This document provides an overview of different types of computer memory, including RAM, ROM, and hybrid memory. It describes the characteristics of SRAM and DRAM, the most common types of RAM memory. DRAM is cheaper and slower than SRAM, and must be periodically refreshed. The document outlines the evolution of DDR RAM standards and their internal structures. ROM includes mask ROM, PROM, EPROM, and is read-only memory that can be programmed during manufacture or special modes. Hybrid memory such as flash memory has qualities of both RAM and ROM.

1. RAM and ROM Memory
Overview

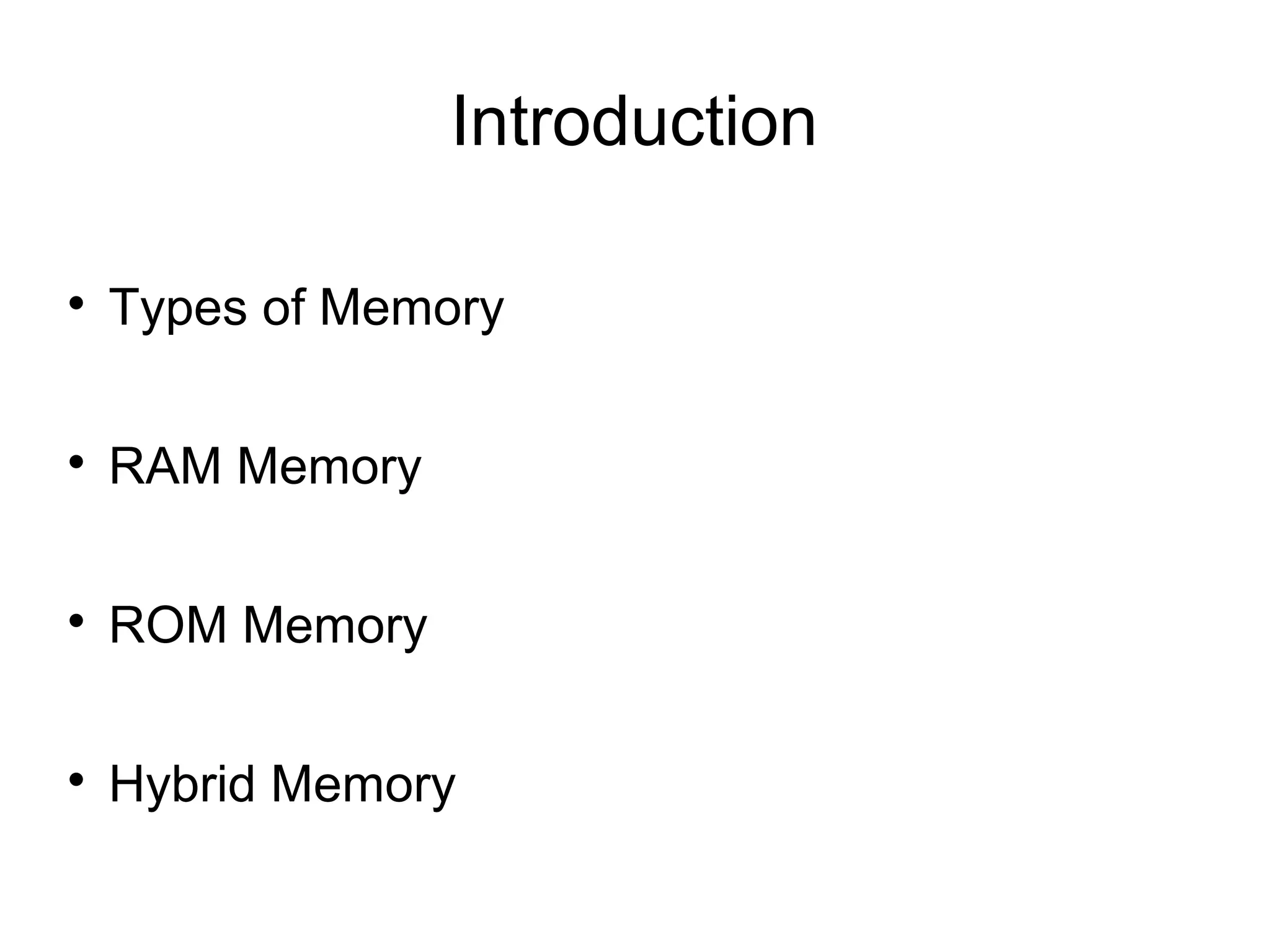

2. Introduction

Types of Memory

RAM Memory

ROM Memory

Hybrid Memory

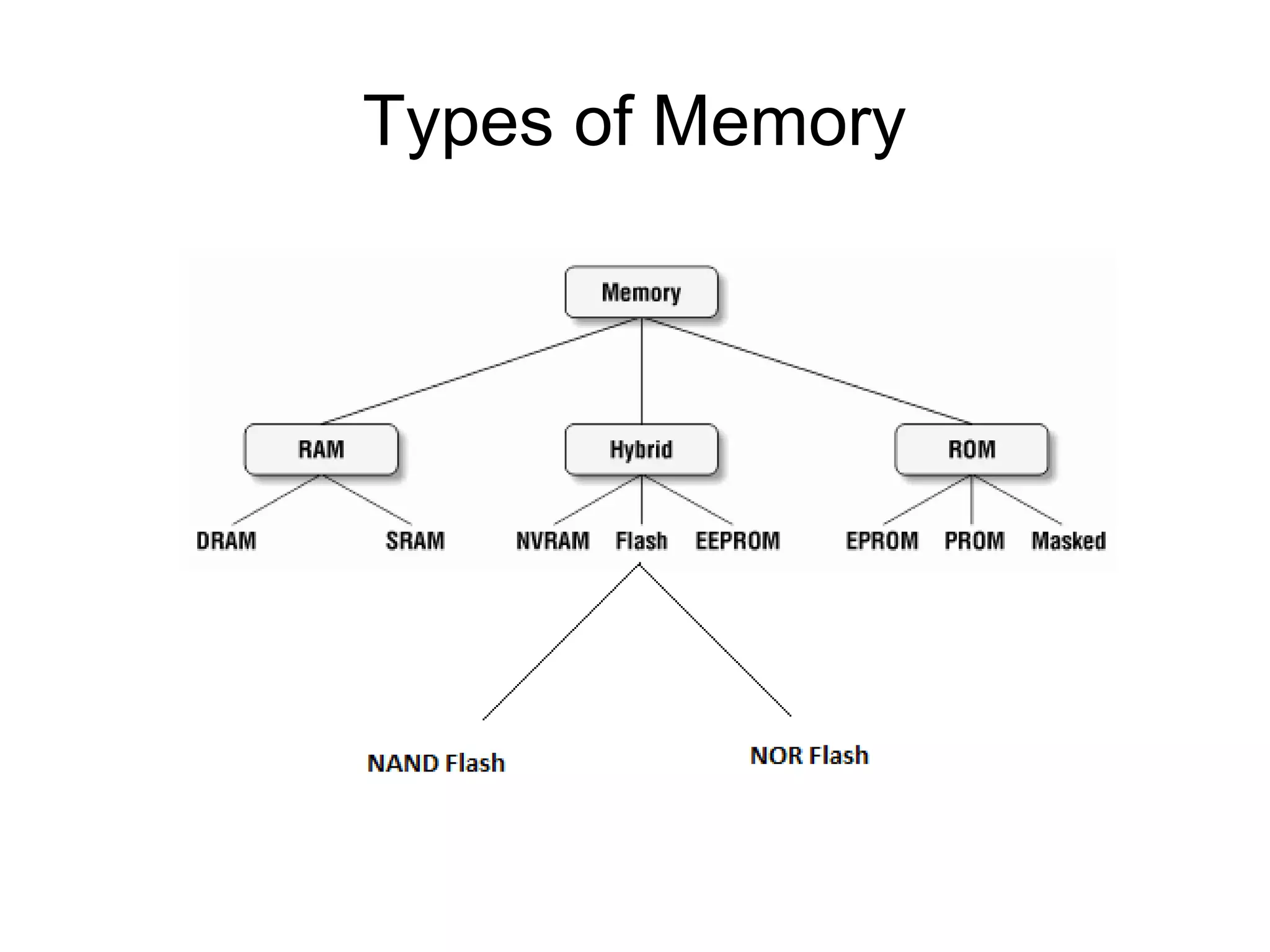

3. Types of Memory

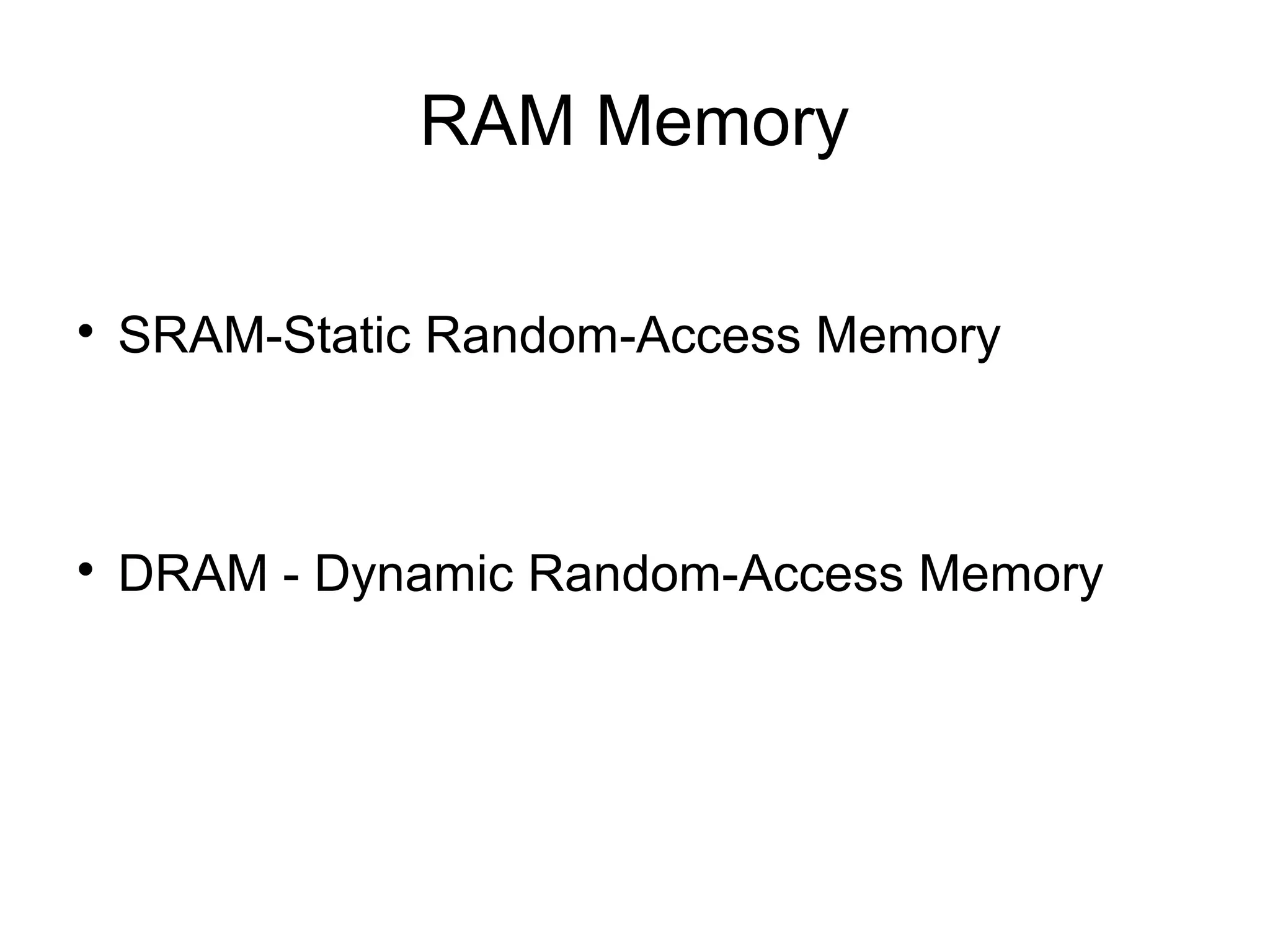

4. RAM Memory

SRAM-Static Random-Access Memory

DRAM - Dynamic Random-Access Memory

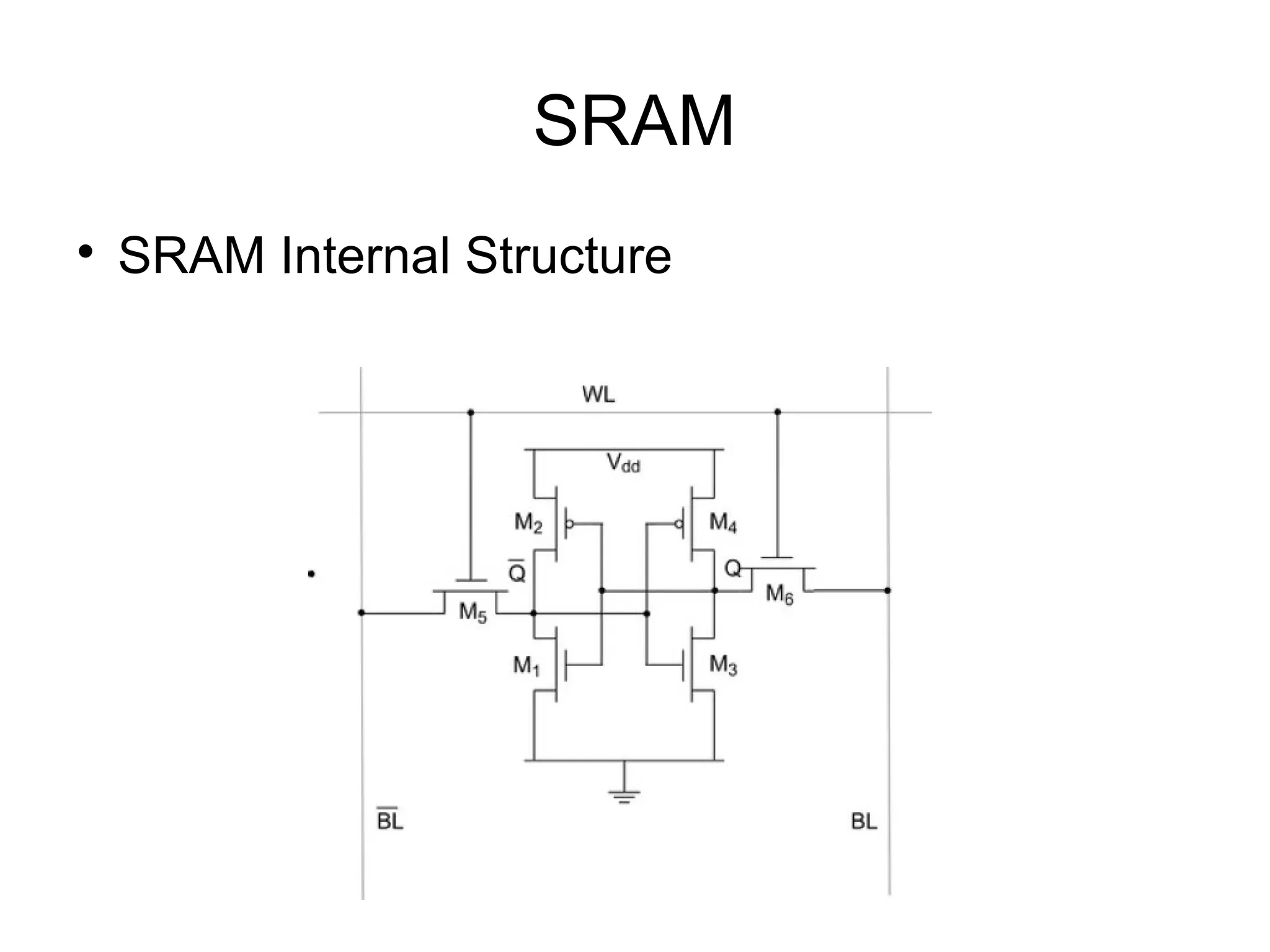

5. SRAM

SRAM Internal Structure

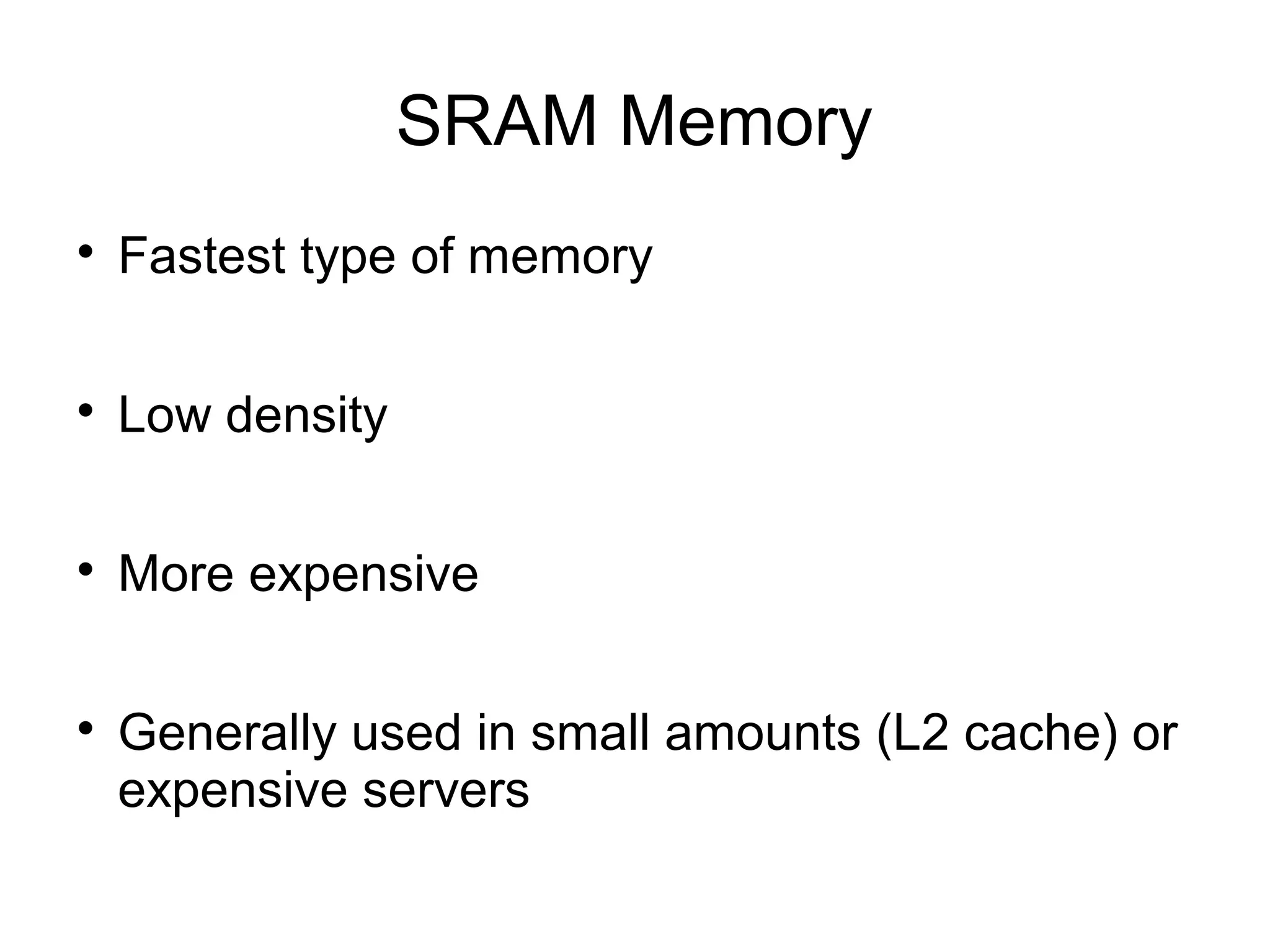

6. SRAM Memory

Fastest type of memory

Low density

More expensive

Generally used in small amounts (L2 cache) or
expensive servers

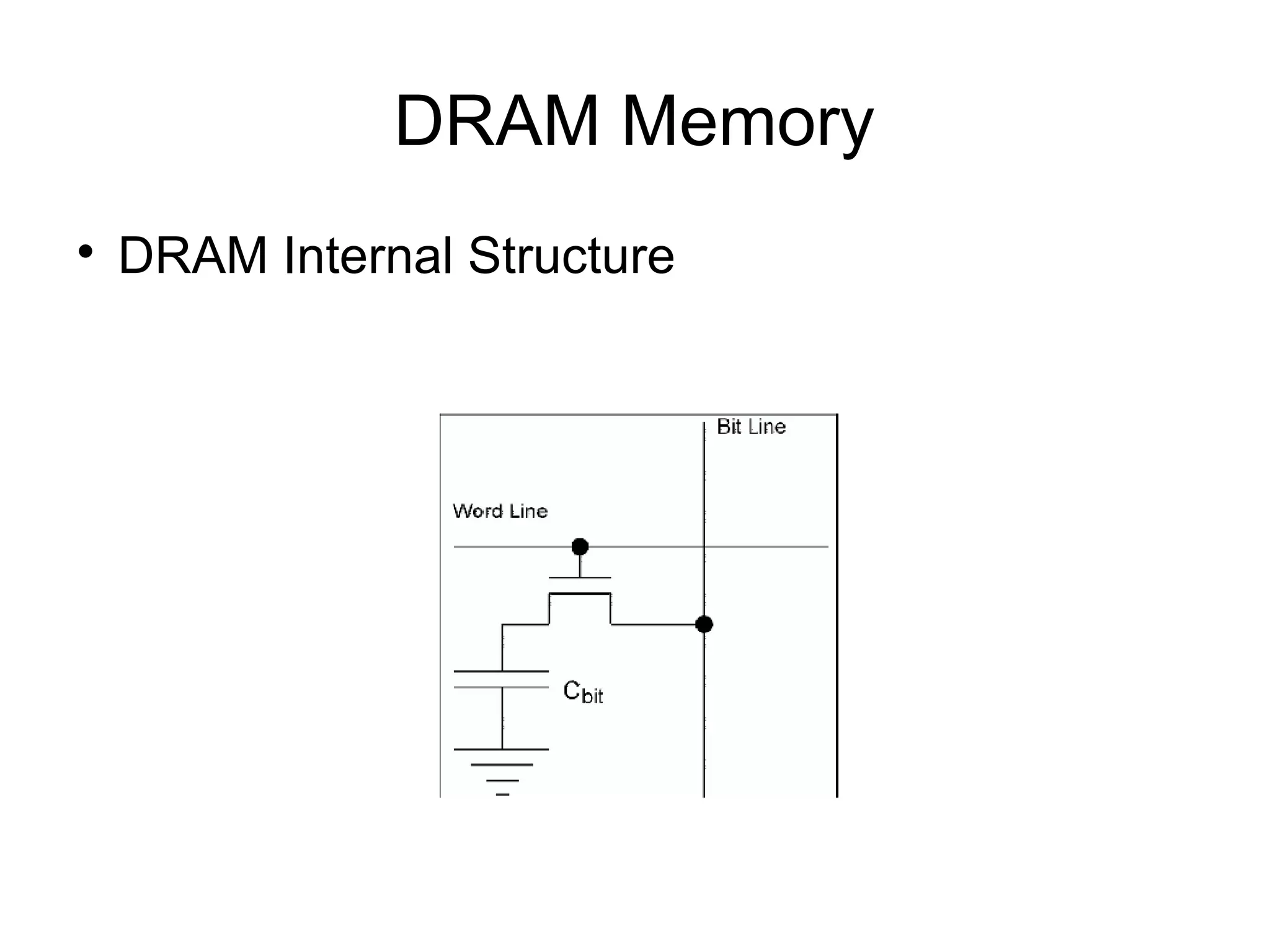

7. DRAM Memory

DRAM Internal Structure

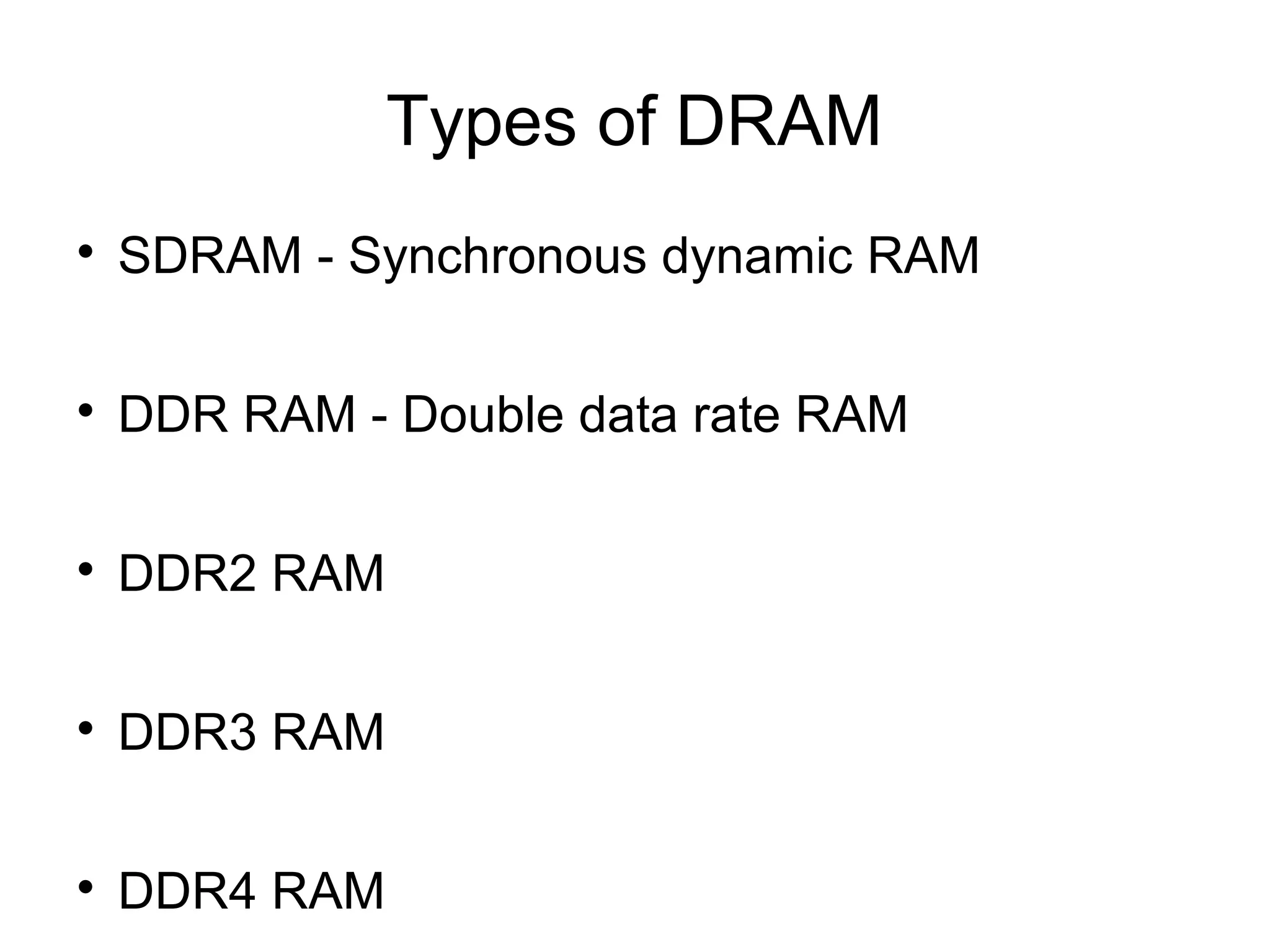

8. Types of DRAM

SDRAM - Synchronous dynamic RAM

DDR RAM - Double data rate RAM

DDR2 RAM

DDR3 RAM

DDR4 RAM

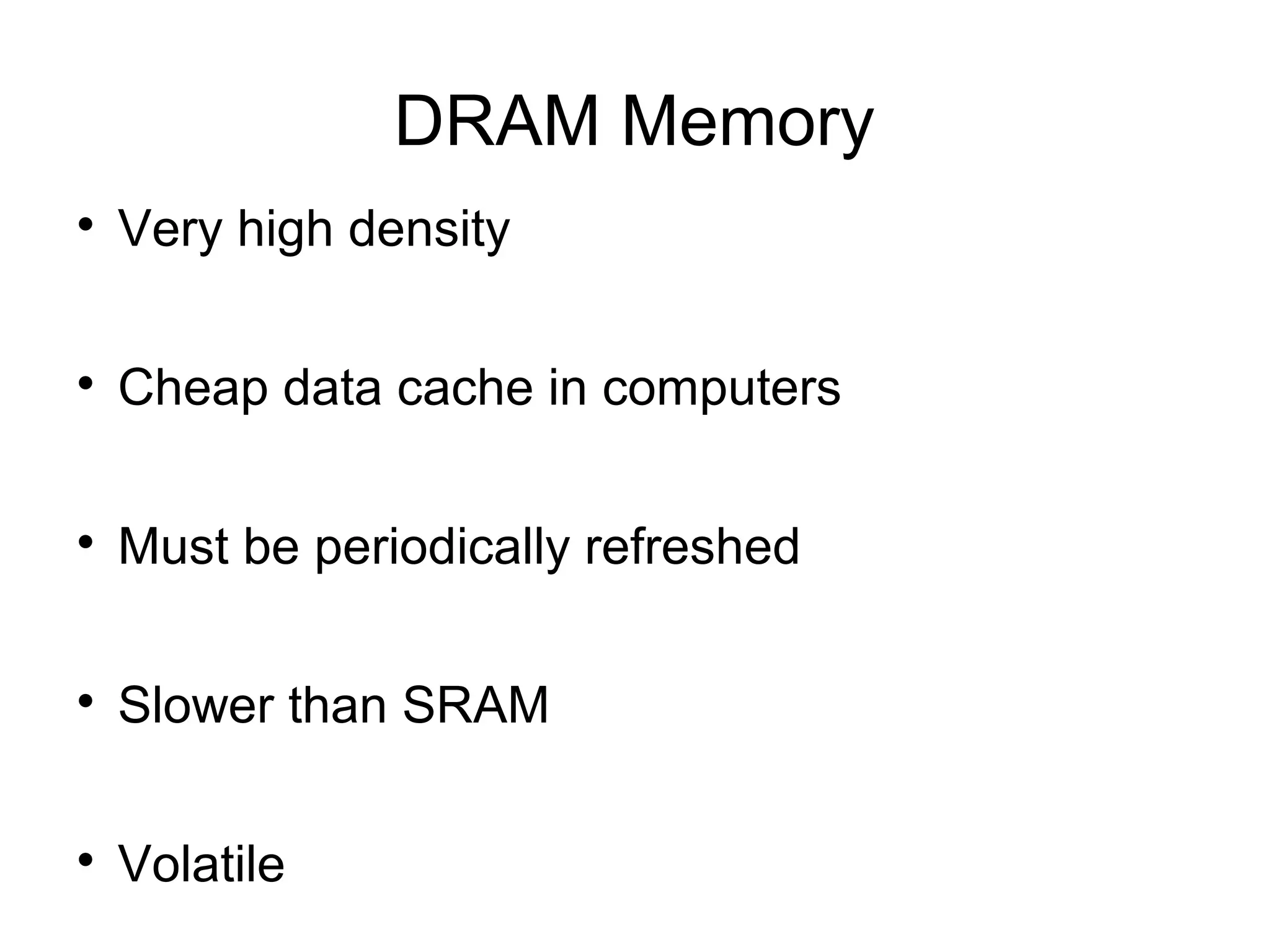

9. DRAM Memory

Very high density

Cheap data cache in computers

Must be periodically refreshed

Slower than SRAM

Volatile

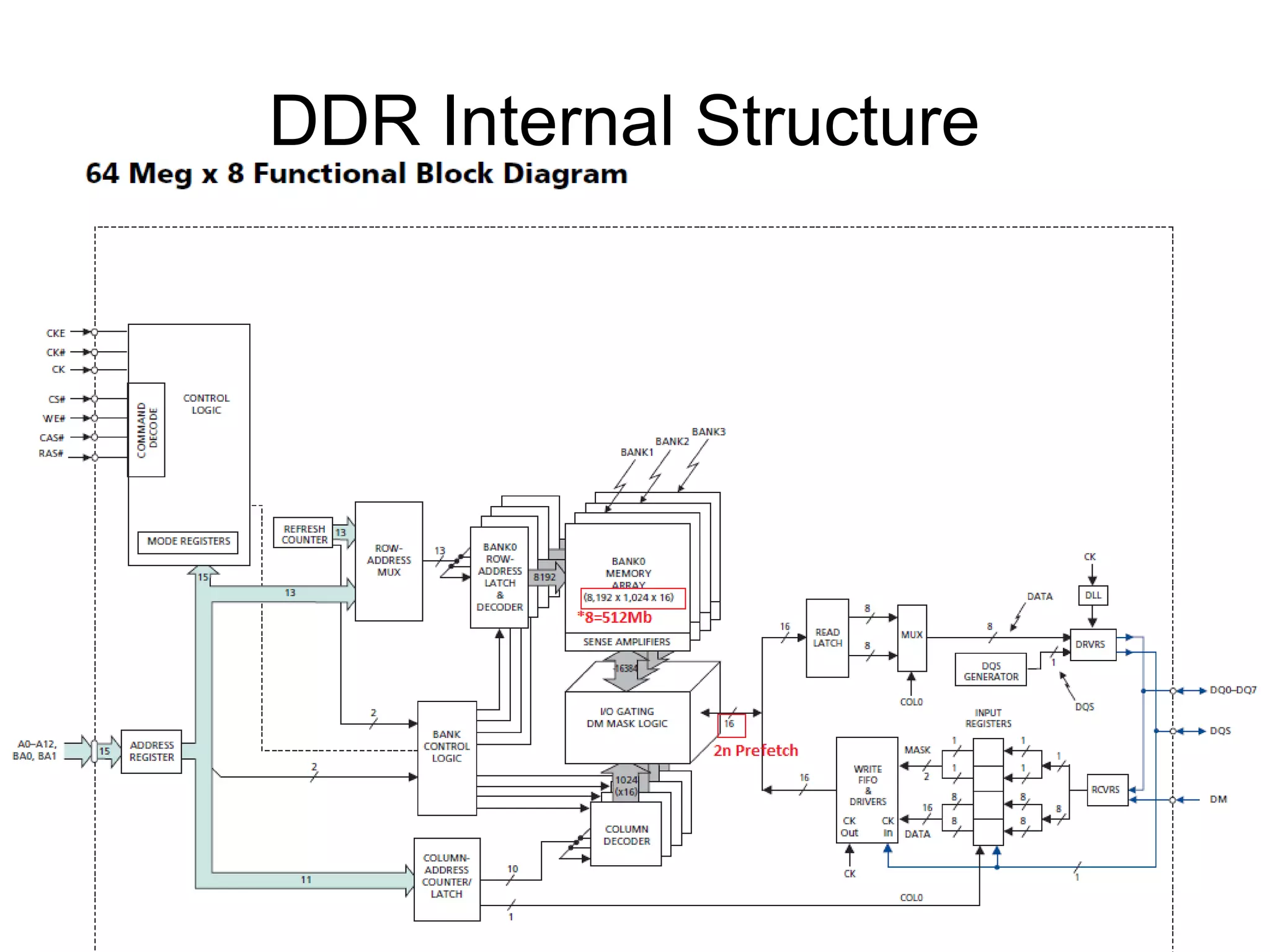

10. DDR Internal Structure
12
10
8
Column 1
Column 2
Column 3
6
4
2
0
Row 1
Row 2
Row 3
Row 4

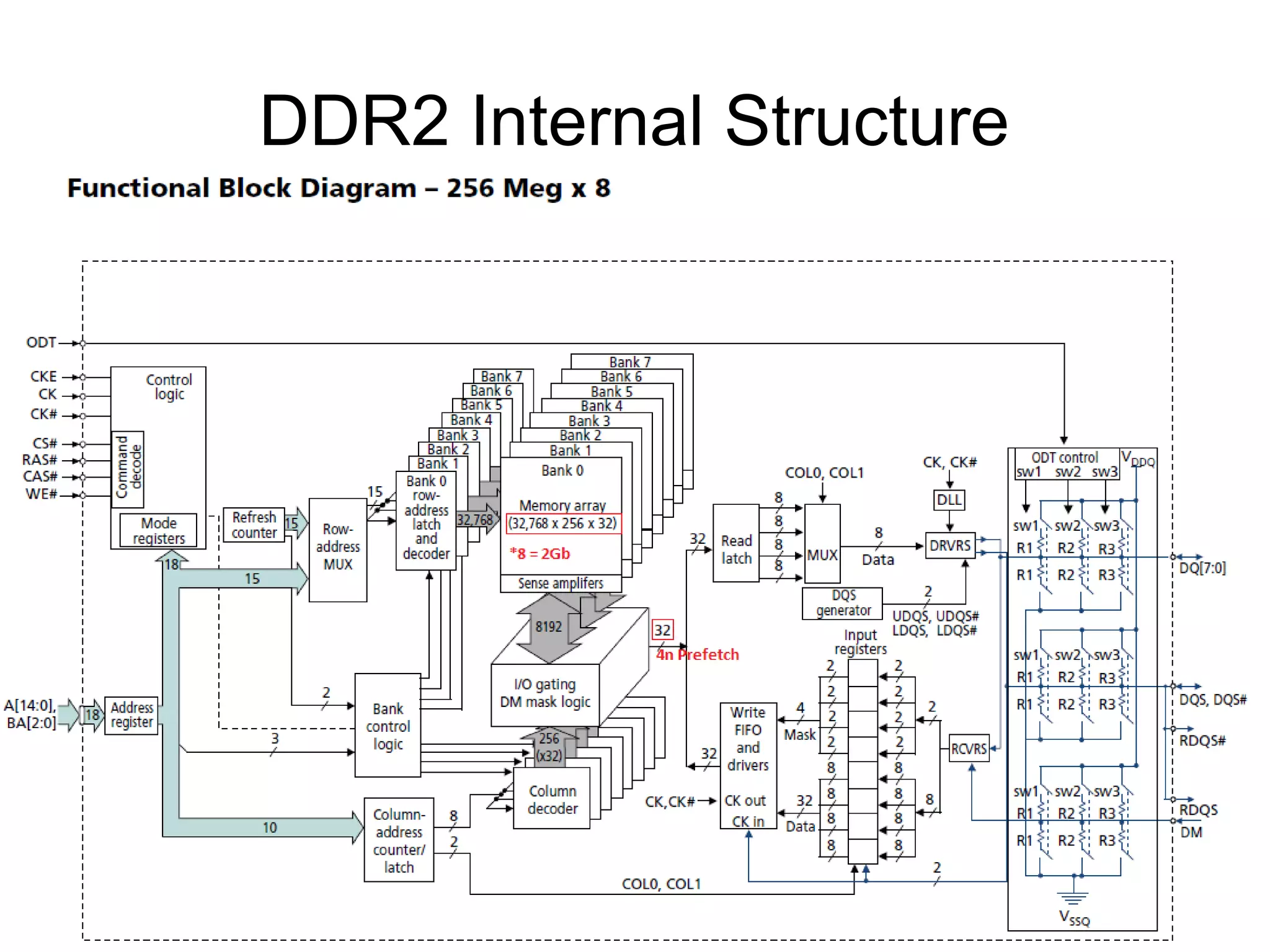

11. DDR2 Internal Structure

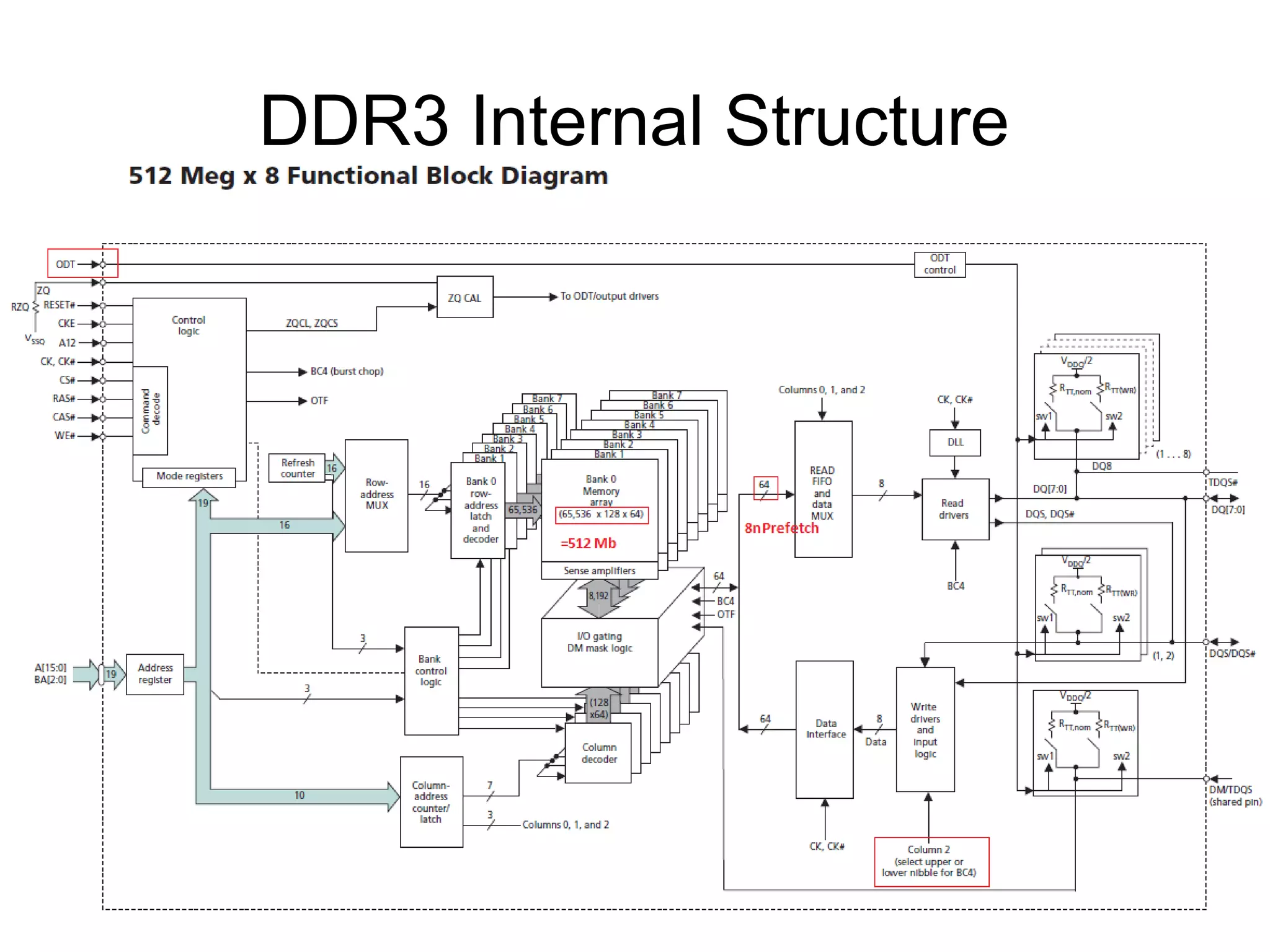

12. DDR3 Internal Structure

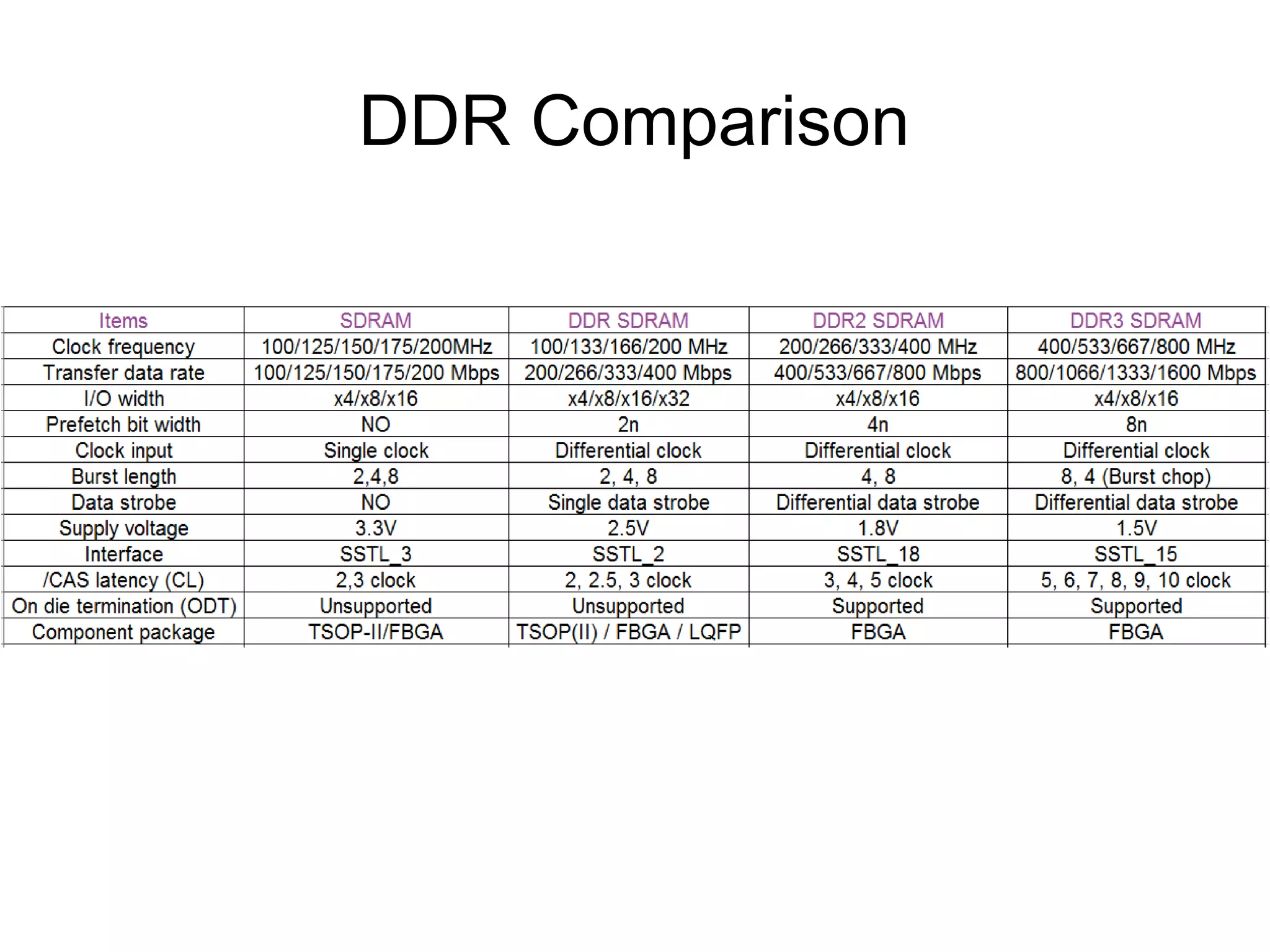

13. DDR Comparison

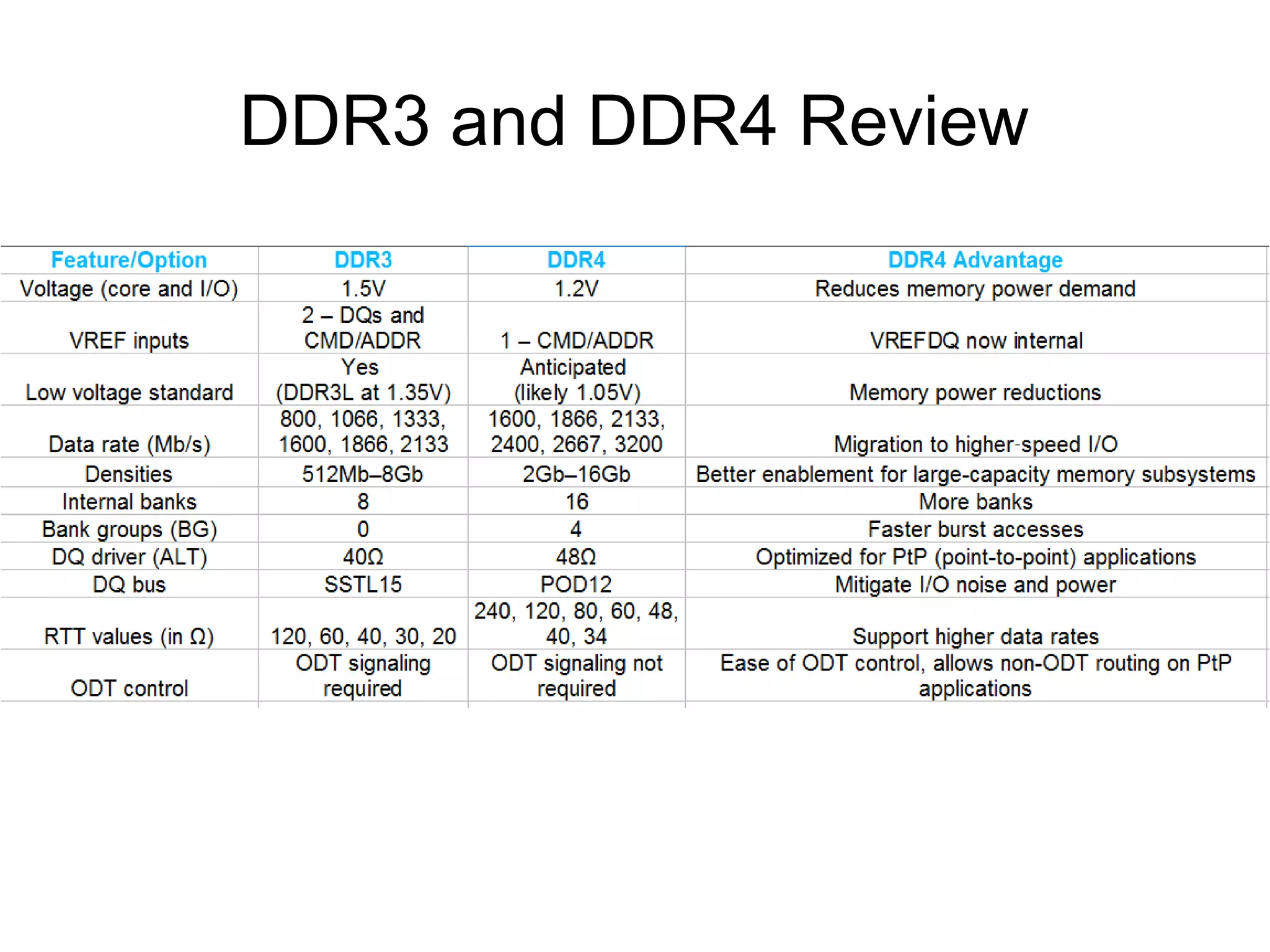

14. DDR3 and DDR4 Review

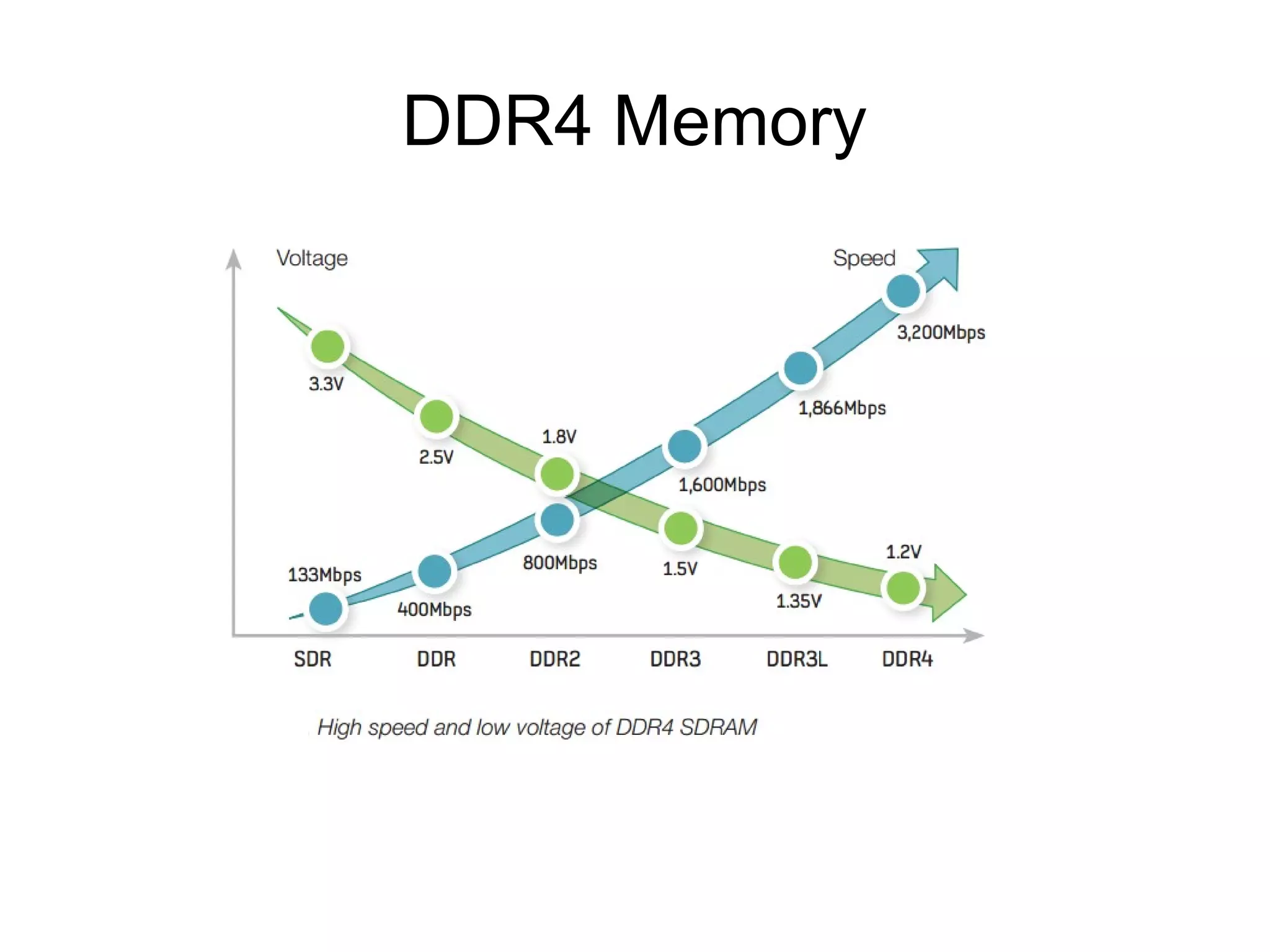

15. DDR4 Memory

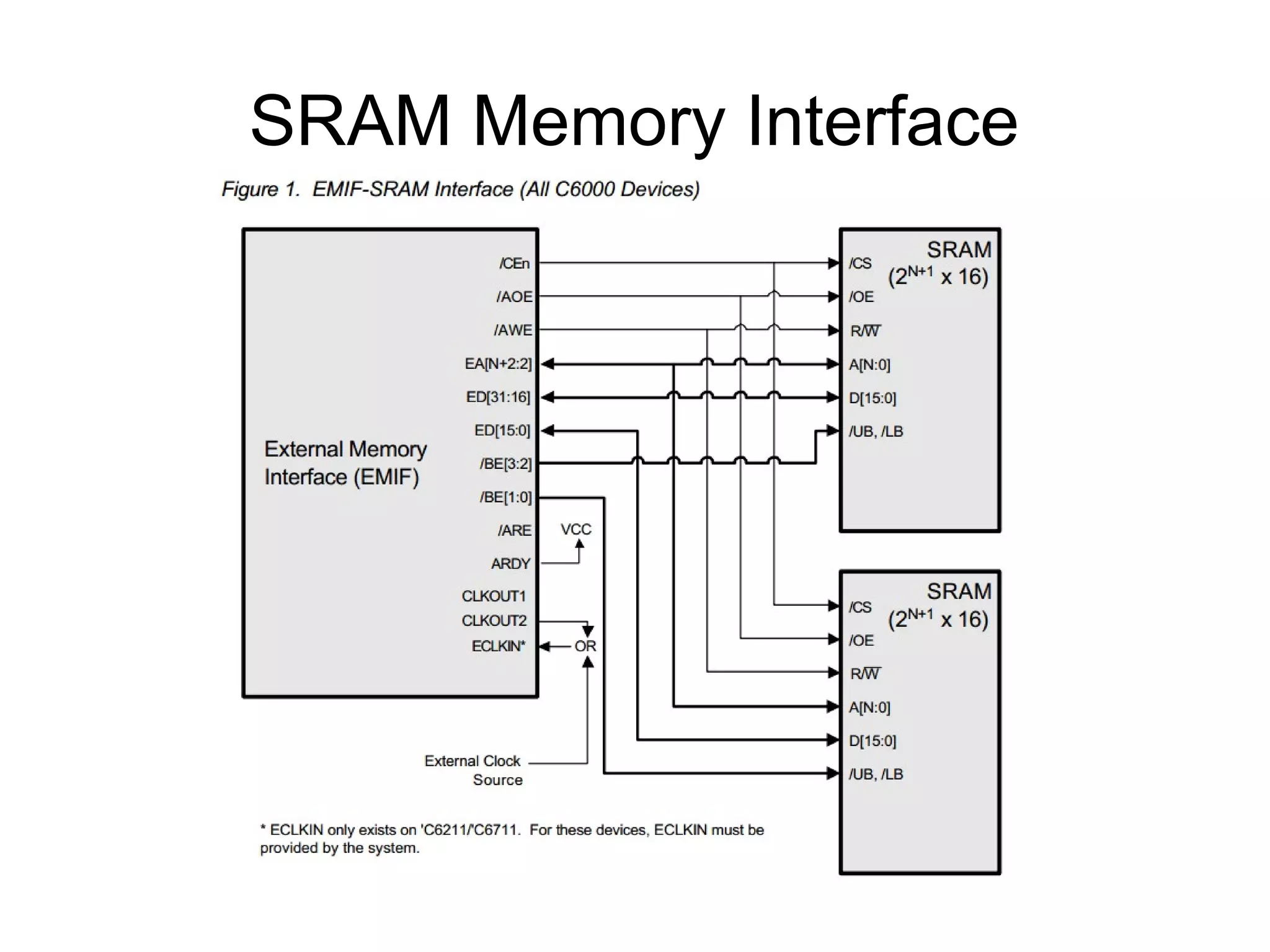

16. SRAM Memory Interface

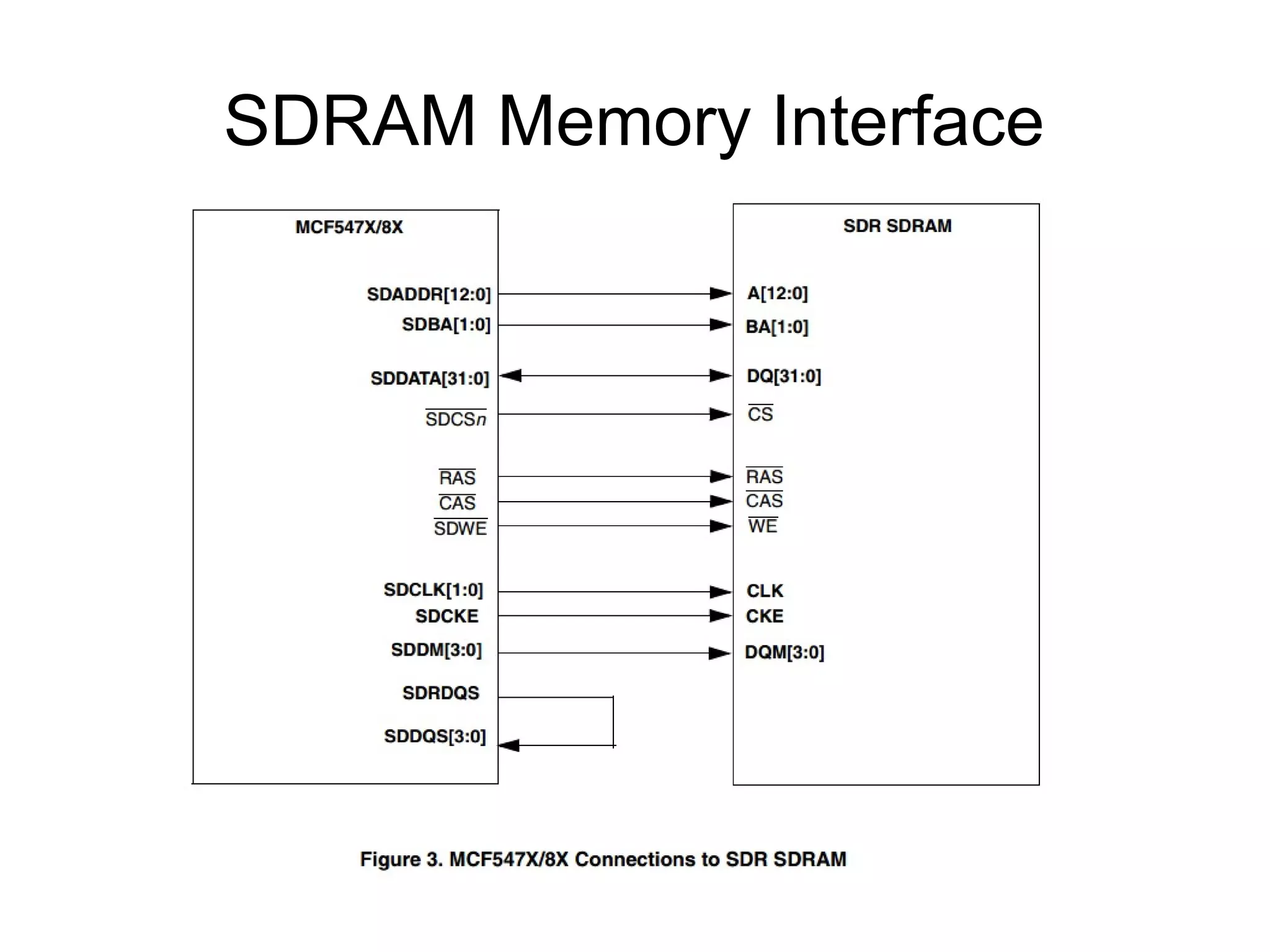

17. SDRAM Memory Interface

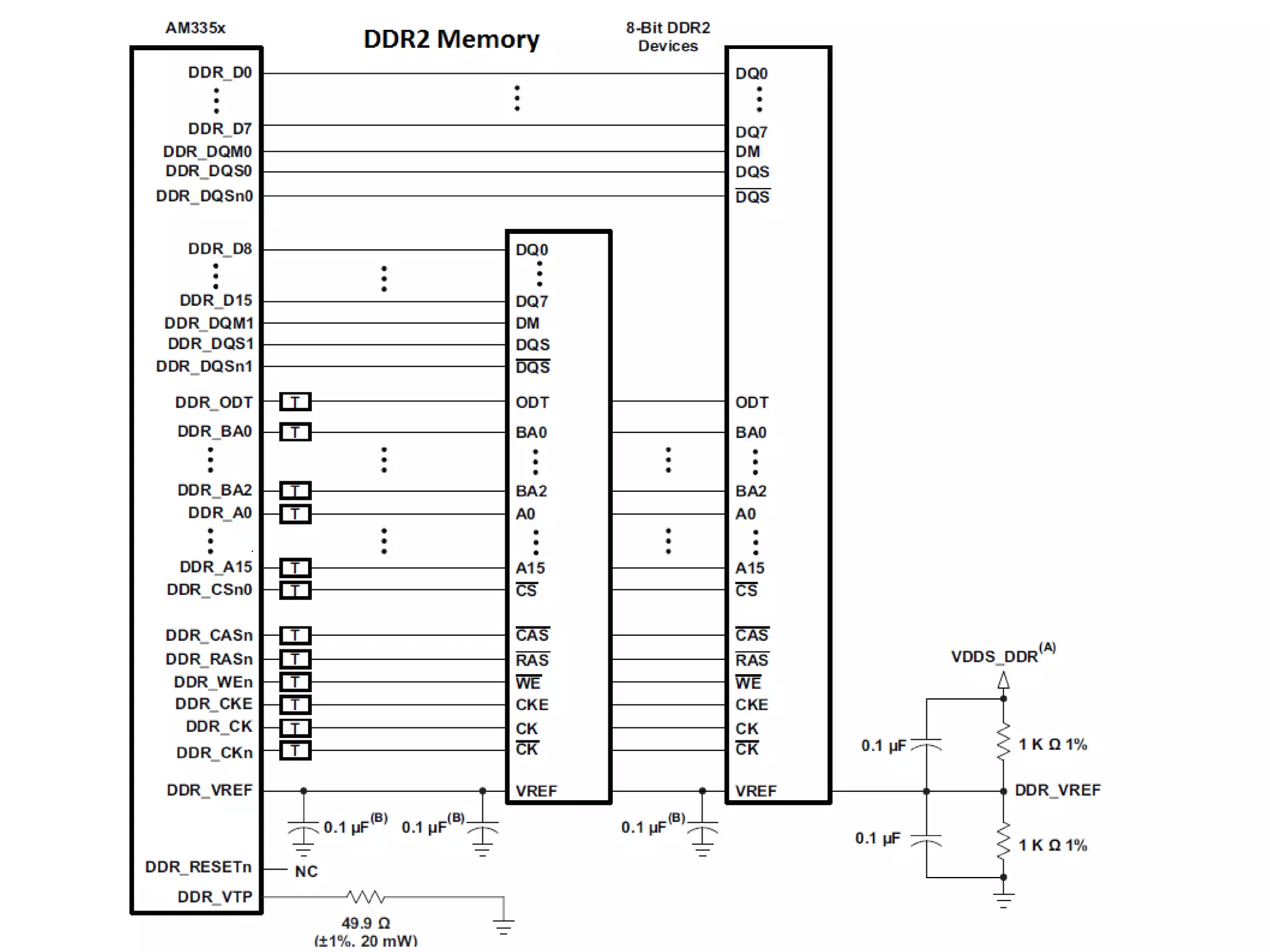

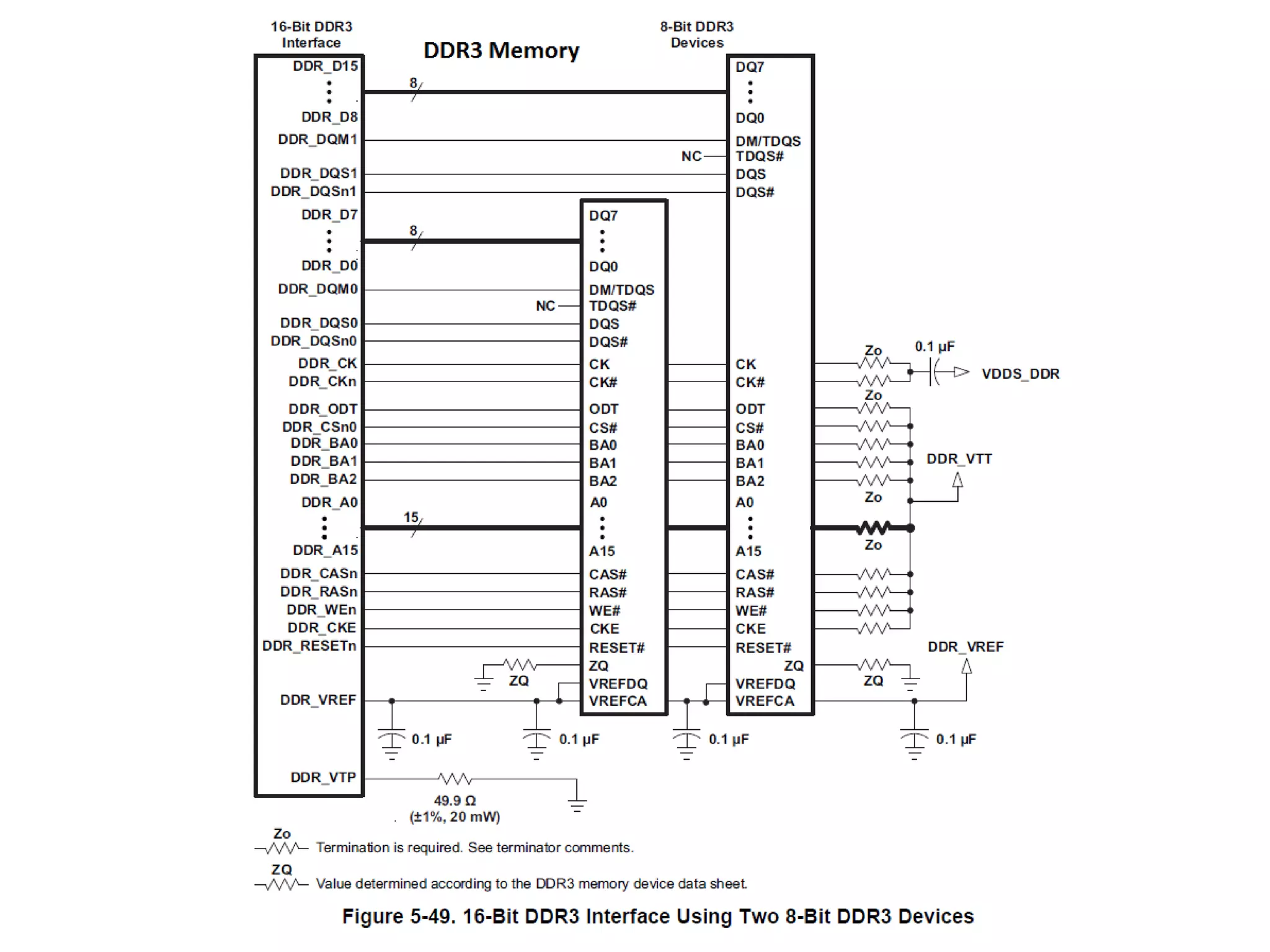

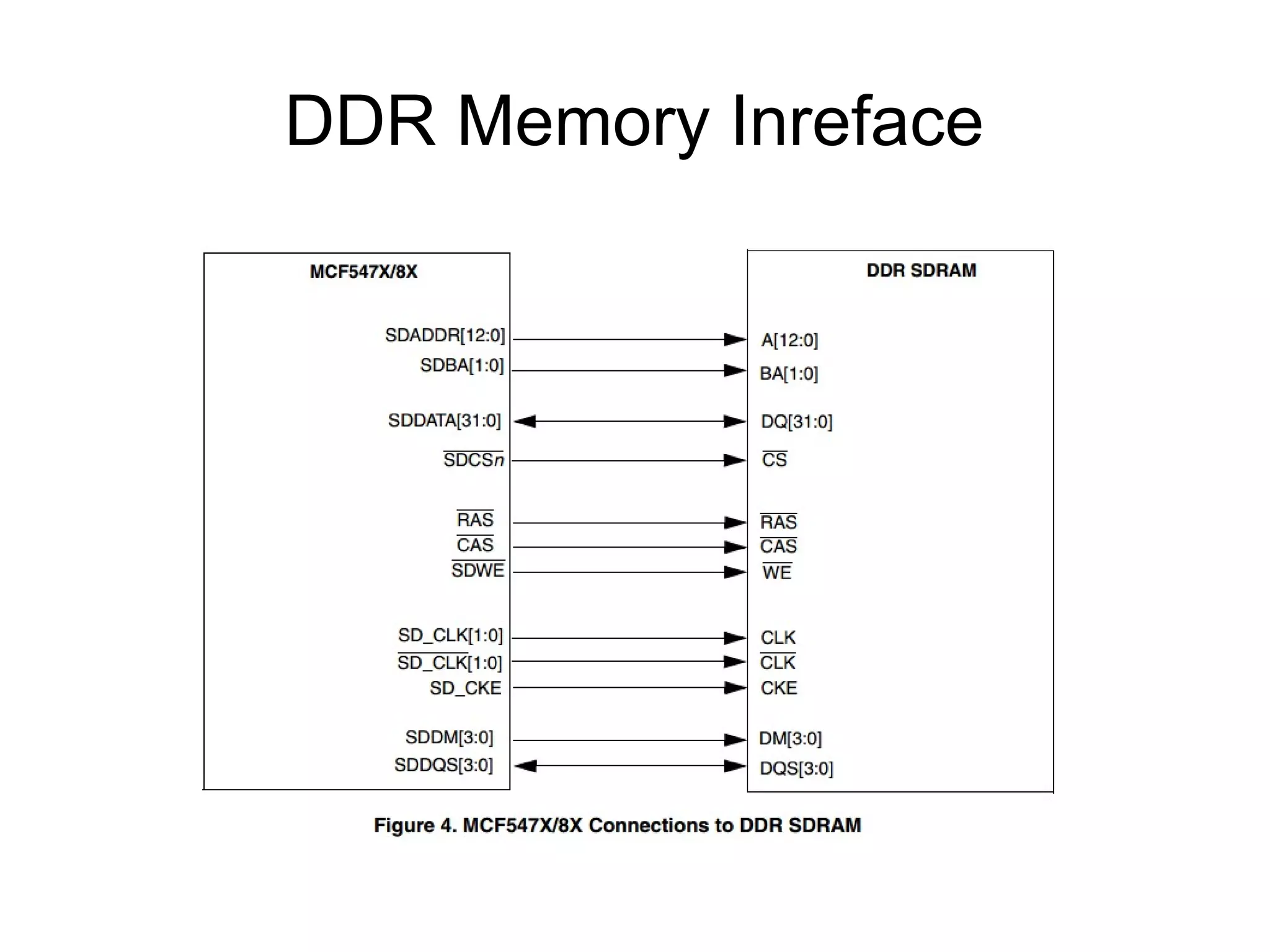

18. DDR Memory Inreface

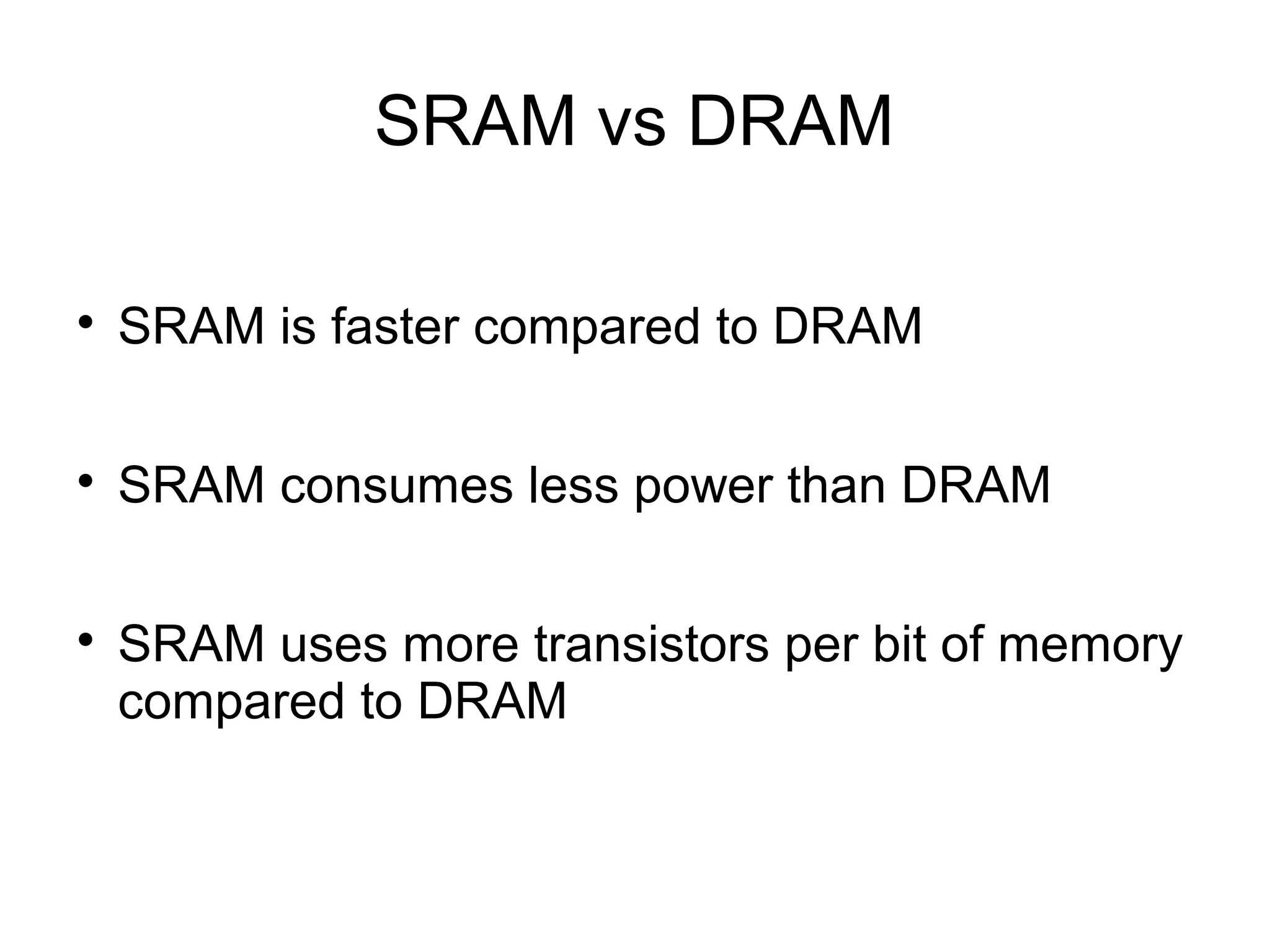

21. SRAM vs DRAM

SRAM is faster compared to DRAM

SRAM consumes less power than DRAM

SRAM uses more transistors per bit of memory
compared to DRAM

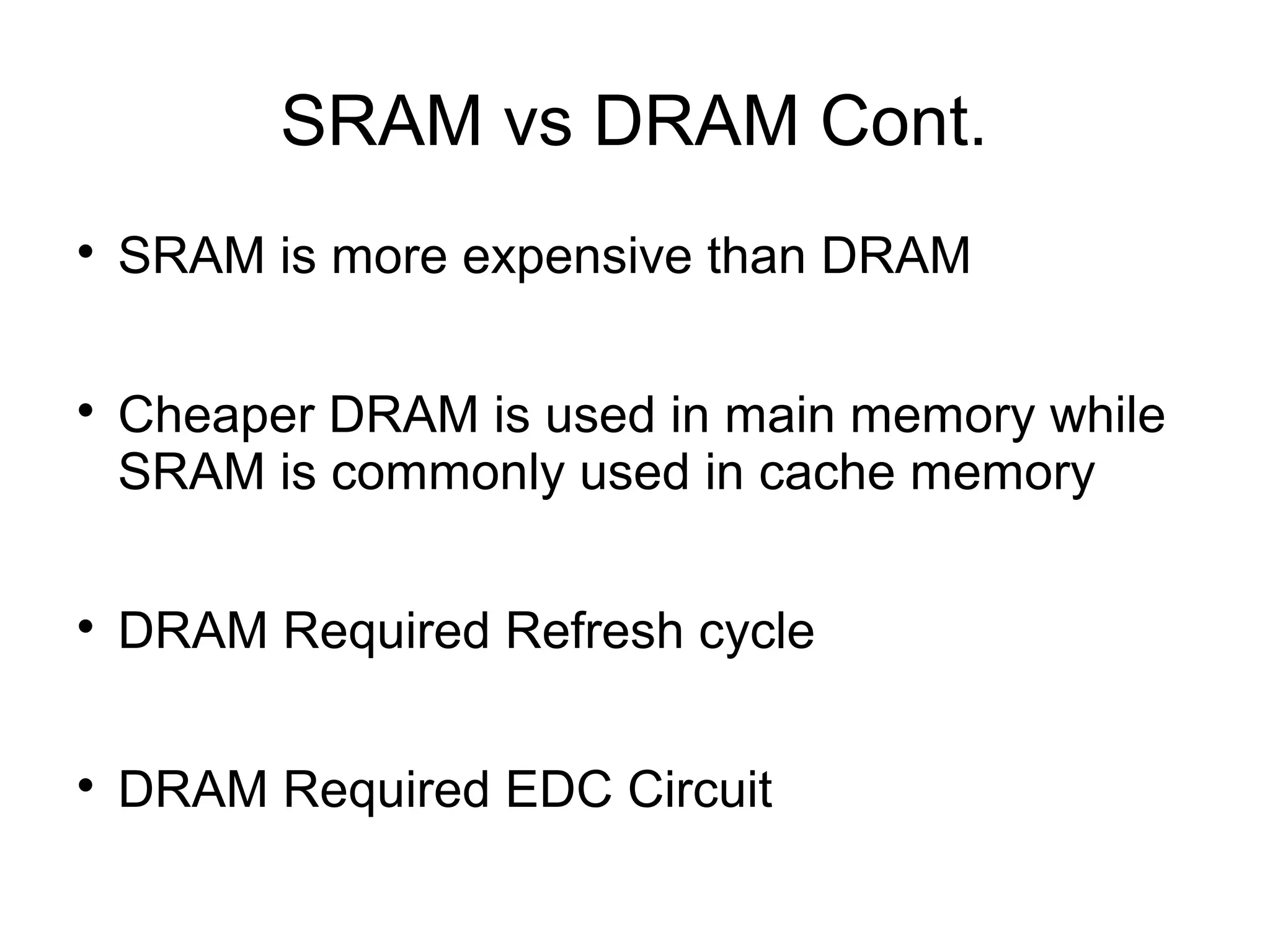

22. SRAM vs DRAM Cont.


SRAM is more expensive than DRAM
Cheaper DRAM is used in main memory while
SRAM is commonly used in cache memory

DRAM Required Refresh cycle

DRAM Required EDC Circuit

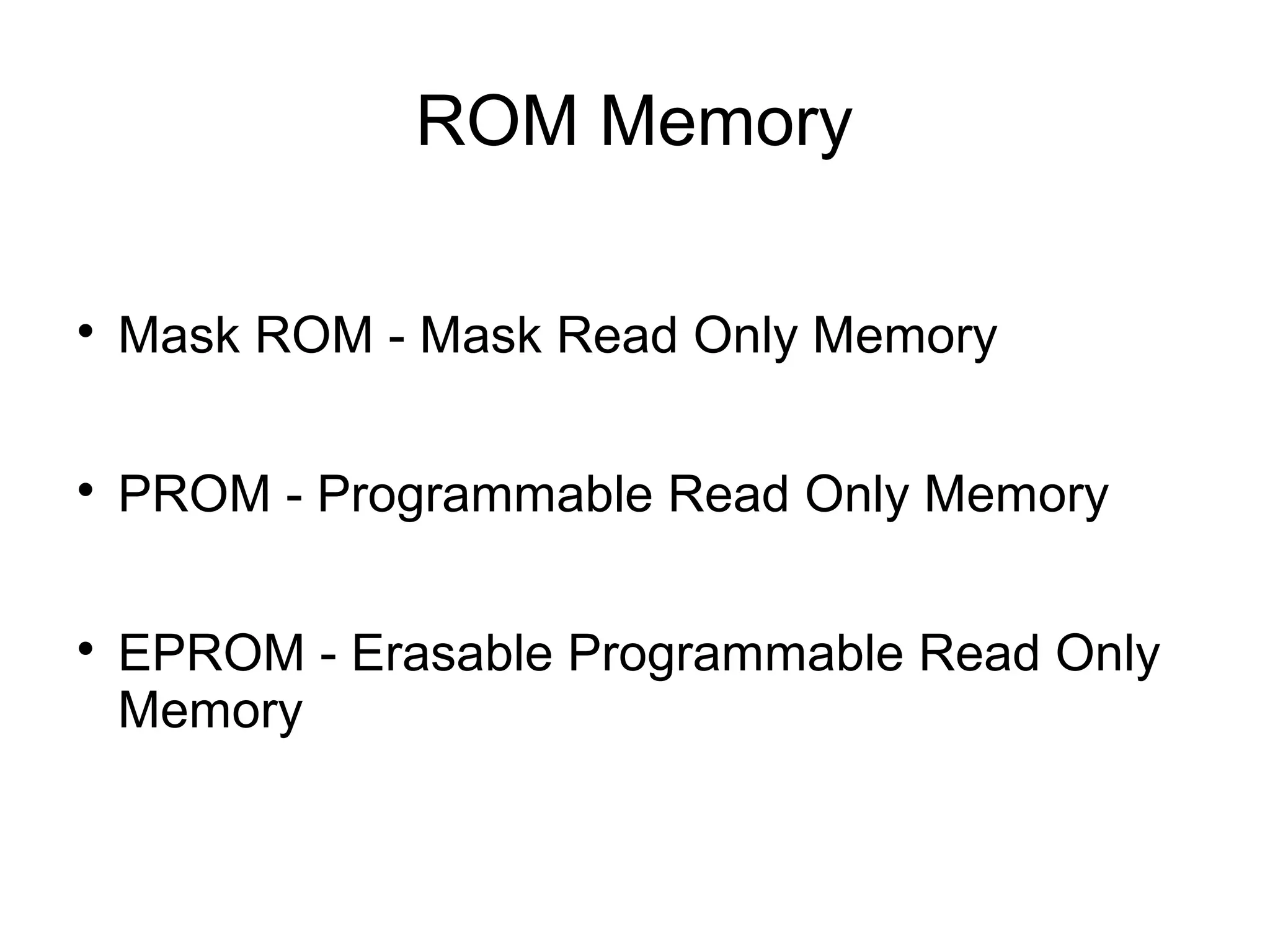

23. ROM Memory

Mask ROM - Mask Read Only Memory

PROM - Programmable Read Only Memory

EPROM - Erasable Programmable Read Only
Memory

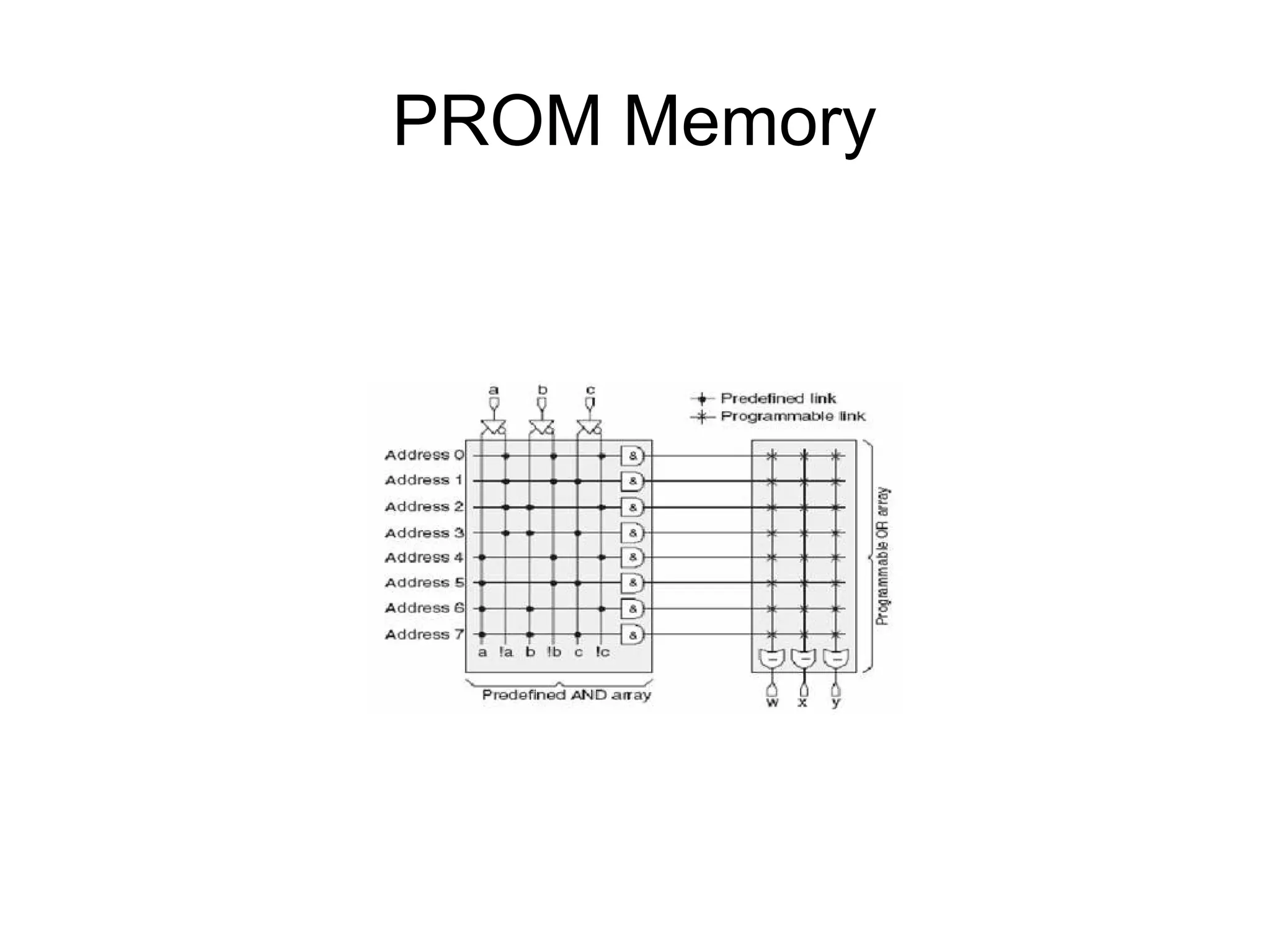

24. PROM Memory

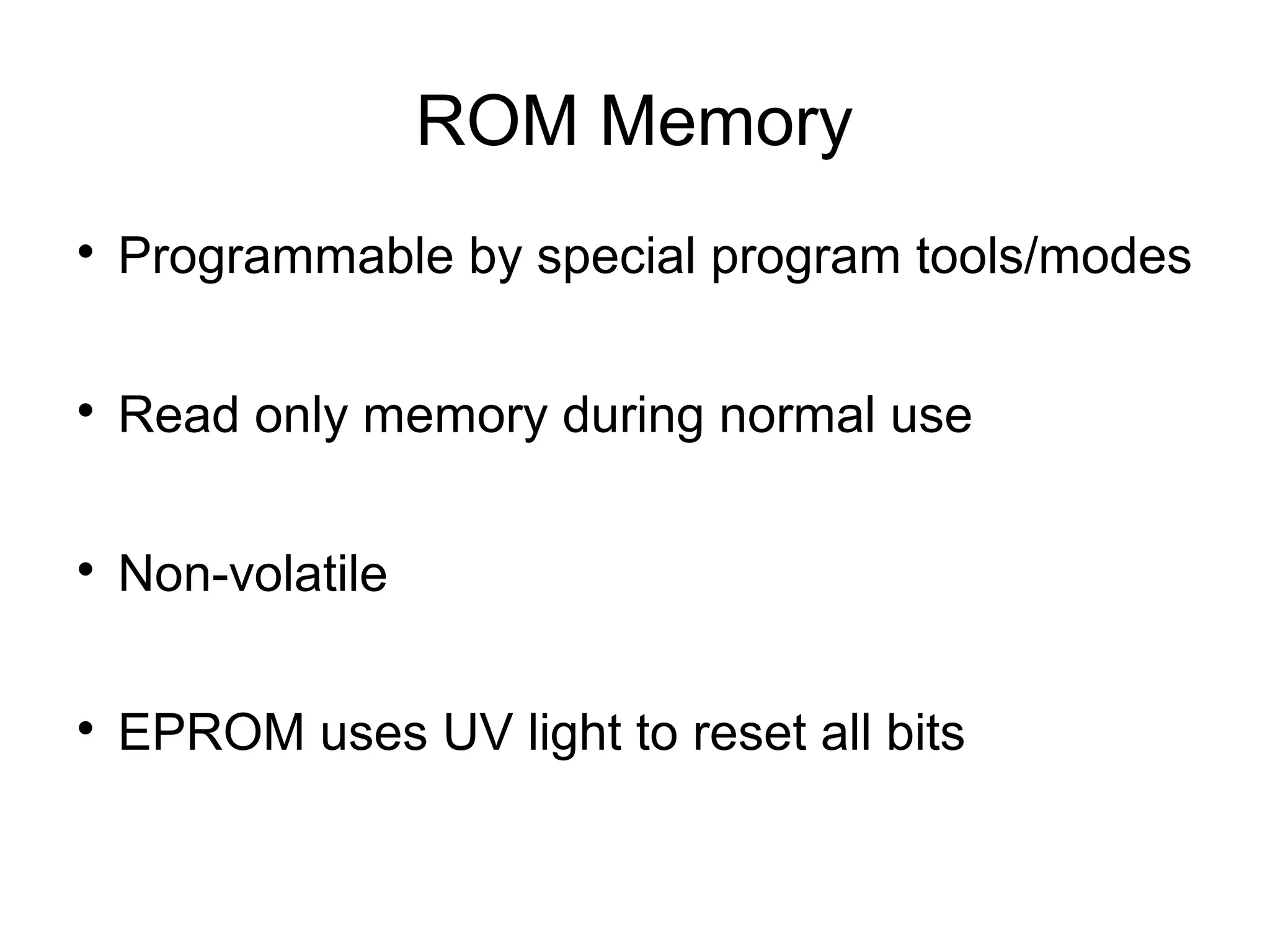

25. ROM Memory

Programmable by special program tools/modes

Read only memory during normal use

Non-volatile

EPROM uses UV light to reset all bits

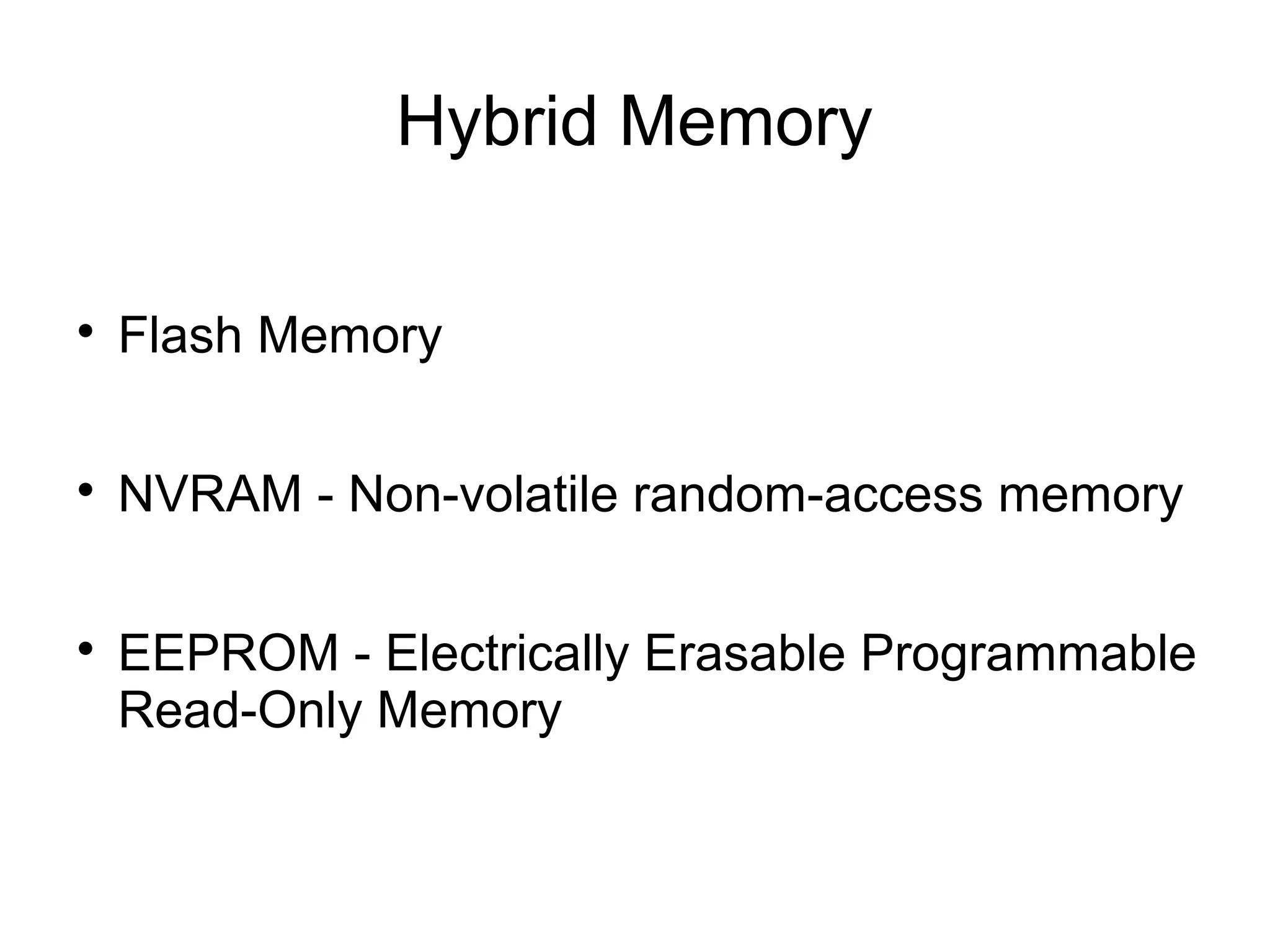

26. Hybrid Memory

Flash Memory

NVRAM - Non-volatile random-access memory

EEPROM - Electrically Erasable Programmable
Read-Only Memory

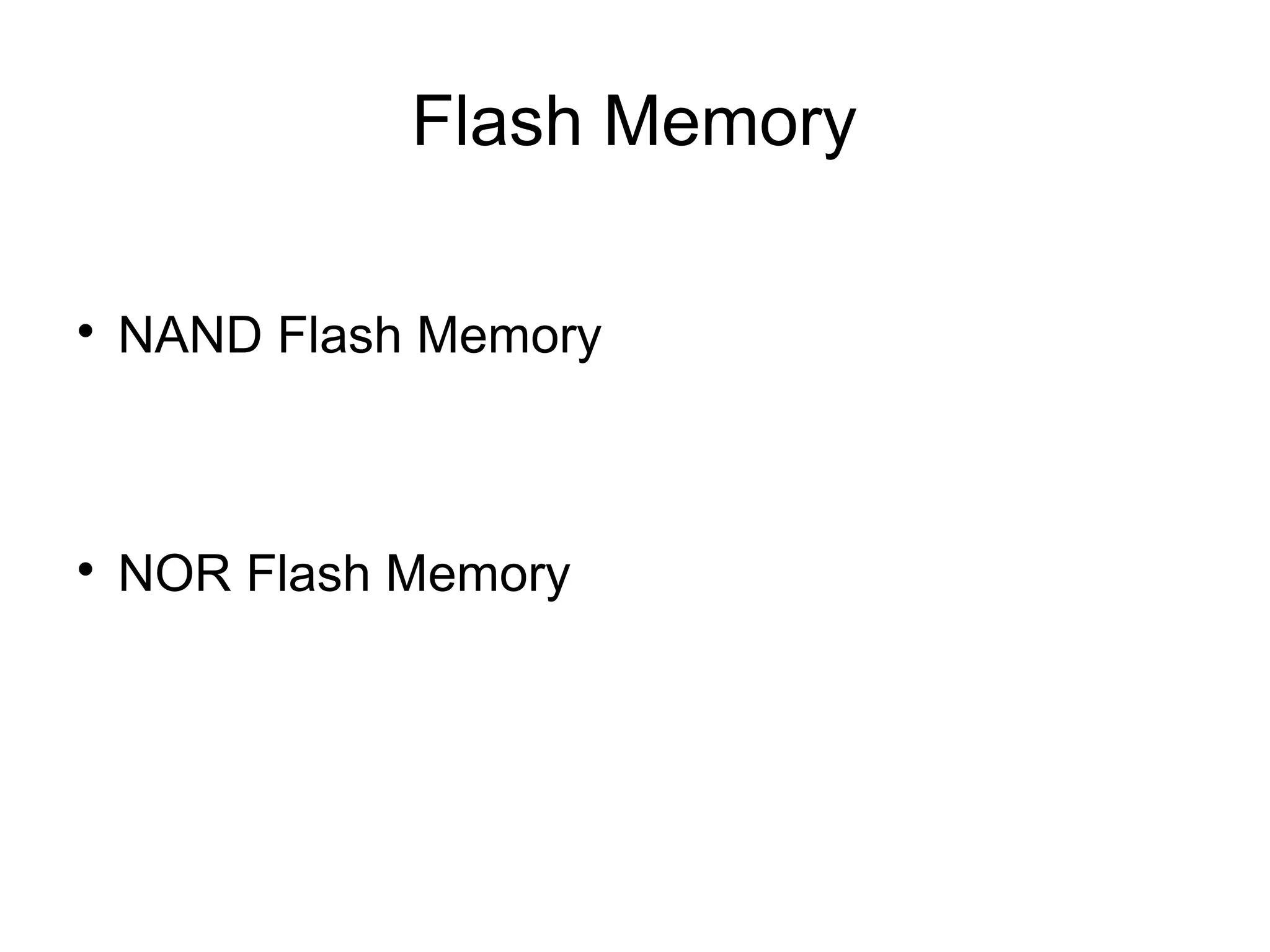

27. Flash Memory

NAND Flash Memory

NOR Flash Memory

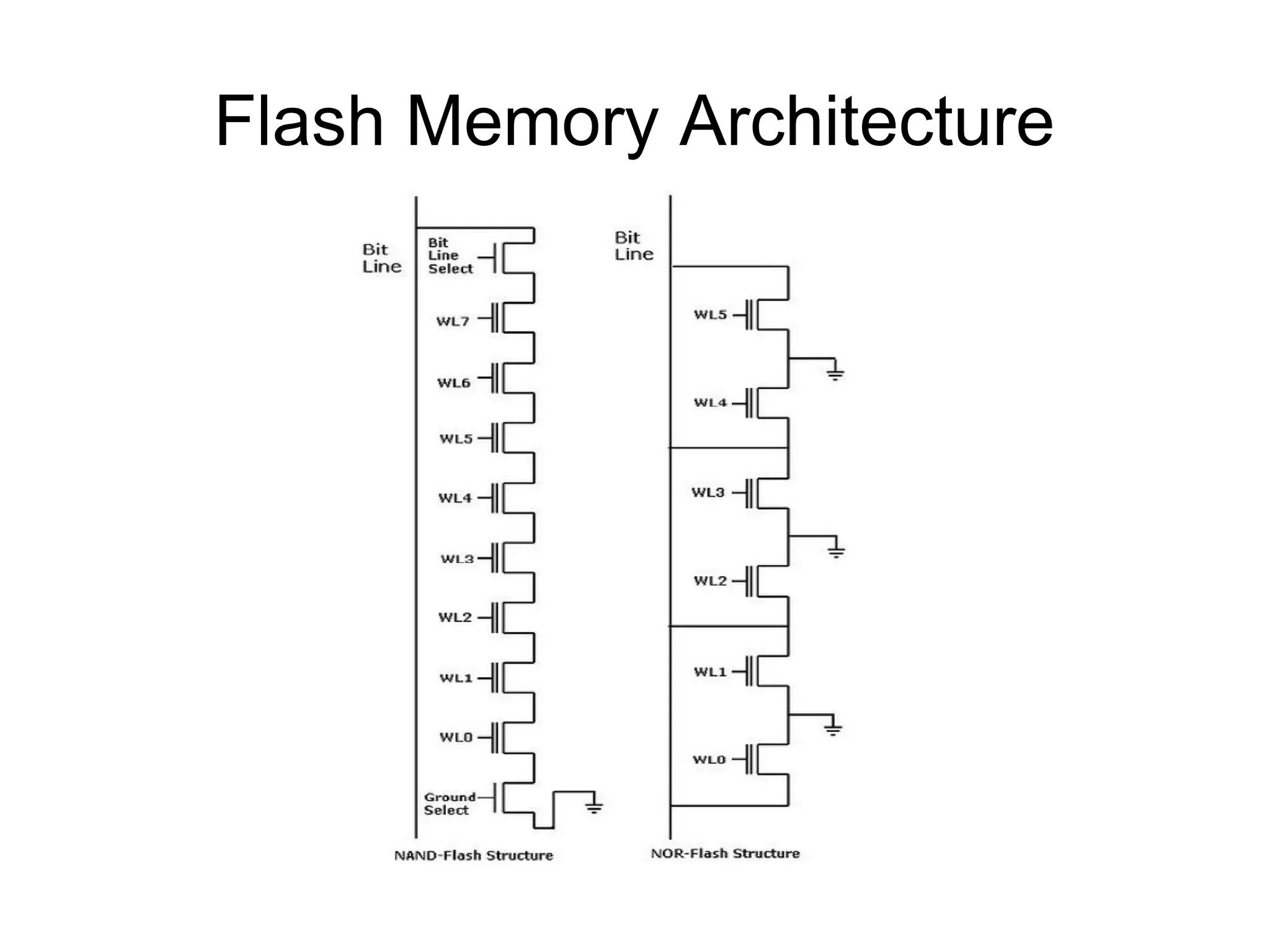

28. Flash Memory Architecture

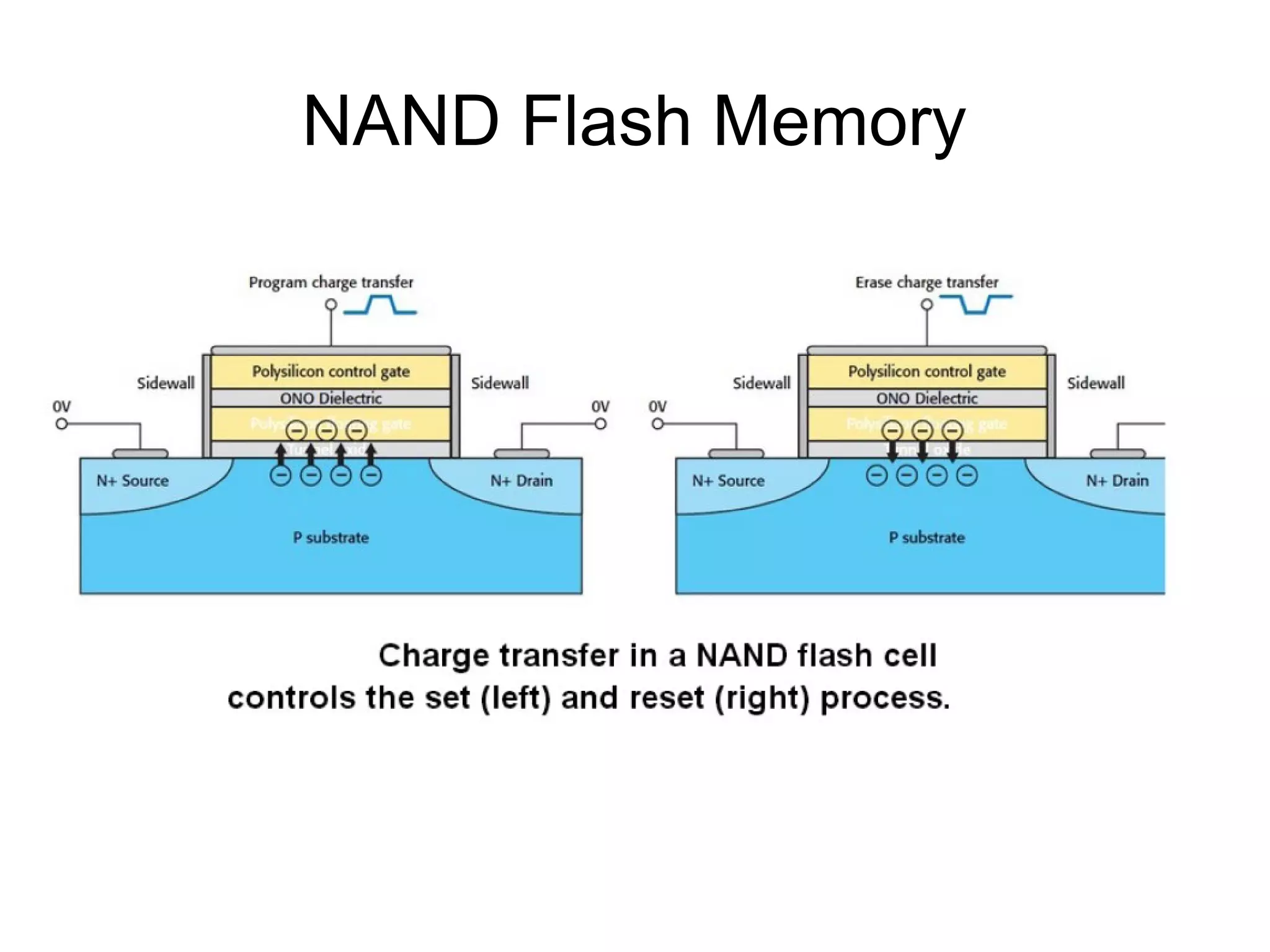

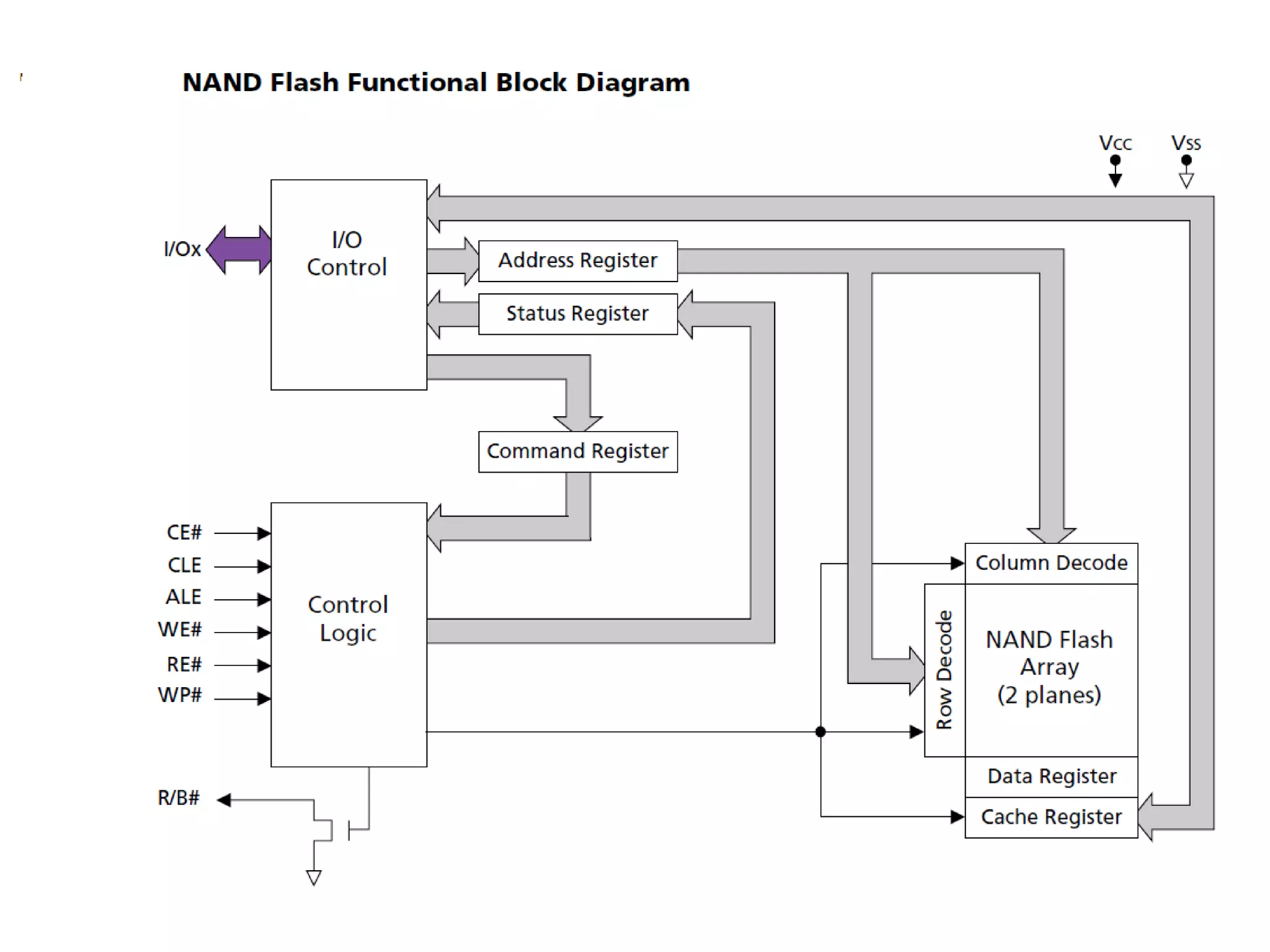

29. NAND Flash Memory

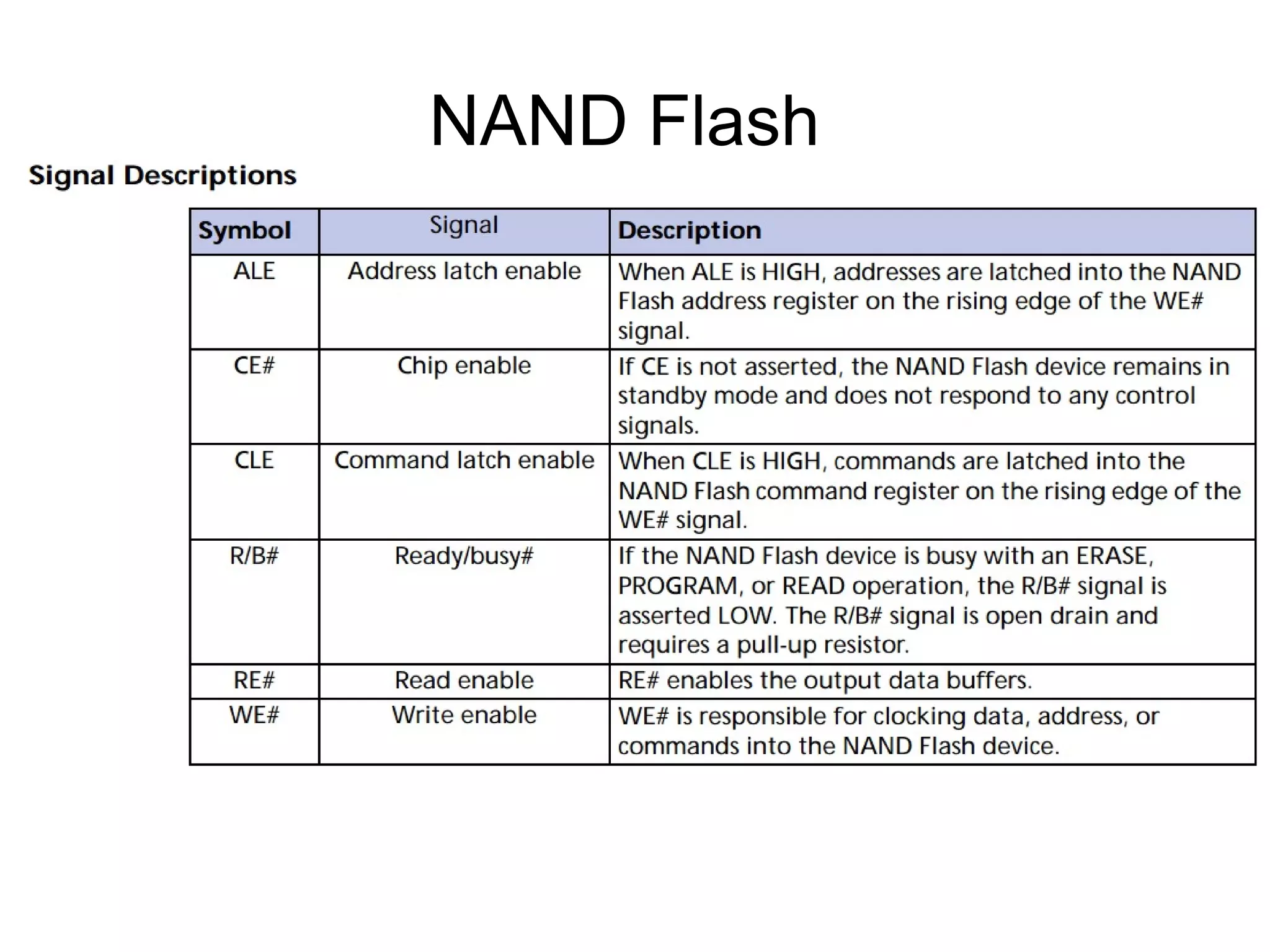

31. NAND Flash

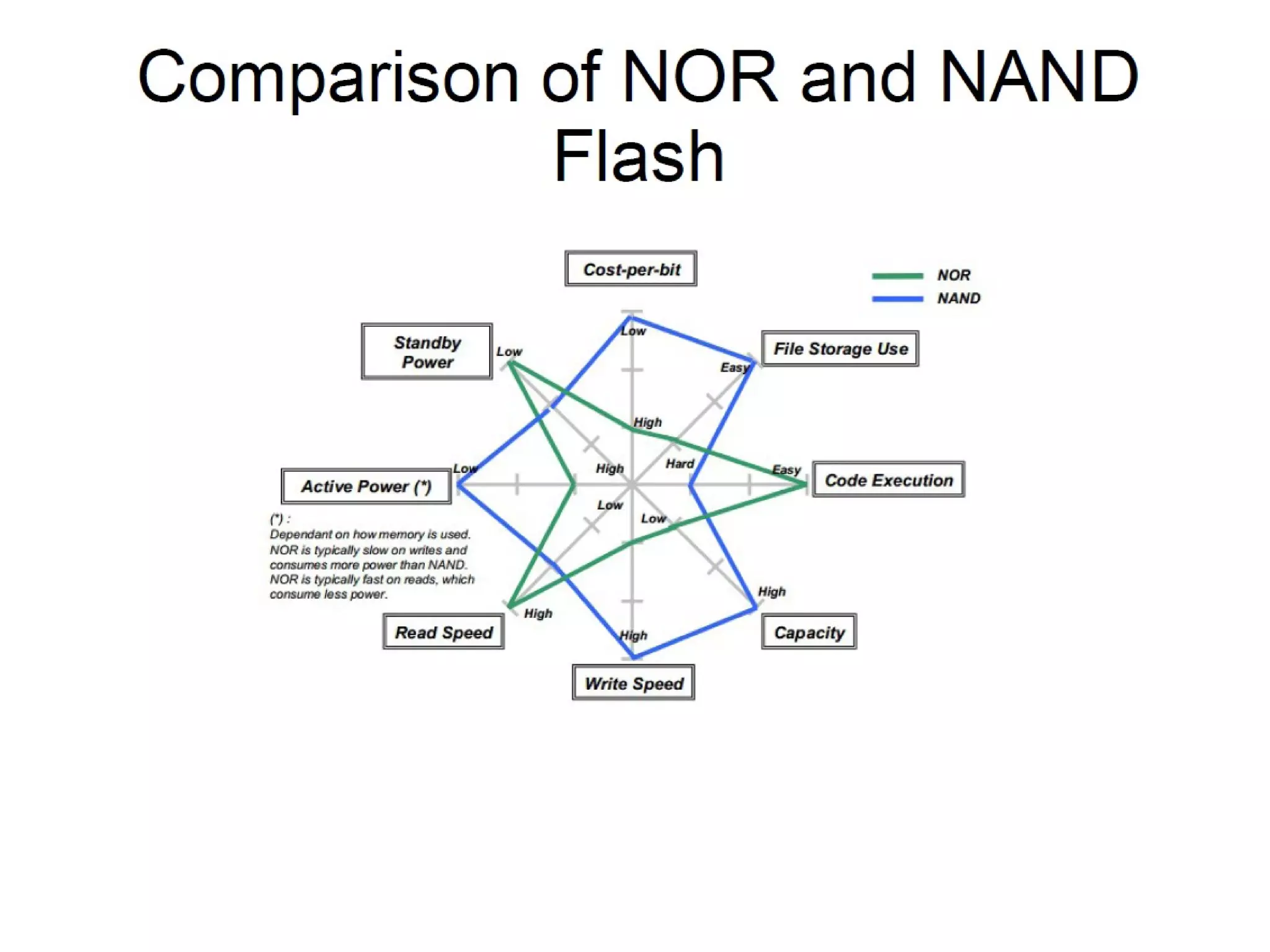

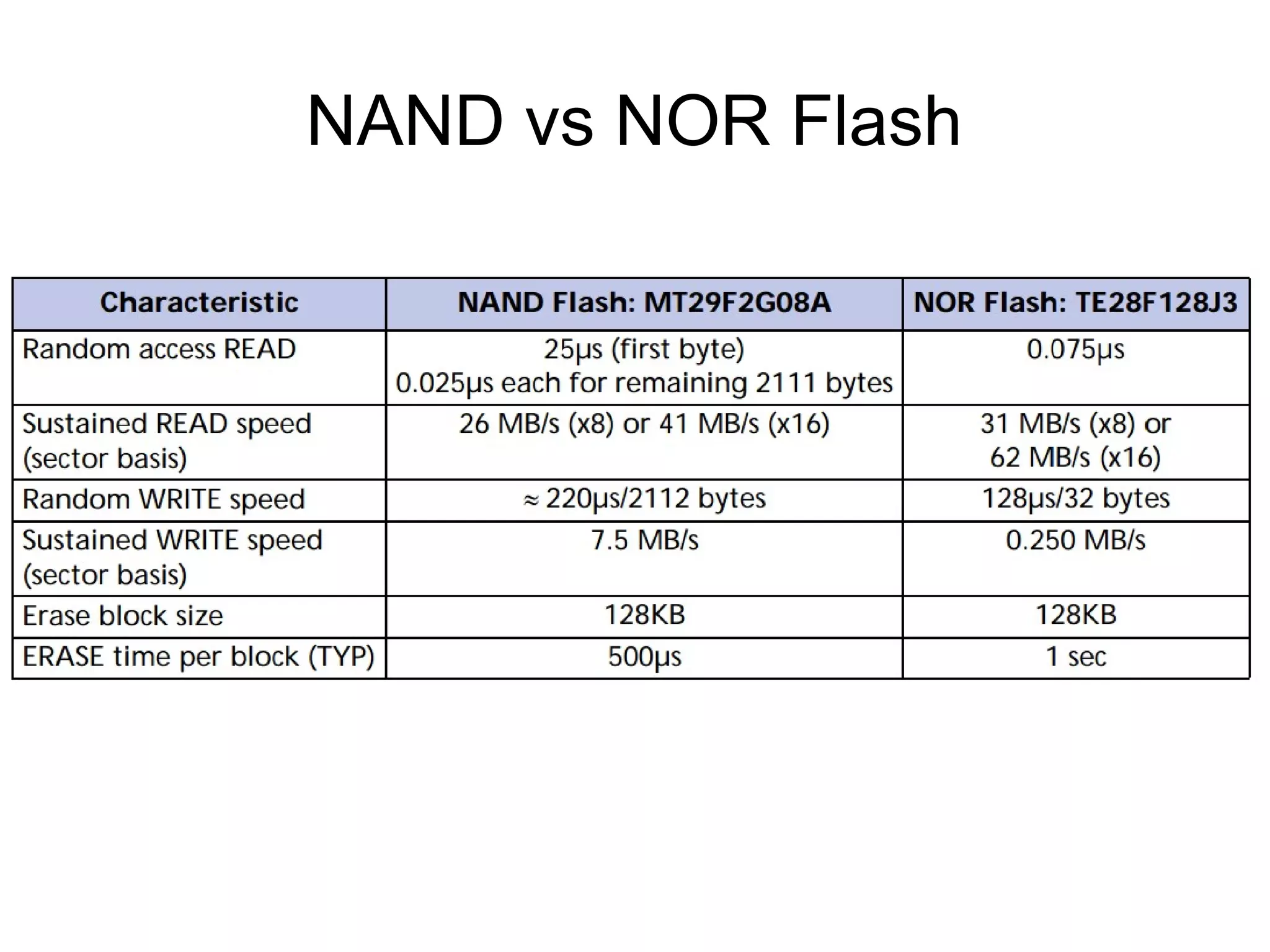

33. NAND vs NOR Flash

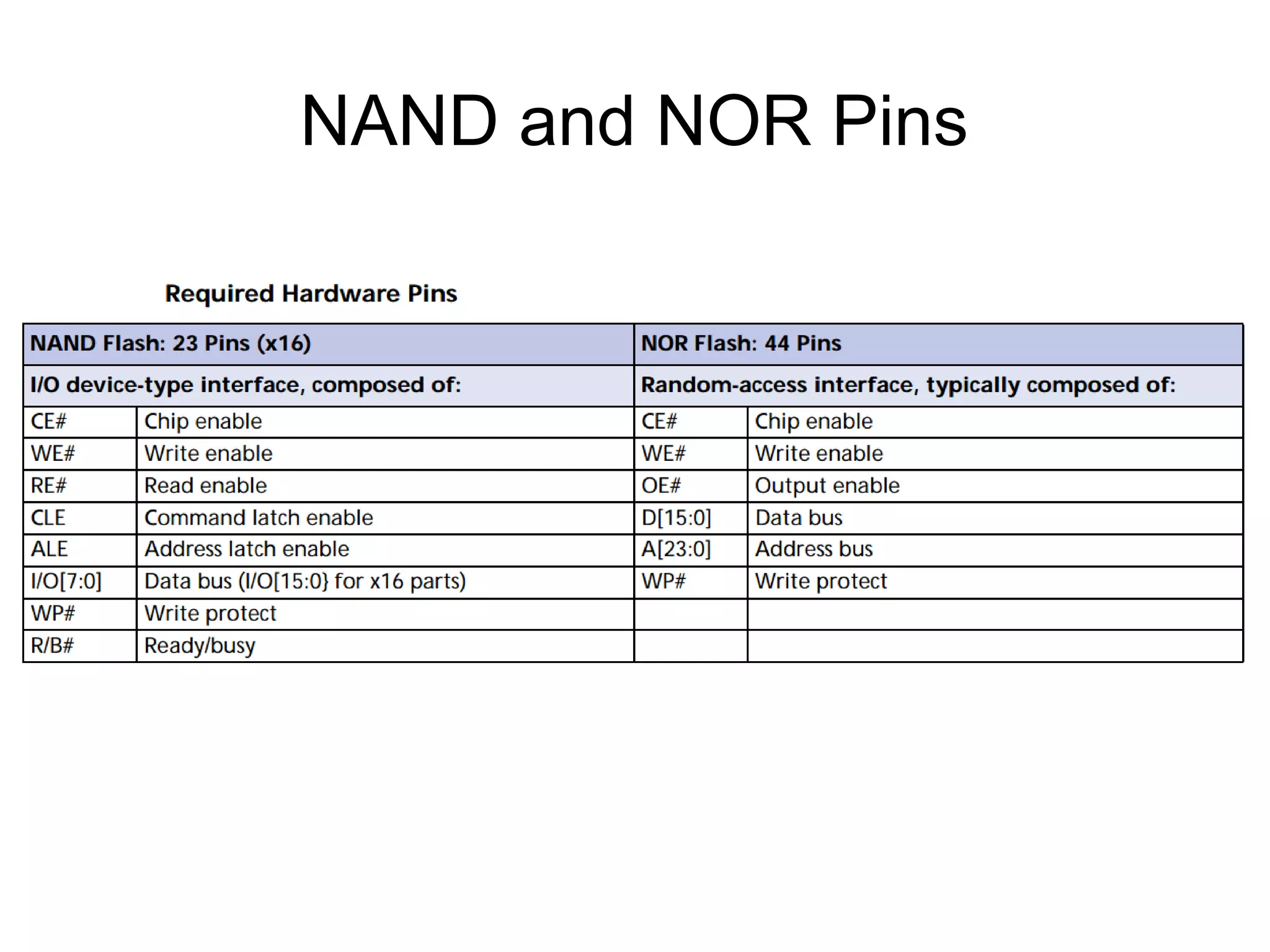

34. NAND and NOR Pins

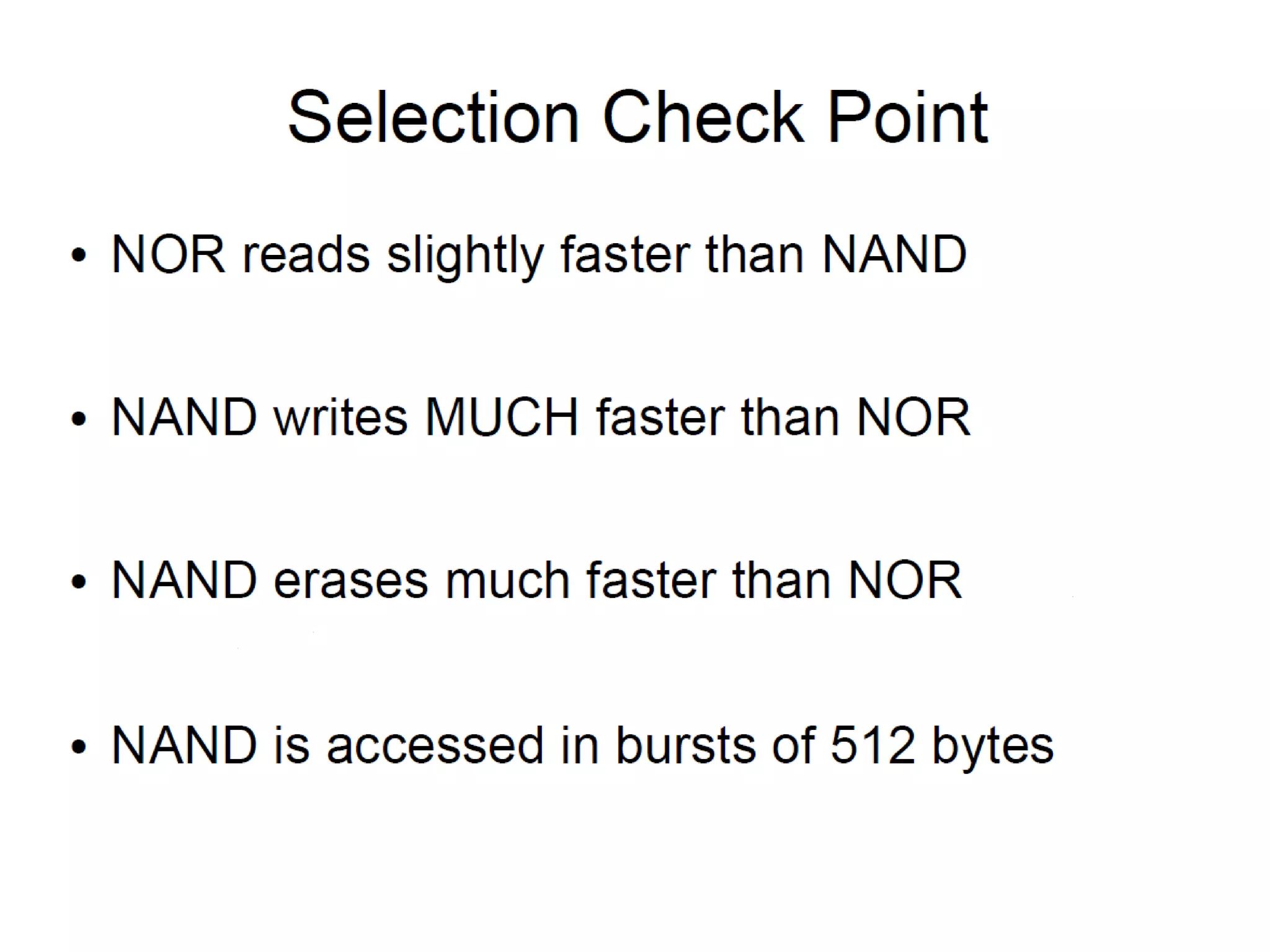

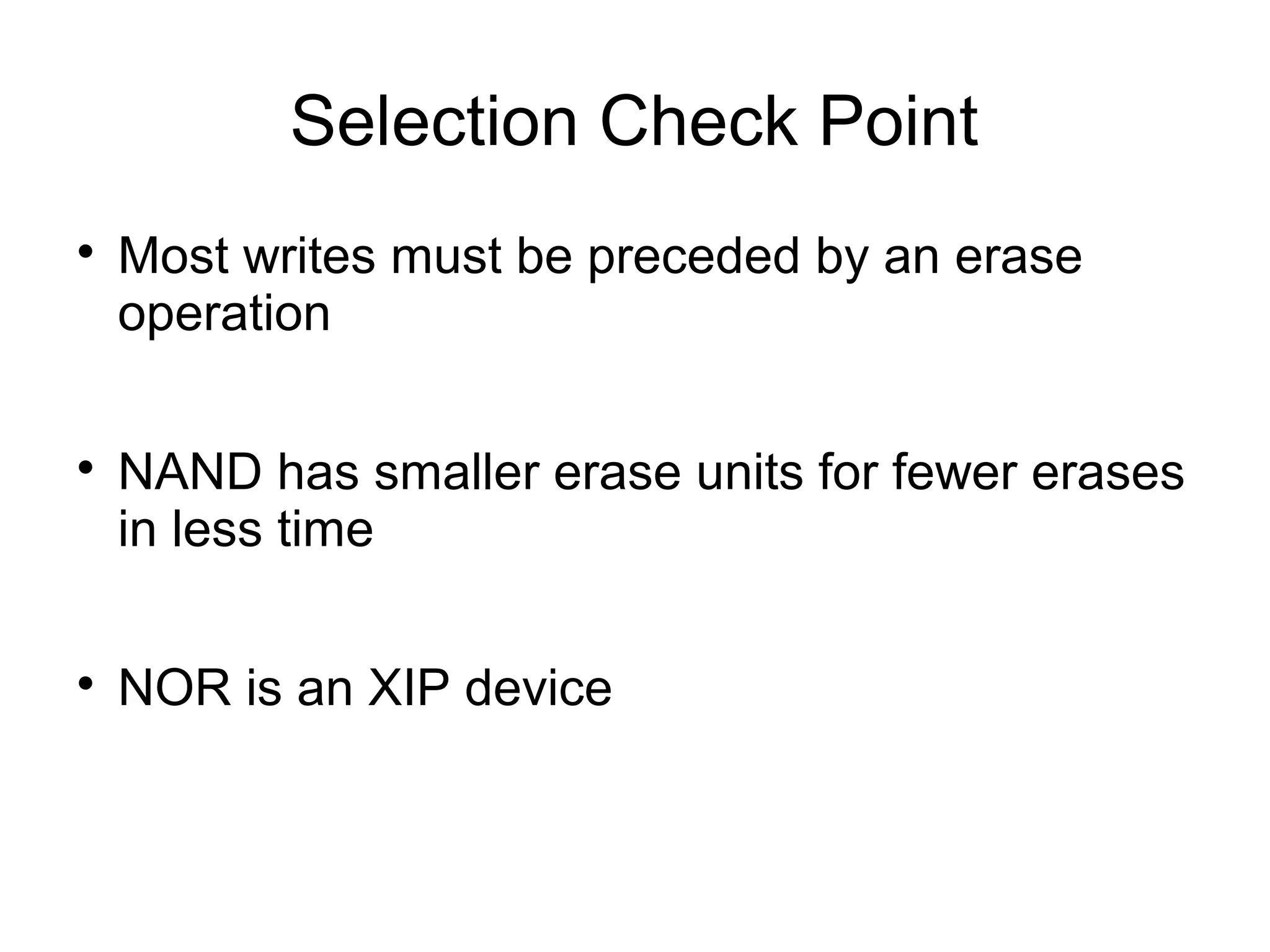

36. Selection Check Point



Most writes must be preceded by an erase
operation
NAND has smaller erase units for fewer erases
in less time
NOR is an XIP device

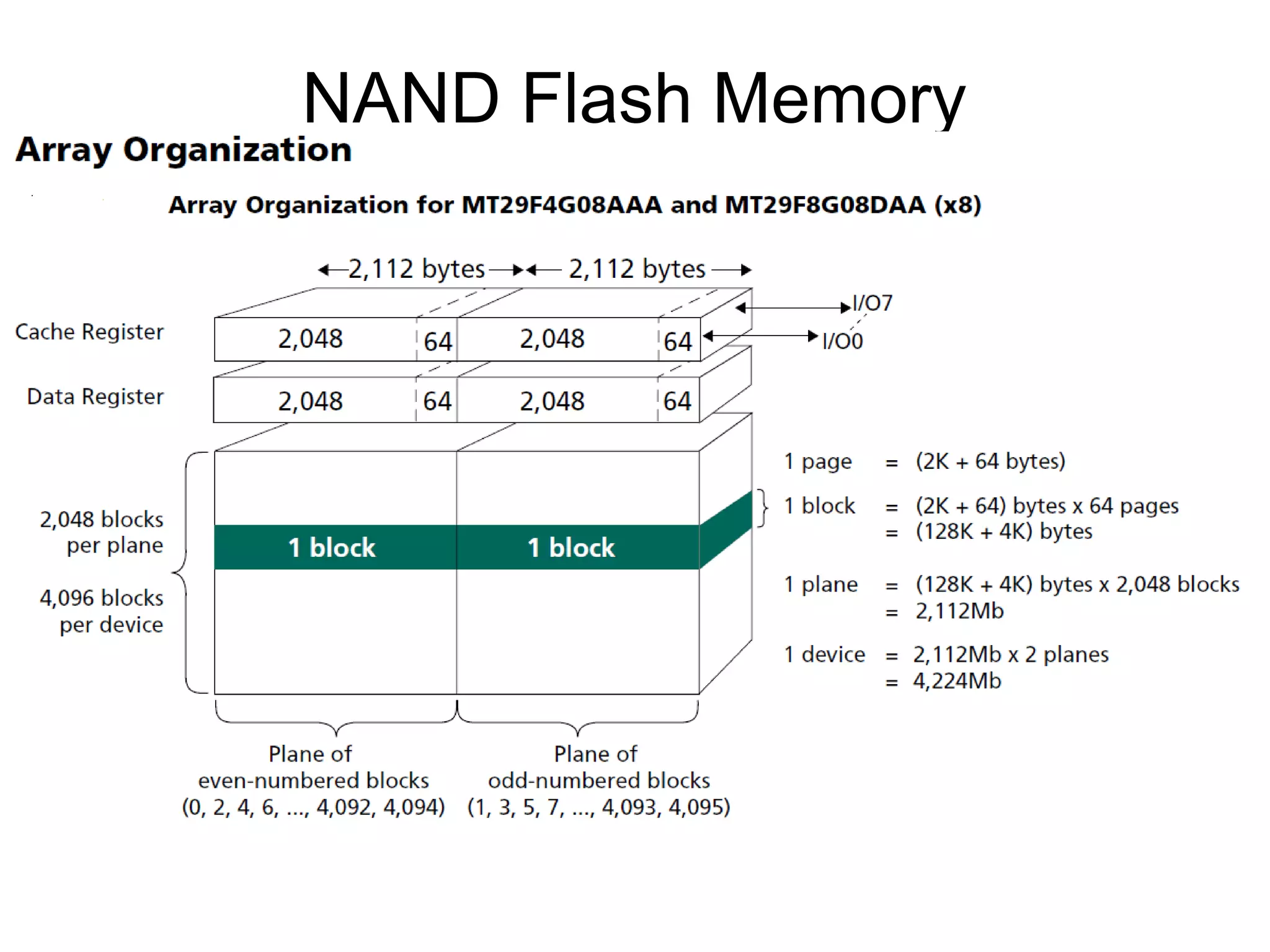

37. NAND Flash Memory

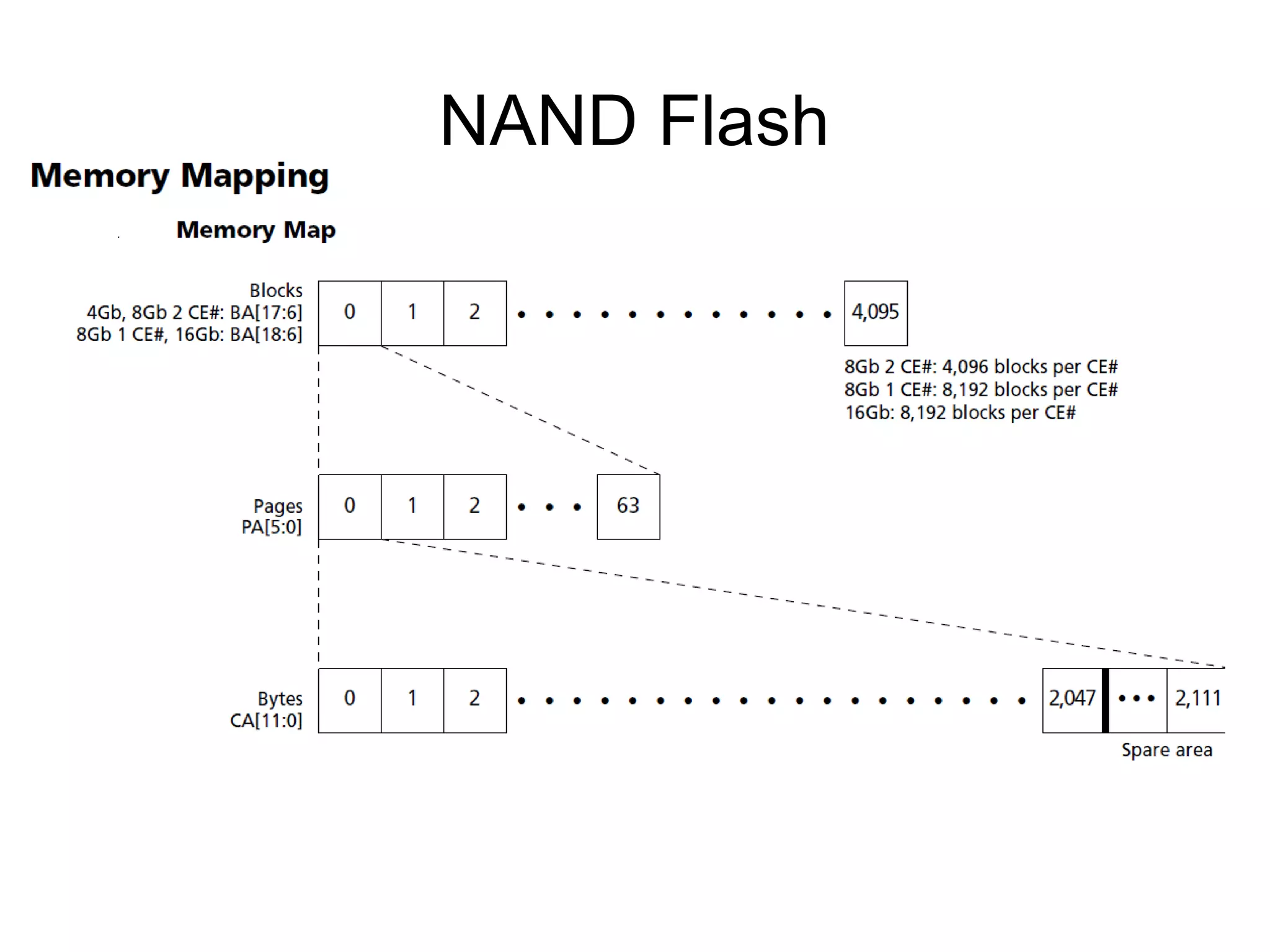

38. NAND Flash

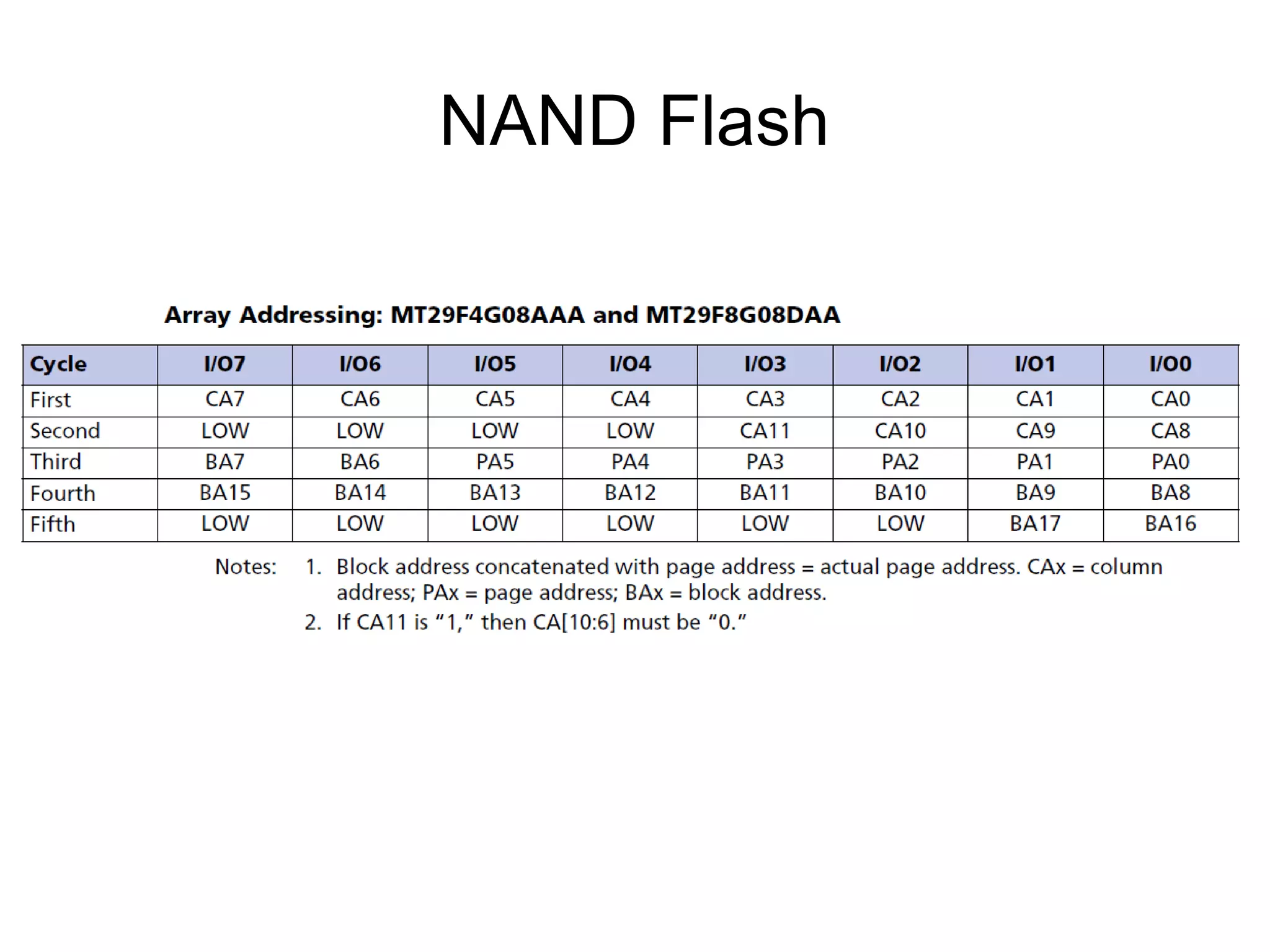

39. NAND Flash

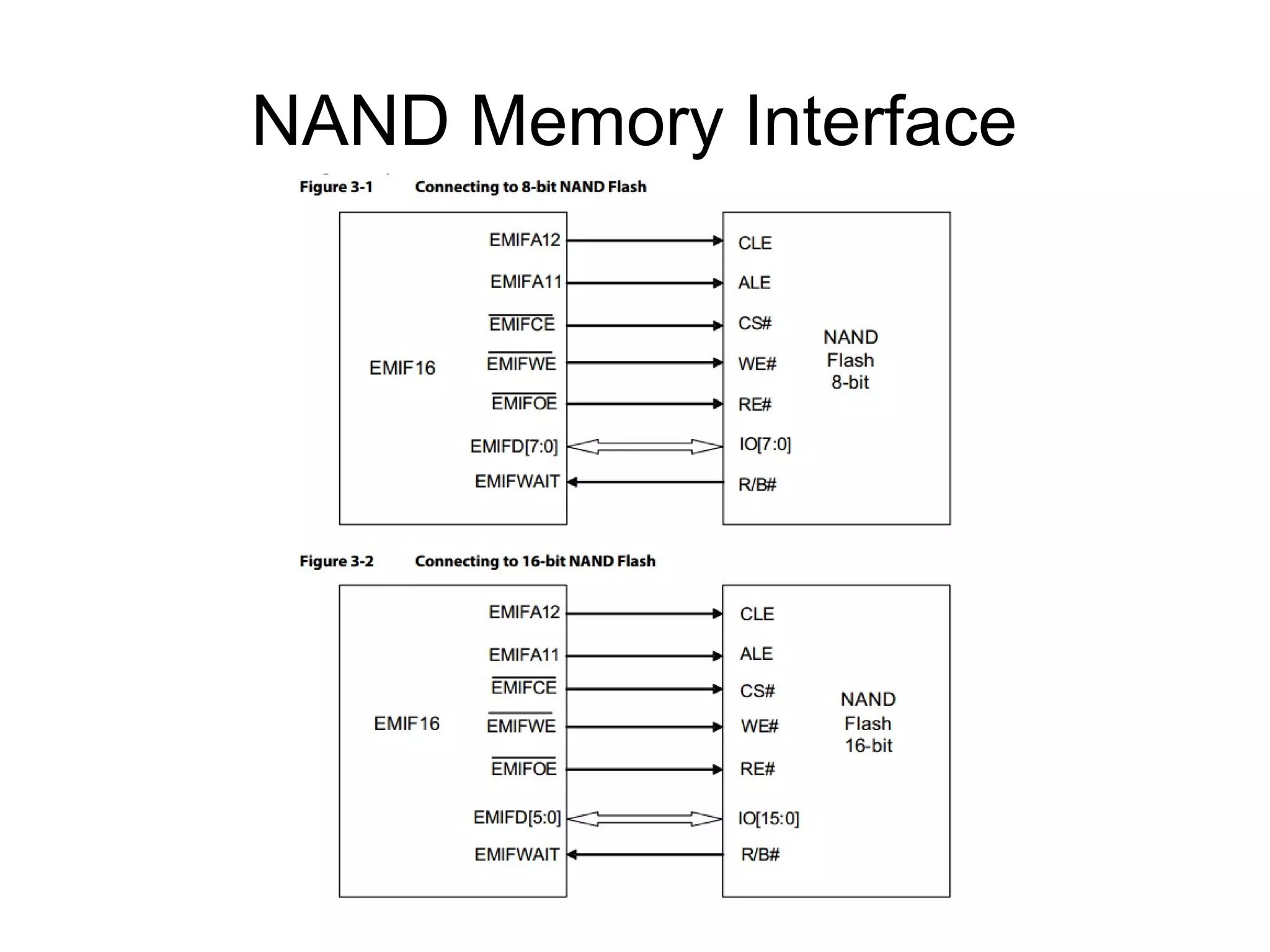

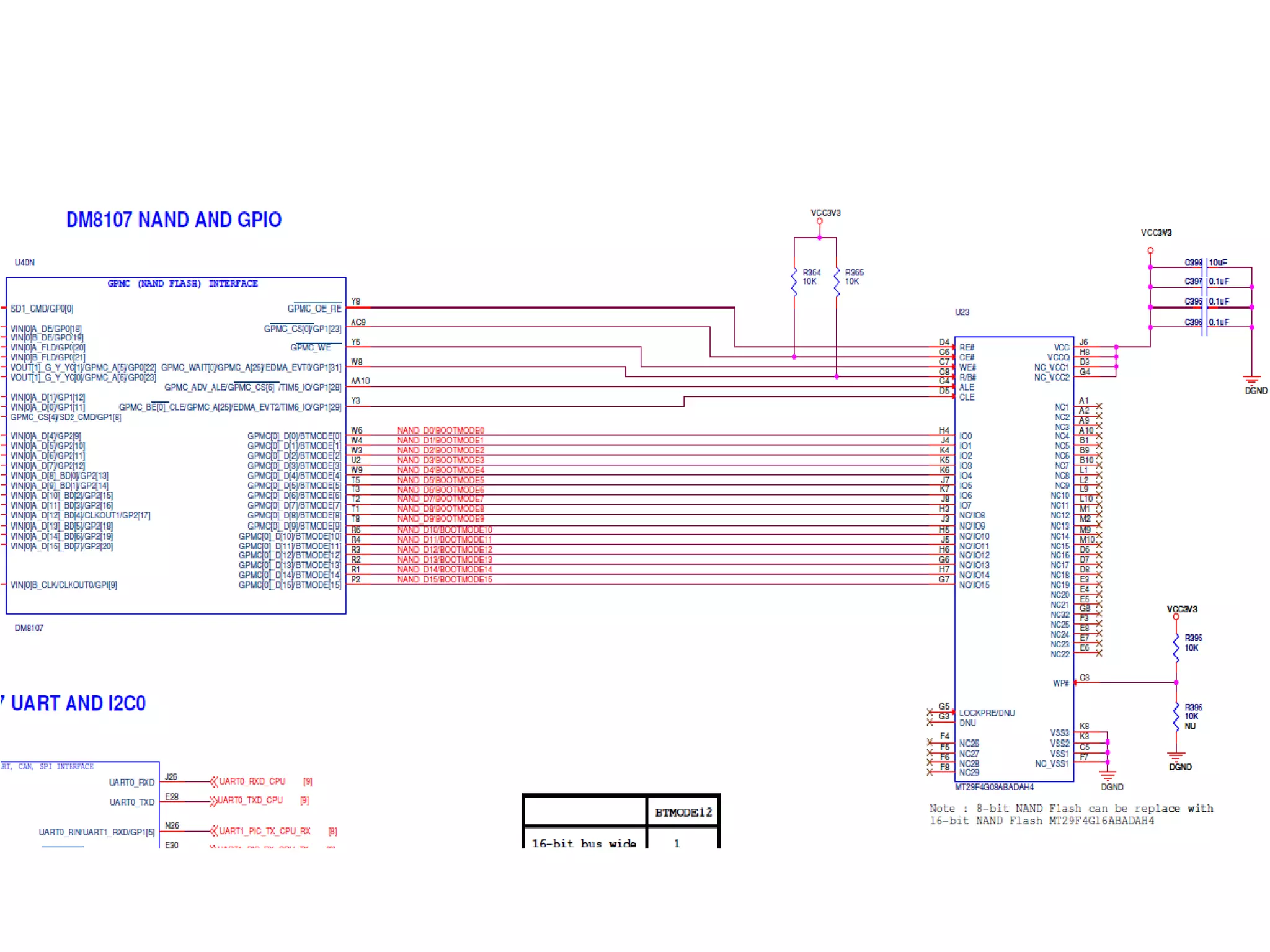

40. NAND Memory Interface

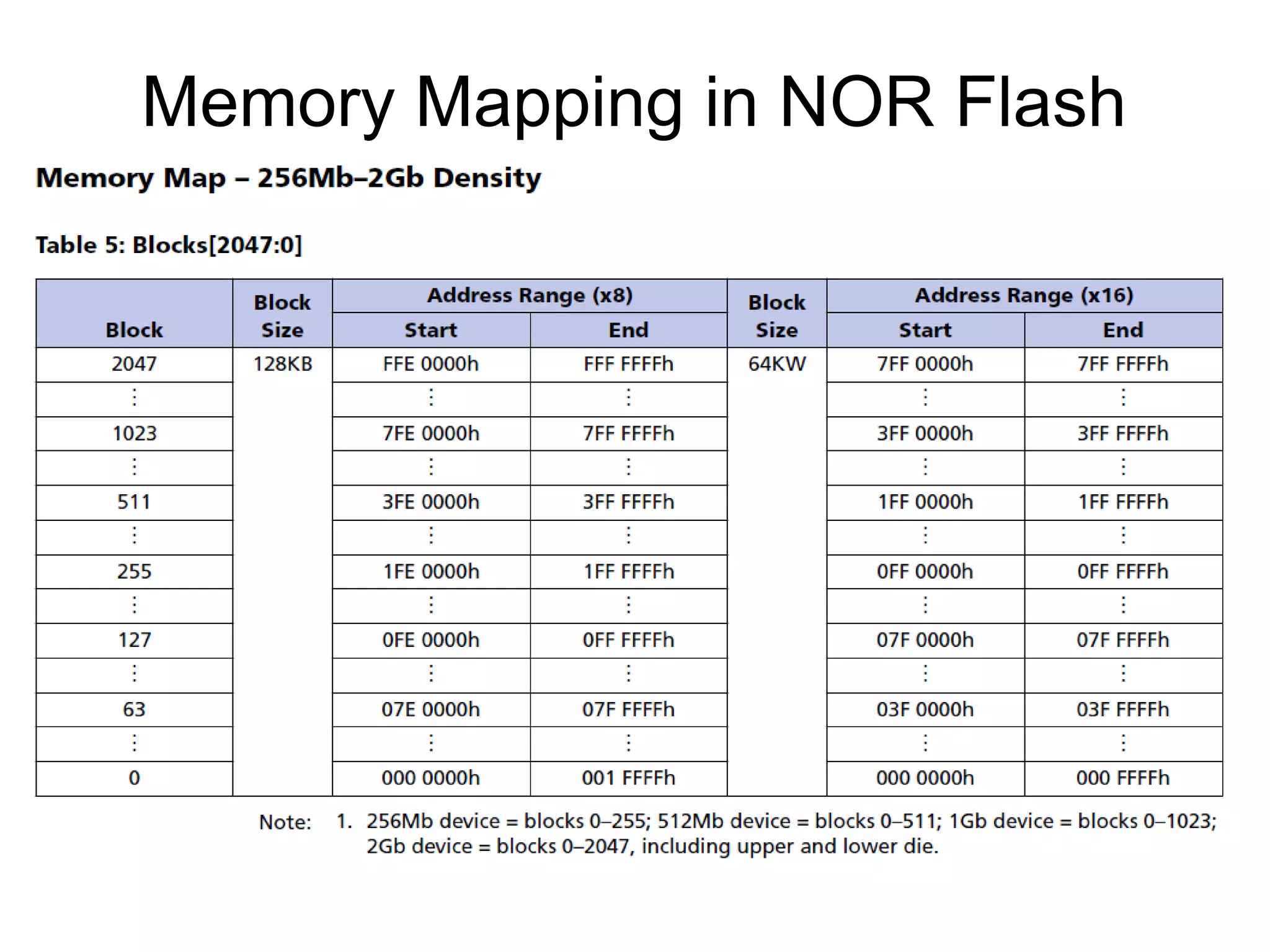

42. Memory Mapping in NOR Flash

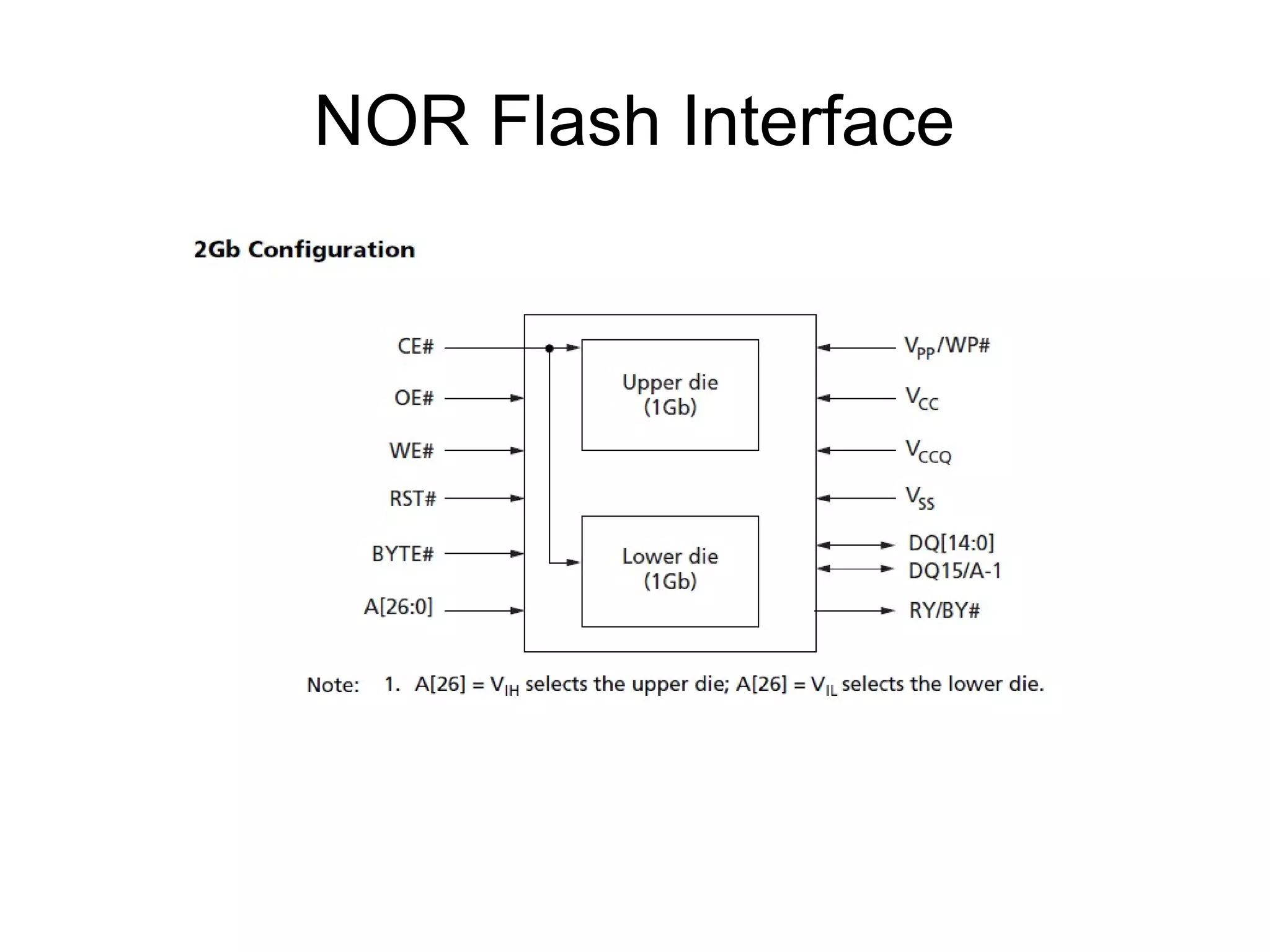

43. NOR Flash Interface

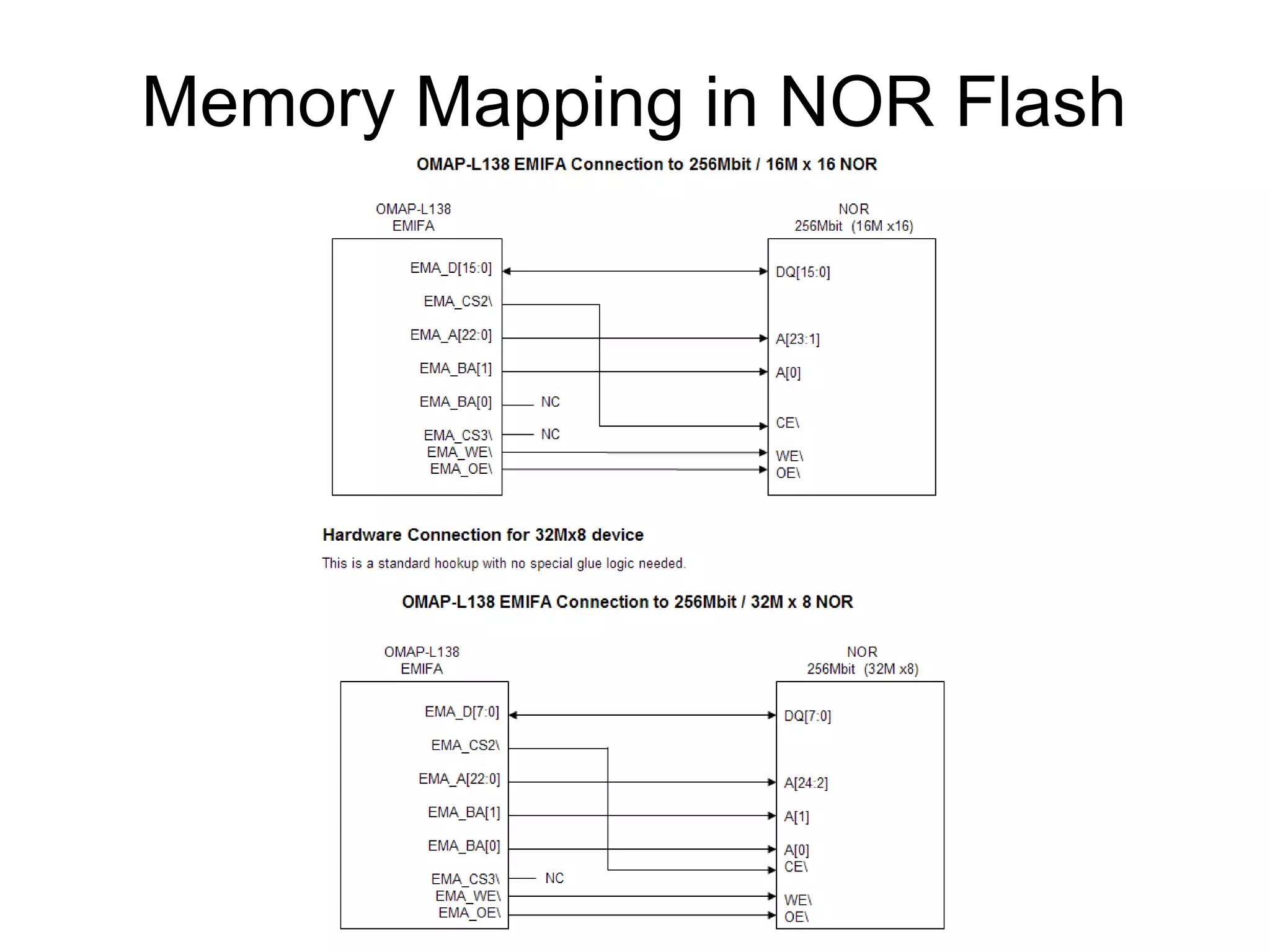

44. Memory Mapping in NOR Flash

45. Any
