Quantum_Algorithms_Teachers Quantum vs. Classical: Exponential Advantage

Quantum vs. Classical: Exponential Advantage

Data & Analytics◦
Quantum Algorithms for the Classroom Deutsch-Jozsa · Grover's Search · Real-World Impact · Puzzle Activities Puzzle Games Layman Explained Code Snippets Real World Impact IBM Quantum Computing Workshop | Day 2 | 13 March 2025
Today's Journey 01 🧩 Puzzle Warm-Up Guess the algorithm mystery — teacher activity 02 🍪 Deutsch-Jozsa Cookie factory analogy + classical vs quantum comparison 03 🔍 Grover's Search Haystack analogy + step-by-step amplitude amplification 04 ⚡ Classical vs Quantum Side-by-side code, circuits & query charts 05 🌍 Real-World Impact Pharma · Cybersecurity · AI · Finance use cases 06 🏆 Quiz & Recap Interactive questions to cement understanding

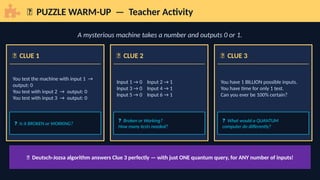

🧩 PUZZLE WARM-UP — Teacher Activity A mysterious machine takes a number and outputs 0 or 1. 🎰 CLUE 1 You test the machine with input 1 → output: 0 You test with input 2 → output: 0 You test with input 3 → output: 0 ❓ Is it BROKEN or WORKING? 🎲 CLUE 2 Input 1 → 0 Input 2 → 1 Input 3 → 0 Input 4 → 1 Input 5 → 0 Input 6 → 1 ❓ Broken or Working? How many tests needed? 🧠 CLUE 3 You have 1 BILLION possible inputs. You have time for only 1 test. Can you ever be 100% certain? ❓ What would a QUANTUM computer do differently? 💡 Deutsch-Jozsa algorithm answers Clue 3 perfectly — with just ONE quantum query, for ANY number of inputs!

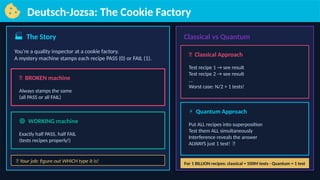

Deutsch-Jozsa: The Cookie Factory 🏭 The Story You're a quality inspector at a cookie factory. A mystery machine stamps each recipe PASS (0) or FAIL (1). 🔴 BROKEN machine Always stamps the same (all PASS or all FAIL) 🟢 WORKING machine Exactly half PASS, half FAIL (tests recipes properly!) 🎯 Your job: figure out WHICH type it is! Classical vs Quantum 🐌 Classical Approach Test recipe 1 → see result Test recipe 2 → see result ... Worst case: N/2 + 1 tests! ⚡ Quantum Approach Put ALL recipes into superposition Test them ALL simultaneously Interference reveals the answer ALWAYS just 1 test! ✅ For 1 BILLION recipes: classical = 500M tests · Quantum = 1 test

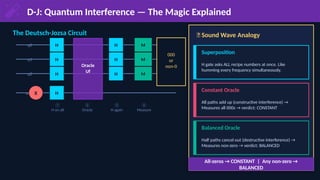

D-J: Quantum Interference — The Magic Explained The Deutsch-Jozsa Circuit q0 q1 q2 anc X H H H H ① H on all Oracle Uf ② Oracle H H H ③ H again M M M ④ Measure 000 or non-0 🎸 Sound Wave Analogy Superposition H gate asks ALL recipe numbers at once. Like humming every frequency simultaneously. Constant Oracle All paths add up (constructive interference) → Measures all 000s → verdict: CONSTANT Balanced Oracle Half paths cancel out (destructive interference) → Measures non-zero → verdict: BALANCED All-zeros → CONSTANT | Any non-zero → BALANCED

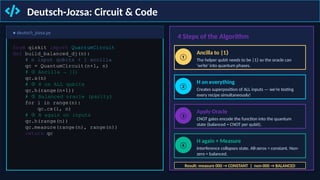

Deutsch-Jozsa: Circuit & Code ● deutsch_jozsa.py from qiskit import QuantumCircuit def build_balanced_dj(n): # n input qubits + 1 ancilla qc = QuantumCircuit(n+1, n) # Ancilla → |1 ① ⟩ qc.x(n) # H on ALL qubits ② qc.h(range(n+1)) # Balanced oracle (parity) ③ for i in range(n): qc.cx(i, n) # H again on inputs ④ qc.h(range(n)) qc.measure(range(n), range(n)) return qc 4 Steps of the Algorithm ① Ancilla to |1⟩ The helper qubit needs to be |1 so the oracle can ⟩ 'write' into quantum phases. ② H on everything Creates superposition of ALL inputs — we're testing every recipe simultaneously! ③ Apply Oracle CNOT gates encode the function into the quantum state (balanced = CNOT per qubit). ④ H again + Measure Interference collapses state. All-zeros = constant. Non- zero = balanced. Result: measure 000 → CONSTANT | non-000 → BALANCED
D-J: Classical vs Quantum — The Numbers Classical 2^(n-1) + 1 queries (worst case) Quantum D-J 1 query — ALWAYS n (bits) 2ⁿ items Classical queries Quantum queries Speedup 3 8 5 1 5× 8 256 129 1 129× 16 65,536 32,769 1 32,769× 20 1,048,576 524,289 1 524,289× n=3: 5× | n=8: 129× | n=16: 32,769× | n=20: 524,289× faster than classical!

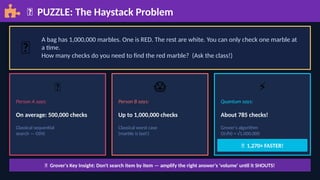

🧩 PUZZLE: The Haystack Problem 🌾 A bag has 1,000,000 marbles. One is RED. The rest are white. You can only check one marble at a time. How many checks do you need to find the red marble? (Ask the class!) 🐢 Person A says: On average: 500,000 checks Classical sequential search — O(N) 😱 Person B says: Up to 1,000,000 checks Classical worst case (marble is last!) ⚡ Quantum says: About 785 checks! Grover's algorithm O(√N) = √1,000,000 ✅ 1,270× FASTER! 🎯 Grover's Key Insight: Don't search item by item — amplify the right answer's 'volume' until it SHOUTS!

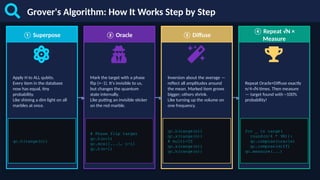

Grover's Algorithm: How It Works Step by Step ① Superpose Apply H to ALL qubits. Every item in the database now has equal, tiny probability. Like shining a dim light on all marbles at once. qc.h(range(n)) ② Oracle Mark the target with a phase flip (×–1). It's invisible to us, but changes the quantum state internally. Like putting an invisible sticker on the red marble. # Phase flip target qc.h(n-1) qc.mcx([...], n-1) qc.h(n-1) ③ Diffuse Inversion about the average — reflect all amplitudes around the mean. Marked item grows bigger; others shrink. Like turning up the volume on one frequency. qc.h(range(n)) qc.x(range(n)) # multi-CZ qc.x(range(n)) qc.h(range(n)) ④ Repeat √N × Measure Repeat Oracle+Diffuse exactly π/4·√N times. Then measure — target found with ~100% probability! for _ in range( round(π/4 * √N)): qc.compose(oracle) qc.compose(diff) qc.measure(...) ▶ ▶ ▶

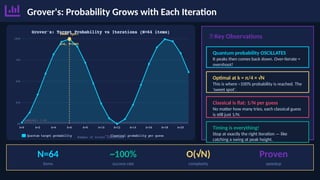

Grover's: Probability Grows with Each Iteration 🎯 Key Observations Quantum probability OSCILLATES It peaks then comes back down. Over-iterate = overshoot! Optimal at k = π/4 × √N This is where ~100% probability is reached. The 'sweet spot'. Classical is flat: 1/N per guess No matter how many tries, each classical guess is still just 1/N. Timing is everything! Stop at exactly the right iteration — like catching a swing at peak height. N=64 items ~100% success rate O(√N) complexity Proven speedup
Grover's Algorithm: Circuit & Key Code ● grover_search.py # Optimal iterations = π/4 × √N opt = round((π/4)*sqrt(N)) # Build circuit qc = QuantumCircuit(n, n) # Equal superposition ① qc.h(range(n)) # Grover iterations ② for _ in range(opt): # Oracle marks target qc.compose(oracle) # Diffusion amplifies qc.compose(diffusion) # Measure ③ qc.measure(range(n), range(n)) # Run on simulator result = sim.run(qc, shots=100) # Target found ~100% of the time! Grover Circuit Anatomy q0 q1 H H Super pose Oracle Uω Mark target Diff. Grover Amplify target ⟳ Repeat √N times M M Measu re Queries Comparison N = 4 items 2 queries avg 1 iteration 2× N = 64 items 32 queries avg 6 iterations 5× N = 1M items 500K queries 785 iterations 637 ×

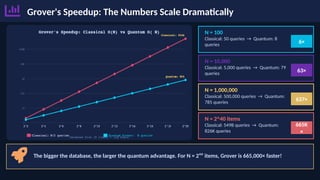

Grover's Speedup: The Numbers Scale Dramatically N = 100 Classical: 50 queries → Quantum: 8 queries 6× N = 10,000 Classical: 5,000 queries → Quantum: 79 queries 63× N = 1,000,000 Classical: 500,000 queries → Quantum: 785 queries 637× N = 2^40 items Classical: 549B queries → Quantum: 826K queries 665K × The bigger the database, the larger the quantum advantage. For N = 2⁴⁰ items, Grover is 665,000× faster!
Head-to-Head: Deutsch-Jozsa vs Grover's Search 🍪 Deutsch-Jozsa 🔍 Grover's Search Problem Is f constant or balanced? Find 1 item in N items Quantum advantage EXPONENTIAL (1 vs 2^n) QUADRATIC (√N vs N) Classical queries Up to 2^(n-1)+1 Up to N queries Quantum queries Always 1 🎯 ~π/4 × √N 🎯 Analogy Cookie inspector checks all recipes at once Spotlight finds red marble among millions instantly Real-world app Classifying huge datasets without reading them all Drug molecule search, cryptography, AI optimization ✅ Both use SUPERPOSITION to check multiple states at once · Both use INTERFERENCE to reveal the answer
Real-World Impact How Deutsch-Jozsa & Grover's Change Everything Pharma & Drug Discovery Cybersecurity AI & Machine Learning Finance & Banking Materials Science Logistics & Supply Chain

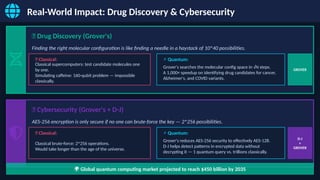

Real-World Impact: Drug Discovery & Cybersecurity 💊 Drug Discovery (Grover's) Finding the right molecular configuration is like finding a needle in a haystack of 10^40 possibilities. 🐌 Classical: Classical supercomputers: test candidate molecules one by one. Simulating caffeine: 160-qubit problem — impossible classically. ⚡ Quantum: Grover's searches the molecular config space in √N steps. A 1,000× speedup on identifying drug candidates for cancer, Alzheimer's, and COVID variants. GROVER 🔐 Cybersecurity (Grover's + D-J) AES-256 encryption is only secure if no one can brute-force the key — 2^256 possibilities. 🐌 Classical: Classical brute-force: 2^256 operations. Would take longer than the age of the universe. ⚡ Quantum: Grover's reduces AES-256 security to effectively AES-128. D-J helps detect patterns in encrypted data without decrypting it — 1 quantum query vs. trillions classically. D-J + GROVER 🌍 Global quantum computing market projected to reach $450 billion by 2035

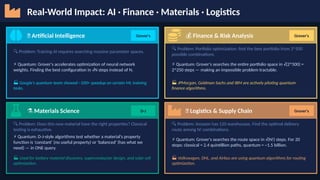

Real-World Impact: AI · Finance · Materials · Logistics 🧠 Artificial Intelligence Grover's 🔍 Problem: Training AI requires searching massive parameter spaces. ⚡ Quantum: Grover's accelerates optimization of neural network weights. Finding the best configuration in √N steps instead of N. 🏭 Google's quantum team showed ~100× speedup on certain ML training tasks. 💰 Finance & Risk Analysis Grover's 🔍 Problem: Portfolio optimization: find the best portfolio from 2^500 possible combinations. ⚡ Quantum: Grover's searches the entire portfolio space in √(2^500) = 2^250 steps — making an impossible problem tractable. 🏭 JPMorgan, Goldman Sachs and IBM are actively piloting quantum finance algorithms. ⚗️Materials Science D-J 🔍 Problem: Does this new material have the right properties? Classical testing is exhaustive. ⚡ Quantum: D-J-style algorithms test whether a material's property function is 'constant' (no useful property) or 'balanced' (has what we need) — in ONE query. 🏭 Used for battery material discovery, superconductor design, and solar cell optimization. 🚚 Logistics & Supply Chain Grover's 🔍 Problem: Amazon has 120 warehouses. Find the optimal delivery route among N! combinations. ⚡ Quantum: Grover's searches the route space in √(N!) steps. For 20 stops: classical = 2.4 quintillion paths, quantum = ~1.5 billion. 🏭 Volkswagen, DHL, and Airbus are using quantum algorithms for routing optimization.
🏆 Quiz Time! — Test Your Understanding Q1: A function with 1 million inputs is either constant or balanced. How many queries does Deutsch-Jozsa need? A) 500,001 B) 1,000 ✅ C) 1 — always! D) It depends Q2: Grover's searches 1 billion items. Classical average = 500 million. How many does Grover's need? A) 500 million ✅ B) 31,623 (≈ √1B) C) 100 D) 1 Q3: What creates the 'magic' in both algorithms? A) Faster processors B) More RAM ✅ C) Quantum interference D) Better sorting

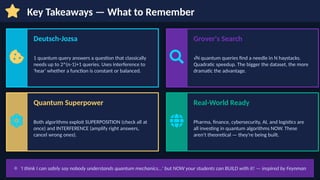

Key Takeaways — What to Remember Deutsch-Jozsa 1 quantum query answers a question that classically needs up to 2^(n-1)+1 queries. Uses interference to 'hear' whether a function is constant or balanced. Grover's Search √N quantum queries find a needle in N haystacks. Quadratic speedup. The bigger the dataset, the more dramatic the advantage. Quantum Superpower Both algorithms exploit SUPERPOSITION (check all at once) and INTERFERENCE (amplify right answers, cancel wrong ones). Real-World Ready Pharma, finance, cybersecurity, AI, and logistics are all investing in quantum algorithms NOW. These aren't theoretical — they're being built. ⚛️'I think I can safely say nobody understands quantum mechanics...' but NOW your students can BUILD with it! — inspired by Feynman
Your Students Are Now Quantum-Ready! Deutsch-Jozsa · Grover's Search · Real-World Impact 📚 Resources for Teachers & Students: IBM Quantum Learning learning.quantum.ibm.com Qiskit Textbook qiskit.org/learn Day 2 Notebook Day2_Quantum_Workshop_v2.ipynb IBM Quantum Platform quantum.ibm.com IBM Quantum Workshop · Day 2 · 13 March 2025 · See you in the quantum future! ⚛️
