IBM Security
QRadar SIEM Foundations
How QRadar SIEM Collects
Security Data
3 IBM Security
QRadar Data Flow - Overall
4 IBM Security
From an Appliance Perspective
Event Collector Capabilities
Event Collector
(ecs-ec-ingress)
Event Collector
(ecs-ec)
5 IBM Security
From an Appliance Perspective
Event/Flow Processor Capabilities
Event Collector
(ecs-ec-ingress)
+
Event Collector
(ecs-ec)
Event Processor
(ecs-ep)
6 IBM Security

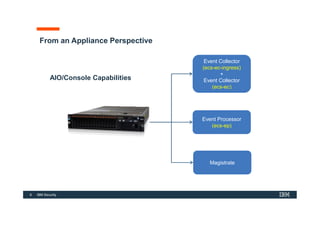

From an Appliance Perspective
AIO/Console Capabilities
Event Collector
(ecs-ec-ingress)
+
Event Collector
(ecs-ec)
Event Processor
(ecs-ep)
Magistrate
7 IBM Security
High-level component architecture and data stores
• Flow and event data is stored in the Ariel
database on the event processors
̶ If accumulation is required, accumulated data is
stored in Ariel accumulation data tables
̶ As soon as data is stored, it cannot be changed
(tamper proof)
̶ Data can be selectively indexed
• Offenses, assets, and identity information are
stored in the master PostgreSQL database on
the Console
̶ Provides one master database with copies on each
processor for backup and automatic restore
• Secure SSH communication between appliances
in a distributed environment is supported
Console services
User interface
Magistrate
Reporting
Event processor
Flow collector Event collector
Identities
Assets
Offenses
Configuration
Flows
Events
Accumulations
Network packet
interface, sFlow,
and 3rd party
Events from log
sources
7
8 IBM Security
Event and Flow Collection
9 IBM Security
QRadar Data Flow - Overall
10 IBM Security
Collecting and Normalizing raw events
• An event is a record from a device that describes an action on a network or host
• QRadar SIEM normalizes the varied information found in raw events
̶ Normalizing means to map information to common field names, for example
• SRC_IP, Source, IP, and others are normalized to Source IP
• user_name, username, login, and others are normalized to User
̶ Normalized events are mapped to high-level and low-level categories to facilitate
further processing
• After raw events are normalized, it is easy to search, report, and cross-correlate these
normalized events
11 IBM Security

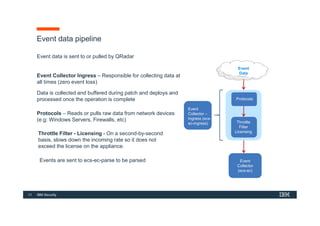

Event data pipeline
Event
Data
Protocols
Throttle
Filter
Licensing
Event
Collector –
Ingress (ecs-
ec-ingress)
Event
Collector
(ecs-ec)
Event data is sent to or pulled by QRadar
Event Collector Ingress – Responsible for collecting data at
all times (zero event loss)
Data is collected and buffered during patch and deploys and
processed once the operation is complete
Protocols – Reads or pulls raw data from network devices
(e.g: Windows Servers, Firewalls, etc)
Throttle Filter - Licensing - On a second-by-second
basis, slows down the incoming rate so it does not
exceed the license on the appliance.
Events are sent to ecs-ec-parse to be parsed
12 IBM Security
Event data pipeline
Qflow
Parsing
(DSM, LSX,
CEP)
Coalescing
Forwarding
Log
Only/Data
Sore
Event
Collector
(ecs-ec)
Event
Processor
Event data is received from the ecs-ec-ingress
Parsing – DSMs / LSX / CEP – take the raw data and
normalize it into a common structure.
Coalescing - “Event Compression”. Find nearly
identical events and delete one and increase the event
count on the record. Key is: source IP, dest IP, dest
port, QID, username
Forwarding - Applies routing rules for the system, such
as sending event data to offsite targets, external Syslog
systems, JSON systems, and other SIEMs.
Log Only/Data Store supports the storage of an
unlimited number of logs without counting against the
EPS License
Events are then sent to the Event Processor
component and pass through the Custom Rules Engine
(CRE). They are tested and correlated against the rules
that are configured
Event
Collector –
Ingress (ecs-
ec-ingress)
13 IBM Security

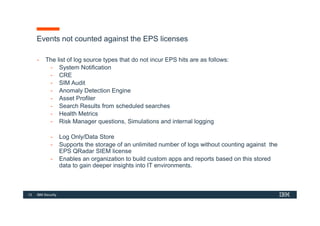

Events not counted against the EPS licenses
- The list of log source types that do not incur EPS hits are as follows:
- System Notification
- CRE
- SIM Audit
- Anomaly Detection Engine
- Asset Profiler
- Search Results from scheduled searches
- Health Metrics
- Risk Manager questions, Simulations and internal logging
- Log Only/Data Store
- Supports the storage of an unlimited number of logs without counting against the
EPS QRadar SIEM license
- Enables an organization to build custom apps and reports based on this stored
data to gain deeper insights into IT environments.
14 IBM Security
Event Coalescing
- Event Coalescing is a method of reducing the data going through the pipeline.
- As data arrives in the pipeline QRadar will attempt to group like events together into a
single event.
- Coalescing occurs after licensing and parsing
- Coalescing is indexed by Log Source, QID, Source IP, Destination IP, Destination Port
and Username.
- If more than 4 events arrive within a 10 second window with these properties being
identical any additional events beyond the 4th will be collapsed together.
- Coalesced events can be identified by looking at the Event Count column in the log
viewer, if the Event Count is >1 the event has been coalesced.
- Coalescing can be turned on or off per log source or by changing the default setting in
the system setting page.
15 IBM Security
QRadar Data Flow - Overall
16 IBM Security
Flow collection and processing
• A flow is a communication session between two hosts
• QFlow Collectors read packets from the wire or receive flows from other devices
• QFlow Collectors convert all gathered network data to flow records similar normalized
events; they include such details as:
̶ when, who, how much, protocols, and options.
17 IBM Security
Flow pipeline
Flows
Qflow
Asymmetric
Recombination
De-Duplication
Flow Governor
(Licensing)
CFP Parsing
Flow
Forwarding
Event
Collector
Event
Processor
The QFlow component collects and creates flow information from
internal and external flow sources
Event Collector – Responsible for parsing and normalizing incoming
flows
Asymmetric recombination - Responsible for combining two sides of
each flow when data is provided asymmetrically
Deduplication - Flow deduplication is a process that removes
duplicate flows when multiple Flow Collectors provide data
to Flow Processors appliances.
Flow Governor - Monitors the number of incoming flows to the
system to manage input queues and licensing.
Custom flow properties – extracts any properties defined in the
Custom Flow Properties
Forwarding - Applies routing rules for the system, such as
sending flow data to offsite targets, external Syslog systems,
JSON systems, and other SIEMs.
Flows are then sent to the Event Processor component and
pass through the Custom Rules Engine (CRE). They are tested
and correlated against the rules that are configured
18 IBM Security

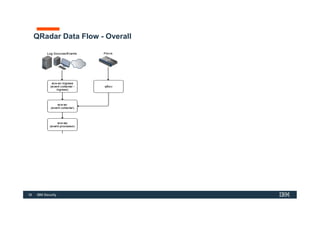

QRadar Data Flow - Overall
19 IBM Security
Event & Flow Correlation and Processing
Event
Collector
Licensing
CRE
Storage and
Indexing
Host Profiling
Real Time
streaming
Event
Processor
Magistrate
Asset Profiler
Ariel
Licensing is applied again on ingress to the EP
After Events and Flows are normalized they are
then sent to the Event Processor for processing
The CRE or Custom Rules Engine Applies the
correlation rules that were created in the UI.
Flow data is then sent to the Ariel Database
for storage.
Host Profiling – Also called passive profiling or
passive scanning. Watches flows on the network
in order to make educated guesses about which
IPs/assets exist and what ports are open.
Streaming – Responsible for the “real time
(streaming)” view in User Interface
If an event matches a rule, the Magistrate
component generates the response that is
configure in the custom rule
20 IBM Security
QRadar Data Flow - Overall
21 IBM Security

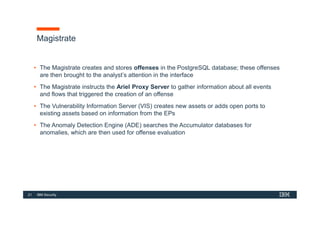

Magistrate
• The Magistrate creates and stores offenses in the PostgreSQL database; these offenses
are then brought to the analyst’s attention in the interface
• The Magistrate instructs the Ariel Proxy Server to gather information about all events
and flows that triggered the creation of an offense
• The Vulnerability Information Server (VIS) creates new assets or adds open ports to
existing assets based on information from the EPs
• The Anomaly Detection Engine (ADE) searches the Accumulator databases for
anomalies, which are then used for offense evaluation
22 IBM Security

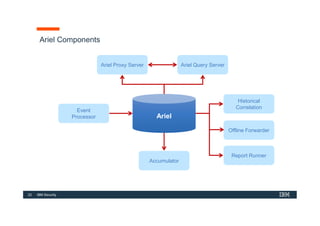

Ariel Components
Ariel
Ariel
Ariel
Event
Processor
Accumulator
Historical
Correlation
Ariel Proxy Server Ariel Query Server
Offline Forwarder
Report Runner
23 IBM Security
Asset and Vulnerability Flow
Ariel
ecs-ep
Event Processor
Scanners/QVM/3rd
Party
ecs-ec
(event collector
Asset Profiler
vis
(Vulnerability
integration service)
Identity Data
Passive
Profiling
POSTGRES
24 IBM Security

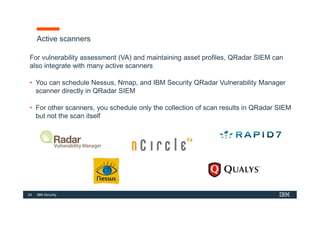

Active scanners
For vulnerability assessment (VA) and maintaining asset profiles, QRadar SIEM can
also integrate with many active scanners
• You can schedule Nessus, Nmap, and IBM Security QRadar Vulnerability Manager
scanner directly in QRadar SIEM
• For other scanners, you schedule only the collection of scan results in QRadar SIEM
but not the scan itself
25 IBM Security

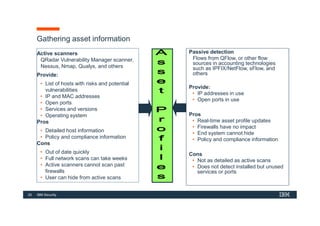

Gathering asset information
Active scanners
QRadar Vulnerability Manager scanner,
Nessus, Nmap, Qualys, and others
Provide:
• List of hosts with risks and potential
vulnerabilities
• IP and MAC addresses
• Open ports
• Services and versions
• Operating system
Pros
• Detailed host information
• Policy and compliance information
Cons
• Out of date quickly
• Full network scans can take weeks
• Active scanners cannot scan past
firewalls
• User can hide from active scans
Passive detection
Flows from QFlow, or other flow
sources in accounting technologies
such as IPFIX/NetFlow, sFlow, and
others
Provide:
• IP addresses in use
• Open ports in use
Pros
• Real-time asset profile updates
• Firewalls have no impact
• End system cannot hide
• Policy and compliance information
Cons
• Not as detailed as active scans
• Does not detect installed but unused
services or ports
26 IBM Security
Hostcontext
Reporting Executor
Report Runner
Tomcat
“Owns” the host it is responsible for starting and stopping
processes and for overall system health and backups.
A stopwatch responsible for keeping track of reports and
when they should run and then instantiating the report
runner
The process that actually generates the reports, querying
postgres, Ariel, etc..
Process that drives our web UI and serves up web pages.
Historical Correlation
Processor
Process that is responsible for historical correlation. Runs a
specified search, runs the results through CRE rules (based
on QRadar time or device time) and generates offenses
The Remainder
27 IBM Security
QRadar Data Flow - Overall
28 IBM Security

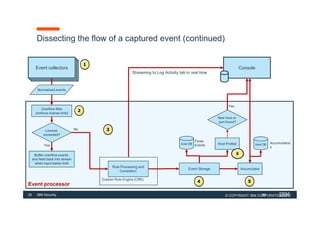

Dissecting the flow of a captured event (Example)
© COPYRIGHT IBM CORPORATION 2017
Event processor
Event collector
No
Overflow filter
(enforce license limit)
License
exceeded?
Buffer overflow events
and feed back into stream
when input below limit
DSM normalization filter
Device Support Module (DSM)
Parser for firewall
Yes
Traffic Analysis
(Log source discovery)
Log source
known?
Create new
log source
No
Yes
Coalescing Filter
FW Deny event
FW Deny event
FW Deny events
1
2
3
4
5
28
29 IBM Security
Firewall Deny
Event
Firewall Deny
Event
Dissecting the flow of a captured event (continued)
© COPYRIGHT IBM CORPORATION 2017
Console
Event processor
No
Event collectors
Overflow filter
(enforce license limit)
License
exceeded?
Buffer overflow events
and feed back into stream
when input below limit
Yes
No
Event Storage
Streaming to Log Activity tab in real time
Ariel DB
Flows
Events
Accumulator
Ariel DB Accumulation
s
Host Profiler
6
Custom Rule Engine (CRE)
New host or
port found?
Yes
Normalized events
Rule Processing and
Correlation
1
2
3
5
4
29
30 IBM Security
Dissecting the flow of a captured event (continued)
© COPYRIGHT IBM CORPORATION 2017
Console
No
Event processors
Overflow filter
(enforce license limit)
License
exceeded?
Buffer overflow events
and feed back into stream
when input below limit
Yes
Ariel DB
Flows
Events
Accumulator
Processed events
Magistrate
Custom Rule Engine
(CRE)
Offenses
(PostgreSQL)
Ariel Proxy
Ariel Query
Server
Anomaly Detection
Engine
Vulnerability
Information Server
Host Profiler
Assets
(PostgreSQL)
1
2
3
4 5 6
30
ibm.com/security
securityintelligence.com
xforce.ibmcloud.com
@ibmsecurity
youtube/user/ibmsecuritysolutions
© Copyright IBM Corporation 2016. All rights reserved. The information contained in these materials is provided for informational purposes only, and is provided AS IS without warranty of any kind,
express or implied. Any statement of direction represents IBM's current intent, is subject to change or withdrawal, and represent only goals and objectives. IBM, the IBM logo, and other IBM products
and services are trademarks of the International Business Machines Corporation, in the United States, other countries or both. Other company, product, or service names may be trademarks or service
marks of others.
Statement of Good Security Practices: IT system security involves protecting systems and information through prevention, detection and response to improper access from within and outside your
enterprise. Improper access can result in information being altered, destroyed, misappropriated or misused or can result in damage to or misuse of your systems, including for use in attacks on others.
No IT system or product should be considered completely secure and no single product, service or security measure can be completely effective in preventing improper use or access. IBM systems,
products and services are designed to be part of a lawful, comprehensive security approach, which will necessarily involve additional operational procedures, and may require other systems, products
or services to be most effective. IBM does not warrant that any systems, products or services are immune from, or will make your enterprise immune from, the malicious or illegal conduct of any party.
FOLLOW US ON:
THANK YOU

More Related Content

What's hot

Q radar architecture deep dive
Q radar architecture   deep diveQ radar architecture   deep dive
Q radar architecture deep dive
Kamal Mouline

What is SIEM? A Brilliant Guide to the Basics
What is SIEM? A Brilliant Guide to the BasicsWhat is SIEM? A Brilliant Guide to the Basics
What is SIEM? A Brilliant Guide to the Basics
Sagar Joshi

What is SIEM
What is SIEMWhat is SIEM
What is SIEM
Patten John

SIEM : Security Information and Event Management
SIEM : Security Information and Event Management SIEM : Security Information and Event Management
SIEM : Security Information and Event Management
SHRIYARAI4

SIEM presentation final
SIEM presentation finalSIEM presentation final
SIEM presentation final
Rizwan S

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)
k33a

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)
hardik soni

SIEM
SIEMSIEM
IBM Qradar & resilient
IBM Qradar & resilientIBM Qradar & resilient
IBM Qradar & resilient
Prime Infoserv

SIEM Primer:
SIEM Primer:SIEM Primer:
SIEM Primer:
Anton Chuvakin

IBM QRadar Security Intelligence Overview
IBM QRadar Security Intelligence OverviewIBM QRadar Security Intelligence Overview
IBM QRadar Security Intelligence Overview
Camilo Fandiño Gómez

Elastic SIEM (Endpoint Security)
Elastic SIEM (Endpoint Security)Elastic SIEM (Endpoint Security)
Elastic SIEM (Endpoint Security)
Kangaroot

IBM Qradar
IBM QradarIBM Qradar
IBM Qradar
Coenraad Smith

IBM QRadar BB & Rules
IBM QRadar BB & RulesIBM QRadar BB & Rules
IBM QRadar BB & Rules
Muhammad Abdel Aal

QRadar, ArcSight and Splunk
QRadar, ArcSight and Splunk QRadar, ArcSight and Splunk
QRadar, ArcSight and Splunk
M sharifi

Introduction to SIEM.pptx
Introduction to SIEM.pptxIntroduction to SIEM.pptx
Introduction to SIEM.pptx
neoalt

Building Security Operation Center
Building Security Operation CenterBuilding Security Operation Center
Building Security Operation Center
S.E. CTS CERT-GOV-MD

Sqrrl and IBM: Threat Hunting for QRadar Users
Sqrrl and IBM: Threat Hunting for QRadar UsersSqrrl and IBM: Threat Hunting for QRadar Users
Sqrrl and IBM: Threat Hunting for QRadar Users
Sqrrl

EDR vs SIEM - The fight is on
EDR vs SIEM - The fight is onEDR vs SIEM - The fight is on
EDR vs SIEM - The fight is on
Justin Henderson

SIEM and Threat Hunting
SIEM and Threat HuntingSIEM and Threat Hunting
SIEM and Threat Hunting
n|u - The Open Security Community


What's hot (20)

Q radar architecture deep dive
Q radar architecture   deep diveQ radar architecture   deep dive
Q radar architecture deep dive

What is SIEM? A Brilliant Guide to the Basics
What is SIEM? A Brilliant Guide to the BasicsWhat is SIEM? A Brilliant Guide to the Basics
What is SIEM? A Brilliant Guide to the Basics

What is SIEM
What is SIEMWhat is SIEM
What is SIEM

SIEM : Security Information and Event Management
SIEM : Security Information and Event Management SIEM : Security Information and Event Management
SIEM : Security Information and Event Management

SIEM presentation final
SIEM presentation finalSIEM presentation final
SIEM presentation final

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)

Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)Security Information and Event Management (SIEM)
Security Information and Event Management (SIEM)

SIEM
SIEMSIEM
SIEM

IBM Qradar & resilient
IBM Qradar & resilientIBM Qradar & resilient
IBM Qradar & resilient

SIEM Primer:
SIEM Primer:SIEM Primer:
SIEM Primer:

IBM QRadar Security Intelligence Overview
IBM QRadar Security Intelligence OverviewIBM QRadar Security Intelligence Overview
IBM QRadar Security Intelligence Overview

Elastic SIEM (Endpoint Security)
Elastic SIEM (Endpoint Security)Elastic SIEM (Endpoint Security)
Elastic SIEM (Endpoint Security)

IBM Qradar
IBM QradarIBM Qradar
IBM Qradar

IBM QRadar BB & Rules
IBM QRadar BB & RulesIBM QRadar BB & Rules
IBM QRadar BB & Rules

QRadar, ArcSight and Splunk
QRadar, ArcSight and Splunk QRadar, ArcSight and Splunk
QRadar, ArcSight and Splunk

Introduction to SIEM.pptx
Introduction to SIEM.pptxIntroduction to SIEM.pptx
Introduction to SIEM.pptx

Building Security Operation Center
Building Security Operation CenterBuilding Security Operation Center
Building Security Operation Center

Sqrrl and IBM: Threat Hunting for QRadar Users
Sqrrl and IBM: Threat Hunting for QRadar UsersSqrrl and IBM: Threat Hunting for QRadar Users
Sqrrl and IBM: Threat Hunting for QRadar Users

EDR vs SIEM - The fight is on
EDR vs SIEM - The fight is onEDR vs SIEM - The fight is on
EDR vs SIEM - The fight is on

SIEM and Threat Hunting
SIEM and Threat HuntingSIEM and Threat Hunting
SIEM and Threat Hunting


Similar to QRadar Architecture.pdf

ESM_101_6.9.0.pdf
ESM_101_6.9.0.pdfESM_101_6.9.0.pdf
ESM_101_6.9.0.pdf
Protect724v2

ESM 101 (ESM v6.9.1c)
ESM 101 (ESM v6.9.1c)ESM 101 (ESM v6.9.1c)
ESM 101 (ESM v6.9.1c)
Protect724tk

ArcSight Basics.ppt
ArcSight Basics.pptArcSight Basics.ppt
ArcSight Basics.ppt
neoalt

MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security
MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network SecurityMMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security
MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security
APNIC

Core intel
Core intelCore intel
Core intel
Krzysztof Adamski

Syslog for SIEM using iSecurity
Syslog for SIEM using iSecurity Syslog for SIEM using iSecurity
Syslog for SIEM using iSecurity
Raz-Lee Security

IBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptxIBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptx
infosec train

IBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptxIBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptx
Infosectrain3

RuSIEM overview (english version)
RuSIEM overview (english version)RuSIEM overview (english version)
RuSIEM overview (english version)
Olesya Shelestova

EventLog Analyzer - Product overview
EventLog Analyzer - Product overviewEventLog Analyzer - Product overview
EventLog Analyzer - Product overview
ManageEngine EventLog Analyzer

ING CoreIntel - collect and process network logs across data centers in near ...
ING CoreIntel - collect and process network logs across data centers in near ...ING CoreIntel - collect and process network logs across data centers in near ...
ING CoreIntel - collect and process network logs across data centers in near ...
Evention

Shaping a Digital Vision
Shaping a Digital VisionShaping a Digital Vision
Shaping a Digital Vision
DataWorks Summit/Hadoop Summit

Opmanager Workshop - Middle East
Opmanager Workshop - Middle EastOpmanager Workshop - Middle East
Opmanager Workshop - Middle East
ManageEngine, Zoho Corporation

ISACA -Threat Hunting using Native Windows tools .pdf
ISACA -Threat Hunting using Native Windows tools .pdfISACA -Threat Hunting using Native Windows tools .pdf
ISACA -Threat Hunting using Native Windows tools .pdf
Gurvinder Singh, CISSP, CISA, ITIL v3

Get Mainframe Visibility to Enhance SIEM Efforts in Splunk
Get Mainframe Visibility to Enhance SIEM Efforts in SplunkGet Mainframe Visibility to Enhance SIEM Efforts in Splunk
Get Mainframe Visibility to Enhance SIEM Efforts in Splunk
Precisely

Overall Security Process Review CISC 6621Agend.docx
Overall Security Process Review CISC 6621Agend.docxOverall Security Process Review CISC 6621Agend.docx
Overall Security Process Review CISC 6621Agend.docx
karlhennesey

PCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting
PCI DSS Reporting Requirements for People Who Hate PCI DSS ReportingPCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting
PCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting
AlienVault

[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale
[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale
[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale
DataScienceConferenc1

EASING THE COMPLIANCE BURDEN SAGAN SOLUTION & PCI COMPLIANCE
EASING THE COMPLIANCE BURDEN  SAGAN SOLUTION & PCI COMPLIANCEEASING THE COMPLIANCE BURDEN  SAGAN SOLUTION & PCI COMPLIANCE
EASING THE COMPLIANCE BURDEN SAGAN SOLUTION & PCI COMPLIANCE
Alex Himmelberg

Infocyte - Digital Forensics and Incident Response (DFIR) Training Session
Infocyte - Digital Forensics and Incident Response (DFIR) Training SessionInfocyte - Digital Forensics and Incident Response (DFIR) Training Session
Infocyte - Digital Forensics and Incident Response (DFIR) Training Session
Infocyte


Similar to QRadar Architecture.pdf (20)

ESM_101_6.9.0.pdf
ESM_101_6.9.0.pdfESM_101_6.9.0.pdf
ESM_101_6.9.0.pdf

ESM 101 (ESM v6.9.1c)
ESM 101 (ESM v6.9.1c)ESM 101 (ESM v6.9.1c)
ESM 101 (ESM v6.9.1c)

ArcSight Basics.ppt
ArcSight Basics.pptArcSight Basics.ppt
ArcSight Basics.ppt

MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security
MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network SecurityMMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security
MMIX Peering Forum and MMNOG 2020: Packet Analysis for Network Security

Core intel
Core intelCore intel
Core intel

Syslog for SIEM using iSecurity
Syslog for SIEM using iSecurity Syslog for SIEM using iSecurity
Syslog for SIEM using iSecurity

IBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptxIBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptx

IBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptxIBM QRadar’s DomainTools Application.pptx
IBM QRadar’s DomainTools Application.pptx

RuSIEM overview (english version)
RuSIEM overview (english version)RuSIEM overview (english version)
RuSIEM overview (english version)

EventLog Analyzer - Product overview
EventLog Analyzer - Product overviewEventLog Analyzer - Product overview
EventLog Analyzer - Product overview

ING CoreIntel - collect and process network logs across data centers in near ...
ING CoreIntel - collect and process network logs across data centers in near ...ING CoreIntel - collect and process network logs across data centers in near ...
ING CoreIntel - collect and process network logs across data centers in near ...

Shaping a Digital Vision
Shaping a Digital VisionShaping a Digital Vision
Shaping a Digital Vision

Opmanager Workshop - Middle East
Opmanager Workshop - Middle EastOpmanager Workshop - Middle East
Opmanager Workshop - Middle East

ISACA -Threat Hunting using Native Windows tools .pdf
ISACA -Threat Hunting using Native Windows tools .pdfISACA -Threat Hunting using Native Windows tools .pdf
ISACA -Threat Hunting using Native Windows tools .pdf

Get Mainframe Visibility to Enhance SIEM Efforts in Splunk
Get Mainframe Visibility to Enhance SIEM Efforts in SplunkGet Mainframe Visibility to Enhance SIEM Efforts in Splunk
Get Mainframe Visibility to Enhance SIEM Efforts in Splunk

Overall Security Process Review CISC 6621Agend.docx
Overall Security Process Review CISC 6621Agend.docxOverall Security Process Review CISC 6621Agend.docx
Overall Security Process Review CISC 6621Agend.docx

PCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting
PCI DSS Reporting Requirements for People Who Hate PCI DSS ReportingPCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting
PCI DSS Reporting Requirements for People Who Hate PCI DSS Reporting

[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale
[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale
[DSC Europe 23] Pramod Immaneni - Real-time analytics at IoT scale

EASING THE COMPLIANCE BURDEN SAGAN SOLUTION & PCI COMPLIANCE
EASING THE COMPLIANCE BURDEN  SAGAN SOLUTION & PCI COMPLIANCEEASING THE COMPLIANCE BURDEN  SAGAN SOLUTION & PCI COMPLIANCE
EASING THE COMPLIANCE BURDEN SAGAN SOLUTION & PCI COMPLIANCE

Infocyte - Digital Forensics and Incident Response (DFIR) Training Session
Infocyte - Digital Forensics and Incident Response (DFIR) Training SessionInfocyte - Digital Forensics and Incident Response (DFIR) Training Session
Infocyte - Digital Forensics and Incident Response (DFIR) Training Session


More from PencilData

Sun硬件产品介绍
Sun硬件产品介绍Sun硬件产品介绍
Sun硬件产品介绍
PencilData

Sun-Product-line-Update-V2.pdf
Sun-Product-line-Update-V2.pdfSun-Product-line-Update-V2.pdf
Sun-Product-line-Update-V2.pdf
PencilData

SUN+Oracle存储产品介绍
SUN+Oracle存储产品介绍SUN+Oracle存储产品介绍
SUN+Oracle存储产品介绍
PencilData

SUN主机产品介绍.ppt
SUN主机产品介绍.pptSUN主机产品介绍.ppt
SUN主机产品介绍.ppt
PencilData

Sun全线硬件产品.ppt
Sun全线硬件产品.pptSun全线硬件产品.ppt
Sun全线硬件产品.ppt
PencilData

User Interface and Data Sources.pdf
User Interface and Data Sources.pdfUser Interface and Data Sources.pdf
User Interface and Data Sources.pdf
PencilData


More from PencilData (6)

Sun硬件产品介绍
Sun硬件产品介绍Sun硬件产品介绍
Sun硬件产品介绍

Sun-Product-line-Update-V2.pdf
Sun-Product-line-Update-V2.pdfSun-Product-line-Update-V2.pdf
Sun-Product-line-Update-V2.pdf

SUN+Oracle存储产品介绍
SUN+Oracle存储产品介绍SUN+Oracle存储产品介绍
SUN+Oracle存储产品介绍

SUN主机产品介绍.ppt
SUN主机产品介绍.pptSUN主机产品介绍.ppt
SUN主机产品介绍.ppt

Sun全线硬件产品.ppt
Sun全线硬件产品.pptSun全线硬件产品.ppt
Sun全线硬件产品.ppt

User Interface and Data Sources.pdf
User Interface and Data Sources.pdfUser Interface and Data Sources.pdf
User Interface and Data Sources.pdf


Recently uploaded

Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...
Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...
Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...
Luigi Fugaro

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

Assure Contact Center Experiences for Your Customers With ThousandEyes
Assure Contact Center Experiences for Your Customers With ThousandEyesAssure Contact Center Experiences for Your Customers With ThousandEyes
Assure Contact Center Experiences for Your Customers With ThousandEyes
ThousandEyes

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf
kalichargn70th171

Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...
Paul Brebner

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf
kalichargn70th171

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
dakas1

Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...
OnePlan Solutions

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
sandeepmenon62

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps
Jhone kinadey

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024
Yara Milbes

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio, Inc.

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
safelyiotech

Penify - Let AI do the Documentation, you write the Code.
Penify - Let AI do the Documentation, you write the Code.Penify - Let AI do the Documentation, you write the Code.
Penify - Let AI do the Documentation, you write the Code.
KrishnaveniMohan1

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
gapen1

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
Bert Jan Schrijver

The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
kalichargn70th171


Recently uploaded (20)

Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...
Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...
Voxxed Days Trieste 2024 - Unleashing the Power of Vector Search and Semantic...

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

Assure Contact Center Experiences for Your Customers With ThousandEyes
Assure Contact Center Experiences for Your Customers With ThousandEyesAssure Contact Center Experiences for Your Customers With ThousandEyes
Assure Contact Center Experiences for Your Customers With ThousandEyes

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf

Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)

Penify - Let AI do the Documentation, you write the Code.
Penify - Let AI do the Documentation, you write the Code.Penify - Let AI do the Documentation, you write the Code.
Penify - Let AI do the Documentation, you write the Code.

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...

The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...


QRadar Architecture.pdf

  • 2. How QRadar SIEM Collects Security Data
  • 3. 3 IBM Security QRadar Data Flow - Overall
  • 4. 4 IBM Security From an Appliance Perspective Event Collector Capabilities Event Collector (ecs-ec-ingress) Event Collector (ecs-ec)
  • 5. 5 IBM Security From an Appliance Perspective Event/Flow Processor Capabilities Event Collector (ecs-ec-ingress) + Event Collector (ecs-ec) Event Processor (ecs-ep)
  • 6. 6 IBM Security From an Appliance Perspective AIO/Console Capabilities Event Collector (ecs-ec-ingress) + Event Collector (ecs-ec) Event Processor (ecs-ep) Magistrate
  • 7. 7 IBM Security High-level component architecture and data stores • Flow and event data is stored in the Ariel database on the event processors ̶ If accumulation is required, accumulated data is stored in Ariel accumulation data tables ̶ As soon as data is stored, it cannot be changed (tamper proof) ̶ Data can be selectively indexed • Offenses, assets, and identity information are stored in the master PostgreSQL database on the Console ̶ Provides one master database with copies on each processor for backup and automatic restore • Secure SSH communication between appliances in a distributed environment is supported Console services User interface Magistrate Reporting Event processor Flow collector Event collector Identities Assets Offenses Configuration Flows Events Accumulations Network packet interface, sFlow, and 3rd party Events from log sources 7
  • 8. 8 IBM Security Event and Flow Collection
  • 9. 9 IBM Security QRadar Data Flow - Overall
  • 10. 10 IBM Security Collecting and Normalizing raw events • An event is a record from a device that describes an action on a network or host • QRadar SIEM normalizes the varied information found in raw events ̶ Normalizing means to map information to common field names, for example • SRC_IP, Source, IP, and others are normalized to Source IP • user_name, username, login, and others are normalized to User ̶ Normalized events are mapped to high-level and low-level categories to facilitate further processing • After raw events are normalized, it is easy to search, report, and cross-correlate these normalized events
  • 11. 11 IBM Security Event data pipeline Event Data Protocols Throttle Filter Licensing Event Collector – Ingress (ecs- ec-ingress) Event Collector (ecs-ec) Event data is sent to or pulled by QRadar Event Collector Ingress – Responsible for collecting data at all times (zero event loss) Data is collected and buffered during patch and deploys and processed once the operation is complete Protocols – Reads or pulls raw data from network devices (e.g: Windows Servers, Firewalls, etc) Throttle Filter - Licensing - On a second-by-second basis, slows down the incoming rate so it does not exceed the license on the appliance. Events are sent to ecs-ec-parse to be parsed
  • 12. 12 IBM Security Event data pipeline Qflow Parsing (DSM, LSX, CEP) Coalescing Forwarding Log Only/Data Sore Event Collector (ecs-ec) Event Processor Event data is received from the ecs-ec-ingress Parsing – DSMs / LSX / CEP – take the raw data and normalize it into a common structure. Coalescing - “Event Compression”. Find nearly identical events and delete one and increase the event count on the record. Key is: source IP, dest IP, dest port, QID, username Forwarding - Applies routing rules for the system, such as sending event data to offsite targets, external Syslog systems, JSON systems, and other SIEMs. Log Only/Data Store supports the storage of an unlimited number of logs without counting against the EPS License Events are then sent to the Event Processor component and pass through the Custom Rules Engine (CRE). They are tested and correlated against the rules that are configured Event Collector – Ingress (ecs- ec-ingress)
  • 13. 13 IBM Security Events not counted against the EPS licenses - The list of log source types that do not incur EPS hits are as follows: - System Notification - CRE - SIM Audit - Anomaly Detection Engine - Asset Profiler - Search Results from scheduled searches - Health Metrics - Risk Manager questions, Simulations and internal logging - Log Only/Data Store - Supports the storage of an unlimited number of logs without counting against the EPS QRadar SIEM license - Enables an organization to build custom apps and reports based on this stored data to gain deeper insights into IT environments.
  • 14. 14 IBM Security Event Coalescing - Event Coalescing is a method of reducing the data going through the pipeline. - As data arrives in the pipeline QRadar will attempt to group like events together into a single event. - Coalescing occurs after licensing and parsing - Coalescing is indexed by Log Source, QID, Source IP, Destination IP, Destination Port and Username. - If more than 4 events arrive within a 10 second window with these properties being identical any additional events beyond the 4th will be collapsed together. - Coalesced events can be identified by looking at the Event Count column in the log viewer, if the Event Count is >1 the event has been coalesced. - Coalescing can be turned on or off per log source or by changing the default setting in the system setting page.
  • 15. 15 IBM Security QRadar Data Flow - Overall
  • 16. 16 IBM Security Flow collection and processing • A flow is a communication session between two hosts • QFlow Collectors read packets from the wire or receive flows from other devices • QFlow Collectors convert all gathered network data to flow records similar normalized events; they include such details as: ̶ when, who, how much, protocols, and options.
  • 17. 17 IBM Security Flow pipeline Flows Qflow Asymmetric Recombination De-Duplication Flow Governor (Licensing) CFP Parsing Flow Forwarding Event Collector Event Processor The QFlow component collects and creates flow information from internal and external flow sources Event Collector – Responsible for parsing and normalizing incoming flows Asymmetric recombination - Responsible for combining two sides of each flow when data is provided asymmetrically Deduplication - Flow deduplication is a process that removes duplicate flows when multiple Flow Collectors provide data to Flow Processors appliances. Flow Governor - Monitors the number of incoming flows to the system to manage input queues and licensing. Custom flow properties – extracts any properties defined in the Custom Flow Properties Forwarding - Applies routing rules for the system, such as sending flow data to offsite targets, external Syslog systems, JSON systems, and other SIEMs. Flows are then sent to the Event Processor component and pass through the Custom Rules Engine (CRE). They are tested and correlated against the rules that are configured
  • 18. 18 IBM Security QRadar Data Flow - Overall
  • 19. 19 IBM Security Event & Flow Correlation and Processing Event Collector Licensing CRE Storage and Indexing Host Profiling Real Time streaming Event Processor Magistrate Asset Profiler Ariel Licensing is applied again on ingress to the EP After Events and Flows are normalized they are then sent to the Event Processor for processing The CRE or Custom Rules Engine Applies the correlation rules that were created in the UI. Flow data is then sent to the Ariel Database for storage. Host Profiling – Also called passive profiling or passive scanning. Watches flows on the network in order to make educated guesses about which IPs/assets exist and what ports are open. Streaming – Responsible for the “real time (streaming)” view in User Interface If an event matches a rule, the Magistrate component generates the response that is configure in the custom rule
  • 20. 20 IBM Security QRadar Data Flow - Overall
  • 21. 21 IBM Security Magistrate • The Magistrate creates and stores offenses in the PostgreSQL database; these offenses are then brought to the analyst’s attention in the interface • The Magistrate instructs the Ariel Proxy Server to gather information about all events and flows that triggered the creation of an offense • The Vulnerability Information Server (VIS) creates new assets or adds open ports to existing assets based on information from the EPs • The Anomaly Detection Engine (ADE) searches the Accumulator databases for anomalies, which are then used for offense evaluation
  • 22. 22 IBM Security Ariel Components Ariel Ariel Ariel Event Processor Accumulator Historical Correlation Ariel Proxy Server Ariel Query Server Offline Forwarder Report Runner
  • 23. 23 IBM Security Asset and Vulnerability Flow Ariel ecs-ep Event Processor Scanners/QVM/3rd Party ecs-ec (event collector Asset Profiler vis (Vulnerability integration service) Identity Data Passive Profiling POSTGRES
  • 24. 24 IBM Security Active scanners For vulnerability assessment (VA) and maintaining asset profiles, QRadar SIEM can also integrate with many active scanners • You can schedule Nessus, Nmap, and IBM Security QRadar Vulnerability Manager scanner directly in QRadar SIEM • For other scanners, you schedule only the collection of scan results in QRadar SIEM but not the scan itself
  • 25. 25 IBM Security Gathering asset information Active scanners QRadar Vulnerability Manager scanner, Nessus, Nmap, Qualys, and others Provide: • List of hosts with risks and potential vulnerabilities • IP and MAC addresses • Open ports • Services and versions • Operating system Pros • Detailed host information • Policy and compliance information Cons • Out of date quickly • Full network scans can take weeks • Active scanners cannot scan past firewalls • User can hide from active scans Passive detection Flows from QFlow, or other flow sources in accounting technologies such as IPFIX/NetFlow, sFlow, and others Provide: • IP addresses in use • Open ports in use Pros • Real-time asset profile updates • Firewalls have no impact • End system cannot hide • Policy and compliance information Cons • Not as detailed as active scans • Does not detect installed but unused services or ports
  • 26. 26 IBM Security Hostcontext Reporting Executor Report Runner Tomcat “Owns” the host it is responsible for starting and stopping processes and for overall system health and backups. A stopwatch responsible for keeping track of reports and when they should run and then instantiating the report runner The process that actually generates the reports, querying postgres, Ariel, etc.. Process that drives our web UI and serves up web pages. Historical Correlation Processor Process that is responsible for historical correlation. Runs a specified search, runs the results through CRE rules (based on QRadar time or device time) and generates offenses The Remainder
  • 27. 27 IBM Security QRadar Data Flow - Overall
  • 28. 28 IBM Security Dissecting the flow of a captured event (Example) © COPYRIGHT IBM CORPORATION 2017 Event processor Event collector No Overflow filter (enforce license limit) License exceeded? Buffer overflow events and feed back into stream when input below limit DSM normalization filter Device Support Module (DSM) Parser for firewall Yes Traffic Analysis (Log source discovery) Log source known? Create new log source No Yes Coalescing Filter FW Deny event FW Deny event FW Deny events 1 2 3 4 5 28
  • 29. 29 IBM Security Firewall Deny Event Firewall Deny Event Dissecting the flow of a captured event (continued) © COPYRIGHT IBM CORPORATION 2017 Console Event processor No Event collectors Overflow filter (enforce license limit) License exceeded? Buffer overflow events and feed back into stream when input below limit Yes No Event Storage Streaming to Log Activity tab in real time Ariel DB Flows Events Accumulator Ariel DB Accumulation s Host Profiler 6 Custom Rule Engine (CRE) New host or port found? Yes Normalized events Rule Processing and Correlation 1 2 3 5 4 29
  • 30. 30 IBM Security Dissecting the flow of a captured event (continued) © COPYRIGHT IBM CORPORATION 2017 Console No Event processors Overflow filter (enforce license limit) License exceeded? Buffer overflow events and feed back into stream when input below limit Yes Ariel DB Flows Events Accumulator Processed events Magistrate Custom Rule Engine (CRE) Offenses (PostgreSQL) Ariel Proxy Ariel Query Server Anomaly Detection Engine Vulnerability Information Server Host Profiler Assets (PostgreSQL) 1 2 3 4 5 6 30
  • 31. ibm.com/security securityintelligence.com xforce.ibmcloud.com @ibmsecurity youtube/user/ibmsecuritysolutions © Copyright IBM Corporation 2016. All rights reserved. The information contained in these materials is provided for informational purposes only, and is provided AS IS without warranty of any kind, express or implied. Any statement of direction represents IBM's current intent, is subject to change or withdrawal, and represent only goals and objectives. IBM, the IBM logo, and other IBM products and services are trademarks of the International Business Machines Corporation, in the United States, other countries or both. Other company, product, or service names may be trademarks or service marks of others. Statement of Good Security Practices: IT system security involves protecting systems and information through prevention, detection and response to improper access from within and outside your enterprise. Improper access can result in information being altered, destroyed, misappropriated or misused or can result in damage to or misuse of your systems, including for use in attacks on others. No IT system or product should be considered completely secure and no single product, service or security measure can be completely effective in preventing improper use or access. IBM systems, products and services are designed to be part of a lawful, comprehensive security approach, which will necessarily involve additional operational procedures, and may require other systems, products or services to be most effective. IBM does not warrant that any systems, products or services are immune from, or will make your enterprise immune from, the malicious or illegal conduct of any party. FOLLOW US ON: THANK YOU
