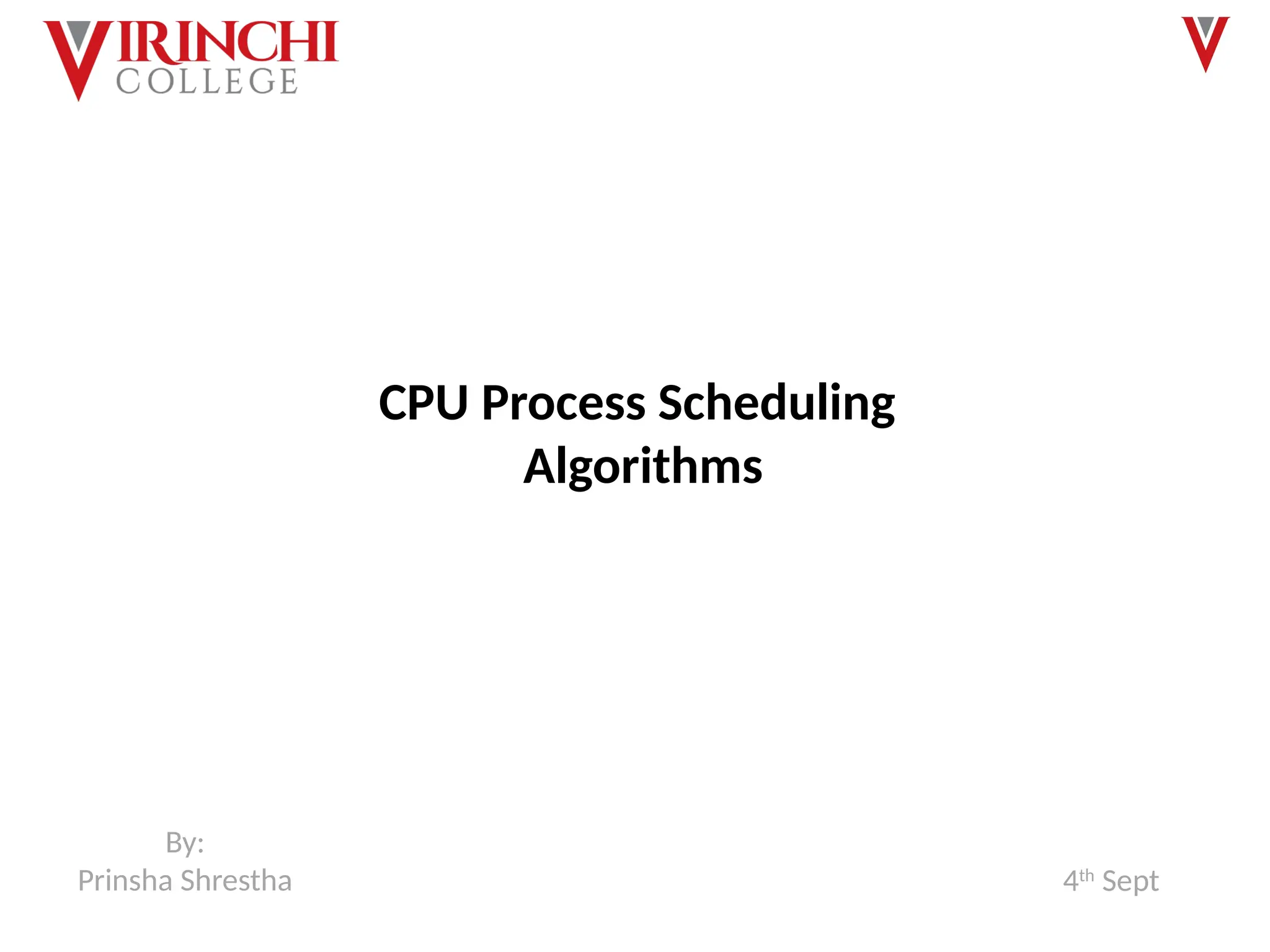

1. CPU Process Scheduling
Algorithms
By:
Prinsha Shrestha 4th
Sept

2. CPU Process Scheduling Algorithms
• CPU process scheduling is a critical component of operating systems.
• It determines how processes are allocated CPU time.
• It manages what process gets CPU time and for how much time.
• It ensures that there is maximum utilization of CPU.

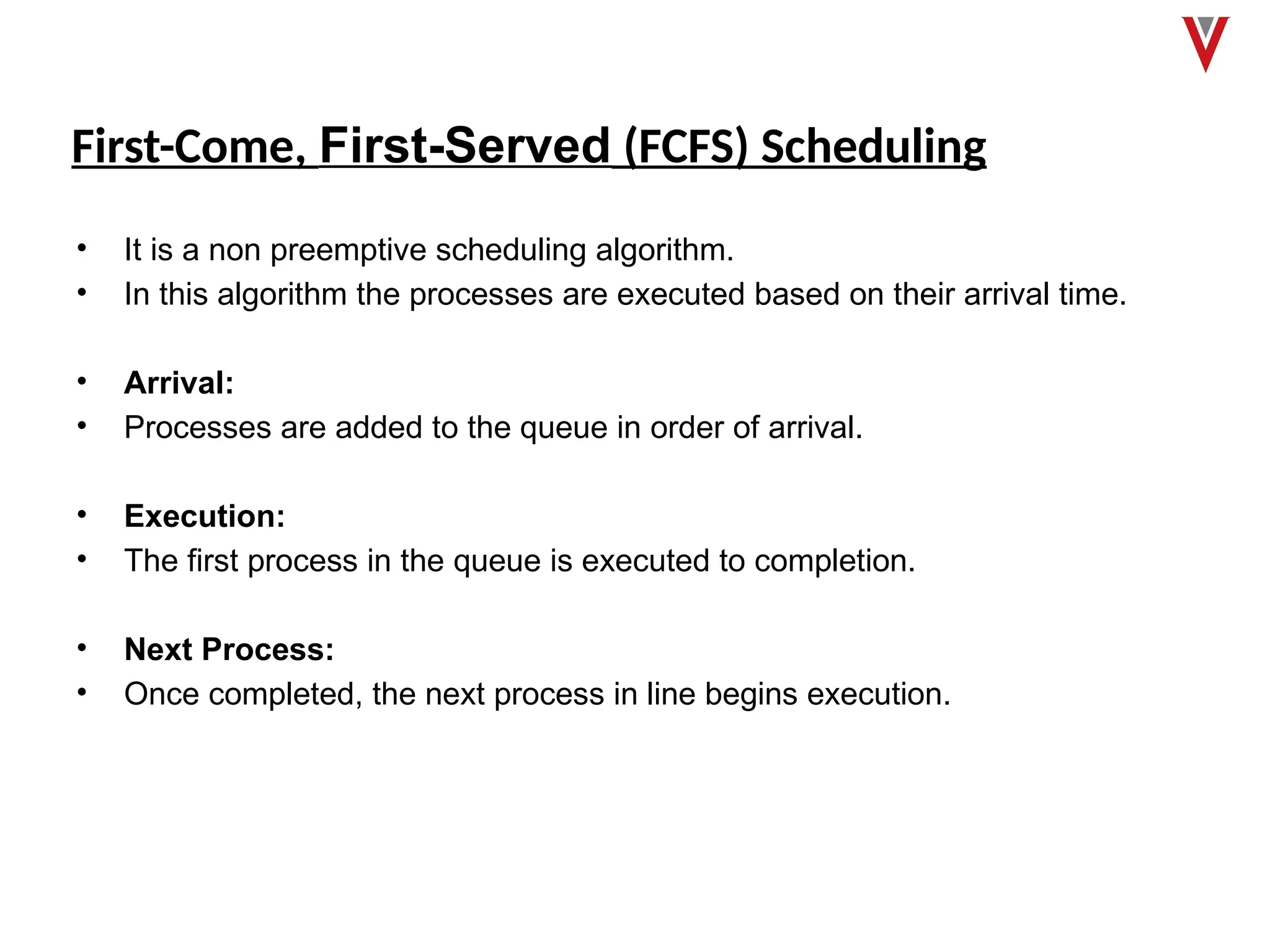

3. First-Come, First-Served (FCFS) Scheduling
• It is a non preemptive scheduling algorithm.
• In this algorithm the processes are executed based on their arrival time.
• Arrival:
• Processes are added to the queue in order of arrival.
• Execution:
• The first process in the queue is executed to completion.
• Next Process:
• Once completed, the next process in line begins execution.

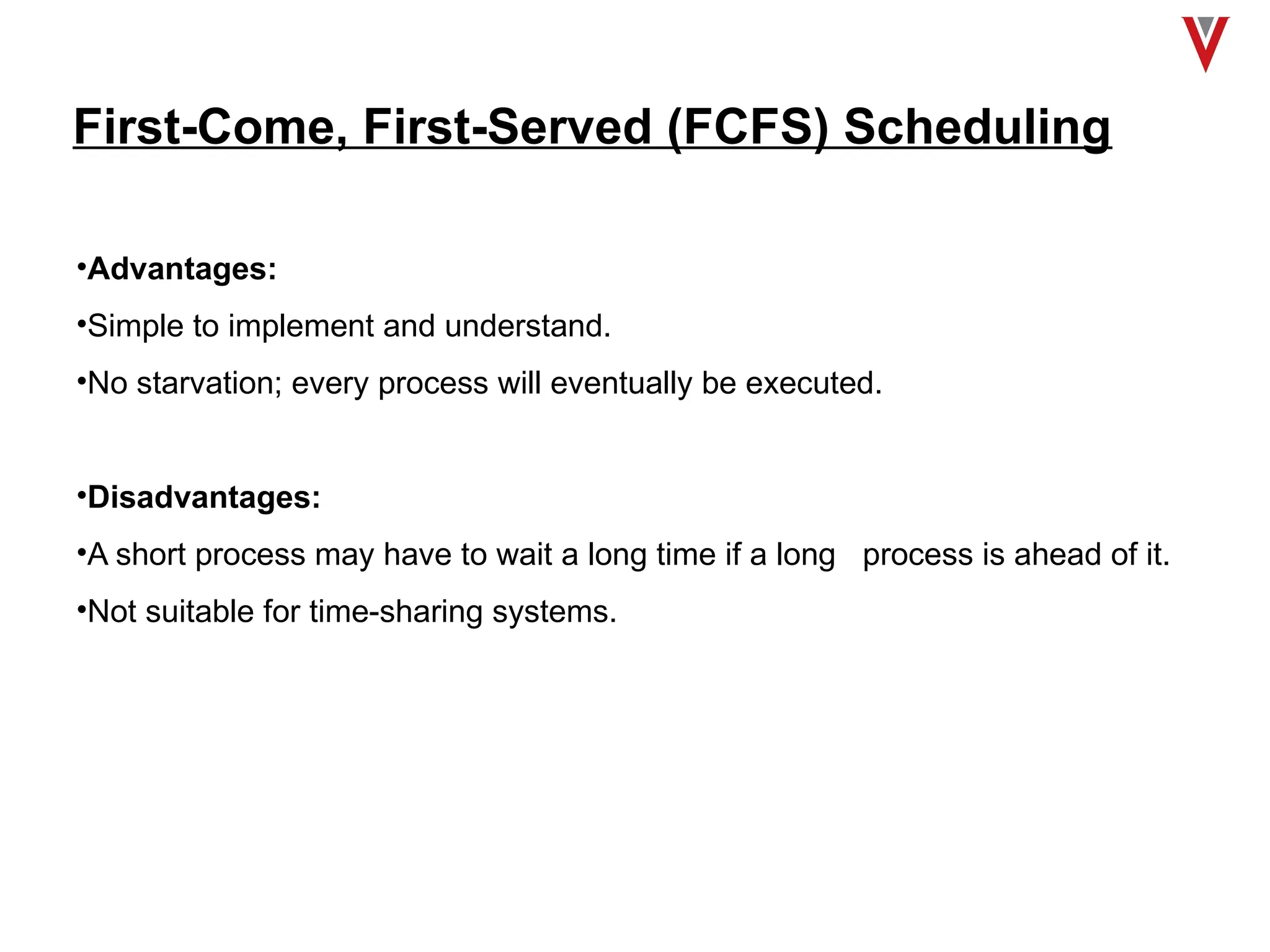

4. First-Come, First-Served (FCFS) Scheduling
•Advantages:
•Simple to implement and understand.
•No starvation; every process will eventually be executed.
•Disadvantages:
•A short process may have to wait a long time if a long process is ahead of it.
•Not suitable for time-sharing systems.

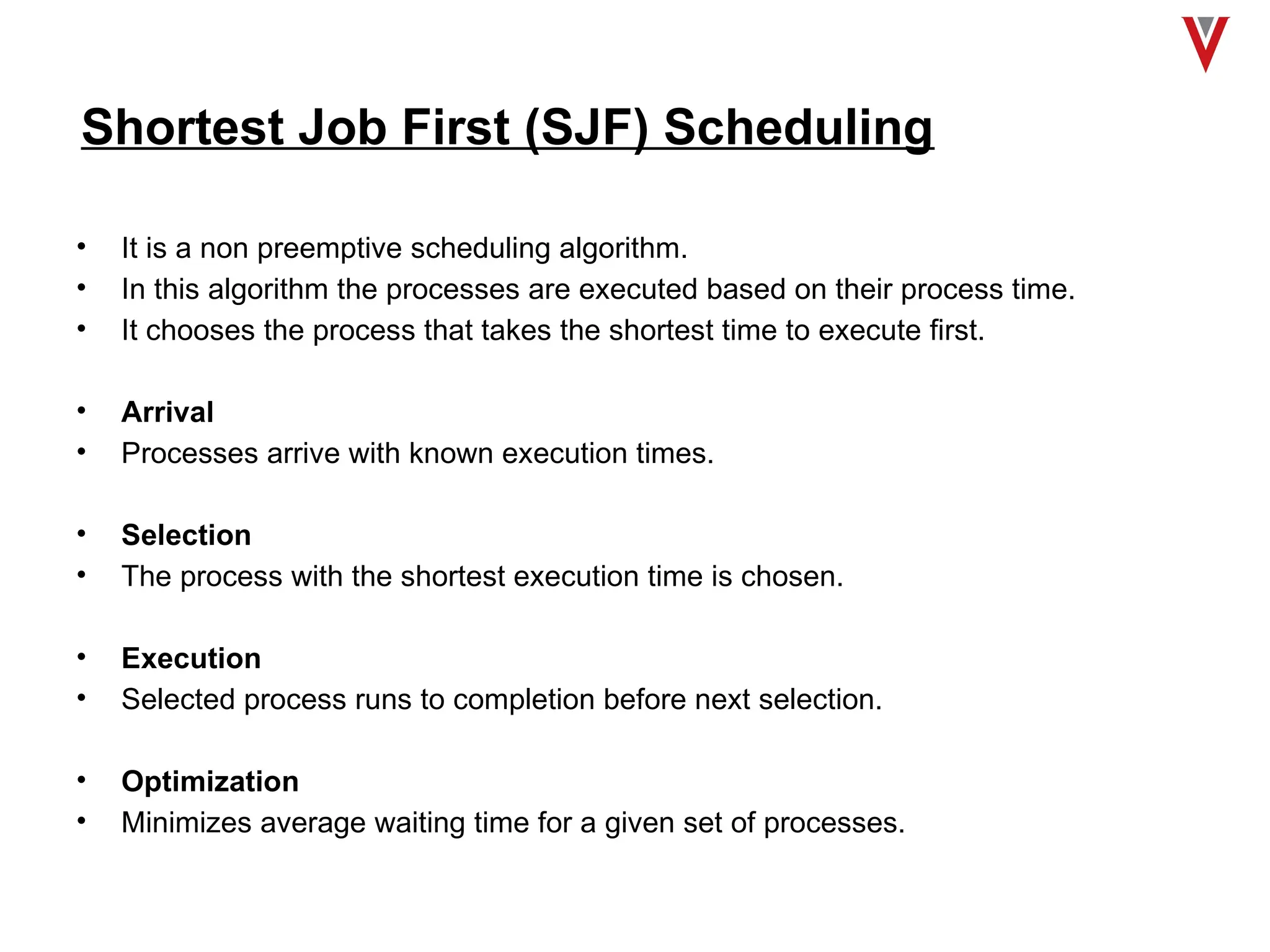

5. Shortest Job First (SJF) Scheduling
• It is a non preemptive scheduling algorithm.
• In this algorithm the processes are executed based on their process time.
• It chooses the process that takes the shortest time to execute first.
• Arrival
• Processes arrive with known execution times.
• Selection
• The process with the shortest execution time is chosen.
• Execution
• Selected process runs to completion before next selection.
• Optimization
• Minimizes average waiting time for a given set of processes.

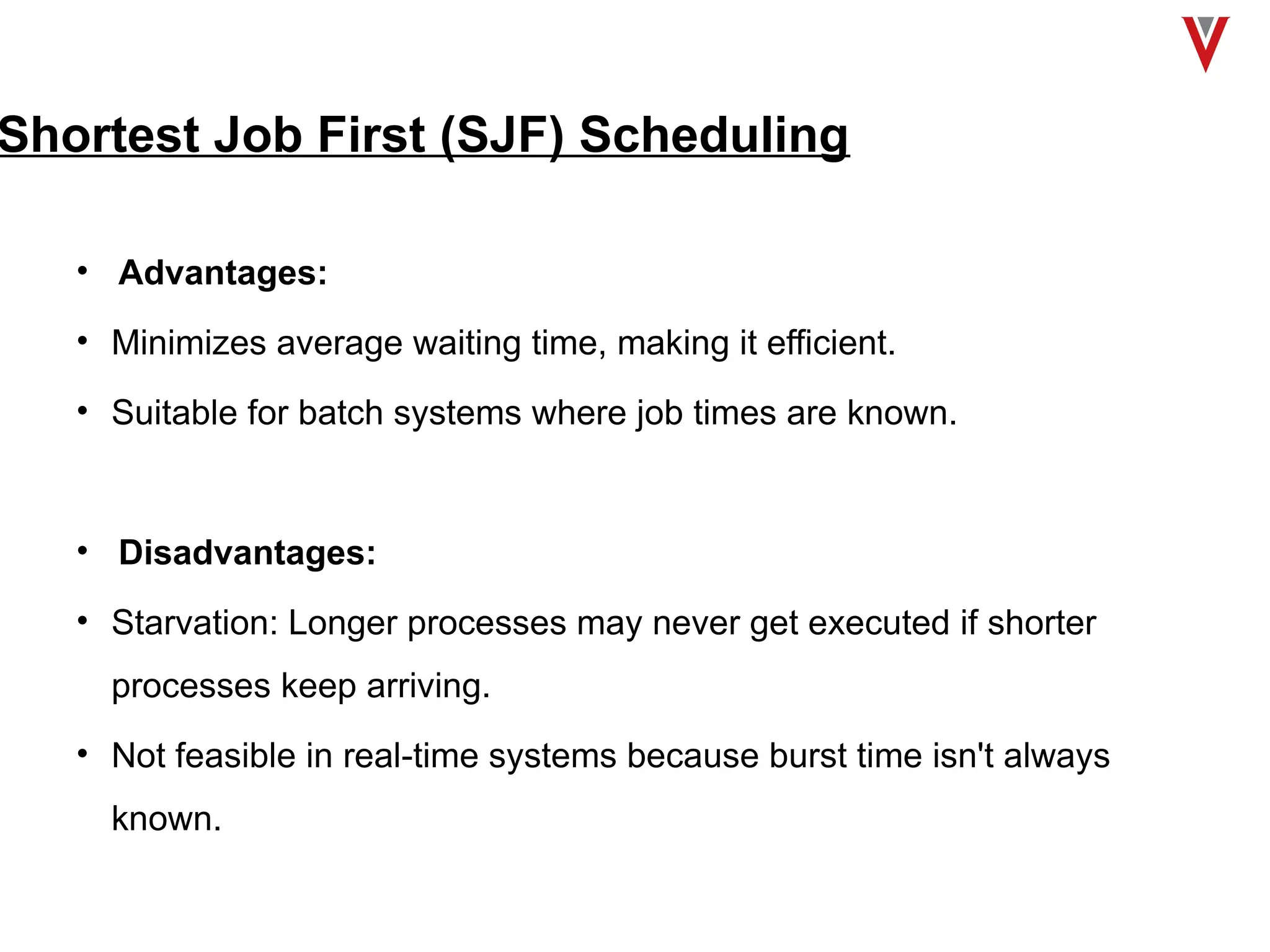

6. Shortest Job First (SJF) Scheduling
• Advantages:
• Minimizes average waiting time, making it efficient.
• Suitable for batch systems where job times are known.
• Disadvantages:
• Starvation: Longer processes may never get executed if shorter
processes keep arriving.
• Not feasible in real-time systems because burst time isn't always
known.

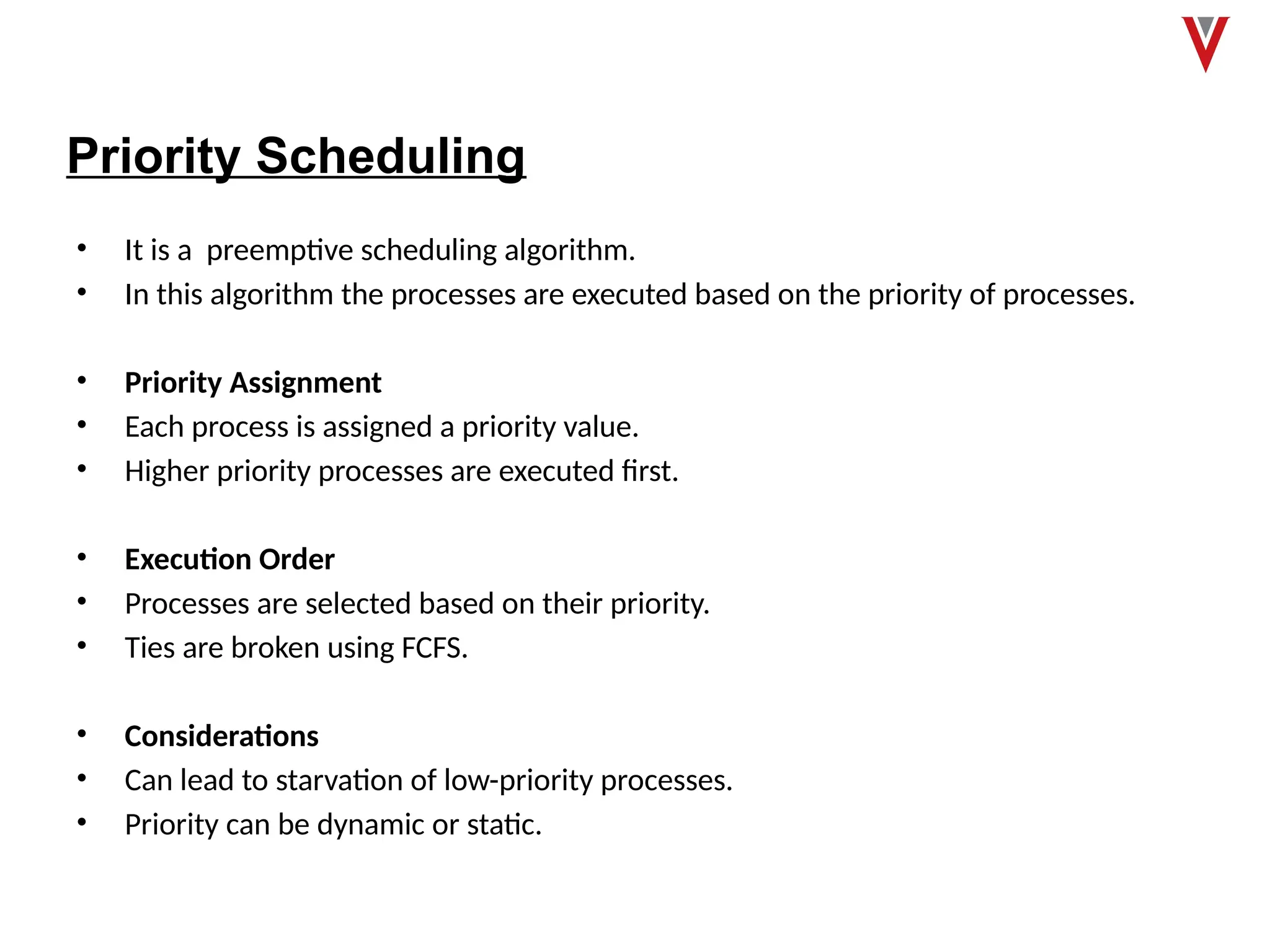

7. Priority Scheduling
• It is a preemptive scheduling algorithm.
• In this algorithm the processes are executed based on the priority of processes.
• Priority Assignment
• Each process is assigned a priority value.
• Higher priority processes are executed first.
• Execution Order
• Processes are selected based on their priority.
• Ties are broken using FCFS.
• Considerations
• Can lead to starvation of low-priority processes.
• Priority can be dynamic or static.

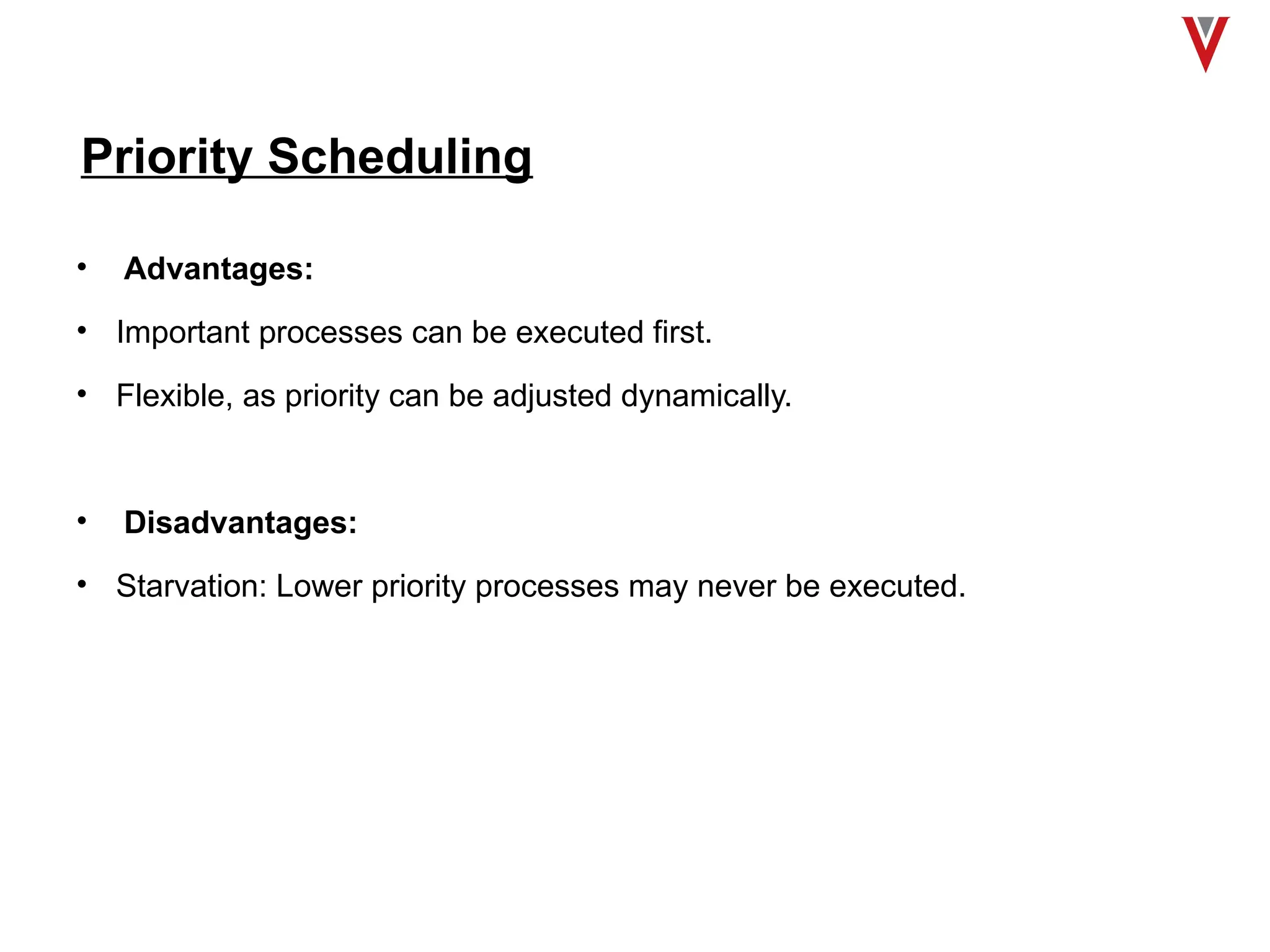

8. Priority Scheduling
• Advantages:
• Important processes can be executed first.
• Flexible, as priority can be adjusted dynamically.
• Disadvantages:
• Starvation: Lower priority processes may never be executed.

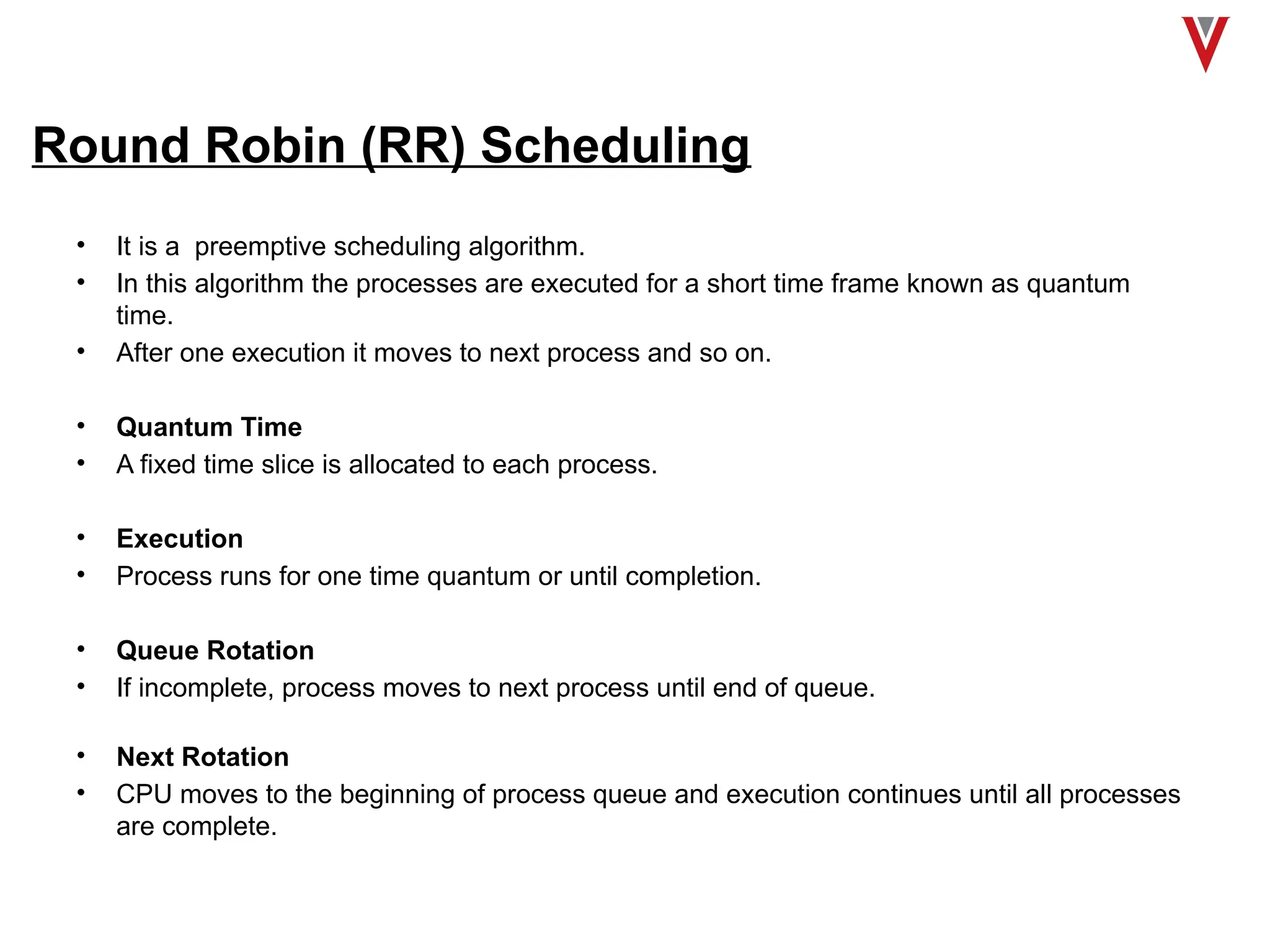

9. Round Robin (RR) Scheduling
• It is a preemptive scheduling algorithm.
• In this algorithm the processes are executed for a short time frame known as quantum
time.
• After one execution it moves to next process and so on.
• Quantum Time
• A fixed time slice is allocated to each process.
• Execution
• Process runs for one time quantum or until completion.
• Queue Rotation
• If incomplete, process moves to next process until end of queue.
• Next Rotation
• CPU moves to the beginning of process queue and execution continues until all processes
are complete.

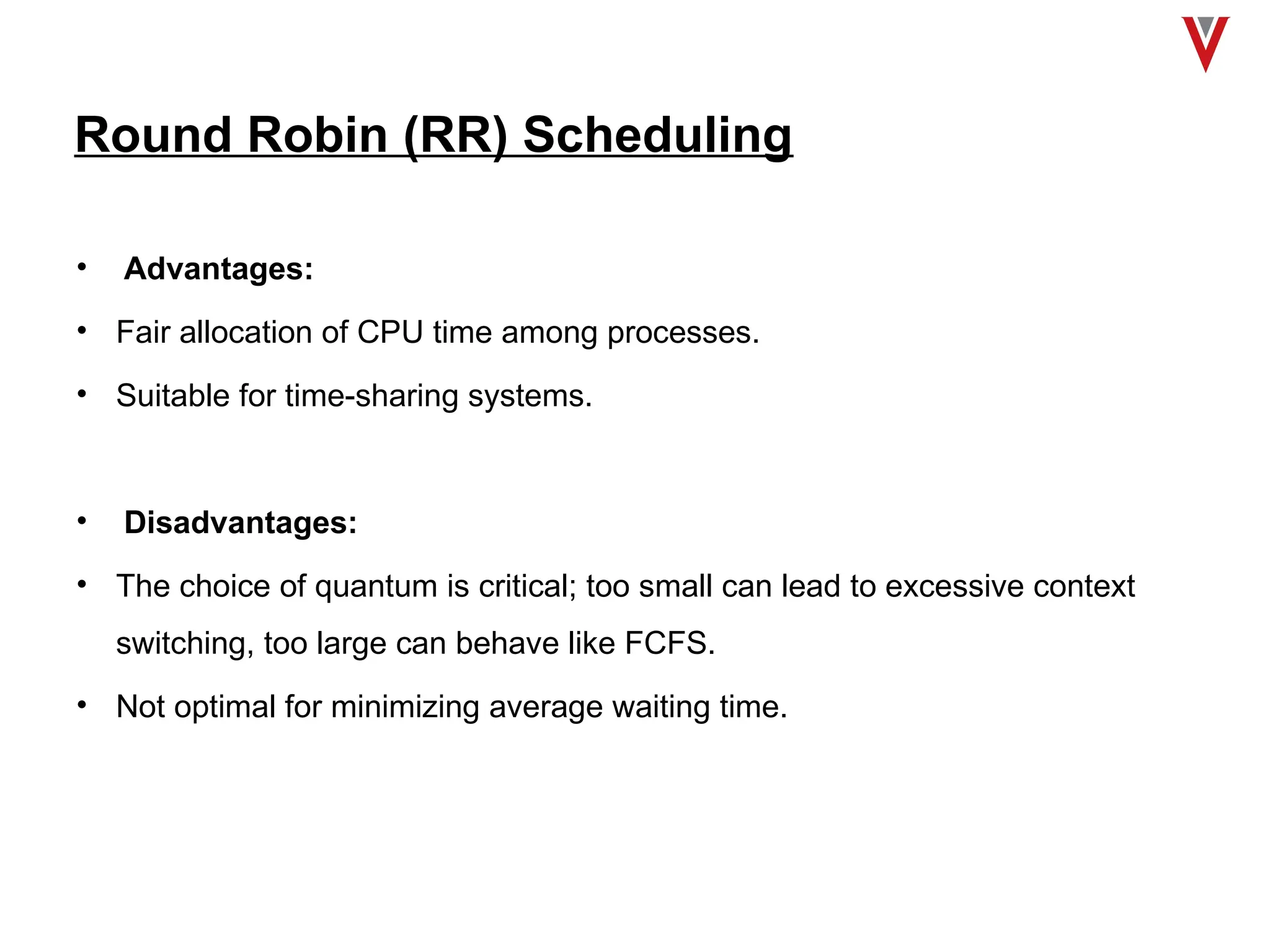

10. Round Robin (RR) Scheduling
• Advantages:
• Fair allocation of CPU time among processes.
• Suitable for time-sharing systems.
• Disadvantages:
• The choice of quantum is critical; too small can lead to excessive context
switching, too large can behave like FCFS.
• Not optimal for minimizing average waiting time.

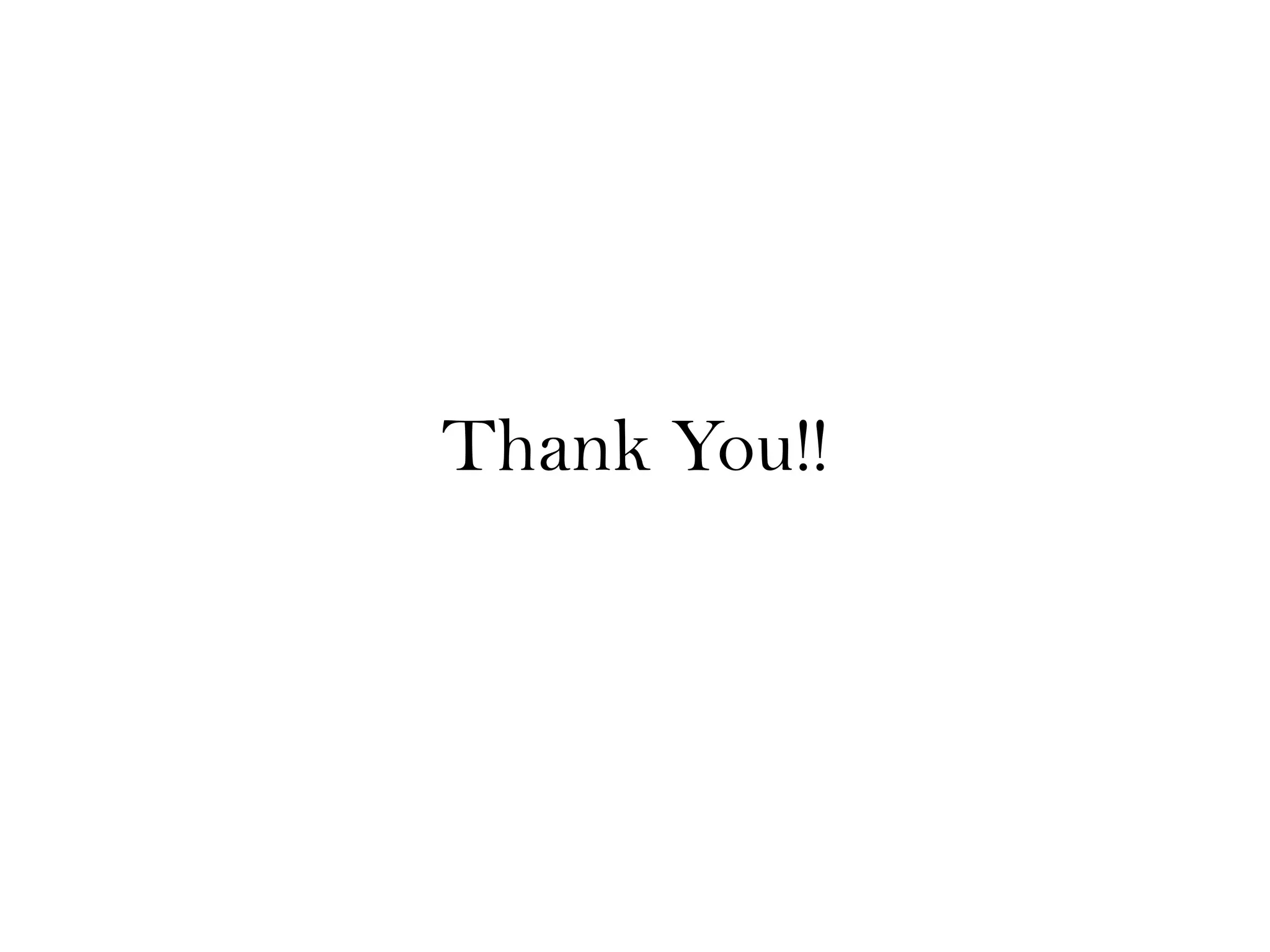

11. Thank You!!
