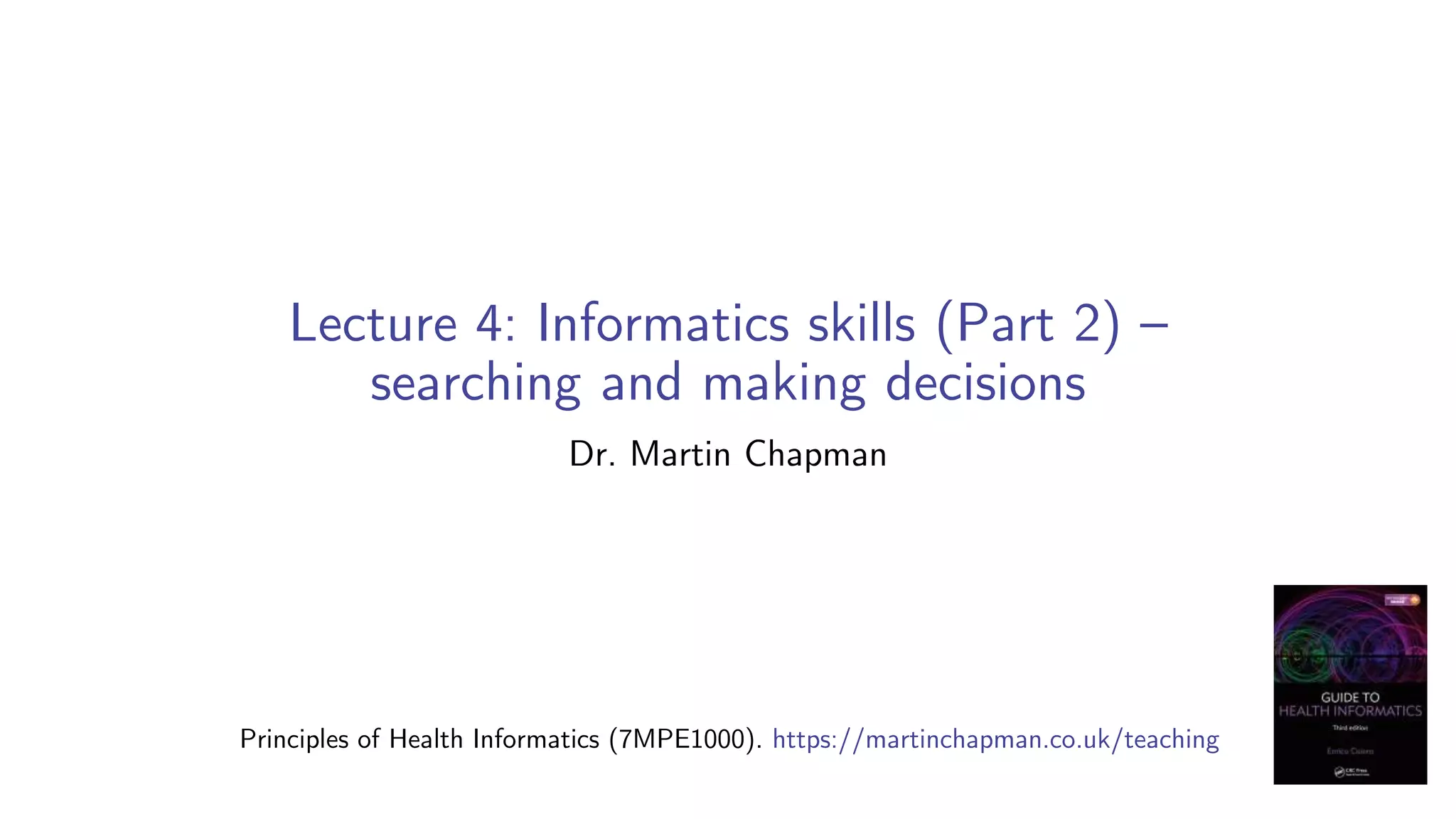

Lecture 4: Informatics skills (Part 2) –
searching and making decisions
Dr. Martin Chapman
Principles of Health Informatics (7MPE1000). https://martinchapman.co.uk/teaching

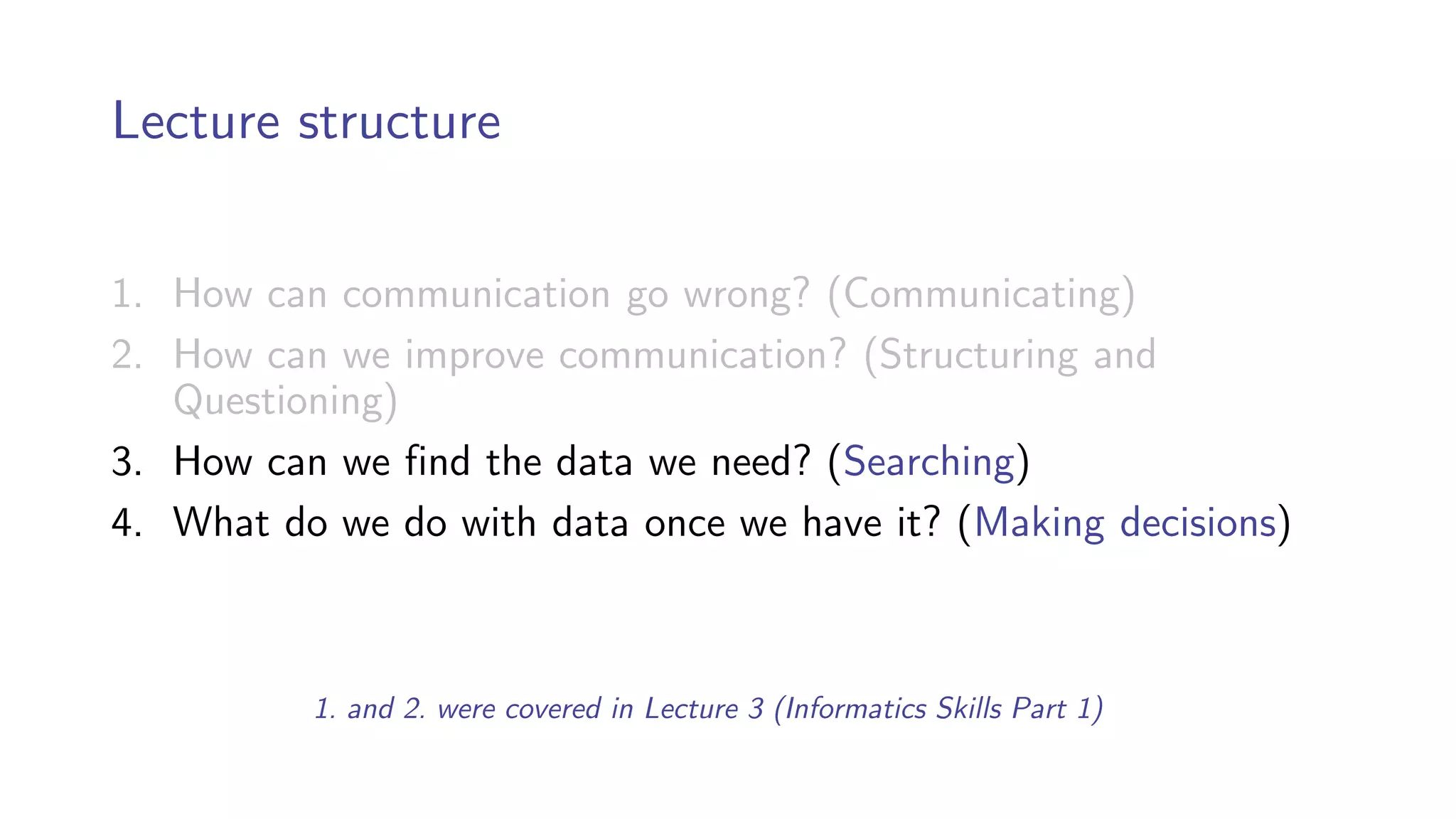

Lecture structure
1. How can communication go wrong? (Communicating)
2. How can we improve communication? (Structuring and
Questioning)
3. How can we find the data we need? (Searching)
4. What do we do with data once we have it? (Making decisions)
1. and 2. were covered in Lecture 3 (Informatics Skills Part 1)
Learning outcomes
1. To again understand how other principles from informatics can
guide the way we work.
Informatics; the study of information: representation, processing, and
how it is communicated.
It all comes back to interventions…
2. To again understand how principles from informatics can influence
clinical practice.
Principles from Informatics we will touch upon
1. Search strategies
2. Logical inference (we started looking at this in Lecture 2)
3. Bayes’ theorem
4. Decision trees
Searching
How can we find the data we need?
Recall: Data channels
Sinks
1 + 2 X, Y
X=1,
Y=2
Data model (language) Labelled data
Knowledge base
Input
Output
3
Z = X + Y
First-hand (verbal)
Second-hand (verbal)
Written (data or
literature)
Device
Searching the data we receive
In Lecture 3, we looked at strategies that allow us to improve
communication.
By following these strategies, we can increase the chance that we
receive the data that we need.
But how do we accurately find the specific data we need from within
a large body of data once we receive it?
We need to consider how to search through data.
Search strategies
We could adopt a simple approach to searching through the data we
receive, such as quickly scanning through everything (search mode)
or focussing in on a section where we think the information we need
might be (reading mode).
But really we need something more formal than this. We need a
dedicated search strategy.
Search space
Our search space is the place in which we will find the information
we need, in this case the data we have received.
Before we can define a search strategy that dictates how we move
through this search space, we need to structure or map through the
space.
A common way to do this is to structure the space as a tree, with
nodes and edges.
Nodes at the end of the tree are called leaf nodes, and the node at
the top of the tree is our root node, and is where our search starts.
Search space
Root node
Leaf node
e.g. Patient Encounter
e.g. Individual diagnosis
Breadth-first search and Depth-first search strategies
1
2 3 4 5
6 7 8 9
10 11
1
2 9 10 11
3 6 7 8
4 5
Rule of thumb: Visit each child
in order, and queue each child
to have its children visited next
Rule of thumb: Always proceed
to the next depth if you can, if
you cannot, backtrack.
Target item
Target item
How do we now search this space?
Analytic search: Heuristic and Model-based strategies
1
2
3
4 5
1
2
Target item
Target item
We might have some heuristic, or
rule of thumb, to guide our search,
such as ‘the item is at depth 3’.
Similarly, we might have an
exact model (like a map) of
where to find the item.
How do we now search this space?
Shameless plug…
There’s more to search: (1) Other search spaces
We may not just find ourselves searching the data we receive, but
also searching, at a higher level, through different information sources
themselves, such as other people or literature resources.
We would do all of this before we actually search the data receive.
There’s more to search: (2) Broader process
Making decisions
What do we do with data once we have it?
Making decisions
So far, we’ve looked at how we can effectively receive data (Lecture
3), and how we can find what we need within that data (Searching).
Often, the data we receive tells us that there is a problem and, as
such, we need to make a decision as to how to rectify that problem.
In the remainder of this lecture, we will consider:
1. How to determine what data tells us
2. How to make a decision accordingly
Determining what data tells us
Everything we’ve looked at so far
has been about collecting data
The things we will discuss are
connected as a part of a wider
decision-making process
Determining what data tells us
We can determine what a piece of data tells us by drawing
conclusions from it.
We can draw conclusions from data using logical inference or rules of
probability.
Using logic inference is already familiar to us…
Recall: Inference procedure
Knowledge, from our model: If a
plane does not have pontoons, then
it will sink.
We refer to this type of model as an
inference procedure.
It is supported by three other (sub-)
models:
(1) A data model
(2) A knowledge base
(3) An ontology
We can break down the actual content
of our model…
Cause and effect
Recall (again): An information system
Sinks
1 + 2 X, Y
X=1,
Y=2
Data model (language) Labelled data
Knowledge base
Input
Output
3
Z = X + Y
We later formalised the
process on the previous slide
as an information system…
Logical inference: Deduction
Sinks
1 + 2 X, Y
X=1,
Y=2
Data model (language) Labelled data
Knowledge base
Input
Output
?
Z = X + Y
The kind of inference we’ve seen so far is known as deduction. We use our knowledge base to
determine which output results from our input.
Logical inference: Abduction
Sinks
? X, Y
X=1,
Y=2
Data model (language) Labelled data
Knowledge base
Input
Output
3
Z = X + Y
Abduction works in the opposite way, seeking to determine the range of possible inputs that might
have led to this output. For example, here we could have X=1;Y=2 or X=2;Y=1.
Logical inference: Induction
Sinks
1 + 2 X, Y
X=1,
Y=2
Data model (language) Labelled data
Knowledge base
Input
Output
3
f(X,Y)? = Z?
Finally, induction tries to determine what connects inputs and outputs together. This is often a difficult and
error-prone process, as it may appear that a rule connects two outputs, when it does not. What if, for
example, we (incorrectly) decided our knowledge base just returned ‘3’ to every input. It is correct in this
case, but would not generalise.
Logic inference in clinical practice
Deduction: The patient has pneumonia (input), so the patient will
develop a fever (output).
Abduction: The patient has a fever (output) so could have
pneumonia OR COVID-19 (possible inputs).
Induction: The patient has pneumonia (input) and then develops a
fever (output). We can (carefully) conclude that pneumonia causes
fever.
This is simplified and does not
necessarily constitute actual
medical practice.
Rules of probability: Bayes’ theorem
While logical inference aims to give us exact conclusions, this might,
in reality, not always be possible.
Instead, a piece of data might tell us one of a number of different
things.
In this case, either implicitly or explicitly, a probability is assigned to
each outcome, depending on how likely it is to occur or be true.
But we need to be careful how we assign these probabilities, given
our existing beliefs.
Note: The following example is adapted from the (excellent) video by
3Blue1Brown, ‘Bayes theorem, the geometry of changing beliefs’.
Exercise: A question
You are told that a person named Alex has the following personality
traits:
‘Quiet’, ‘Reserved’, ‘Good at maths’
Do you think it’s more likely that Alex:
(A)Works in retail (e.g. a shop assistant)
or
(B) Is a computer programmer?
This is our data
Exercise: A question
A similar study was carried out by two academics who determined
that (when transposed for this example) the majority of people
would say that Alex is most likely to be a computer programmer.
75% chance
programmer
Common judgements vs. rationality
While understandable, saying that these traits mean that Alex is a
programmer is actually irrational (i.e. goes against standard laws of
probability).
This is not necessarily due to stereotypes (although they likely play
some part – retail workers can be quiet, reserved and good at maths
too!), but instead due to, in the researchers’ opinions, background
information, or an estimate thereof, not being included when making
this determination.
Background information in decision making
Relevant background information when answering our retail vs.
programmer question is the number of individuals in these roles in
the population.
From UK census data, we can see that there are over three times as
many people working in retail as programmers.
Industry People
Retail trade 2,844,470
Computer programming 790,258
Bayes’ theorem: The ‘prior’
We can again visualise this, and it
actually tells us a very different
story from the 75% chance we
thought of earlier.
Probabilities drawn from existing
data in this way are known as the
prior.
25% chance
programmer
1 3
75% chance
retail
For every 4 people,
we can expect one to
be a programmer.
Bayes’ theorem: The ‘likelihood’
We can now consider again the
likelihood that, given the data we
have about Alex’s traits, they are
a programmer.
This time though, we must do so
in the context of there being a
greater number of retail workers.
We’ve extrapolated,
but the proportions
are the same.
4 12
25% 75%
Bayes’ theorem: The ‘likelihood’
To do this, we now consider our
percentage (the chance of
someone with Alex’s traits being
a programmer) as a proportion of
the total programmers that would
be in this representative sample,
and do the same for the retail
workers:
75%
25%
4 12
Note: these percentages don’t
necessarily have to add up to
100%.
25% 75%
Bayes’ theorem: Final calculation
With these percentages, 3
programmers fit the description we
have, and 3 retail workers.
To determine our new discounted
probability score, therefore, of Alex
being a programmer, we must relate
the number of programmers fitting
the description to the total number
of people fitting the description:
= 50%
3
4 12
3
6
3
Bayes’ theorem: Core idea
This shows us how the
strength of our new data
has been discounted by our
existing knowledge.
In other words, our new
data has not been taken as
it is, but has instead
updated what we originally
thought to be true, from the
data (our prior beliefs).
25% chance
programmer
(Prior)
50% chance
programmer
(Bayes’)
75% chance
programmer
(Likelihood)
Bayes’ theorem: Formula
We can write this process out as a formula:
(75% × 25%)
((75% × 25%)+(25% × 75%))
(Programmer likelihood × Programmer prior)
((Programmer likelihood × Programmer prior) +
(Retail likelihood × Retail prior))
or
= 50%
Aside: Bayes’ in Artificial Intelligence (AI)
A robot may update its beliefs about the world after
receiving new data, using Bayes’ theorem.
Making a decision
Prelude: Combining probabilities
Bayes’ theorem (and other methods of inference) tell us (accurately)
the chance of certain outcomes occurring, e.g. Alex being a
programmer.
However, more complex outcomes are often based upon multiple
things being true, and as such we need to take into account multiple
probabilities.
We can do this (somewhat unintuitively at this point, given the fact
that no decisions are shown) using something called a decision tree:
Before we think about actually
making decisions…
‘Decision trees’
We want to know the chance that Alex could fill a Python programmer role:
Suitable for the job: (33% × 80%) + (67% × 1%) = 27%
Not suitable for the job: (33% × 20%) + (67% × 99%) = 73%
Alex turns up
Alex is a
programmer
Alex is not a
programmer
Alex knows
Python
Alex does not
know Python
Alex knows
Python
Alex does not
know Python
Suitable for
the job
Not suitable
for the job
Suitable for
the job
Not suitable
for the job
67%
33%
80%
20%
99%
1%
We multiply the
probabilities along each
branch.
Chance node
We could again apply Bayes
to get our Python %s
Outcome
This is quite like our search
space, except now we’re
representing a decision space.
Decision trees
Let’s now add in a
decision node and
consider whether to
hire Alex.
With just our
percentages, there
isn’t much to go on
here.
Fortunately though,
when making a
decision preferences
are also a factor;
which outcomes do we
prefer.
Hire Alex
Don’t hire
Alex
Let’s assume we don’t have
the opportunity to interview
Alex, we just hire them!
Decision trees with utility
In this context, we
express preferences
with something
called utility.
This is a number
between 0 and 1,
showing how much
we prefer a given
outcome, after a
particular decision
has been made.
Hire Alex
Don’t hire
Alex
Utility
Decision trees with utility
We may decide that
missing a
programmer by
mistakenly not hiring
them is worse (in
our minds) than
actually hiring a
good programmer
(imagine the missed
potential!).
We can reflect this
as follows:
Hire Alex
Don’t hire
Alex
Utility
0.8
0.8
0.5
0
0.5
0
0
0
…but there is a
worse outcome
for us if we miss
out on Alex’s
skills.
We’re pretty
happy if we hire
Alex and they are
a programmer…
Decision trees with utility
Working:
Hire Alex:
(33% × 80% × 0.8)
+ (33% × 20% × 0)
+ (67% × 1% × 0.8)
+ (67% × 99% × 0)
= 0.2166
Don’t hire Alex:
(33% × 80% × 0.5)
+ (33% × 20% × 0)
+ (67% × 1% × 0.5)
+ (67% × 99% × 0)
= 0.1354
Hire Alex
Don’t hire
Alex
Utility
0.8
0.8
0.5
0
0.5
0
0
0
Now we include
the utility in our
calculation.
Now we include
the utility in our
calculation.
Highest utility
Where do utility values come from?
You may not agree with the utility values used previously, and that’s
ok! It’s all about preference.
Broadly, utility values can be drawn from:
1. Rating scales (as we have seen).
2. Standard gamble (the more likely a person is to choose a low
probability option, the higher utility they ascribe to that
outcome).
3. Time trade-off (compare time periods with an unknown utility to
those with a known utility, when they are considered equivalent,
and adjust accordingly).
A note on rationality and utility
Calculations of utility here seem to
give us a fairly straightforward way
of determining how to make a
decision.
However, the concept of utility is
based upon assumptions of
rationality; that humans will always
act in a manner that maximises
their utility. This, unfortunately, is
not always the case.
The best thing for each prisoner to do is
to lie (-1, -1), but the most attractive
option is to confess despite a worse
outcome (-8, -8), due to the risk of the
other confessing (-10).
Summary
To again understand how other principles from informatics can guide the
way we work.
• Proper search strategies are needed to locate the specific data we need
when we receive a large amount of it.
• When we receive new data, we might be able to determine its exact
implications using logical inference.
• If we receive new data and we are unsure of its consequences, we can
determine the probability of different outcomes, making sure to
consider the wider context, using Bayes’ theorem.
• Once we know what a piece of data tells us, or may tell us, we can
decide between alternatives using a decision tree.
It all comes back to interventions…
To again understand how principles from informatics can influence clinical
practice.
• Much like poor communication, not being able to efficiently search the
information received can cause issues with the delivery of interventions.
• The more efficiently a clinician can search data, the more efficient
intervention delivery will be.
• Not accurately inferring the likelihood of a piece of data indicating that
a patient has a certain condition can lead to the incorrect delivery of
interventions.
• As such, leveraging techniques from informatics in order to gain an
accurate view on probabilities is important.
References and Images
Enrico Coiera. Guide to Health Informatics (3rd ed.). CRC Press, 2015.
https://www.riomed.com/electronic-patient-records-impact-on-healthcare-industry/
https://www.lego.com/en-gb/service/buildinginstructions/3178
https://uxwing.com/computer-internet-woman-icon/
https://www.flaticon.com/free-
icon/cashier_4469878?term=shop+assistant&page=1&position=7&origin=search&related_id=4469878
https://www.electronicsforu.com/news/robots-at-duty-to-prevent-spread-of-covid-19-infection

More Related Content

Similar to Principles of Health Informatics: Informatics skills - searching and making decisions

PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx
PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptxPPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx
PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx
RaviKiranVarma4

Frequentist inference only seems easy By John Mount
Frequentist inference only seems easy By John MountFrequentist inference only seems easy By John Mount
Frequentist inference only seems easy By John Mount
Chester Chen

Ms 07 information systems for managers
Ms   07 information systems for managersMs   07 information systems for managers
Ms 07 information systems for managers
smumbahelp

Machine learning presentation (razi)
Machine learning presentation (razi)Machine learning presentation (razi)
Machine learning presentation (razi)
Rizwan Shaukat

Machine learning-in-details-with-out-python-code
Machine learning-in-details-with-out-python-codeMachine learning-in-details-with-out-python-code
Machine learning-in-details-with-out-python-code
Osama Ghandour Geris

Unit-1.pdf
Unit-1.pdfUnit-1.pdf
Unit-1.pdf
SwarnaKumariChinni

week 1 CS 3rdData, information and.pptx
week 1 CS 3rdData, information and.pptxweek 1 CS 3rdData, information and.pptx
week 1 CS 3rdData, information and.pptx
JuliusECatipon

Module 1.3 data exploratory
Module 1.3  data exploratoryModule 1.3  data exploratory
Module 1.3 data exploratory
Sara Hooker

Introduction-to-Knowledge Discovery in Database
Introduction-to-Knowledge Discovery in DatabaseIntroduction-to-Knowledge Discovery in Database
Introduction-to-Knowledge Discovery in Database
Kartik Kalpande Patil

Module 5: Decision Trees
Module 5: Decision TreesModule 5: Decision Trees
Module 5: Decision Trees
Sara Hooker

Yo. big data. understanding data science in the era of big data.
Yo. big data. understanding data science in the era of big data.Yo. big data. understanding data science in the era of big data.
Yo. big data. understanding data science in the era of big data.
Natalino Busa

Forms of learning in ai
Forms of learning in aiForms of learning in ai
Forms of learning in ai
Robert Antony

Chapter 5 (final)
Chapter 5 (final)Chapter 5 (final)
Chapter 5 (final)
Nateshwar Kamlesh

Analysing The Data
Analysing The DataAnalysing The Data
Analysing The Data
Angel Evans

The Importance of Probability in Data Science.docx
The Importance of Probability in Data Science.docxThe Importance of Probability in Data Science.docx
The Importance of Probability in Data Science.docx
nearlearn

Data mining
Data miningData mining
30 Argumentative Essay Examples In Illustrator Go
30 Argumentative Essay Examples In Illustrator  Go30 Argumentative Essay Examples In Illustrator  Go
30 Argumentative Essay Examples In Illustrator Go
Tanya Williams

Critical thinking-e book
Critical thinking-e bookCritical thinking-e book
Critical thinking-e book
Amit Phutane

Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)
Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)
Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)
Sherri Gunder

Extending the Mind with Cognitive Prosthetics?
Extending the Mind with Cognitive Prosthetics? Extending the Mind with Cognitive Prosthetics?
Extending the Mind with Cognitive Prosthetics?
PhiloWeb


Similar to Principles of Health Informatics: Informatics skills - searching and making decisions (20)

PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx
PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptxPPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx
PPT ON INTRODUCTION TO AI- UNIT-1-PART-3.pptx

Frequentist inference only seems easy By John Mount
Frequentist inference only seems easy By John MountFrequentist inference only seems easy By John Mount
Frequentist inference only seems easy By John Mount

Ms 07 information systems for managers
Ms   07 information systems for managersMs   07 information systems for managers
Ms 07 information systems for managers

Machine learning presentation (razi)
Machine learning presentation (razi)Machine learning presentation (razi)
Machine learning presentation (razi)

Machine learning-in-details-with-out-python-code
Machine learning-in-details-with-out-python-codeMachine learning-in-details-with-out-python-code
Machine learning-in-details-with-out-python-code

Unit-1.pdf
Unit-1.pdfUnit-1.pdf
Unit-1.pdf

week 1 CS 3rdData, information and.pptx
week 1 CS 3rdData, information and.pptxweek 1 CS 3rdData, information and.pptx
week 1 CS 3rdData, information and.pptx

Module 1.3 data exploratory
Module 1.3  data exploratoryModule 1.3  data exploratory
Module 1.3 data exploratory

Introduction-to-Knowledge Discovery in Database
Introduction-to-Knowledge Discovery in DatabaseIntroduction-to-Knowledge Discovery in Database
Introduction-to-Knowledge Discovery in Database

Module 5: Decision Trees
Module 5: Decision TreesModule 5: Decision Trees
Module 5: Decision Trees

Yo. big data. understanding data science in the era of big data.
Yo. big data. understanding data science in the era of big data.Yo. big data. understanding data science in the era of big data.
Yo. big data. understanding data science in the era of big data.

Forms of learning in ai
Forms of learning in aiForms of learning in ai
Forms of learning in ai

Chapter 5 (final)
Chapter 5 (final)Chapter 5 (final)
Chapter 5 (final)

Analysing The Data
Analysing The DataAnalysing The Data
Analysing The Data

The Importance of Probability in Data Science.docx
The Importance of Probability in Data Science.docxThe Importance of Probability in Data Science.docx
The Importance of Probability in Data Science.docx

Data mining
Data miningData mining
Data mining

30 Argumentative Essay Examples In Illustrator Go
30 Argumentative Essay Examples In Illustrator  Go30 Argumentative Essay Examples In Illustrator  Go
30 Argumentative Essay Examples In Illustrator Go

Critical thinking-e book
Critical thinking-e bookCritical thinking-e book
Critical thinking-e book

Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)
Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)
Ch17 lab r_verdu103: Entry level statistics exercise (descriptives)

Extending the Mind with Cognitive Prosthetics?
Extending the Mind with Cognitive Prosthetics? Extending the Mind with Cognitive Prosthetics?
Extending the Mind with Cognitive Prosthetics?


More from Martin Chapman

Principles of Health Informatics: Clinical decision support systems
Principles of Health Informatics: Clinical decision support systemsPrinciples of Health Informatics: Clinical decision support systems
Principles of Health Informatics: Clinical decision support systems
Martin Chapman

Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...
Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...
Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...
Martin Chapman

Technical Validation through Automated Testing
Technical Validation through Automated TestingTechnical Validation through Automated Testing
Technical Validation through Automated Testing
Martin Chapman

Scalable architectures for phenotype libraries
Scalable architectures for phenotype librariesScalable architectures for phenotype libraries
Scalable architectures for phenotype libraries
Martin Chapman

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...
Martin Chapman

Using AI to autonomously identify diseases within groups of patients
Using AI to autonomously identify diseases within groups of patientsUsing AI to autonomously identify diseases within groups of patients
Using AI to autonomously identify diseases within groups of patients
Martin Chapman

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...
Martin Chapman

Principles of Health Informatics: Evaluating medical software
Principles of Health Informatics: Evaluating medical softwarePrinciples of Health Informatics: Evaluating medical software
Principles of Health Informatics: Evaluating medical software
Martin Chapman

Principles of Health Informatics: Usability of medical software
Principles of Health Informatics: Usability of medical softwarePrinciples of Health Informatics: Usability of medical software
Principles of Health Informatics: Usability of medical software
Martin Chapman

Principles of Health Informatics: Social networks, telehealth, and mobile health
Principles of Health Informatics: Social networks, telehealth, and mobile healthPrinciples of Health Informatics: Social networks, telehealth, and mobile health
Principles of Health Informatics: Social networks, telehealth, and mobile health
Martin Chapman

Principles of Health Informatics: Communication systems in healthcare
Principles of Health Informatics: Communication systems in healthcarePrinciples of Health Informatics: Communication systems in healthcare
Principles of Health Informatics: Communication systems in healthcare
Martin Chapman

Principles of Health Informatics: Terminologies and classification systems
Principles of Health Informatics: Terminologies and classification systemsPrinciples of Health Informatics: Terminologies and classification systems
Principles of Health Informatics: Terminologies and classification systems
Martin Chapman

Principles of Health Informatics: Representing medical knowledge
Principles of Health Informatics: Representing medical knowledgePrinciples of Health Informatics: Representing medical knowledge
Principles of Health Informatics: Representing medical knowledge
Martin Chapman

Principles of Health Informatics: Models, information, and information systems
Principles of Health Informatics: Models, information, and information systemsPrinciples of Health Informatics: Models, information, and information systems
Principles of Health Informatics: Models, information, and information systems
Martin Chapman

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...
Martin Chapman

Using Microservices to Design Patient-facing Research Software
Using Microservices to Design Patient-facing Research SoftwareUsing Microservices to Design Patient-facing Research Software
Using Microservices to Design Patient-facing Research Software
Martin Chapman

Using CWL to support EHR-based phenotyping
Using CWL to support EHR-based phenotypingUsing CWL to support EHR-based phenotyping
Using CWL to support EHR-based phenotyping
Martin Chapman

Phenoflow: An Architecture for Computable Phenotypes
Phenoflow: An Architecture for Computable PhenotypesPhenoflow: An Architecture for Computable Phenotypes
Phenoflow: An Architecture for Computable Phenotypes
Martin Chapman

Phenoflow 2021
Phenoflow 2021Phenoflow 2021
Phenoflow 2021
Martin Chapman

COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt
COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvItCOVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt
COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt
Martin Chapman


More from Martin Chapman (20)

Principles of Health Informatics: Clinical decision support systems
Principles of Health Informatics: Clinical decision support systemsPrinciples of Health Informatics: Clinical decision support systems
Principles of Health Informatics: Clinical decision support systems

Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...
Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...
Mechanisms for Integrating Real Data into Search Game Simulations: An Applica...

Technical Validation through Automated Testing
Technical Validation through Automated TestingTechnical Validation through Automated Testing
Technical Validation through Automated Testing

Scalable architectures for phenotype libraries
Scalable architectures for phenotype librariesScalable architectures for phenotype libraries
Scalable architectures for phenotype libraries

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...

Using AI to autonomously identify diseases within groups of patients
Using AI to autonomously identify diseases within groups of patientsUsing AI to autonomously identify diseases within groups of patients
Using AI to autonomously identify diseases within groups of patients

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...

Principles of Health Informatics: Evaluating medical software
Principles of Health Informatics: Evaluating medical softwarePrinciples of Health Informatics: Evaluating medical software
Principles of Health Informatics: Evaluating medical software

Principles of Health Informatics: Usability of medical software
Principles of Health Informatics: Usability of medical softwarePrinciples of Health Informatics: Usability of medical software
Principles of Health Informatics: Usability of medical software

Principles of Health Informatics: Social networks, telehealth, and mobile health
Principles of Health Informatics: Social networks, telehealth, and mobile healthPrinciples of Health Informatics: Social networks, telehealth, and mobile health
Principles of Health Informatics: Social networks, telehealth, and mobile health

Principles of Health Informatics: Communication systems in healthcare
Principles of Health Informatics: Communication systems in healthcarePrinciples of Health Informatics: Communication systems in healthcare
Principles of Health Informatics: Communication systems in healthcare

Principles of Health Informatics: Terminologies and classification systems
Principles of Health Informatics: Terminologies and classification systemsPrinciples of Health Informatics: Terminologies and classification systems
Principles of Health Informatics: Terminologies and classification systems

Principles of Health Informatics: Representing medical knowledge
Principles of Health Informatics: Representing medical knowledgePrinciples of Health Informatics: Representing medical knowledge
Principles of Health Informatics: Representing medical knowledge

Principles of Health Informatics: Models, information, and information systems
Principles of Health Informatics: Models, information, and information systemsPrinciples of Health Informatics: Models, information, and information systems
Principles of Health Informatics: Models, information, and information systems

Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...Using AI to understand how preventative interventions can improve the health ...
Using AI to understand how preventative interventions can improve the health ...

Using Microservices to Design Patient-facing Research Software
Using Microservices to Design Patient-facing Research SoftwareUsing Microservices to Design Patient-facing Research Software
Using Microservices to Design Patient-facing Research Software

Using CWL to support EHR-based phenotyping
Using CWL to support EHR-based phenotypingUsing CWL to support EHR-based phenotyping
Using CWL to support EHR-based phenotyping

Phenoflow: An Architecture for Computable Phenotypes
Phenoflow: An Architecture for Computable PhenotypesPhenoflow: An Architecture for Computable Phenotypes
Phenoflow: An Architecture for Computable Phenotypes

Phenoflow 2021
Phenoflow 2021Phenoflow 2021
Phenoflow 2021

COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt
COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvItCOVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt
COVID-19 Analytics in Jupyter: Intuitive Provenance Integration using ProvIt


Recently uploaded

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf
BoudhayanBhattachari

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
سمير بسيوني

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Vivekanand Anglo Vedic Academy

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.
deepaannamalai16

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"
National Information Standards Organization (NISO)

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx
zuzanka

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
giancarloi8888

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training
melliereed

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
iammrhaywood

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
Nguyen Thanh Tu Collection

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
RidwanHassanYusuf


Recently uploaded (20)

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf

Nutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour TrainingNutrition Inc FY 2024, 4 - Hour Training
Nutrition Inc FY 2024, 4 - Hour Training

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx


Principles of Health Informatics: Informatics skills - searching and making decisions

  • 1. Lecture 4: Informatics skills (Part 2) – searching and making decisions Dr. Martin Chapman Principles of Health Informatics (7MPE1000). https://martinchapman.co.uk/teaching
  • 2. Lecture structure 1. How can communication go wrong? (Communicating) 2. How can we improve communication? (Structuring and Questioning) 3. How can we find the data we need? (Searching) 4. What do we do with data once we have it? (Making decisions) 1. and 2. were covered in Lecture 3 (Informatics Skills Part 1)
  • 3. Learning outcomes 1. To again understand how other principles from informatics can guide the way we work. Informatics; the study of information: representation, processing, and how it is communicated. It all comes back to interventions… 2. To again understand how principles from informatics can influence clinical practice.
  • 4. Principles from Informatics we will touch upon 1. Search strategies 2. Logical inference (we started looking at this in Lecture 2) 3. Bayes’ theorem 4. Decision trees
  • 5. Searching How can we find the data we need?
  • 6. Recall: Data channels Sinks 1 + 2 X, Y X=1, Y=2 Data model (language) Labelled data Knowledge base Input Output 3 Z = X + Y First-hand (verbal) Second-hand (verbal) Written (data or literature) Device
  • 7. Searching the data we receive In Lecture 3, we looked at strategies that allow us to improve communication. By following these strategies, we can increase the chance that we receive the data that we need. But how do we accurately find the specific data we need from within a large body of data once we receive it? We need to consider how to search through data.
  • 8. Search strategies We could adopt a simple approach to searching through the data we receive, such as quickly scanning through everything (search mode) or focussing in on a section where we think the information we need might be (reading mode). But really we need something more formal than this. We need a dedicated search strategy.
  • 9. Search space Our search space is the place in which we will find the information we need, in this case the data we have received. Before we can define a search strategy that dictates how we move through this search space, we need to structure or map through the space. A common way to do this is to structure the space as a tree, with nodes and edges. Nodes at the end of the tree are called leaf nodes, and the node at the top of the tree is our root node, and is where our search starts.
  • 10. Search space Root node Leaf node e.g. Patient Encounter e.g. Individual diagnosis
  • 11. Breadth-first search and Depth-first search strategies 1 2 3 4 5 6 7 8 9 10 11 1 2 9 10 11 3 6 7 8 4 5 Rule of thumb: Visit each child in order, and queue each child to have its children visited next Rule of thumb: Always proceed to the next depth if you can, if you cannot, backtrack. Target item Target item How do we now search this space?
  • 12. Analytic search: Heuristic and Model-based strategies 1 2 3 4 5 1 2 Target item Target item We might have some heuristic, or rule of thumb, to guide our search, such as ‘the item is at depth 3’. Similarly, we might have an exact model (like a map) of where to find the item. How do we now search this space?
  • 14. There’s more to search: (1) Other search spaces We may not just find ourselves searching the data we receive, but also searching, at a higher level, through different information sources themselves, such as other people or literature resources. We would do all of this before we actually search the data receive.
  • 15. There’s more to search: (2) Broader process
  • 16. Making decisions What do we do with data once we have it?
  • 17. Making decisions So far, we’ve looked at how we can effectively receive data (Lecture 3), and how we can find what we need within that data (Searching). Often, the data we receive tells us that there is a problem and, as such, we need to make a decision as to how to rectify that problem. In the remainder of this lecture, we will consider: 1. How to determine what data tells us 2. How to make a decision accordingly
  • 18. Determining what data tells us Everything we’ve looked at so far has been about collecting data The things we will discuss are connected as a part of a wider decision-making process
  • 19. Determining what data tells us We can determine what a piece of data tells us by drawing conclusions from it. We can draw conclusions from data using logical inference or rules of probability. Using logic inference is already familiar to us…
  • 20. Recall: Inference procedure Knowledge, from our model: If a plane does not have pontoons, then it will sink. We refer to this type of model as an inference procedure. It is supported by three other (sub-) models: (1) A data model (2) A knowledge base (3) An ontology We can break down the actual content of our model… Cause and effect
  • 21. Recall (again): An information system Sinks 1 + 2 X, Y X=1, Y=2 Data model (language) Labelled data Knowledge base Input Output 3 Z = X + Y We later formalised the process on the previous slide as an information system…
  • 22. Logical inference: Deduction Sinks 1 + 2 X, Y X=1, Y=2 Data model (language) Labelled data Knowledge base Input Output ? Z = X + Y The kind of inference we’ve seen so far is known as deduction. We use our knowledge base to determine which output results from our input.
  • 23. Logical inference: Abduction Sinks ? X, Y X=1, Y=2 Data model (language) Labelled data Knowledge base Input Output 3 Z = X + Y Abduction works in the opposite way, seeking to determine the range of possible inputs that might have led to this output. For example, here we could have X=1;Y=2 or X=2;Y=1.
  • 24. Logical inference: Induction Sinks 1 + 2 X, Y X=1, Y=2 Data model (language) Labelled data Knowledge base Input Output 3 f(X,Y)? = Z? Finally, induction tries to determine what connects inputs and outputs together. This is often a difficult and error-prone process, as it may appear that a rule connects two outputs, when it does not. What if, for example, we (incorrectly) decided our knowledge base just returned ‘3’ to every input. It is correct in this case, but would not generalise.
  • 25. Logic inference in clinical practice Deduction: The patient has pneumonia (input), so the patient will develop a fever (output). Abduction: The patient has a fever (output) so could have pneumonia OR COVID-19 (possible inputs). Induction: The patient has pneumonia (input) and then develops a fever (output). We can (carefully) conclude that pneumonia causes fever. This is simplified and does not necessarily constitute actual medical practice.
  • 26. Rules of probability: Bayes’ theorem While logical inference aims to give us exact conclusions, this might, in reality, not always be possible. Instead, a piece of data might tell us one of a number of different things. In this case, either implicitly or explicitly, a probability is assigned to each outcome, depending on how likely it is to occur or be true. But we need to be careful how we assign these probabilities, given our existing beliefs. Note: The following example is adapted from the (excellent) video by 3Blue1Brown, ‘Bayes theorem, the geometry of changing beliefs’.
  • 27. Exercise: A question You are told that a person named Alex has the following personality traits: ‘Quiet’, ‘Reserved’, ‘Good at maths’ Do you think it’s more likely that Alex: (A)Works in retail (e.g. a shop assistant) or (B) Is a computer programmer? This is our data
  • 28. Exercise: A question A similar study was carried out by two academics who determined that (when transposed for this example) the majority of people would say that Alex is most likely to be a computer programmer. 75% chance programmer
  • 29. Common judgements vs. rationality While understandable, saying that these traits mean that Alex is a programmer is actually irrational (i.e. goes against standard laws of probability). This is not necessarily due to stereotypes (although they likely play some part – retail workers can be quiet, reserved and good at maths too!), but instead due to, in the researchers’ opinions, background information, or an estimate thereof, not being included when making this determination.
  • 30. Background information in decision making Relevant background information when answering our retail vs. programmer question is the number of individuals in these roles in the population. From UK census data, we can see that there are over three times as many people working in retail as programmers. Industry People Retail trade 2,844,470 Computer programming 790,258
  • 31. Bayes’ theorem: The ‘prior’ We can again visualise this, and it actually tells us a very different story from the 75% chance we thought of earlier. Probabilities drawn from existing data in this way are known as the prior. 25% chance programmer 1 3 75% chance retail For every 4 people, we can expect one to be a programmer.
  • 32. Bayes’ theorem: The ‘likelihood’ We can now consider again the likelihood that, given the data we have about Alex’s traits, they are a programmer. This time though, we must do so in the context of there being a greater number of retail workers. We’ve extrapolated, but the proportions are the same. 4 12 25% 75%
  • 33. Bayes’ theorem: The ‘likelihood’ To do this, we now consider our percentage (the chance of someone with Alex’s traits being a programmer) as a proportion of the total programmers that would be in this representative sample, and do the same for the retail workers: 75% 25% 4 12 Note: these percentages don’t necessarily have to add up to 100%. 25% 75%
  • 34. Bayes’ theorem: Final calculation With these percentages, 3 programmers fit the description we have, and 3 retail workers. To determine our new discounted probability score, therefore, of Alex being a programmer, we must relate the number of programmers fitting the description to the total number of people fitting the description: = 50% 3 4 12 3 6 3
  • 35. Bayes’ theorem: Core idea This shows us how the strength of our new data has been discounted by our existing knowledge. In other words, our new data has not been taken as it is, but has instead updated what we originally thought to be true, from the data (our prior beliefs). 25% chance programmer (Prior) 50% chance programmer (Bayes’) 75% chance programmer (Likelihood)
  • 36. Bayes’ theorem: Formula We can write this process out as a formula: (75% × 25%) ((75% × 25%)+(25% × 75%)) (Programmer likelihood × Programmer prior) ((Programmer likelihood × Programmer prior) + (Retail likelihood × Retail prior)) or = 50%
  • 37. Aside: Bayes’ in Artificial Intelligence (AI) A robot may update its beliefs about the world after receiving new data, using Bayes’ theorem.
  • 39. Prelude: Combining probabilities Bayes’ theorem (and other methods of inference) tell us (accurately) the chance of certain outcomes occurring, e.g. Alex being a programmer. However, more complex outcomes are often based upon multiple things being true, and as such we need to take into account multiple probabilities. We can do this (somewhat unintuitively at this point, given the fact that no decisions are shown) using something called a decision tree: Before we think about actually making decisions…
  • 40. ‘Decision trees’ We want to know the chance that Alex could fill a Python programmer role: Suitable for the job: (33% × 80%) + (67% × 1%) = 27% Not suitable for the job: (33% × 20%) + (67% × 99%) = 73% Alex turns up Alex is a programmer Alex is not a programmer Alex knows Python Alex does not know Python Alex knows Python Alex does not know Python Suitable for the job Not suitable for the job Suitable for the job Not suitable for the job 67% 33% 80% 20% 99% 1% We multiply the probabilities along each branch. Chance node We could again apply Bayes to get our Python %s Outcome This is quite like our search space, except now we’re representing a decision space.
  • 41. Decision trees Let’s now add in a decision node and consider whether to hire Alex. With just our percentages, there isn’t much to go on here. Fortunately though, when making a decision preferences are also a factor; which outcomes do we prefer. Hire Alex Don’t hire Alex Let’s assume we don’t have the opportunity to interview Alex, we just hire them!
  • 42. Decision trees with utility In this context, we express preferences with something called utility. This is a number between 0 and 1, showing how much we prefer a given outcome, after a particular decision has been made. Hire Alex Don’t hire Alex Utility
  • 43. Decision trees with utility We may decide that missing a programmer by mistakenly not hiring them is worse (in our minds) than actually hiring a good programmer (imagine the missed potential!). We can reflect this as follows: Hire Alex Don’t hire Alex Utility 0.8 0.8 0.5 0 0.5 0 0 0 …but there is a worse outcome for us if we miss out on Alex’s skills. We’re pretty happy if we hire Alex and they are a programmer…
  • 44. Decision trees with utility Working: Hire Alex: (33% × 80% × 0.8) + (33% × 20% × 0) + (67% × 1% × 0.8) + (67% × 99% × 0) = 0.2166 Don’t hire Alex: (33% × 80% × 0.5) + (33% × 20% × 0) + (67% × 1% × 0.5) + (67% × 99% × 0) = 0.1354 Hire Alex Don’t hire Alex Utility 0.8 0.8 0.5 0 0.5 0 0 0 Now we include the utility in our calculation. Now we include the utility in our calculation. Highest utility
  • 45. Where do utility values come from? You may not agree with the utility values used previously, and that’s ok! It’s all about preference. Broadly, utility values can be drawn from: 1. Rating scales (as we have seen). 2. Standard gamble (the more likely a person is to choose a low probability option, the higher utility they ascribe to that outcome). 3. Time trade-off (compare time periods with an unknown utility to those with a known utility, when they are considered equivalent, and adjust accordingly).
  • 46. A note on rationality and utility Calculations of utility here seem to give us a fairly straightforward way of determining how to make a decision. However, the concept of utility is based upon assumptions of rationality; that humans will always act in a manner that maximises their utility. This, unfortunately, is not always the case. The best thing for each prisoner to do is to lie (-1, -1), but the most attractive option is to confess despite a worse outcome (-8, -8), due to the risk of the other confessing (-10).
  • 47. Summary To again understand how other principles from informatics can guide the way we work. • Proper search strategies are needed to locate the specific data we need when we receive a large amount of it. • When we receive new data, we might be able to determine its exact implications using logical inference. • If we receive new data and we are unsure of its consequences, we can determine the probability of different outcomes, making sure to consider the wider context, using Bayes’ theorem. • Once we know what a piece of data tells us, or may tell us, we can decide between alternatives using a decision tree.
  • 48. It all comes back to interventions… To again understand how principles from informatics can influence clinical practice. • Much like poor communication, not being able to efficiently search the information received can cause issues with the delivery of interventions. • The more efficiently a clinician can search data, the more efficient intervention delivery will be. • Not accurately inferring the likelihood of a piece of data indicating that a patient has a certain condition can lead to the incorrect delivery of interventions. • As such, leveraging techniques from informatics in order to gain an accurate view on probabilities is important.
  • 49. References and Images Enrico Coiera. Guide to Health Informatics (3rd ed.). CRC Press, 2015. https://www.riomed.com/electronic-patient-records-impact-on-healthcare-industry/ https://www.lego.com/en-gb/service/buildinginstructions/3178 https://uxwing.com/computer-internet-woman-icon/ https://www.flaticon.com/free- icon/cashier_4469878?term=shop+assistant&page=1&position=7&origin=search&related_id=4469878 https://www.electronicsforu.com/news/robots-at-duty-to-prevent-spread-of-covid-19-infection
