Time Study
Presented by:-
Chhavi Narayan
Khushboo singh
Abhishek sahoo
Dhondup

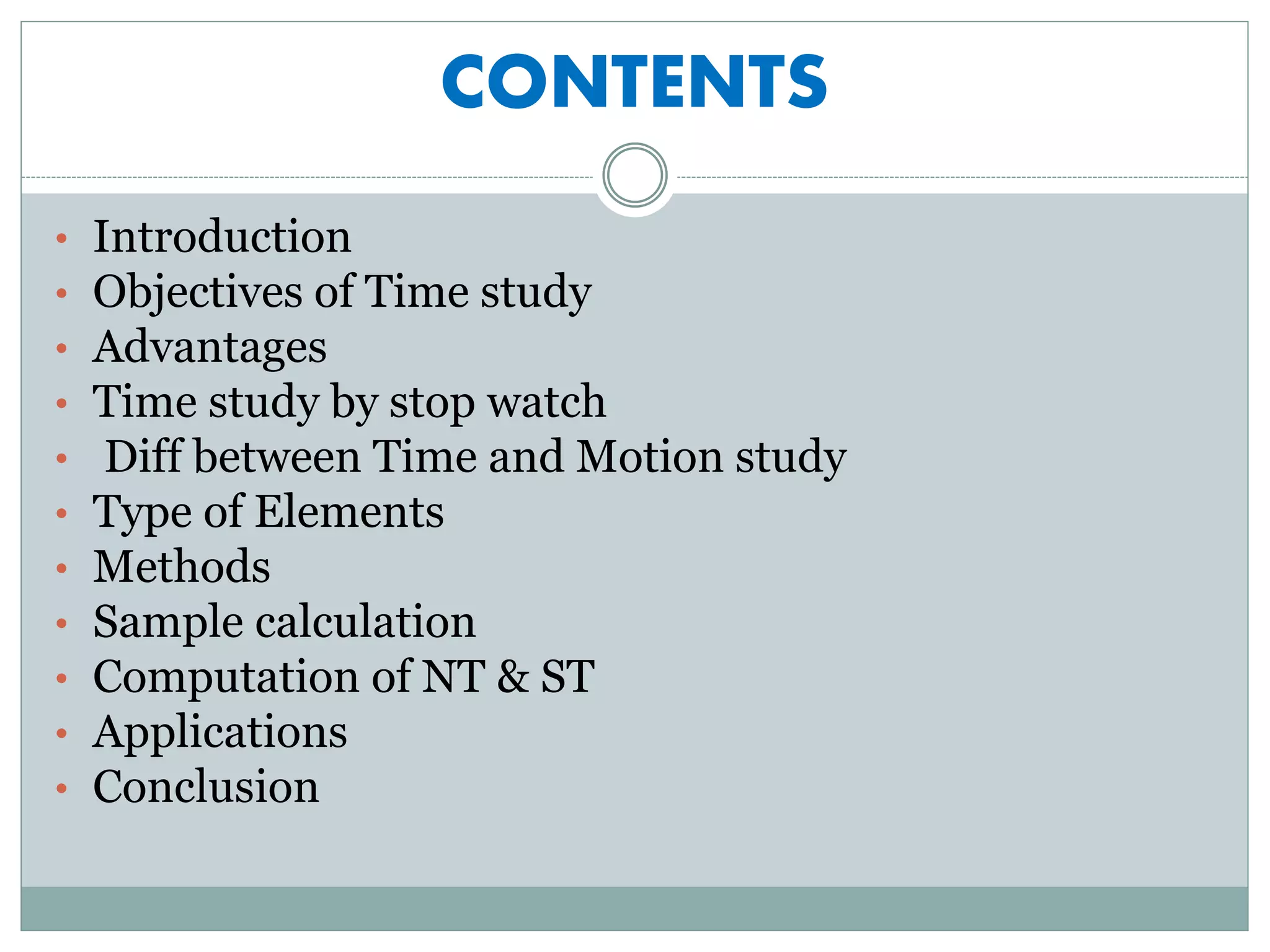

CONTENTS
• Introduction
• Objectives of Time study
• Advantages
• Time study by stop watch
• Diff between Time and Motion study
• Type of Elements
• Methods
• Sample calculation
• Computation of NT & ST
• Applications
• Conclusion
INTRODUCTION
WORK STUDY:-
 Motion study
 Time study:-
o A qualified, well trained operator
o Normal pace
o Doing a specific task
OBJECTIVES OF TIME STUDY
• To increase productivity
 To set labour standard for satisfactory performance.
 To determine basic times/normal times.
 To determine the number of machines an operator can
handle.
 To determine standards costs.
Advantages
To develop suitable working conditions
To improve utilization of resources
To reduce human effort by proper design of
processes
TIME STUDY MOTION STUDY
 Notes the time involved
in carrying out each
element of operation.
 Aims at fixing the
standard time for
carrying out a job.
 Is not suitable for
workers where quality is
prime consideration
 Study of motions on an
operation
 To reduce wastage of
time
 Suitable for all types of
jobs.
Diff between time & motion study
Types of elements involved in a job
 Repetitive element:- Occurs in every work cycle of the job.
 Occasional element:- Occurs at intervals.
 Constant element:- Basic or normal time remains constant.
 Variable element:- Basic or normal time varies.
 Manual element:- Performed manually.
 Governing element :- Occupies a longer time than any other
element.
Methods
 1.Predetermined time standard system
 2.Stop watch reading
a) Continuous
b) Snap-back
 3.Work sampling
Sample calculation
1. E=2√
𝒑(𝟏−𝒑)
𝒏
2. 𝒏 =
𝟒𝒑(𝟏−𝒑)
𝑬 𝟐
P=proportion of phoning of
activity
E=error
n=sample size
Que. A preliminary study indicates that the proportion of
idle time of a machine is 30% ; rest of the time it is
working . To get a good estimate of the idle time with a
precision of ±1% , then what should be the sample size?
n=
4(0.30)(1−0.30)
(0.01)2 =8400
Computation of NT & ST
Work
element
a b c d*
Obs. rating 0.56min 0.25min 0.50min 1.10min
Performanc
e rating
100% 80% 110% 100%
* Irregular element performed every 5
cycles
PFD allowance=15%
Normal
time=0.56(1.0)+0.25(0.80)+0.50(1.10)+1.10(1.0)/5=1.53min
Standard time=1.53(1+0.15)=1.76
Applications
 In decision making
 Provides accuracy
 Organisation and method
Conclusion
TIME STUDY
