Practical automation for beginners

Practical automation
for beginners
How to start workplace automation projects
with basic Python
Seoweon Yoo (seoweon.yoo@reddal.com)
Slides: bit.ly/practical_automation
0

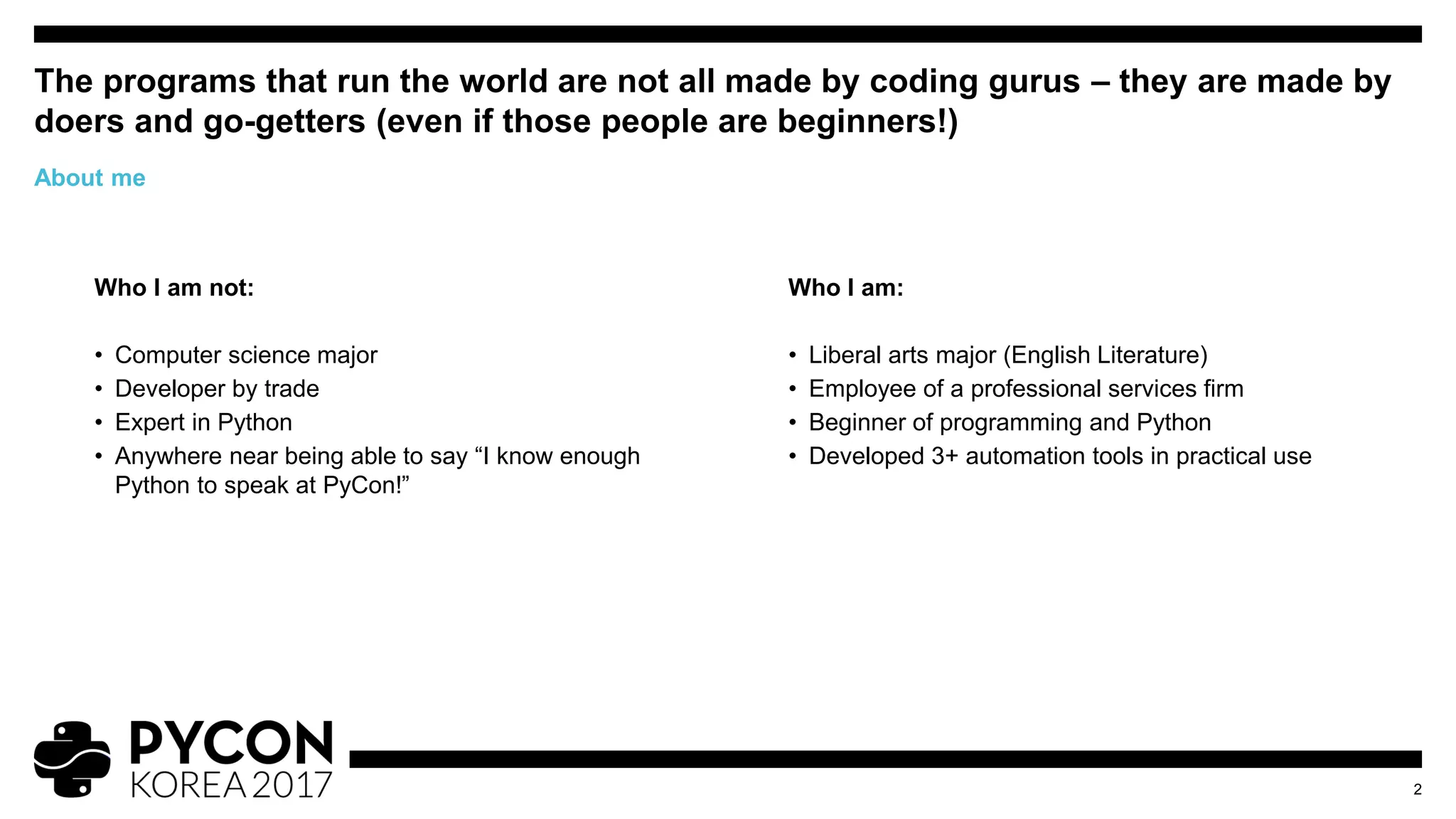

Who I am not:
• Computer science major
• Developer by trade
• Expert in Python
• Anywhere near being able to say “I know enough
Python to speak at PyCon!”
The programs that run the world are not all made by coding gurus – they are made by
doers and go-getters (even if those people are beginners!)
2
About me
Who I am:
• Liberal arts major (English Literature)
• Employee of a professional services firm
• Beginner of programming and Python
• Developed 3+ automation tools in practical use

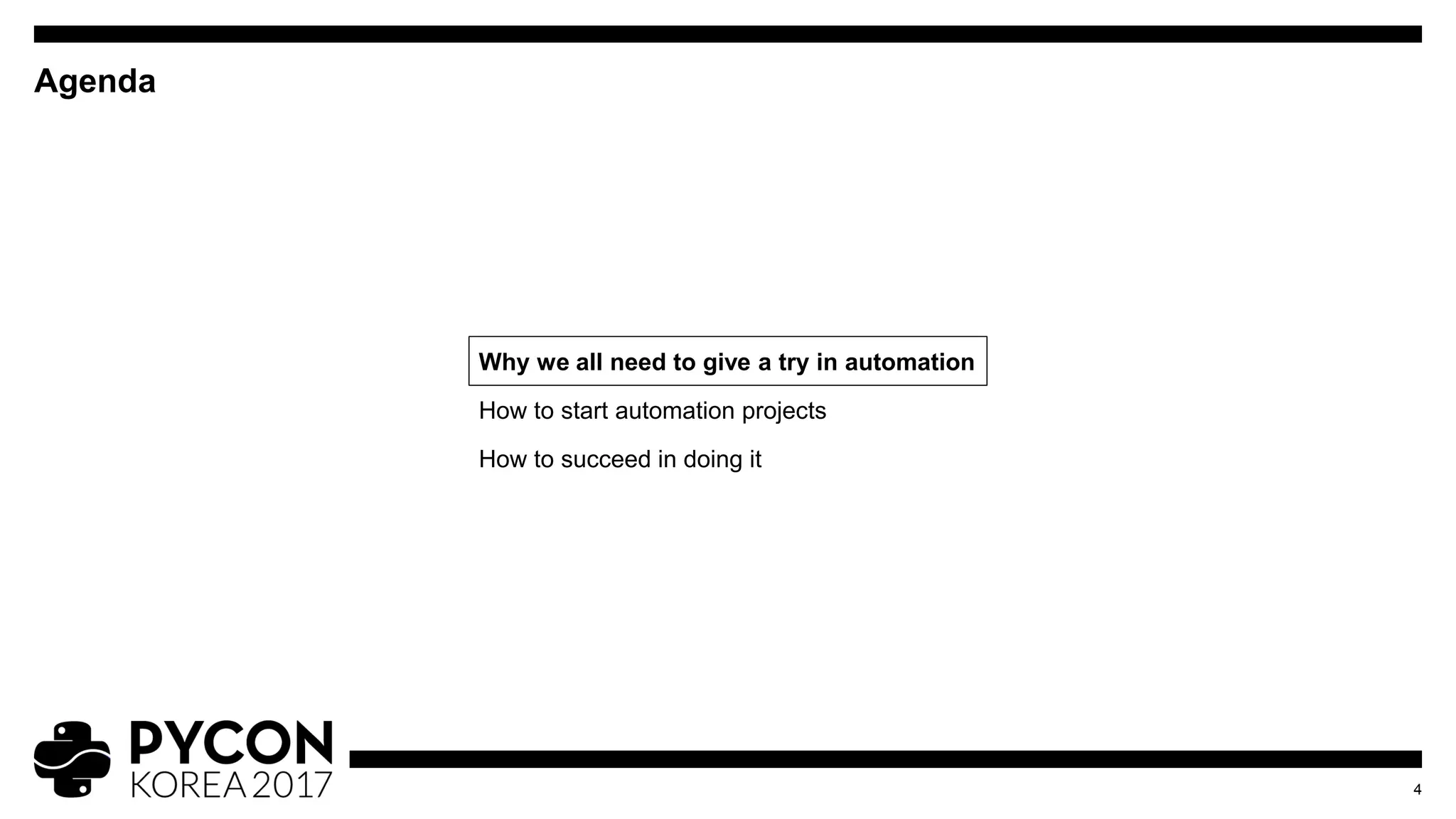

Agenda
4
Why we all need to give a try in automation
How to start automation projects
How to succeed in doing it

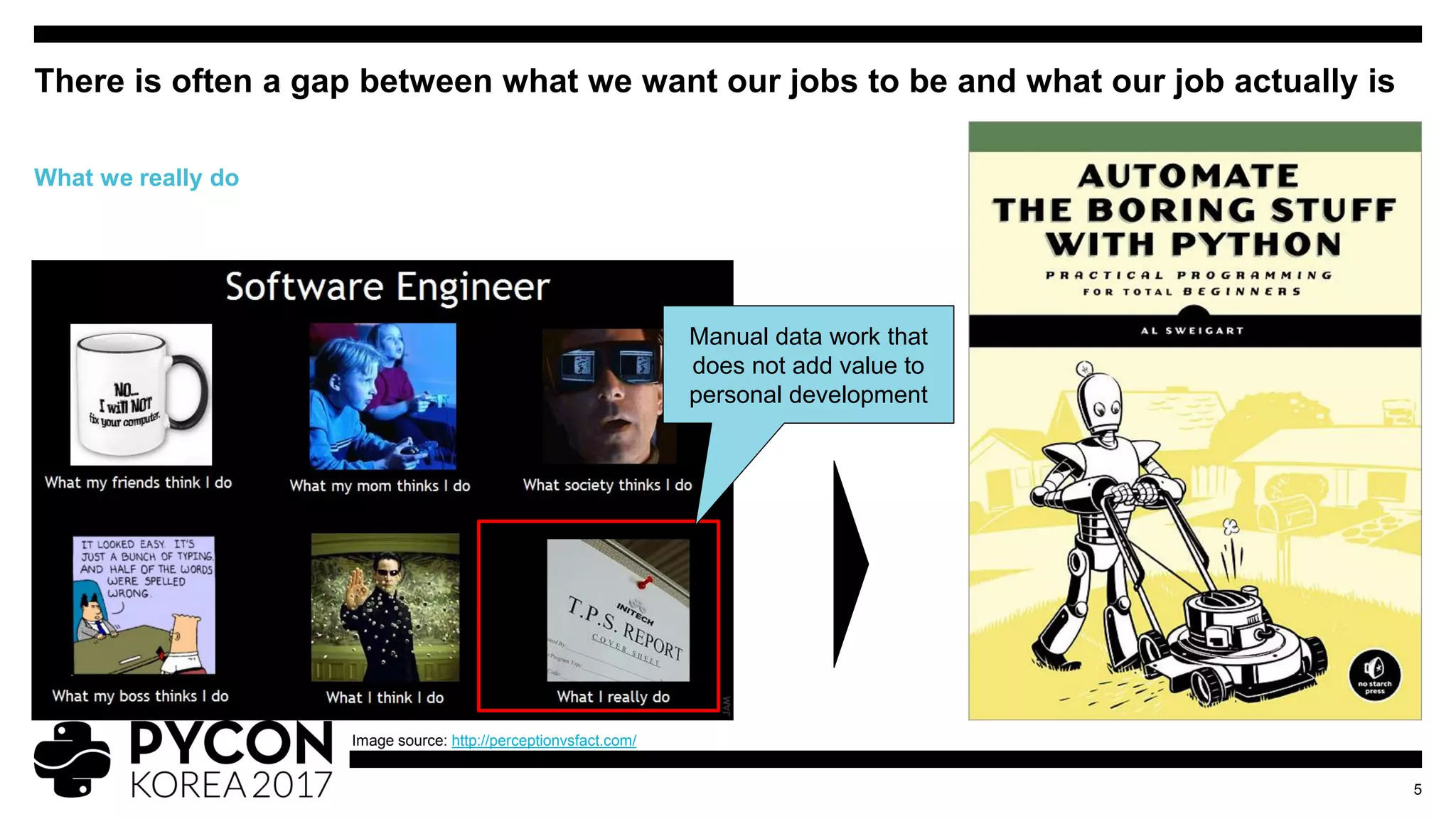

There is often a gap between what we want our jobs to be and what our job actually is
5
What we really do
Manual data work that
does not add value to
personal development
Image source: http://perceptionvsfact.com/

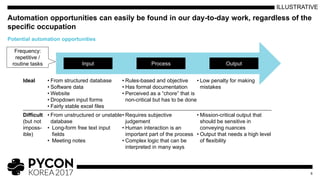

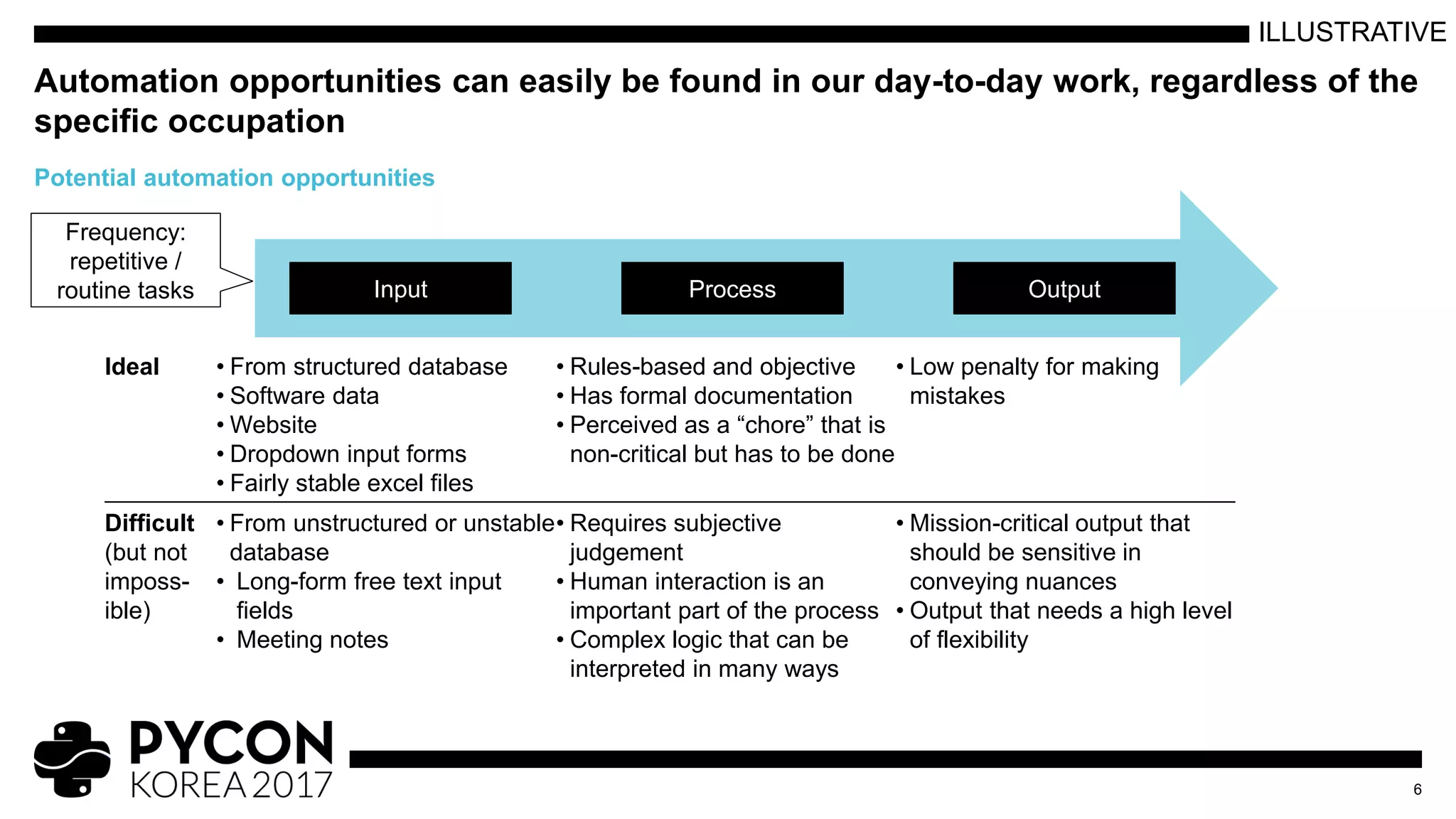

Automation opportunities can easily be found in our day-to-day work, regardless of the
specific occupation
6
Potential automation opportunities
Input Process Output
Frequency:
repetitive /
routine tasks
Ideal • From structured database
• Software data
• Website
• Dropdown input forms
• Fairly stable excel files
• Rules-based and objective
• Has formal documentation
• Perceived as a “chore” that is
non-critical but has to be done
• Low penalty for making
mistakes
Difficult
(but not
imposs-
ible)
• From unstructured or unstable
database
• Long-form free text input
fields
• Meeting notes
• Requires subjective
judgement
• Human interaction is an
important part of the process
• Complex logic that can be
interpreted in many ways
• Mission-critical output that
should be sensitive in
conveying nuances
• Output that needs a high level
of flexibility
ILLUSTRATIVE

• It’s cheaper (monetary, resource
utilization, and/or opportunity
cost-wise)
• … that is all you need!
• The time and cost to develop
programs in Python is fast

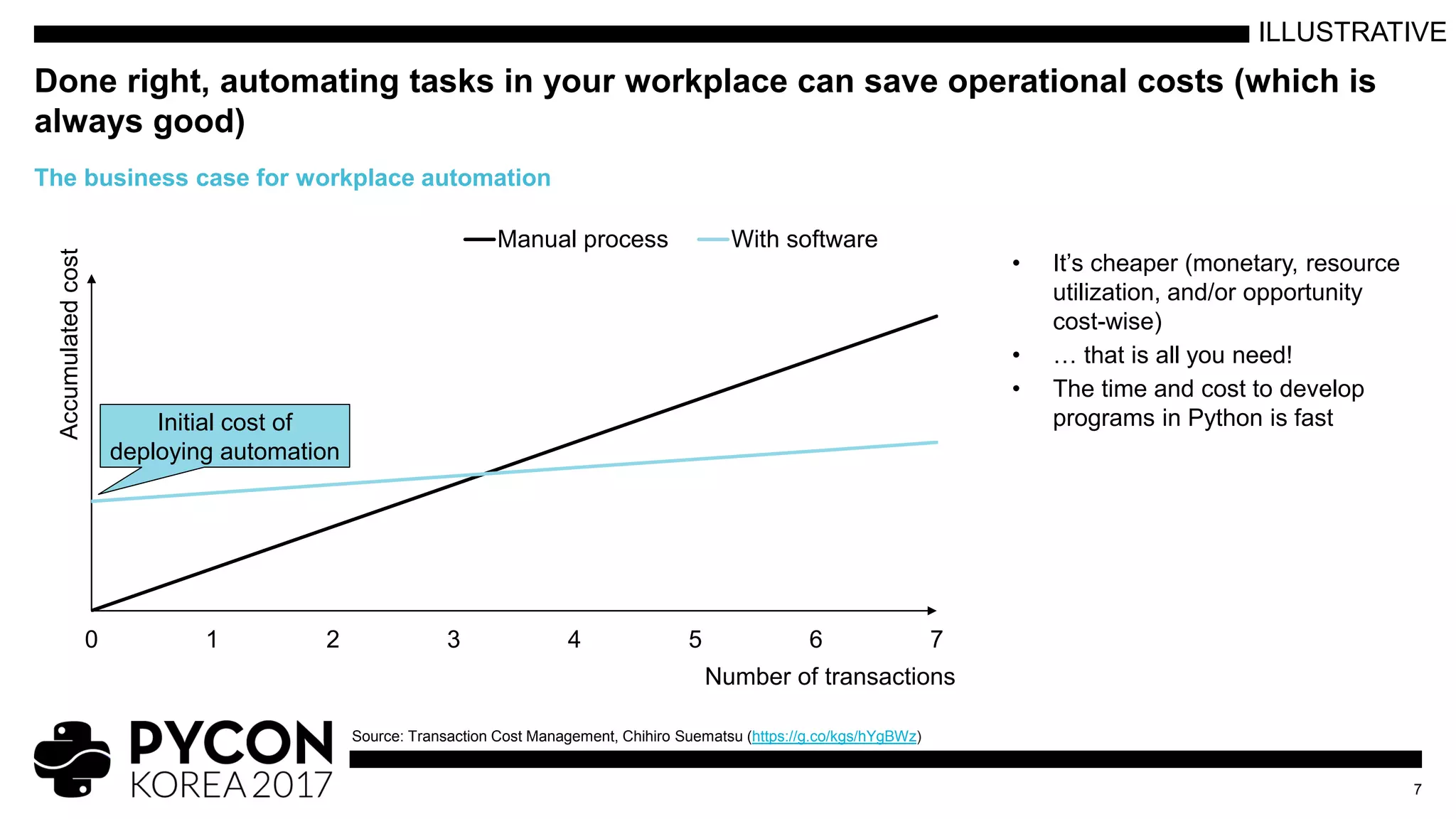

Done right, automating tasks in your workplace can save operational costs (which is
always good)
7
The business case for workplace automation
Source: Transaction Cost Management, Chihiro Suematsu (https://g.co/kgs/hYgBWz)
0
5
10
15
20
25
30
35
40
0 1 2 3 4 5 6 7
Accumulatedcost
Number of transactions
Manual process With software
Initial cost of
deploying automation
ILLUSTRATIVE

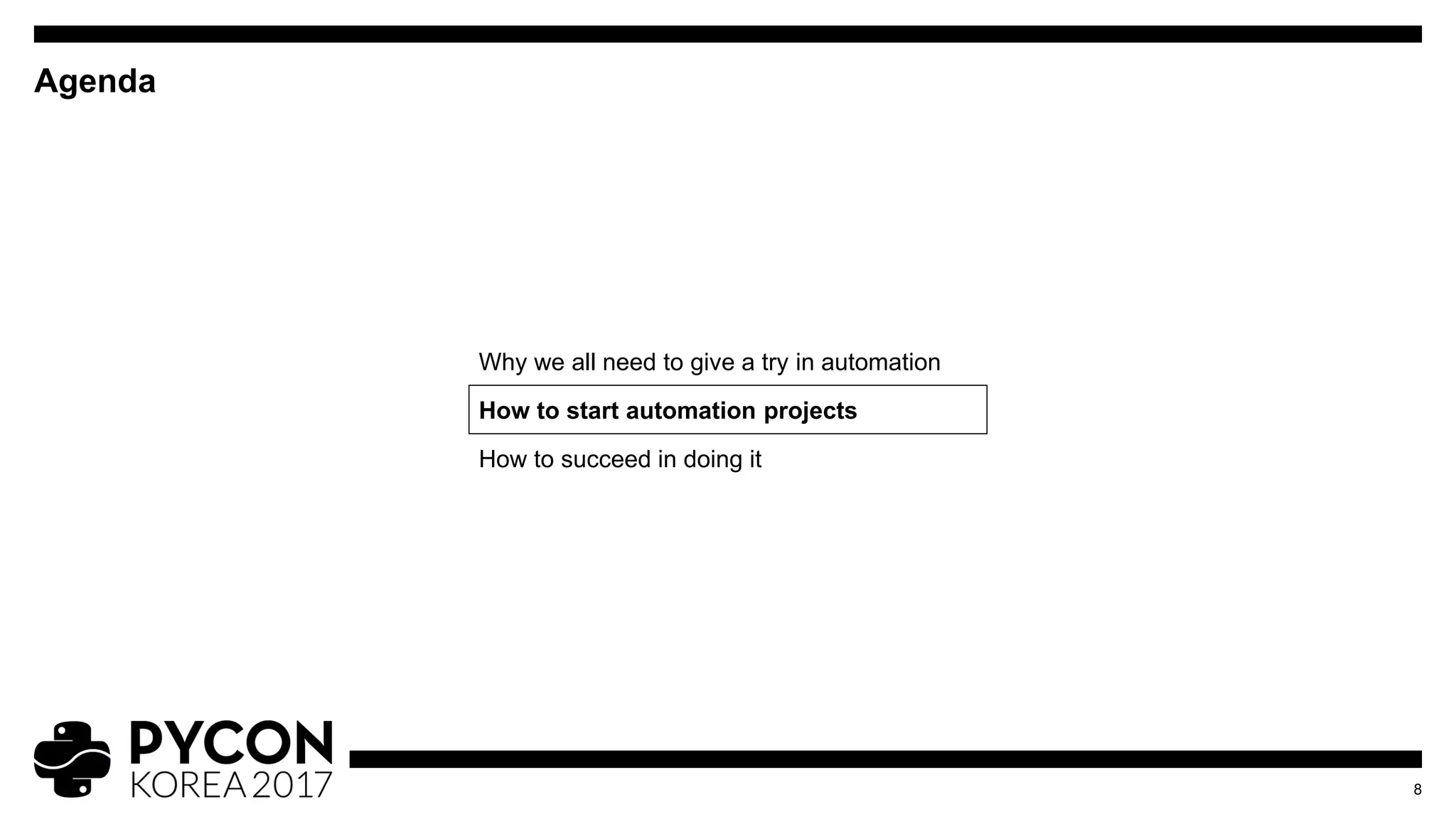

Agenda
8

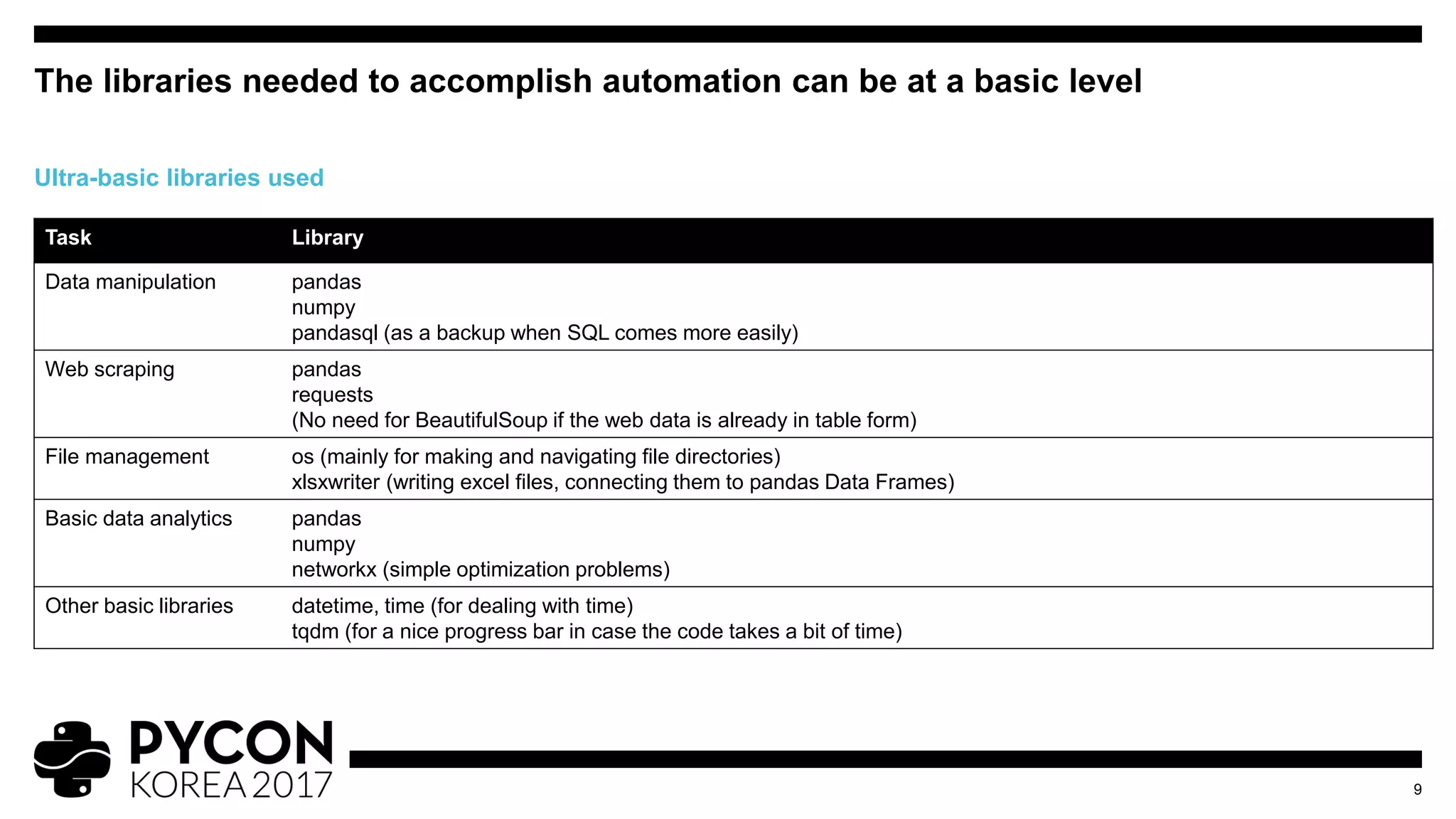

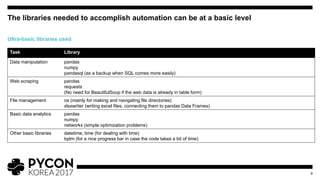

Task Library
Data manipulation pandas
numpy
pandasql (as a backup when SQL comes more easily)
Web scraping pandas
requests
(No need for BeautifulSoup if the web data is already in table form)
File management os (mainly for making and navigating file directories)
xlsxwriter (writing excel files, connecting them to pandas Data Frames)
Basic data analytics pandas
numpy
networkx (simple optimization problems)
Other basic libraries datetime, time (for dealing with time)
tqdm (for a nice progress bar in case the code takes a bit of time)
The libraries needed to accomplish automation can be at a basic level
9
Ultra-basic libraries used

• A smaller chunk of work is always better
–Break down the task you have in mind and choose the
easiest parts first
–A weekend project is better than a week-long project
• Always start with low-hanging fruit
–Choose tasks that are simple and straightforward
–Possible to apply even entry-level programming to
solve practical problems

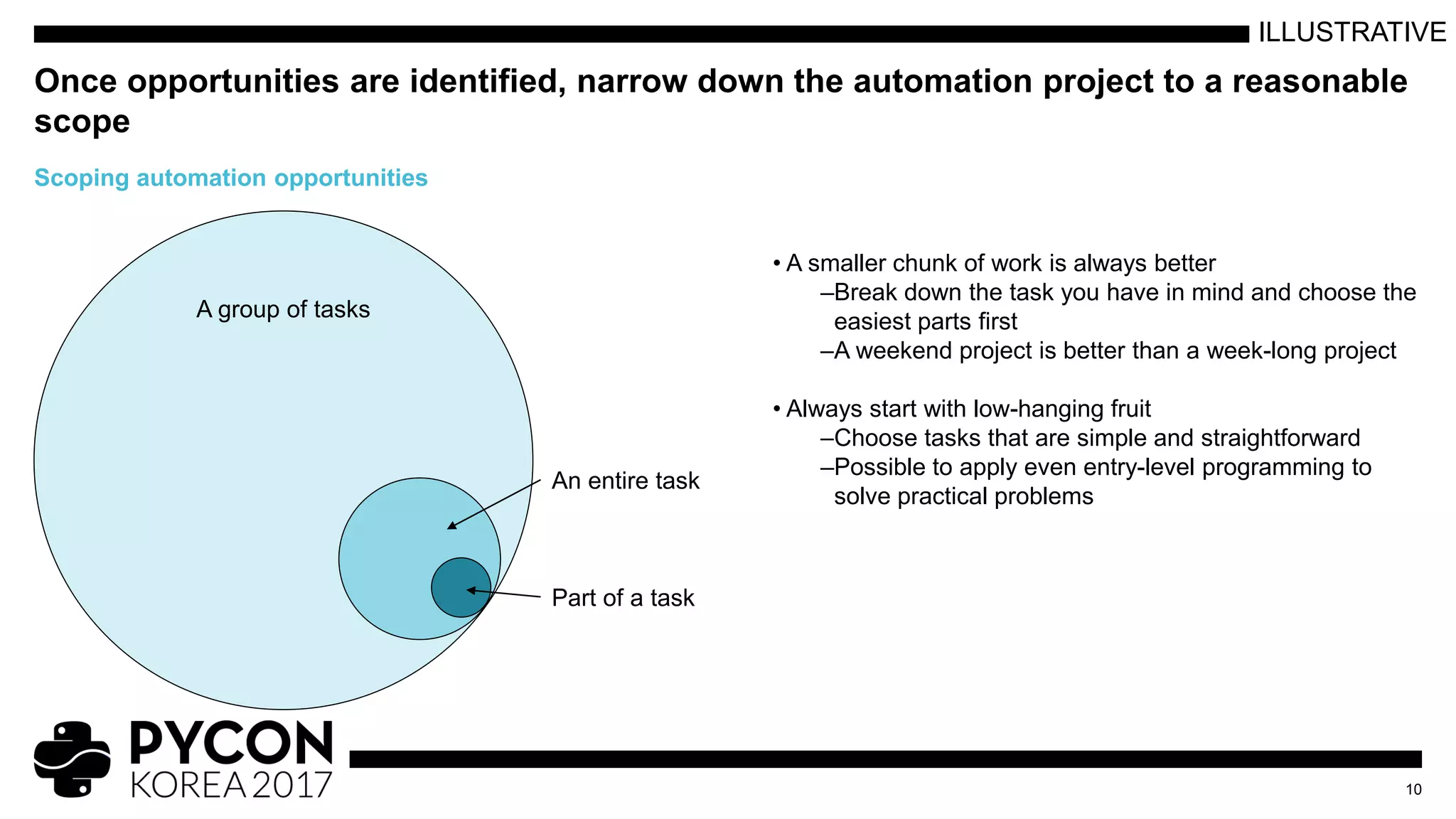

Once opportunities are identified, narrow down the automation project to a reasonable
scope
10
Scoping automation opportunities
A group of tasks
An entire task
Part of a task
ILLUSTRATIVE

Entire project management process
• Custom project management web application for
shipbuilding company
• Web application based on Django framework
Weekly dashboard generation
• Project vendor flight cost control status report and
reaching practical cost-saving through simple
analytics
• Step-by-step Jupyter Notebook documentation
and script to produce Excel document

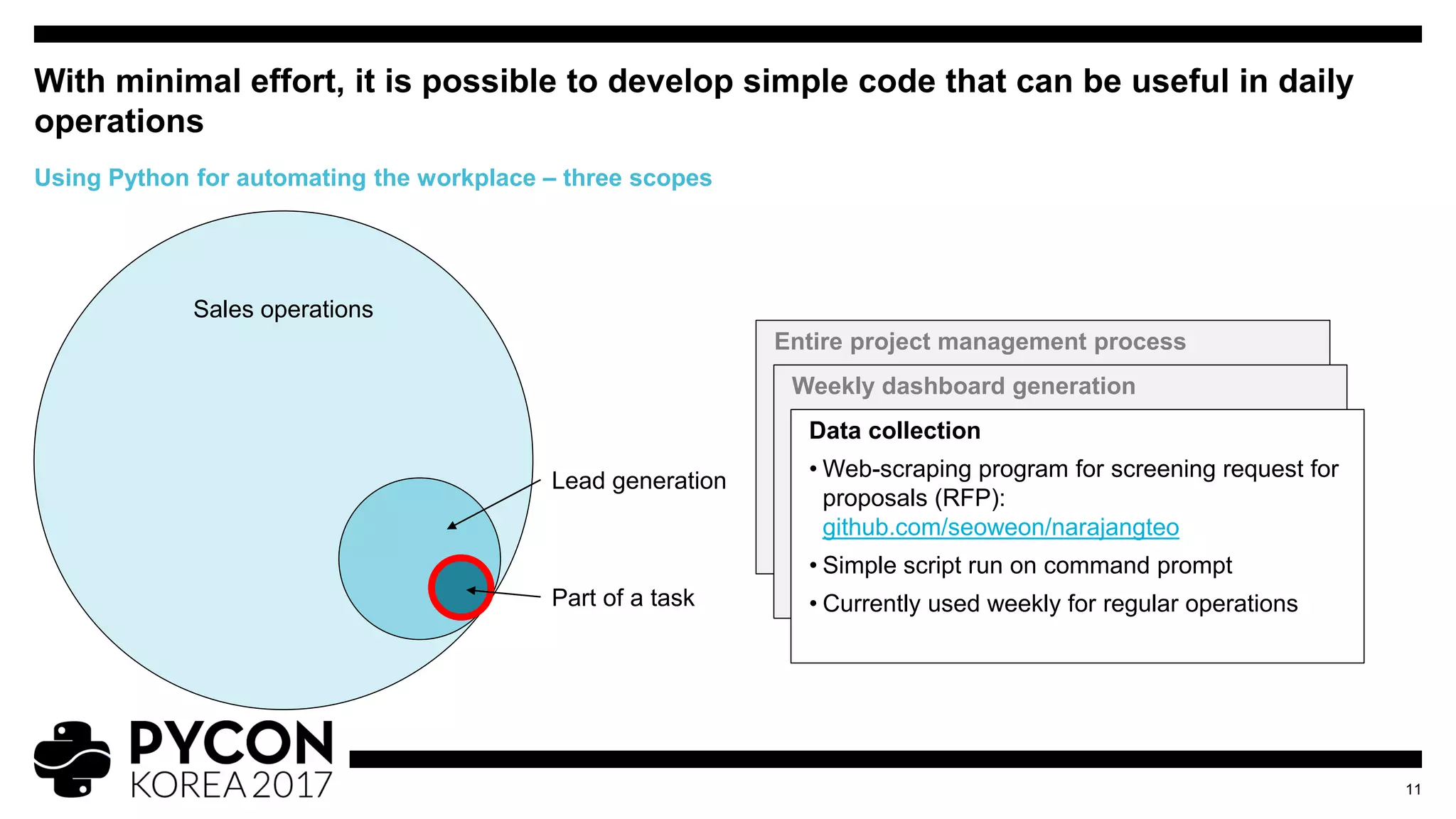

With minimal effort, it is possible to develop simple code that can be useful in daily
operations
11
Using Python for automating the workplace – three scopes
Data collection
• Web-scraping program for screening request for
proposals (RFP):
github.com/seoweon/narajangteo
• Simple script run on command prompt
• Currently used weekly for regular operationsPart of a task
Sales operations
Lead generation

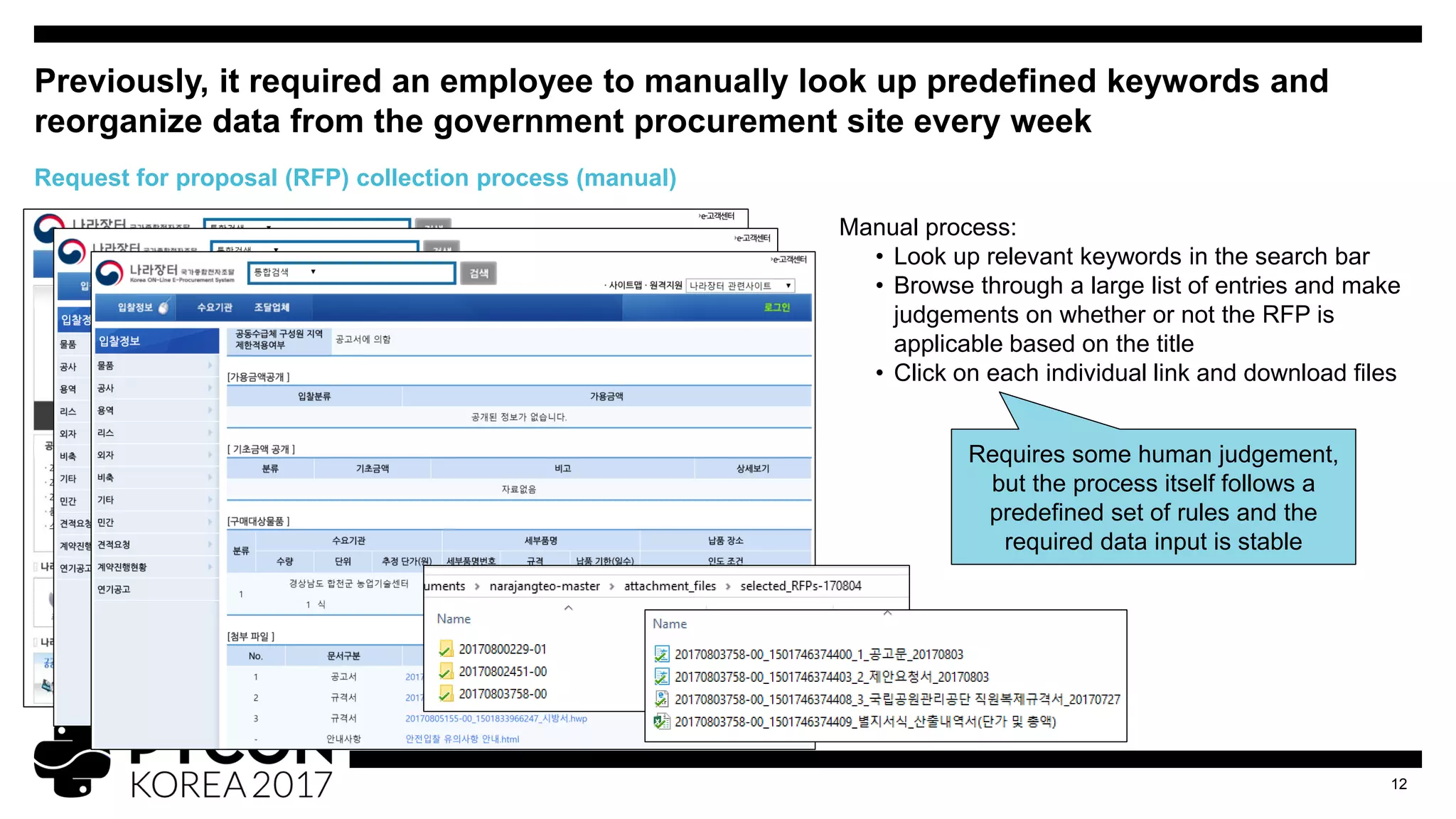

Previously, it required an employee to manually look up predefined keywords and
reorganize data from the government procurement site every week
12
Request for proposal (RFP) collection process (manual)
Manual process:
• Look up relevant keywords in the search bar
• Browse through a large list of entries and make
judgements on whether or not the RFP is
applicable based on the title
• Click on each individual link and download files
Requires some human judgement,
but the process itself follows a
predefined set of rules and the
required data input is stable

• One-time input of all the keywords you want to search
• One-time input of all the keywords you want to exclude
• Run the program and get the shortened list

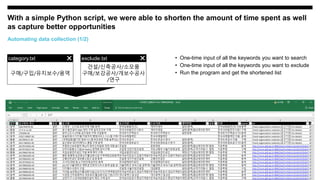

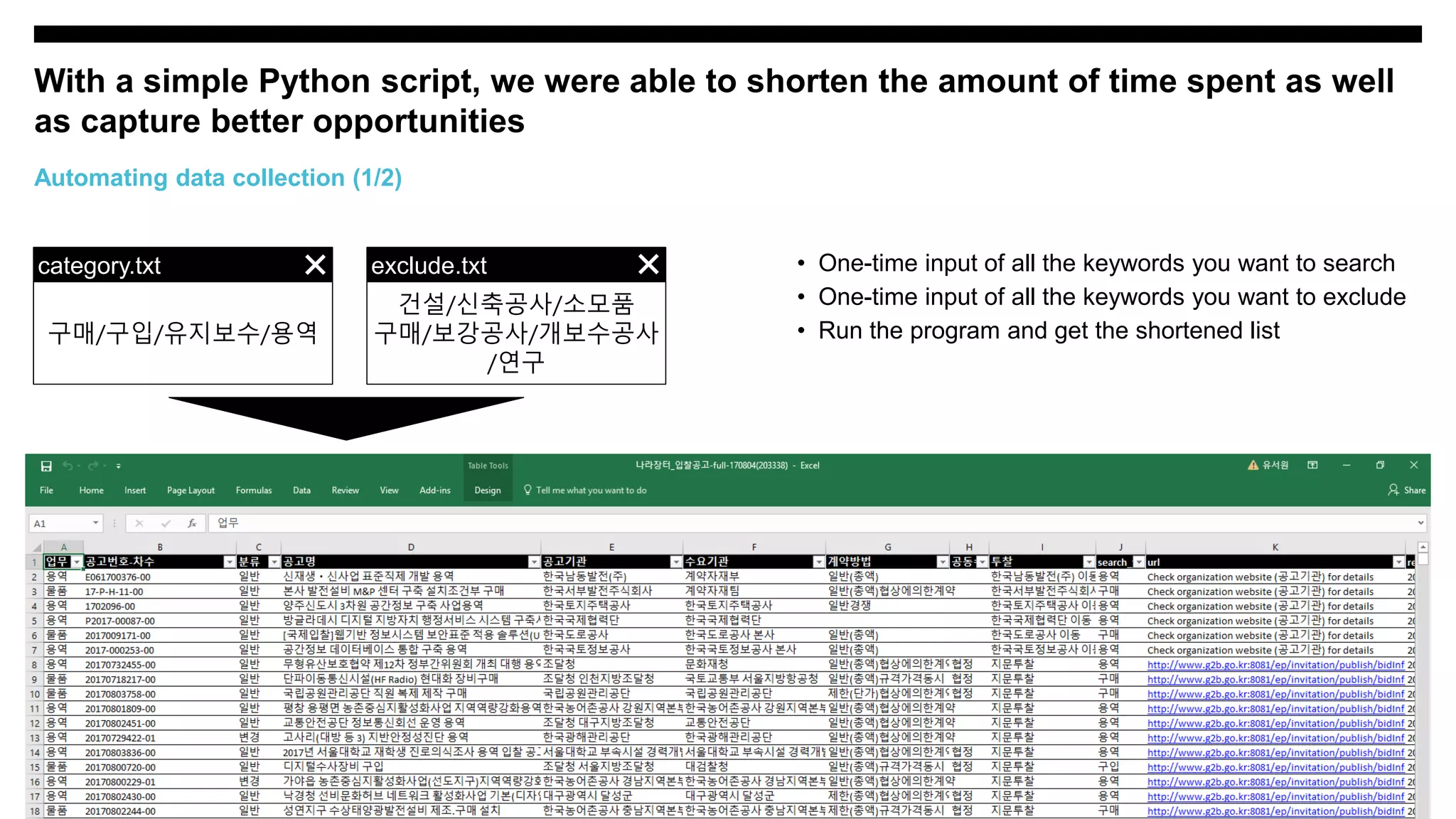

With a simple Python script, we were able to shorten the amount of time spent as well
as capture better opportunities
13
Automating data collection (1/2)
category.txt
구매/구입/유지보수/용역
exclude.txt
건설/신축공사/소모품
구매/보강공사/개보수공사
/연구

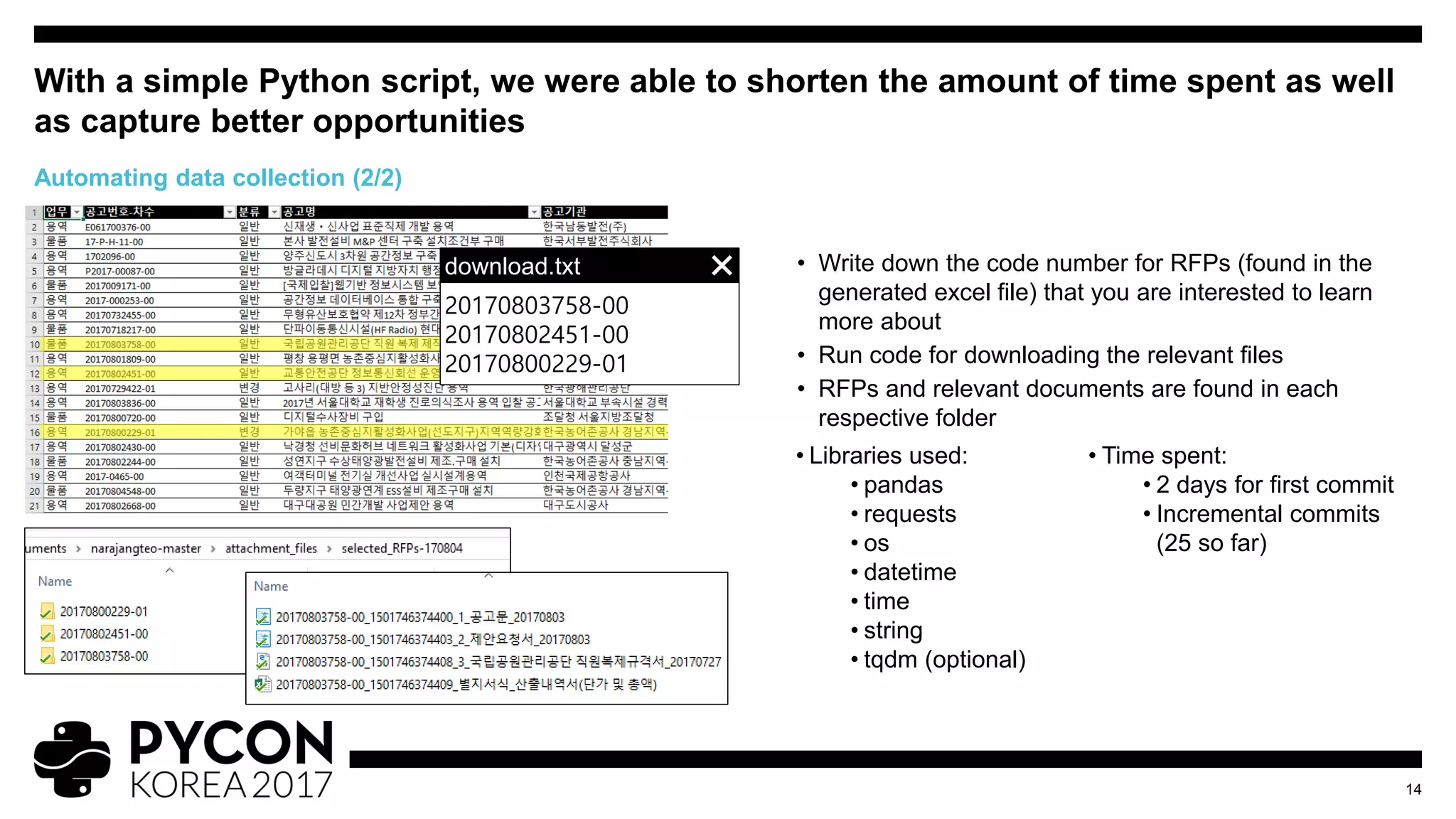

With a simple Python script, we were able to shorten the amount of time spent as well
as capture better opportunities
14
Automating data collection (2/2)
download.txt
20170803758-00
20170802451-00
20170800229-01
• Write down the code number for RFPs (found in the
generated excel file) that you are interested to learn
more about
• Run code for downloading the relevant files
• RFPs and relevant documents are found in each
respective folder
• Libraries used:
• pandas
• requests
• os
• datetime
• time
• string
• tqdm (optional)
• Time spent:
• 2 days for first commit
• Incremental commits
(25 so far)

• Custom project management web application for

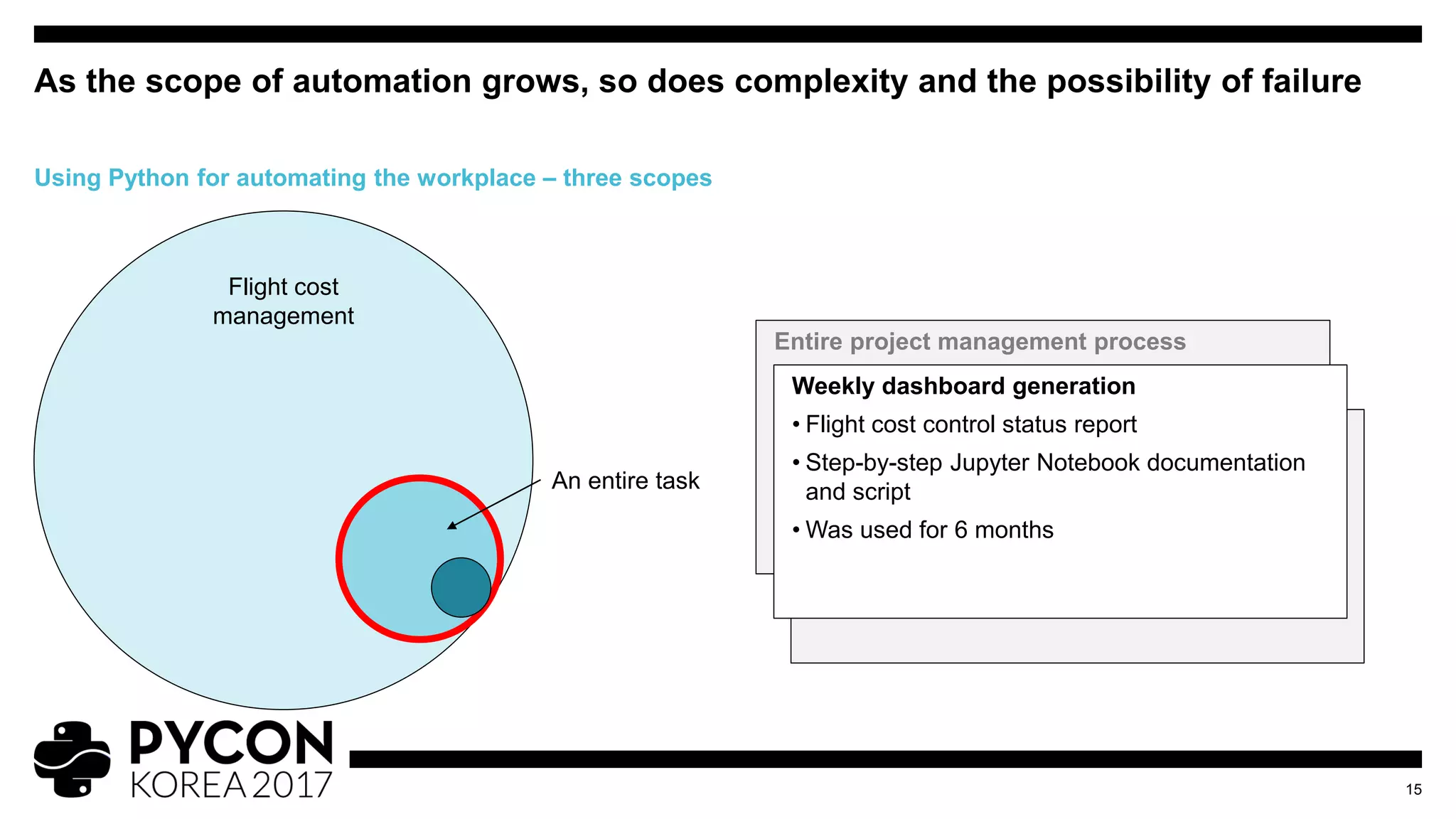

As the scope of automation grows, so does complexity and the possibility of failure
15
Data collection
proposals (RFP):
• Used weekly for regular operations
• Flight cost control status report
and script
• Was used for 6 months
An entire task
Flight cost
management

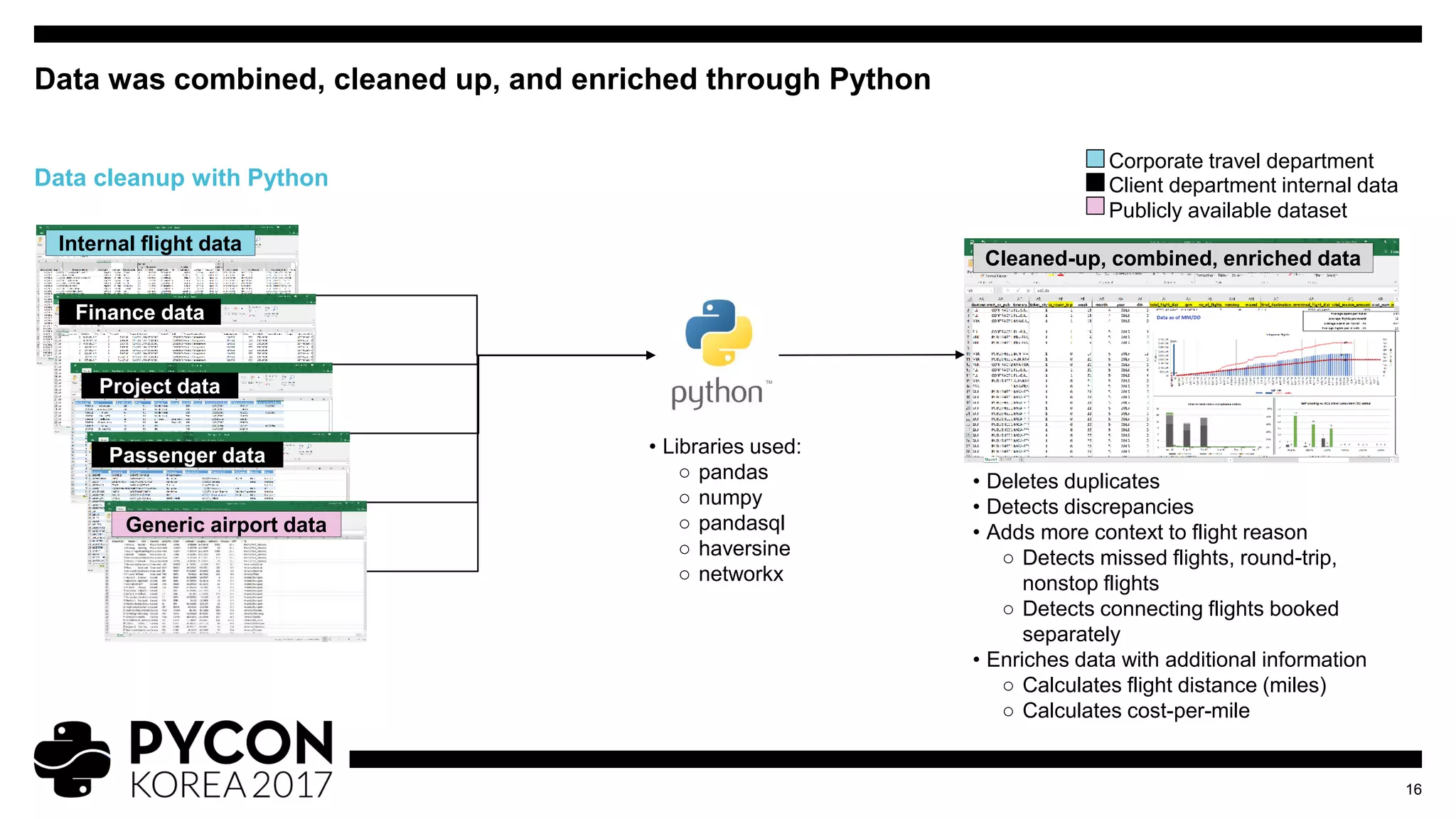

Data was combined, cleaned up, and enriched through Python
16
Data cleanup with Python
Internal flight data
Finance data
Project data
Passenger data
Generic airport data
Cleaned-up, combined, enriched data
• Deletes duplicates
• Detects discrepancies
• Adds more context to flight reason
○ Detects missed flights, round-trip,
nonstop flights
○ Detects connecting flights booked
separately
• Enriches data with additional information
○ Calculates flight distance (miles)
○ Calculates cost-per-mile
Client department internal data
Corporate travel department
Publicly available dataset
• Libraries used:
○ pandas
○ numpy
○ pandasql
○ haversine
○ networkx

Data collection
proposals (RFP):
• Used weekly for regular operations
• Project vendor flight cost control status report and
reaching practical cost-saving through simple
analytics
and script to produce Excel document
• Custom project management application for
• Four-month development project with three full-
time team members
• Two-month training effort for user onboarding

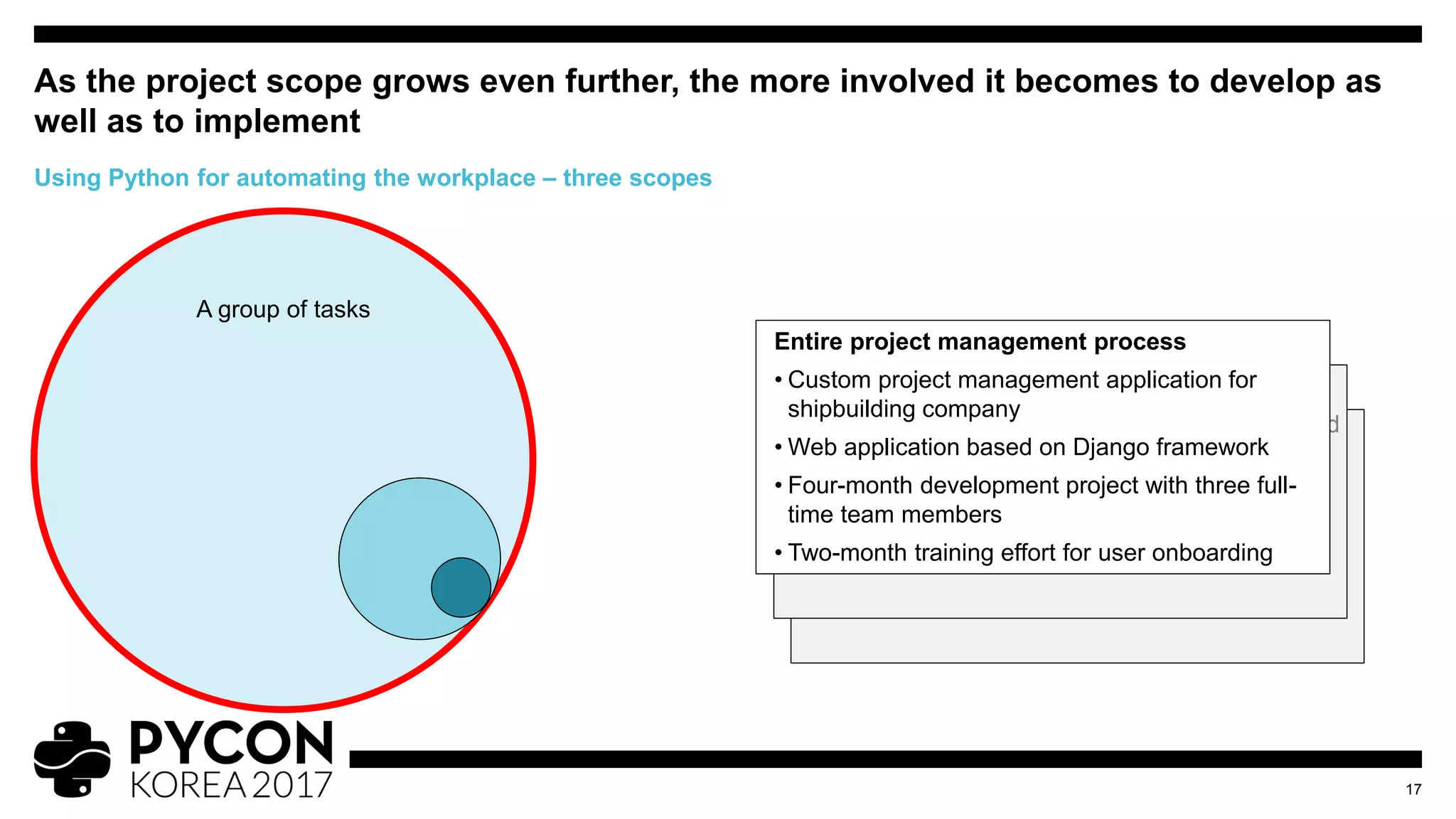

As the project scope grows even further, the more involved it becomes to develop as
well as to implement
17
A group of tasks

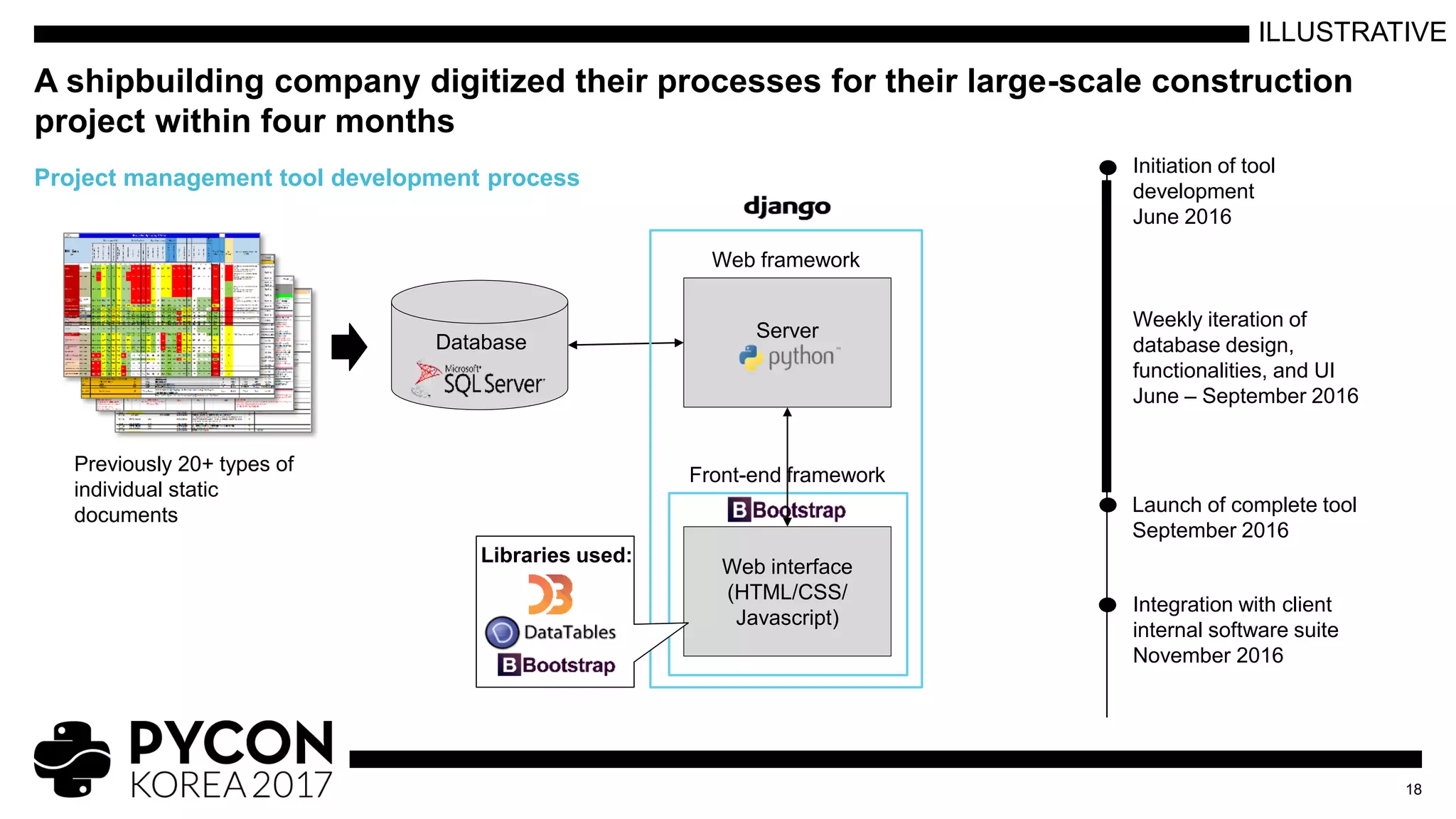

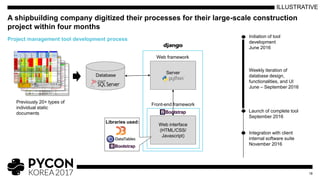

A shipbuilding company digitized their processes for their large-scale construction
project within four months
18
Project management tool development process
Previously 20+ types of
individual static
documents
Server
Web framework
Web interface
(HTML/CSS/
Javascript)
Front-end framework
Libraries used:
Database
ILLUSTRATIVE
Initiation of tool
development
June 2016
Integration with client
internal software suite
November 2016
Launch of complete tool
September 2016
Weekly iteration of
database design,
functionalities, and UI
June – September 2016

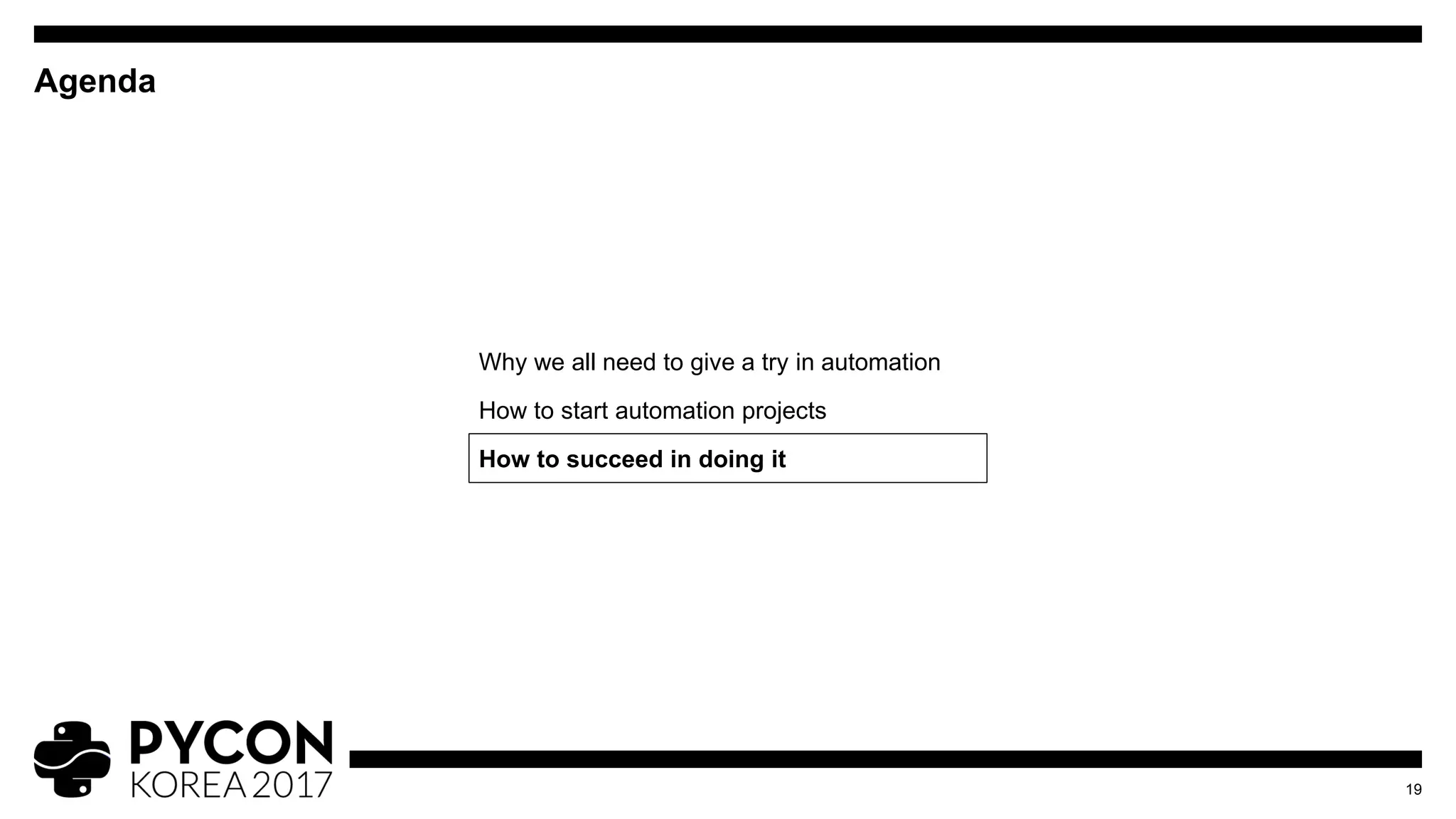

Agenda
19

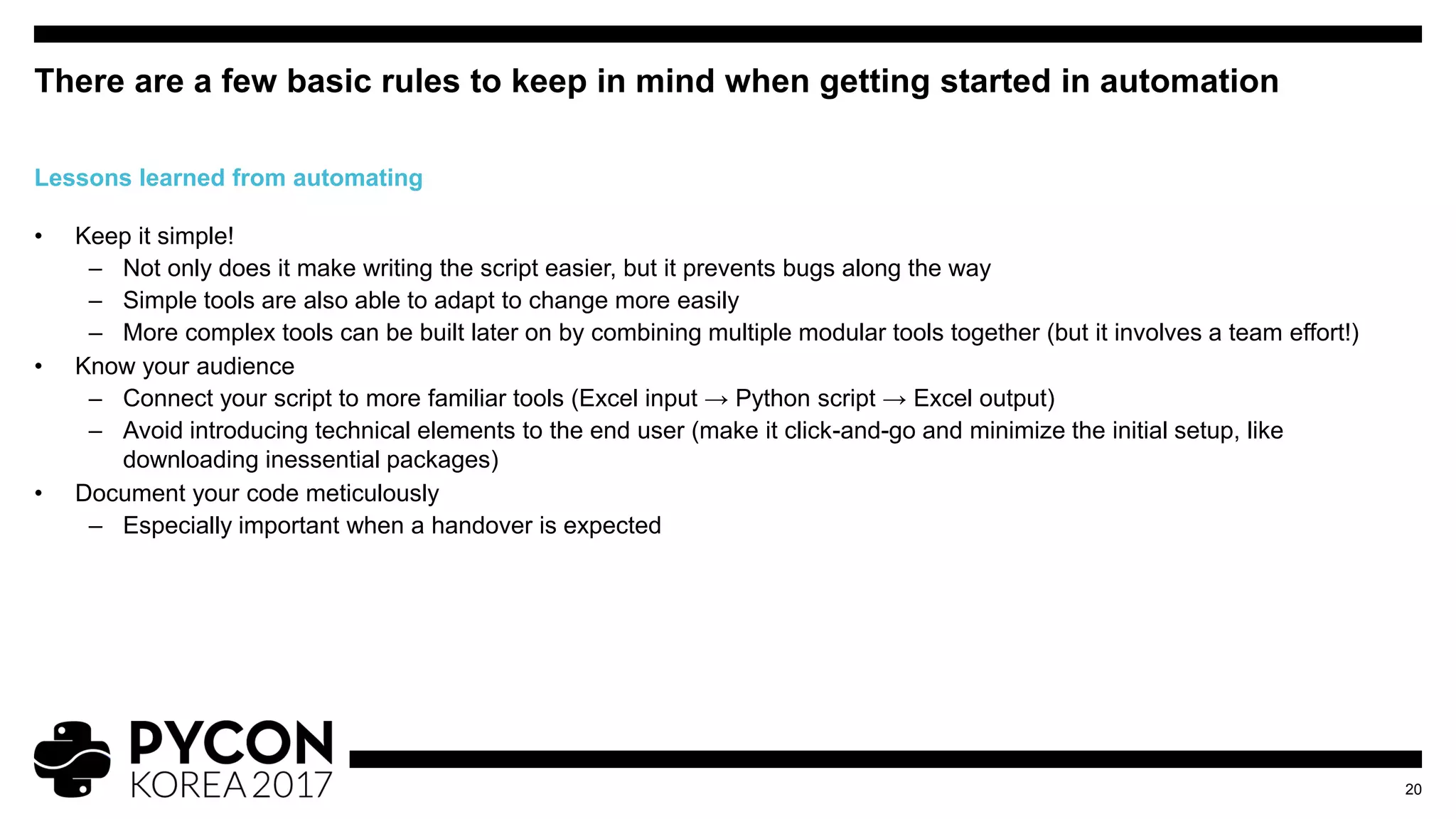

• Keep it simple!
– Not only does it make writing the script easier, but it prevents bugs along the way
– Simple tools are also able to adapt to change more easily
– More complex tools can be built later on by combining multiple modular tools together (but it involves a team effort!)
• Know your audience
– Connect your script to more familiar tools (Excel input → Python script → Excel output)
– Avoid introducing technical elements to the end user (make it click-and-go and minimize the initial setup, like
downloading inessential packages)
• Document your code meticulously
– Especially important when a handover is expected
There are a few basic rules to keep in mind when getting started in automation
20
Lessons learned from automating

21
We’re hiring!
www.reddal.com/join-reddal/
Slides: bit.ly/practical_automation | e-mail: seoweon.yoo@reddal.com

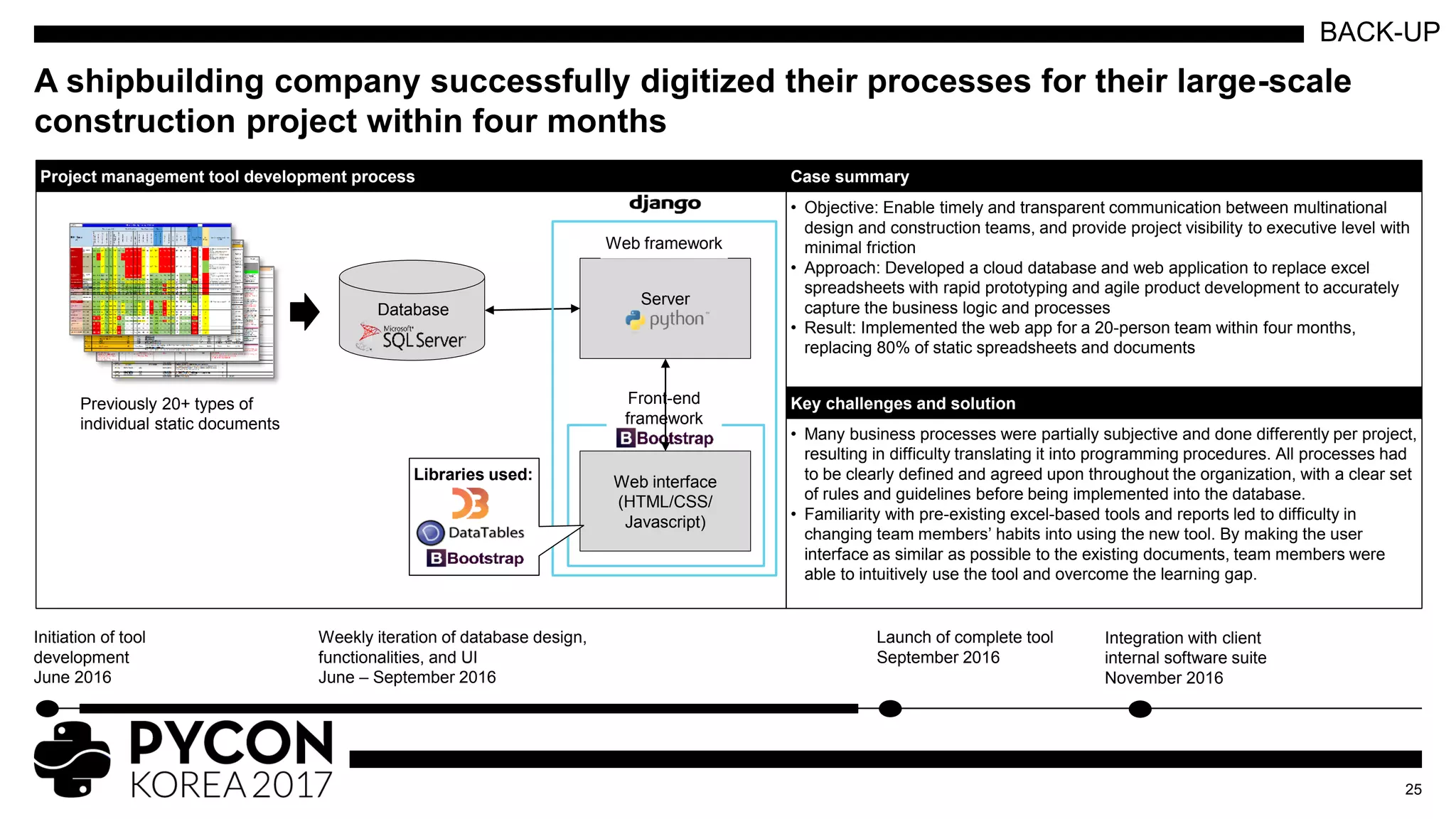

A shipbuilding company successfully digitized their processes for their large-scale
construction project within four months
25
• Objective: Enable timely and transparent communication between multinational
design and construction teams, and provide project visibility to executive level with
minimal friction
• Approach: Developed a cloud database and web application to replace excel
spreadsheets with rapid prototyping and agile product development to accurately
capture the business logic and processes
• Result: Implemented the web app for a 20-person team within four months,
replacing 80% of static spreadsheets and documents
• Many business processes were partially subjective and done differently per project,
resulting in difficulty translating it into programming procedures. All processes had
to be clearly defined and agreed upon throughout the organization, with a clear set
of rules and guidelines before being implemented into the database.
• Familiarity with pre-existing excel-based tools and reports led to difficulty in
changing team members’ habits into using the new tool. By making the user
interface as similar as possible to the existing documents, team members were
able to intuitively use the tool and overcome the learning gap.
Project management tool development process Case summary
Key challenges and solution
Initiation of tool
development
June 2016
Integration with client
internal software suite
November 2016
Launch of complete tool
September 2016
Weekly iteration of database design,
functionalities, and UI
June – September 2016
Previously 20+ types of
individual static documents
Server
Web framework
Web interface
(HTML/CSS/
Javascript)
Front-end
framework
Libraries used:
Database
BACK-UP
