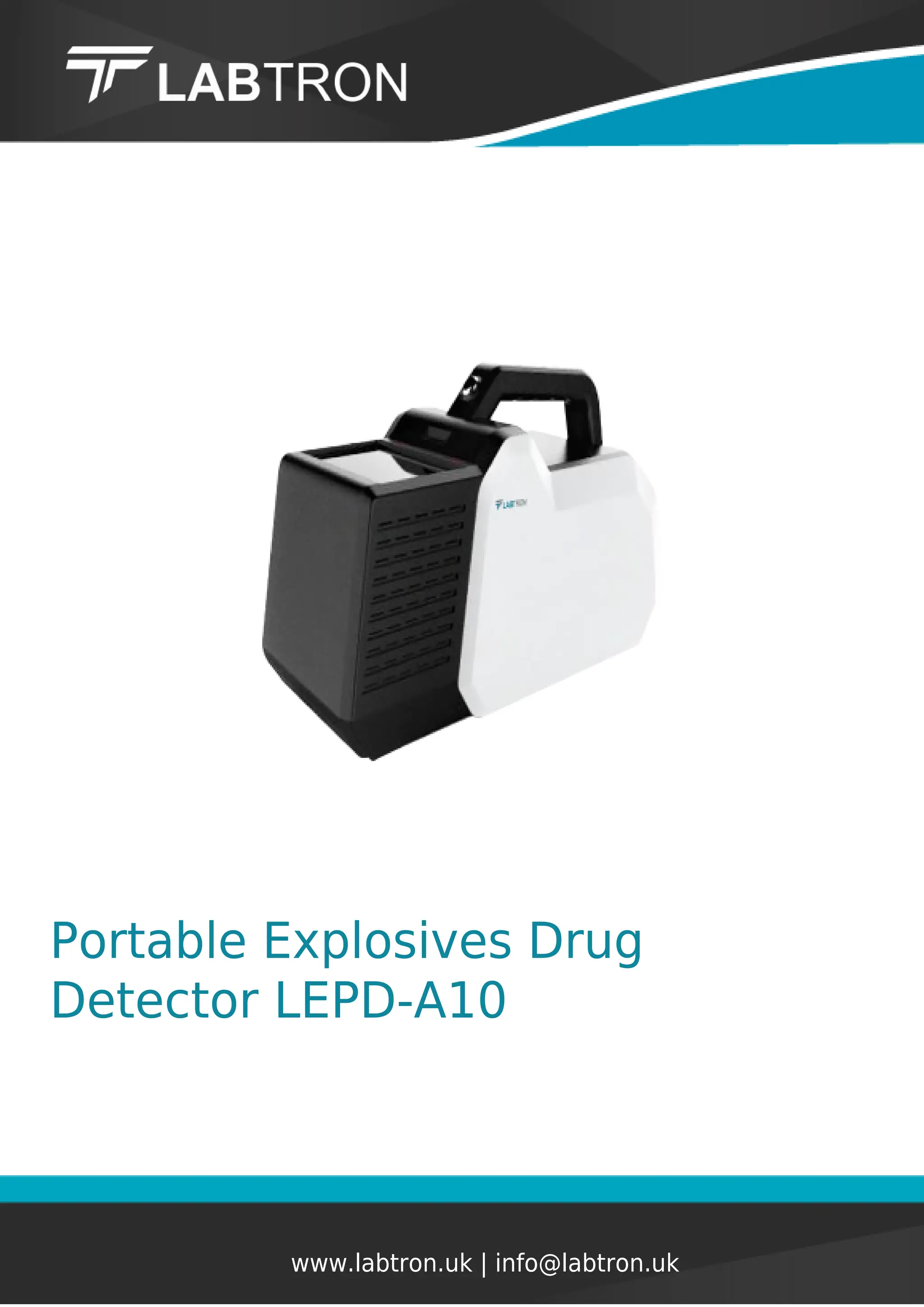

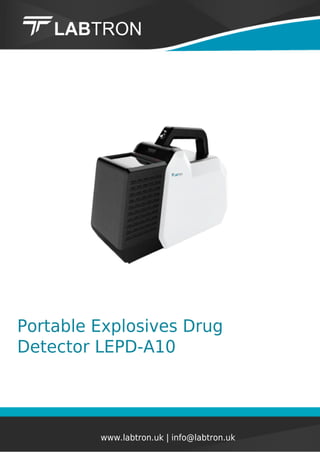

Portable Explosives Drug
Detector LEPD-A10
www.labtron.uk | info@labtron.uk
Overview
Portable Explosives Drug Detector LEPD-A10 uses IMS (Ion Mobility
Spectrometry) technology to detect trace level of explosives. With higher
sensitivity it detects explosive present in nanogram level in a test sample.
Various explosives like Black Powder, Ammonium Nitrate (AN), TNT,
PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4,
Semtex, TATP, etc. can be detected. Features like audio and visual alert
system, password lock option, touch screen display, results displayed in
few seconds etc. makes it highly efficient. It has wide applications in
investigation department, research labs and industries.
Specifications :
Detectable explosives
Black Powder, Ammonium
Nitrate(AN),TNT, PETN, RDX, nitro-
glycerine, Octo, Tetra, Dinitrotoluene
(DNT), C4, Semtex, TATP, etc.
Self-diagnosis function built-in diagnostics, power-on self-test
Sensitivity nanogram
Alarm mode voice + information display
Analysis time < 5 s
Detection rate ≥ 99%
False positive rate ≤ 1%
Machine weight < 3 kg
Warm-up time ≤ 10 min
Working environment -15°C to 50°C
Display screen 5 inch high-definition touch display
Battery display function graphic display of battery usage
Standby time > 5 hours
Product Dimension (L×W×H) 338 ×148 ×175 mm
Power
220 V AC 50-60 Hz / Lithium battery
powered
Power adapter
input 220 V / AC 50-60 Hz
output 16 V / DC
Weight < 3 kg
Features :
- Adopts IMS Technology
- Displays location map
- Detection within few seconds
- Remote operation available
- Option to add new samples by users
- Self-diagnosis of the sample
- Audio and visual alert system
- 5 inch touch screen to view and pre-set parameters
- Battery last up to 4 to 5 hours
- Light weight, ergonomic design, user friendly interface
- Handle provided for better grip
Applications :
It is widely used in Airport, police, railways security department, research
labs etc. to detect traces of explosives.
Labtron Equipment Ltd.Quatro House,Lyon
Way,Camberley,SurreyGU16 7ER, United Kingdom
Email: |
Phone: +44 2080 043 608
info@labtron.uk Website: www.labtron.uk
