1. Jive, Dropbox and other integrations!

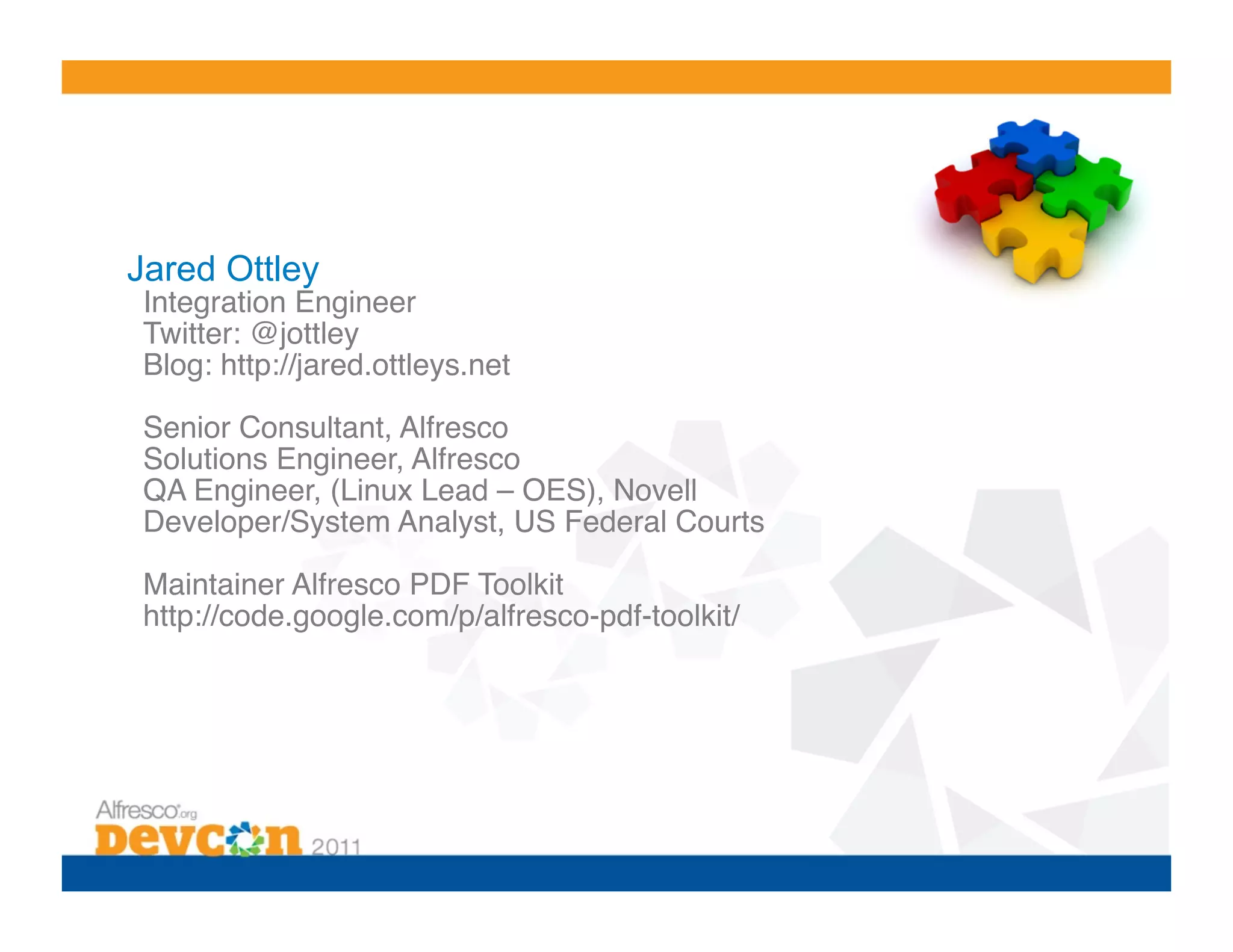

2. Jared Ottley
Integration Engineer!
Twitter: @jottley!
Blog: http://jared.ottleys.net!
Senior Consultant, Alfresco!
Solutions Engineer, Alfresco !
QA Engineer, (Linux Lead – OES), Novell!
Developer/System Analyst, US Federal Courts!
Maintainer Alfresco PDF Toolkit!
http://code.google.com/p/alfresco-pdf-toolkit/!

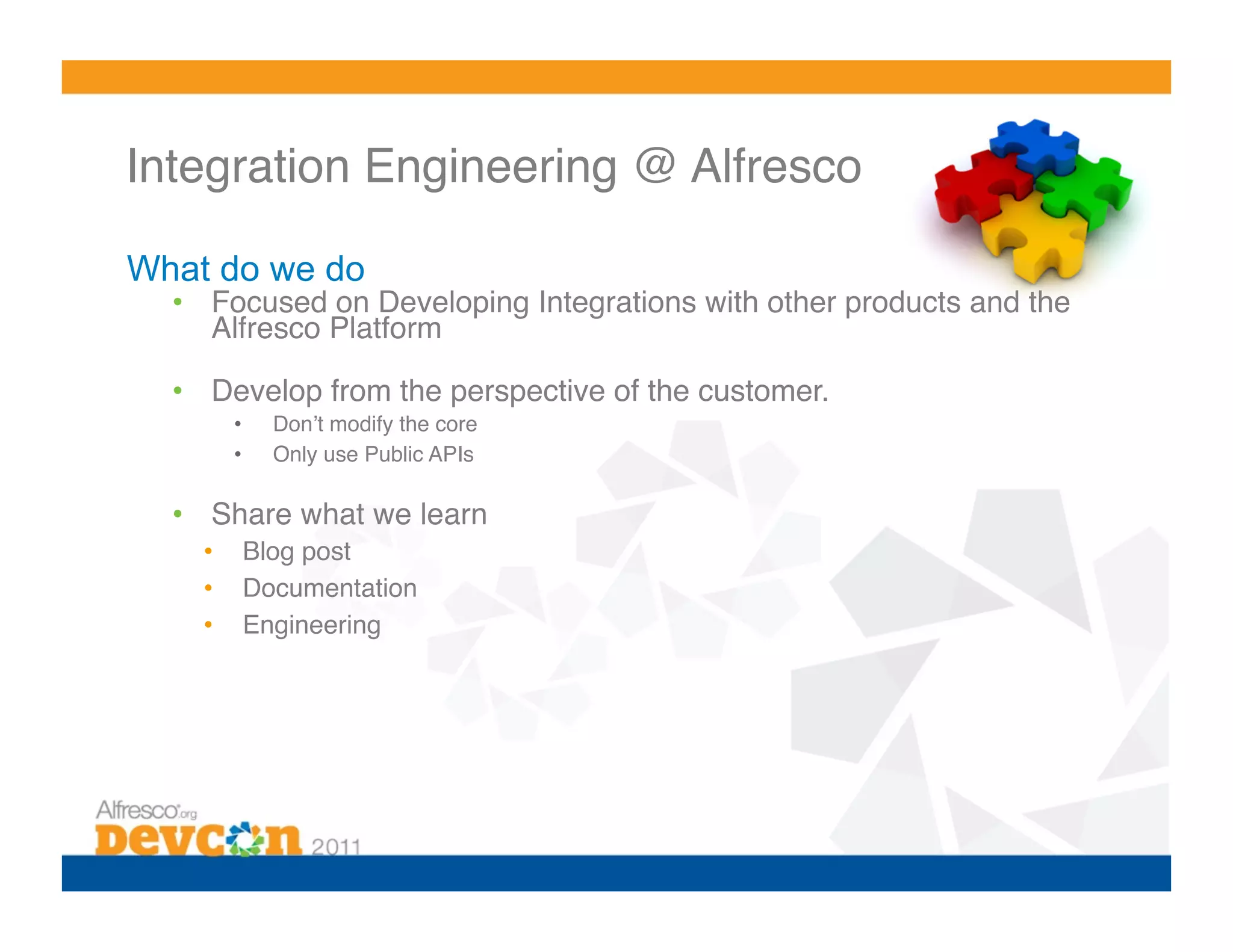

3. Integration Engineering @ Alfresco!
What do we do
• Focused on Developing Integrations with other products and the
Alfresco Platform!
• Develop from the perspective of the customer. !
• Donʼt modify the core!
• Only use Public APIs!
• Share what we learn!
• Blog post!
• Documentation!
• Engineering!

4. Alfresco – Jive Toolkit

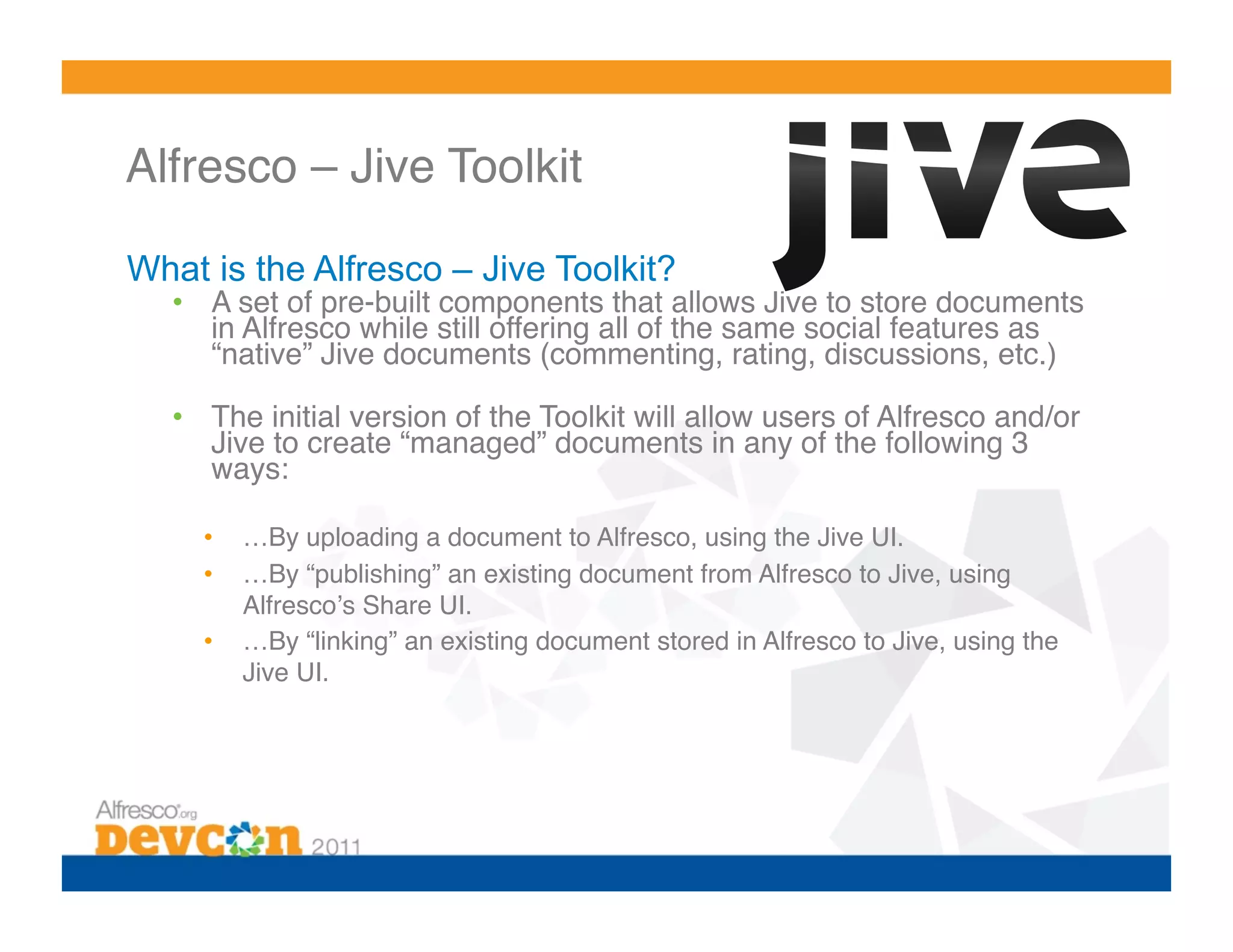

5. Alfresco – Jive Toolkit!
What is the Alfresco – Jive Toolkit?
• A set of pre-built components that allows Jive to store documents
in Alfresco while still offering all of the same social features as
“native” Jive documents (commenting, rating, discussions, etc.)!
• The initial version of the Toolkit will allow users of Alfresco and/or
Jive to create “managed” documents in any of the following 3
ways:!
• …By uploading a document to Alfresco, using the Jive UI.!
• …By “publishing” an existing document from Alfresco to Jive, using
Alfrescoʼs Share UI.!
• …By “linking” an existing document stored in Alfresco to Jive, using the
Jive UI.!

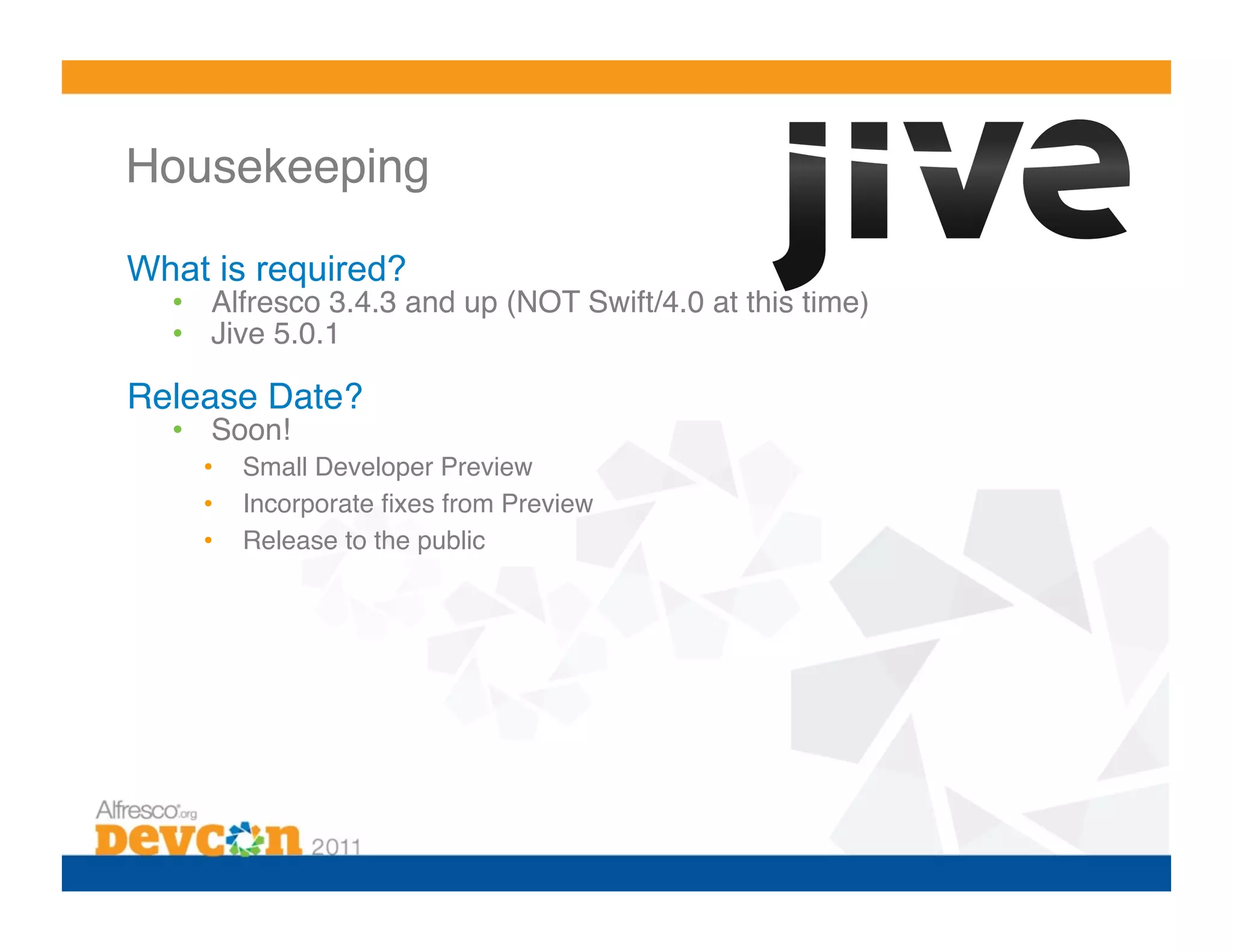

6. Housekeeping
What is required?
• Alfresco 3.4.3 and up (NOT Swift/4.0 at this time)!
• Jive 5.0.1!
Release Date?
• Soon!!
• Small Developer Preview!
• Incorporate fixes from Preview!
• Release to the public!

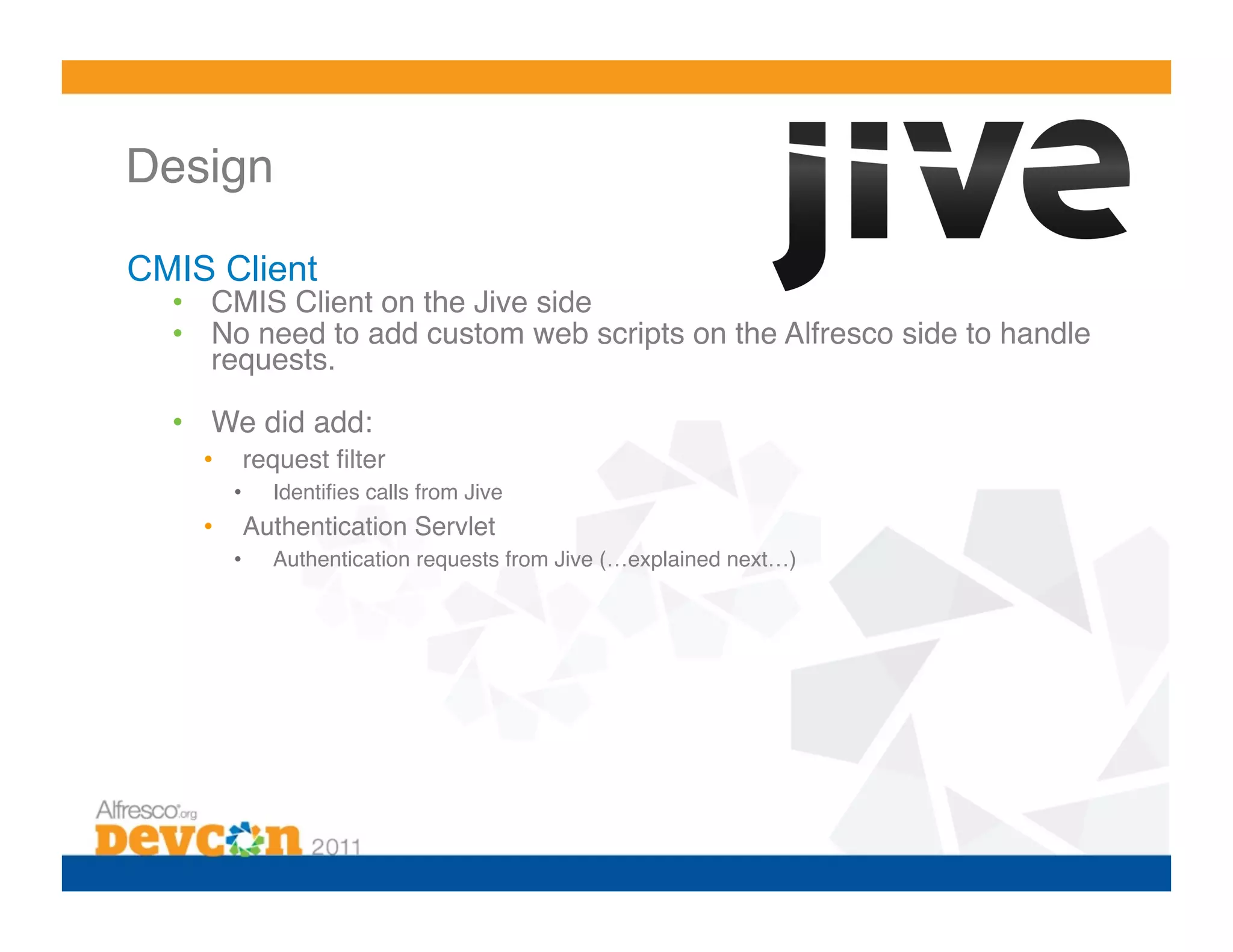

7. Design
CMIS Client
• CMIS Client on the Jive side!
• No need to add custom web scripts on the Alfresco side to handle
requests.!
• We did add:!
• request filter!
• Identifies calls from Jive!
• Authentication Servlet!
• Authentication requests from Jive (…explained next…)!

8. Design
Permissions
• The models differ!
• No access to user credentials on either side!
• Implemented Solution!
• Rely on a common backend – LDAP – Let each side manage its own
permissions (Jive – Community; Alfresco – Node).!
• Common user to make calls to Alfresco/Jive!
• Encrypted UserID to specify “RunAs” User!
• This is still open for change/improvement. We need “real world” feedback
to validate our approach!

9. Design
Delete
• Jive does not hold a copy of the content, just a reference: the
cmis:id!
• To protect it from from having Orphaned content. Alfresco does not
allow deletes while content is socialized.!
• Accomplished through a policy (beforeDeleteNode) which simply
throws an exception when a delete is tried!
Copy
• We want to allow coping of content in Alfresco, but we donʼt want
the content to be socialized!
• The Jive side only supports a single reference to content!
• Jive has no concept of folders (Though it does support tags/categories)!
• Disable copying the socialized aspect to new node through a copy
callback!
• getCopyCallback returns DoNothingCopyBehaviourCallback()!

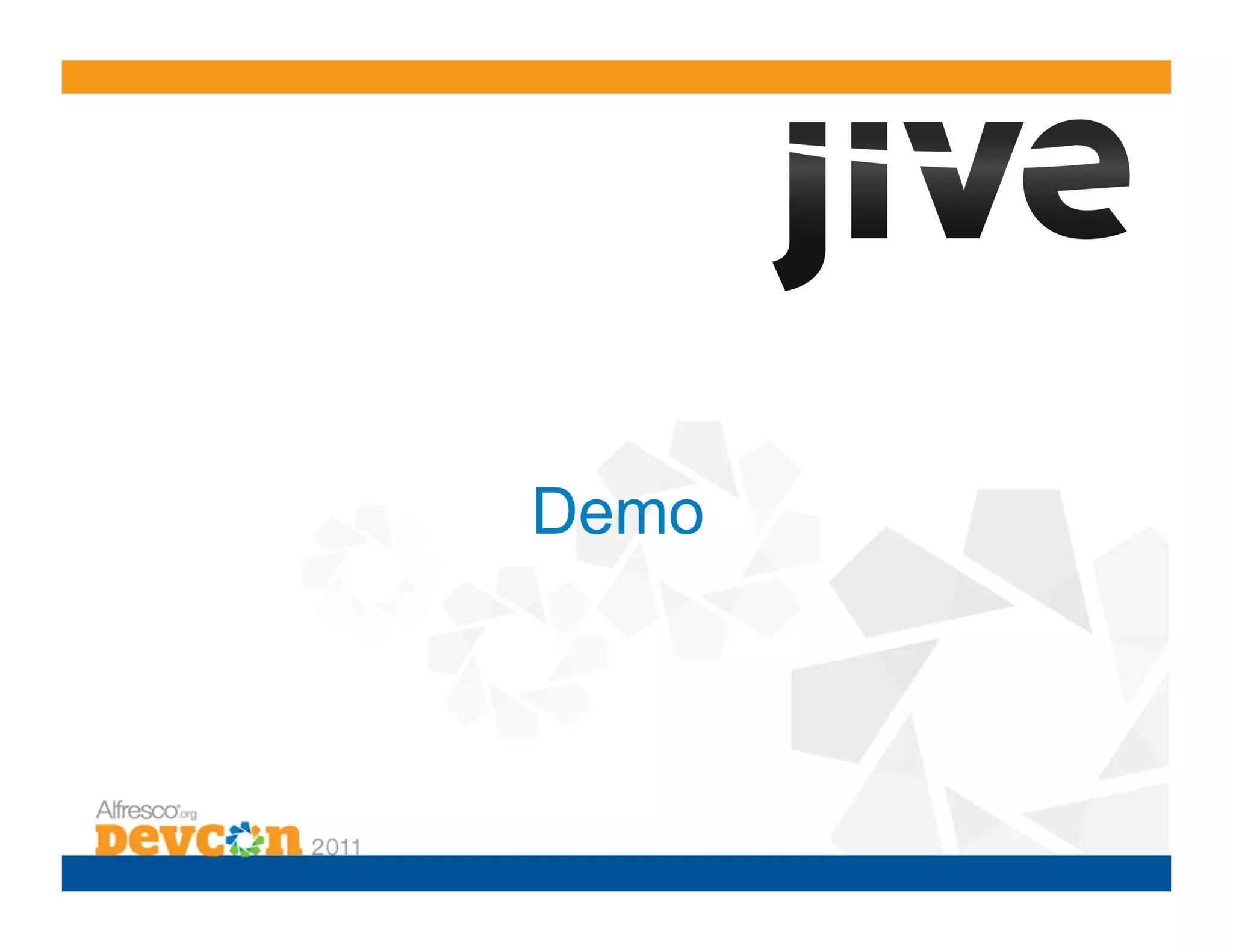

10. Demo

11. Alfresco Dropbox Connector!

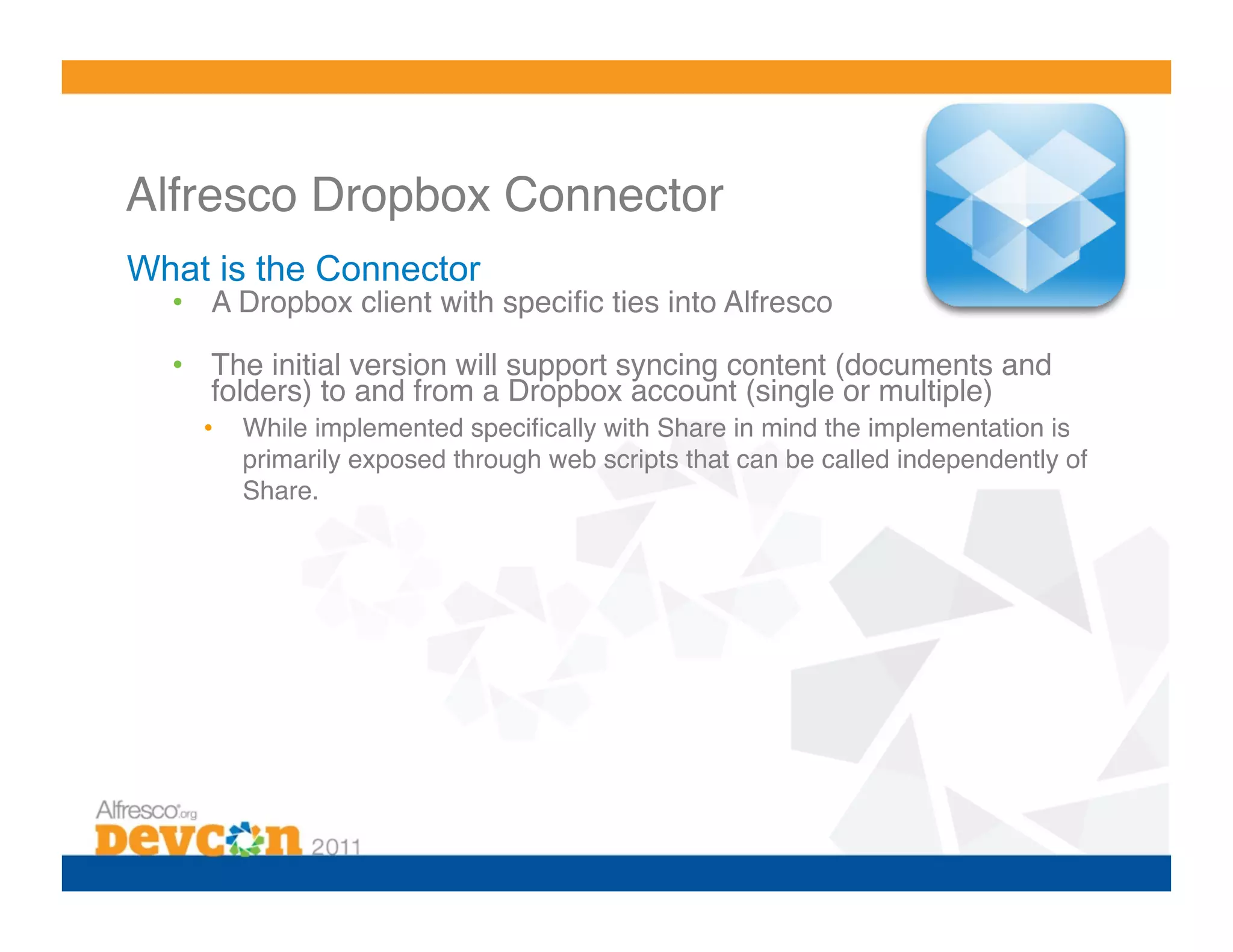

12. Alfresco Dropbox Connector!
What is the Connector
• A Dropbox client with specific ties into Alfresco!
• The initial version will support syncing content (documents and
folders) to and from a Dropbox account (single or multiple)!
• While implemented specifically with Share in mind the implementation is
primarily exposed through web scripts that can be called independently of
Share.!

13. Housekeeping
What is required?
• Alfresco 4.0 (aka Swift)!
Release Date?
• TBD!
• Close to submission for Approval from Dropbox!
• Further Testing of Multiple User use case!

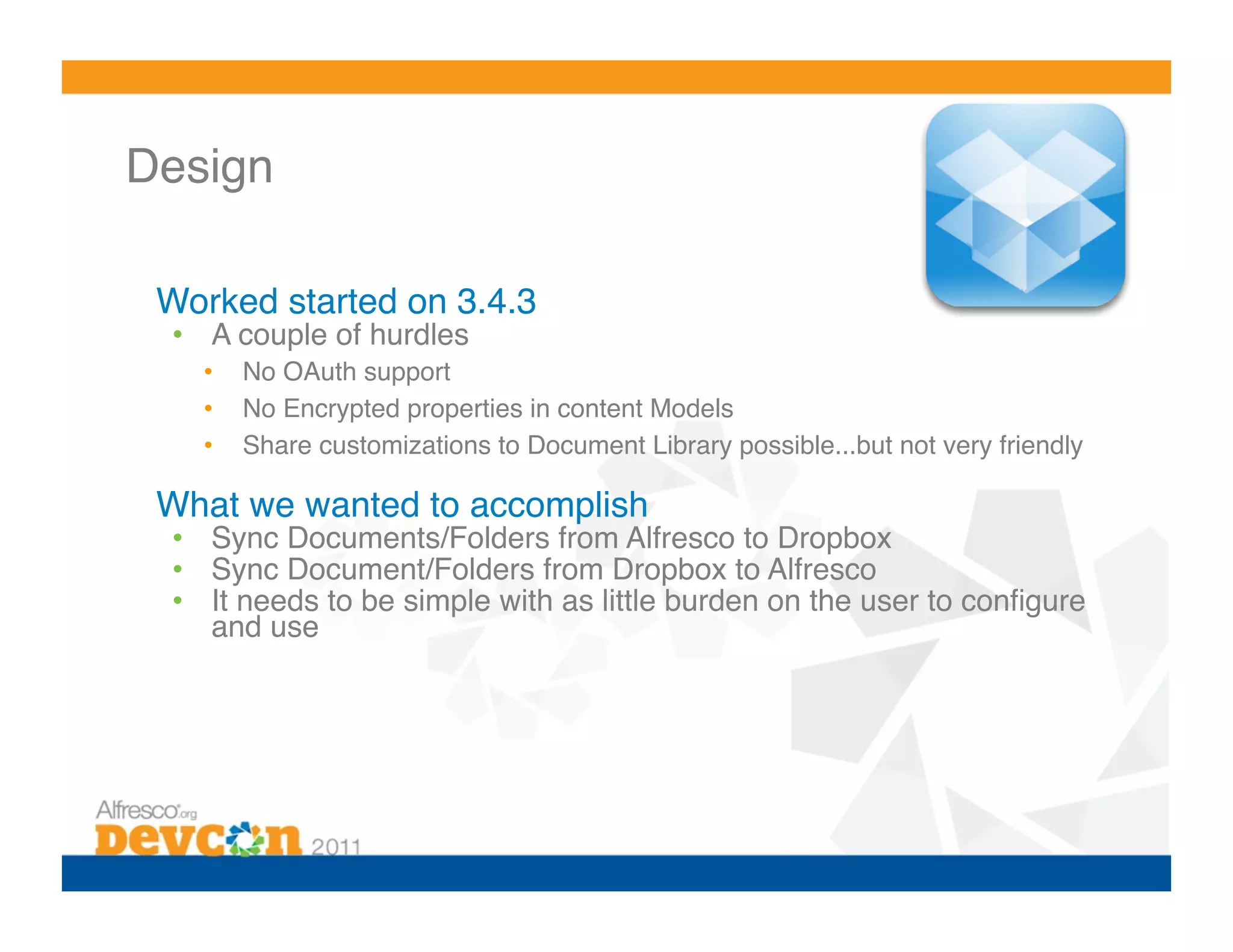

14. Design
Worked started on 3.4.3!
• A couple of hurdles!
• No OAuth support!
• No Encrypted properties in content Models!
• Share customizations to Document Library possible...but not very friendly!
What we wanted to accomplish!
• Sync Documents/Folders from Alfresco to Dropbox!
• Sync Document/Folders from Dropbox to Alfresco!
• It needs to be simple with as little burden on the user to configure
and use!

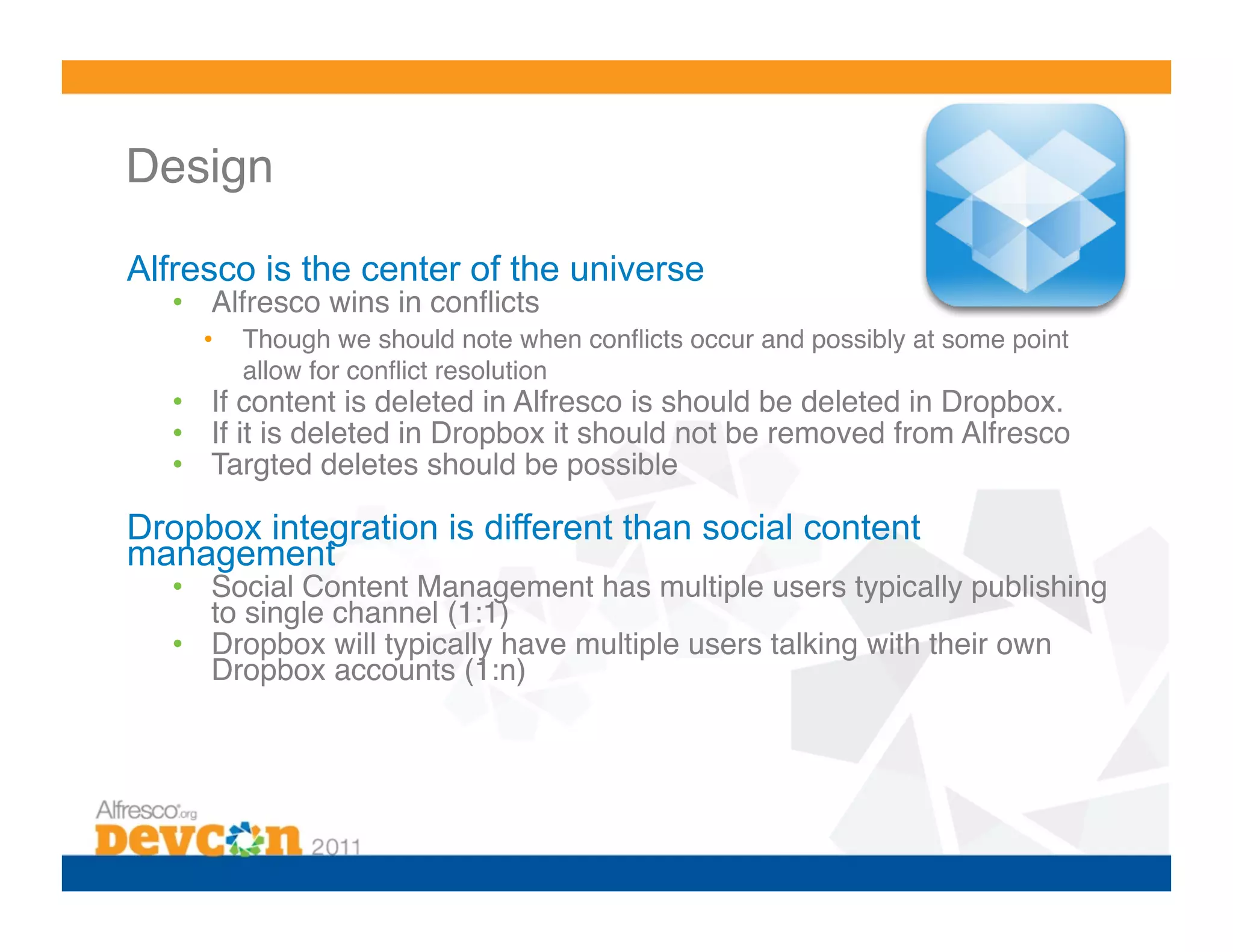

15. Design
Alfresco is the center of the universe
• Alfresco wins in conflicts!
• Though we should note when conflicts occur and possibly at some point
allow for conflict resolution!
• If content is deleted in Alfresco is should be deleted in Dropbox.!
• If it is deleted in Dropbox it should not be removed from Alfresco!
• Targted deletes should be possible!
Dropbox integration is different than social content
management
• Social Content Management has multiple users typically publishing
to single channel (1:1)!
• Dropbox will typically have multiple users talking with their own
Dropbox accounts (1:n)!

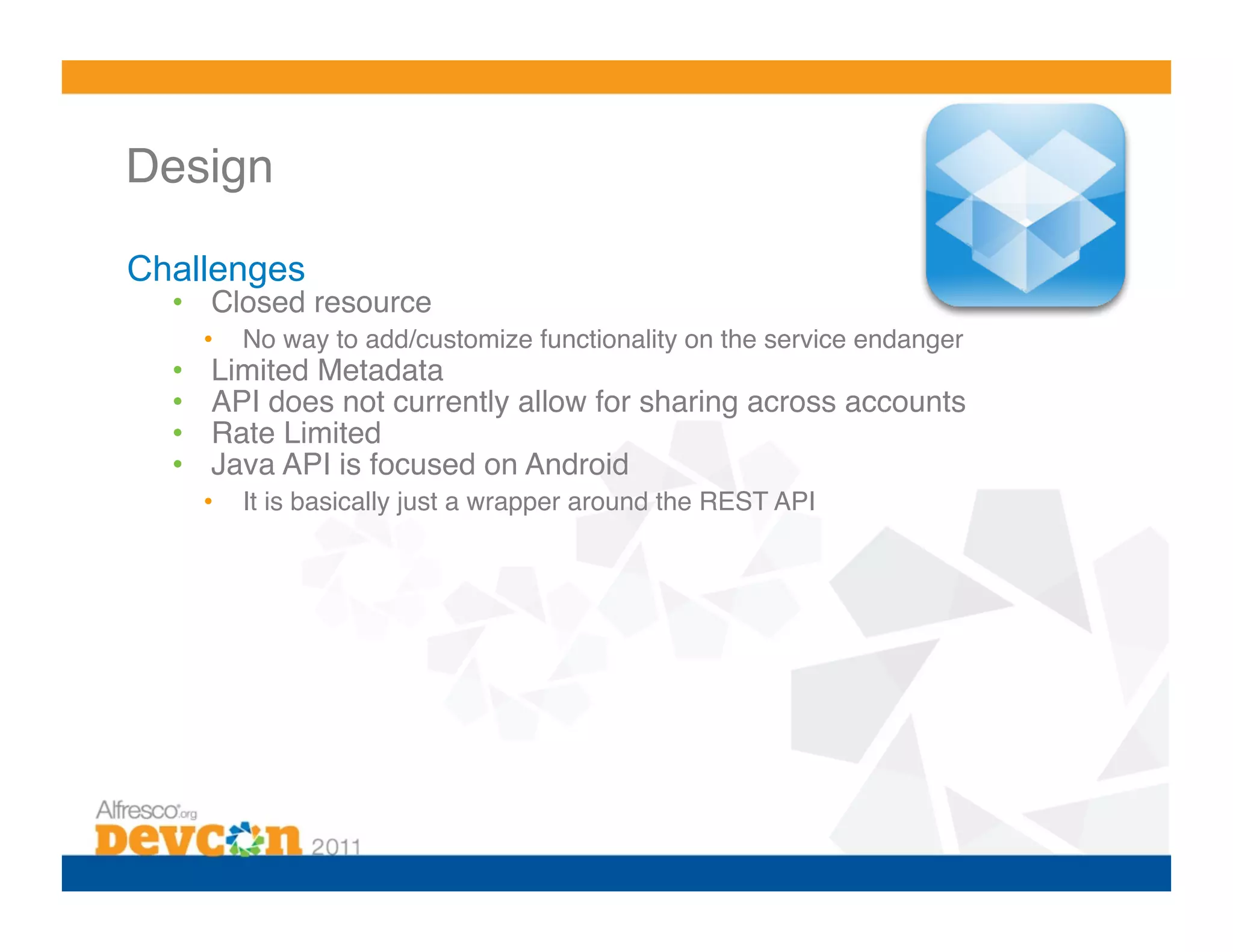

16. Design
Challenges
• Closed resource!
• No way to add/customize functionality on the service endanger!
• Limited Metadata!
• API does not currently allow for sharing across accounts!
• Rate Limited!
• Java API is focused on Android!
• It is basically just a wrapper around the REST API!

17. Design
Oauth
• Currently Using Signpost!
• Moving to SpringSocial!
• SpringSocial is supported in Alfresco (Needed for Social Content
Publishing)!
• Use *New* Encyptyped Content Model properties types to store
Token Key and Secret!
Apache HTTP Client 4.x
• Alfresco 4.0 now uses HTTPClient 4.x.!
• This is different than 3.x!

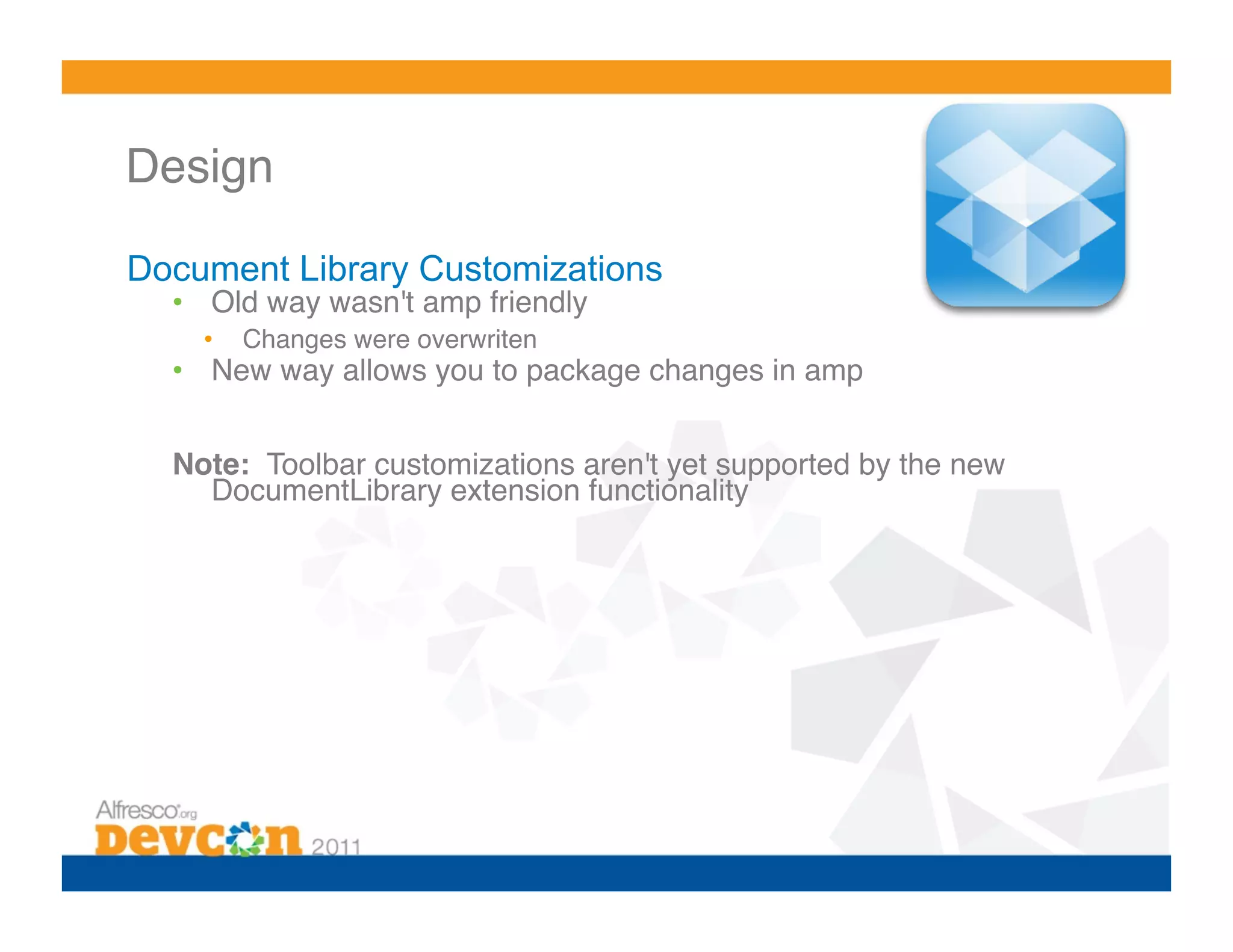

18. Design
Document Library Customizations
• Old way wasn't amp friendly!
• Changes were overwriten!
• New way allows you to package changes in amp!
Note: Toolbar customizations aren't yet supported by the new
DocumentLibrary extension functionality!

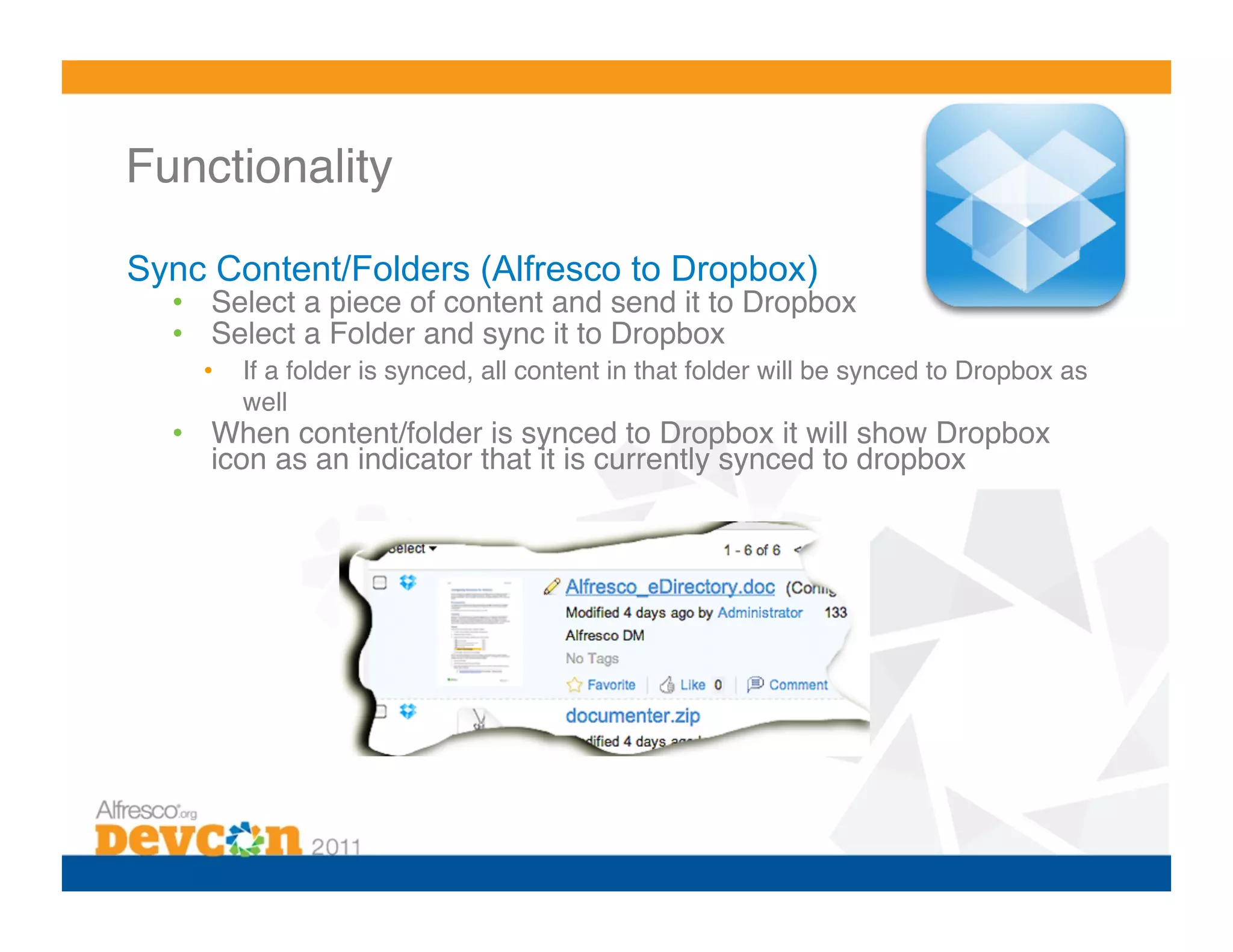

19. Functionality
Sync Content/Folders (Alfresco to Dropbox)
• Select a piece of content and send it to Dropbox!
• Select a Folder and sync it to Dropbox!
• If a folder is synced, all content in that folder will be synced to Dropbox as
well!
• When content/folder is synced to Dropbox it will show Dropbox
icon as an indicator that it is currently synced to dropbox!

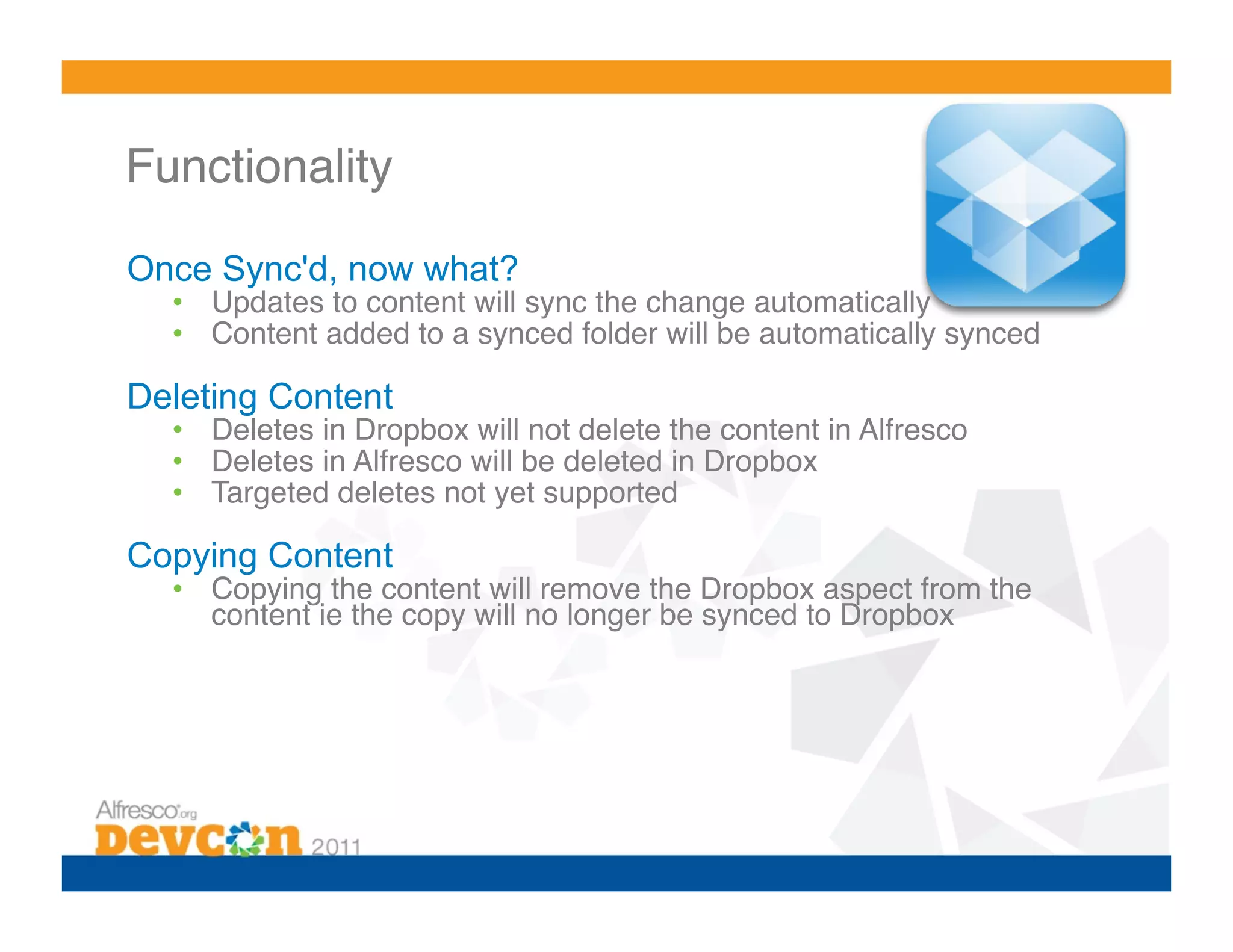

20. Functionality
Once Sync'd, now what?
• Updates to content will sync the change automatically!
• Content added to a synced folder will be automatically synced!
Deleting Content
• Deletes in Dropbox will not delete the content in Alfresco!
• Deletes in Alfresco will be deleted in Dropbox!
• Targeted deletes not yet supported!
Copying Content
• Copying the content will remove the Dropbox aspect from the
content ie the copy will no longer be synced to Dropbox!

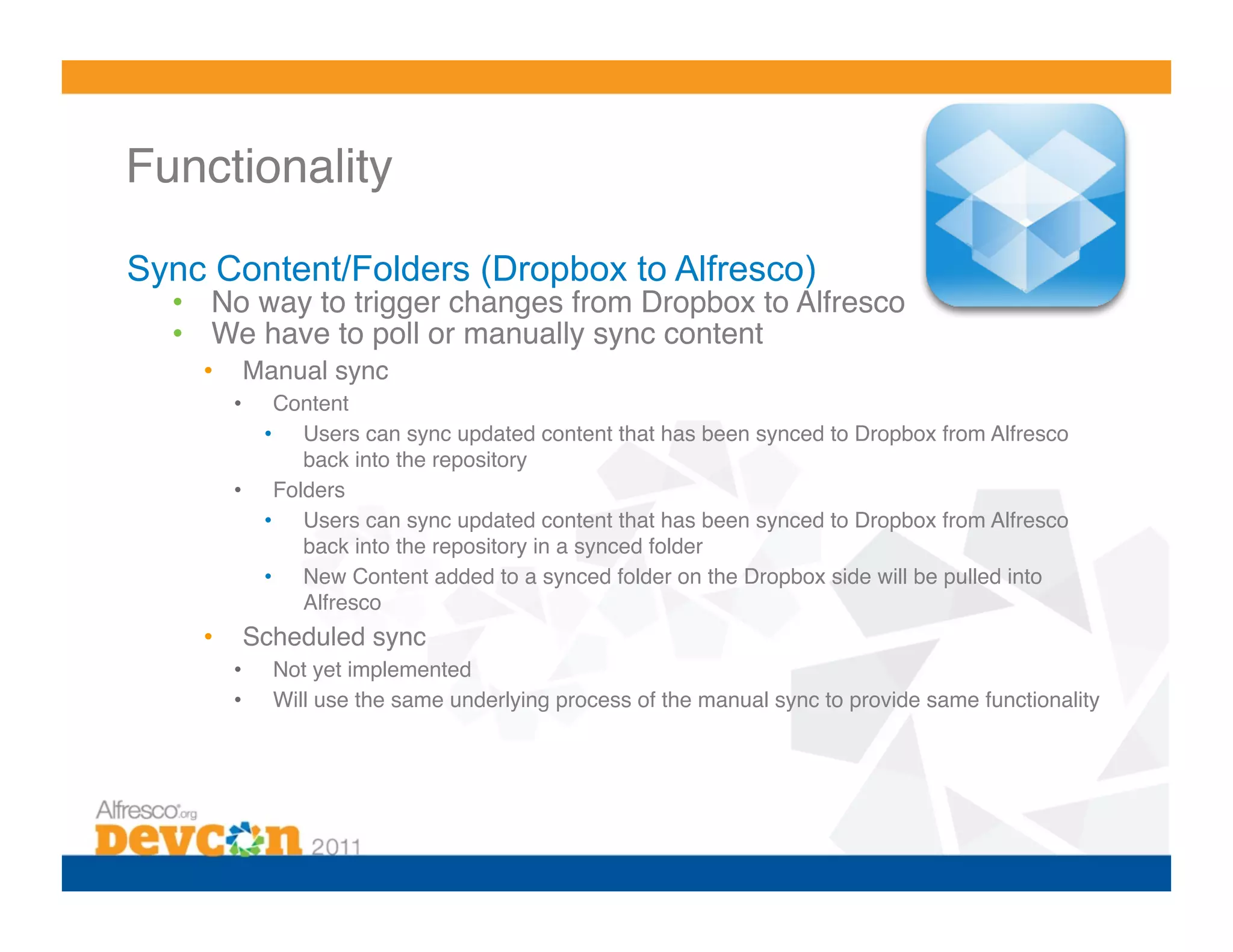

21. Functionality
Sync Content/Folders (Dropbox to Alfresco)
• No way to trigger changes from Dropbox to Alfresco!
• We have to poll or manually sync content!
• Manual sync!
• Content!
• Users can sync updated content that has been synced to Dropbox from Alfresco
back into the repository!
• Folders!
• Users can sync updated content that has been synced to Dropbox from Alfresco
back into the repository in a synced folder!
• New Content added to a synced folder on the Dropbox side will be pulled into
Alfresco!
• Scheduled sync!
• Not yet implemented!
• Will use the same underlying process of the manual sync to provide same functionality!

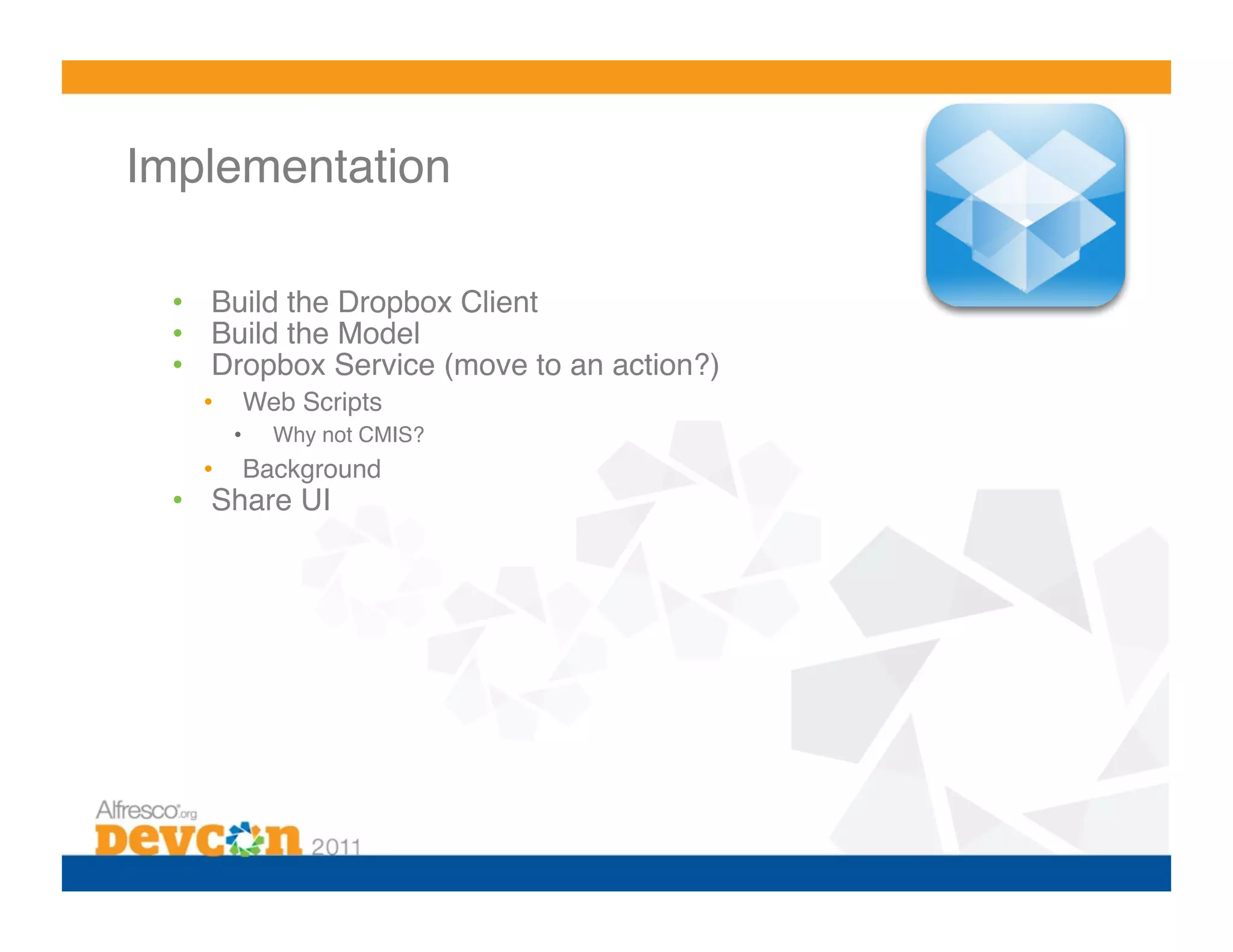

22. Implementation
• Build the Dropbox Client!
• Build the Model!
• Dropbox Service (move to an action?)!
• Web Scripts!
• Why not CMIS?!
• Background!
• Share UI!

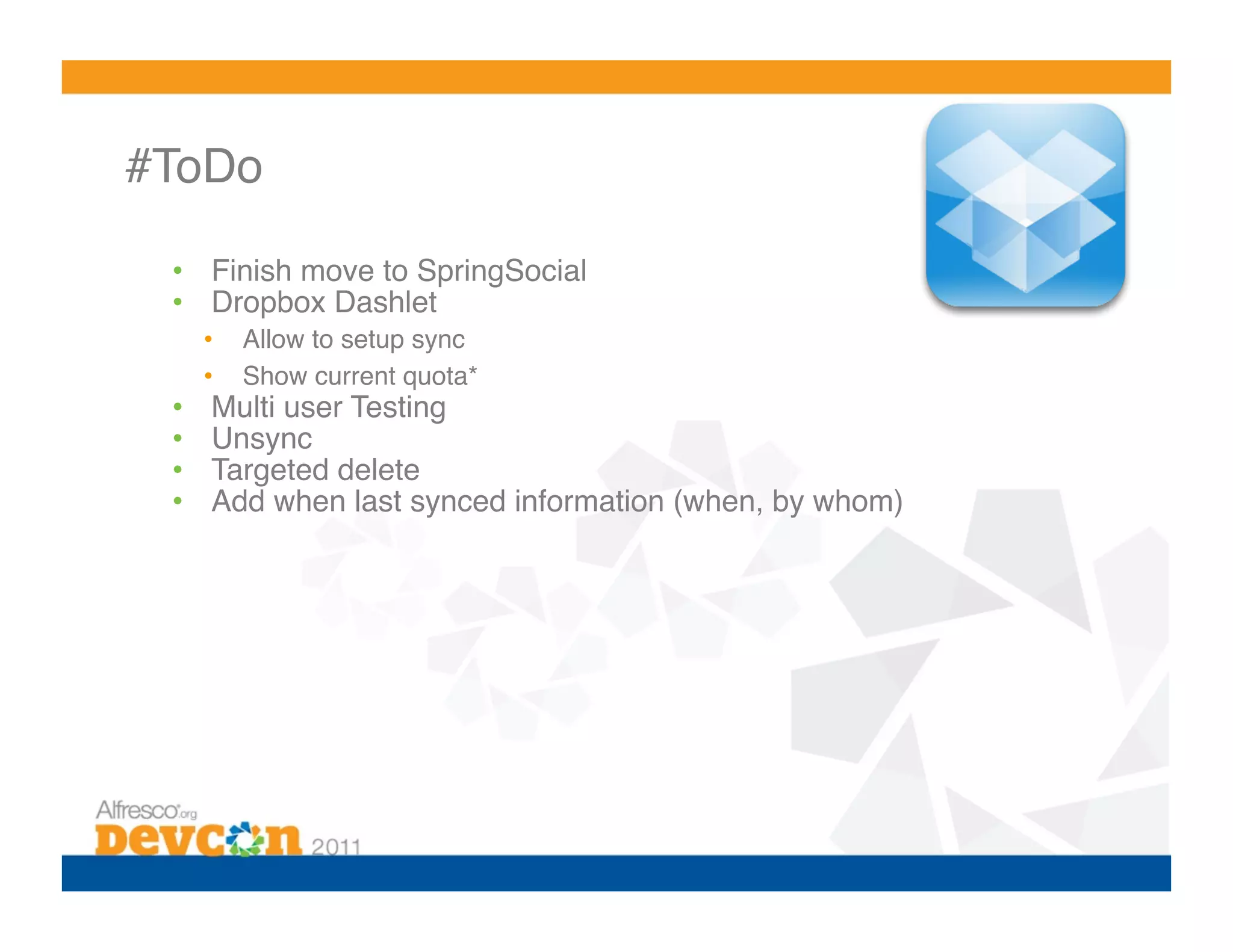

23. #ToDo
• Finish move to SpringSocial!
• Dropbox Dashlet!
• Allow to setup sync!
• Show current quota*!
• Multi user Testing!
• Unsync !
• Targeted delete!
• Add when last synced information (when, by whom)!

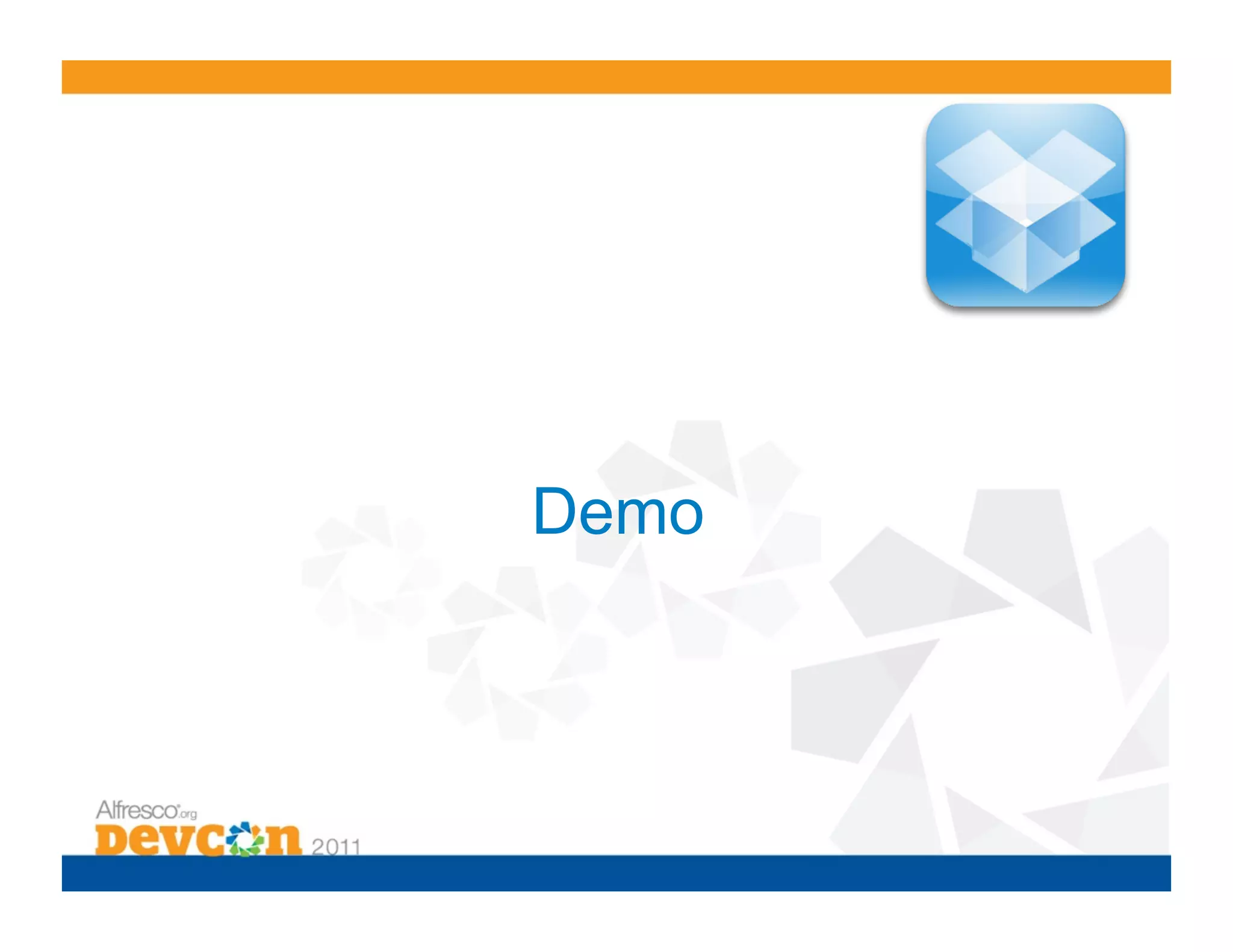

24. Demo

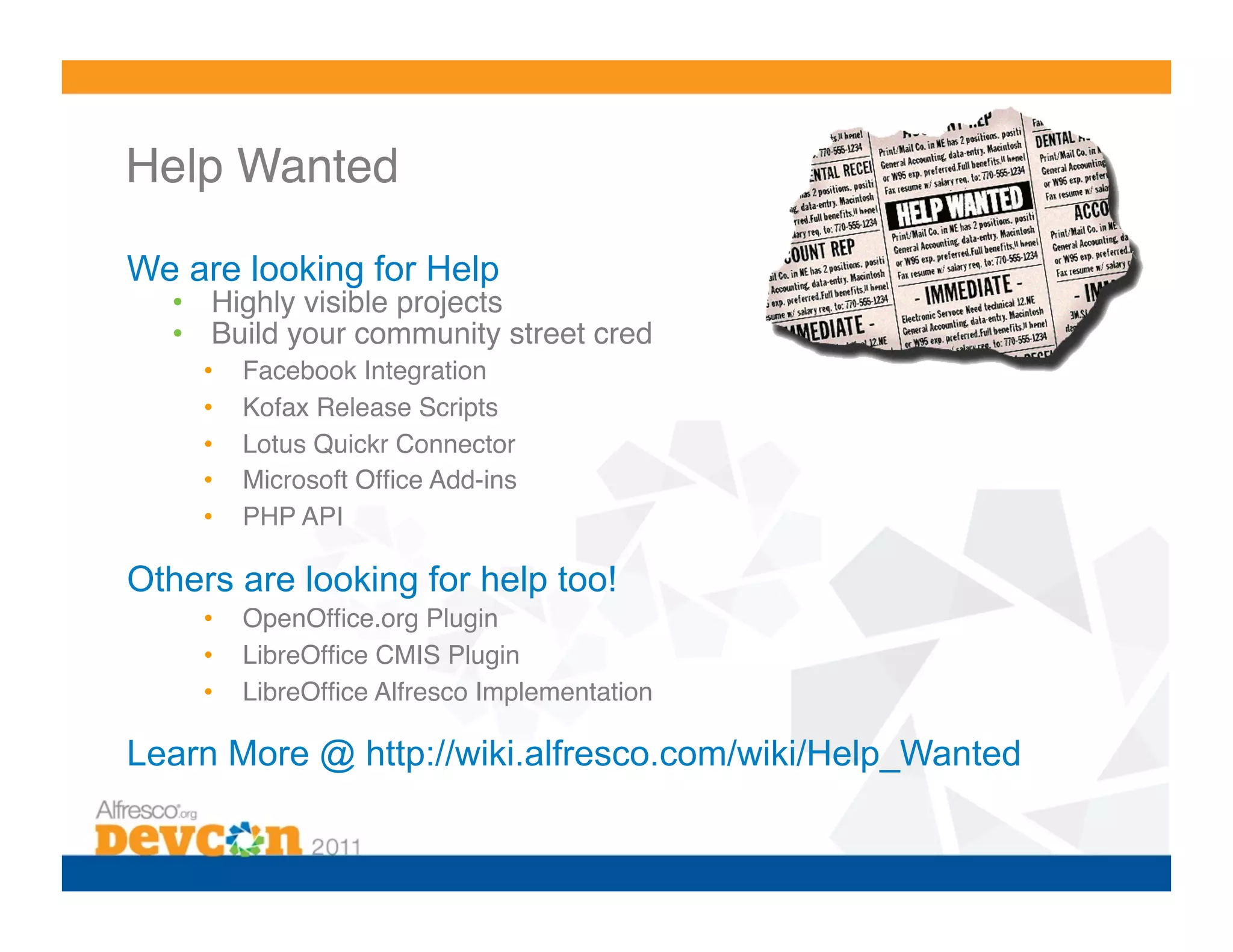

25. Help Wanted!
We are looking for Help
• Highly visible projects!
• Build your community street cred!
• Facebook Integration!
• Kofax Release Scripts!
• Lotus Quickr Connector!
• Microsoft Office Add-ins!
• PHP API!
Others are looking for help too!
• OpenOffice.org Plugin!
• LibreOffice CMIS Plugin!
• LibreOffice Alfresco Implementation!
Learn More @ http://wiki.alfresco.com/wiki/Help_Wanted

26. Q&A
