Phone Calls and SMS from PHP PHP World 2016 David Stockton November 16, 2016
Standard Interactions
Input
Web Pages / Forms
APIs
CLI

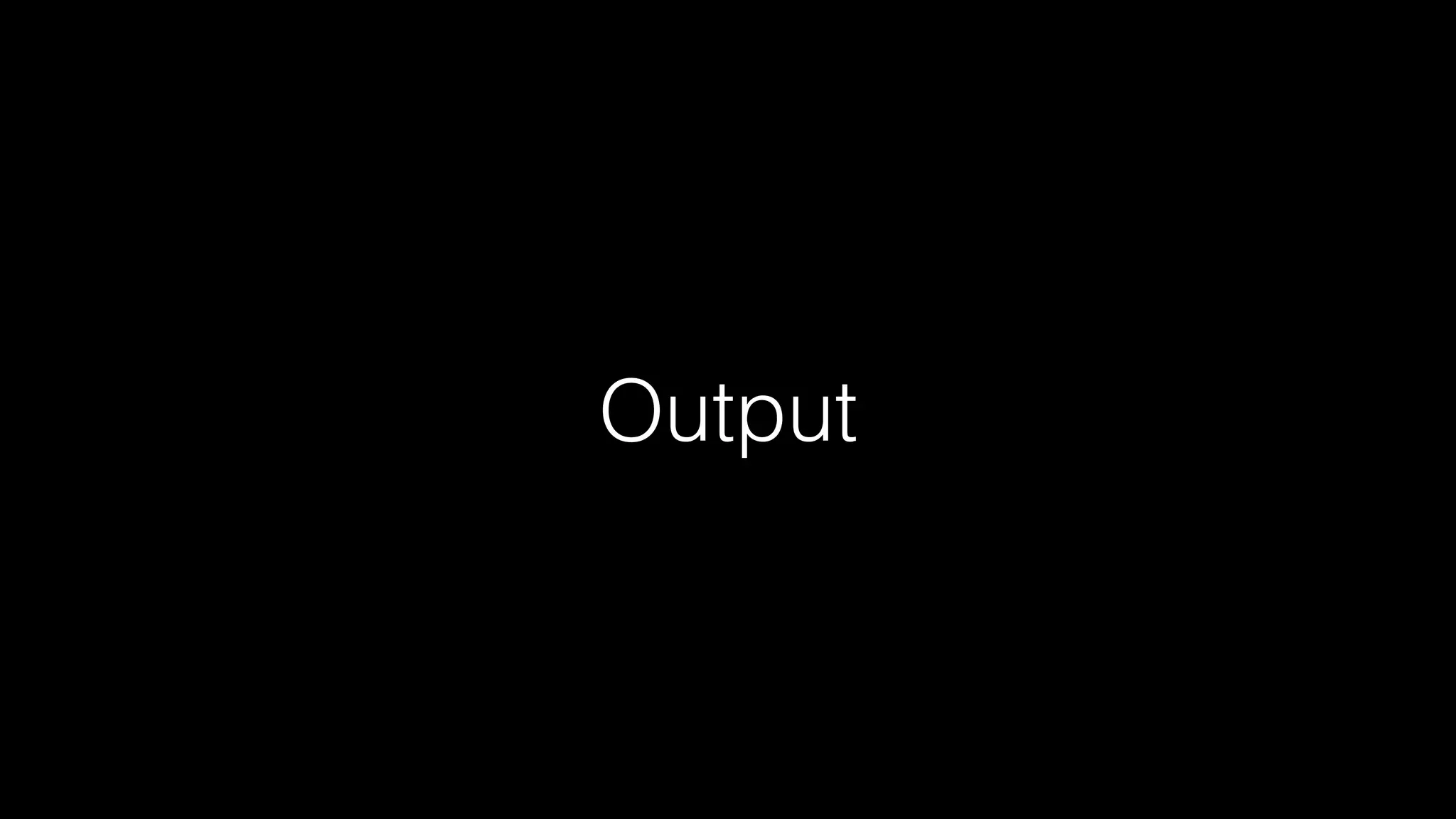

Output
HTML
Graphics
Documents
Reports
JSON
Console Output
Files

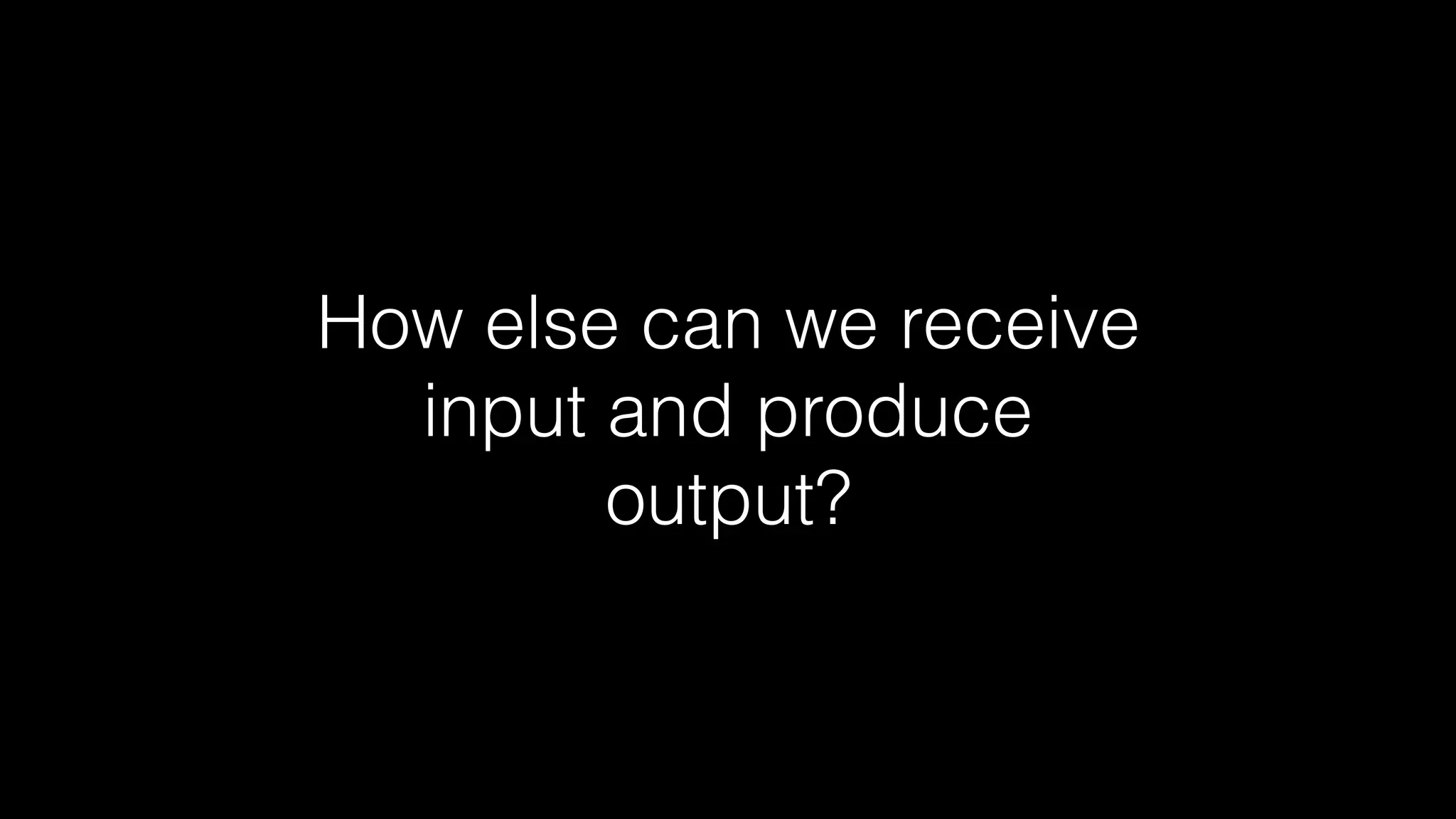

How else can we receive input and produce output?
Input: Phone Call
Input: SMS Message
Output: Text Message
Output: MMS Message

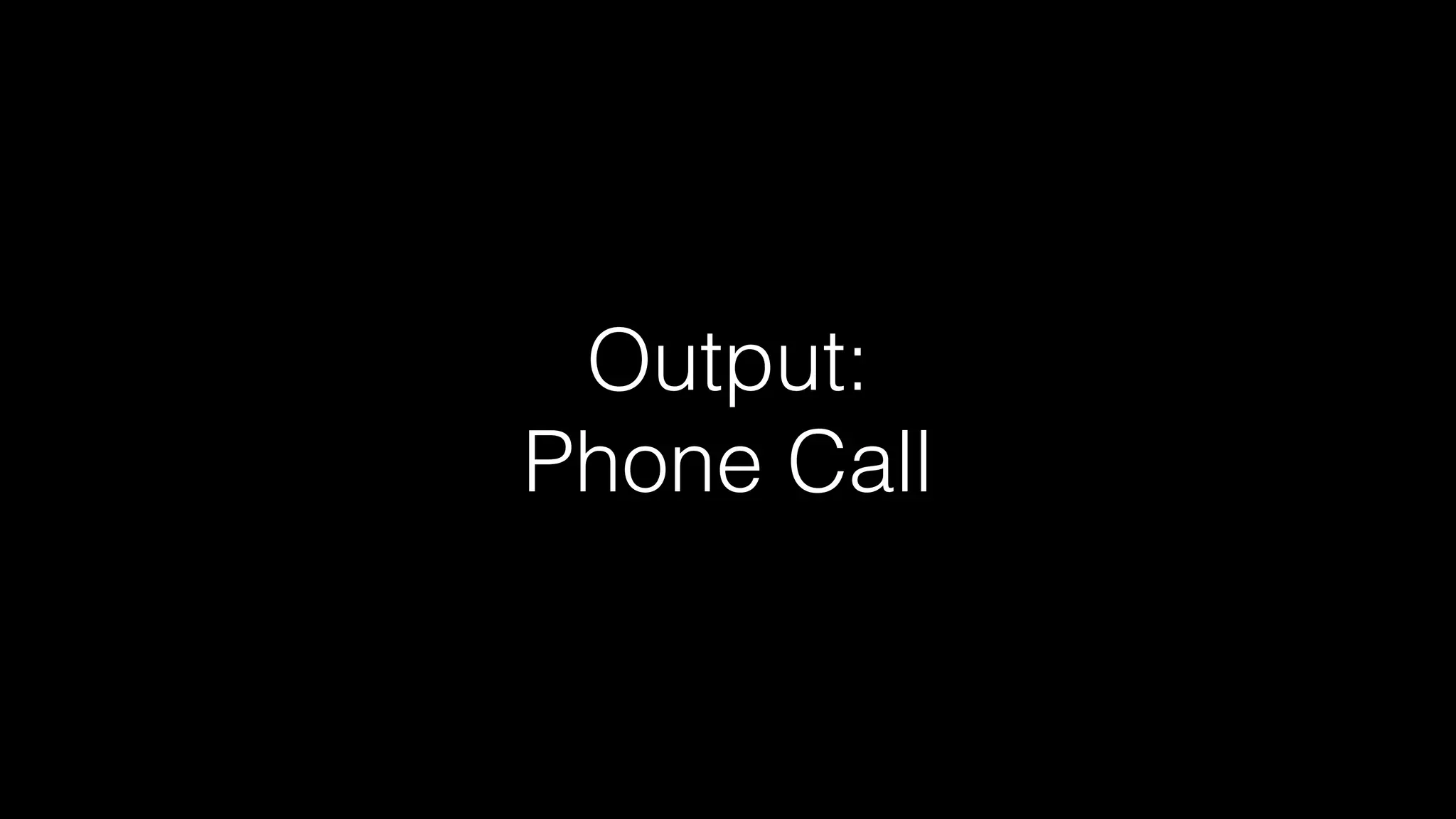

Output: Phone Call
APIs for Phone Interaction

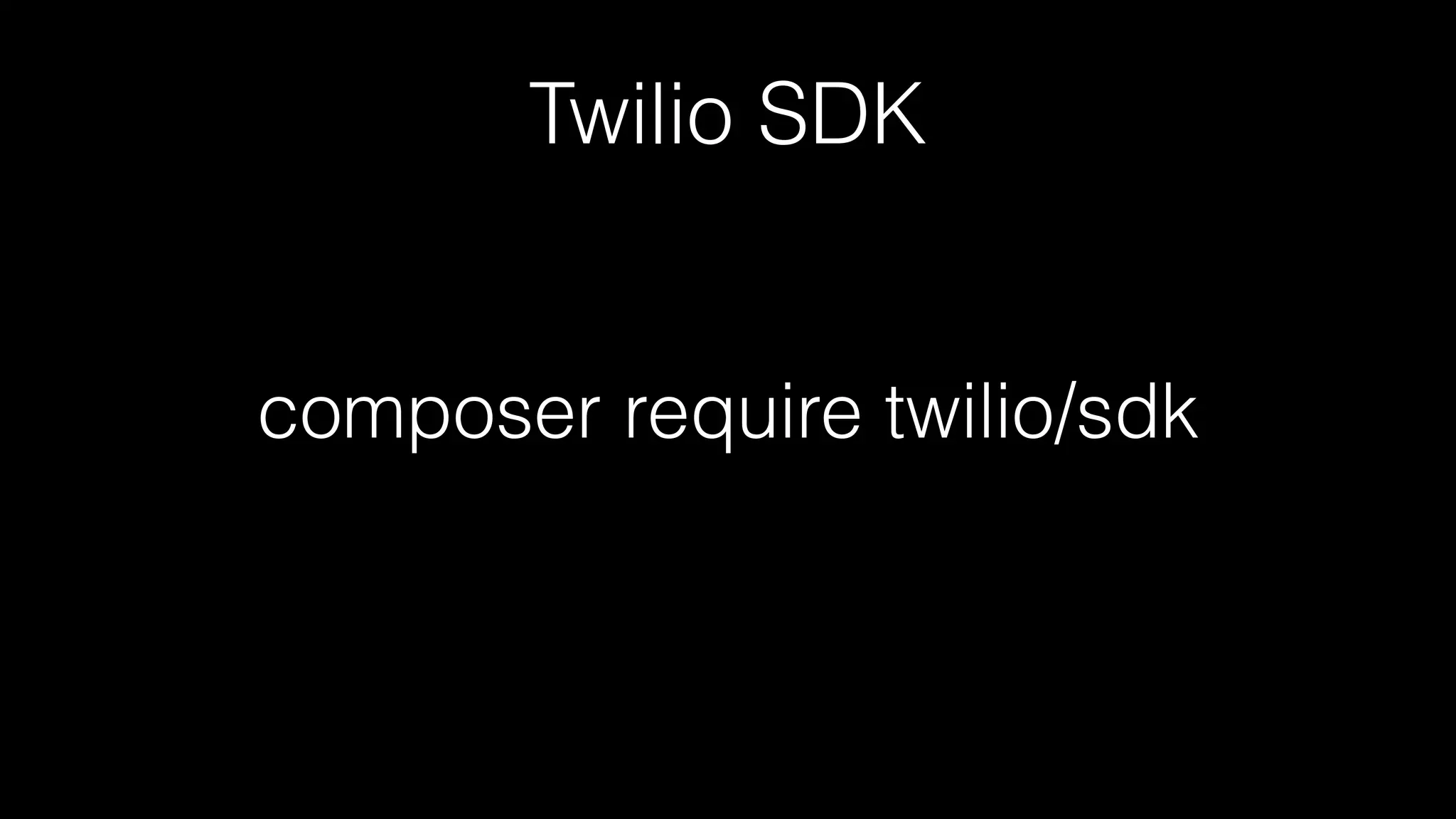

Twilio SDK composer require twilio/sdk

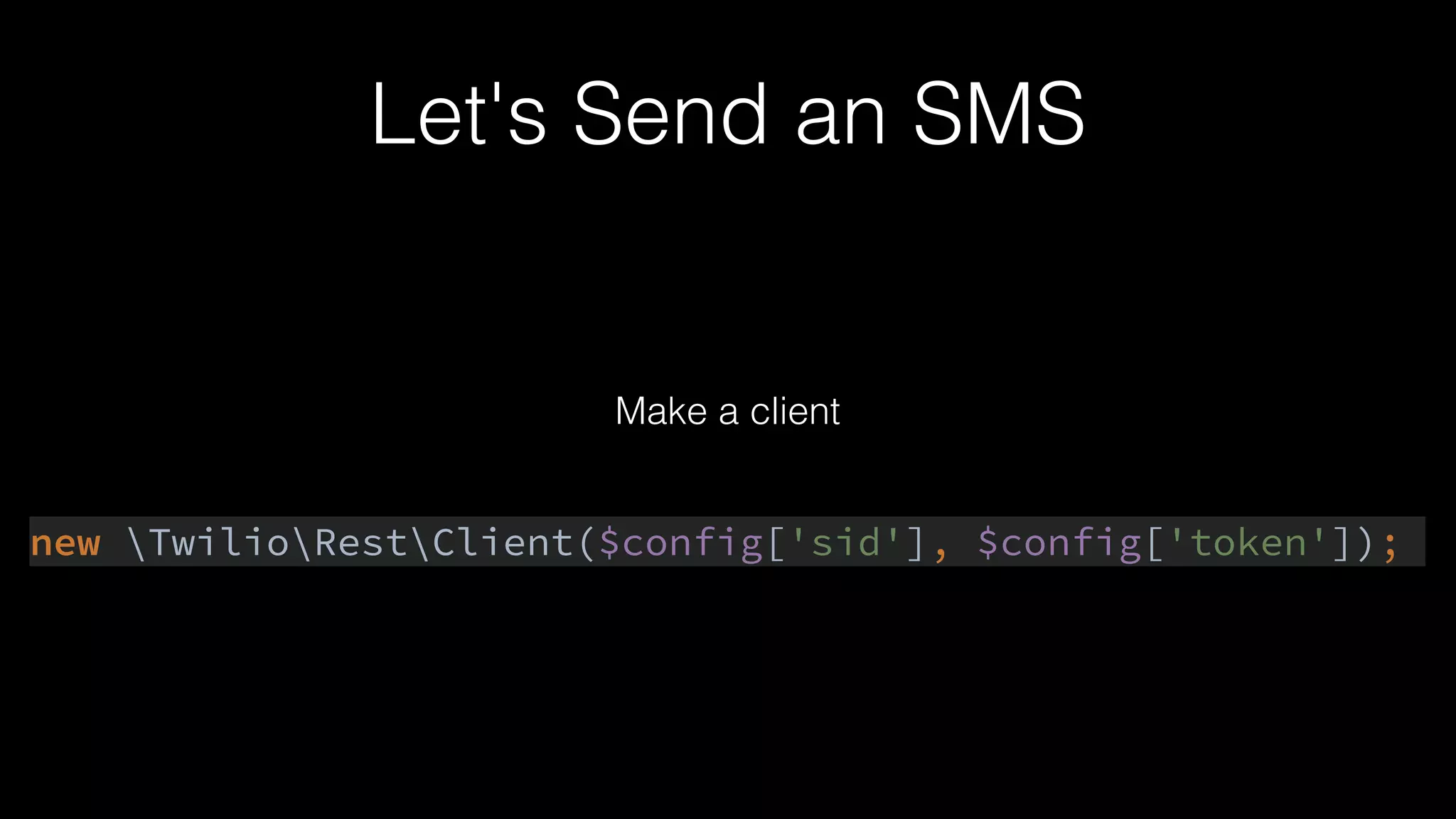

Let's Send an SMS new TwilioRestClient($config['sid'], $config['token']); Make a client

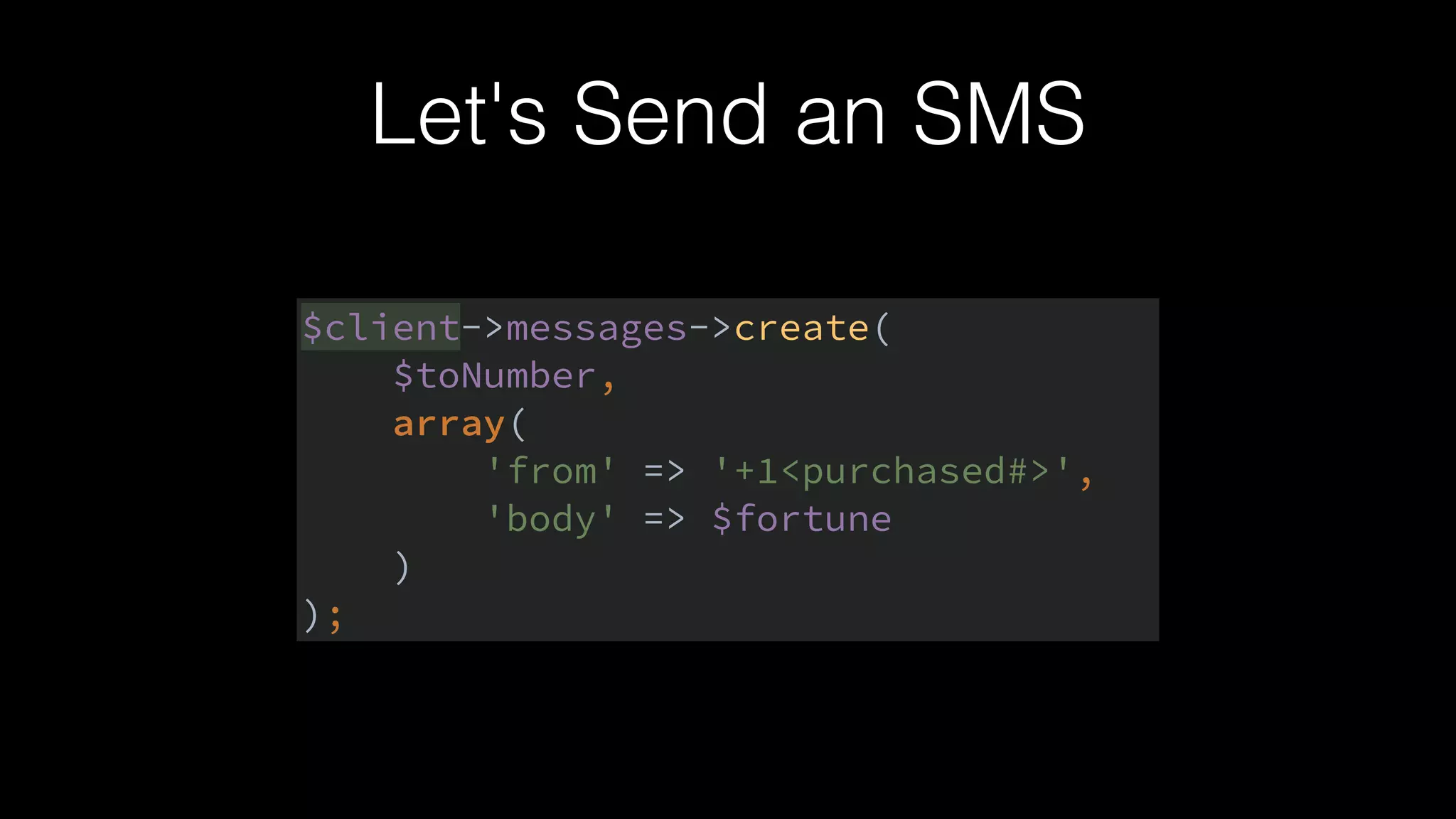

Let's Send an SMS $client->messages->create(
 $toNumber,
 array(
 'from' => '+1<purchased#>',
 'body' => $fortune
 )
 );

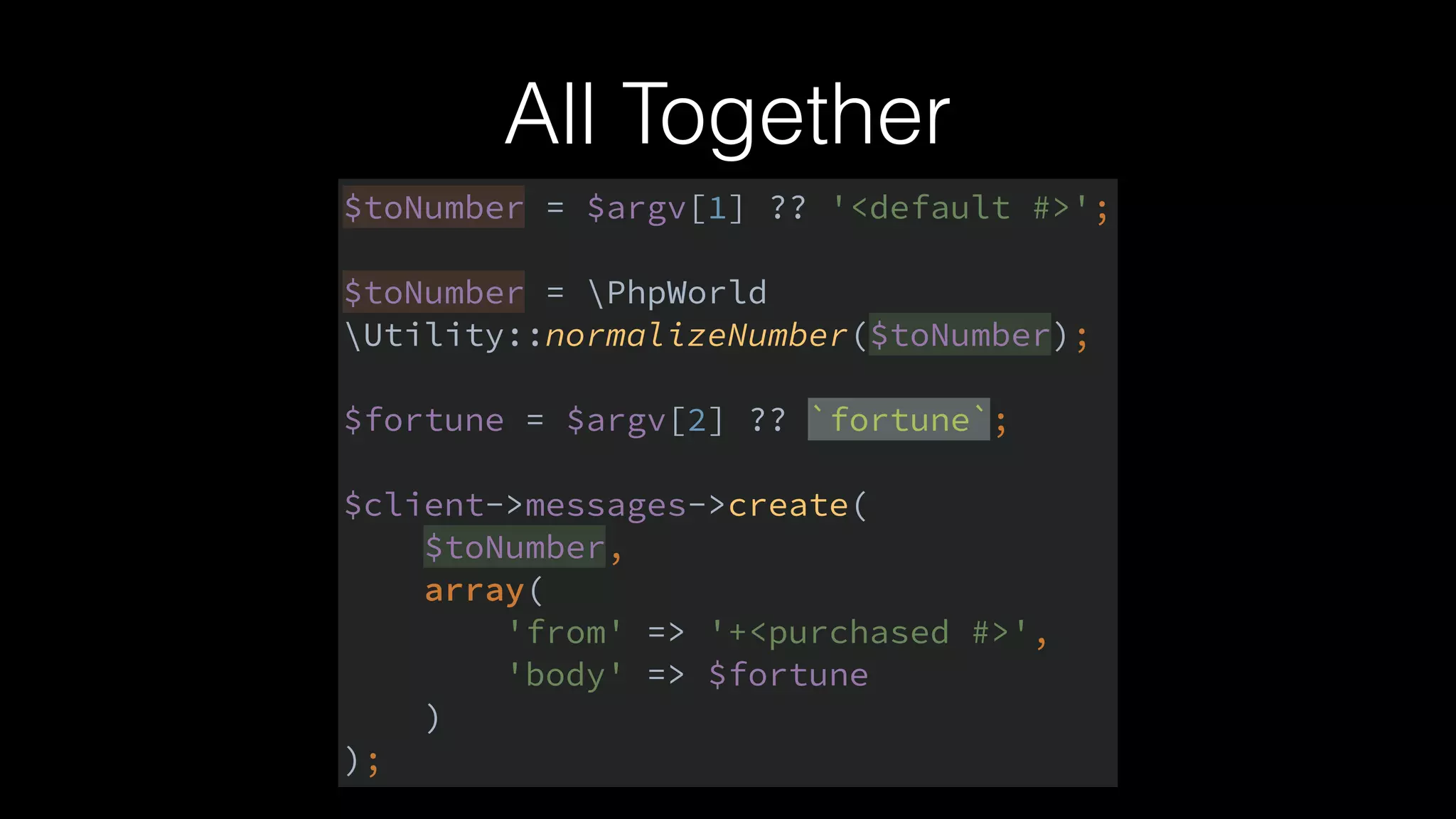

All Together $toNumber = $argv[1] ?? '<default #>';

 $toNumber = PhpWorld Utility::normalizeNumber($toNumber);

 $fortune = $argv[2] ?? `fortune`;

 $client->messages->create(
 $toNumber,
 array(
 'from' => '+<purchased #>',
 'body' => $fortune
 )
 );

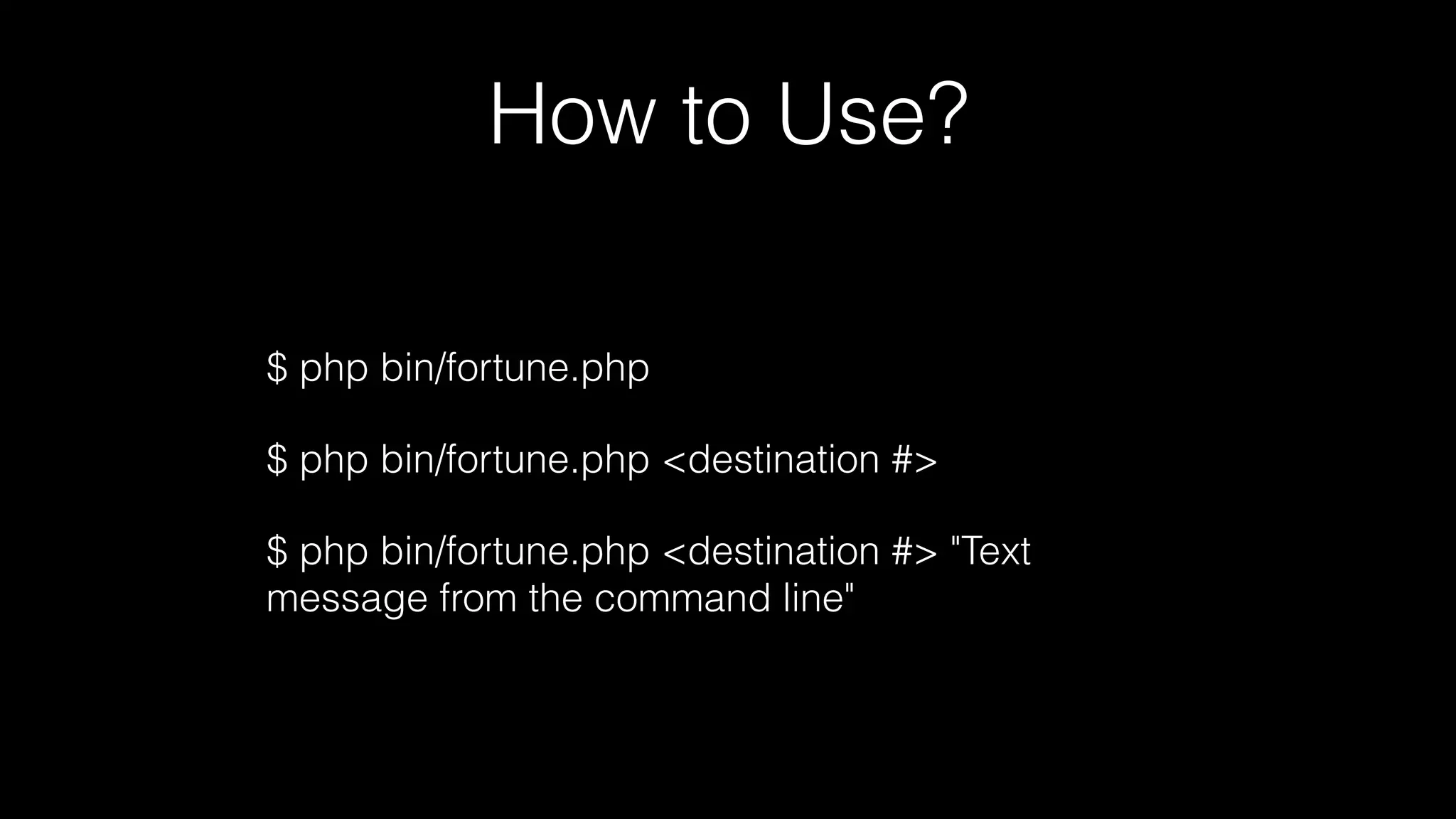

How to Use? $ php bin/fortune.php $ php bin/fortune.php <destination #> $ php bin/fortune.php <destination #> "Text message from the command line"

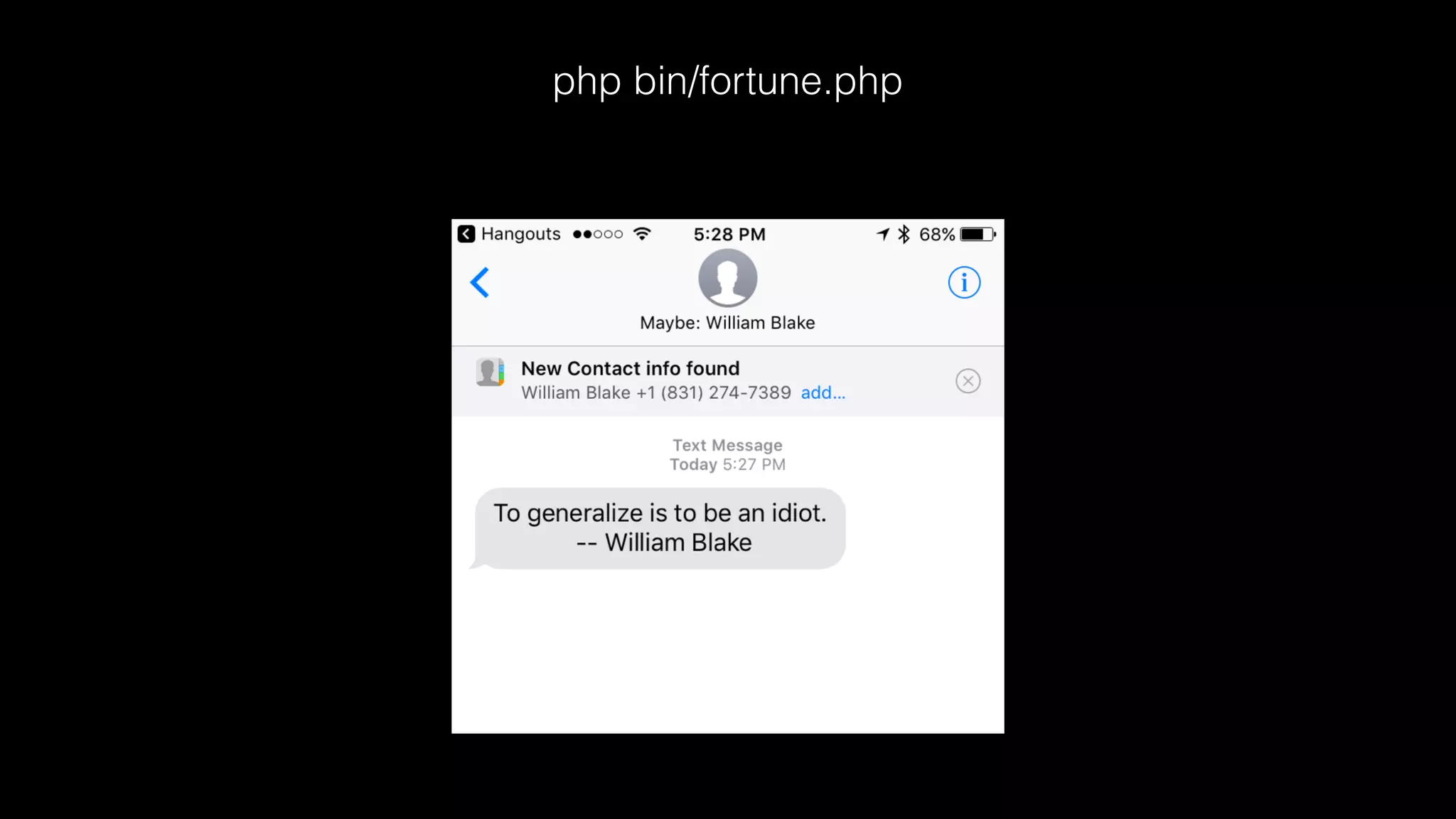

php bin/fortune.php
php bin/fortune.php 7206757471

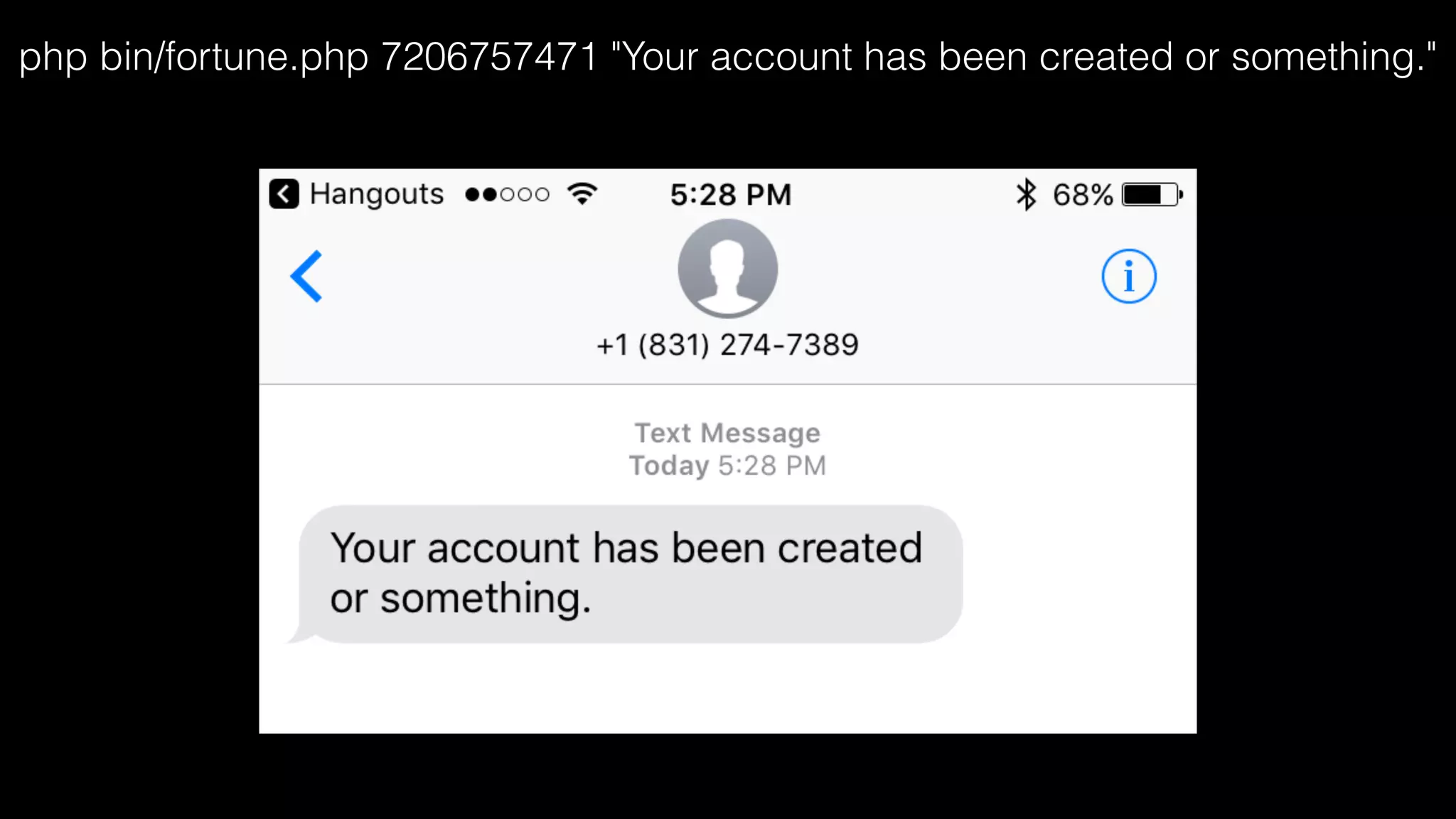

php bin/fortune.php 7206757471 "Your account has been created or something."

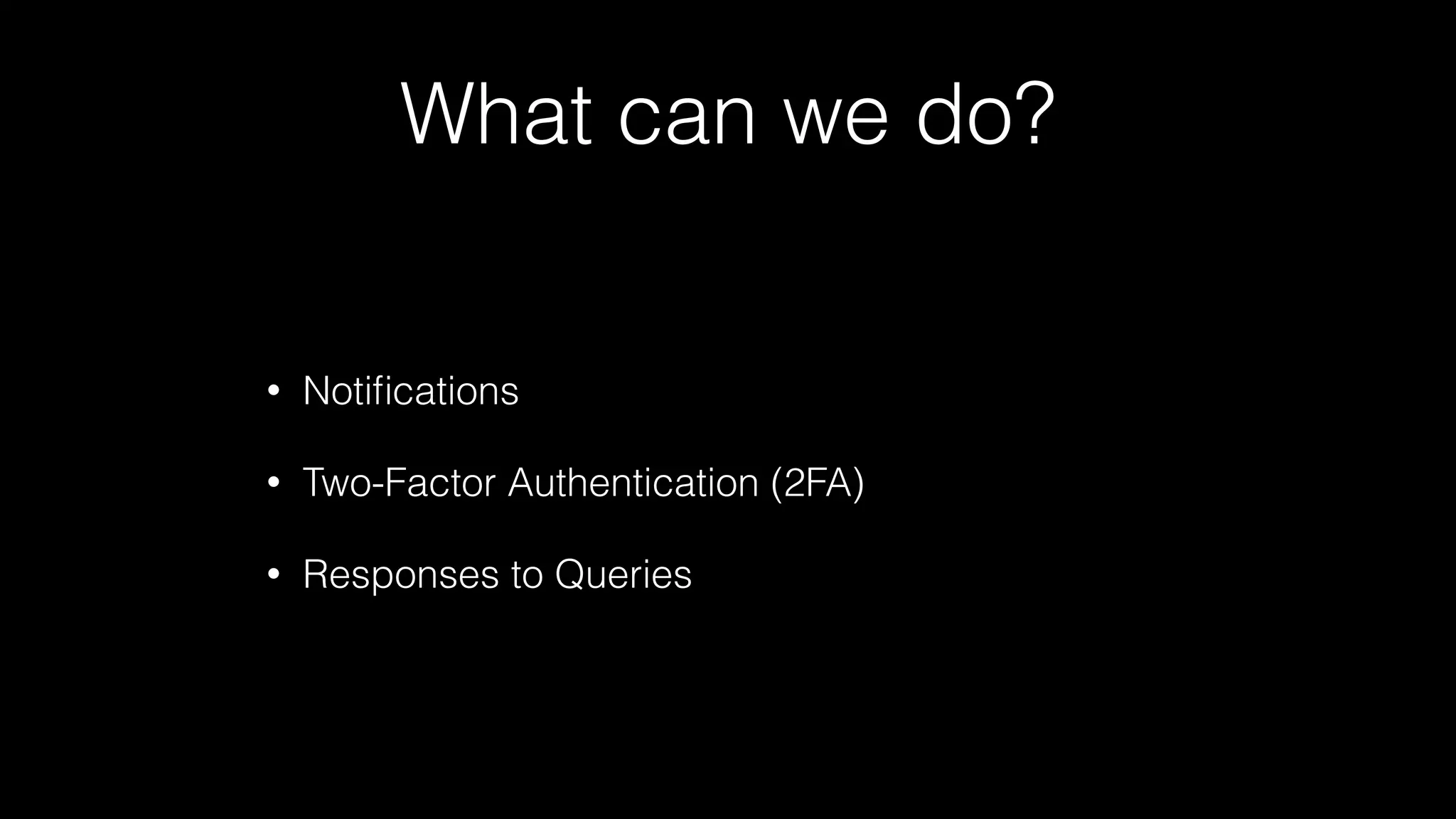

What can we do? • Notifications • Two-Factor Authentication (2FA) • Responses to Queries

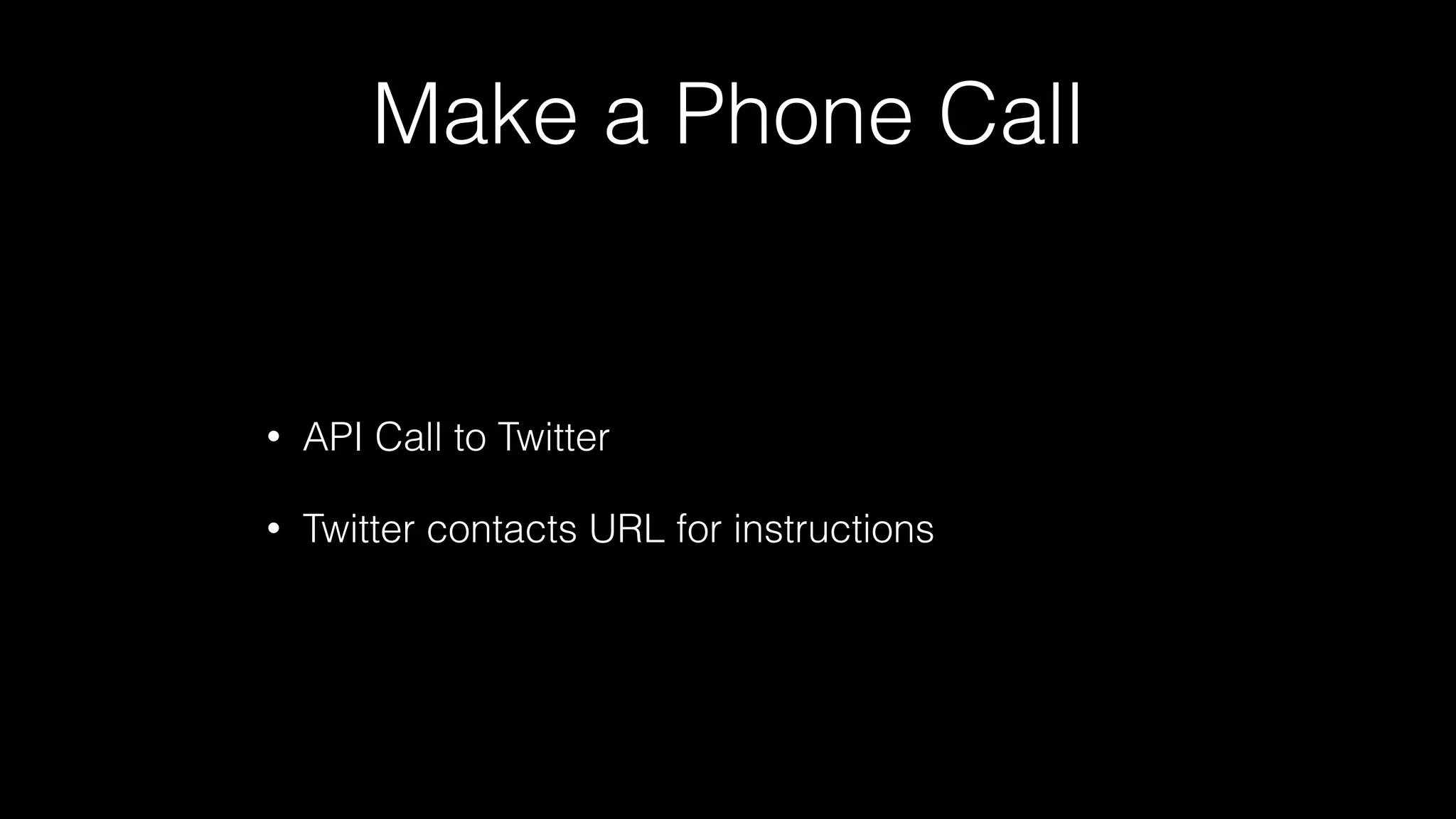

Make a Phone Call • API Call to Twitter • Twitter contacts URL for instructions

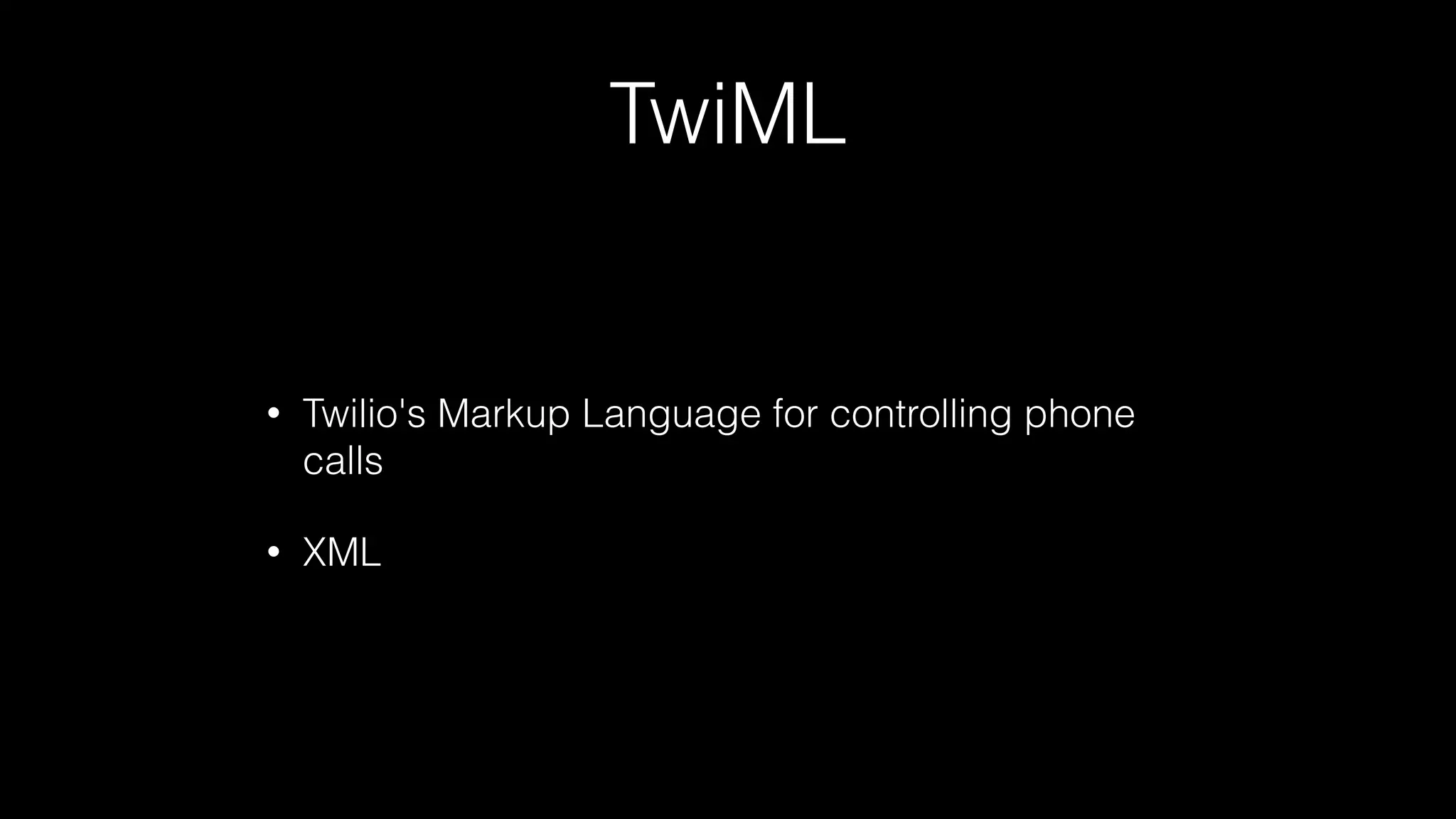

TwiML • Twilio's Markup Language for controlling phone calls • XML

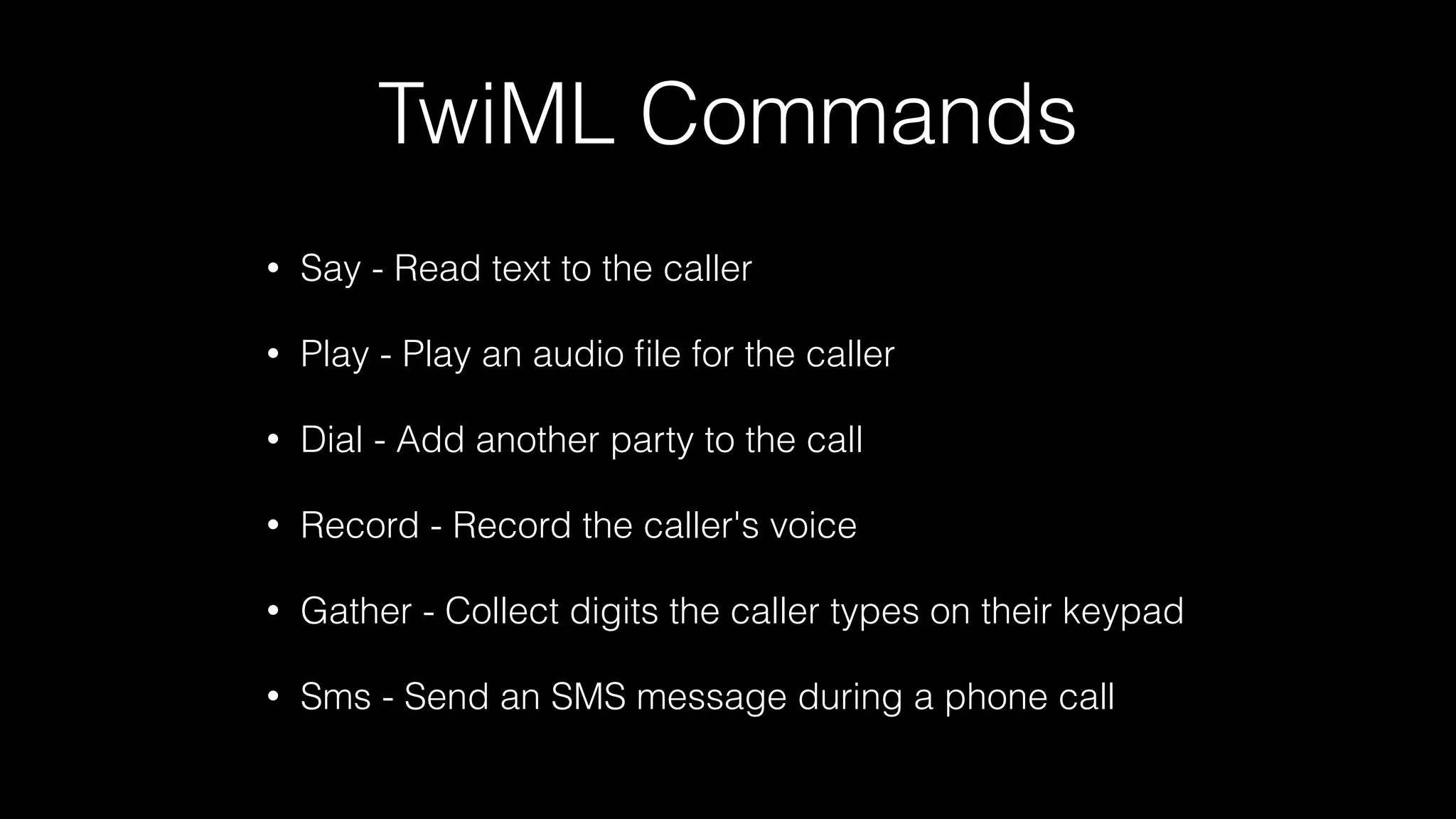

TwiML Commands • Say - Read text to the caller • Play - Play an audio file for the caller • Dial - Add another party to the call • Record - Record the caller's voice • Gather - Collect digits the caller types on their keypad • Sms - Send an SMS message during a phone call
More TwiML • Hangup - Hang up the call • Queue - Add the caller to a queue of callers. • Redirect - Redirect call flow to a different TwiML document. • Pause - Wait before executing more instructions • Reject - Decline an incoming call without being billed. • Message - Send an MMS or SMS message reply

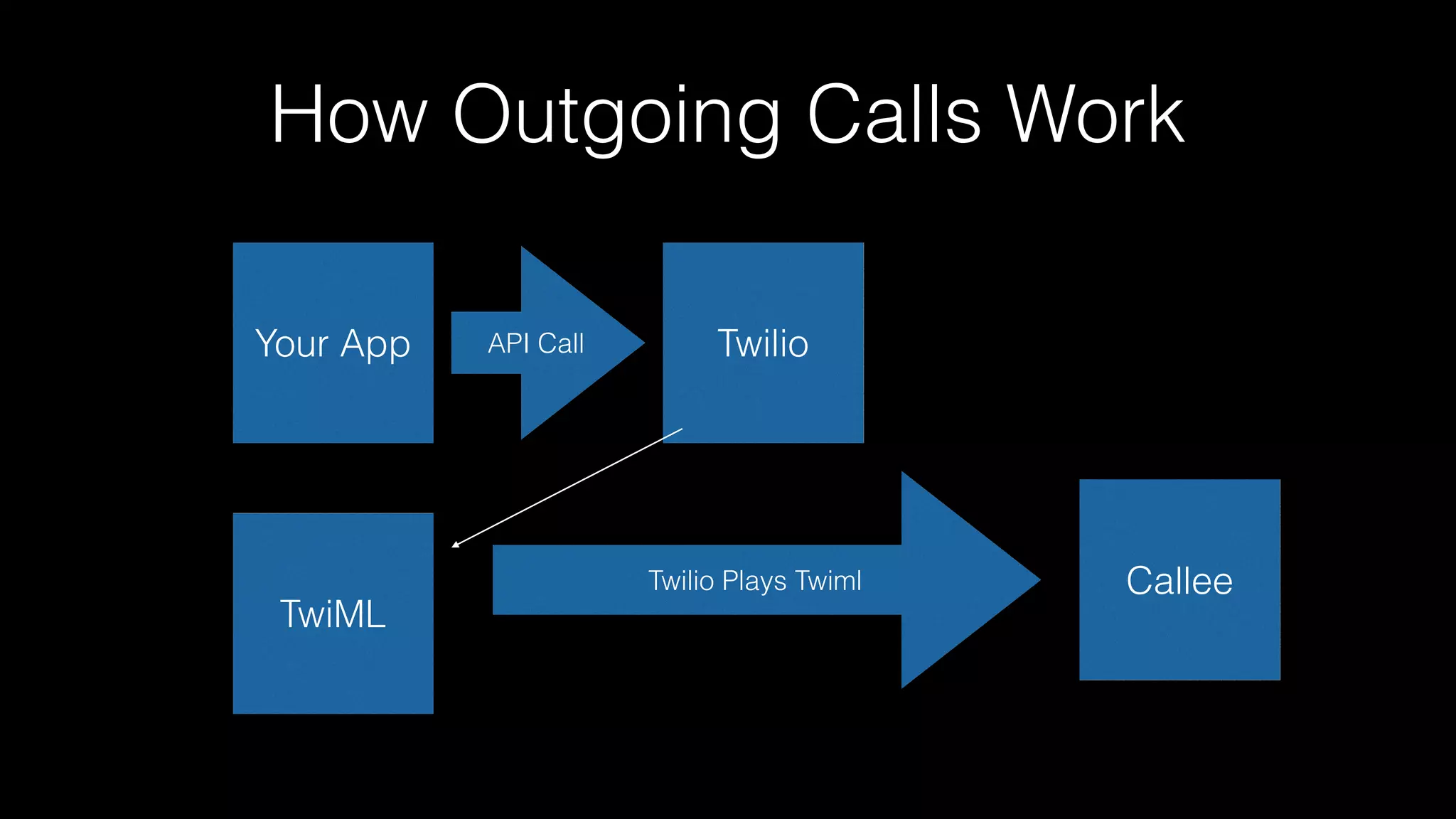

How Outgoing Calls Work Your App TwilioAPI Call TwiML CalleeTwilio Plays Twiml

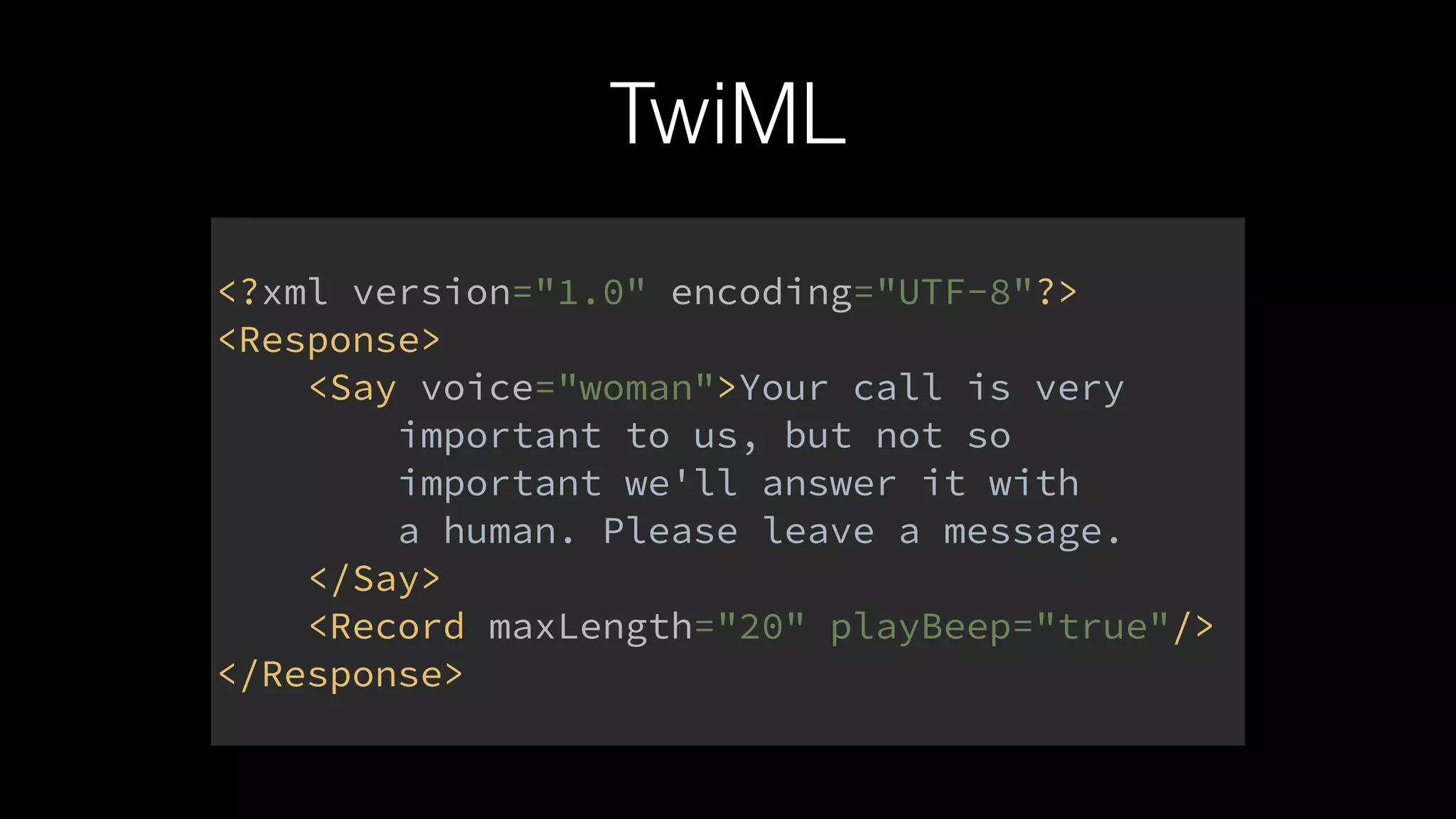

TwiML <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>

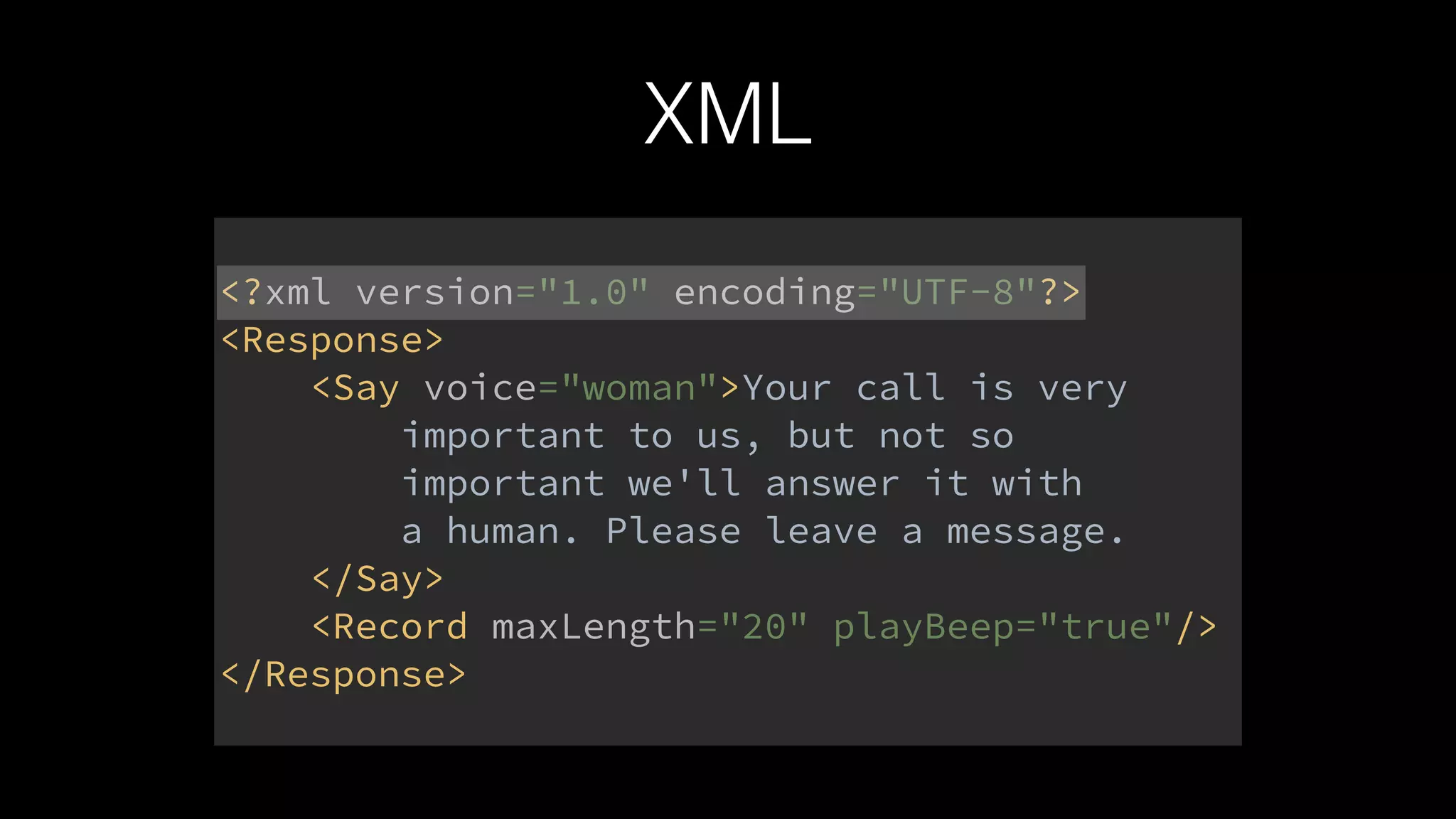

XML <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>

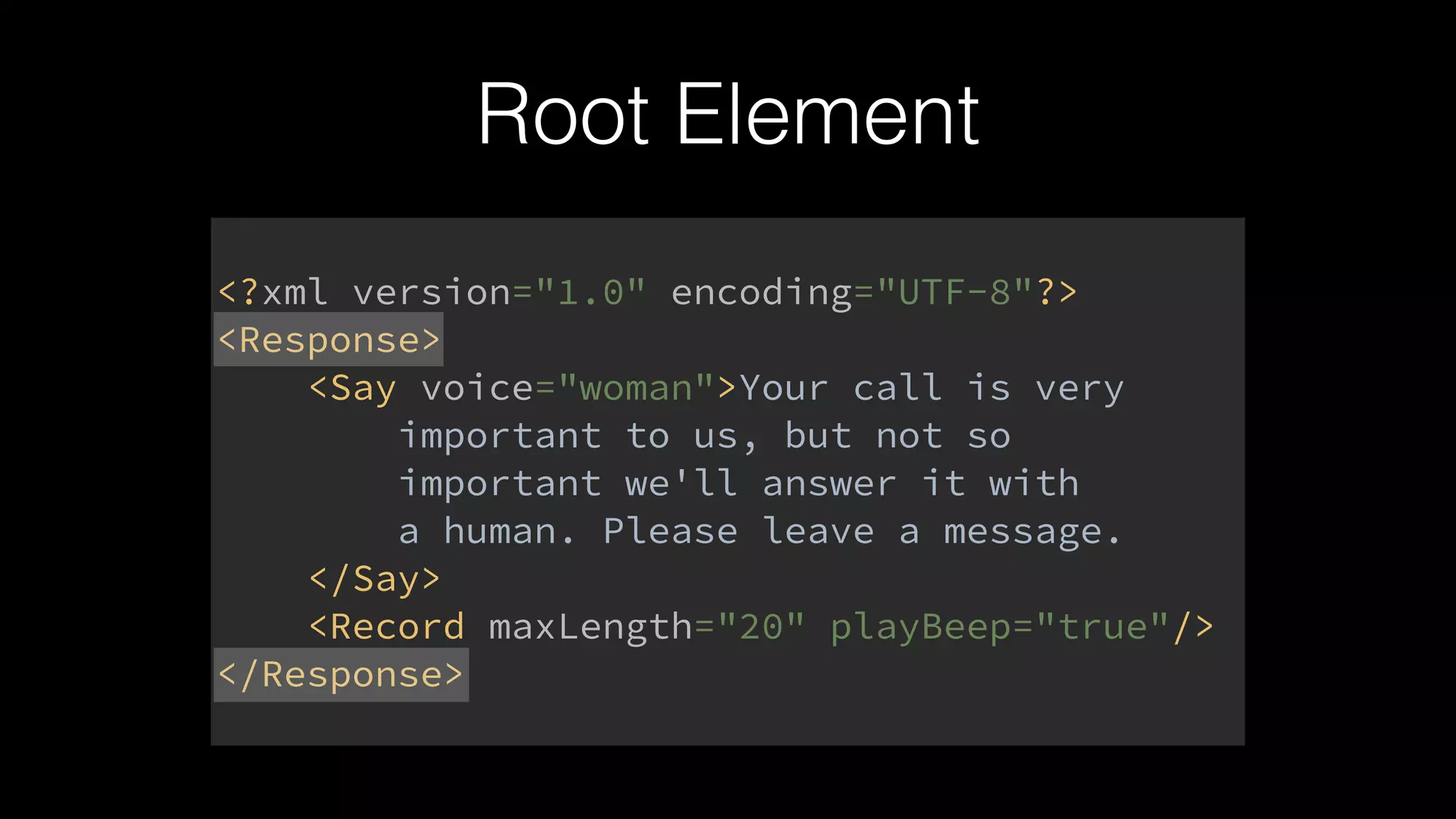

Root Element <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>

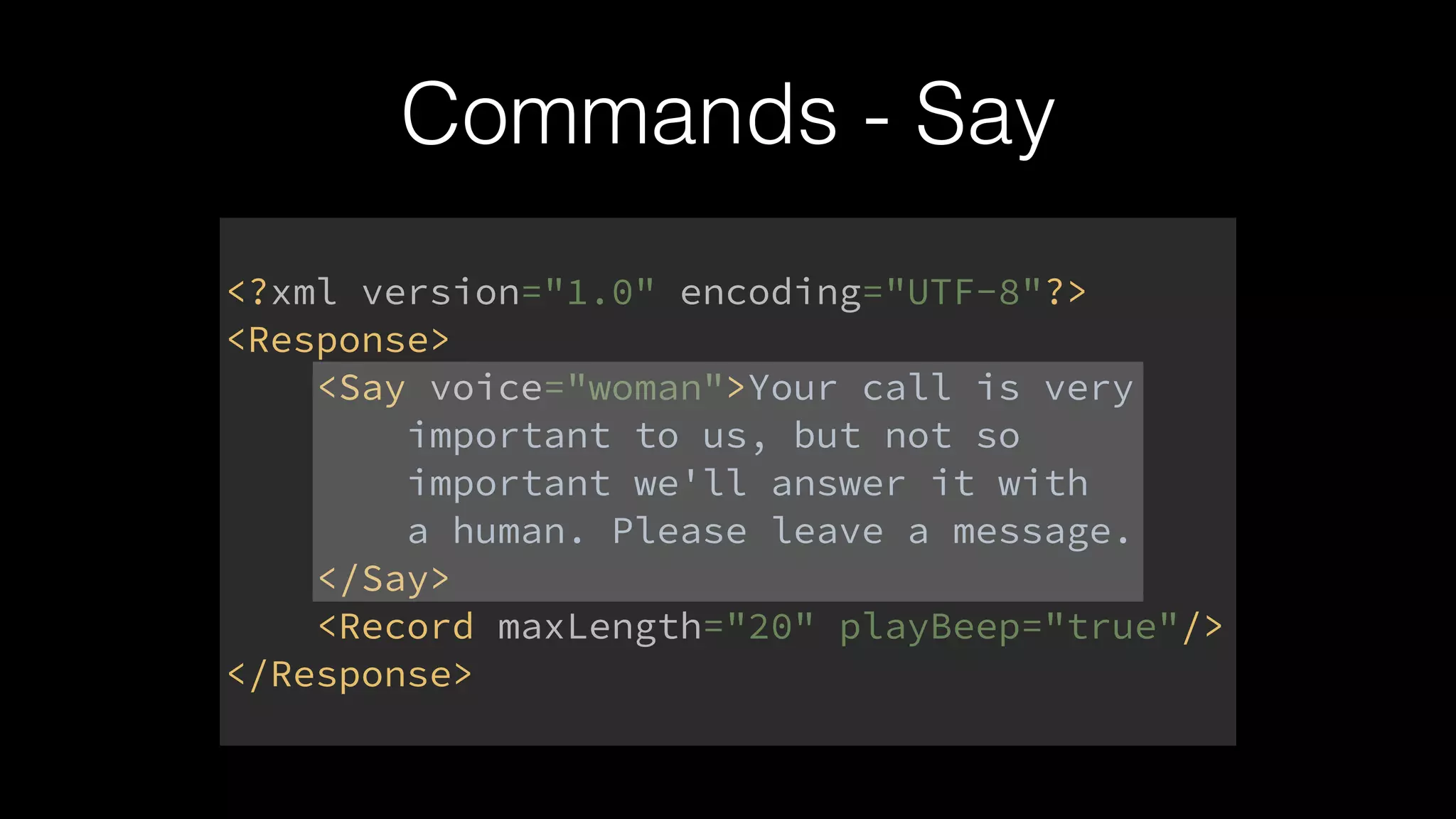

Commands - Say <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>
<?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>

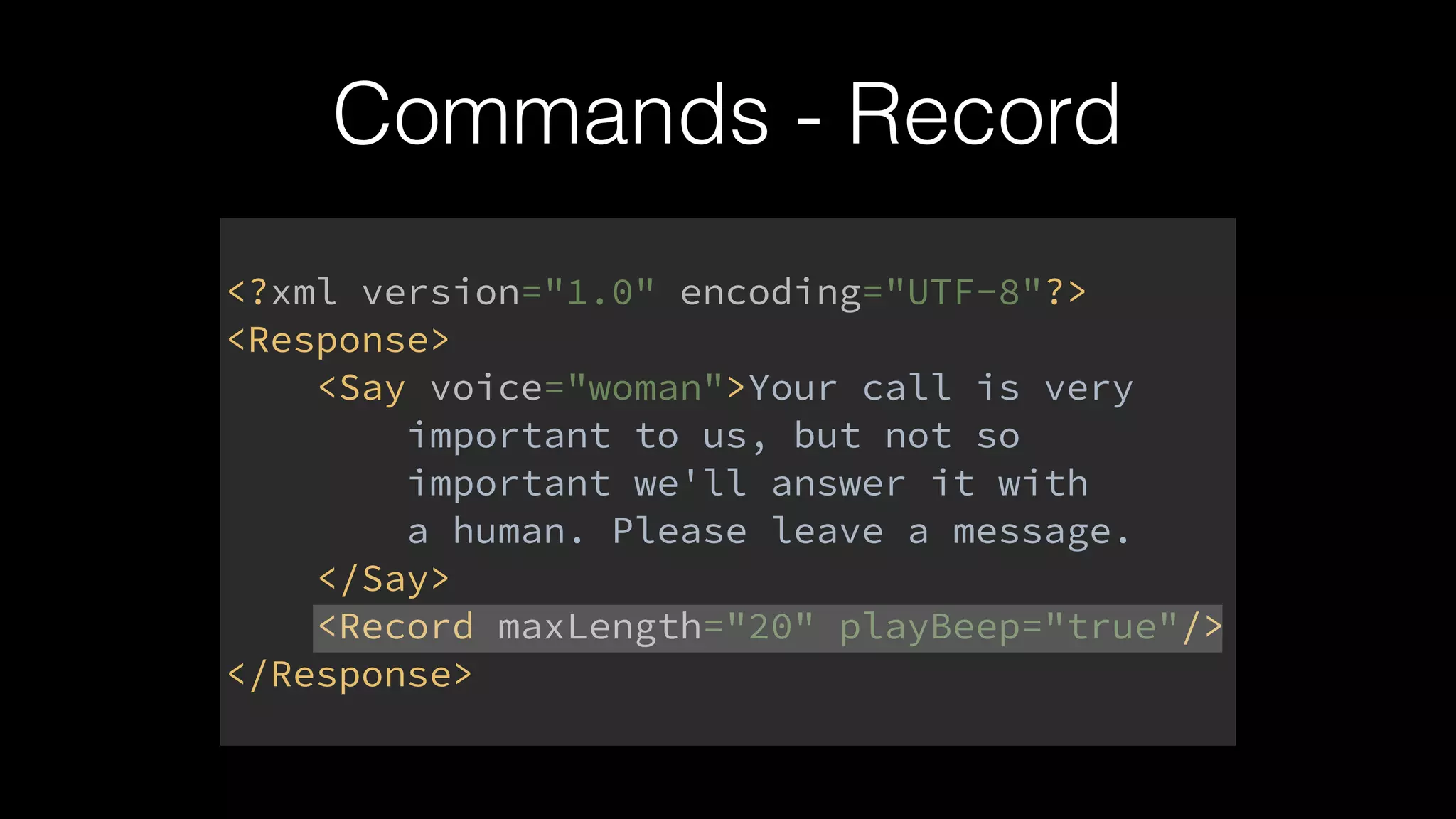

 </Response> Commands - Record

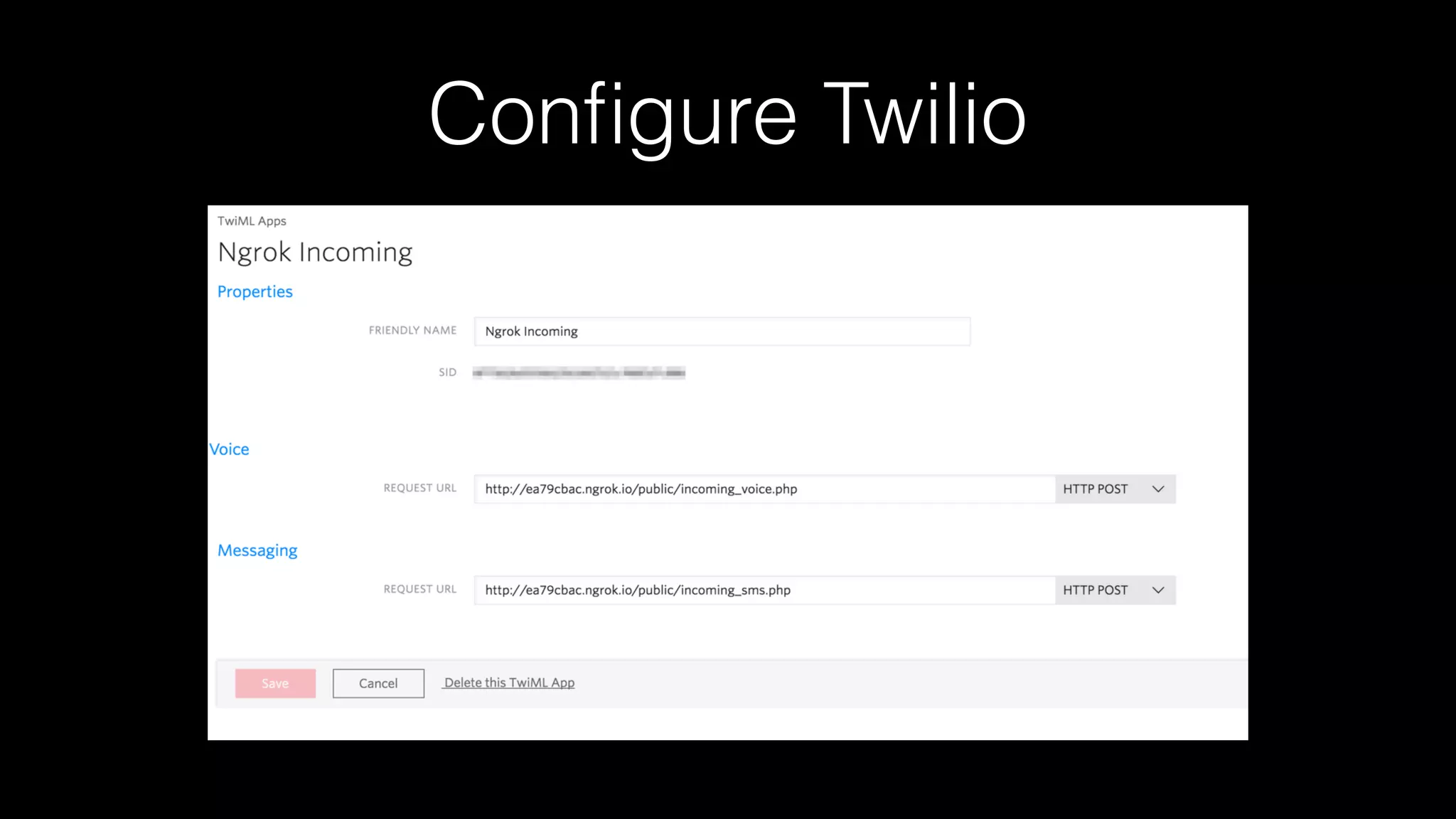

Configure Twilio

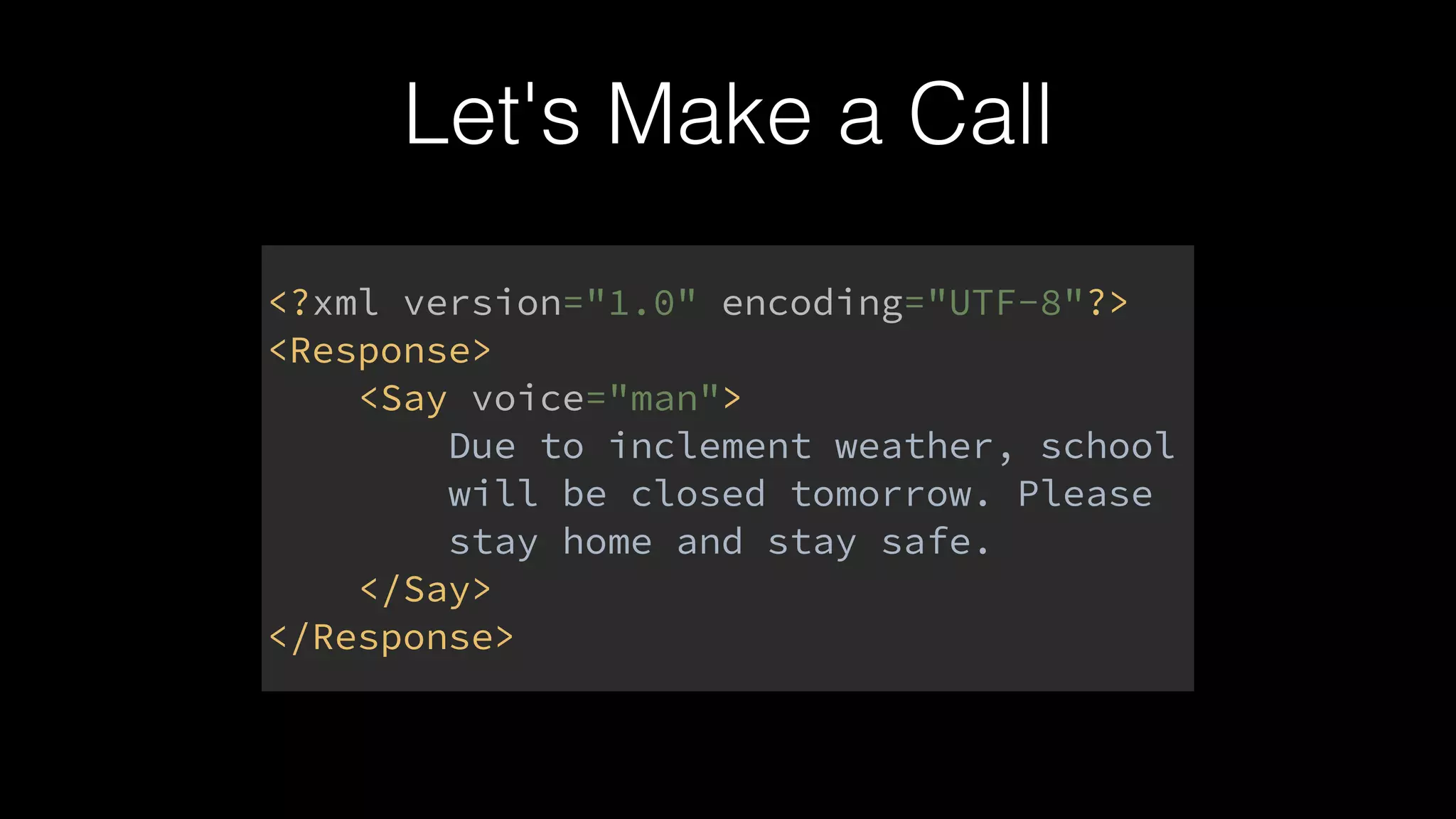

Let's Make a Call <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="man">
 Due to inclement weather, school
 will be closed tomorrow. Please
 stay home and stay safe.
 </Say>
 </Response>

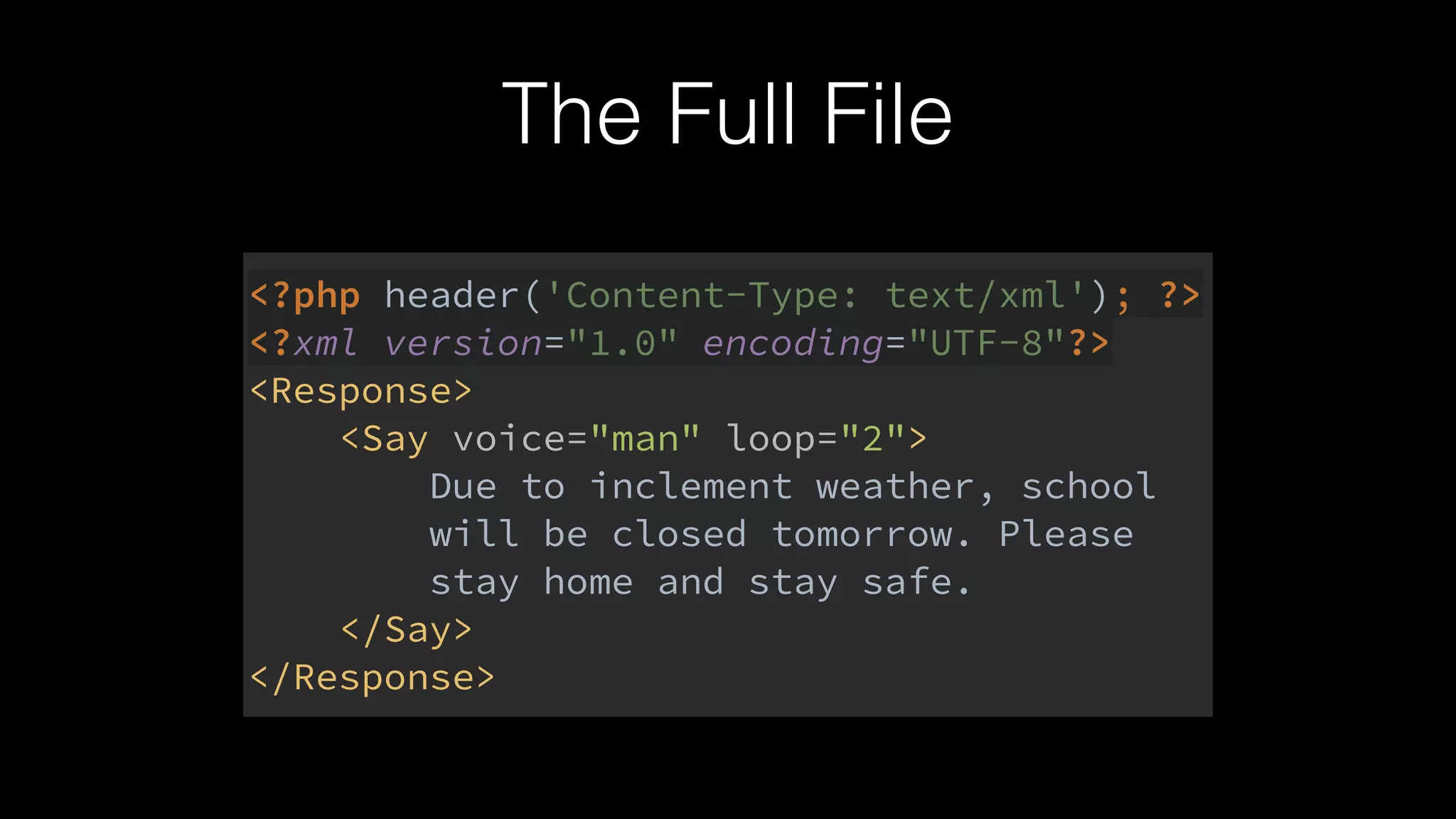

The Full File <?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="man" loop="2">
 Due to inclement weather, school
 will be closed tomorrow. Please
 stay home and stay safe.
 </Say>
 </Response>

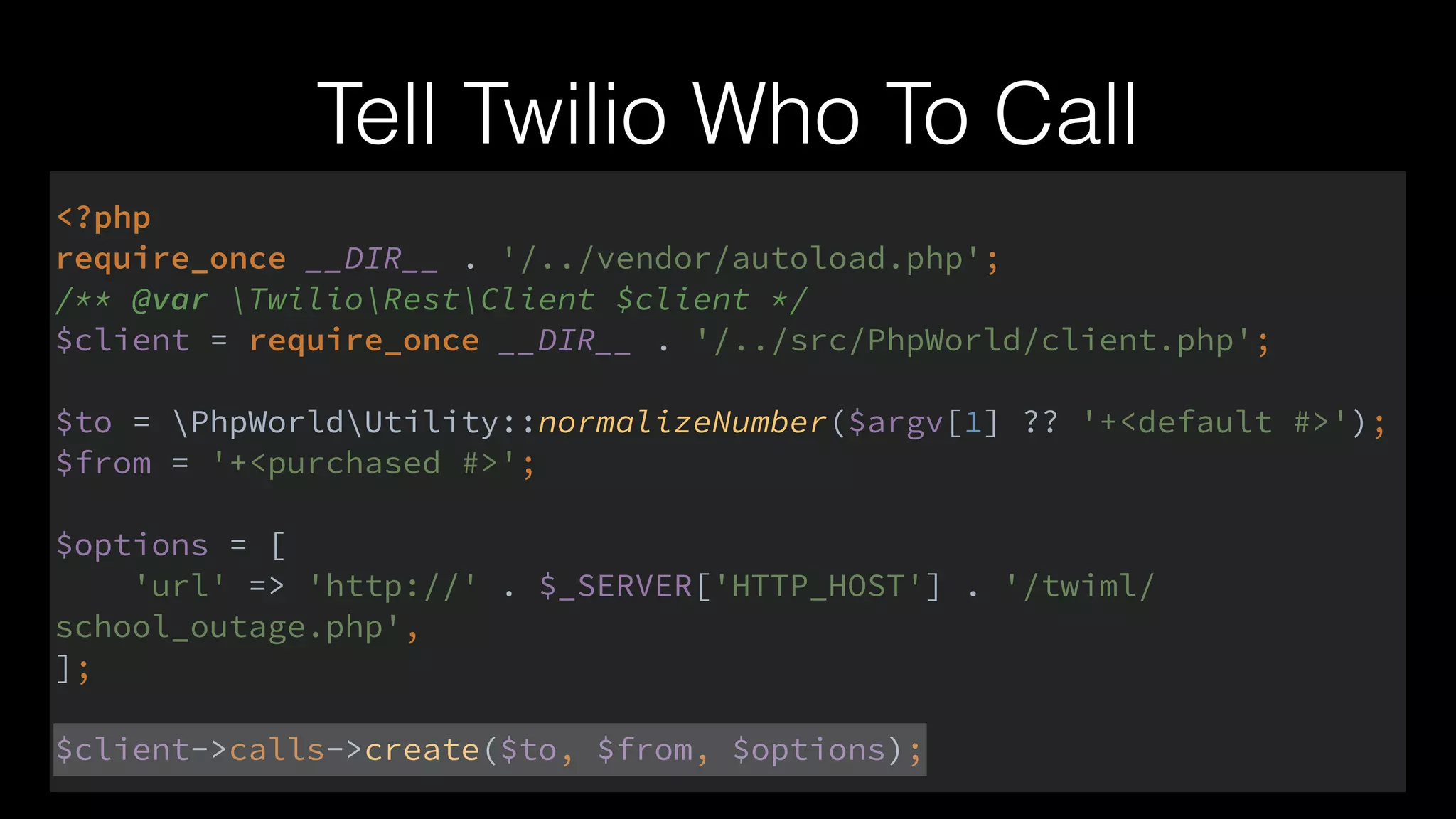

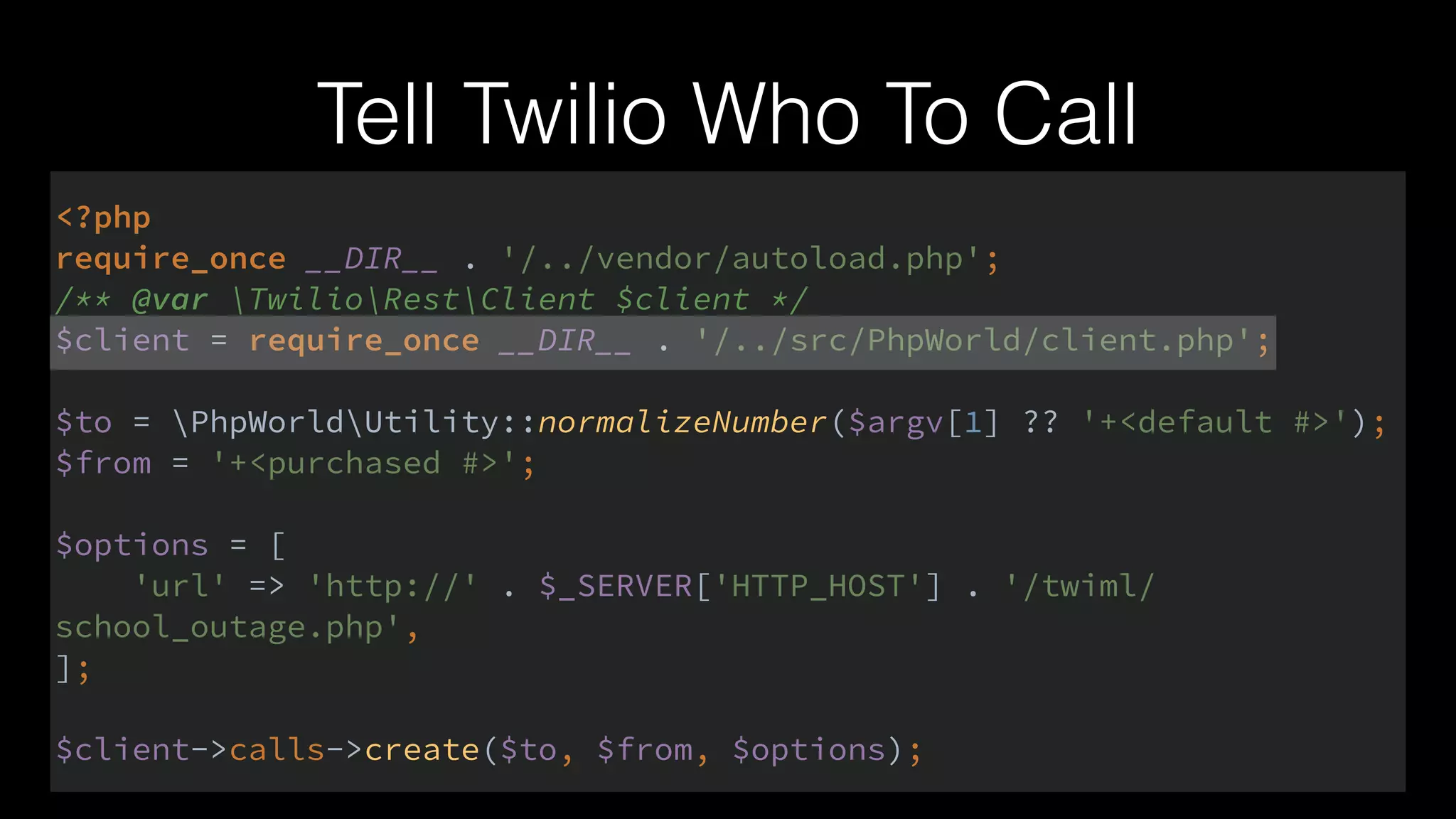

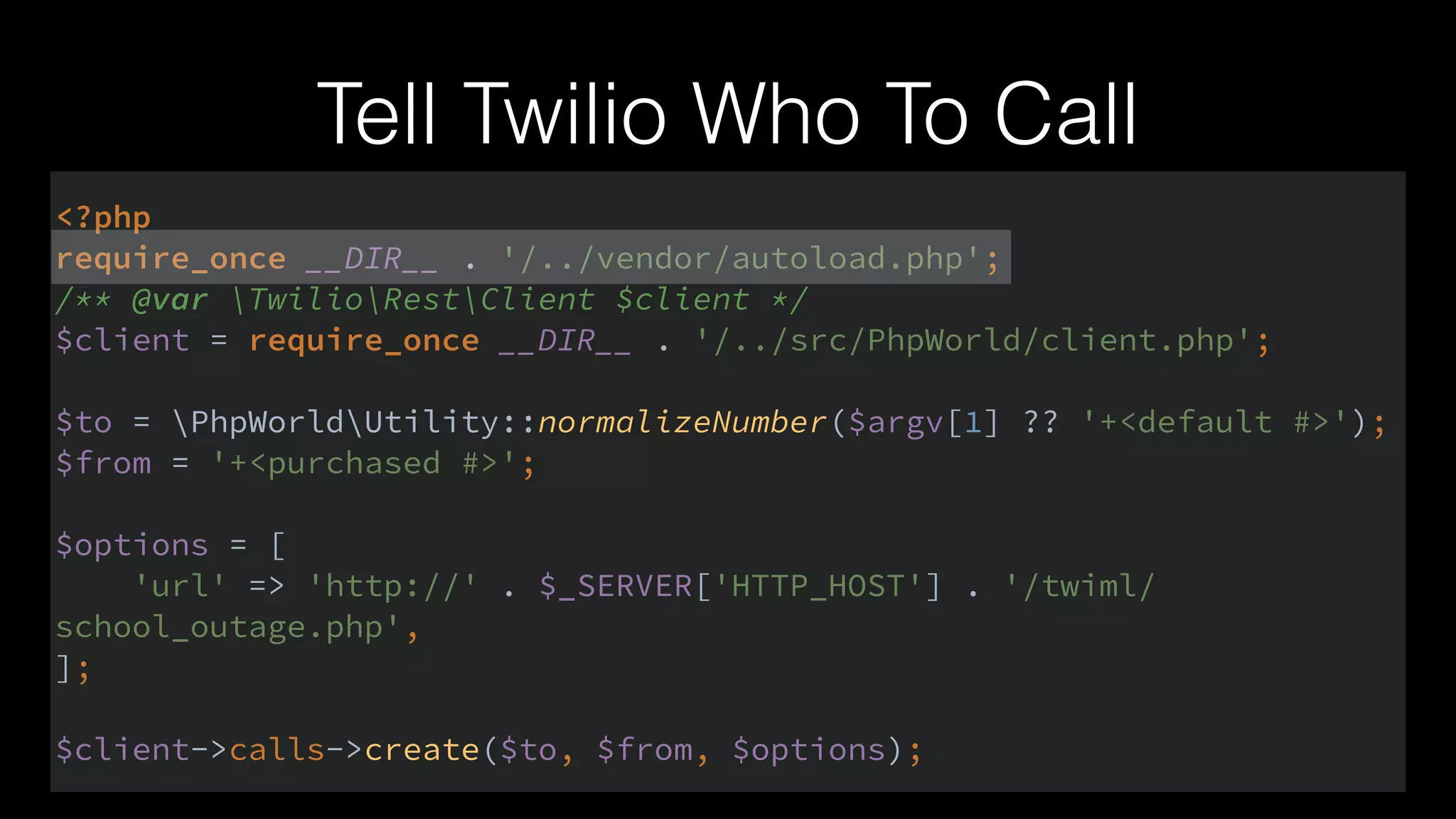

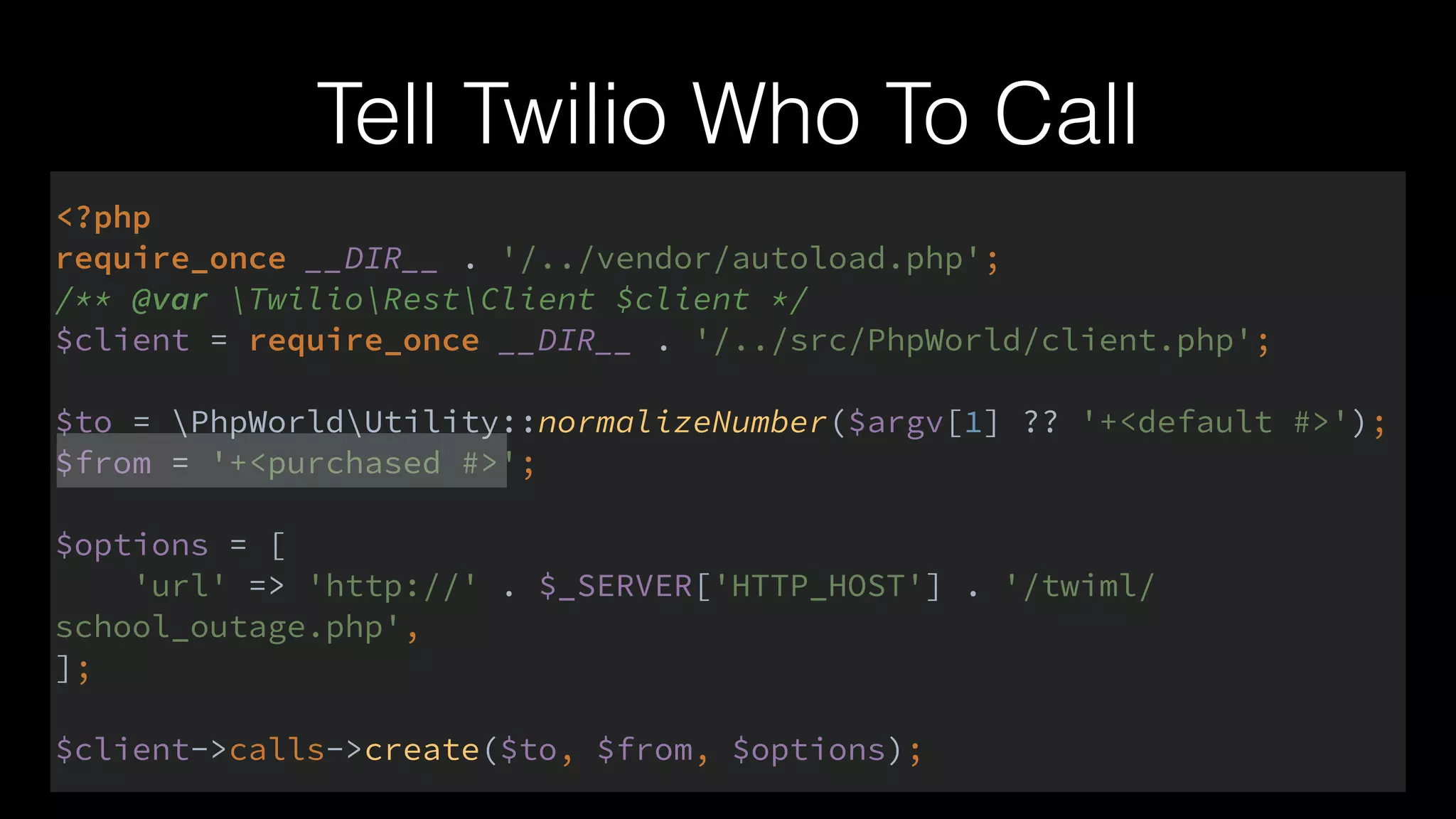

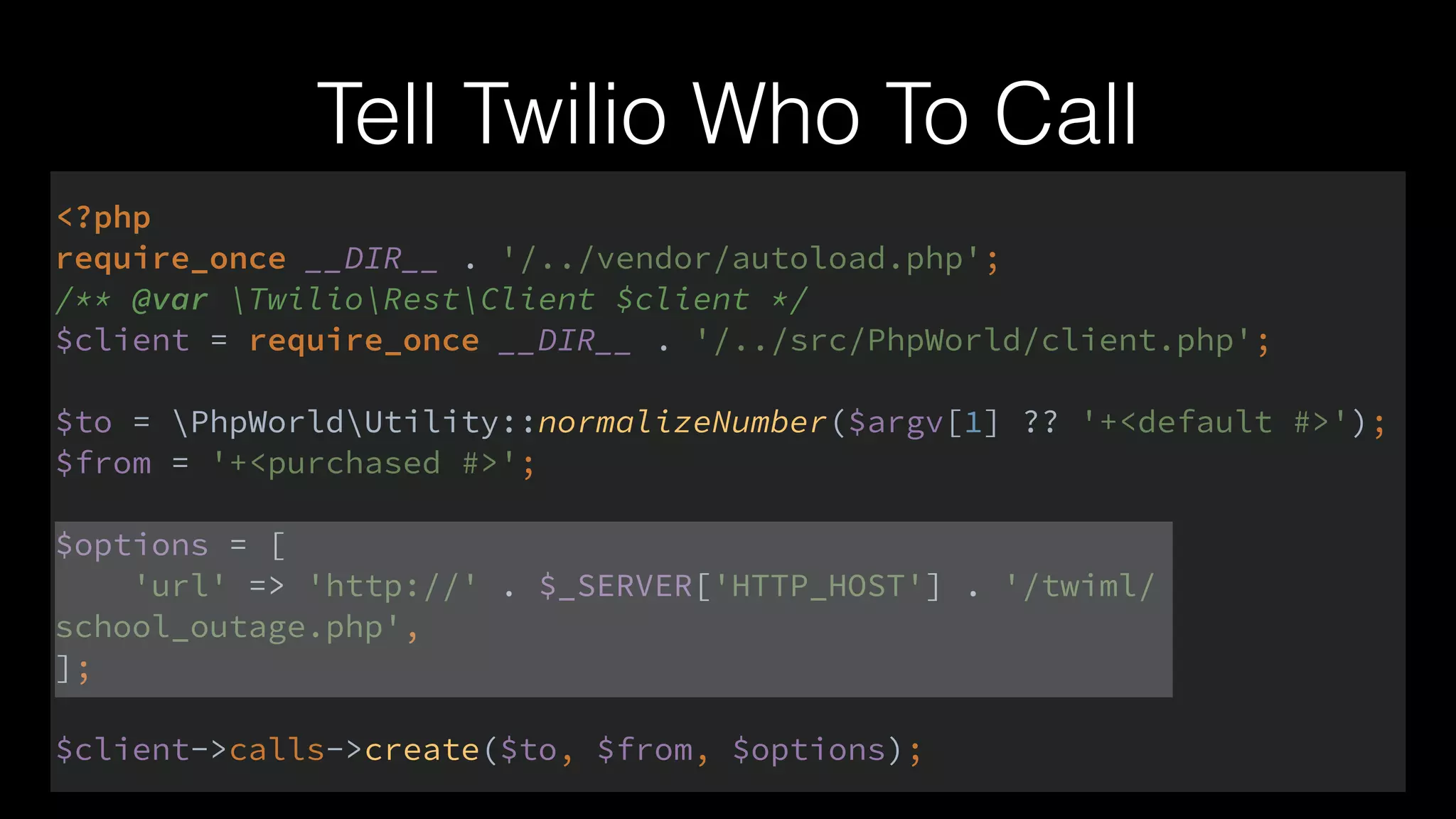

Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);

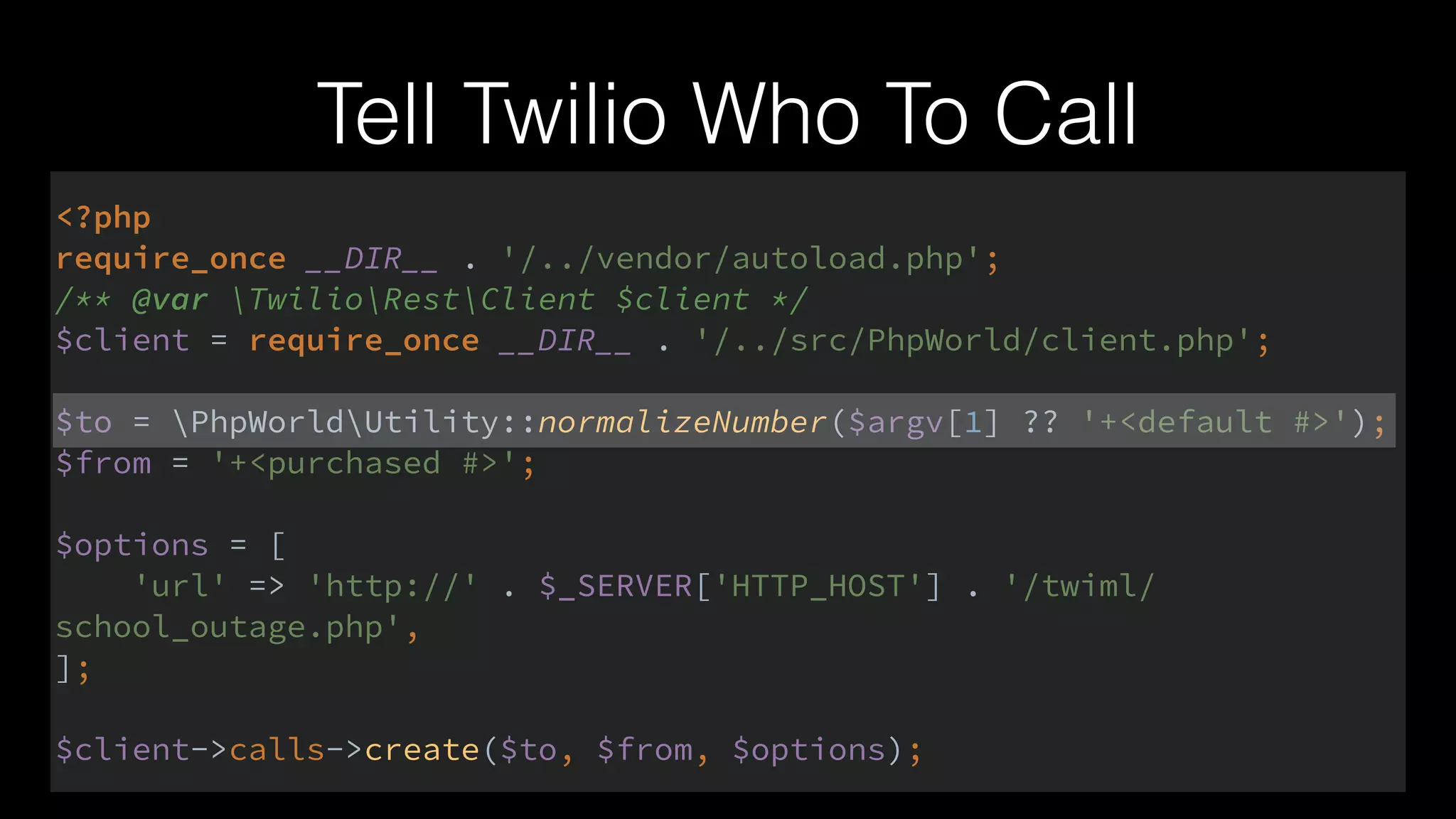

Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
Tell Twilio Who To Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);

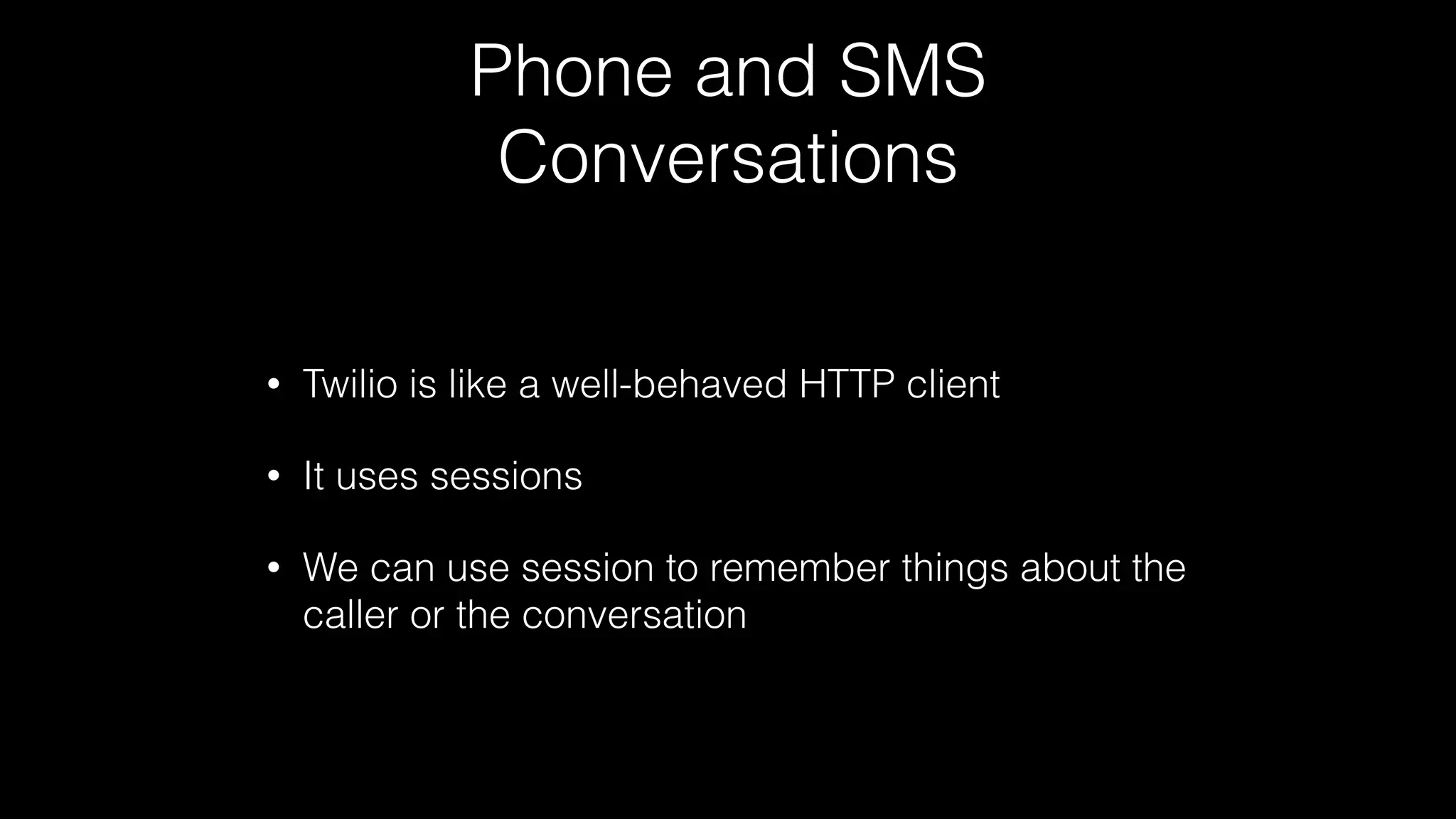

Phone and SMS Conversations • Twilio is like a well-behaved HTTP client • It uses sessions • We can use session to remember things about the caller or the conversation

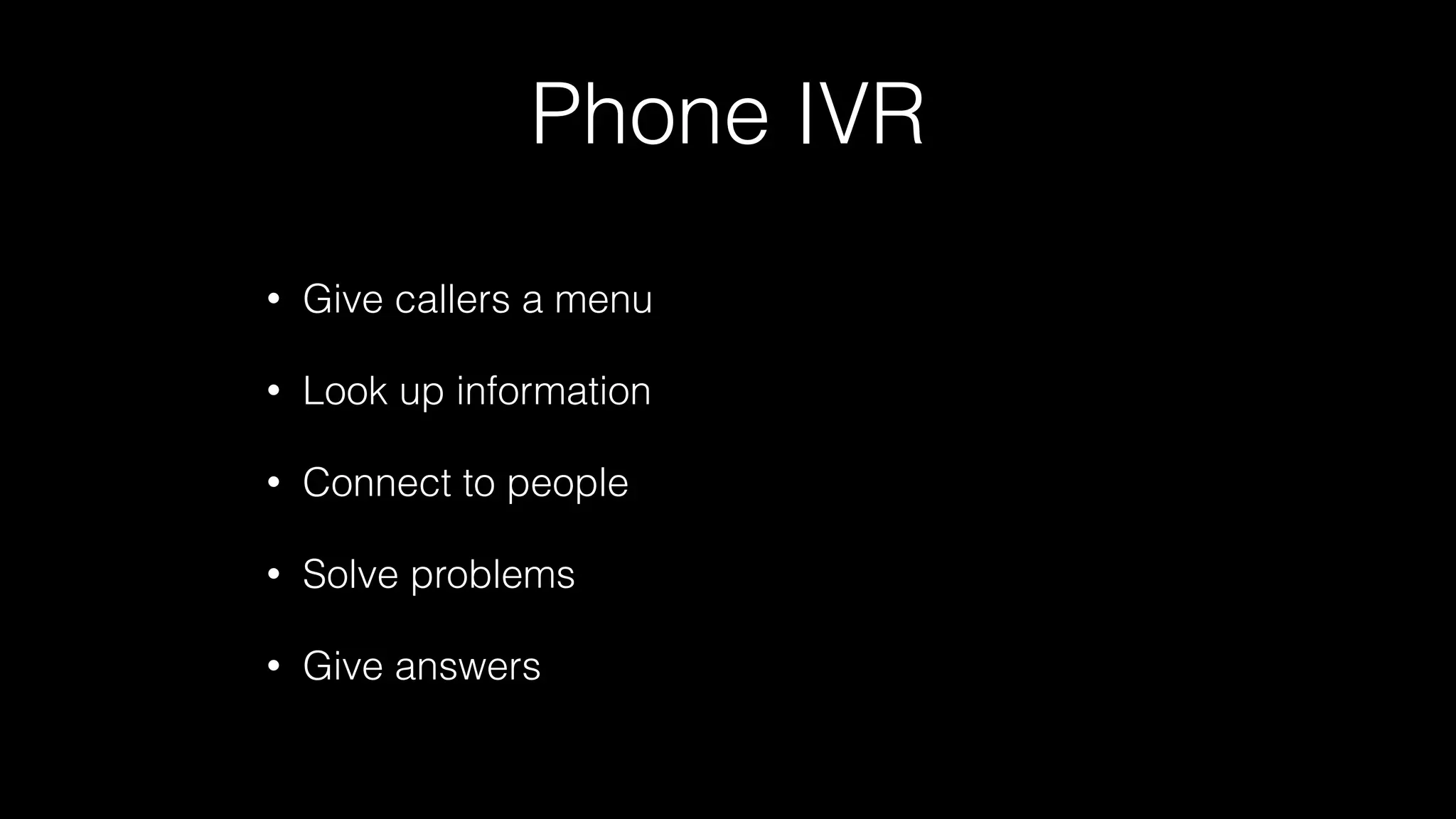

Phone IVR • Give callers a menu • Look up information • Connect to people • Solve problems • Give answers

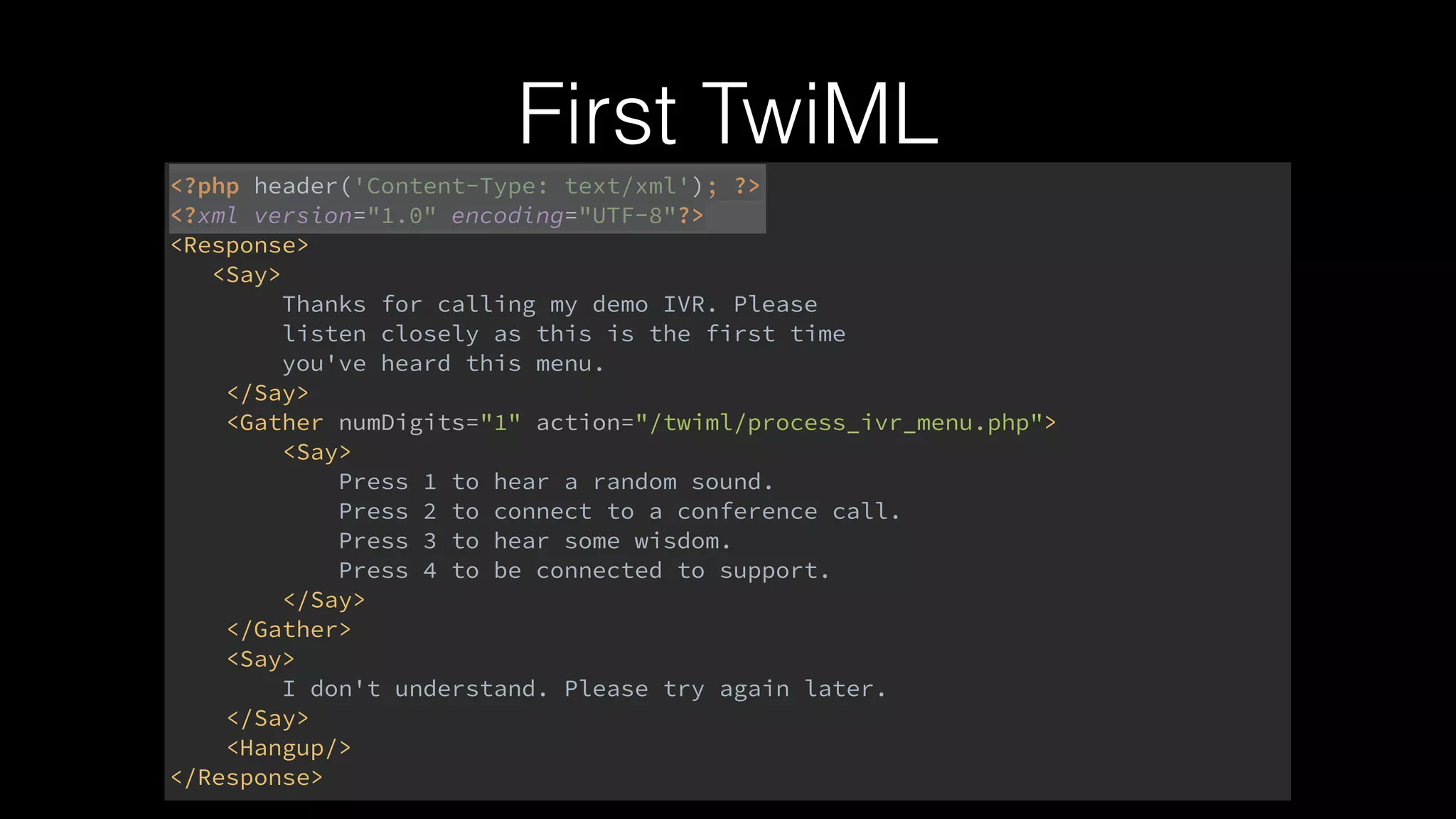

First TwiML <?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>
<?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>

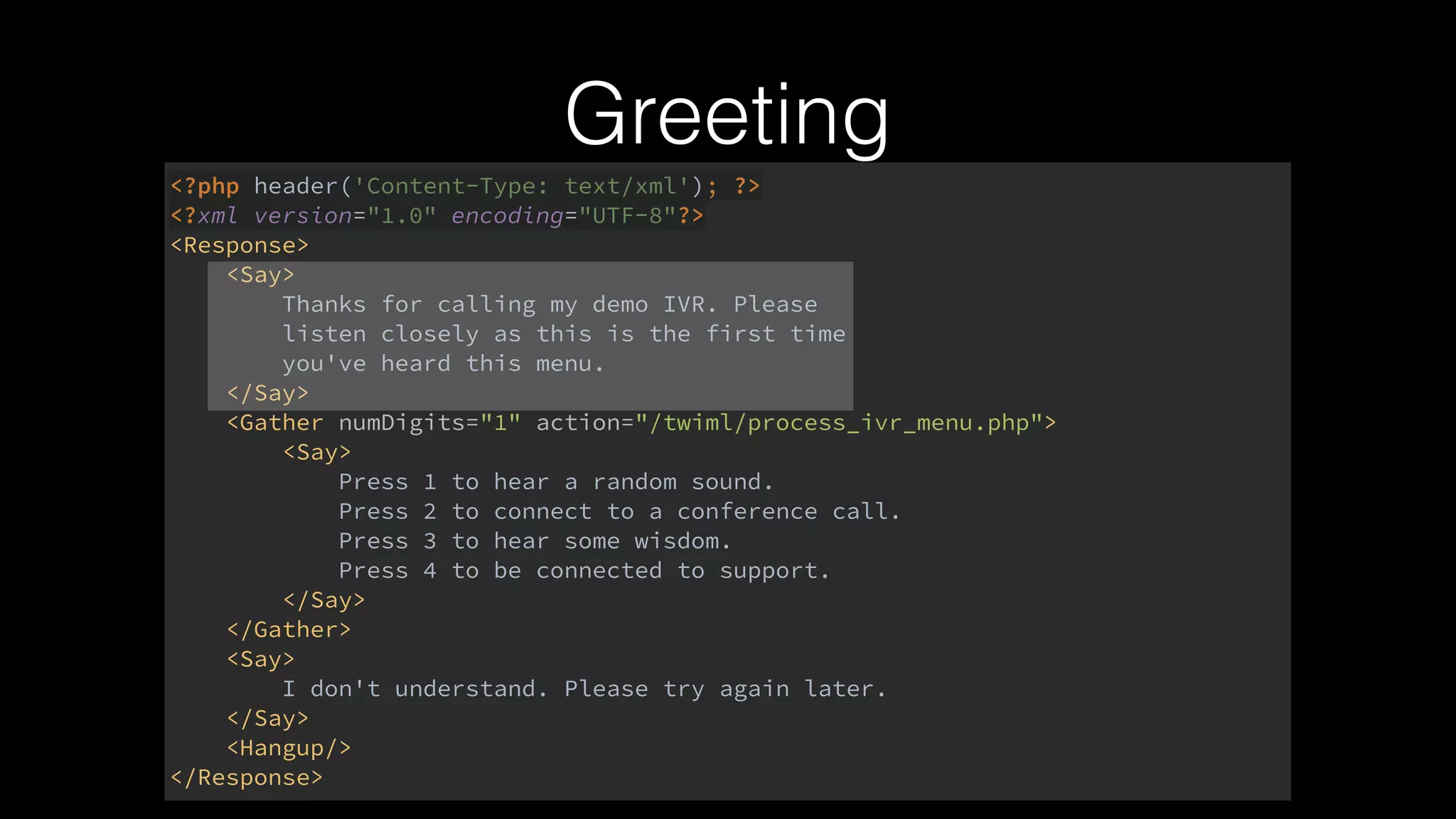

 </Response> Greeting
<?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>

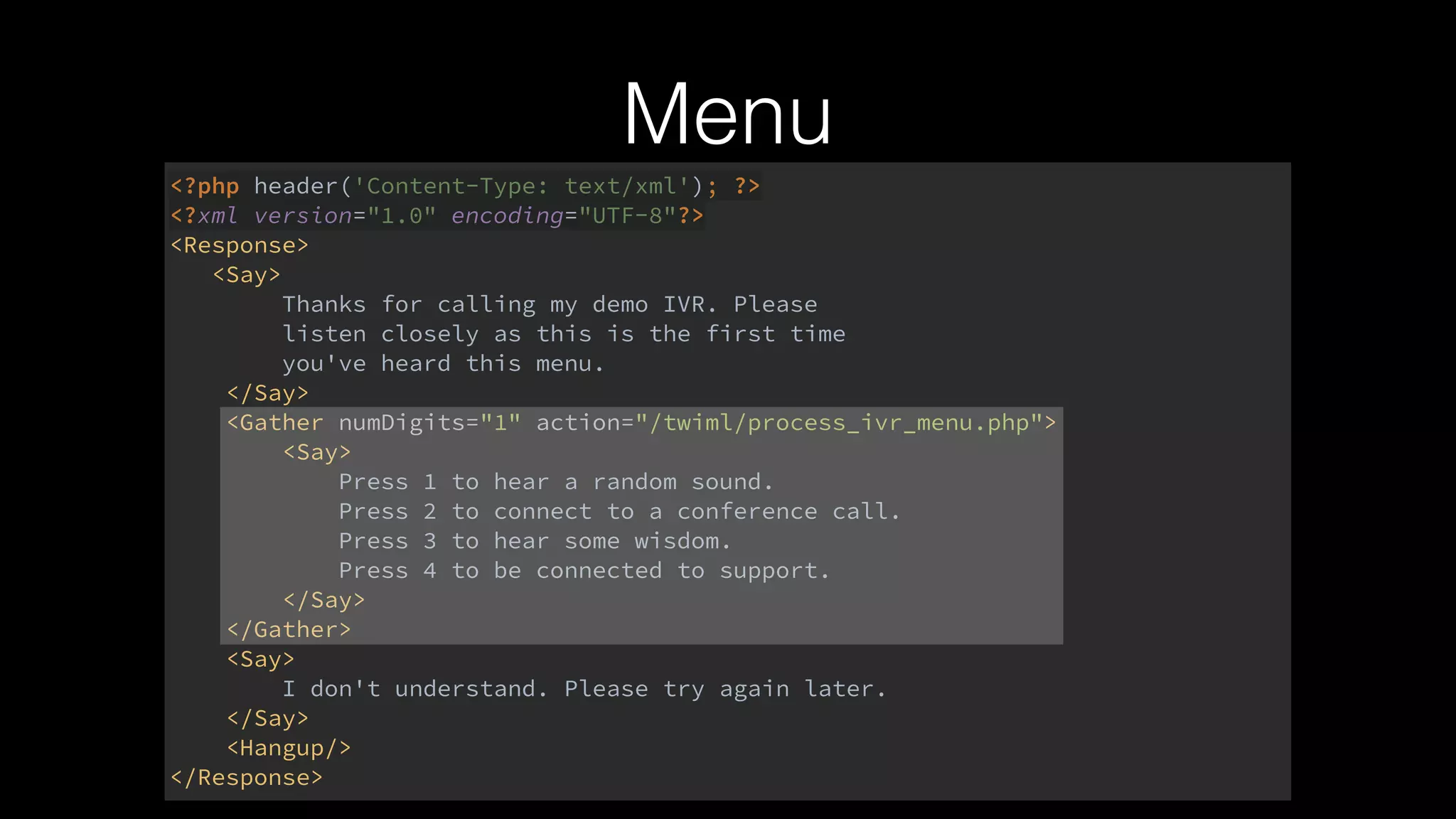

 </Response> Menu

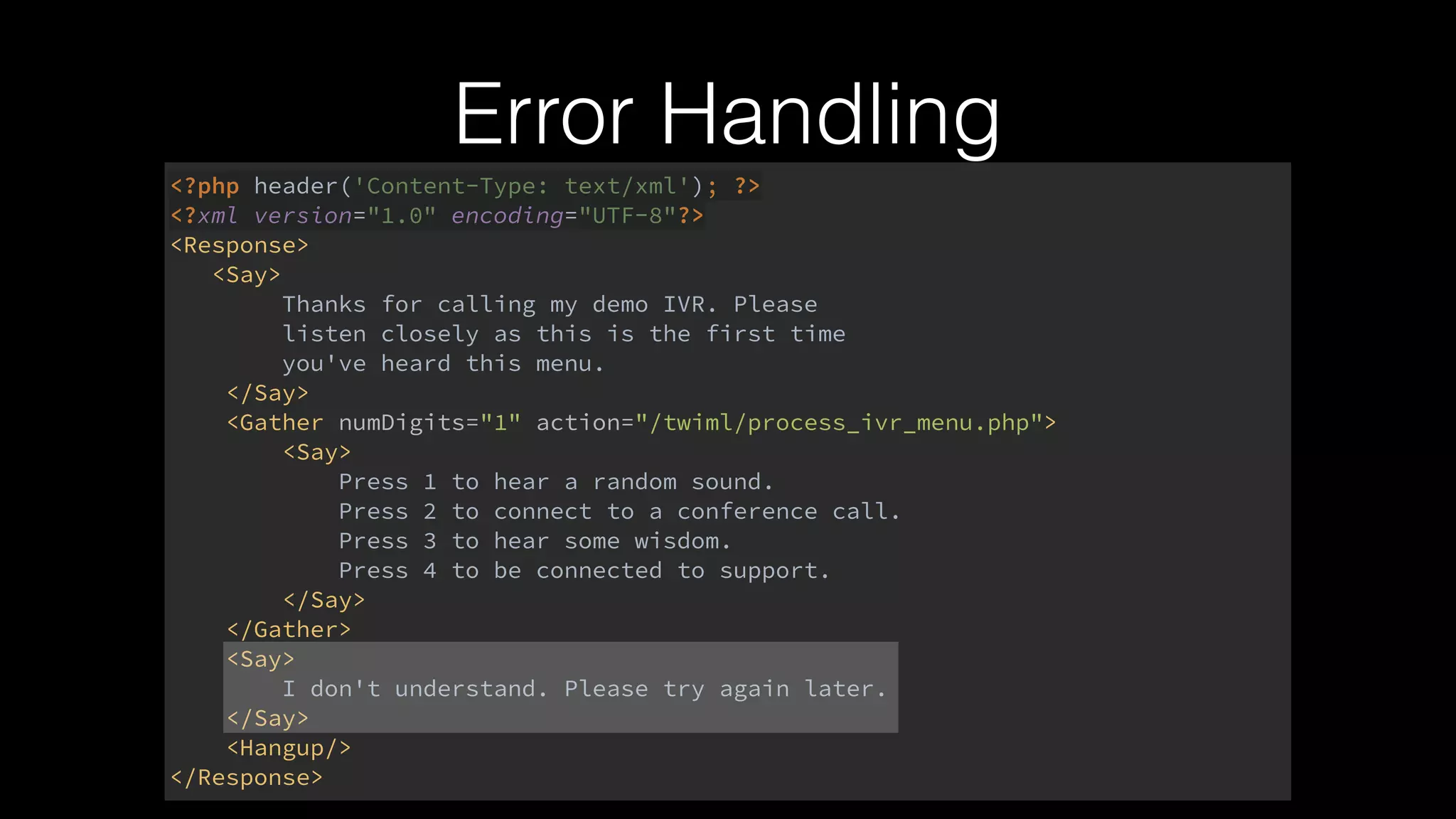

Error Handling <?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>

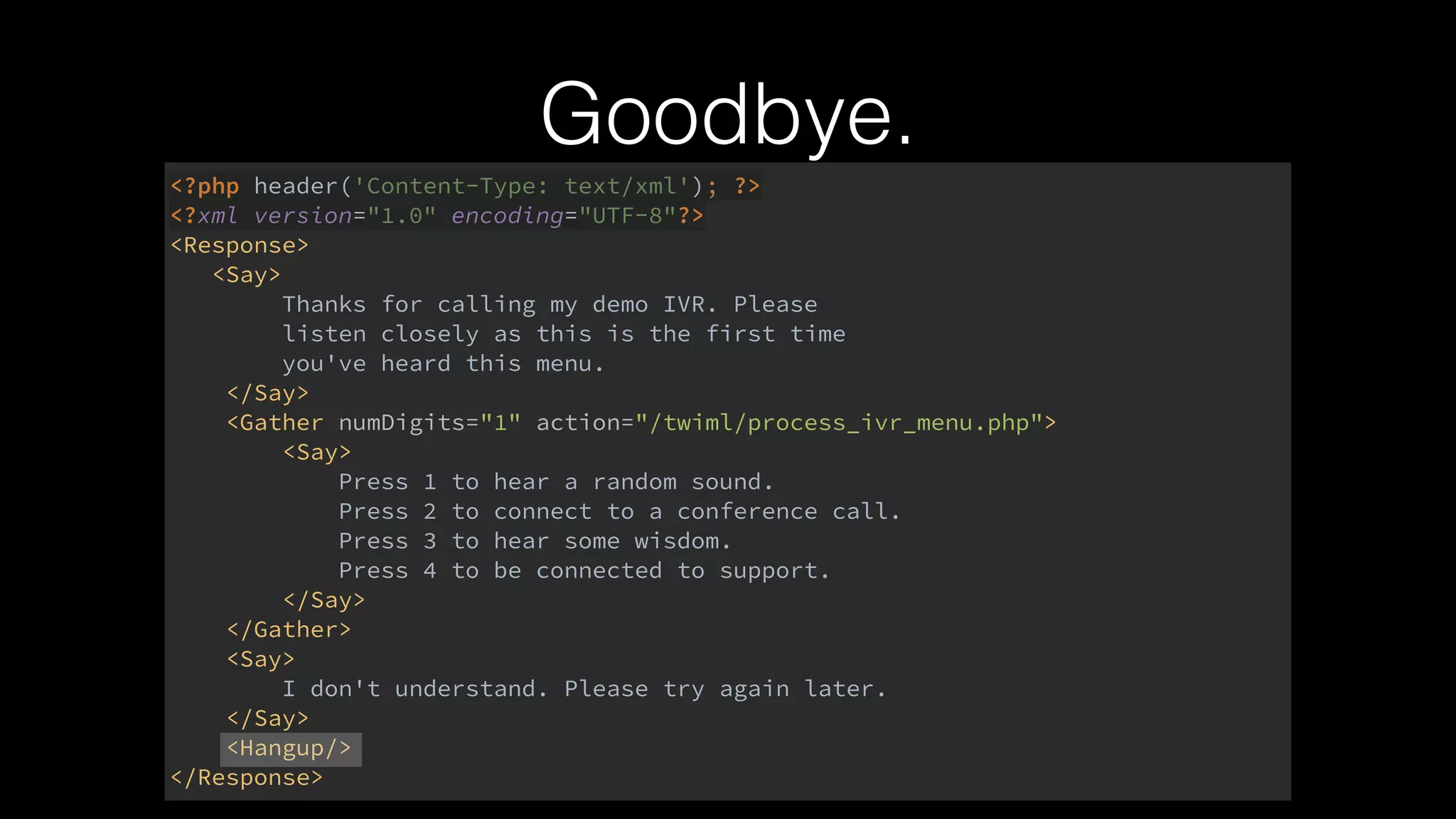

Goodbye. <?php header('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>

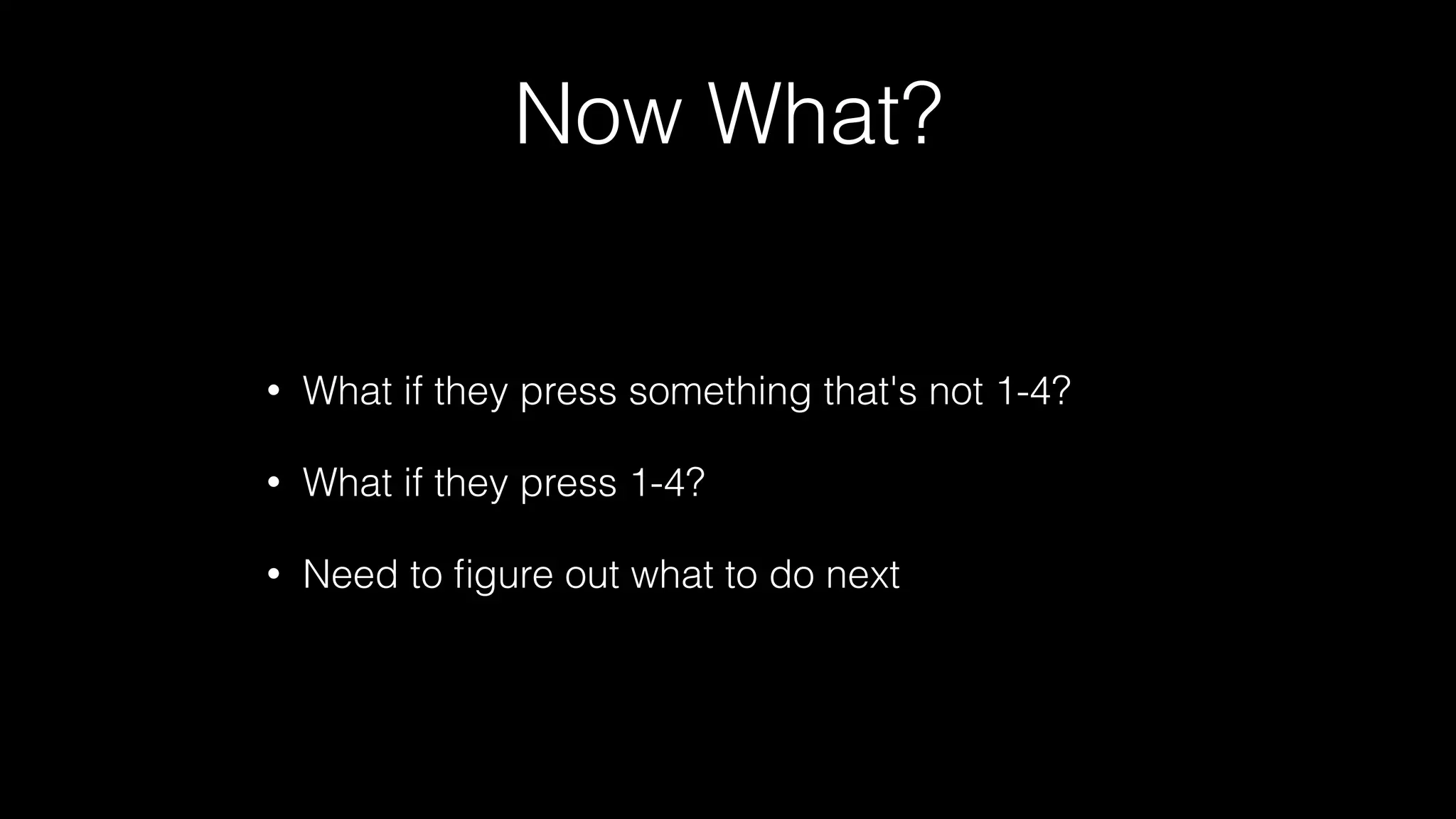

Now What? • What if they press something that's not 1-4? • What if they press 1-4? • Need to figure out what to do next

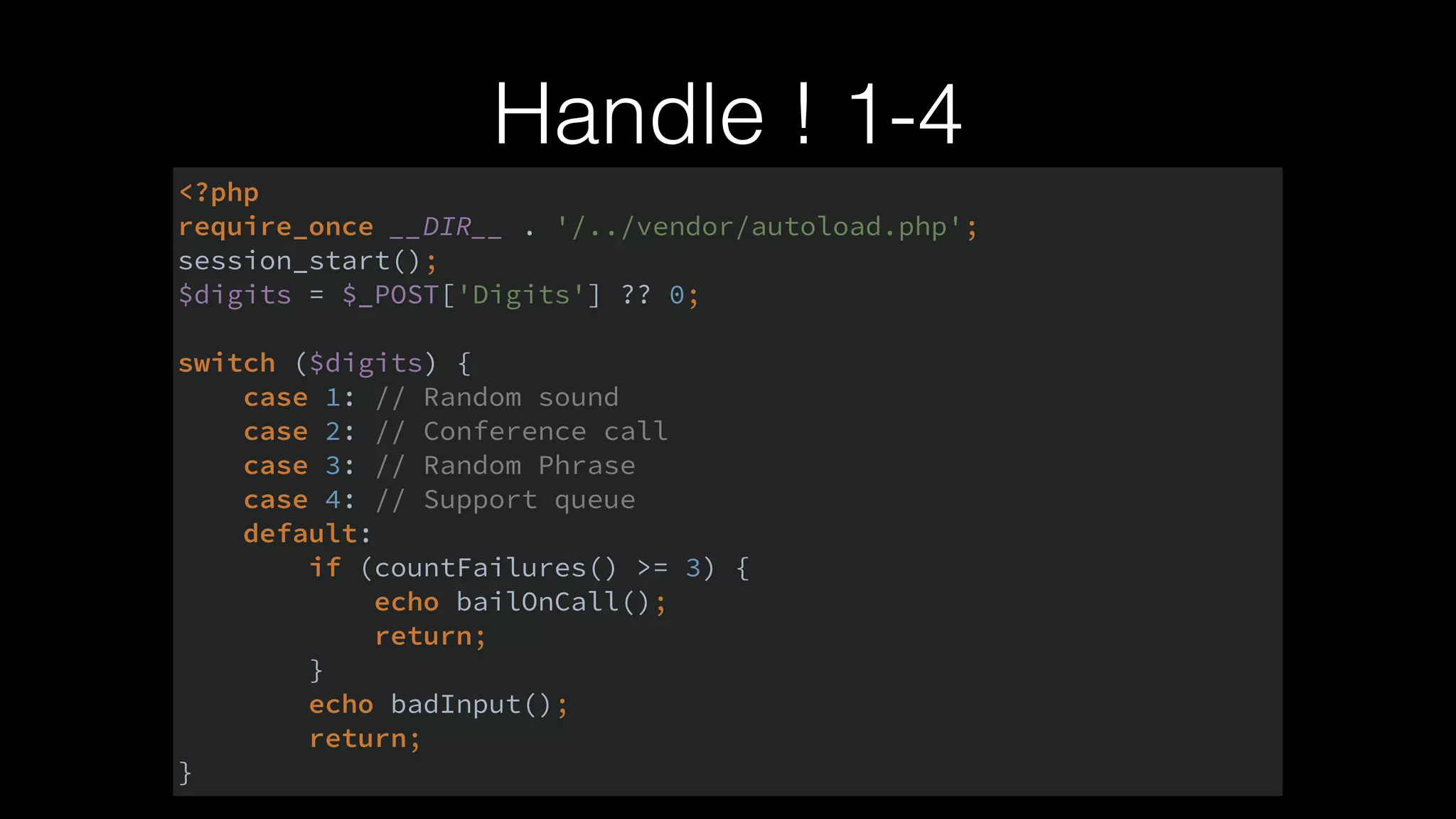

Handle ! 1-4 <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 session_start();
 $digits = $_POST['Digits'] ?? 0;

 switch ($digits) {
 case 1: // Random sound
 case 2: // Conference call
 case 3: // Random Phrase
 case 4: // Support queue
 default:
 if (countFailures() >= 3) {
 echo bailOnCall();
 return;
 }
 echo badInput();
 return;
 }

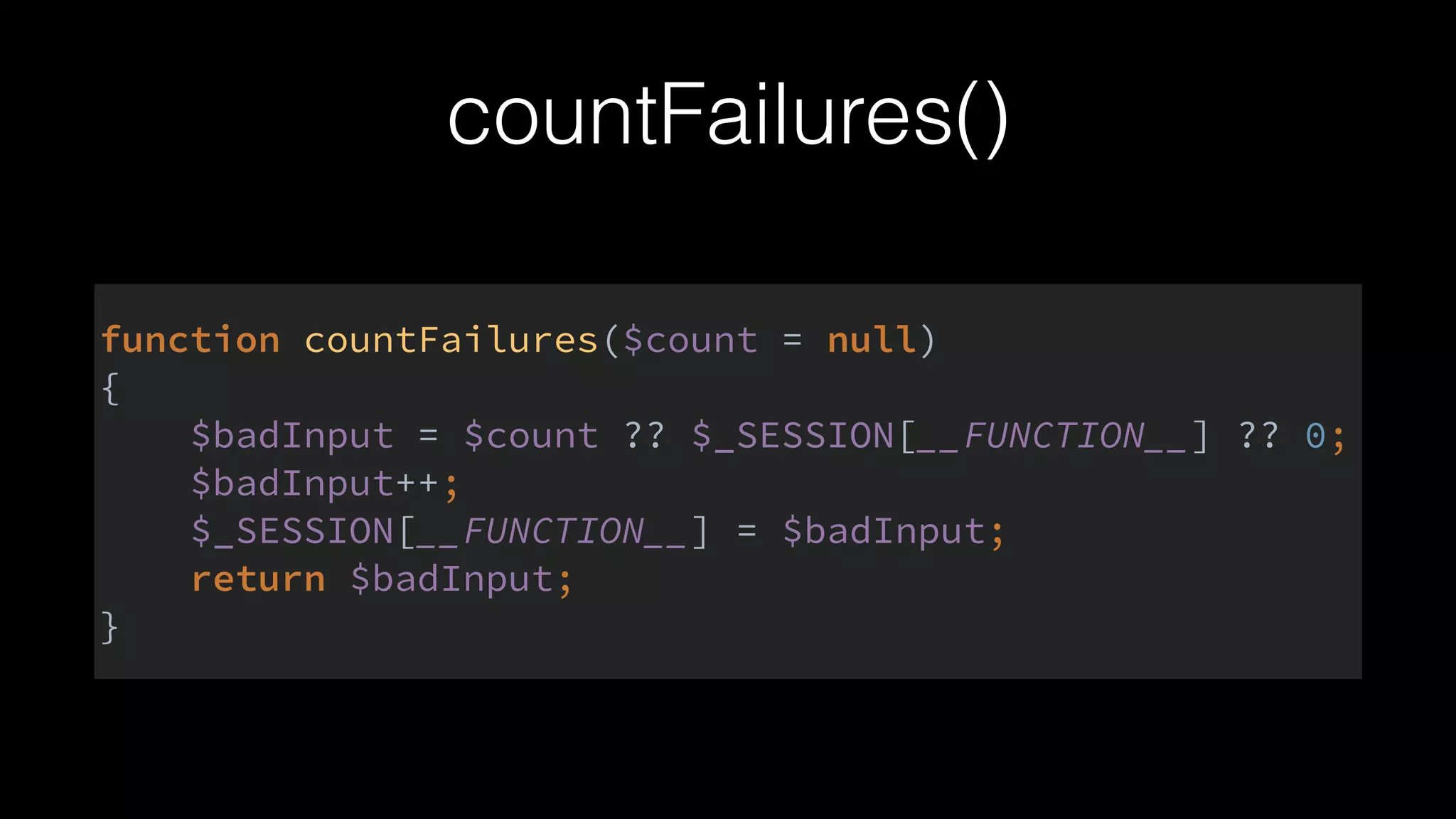

countFailures() function countFailures($count = null)
 {
 $badInput = $count ?? $_SESSION[__FUNCTION__] ?? 0;
 $badInput++;
 $_SESSION[__FUNCTION__] = $badInput;
 return $badInput;
 }

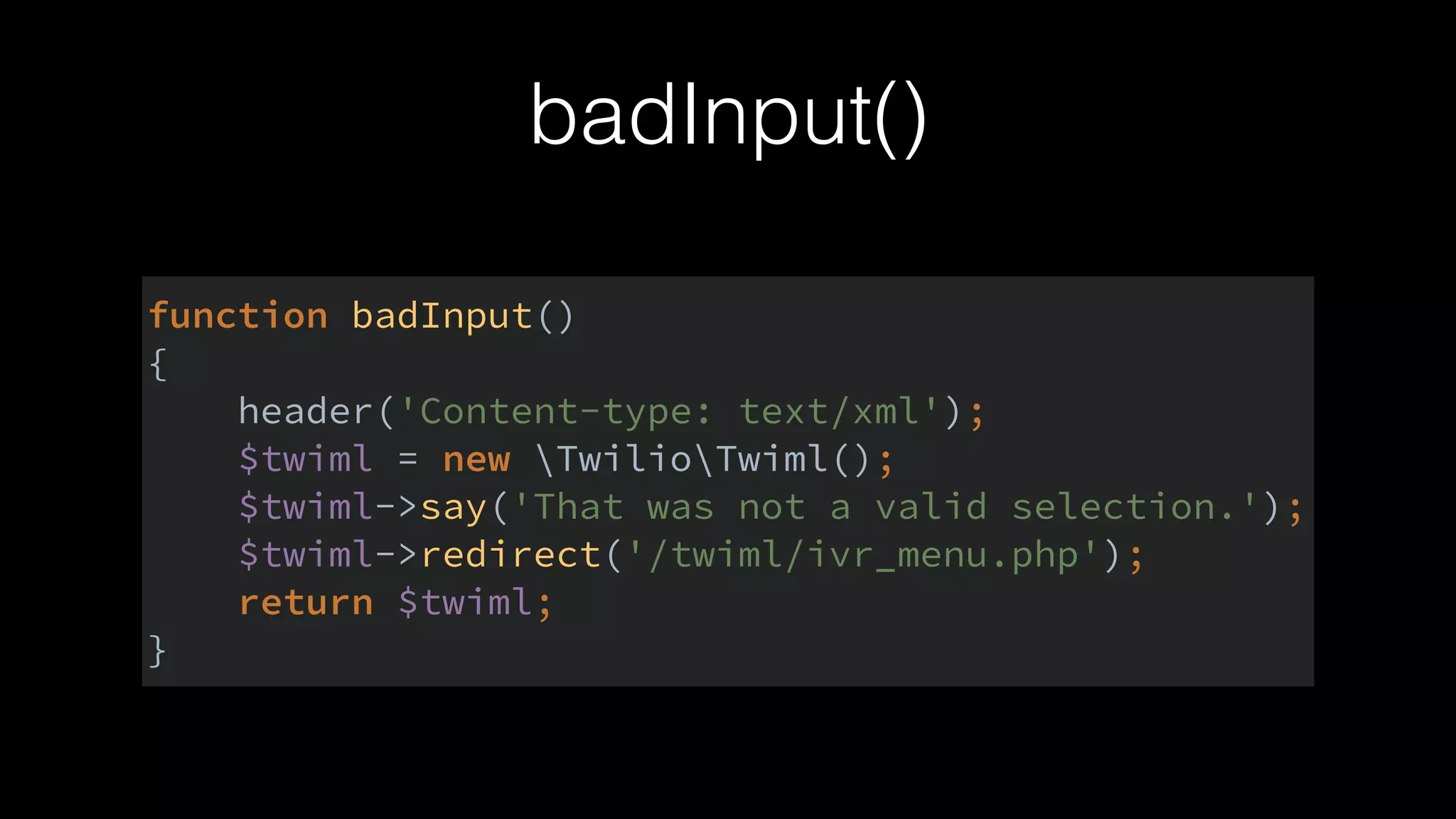

badInput() function badInput()
 {
 header('Content-type: text/xml');
 $twiml = new TwilioTwiml();
 $twiml->say('That was not a valid selection.');
 $twiml->redirect('/twiml/ivr_menu.php');
 return $twiml;
 }

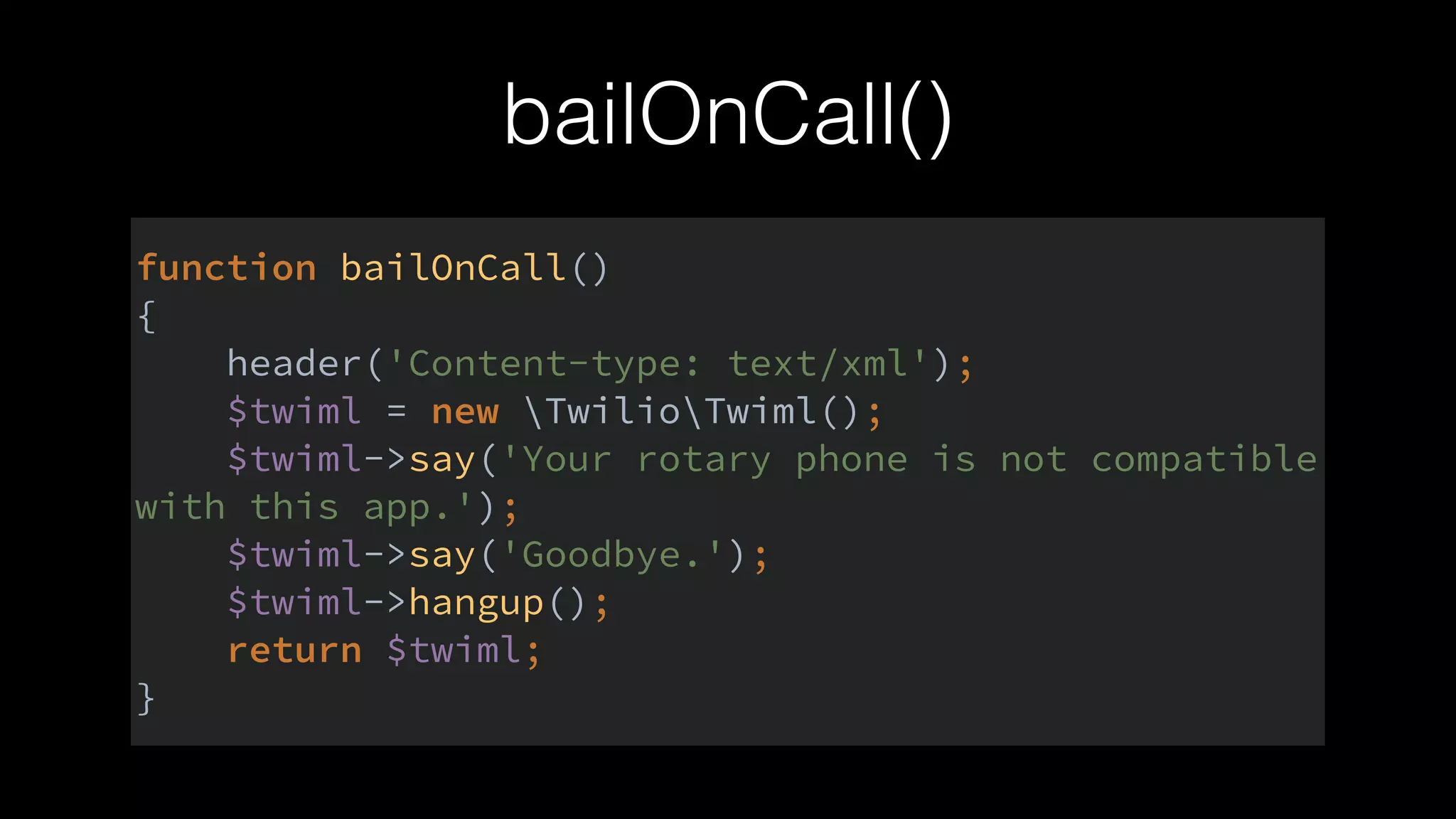

bailOnCall() function bailOnCall()
 {
 header('Content-type: text/xml');
 $twiml = new TwilioTwiml();
 $twiml->say('Your rotary phone is not compatible with this app.');
 $twiml->say('Goodbye.');
 $twiml->hangup();
 return $twiml;
 }
Call Handler switch ($digits) {
 case 1: // Random sound
 echo randomSound();
 break;
 case 2: // Conference call
 echo conferenceCall();
 break;
 case 3: // Random Phrase
 echo fortune();
 break;
 case 4: // Support queue
 echo supportQueue();
 break;
 default:
 ... }

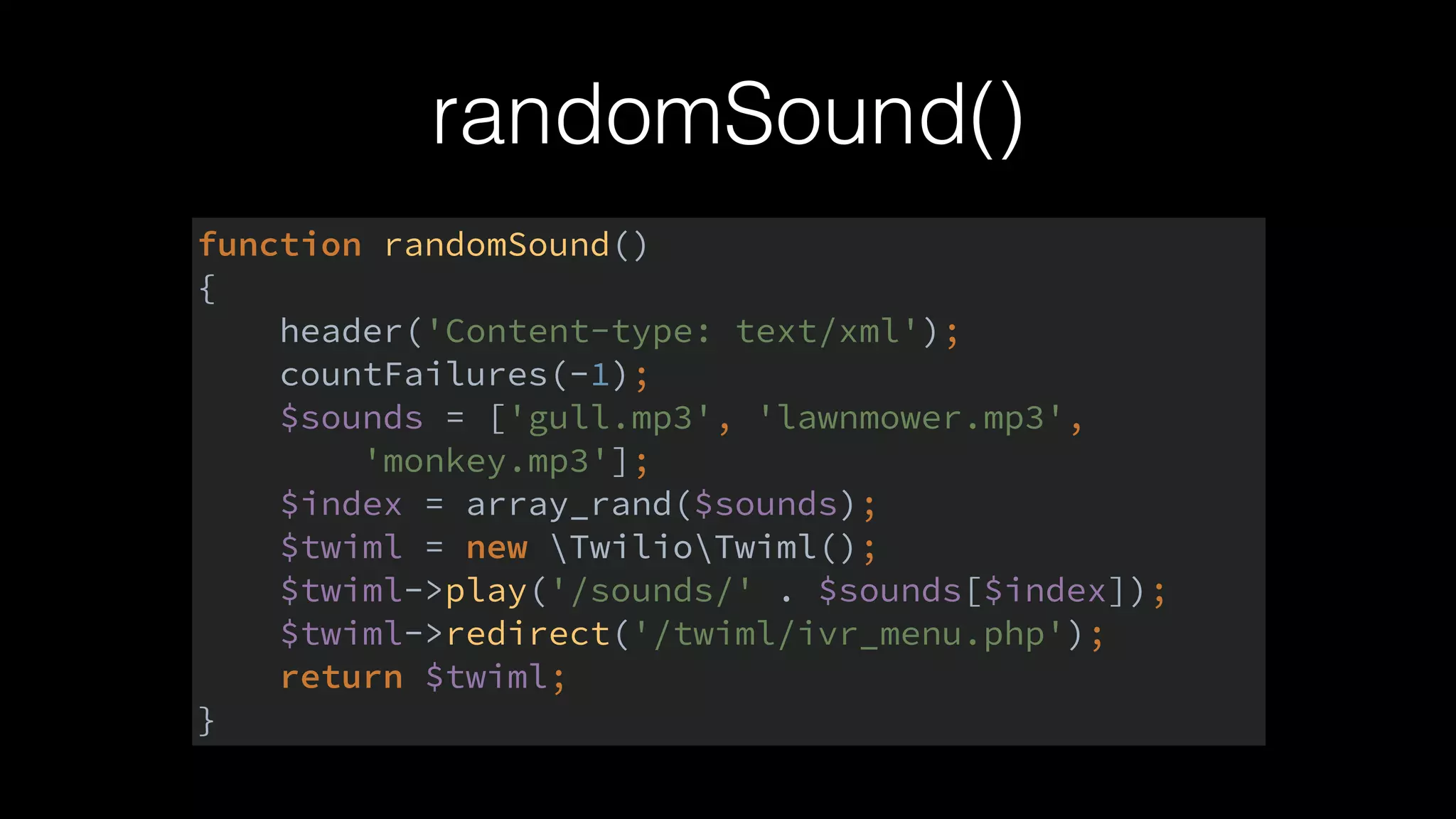

randomSound() function randomSound()
 {
 header('Content-type: text/xml');
 countFailures(-1);
 $sounds = ['gull.mp3', 'lawnmower.mp3',
 'monkey.mp3'];
 $index = array_rand($sounds);
 $twiml = new TwilioTwiml();
 $twiml->play('/sounds/' . $sounds[$index]);
 $twiml->redirect('/twiml/ivr_menu.php');
 return $twiml;
 }

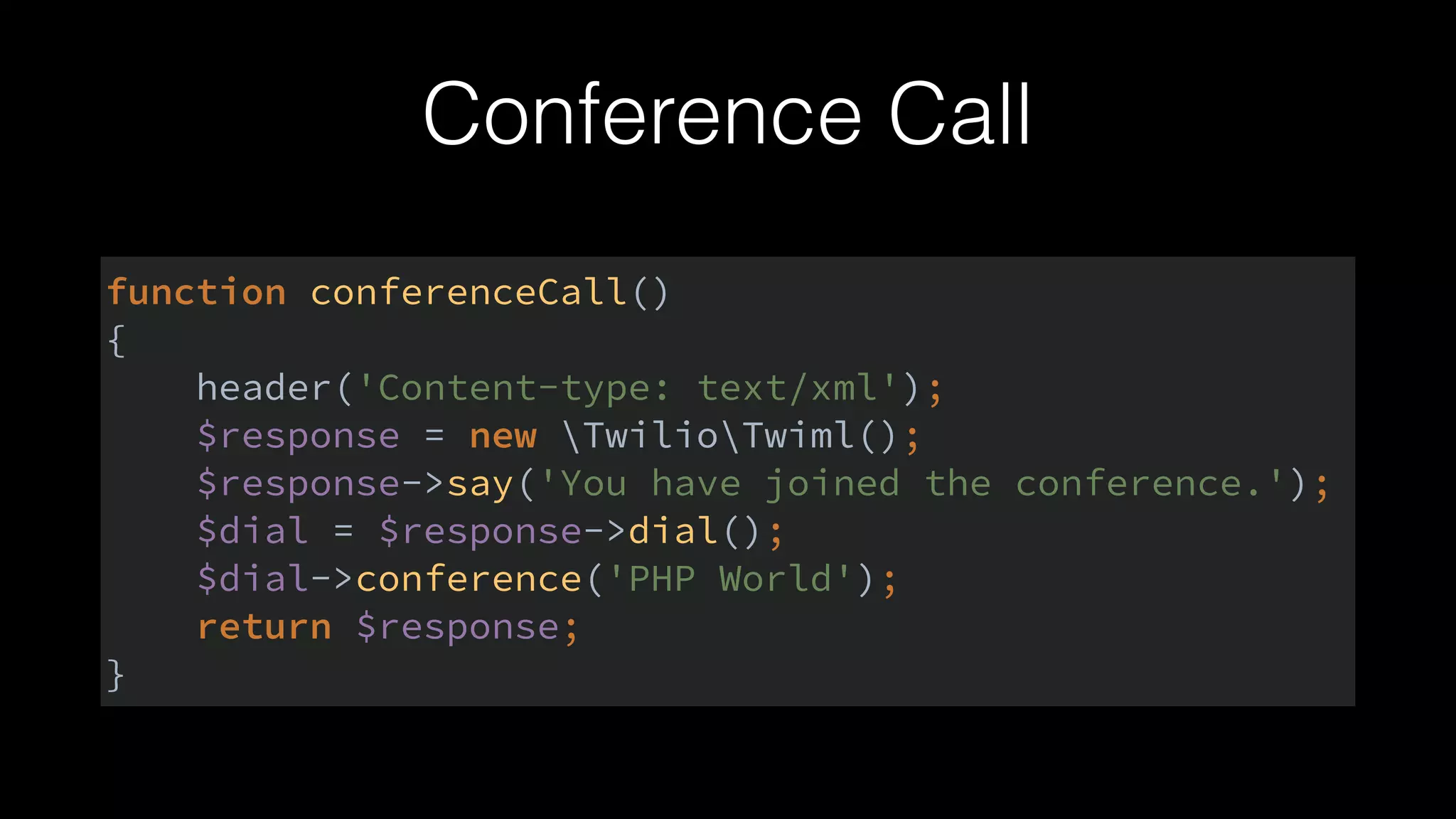

Conference Call function conferenceCall()
 {
 header('Content-type: text/xml');
 $response = new TwilioTwiml();
 $response->say('You have joined the conference.');
 $dial = $response->dial();
 $dial->conference('PHP World');
 return $response;
 }

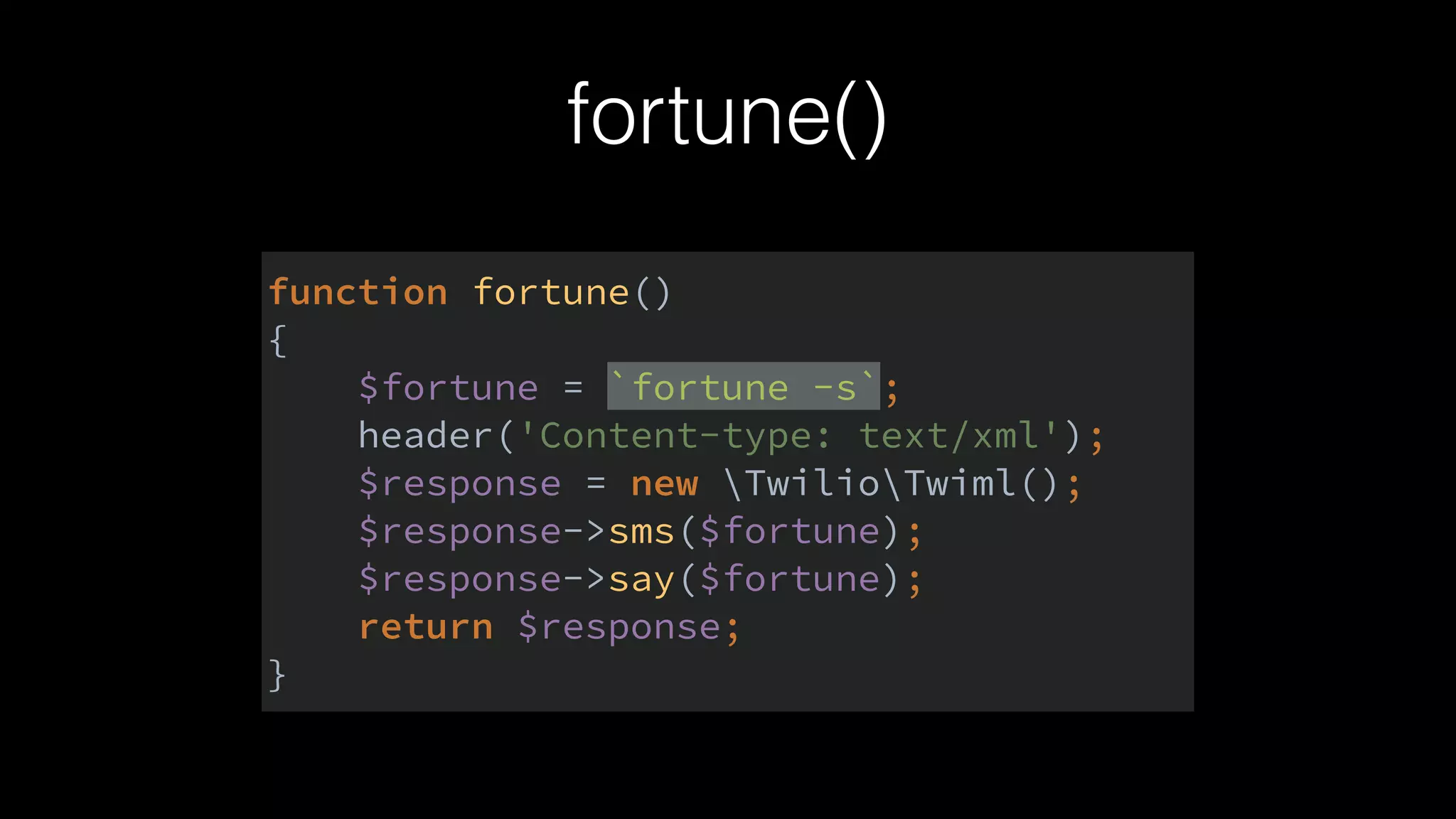

fortune() function fortune()
 {
 $fortune = `fortune -s`;
 header('Content-type: text/xml');
 $response = new TwilioTwiml();
 $response->sms($fortune);
 $response->say($fortune);
 return $response;
 }

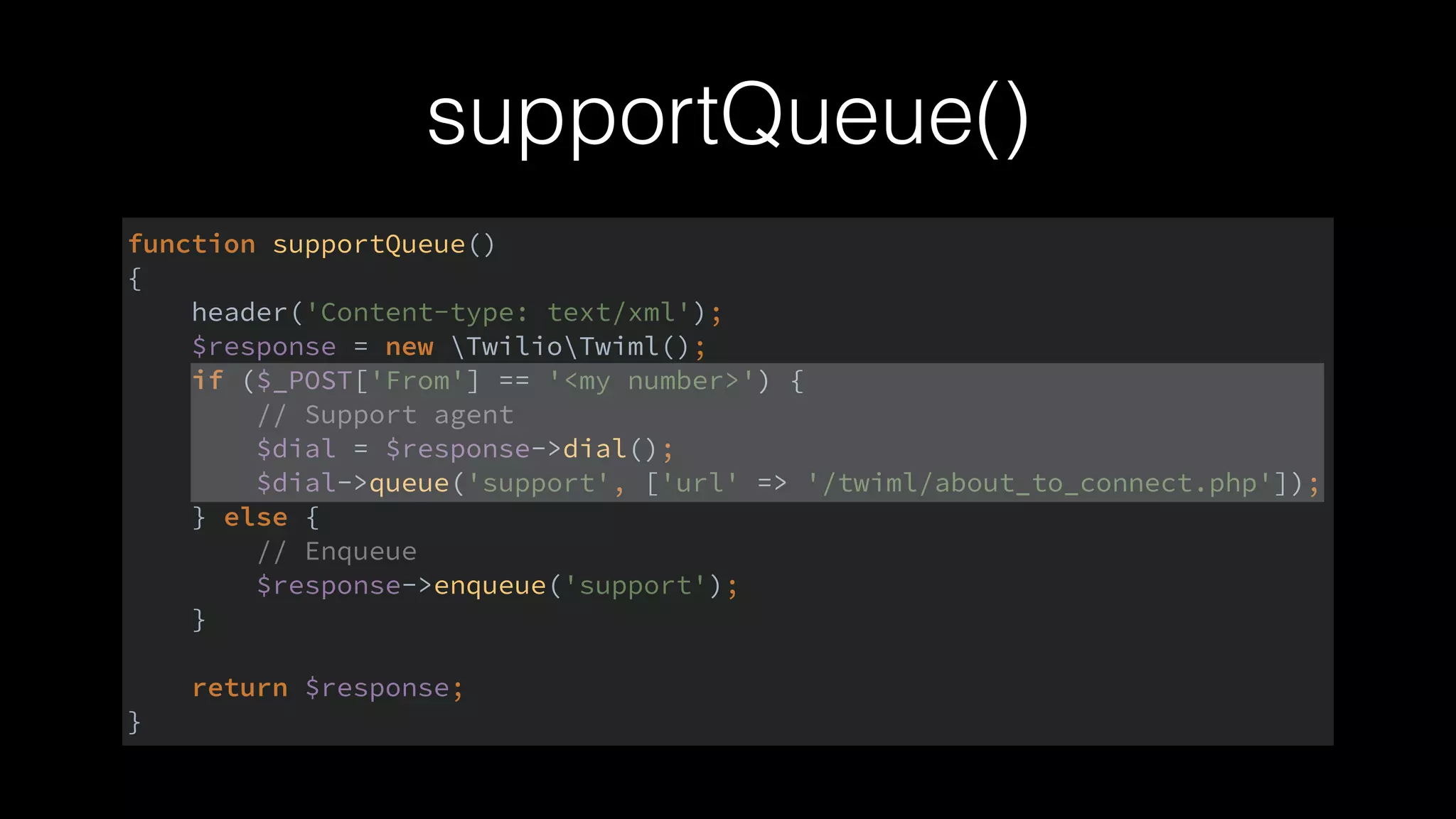

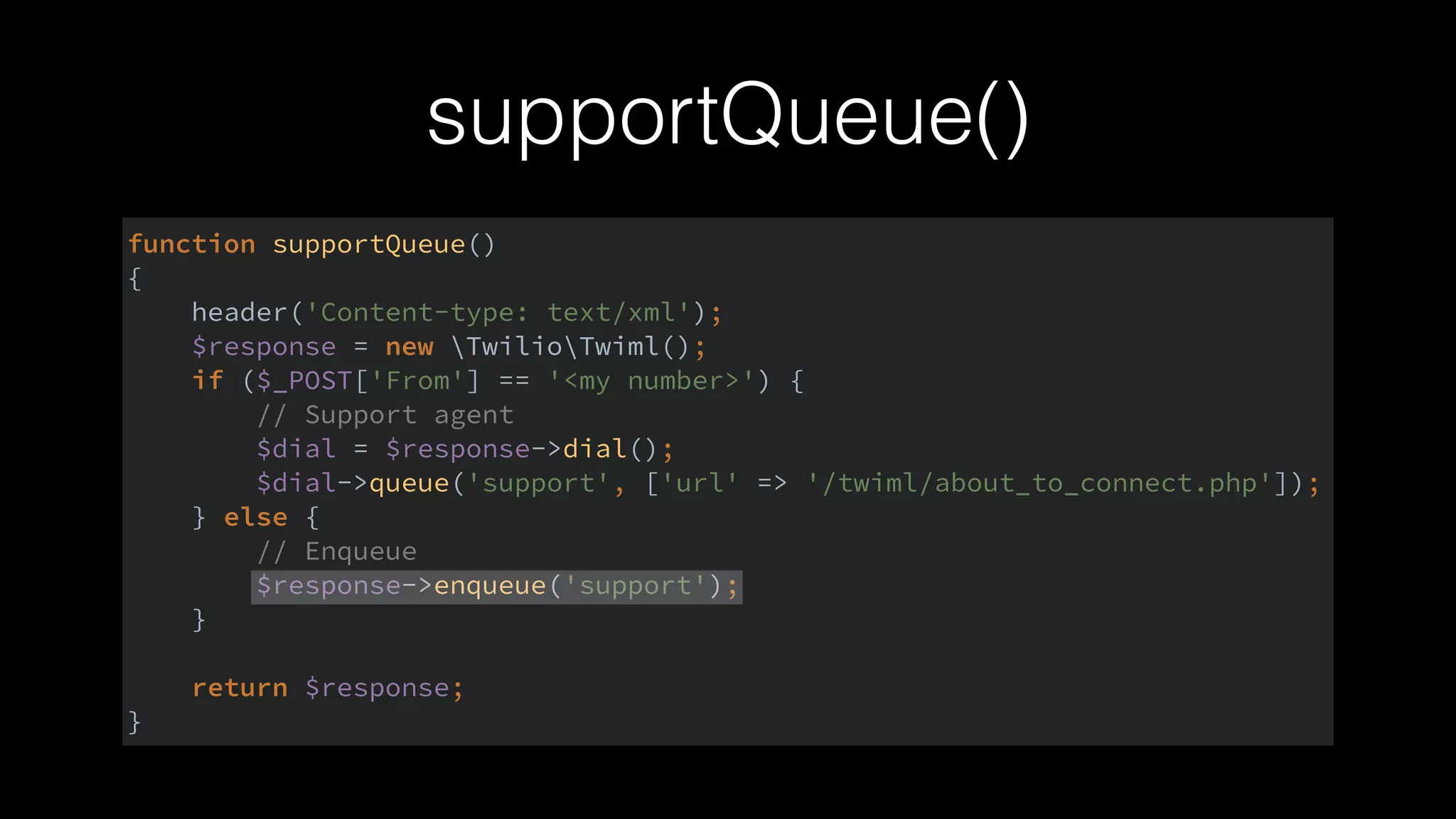

supportQueue() function supportQueue()
 {
 header('Content-type: text/xml');
 $response = new TwilioTwiml();
 if ($_POST['From'] == '<my number>') {
 // Support agent
 $dial = $response->dial();
 $dial->queue('support', ['url' => '/twiml/about_to_connect.php']);
 } else {
 // Enqueue
 $response->enqueue('support');
 }

 return $response;
 }
supportQueue() function supportQueue()
 {
 header('Content-type: text/xml');
 $response = new TwilioTwiml();
 if ($_POST['From'] == '<my number>') {
 // Support agent
 $dial = $response->dial();
 $dial->queue('support', ['url' => '/twiml/about_to_connect.php']);
 } else {
 // Enqueue
 $response->enqueue('support');
 }

 return $response;
 }

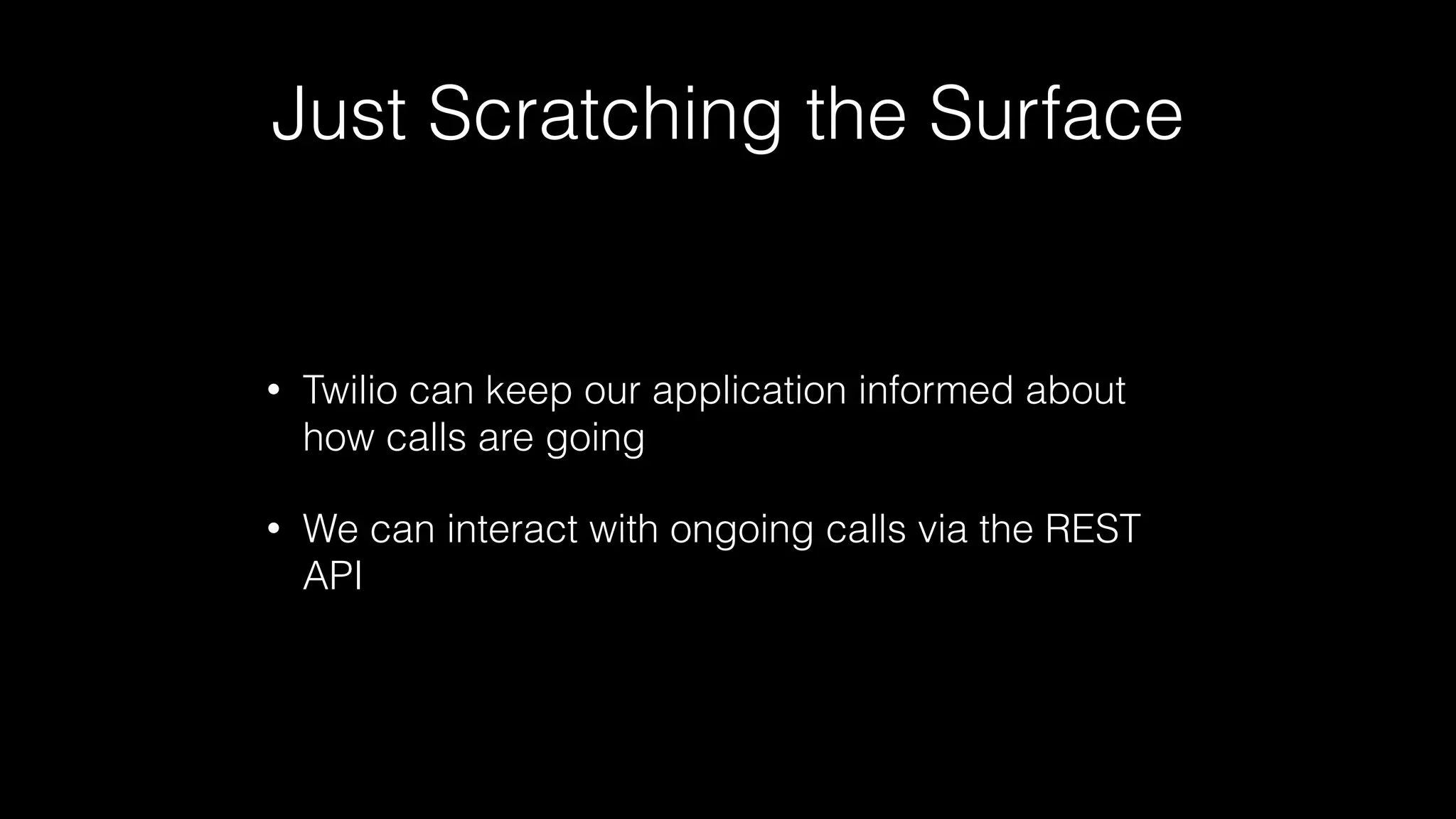

Just Scratching the Surface • Twilio can keep our application informed about how calls are going • We can interact with ongoing calls via the REST API

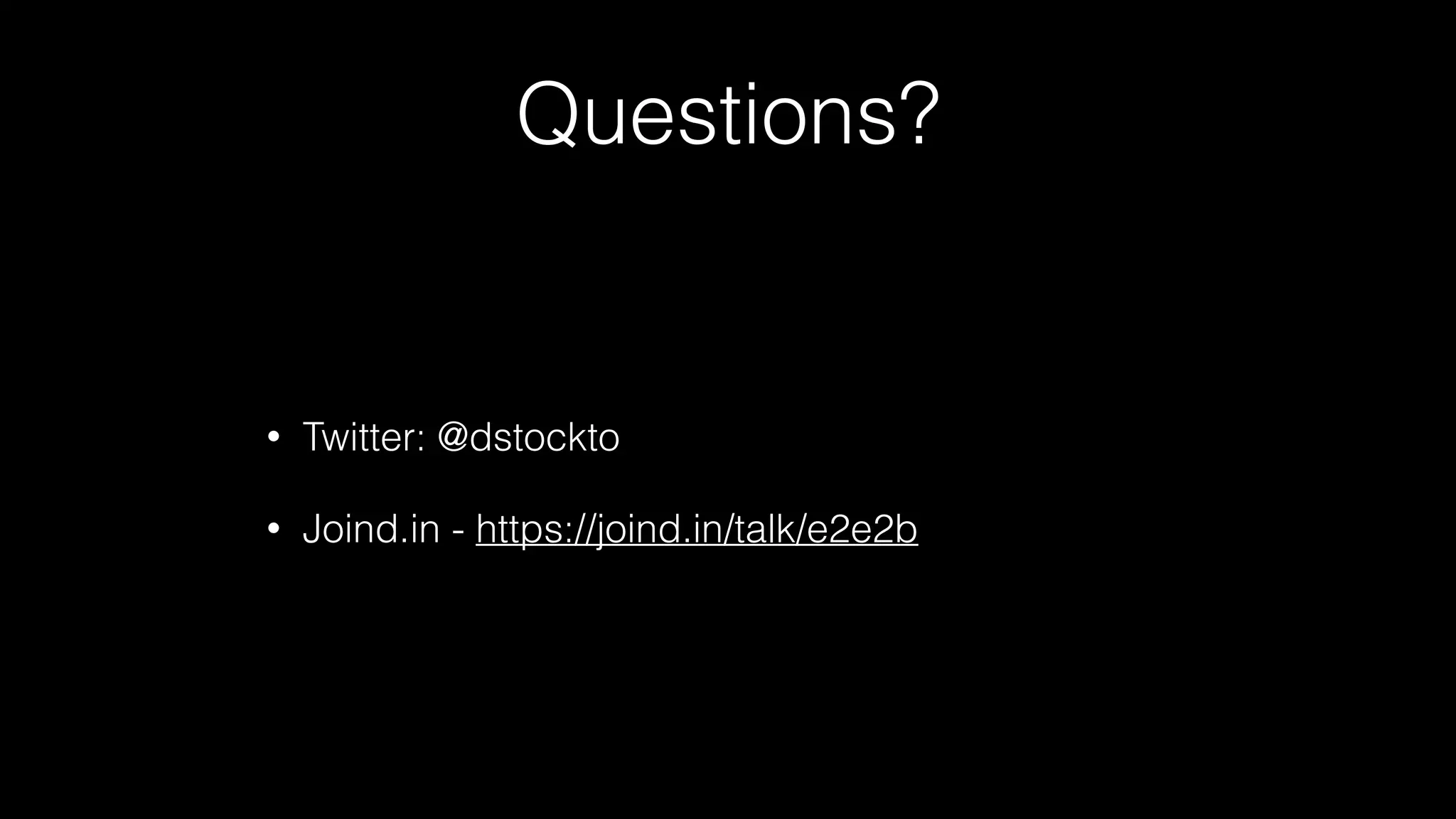

Questions? • Twitter: @dstockto • Joind.in - https://joind.in/talk/e2e2b
20162016

More Related Content

PPT
Introducation to php for beginners
bymusrath mohammad

PDF
PhpBB meets Symfony2
byFabien Potencier

PPT
Php with my sql
byhusnara mohammad

PPT
Introduction to PHP
byprabhatjon

PDF
Symfony2 - OSIDays 2010
byFabien Potencier

PDF
I put on my mink and wizard behat (tutorial)
byxsist10

PDF
I put on my mink and wizard behat (talk)
byxsist10

KEY
Zend Framework Study@Tokyo vol1
byShinya Ohyanagi

Introducation to php for beginners
bymusrath mohammad

PhpBB meets Symfony2
byFabien Potencier

Php with my sql
byhusnara mohammad

Introduction to PHP
byprabhatjon

Symfony2 - OSIDays 2010
byFabien Potencier

I put on my mink and wizard behat (tutorial)
byxsist10

I put on my mink and wizard behat (talk)
byxsist10

Zend Framework Study@Tokyo vol1
byShinya Ohyanagi


What's hot

PDF
QA for PHP projects
byMichelangelo van Dam

PDF
PHP, RabbitMQ, and You
byJason Lotito

PPT
PHP Security
byMindfire Solutions

PPS
PHP Security
bymanugoel2003

PDF
Marrow: A Meta-Framework for Python 2.6+ and 3.1+
byConFoo

PDF
Let's play a game with blackfire player
byMarcin Czarnecki

PPT
P H P Part I I, By Kian
byphelios

ODP
My app is secure... I think
byWim Godden

PDF
Symfony2 - WebExpo 2010
byFabien Potencier

PPTX
Inside a Digital Collection: Historic Clothing in Omeka
byArden Kirkland

PDF
Security 202 - Are you sure your site is secure?
byConFoo

PDF
Php Security
byguest7cf35c

PDF
Top 10 php classic traps php serbia
byDamien Seguy

PDF
Session1+2
byสอนทำโปรเจคจบ วิทคอมไอทีคอมธุรกิจ

PDF
PHP an intro -1
byKanchilug

PDF
The state of Symfony2 - SymfonyDay 2010
byFabien Potencier

PDF
PHPUnit Episode iv.iii: Return of the tests
byMichelangelo van Dam

PPTX
New in php 7
byVic Metcalfe

KEY
PHP security audits
byDamien Seguy

PDF
Php tips-and-tricks4128
byPrinceGuru MS

QA for PHP projects
byMichelangelo van Dam

PHP, RabbitMQ, and You
byJason Lotito

PHP Security
byMindfire Solutions

PHP Security
bymanugoel2003

Marrow: A Meta-Framework for Python 2.6+ and 3.1+
byConFoo

Let's play a game with blackfire player
byMarcin Czarnecki

P H P Part I I, By Kian
byphelios

My app is secure... I think
byWim Godden

Symfony2 - WebExpo 2010
byFabien Potencier

Inside a Digital Collection: Historic Clothing in Omeka
byArden Kirkland

Security 202 - Are you sure your site is secure?
byConFoo

Php Security
byguest7cf35c

Top 10 php classic traps php serbia
byDamien Seguy

Session1+2
byสอนทำโปรเจคจบ วิทคอมไอทีคอมธุรกิจ

PHP an intro -1
byKanchilug

The state of Symfony2 - SymfonyDay 2010
byFabien Potencier

PHPUnit Episode iv.iii: Return of the tests
byMichelangelo van Dam

New in php 7
byVic Metcalfe

PHP security audits
byDamien Seguy

Php tips-and-tricks4128
byPrinceGuru MS


Viewers also liked

PDF
Asynchronous PHP and Real-time Messaging
bySteve Rhoades

PDF
Zend con 2016 - Asynchronous Prorgamming in PHP
byAdam Englander

PDF
Node.js interactive NA 2016: Tales From the Crypt
byAdam Englander

PPTX
Engineer - Mastering the Art of Software
byCristiano Diniz da Silva

PDF
php[world] 2016 - You Don’t Need Node.js - Async Programming in PHP
byAdam Englander

PPTX
Python Bluetooth
byAdam Englander

PDF
Hack the Future
byJason McCreary

PDF
Zend Framework Foundations
byChuck Reeves

PDF
Create, test, secure, repeat
byMichelangelo van Dam

PPTX
Travis CI - PHP
byAdam Englander

PDF
All the Laravel Things – Up & Running to Making $$
byJoe Ferguson

PDF
Amp your site an intro to accelerated mobile pages
byRobert McFrazier

PDF
PHP UK 2017 - Don't Lose Sleep - Secure Your REST
byAdam Englander

PDF
php[world] 2015 Training - Laravel from the Ground Up
byJoe Ferguson

PDF
Adding 1.21 Gigawatts to Applications with RabbitMQ (Bulgaria PHP 2016 - Tuto...
byJames Titcumb

PDF
IoT Lock Down - Battling the Bot Net Builders
byAdam Englander

PPTX
IoT Lockdown
byAdam Englander

PDF
SunshinePHP 2017: Tales From The Crypt - A Cryptography Primer
byAdam Englander

PDF
php[world] 2016 - Tales From the Crypto: A Cryptography Primer
byAdam Englander

PDF
Py Vegas - Tales from the crypt
byAdam Englander

Asynchronous PHP and Real-time Messaging
bySteve Rhoades

Zend con 2016 - Asynchronous Prorgamming in PHP
byAdam Englander

Node.js interactive NA 2016: Tales From the Crypt
byAdam Englander

Engineer - Mastering the Art of Software
byCristiano Diniz da Silva

php[world] 2016 - You Don’t Need Node.js - Async Programming in PHP
byAdam Englander

Python Bluetooth
byAdam Englander

Hack the Future
byJason McCreary

Zend Framework Foundations
byChuck Reeves

Create, test, secure, repeat
byMichelangelo van Dam

Travis CI - PHP
byAdam Englander

All the Laravel Things – Up & Running to Making $$
byJoe Ferguson

Amp your site an intro to accelerated mobile pages
byRobert McFrazier

PHP UK 2017 - Don't Lose Sleep - Secure Your REST
byAdam Englander

php[world] 2015 Training - Laravel from the Ground Up
byJoe Ferguson

Adding 1.21 Gigawatts to Applications with RabbitMQ (Bulgaria PHP 2016 - Tuto...
byJames Titcumb

IoT Lock Down - Battling the Bot Net Builders
byAdam Englander

IoT Lockdown
byAdam Englander

SunshinePHP 2017: Tales From The Crypt - A Cryptography Primer
byAdam Englander

php[world] 2016 - Tales From the Crypto: A Cryptography Primer
byAdam Englander

Py Vegas - Tales from the crypt
byAdam Englander


Similar to Phone calls and sms from php

ODP
TWILIO SMS Introduction
byNaincy Gupta

PDF
Dinstar GSM Gateway HTTP API-v202011.pdf
byAjay Mishra

PDF
Twilio Presents at PariSoMa
byTwilio Inc

PDF
Look Who's Talking
byPablo Cantero

PDF
Ruby on the Phone
byMat Schaffer

PDF
East Bay Ruby Tropo presentation
byAdam Kalsey

PPTX
How to Integrate Text and Phone Messaging with your Website
byCindy Cullen

PPTX
Real time voice call integration - Confoo 2012
byMichael Peacock

PDF
Voicecon - Mashups with Tropo.com
byVoxeo Corp

PDF
Developing Tropo Applications
byCisco DevNet

PPTX
PHP & Twilio
byMichael Peacock

PPTX
Tech campmemphis slides_post_session
byStewart Whaley

PPT
VoIP Drupal Framework DrupalCon Prague
byTamer Zoubi

PDF
Twilio at the Google App Engine Meetup 2009-10
byTwilio Inc

KEY
Getting Started with Twilio
byMichael Kimsal

PDF
7 Principles of API Design - Waza
byTwilio Inc

PPT
VoIP Drupal: building sites that send SMS, answer phone calls, and more
byLeo Burd

PDF
Twilio - Social App Workshop - 2010-07-24
byTwilio Inc

PDF
Twilio Voice Applications with Amazon AWS S3 and EC2
byTwilio Inc

KEY
Twilio
byBrian Levine

TWILIO SMS Introduction
byNaincy Gupta

Dinstar GSM Gateway HTTP API-v202011.pdf
byAjay Mishra

Twilio Presents at PariSoMa
byTwilio Inc

Look Who's Talking
byPablo Cantero

Ruby on the Phone
byMat Schaffer

East Bay Ruby Tropo presentation
byAdam Kalsey

How to Integrate Text and Phone Messaging with your Website
byCindy Cullen

Real time voice call integration - Confoo 2012
byMichael Peacock

Voicecon - Mashups with Tropo.com
byVoxeo Corp

Developing Tropo Applications
byCisco DevNet

PHP & Twilio
byMichael Peacock

Tech campmemphis slides_post_session
byStewart Whaley

VoIP Drupal Framework DrupalCon Prague
byTamer Zoubi

Twilio at the Google App Engine Meetup 2009-10
byTwilio Inc

Getting Started with Twilio
byMichael Kimsal

7 Principles of API Design - Waza
byTwilio Inc

VoIP Drupal: building sites that send SMS, answer phone calls, and more
byLeo Burd

Twilio - Social App Workshop - 2010-07-24
byTwilio Inc

Twilio Voice Applications with Amazon AWS S3 and EC2
byTwilio Inc

Twilio
byBrian Levine


More from David Stockton

PDF
Intermediate OOP in PHP
byDavid Stockton

PDF
Hacking sites for fun and profit
byDavid Stockton

PPTX
Regular expressions and php
byDavid Stockton

PDF
Hacking sites for fun and profit
byDavid Stockton

PDF
Hacking sites for fun and profit
byDavid Stockton

PDF
The Art of Transduction
byDavid Stockton

PPTX
PHP 5 Magic Methods
byDavid Stockton

PPT
Tame Your Build And Deployment Process With Hudson, PHPUnit, and SSH
byDavid Stockton

PDF
Intermediate OOP in PHP
byDavid Stockton

PDF
Building APIs with Apigilty and Zend Framework 2
byDavid Stockton

PDF
API All the Things!
byDavid Stockton

PDF
Using queues and offline processing to help speed up your application
byDavid Stockton

ZIP
Mercurial Distributed Version Control
byDavid Stockton

PDF
FireBug And FirePHP
byDavid Stockton

PDF
Grokking regex
byDavid Stockton

PDF
Increasing code quality with code reviews (poetry version)
byDavid Stockton

PDF
Beginning OOP in PHP
byDavid Stockton

PDF
Common design patterns in php
byDavid Stockton

PDF
Intermediate oop in php
byDavid Stockton

Intermediate OOP in PHP
byDavid Stockton

Hacking sites for fun and profit
byDavid Stockton

Regular expressions and php
byDavid Stockton

Hacking sites for fun and profit
byDavid Stockton

Hacking sites for fun and profit
byDavid Stockton

The Art of Transduction
byDavid Stockton

PHP 5 Magic Methods
byDavid Stockton

Tame Your Build And Deployment Process With Hudson, PHPUnit, and SSH
byDavid Stockton

Intermediate OOP in PHP
byDavid Stockton

Building APIs with Apigilty and Zend Framework 2
byDavid Stockton

API All the Things!
byDavid Stockton

Using queues and offline processing to help speed up your application
byDavid Stockton

Mercurial Distributed Version Control
byDavid Stockton

FireBug And FirePHP
byDavid Stockton

Grokking regex
byDavid Stockton

Increasing code quality with code reviews (poetry version)
byDavid Stockton

Beginning OOP in PHP
byDavid Stockton

Common design patterns in php
byDavid Stockton

Intermediate oop in php
byDavid Stockton


Recently uploaded

PDF
বাংলাদেশ অর্থনৈতিক সমীক্ষা - ২০২৫ with Bookmark.pdf
bytanbircox UJS App

PDF
Risk Management and Regulatory Compliance - by Ms. Oceana Wong
byagenticroom

PDF
Deep Research and Analysis - by Ms. Oceana Wong
byagenticroom

PDF
Agentic AI and AI Agents 20251121.pdf - by Ms. Oceana Wong
byagenticroom

PDF
AI Chatbots and Prompt Engineering - by Ms. Oceana Wong
byagenticroom

PDF
DEFINITION OF COMMUNITY Sociology. .pdf
byJhasketan Kuanar

PDF
Conferencia de Abertura_Virgilio Almeida.pdf
byGrupo Tordesillas

PDF
Cattolica University - Lab Generative and Agentic AI - Mario Bencivinni
byMario Bencivinni

PPTX
Masterclass on Cybercrime, Scams & Safety Hacks.pptx
bykalkidirwhytap

PPTX
Physical education notes class ncert 12th
byjatinrg2009

PDF
Integrated Circuits: Lithography Techniques - Fundamentals and Advanced Metho...
byGS Virdi

PDF
LH_Lecture Note on Spices , AI And Importance in Human Life.pdf
bybisensharad

PDF
“Step-by-Step Fabrication of Bipolar Junction Transistors (BJTs)”
byGS Virdi

PPTX
Time Series Analysis - Meaning, Definition, Components and Application
bySundar B N

PPTX
LYMPHATIC SYSTEM.pptx it includes lymph, lymph nodes, bone marrow, spleen
byReena Yadav

PPTX
Time Series Analysis - Method of Simple Moving Average 3 Year and 4 Year Movi...
bySundar B N

PPTX
Anatomy of the eyeball An overviews.pptx
byMushahidRaza8

PPTX
SEMESTER 5 UNIT- 1 Difference of Children and adults.pptx
bysachin7989

PPTX
Elderly in India: The Changing Scenario.pptx
byMonika

PPTX
A Presentation of PMES 2025-2028 with Salient features.pptx
byRoyPintor2

বাংলাদেশ অর্থনৈতিক সমীক্ষা - ২০২৫ with Bookmark.pdf
bytanbircox UJS App

Risk Management and Regulatory Compliance - by Ms. Oceana Wong
byagenticroom

Deep Research and Analysis - by Ms. Oceana Wong
byagenticroom

Agentic AI and AI Agents 20251121.pdf - by Ms. Oceana Wong
byagenticroom

AI Chatbots and Prompt Engineering - by Ms. Oceana Wong
byagenticroom

DEFINITION OF COMMUNITY Sociology. .pdf
byJhasketan Kuanar

Conferencia de Abertura_Virgilio Almeida.pdf
byGrupo Tordesillas

Cattolica University - Lab Generative and Agentic AI - Mario Bencivinni
byMario Bencivinni

Masterclass on Cybercrime, Scams & Safety Hacks.pptx
bykalkidirwhytap

Physical education notes class ncert 12th
byjatinrg2009

Integrated Circuits: Lithography Techniques - Fundamentals and Advanced Metho...
byGS Virdi

LH_Lecture Note on Spices , AI And Importance in Human Life.pdf
bybisensharad

“Step-by-Step Fabrication of Bipolar Junction Transistors (BJTs)”
byGS Virdi

Time Series Analysis - Meaning, Definition, Components and Application
bySundar B N

LYMPHATIC SYSTEM.pptx it includes lymph, lymph nodes, bone marrow, spleen
byReena Yadav

Time Series Analysis - Method of Simple Moving Average 3 Year and 4 Year Movi...
bySundar B N

Anatomy of the eyeball An overviews.pptx
byMushahidRaza8

SEMESTER 5 UNIT- 1 Difference of Children and adults.pptx
bysachin7989

Elderly in India: The Changing Scenario.pptx
byMonika

A Presentation of PMES 2025-2028 with Salient features.pptx
byRoyPintor2


Phone calls and sms from php

  • 1.
    Phone Calls andSMS from PHP PHP World 2016 David Stockton November 16, 2016
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
    How else canwe receive input and produce output?
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 23.
  • 24.
    Let's Send anSMS new TwilioRestClient($config['sid'], $config['token']); Make a client
  • 25.
    Let's Send anSMS $client->messages->create(
 $toNumber,
 array(
 'from' => '+1<purchased#>',
 'body' => $fortune
 )
 );
  • 26.
    All Together $toNumber =$argv[1] ?? '<default #>';

 $toNumber = PhpWorld Utility::normalizeNumber($toNumber);

 $fortune = $argv[2] ?? `fortune`;

 $client->messages->create(
 $toNumber,
 array(
 'from' => '+<purchased #>',
 'body' => $fortune
 )
 );
  • 27.
    How to Use? $php bin/fortune.php $ php bin/fortune.php <destination #> $ php bin/fortune.php <destination #> "Text message from the command line"
  • 28.
  • 29.
  • 30.
    php bin/fortune.php 7206757471"Your account has been created or something."
  • 31.
    What can wedo? • Notifications • Two-Factor Authentication (2FA) • Responses to Queries
  • 32.
    Make a PhoneCall • API Call to Twitter • Twitter contacts URL for instructions
  • 33.
    TwiML • Twilio's MarkupLanguage for controlling phone calls • XML
  • 34.
    TwiML Commands • Say- Read text to the caller • Play - Play an audio file for the caller • Dial - Add another party to the call • Record - Record the caller's voice • Gather - Collect digits the caller types on their keypad • Sms - Send an SMS message during a phone call
  • 35.
    More TwiML • Hangup- Hang up the call • Queue - Add the caller to a queue of callers. • Redirect - Redirect call flow to a different TwiML document. • Pause - Wait before executing more instructions • Reject - Decline an incoming call without being billed. • Message - Send an MMS or SMS message reply
  • 36.
    How Outgoing CallsWork Your App TwilioAPI Call TwiML CalleeTwilio Plays Twiml
  • 37.
    TwiML <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Sayvoice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>
  • 38.
    XML <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Sayvoice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>
  • 39.
    Root Element <?xml version="1.0"encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>
  • 40.
    Commands - Say <?xmlversion="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response>
  • 41.
    <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Sayvoice="woman">Your call is very
 important to us, but not so
 important we'll answer it with
 a human. Please leave a message.
 </Say>
 <Record maxLength="20" playBeep="true"/>
 </Response> Commands - Record
  • 42.
  • 43.
    Let's Make aCall <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="man">
 Due to inclement weather, school
 will be closed tomorrow. Please
 stay home and stay safe.
 </Say>
 </Response>
  • 44.
    The Full File <?phpheader('Content-Type: text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say voice="man" loop="2">
 Due to inclement weather, school
 will be closed tomorrow. Please
 stay home and stay safe.
 </Say>
 </Response>
  • 45.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 46.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 47.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 48.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 49.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 50.
    Tell Twilio WhoTo Call <?php
 require_once __DIR__ . '/../vendor/autoload.php';
 /** @var TwilioRestClient $client */
 $client = require_once __DIR__ . '/../src/PhpWorld/client.php';

 $to = PhpWorldUtility::normalizeNumber($argv[1] ?? '+<default #>');
 $from = '+<purchased #>';

 $options = [
 'url' => 'http://' . $_SERVER['HTTP_HOST'] . '/twiml/ school_outage.php',
 ];

 $client->calls->create($to, $from, $options);
  • 51.
    Phone and SMS Conversations •Twilio is like a well-behaved HTTP client • It uses sessions • We can use session to remember things about the caller or the conversation
  • 52.
    Phone IVR • Givecallers a menu • Look up information • Connect to people • Solve problems • Give answers
  • 53.
    First TwiML <?php header('Content-Type:text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>
  • 54.
    <?php header('Content-Type: text/xml');?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response> Greeting
  • 55.
    <?php header('Content-Type: text/xml');?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response> Menu
  • 56.
    Error Handling <?php header('Content-Type:text/xml'); ?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>
  • 57.
    Goodbye. <?php header('Content-Type: text/xml');?>
 <?xml version="1.0" encoding="UTF-8"?>
 <Response>
 <Say>
 Thanks for calling my demo IVR. Please
 listen closely as this is the first time
 you've heard this menu.
 </Say>
 <Gather numDigits="1" action="/twiml/process_ivr_menu.php">
 <Say>
 Press 1 to hear a random sound.
 Press 2 to connect to a conference call.
 Press 3 to hear some wisdom.
 Press 4 to be connected to support.
 </Say>
 </Gather>
 <Say>
 I don't understand. Please try again later.
 </Say>
 <Hangup/>
 </Response>
  • 58.
    Now What? • Whatif they press something that's not 1-4? • What if they press 1-4? • Need to figure out what to do next
  • 59.
    Handle ! 1-4 <?php
 require_once__DIR__ . '/../vendor/autoload.php';
 session_start();
 $digits = $_POST['Digits'] ?? 0;

 switch ($digits) {
 case 1: // Random sound
 case 2: // Conference call
 case 3: // Random Phrase
 case 4: // Support queue
 default:
 if (countFailures() >= 3) {
 echo bailOnCall();
 return;
 }
 echo badInput();
 return;
 }
  • 60.
    countFailures() function countFailures($count =null)
 {
 $badInput = $count ?? $_SESSION[__FUNCTION__] ?? 0;
 $badInput++;
 $_SESSION[__FUNCTION__] = $badInput;
 return $badInput;
 }
  • 61.
    badInput() function badInput()
 {
 header('Content-type: text/xml');
 $twiml= new TwilioTwiml();
 $twiml->say('That was not a valid selection.');
 $twiml->redirect('/twiml/ivr_menu.php');
 return $twiml;
 }
  • 62.
    bailOnCall() function bailOnCall()
 {
 header('Content-type: text/xml');
 $twiml= new TwilioTwiml();
 $twiml->say('Your rotary phone is not compatible with this app.');
 $twiml->say('Goodbye.');
 $twiml->hangup();
 return $twiml;
 }
  • 63.
    Call Handler switch ($digits){
 case 1: // Random sound
 echo randomSound();
 break;
 case 2: // Conference call
 echo conferenceCall();
 break;
 case 3: // Random Phrase
 echo fortune();
 break;
 case 4: // Support queue
 echo supportQueue();
 break;
 default:
 ... }
  • 64.
    randomSound() function randomSound()
 {
 header('Content-type: text/xml');
 countFailures(-1);
 $sounds= ['gull.mp3', 'lawnmower.mp3',
 'monkey.mp3'];
 $index = array_rand($sounds);
 $twiml = new TwilioTwiml();
 $twiml->play('/sounds/' . $sounds[$index]);
 $twiml->redirect('/twiml/ivr_menu.php');
 return $twiml;
 }
  • 65.
    Conference Call function conferenceCall()
 {
 header('Content-type:text/xml');
 $response = new TwilioTwiml();
 $response->say('You have joined the conference.');
 $dial = $response->dial();
 $dial->conference('PHP World');
 return $response;
 }
  • 66.
    fortune() function fortune()
 {
 $fortune =`fortune -s`;
 header('Content-type: text/xml');
 $response = new TwilioTwiml();
 $response->sms($fortune);
 $response->say($fortune);
 return $response;
 }
  • 67.
    supportQueue() function supportQueue()
 {
 header('Content-type: text/xml');
 $response= new TwilioTwiml();
 if ($_POST['From'] == '<my number>') {
 // Support agent
 $dial = $response->dial();
 $dial->queue('support', ['url' => '/twiml/about_to_connect.php']);
 } else {
 // Enqueue
 $response->enqueue('support');
 }

 return $response;
 }
  • 68.
    supportQueue() function supportQueue()
 {
 header('Content-type: text/xml');
 $response= new TwilioTwiml();
 if ($_POST['From'] == '<my number>') {
 // Support agent
 $dial = $response->dial();
 $dial->queue('support', ['url' => '/twiml/about_to_connect.php']);
 } else {
 // Enqueue
 $response->enqueue('support');
 }

 return $response;
 }
  • 69.
    Just Scratching theSurface • Twilio can keep our application informed about how calls are going • We can interact with ongoing calls via the REST API
  • 70.
    Questions? • Twitter: @dstockto •Joind.in - https://joind.in/talk/e2e2b
  • 71.
