Patellar tendon bearing prosthesis

The patellar tendon bearing prosthesis was invented in the 1950s as an improvement over the plug fit socket. It distributes pressure over specific areas of the residual limb that are better able to tolerate pressure, such as the patellar tendon, muscles, and bone. Areas with nerves, blood vessels, and less tissue are relieved of pressure. The prosthesis has a socket, foot assembly such as a SACH foot, shank to connect them, and a suspension like a strap to hold it in place. It provides control, weight bearing ability, and acceptance for amputees.

Health & Medicine◦
Downloaded 277 times
PATELLAR TENDON BEARING PROSTHESIS Dr. Madhusudhan NC Resident-Dept. of Orthopaedic Surgery Bangalore Baptist Hospital

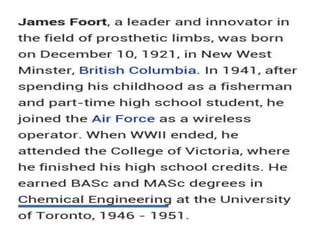

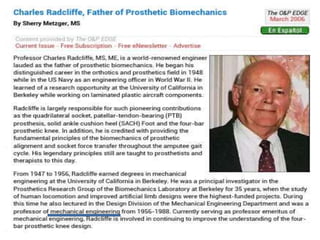

History • Invented in 1950’s (Even before we all were born) • James Foort & Charles Radcliffe • State of the art was the “plug fit” socket Plug Fit • Typically wood socket lined with leather • Essentially a cylinder • No provision for volume change • Depth of limb engaged in socket was volume dependent
PRESCRIPTION CRITERIA 1. A wide variety of amputees can wear. 2. To know who are not the candidates for PTB prosthesis……. We need to know the contraindications for PTB prosthesis. 3. Successful application described under 3 criterias. 1. Control. 2. Weight bearing. 3. Acceptance.

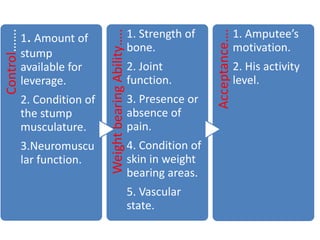

Control……. 1. Amount of stump available for leverage. 2. Condition of the stump musculature. 3.Neuromuscu lar function. Weight bearing Ability….. 1. Strength of bone. 2. Joint function. 3. Presence or absence of pain. 4. Condition of skin in weight bearing areas. 5. Vascular state. Acceptance…. 1. Amputee’s motivation. 2. His activity level.
PTB-Loading Pressure Tolerant Areas • It was theorized that certain places on the residual limb would be better at pressure dissipation and thus • Could tolerate load better than other areas • These were areas that contained – Soft tissue – Neurovascular areas – Muscular areas

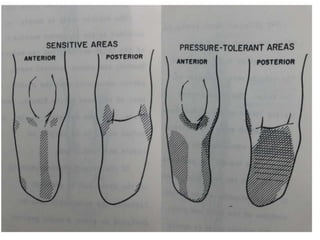

PTB-Loading Pressure Tolerant Areas • Patella Tendon • Anterior Muscular Compartment • Medial Tibial Flare • Lateral Stabilizing bar/ Shaft of Fibula • Gastrocnemius muscle bellies • Popliteal Fossa • Distal end to some extent
PTB-Relieving Pressure Sensitive Areas • If soft tissue and vascular areas can tolerate load, then remaining areas must be less tolerant of load. • This includes areas of – Less vasculature – Less soft tissue
PTB-Relieving Pressure Sensitive Areas • Patella • Lateral Tibial (Gerdy’s)Tubercle/Iliotibial Band • Fibula Head/Common Peroneal Nerve • Tibial Tubercle • Tibial Crest • Distal cut end of Fibula/Tibia • Hamstring Tendons
We’ll discuss in brief how exactly it has been done. Concepts: 1. Parts. 2. Shank? 3. Foot Assembly 4. Alignments.
So we have socket ready with us…, Let us select the Foot assembly. Options! 1. SACH foot. 2. SAFE (Stationary Attachment Flexible Endoskeleton) foot. 3. STEN (Stored Energy) 4. Carbon copy. 5. Quantum foot. 6. Seattle….,Flex foot….,Springlite…..,Jaipur foot.
One End we have Socket….,the other end Foot… Connected by. “Shank” Shank 1. Exoskeleton. 2. Endoskeleton. * Strength * Cost * Cosmesis
Needs Suspension. Options: 1. Mulleys strap/ Condylar cuff suspension. 2. PTBSCSP 3. Sleeve suspension. 4. Silicone suction socket. 5. Thigh corset. 6. Waist bell.
To remember… 1. Parts. 2. Weight bearing and relieving. 3. Types of foot assembly, shank,suspension.
