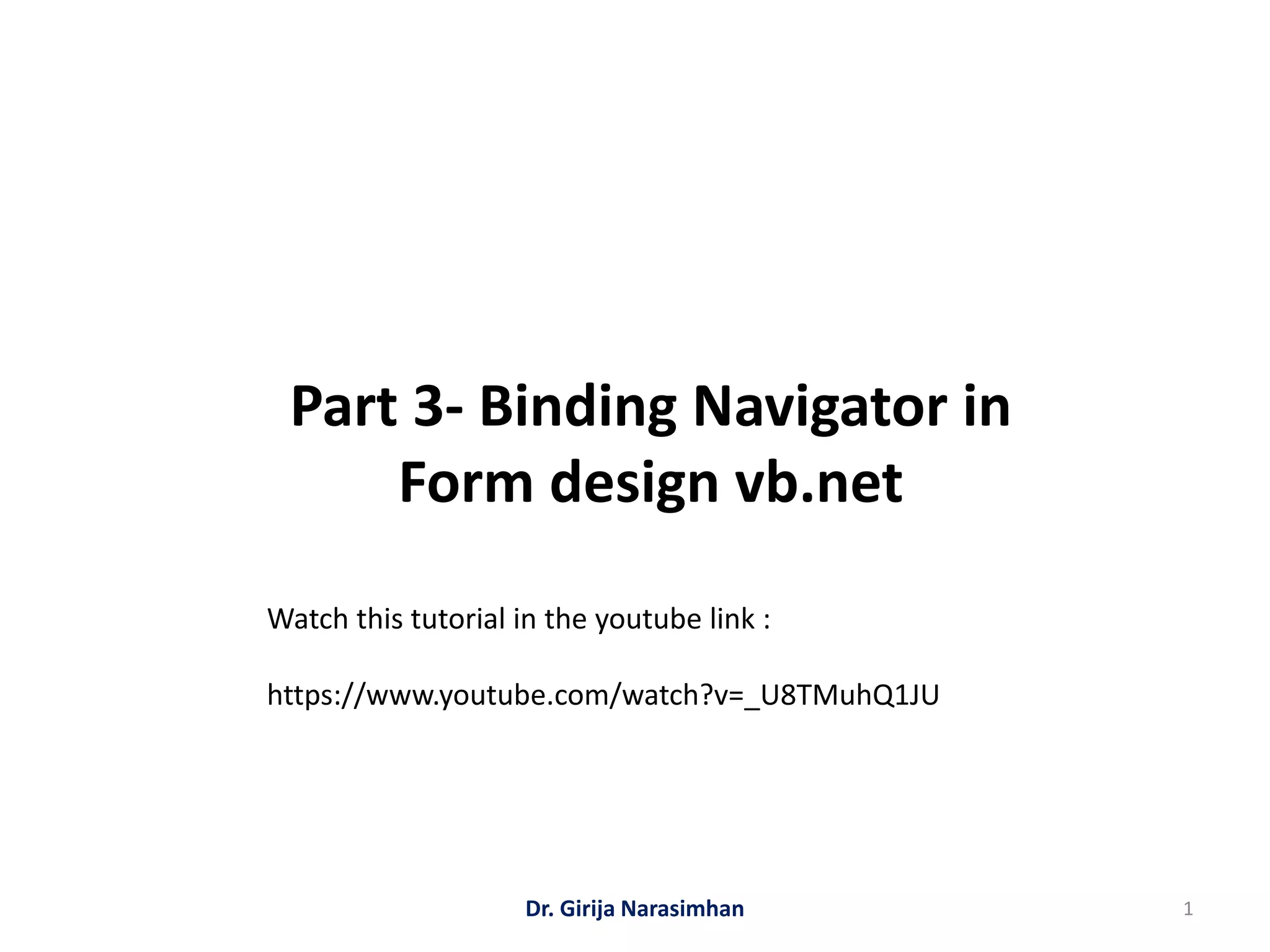

1. Part 3- Binding Navigator in
Form design vb.net
Dr. Girija Narasimhan 1
Watch this tutorial in the youtube link :
https://www.youtube.com/watch?v=_U8TMuhQ1JU

2. Suppose in the form design , Binding Navigator is not appear then go to view
tool box  data Binding Navigator drag and place it in form design
Dr. Girija Narasimhan 2

3. In the Form Design  Binding Navigator right click Property  Binding source  change
appropriate table binding source, then only in the runtime it is active otherwise it is inactive
in runtime. Only visible in design time
Dr. Girija Narasimhan 3

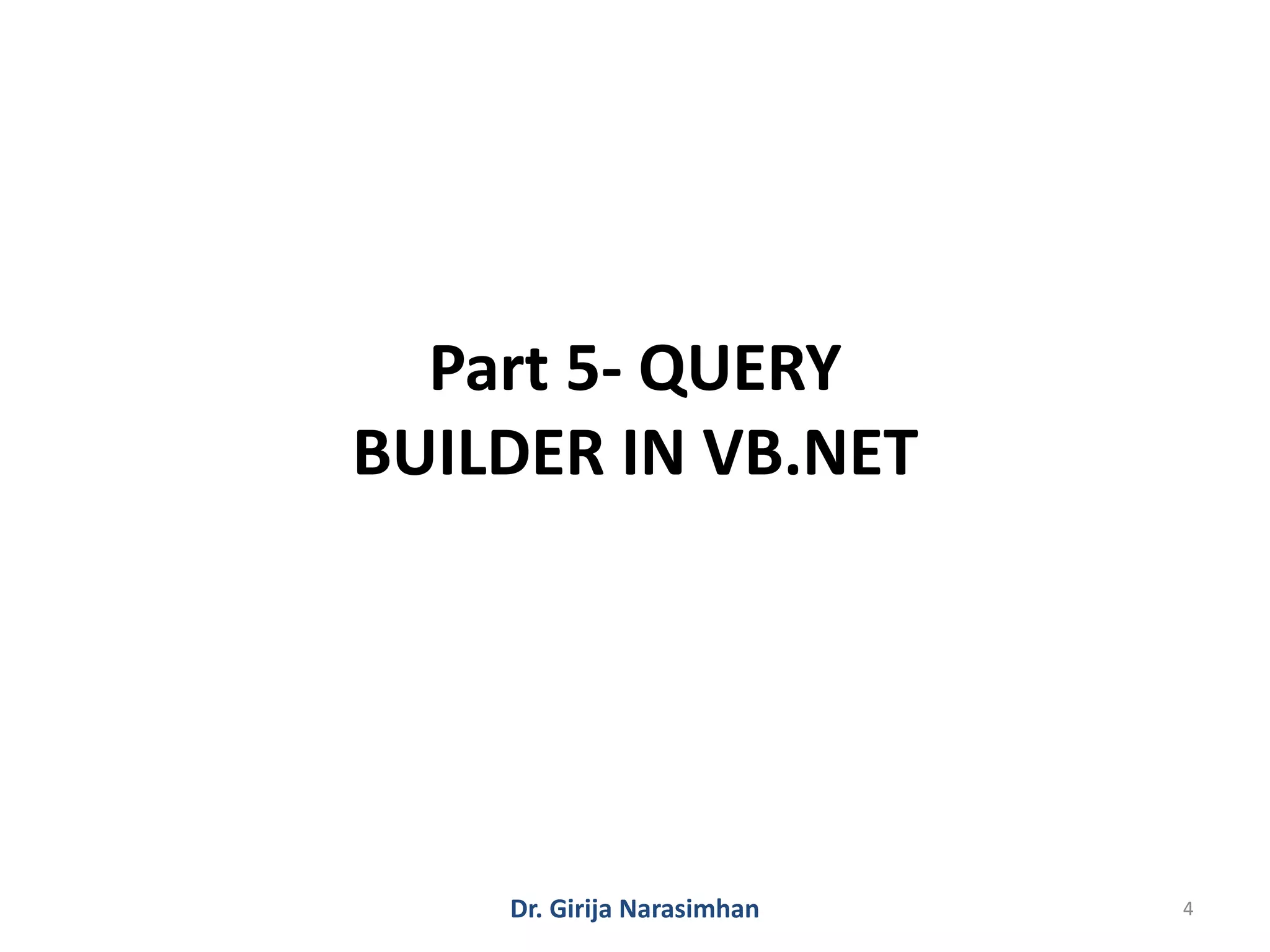

4. Dr. Girija Narasimhan 4
Part 5- QUERY
BUILDER IN VB.NET

5. Dr. Girija Narasimhan 5

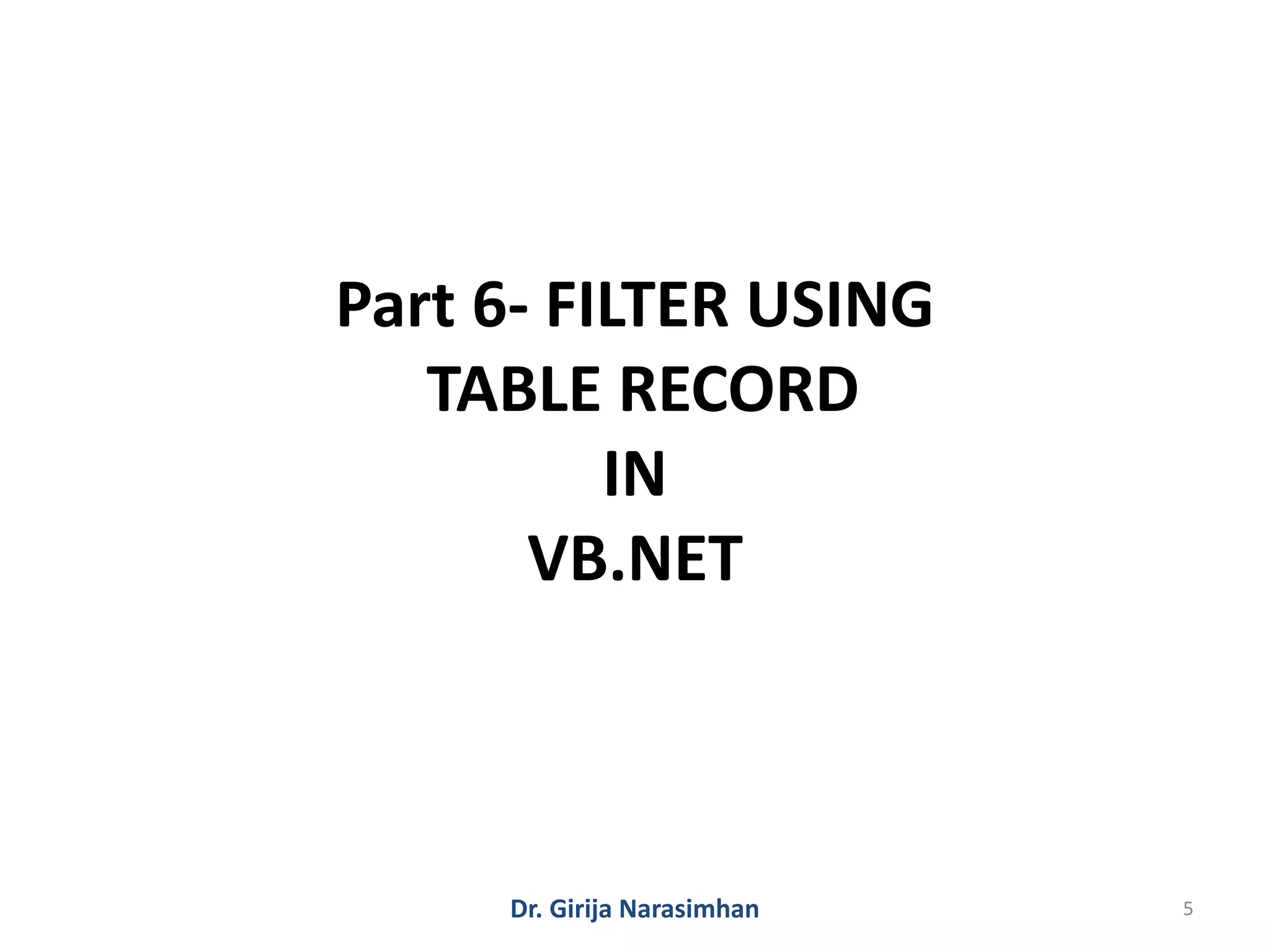

Part 6- FILTER USING
TABLE RECORD
IN
VB.NET

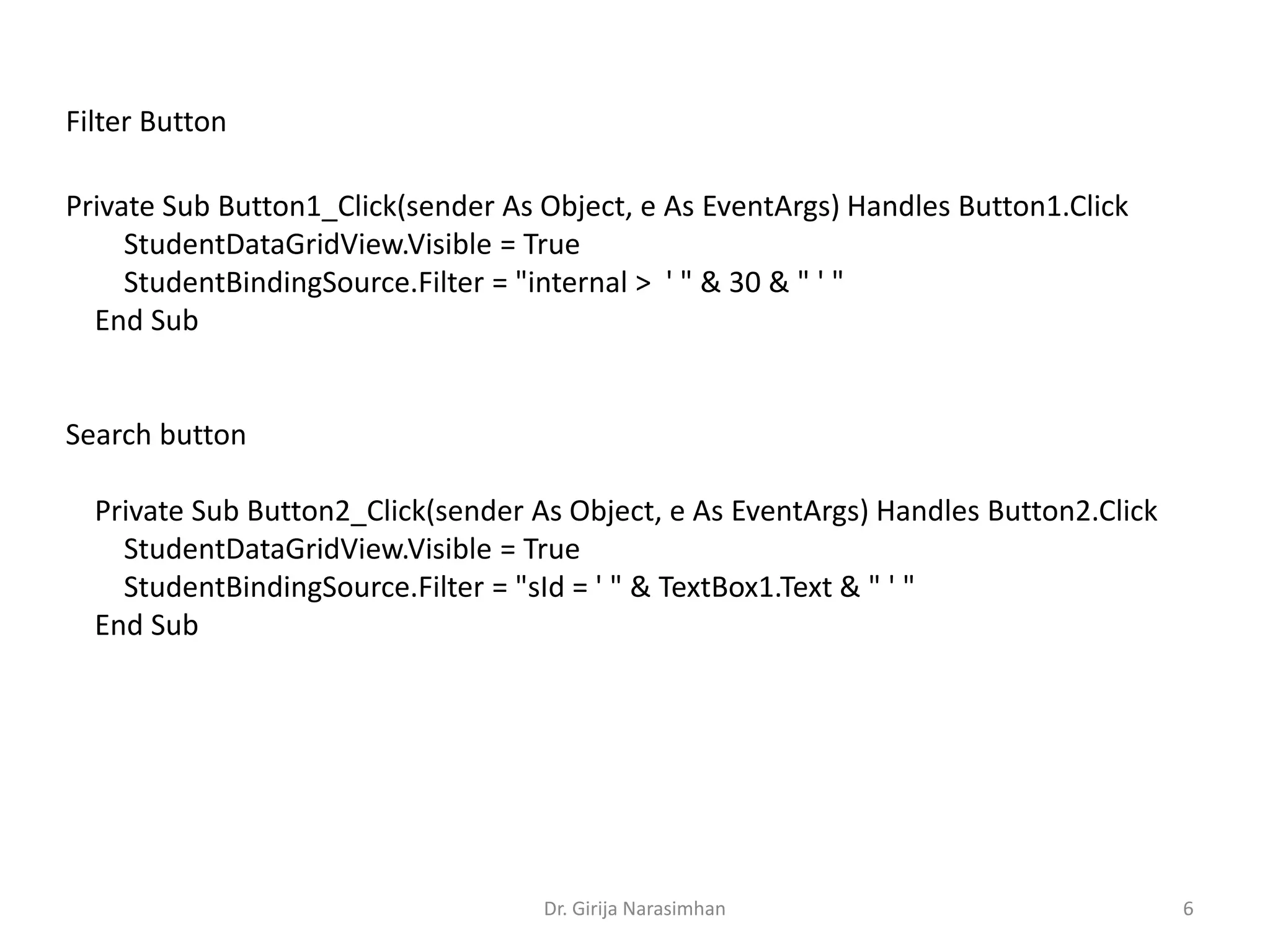

6. Dr. Girija Narasimhan 6
Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
StudentDataGridView.Visible = True
StudentBindingSource.Filter = "internal > ' " & 30 & " ' "
End Sub
Search button
Private Sub Button2_Click(sender As Object, e As EventArgs) Handles Button2.Click
StudentDataGridView.Visible = True
StudentBindingSource.Filter = "sId = ' " & TextBox1.Text & " ' "
End Sub
Filter Button

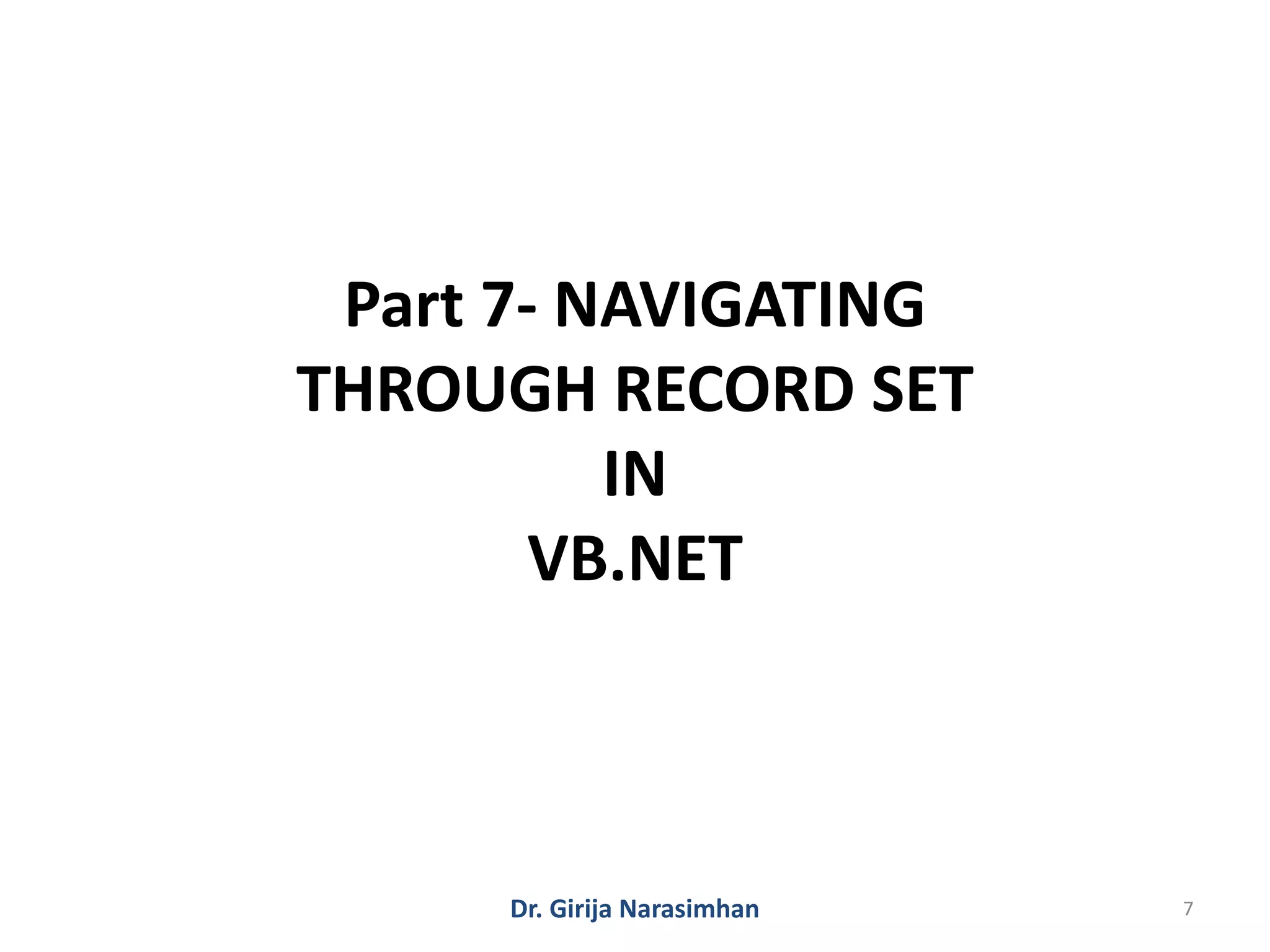

7. Dr. Girija Narasimhan 7
Part 7- NAVIGATING
THROUGH RECORD SET
IN
VB.NET

8. Dr. Girija Narasimhan 8

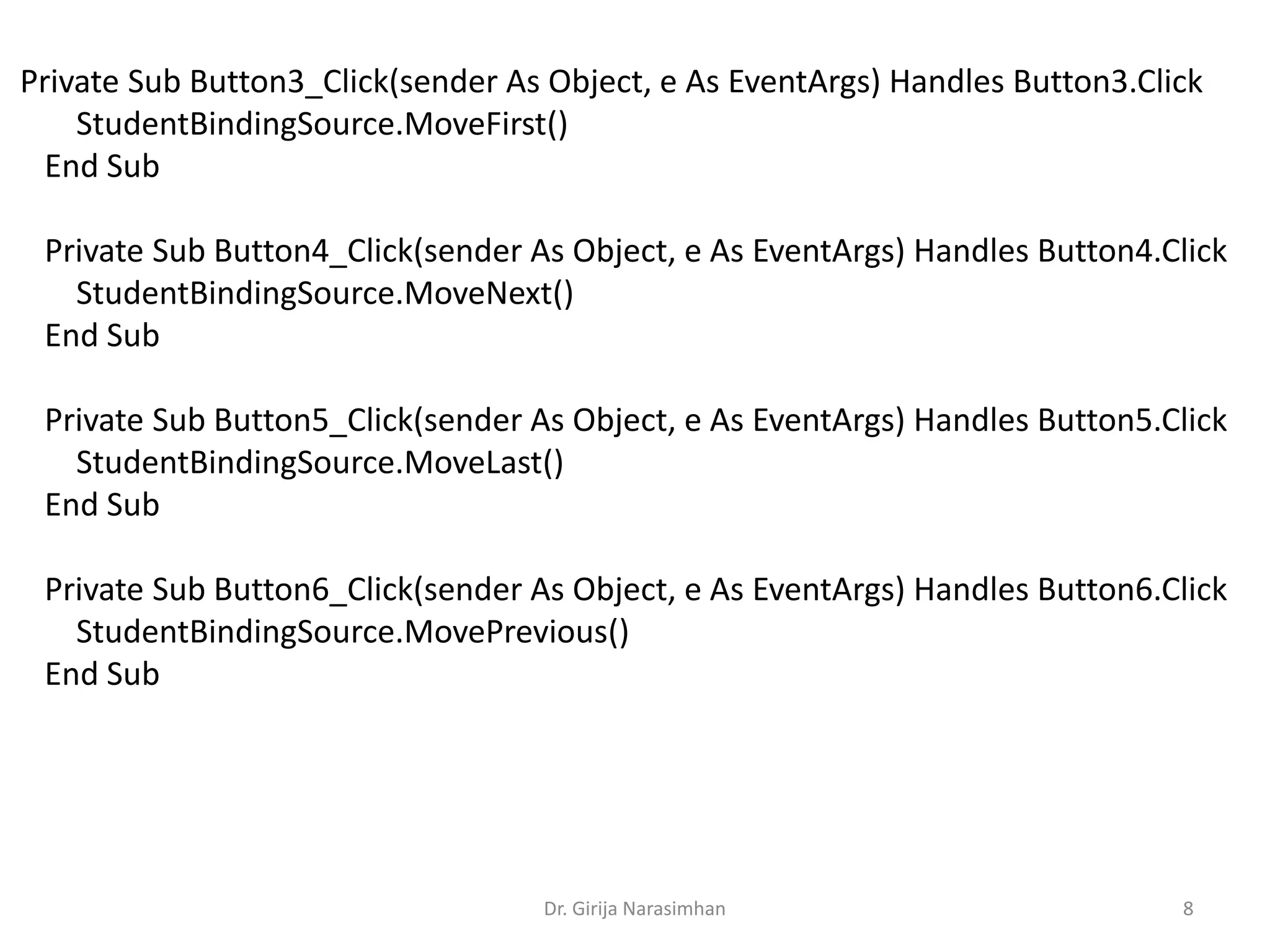

Private Sub Button3_Click(sender As Object, e As EventArgs) Handles Button3.Click
StudentBindingSource.MoveFirst()
End Sub
Private Sub Button4_Click(sender As Object, e As EventArgs) Handles Button4.Click
StudentBindingSource.MoveNext()
End Sub
Private Sub Button5_Click(sender As Object, e As EventArgs) Handles Button5.Click
StudentBindingSource.MoveLast()
End Sub
Private Sub Button6_Click(sender As Object, e As EventArgs) Handles Button6.Click
StudentBindingSource.MovePrevious()
End Sub

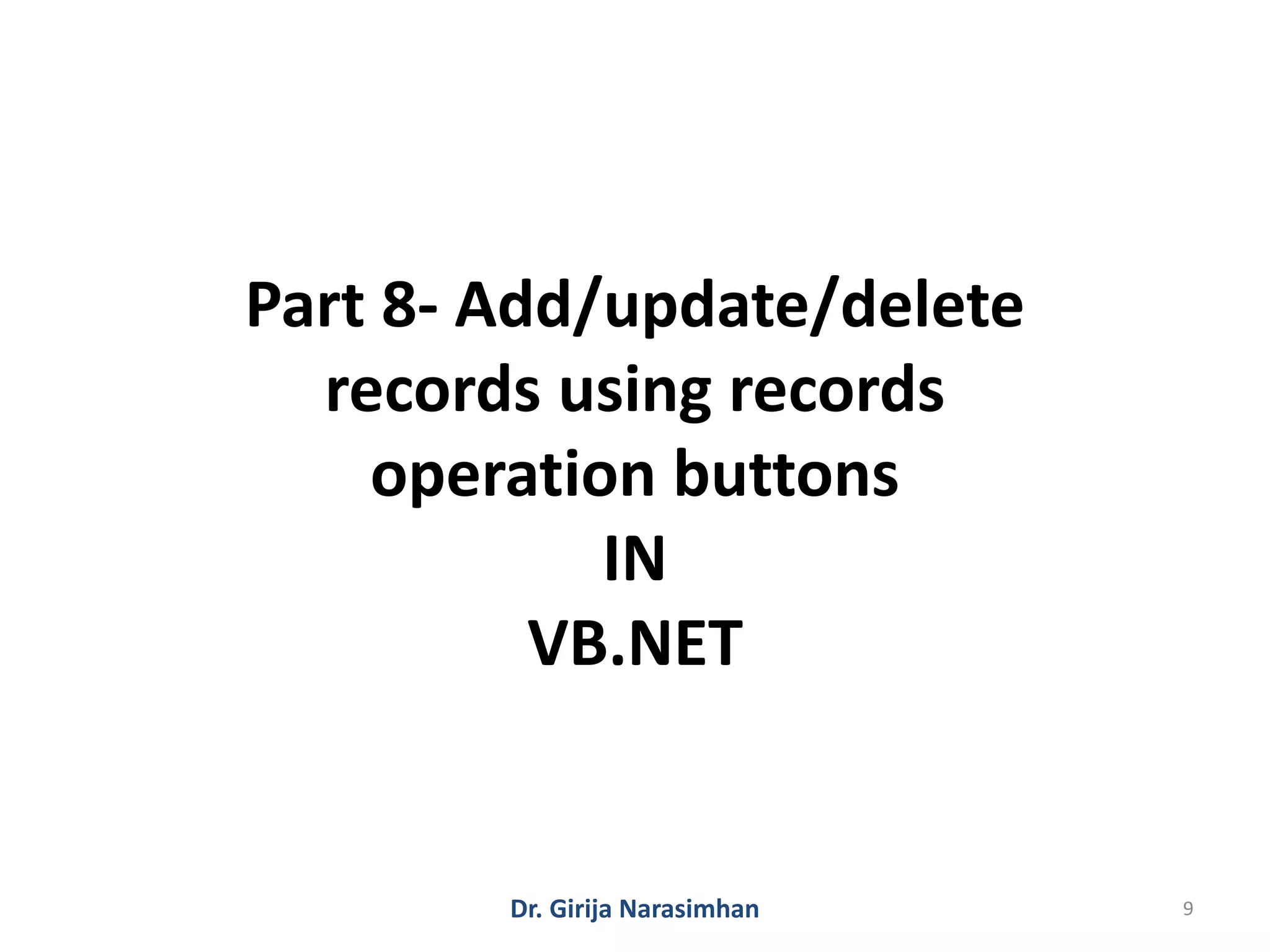

9. Dr. Girija Narasimhan 9
Part 8- Add/update/delete
records using records
operation buttons
IN
VB.NET

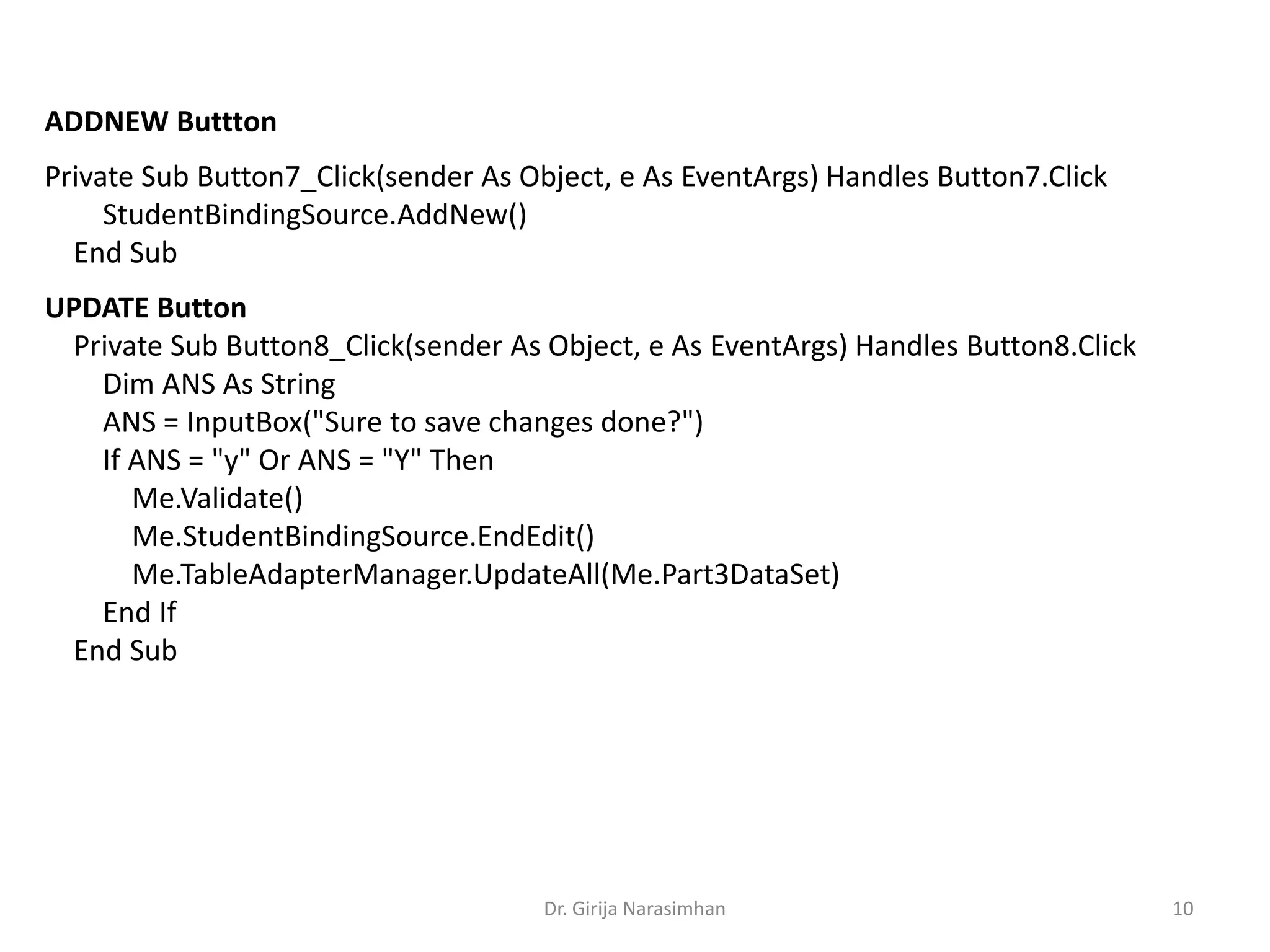

10. Dr. Girija Narasimhan 10
ADDNEW Buttton
Private Sub Button7_Click(sender As Object, e As EventArgs) Handles Button7.Click
StudentBindingSource.AddNew()
End Sub
UPDATE Button
Private Sub Button8_Click(sender As Object, e As EventArgs) Handles Button8.Click
Dim ANS As String
ANS = InputBox("Sure to save changes done?")
If ANS = "y" Or ANS = "Y" Then
Me.Validate()
Me.StudentBindingSource.EndEdit()
Me.TableAdapterManager.UpdateAll(Me.Part3DataSet)
End If
End Sub

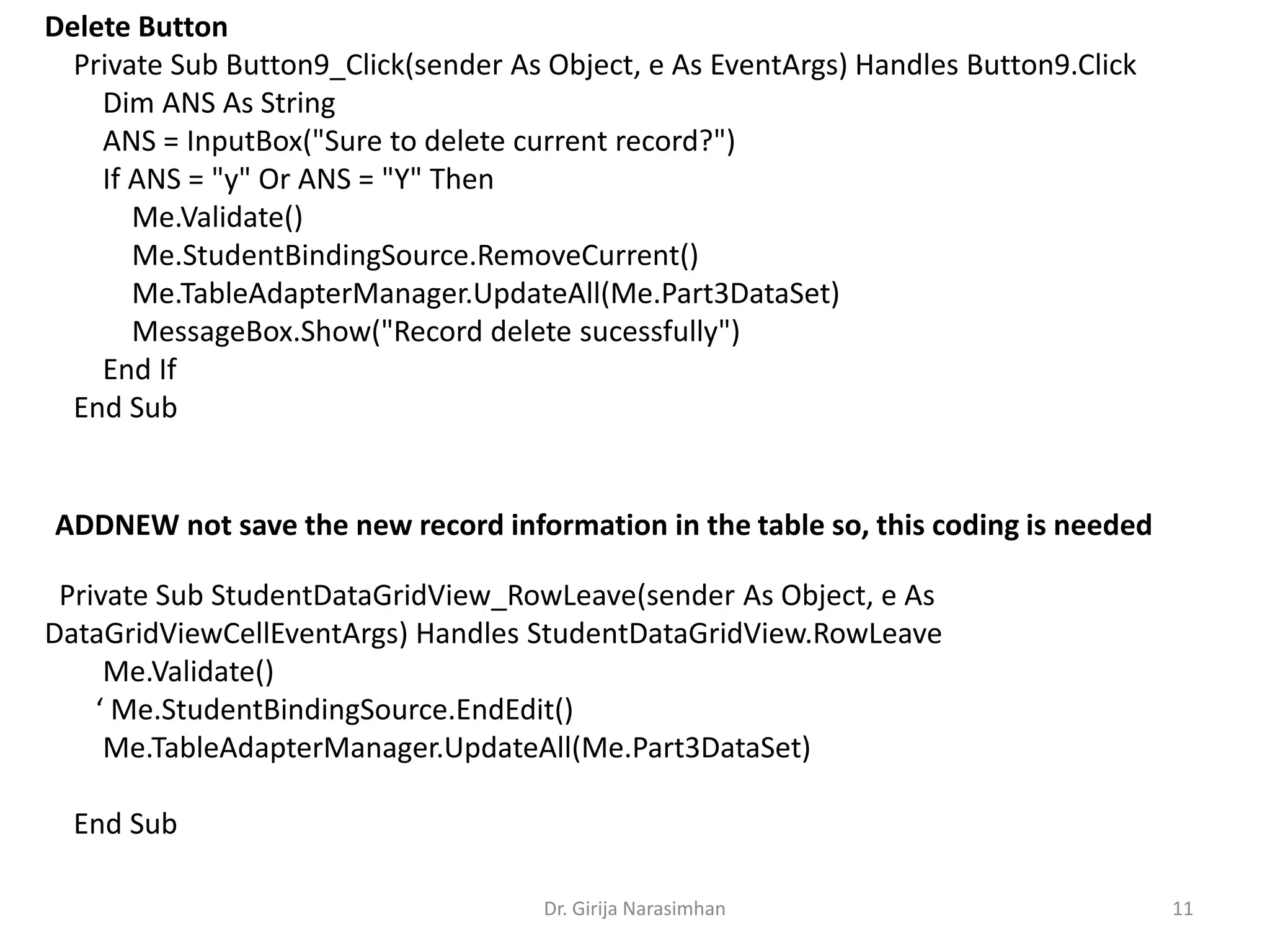

11. Dr. Girija Narasimhan 11
Private Sub StudentDataGridView_RowLeave(sender As Object, e As
DataGridViewCellEventArgs) Handles StudentDataGridView.RowLeave
Me.Validate()
‘ Me.StudentBindingSource.EndEdit()
Me.TableAdapterManager.UpdateAll(Me.Part3DataSet)
End Sub
Delete Button
Private Sub Button9_Click(sender As Object, e As EventArgs) Handles Button9.Click
Dim ANS As String
ANS = InputBox("Sure to delete current record?")
If ANS = "y" Or ANS = "Y" Then
Me.Validate()
Me.StudentBindingSource.RemoveCurrent()
Me.TableAdapterManager.UpdateAll(Me.Part3DataSet)
MessageBox.Show("Record delete sucessfully")
End If
End Sub
ADDNEW not save the new record information in the table so, this coding is needed

12. Dr. Girija Narasimhan 12

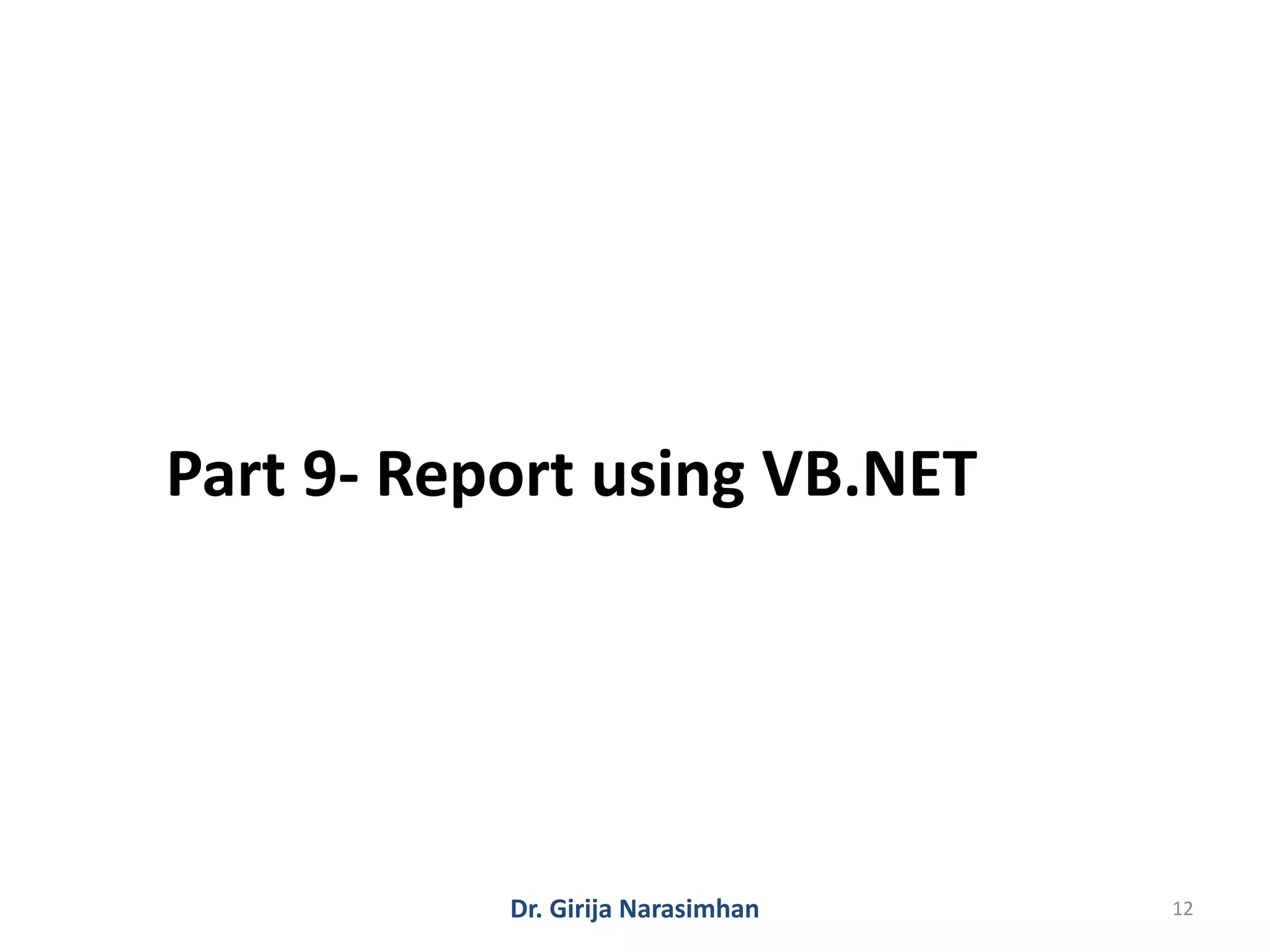

Part 9- Report using VB.NET

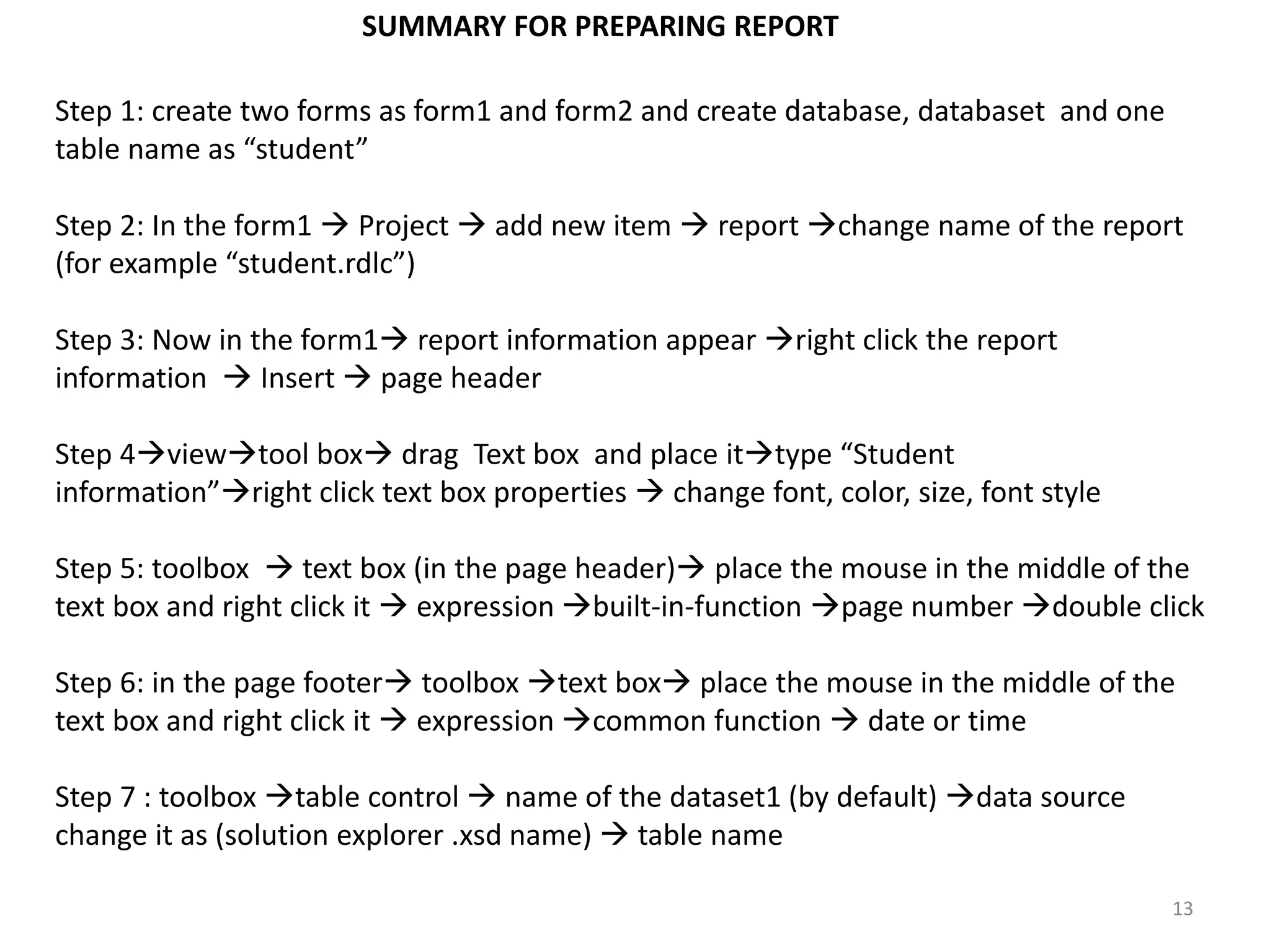

13. Step 1: create two forms as form1 and form2 and create database, databaset and one
table name as “student”
Step 2: In the form1  Project  add new item  report change name of the report
(for example “student.rdlc”)
Step 3: Now in the form1 report information appear right click the report
information  Insert  page header
Step 4viewtool box drag Text box and place ittype “Student
information”right click text box properties  change font, color, size, font style
Step 5: toolbox  text box (in the page header) place the mouse in the middle of the
text box and right click it  expression built-in-function page number double click
Step 6: in the page footer toolbox text box place the mouse in the middle of the
text box and right click it  expression common function  date or time
Step 7 : toolbox table control  name of the dataset1 (by default) data source
change it as (solution explorer .xsd name)  table name
13
SUMMARY FOR PREPARING REPORT

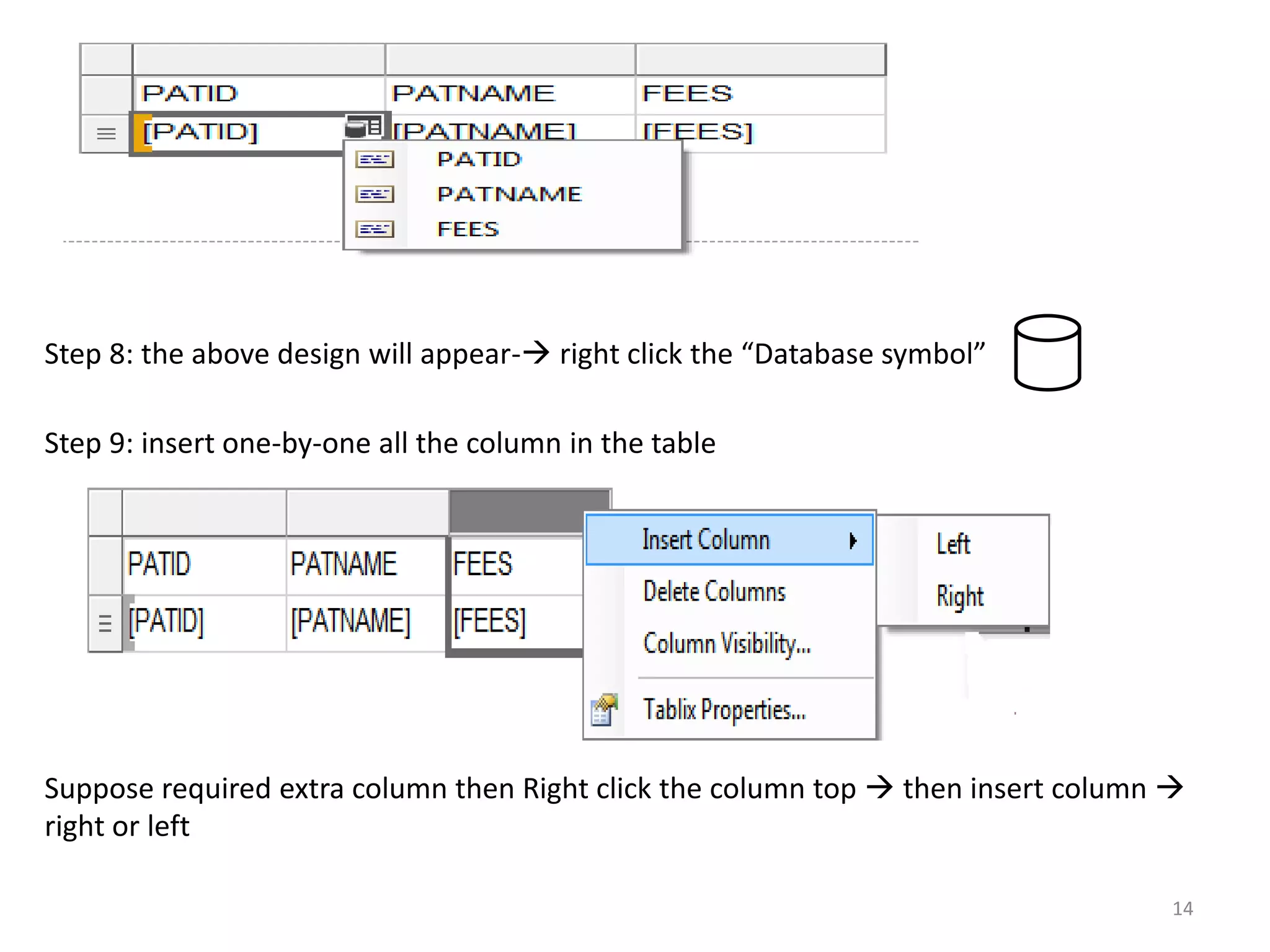

14. Step 8: the above design will appear- right click the “Database symbol”
Step 9: insert one-by-one all the column in the table
Suppose required extra column then Right click the column top  then insert column 
right or left
14

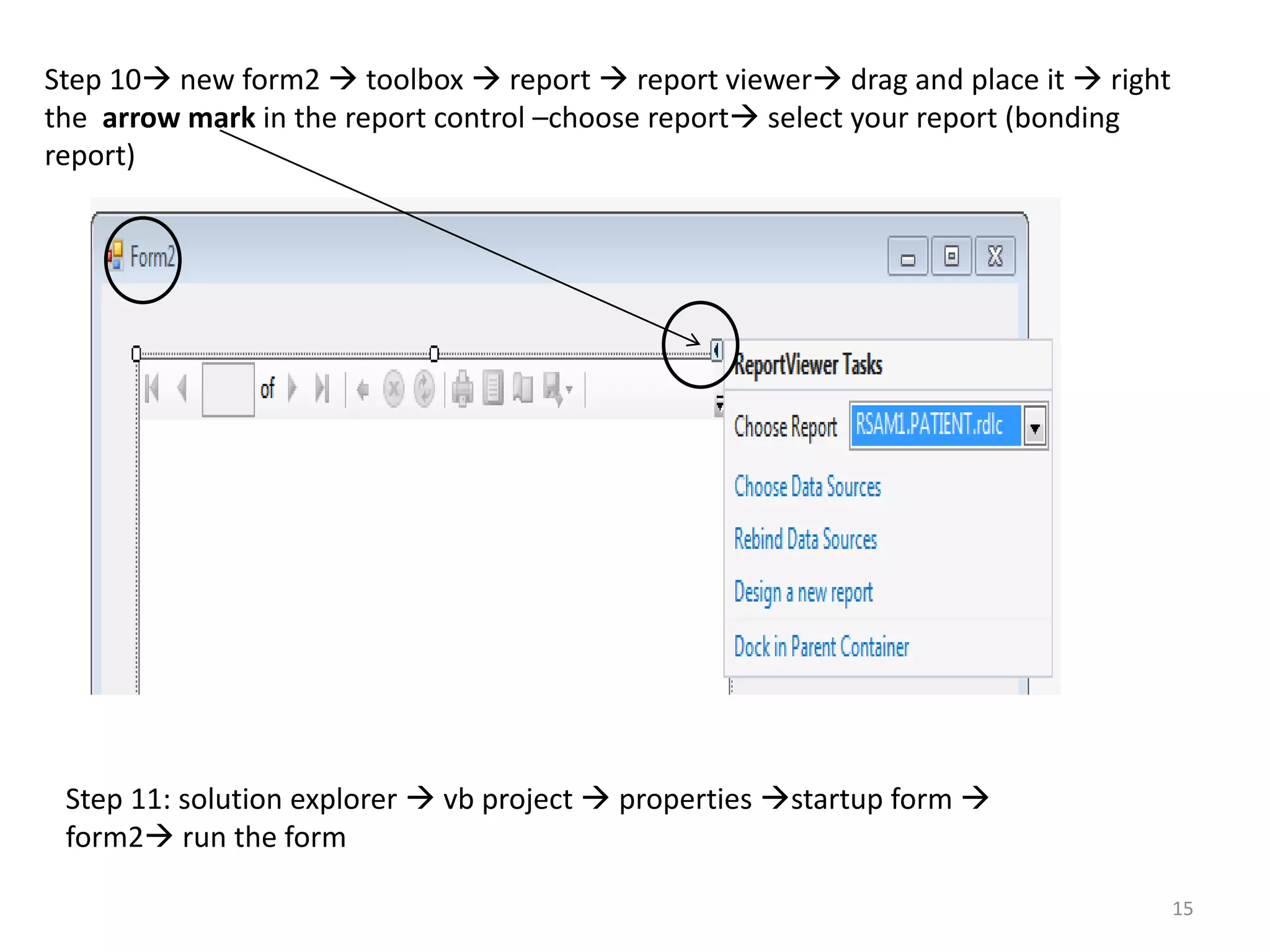

15. Step 10 new form2  toolbox  report  report viewer drag and place it  right
the arrow mark in the report control –choose report select your report (bonding
report)
Step 11: solution explorer  vb project  properties startup form 
form2 run the form
15

16. Dr. Girija Narasimhan 16

17. Dr. Girija Narasimhan 17

18. Dr. Girija Narasimhan 18

19. Dr. Girija Narasimhan 19

20. Dr. Girija Narasimhan 20
