Parallel Complex Event Processing

Karol Grzegorczyk
03-06-2013

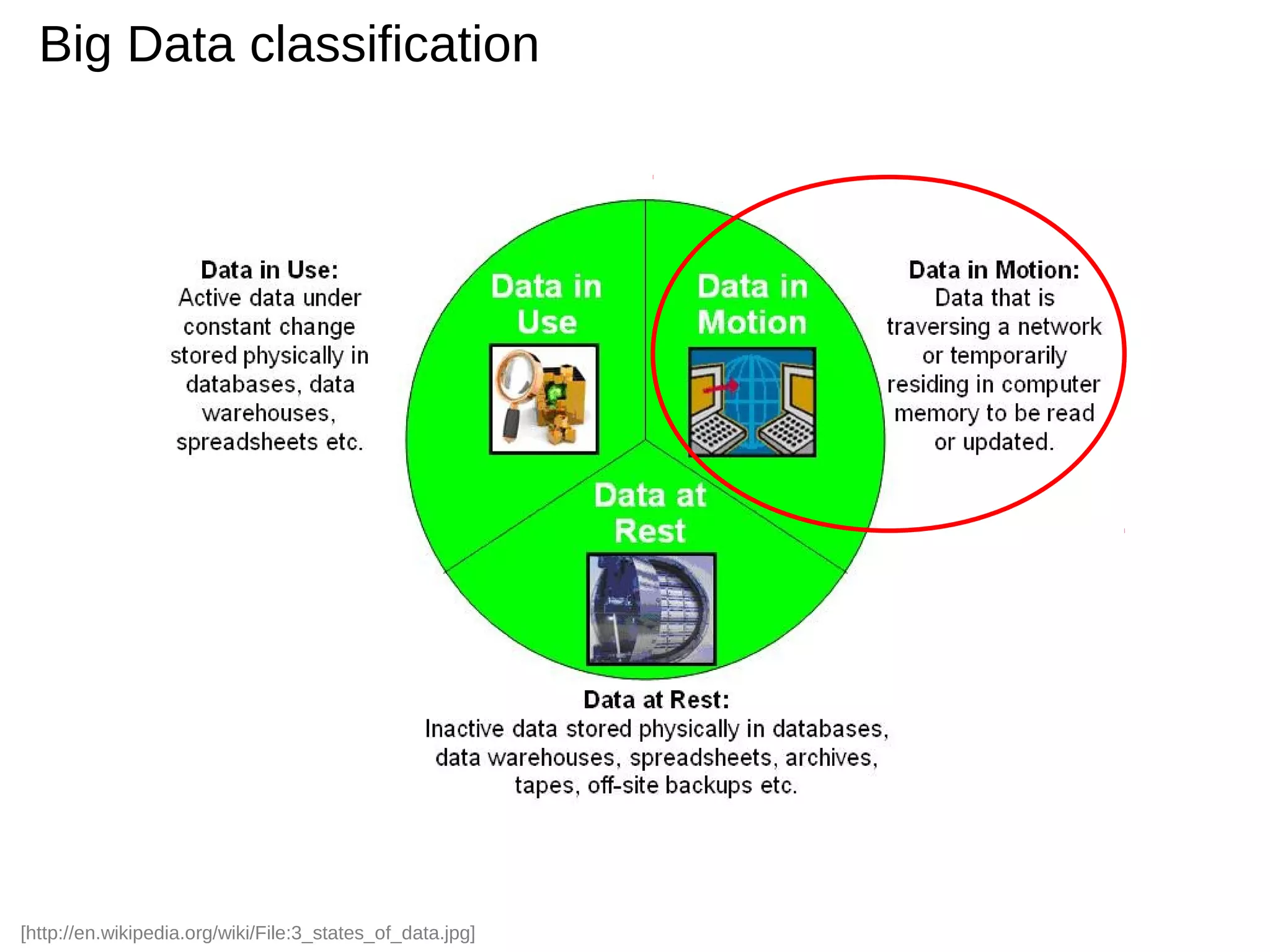

Big Data classification

[http://en.wikipedia.org/wiki/File:3_states_of_data.jpg]

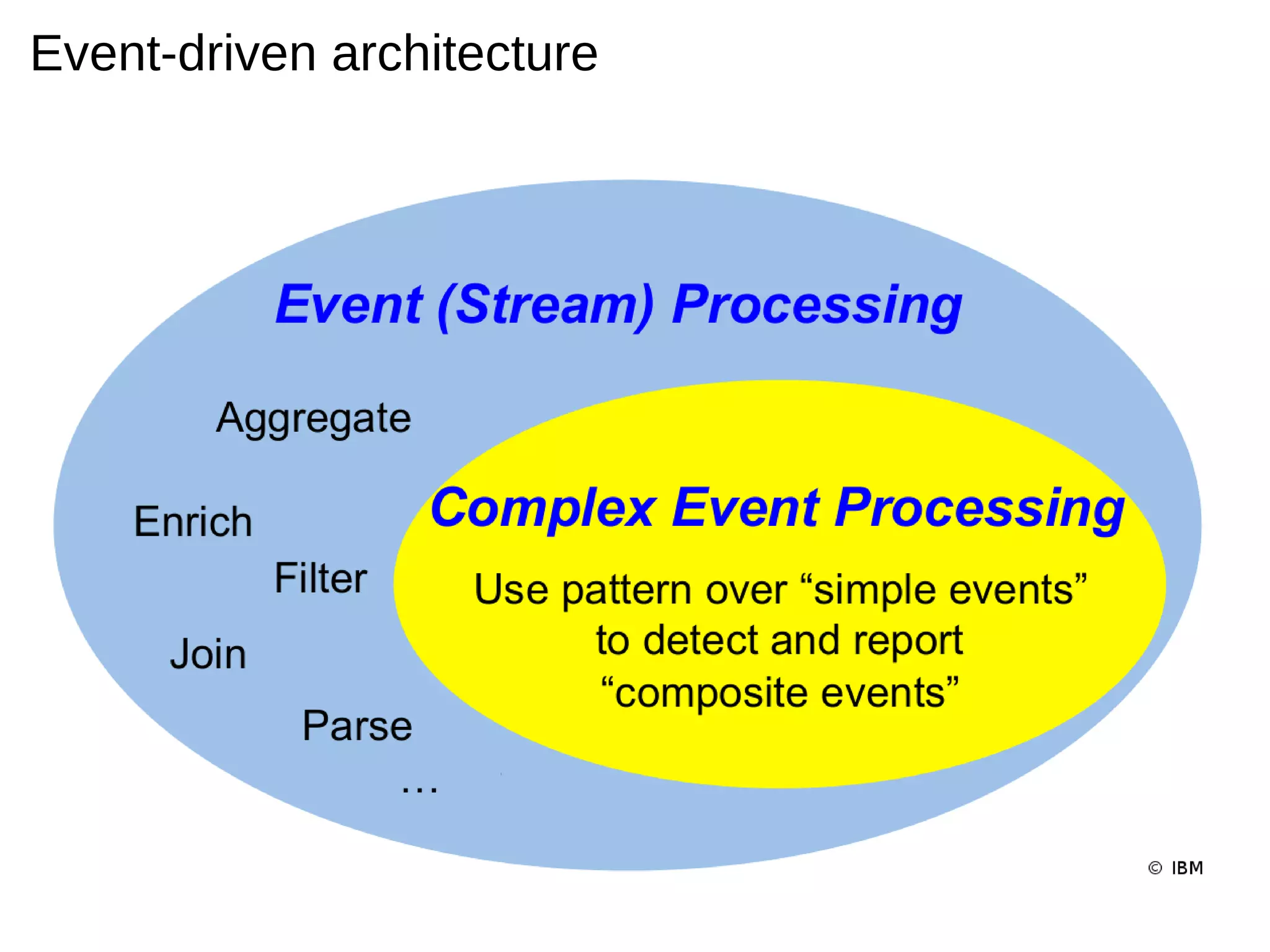

Event-driven architecture

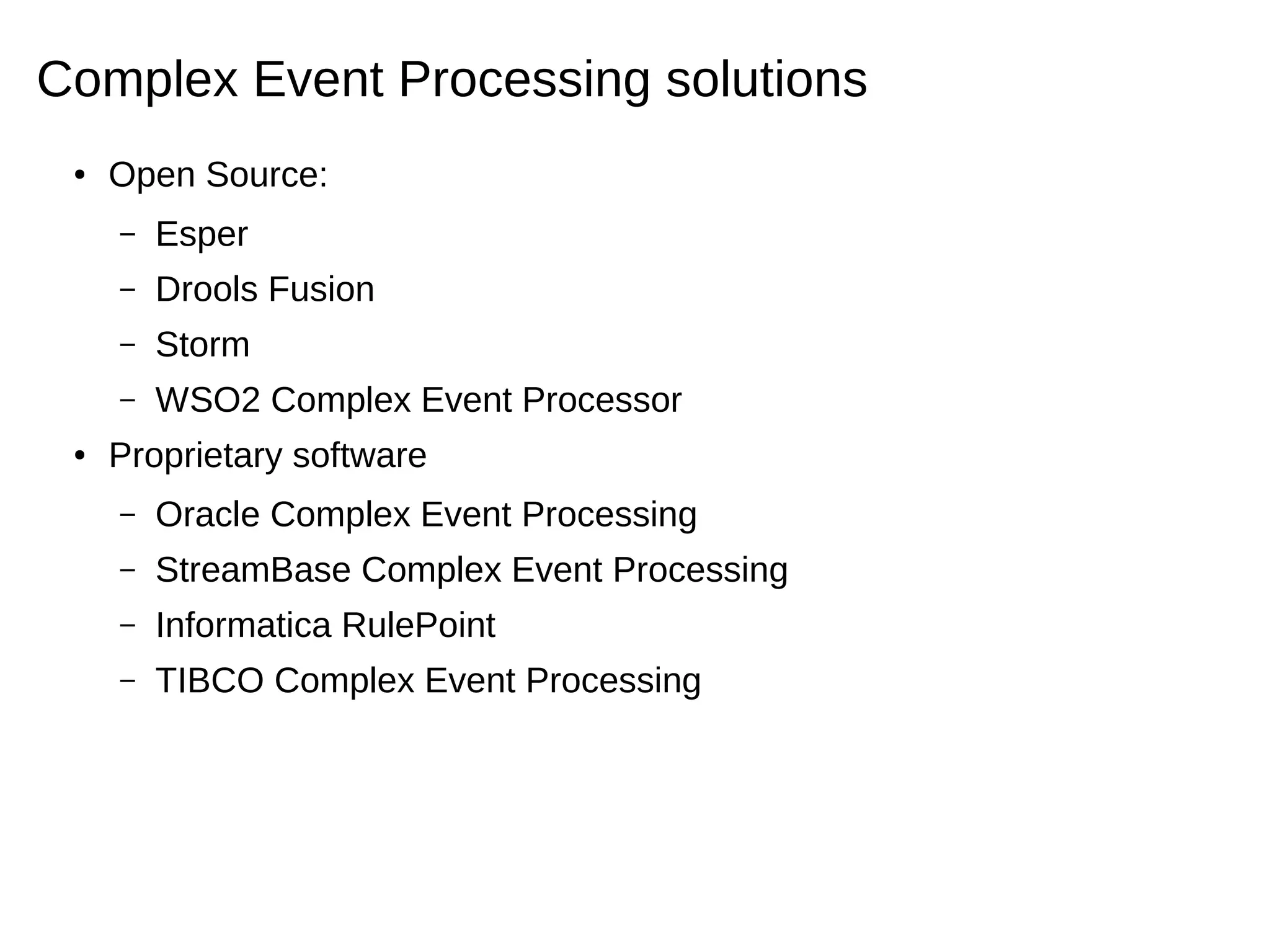

Complex Event Processing solutions
●

Open Source:
–
–

Drools Fusion

–

Storm

–
●

Esper

WSO2 Complex Event Processor

Proprietary software
–

Oracle Complex Event Processing

–

StreamBase Complex Event Processing

–

Informatica RulePoint

–

TIBCO Complex Event Processing

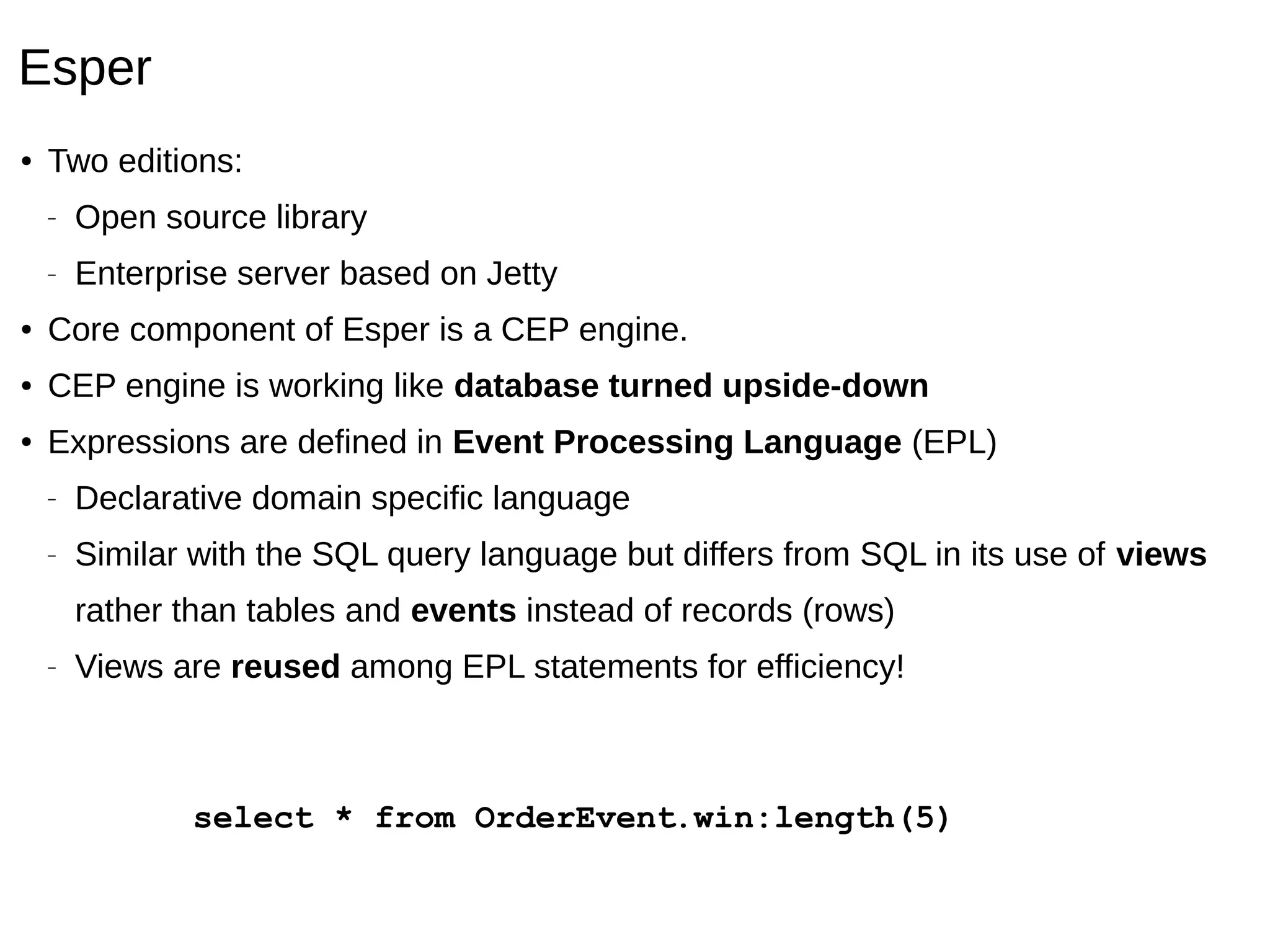

Esper
●

Two editions:
―

Open source library

―

Enterprise server based on Jetty

●

Core component of Esper is a CEP engine.

●

CEP engine is working like database turned upside-down

●

Expressions are defined in Event Processing Language (EPL)
―

Declarative domain specific language

―

Similar with the SQL query language but differs from SQL in its use of views
rather than tables and events instead of records (rows)

―

Views are reused among EPL statements for efficiency!

select * from OrderEvent.win:length(5)

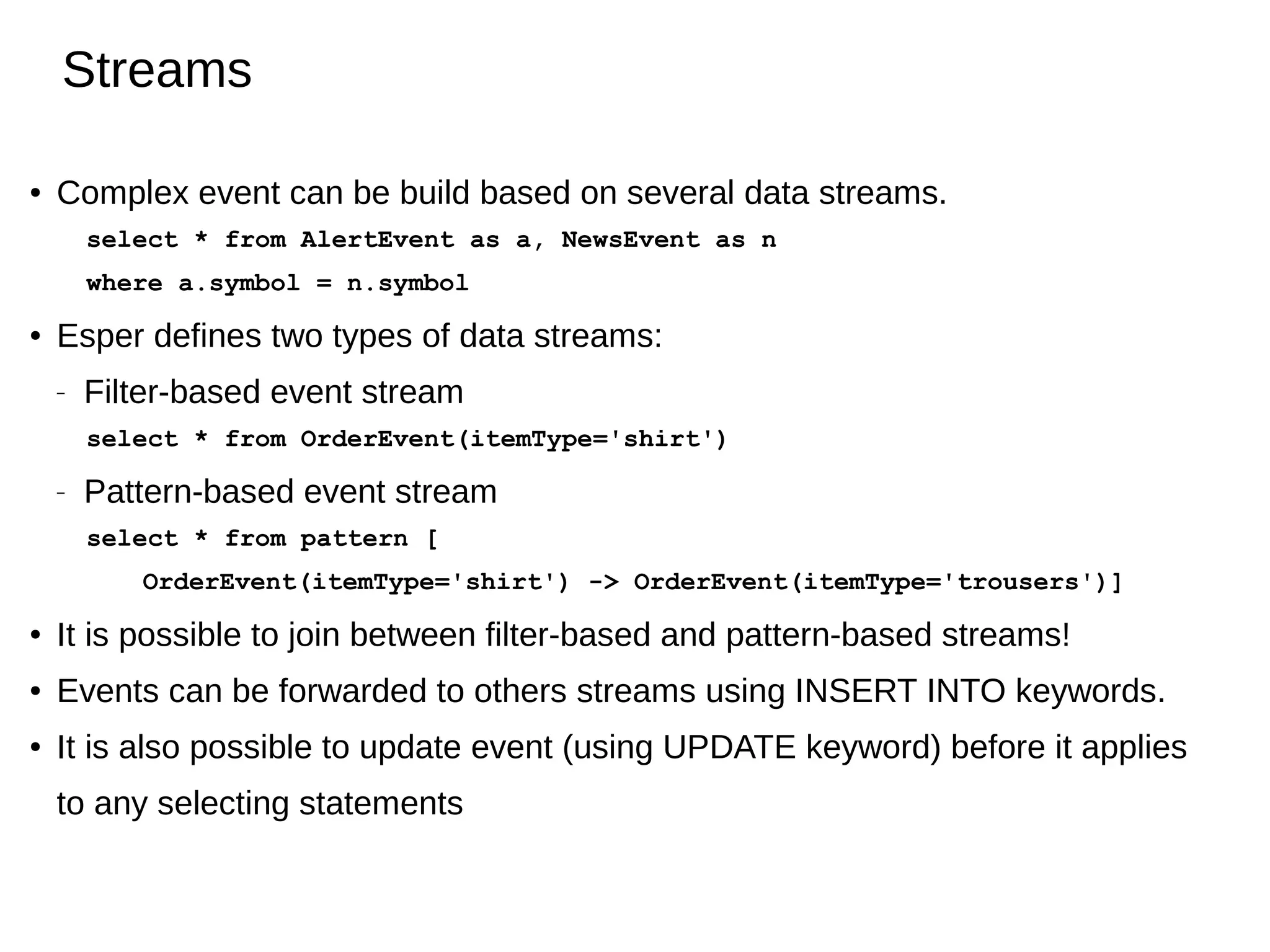

Streams
●

Complex event can be build based on several data streams.
select * from AlertEvent as a, NewsEvent as n
where a.symbol = n.symbol

●

Esper defines two types of data streams:
―

Filter-based event stream
select * from OrderEvent(itemType='shirt')

―

Pattern-based event stream
select * from pattern [
OrderEvent(itemType='shirt') -> OrderEvent(itemType='trousers')]

●

It is possible to join between filter-based and pattern-based streams!

●

Events can be forwarded to others streams using INSERT INTO keywords.

●

It is also possible to update event (using UPDATE keyword) before it applies
to any selecting statements

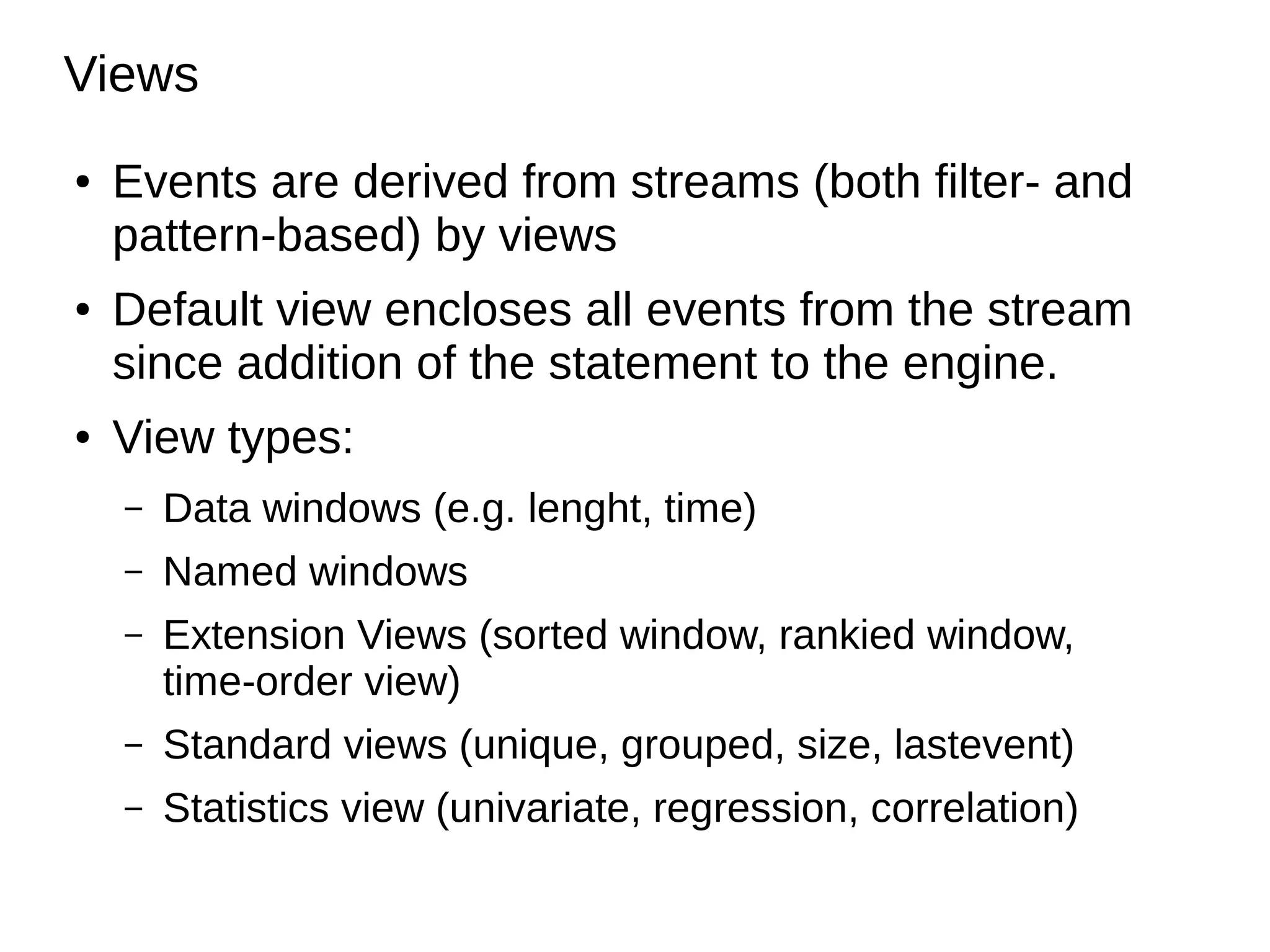

Views
●

●

●

Events are derived from streams (both filter- and
pattern-based) by views
Default view encloses all events from the stream
since addition of the statement to the engine.
View types:
–

Data windows (e.g. lenght, time)

–

Named windows

–

Extension Views (sorted window, rankied window,
time-order view)

–

Standard views (unique, grouped, size, lastevent)

–

Statistics view (univariate, regression, correlation)

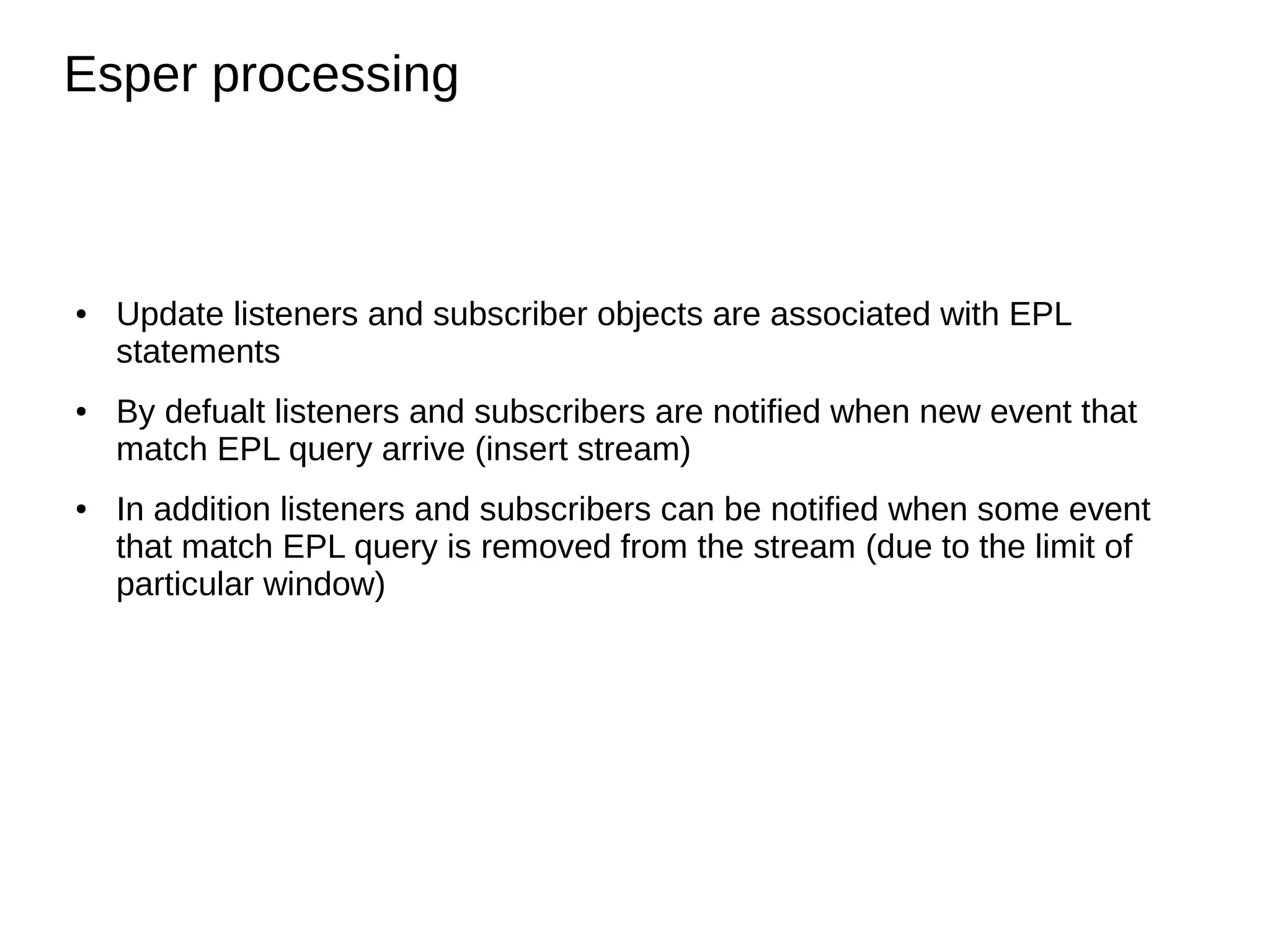

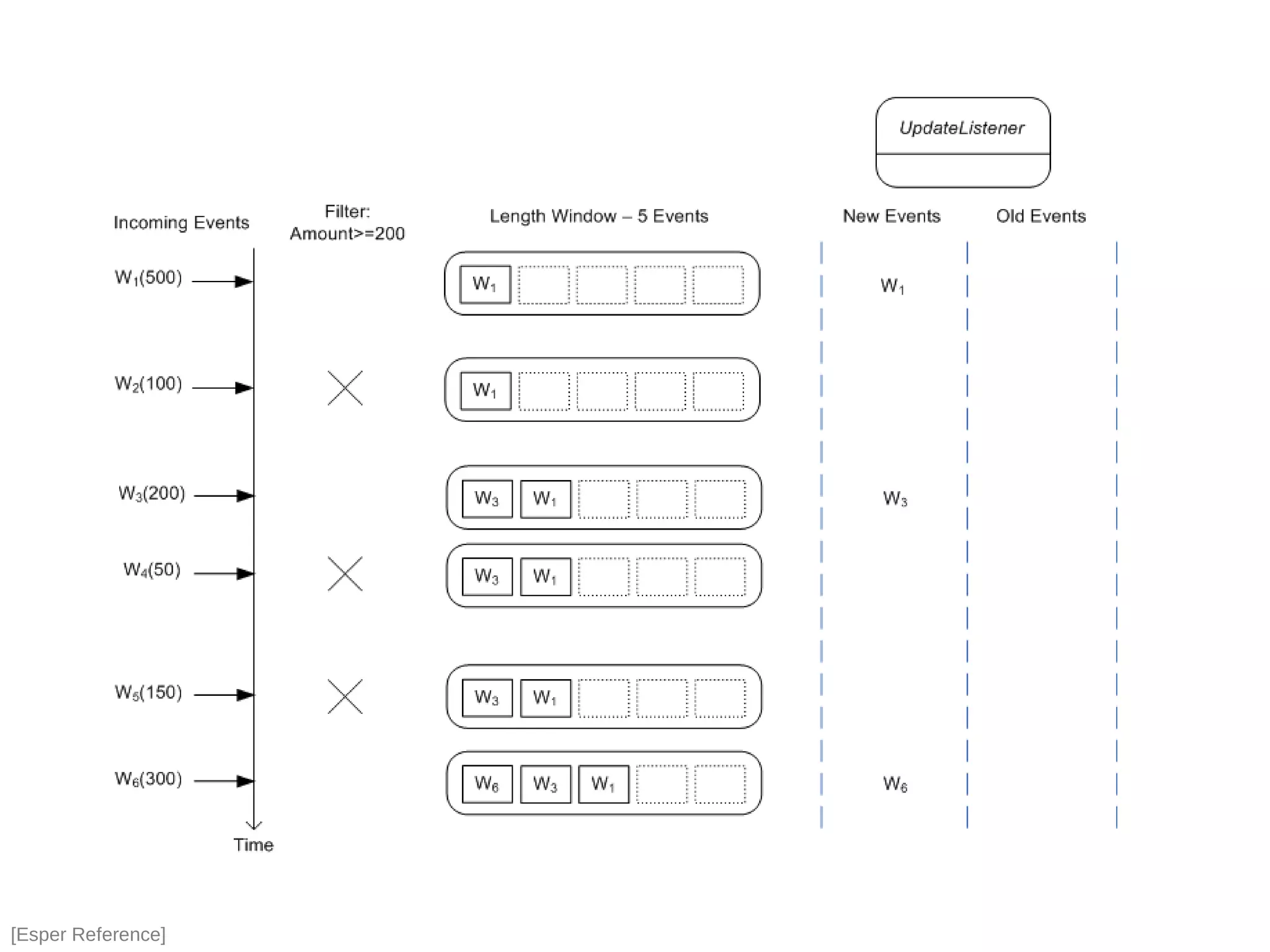

Esper processing

●

●

●

Update listeners and subscriber objects are associated with EPL
statements
By defualt listeners and subscribers are notified when new event that
match EPL query arrive (insert stream)
In addition listeners and subscribers can be notified when some event
that match EPL query is removed from the stream (due to the limit of
particular window)
[Esper Reference]

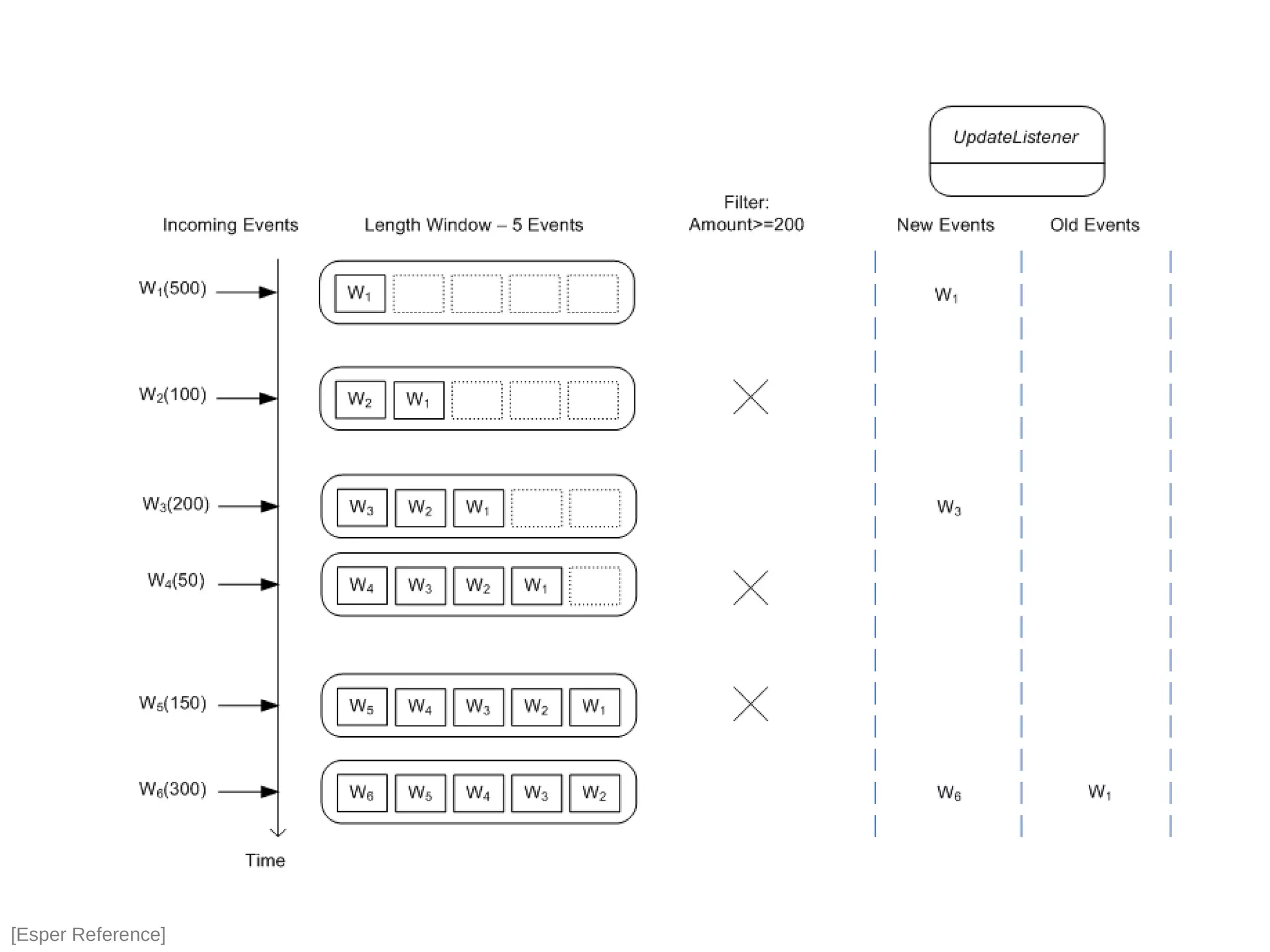

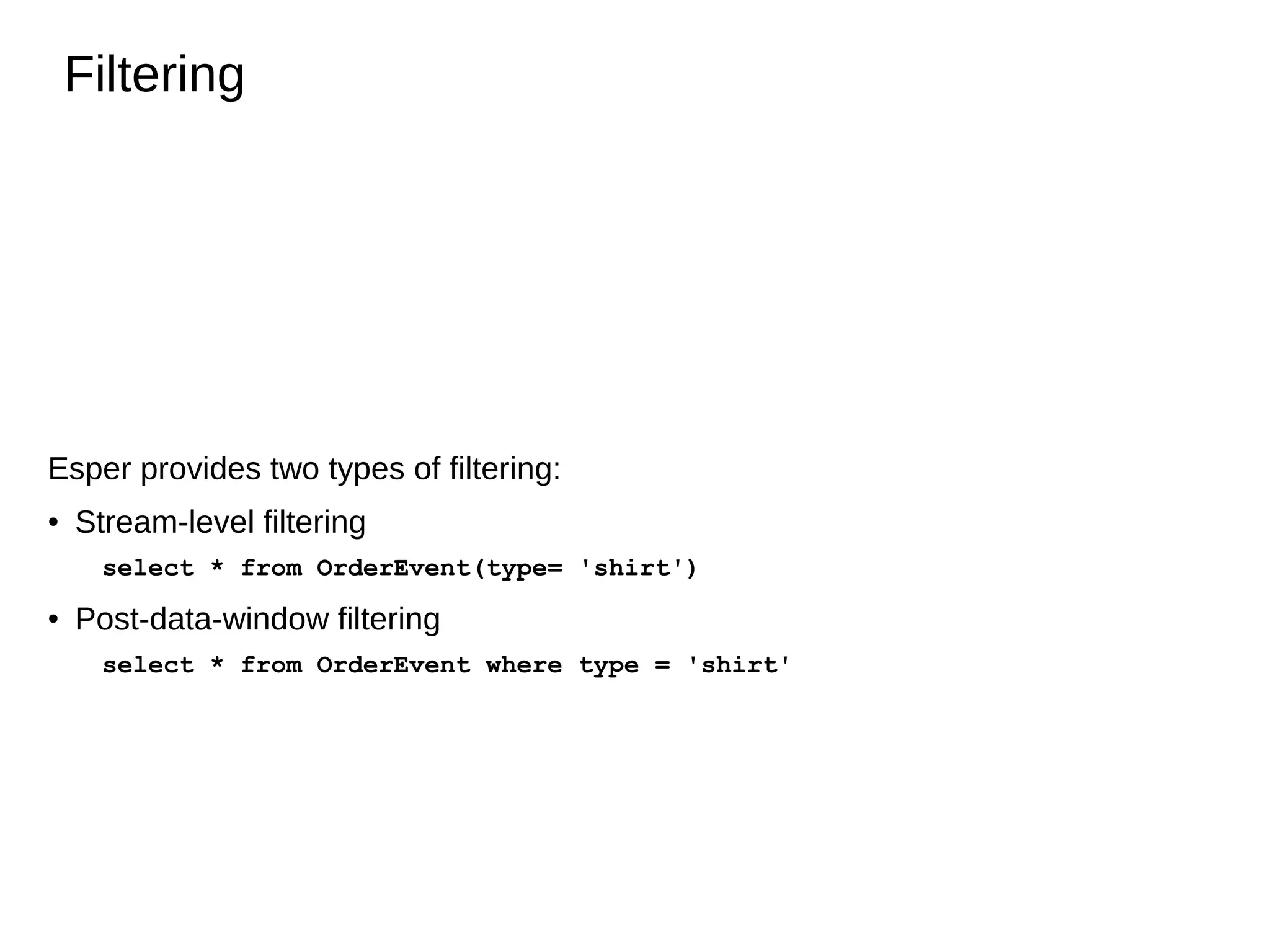

Filtering

Esper provides two types of filtering:
●

Stream-level filtering
select * from OrderEvent(type= 'shirt')

●

Post-data-window filtering
select * from OrderEvent where type = 'shirt'
[Esper Reference]
[Esper Reference]

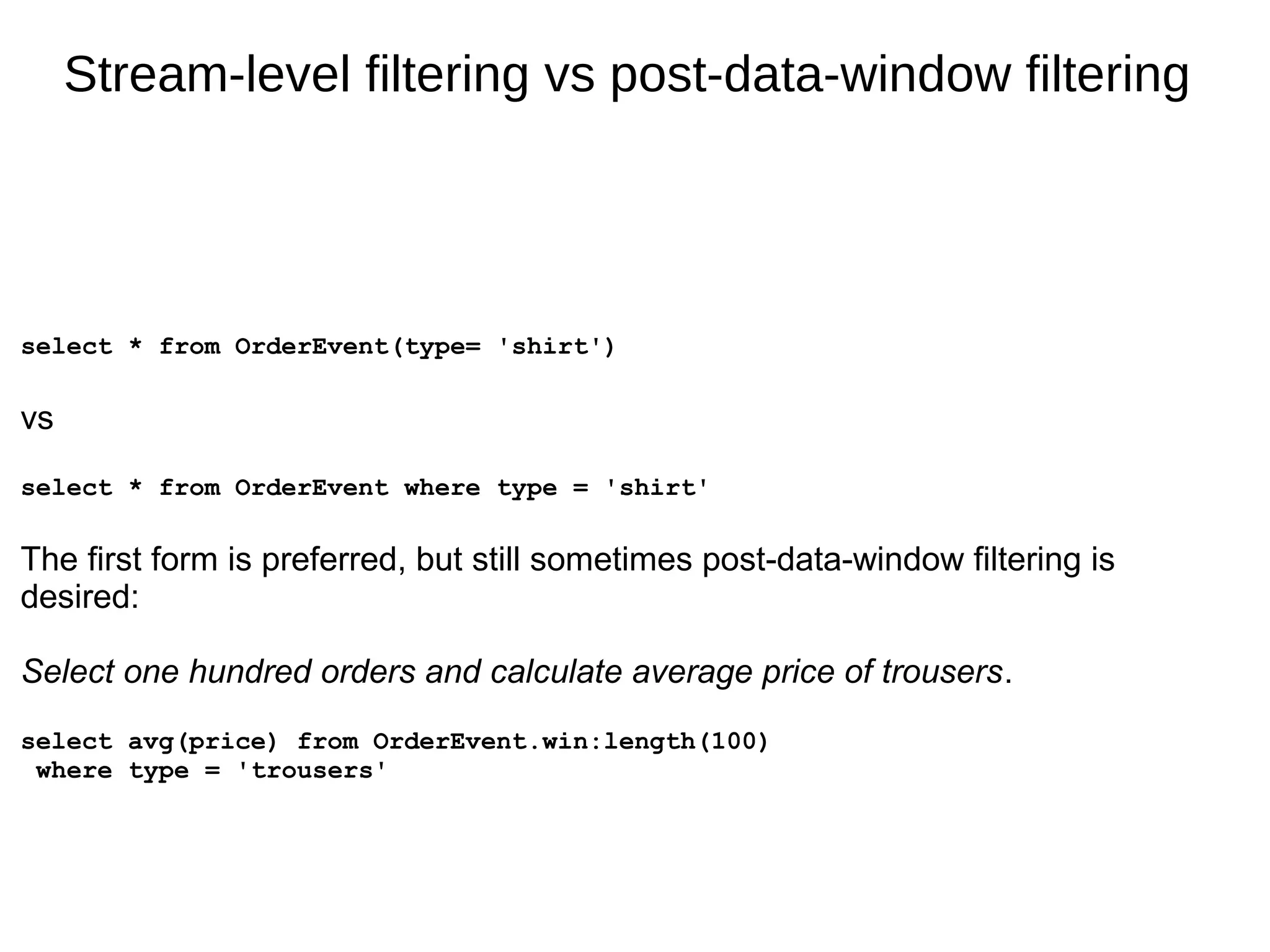

Stream-level filtering vs post-data-window filtering

select * from OrderEvent(type= 'shirt')

vs
select * from OrderEvent where type = 'shirt'

The first form is preferred, but still sometimes post-data-window filtering is
desired:
Select one hundred orders and calculate average price of trousers.
select avg(price) from OrderEvent.win:length(100)
where type = 'trousers'

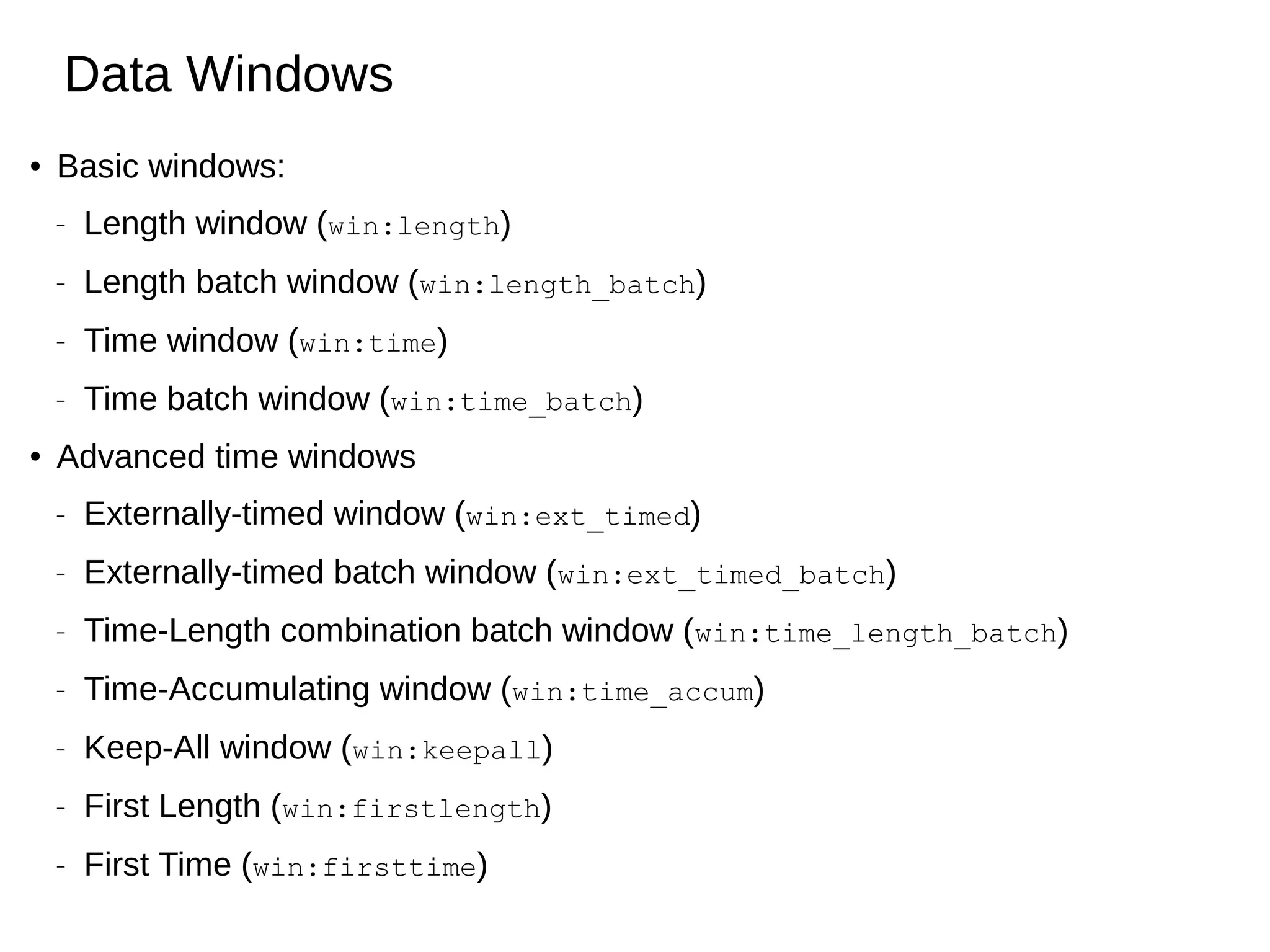

Data Windows
●

Basic windows:
―

―

Length batch window (win:length_batch)

―

Time window (win:time)

―

●

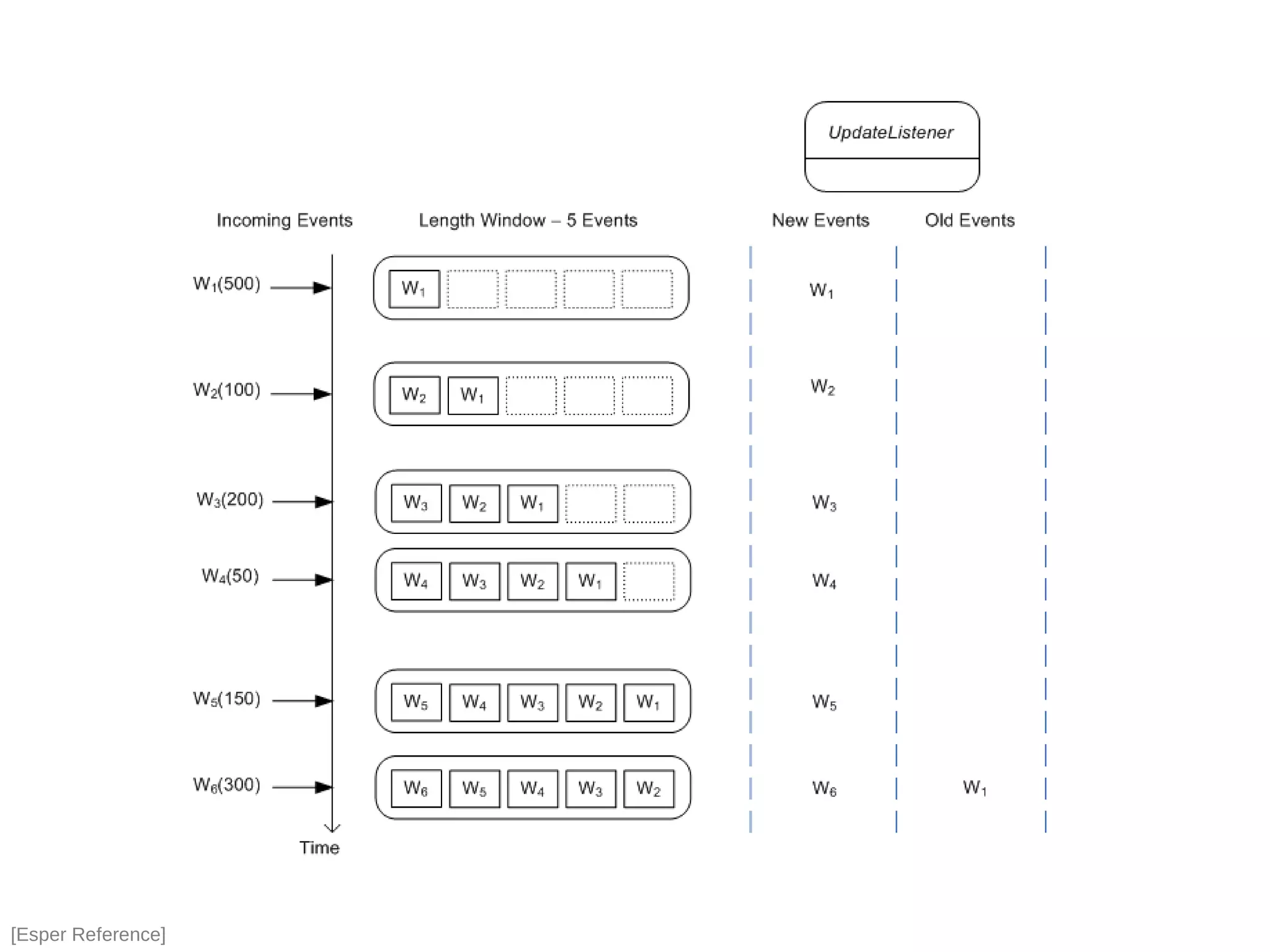

Length window (win:length)

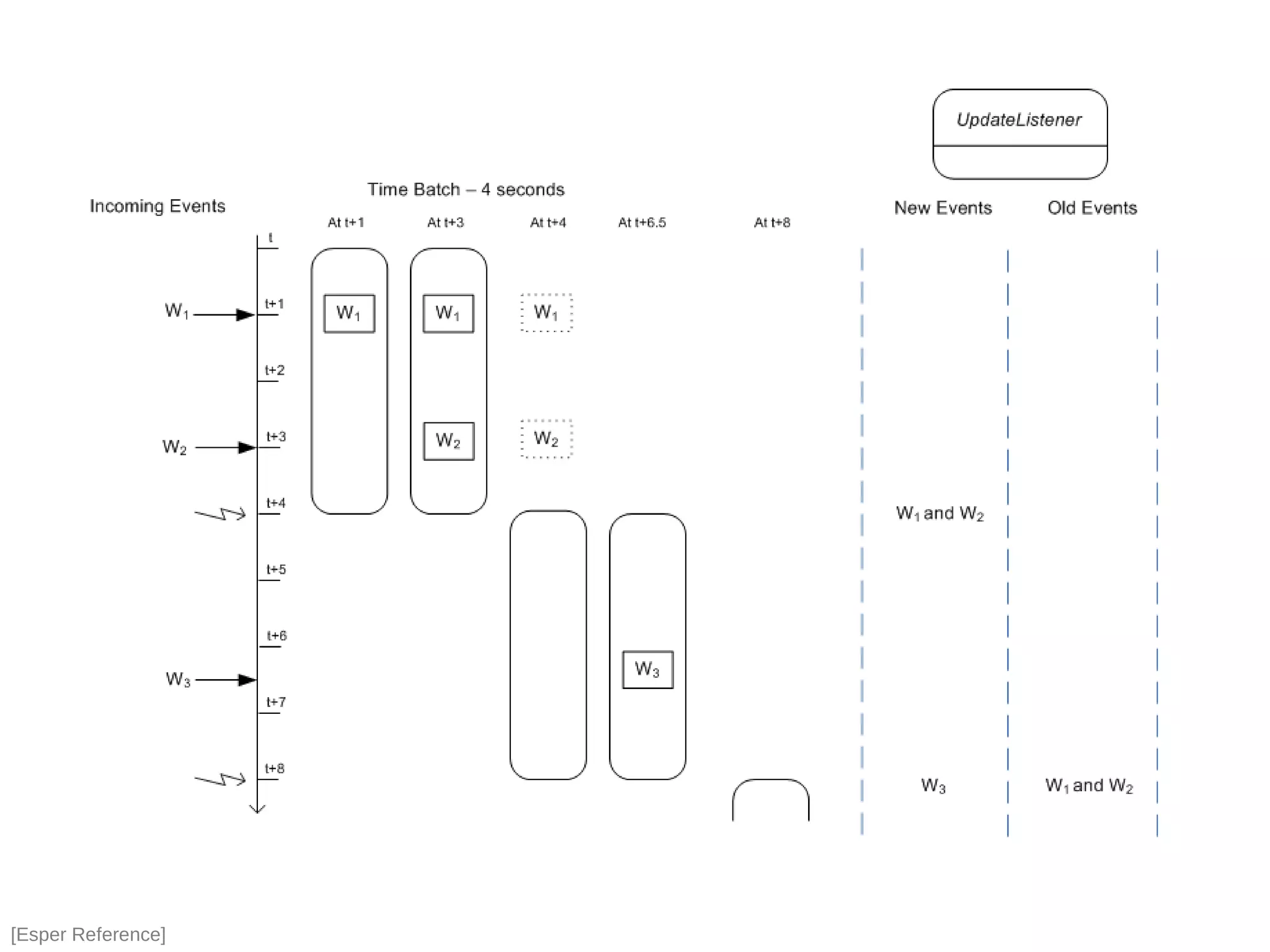

Time batch window (win:time_batch)

Advanced time windows
―

Externally-timed window (win:ext_timed)

―

Externally-timed batch window (win:ext_timed_batch)

―

Time-Length combination batch window (win:time_length_batch)

―

Time-Accumulating window (win:time_accum)

―

Keep-All window (win:keepall)

―

First Length (win:firstlength)

―

First Time (win:firsttime)

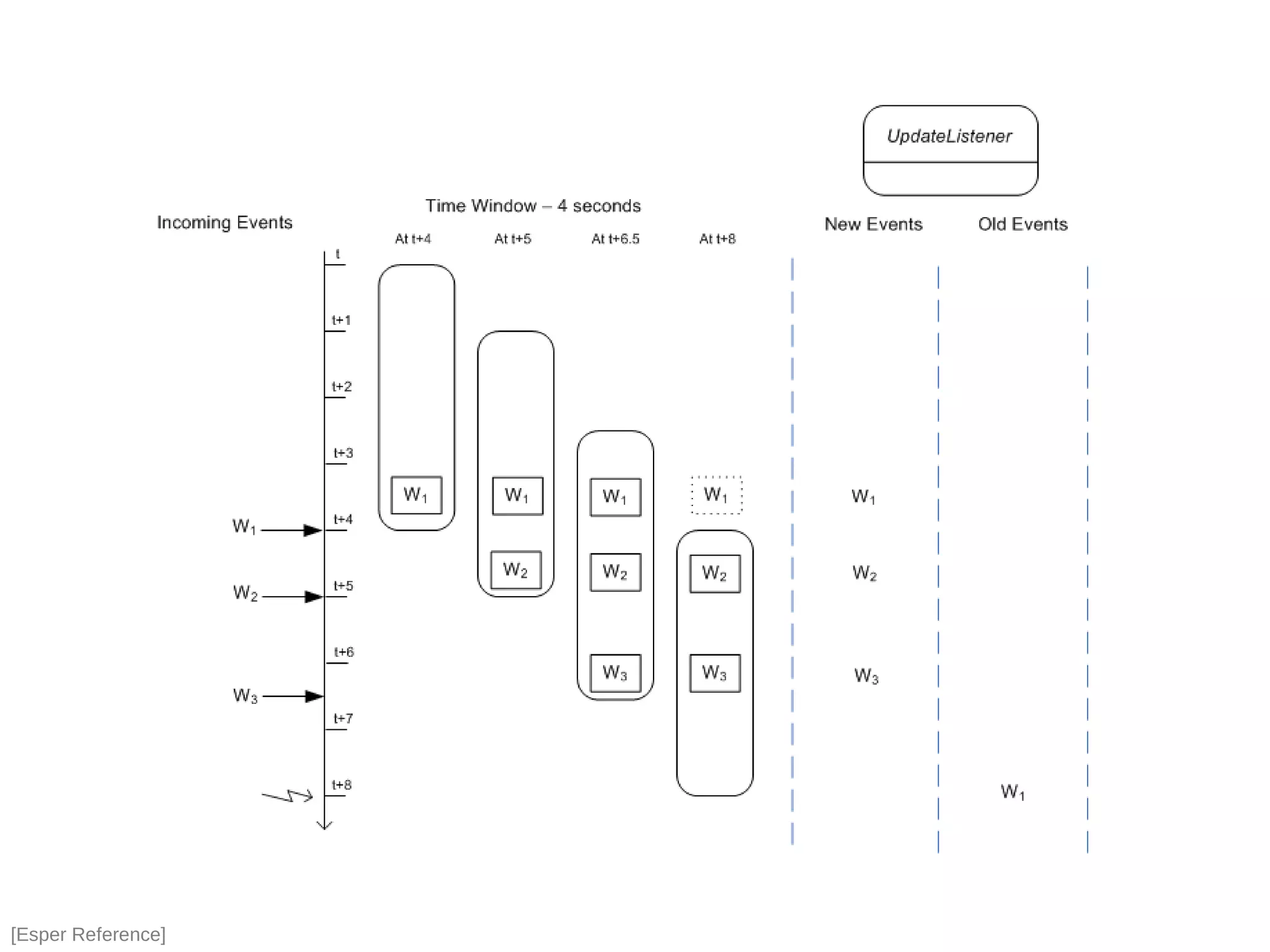

[Esper Reference]
[Esper Reference]

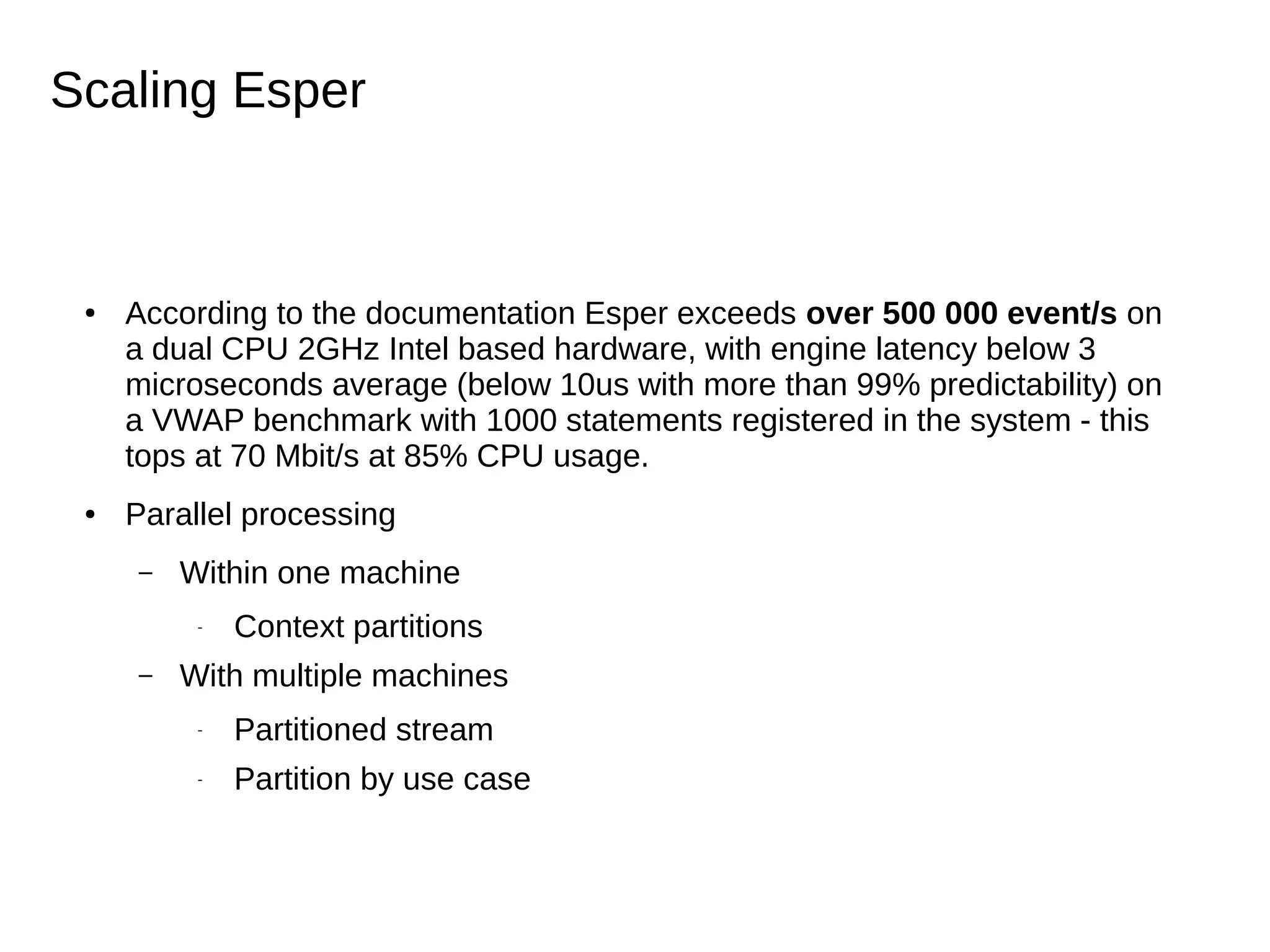

Scaling Esper

●

●

According to the documentation Esper exceeds over 500 000 event/s on
a dual CPU 2GHz Intel based hardware, with engine latency below 3
microseconds average (below 10us with more than 99% predictability) on
a VWAP benchmark with 1000 statements registered in the system - this
tops at 70 Mbit/s at 85% CPU usage.
Parallel processing
–

Within one machine
-

–

Context partitions

With multiple machines
-

Partitioned stream

-

Partition by use case

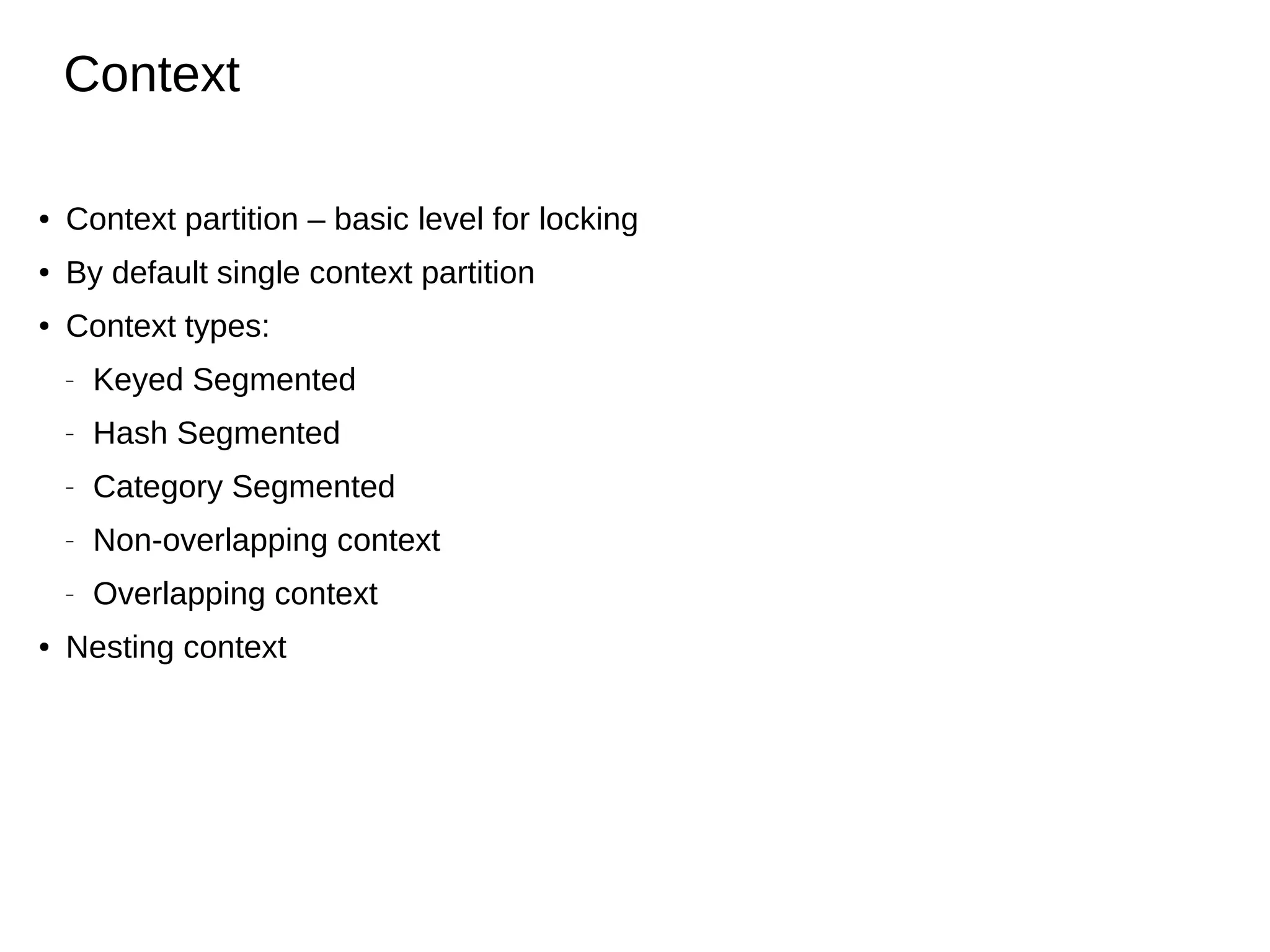

Context
●

Context partition – basic level for locking

●

By default single context partition

●

Context types:
―
―

Hash Segmented

―

Category Segmented

―

Non-overlapping context

―

●

Keyed Segmented

Overlapping context

Nesting context

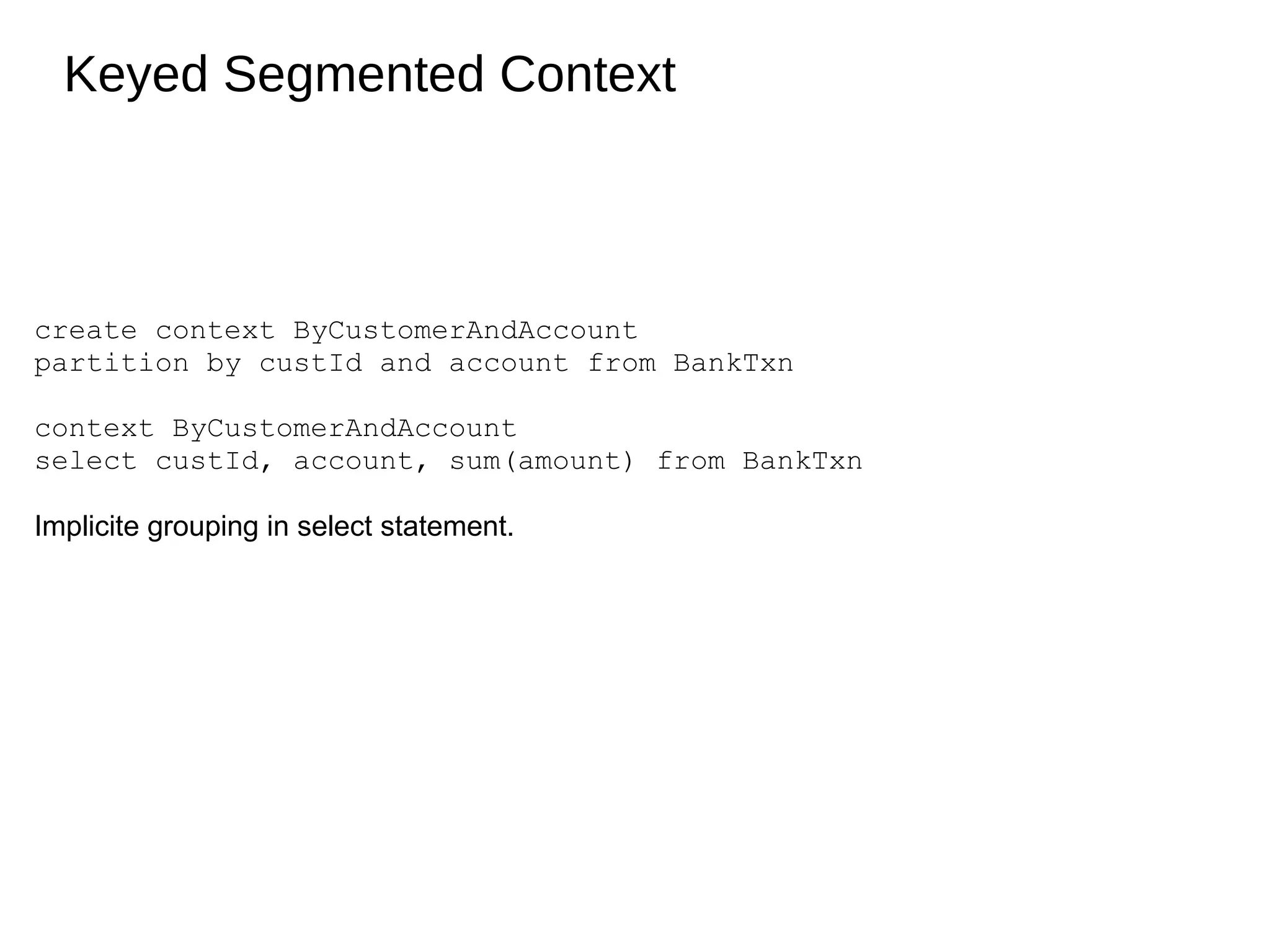

Keyed Segmented Context

create context ByCustomerAndAccount
partition by custId and account from BankTxn
context ByCustomerAndAccount
select custId, account, sum(amount) from BankTxn
Implicite grouping in select statement.

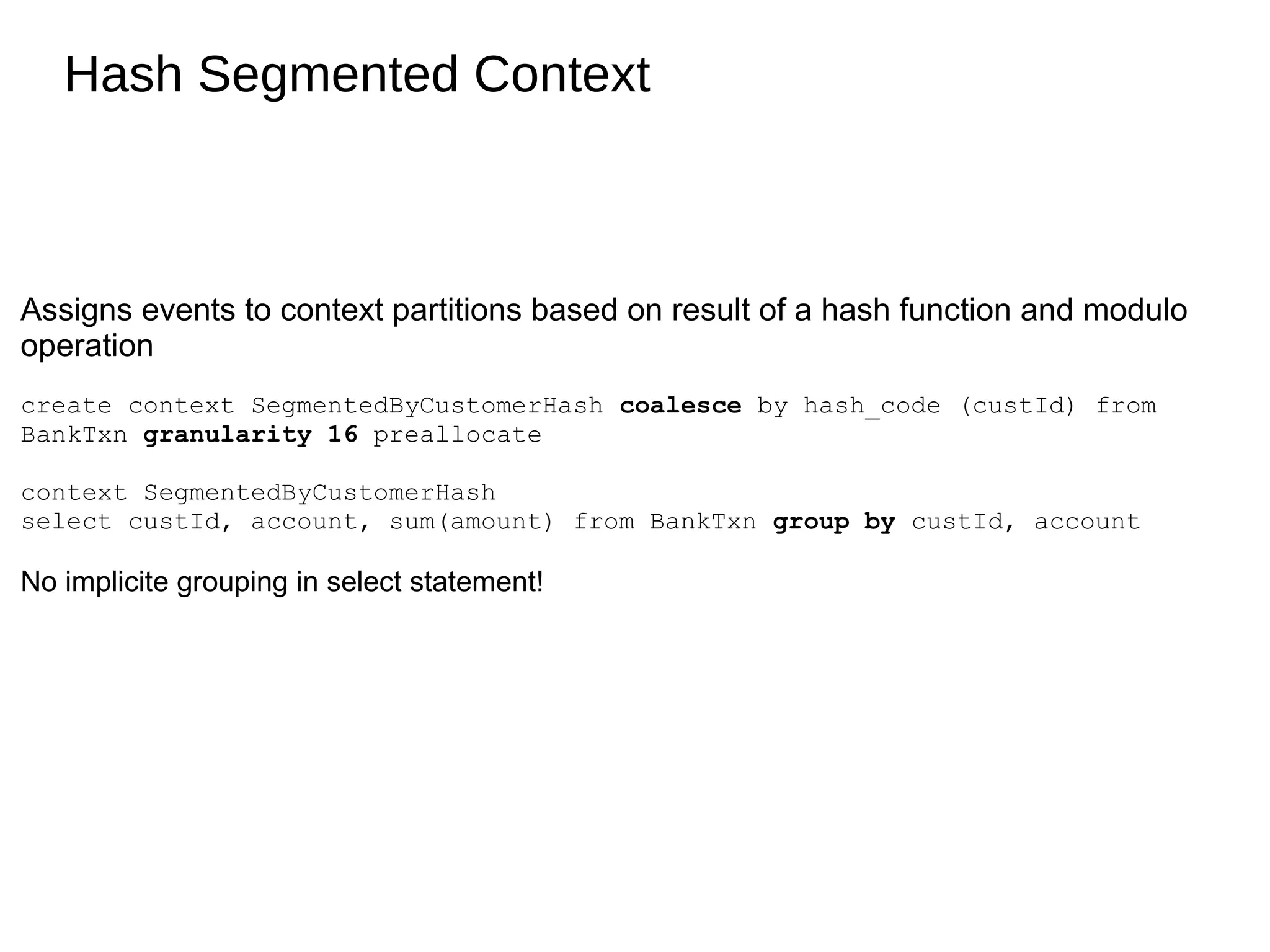

Hash Segmented Context

Assigns events to context partitions based on result of a hash function and modulo
operation
create context SegmentedByCustomerHash coalesce by hash_code (custId) from
BankTxn granularity 16 preallocate
context SegmentedByCustomerHash
select custId, account, sum(amount) from BankTxn group by custId, account

No implicite grouping in select statement!

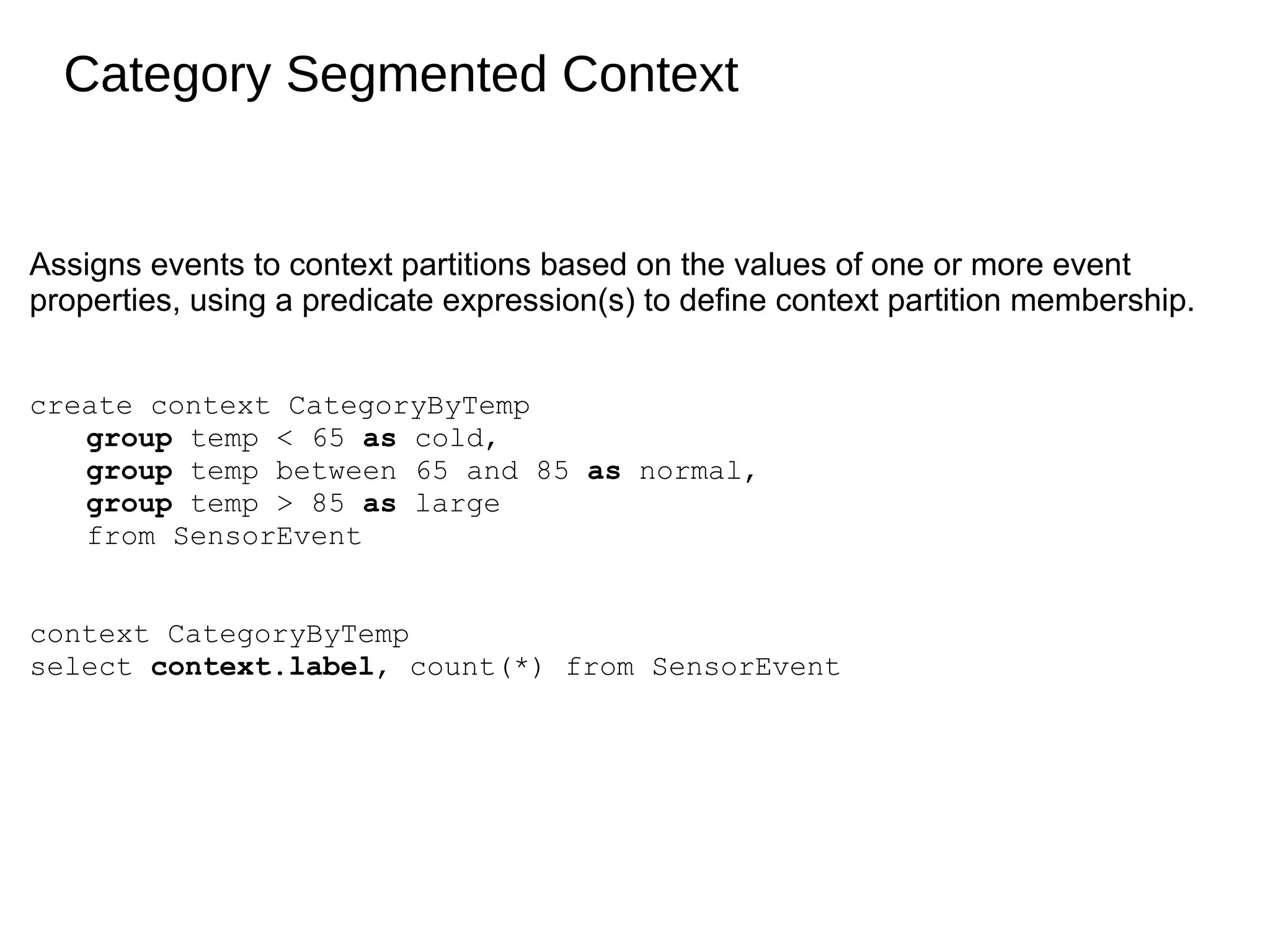

Category Segmented Context

Assigns events to context partitions based on the values of one or more event
properties, using a predicate expression(s) to define context partition membership.
create context CategoryByTemp
group temp < 65 as cold,
group temp between 65 and 85 as normal,
group temp > 85 as large
from SensorEvent
context CategoryByTemp
select context.label, count(*) from SensorEvent

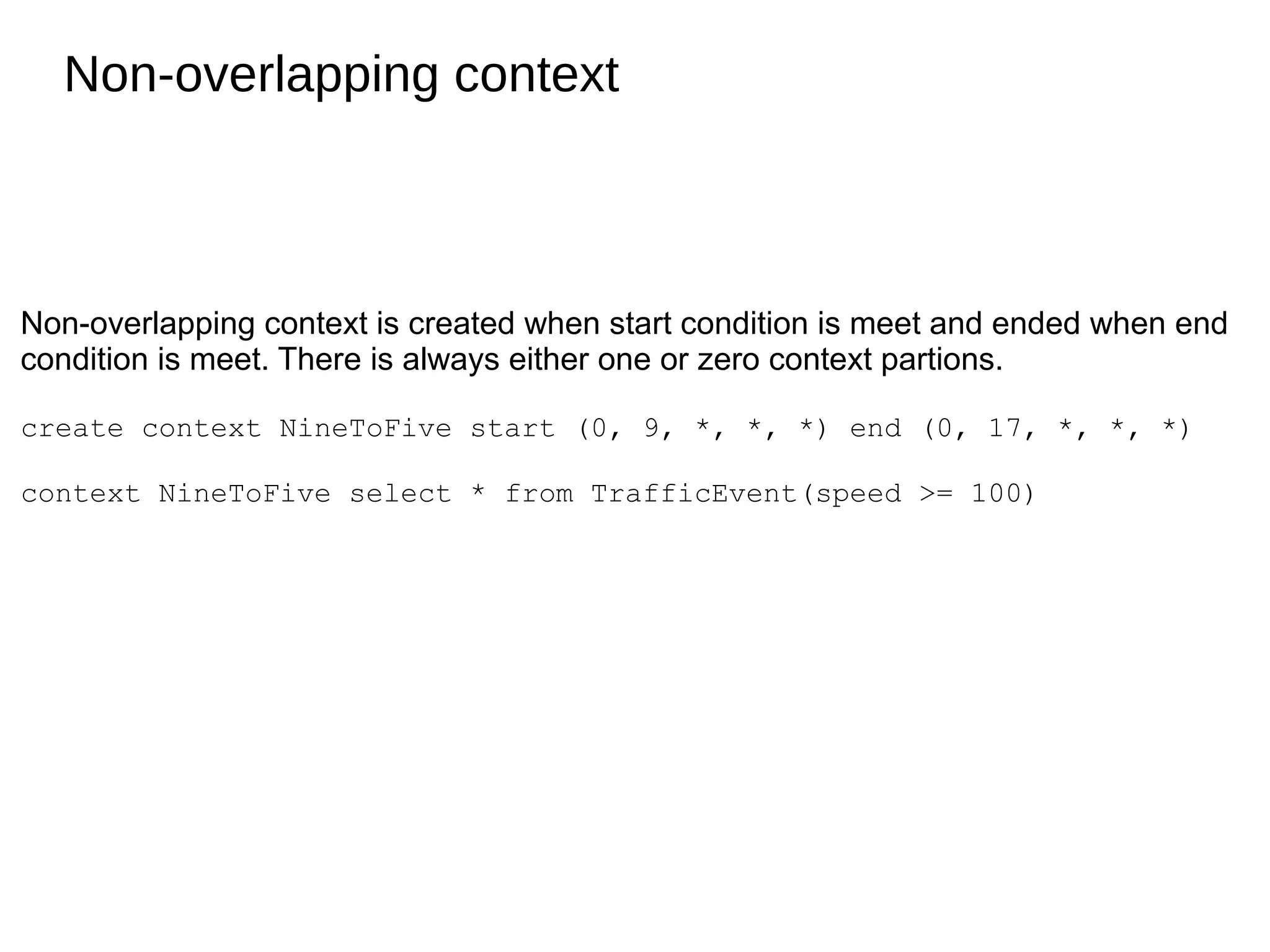

Non-overlapping context

Non-overlapping context is created when start condition is meet and ended when end
condition is meet. There is always either one or zero context partions.
create context NineToFive start (0, 9, *, *, *) end (0, 17, *, *, *)
context NineToFive select * from TrafficEvent(speed >= 100)

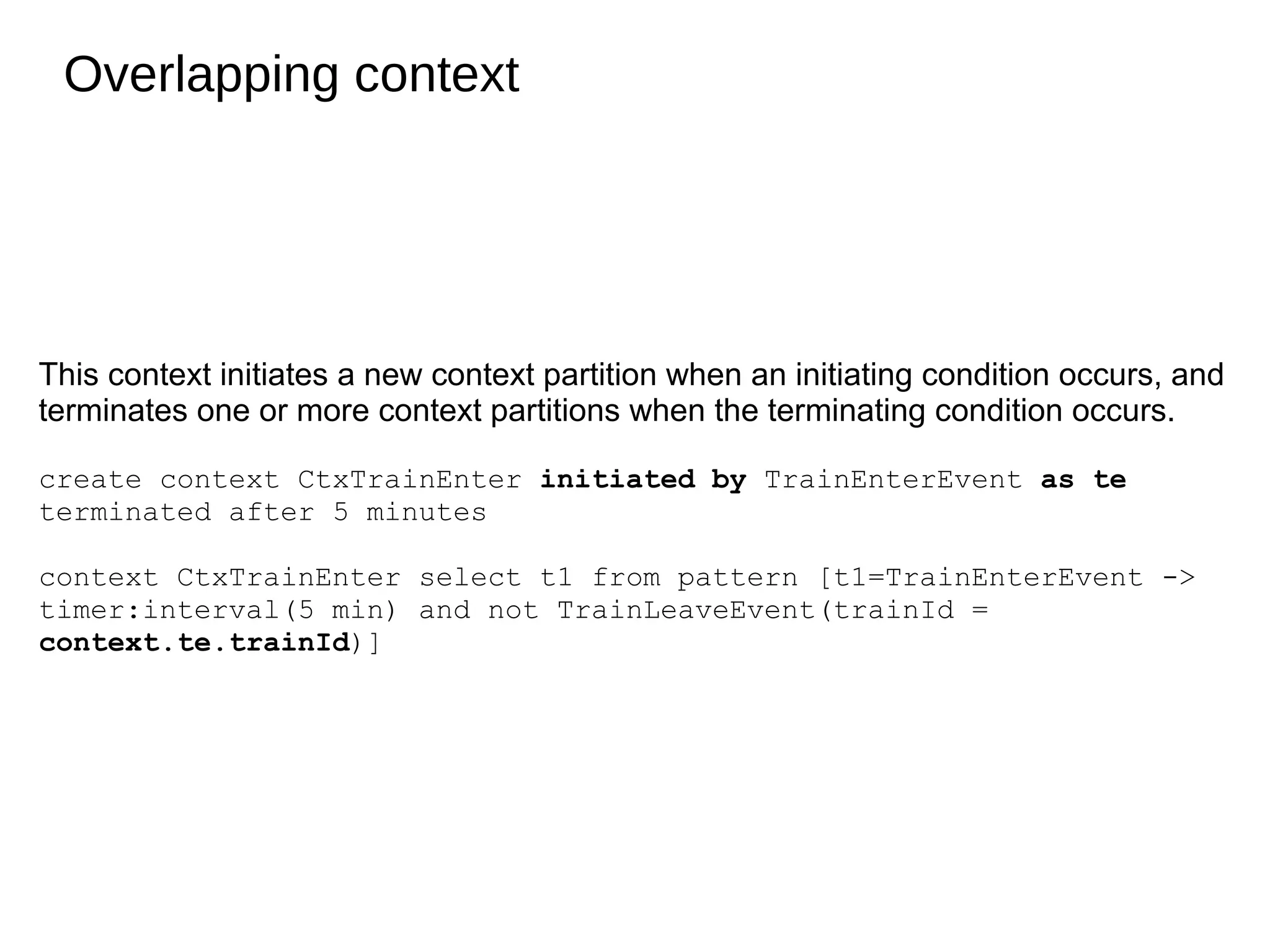

Overlapping context

This context initiates a new context partition when an initiating condition occurs, and
terminates one or more context partitions when the terminating condition occurs.
create context CtxTrainEnter initiated by TrainEnterEvent as te
terminated after 5 minutes
context CtxTrainEnter select t1 from pattern [t1=TrainEnterEvent ->
timer:interval(5 min) and not TrainLeaveEvent(trainId =
context.te.trainId)]

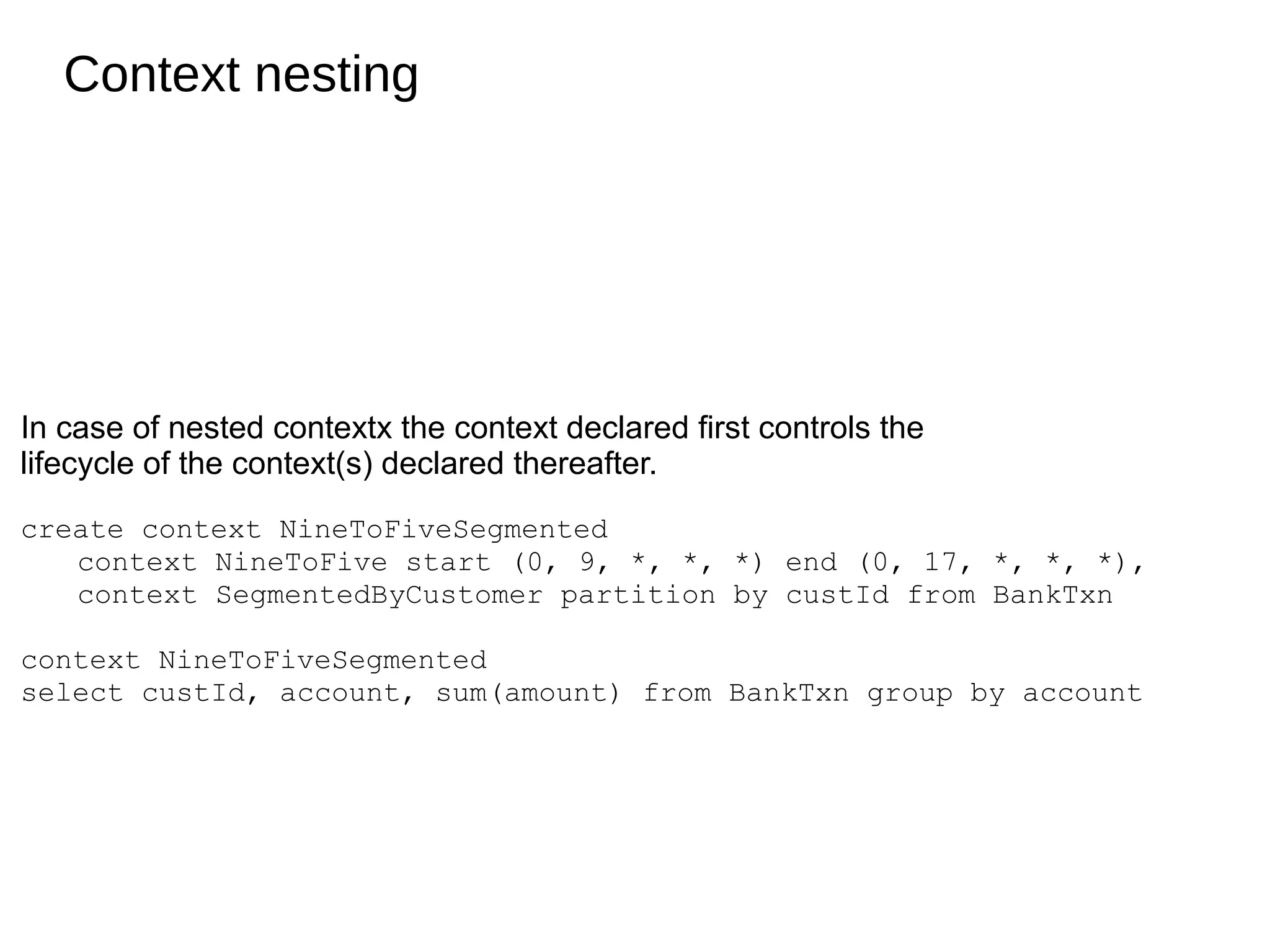

Context nesting

In case of nested contextx the context declared first controls the
lifecycle of the context(s) declared thereafter.
create context NineToFiveSegmented
context NineToFive start (0, 9, *, *, *) end (0, 17, *, *, *),
context SegmentedByCustomer partition by custId from BankTxn
context NineToFiveSegmented
select custId, account, sum(amount) from BankTxn group by account

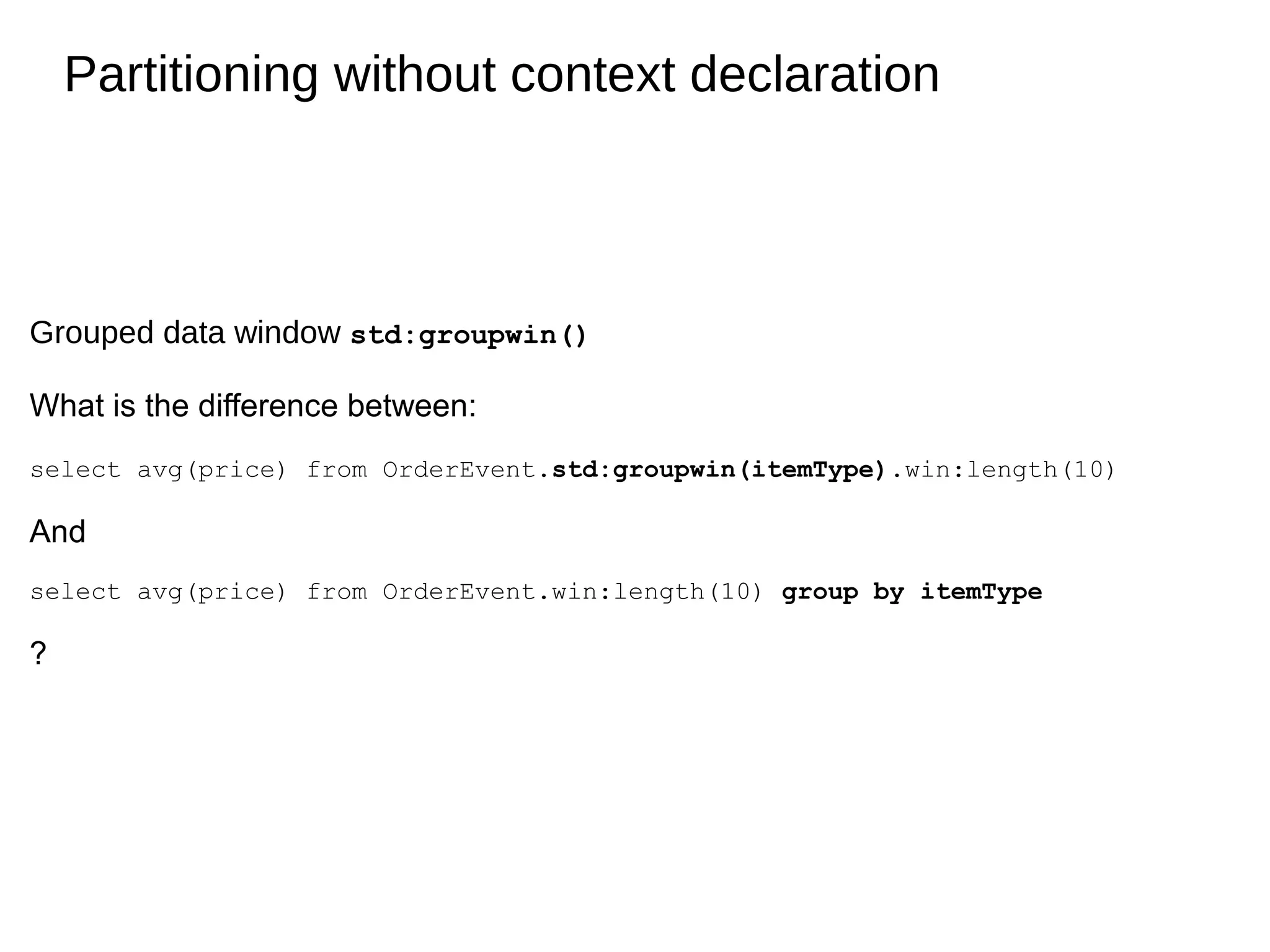

Partitioning without context declaration

Grouped data window std:groupwin()
What is the difference between:
select avg(price) from OrderEvent.std:groupwin(itemType).win:length(10)

And
select avg(price) from OrderEvent.win:length(10) group by itemType

?

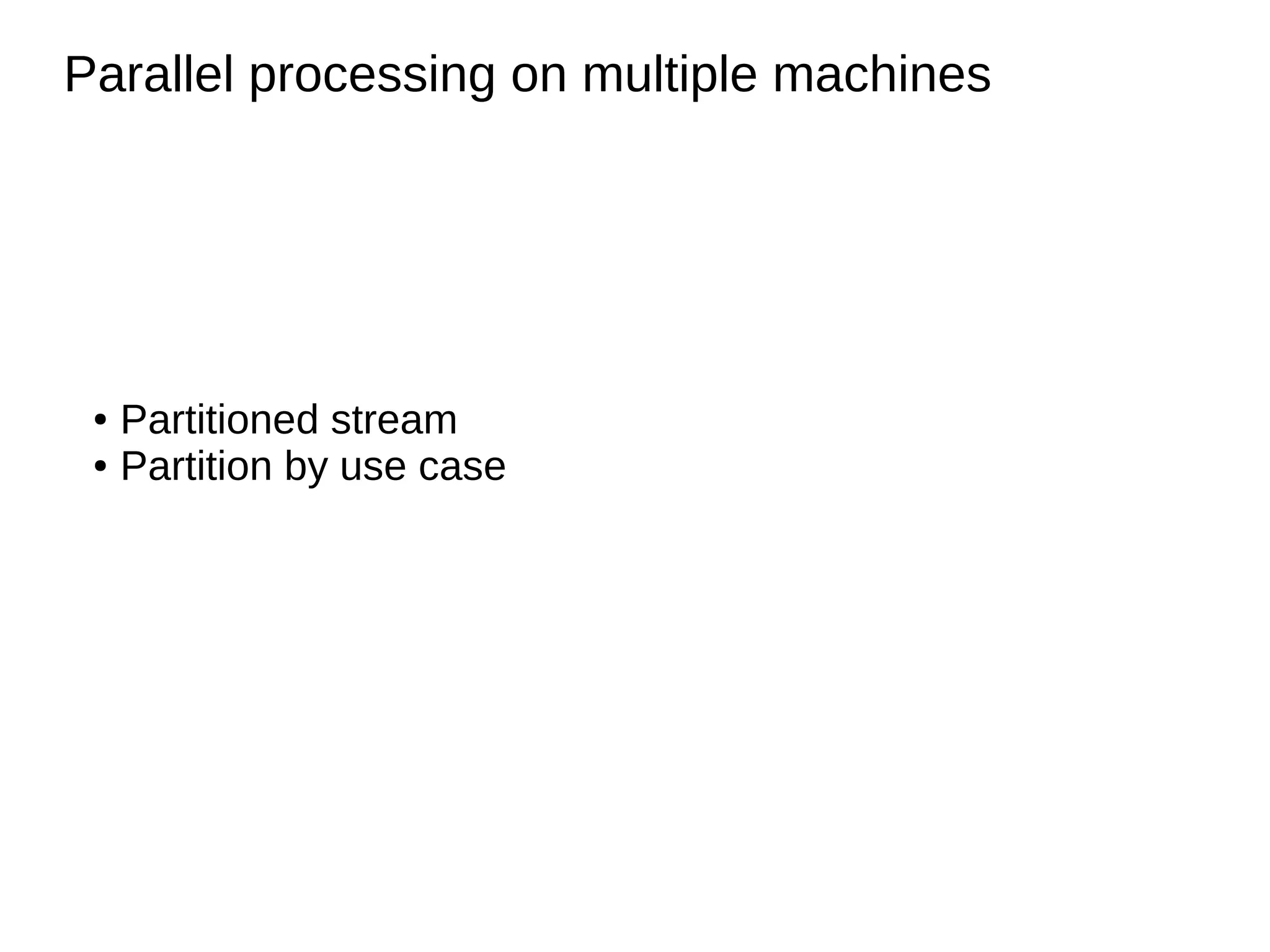

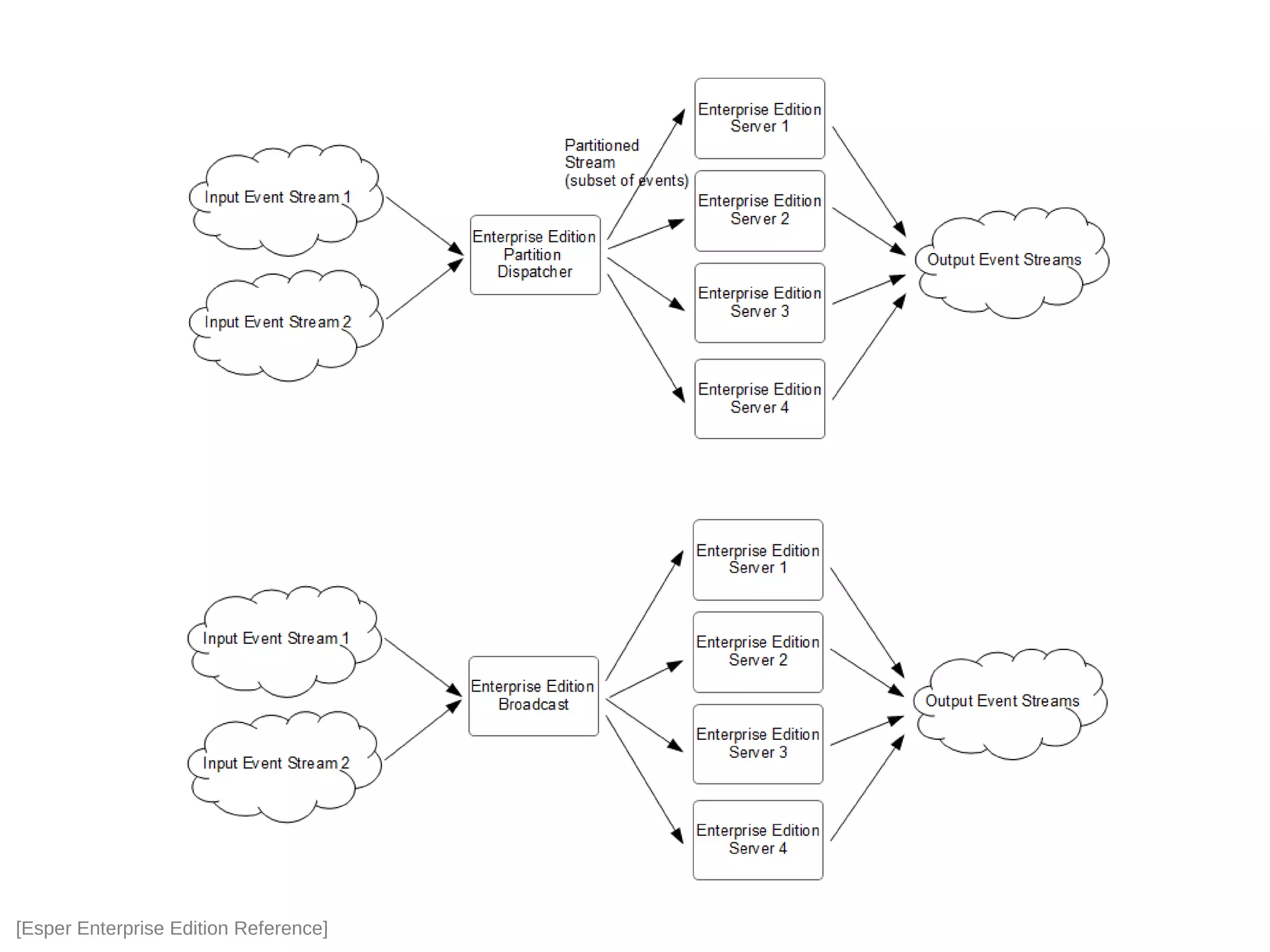

Parallel processing on multiple machines

Partitioned stream
● Partition by use case
●
[Esper Enterprise Edition Reference]
Thank you
