ONOS와 Raspberry Pi 기반 가상물리 SDN 실증 환경 구축과 응용 개발
- 1. ONOS와 Raspberry Pi기반 가상/물리 SDN 실증 환경 구축과 응용 개발 경희대학교 이성원 교수 Email : drsungwon@khu.ac.kr Web : http://mobilelab.khu.ac.kr 경희대학교 컴퓨터공학과 모바일컨버전스Lab 한상윤 Email : sangyun0628@khu.ac.kr

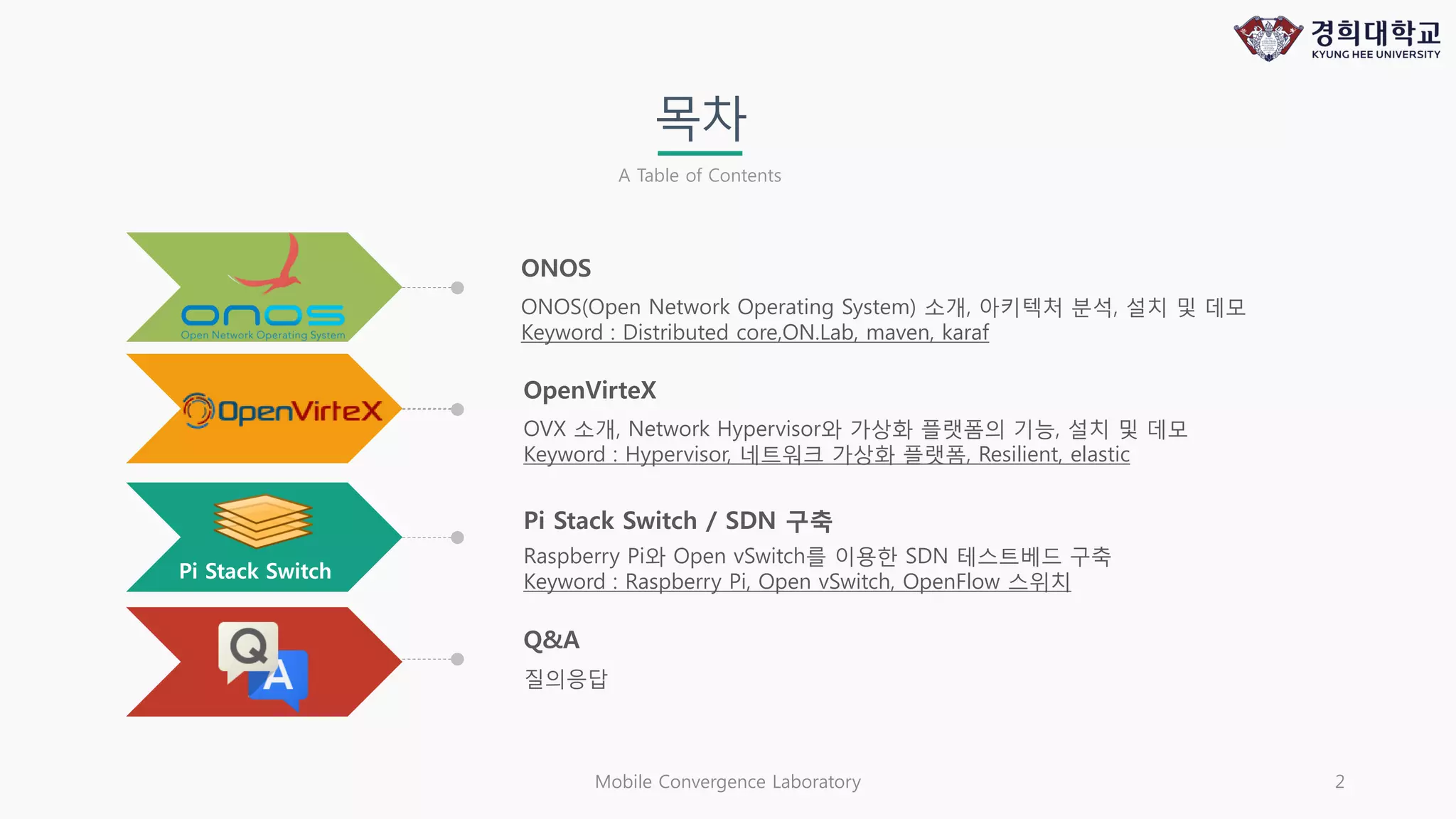

- 2. Mobile Convergence Laboratory2 목차 A Table of Contents ONOS ONOS(Open Network Operating System) 소개, 아키텍처 분석, 설치 및 데모 Keyword : Distributed core,ON.Lab, maven, karaf OpenVirteX OVX 소개, Network Hypervisor와 가상화 플랫폼의 기능, 설치 및 데모 Keyword : Hypervisor, 네트워크 가상화 플랫폼, Resilient, elastic Pi Stack Switch / SDN 구축 Raspberry Pi와 Open vSwitch를 이용한 SDN 테스트베드 구축 Keyword : Raspberry Pi, Open vSwitch, OpenFlow 스위치 Q&A 질의응답 Pi Stack Switch
- 3. SDN Network OperatingSystem & SDN Control Platform Mobile Convergence Laboratory 3
- 4. • Carrier gradeSDN OS for service providers • SDN OS with scalability, high availability, high performance and right abstractions • By Mobile Convergence Laboratory 4
- 5. Mobile Convergence Laboratory5 Non-profit Tools/Platforms for SDN community
- 6.
- 7.
- 8.
- 9. Mobile Convergence Laboratory9 Supporting members
- 10. Mobile Convergence Laboratory10 Projects
- 11.
- 12. 12Mobile Convergence Laboratory ONOS의목표는 뭘까? 기존의 수많은 SDN controller
- 13.
- 14. Mobile Convergence Laboratory14 commercial products
- 15. Mobile Convergence Laboratory15 commercial products
- 16. Mobile Convergence Laboratory16 High Availability • Multiple Instance Clustering • Fault tolerance using Distributed Core • Five Nines availability
- 17. Mobile Convergence Laboratory17 High Availability High Performance • High Throughput • ~500K-1M path setups/second • High Volume • ~500GB-1TB state data • Low Latency • 10~100ms
- 18. Mobile Convergence Laboratory18 High Availability High Performance Scalability • OSGi based OSS Karaf Deploy, Config • Distributed Clustering Sync, Share • Dynamic Clustering
- 19. Mobile Convergence Laboratory19 High Availability High Performance Scalability White Box (Open) Reference : ONOS wiki
- 20. Mobile Convergence Laboratory20 High Availability High Performance Scalability White Box (Open)
- 21. Mobile Convergence Laboratory21 The center of SDN/NFV
- 22. Mobile Convergence Laboratory22 ONOS Framework(ONOSFW)

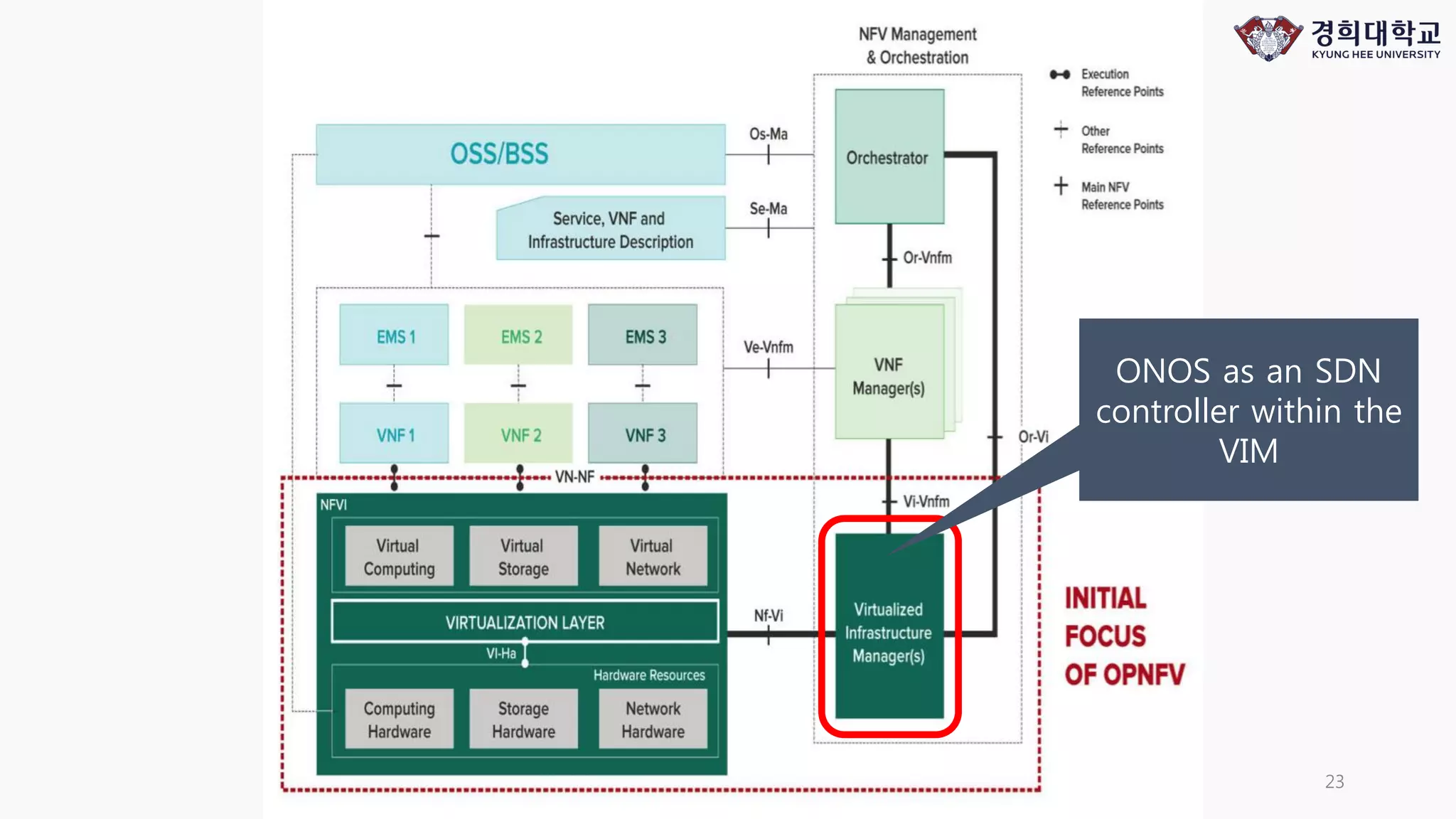

- 23. Mobile Convergence Laboratory23 ONOS as an SDN controller within the VIM
- 24. Mobile Convergence Laboratory24 ONOS with Linux Foundation
- 25. ONOS Architecture The changinghistory of architecture Overall architecture Subsystem Structure Mobile Convergence Laboratory 25

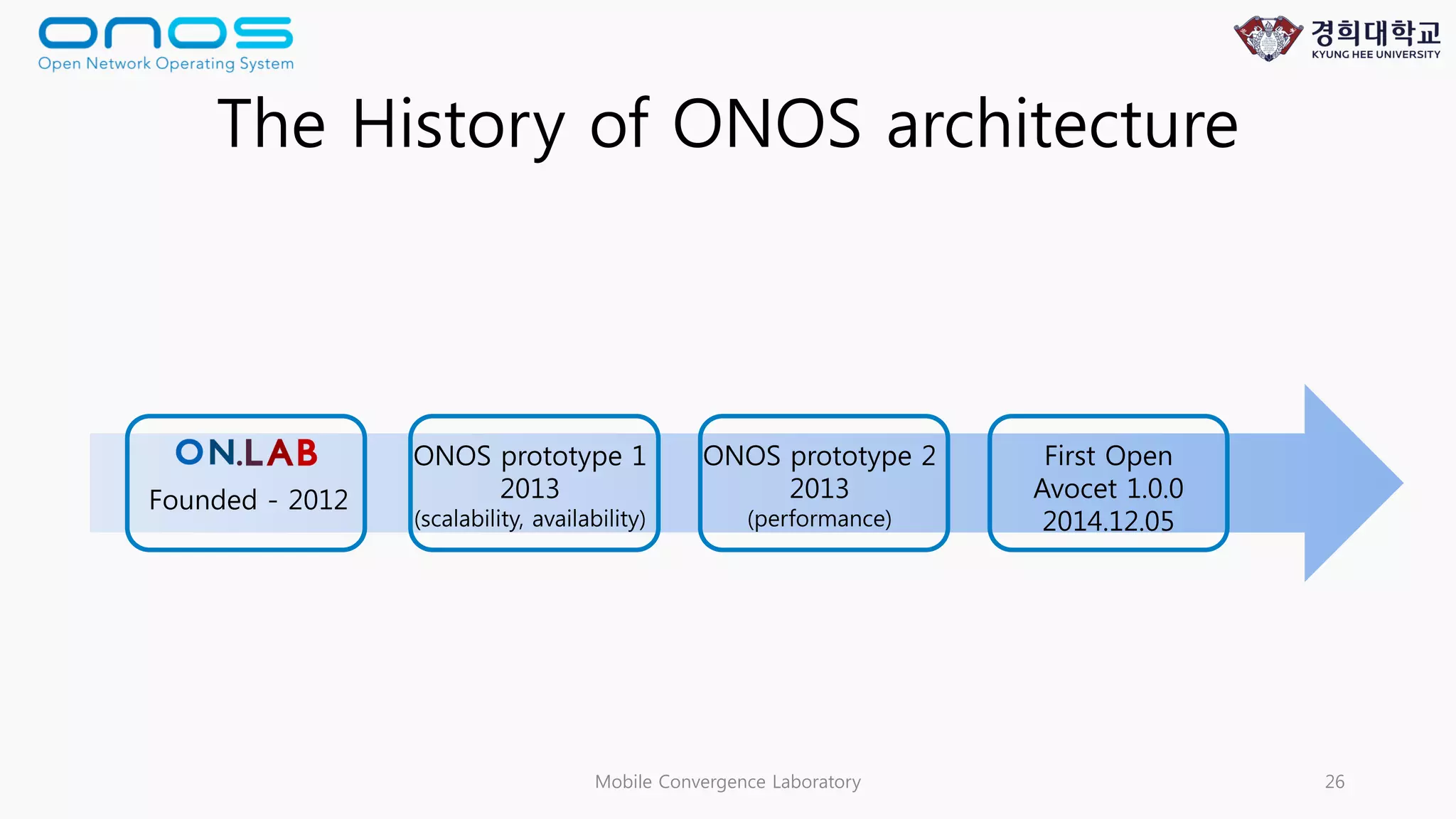

- 26. Mobile Convergence Laboratory26 The History of ONOS architecture Founded - 2012 ONOS prototype 1 2013 (scalability, availability) ONOS prototype 2 2013 (performance) First Open Avocet 1.0.0 2014.12.05
- 27. Mobile Convergence Laboratory27 Prototype-1 (1G core)

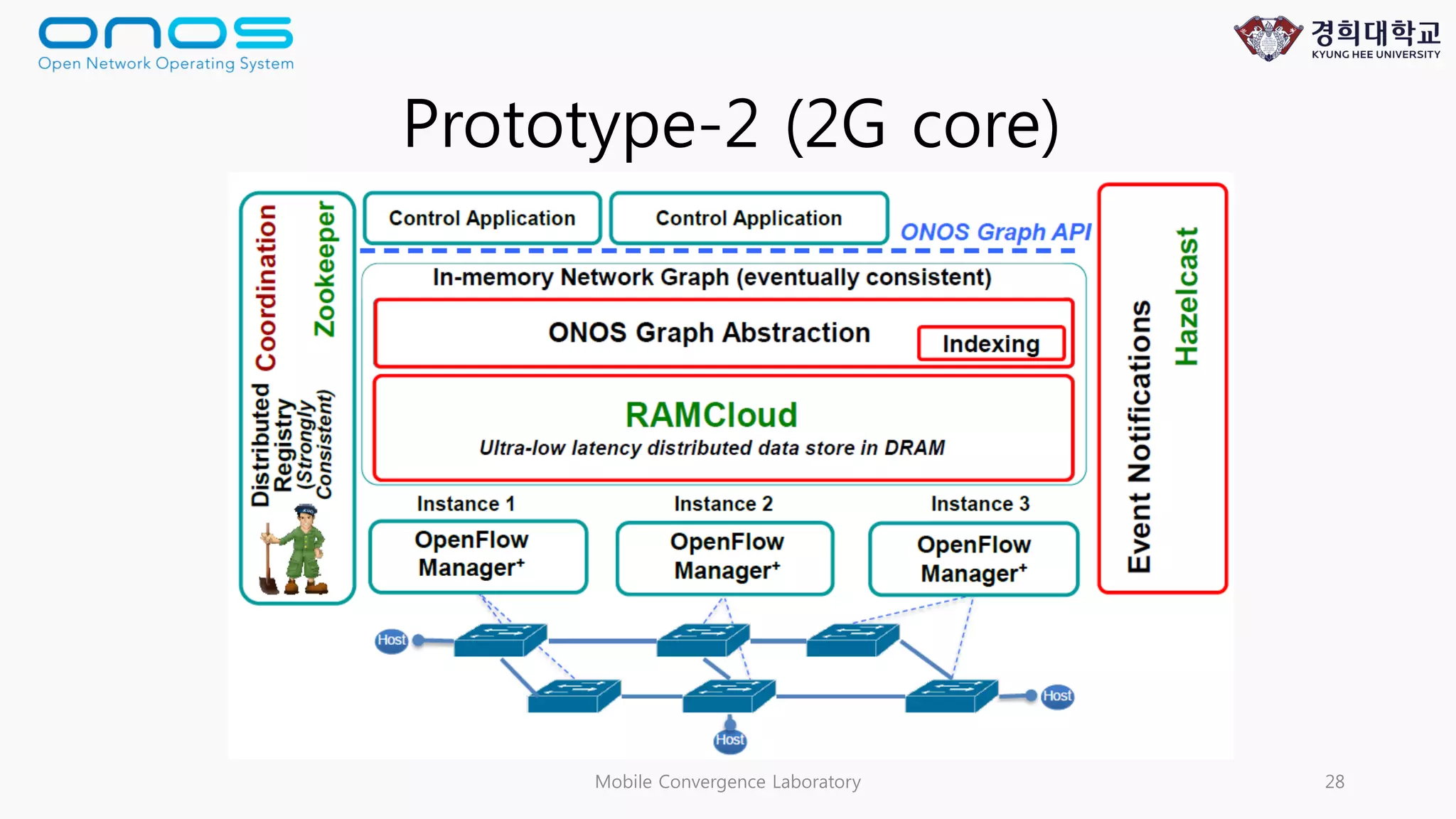

- 28. Mobile Convergence Laboratory28 Prototype-2 (2G core)

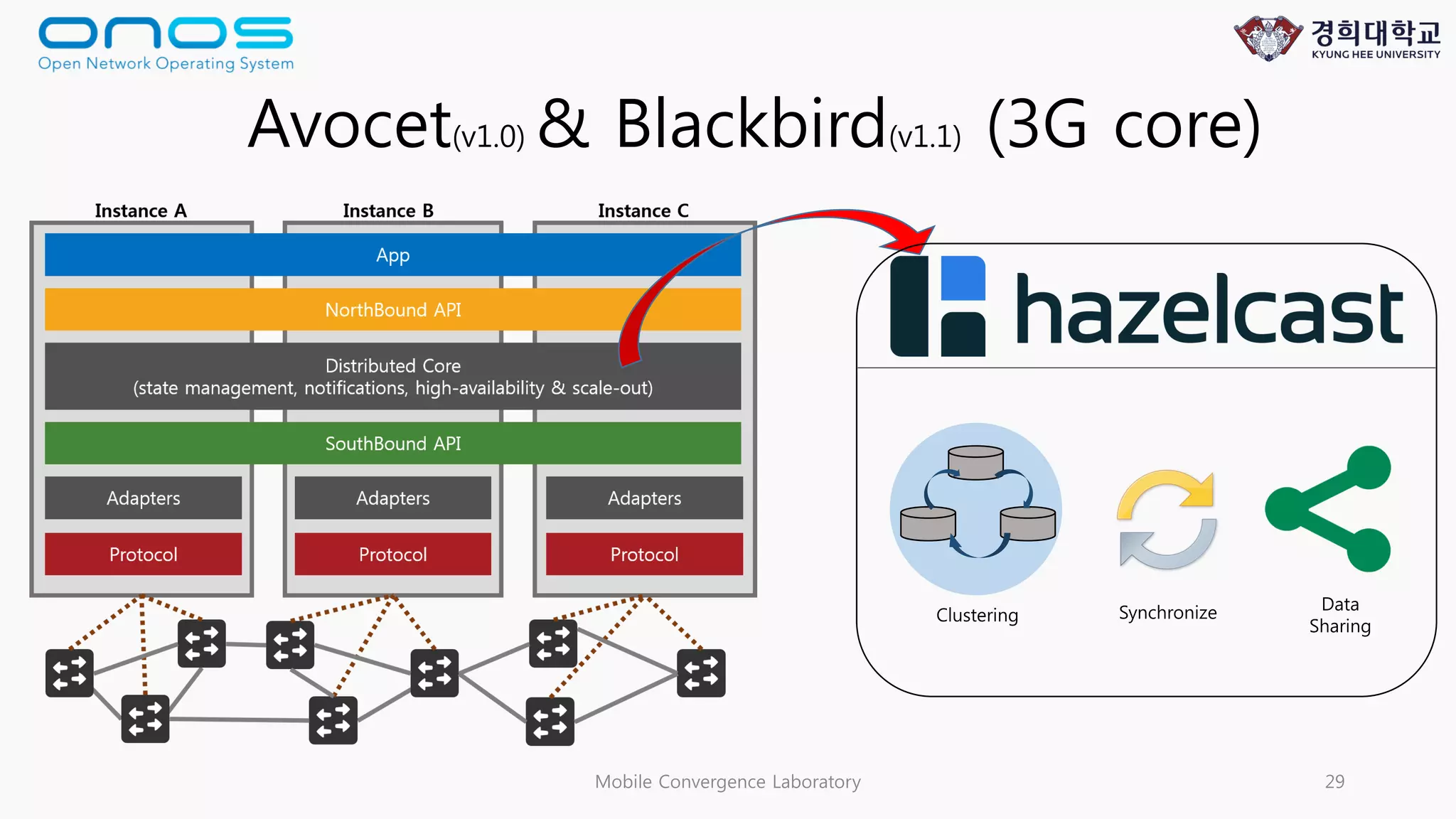

- 29. Mobile Convergence Laboratory29 Clustering Synchronize Data Sharing Avocet(v1.0) & Blackbird(v1.1) (3G core)

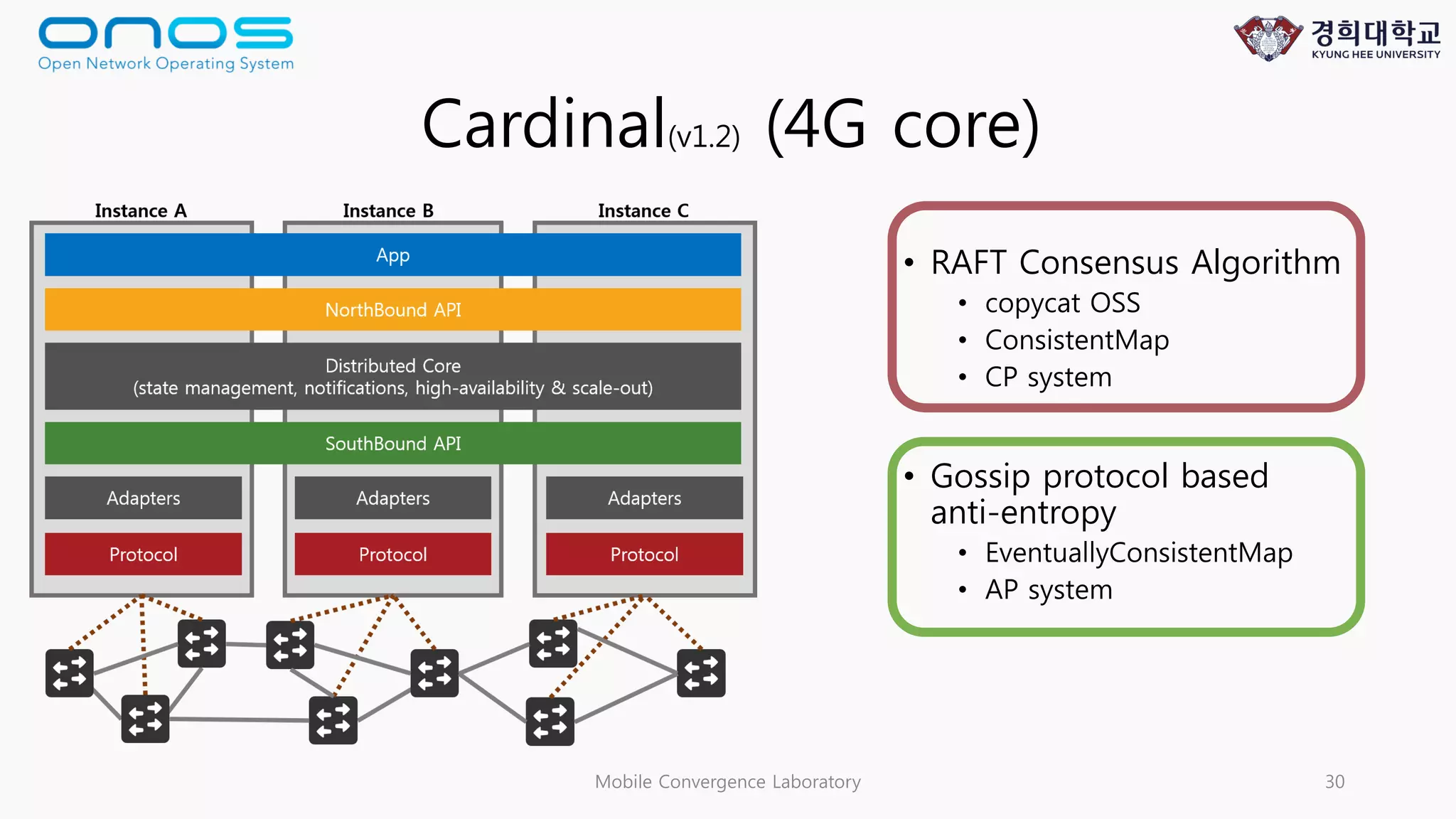

- 30. Mobile Convergence Laboratory30 Cardinal(v1.2) (4G core) • RAFT Consensus Algorithm • copycat OSS • ConsistentMap • CP system • Gossip protocol based anti-entropy • EventuallyConsistentMap • AP system

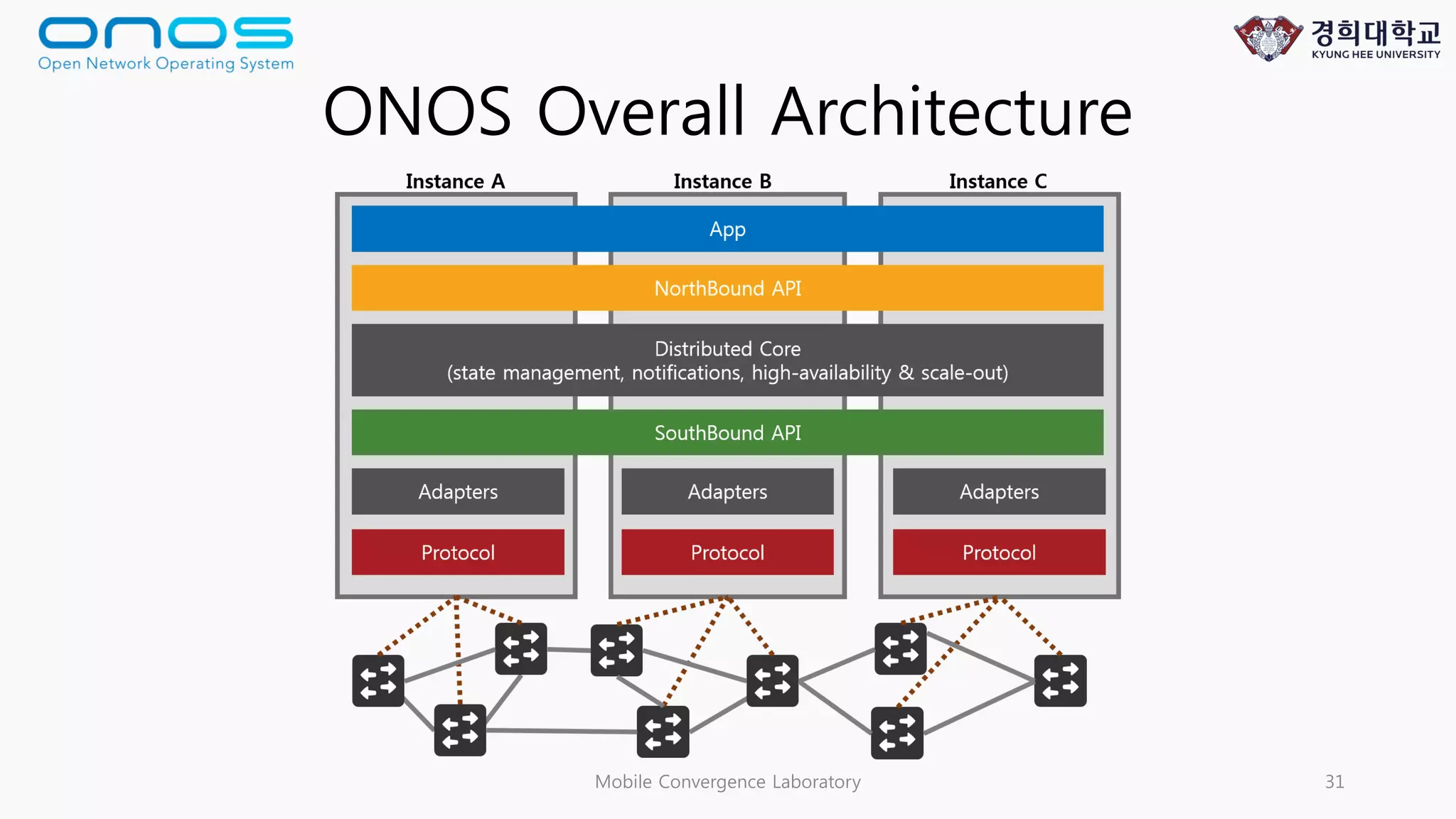

- 31. ONOS Overall Architecture MobileConvergence Laboratory 31
- 32. Architectural Tenets Mobile ConvergenceLaboratory 32 • High availability, scalability and performance • Strong abstractions and simplicity • Protocol and device behavior independence • Separation of concerns and modularity

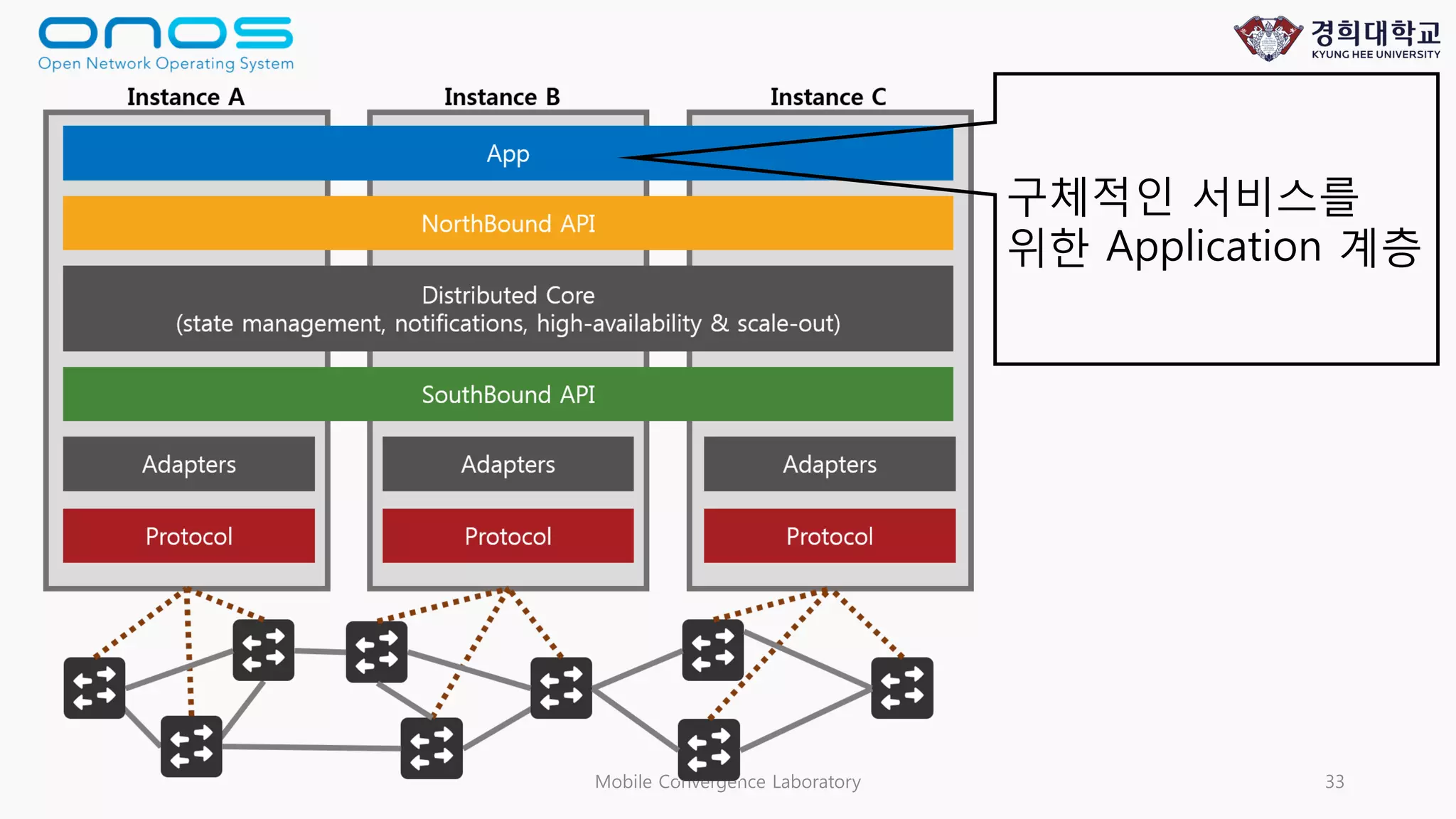

- 33. Mobile Convergence Laboratory33 구체적인 서비스를 위한 Application 계층

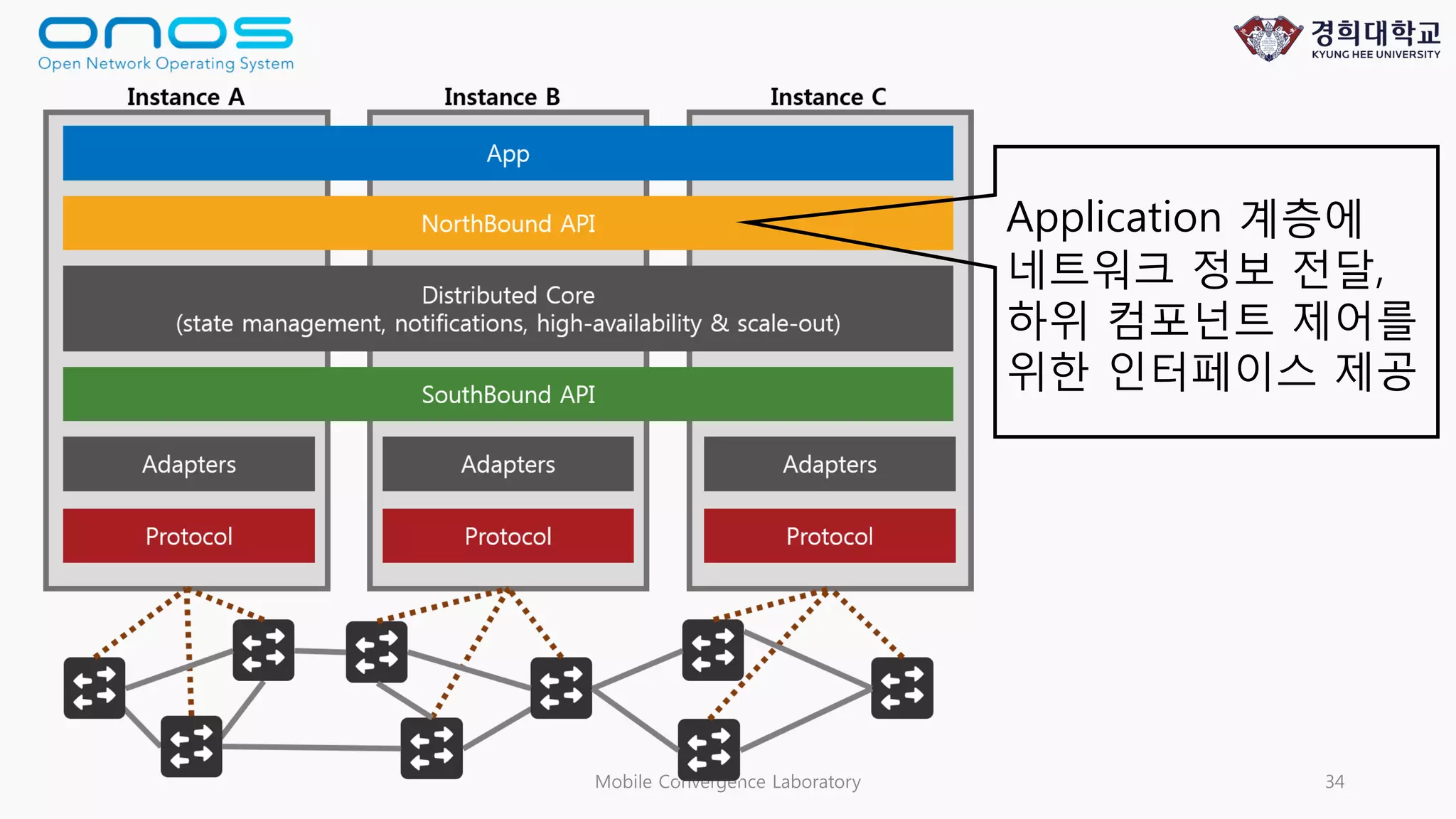

- 34. Mobile Convergence Laboratory34 Application 계층에 네트워크 정보 전달, 하위 컴포넌트 제어를 위한 인터페이스 제공

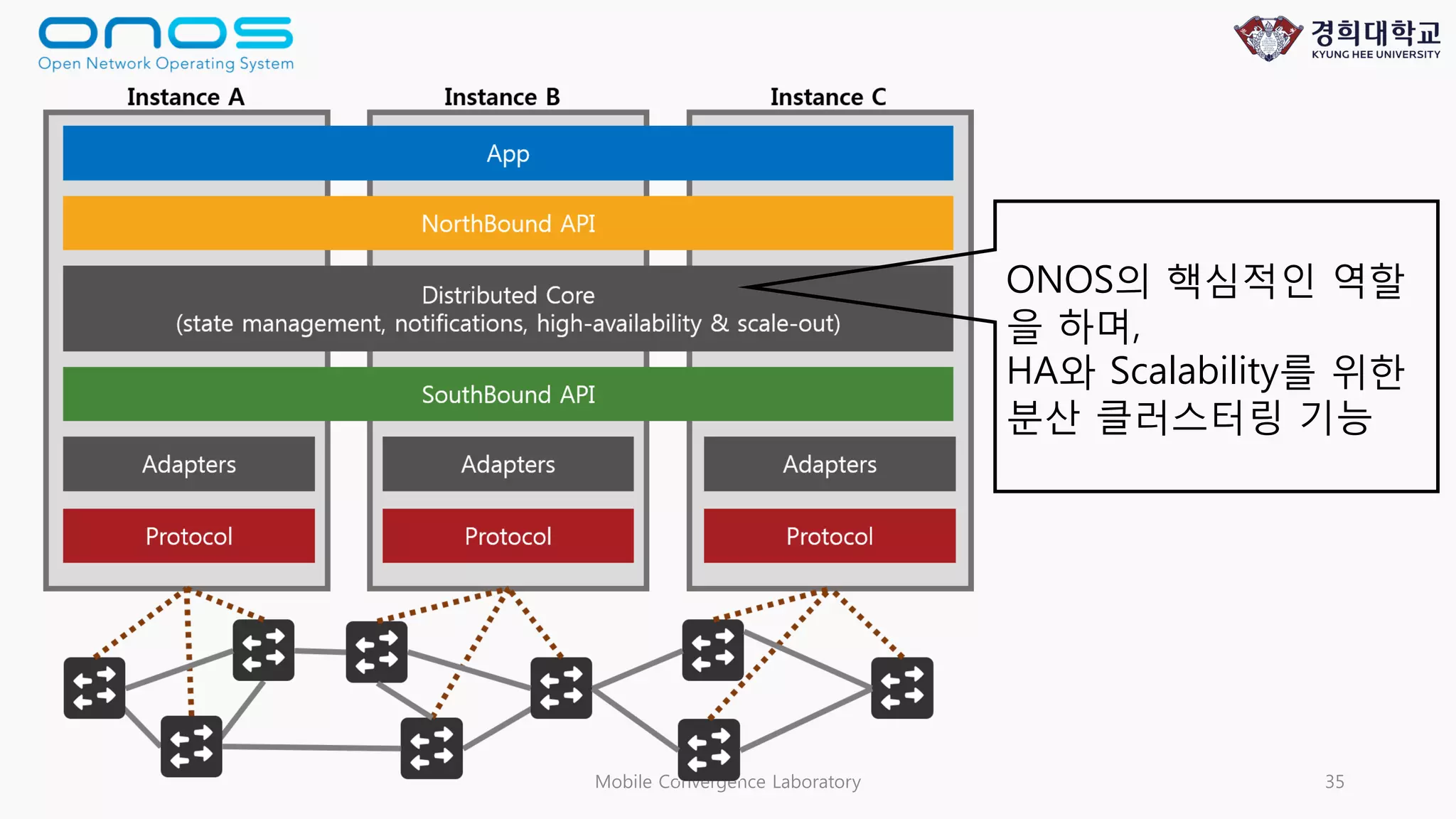

- 35. Mobile Convergence Laboratory35 ONOS의 핵심적인 역할 을 하며, HA와 Scalability를 위한 분산 클러스터링 기능

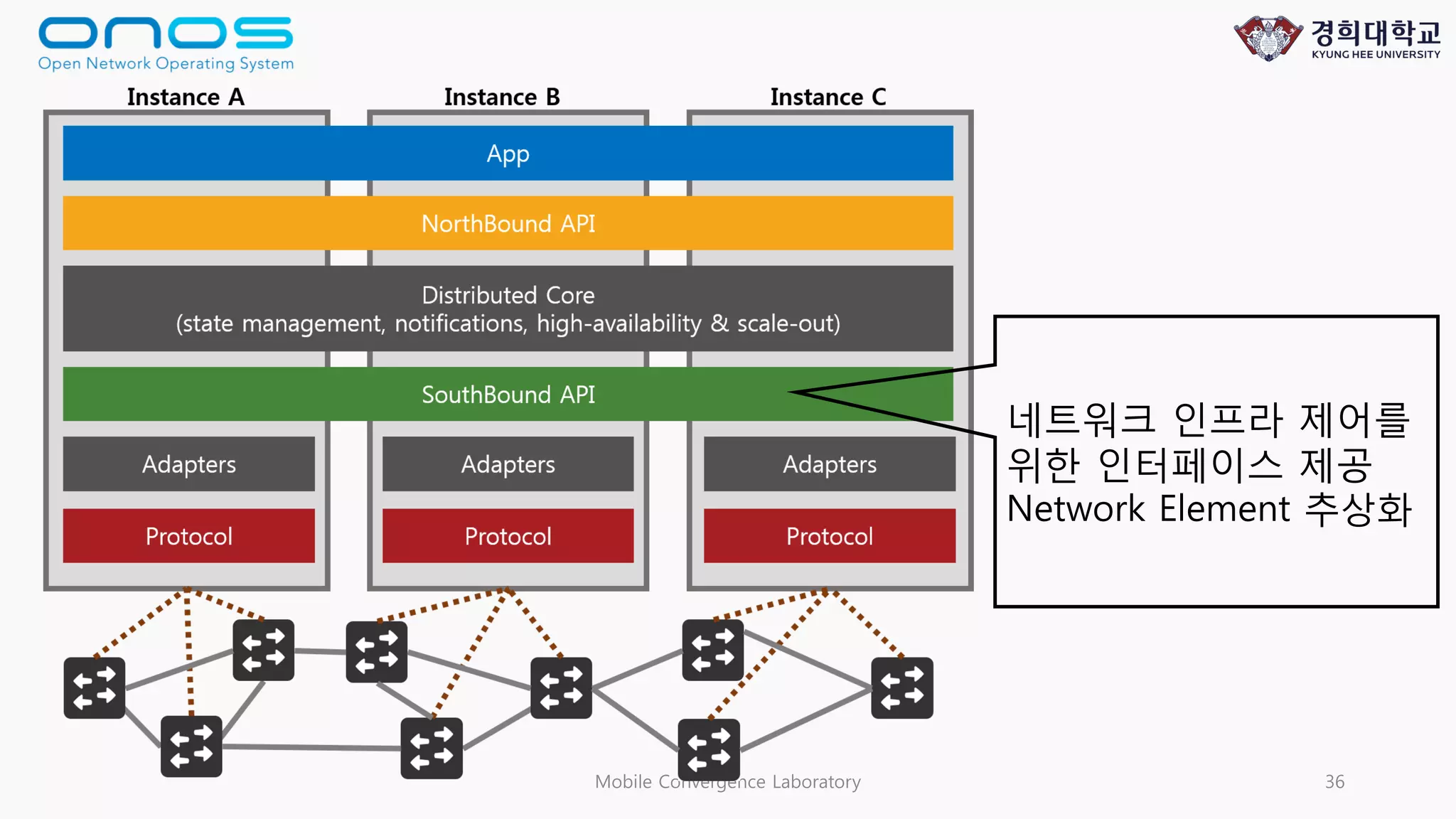

- 36. Mobile Convergence Laboratory36 네트워크 인프라 제어를 위한 인터페이스 제공 Network Element 추상화

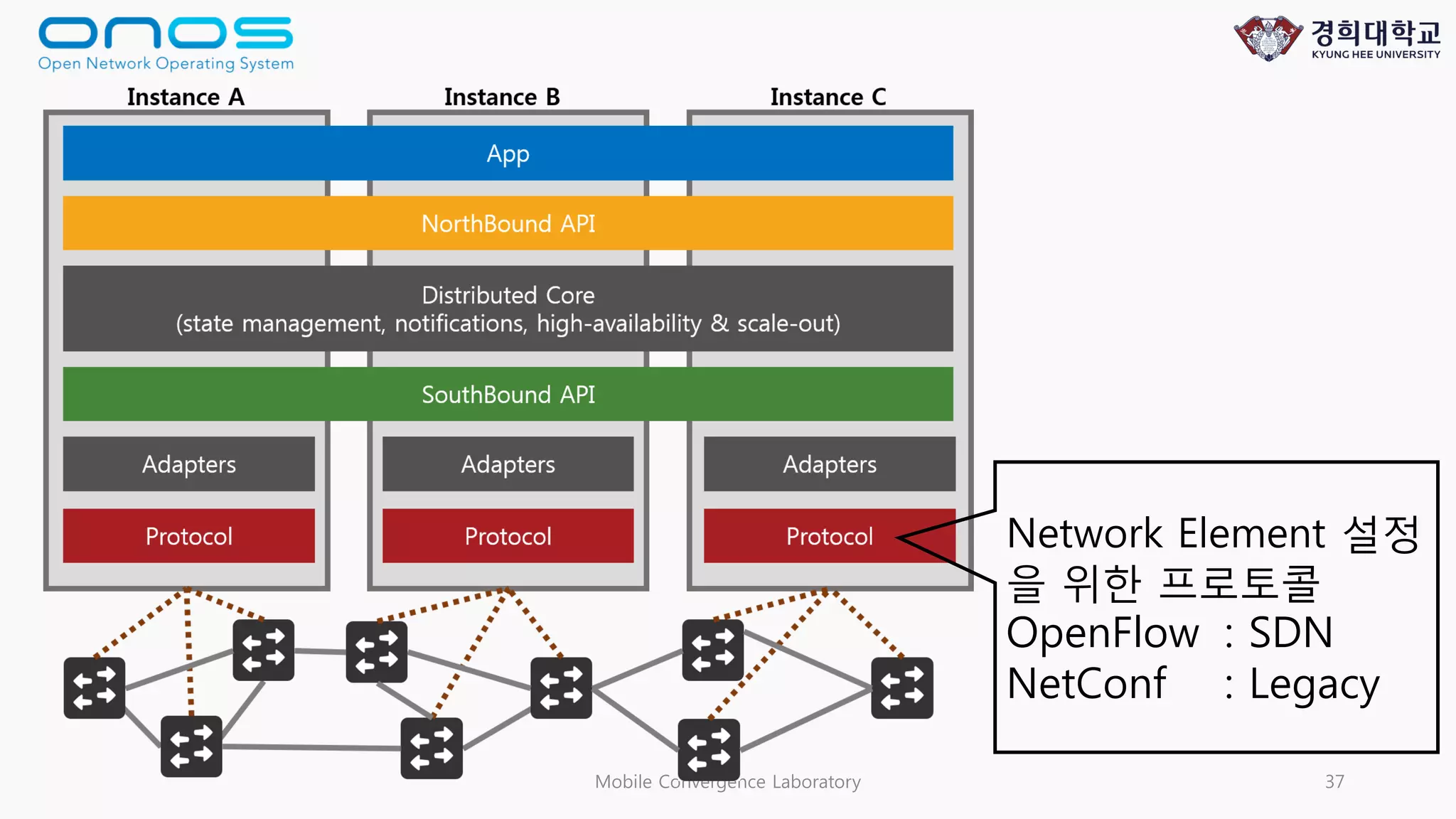

- 37. Mobile Convergence Laboratory37 Network Element 설정 을 위한 프로토콜 OpenFlow : SDN NetConf : Legacy

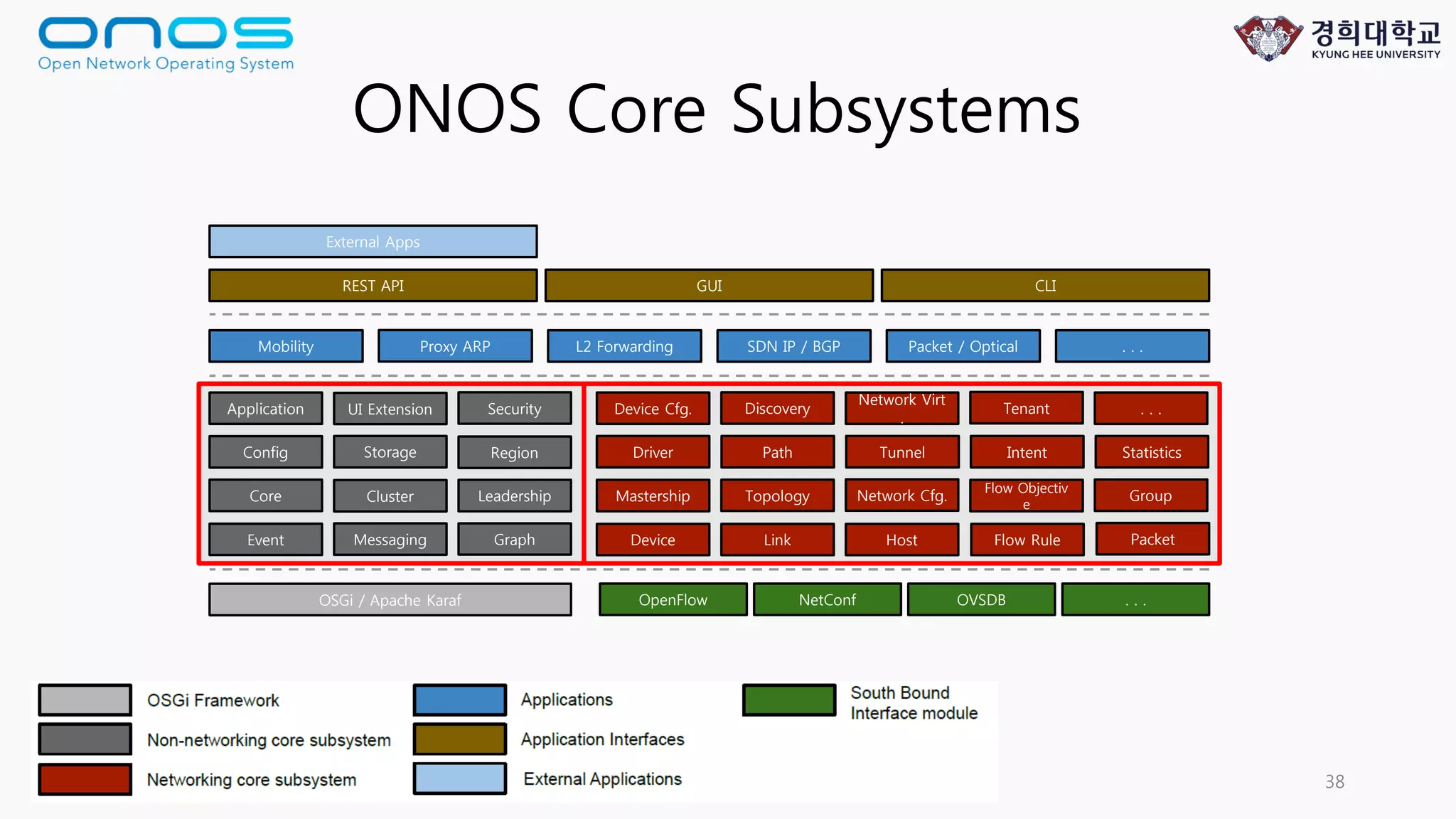

- 38. Mobile Convergence Laboratory38 ONOS Core Subsystems Device Link Host Topology Flow Rule Path Packet StatisticsIntent Application Leadership Messaging Storage Region Mastership Driver Group Security Flow Objectiv e Event OpenFlow NetConf OVSDB Core Cluster . . . Proxy ARPMobility L2 Forwarding REST API GUI CLI Network Cfg. SDN IP / BGP Packet / Optical Tunnel . . . OSGi / Apache Karaf Network Virt . Device Cfg. Config UI Extension External Apps Graph Discovery Tenant . . .
- 39. Mobile Convergence Laboratory39 ONOS Subsystems Structure Northbound Core Southbound

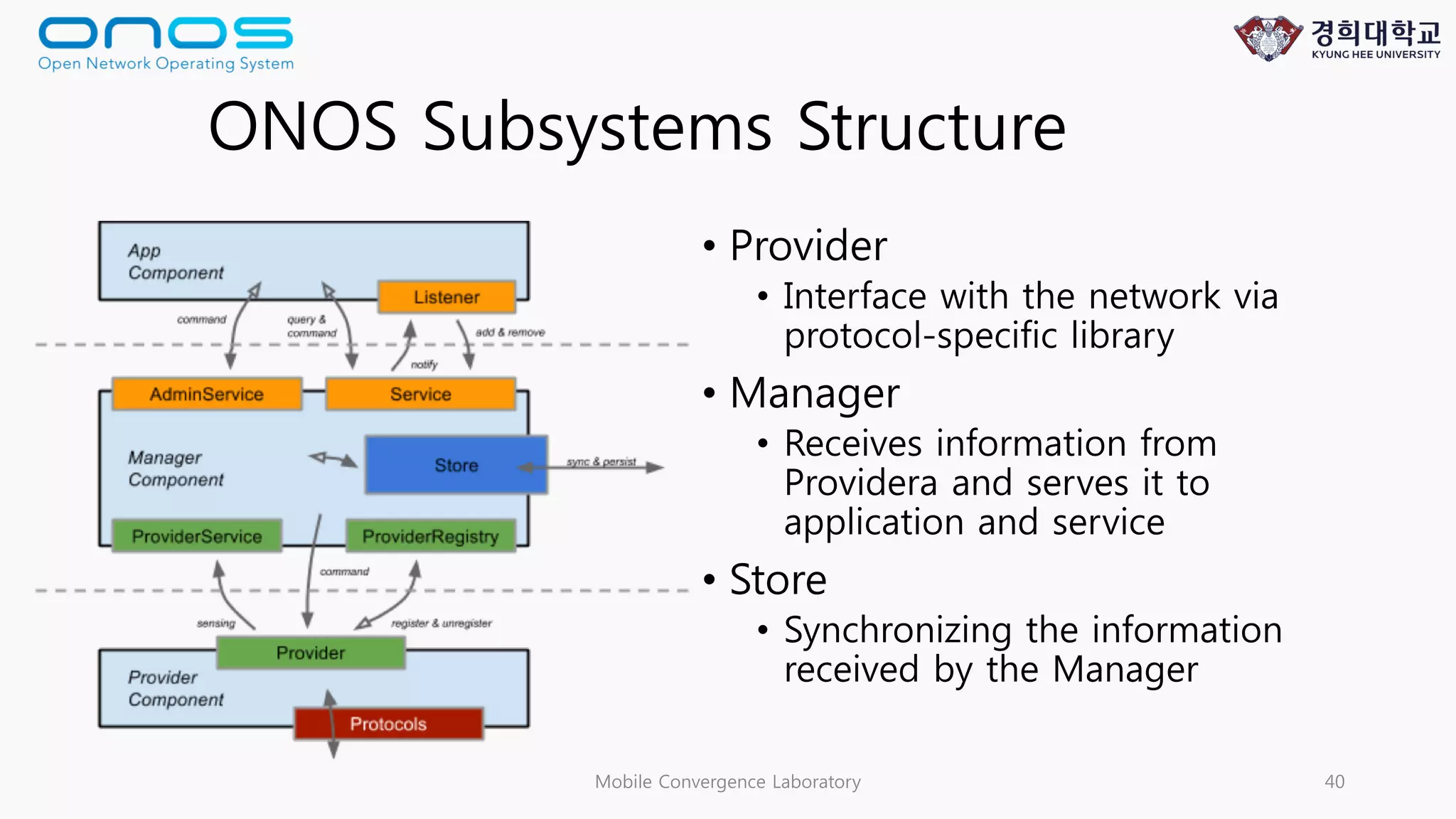

- 40. Mobile Convergence Laboratory40 ONOS Subsystems Structure • Provider • Interface with the network via protocol-specific library • Manager • Receives information from Providera and serves it to application and service • Store • Synchronizing the information received by the Manager
- 41. Scale-out / HAscenarios Mobile Convergence Laboratory 41
- 42. Mobile Convergence Laboratory42 Distributed Core Instance 1 Scale-out by Distributed Core (1) Network Graph Global network view

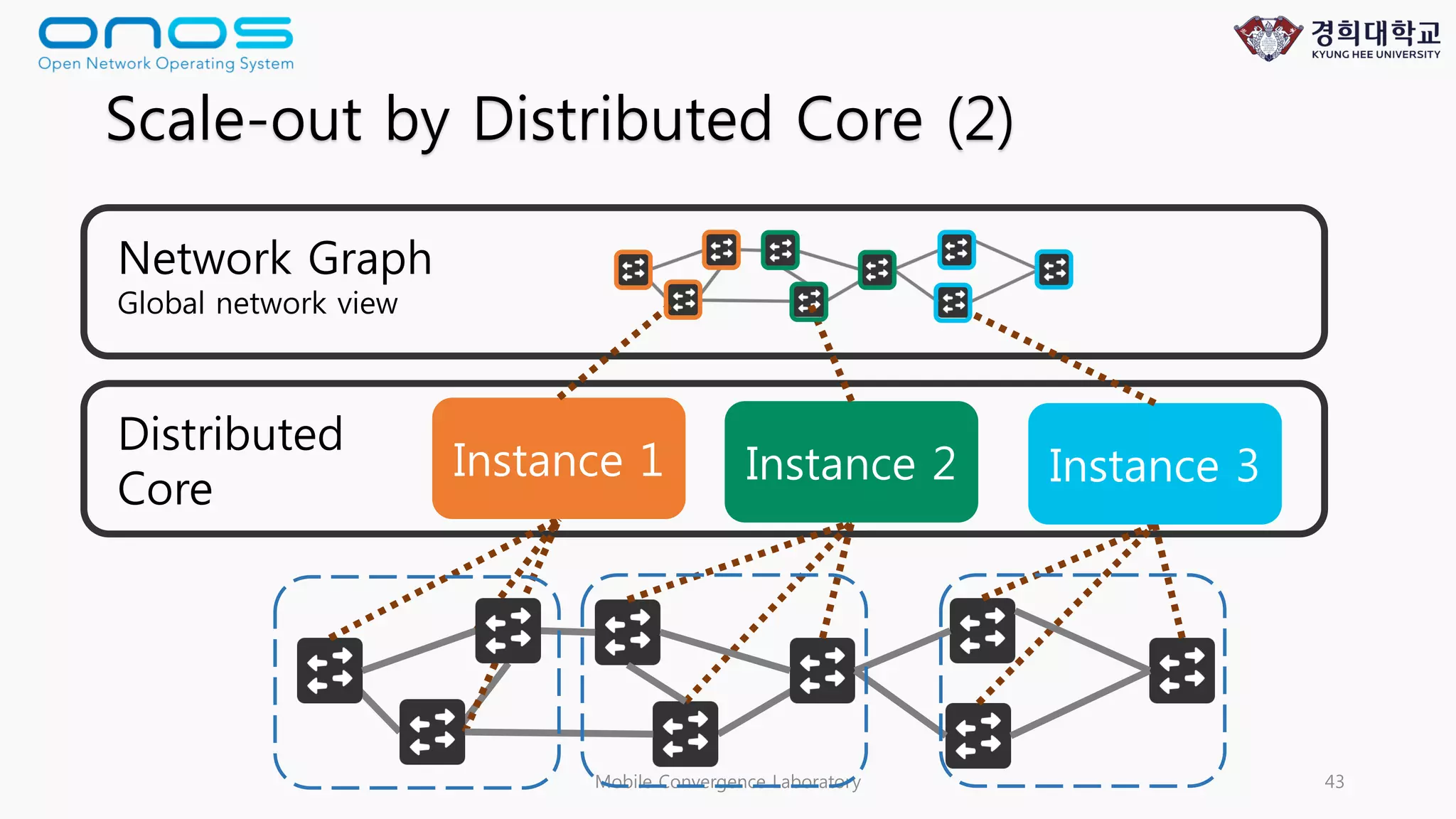

- 43. Mobile Convergence Laboratory43 Distributed Core Instance 1 Instance 2 Instance 3 Scale-out by Distributed Core (2) Network Graph Global network view

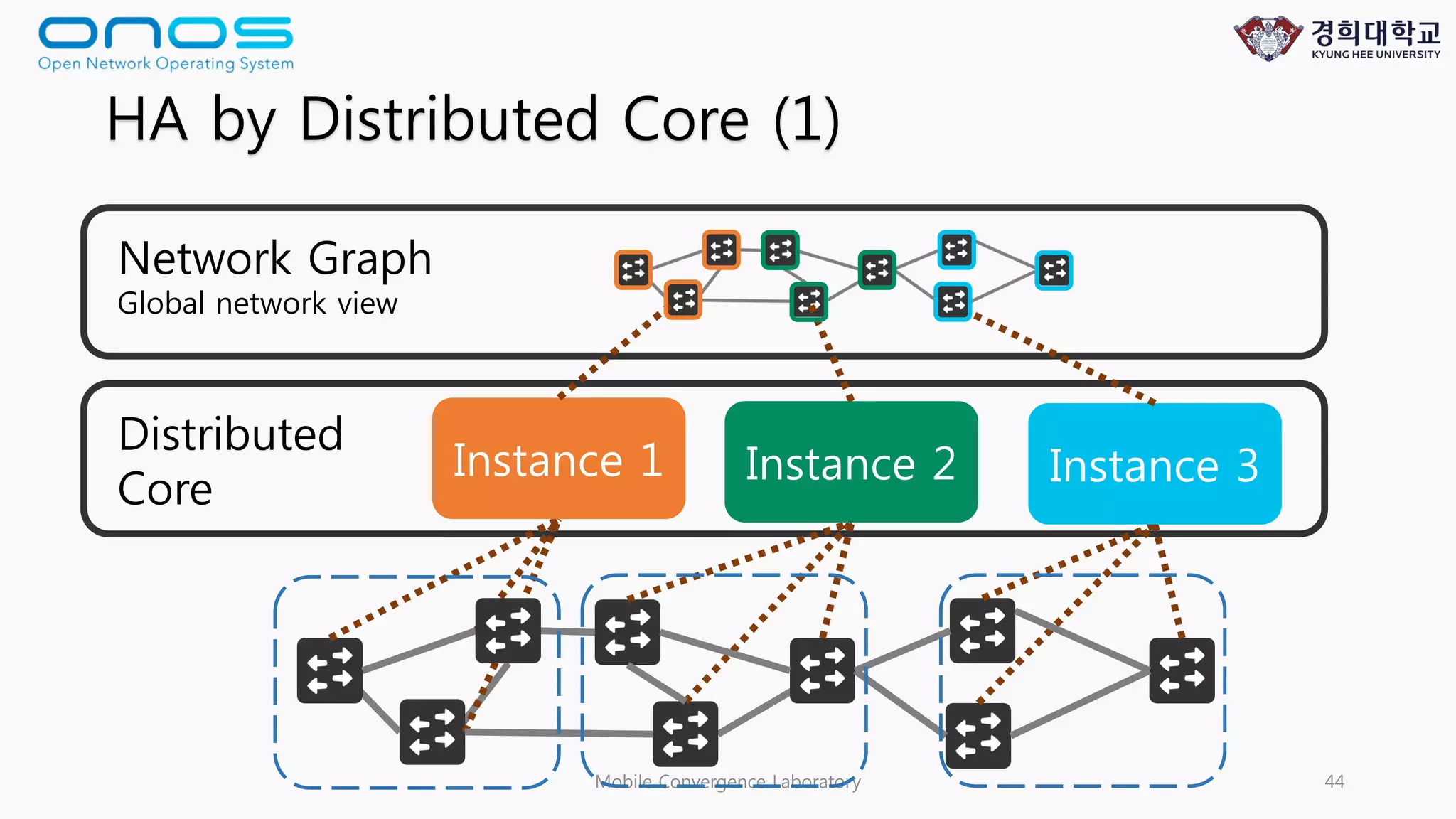

- 44. Mobile Convergence Laboratory44 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (1) Network Graph Global network view
- 45. Mobile Convergence Laboratory45 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (2) Network Graph Global network view

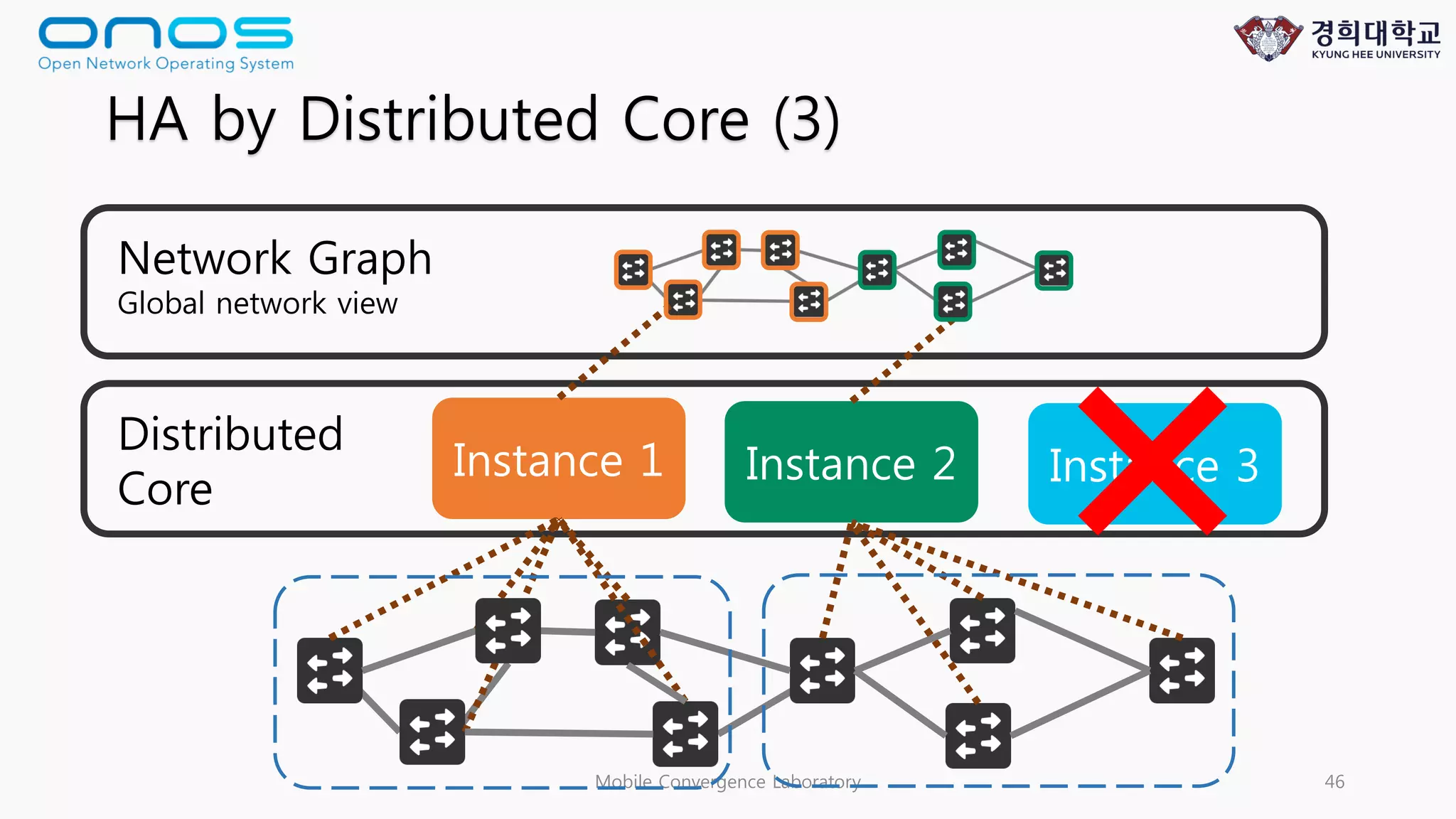

- 46. Mobile Convergence Laboratory46 Distributed Core Instance 1 Instance 2 Instance 3 HA by Distributed Core (3) Network Graph Global network view
- 47.

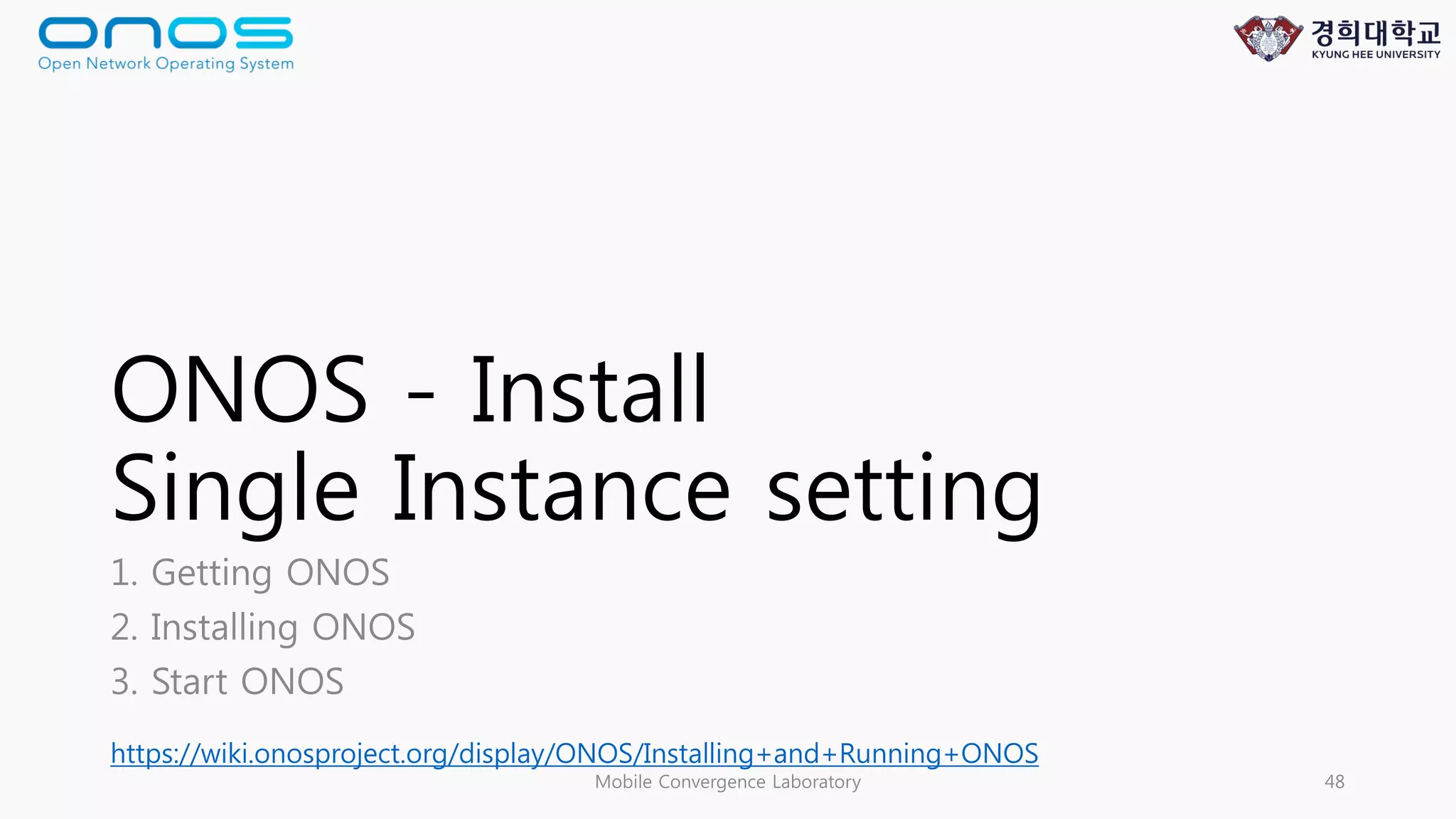

- 48. ONOS - Install SingleInstance setting 1. Getting ONOS 2. Installing ONOS 3. Start ONOS Mobile Convergence Laboratory 48 https://wiki.onosproject.org/display/ONOS/Installing+and+Running+ONOS

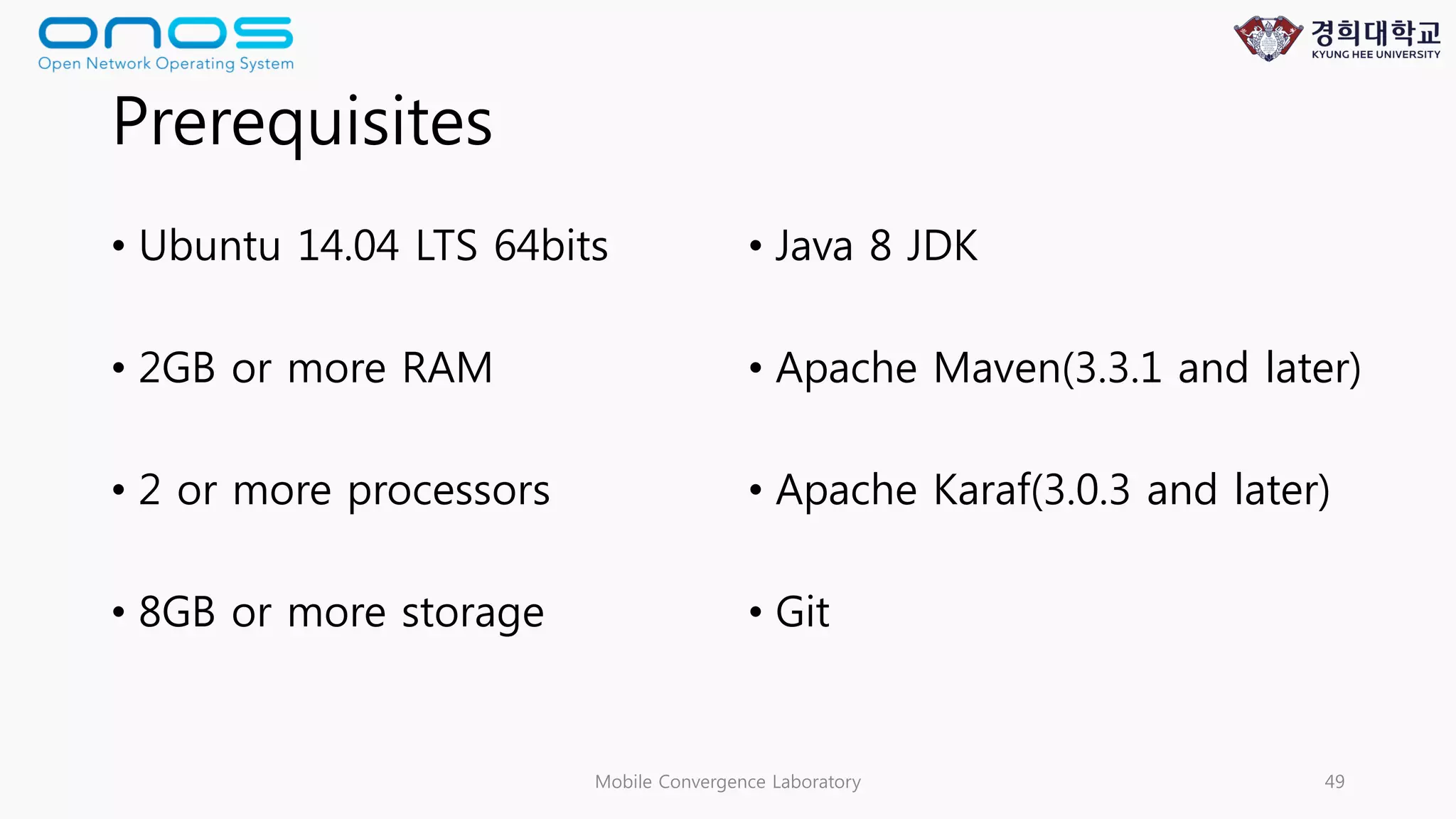

- 49. Prerequisites • Ubuntu 14.04LTS 64bits • 2GB or more RAM • 2 or more processors • 8GB or more storage • Java 8 JDK • Apache Maven(3.3.1 and later) • Apache Karaf(3.0.3 and later) • Git Mobile Convergence Laboratory 49

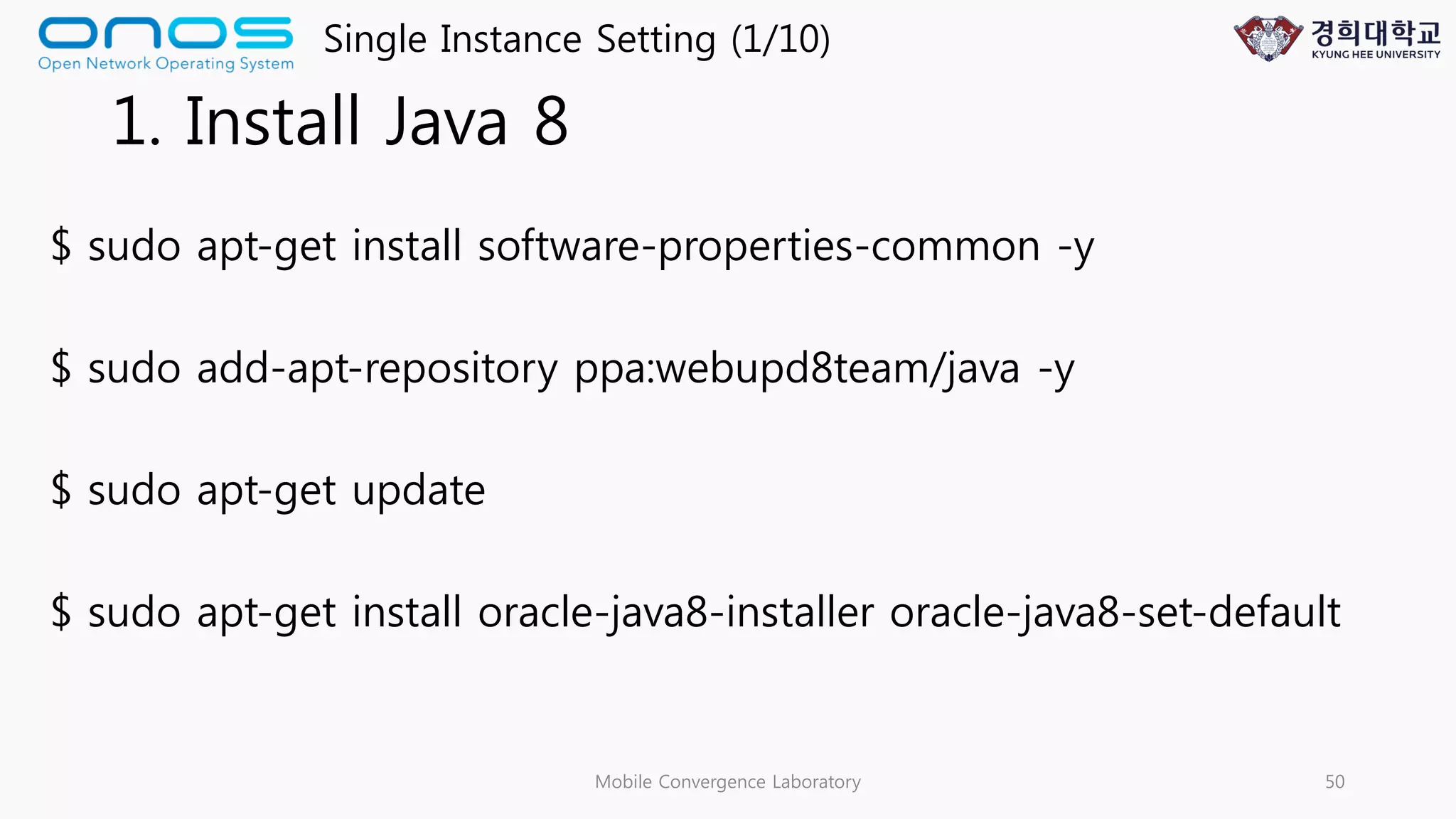

- 50. 1. Install Java8 $ sudo apt-get install software-properties-common -y $ sudo add-apt-repository ppa:webupd8team/java -y $ sudo apt-get update $ sudo apt-get install oracle-java8-installer oracle-java8-set-default Mobile Convergence Laboratory 50 Single Instance Setting (1/10)

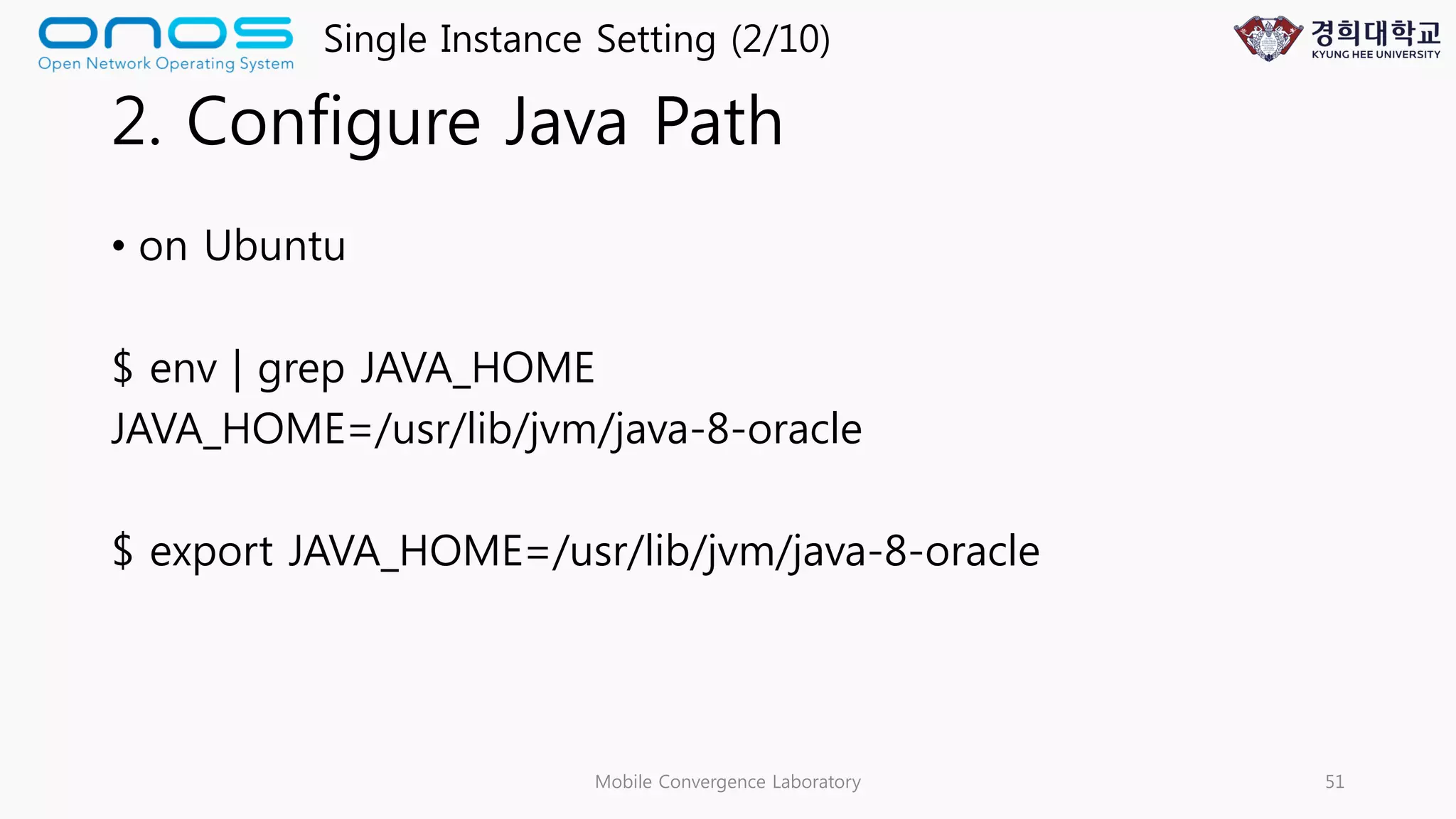

- 51. 2. Configure JavaPath • on Ubuntu $ env | grep JAVA_HOME JAVA_HOME=/usr/lib/jvm/java-8-oracle $ export JAVA_HOME=/usr/lib/jvm/java-8-oracle Mobile Convergence Laboratory 51 Single Instance Setting (2/10)
- 52. 3. Install Git $sudo apt-get install git-core $ git --version Mobile Convergence Laboratory 52 Single Instance Setting (3/10)

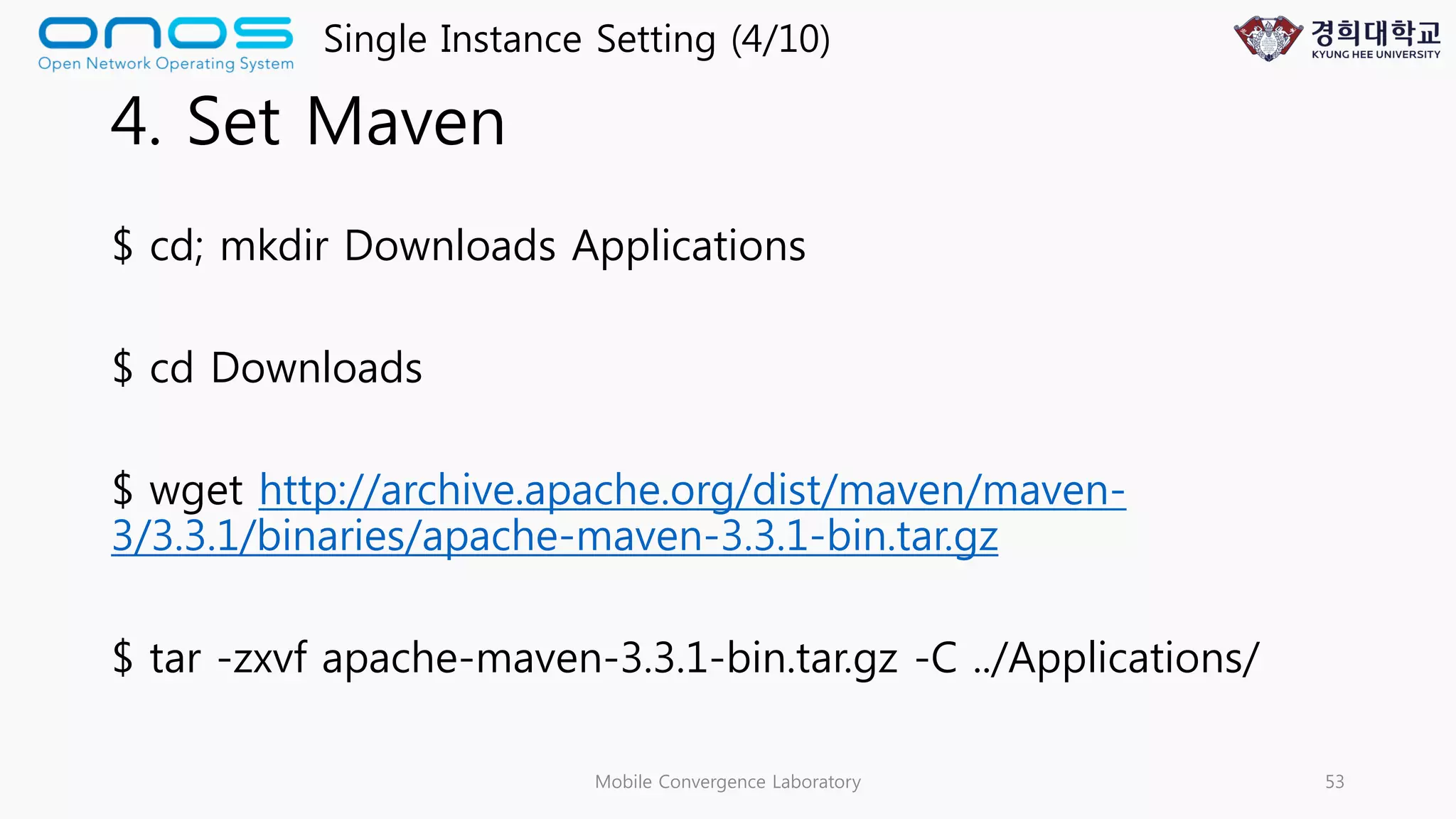

- 53. 4. Set Maven $cd; mkdir Downloads Applications $ cd Downloads $ wget http://archive.apache.org/dist/maven/maven- 3/3.3.1/binaries/apache-maven-3.3.1-bin.tar.gz $ tar -zxvf apache-maven-3.3.1-bin.tar.gz -C ../Applications/ Mobile Convergence Laboratory 53 Single Instance Setting (4/10)

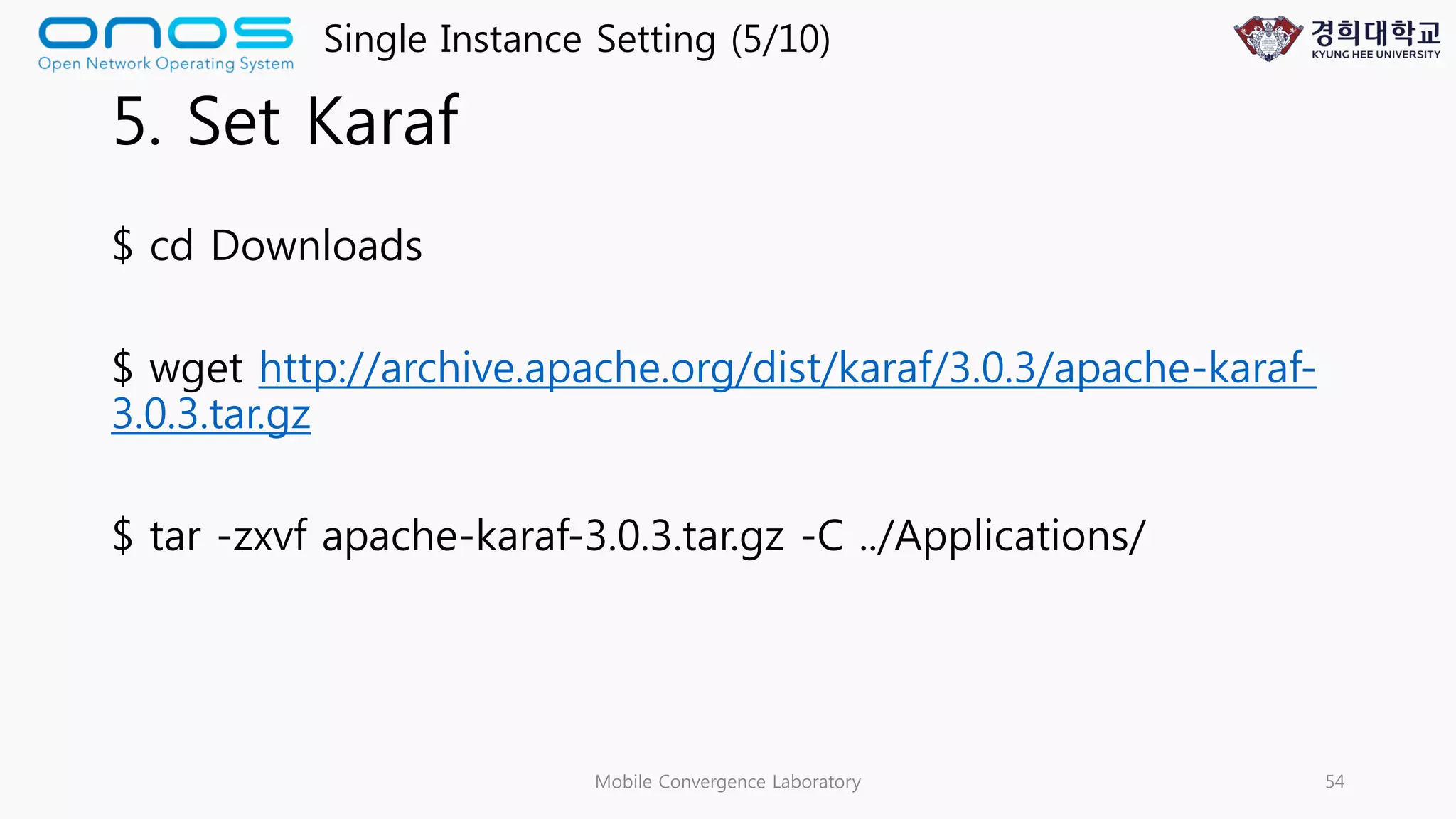

- 54. 5. Set Karaf $cd Downloads $ wget http://archive.apache.org/dist/karaf/3.0.3/apache-karaf- 3.0.3.tar.gz $ tar -zxvf apache-karaf-3.0.3.tar.gz -C ../Applications/ Mobile Convergence Laboratory 54 Single Instance Setting (5/10)

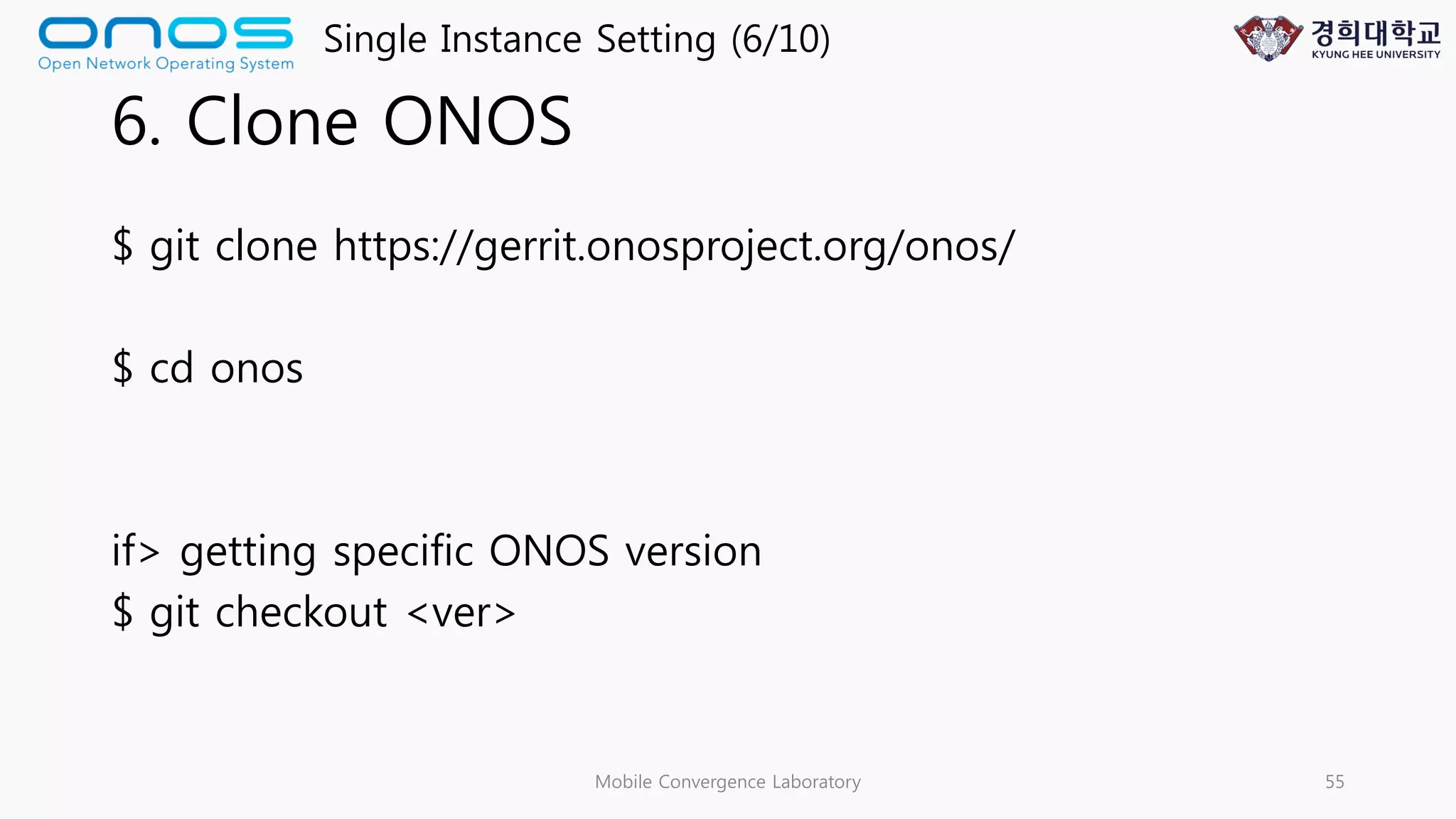

- 55. 6. Clone ONOS $git clone https://gerrit.onosproject.org/onos/ $ cd onos if> getting specific ONOS version $ git checkout <ver> Mobile Convergence Laboratory 55 Single Instance Setting (6/10)

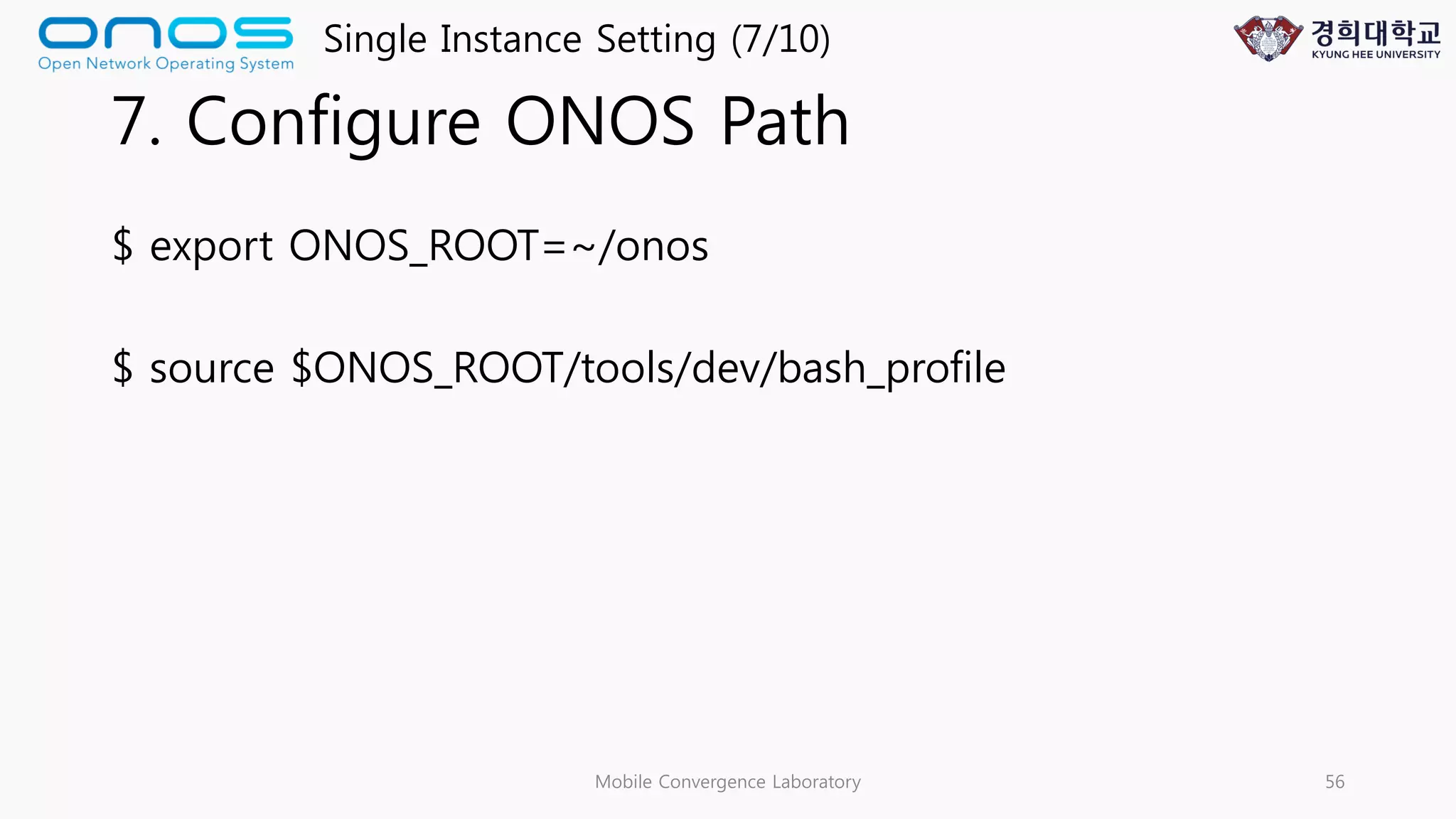

- 56. 7. Configure ONOSPath $ export ONOS_ROOT=~/onos $ source $ONOS_ROOT/tools/dev/bash_profile Mobile Convergence Laboratory 56 Single Instance Setting (7/10)

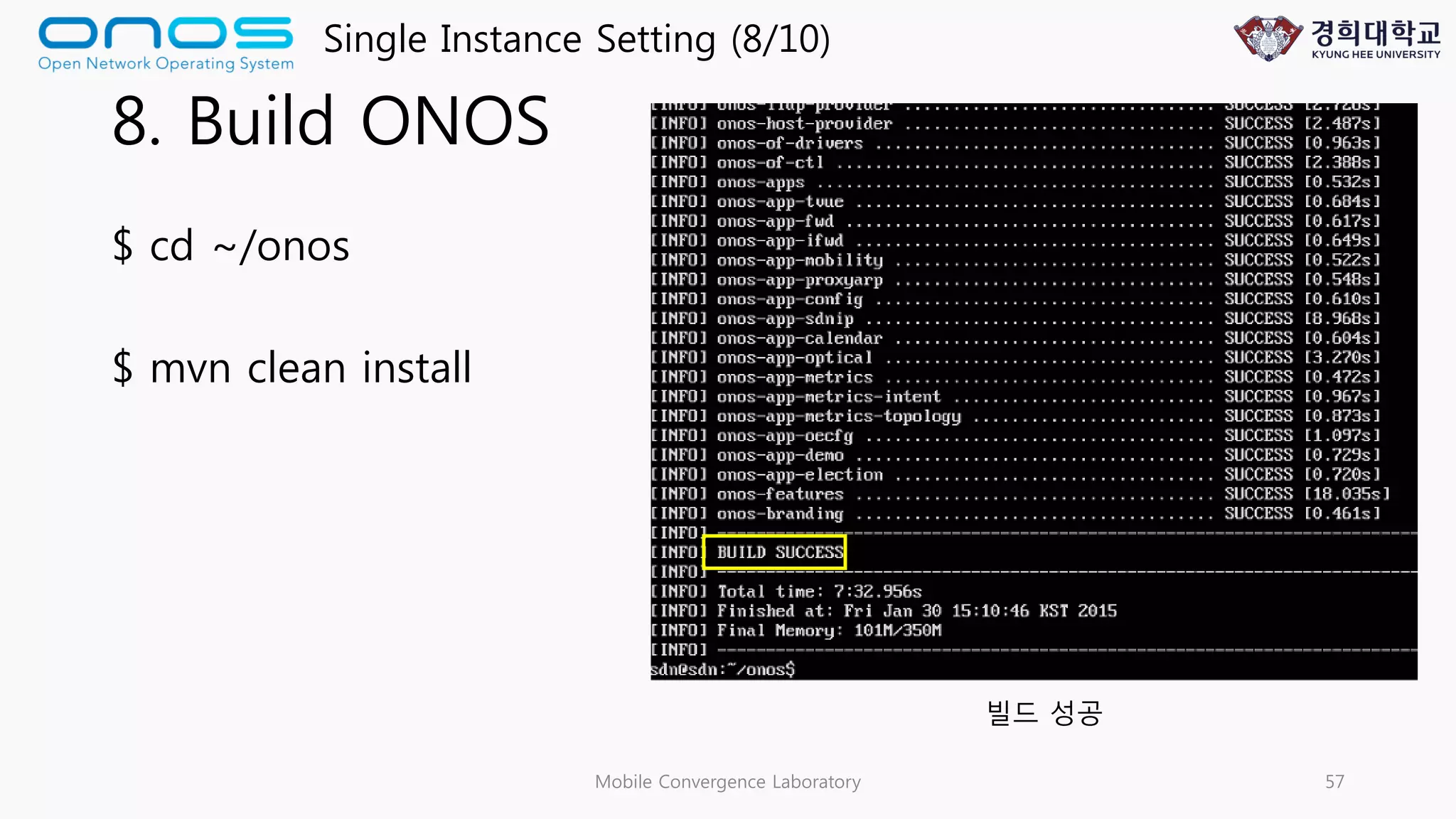

- 57. 8. Build ONOS $cd ~/onos $ mvn clean install Mobile Convergence Laboratory 57 빌드 성공 Single Instance Setting (8/10)

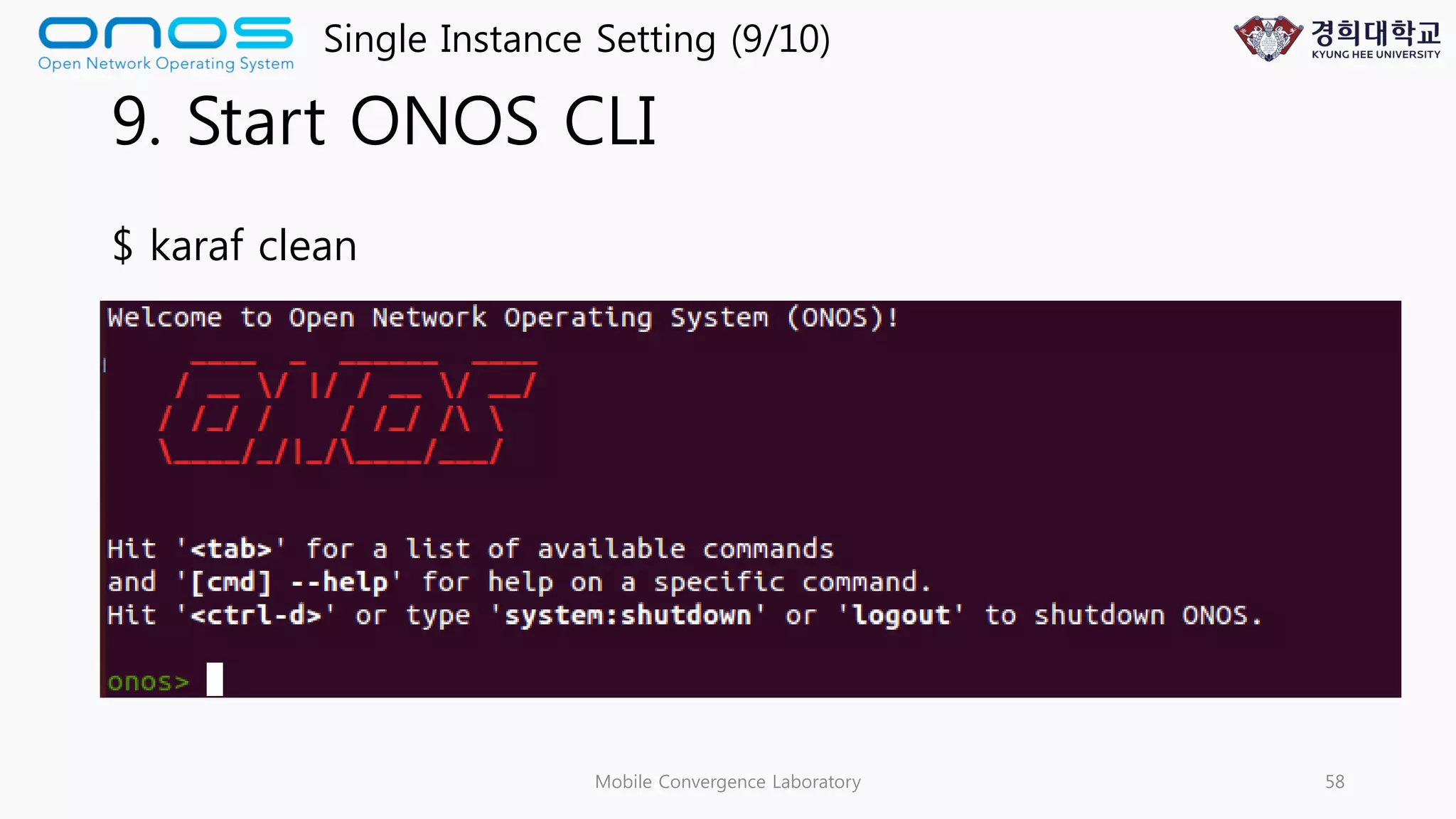

- 58. 9. Start ONOSCLI $ karaf clean Mobile Convergence Laboratory 58 Single Instance Setting (9/10)

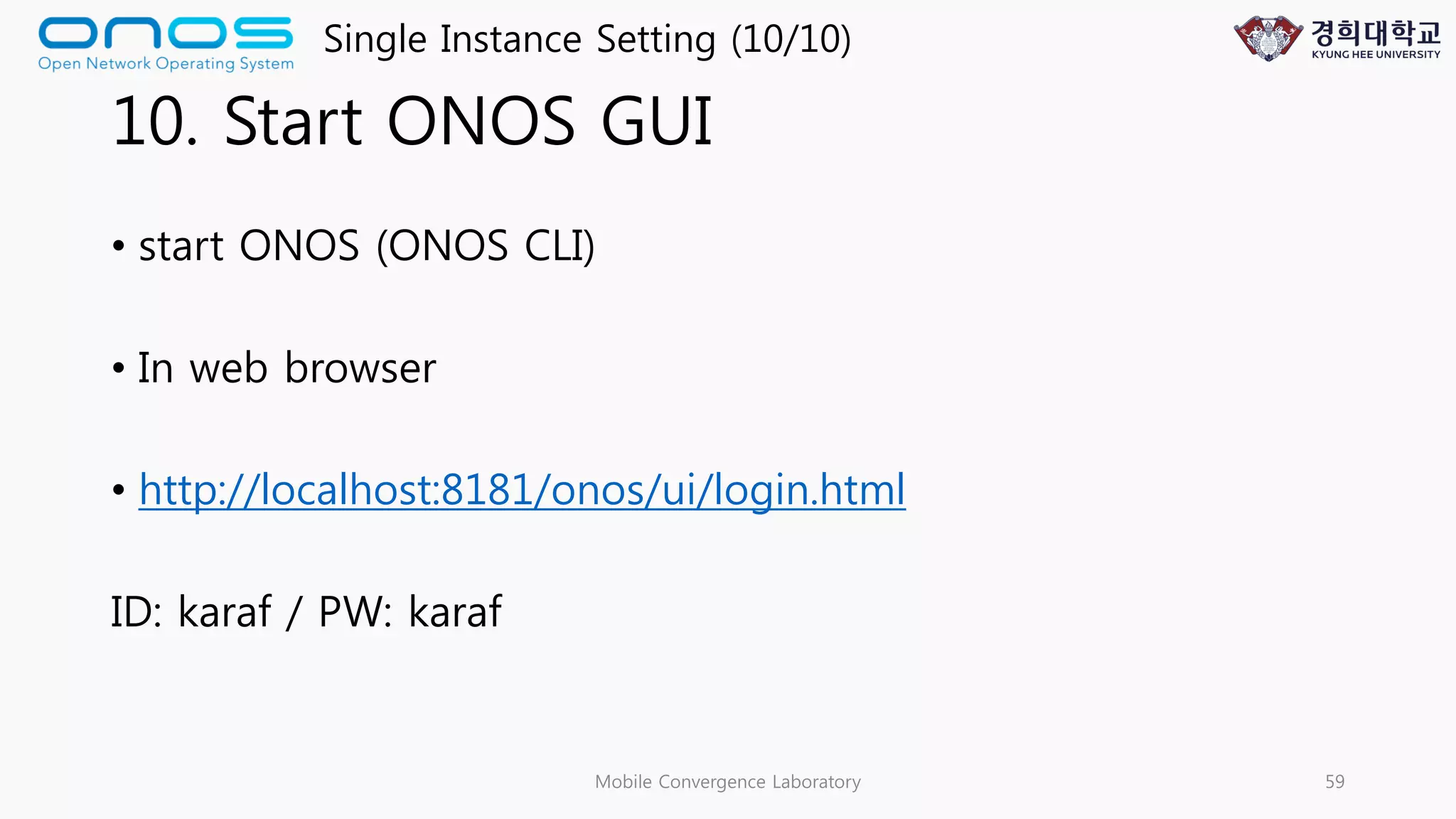

- 59. 10. Start ONOSGUI • start ONOS (ONOS CLI) • In web browser • http://localhost:8181/onos/ui/login.html ID: karaf / PW: karaf Mobile Convergence Laboratory 59 Single Instance Setting (10/10)
- 60.
- 61.

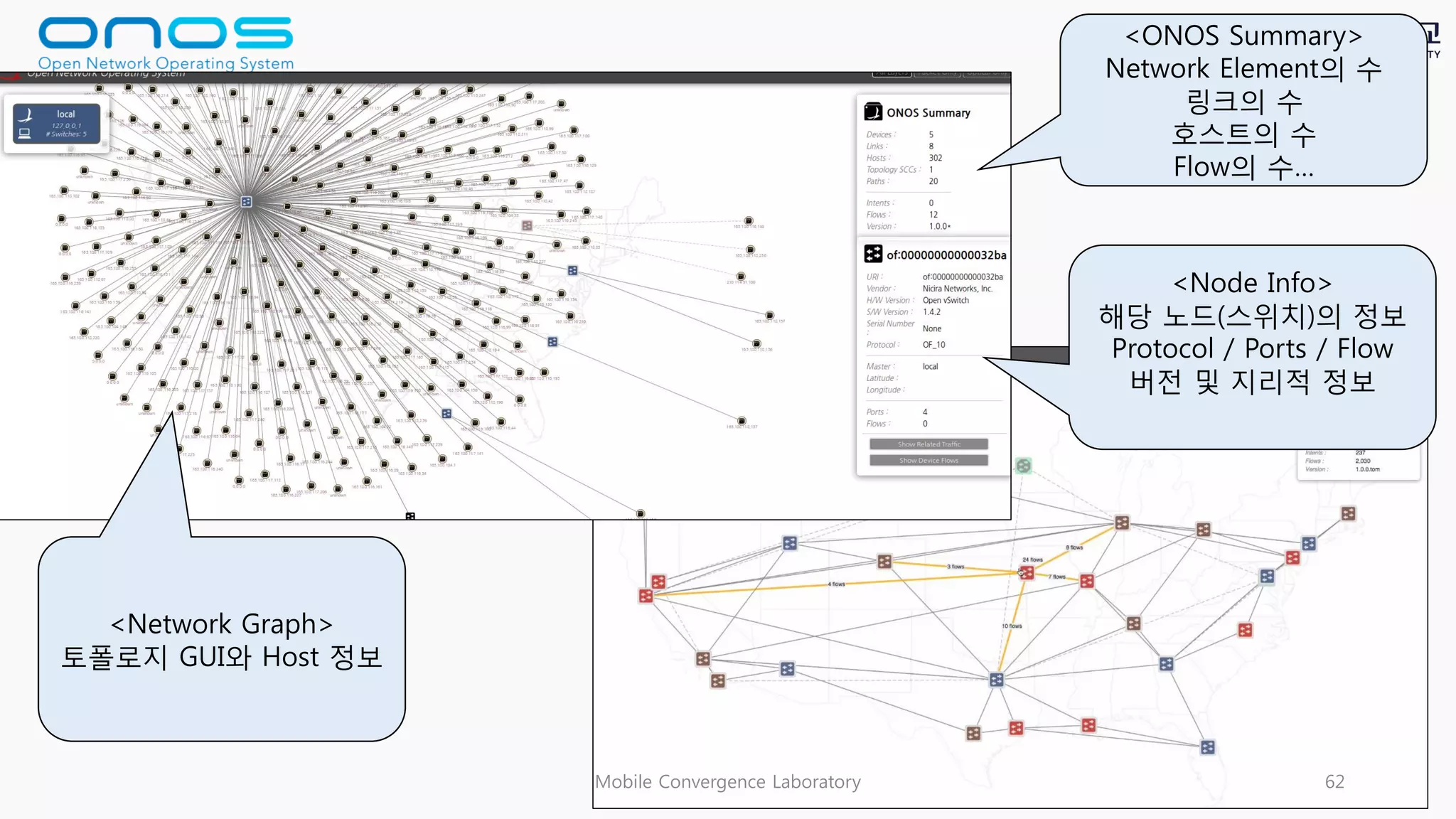

- 62. Mobile Convergence Laboratory62 <Network Graph> 토폴로지 GUI와 Host 정보 <Node Info> 해당 노드(스위치)의 정보 Protocol / Ports / Flow 버전 및 지리적 정보 <ONOS Summary> Network Element의 수 링크의 수 호스트의 수 Flow의 수…
- 63. ONOS - Install MultiInstance setting 1. Getting ONOS 2. Installing ONOS 3. Start ONOS Mobile Convergence Laboratory 63 https://wiki.onosproject.org/display/ONOS/Installing+and+Running+ONOS

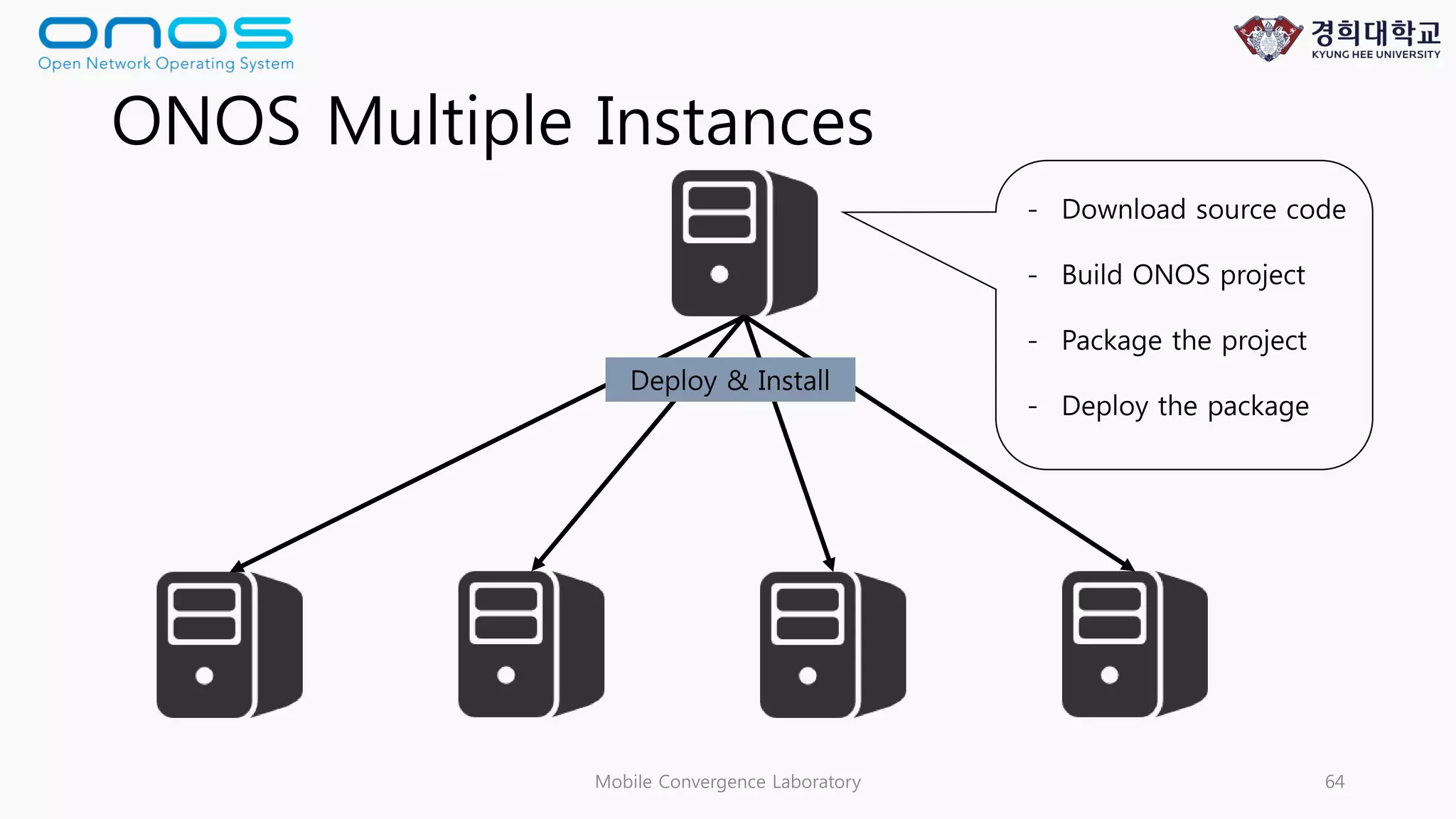

- 64. ONOS Multiple Instances MobileConvergence Laboratory 64 - Download source code - Build ONOS project - Package the project - Deploy the package Deploy & Install

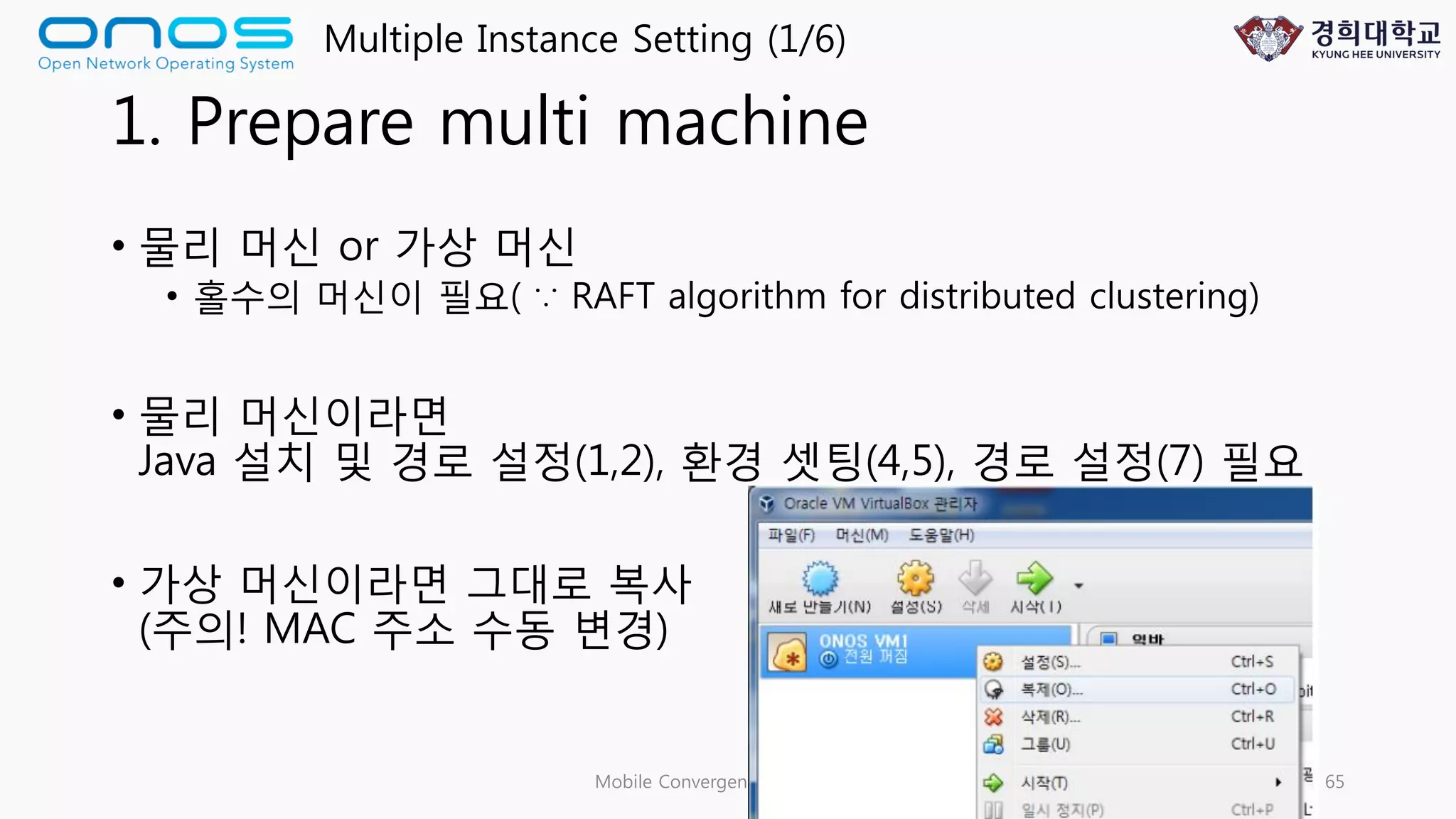

- 65. 1. Prepare multimachine • 물리 머신 or 가상 머신 • 홀수의 머신이 필요( ∵ RAFT algorithm for distributed clustering) • 물리 머신이라면 Java 설치 및 경로 설정(1,2), 환경 셋팅(4,5), 경로 설정(7) 필요 • 가상 머신이라면 그대로 복사 (주의! MAC 주소 수동 변경) Mobile Convergence Laboratory 65 Multiple Instance Setting (1/6)
- 66. 2. cell script •~/onos/tools/test/cells 디렉토리에 FILE_NAME 파일에 다음과 같이 작성 • 머신과 환경에 맞게 작성 Mobile Convergence Laboratory 66 Multiple Instance Setting (2/6)

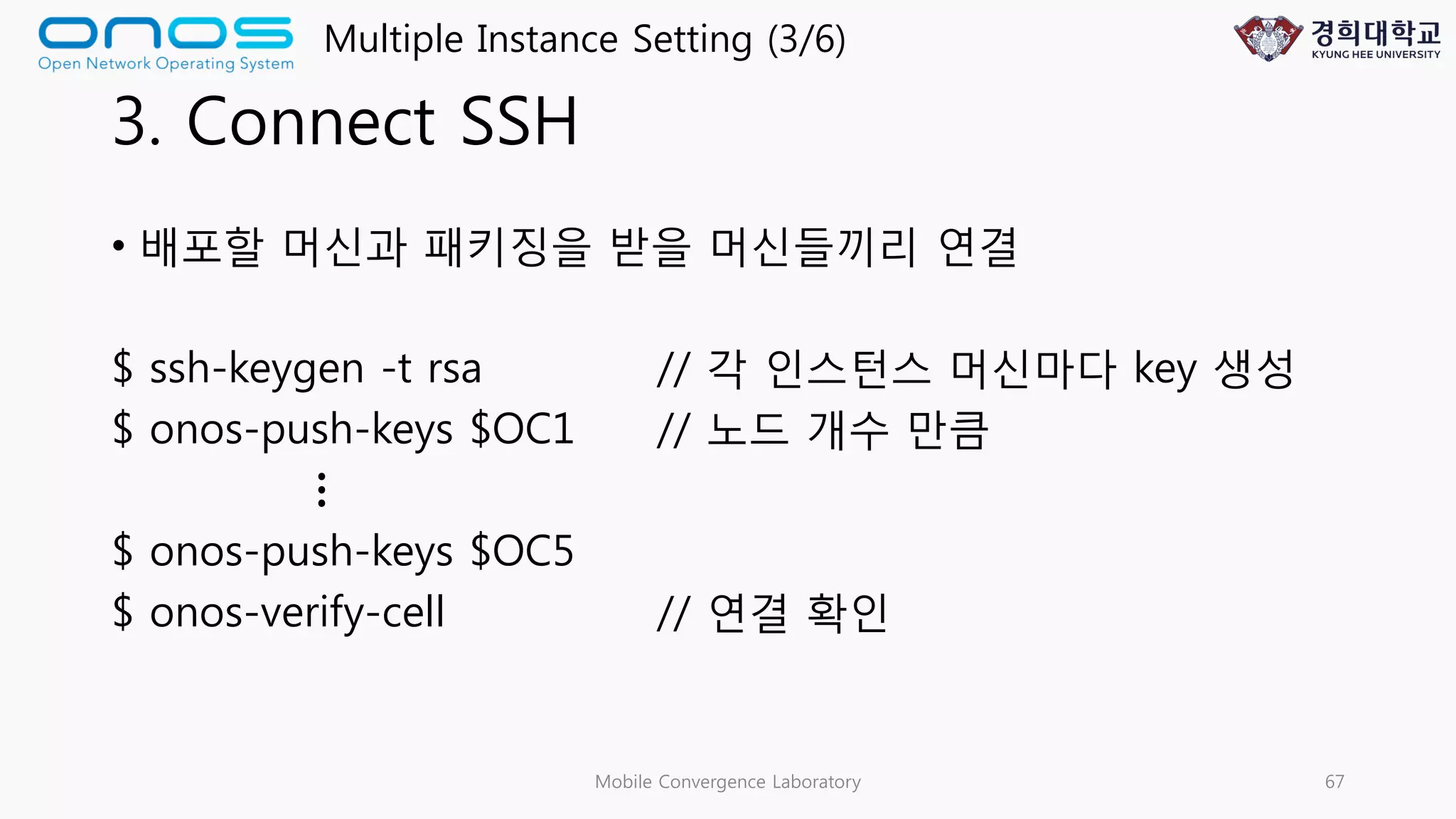

- 67. 3. Connect SSH •배포할 머신과 패키징을 받을 머신들끼리 연결 $ ssh-keygen -t rsa // 각 인스턴스 머신마다 key 생성 $ onos-push-keys $OC1 // 노드 개수 만큼 $ onos-push-keys $OC5 $ onos-verify-cell // 연결 확인 Mobile Convergence Laboratory 67 Multiple Instance Setting (3/6) …
- 68. 4. Define controlplane • cell 명령어와 작성한 스크립트로 제어 평면에 대한 정의 $ cell FILE_NAME Mobile Convergence Laboratory 68 Multiple Instance Setting (4/6)

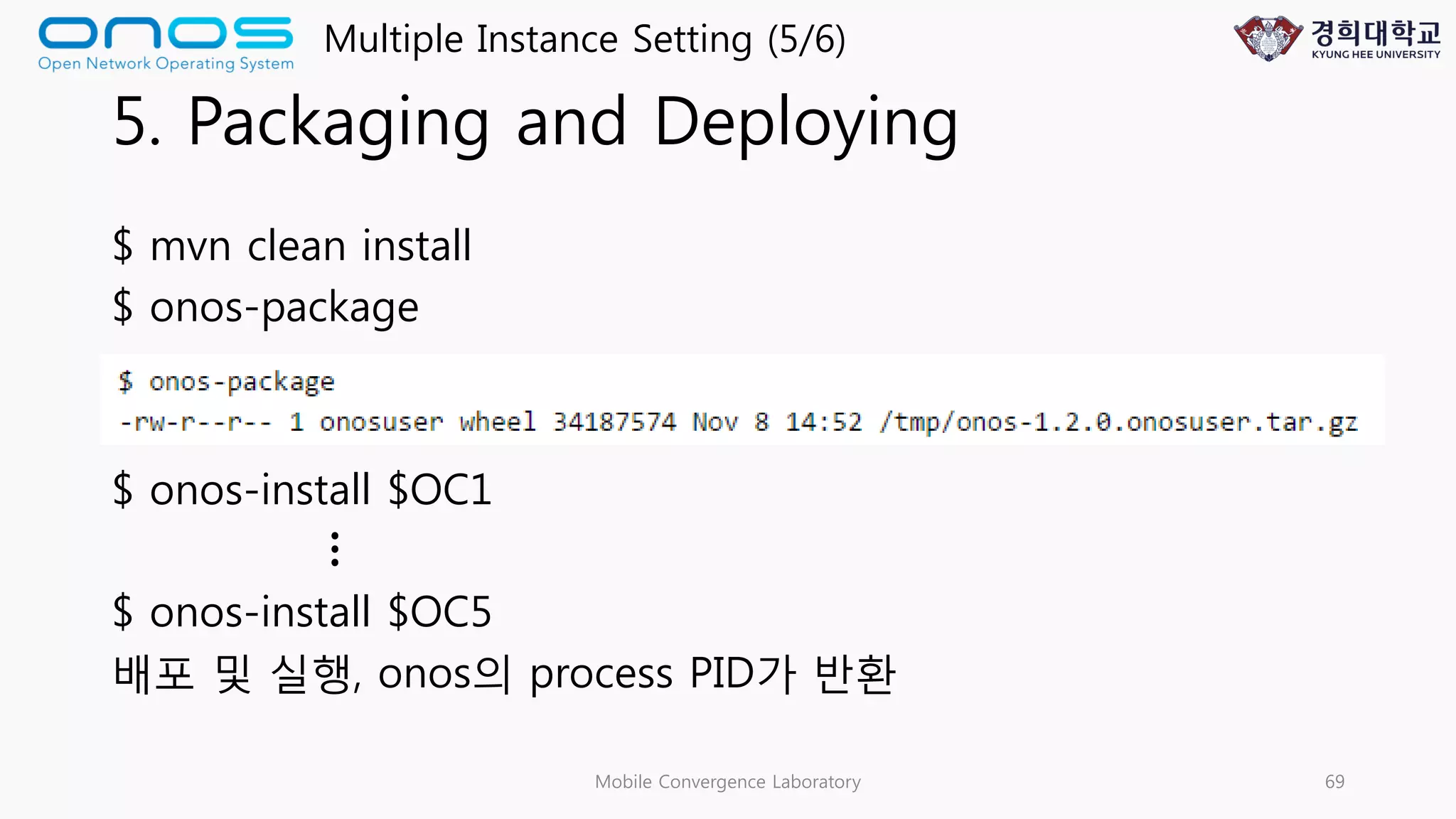

- 69. 5. Packaging andDeploying $ mvn clean install $ onos-package $ onos-install $OC1 $ onos-install $OC5 배포 및 실행, onos의 process PID가 반환 Mobile Convergence Laboratory 69 Multiple Instance Setting (5/6) …

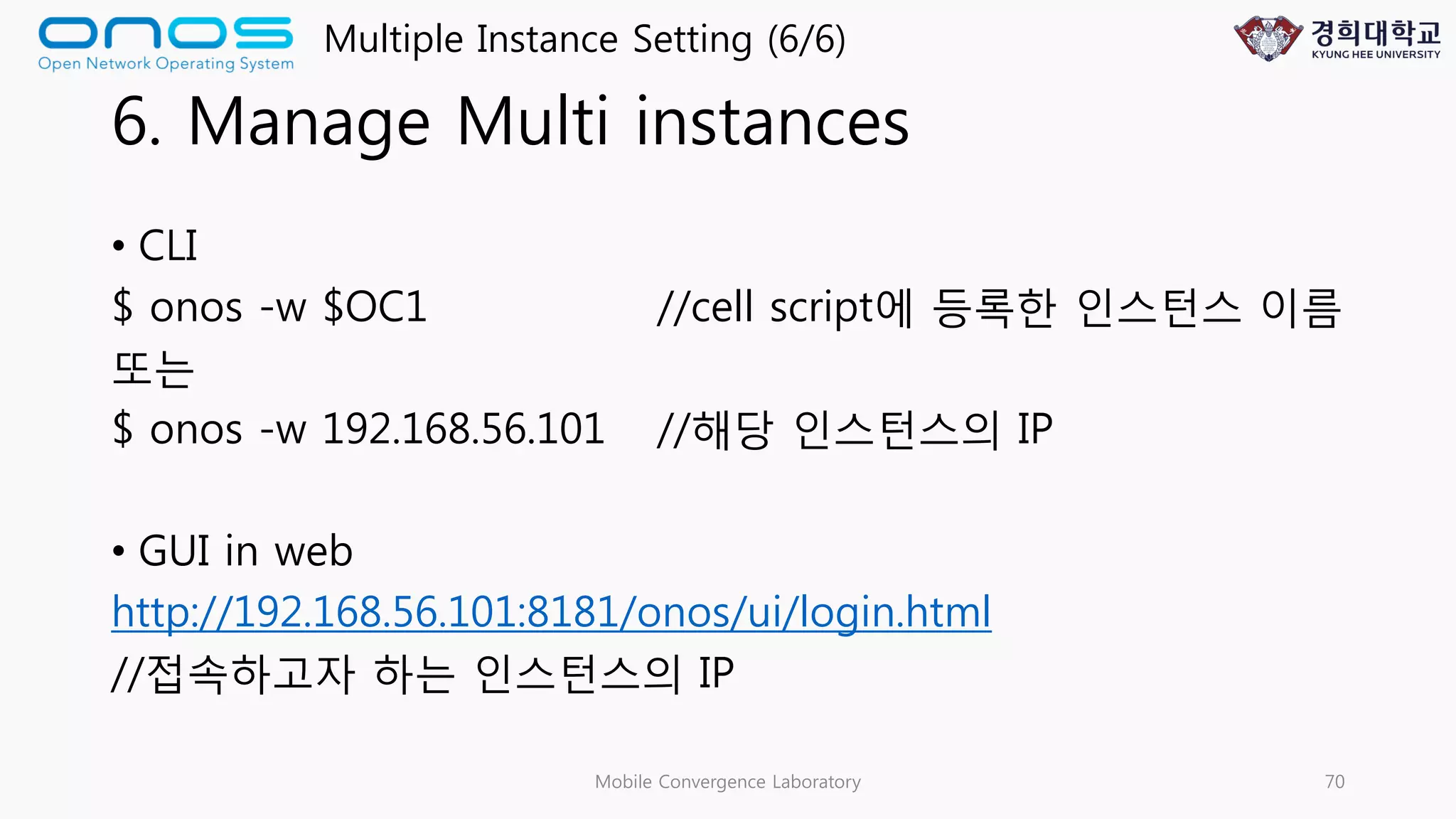

- 70. 6. Manage Multiinstances • CLI $ onos -w $OC1 //cell script에 등록한 인스턴스 이름 또는 $ onos -w 192.168.56.101 //해당 인스턴스의 IP • GUI in web http://192.168.56.101:8181/onos/ui/login.html //접속하고자 하는 인스턴스의 IP Mobile Convergence Laboratory 70 Multiple Instance Setting (6/6)

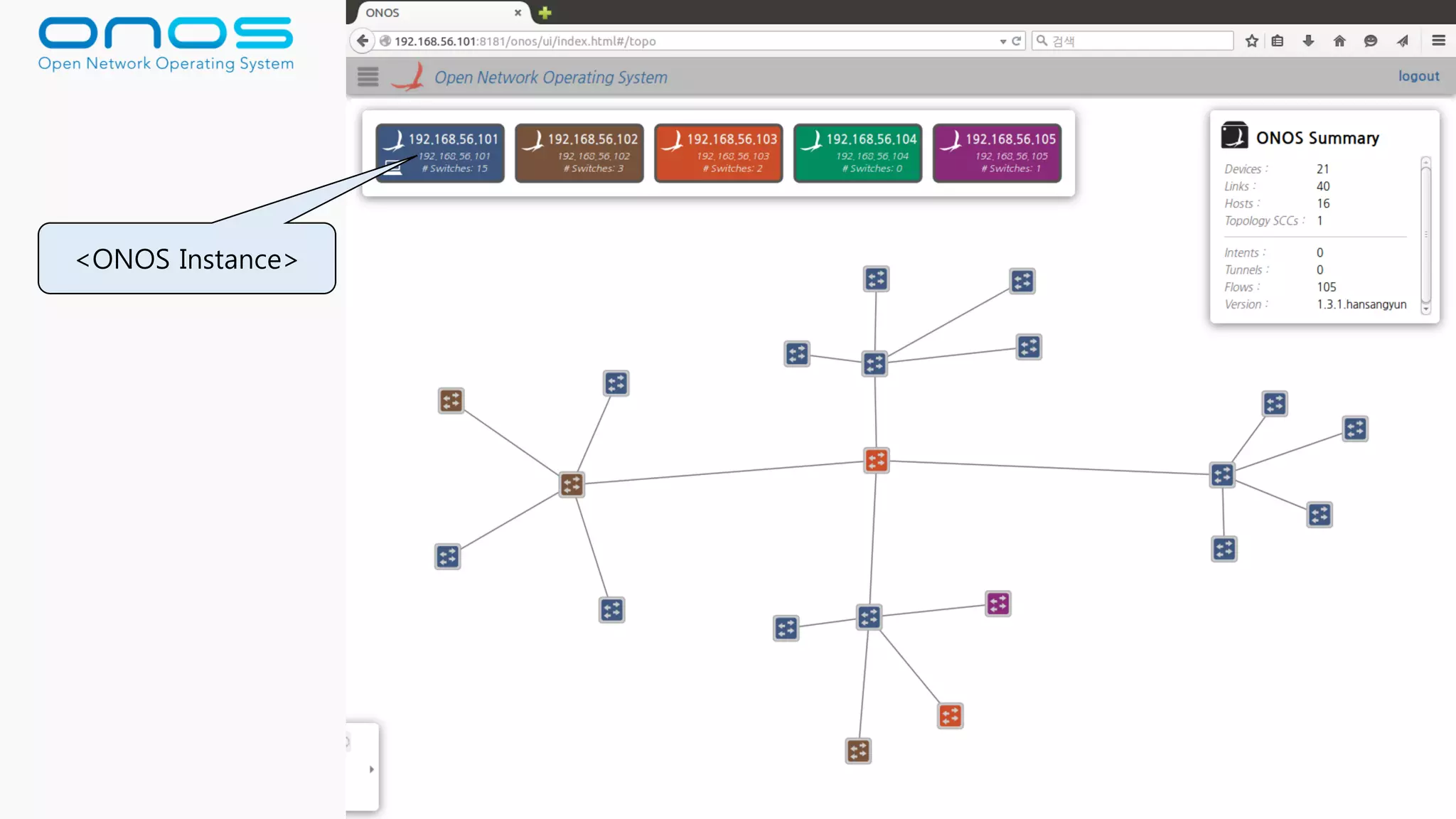

- 71. Mobile Convergence Laboratory71 <ONOS Instance>

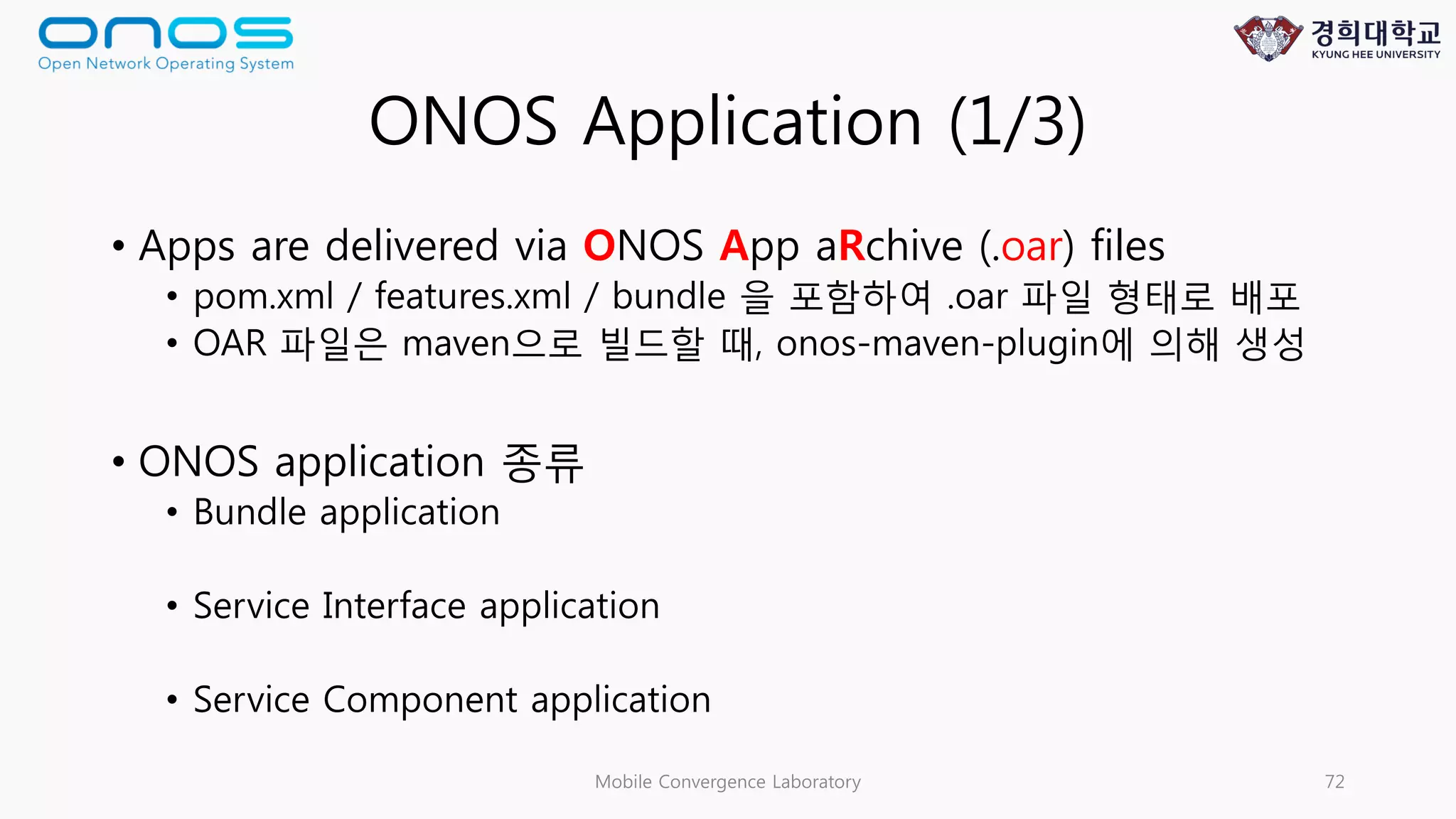

- 72. ONOS Application (1/3) •Apps are delivered via ONOS App aRchive (.oar) files • pom.xml / features.xml / bundle 을 포함하여 .oar 파일 형태로 배포 • OAR 파일은 maven으로 빌드할 때, onos-maven-plugin에 의해 생성 • ONOS application 종류 • Bundle application • Service Interface application • Service Component application Mobile Convergence Laboratory 72

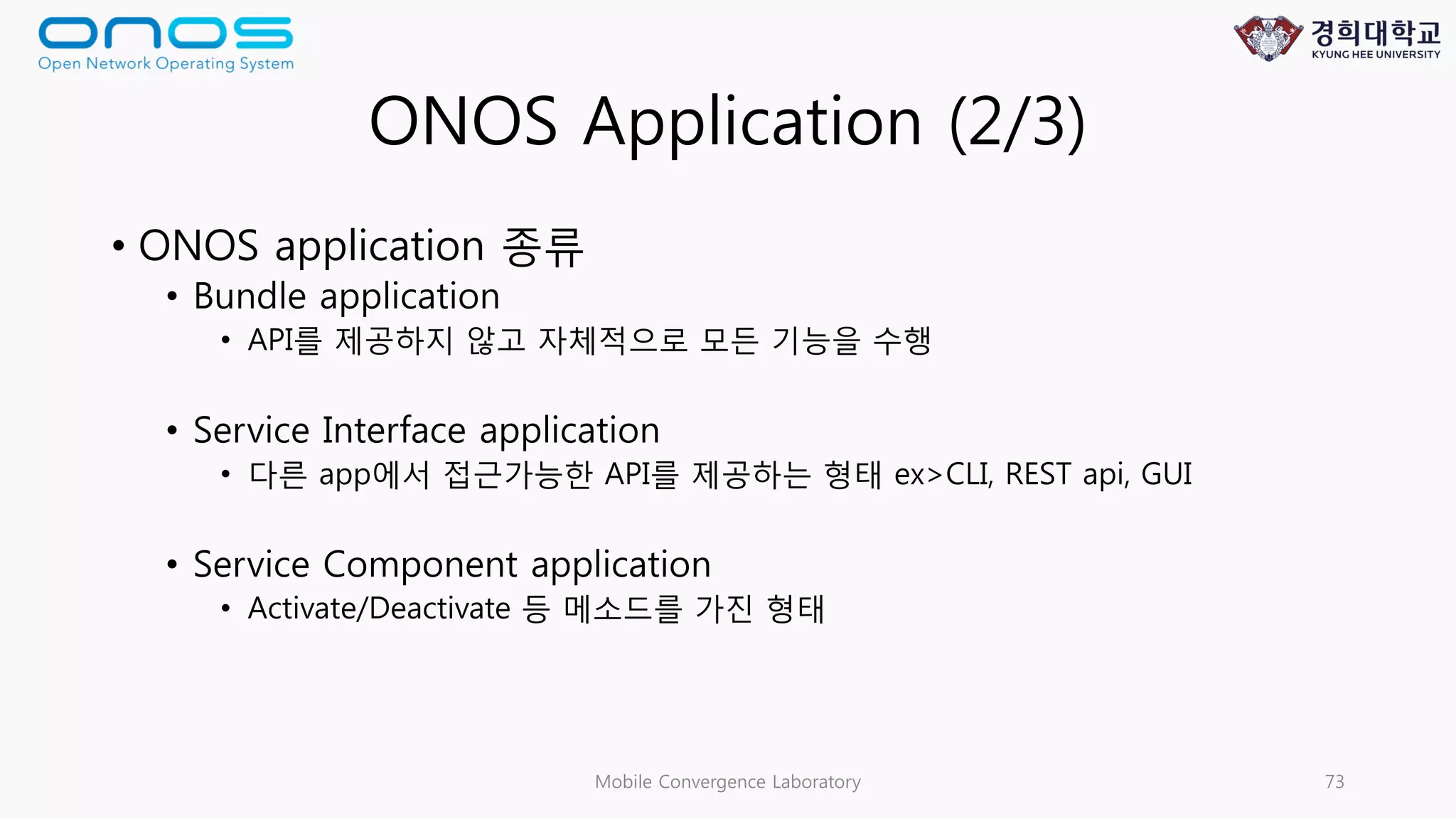

- 73. ONOS Application (2/3) •ONOS application 종류 • Bundle application • API를 제공하지 않고 자체적으로 모든 기능을 수행 • Service Interface application • 다른 app에서 접근가능한 API를 제공하는 형태 ex>CLI, REST api, GUI • Service Component application • Activate/Deactivate 등 메소드를 가진 형태 Mobile Convergence Laboratory 73

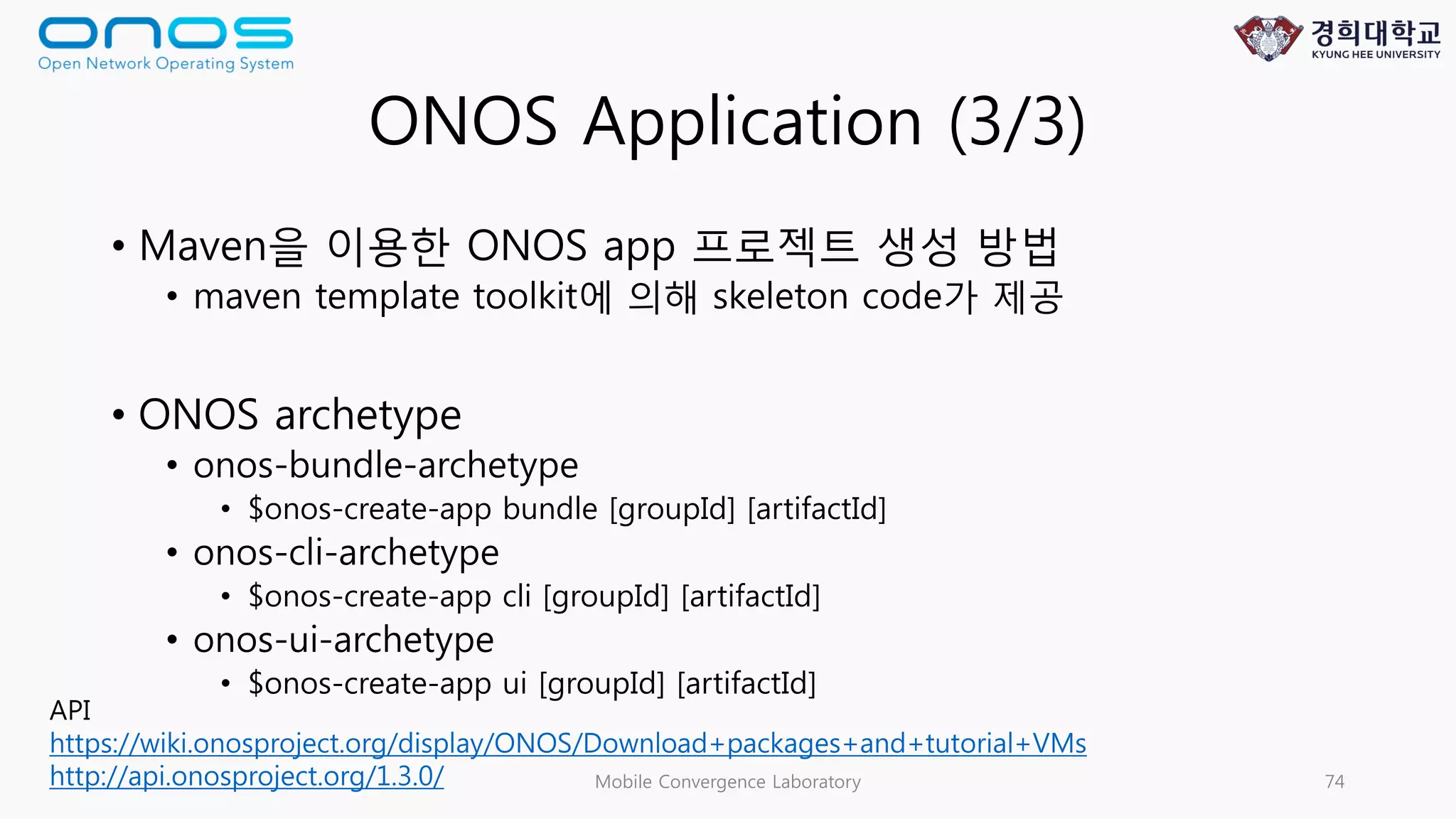

- 74. ONOS Application (3/3) •Maven을 이용한 ONOS app 프로젝트 생성 방법 • maven template toolkit에 의해 skeleton code가 제공 • ONOS archetype • onos-bundle-archetype • $onos-create-app bundle [groupId] [artifactId] • onos-cli-archetype • $onos-create-app cli [groupId] [artifactId] • onos-ui-archetype • $onos-create-app ui [groupId] [artifactId] Mobile Convergence Laboratory 74 API https://wiki.onosproject.org/display/ONOS/Download+packages+and+tutorial+VMs http://api.onosproject.org/1.3.0/

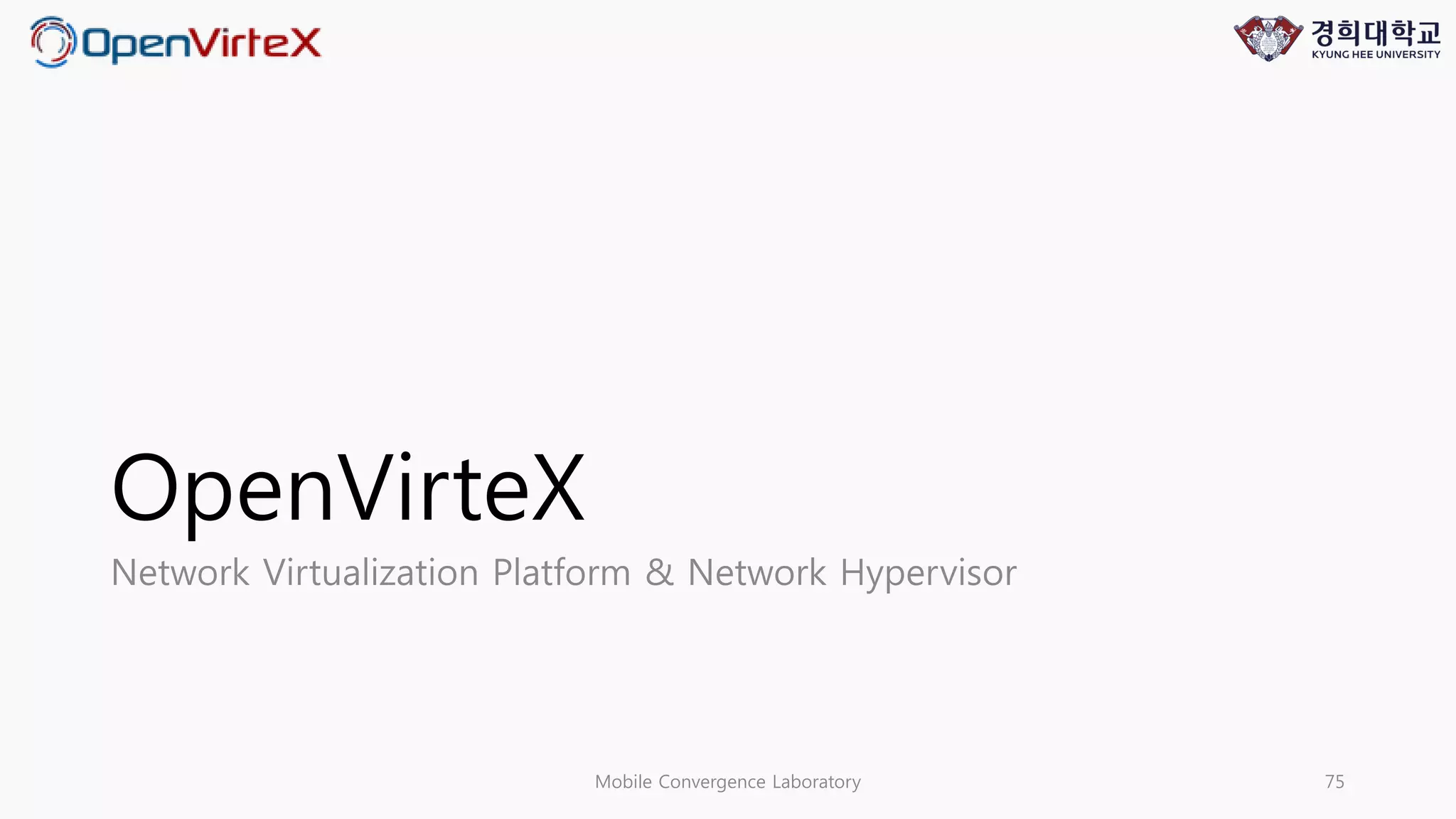

- 75. OpenVirteX Network Virtualization Platform& Network Hypervisor Mobile Convergence Laboratory 75

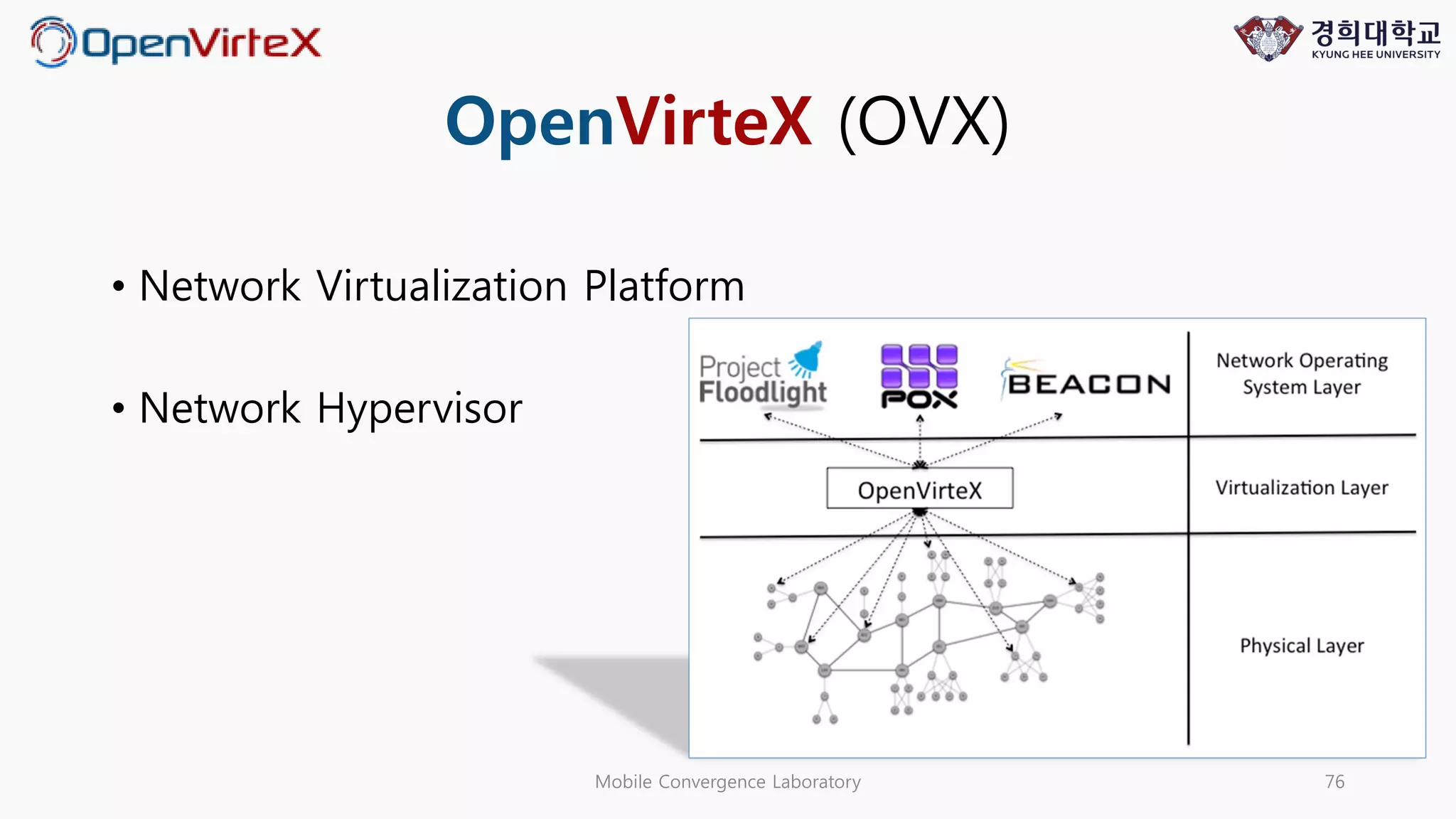

- 76. OpenVirteX (OVX) • NetworkVirtualization Platform • Network Hypervisor Mobile Convergence Laboratory 76

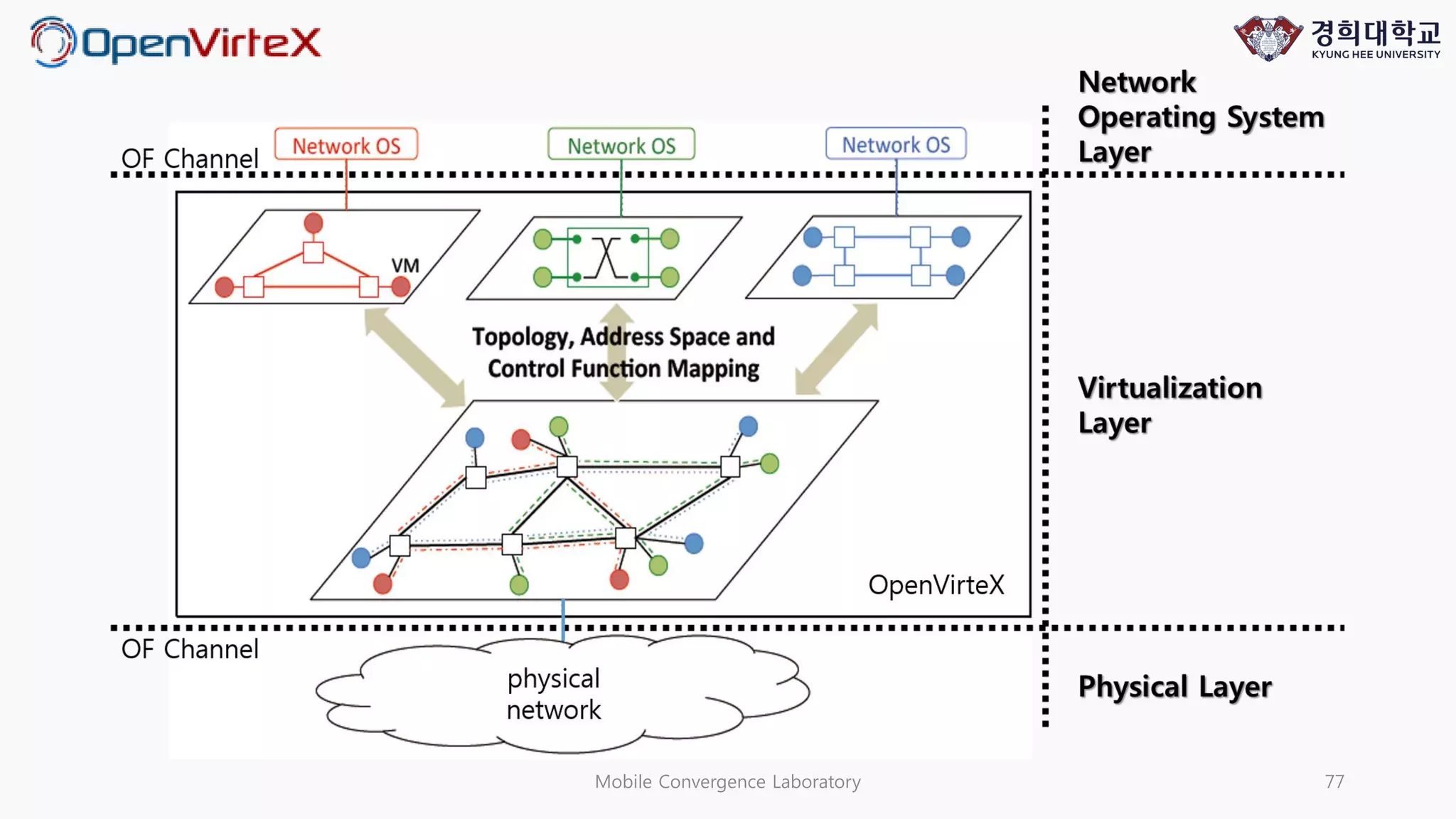

- 77.
- 78. 주요 기능 • TopologyVirtualization • Address Space Virtualization • Control Function Virtualization Mobile Convergence Laboratory 78

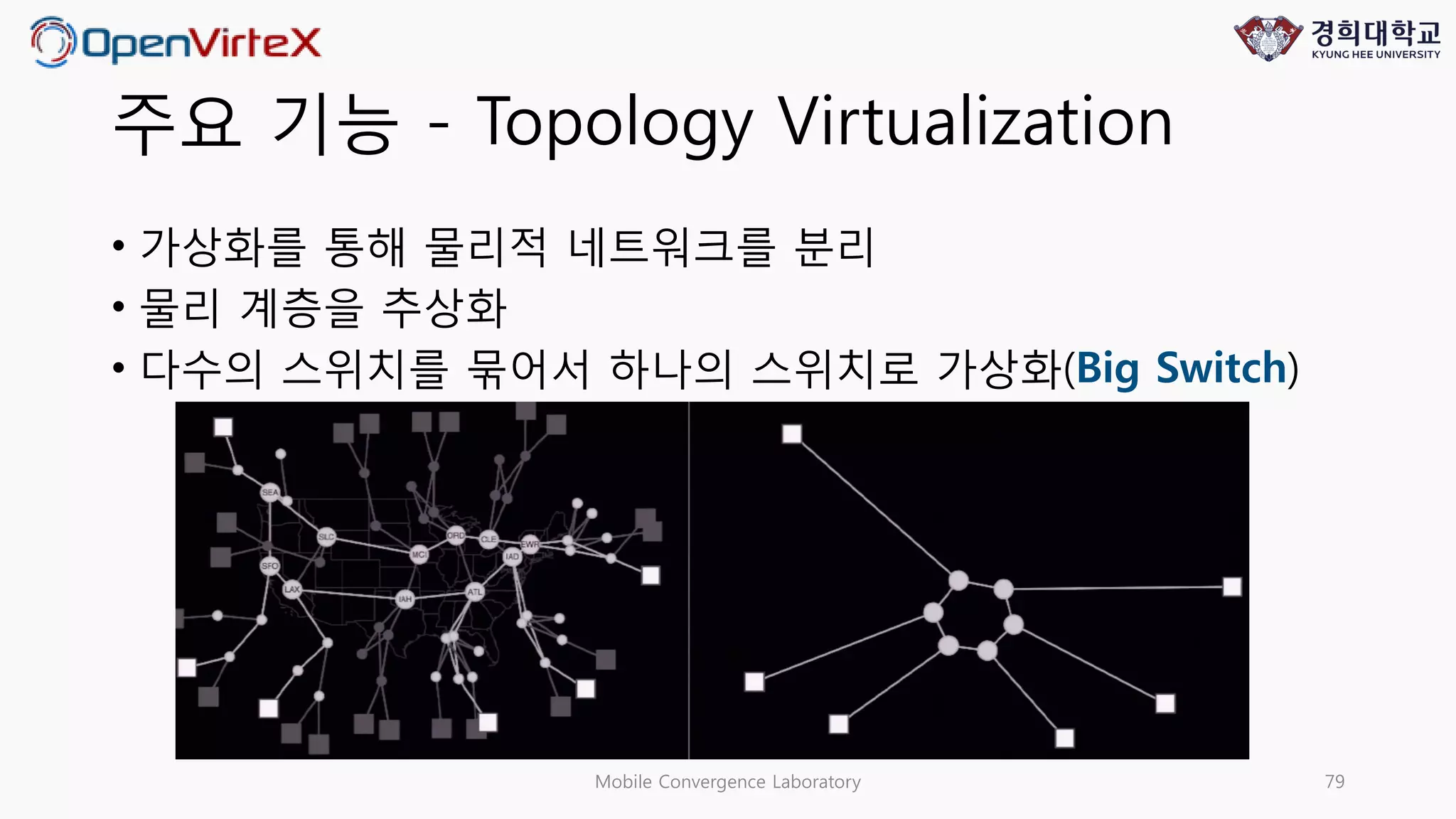

- 79. 주요 기능 -Topology Virtualization • 가상화를 통해 물리적 네트워크를 분리 • 물리 계층을 추상화 • 다수의 스위치를 묶어서 하나의 스위치로 가상화(Big Switch) Mobile Convergence Laboratory 79
- 80. 주요 기능 -Address Space Virtualization Mobile Convergence Laboratory 80

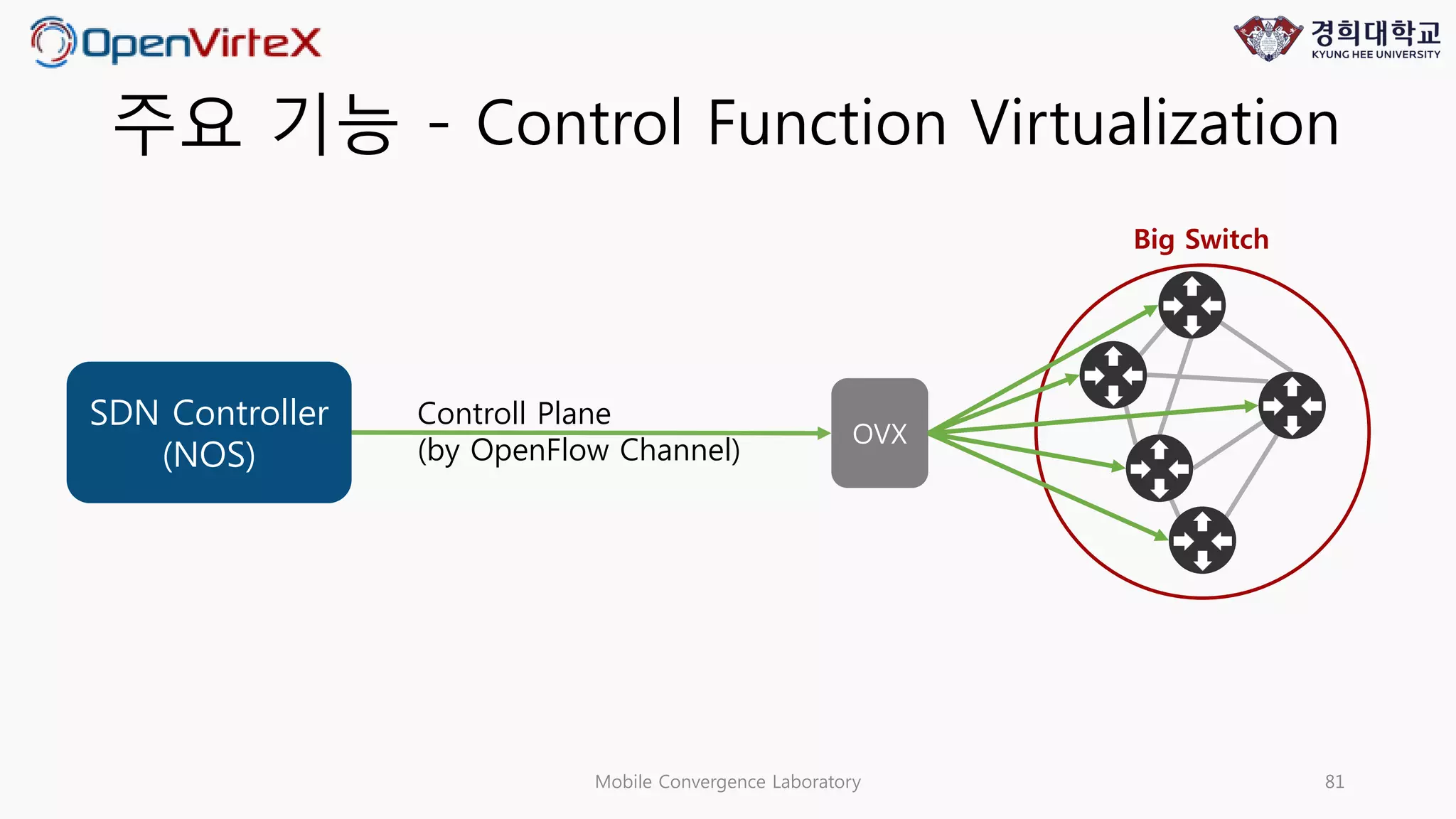

- 81. 주요 기능 -Control Function Virtualization Mobile Convergence Laboratory 81 SDN Controller (NOS) Big Switch Controll Plane (by OpenFlow Channel) OVX

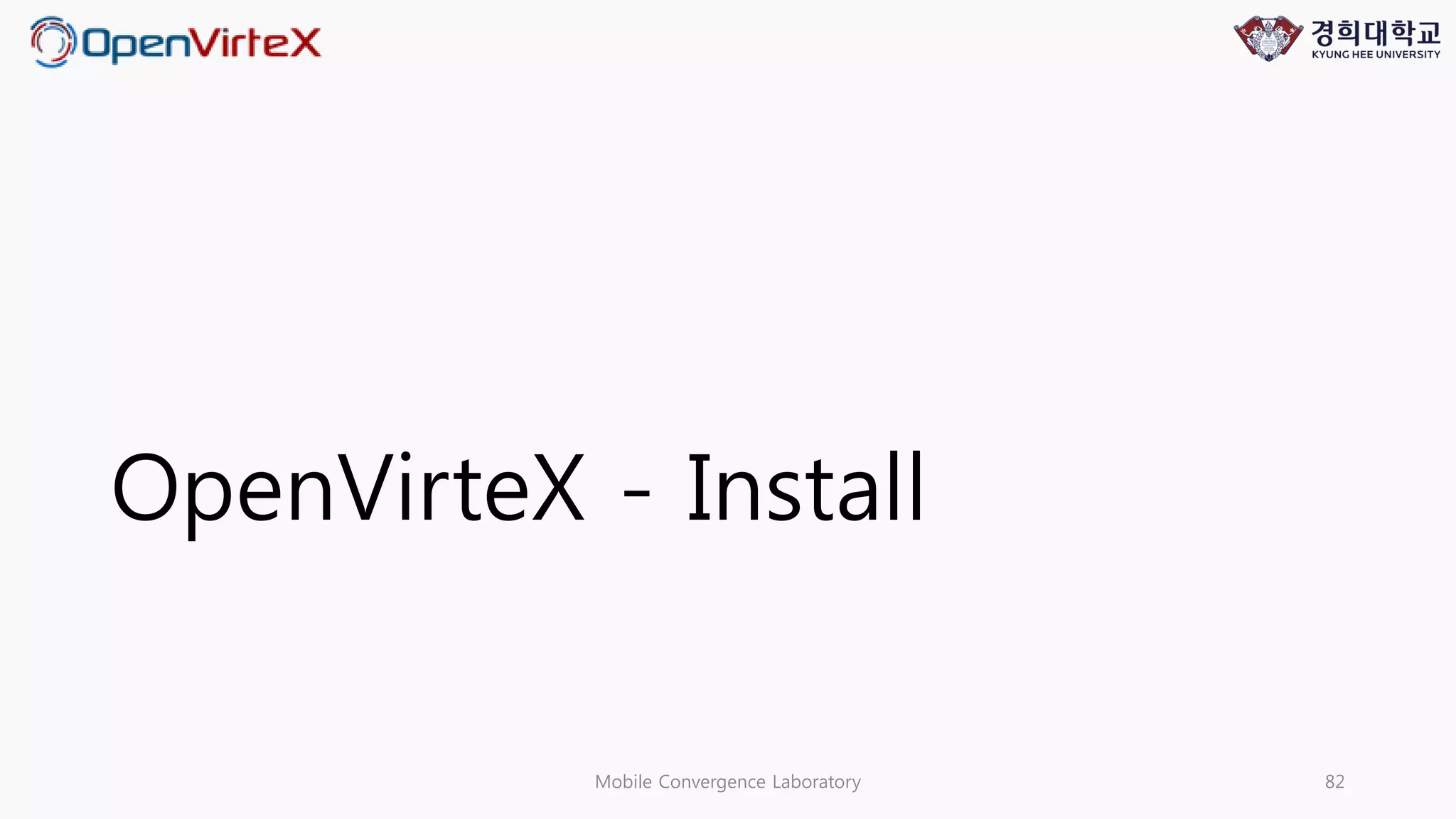

- 82. OpenVirteX - Install MobileConvergence Laboratory 82

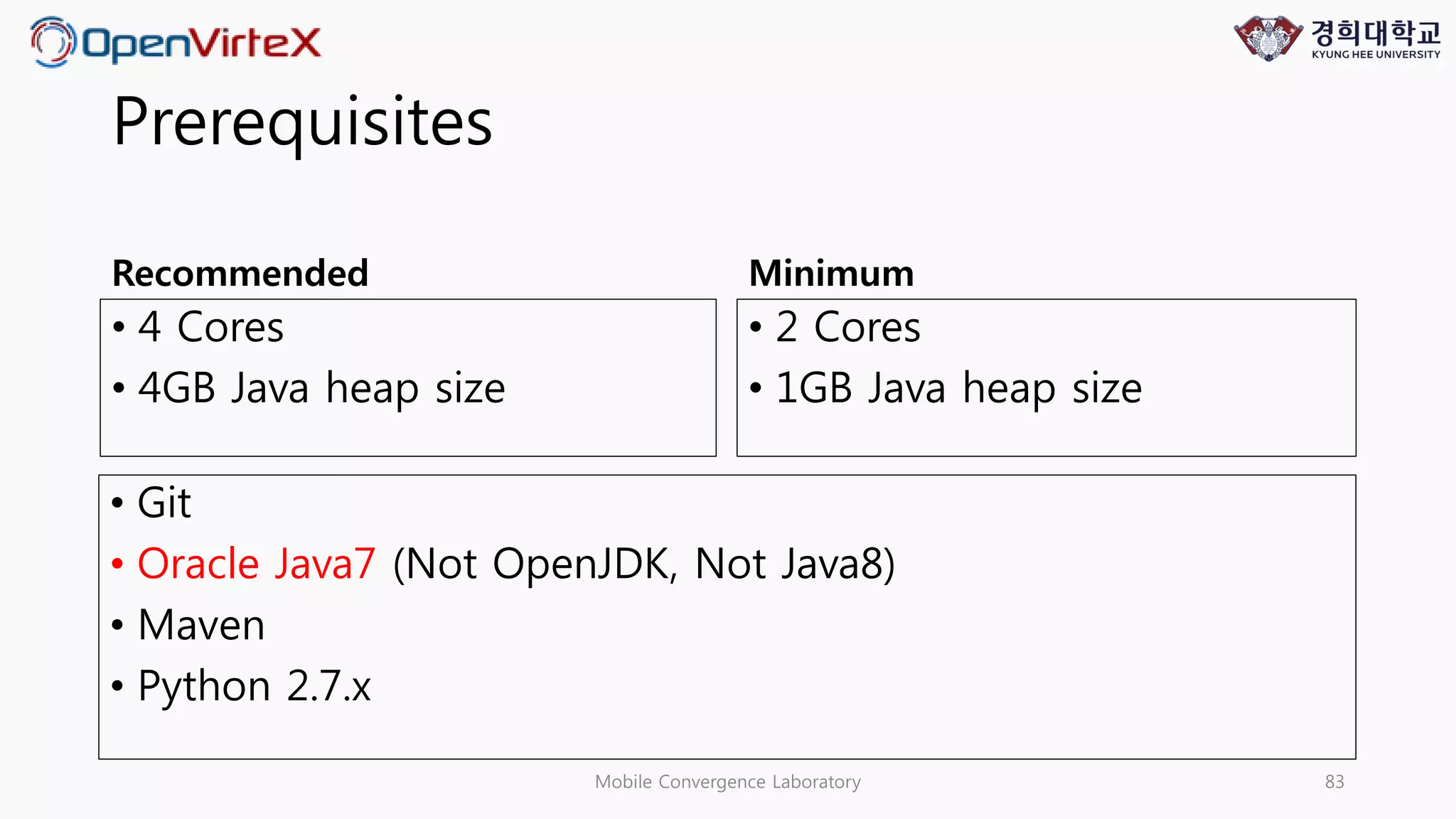

- 83. Prerequisites Recommended • 4 Cores •4GB Java heap size Minimum • 2 Cores • 1GB Java heap size Mobile Convergence Laboratory 83 • Git • Oracle Java7 (Not OpenJDK, Not Java8) • Maven • Python 2.7.x

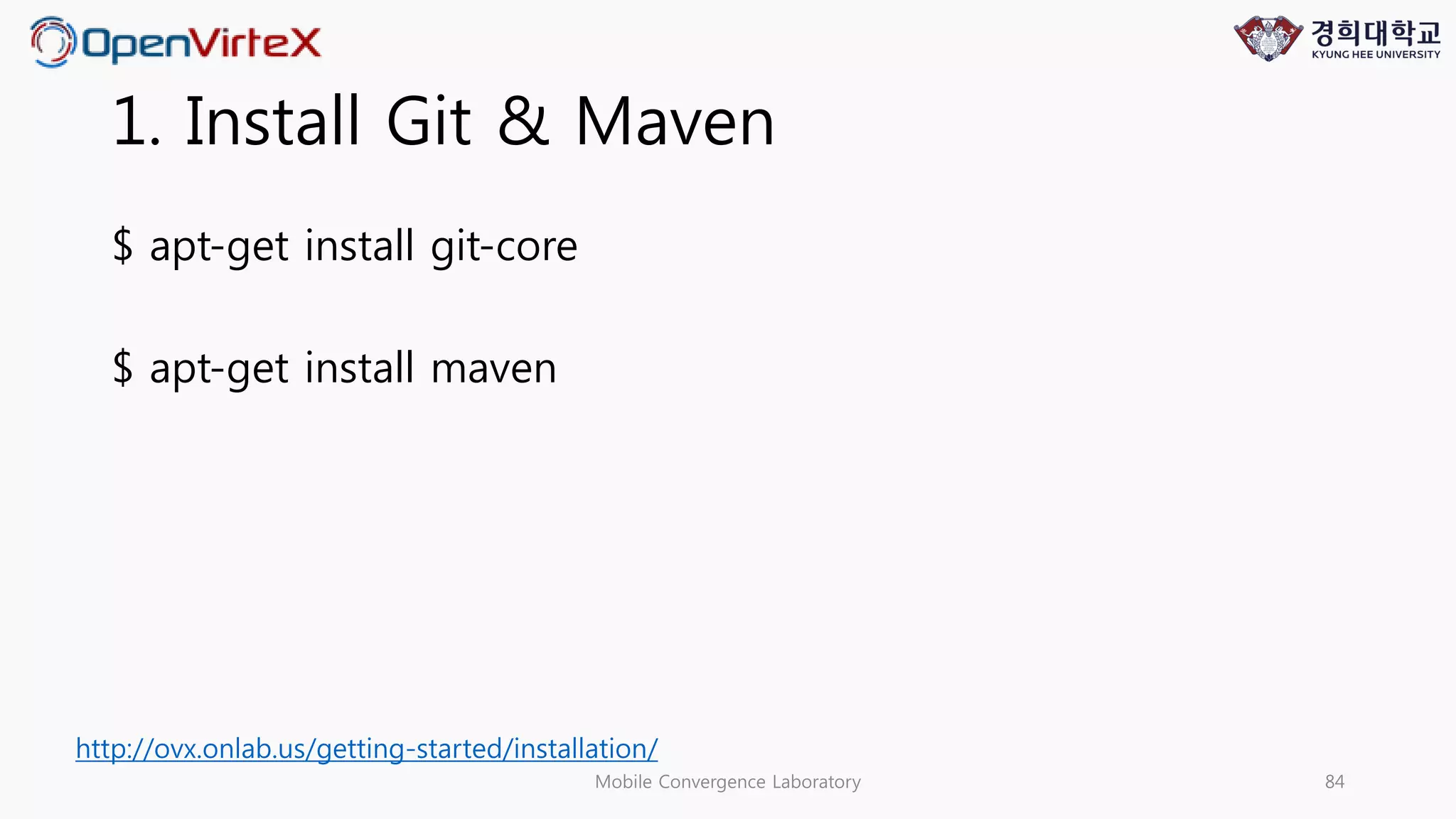

- 84. 1. Install Git& Maven $ apt-get install git-core $ apt-get install maven Mobile Convergence Laboratory 84 http://ovx.onlab.us/getting-started/installation/

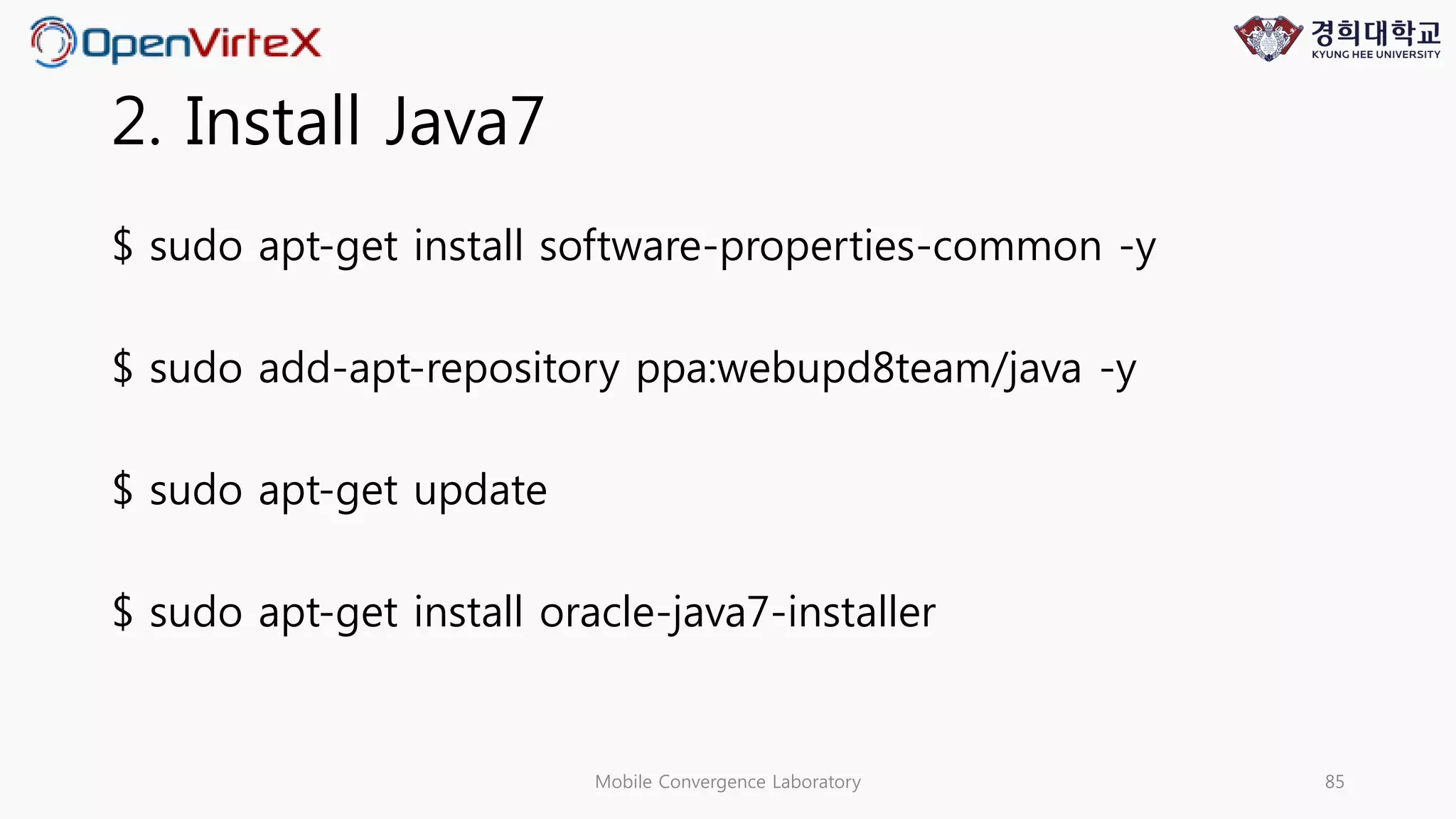

- 85. 2. Install Java7 $sudo apt-get install software-properties-common -y $ sudo add-apt-repository ppa:webupd8team/java -y $ sudo apt-get update $ sudo apt-get install oracle-java7-installer Mobile Convergence Laboratory 85

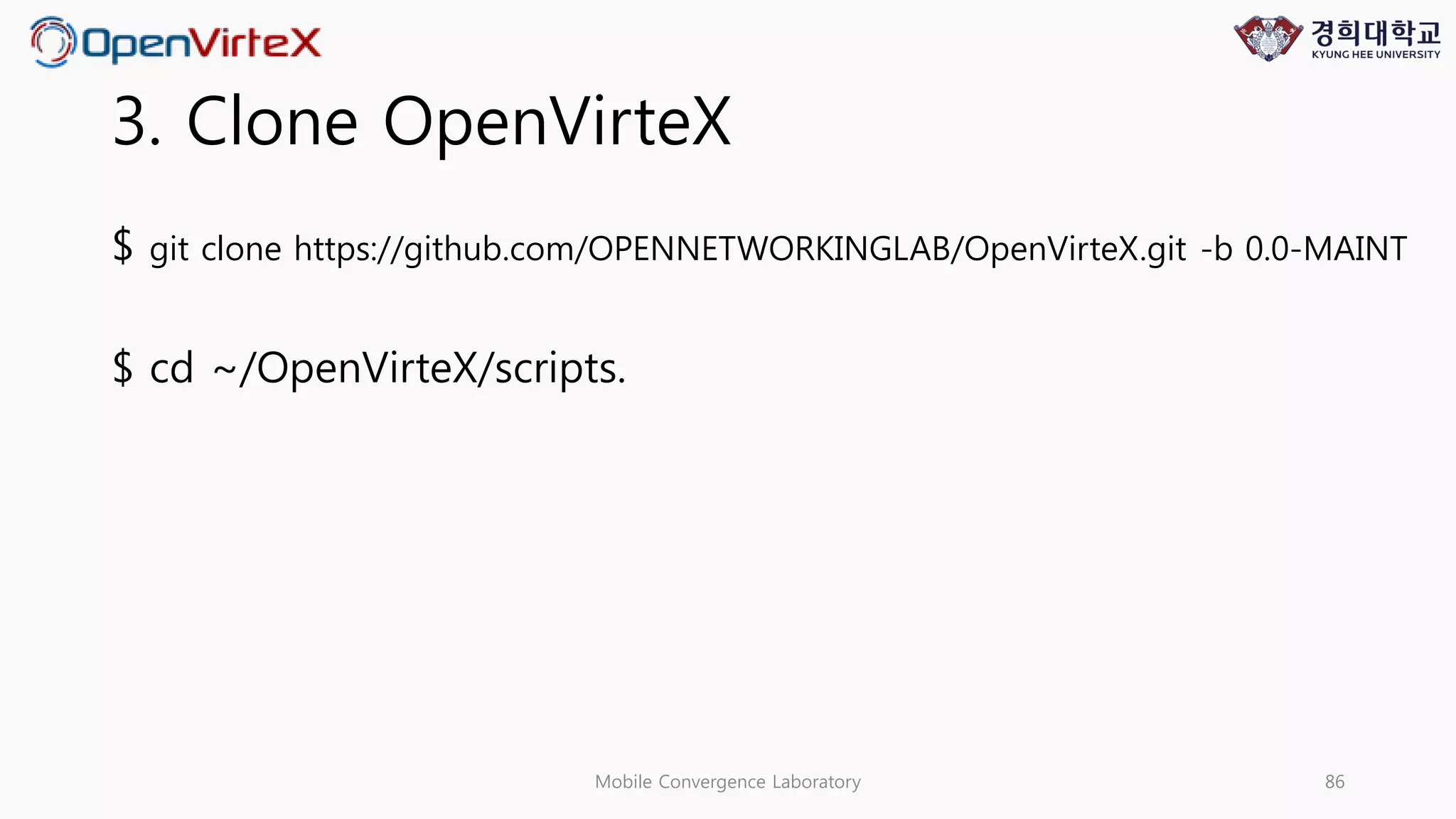

- 86. 3. Clone OpenVirteX $git clone https://github.com/OPENNETWORKINGLAB/OpenVirteX.git -b 0.0-MAINT $ cd ~/OpenVirteX/scripts. Mobile Convergence Laboratory 86

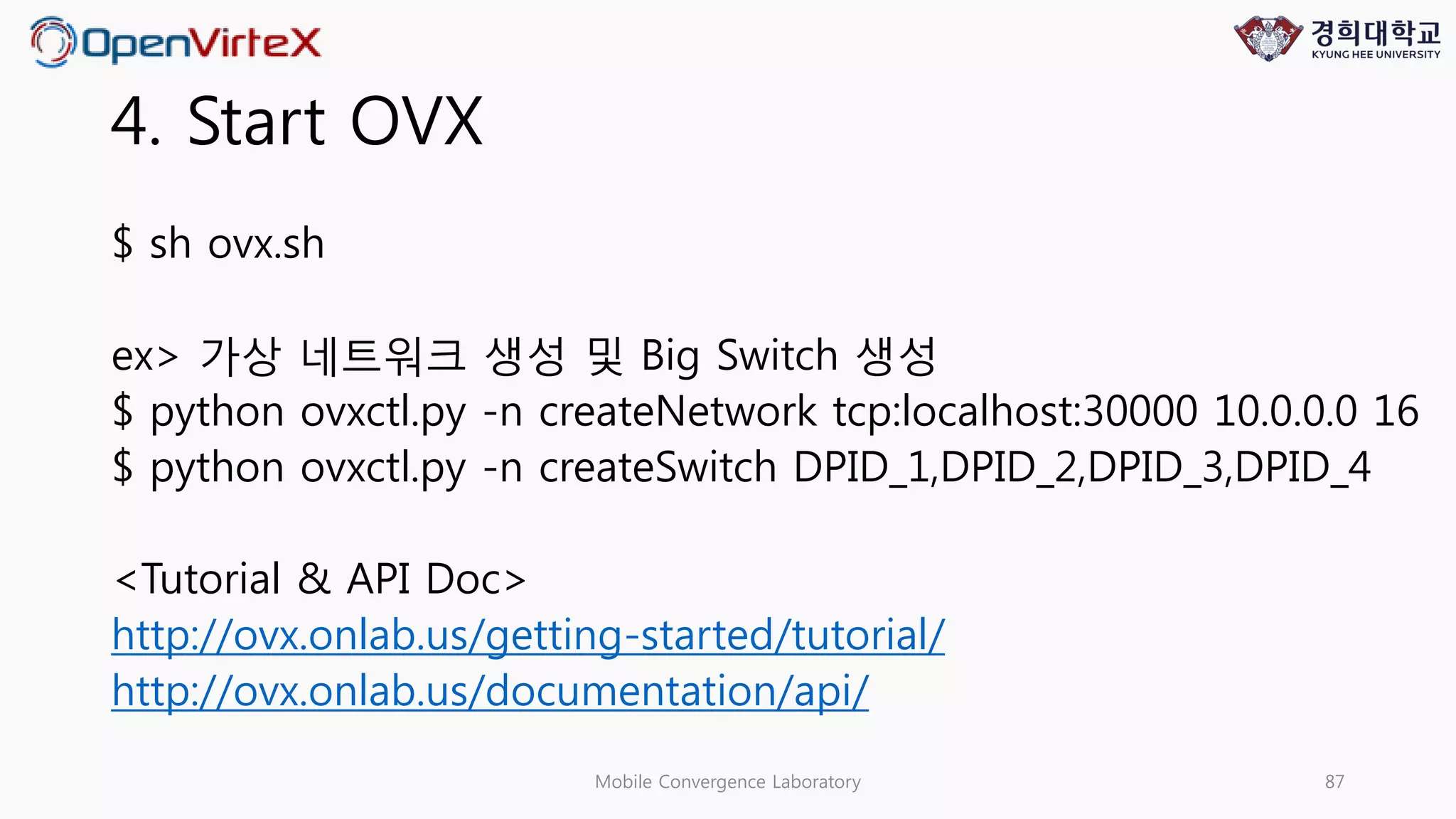

- 87. 4. Start OVX $sh ovx.sh ex> 가상 네트워크 생성 및 Big Switch 생성 $ python ovxctl.py -n createNetwork tcp:localhost:30000 10.0.0.0 16 $ python ovxctl.py -n createSwitch DPID_1,DPID_2,DPID_3,DPID_4 <Tutorial & API Doc> http://ovx.onlab.us/getting-started/tutorial/ http://ovx.onlab.us/documentation/api/ Mobile Convergence Laboratory 87

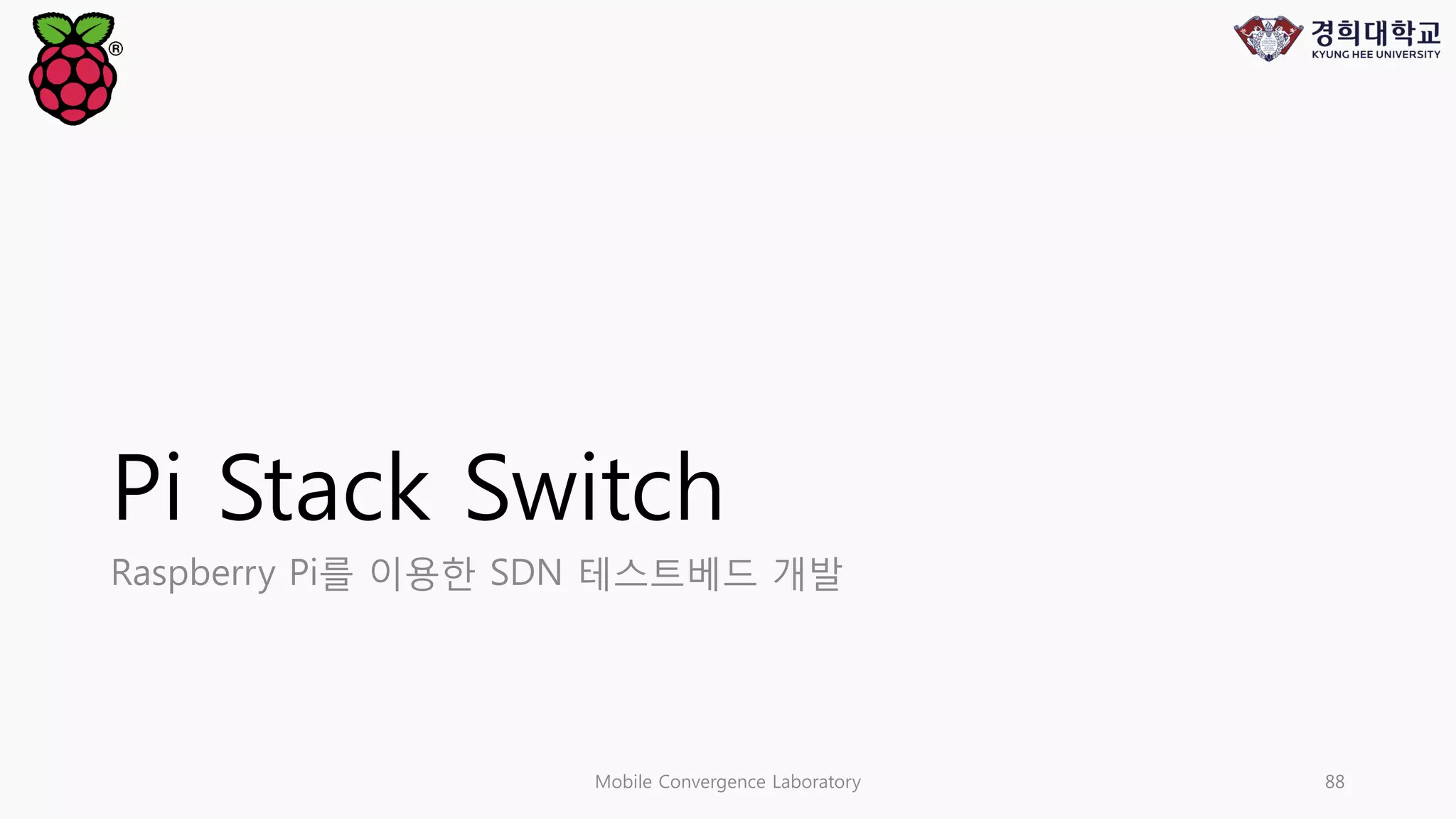

- 88. Pi Stack Switch RaspberryPi를 이용한 SDN 테스트베드 개발 Mobile Convergence Laboratory 88

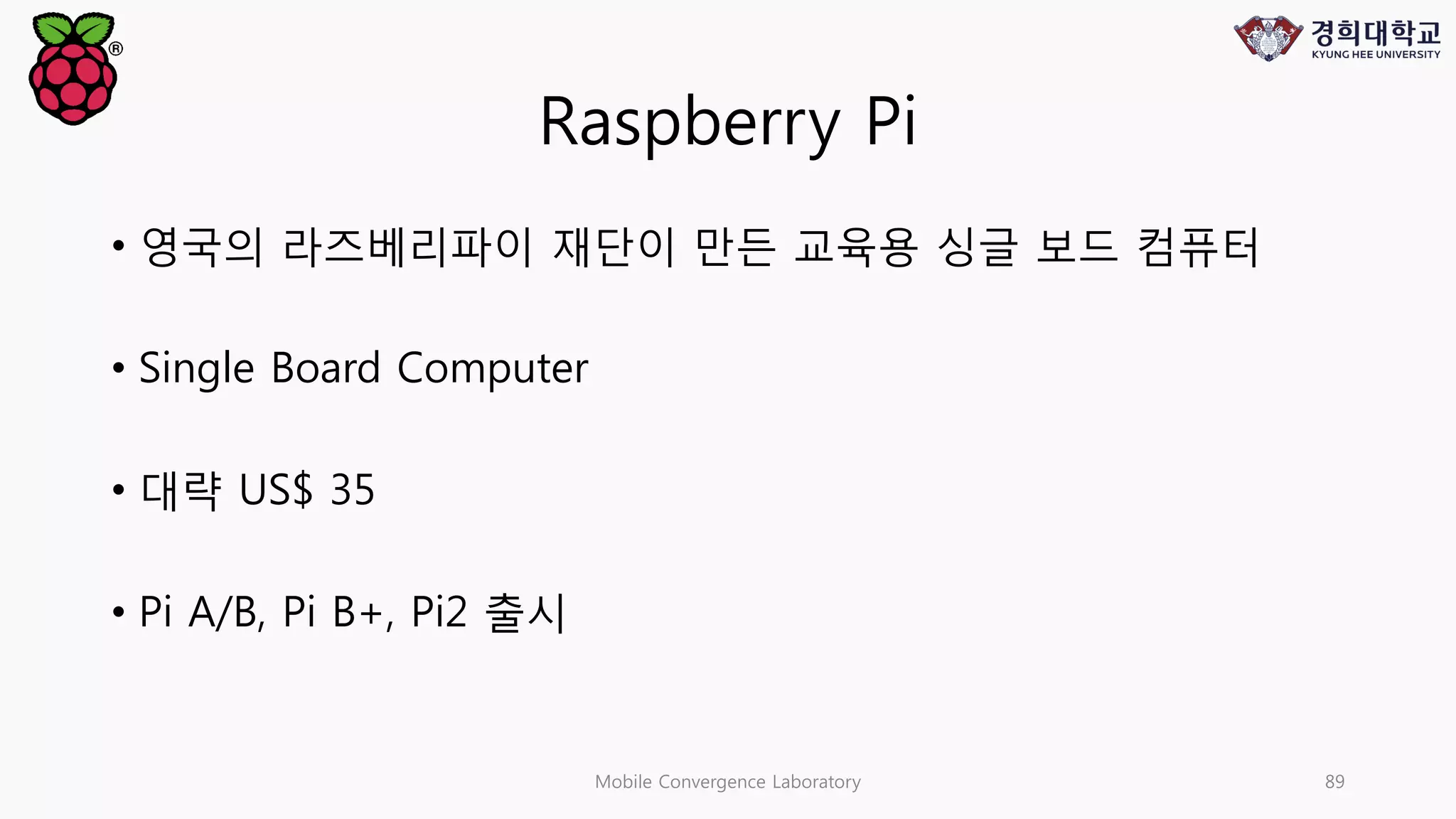

- 89. Raspberry Pi • 영국의라즈베리파이 재단이 만든 교육용 싱글 보드 컴퓨터 • Single Board Computer • 대략 US$ 35 • Pi A/B, Pi B+, Pi2 출시 Mobile Convergence Laboratory 89
- 90. Raspberry Pi2의 스펙 •Single Board Computer(Micro Computer) • CPU : 900MHz ARM Cortex-A7 쿼드코어 • RAM : 1GB • USB 2.0 * 4 + HDMI * 1 + Micro USB전원 • 10/100 Mbit/s Ethernet Mobile Convergence Laboratory 90출처 : Wikipedia(wikipedia.org/wiki/Raspberry_Pi)

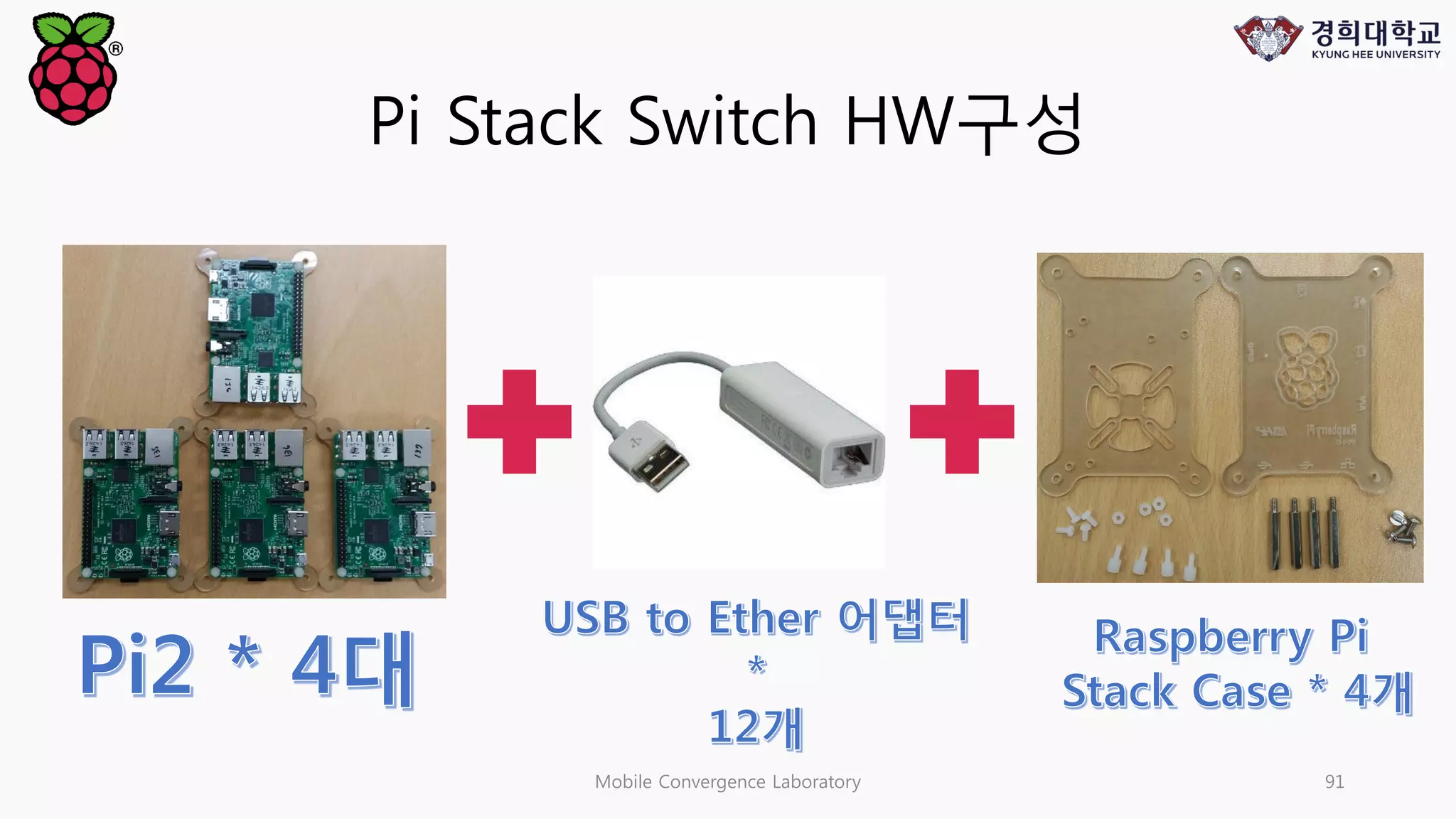

- 91. Pi Stack SwitchHW구성 Mobile Convergence Laboratory 91
- 92. Mobile Convergence Laboratory92 Pi Stack Switch HW구성 메인 스위치 x 1개 x 1포트 + 서브 스위치 x 3개 x 3포트 = 10포트 스위치

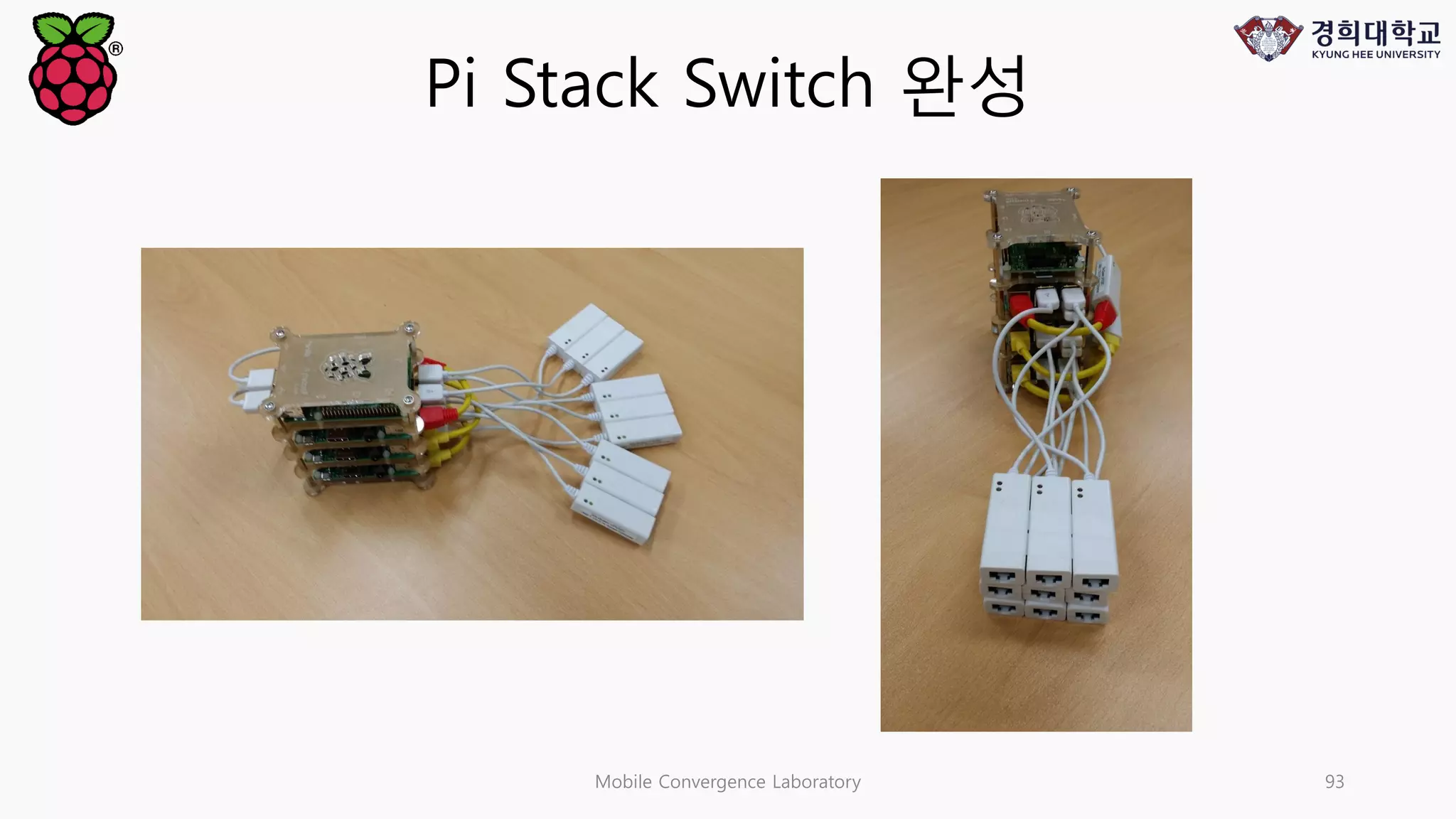

- 93. Mobile Convergence Laboratory93 Pi Stack Switch 완성

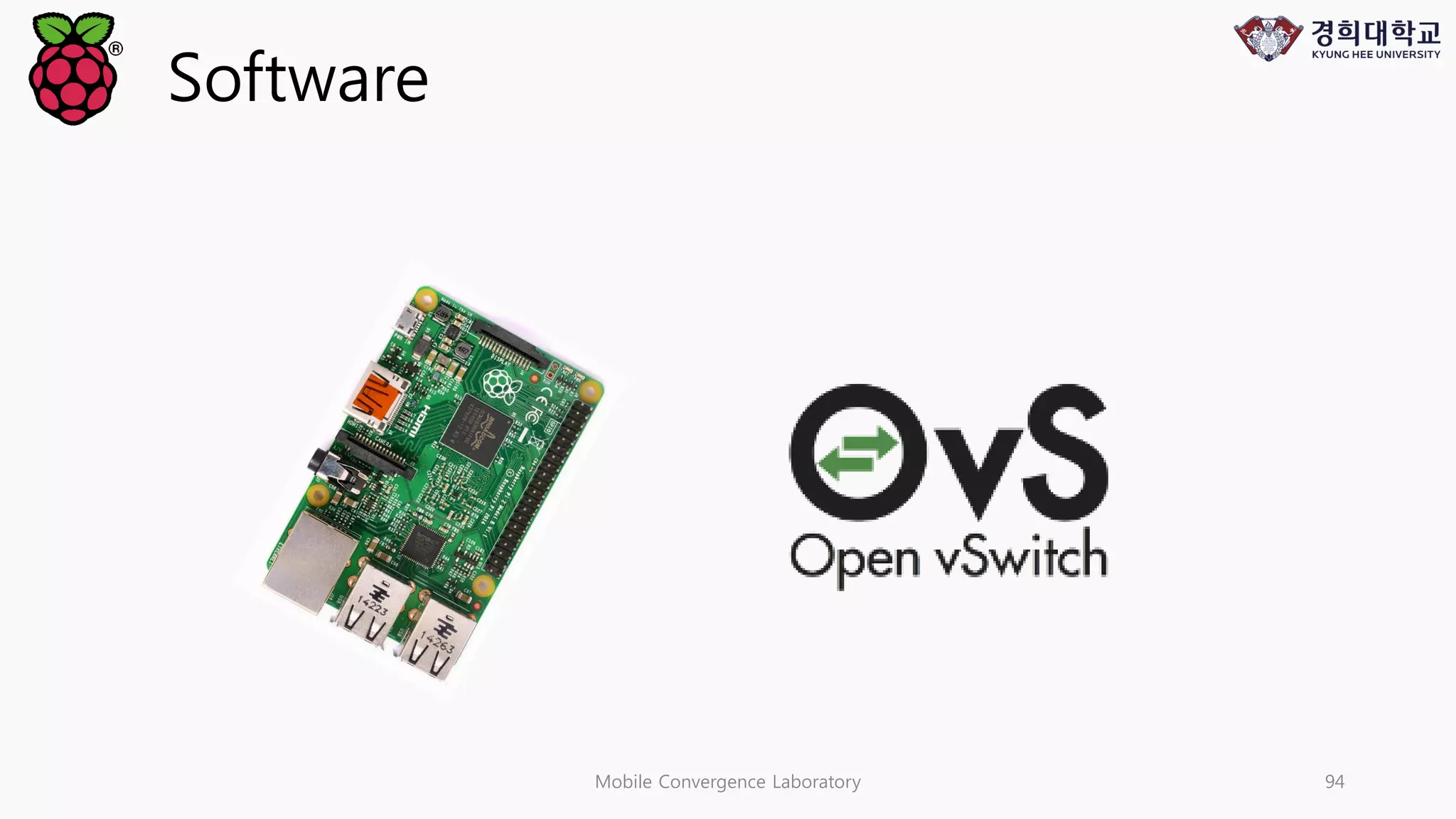

- 94. Mobile Convergence Laboratory94 Software

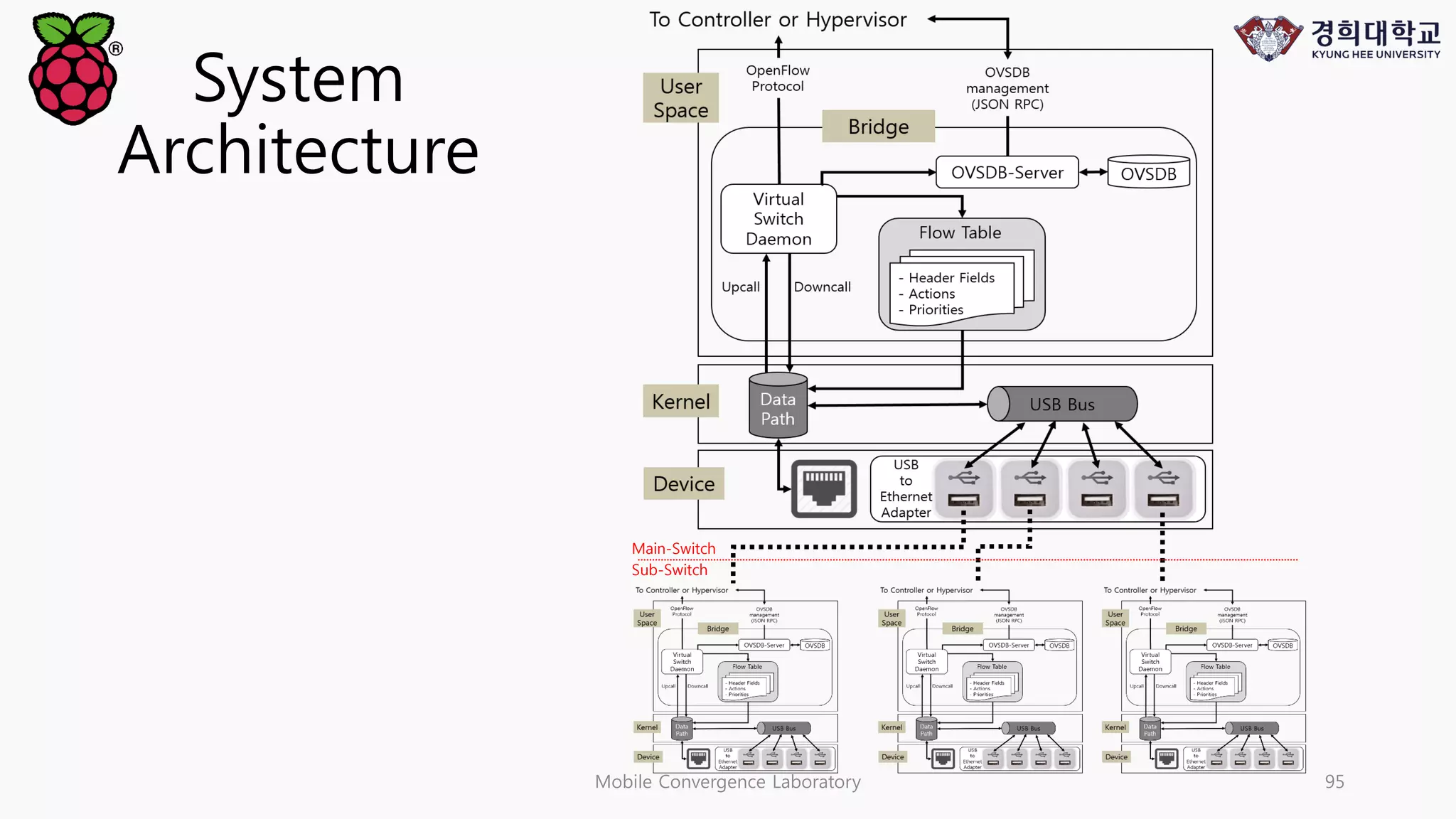

- 95. Mobile Convergence Laboratory95 System Architecture Main-Switch Sub-Switch
- 96. Pi Stack Switch- Install • OpenvSwitch 설치 $ sudo apt-get install openvswitch-switch openvswitch- controller openvswitch-common $ sudo ovs-vsctl add-br <BridgeName> $ sudo ovs-vsctl add-port <BridgeName> eth_n $ sudo ovs-vsctl set-controller <BridgeName> tcp:Ctrl_IP:6633 https://github.com/MobileConvergenceLab/pi-switch Mobile Convergence Laboratory 96

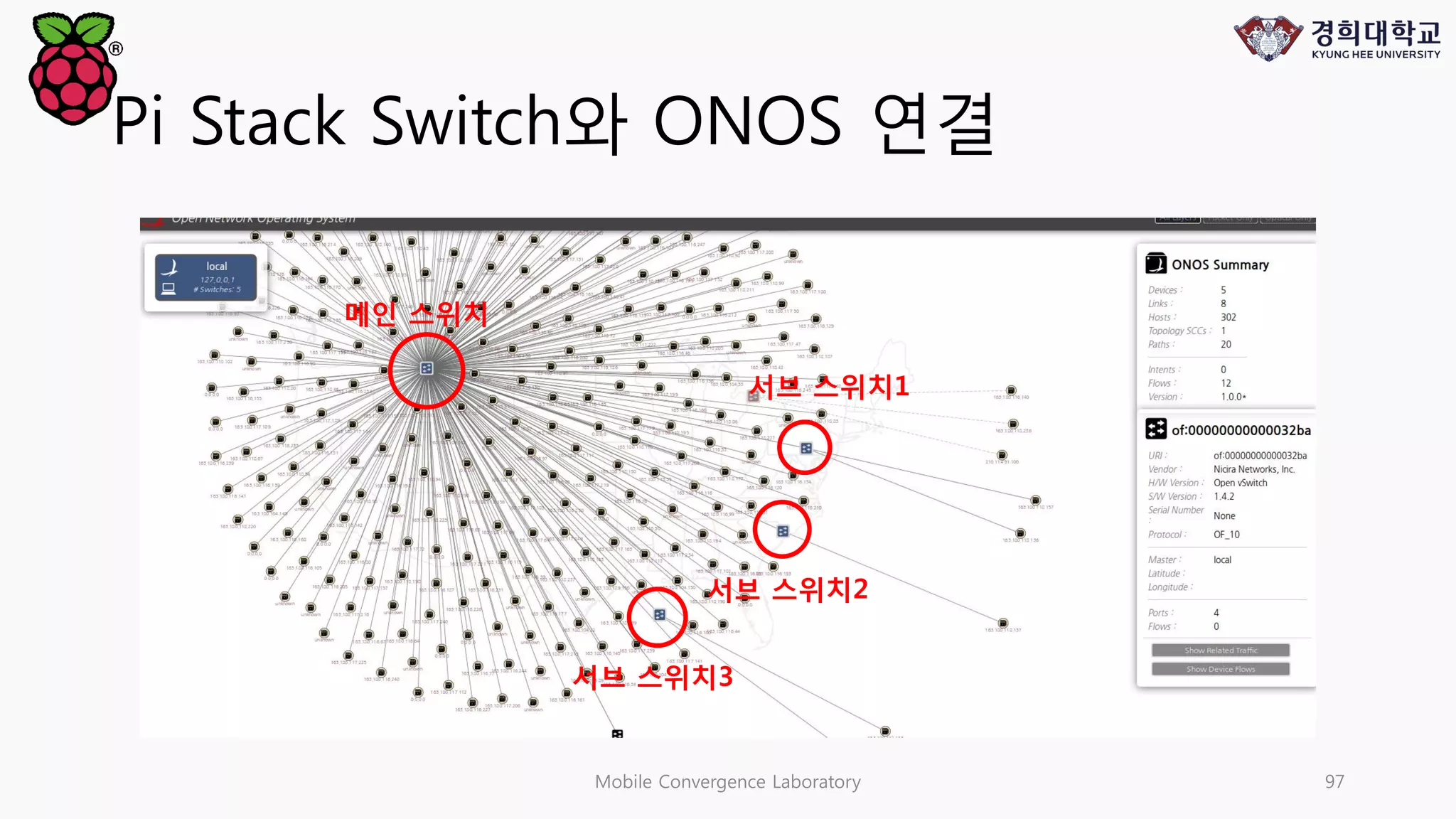

- 97. Pi Stack Switch와ONOS 연결 Mobile Convergence Laboratory 97 메인 스위치 서브 스위치1 서브 스위치2 서브 스위치3
- 98. SDN 실증 환경구축 SDN 테스트베드와 하이퍼바이저 그리고 SDN 컨트롤러 Mobile Convergence Laboratory 98
- 99. Mobile Convergence Laboratory99 Pi Stack Switch

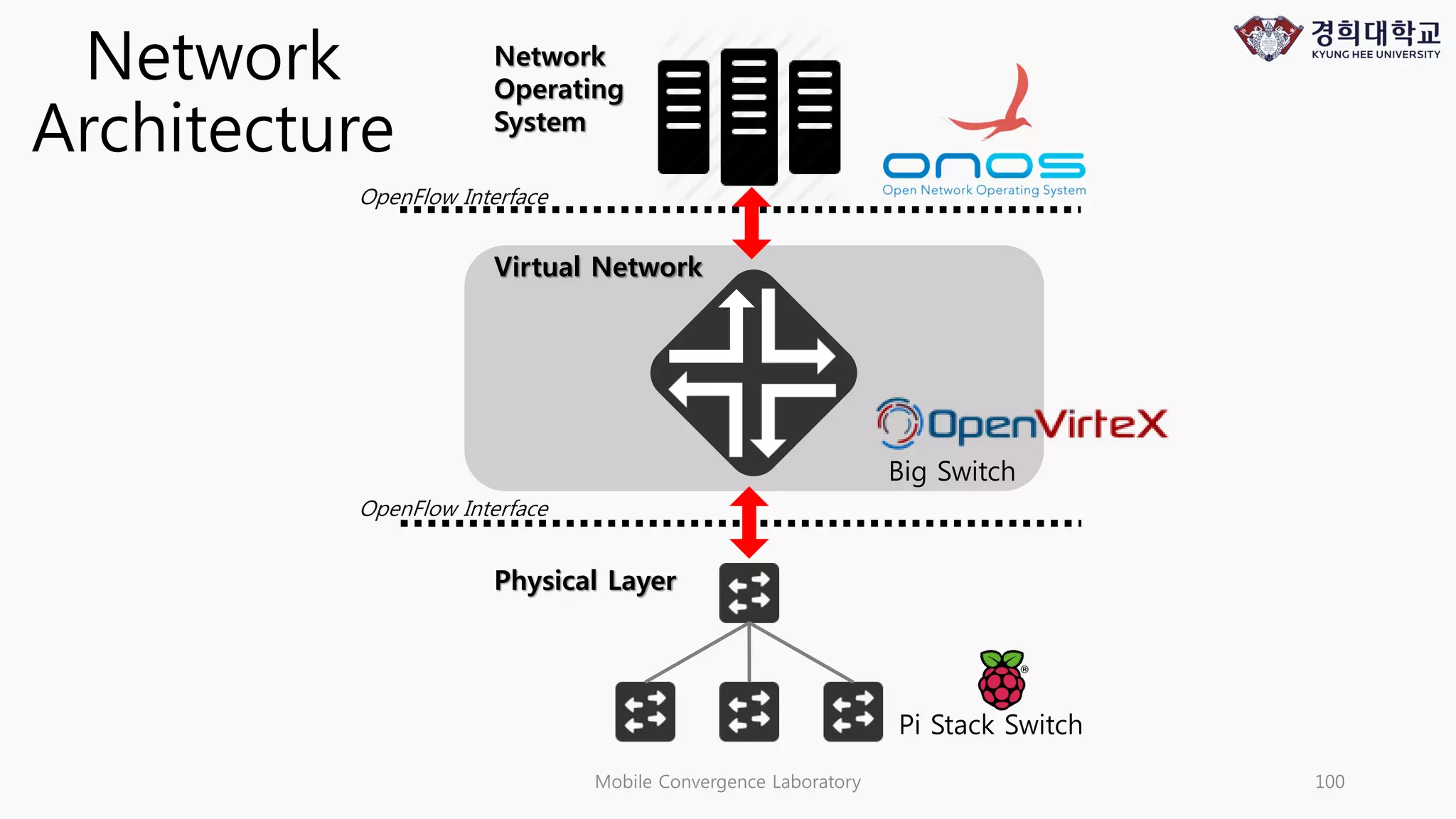

- 100. Mobile Convergence Laboratory100 Network Architecture Network Operating System Virtual Network Physical Layer OpenFlow Interface Pi Stack Switch OpenFlow Interface Big Switch

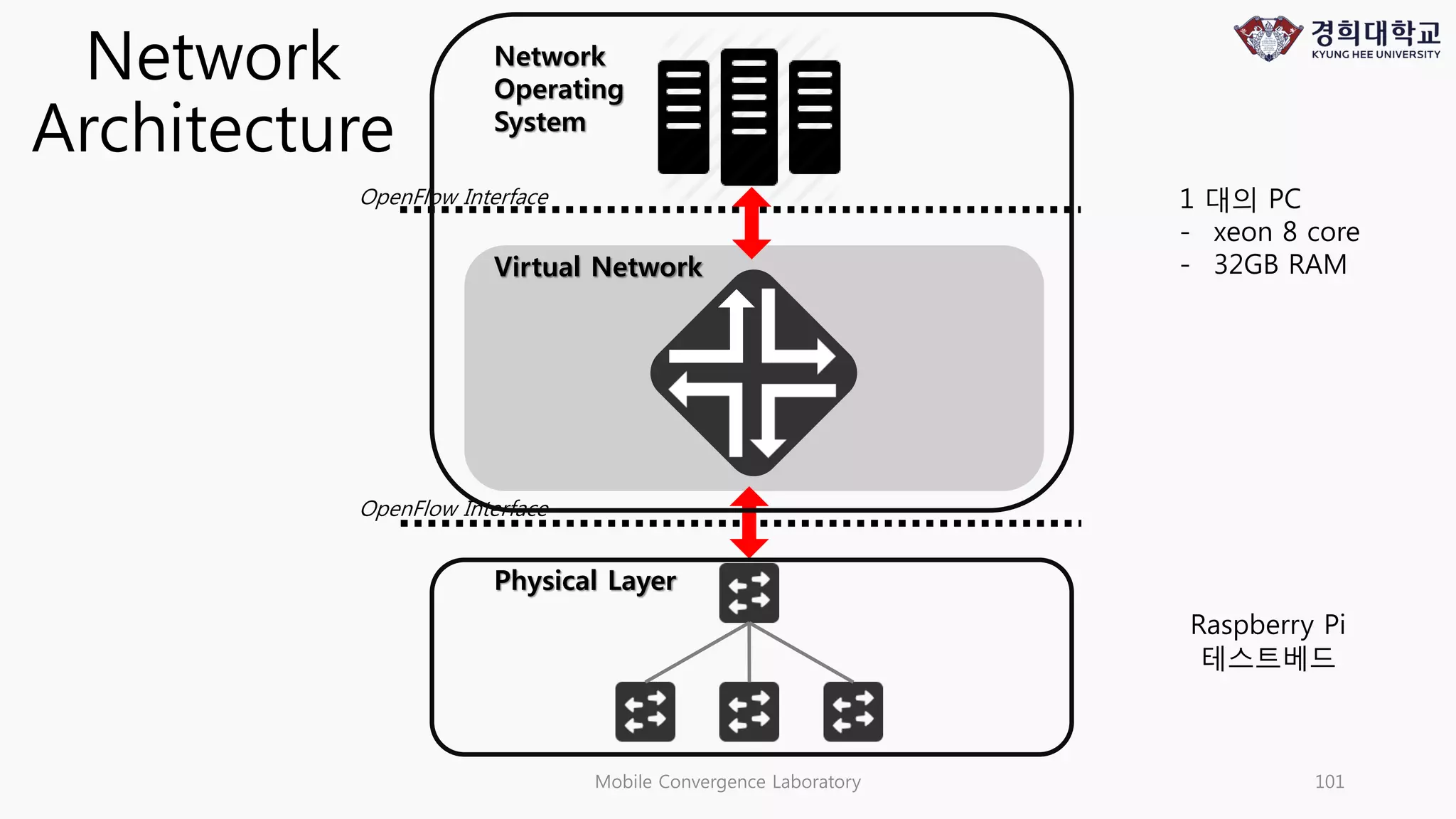

- 101. Mobile Convergence Laboratory101 Network Architecture Network Operating System Virtual Network Physical Layer OpenFlow Interface OpenFlow Interface 1 대의 PC - xeon 8 core - 32GB RAM Raspberry Pi 테스트베드

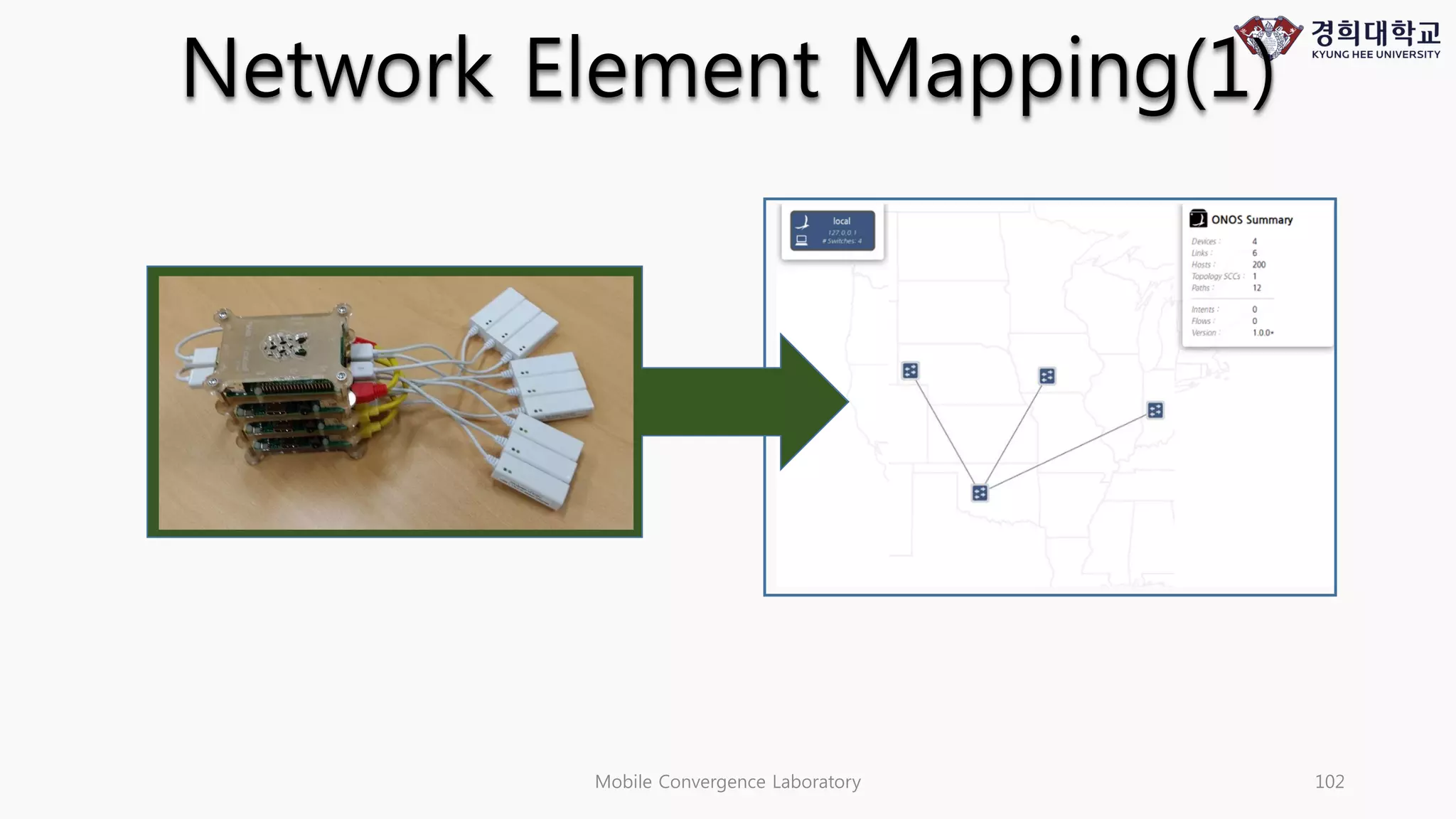

- 102. Mobile Convergence Laboratory102 Network Element Mapping(1)
- 103. Mobile Convergence Laboratory103 Network Element Mapping(2) Big Switch By OpenVirteX
- 104. Mobile Convergence Laboratory104 Pi only SDN (1/3) Raspberry Pi
- 105. Mobile Convergence Laboratory105 Pi only SDN (2/3) ONOS controller Pi Stack Switch (SDN Switch)

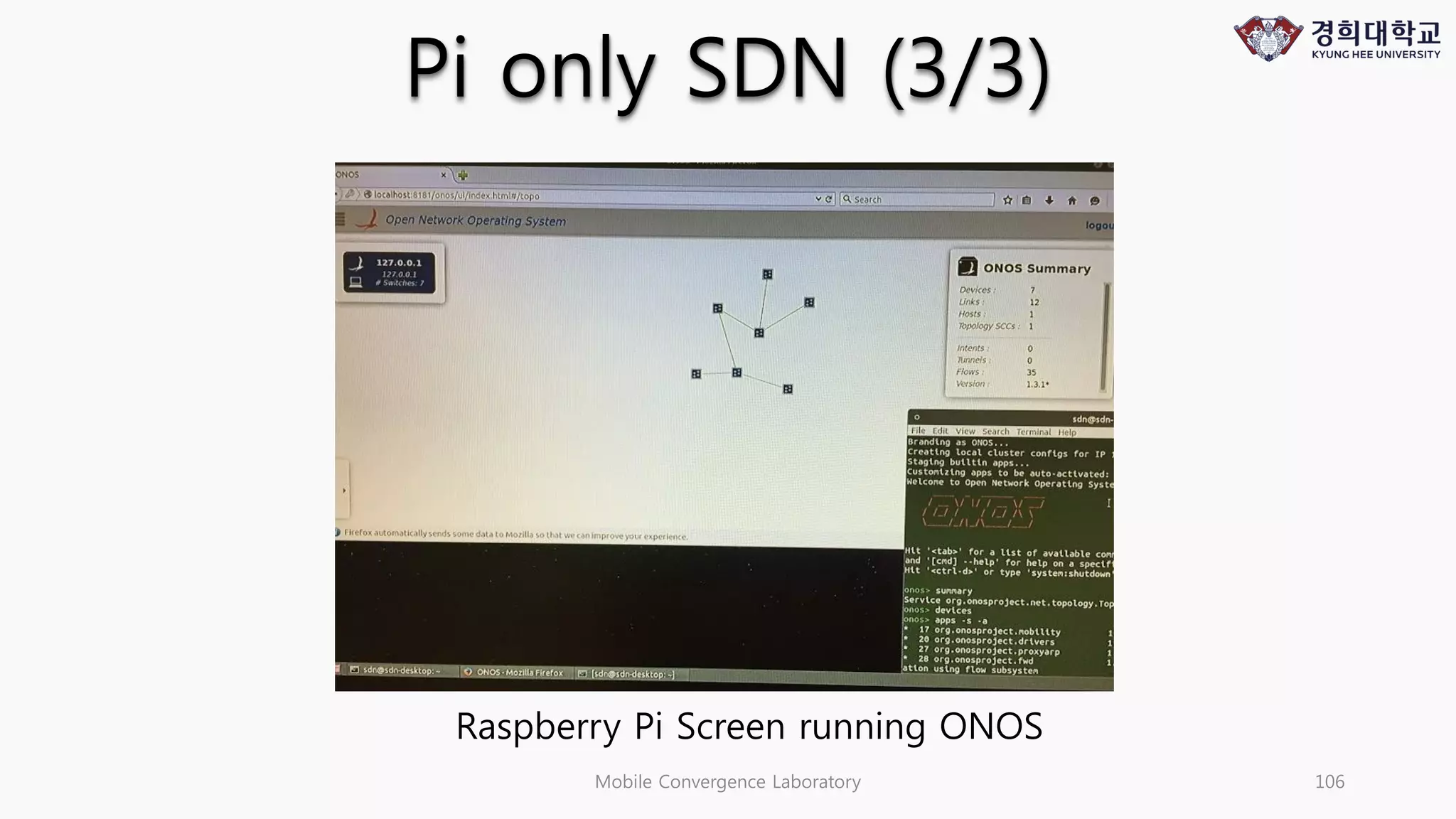

- 106. Mobile Convergence Laboratory106 Pi only SDN (3/3) Raspberry Pi Screen running ONOS

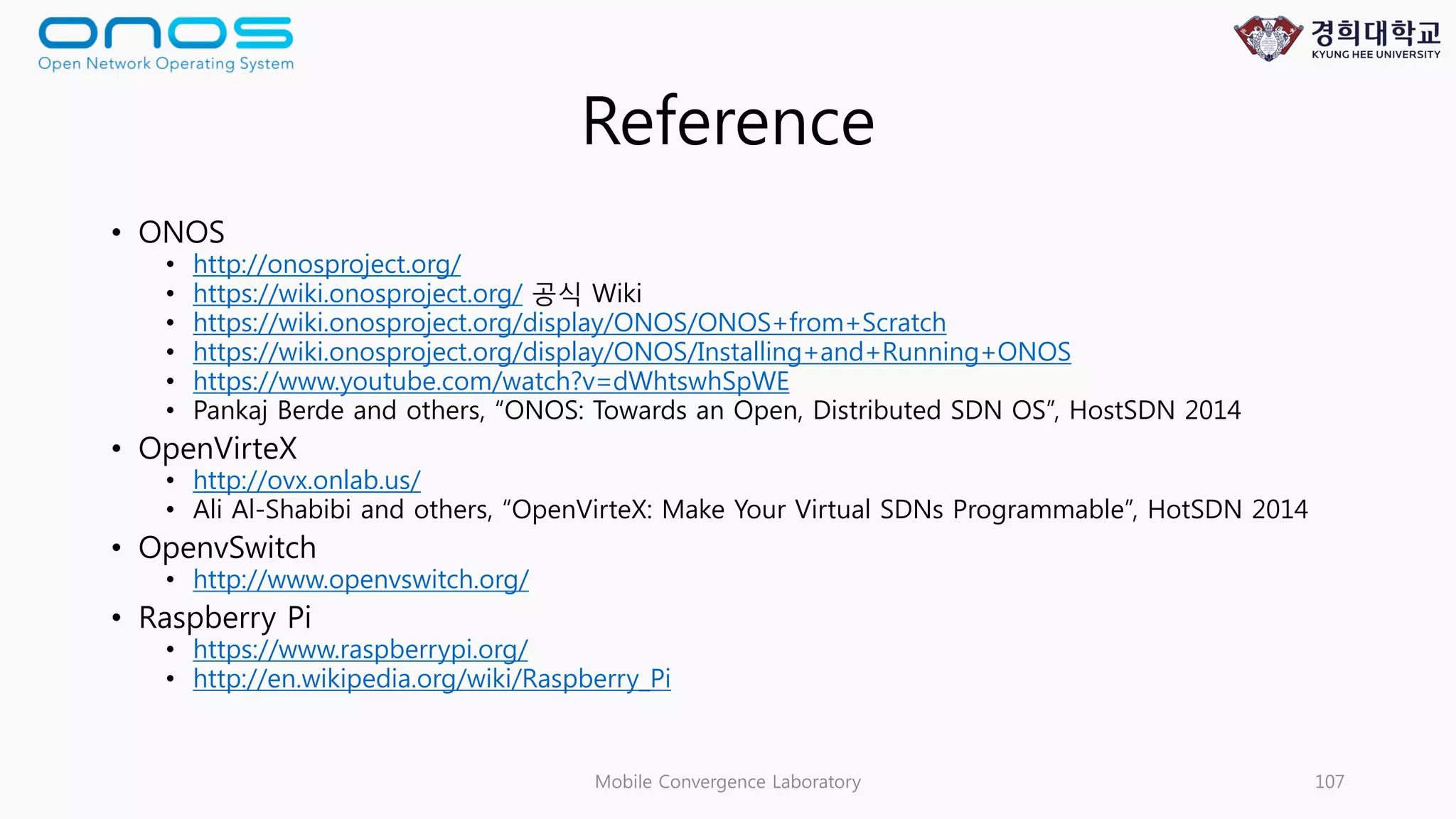

- 107. Reference • ONOS • http://onosproject.org/ •https://wiki.onosproject.org/ 공식 Wiki • https://wiki.onosproject.org/display/ONOS/ONOS+from+Scratch • https://wiki.onosproject.org/display/ONOS/Installing+and+Running+ONOS • https://www.youtube.com/watch?v=dWhtswhSpWE • Pankaj Berde and others, “ONOS: Towards an Open, Distributed SDN OS”, HostSDN 2014 • OpenVirteX • http://ovx.onlab.us/ • Ali Al-Shabibi and others, “OpenVirteX: Make Your Virtual SDNs Programmable”, HotSDN 2014 • OpenvSwitch • http://www.openvswitch.org/ • Raspberry Pi • https://www.raspberrypi.org/ • http://en.wikipedia.org/wiki/Raspberry_Pi Mobile Convergence Laboratory 107
