OVERVIEW OFAN OIL & GAS OFFSHORE & MARINE PROJECTS SESSION II OFFSHORE OIL & GAS
OFFSHORE OIL & GAS 1. WORLDWIDE 2. EGYPT 2 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF
OFFSHORE OIL & GAS 1. WORLDWIDE 3 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16

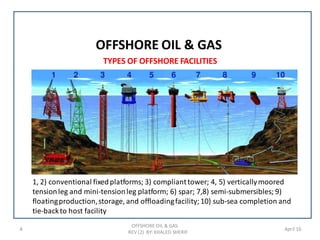

TYPES OF OFFSHORE FACILITIES 1, 2) conventional fixedplatforms; 3) complianttower; 4, 5) verticallymoored tensionleg and mini-tensionleg platform; 6) spar; 7,8) semi-submersibles; 9) floatingproduction,storage, and offloadingfacility;10) sub-sea completion and tie-backto host facility 4 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS
5 April 16 WATERDEPTHS OFFSHORE OIL & GAS US MINERALS MANAGEMENTSERVICE (MMS) DEFINITIONS: • SHALLOW = 1 – 1,000’ (1- 330 M) • DEEPWATER = 1,001 – 5,000’ (330 – 1525 M) • ULTRA DEEPWATER= > 5,001’ (1525 M) OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

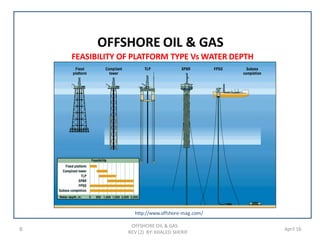

6 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS http://www.offshore-mag.com/ FEASIBILITY OF PLATFORM TYPE Vs WATER DEPTH

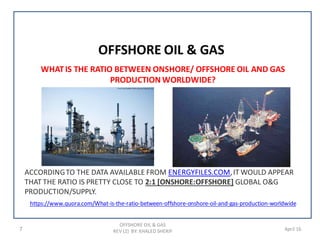

7 April 16 WHATIS THE RATIO BETWEEN ONSHORE/ OFFSHORE OIL AND GAS PRODUCTION WORLDWIDE? ACCORDINGTO THE DATA AVAILABLE FROM ENERGYFILES.COM,IT WOULD APPEAR THAT THE RATIO IS PRETTY CLOSE TO 2:1 [ONSHORE:OFFSHORE] GLOBAL O&G PRODUCTION/SUPPLY. worldwide-production-gas-and-oil-onshore-offshore-between-ratio-the-is-https://www.quora.com/What OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

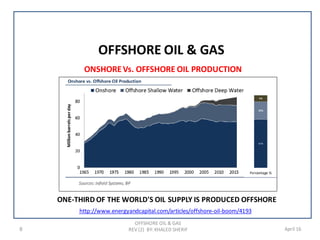

8 April 16 ONSHOREVs. OFFSHORE OIL PRODUCTION OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF 4193boom/-oil-http://www.energyandcapital.com/articles/offshore ONE-THIRD OF THE WORLD'S OIL SUPPLY IS PRODUCED OFFSHORE

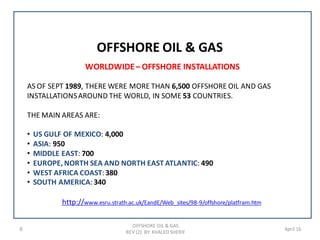

9 April 16 WORLDWIDE– OFFSHORE INSTALLATIONS AS OF SEPT 1989, THERE WERE MORE THAN 6,500 OFFSHORE OIL AND GAS INSTALLATIONSAROUND THE WORLD, IN SOME 53 COUNTRIES. THE MAIN AREAS ARE: • US GULF OF MEXICO: 4,000 • ASIA: 950 • MIDDLE EAST: 700 • EUROPE, NORTH SEA AND NORTH EAST ATLANTIC: 490 • WEST AFRICA COAST:380 • SOUTH AMERICA:340 /offshore/platfram.htm9-98www.esru.strath.ac.uk/EandE/Web_sites/http:// OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

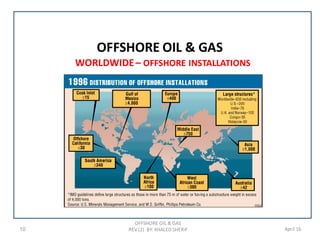

10 April 16 WORLDWIDE– OFFSHORE INSTALLATIONS OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

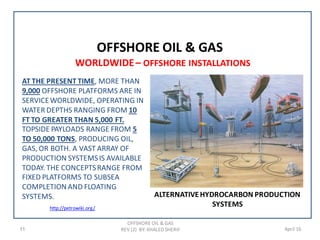

11 April 16 WORLDWIDE– OFFSHORE INSTALLATIONS OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF AT THE PRESENT TIME, MORE THAN 9,000 OFFSHORE PLATFORMS ARE IN SERVICEWORLDWIDE, OPERATING IN WATER DEPTHS RANGING FROM 10 FT TO GREATER THAN 5,000 FT. TOPSIDE PAYLOADS RANGE FROM 5 TO 50,000 TONS, PRODUCING OIL, GAS, OR BOTH. A VAST ARRAY OF PRODUCTION SYSTEMSIS AVAILABLE TODAY. THE CONCEPTSRANGE FROM FIXED PLATFORMS TO SUBSEA COMPLETIONAND FLOATING SYSTEMS. http://petrowiki.org/ ALTERNATIVEHYDROCARBON PRODUCTION SYSTEMS

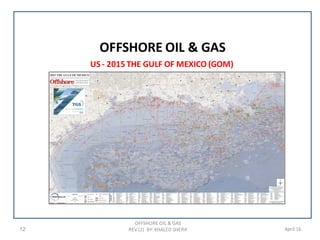

12 April 16 US - 2015 THE GULF OF MEXICO (GOM) OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

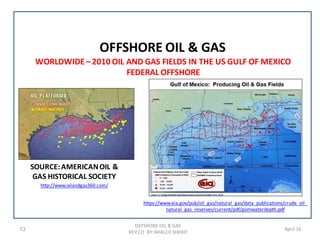

13 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– 2010 OIL AND GAS FIELDS IN THE US GULF OF MEXICO FEDERAL OFFSHORE https://www.eia.gov/pub/oil_gas/natural_gas/data_publications/crude_oil_ natural_gas_reserves/current/pdf/gomwaterdepth.pdf SOURCE:AMERICANOIL & GAS HISTORICAL SOCIETY http://www.oilandgas360.com/

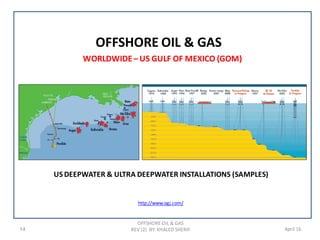

14 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS http://www.ogj.com/ WORLDWIDE– US GULF OF MEXICO (GOM) US DEEPWATER & ULTRA DEEPWATER INSTALLATIONS (SAMPLES)

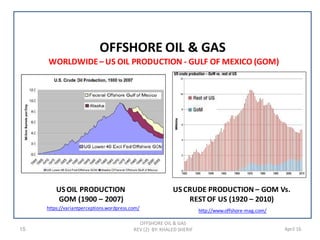

15 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– US OIL PRODUCTION - GULF OF MEXICO (GOM) US OIL PRODUCTION GOM (1900 – 2007) https://variantperceptions.wordpress.com/ US CRUDE PRODUCTION – GOM Vs. RESTOF US (1920 – 2010) http://www.offshore-mag.com/

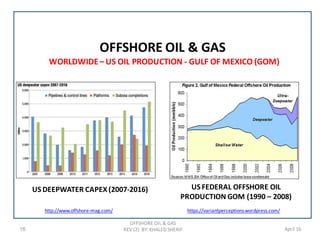

16 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– US OIL PRODUCTION - GULF OF MEXICO (GOM) http://www.offshore-mag.com/ US DEEPWATER CAPEX (2007-2016) https://variantperceptions.wordpress.com/ US FEDERAL OFFSHORE OIL PRODUCTION GOM (1990 – 2008)

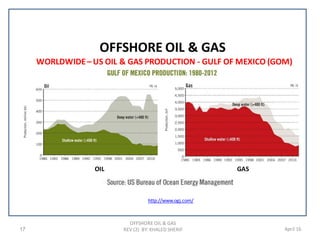

17 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– US OIL & GAS PRODUCTION - GULF OF MEXICO (GOM) http://www.ogj.com/ OIL GAS

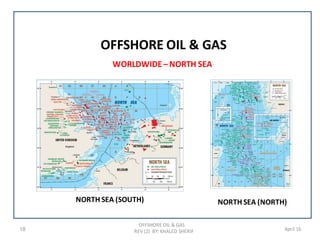

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF18 SOU April 16 WORLDWIDE– NORTH SEA OFFSHORE OIL & GAS NORTH SEA (SOUTH) NORTH SEA (NORTH)

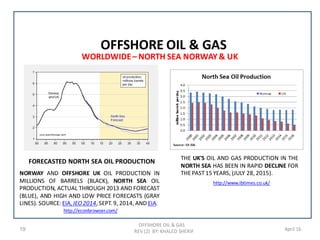

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF19 SOU April 16 WORLDWIDE– NORTH SEA NORWAY& UK OFFSHORE OIL & GAS THE UK'S OIL AND GAS PRODUCTION IN THE NORTH SEA HAS BEEN IN RAPID DECLINE FOR THEPAST15 YEARS, (JULY 28, 2015). http://www.ibtimes.co.uk/ FORECASTED NORTH SEA OIL PRODUCTION NORWAY AND OFFSHORE UK OIL PRODUCTION IN MILLIONS OF BARRELS (BLACK), NORTH SEA OIL PRODUCTION, ACTUAL THROUGH 2013 AND FORECAST (BLUE), AND HIGH AND LOW PRICE FORECASTS (GRAY LINES). SOURCE: EIA, IEO2014, SEPT. 9, 2014, AND EIA. http://econbrowser.com/

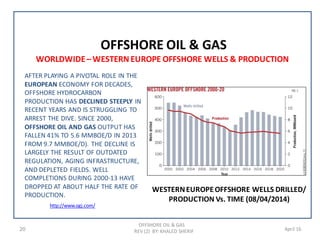

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF20 SOU April 16 WORLDWIDE– WESTERN EUROPE OFFSHORE WELLS & PRODUCTION OFFSHORE OIL & GAS http://www.ogj.com/ AFTER PLAYING A PIVOTAL ROLE IN THE EUROPEAN ECONOMY FOR DECADES, OFFSHORE HYDROCARBON PRODUCTION HAS DECLINED STEEPLY IN RECENT YEARS AND IS STRUGGLING TO ARREST THE DIVE. SINCE 2000, OFFSHORE OIL AND GAS OUTPUT HAS FALLEN 41% TO 5.6 MMBOE/D IN 2013 FROM 9.7 MMBOE/D). THE DECLINE IS LARGELY THE RESULT OF OUTDATED REGULATION, AGING INFRASTRUCTURE, AND DEPLETED FIELDS. WELL COMPLETIONS DURING 2000-13 HAVE DROPPED AT ABOUT HALF THE RATE OF PRODUCTION. WESTERNEUROPEOFFSHORE WELLS DRILLED/ PRODUCTION Vs. TIME (08/04/2014)

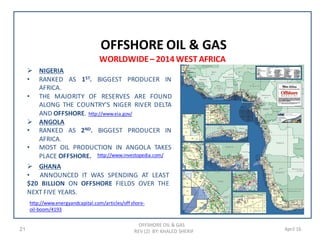

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF21 April 16 WORLDWIDE– 2014 WEST AFRICA OFFSHORE OIL & GAS  GHANA • ANNOUNCED IT WAS SPENDING AT LEAST $20 BILLION ON OFFSHORE FIELDS OVER THE NEXT FIVE YEARS. http://www.energyandcapital.com/articles/off shore- oil-boom/4193  NIGERIA • RANKED AS 1ST. BIGGEST PRODUCER IN AFRICA. • THE MAJORITY OF RESERVES ARE FOUND ALONG THE COUNTRY'S NIGER RIVER DELTA AND OFFSHORE. http://www.eia.gov/  ANGOLA • RANKED AS 2ND. BIGGEST PRODUCER IN AFRICA. • MOST OIL PRODUCTION IN ANGOLA TAKES PLACE OFFSHORE. http://www.investopedia.com/

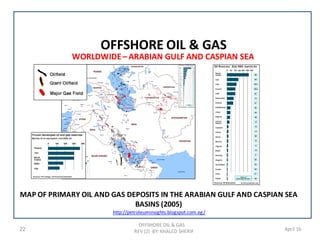

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF22 April 16 WORLDWIDE– ARABIAN GULF AND CASPIAN SEA MAP OF PRIMARY OIL AND GAS DEPOSITS IN THE ARABIAN GULF AND CASPIAN SEA BASINS (2005) http://petroleuminsights.blogspot.com.eg/ OFFSHORE OIL & GAS

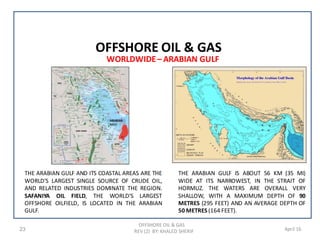

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF23 April 16 WORLDWIDE– ARABIAN GULF OFFSHORE OIL & GAS THE ARABIAN GULF IS ABOUT 56 KM (35 MI) WIDE AT ITS NARROWEST, IN THE STRAIT OF HORMUZ. THE WATERS ARE OVERALL VERY SHALLOW, WITH A MAXIMUM DEPTH OF 90 METRES (295 FEET) AND AN AVERAGE DEPTH OF 50 METRES (164 FEET). THE ARABIAN GULF AND ITS COASTAL AREAS ARE THE WORLD'S LARGEST SINGLE SOURCE OF CRUDE OIL, AND RELATED INDUSTRIES DOMINATE THE REGION. SAFANIYA OIL FIELD, THE WORLD'S LARGEST OFFSHORE OILFIELD, IS LOCATED IN THE ARABIAN GULF.

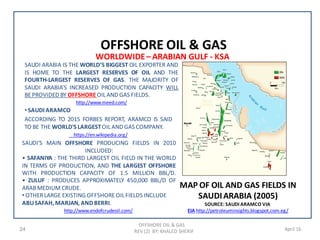

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF24 April 16 • SAUDI ARAMCO ACCORDING TO 2015 FORBES REPORT, ARAMCO IS SAID TO BE THE WORLD'S LARGESTOIL AND GAS COMPANY. https://en.wikipedia.org/ OFFSHORE OIL & GAS MAP OF OIL AND GAS FIELDS IN SAUDIARABIA (2005) SOURCE: SAUDI ARAMCO VIA EIA http://petroleuminsights.blogspot.com.eg/ SAUDI’S MAIN OFFSHORE PRODUCING FIELDS IN 2010 INCLUDED: • SAFANIYA : THE THIRD LARGEST OIL FIELD IN THE WORLD IN TERMS OF PRODUCTION, AND THE LARGEST OFFSHORE WITH PRODUCTION CAPACITY OF 1.5 MILLION BBL/D. • ZULUF : PRODUCES APPROXIMATELY 450,000 BBL/D OF ARABMEDIUM CRUDE. • OTHERLARGE EXISTING OFFSHOREOIL FIELDS INCLUDE ABUSAFAH, MARJAN, AND BERRI. http://www.endofcrudeoil.com/ WORLDWIDE– ARABIAN GULF - KSA SAUDI ARABIA IS THE WORLD’S BIGGEST OIL EXPORTER AND IS HOME TO THE LARGEST RESERVES OF OIL AND THE FOURTH-LARGEST RESERVES OF GAS. THE MAJORITY OF SAUDI ARABIA’S INCREASED PRODUCTION CAPACITY WILL BEPROVIDED BY OFFSHOREOIL AND GAS FIELDS. http://www.meed.com/

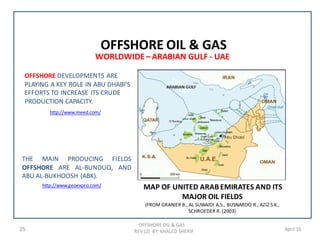

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF25 April 16 WORLDWIDE– ARABIAN GULF - UAE http://www.geoexpro.com/ OFFSHORE OIL & GAS THE MAIN PRODUCING FIELDS OFFSHORE ARE AL-BUNDUQ, AND ABU AL-BUKHOOSH (ABK). MAP OF UNITED ARABEMIRATES AND ITS MAJOR OIL FIELDS (FROM GRANIER B., AL SUWAIDI A.S., BUSNARDO R., AZIZ S.K., SCHROEDER R. (2003) OFFSHORE DEVELOPMENTS ARE PLAYING A KEY ROLE IN ABU DHABI’S EFFORTS TO INCREASE ITS CRUDE PRODUCTION CAPACITY. http://www.meed.com/

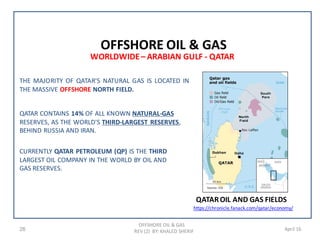

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF26 April 16 WORLDWIDE– ARABIAN GULF - QATAR OFFSHORE OIL & GAS https://chronicle.fanack.com/qatar/economy/ THE MAJORITY OF QATAR'S NATURAL GAS IS LOCATED IN THE MASSIVE OFFSHORE NORTH FIELD. QATAR CONTAINS 14% OF ALL KNOWN NATURAL-GAS RESERVES, AS THE WORLD'S THIRD-LARGEST RESERVES, BEHIND RUSSIA AND IRAN. QATAROIL AND GAS FIELDS CURRENTLY QATAR PETROLEUM (QP) IS THE THIRD LARGEST OIL COMPANY IN THE WORLD BY OIL AND GAS RESERVES.

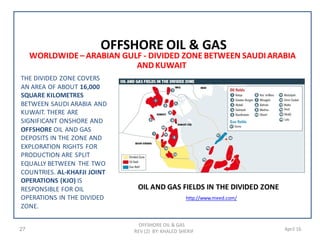

OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF27 April 16 WORLDWIDE– ARABIAN GULF - DIVIDED ZONE BETWEEN SAUDIARABIA ANDKUWAIT OFFSHORE OIL & GAS THE DIVIDED ZONE COVERS AN AREA OF ABOUT 16,000 SQUARE KILOMETRES BETWEEN SAUDI ARABIA AND KUWAIT. THERE ARE SIGNIFICANT ONSHORE AND OFFSHORE OIL AND GAS DEPOSITS IN THE ZONE AND EXPLORATION RIGHTS FOR PRODUCTION ARE SPLIT EQUALLY BETWEEN THE TWO COUNTRIES. AL-KHAFJI JOINT OPERATIONS (KJO) IS RESPONSIBLE FOR OIL OPERATIONS IN THE DIVIDED ZONE. http://www.meed.com/ OIL AND GAS FIELDS IN THE DIVIDED ZONE
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 28 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO01: FIXED PLATFORM (SHELL - BULLWINKLE)

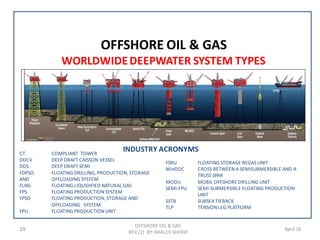

29 April 16 WORLDWIDEDEEPWATER SYSTEM TYPES OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF CT COMPLIANT TOWER DDCV DEEP DRAFT CAISSON VESSEL DDS DEEP DRAFT SEMI FDPSO FLOATING DRILLING, PRODUCTION, STORAGE AND OFFLOADING SYSTEM FLNG FLOATING LIQUIDIFIED NATURAL GAS FPS FLOATING PRODUCTION SYSTEM FPSO FLOATING PRODUCTION, STORAGE AND OFFLOADING SYSTEM FPU FLOATING PRODUCTION UNIT FSRU FLOATING STORAGE REGAS UNIT MinDOC CROSS BETWEEN A SEMISUBMERSIBLE AND A TRUSS SPAR MODU MOBIL OFFSHORE DRILLING UNIT SEMI-FPU SEMI-SUBMERSIBLE FLOATING PRODUCTION UNIT SSTB SUBSEA TIEBACK TLP TENSION LEG PLATFORM INDUSTRY ACRONYMS

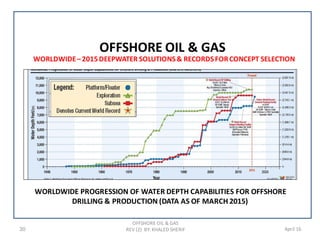

30 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS WORLDWIDE PROGRESSION OF WATER DEPTH CAPABILITIES FOR OFFSHORE DRILLING & PRODUCTION (DATA AS OF MARCH 2015)

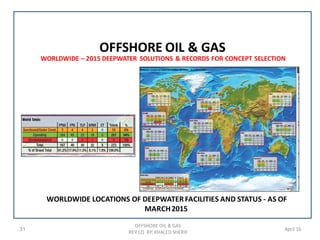

31 April 16 WORLDWIDE – 2015 DEEPWATER SOLUTIONS & RECORDS FOR CONCEPT SELECTION WORLDWIDE LOCATIONS OF DEEPWATERFACILITIES AND STATUS - AS OF MARCH2015 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS

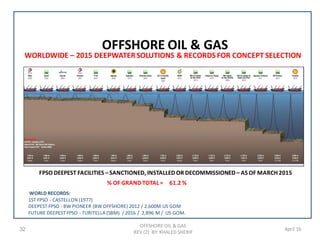

32 April 16 WORLDWIDE – 2015 DEEPWATERSOLUTIONS & RECORDS FOR CONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS FPSO DEEPEST FACILITIES – SANCTIONED, INSTALLED OR DECOMMISSIONED – AS OF MARCH 2015 % OF GRAND TOTAL = 61.2 % WORLD RECORDS: 1ST FPSO - CASTELLON (1977) DEEPEST FPSO - BW PIONEER (BW OFFSHORE) 2012 / 2,600M US GOM FUTURE DEEPEST FPSO - TURITELLA (SBM) / 2016 / 2,896 M / US GOM.

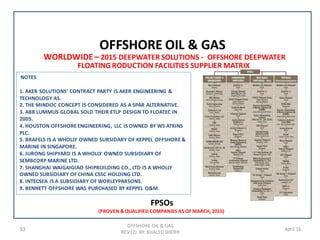

33 April 16 WORLDWIDE– 2015 DEEPWATER SOLUTIONS - OFFSHORE DEEPWATER FLOATING RODUCTION FACILITIES SUPPLIER MATRIX OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS FPSOs (PROVEN & QUALIFIED COMPANIES AS OF MARCH, 2015) NOTES 1. AKER SOLUTIONS’ CONTRACT PARTY IS AKER ENGINEERING & TECHNOLOGY AS. 2. THE MINDOC CONCEPT IS CONSIDERED AS A SPAR ALTERNATIVE. 3. ABB LUMMUS GLOBAL SOLD THEIR ETLP DESIGN TO FLOATEC IN 2005. 4. HOUSTON OFFSHORE ENGINEERING, LLC IS OWNED BY WS ATKINS PLC. 5. BRAFELS IS A WHOLLY OWNED SUBSIDARY OF KEPPEL OFFSHORE & MARINE IN SINGAPORE. 6. JURONG SHIPYARD IS A WHOLLY OWNED SUBSIDIARY OF SEMBCORP MARINE LTD. 7. SHANGHAI WAIGAIGIAO SHIPBUILDING CO., LTD IS A WHOLLY OWNED SUBSIDIARY OF CHINA CSSC HOLDING LTD. 8. INTECSEA IS A SUBSIDIARY OF WORLEYPARSONS. 9. BENNETT OFFSHORE WAS PURCHASED BY KEPPEL O&M.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 34 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO02: FPSOs (ANGOLA PSVM & ARMADA PERDANA FPSO)

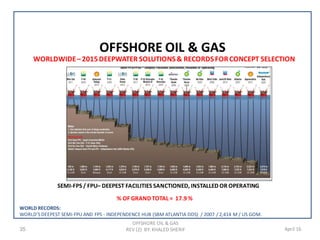

35 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS SEMI-FPS / FPU– DEEPEST FACILITIES SANCTIONED, INSTALLED OR OPERATING % OF GRAND TOTAL = 17.9 % WORLD RECORDS: WORLD’S DEEPEST SEMI-FPU AND FPS - INDEPENDENCE HUB (SBM ATLANTIA DDS) / 2007 / 2,414 M / US GOM.

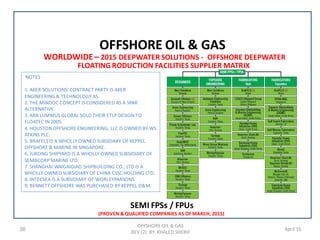

36 April 16 WORLDWIDE– 2015 DEEPWATER SOLUTIONS - OFFSHORE DEEPWATER FLOATING RODUCTION FACILITIES SUPPLIER MATRIX OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS SEMI FPSs / FPUs (PROVEN & QUALIFIED COMPANIES AS OF MARCH, 2015) NOTES 1. AKER SOLUTIONS’ CONTRACT PARTY IS AKER ENGINEERING & TECHNOLOGY AS. 2. THE MINDOC CONCEPT IS CONSIDERED AS A SPAR ALTERNATIVE. 3. ABB LUMMUS GLOBAL SOLD THEIR ETLP DESIGN TO FLOATEC IN 2005. 4. HOUSTON OFFSHORE ENGINEERING, LLC IS OWNED BY WS ATKINS PLC. 5. BRAFELS IS A WHOLLY OWNED SUBSIDARY OF KEPPEL OFFSHORE & MARINE IN SINGAPORE. 6. JURONG SHIPYARD IS A WHOLLY OWNED SUBSIDIARY OF SEMBCORP MARINE LTD. 7. SHANGHAI WAIGAIGIAO SHIPBUILDING CO., LTD IS A WHOLLY OWNED SUBSIDIARY OF CHINA CSSC HOLDING LTD. 8. INTECSEA IS A SUBSIDIARY OF WORLEYPARSONS. 9. BENNETT OFFSHORE WAS PURCHASED BY KEPPEL O&M.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 37 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO03: SEMI FPSs / FPUs (CHEVRON - JACK & ST. MALO FPU)

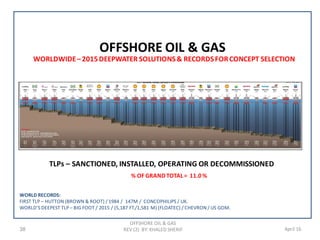

38 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS TLPs – SANCTIONED, INSTALLED, OPERATING OR DECOMMISSIONED WORLD RECORDS: FIRST TLP – HUTTON (BROWN & ROOT) / 1984 / 147M / CONCOPHILIPS / UK. WORLD'S DEEPEST TLP – BIG FOOT / 2015 / (5,187 FT./1,581 M) (FLOATEC) / CHEVRON / US GOM. % OF GRAND TOTAL = 11.0 %

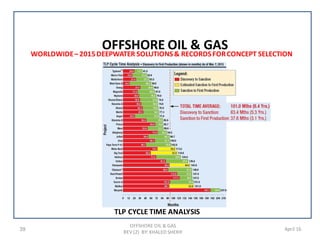

39 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS TLP CYCLE TIME ANALYSIS

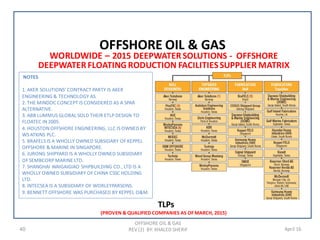

40 April 16 WORLDWIDE – 2015 DEEPWATER SOLUTIONS - OFFSHORE DEEPWATER FLOATINGRODUCTION FACILITIESSUPPLIER MATRIX OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS TLPs (PROVEN & QUALIFIED COMPANIES AS OF MARCH, 2015) NOTES 1. AKER SOLUTIONS’ CONTRACT PARTY IS AKER ENGINEERING & TECHNOLOGY AS. 2. THE MINDOC CONCEPT IS CONSIDERED AS A SPAR ALTERNATIVE. 3. ABB LUMMUS GLOBAL SOLD THEIR ETLP DESIGN TO FLOATEC IN 2005. 4. HOUSTON OFFSHORE ENGINEERING, LLC IS OWNED BY WS ATKINS PLC. 5. BRAFELS IS A WHOLLY OWNED SUBSIDARY OF KEPPEL OFFSHORE & MARINE IN SINGAPORE. 6. JURONG SHIPYARD IS A WHOLLY OWNED SUBSIDIARY OF SEMBCORP MARINE LTD. 7. SHANGHAI WAIGAIGIAO SHIPBUILDING CO., LTD IS A WHOLLY OWNED SUBSIDIARY OF CHINA CSSC HOLDING LTD. 8. INTECSEA IS A SUBSIDIARY OF WORLEYPARSONS. 9. BENNETT OFFSHORE WAS PURCHASED BY KEPPEL O&M.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 41 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO04: TLPs (BHP BILLITON - SHENZI TLP)

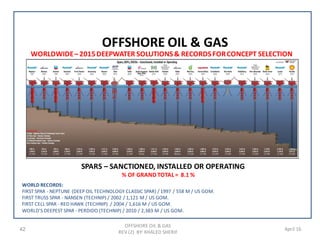

42 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS SPARS – SANCTIONED, INSTALLED OR OPERATING WORLD RECORDS: FIRST SPAR - NEPTUNE (DEEP OIL TECHNOLOGY CLASSIC SPAR) / 1997 / 558 M / US GOM. FIRST TRUSS SPAR - NANSEN (TECHNIP) / 2002 / 1,121 M / US GOM. FIRST CELL SPAR - RED HAWK (TECHNIP) / 2004 / 1,616 M / US GOM. WORLD'S DEEPEST SPAR - PERDIDO (TECHNIP) / 2010 / 2,383 M / US GOM. % OF GRAND TOTAL = 8.1 %

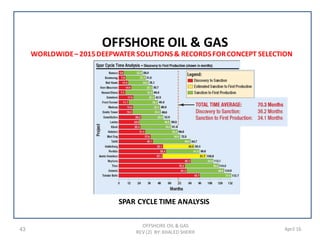

43 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS SPAR CYCLE TIME ANALYSIS
44 April 16 WORLDWIDE– 2015 DEEPWATER SOLUTIONS - OFFSHORE DEEPWATER FLOATING RODUCTION FACILITIES SUPPLIER MATRIX OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS SPARS & SPAR ALTERNATIVES (PROVEN & QUALIFIED COMPANIES AS OF MARCH, 2015) NOTES 1. AKER SOLUTIONS’ CONTRACT PARTY IS AKER ENGINEERING & TECHNOLOGY AS. 2. THE MINDOC CONCEPT IS CONSIDERED AS A SPAR ALTERNATIVE. 3. ABB LUMMUS GLOBAL SOLD THEIR ETLP DESIGN TO FLOATEC IN 2005. 4. HOUSTON OFFSHORE ENGINEERING, LLC IS OWNED BY WS ATKINS PLC. 5. BRAFELS IS A WHOLLY OWNED SUBSIDARY OF KEPPEL OFFSHORE & MARINE IN SINGAPORE. 6. JURONG SHIPYARD IS A WHOLLY OWNED SUBSIDIARY OF SEMBCORP MARINE LTD. 7. SHANGHAI WAIGAIGIAO SHIPBUILDING CO., LTD IS A WHOLLY OWNED SUBSIDIARY OF CHINA CSSC HOLDING LTD. 8. INTECSEA IS A SUBSIDIARY OF WORLEYPARSONS. 9. BENNETT OFFSHORE WAS PURCHASED BY KEPPEL O&M.

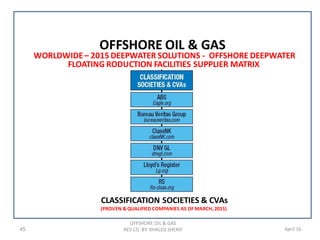

45 April 16 WORLDWIDE– 2015 DEEPWATER SOLUTIONS - OFFSHORE DEEPWATER FLOATING RODUCTION FACILITIES SUPPLIER MATRIX OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS CLASSIFICATION SOCIETIES & CVAs (PROVEN & QUALIFIED COMPANIES AS OF MARCH, 2015)

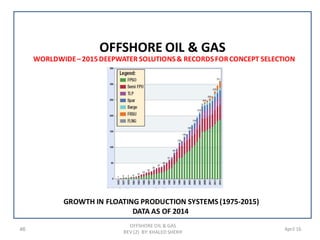

46 April 16 WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS GROWTH IN FLOATING PRODUCTION SYSTEMS (1975-2015) DATA AS OF 2014

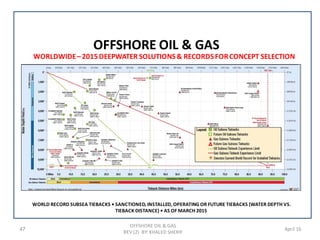

47 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– 2015DEEPWATER SOLUTIONS& RECORDSFORCONCEPT SELECTION WORLD RECORD SUBSEA TIEBACKS • SANCTIONED, INSTALLED, OPERATING OR FUTURE TIEBACKS (WATER DEPTH VS. TIEBACK DISTANCE) • AS OF MARCH 2015
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 48 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO05: SPARS (SHELL - PERDIDO)

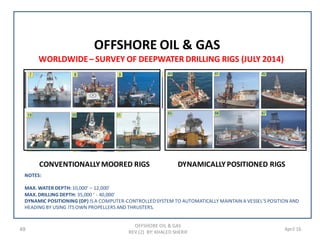

49 April 16 WORLDWIDE– SURVEY OF DEEPWATER DRILLING RIGS (JULY 2014) OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF CONVENTIONALLYMOORED RIGS DYNAMICALLYPOSITIONED RIGS NOTES: MAX. WATER DEPTH: 10,000’ – 12,000’ MAX. DRILLING DEPTH: 35,000 ’ - 40,000’ DYNAMIC POSITIONING (DP) IS A COMPUTER-CONTROLLEDSYSTEM TO AUTOMATICALLY MAINTAIN A VESSEL'S POSITION AND HEADING BY USING ITS OWN PROPELLERS AND THRUSTERS.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 50 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO06: DRILLING RIGS (DRILLING RIG & DYNAMIC POSITIONING)

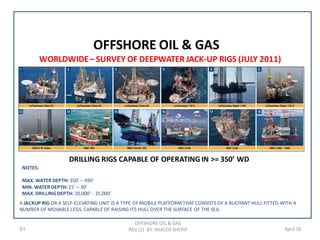

51 April 16 DRILLING RIGS CAPABLE OF OPERATING IN >= 350’ WD OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– SURVEY OF DEEPWATER JACK-UP RIGS (JULY 2011) NOTES: MAX. WATER DEPTH: 350’ – 490’ MIN. WATER DEPTH: 15’ – 30’ MAX. DRILLING DEPTH: 20,000’ - 35,000’ A JACKUP RIG OR A SELF-ELEVATING UNIT IS A TYPE OF MOBILE PLATFORM THAT CONSISTS OF A BUOYANT HULL FITTED WITH A NUMBER OF MOVABLE LEGS, CAPABLE OF RAISING ITS HULL OVER THE SURFACE OF THE SEA.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 52 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO07: JACK-UP RIGS (AERIAL FILMING)

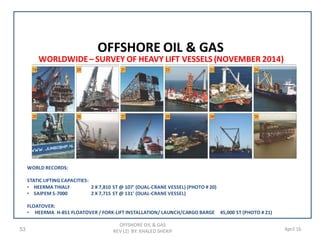

53 April 16 WORLDWIDE– SURVEY OF HEAVY LIFT VESSELS (NOVEMBER 2014) OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLD RECORDS: STATIC LIFTING CAPACITIES: • HEERMA THIALF 2 X 7,810 ST @ 107’ (DUAL-CRANE VESSEL) (PHOTO # 20) • SAIPEM S-7000 2 X 7,715 ST @ 131’ (DUAL-CRANE VESSEL) FLOATOVER: • HEERMA H-851 FLOATOVER / FORK-LIFT INSTALLATION/ LAUNCH/CARGO BARGE 45,000 ST (PHOTO # 21)
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 54 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO08: HEAVY LIFT VESSELS (HEERMA - THIALF)

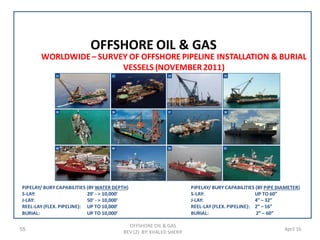

55 April 16 WORLDWIDE– SURVEY OF OFFSHORE PIPELINE INSTALLATION & BURIAL VESSELS (NOVEMBER2011) OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF PIPELAY/ BURY CAPABILITIES (BY WATER DEPTH) S-LAY: 20’ - > 10,000’ J-LAY: 50’ - > 10,000’ REEL-LAY (FLEX. PIPELINE): UP TO 10,000’ BURIAL: UP TO 10,000’ PIPELAY/ BURY CAPABILITIES (BY PIPE DIAMETER) S-LAY: UP TO 60” J-LAY: 4” – 32” REEL-LAY (FLEX. PIPELINE): 2” – 16” BURIAL: 2” – 60”
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 56 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO09: OFFSHORE PIPELINE INSTALLATION & BURIAL VESSELS (SAIPEM - CASTORONE)

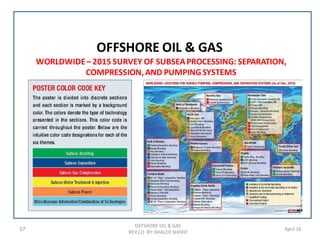

57 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– 2015 SURVEY OF SUBSEAPROCESSING: SEPARATION, COMPRESSION,AND PUMPINGSYSTEMS
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 58 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO10: SUBSEASYSTEMS

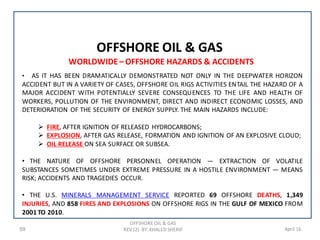

59 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HAZARDS & ACCIDENTS • AS IT HAS BEEN DRAMATICALLY DEMONSTRATED NOT ONLY IN THE DEEPWATER HORIZON ACCIDENT BUT IN A VARIETY OF CASES, OFFSHORE OIL RIGS ACTIVITIES ENTAIL THE HAZARD OF A MAJOR ACCIDENT WITH POTENTIALLY SEVERE CONSEQUENCES TO THE LIFE AND HEALTH OF WORKERS, POLLUTION OF THE ENVIRONMENT, DIRECT AND INDIRECT ECONOMIC LOSSES, AND DETERIORATION OF THE SECURITY OF ENERGY SUPPLY. THE MAIN HAZARDS INCLUDE:  FIRE, AFTER IGNITION OF RELEASED HYDROCARBONS;  EXPLOSION, AFTER GAS RELEASE, FORMATION AND IGNITION OF AN EXPLOSIVE CLOUD;  OIL RELEASE ON SEA SURFACE OR SUBSEA. • THE NATURE OF OFFSHORE PERSONNEL OPERATION — EXTRACTION OF VOLATILE SUBSTANCES SOMETIMES UNDER EXTREME PRESSURE IN A HOSTILE ENVIRONMENT — MEANS RISK; ACCIDENTS AND TRAGEDIES OCCUR. • THE U.S. MINERALS MANAGEMENT SERVICE REPORTED 69 OFFSHORE DEATHS, 1,349 INJURIES, AND 858 FIRES AND EXPLOSIONS ON OFFSHORE RIGS IN THE GULF OF MEXICO FROM 2001 TO 2010.
60 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE ACCIDENTS (DEEPWATER HORIZON) ON APRIL 21, 2010, THE DEEPWATER HORIZON PLATFORM, 52 MILES OFFSHORE OF VENICE, LOUISIANA, (PROPERTY OF TRANSOCEAN AND LEASED TO BP) EXPLODED, KILLING 11 PEOPLE, AND SANK TWO DAYS LATER. THE RESULTING UNDERSEA GUSHER, CONSERVATIVELY ESTIMATED TO EXCEED 20 MILLION US Gallons (76,000 M3) AS OF EARLY JUNE, 2010, BECAME THE WORST OIL SPILL IN US HISTORY, ECLIPSING THE EXXON VALDEZ OIL SPILL.
61 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE ACCIDENTS (PIPER ALPHA) PIPER ALPHA WAS A NORTH SEA OIL PRODUCTIONPLATFORMOPERATED BYOCCIDENTAL PETROLEUM (CALEDONIA) LTD.THEPLATFORMBEGANPRODUCTIONIN1976, FIRSTAS ANOIL-ONLYPLATFORMAND LATER CONVERTED TO ADD GAS PRODUCTION. ANEXPLOSION, AND THERESULTING OIL AND GAS FIRES, DESTROYED ITON6 JULY 1988, KILLING 167, INCLUDING TWO CREWMENOF A RESCUE VESSEL;61 SURVIVED. THETOTAL INSURED LOSS WAS ABOUT£1.7 BILLION (US$3.4 BILLION).

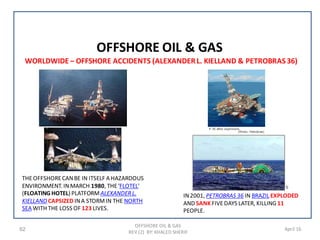

62 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE – OFFSHORE ACCIDENTS (ALEXANDERL. KIELLAND & PETROBRAS 36) THEOFFSHORECANBE IN ITSELF A HAZARDOUS ENVIRONMENT. INMARCH 1980, THE'FLOTEL' (FLOATING HOTEL) PLATFORMALEXANDERL. KIELLAND CAPSIZED INA STORMIN THE NORTH SEA WITH THE LOSS OF 123 LIVES. IN2001, PETROBRAS 36 IN BRAZIL EXPLODED AND SANKFIVEDAYS LATER, KILLING 11 PEOPLE.

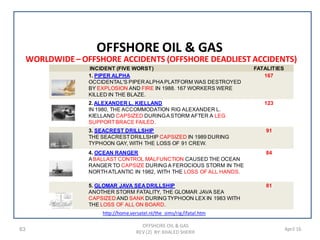

63 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE ACCIDENTS (OFFSHORE DEADLIEST ACCIDENTS) INCIDENT (FIVE WORST) FATALITIES 1. PIPER ALPHA OCCIDENTAL'S PIPER ALPHAPLATFORM WAS DESTROYED BY EXPLOSION AND FIRE IN 1988. 167 WORKERS WERE KILLED IN THE BLAZE. 167 2. ALEXANDER L. KIELLAND IN 1980, THE ACCOMMODATION RIG ALEXANDER L. KIELLAND CAPSIZED DURINGASTORM AFTER A LEG SUPPORTBRACE FAILED. 123 3. SEACREST DRILLSHIP THE SEACRESTDRILLSHIP CAPSIZED IN 1989 DURING TYPHOON GAY, WITH THE LOSS OF 91 CREW. 91 4. OCEAN RANGER ABALLAST CONTROL MALFUNCTION CAUSED THE OCEAN RANGER TO CAPSIZE DURING A FEROCIOUS STORM IN THE NORTH ATLANTIC IN 1982, WITH THE LOSS OF ALL HANDS. 84 5. GLOMAR JAVA SEA DRILLSHIP ANOTHER STORM FATALITY, THE GLOMAR JAVA SEA CAPSIZED AND SANK DURING TYPHOON LEX IN 1983 WITH THE LOSS OF ALL ON BOARD. 81 http://home.versatel.nl/the_sims/rig/ifatal.htm

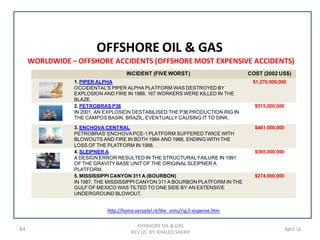

64 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE – OFFSHORE ACCIDENTS (OFFSHORE MOST EXPENSIVE ACCIDENTS) INCIDENT (FIVE WORST) COST (2002 US$) 1. PIPER ALPHA OCCIDENTAL'S PIPER ALPHA PLATFORM WAS DESTROYED BY EXPLOSION AND FIRE IN 1988. 167 WORKERS WERE KILLED IN THE BLAZE. $1,270,000,000 2. PETROBRAS P36 IN 2001, AN EXPLOSION DESTABILISED THE P36 PRODUCTION RIG IN THE CAMPOS BASIN, BRAZIL, EVENTUALLY CAUSING IT TO SINK. $515,000,000 3. ENCHOVA CENTRAL PETROBRAS' ENCHOVAPCE-1 PLATFORM SUFFEREDTWICE WITH BLOWOUTS AND FIRE IN BOTH 1984 AND 1988, ENDING WITH THE LOSS OF THE PLATFORM IN 1988. $461,000,000 4. SLEIPNER A A DESIGN ERROR RESULTED IN THE STRUCTURAL FAILURE IN 1991 OF THE GRAVITY BASE UNIT OF THE ORIGINAL SLEIPNER A PLATFORM. $365,000,000 5. MISSISSIPPI CANYON 311 A (BOURBON) IN 1987, THE MISSISSIPPI CANYON 311 A BOURBON PLATFORM IN THE GULF OF MEXICO WAS TILTED TO ONE SIDE BY AN EXTENSIVE UNDERGROUND BLOWOUT. $274,000,000 http://home.versatel.nl/the_sims/rig/i-expense.htm

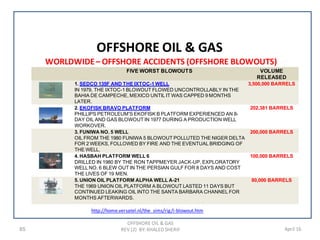

65 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE ACCIDENTS (OFFSHORE BLOWOUTS) FIVE WORST BLOWOUTS VOLUME RELEASED 1. SEDCO 135F AND THE IXTOC-1 WELL IN 1979, THE IXTOC-1 BLOWOUT FLOWED UNCONTROLLABLY IN THE BAHIA DE CAMPECHE, MEXICO UNTIL IT WAS CAPPED 9 MONTHS LATER. 3,500,000 BARRELS 2. EKOFISK BRAVO PLATFORM PHILLIPS PETROLEUM'S EKOFISK B PLATFORM EXPERIENCED AN 8- DAY OIL AND GAS BLOWOUT IN 1977 DURING A PRODUCTION WELL WORKOVER. 202,381 BARRELS 3. FUNIWA NO. 5 WELL OIL FROM THE 1980 FUNIWA 5 BLOWOUT POLLUTED THE NIGER DELTA FOR 2 WEEKS, FOLLOWED BY FIRE AND THE EVENTUAL BRIDGING OF THE WELL. 200,000 BARRELS 4. HASBAH PLATFORM WELL 6 DRILLED IN 1980 BY THE RON TAPPMEYER JACK-UP, EXPLORATORY WELL NO. 6 BLEW OUT IN THE PERSIAN GULF FOR 8 DAYS AND COST THE LIVES OF 19 MEN. 100,000 BARRELS 5. UNION OIL PLATFORM ALPHA WELL A-21 THE 1969 UNION OIL PLATFORM A BLOWOUT LASTED 11 DAYS BUT CONTINUED LEAKING OIL INTO THE SANTA BARBARA CHANNEL FOR MONTHS AFTERWARDS. 80,000 BARRELS http://home.versatel.nl/the_sims/rig/i-blowout.htm

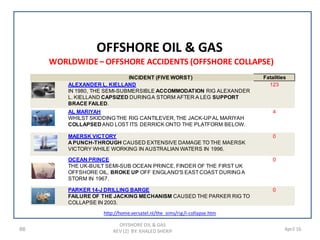

66 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE ACCIDENTS (OFFSHORE COLLAPSE) INCIDENT (FIVE WORST) Fatalities ALEXANDER L. KIELLAND IN 1980, THE SEMI-SUBMERSIBLE ACCOMMODATION RIG ALEXANDER L. KIELLAND CAPSIZED DURINGA STORM AFTER A LEG SUPPORT BRACE FAILED. 123 AL MARIYAH WHILST SKIDDING THE RIG CANTILEVER, THE JACK-UPAL MARIYAH COLLAPSED AND LOST ITS DERRICK ONTO THE PLATFORM BELOW. 4 MAERSK VICTORY A PUNCH-THROUGH CAUSED EXTENSIVE DAMAGE TO THE MAERSK VICTORY WHILE WORKING IN AUSTRALIAN WATERS IN 1996. 0 OCEAN PRINCE THE UK-BUILT SEMI-SUB OCEAN PRINCE, FINDER OF THE FIRST UK OFFSHORE OIL, BROKE UP OFF ENGLAND'S EASTCOAST DURING A STORM IN 1967. 0 PARKER 14-J DRILLING BARGE FAILURE OF THE JACKING MECHANISM CAUSED THE PARKER RIG TO COLLAPSE IN 2003. 0 http://home.versatel.nl/the_sims/rig/i-collapse.htm
67 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HURRICANE HURRICANE RITA 2005 MOREPOWERFUL THANKATRINA, RITA WAS ONE OF THEMOSTINTENSE HURRICANES EVER, PEAKING AS A CATEGORY5 AND DEVASTATING LOUISIANA. ARRIVING LATESEPTEMBER2005 IN THEGULF OF MEXICO, RITA SLICED THROUGH ONE OF THEBUSIESTOIL AND GAS REGIONS AS A CATEGORY5 HURRICANE, BRINGING 155 MPH WINDS AND 60 FOOTSEAS. RITA CAUSED SIGNIFICANTDAMAGEOFFSHOREINCLUDING: • 66 PLATFORMS DESTROYED, WITH 32 MORE SUFFERING EXTENSIVEDAMAGE. • 13 MODUS BROKETHEIR MOORINGS AND WERE SETADRIFT. • 1 JACKUP RIG WAS SUNK, WITH 7 JACK-UPS AND 2 SEMI-SUBS EXPERIENCING EXTENSIVEDAMAGE. (STATISTICS FROMMINERALS MANAGEMENT SERVICE) BEFORE: CHEVRON TYPHOON AFTER: CHEVRON TYPHOON RIG: CHEVRON TYPHOON PLATFORM DATE: 27 SEP 2005 LOCATION: GULF OF MEXICO SUMMARY AFTER THE HURRICANE, AN AERIAL SURVEY FOUND THE CHEVRON TYPHOON TENSION LEG PLATFORM FLOATING UPSIDE-DOWN, AROUND 80 MILES FROM ITS HOME IN GREEN CANYON BLOCK 236. IN MAY 2006, CHEVRON DECLARED THAT IT WOULD BE DONATING THE DAMAGED PLATFORM TO A U.S. DEPT. OF INTERIOR PROGRAM WHICH USES OLD OIL AND GAS PLATFORMS IN THE CONSTRUCTION OF ARTIFICIAL OFFSHORE REEFS. http://home.versatel.nl/the_sims/rig/h-rita.htm

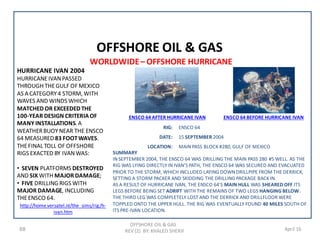

68 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HURRICANE HURRICANE IVAN 2004 HURRICANEIVANPASSED THROUGH THEGULF OF MEXICO AS A CATEGORY4 STORM, WITH WAVES AND WINDS WHICH MATCHED OR EXCEEDED THE 100-YEAR DESIGN CRITERIAOF MANY INSTALLATIONS. A WEATHERBUOYNEAR THE ENSCO 64 MEASURED 83 FOOTWAVES. THEFINAL TOLL OF OFFSHORE RIGS EXACTED BY IVANWAS: • SEVEN PLATFORMS DESTROYED AND SIX WITH MAJOR DAMAGE; • FIVE DRILLING RIGS WITH MAJOR DAMAGE, INCLUDING THEENSCO 64. RIG: ENSCO 64 DATE: 15 SEPTEMBER 2004 LOCATION: MAIN PASS BLOCK #280, GULF OF MEXICO SUMMARY IN SEPTEMBER 2004, THE ENSCO 64 WAS DRILLING THE MAIN PASS 280 #5 WELL. AS THE RIG WAS LYING DIRECTLY IN IVAN'S PATH, THE ENSCO 64 WAS SECURED AND EVACUATED PRIOR TO THE STORM, WHICH INCLUDED LAYING DOWN DRILLPIPE FROM THE DERRICK, SETTING A STORM PACKER AND SKIDDING THE DRILLING PACKAGE BACK IN. AS A RESULT OF HURRICANE IVAN, THE ENSCO 64'S MAIN HULL WAS SHEARED OFF ITS LEGS BEFORE BEING SET ADRIFT WITH THE REMAINS OF TWO LEGS HANGING BELOW. THE THIRD LEG WAS COMPLETELY LOST AND THE DERRICK AND DRILLFLOOR WERE TOPPLED ONTO THE UPPER HULL. THE RIG WAS EVENTUALLY FOUND 40 MILES SOUTH OF ITS PRE-IVAN LOCATION. AFTER HURRICANE IVAN64ENSCO BEFORE HURRICANE IVAN64ENSCO http://home.versatel.nl/the_sims/rig/h- ivan.htm
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 69 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO11: WORLDWIDE– OFFSHORE ACCIDENTS
70 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HEALTH, SAFETY, ENVIRONMENT,AND QUALITY (HSEQ) OVERVIEW HSEQ IS AN IMPORTANT CONCEPT WITHIN THE OFFSHORE INDUSTRY. VIRTUALLY ALL COMPANIES INVOLVED IN THEOFFSHOREBUSINESS HAVEANHSEQ POLICY. THEREARE SEVERAL REASONS FORTHEBIG FOCUS ONHSEQ: • THE MAIN AIMS ARE TO PROTECT THE HEALTH, SAFETY AND WELFARE OF PEOPLE AT WORK, AND TO SAFEGUARD OTHERS. • FOCUS ON HSEQ IS TO DECIDE WHAT IS REASONABLY PRACTICABLE WITHIN SAFETY AND ENVIRONMENT. • THE ECONOMY INTHEOVERALL PICTURE WILL BE REDUCED. LESS ACCIDENTS = LESS EXPENDITURE. • THE ATTENTION TO HSEQ CAN BE ATTRIBUTED TO SOME TRAGIC ACCIDENTS IN THE OFFSHORE INDUSTRY SUCH AS THE 1988 PIPER ALPHA DISASTER IN THE SCOTTISH PART OF THE NORTH SEA WHERE A GAS EXPLOSIONRESULTED INTHEDEATH OF 167 PEOPLEAS WELL AS THE TOTAL DESTRUCTION OF THEPLATFORM.
71 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HEALTH, SAFETY, ENVIRONMENT,AND QUALITY (HSEQ) HAZARDS AND GOALS • ALTHOUGH THERE HAVE BEEN IMPROVEMENTS IN HEALTH AND SAFETY OFFSHORE SINCE THE PIPER ALPHA DISASTERIN1988 THERISKS AREEVER PRESENT: • FIRE • EXPLOSION • RELEASEOF GAS • STRUCTURAL FAILURE • ENVIRONMENTDISASTERS • WITHIN HSEQ THE GOALS FOR THE UPSTREAM OIL AND GAS INDUSTRY ARE: • TO PREVENT MAJOR ACCIDENTS WITH CATASTROPHIC CONSEQUENCES • TO PREVENT FATALITIES AND ACCIDENTS • TO SECURE A STEP CHANGE IMPROVEMENT IN INJURY RATES AND WORK RELATED HEALTH AND CONSEQUENT DAYS LOST FROM WORK • TO SUPPORT INDUSTRY’S GOAL TO BE THE WORLD’S SAFEST OFFSHORE SECTOR • TO SECURE MORE EFFECTIVE WORKPLACE INVOLVEMENT • TO MAINTAIN AN EFFECTIVE REGULATORY FRAMEWORK

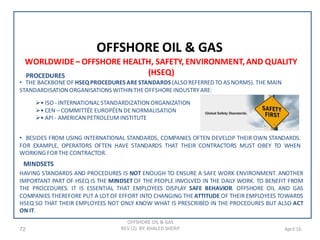

72 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HEALTH, SAFETY, ENVIRONMENT,AND QUALITY (HSEQ)PROCEDURES • THE BACKBONEOF HSEQ PROCEDURES ARESTANDARDS (ALSOREFERRED TO AS NORMS). THE MAIN STANDARDISATIONORGANISATIONS WITHINTHEOFFSHOREINDUSTRYARE: • ISO - INTERNATIONAL STANDARDIZATIONORGANIZATION • CEN – COMMITTÉE EUROPÉEN DE NORMALISATION • API - AMERICANPETROLEUM INSTITUTE • BESIDES FROM USING INTERNATIONAL STANDARDS, COMPANIES OFTEN DEVELOP THEIR OWN STANDARDS. FOR EXAMPLE, OPERATORS OFTEN HAVE STANDARDS THAT THEIR CONTRACTORS MUST OBEY TO WHEN WORKING FORTHECONTRACTOR. MINDSETS HAVING STANDARDS AND PROCEDURES IS NOT ENOUGH TO ENSURE A SAFE WORK ENVIRONMENT. ANOTHER IMPORTANT PART OF HSEQ IS THE MINDSET OF THE PEOPLE INVOLVED IN THE DAILY WORK. TO BENEFIT FROM THE PROCEDURES. IT IS ESSENTIAL THAT EMPLOYEES DISPLAY SAFE BEHAVIOR. OFFSHORE OIL AND GAS COMPANIES THEREFORE PUT A LOTOF EFFORT INTO CHANGING THEATTITUDE OF THEIR EMPLOYEES TOWARDS HSEQ SO THAT THEIR EMPLOYEES NOT ONLY KNOW WHAT IS PRESCRIBED IN THE PROCEDURES BUT ALSO ACT ON IT.

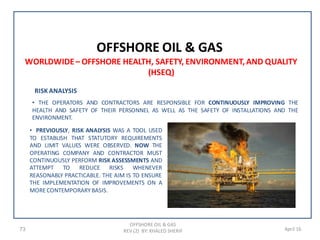

73 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE HEALTH, SAFETY, ENVIRONMENT,AND QUALITY (HSEQ) RISK ANALYSIS • THE OPERATORS AND CONTRACTORS ARE RESPONSIBLE FOR CONTINUOUSLY IMPROVING THE HEALTH AND SAFETY OF THEIR PERSONNEL AS WELL AS THE SAFETY OF INSTALLATIONS AND THE ENVIRONMENT. • PREVIOUSLY, RISK ANALYSIS WAS A TOOL USED TO ESTABLISH THAT STATUTORY REQUIREMENTS AND LIMIT VALUES WERE OBSERVED. NOW THE OPERATING COMPANY AND CONTRACTOR MUST CONTINUOUSLY PERFORM RISK ASSESSMENTS AND ATTEMPT TO REDUCE RISKS WHENEVER REASONABLY PRACTICABLE. THE AIM IS TO ENSURE THE IMPLEMENTATION OF IMPROVEMENTS ON A MORECONTEMPORARYBASIS.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 74 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO12: WORLDWIDE– OFFSHORE HEALTH, SAFETY, ENVIRONMENT, ANDQUALITY (HSEQ)

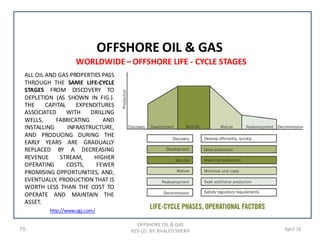

75 April 16 OFFSHORE OIL & GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF WORLDWIDE– OFFSHORE LIFE - CYCLE STAGES ALL OIL AND GAS PROPERTIES PASS THROUGH THE SAME LIFE-CYCLE STAGES FROM DISCOVERY TO DEPLETION (AS SHOWN IN FIG.). THE CAPITAL EXPENDITURES ASSOCIATED WITH DRILLING WELLS, FABRICATING AND INSTALLING INFRASTRUCTURE, AND PRODUCING DURING THE EARLY YEARS ARE GRADUALLY REPLACED BY A DECREASING REVENUE STREAM, HIGHER OPERATING COSTS, FEWER PROMISING OPPORTUNITIES, AND, EVENTUALLY, PRODUCTION THAT IS WORTH LESS THAN THE COST TO OPERATE AND MAINTAIN THE ASSET. http://www.ogj.com/

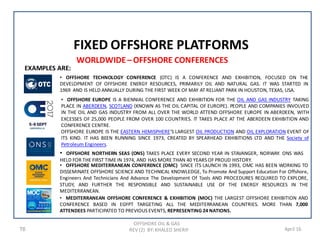

WORLDWIDE– OFFSHORE CONFERENCES OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF76 April 16 FIXED OFFSHORE PLATFORMS • OFFSHORE TECHNOLOGY CONFERENCE (OTC) IS A CONFERENCE AND EXHIBITION, FOCUSED ON THE DEVELOPMENT OF OFFSHORE ENERGY RESOURCES, PRIMARILY OIL AND NATURAL GAS. IT WAS STARTED IN 1969 AND IS HELD ANNUALLY DURING THE FIRST WEEK OF MAY AT RELIANT PARK IN HOUSTON, TEXAS, USA. • MEDITERRANEAN OFFSHORE CONFERENCE & EXHIBITION (MOC) THE LARGEST OFFSHORE EXHIBITION AND CONFERENCE BASED IN EGYPT TARGETING ALL THE MEDITERRANEAN COUNTRIES. MORE THAN 7,000 ATTENDEES PARTICIPATED TO PREVIOUS EVENTS, REPRESENTING 24 NATIONS. • OFFSHORE NORTHERN SEAS (ONS) TAKES PLACE EVERY SECOND YEAR IN STAVANGER, NORWAY. ONS WAS HELD FOR THE FIRST TIME IN 1974, AND HAS MORE THAN 40 YEARS OF PROUD HISTORY. • OFFSHORE EUROPE IS A BIENNIAL CONFERENCE AND EXHIBITION FOR THE OIL AND GAS INDUSTRY TAKING PLACE IN ABERDEEN, SCOTLAND (KNOWN AS THE OIL CAPITAL OF EUROPE). PEOPLE AND COMPANIES INVOLVED IN THE OIL AND GAS INDUSTRY FROM ALL OVER THE WORLD ATTEND OFFSHORE EUROPE IN ABERDEEN, WITH EXCESSES OF 25,000 PEOPLE FROM OVER 100 COUNTRIES. IT TAKES PLACE AT THE ABERDEEN EXHIBITION AND CONFERENCE CENTRE. OFFSHORE EUROPE IS THE EASTERN HEMISPHERE'S LARGEST OIL PRODUCTION AND OIL EXPLORATION EVENT OF ITS KIND. IT HAS BEEN RUNNING SINCE 1973, CREATED BY SPEARHEAD EXHIBITIONS LTD AND THE Society of Petroleum Engineers. EXAMPLES ARE: • OFFSHORE MEDITERRANEAN CONFERENCE (OMC) SINCE ITS LAUNCH IN 1993, OMC HAS BEEN WORKING TO DISSEMINATE OFFSHORE SCIENCE AND TECHNICAL KNOWLEDGE, To Promote And Support Education For Offshore, Engineers And Technicians And Advance The Development Of Tools AND PROCEDURES REQUIRED TO EXPLORE, STUDY, AND FURTHER THE RESPONSIBLE AND SUSTAINABLE USE OF THE ENERGY RESOURCES IN THE MEDITERRANEAN.
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 77 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO13: WORLDWIDE– OFFSHORE CONFERENCES
OFFSHORE OIL & GAS 2. EGYPT 78 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF

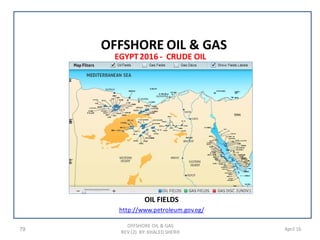

79 April 16 EGYPT2016 - CRUDE OIL OIL FIELDS http://www.petroleum.gov.eg/ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS
80 April 16 EGYPT2016 - CRUDE OIL APPROXIMATELY 50% OF EGYPT'S OIL PRODUCTION COMES FROM THE GULF OF SUEZ https://en.wikipedia.org/wiki/Energy_in_Egypt http://www.marefa.org/ ‫ﺍﻟﺳﻭﻳﺱ‬ ‫ﻭﺧﻠﻳﺞ‬ ‫ﺍﻟﺷﺭﻗﻳﺔ‬ ‫ﺍﻟﺻﺣﺭﺍء‬ ‫ﻓﻲ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﺍﻛﺗﺷﺎﻓﺎﺕ‬. http://www.petroleum.gov.eg/ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS

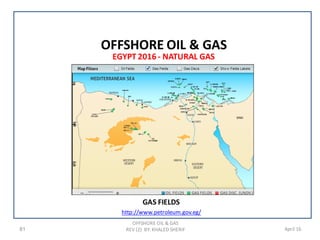

81 April 16 EGYPT 2016 - NATURAL GAS GAS FIELDS http://www.petroleum.gov.eg/ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS

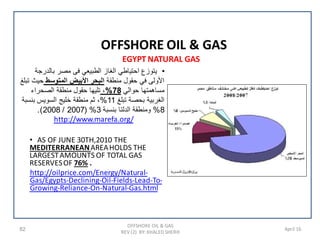

82 April 16 • AS OF JUNE 30TH,2010 THE MEDITERRANEANAREAHOLDS THE LARGESTAMOUNTS OF TOTAL GAS RESERVESOF 76% . -http://oilprice.com/Energy/Natural -To-Lead-Fields-Oil-Declining-Gas/Egypts Gas.html-Natural-On-Reliance-Growing EGYPT NATURAL GAS •‫ﺑﺎﻟﺩﺭﺟﺔ‬ ‫ﻣﺻﺭ‬ ‫ﻓﻰ‬ ‫ﺍﻟﻁﺑﻳﻌﻲ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﺍﺣﺗﻳﺎﻁﻲ‬ ‫ﻳﺗﻭﺯﻉ‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﺣﻘﻭﻝ‬ ‫ﻓﻲ‬ ‫ﺍﻷﻭﻟﻰ‬‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺍﻷﺑﻳﺽ‬ ‫ﺍﻟﺑﺣﺭ‬‫ﺗﺑﻠﻎ‬ ‫ﺣﻳﺙ‬ ‫ﺣﻭﺍﻟﻲ‬ ‫ﻣﺳﺎﻫﻣﺗﻬﺎ‬78%،‫ﺍﻟﺻﺣﺭﺍء‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﺣﻘﻭﻝ‬ ‫ﺗﻠﻳﻬﺎ‬ ‫ﺗﺑﻠﻎ‬ ‫ﺑﺣﺻﺔ‬ ‫ﺍﻟﻐﺭﺑﻳﺔ‬11%‫ﺑﻧﺳﺑﺔ‬ ‫ﺍﻟﺳﻭﻳﺱ‬ ‫ﺧﻠﻳﺞ‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﺛﻡ‬ ، 8%‫ﺑﻧﺳﺑﺔ‬ ‫ﺍﻟﺩﻟﺗﺎ‬ ‫ﻭﻣﻧﻁﻘﺔ‬3) %2007/2008.( http://www.marefa.org/ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS
83 April 16 EGYPT 2016 - NATURAL GAS GAS DISCOVERIES (UNDEVELOPED) http://www.petroleum.gov.eg/ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS
84 April 16 • IN MARCH 2015, BP SIGNED A $12 BILLION DEAL TO DEVELOP NATURAL GAS IN EGYPT. BP SAID IT WOULD DEVELOP A LARGE QUANTITY OF OFFSHORE GAS, EQUIVALENT TO ABOUT ONE-QUARTER OF EGYPT’S OUTPUT. https://en.wikipedia.org/wiki/Energy_in_Egypt • IN SEPTEMBER 2015 ITALIAN ENERGY COMPANY ENI SPA ANNOUNCED THE DISCOVERY OF THE LARGEST GAS FIELD IN THE MEDITERRANEAN, ZOHR GAS FIELD. https://en.wikipedia.org/wiki/Energy_in_Egypt EGYPT2016 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS

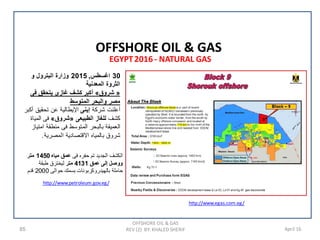

85 April 16 EGYPT2016 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS http://www.egas.com.eg/ http://www.petroleum.gov.eg/ 30‫ﺍﻏﺳﻁﺱ‬,2015‫ﻭ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﻭﺯﺍﺭﺓ‬ ‫ﺍﻟﻣﻌﺩﻧﻳﺔ‬ ‫ﺍﻟﺛﺭﻭﺓ‬ »‫ﺷﺭﻭﻕ‬«‫ﻓﻰ‬ ‫ﻳﺗﺣﻘﻖ‬ ‫ﻏﺎﺯﻯ‬ ‫ﻛﺷﻑ‬ ‫ﺃﻛﺑﺭ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﻭﺍﻟﺑﺣﺭ‬ ‫ﻣﺻﺭ‬ ‫ﺷﺭﻛﺔ‬ ‫ﺃﻋﻠﻧﺕ‬‫ﺇﻳﻧﻰ‬‫ﺃﻛﺑﺭ‬ ‫ﺗﺣﻘﻳﻖ‬ ‫ﻋﻥ‬ ‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬ ‫ﻛﺷﻑ‬‫ﺍﻟﻁﺑﻳﻌﻰ‬ ‫ﻟﻠﻐﺎﺯ‬»‫ﺷﺭﻭﻕ‬«‫ﺍﻟﻣﻳﺎﺓ‬ ‫ﻓﻰ‬ ‫ﺍﻣﺗﻳﺎﺯ‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﻓﻰ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺑﺎﻟﺑﺣﺭ‬ ‫ﺍﻟﻌﻣﻳﻘﺔ‬ ‫ﺍﻟﻣﺻﺭﻳﺔ‬ ‫ﺍﻻﻗﺗﺻﺎﺩﻳﺔ‬ ‫ﺑﺎﻟﻣﻳﺎﻩ‬ ‫ﺷﺭﻭﻕ‬. ‫ﻓﻰ‬ ‫ﺣﻔﺭﻩ‬ ‫ﺗﻡ‬ ‫ﺍﻟﺟﺩﻳﺩ‬ ‫ﺍﻟﻛﺷﻑ‬‫ﻣﻳﺎﻩ‬ ‫ﻋﻣﻖ‬1450‫ﻣﺗﺭ‬ ‫ﻋﻣﻖ‬ ‫ﺇﻟﻰ‬ ‫ﻭﻭﺻﻝ‬4131‫ﻣﺗﺭ‬‫ﻁﺑﻘﺔ‬ ‫ﻟﻳﺧﺗﺭﻕ‬ ‫ﺣﻭﺍﻟﻰ‬ ‫ﺑﺳﻣﻙ‬ ‫ﺑﺎﻟﻬﻳﺩﺭﻭﻛﺭﺑﻭﻧﺎﺕ‬ ‫ﺣﺎﻣﻠﺔ‬2000‫ﻗﺩﻡ‬

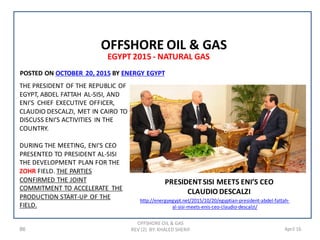

86 April 16 EGYPT 2015 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS PRESIDENTSISI MEETS ENI’S CEO CLAUDIO DESCALZI ENERGY EGYPTBY2015,20OCTOBERPOSTED ON THE PRESIDENT OF THE REPUBLIC OF EGYPT, ABDEL FATTAH AL-SISI, AND ENI’S CHIEF EXECUTIVE OFFICER, CLAUDIO DESCALZI, MET IN CAIRO TO DISCUSS ENI’S ACTIVITIES IN THE COUNTRY. DURING THE MEETING, ENI’S CEO PRESENTED TO PRESIDENT AL-SISI THE DEVELOPMENT PLAN FOR THE ZOHR FIELD. THE PARTIES CONFIRMED THE JOINT COMMITMENT TO ACCELERATE THE PRODUCTION START-UP OF THE FIELD. http://energyegypt.net/2015/10/20/egyptian-president-abdel-fattah- al-sisi-meets-enis-ceo-claudio-descalzi/

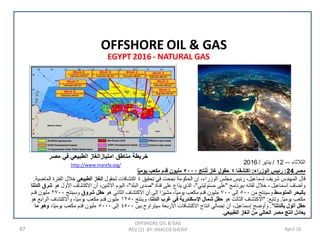

87 April 16 ‫ﺍﻟﺛﻼﺛﺎء‬—12/‫ﻳﻧﺎﻳﺭ‬/2016 ‫ﻣﺻﺭ‬24:‫ﺍﻟﻭﺯﺭﺍء‬ ‫ﺭﺋﻳﺱ‬:‫ﺍﻛﺗﺷﻔﻧﺎ‬٤‫ﻧﺗﺞ‬ُ‫ﺗ‬ ‫ﻏﺎﺯ‬ ‫ﺣﻘﻭﻝ‬٥۰۰۰‫ﺎ‬ً‫ﻳ‬‫ﻳﻭﻣ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬ ‫ﻗﺎﻝ‬‫ﺗﺣﻘﻳﻖ‬ ‫ﻓﻲ‬ ‫ﻧﺟﺣﺕ‬ ‫ﺍﻟﺣﻛﻭﻣﺔ‬ ‫ﺇﻥ‬ ،‫ﺍﻟﻭﺯﺭﺍء‬ ‫ﻣﺟﻠﺱ‬ ‫ﺭﺋﻳﺱ‬ ،‫ﺇﺳﻣﺎﻋﻳﻝ‬ ‫ﺷﺭﻳﻑ‬ ‫ﺍﻟﻣﻬﻧﺩﺱ‬٤‫ﻟﺣﻘﻭﻝ‬ ‫ﺍﻛﺗﺷﺎﻓﺎﺕ‬‫ﺍﻟﻁﺑﻳﻌﻲ‬ ‫ﺍﻟﻐﺎﺯ‬‫ﺍﻟﻣﺎﺿﻳﺔ‬ ‫ﺍﻟﻔﺗﺭﺓ‬ ‫ﺧﻼﻝ‬. ‫ﺇﺳﻣﺎﻋﻳﻝ‬ ‫ﻭﺃﺿﺎﻑ‬-‫ﺑﺑﺭﻧﺎﻣﺞ‬ ‫ﻟﻘﺎﺋﻪ‬ ‫ﺧﻼﻝ‬"‫ﻣﺳﺋﻭﻟﻳﺗﻲ‬ ‫ﻋﻠﻰ‬"‫ﻗﻧﺎﺓ‬ ‫ﻋﻠﻰ‬ ‫ﻳﺫﺍﻉ‬ ‫ﺍﻟﺫﻱ‬ ،"‫ﺍﻟﺑﻠﺩ‬ ‫ﺻﺩﻯ‬"-‫ﻫﻭ‬ ‫ﺍﻷﻭﻝ‬ ‫ﺍﻻﻛﺗﺷﺎﻑ‬ ‫ﺃﻥ‬ ،‫ﺍﻻﺛﻧﻳﻥ‬ ‫ﺍﻟﻳﻭﻡ‬‫ﺍﻟﺩﻟﺗﺎ‬ ‫ﺷﺭﻕ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺑﺎﻟﺑﺣﺭ‬‫ﻣﻥ‬ ‫ﻭﺳﻳﻧﺗﺞ‬٥۰۰‫ﺇﻟﻰ‬۷۰۰‫ﻫﻭ‬ ‫ﺍﻟﺛﺎﻧﻲ‬ ‫ﺍﻻﻛﺗﺷﺎﻑ‬ ‫ﺃﻥ‬ ‫ﺇﻟﻰ‬ ‫ﺍ‬ ً‫ﻣﺷﻳﺭ‬ ،‫ﺎ‬ً‫ﻳ‬‫ﻳﻭﻣ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬‫ﺷﺭﻭﻕ‬ ‫ﺣﻘﻝ‬‫ﻭﺳﻳﻧﺗﺞ‬۲۷۰۰‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬ ‫ﺎ‬ً‫ﻳ‬‫ﻳﻭﻣ‬ ‫ﻣﻛﻌﺏ‬.‫ﻭﺗﺎﺑﻊ‬" :‫ﻫﻭ‬ ‫ﺍﻟﺛﺎﻟﺙ‬ ‫ﺍﻻﻛﺗﺷﺎﻑ‬‫ﺍﻟﺩﻟﺗﺎ‬ ‫ﻏﺭﺏ‬ ‫ﻓﻲ‬ ‫ﺍﻹﺳﻛﻧﺩﺭﻳﺔ‬ ‫ﺷﻣﺎﻝ‬ ‫ﺣﻘﻝ‬‫ﻭﻳﻧﺗﺞ‬ ،۱۲٥۰‫ﻫﻭ‬ ‫ﺍﻟﺭﺍﺑﻊ‬ ‫ﻭﺍﻻﻛﺗﺷﺎﻑ‬ ،‫ﺎ‬ً‫ﻳ‬‫ﻳﻭﻣ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬ ‫ﺑﺎﻟﺩﻟﺗﺎ‬ ‫ﺃﺗﻭﻝ‬ ‫ﺣﻘﻝ‬."‫ﺑﻳﻥ‬ ‫ﺳﻳﺗﺭﺍﻭﺡ‬ ‫ﺍﻷﺭﺑﻌﺔ‬ ‫ﺍﻻﻛﺗﺷﺎﻓﺎﺕ‬ ‫ﺍﻧﺗﺎﺝ‬ ‫ﺇﺟﻣﺎﻟﻲ‬ ‫ﺃﻥ‬ ،‫ﺇﺳﻣﺎﻋﻳﻝ‬ ‫ﻭﺃﻭﺿﺢ‬٤٥۰۰‫ﺇﻟﻰ‬٥۰۰۰،‫ﺎ‬ً‫ﻳ‬‫ﻳﻭﻣ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬‫ﻣﺎ‬ ‫ﻭﻫﻭ‬ ‫ﺍﻟﻁﺑﻳﻌﻲ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﻣﻥ‬ ‫ﺍﻟﺣﺎﻟﻲ‬ ‫ﻣﺻﺭ‬ ‫ﺍﻧﺗﺞ‬ ‫ﻳﻌﺎﺩﻝ‬. EGYPT 2016 - NATURAL GAS http://www.marefa.org/ ‫ﻣﺻﺭ‬ ‫ﻓﻲ‬ ‫ﺍﻟﻁﺑﻳﻌﻲ‬ ‫ﺍﻣﺗﻳﺎﺯﺍﻟﻐﺎﺯ‬ ‫ﻣﻧﺎﻁﻖ‬ ‫ﺧﺭﻳﻁﺔ‬ OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS

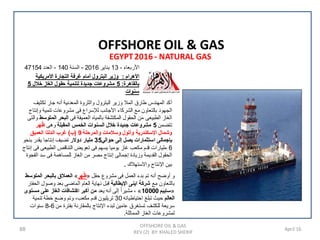

88 April 16 EGYPT2016 - NATURAL GAS ‫ﺍﻷﺭﺑﻌﺎء‬-13‫ﻳﻧﺎﻳﺭ‬2016-‫ﺍﻟﺳﻧﺔ‬140-‫ﺍﻟﻌﺩﺩ‬47154 ‫ﺍﻷﻫﺭﺍﻡ‬:‫ﺍﻷﻣﺭﻳﻛﻳﺔ‬ ‫ﺍﻟﺗﺟﺎﺭﺓ‬ ‫ﻏﺭﻓﺔ‬ ‫ﺃﻣﺎﻡ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﻭﺯﻳﺭ‬ ‫ﺑﺎﻟﻘﺎﻫﺭﺓ‬:5‫ﺧﻼﻝ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﺣﻘﻭﻝ‬ ‫ﻟﺗﻧﻣﻳﺔ‬ ‫ﺟﺩﻳﺩﺓ‬ ‫ﻣﺷﺭﻭﻋﺎﺕ‬5 ‫ﺳﻧﻭﺍﺕ‬ ‫ﺗﻛﺛﻳﻑ‬ ‫ﺟﺎﺭ‬ ‫ﺃﻧﻪ‬ ‫ﺍﻟﻣﻌﺩﻧﻳﺔ‬ ‫ﻭﺍﻟﺛﺭﻭﺓ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﻭﺯﻳﺭ‬ ‫ﺍﻟﻣﻼ‬ ‫ﻁﺎﺭﻕ‬ ‫ﺍﻟﻣﻬﻧﺩﺱ‬ ‫ﺃﻛﺩ‬ ‫ﻭﺇﻧﺗﺎﺝ‬ ‫ﺗﻧﻣﻳﺔ‬ ‫ﻣﺷﺭﻭﻋﺎﺕ‬ ‫ﻓﻰ‬ ‫ﻟﻺﺳﺭﺍﻉ‬ ‫ﺍﻷﺟﺎﻧﺏ‬ ‫ﺍﻟﺷﺭﻛﺎء‬ ‫ﻣﻊ‬ ‫ﺑﺎﻟﺗﻌﺎﻭﻥ‬ ‫ﺍﻟﺟﻬﻭﺩ‬ ‫ﻓﻰ‬ ‫ﺍﻟﻌﻣﻳﻘﺔ‬ ‫ﺑﺎﻟﻣﻳﺎﻩ‬ ‫ﺍﻟﻣﻛﺗﺷﻔﺔ‬ ‫ﺍﻟﺣﻘﻭﻝ‬ ‫ﻣﻥ‬ ‫ﺍﻟﻁﺑﻳﻌﻰ‬ ‫ﺍﻟﻐﺎﺯ‬‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺍﻟﺑﺣﺭ‬‫ﻭﺍﻟﺗﻰ‬ ‫ﺗﺗﺿﻣﻥ‬5‫ﺍﻟﻣﻘﺑﻠﺔ‬ ‫ﺍﻟﺧﻣﺱ‬ ‫ﺍﻟﺳﻧﻭﺍﺕ‬ ‫ﺧﻼﻝ‬ ‫ﺟﺩﻳﺩﺓ‬ ‫ﻣﺷﺭﻭﻋﺎﺕ‬‫ﻭﻫﻰ‬‫ﻬﺭ‬ُ‫ﻅ‬ ‫ﻭﺍﻟﻣﺭﺣﻠﺔ‬ ‫ﻭﺳﻼﻣﺎﺕ‬ ‫ﻭﺃﺗﻭﻝ‬ ‫ﺍﻹﺳﻛﻧﺩﺭﻳﺔ‬ ‫ﻭﺷﻣﺎﻝ‬9)‫ﺏ‬(‫ﺍﻟﻌﻣﻳﻖ‬ ‫ﺍﻟﺩﻟﺗﺎ‬ ‫ﻏﺭﺏ‬ ‫ﺣﻭﺍﻟﻲ‬ ‫ﺇﻟﻰ‬ ‫ﻳﺻﻝ‬ ‫ﺍﺳﺗﺛﻣﺎﺭﺍﺕ‬ ‫ﺑﺈﺟﻣﺎﻟﻰ‬35‫ﺩﻭﻻﺭ‬ ‫ﻣﻠﻳﺎﺭ‬‫ﺑﻧﺣﻭ‬ ‫ﻳﻘﺩﺭ‬ ‫ﺇﻧﺗﺎﺟﺎ‬ ‫ﺗﺿﻳﻑ‬ 6‫ﺇﻧﺗﺎﺝ‬ ‫ﻓﻰ‬ ‫ﺍﻟﻁﺑﻳﻌﻰ‬ ‫ﺍﻟﺗﻧﺎﻗﺹ‬ ‫ﺗﻌﻭﻳﺽ‬ ‫ﻓﻰ‬ ‫ﻳﺳﻬﻡ‬ ‫ﻳﻭﻣﻳﺎ‬ ‫ﻏﺎﺯ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﺎﺭﺍﺕ‬ ‫ﺍﻟﻔﺟﻭﺓ‬ ‫ﺳﺩ‬ ‫ﻓﻰ‬ ‫ﻟﻠﻣﺳﺎﻫﻣﺔ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﻣﻥ‬ ‫ﻣﺻﺭ‬ ‫ﺇﻧﺗﺎﺝ‬ ‫ﺇﺟﻣﺎﻟﻰ‬ ‫ﻭﺯﻳﺎﺩﺓ‬ ‫ﺍﻟﻘﺩﻳﻣﺔ‬ ‫ﺍﻟﺣﻘﻭﻝ‬ ‫ﻭﺍﻻﺳﺗﻬﻼﻙ‬ ‫ﺍﻹﻧﺗﺎﺝ‬ ‫ﺑﻳﻥ‬. ‫ﺣﻘﻝ‬ ‫ﻣﺷﺭﻭﻉ‬ ‫ﻓﻰ‬ ‫ﺍﻟﻌﻣﻝ‬ ‫ﺑﺩء‬ ‫ﺗﻡ‬ ‫ﺃﻧﻪ‬ ‫ﺃﻭﺿﺢ‬ ‫ﻭ‬»‫ﻬﺭ‬ُ‫ﻅ‬«‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺑﺎﻟﺑﺣﺭ‬ ‫ﺍﻟﻌﻣﻼﻕ‬ ‫ﻣﻊ‬ ‫ﺑﺎﻟﺗﻌﺎﻭﻥ‬‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬ ‫ﺍﻳﻧﻰ‬ ‫ﺷﺭﻛﺔ‬‫ﺍﻟﺣﻔﺎﺭ‬ ‫ﻭﺻﻭﻝ‬ ‫ﺑﻌﺩ‬ ‫ﺍﻟﻣﺎﺿﻰ‬ ‫ﺍﻟﻌﺎﻡ‬ ‫ﻧﻬﺎﻳﺔ‬ ‫ﻗﺑﻝ‬ »‫ﺳﺎﻳﺑﻡ‬10000«‫ﻳﻌﺩ‬ ‫ﺃﻧﻪ‬ ‫ﺇﻟﻰ‬ ً‫ﺍ‬‫ﻣﺷﻳﺭ‬ ،‫ﻣﺳﺗﻭﻯ‬ ‫ﻋﻠﻰ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﺍﻛﺗﺷﺎﻓﺎﺕ‬ ‫ﺃﻛﺑﺭ‬ ‫ﻣﻥ‬ ‫ﺍﻟﻌﺎﻟﻡ‬‫ﺍﺣﺗﻳﺎﻁﻳﺎﺗﻪ‬ ‫ﺗﺑﻠﻎ‬ ‫ﺣﻳﺙ‬30‫ﺗﻧﻣﻳﺔ‬ ‫ﺧﻁﺔ‬ ‫ﻭﺿﻊ‬ ‫ﻭﺗﻡ‬ ،‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﺗﺭﻳﻠﻳﻭﻥ‬ ‫ﻣﻥ‬ ‫ﺑﻔﺗﺭﺓ‬ ‫ﺑﺎﻟﻣﻘﺎﺭﻧﺔ‬ ‫ﺍﻹﻧﺗﺎﺝ‬ ‫ﻟﺑﺩء‬ ‫ﻋﺎﻣﻳﻥ‬ ‫ﺗﺳﺗﻐﺭﻕ‬ ‫ﻟﻠﻛﺷﻑ‬ ‫ﺳﺭﻳﻌﺔ‬6-8‫ﺳﻧﻭﺍﺕ‬ ‫ﺍﻟﻣﻣﺎﺛﻠﺔ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﻟﻣﺷﺭﻭﻋﺎﺕ‬. OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS
89 April 16 EGYPT2016 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS ..‫ﺍﻟﻣﻘﺑﻝ‬ ‫ﺍﻟﻌﺎﻡ‬ ‫ﺑﺗﺭﻭﻟﻳﺔ‬ ‫ﺍﺳﺗﺛﻣﺎﺭﺍﺕ‬ ‫ﺩﻭﻻﺭ‬ ‫ﻣﻠﻳﺎﺭ‬ 27 ‫ﺛﻣﺎﺭ‬ ‫ﻧﺟﻧﻰ‬ : ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﻭﺯﻳﺭ‬ ‫ﻣﺷﺭﻭﻋﺎﺕ‬ 3 ‫ﻣﻥ‬ ‫ﻏﺎﺯ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﺎﺭ‬ 1,9 ‫ﺇﻧﺗﺎﺝ‬ 10‫ﻓﺑﺭﺍﻳﺭ‬2016‫ﺍﻟﻳﻭﻣﻰ‬ ‫ﺍﻷﻫﺭﺍﻡ‬: ‫ﻭﺍﺿﺎﻑ‬‫ﺍﻥ‬‫ﻣﺻﺭ‬‫ﺿﻣﻥ‬‫ﻋﺩﺩ‬‫ﻗﻠﻳﻝ‬‫ﺟﺩﺍ‬‫ﻣﻥ‬‫ﺑﻠﺩﺍﻥ‬ ‫ﺍﻟﻌﺎﻟﻡ‬‫ﺍﻟﺗﻲ‬‫ﺗﺷﻬﺩ‬‫ﻣﺛﻝ‬‫ﻫﺫﺍ‬‫ﺍﻟﻌﺩﺩ‬‫ﺍﻟﻛﺑﻳﺭ‬‫ﻣﻥ‬ ‫ﺍﻟﻣﺷﺭﻭﻋﺎﺕ‬‫ﻓﻰ‬‫ﻭﻗﺕ‬‫ﻭﺍﺣﺩ‬‫ﺭﻏﻡ‬‫ﻅﺭﻭﻑ‬‫ﺗﺭﺍﺟﻊ‬ ‫ﺃﺳﻌﺎﺭ‬‫ﺍﻟﺧﺎﻡ‬‫ﻋﺎﻟﻣﻳﺎ‬،‫ﻭ‬‫ﻣﺎ‬‫ﺯﺍﻟﺕ‬‫ﻣﺻﺭ‬‫ﺍﻟﺑﻠﺩ‬‫ﺍﻟﺗﻰ‬ ‫ﻳﻭﺟﺩ‬‫ﺑﻬﺎ‬‫ﺃﻛﺑﺭ‬‫ﻋﺩﺩ‬‫ﻣﻥ‬‫ﺍﻟﺣﻔﺎﺭﺍﺕ‬‫ﻳﺎﻟﺑﺣﺭ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ‬. ‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺍﻷﺑﻳﺽ‬ ‫ﺑﺎﻟﺑﺣﺭ‬ ‫ﺑﺣﺭﻳﺔ‬ ‫ﻣﺷﺭﻭﻋﺎﺕ‬

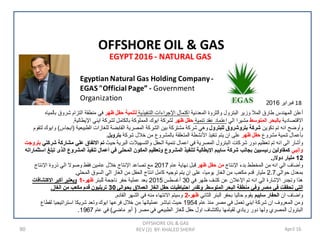

90 April 16 EGYPT2016 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS 18‫ﻓﺑﺭﺍﻳﺭ‬2016: Egyptian Natural Gas Holding Company- EGAS "Official Page” - Government Organization ‫ﺍﻟﻣﻌﺩﻧﻳﺔ‬ ‫ﻭﺍﻟﺛﺭﻭﺓ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬ ‫ﻭﺯﻳﺭ‬ ‫ﺍﻟﻣﻼ‬ ‫ﻁﺎﺭﻕ‬ ‫ﺍﻟﻣﻬﻧﺩﺱ‬ ‫ﺃﻋﻠﻥ‬‫ﺍﻟﺗﻧﻔﻳﺫﻳﺔ‬ ‫ﺍﻹﺟﺭﺍءﺍﺕ‬ ‫ﺍﻛﺗﻣﺎﻝ‬‫ﻅﻬﺭ‬ ‫ﺣﻘﻝ‬ ‫ﻟﺗﻧﻣﻳﺔ‬‫ﺑﺎﻟﻣﻳﺎﻩ‬ ‫ﺷﺭﻭﻕ‬ ‫ﺍﻟﺗﺯﺍﻡ‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﻓﻲ‬ ‫ﺍﻻﻗﺗﺻﺎﺩﻳﺔ‬‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺑﺎﻟﺑﺣﺭ‬‫ﺍﻟﻲ‬ ‫ﻣﺷﻳﺭﺍ‬‫ﺗﻧﻣﻳﺔ‬ ‫ﻋﻘﺩ‬ ‫ﺍﻋﺗﻣﺎﺩ‬‫ﻅﻬﺭ‬ ‫ﺣﻘﻝ‬‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬ ‫ﺍﻳﻧﻲ‬ ‫ﻟﺷﺭﻛﺔ‬ ‫ﺑﺎﻟﻛﺎﻣﻝ‬ ‫ﺍﻟﻣﻣﻠﻭﻛﺔ‬ ‫ﺍﻳﻭﻙ‬ ‫ﻟﺷﺭﻛﺔ‬. ‫ﺗﻛﻭﻳﻥ‬ ‫ﺗﻡ‬ ‫ﺍﻧﻪ‬ ‫ﻭﺃﻭﺿﺢ‬‫ﻟﻠﺑﺗﺭﻭﻝ‬ ‫ﺑﺗﺭﻭﺷﺭﻭﻕ‬ ‫ﺷﺭﻛﺔ‬‫ﺍﻟﻁﺑﻳﻌﻳﺔ‬ ‫ﻟﻠﻐﺎﺯﺍﺕ‬ ‫ﺍﻟﻘﺎﺑﺿﺔ‬ ‫ﺍﻟﻣﺻﺭﻳﺔ‬ ‫ﺍﻟﺷﺭﻛﺔ‬ ‫ﺑﻳﻥ‬ ‫ﻣﺷﺗﺭﻛﺔ‬ ‫ﺷﺭﻛﺔ‬ ‫ﻭﻫﻲ‬)‫ﺍﻳﺟﺎﺱ‬(‫ﻟﺗﻘﻭﻡ‬ ‫ﻭﺍﻳﻭﻙ‬ ‫ﻣﺷﺭﻭﻉ‬ ‫ﺗﻧﻣﻳﺔ‬ ‫ﺑﺄﻋﻣﺎﻝ‬‫ﻅﻬﺭ‬ ‫ﺣﻘﻝ‬‫ﺷﺭﻛﺔ‬ ‫ﺧﻼﻝ‬ ‫ﻣﻥ‬ ‫ﺑﺎﻟﻣﺷﺭﻭﻉ‬ ‫ﺍﻟﻣﺗﻌﻠﻘﺔ‬ ‫ﺍﻷﻧﺷﻁﺔ‬ ‫ﺗﻧﻔﻳﺫ‬ ‫ﻳﺗﻡ‬ ‫ﺍﻥ‬ ‫ﻋﻠﻰ‬‫ﺑﺗﺭﻭﺑﻝ‬. ‫ﺷﺭﻛﺎﺕ‬ ‫ﺩﻭﺭ‬ ‫ﺗﻌﻅﻳﻡ‬ ‫ﺗﻡ‬ ‫ﺍﻧﻪ‬ ‫ﺍﻟﻰ‬ ‫ﻭﺃﺷﺎﺭ‬‫ﺣﻳﺙ‬ ‫ﺍﻟﺑﺭﻳﺔ‬ ‫ﻭﺍﻟﺗﺳﻬﻳﻼﺕ‬ ‫ﺍﻟﺣﻘﻝ‬ ‫ﺗﻧﻣﻳﺔ‬ ‫ﺍﻋﻣﺎﻝ‬ ‫ﻓﻲ‬ ‫ﺍﻟﻣﺻﺭﻳﺔ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬‫ﺷﺭﻛﺗﻲ‬ ‫ﻣﺷﺎﺭﻛﺔ‬ ‫ﻋﻠﻲ‬ ‫ﺍﻻﺗﻔﺎﻕ‬ ‫ﺗﻡ‬‫ﺑﺗﺭﻭﺟﺕ‬ ‫ﻭﺍﻧﺑﻲ‬‫ﺍﺳﺗﺛﻣﺎﺭﺍﺗﻪ‬ ‫ﺗﺑﻠﻎ‬ ‫ﺍﻟﺫﻯ‬ ‫ﺍﻟﻣﺷﺭﻭﻉ‬ ‫ﺗﻧﻔﻳﺫ‬ ‫ﺃﻋﻣﺎﻝ‬ ‫ﻓﻲ‬ ‫ﺍﻟﻣﺣﻠﻰ‬ ‫ﺍﻟﻣﻛﻭﻥ‬ ‫ﻭﺗﻌﻅﻳﻡ‬ ‫ﺍﻟﻣﺷﺭﻭﻉ‬ ‫ﻟﺗﻧﻔﻳﺫ‬ ‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬ ‫ﺳﺎﻳﺑﻡ‬ ‫ﺷﺭﻛﺔ‬ ‫ﺑﺟﺎﻧﺏ‬ ‫ﺭﺋﻳﺳﻳﻳﻥ‬ ‫ﻛﻣﻘﺎﻭﻟﻳﻥ‬ 12‫ﺩﻭﻻﺭ‬ ‫ﻣﻠﻳﺎﺭ‬. ‫ﺍﻹﻧﺗﺎﺝ‬ ‫ﺑﺩء‬ ‫ﺍﻟﻣﺧﻁﻁ‬ ‫ﻣﻥ‬ ‫ﺍﻧﻪ‬ ‫ﺍﻟﻲ‬ ‫ﻭﺃﺿﺎﻑ‬‫ﻅﻬﺭ‬ ‫ﺣﻘﻝ‬ ‫ﻣﻥ‬‫ﻋﺎﻡ‬ ‫ﻧﻬﺎﻳﺔ‬ ‫ﻗﺑﻝ‬2017‫ﺍﻹﻧﺗﺎﺝ‬ ‫ﺫﺭﻭﺓ‬ ‫ﺍﻟﻲ‬ ‫ﻭﺻﻭﻻ‬ ‫ﻓﻘﻁ‬ ‫ﻋﺎﻣﻳﻥ‬ ‫ﺧﻼﻝ‬ ‫ﺍﻹﻧﺗﺎﺝ‬ ‫ﺗﺻﺎﻋﺩ‬ ‫ﻣﻊ‬ ‫ﺣﻭﺍﻟﻲ‬ ‫ﺑﻣﻌﺩﻝ‬2.7‫ﺍﻟﻣﺣﻠﻲ‬ ‫ﺍﻟﺳﻭﻕ‬ ‫ﺍﻟﻲ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﻣﻥ‬ ‫ﺍﻟﺣﻘﻝ‬ ‫ﺍﻧﺗﺎﺝ‬ ‫ﻛﺎﻣﻝ‬ ‫ﺗﻭﺟﻳﻪ‬ ‫ﻳﺗﻡ‬ ‫ﺍﻥ‬ ‫ﻋﻠﻰ‬ ،‫ﻳﻭﻣﻳﺎ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﻣﻥ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﺎﺭ‬. ‫ﻓﻲ‬ ‫ﻅﻬﺭ‬ ‫ﻛﺷﻑ‬ ‫ﻋﻥ‬ ‫ﺍﻹﻋﻼﻥ‬ ‫ﺗﻡ‬ ‫ﺍﻧﻪ‬ ‫ﺍﻟﻲ‬ ‫ﺍﻹﺷﺎﺭﺓ‬ ‫ﻭﺗﺟﺩﺭ‬ ‫ﻫﺫﺍ‬30‫ﺃﻏﺳﻁﺱ‬2015‫ﻟﻠﺑﺋﺭ‬ ‫ﻧﺎﺟﺣﺔ‬ ‫ﺣﻔﺭ‬ ‫ﻋﻣﻠﻳﺔ‬ ‫ﺑﻌﺩ‬‫ﻅﻬﺭ‬-1‫ﺍﻻﻛﺗﺷﺎﻓﺎﺕ‬ ‫ﺃﻛﺑﺭ‬ ‫ﻭﻳﻌﺗﺑﺭ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ‬ ‫ﺍﻟﺑﺣﺭ‬ ‫ﻣﻧﻁﻘﺔ‬ ‫ﻭﻓﻲ‬ ‫ﻣﺻﺭ‬ ‫ﻓﻲ‬ ‫ﺗﺣﻘﻘﺕ‬ ‫ﺍﻟﺗﻲ‬.‫ﺑﺣﻭﺍﻟﻲ‬ ‫ﺍﻟﻌﻣﻼﻕ‬ ‫ﺍﻟﻐﺎﺯ‬ ‫ﺣﻘﻝ‬ ‫ﺍﺣﺗﻳﺎﻁﻳﺎﺕ‬ ‫ﻭﺗﻘﺩﺭ‬30‫ﺍﻟﻐﺎﺯ‬ ‫ﻣﻥ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﺗﺭﻳﻠﻳﻭﻥ‬. ‫ﺍﻥ‬ ‫ﻭﺍﺿﺎﻑ‬‫ﺳﺎﻳﺑﻡ‬ ‫ﺍﻟﺣﻔﺎﺭ‬‫ﺍﻟﺛﺎﻧﻲ‬ ‫ﺍﻟﺑﺋﺭ‬ ‫ﺑﺣﻔﺭ‬ ‫ﺣﺎﻟﻳﺎ‬ ‫ﻳﻘﻭﻡ‬‫ﻅﻬﺭ‬-2‫ﺍﻟﻘﺎﺩﻡ‬ ‫ﺍﻟﺷﻬﺭ‬ ‫ﻓﻲ‬ ‫ﻣﻧﻪ‬ ‫ﺍﻻﻧﺗﻬﺎء‬ ‫ﻭﺳﻳﺗﻡ‬. ‫ﻋﺎﻡ‬ ‫ﻣﻧﺫ‬ ‫ﻣﺻﺭ‬ ‫ﻓﻲ‬ ‫ﺗﻌﻣﻝ‬ ‫ﺍﻳﻧﻲ‬ ‫ﺷﺭﻛﺔ‬ ‫ﺍﻥ‬ ‫ﺍﻟﻣﻌﺭﻭﻑ‬ ‫ﻭﻣﻥ‬1954‫ﻟﻘﻁﺎﻉ‬ ‫ﺍﺳﺗﺭﺍﺗﻳﺟﻳﺎ‬ ‫ﺷﺭﻳﻛﺎ‬ ‫ﻭﺗﻌﺩ‬ ‫ﺍﻳﻭﻙ‬ ‫ﻓﺭﻋﻬﺎ‬ ‫ﺧﻼﻝ‬ ‫ﻣﻥ‬ ‫ﻋﻣﻠﻳﺎﺗﻬﺎ‬ ‫ﺗﺑﺎﺷﺭ‬ ‫ﺣﻳﺙ‬ ‫ﻣﺻﺭ‬ ‫ﻓﻲ‬ ‫ﺍﻟﻁﺑﻳﻌﻲ‬ ‫ﻟﻠﻐﺎﺯ‬ ‫ﺣﻘﻝ‬ ‫ﺍﻭﻝ‬ ‫ﺑﺎﻛﺗﺷﺎﻑ‬ ‫ﻟﻘﻳﺎﻣﻬﺎ‬ ‫ﺭﻳﺎﺩﻱ‬ ‫ﺩﻭﺭ‬ ‫ﻭﻟﻬﺎ‬ ‫ﺍﻟﻣﺻﺭﻱ‬ ‫ﺍﻟﺑﺗﺭﻭﻝ‬)‫ﻣﺎﺿﻲ‬ ‫ﺃﺑﻭ‬(‫ﻋﺎﻡ‬ ‫ﻓﻲ‬1967.

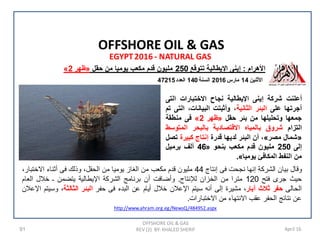

91 April 16 EGYPT2016 - NATURAL GAS OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS ‫ﺍﻷﺛﻧﻳﻥ‬14‫ﻣﺎﺭﺱ‬2016‫ﺍﻟﺳﻧﺔ‬140‫ﺍﻟﻌﺩﺩ‬47215 ‫ﺍﻷﻫﺭﺍﻡ‬:‫ﺗﺗﻭﻗﻊ‬ ‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬ ‫ﺇﻳﻧﻰ‬250‫ﺣﻘﻝ‬ ‫ﻣﻥ‬ ‫ﻳﻭﻣﻳﺎ‬ ‫ﻣﻛﻌﺏ‬ ‫ﻗﺩﻡ‬ ‫ﻣﻠﻳﻭﻥ‬»‫ﻅﻬﺭ‬2« ‫ﻭﻗﺎﻝ‬‫ﺑﻳﺎﻥ‬‫ﺍﻟﺷﺭﻛﺔ‬‫ﺇﻧﻬﺎ‬‫ﻧﺟﺣﺕ‬‫ﻓﻰ‬‫ﺇﻧﺗﺎﺝ‬44‫ﻣﻠﻳﻭﻥ‬‫ﻗﺩﻡ‬‫ﻣﻛﻌﺏ‬‫ﻣﻥ‬‫ﺍﻟﻐﺎﺯ‬‫ﻳﻭﻣﻳﺎ‬‫ﻣﻥ‬،‫ﺍﻟﺣﻘﻝ‬‫ﻭﺫﻟﻙ‬‫ﻓﻰ‬‫ﺃﺛﻧﺎء‬،‫ﺍﻻﺧﺗﺑﺎﺭ‬ ‫ﺣﻳﺙ‬‫ﺟﺭﻯ‬‫ﻓﺗﺢ‬120‫ﻣﺗﺭﺍ‬‫ﻣﻥ‬‫ﺍﻟﺧﺯﺍﻥ‬‫ﻟﻺﻧﺗﺎﺝ‬.‫ﻭﺃﺿﺎﻓﺕ‬‫ﺃﻥ‬‫ﺑﺭﻧﺎﻣﺞ‬‫ﺍﻟﺷﺭﻛﺔ‬‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬‫ﻳﺗﺿﻣﻥ‬‫ـ‬‫ﺧﻼﻝ‬‫ﺍﻟﻌﺎﻡ‬ ‫ﺍﻟﺣﺎﻟﻰ‬‫ﺣﻔﺭ‬‫ﺛﻼﺙ‬‫ﺁﺑﺎﺭ‬،‫ﻣﺷﻳﺭﺓ‬‫ﺇﻟﻰ‬‫ﺃﻧﻪ‬‫ﺳﻳﺗﻡ‬‫ﺍﻹﻋﻼﻥ‬‫ﺧﻼﻝ‬‫ﺃﻳﺎﻡ‬‫ﻋﻥ‬‫ﺍﻟﺑﺩء‬‫ﻓﻰ‬‫ﺣﻔﺭ‬‫ﺍﻟﺑﺋﺭ‬‫ﺍﻟﺛﺎﻟﺛﺔ‬،‫ﻭﺳﻳﺗﻡ‬‫ﺍﻹﻋﻼﻥ‬ ‫ﻋﻥ‬‫ﻧﺗﺎﺋﺞ‬‫ﺍﻟﺣﻔﺭ‬‫ﻋﻘﺏ‬‫ﺍﻻﻧﺗﻬﺎء‬‫ﻣﻥ‬‫ﺍﻻﺧﺗﺑﺎﺭﺍﺕ‬. ‫ﺃﻋﻠﻧﺕ‬‫ﺷﺭﻛﺔ‬‫ﺇﻳﻧﻰ‬‫ﺍﻹﻳﻁﺎﻟﻳﺔ‬‫ﻧﺟﺎﺡ‬‫ﺍﻻﺧﺗﺑﺎﺭﺍﺕ‬‫ﺍﻟﺗﻰ‬ ‫ﺃﺟﺭﺗﻬﺎ‬‫ﻋﻠﻰ‬‫ﺍﻟﺑﺋﺭ‬‫ﺍﻟﺛﺎﻧﻳﺔ‬،‫ﻭﺃﺛﺑﺗﺕ‬،‫ﺍﻟﺑﻳﺎﻧﺎﺕ‬‫ﺍﻟﺗﻰ‬‫ﺗﻡ‬ ‫ﺟﻣﻌﻬﺎ‬‫ﻭﺗﺣﻠﻳﻠﻬﺎ‬‫ﻣﻥ‬‫ﺑﺋﺭ‬‫ﺣﻘﻝ‬»‫ﻅﻬﺭ‬2«‫ﻓﻰ‬‫ﻣﻧﻁﻘﺔ‬ ‫ﺍﻟﺗﺯﺍﻡ‬‫ﺷﺭﻭﻕ‬‫ﺑﺎﻟﻣﻳﺎﻩ‬‫ﺍﻻﻗﺗﺻﺎﺩﻳﺔ‬‫ﺑﺎﻟﺑﺣﺭ‬‫ﺍﻟﻣﺗﻭﺳﻁ‬ »‫ﺷﻣﺎﻝ‬‫ﻣﺻﺭ‬«،‫ﺃﻥ‬‫ﺍﻟﺑﺋﺭ‬‫ﻟﺩﻳﻬﺎ‬‫ﻗﺩﺭﺓ‬‫ﺇﻧﺗﺎﺝ‬‫ﻛﺑﻳﺭﺓ‬‫ﺗﺻﻝ‬ ‫ﺇﻟﻰ‬250‫ﻣﻠﻳﻭﻥ‬‫ﻗﺩﻡ‬‫ﻣﻛﻌﺏ‬‫ﺑﻧﺣﻭ‬»46‫ﺃﻟﻑ‬‫ﺑﺭﻣﻳﻝ‬ ‫ﻣﻥ‬‫ﺍﻟﻧﻔﻁ‬‫ﺍﻟﻣﻛﺎﻓﺊ‬‫ﻳﻭﻣﻳﺎ‬«. http://www.ahram.org.eg/NewsQ/484952.aspx

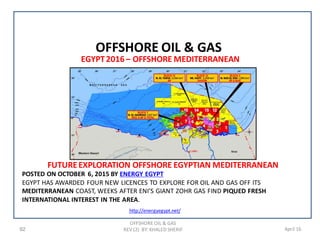

92 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS POSTED ON OCTOBER 6, 2015 BY ENERGY EGYPT EGYPT HAS AWARDED FOUR NEW LICENCES TO EXPLORE FOR OIL AND GAS OFF ITS MEDITERRANEAN COAST, WEEKS AFTER ENI’S GIANT ZOHR GAS FIND PIQUED FRESH INTERNATIONAL INTEREST IN THE AREA. http://energyegypt.net/ FUTUREEXPLORATION OFFSHORE EGYPTIAN MEDITERRANEAN EGYPT2016 – OFFSHORE MEDITERRANEAN

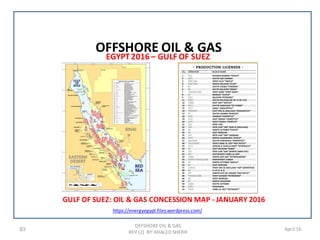

93 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS GULF OF SUEZ: OIL & GAS CONCESSION MAP - JANUARY 2016 https://energyegypt.files.wordpress.com/ EGYPT2016 – GULF OF SUEZ

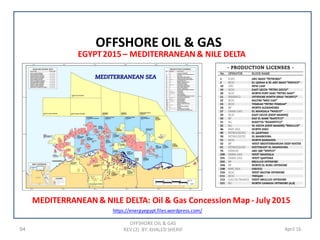

94 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS MEDITERRANEAN & NILE DELTA: Oil & Gas Concession Map - July 2015 https://energyegypt.files.wordpress.com/ EGYPT2015 – MEDITERRANEAN & NILE DELTA
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 95 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO14: EGYPT OIL & GAS (ENI & BP EXPLORATIONS)

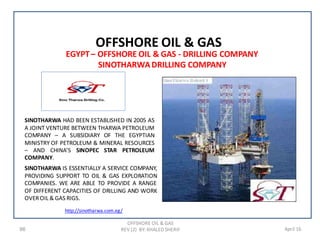

96 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS EGYPT– OFFSHORE OIL & GAS - DRILLING COMPANY SINOTHARWADRILLING COMPANY SINOTHARWA HAD BEEN ESTABLISHED IN 2005 AS A JOINT VENTURE BETWEEN THARWA PETROLEUM COMPANY – A SUBSIDIARY OF THE EGYPTIAN MINISTRY OF PETROLEUM & MINERAL RESOURCES – AND CHINA’S SINOPEC STAR PETROLEUM COMPANY. SINOTHARWA IS ESSENTIALLY A SERVICE COMPANY, PROVIDING SUPPORT TO OIL & GAS EXPLORATION COMPANIES. WE ARE ABLE TO PROVIDE A RANGE OF DIFFERENT CAPACITIES OF DRILLING AND WORK OVEROIL & GAS RIGS. http://sinotharwa.com.eg/
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 97 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO15: EGYPT OFFSHORE OIL & GAS DRILLING COMPANY SINOTHARWADRILLING COMPANY

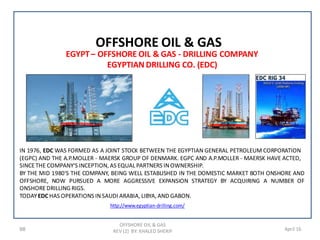

98 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS EGYPT– OFFSHORE OIL & GAS - DRILLING COMPANY EGYPTIAN DRILLING CO. (EDC) IN 1976, EDC WAS FORMED AS A JOINT STOCK BETWEEN THE EGYPTIAN GENERAL PETROLEUM CORPORATION (EGPC) AND THE A.P.MOLLER - MAERSK GROUP OF DENMARK. EGPC AND A.P.MOLLER - MAERSK HAVE ACTED, SINCETHE COMPANY'S INCEPTION, AS EQUAL PARTNERS INOWNERSHIP. TODAYEDC HAS OPERATIONS INSAUDI ARABIA, LIBYA, AND GABON. BY THE MID 1980'S THE COMPANY, BEING WELL ESTABLISHED IN THE DOMESTIC MARKET BOTH ONSHORE AND OFFSHORE, NOW PURSUED A MORE AGGRESSIVE EXPANSION STRATEGY BY ACQUIRING A NUMBER OF ONSHOREDRILLING RIGS. http://www.egyptian-drilling.com/
OFFSHORE OIL & GAS SUPPLEMENTRY VIDEO 99 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF April 16 VIDEO16: EGYPT OFFSHORE OIL & GAS DRILLING COMPANY EGYPTIAN DRILLING CO. (EDC)

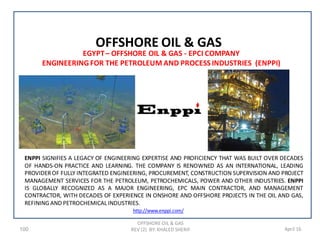

100 April 16 OFFSHORE OIL & GAS REV (2) BY: KHALED SHERIF OFFSHORE OIL & GAS EGYPT– OFFSHORE OIL & GAS - EPCI COMPANY ENGINEERING FOR THE PETROLEUM AND PROCESS INDUSTRIES (ENPPI) ENPPI SIGNIFIES A LEGACY OF ENGINEERING EXPERTISE AND PROFICIENCY THAT WAS BUILT OVER DECADES OF HANDS-ON PRACTICE AND LEARNING. THE COMPANY IS RENOWNED AS AN INTERNATIONAL, LEADING PROVIDEROF FULLY INTEGRATED ENGINEERING, PROCUREMENT, CONSTRUCTION SUPERVISION AND PROJECT MANAGEMENT SERVICES FOR THE PETROLEUM, PETROCHEMICALS, POWER AND OTHER INDUSTRIES. ENPPI IS GLOBALLY RECOGNIZED AS A MAJOR ENGINEERING, EPC MAIN CONTRACTOR, AND MANAGEMENT CONTRACTOR, WITH DECADES OF EXPERIENCE IN ONSHORE AND OFFSHORE PROJECTS IN THE OIL AND GAS, REFINING AND PETROCHEMICAL INDUSTRIES. http://www.enppi.com/
