NoSQL at Twitter
Kevin Weil -- @kevinweil
Analytics Lead, Twitter

April 21, 2010




                           TM

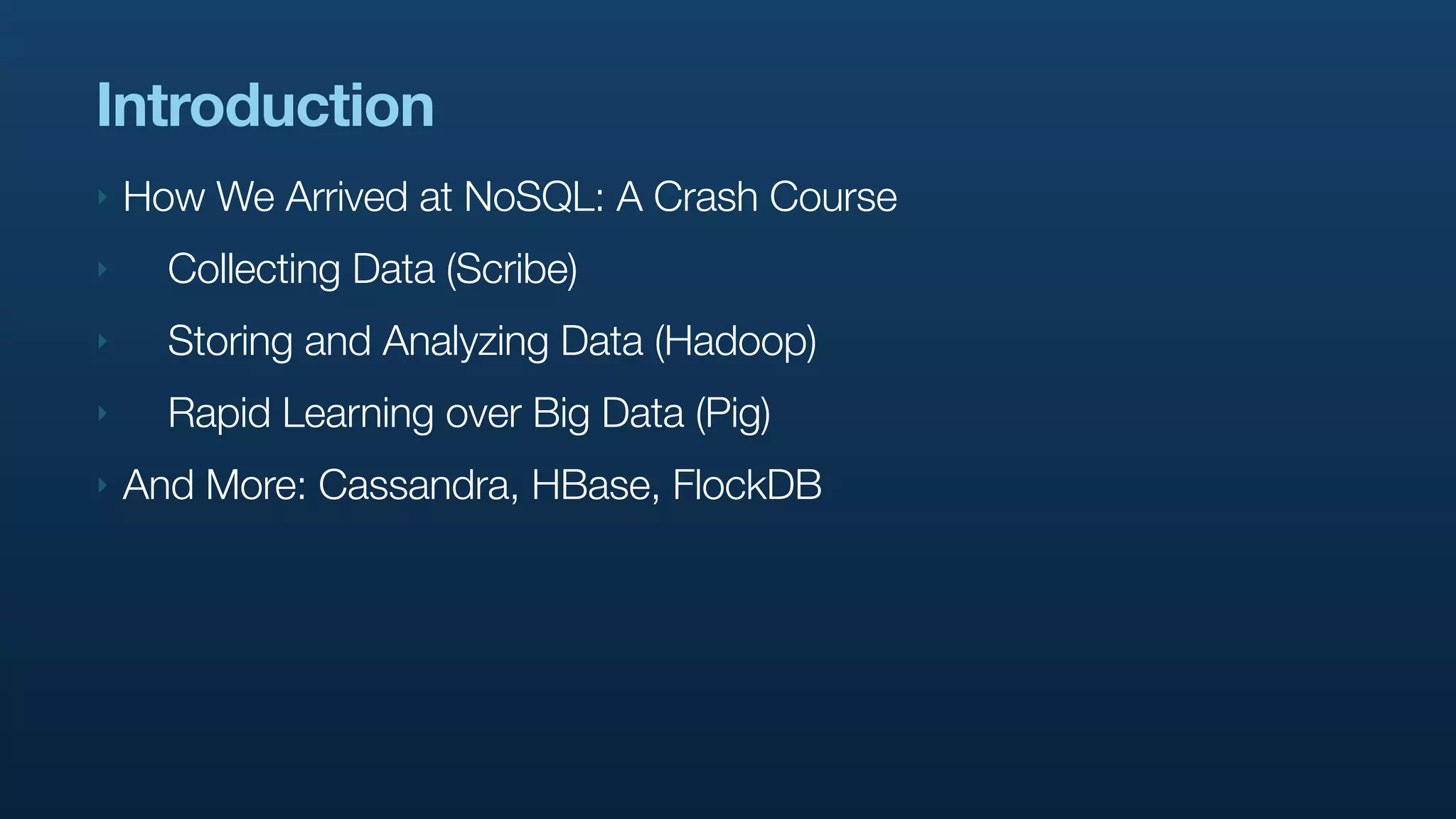

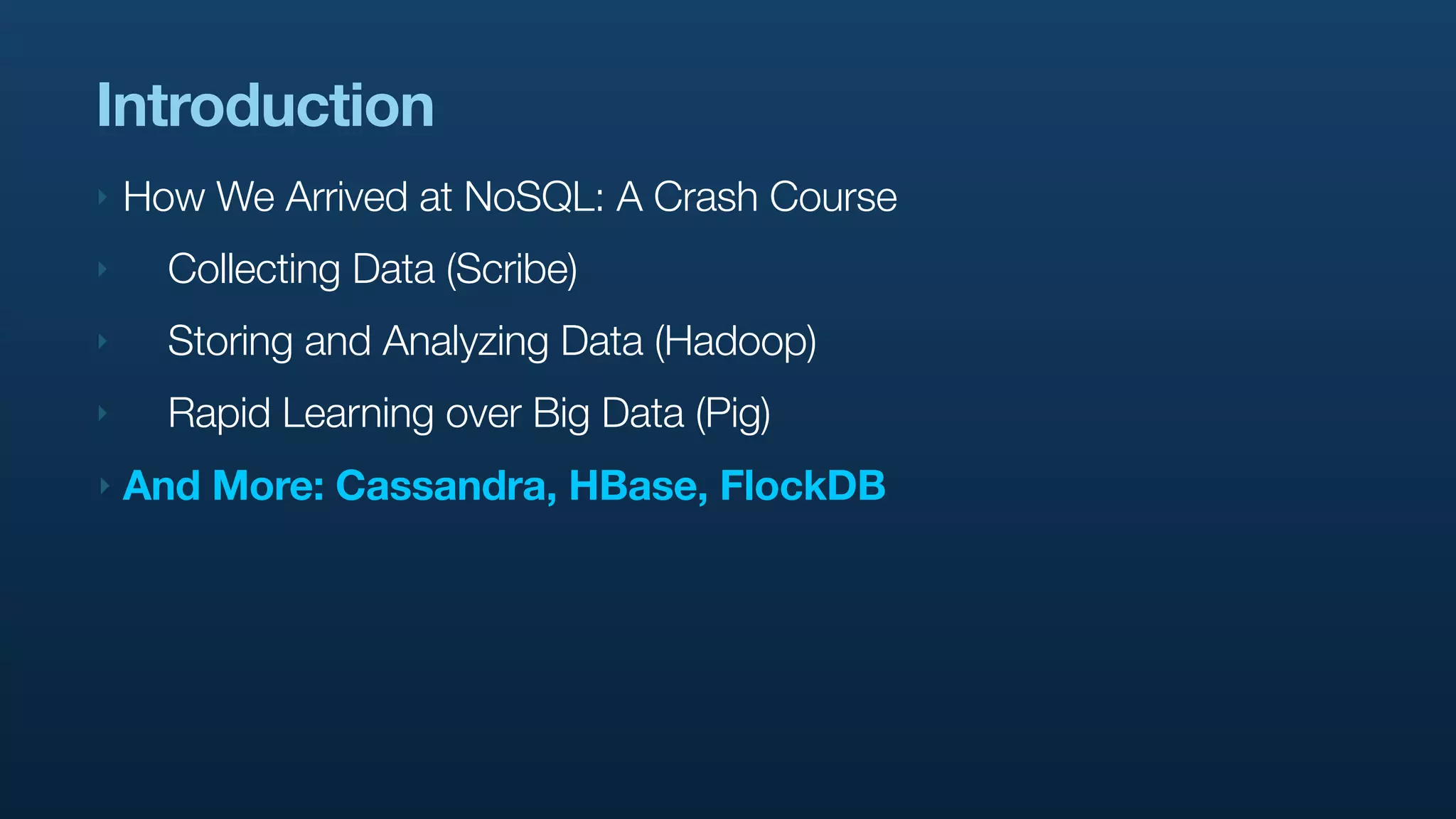

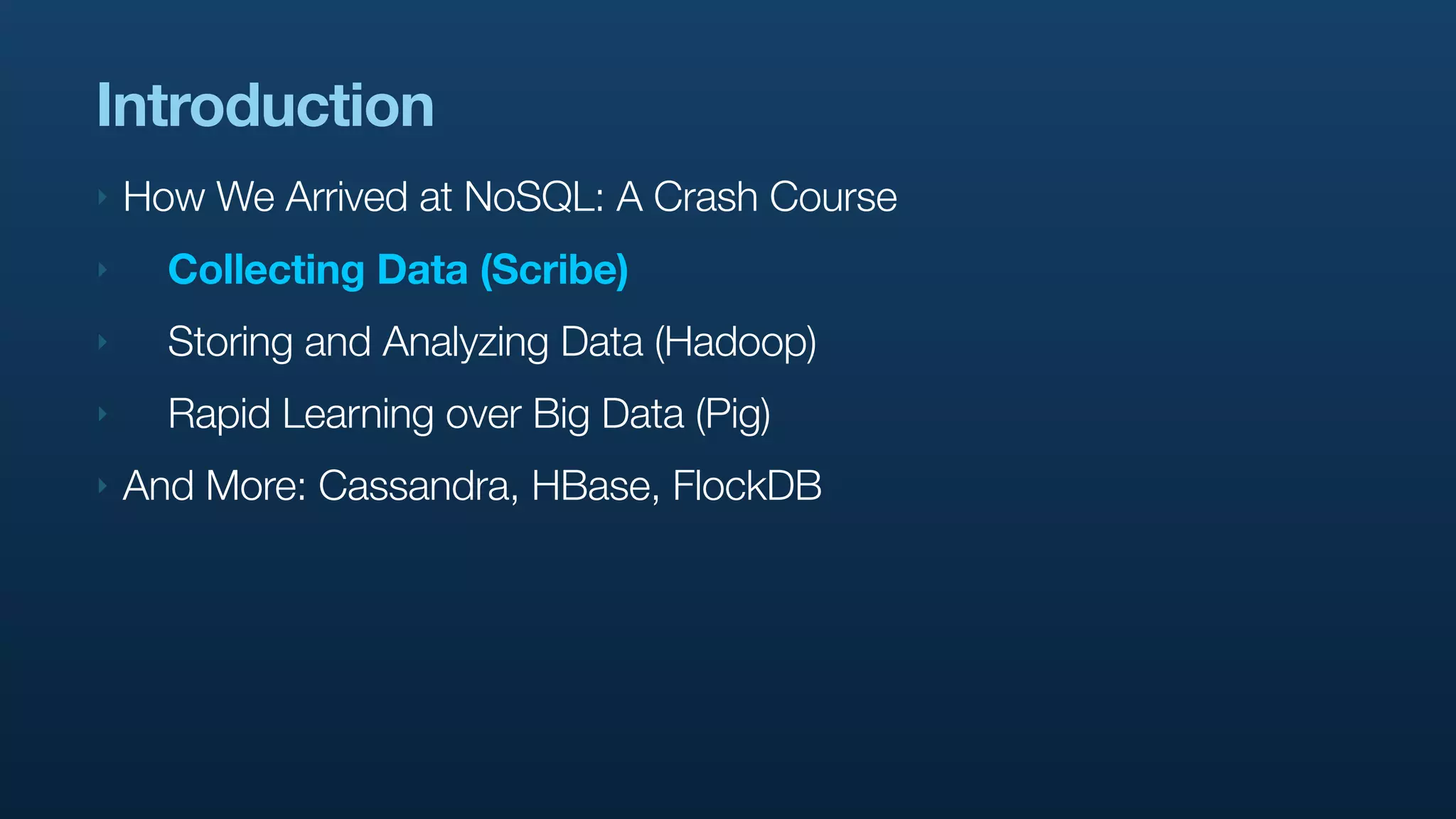

Introduction
‣   How We Arrived at NoSQL: A Crash Course
‣     Collecting Data (Scribe)
‣     Storing and Analyzing Data (Hadoop)
‣     Rapid Learning over Big Data (Pig)
‣   And More: Cassandra, HBase, FlockDB

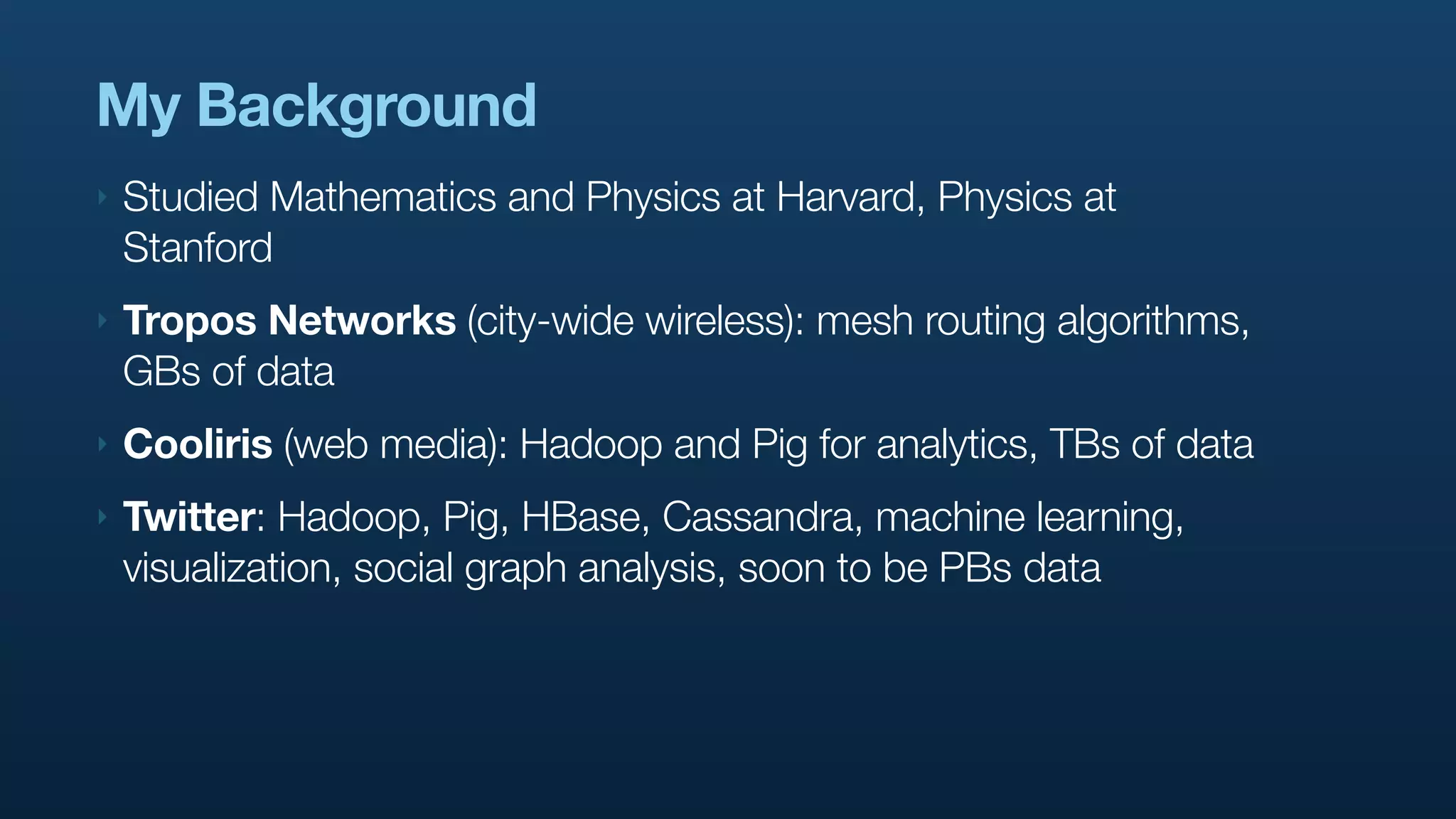

My Background
‣   Studied Mathematics and Physics at Harvard, Physics at
    Stanford
‣   Tropos Networks (city-wide wireless): mesh routing algorithms,
    GBs of data
‣   Cooliris (web media): Hadoop and Pig for analytics, TBs of data
‣   Twitter: Hadoop, Pig, HBase, Cassandra, machine learning,
    visualization, social graph analysis, soon to be PBs data
Introduction
‣   How We Arrived at NoSQL: A Crash Course
‣     Collecting Data (Scribe)
‣     Storing and Analyzing Data (Hadoop)
‣     Rapid Learning over Big Data (Pig)
‣   And More: Cassandra, HBase, FlockDB

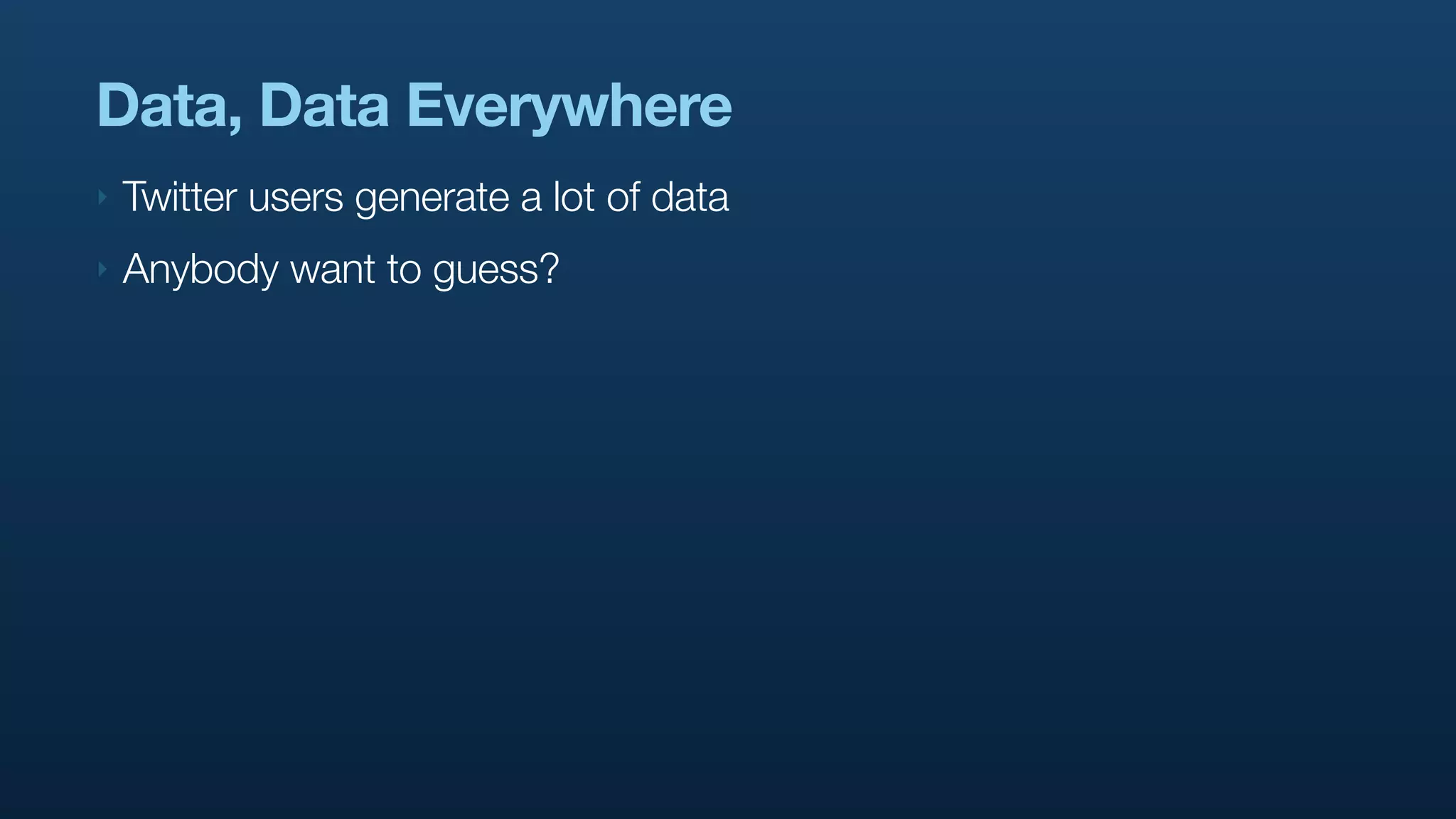

Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
‣     7 TB/day (2+ PB/yr)

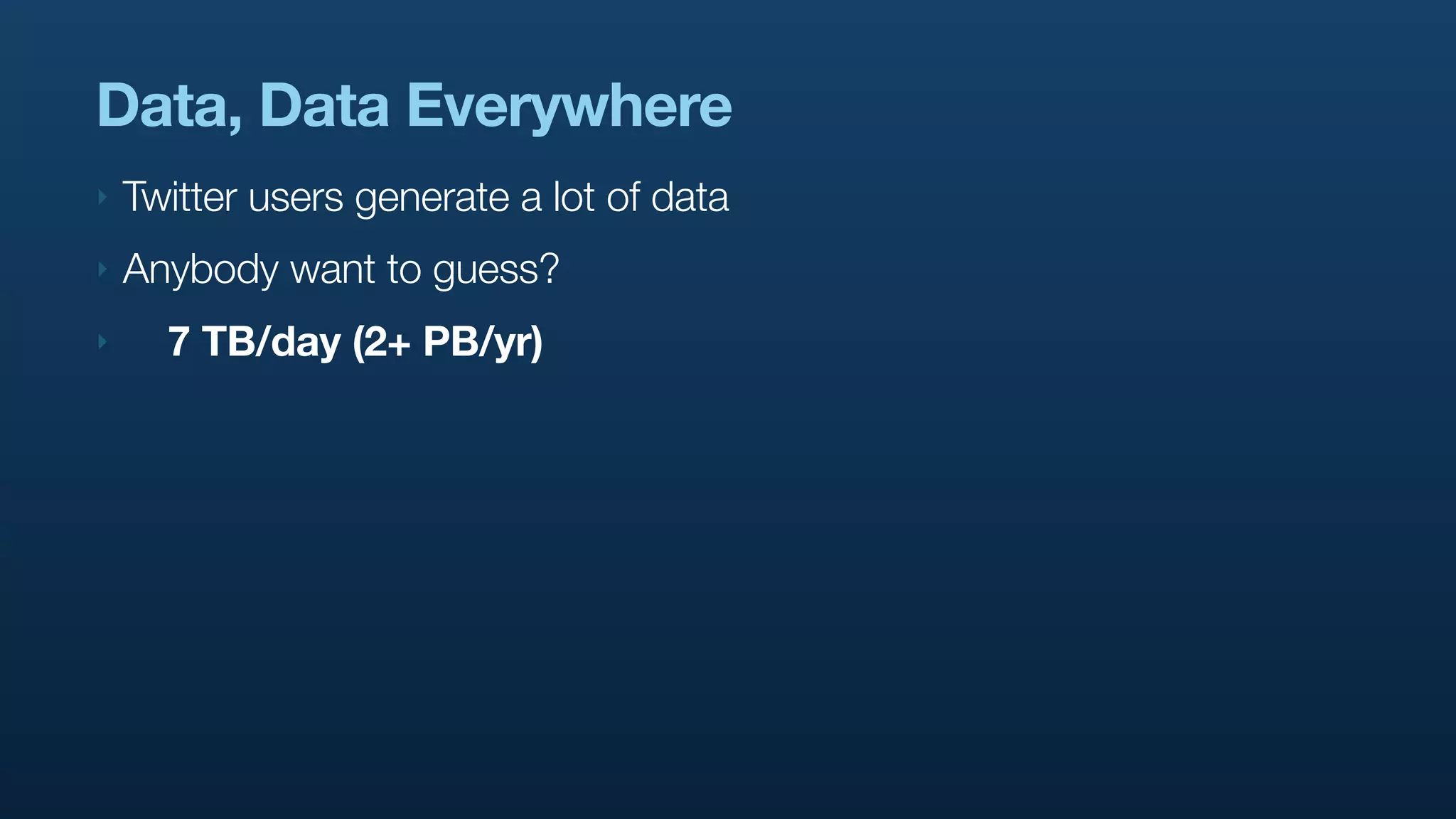

Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
‣     7 TB/day (2+ PB/yr)
‣     10,000 CDs/day

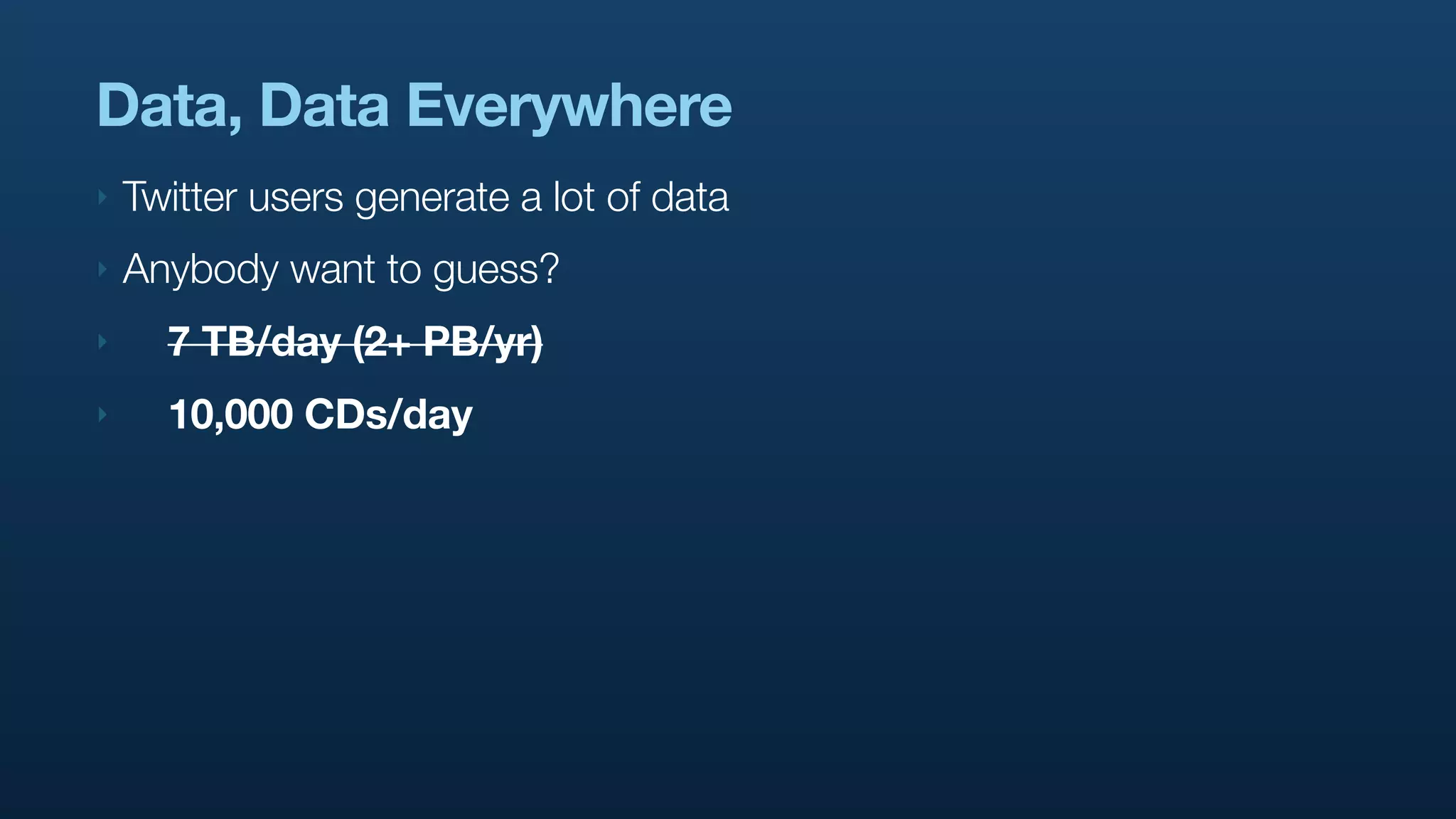

Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
‣     7 TB/day (2+ PB/yr)
‣     10,000 CDs/day
‣     5 million floppy disks

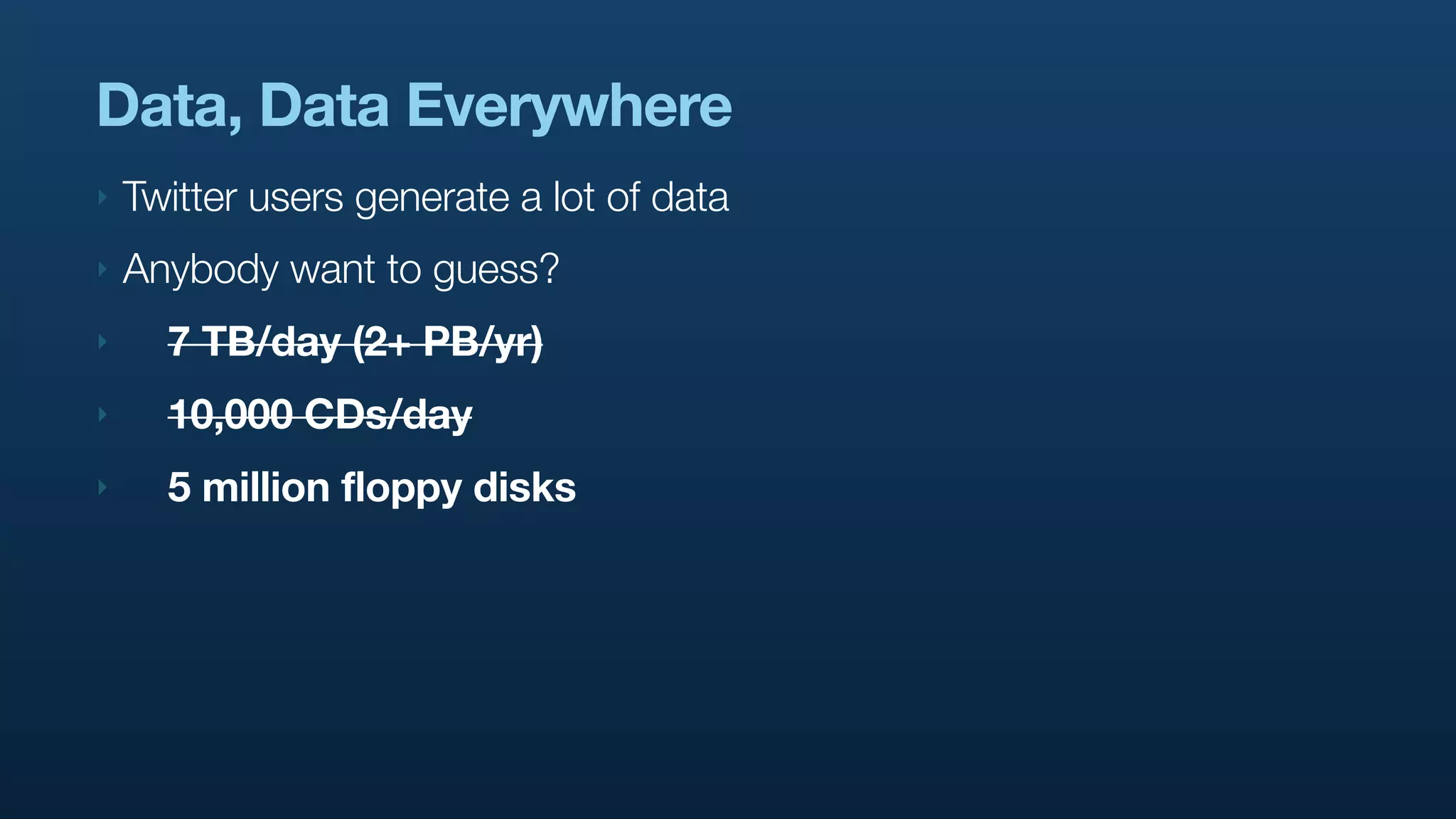

Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
‣     7 TB/day (2+ PB/yr)
‣     10,000 CDs/day
‣     5 million floppy disks
‣     300 GB while I give this talk

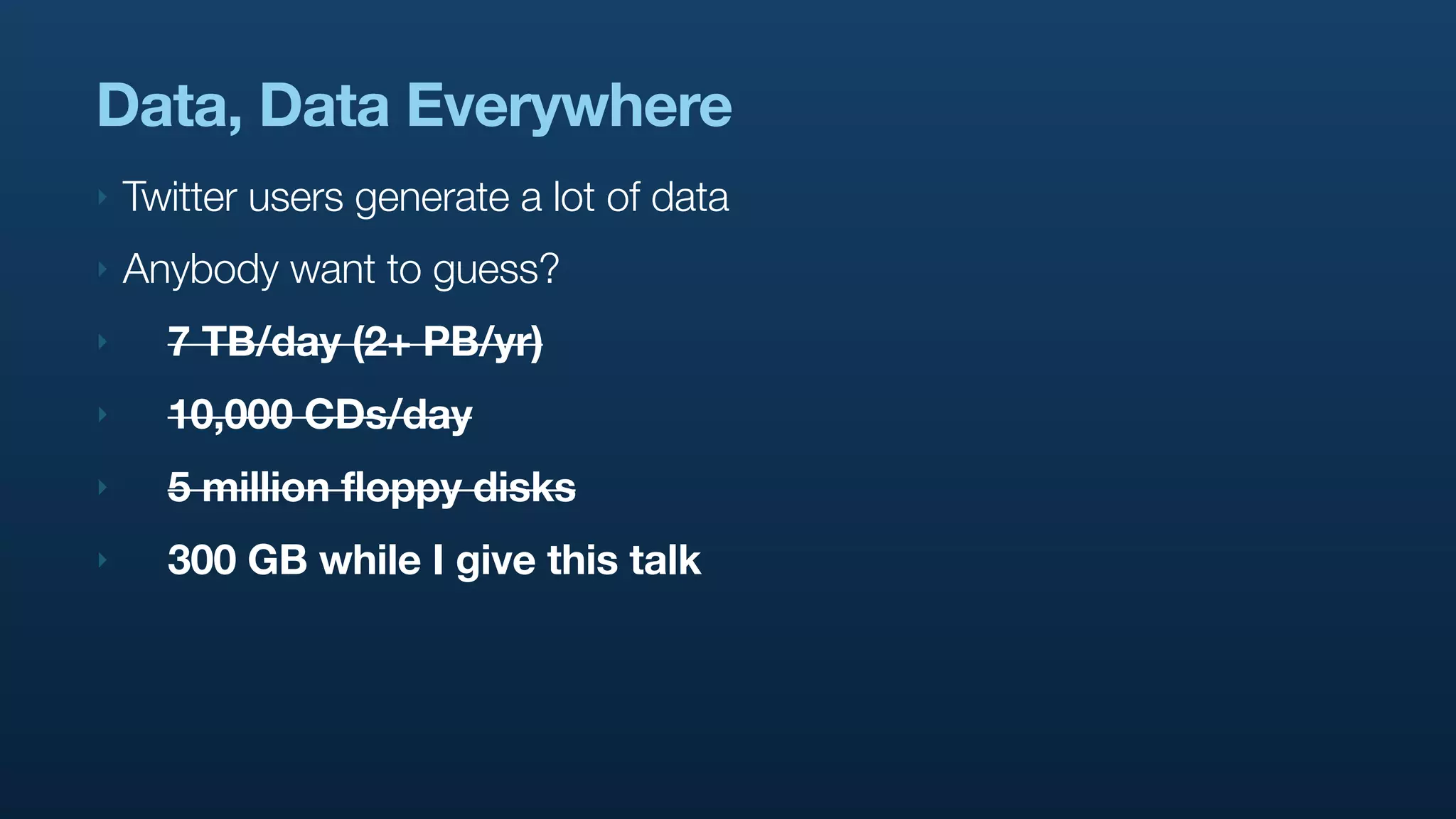

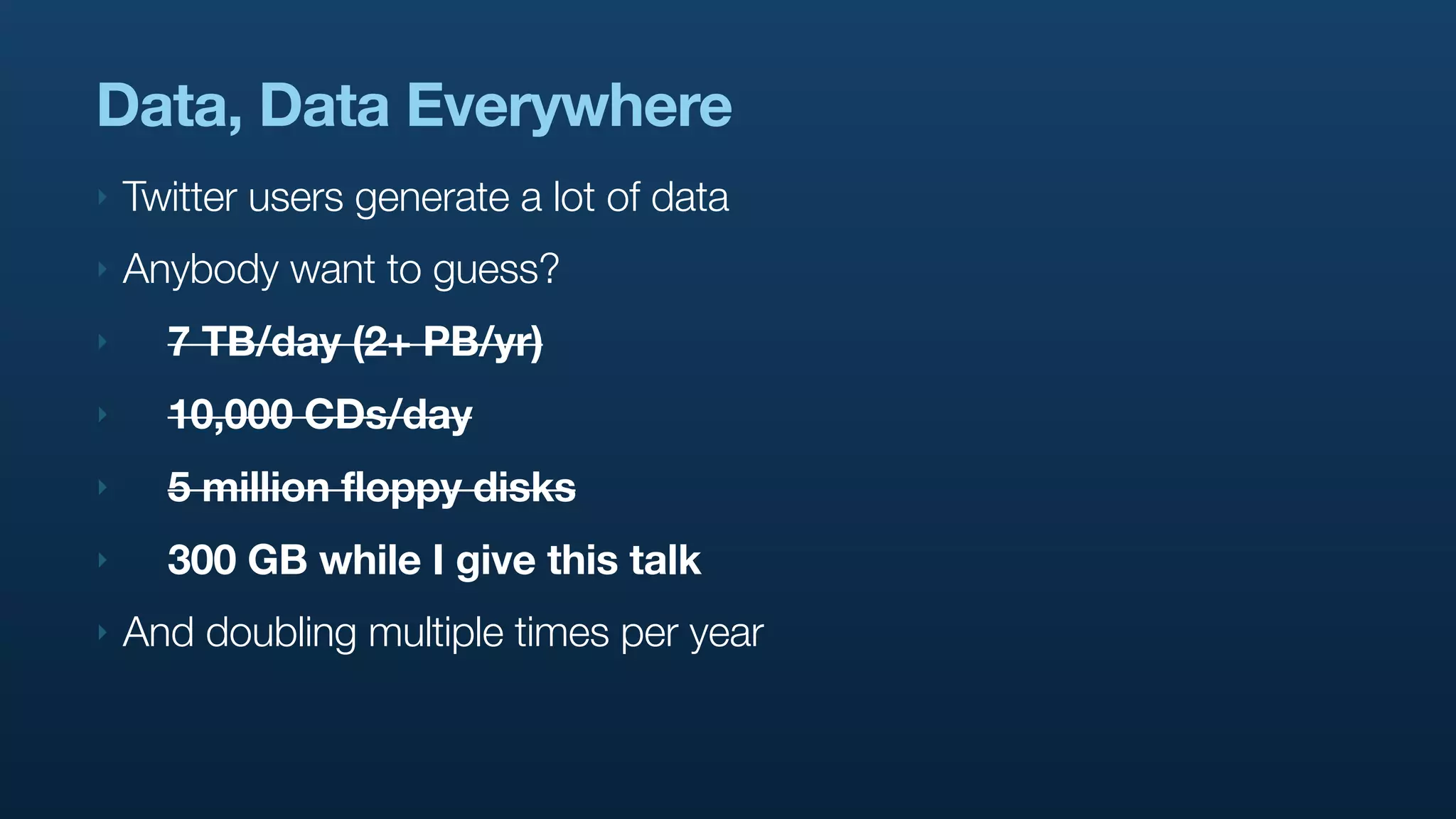

Data, Data Everywhere
‣   Twitter users generate a lot of data
‣   Anybody want to guess?
‣     7 TB/day (2+ PB/yr)
‣     10,000 CDs/day
‣     5 million floppy disks
‣     300 GB while I give this talk
‣   And doubling multiple times per year

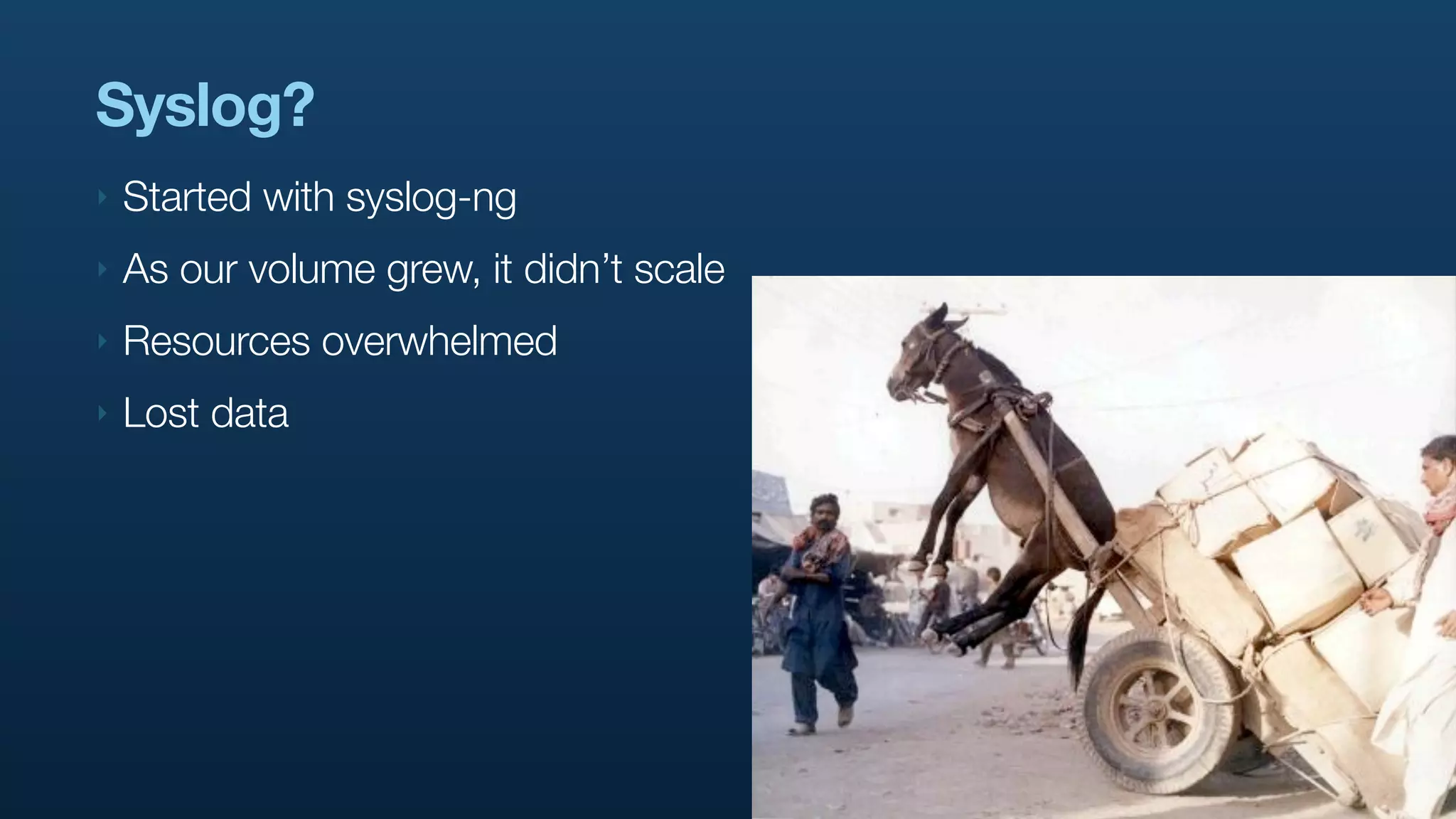

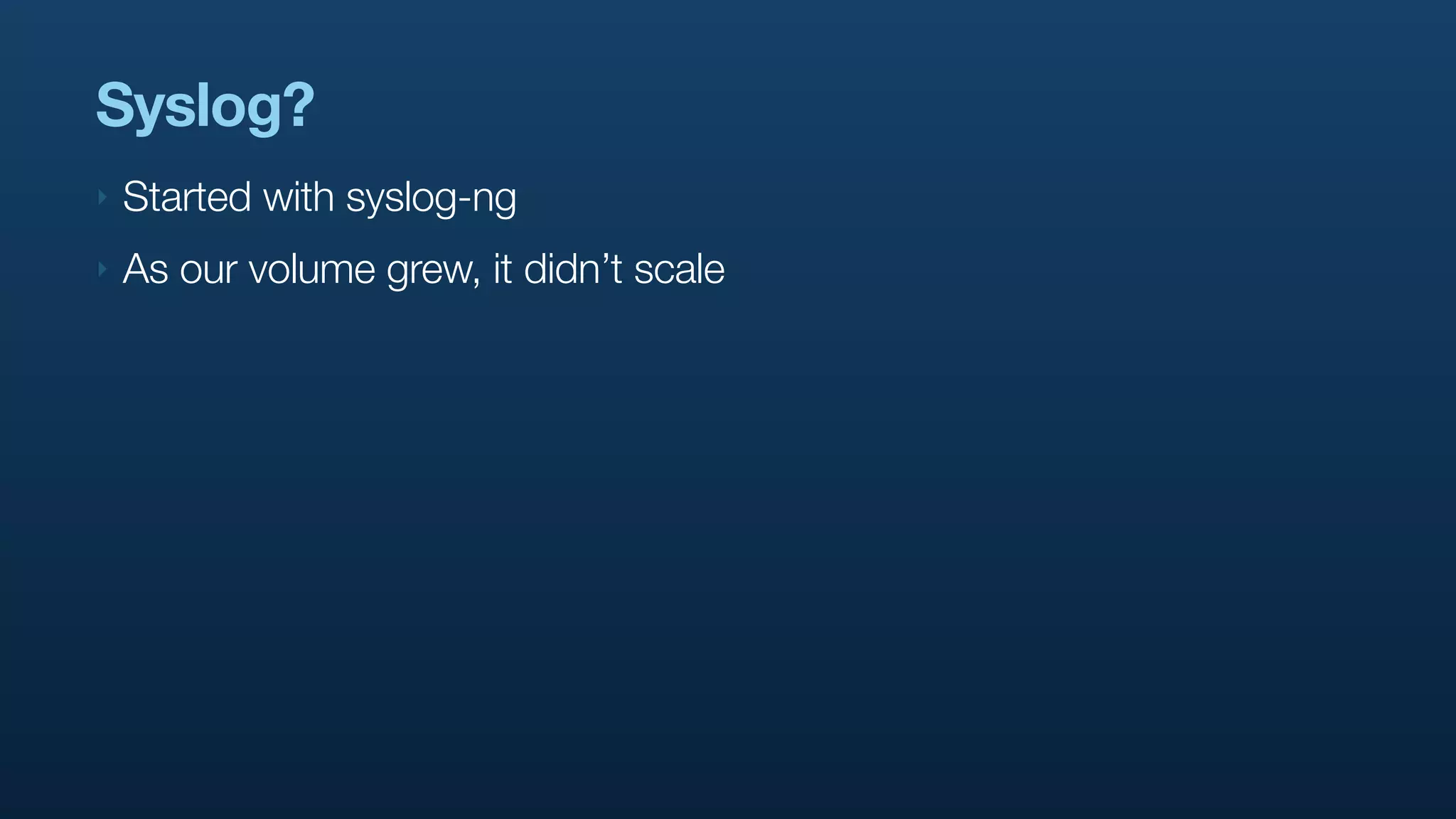

Syslog?
‣   Started with syslog-ng
‣   As our volume grew, it didn’t scale
Syslog?
‣   Started with syslog-ng
‣   As our volume grew, it didn’t scale
‣   Resources overwhelmed
‣   Lost data

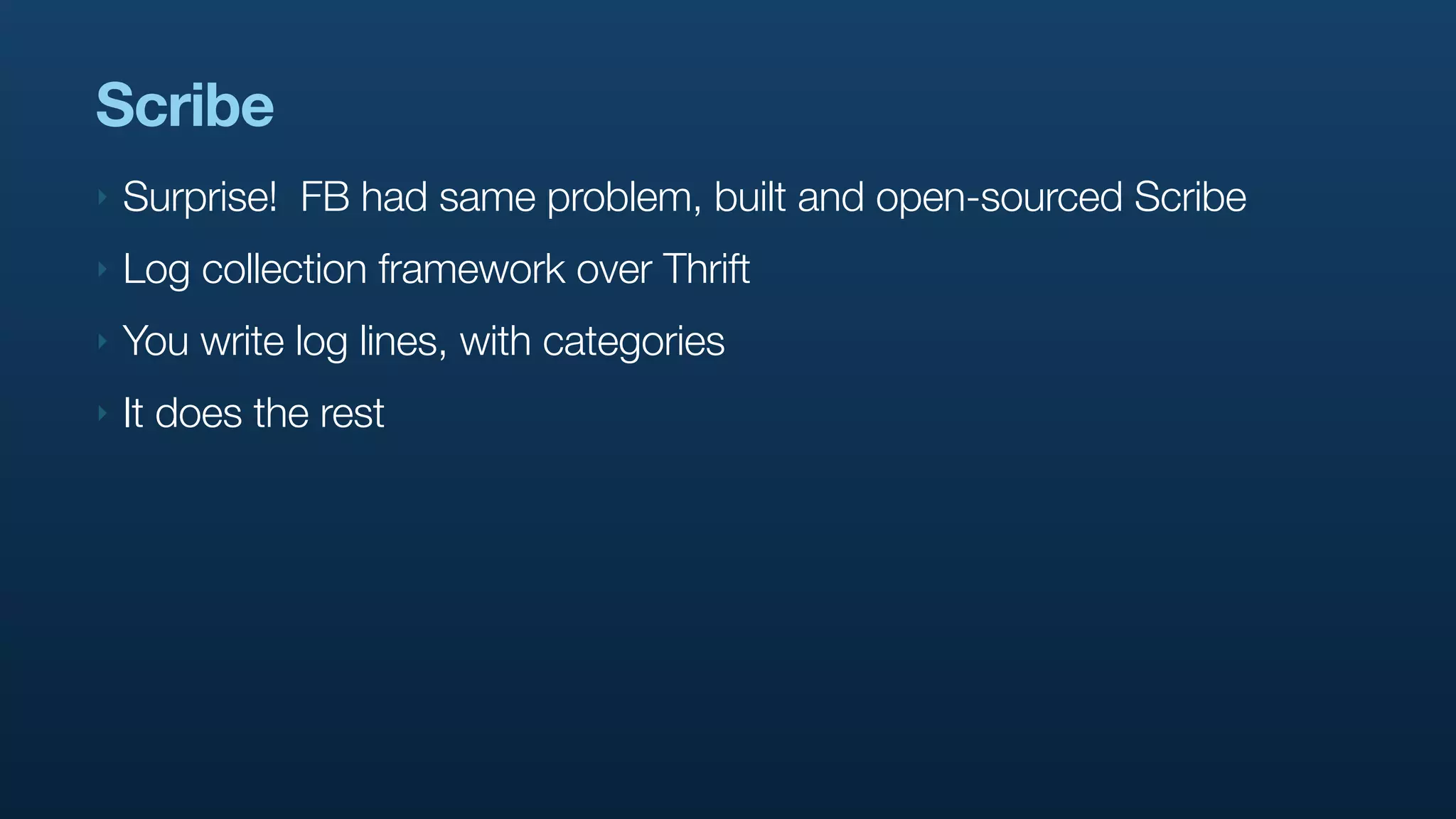

Scribe
‣   Surprise! FB had same problem, built and open-sourced Scribe
‣   Log collection framework over Thrift
‣   You write log lines, with categories
‣   It does the rest

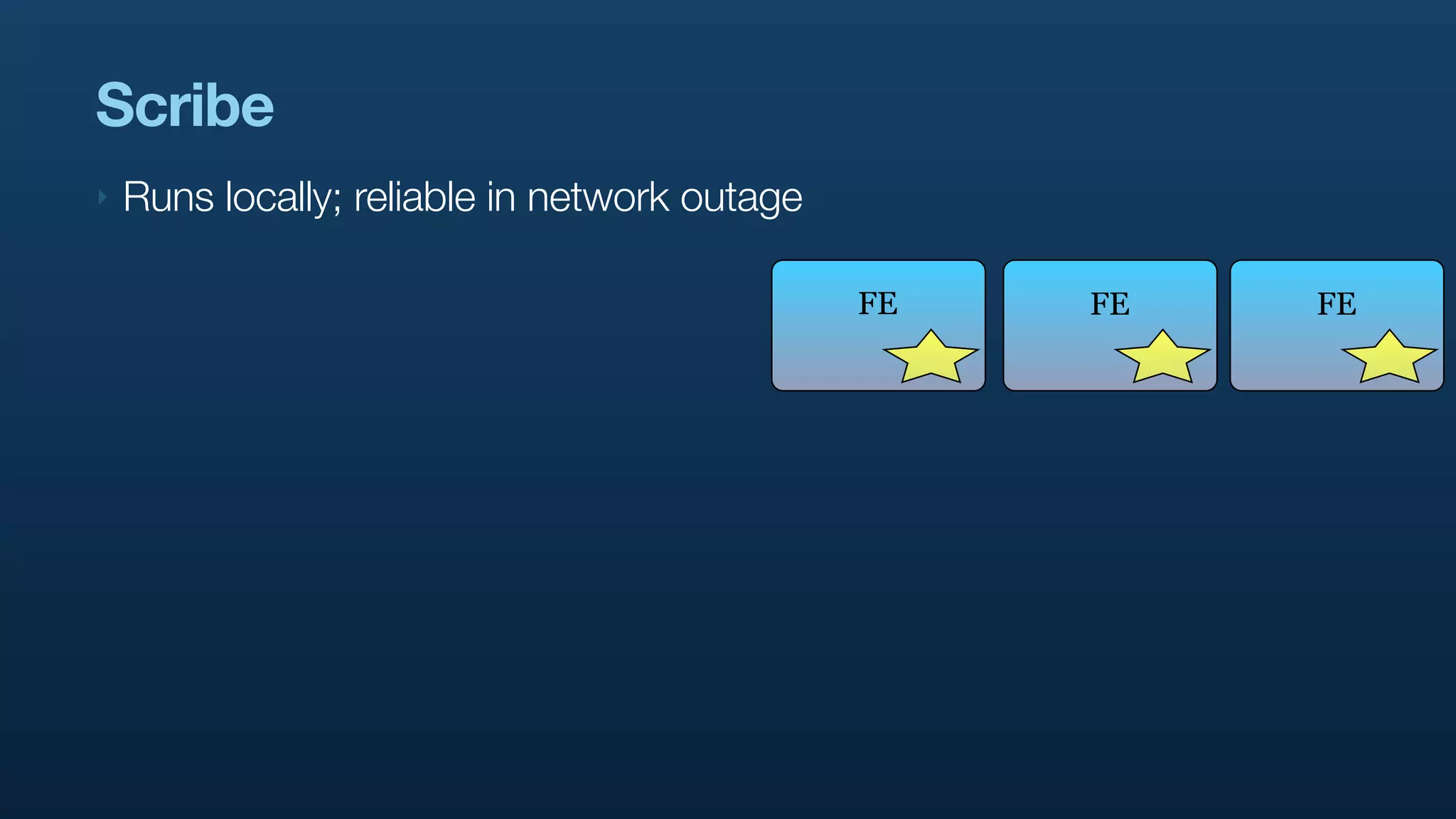

Scribe
‣   Runs locally; reliable in network outage

                                               FE   FE   FE

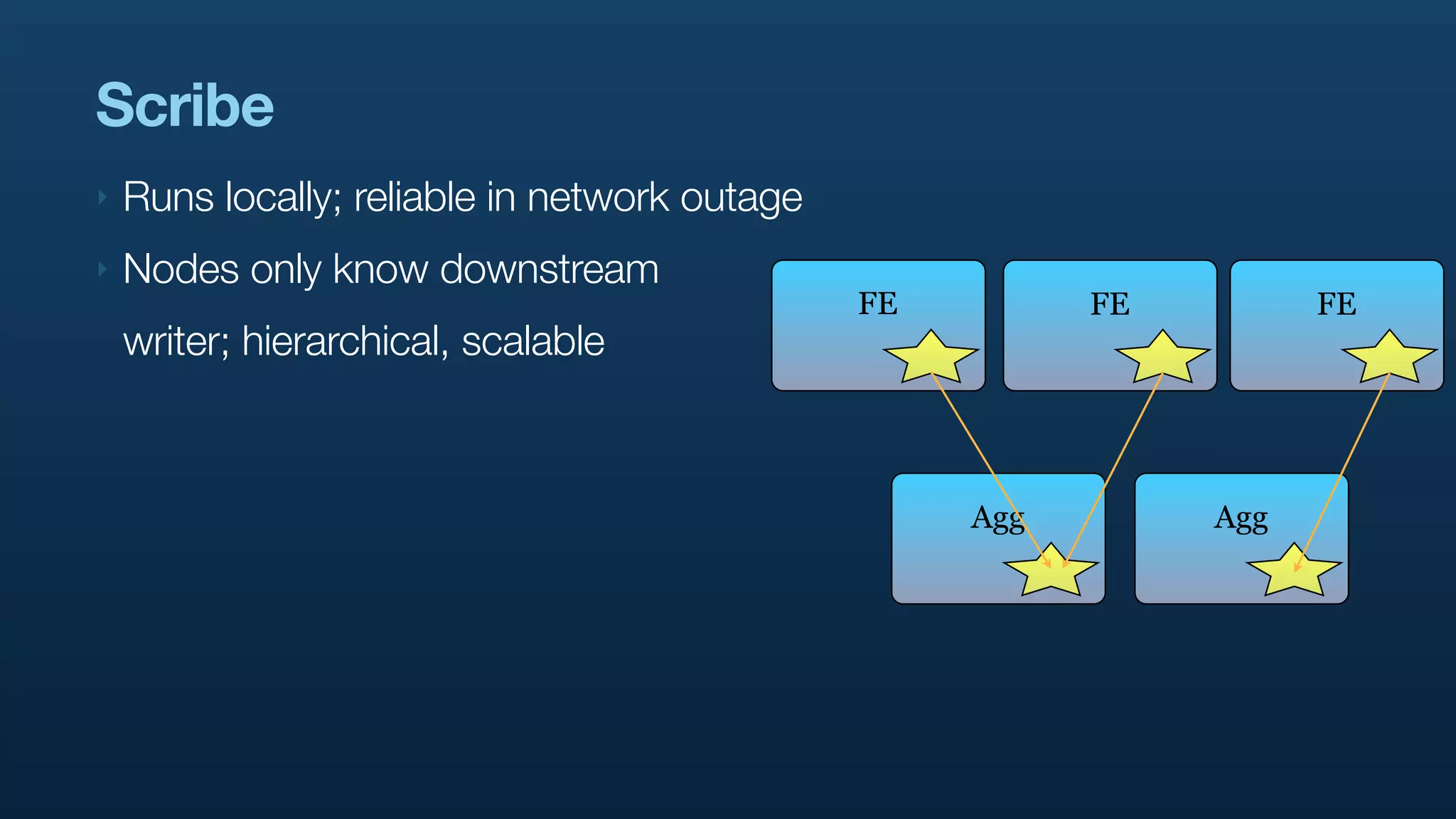

Scribe
‣   Runs locally; reliable in network outage
‣   Nodes only know downstream
                                               FE         FE         FE
    writer; hierarchical, scalable



                                                    Agg        Agg

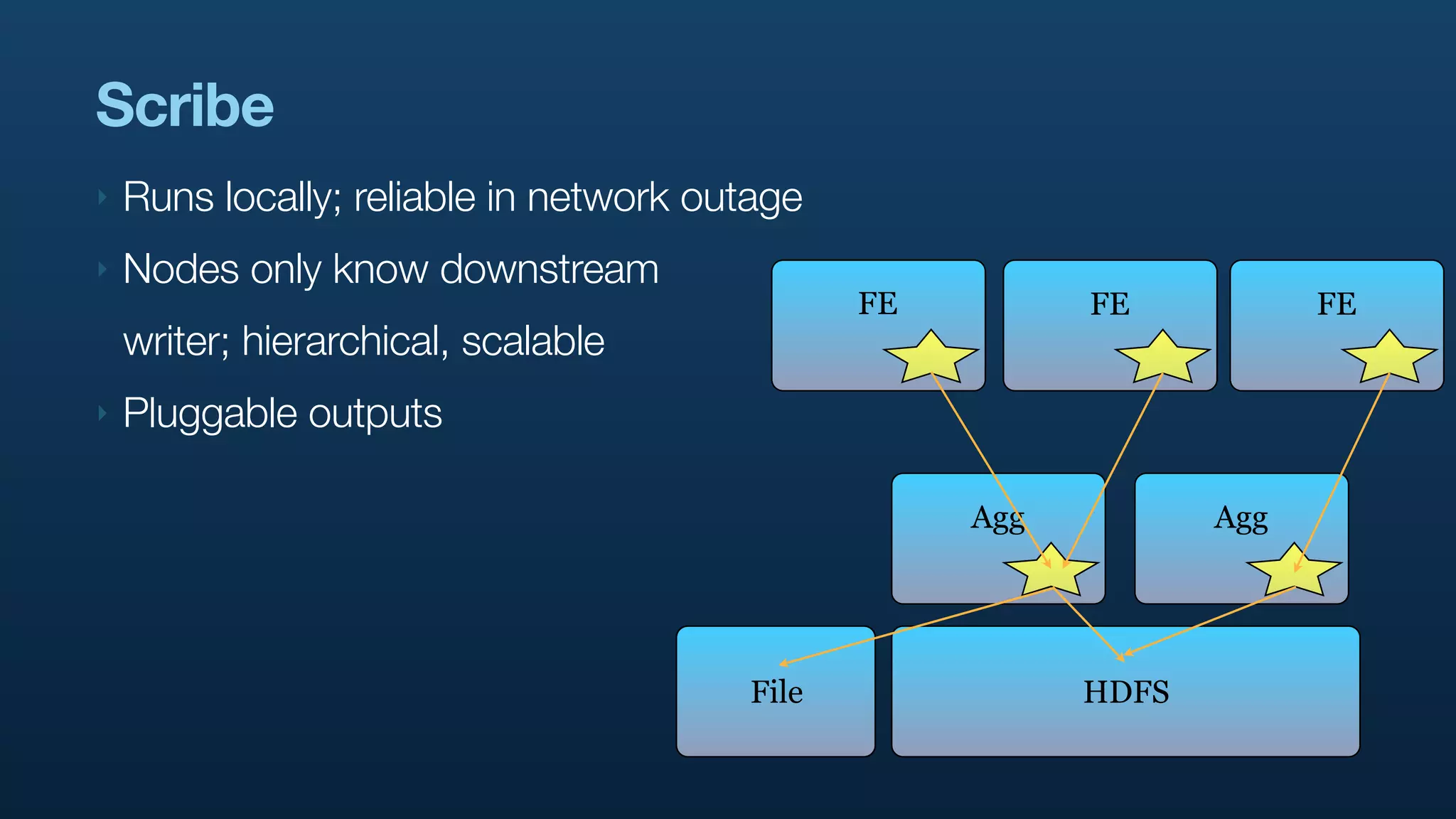

Scribe
‣   Runs locally; reliable in network outage
‣   Nodes only know downstream
                                               FE         FE           FE
    writer; hierarchical, scalable
‣   Pluggable outputs

                                                    Agg          Agg




                                        File              HDFS

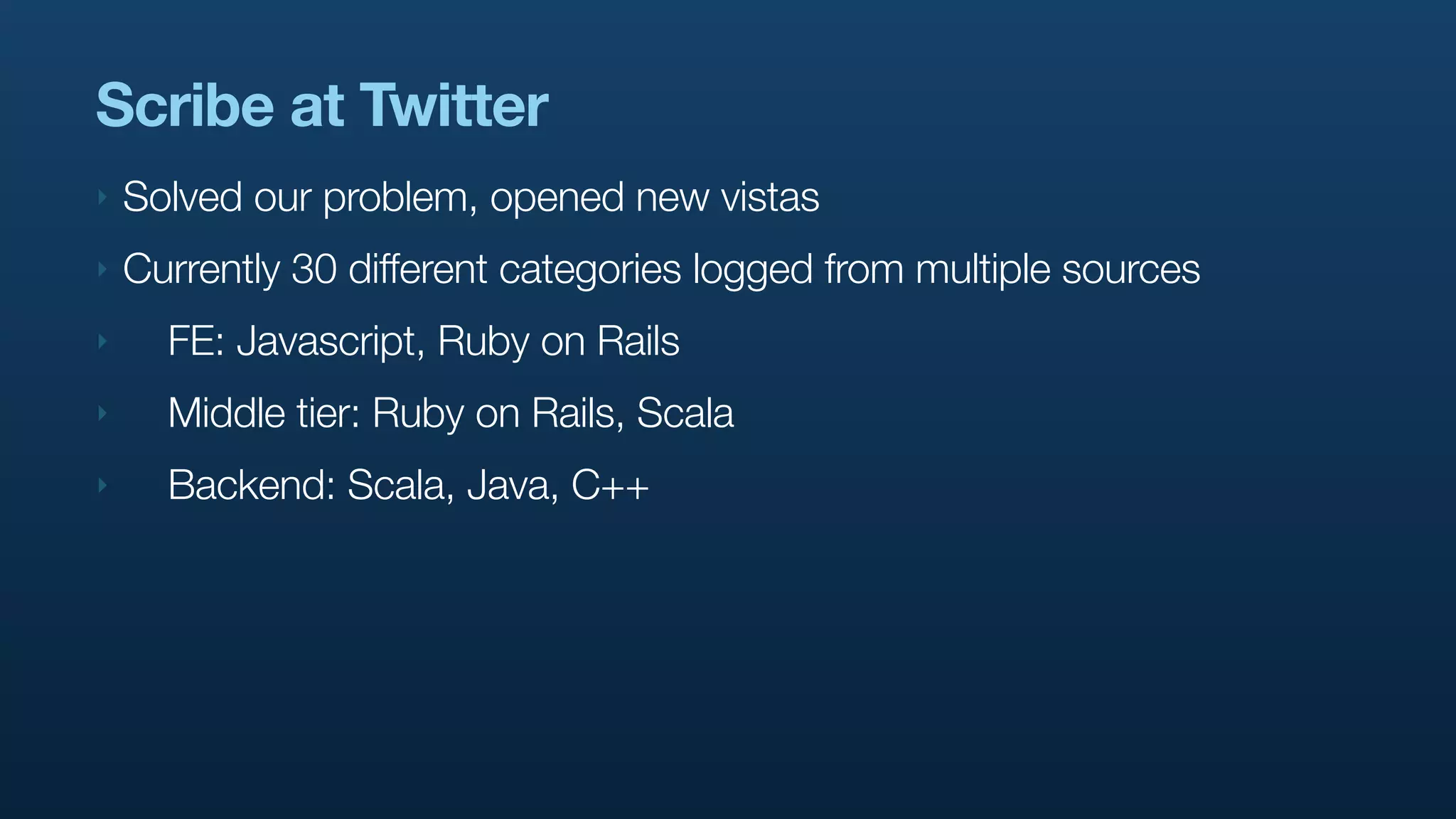

Scribe at Twitter
‣   Solved our problem, opened new vistas
‣   Currently 30 different categories logged from multiple sources
‣     FE: Javascript, Ruby on Rails
‣     Middle tier: Ruby on Rails, Scala
‣     Backend: Scala, Java, C++

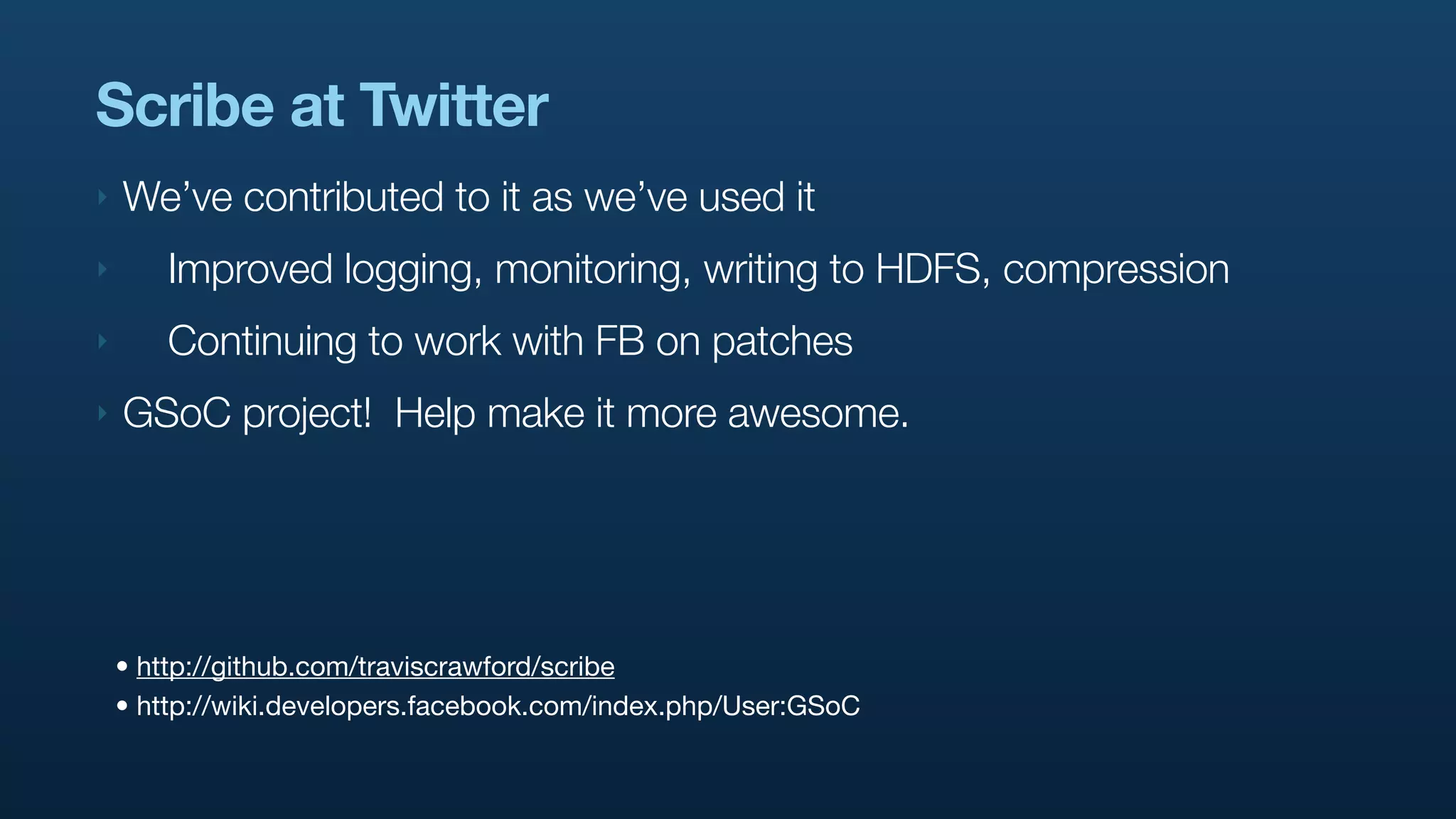

Scribe at Twitter
‣   We’ve contributed to it as we’ve used it
‣       Improved logging, monitoring, writing to HDFS, compression
‣       Continuing to work with FB on patches
‣   GSoC project! Help make it more awesome.




    • http://github.com/traviscrawford/scribe
    • http://wiki.developers.facebook.com/index.php/User:GSoC

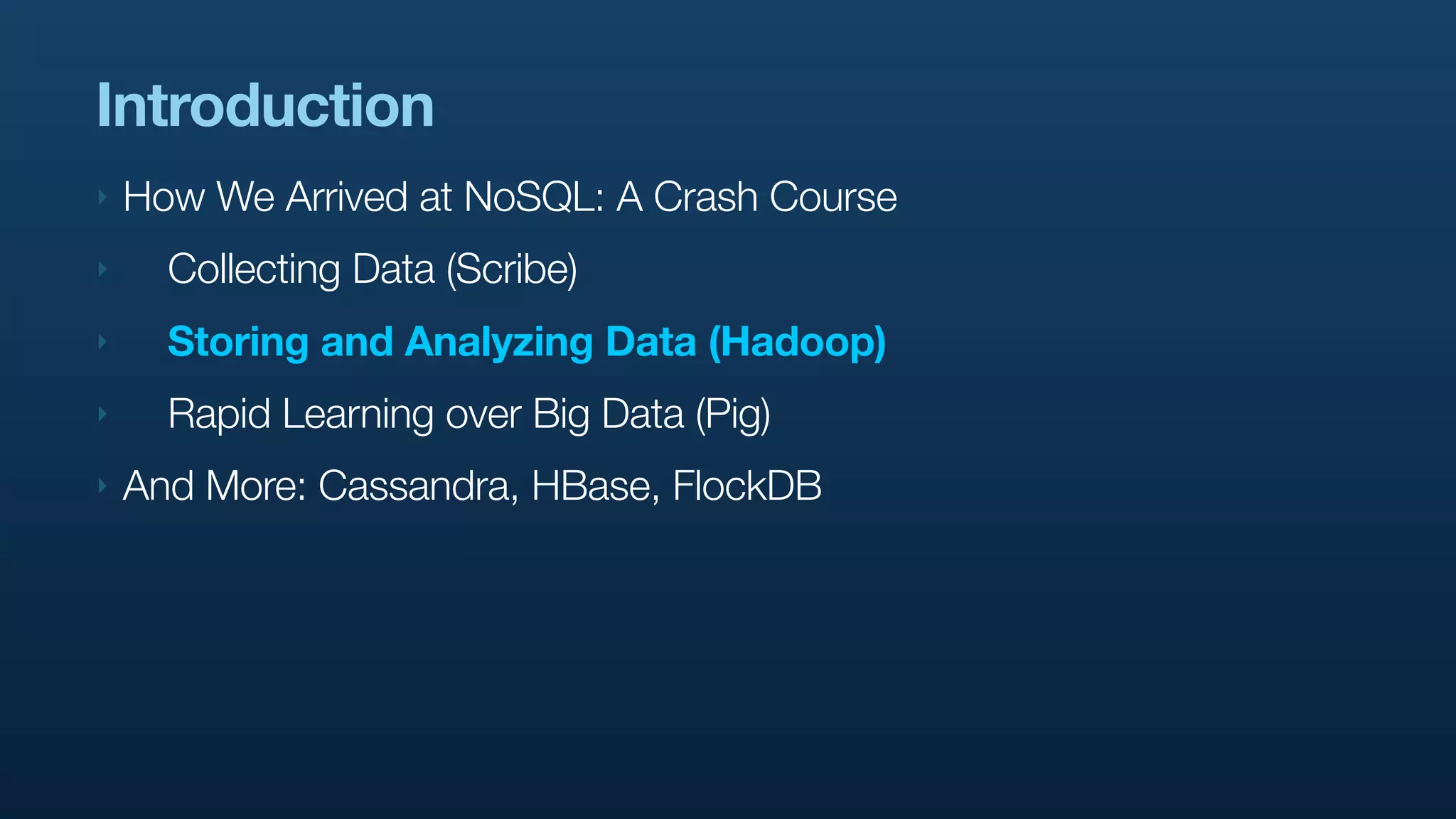

Introduction
‣   How We Arrived at NoSQL: A Crash Course
‣     Collecting Data (Scribe)
‣     Storing and Analyzing Data (Hadoop)
‣     Rapid Learning over Big Data (Pig)
‣   And More: Cassandra, HBase, FlockDB

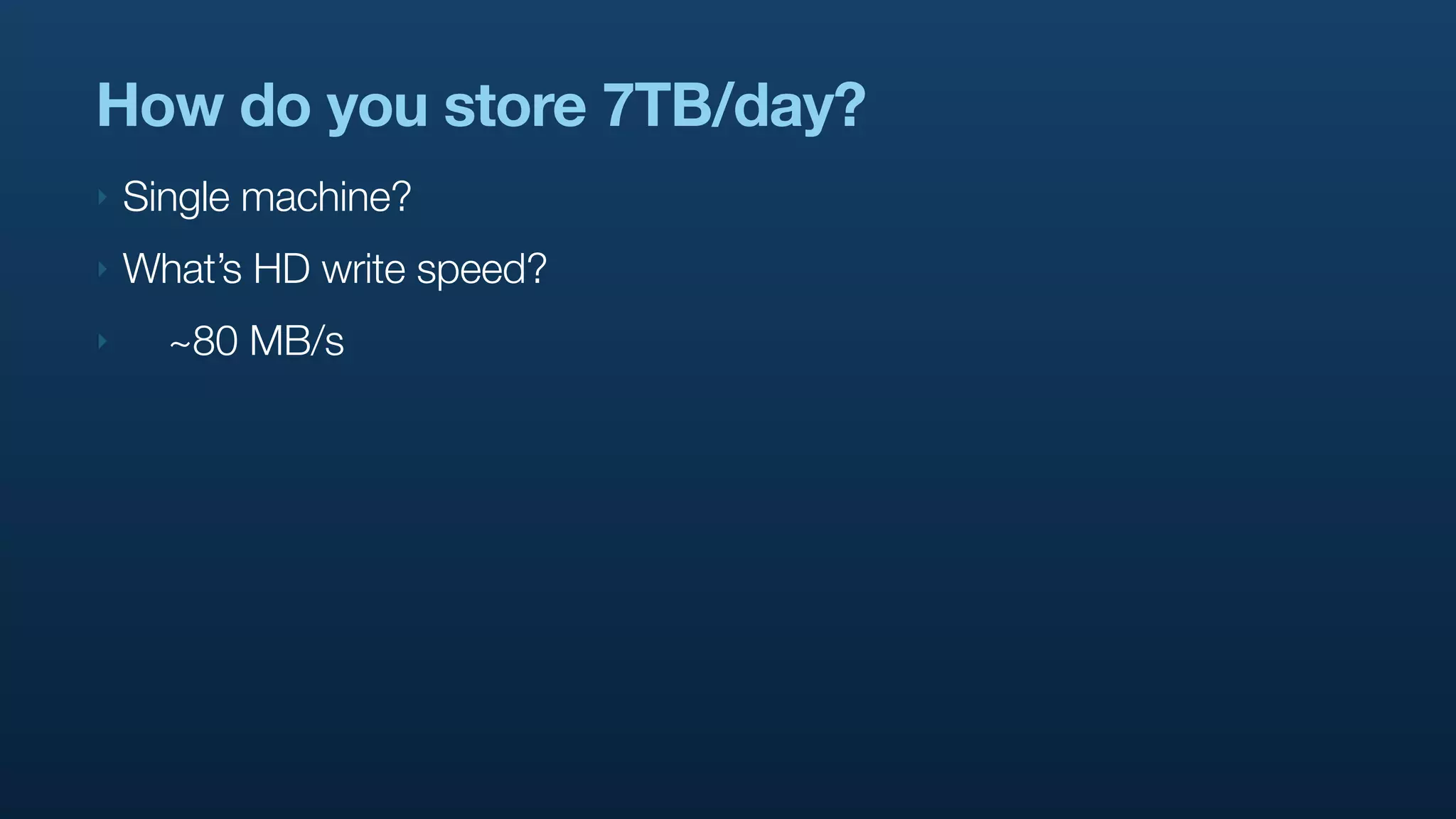

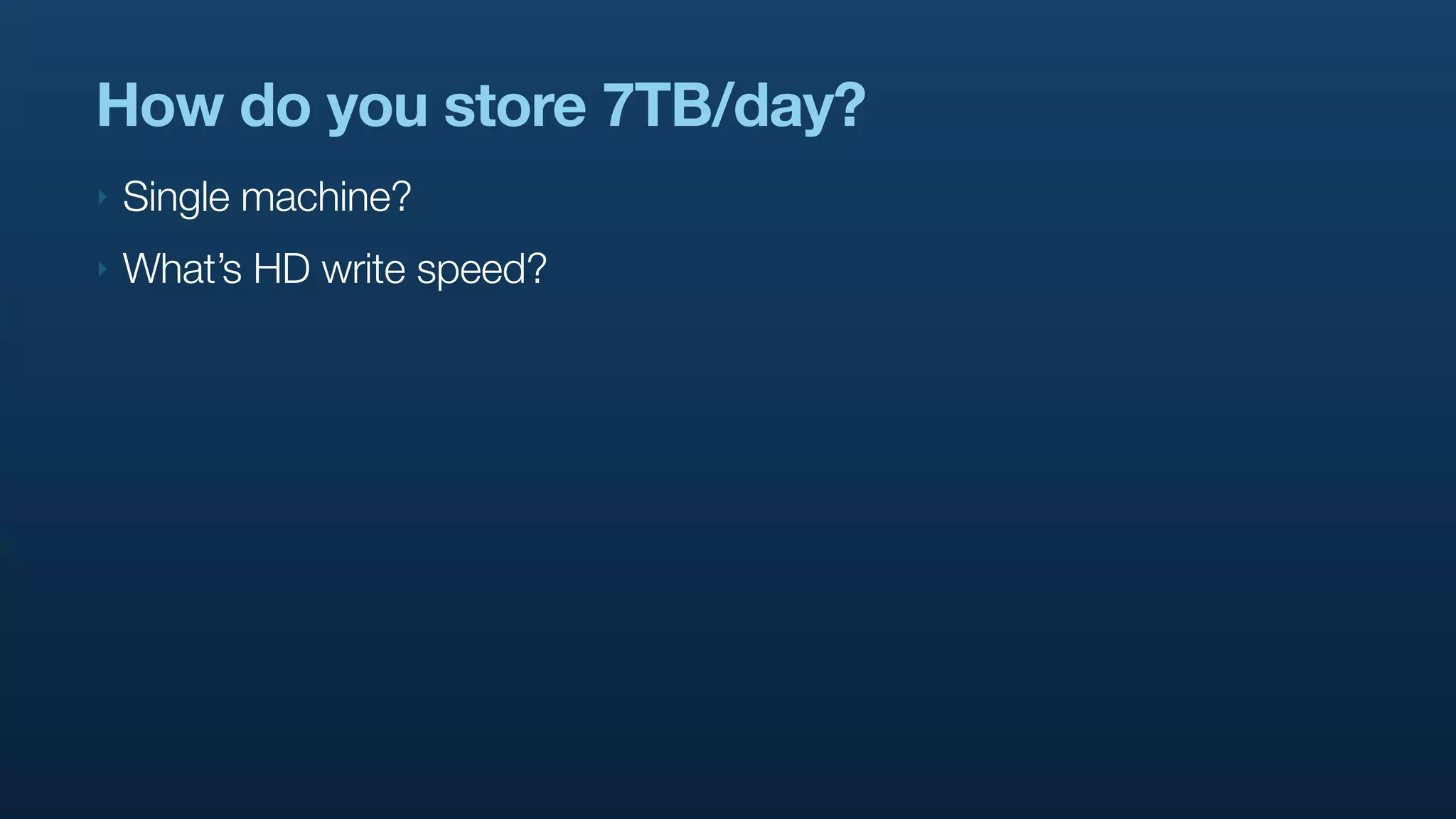

How do you store 7TB/day?
‣   Single machine?
‣   What’s HD write speed?
How do you store 7TB/day?
‣   Single machine?
‣   What’s HD write speed?
‣     ~80 MB/s

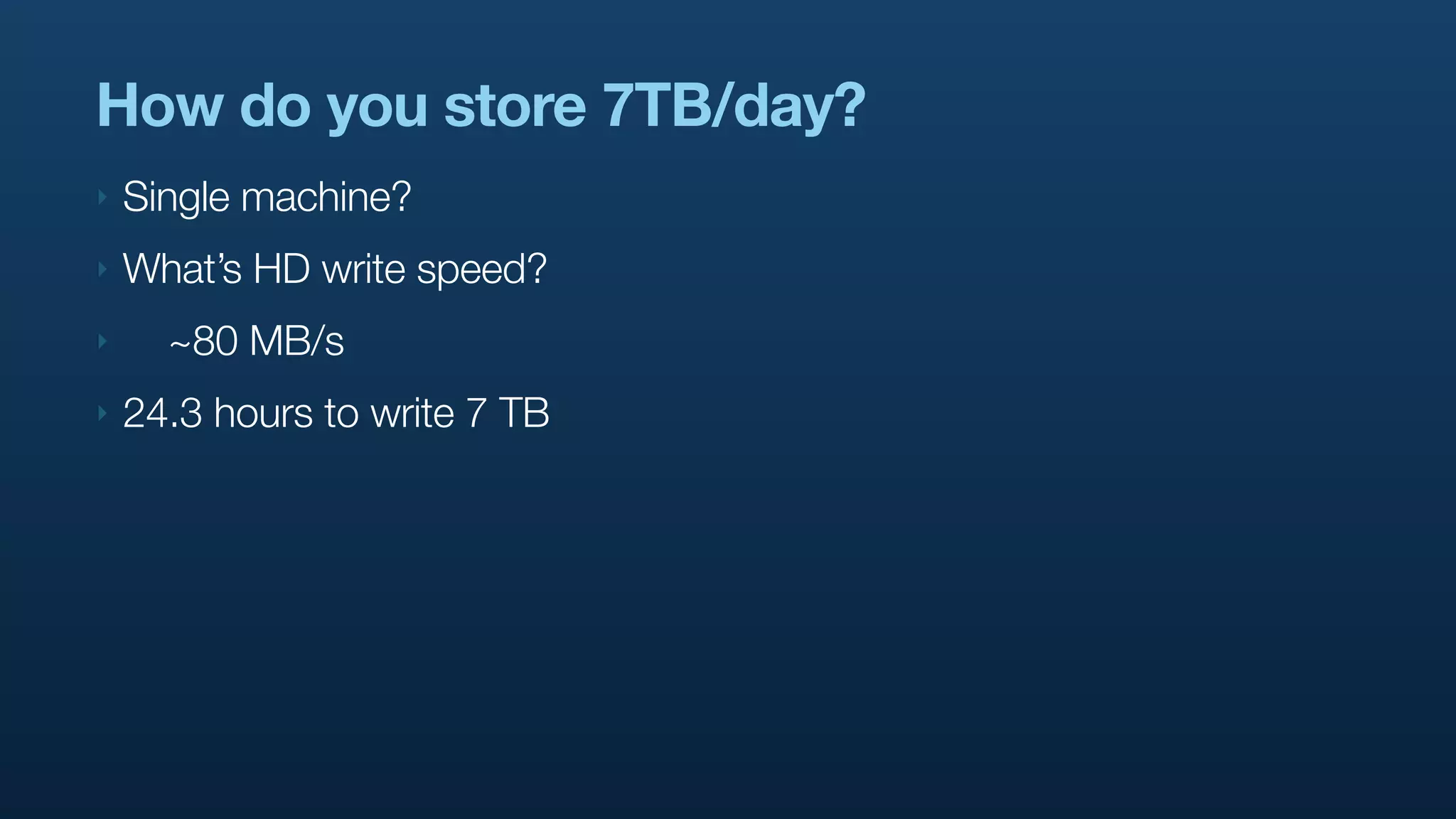

How do you store 7TB/day?
‣   Single machine?
‣   What’s HD write speed?
‣     ~80 MB/s
‣   24.3 hours to write 7 TB

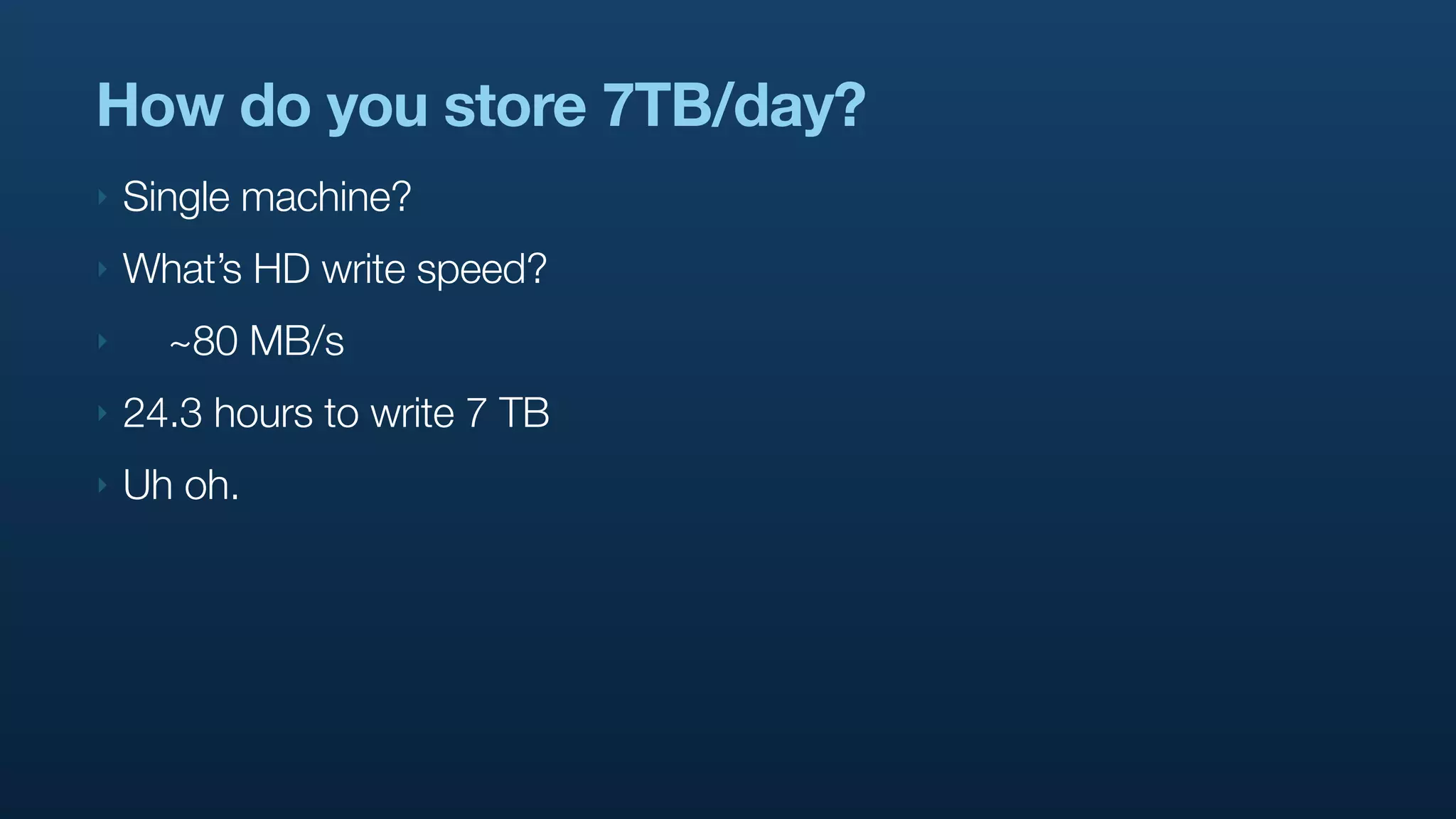

How do you store 7TB/day?
‣   Single machine?
‣   What’s HD write speed?
‣     ~80 MB/s
‣   24.3 hours to write 7 TB
‣   Uh oh.

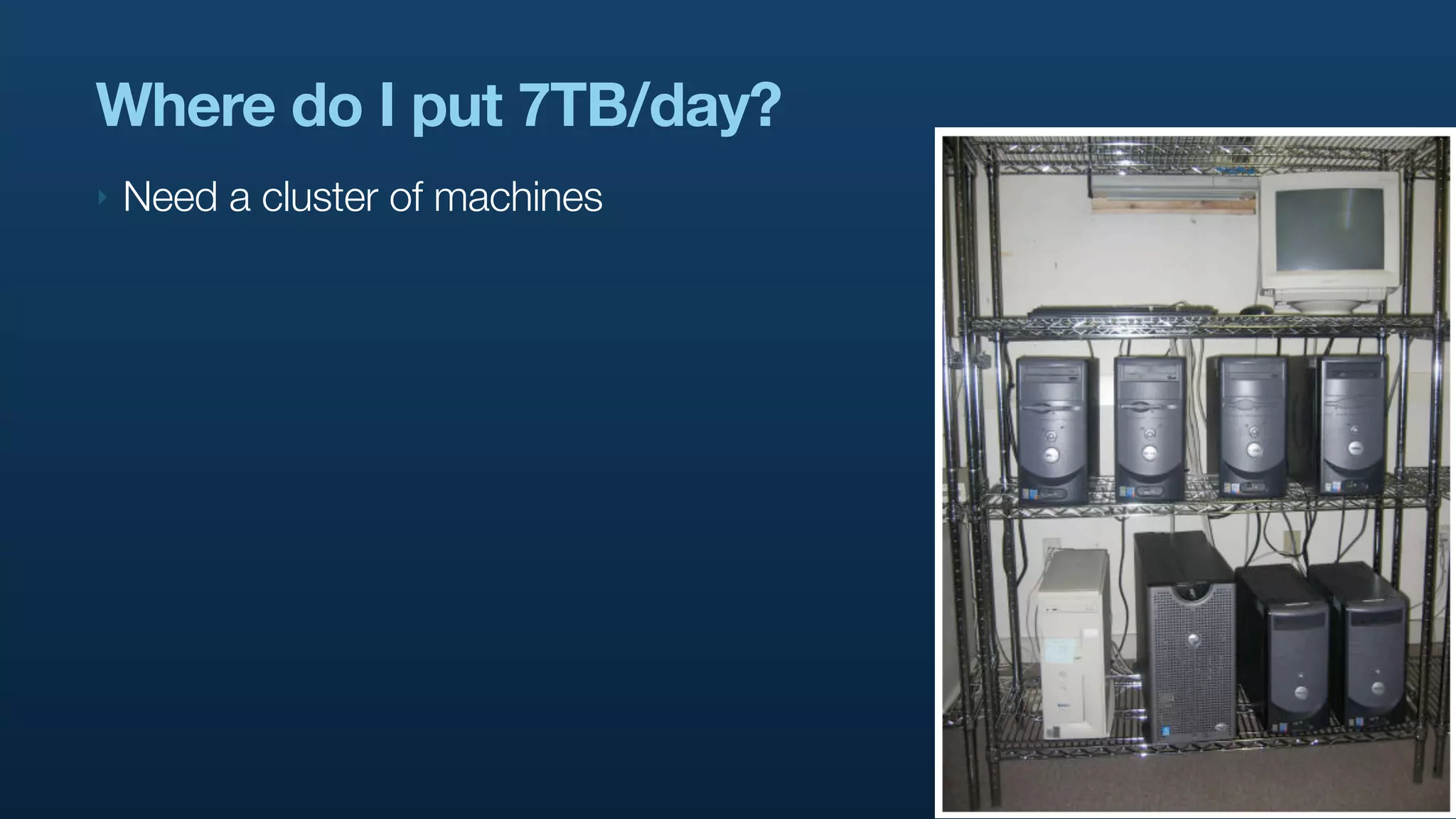

Where do I put 7TB/day?
‣   Need a cluster of machines
Where do I put 7TB/day?
‣   Need a cluster of machines


‣   ... which adds new layers of complexity

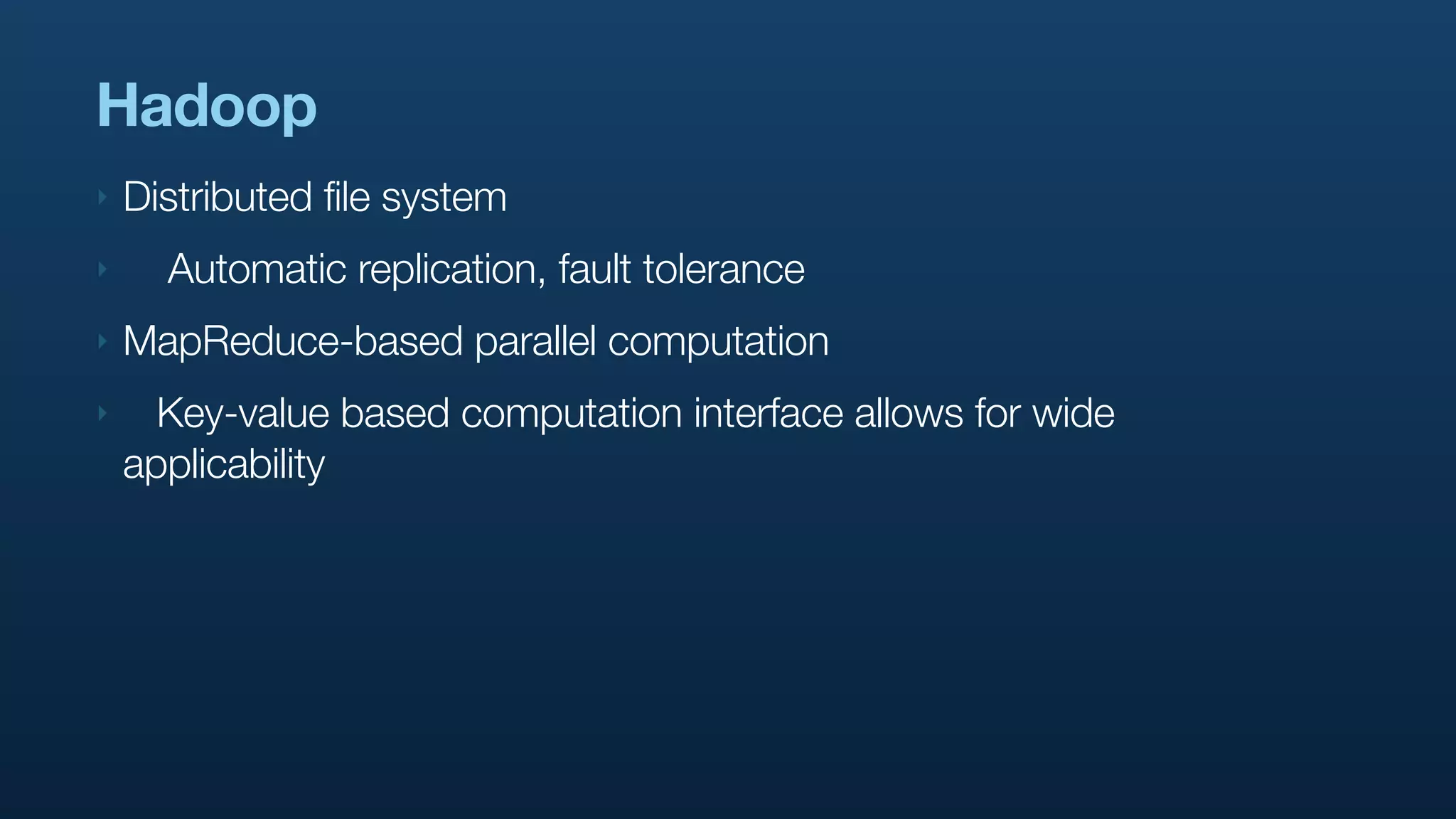

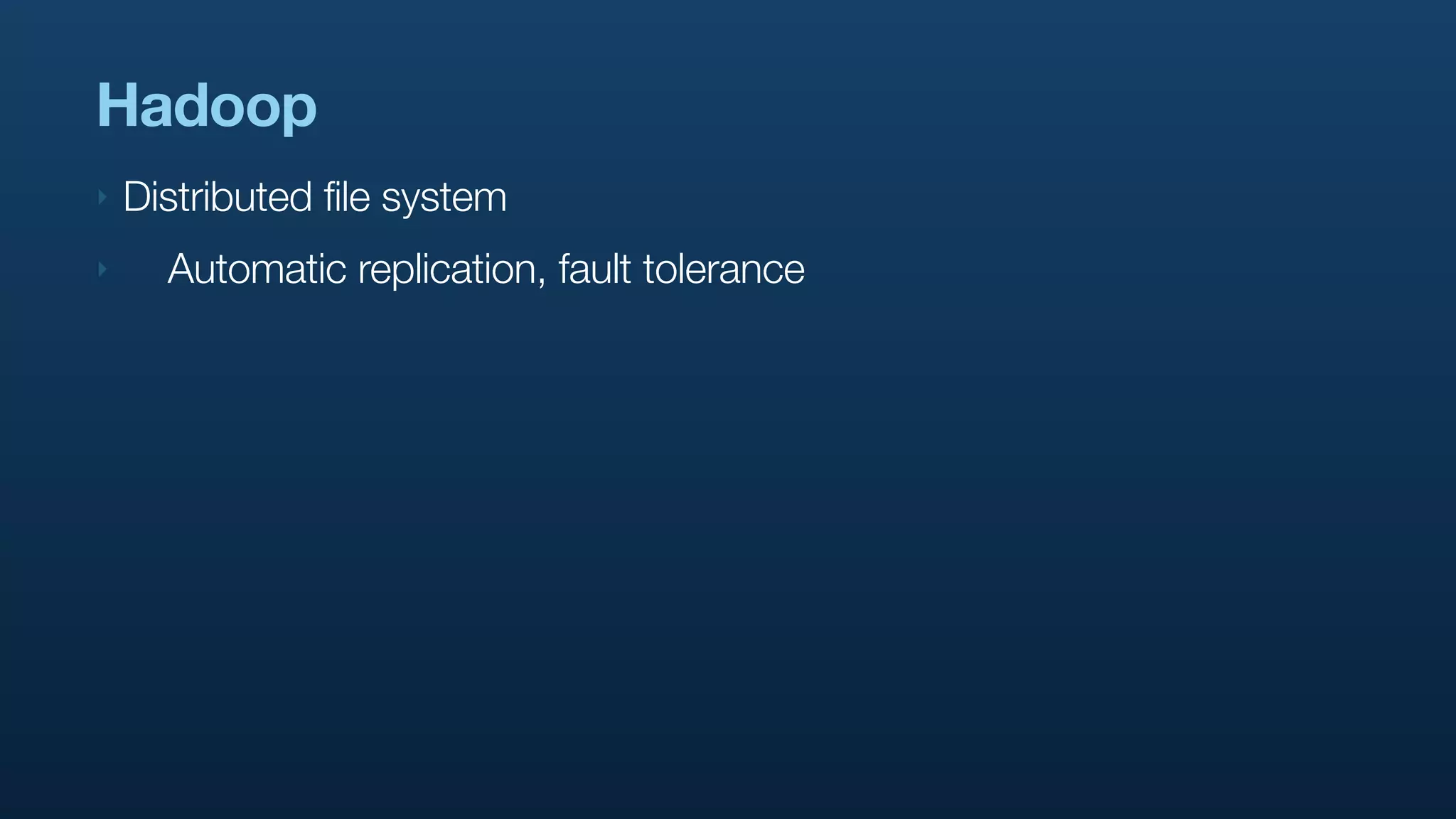

Hadoop
‣   Distributed file system
‣     Automatic replication, fault tolerance
Hadoop
‣   Distributed file system
‣     Automatic replication, fault tolerance
‣   MapReduce-based parallel computation
‣     Key-value based computation interface allows for wide
    applicability

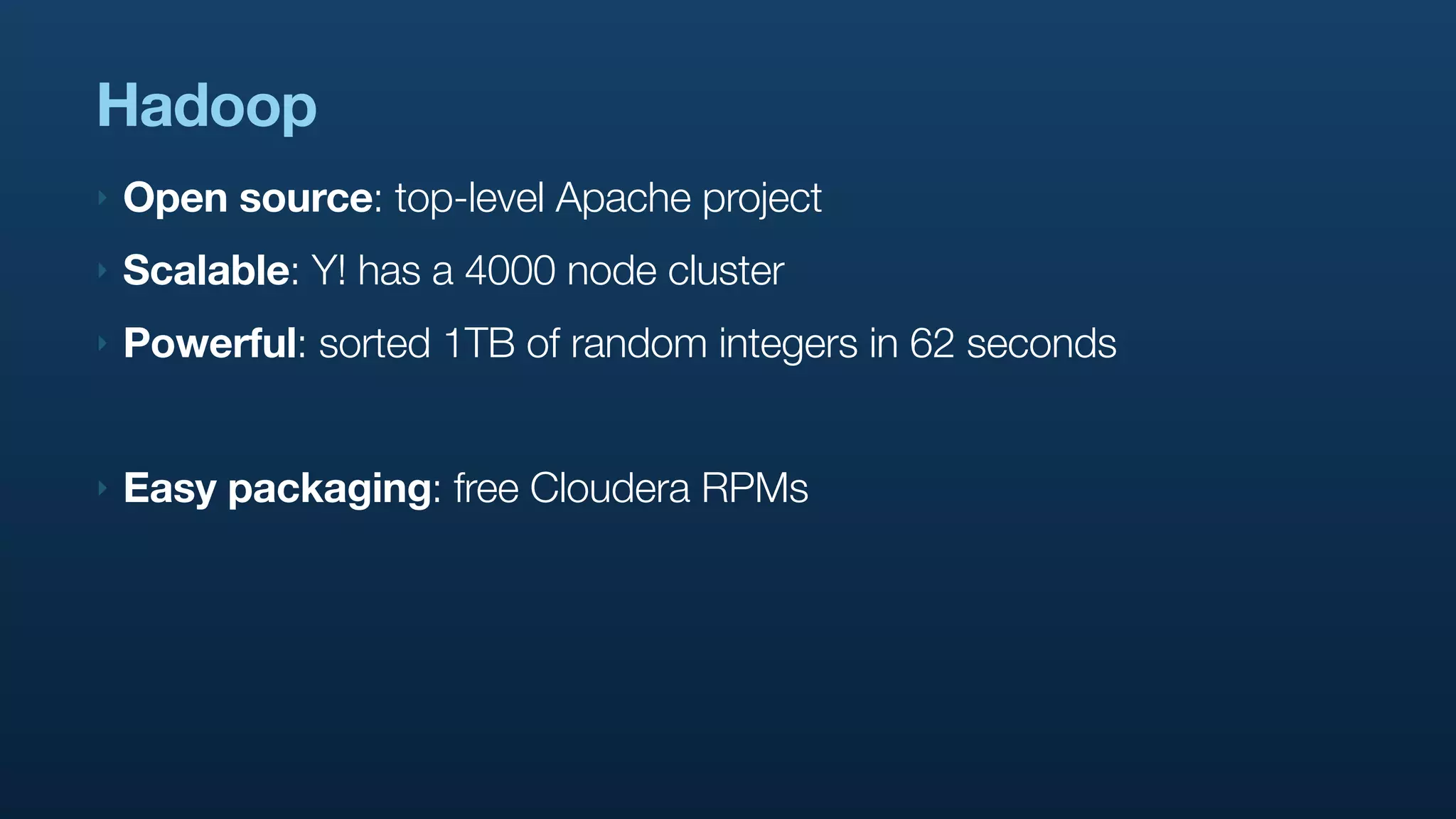

Hadoop
‣   Open source: top-level Apache project
‣   Scalable: Y! has a 4000 node cluster
‣   Powerful: sorted 1TB of random integers in 62 seconds


‣   Easy packaging: free Cloudera RPMs

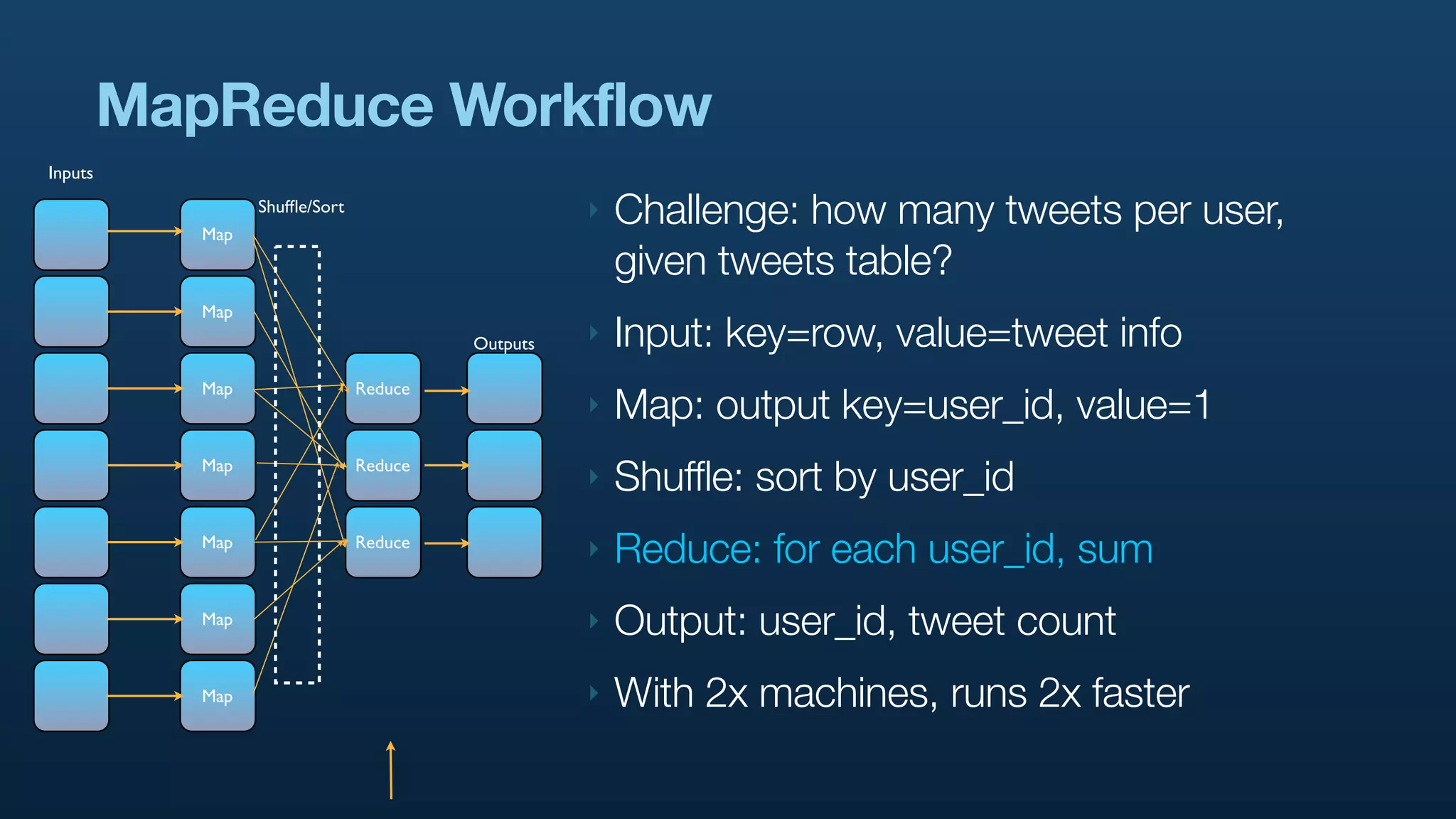

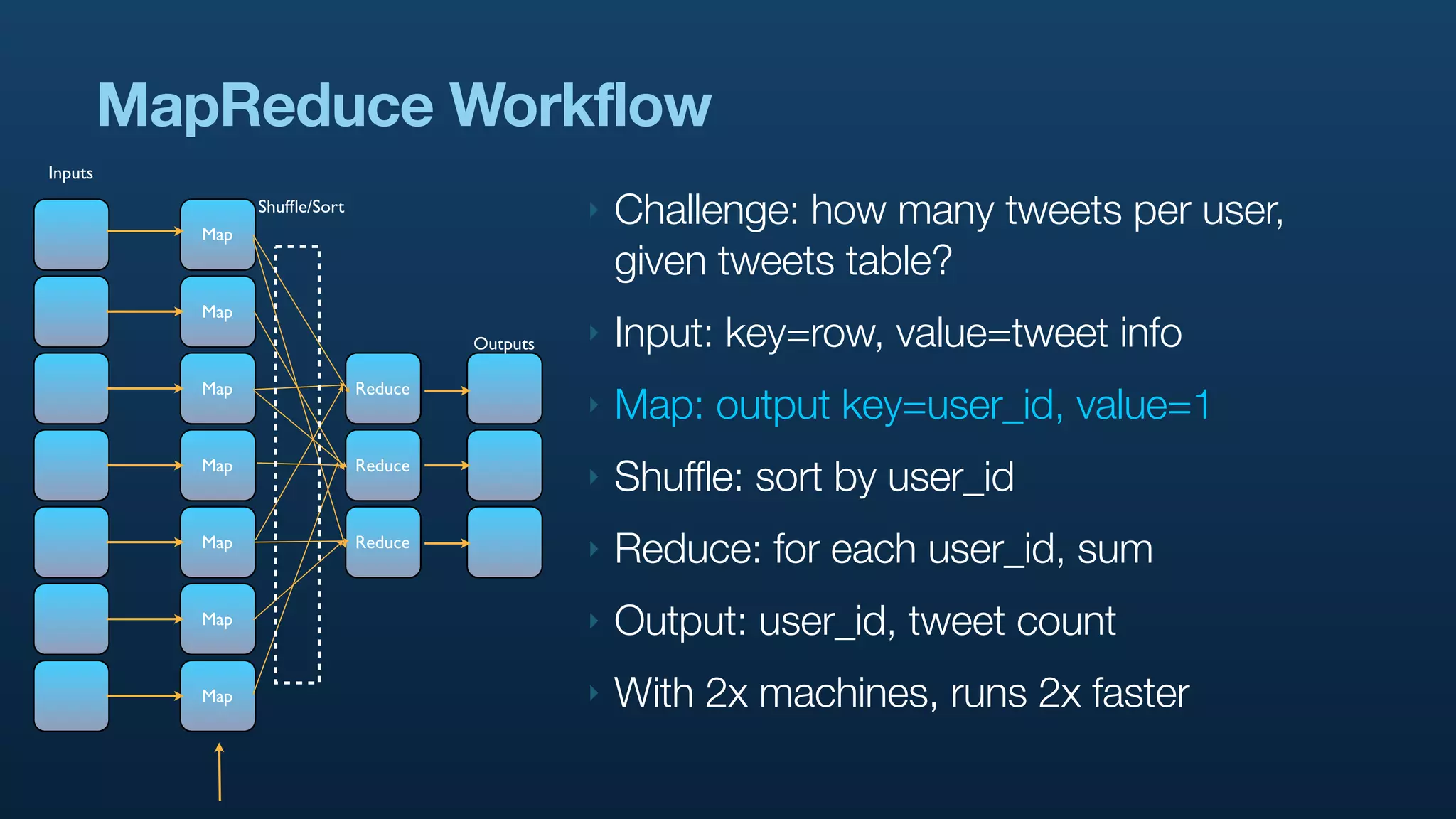

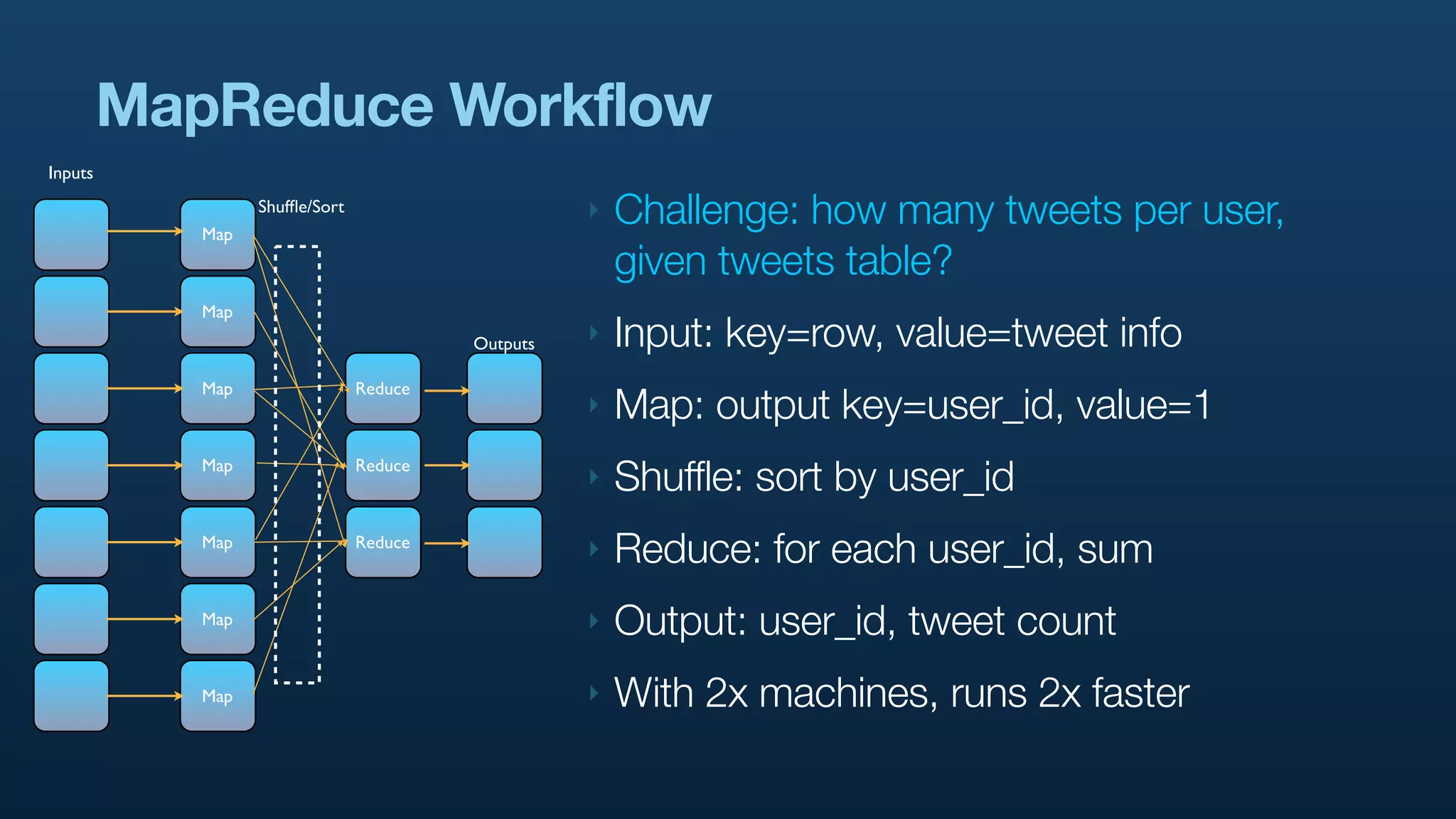

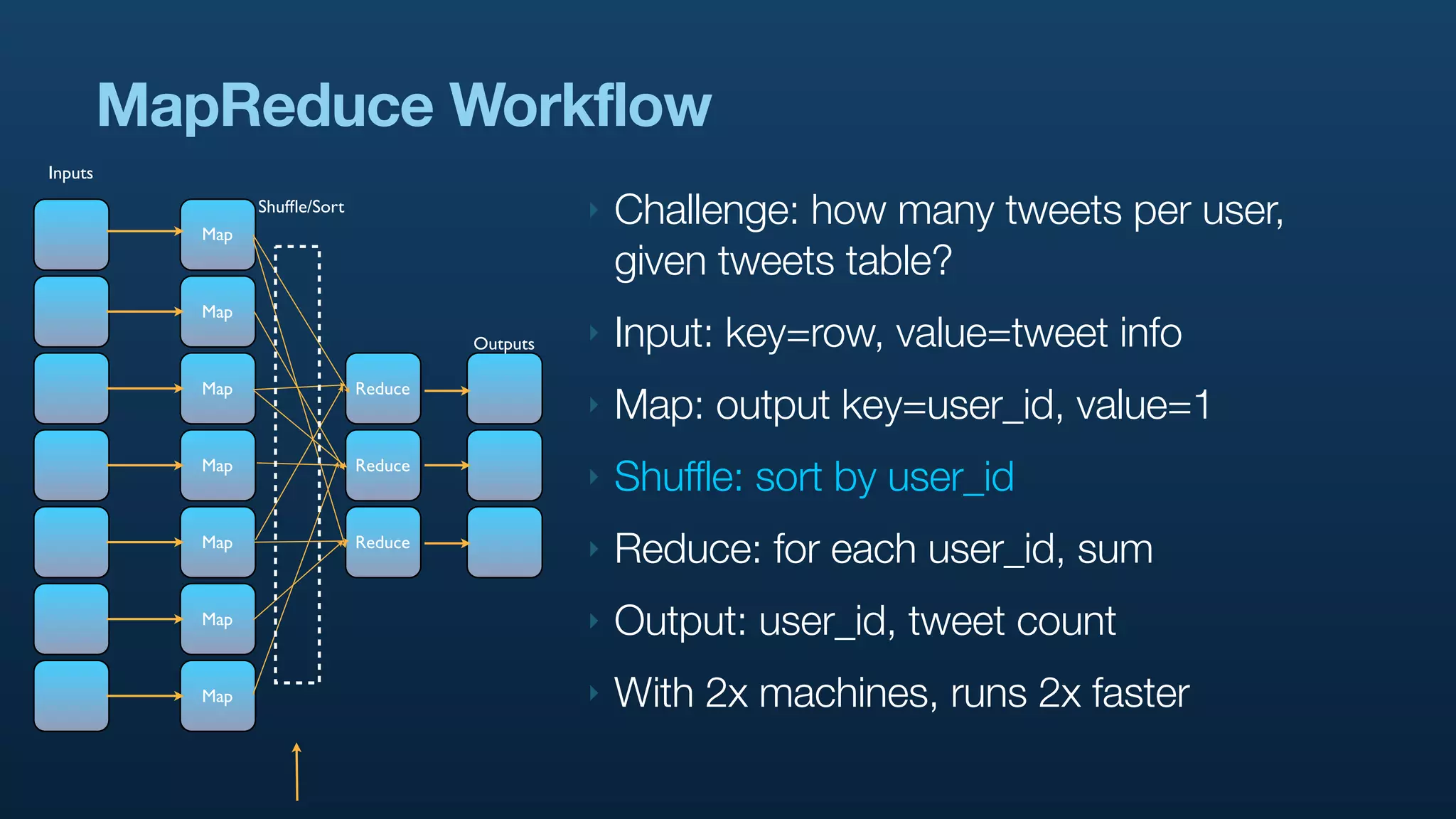

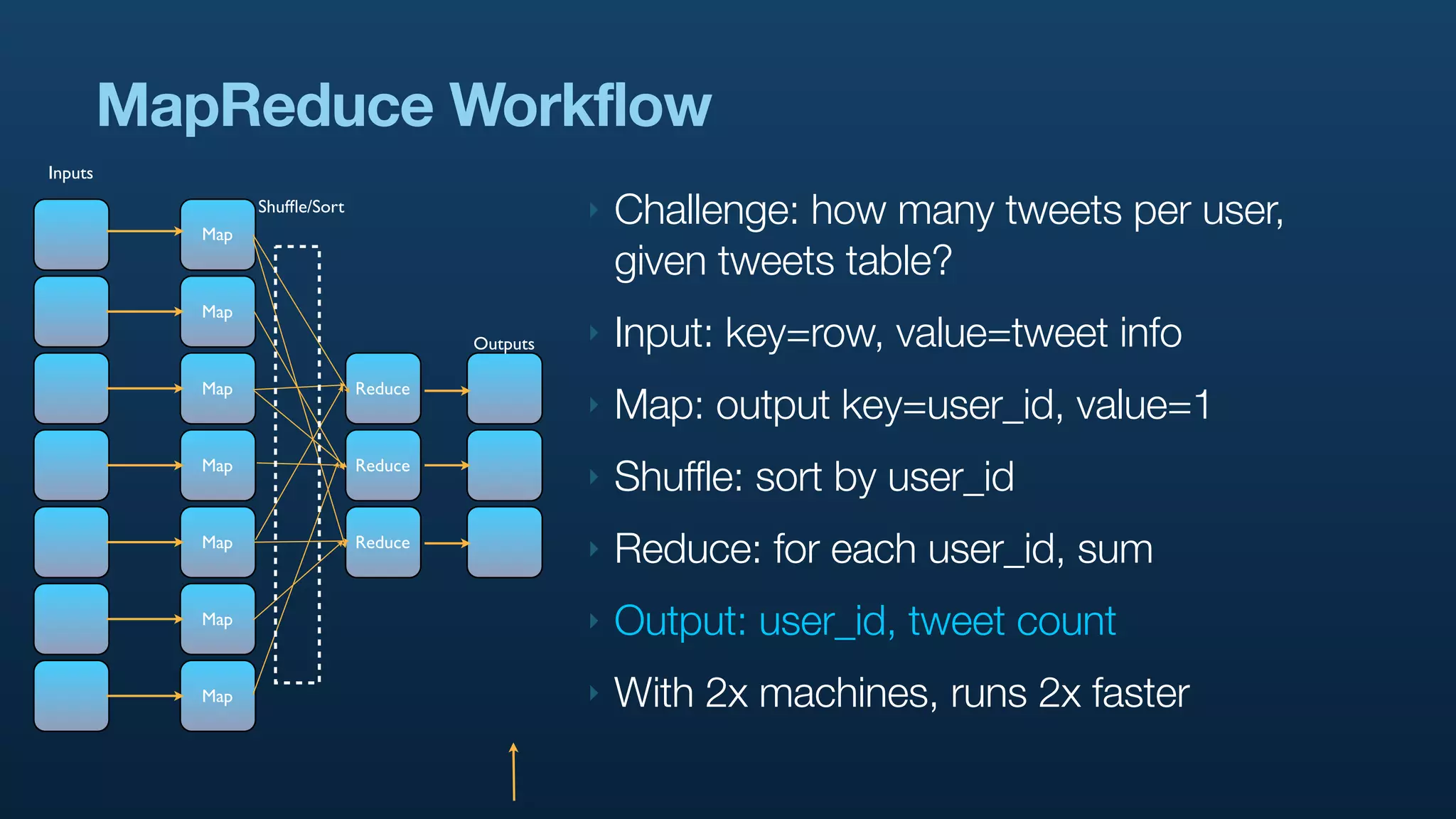

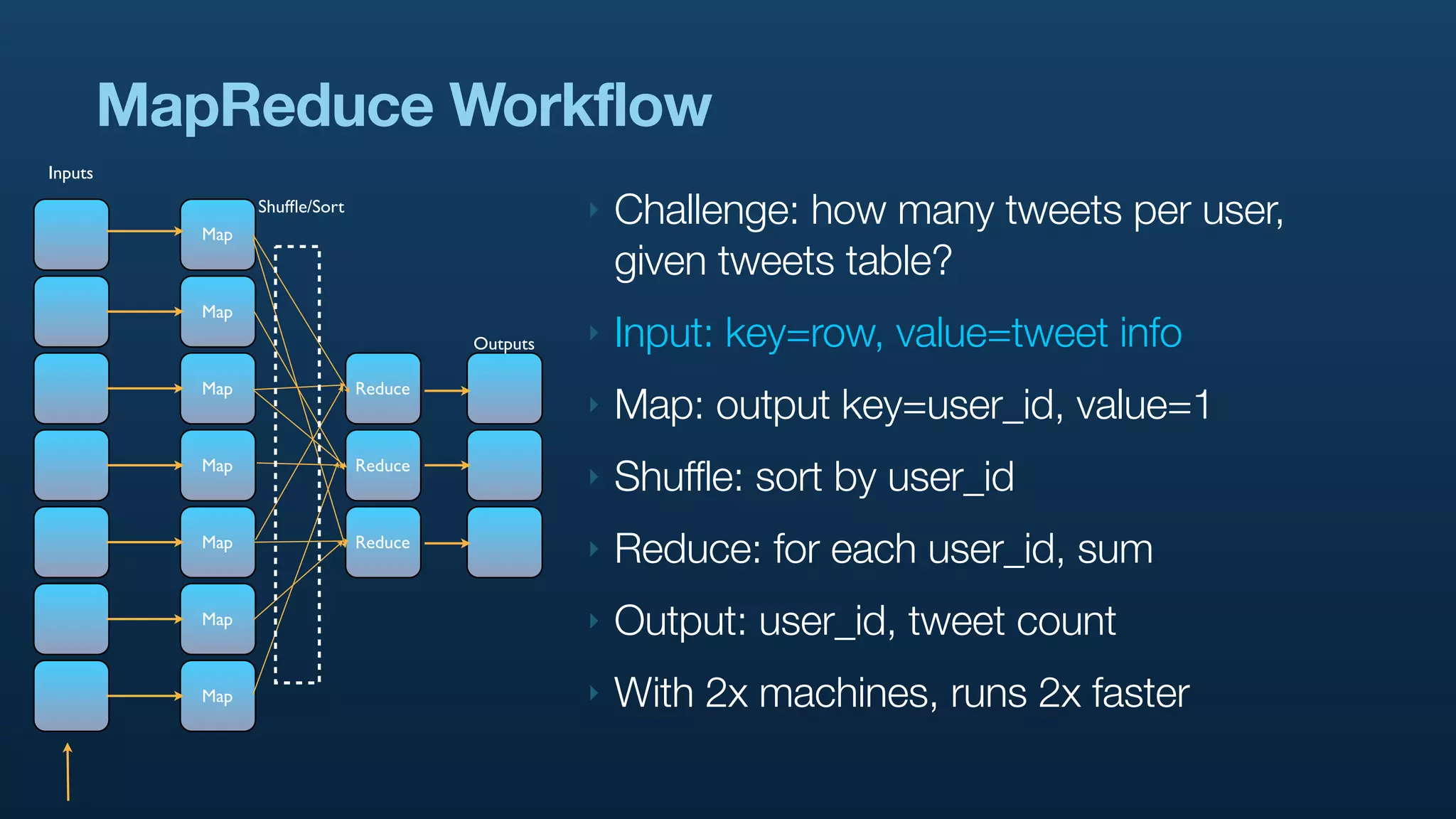

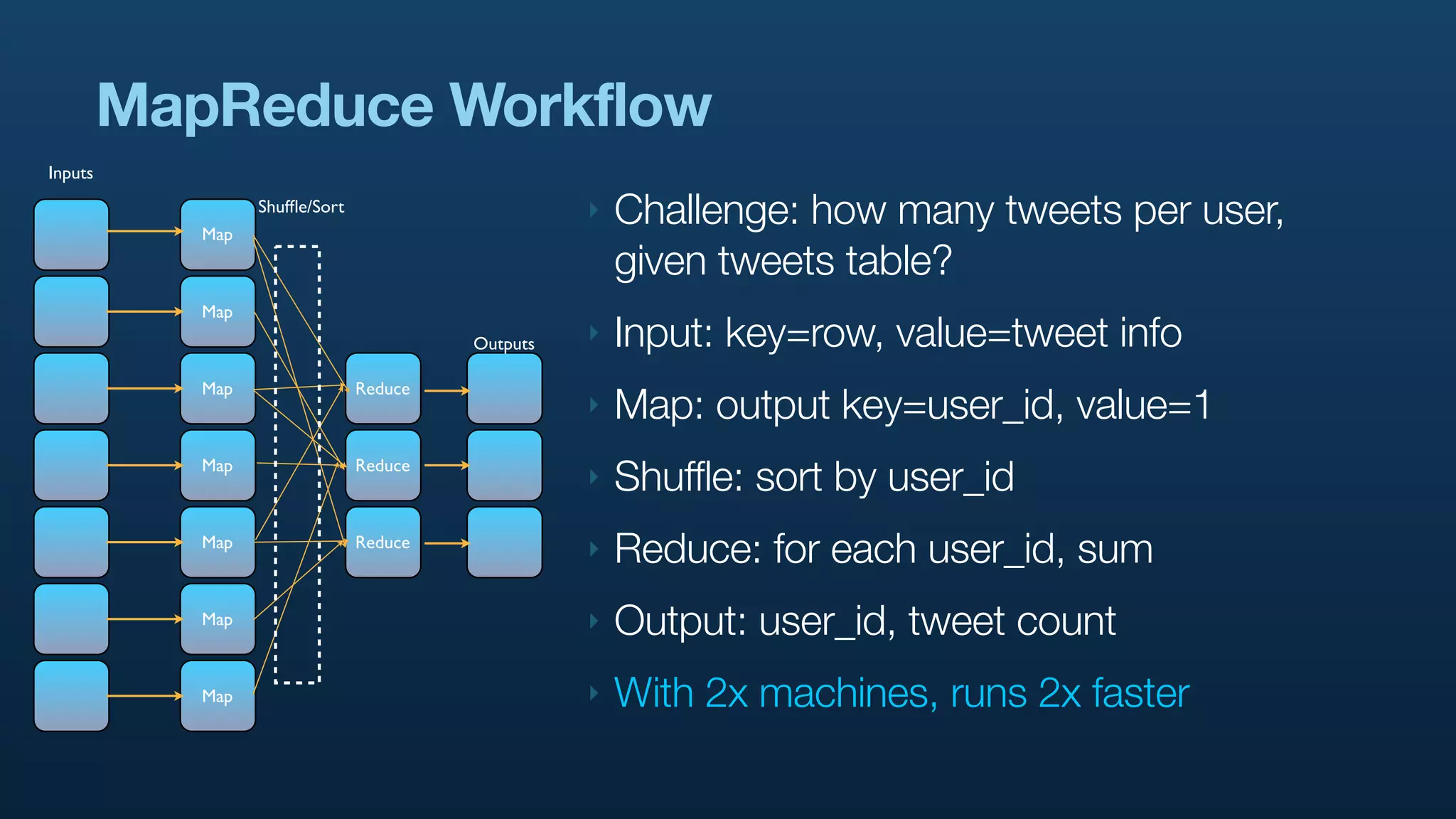

MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster
MapReduce Workflow
Inputs


            Map
                  Shuffle/Sort                      ‣   Challenge: how many tweets per user,
                                                       given tweets table?
            Map
                                         Outputs   ‣   Input: key=row, value=tweet info
            Map                 Reduce
                                                   ‣   Map: output key=user_id, value=1
            Map                 Reduce
                                                   ‣   Shuffle: sort by user_id
            Map                 Reduce
                                                   ‣   Reduce: for each user_id, sum
            Map                                    ‣   Output: user_id, tweet count
            Map                                    ‣   With 2x machines, runs 2x faster

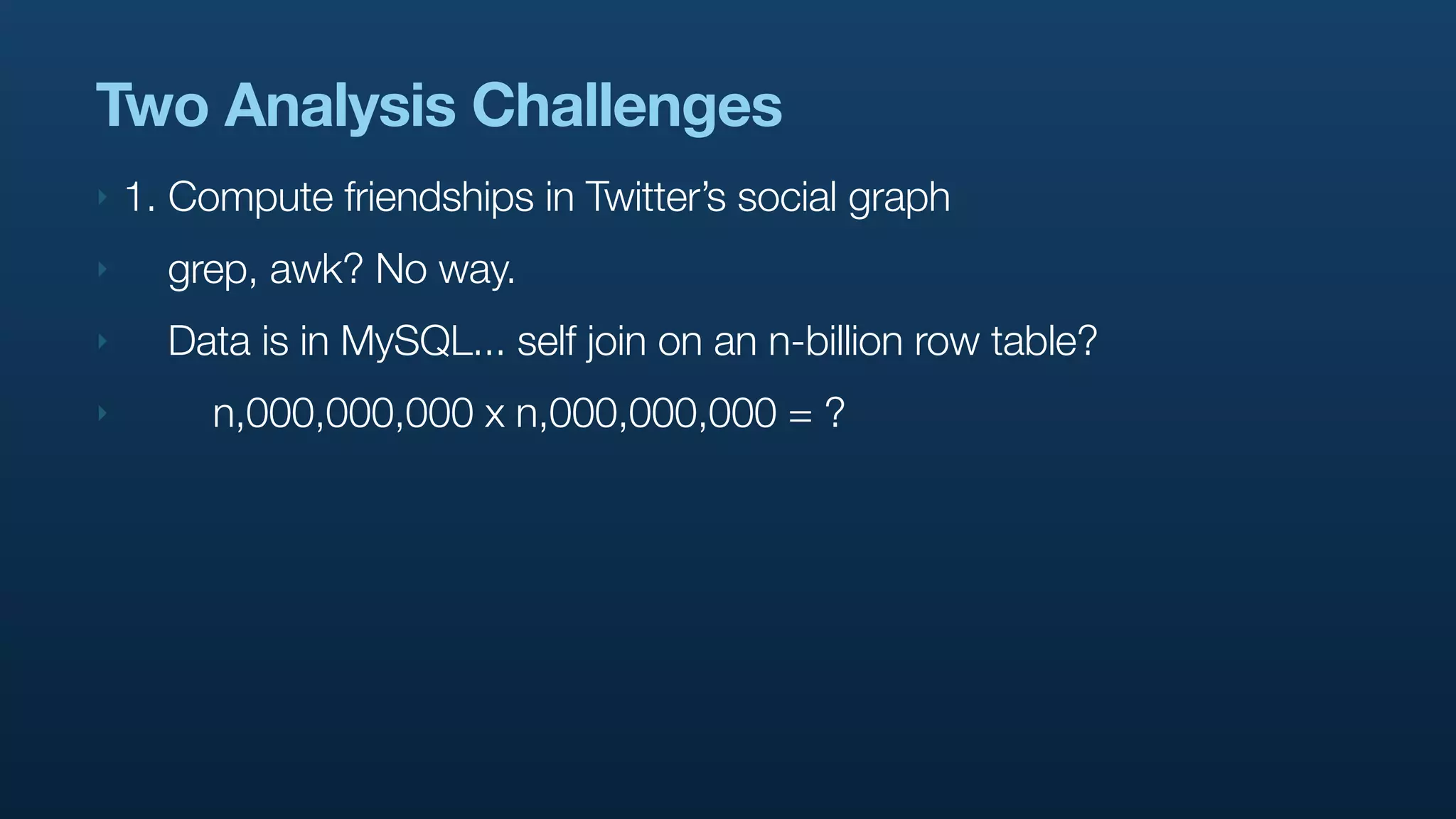

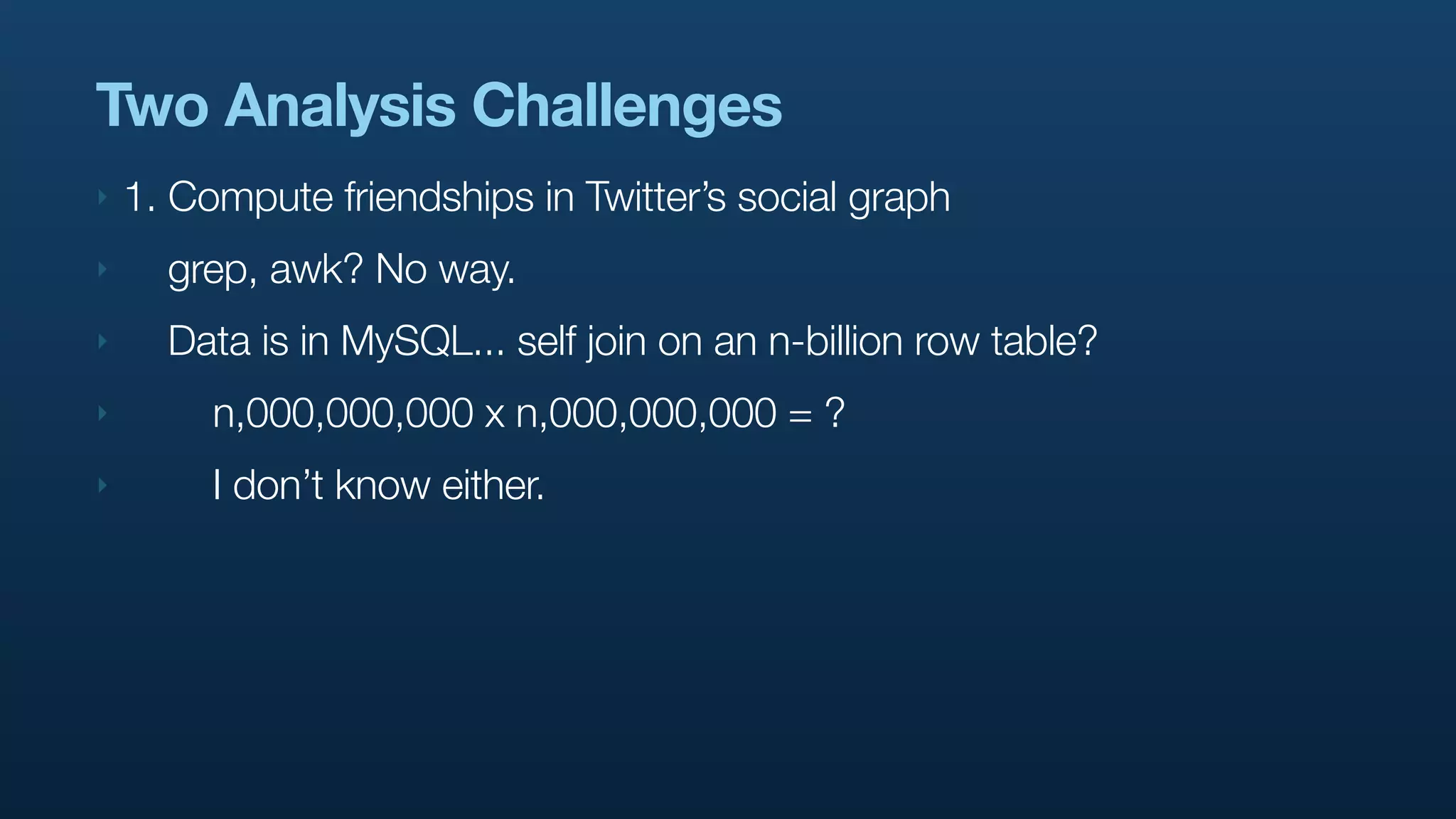

Two Analysis Challenges
‣   1. Compute friendships in Twitter’s social graph
‣     grep, awk? No way.
‣     Data is in MySQL... self join on an n-billion row table?
‣        n,000,000,000 x n,000,000,000 = ?
Two Analysis Challenges
‣   1. Compute friendships in Twitter’s social graph
‣     grep, awk? No way.
‣     Data is in MySQL... self join on an n-billion row table?
‣        n,000,000,000 x n,000,000,000 = ?
‣        I don’t know either.

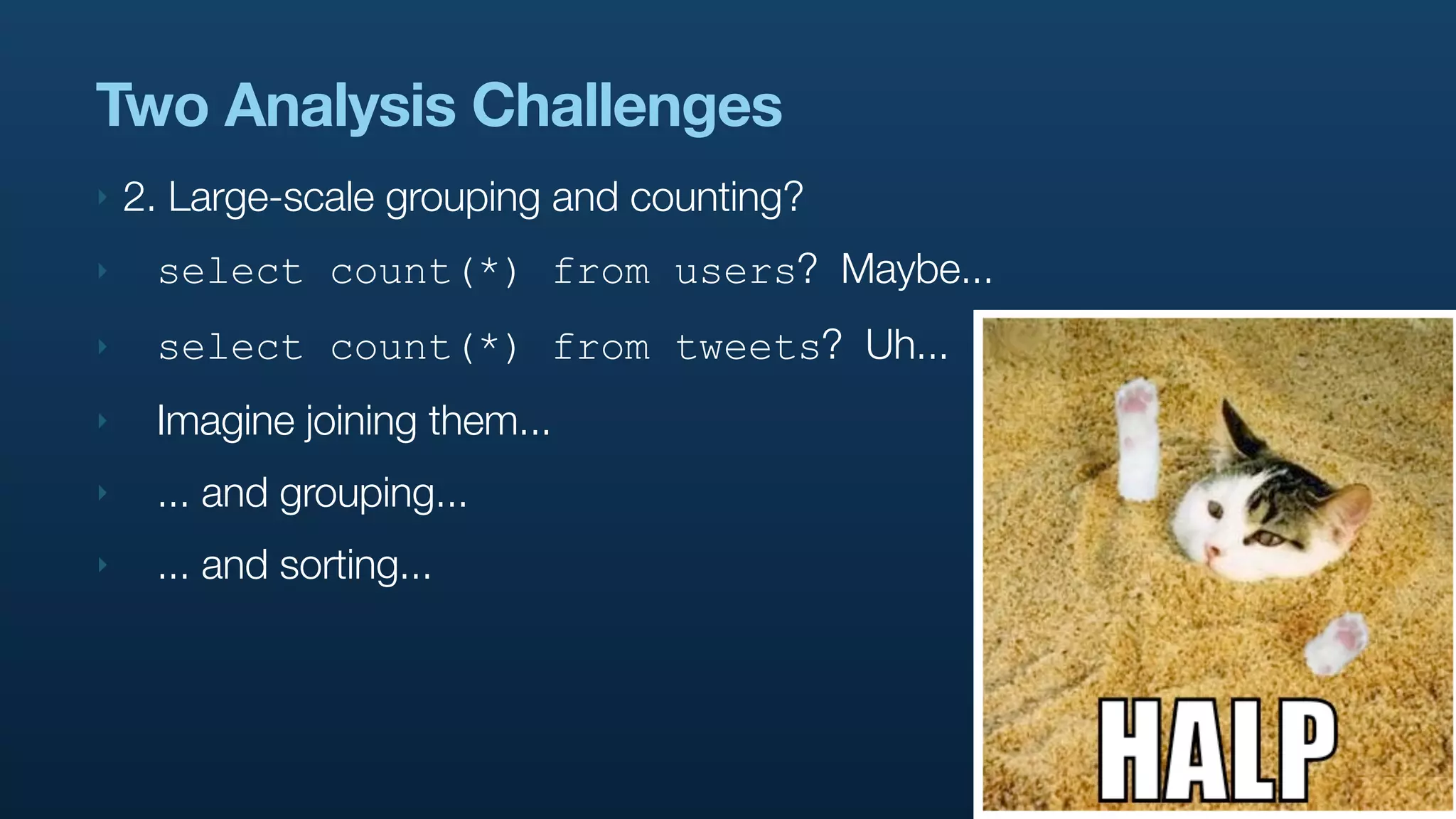

Two Analysis Challenges
‣   2. Large-scale grouping and counting?
‣    select count(*) from users? Maybe...
‣    select count(*) from tweets? Uh...
‣    Imagine joining them...
‣    ... and grouping...
‣    ... and sorting...

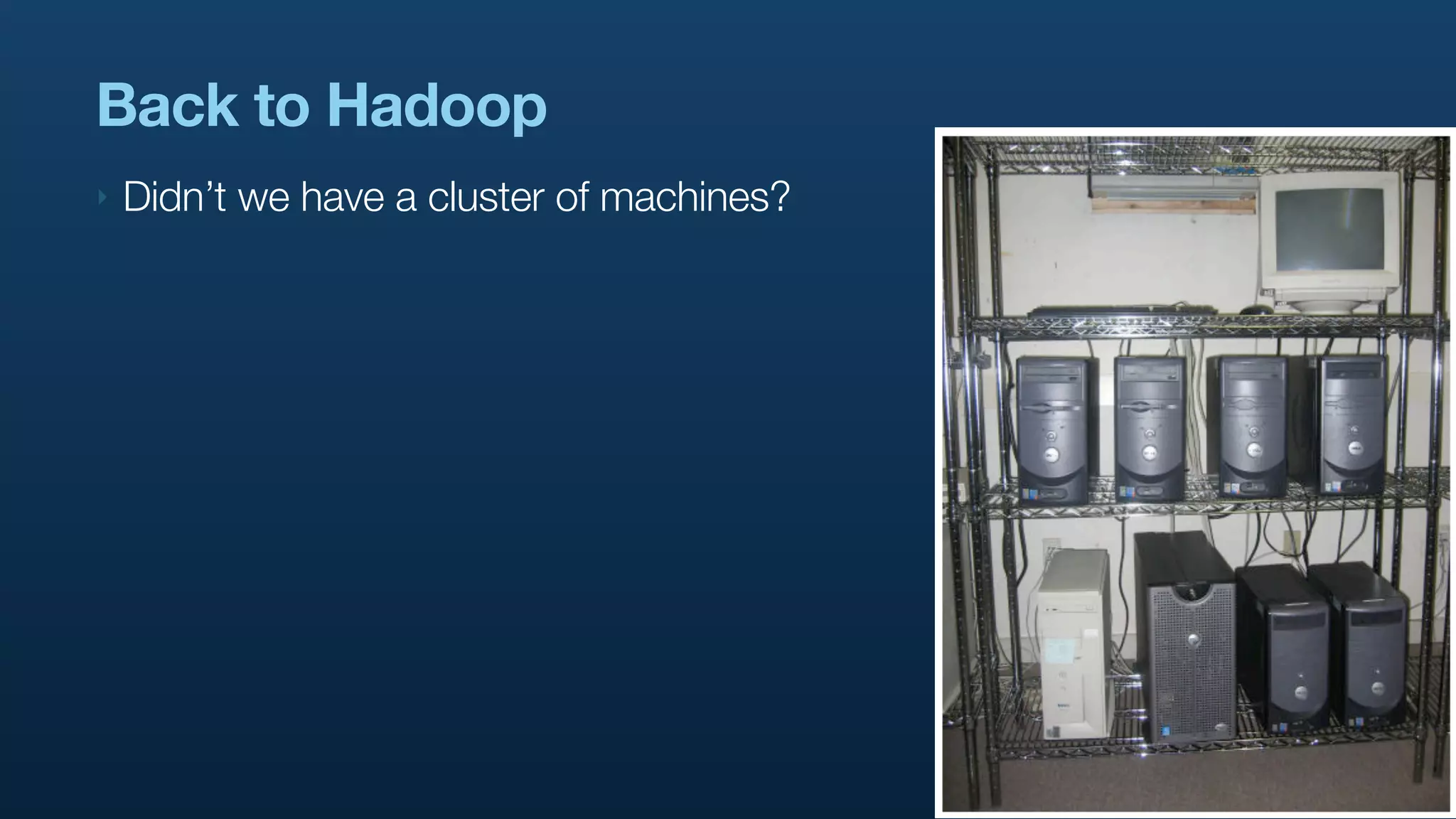

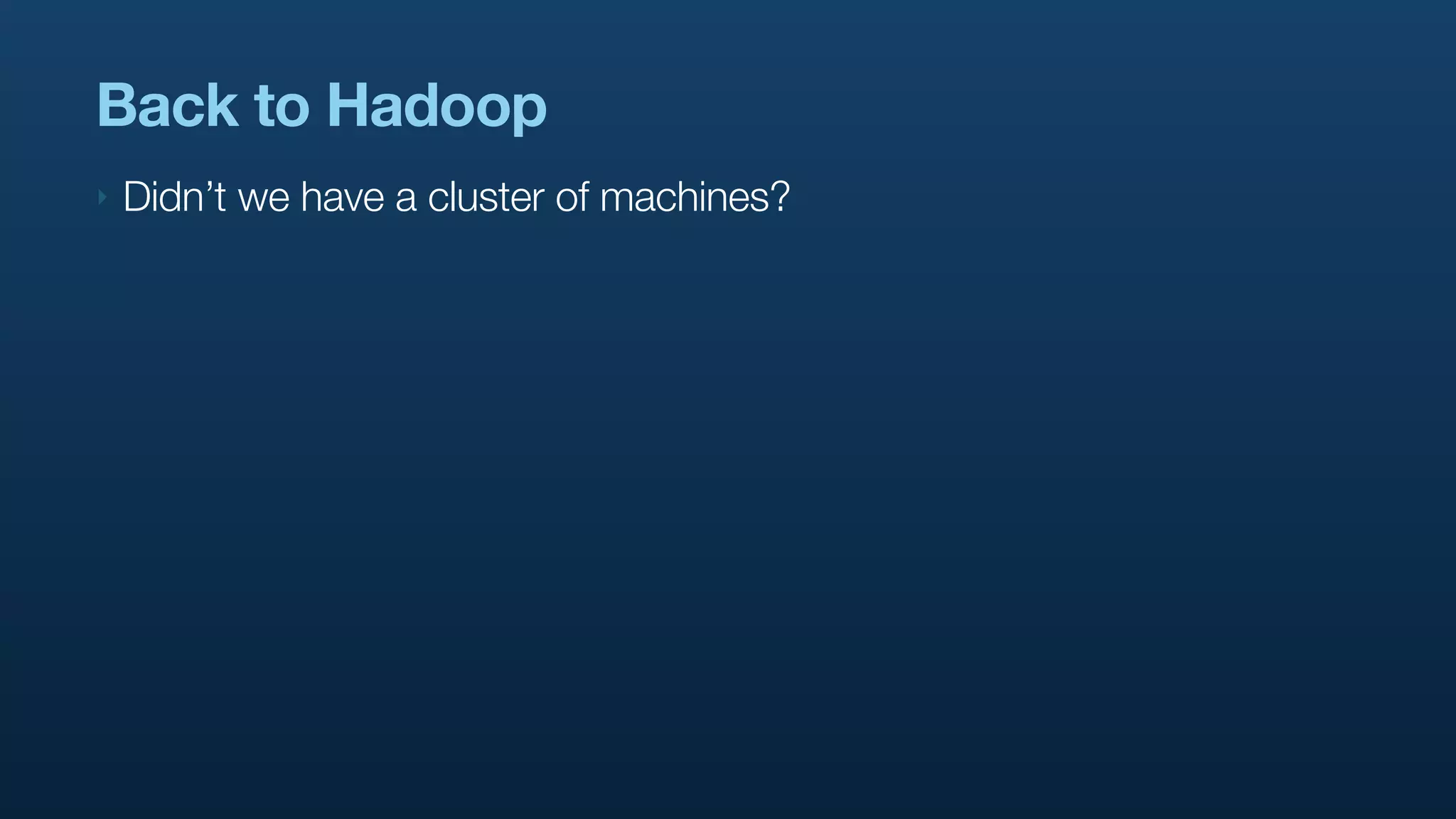

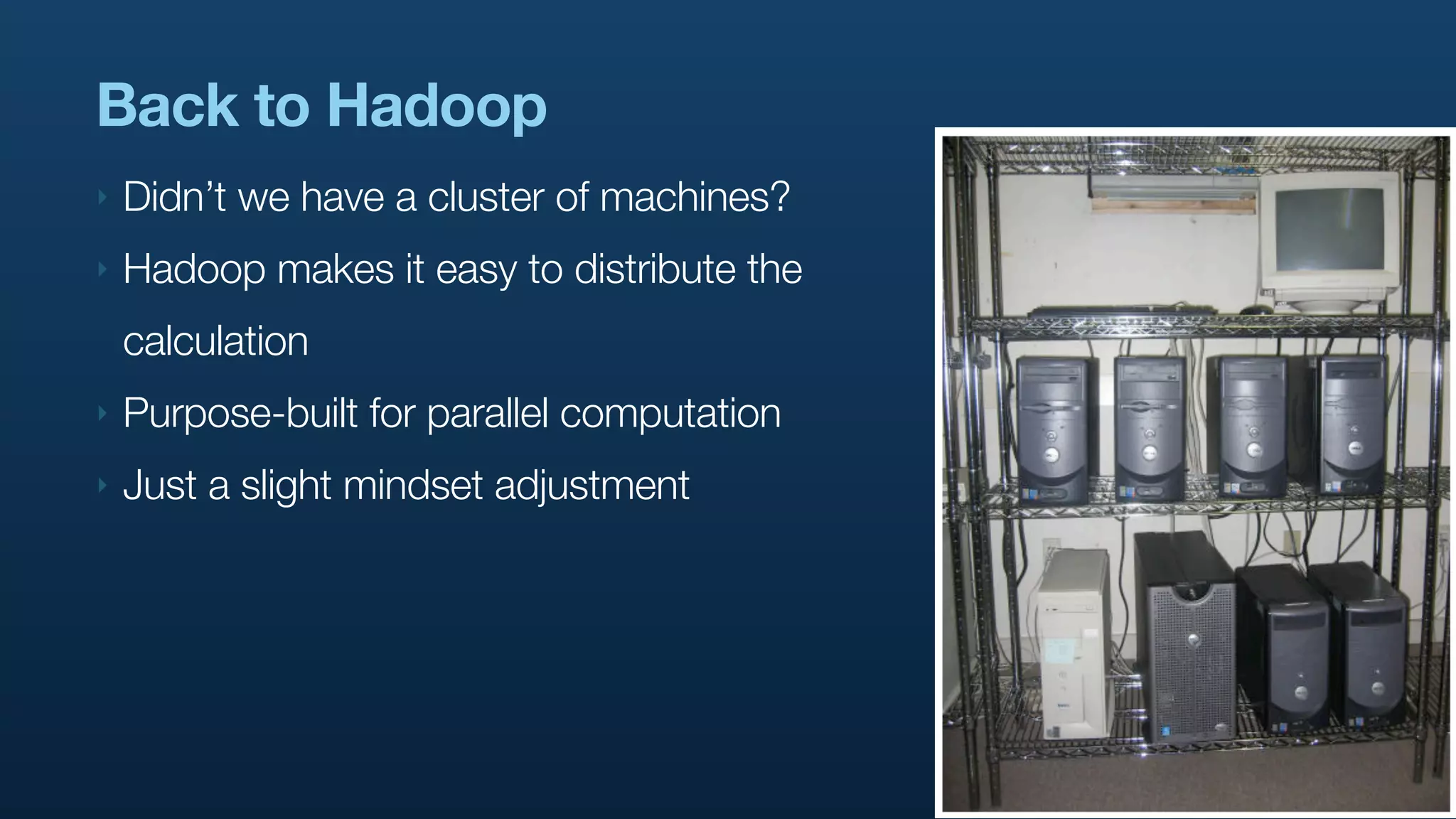

Back to Hadoop
‣   Didn’t we have a cluster of machines?
Back to Hadoop
‣   Didn’t we have a cluster of machines?
Back to Hadoop
‣   Didn’t we have a cluster of machines?
‣   Hadoop makes it easy to distribute the
    calculation
‣   Purpose-built for parallel computation
‣   Just a slight mindset adjustment

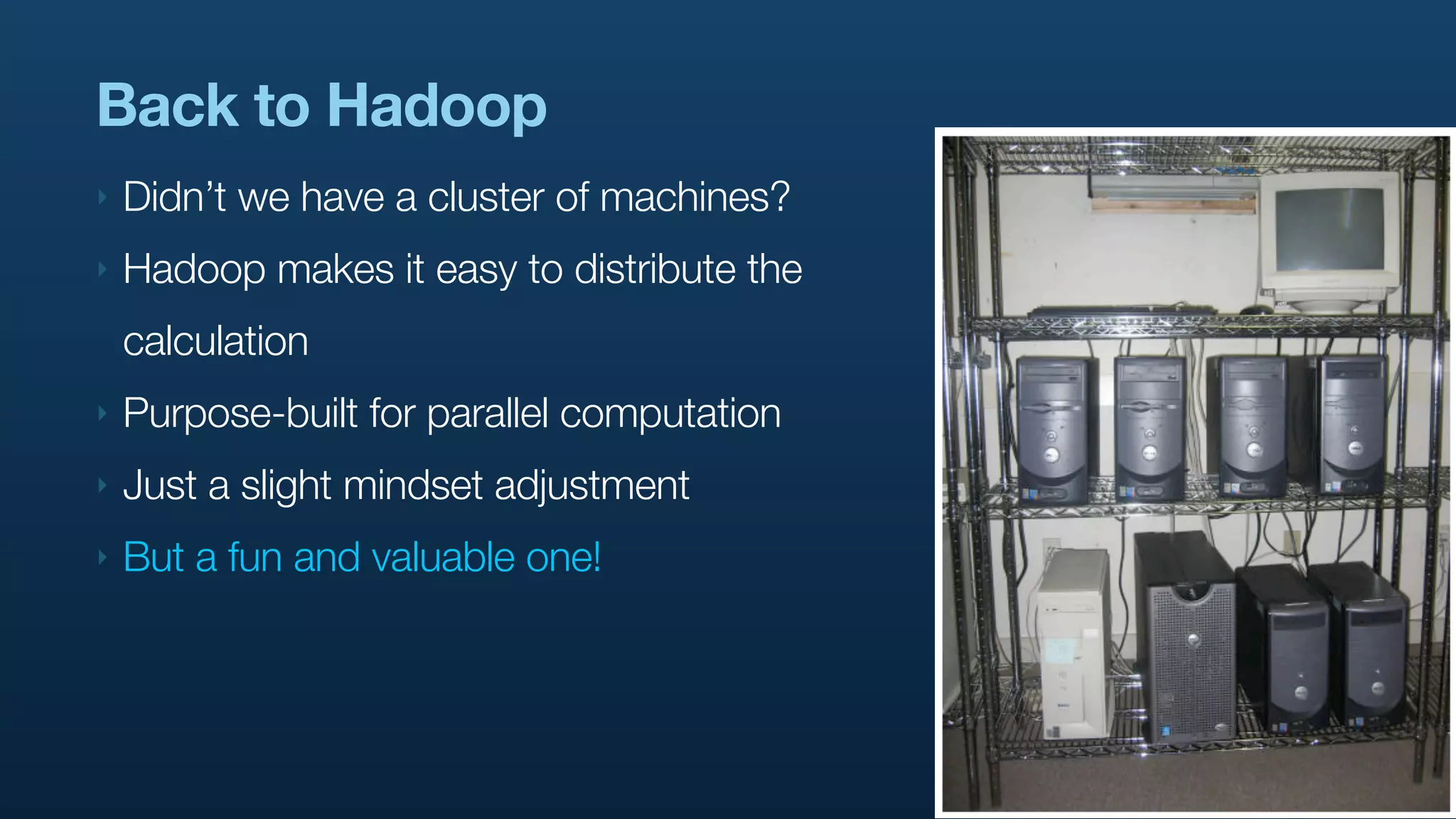

Back to Hadoop
‣   Didn’t we have a cluster of machines?
‣   Hadoop makes it easy to distribute the
    calculation
‣   Purpose-built for parallel computation
‣   Just a slight mindset adjustment
‣   But a fun and valuable one!

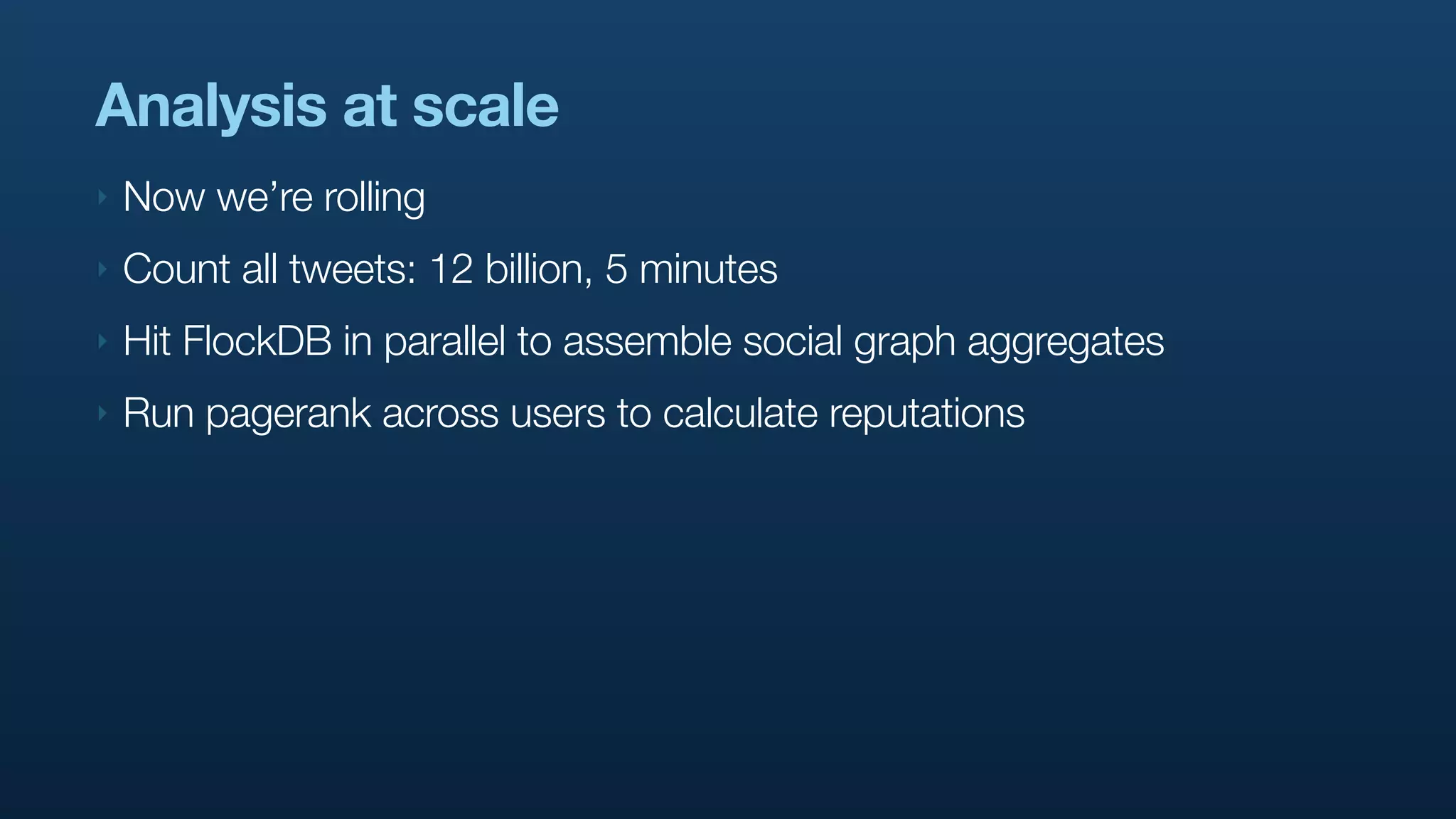

Analysis at scale
‣   Now we’re rolling
‣   Count all tweets: 12 billion, 5 minutes

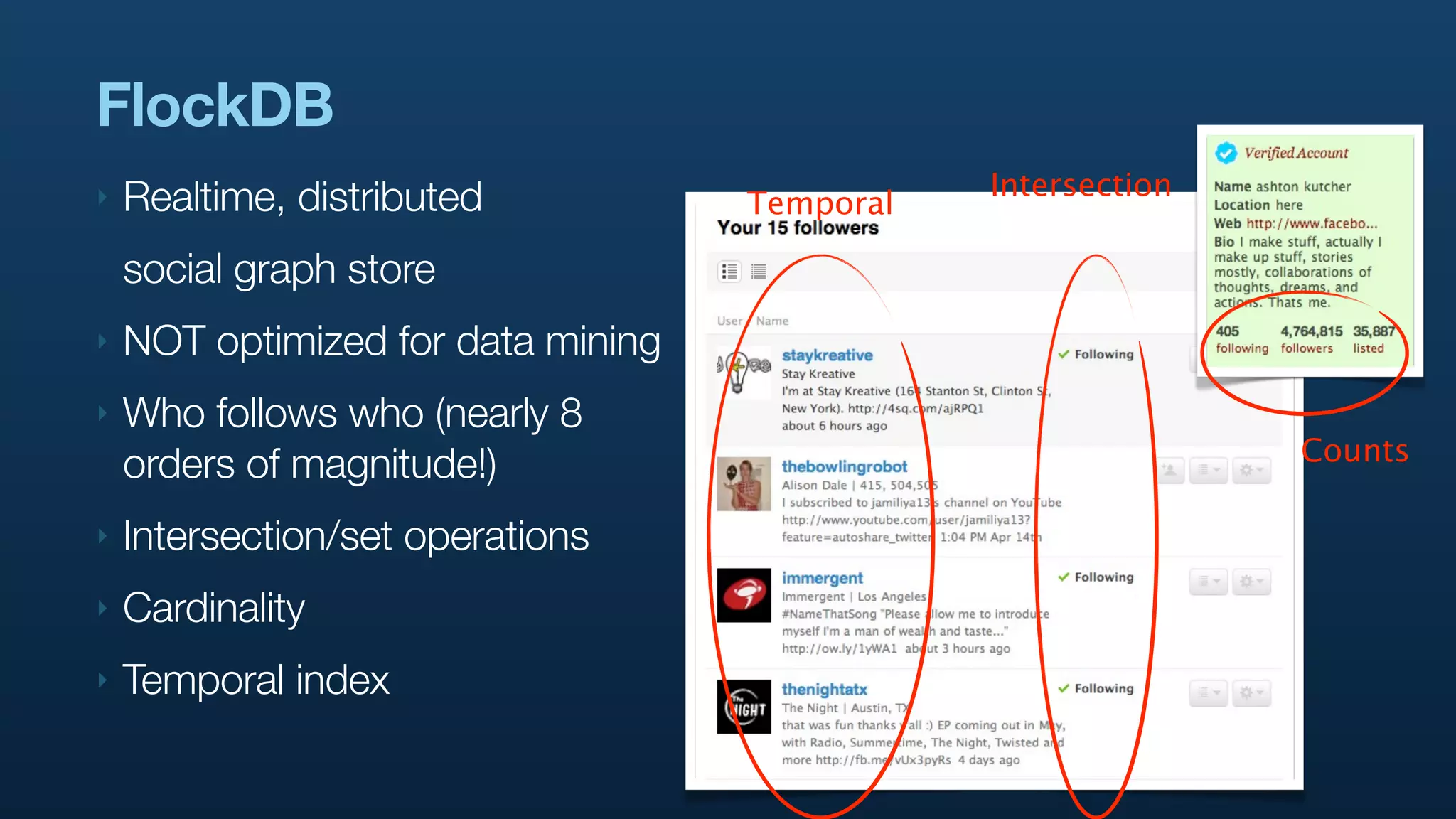

‣   Hit FlockDB in parallel to assemble social graph aggregates
‣   Run pagerank across users to calculate reputations

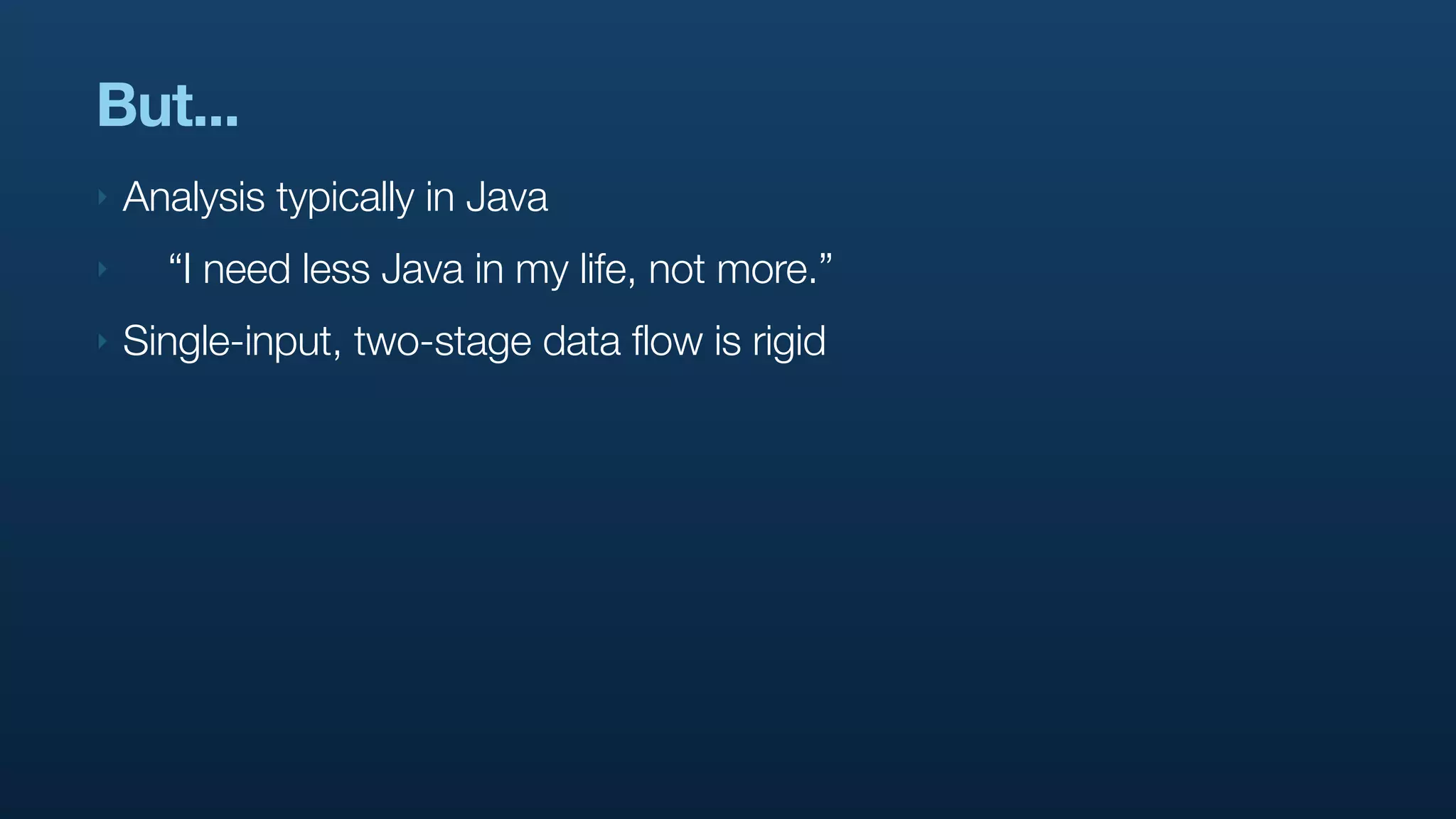

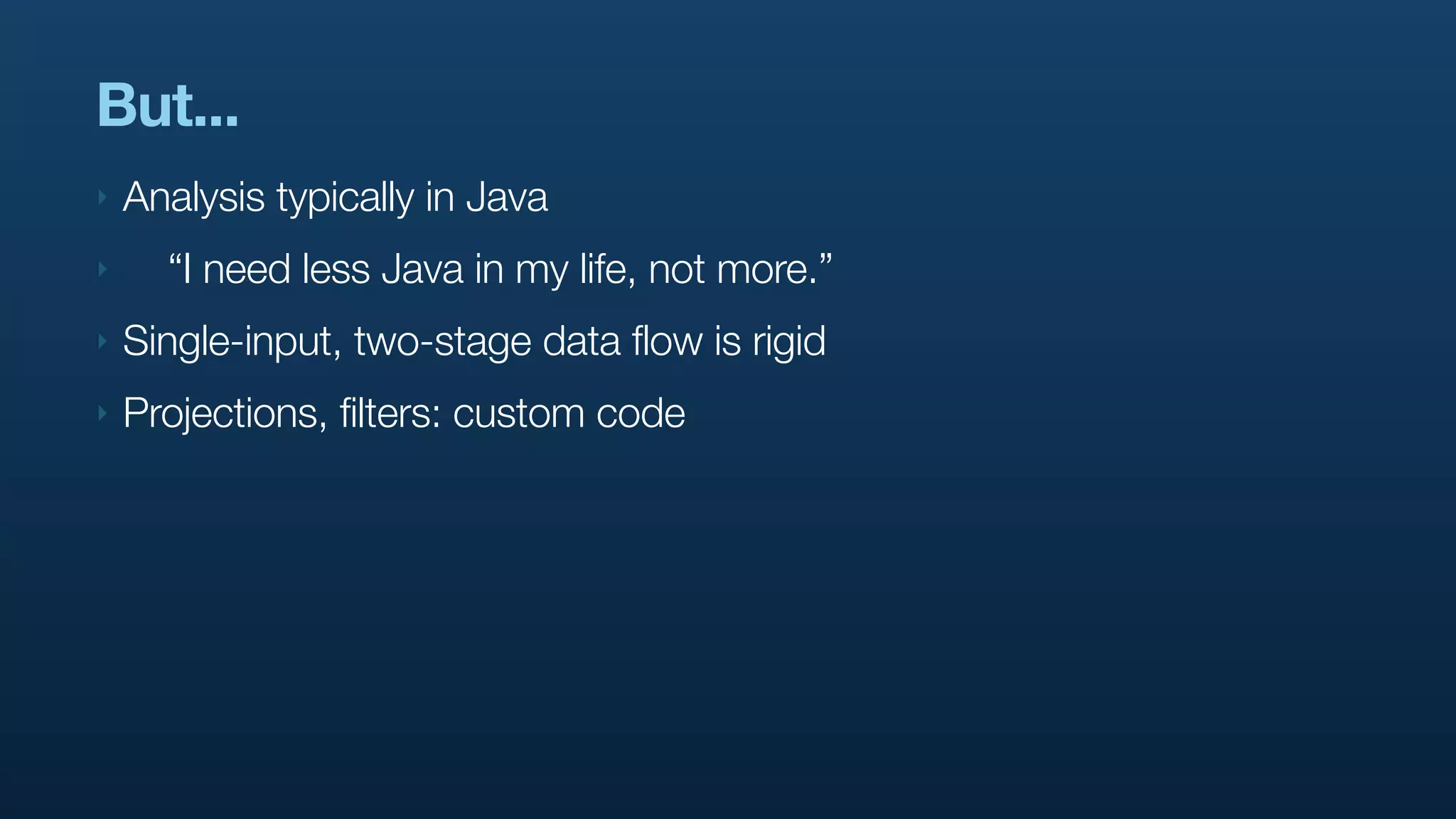

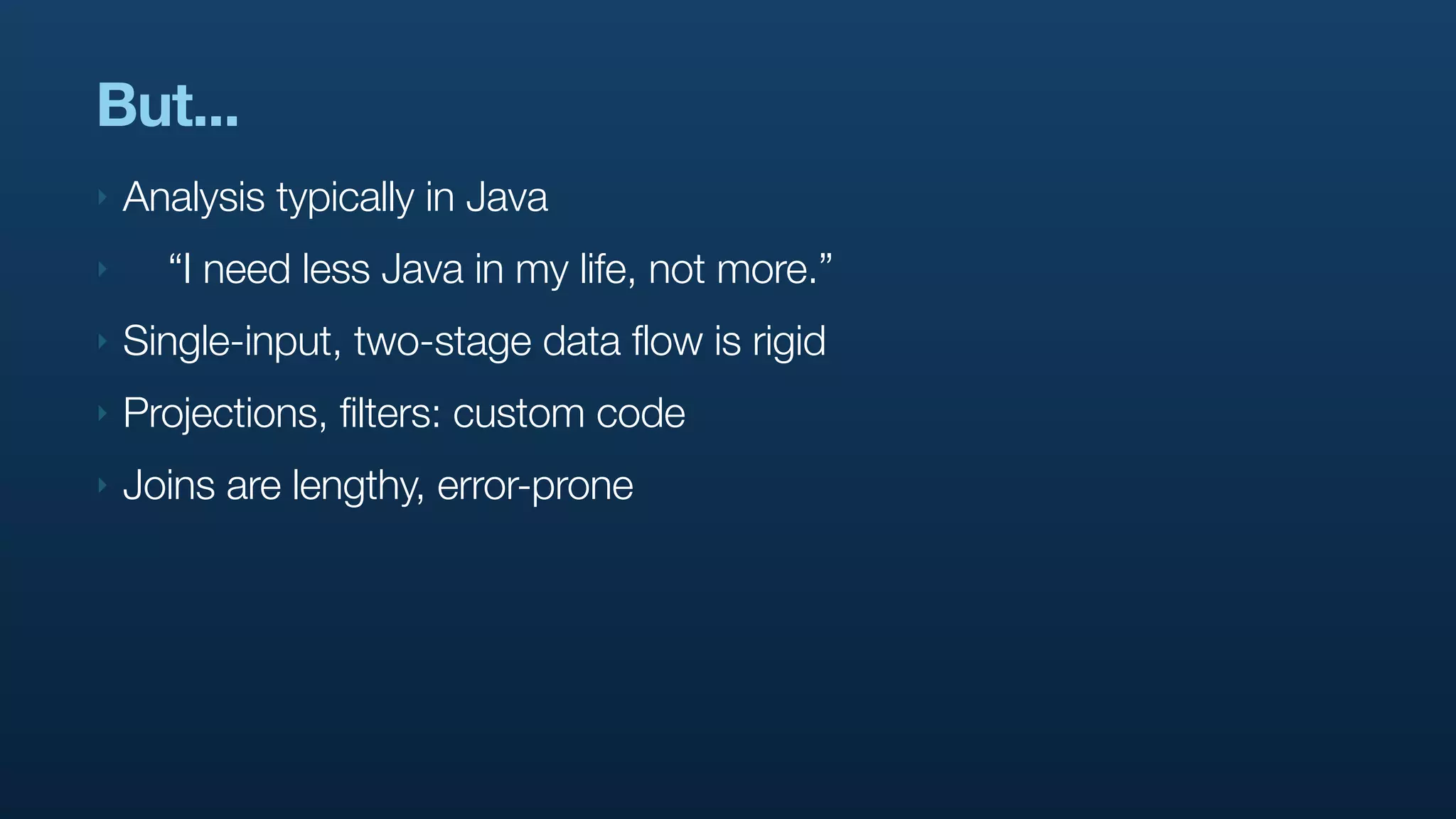

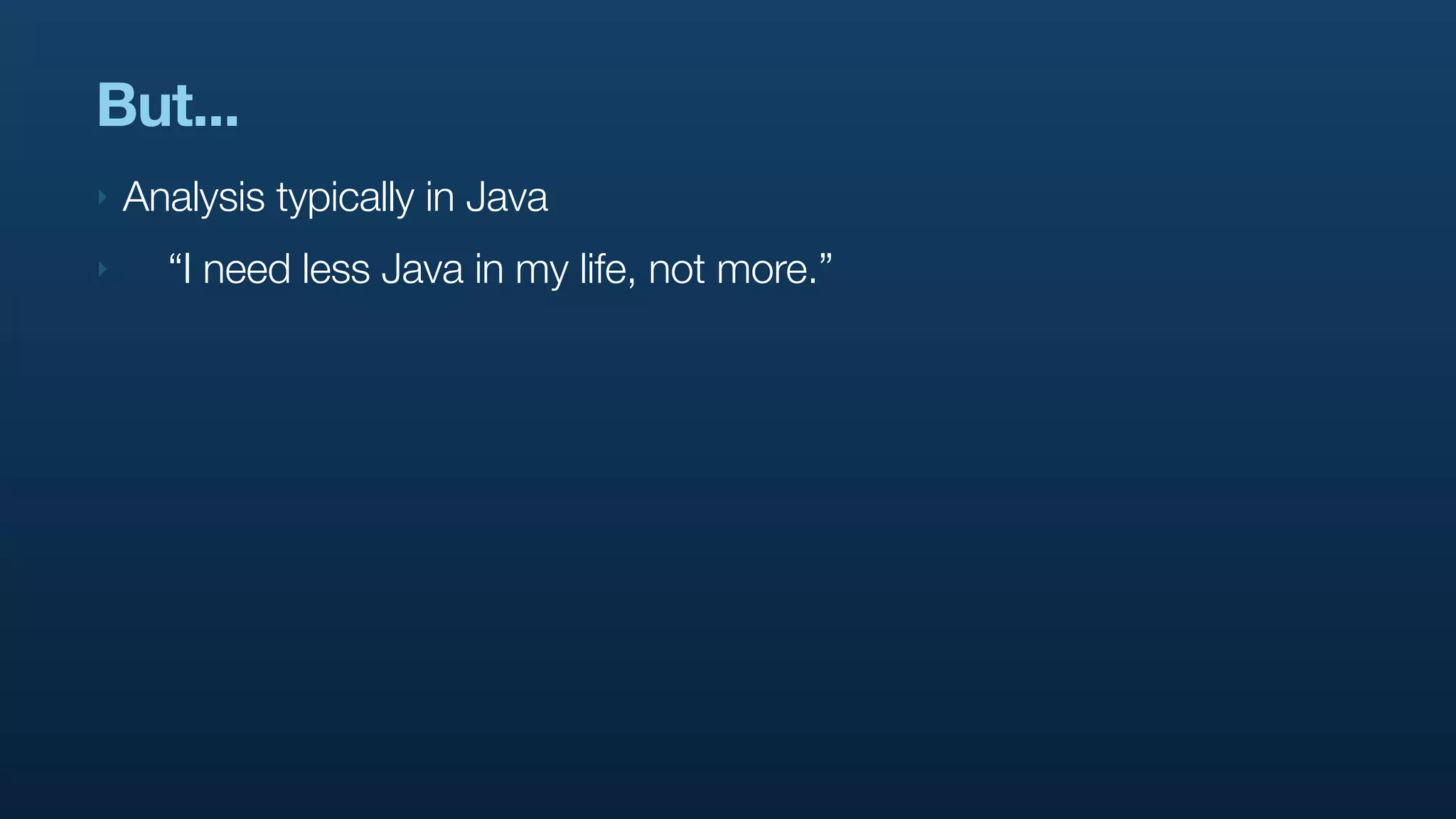

But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
‣   Single-input, two-stage data flow is rigid
But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
‣   Single-input, two-stage data flow is rigid
‣   Projections, filters: custom code
But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
‣   Single-input, two-stage data flow is rigid
‣   Projections, filters: custom code
‣   Joins are lengthy, error-prone
But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
‣   Single-input, two-stage data flow is rigid
‣   Projections, filters: custom code
‣   Joins are lengthy, error-prone
‣   n-stage jobs hard to manage

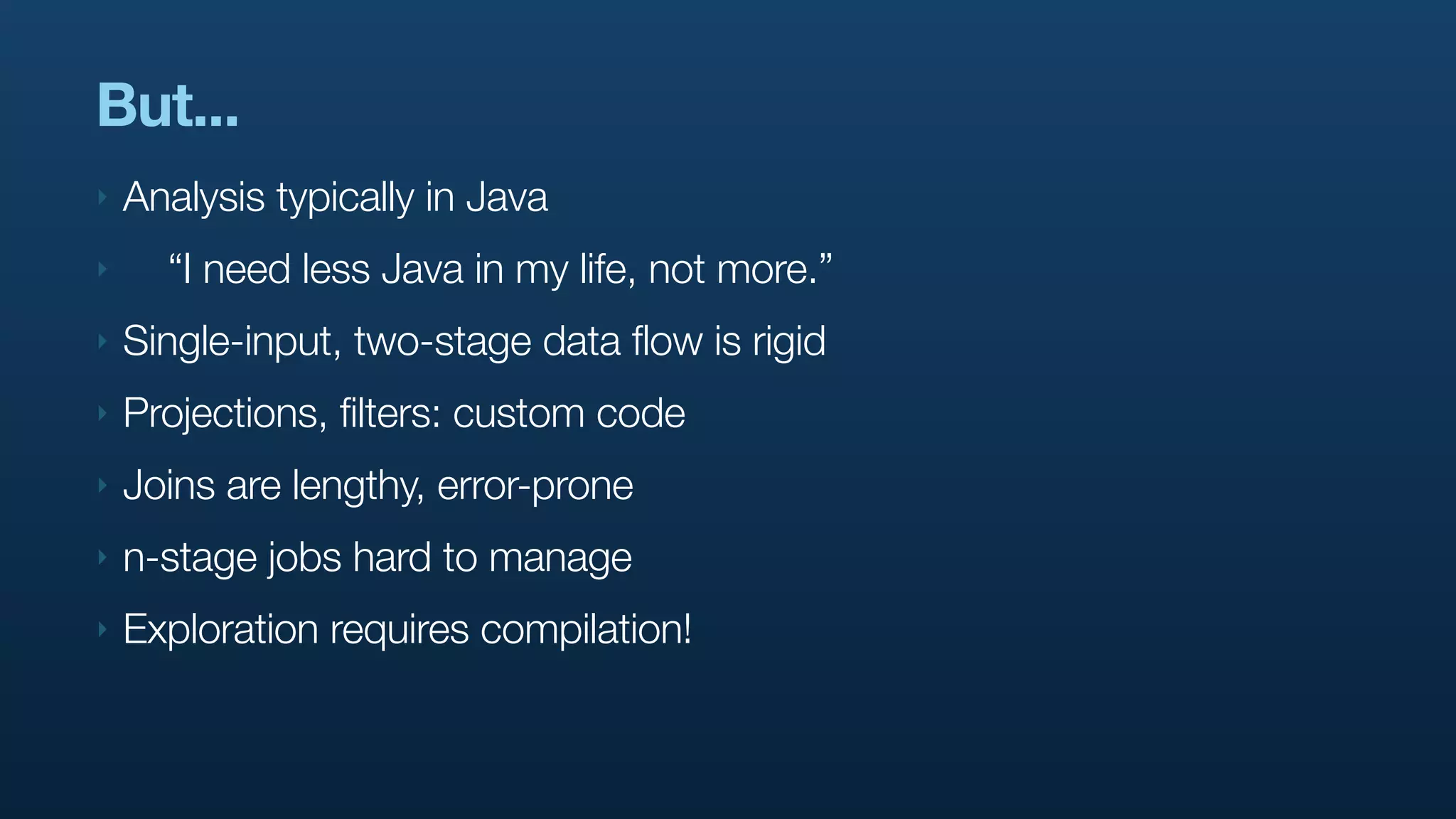

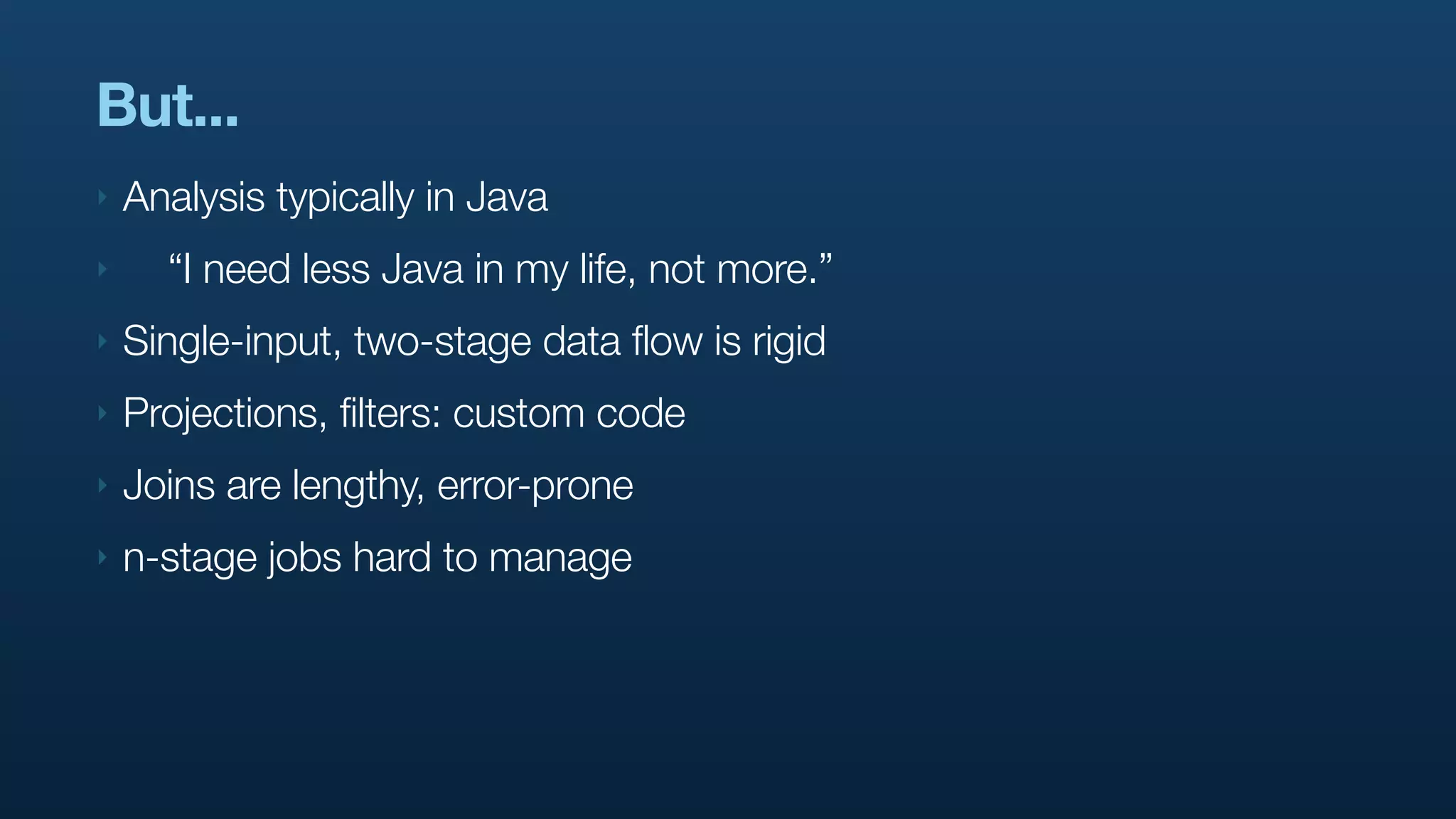

But...
‣   Analysis typically in Java
‣     “I need less Java in my life, not more.”
‣   Single-input, two-stage data flow is rigid
‣   Projections, filters: custom code
‣   Joins are lengthy, error-prone
‣   n-stage jobs hard to manage
‣   Exploration requires compilation!

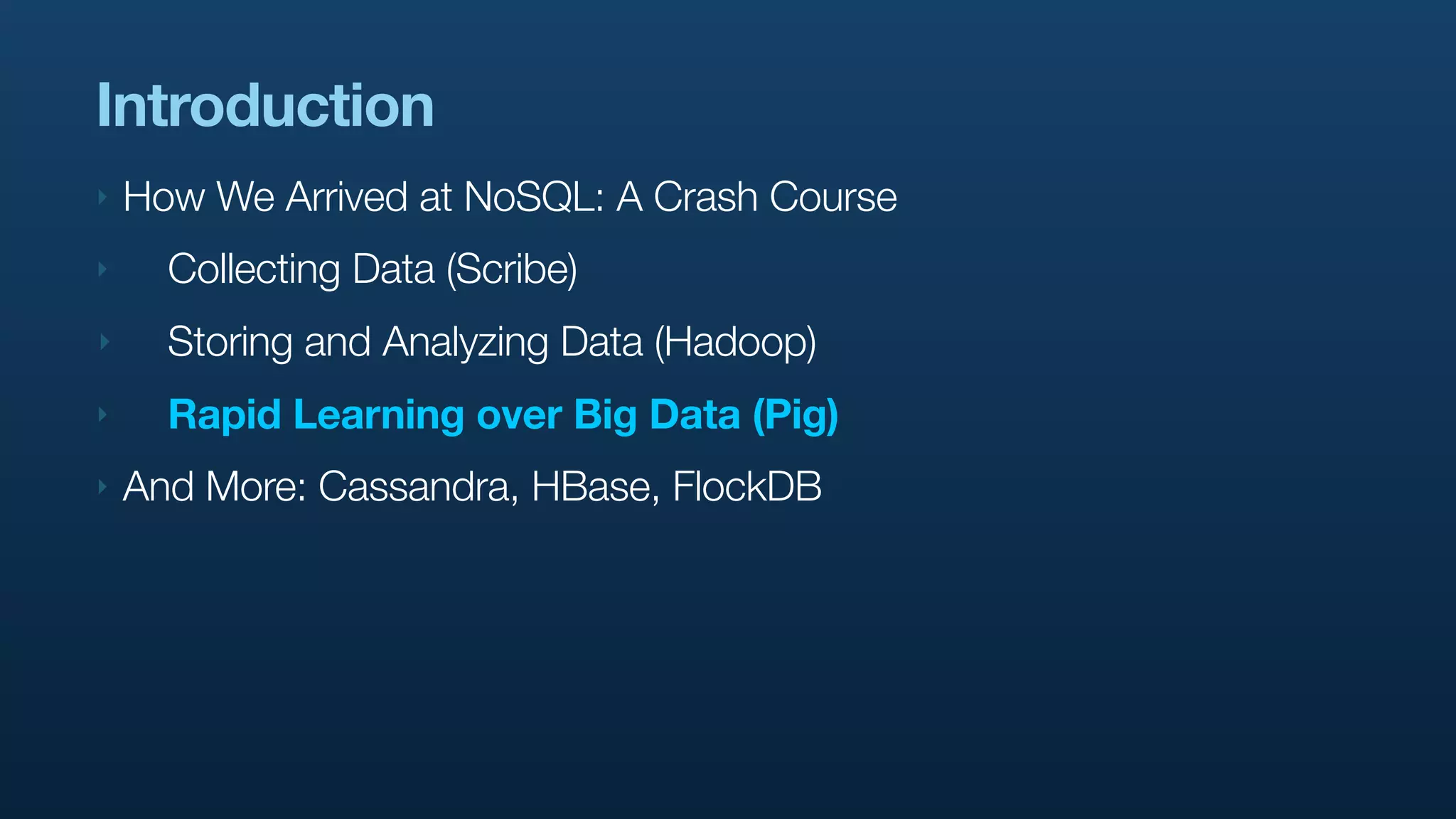

Introduction
‣   How We Arrived at NoSQL: A Crash Course
‣     Collecting Data (Scribe)
‣     Storing and Analyzing Data (Hadoop)
‣     Rapid Learning over Big Data (Pig)
‣   And More: Cassandra, HBase, FlockDB

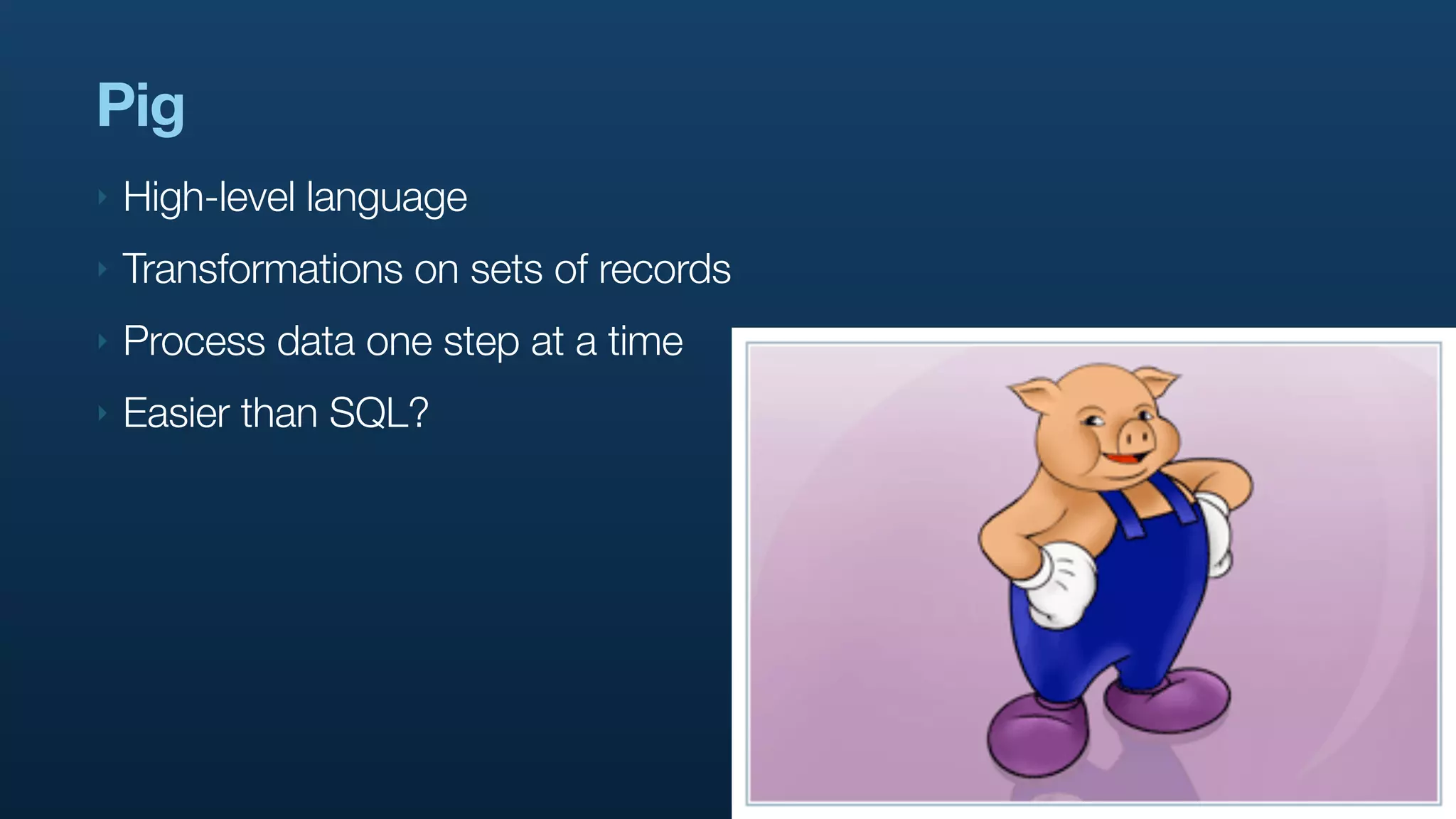

Pig
‣   High-level language
‣   Transformations on sets of records
‣   Process data one step at a time
‣   Easier than SQL?

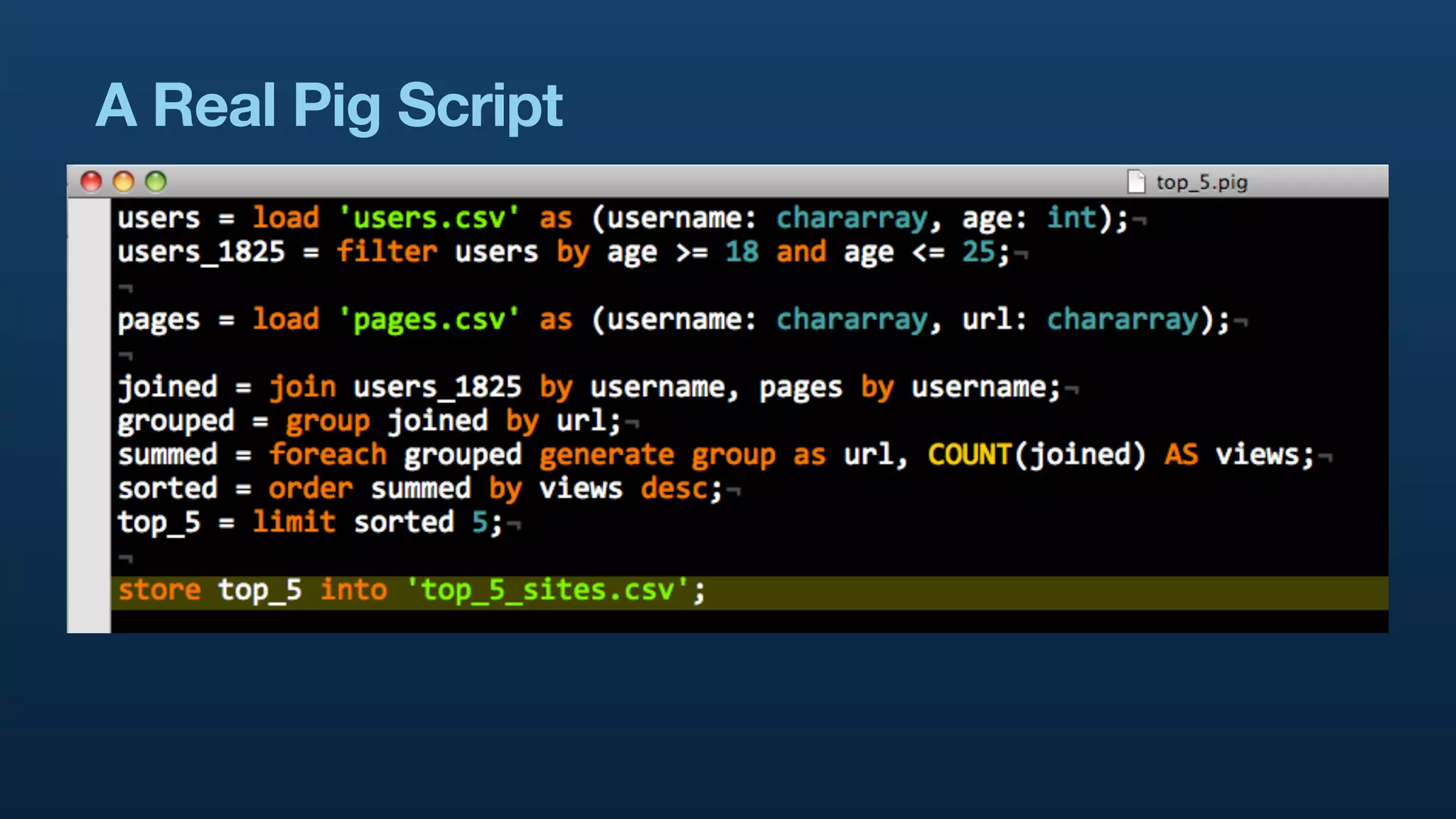

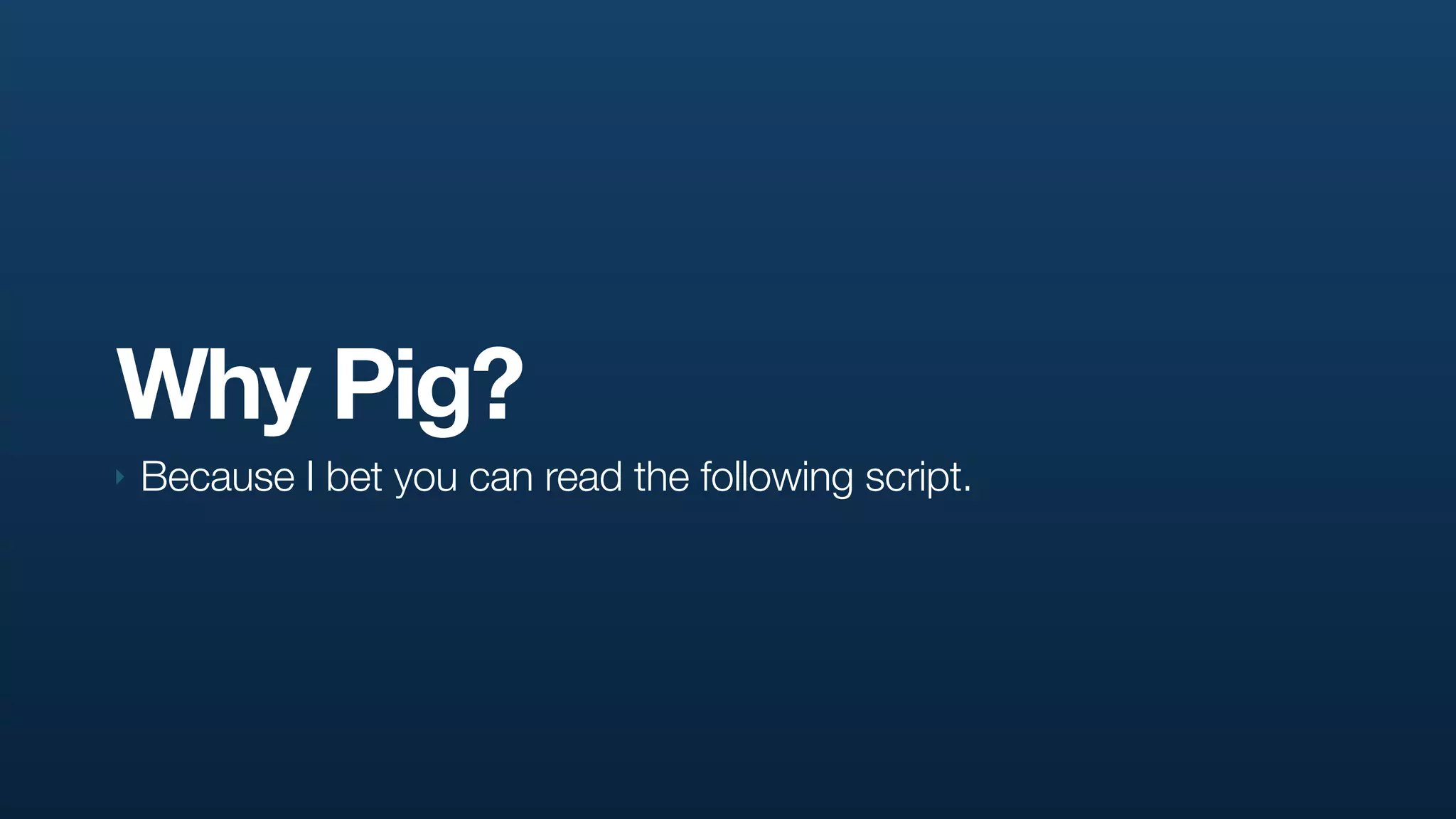

Why Pig?

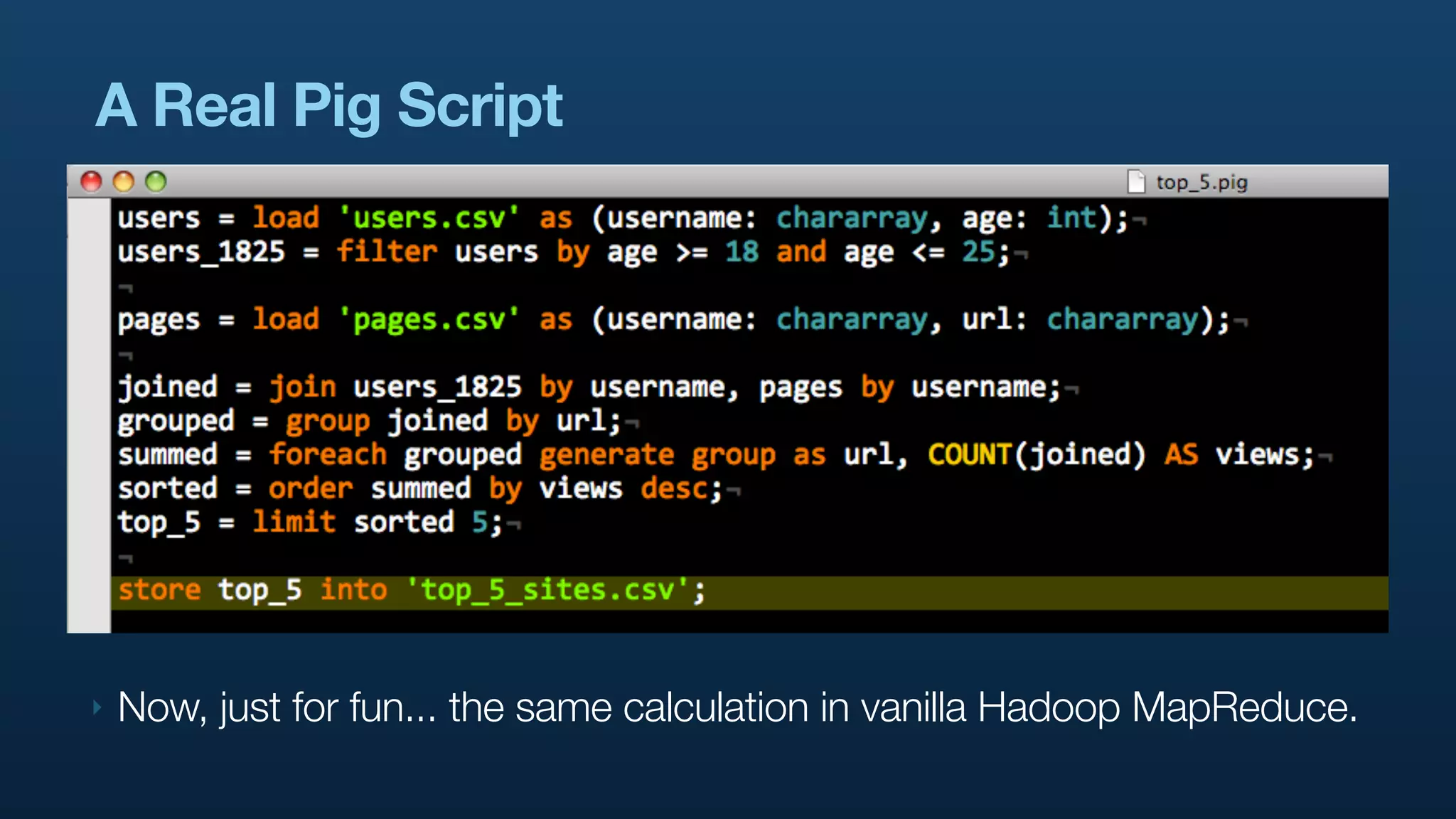

‣   Because I bet you can read the following script.
A Real Pig Script
A Real Pig Script




‣   Now, just for fun... the same calculation in vanilla Hadoop MapReduce.

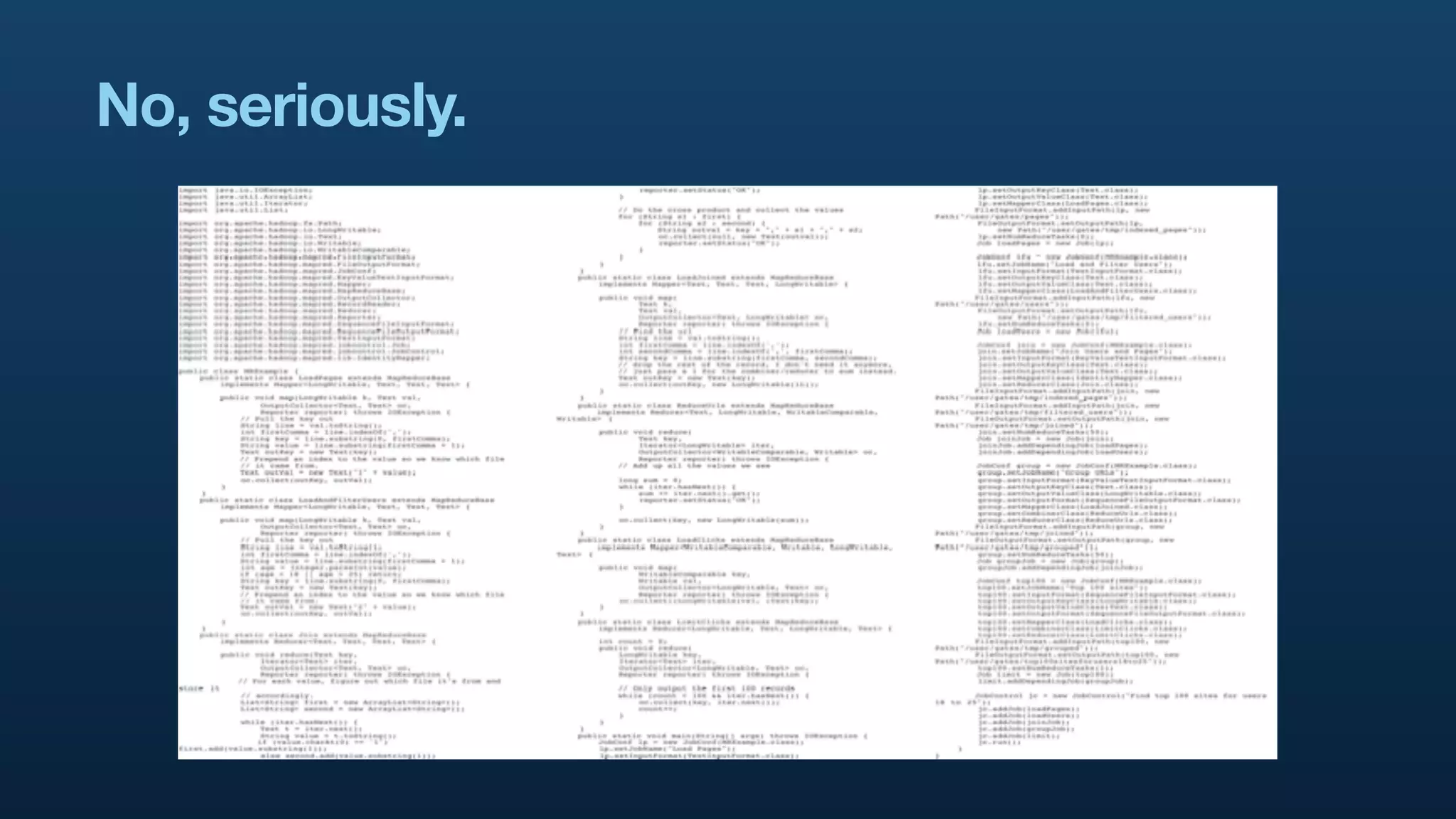

No, seriously.
Pig Democratizes Large-scale Data
Analysis
‣   The Pig version is:
‣     5% of the code

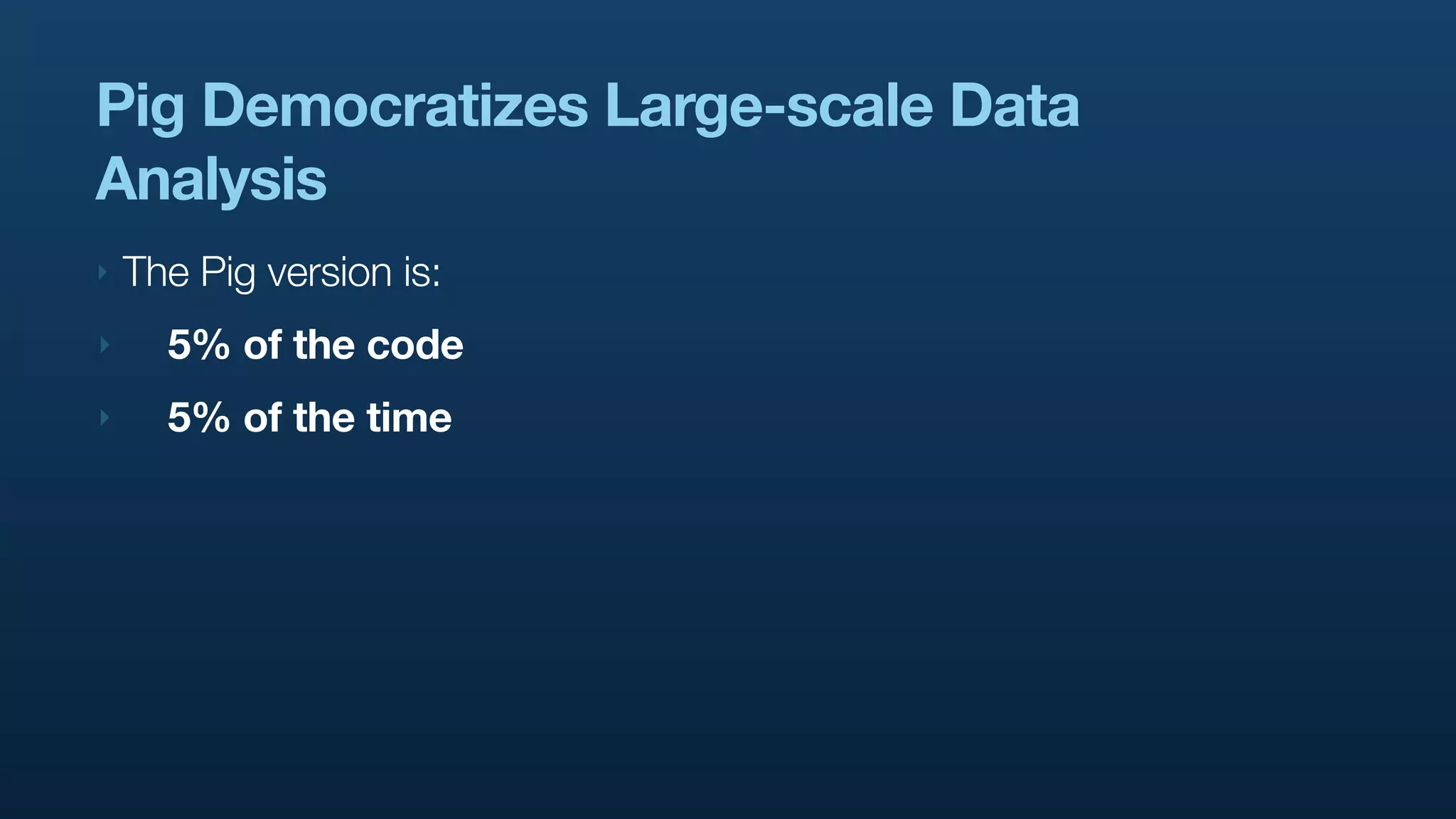

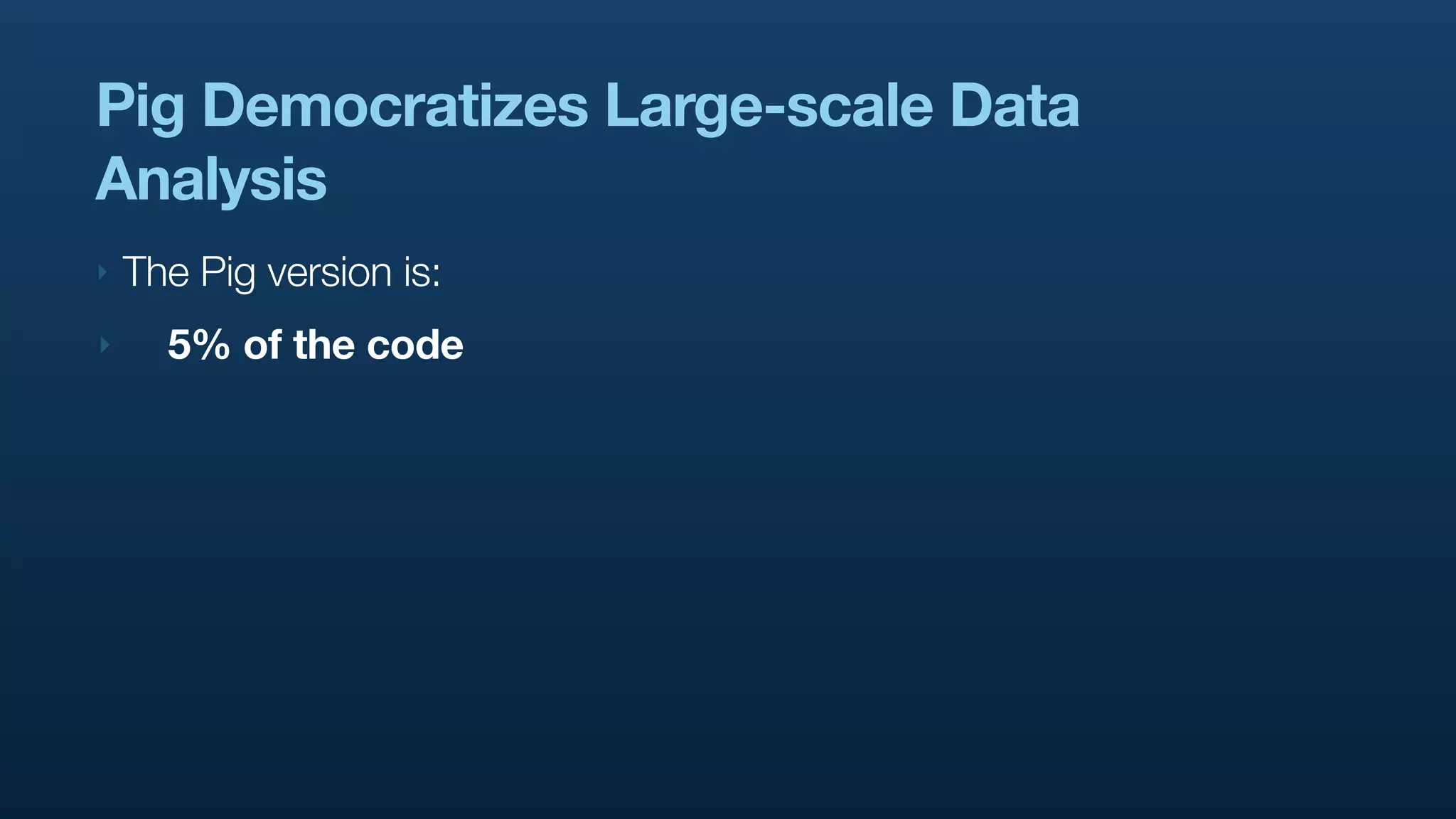

Pig Democratizes Large-scale Data
Analysis
‣   The Pig version is:
‣     5% of the code
‣     5% of the time

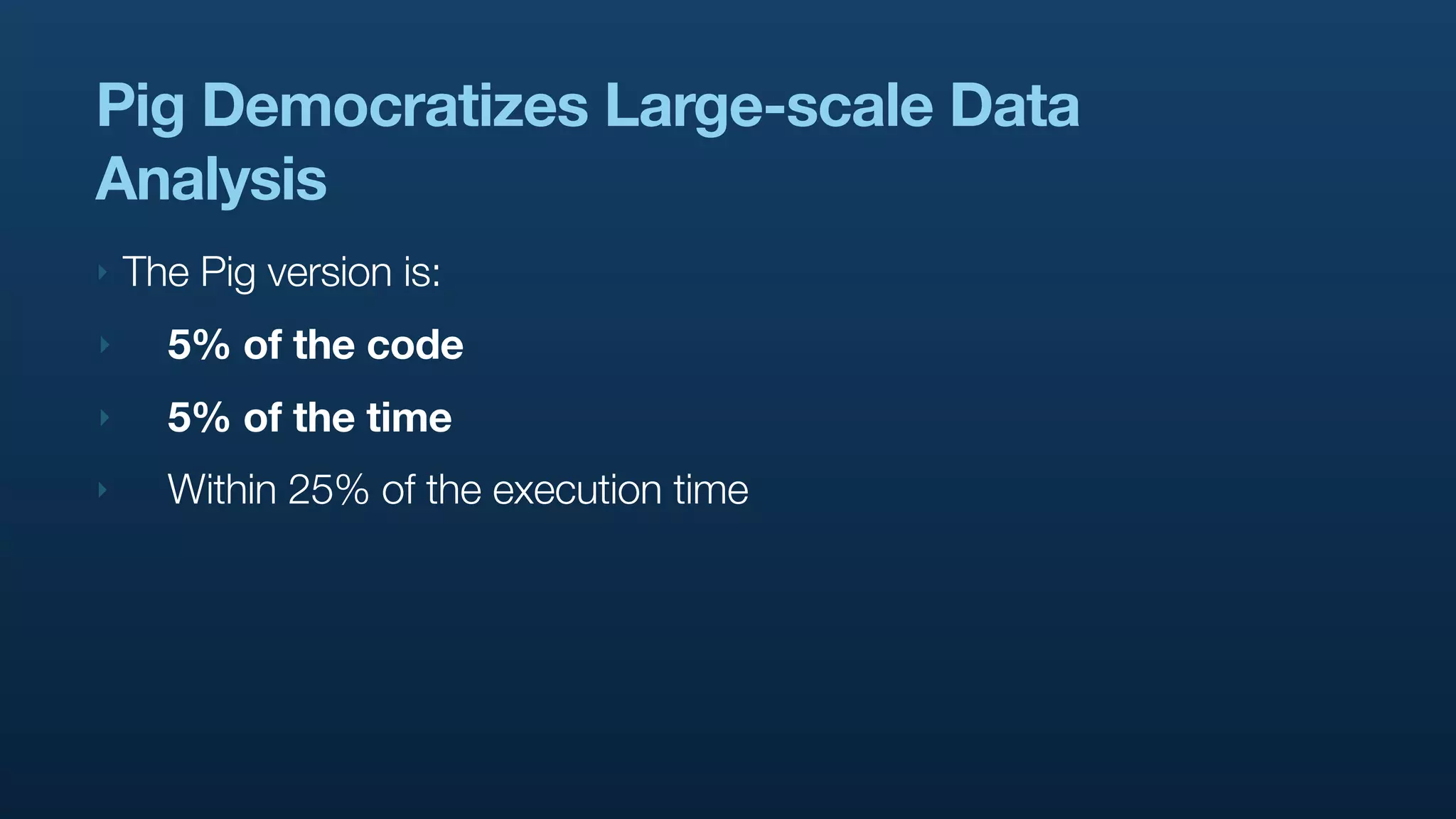

Pig Democratizes Large-scale Data
Analysis
‣   The Pig version is:
‣     5% of the code
‣     5% of the time
‣     Within 25% of the execution time

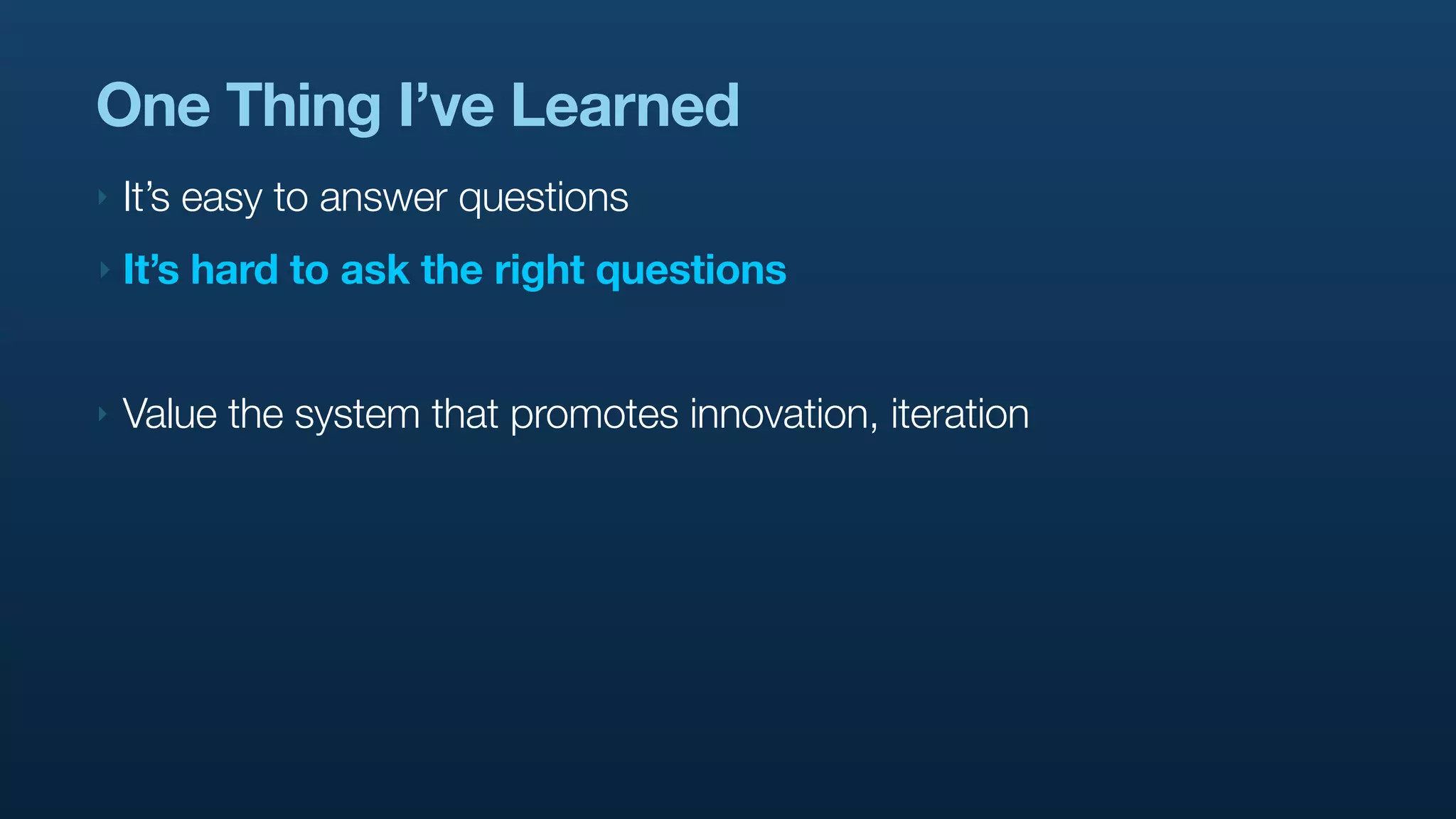

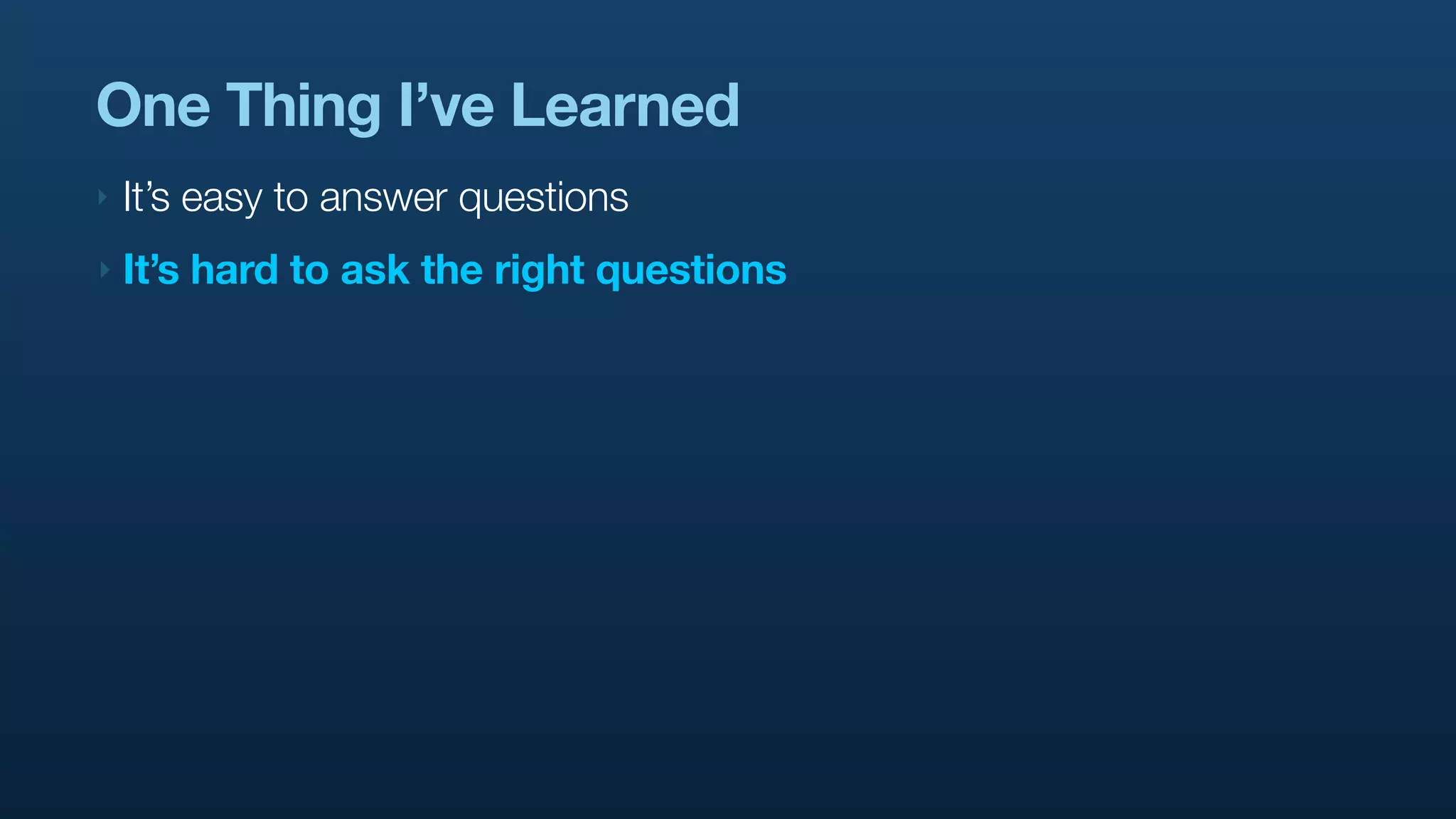

One Thing I’ve Learned
‣   It’s easy to answer questions
‣   It’s hard to ask the right questions
One Thing I’ve Learned
‣   It’s easy to answer questions
‣   It’s hard to ask the right questions


‣   Value the system that promotes innovation, iteration

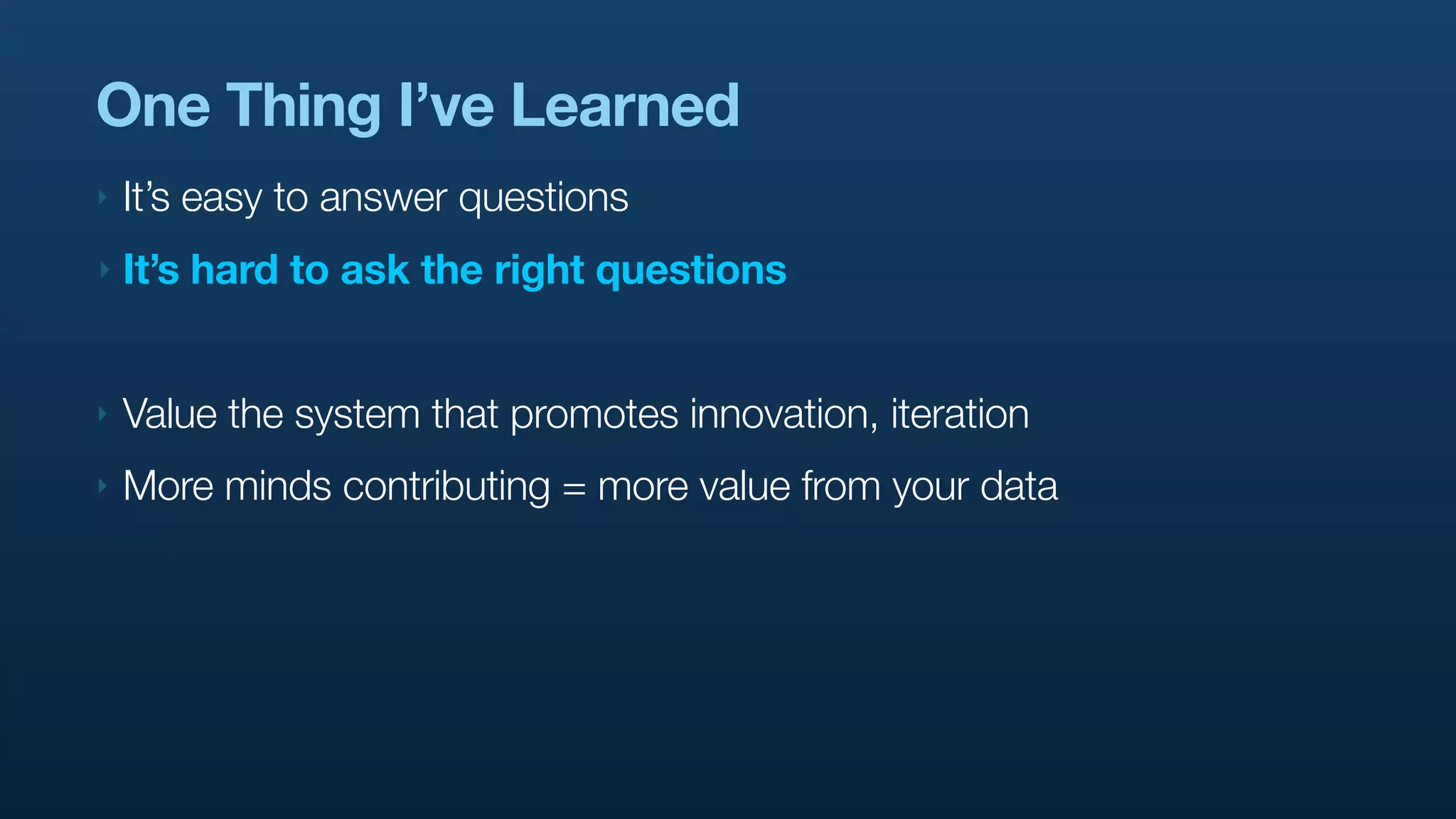

One Thing I’ve Learned
‣   It’s easy to answer questions
‣   It’s hard to ask the right questions


‣   Value the system that promotes innovation, iteration
‣   More minds contributing = more value from your data

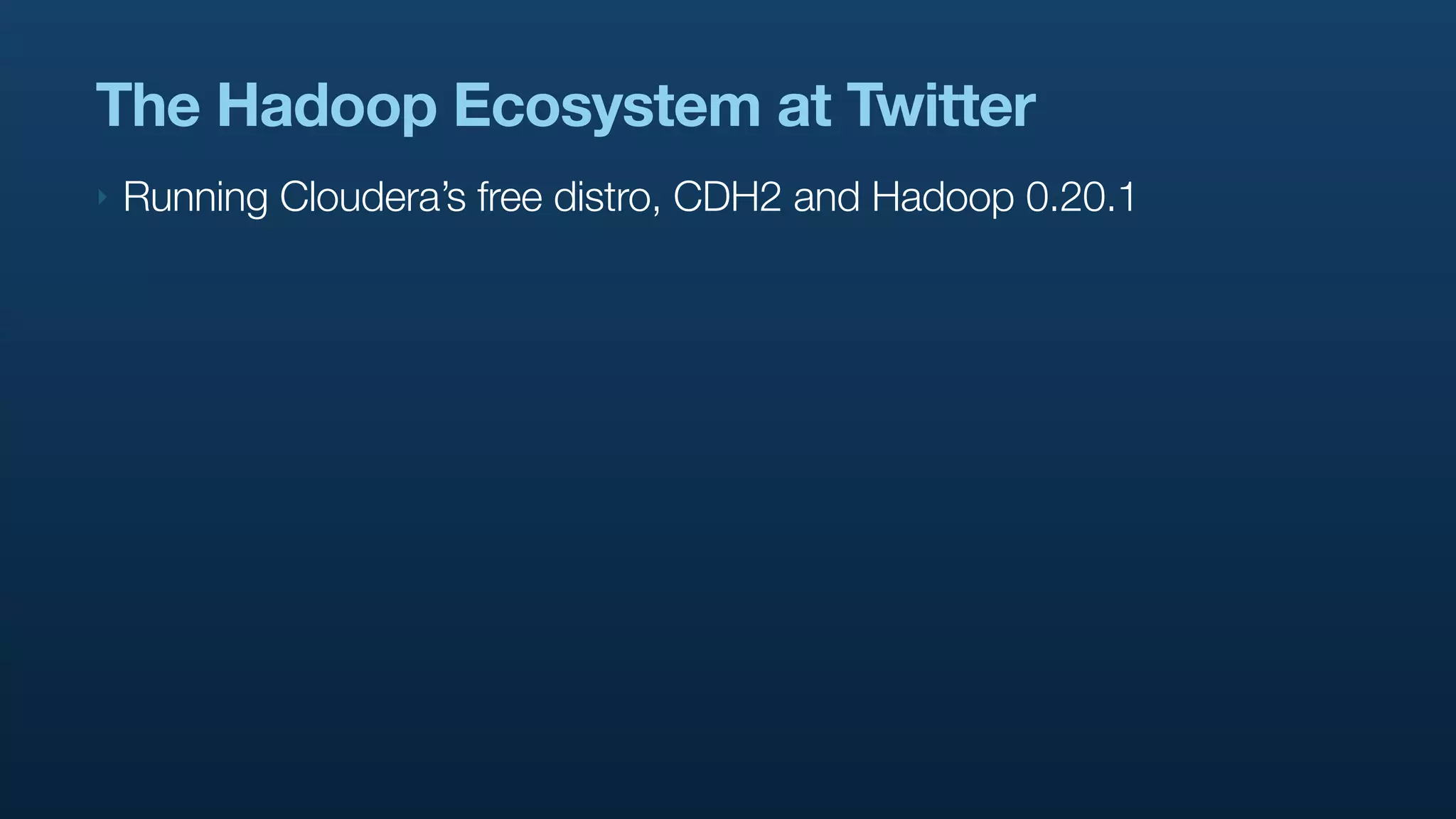

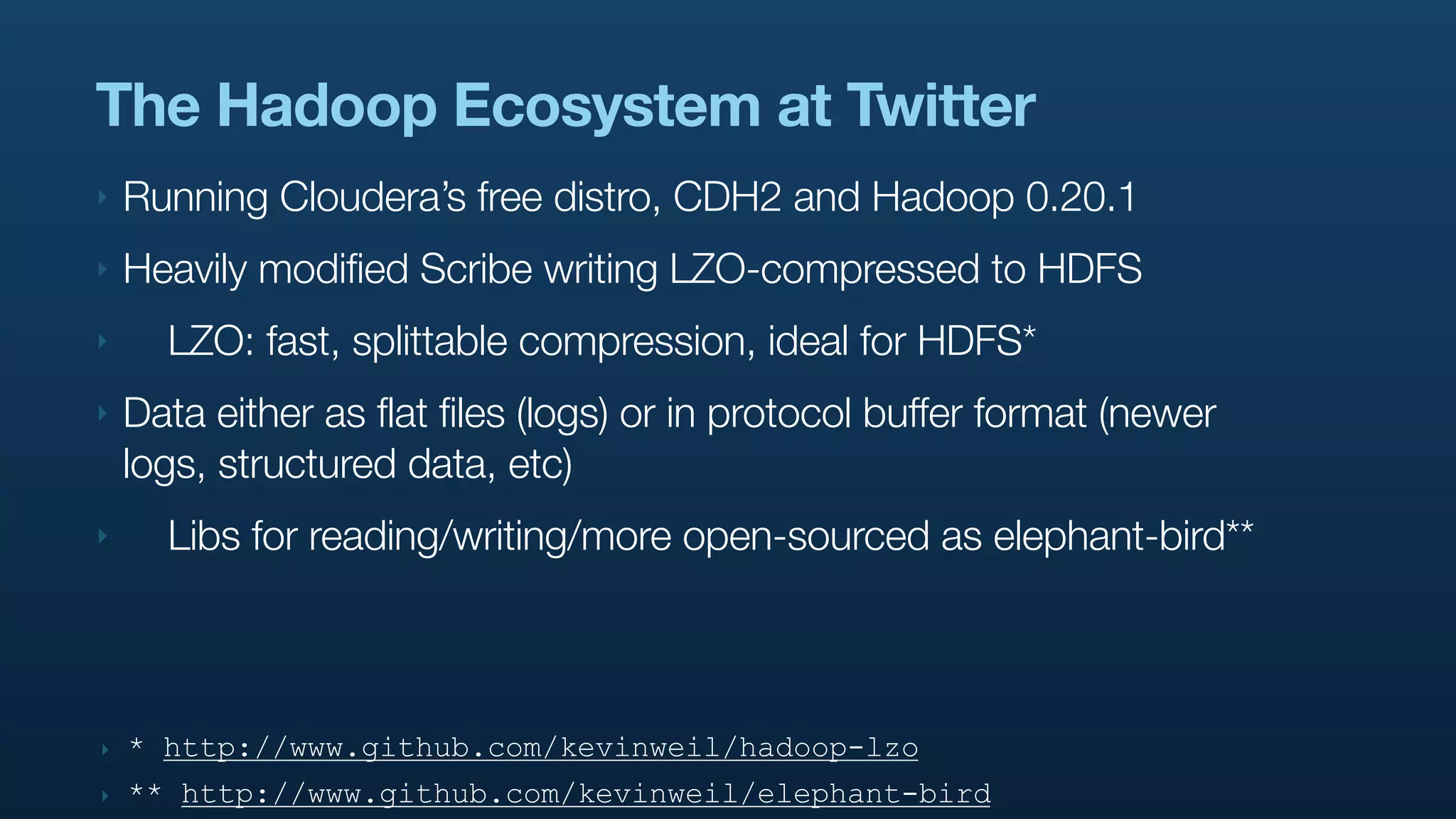

The Hadoop Ecosystem at Twitter
‣   Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1

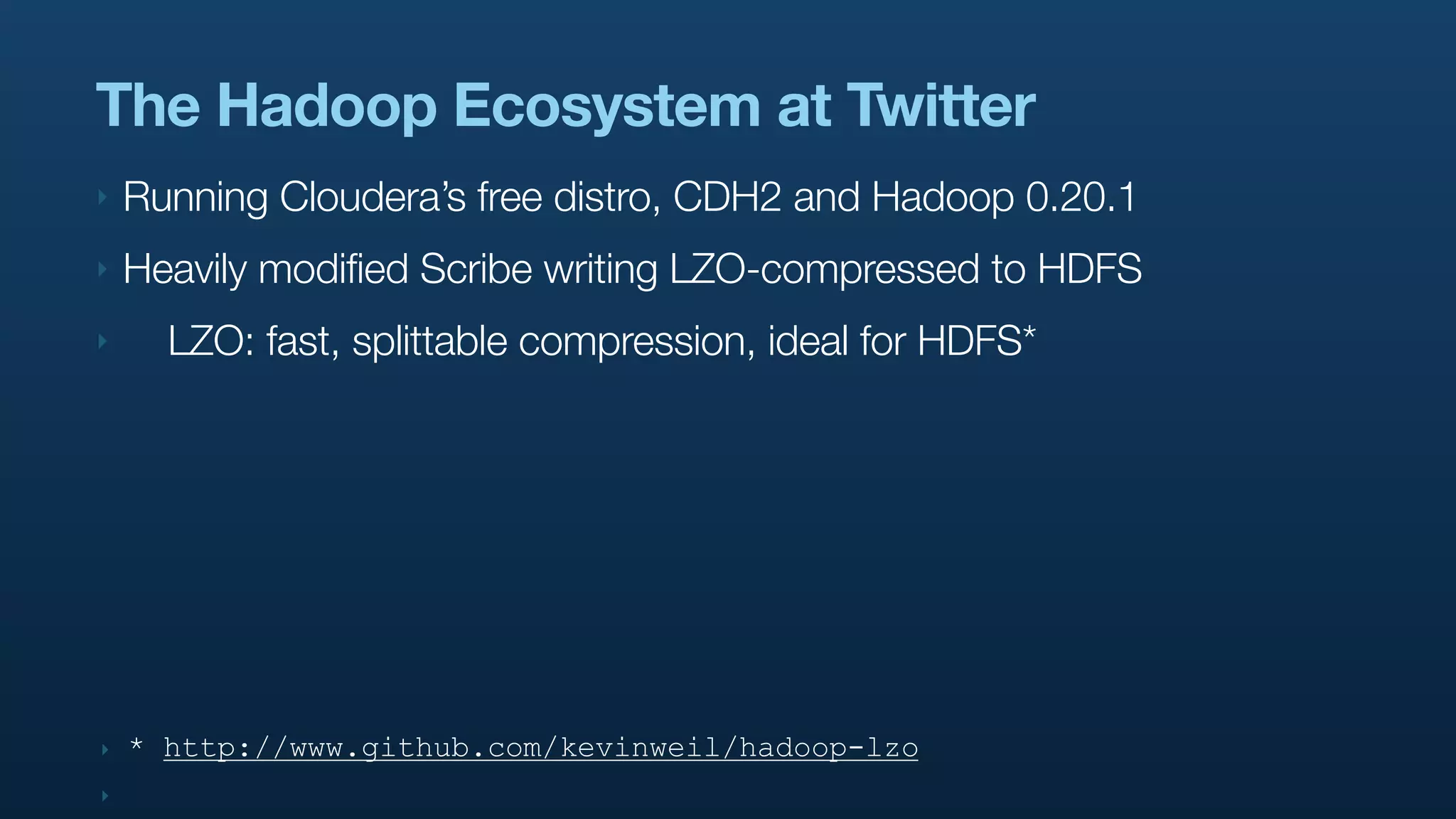

The Hadoop Ecosystem at Twitter
‣   Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1
‣   Heavily modified Scribe writing LZO-compressed to HDFS
‣     LZO: fast, splittable compression, ideal for HDFS*




‣   * http://www.github.com/kevinweil/hadoop-lzo
‣
The Hadoop Ecosystem at Twitter
‣   Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1
‣   Heavily modified Scribe writing LZO-compressed to HDFS
‣     LZO: fast, splittable compression, ideal for HDFS*
‣   Data either as flat files (logs) or in protocol buffer format (newer
    logs, structured data, etc)
‣     Libs for reading/writing/more open-sourced as elephant-bird**



‣   * http://www.github.com/kevinweil/hadoop-lzo
‣   ** http://www.github.com/kevinweil/elephant-bird

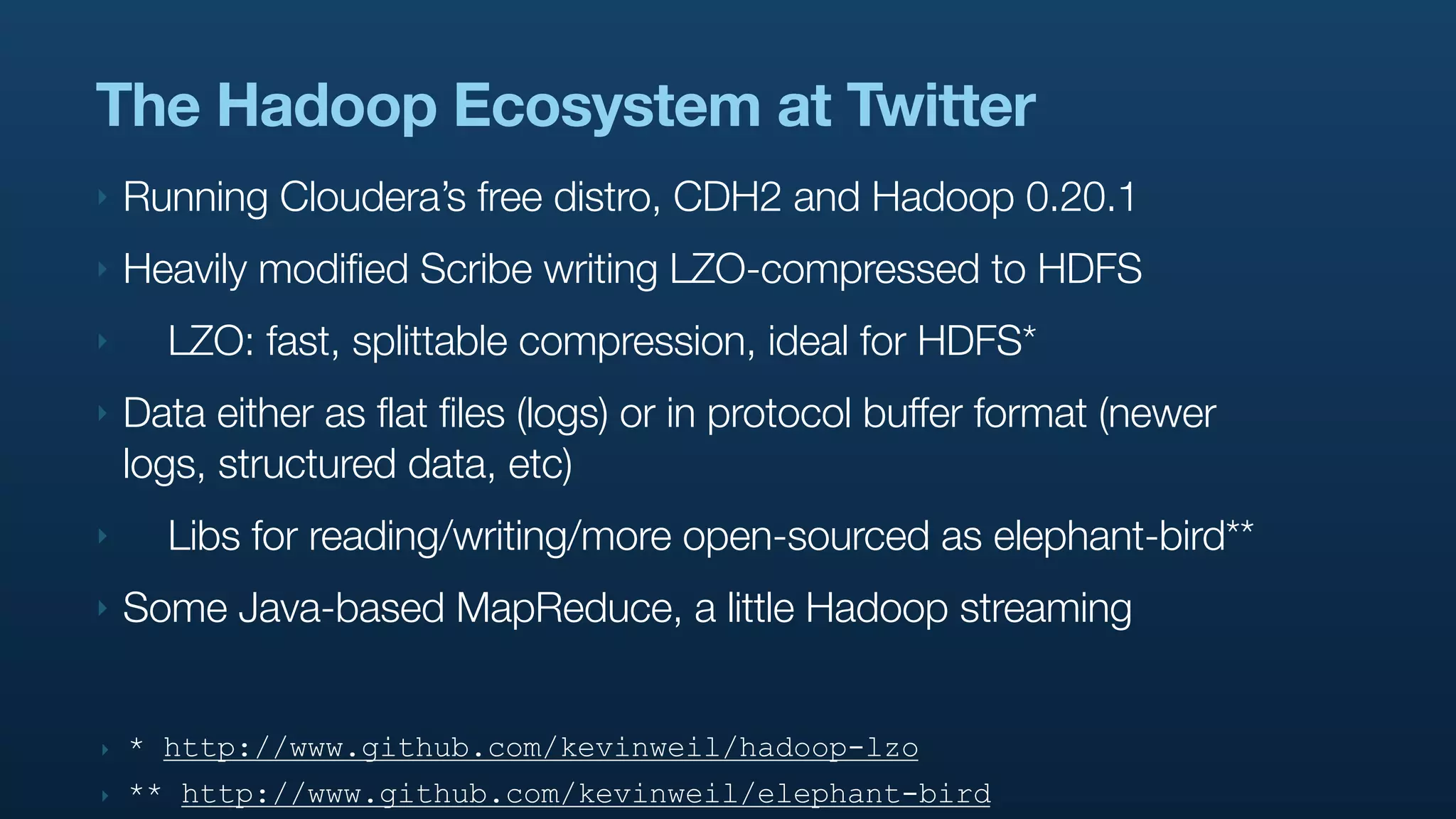

The Hadoop Ecosystem at Twitter
‣   Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1
‣   Heavily modified Scribe writing LZO-compressed to HDFS
‣     LZO: fast, splittable compression, ideal for HDFS*
‣   Data either as flat files (logs) or in protocol buffer format (newer
    logs, structured data, etc)
‣     Libs for reading/writing/more open-sourced as elephant-bird**
‣   Some Java-based MapReduce, a little Hadoop streaming


‣   * http://www.github.com/kevinweil/hadoop-lzo
‣   ** http://www.github.com/kevinweil/elephant-bird

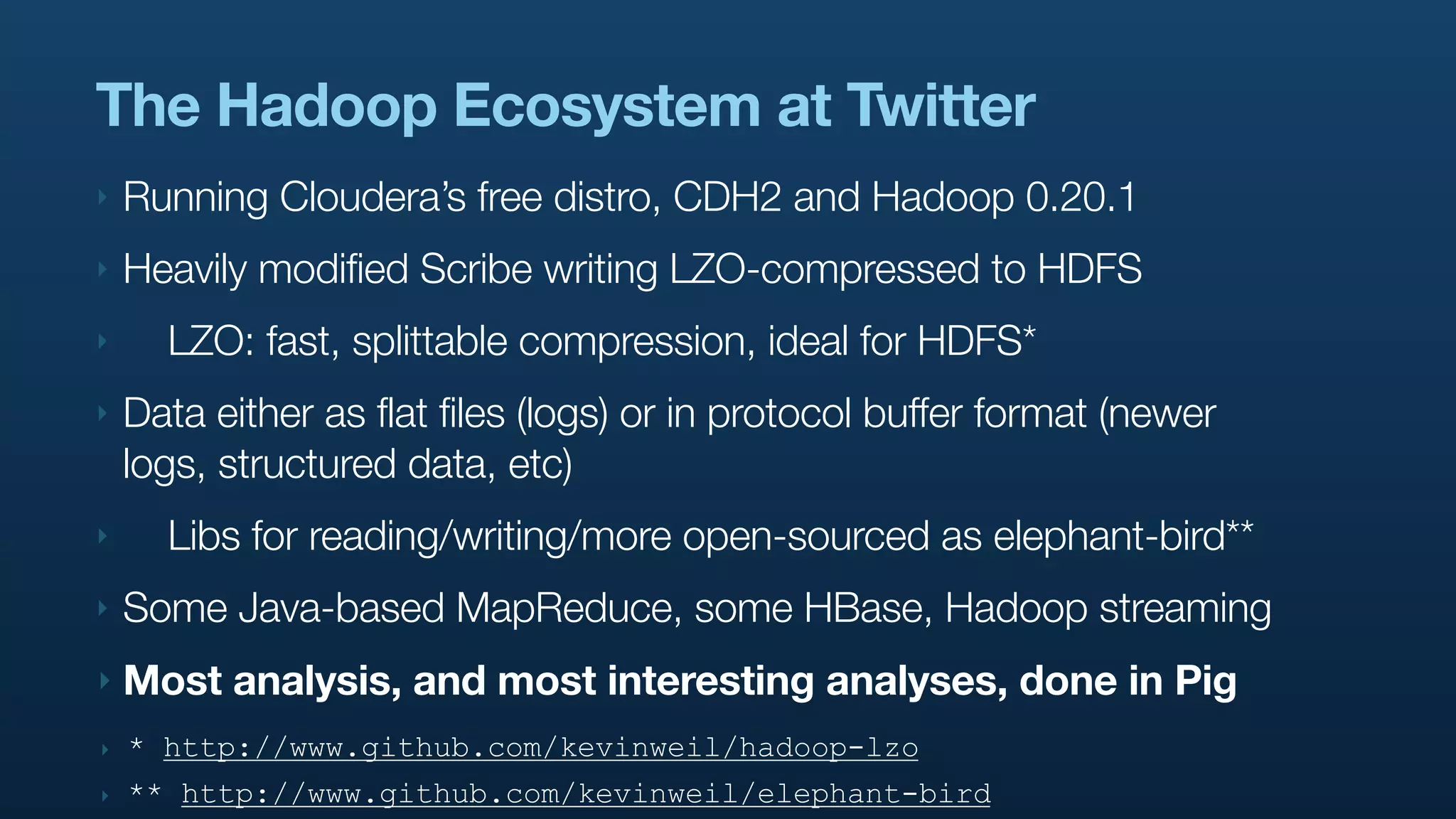

The Hadoop Ecosystem at Twitter
‣   Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1
‣   Heavily modified Scribe writing LZO-compressed to HDFS
‣     LZO: fast, splittable compression, ideal for HDFS*
‣   Data either as flat files (logs) or in protocol buffer format (newer
    logs, structured data, etc)
‣     Libs for reading/writing/more open-sourced as elephant-bird**
‣   Some Java-based MapReduce, some HBase, Hadoop streaming
‣   Most analysis, and most interesting analyses, done in Pig
‣   * http://www.github.com/kevinweil/hadoop-lzo
‣   ** http://www.github.com/kevinweil/elephant-bird

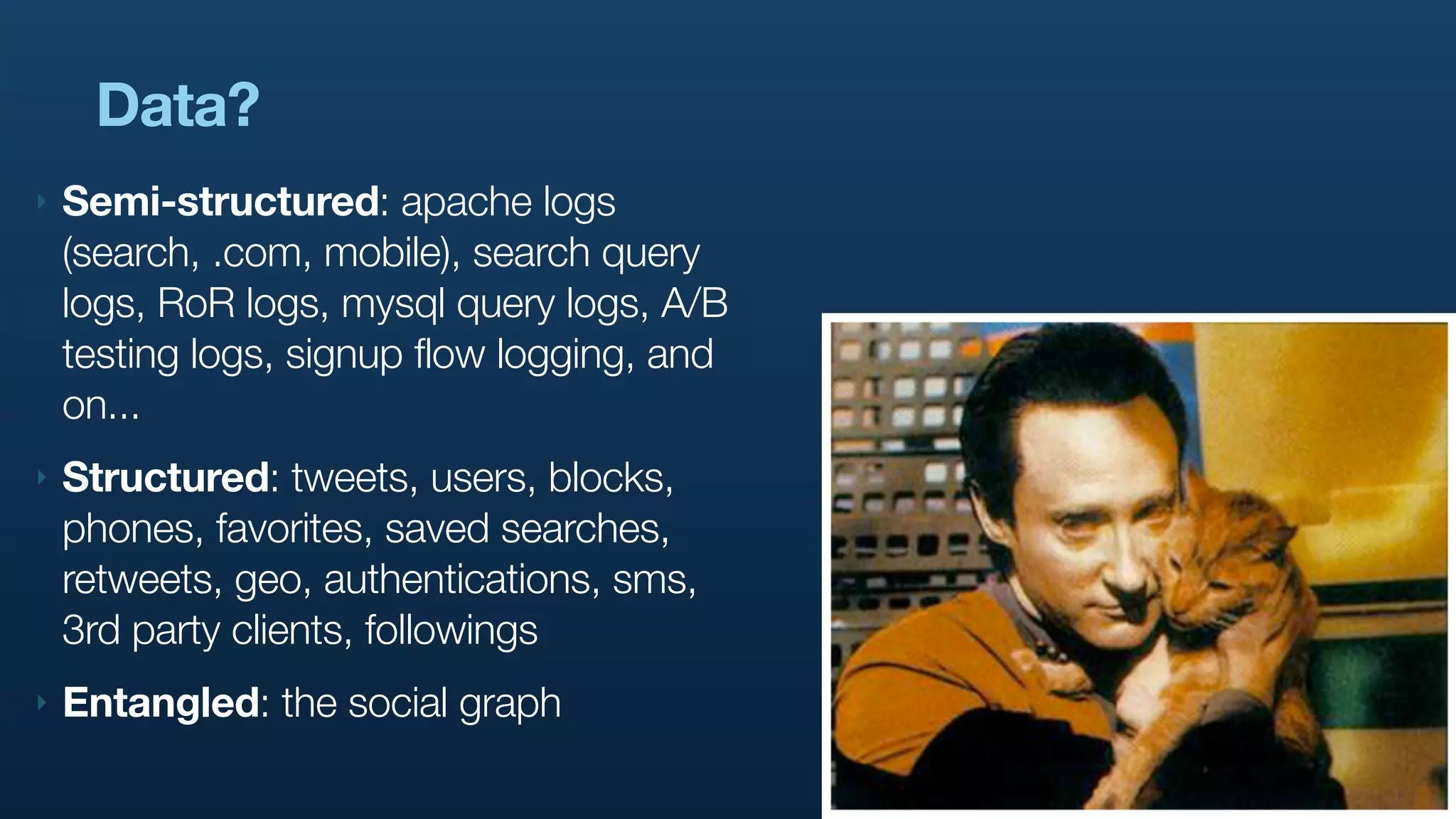

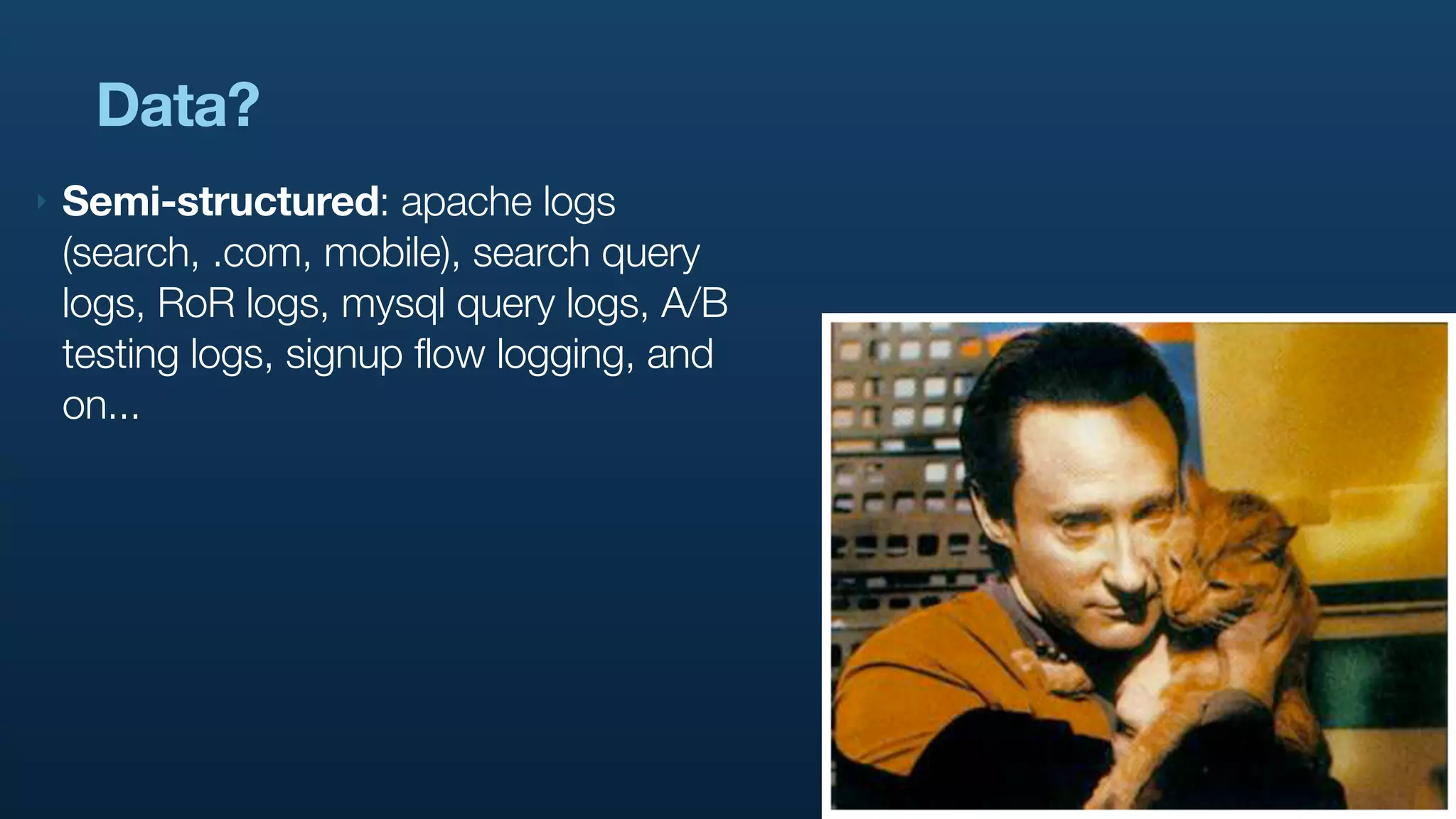

Data?
‣   Semi-structured: apache logs
    (search, .com, mobile), search query
    logs, RoR logs, mysql query logs, A/B
    testing logs, signup flow logging, and
    on...
Data?
‣   Semi-structured: apache logs
    (search, .com, mobile), search query
    logs, RoR logs, mysql query logs, A/B
    testing logs, signup flow logging, and
    on...
‣   Structured: tweets, users, blocks,
    phones, favorites, saved searches,
    retweets, geo, authentications, sms,
    3rd party clients, followings
Data?
‣   Semi-structured: apache logs
    (search, .com, mobile), search query
    logs, RoR logs, mysql query logs, A/B
    testing logs, signup flow logging, and
    on...
‣   Structured: tweets, users, blocks,
    phones, favorites, saved searches,
    retweets, geo, authentications, sms,
    3rd party clients, followings
‣   Entangled: the social graph

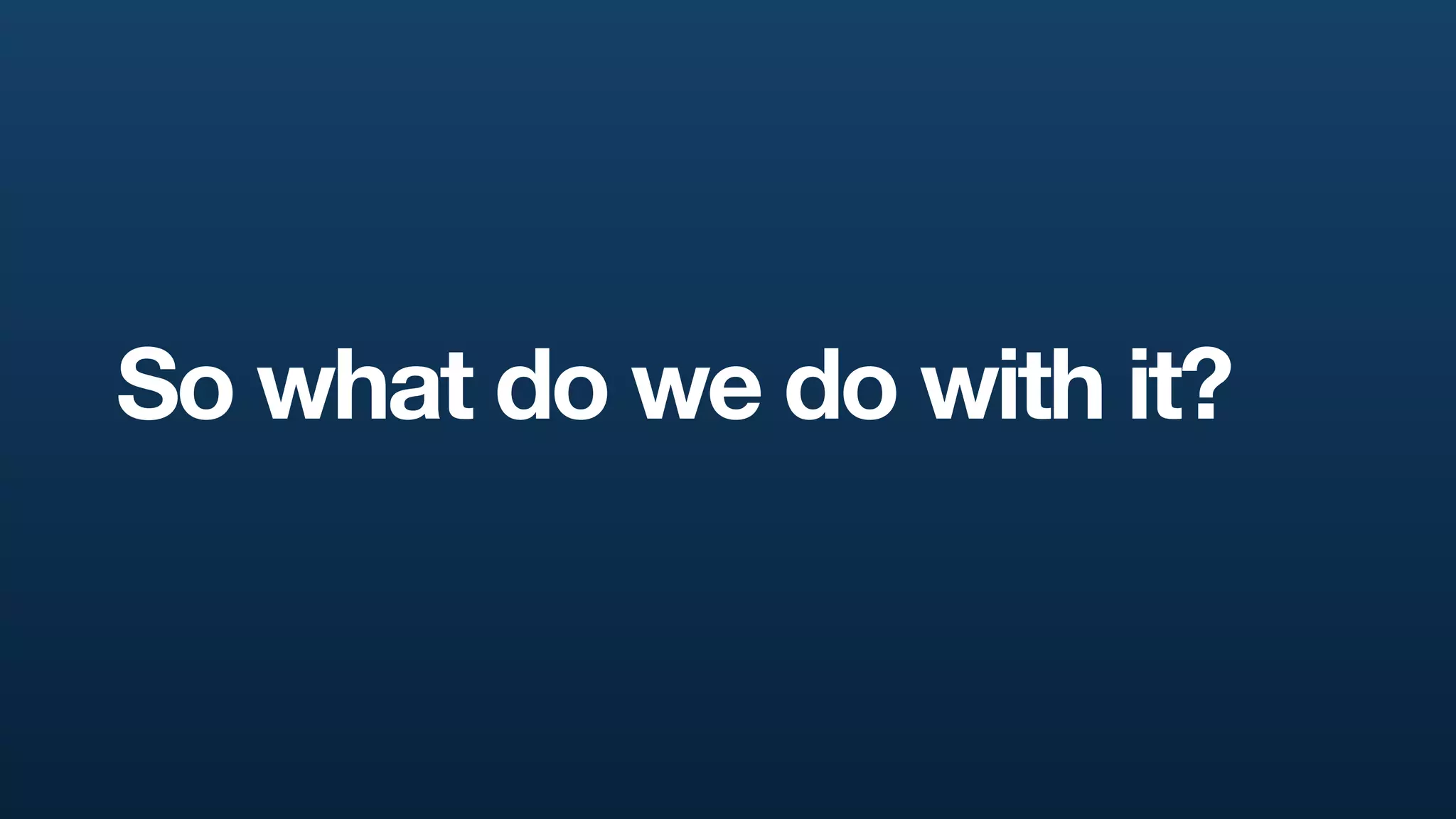

So what do we do with it?

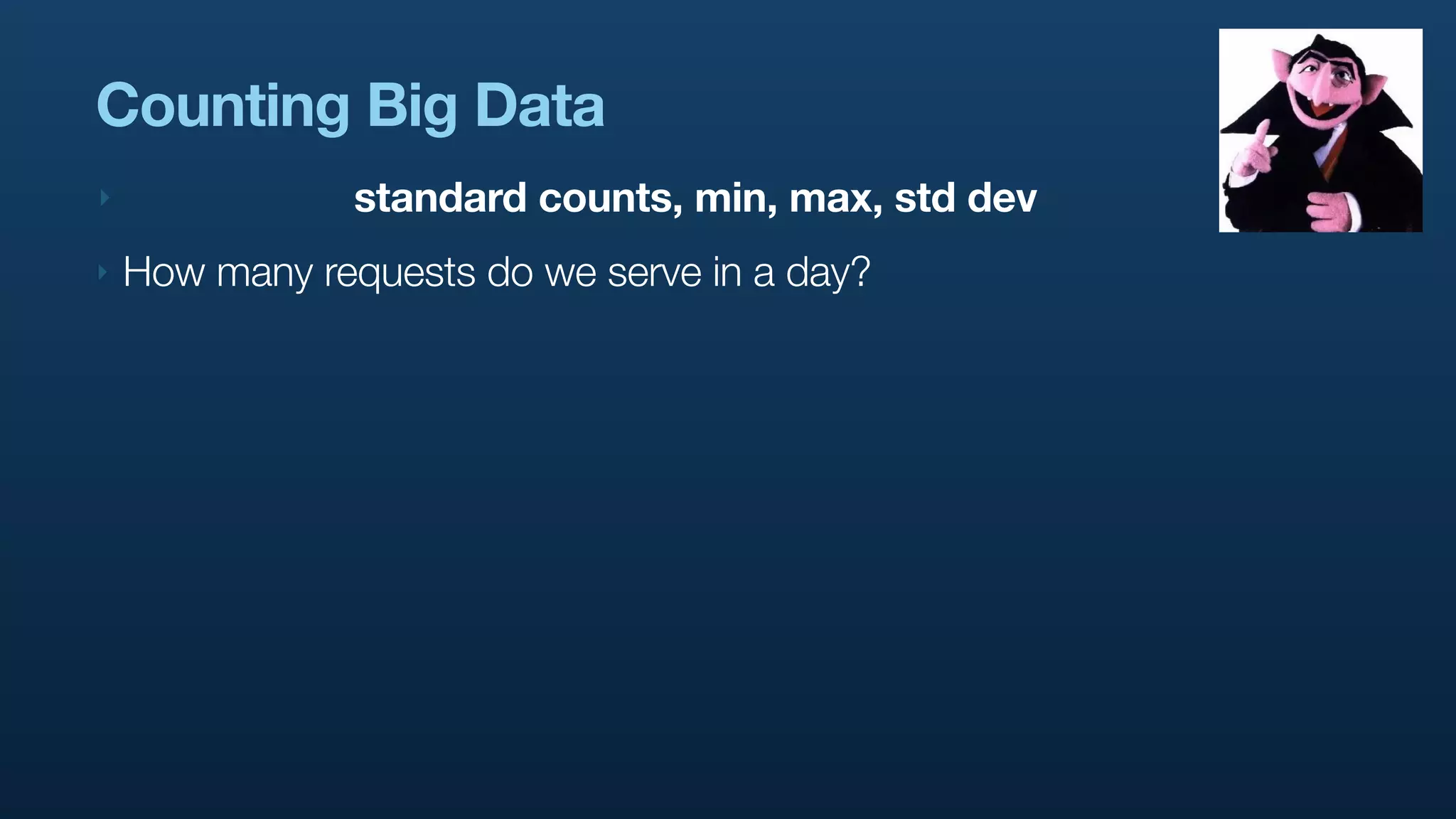

Counting Big Data
‣               standard counts, min, max, std dev
‣   How many requests do we serve in a day?

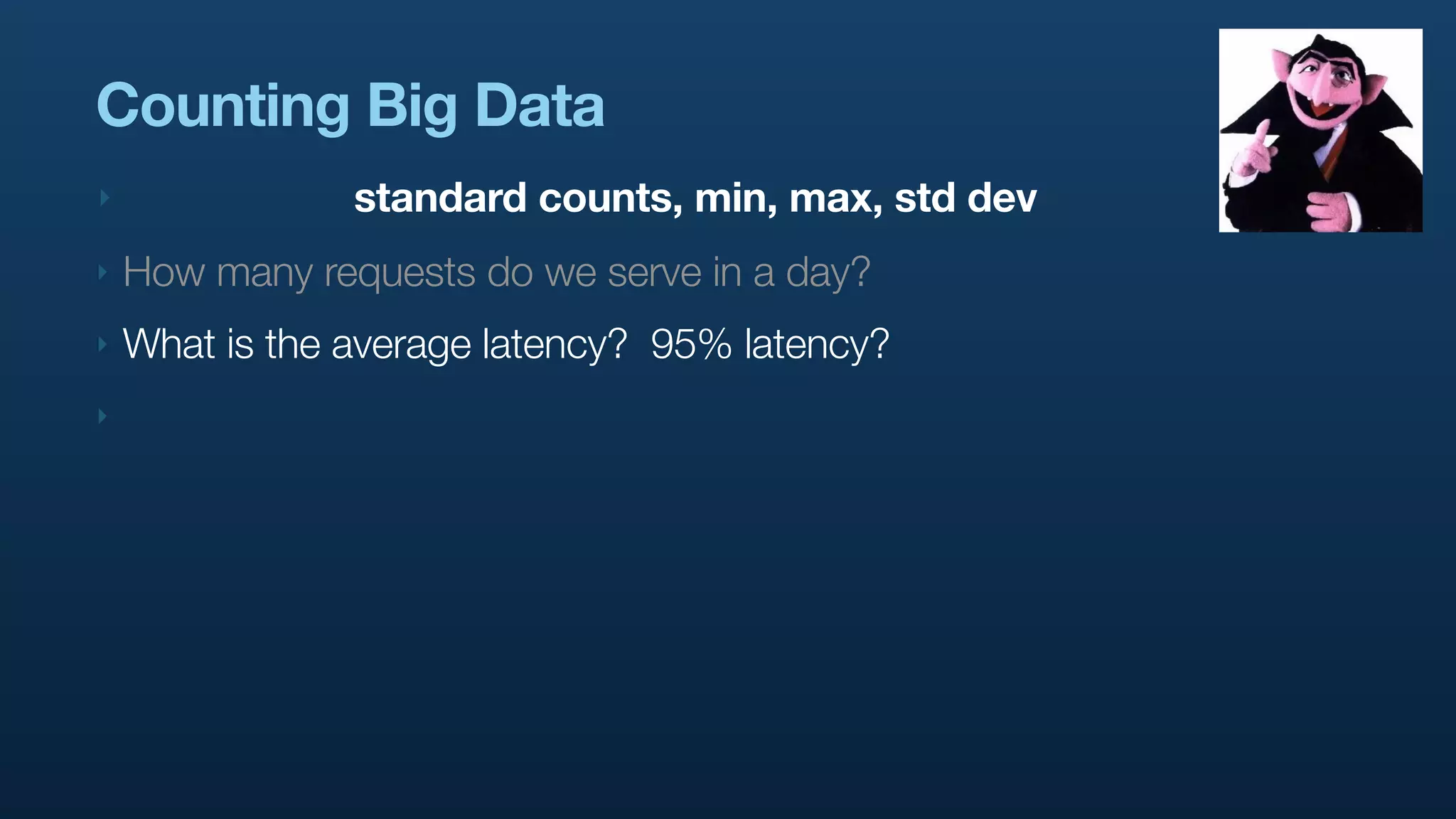

Counting Big Data
‣               standard counts, min, max, std dev
‣   How many requests do we serve in a day?
‣   What is the average latency? 95% latency?
‣

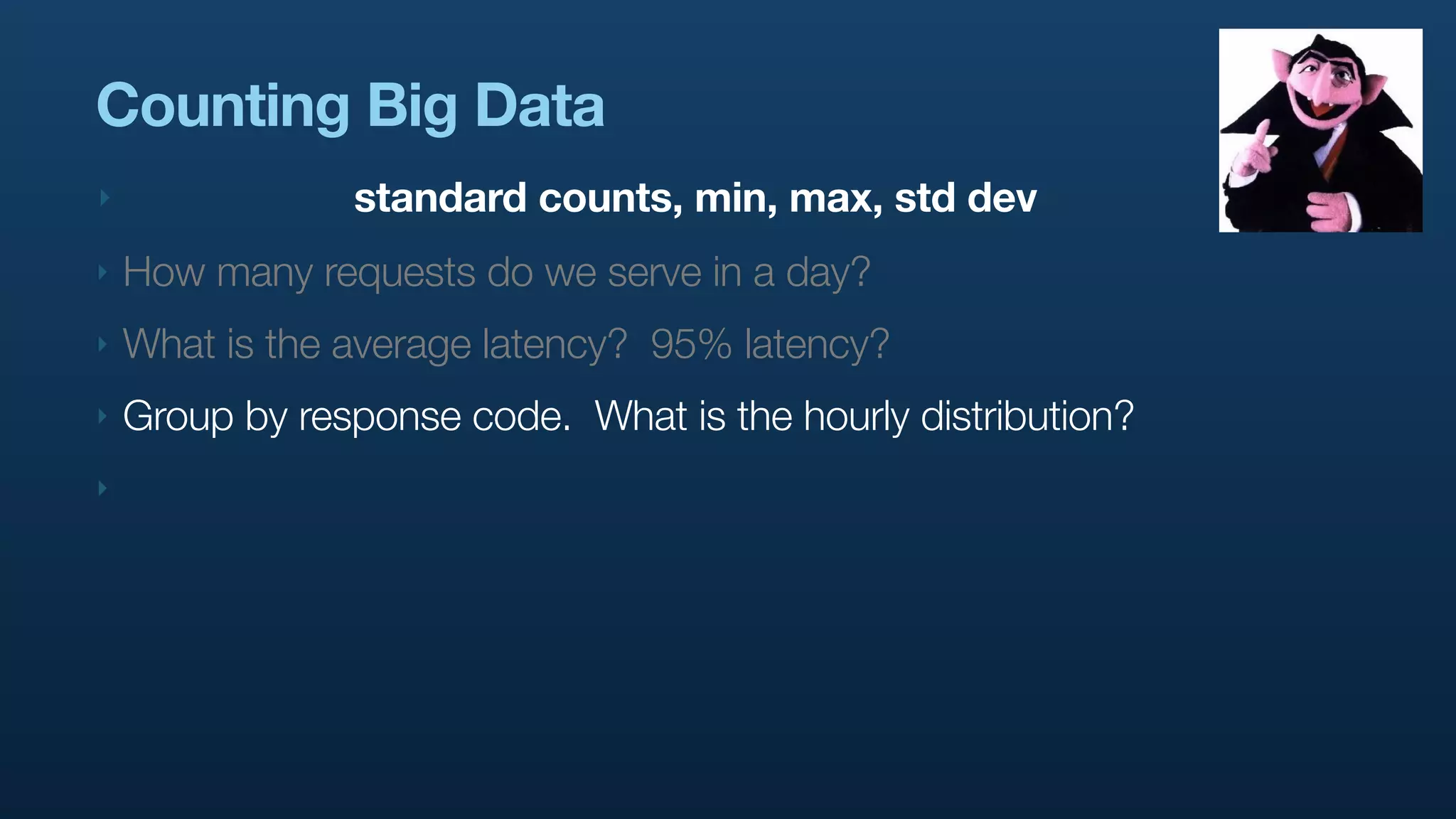

Counting Big Data
‣               standard counts, min, max, std dev
‣   How many requests do we serve in a day?
‣   What is the average latency? 95% latency?
‣   Group by response code. What is the hourly distribution?
‣

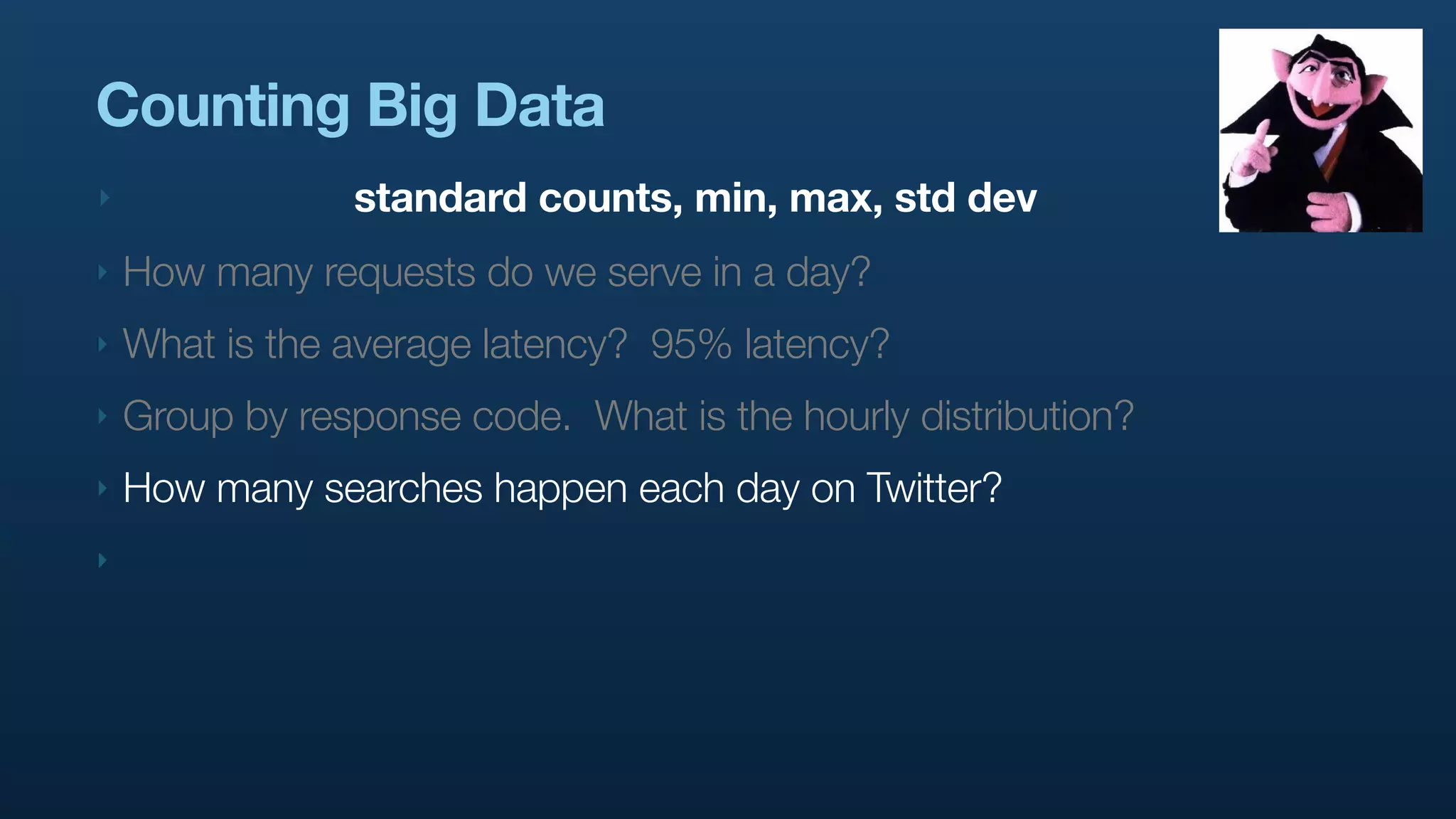

Counting Big Data
‣               standard counts, min, max, std dev
‣   How many requests do we serve in a day?
‣   What is the average latency? 95% latency?
‣   Group by response code. What is the hourly distribution?
‣   How many searches happen each day on Twitter?
‣
Counting Big Data
‣               standard counts, min, max, std dev
‣   How many requests do we serve in a day?
‣   What is the average latency? 95% latency?
‣   Group by response code. What is the hourly distribution?
‣   How many searches happen each day on Twitter?
‣   How many unique queries, how many unique users?
‣

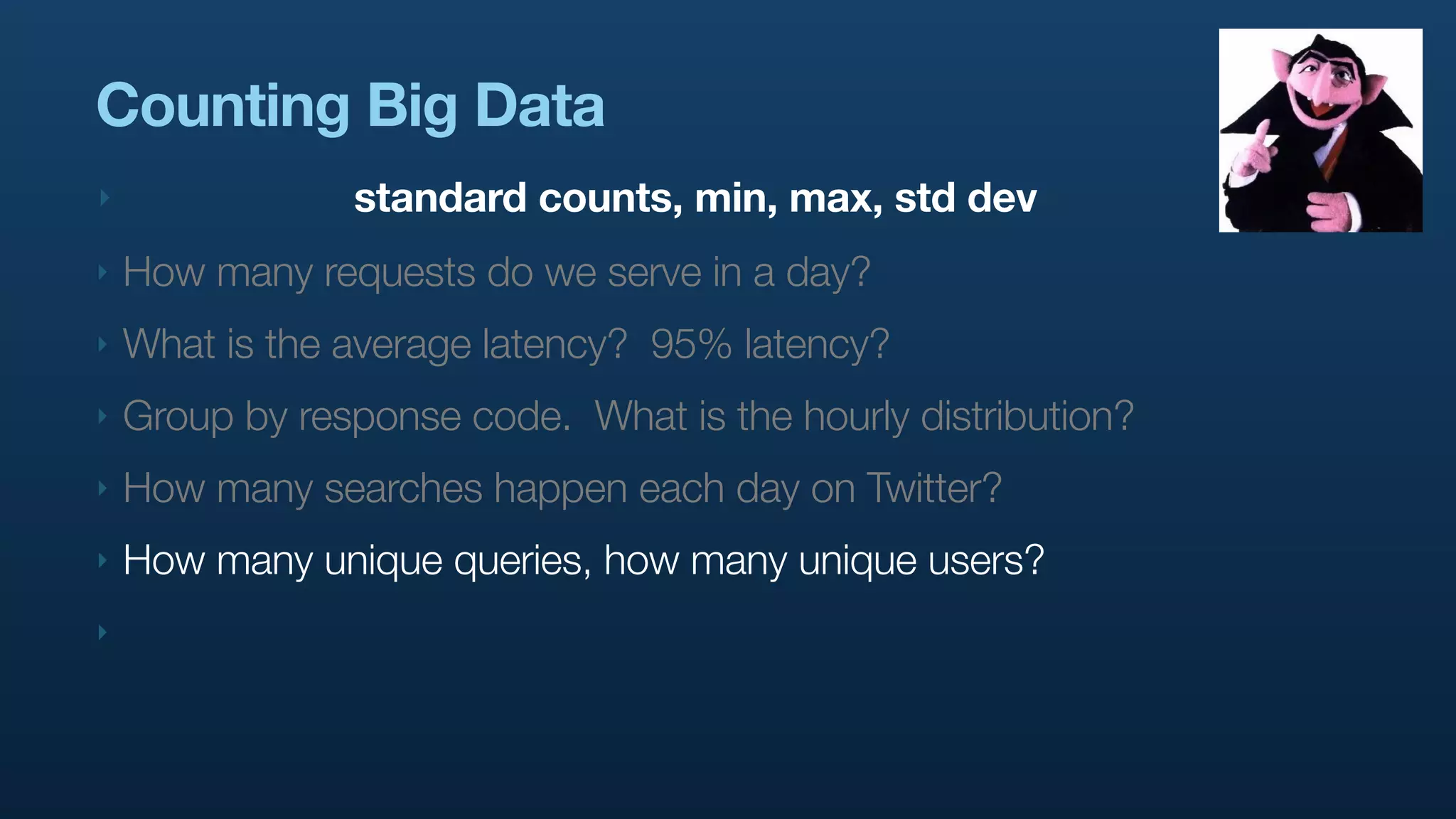

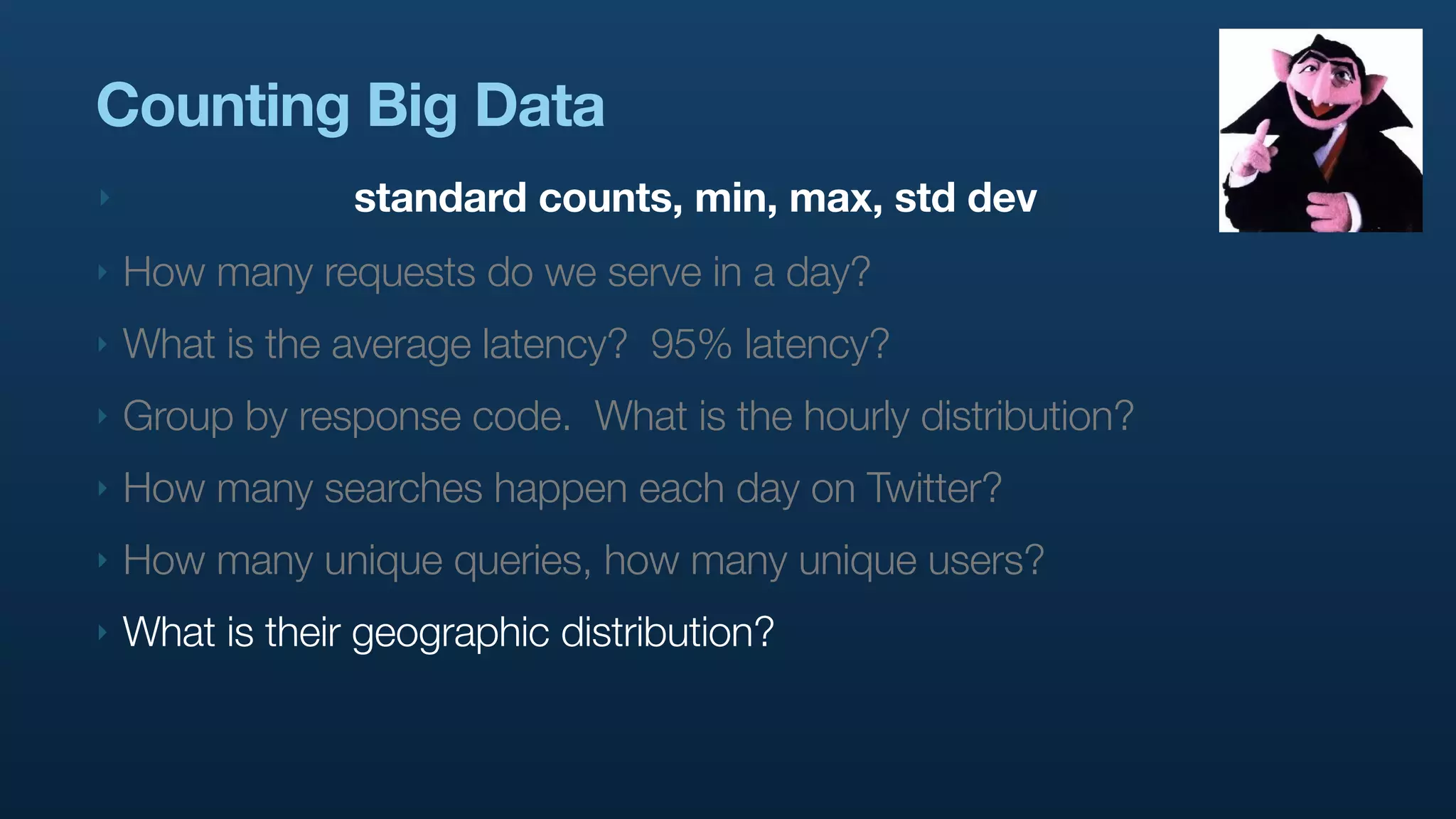

Counting Big Data
‣                standard counts, min, max, std dev
‣   How many requests do we serve in a day?
‣   What is the average latency? 95% latency?
‣   Group by response code. What is the hourly distribution?
‣   How many searches happen each day on Twitter?
‣   How many unique queries, how many unique users?
‣   What is their geographic distribution?

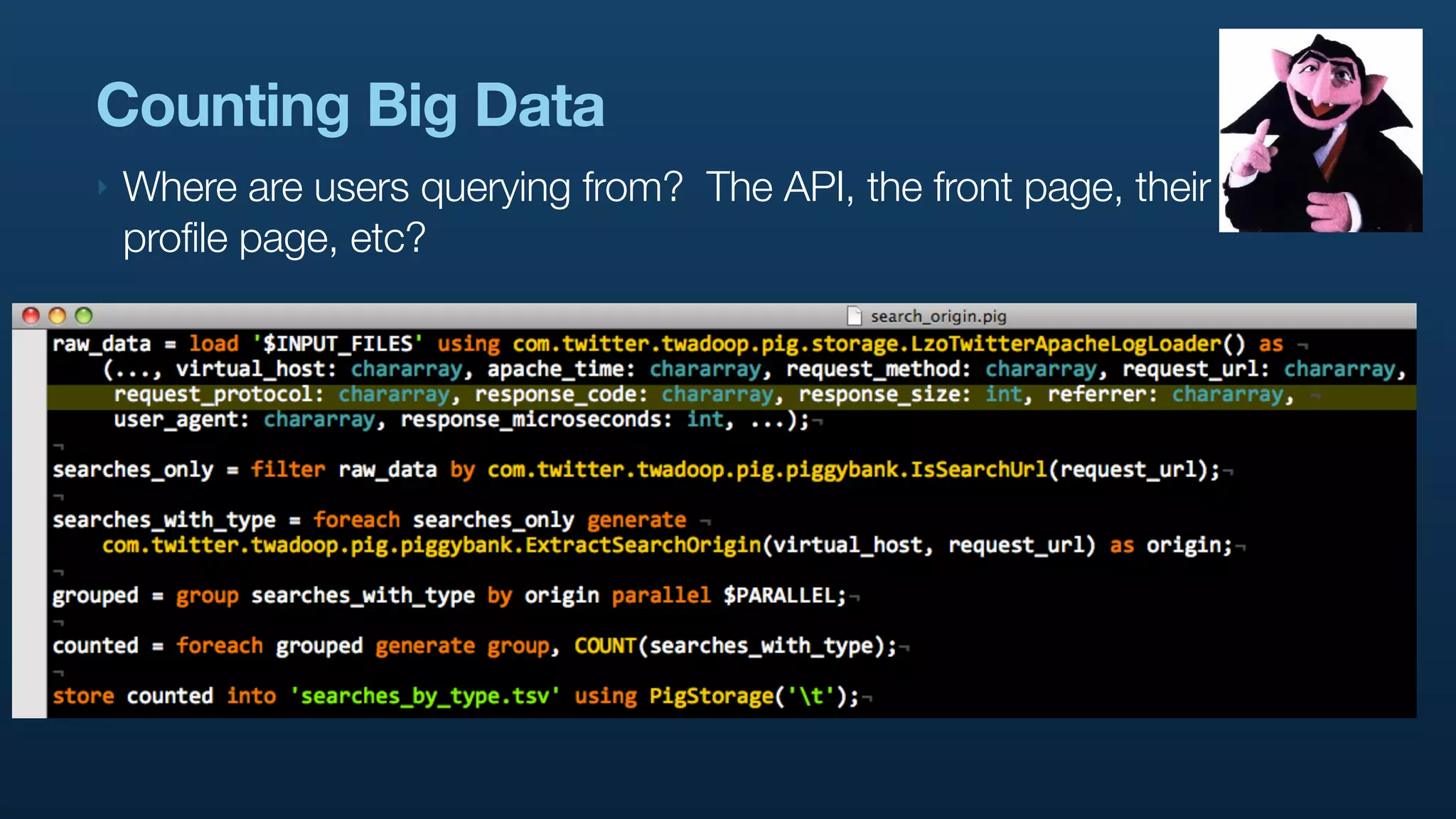

Counting Big Data
‣   Where are users querying from? The API, the front page, their
    profile page, etc?
‣

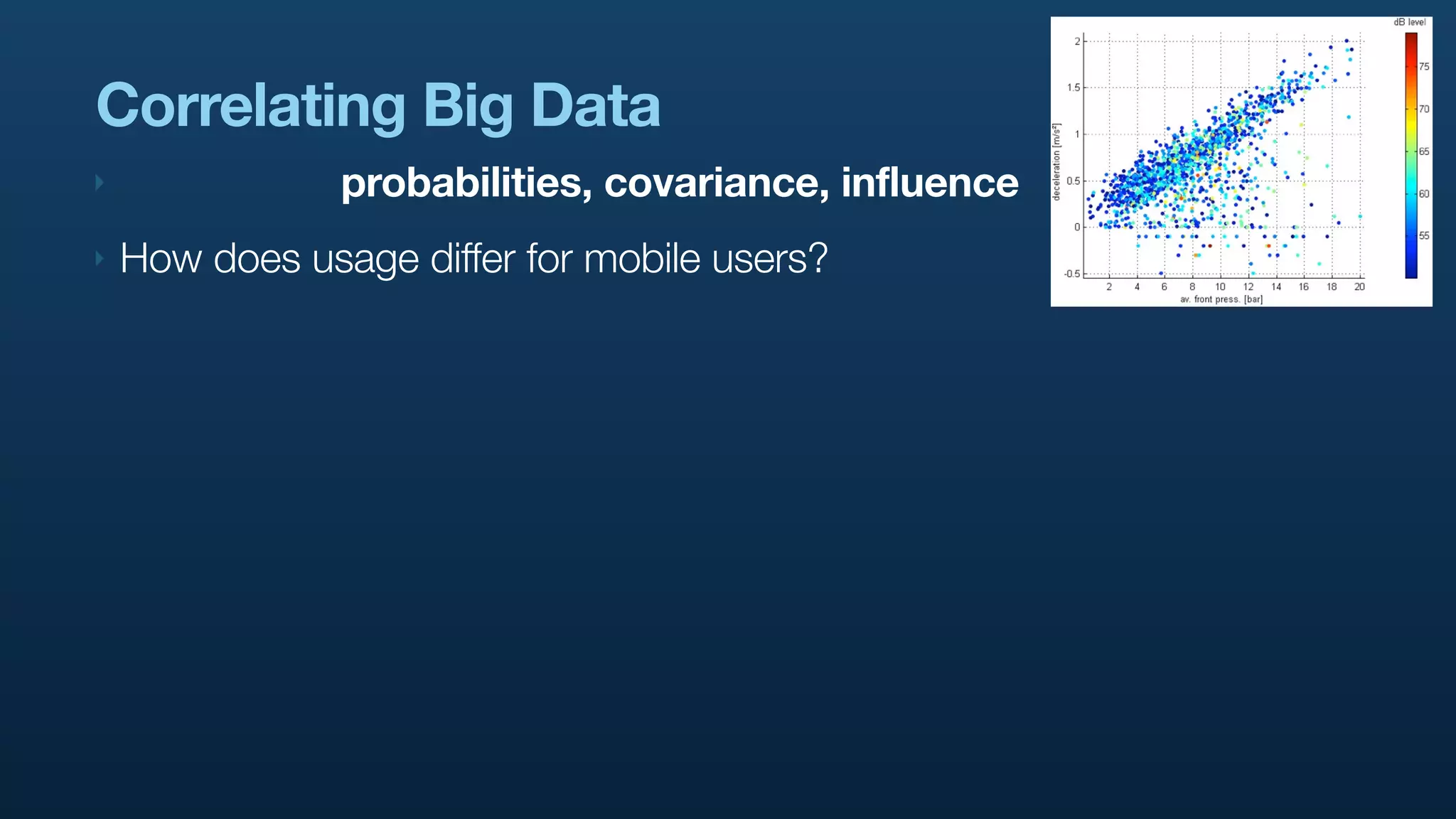

Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?

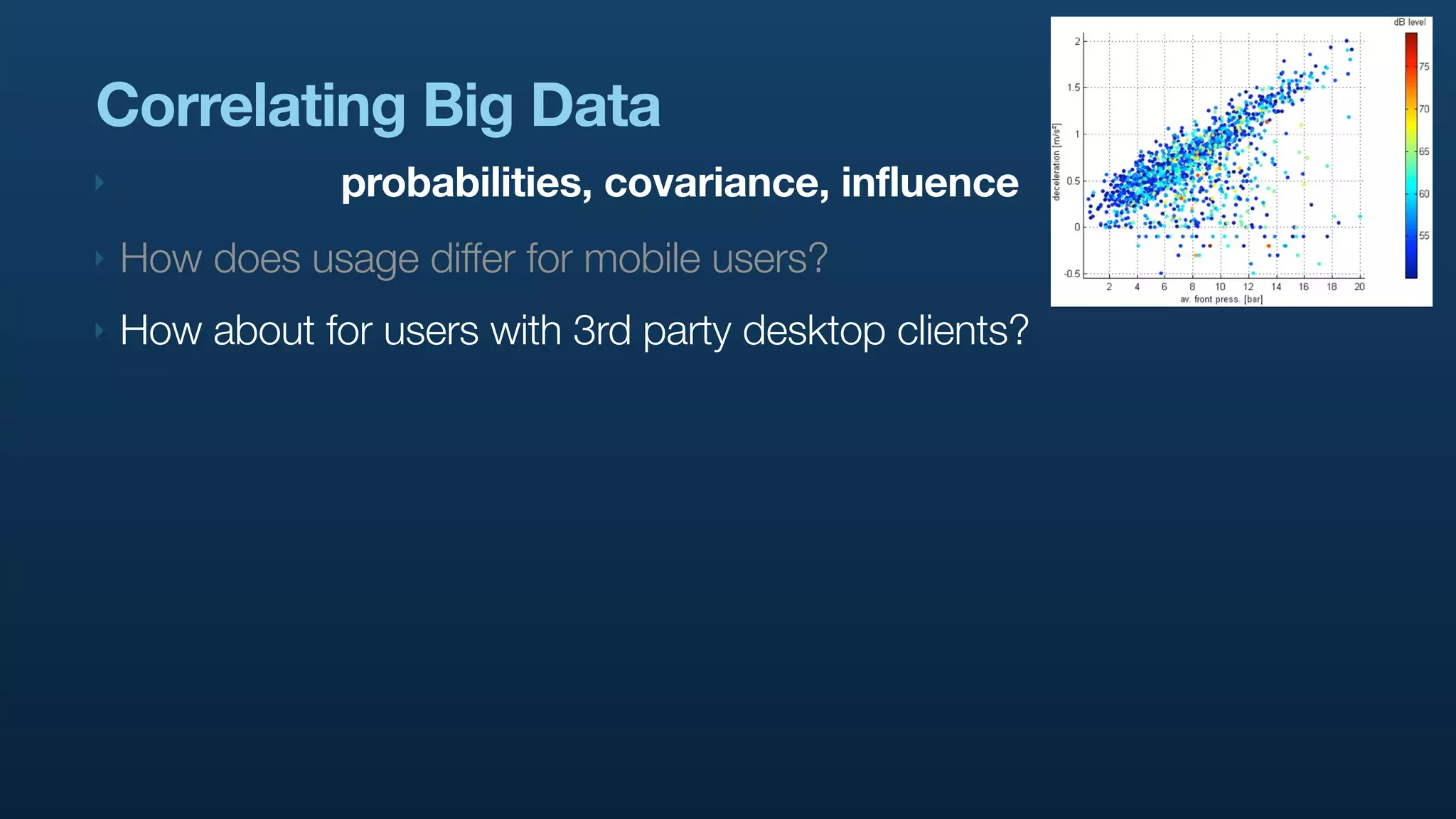

Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses

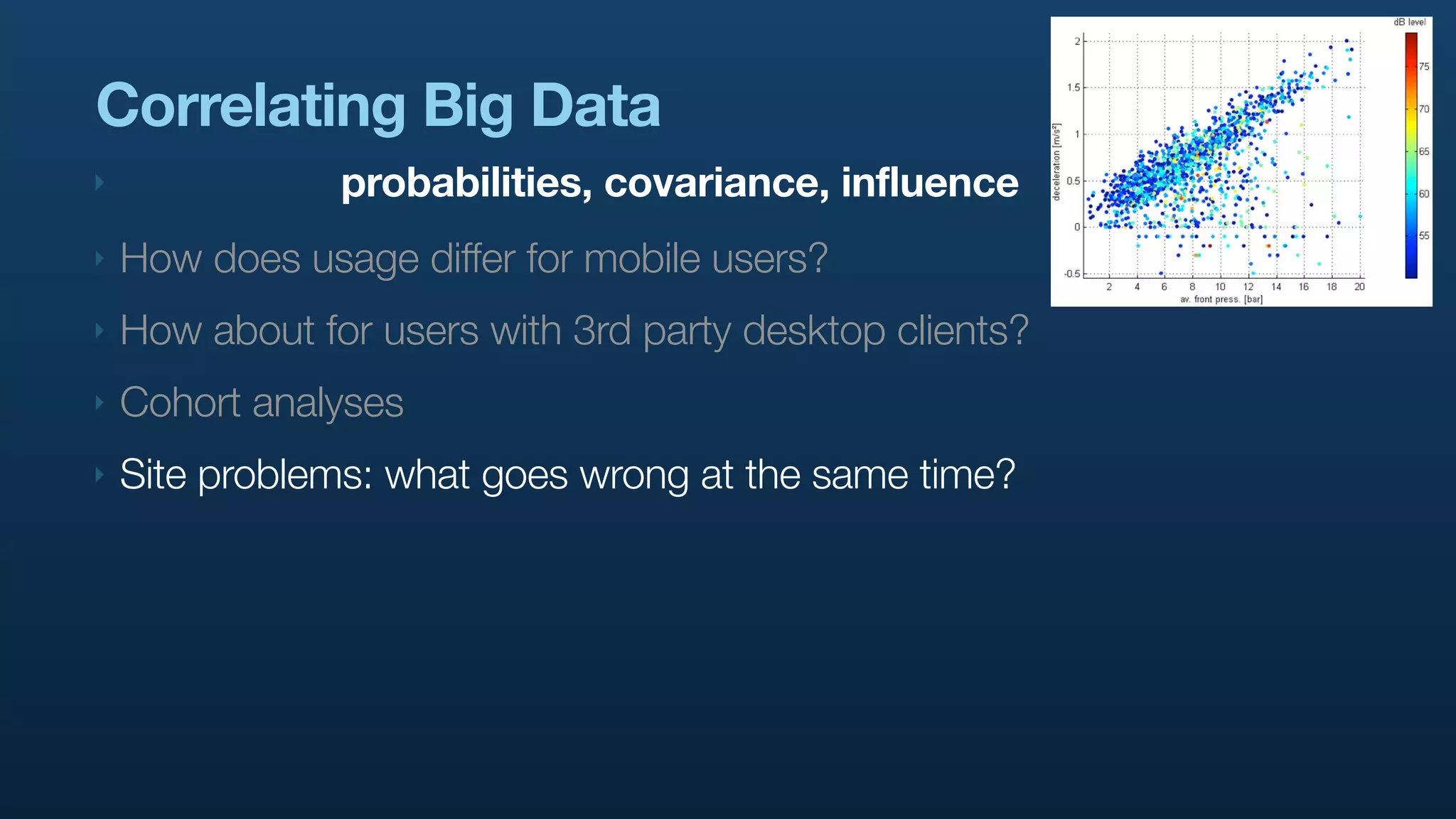

Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses
‣   Site problems: what goes wrong at the same time?
Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses
‣   Site problems: what goes wrong at the same time?
‣   Which features get users hooked?

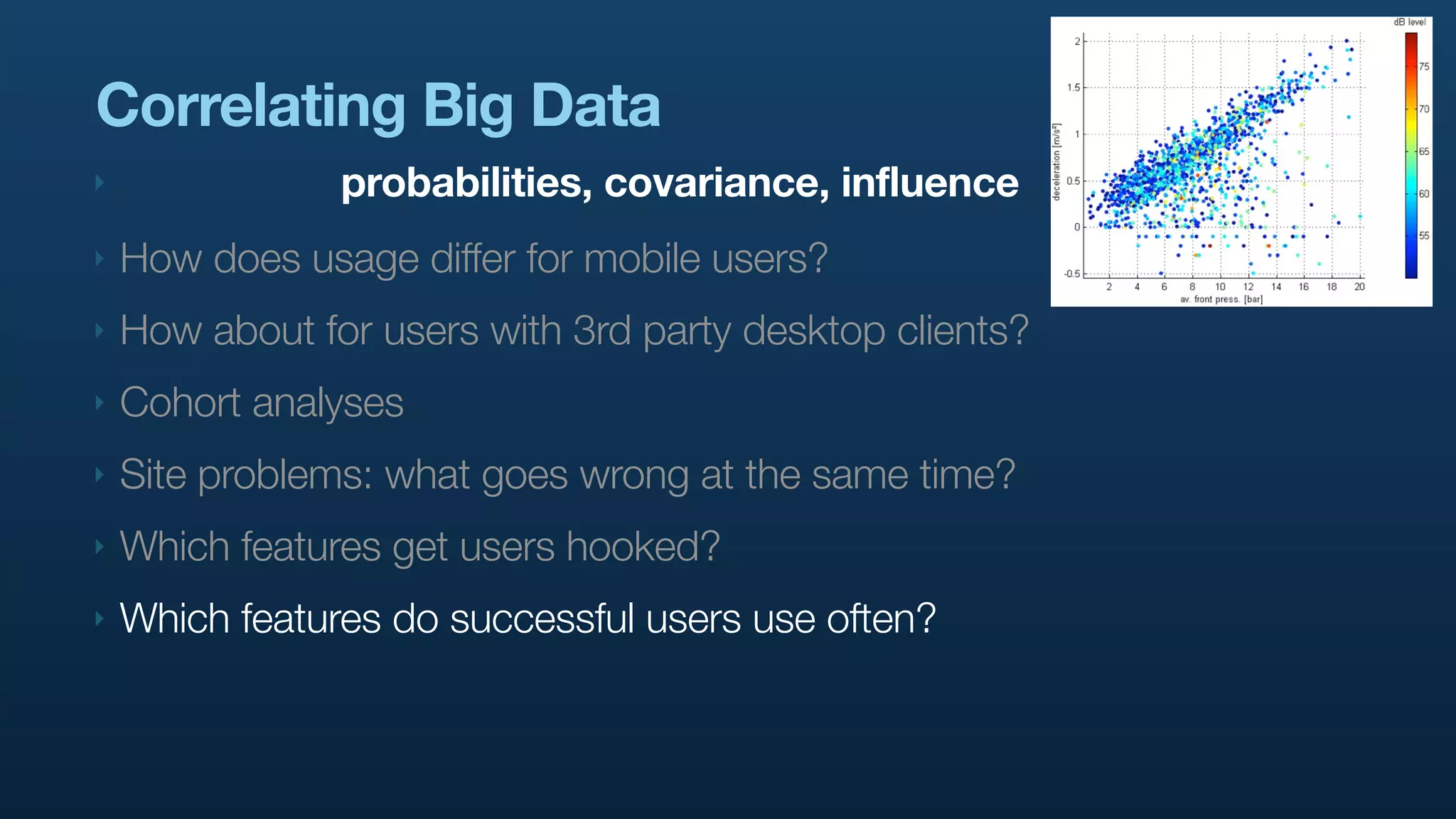

Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses
‣   Site problems: what goes wrong at the same time?
‣   Which features get users hooked?
‣   Which features do successful users use often?

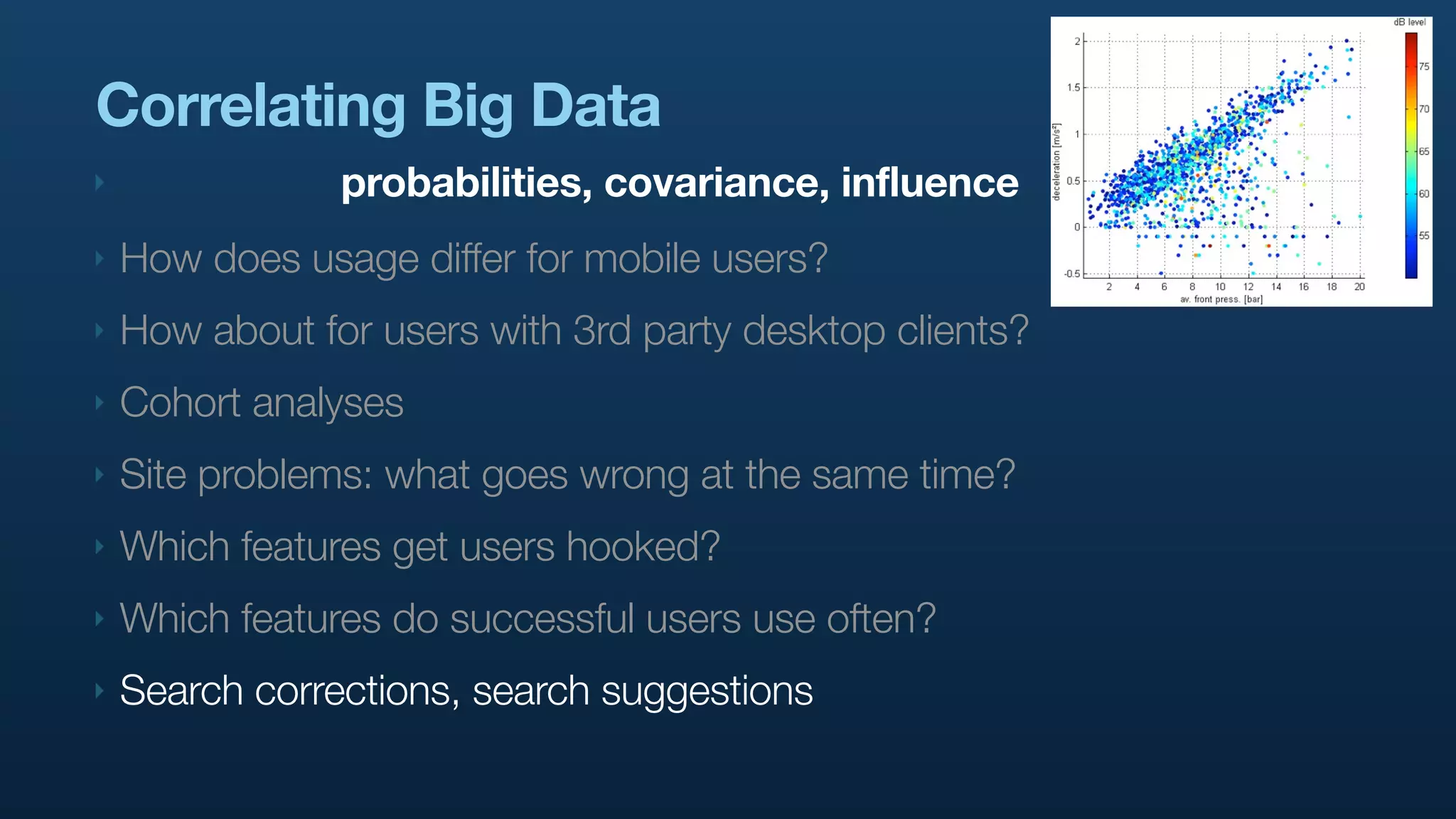

Correlating Big Data
‣               probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses
‣   Site problems: what goes wrong at the same time?
‣   Which features get users hooked?
‣   Which features do successful users use often?
‣   Search corrections, search suggestions

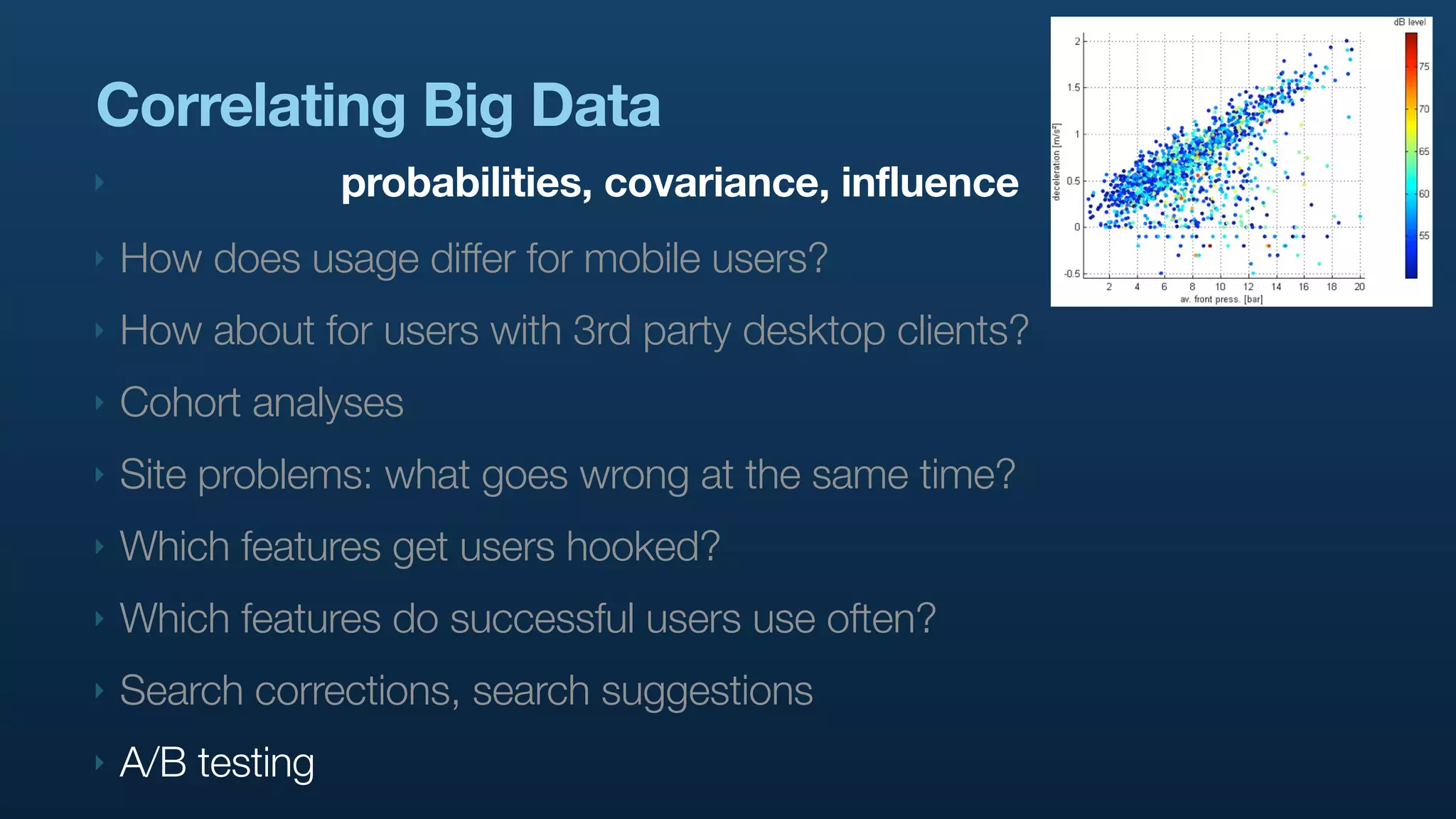

Correlating Big Data
‣                 probabilities, covariance, influence
‣   How does usage differ for mobile users?
‣   How about for users with 3rd party desktop clients?
‣   Cohort analyses
‣   Site problems: what goes wrong at the same time?
‣   Which features get users hooked?
‣   Which features do successful users use often?
‣   Search corrections, search suggestions
‣   A/B testing

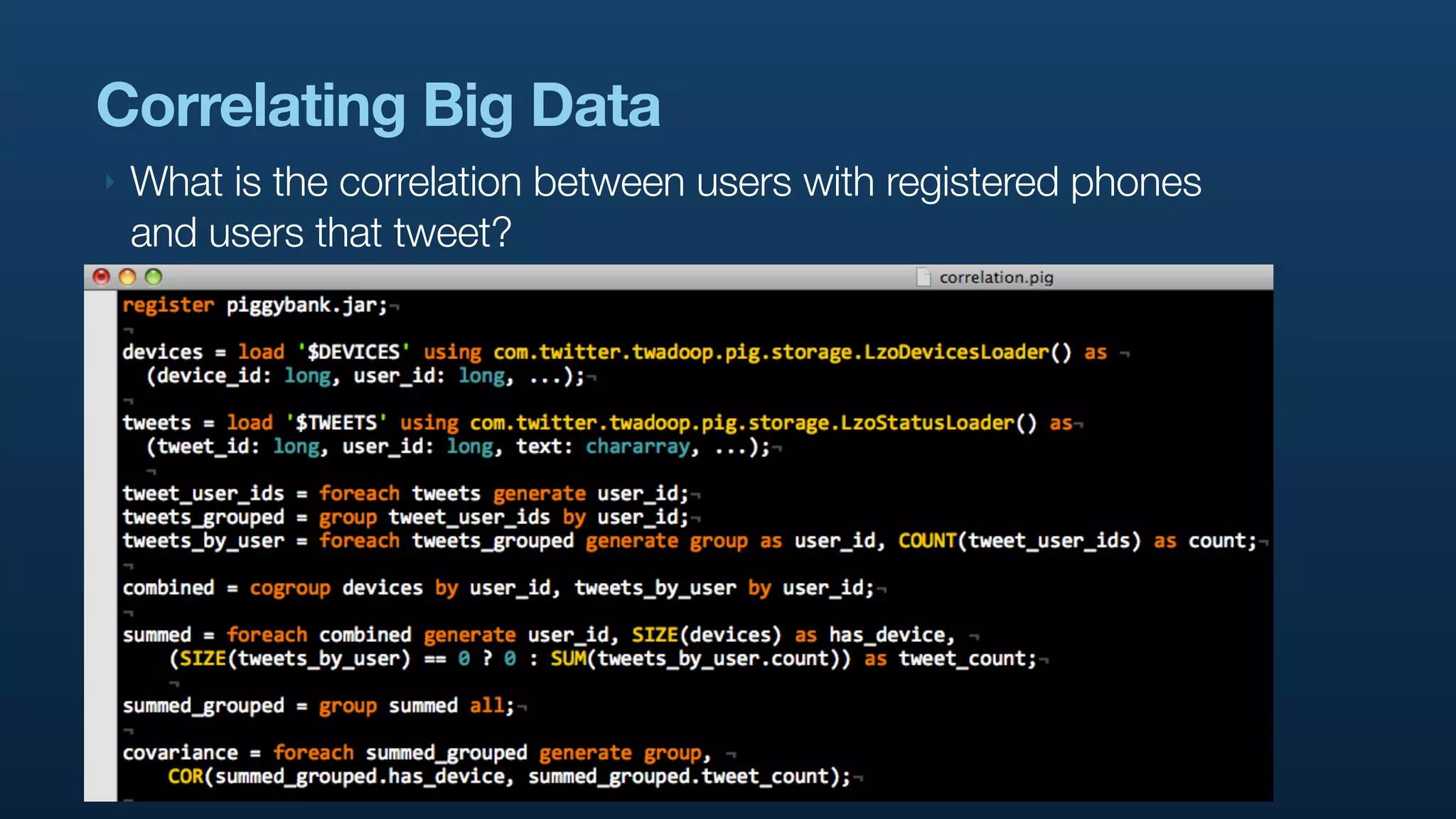

Correlating Big Data
‣   What is the correlation between users with registered phones
    and users that tweet?
Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
‣     From the tweets of those they follow?
Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
‣     From the tweets of those they follow?
‣     From the tweets of their followers?
Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
‣     From the tweets of those they follow?
‣     From the tweets of their followers?
‣     From the ratio of followers/following?

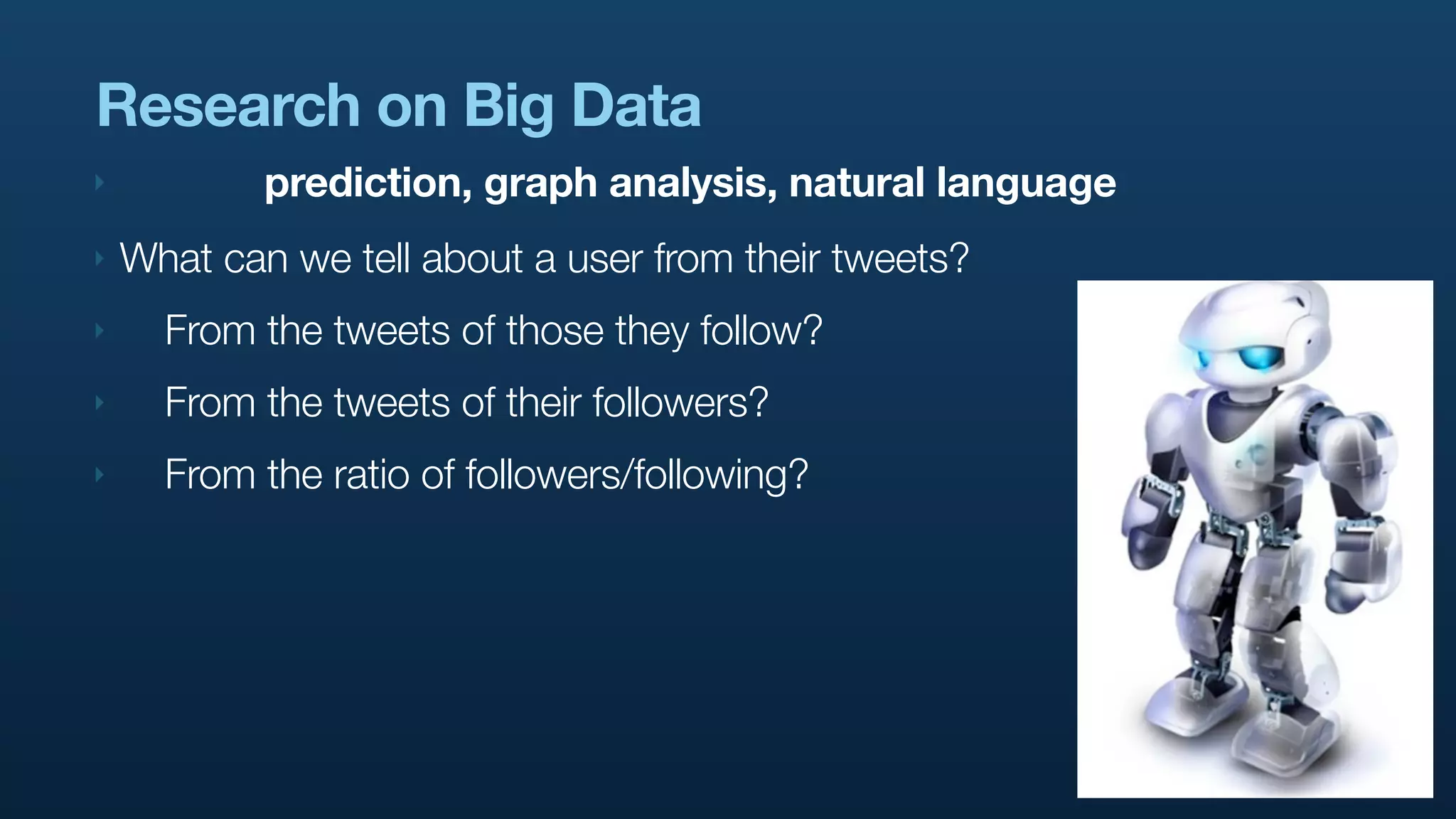

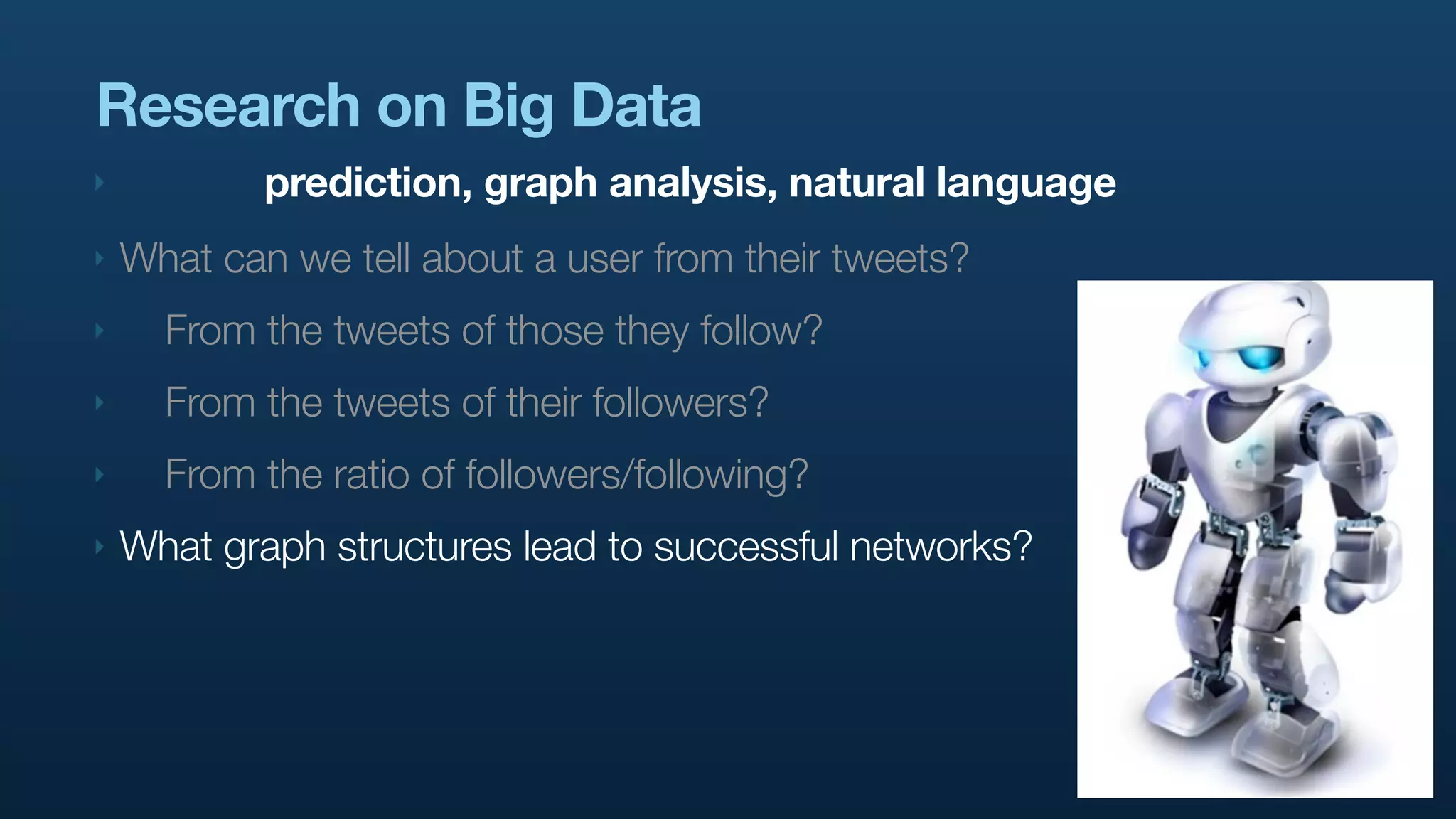

Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
‣     From the tweets of those they follow?
‣     From the tweets of their followers?
‣     From the ratio of followers/following?
‣   What graph structures lead to successful networks?
Research on Big Data
‣           prediction, graph analysis, natural language
‣   What can we tell about a user from their tweets?
‣     From the tweets of those they follow?
‣     From the tweets of their followers?
‣     From the ratio of followers/following?
‣   What graph structures lead to successful networks?
‣   User reputation

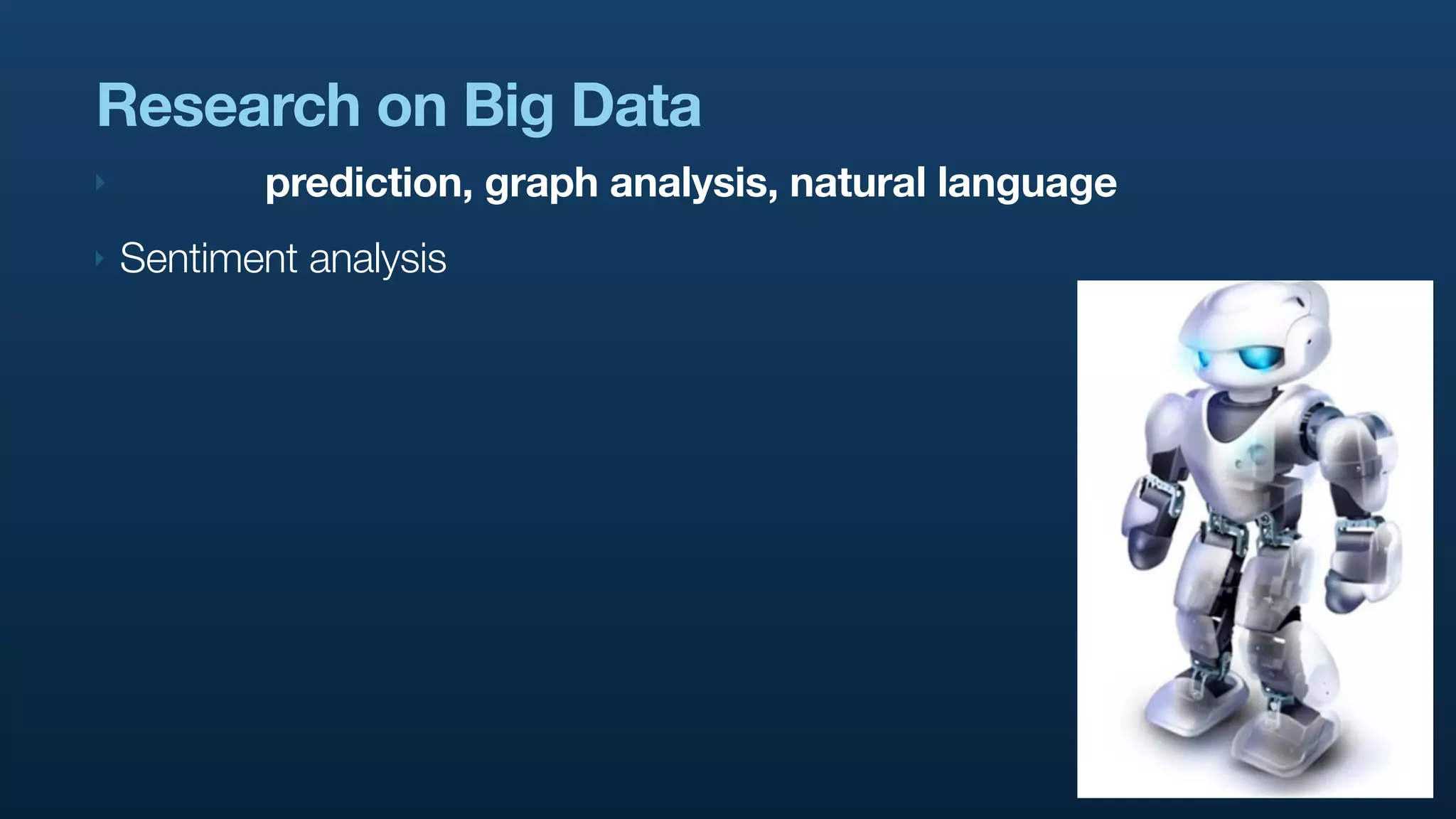

Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?

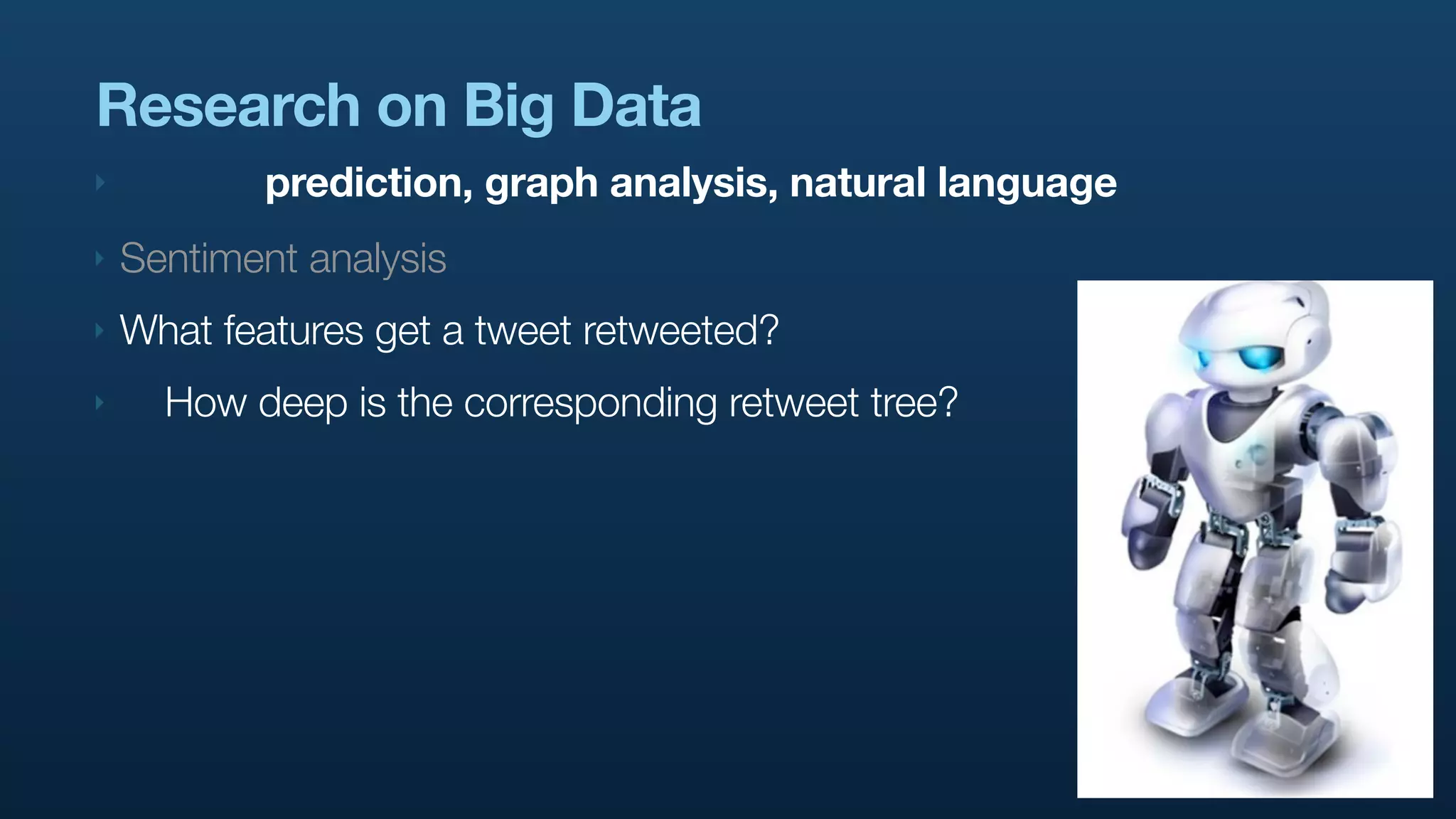

Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?
‣     How deep is the corresponding retweet tree?
Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?
‣     How deep is the corresponding retweet tree?
‣   Long-term duplicate detection

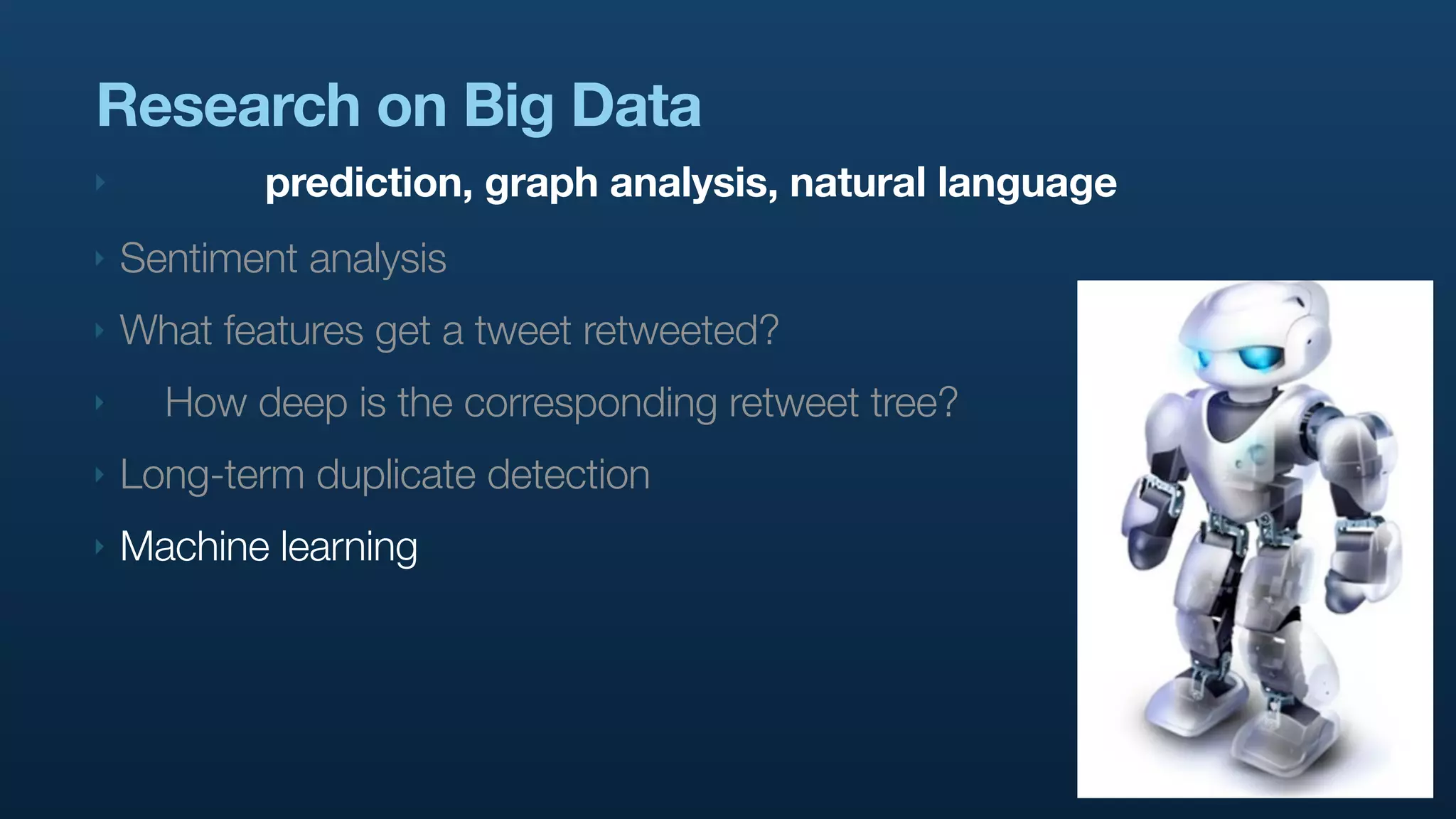

Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?
‣     How deep is the corresponding retweet tree?
‣   Long-term duplicate detection
‣   Machine learning

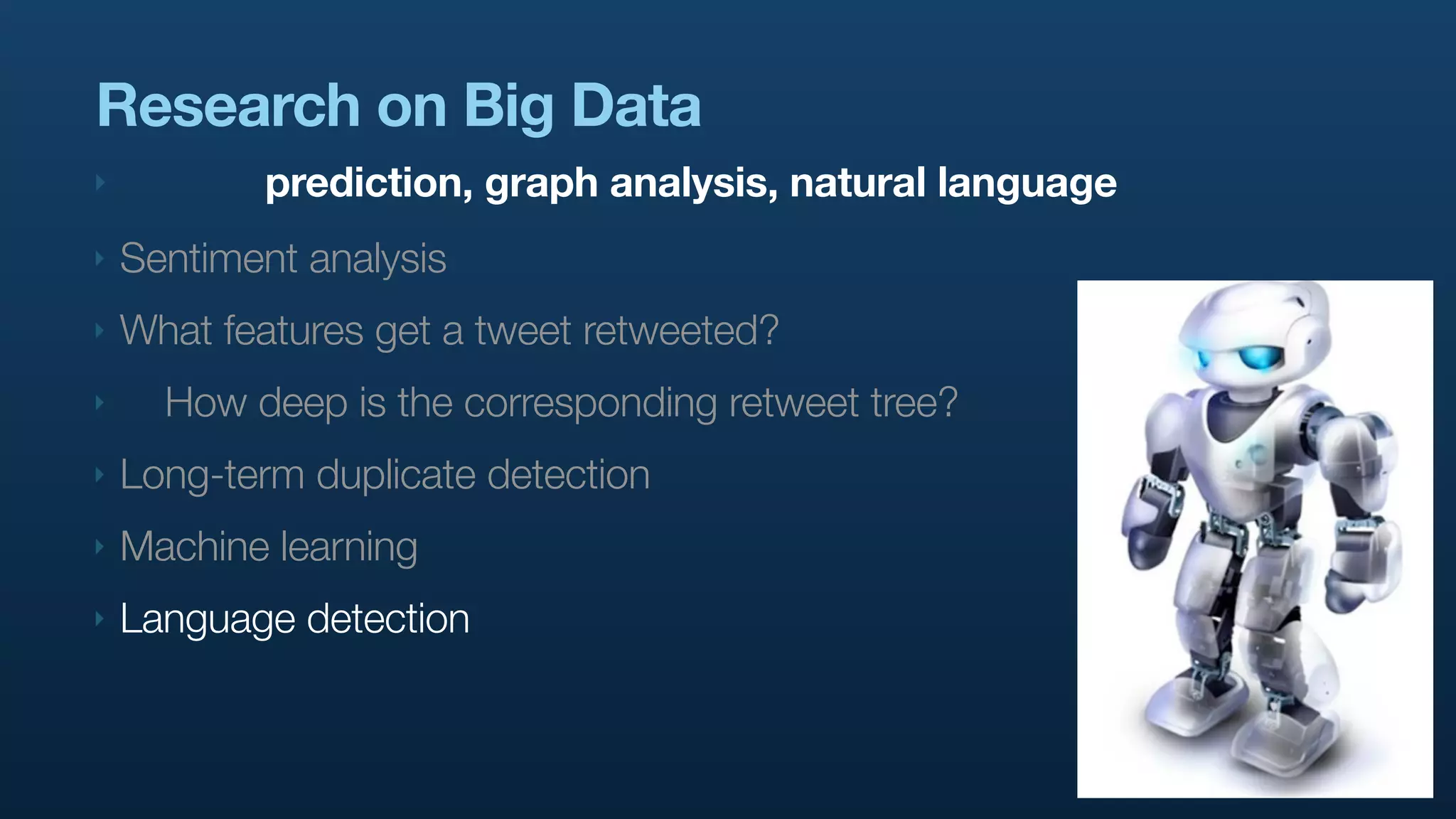

Research on Big Data
‣          prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?
‣     How deep is the corresponding retweet tree?
‣   Long-term duplicate detection
‣   Machine learning
‣   Language detection

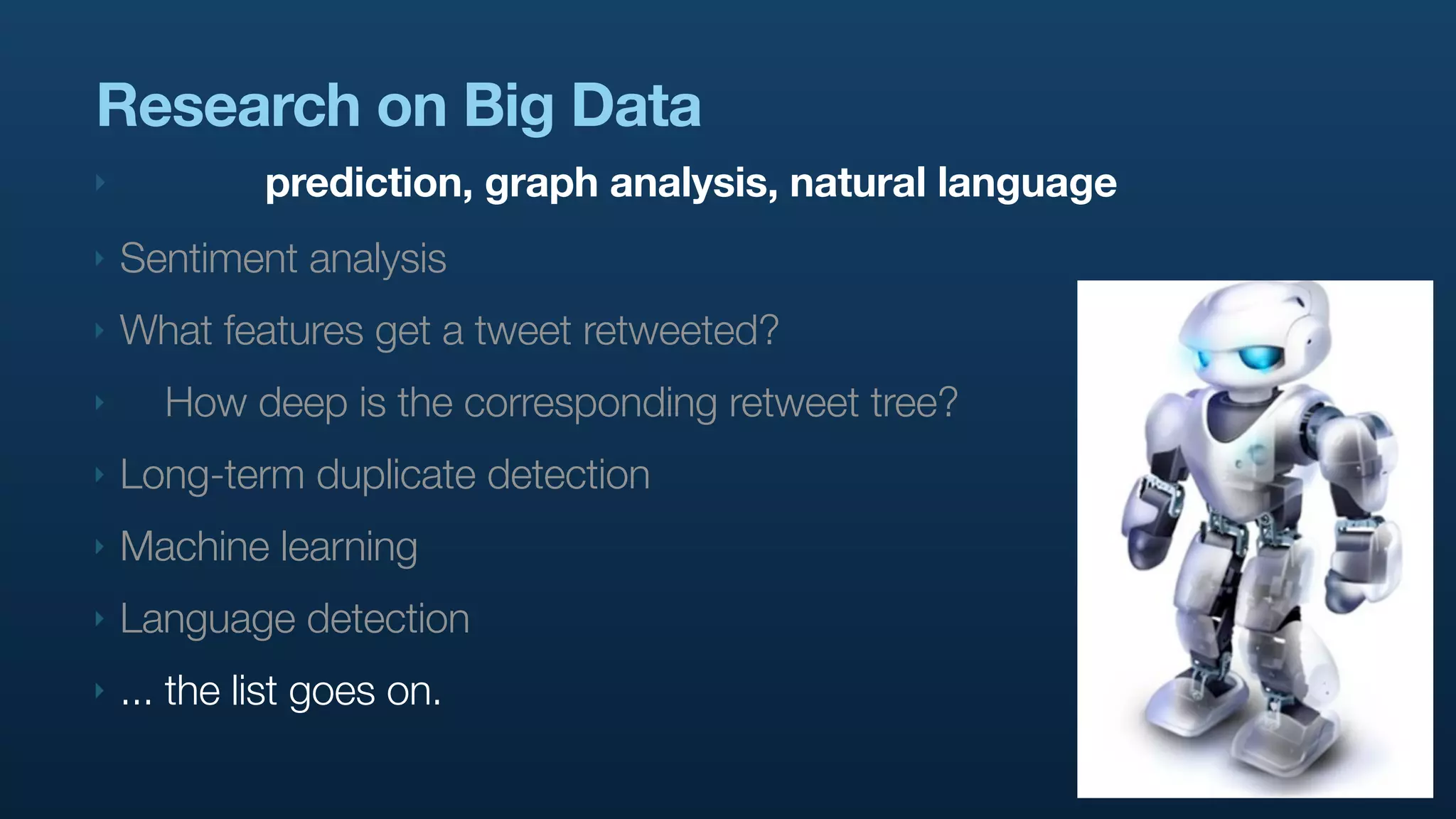

Research on Big Data
‣            prediction, graph analysis, natural language
‣   Sentiment analysis
‣   What features get a tweet retweeted?
‣     How deep is the corresponding retweet tree?
‣   Long-term duplicate detection
‣   Machine learning
‣   Language detection
‣   ... the list goes on.

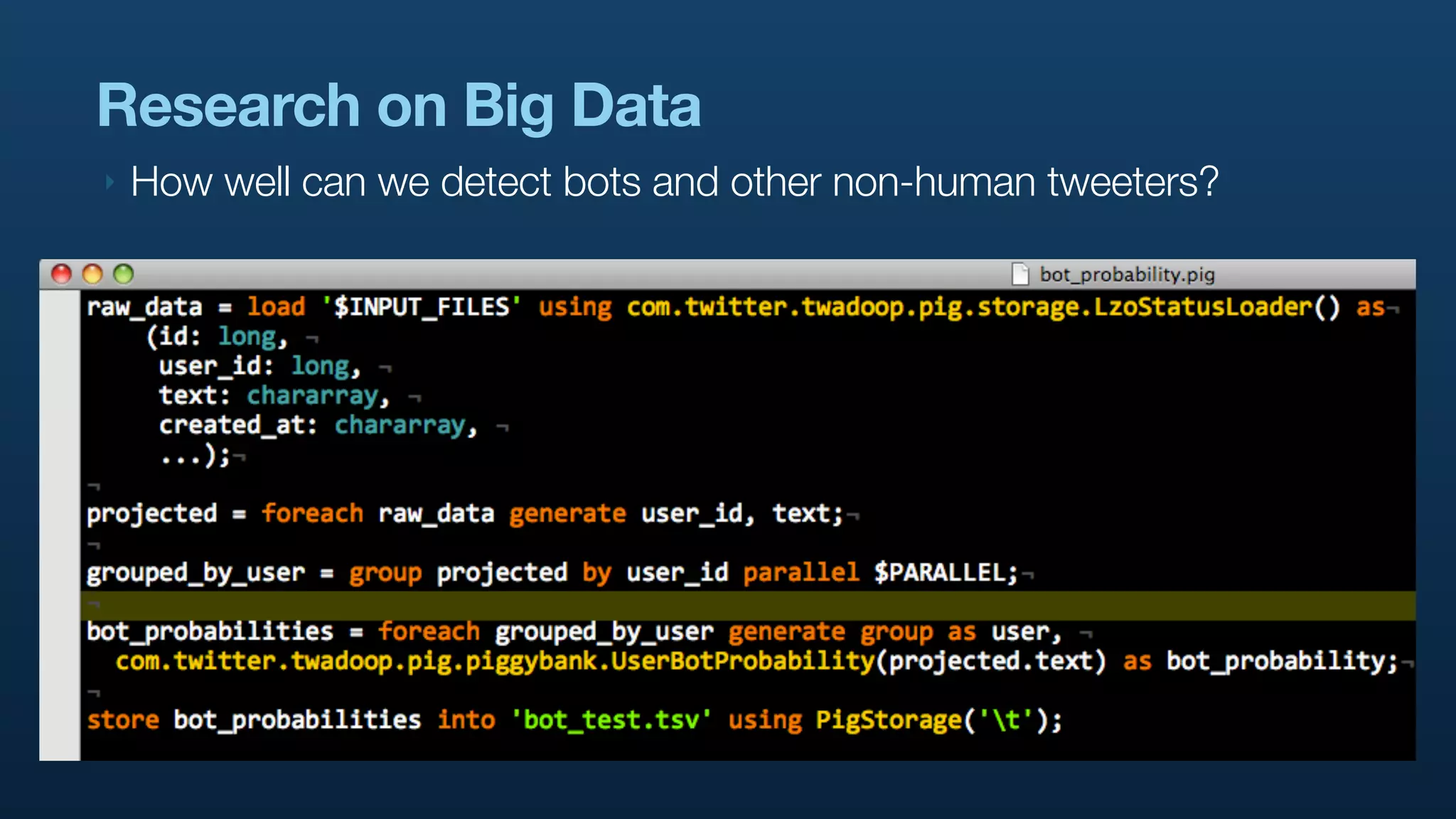

Research on Big Data
‣   How well can we detect bots and other non-human tweeters?
Introduction
‣   How We Arrived at NoSQL: A Crash Course
‣     Collecting Data (Scribe)
‣     Storing and Analyzing Data (Hadoop)
‣     Rapid Learning over Big Data (Pig)
‣   And More: Cassandra, HBase, FlockDB

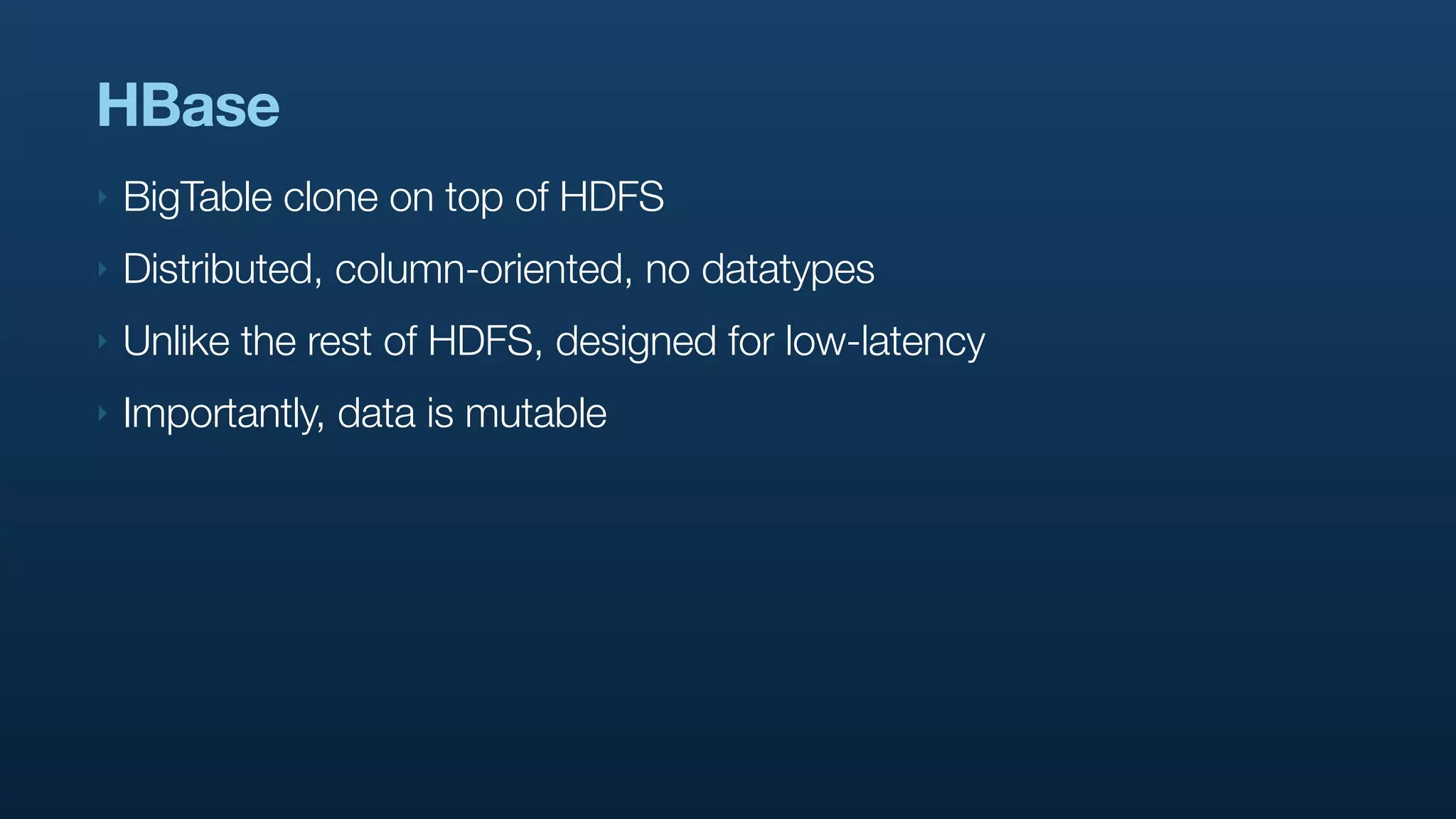

HBase
‣   BigTable clone on top of HDFS
‣   Distributed, column-oriented, no datatypes
‣   Unlike the rest of HDFS, designed for low-latency
‣   Importantly, data is mutable

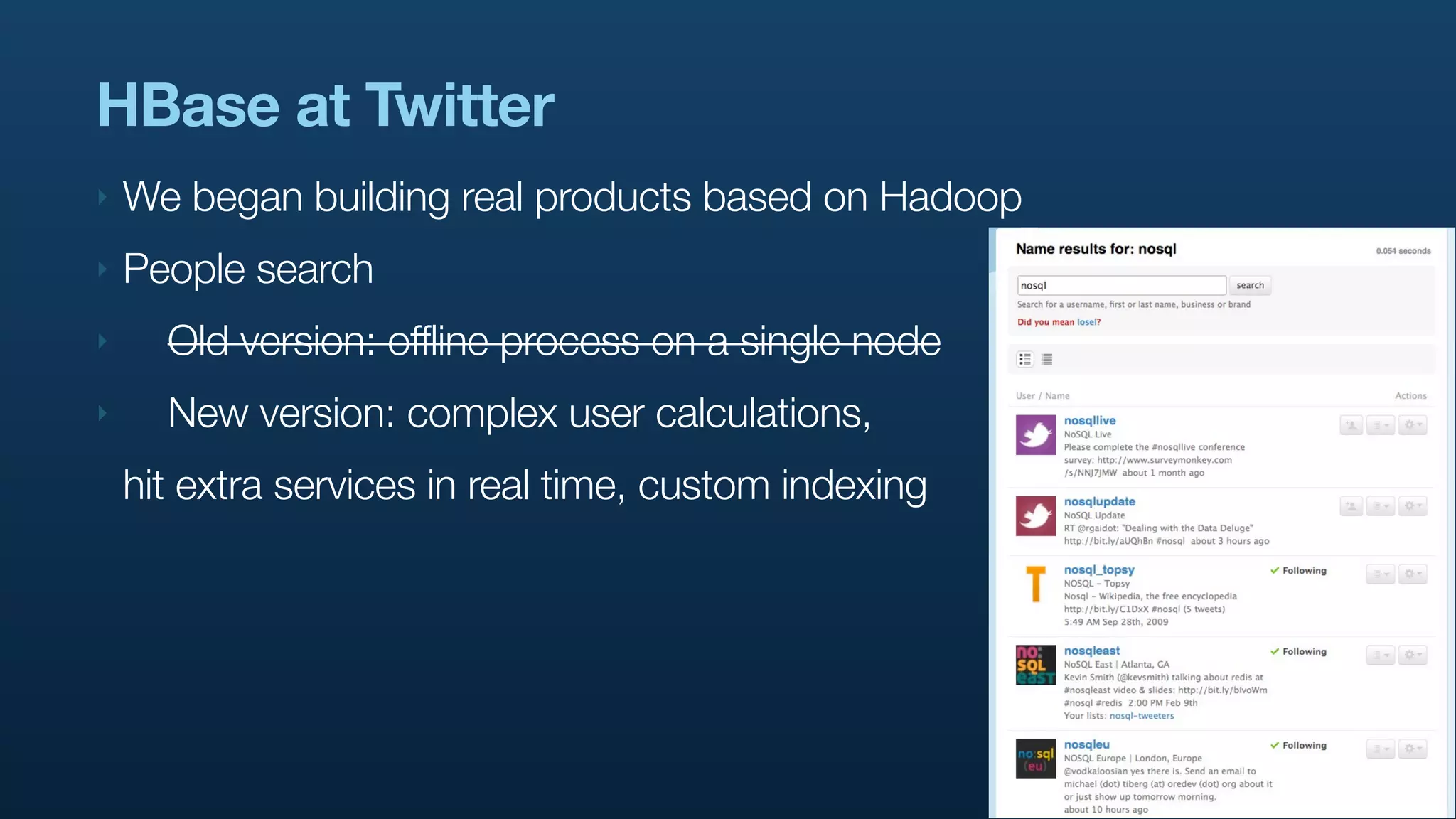

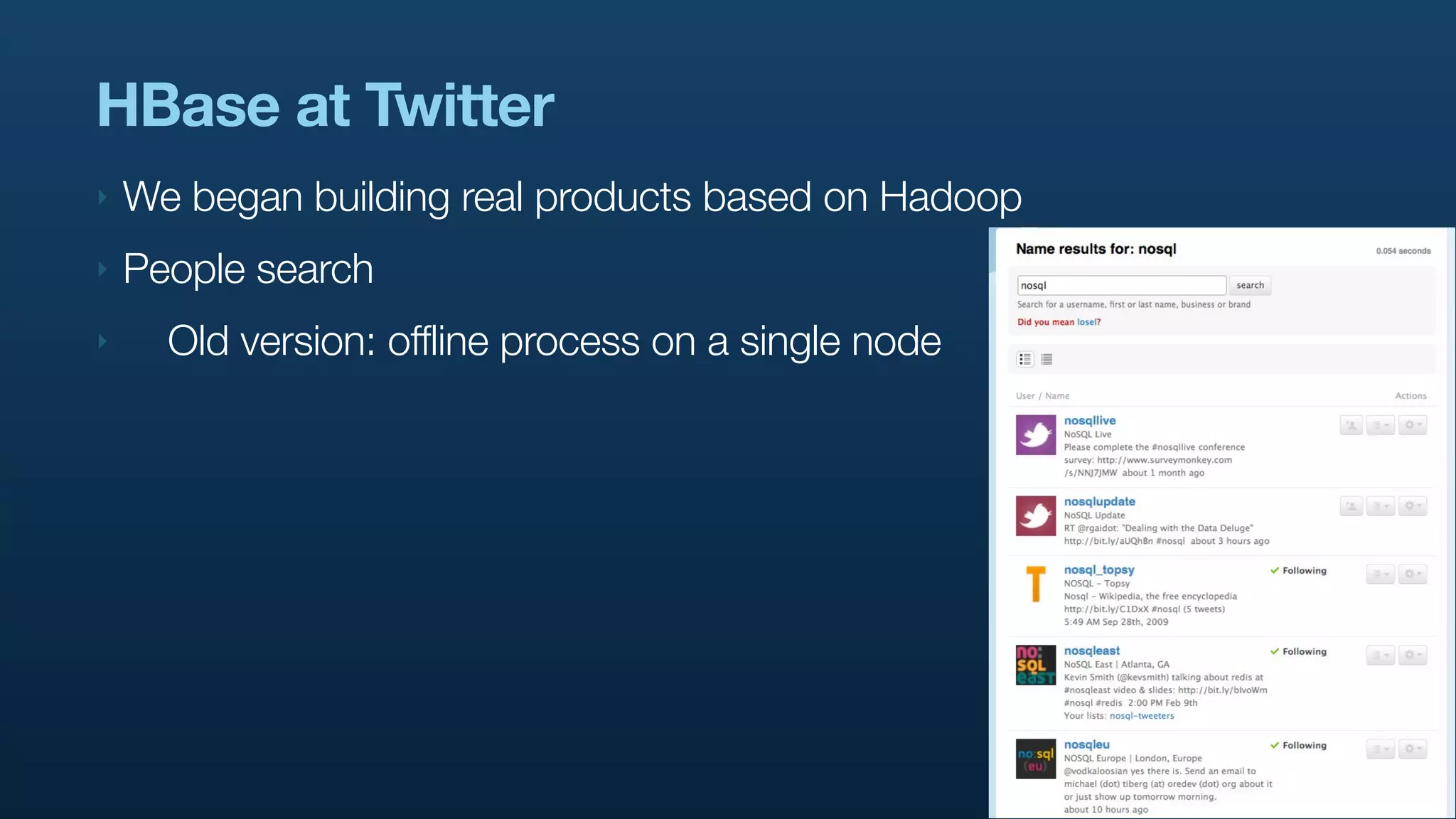

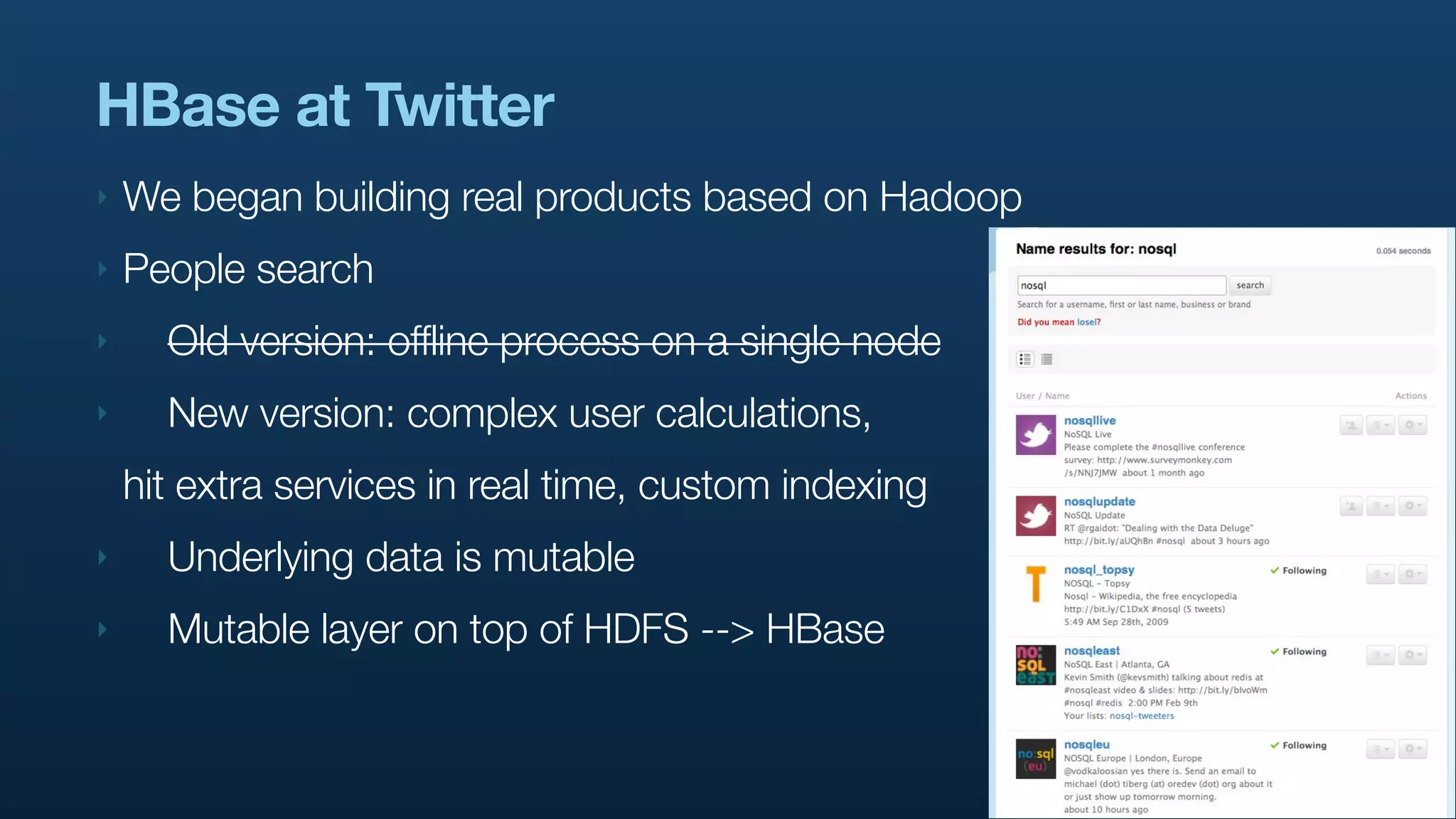

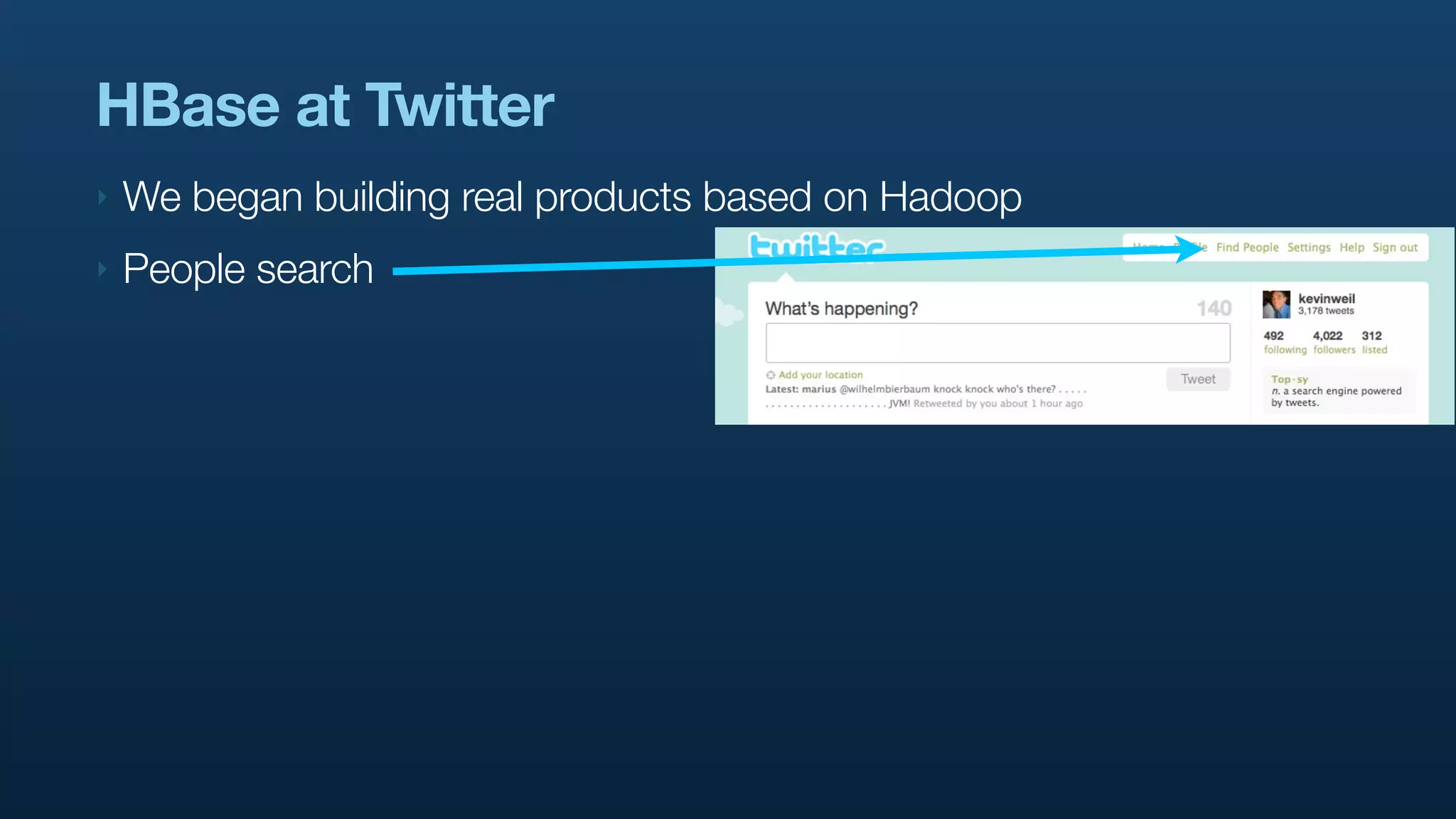

HBase at Twitter
‣   We began building real products based on Hadoop
‣   People search
HBase at Twitter
‣   We began building real products based on Hadoop
‣   People search
‣     Old version: offline process on a single node
HBase at Twitter
‣   We began building real products based on Hadoop
‣   People search
‣     Old version: offline process on a single node
‣     New version: complex user calculations,
    hit extra services in real time, custom indexing
HBase at Twitter
‣   We began building real products based on Hadoop
‣   People search
‣     Old version: offline process on a single node
‣     New version: complex user calculations,
    hit extra services in real time, custom indexing
‣     Underlying data is mutable
‣     Mutable layer on top of HDFS --> HBase
People Search
‣   Import user data into HBase
People Search
‣   Import user data into HBase
‣   Periodic MapReduce job reading from HBase
‣     Hits FlockDB, multiple other internal services in mapper
‣     Custom partitioning

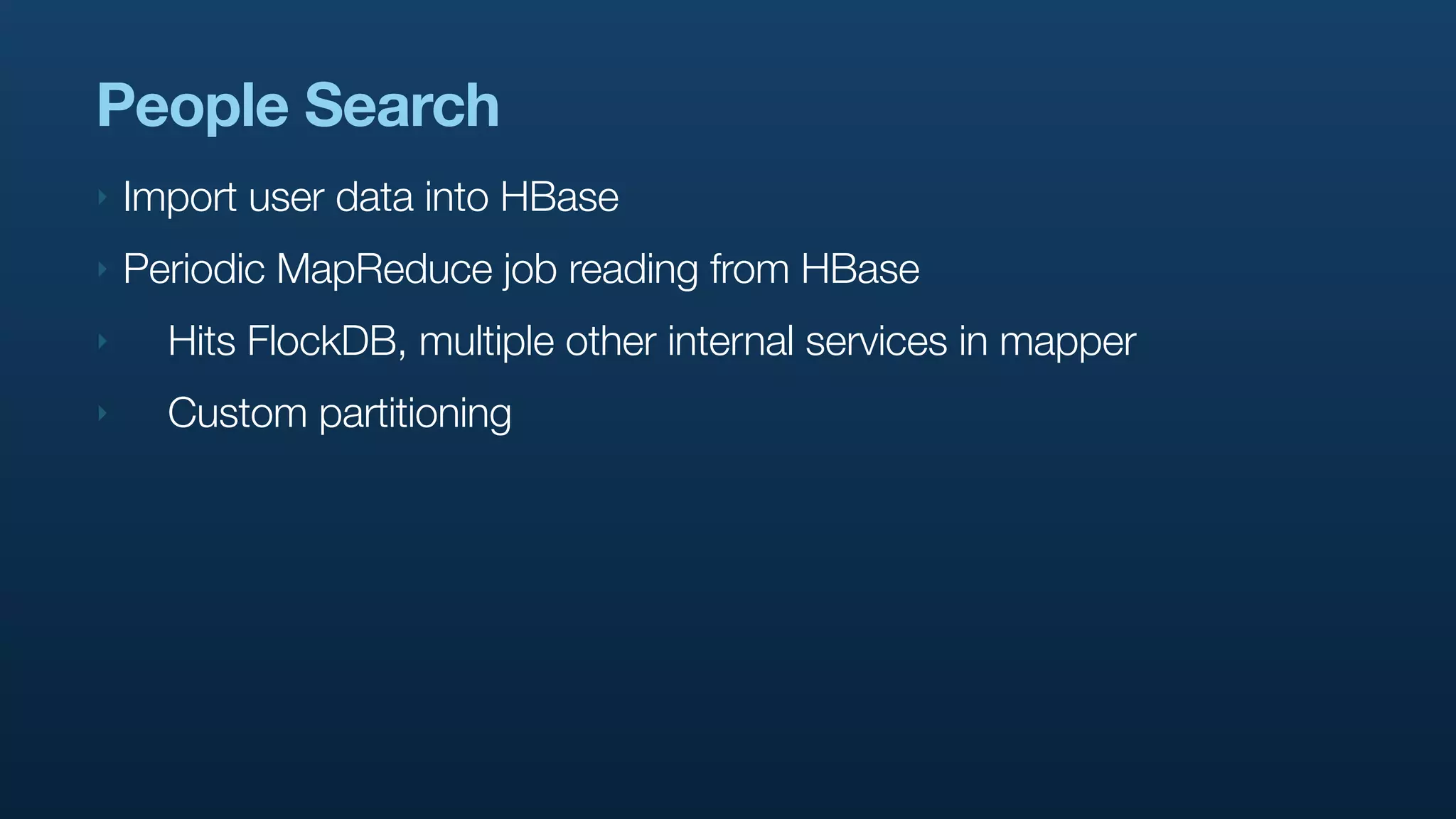

People Search
‣   Import user data into HBase
‣   Periodic MapReduce job reading from HBase
‣     Hits FlockDB, multiple other internal services in mapper
‣     Custom partitioning
‣     Data sucked across to sharded, replicated, horizontally
    scalable, in-memory, low-latency Scala service
‣        Build a trie, do case folding/normalization, suggestions, etc

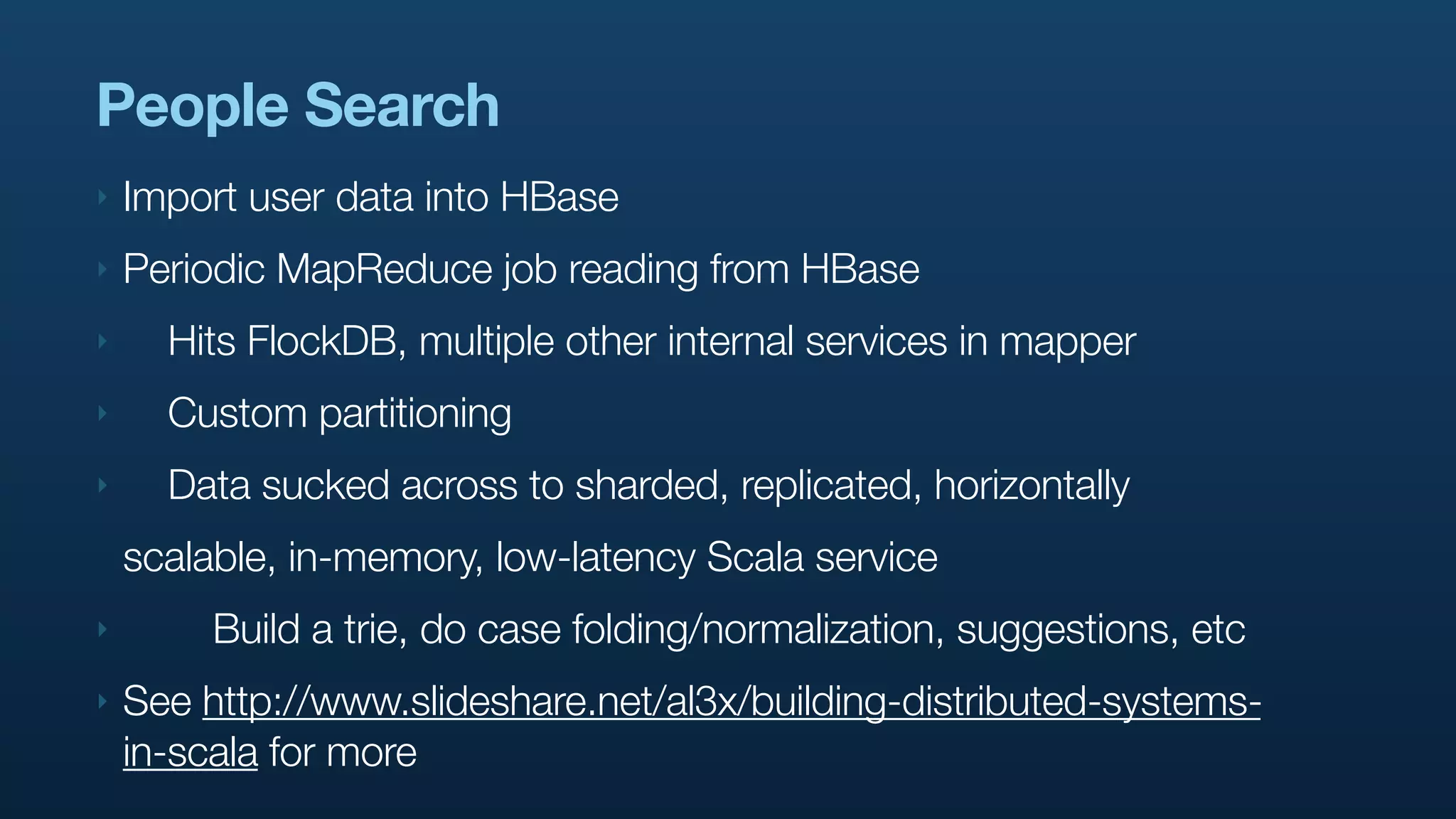

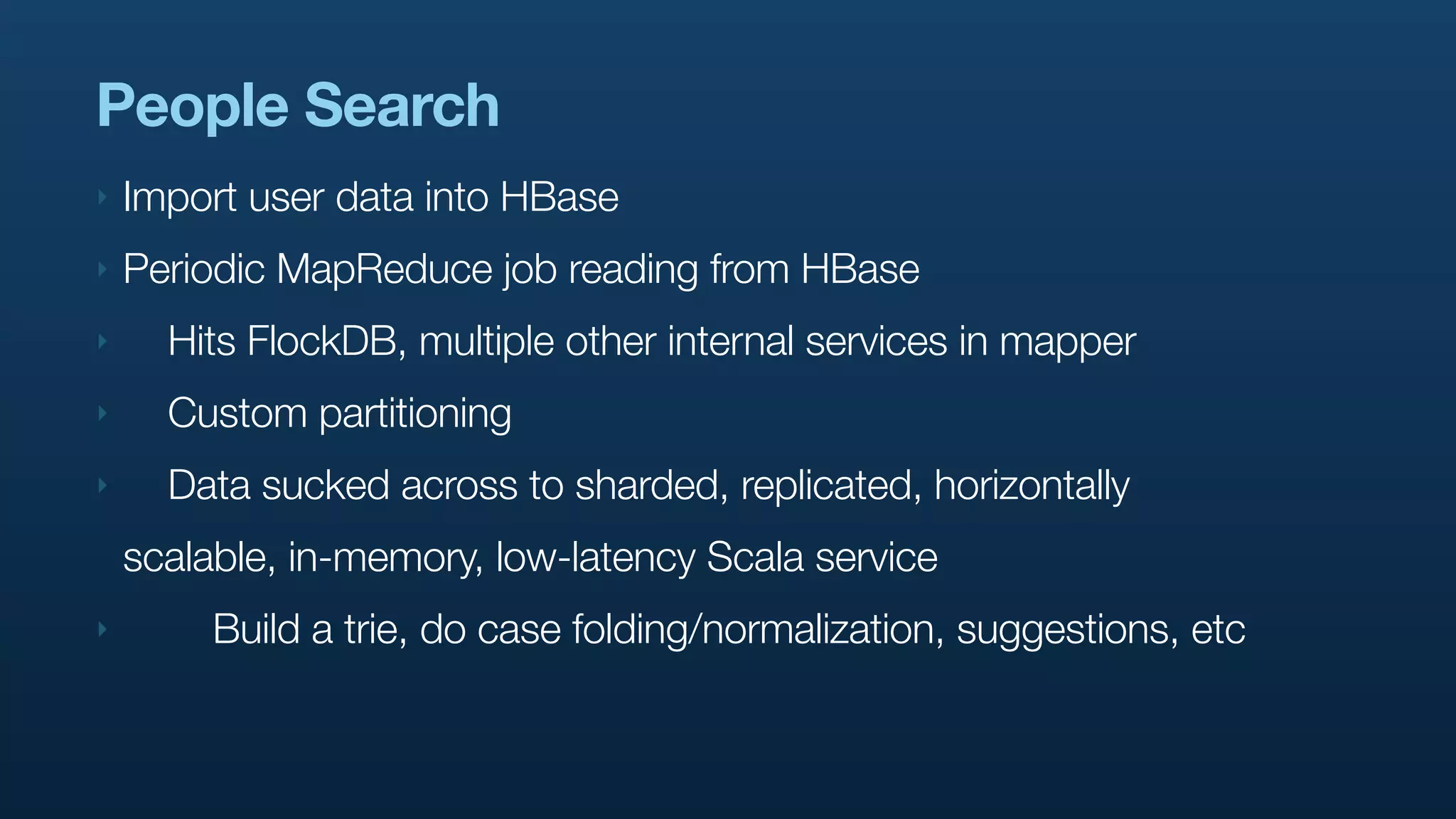

People Search
‣   Import user data into HBase
‣   Periodic MapReduce job reading from HBase
‣     Hits FlockDB, multiple other internal services in mapper
‣     Custom partitioning
‣     Data sucked across to sharded, replicated, horizontally
    scalable, in-memory, low-latency Scala service
‣        Build a trie, do case folding/normalization, suggestions, etc
‣   See http://www.slideshare.net/al3x/building-distributed-systems-
    in-scala for more
HBase
‣   More products now being built on top of it
‣   Flexible, easy to connect to MapReduce/Pig

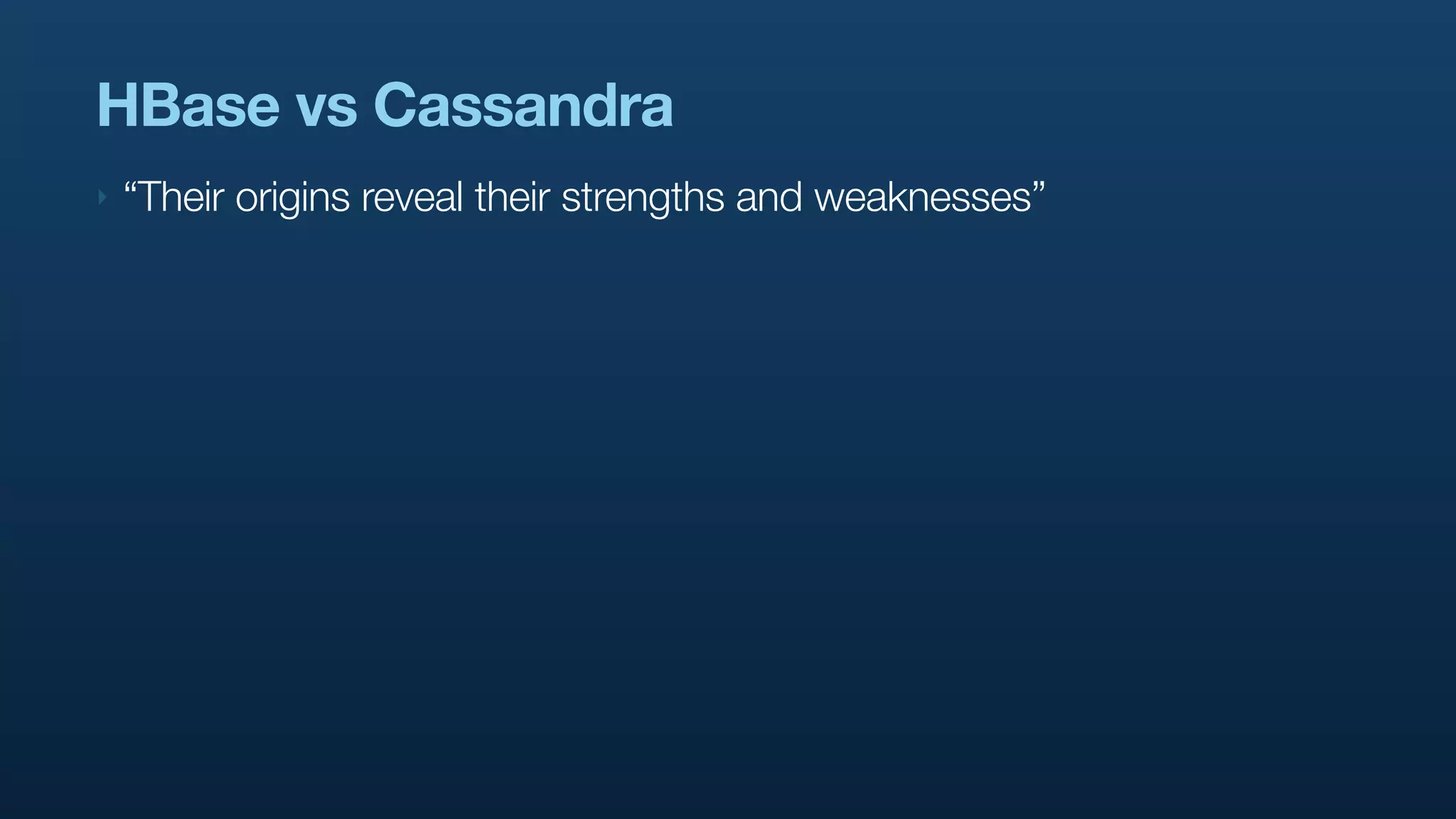

HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”

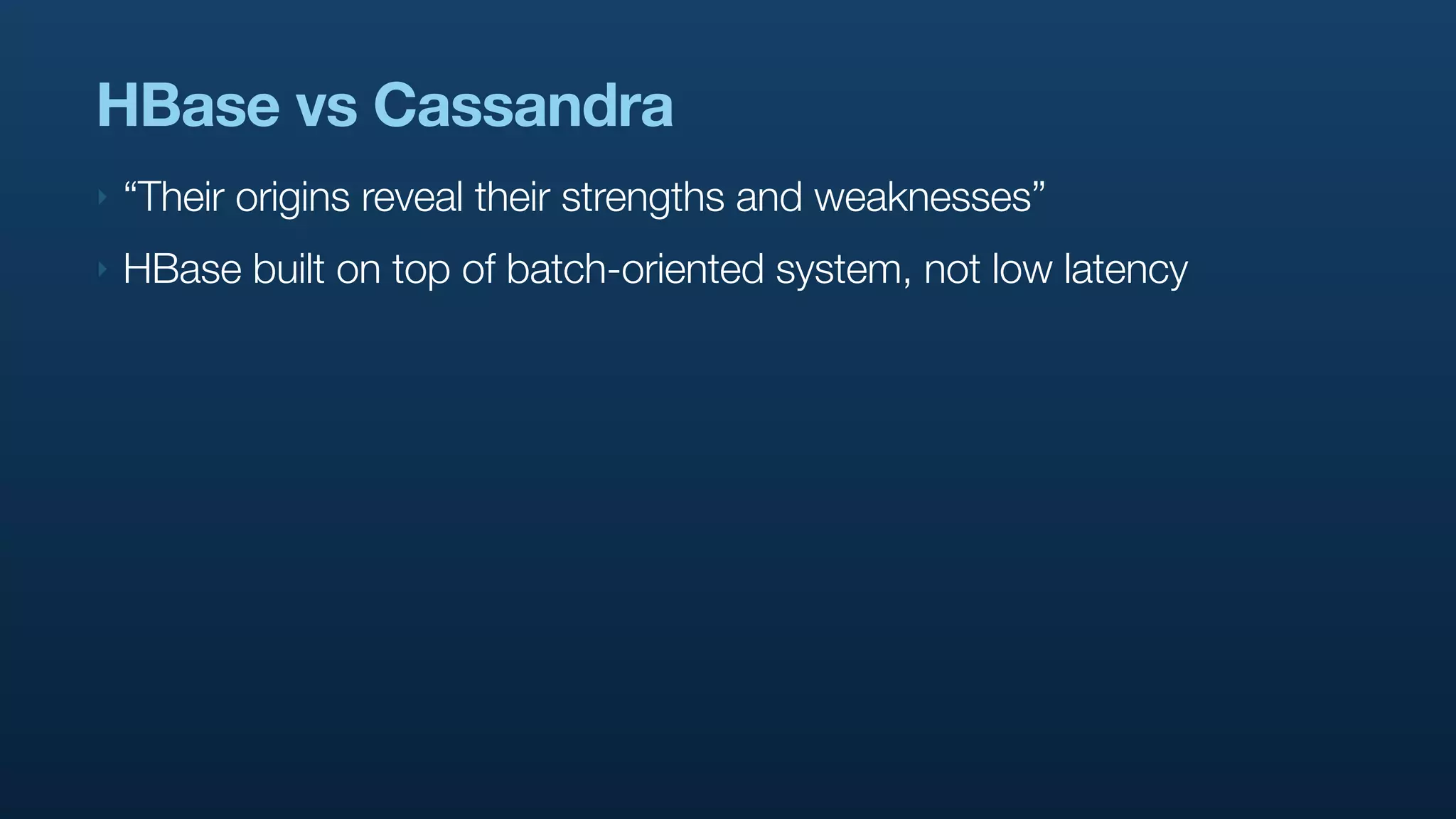

HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”
‣   HBase built on top of batch-oriented system, not low latency

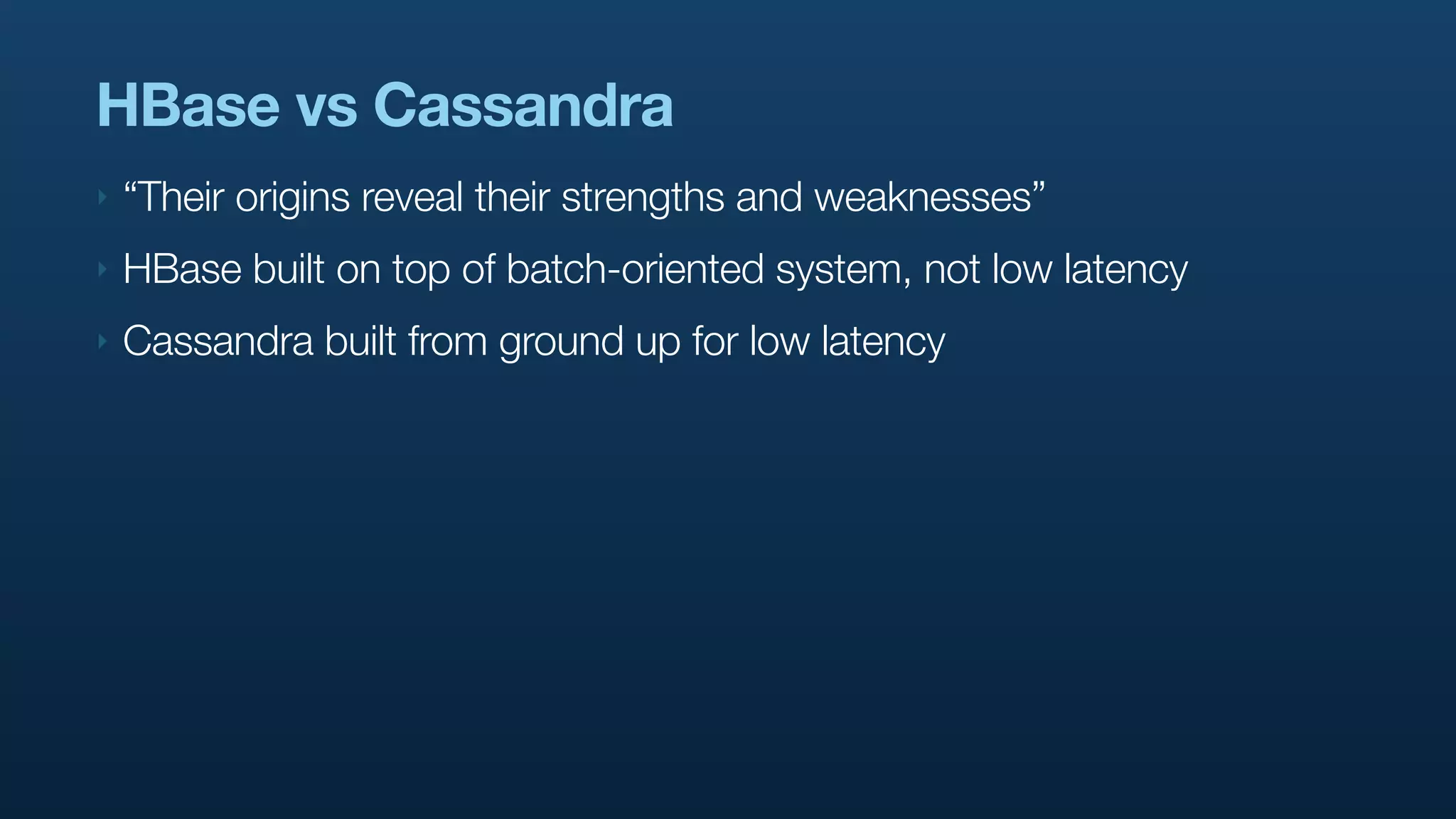

HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”
‣   HBase built on top of batch-oriented system, not low latency
‣   Cassandra built from ground up for low latency
HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”
‣   HBase built on top of batch-oriented system, not low latency
‣   Cassandra built from ground up for low latency
‣   HBase easy to connect to batch jobs as input and output

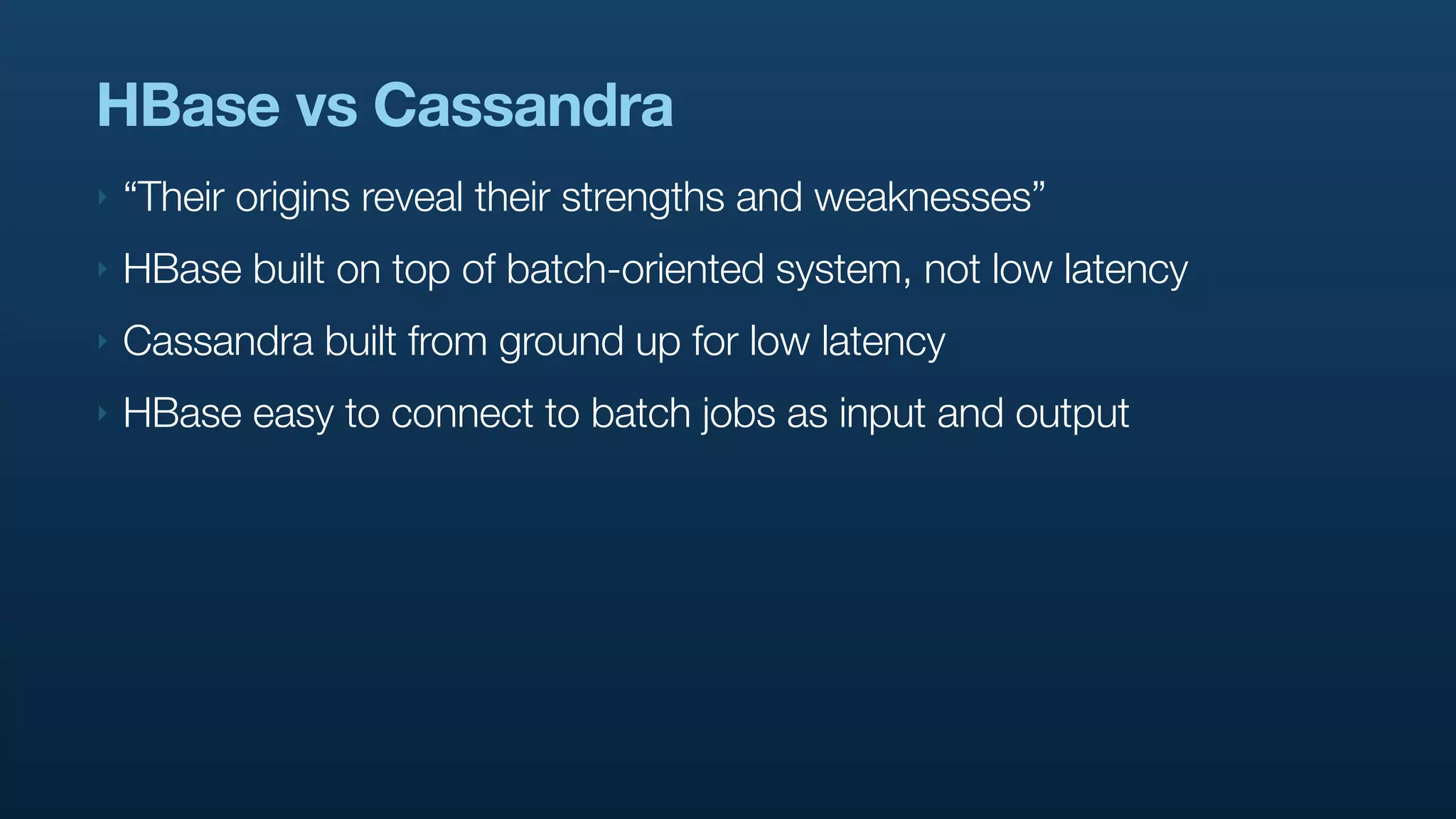

HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”
‣   HBase built on top of batch-oriented system, not low latency
‣   Cassandra built from ground up for low latency
‣   HBase easy to connect to batch jobs as input and output
‣   Cassandra not so much (but we’re working on it)

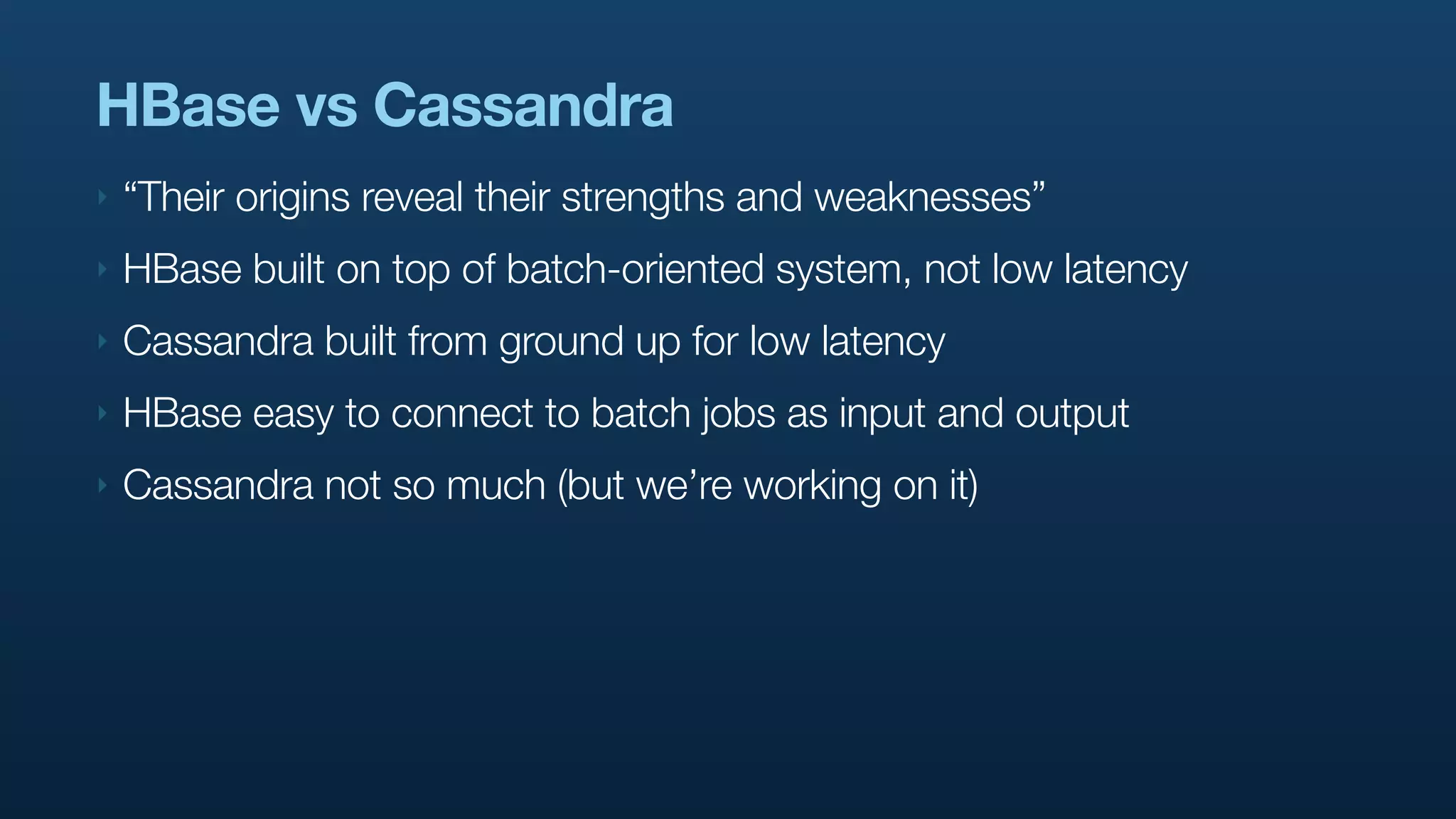

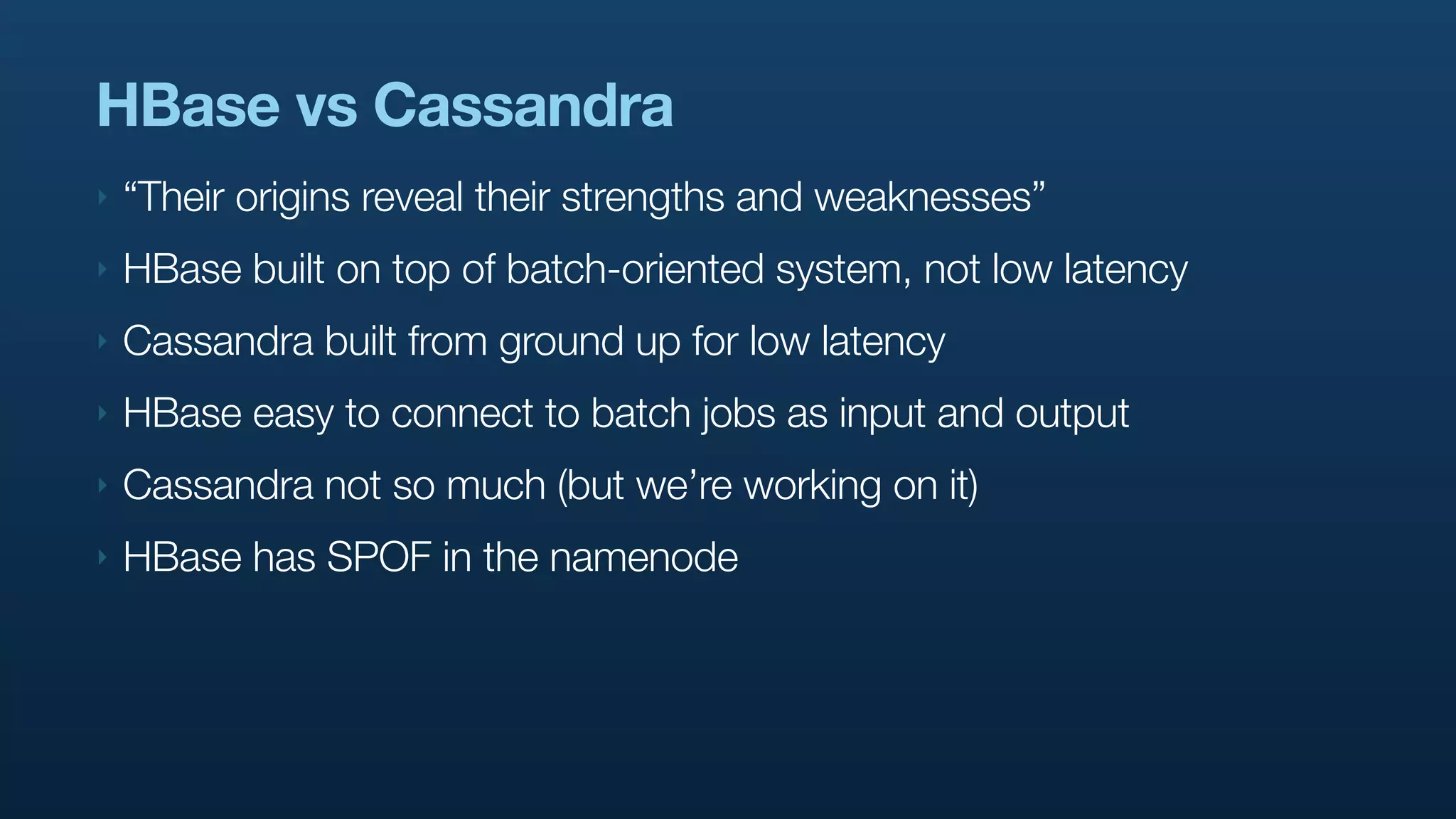

HBase vs Cassandra
‣   “Their origins reveal their strengths and weaknesses”
‣   HBase built on top of batch-oriented system, not low latency
‣   Cassandra built from ground up for low latency
‣   HBase easy to connect to batch jobs as input and output
‣   Cassandra not so much (but we’re working on it)
‣   HBase has SPOF in the namenode

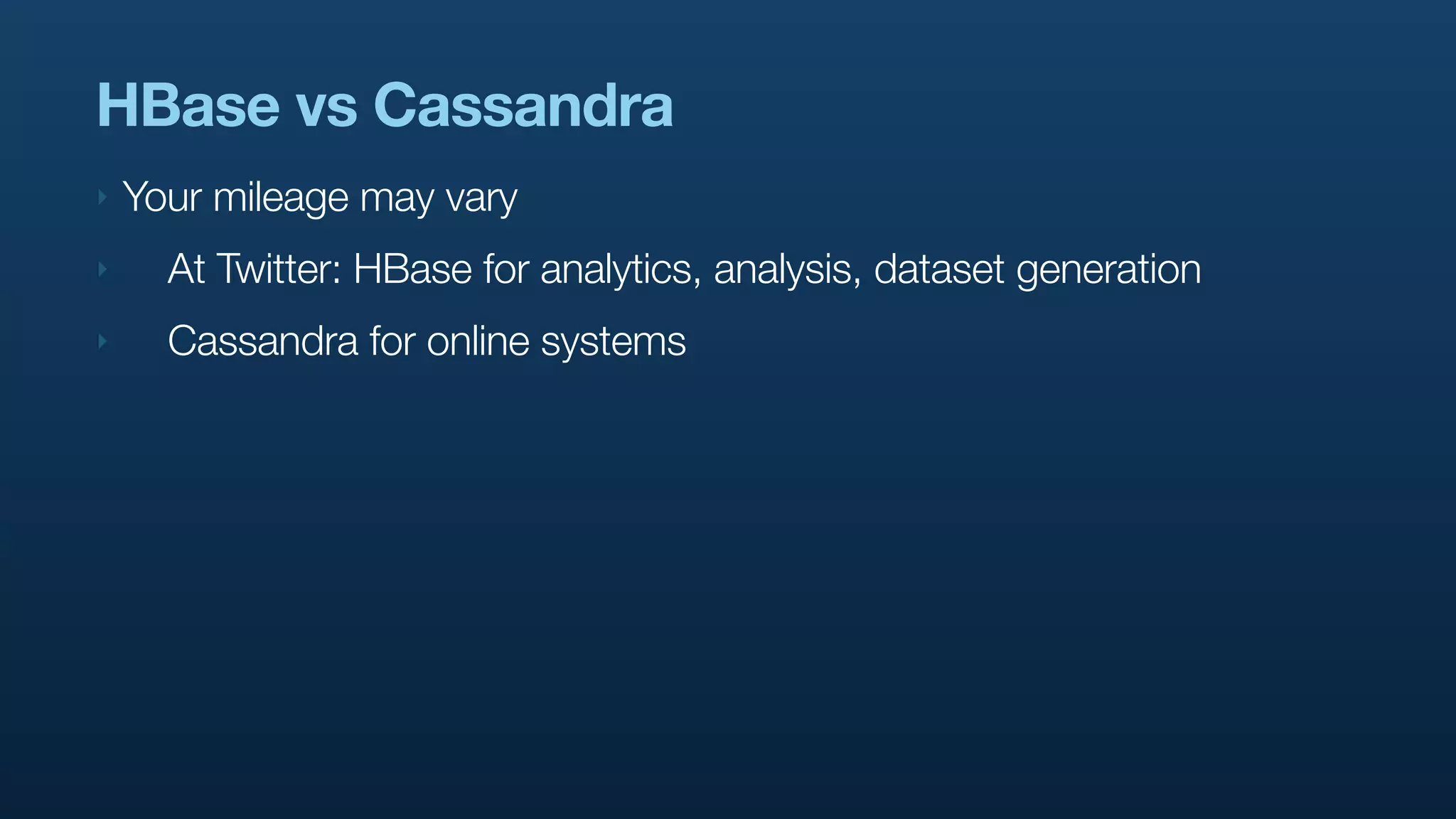

HBase vs Cassandra
‣   Your mileage may vary
‣     At Twitter: HBase for analytics, analysis, dataset generation
‣     Cassandra for online systems

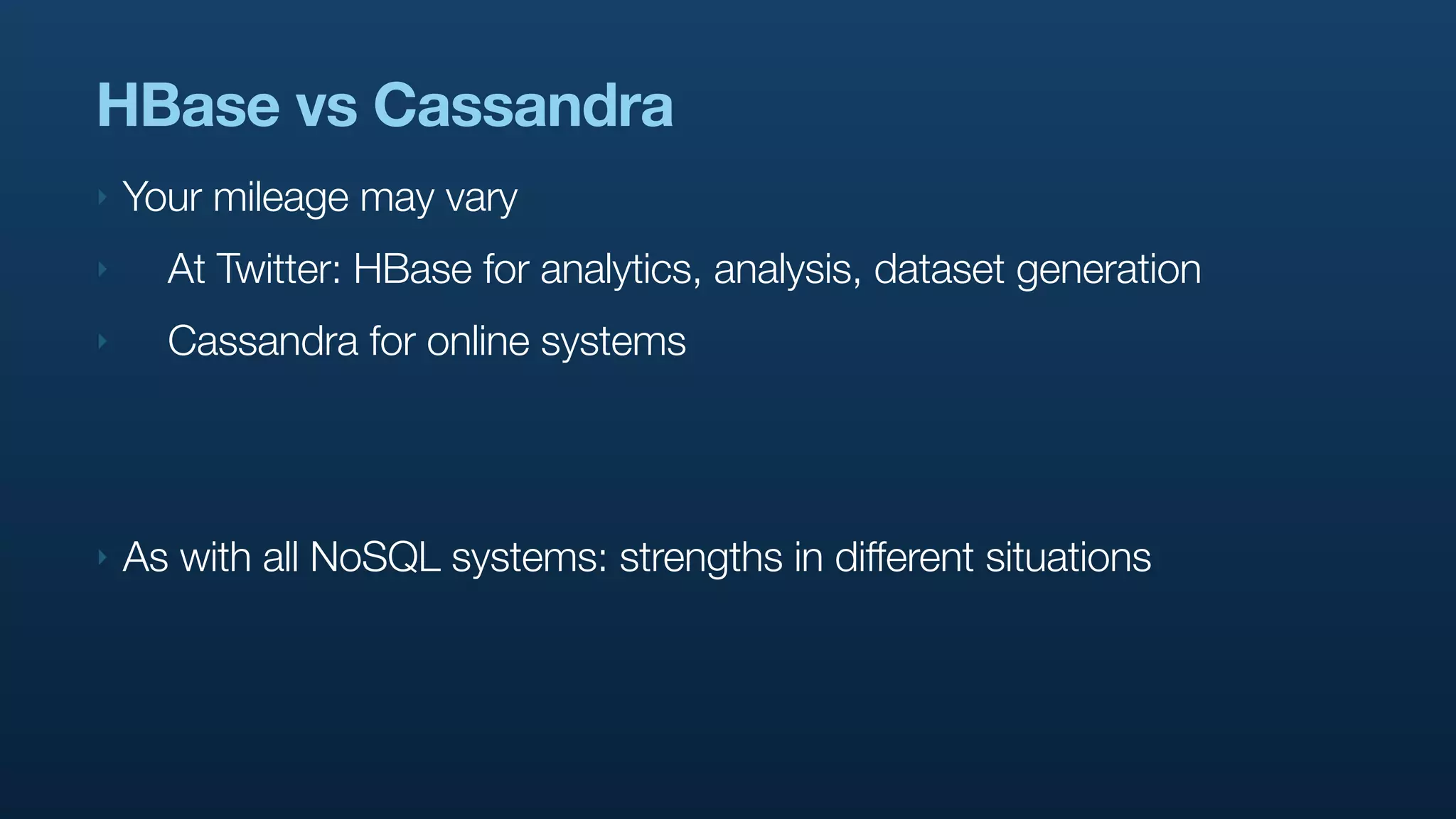

HBase vs Cassandra
‣   Your mileage may vary
‣     At Twitter: HBase for analytics, analysis, dataset generation
‣     Cassandra for online systems




‣   As with all NoSQL systems: strengths in different situations

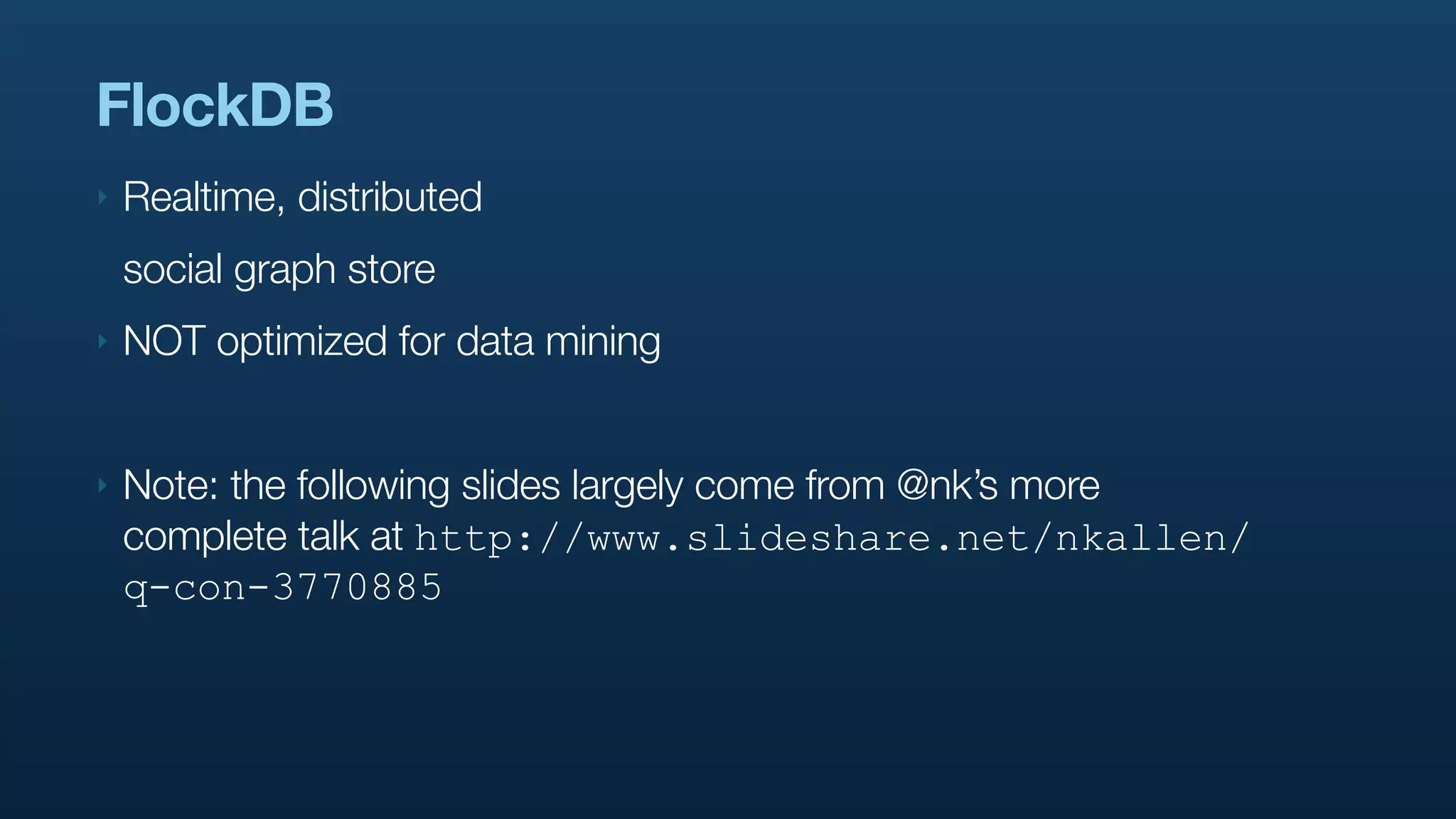

FlockDB
‣   Realtime, distributed
    social graph store
‣   NOT optimized for data mining


‣   Note: the following slides largely come from @nk’s more
    complete talk at http://www.slideshare.net/nkallen/
    q-con-3770885
FlockDB
‣   Realtime, distributed                      Intersection
                                    Temporal

    social graph store
‣   NOT optimized for data mining
‣   Who follows who (nearly 8
                                                              Counts
    orders of magnitude!)
‣   Intersection/set operations
‣   Cardinality
‣   Temporal index

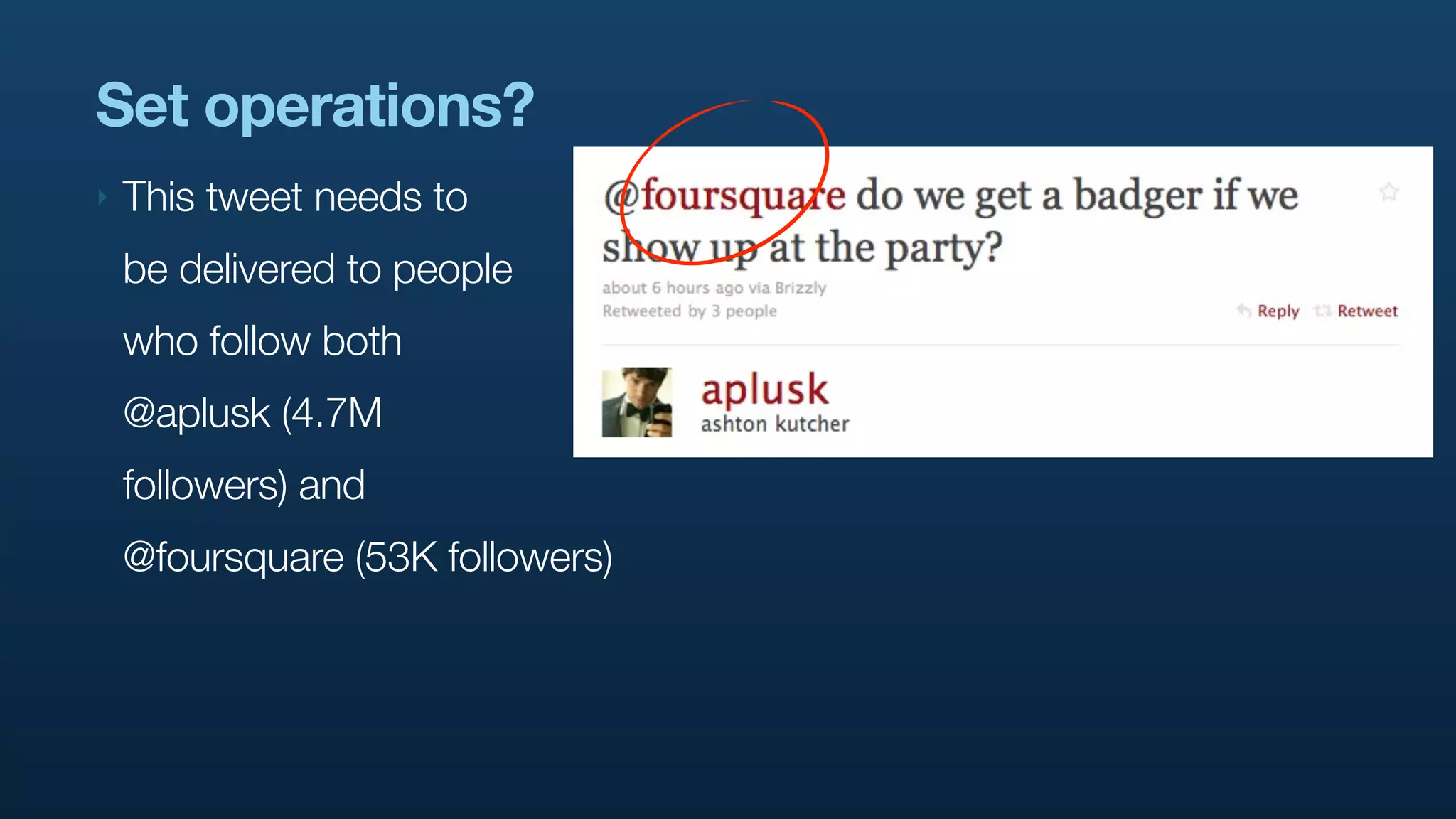

Set operations?
‣   This tweet needs to
    be delivered to people
    who follow both
    @aplusk (4.7M
    followers) and
    @foursquare (53K followers)

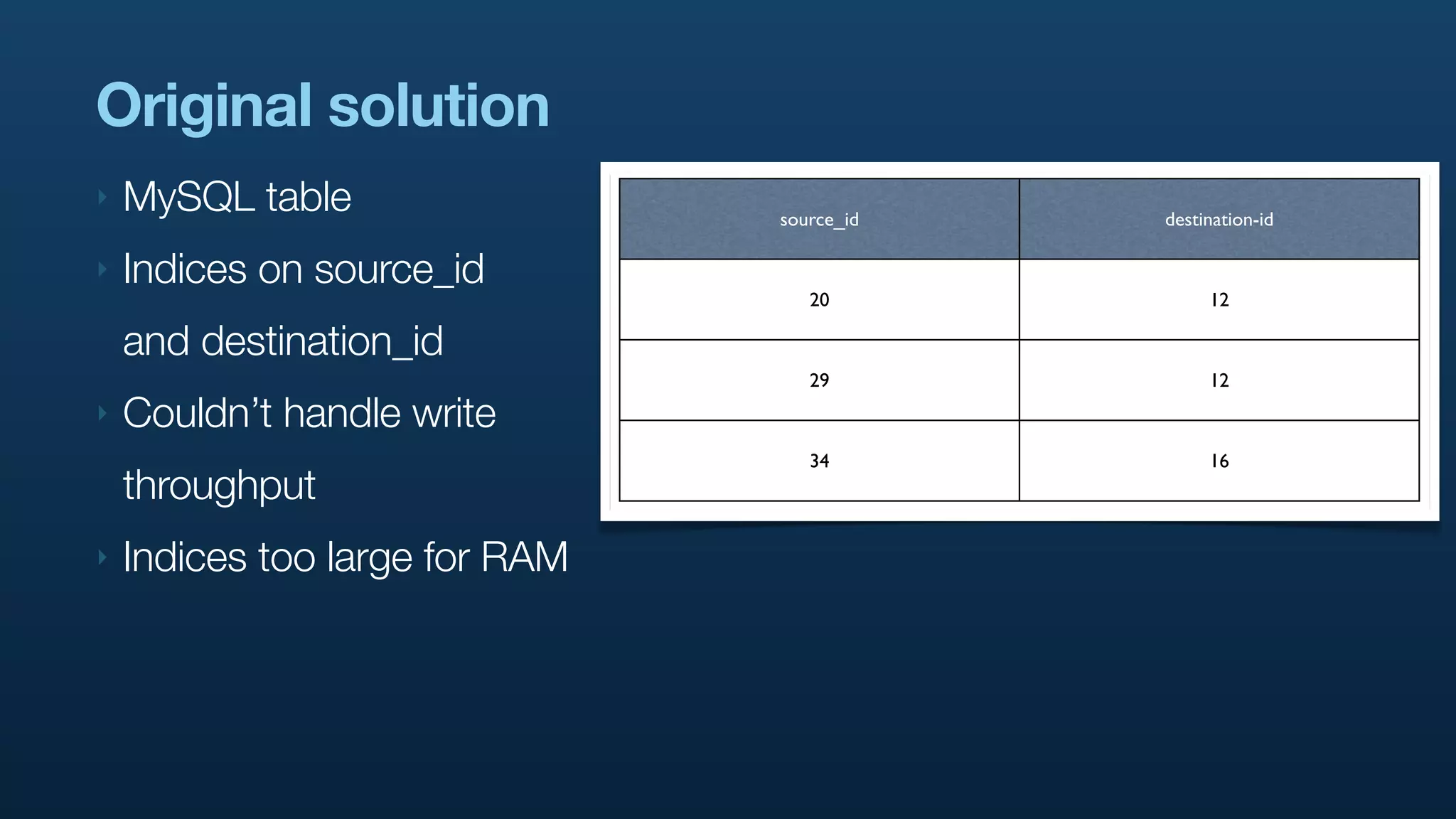

Original solution
‣   MySQL table                 source_id   destination-id

‣   Indices on source_id
                                   20            12

    and destination_id
                                   29            12
‣   Couldn’t handle write
                                   34            16
    throughput
‣   Indices too large for RAM

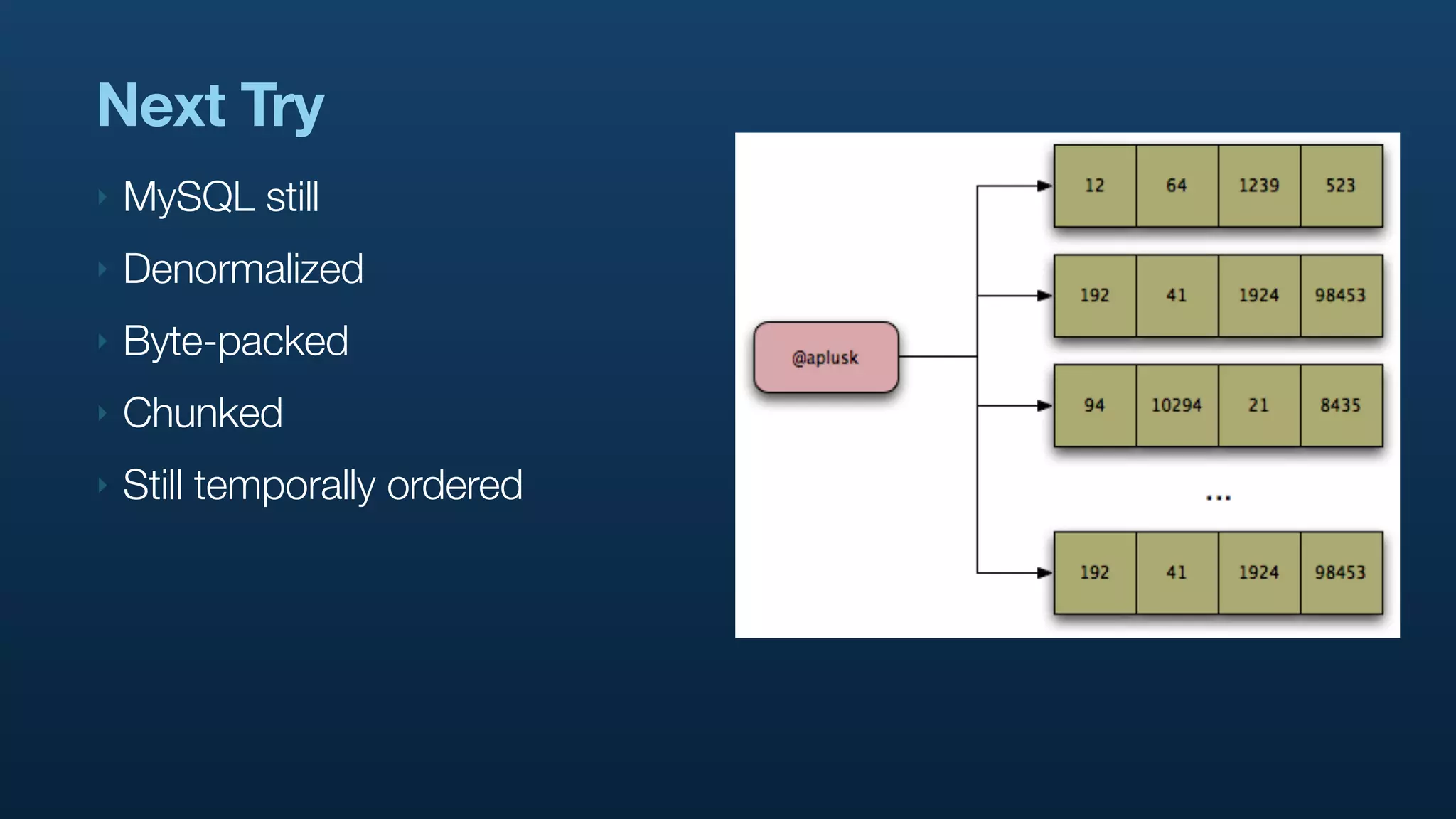

Next Try
‣   MySQL still
‣   Denormalized
‣   Byte-packed
‣   Chunked
‣   Still temporally ordered

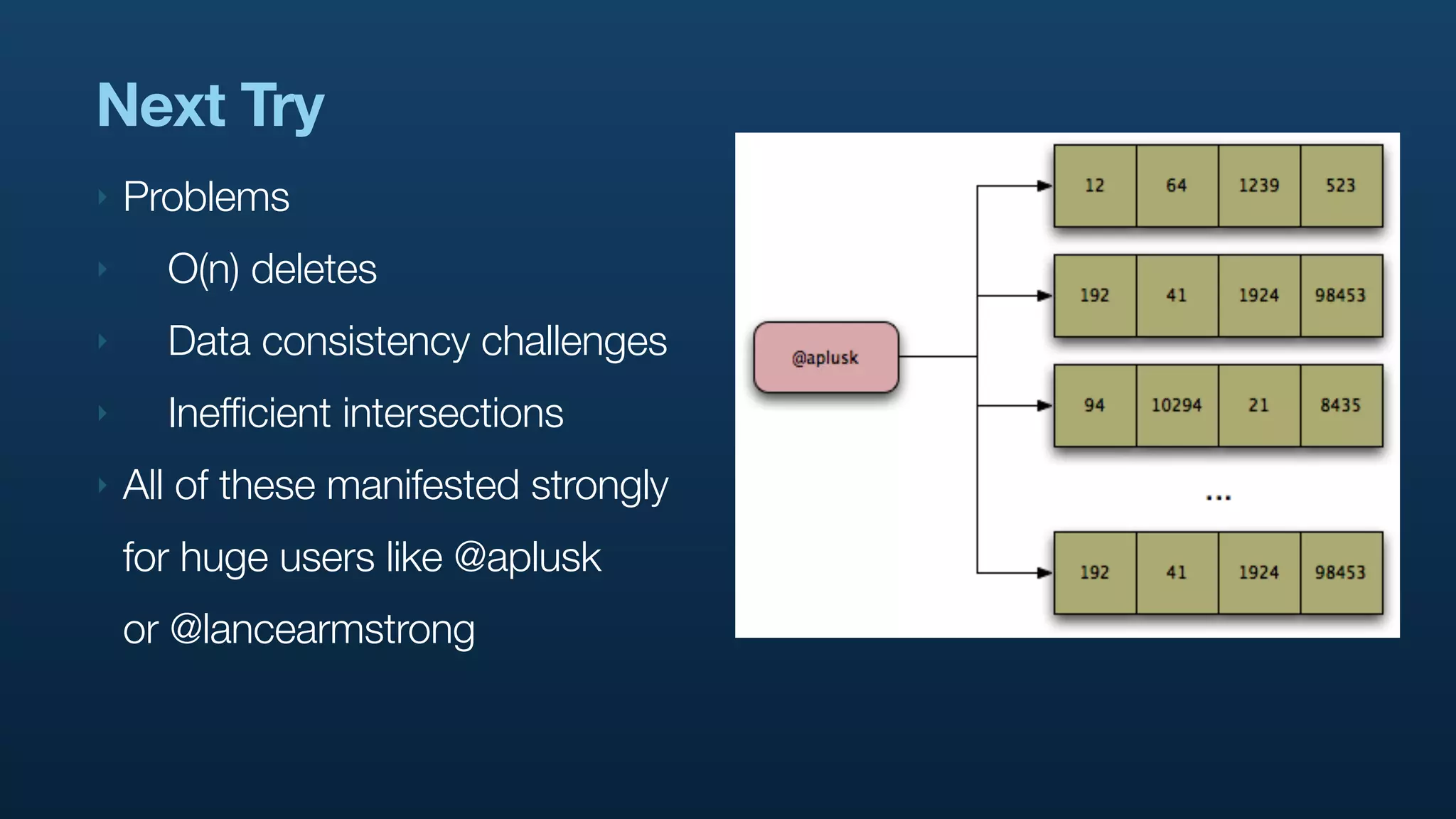

Next Try
‣   Problems
‣     O(n) deletes
‣     Data consistency challenges
‣     Inefficient intersections
‣   All of these manifested strongly
    for huge users like @aplusk
    or @lancearmstrong

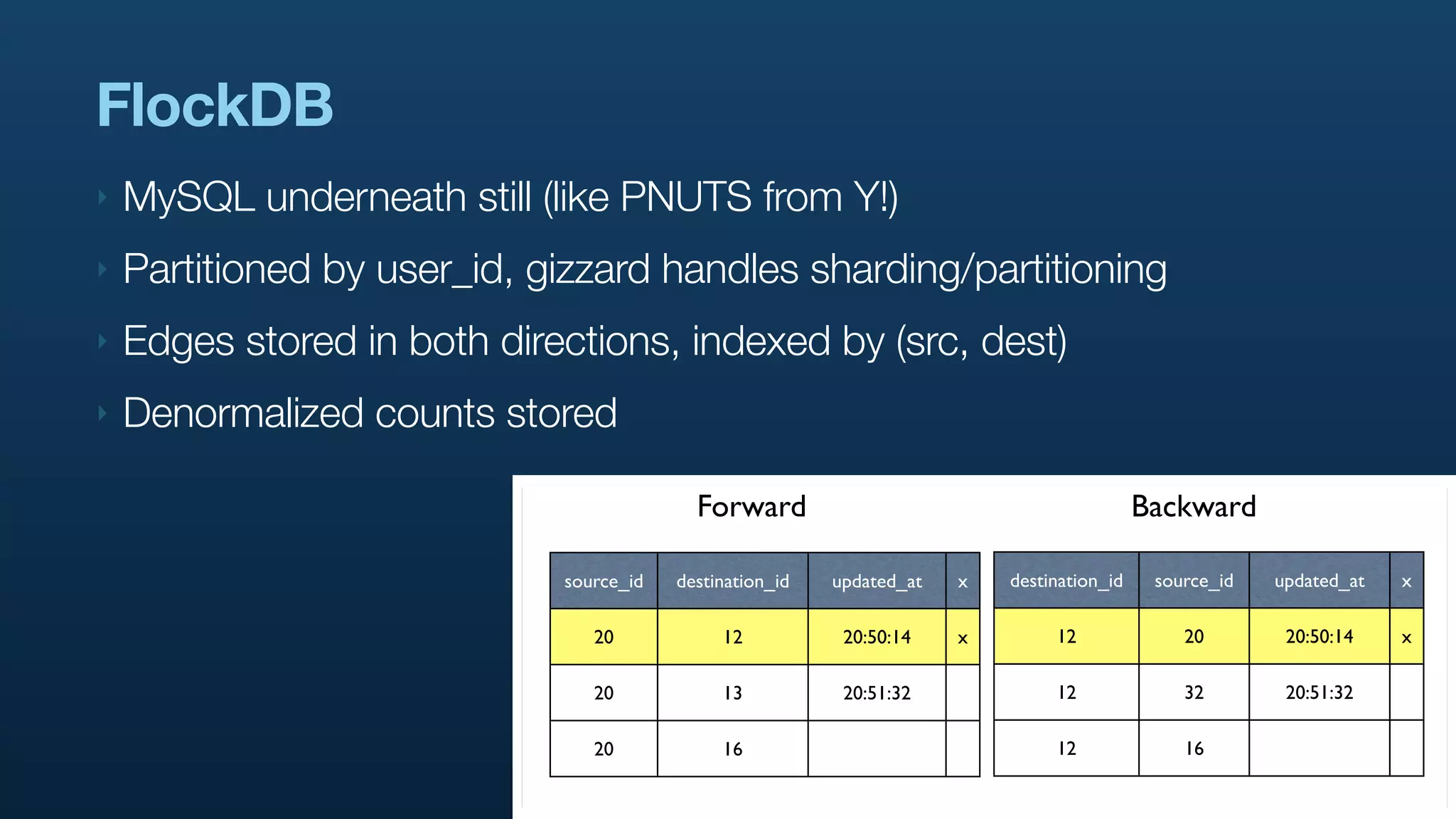

FlockDB
‣   MySQL underneath still (like PNUTS from Y!)
‣   Partitioned by user_id, gizzard handles sharding/partitioning
‣   Edges stored in both directions, indexed by (src, dest)
‣   Denormalized counts stored

                                           Forward                                          Backward

                             source_id   destination_id   updated_at   x   destination_id    source_id   updated_at   x

                                20            12           20:50:14    x        12              20        20:50:14    x

                                20            13           20:51:32             12              32        20:51:32

                                20            16                                12              16

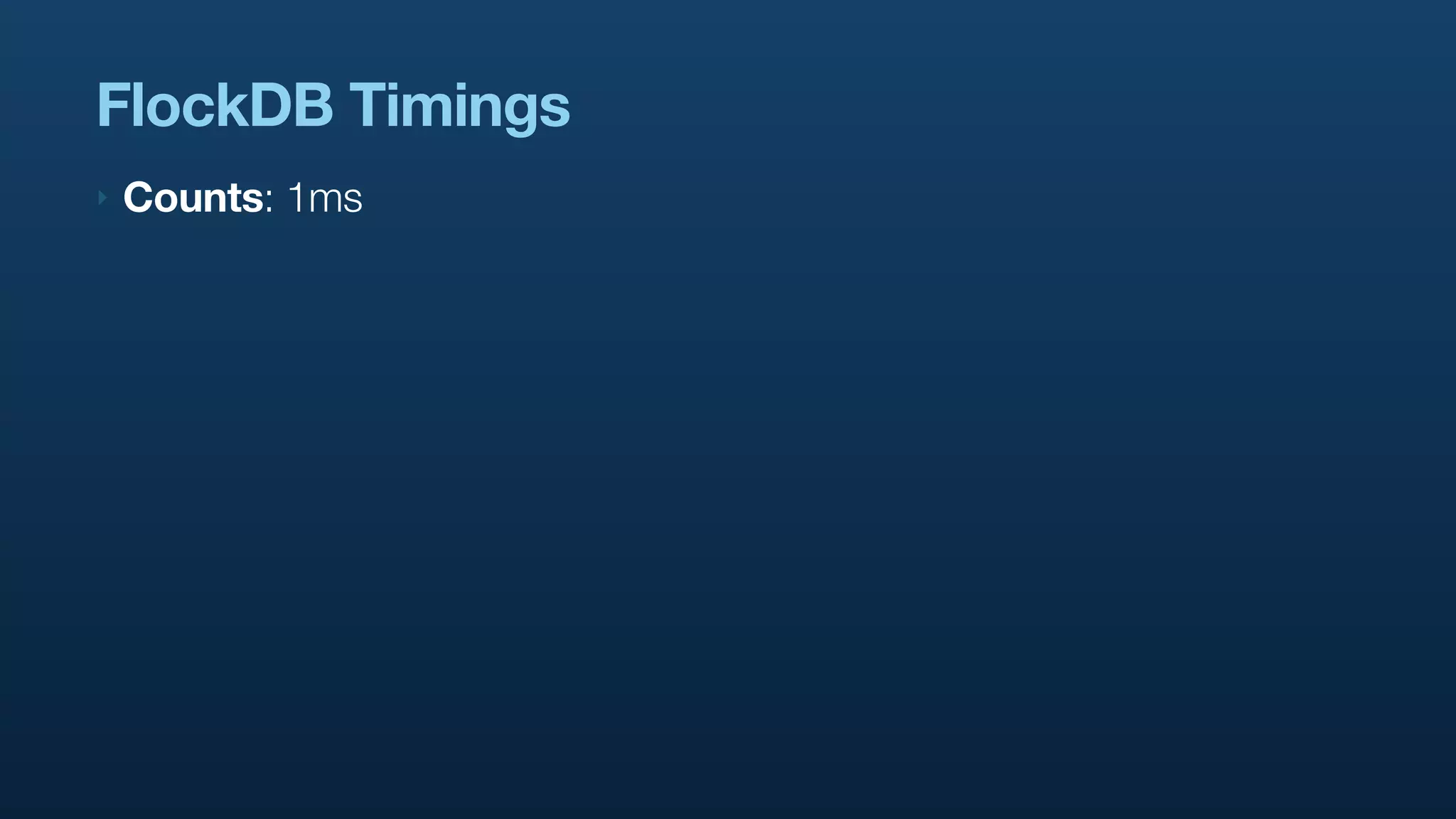

FlockDB Timings
‣   Counts: 1ms

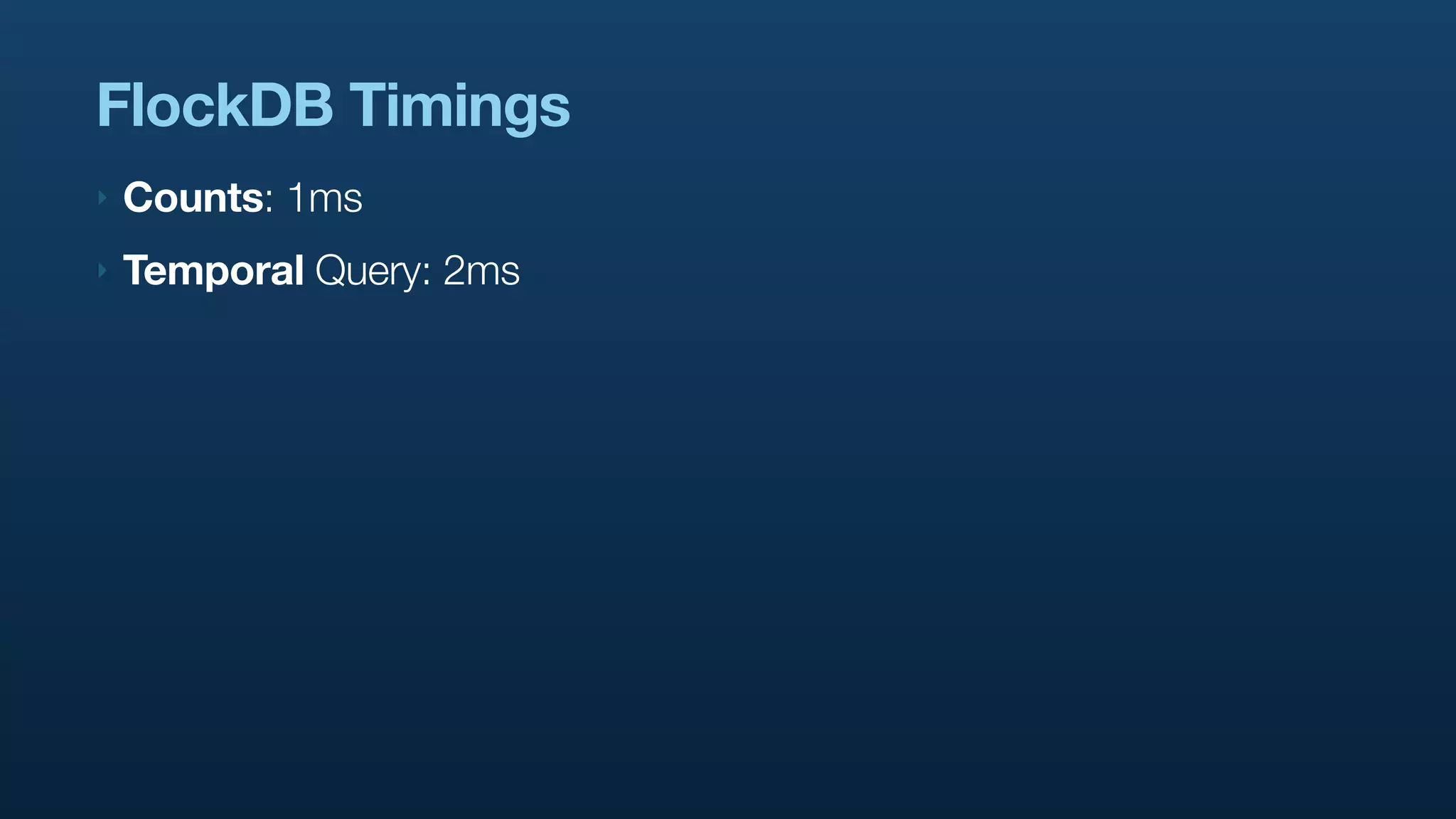

FlockDB Timings
‣   Counts: 1ms
‣   Temporal Query: 2ms
FlockDB Timings
‣   Counts: 1ms
‣   Temporal Query: 2ms
‣   Writes: 1ms for journal, 16ms for durability

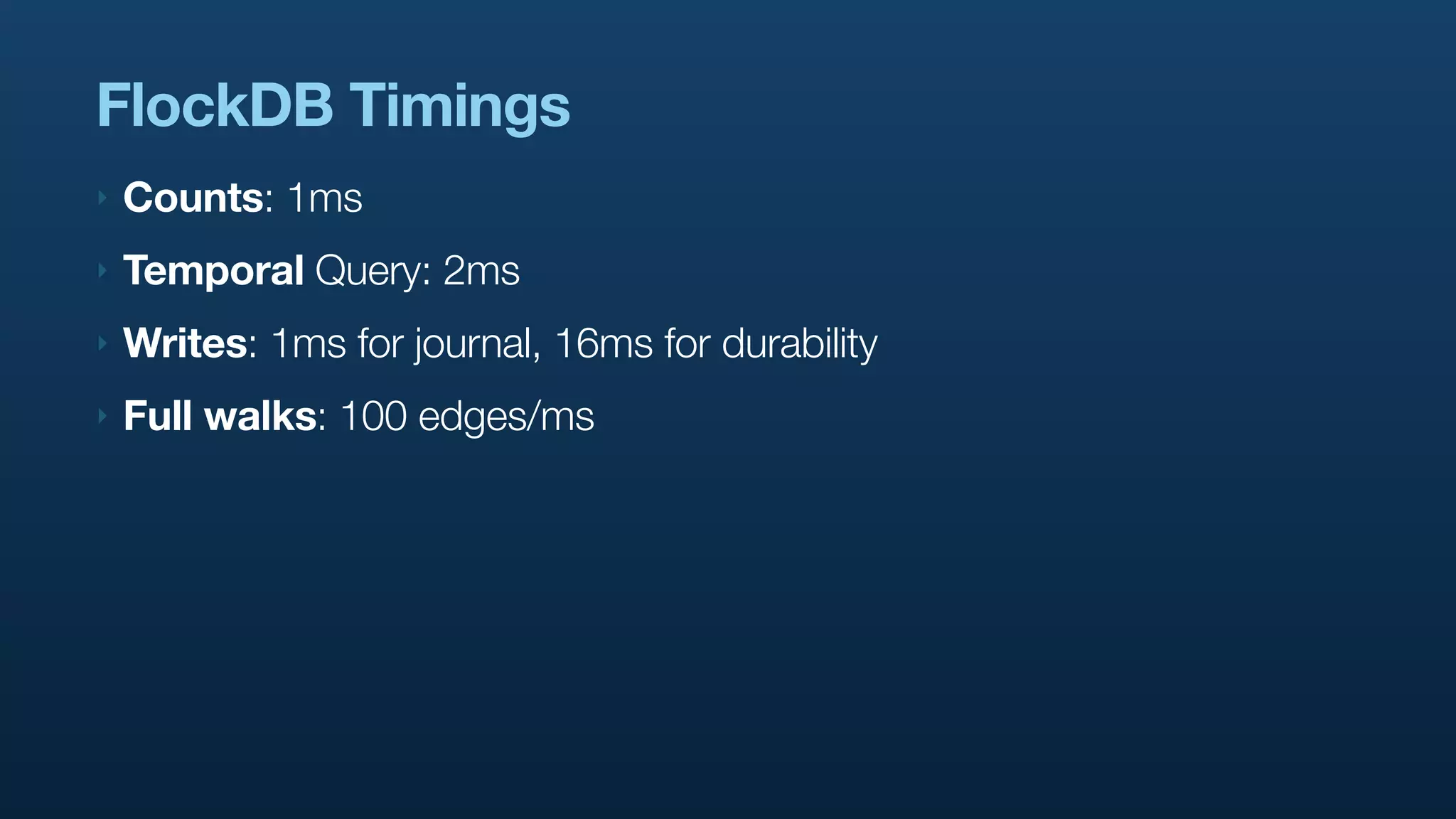

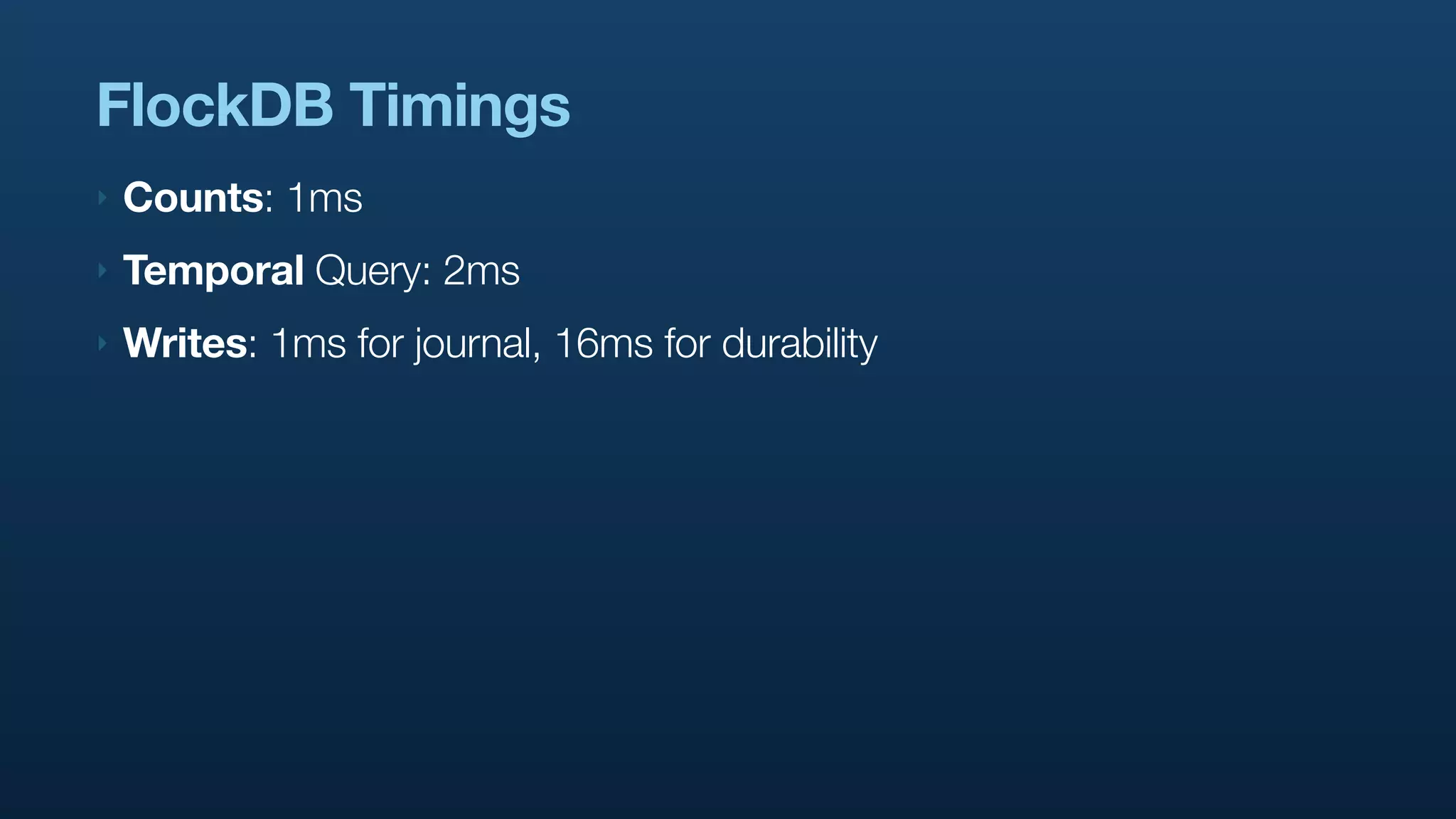

FlockDB Timings
‣   Counts: 1ms
‣   Temporal Query: 2ms
‣   Writes: 1ms for journal, 16ms for durability
‣   Full walks: 100 edges/ms

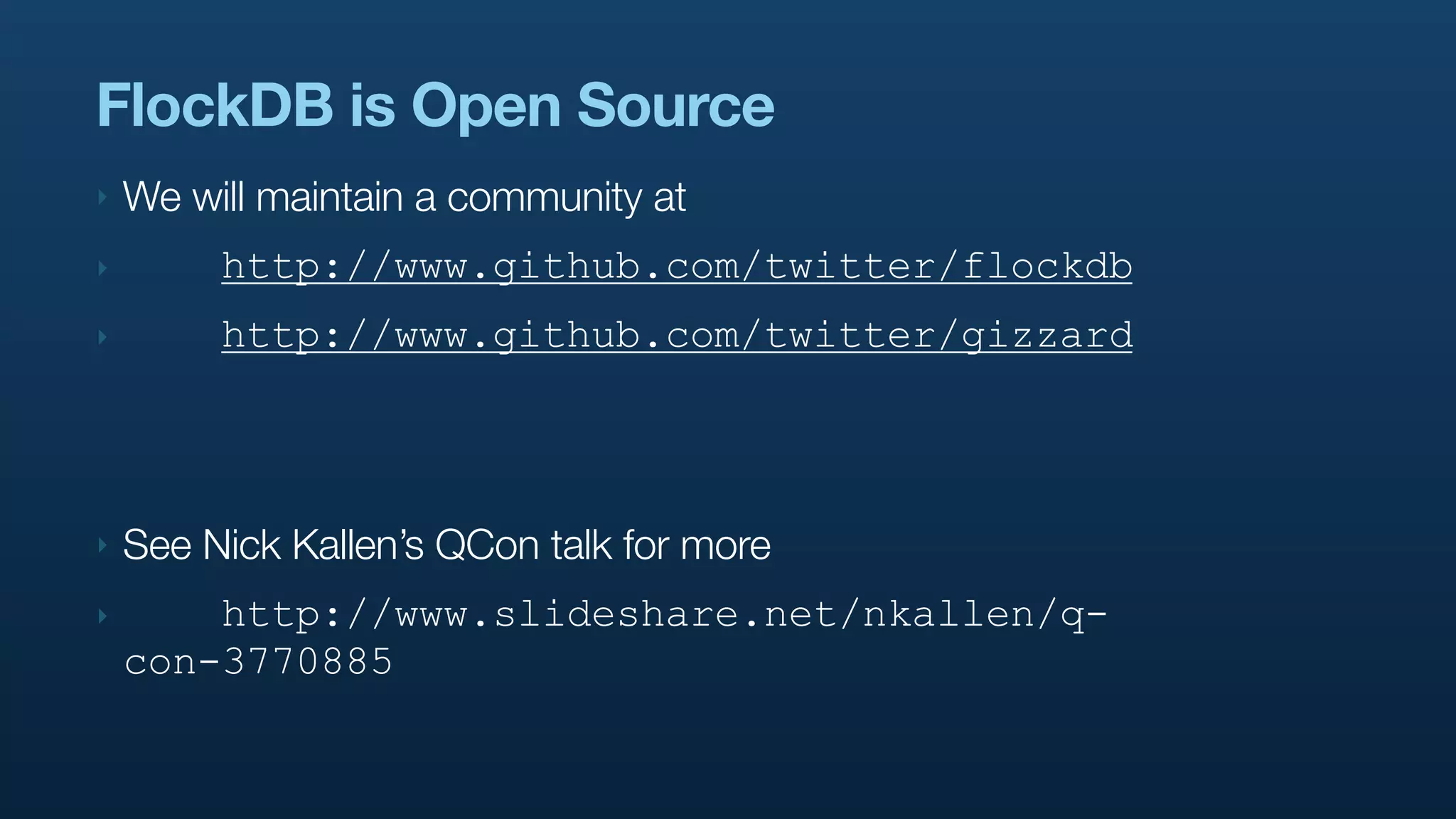

FlockDB is Open Source
‣   We will maintain a community at
‣        http://www.github.com/twitter/flockdb
‣        http://www.github.com/twitter/gizzard



‣   See Nick Kallen’s QCon talk for more
‣       http://www.slideshare.net/nkallen/q-
    con-3770885

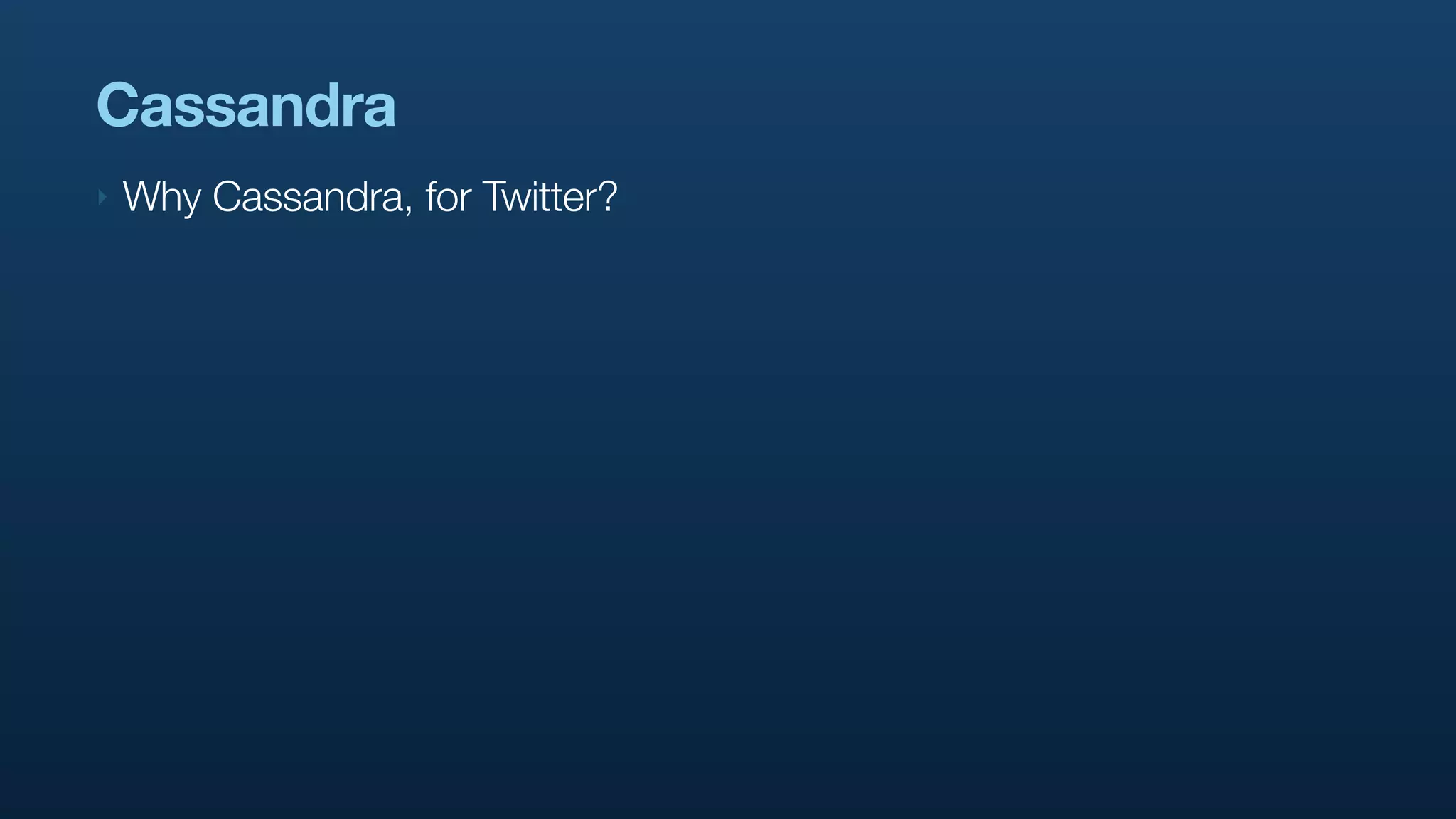

Cassandra
‣   Why Cassandra, for Twitter?
Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL

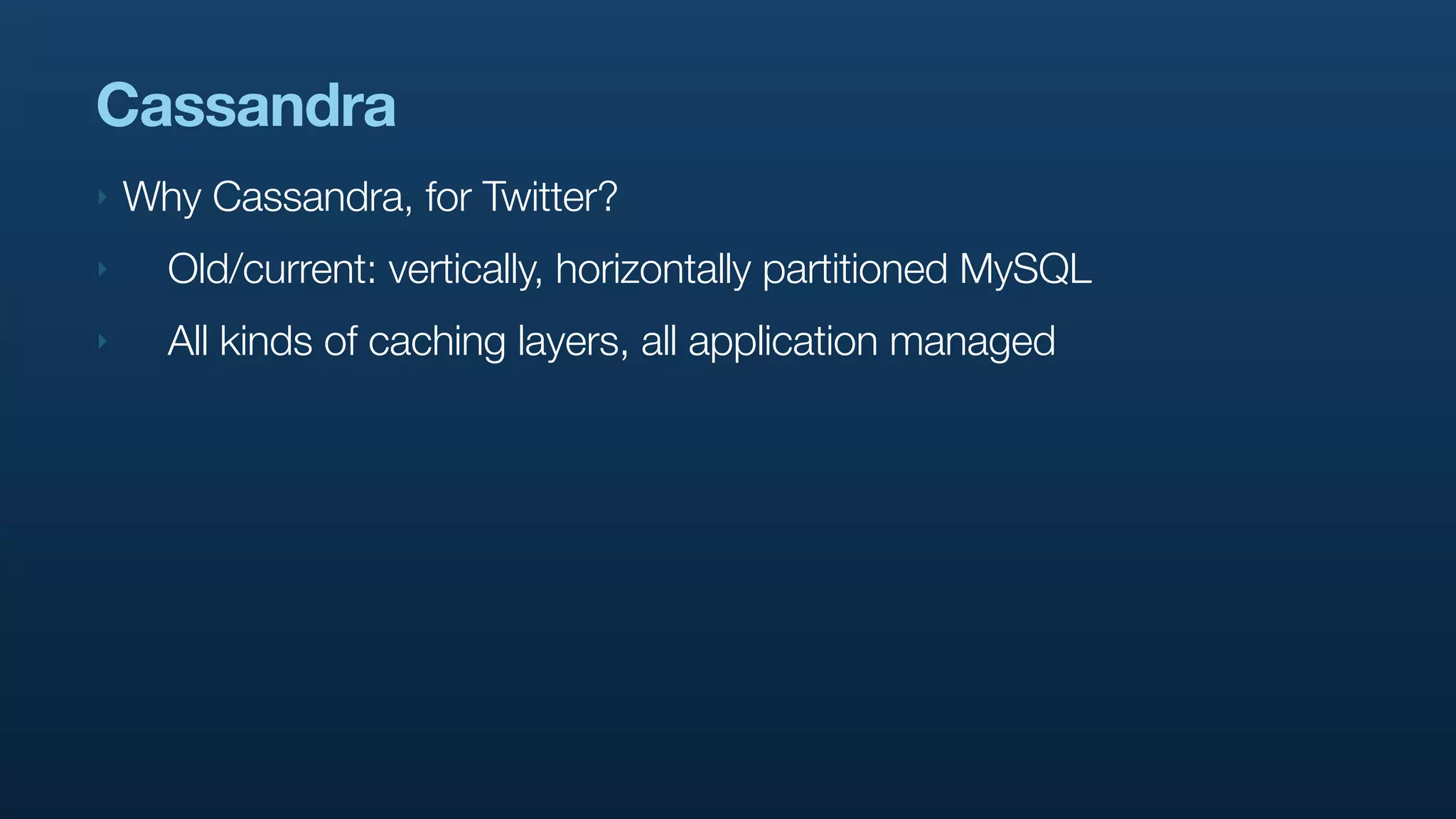

Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL
‣     All kinds of caching layers, all application managed
Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables

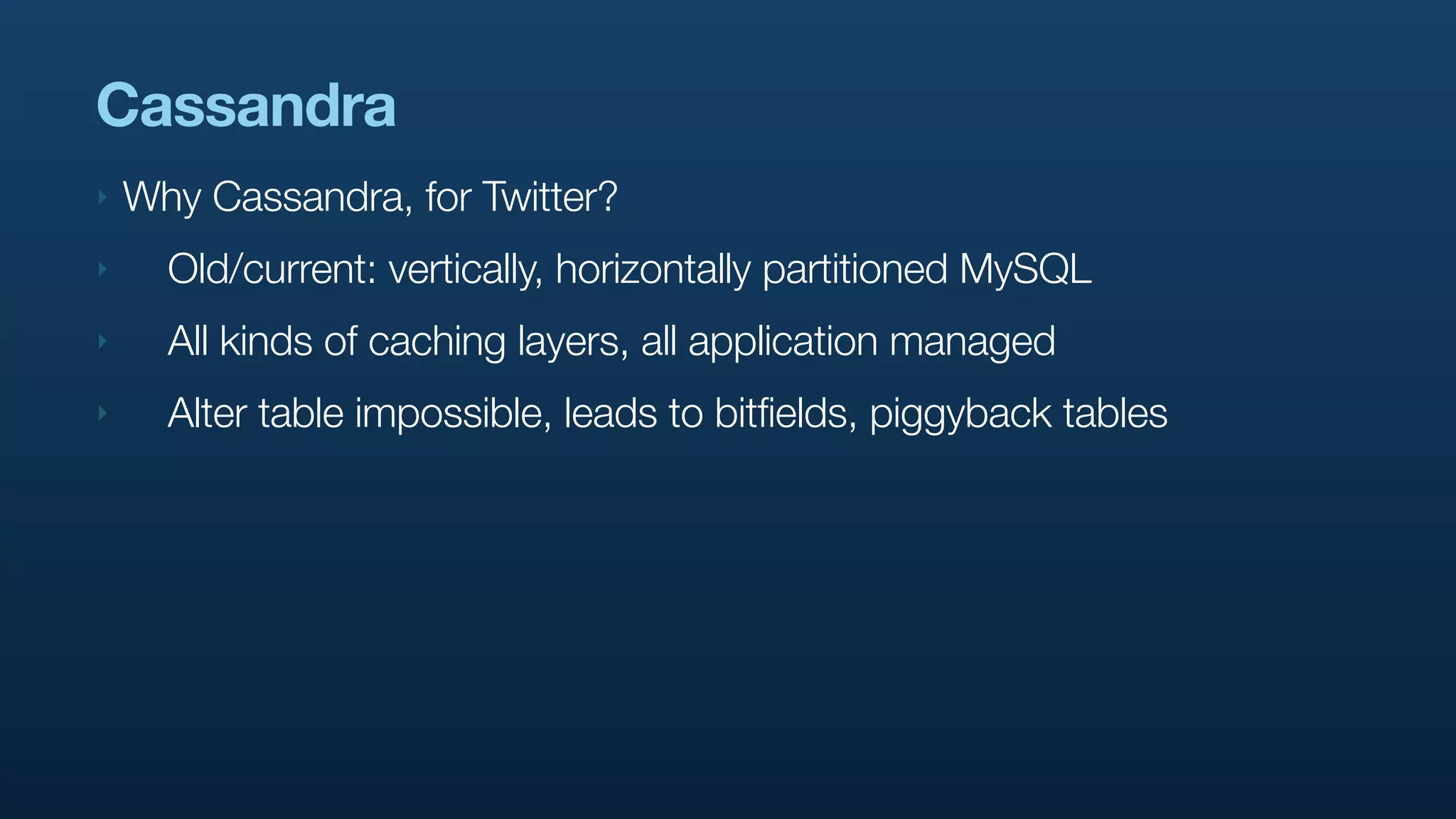

Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables
‣     Hardware intensive, error prone, etc

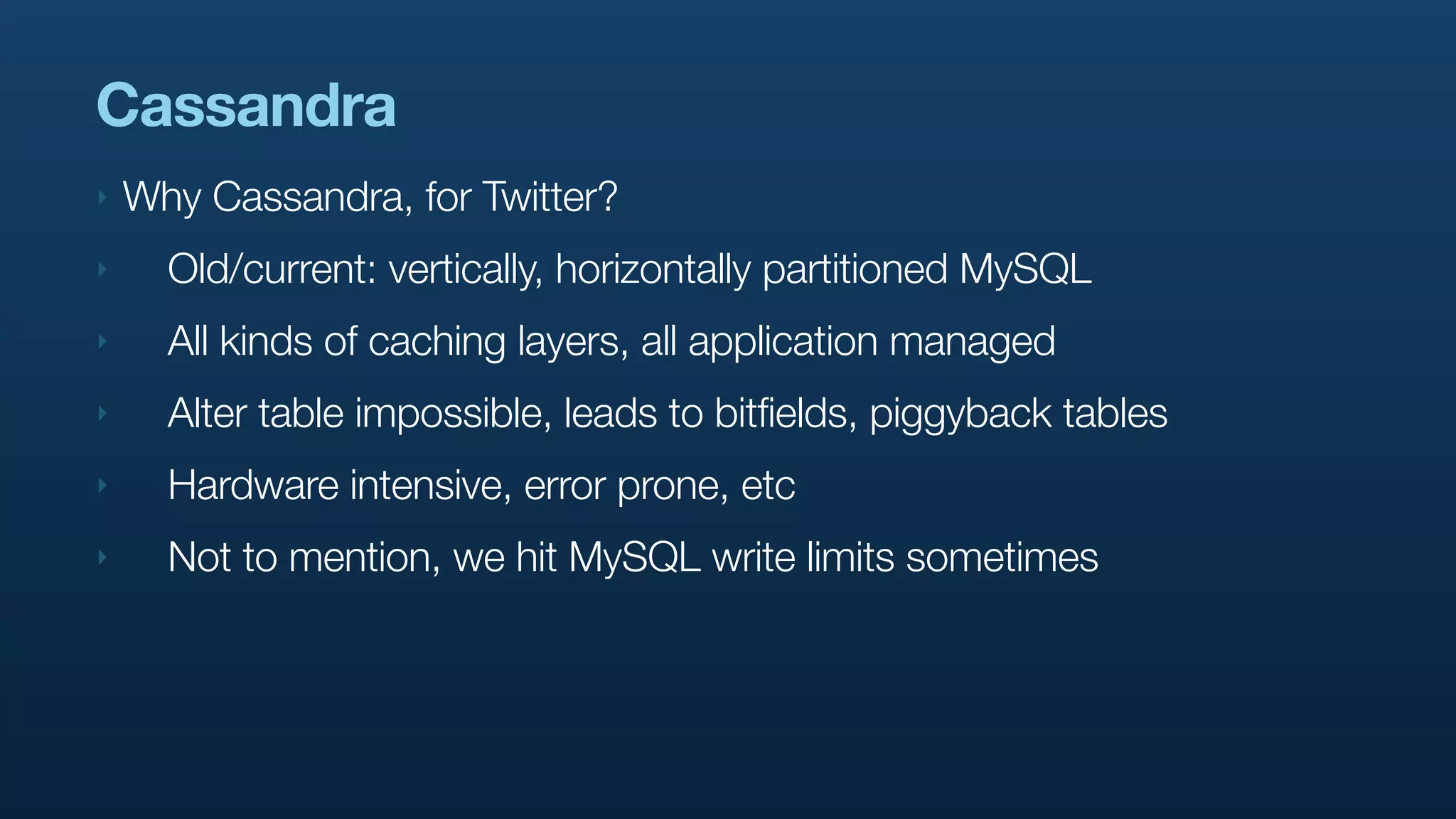

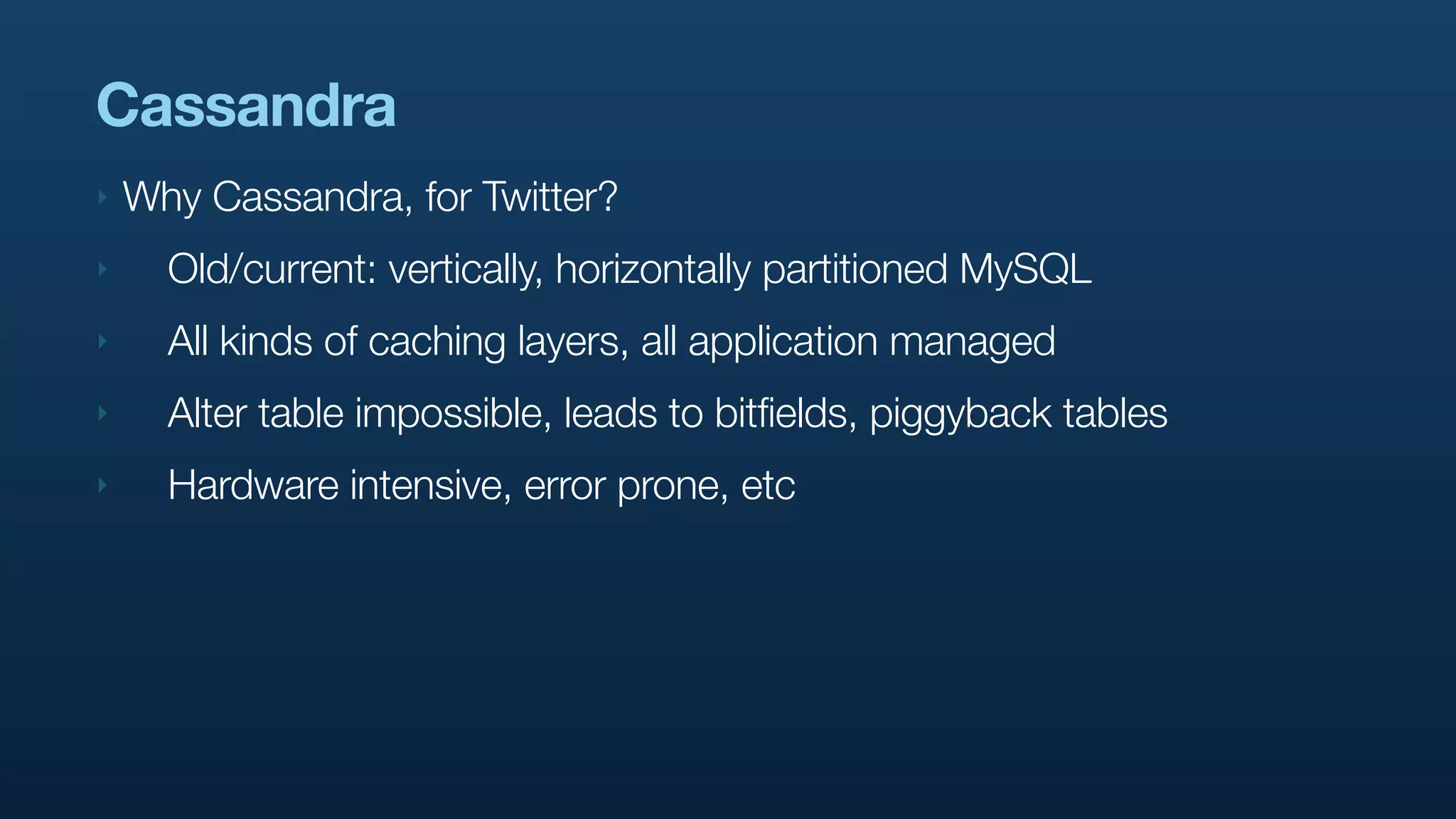

Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables
‣     Hardware intensive, error prone, etc
‣     Not to mention, we hit MySQL write limits sometimes

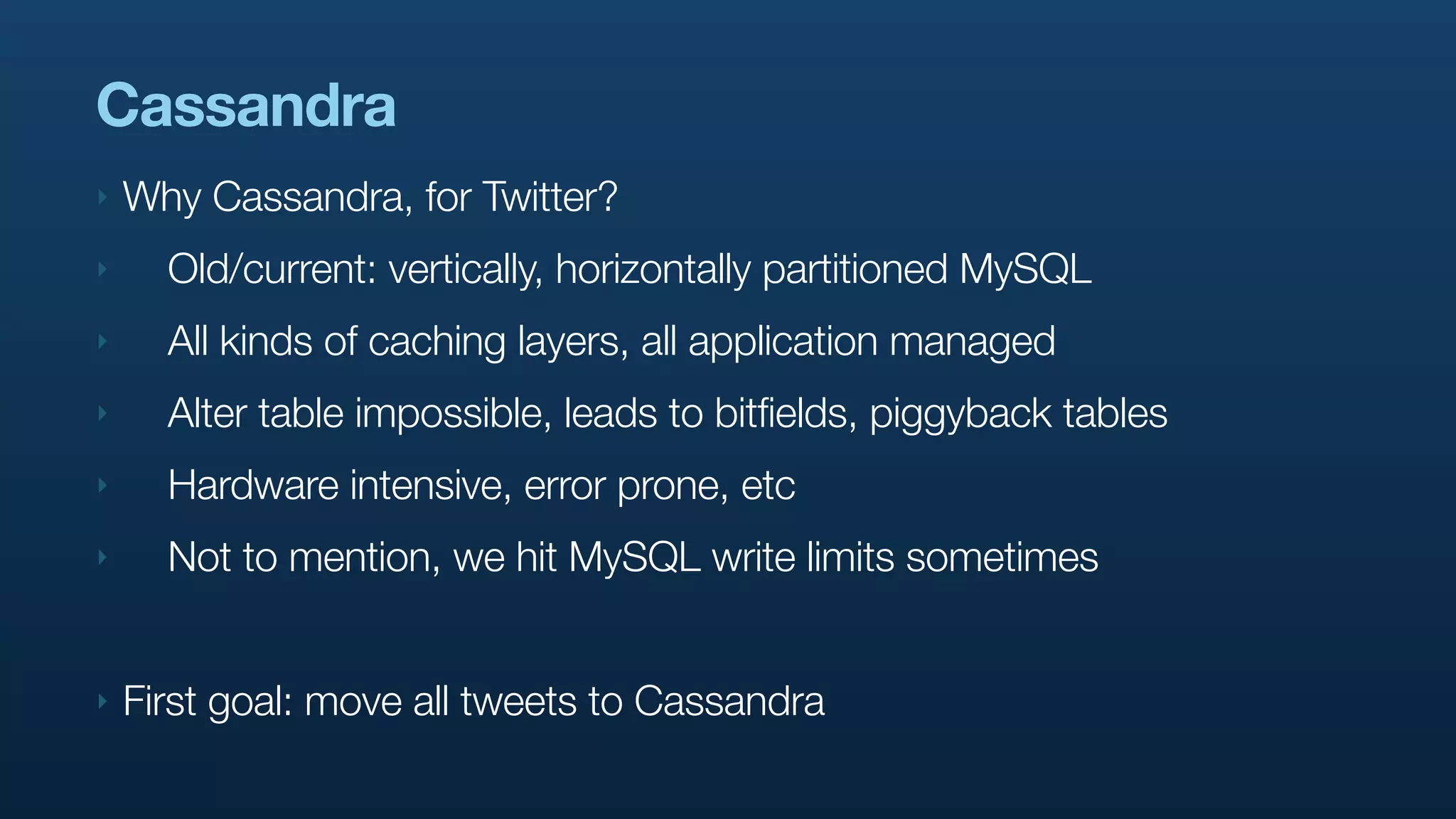

Cassandra
‣   Why Cassandra, for Twitter?
‣     Old/current: vertically, horizontally partitioned MySQL
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables
‣     Hardware intensive, error prone, etc
‣     Not to mention, we hit MySQL write limits sometimes


‣   First goal: move all tweets to Cassandra

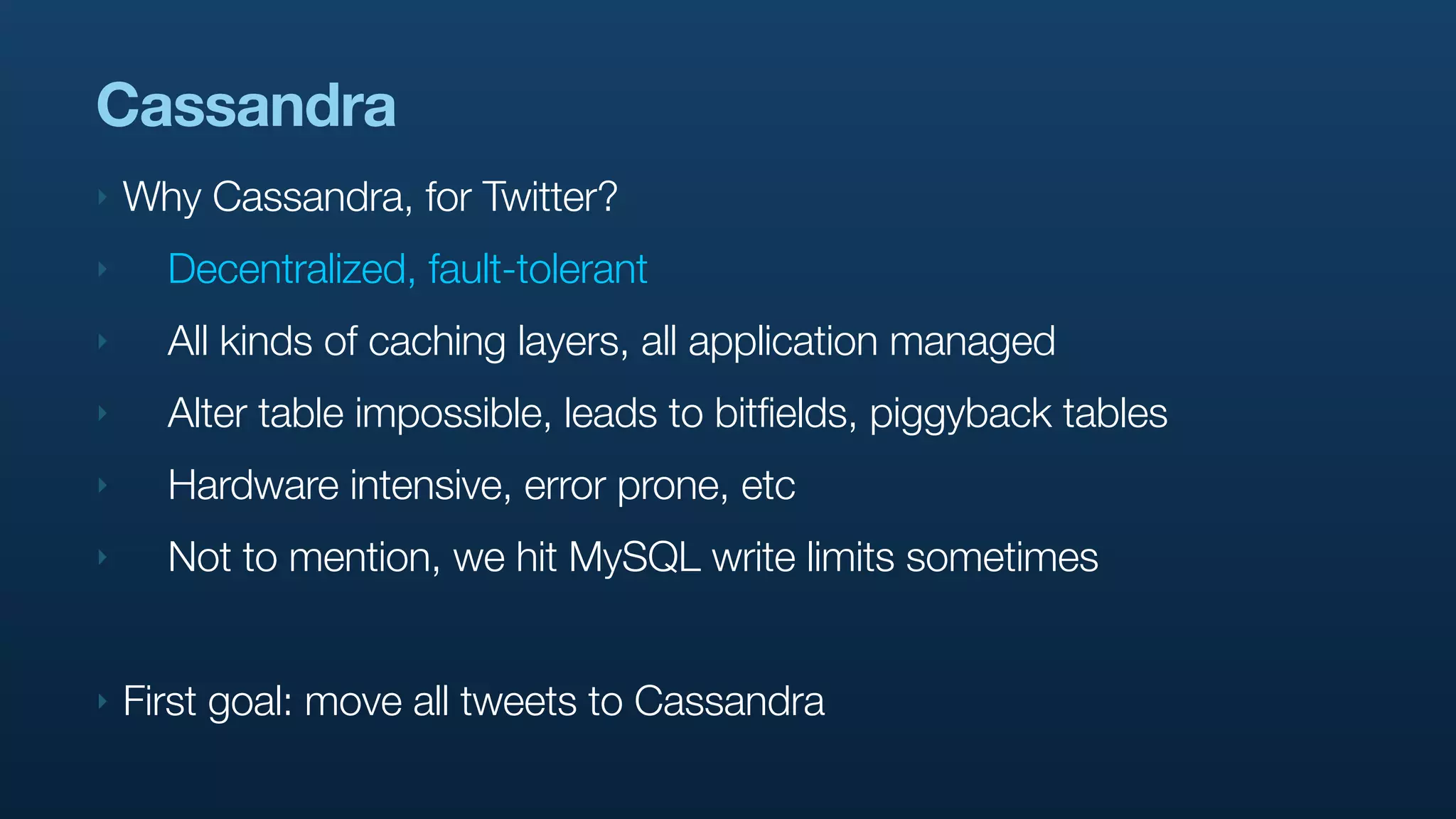

Cassandra
‣   Why Cassandra, for Twitter?
‣     Decentralized, fault-tolerant
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables
‣     Hardware intensive, error prone, etc
‣     Not to mention, we hit MySQL write limits sometimes


‣   First goal: move all tweets to Cassandra

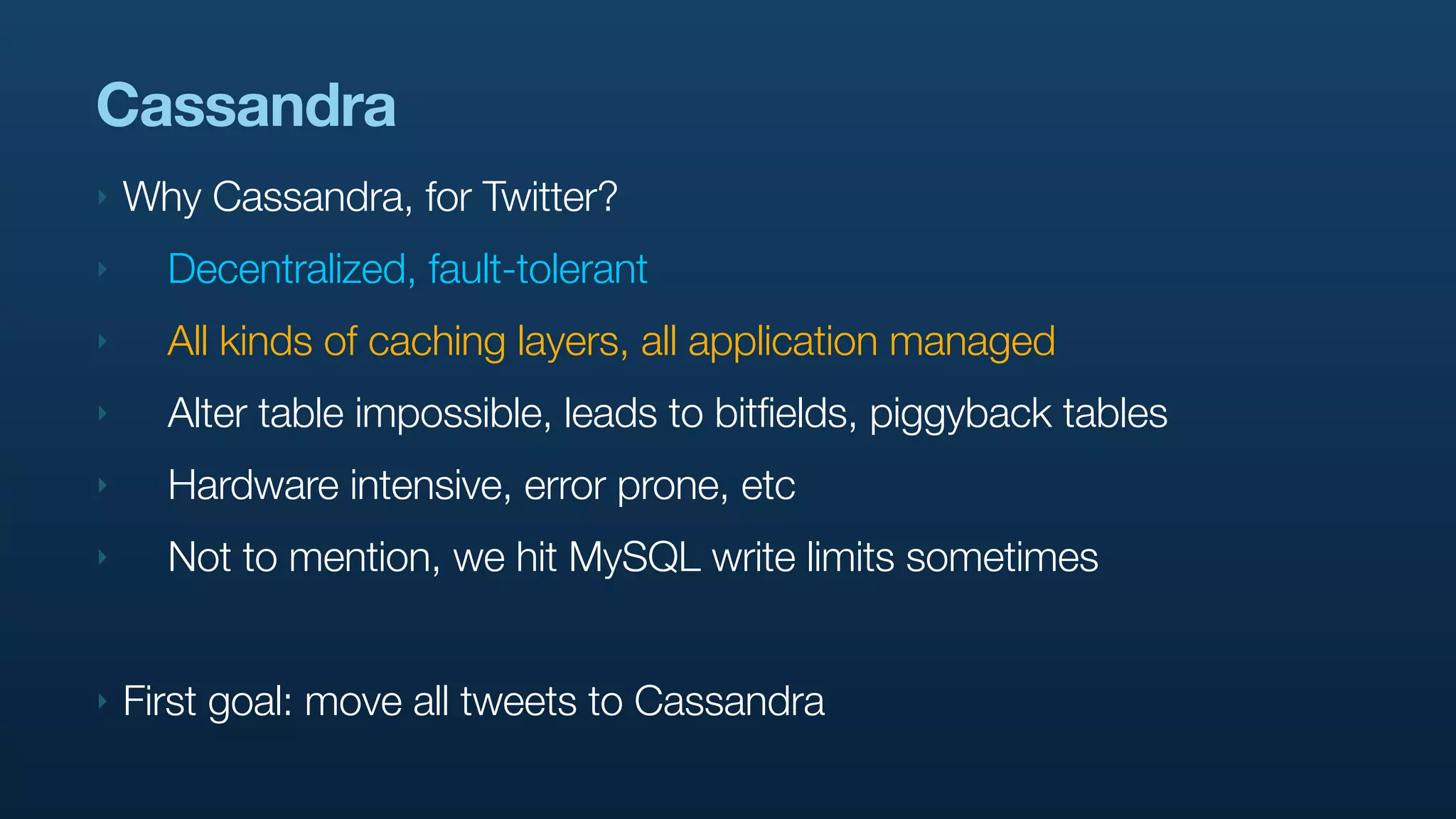

Cassandra
‣   Why Cassandra, for Twitter?
‣     Decentralized, fault-tolerant
‣     All kinds of caching layers, all application managed
‣     Alter table impossible, leads to bitfields, piggyback tables
‣     Hardware intensive, error prone, etc
‣     Not to mention, we hit MySQL write limits sometimes


‣   First goal: move all tweets to Cassandra

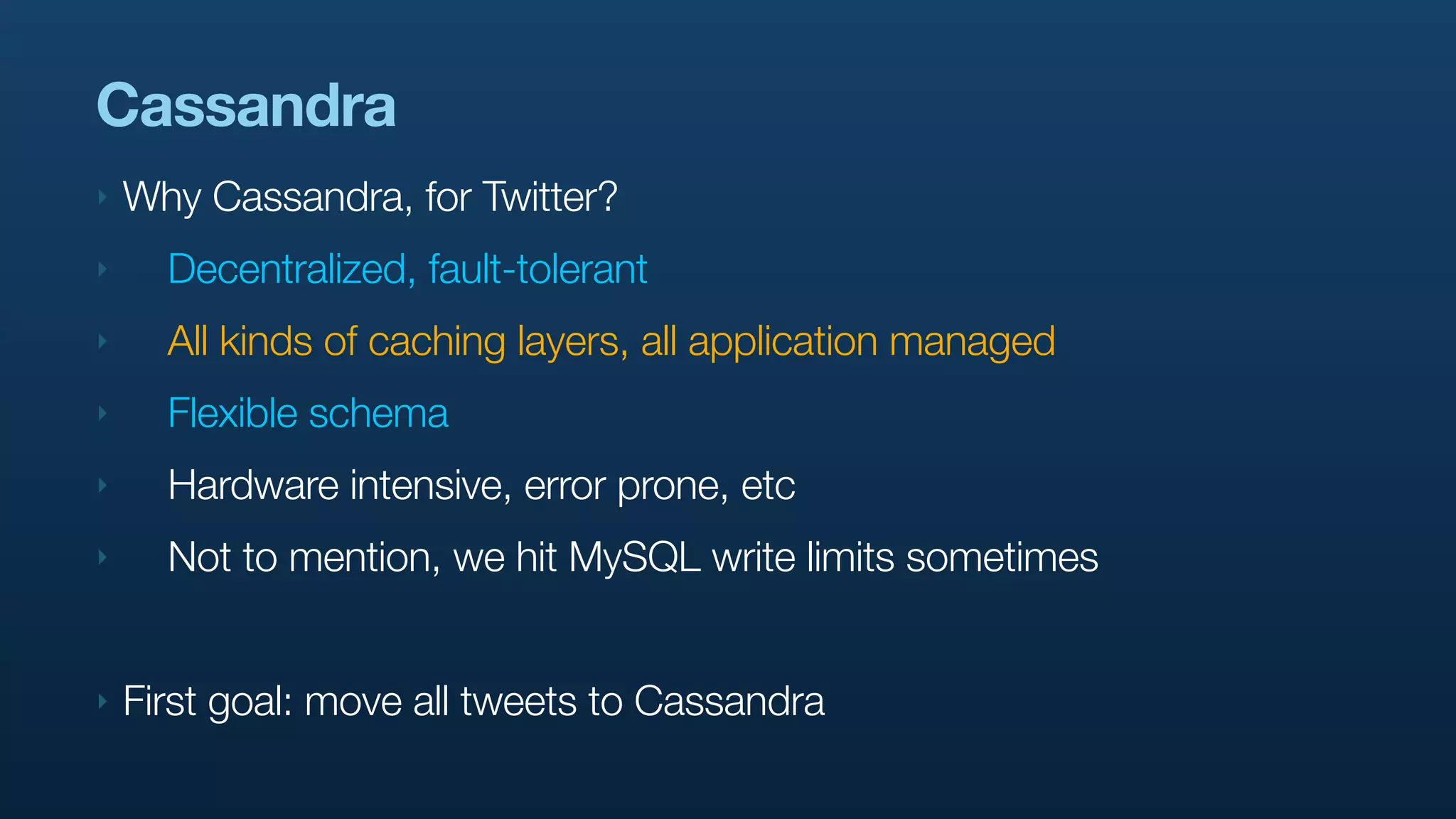

Cassandra
‣   Why Cassandra, for Twitter?
‣     Decentralized, fault-tolerant
‣     All kinds of caching layers, all application managed
‣     Flexible schema
‣     Hardware intensive, error prone, etc
‣     Not to mention, we hit MySQL write limits sometimes


‣   First goal: move all tweets to Cassandra

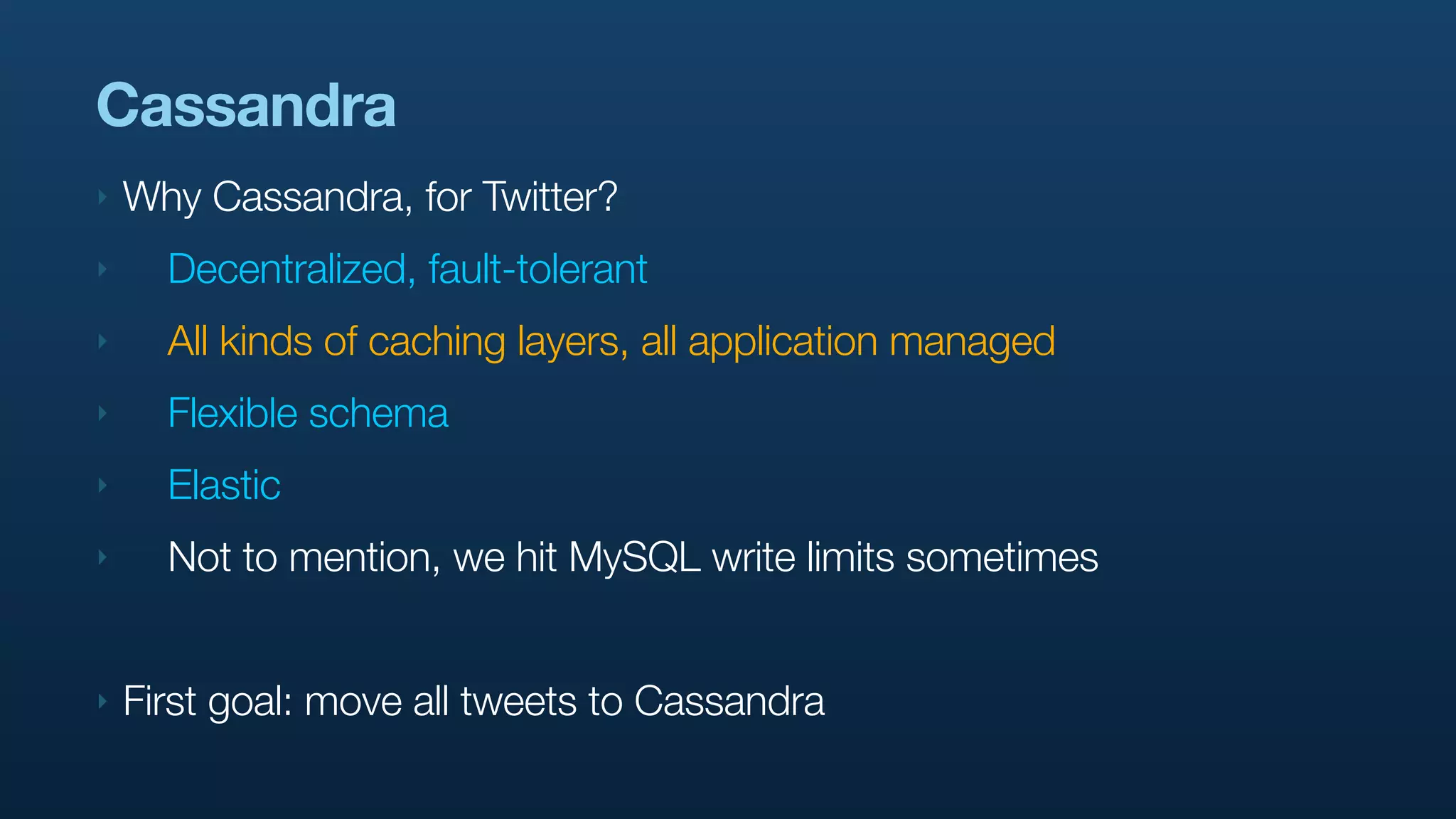

Cassandra
‣   Why Cassandra, for Twitter?
‣     Decentralized, fault-tolerant
‣     All kinds of caching layers, all application managed
‣     Flexible schema
‣     Elastic
‣     Not to mention, we hit MySQL write limits sometimes


‣   First goal: move all tweets to Cassandra

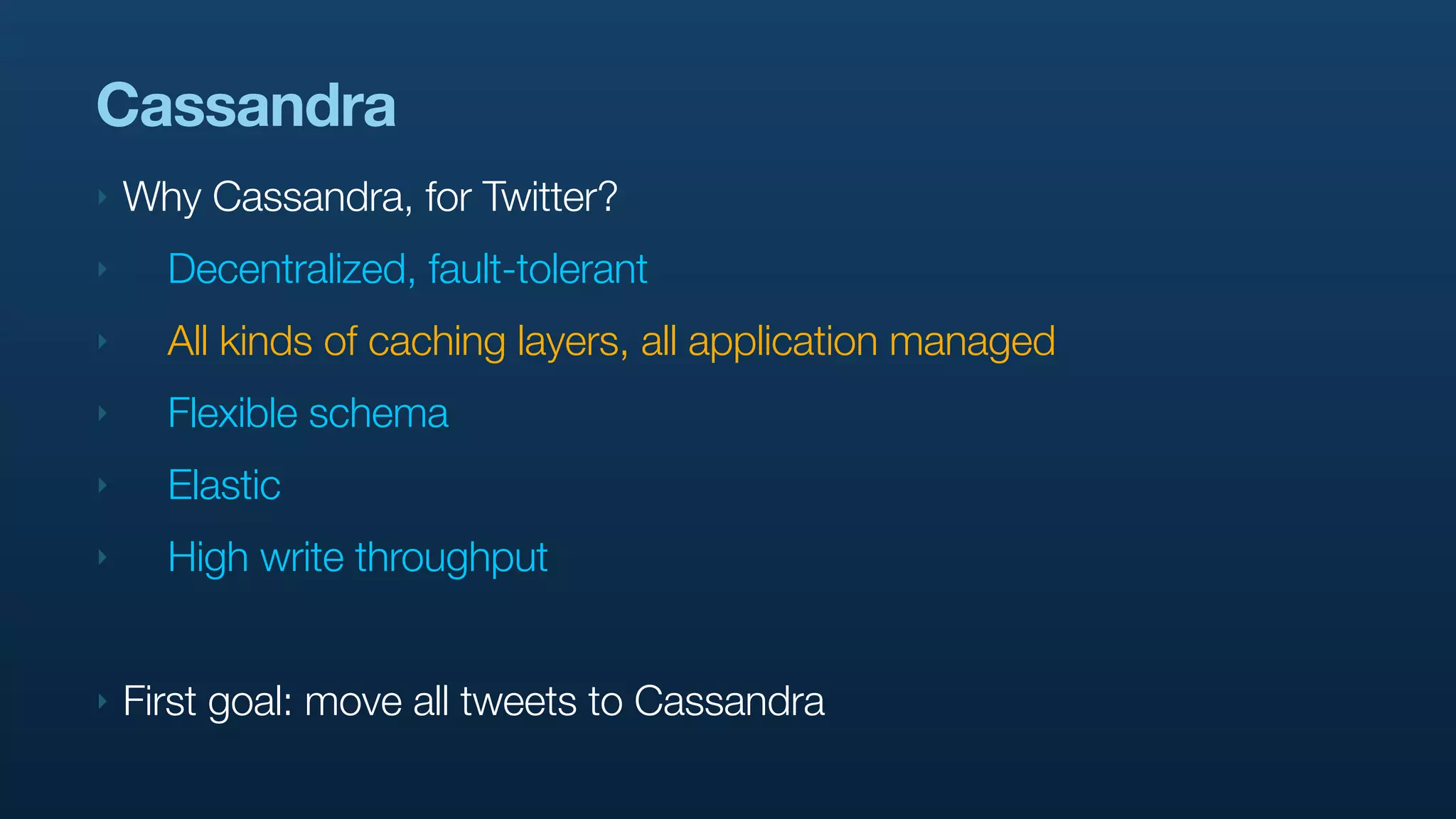

Cassandra
‣   Why Cassandra, for Twitter?
‣     Decentralized, fault-tolerant
‣     All kinds of caching layers, all application managed
‣     Flexible schema
‣     Elastic
‣     High write throughput


‣   First goal: move all tweets to Cassandra

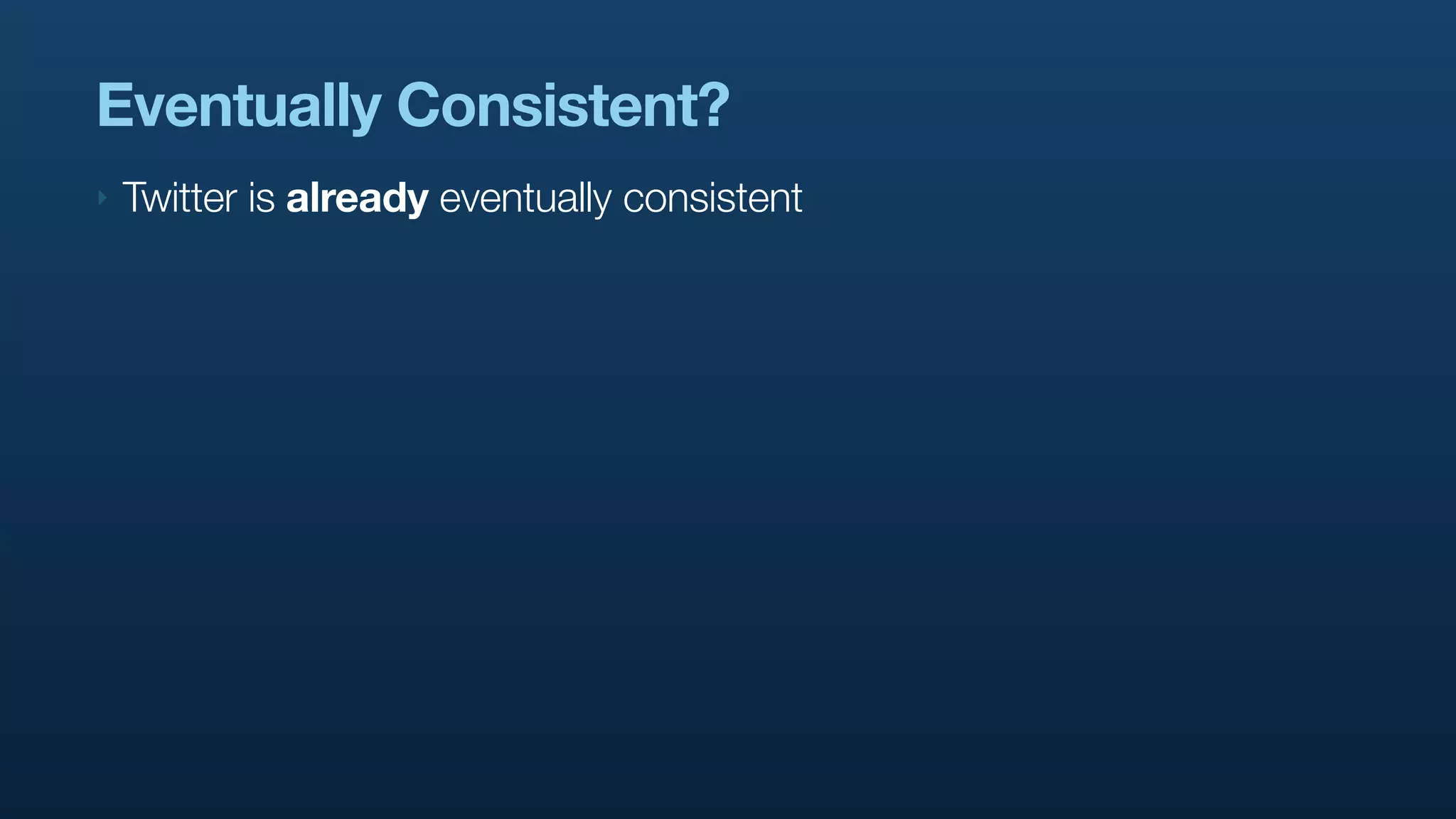

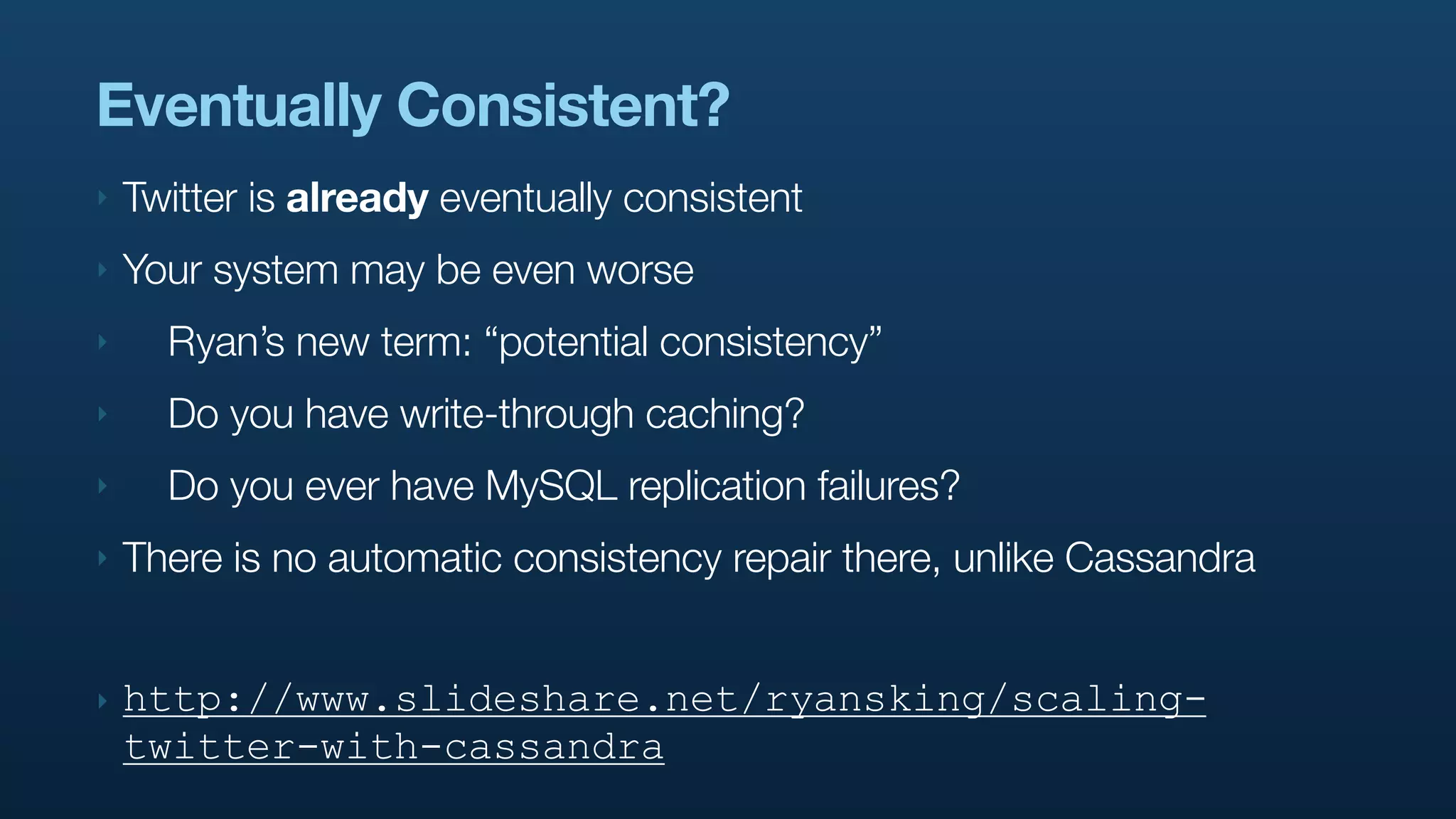

Eventually Consistent?
‣   Twitter is already eventually consistent

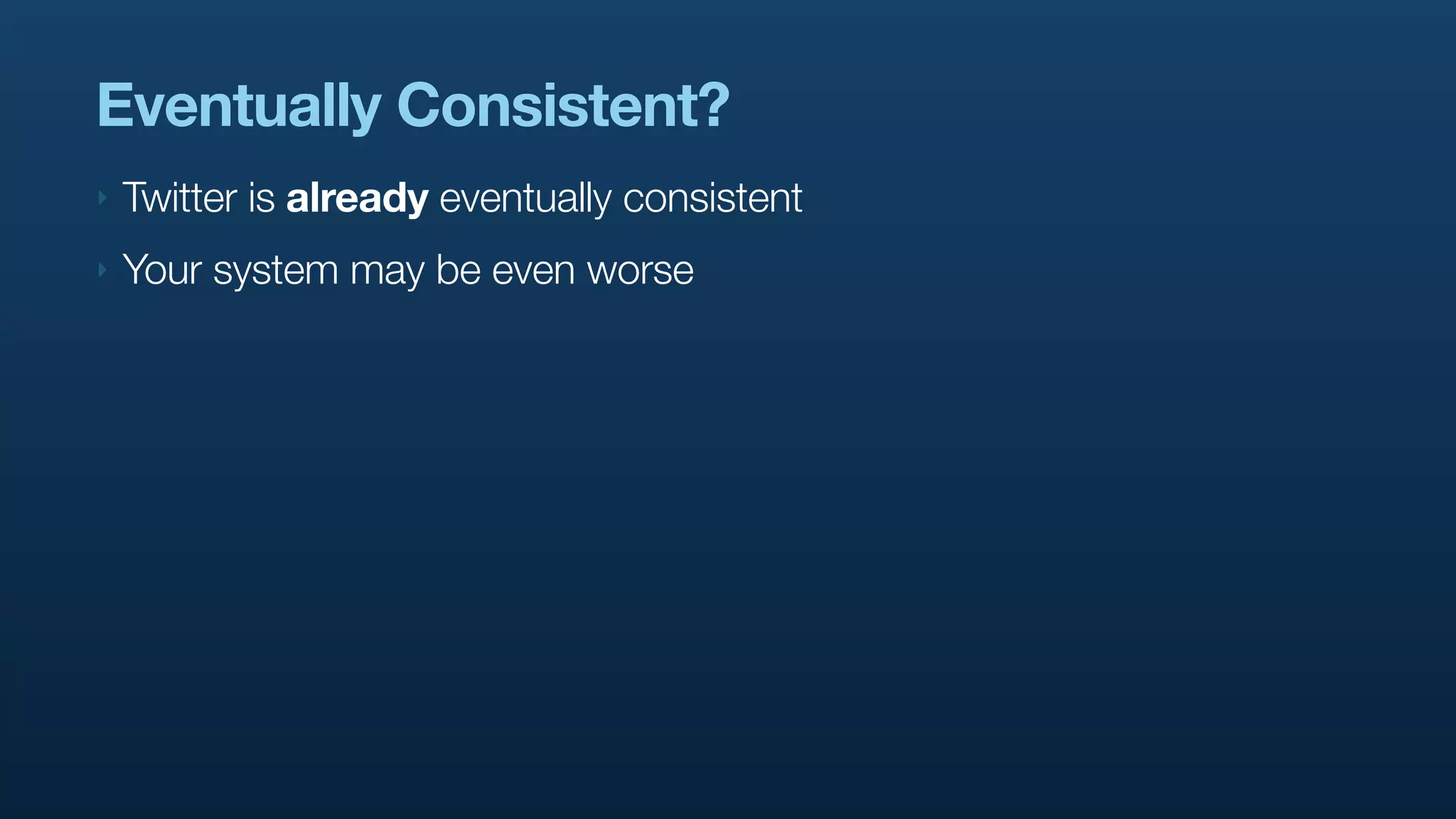

Eventually Consistent?
‣   Twitter is already eventually consistent
‣   Your system may be even worse
Eventually Consistent?
‣   Twitter is already eventually consistent
‣   Your system may be even worse
‣     Ryan’s new term: “potential consistency”
‣     Do you have write-through caching?
‣     Do you ever have MySQL replication failures?

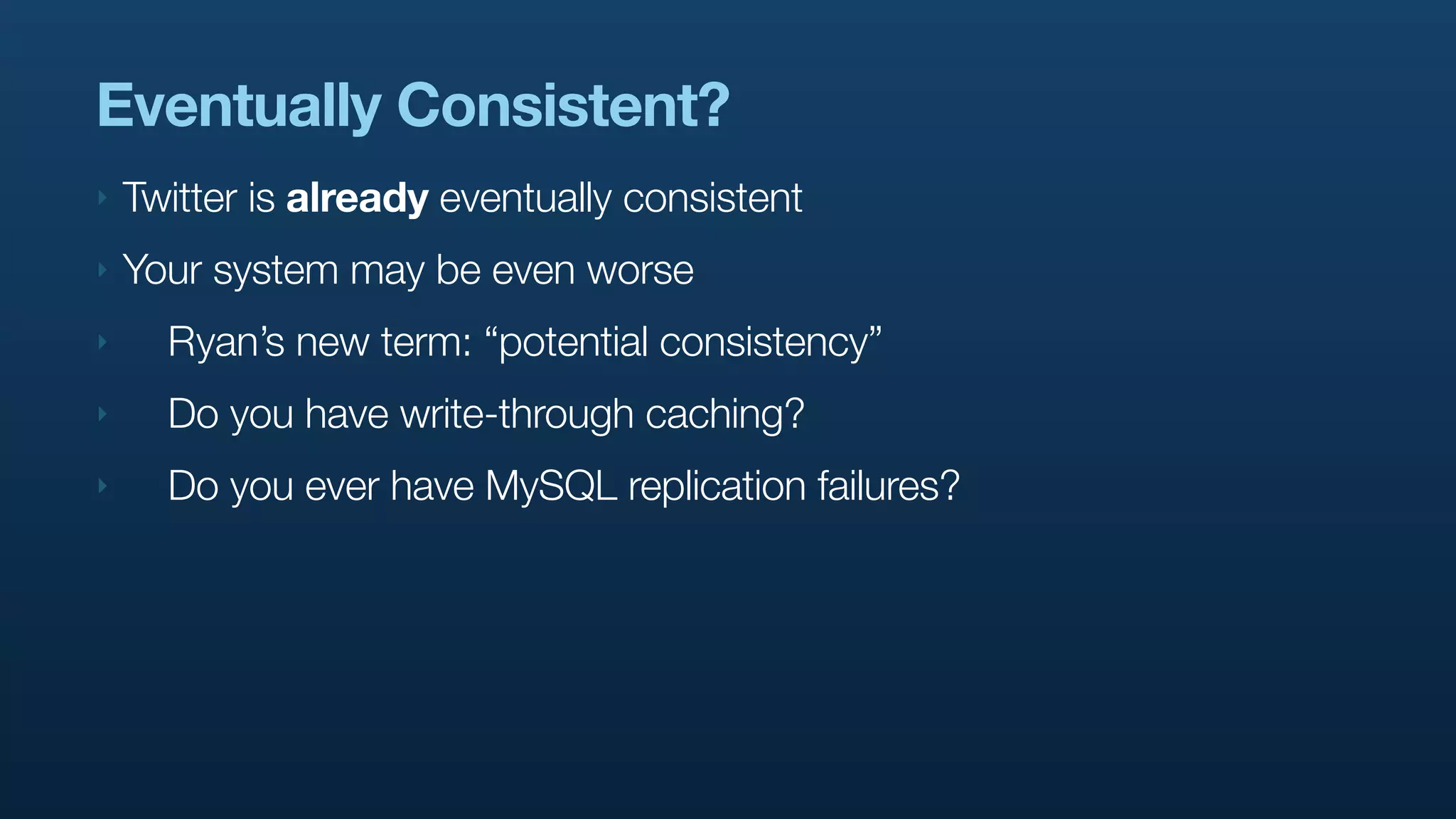

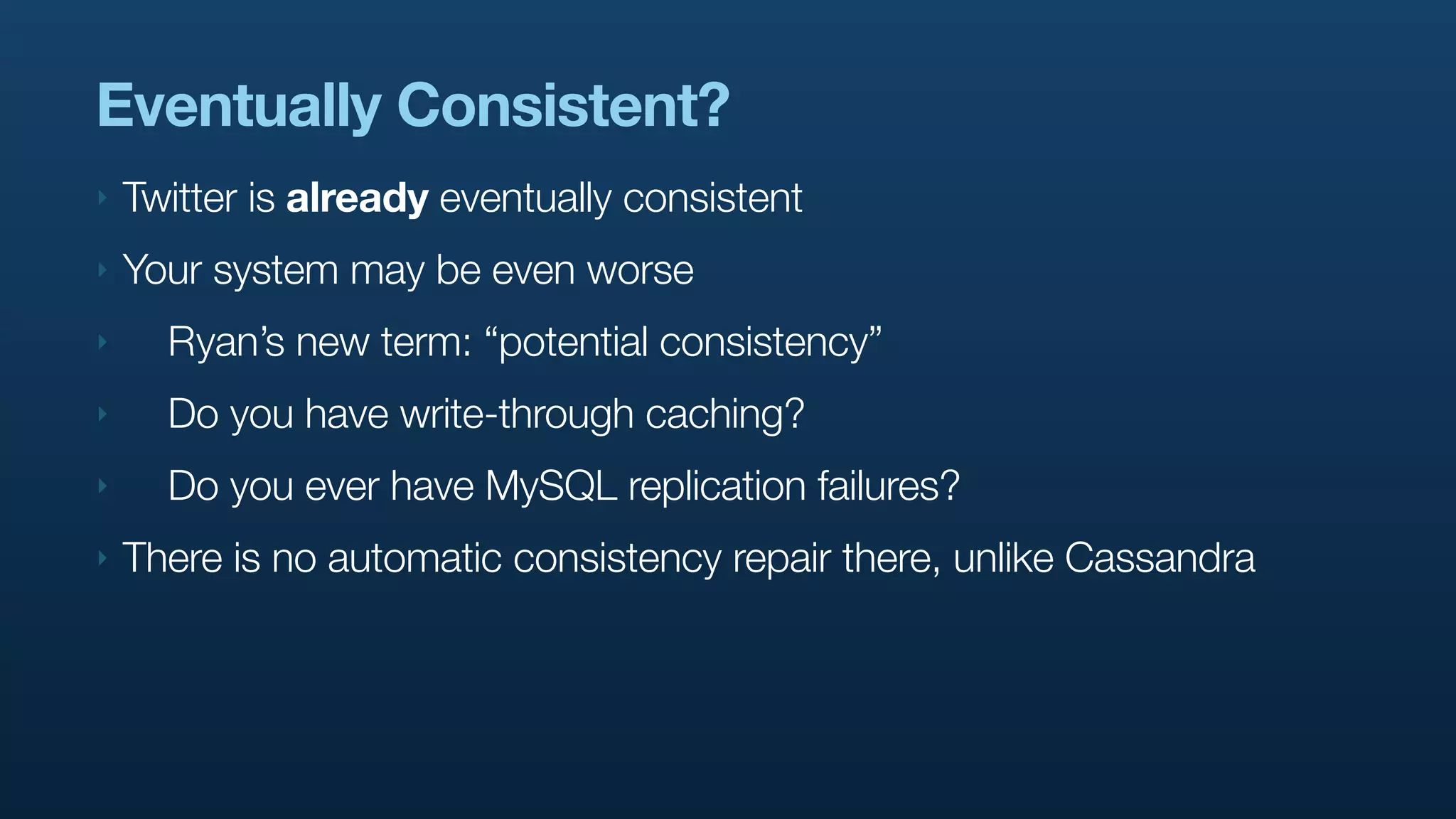

Eventually Consistent?
‣   Twitter is already eventually consistent
‣   Your system may be even worse
‣     Ryan’s new term: “potential consistency”
‣     Do you have write-through caching?
‣     Do you ever have MySQL replication failures?
‣   There is no automatic consistency repair there, unlike Cassandra
Eventually Consistent?
‣   Twitter is already eventually consistent
‣   Your system may be even worse
‣     Ryan’s new term: “potential consistency”
‣     Do you have write-through caching?
‣     Do you ever have MySQL replication failures?
‣   There is no automatic consistency repair there, unlike Cassandra


‣   http://www.slideshare.net/ryansking/scaling-
    twitter-with-cassandra

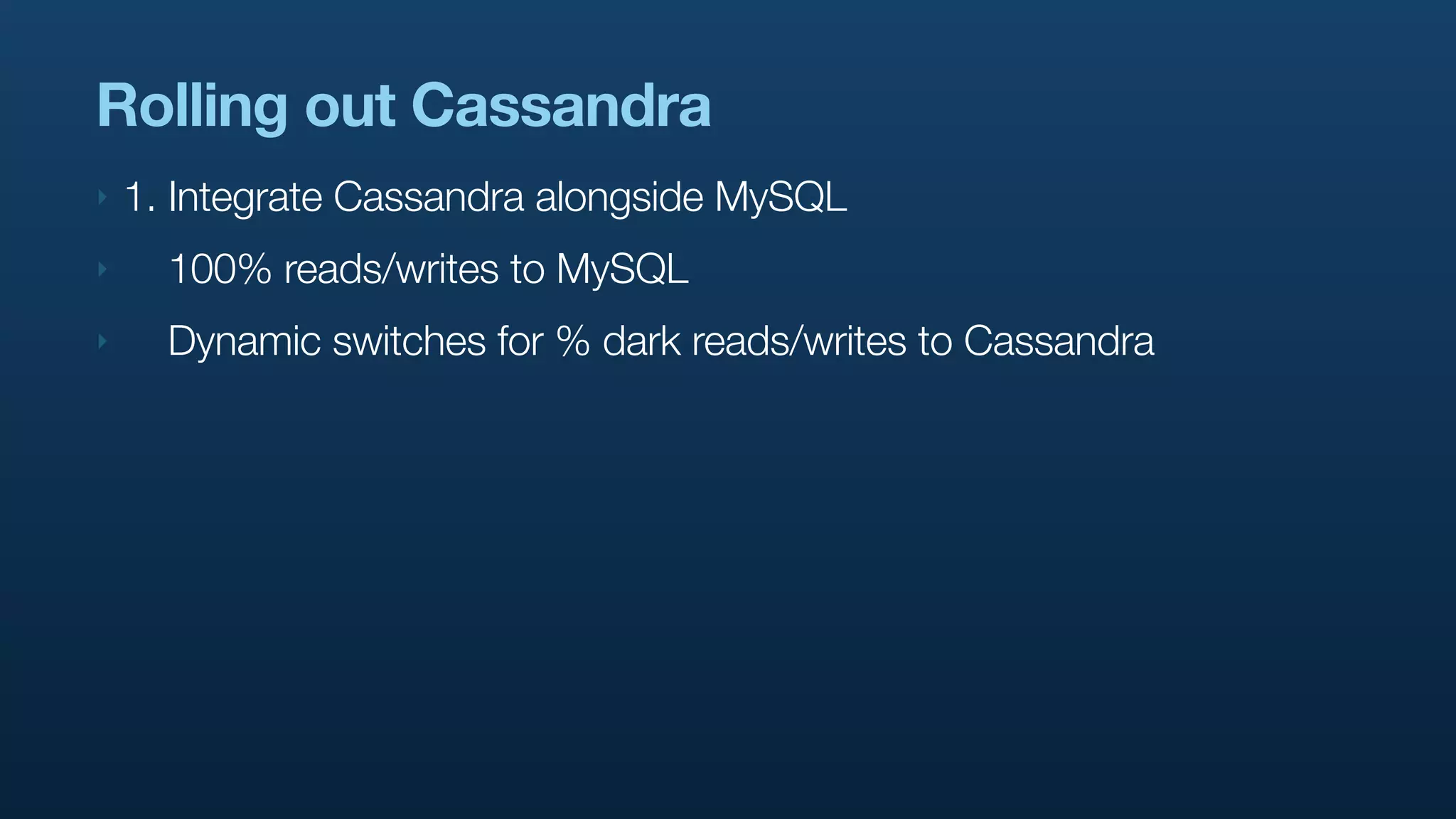

Rolling out Cassandra
‣   1. Integrate Cassandra alongside MySQL
‣     100% reads/writes to MySQL
‣     Dynamic switches for % dark reads/writes to Cassandra

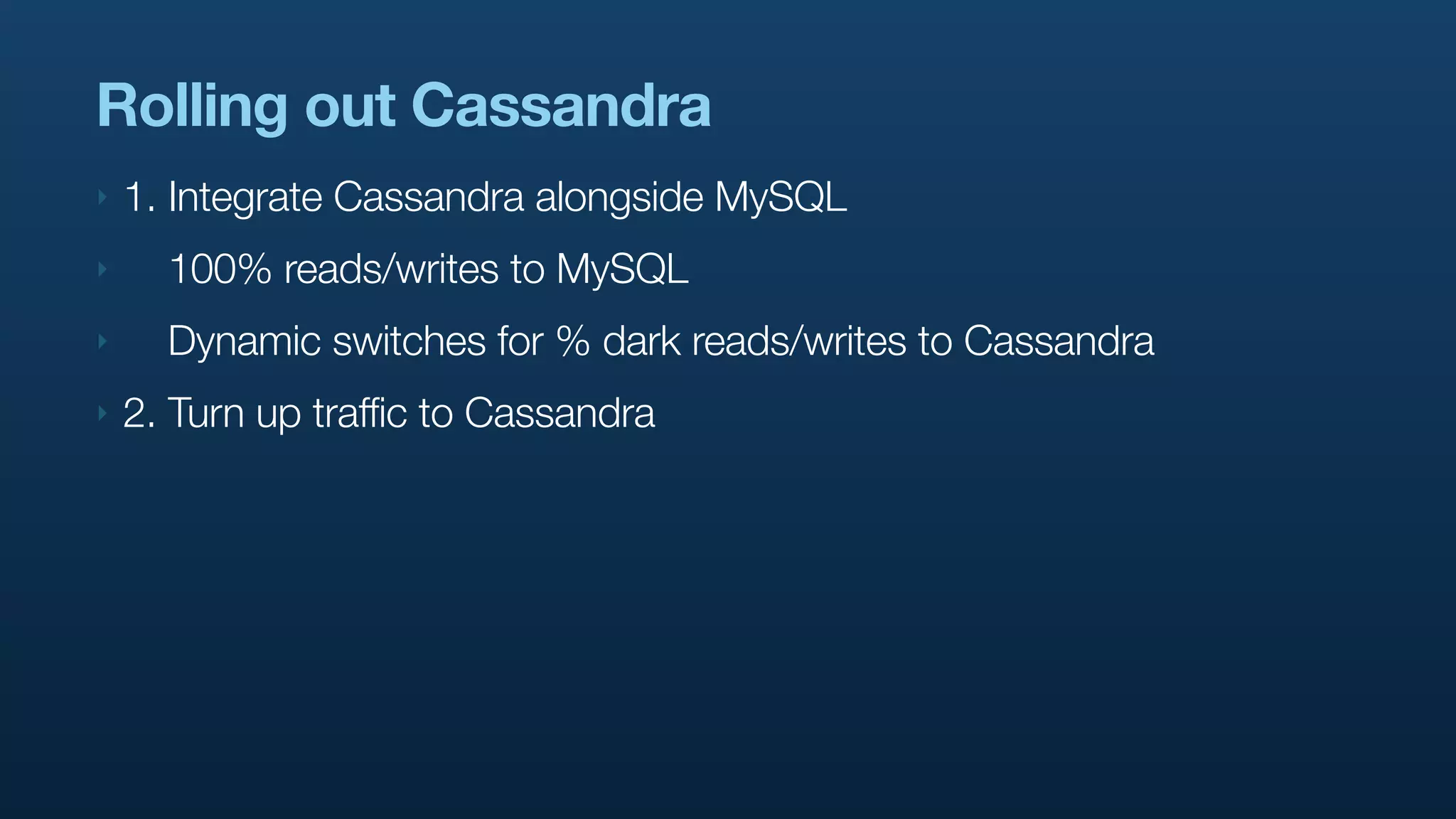

Rolling out Cassandra
‣   1. Integrate Cassandra alongside MySQL
‣     100% reads/writes to MySQL
‣     Dynamic switches for % dark reads/writes to Cassandra
‣   2. Turn up traffic to Cassandra
Rolling out Cassandra
‣   1. Integrate Cassandra alongside MySQL
‣     100% reads/writes to MySQL
‣     Dynamic switches for % dark reads/writes to Cassandra
‣   2. Turn up traffic to Cassandra
‣   3. Find something that’s broken, set switch to 0%

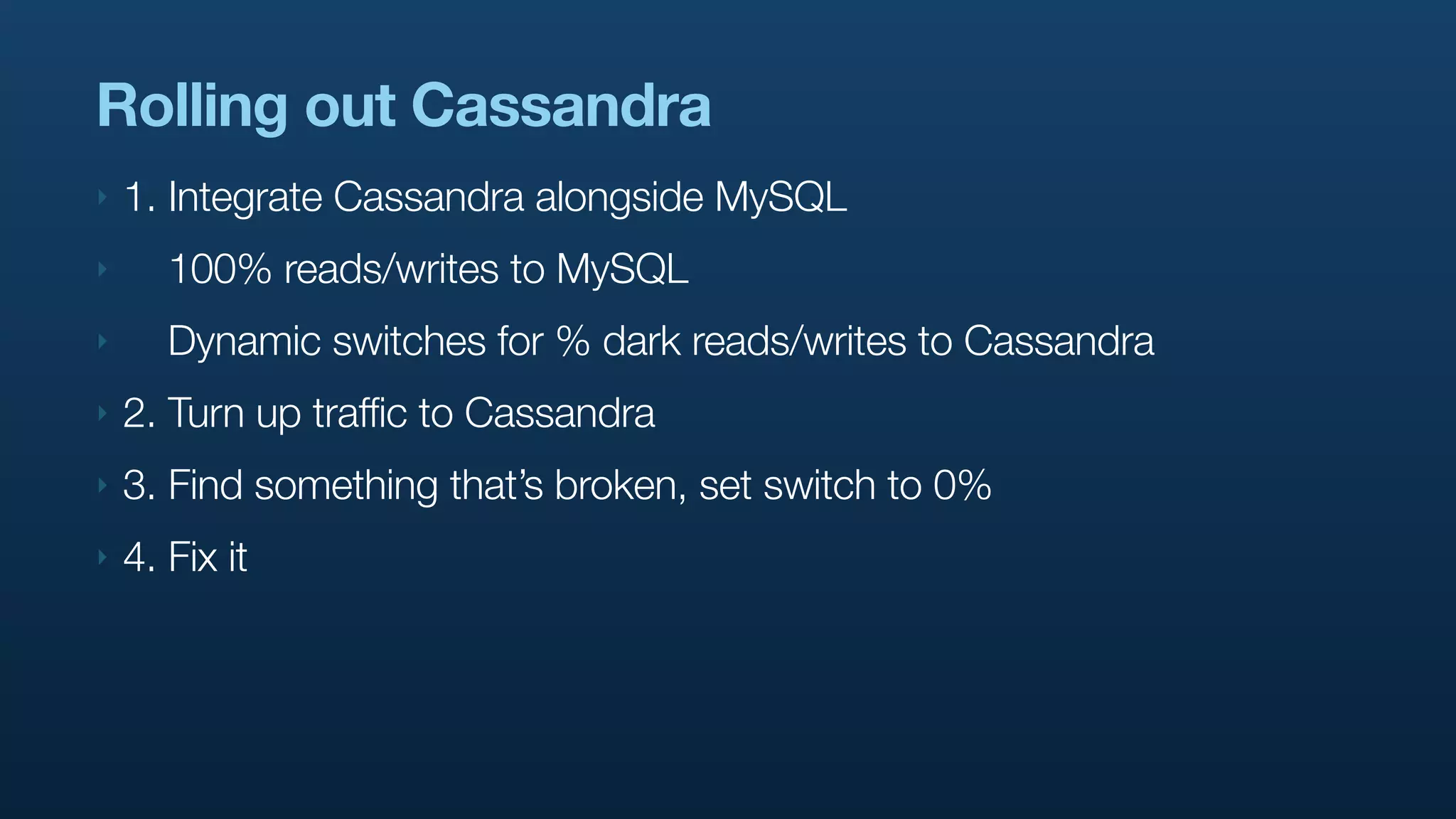

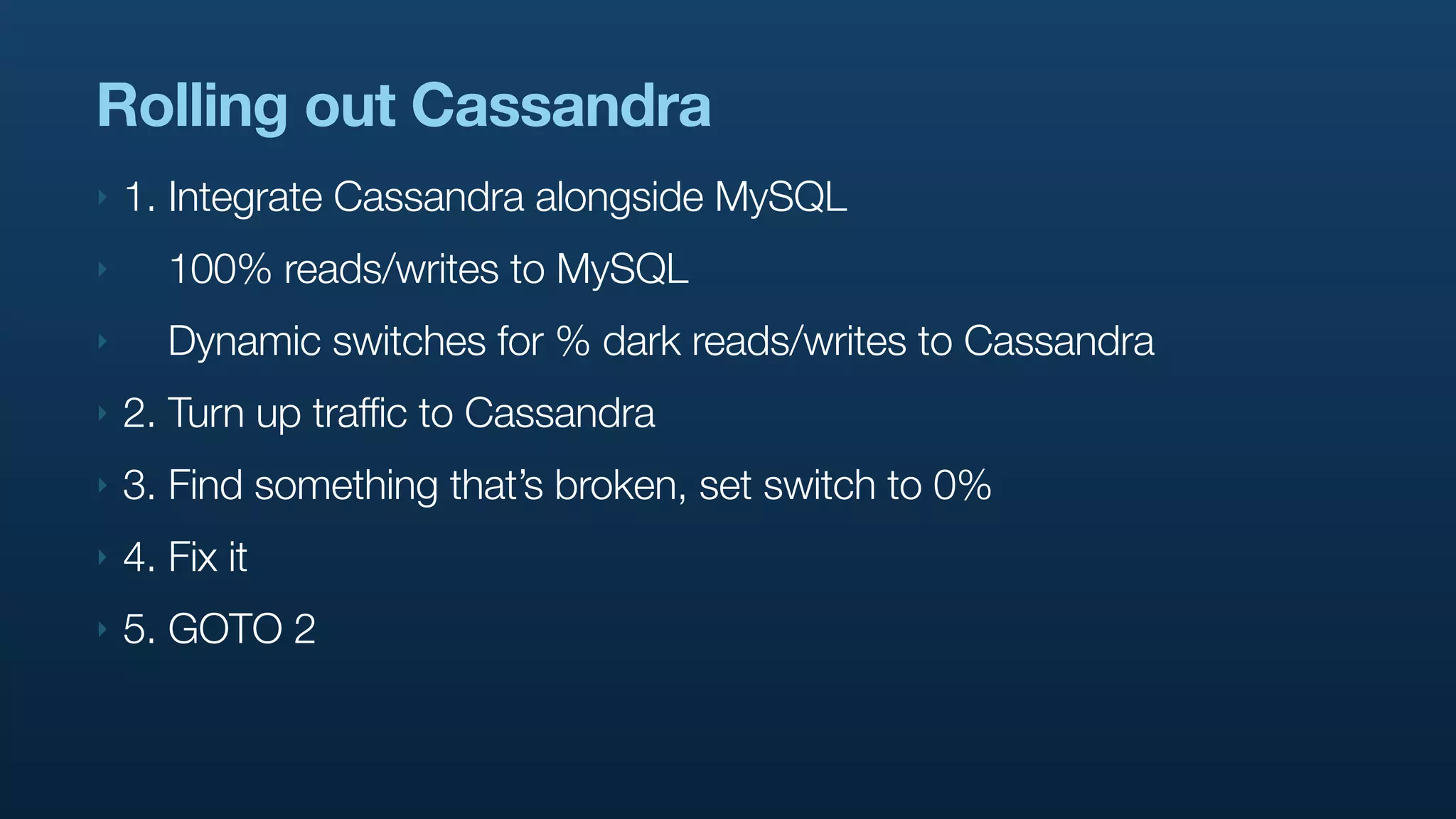

Rolling out Cassandra
‣   1. Integrate Cassandra alongside MySQL
‣      100% reads/writes to MySQL
‣      Dynamic switches for % dark reads/writes to Cassandra
‣   2. Turn up traffic to Cassandra
‣   3. Find something that’s broken, set switch to 0%
‣   4. Fix it
Rolling out Cassandra
‣   1. Integrate Cassandra alongside MySQL
‣      100% reads/writes to MySQL
‣      Dynamic switches for % dark reads/writes to Cassandra
‣   2. Turn up traffic to Cassandra
‣   3. Find something that’s broken, set switch to 0%
‣   4. Fix it
‣   5. GOTO 2
Cassandra for Realtime Analytics
‣   Starting a project around realtime analytics
‣   Cassandra as the backing store
‣     Using, developing, testing Digg’s atomic incr patches
‣   More soon.
That was a lot of slides
‣   Thanks for sticking with me.
Questions?   Follow me at
             twitter.com/kevinweil




                          TM

More Related Content

What's hot

Iceberg: a fast table format for S3
Iceberg: a fast table format for S3Iceberg: a fast table format for S3
Iceberg: a fast table format for S3
DataWorks Summit

Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021
Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021
Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021
StreamNative

Building a fully managed stream processing platform on Flink at scale for Lin...
Building a fully managed stream processing platform on Flink at scale for Lin...Building a fully managed stream processing platform on Flink at scale for Lin...
Building a fully managed stream processing platform on Flink at scale for Lin...
Flink Forward

CockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL DatabaseCockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL Database
C4Media

Rocks db state store in structured streaming
Rocks db state store in structured streamingRocks db state store in structured streaming
Rocks db state store in structured streaming
Balaji Mohanam

Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber
Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, UberKafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber
Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber
HostedbyConfluent

Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...
Flink Forward

TiDB for Big Data
TiDB for Big DataTiDB for Big Data
TiDB for Big Data
PingCAP

Intro to Telegraf
Intro to TelegrafIntro to Telegraf
Intro to Telegraf
InfluxData

Cassandra Introduction & Features
Cassandra Introduction & FeaturesCassandra Introduction & Features
Cassandra Introduction & Features
DataStax Academy

CockroachDB
CockroachDBCockroachDB
CockroachDB
andrei moga

Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
DataWorks Summit

Using ClickHouse for Experimentation
Using ClickHouse for ExperimentationUsing ClickHouse for Experimentation
Using ClickHouse for Experimentation
Gleb Kanterov

A visual introduction to Apache Kafka
A visual introduction to Apache KafkaA visual introduction to Apache Kafka
A visual introduction to Apache Kafka
Paul Brebner

Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka
AIMDek Technologies

Apache Kafka Introduction
Apache Kafka IntroductionApache Kafka Introduction
Apache Kafka Introduction
Amita Mirajkar

InnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick FiguresInnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick Figures
Karwin Software Solutions LLC

Road to NODES - Blazing Fast Ingest with Apache Arrow
Road to NODES - Blazing Fast Ingest with Apache ArrowRoad to NODES - Blazing Fast Ingest with Apache Arrow
Road to NODES - Blazing Fast Ingest with Apache Arrow
Neo4j

Introduction to Apache ZooKeeper
Introduction to Apache ZooKeeperIntroduction to Apache ZooKeeper
Introduction to Apache ZooKeeper
Saurav Haloi

Log Structured Merge Tree
Log Structured Merge TreeLog Structured Merge Tree
Log Structured Merge Tree
University of California, Santa Cruz


What's hot (20)

Iceberg: a fast table format for S3
Iceberg: a fast table format for S3Iceberg: a fast table format for S3
Iceberg: a fast table format for S3

Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021
Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021
Trino: A Ludicrously Fast Query Engine - Pulsar Summit NA 2021

Building a fully managed stream processing platform on Flink at scale for Lin...
Building a fully managed stream processing platform on Flink at scale for Lin...Building a fully managed stream processing platform on Flink at scale for Lin...
Building a fully managed stream processing platform on Flink at scale for Lin...

CockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL DatabaseCockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL Database

Rocks db state store in structured streaming
Rocks db state store in structured streamingRocks db state store in structured streaming
Rocks db state store in structured streaming

Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber
Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, UberKafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber
Kafka Tiered Storage | Satish Duggana and Sriharsha Chintalapani, Uber

Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...Tame the small files problem and optimize data layout for streaming ingestion...
Tame the small files problem and optimize data layout for streaming ingestion...

TiDB for Big Data
TiDB for Big DataTiDB for Big Data
TiDB for Big Data

Intro to Telegraf
Intro to TelegrafIntro to Telegraf
Intro to Telegraf

Cassandra Introduction & Features
Cassandra Introduction & FeaturesCassandra Introduction & Features
Cassandra Introduction & Features

CockroachDB
CockroachDBCockroachDB
CockroachDB

Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3

Using ClickHouse for Experimentation
Using ClickHouse for ExperimentationUsing ClickHouse for Experimentation
Using ClickHouse for Experimentation

A visual introduction to Apache Kafka
A visual introduction to Apache KafkaA visual introduction to Apache Kafka
A visual introduction to Apache Kafka

Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka

Apache Kafka Introduction
Apache Kafka IntroductionApache Kafka Introduction
Apache Kafka Introduction

InnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick FiguresInnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick Figures

Road to NODES - Blazing Fast Ingest with Apache Arrow
Road to NODES - Blazing Fast Ingest with Apache ArrowRoad to NODES - Blazing Fast Ingest with Apache Arrow
Road to NODES - Blazing Fast Ingest with Apache Arrow

Introduction to Apache ZooKeeper
Introduction to Apache ZooKeeperIntroduction to Apache ZooKeeper
Introduction to Apache ZooKeeper

Log Structured Merge Tree
Log Structured Merge TreeLog Structured Merge Tree
Log Structured Merge Tree


Similar to NoSQL at Twitter (NoSQL EU 2010)

Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)
Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)
Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)
Kevin Weil

Hadoop and pig at twitter (oscon 2010)
Hadoop and pig at twitter (oscon 2010)Hadoop and pig at twitter (oscon 2010)
Hadoop and pig at twitter (oscon 2010)
Kevin Weil

Hadoop, Pig, and Twitter (NoSQL East 2009)
Hadoop, Pig, and Twitter (NoSQL East 2009)Hadoop, Pig, and Twitter (NoSQL East 2009)
Hadoop, Pig, and Twitter (NoSQL East 2009)
Kevin Weil

Geo Analytics Tutorial - Where 2.0 2011
Geo Analytics Tutorial - Where 2.0 2011Geo Analytics Tutorial - Where 2.0 2011
Geo Analytics Tutorial - Where 2.0 2011
Peter Skomoroch

Big Data at Twitter, Chirp 2010
Big Data at Twitter, Chirp 2010Big Data at Twitter, Chirp 2010
Big Data at Twitter, Chirp 2010
Kevin Weil

Spatial Analytics, Where 2.0 2010
Spatial Analytics, Where 2.0 2010Spatial Analytics, Where 2.0 2010
Spatial Analytics, Where 2.0 2010
Kevin Weil

Where20 Spatial Analytics 2010
Where20 Spatial Analytics 2010Where20 Spatial Analytics 2010
Where20 Spatial Analytics 2010
seagor

MapReduce Algorithm Design
MapReduce Algorithm DesignMapReduce Algorithm Design
MapReduce Algorithm Design
Gabriela Agustini

Big Data Analytics with Hadoop with @techmilind
Big Data Analytics with Hadoop with @techmilindBig Data Analytics with Hadoop with @techmilind
Big Data Analytics with Hadoop with @techmilind
EMC

1st UIM-GDB - Connections to the Real World
1st UIM-GDB - Connections to the Real World1st UIM-GDB - Connections to the Real World
1st UIM-GDB - Connections to the Real World
Achim Friedland

Perl on Amazon Elastic MapReduce
Perl on Amazon Elastic MapReducePerl on Amazon Elastic MapReduce
Perl on Amazon Elastic MapReduce
Pedro Figueiredo

Hadoop Streaming: Programming Hadoop without Java
Hadoop Streaming: Programming Hadoop without JavaHadoop Streaming: Programming Hadoop without Java
Hadoop Streaming: Programming Hadoop without Java
Glenn K. Lockwood

Hadoop Hive Talk At IIT-Delhi
Hadoop Hive Talk At IIT-DelhiHadoop Hive Talk At IIT-Delhi
Hadoop Hive Talk At IIT-Delhi
Joydeep Sen Sarma

TheEdge10 : Big Data is Here - Hadoop to the Rescue
TheEdge10 : Big Data is Here - Hadoop to the RescueTheEdge10 : Big Data is Here - Hadoop to the Rescue
TheEdge10 : Big Data is Here - Hadoop to the Rescue
Shay Sofer

Infrastructure for cloud_computing
Infrastructure for cloud_computingInfrastructure for cloud_computing
Infrastructure for cloud_computing
JULIO GONZALEZ SANZ

2011.10.14 Apache Giraph - Hortonworks
2011.10.14 Apache Giraph - Hortonworks2011.10.14 Apache Giraph - Hortonworks
2011.10.14 Apache Giraph - Hortonworks
Avery Ching

Hadoop 101 for bioinformaticians
Hadoop 101 for bioinformaticiansHadoop 101 for bioinformaticians
Hadoop 101 for bioinformaticians
attilacsordas

Hadoop introduction 2
Hadoop introduction 2Hadoop introduction 2
Hadoop introduction 2
Tianwei Liu

Hadoop at Twitter (Hadoop Summit 2010)
Hadoop at Twitter (Hadoop Summit 2010)Hadoop at Twitter (Hadoop Summit 2010)
Hadoop at Twitter (Hadoop Summit 2010)
Kevin Weil

An Introduction to MapReduce
An Introduction to MapReduce An Introduction to MapReduce
An Introduction to MapReduce
Sina Ebrahimi


Similar to NoSQL at Twitter (NoSQL EU 2010) (20)

Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)
Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)
Analyzing Big Data at Twitter (Web 2.0 Expo NYC Sep 2010)

Hadoop and pig at twitter (oscon 2010)
Hadoop and pig at twitter (oscon 2010)Hadoop and pig at twitter (oscon 2010)
Hadoop and pig at twitter (oscon 2010)

Hadoop, Pig, and Twitter (NoSQL East 2009)
Hadoop, Pig, and Twitter (NoSQL East 2009)Hadoop, Pig, and Twitter (NoSQL East 2009)
Hadoop, Pig, and Twitter (NoSQL East 2009)

Geo Analytics Tutorial - Where 2.0 2011
Geo Analytics Tutorial - Where 2.0 2011Geo Analytics Tutorial - Where 2.0 2011
Geo Analytics Tutorial - Where 2.0 2011

Big Data at Twitter, Chirp 2010
Big Data at Twitter, Chirp 2010Big Data at Twitter, Chirp 2010
Big Data at Twitter, Chirp 2010

Spatial Analytics, Where 2.0 2010
Spatial Analytics, Where 2.0 2010Spatial Analytics, Where 2.0 2010
Spatial Analytics, Where 2.0 2010

Where20 Spatial Analytics 2010
Where20 Spatial Analytics 2010Where20 Spatial Analytics 2010
Where20 Spatial Analytics 2010

MapReduce Algorithm Design
MapReduce Algorithm DesignMapReduce Algorithm Design
MapReduce Algorithm Design

Big Data Analytics with Hadoop with @techmilind
Big Data Analytics with Hadoop with @techmilindBig Data Analytics with Hadoop with @techmilind
Big Data Analytics with Hadoop with @techmilind

1st UIM-GDB - Connections to the Real World
1st UIM-GDB - Connections to the Real World1st UIM-GDB - Connections to the Real World
1st UIM-GDB - Connections to the Real World

Perl on Amazon Elastic MapReduce
Perl on Amazon Elastic MapReducePerl on Amazon Elastic MapReduce
Perl on Amazon Elastic MapReduce

Hadoop Streaming: Programming Hadoop without Java
Hadoop Streaming: Programming Hadoop without JavaHadoop Streaming: Programming Hadoop without Java
Hadoop Streaming: Programming Hadoop without Java

Hadoop Hive Talk At IIT-Delhi
Hadoop Hive Talk At IIT-DelhiHadoop Hive Talk At IIT-Delhi
Hadoop Hive Talk At IIT-Delhi

TheEdge10 : Big Data is Here - Hadoop to the Rescue
TheEdge10 : Big Data is Here - Hadoop to the RescueTheEdge10 : Big Data is Here - Hadoop to the Rescue
TheEdge10 : Big Data is Here - Hadoop to the Rescue

Infrastructure for cloud_computing
Infrastructure for cloud_computingInfrastructure for cloud_computing
Infrastructure for cloud_computing

2011.10.14 Apache Giraph - Hortonworks
2011.10.14 Apache Giraph - Hortonworks2011.10.14 Apache Giraph - Hortonworks
2011.10.14 Apache Giraph - Hortonworks

Hadoop 101 for bioinformaticians
Hadoop 101 for bioinformaticiansHadoop 101 for bioinformaticians
Hadoop 101 for bioinformaticians

Hadoop introduction 2
Hadoop introduction 2Hadoop introduction 2
Hadoop introduction 2

Hadoop at Twitter (Hadoop Summit 2010)
Hadoop at Twitter (Hadoop Summit 2010)Hadoop at Twitter (Hadoop Summit 2010)
Hadoop at Twitter (Hadoop Summit 2010)

An Introduction to MapReduce
An Introduction to MapReduce An Introduction to MapReduce
An Introduction to MapReduce


Recently uploaded

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
Edge AI and Vision Alliance

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Precisely

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Neo4j

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek


Recently uploaded (20)

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and BioinformaticiansBiomedical Knowledge Graphs for Data Scientists and Bioinformaticians
Biomedical Knowledge Graphs for Data Scientists and Bioinformaticians

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)


NoSQL at Twitter (NoSQL EU 2010)

  • 1. NoSQL at Twitter Kevin Weil -- @kevinweil Analytics Lead, Twitter April 21, 2010 TM
  • 2. Introduction ‣ How We Arrived at NoSQL: A Crash Course ‣ Collecting Data (Scribe) ‣ Storing and Analyzing Data (Hadoop) ‣ Rapid Learning over Big Data (Pig) ‣ And More: Cassandra, HBase, FlockDB
  • 3. My Background ‣ Studied Mathematics and Physics at Harvard, Physics at Stanford ‣ Tropos Networks (city-wide wireless): mesh routing algorithms, GBs of data ‣ Cooliris (web media): Hadoop and Pig for analytics, TBs of data ‣ Twitter: Hadoop, Pig, HBase, Cassandra, machine learning, visualization, social graph analysis, soon to be PBs data
  • 4. Introduction ‣ How We Arrived at NoSQL: A Crash Course ‣ Collecting Data (Scribe) ‣ Storing and Analyzing Data (Hadoop) ‣ Rapid Learning over Big Data (Pig) ‣ And More: Cassandra, HBase, FlockDB
  • 5. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess?
  • 6. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess? ‣ 7 TB/day (2+ PB/yr)
  • 7. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess? ‣ 7 TB/day (2+ PB/yr) ‣ 10,000 CDs/day
  • 8. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess? ‣ 7 TB/day (2+ PB/yr) ‣ 10,000 CDs/day ‣ 5 million floppy disks
  • 9. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess? ‣ 7 TB/day (2+ PB/yr) ‣ 10,000 CDs/day ‣ 5 million floppy disks ‣ 300 GB while I give this talk
  • 10. Data, Data Everywhere ‣ Twitter users generate a lot of data ‣ Anybody want to guess? ‣ 7 TB/day (2+ PB/yr) ‣ 10,000 CDs/day ‣ 5 million floppy disks ‣ 300 GB while I give this talk ‣ And doubling multiple times per year
  • 11. Syslog? ‣ Started with syslog-ng ‣ As our volume grew, it didn’t scale
  • 12. Syslog? ‣ Started with syslog-ng ‣ As our volume grew, it didn’t scale ‣ Resources overwhelmed ‣ Lost data
  • 13. Scribe ‣ Surprise! FB had same problem, built and open-sourced Scribe ‣ Log collection framework over Thrift ‣ You write log lines, with categories ‣ It does the rest
  • 14. Scribe ‣ Runs locally; reliable in network outage FE FE FE
  • 15. Scribe ‣ Runs locally; reliable in network outage ‣ Nodes only know downstream FE FE FE writer; hierarchical, scalable Agg Agg
  • 16. Scribe ‣ Runs locally; reliable in network outage ‣ Nodes only know downstream FE FE FE writer; hierarchical, scalable ‣ Pluggable outputs Agg Agg File HDFS
  • 17. Scribe at Twitter ‣ Solved our problem, opened new vistas ‣ Currently 30 different categories logged from multiple sources ‣ FE: Javascript, Ruby on Rails ‣ Middle tier: Ruby on Rails, Scala ‣ Backend: Scala, Java, C++
  • 18. Scribe at Twitter ‣ We’ve contributed to it as we’ve used it ‣ Improved logging, monitoring, writing to HDFS, compression ‣ Continuing to work with FB on patches ‣ GSoC project! Help make it more awesome. • http://github.com/traviscrawford/scribe • http://wiki.developers.facebook.com/index.php/User:GSoC
  • 19. Introduction ‣ How We Arrived at NoSQL: A Crash Course ‣ Collecting Data (Scribe) ‣ Storing and Analyzing Data (Hadoop) ‣ Rapid Learning over Big Data (Pig) ‣ And More: Cassandra, HBase, FlockDB
  • 20. How do you store 7TB/day? ‣ Single machine? ‣ What’s HD write speed?
  • 21. How do you store 7TB/day? ‣ Single machine? ‣ What’s HD write speed? ‣ ~80 MB/s
  • 22. How do you store 7TB/day? ‣ Single machine? ‣ What’s HD write speed? ‣ ~80 MB/s ‣ 24.3 hours to write 7 TB
  • 23. How do you store 7TB/day? ‣ Single machine? ‣ What’s HD write speed? ‣ ~80 MB/s ‣ 24.3 hours to write 7 TB ‣ Uh oh.
  • 24. Where do I put 7TB/day? ‣ Need a cluster of machines
  • 25. Where do I put 7TB/day? ‣ Need a cluster of machines ‣ ... which adds new layers of complexity
  • 26. Hadoop ‣ Distributed file system ‣ Automatic replication, fault tolerance
  • 27. Hadoop ‣ Distributed file system ‣ Automatic replication, fault tolerance ‣ MapReduce-based parallel computation ‣ Key-value based computation interface allows for wide applicability
  • 28. Hadoop ‣ Open source: top-level Apache project ‣ Scalable: Y! has a 4000 node cluster ‣ Powerful: sorted 1TB of random integers in 62 seconds ‣ Easy packaging: free Cloudera RPMs
  • 29. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 30. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 31. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 32. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 33. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 34. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 35. MapReduce Workflow Inputs Map Shuffle/Sort ‣ Challenge: how many tweets per user, given tweets table? Map Outputs ‣ Input: key=row, value=tweet info Map Reduce ‣ Map: output key=user_id, value=1 Map Reduce ‣ Shuffle: sort by user_id Map Reduce ‣ Reduce: for each user_id, sum Map ‣ Output: user_id, tweet count Map ‣ With 2x machines, runs 2x faster
  • 36. Two Analysis Challenges ‣ 1. Compute friendships in Twitter’s social graph ‣ grep, awk? No way. ‣ Data is in MySQL... self join on an n-billion row table? ‣ n,000,000,000 x n,000,000,000 = ?
  • 37. Two Analysis Challenges ‣ 1. Compute friendships in Twitter’s social graph ‣ grep, awk? No way. ‣ Data is in MySQL... self join on an n-billion row table? ‣ n,000,000,000 x n,000,000,000 = ? ‣ I don’t know either.
  • 38. Two Analysis Challenges ‣ 2. Large-scale grouping and counting? ‣ select count(*) from users? Maybe... ‣ select count(*) from tweets? Uh... ‣ Imagine joining them... ‣ ... and grouping... ‣ ... and sorting...
  • 39. Back to Hadoop ‣ Didn’t we have a cluster of machines?
  • 40. Back to Hadoop ‣ Didn’t we have a cluster of machines?
  • 41. Back to Hadoop ‣ Didn’t we have a cluster of machines? ‣ Hadoop makes it easy to distribute the calculation ‣ Purpose-built for parallel computation ‣ Just a slight mindset adjustment
  • 42. Back to Hadoop ‣ Didn’t we have a cluster of machines? ‣ Hadoop makes it easy to distribute the calculation ‣ Purpose-built for parallel computation ‣ Just a slight mindset adjustment ‣ But a fun and valuable one!
  • 43. Analysis at scale ‣ Now we’re rolling ‣ Count all tweets: 12 billion, 5 minutes ‣ Hit FlockDB in parallel to assemble social graph aggregates ‣ Run pagerank across users to calculate reputations
  • 44. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.”
  • 45. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.” ‣ Single-input, two-stage data flow is rigid
  • 46. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.” ‣ Single-input, two-stage data flow is rigid ‣ Projections, filters: custom code
  • 47. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.” ‣ Single-input, two-stage data flow is rigid ‣ Projections, filters: custom code ‣ Joins are lengthy, error-prone
  • 48. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.” ‣ Single-input, two-stage data flow is rigid ‣ Projections, filters: custom code ‣ Joins are lengthy, error-prone ‣ n-stage jobs hard to manage
  • 49. But... ‣ Analysis typically in Java ‣ “I need less Java in my life, not more.” ‣ Single-input, two-stage data flow is rigid ‣ Projections, filters: custom code ‣ Joins are lengthy, error-prone ‣ n-stage jobs hard to manage ‣ Exploration requires compilation!
  • 50. Introduction ‣ How We Arrived at NoSQL: A Crash Course ‣ Collecting Data (Scribe) ‣ Storing and Analyzing Data (Hadoop) ‣ Rapid Learning over Big Data (Pig) ‣ And More: Cassandra, HBase, FlockDB
  • 51. Pig ‣ High-level language ‣ Transformations on sets of records ‣ Process data one step at a time ‣ Easier than SQL?
  • 52. Why Pig? ‣ Because I bet you can read the following script.
  • 53. A Real Pig Script
  • 54. A Real Pig Script ‣ Now, just for fun... the same calculation in vanilla Hadoop MapReduce.
  • 56. Pig Democratizes Large-scale Data Analysis ‣ The Pig version is: ‣ 5% of the code
  • 57. Pig Democratizes Large-scale Data Analysis ‣ The Pig version is: ‣ 5% of the code ‣ 5% of the time
  • 58. Pig Democratizes Large-scale Data Analysis ‣ The Pig version is: ‣ 5% of the code ‣ 5% of the time ‣ Within 25% of the execution time
  • 59. One Thing I’ve Learned ‣ It’s easy to answer questions ‣ It’s hard to ask the right questions
  • 60. One Thing I’ve Learned ‣ It’s easy to answer questions ‣ It’s hard to ask the right questions ‣ Value the system that promotes innovation, iteration
  • 61. One Thing I’ve Learned ‣ It’s easy to answer questions ‣ It’s hard to ask the right questions ‣ Value the system that promotes innovation, iteration ‣ More minds contributing = more value from your data
  • 62. The Hadoop Ecosystem at Twitter ‣ Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1
  • 63. The Hadoop Ecosystem at Twitter ‣ Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1 ‣ Heavily modified Scribe writing LZO-compressed to HDFS ‣ LZO: fast, splittable compression, ideal for HDFS* ‣ * http://www.github.com/kevinweil/hadoop-lzo ‣
  • 64. The Hadoop Ecosystem at Twitter ‣ Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1 ‣ Heavily modified Scribe writing LZO-compressed to HDFS ‣ LZO: fast, splittable compression, ideal for HDFS* ‣ Data either as flat files (logs) or in protocol buffer format (newer logs, structured data, etc) ‣ Libs for reading/writing/more open-sourced as elephant-bird** ‣ * http://www.github.com/kevinweil/hadoop-lzo ‣ ** http://www.github.com/kevinweil/elephant-bird
  • 65. The Hadoop Ecosystem at Twitter ‣ Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1 ‣ Heavily modified Scribe writing LZO-compressed to HDFS ‣ LZO: fast, splittable compression, ideal for HDFS* ‣ Data either as flat files (logs) or in protocol buffer format (newer logs, structured data, etc) ‣ Libs for reading/writing/more open-sourced as elephant-bird** ‣ Some Java-based MapReduce, a little Hadoop streaming ‣ * http://www.github.com/kevinweil/hadoop-lzo ‣ ** http://www.github.com/kevinweil/elephant-bird
  • 66. The Hadoop Ecosystem at Twitter ‣ Running Cloudera’s free distro, CDH2 and Hadoop 0.20.1 ‣ Heavily modified Scribe writing LZO-compressed to HDFS ‣ LZO: fast, splittable compression, ideal for HDFS* ‣ Data either as flat files (logs) or in protocol buffer format (newer logs, structured data, etc) ‣ Libs for reading/writing/more open-sourced as elephant-bird** ‣ Some Java-based MapReduce, some HBase, Hadoop streaming ‣ Most analysis, and most interesting analyses, done in Pig ‣ * http://www.github.com/kevinweil/hadoop-lzo ‣ ** http://www.github.com/kevinweil/elephant-bird
  • 67. Data? ‣ Semi-structured: apache logs (search, .com, mobile), search query logs, RoR logs, mysql query logs, A/B testing logs, signup flow logging, and on...
  • 68. Data? ‣ Semi-structured: apache logs (search, .com, mobile), search query logs, RoR logs, mysql query logs, A/B testing logs, signup flow logging, and on... ‣ Structured: tweets, users, blocks, phones, favorites, saved searches, retweets, geo, authentications, sms, 3rd party clients, followings
  • 69. Data? ‣ Semi-structured: apache logs (search, .com, mobile), search query logs, RoR logs, mysql query logs, A/B testing logs, signup flow logging, and on... ‣ Structured: tweets, users, blocks, phones, favorites, saved searches, retweets, geo, authentications, sms, 3rd party clients, followings ‣ Entangled: the social graph
  • 70. So what do we do with it?
  • 71. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day?
  • 72. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day? ‣ What is the average latency? 95% latency? ‣
  • 73. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day? ‣ What is the average latency? 95% latency? ‣ Group by response code. What is the hourly distribution? ‣
  • 74. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day? ‣ What is the average latency? 95% latency? ‣ Group by response code. What is the hourly distribution? ‣ How many searches happen each day on Twitter? ‣
  • 75. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day? ‣ What is the average latency? 95% latency? ‣ Group by response code. What is the hourly distribution? ‣ How many searches happen each day on Twitter? ‣ How many unique queries, how many unique users? ‣
  • 76. Counting Big Data ‣ standard counts, min, max, std dev ‣ How many requests do we serve in a day? ‣ What is the average latency? 95% latency? ‣ Group by response code. What is the hourly distribution? ‣ How many searches happen each day on Twitter? ‣ How many unique queries, how many unique users? ‣ What is their geographic distribution?
  • 77. Counting Big Data ‣ Where are users querying from? The API, the front page, their profile page, etc? ‣
  • 78. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users?
  • 79. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients?
  • 80. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses
  • 81. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses ‣ Site problems: what goes wrong at the same time?
  • 82. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses ‣ Site problems: what goes wrong at the same time? ‣ Which features get users hooked?
  • 83. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses ‣ Site problems: what goes wrong at the same time? ‣ Which features get users hooked? ‣ Which features do successful users use often?
  • 84. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses ‣ Site problems: what goes wrong at the same time? ‣ Which features get users hooked? ‣ Which features do successful users use often? ‣ Search corrections, search suggestions
  • 85. Correlating Big Data ‣ probabilities, covariance, influence ‣ How does usage differ for mobile users? ‣ How about for users with 3rd party desktop clients? ‣ Cohort analyses ‣ Site problems: what goes wrong at the same time? ‣ Which features get users hooked? ‣ Which features do successful users use often? ‣ Search corrections, search suggestions ‣ A/B testing
  • 86. Correlating Big Data ‣ What is the correlation between users with registered phones and users that tweet?
  • 87. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets?
  • 88. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets? ‣ From the tweets of those they follow?
  • 89. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets? ‣ From the tweets of those they follow? ‣ From the tweets of their followers?
  • 90. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets? ‣ From the tweets of those they follow? ‣ From the tweets of their followers? ‣ From the ratio of followers/following?
  • 91. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets? ‣ From the tweets of those they follow? ‣ From the tweets of their followers? ‣ From the ratio of followers/following? ‣ What graph structures lead to successful networks?
  • 92. Research on Big Data ‣ prediction, graph analysis, natural language ‣ What can we tell about a user from their tweets? ‣ From the tweets of those they follow? ‣ From the tweets of their followers? ‣ From the ratio of followers/following? ‣ What graph structures lead to successful networks? ‣ User reputation
  • 93. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis
  • 94. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted?
  • 95. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted? ‣ How deep is the corresponding retweet tree?
  • 96. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted? ‣ How deep is the corresponding retweet tree? ‣ Long-term duplicate detection
  • 97. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted? ‣ How deep is the corresponding retweet tree? ‣ Long-term duplicate detection ‣ Machine learning
  • 98. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted? ‣ How deep is the corresponding retweet tree? ‣ Long-term duplicate detection ‣ Machine learning ‣ Language detection
  • 99. Research on Big Data ‣ prediction, graph analysis, natural language ‣ Sentiment analysis ‣ What features get a tweet retweeted? ‣ How deep is the corresponding retweet tree? ‣ Long-term duplicate detection ‣ Machine learning ‣ Language detection ‣ ... the list goes on.
  • 100. Research on Big Data ‣ How well can we detect bots and other non-human tweeters?
  • 101. Introduction ‣ How We Arrived at NoSQL: A Crash Course ‣ Collecting Data (Scribe) ‣ Storing and Analyzing Data (Hadoop) ‣ Rapid Learning over Big Data (Pig) ‣ And More: Cassandra, HBase, FlockDB
  • 102. HBase ‣ BigTable clone on top of HDFS ‣ Distributed, column-oriented, no datatypes ‣ Unlike the rest of HDFS, designed for low-latency ‣ Importantly, data is mutable
  • 103. HBase at Twitter ‣ We began building real products based on Hadoop ‣ People search
  • 104. HBase at Twitter ‣ We began building real products based on Hadoop ‣ People search ‣ Old version: offline process on a single node
  • 105. HBase at Twitter ‣ We began building real products based on Hadoop ‣ People search ‣ Old version: offline process on a single node ‣ New version: complex user calculations, hit extra services in real time, custom indexing
  • 106. HBase at Twitter ‣ We began building real products based on Hadoop ‣ People search ‣ Old version: offline process on a single node ‣ New version: complex user calculations, hit extra services in real time, custom indexing ‣ Underlying data is mutable ‣ Mutable layer on top of HDFS --> HBase
  • 107. People Search ‣ Import user data into HBase
  • 108. People Search ‣ Import user data into HBase ‣ Periodic MapReduce job reading from HBase ‣ Hits FlockDB, multiple other internal services in mapper ‣ Custom partitioning
  • 109. People Search ‣ Import user data into HBase ‣ Periodic MapReduce job reading from HBase ‣ Hits FlockDB, multiple other internal services in mapper ‣ Custom partitioning ‣ Data sucked across to sharded, replicated, horizontally scalable, in-memory, low-latency Scala service ‣ Build a trie, do case folding/normalization, suggestions, etc
  • 110. People Search ‣ Import user data into HBase ‣ Periodic MapReduce job reading from HBase ‣ Hits FlockDB, multiple other internal services in mapper ‣ Custom partitioning ‣ Data sucked across to sharded, replicated, horizontally scalable, in-memory, low-latency Scala service ‣ Build a trie, do case folding/normalization, suggestions, etc ‣ See http://www.slideshare.net/al3x/building-distributed-systems- in-scala for more
  • 111. HBase ‣ More products now being built on top of it ‣ Flexible, easy to connect to MapReduce/Pig
  • 112. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses”
  • 113. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses” ‣ HBase built on top of batch-oriented system, not low latency
  • 114. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses” ‣ HBase built on top of batch-oriented system, not low latency ‣ Cassandra built from ground up for low latency
  • 115. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses” ‣ HBase built on top of batch-oriented system, not low latency ‣ Cassandra built from ground up for low latency ‣ HBase easy to connect to batch jobs as input and output
  • 116. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses” ‣ HBase built on top of batch-oriented system, not low latency ‣ Cassandra built from ground up for low latency ‣ HBase easy to connect to batch jobs as input and output ‣ Cassandra not so much (but we’re working on it)
  • 117. HBase vs Cassandra ‣ “Their origins reveal their strengths and weaknesses” ‣ HBase built on top of batch-oriented system, not low latency ‣ Cassandra built from ground up for low latency ‣ HBase easy to connect to batch jobs as input and output ‣ Cassandra not so much (but we’re working on it) ‣ HBase has SPOF in the namenode
  • 118. HBase vs Cassandra ‣ Your mileage may vary ‣ At Twitter: HBase for analytics, analysis, dataset generation ‣ Cassandra for online systems
  • 119. HBase vs Cassandra ‣ Your mileage may vary ‣ At Twitter: HBase for analytics, analysis, dataset generation ‣ Cassandra for online systems ‣ As with all NoSQL systems: strengths in different situations
  • 120. FlockDB ‣ Realtime, distributed social graph store ‣ NOT optimized for data mining ‣ Note: the following slides largely come from @nk’s more complete talk at http://www.slideshare.net/nkallen/ q-con-3770885
  • 121. FlockDB ‣ Realtime, distributed Intersection Temporal social graph store ‣ NOT optimized for data mining ‣ Who follows who (nearly 8 Counts orders of magnitude!) ‣ Intersection/set operations ‣ Cardinality ‣ Temporal index
  • 122. Set operations? ‣ This tweet needs to be delivered to people who follow both @aplusk (4.7M followers) and @foursquare (53K followers)
  • 123. Original solution ‣ MySQL table source_id destination-id ‣ Indices on source_id 20 12 and destination_id 29 12 ‣ Couldn’t handle write 34 16 throughput ‣ Indices too large for RAM
  • 124. Next Try ‣ MySQL still ‣ Denormalized ‣ Byte-packed ‣ Chunked ‣ Still temporally ordered
  • 125. Next Try ‣ Problems ‣ O(n) deletes ‣ Data consistency challenges ‣ Inefficient intersections ‣ All of these manifested strongly for huge users like @aplusk or @lancearmstrong
  • 126. FlockDB ‣ MySQL underneath still (like PNUTS from Y!) ‣ Partitioned by user_id, gizzard handles sharding/partitioning ‣ Edges stored in both directions, indexed by (src, dest) ‣ Denormalized counts stored Forward Backward source_id destination_id updated_at x destination_id source_id updated_at x 20 12 20:50:14 x 12 20 20:50:14 x 20 13 20:51:32 12 32 20:51:32 20 16 12 16
  • 127. FlockDB Timings ‣ Counts: 1ms
  • 128. FlockDB Timings ‣ Counts: 1ms ‣ Temporal Query: 2ms
  • 129. FlockDB Timings ‣ Counts: 1ms ‣ Temporal Query: 2ms ‣ Writes: 1ms for journal, 16ms for durability
  • 130. FlockDB Timings ‣ Counts: 1ms ‣ Temporal Query: 2ms ‣ Writes: 1ms for journal, 16ms for durability ‣ Full walks: 100 edges/ms
  • 131. FlockDB is Open Source ‣ We will maintain a community at ‣ http://www.github.com/twitter/flockdb ‣ http://www.github.com/twitter/gizzard ‣ See Nick Kallen’s QCon talk for more ‣ http://www.slideshare.net/nkallen/q- con-3770885
  • 132. Cassandra ‣ Why Cassandra, for Twitter?
  • 133. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL
  • 134. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL ‣ All kinds of caching layers, all application managed
  • 135. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables
  • 136. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables ‣ Hardware intensive, error prone, etc
  • 137. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables ‣ Hardware intensive, error prone, etc ‣ Not to mention, we hit MySQL write limits sometimes
  • 138. Cassandra ‣ Why Cassandra, for Twitter? ‣ Old/current: vertically, horizontally partitioned MySQL ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables ‣ Hardware intensive, error prone, etc ‣ Not to mention, we hit MySQL write limits sometimes ‣ First goal: move all tweets to Cassandra
  • 139. Cassandra ‣ Why Cassandra, for Twitter? ‣ Decentralized, fault-tolerant ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables ‣ Hardware intensive, error prone, etc ‣ Not to mention, we hit MySQL write limits sometimes ‣ First goal: move all tweets to Cassandra
  • 140. Cassandra ‣ Why Cassandra, for Twitter? ‣ Decentralized, fault-tolerant ‣ All kinds of caching layers, all application managed ‣ Alter table impossible, leads to bitfields, piggyback tables ‣ Hardware intensive, error prone, etc ‣ Not to mention, we hit MySQL write limits sometimes ‣ First goal: move all tweets to Cassandra
  • 141. Cassandra ‣ Why Cassandra, for Twitter? ‣ Decentralized, fault-tolerant ‣ All kinds of caching layers, all application managed ‣ Flexible schema ‣ Hardware intensive, error prone, etc ‣ Not to mention, we hit MySQL write limits sometimes ‣ First goal: move all tweets to Cassandra
  • 142. Cassandra ‣ Why Cassandra, for Twitter? ‣ Decentralized, fault-tolerant ‣ All kinds of caching layers, all application managed ‣ Flexible schema ‣ Elastic ‣ Not to mention, we hit MySQL write limits sometimes ‣ First goal: move all tweets to Cassandra
  • 143. Cassandra ‣ Why Cassandra, for Twitter? ‣ Decentralized, fault-tolerant ‣ All kinds of caching layers, all application managed ‣ Flexible schema ‣ Elastic ‣ High write throughput ‣ First goal: move all tweets to Cassandra
  • 144. Eventually Consistent? ‣ Twitter is already eventually consistent
  • 145. Eventually Consistent? ‣ Twitter is already eventually consistent ‣ Your system may be even worse
  • 146. Eventually Consistent? ‣ Twitter is already eventually consistent ‣ Your system may be even worse ‣ Ryan’s new term: “potential consistency” ‣ Do you have write-through caching? ‣ Do you ever have MySQL replication failures?
  • 147. Eventually Consistent? ‣ Twitter is already eventually consistent ‣ Your system may be even worse ‣ Ryan’s new term: “potential consistency” ‣ Do you have write-through caching? ‣ Do you ever have MySQL replication failures? ‣ There is no automatic consistency repair there, unlike Cassandra
  • 148. Eventually Consistent? ‣ Twitter is already eventually consistent ‣ Your system may be even worse ‣ Ryan’s new term: “potential consistency” ‣ Do you have write-through caching? ‣ Do you ever have MySQL replication failures? ‣ There is no automatic consistency repair there, unlike Cassandra ‣ http://www.slideshare.net/ryansking/scaling- twitter-with-cassandra
  • 149. Rolling out Cassandra ‣ 1. Integrate Cassandra alongside MySQL ‣ 100% reads/writes to MySQL ‣ Dynamic switches for % dark reads/writes to Cassandra
  • 150. Rolling out Cassandra ‣ 1. Integrate Cassandra alongside MySQL ‣ 100% reads/writes to MySQL ‣ Dynamic switches for % dark reads/writes to Cassandra ‣ 2. Turn up traffic to Cassandra
  • 151. Rolling out Cassandra ‣ 1. Integrate Cassandra alongside MySQL ‣ 100% reads/writes to MySQL ‣ Dynamic switches for % dark reads/writes to Cassandra ‣ 2. Turn up traffic to Cassandra ‣ 3. Find something that’s broken, set switch to 0%
  • 152. Rolling out Cassandra ‣ 1. Integrate Cassandra alongside MySQL ‣ 100% reads/writes to MySQL ‣ Dynamic switches for % dark reads/writes to Cassandra ‣ 2. Turn up traffic to Cassandra ‣ 3. Find something that’s broken, set switch to 0% ‣ 4. Fix it
  • 153. Rolling out Cassandra ‣ 1. Integrate Cassandra alongside MySQL ‣ 100% reads/writes to MySQL ‣ Dynamic switches for % dark reads/writes to Cassandra ‣ 2. Turn up traffic to Cassandra ‣ 3. Find something that’s broken, set switch to 0% ‣ 4. Fix it ‣ 5. GOTO 2
  • 154. Cassandra for Realtime Analytics ‣ Starting a project around realtime analytics ‣ Cassandra as the backing store ‣ Using, developing, testing Digg’s atomic incr patches ‣ More soon.
  • 155. That was a lot of slides ‣ Thanks for sticking with me.
  • 156. Questions? Follow me at twitter.com/kevinweil TM

Editor's Notes
