The document discusses database normalization and different normal forms. It defines normalization as removing redundant data to improve storage efficiency and integrity. It outlines Edgar Codd's introduction of normalization and the first three normal forms he proposed: 1NF, 2NF, 3NF. It also discusses Boyce-Codd Normal Form and defines the differences between 3NF and BCNF. Examples are provided to illustrate the different normal forms.

2. Index
 Normalization and history of norm…
 Why we do normalization..
 How many normal form..
 (1NF) and (2NF) with example…
 (3NF) and (BCNF) with example..
 Difference between 3NF and BCNF..
--------------------------******----------------------

3. Normalization
Normalization is the process of removing
redundant data from tabels into improve
storage efficiency and data integrity………
This process takes a relation schema through a
series of tests to certify wether it satisfies a
certain normal forms………..

4. History of normalization
 Edgar.F codd, the inventor of the relational
model,introduced the concept of
normalization..
 The first normal form(1NF)was proposed by
codd in 1970…
 Codd went on to define second normal
form(2NF) and third normal form (3NF) in
1971.
To eliminate some anomalies in (3NF) the
stronger version of 3NF is called“BCNF” was
proposed by “Boyce and Codd”…

5. Why we do normalization?
 It is the process of analyzing the given
relation schema based on their functional
dependencies and primary keys to achieve the
disiarable properties of.
 It is used to minimizing data redundancy.
 It is used to minimizing deletion,insertion and
updation anomalies.

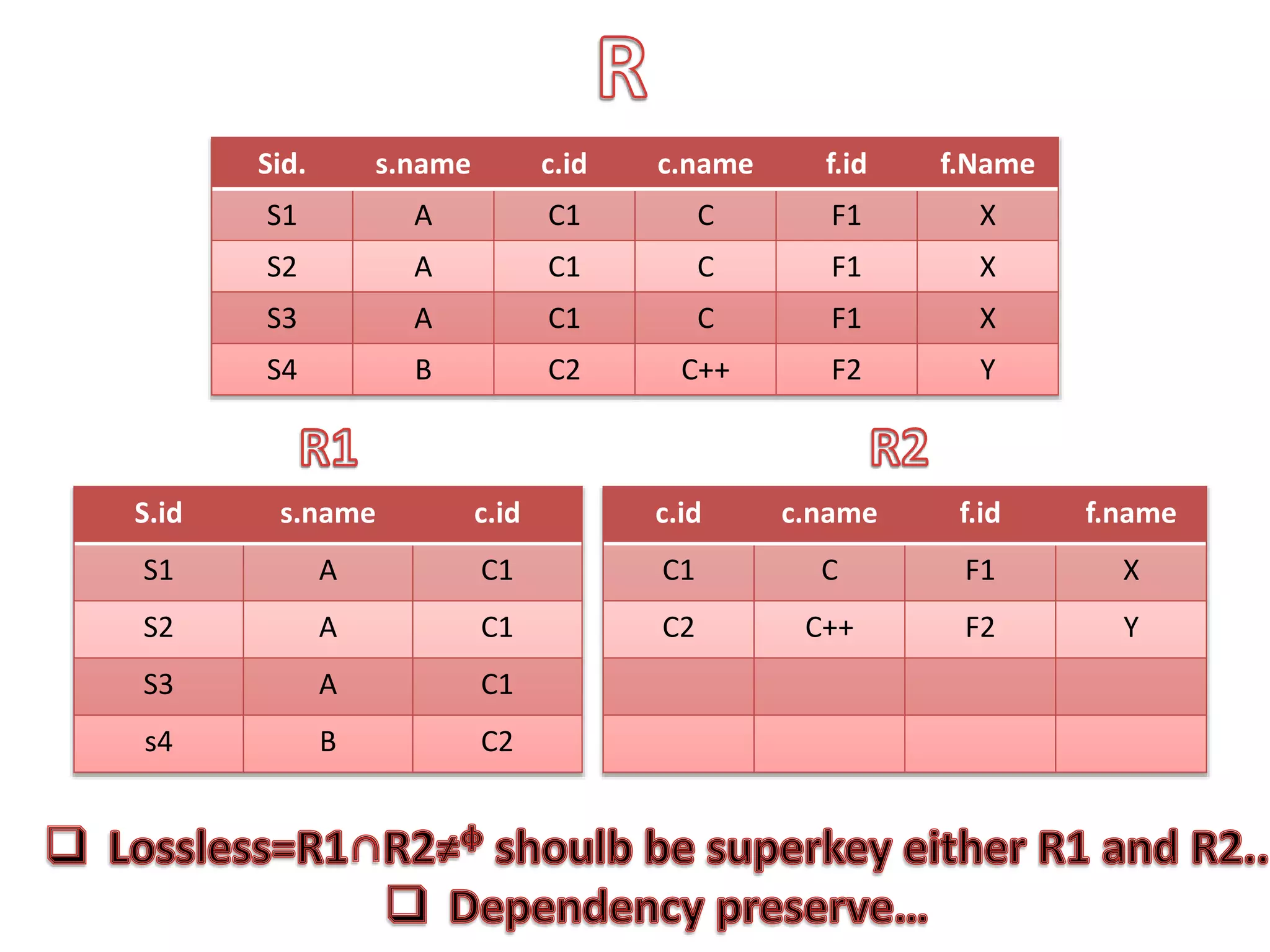

6. Sid. s.name c.id c.name f.id f.Name
S1 A C1 C F1 X
S2 A C1 C F1 X
S3 A C1 C F1 X
S4 B C2 C++ F2 Y
S.id s.name c.id
S1 A C1
S2 A C1
S3 A C1
s4 B C2
c.id c.name f.id f.name
C1 C F1 X
C2 C++ F2 Y

7. How Many normal form?
 Initially codd proposed three normal form,
which he called first,second and third normal
forms.
 A stronger defination of third normal form is
called Boyce-codd normal form(BCNF),was
proposed later by Boyce-Codd.
 Later fourth and fifth normal form were
proposed.

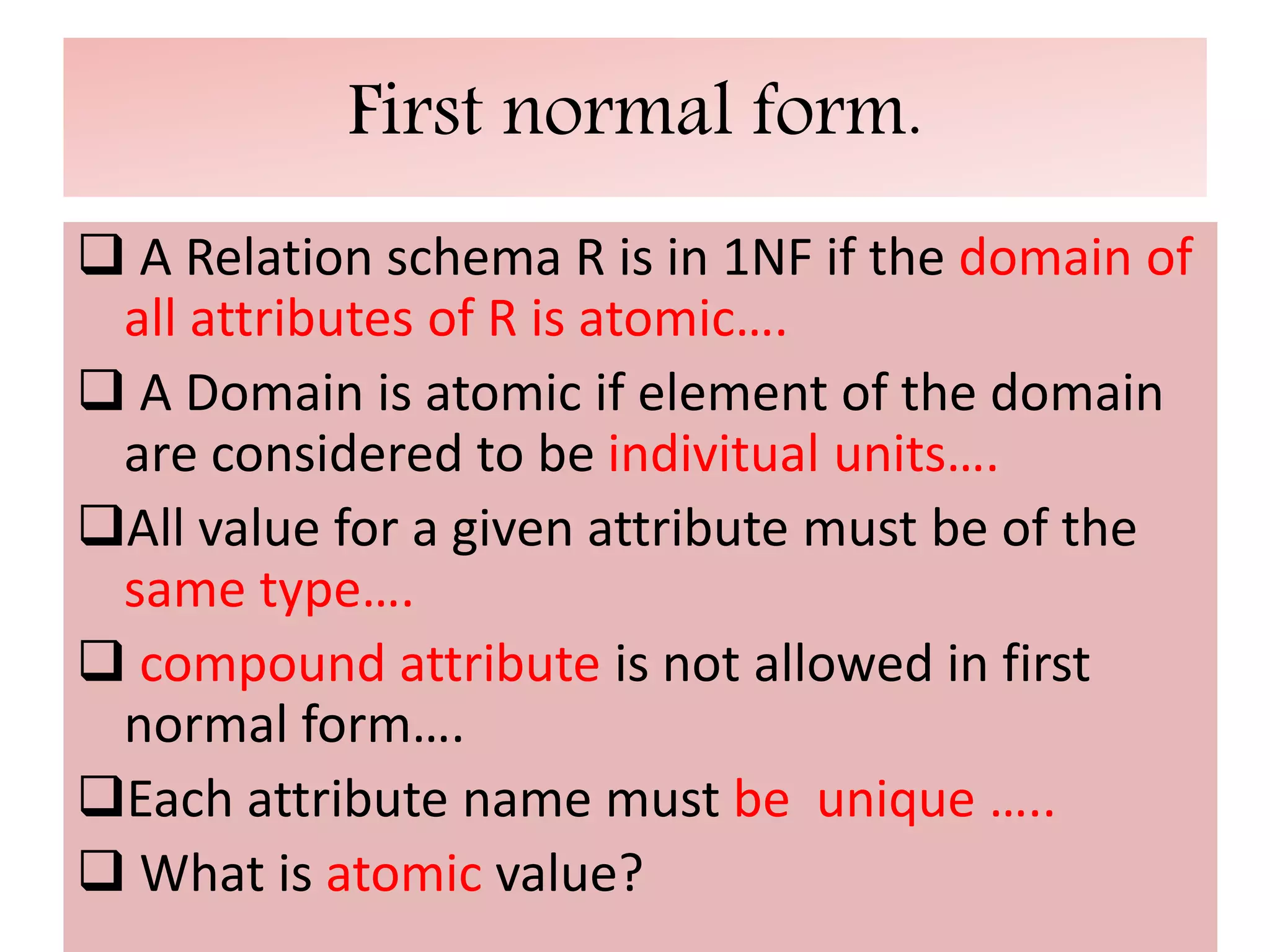

8. First normal form.
 A Relation schema R is in 1NF if the domain of
all attributes of R is atomic….
 A Domain is atomic if element of the domain
are considered to be indivitual units….
All value for a given attribute must be of the
same type….
 compound attribute is not allowed in first
normal form….
Each attribute name must be unique …..
 What is atomic value?

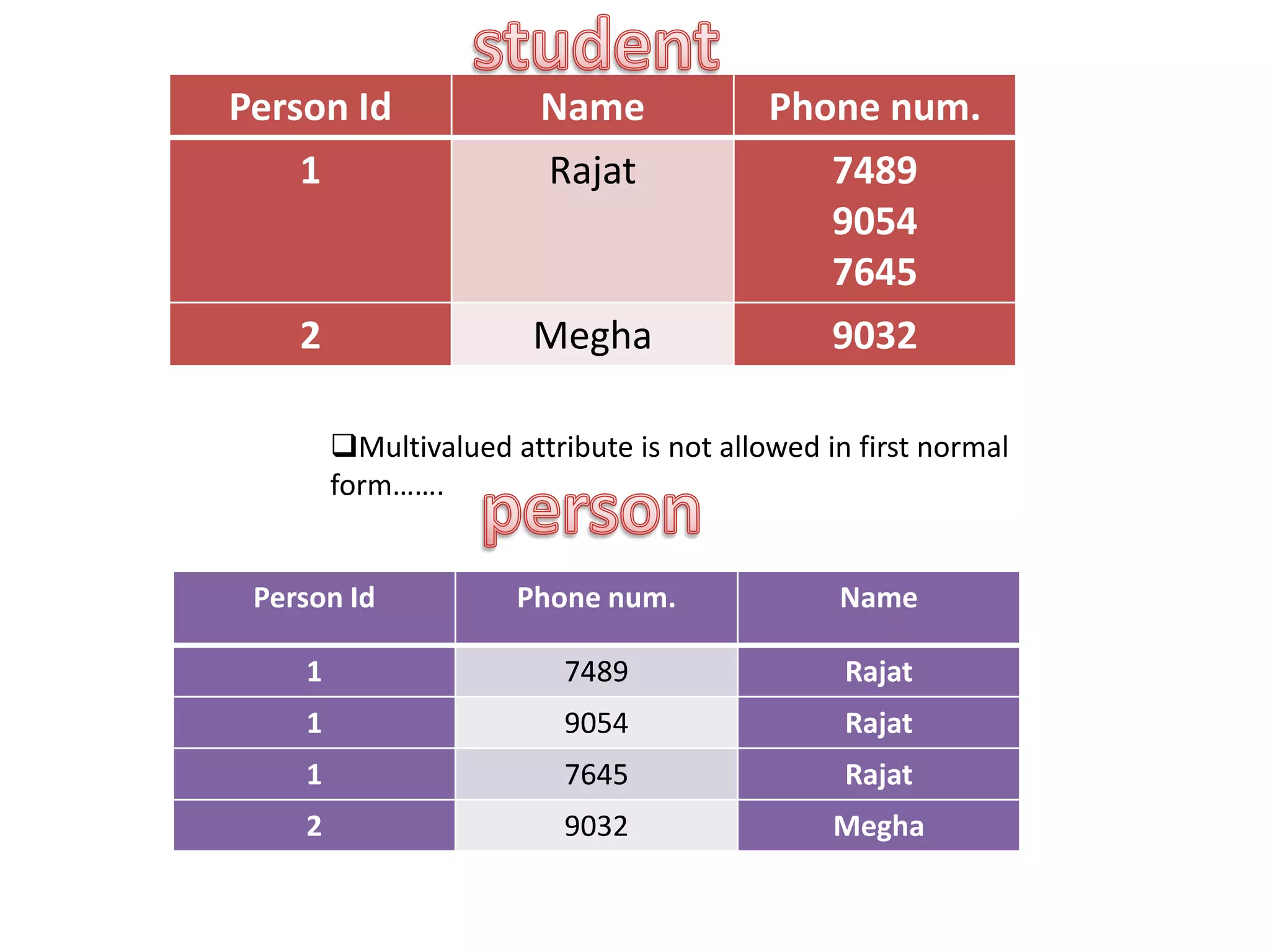

9. Person Id Name Phone num.
1 Rajat 7489
9054
7645
2 Megha 9032
Person Id Phone num. Name
1 7489 Rajat
1 9054 Rajat
1 7645 Rajat
2 9032 Megha
Multivalued attribute is not allowed in first normal
form…….

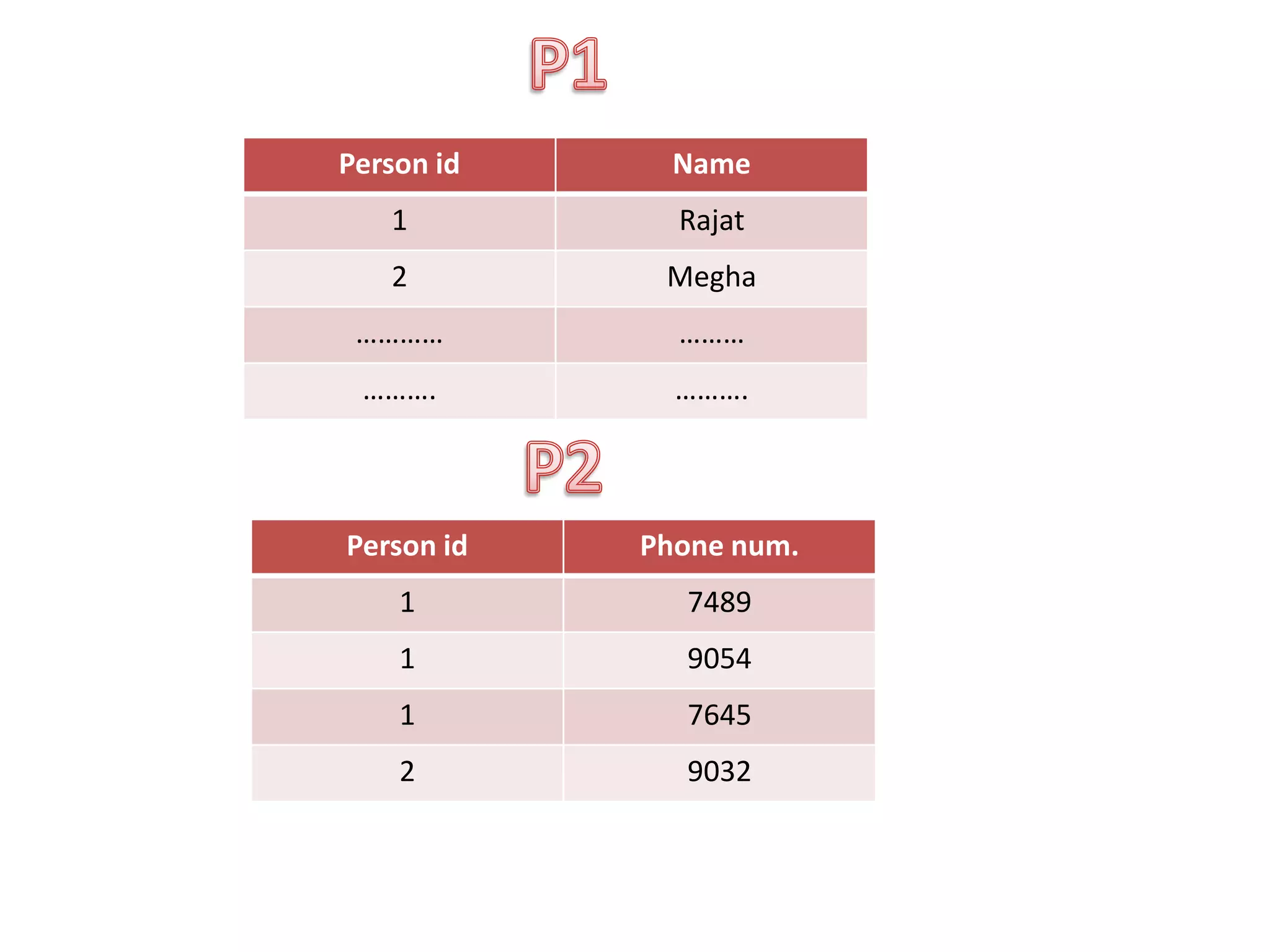

10. Person id Name
1 Rajat
2 Megha
………… ………
………. ……….
Person id Phone num.
1 7489
1 9054
1 7645
2 9032

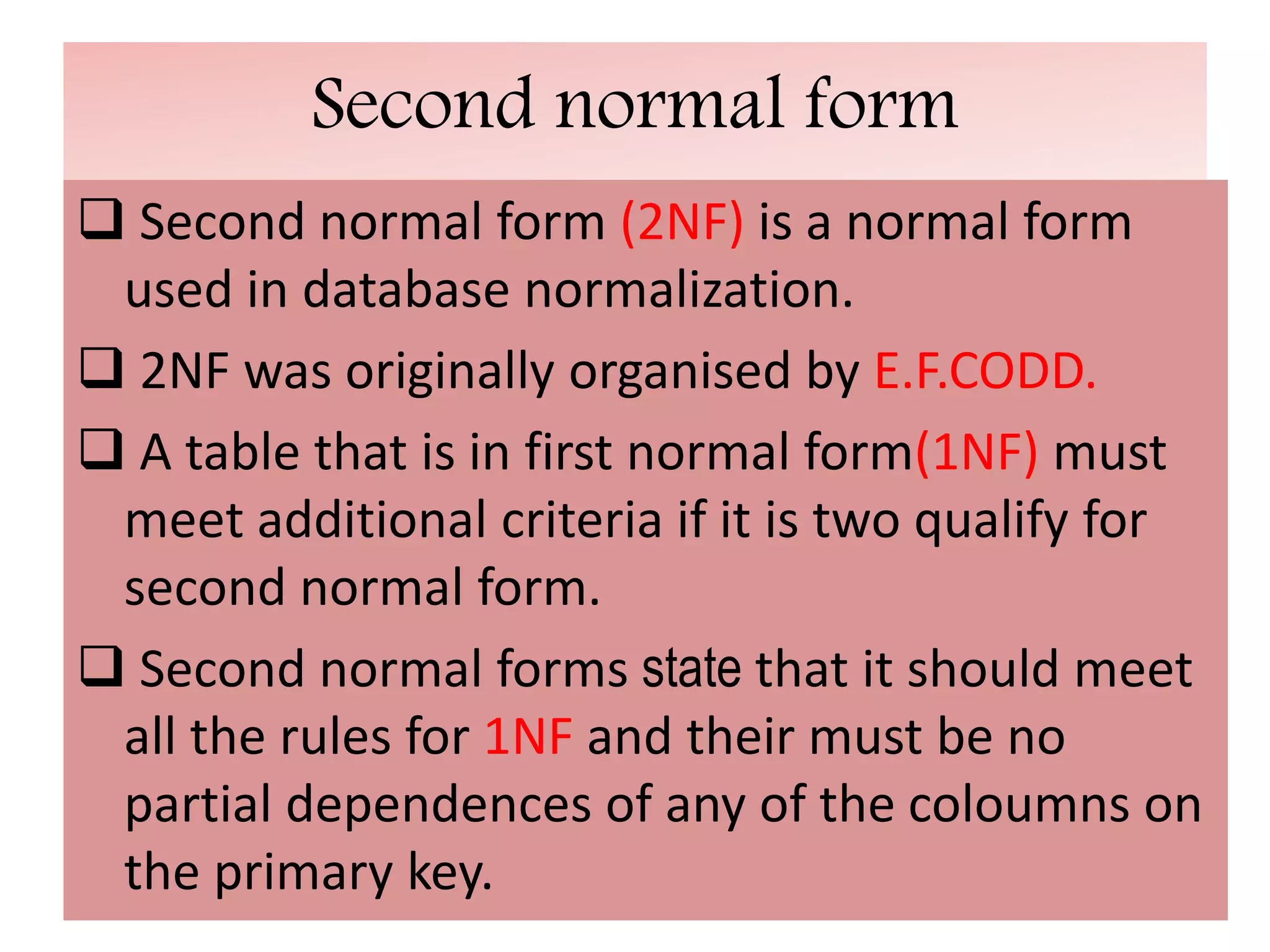

11. Second normal form
 Second normal form (2NF) is a normal form
used in database normalization.
 2NF was originally organised by E.F.CODD.
 A table that is in first normal form(1NF) must
meet additional criteria if it is two qualify for
second normal form.
 Second normal forms state that it should meet
all the rules for 1NF and their must be no
partial dependences of any of the coloumns on
the primary key.

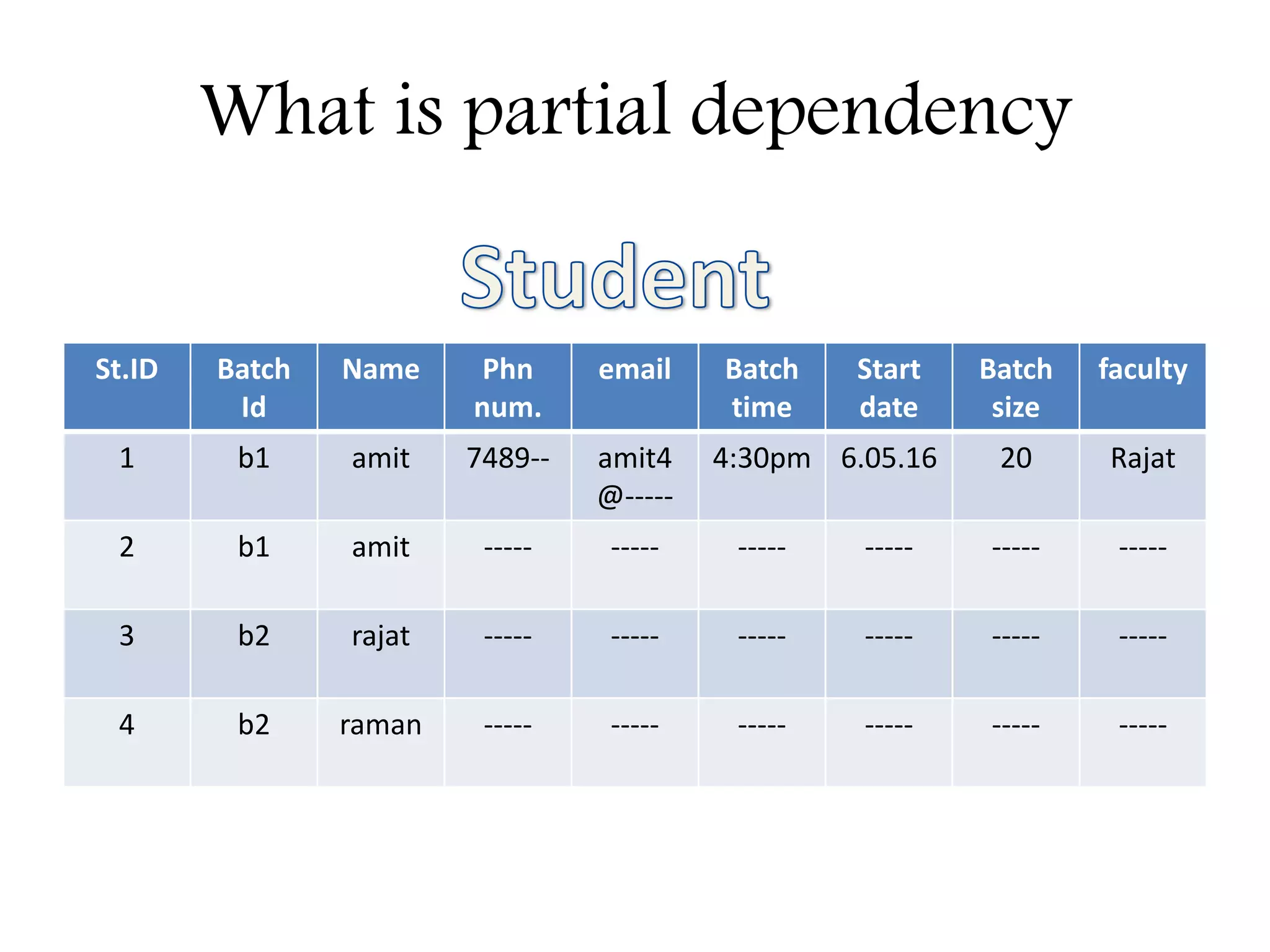

12. What is partial dependency
St.ID Batch
Id
Name Phn
num.
email Batch
time
Start
date
Batch
size
faculty
1 b1 amit 7489-- amit4
@-----
4:30pm 6.05.16 20 Rajat
2 b1 amit ----- ----- ----- ----- ----- -----
3 b2 rajat ----- ----- ----- ----- ----- -----
4 b2 raman ----- ----- ----- ----- ----- -----

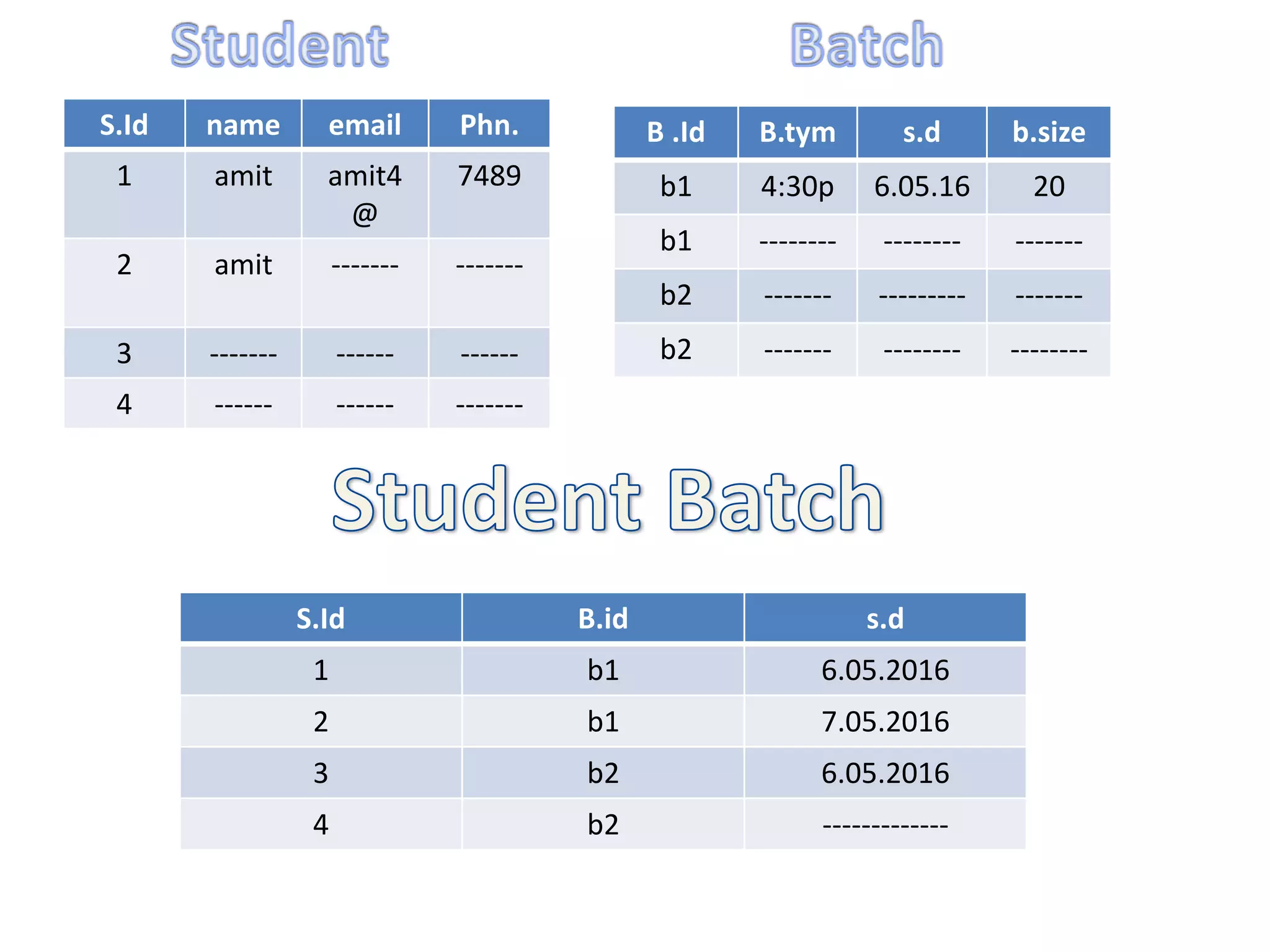

13. S.Id name email Phn.
1 amit amit4
@
7489
2 amit ------- -------
3 ------- ------ ------
4 ------ ------ -------
B .Id B.tym s.d b.size
b1 4:30p 6.05.16 20
b1 -------- -------- -------
b2 ------- --------- -------
b2 ------- -------- --------
S.Id B.id s.d
1 b1 6.05.2016
2 b1 7.05.2016
3 b2 6.05.2016
4 b2 -------------

14. Third normal forms
 Third normal forms(3NF) is a normal form
used in database normalization.
 (3NF) was originally defined by E.F.CODD…

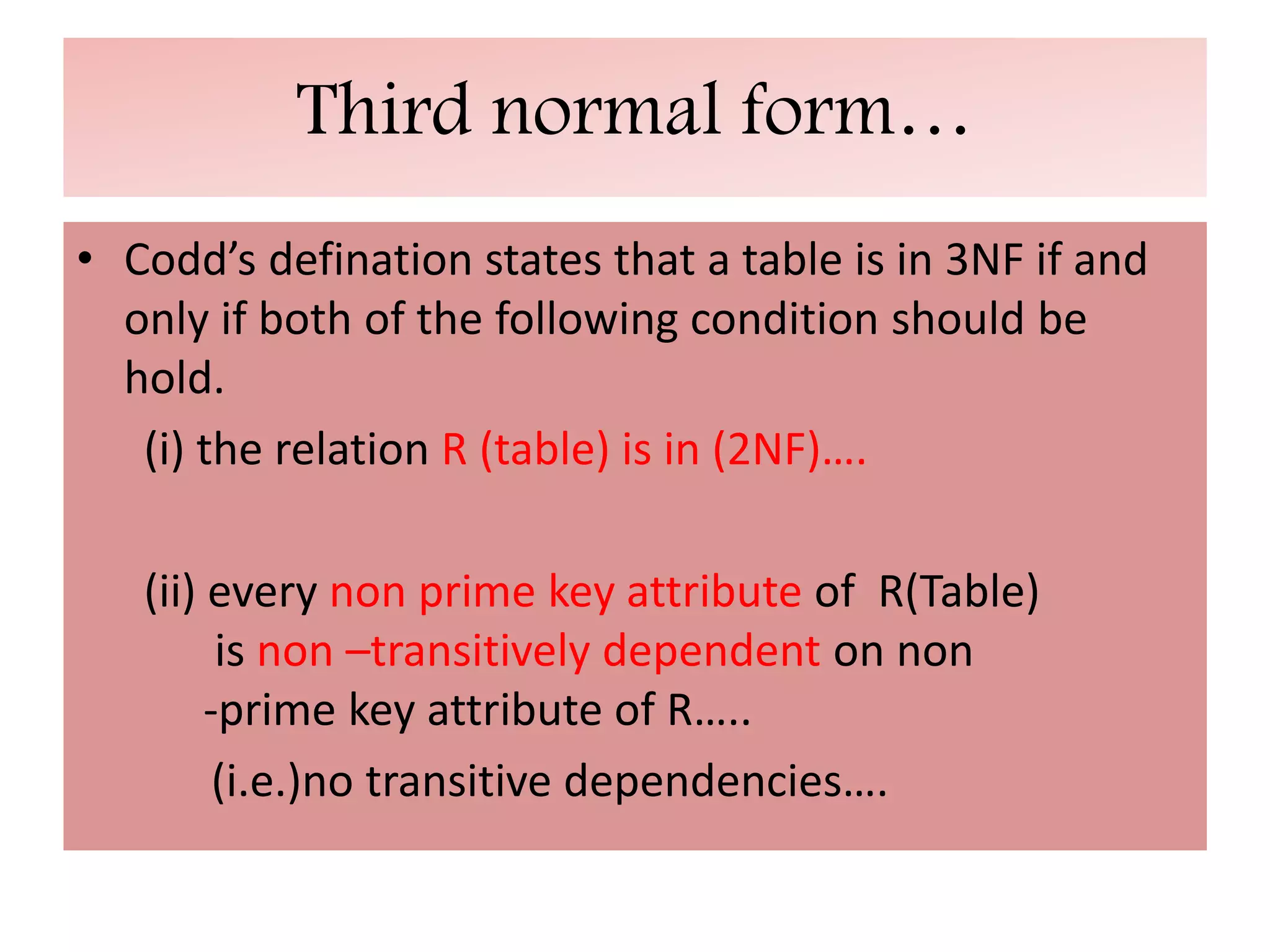

15. Third normal form…
• Codd’s defination states that a table is in 3NF if and
only if both of the following condition should be
hold.
(i) the relation R (table) is in (2NF)….
(ii) every non prime key attribute of R(Table)
is non –transitively dependent on non
-prime key attribute of R…..
(i.e.)no transitive dependencies….

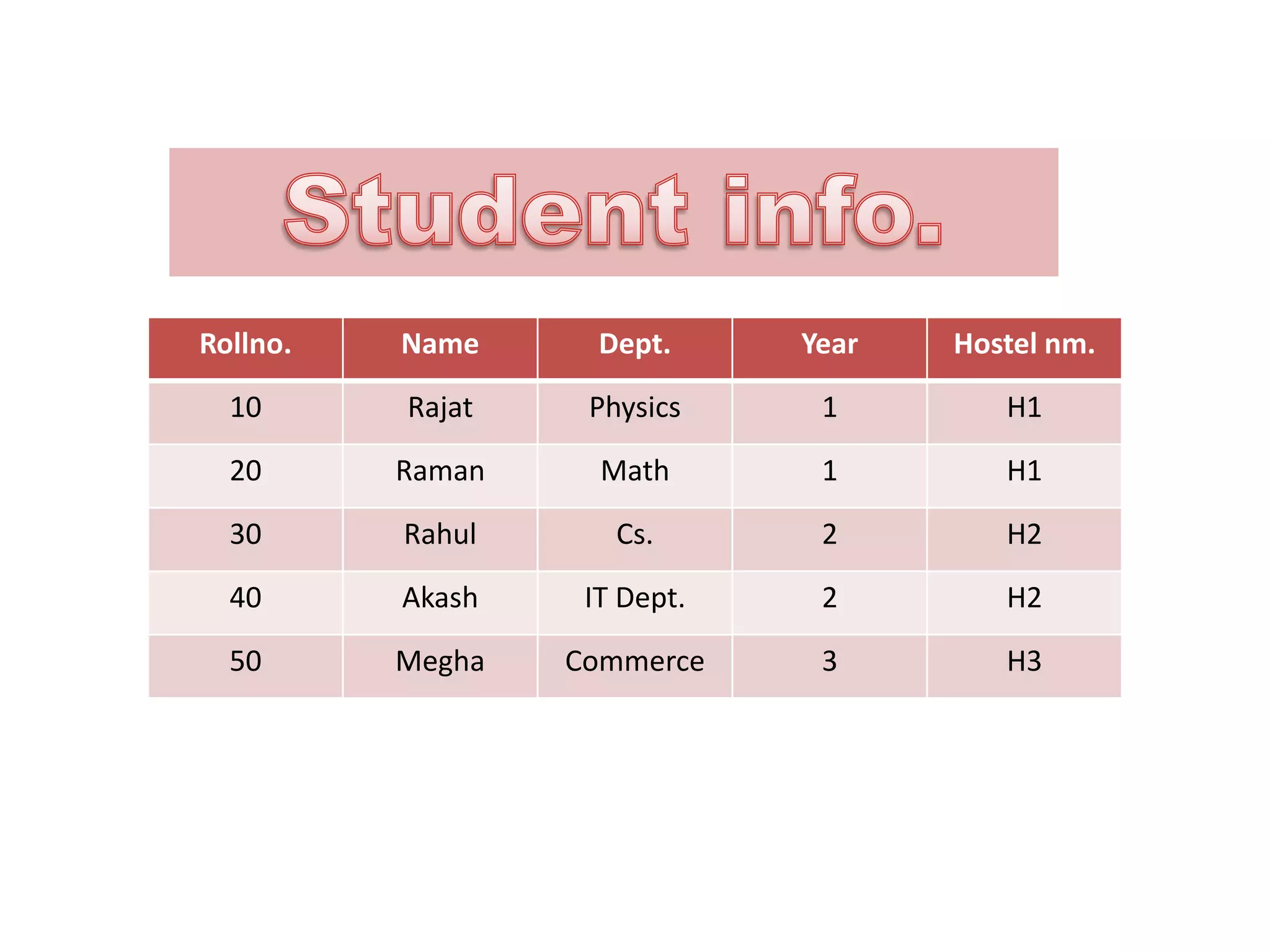

16. Rollno. Name Dept. Year Hostel nm.
10 Rajat Physics 1 H1
20 Raman Math 1 H1
30 Rahul Cs. 2 H2
40 Akash IT Dept. 2 H2
50 Megha Commerce 3 H3

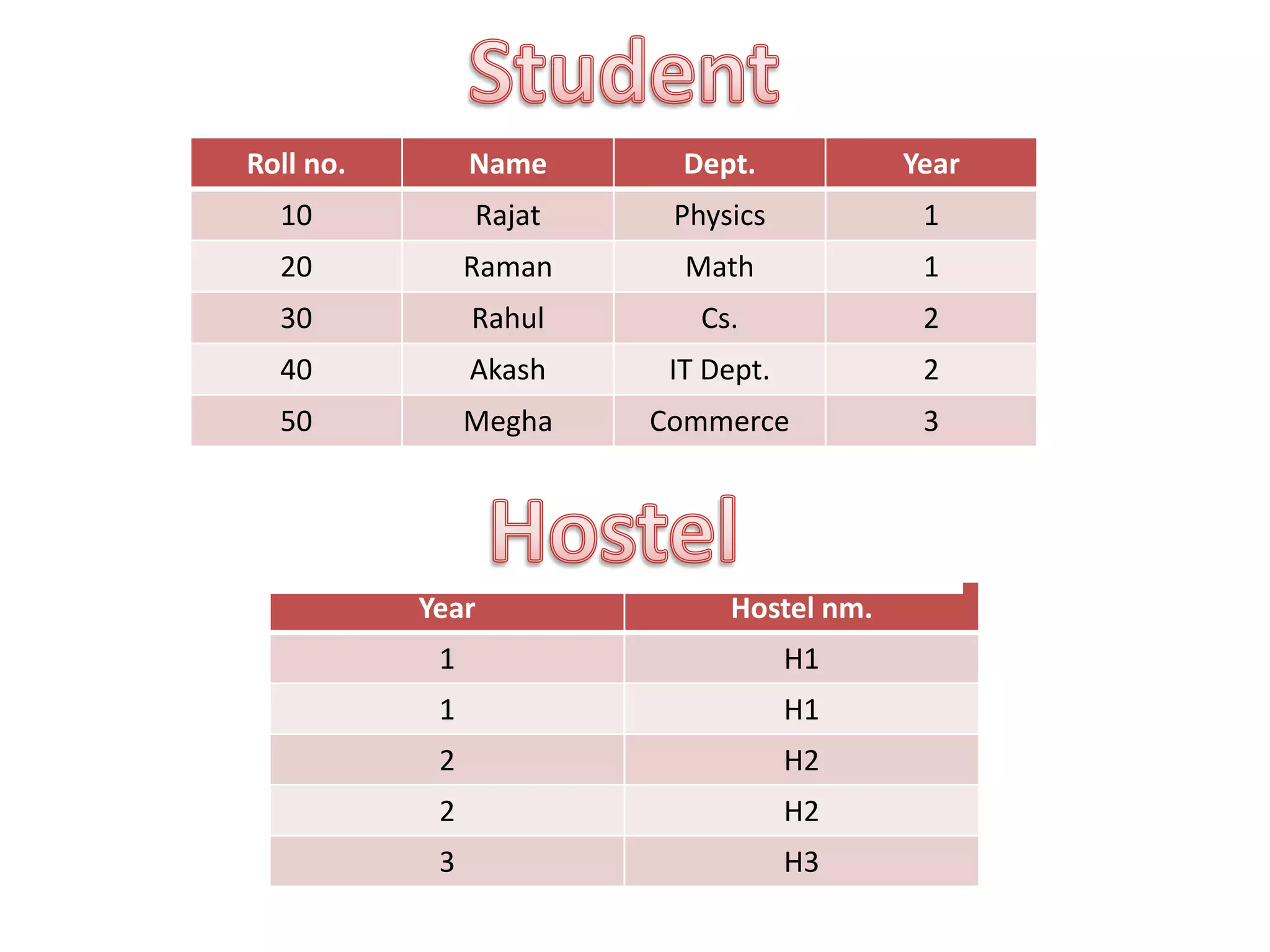

17. Roll no. Name Dept. Year
10 Rajat Physics 1
20 Raman Math 1
30 Rahul Cs. 2
40 Akash IT Dept. 2
50 Megha Commerce 3
Year Hostel nm.
1 H1
1 H1
2 H2
2 H2
3 H3

18. Boyce codd normal form
The official qualification for BCNF are:-
• A table is already in 3NF.
• Atmost one determinant must be superkey in
relation..
Atmost one determinant that are not
superkeys are removed to place in
another table.

19. The difference between 3NF and BCNF
 The difference between 3NF and BCNF is that
for a functional dependency A->B ,3NF allows
this dependency in a relation if A is prime key
attribute and B is not a cnadidate key..
Whereas BCNF insists that for this dependency
to remain in a relation B,must be a candidate.

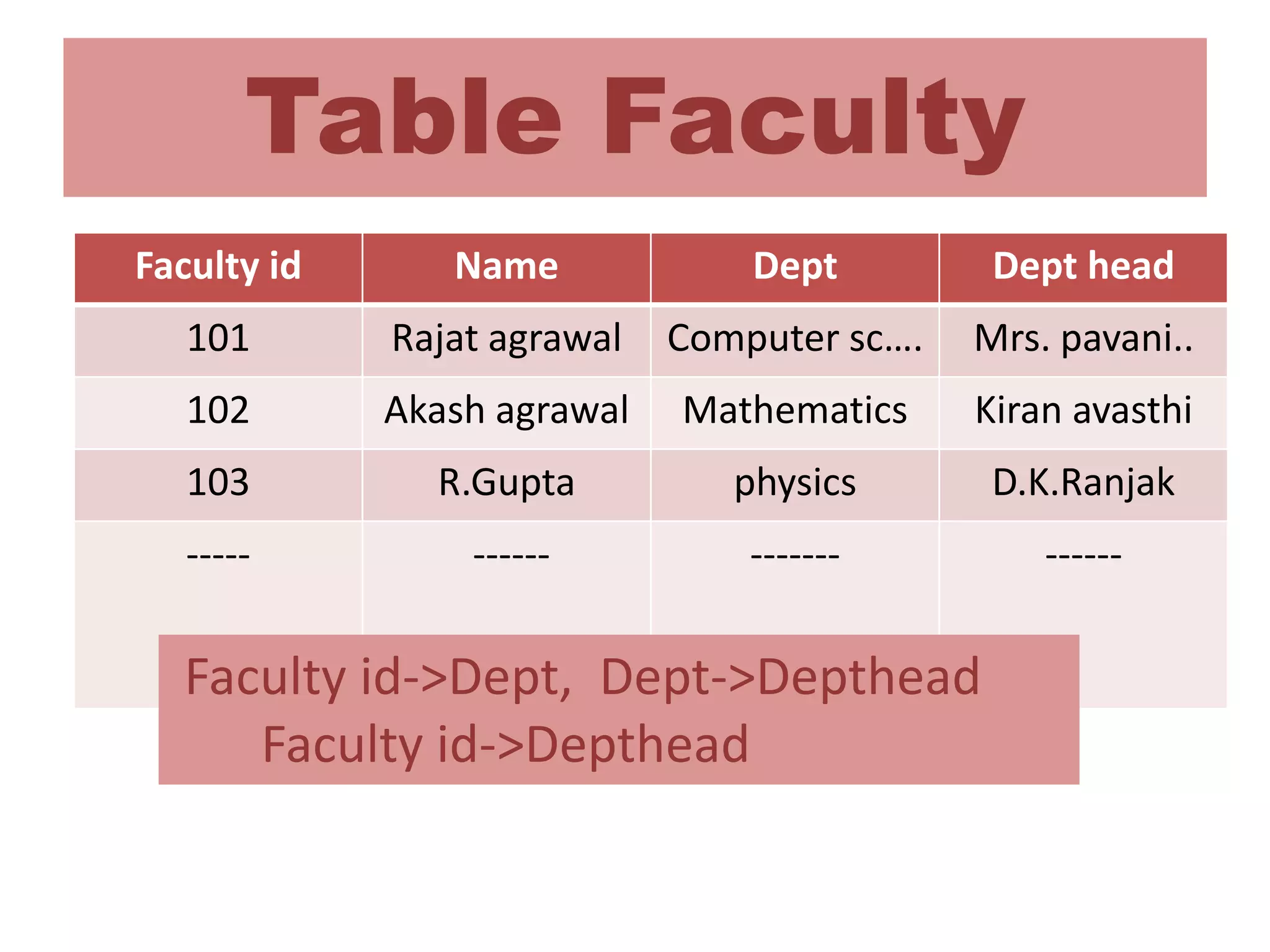

20. Table Faculty
Faculty id Name Dept Dept head
101 Rajat agrawal Computer sc…. Mrs. pavani..
102 Akash agrawal Mathematics Kiran avasthi
103 R.Gupta physics D.K.Ranjak
----- ------ ------- ------
Faculty id->Dept, Dept->Depthead
Faculty id->Depthead

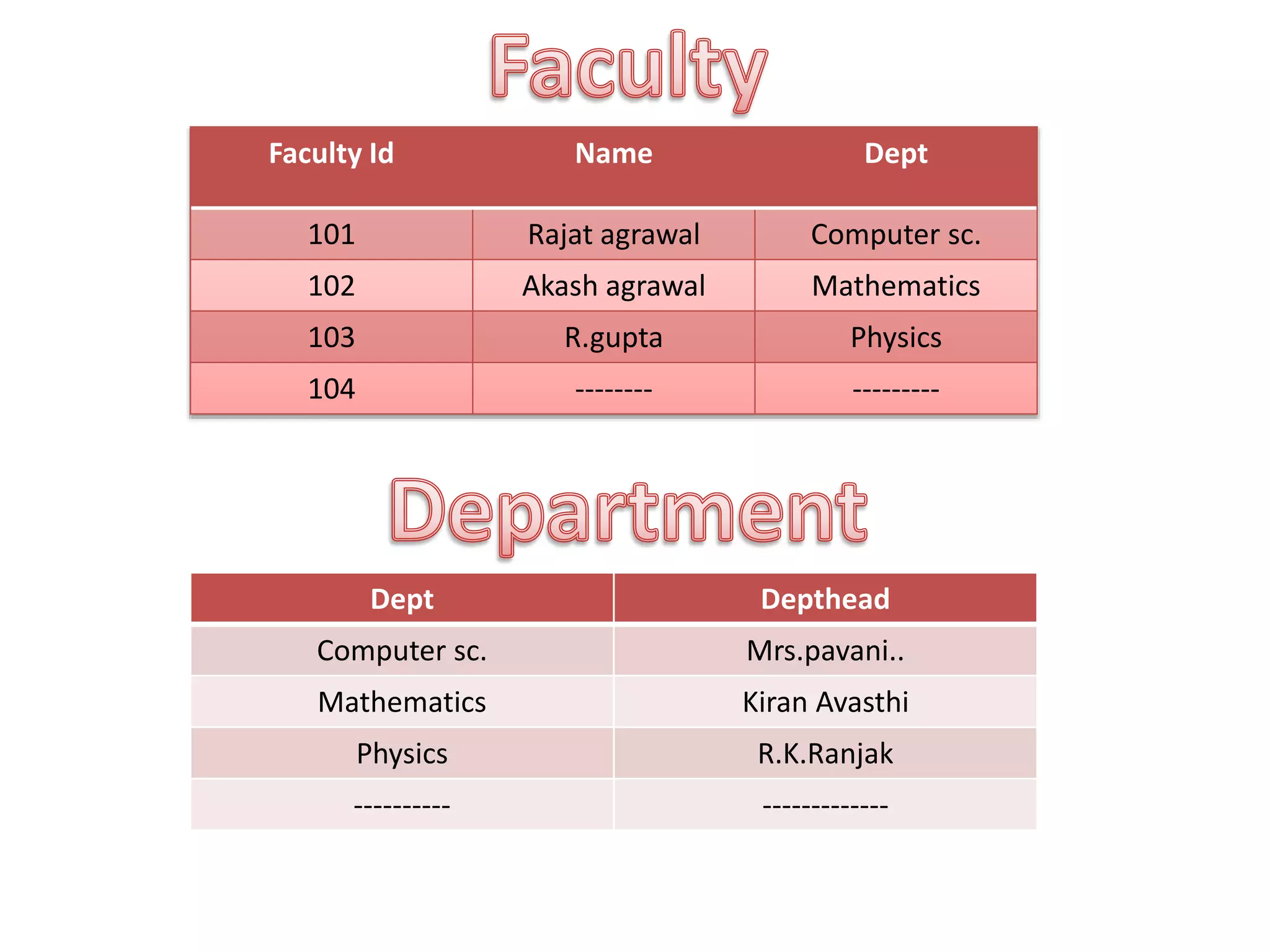

21. Faculty Id Name Dept
101 Rajat agrawal Computer sc.
102 Akash agrawal Mathematics
103 R.gupta Physics
104 -------- ---------
Dept Depthead
Computer sc. Mrs.pavani..
Mathematics Kiran Avasthi
Physics R.K.Ranjak
---------- -------------
