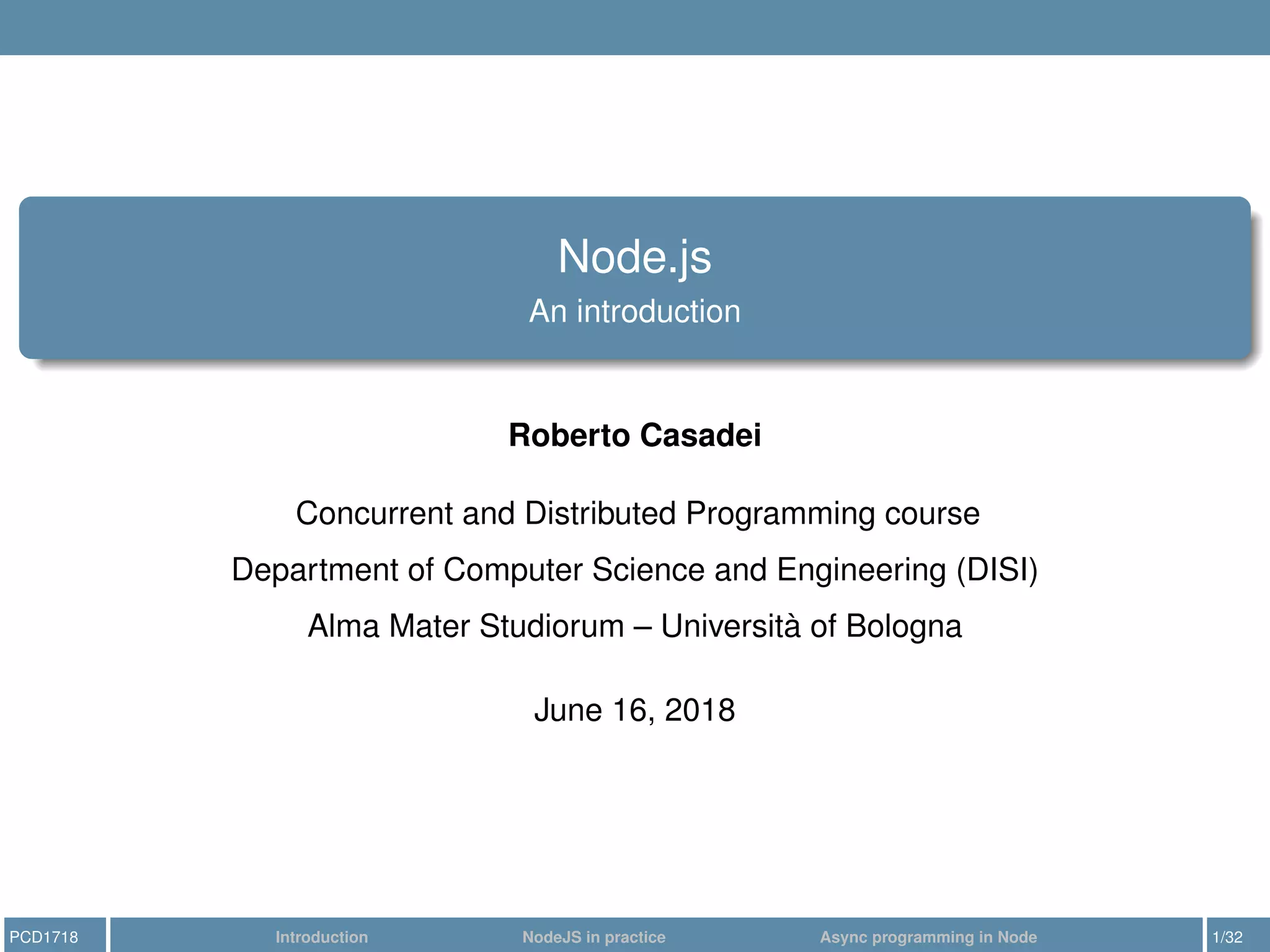

NodeJS: an Introduction

Node.js
An introduction
Roberto Casadei
Concurrent and Distributed Programming course
Department of Computer Science and Engineering (DISI)
Alma Mater Studiorum – Università of Bologna
June 16, 2018
PCD1718 Introduction NodeJS in practice Async programming in Node 1/32

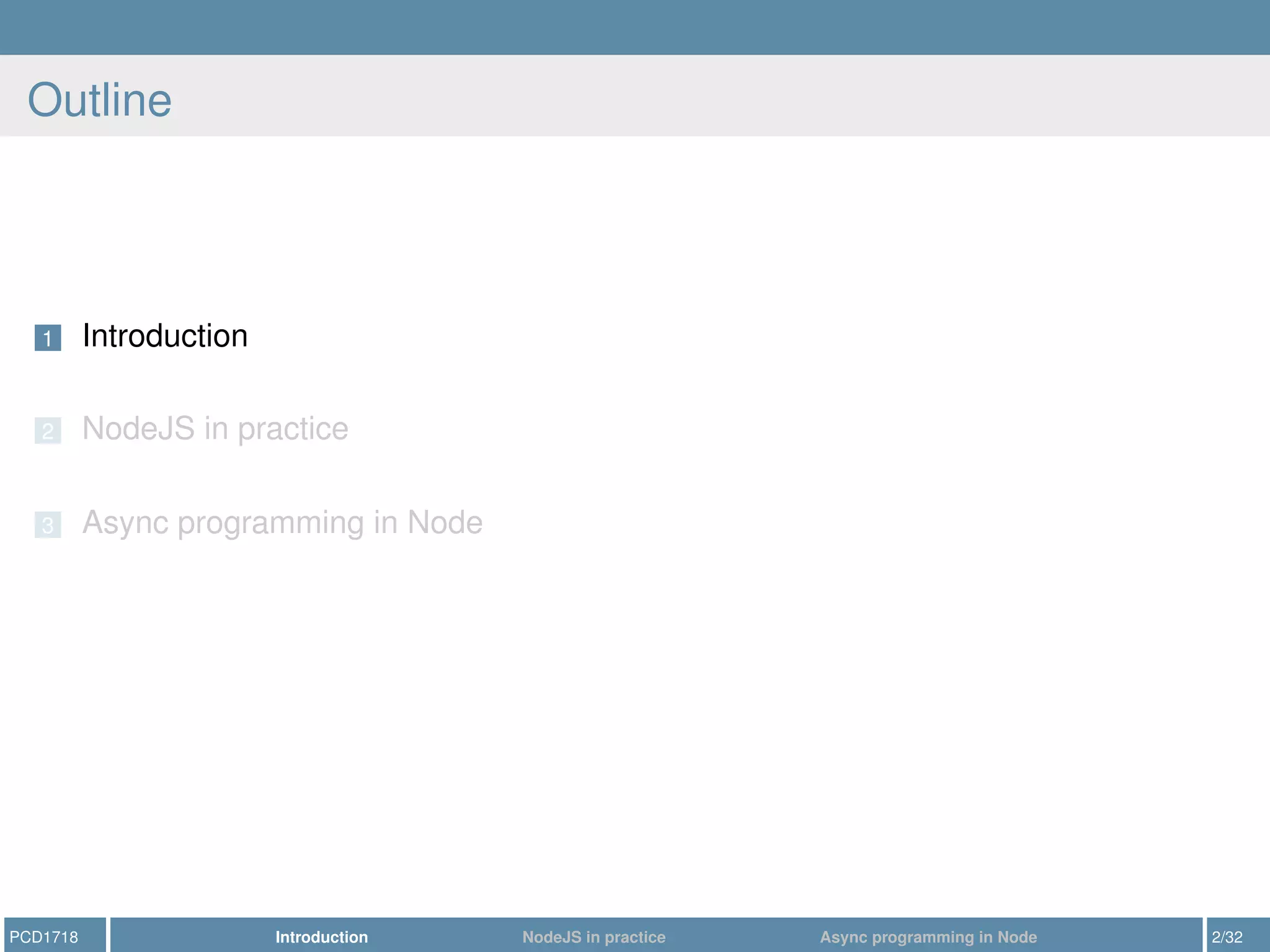

Outline
1 Introduction
2 NodeJS in practice
3 Async programming in Node

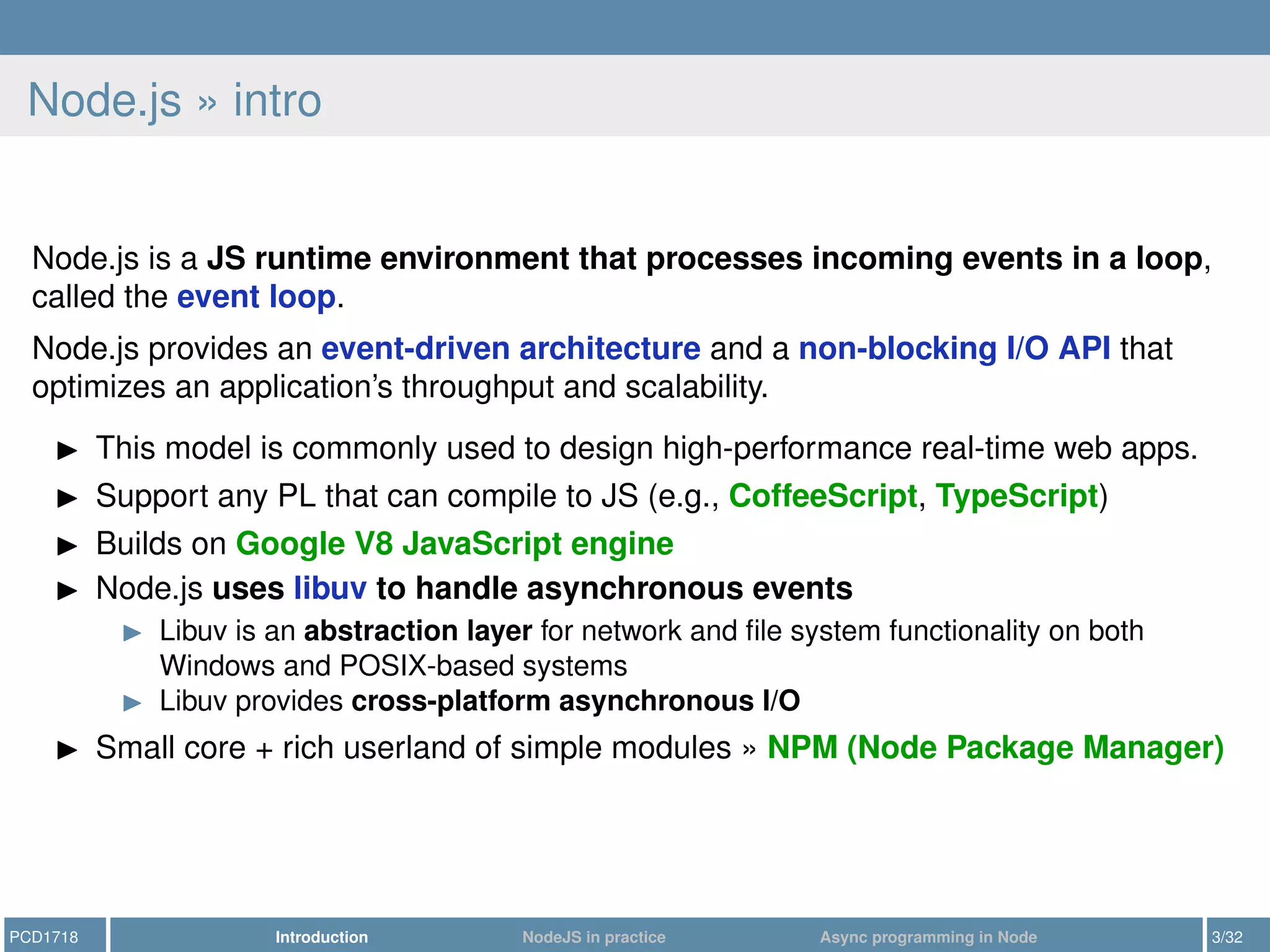

Node.js » intro
Node.js is a JS runtime environment that processes incoming events in a loop,
called the event loop.
Node.js provides an event-driven architecture and a non-blocking I/O API that
optimizes an application’s throughput and scalability.
This model is commonly used to design high-performance real-time web apps.
Support any PL that can compile to JS (e.g., CoffeeScript, TypeScript)
Builds on Google V8 JavaScript engine
Node.js uses libuv to handle asynchronous events
Libuv is an abstraction layer for network and ﬁle system functionality on both
Windows and POSIX-based systems
Libuv provides cross-platform asynchronous I/O
Small core + rich userland of simple modules » NPM (Node Package Manager)

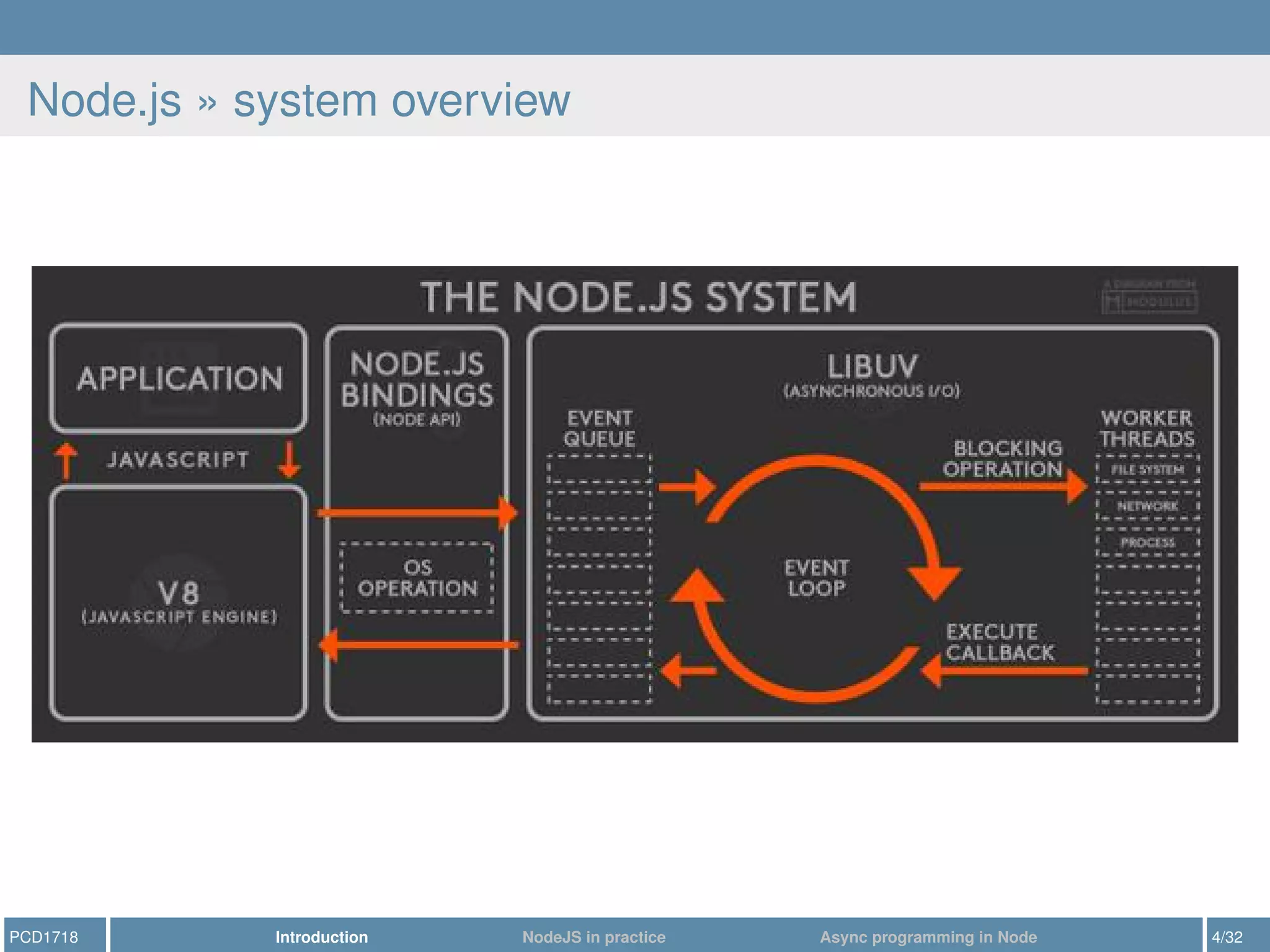

Node.js » system overview

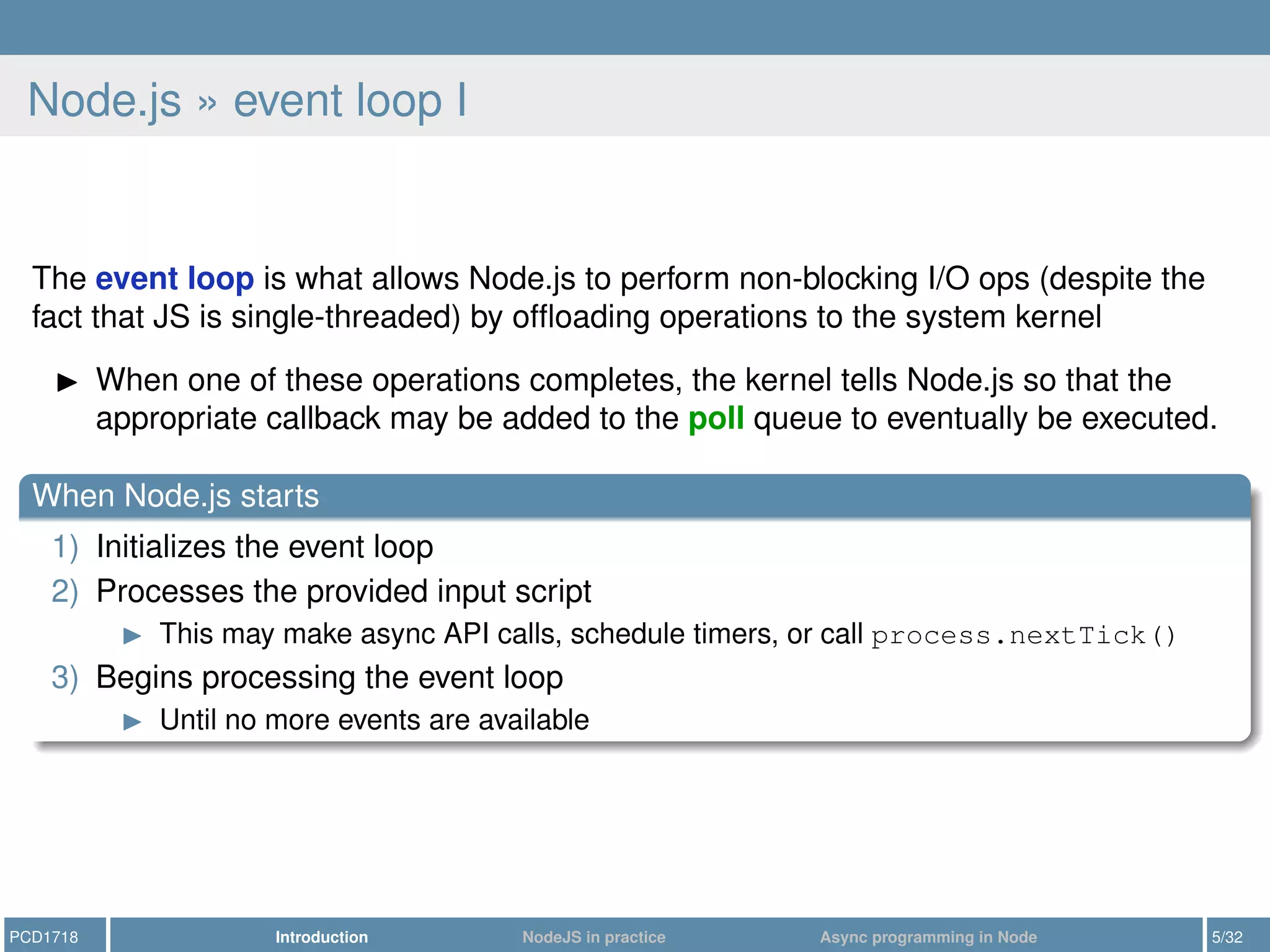

Node.js » event loop I
The event loop is what allows Node.js to perform non-blocking I/O ops (despite the
fact that JS is single-threaded) by ofﬂoading operations to the system kernel
When one of these operations completes, the kernel tells Node.js so that the
appropriate callback may be added to the poll queue to eventually be executed.
When Node.js starts
1) Initializes the event loop
2) Processes the provided input script
This may make async API calls, schedule timers, or call process.nextTick()
3) Begins processing the event loop
Until no more events are available

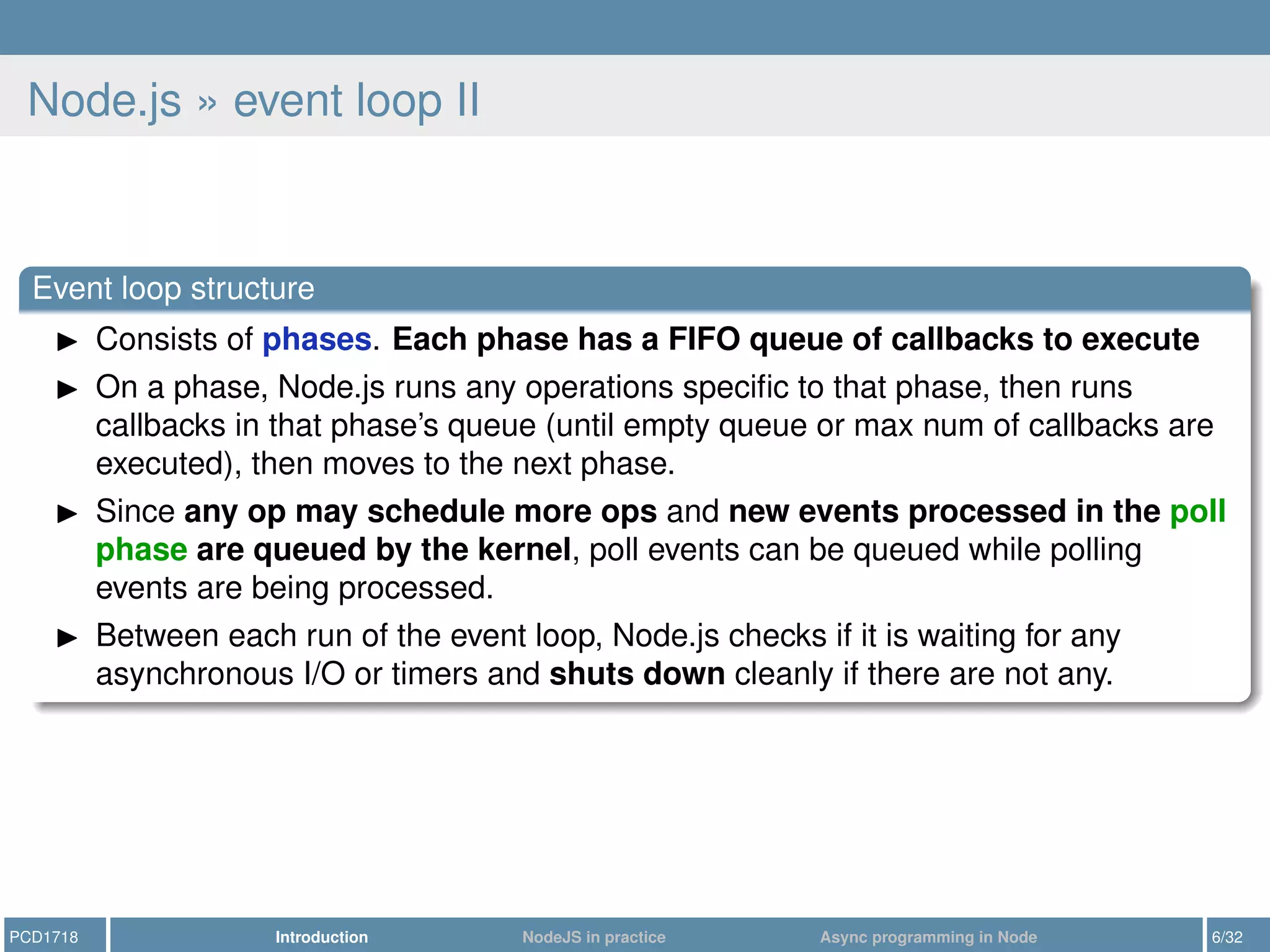

Node.js » event loop II
Event loop structure
Consists of phases. Each phase has a FIFO queue of callbacks to execute
On a phase, Node.js runs any operations speciﬁc to that phase, then runs
callbacks in that phase’s queue (until empty queue or max num of callbacks are
executed), then moves to the next phase.
Since any op may schedule more ops and new events processed in the poll
phase are queued by the kernel, poll events can be queued while polling
events are being processed.
Between each run of the event loop, Node.js checks if it is waiting for any
asynchronous I/O or timers and shuts down cleanly if there are not any.

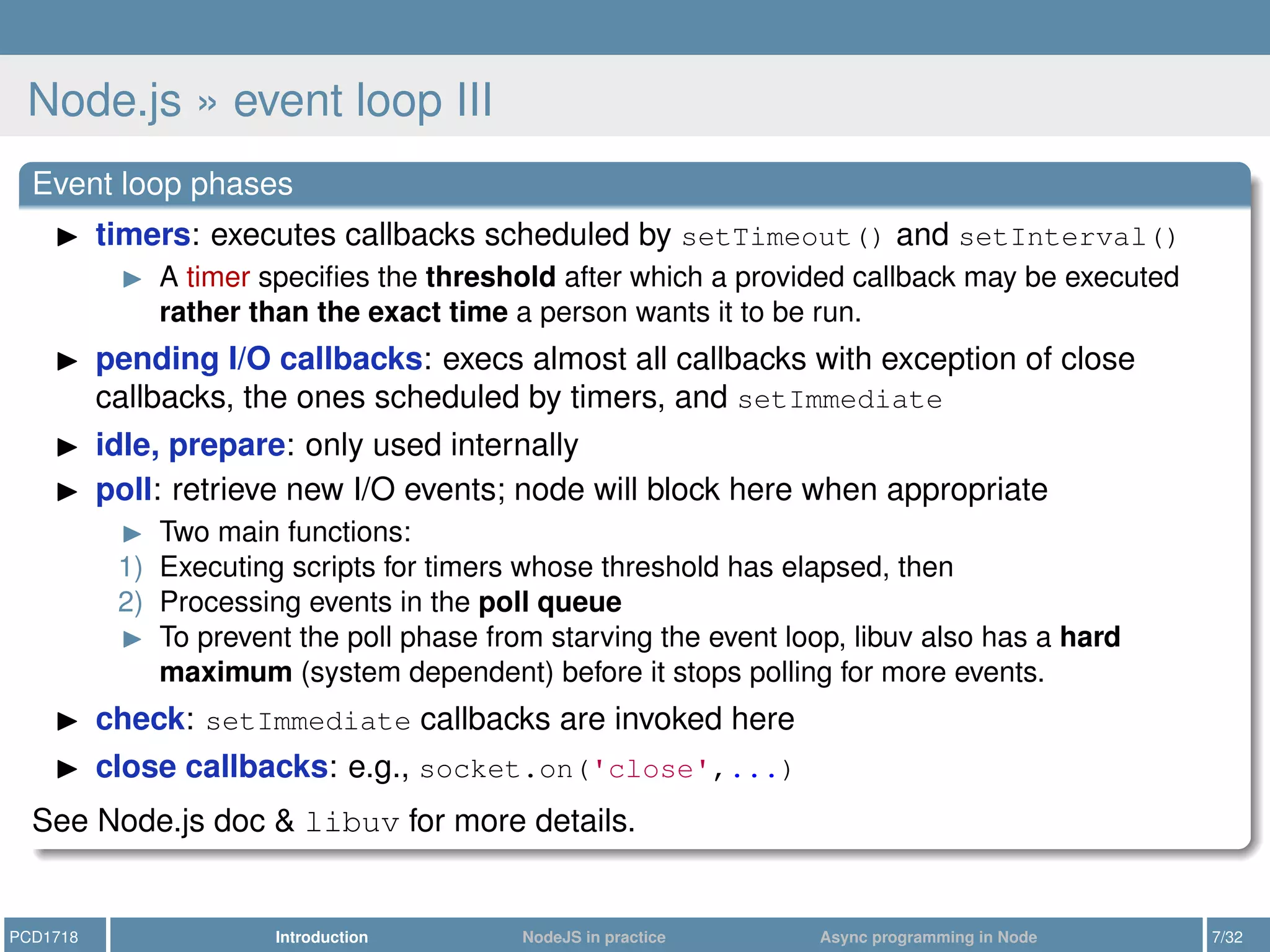

Node.js » event loop III
Event loop phases
timers: executes callbacks scheduled by setTimeout() and setInterval()
A timer speciﬁes the threshold after which a provided callback may be executed
rather than the exact time a person wants it to be run.
pending I/O callbacks: execs almost all callbacks with exception of close
callbacks, the ones scheduled by timers, and setImmediate
idle, prepare: only used internally
poll: retrieve new I/O events; node will block here when appropriate
Two main functions:
1) Executing scripts for timers whose threshold has elapsed, then
2) Processing events in the poll queue
To prevent the poll phase from starving the event loop, libuv also has a hard
maximum (system dependent) before it stops polling for more events.
check: setImmediate callbacks are invoked here
close callbacks: e.g., socket.on('close',...)
See Node.js doc & libuv for more details.

Modules and packages On JavaScript Examples

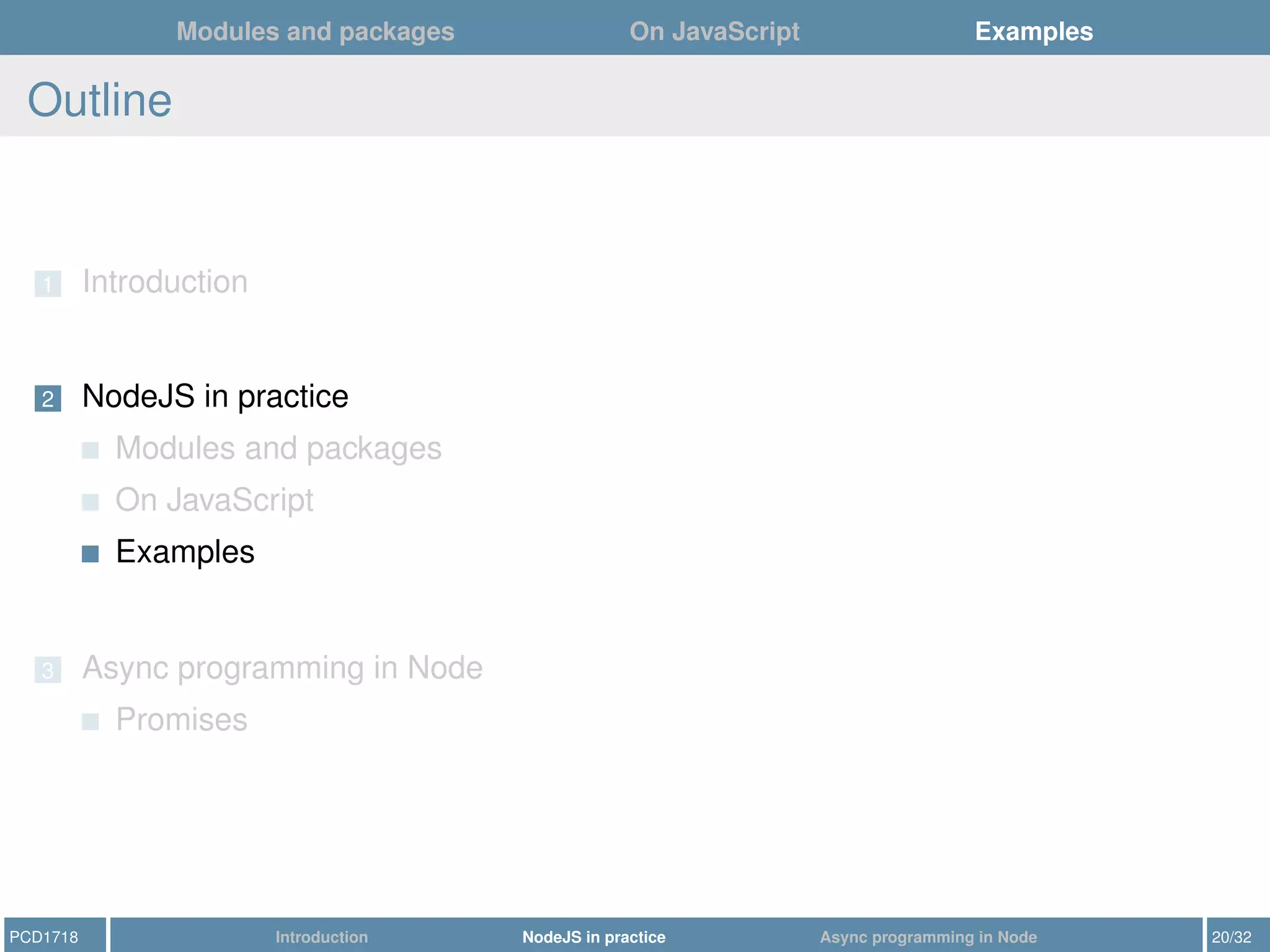

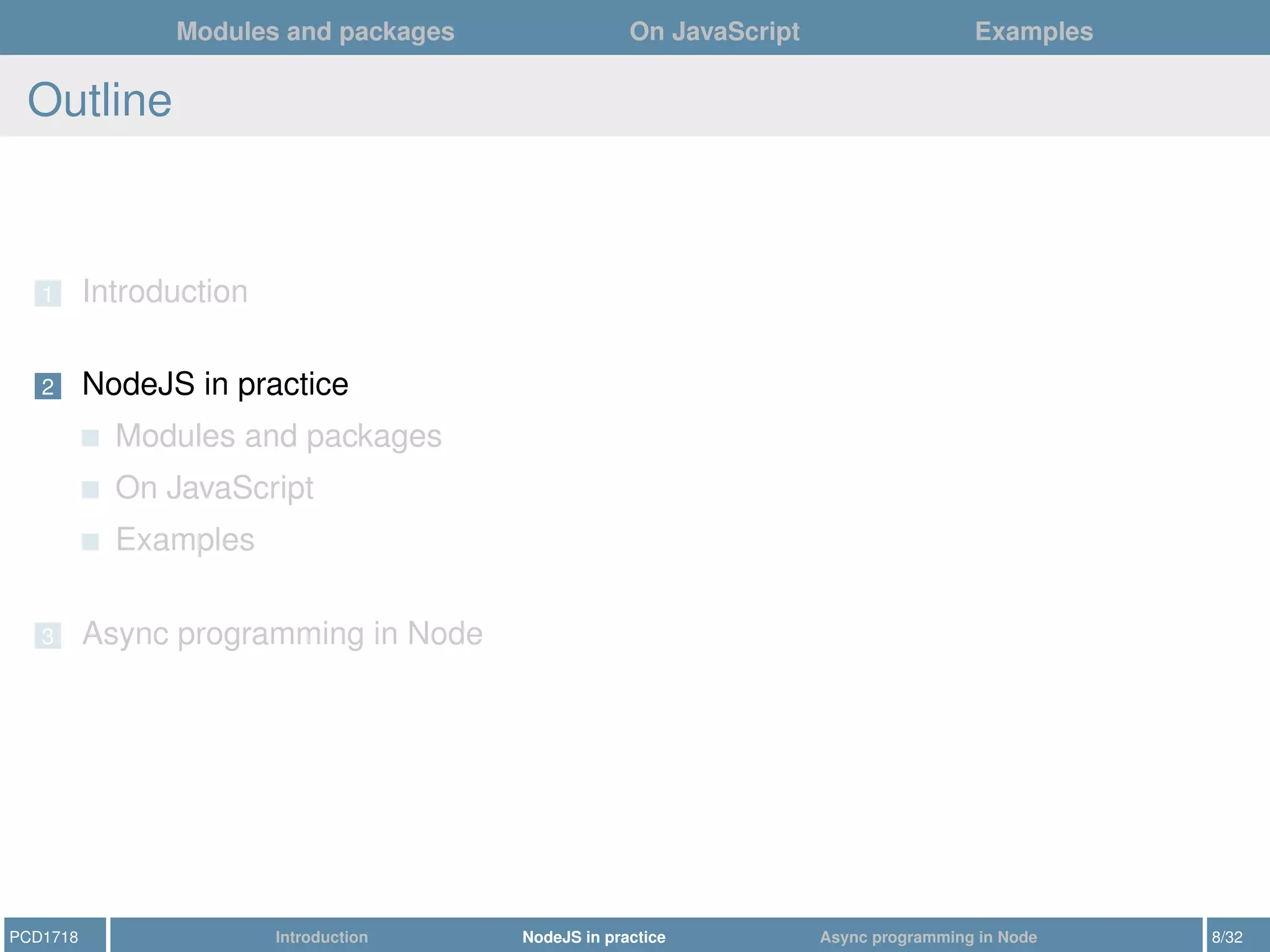

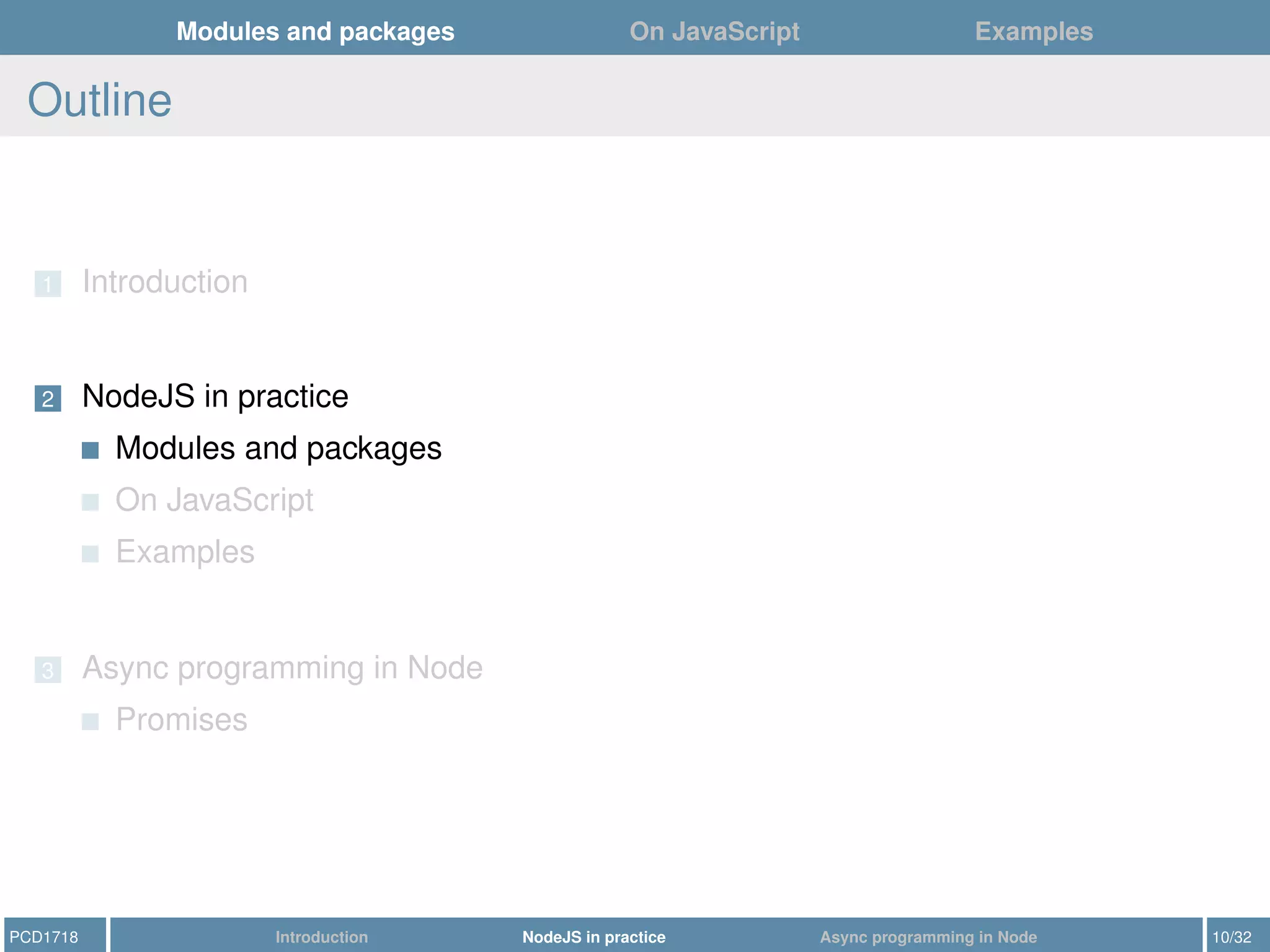

Outline
1 Introduction
Modules and packages
On JavaScript
Examples

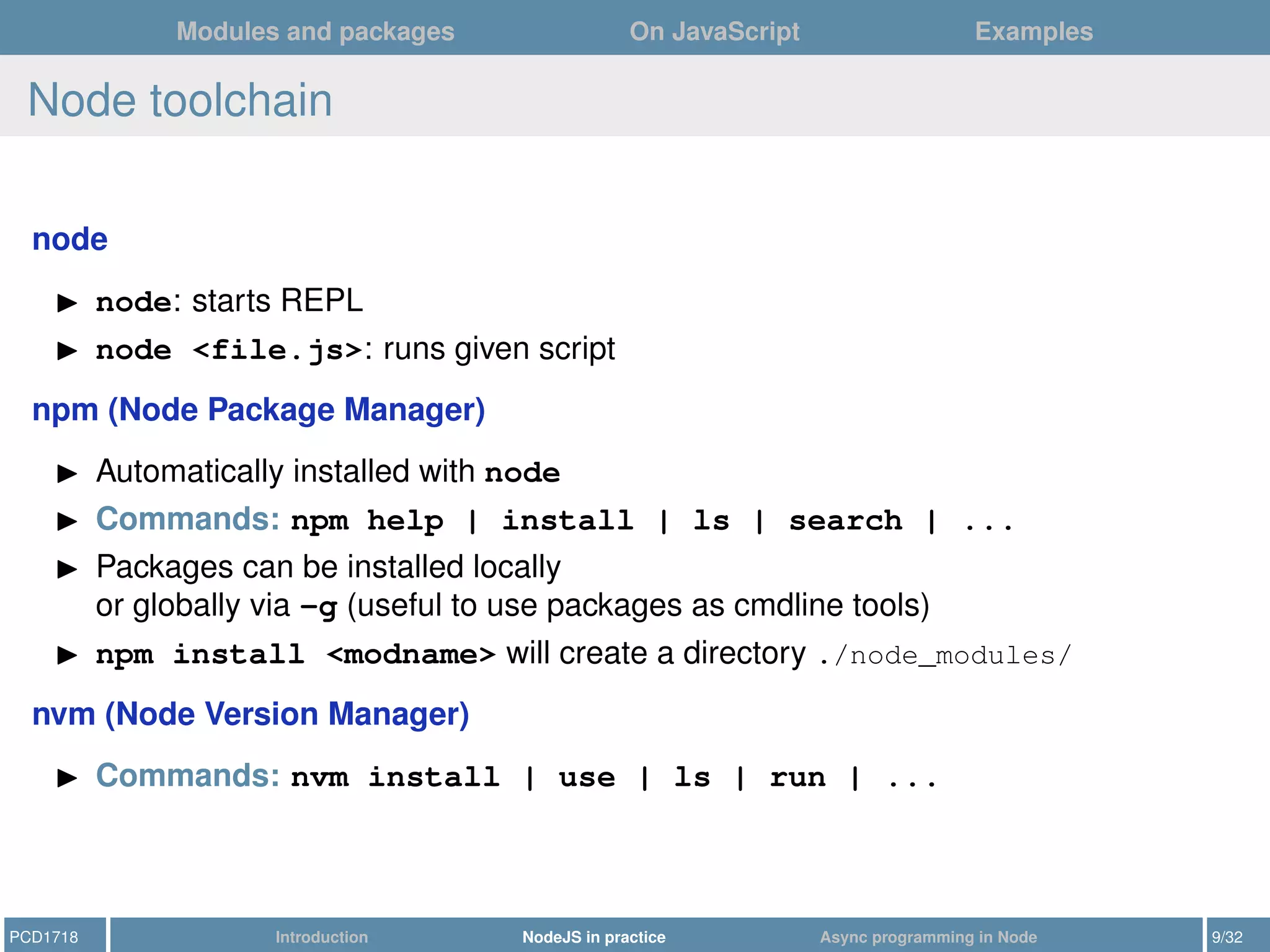

Node toolchain
node
node: starts REPL
node <file.js>: runs given script
npm (Node Package Manager)
Automatically installed with node
Commands: npm help | install | ls | search | ...
Packages can be installed locally
or globally via -g (useful to use packages as cmdline tools)
npm install <modname> will create a directory ./node_modules/
nvm (Node Version Manager)
Commands: nvm install | use | ls | run | ...

Outline
1 Introduction
On JavaScript
Examples
Promises

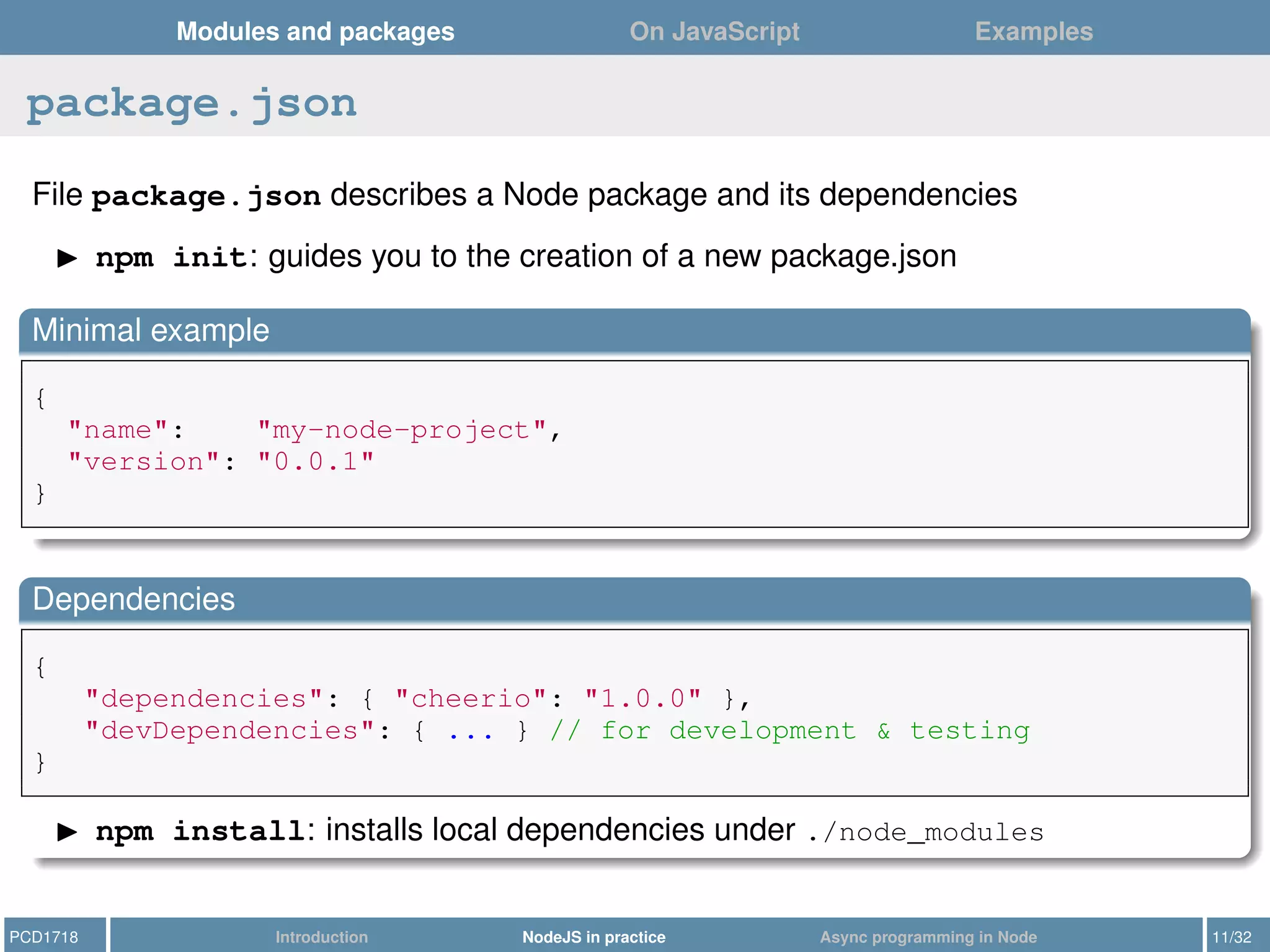

package.json
File package.json describes a Node package and its dependencies
npm init: guides you to the creation of a new package.json
Minimal example
{
"name": "my-node-project",
"version": "0.0.1"
}
Dependencies
{
"dependencies": { "cheerio": "1.0.0" },
"devDependencies": { ... } // for development & testing
}
npm install: installs local dependencies under ./node_modules

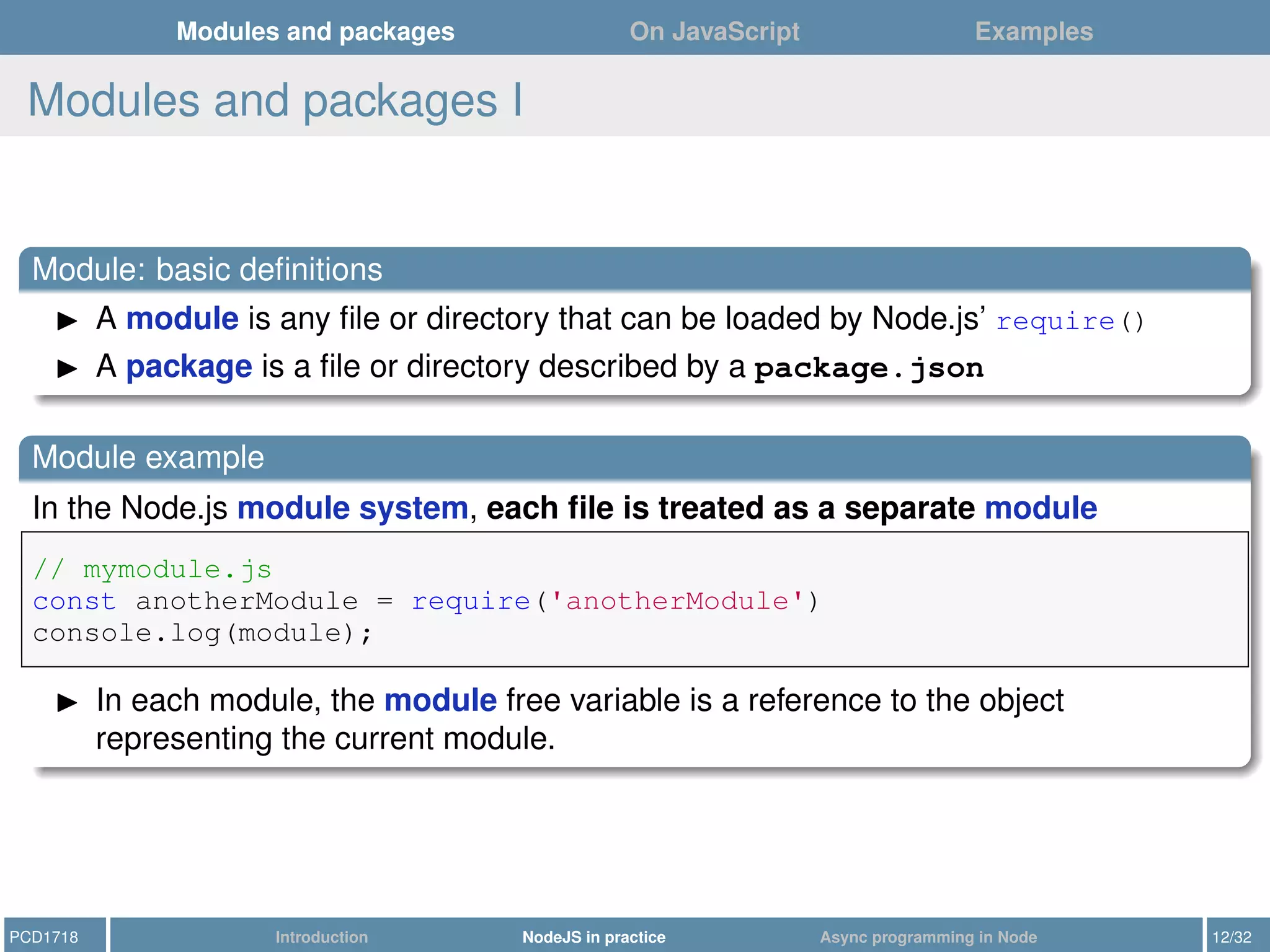

Modules and packages I
Module: basic definitions
A module is any file or directory that can be loaded by Node.js’ require()
A package is a file or directory described by a package.json
Module example
In the Node.js module system, each file is treated as a separate module
// mymodule.js
const anotherModule = require('anotherModule')
console.log(module);
In each module, the module free variable is a reference to the object
representing the current module.

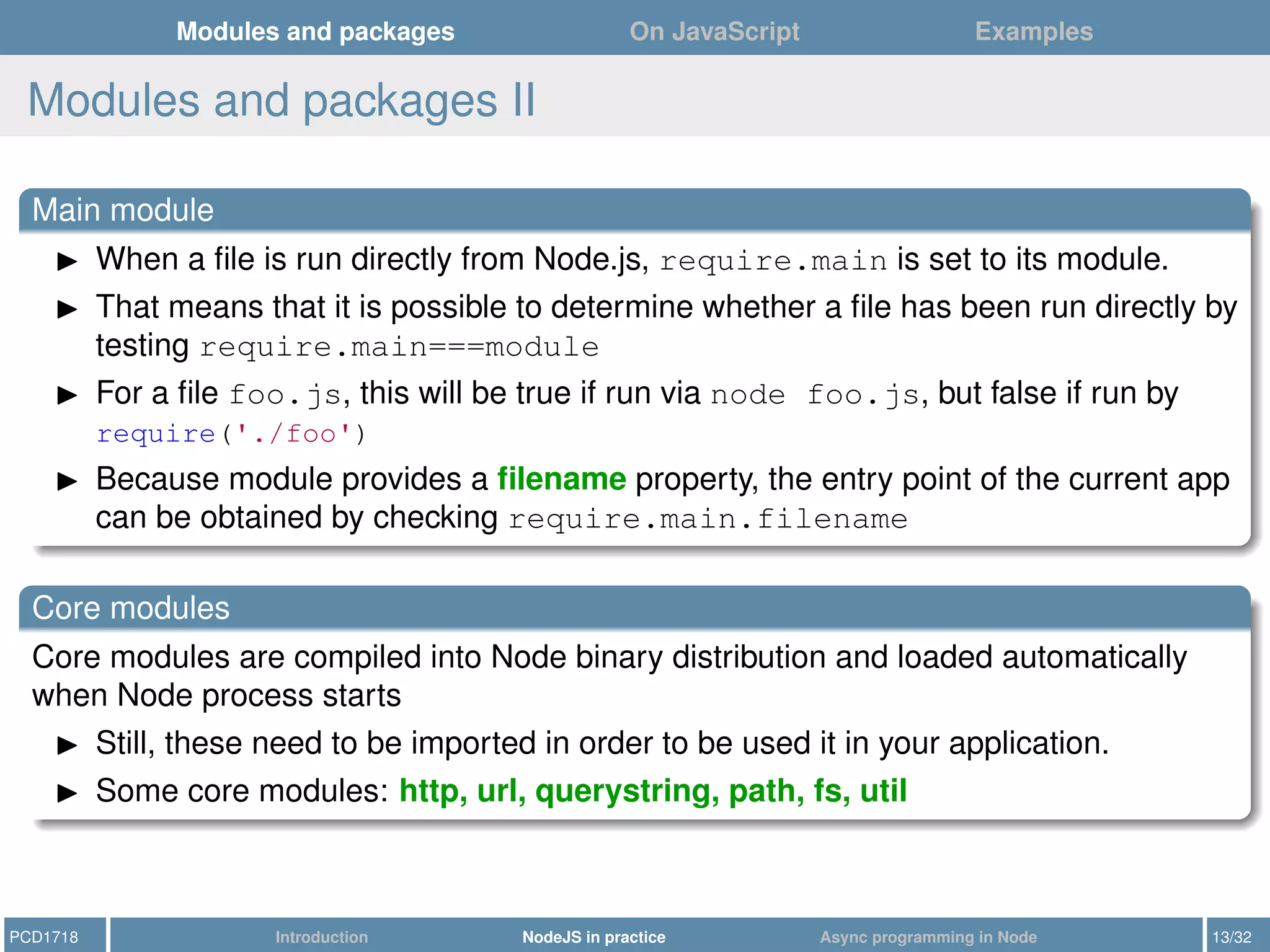

Modules and packages II
Main module
When a file is run directly from Node.js, require.main is set to its module.
That means that it is possible to determine whether a file has been run directly by
testing require.main===module
For a file foo.js, this will be true if run via node foo.js, but false if run by
require('./foo')
Because module provides a filename property, the entry point of the current app
can be obtained by checking require.main.filename
Core modules
Core modules are compiled into Node binary distribution and loaded automatically
when Node process starts
Still, these need to be imported in order to be used it in your application.
Some core modules: http, url, querystring, path, fs, util

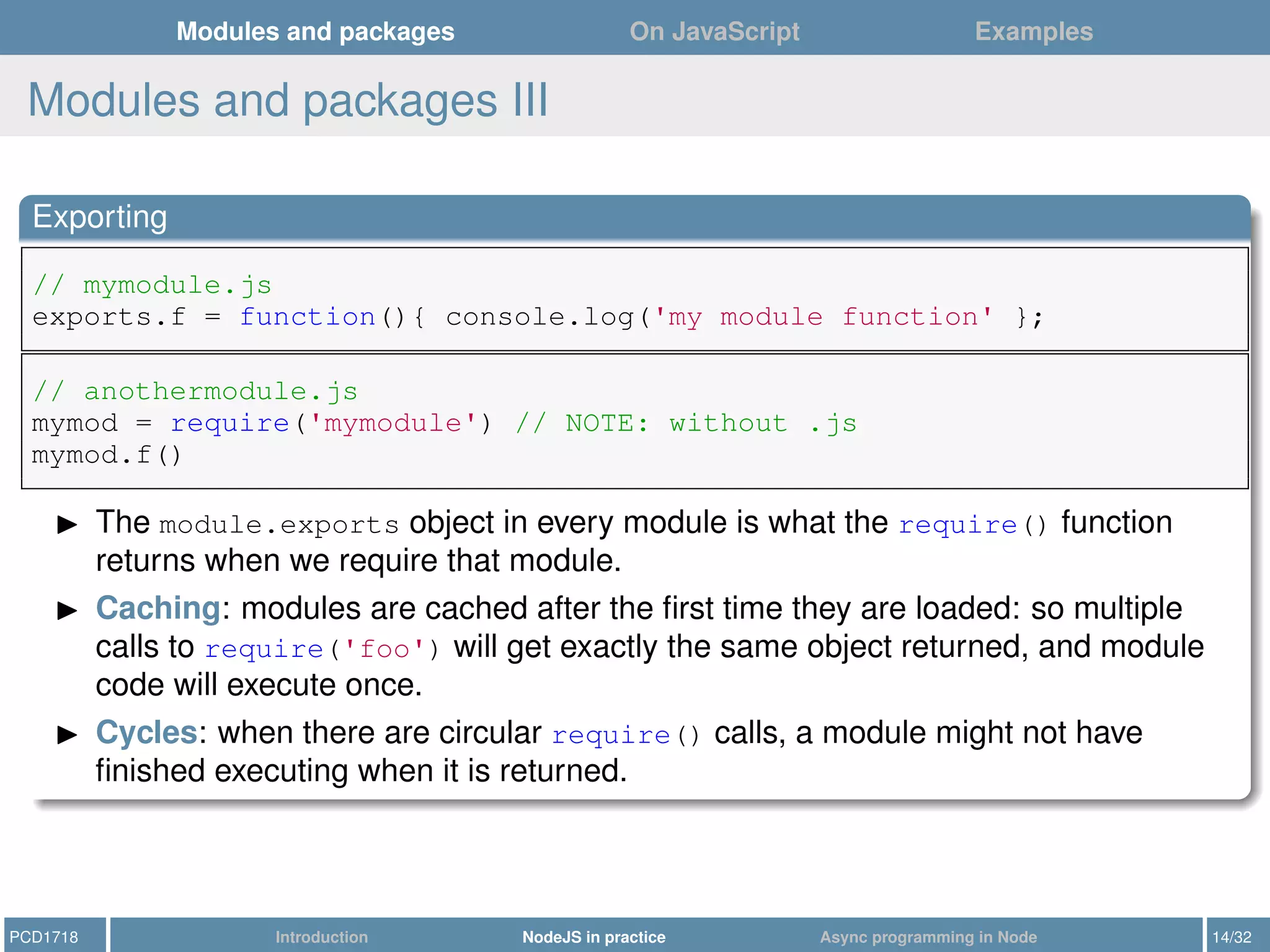

Modules and packages III
Exporting
// mymodule.js
exports.f = function(){ console.log('my module function' };
// anothermodule.js
mymod = require('mymodule') // NOTE: without .js
mymod.f()
The module.exports object in every module is what the require() function
returns when we require that module.
Caching: modules are cached after the ﬁrst time they are loaded: so multiple
calls to require('foo') will get exactly the same object returned, and module
code will execute once.
Cycles: when there are circular require() calls, a module might not have
ﬁnished executing when it is returned.

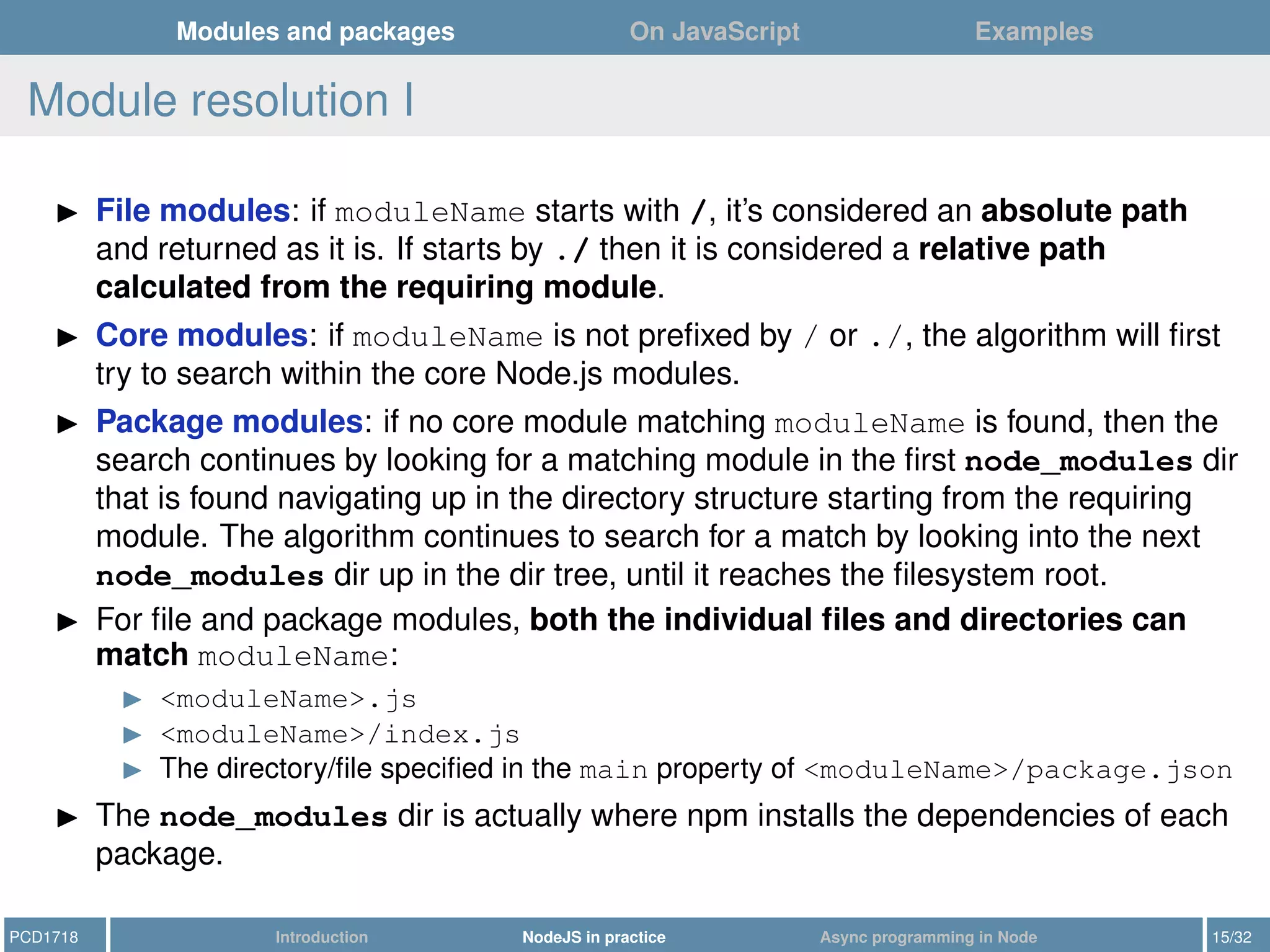

Module resolution I
File modules: if moduleName starts with /, it’s considered an absolute path
and returned as it is. If starts by ./ then it is considered a relative path
calculated from the requiring module.
Core modules: if moduleName is not prefixed by / or ./, the algorithm will first
try to search within the core Node.js modules.
Package modules: if no core module matching moduleName is found, then the
search continues by looking for a matching module in the first node_modules dir
that is found navigating up in the directory structure starting from the requiring
module. The algorithm continues to search for a match by looking into the next
node_modules dir up in the dir tree, until it reaches the filesystem root.
For file and package modules, both the individual files and directories can
match moduleName:
<moduleName>.js
<moduleName>/index.js
The directory/file specified in the main property of <moduleName>/package.json
The node_modules dir is actually where npm installs the dependencies of each
package.

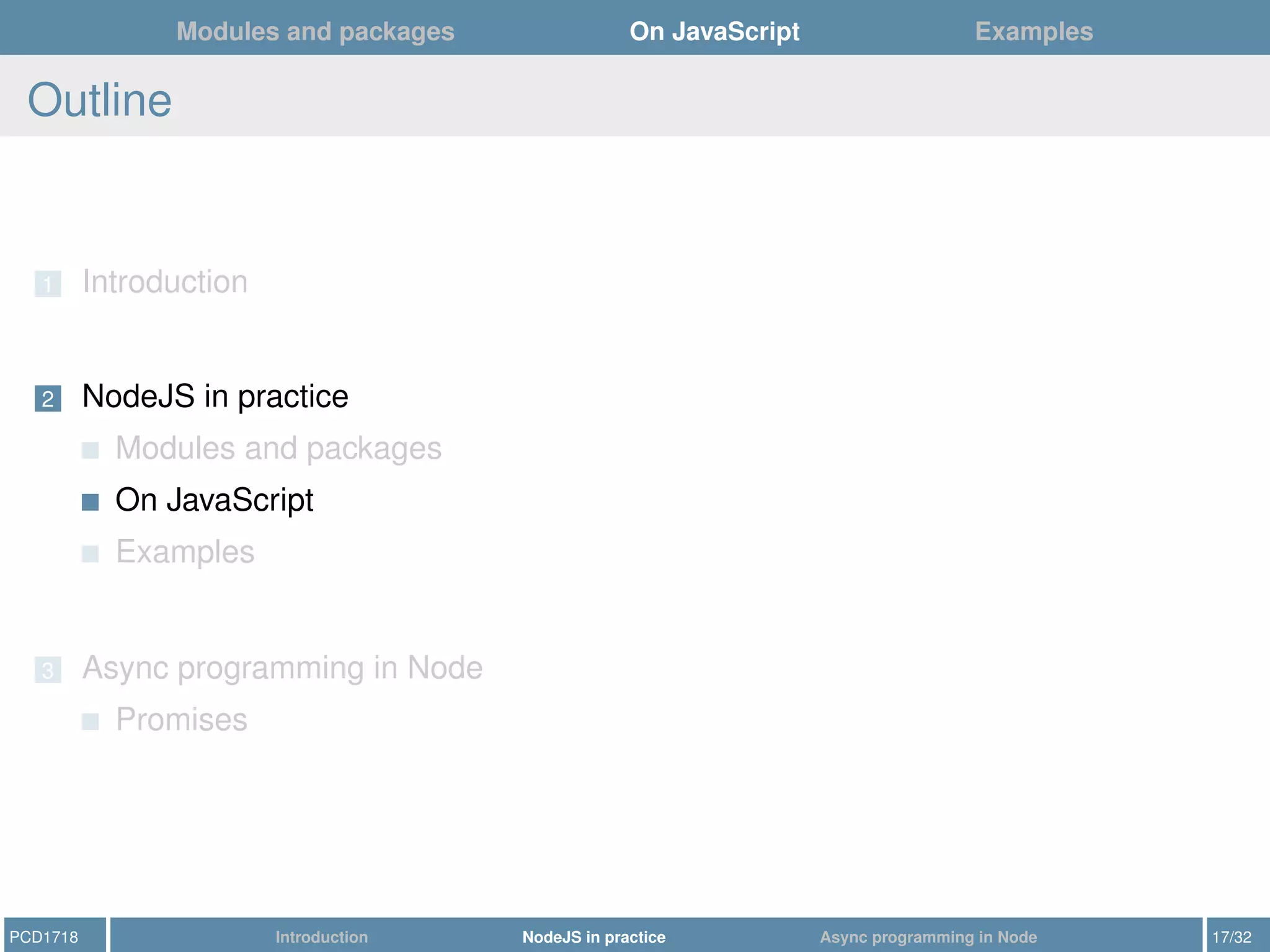

Outline
1 Introduction
On JavaScript
Examples
Promises

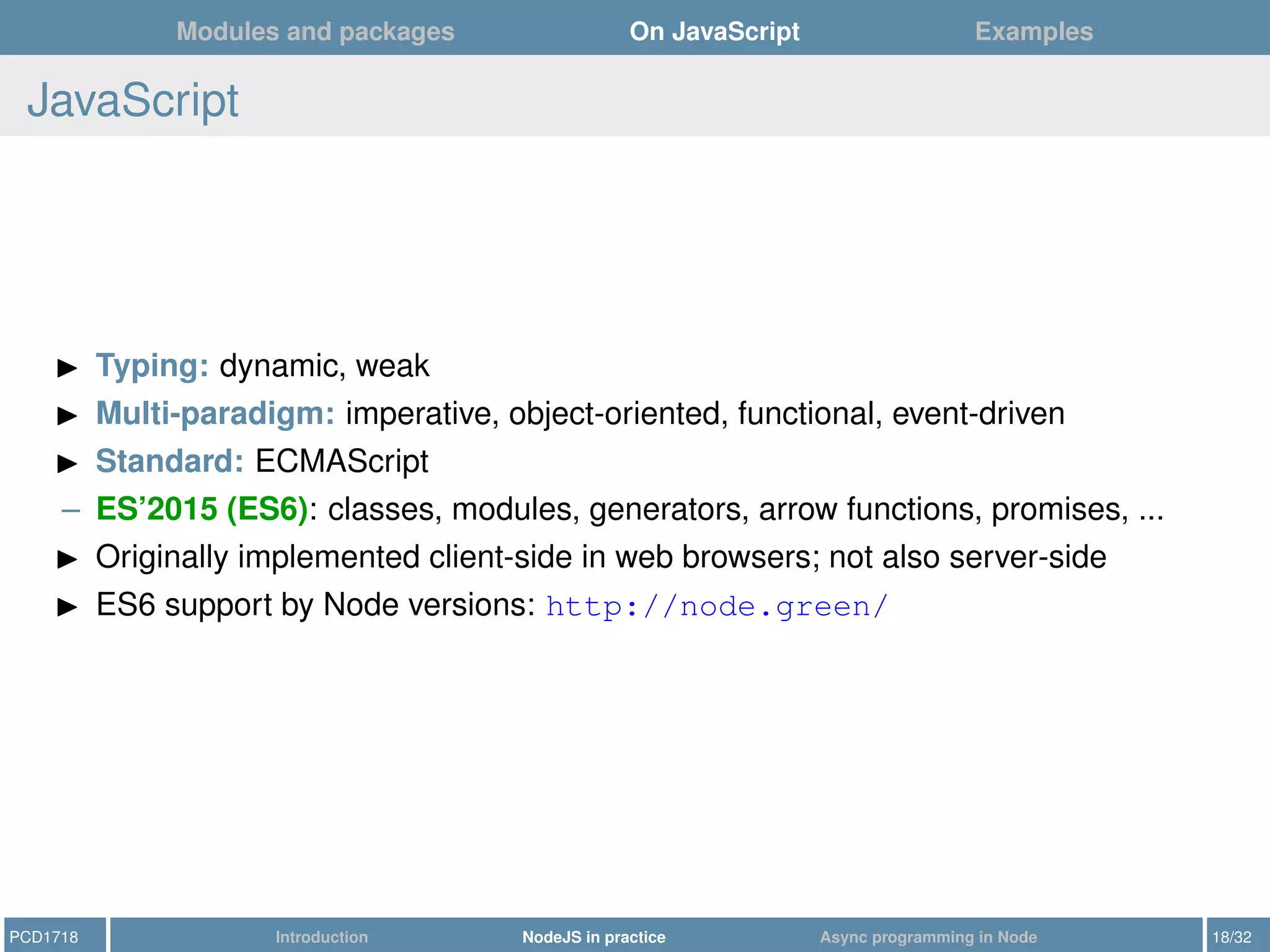

JavaScript
Typing: dynamic, weak
Multi-paradigm: imperative, object-oriented, functional, event-driven
Standard: ECMAScript
– ES’2015 (ES6): classes, modules, generators, arrow functions, promises, ...
Originally implemented client-side in web browsers; not also server-side
ES6 support by Node versions: http://node.green/

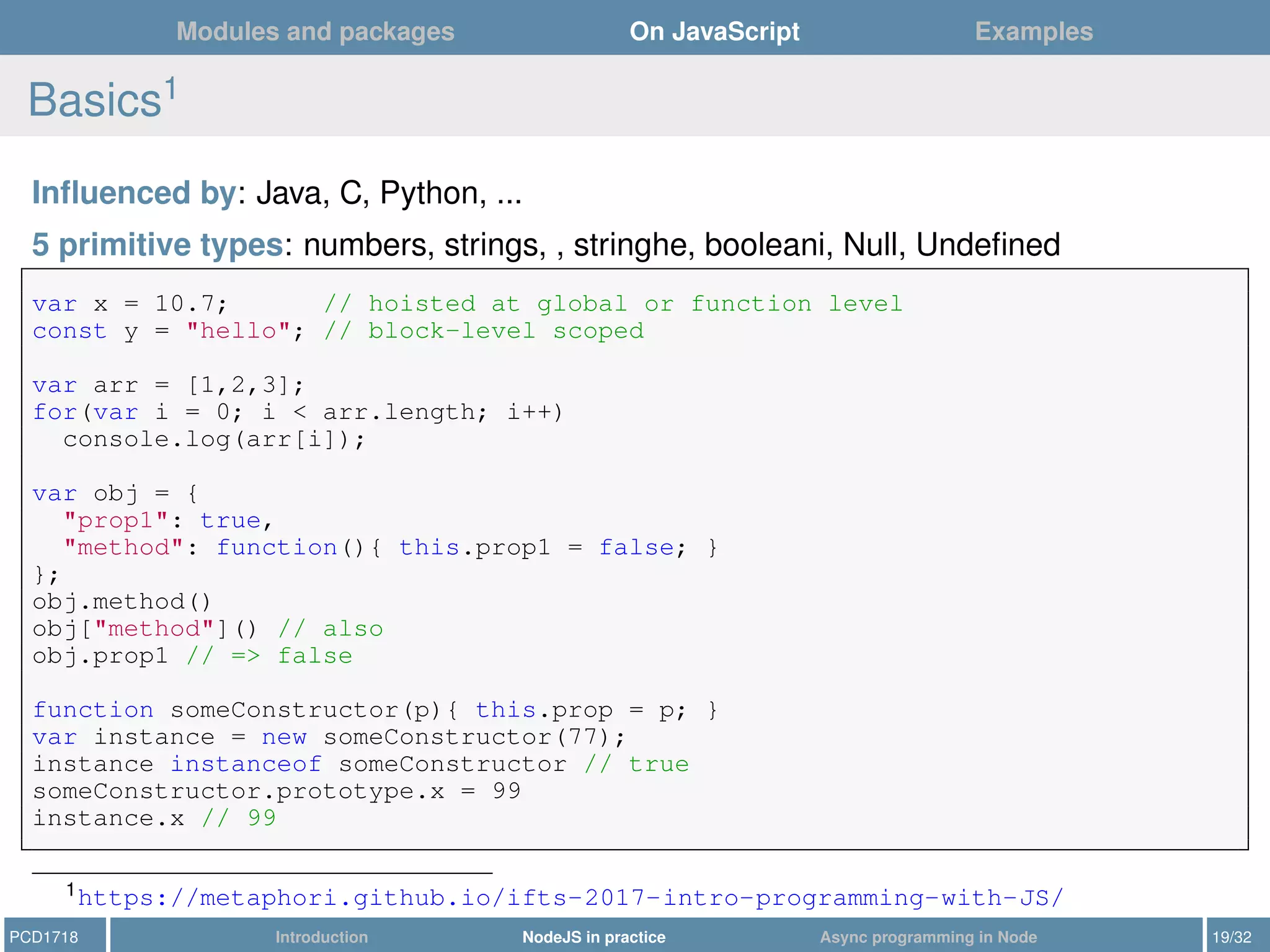

Basics1
Inﬂuenced by: Java, C, Python, ...
5 primitive types: numbers, strings, , stringhe, booleani, Null, Undeﬁned
var x = 10.7; // hoisted at global or function level
const y = "hello"; // block-level scoped
var arr = [1,2,3];
for(var i = 0; i < arr.length; i++)
console.log(arr[i]);
var obj = {
"prop1": true,
"method": function(){ this.prop1 = false; }
};
obj.method()
obj["method"]() // also
obj.prop1 // => false
function someConstructor(p){ this.prop = p; }
var instance = new someConstructor(77);
instance instanceof someConstructor // true
someConstructor.prototype.x = 99
instance.x // 99
1https://metaphori.github.io/ifts-2017-intro-programming-with-JS/

Outline
1 Introduction
On JavaScript
Examples
Promises

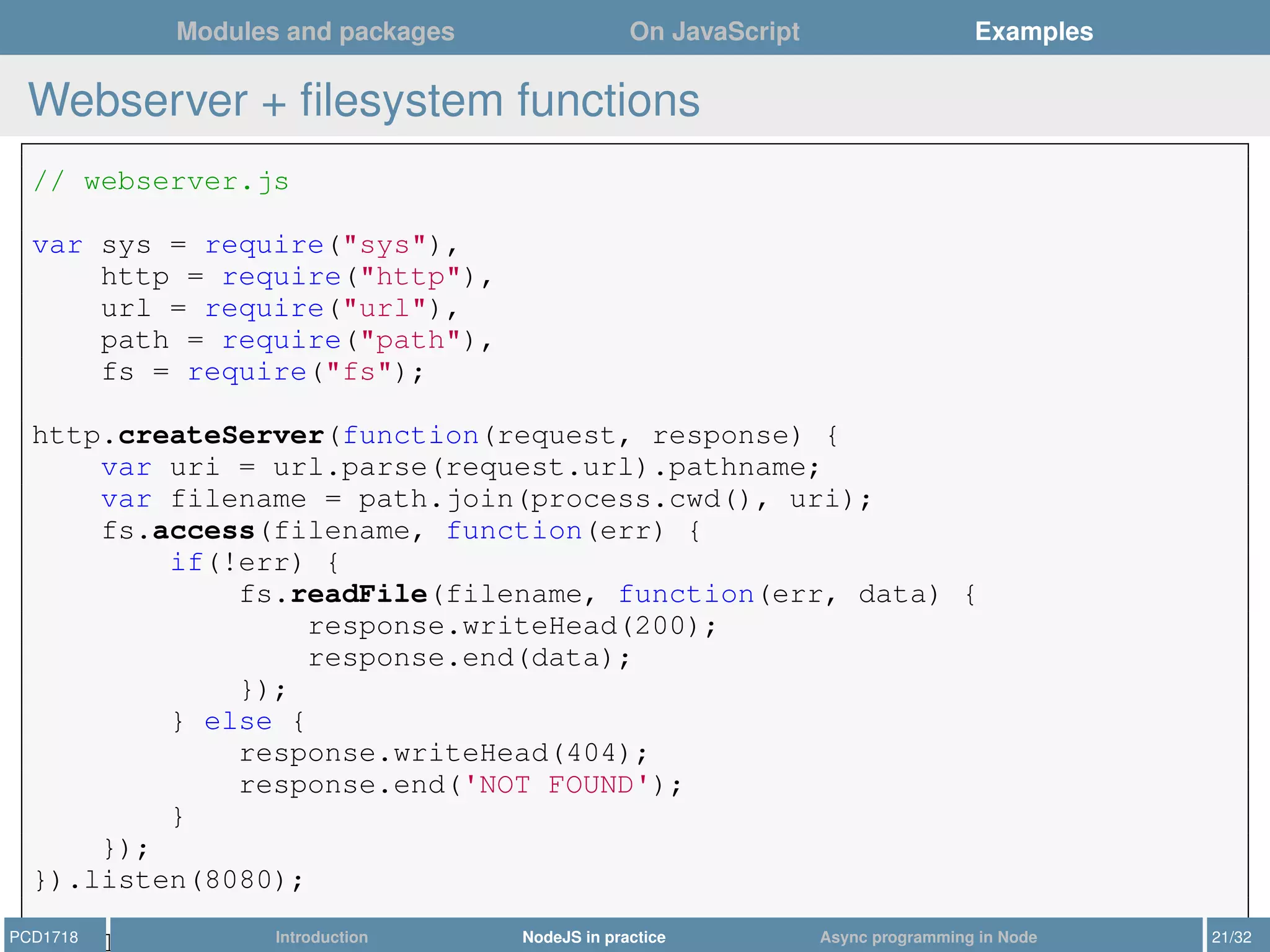

Webserver + ﬁlesystem functions
// webserver.js
var sys = require("sys"),
http = require("http"),
url = require("url"),
path = require("path"),
fs = require("fs");
http.createServer(function(request, response) {
var uri = url.parse(request.url).pathname;
var filename = path.join(process.cwd(), uri);
fs.access(filename, function(err) {
if(!err) {
fs.readFile(filename, function(err, data) {
response.writeHead(200);
response.end(data);
});
} else {
response.writeHead(404);
response.end('NOT FOUND');
}
});
}).listen(8080);
sys.log("Server running at http://localhost:8080/");PCD1718 Introduction NodeJS in practice Async programming in Node 21/32

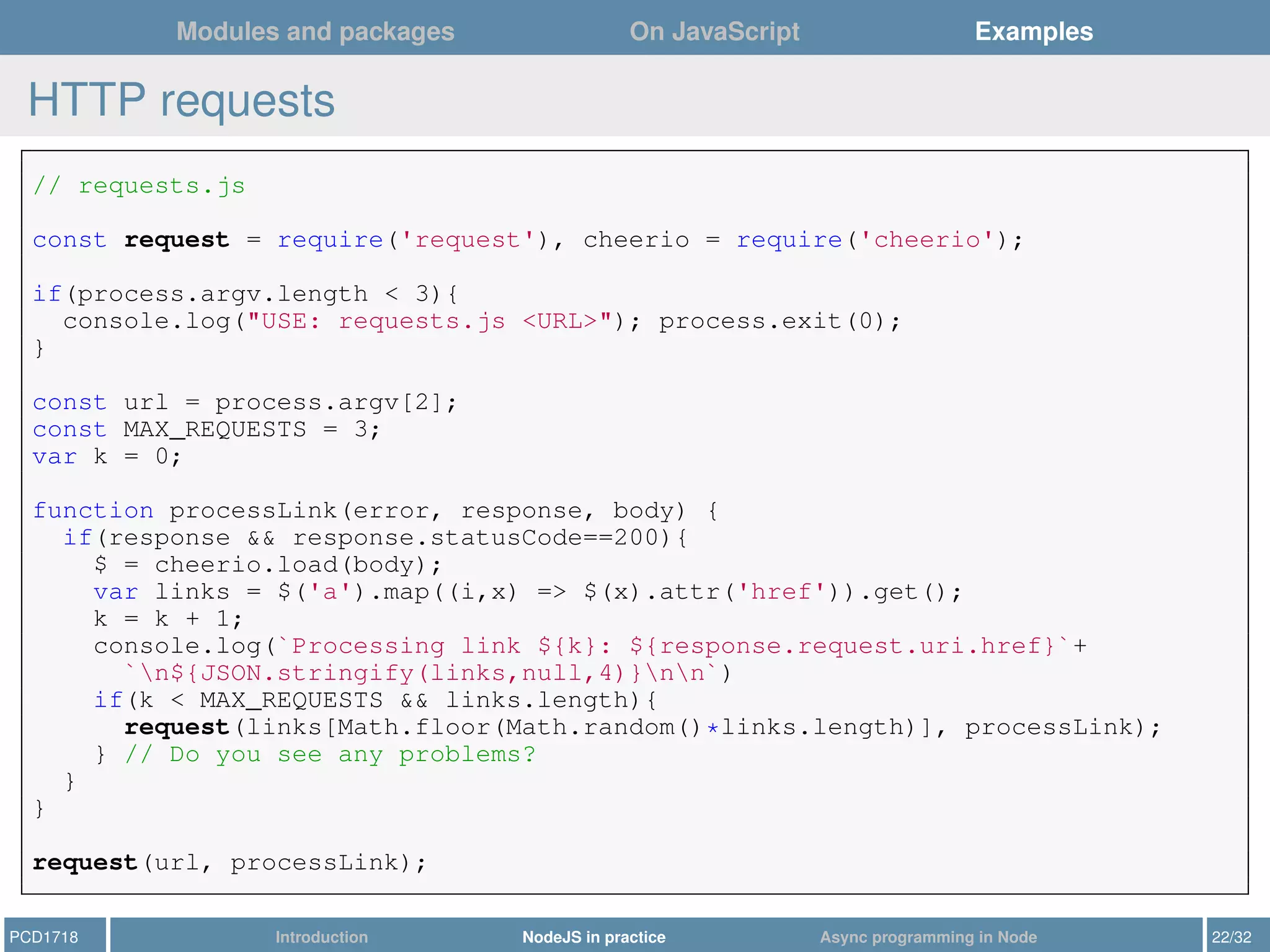

HTTP requests
// requests.js
const request = require('request'), cheerio = require('cheerio');
if(process.argv.length < 3){
console.log("USE: requests.js <URL>"); process.exit(0);
}
const url = process.argv[2];
const MAX_REQUESTS = 3;
var k = 0;
function processLink(error, response, body) {
if(response && response.statusCode==200){
$ = cheerio.load(body);
var links = $('a').map((i,x) => $(x).attr('href')).get();
k = k + 1;
console.log(`Processing link ${k}: ${response.request.uri.href}`+
`n${JSON.stringify(links,null,4)}nn`)
if(k < MAX_REQUESTS && links.length){
request(links[Math.floor(Math.random()*links.length)], processLink);
} // Do you see any problems?
}
}
request(url, processLink);

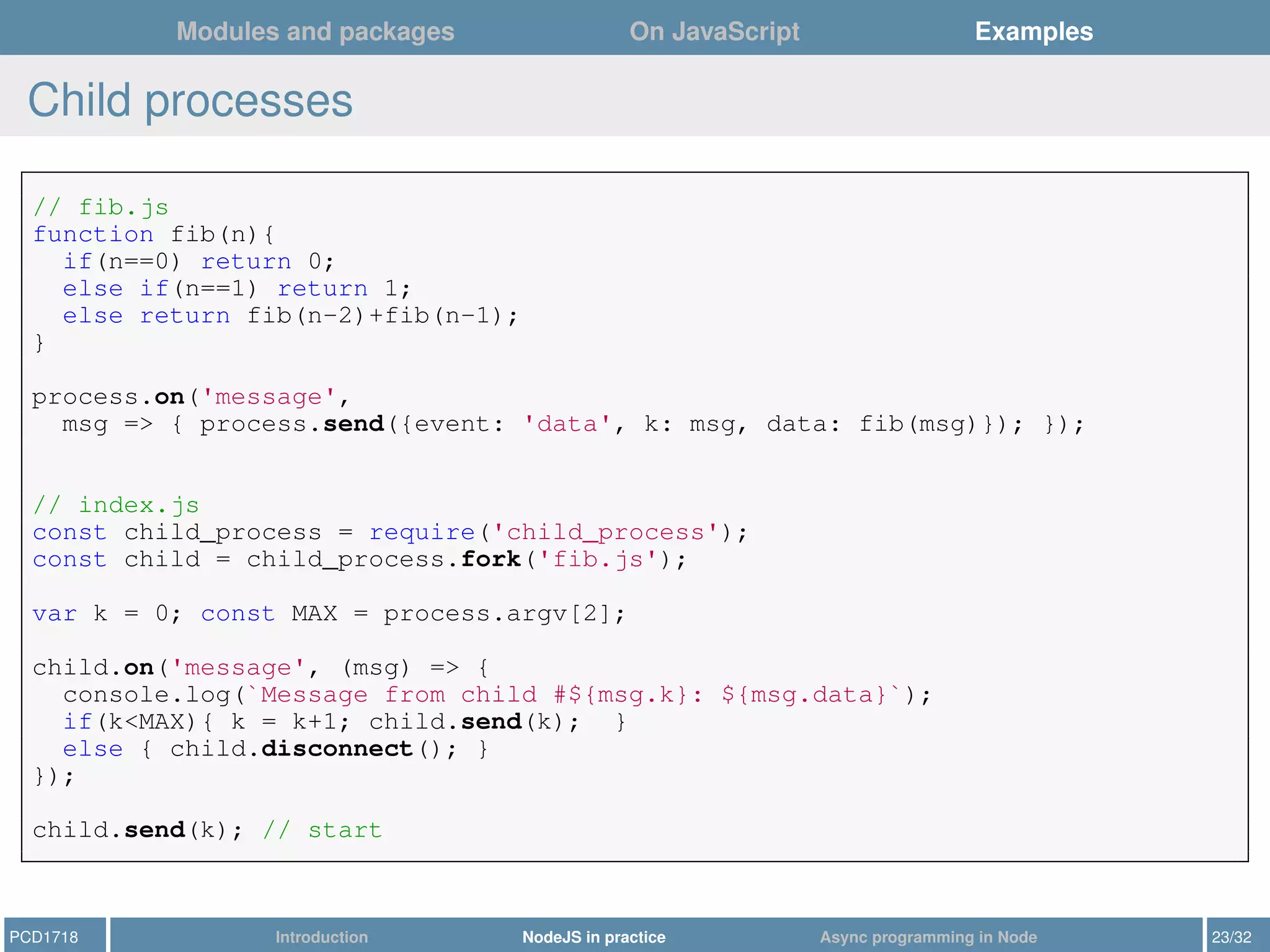

Child processes
// fib.js
function fib(n){
if(n==0) return 0;
else if(n==1) return 1;
else return fib(n-2)+fib(n-1);
}
process.on('message',
msg => { process.send({event: 'data', k: msg, data: fib(msg)}); });
// index.js
const child_process = require('child_process');
const child = child_process.fork('fib.js');
var k = 0; const MAX = process.argv[2];
child.on('message', (msg) => {
console.log(`Message from child #${msg.k}: ${msg.data}`);
if(k<MAX){ k = k+1; child.send(k); }
else { child.disconnect(); }
});
child.send(k); // start

Promises

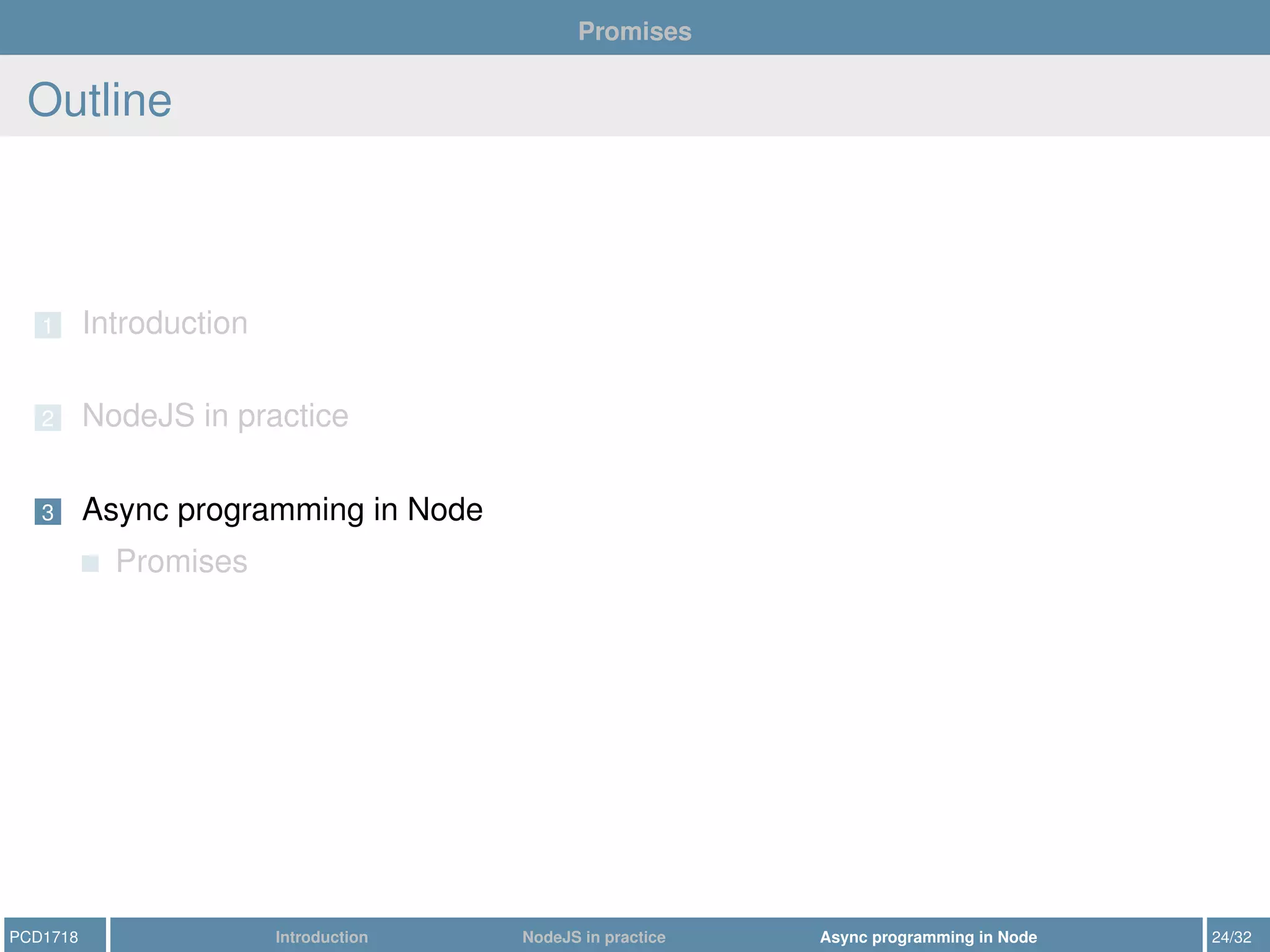

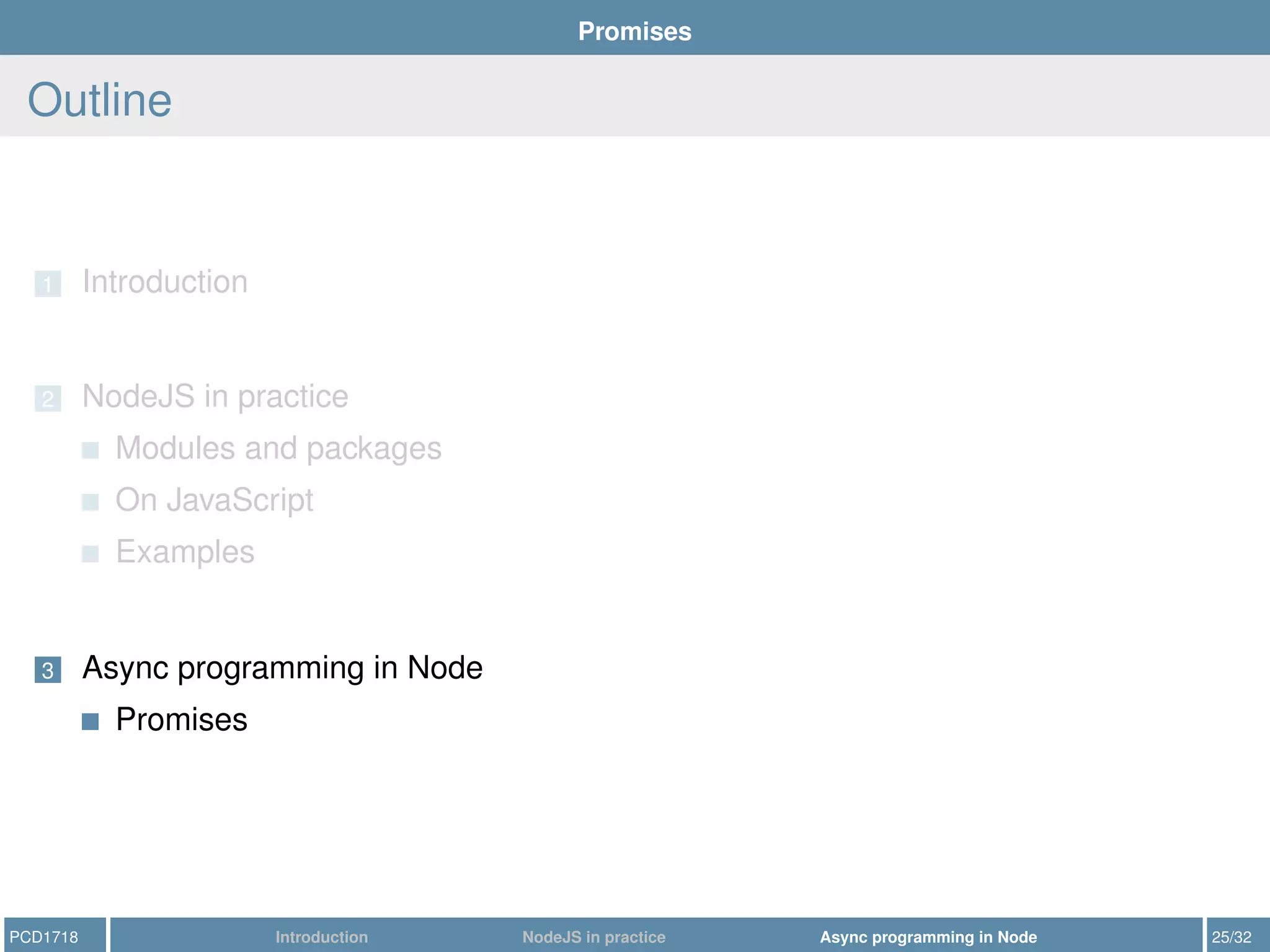

Outline
1 Introduction
Promises

Promises
Outline
1 Introduction
On JavaScript
Examples
Promises

Promises

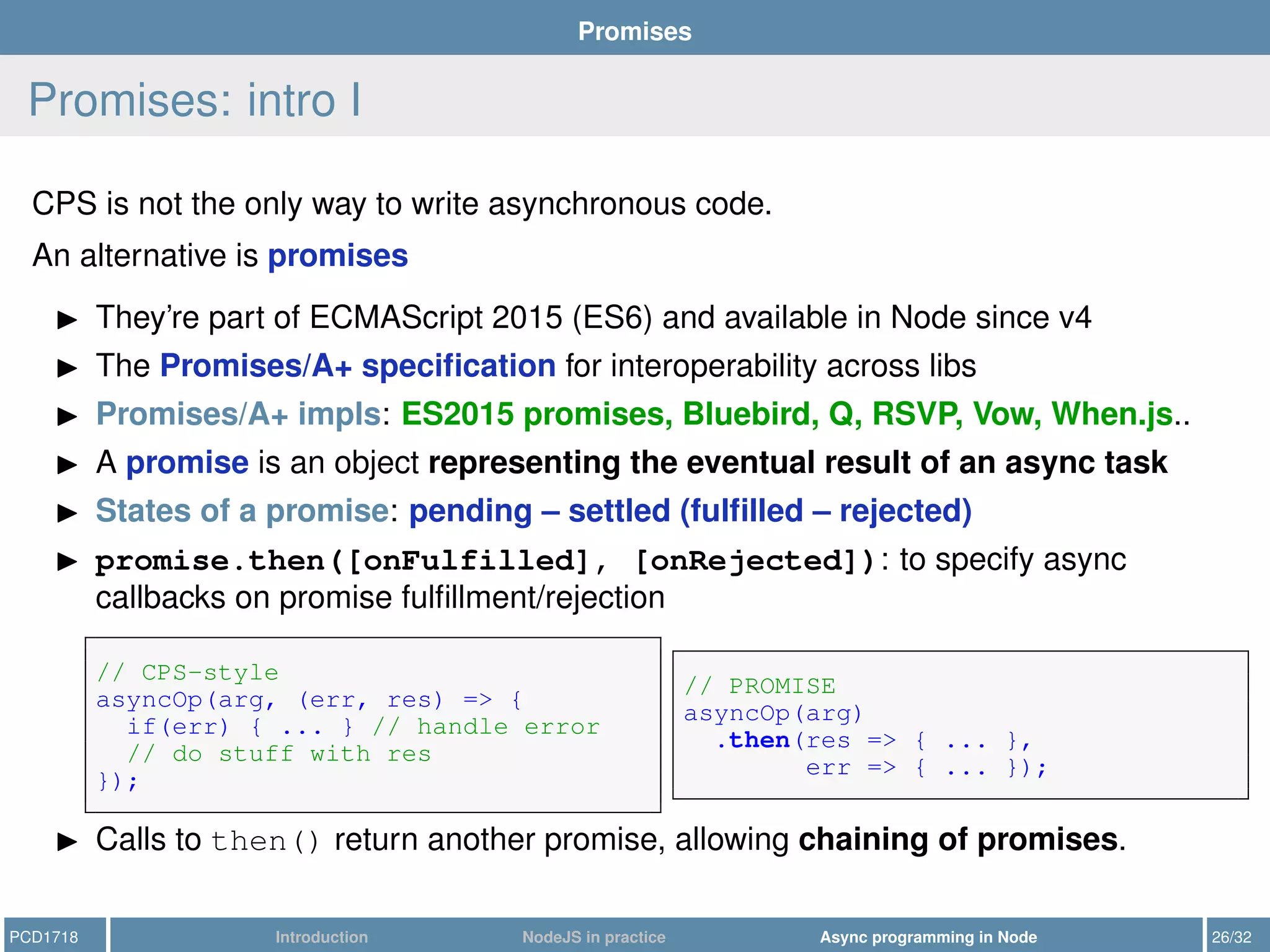

Promises: intro I
CPS is not the only way to write asynchronous code.
An alternative is promises
They’re part of ECMAScript 2015 (ES6) and available in Node since v4
The Promises/A+ specification for interoperability across libs
Promises/A+ impls: ES2015 promises, Bluebird, Q, RSVP, Vow, When.js..
A promise is an object representing the eventual result of an async task
States of a promise: pending – settled (fulfilled – rejected)
promise.then([onFulfilled], [onRejected]): to specify async
callbacks on promise fulfillment/rejection
// CPS-style
asyncOp(arg, (err, res) => {
if(err) { ... } // handle error
// do stuff with res
});
// PROMISE
asyncOp(arg)
.then(res => { ... },
err => { ... });
Calls to then() return another promise, allowing chaining of promises.

Promises

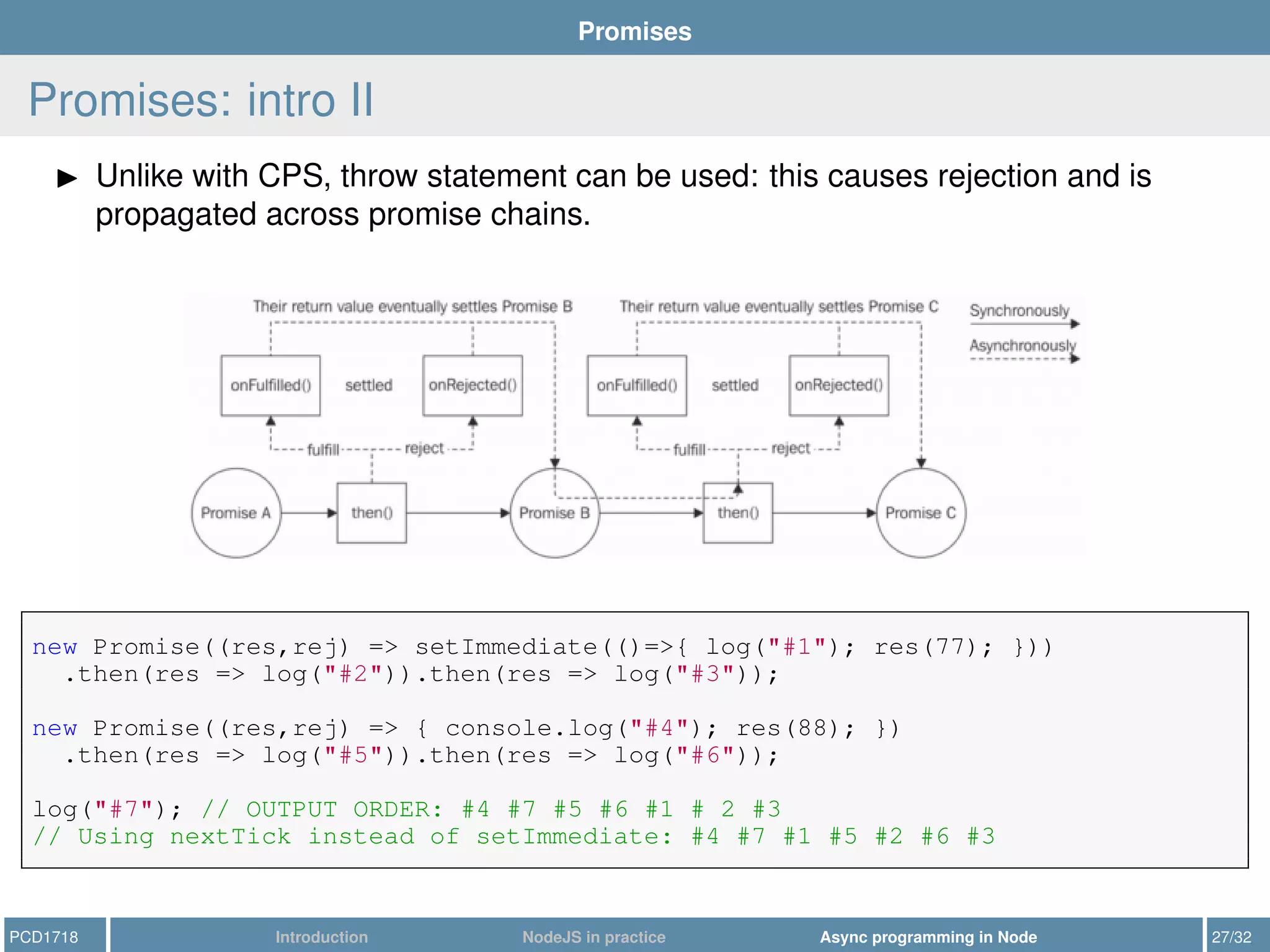

Promises: intro II
Unlike with CPS, throw statement can be used: this causes rejection and is
propagated across promise chains.
new Promise((res,rej) => setImmediate(()=>{ log("#1"); res(77); }))
.then(res => log("#2")).then(res => log("#3"));
new Promise((res,rej) => { console.log("#4"); res(88); })
.then(res => log("#5")).then(res => log("#6"));
log("#7"); // OUTPUT ORDER: #4 #7 #5 #6 #1 # 2 #3
// Using nextTick instead of setImmediate: #4 #7 #1 #5 #2 #6 #3

Promises

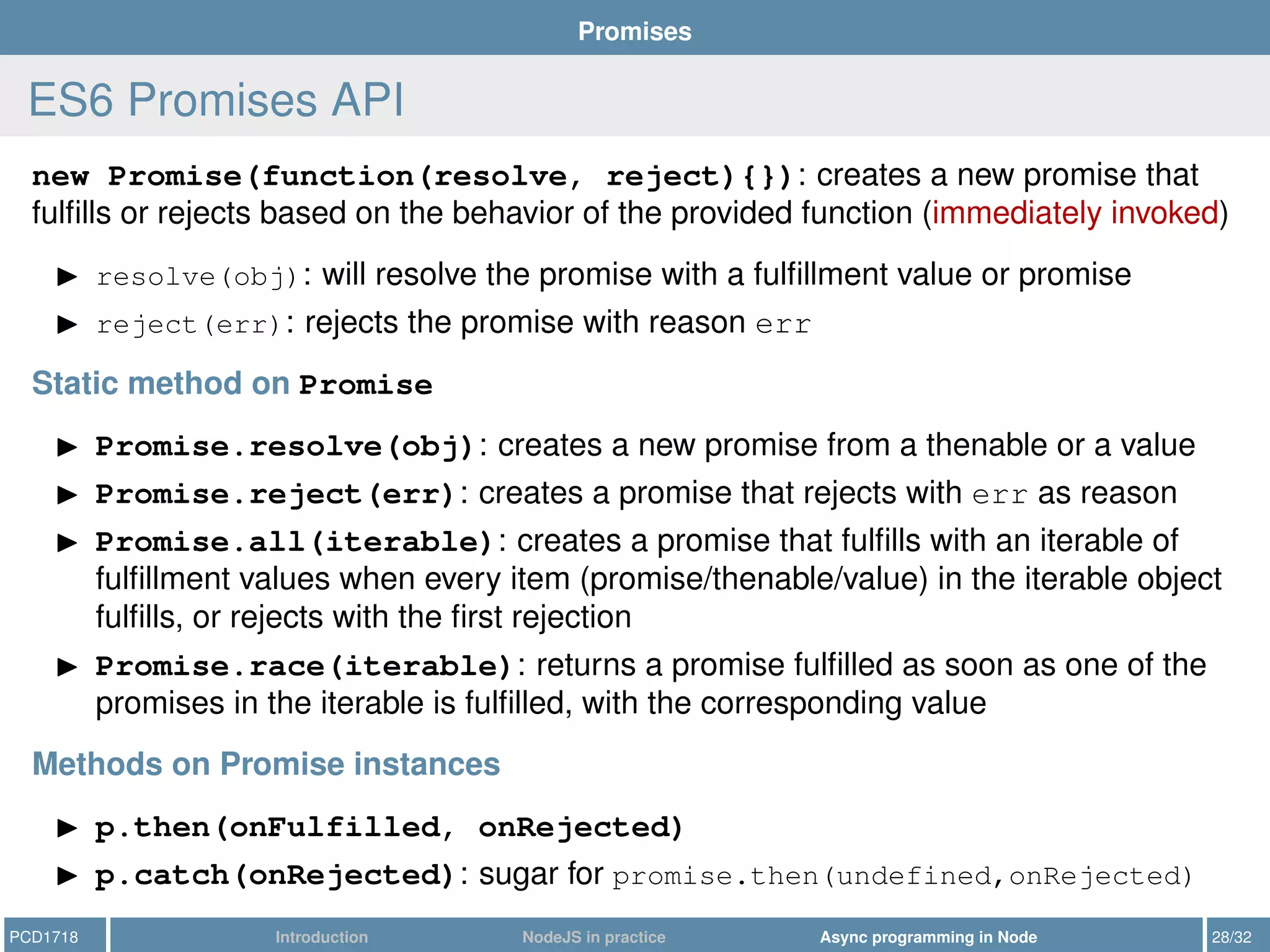

ES6 Promises API
new Promise(function(resolve, reject){}): creates a new promise that
fulfills or rejects based on the behavior of the provided function (immediately invoked)
resolve(obj): will resolve the promise with a fulfillment value or promise
reject(err): rejects the promise with reason err
Static method on Promise
Promise.resolve(obj): creates a new promise from a thenable or a value
Promise.reject(err): creates a promise that rejects with err as reason
Promise.all(iterable): creates a promise that fulfills with an iterable of
fulfillment values when every item (promise/thenable/value) in the iterable object
fulfills, or rejects with the first rejection
Promise.race(iterable): returns a promise fulfilled as soon as one of the
promises in the iterable is fulfilled, with the corresponding value
Methods on Promise instances
p.then(onFulfilled, onRejected)
p.catch(onRejected): sugar for promise.then(undefined,onRejected)

Promises

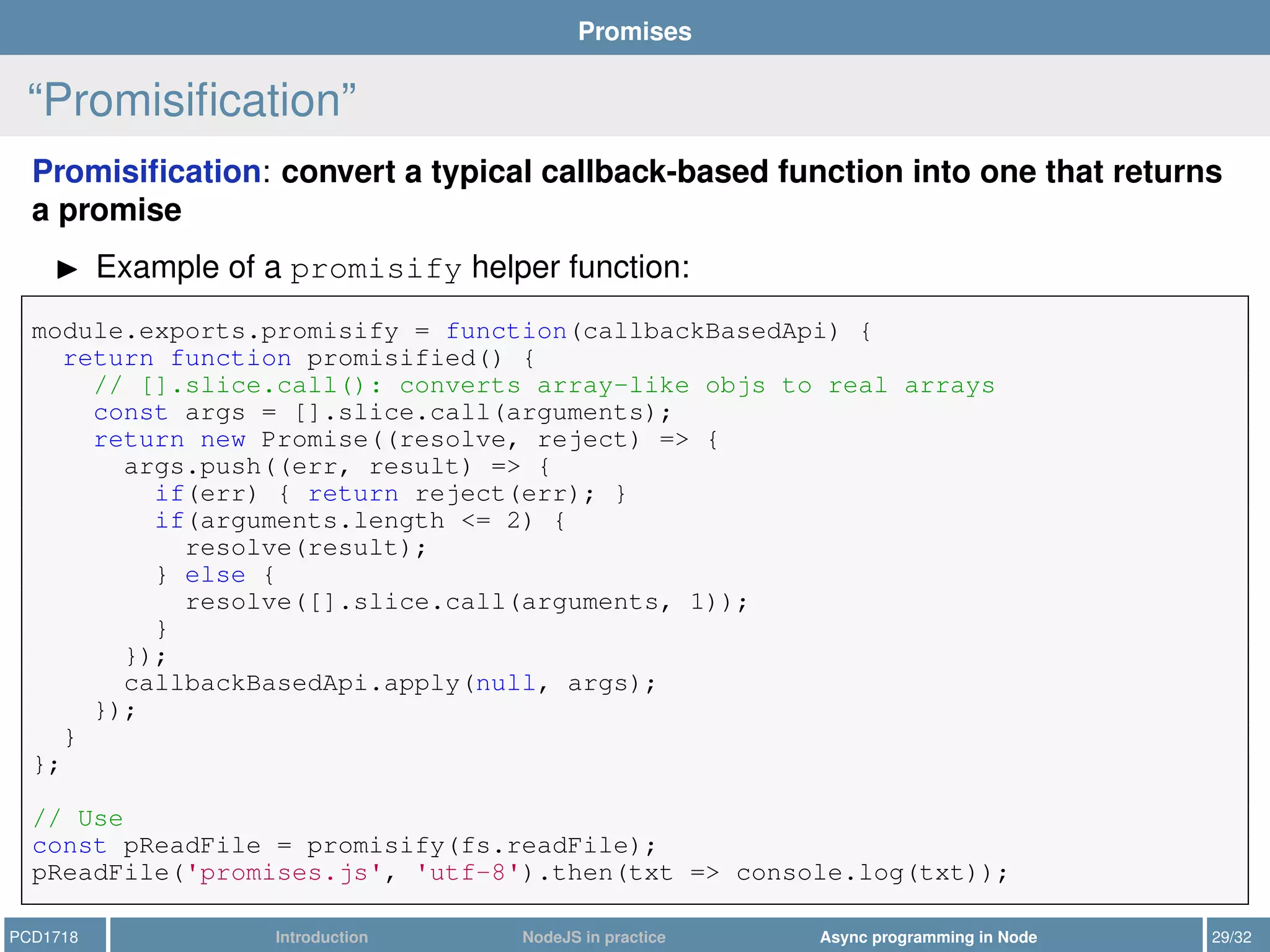

“Promisiﬁcation”
Promisiﬁcation: convert a typical callback-based function into one that returns
a promise
Example of a promisify helper function:
module.exports.promisify = function(callbackBasedApi) {
return function promisified() {
// [].slice.call(): converts array-like objs to real arrays
const args = [].slice.call(arguments);
return new Promise((resolve, reject) => {
args.push((err, result) => {
if(err) { return reject(err); }
if(arguments.length <= 2) {
resolve(result);
} else {
resolve([].slice.call(arguments, 1));
}
});
callbackBasedApi.apply(null, args);
});
}
};
// Use
const pReadFile = promisify(fs.readFile);
pReadFile('promises.js', 'utf-8').then(txt => console.log(txt));

Promises

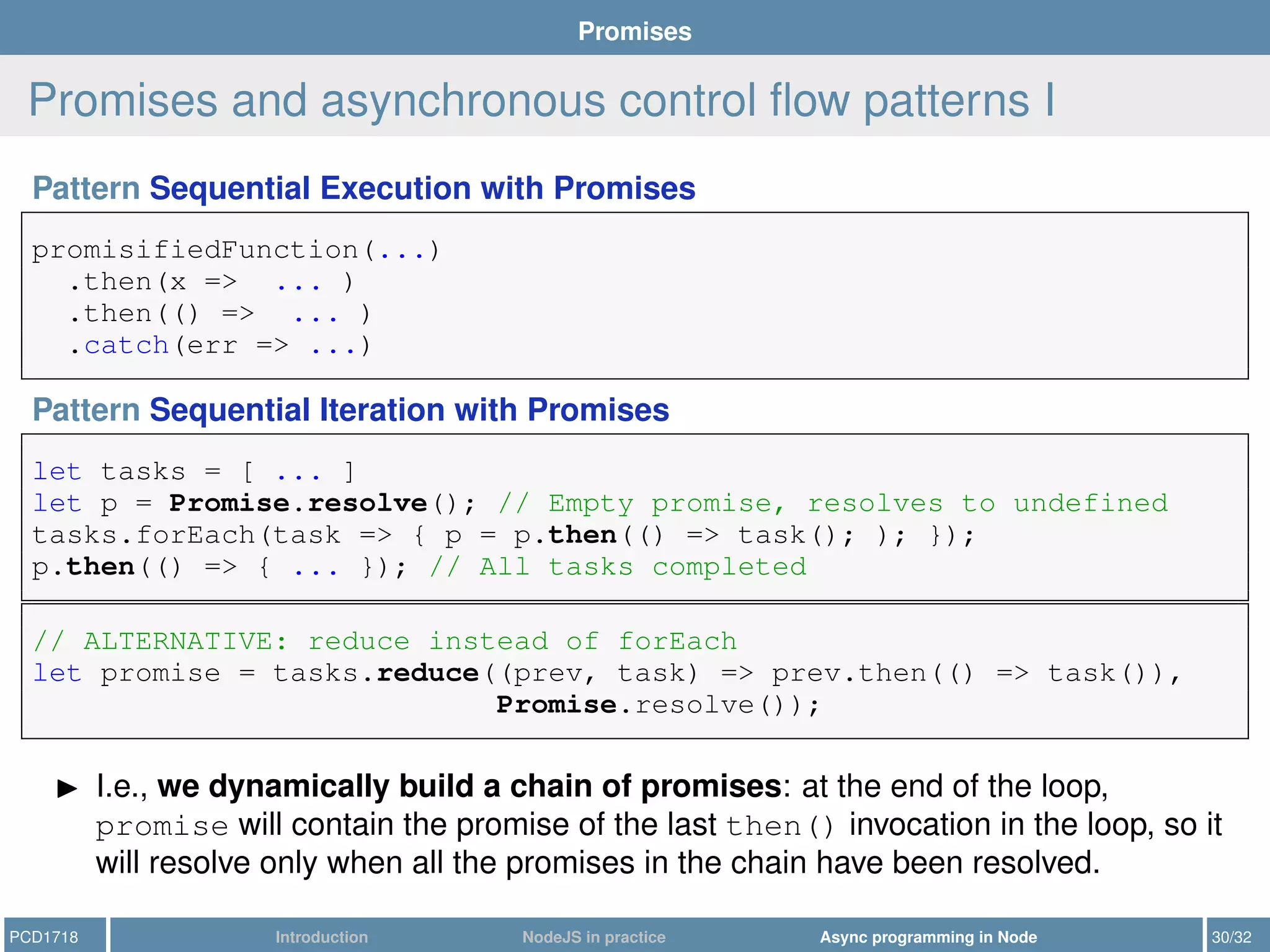

Promises and asynchronous control ﬂow patterns I
Pattern Sequential Execution with Promises
promisifiedFunction(...)
.then(x => ... )
.then(() => ... )
.catch(err => ...)
Pattern Sequential Iteration with Promises
let tasks = [ ... ]
let p = Promise.resolve(); // Empty promise, resolves to undefined
tasks.forEach(task => { p = p.then(() => task(); ); });
p.then(() => { ... }); // All tasks completed
// ALTERNATIVE: reduce instead of forEach
let promise = tasks.reduce((prev, task) => prev.then(() => task()),
Promise.resolve());
I.e., we dynamically build a chain of promises: at the end of the loop,
promise will contain the promise of the last then() invocation in the loop, so it
will resolve only when all the promises in the chain have been resolved.

Promises

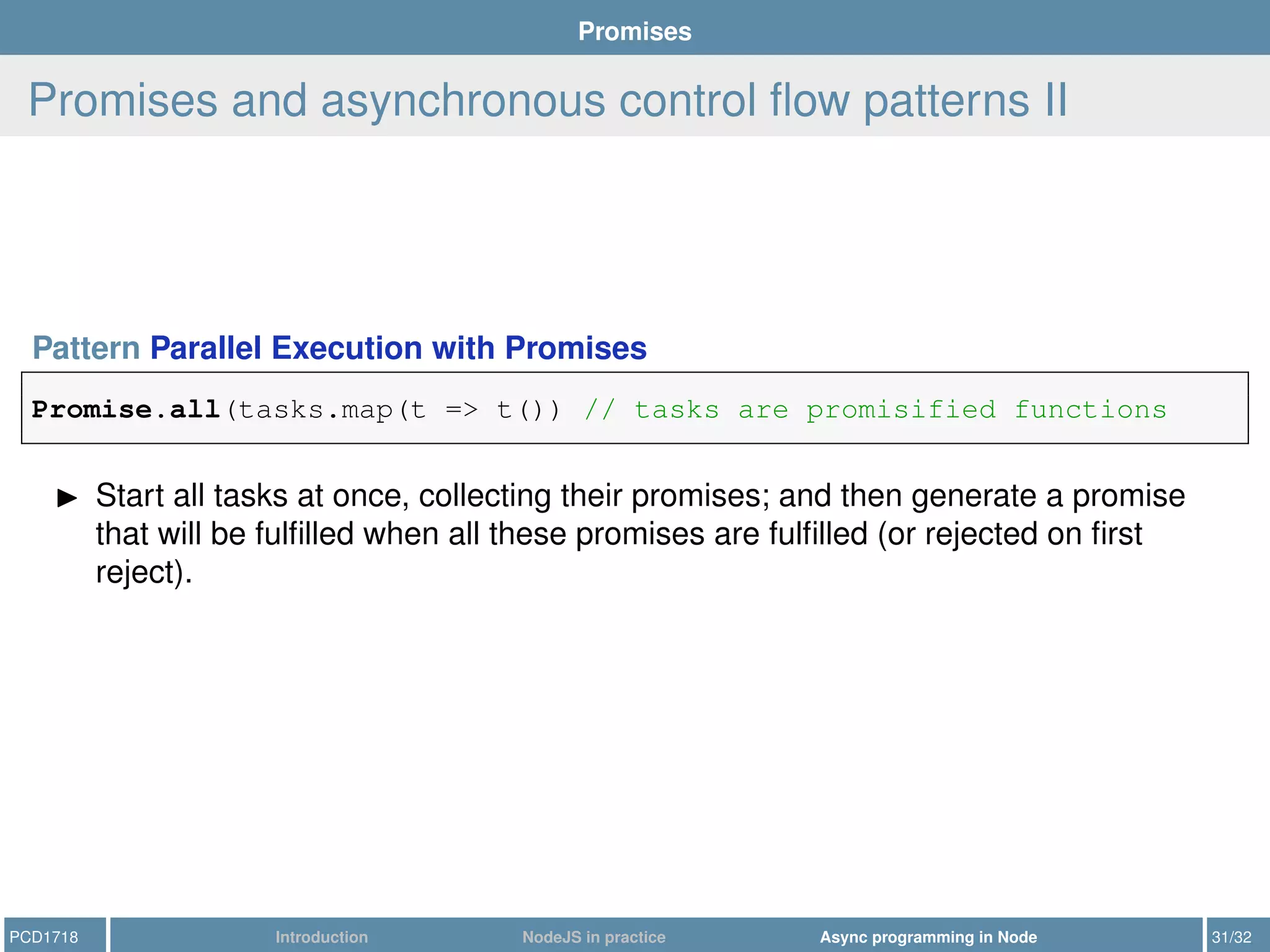

Promises and asynchronous control flow patterns II
Pattern Parallel Execution with Promises
Promise.all(tasks.map(t => t()) // tasks are promisified functions
Start all tasks at once, collecting their promises; and then generate a promise
that will be fulfilled when all these promises are fulfilled (or rejected on first
reject).

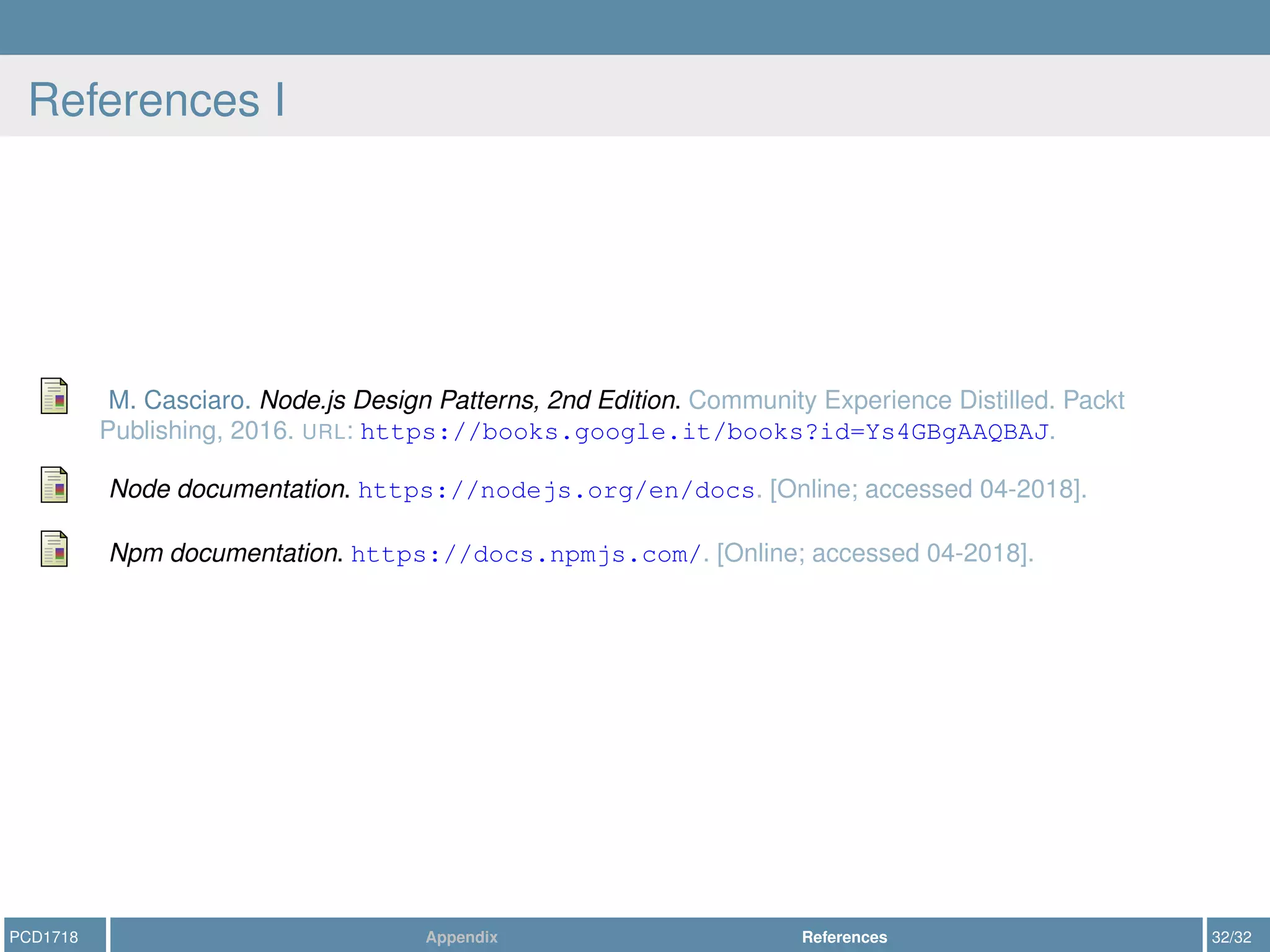

References I
M. Casciaro. Node.js Design Patterns, 2nd Edition. Community Experience Distilled. Packt
Publishing, 2016. URL: https://books.google.it/books?id=Ys4GBgAAQBAJ.
Node documentation. https://nodejs.org/en/docs. [Online; accessed 04-2018].
Npm documentation. https://docs.npmjs.com/. [Online; accessed 04-2018].
PCD1718 Appendix References 32/32

NodeJS: an Introduction

More Related Content

What's hot

Similar to NodeJS: an Introduction

More from Roberto Casadei

Recently uploaded

NodeJS: an Introduction
