LINQ2NHRicci Gian MariaGiorgetti Alessandro

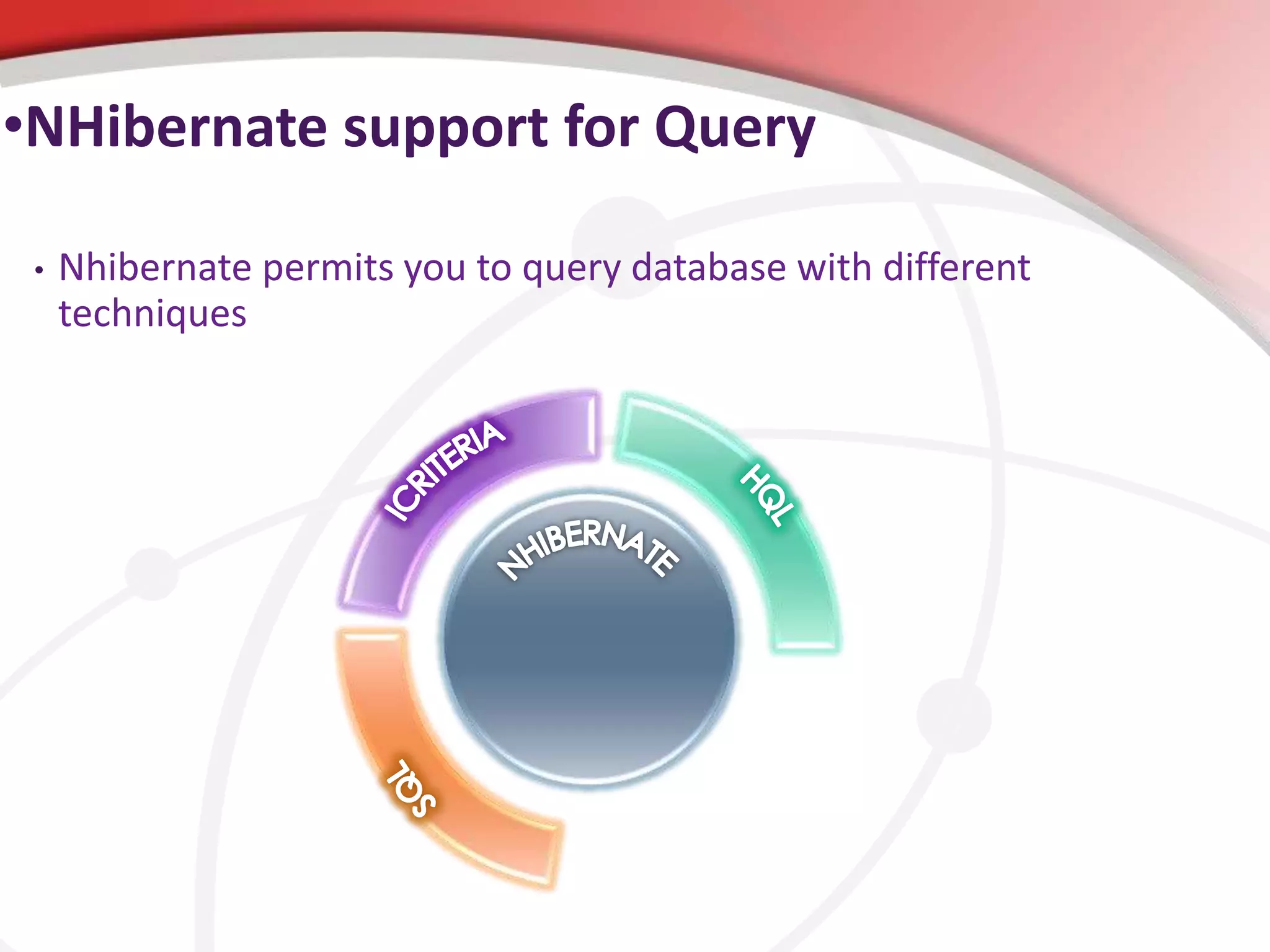

Nhibernate permits you to query database with different techniquesNHibernate support for QueryHQLICRITERIASQLNHIBERNATE
The LINQ query expressed by code gets translated into an “Expression Tree”An Expression Tree is a representation of the query with a tree like this oneWhat is needed to build a LINQ provider 3 + (5 + 9) * 2
If an arithmetic expression is simple to visualize as a tree a LINQ query could be more complex.Luckily enough, we do not need to know this to use LINQ2NH, but is useful to understand the processExpression Tree in real world
We already have a LINQ2NH provider, is it not good?We have LINQ2NH in 2.1.. So? LINQ2NHHQLICRITERIASQLNHIBERNATE
2.1 LINQ provider is limited by features offered by ICriteriaThe query gets translated from ExpressionTree to ICriteria then from ICriteria to the real queryICriteria misses some features like Having clauseIt is difficult to create complex query with ICriteria so it is difficult to support full LINQ syntaxCurrent situation
First of all there was a rewrite of the HQL parser using an AST (Abstract Syntax Tree) based on ANTLRSteve Strong started from the Java ANTLR parser and converted for C#The resulting HQL engine now has four steps, the hard work is between 2nd and 3rd stepsA new idea – use HQL
Why rewrite HQL parser is needed for LINQThe big idea is to create a provider that translate an Expression Tree to the same Parse Tree of HQLSTRING(HQL)LINQThe complex part, is translating the Parse treeTranslation of parse tree is the point where mappings are consulted to generate the SQL treeReusing the same code for HQL and LINQ is the key for success and performancePARSE TREEICRITERIASQLNHIBERNATE
Is LINQ2NH mature enough?Actually the provider supports many features, but since parsing an Expression Tree is not so simple we still have something unsupportedWe will see this in detail in the second part, you should simple be aware that not full LINQ syntax is supported
Whylinq 2 NHIf we already have HQL, ICriteria and SQL, we really need LINQ?
LINQ is strongly typed, so you have full intellisense power and compile time checkingRefactoring capabilities, if you rename a property of a mapped class, you automatically have your LINQ queries updatedLINQ is standard in .NET, maybe you already know it, and you can use to query XML, object in memory, LDAP tree, Entity Framework  and so on.Differencebetween HQL and LINQ
Deferred execution – a key concept of LINQSome of the LINQ operator are called: “deferred” operatorA deferred operator is evaluated only during the iteration of the content, or if you call a “not deferred” operator (like ToList() )
Deferred execution – even in LINQ2NHThe very same happens for LINQ2NH queries.Nothing get executed here, you are only defining a query like you do with ICriteriaSince Count is a “non deferred” operator, a  query to the database is issued.
LINQ query is an expression tree that can be manipulated by code Like ICriteria is simple to add and remove condition, projections to an existing query.You can pass a LINQ query between layers, each layer can manipulate the query in a very simple way.Differencebetween HQL and LINQ
Very easy projectionYou can have one layer that manage the where part and another one that use projectionYou can project into Dto (Data Transfer Object) with great easy, respect HQLYou can leverage Anonymous Type instead of DTO.Difference between HQL and LINQ
You can build on the fly complex anonymous DTO, with calculation in it and let the provider do the workLINQ is expressiveSince you want to use the year part of the BirthDate property, the provider is using datepart SQL functionProvider is smart, and select only what is needed and not unnecessary properties
Linq to Nh – Part 2
A thing you need to be aware of…Some things that actually ‘do not work’How to extend the provider to overcome issues and add features.Part 2 - Agenda
Nhibernate best practice: use explicit Transations!Deferred execution might cause troubles when coupled with Transaction Management policies.It’s very easy to execute code outside the scope of a transaction, and you will hardly spot it at first.If your repository/dao or whateever data access strategy you have, exposes IQueriable<T> interfaces you need to be careful and call the functions that actually ‘trigger’ the Linq query evaluation inside the scope of your transation (i.e.: GetEnumerator(), Count(), ToList(), Single(), etc…).A Thing to be Aware of…Linq2Nh and Transactions
Some Functions/Operators not supported – for example: Equals() is supported only for strings at the moment, for all other types you can use the ==operator.Problems when using Ilists<T> while trying to create expressions that use ‘contains’ to realize ‘Select..from…where..in’ queries. The parser goes crazy and try to compare an IList<T> to T entities.Custom IUserType(s) not supported yet. (It’s a bug and should be corrected soon..remember it’s an alpha version).Problems with some Joins and Nested Queries, you need to rework your code if you want to use Linq to perform these kind of queries.During everyday usage of the provider you can encounter the following problems:Some things that actually ‘do not work’
Fix some of the holes in the provider – the missing equals for example.Add new features and functionalities.Extending the provider is very easy and it allows you to:Extending Linq To NHibernate
Given your Linq Query a parser examines it.Each segment of the expression that forms the query is translated from a Linq Expression to an Hql Expression (The old provider was based on the ICriteria API).Your operators are replaced with the predefined corresponding ones (or the one you defined/customized).The result is the internal representation of an HQL query that is later on converted to a real SQL query.Putting it simple the new provider works this way:Extending Linq To NHibernate
Create a ‘Method Generator’ – a class that basically tells Nhibernate how to build an Hql Expression that represent your Linq function.Register the Method Generator in the internal methods repository – inherit from DefaultLinqToHqlGeneratorsRegistry to add you custom methods.Tell Nhibernate to use your custom method registry intead of the default one:To customize the provider you have to:Extending Linq To NHibernate
Inherit from the base class BaseHqlGeneratorForMethodProvide the list of supported methods (a sort of call signatures)Override the BuildHql() function that will provide the HqlExpression that represent your operator/functionImplement the IRuntimeMethodHqlGeneratorinterface (usefull when you do not know the types involved ‘at design time’).you do not provide a list of function calls to matchImplement the  bool SupportsMethod(MethodInfo method) – states if the method can be represented by the generator.Implement the IHqlGeneratorForMethod GetMethodGenerator(MethodInfo method) – returns a method generator that will be used to generate the HqlExpressionTo create a Method Generator you can:Extending Linq To NHibernate
DemoExtending the provider
Thank you for attending!
