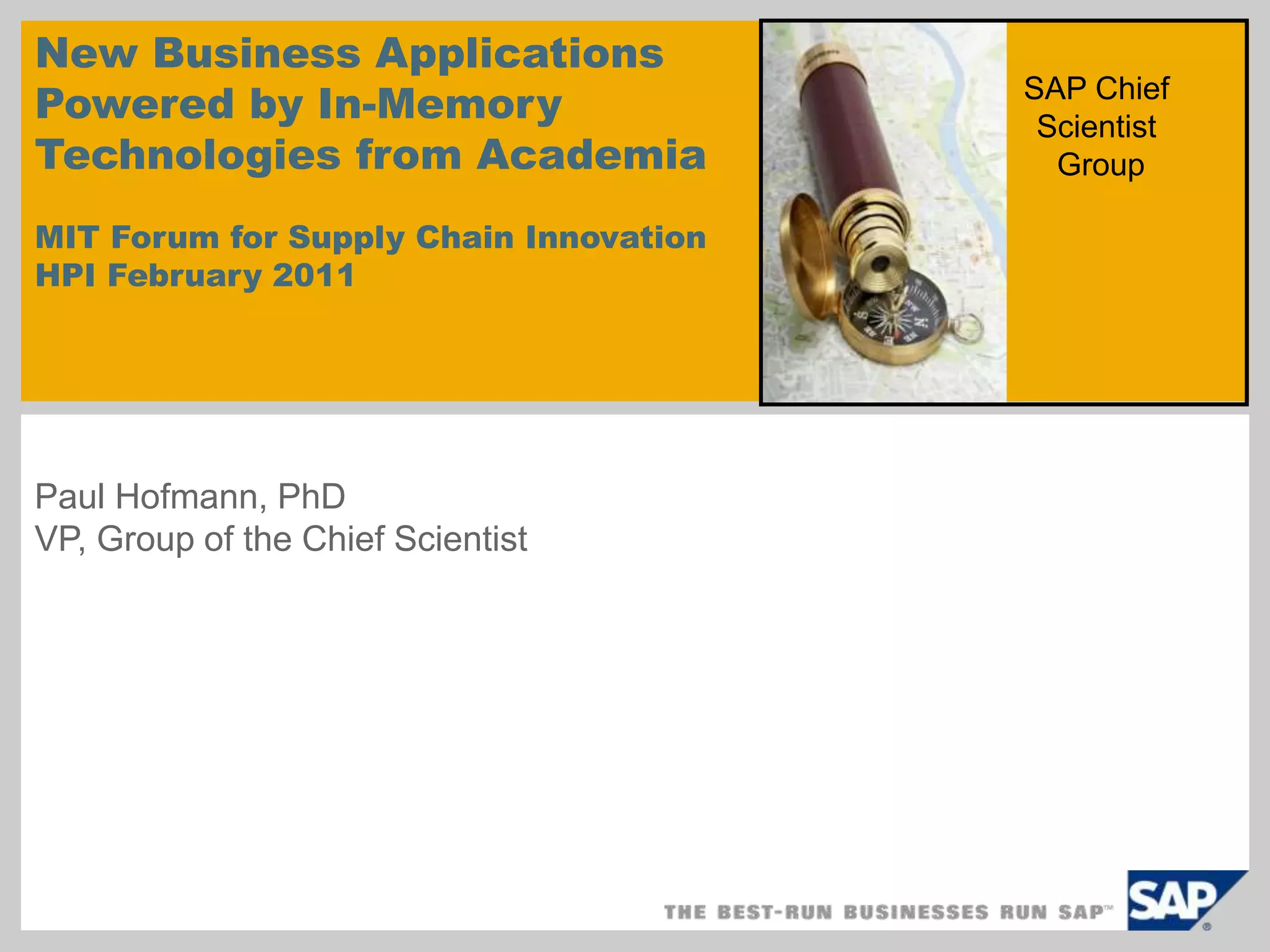

New Business Applications
Powered by In-Memory
Technologies from Academia
MIT Forum for Supply Chain Innovation
HPI February 2011
Paul Hofmann, PhD
VP, Group of the Chief Scientist
SAP Chief
Scientist
Group

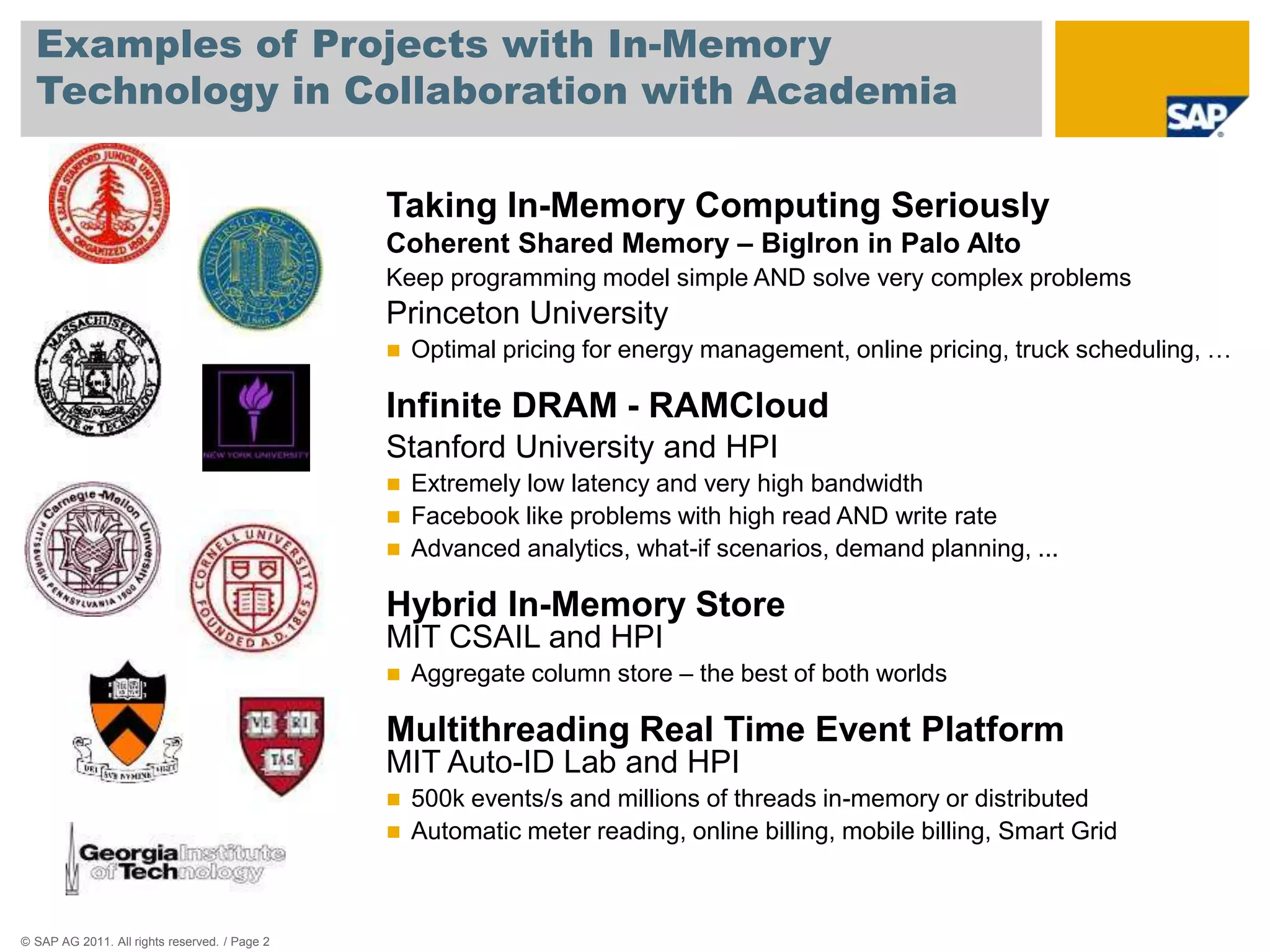

Examples of Projects with In-Memory
Technology in Collaboration with Academia
© SAP AG 2011. All rights reserved. / Page 2
Taking In-Memory Computing Seriously
Coherent Shared Memory – BigIron in Palo Alto
Keep programming model simple AND solve very complex problems
Princeton University
 Optimal pricing for energy management, online pricing, truck scheduling, …
Infinite DRAM - RAMCloud
Stanford University and HPI
 Extremely low latency and very high bandwidth
 Facebook like problems with high read AND write rate
 Advanced analytics, what-if scenarios, demand planning, ...
Hybrid In-Memory Store
MIT CSAIL and HPI
 Aggregate column store – the best of both worlds
Multithreading Real Time Event Platform
MIT Auto-ID Lab and HPI
 500k events/s and millions of threads in-memory or distributed
 Automatic meter reading, online billing, mobile billing, Smart Grid
Taking In-Memory Computing Seriously
Chief Scientist Group
Princeton University – Operations Research and Financial Engineering
Warren Powell, et al
© SAP AG 2011. All rights reserved. / Page 3
Taking In-Memory Computing Seriously!
Basic Assumptions
 Disk is tape - active data must be in DRAM
 Data locality is king  avoid cache misses and stalled CPU
Problems and Opportunities for In-Memory Computing
 Addressable DRAM per box is limited – different than hard disks.
We need to scale memory independently from physical boxes
 Scaling Architecture
– Arbitrary scaling of the amount of data stored in DRAM
– Arbitrary & independent scaling of number of active users & associated computing load
 Inter-Process Communication is slow and hard to program (latencies are in the area of
0.5-1ms )
We can do better
© SAP AG 2011. All rights reserved. / Page 4
Taking In-Memory Computing Seriously!
How can we do better?
 Coherent Shared Memory or ccNUMA
All CPUs can access all memory and all I/O channels in about 1 μs
We can scale independently with DRAM and CPUs
You need more computing power – add another board …
You need more DRAM – add another board …
 Merge Application Server & DB Server – reference memory directly from app
© SAP AG 2011. All rights reserved. / Page 5
BigIron - A System We Architected For Hana with
Leading-Edge, Cluster Server Components
System Specifications Architecture, Assembly,
© SAP AG 2011. All rights reserved. / Page 6
System architecture: SAP Technology
Infrastructure
Research Practice
Assembly and Test: Colfax
International
Hosting: Bay Area Internet
Solutions, Santa
Clara, CA
• Large shared
coherent
memory (5TB)
across
servers via
Scale MP
• 160 cores(320
HT)
Big Iron 2
Extreme Performance, Scalability,
and much simpler system model
Research Server Cluster
 5 x 4U Servers
(4 Intel XEON x7560 2.26Ghz)
 160 cores (32 Cores/Server)
 5TB memory (64 x 16MB
DDR3/Server)
 30TB SSD (solid state disk)
storage
 5 Networks
 VPN of ScaleMP (40-
160GbIB)
 VPN of Server Cluster
(10GbE)
 VPN of Storage Array
(10GbE)
 VPN of SAP Internal Network
(10MbE metered)
 Firewalled GW to Internet
(1GbE Expandable)
 1 NAS (72TB Expandable to 180)
 1 x 48U Rack
 System Software
 SLES11 Linux OS Licenses
 ScaleMP vSMP Licenses
 System cost: $618K with tax and
support
& Hosting
Coherent Shared Memory – Improved
Productivity at Low Price
Traditional server clusters – Distributed memory
Programming of Queries,
Distribution of Data
Physical
Server #1
© SAP AG 2011. All rights reserved. / Page 7
Server Cluster with Coherent Shared Memory
Traditional
SAP developer
Coherent Shared Memory via
software approach
 Developers can treat system as one “big” server and
let the operating system and lower level software
handle the problem
 Initial design is timeless – hardware scaling handled
below app design layer
 Developers do not need additional skills for in-memory
computing
Before
Physical
Server #2
SAP developer
for in-memory
computing
Physical
Server n …
 Developers need to distribute queries and data
across physical servers; access to data requires
mastering complex communications protocols
 Design trapped at a single “scale” – platform growth
forces redesign every couple years
 Specialized programming skills held only by SAP’s
top developers
After
Physical
Server #1
Physical
Server #2
Physical
Server n …
Solve Very Compute Intensive Problems
Like Stochastic Optimization
We need to juggle intermittent energy from wind or solar and volatile electricity
prices to meet time-varying loads – Princeton has the necessary algorithms
Wind speed
Electricity prices
We can reduce compute time from days to minutes!
© SAP AG 2011. All rights reserved. / Page 8
Load
Modeling uncertainty in power scheduling
12
10
8
6
4
2
© SAP AG 2011. All rights reserved. / Page 9
The effect of modeling uncertainty in wind
0
Uncertain forecast Perfect forecast Constant wind
2% wind
40% wind
Modeling Uncertainty In Power Scheduling
Designing energy portfolios….
… is like building a stone wall. You can do a perfect job with a perfect forecast. The
challenge is dealing with uncertainty.
© SAP AG 2011. All rights reserved. / Page 10
In the beginning….
© SAP AG 2011. All rights reserved. / Page 11
Infinite DRAM with RAM Cloud
Stanford University and HPI
John Ousterhout, Mendel Rosenblum, Christian Tinnefeld, et al
© SAP AG 2011. All rights reserved. / Page 12
Impact of Latency for Internet Applications
© SAP AG 2011. All rights reserved. / Page 13
Large-scale Apps Struggle with High Latency
Web Application
Application Server Storage Server
0.5-10ms latency
RAMCloud – Stanford University
Create distributed storage system that keeps data entirely in DRAM
Combining the main memories of thousands of servers
Use high-end network (10 Gigabit Ethernet / Infiniband)
Replicate data synchronously into the main memories of other nodes
Asynchronous writes to disk only for backup/archival purpose
This results in:
 Gracefully scaling storage solution
 Very low access latency AND high bandwidth
 Latency of memory access via network 1-5 μs
 Eventually consistent data storage – consistency is sub second
© SAP AG 2011. All rights reserved. / Page 14
RAMCloud – Stanford University
RamCoud ideal for apps with millions of concurrent users that need more complex
data structures than key value store e.g. Facebook, Quora, Yelp, etc.
Research Questions in the Context of Enterprise Applications
What-If Analytics
 Ideally, companies want to do what-if analytics on their complete history of transactional
data, not on a subset (Think about WalMart or Unilever)
 What-if Analytics need high bursts of read AND write access
 How can the needed data be modeled and placed in a RAMCloud?
 How can the needed data operations be implemented in a scalable way?
Transactional Properties
 Enterprise applications rely on transactional properties
 RAMCloud provides extremely low latency, but only eventually consistent
 Are the reduced transaction times sufficient to avoid lock wait times or reduce aborted
transactions?
© SAP AG 2011. All rights reserved. / Page 15
Hybrid In-Memory Store HIRYSE
MIT CSAIL and HPI
Sam Madden, Philippe Cudre-Mauroux, Jens Krueger, Martin Grund, et al
© SAP AG 2011. All rights reserved. / Page 16
Hybrid Partitioning for Mixed Workloads
OLTP
OLAP
Row
1
Row
2
Row
3
Row
1
Row
2
Row
3
© SAP AG 2011. All rights reserved. / Page 17
Row Store Column Store Hybrid Store
Row
4
Row
4
Doc
Num
Doc
Date
Sold-
To
Value
Sales
Org
Status
Doc
Num
Doc
Date
Sold-
To
Value
Sales
Org
Status
Row
1
Row
2
Row
3
Row
4
Doc
Num
Sold-
To
Doc
Date
Value
Sales
Org
Status
HYRISE Architecture
© SAP AG 2011. All rights reserved. / Page 18
■ Query Processor - chooses the best
possible query plan for the hybrid data
storage structure
■ Layout Manager - given a workload
it performs an evaluation based on a
cache miss based cost model and
generates the best possible layout
■ Storage Manager - main memory
hybrid storage manager capable of
vertical partitioning in single relations
Cost Model
Used to describe the layout dependent costs based on cache misses
Combine complex access patterns from simpler ones (scan, lookup,…)
Measure
 All different access variants to the hybrid storage layer - full projection, partial
projection, selection, tuple reconstruction
 Different performance parameters - compiler settings, hardware pre-fetcher, …
Observe
 Combined behavior of all components – look at total workload
 Count cache misses using the CPU hardware performance counter
Understand
 Develop the cost model
© SAP AG 2011. All rights reserved. / Page 19
Results
© SAP AG 2011. All rights reserved. / Page 20
Multithreading Real Time Event Platform
MIT Auto ID Lab and HPI
John Williams, Sergio Herrero, Abel Sanchez, et al
© SAP AG 2011. All rights reserved. / Page 21
Motivation: Rapid Growth of Events and
Messaging Platforms
Verizon and T-Mobile: 2-3 days to generate phone bill
© SAP AG 2011. All rights reserved. / Page 22
A Comparative Study of Data Storage and Processing Architectures
iTunes: 24 hours to generate bill
Uninterrupted Growth of online billing systems (Hulu, Netflix…)
Dynamic Pricing on SmartGrid requires design of infrastructure
capable of ingesting millions of events in quasi-real time
Goal: Design a
multi-threaded
system that
produces the
electricity
consumption bill
of a city of 1M
households
8 hours  seconds
Smart Meter Reading Problem
Users
© SAP AG 2011. All rights reserved. / Page 23
Energy
Producers
Data Generation
Data Persistence
Data Processing
Multithreaded Simulator for Smart Meter
Management
Layer
Generation Layer Consumption Layer
© SAP AG 2011. All rights reserved. / Page 24
Storage Layer
Meter Read
Generators
Head Ends
Simulation
Manager
Query
Client
Query
Client
Query
Client
MDUS
Meter
Data
Unification
System
DRYAD
HADOOPDB
SAP HANA
Web Service
Interfaces
Web Service
Interfaces
Conclusion
Platform that handles billions of events/day AND large numbers of
threads on one machine (> 1 million), e.g. Siemens 500k events/s
RDBMS (used by today’s MDUS vendors) provides good query
performance but does not scale to millions of households (8 h)
Distributed File System (DFS): Provides the scalability, reliability & insert
performance necessary for the storage of Smart Meter Reader data
Using Map Reduce on top of a DFS (HDFS or CEPH) is good for batch
processing systems
Loading data from DFS and executing queries in-memory using HANA
provides very good performance results for real time queries  RAPTOR
Prototype for SmartGrid allowing to ingest smart meter data in real time,
do dynamic pricing (4 buckets), store in DFS & do real time analytics
© SAP AG 2011. All rights reserved. / Page 25
A Comparative Study of Data Storage and Processing Architectures
Bill for 1 M households in seconds
Sense
• Collect current conditions at
fine grain in real time
Analyze
• Access real-time data – analyze
data, learn, build models
Actuate
• Control (soft, hard, persuasive,
personal)
ELECTRONIC NERVOUS SYSTEM
Analytical
Approach
Inductive
Approach
No Data Complete Data
No Prior
Knowledge
Perfect
Knowledge
Data
Knowledge
2
  
   
2
1
exp
2
i
i
x
y

 
 
 
X1 -1 Y1 0.02540487
X2 -0.9 Y2 0.02779527
X3 -0.8 Y3 0.03010825
X4 -0.7 Y4 0.03228947
X5 -0.6 Y5 0.03428442 .. .. .. .. . . . .
GPS SIM
Card

More Related Content

What's hot

Big Data World Forum
Big Data World ForumBig Data World Forum
Big Data World Forum
bigdatawf

How to Succeed in the Cloud (Financially)
How to Succeed in the Cloud (Financially)How to Succeed in the Cloud (Financially)
How to Succeed in the Cloud (Financially)
Rand Group

TUSC-Piocon OBIEE Case Studies
TUSC-Piocon OBIEE Case StudiesTUSC-Piocon OBIEE Case Studies
TUSC-Piocon OBIEE Case Studies
Mark West

Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...
Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...
Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...
StampedeCon

HP Moonshot. Progettato per i Data Center, costruito per il pianeta.
HP Moonshot. Progettato per i Data Center, costruito per il pianeta.HP Moonshot. Progettato per i Data Center, costruito per il pianeta.
HP Moonshot. Progettato per i Data Center, costruito per il pianeta.
HP Enterprise Italia

Why Infrastructure Matters for Big Data & Analytics
Why Infrastructure Matters for Big Data & AnalyticsWhy Infrastructure Matters for Big Data & Analytics
Why Infrastructure Matters for Big Data & Analytics
Rick Perret

SAP vs SAS - Comparison
SAP vs SAS - ComparisonSAP vs SAS - Comparison
SAP vs SAS - Comparison
Arnab Roy Chowdhury

Monitizing Big Data at Telecom Service Providers
Monitizing Big Data at Telecom Service ProvidersMonitizing Big Data at Telecom Service Providers
Monitizing Big Data at Telecom Service Providers
DataWorks Summit

Building Innovative Industry Solutions for System z
Building Innovative Industry Solutions for System zBuilding Innovative Industry Solutions for System z
Building Innovative Industry Solutions for System z
dkang

Infosys – Cloud Business Value Architecture
Infosys – Cloud Business Value ArchitectureInfosys – Cloud Business Value Architecture
Infosys – Cloud Business Value Architecture
Infosys

IBM InfoSphere Data Replication for Big Data
IBM InfoSphere Data Replication for Big DataIBM InfoSphere Data Replication for Big Data
IBM InfoSphere Data Replication for Big Data
IBM Analytics

Dell AI Oil and Gas Webinar
Dell AI Oil and Gas WebinarDell AI Oil and Gas Webinar
Dell AI Oil and Gas Webinar
Bill Wong

Big Data World Forum
Big Data World ForumBig Data World Forum
Big Data World Forum
bigdatawf

next-generation-data-centers
next-generation-data-centersnext-generation-data-centers
next-generation-data-centers
Jason Hoffman

Big Memory Webcast
Big Memory WebcastBig Memory Webcast
Big Memory Webcast
MemVerge

IBM Power Systems at the heart of Cognitive Solutions
IBM Power Systems at the heart of Cognitive SolutionsIBM Power Systems at the heart of Cognitive Solutions
IBM Power Systems at the heart of Cognitive Solutions
David Spurway

Haven 2 0
Haven 2 0 Haven 2 0
Keynote for the IBM Avnet Indonesia MSP Day
Keynote for the IBM Avnet Indonesia MSP DayKeynote for the IBM Avnet Indonesia MSP Day
Keynote for the IBM Avnet Indonesia MSP Day
Pandu W Sastrowardoyo

1524 how ibm's big data solution can help you gain insight into your data cen...
1524 how ibm's big data solution can help you gain insight into your data cen...1524 how ibm's big data solution can help you gain insight into your data cen...
1524 how ibm's big data solution can help you gain insight into your data cen...
IBM

PaaS: Open For Business
PaaS: Open For Business PaaS: Open For Business
PaaS: Open For Business
VMware Tanzu


What's hot (20)

Big Data World Forum
Big Data World ForumBig Data World Forum
Big Data World Forum

How to Succeed in the Cloud (Financially)
How to Succeed in the Cloud (Financially)How to Succeed in the Cloud (Financially)
How to Succeed in the Cloud (Financially)

TUSC-Piocon OBIEE Case Studies
TUSC-Piocon OBIEE Case StudiesTUSC-Piocon OBIEE Case Studies
TUSC-Piocon OBIEE Case Studies

Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...
Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...
Big Data: Infrastructure Implications for “The Enterprise of Things” - Stampe...

HP Moonshot. Progettato per i Data Center, costruito per il pianeta.
HP Moonshot. Progettato per i Data Center, costruito per il pianeta.HP Moonshot. Progettato per i Data Center, costruito per il pianeta.
HP Moonshot. Progettato per i Data Center, costruito per il pianeta.

Why Infrastructure Matters for Big Data & Analytics
Why Infrastructure Matters for Big Data & AnalyticsWhy Infrastructure Matters for Big Data & Analytics
Why Infrastructure Matters for Big Data & Analytics

SAP vs SAS - Comparison
SAP vs SAS - ComparisonSAP vs SAS - Comparison
SAP vs SAS - Comparison

Monitizing Big Data at Telecom Service Providers
Monitizing Big Data at Telecom Service ProvidersMonitizing Big Data at Telecom Service Providers
Monitizing Big Data at Telecom Service Providers

Building Innovative Industry Solutions for System z
Building Innovative Industry Solutions for System zBuilding Innovative Industry Solutions for System z
Building Innovative Industry Solutions for System z

Infosys – Cloud Business Value Architecture
Infosys – Cloud Business Value ArchitectureInfosys – Cloud Business Value Architecture
Infosys – Cloud Business Value Architecture

IBM InfoSphere Data Replication for Big Data
IBM InfoSphere Data Replication for Big DataIBM InfoSphere Data Replication for Big Data
IBM InfoSphere Data Replication for Big Data

Dell AI Oil and Gas Webinar
Dell AI Oil and Gas WebinarDell AI Oil and Gas Webinar
Dell AI Oil and Gas Webinar

Big Data World Forum
Big Data World ForumBig Data World Forum
Big Data World Forum

next-generation-data-centers
next-generation-data-centersnext-generation-data-centers
next-generation-data-centers

Big Memory Webcast
Big Memory WebcastBig Memory Webcast
Big Memory Webcast

IBM Power Systems at the heart of Cognitive Solutions
IBM Power Systems at the heart of Cognitive SolutionsIBM Power Systems at the heart of Cognitive Solutions
IBM Power Systems at the heart of Cognitive Solutions

Haven 2 0
Haven 2 0 Haven 2 0
Haven 2 0

Keynote for the IBM Avnet Indonesia MSP Day
Keynote for the IBM Avnet Indonesia MSP DayKeynote for the IBM Avnet Indonesia MSP Day
Keynote for the IBM Avnet Indonesia MSP Day

1524 how ibm's big data solution can help you gain insight into your data cen...
1524 how ibm's big data solution can help you gain insight into your data cen...1524 how ibm's big data solution can help you gain insight into your data cen...
1524 how ibm's big data solution can help you gain insight into your data cen...

PaaS: Open For Business
PaaS: Open For Business PaaS: Open For Business
PaaS: Open For Business


Viewers also liked

Dynamic Search Using Semantics & Statistics
Dynamic Search Using Semantics & StatisticsDynamic Search Using Semantics & Statistics
Dynamic Search Using Semantics & Statistics
Paul Hofmann

Economics of Cloud Computing
Economics of Cloud ComputingEconomics of Cloud Computing
Economics of Cloud Computing
Paul Hofmann

RFID Simulation of the US Pharmaceutical Supply Chain
RFID Simulation of the US Pharmaceutical Supply ChainRFID Simulation of the US Pharmaceutical Supply Chain
RFID Simulation of the US Pharmaceutical Supply Chain
Paul Hofmann

LINK TO VIDEOS
LINK TO VIDEOSLINK TO VIDEOS
LINK TO VIDEOS
Saffron Technology Inc.

Saffron Tech Company Profile
Saffron Tech Company ProfileSaffron Tech Company Profile
Saffron Tech Company Profile
IT Chimes

e-Learning Reimagined: the Secret to Achieving and Measuring ROI
e-Learning Reimagined: the Secret to Achieving and Measuring ROIe-Learning Reimagined: the Secret to Achieving and Measuring ROI
e-Learning Reimagined: the Secret to Achieving and Measuring ROI
Saffron Interactive

Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...
Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...
Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...
Mr.Allah Dad Khan

Saffron
SaffronSaffron
深層学習フレームワーク Chainer の開発と今後の展開
深層学習フレームワーク Chainer の開発と今後の展開深層学習フレームワーク Chainer の開発と今後の展開
深層学習フレームワーク Chainer の開発と今後の展開
Seiya Tokui


Viewers also liked (9)

Dynamic Search Using Semantics & Statistics
Dynamic Search Using Semantics & StatisticsDynamic Search Using Semantics & Statistics
Dynamic Search Using Semantics & Statistics

Economics of Cloud Computing
Economics of Cloud ComputingEconomics of Cloud Computing
Economics of Cloud Computing

RFID Simulation of the US Pharmaceutical Supply Chain
RFID Simulation of the US Pharmaceutical Supply ChainRFID Simulation of the US Pharmaceutical Supply Chain
RFID Simulation of the US Pharmaceutical Supply Chain

LINK TO VIDEOS
LINK TO VIDEOSLINK TO VIDEOS
LINK TO VIDEOS

Saffron Tech Company Profile
Saffron Tech Company ProfileSaffron Tech Company Profile
Saffron Tech Company Profile

e-Learning Reimagined: the Secret to Achieving and Measuring ROI
e-Learning Reimagined: the Secret to Achieving and Measuring ROIe-Learning Reimagined: the Secret to Achieving and Measuring ROI
e-Learning Reimagined: the Secret to Achieving and Measuring ROI

Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...
Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...
Production technology and processing of saffron (crocus) by Mr Allah Dad Khan...

Saffron
SaffronSaffron
Saffron

深層学習フレームワーク Chainer の開発と今後の展開
深層学習フレームワーク Chainer の開発と今後の展開深層学習フレームワーク Chainer の開発と今後の展開
深層学習フレームワーク Chainer の開発と今後の展開


Similar to New Business Applications Powered by In-Memory Technology @MIT Forum for Supply Chain Innovation, 2011

NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver
NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in VacouverNGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver
NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver
Scott Shadley, MBA,PMC-III

DM Radio Webinar: Adopting a Streaming-Enabled Architecture
DM Radio Webinar: Adopting a Streaming-Enabled ArchitectureDM Radio Webinar: Adopting a Streaming-Enabled Architecture
DM Radio Webinar: Adopting a Streaming-Enabled Architecture
DATAVERSITY

IBM Spectrum Scale Overview november 2015
IBM Spectrum Scale Overview november 2015IBM Spectrum Scale Overview november 2015
IBM Spectrum Scale Overview november 2015
Doug O'Flaherty

K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...
K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...
K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...
Fujitsu India

NetApp All Flash storage
NetApp All Flash storageNetApp All Flash storage
NetApp All Flash storage
MarketingArrowECS_CZ

HPE Solutions for Challenges in AI and Big Data
HPE Solutions for Challenges in AI and Big DataHPE Solutions for Challenges in AI and Big Data
HPE Solutions for Challenges in AI and Big Data
Lviv Startup Club

Saviak lviv ai-2019-e-mail (1)
Saviak lviv ai-2019-e-mail (1)Saviak lviv ai-2019-e-mail (1)
Saviak lviv ai-2019-e-mail (1)
Lviv Startup Club

Webinar: Three Reasons Why NAS is No Good for AI and Machine Learning
Webinar: Three Reasons Why NAS is No Good for AI and Machine LearningWebinar: Three Reasons Why NAS is No Good for AI and Machine Learning
Webinar: Three Reasons Why NAS is No Good for AI and Machine Learning
Storage Switzerland

Green Plum IIIT- Allahabad
Green Plum IIIT- Allahabad Green Plum IIIT- Allahabad
Green Plum IIIT- Allahabad
IIIT ALLAHABAD

Aerospike: Enabling Your Digital Transformation
Aerospike: Enabling Your Digital TransformationAerospike: Enabling Your Digital Transformation
Aerospike: Enabling Your Digital Transformation
Brillix

Big Data Real Time Analytics - A Facebook Case Study
Big Data Real Time Analytics - A Facebook Case StudyBig Data Real Time Analytics - A Facebook Case Study
Big Data Real Time Analytics - A Facebook Case Study
Nati Shalom

Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...
Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...
Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...
StampedeCon

Presentazione PernixData @ VMUGIT UserCon 2015
Presentazione PernixData @ VMUGIT UserCon 2015Presentazione PernixData @ VMUGIT UserCon 2015
Presentazione PernixData @ VMUGIT UserCon 2015
VMUG IT

IBM Data Centric Systems & OpenPOWER
IBM Data Centric Systems & OpenPOWERIBM Data Centric Systems & OpenPOWER
IBM Data Centric Systems & OpenPOWER
inside-BigData.com

Macroview Netapp Overview
Macroview Netapp OverviewMacroview Netapp Overview
Macroview Netapp Overview
Alex Tsui

Autodesk Technical Webinar: SAP HANA in-memory database
Autodesk Technical Webinar: SAP HANA in-memory databaseAutodesk Technical Webinar: SAP HANA in-memory database
Autodesk Technical Webinar: SAP HANA in-memory database
SAP PartnerEdge program for Application Development

Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...
Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...
Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...
Prolifics

EMEA TechTalk – The NetApp Flash Optimized Portfolio
EMEA TechTalk – The NetApp Flash Optimized PortfolioEMEA TechTalk – The NetApp Flash Optimized Portfolio
EMEA TechTalk – The NetApp Flash Optimized Portfolio
NetApp

Add Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology
Add Memory, Improve Performance, and Lower Costs with IBM MAX5 TechnologyAdd Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology
Add Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology
IBM India Smarter Computing

Tendencias Storage
Tendencias StorageTendencias Storage
Tendencias Storage
Fran Navarro


Similar to New Business Applications Powered by In-Memory Technology @MIT Forum for Supply Chain Innovation, 2011 (20)

NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver
NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in VacouverNGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver
NGD Systems and Microsoft Keynote Presentation at IPDPS MPP in Vacouver

DM Radio Webinar: Adopting a Streaming-Enabled Architecture
DM Radio Webinar: Adopting a Streaming-Enabled ArchitectureDM Radio Webinar: Adopting a Streaming-Enabled Architecture
DM Radio Webinar: Adopting a Streaming-Enabled Architecture

IBM Spectrum Scale Overview november 2015
IBM Spectrum Scale Overview november 2015IBM Spectrum Scale Overview november 2015
IBM Spectrum Scale Overview november 2015

K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...
K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...
K5.Fujitsu World Tour 2016-Winning with NetApp in Digital Transformation Age,...

NetApp All Flash storage
NetApp All Flash storageNetApp All Flash storage
NetApp All Flash storage

HPE Solutions for Challenges in AI and Big Data
HPE Solutions for Challenges in AI and Big DataHPE Solutions for Challenges in AI and Big Data
HPE Solutions for Challenges in AI and Big Data

Saviak lviv ai-2019-e-mail (1)
Saviak lviv ai-2019-e-mail (1)Saviak lviv ai-2019-e-mail (1)
Saviak lviv ai-2019-e-mail (1)

Webinar: Three Reasons Why NAS is No Good for AI and Machine Learning
Webinar: Three Reasons Why NAS is No Good for AI and Machine LearningWebinar: Three Reasons Why NAS is No Good for AI and Machine Learning
Webinar: Three Reasons Why NAS is No Good for AI and Machine Learning

Green Plum IIIT- Allahabad
Green Plum IIIT- Allahabad Green Plum IIIT- Allahabad
Green Plum IIIT- Allahabad

Aerospike: Enabling Your Digital Transformation
Aerospike: Enabling Your Digital TransformationAerospike: Enabling Your Digital Transformation
Aerospike: Enabling Your Digital Transformation

Big Data Real Time Analytics - A Facebook Case Study
Big Data Real Time Analytics - A Facebook Case StudyBig Data Real Time Analytics - A Facebook Case Study
Big Data Real Time Analytics - A Facebook Case Study

Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...
Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...
Analytics, Big Data and Nonvolatile Memory Architectures – Why you Should Car...

Presentazione PernixData @ VMUGIT UserCon 2015
Presentazione PernixData @ VMUGIT UserCon 2015Presentazione PernixData @ VMUGIT UserCon 2015
Presentazione PernixData @ VMUGIT UserCon 2015

IBM Data Centric Systems & OpenPOWER
IBM Data Centric Systems & OpenPOWERIBM Data Centric Systems & OpenPOWER
IBM Data Centric Systems & OpenPOWER

Macroview Netapp Overview
Macroview Netapp OverviewMacroview Netapp Overview
Macroview Netapp Overview

Autodesk Technical Webinar: SAP HANA in-memory database
Autodesk Technical Webinar: SAP HANA in-memory databaseAutodesk Technical Webinar: SAP HANA in-memory database
Autodesk Technical Webinar: SAP HANA in-memory database

Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...
Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...
Architecting and Tuning IIB/eXtreme Scale for Maximum Performance and Reliabi...

EMEA TechTalk – The NetApp Flash Optimized Portfolio
EMEA TechTalk – The NetApp Flash Optimized PortfolioEMEA TechTalk – The NetApp Flash Optimized Portfolio
EMEA TechTalk – The NetApp Flash Optimized Portfolio

Add Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology
Add Memory, Improve Performance, and Lower Costs with IBM MAX5 TechnologyAdd Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology
Add Memory, Improve Performance, and Lower Costs with IBM MAX5 Technology

Tendencias Storage
Tendencias StorageTendencias Storage
Tendencias Storage


Recently uploaded

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF
Ajin Abraham

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

ScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking ReplicationScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking Replication
ScyllaDB

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
Fwdays

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots
Pablo Gómez Abajo

Northern Engraving | Modern Metal Trim, Nameplates and Appliance Panels
Northern Engraving | Modern Metal Trim, Nameplates and Appliance PanelsNorthern Engraving | Modern Metal Trim, Nameplates and Appliance Panels
Northern Engraving | Modern Metal Trim, Nameplates and Appliance Panels
Northern Engraving

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
LizaNolte

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

"Scaling RAG Applications to serve millions of users", Kevin Goedecke
"Scaling RAG Applications to serve millions of users",  Kevin Goedecke"Scaling RAG Applications to serve millions of users",  Kevin Goedecke
"Scaling RAG Applications to serve millions of users", Kevin Goedecke
Fwdays

Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!
Tobias Schneck

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration
Mydbops

QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
AlexanderRichford

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
FilipTomaszewski5

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx
BibashShahi

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx
christinelarrosa


Recently uploaded (20)

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

ScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking ReplicationScyllaDB Tablets: Rethinking Replication
ScyllaDB Tablets: Rethinking Replication

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin..."$10 thousand per minute of downtime: architecture, queues, streaming and fin...
"$10 thousand per minute of downtime: architecture, queues, streaming and fin...

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots

Northern Engraving | Modern Metal Trim, Nameplates and Appliance Panels
Northern Engraving | Modern Metal Trim, Nameplates and Appliance PanelsNorthern Engraving | Modern Metal Trim, Nameplates and Appliance Panels
Northern Engraving | Modern Metal Trim, Nameplates and Appliance Panels

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

"Scaling RAG Applications to serve millions of users", Kevin Goedecke
"Scaling RAG Applications to serve millions of users",  Kevin Goedecke"Scaling RAG Applications to serve millions of users",  Kevin Goedecke
"Scaling RAG Applications to serve millions of users", Kevin Goedecke

Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration

QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

Christine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptxChristine's Supplier Sourcing Presentaion.pptx
Christine's Supplier Sourcing Presentaion.pptx


New Business Applications Powered by In-Memory Technology @MIT Forum for Supply Chain Innovation, 2011

  • 1. New Business Applications Powered by In-Memory Technologies from Academia MIT Forum for Supply Chain Innovation HPI February 2011 Paul Hofmann, PhD VP, Group of the Chief Scientist SAP Chief Scientist Group
  • 2. Examples of Projects with In-Memory Technology in Collaboration with Academia © SAP AG 2011. All rights reserved. / Page 2 Taking In-Memory Computing Seriously Coherent Shared Memory – BigIron in Palo Alto Keep programming model simple AND solve very complex problems Princeton University  Optimal pricing for energy management, online pricing, truck scheduling, … Infinite DRAM - RAMCloud Stanford University and HPI  Extremely low latency and very high bandwidth  Facebook like problems with high read AND write rate  Advanced analytics, what-if scenarios, demand planning, ... Hybrid In-Memory Store MIT CSAIL and HPI  Aggregate column store – the best of both worlds Multithreading Real Time Event Platform MIT Auto-ID Lab and HPI  500k events/s and millions of threads in-memory or distributed  Automatic meter reading, online billing, mobile billing, Smart Grid
  • 3. Taking In-Memory Computing Seriously Chief Scientist Group Princeton University – Operations Research and Financial Engineering Warren Powell, et al © SAP AG 2011. All rights reserved. / Page 3
  • 4. Taking In-Memory Computing Seriously! Basic Assumptions  Disk is tape - active data must be in DRAM  Data locality is king  avoid cache misses and stalled CPU Problems and Opportunities for In-Memory Computing  Addressable DRAM per box is limited – different than hard disks. We need to scale memory independently from physical boxes  Scaling Architecture – Arbitrary scaling of the amount of data stored in DRAM – Arbitrary & independent scaling of number of active users & associated computing load  Inter-Process Communication is slow and hard to program (latencies are in the area of 0.5-1ms ) We can do better © SAP AG 2011. All rights reserved. / Page 4
  • 5. Taking In-Memory Computing Seriously! How can we do better?  Coherent Shared Memory or ccNUMA All CPUs can access all memory and all I/O channels in about 1 μs We can scale independently with DRAM and CPUs You need more computing power – add another board … You need more DRAM – add another board …  Merge Application Server & DB Server – reference memory directly from app © SAP AG 2011. All rights reserved. / Page 5
  • 6. BigIron - A System We Architected For Hana with Leading-Edge, Cluster Server Components System Specifications Architecture, Assembly, © SAP AG 2011. All rights reserved. / Page 6 System architecture: SAP Technology Infrastructure Research Practice Assembly and Test: Colfax International Hosting: Bay Area Internet Solutions, Santa Clara, CA • Large shared coherent memory (5TB) across servers via Scale MP • 160 cores(320 HT) Big Iron 2 Extreme Performance, Scalability, and much simpler system model Research Server Cluster  5 x 4U Servers (4 Intel XEON x7560 2.26Ghz)  160 cores (32 Cores/Server)  5TB memory (64 x 16MB DDR3/Server)  30TB SSD (solid state disk) storage  5 Networks  VPN of ScaleMP (40- 160GbIB)  VPN of Server Cluster (10GbE)  VPN of Storage Array (10GbE)  VPN of SAP Internal Network (10MbE metered)  Firewalled GW to Internet (1GbE Expandable)  1 NAS (72TB Expandable to 180)  1 x 48U Rack  System Software  SLES11 Linux OS Licenses  ScaleMP vSMP Licenses  System cost: $618K with tax and support & Hosting
  • 7. Coherent Shared Memory – Improved Productivity at Low Price Traditional server clusters – Distributed memory Programming of Queries, Distribution of Data Physical Server #1 © SAP AG 2011. All rights reserved. / Page 7 Server Cluster with Coherent Shared Memory Traditional SAP developer Coherent Shared Memory via software approach  Developers can treat system as one “big” server and let the operating system and lower level software handle the problem  Initial design is timeless – hardware scaling handled below app design layer  Developers do not need additional skills for in-memory computing Before Physical Server #2 SAP developer for in-memory computing Physical Server n …  Developers need to distribute queries and data across physical servers; access to data requires mastering complex communications protocols  Design trapped at a single “scale” – platform growth forces redesign every couple years  Specialized programming skills held only by SAP’s top developers After Physical Server #1 Physical Server #2 Physical Server n …
  • 8. Solve Very Compute Intensive Problems Like Stochastic Optimization We need to juggle intermittent energy from wind or solar and volatile electricity prices to meet time-varying loads – Princeton has the necessary algorithms Wind speed Electricity prices We can reduce compute time from days to minutes! © SAP AG 2011. All rights reserved. / Page 8 Load
  • 9. Modeling uncertainty in power scheduling 12 10 8 6 4 2 © SAP AG 2011. All rights reserved. / Page 9 The effect of modeling uncertainty in wind 0 Uncertain forecast Perfect forecast Constant wind 2% wind 40% wind
  • 10. Modeling Uncertainty In Power Scheduling Designing energy portfolios…. … is like building a stone wall. You can do a perfect job with a perfect forecast. The challenge is dealing with uncertainty. © SAP AG 2011. All rights reserved. / Page 10
  • 11. In the beginning…. © SAP AG 2011. All rights reserved. / Page 11
  • 12. Infinite DRAM with RAM Cloud Stanford University and HPI John Ousterhout, Mendel Rosenblum, Christian Tinnefeld, et al © SAP AG 2011. All rights reserved. / Page 12
  • 13. Impact of Latency for Internet Applications © SAP AG 2011. All rights reserved. / Page 13 Large-scale Apps Struggle with High Latency Web Application Application Server Storage Server 0.5-10ms latency
  • 14. RAMCloud – Stanford University Create distributed storage system that keeps data entirely in DRAM Combining the main memories of thousands of servers Use high-end network (10 Gigabit Ethernet / Infiniband) Replicate data synchronously into the main memories of other nodes Asynchronous writes to disk only for backup/archival purpose This results in:  Gracefully scaling storage solution  Very low access latency AND high bandwidth  Latency of memory access via network 1-5 μs  Eventually consistent data storage – consistency is sub second © SAP AG 2011. All rights reserved. / Page 14
  • 15. RAMCloud – Stanford University RamCoud ideal for apps with millions of concurrent users that need more complex data structures than key value store e.g. Facebook, Quora, Yelp, etc. Research Questions in the Context of Enterprise Applications What-If Analytics  Ideally, companies want to do what-if analytics on their complete history of transactional data, not on a subset (Think about WalMart or Unilever)  What-if Analytics need high bursts of read AND write access  How can the needed data be modeled and placed in a RAMCloud?  How can the needed data operations be implemented in a scalable way? Transactional Properties  Enterprise applications rely on transactional properties  RAMCloud provides extremely low latency, but only eventually consistent  Are the reduced transaction times sufficient to avoid lock wait times or reduce aborted transactions? © SAP AG 2011. All rights reserved. / Page 15
  • 16. Hybrid In-Memory Store HIRYSE MIT CSAIL and HPI Sam Madden, Philippe Cudre-Mauroux, Jens Krueger, Martin Grund, et al © SAP AG 2011. All rights reserved. / Page 16
  • 17. Hybrid Partitioning for Mixed Workloads OLTP OLAP Row 1 Row 2 Row 3 Row 1 Row 2 Row 3 © SAP AG 2011. All rights reserved. / Page 17 Row Store Column Store Hybrid Store Row 4 Row 4 Doc Num Doc Date Sold- To Value Sales Org Status Doc Num Doc Date Sold- To Value Sales Org Status Row 1 Row 2 Row 3 Row 4 Doc Num Sold- To Doc Date Value Sales Org Status
  • 18. HYRISE Architecture © SAP AG 2011. All rights reserved. / Page 18 ■ Query Processor - chooses the best possible query plan for the hybrid data storage structure ■ Layout Manager - given a workload it performs an evaluation based on a cache miss based cost model and generates the best possible layout ■ Storage Manager - main memory hybrid storage manager capable of vertical partitioning in single relations
  • 19. Cost Model Used to describe the layout dependent costs based on cache misses Combine complex access patterns from simpler ones (scan, lookup,…) Measure  All different access variants to the hybrid storage layer - full projection, partial projection, selection, tuple reconstruction  Different performance parameters - compiler settings, hardware pre-fetcher, … Observe  Combined behavior of all components – look at total workload  Count cache misses using the CPU hardware performance counter Understand  Develop the cost model © SAP AG 2011. All rights reserved. / Page 19
  • 20. Results © SAP AG 2011. All rights reserved. / Page 20
  • 21. Multithreading Real Time Event Platform MIT Auto ID Lab and HPI John Williams, Sergio Herrero, Abel Sanchez, et al © SAP AG 2011. All rights reserved. / Page 21
  • 22. Motivation: Rapid Growth of Events and Messaging Platforms Verizon and T-Mobile: 2-3 days to generate phone bill © SAP AG 2011. All rights reserved. / Page 22 A Comparative Study of Data Storage and Processing Architectures iTunes: 24 hours to generate bill Uninterrupted Growth of online billing systems (Hulu, Netflix…) Dynamic Pricing on SmartGrid requires design of infrastructure capable of ingesting millions of events in quasi-real time Goal: Design a multi-threaded system that produces the electricity consumption bill of a city of 1M households 8 hours  seconds
  • 23. Smart Meter Reading Problem Users © SAP AG 2011. All rights reserved. / Page 23 Energy Producers Data Generation Data Persistence Data Processing
  • 24. Multithreaded Simulator for Smart Meter Management Layer Generation Layer Consumption Layer © SAP AG 2011. All rights reserved. / Page 24 Storage Layer Meter Read Generators Head Ends Simulation Manager Query Client Query Client Query Client MDUS Meter Data Unification System DRYAD HADOOPDB SAP HANA Web Service Interfaces Web Service Interfaces
  • 25. Conclusion Platform that handles billions of events/day AND large numbers of threads on one machine (> 1 million), e.g. Siemens 500k events/s RDBMS (used by today’s MDUS vendors) provides good query performance but does not scale to millions of households (8 h) Distributed File System (DFS): Provides the scalability, reliability & insert performance necessary for the storage of Smart Meter Reader data Using Map Reduce on top of a DFS (HDFS or CEPH) is good for batch processing systems Loading data from DFS and executing queries in-memory using HANA provides very good performance results for real time queries  RAPTOR Prototype for SmartGrid allowing to ingest smart meter data in real time, do dynamic pricing (4 buckets), store in DFS & do real time analytics © SAP AG 2011. All rights reserved. / Page 25 A Comparative Study of Data Storage and Processing Architectures Bill for 1 M households in seconds
  • 26. Sense • Collect current conditions at fine grain in real time Analyze • Access real-time data – analyze data, learn, build models Actuate • Control (soft, hard, persuasive, personal) ELECTRONIC NERVOUS SYSTEM Analytical Approach Inductive Approach No Data Complete Data No Prior Knowledge Perfect Knowledge Data Knowledge 2        2 1 exp 2 i i x y        X1 -1 Y1 0.02540487 X2 -0.9 Y2 0.02779527 X3 -0.8 Y3 0.03010825 X4 -0.7 Y4 0.03228947 X5 -0.6 Y5 0.03428442 .. .. .. .. . . . . GPS SIM Card
