MySQL Query Tuning for the Squeemish -- Fossetcon Orlando Sep 2014

MMyySSQQLL QQuueerryy TTuunniinngg
FFoorr tthhee SSqquueeeemmiisshh
David.Stokes@Oracle.com
@stoker

Copyright © 2014 Dave Stokes 2
MySQL Optimizer
● The MySQL Cost Based
Optimizer wants to optimize
each query, every time.
Query plans can not be
locked in as with Oracle.
● Cost is/was based on disk
I/O
● FusionIO, hybrid drives
changing cost paradigm
– Cost when cost = 0?!?
● Checks Syntax
● Guesstimates costs, looks
for cheapest way to do
things
● May not be the best way
● How good are your
statistics? When was your
last ANALYSE TABLE?
– Need to run to update
stats

Logging – find slow queries
Log slow queries (time configurable) and queries
w/o indexes.
MySQL 5.7 allows levels of verbosity.
PERFORMANCE_SCHEMA,
INFORMATION_SCEMA has tons of useful data.

Chapter 8 of the MySQL Manual
● All about optimization
● EXPLAIN
MySQL 5.6.3 and later permits explainable statements for EXPLAIN are
SELECT, DELETE, INSERT, REPLACE, and UPDATE. Before MySQL
5.6.3, SELECT is the only explainable statement.
● Many developers have been trained in their language of
choice, JavaScript, JSON/REST, etc. but very, very few
have any SQL training. And many try to use ORMs to
make up for their rotten SQL skills or try to force NoSQL
technologies for relational data.

Please note

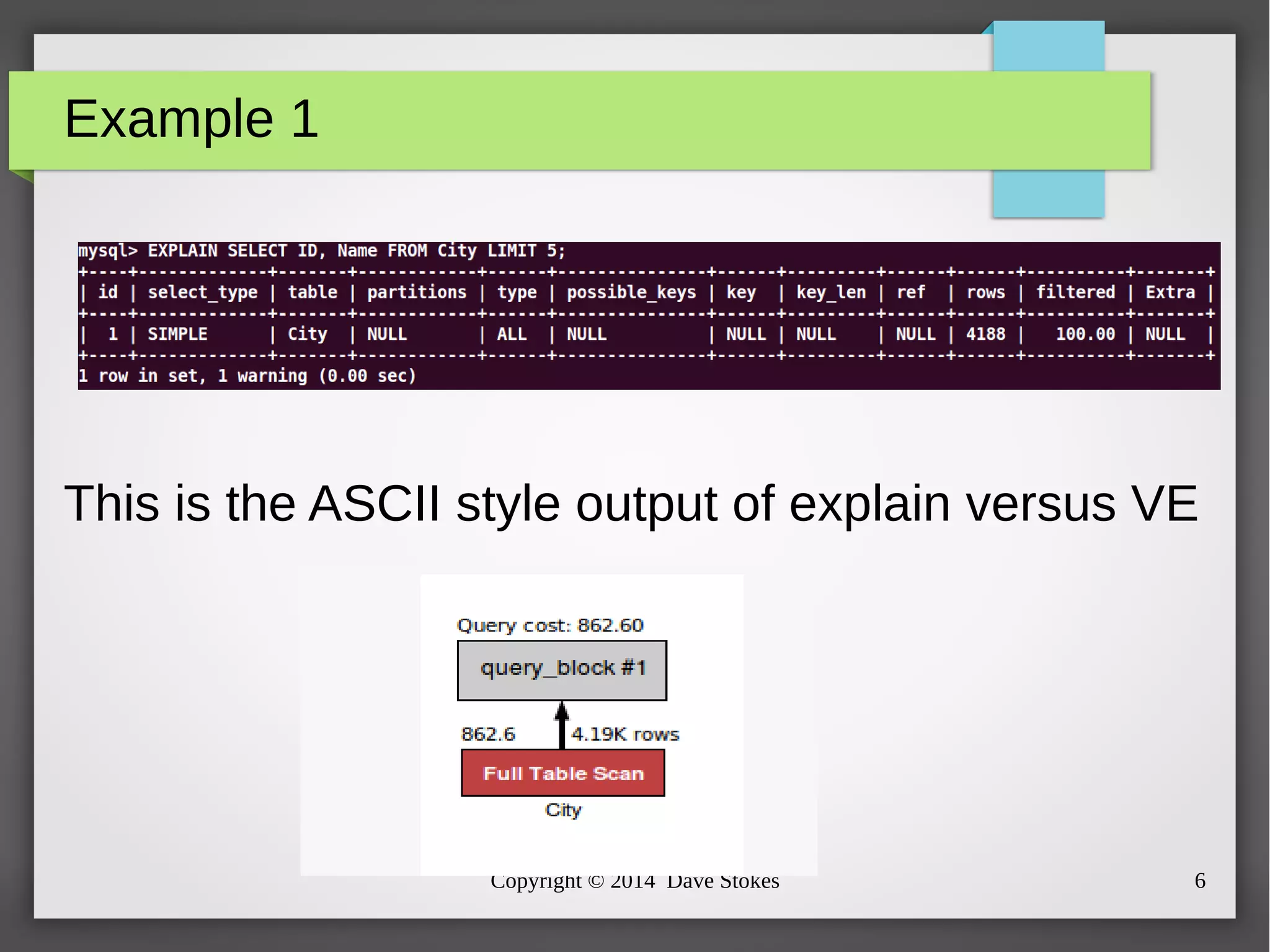

Example 1
This is the ASCII style output of explain versus VE

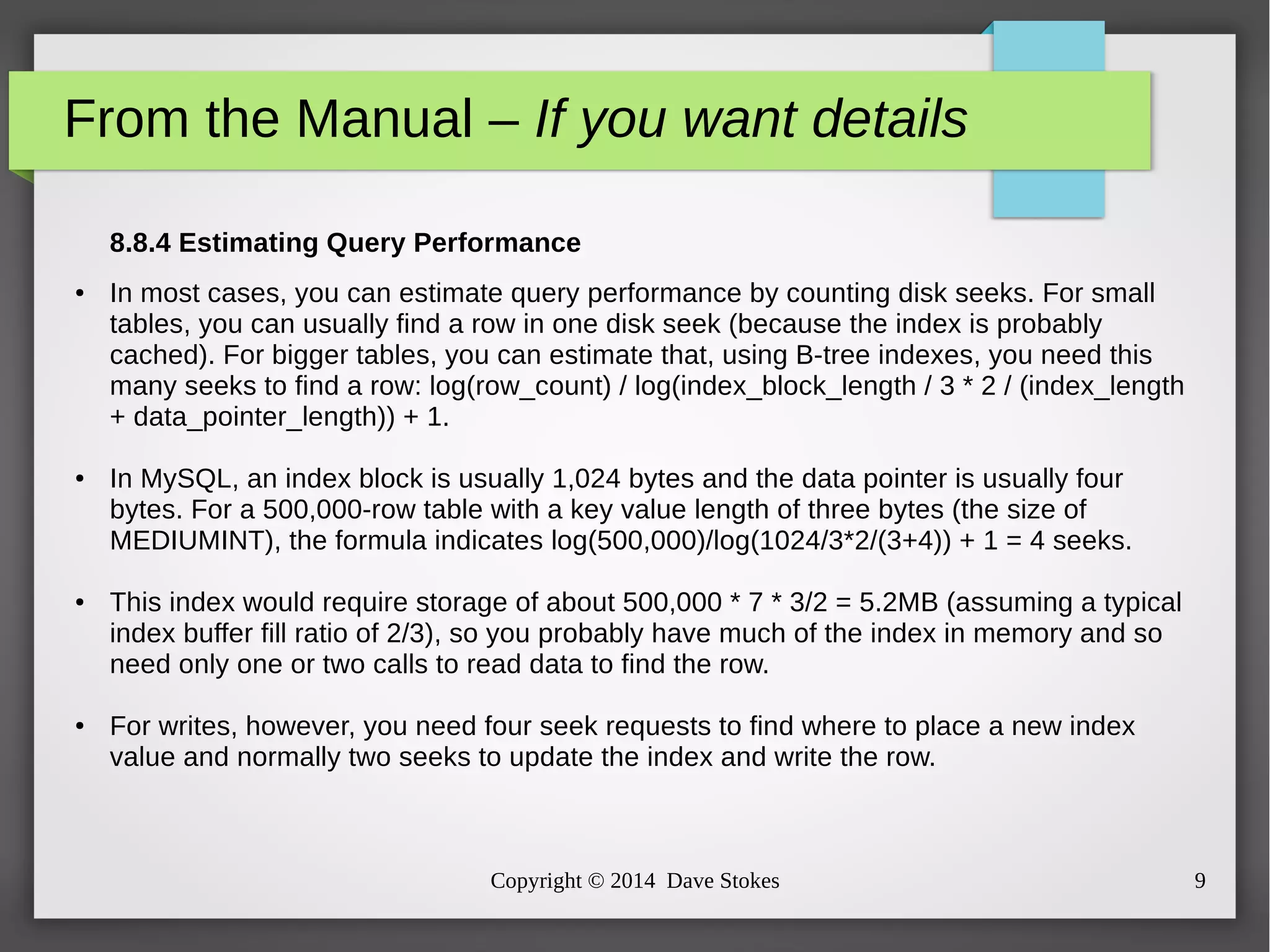

From the Manual – If you want details
8.8.4 Estimating Query Performance
● In most cases, you can estimate query performance by counting disk seeks. For small
tables, you can usually find a row in one disk seek (because the index is probably
cached). For bigger tables, you can estimate that, using B-tree indexes, you need this
many seeks to find a row: log(row_count) / log(index_block_length / 3 * 2 / (index_length
+ data_pointer_length)) + 1.
● In MySQL, an index block is usually 1,024 bytes and the data pointer is usually four
bytes. For a 500,000-row table with a key value length of three bytes (the size of
MEDIUMINT), the formula indicates log(500,000)/log(1024/3*2/(3+4)) + 1 = 4 seeks.
● This index would require storage of about 500,000 * 7 * 3/2 = 5.2MB (assuming a typical
index buffer fill ratio of 2/3), so you probably have much of the index in memory and so
need only one or two calls to read data to find the row.
● For writes, however, you need four seek requests to find where to place a new index
value and normally two seeks to update the index and write the row.

Previous slide in simpler terms
● Use smallest data type possible. No BIGINT for age or
customer id numbers
– Are you really going to live to
18,446,744,073,709,551,615?
– Use PROCEDUE ANALYSE to find optimal size/type
● Wasted space is moved from disk to memory, memoery to
buffer, buffer to network, network to buffer, and/or buffer to
disk
– Reading off disk 100,000 slower than memory

From the Manual – If you want details
8.8.4 Estimating Query Performance
● In most cases, you can estimate query performance by counting disk seeks. For small
tables, you can usually find a row in one disk seek (because the index is probably
cached). For bigger tables, you can estimate that, using B-tree indexes, you need this
many seeks to find a row: log(row_count) / log(index_block_length / 3 * 2 / (index_length
+ data_pointer_length)) + 1.
● In MySQL, an index block is usually 1,024 bytes and the data pointer is usually four
bytes. For a 500,000-row table with a key value length of three bytes (the size of
MEDIUMINT), the formula indicates log(500,000)/log(1024/3*2/(3+4)) + 1 = 4 seeks.
● This index would require storage of about 500,000 * 7 * 3/2 = 5.2MB (assuming a typical
index buffer fill ratio of 2/3), so you probably have much of the index in memory and so
need only one or two calls to read data to find the row.
● For writes, however, you need four seek requests to find where to place a new index
value and normally two seeks to update the index and write the row.

Chapter 8 is a treasure
trove of information.

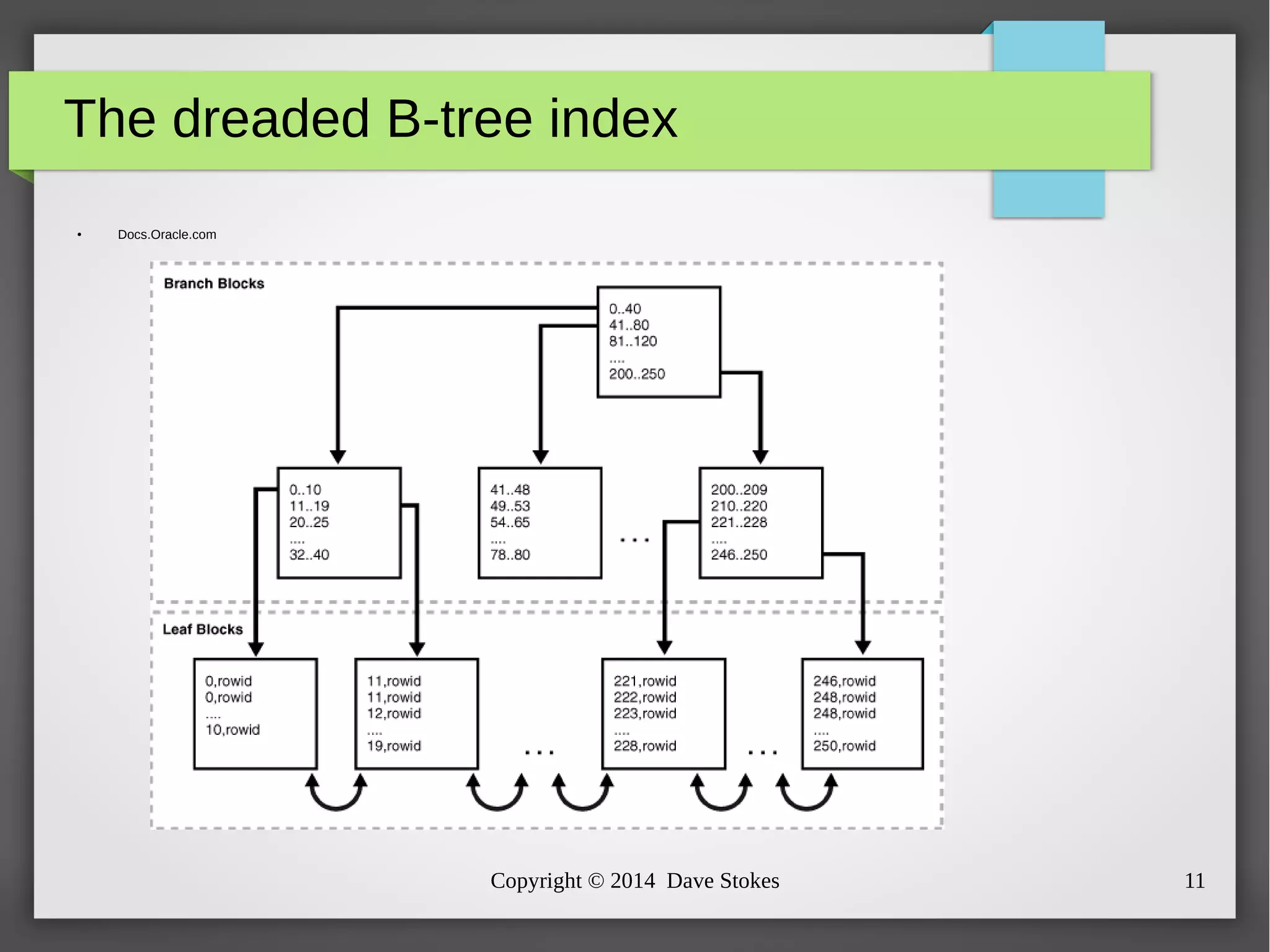

The dreaded B-tree index
● Docs.Oracle.com

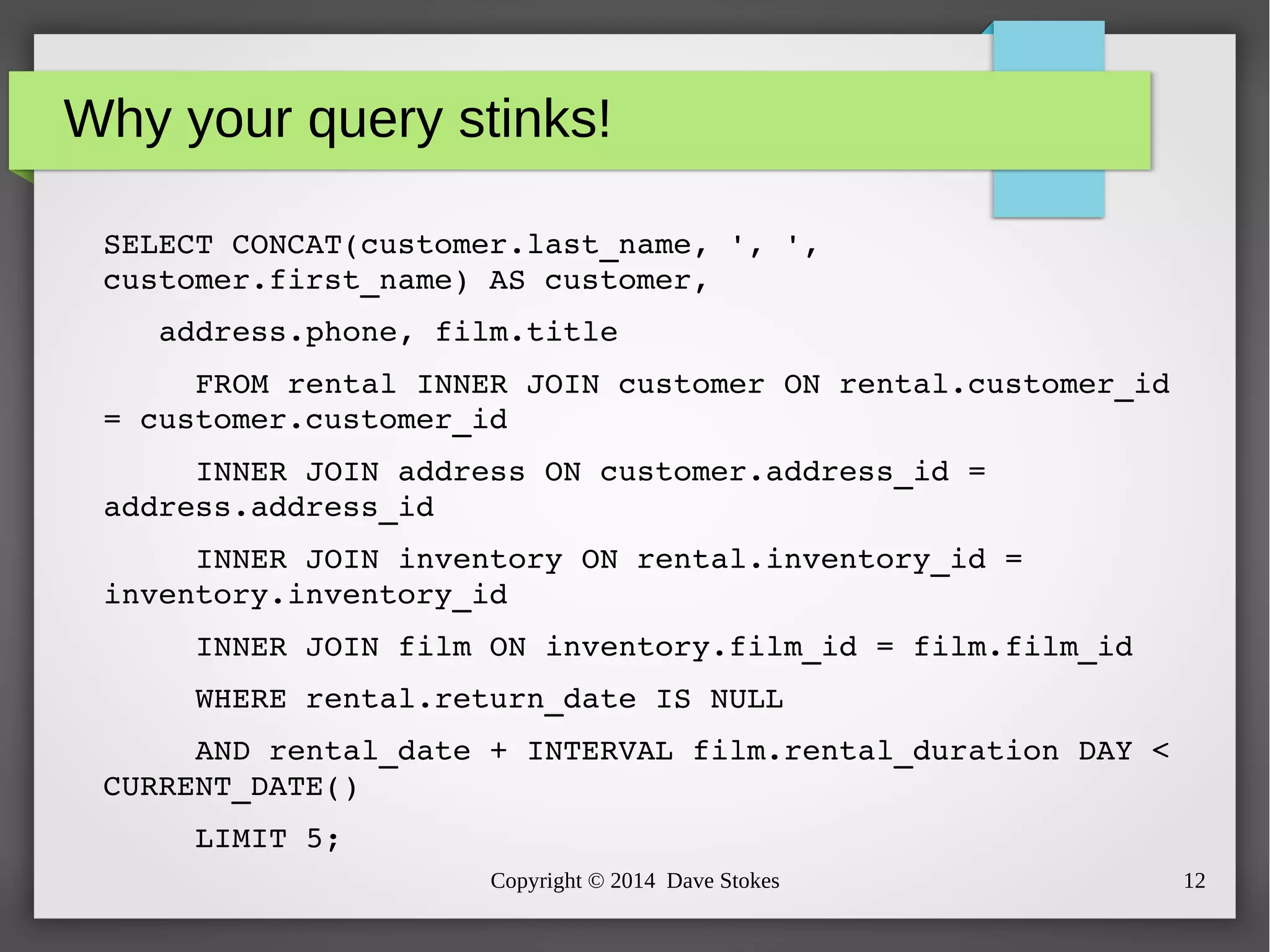

Why your query stinks!
SELECT CONCAT(customer.last_name, ', ',
customer.first_name) AS customer,
address.phone, film.title
FROM rental INNER JOIN customer ON rental.customer_id
= customer.customer_id
INNER JOIN address ON customer.address_id =
address.address_id
INNER JOIN inventory ON rental.inventory_id =
inventory.inventory_id
INNER JOIN film ON inventory.film_id = film.film_id
WHERE rental.return_date IS NULL
AND rental_date + INTERVAL film.rental_duration DAY <
CURRENT_DATE()
LIMIT 5;

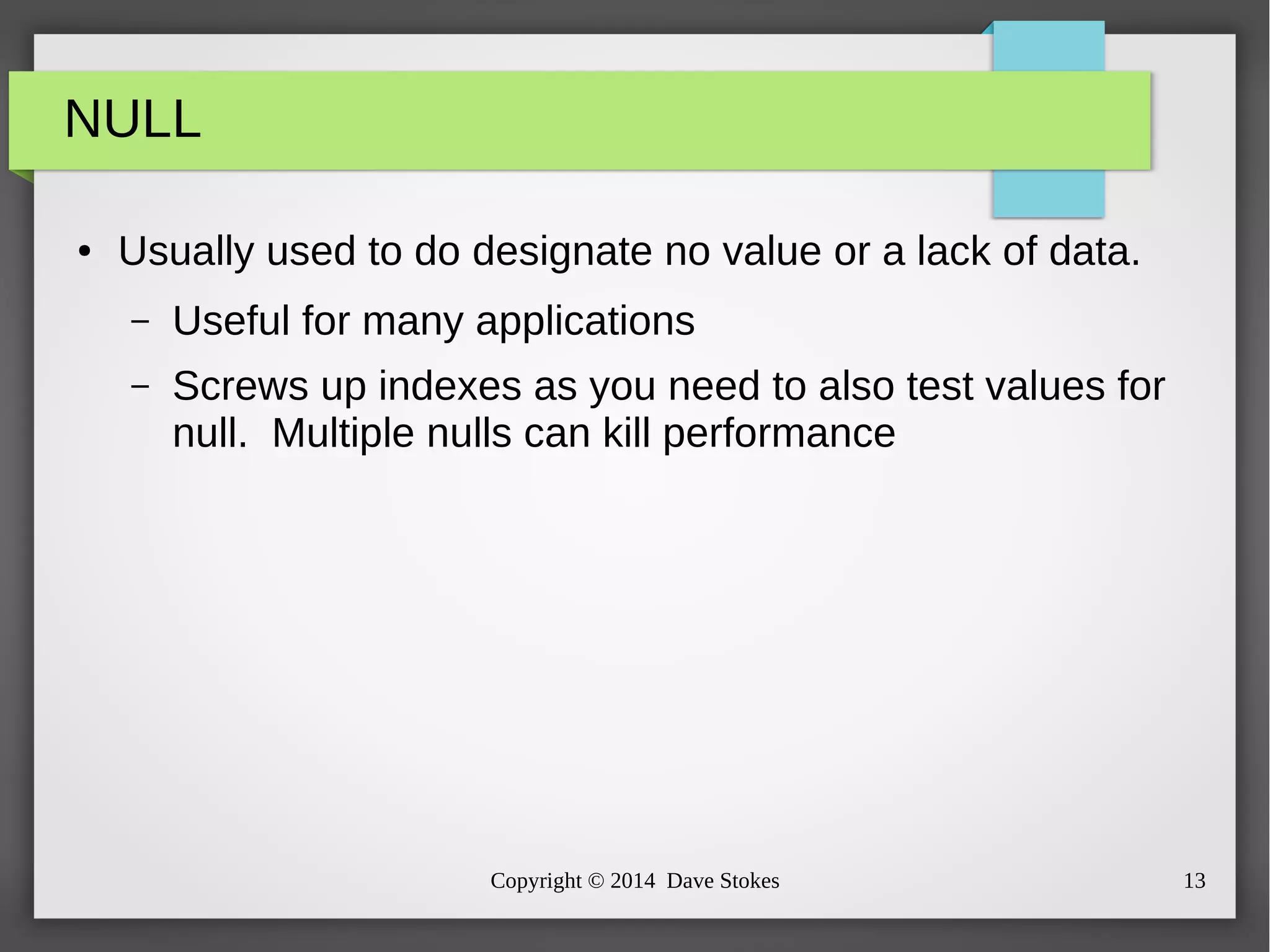

NULL
● Usually used to do designate no value or a lack of data.
– Useful for many applications
– Screws up indexes as you need to also test values for
null. Multiple nulls can kill performance

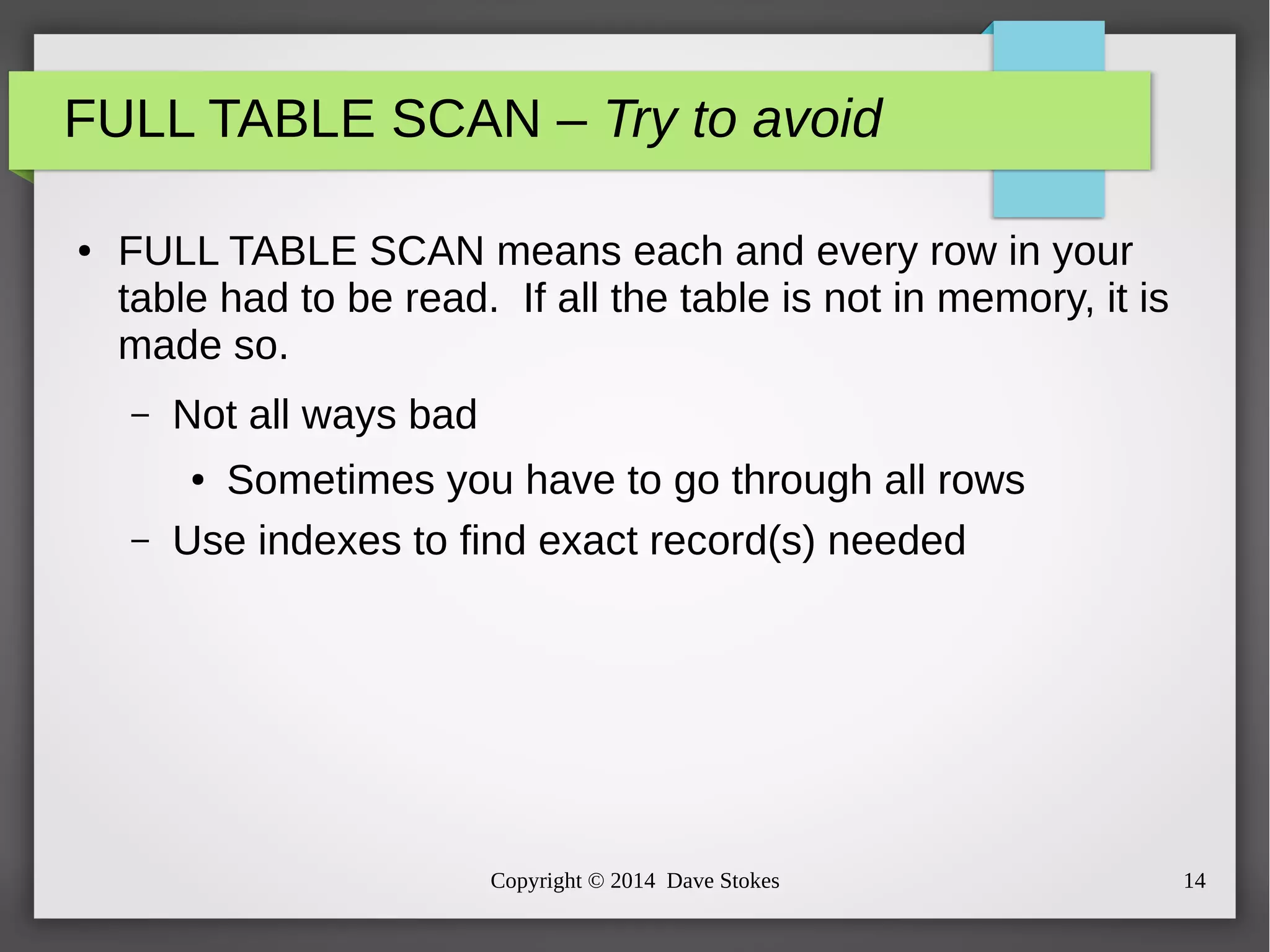

FULL TABLE SCAN – Try to avoid
● FULL TABLE SCAN means each and every row in your
table had to be read. If all the table is not in memory, it is
made so.
– Not all ways bad
● Sometimes you have to go through all rows
– Use indexes to find exact record(s) needed

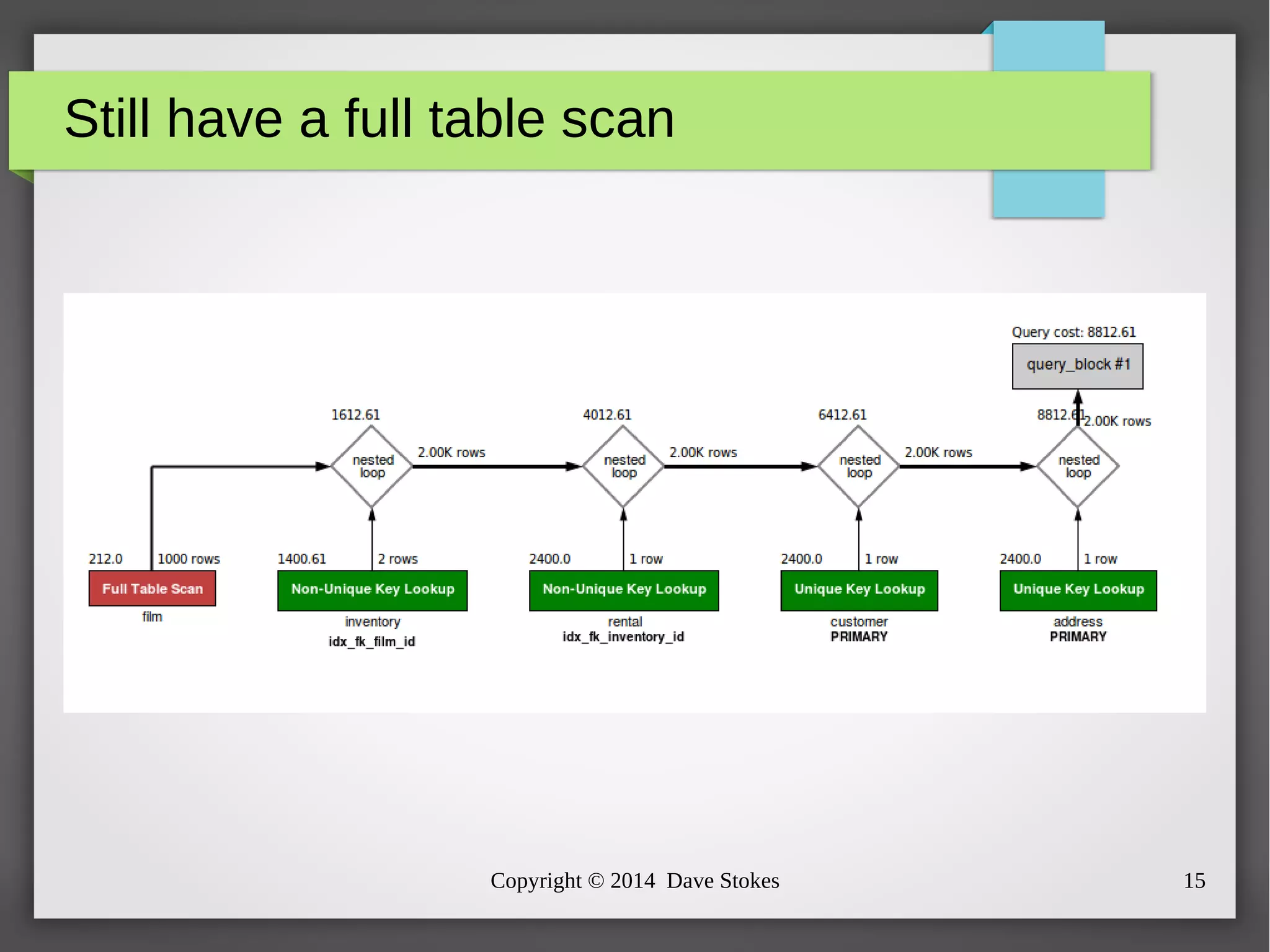

Still have a full table scan

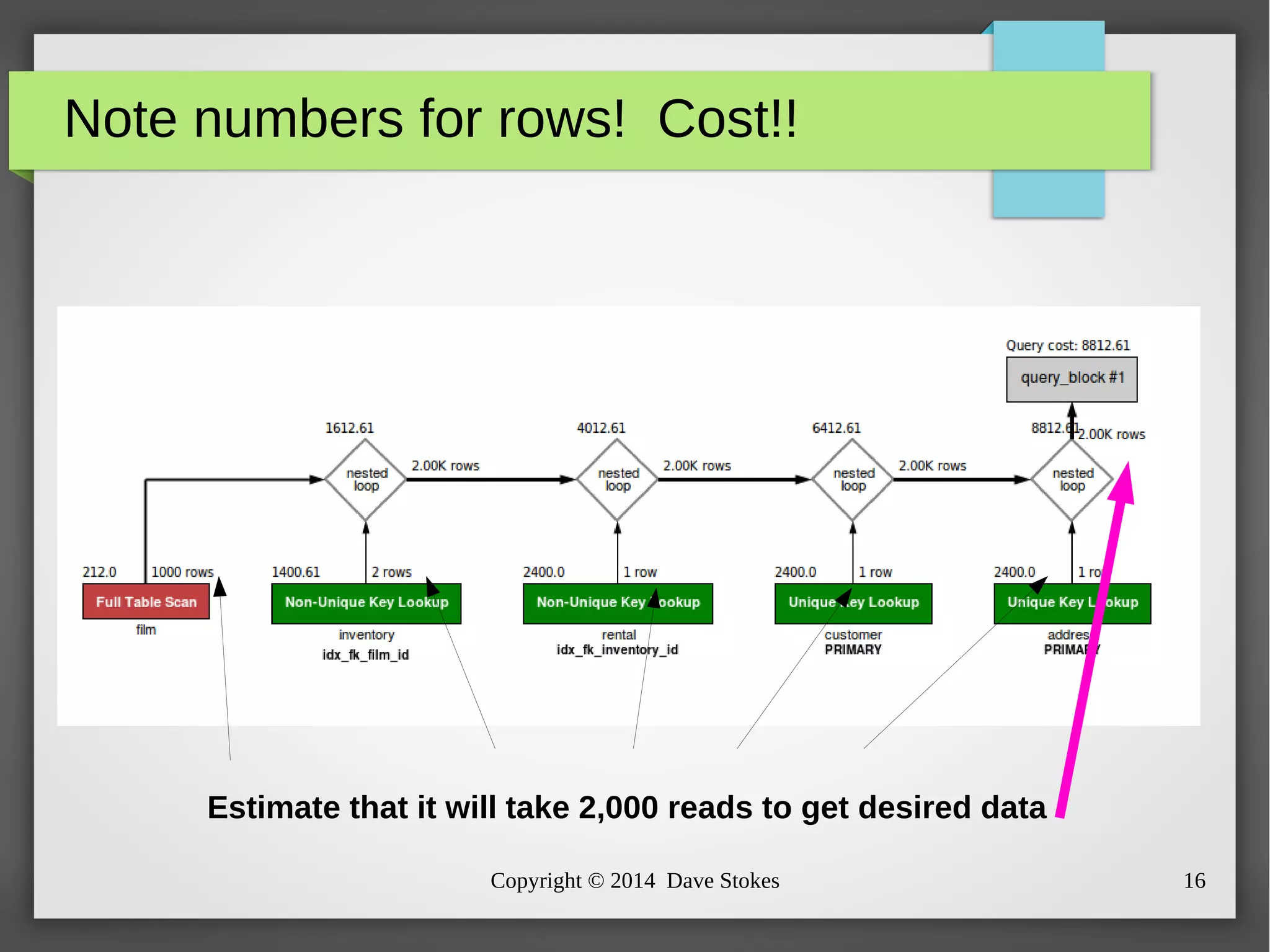

Note numbers for rows! Cost!!
Estimate that it will take 2,000 reads to get desired data

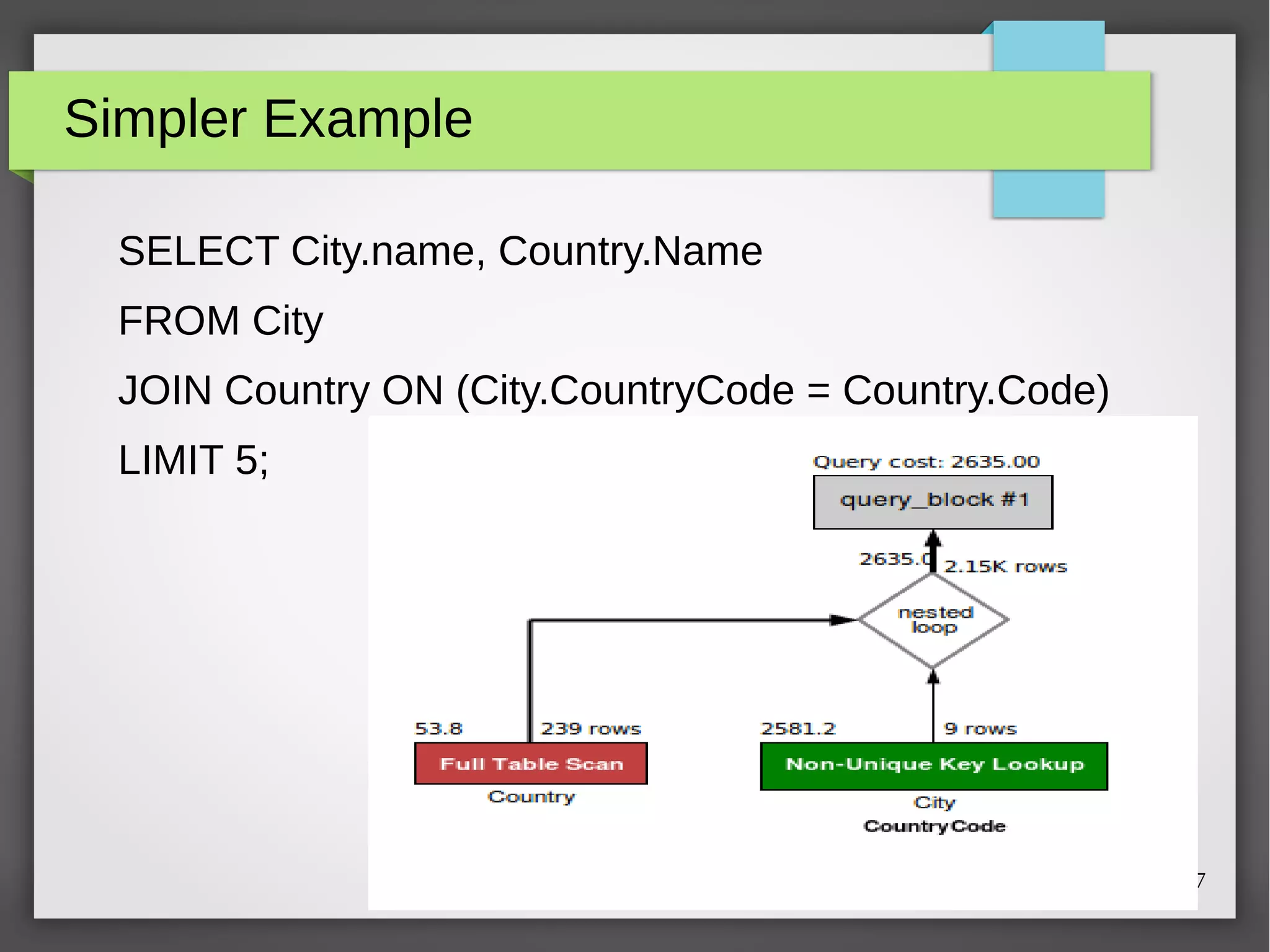

Simpler Example
SELECT City.name, Country.Name
FROM City
JOIN Country ON (City.CountryCode = Country.Code)
LIMIT 5;

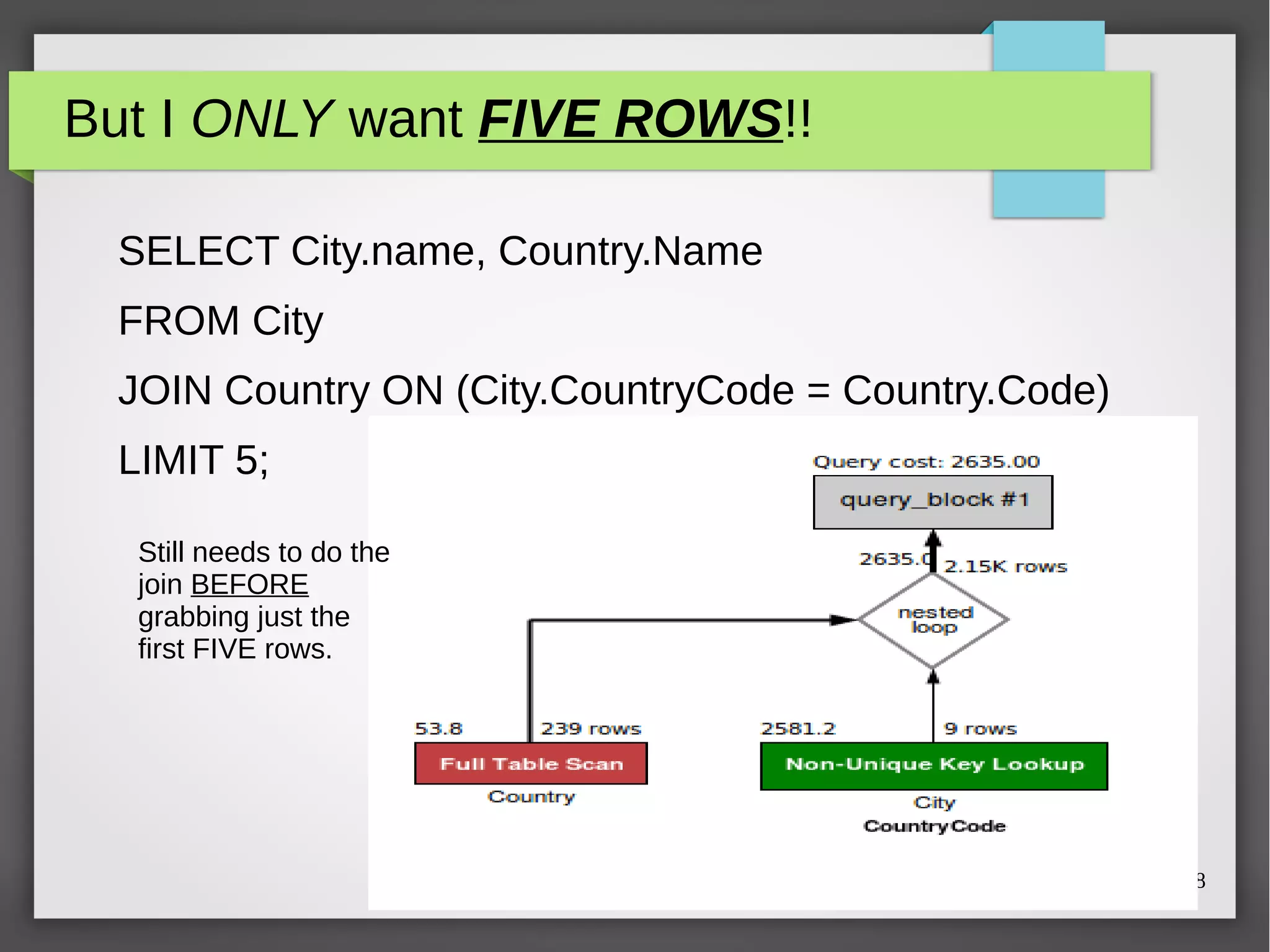

But I ONLY want FIVE ROWS!!
FROM City
LIMIT 5;
Still needs to do the
join BEFORE
grabbing just the
first FIVE rows.

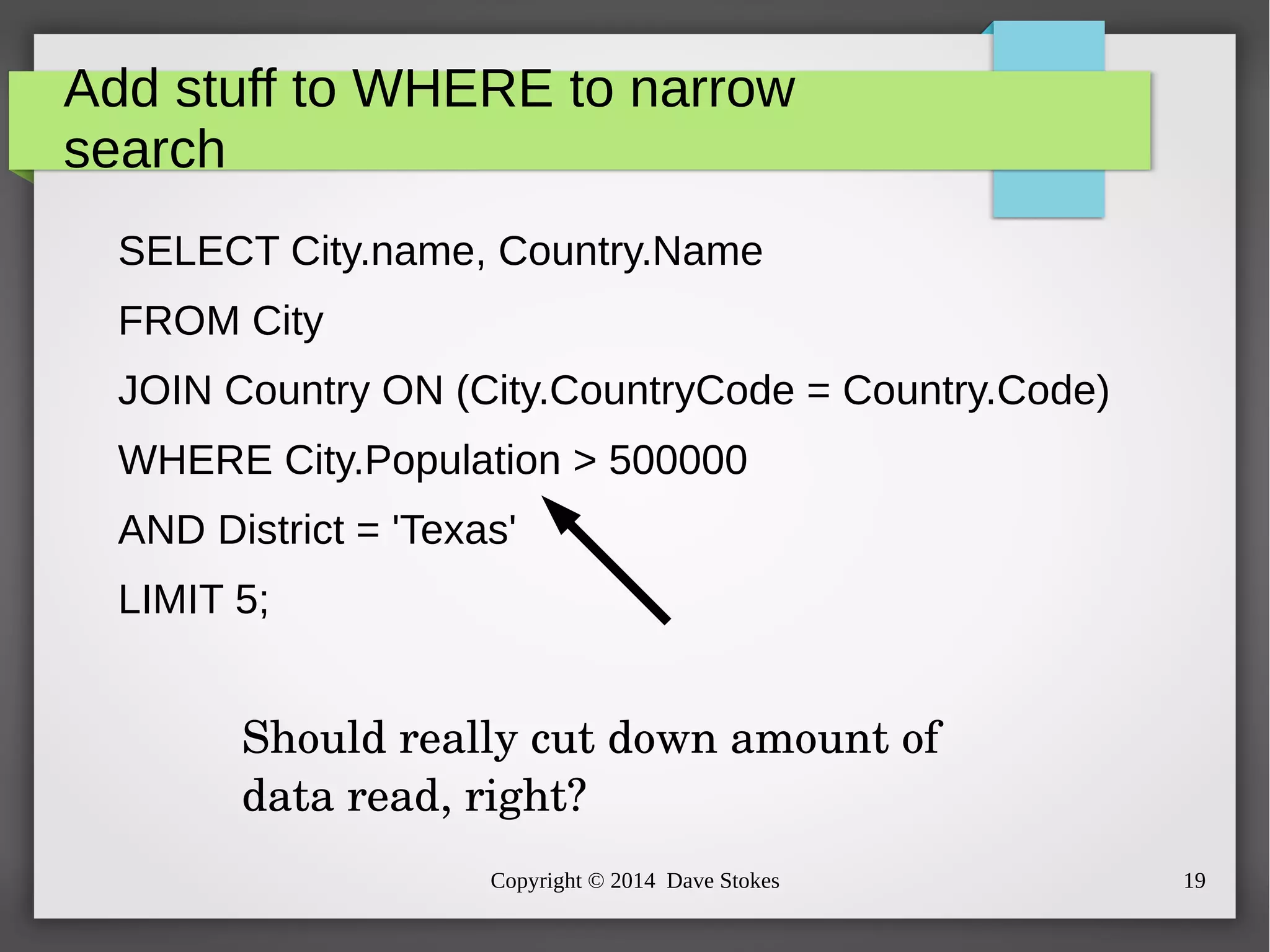

Add stuff to WHERE to narrow
search
FROM City
WHERE City.Population > 500000
AND District = 'Texas'
LIMIT 5;
Should really cut down amount of
data read, right?

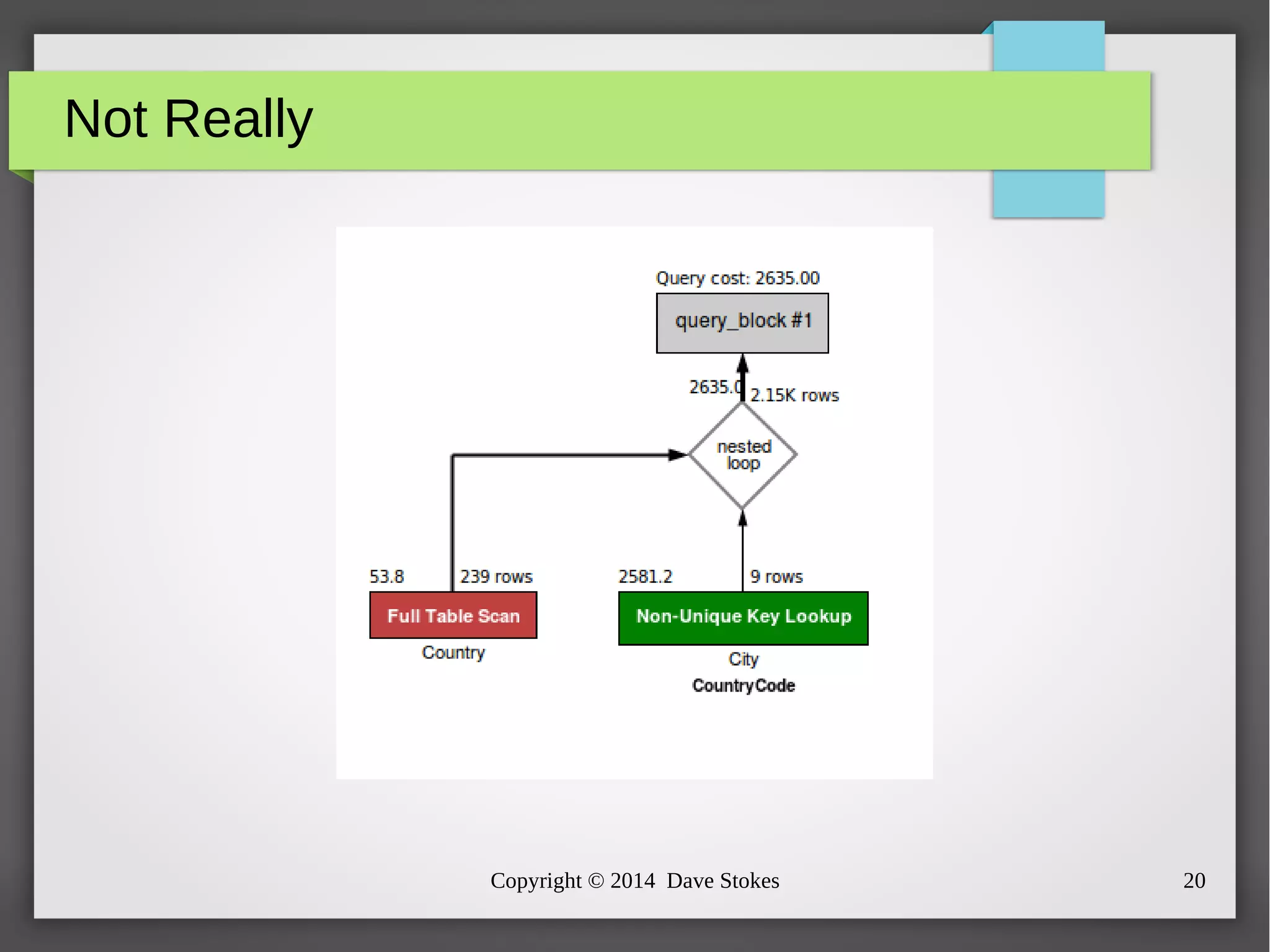

Not Really

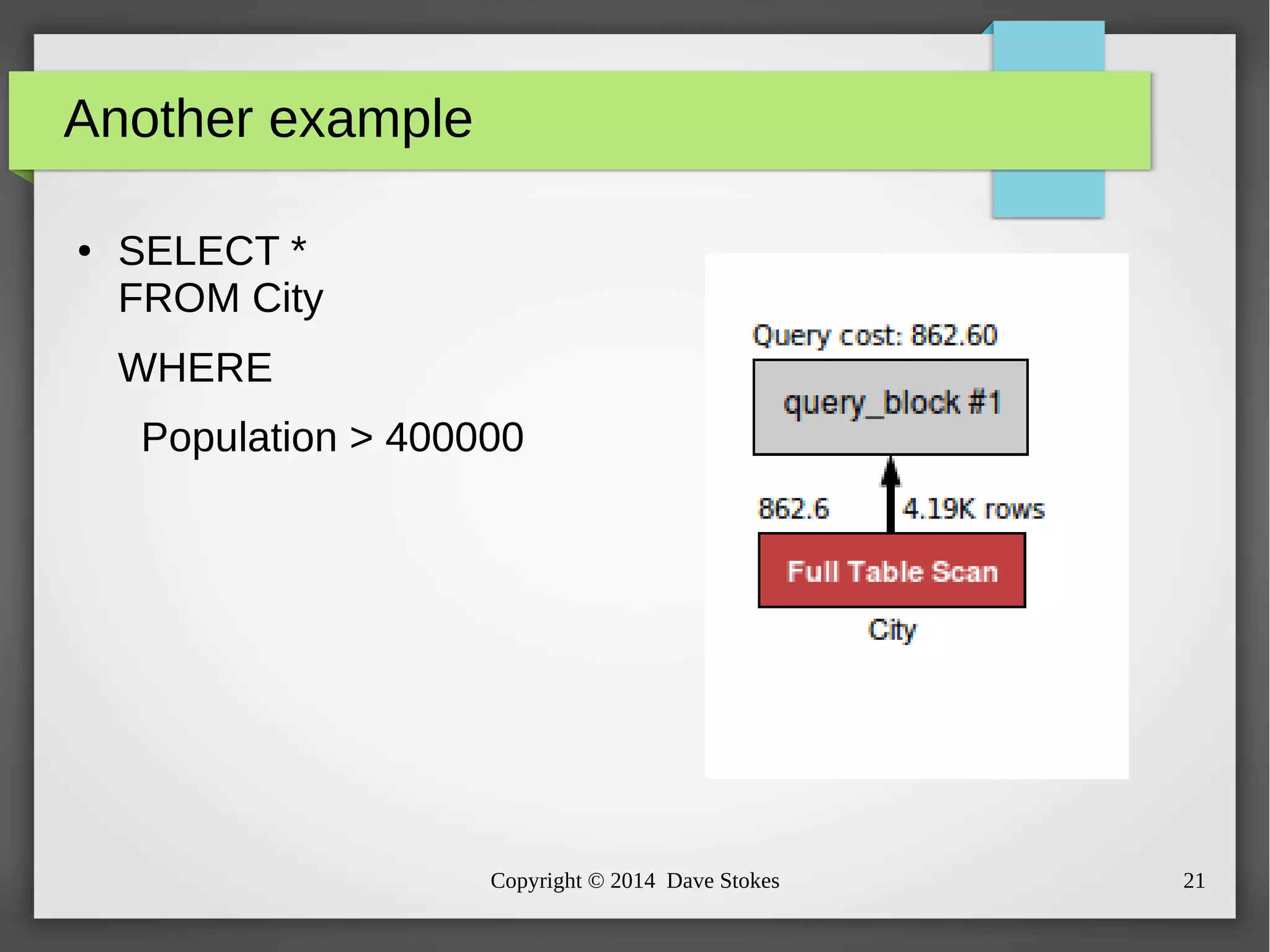

Another example
● SELECT *
FROM City
WHERE
Population > 400000

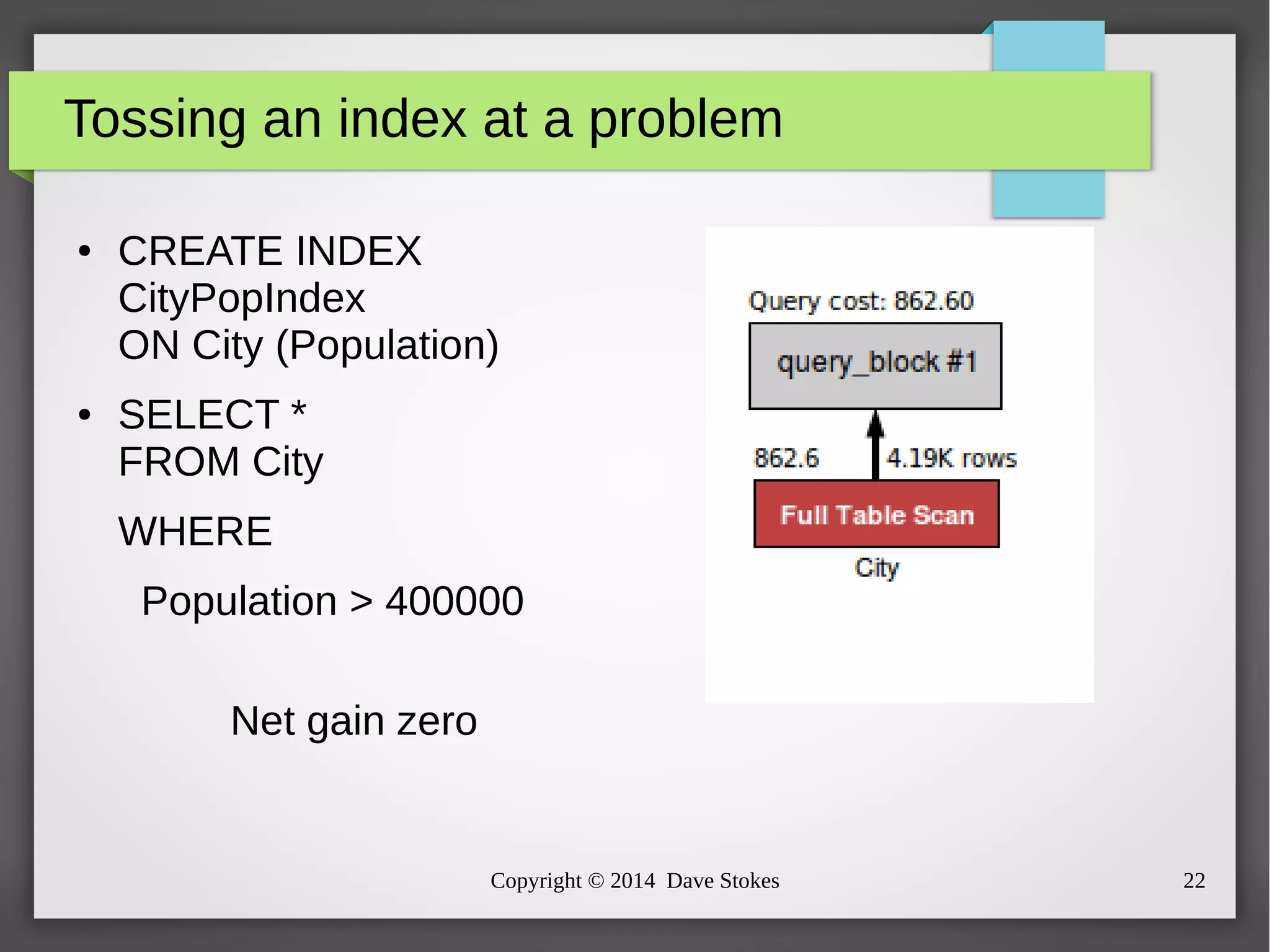

Tossing an index at a problem
● CREATE INDEX
CityPopIndex
ON City (Population)
● SELECT *
FROM City
WHERE
Population > 400000
Net gain zero

● Optimizer did not use our
new index!!

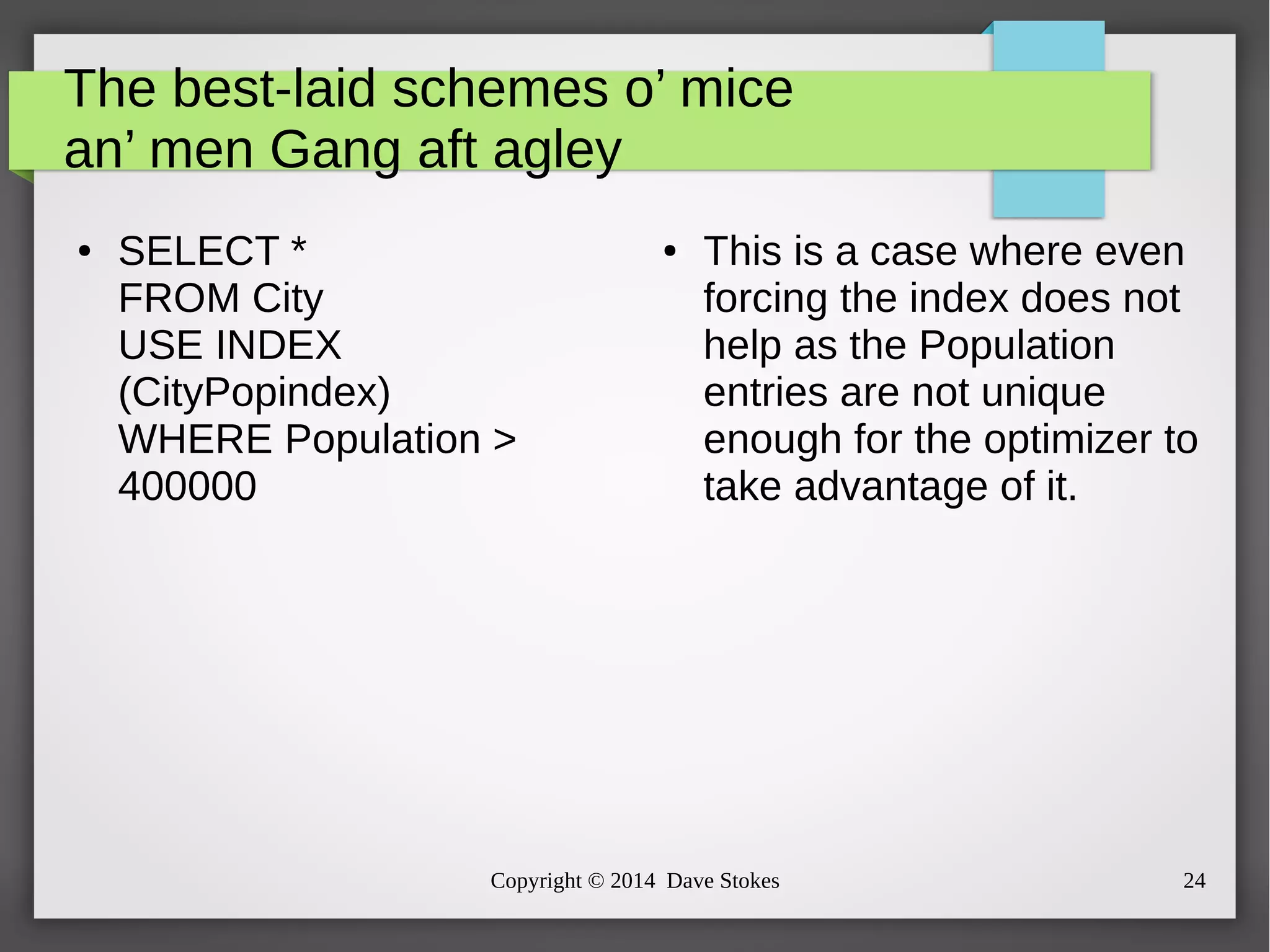

The best-laid schemes o’ mice
an’ men Gang aft agley
● SELECT *
FROM City
USE INDEX
(CityPopindex)
WHERE Population >
400000
● This is a case where even
forcing the index does not
help as the Population
entries are not unique
enough for the optimizer to
take advantage of it.

Another example
● SELECT Name
FROM City
WHERE
CountryCode = 'USA'
● 274 rows in world.City
have USA as the
CountryCode, better than
4K total records in a FULL
TABLE SCAN

Using a Join
● SELECT City.Name,
Country.name
FROM City
Join Country ON
(Country.code =
City.CountryCode)
WHERE Country.Population
> 4000000
AND
City.CountryCode='USA'

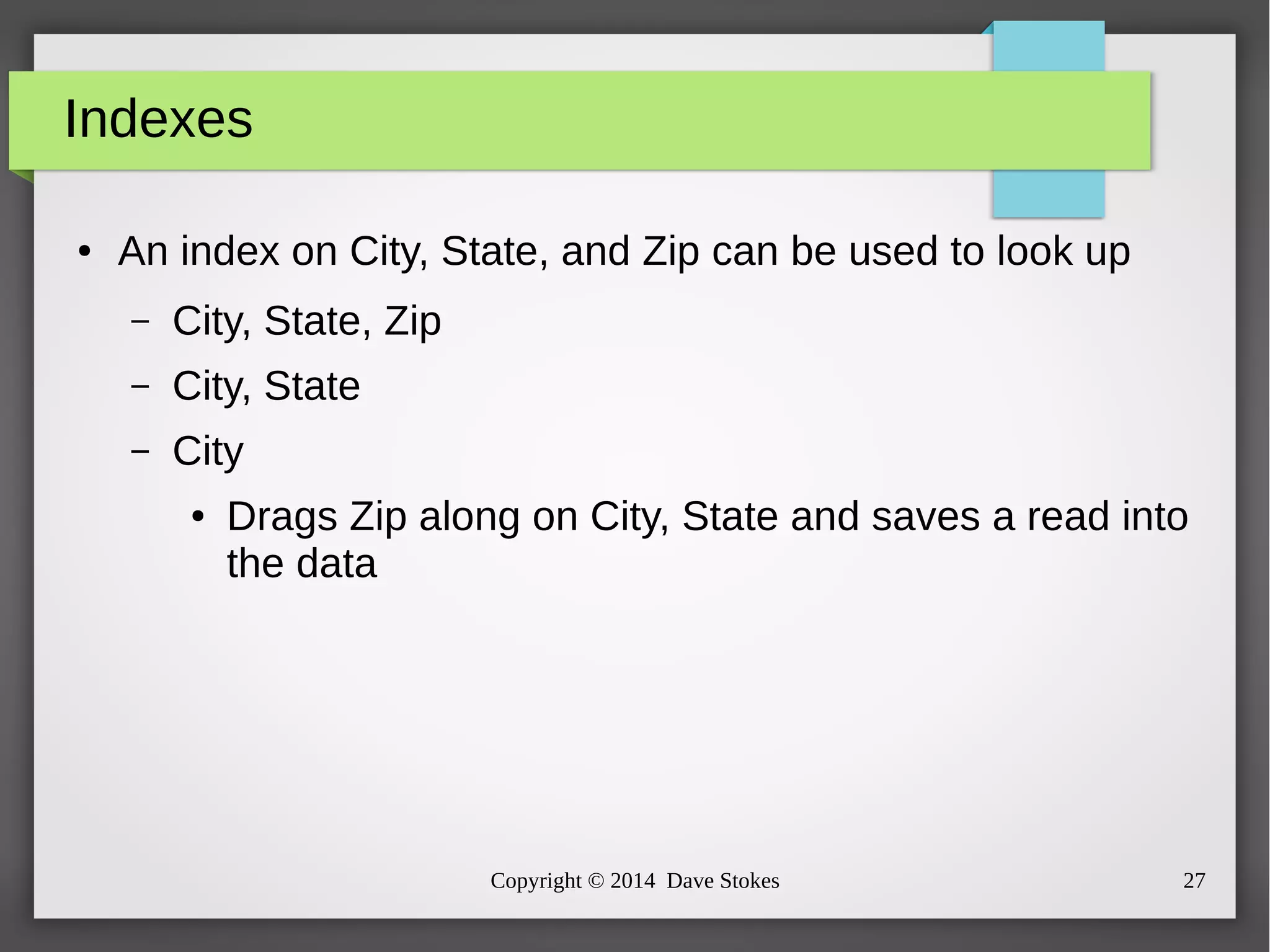

Indexes
● An index on City, State, and Zip can be used to look up
– City, State, Zip
– City, State
– City
● Drags Zip along on City, State and saves a read into
the data

Add a table for zipcodes
SHOW CREATE TABLE zipcodesG
Table: zipcodes
Create Table: CREATE TABLE `zipcodes` (
`zip` varchar(5) NOT NULL,
`type` char(10) DEFAULT NULL,
`primary_city` varchar(25) DEFAULT NULL,
àccceptable_cities` varchar(50) DEFAULT
NULL,
ùnacceptable_city` varchar(50) DEFAULT
NULL,
`state` char(2) DEFAULT NULL,
`county` varchar(30) DEFAULT NULL,
`tz` char(50) DEFAULT NULL,
àrea_code` varchar(20) DEFAULT NULL,
`latitude` decimal(5,0) DEFAULT NULL,
`longitude` decimal(5,0) DEFAULT NULL,
`world_region` char(4) DEFAULT NULL,
`country` char(2) DEFAULT NULL,
`decomissioned` int(2) DEFAULT NULL,
èst_population` int(10) unsigned
DEFAULT NULL,
`notes` char(20) DEFAULT NULL,
PRIMARY KEY (`zip`),
) ENGINE=InnoDB
DEFAULT CHARSET=latin1

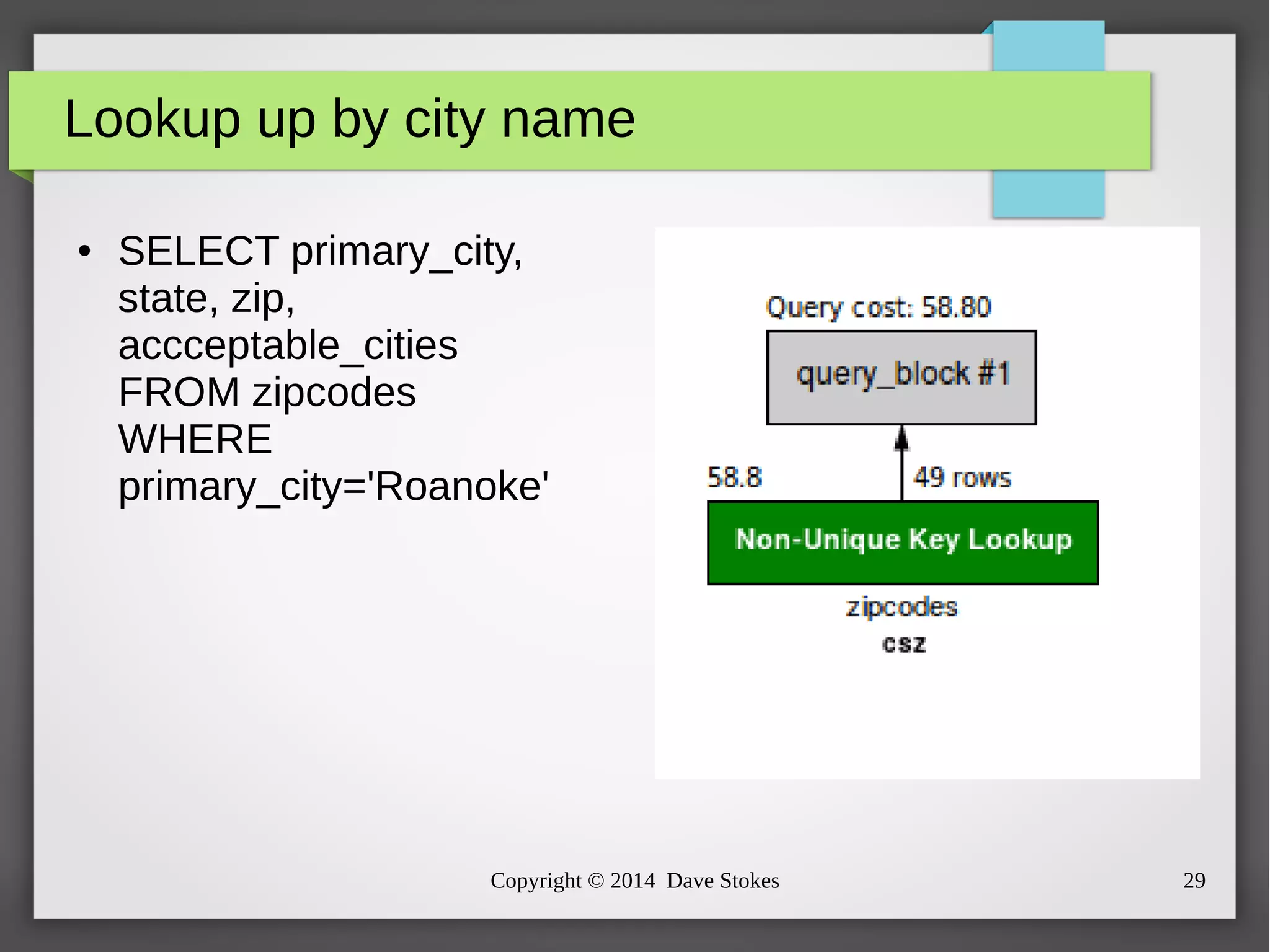

Lookup up by city name
● SELECT primary_city,
state, zip,
accceptable_cities
FROM zipcodes
WHERE
primary_city='Roanoke'

Two factors
SELECT primary_city, state, zip,
accceptable_cities
FROM zipcodes
WHERE primary_city='Roanoke'
AND
state='TX'

What is we specify all three items?
● SELECT primary_city, state,
zip, accceptable_cities
FROM
zipcodes
WHERE
primary_city='Roanoke'
AND
state='TX'
AND
zip='76262'
Optimizer is smart
enough to figure that
PRIMARY key gives
all we need the
cheapest

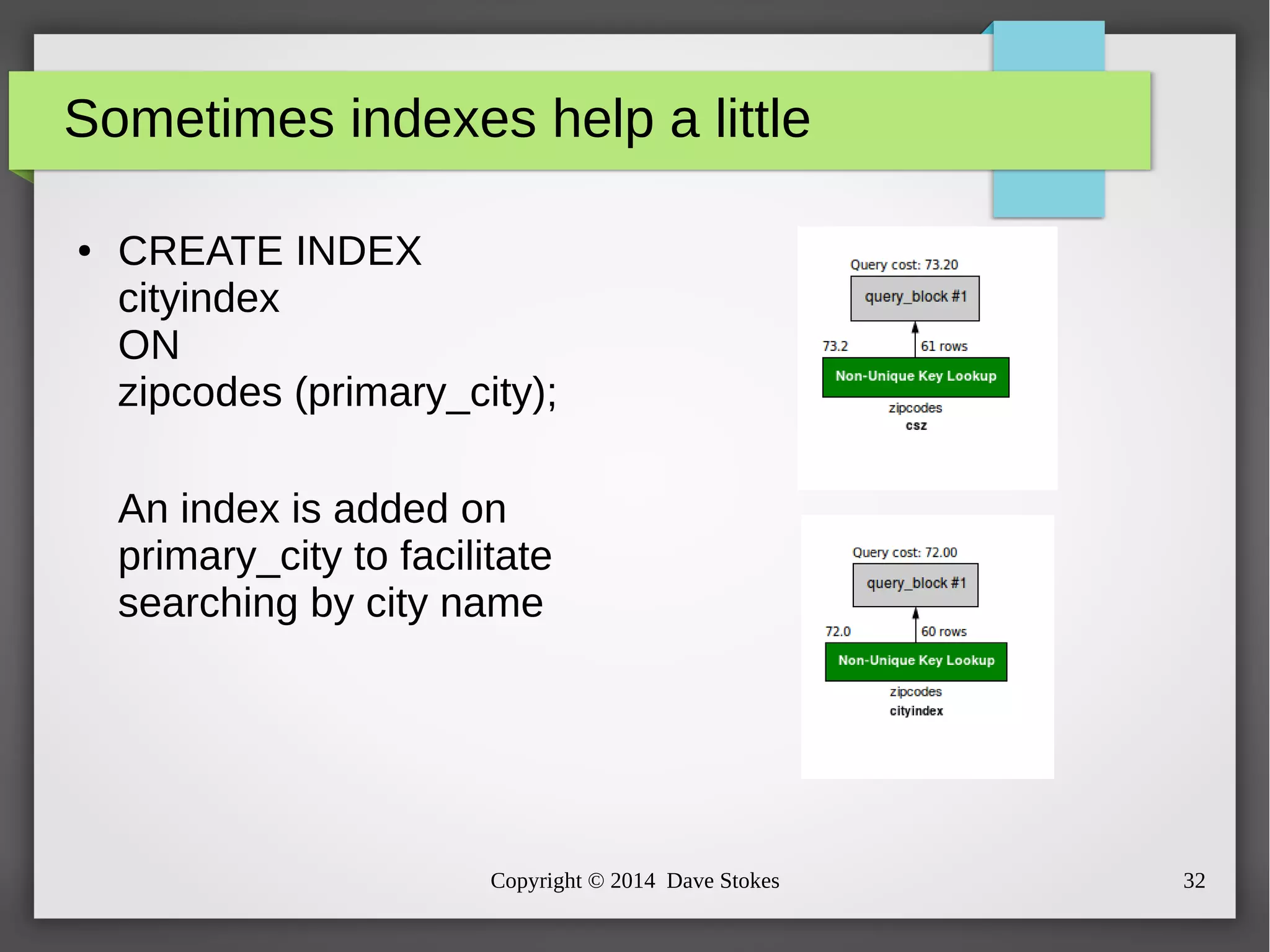

Sometimes indexes help a little
● CREATE INDEX
cityindex
ON
zipcodes (primary_city);
An index is added on
primary_city to facilitate
searching by city name

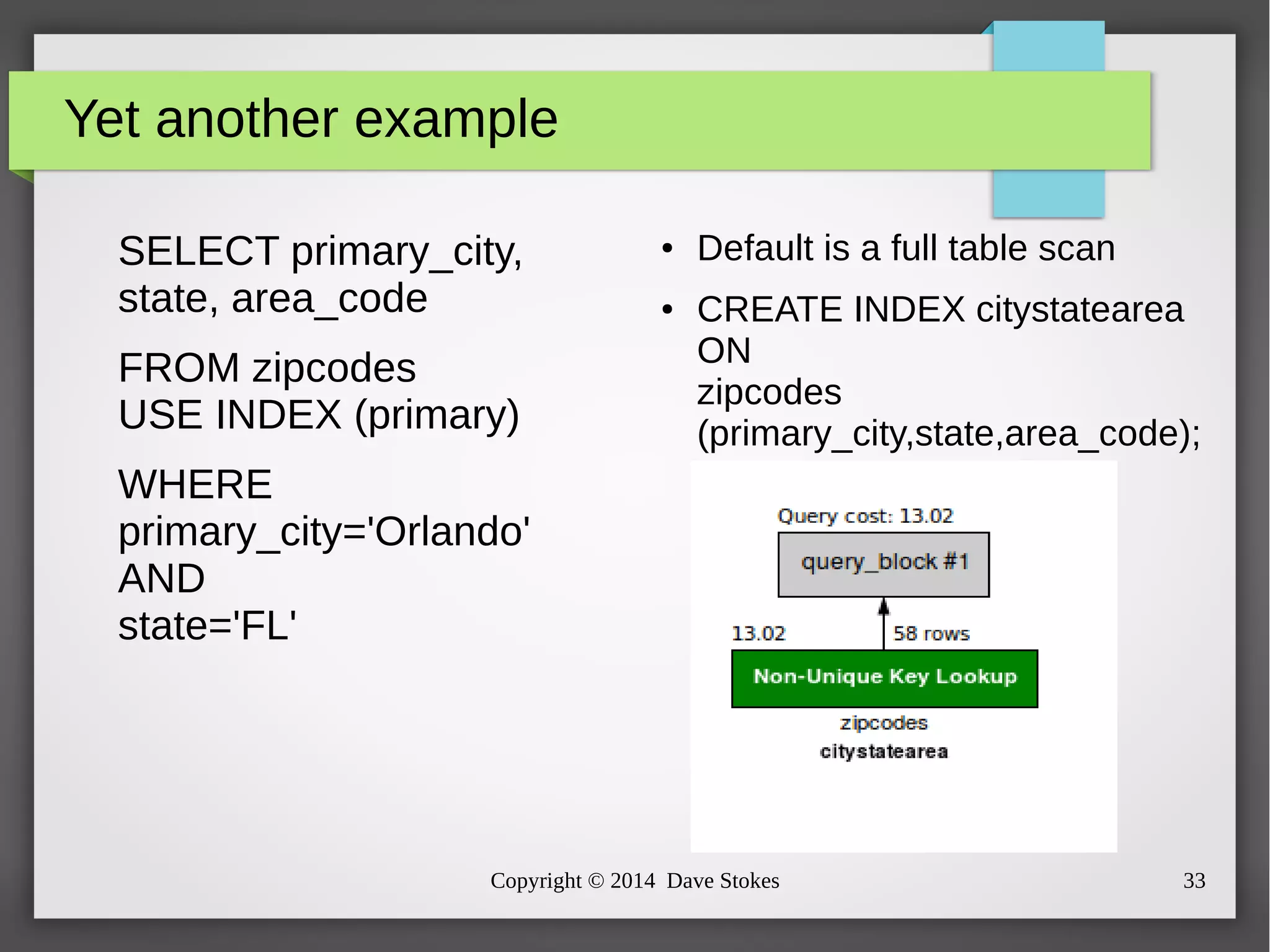

Yet another example
SELECT primary_city,
state, area_code
FROM zipcodes
USE INDEX (primary)
WHERE
primary_city='Orlando'
AND
state='FL'
● Default is a full table scan
● CREATE INDEX citystatearea
ON
zipcodes
(primary_city,state,area_code);

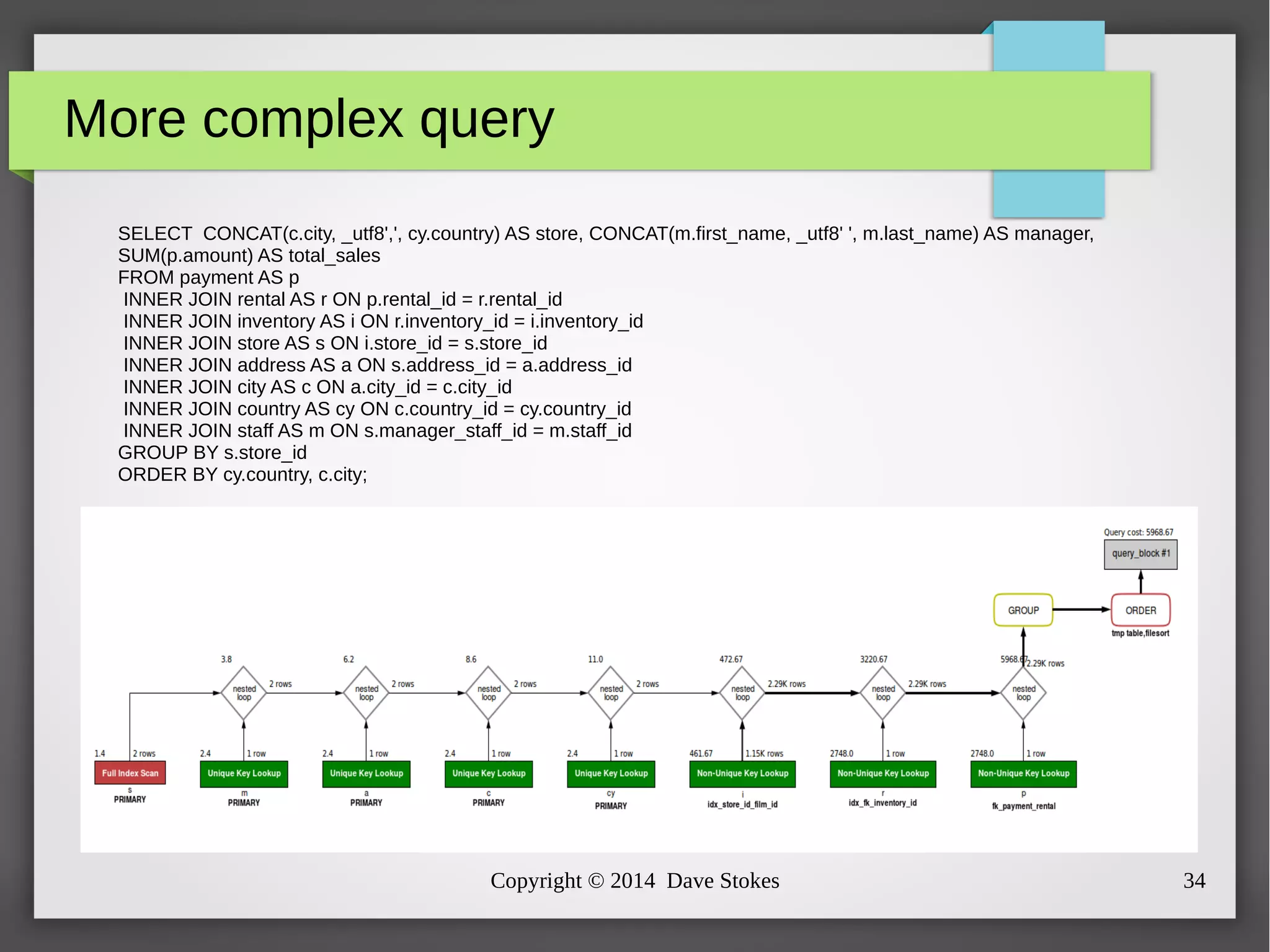

More complex query
SELECT CONCAT(c.city, _utf8',', cy.country) AS store, CONCAT(m.first_name, _utf8' ', m.last_name) AS manager,
SUM(p.amount) AS total_sales
FROM payment AS p
INNER JOIN rental AS r ON p.rental_id = r.rental_id
INNER JOIN inventory AS i ON r.inventory_id = i.inventory_id
INNER JOIN store AS s ON i.store_id = s.store_id
INNER JOIN address AS a ON s.address_id = a.address_id
INNER JOIN city AS c ON a.city_id = c.city_id
INNER JOIN country AS cy ON c.country_id = cy.country_id
INNER JOIN staff AS m ON s.manager_staff_id = m.staff_id
GROUP BY s.store_id
ORDER BY cy.country, c.city;

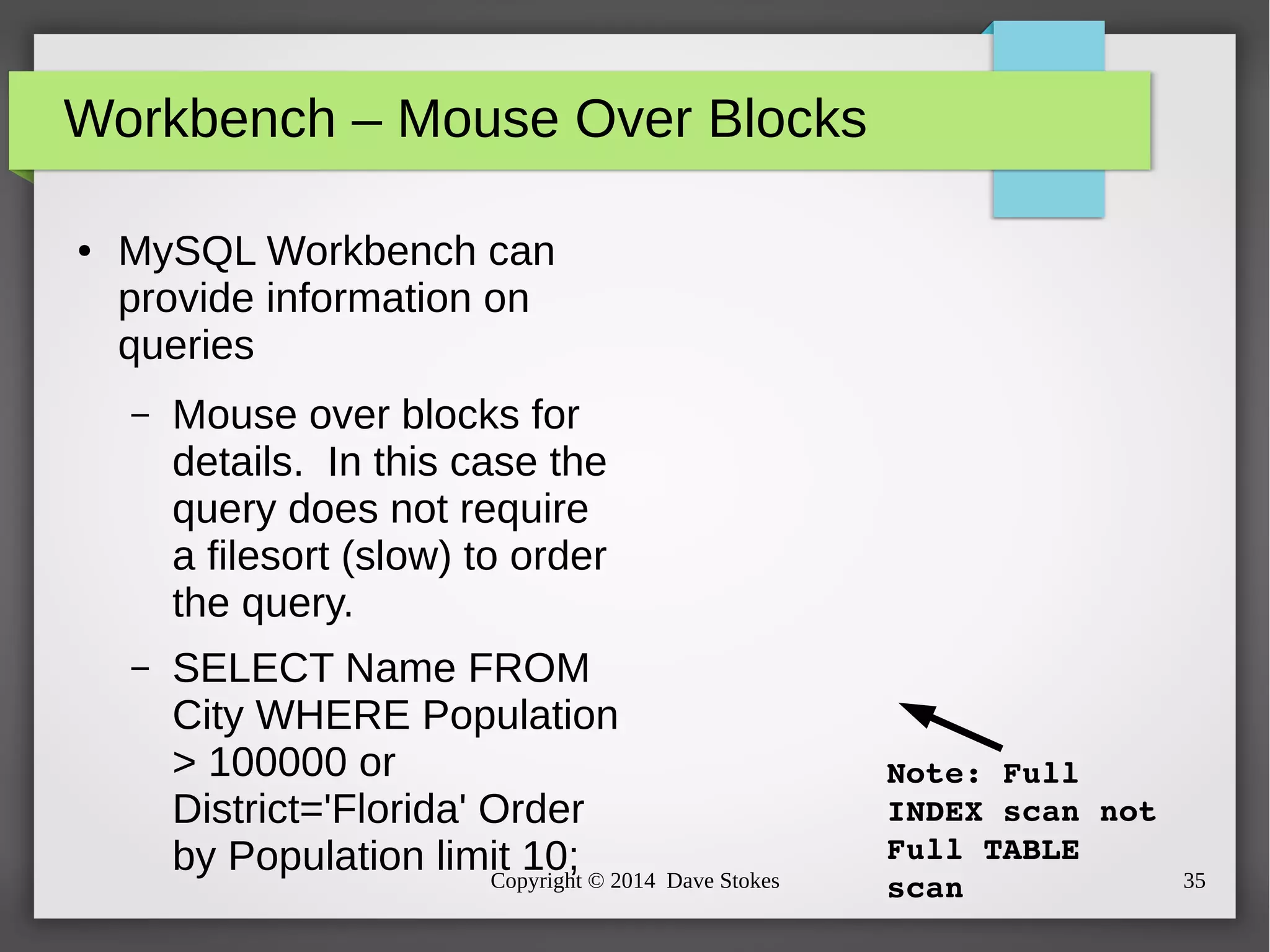

Workbench – Mouse Over Blocks
● MySQL Workbench can
provide information on
queries
– Mouse over blocks for
details. In this case the
query does not require
a filesort (slow) to order
the query.
– SELECT Name FROM
City WHERE Population
> 100000 or
District='Florida' Order
by Population limit 10;
Note: Full
INDEX scan not
Full TABLE
scan

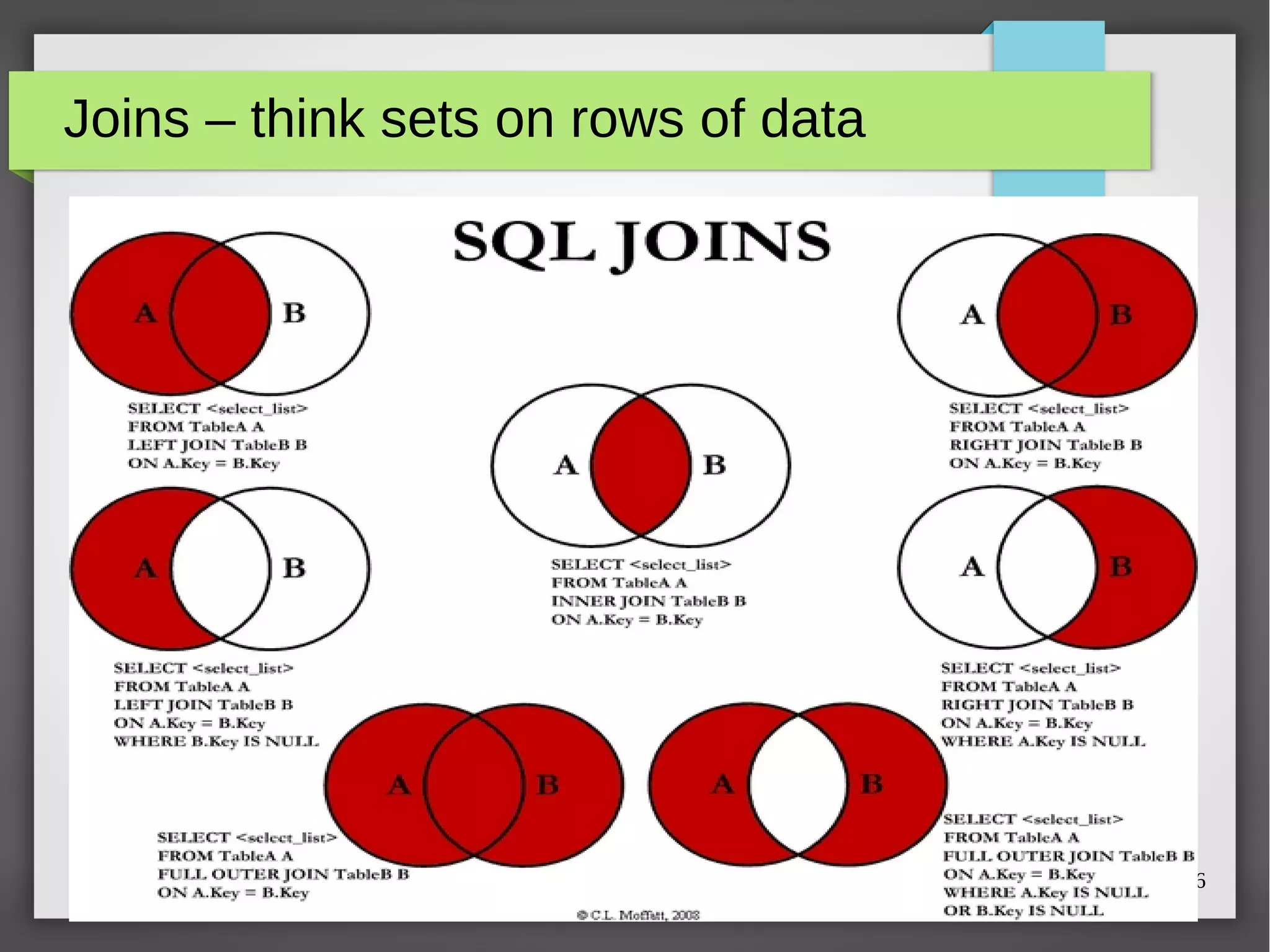

Joins – think sets on rows of data

Books
● Effective MySQL Optimizing SQL Statements
– Ronald Bradford
● High Performance MySQL
– Schwartz, Zaitsev, Tkachenko

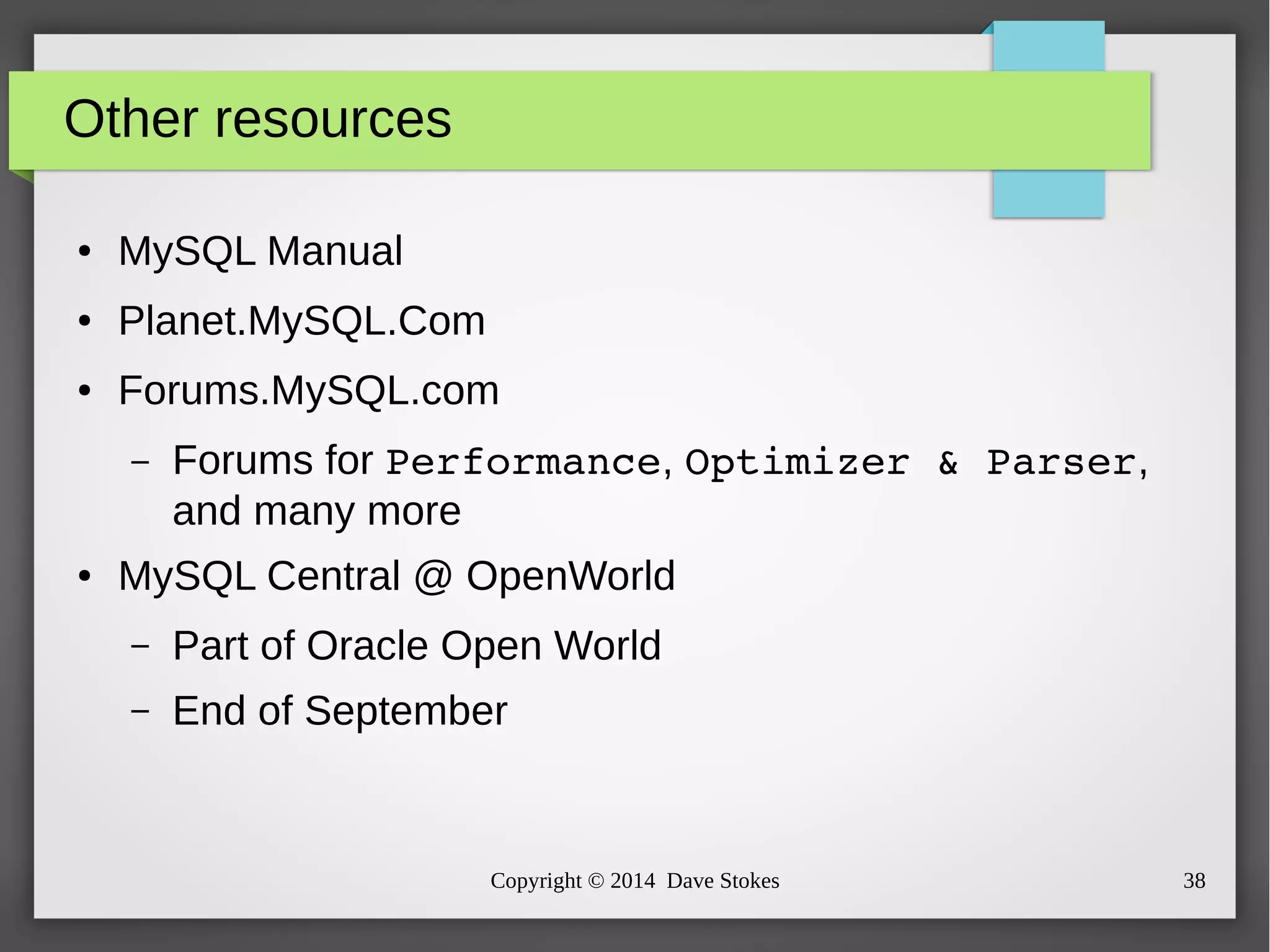

Other resources
● MySQL Manual
● Planet.MySQL.Com
● Forums.MySQL.com
– Forums for Performance, Optimizer & Parser,
and many more
● MySQL Central @ OpenWorld
– Part of Oracle Open World
– End of September

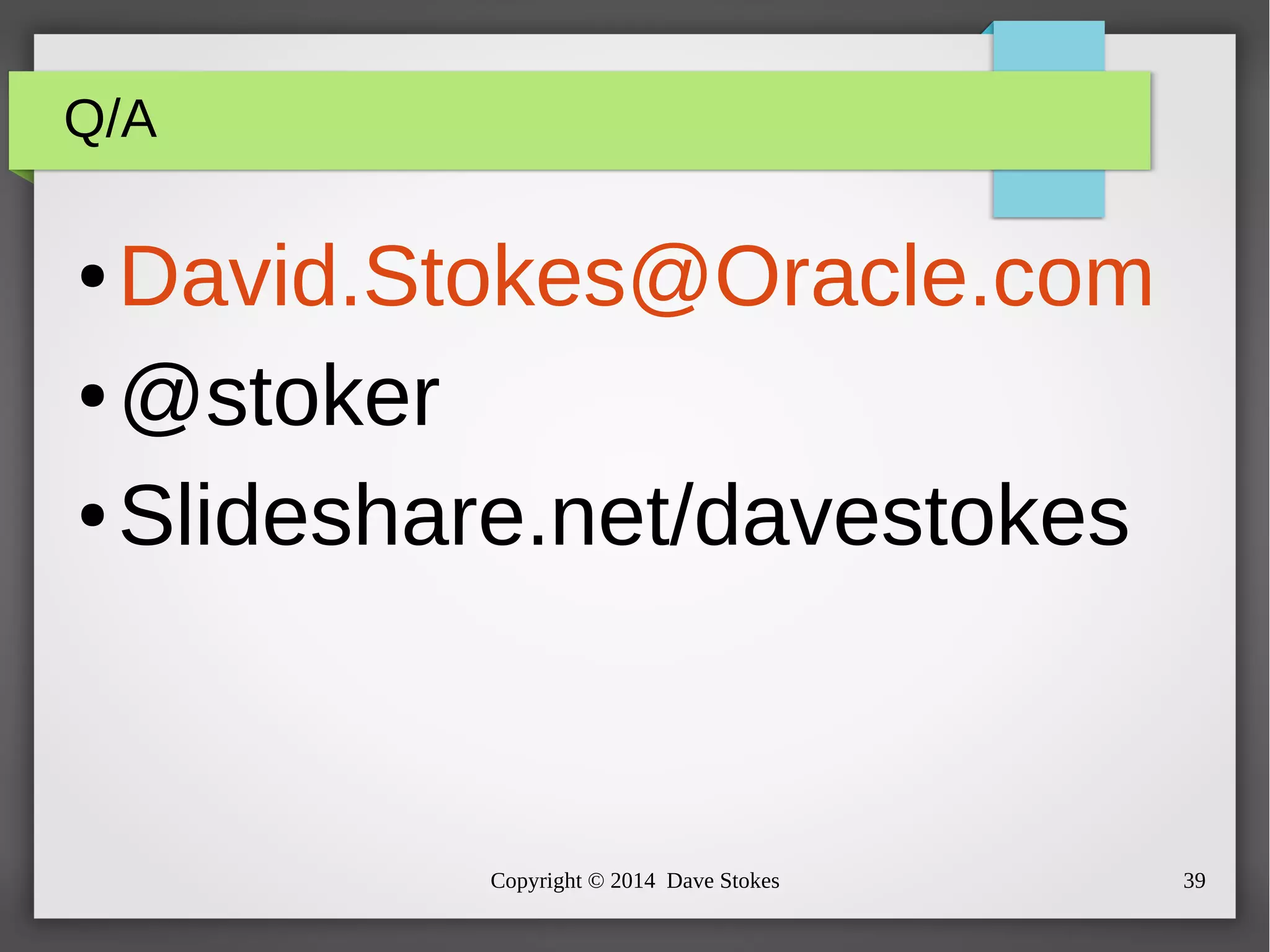

Q/A
●David.Stokes@Oracle.com
●@stoker
●Slideshare.net/davestokes
