1. Multithreading in Java
MRS.R.HANNAH ROSELINE
ASSISTANT PROFESSOR ,

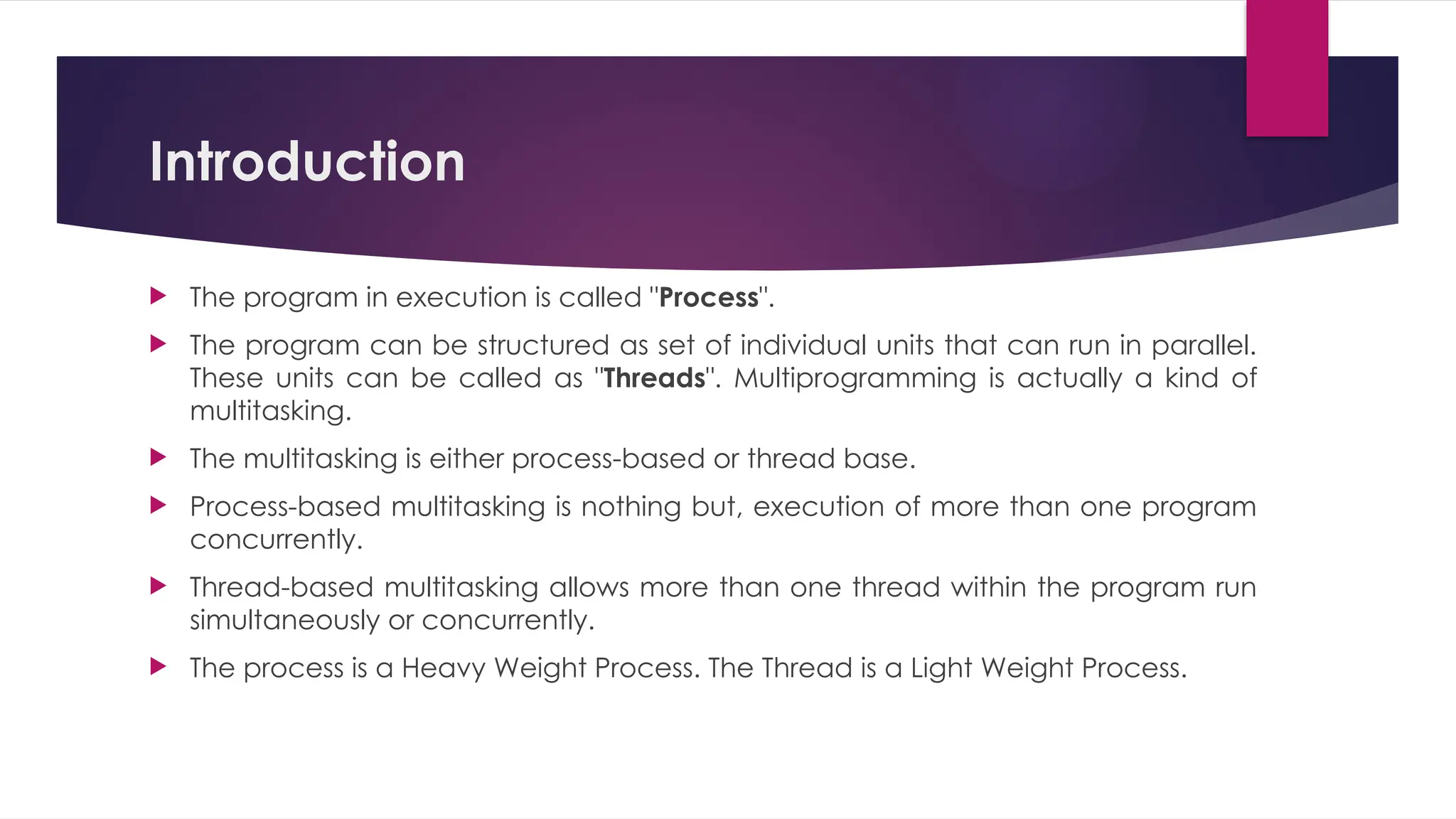

2. Introduction
 The program in execution is called "Process".
 The program can be structured as set of individual units that can run in parallel.
These units can be called as "Threads". Multiprogramming is actually a kind of
multitasking.
 The multitasking is either process-based or thread base.
 Process-based multitasking is nothing but, execution of more than one program
concurrently.
 Thread-based multitasking allows more than one thread within the program run
simultaneously or concurrently.
 The process is a Heavy Weight Process. The Thread is a Light Weight Process.

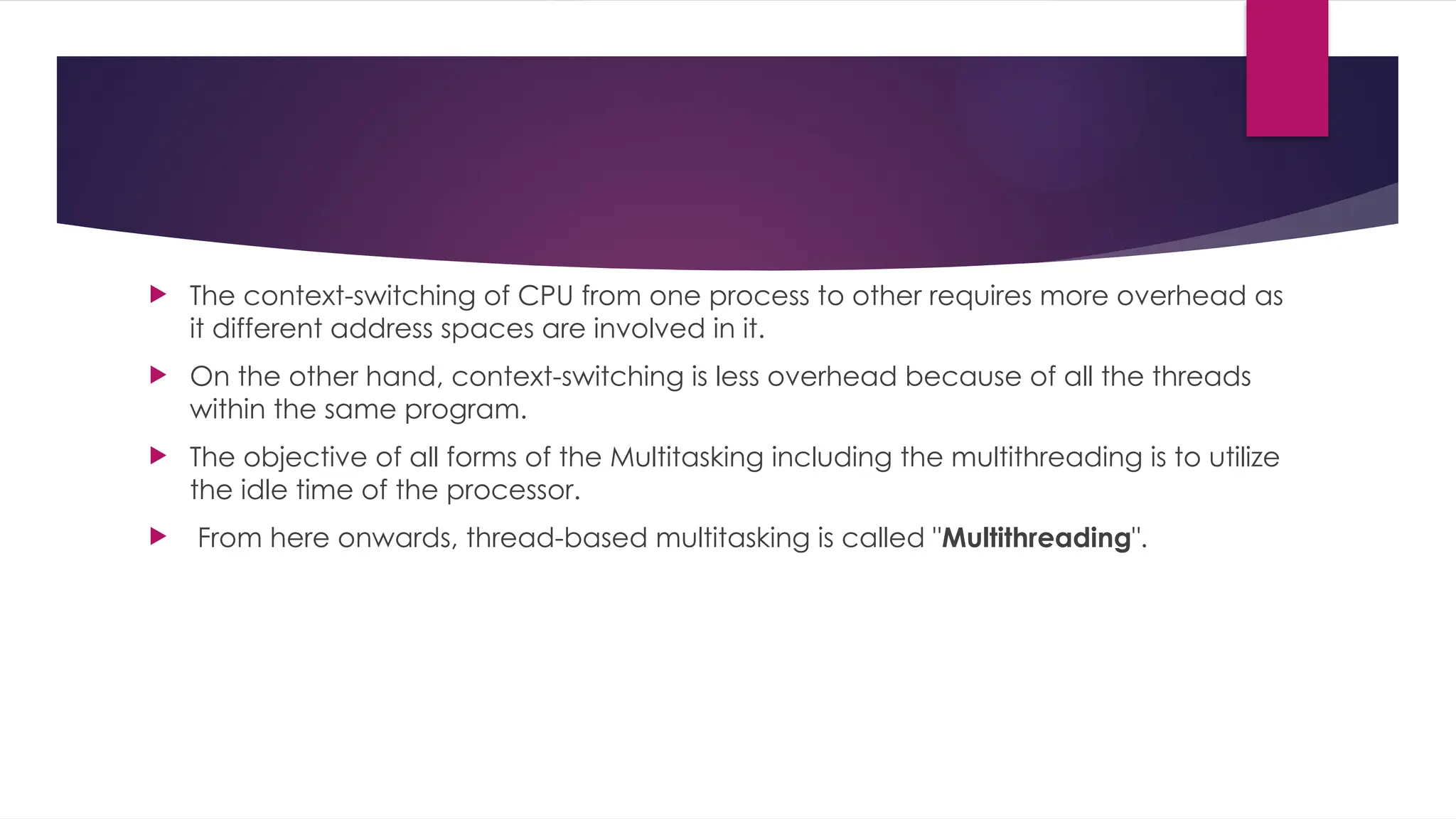

3.  The context-switching of CPU from one process to other requires more overhead as
it different address spaces are involved in it.
 On the other hand, context-switching is less overhead because of all the threads
within the same program.
 The objective of all forms of the Multitasking including the multithreading is to utilize
the idle time of the processor.
 From here onwards, thread-based multitasking is called "Multithreading".

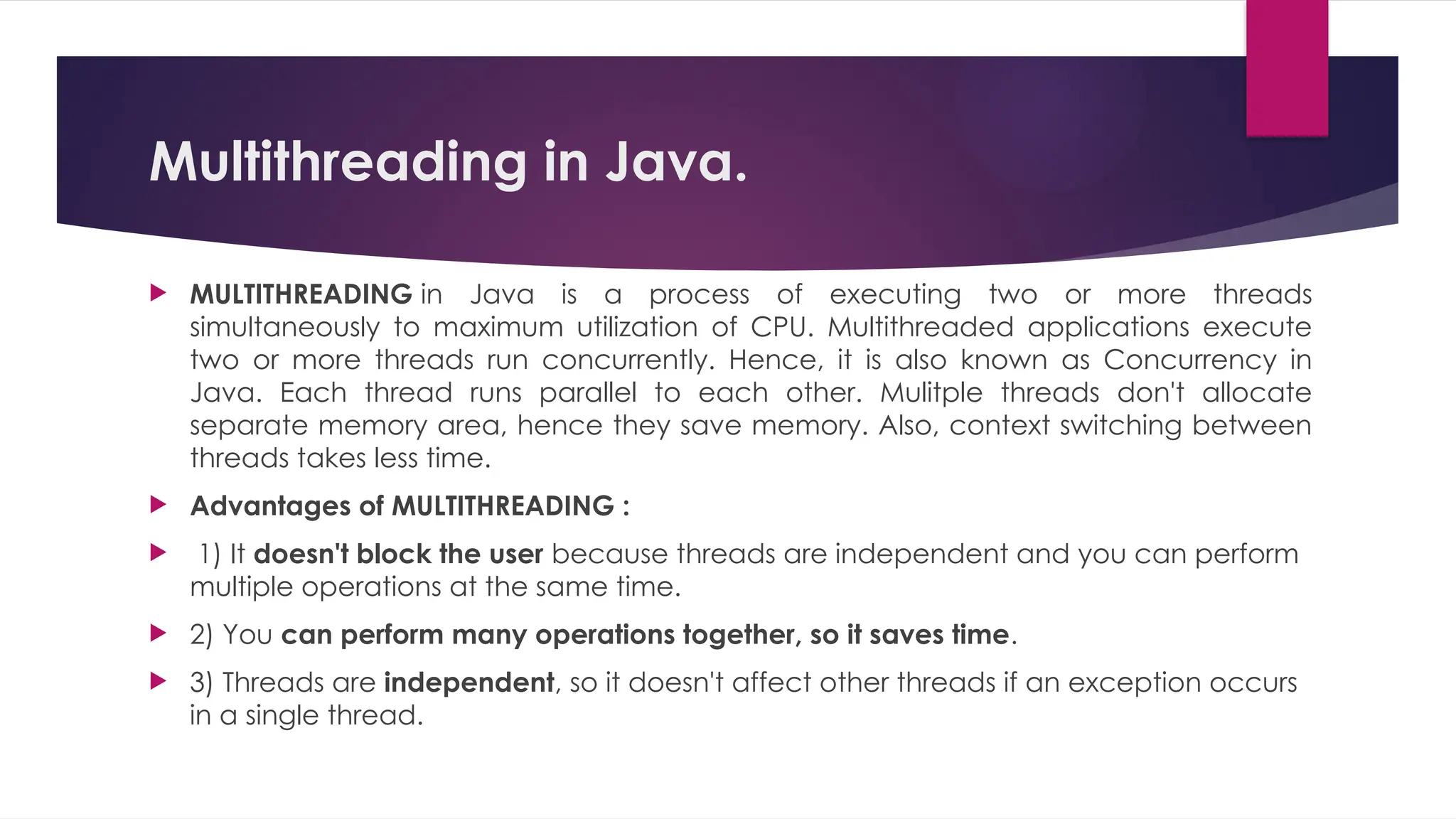

4. Multithreading in Java.
 MULTITHREADING in Java is a process of executing two or more threads
simultaneously to maximum utilization of CPU. Multithreaded applications execute
two or more threads run concurrently. Hence, it is also known as Concurrency in
Java. Each thread runs parallel to each other. Mulitple threads don't allocate
separate memory area, hence they save memory. Also, context switching between
threads takes less time.
 Advantages of MULTITHREADING :
 1) It doesn't block the user because threads are independent and you can perform
multiple operations at the same time.
 2) You can perform many operations together, so it saves time.
 3) Threads are independent, so it doesn't affect other threads if an exception occurs
in a single thread.

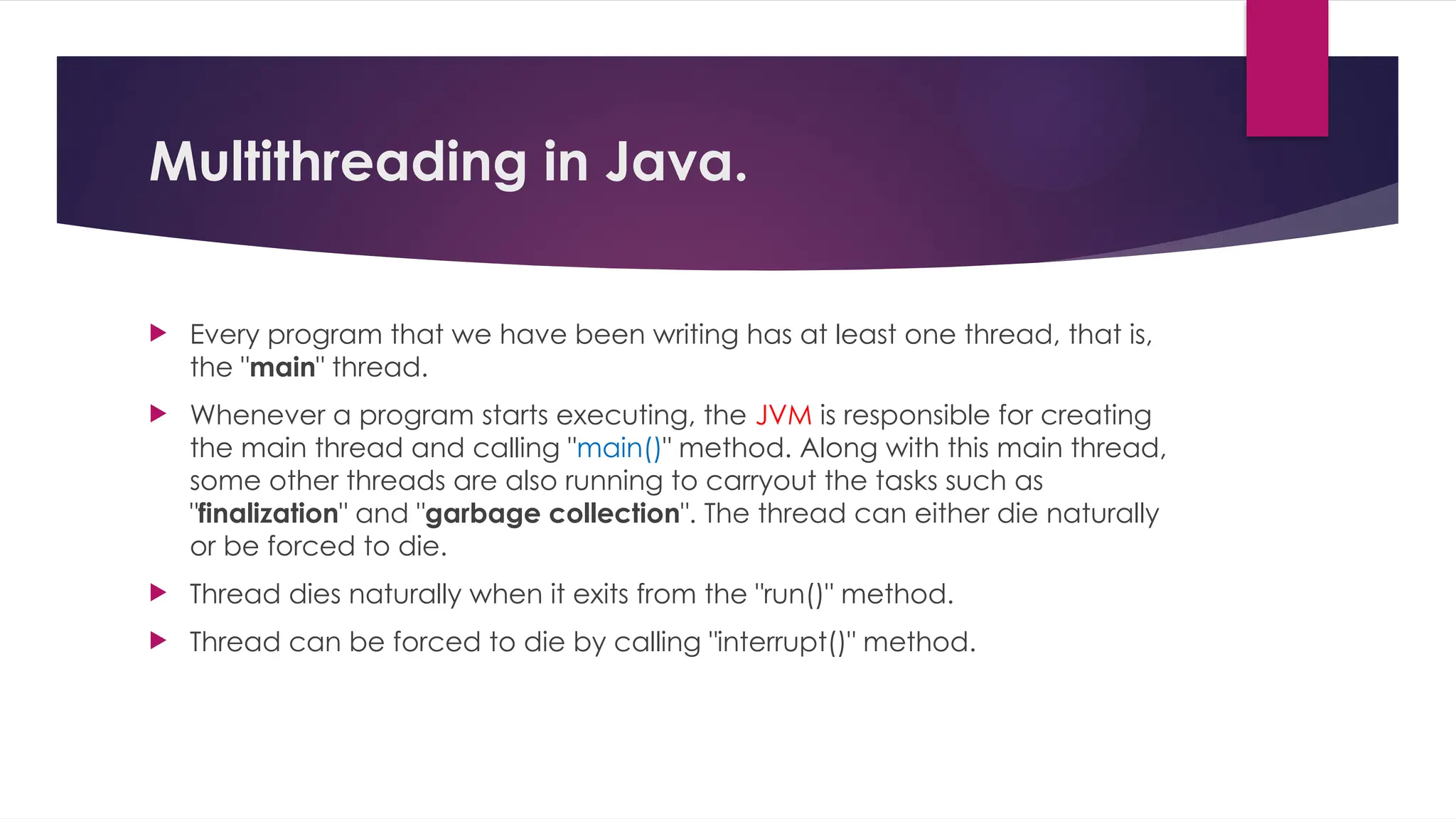

5. Multithreading in Java.
 Every program that we have been writing has at least one thread, that is,
the "main" thread.
 Whenever a program starts executing, the JVM is responsible for creating
the main thread and calling "main()" method. Along with this main thread,
some other threads are also running to carryout the tasks such as
"finalization" and "garbage collection". The thread can either die naturally
or be forced to die.
 Thread dies naturally when it exits from the "run()" method.
 Thread can be forced to die by calling "interrupt()" method.

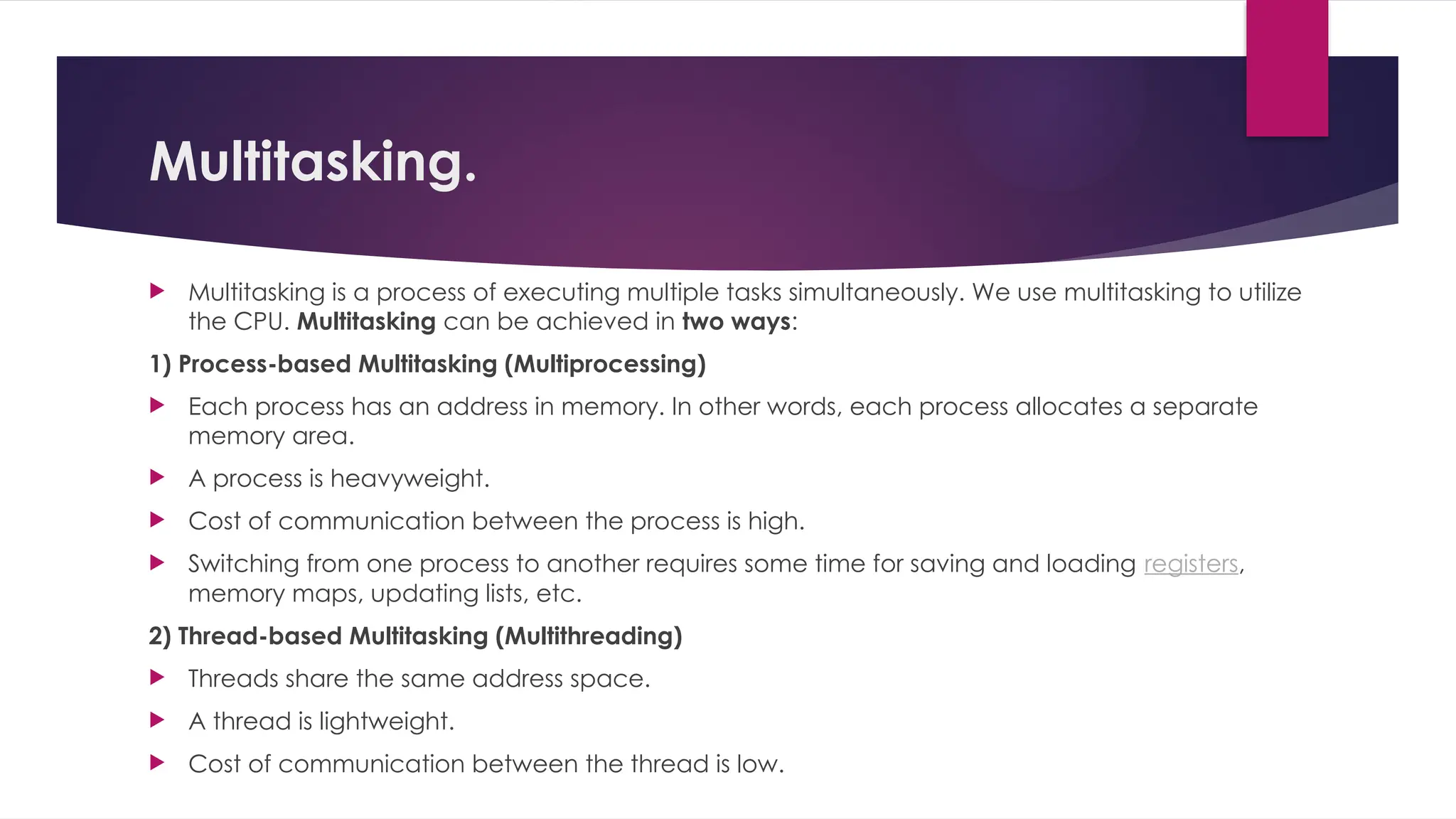

6. Multitasking.
 Multitasking is a process of executing multiple tasks simultaneously. We use multitasking to utilize
the CPU. Multitasking can be achieved in two ways:
1) Process-based Multitasking (Multiprocessing)
 Each process has an address in memory. In other words, each process allocates a separate
memory area.
 A process is heavyweight.
 Cost of communication between the process is high.
 Switching from one process to another requires some time for saving and loading registers,
memory maps, updating lists, etc.
2) Thread-based Multitasking (Multithreading)
 Threads share the same address space.
 A thread is lightweight.
 Cost of communication between the thread is low.

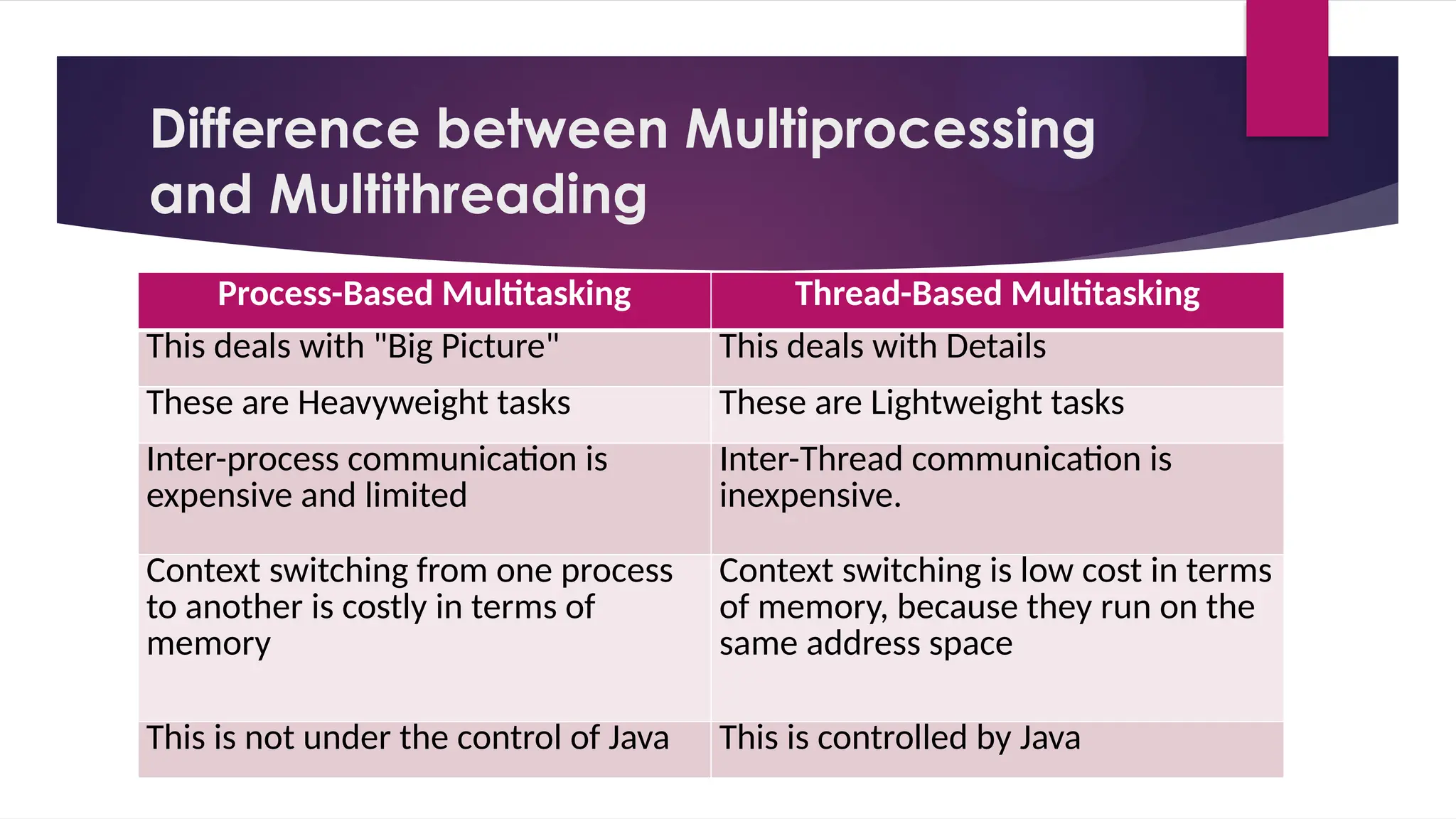

7. Difference between Multiprocessing
and Multithreading
Process-Based Multitasking Thread-Based Multitasking
This deals with "Big Picture" This deals with Details
These are Heavyweight tasks These are Lightweight tasks
Inter-process communication is
expensive and limited
Inter-Thread communication is
inexpensive.
Context switching from one process
to another is costly in terms of
memory
Context switching is low cost in terms
of memory, because they run on the
same address space
This is not under the control of Java This is controlled by Java

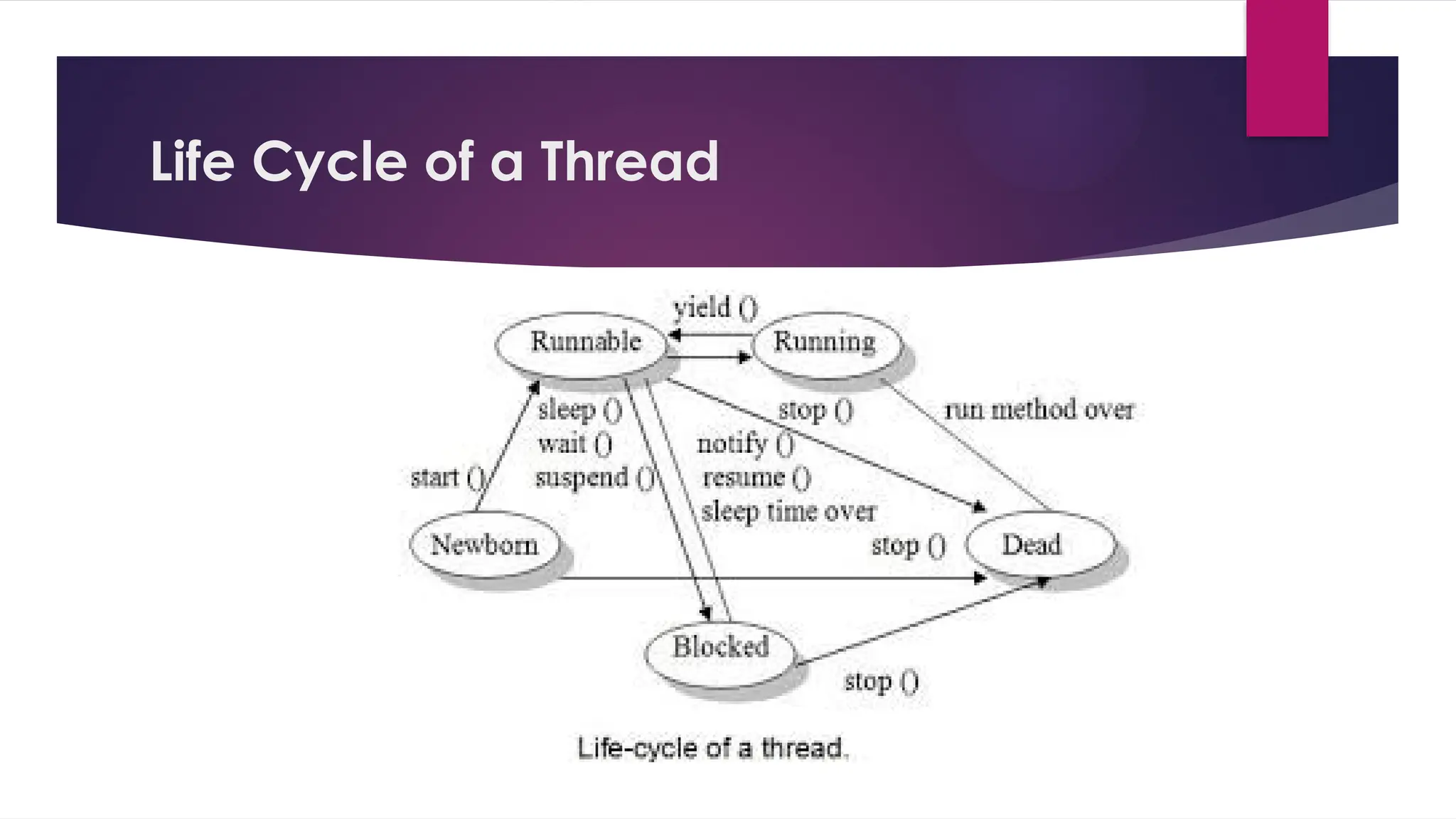

8. Life Cycle of a Thread

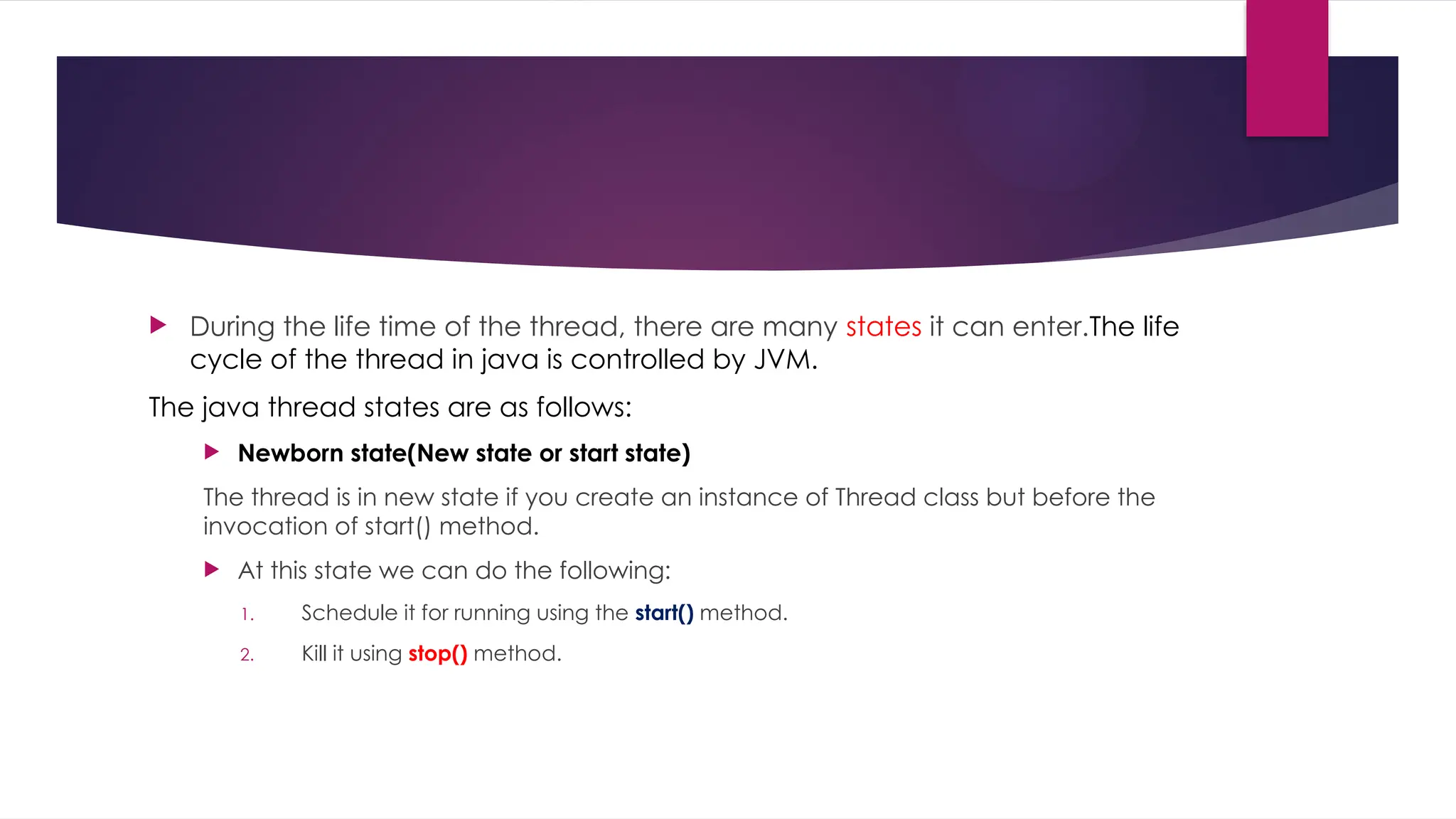

9.  During the life time of the thread, there are many states it can enter.The life
cycle of the thread in java is controlled by JVM.
The java thread states are as follows:
 Newborn state(New state or start state)
The thread is in new state if you create an instance of Thread class but before the
invocation of start() method.
 At this state we can do the following:
1. Schedule it for running using the start() method.
2. Kill it using stop() method.

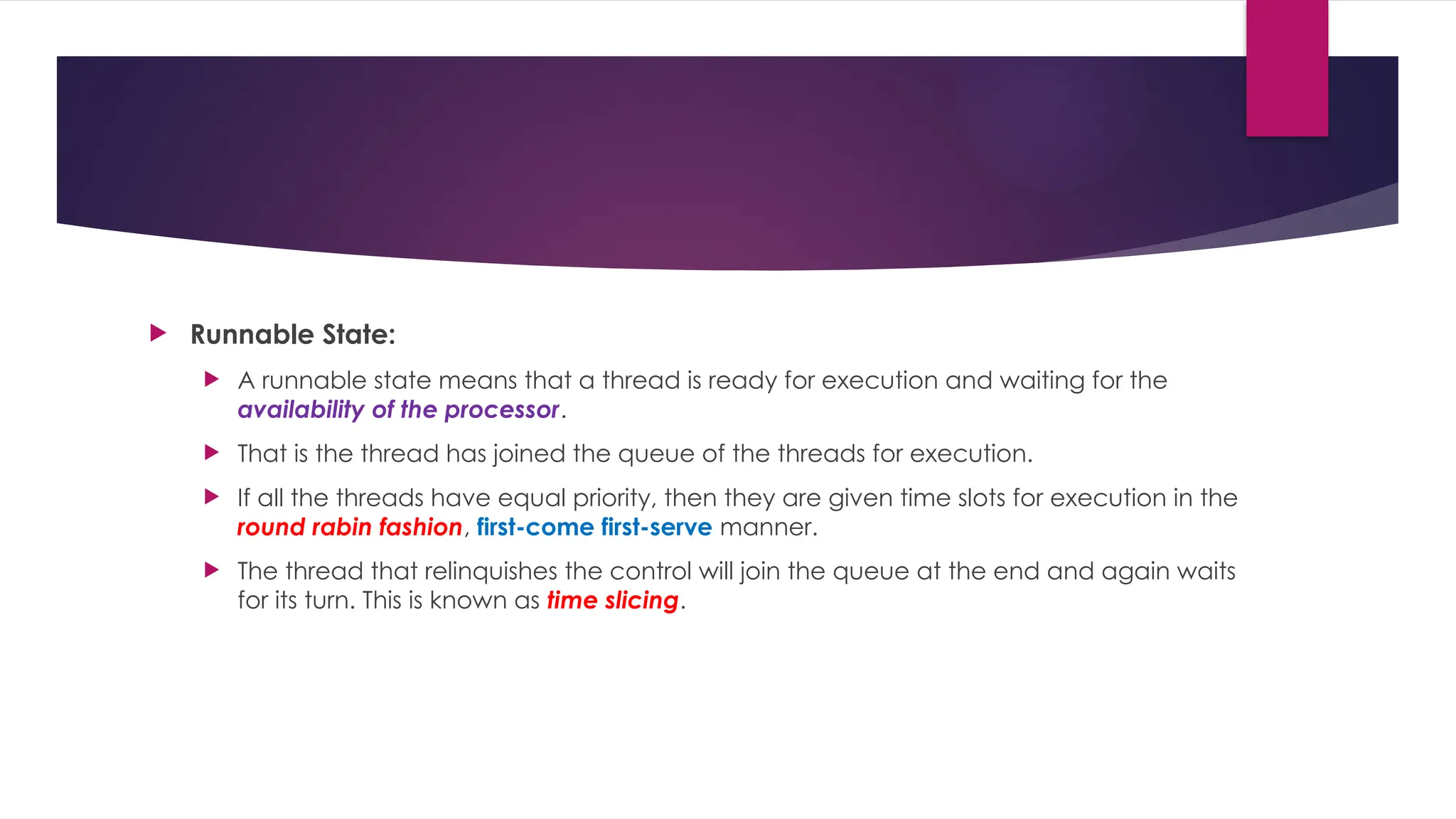

10.  Runnable State:
 A runnable state means that a thread is ready for execution and waiting for the
availability of the processor.
 That is the thread has joined the queue of the threads for execution.
 If all the threads have equal priority, then they are given time slots for execution in the
round rabin fashion, first-come first-serve manner.
 The thread that relinquishes the control will join the queue at the end and again waits
for its turn. This is known as time slicing.

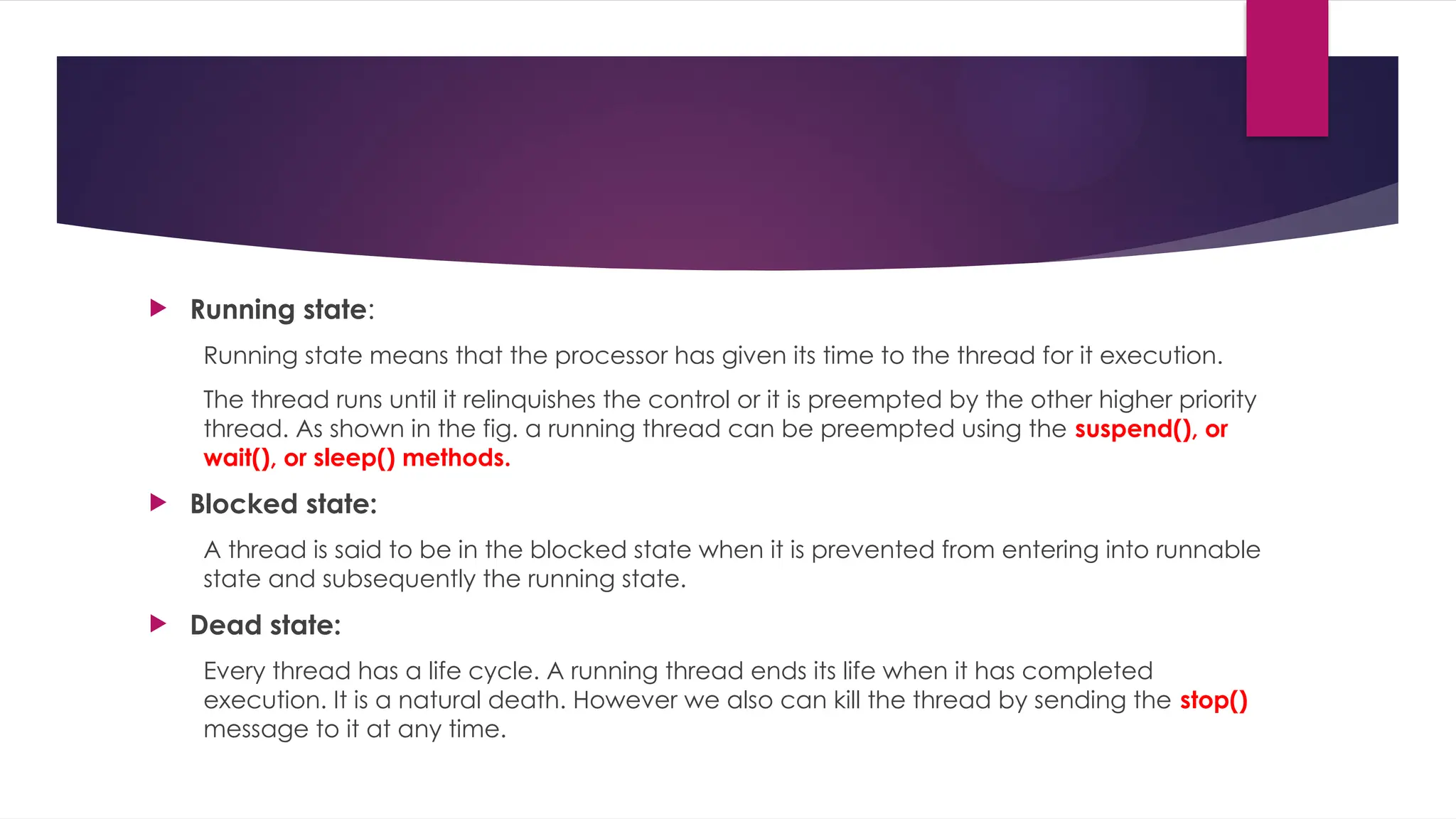

11.  Running state:
Running state means that the processor has given its time to the thread for it execution.
The thread runs until it relinquishes the control or it is preempted by the other higher priority
thread. As shown in the fig. a running thread can be preempted using the suspend(), or
wait(), or sleep() methods.
 Blocked state:
A thread is said to be in the blocked state when it is prevented from entering into runnable
state and subsequently the running state.
 Dead state:
Every thread has a life cycle. A running thread ends its life when it has completed
execution. It is a natural death. However we also can kill the thread by sending the stop()
message to it at any time.

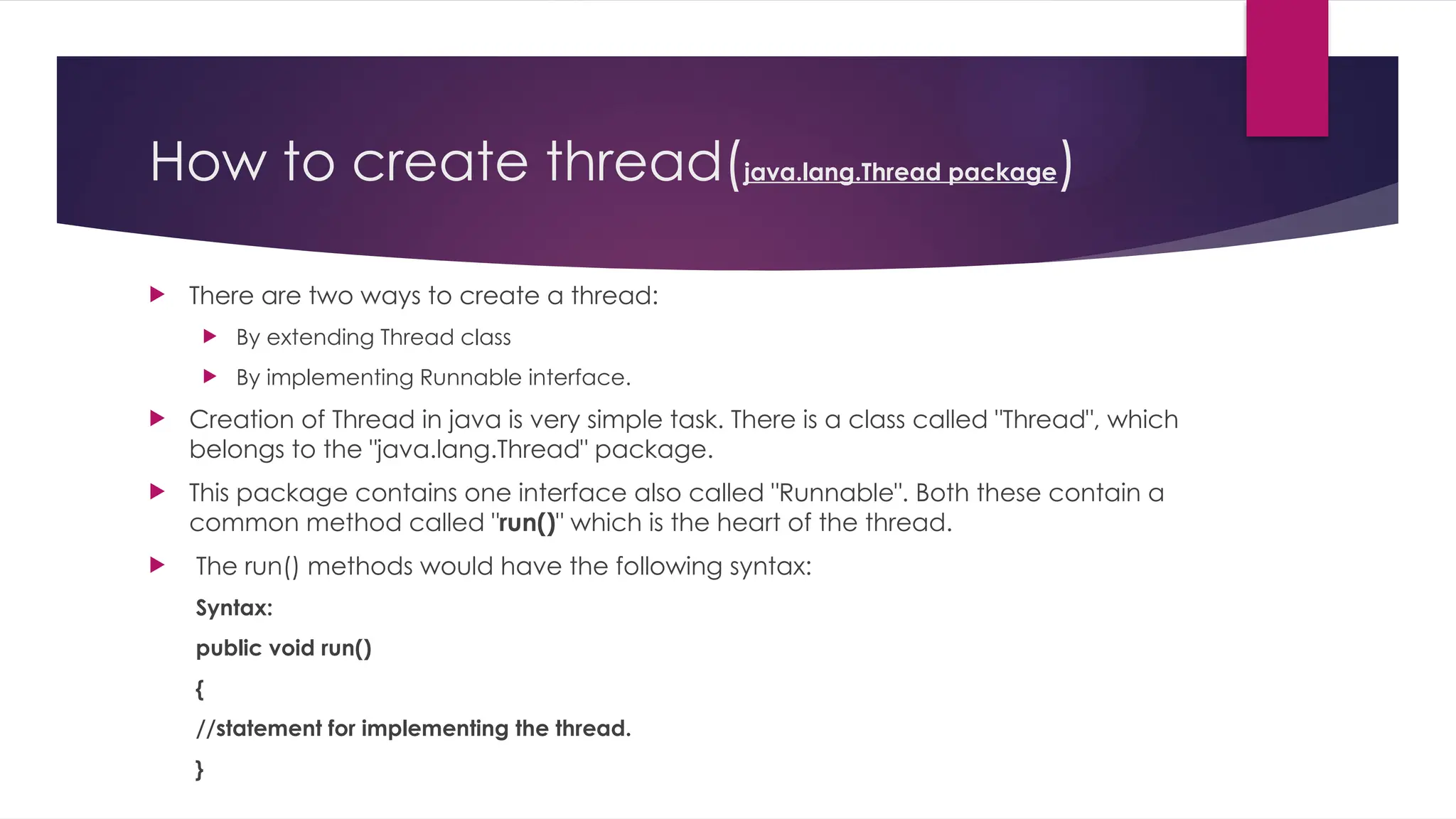

12. How to create thread(java.lang.Thread package)
 There are two ways to create a thread:
 By extending Thread class
 By implementing Runnable interface.
 Creation of Thread in java is very simple task. There is a class called "Thread", which
belongs to the "java.lang.Thread" package.
 This package contains one interface also called "Runnable". Both these contain a
common method called "run()" which is the heart of the thread.
 The run() methods would have the following syntax:
Syntax:
public void run()
{
//statement for implementing the thread.
}

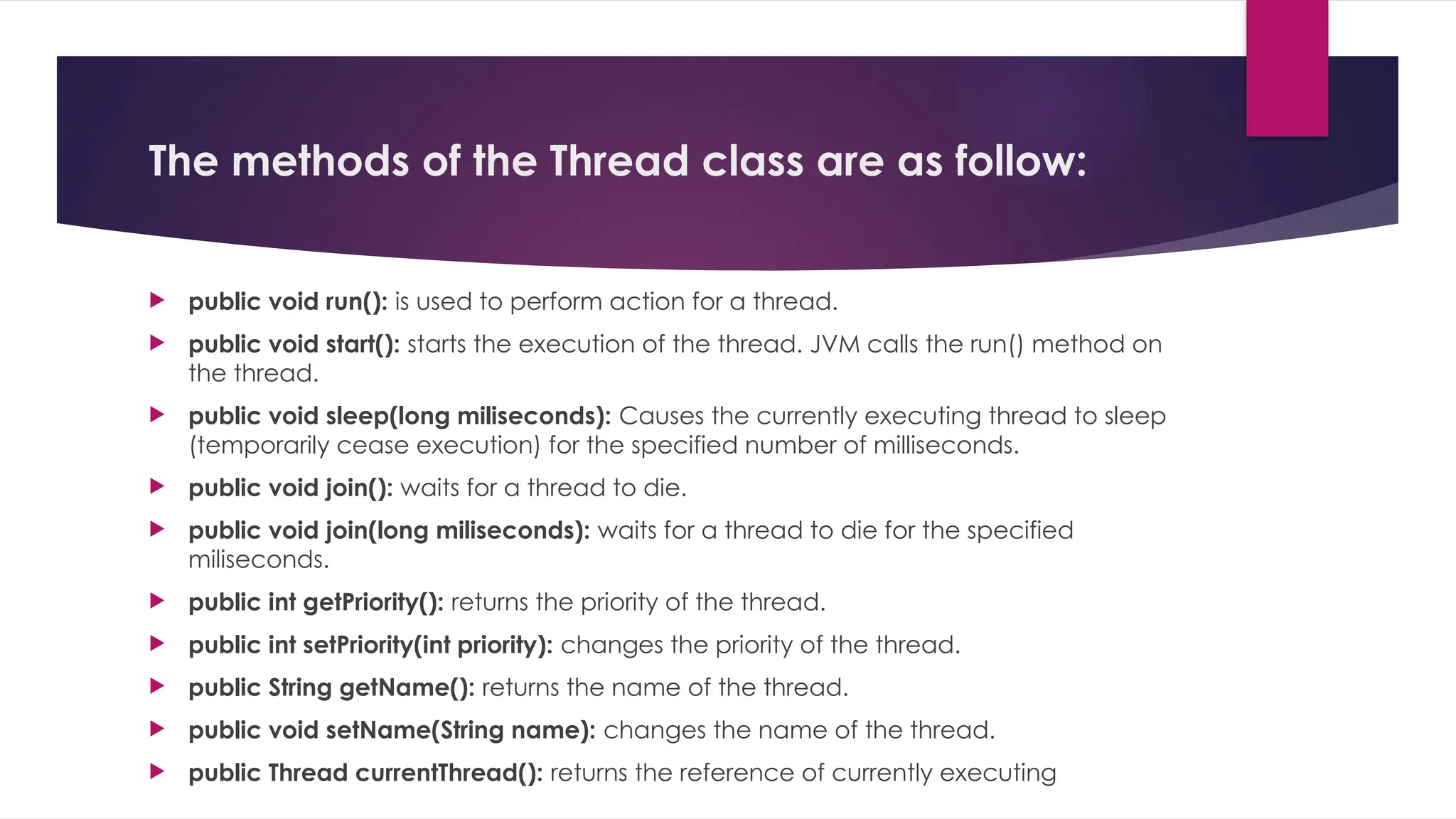

13. The methods of the Thread class are as follow:
 public void run(): is used to perform action for a thread.
 public void start(): starts the execution of the thread. JVM calls the run() method on
the thread.
 public void sleep(long miliseconds): Causes the currently executing thread to sleep
(temporarily cease execution) for the specified number of milliseconds.
 public void join(): waits for a thread to die.
 public void join(long miliseconds): waits for a thread to die for the specified
miliseconds.
 public int getPriority(): returns the priority of the thread.
 public int setPriority(int priority): changes the priority of the thread.
 public String getName(): returns the name of the thread.
 public void setName(String name): changes the name of the thread.
 public Thread currentThread(): returns the reference of currently executing

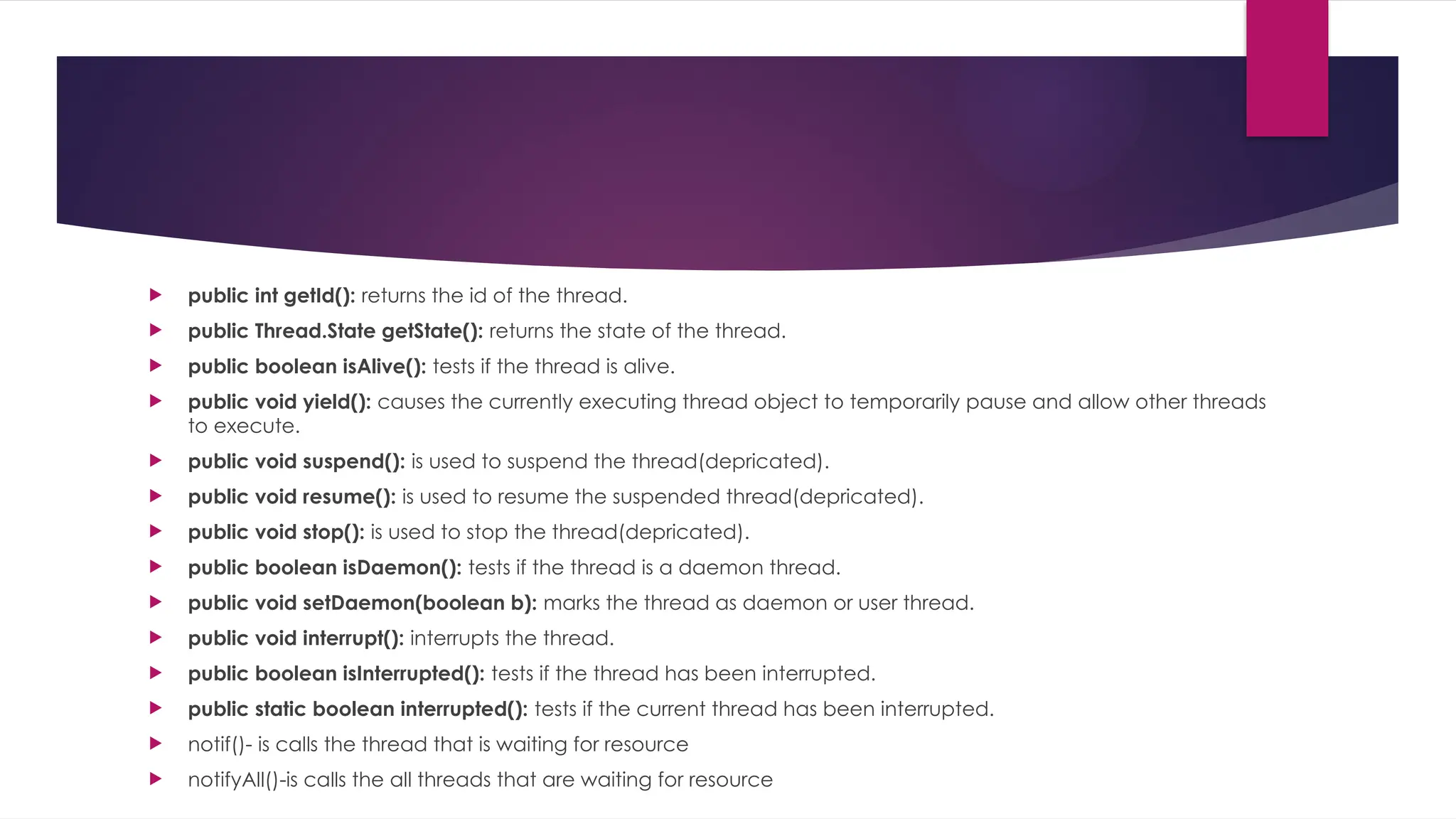

14.  public int getId(): returns the id of the thread.
 public Thread.State getState(): returns the state of the thread.
 public boolean isAlive(): tests if the thread is alive.
 public void yield(): causes the currently executing thread object to temporarily pause and allow other threads
to execute.
 public void suspend(): is used to suspend the thread(depricated).
 public void resume(): is used to resume the suspended thread(depricated).
 public void stop(): is used to stop the thread(depricated).
 public boolean isDaemon(): tests if the thread is a daemon thread.
 public void setDaemon(boolean b): marks the thread as daemon or user thread.
 public void interrupt(): interrupts the thread.
 public boolean isInterrupted(): tests if the thread has been interrupted.
 public static boolean interrupted(): tests if the current thread has been interrupted.
 notif()- is calls the thread that is waiting for resource
 notifyAll()-is calls the all threads that are waiting for resource

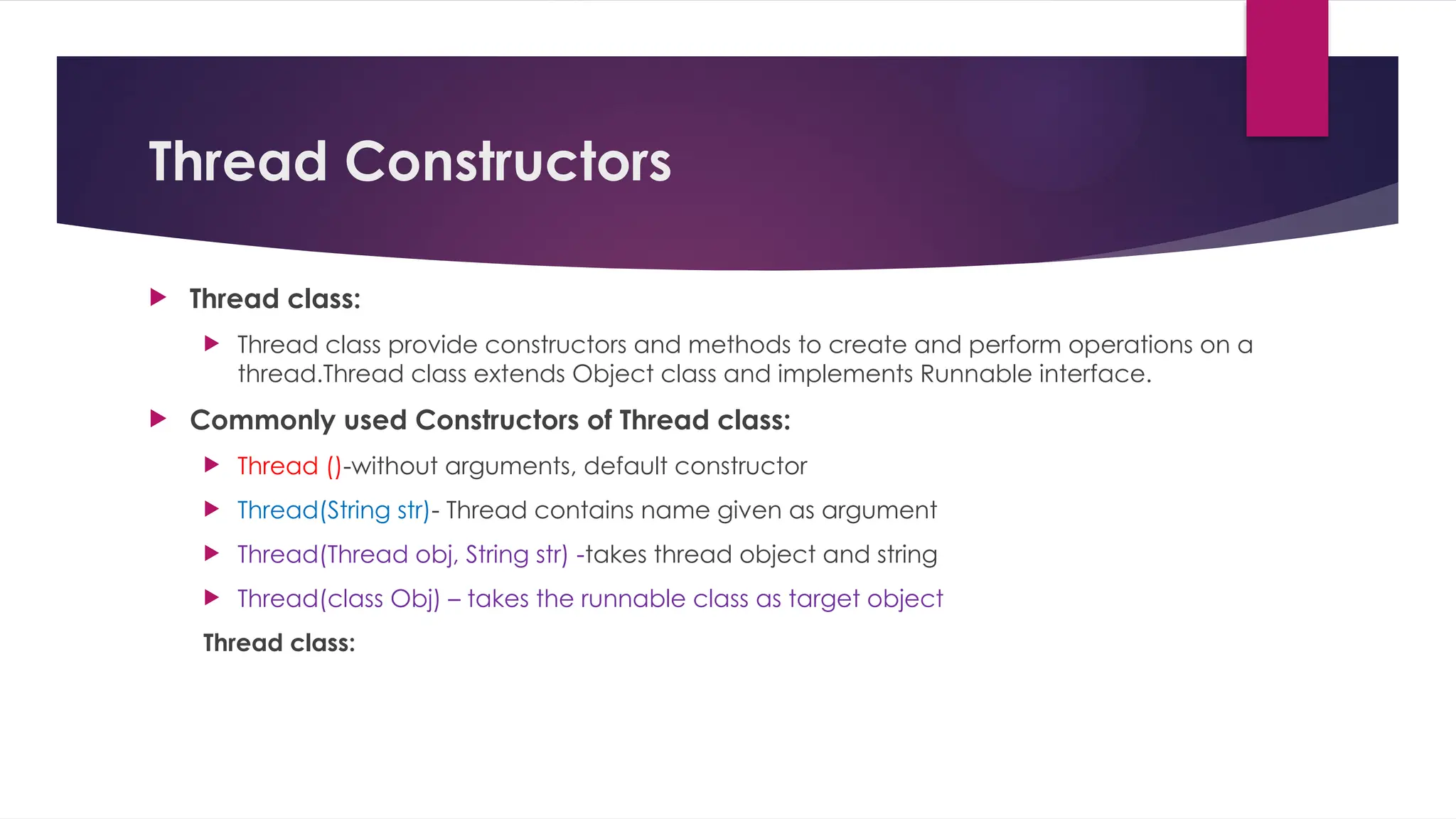

15. Thread Constructors
 Thread class:
 Thread class provide constructors and methods to create and perform operations on a
thread.Thread class extends Object class and implements Runnable interface.
 Commonly used Constructors of Thread class:
 Thread ()-without arguments, default constructor
 Thread(String str)- Thread contains name given as argument
 Thread(Thread obj, String str) -takes thread object and string
 Thread(class Obj) – takes the runnable class as target object
Thread class:

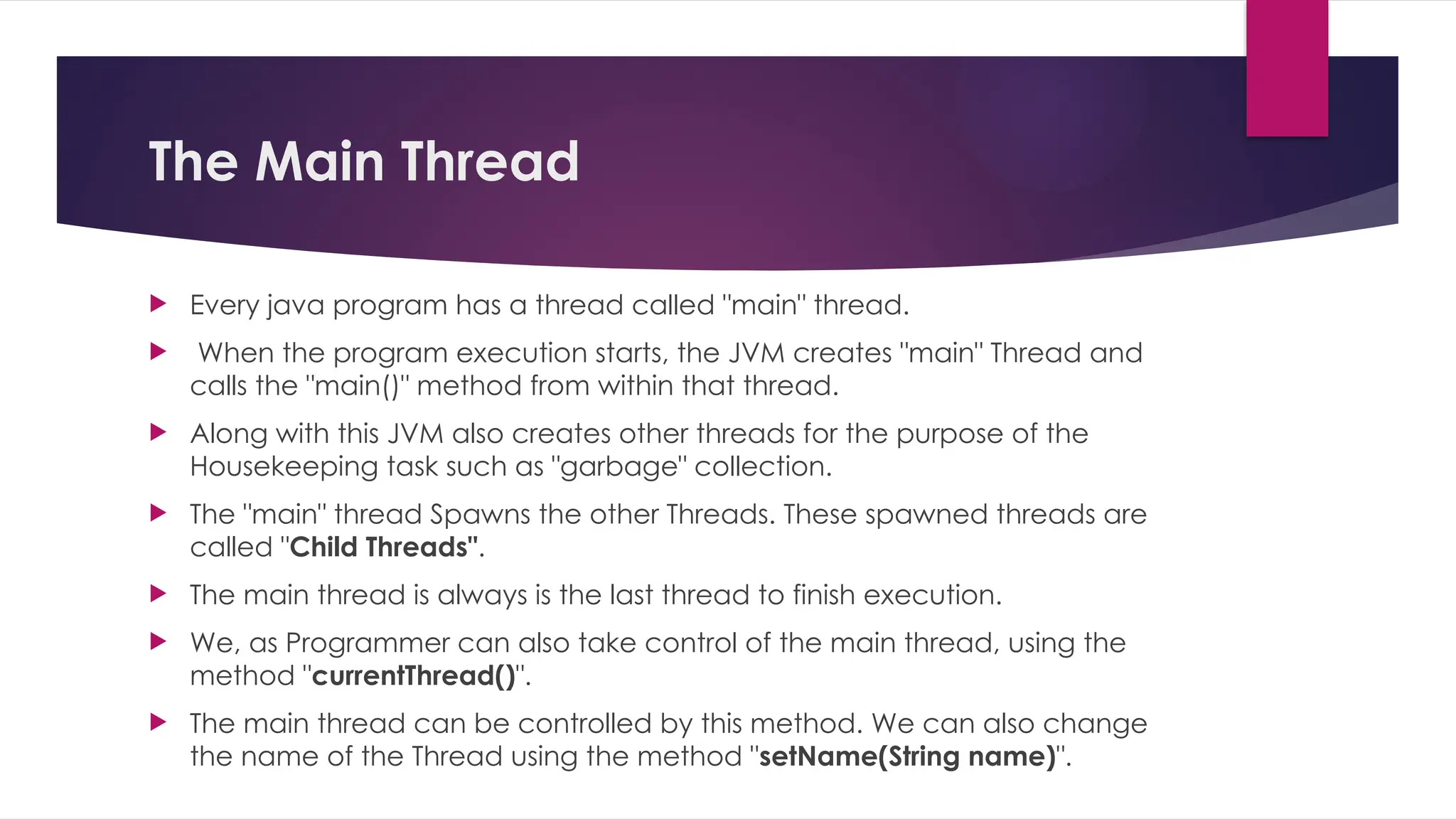

16. The Main Thread
 Every java program has a thread called "main" thread.
 When the program execution starts, the JVM creates "main" Thread and
calls the "main()" method from within that thread.
 Along with this JVM also creates other threads for the purpose of the
Housekeeping task such as "garbage" collection.
 The "main" thread Spawns the other Threads. These spawned threads are
called "Child Threads".
 The main thread is always is the last thread to finish execution.
 We, as Programmer can also take control of the main thread, using the
method "currentThread()".
 The main thread can be controlled by this method. We can also change
the name of the Thread using the method "setName(String name)".

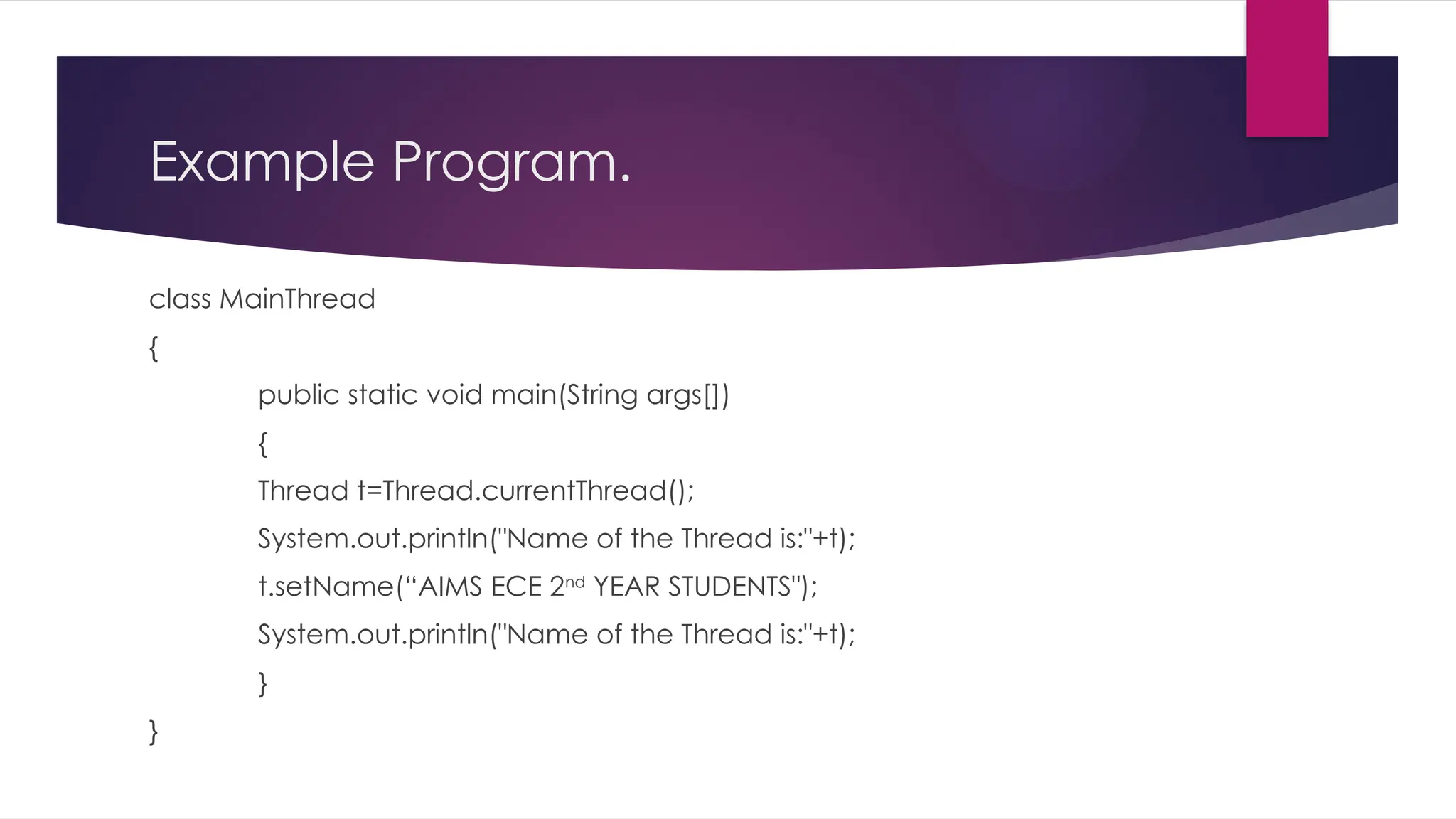

17. Example Program.
class MainThread
{
public static void main(String args[])
{
Thread t=Thread.currentThread();
System.out.println("Name of the Thread is:"+t);
t.setName(“AIMS ECE 2nd
YEAR STUDENTS");
System.out.println("Name of the Thread is:"+t);
}
}

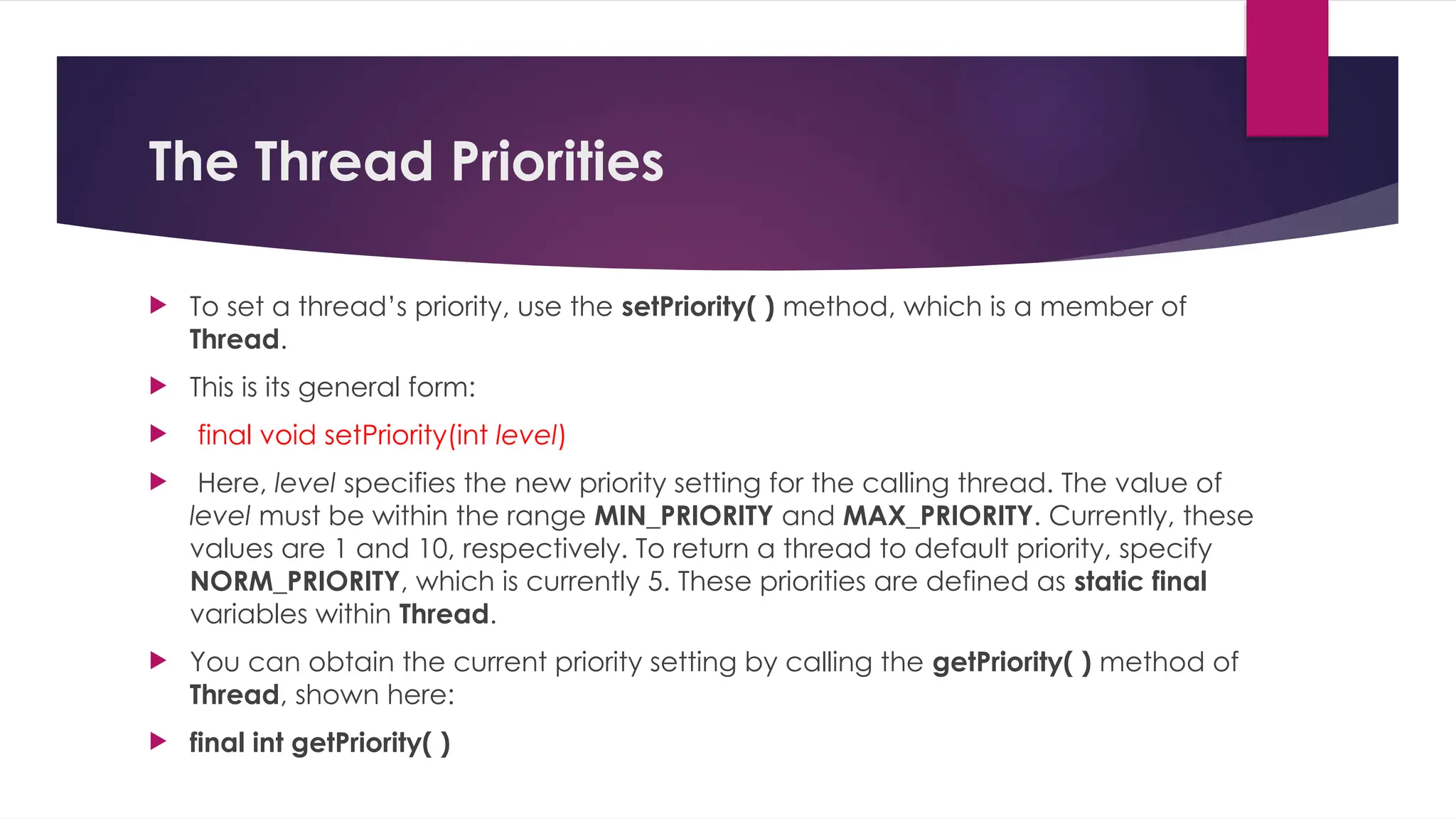

18. The Thread Priorities
 To set a thread’s priority, use the setPriority( ) method, which is a member of
Thread.
 This is its general form:
 final void setPriority(int level)
 Here, level specifies the new priority setting for the calling thread. The value of
level must be within the range MIN_PRIORITY and MAX_PRIORITY. Currently, these
values are 1 and 10, respectively. To return a thread to default priority, specify
NORM_PRIORITY, which is currently 5. These priorities are defined as static final
variables within Thread.
 You can obtain the current priority setting by calling the getPriority( ) method of
Thread, shown here:
 final int getPriority( )

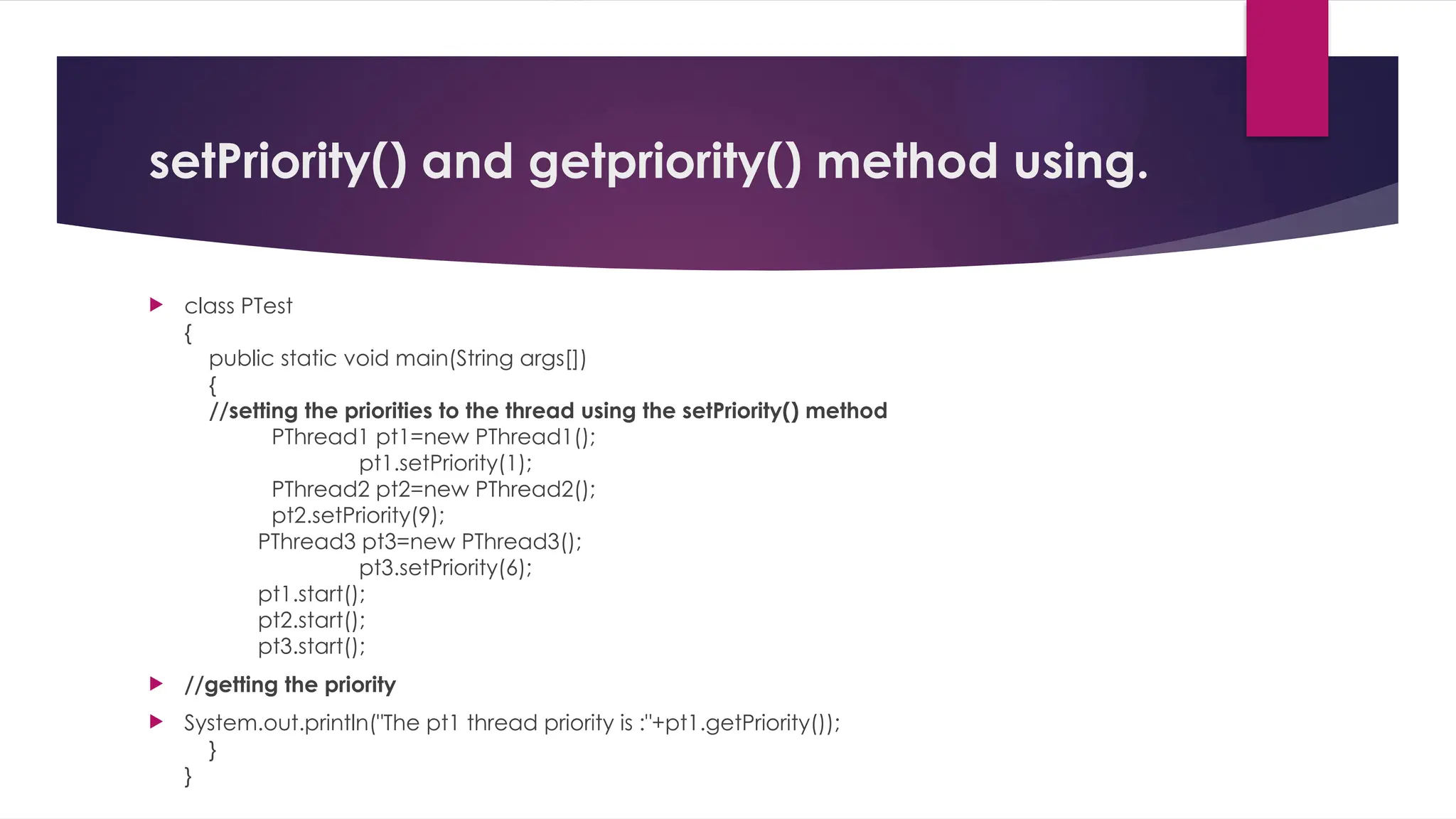

19. setPriority() and getpriority() method using.
 class PTest
{
public static void main(String args[])
{
//setting the priorities to the thread using the setPriority() method
PThread1 pt1=new PThread1();
pt1.setPriority(1);
PThread2 pt2=new PThread2();
pt2.setPriority(9);
PThread3 pt3=new PThread3();
pt3.setPriority(6);
pt1.start();
pt2.start();
pt3.start();
 //getting the priority
 System.out.println("The pt1 thread priority is :"+pt1.getPriority());
}
}

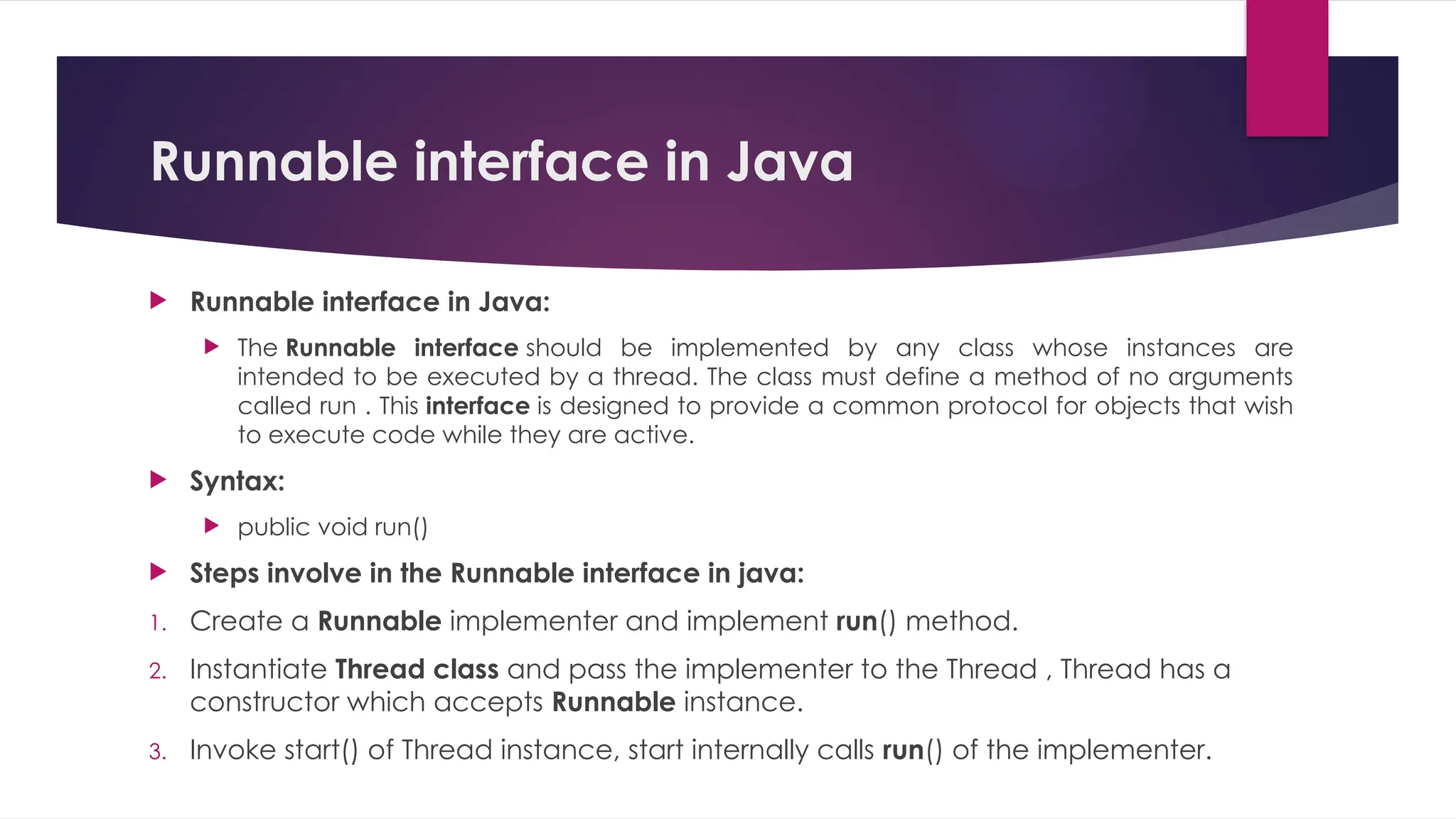

20. Runnable interface in Java
 Runnable interface in Java:
 The Runnable interface should be implemented by any class whose instances are
intended to be executed by a thread. The class must define a method of no arguments
called run . This interface is designed to provide a common protocol for objects that wish
to execute code while they are active.
 Syntax:
 public void run()
 Steps involve in the Runnable interface in java:
1. Create a Runnable implementer and implement run() method.
2. Instantiate Thread class and pass the implementer to the Thread , Thread has a
constructor which accepts Runnable instance.
3. Invoke start() of Thread instance, start internally calls run() of the implementer.

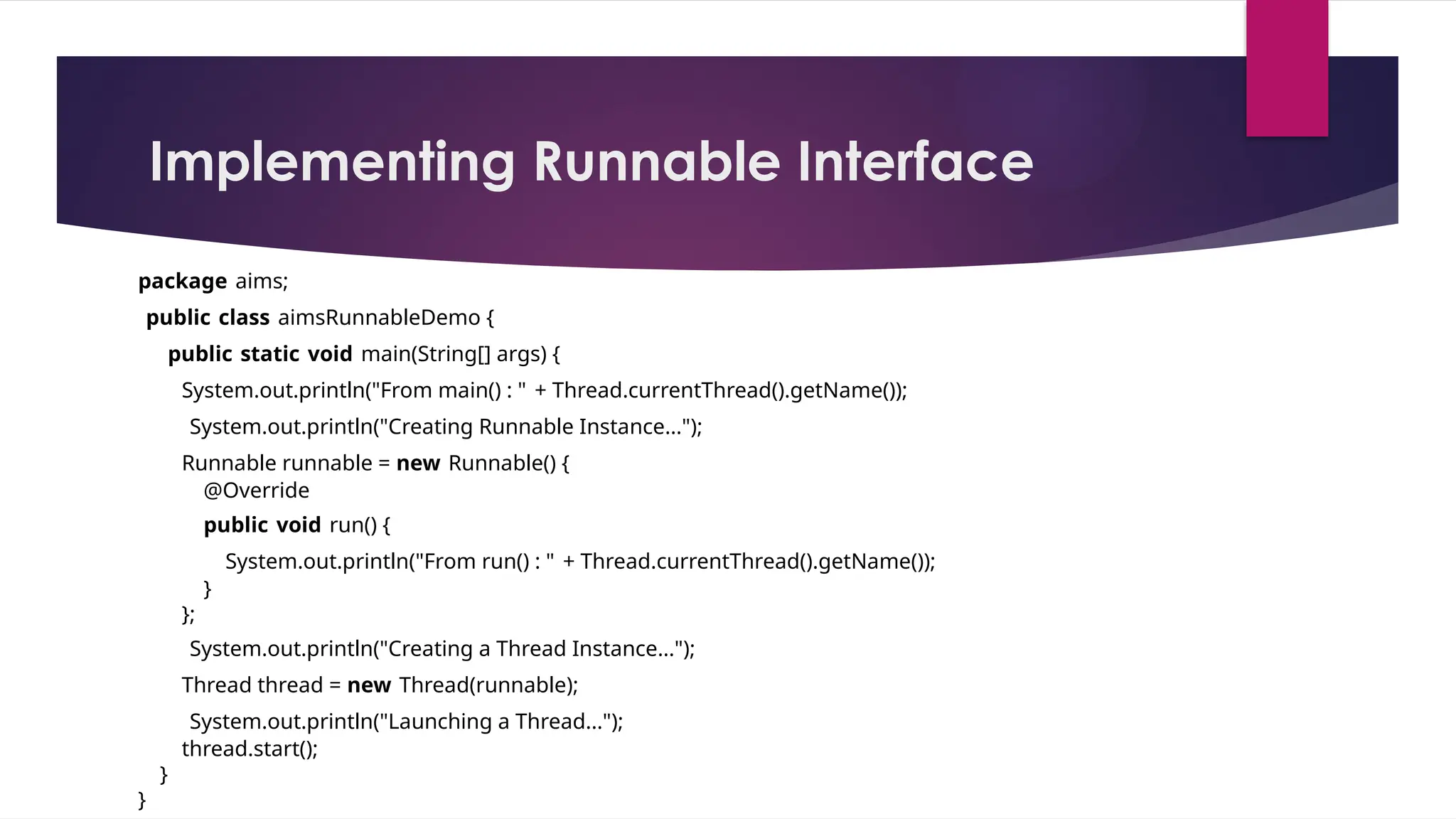

21. Implementing Runnable Interface
package aims;
public class aimsRunnableDemo {
public static void main(String[] args) {
System.out.println("From main() : " + Thread.currentThread().getName());
System.out.println("Creating Runnable Instance...");
Runnable runnable = new Runnable() {
@Override
public void run() {
System.out.println("From run() : " + Thread.currentThread().getName());
}
};
System.out.println("Creating a Thread Instance...");
Thread thread = new Thread(runnable);
System.out.println("Launching a Thread...");
thread.start();
}
}

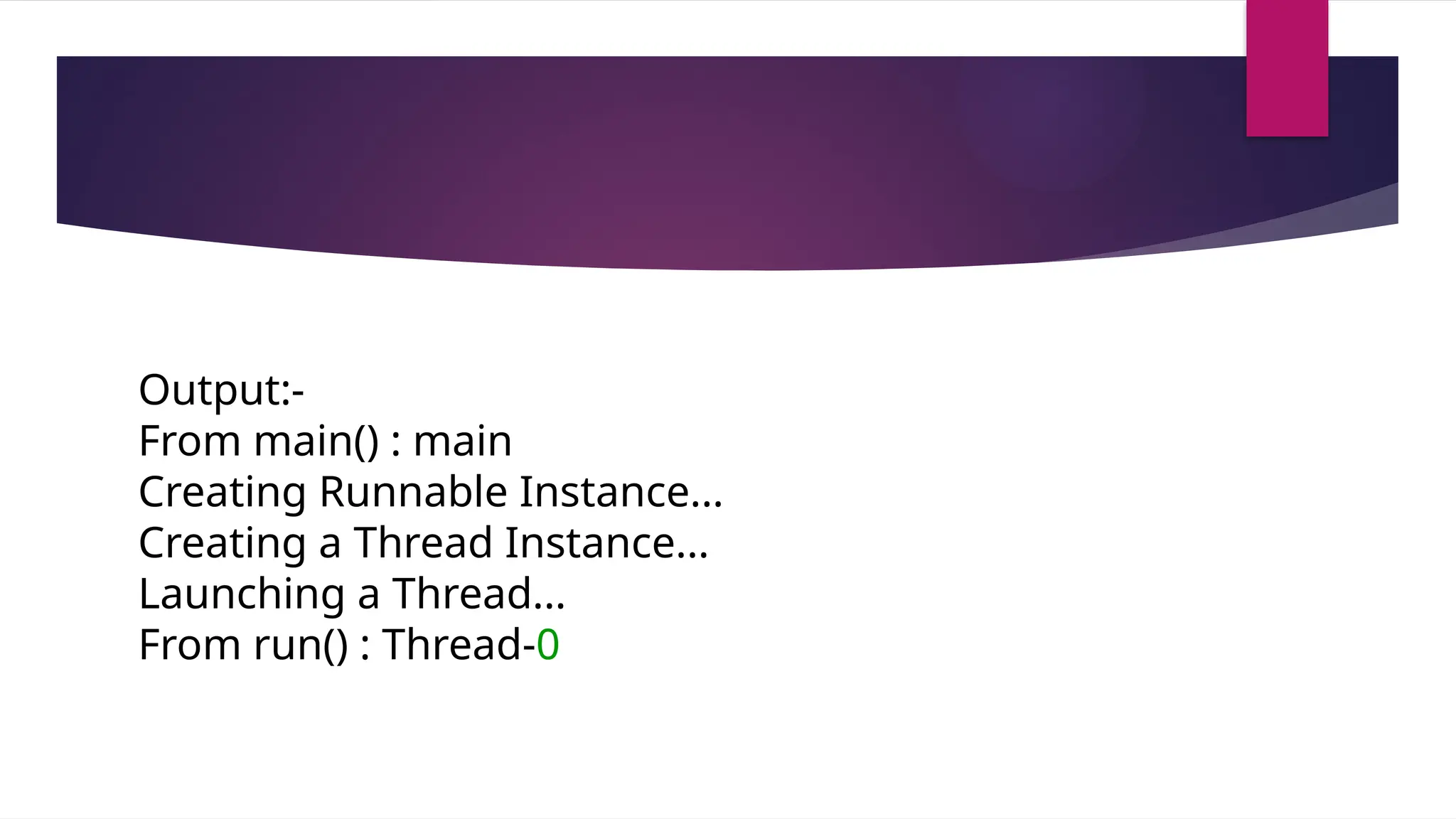

22. Output:-
From main() : main
Creating Runnable Instance...
Creating a Thread Instance...
Launching a Thread...
From run() : Thread-0

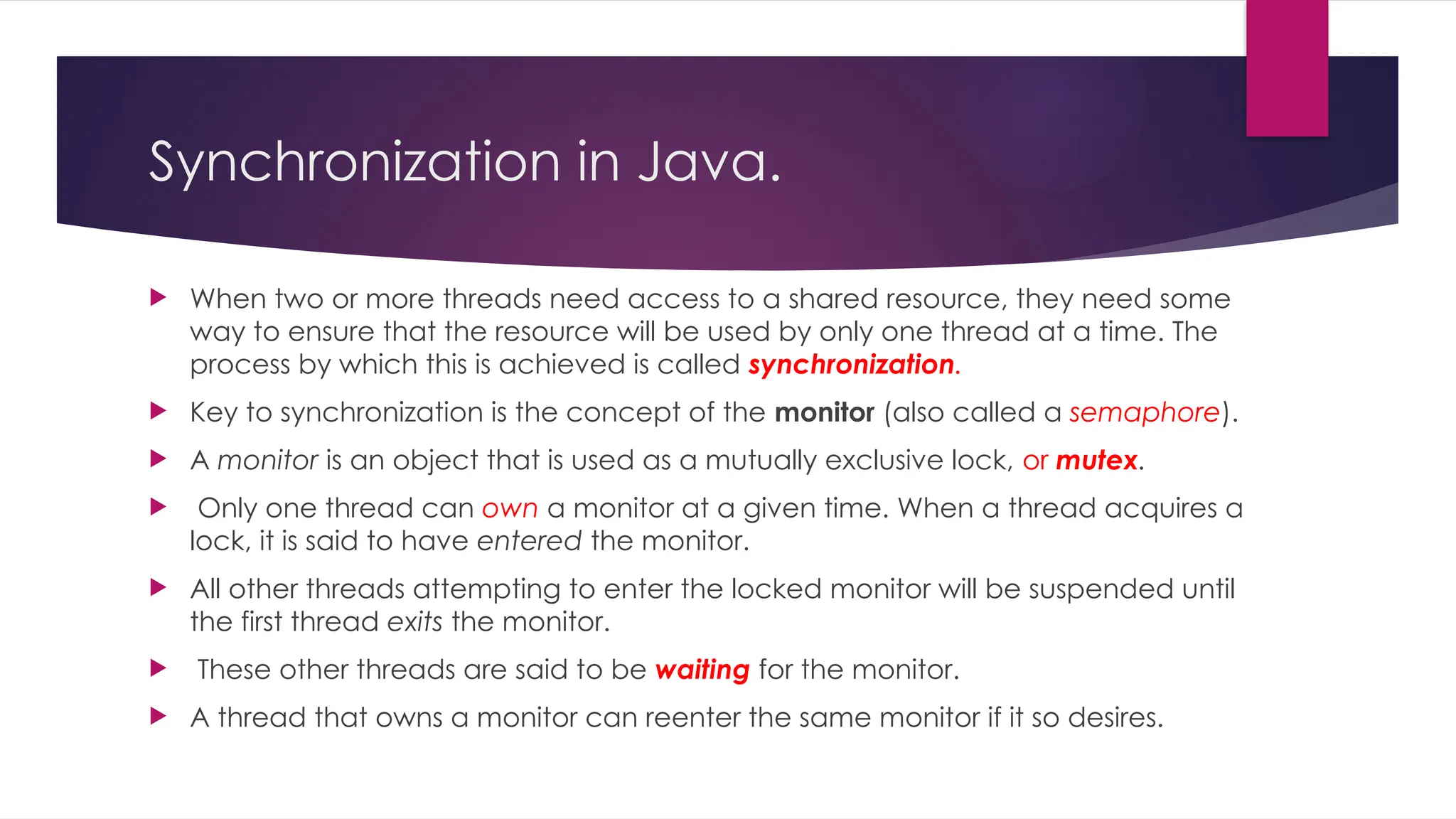

23. Synchronization in Java.
 When two or more threads need access to a shared resource, they need some
way to ensure that the resource will be used by only one thread at a time. The
process by which this is achieved is called synchronization.
 Key to synchronization is the concept of the monitor (also called a semaphore).
 A monitor is an object that is used as a mutually exclusive lock, or mutex.
 Only one thread can own a monitor at a given time. When a thread acquires a
lock, it is said to have entered the monitor.
 All other threads attempting to enter the locked monitor will be suspended until
the first thread exits the monitor.
 These other threads are said to be waiting for the monitor.
 A thread that owns a monitor can reenter the same monitor if it so desires.

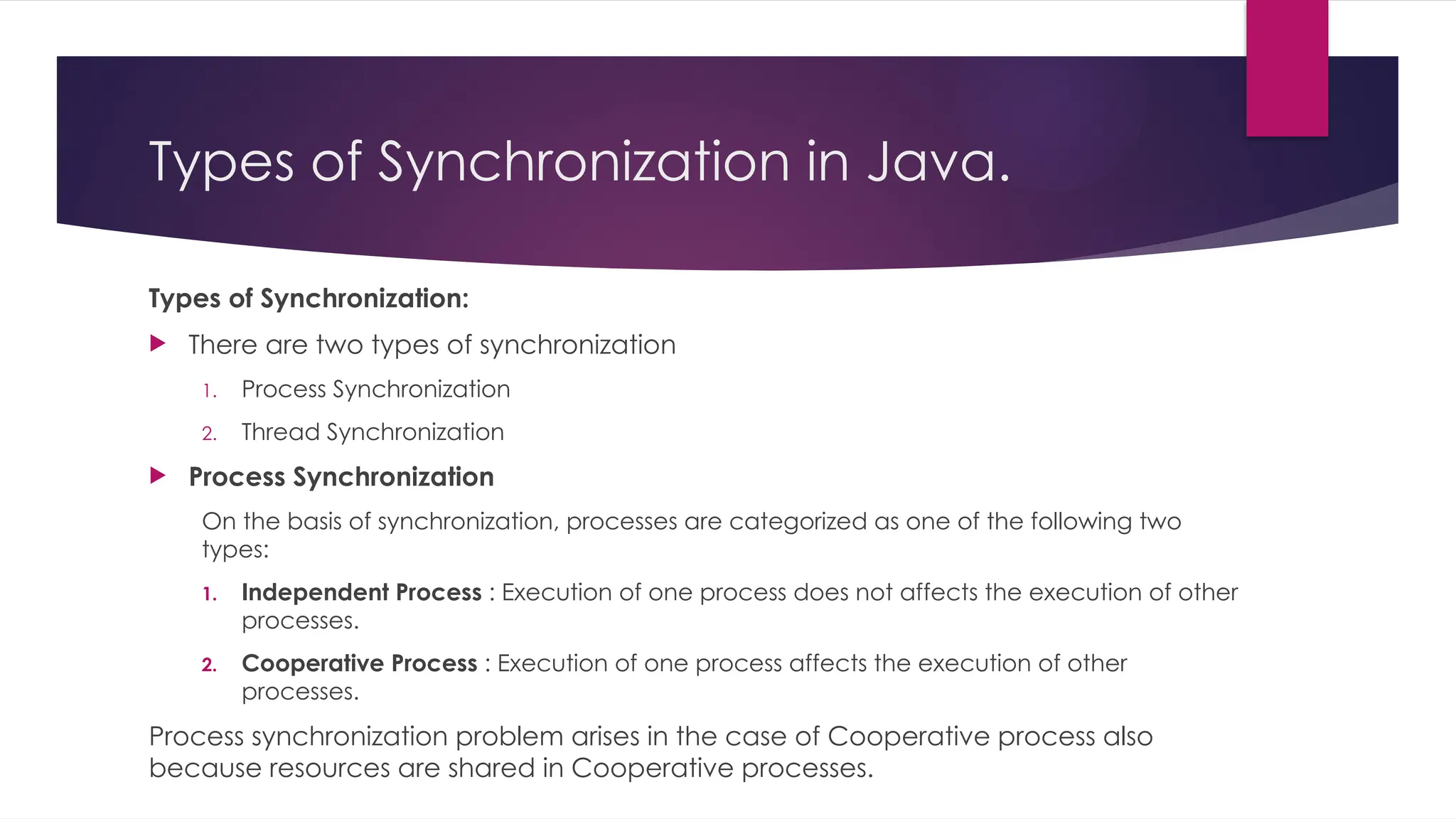

24. Types of Synchronization:
 There are two types of synchronization
1. Process Synchronization
2. Thread Synchronization
 Process Synchronization
On the basis of synchronization, processes are categorized as one of the following two
types:
1. Independent Process : Execution of one process does not affects the execution of other
processes.
2. Cooperative Process : Execution of one process affects the execution of other
processes.
Process synchronization problem arises in the case of Cooperative process also
because resources are shared in Cooperative processes.
Types of Synchronization in Java.

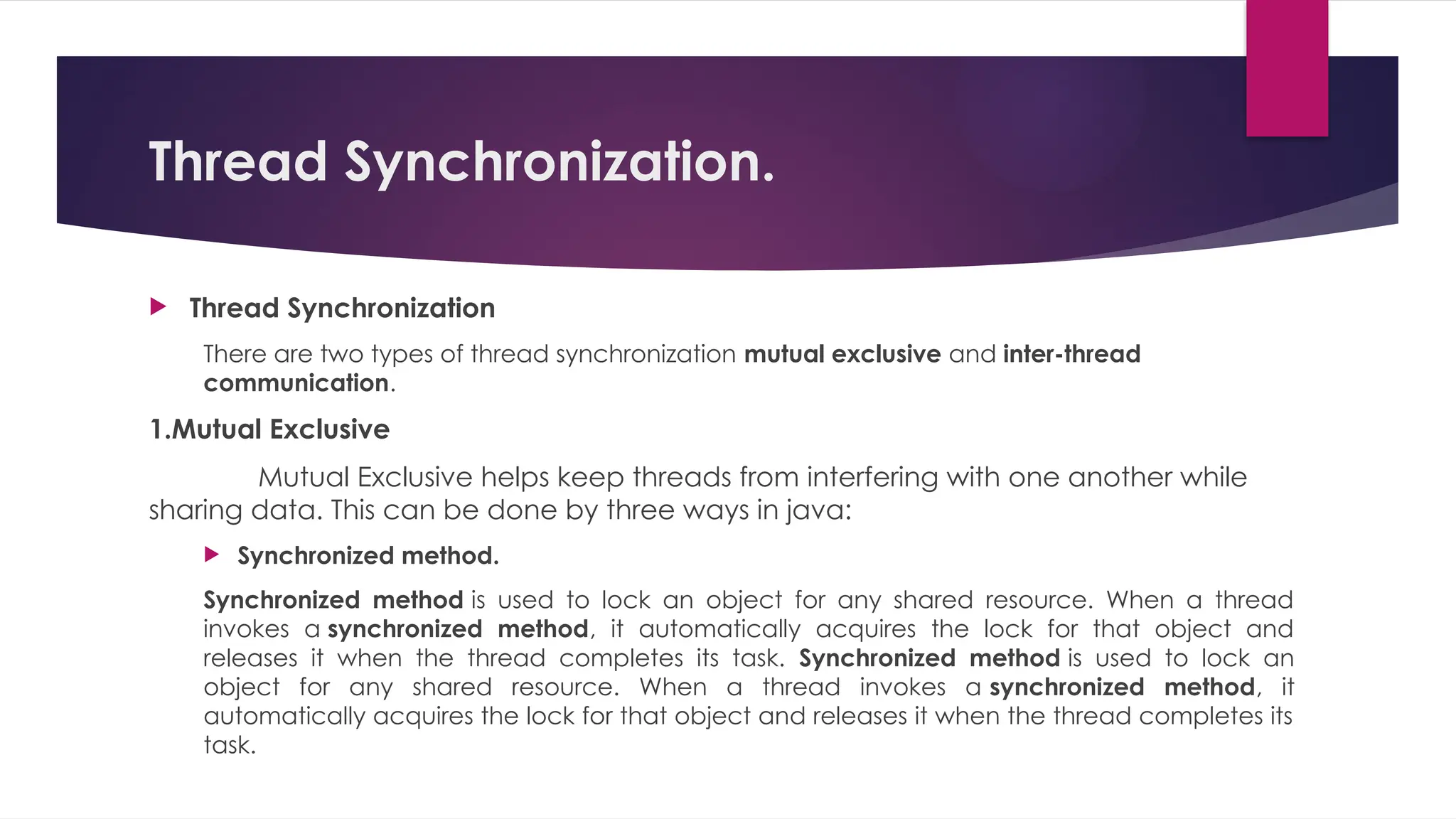

25. Thread Synchronization.
 Thread Synchronization
There are two types of thread synchronization mutual exclusive and inter-thread
communication.
1.Mutual Exclusive
Mutual Exclusive helps keep threads from interfering with one another while
sharing data. This can be done by three ways in java:
 Synchronized method.
Synchronized method is used to lock an object for any shared resource. When a thread
invokes a synchronized method, it automatically acquires the lock for that object and
releases it when the thread completes its task. Synchronized method is used to lock an
object for any shared resource. When a thread invokes a synchronized method, it
automatically acquires the lock for that object and releases it when the thread completes its
task.

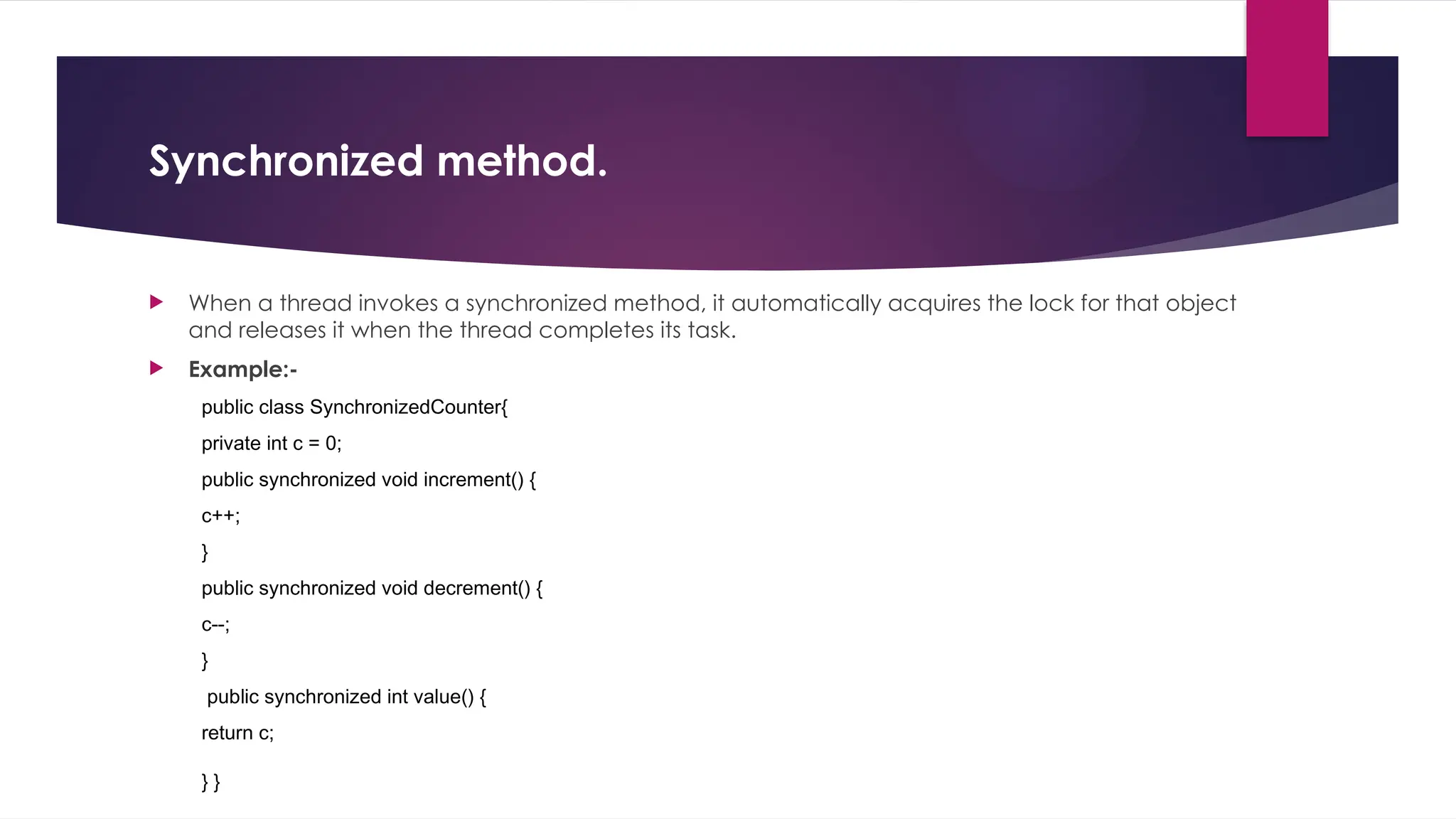

26. Synchronized method.
 When a thread invokes a synchronized method, it automatically acquires the lock for that object
and releases it when the thread completes its task.
 Example:-
public class SynchronizedCounter{
private int c = 0;
public synchronized void increment() {
c++;
}
public synchronized void decrement() {
c--;
}
public synchronized int value() {
return c;
} }

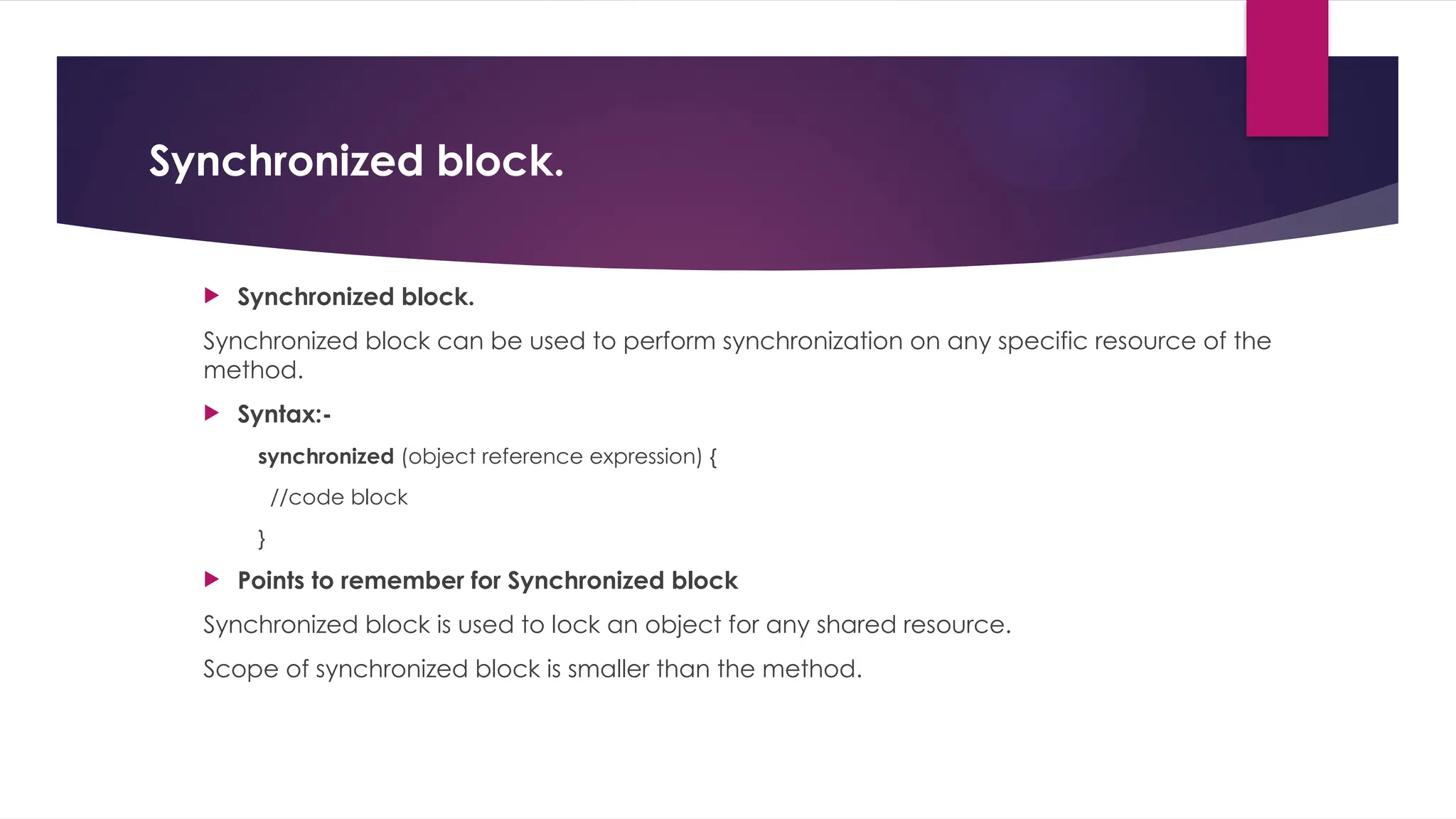

27. Synchronized block.
 Synchronized block.
Synchronized block can be used to perform synchronization on any specific resource of the
method.
 Syntax:-
synchronized (object reference expression) {
//code block
}
 Points to remember for Synchronized block
Synchronized block is used to lock an object for any shared resource.
Scope of synchronized block is smaller than the method.

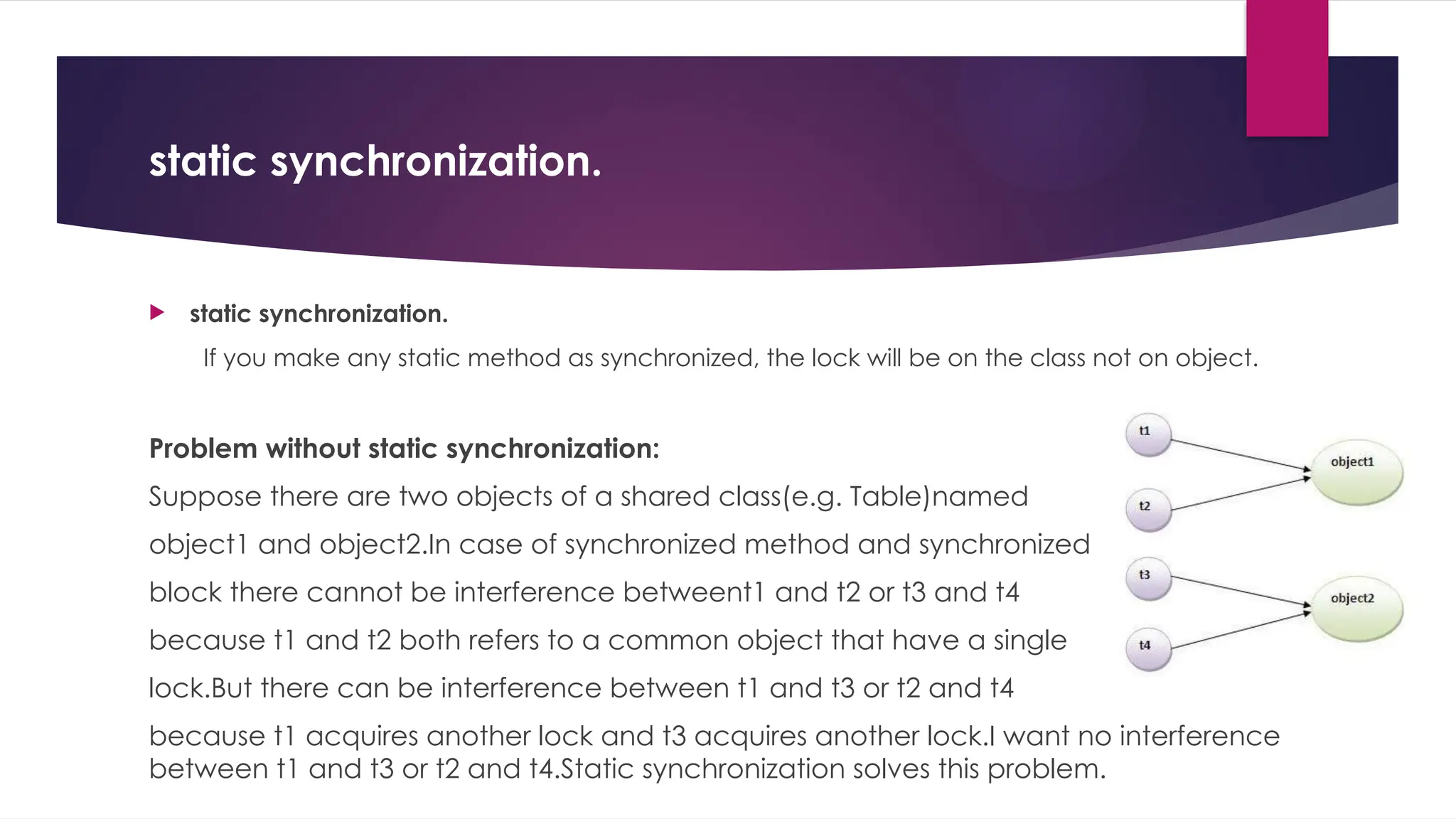

28. static synchronization.
 static synchronization.
If you make any static method as synchronized, the lock will be on the class not on object.
Problem without static synchronization:
Suppose there are two objects of a shared class(e.g. Table)named
object1 and object2.In case of synchronized method and synchronized
block there cannot be interference betweent1 and t2 or t3 and t4
because t1 and t2 both refers to a common object that have a single
lock.But there can be interference between t1 and t3 or t2 and t4
because t1 acquires another lock and t3 acquires another lock.I want no interference
between t1 and t3 or t2 and t4.Static synchronization solves this problem.

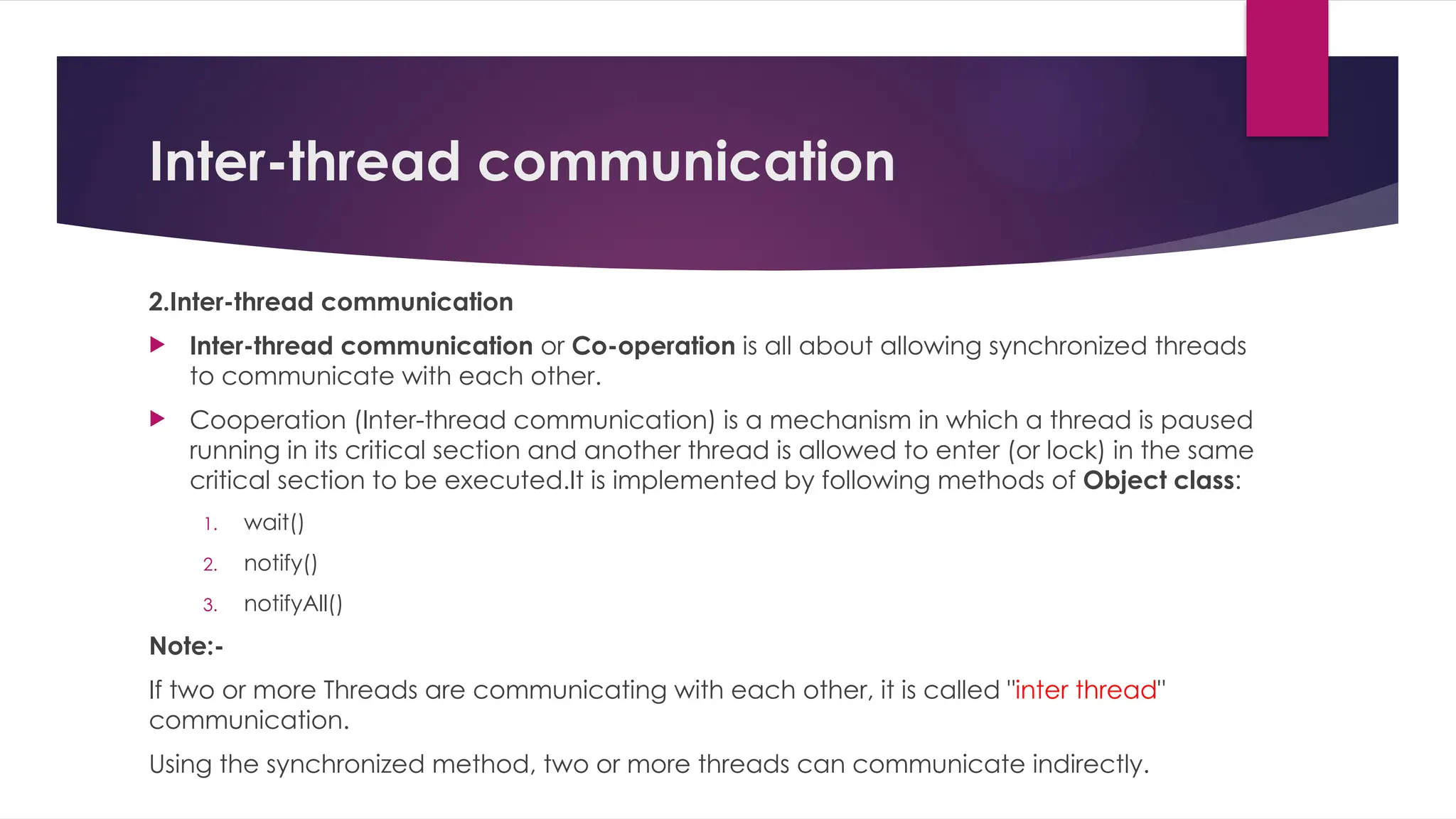

29. Inter-thread communication
2.Inter-thread communication
 Inter-thread communication or Co-operation is all about allowing synchronized threads
to communicate with each other.
 Cooperation (Inter-thread communication) is a mechanism in which a thread is paused
running in its critical section and another thread is allowed to enter (or lock) in the same
critical section to be executed.It is implemented by following methods of Object class:
1. wait()
2. notify()
3. notifyAll()
Note:-
If two or more Threads are communicating with each other, it is called "inter thread"
communication.
Using the synchronized method, two or more threads can communicate indirectly.

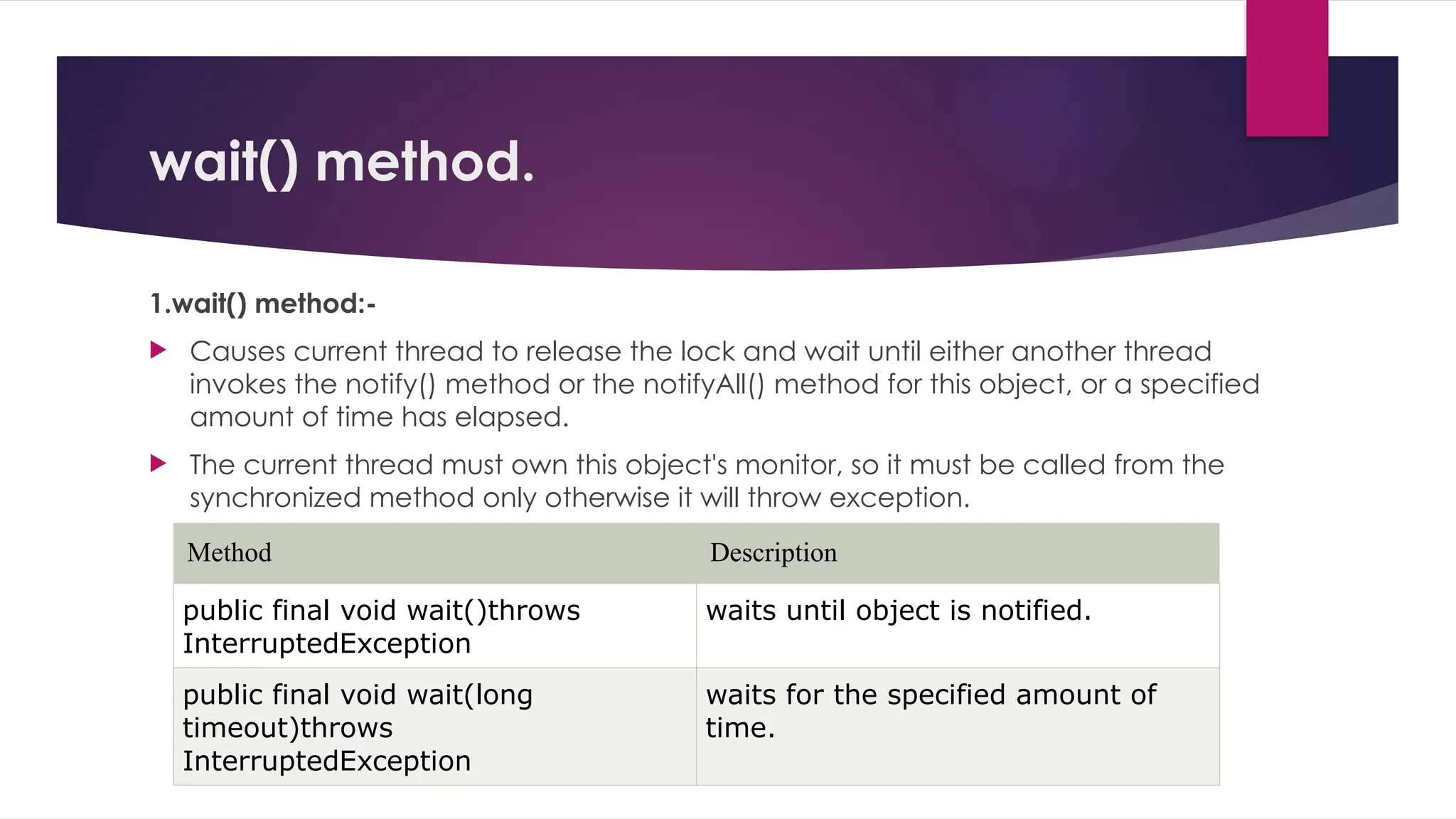

30. wait() method.
1.wait() method:-
 Causes current thread to release the lock and wait until either another thread
invokes the notify() method or the notifyAll() method for this object, or a specified
amount of time has elapsed.
 The current thread must own this object's monitor, so it must be called from the
synchronized method only otherwise it will throw exception.
Method Description
public final void wait()throws
InterruptedException
waits until object is notified.
public final void wait(long
timeout)throws
InterruptedException
waits for the specified amount of
time.

31. notify() and notify All() method.
2.notify() method:-
 Wakes up a single thread that is waiting on this object's monitor. If any threads are
waiting on this object, one of them is chosen to be awakened. The choice is
arbitrary and occurs at the discretion of the implementation. Syntax:
 public final void notify()
3.notifyAll() method:-
 Wakes up all threads that are waiting on this object's monitor. Syntax:
 public final void notifyAll()

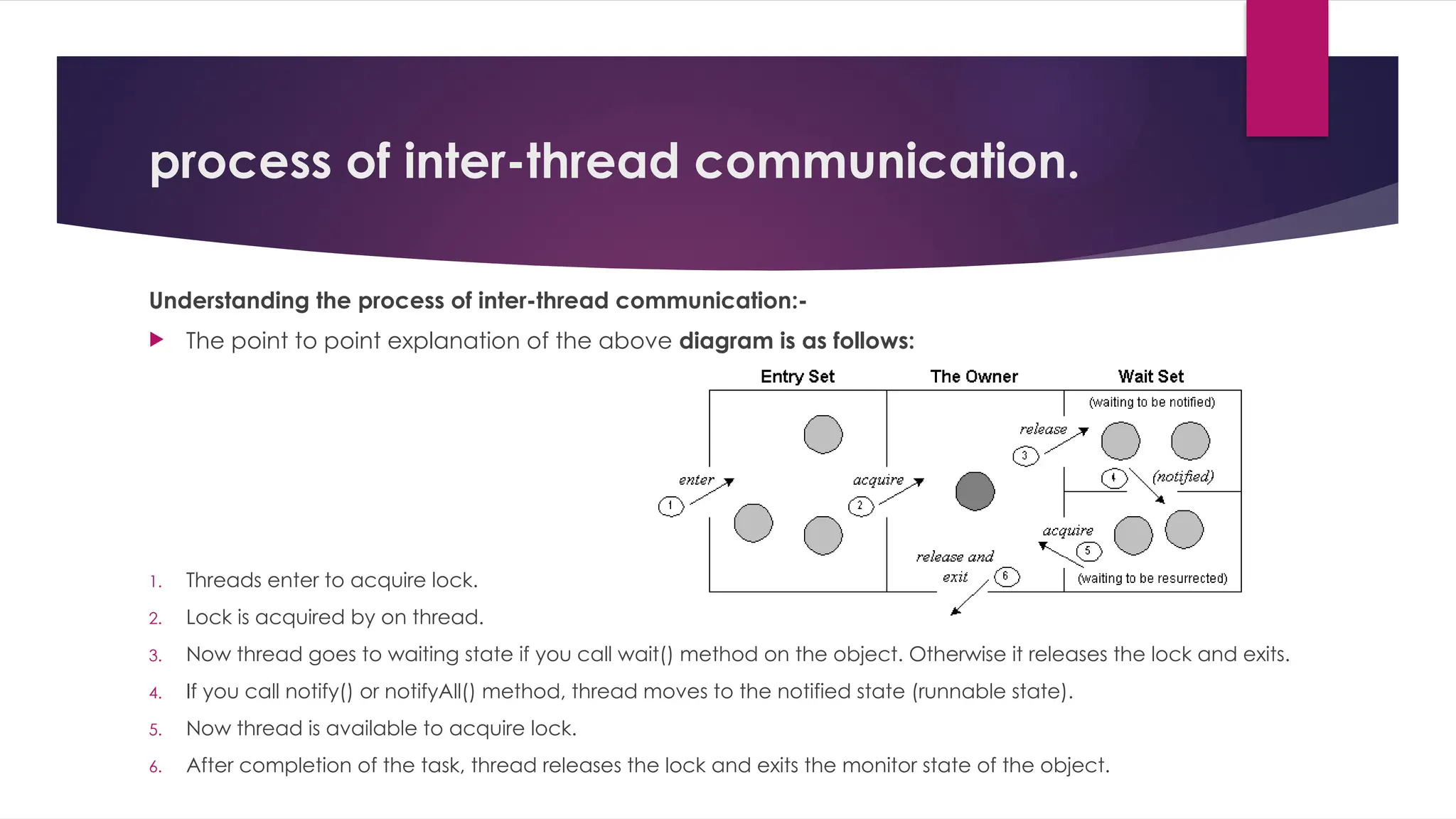

32. process of inter-thread communication.
Understanding the process of inter-thread communication:-
 The point to point explanation of the above diagram is as follows:
1. Threads enter to acquire lock.
2. Lock is acquired by on thread.
3. Now thread goes to waiting state if you call wait() method on the object. Otherwise it releases the lock and exits.
4. If you call notify() or notifyAll() method, thread moves to the notified state (runnable state).
5. Now thread is available to acquire lock.
6. After completion of the task, thread releases the lock and exits the monitor state of the object.

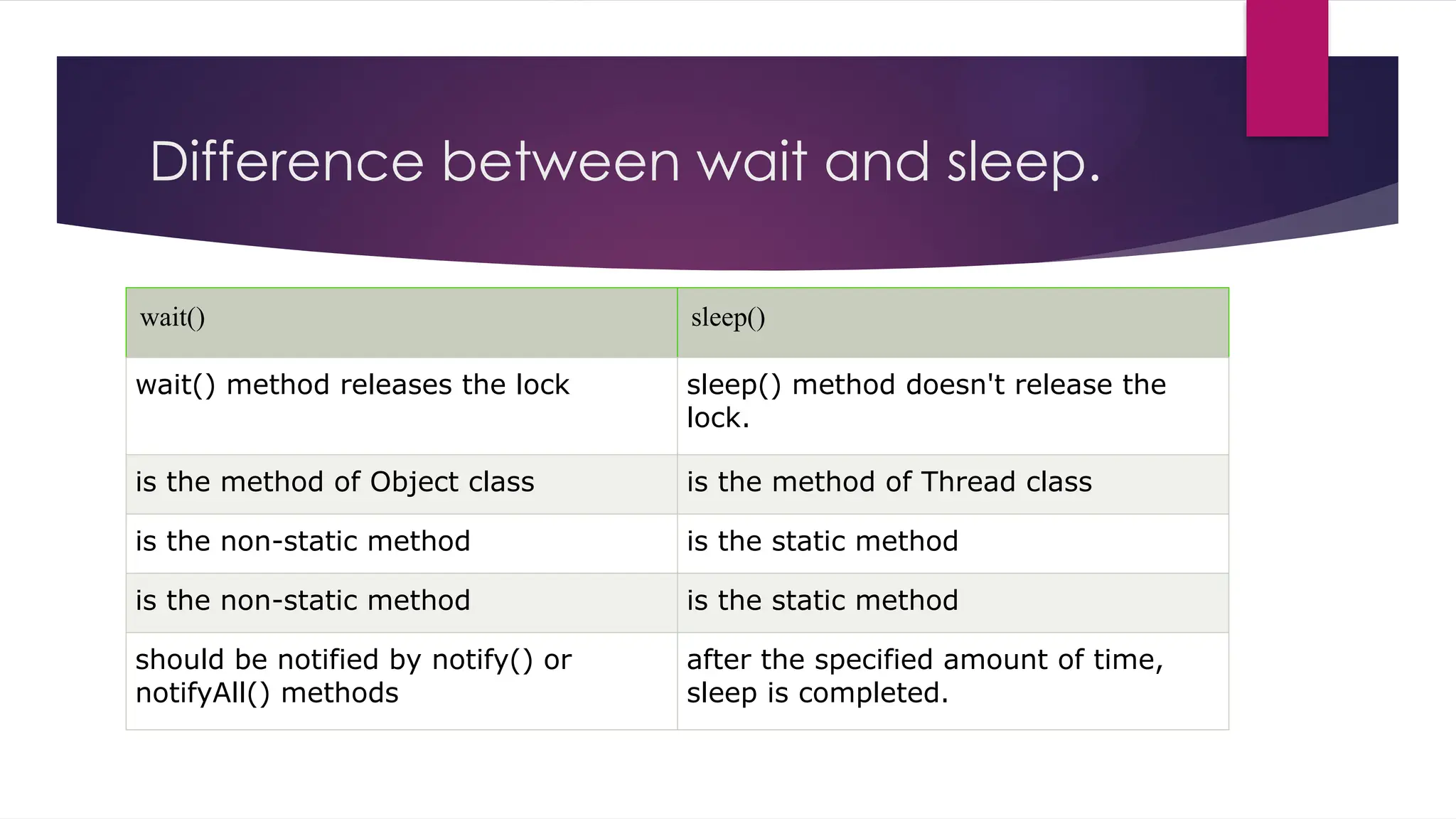

33. Difference between wait and sleep.
wait() sleep()
wait() method releases the lock sleep() method doesn't release the
lock.
is the method of Object class is the method of Thread class
is the non-static method is the static method
is the non-static method is the static method
should be notified by notify() or
notifyAll() methods
after the specified amount of time,
sleep is completed.

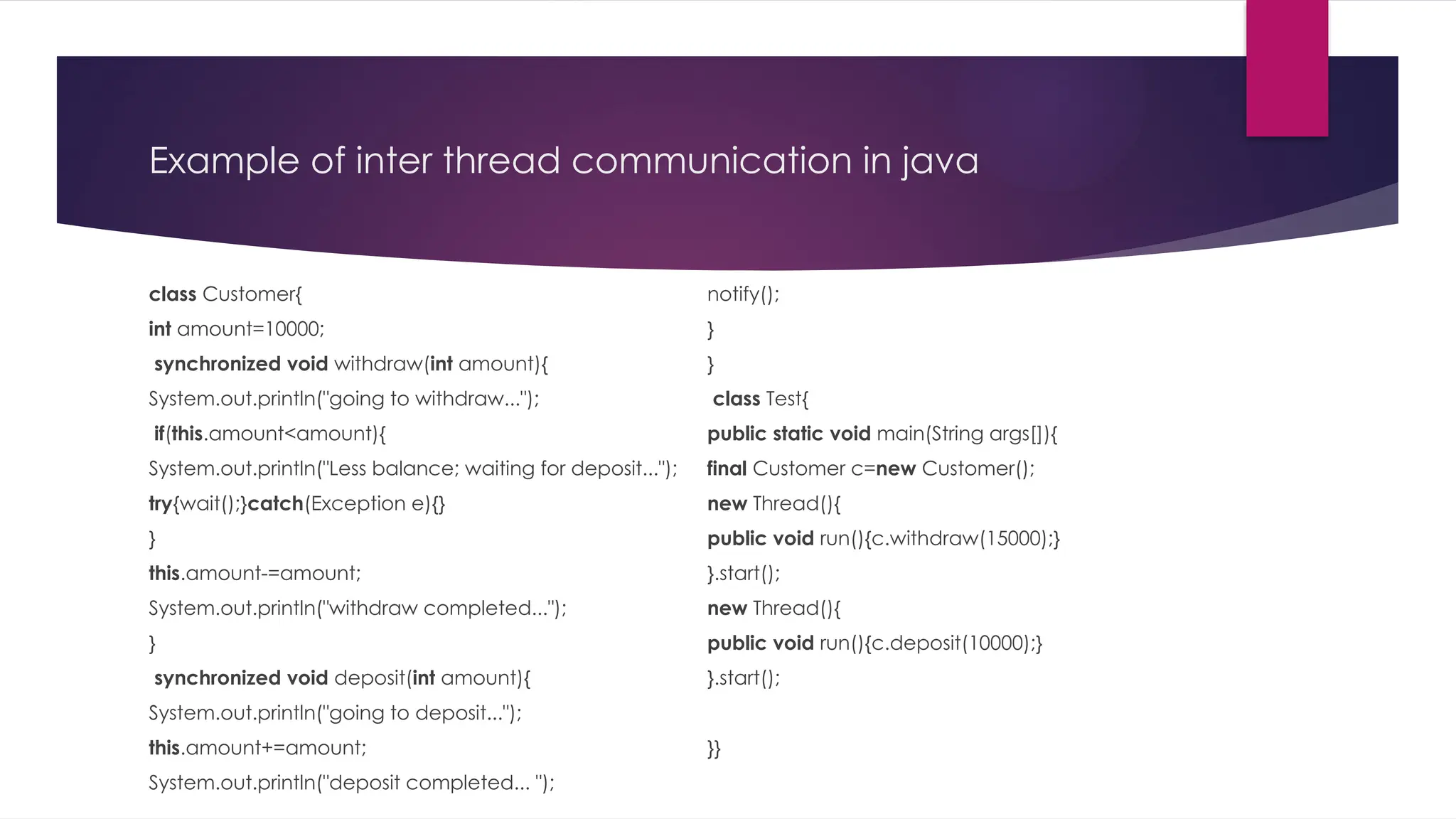

34. Example of inter thread communication in java
class Customer{
int amount=10000;
synchronized void withdraw(int amount){
System.out.println("going to withdraw...");
if(this.amount<amount){
System.out.println("Less balance; waiting for deposit...");
try{wait();}catch(Exception e){}
}
this.amount-=amount;
System.out.println("withdraw completed...");
}
synchronized void deposit(int amount){
System.out.println("going to deposit...");
this.amount+=amount;
System.out.println("deposit completed... ");
notify();
}
}
class Test{
public static void main(String args[]){
final Customer c=new Customer();
new Thread(){
public void run(){c.withdraw(15000);}
}.start();
new Thread(){
public void run(){c.deposit(10000);}
}.start();
}}

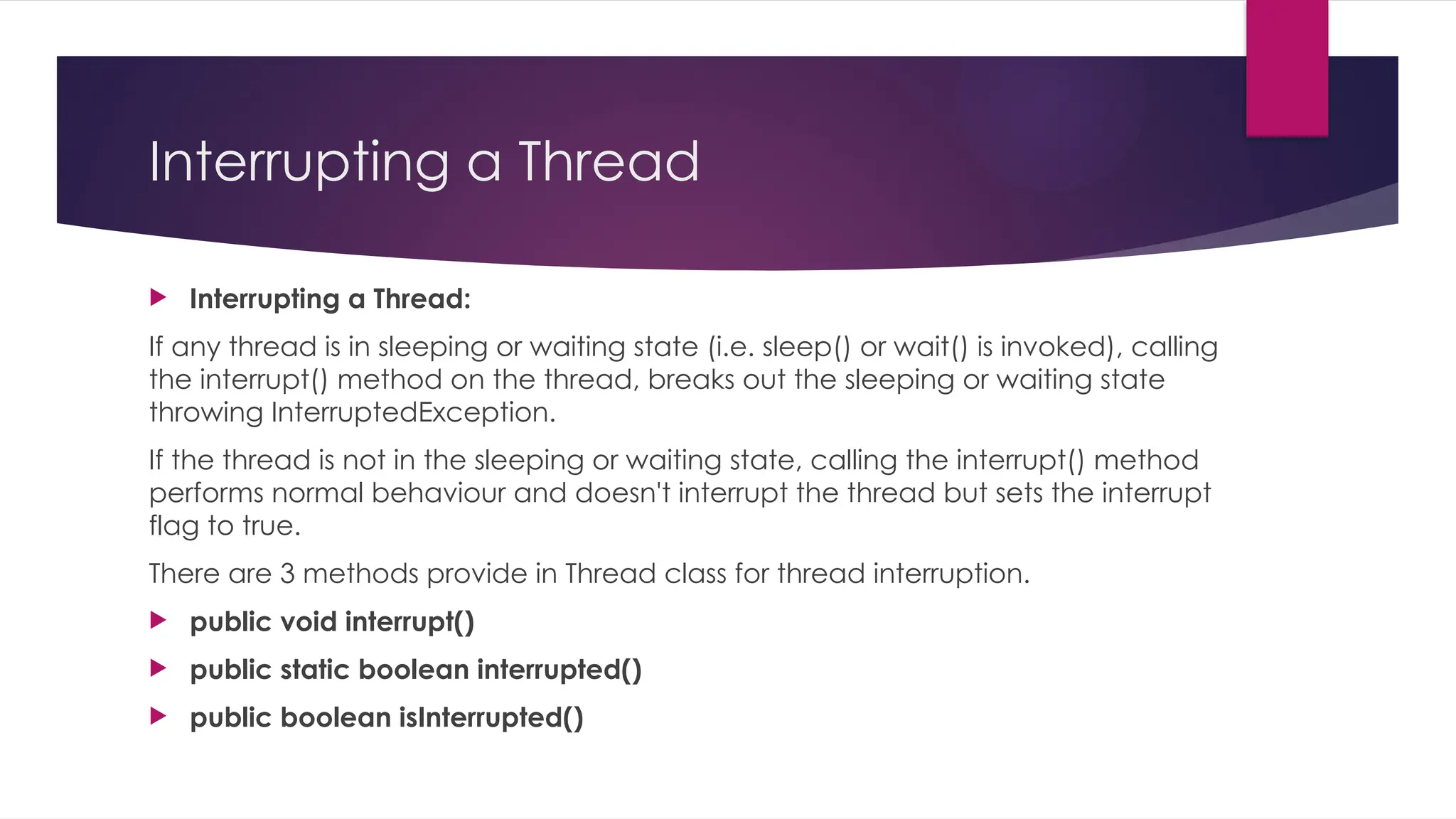

35. Interrupting a Thread
 Interrupting a Thread:
If any thread is in sleeping or waiting state (i.e. sleep() or wait() is invoked), calling
the interrupt() method on the thread, breaks out the sleeping or waiting state
throwing InterruptedException.
If the thread is not in the sleeping or waiting state, calling the interrupt() method
performs normal behaviour and doesn't interrupt the thread but sets the interrupt
flag to true.
There are 3 methods provide in Thread class for thread interruption.
 public void interrupt()
 public static boolean interrupted()
 public boolean isInterrupted()

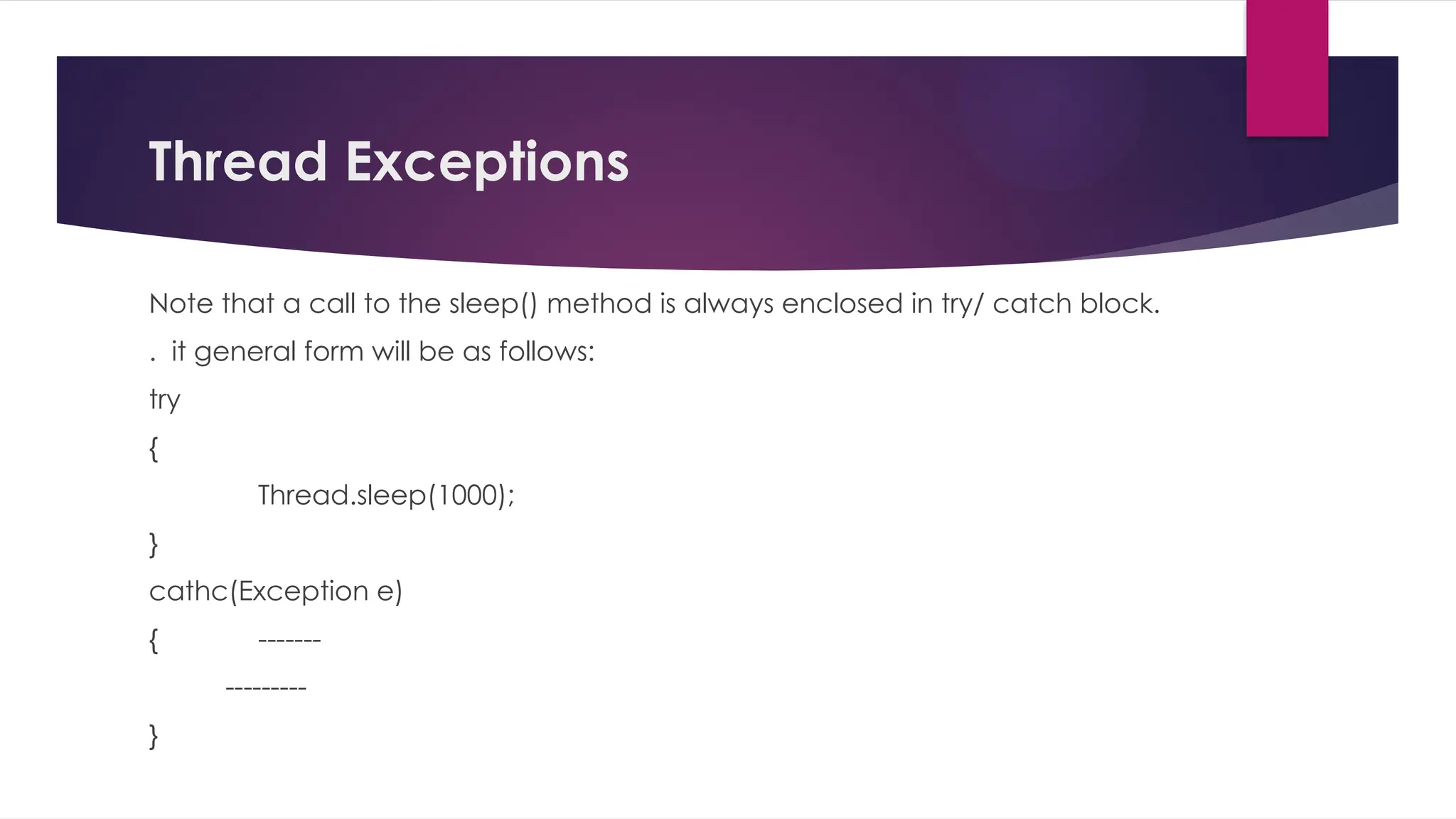

36. Thread Exceptions
Note that a call to the sleep() method is always enclosed in try/ catch block.
. it general form will be as follows:
try
{
Thread.sleep(1000);
}
cathc(Exception e)
{ -------
---------
}

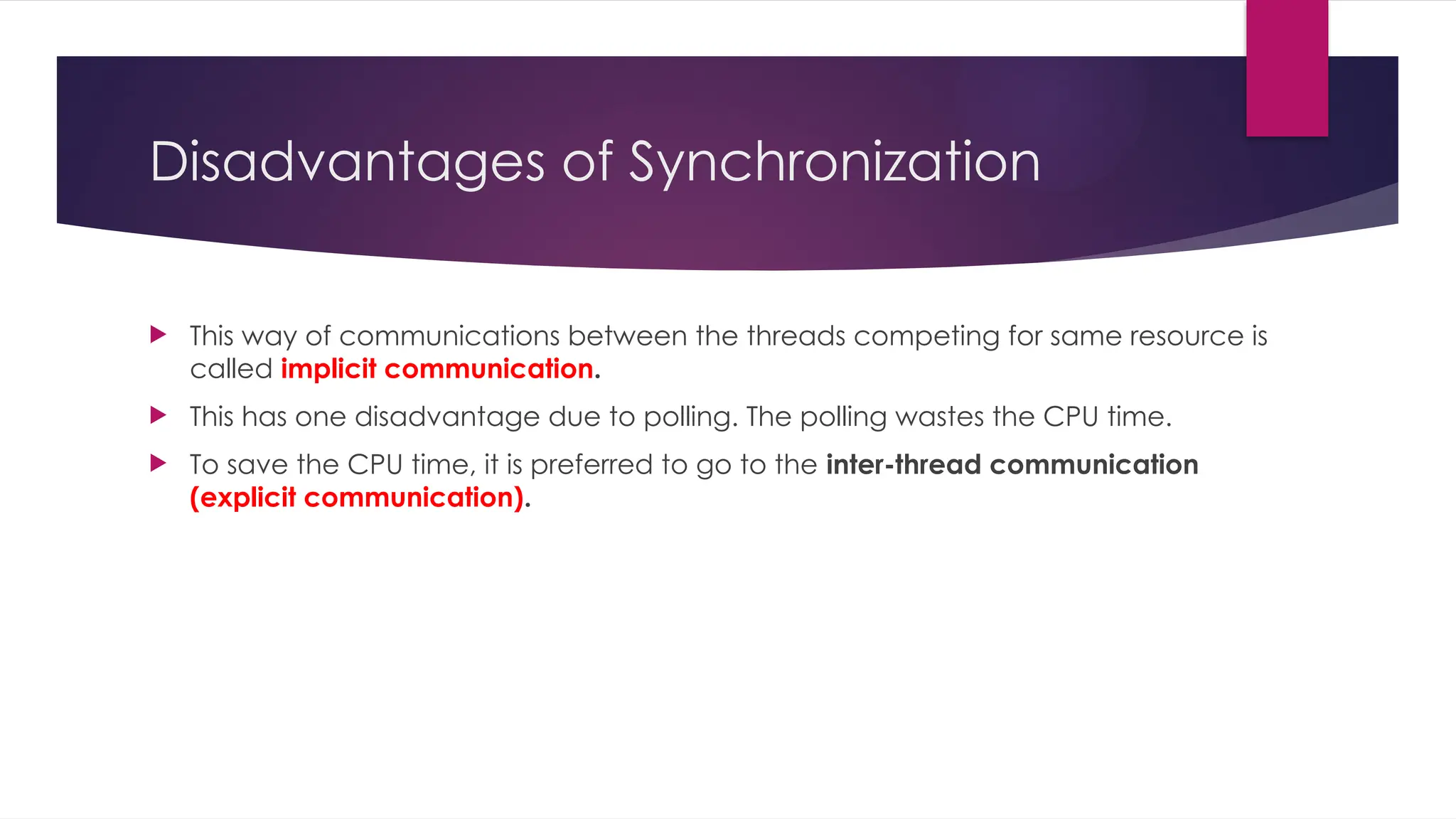

37. Disadvantages of Synchronization
 This way of communications between the threads competing for same resource is
called implicit communication.
 This has one disadvantage due to polling. The polling wastes the CPU time.
 To save the CPU time, it is preferred to go to the inter-thread communication
(explicit communication).
