This document discusses using Mule ESG's SSH connector to run UNIX commands on a remote SSH-enabled Linux/UNIX machine. It describes the prerequisites including Anypoint Studio, Mule runtime, and an SSH-enabled machine. It provides an example Mule flow that uses the SSH connector configured with username, password, and host to send a command to touch a file, with a callback flow to log that the file was copied.

1. Mule ESB: SSH Connector
This Example Explains about running UNIX
commands in a remote ssh enabled UNIX/LINUX
machine using Mule ESB SSH Connector.

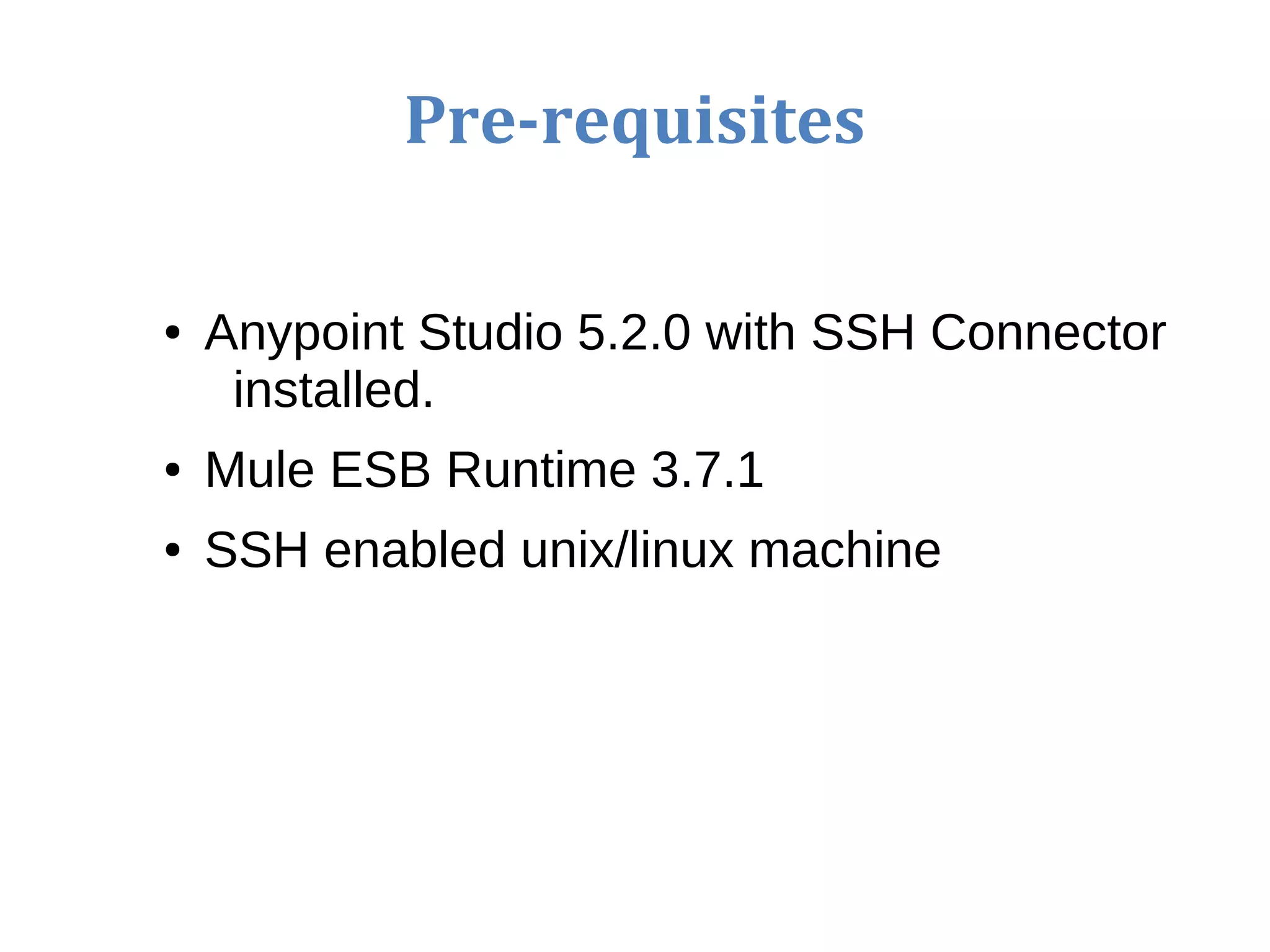

2. Pre-requisites
● Anypoint Studio 5.2.0 with SSH Connector
installed.
● Mule ESB Runtime 3.7.1
● SSH enabled unix/linux machine

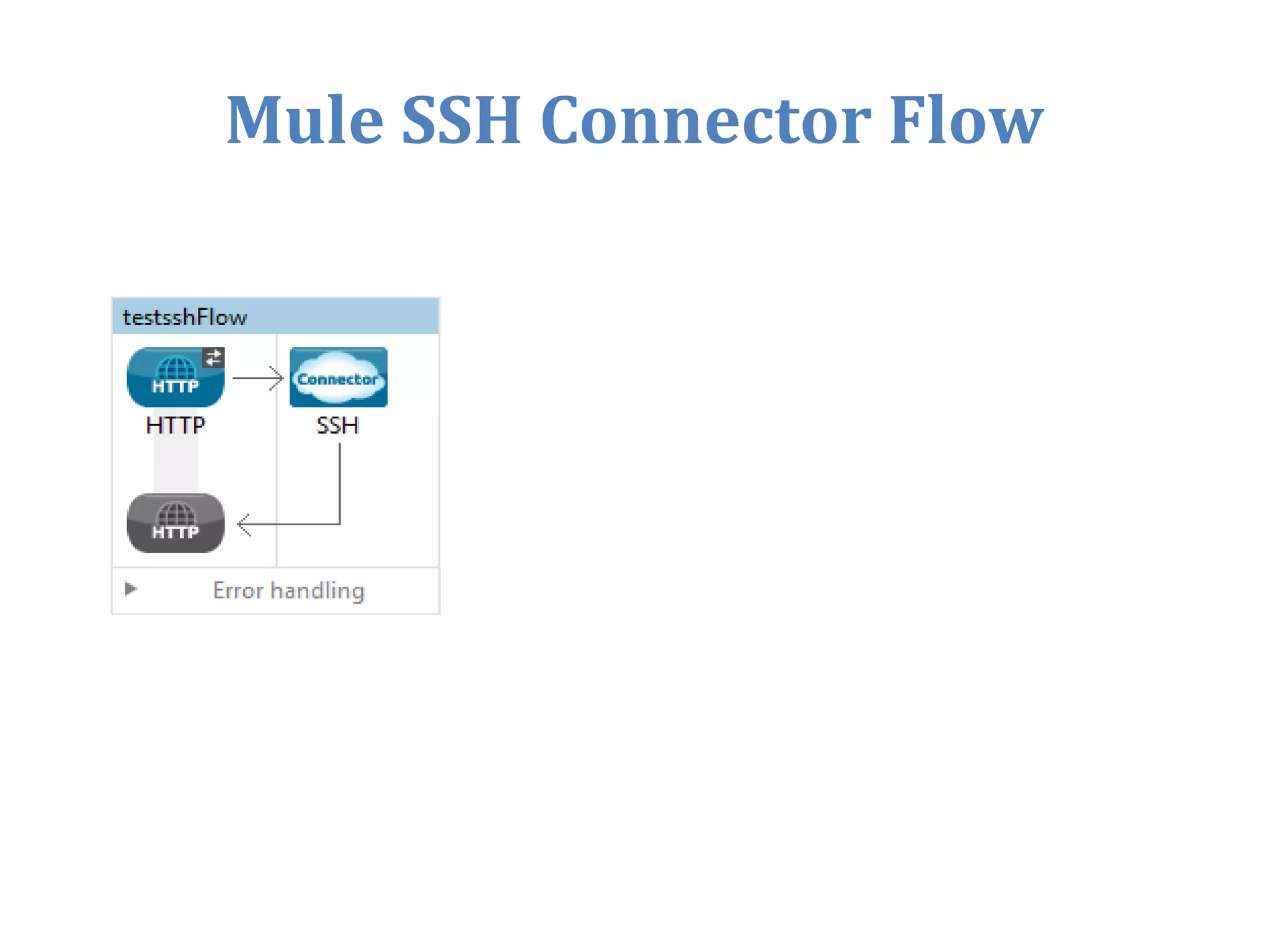

3. Mule SSH Connector Flow

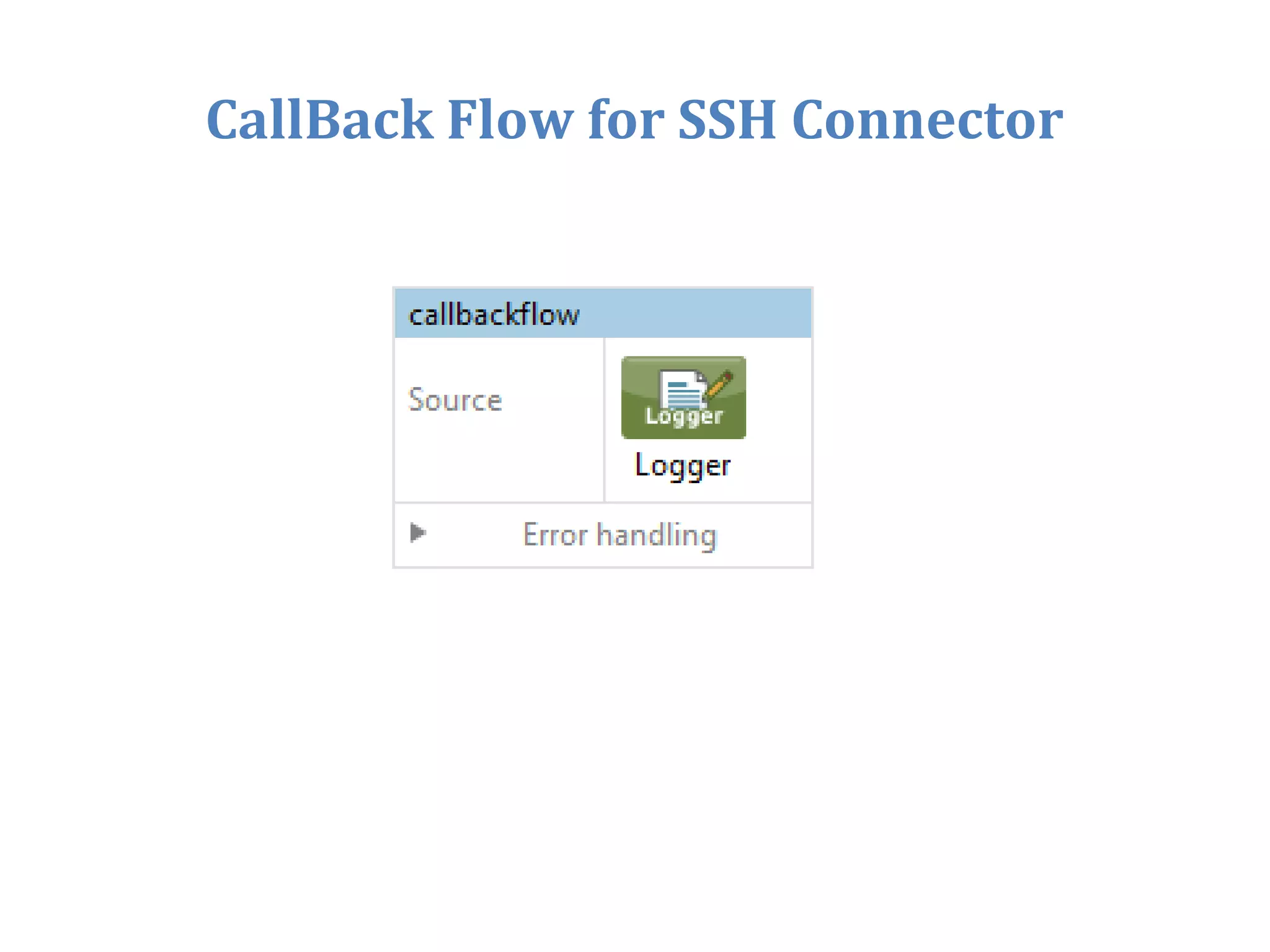

4. CallBack Flow for SSH Connector

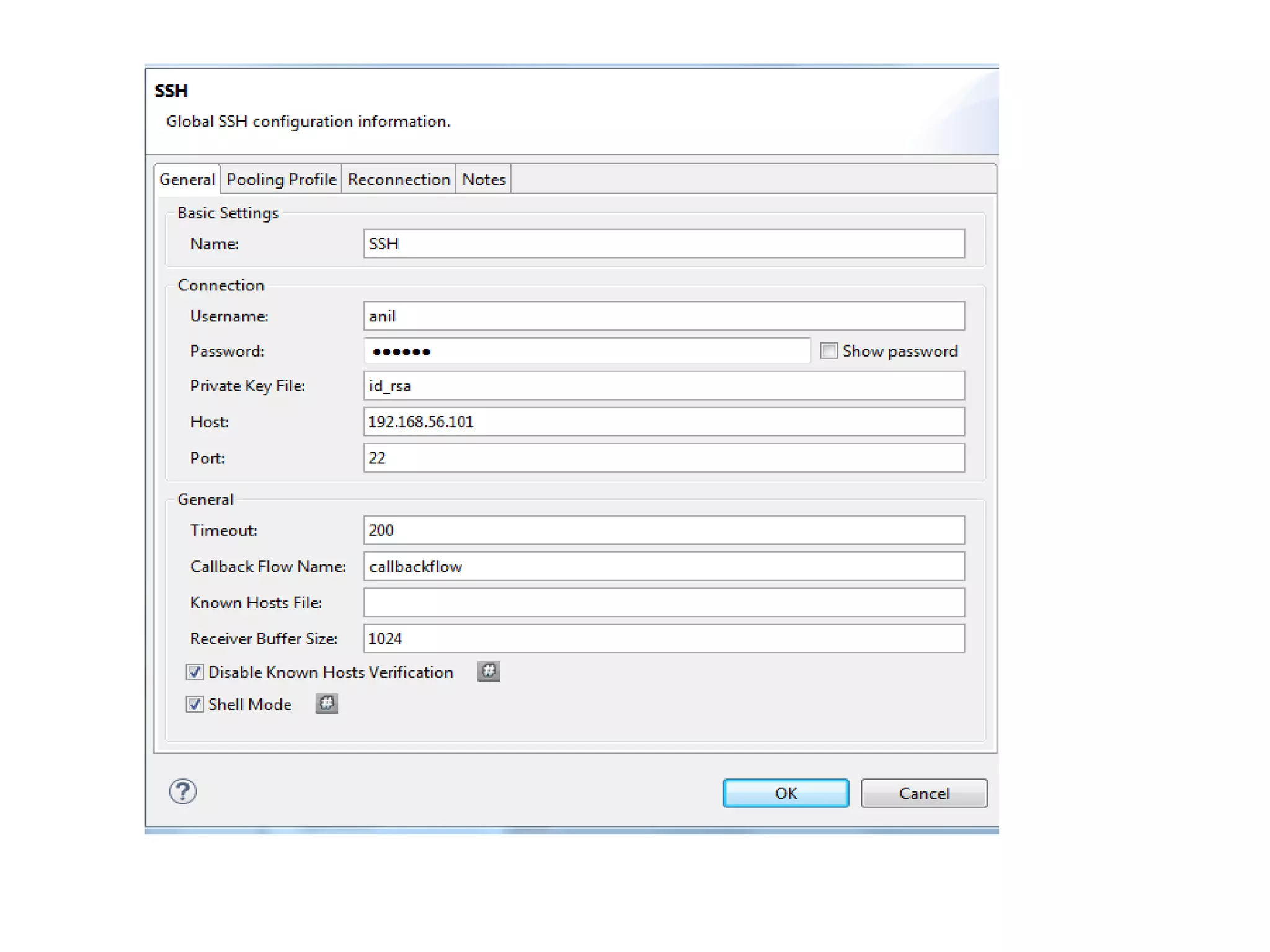

5. SSH Connector Configuration
I am running below UNIX command using SSH
Connector
“touch tezt.xml”

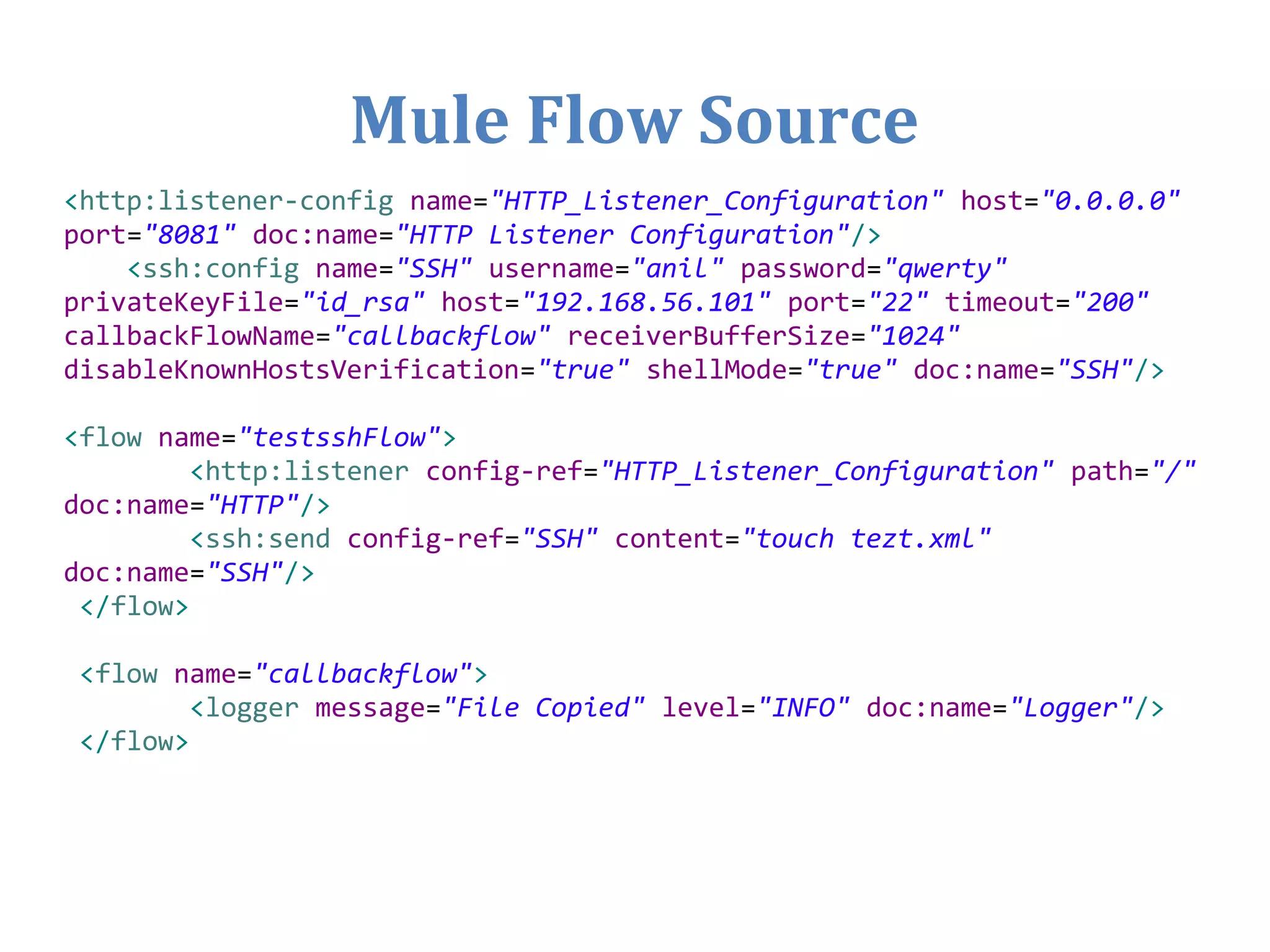

7. Mule Flow Source
<http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0"
port="8081" doc:name="HTTP Listener Configuration"/>
<ssh:config name="SSH" username="anil" password="qwerty"
privateKeyFile="id_rsa" host="192.168.56.101" port="22" timeout="200"
callbackFlowName="callbackflow" receiverBufferSize="1024"
disableKnownHostsVerification="true" shellMode="true" doc:name="SSH"/>
<flow name="testsshFlow">
<http:listener config-ref="HTTP_Listener_Configuration" path="/"
doc:name="HTTP"/>
<ssh:send config-ref="SSH" content="touch tezt.xml"
doc:name="SSH"/>
</flow>
<flow name="callbackflow">
<logger message="File Copied" level="INFO" doc:name="Logger"/>
</flow>

8. File Created in unix Machine
