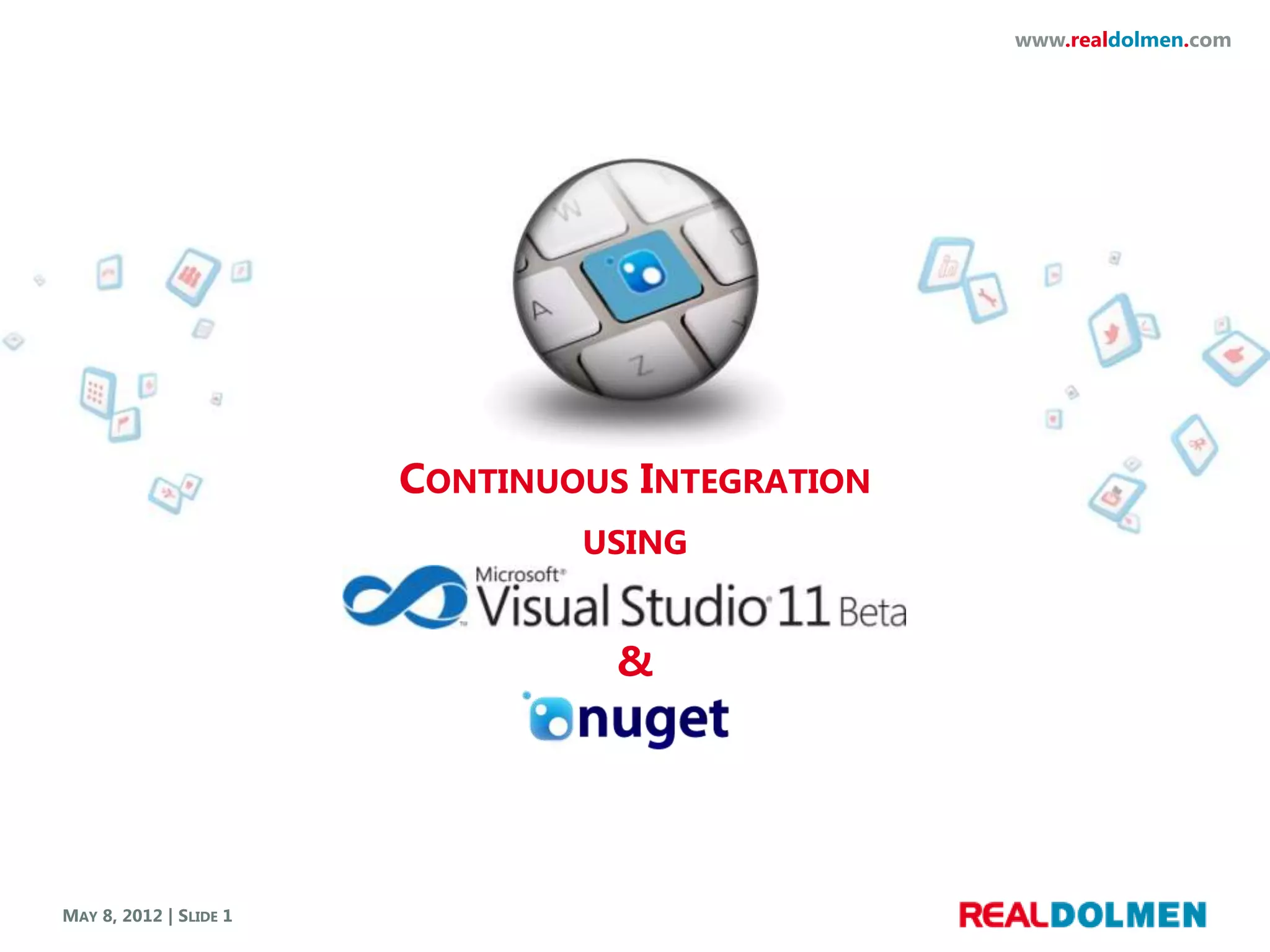

www.realdolmen.com




                        CONTINUOUS INTEGRATION
                                USING


                                  &




MAY 8, 2012 | SLIDE 1
WHO AM I?
        Xavier Decoster
        Antwerp, Belgium
        www.realdolmen.com
        Co-founder of MyGet.org
        Focus on ALM/Web
        http://www.xavierdecoster.com
        @xavierdecoster




MAY 8, 2012 | SLIDE 3

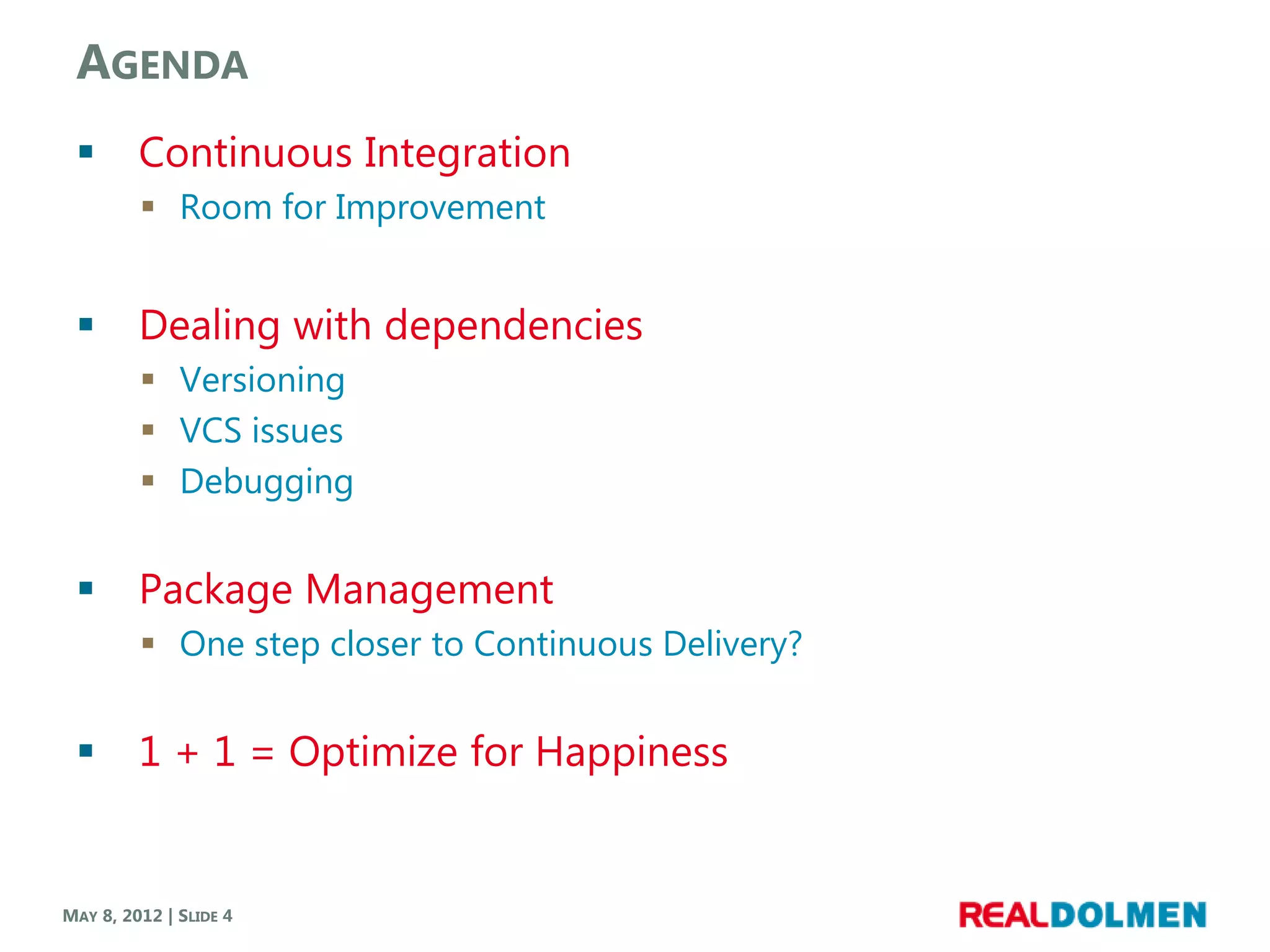

AGENDA
        Continuous Integration
          Room for Improvement


        Dealing with dependencies
          Versioning
          VCS issues
          Debugging


        Package Management
          One step closer to Continuous Delivery?


        1 + 1 = Optimize for Happiness


MAY 8, 2012 | SLIDE 4

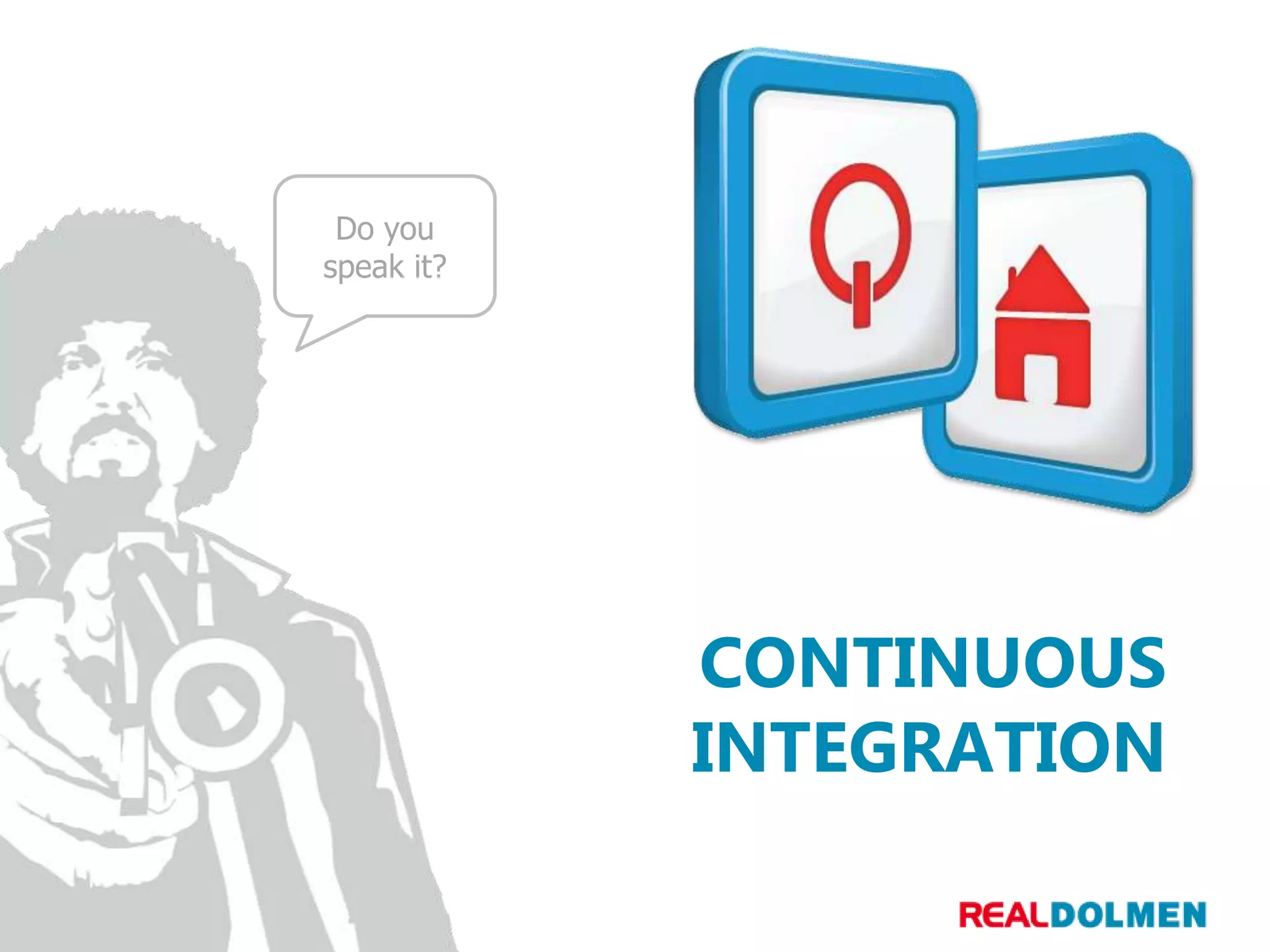

Do you
                        speak it?




                                    CONTINUOUS
                                    INTEGRATION

MAY 8, 2012 | SLIDE 5

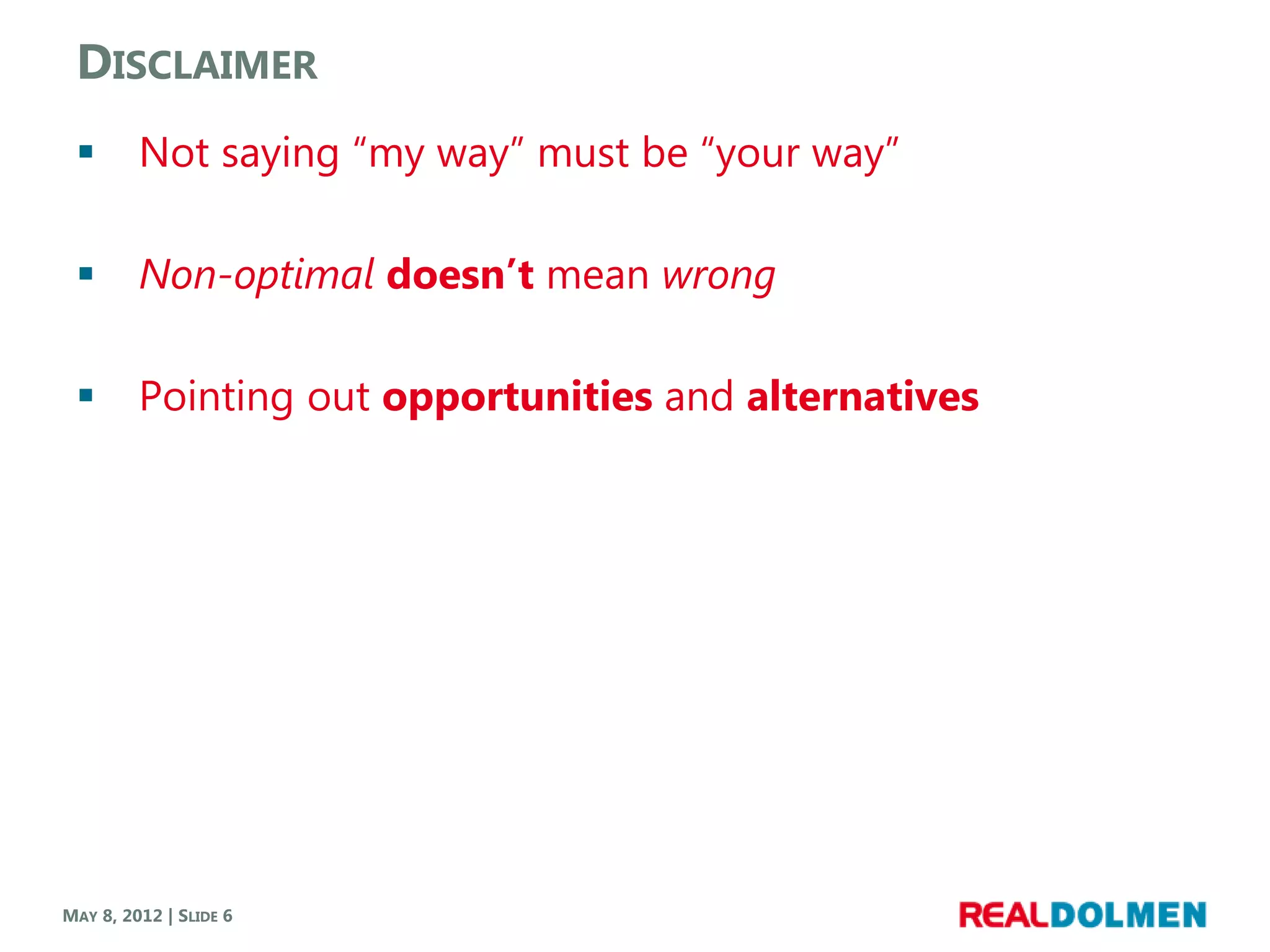

DISCLAIMER
        Not saying “my way” must be “your way”

        Non-optimal doesn’t mean wrong

        Pointing out opportunities and alternatives




MAY 8, 2012 | SLIDE 6

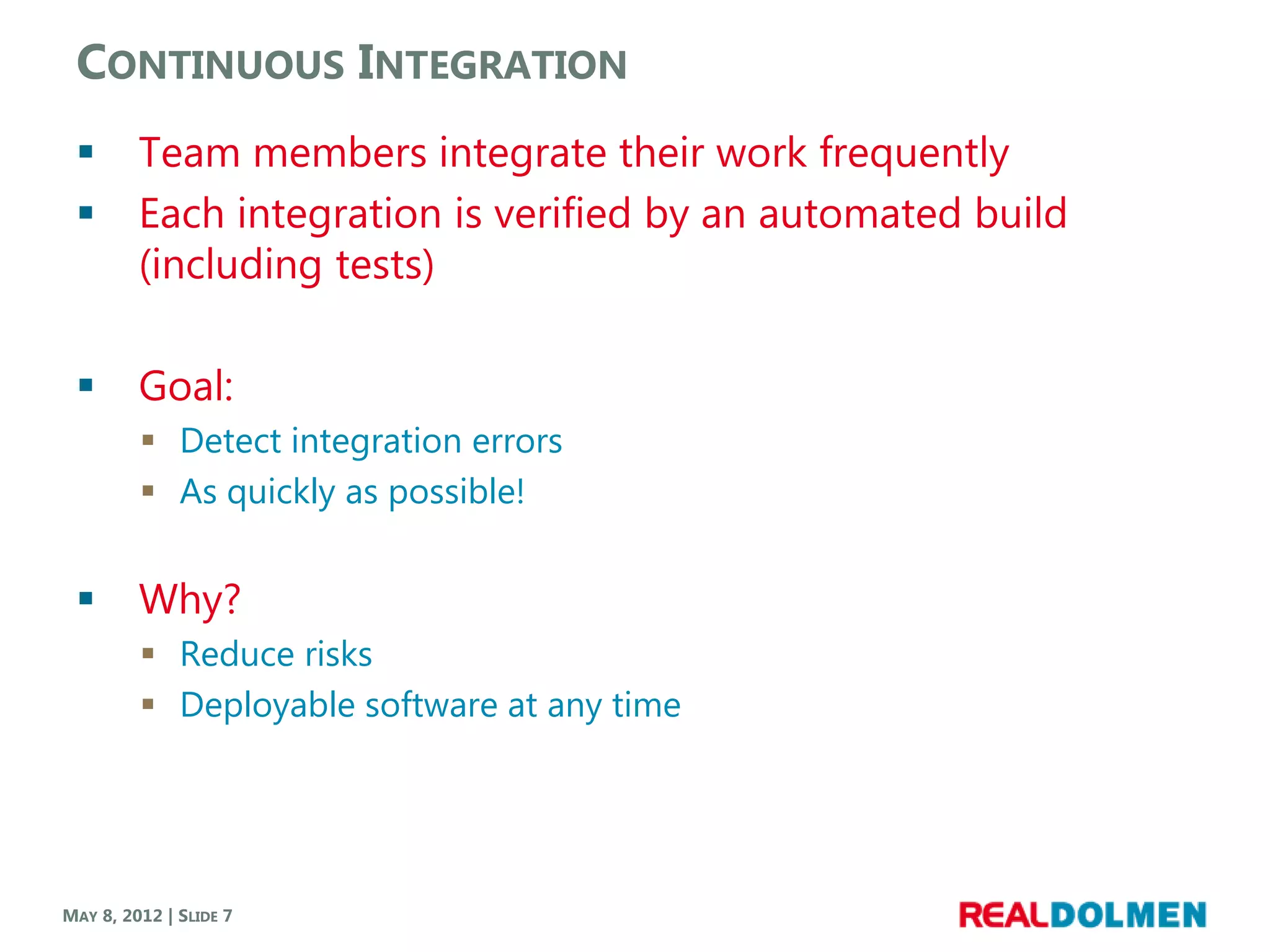

CONTINUOUS INTEGRATION
        Team members integrate their work frequently
        Each integration is verified by an automated build
         (including tests)

        Goal:
          Detect integration errors
          As quickly as possible!


        Why?
          Reduce risks
          Deployable software at any time




MAY 8, 2012 | SLIDE 7

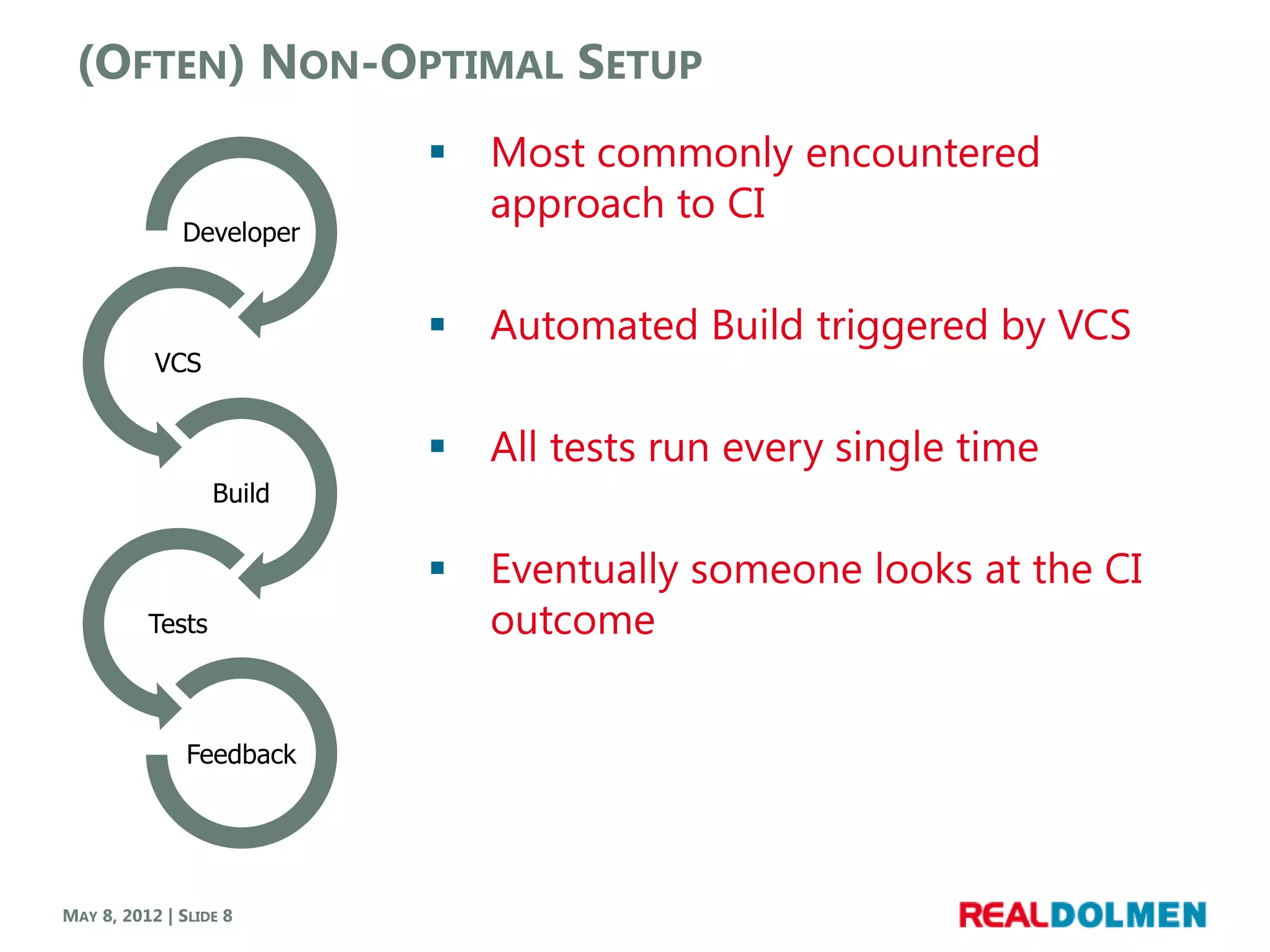

(OFTEN) NON-OPTIMAL SETUP
                             Most commonly encountered
                              approach to CI
              Developer


                             Automated Build triggered by VCS
           VCS


                             All tests run every single time
                  Build


                             Eventually someone looks at the CI
          Tests               outcome


               Feedback




MAY 8, 2012 | SLIDE 8

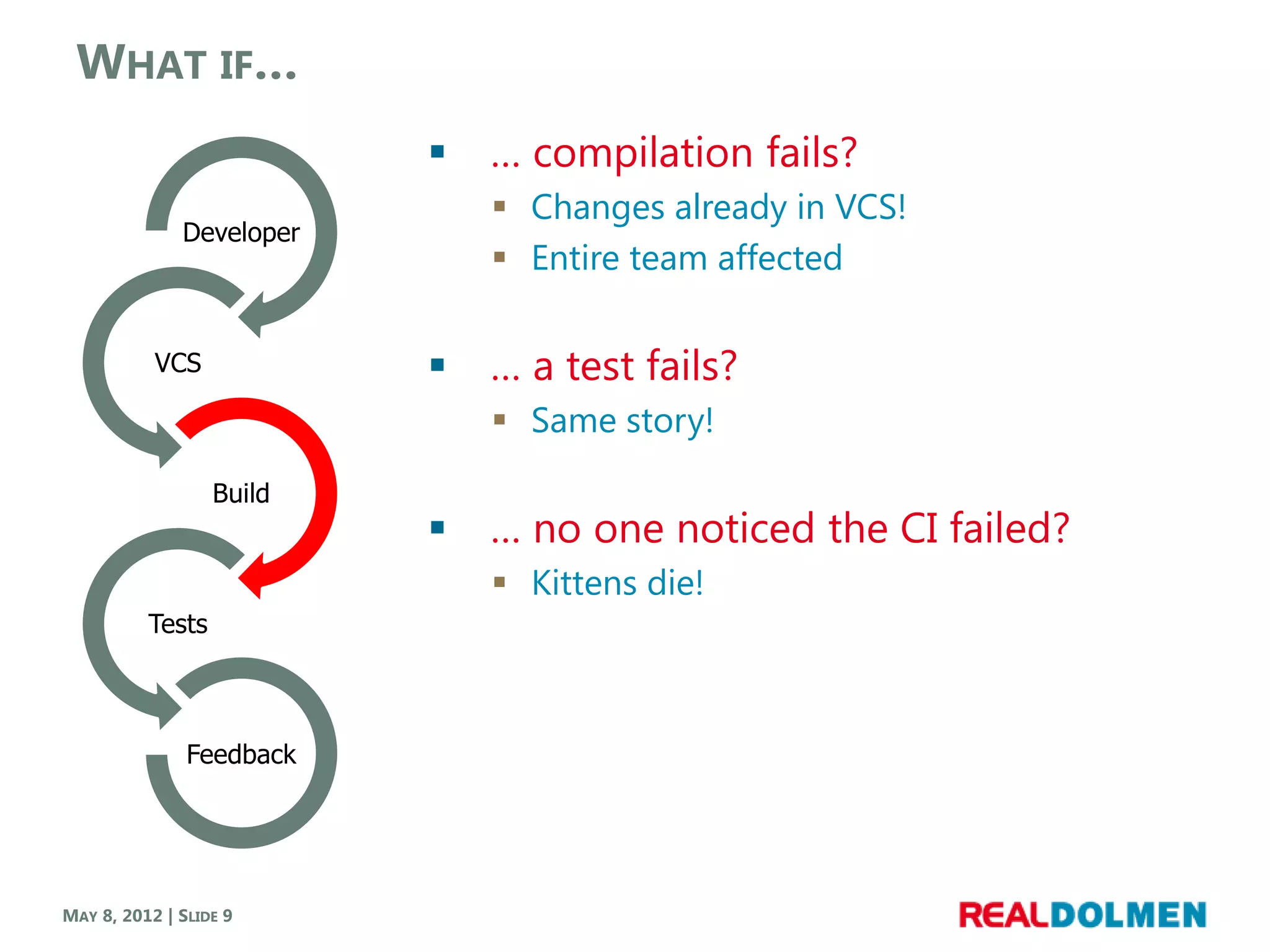

WHAT IF…
                             … compilation fails?
                               Changes already in VCS!
              Developer
                               Entire team affected

           VCS               … a test fails?
                               Same story!
                  Build
                             … no one noticed the CI failed?
                               Kittens die!
          Tests



               Feedback




MAY 8, 2012 | SLIDE 9
OPTIMIZE FOR HAPPINESS
                             Integrate first!
                               Gated check-ins
              Developer


                             Integration fails?
          Build                Changeset rejected


                  Tests      Integration succeeds?
                               Changeset committed

       Feedback
                          Every successful check-in is a reward for
                          good work.
                  VCS




MAY 8, 2012 | SLIDE 10

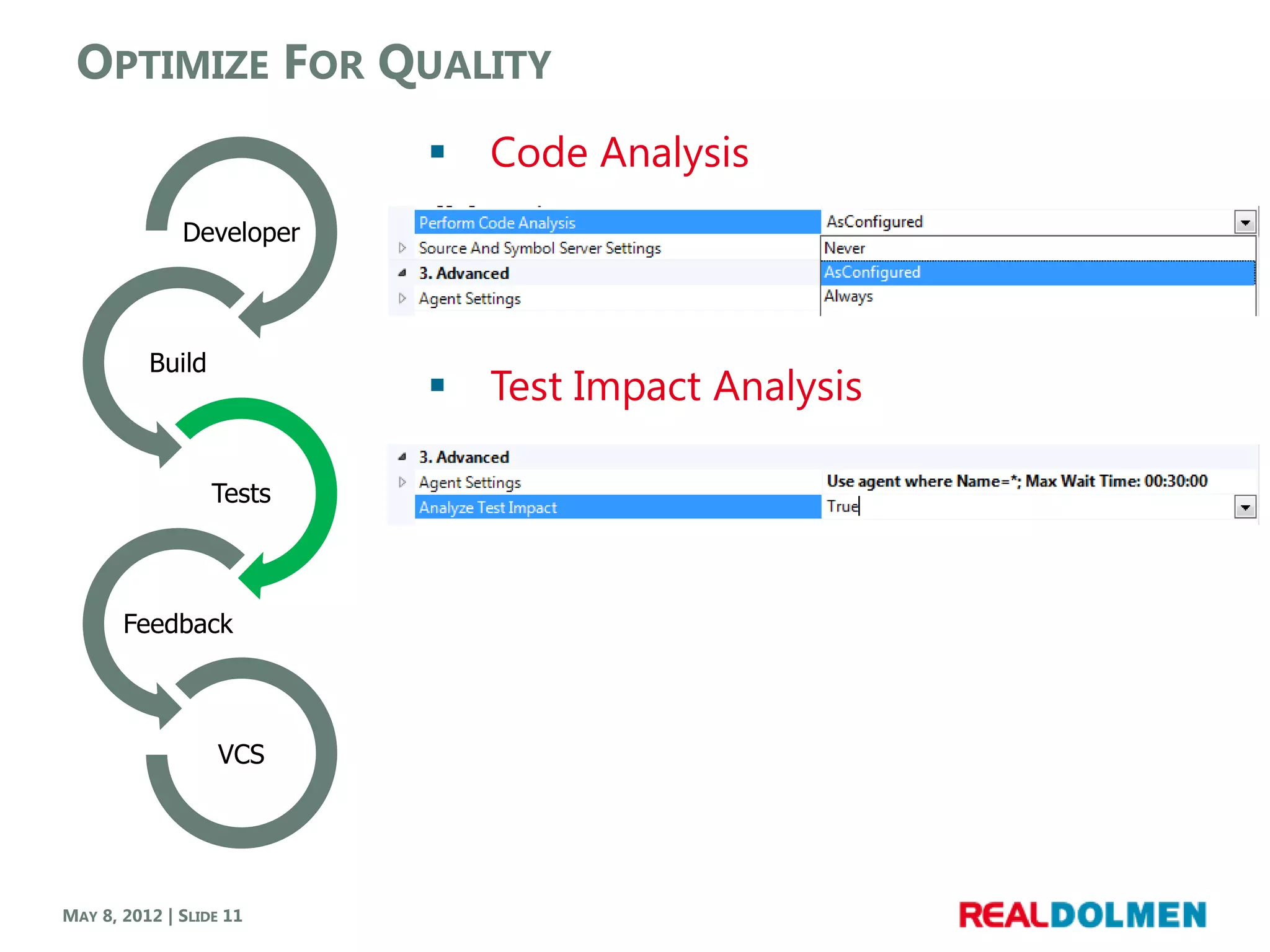

OPTIMIZE FOR QUALITY
                             Code Analysis
              Developer



          Build
                             Test Impact Analysis

                  Tests



       Feedback



                  VCS




MAY 8, 2012 | SLIDE 11
TFS11 – CI IMPROVEMENTS
        Build Triggers




MAY 8, 2012 | SLIDE 12
TFS11 – CI IMPROVEMENTS
        Supporting multiple test frameworks
          MSTest (built-in)
          xUnit (http://aka.ms/xunit-vs11)
          NUnit (http://aka.ms/nunit-vs11)




MAY 8, 2012 | SLIDE 13

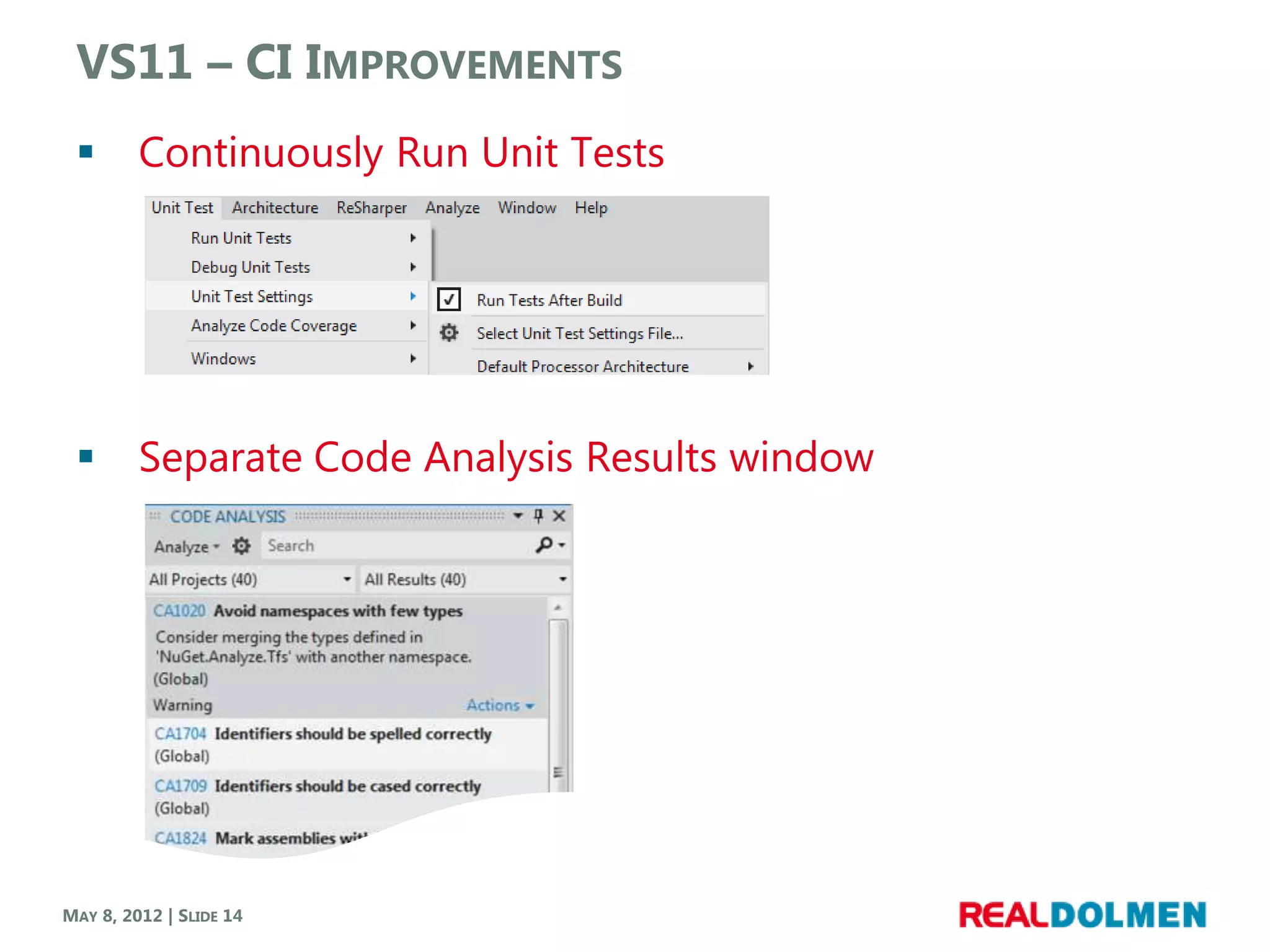

VS11 – CI IMPROVEMENTS
        Continuously Run Unit Tests




        Separate Code Analysis Results window




MAY 8, 2012 | SLIDE 14
VS11 – CI IMPROVEMENTS
        Tracking Builds




MAY 8, 2012 | SLIDE 15
VS11 – CI IMPROVEMENTS
        Faster Feedback
          Dialog Prompt
          Auto-Reconciliation
          Toast notifications




        Improved accessibility to builds
          Own recent builds overview
          Favorites!
          Filter definitions using search box




MAY 8, 2012 | SLIDE 16
TFS ONLINE (BETA)
        Built upon Windows Azure
        “TFS in the Cloud”

        Benefits
             Incremental feature upgrades
             Reduced timespan between major upgrades
             Setup & configuration by Microsoft
             Most of internal support & maintenance by Microsoft


        Identity management
          Via Windows Azure ACS
                  Only Live ID at the moment
                  Federation to come?


MAY 8, 2012 | SLIDE 17
DEALING WITH
      DEPENDENCIES

MAY 8, 2012 | SLIDE 18

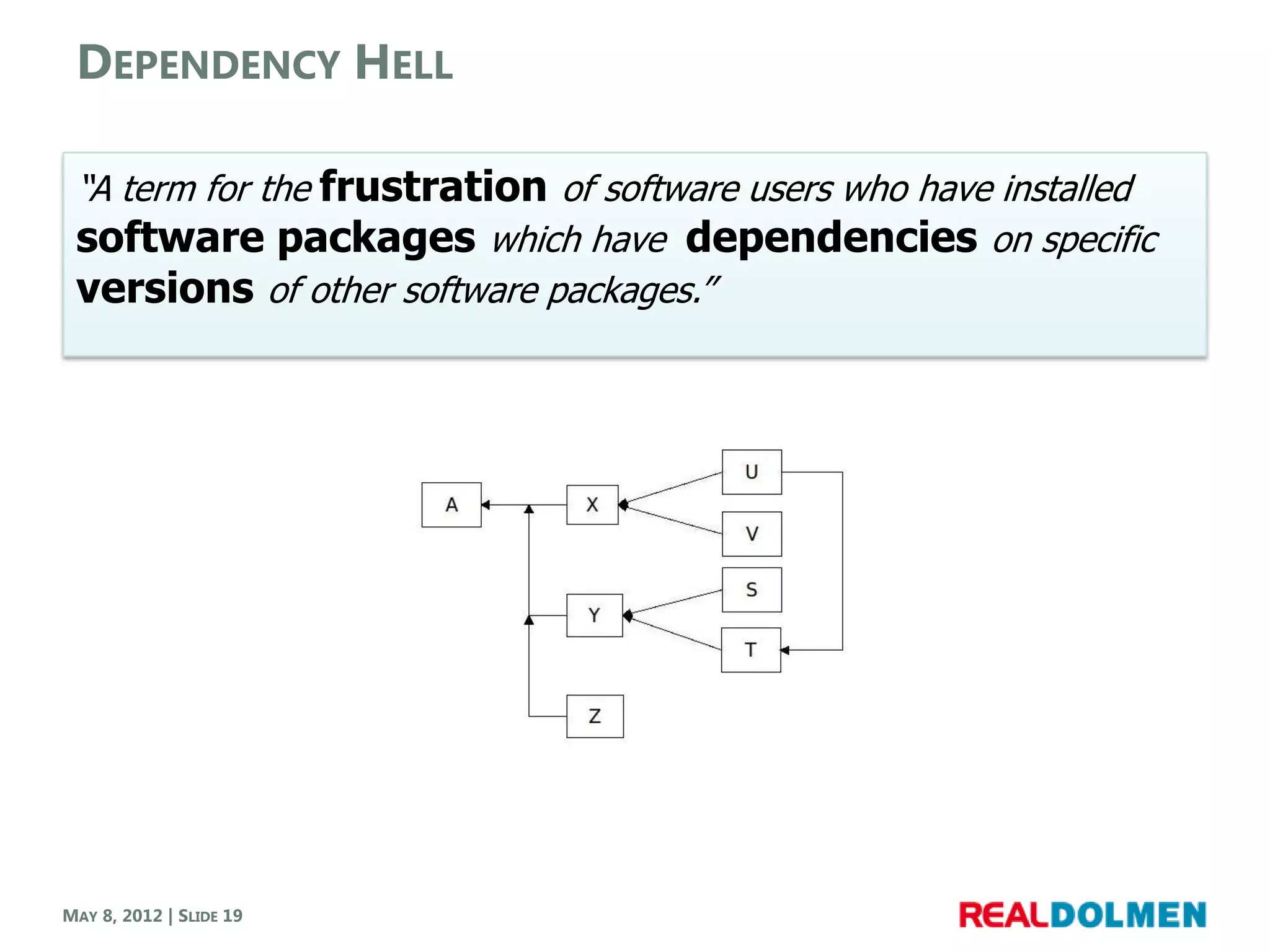

DEPENDENCY HELL

 “A term for the frustration of software users who have installed
 software packages which have dependencies on specific
 versions of other software packages.”




MAY 8, 2012 | SLIDE 19
REACTIONS
        Reinventing the wheel
          We don’t need that dependency
          “If they can do it, we can do it, but better”


        Marketing-driven versioning
          People are waiting for v2 to buy
          Let’s call it v7 Platform Update SP3 November Edition
           KB2348063 RTW Refresh


                What happened to reuse of components?
                We lost ownership of AssemblyVersion ?




MAY 8, 2012 | SLIDE 20

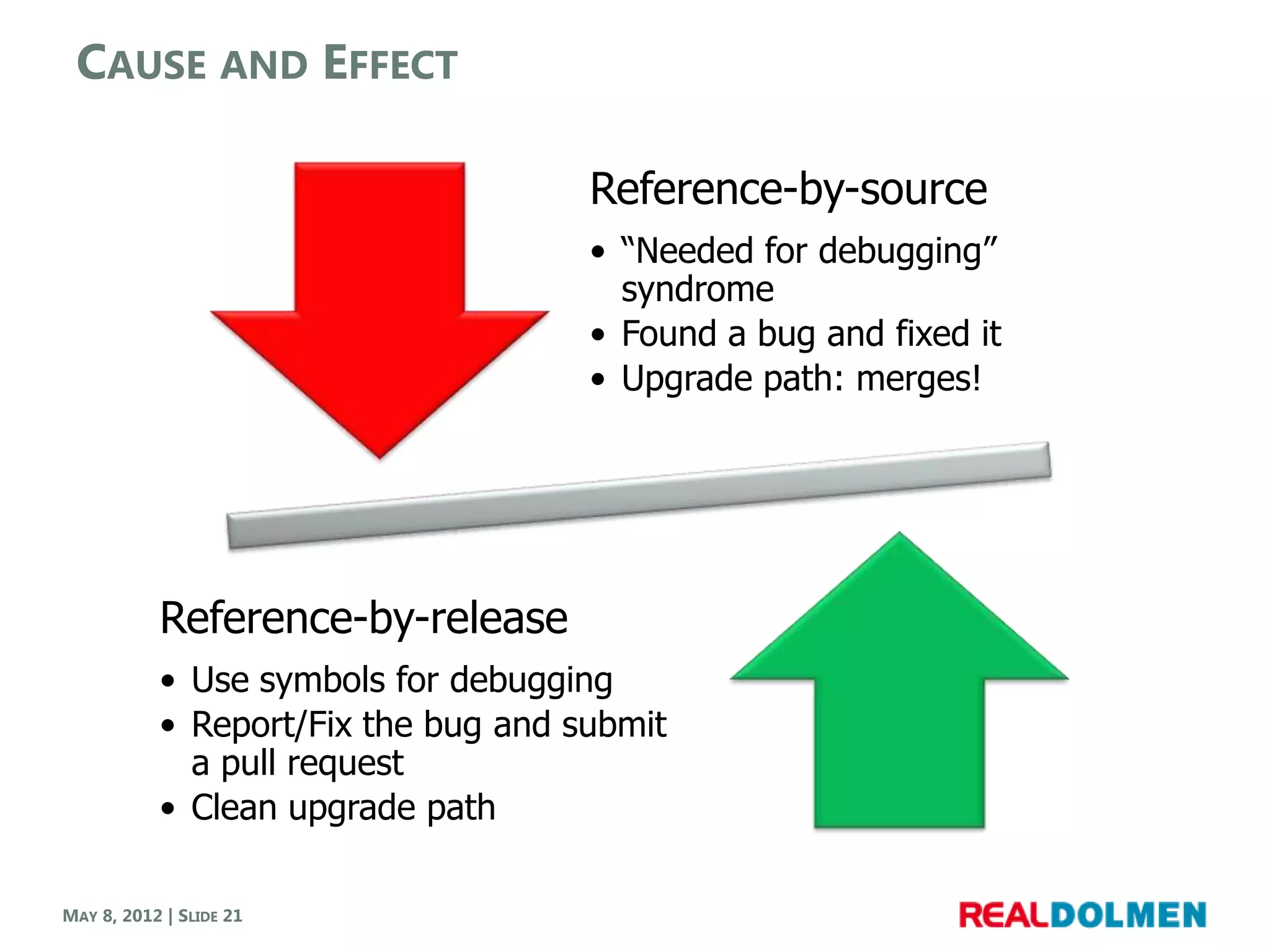

CAUSE AND EFFECT

                                     Reference-by-source
                                     • “Needed for debugging”
                                       syndrome
                                     • Found a bug and fixed it
                                     • Upgrade path: merges!




           Reference-by-release
           • Use symbols for debugging
           • Report/Fix the bug and submit
             a pull request
           • Clean upgrade path

MAY 8, 2012 | SLIDE 21
PACKAGE
                         MANAGEMENT

MAY 8, 2012 | SLIDE 22

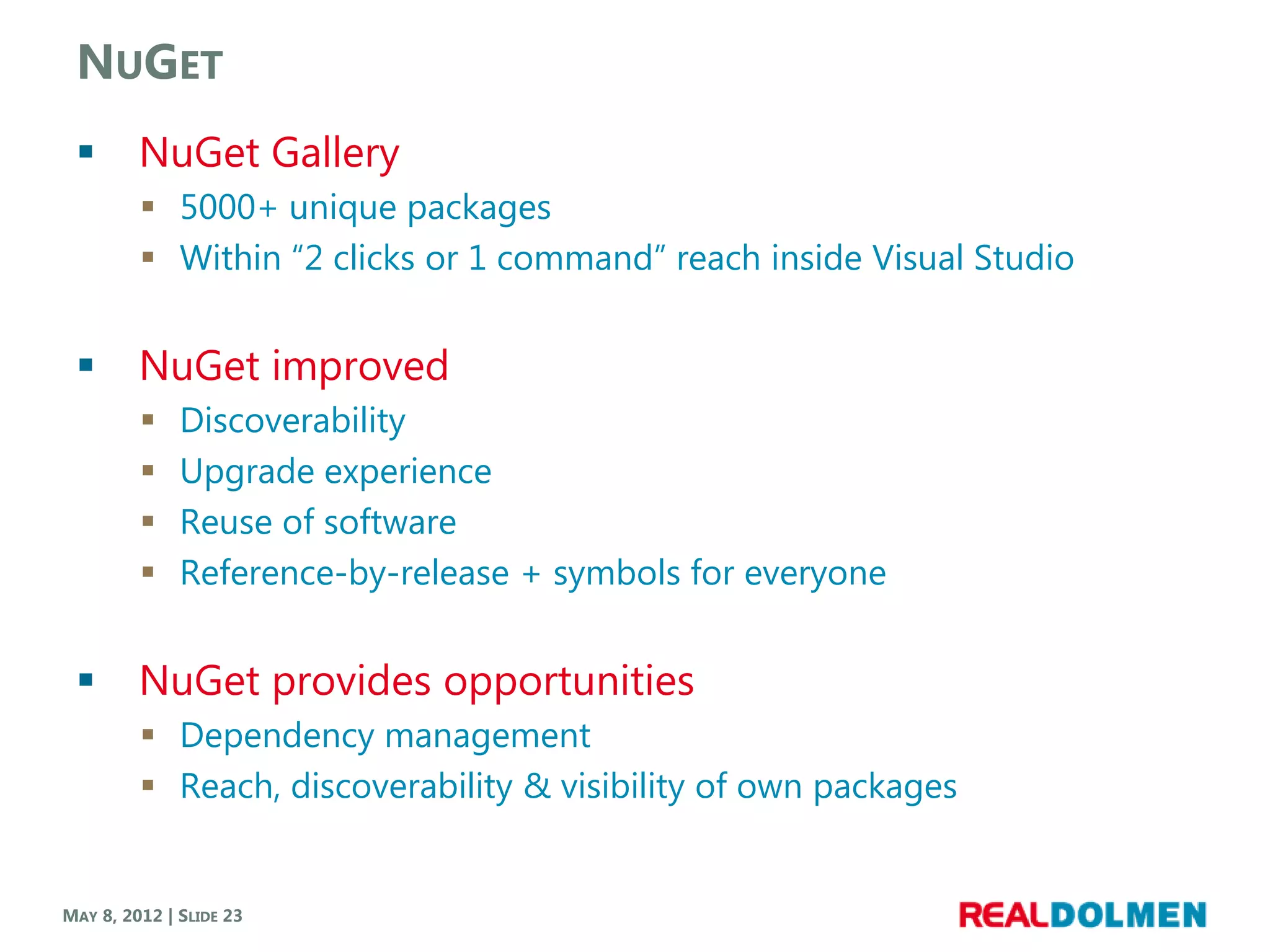

NUGET
        NuGet Gallery
          5000+ unique packages
          Within “2 clicks or 1 command” reach inside Visual Studio


        NuGet improved
             Discoverability
             Upgrade experience
             Reuse of software
             Reference-by-release + symbols for everyone


        NuGet provides opportunities
          Dependency management
          Reach, discoverability & visibility of own packages


MAY 8, 2012 | SLIDE 23
VERSIONING
        NuGet supports Semantic Versioning
          http://www.semver.org
           Major                            Breaking changes
           Minor                            Backwards compatible API
                                            additions/changes
           Patch                            Bugfixes not affecting the
                                            API


          Prerelease
                  Tags: Alpha, Beta, RC, … (e.g. v1.0.0-RC)
                  Note: precedence in alphabetic order!




MAY 8, 2012 | SLIDE 24

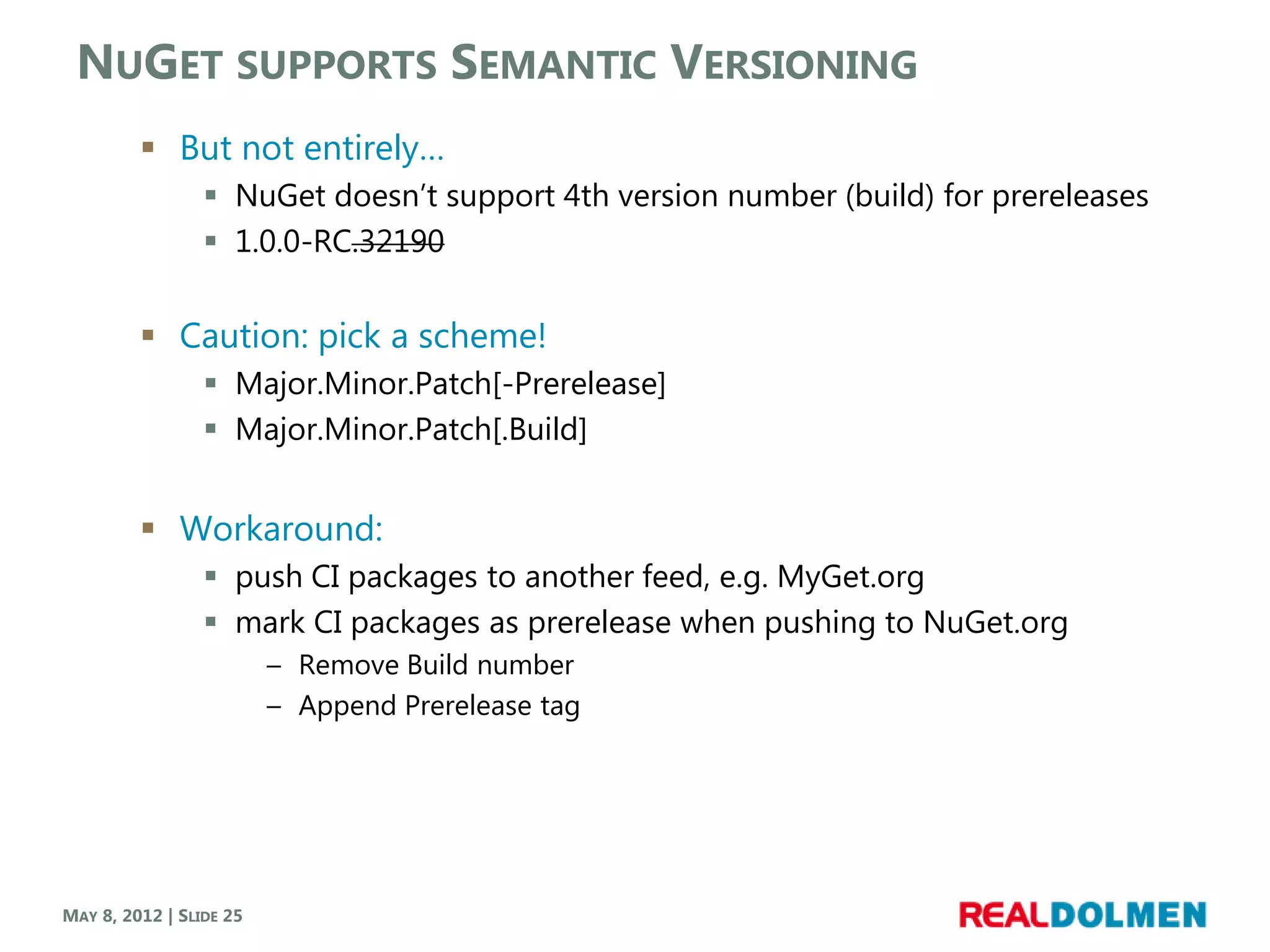

NUGET SUPPORTS SEMANTIC VERSIONING
          But not entirely…
                  NuGet doesn’t support 4th version number (build) for prereleases
                  1.0.0-RC.32190


          Caution: pick a scheme!
                  Major.Minor.Patch[-Prerelease]
                  Major.Minor.Patch[.Build]


          Workaround:
                  push CI packages to another feed, e.g. MyGet.org
                  mark CI packages as prerelease when pushing to NuGet.org
                         – Remove Build number
                         – Append Prerelease tag




MAY 8, 2012 | SLIDE 25

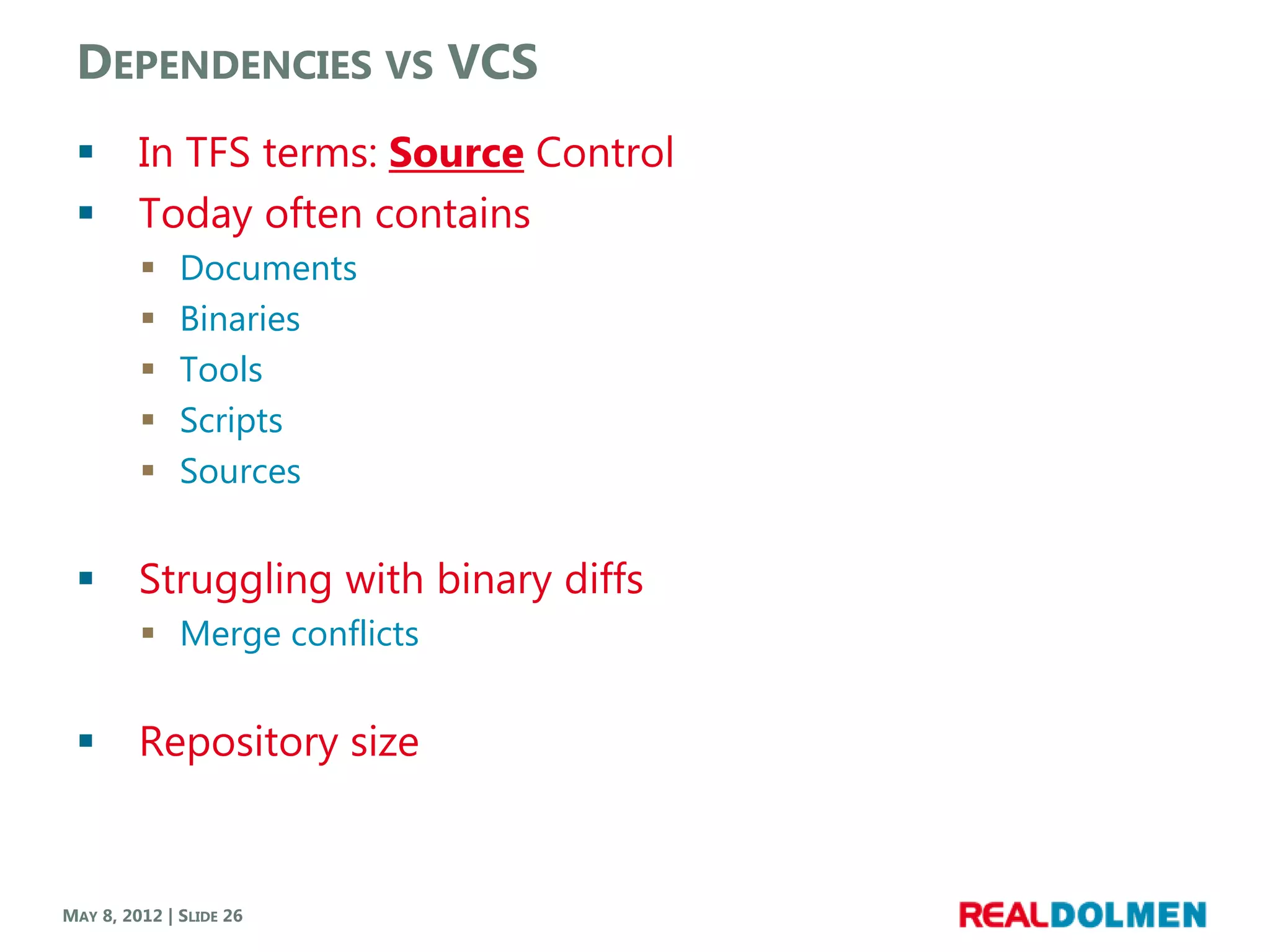

DEPENDENCIES VS VCS
        In TFS terms: Source Control
        Today often contains
             Documents
             Binaries
             Tools
             Scripts
             Sources


        Struggling with binary diffs
          Merge conflicts


        Repository size


MAY 8, 2012 | SLIDE 26

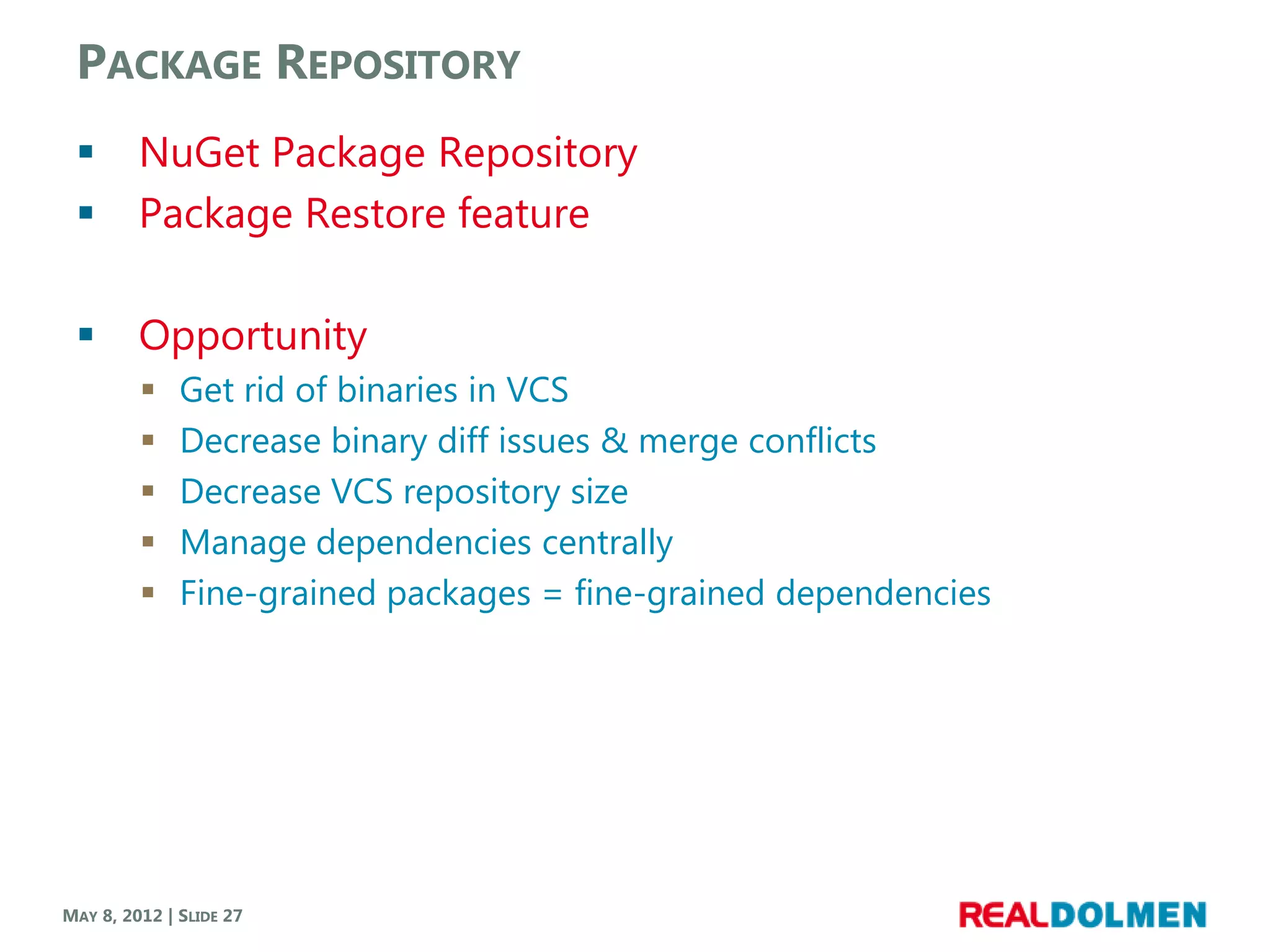

PACKAGE REPOSITORY
        NuGet Package Repository
        Package Restore feature

        Opportunity
             Get rid of binaries in VCS
             Decrease binary diff issues & merge conflicts
             Decrease VCS repository size
             Manage dependencies centrally
             Fine-grained packages = fine-grained dependencies




MAY 8, 2012 | SLIDE 27
IN OR OUT?
        Your choice
        Have a strategy!

        No-Commit?
          What if the package source goes down?
          What if a package got removed from the repository?
          Mirroring




MAY 8, 2012 | SLIDE 28

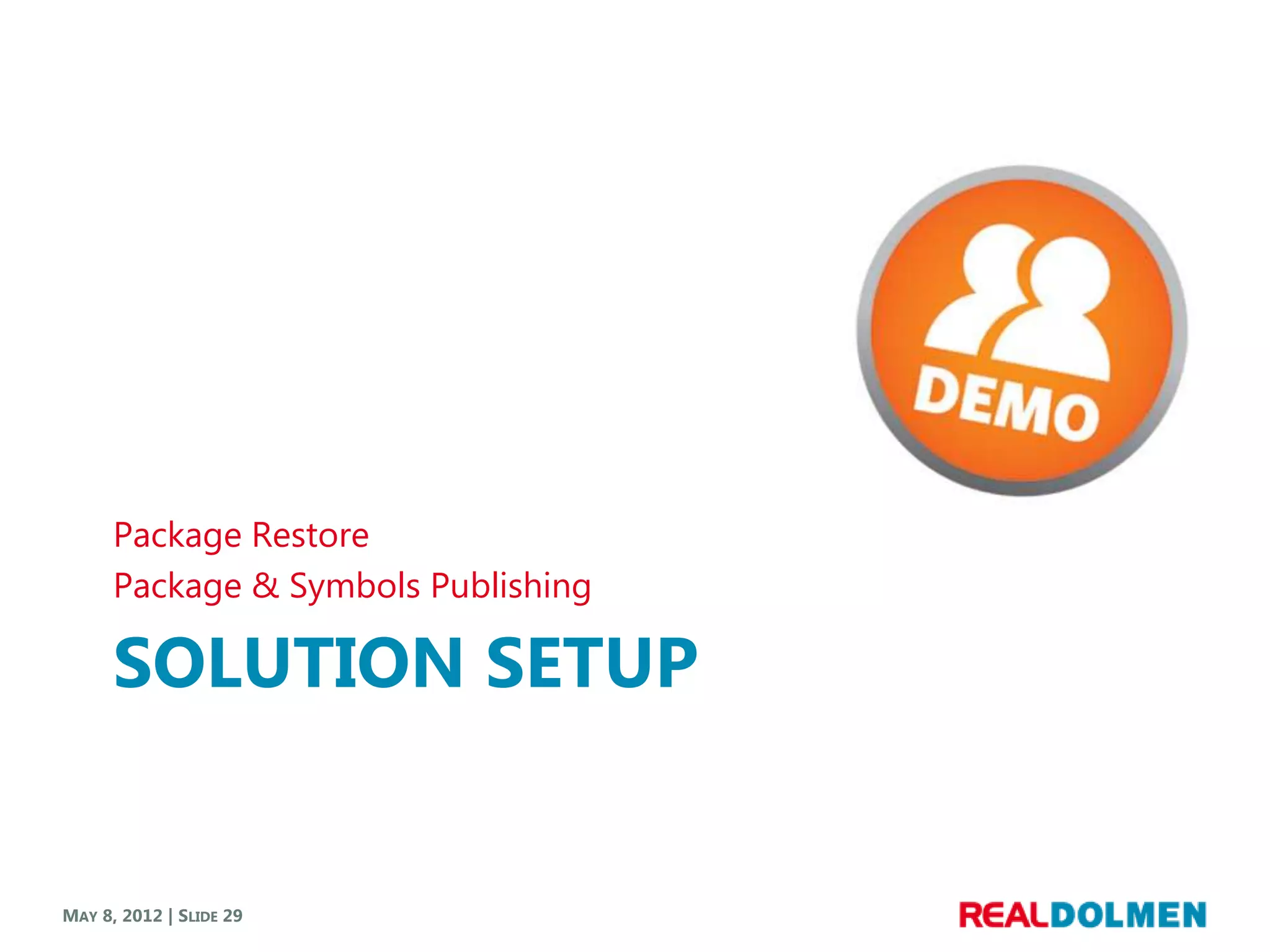

Package Restore
      Package & Symbols Publishing

      SOLUTION SETUP


MAY 8, 2012 | SLIDE 29

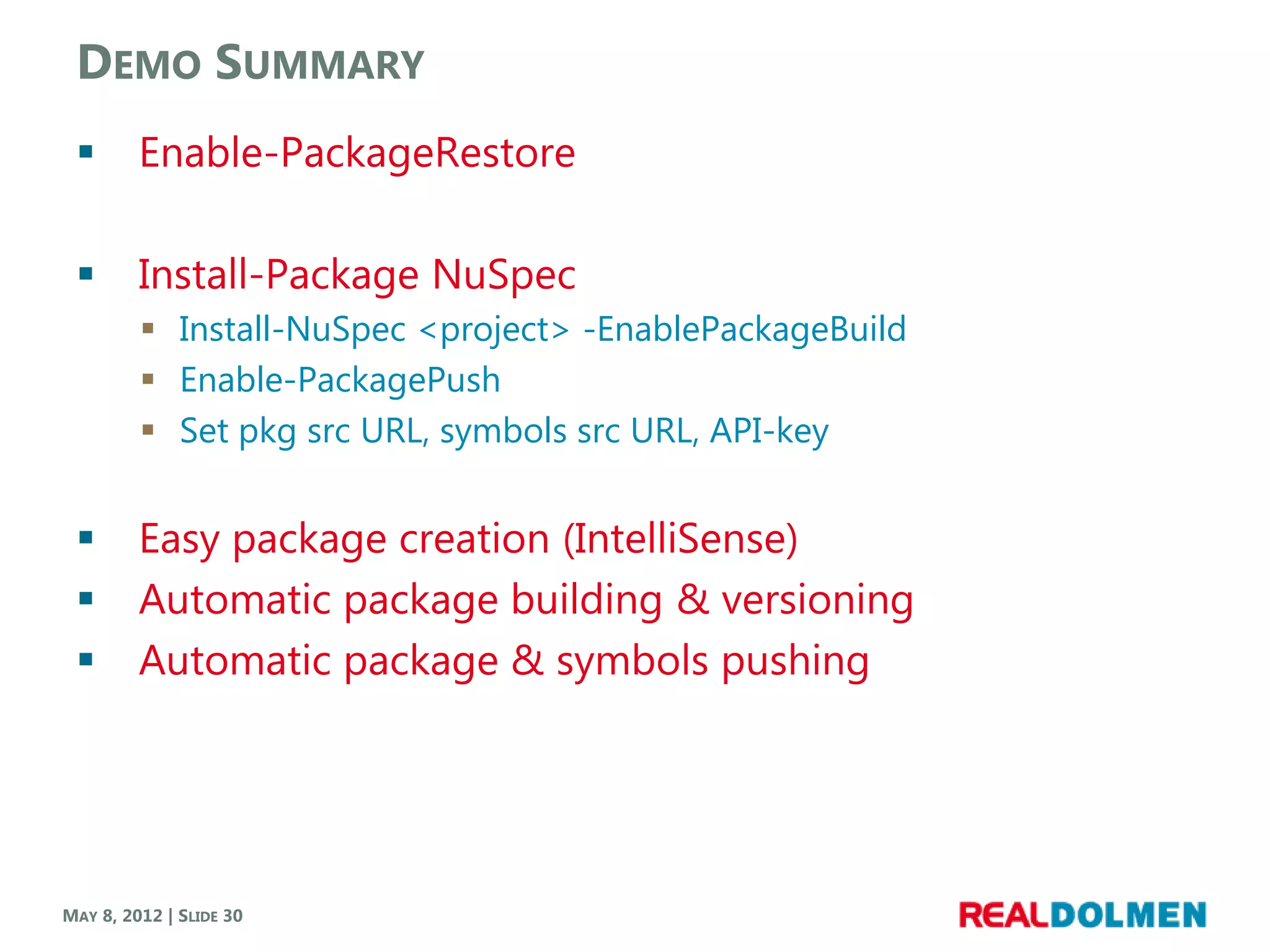

DEMO SUMMARY
        Enable-PackageRestore

        Install-Package NuSpec
          Install-NuSpec <project> -EnablePackageBuild
          Enable-PackagePush
          Set pkg src URL, symbols src URL, API-key


        Easy package creation (IntelliSense)
        Automatic package building & versioning
        Automatic package & symbols pushing




MAY 8, 2012 | SLIDE 30

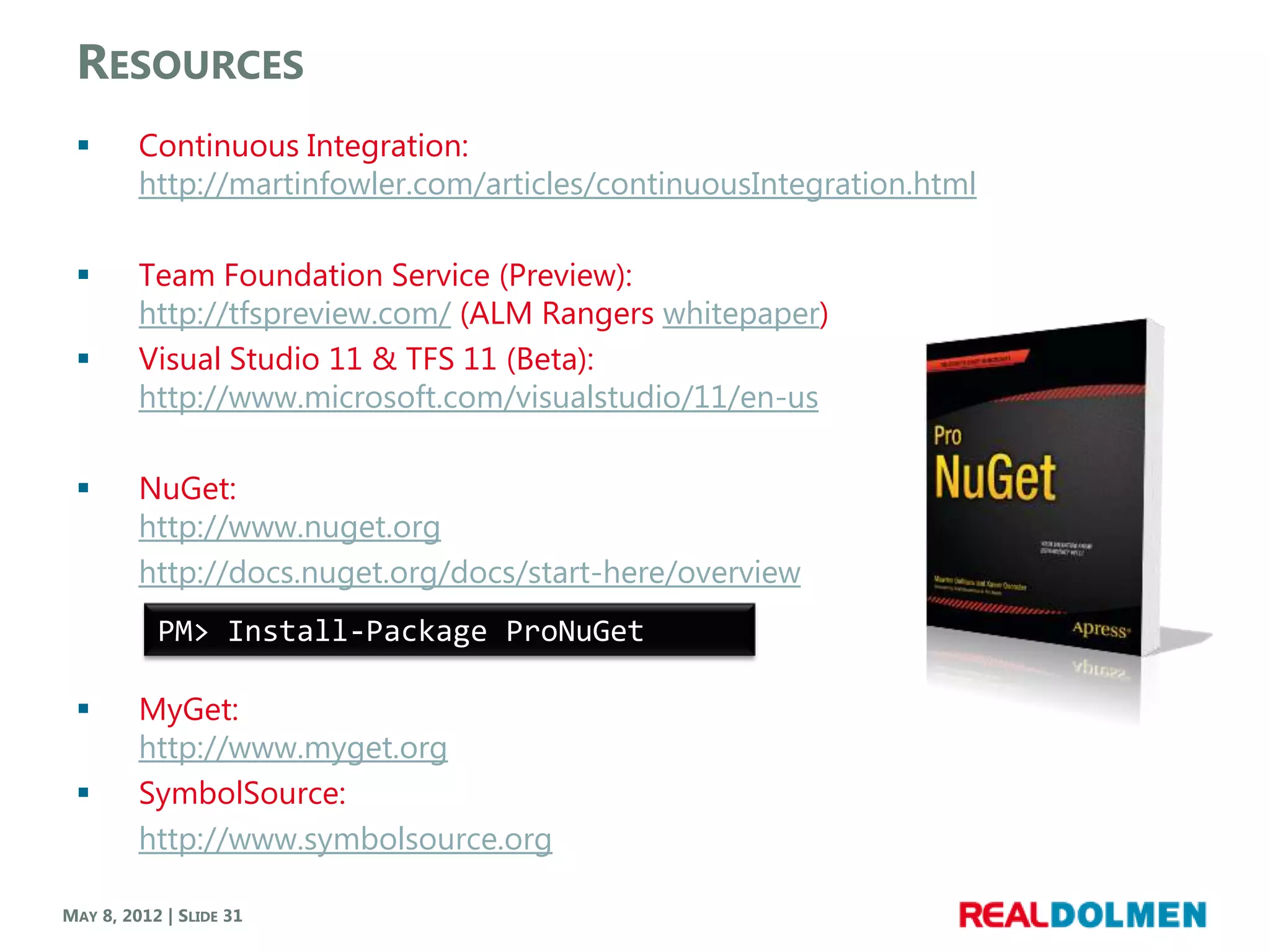

RESOURCES
        Continuous Integration:
         http://martinfowler.com/articles/continuousIntegration.html

        Team Foundation Service (Preview):
         http://tfspreview.com/ (ALM Rangers whitepaper)
        Visual Studio 11 & TFS 11 (Beta):
         http://www.microsoft.com/visualstudio/11/en-us

        NuGet:
         http://www.nuget.org
        http://docs.nuget.org/docs/start-here/overview
           PM> Install-Package ProNuGet

        MyGet:
         http://www.myget.org
        SymbolSource:
        http://www.symbolsource.org

MAY 8, 2012 | SLIDE 31
BONUS




                         http://bit.ly/mygetforfree




MAY 8, 2012 | SLIDE 32
Q&A


MAY 8, 2012 | SLIDE 33

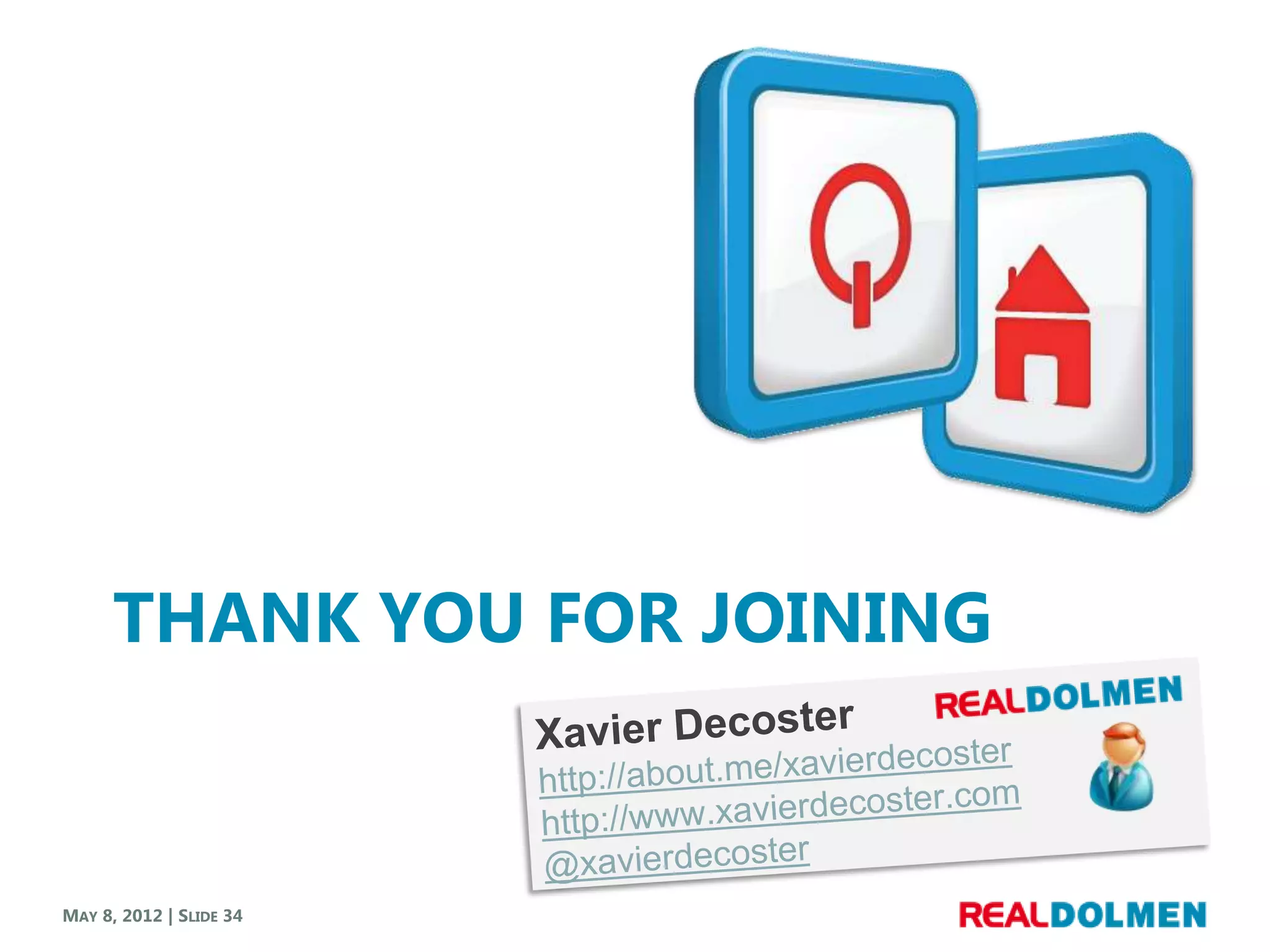

THANK YOU FOR JOINING


MAY 8, 2012 | SLIDE 34
