Network-Centric Warfare and Wireless Communications
Modern warfare is increasingly network centric
Civilian society has moved from the industrial age focus on automation and scale to an information age
economy based on computing and communications. Warfare is also moving towards an information age
paradigm based on information sharing, situational awareness, and distributed points of intelligence,
command and control. A widely-networked fighting force is better able to share information about tactical
situations that may be geographically widespread, asymmetric, and rapidly changing. Commanders must be
able to better assess situations across broad theaters, with extensive data, voice, and especially video feeds
as strategic inputs. Thus, network-centric warfare improves effectiveness at both the tactical "point of the
spear" and in the achievement of broader strategic goals.
Broadly disseminated knowledge assets enable fighting forces that must self-synchronize, even as they physically disperse to address dynamic
battlefield conditions. The speed of decision has increased and command decisions must be rapidly relayed and implemented, to improve
battlefield outcomes. Information superiority has become as important in today's battlefield as air superiority was in the past in increasing
mission effectiveness.
Information superiority has become critical as needs of both war fighters and commanders have broadened to include real-time video, high-
speed data, and voice. Data and intelligence sources include terrestrial forces and sensors, satellites, UAVs (Unmanned Aerial Vehicles), and a
wide variety of centralized and distributed information assets.
Network-centric warfare "cornerstone" technology requirements
The vast majority of these information assets, command, communications, and control must be delivered wirelessly, with seamless
connections to wired networks for intelligence resources and other data. Further, these wireless technologies must support data, voice, and
increasingly, video traffic flows. Beyond those basic capabilities, four key cornerstone capabilities must be incorporated in the networks
designed to support modern warfare: mobility, high performance support of real-time protocols, distributed frequency agility, and
distributed topologies and network formation.
Mobility In the network-centric warfare environment, mobility implies more than just the motion of individuals and vehicles in relation to
one another and to other fixed locations. High performance must be maintained in motion, which includes rapid reconfiguration of network
topology as units and individuals re-orient themselves in pursuit of battlefield objectives. To achieve this, networking hand offs between
communicating devices must be coordinated to minimize data outages and/or a reduction in performance while in motion. These hand-offs
must be transparent to communicating units, maintaining session connectivity while in motion. Location awareness, both in relation to
other communicating devices and space (such as GPS) may also be key to high performance in motion. P3M Press Release P3M Patent
High performance for real-time protocols With streaming and stored video an increasingly important part of modern command,
communications, and control, the ability to deliver high bandwidth streams with low latency and low jitter is critical. This is not just at
headquarters command locations, from a variety of video sensor platforms but increasingly to individual vehicles and war fighters. In many
cases, these video streams must be delivered expeditiously across multiple hops (node-to-node connections) without loss of performance.
Similarly, voice communications across many hops and in motion with high performance is a challenge demanding low delay and jitter at
each network device. . PBV Press Release PBV Patent
Distributed frequency agility The dynamic and unpredictable nature of modern warfare and the peculiarities of the Radio Frequency (RF)
spectrum environment place a high premium on the capability of individual devices to independently choose frequencies, locate and
connect with peer devices, and rapidly shift frequencies in an automated, coordinated fashion without centralized oversight. This capability
permits units to be brought on-line quickly in a hastily-formed network as well as to deal with inadvertent or malicious interfering and
jamming signals in a deployed situation. Ideally, communicating devices will choose and manage frequencies and channels independently,
for maximum flexibility in responding to mobility or interfering sources. In addition, these devices should continuously monitor the RF
environment to allow for ongoing automated and coordinated optimization of the available RF spectrum. Illustration
Distributed topologies and network formation Relationships between organizational units, vehicles, and individual war fighters may change
rapidly, bit in terms of command and control and in terms of physical proximity. In earlier eras, battlefield superiority depended on masses
of contiguous units, but today the focus is on efficiency in achieving mission objectives. In order to deal with these changing relationships,
communications devices must dynamically monitor and reconfigure network topologies. With thousands or hundreds of thousands of
devices deployed in a single operation, it would be physically and logically impossible for network topologies to be defined and managed
centrally. Instead, each device must independently find the best path for interconnection, choosing from available connections based on
rules-based criteria. Topology flexibility combines with frequency agility to permit networks to form, change, and reform automatically,
without client awareness or intervention. Animation
1
© 2002-2016 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
Mobile and Disruption Tolerant Mesh Architecture
In development for more than five years, MeshDynamics Wireless Mesh Technology meets these four cornerstone requirements with two
foundational technologies, Third-Generation multi-radio architecture and Dynamic Distributed Radio Intelligence. The following sections
highlight these two technologies, then describe four unique capabilities of the MeshDynamics solution for military mobility: channel and
topology agility in motion; fully dynamic ("rootless") topology support; hybrid topologies for tactical network extension; and location and
relationship capabilities in support of the network-centric warfare cornerstones.
Mesh networking began in military applications with a simple topology often referred to as "ad hoc" Individual single-radio nodes provided
connections to adjacent nodes (and potentially to wireless client devices) by switching between bridging functionality and client service
functionality. While effective in low-demand environments and inherently mobile, the constant "turnaround" of radios and reliance on a single
channel throughout the network greatly diminishes the potential performance of the network. Network-centric cornerstone requirements for
high performance of real-time protocols (including higher data rates and video streams) led developers to create later generations of more
sophisticated mesh networking topology.
Figure 1: (L-R): Ad Hoc, 1-Radio Meshed Backhaul, MeshDynamics multi-radio Mesh Backhaul
Three generations of evolving mesh architectures are depicted above. They are (Left to Right):
First Generation: 1-Radio Ad Hoc Mesh (left). This network uses one radio channel both to service clients and to provide the mesh backhaul.
The ad hoc mesh radio, marked AH, provides both services – client access and backhaul. This architecture provides the worst services of all
the options, as expected, since both backhaul and service compete for bandwidth.
Second Generation: Dual-Radio with Single Radio Ad-Hoc meshed backhaul (center). This configuration can also be referred to as a “1+1”
network, since each node contains two radios, one to provide service to the clients, and one to create the mesh network for backhaul. The
“1+1” appellation indicates that these radios are separate from each other – the radio providing service does not participate in the backhaul,
and the radio participating in the backhaul does not provide service to the clients. Performance analysis indicates that separating the service
from the backhaul improves performance when compared with conventional ad hoc mesh networks. But since a single radio ad hoc mesh is still
servicing the backhaul, packets traveling toward the Internet share bandwidth at each hop along the backhaul path with other interfering mesh
backhaul nodes - all-operating on the same channel. This leads to throughput degradations which are not as severe as for the ad-hoc mesh,
but which are sizeable nevertheless.
Third Generation: Multi-radio Structured Mesh (right). The last architecture shown is one that provides separate backhaul and service
functionality and dynamically manages channels of all of the radios so that all radios are on non-interfering channels. Performance testing by
military organizations indicates that this provides the best performance of any of the methods considered here. Note that the two backhaul
radios for the 3-radio example shown in Figure 1 are of the same type - not to be confused with 1+1 so-called dual radio meshes where one
radio is for backhaul) and the other for service. In the 3-radio configuration, 2 radios are providing the up link and down link backhaul
functionality, and the third radio is providing service to the clients.
The power of distributed dynamic radio intelligence
2
© 2002-2016 MeshDynamics. Paten
The major challenge in Third Generation architectural implementations is avoiding co-channel interference from the multiple radios operating in
a given band. This is an obvious problem when operating in the non-licensed public spectrum, but can also limit performance in licensed
ted and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
military frequencies used by custom radios. Earlier Third Generation implementations often restricted this interference by using directional
sectored antennas. But this technique is useless in the mobile environment.
MeshDynamics' instead allocates channels dynamically, listening for adjacent nodes as well as competing, interfering, or jamming sources,
addressing the third cornerstone of distributed frequency agility. Channel maps are selected and reselected as necessary to provide optimum
performance and to maintain connectivity, no matter how the RF environment may change nor how individual nodes may move in relationship
to one another. This would not be possible with traditional centralized RF channel management through a single controller, as changes in
location and RF environment may isolate sections of the network from the controller. Instead, a unique MeshDynamics technology distributes
the channel and topology selection to independent but coordinated functions in each node. This is Distributed Dynamic Radio Intelligence.
The combination of multi-radio Third Generation capabilities and Dynamic Distributed Radio Intelligence maintain a high degree of connectivity
in motion, ensuring that the MeshDynamics network delivers high performance at speed. In the military environment, this provides for the
maximal utility of tactical networking, as data, voice and video may be shared no matter the physical relationship of the communicating units to
one another of fixed bases.
Hybrid topologies for tactical network extension
Although the Third-Generation wireless mesh architecture has been proven to provide much higher performance than ad hoc First Generation
architectures, there are tactical deployment situations where a combination of the two capabilities may be useful in achieving the mobility and
distributed topologies and network formation cornerstones. In particular, small footprint (minimal size, low weight, low power) single-radio
peer-to-peer ad hoc nodes carried by individual personnel may be desired in many tactical situations.
MeshDynamics has pioneered a unique bridging technology between the Third Generation high performance multi-radio network and widely
distributed individual peer-to-peer ad hoc nodes that allow the individual ad hoc nodes to join the higher performance network directly when in
range, but to hop peer-to-peer across the ad hoc network if necessary to connect to the Third Generation high performance network.
Fig 2: Hybrid Mesh is a high performance multi-radio meshed backhaul that supports both standard and ad hoc mesh clients.
In a typical deployment, higher performance multi-radio mesh nodes might be deployed on supporting vehicles, with body-carried nodes
deployed with each individual. As individuals move farther from the supporting vehicle, their connection will shift automatically and dynamically
between a direct connection to the vehicle-mounted network and a peer-to-peer bridge when too distant or obscured from the vehicle.
The Third Generation multi-radio mesh provides bandwidth and low latency for mission critical voice/video involving wide areas (and
consequently many hops). The ad hoc mesh provides the connectivity to the multi-radio backhaul and can coexist with it with minimal
modification: the ad hoc mesh views the multi-radio backhaul as an Ethernet link substitute. This extended combined network is now auto-
configurable and scalable under a unified control layer. Note that the infrastructure mesh supports both “standard” clients – those that connect
to the Access Point but do not have any ad hoc mesh functionality and “ad hoc mesh” clients.
Radio-Agnostic Technology
MeshDynamics' patented and patent-pending Third Generation implementation is not limited to any particular number of physical radios, or
indeed to the concept of separate physical radios at all. Instead, the MeshDynamics networking algorithm treats multiple physical and/or logical
radios as a pool of available connections to be dynamically managed for optimum performance in a mobile environment. MeshDynamics'
powerful networking algorithms have been designed to work over a variety of civilian and military radio bands. Current production products
serve WiFi 802.11 a/b/g at 2.4 and 5.8 GHz and public safety nets at 4.9 GHz. Support for 900 MHz, 700 MHz, and WiMAX bands is in
development. Custom development capabilities are also available for military radios operating in a broad range of bands.
Location and relationship capabilities
3
© 2002-2016 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
Because of the efficient, yet extensible, node-to-node management information path provided by the MeshDynamics network, additional
functionality is available for monitoring and reporting of location information in support of the mobility cornerstone technology requirement.
Individual nodes may be fitted with GPS (Global Positioning System) receivers and real-time information on the nodes' locations (fixed or in
motion) may be provided to administrators or to other applications using standard data protocols.
In addition, each node maintains a listing of the MAC IDs of every associated user device. This information may be interpolated by an external
application to indicate with which nodes individual client devices are currently associated. Combined with the known fixed or GPS-derived
location of each node, this provides a rough approximation of end user location and distribution.
Channel and topology agility in military environments
In order for the MeshDynamics network to continually and dynamically respond to a changing tactical environment, each node is designed to
periodically and momentarily "listen" to its surroundings. This brief activity does not appreciably diminish data capability, but allows each node
to constantly be aware of a changing environment. In hastily-formed networks, newly deployed units can rapidly discover (and be discovered
by) adjacent units already operational in the network. No site survey or channel pre-configuration is necessary: the distributed dynamic radio
intelligence in each node manages the complete network set-up process.
Fig 3: Node Heartbeats provides GPS updates for the map view. It also provides node connectivity information for the topology view.
This capability is provided by a constant exchange of an informational heartbeat between nodes. This efficient datagram delivers information
about adjacencies to permit each individual node to make independent but coordinated decisions regarding channels and topologies. In high-
speed mobility environments, an additional dedicated "scanning" radio may be incorporated into each node to provide the smoothest and most
rapid adaptations of channel and topology for near instantaneous node-to-node switchover as required. A recent successful trial involved
transmission of real-time video from a moving vehicle connecting through a series of roadside fixed nodes. Video transmission was maintained
without dropouts, as the dedicated scanning radio allowed the mobile node to continually connect in turn to the best fixed node.
Network start-up is automatic and immediate when power is applied to the nodes. MeshDynamics units are compact and rugged, making for
minimal transport cost and weight in hastily-formed and mobile applications. Mobility Test Report
About MeshDynamics
Founded in 2002, MeshDynamics began shipping production units late in 2005 and has customers in many applications areas: municipal
(metro) networking; homeland security/defense; transportation (e.g., rail and air); military; and public safety. Customers are worldwide; sales
are direct and through resellers. Military organizations and defense contractors have performed extensive tests confirming MeshDynamics'
industry-leading performance. In addition to these sales of the standard products, MeshDynamics maintains substantial custom development
activity with key defense agencies. The technology pioneered for these demanding customers has been utilized in MeshDynamics' products.
Related Links:
Disruption Tolerant Networks [SPAWAR Contract]
MeshDynamics Patent Portfolio [Patents related to Hybrid Mesh Networks and extensions to support next generation IoT devices]
4
© 2002-2008 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com

More Related Content

What's hot

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentals
Ravi Sharma

proactive and reactive routing comparisons
proactive and reactive routing comparisonsproactive and reactive routing comparisons
proactive and reactive routing comparisons
ITM Universe - Vadodara

Bluetooth - Comprehensive Presentation
Bluetooth - Comprehensive PresentationBluetooth - Comprehensive Presentation
Bluetooth - Comprehensive Presentation
Muhammed Afsal Villan

Lte pre launch
Lte pre launchLte pre launch
Lte pre launch
Hatim100

Underwater wireless communication
Underwater wireless communicationUnderwater wireless communication
Underwater wireless communication
Abhirami P S

Wireless & Mobile Communications Questions & Answers
Wireless & Mobile Communications Questions & AnswersWireless & Mobile Communications Questions & Answers
Wireless & Mobile Communications Questions & Answers
ibrahimnabil17

Cognitive radio networks
Cognitive radio networksCognitive radio networks
Cognitive radio networks
sangitaholkar

5g introduction_NR
5g introduction_NR5g introduction_NR
5g introduction_NR
Nitin George Thomas

5G + AI: The Ingredients For Next Generation Wireless Innovation
5G + AI: The Ingredients For Next Generation Wireless Innovation5G + AI: The Ingredients For Next Generation Wireless Innovation
5G + AI: The Ingredients For Next Generation Wireless Innovation
Qualcomm Research

SDN: an introduction
SDN: an introductionSDN: an introduction
SDN: an introduction
Luca Profico

Cognitive radio networks
Cognitive radio networksCognitive radio networks
Cognitive radio networks
Ameer Sameer

Wireless LAN
Wireless LANWireless LAN
Wireless LAN
KannanKrishnana

Osi Model
Osi ModelOsi Model
Cellular architecture
Cellular architectureCellular architecture
Cellular architecture
RKGhosh3

Study of Leach Protocol- A Review
Study of Leach Protocol- A ReviewStudy of Leach Protocol- A Review
Study of Leach Protocol- A Review
Editor IJMTER

【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf
【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf
【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf
Ryuichi Yasunaga

Ieee 802.11overview
Ieee 802.11overviewIeee 802.11overview
lan overview
lan overviewlan overview
lan overview
Srinivasa Rao

WiFi 7 Training, Improved Latency, Introduction to 802.11be
WiFi 7 Training, Improved Latency, Introduction to 802.11beWiFi 7 Training, Improved Latency, Introduction to 802.11be
WiFi 7 Training, Improved Latency, Introduction to 802.11be
Bryan Len

Cluster computing
Cluster computingCluster computing
Cluster computing
pooja khatana


What's hot (20)

5G RAN fundamentals
5G RAN fundamentals5G RAN fundamentals
5G RAN fundamentals

proactive and reactive routing comparisons
proactive and reactive routing comparisonsproactive and reactive routing comparisons
proactive and reactive routing comparisons

Bluetooth - Comprehensive Presentation
Bluetooth - Comprehensive PresentationBluetooth - Comprehensive Presentation
Bluetooth - Comprehensive Presentation

Lte pre launch
Lte pre launchLte pre launch
Lte pre launch

Underwater wireless communication
Underwater wireless communicationUnderwater wireless communication
Underwater wireless communication

Wireless & Mobile Communications Questions & Answers
Wireless & Mobile Communications Questions & AnswersWireless & Mobile Communications Questions & Answers
Wireless & Mobile Communications Questions & Answers

Cognitive radio networks
Cognitive radio networksCognitive radio networks
Cognitive radio networks

5g introduction_NR
5g introduction_NR5g introduction_NR
5g introduction_NR

5G + AI: The Ingredients For Next Generation Wireless Innovation
5G + AI: The Ingredients For Next Generation Wireless Innovation5G + AI: The Ingredients For Next Generation Wireless Innovation
5G + AI: The Ingredients For Next Generation Wireless Innovation

SDN: an introduction
SDN: an introductionSDN: an introduction
SDN: an introduction

Cognitive radio networks
Cognitive radio networksCognitive radio networks
Cognitive radio networks

Wireless LAN
Wireless LANWireless LAN
Wireless LAN

Osi Model
Osi ModelOsi Model
Osi Model

Cellular architecture
Cellular architectureCellular architecture
Cellular architecture

Study of Leach Protocol- A Review
Study of Leach Protocol- A ReviewStudy of Leach Protocol- A Review
Study of Leach Protocol- A Review

【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf
【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf
【English version】3GPP 5G Standalone Handover Call flow_Rev4.13_20231224.pdf

Ieee 802.11overview
Ieee 802.11overviewIeee 802.11overview
Ieee 802.11overview

lan overview
lan overviewlan overview
lan overview

WiFi 7 Training, Improved Latency, Introduction to 802.11be
WiFi 7 Training, Improved Latency, Introduction to 802.11beWiFi 7 Training, Improved Latency, Introduction to 802.11be
WiFi 7 Training, Improved Latency, Introduction to 802.11be

Cluster computing
Cluster computingCluster computing
Cluster computing


Similar to Military, Defense and Public Safety Mesh Networks [MeshDynamics]

7.chapter
7.chapter7.chapter
7.chapter
Basil John

Communications in Vehicular networks
Communications in Vehicular networksCommunications in Vehicular networks
Communications in Vehicular networks
DaisyWatson5

A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...
A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...
A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...
Editor IJMTER

92863888 5g-technology-ppt-by-nasar
92863888 5g-technology-ppt-by-nasar92863888 5g-technology-ppt-by-nasar
92863888 5g-technology-ppt-by-nasar
Nasar Mohammed

Analysis of Handoff techniques used for hybrid networks: cellular/WLAN
Analysis of Handoff techniques used for hybrid networks: cellular/WLAN  Analysis of Handoff techniques used for hybrid networks: cellular/WLAN
Analysis of Handoff techniques used for hybrid networks: cellular/WLAN
IJORCS

Resource Dependent Radio Allocation For Battlefield Communications - A Data M...
Resource Dependent Radio Allocation For Battlefield Communications - A Data M...Resource Dependent Radio Allocation For Battlefield Communications - A Data M...
Resource Dependent Radio Allocation For Battlefield Communications - A Data M...
IJERA Editor

COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...
COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...
COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...
IJCNCJournal

A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review
A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a ReviewA Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review
A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review
iosrjce

Q0173299104
Q0173299104Q0173299104
Q0173299104
IOSR Journals

H010524049
H010524049H010524049
H010524049
IOSR Journals

The_Future_of_Wireless_Telemetry
The_Future_of_Wireless_TelemetryThe_Future_of_Wireless_Telemetry
The_Future_of_Wireless_Telemetry
White Pine Consulting

A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs
A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNsA Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs
A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs
ijsrd.com

Generating Insights
Generating InsightsGenerating Insights
Generating Insights
telecomtodd

1V DSP IN WIRELESS COMMUNICATION SYSTEMS
1V DSP IN WIRELESS COMMUNICATION SYSTEMS1V DSP IN WIRELESS COMMUNICATION SYSTEMS
1V DSP IN WIRELESS COMMUNICATION SYSTEMS
International Journal of Technical Research & Application

Aj32242252
Aj32242252Aj32242252
Aj32242252
IJERA Editor

Advanced Networking on GloMoSim
Advanced Networking on GloMoSimAdvanced Networking on GloMoSim
Advanced Networking on GloMoSim
Kathirvel Ayyaswamy

Wireless Communication Systems Are Developing Rapidly Essay
Wireless Communication Systems Are Developing Rapidly EssayWireless Communication Systems Are Developing Rapidly Essay
Wireless Communication Systems Are Developing Rapidly Essay
April Dillard

Energy Minimization in Wireless Sensor Networks Using Multi Hop Transmission
Energy Minimization in Wireless Sensor Networks Using Multi  Hop TransmissionEnergy Minimization in Wireless Sensor Networks Using Multi  Hop Transmission
Energy Minimization in Wireless Sensor Networks Using Multi Hop Transmission
IOSR Journals

Frontiers of Wireless and Mobile Communications
Frontiers of Wireless and Mobile CommunicationsFrontiers of Wireless and Mobile Communications
Frontiers of Wireless and Mobile Communications
Sai Varrshini

Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks
Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom NetworksWhitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks
Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks
ST Engineering iDirect


Similar to Military, Defense and Public Safety Mesh Networks [MeshDynamics] (20)

7.chapter
7.chapter7.chapter
7.chapter

Communications in Vehicular networks
Communications in Vehicular networksCommunications in Vehicular networks
Communications in Vehicular networks

A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...
A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...
A Comparative Analysis of Vertical Handover Decision Process Algorithms for N...

92863888 5g-technology-ppt-by-nasar
92863888 5g-technology-ppt-by-nasar92863888 5g-technology-ppt-by-nasar
92863888 5g-technology-ppt-by-nasar

Analysis of Handoff techniques used for hybrid networks: cellular/WLAN
Analysis of Handoff techniques used for hybrid networks: cellular/WLAN  Analysis of Handoff techniques used for hybrid networks: cellular/WLAN
Analysis of Handoff techniques used for hybrid networks: cellular/WLAN

Resource Dependent Radio Allocation For Battlefield Communications - A Data M...
Resource Dependent Radio Allocation For Battlefield Communications - A Data M...Resource Dependent Radio Allocation For Battlefield Communications - A Data M...
Resource Dependent Radio Allocation For Battlefield Communications - A Data M...

COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...
COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...
COMPARATIVE AND QOS PERFORMANCE ANALYSIS OF TERRESTRIAL-AERIAL PLATFORMS-SATE...

A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review
A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a ReviewA Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review
A Hybrid Approach for Performance Enhancement of VANET using CSMA-MACA: a Review

Q0173299104
Q0173299104Q0173299104
Q0173299104

H010524049
H010524049H010524049
H010524049

The_Future_of_Wireless_Telemetry
The_Future_of_Wireless_TelemetryThe_Future_of_Wireless_Telemetry
The_Future_of_Wireless_Telemetry

A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs
A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNsA Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs
A Survey of Various Routing and Channel Assignment Strategies for MR-MC WMNs

Generating Insights
Generating InsightsGenerating Insights
Generating Insights

1V DSP IN WIRELESS COMMUNICATION SYSTEMS
1V DSP IN WIRELESS COMMUNICATION SYSTEMS1V DSP IN WIRELESS COMMUNICATION SYSTEMS
1V DSP IN WIRELESS COMMUNICATION SYSTEMS

Aj32242252
Aj32242252Aj32242252
Aj32242252

Advanced Networking on GloMoSim
Advanced Networking on GloMoSimAdvanced Networking on GloMoSim
Advanced Networking on GloMoSim

Wireless Communication Systems Are Developing Rapidly Essay
Wireless Communication Systems Are Developing Rapidly EssayWireless Communication Systems Are Developing Rapidly Essay
Wireless Communication Systems Are Developing Rapidly Essay

Energy Minimization in Wireless Sensor Networks Using Multi Hop Transmission
Energy Minimization in Wireless Sensor Networks Using Multi  Hop TransmissionEnergy Minimization in Wireless Sensor Networks Using Multi  Hop Transmission
Energy Minimization in Wireless Sensor Networks Using Multi Hop Transmission

Frontiers of Wireless and Mobile Communications
Frontiers of Wireless and Mobile CommunicationsFrontiers of Wireless and Mobile Communications
Frontiers of Wireless and Mobile Communications

Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks
Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom NetworksWhitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks
Whitepaper: Gaining Operational Advantage Through Innovative Milsatcom Networks


More from MeshDynamics

Chirp_Primer_Slides:ULtra Low Power Edge Connectivity
Chirp_Primer_Slides:ULtra Low Power Edge ConnectivityChirp_Primer_Slides:ULtra Low Power Edge Connectivity
Chirp_Primer_Slides:ULtra Low Power Edge Connectivity
MeshDynamics

small-dumb-cheap-and-copious-the-future-of-the-internet-of-things
small-dumb-cheap-and-copious-the-future-of-the-internet-of-thingssmall-dumb-cheap-and-copious-the-future-of-the-internet-of-things
small-dumb-cheap-and-copious-the-future-of-the-internet-of-things
MeshDynamics

Francis da costa rethinks the internet of things zd_net
Francis da costa rethinks the internet of things   zd_netFrancis da costa rethinks the internet of things   zd_net
Francis da costa rethinks the internet of things zd_net
MeshDynamics

Md4000 mesh suite-intro
Md4000 mesh suite-introMd4000 mesh suite-intro
Md4000 mesh suite-intro
MeshDynamics

Chirp Networks for Industrial Internet and Real time M2M
Chirp Networks for Industrial Internet and Real time M2MChirp Networks for Industrial Internet and Real time M2M
Chirp Networks for Industrial Internet and Real time M2M
MeshDynamics

Strategies for IIOT and M2M Networking
Strategies for IIOT and M2M NetworkingStrategies for IIOT and M2M Networking
Strategies for IIOT and M2M Networking
MeshDynamics

IOT Solutions and Challenges
IOT Solutions and ChallengesIOT Solutions and Challenges
IOT Solutions and Challenges
MeshDynamics

Towards Rapid Implementation of Adaptive Robotic Systems
Towards Rapid Implementation of Adaptive Robotic SystemsTowards Rapid Implementation of Adaptive Robotic Systems
Towards Rapid Implementation of Adaptive Robotic Systems
MeshDynamics

An Integrated Prototyping Environment For Programmable Automation
An Integrated Prototyping Environment For Programmable AutomationAn Integrated Prototyping Environment For Programmable Automation
An Integrated Prototyping Environment For Programmable Automation
MeshDynamics

Chirp Networks
Chirp NetworksChirp Networks
Chirp Networks
MeshDynamics

The Abstracted Network for Industrial Internet- Slides
The Abstracted Network for Industrial Internet- SlidesThe Abstracted Network for Industrial Internet- Slides
The Abstracted Network for Industrial Internet- Slides
MeshDynamics

The Abstracted Network for Industrial Internet
The Abstracted Network for Industrial InternetThe Abstracted Network for Industrial Internet
The Abstracted Network for Industrial Internet
MeshDynamics

MeshDynamics Disruption Tolerant Networks
MeshDynamics Disruption Tolerant NetworksMeshDynamics Disruption Tolerant Networks
MeshDynamics Disruption Tolerant Networks
MeshDynamics

Scale-able Internet of Things (Presented June 12015)
Scale-able Internet of Things (Presented June 12015) Scale-able Internet of Things (Presented June 12015)
Scale-able Internet of Things (Presented June 12015)
MeshDynamics

Iot conference-oct-2014
Iot conference-oct-2014Iot conference-oct-2014
Iot conference-oct-2014
MeshDynamics

Open Source For Self Classification of Data Stream in the Internet Of Things.
Open Source For Self Classification of Data Stream in the Internet Of Things. Open Source For Self Classification of Data Stream in the Internet Of Things.
Open Source For Self Classification of Data Stream in the Internet Of Things.
MeshDynamics

MeshDynamics P3M Persistent and Dynamic Mesh Networks
MeshDynamics P3M Persistent and Dynamic Mesh NetworksMeshDynamics P3M Persistent and Dynamic Mesh Networks
MeshDynamics P3M Persistent and Dynamic Mesh Networks
MeshDynamics

MeshDynamics Mesh Networks - Video Surveillance
MeshDynamics Mesh Networks - Video SurveillanceMeshDynamics Mesh Networks - Video Surveillance
MeshDynamics Mesh Networks - Video Surveillance
MeshDynamics

MeshDynamics MD4000 Mesh Network Products - Installation Guide
MeshDynamics MD4000 Mesh Network Products - Installation GuideMeshDynamics MD4000 Mesh Network Products - Installation Guide
MeshDynamics MD4000 Mesh Network Products - Installation Guide
MeshDynamics

MeshDynamics MD4000 Mesh Network Deployment- Best Practices
MeshDynamics MD4000 Mesh Network Deployment- Best PracticesMeshDynamics MD4000 Mesh Network Deployment- Best Practices
MeshDynamics MD4000 Mesh Network Deployment- Best Practices
MeshDynamics


More from MeshDynamics (20)

Chirp_Primer_Slides:ULtra Low Power Edge Connectivity
Chirp_Primer_Slides:ULtra Low Power Edge ConnectivityChirp_Primer_Slides:ULtra Low Power Edge Connectivity
Chirp_Primer_Slides:ULtra Low Power Edge Connectivity

small-dumb-cheap-and-copious-the-future-of-the-internet-of-things
small-dumb-cheap-and-copious-the-future-of-the-internet-of-thingssmall-dumb-cheap-and-copious-the-future-of-the-internet-of-things
small-dumb-cheap-and-copious-the-future-of-the-internet-of-things

Francis da costa rethinks the internet of things zd_net
Francis da costa rethinks the internet of things   zd_netFrancis da costa rethinks the internet of things   zd_net
Francis da costa rethinks the internet of things zd_net

Md4000 mesh suite-intro
Md4000 mesh suite-introMd4000 mesh suite-intro
Md4000 mesh suite-intro

Chirp Networks for Industrial Internet and Real time M2M
Chirp Networks for Industrial Internet and Real time M2MChirp Networks for Industrial Internet and Real time M2M
Chirp Networks for Industrial Internet and Real time M2M

Strategies for IIOT and M2M Networking
Strategies for IIOT and M2M NetworkingStrategies for IIOT and M2M Networking
Strategies for IIOT and M2M Networking

IOT Solutions and Challenges
IOT Solutions and ChallengesIOT Solutions and Challenges
IOT Solutions and Challenges

Towards Rapid Implementation of Adaptive Robotic Systems
Towards Rapid Implementation of Adaptive Robotic SystemsTowards Rapid Implementation of Adaptive Robotic Systems
Towards Rapid Implementation of Adaptive Robotic Systems

An Integrated Prototyping Environment For Programmable Automation
An Integrated Prototyping Environment For Programmable AutomationAn Integrated Prototyping Environment For Programmable Automation
An Integrated Prototyping Environment For Programmable Automation

Chirp Networks
Chirp NetworksChirp Networks
Chirp Networks

The Abstracted Network for Industrial Internet- Slides
The Abstracted Network for Industrial Internet- SlidesThe Abstracted Network for Industrial Internet- Slides
The Abstracted Network for Industrial Internet- Slides

The Abstracted Network for Industrial Internet
The Abstracted Network for Industrial InternetThe Abstracted Network for Industrial Internet
The Abstracted Network for Industrial Internet

MeshDynamics Disruption Tolerant Networks
MeshDynamics Disruption Tolerant NetworksMeshDynamics Disruption Tolerant Networks
MeshDynamics Disruption Tolerant Networks

Scale-able Internet of Things (Presented June 12015)
Scale-able Internet of Things (Presented June 12015) Scale-able Internet of Things (Presented June 12015)
Scale-able Internet of Things (Presented June 12015)

Iot conference-oct-2014
Iot conference-oct-2014Iot conference-oct-2014
Iot conference-oct-2014

Open Source For Self Classification of Data Stream in the Internet Of Things.
Open Source For Self Classification of Data Stream in the Internet Of Things. Open Source For Self Classification of Data Stream in the Internet Of Things.
Open Source For Self Classification of Data Stream in the Internet Of Things.

MeshDynamics P3M Persistent and Dynamic Mesh Networks
MeshDynamics P3M Persistent and Dynamic Mesh NetworksMeshDynamics P3M Persistent and Dynamic Mesh Networks
MeshDynamics P3M Persistent and Dynamic Mesh Networks

MeshDynamics Mesh Networks - Video Surveillance
MeshDynamics Mesh Networks - Video SurveillanceMeshDynamics Mesh Networks - Video Surveillance
MeshDynamics Mesh Networks - Video Surveillance

MeshDynamics MD4000 Mesh Network Products - Installation Guide
MeshDynamics MD4000 Mesh Network Products - Installation GuideMeshDynamics MD4000 Mesh Network Products - Installation Guide
MeshDynamics MD4000 Mesh Network Products - Installation Guide

MeshDynamics MD4000 Mesh Network Deployment- Best Practices
MeshDynamics MD4000 Mesh Network Deployment- Best PracticesMeshDynamics MD4000 Mesh Network Deployment- Best Practices
MeshDynamics MD4000 Mesh Network Deployment- Best Practices


Recently uploaded

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment
Octavian Nadolu

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Vladimir Iglovikov, Ph.D.

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...
sonjaschweigert1

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...
Zilliz

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events
Ana-Maria Mihalceanu

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Zilliz

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j


Recently uploaded (20)

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...


Military, Defense and Public Safety Mesh Networks [MeshDynamics]

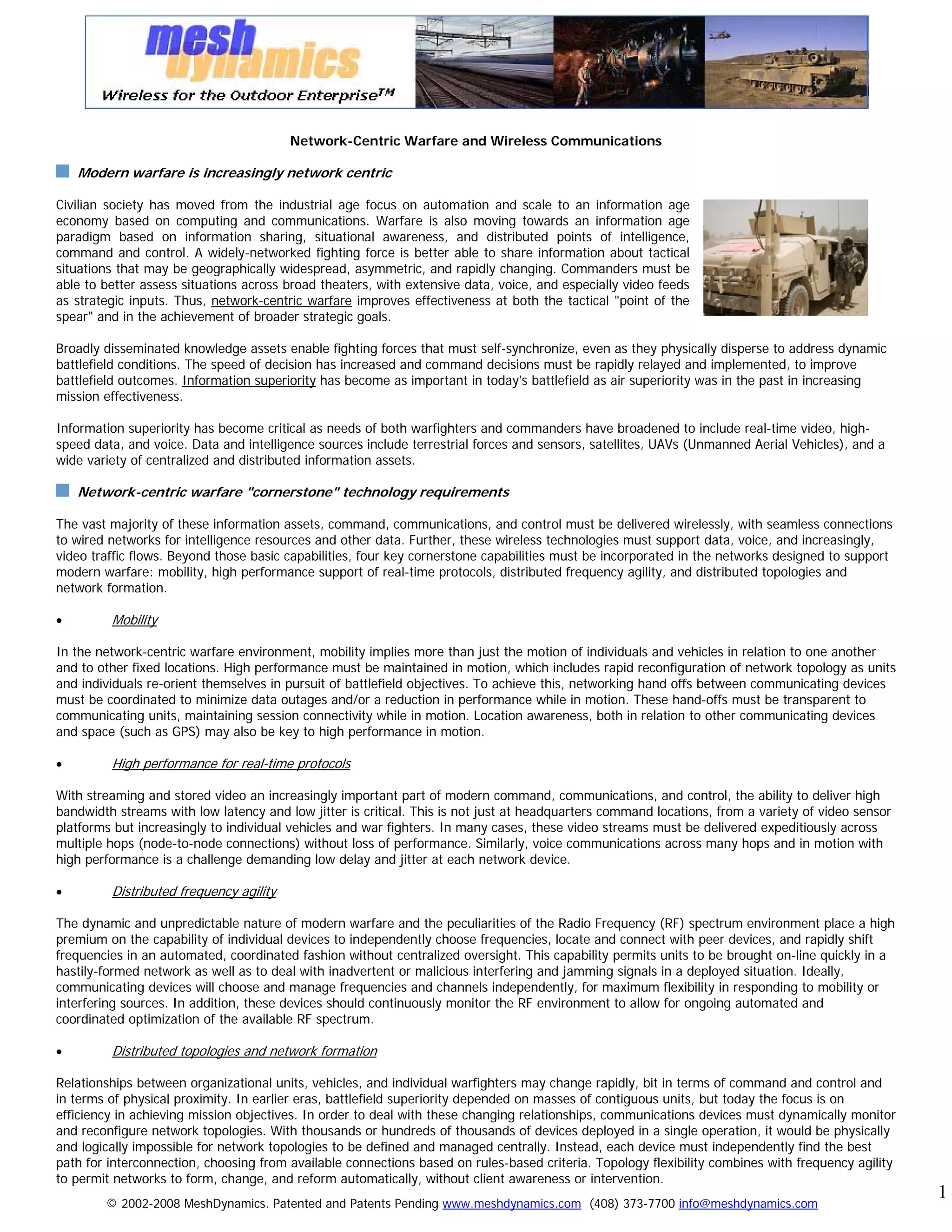

  • 1. Network-Centric Warfare and Wireless Communications Modern warfare is increasingly network centric Civilian society has moved from the industrial age focus on automation and scale to an information age economy based on computing and communications. Warfare is also moving towards an information age paradigm based on information sharing, situational awareness, and distributed points of intelligence, command and control. A widely-networked fighting force is better able to share information about tactical situations that may be geographically widespread, asymmetric, and rapidly changing. Commanders must be able to better assess situations across broad theaters, with extensive data, voice, and especially video feeds as strategic inputs. Thus, network-centric warfare improves effectiveness at both the tactical "point of the spear" and in the achievement of broader strategic goals. Broadly disseminated knowledge assets enable fighting forces that must self-synchronize, even as they physically disperse to address dynamic battlefield conditions. The speed of decision has increased and command decisions must be rapidly relayed and implemented, to improve battlefield outcomes. Information superiority has become as important in today's battlefield as air superiority was in the past in increasing mission effectiveness. Information superiority has become critical as needs of both war fighters and commanders have broadened to include real-time video, high- speed data, and voice. Data and intelligence sources include terrestrial forces and sensors, satellites, UAVs (Unmanned Aerial Vehicles), and a wide variety of centralized and distributed information assets. Network-centric warfare "cornerstone" technology requirements The vast majority of these information assets, command, communications, and control must be delivered wirelessly, with seamless connections to wired networks for intelligence resources and other data. Further, these wireless technologies must support data, voice, and increasingly, video traffic flows. Beyond those basic capabilities, four key cornerstone capabilities must be incorporated in the networks designed to support modern warfare: mobility, high performance support of real-time protocols, distributed frequency agility, and distributed topologies and network formation. Mobility In the network-centric warfare environment, mobility implies more than just the motion of individuals and vehicles in relation to one another and to other fixed locations. High performance must be maintained in motion, which includes rapid reconfiguration of network topology as units and individuals re-orient themselves in pursuit of battlefield objectives. To achieve this, networking hand offs between communicating devices must be coordinated to minimize data outages and/or a reduction in performance while in motion. These hand-offs must be transparent to communicating units, maintaining session connectivity while in motion. Location awareness, both in relation to other communicating devices and space (such as GPS) may also be key to high performance in motion. P3M Press Release P3M Patent High performance for real-time protocols With streaming and stored video an increasingly important part of modern command, communications, and control, the ability to deliver high bandwidth streams with low latency and low jitter is critical. This is not just at headquarters command locations, from a variety of video sensor platforms but increasingly to individual vehicles and war fighters. In many cases, these video streams must be delivered expeditiously across multiple hops (node-to-node connections) without loss of performance. Similarly, voice communications across many hops and in motion with high performance is a challenge demanding low delay and jitter at each network device. . PBV Press Release PBV Patent Distributed frequency agility The dynamic and unpredictable nature of modern warfare and the peculiarities of the Radio Frequency (RF) spectrum environment place a high premium on the capability of individual devices to independently choose frequencies, locate and connect with peer devices, and rapidly shift frequencies in an automated, coordinated fashion without centralized oversight. This capability permits units to be brought on-line quickly in a hastily-formed network as well as to deal with inadvertent or malicious interfering and jamming signals in a deployed situation. Ideally, communicating devices will choose and manage frequencies and channels independently, for maximum flexibility in responding to mobility or interfering sources. In addition, these devices should continuously monitor the RF environment to allow for ongoing automated and coordinated optimization of the available RF spectrum. Illustration Distributed topologies and network formation Relationships between organizational units, vehicles, and individual war fighters may change rapidly, bit in terms of command and control and in terms of physical proximity. In earlier eras, battlefield superiority depended on masses of contiguous units, but today the focus is on efficiency in achieving mission objectives. In order to deal with these changing relationships, communications devices must dynamically monitor and reconfigure network topologies. With thousands or hundreds of thousands of devices deployed in a single operation, it would be physically and logically impossible for network topologies to be defined and managed centrally. Instead, each device must independently find the best path for interconnection, choosing from available connections based on rules-based criteria. Topology flexibility combines with frequency agility to permit networks to form, change, and reform automatically, without client awareness or intervention. Animation 1 © 2002-2016 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com

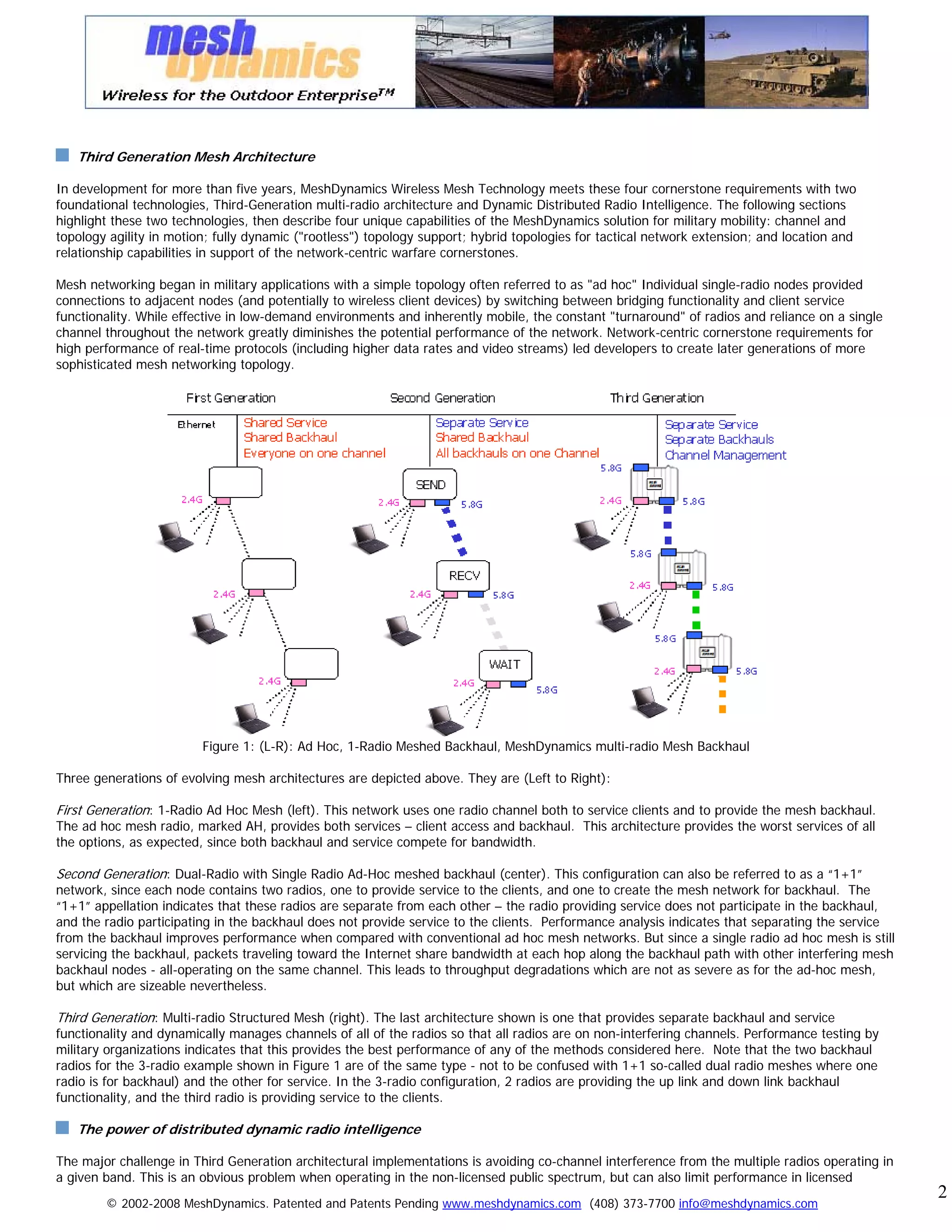

  • 2. Mobile and Disruption Tolerant Mesh Architecture In development for more than five years, MeshDynamics Wireless Mesh Technology meets these four cornerstone requirements with two foundational technologies, Third-Generation multi-radio architecture and Dynamic Distributed Radio Intelligence. The following sections highlight these two technologies, then describe four unique capabilities of the MeshDynamics solution for military mobility: channel and topology agility in motion; fully dynamic ("rootless") topology support; hybrid topologies for tactical network extension; and location and relationship capabilities in support of the network-centric warfare cornerstones. Mesh networking began in military applications with a simple topology often referred to as "ad hoc" Individual single-radio nodes provided connections to adjacent nodes (and potentially to wireless client devices) by switching between bridging functionality and client service functionality. While effective in low-demand environments and inherently mobile, the constant "turnaround" of radios and reliance on a single channel throughout the network greatly diminishes the potential performance of the network. Network-centric cornerstone requirements for high performance of real-time protocols (including higher data rates and video streams) led developers to create later generations of more sophisticated mesh networking topology. Figure 1: (L-R): Ad Hoc, 1-Radio Meshed Backhaul, MeshDynamics multi-radio Mesh Backhaul Three generations of evolving mesh architectures are depicted above. They are (Left to Right): First Generation: 1-Radio Ad Hoc Mesh (left). This network uses one radio channel both to service clients and to provide the mesh backhaul. The ad hoc mesh radio, marked AH, provides both services – client access and backhaul. This architecture provides the worst services of all the options, as expected, since both backhaul and service compete for bandwidth. Second Generation: Dual-Radio with Single Radio Ad-Hoc meshed backhaul (center). This configuration can also be referred to as a “1+1” network, since each node contains two radios, one to provide service to the clients, and one to create the mesh network for backhaul. The “1+1” appellation indicates that these radios are separate from each other – the radio providing service does not participate in the backhaul, and the radio participating in the backhaul does not provide service to the clients. Performance analysis indicates that separating the service from the backhaul improves performance when compared with conventional ad hoc mesh networks. But since a single radio ad hoc mesh is still servicing the backhaul, packets traveling toward the Internet share bandwidth at each hop along the backhaul path with other interfering mesh backhaul nodes - all-operating on the same channel. This leads to throughput degradations which are not as severe as for the ad-hoc mesh, but which are sizeable nevertheless. Third Generation: Multi-radio Structured Mesh (right). The last architecture shown is one that provides separate backhaul and service functionality and dynamically manages channels of all of the radios so that all radios are on non-interfering channels. Performance testing by military organizations indicates that this provides the best performance of any of the methods considered here. Note that the two backhaul radios for the 3-radio example shown in Figure 1 are of the same type - not to be confused with 1+1 so-called dual radio meshes where one radio is for backhaul) and the other for service. In the 3-radio configuration, 2 radios are providing the up link and down link backhaul functionality, and the third radio is providing service to the clients. The power of distributed dynamic radio intelligence 2 © 2002-2016 MeshDynamics. Paten The major challenge in Third Generation architectural implementations is avoiding co-channel interference from the multiple radios operating in a given band. This is an obvious problem when operating in the non-licensed public spectrum, but can also limit performance in licensed ted and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
  • 3. military frequencies used by custom radios. Earlier Third Generation implementations often restricted this interference by using directional sectored antennas. But this technique is useless in the mobile environment. MeshDynamics' instead allocates channels dynamically, listening for adjacent nodes as well as competing, interfering, or jamming sources, addressing the third cornerstone of distributed frequency agility. Channel maps are selected and reselected as necessary to provide optimum performance and to maintain connectivity, no matter how the RF environment may change nor how individual nodes may move in relationship to one another. This would not be possible with traditional centralized RF channel management through a single controller, as changes in location and RF environment may isolate sections of the network from the controller. Instead, a unique MeshDynamics technology distributes the channel and topology selection to independent but coordinated functions in each node. This is Distributed Dynamic Radio Intelligence. The combination of multi-radio Third Generation capabilities and Dynamic Distributed Radio Intelligence maintain a high degree of connectivity in motion, ensuring that the MeshDynamics network delivers high performance at speed. In the military environment, this provides for the maximal utility of tactical networking, as data, voice and video may be shared no matter the physical relationship of the communicating units to one another of fixed bases. Hybrid topologies for tactical network extension Although the Third-Generation wireless mesh architecture has been proven to provide much higher performance than ad hoc First Generation architectures, there are tactical deployment situations where a combination of the two capabilities may be useful in achieving the mobility and distributed topologies and network formation cornerstones. In particular, small footprint (minimal size, low weight, low power) single-radio peer-to-peer ad hoc nodes carried by individual personnel may be desired in many tactical situations. MeshDynamics has pioneered a unique bridging technology between the Third Generation high performance multi-radio network and widely distributed individual peer-to-peer ad hoc nodes that allow the individual ad hoc nodes to join the higher performance network directly when in range, but to hop peer-to-peer across the ad hoc network if necessary to connect to the Third Generation high performance network. Fig 2: Hybrid Mesh is a high performance multi-radio meshed backhaul that supports both standard and ad hoc mesh clients. In a typical deployment, higher performance multi-radio mesh nodes might be deployed on supporting vehicles, with body-carried nodes deployed with each individual. As individuals move farther from the supporting vehicle, their connection will shift automatically and dynamically between a direct connection to the vehicle-mounted network and a peer-to-peer bridge when too distant or obscured from the vehicle. The Third Generation multi-radio mesh provides bandwidth and low latency for mission critical voice/video involving wide areas (and consequently many hops). The ad hoc mesh provides the connectivity to the multi-radio backhaul and can coexist with it with minimal modification: the ad hoc mesh views the multi-radio backhaul as an Ethernet link substitute. This extended combined network is now auto- configurable and scalable under a unified control layer. Note that the infrastructure mesh supports both “standard” clients – those that connect to the Access Point but do not have any ad hoc mesh functionality and “ad hoc mesh” clients. Radio-Agnostic Technology MeshDynamics' patented and patent-pending Third Generation implementation is not limited to any particular number of physical radios, or indeed to the concept of separate physical radios at all. Instead, the MeshDynamics networking algorithm treats multiple physical and/or logical radios as a pool of available connections to be dynamically managed for optimum performance in a mobile environment. MeshDynamics' powerful networking algorithms have been designed to work over a variety of civilian and military radio bands. Current production products serve WiFi 802.11 a/b/g at 2.4 and 5.8 GHz and public safety nets at 4.9 GHz. Support for 900 MHz, 700 MHz, and WiMAX bands is in development. Custom development capabilities are also available for military radios operating in a broad range of bands. Location and relationship capabilities 3 © 2002-2016 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
  • 4. Because of the efficient, yet extensible, node-to-node management information path provided by the MeshDynamics network, additional functionality is available for monitoring and reporting of location information in support of the mobility cornerstone technology requirement. Individual nodes may be fitted with GPS (Global Positioning System) receivers and real-time information on the nodes' locations (fixed or in motion) may be provided to administrators or to other applications using standard data protocols. In addition, each node maintains a listing of the MAC IDs of every associated user device. This information may be interpolated by an external application to indicate with which nodes individual client devices are currently associated. Combined with the known fixed or GPS-derived location of each node, this provides a rough approximation of end user location and distribution. Channel and topology agility in military environments In order for the MeshDynamics network to continually and dynamically respond to a changing tactical environment, each node is designed to periodically and momentarily "listen" to its surroundings. This brief activity does not appreciably diminish data capability, but allows each node to constantly be aware of a changing environment. In hastily-formed networks, newly deployed units can rapidly discover (and be discovered by) adjacent units already operational in the network. No site survey or channel pre-configuration is necessary: the distributed dynamic radio intelligence in each node manages the complete network set-up process. Fig 3: Node Heartbeats provides GPS updates for the map view. It also provides node connectivity information for the topology view. This capability is provided by a constant exchange of an informational heartbeat between nodes. This efficient datagram delivers information about adjacencies to permit each individual node to make independent but coordinated decisions regarding channels and topologies. In high- speed mobility environments, an additional dedicated "scanning" radio may be incorporated into each node to provide the smoothest and most rapid adaptations of channel and topology for near instantaneous node-to-node switchover as required. A recent successful trial involved transmission of real-time video from a moving vehicle connecting through a series of roadside fixed nodes. Video transmission was maintained without dropouts, as the dedicated scanning radio allowed the mobile node to continually connect in turn to the best fixed node. Network start-up is automatic and immediate when power is applied to the nodes. MeshDynamics units are compact and rugged, making for minimal transport cost and weight in hastily-formed and mobile applications. Mobility Test Report About MeshDynamics Founded in 2002, MeshDynamics began shipping production units late in 2005 and has customers in many applications areas: municipal (metro) networking; homeland security/defense; transportation (e.g., rail and air); military; and public safety. Customers are worldwide; sales are direct and through resellers. Military organizations and defense contractors have performed extensive tests confirming MeshDynamics' industry-leading performance. In addition to these sales of the standard products, MeshDynamics maintains substantial custom development activity with key defense agencies. The technology pioneered for these demanding customers has been utilized in MeshDynamics' products. Related Links: Disruption Tolerant Networks [SPAWAR Contract] MeshDynamics Patent Portfolio [Patents related to Hybrid Mesh Networks and extensions to support next generation IoT devices] 4 © 2002-2008 MeshDynamics. Patented and Patents Pending www.meshdynamics.com (408) 373-7700 info@meshdynamics.com
