MicroPython Introduction PUSG July 2017
- 1. Introduction to MicroPython pythonrunning on tiny embedded boards
- 2. • new Pythonimplementation based on Python 3 • a 32-bit ARM processor based development board Kickstarter

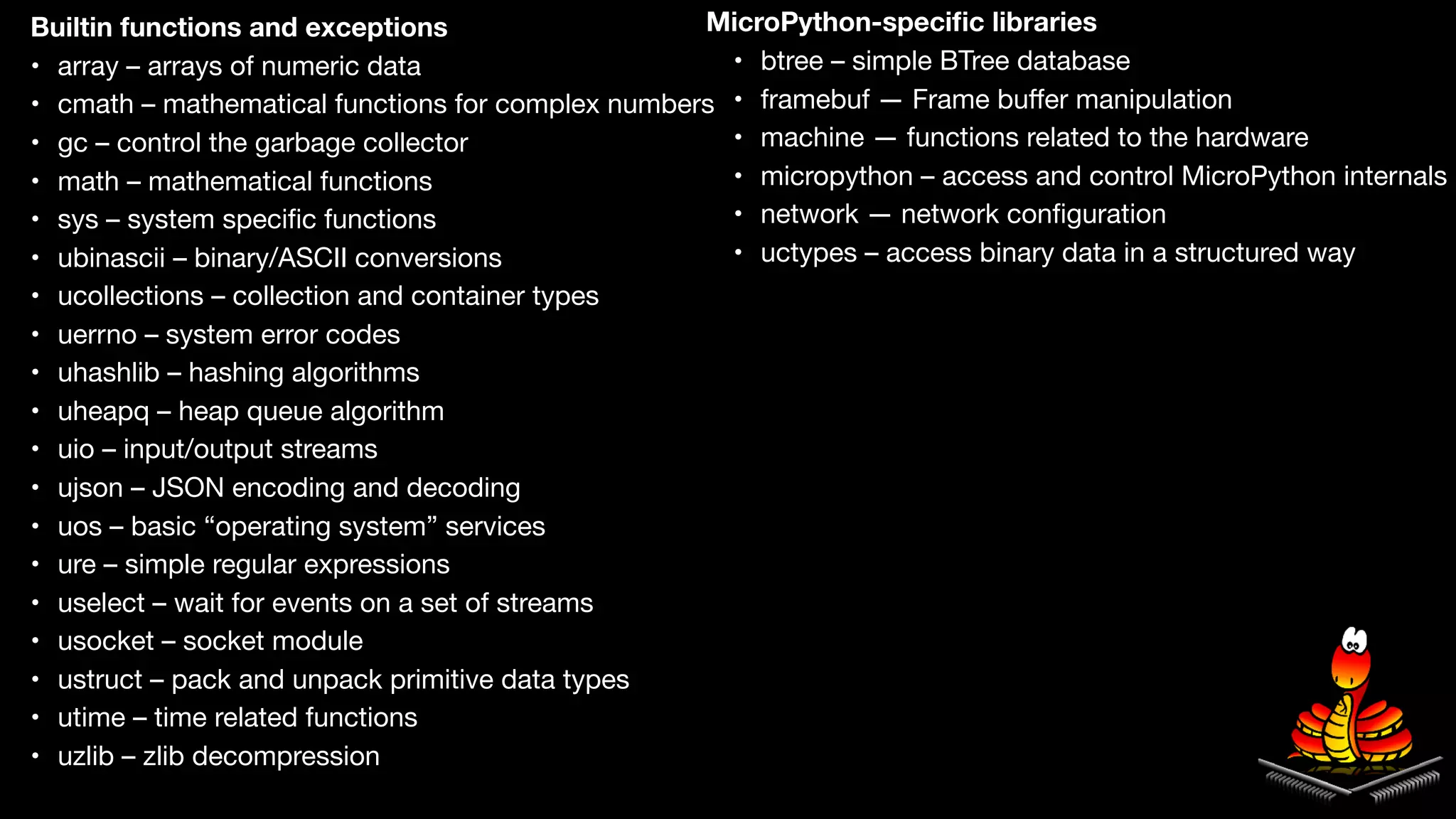

- 3. Builtin functions andexceptions • array – arrays of numeric data • cmath – mathematical functions for complex numbers • gc – control the garbage collector • math – mathematical functions • sys – system specific functions • ubinascii – binary/ASCII conversions • ucollections – collection and container types • uerrno – system error codes • uhashlib – hashing algorithms • uheapq – heap queue algorithm • uio – input/output streams • ujson – JSON encoding and decoding • uos – basic “operating system” services • ure – simple regular expressions • uselect – wait for events on a set of streams • usocket – socket module • ustruct – pack and unpack primitive data types • utime – time related functions • uzlib – zlib decompression MicroPython-specific libraries • btree – simple BTree database • framebuf — Frame buffer manipulation • machine — functions related to the hardware • micropython – access and control MicroPython internals • network — network configuration • uctypes – access binary data in a structured way

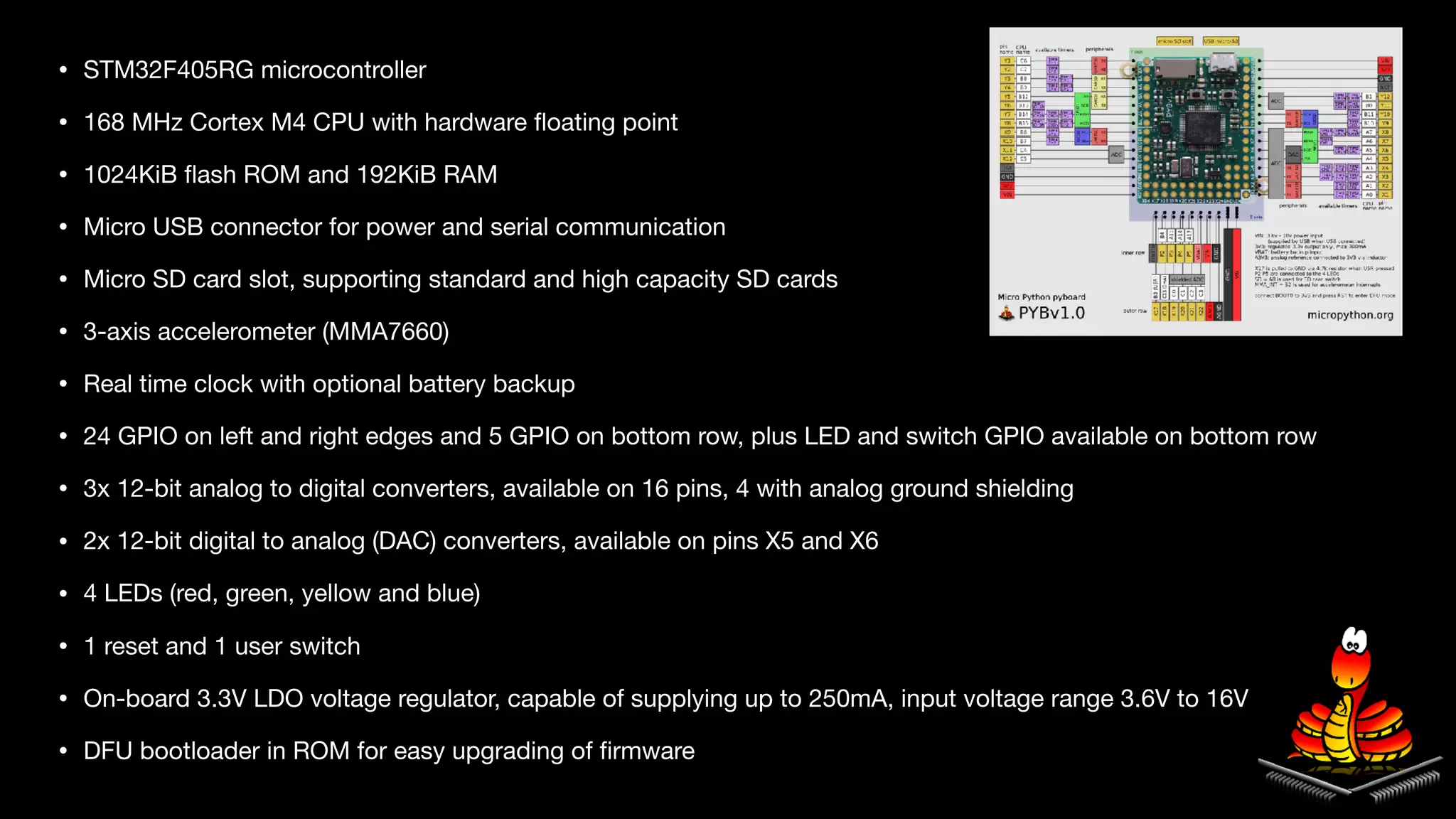

- 4. • STM32F405RG microcontroller •168 MHz Cortex M4 CPU with hardware floating point • 1024KiB flash ROM and 192KiB RAM • Micro USB connector for power and serial communication • Micro SD card slot, supporting standard and high capacity SD cards • 3-axis accelerometer (MMA7660) • Real time clock with optional battery backup • 24 GPIO on left and right edges and 5 GPIO on bottom row, plus LED and switch GPIO available on bottom row • 3x 12-bit analog to digital converters, available on 16 pins, 4 with analog ground shielding • 2x 12-bit digital to analog (DAC) converters, available on pins X5 and X6 • 4 LEDs (red, green, yellow and blue) • 1 reset and 1 user switch • On-board 3.3V LDO voltage regulator, capable of supplying up to 250mA, input voltage range 3.6V to 16V • DFU bootloader in ROM for easy upgrading of firmware
- 5.

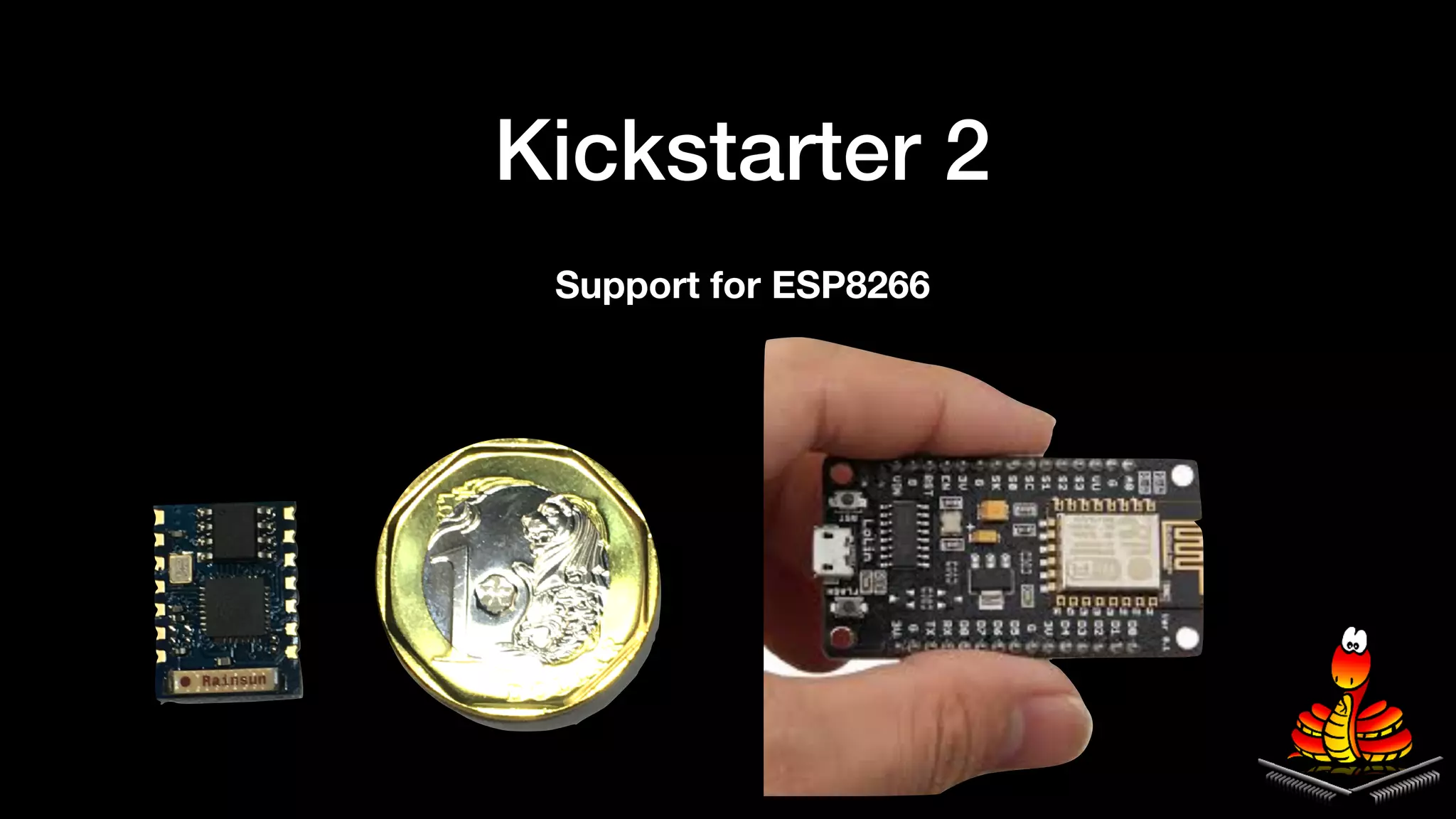

- 6. Kickstarter 2 Support forESP8266

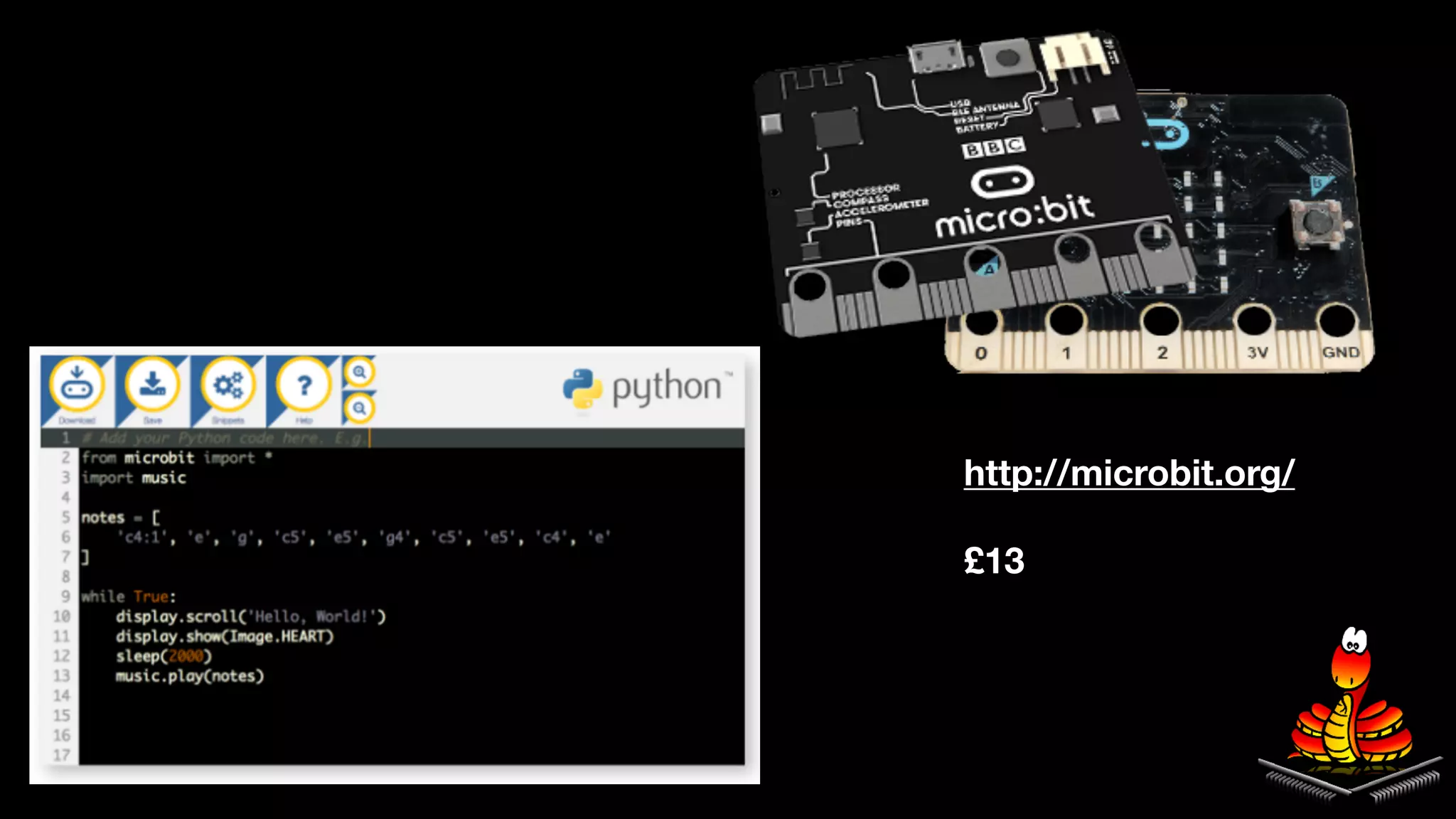

- 7.
- 8.
- 9.
- 10. • http://docs.micropython.org/ • https://forum.micropython.org/ • https://github.com/micropython
