Micronaut HTTP Client
James Kleeh

© 2019, Object Computing, Inc. (OCI). All rights reserved. objectcomputing.com

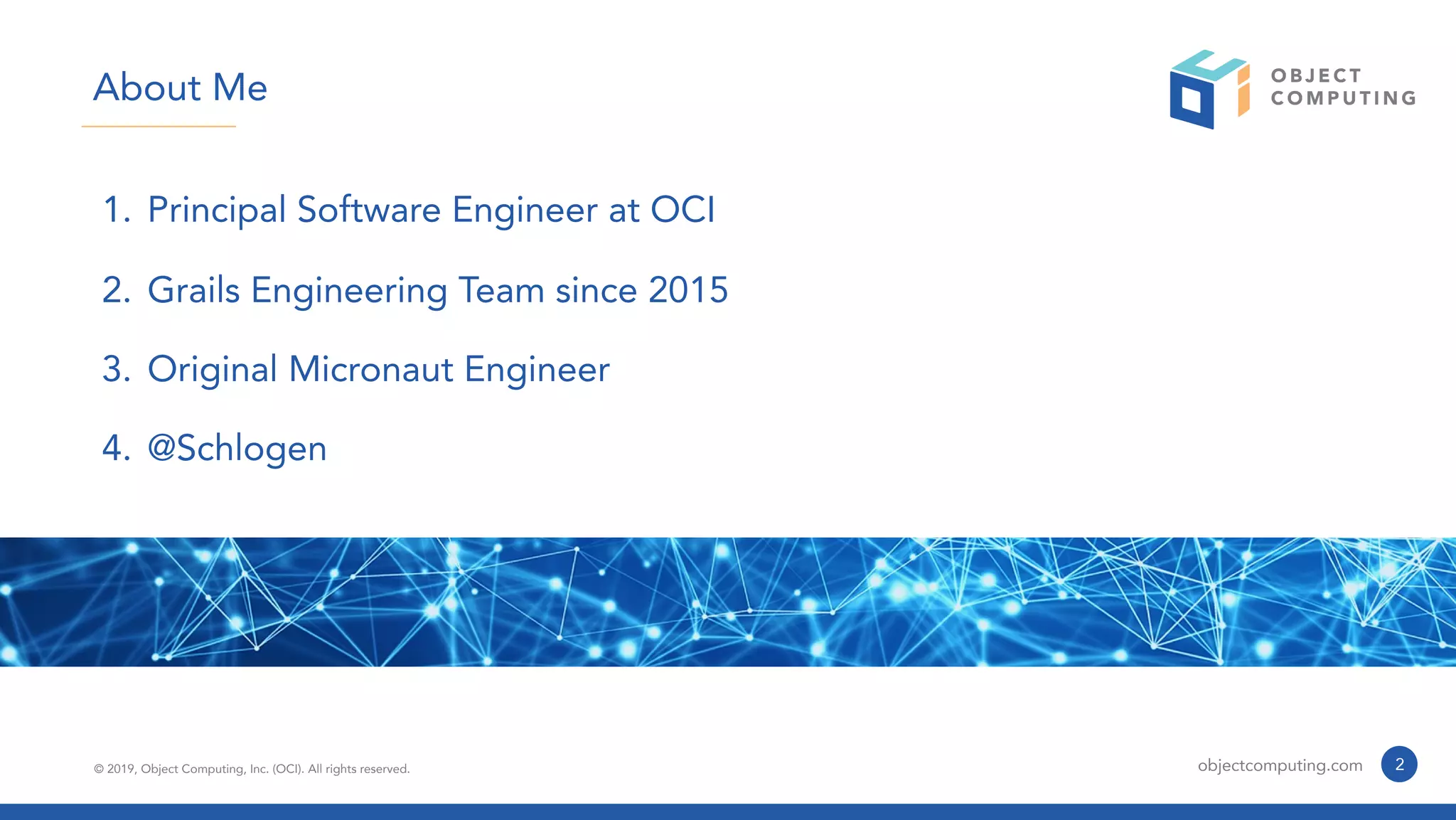

1. Principal Software Engineer at OCI
2. Grails Engineering Team since 2015
3. Original Micronaut Engineer
4. @Schlogen
2
About Me

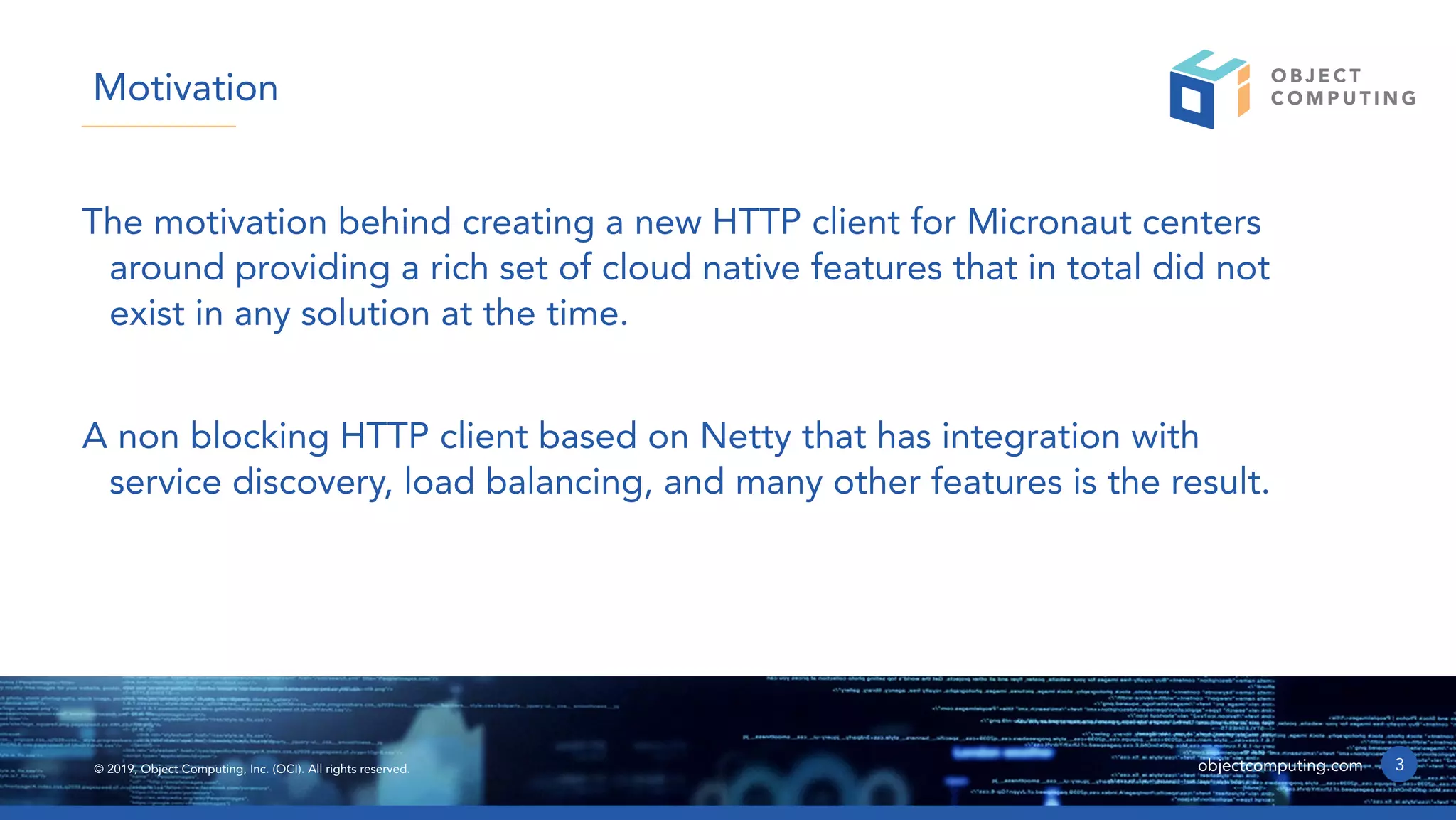

The motivation behind creating a new HTTP client for Micronaut centers
around providing a rich set of cloud native features that in total did not
exist in any solution at the time.
A non blocking HTTP client based on Netty that has integration with
service discovery, load balancing, and many other features is the result.
3
Motivation

1. Basic Usage
2. Reactive
3. Recovery
4. Service Discovery / Load Balancing
5. Much More …
4
Agenda

© 2019, Object Computing, Inc. (OCI). All rights reserved. objectcomputing.com 5

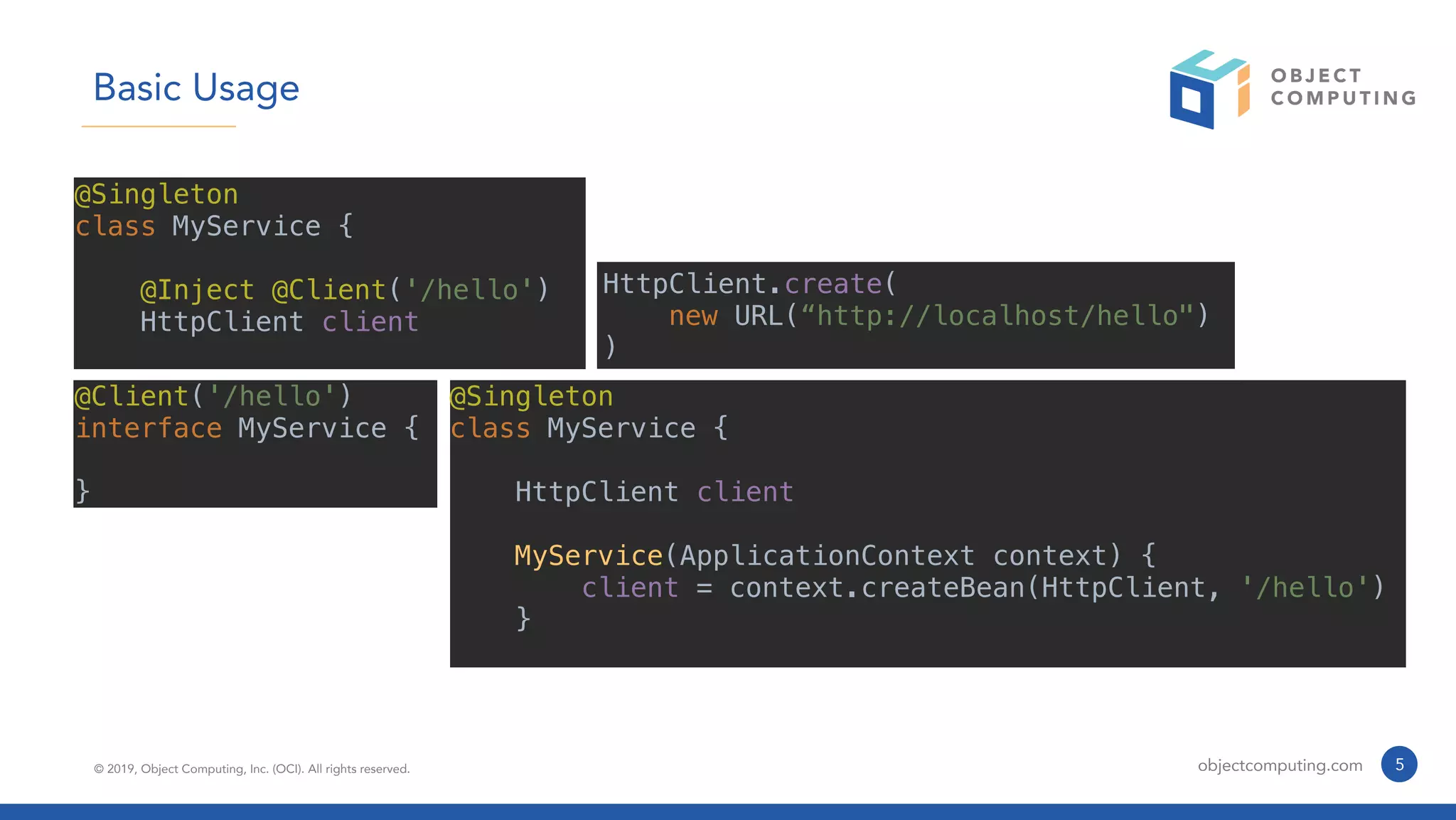

Basic Usage
@Singleton
class MyService {
@Inject @Client('/hello')
HttpClient client
@Singleton
class MyService {
HttpClient client
MyService(ApplicationContext context) {
client = context.createBean(HttpClient, '/hello')
}
@Client('/hello')
interface MyService {
}
HttpClient.create(
new URL(“http://localhost/hello")
)

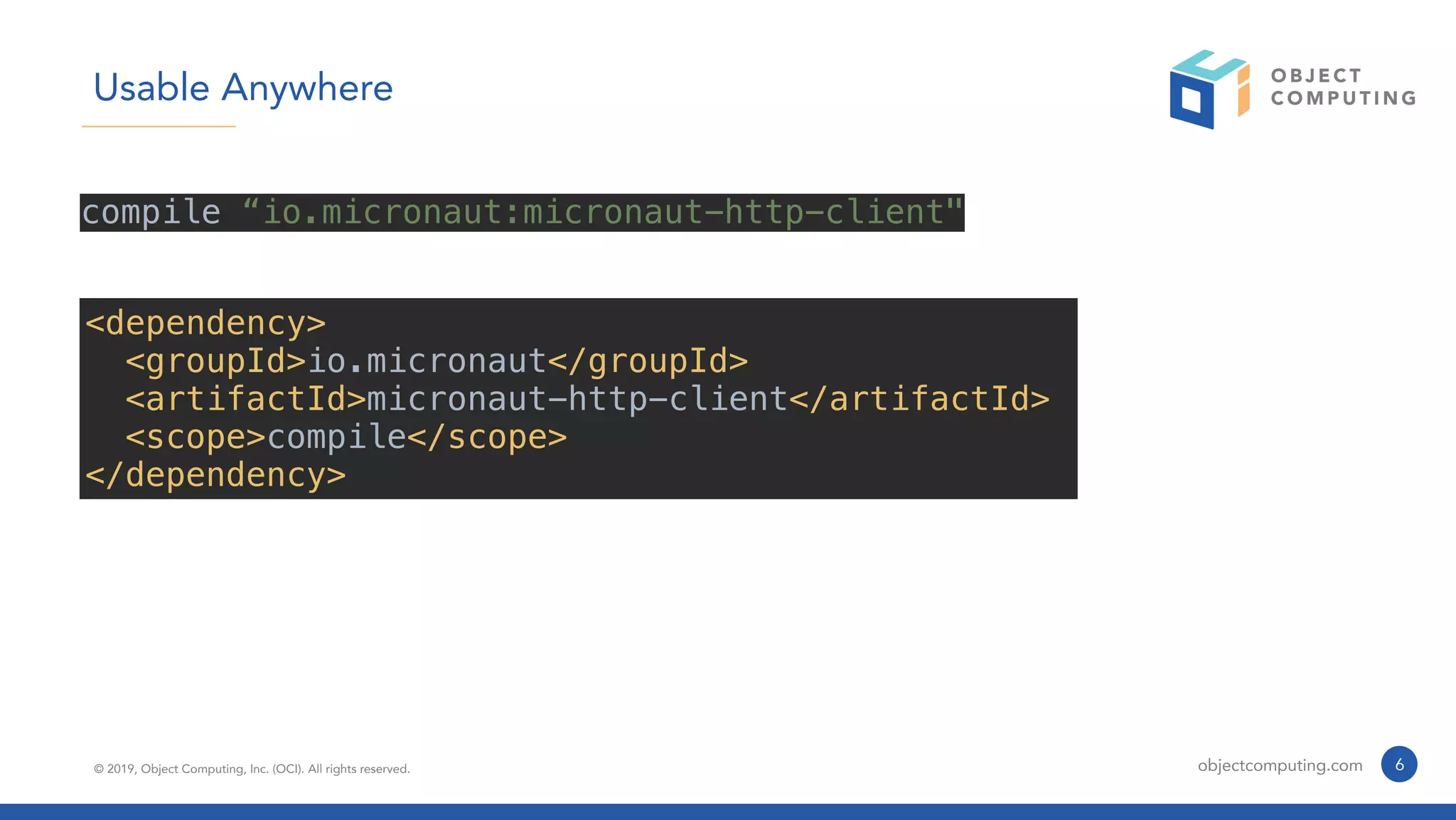

Usable Anywhere
compile “io.micronaut:micronaut-http-client"
<dependency>
<groupId>io.micronaut</groupId>
<artifactId>micronaut-http-client</artifactId>
<scope>compile</scope>
</dependency>

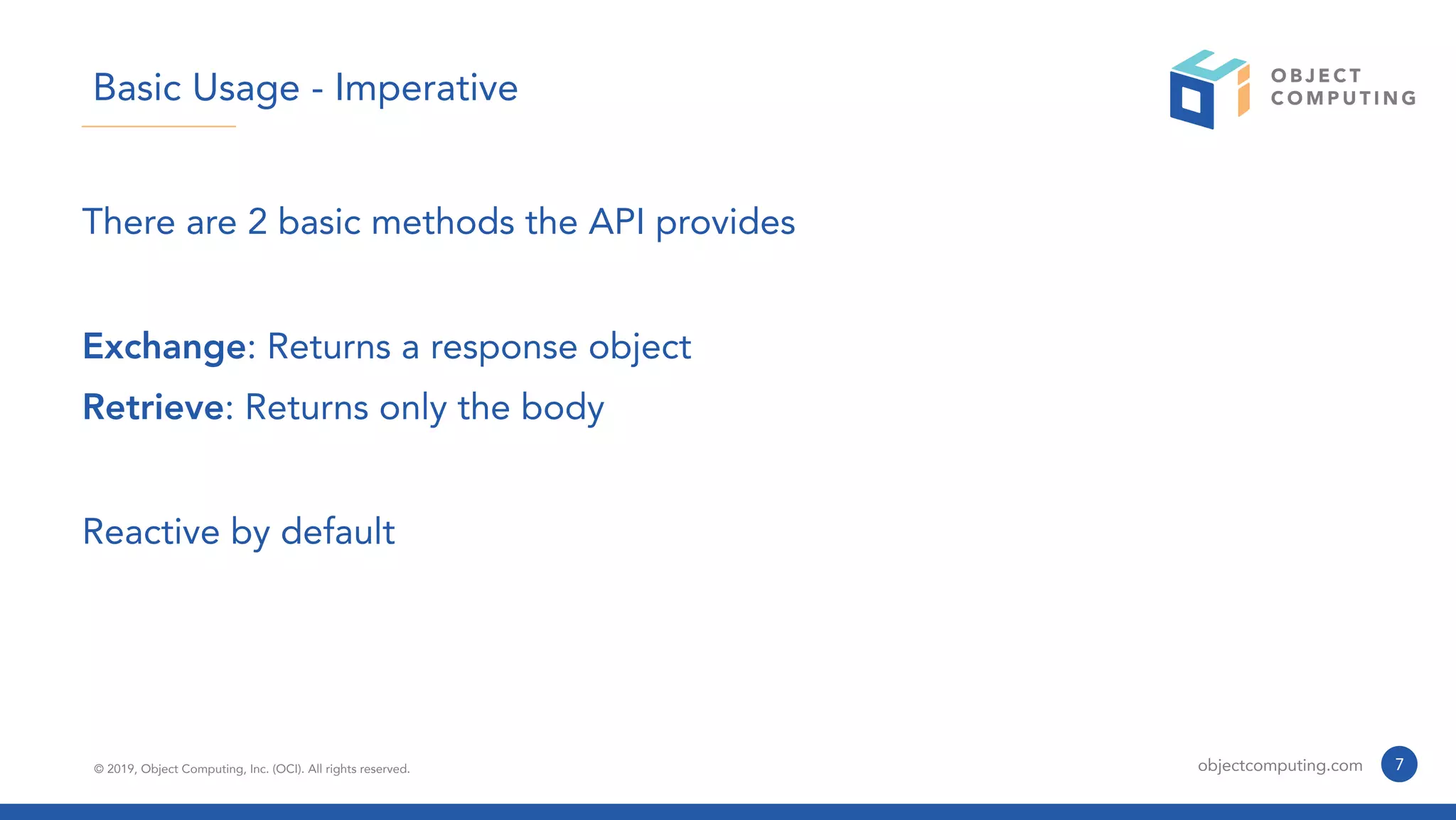

Basic Usage - Imperative
There are 2 basic methods the API provides
Exchange: Returns a response object
Retrieve: Returns only the body
Reactive by default

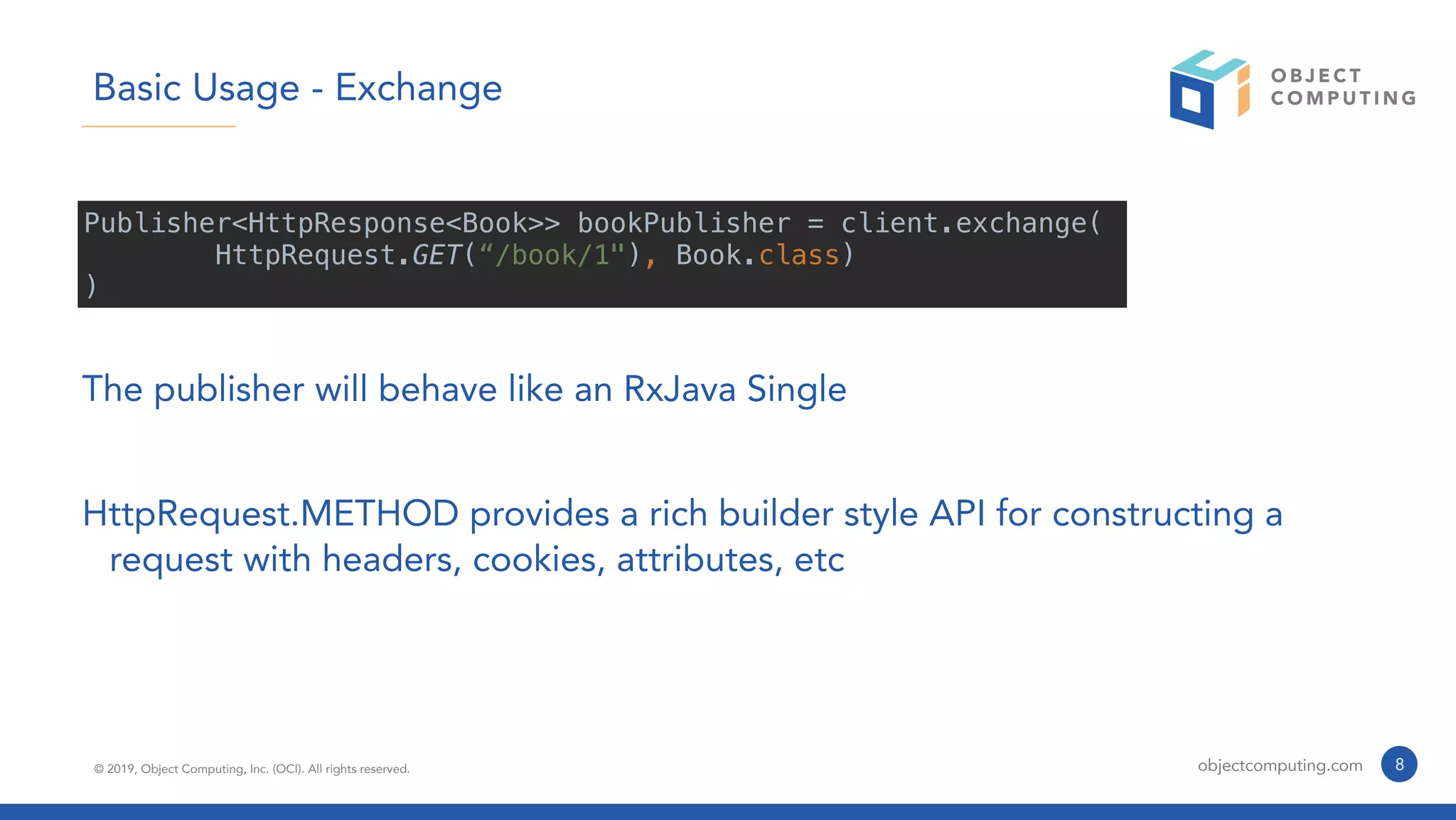

Basic Usage - Exchange
Publisher<HttpResponse<Book>> bookPublisher = client.exchange(
HttpRequest.GET(“/book/1"), Book.class)
)
The publisher will behave like an RxJava Single
HttpRequest.METHOD provides a rich builder style API for constructing a
request with headers, cookies, attributes, etc

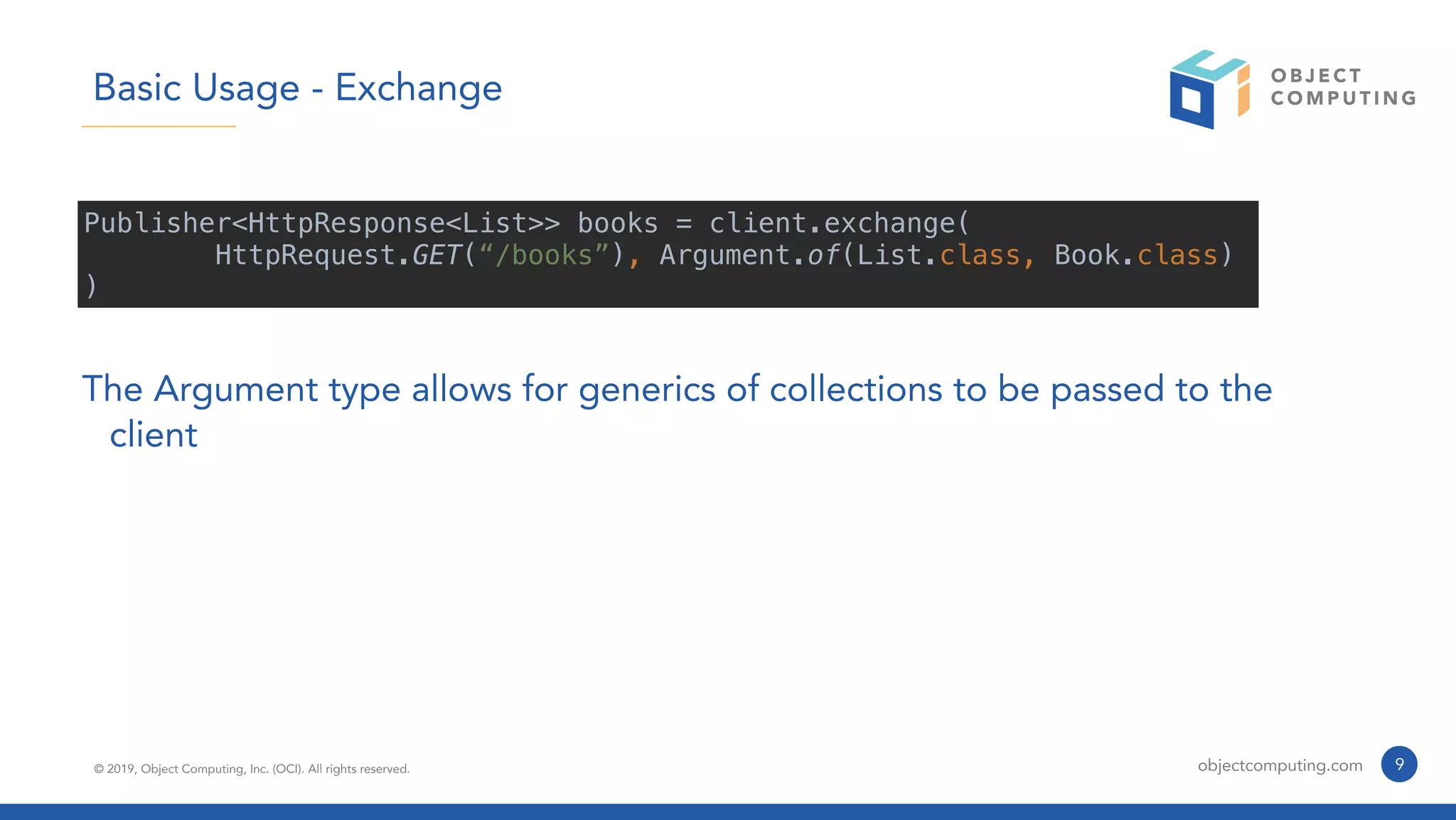

Basic Usage - Exchange
Publisher<HttpResponse<List>> books = client.exchange(
HttpRequest.GET(“/books”), Argument.of(List.class, Book.class)
)
The Argument type allows for generics of collections to be passed to the
client

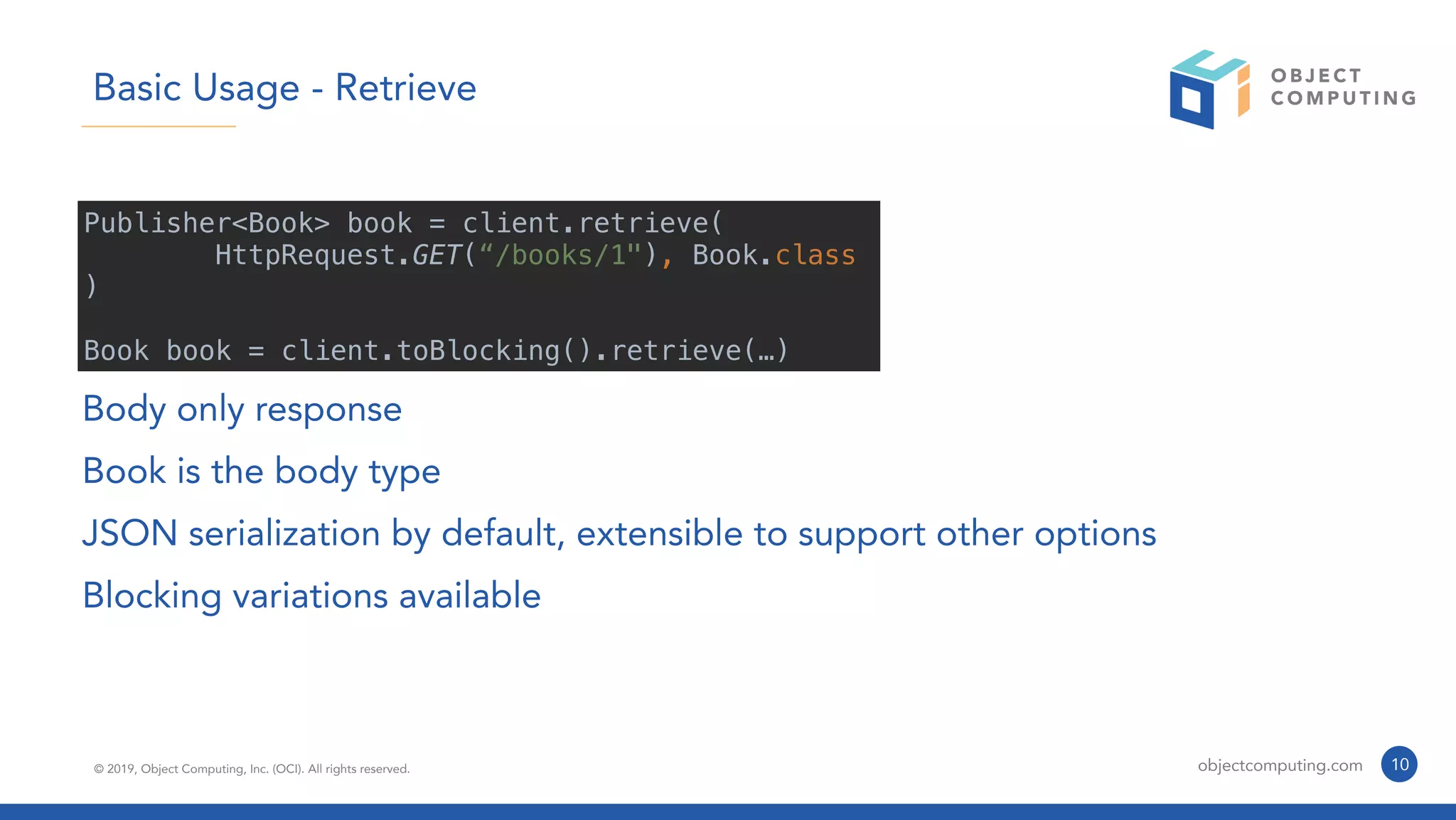

Basic Usage - Retrieve
Publisher<Book> book = client.retrieve(
HttpRequest.GET(“/books/1"), Book.class
)
Book book = client.toBlocking().retrieve(…)
Body only response
Book is the body type
JSON serialization by default, extensible to support other options
Blocking variations available

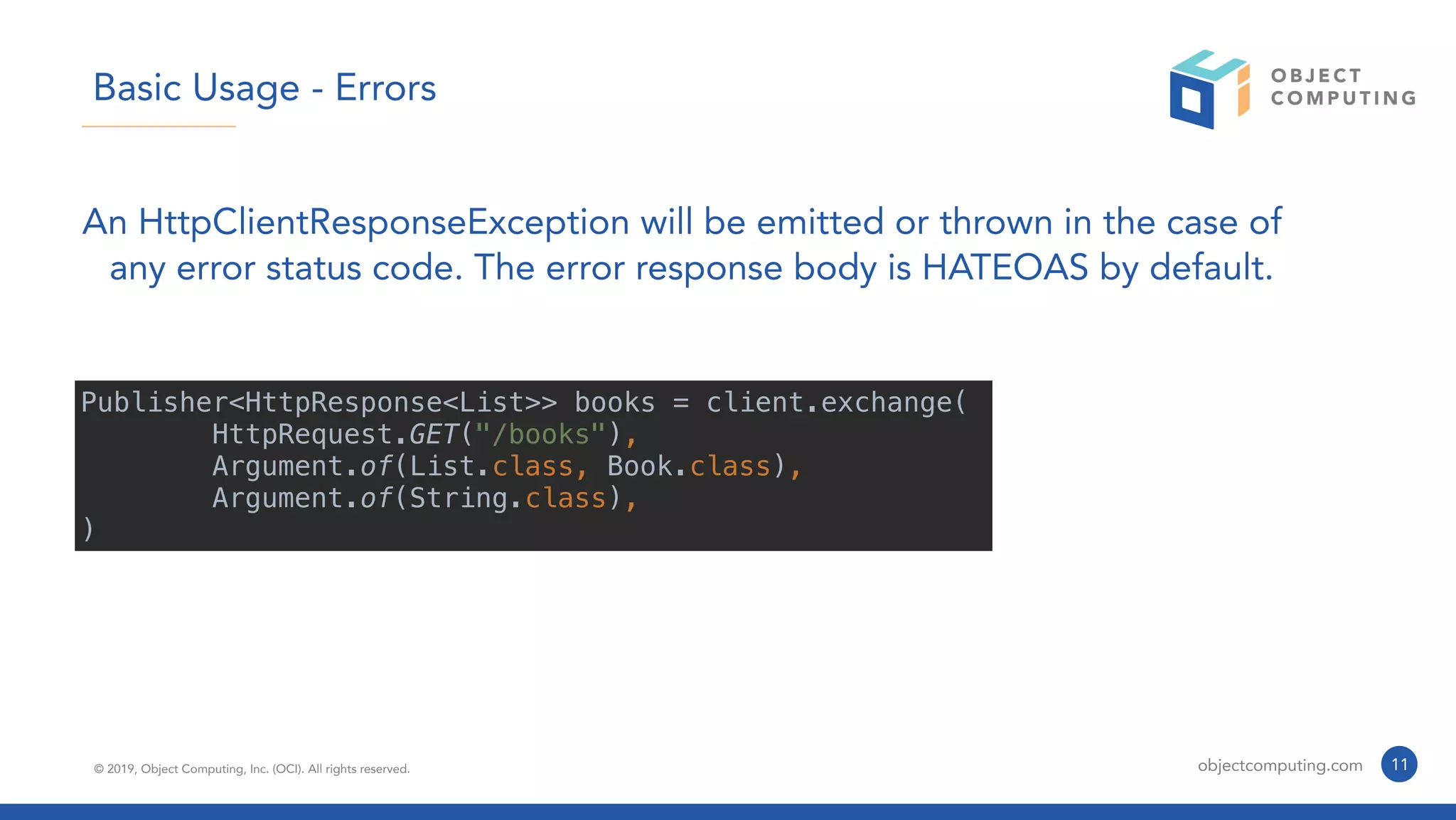

Basic Usage - Errors
An HttpClientResponseException will be emitted or thrown in the case of
any error status code. The error response body is HATEOAS by default.
Publisher<HttpResponse<List>> books = client.exchange(
HttpRequest.GET("/books"),
Argument.of(List.class, Book.class),
Argument.of(String.class),
)

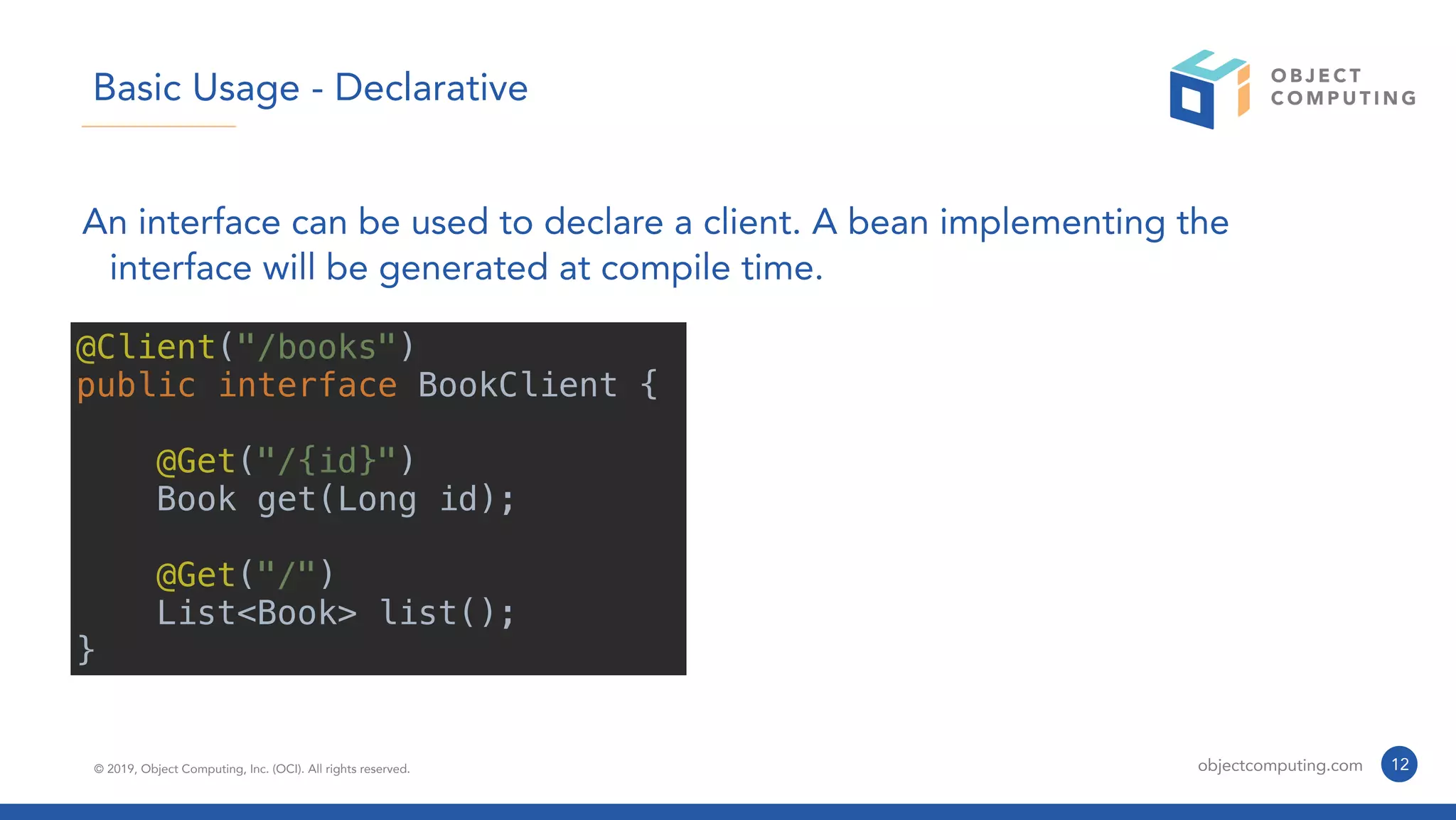

Basic Usage - Declarative
An interface can be used to declare a client. A bean implementing the
interface will be generated at compile time.
@Client("/books")
public interface BookClient {
@Get("/{id}")
Book get(Long id);
@Get("/")
List<Book> list();
}

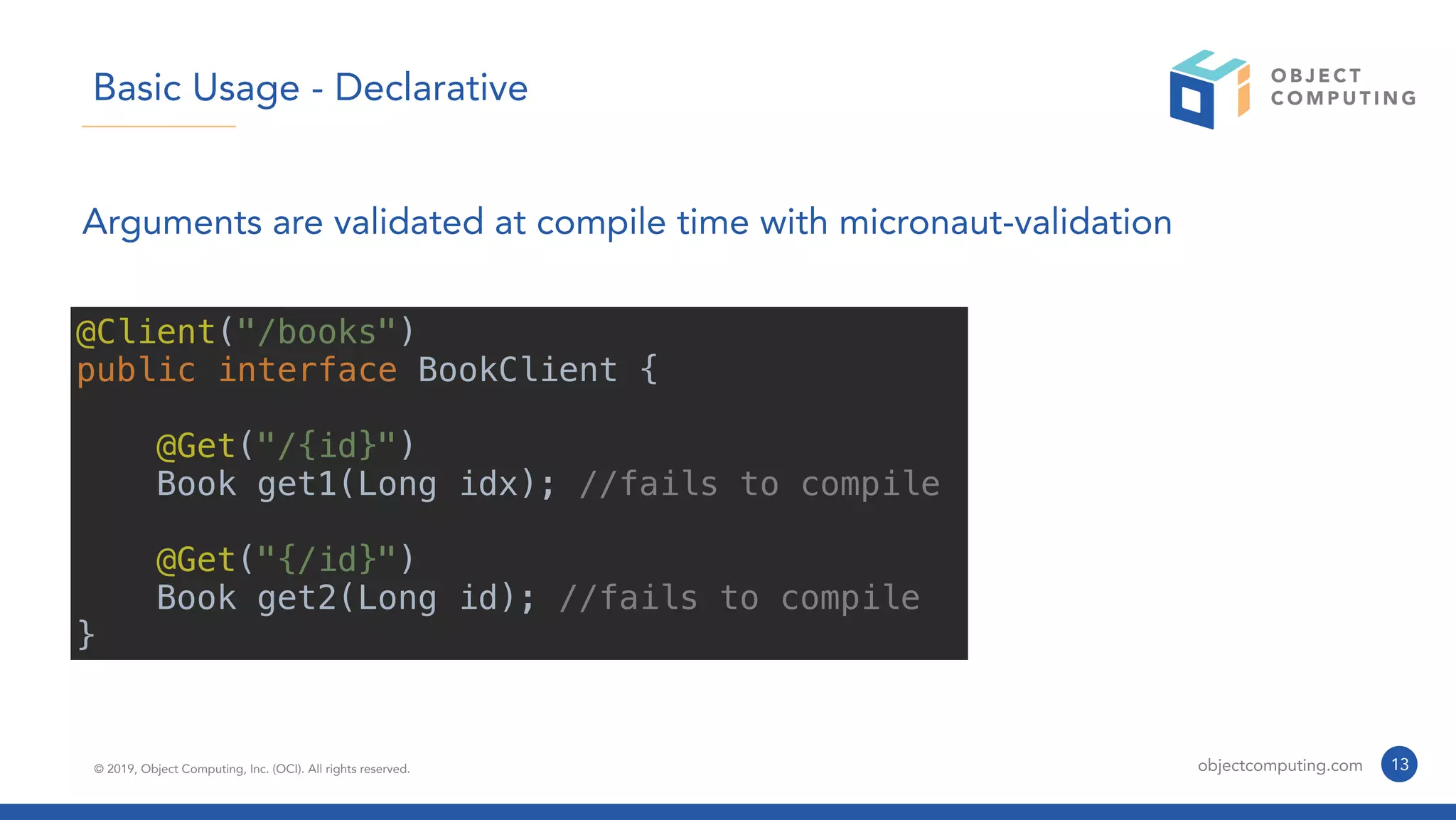

Arguments are validated at compile time with micronaut-validation
@Client("/books")
@Get("/{id}")
Book get1(Long idx); //fails to compile
@Get("{/id}")
Book get2(Long id); //fails to compile
}

Headers can be set statically or dynamically
@Client("/books")
@Header(name = "X-My-Header", value = "my-value")
@Get("/{id}")
Book get(Long id);
@Get("/")
List<Book> list(@Header("X-My-Header") String myHeader)
}

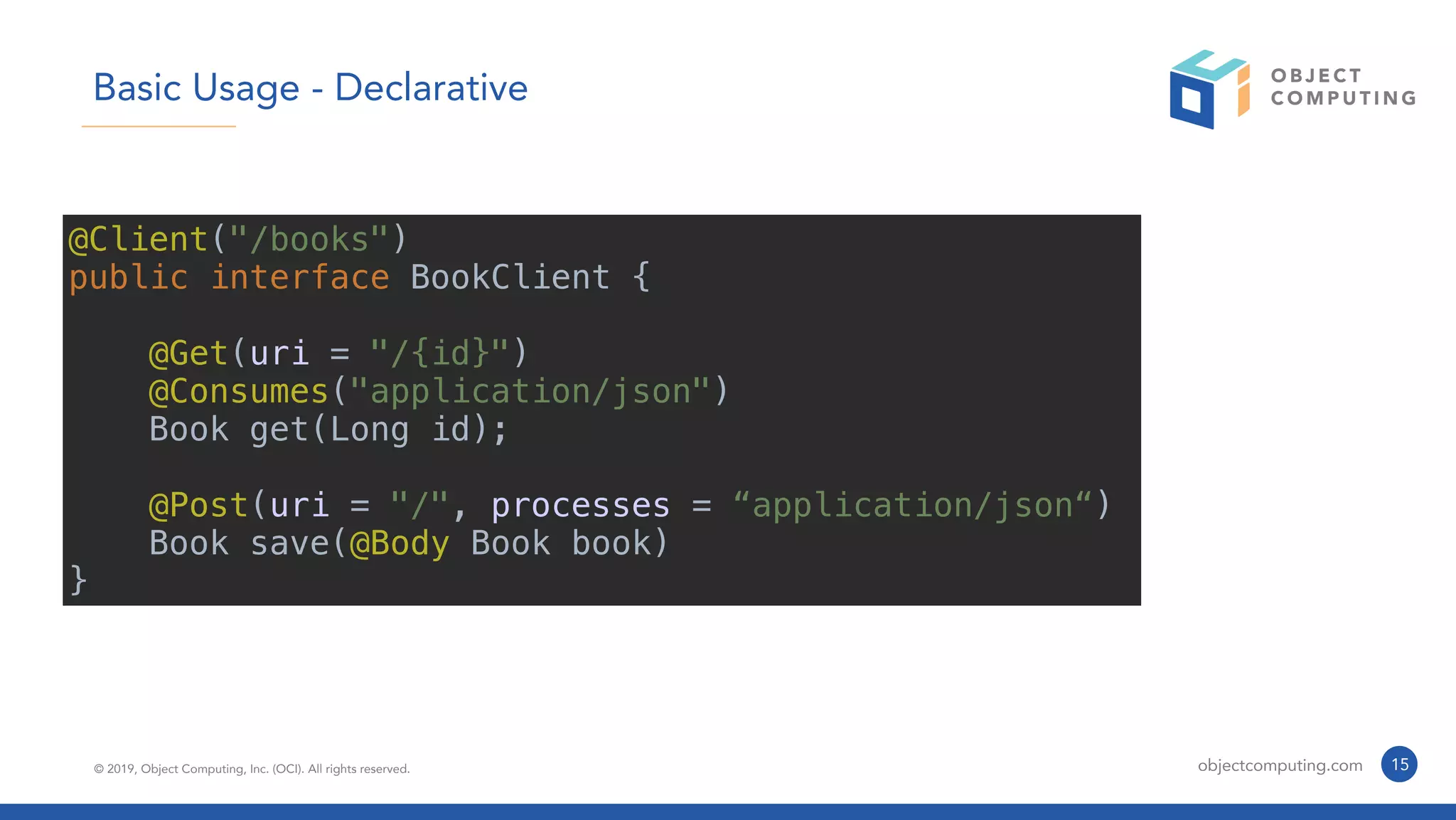

@Client("/books")
@Get(uri = "/{id}")
@Consumes("application/json")
Book get(Long id);
@Post(uri = "/", processes = “application/json“)
Book save(@Body Book book)
}

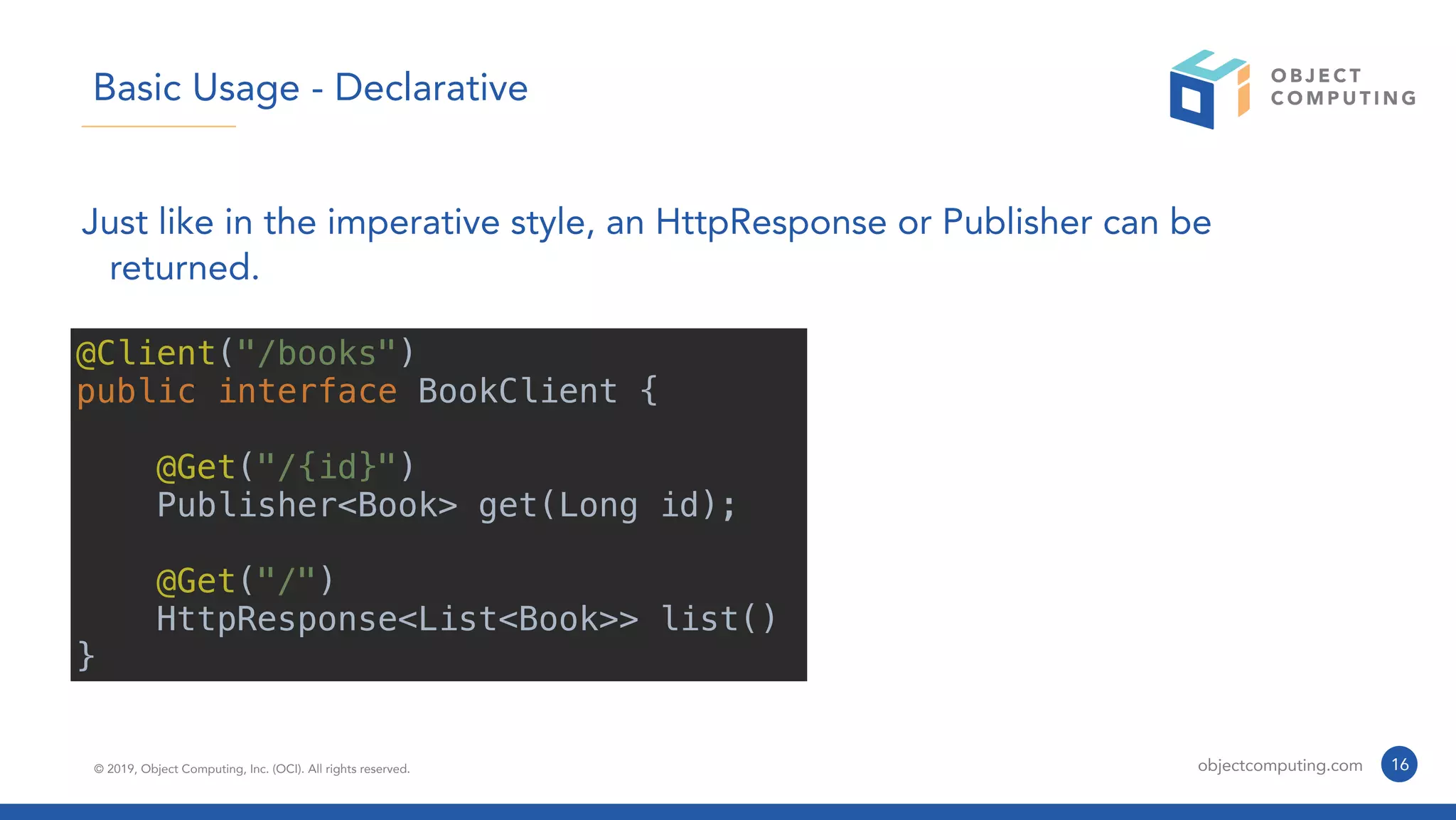

Just like in the imperative style, an HttpResponse or Publisher can be
returned.
@Client("/books")
@Get("/{id}")
Publisher<Book> get(Long id);
@Get("/")
HttpResponse<List<Book>> list()
}

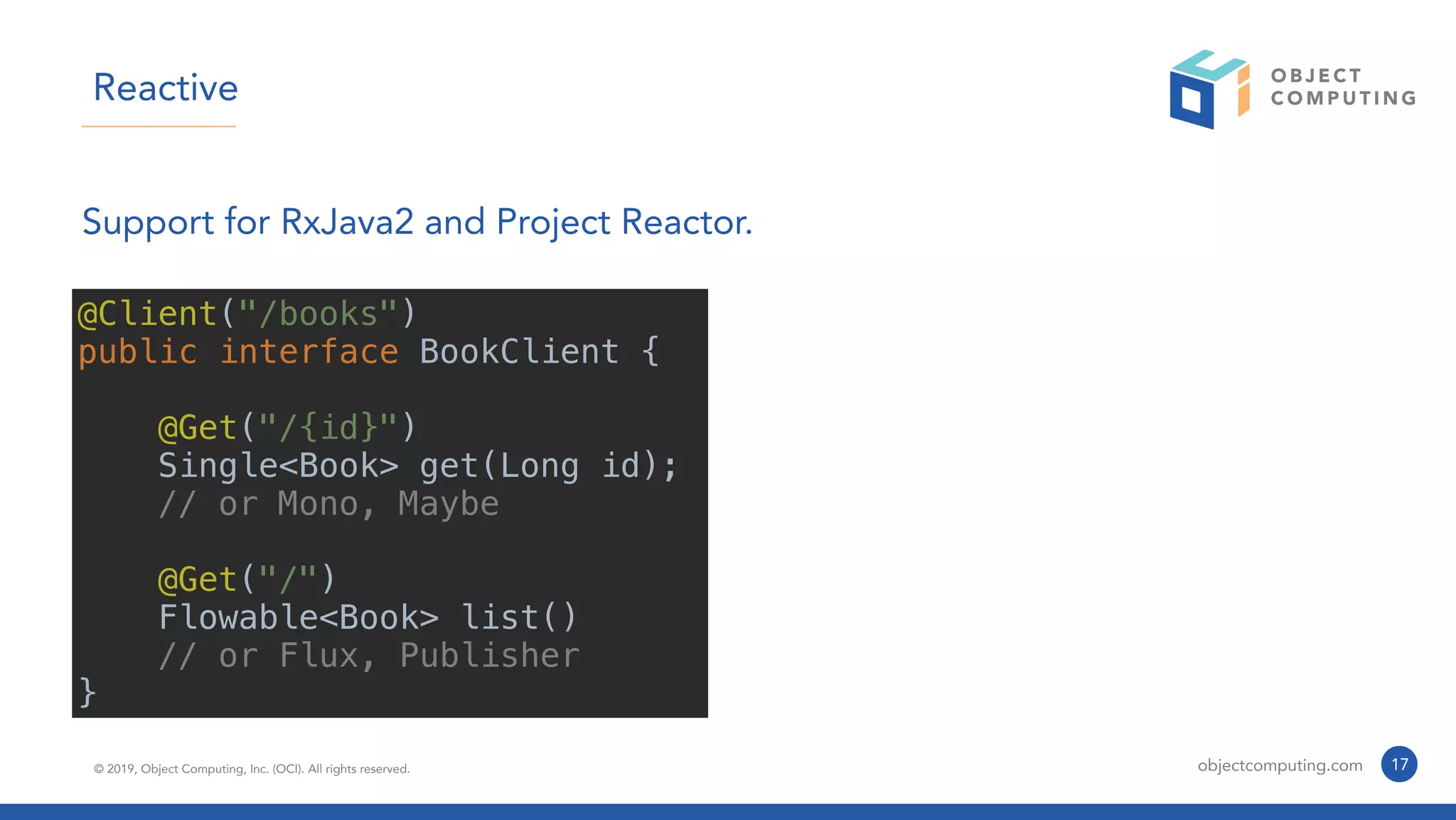

Reactive
Support for RxJava2 and Project Reactor.
@Client("/books")
@Get("/{id}")
Single<Book> get(Long id);
// or Mono, Maybe
@Get("/")
Flowable<Book> list()
// or Flux, Publisher
}

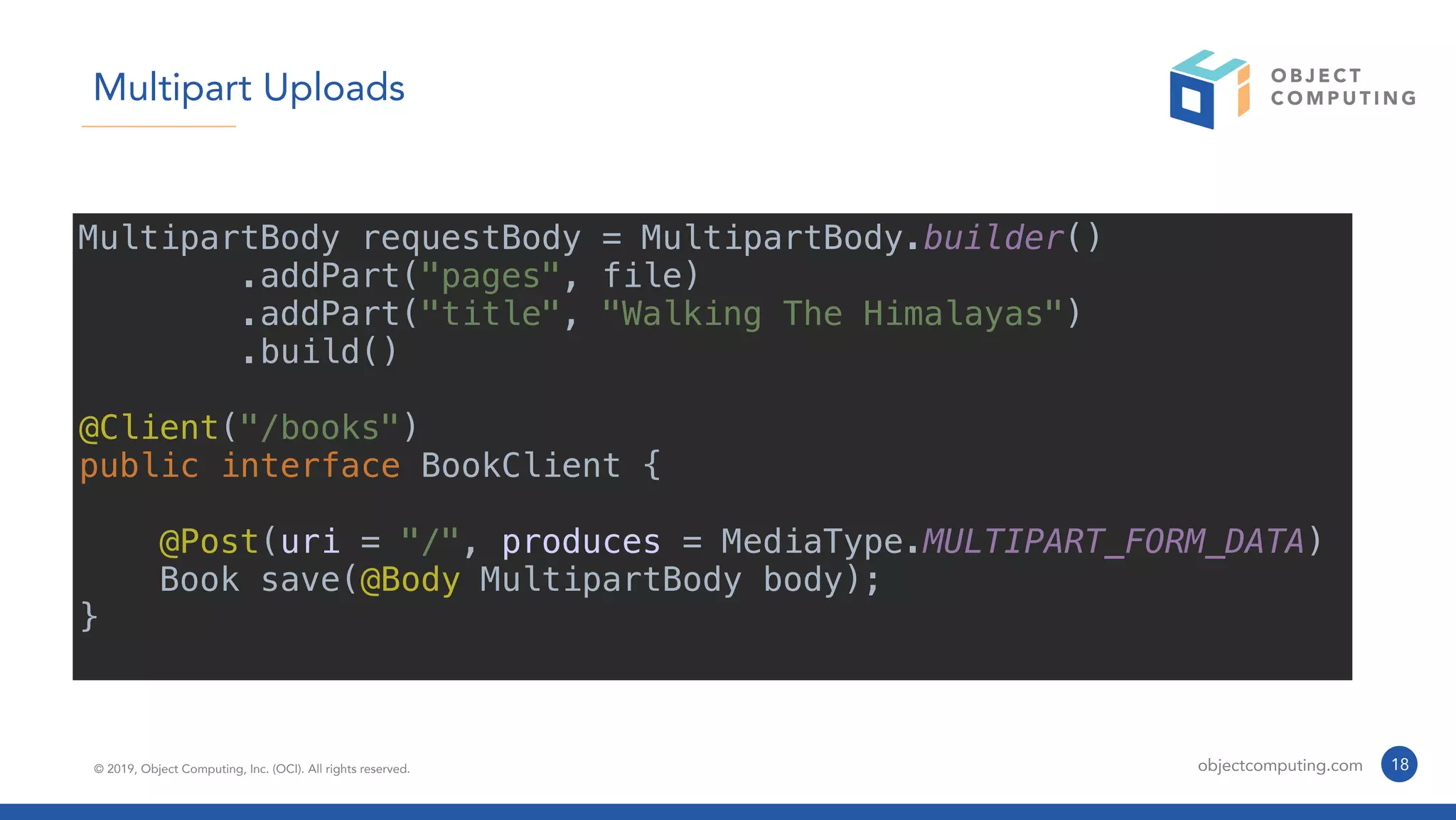

Multipart Uploads
MultipartBody requestBody = MultipartBody.builder()
.addPart("pages", file)
.addPart("title", "Walking The Himalayas")
.build()
@Client("/books")
@Post(uri = "/", produces = MediaType.MULTIPART_FORM_DATA)
Book save(@Body MultipartBody body);
}

Retry Support
Enable retries with a simple annotation. If all attempts fail the original
exception is thrown.
@Client(“bookService")
@Retryable(attempts = '5', delay = '5ms')
@Get(“/{id}")
Book get(Long id);
}

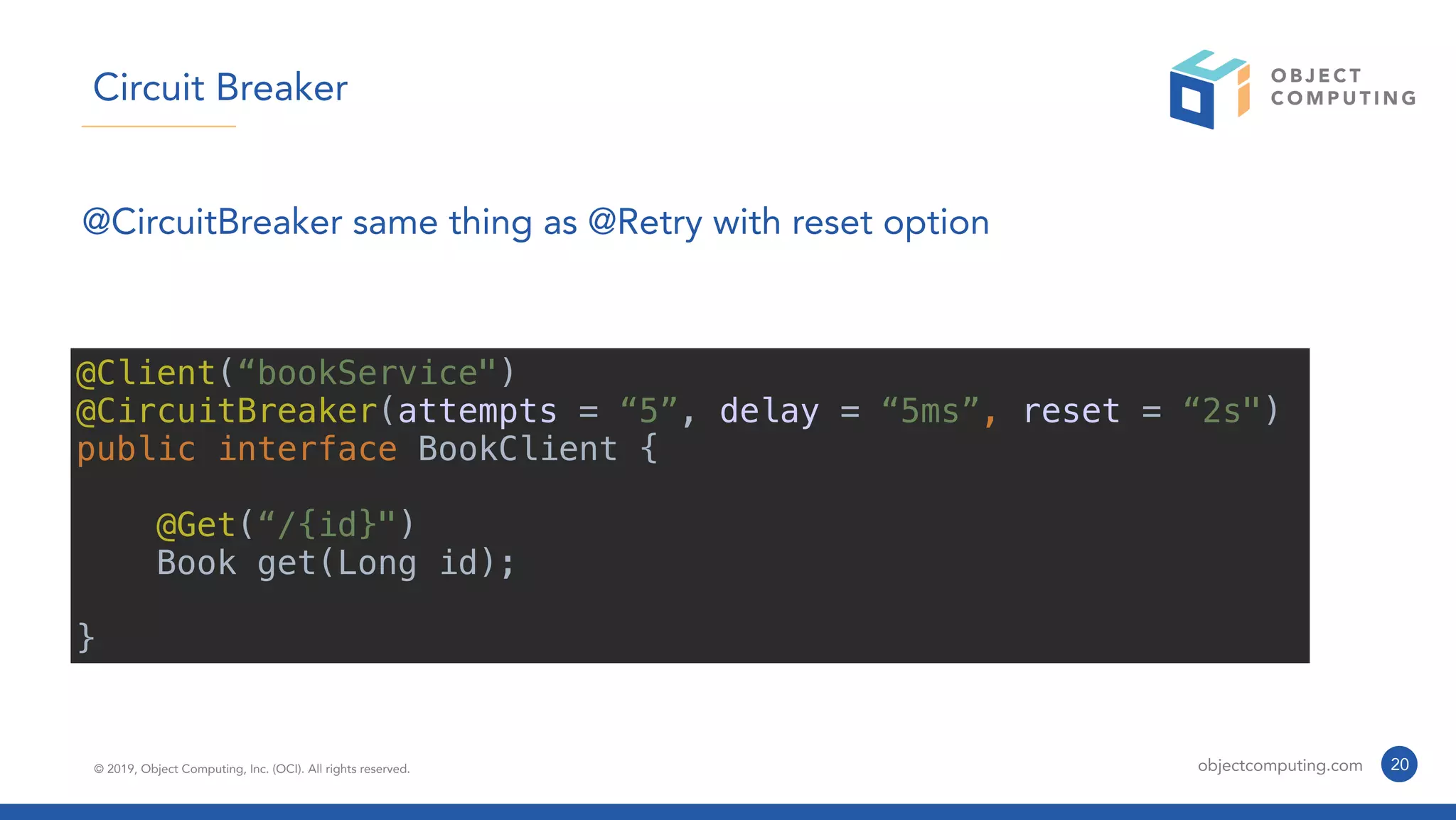

Circuit Breaker
@CircuitBreaker same thing as @Retry with reset option
@CircuitBreaker(attempts = “5”, delay = “5ms”, reset = “2s")
@Get(“/{id}")
Book get(Long id);
}

Fallback
The @Client annotation is annotated with @Recoverable
When an exception is thrown, a fallback is searched for and executed
@Fallback
public class BookFallback implements BookApi {
@Override
Book get(Long id) {
return …
}
}

Resiliency Demo

Service Discovery
Micronaut’s HTTP client works seamlessly with service discovery solutions.
A common DiscoveryClient API abstracts the implementation.
@Client(“book-service")
}
@Client(id = “book-service", path = "/books")
}

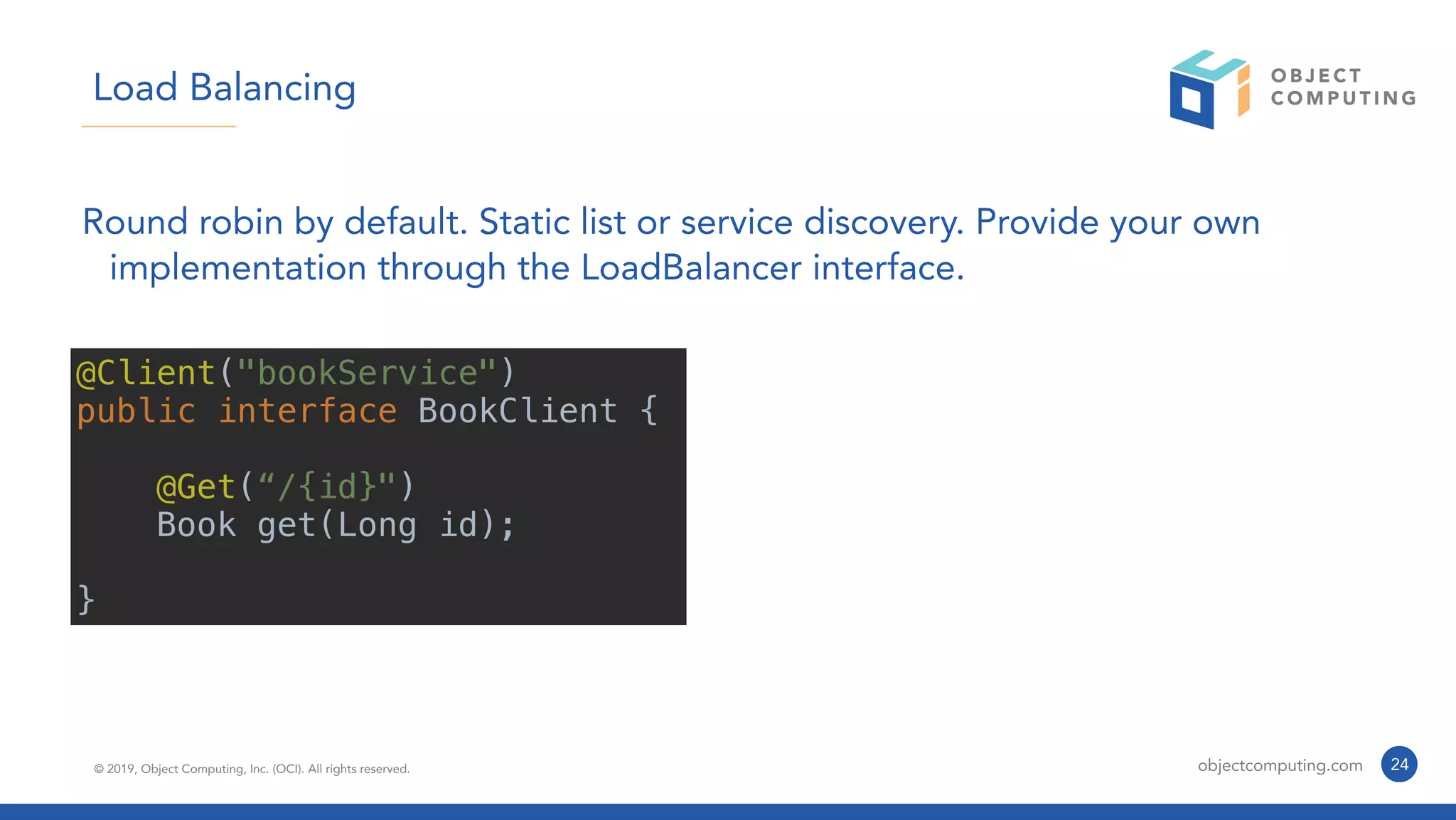

Load Balancing
Round robin by default. Static list or service discovery. Provide your own
implementation through the LoadBalancer interface.
@Client("bookService")
@Get(“/{id}")
Book get(Long id);
}

Service Discovery Demo

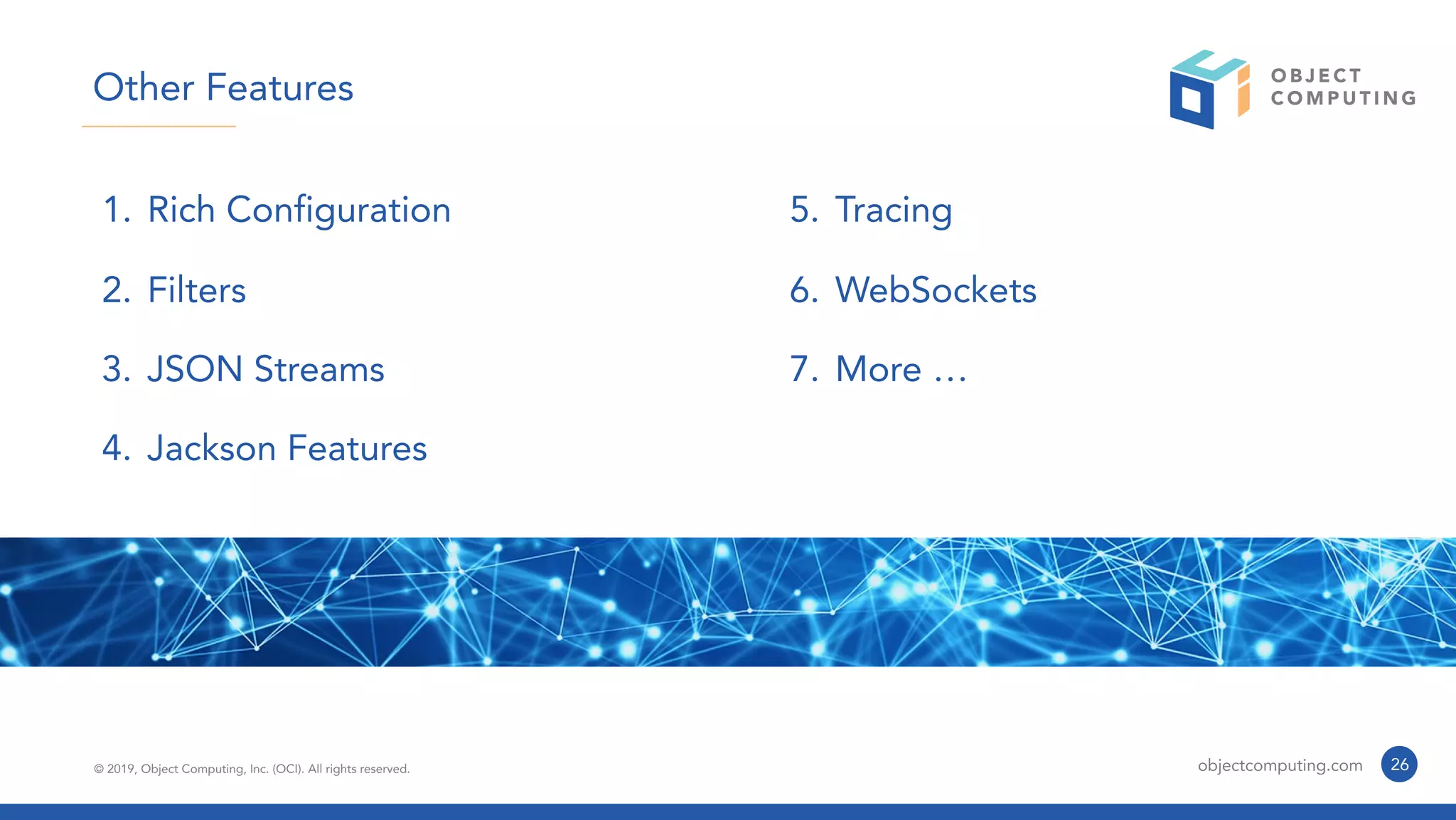

1. Rich Configuration
2. Filters
3. JSON Streams
4. Jackson Features
5. Tracing
6. WebSockets
7. More …
26
Other Features

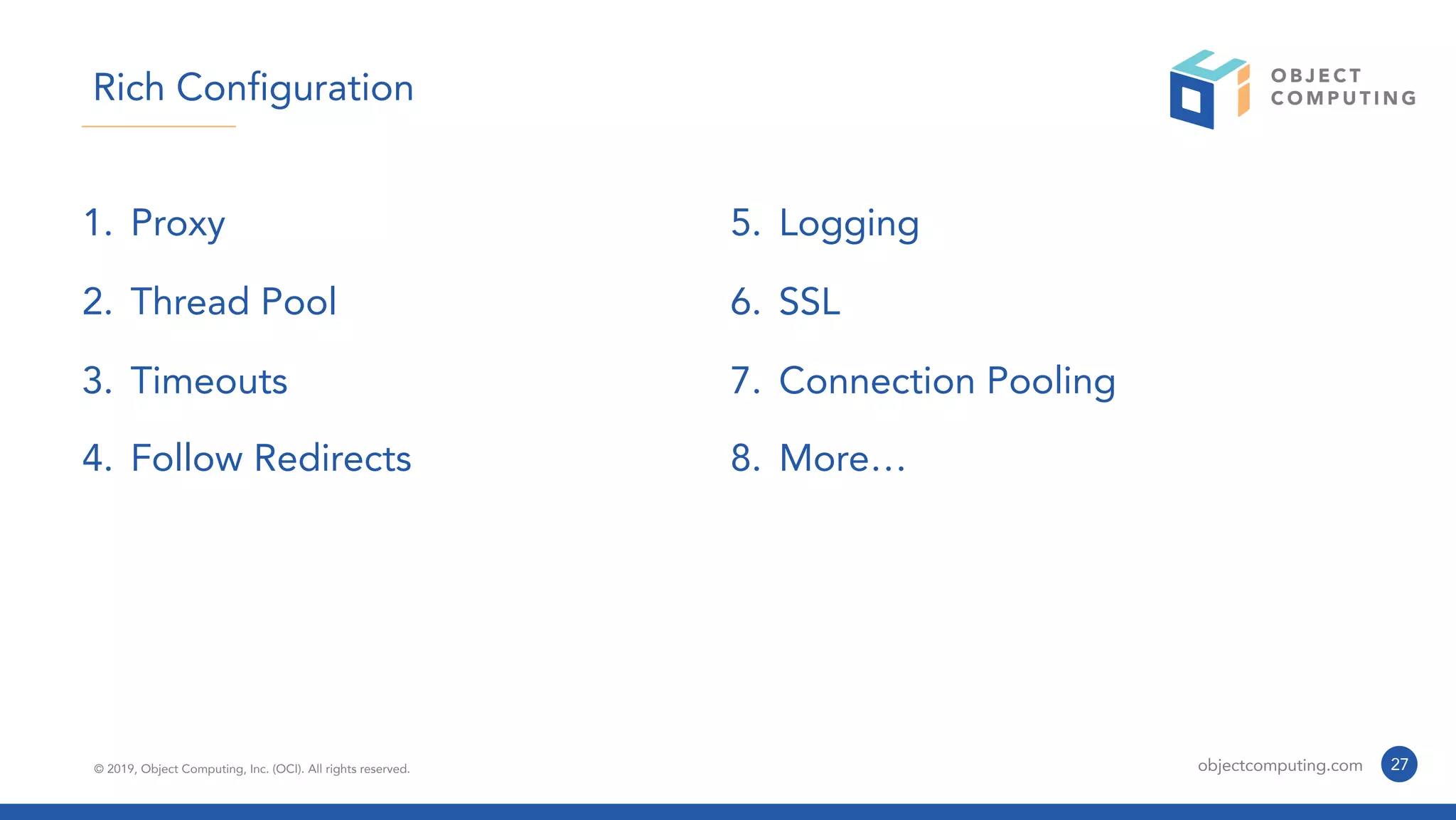

Rich Configuration
1. Proxy
2. Thread Pool
3. Timeouts
4. Follow Redirects
5. Logging
6. SSL
7. Connection Pooling
8. More…

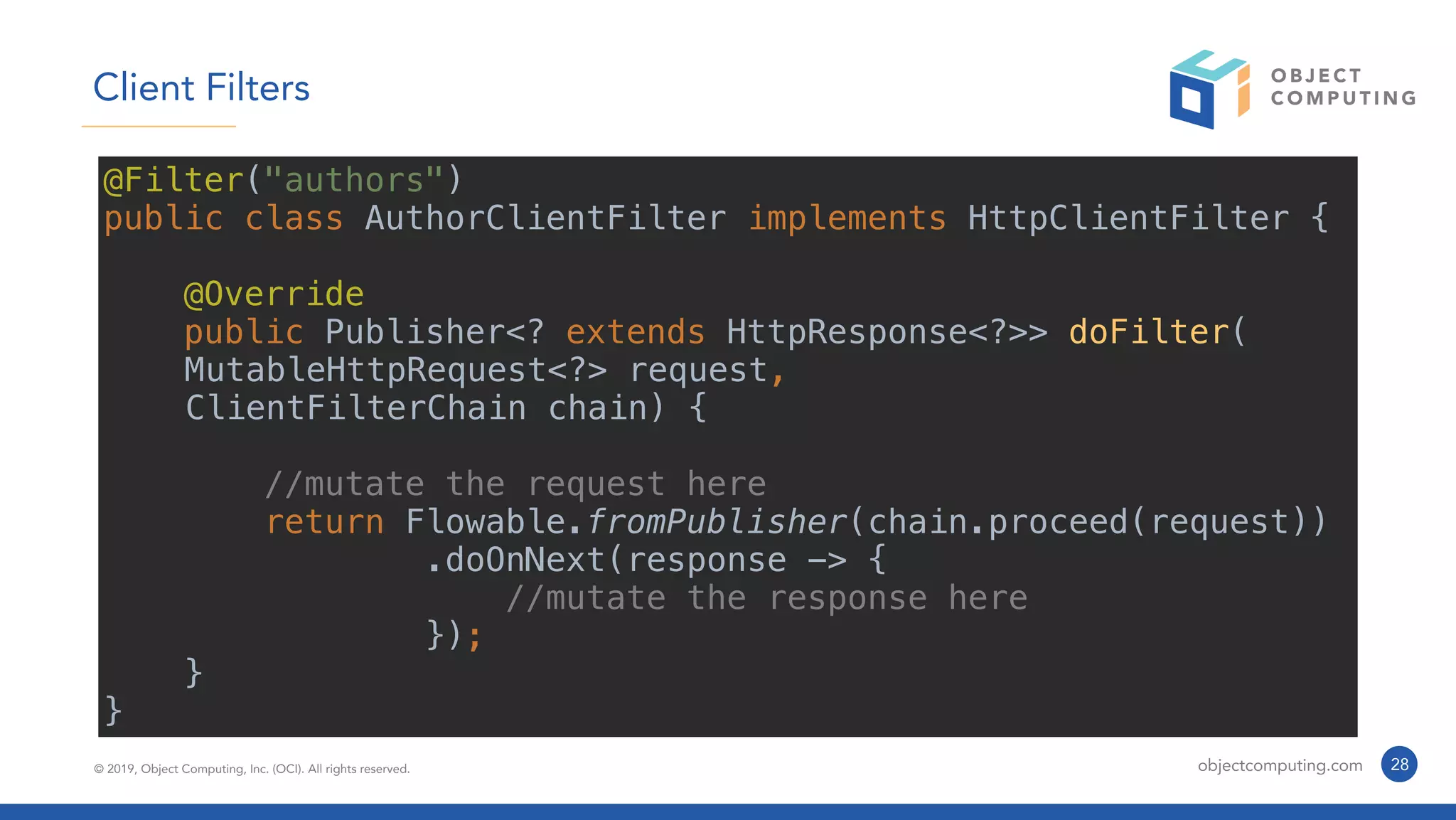

Client Filters
@Filter("authors")
public class AuthorClientFilter implements HttpClientFilter {
@Override
public Publisher<? extends HttpResponse<?>> doFilter(
MutableHttpRequest<?> request,
ClientFilterChain chain) {
//mutate the request here
return Flowable.fromPublisher(chain.proceed(request))
.doOnNext(response -> {
//mutate the response here
});
}
}

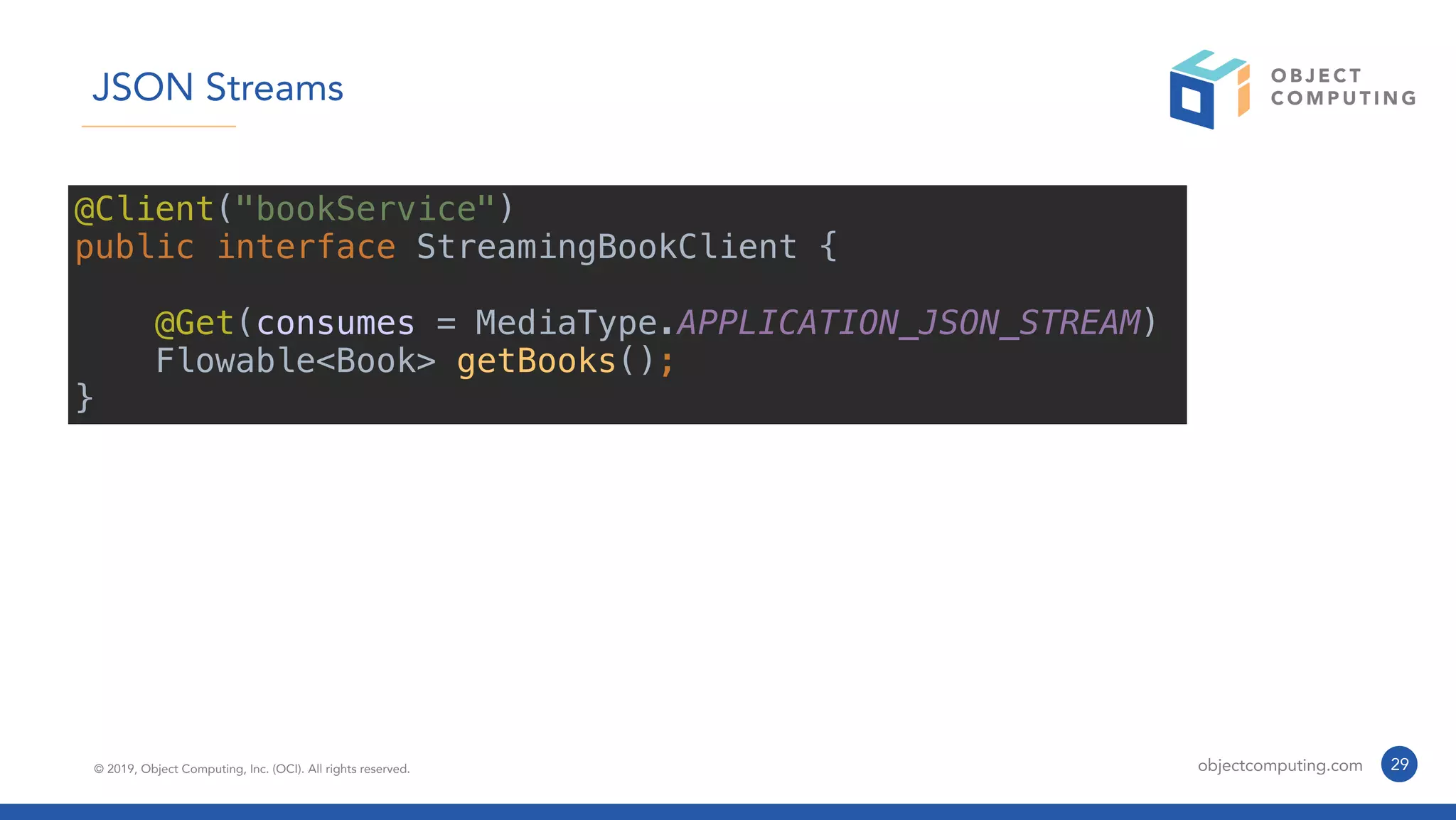

JSON Streams
@Client("bookService")
public interface StreamingBookClient {
@Get(consumes = MediaType.APPLICATION_JSON_STREAM)
Flowable<Book> getBooks();
}

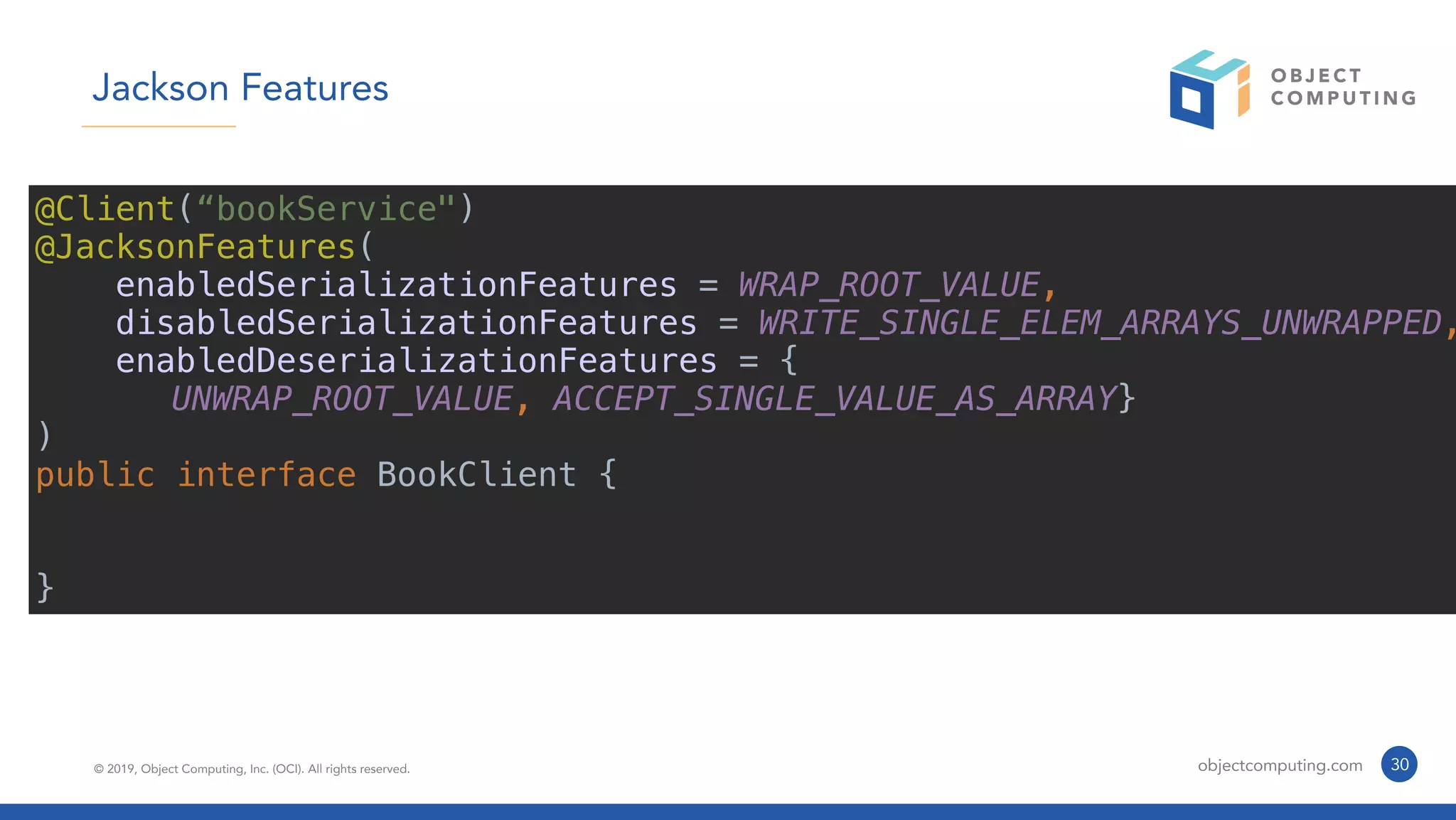

Jackson Features
@JacksonFeatures(
enabledSerializationFeatures = WRAP_ROOT_VALUE,
disabledSerializationFeatures = WRITE_SINGLE_ELEM_ARRAYS_UNWRAPPED,
enabledDeserializationFeatures = {
UNWRAP_ROOT_VALUE, ACCEPT_SINGLE_VALUE_AS_ARRAY}
)
}

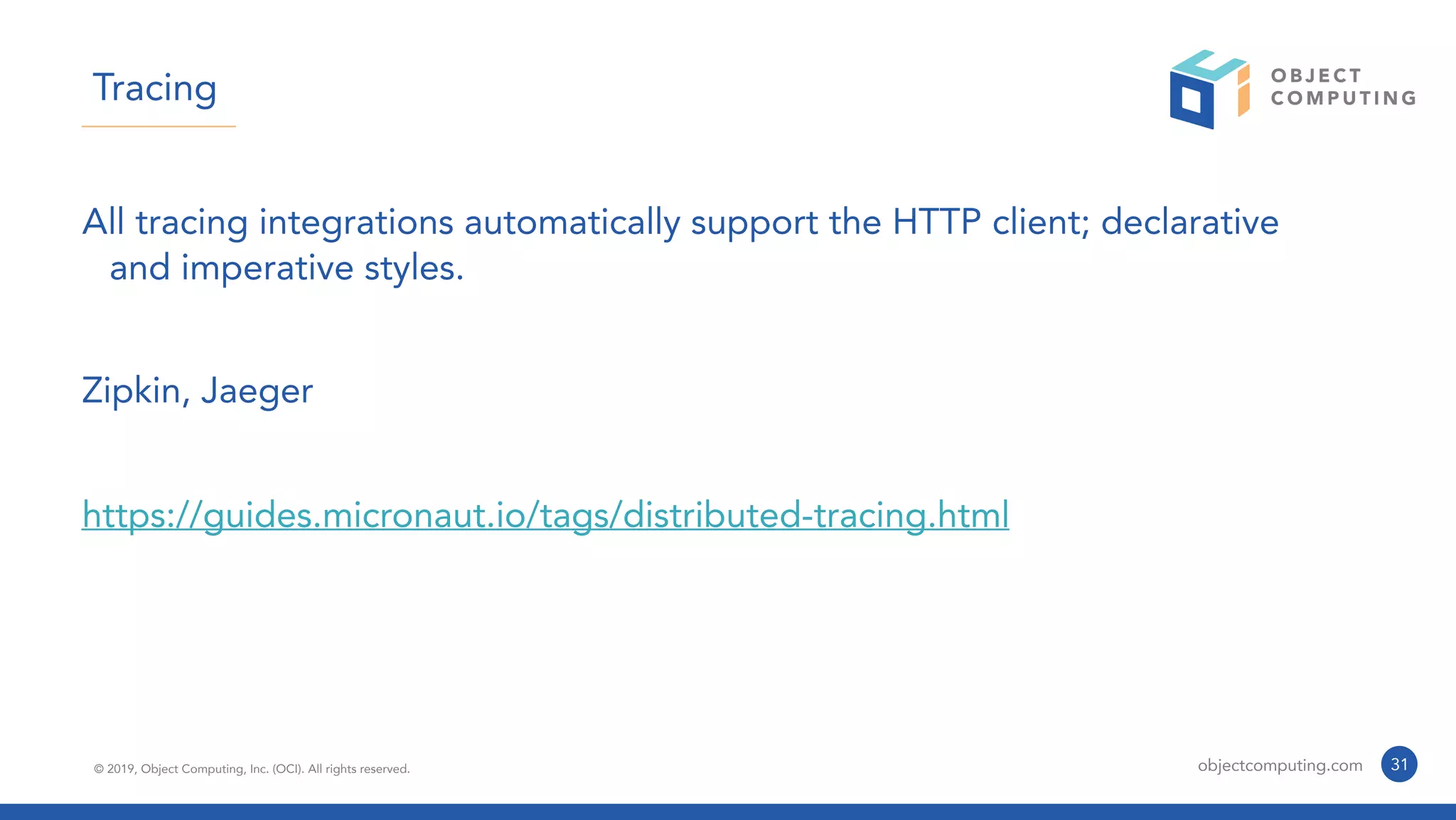

Tracing
All tracing integrations automatically support the HTTP client; declarative
and imperative styles.
Zipkin, Jaeger
https://guides.micronaut.io/tags/distributed-tracing.html

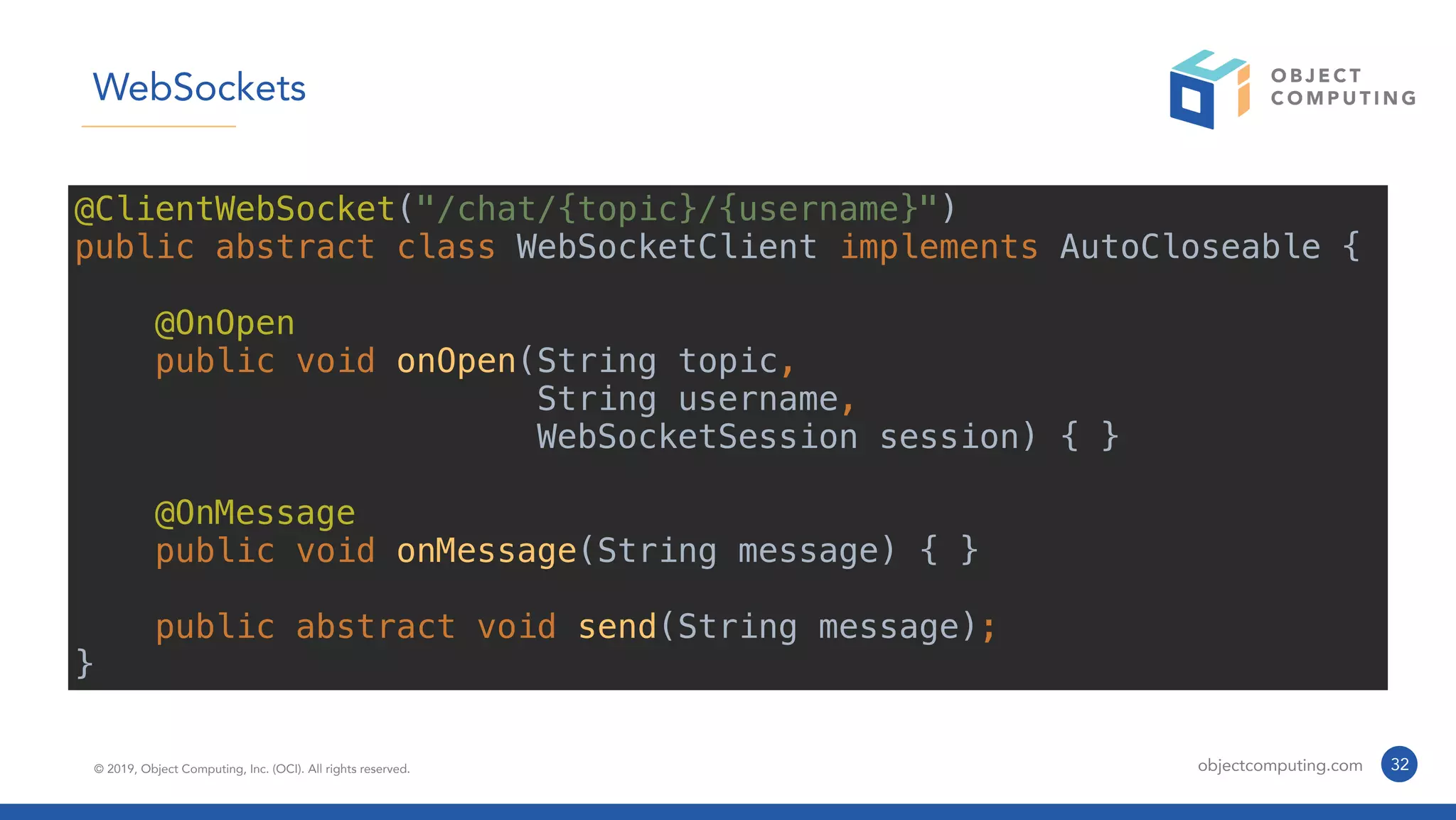

WebSockets
@ClientWebSocket("/chat/{topic}/{username}")
public abstract class WebSocketClient implements AutoCloseable {
@OnOpen
public void onOpen(String topic,
String username,
WebSocketSession session) { }
@OnMessage
public void onMessage(String message) { }
public abstract void send(String message);
}

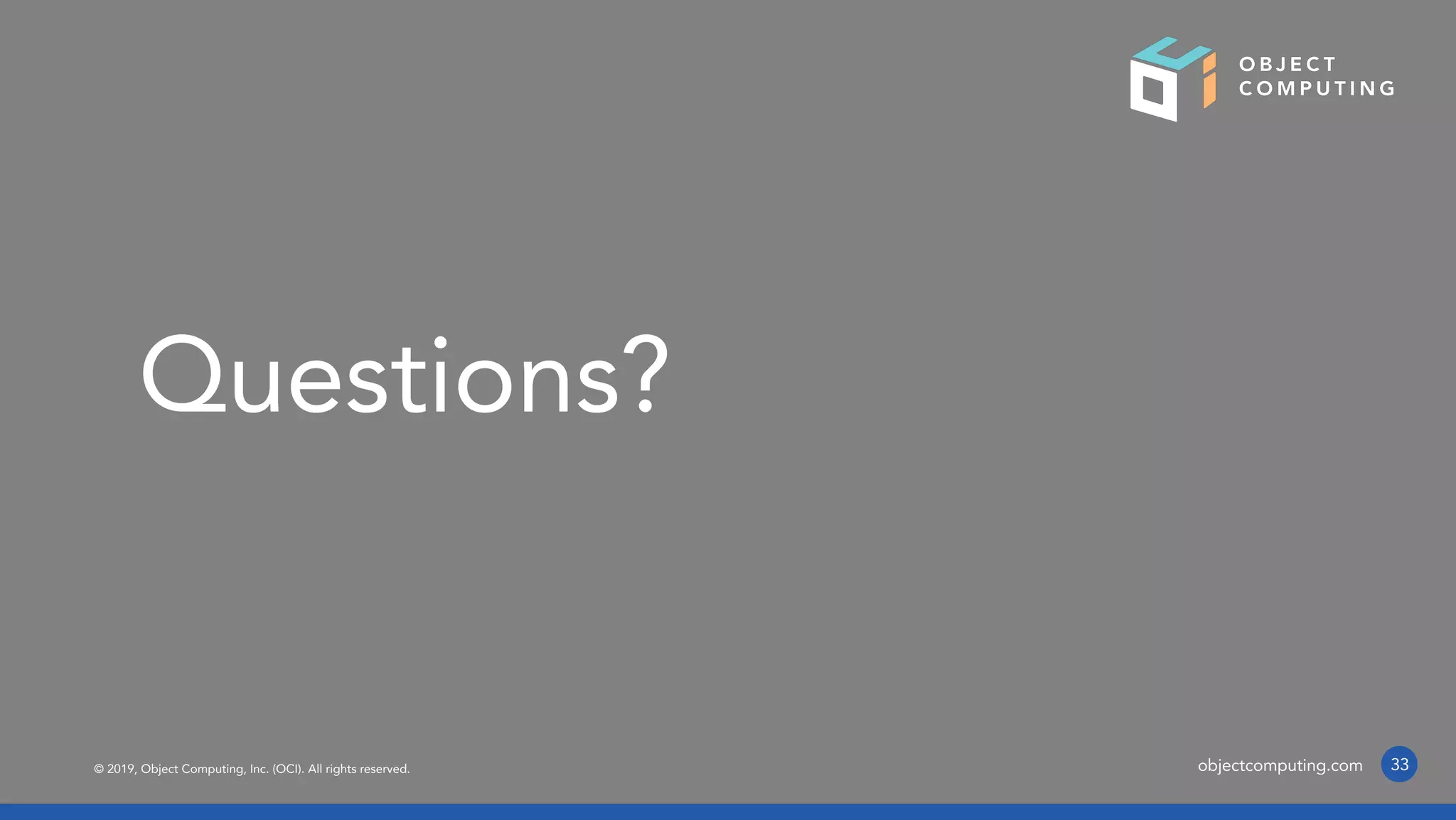

Questions?
33

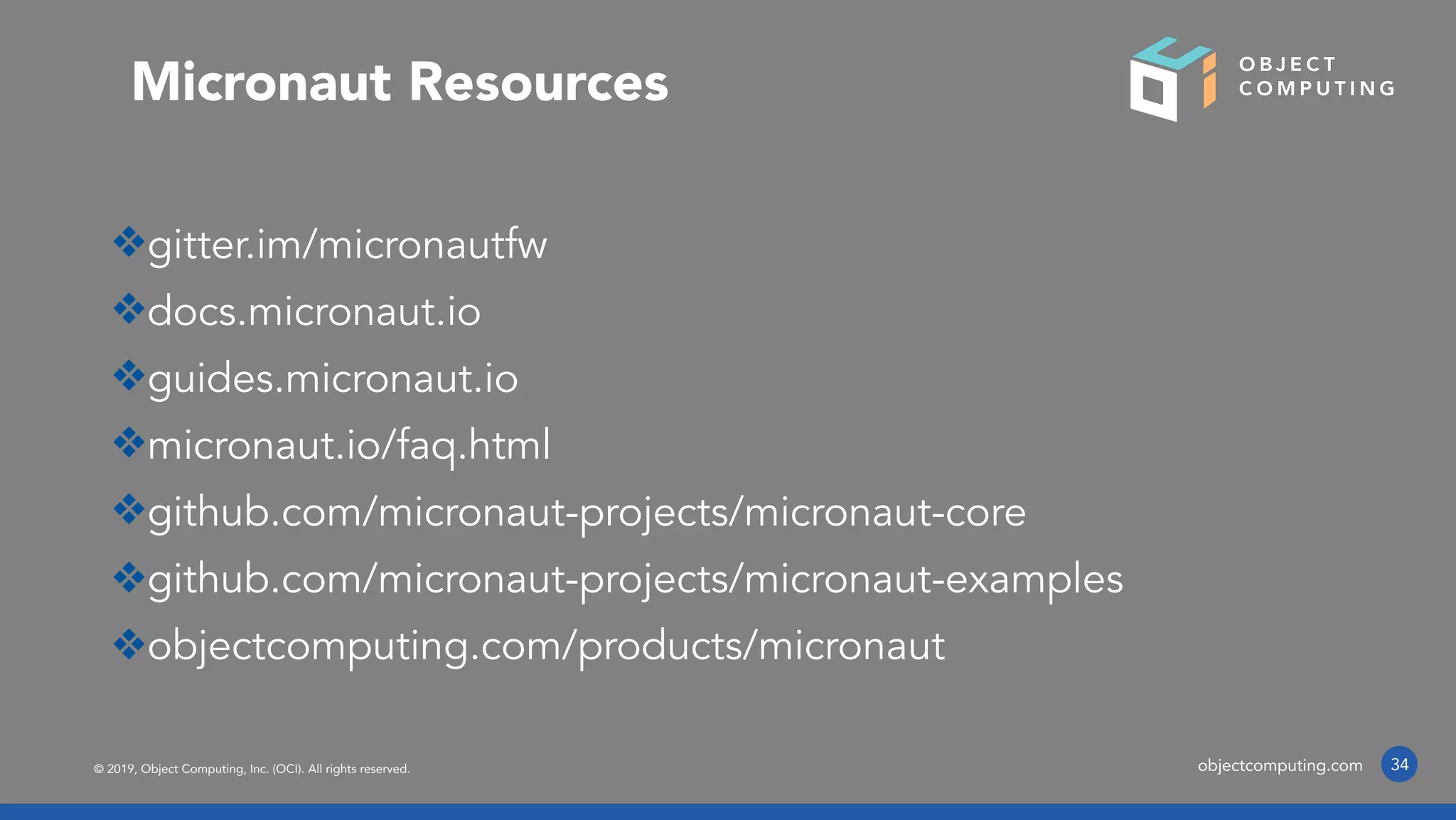

❖gitter.im/micronautfw
❖docs.micronaut.io
❖guides.micronaut.io
❖micronaut.io/faq.html
❖github.com/micronaut-projects/micronaut-core
❖github.com/micronaut-projects/micronaut-examples
❖objectcomputing.com/products/micronaut
34
Micronaut Resources
