• 1.

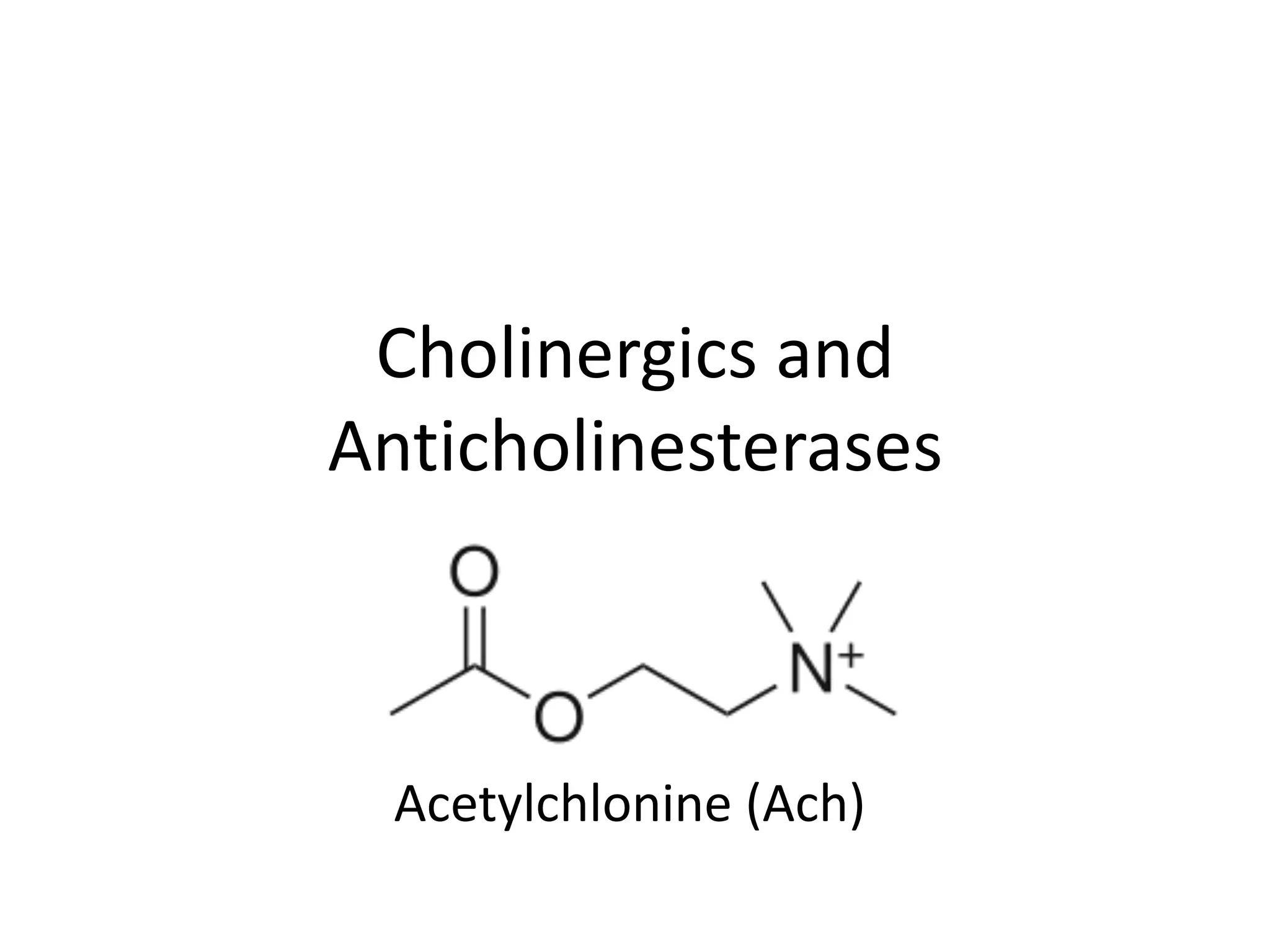

  Cholinergics and Anticholinesterases Acetylchlonine (Ach)
• 2.

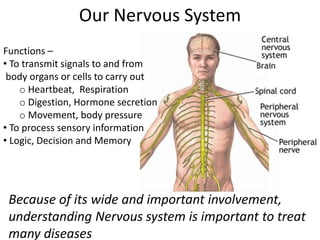

  Our Nervous System Becauseof its wide and important involvement, understanding Nervous system is important to treat many diseases Functions – • To transmit signals to and from body organs or cells to carry out o Heartbeat, Respiration o Digestion, Hormone secretion o Movement, body pressure • To process sensory information • Logic, Decision and Memory
• 3.
  Drugs based onNervous System treat various clinical conditions Cholinergic NS NS based on other Neurotransmitters Impaired or excessive gastric/secretion Epilepsy – irregular neuronal activity leading to muscle spasm Glaucoma – increased pressure on eye Bradycardia – slow heart beat Anxiety – feeling irrational fear Relief from pain Alzheimer’s and –loss of memory Parkinson disease – loss of movement control Myasthenia gravis – muscle weakness Cause unconsciousness during surgery
• 4.

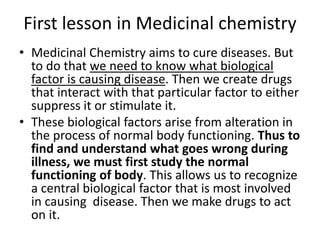

  First lesson inMedicinal chemistry • Medicinal Chemistry aims to cure diseases. But to do that we need to know what biological factor is causing disease. Then we create drugs that interact with that particular factor to either suppress it or stimulate it. • These biological factors arise from alteration in the process of normal body functioning. Thus to find and understand what goes wrong during illness, we must first study the normal functioning of body. This allows us to recognize a central biological factor that is most involved in causing disease. Then we make drugs to act on it.
• 5.

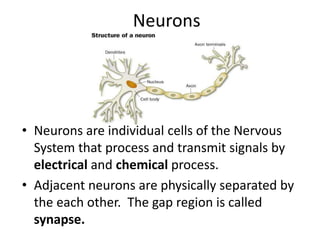

  Neurons • Neurons areindividual cells of the Nervous System that process and transmit signals by electrical and chemical process. • Adjacent neurons are physically separated by the each other. The gap region is called synapse.
• 6.

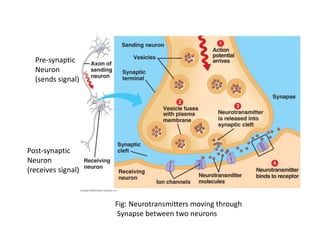

  Fig: Neurotransmitters movingthrough Synapse between two neurons Pre-synaptic Neuron (sends signal) Post-synaptic Neuron (receives signal)
• 7.

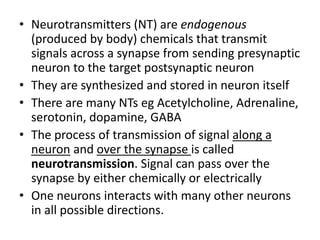

  • Neurotransmitters (NT)are endogenous (produced by body) chemicals that transmit signals across a synapse from sending presynaptic neuron to the target postsynaptic neuron • They are synthesized and stored in neuron itself • There are many NTs eg Acetylcholine, Adrenaline, serotonin, dopamine, GABA • The process of transmission of signal along a neuron and over the synapse is called neurotransmission. Signal can pass over the synapse by either chemically or electrically • One neurons interacts with many other neurons in all possible directions.
• 8.

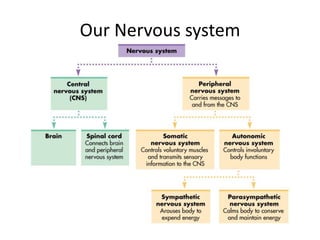

  Our Nervous system
• 9.

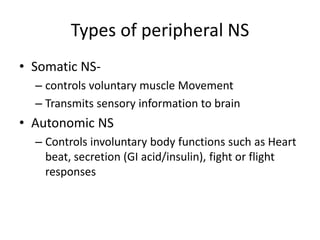

  Types of peripheralNS • Somatic NS- – controls voluntary muscle Movement – Transmits sensory information to brain • Autonomic NS – Controls involuntary body functions such as Heart beat, secretion (GI acid/insulin), fight or flight responses
• 10.

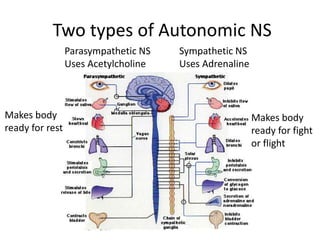

  Two types ofAutonomic NS Parasympathetic NS Uses Acetylcholine Sympathetic NS Uses Adrenaline Makes body ready for fight or flight Makes body ready for rest
• 11.

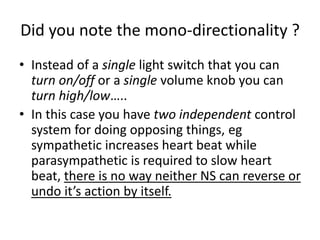

  Did you notethe mono-directionality ? • Instead of a single light switch that you can turn on/off or a single volume knob you can turn high/low….. • In this case you have two independent control system for doing opposing things, eg sympathetic increases heart beat while parasympathetic is required to slow heart beat, there is no way neither NS can reverse or undo it’s action by itself.
• 12.

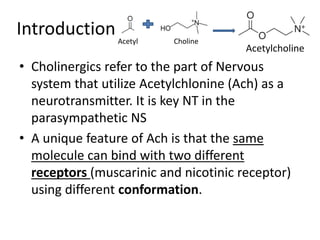

  Introduction • Cholinergics referto the part of Nervous system that utilize Acetylchlonine (Ach) as a neurotransmitter. It is key NT in the parasympathetic NS • A unique feature of Ach is that the same molecule can bind with two different receptors (muscarinic and nicotinic receptor) using different conformation. Acetylcholine Acetyl Choline
• 13.

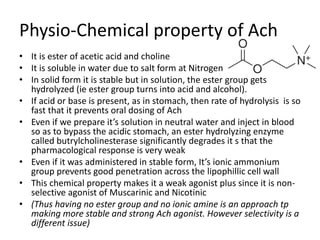

  Physio-Chemical property ofAch • It is ester of acetic acid and choline • It is soluble in water due to salt form at Nitrogen • In solid form it is stable but in solution, the ester group gets hydrolyzed (ie ester group turns into acid and alcohol). • If acid or base is present, as in stomach, then rate of hydrolysis is so fast that it prevents oral dosing of Ach • Even if we prepare it’s solution in neutral water and inject in blood so as to bypass the acidic stomach, an ester hydrolyzing enzyme called butrylcholinesterase significantly degrades it s that the pharmacological response is very weak • Even if it was administered in stable form, It’s ionic ammonium group prevents good penetration across the lipophillic cell wall • This chemical property makes it a weak agonist plus since it is non- selective agonist of Muscarinic and Nicotinic • (Thus having no ester group and no ionic amine is an approach tp making more stable and strong Ach agonist. However selectivity is a different issue)
• 14.

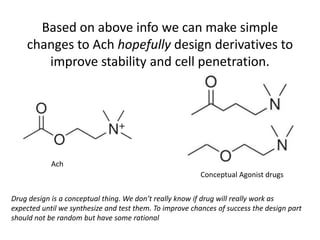

  Based on aboveinfo we can make simple changes to Ach hopefully design derivatives to improve stability and cell penetration. Ach Conceptual Agonist drugs Drug design is a conceptual thing. We don’t really know if drug will really work as expected until we synthesize and test them. To improve chances of success the design part should not be random but have some rational
• 15.

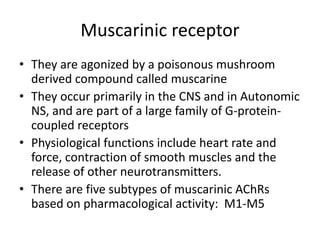

  Muscarinic receptor • Theyare agonized by a poisonous mushroom derived compound called muscarine • They occur primarily in the CNS and in Autonomic NS, and are part of a large family of G-protein- coupled receptors • Physiological functions include heart rate and force, contraction of smooth muscles and the release of other neurotransmitters. • There are five subtypes of muscarinic AChRs based on pharmacological activity: M1-M5
• 16.

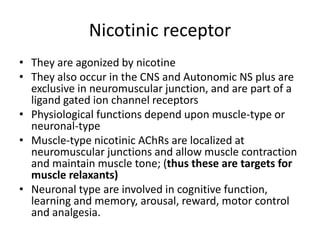

  Nicotinic receptor • Theyare agonized by nicotine • They also occur in the CNS and Autonomic NS plus are exclusive in neuromuscular junction, and are part of a ligand gated ion channel receptors • Physiological functions depend upon muscle-type or neuronal-type • Muscle-type nicotinic AChRs are localized at neuromuscular junctions and allow muscle contraction and maintain muscle tone; (thus these are targets for muscle relaxants) • Neuronal type are involved in cognitive function, learning and memory, arousal, reward, motor control and analgesia.

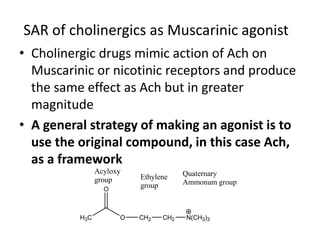

• 17.
  H3C O O CH2 CH2N(CH3)3 Quaternary Ammonum group Ethylene group Acyloxy group SAR of cholinergics as Muscarinic agonist • Cholinergic drugs mimic action of Ach on Muscarinic or nicotinic receptors and produce the same effect as Ach but in greater magnitude • A general strategy of making an agonist is to use the original compound, in this case Ach, as a framework
• 18.

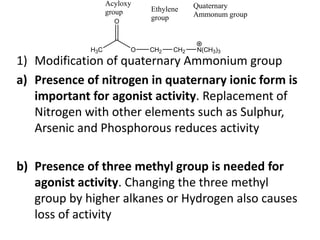

  1) Modification ofquaternary Ammonium group a) Presence of nitrogen in quaternary ionic form is important for agonist activity. Replacement of Nitrogen with other elements such as Sulphur, Arsenic and Phosphorous reduces activity b) Presence of three methyl group is needed for agonist activity. Changing the three methyl group by higher alkanes or Hydrogen also causes loss of activity H3C O O CH2 CH2 N(CH3)3 Quaternary Ammonum group Ethylene group Acyloxy group
• 19.

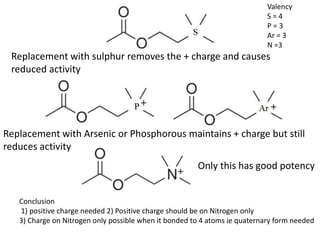

  Replacement with Arsenicor Phosphorous maintains + charge but still reduces activity Replacement with sulphur removes the + charge and causes reduced activity Only this has good potency Conclusion 1) positive charge needed 2) Positive charge should be on Nitrogen only 3) Charge on Nitrogen only possible when it bonded to 4 atoms ie quaternary form needed Valency S = 4 P = 3 Ar = 3 N =3
• 20.

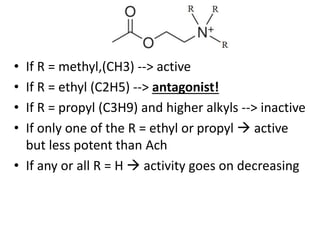

  • If R= methyl,(CH3) --> active • If R = ethyl (C2H5) --> antagonist! • If R = propyl (C3H9) and higher alkyls --> inactive • If only one of the R = ethyl or propyl  active but less potent than Ach • If any or all R = H  activity goes on decreasing

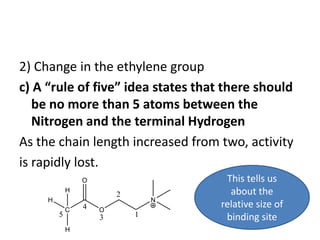

• 21.
  2) Change inthe ethylene group c) A “rule of five” idea states that there should be no more than 5 atoms between the Nitrogen and the terminal Hydrogen As the chain length increased from two, activity is rapidly lost. C O N O H H H 1 2 3 4 5 This tells us about the relative size of binding site
• 22.

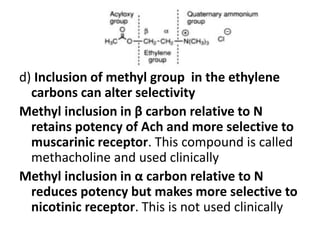

  d) Inclusion ofmethyl group in the ethylene carbons can alter selectivity Methyl inclusion in β carbon relative to N retains potency of Ach and more selective to muscarinic receptor. This compound is called methacholine and used clinically Methyl inclusion in α carbon relative to N reduces potency but makes more selective to nicotinic receptor. This is not used clinically

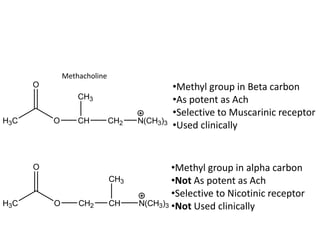

• 23.
  •Methyl group inBeta carbon •As potent as Ach •Selective to Muscarinic receptor •Used clinically •Methyl group in alpha carbon •Not As potent as Ach •Selective to Nicotinic receptor •Not Used clinically Methacholine H3C O O CH2 CH N(CH3)3 CH3 H3C O O CH CH2 N(CH3)3 CH3
• 24.

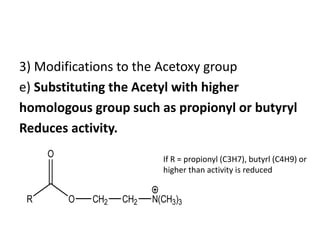

  3) Modifications tothe Acetoxy group e) Substituting the Acetyl with higher homologous group such as propionyl or butyryl Reduces activity. R O O CH2 CH2 N(CH3)3 If R = propionyl (C3H7), butyrl (C4H9) or higher than activity is reduced
• 25.

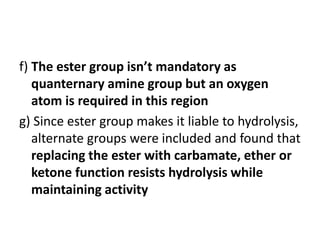

  f) The estergroup isn’t mandatory as quanternary amine group but an oxygen atom is required in this region g) Since ester group makes it liable to hydrolysis, alternate groups were included and found that replacing the ester with carbamate, ether or ketone function resists hydrolysis while maintaining activity
• 26.

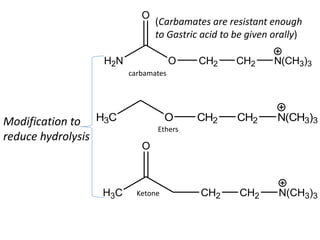

  H3C O CH2CH2 N(CH3)3 H3C CH2 CH2 N(CH3)3 O H2N O O CH2 CH2 N(CH3)3 carbamates Ethers Ketone (Carbamates are resistant enough to Gastric acid to be given orally) Modification to reduce hydrolysis
• 27.

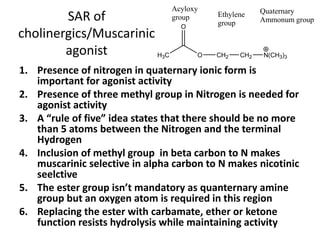

  SAR of cholinergics/Muscarinic agonist 1. Presenceof nitrogen in quaternary ionic form is important for agonist activity 2. Presence of three methyl group in Nitrogen is needed for agonist activity 3. A “rule of five” idea states that there should be no more than 5 atoms between the Nitrogen and the terminal Hydrogen 4. Inclusion of methyl group in beta carbon to N makes muscarinic selective in alpha carbon to N makes nicotinic seelctive 5. The ester group isn’t mandatory as quanternary amine group but an oxygen atom is required in this region 6. Replacing the ester with carbamate, ether or ketone function resists hydrolysis while maintaining activity H3C O O CH2 CH2 N(CH3)3 Quaternary Ammonum group Ethylene group Acyloxy group

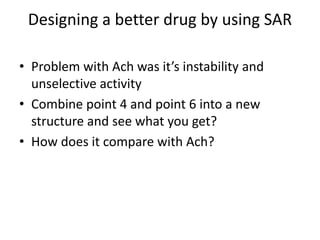

• 28.
  Designing a betterdrug by using SAR • Problem with Ach was it’s instability and unselective activity • Combine point 4 and point 6 into a new structure and see what you get? • How does it compare with Ach?

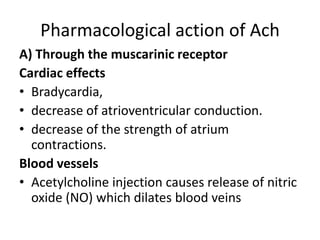

• 29.
  Pharmacological action ofAch A) Through the muscarinic receptor Cardiac effects • Bradycardia, • decrease of atrioventricular conduction. • decrease of the strength of atrium contractions. Blood vessels • Acetylcholine injection causes release of nitric oxide (NO) which dilates blood veins
• 30.

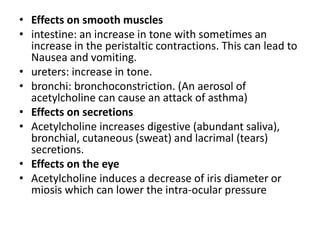

  • Effects onsmooth muscles • intestine: an increase in tone with sometimes an increase in the peristaltic contractions. This can lead to Nausea and vomiting. • ureters: increase in tone. • bronchi: bronchoconstriction. (An aerosol of acetylcholine can cause an attack of asthma) • Effects on secretions • Acetylcholine increases digestive (abundant saliva), bronchial, cutaneous (sweat) and lacrimal (tears) secretions. • Effects on the eye • Acetylcholine induces a decrease of iris diameter or miosis which can lower the intra-ocular pressure
• 31.

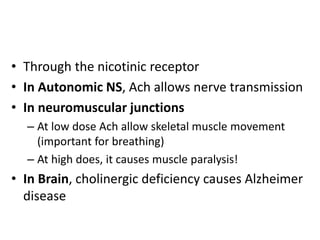

  • Through thenicotinic receptor • In Autonomic NS, Ach allows nerve transmission • In neuromuscular junctions – At low dose Ach allow skeletal muscle movement (important for breathing) – At high does, it causes muscle paralysis! • In Brain, cholinergic deficiency causes Alzheimer disease
• 32.

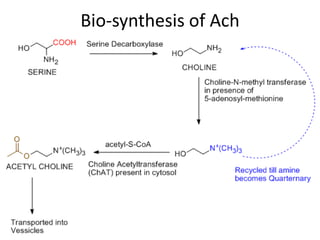

  Bio-synthesis of Ach
• 33.

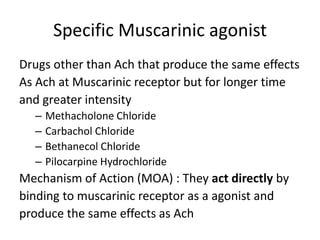

  Specific Muscarinic agonist Drugsother than Ach that produce the same effects As Ach at Muscarinic receptor but for longer time and greater intensity – Methacholone Chloride – Carbachol Chloride – Bethanecol Chloride – Pilocarpine Hydrochloride Mechanism of Action (MOA) : They act directly by binding to muscarinic receptor as a agonist and produce the same effects as Ach

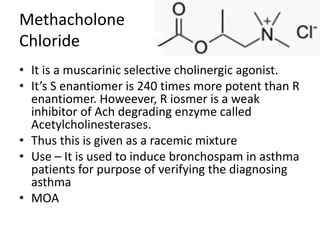

• 34.
  Methacholone Chloride • It isa muscarinic selective cholinergic agonist. • It’s S enantiomer is 240 times more potent than R enantiomer. Howeever, R iosmer is a weak inhibitor of Ach degrading enzyme called Acetylcholinesterases. • Thus this is given as a racemic mixture • Use – It is used to induce bronchospam in asthma patients for purpose of verifying the diagnosing asthma • MOA
• 35.

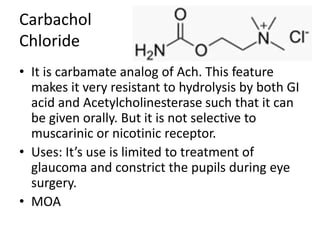

  Carbachol Chloride • It iscarbamate analog of Ach. This feature makes it very resistant to hydrolysis by both GI acid and Acetylcholinesterase such that it can be given orally. But it is not selective to muscarinic or nicotinic receptor. • Uses: It’s use is limited to treatment of glaucoma and constrict the pupils during eye surgery. • MOA

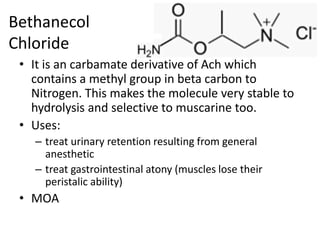

• 36.
  Bethanecol Chloride • It isan carbamate derivative of Ach which contains a methyl group in beta carbon to Nitrogen. This makes the molecule very stable to hydrolysis and selective to muscarine too. • Uses: – treat urinary retention resulting from general anesthetic – treat gastrointestinal atony (muscles lose their peristalic ability) • MOA

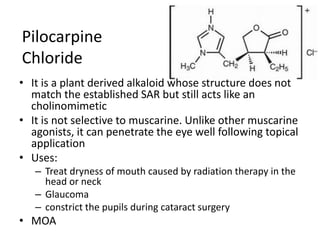

• 37.
  Pilocarpine Chloride • It isa plant derived alkaloid whose structure does not match the established SAR but still acts like an cholinomimetic • It is not selective to muscarine. Unlike other muscarine agonists, it can penetrate the eye well following topical application • Uses: – Treat dryness of mouth caused by radiation therapy in the head or neck – Glaucoma – constrict the pupils during cataract surgery • MOA

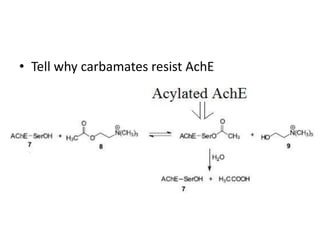

• 38.
  • Tell whycarbamates resist AchE
• 39.

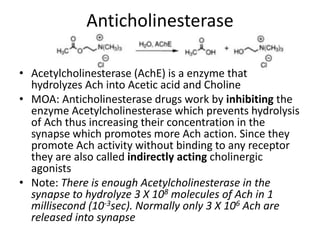

  Anticholinesterase • Acetylcholinesterase (AchE)is a enzyme that hydrolyzes Ach into Acetic acid and Choline • MOA: Anticholinesterase drugs work by inhibiting the enzyme Acetylcholinesterase which prevents hydrolysis of Ach thus increasing their concentration in the synapse which promotes more Ach action. Since they promote Ach activity without binding to any receptor they are also called indirectly acting cholinergic agonists • Note: There is enough Acetylcholinesterase in the synapse to hydrolyze 3 X 108 molecules of Ach in 1 millisecond (10-3sec). Normally only 3 X 106 Ach are released into synapse
• 40.

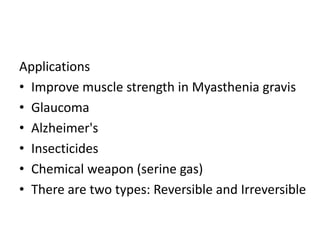

  Applications • Improve musclestrength in Myasthenia gravis • Glaucoma • Alzheimer's • Insecticides • Chemical weapon (serine gas) • There are two types: Reversible and Irreversible

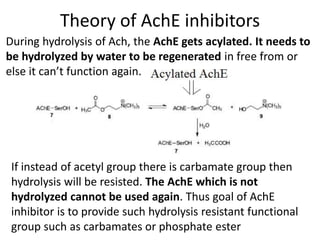

• 41.
  Theory of AchEinhibitors If instead of acetyl group there is carbamate group then hydrolysis will be resisted. The AchE which is not hydrolyzed cannot be used again. Thus goal of AchE inhibitor is to provide such hydrolysis resistant functional group such as carbamates or phosphate ester During hydrolysis of Ach, the AchE gets acylated. It needs to be hydrolyzed by water to be regenerated in free from or else it can’t function again.

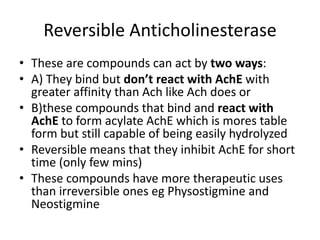

• 42.
  Reversible Anticholinesterase • Theseare compounds can act by two ways: • A) They bind but don’t react with AchE with greater affinity than Ach like Ach does or • B)these compounds that bind and react with AchE to form acylate AchE which is mores table form but still capable of being easily hydrolyzed • Reversible means that they inhibit AchE for short time (only few mins) • These compounds have more therapeutic uses than irreversible ones eg Physostigmine and Neostigmine
• 43.

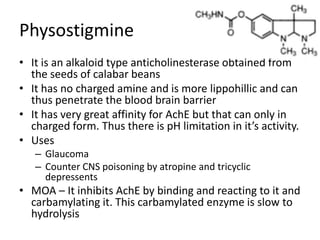

  Physostigmine • It isan alkaloid type anticholinesterase obtained from the seeds of calabar beans • It has no charged amine and is more lippohillic and can thus penetrate the blood brain barrier • It has very great affinity for AchE but that can only in charged form. Thus there is pH limitation in it’s activity. • Uses – Glaucoma – Counter CNS poisoning by atropine and tricyclic depressents • MOA – It inhibits AchE by binding and reacting to it and carbamylating it. This carbamylated enzyme is slow to hydrolysis

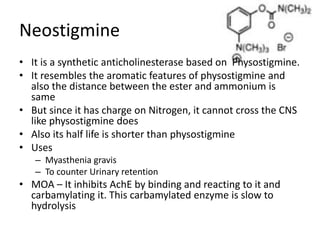

• 44.
  Neostigmine • It isa synthetic anticholinesterase based on Physostigmine. • It resembles the aromatic features of physostigmine and also the distance between the ester and ammonium is same • But since it has charge on Nitrogen, it cannot cross the CNS like physostigmine does • Also its half life is shorter than physostigmine • Uses – Myasthenia gravis – To counter Urinary retention • MOA – It inhibits AchE by binding and reacting to it and carbamylating it. This carbamylated enzyme is slow to hydrolysis
• 45.
  Irreversible Anticholinesterase • Thesecompounds act by only one way: that bind and react with AchE to AchE with greater affinity than Ach to form acylated enzyme which strongly resist hydrolysis • Irreversible means that they inhibit AchE for very long time(many hours) • These compounds have less therapeutic uses than reversible ones. • Serine gas and organophosphate insecticides are based on this concept. • They cause cholinergic crisis • Their common structural feature is the presence of Phosphate ester bond which strongly resist hydrolysis
• 46.

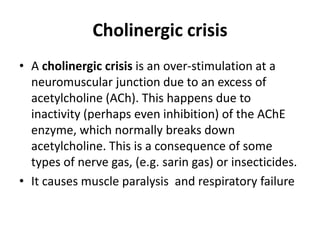

  Cholinergic crisis • Acholinergic crisis is an over-stimulation at a neuromuscular junction due to an excess of acetylcholine (ACh). This happens due to inactivity (perhaps even inhibition) of the AChE enzyme, which normally breaks down acetylcholine. This is a consequence of some types of nerve gas, (e.g. sarin gas) or insecticides. • It causes muscle paralysis and respiratory failure
• 47.

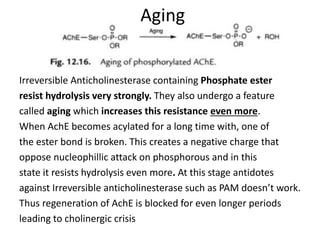

  Aging Irreversible Anticholinesterase containingPhosphate ester resist hydrolysis very strongly. They also undergo a feature called aging which increases this resistance even more. When AchE becomes acylated for a long time with, one of the ester bond is broken. This creates a negative charge that oppose nucleophillic attack on phosphorous and in this state it resists hydrolysis even more. At this stage antidotes against Irreversible anticholinesterase such as PAM doesn’t work. Thus regeneration of AchE is blocked for even longer periods leading to cholinergic crisis
• 48.

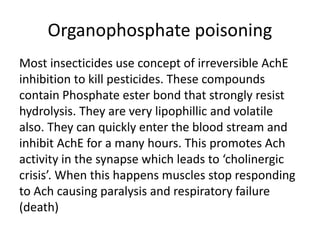

  Organophosphate poisoning Most insecticidesuse concept of irreversible AchE inhibition to kill pesticides. These compounds contain Phosphate ester bond that strongly resist hydrolysis. They are very lipophillic and volatile also. They can quickly enter the blood stream and inhibit AchE for a many hours. This promotes Ach activity in the synapse which leads to ‘cholinergic crisis’. When this happens muscles stop responding to Ach causing paralysis and respiratory failure (death)
• 49.

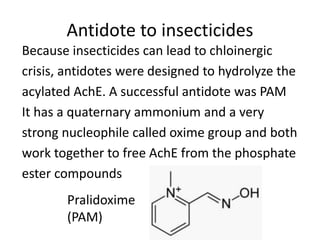

  Antidote to insecticides Becauseinsecticides can lead to chloinergic crisis, antidotes were designed to hydrolyze the acylated AchE. A successful antidote was PAM It has a quaternary ammonium and a very strong nucleophile called oxime group and both work together to free AchE from the phosphate ester compounds Pralidoxime (PAM)
• 50.

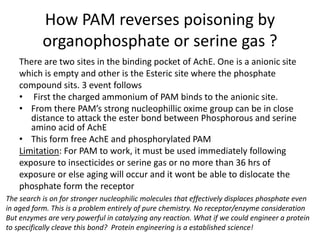

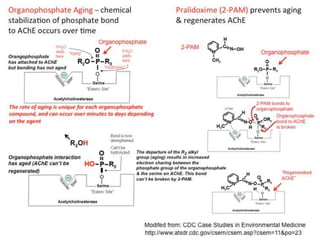

  How PAM reversespoisoning by organophosphate or serine gas ? There are two sites in the binding pocket of AchE. One is a anionic site which is empty and other is the Esteric site where the phosphate compound sits. 3 event follows • First the charged ammonium of PAM binds to the anionic site. • From there PAM’s strong nucleophillic oxime group can be in close distance to attack the ester bond between Phosphorous and serine amino acid of AchE • This form free AchE and phosphorylated PAM Limitation: For PAM to work, it must be used immediately following exposure to insecticides or serine gas or no more than 36 hrs of exposure or else aging will occur and it wont be able to dislocate the phosphate form the receptor The search is on for stronger nucleophilic molecules that effectively displaces phosphate even in aged form. This is a problem entirely of pure chemistry. No receptor/enzyme consideration But enzymes are very powerful in catalyzing any reaction. What if we could engineer a protein to specifically cleave this bond? Protein engineering is a established science!
• 52.
  Thank You

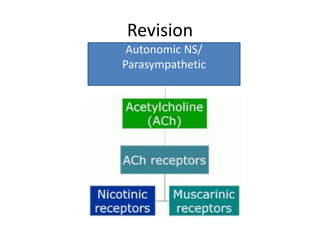

• 53.
  Revision Autonomic NS/ Parasympathetic
• 54.

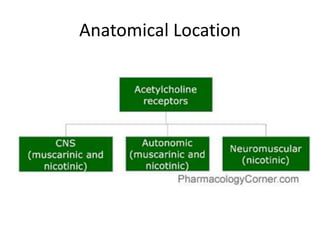

  Anatomical Location
• 55.

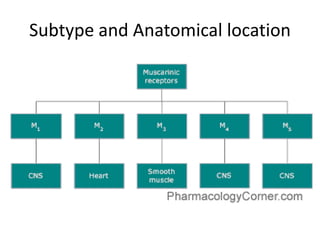

  Subtype and Anatomicallocation
• 56.

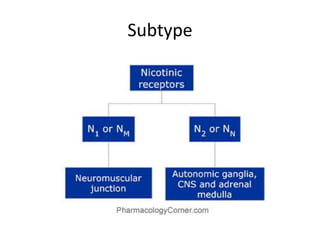

  Subtype
• 57.

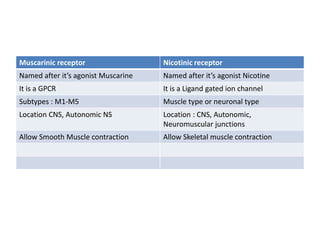

  Muscarinic receptor Nicotinicreceptor Named after it’s agonist Muscarine Named after it’s agonist Nicotine It is a GPCR It is a Ligand gated ion channel Subtypes : M1-M5 Muscle type or neuronal type Location CNS, Autonomic NS Location : CNS, Autonomic, Neuromuscular junctions Allow Smooth Muscle contraction Allow Skeletal muscle contraction

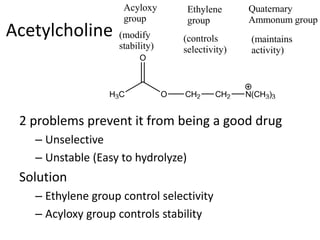

• 58.
  Acetylcholine 2 problems preventit from being a good drug – Unselective – Unstable (Easy to hydrolyze) Solution – Ethylene group control selectivity – Acyloxy group controls stability H3C O O CH2 CH2 N(CH3)3 Quaternary Ammonum group Ethylene group Acyloxy group (maintains activity) (controls selectivity) (modify stability)

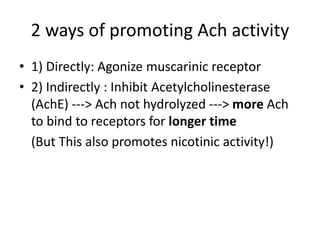

• 59.
  2 ways ofpromoting Ach activity • 1) Directly: Agonize muscarinic receptor • 2) Indirectly : Inhibit Acetylcholinesterase (AchE) ---> Ach not hydrolyzed ---> more Ach to bind to receptors for longer time (But This also promotes nicotinic activity!)
• 60.

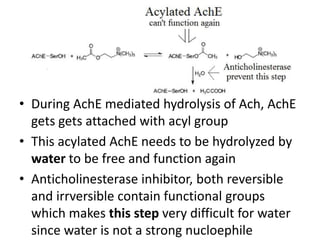

  • During AchEmediated hydrolysis of Ach, AchE gets gets attached with acyl group • This acylated AchE needs to be hydrolyzed by water to be free and function again • Anticholinesterase inhibitor, both reversible and irrversible contain functional groups which makes this step very difficult for water since water is not a strong nucloephile

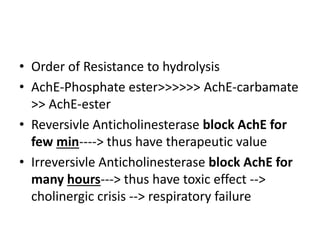

• 61.
  • Order ofResistance to hydrolysis • AchE-Phosphate ester>>>>>> AchE-carbamate >> AchE-ester • Reversivle Anticholinesterase block AchE for few min----> thus have therapeutic value • Irreversivle Anticholinesterase block AchE for many hours---> thus have toxic effect --> cholinergic crisis --> respiratory failure

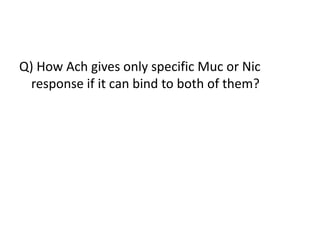

• 62.
  Q) How Achgives only specific Muc or Nic response if it can bind to both of them?

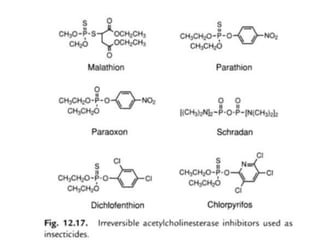

• 63.

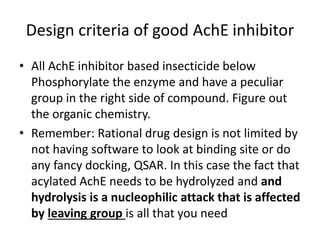

  Design criteria ofgood AchE inhibitor • All AchE inhibitor based insecticide below Phosphorylate the enzyme and have a peculiar group in the right side of compound. Figure out the organic chemistry. • Remember: Rational drug design is not limited by not having software to look at binding site or do any fancy docking, QSAR. In this case the fact that acylated AchE needs to be hydrolyzed and and hydrolysis is a nucleophilic attack that is affected by leaving group is all that you need
• 65.

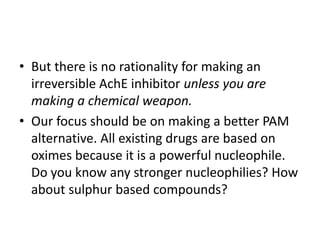

  • But thereis no rationality for making an irreversible AchE inhibitor unless you are making a chemical weapon. • Our focus should be on making a better PAM alternative. All existing drugs are based on oximes because it is a powerful nucleophile. Do you know any stronger nucleophilies? How about sulphur based compounds?

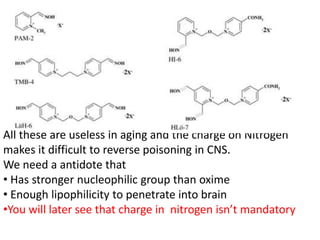

• 66.
  All these areuseless in aging and the charge on Nitrogen makes it difficult to reverse poisoning in CNS. We need a antidote that • Has stronger nucleophilic group than oxime • Enough lipophilicity to penetrate into brain •You will later see that charge in nitrogen isn’t mandatory
• 67.

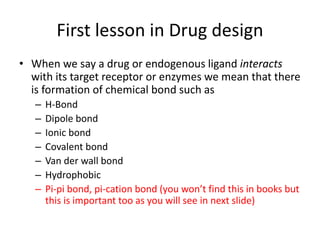

  First lesson inDrug design • When we say a drug or endogenous ligand interacts with its target receptor or enzymes we mean that there is formation of chemical bond such as – H-Bond – Dipole bond – Ionic bond – Covalent bond – Van der wall bond – Hydrophobic – Pi-pi bond, pi-cation bond (you won’t find this in books but this is important too as you will see in next slide)

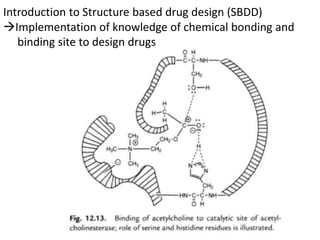

• 68.
  Introduction to Structurebased drug design (SBDD) Implementation of knowledge of chemical bonding and binding site to design drugs

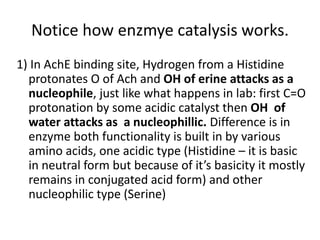

• 69.
  Notice how enzmyecatalysis works. 1) In AchE binding site, Hydrogen from a Histidine protonates O of Ach and OH of erine attacks as a nucleophile, just like what happens in lab: first C=O protonation by some acidic catalyst then OH of water attacks as a nucleophillic. Difference is in enzyme both functionality is built in by various amino acids, one acidic type (Histidine – it is basic in neutral form but because of it’s basicity it mostly remains in conjugated acid form) and other nucleophilic type (Serine)
• 70.

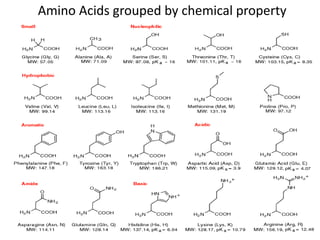

  Amino Acids groupedby chemical property
• 71.

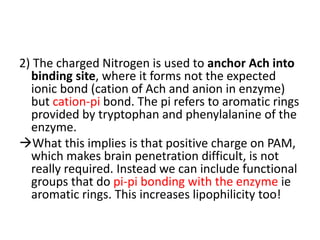

  2) The chargedNitrogen is used to anchor Ach into binding site, where it forms not the expected ionic bond (cation of Ach and anion in enzyme) but cation-pi bond. The pi refers to aromatic rings provided by tryptophan and phenylalanine of the enzyme. What this implies is that positive charge on PAM, which makes brain penetration difficult, is not really required. Instead we can include functional groups that do pi-pi bonding with the enzyme ie aromatic rings. This increases lipophilicity too!
• 72.

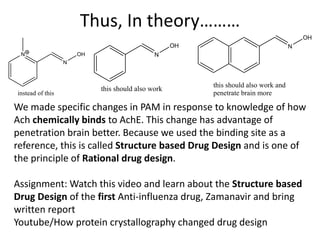

  Thus, In theory……… N OH thisshould also work N OH this should also work and penetrate brain more We made specific changes in PAM in response to knowledge of how Ach chemically binds to AchE. This change has advantage of penetration brain better. Because we used the binding site as a reference, this is called Structure based Drug Design and is one of the principle of Rational drug design. Assignment: Watch this video and learn about the Structure based Drug Design of the first Anti-influenza drug, Zamanavir and bring written report Youtube/How protein crystallography changed drug design N N OH instead of this

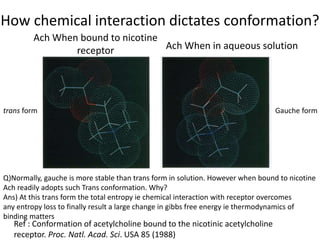

• 73.
  How chemical interactiondictates conformation? Ach When bound to nicotine receptor Ach When in aqueous solution trans form Gauche form Ref : Conformation of acetylcholine bound to the nicotinic acetylcholine receptor. Proc. Natl. Acad. Sci. USA 85 (1988) Q)Normally, gauche is more stable than trans form in solution. However when bound to nicotine Ach readily adopts such Trans conformation. Why? Ans) At this trans form the total entropy ie chemical interaction with receptor overcomes any entropy loss to finally result a large change in gibbs free energy ie thermodynamics of binding matters
