The document provides an overview of AWS billing fundamentals, focusing on managing and analyzing cloud costs effectively. It outlines stages of cost management including visibility, allocation, efficiency, savings, and unit cost, while emphasizing the importance of tagging resources and utilizing reserved instances for cost savings. Key metrics and detailed billing reports are discussed to enhance understanding of AWS expenses and optimize financial management.

1. @cloudability

2. @cloudability
AWS Billing Fundamentals

3. 0
45
90
135
180
Dev/Test
POC
App#1
App#3
App#2
Exec team starts
really caringLoadtest

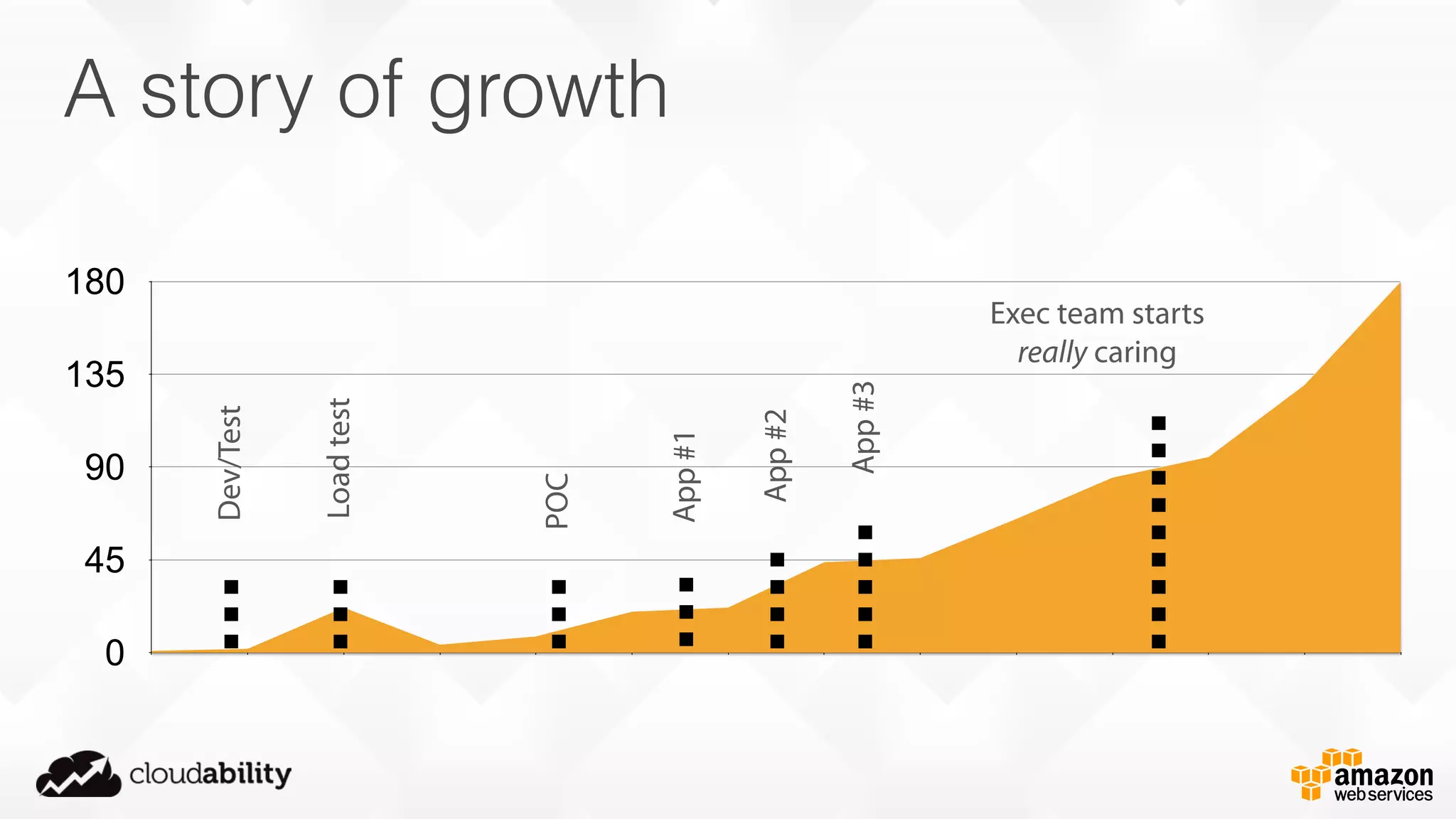

A story of growth

4. @cloudability
About Us
Cloud Cost Management & Analytics
$2B+
in tracked AWS costs

5. @cloudability

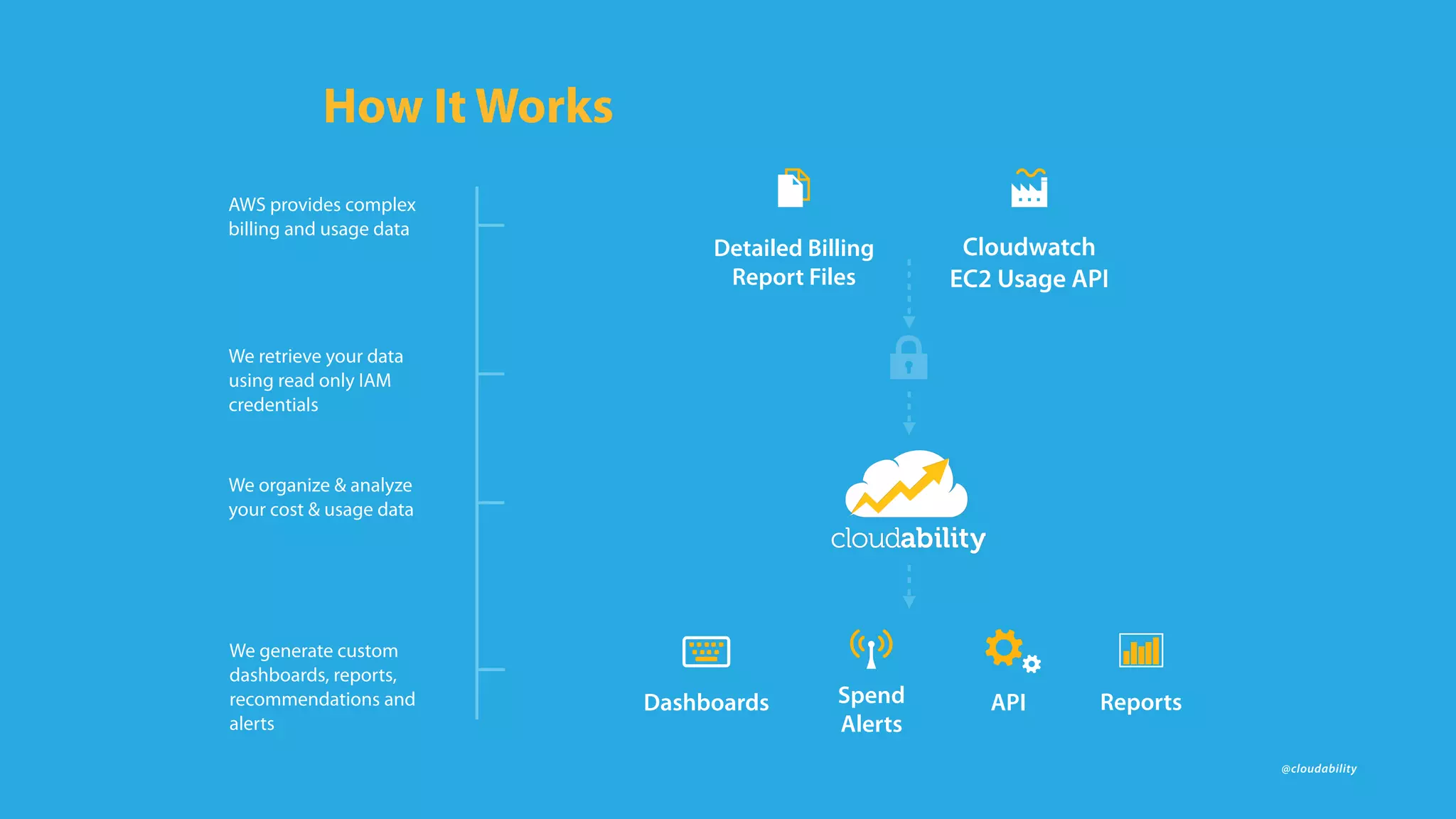

Dashboards Spend
Alerts
API Reports
Cloudwatch
EC2 Usage API
Detailed Billing
Report Files
We generate custom
dashboards, reports,
recommendations and
alerts
We retrieve your data
using read only IAM
credentials
AWS provides complex
billing and usage data
We organize & analyze
your cost & usage data
How It Works

6. Visibility Allocation
Efficiency
Savings
Unit
Cost
Cloud Cost Management Lifecyle
Stage I: Visibility (No Surprises)
Stage II: Allocation (Where are the dollars going?)
Stage III: Efficiency (Don’t run cloud like a
datacenter)
Stage IV: Savings (Lower hourly rate with RIs)
Stage V: Unit Cost (Tying spending to margins)

7. @cloudability
7
How does AWS charge?

8. @cloudability
8
cost = usage x rate

9. @cloudability
9

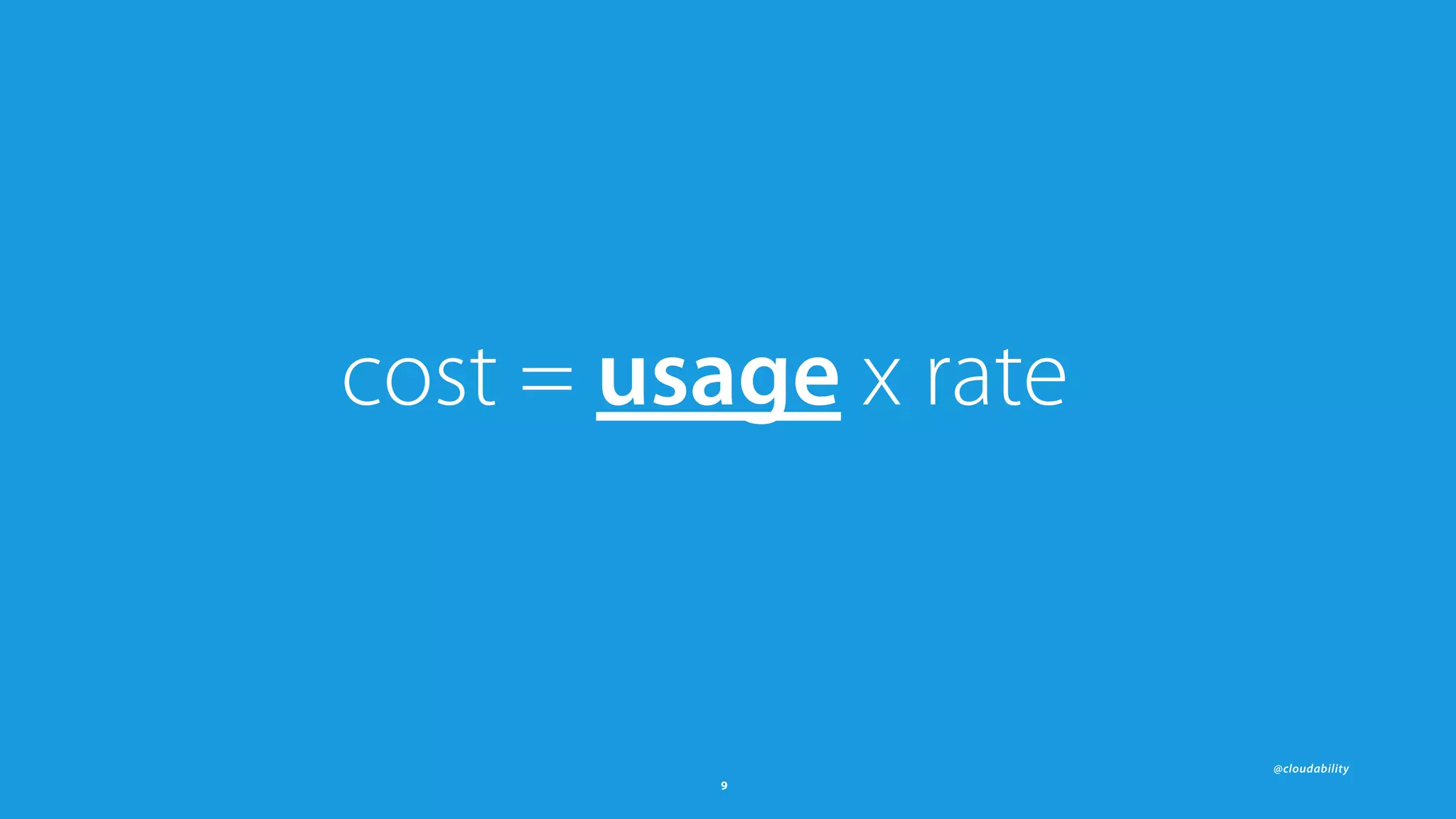

cost = usage x rate

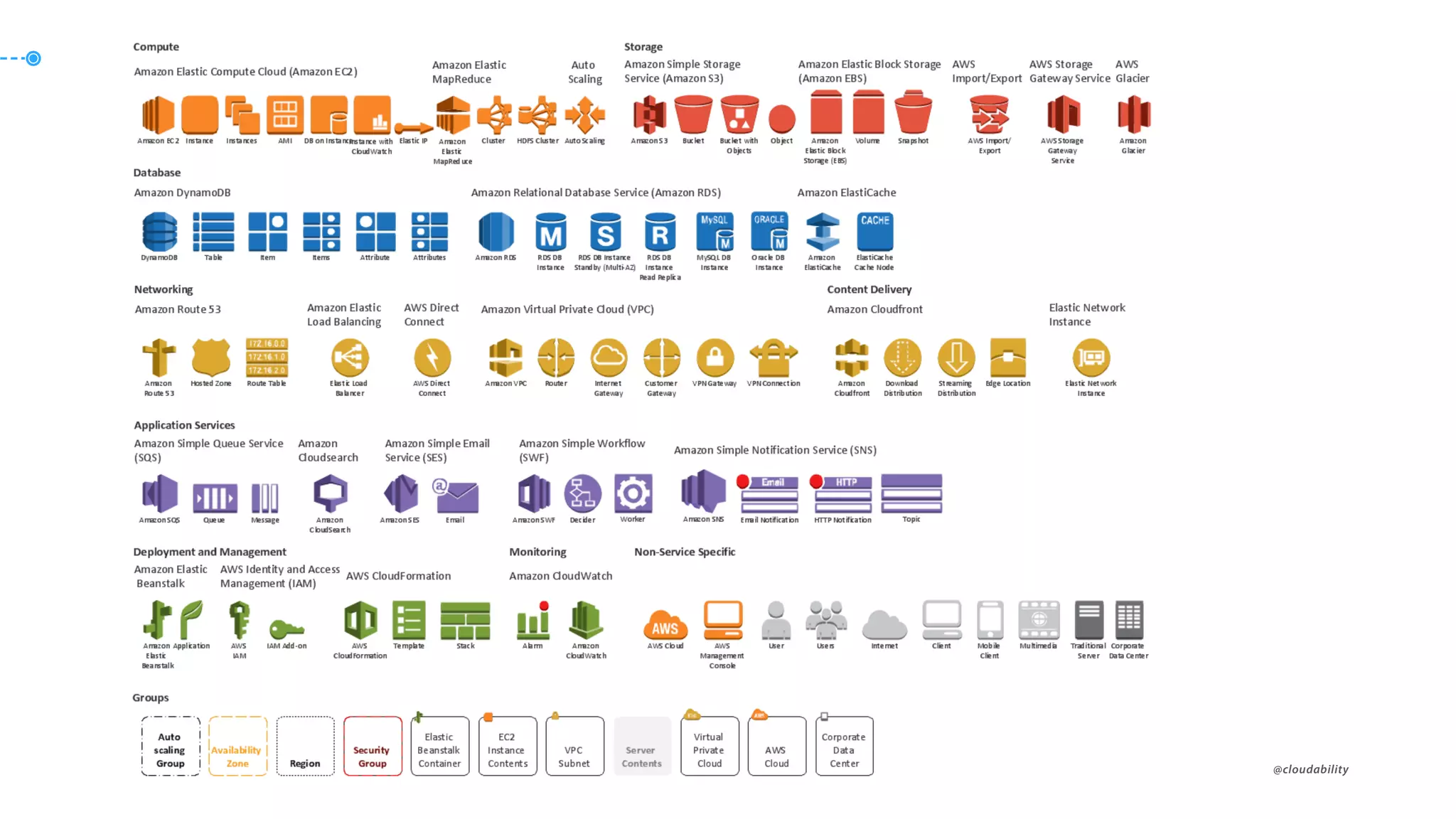

10. ๏ @cloudability10

11. @cloudability
11

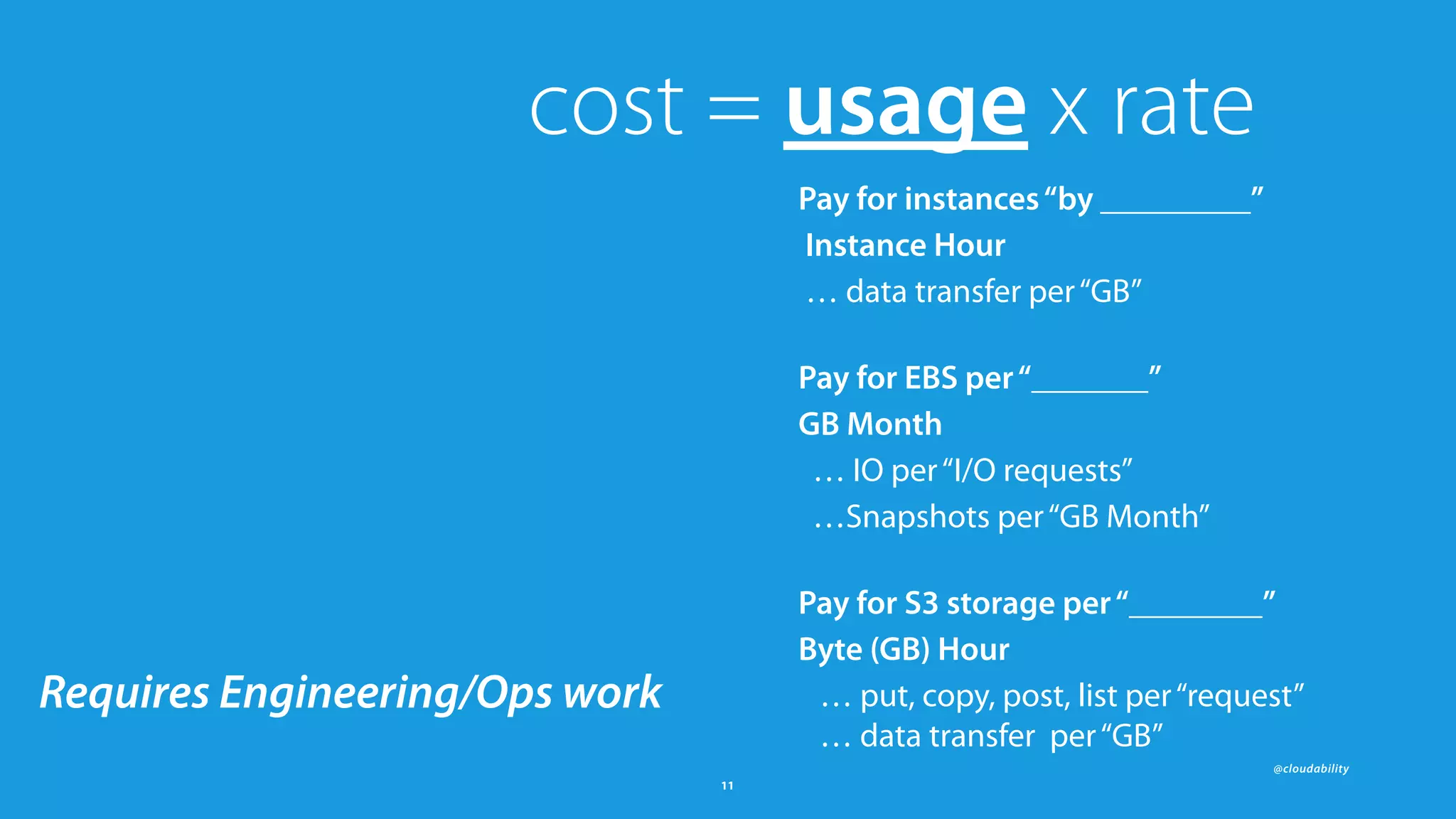

cost = usage x rate
Pay for instances“by _________”
Instance Hour
… data transfer per“GB”
Pay for EBS per“_______”
GB Month
… IO per“I/O requests”
…Snapshots per“GB Month”
Pay for S3 storage per“________”
Byte (GB) Hour
… put, copy, post, list per“request”
… data transfer per“GB”
Requires Engineering/Ops work

12. @cloudability
12
EC2 (compute)
spending generally accounts for
80%+ of the bill…
(Followed by EBS, S3, RDS, etc.)

13. @cloudability
13
cost = usage x rate

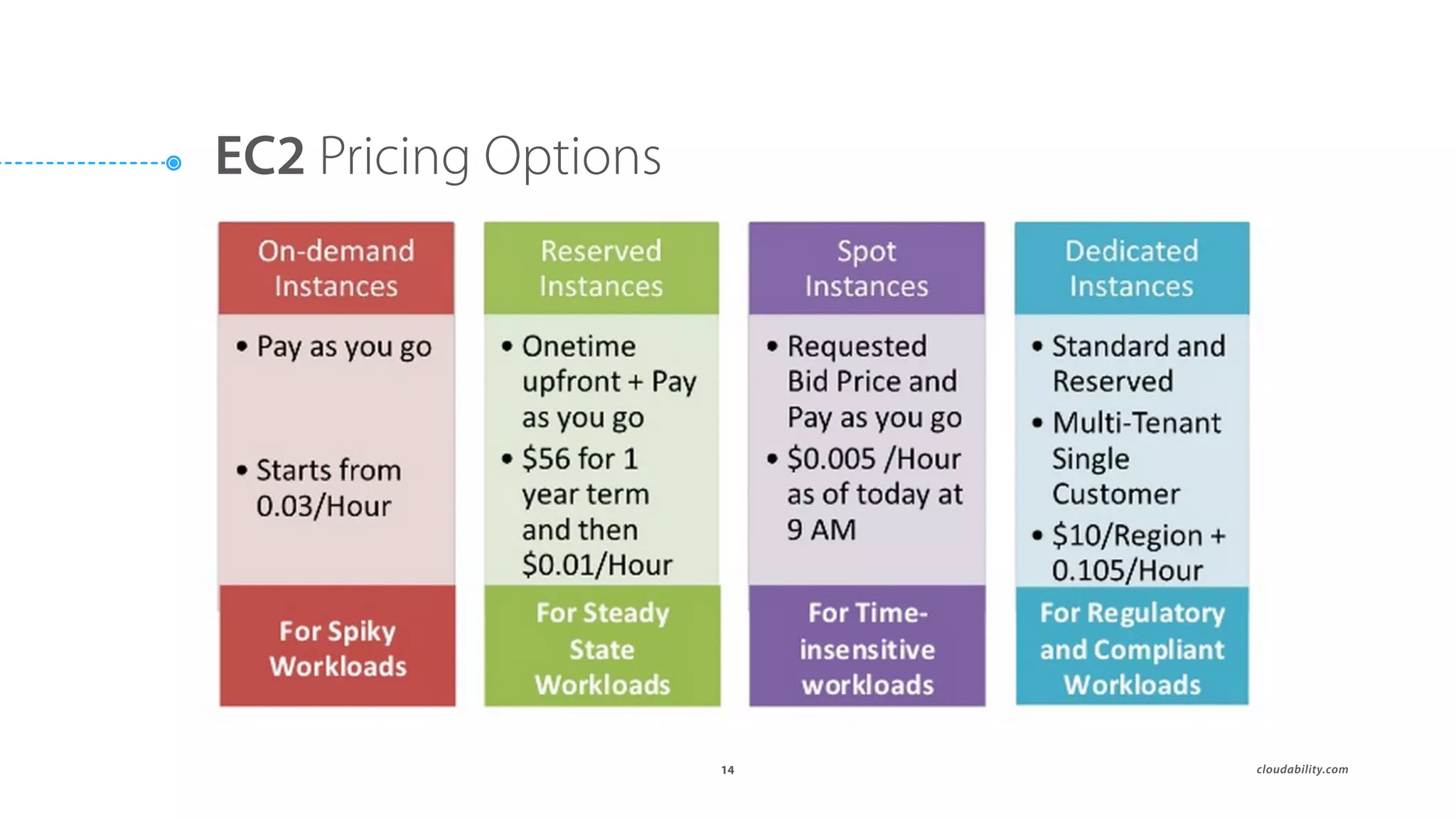

14. ๏ cloudability.com14
EC2 Pricing Options

15. @cloudability
15
cost = usage x rate
Pay as you go with On-demand or “BoxUsage”
Commit to lower rates with Reserved Instances “HeavyUsage”
Architect for instability with Spot Instances“SpotUsage”
Single tenancy with Dedicated Instances“DedicatedUsage”
etc
Can be autonomously controlled by Finance
without engineering work

16. ๏ @cloudability16
Let’s look under the hood
at the Detailed Billing Report
(DBR)…

17. ๏ @cloudability
Originating account
for the charges
Linked Account
Data Sources
AWS Product Name
e.g. Amazon Elastic
Compute Cloud
Product Name
The type of usage
charge applied
e.g.
heavyusage:m3.large
Usage Type
A human readable
field showing the
resource type used as
well as the rate
applied
Item Description
17
Key Dimensions in the DBR

18. ๏ @cloudability
Total Blended Cost
for the time period,
represented in
Cloudability as
“Total Invoiced Cost”
Blended Cost
Data Sources
Total Unblended Cost
for the time period
Unblended Cost
Amount of individual
units used of that
resource type
Usage Quantity
Unblended rate for a
single unit of the
resource type
Unblended Rate
18
Key Metrics in the DBR

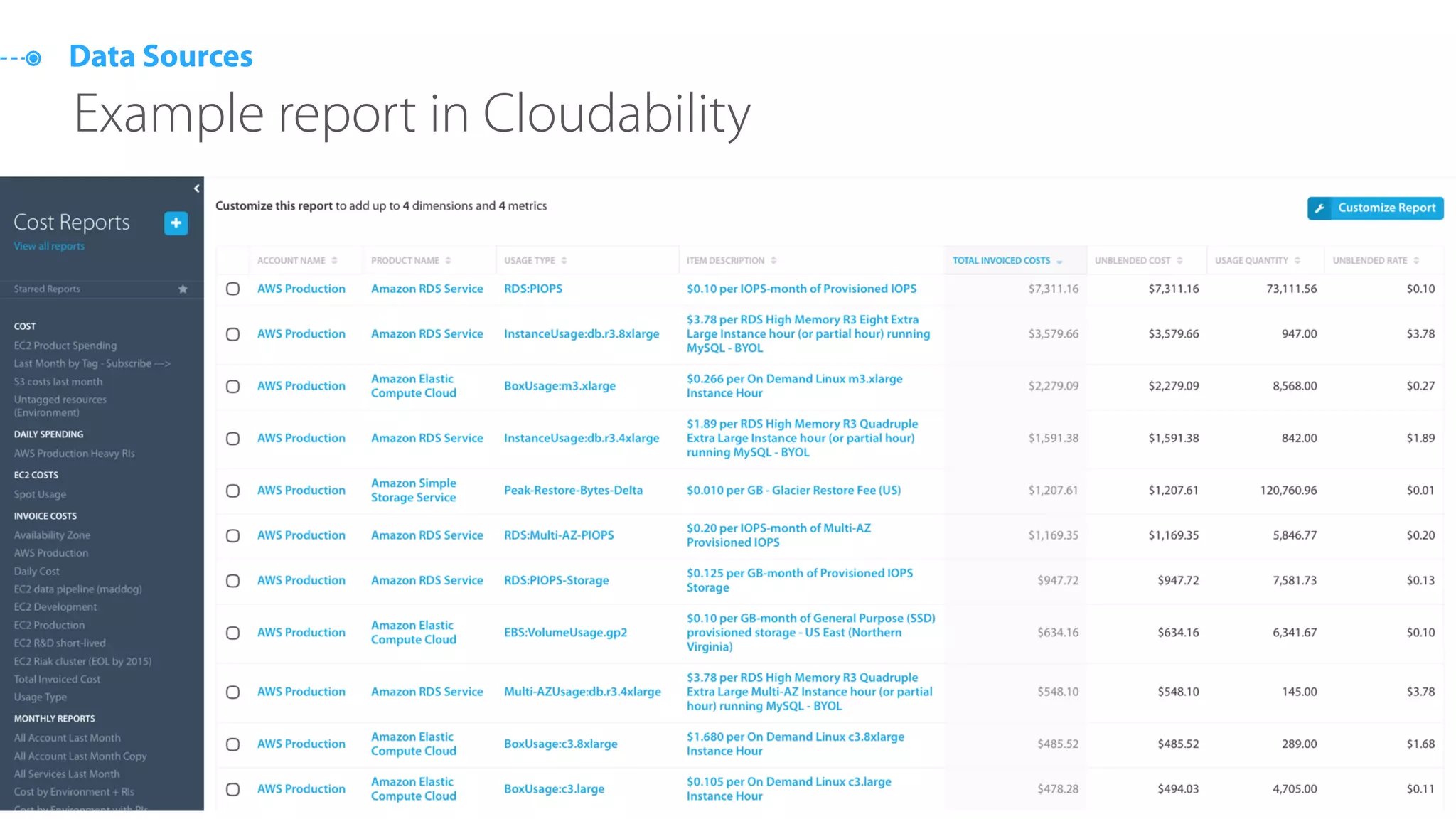

19. ๏ @cloudability
Data Sources
19
Example report in Cloudability

20. ๏ cloudability.com
Data Sources
20

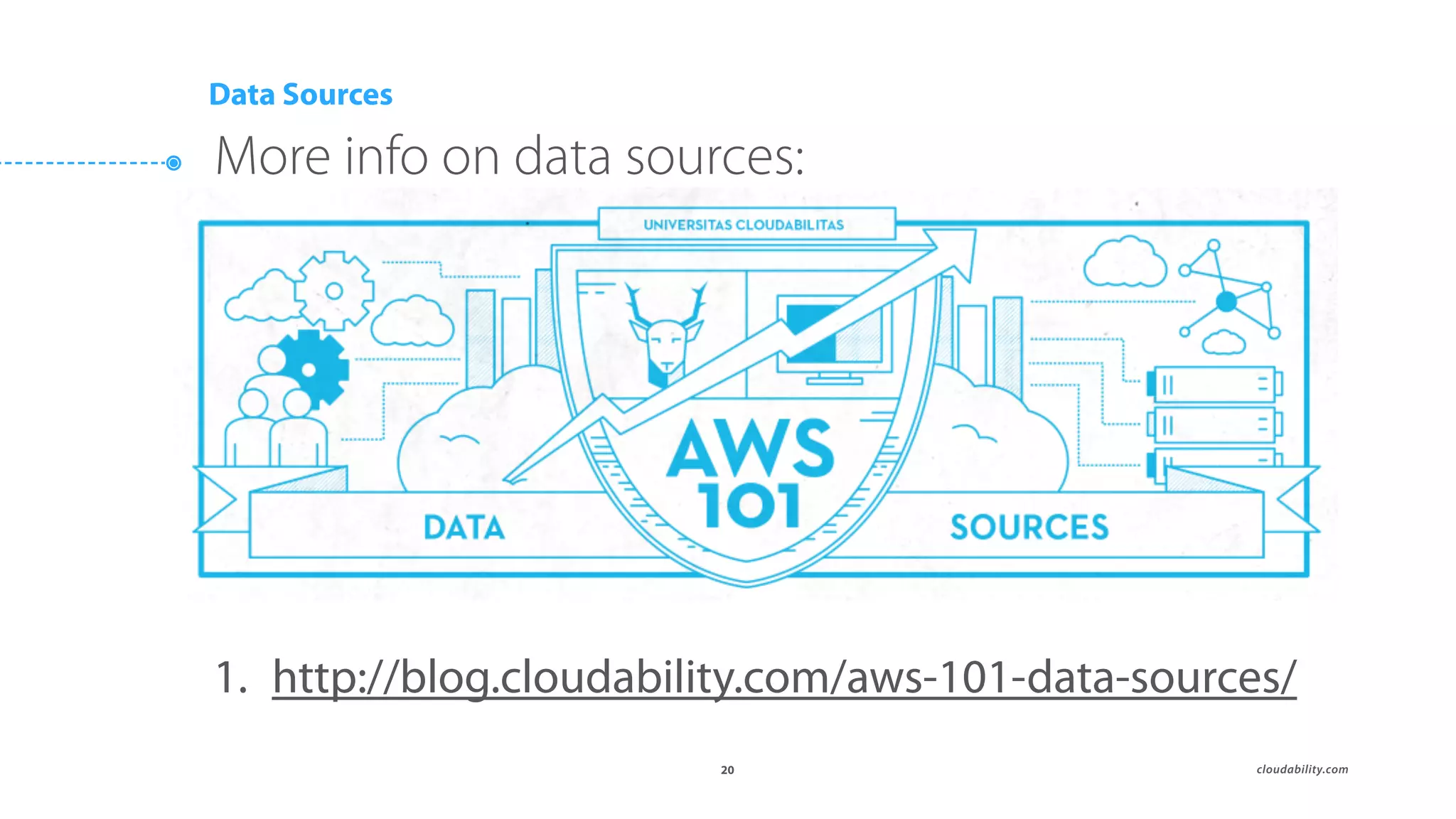

More info on data sources:
1. http://blog.cloudability.com/aws-101-data-sources/

21. ๏ cloudability.com
Data Sources
21

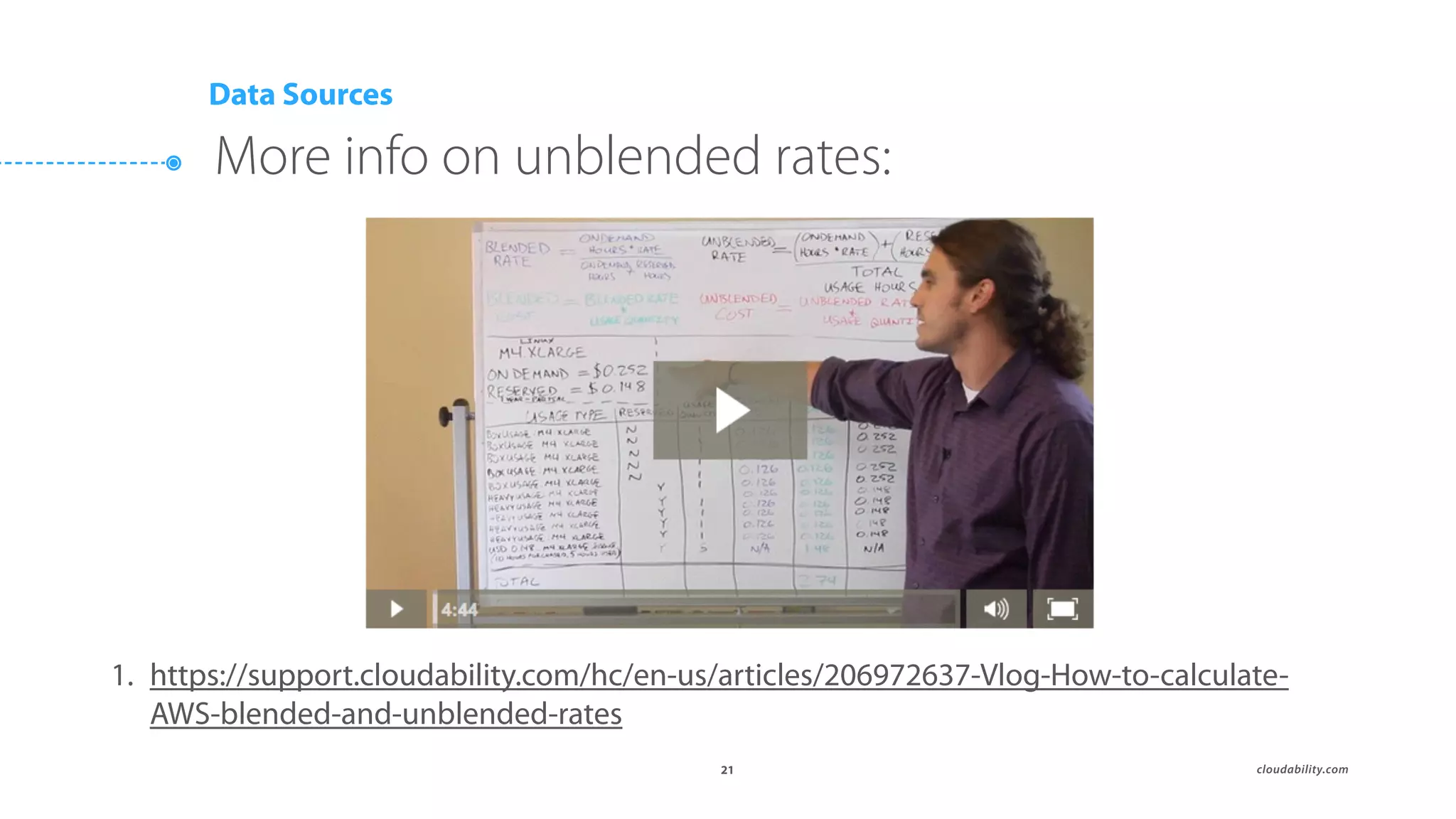

More info on unblended rates:
1. https://support.cloudability.com/hc/en-us/articles/206972637-Vlog-How-to-calculate-
AWS-blended-and-unblended-rates

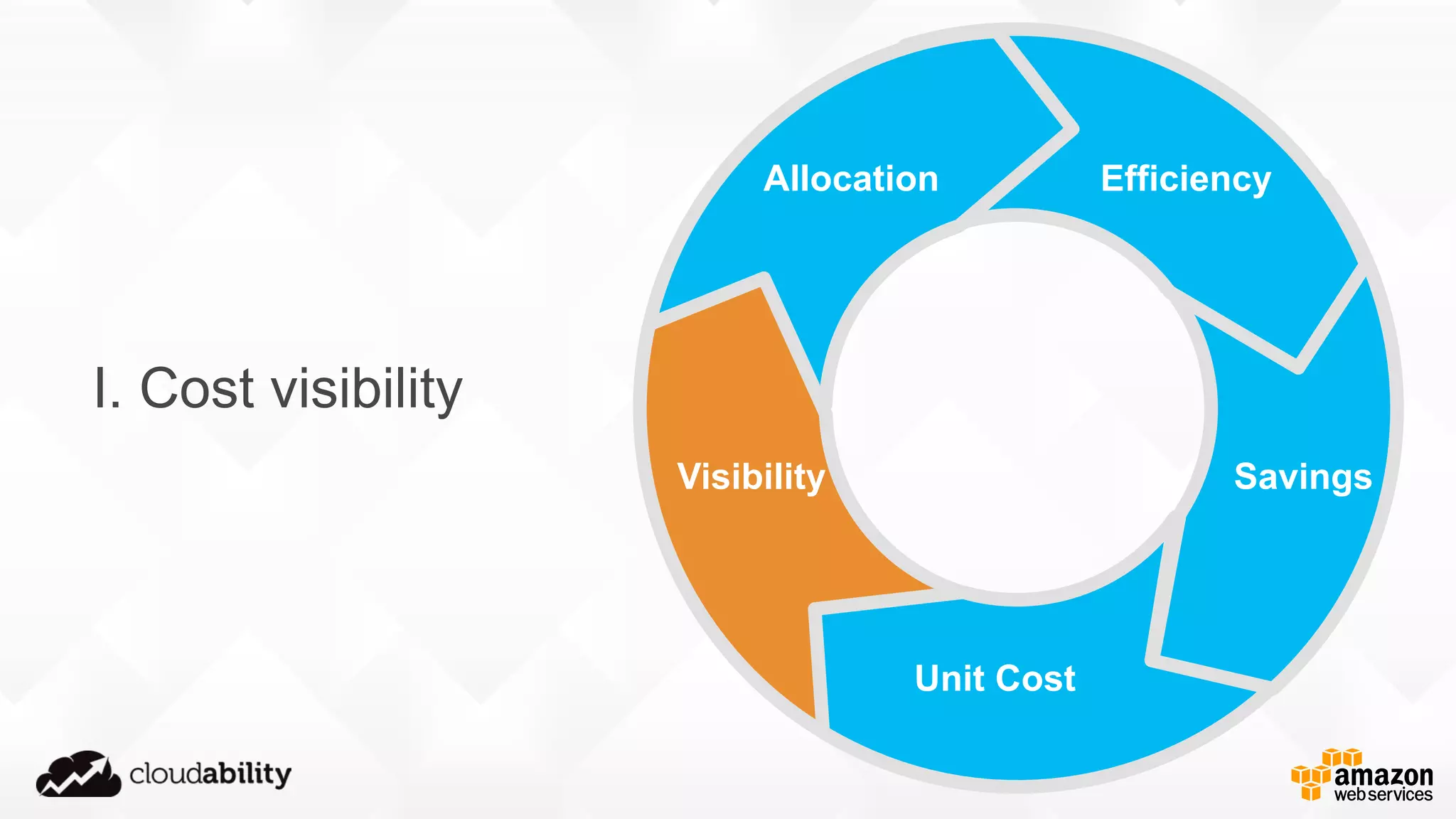

22. Visibility
Allocation Efficiency
Savings
Unit Cost
I. Cost visibility

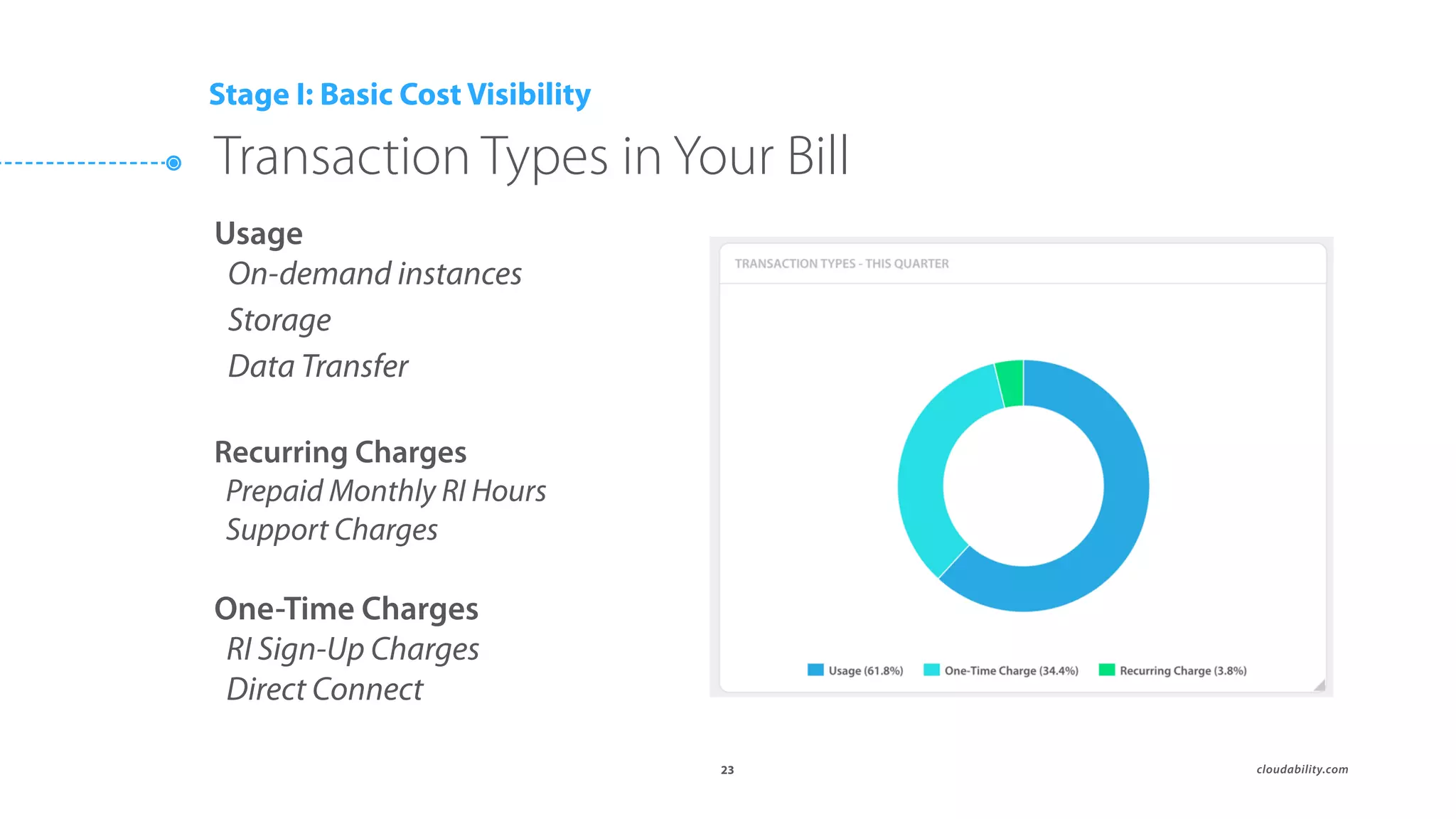

23. ๏ cloudability.com23
Transaction Types in Your Bill
Stage I: Basic Cost Visibility
Usage
On-demand instances
Storage
Data Transfer
Recurring Charges
Prepaid Monthly RI Hours
Support Charges
One-Time Charges
RI Sign-Up Charges
Direct Connect

24. @cloudability
Cost Visibility
Create custom
dashboards and
alerts

25. Visibility
Allocation Efficiency
Savings
Unit Cost
II. Allocation

26. @cloudability
@cloudabi
lity
Tools for
splitting costs

27. @cloudability
@cloudability

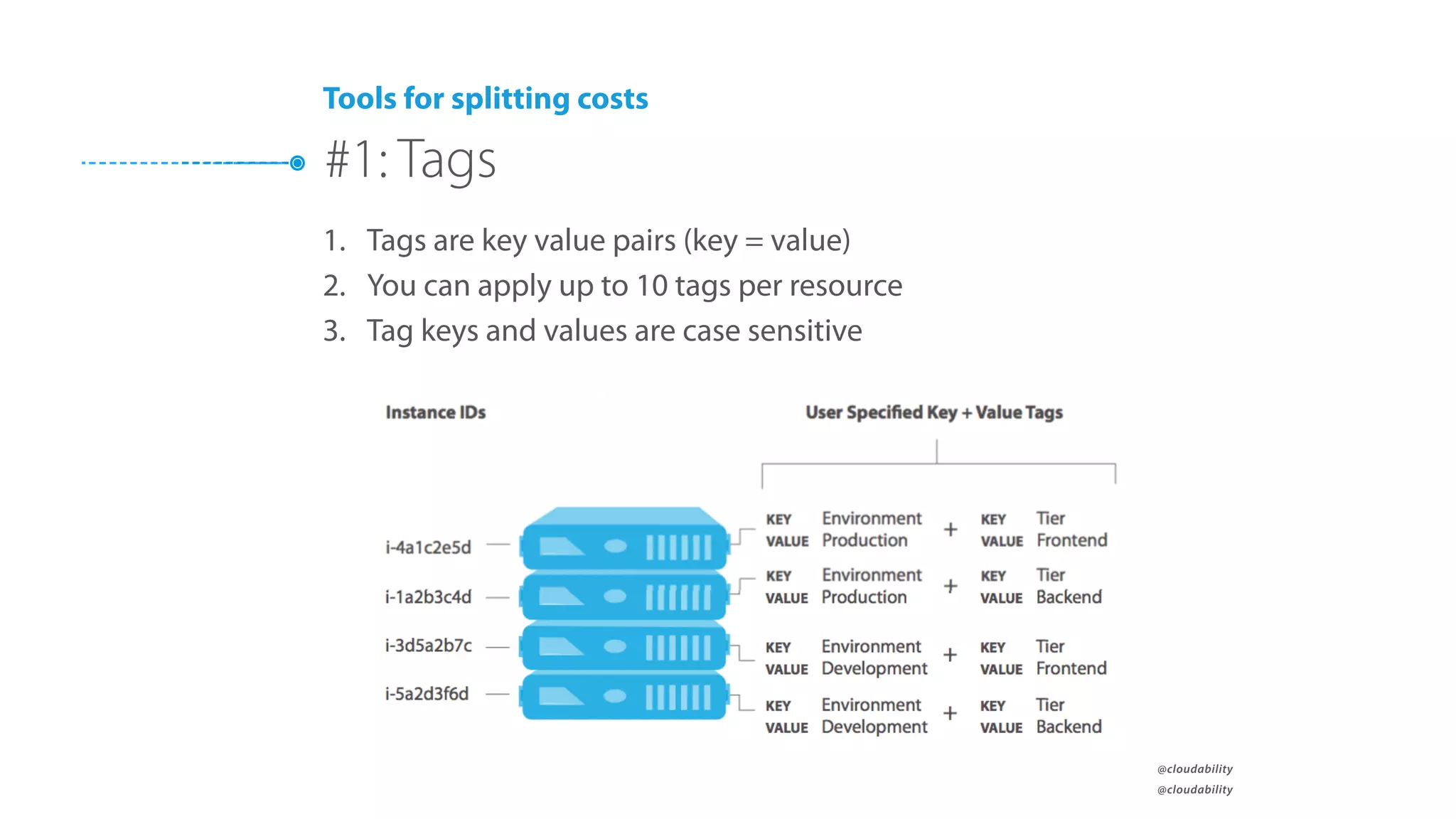

1. Tags are key value pairs (key = value)
2. You can apply up to 10 tags per resource
3. Tag keys and values are case sensitive
#1: Tags
Tools for splitting costs

28. @cloudability
@cloudability

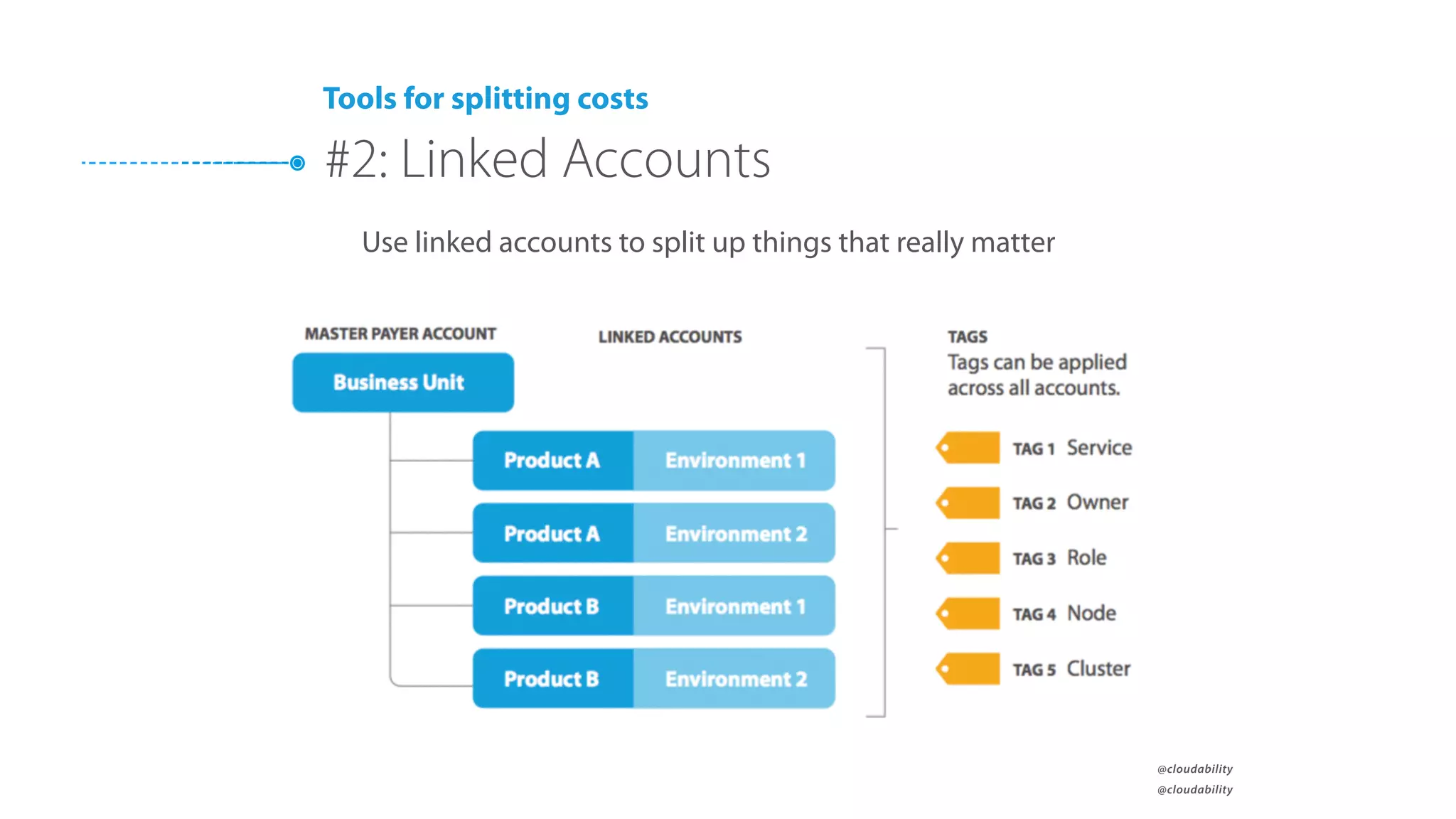

#2: Linked Accounts
Use linked accounts to split up things that really matter
Tools for splitting costs

29. @cloudability

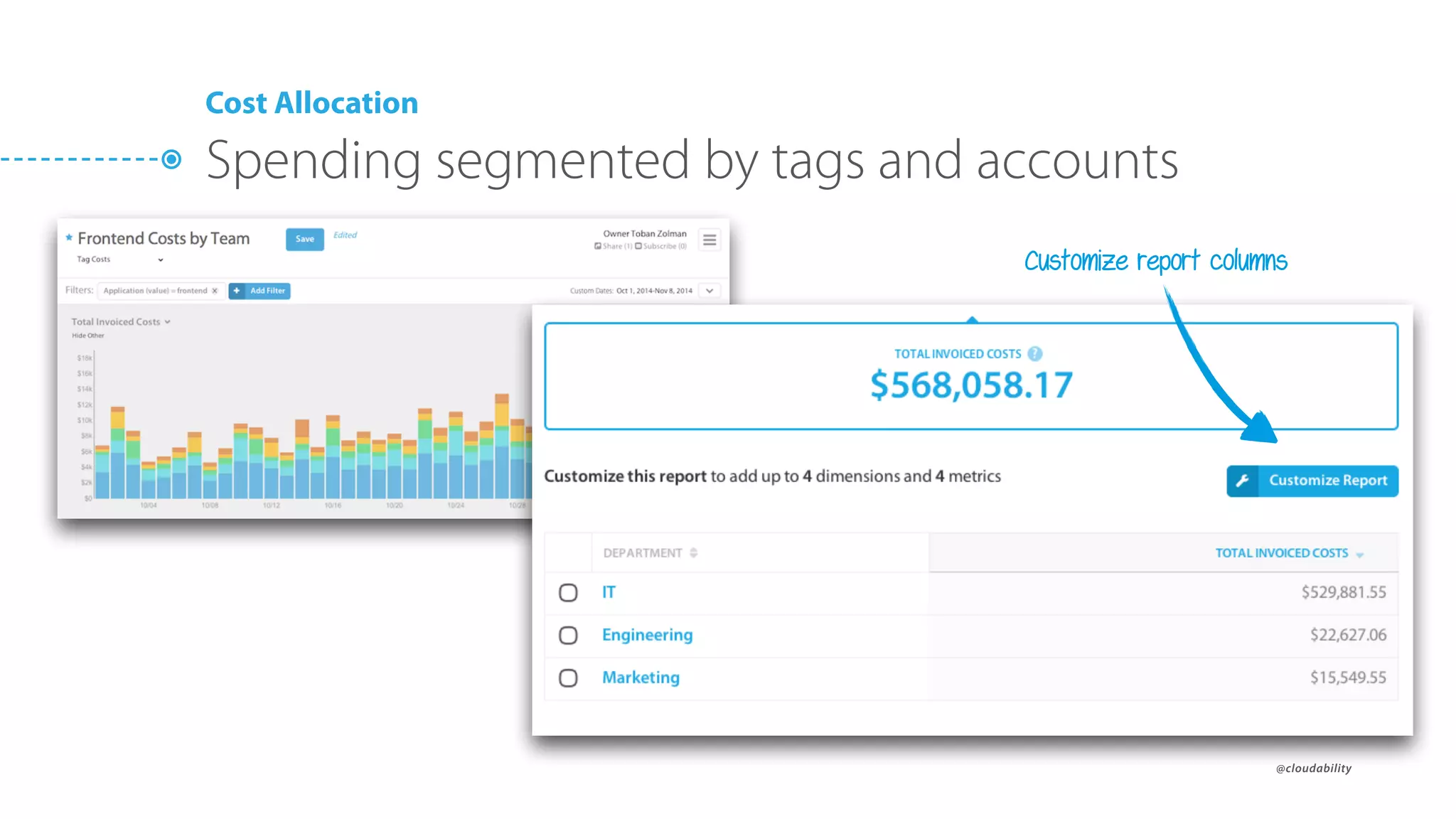

Cost Allocation
Spending segmented by tags and accounts
Customize report columns

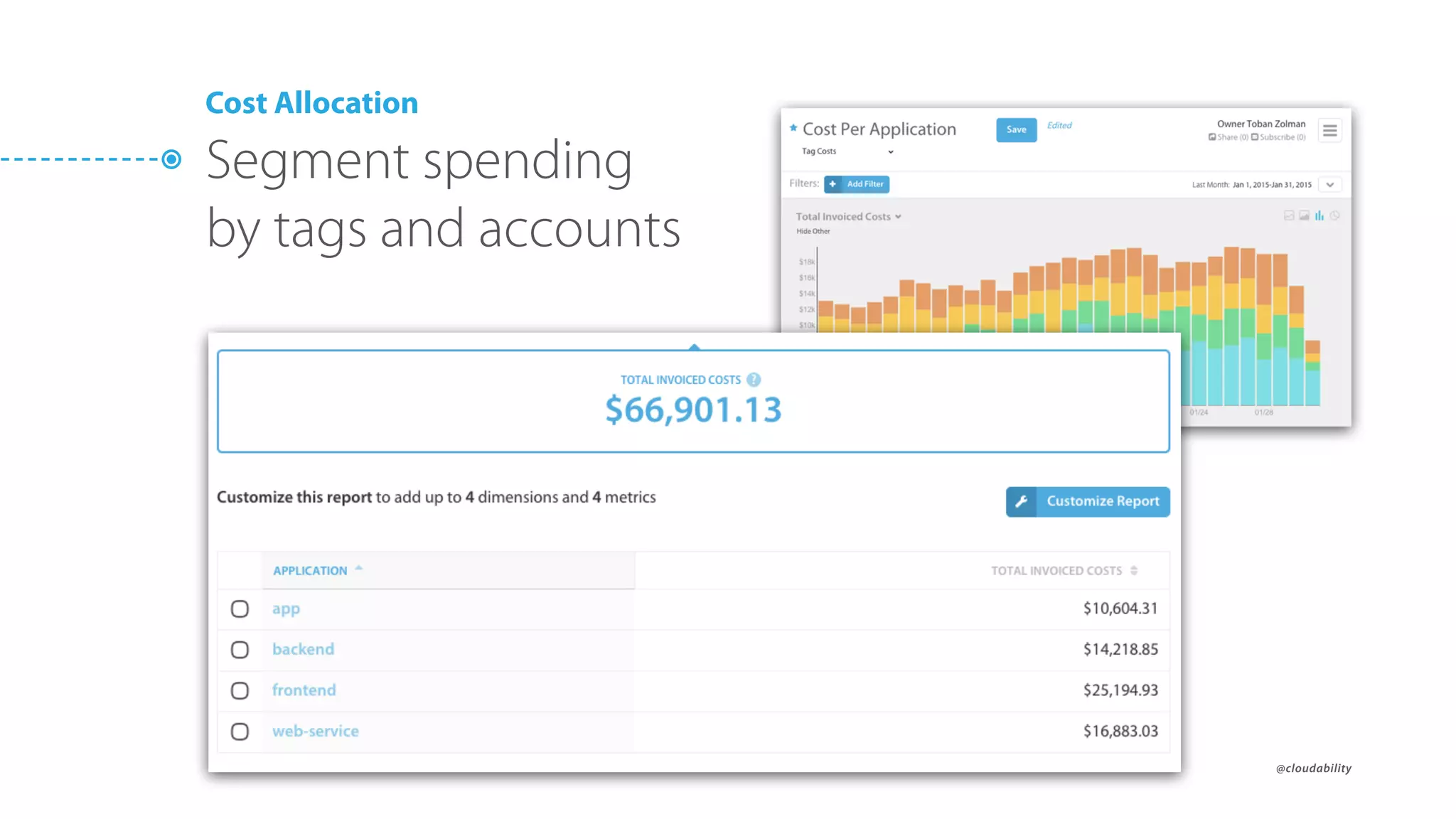

30. @cloudability
Cost Allocation
Segment spending
by tags and accounts

31. @cloudability
@cloudability
Tag everything you can

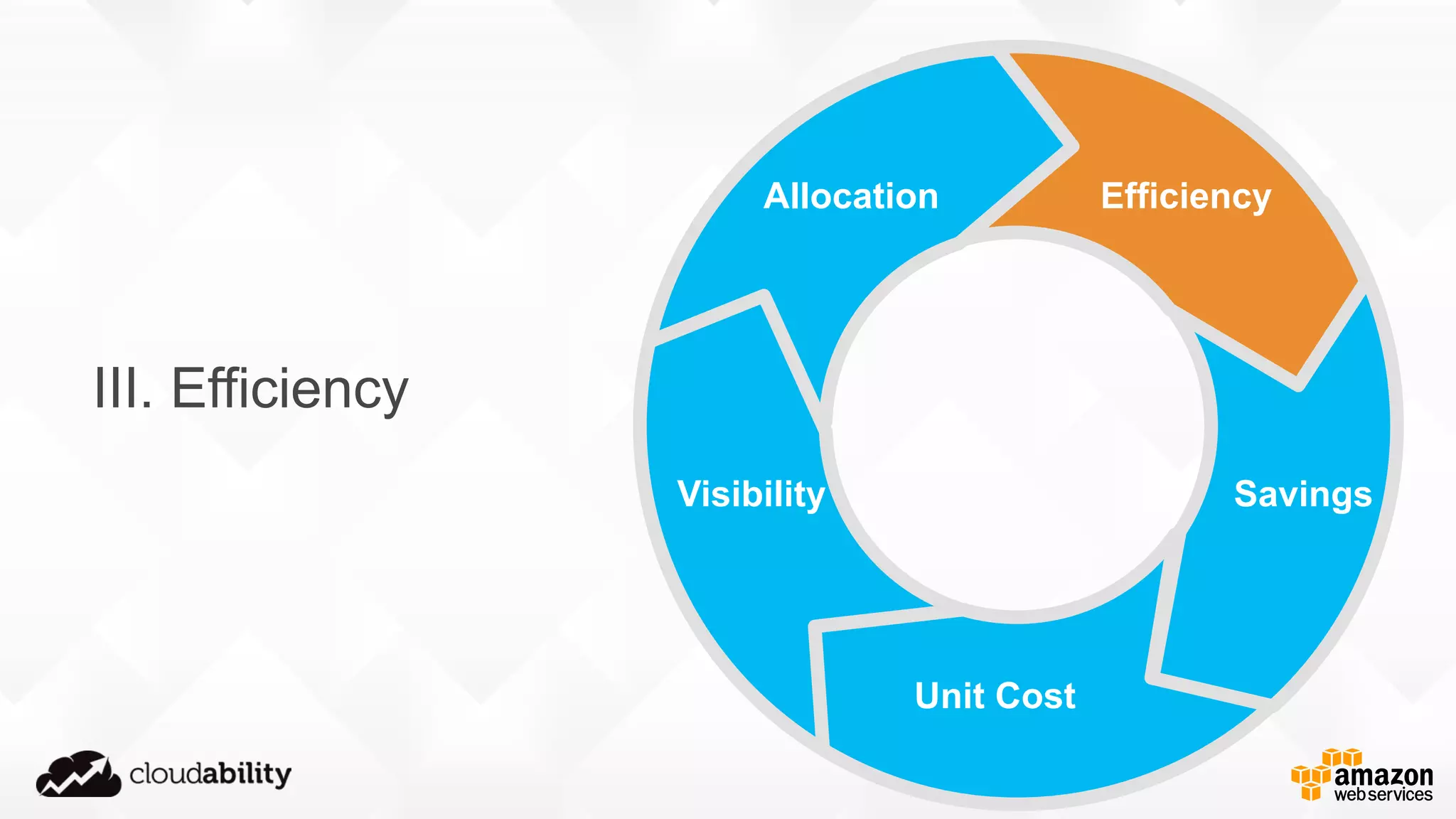

32. Visibility
Allocation Efficiency
Savings
Unit Cost
III. Efficiency

33. ๏ @cloudability
hours in a week
168

34. ๏ @cloudability

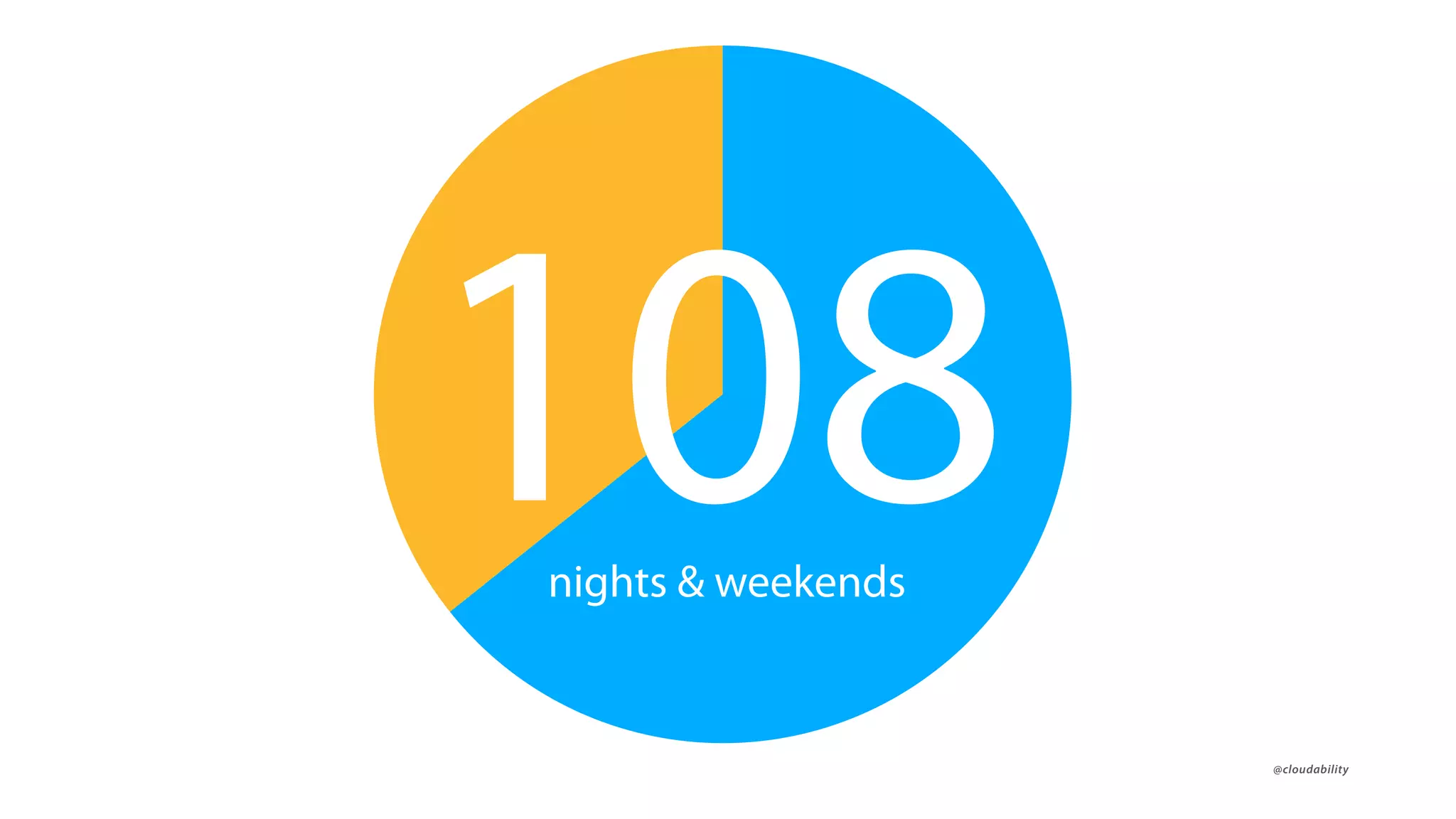

nights & weekends
108

35. @cloudability
35
Don’t run the cloud like a data center:
65% of the hours in a month
are nights and weekends

36. @cloudability
Usage Optimization
Find unused and
underutilized
instances

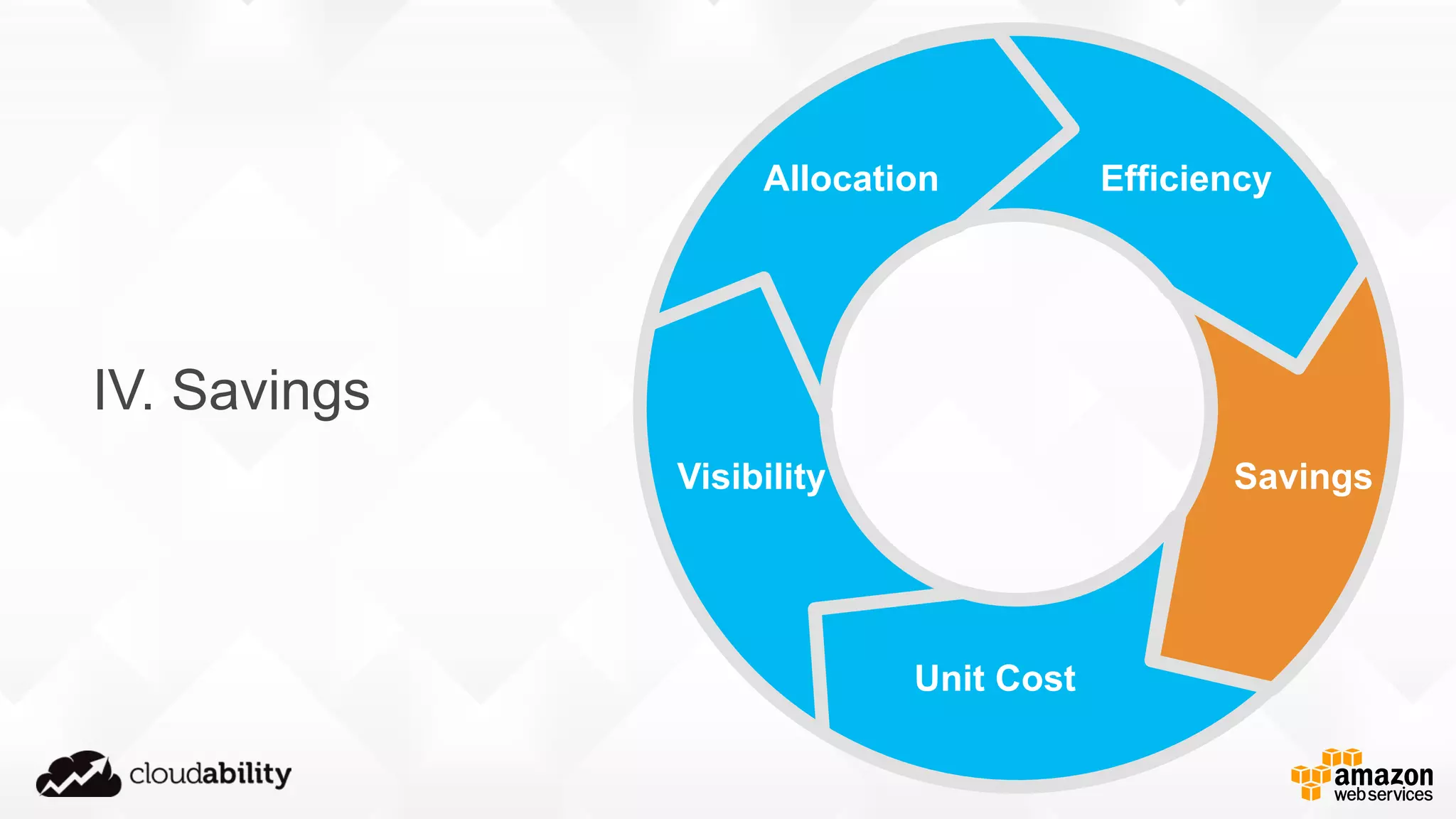

37. Visibility
Allocation Efficiency
Savings
Unit Cost
IV. Savings

38. @cloudability
38
Reserved Instances
“Reservations”require no engineering work,
enabling finance to autonomously reduce costs
by 30-60% over on-demand

39. @cloudability@cloudability

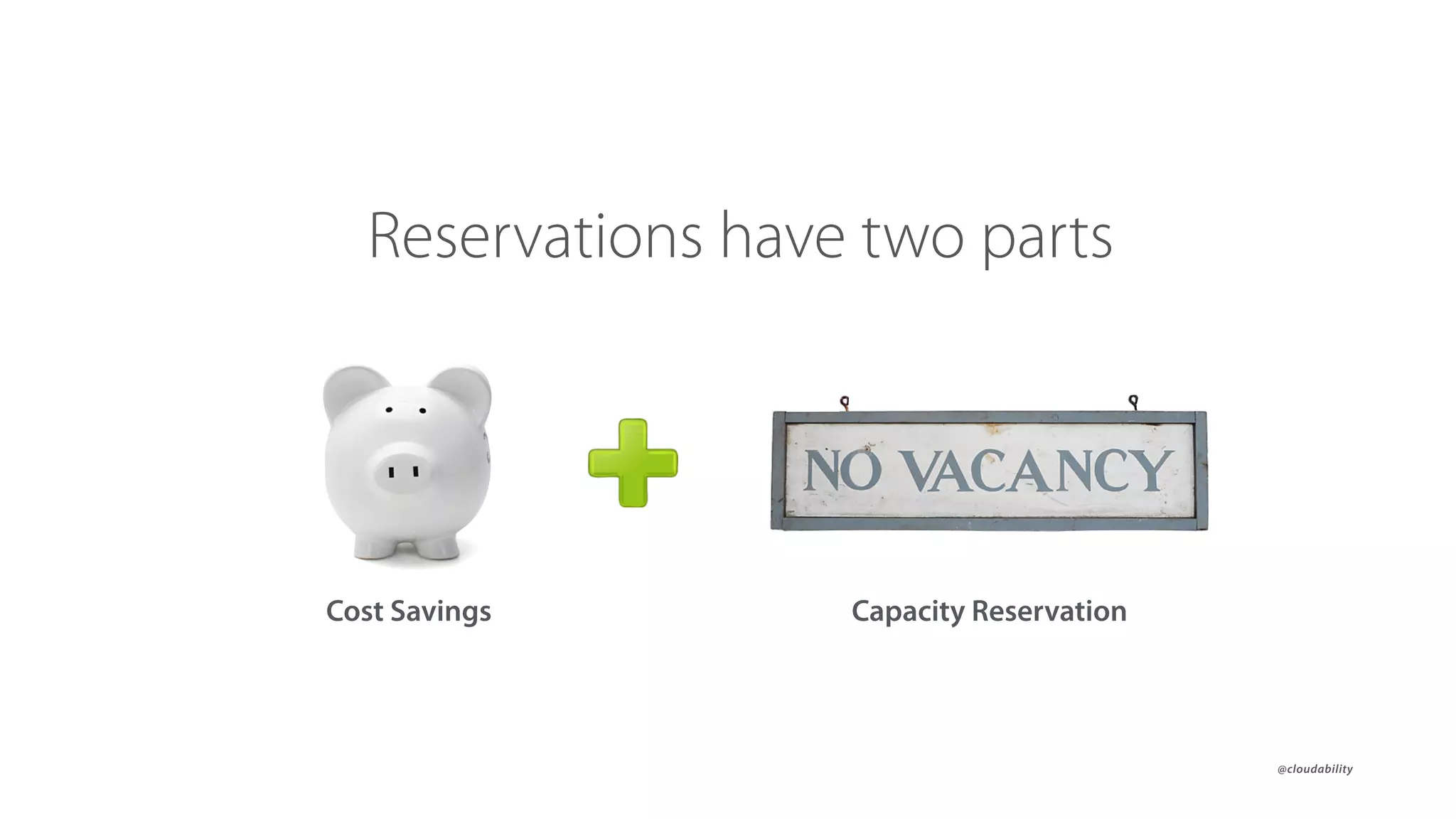

Cost Savings Capacity Reservation
Reservations have two parts

40. @cloudability@cloudability
An RI gives you 744 coupons that can be applied
a relevant instance in any given hour

41. @cloudability

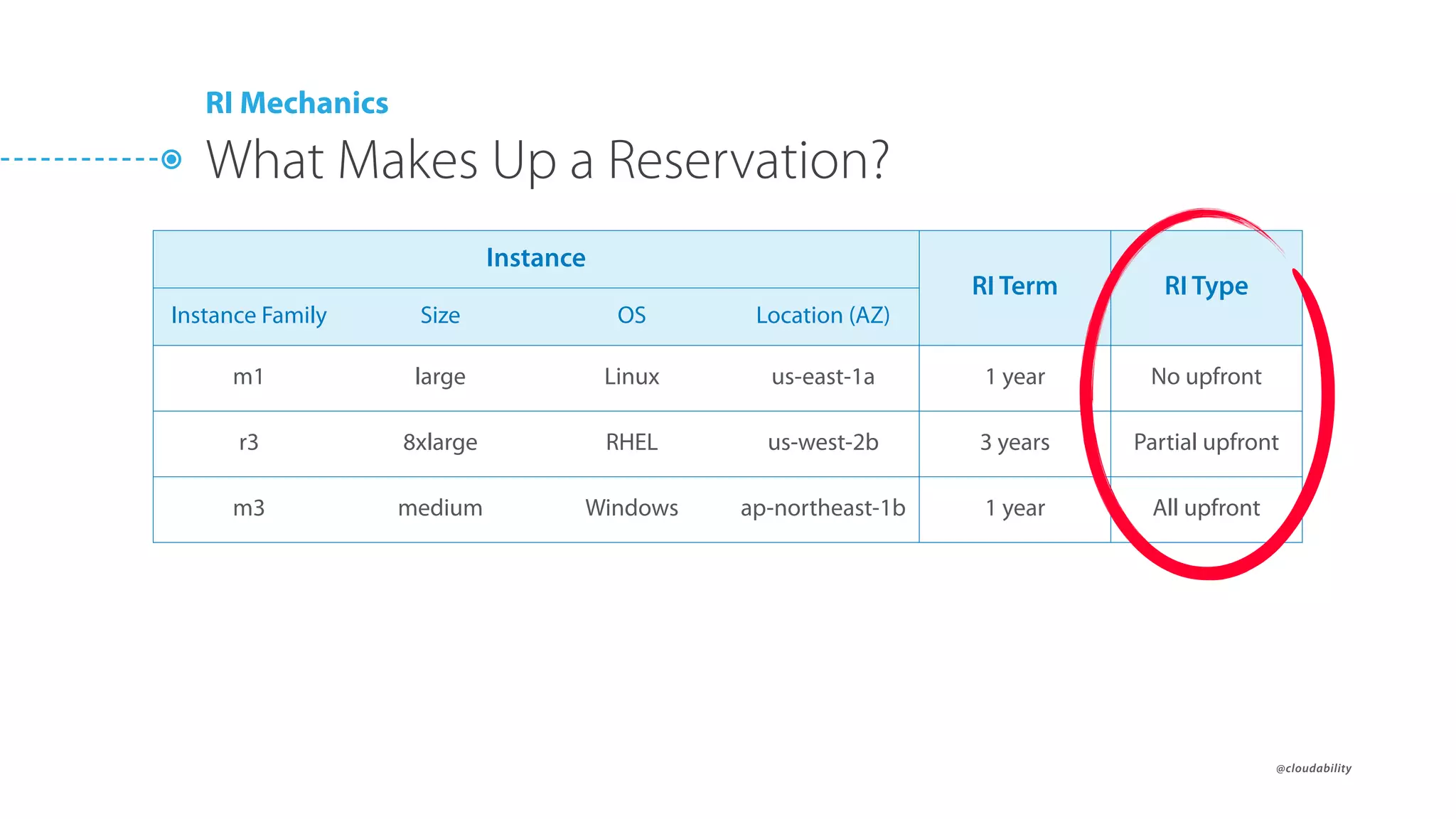

RI Mechanics
What Makes Up a Reservation?
Instance
RI Term RI Type
Instance Family Size OS Location (AZ)
m1 large Linux us-east-1a 1 year No upfront
r3 8xlarge RHEL us-west-2b 3 years Partial upfront
m3 medium Windows ap-northeast-1b 1 year All upfront

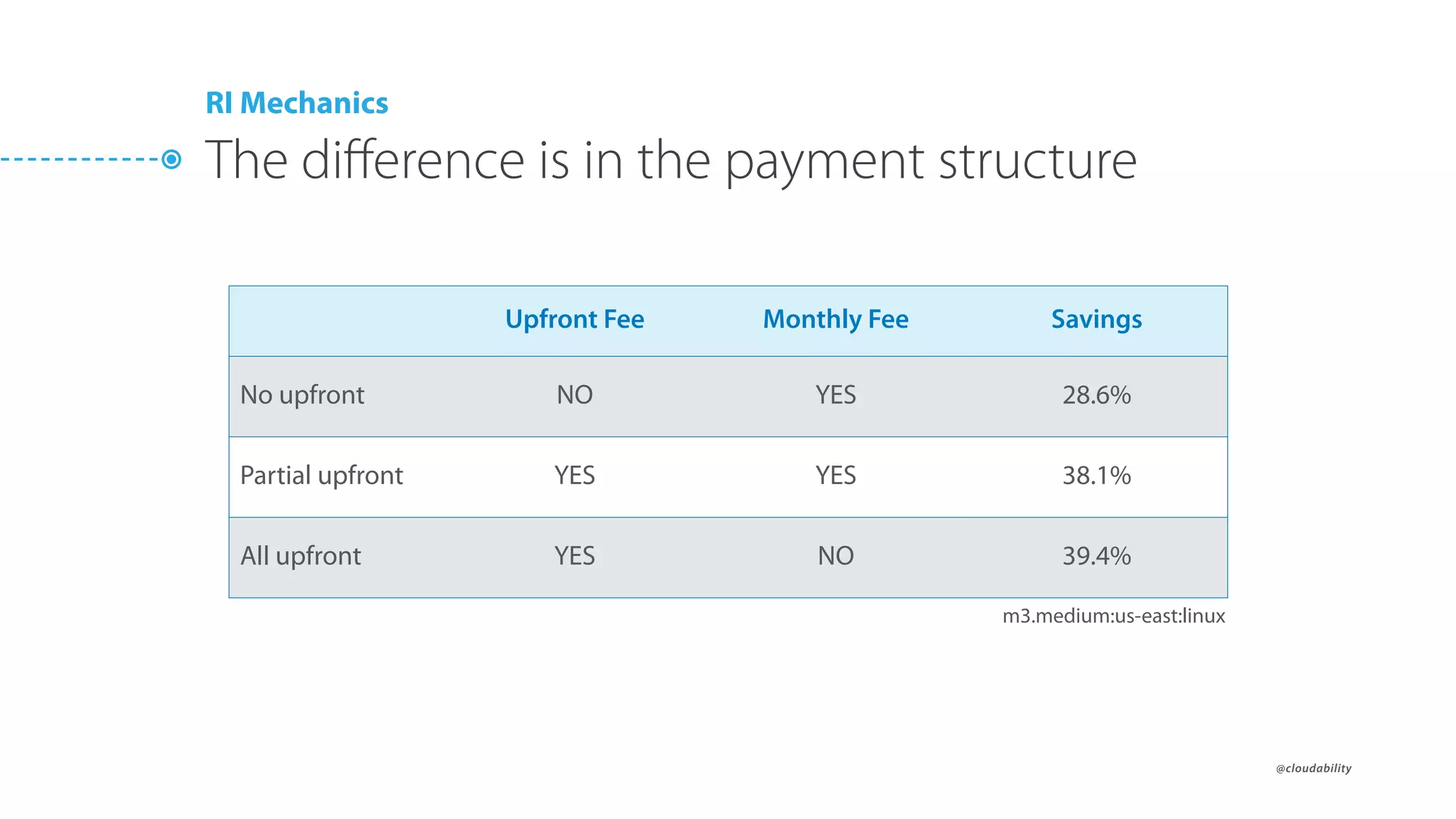

42. @cloudability
RI Mechanics
The difference is in the payment structure
Upfront Fee Monthly Fee Savings
No upfront NO YES 28.6%
Partial upfront YES YES 38.1%
All upfront YES NO 39.4%
m3.medium:us-east:linux

43. @cloudability@cloudability

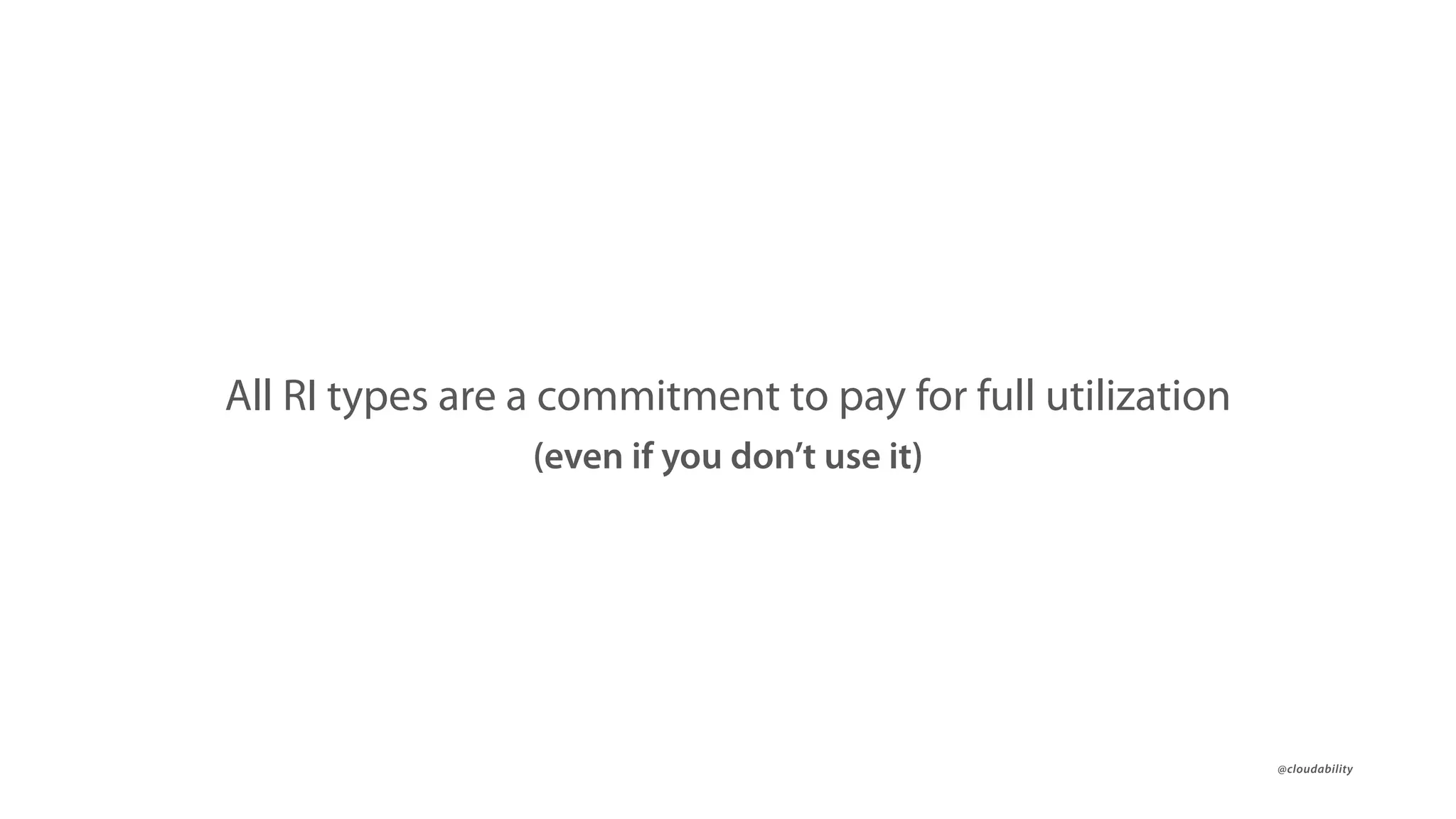

All RI types are a commitment to pay for full utilization
(even if you don’t use it)

44. Reservations Infrastructure

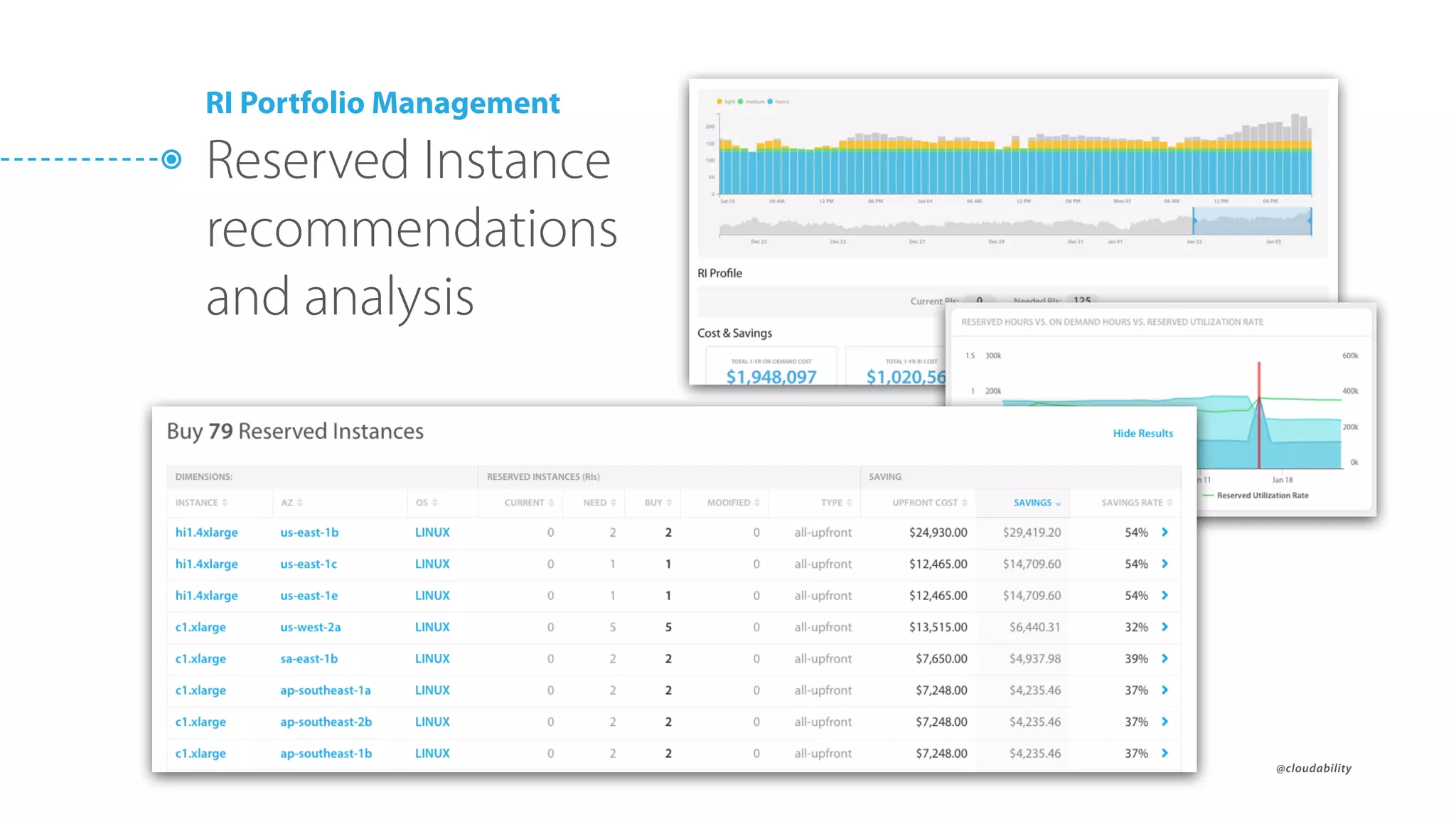

45. @cloudability
RI Portfolio Management
Reserved Instance
recommendations
and analysis

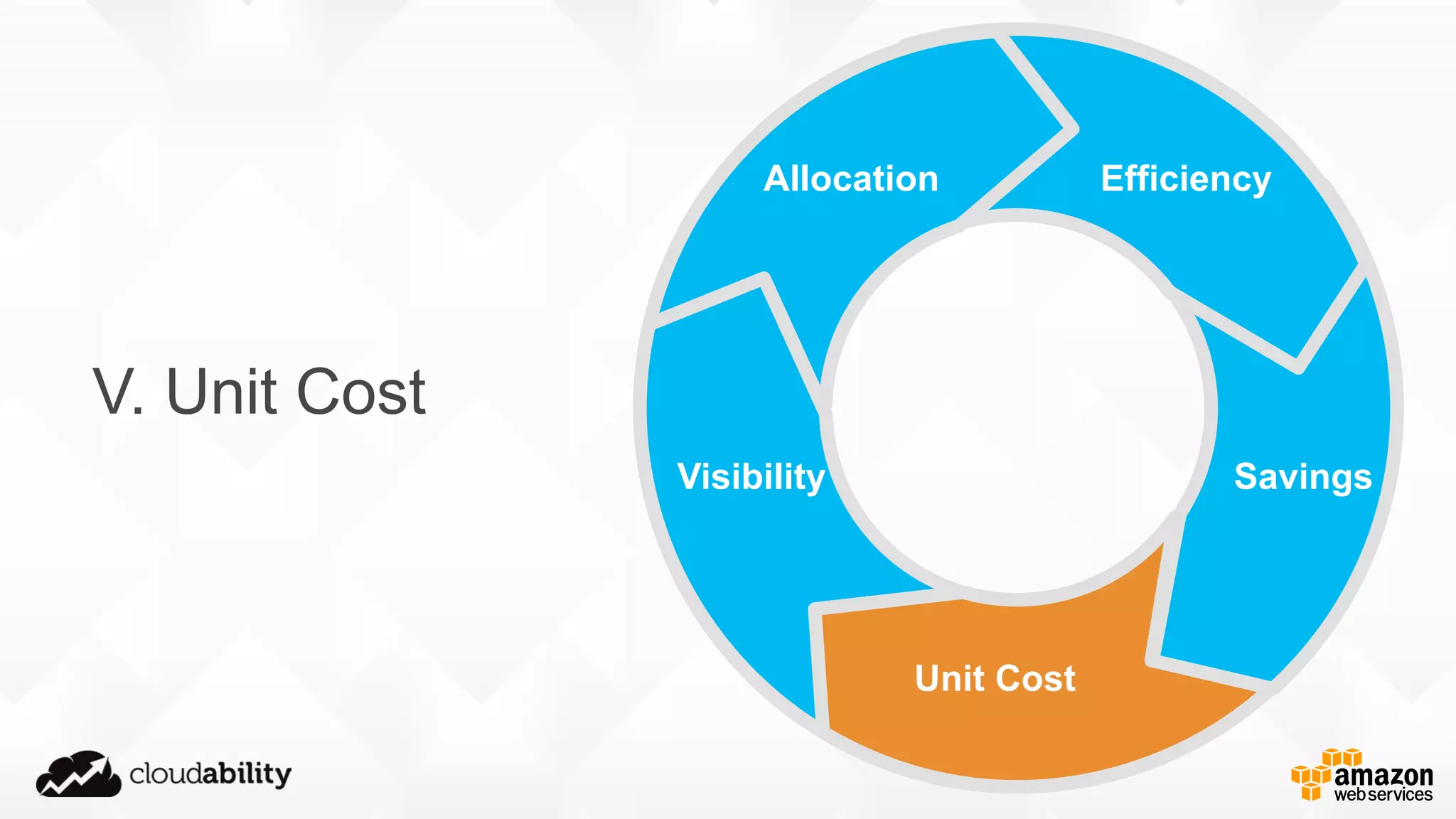

46. Visibility
Allocation Efficiency
Savings
Unit Cost
V. Unit Cost

47. Why does unit cost matter?
0
45
90
135
180
Dev/Test
POC
App#1
App#3
App#2
Exec team starts
really caring
Hiccup

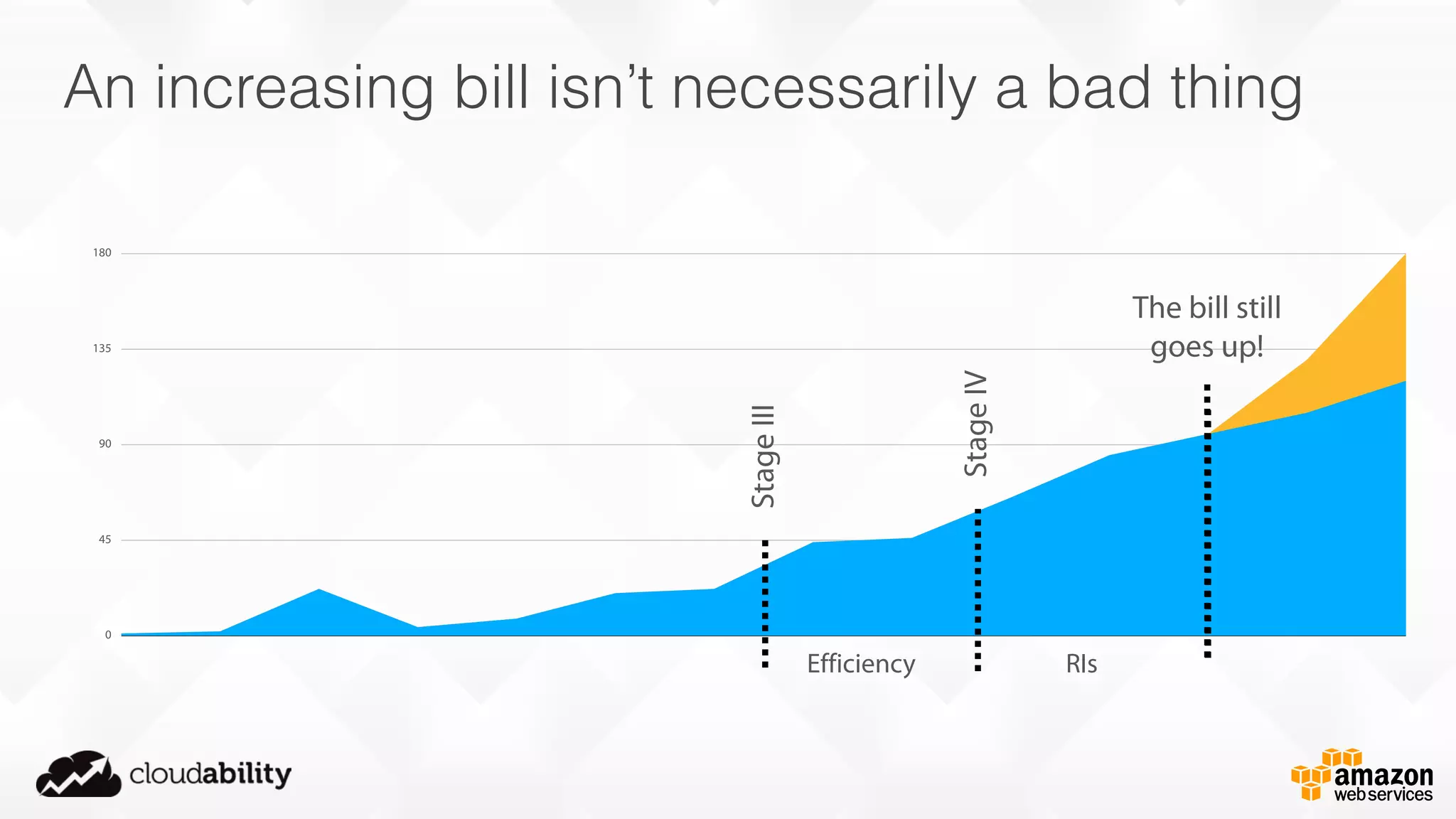

48. An increasing bill isn’t necessarily a bad thing
0
45
90
135
180
The bill still
goes up!
StageIII
Efficiency
StageIV
RIs

49. Unit cost is
cost per X

50. cost per subscriber
cost per pageview
cost per customer
cost per API call

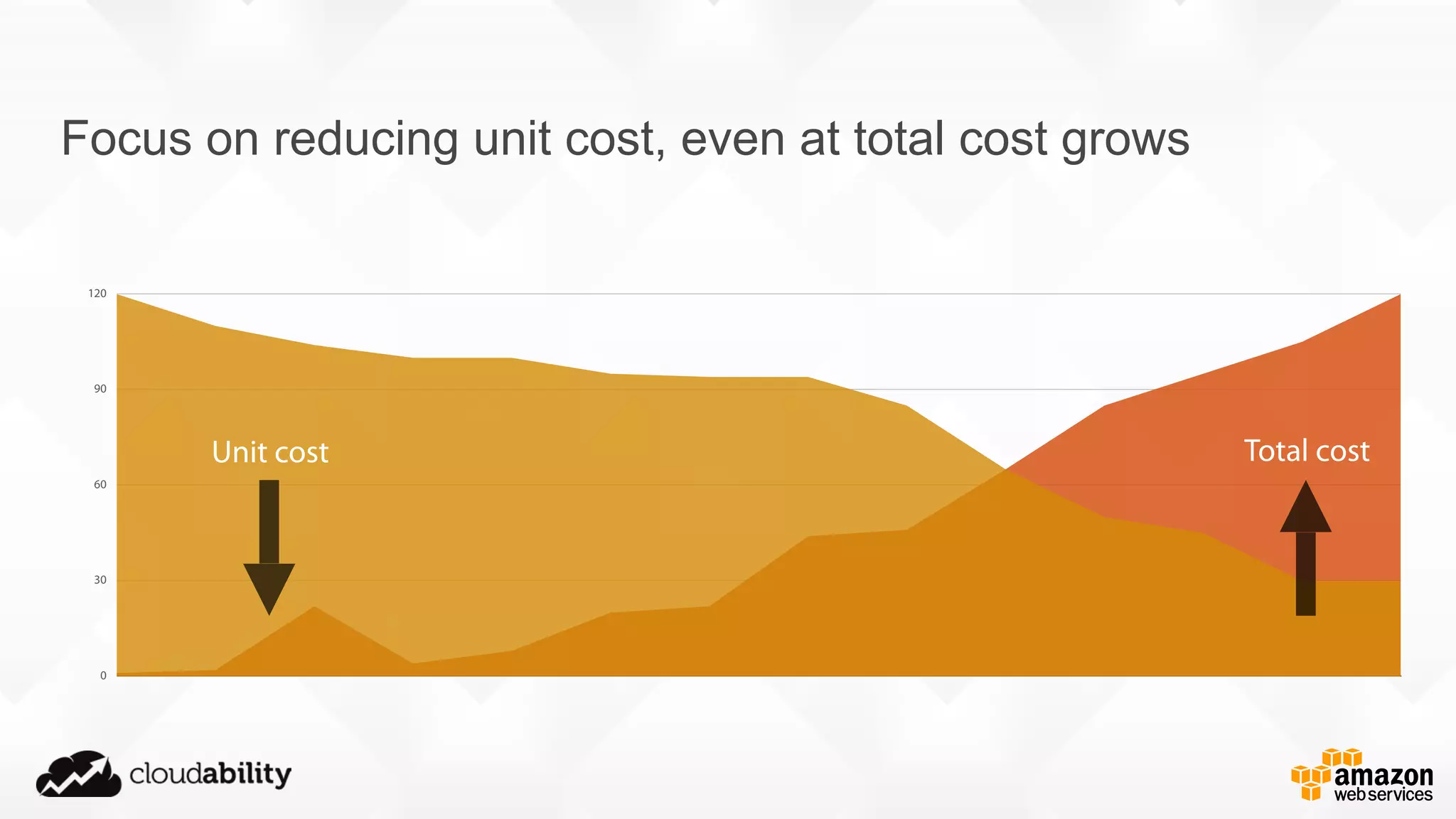

51. Focus on reducing unit cost, even at total cost grows
0
30
60
90
120
Unit cost Total cost

52. Unit cost =
total cost / business metric

53. $1000 / 1000 customers =
$1 unit cost

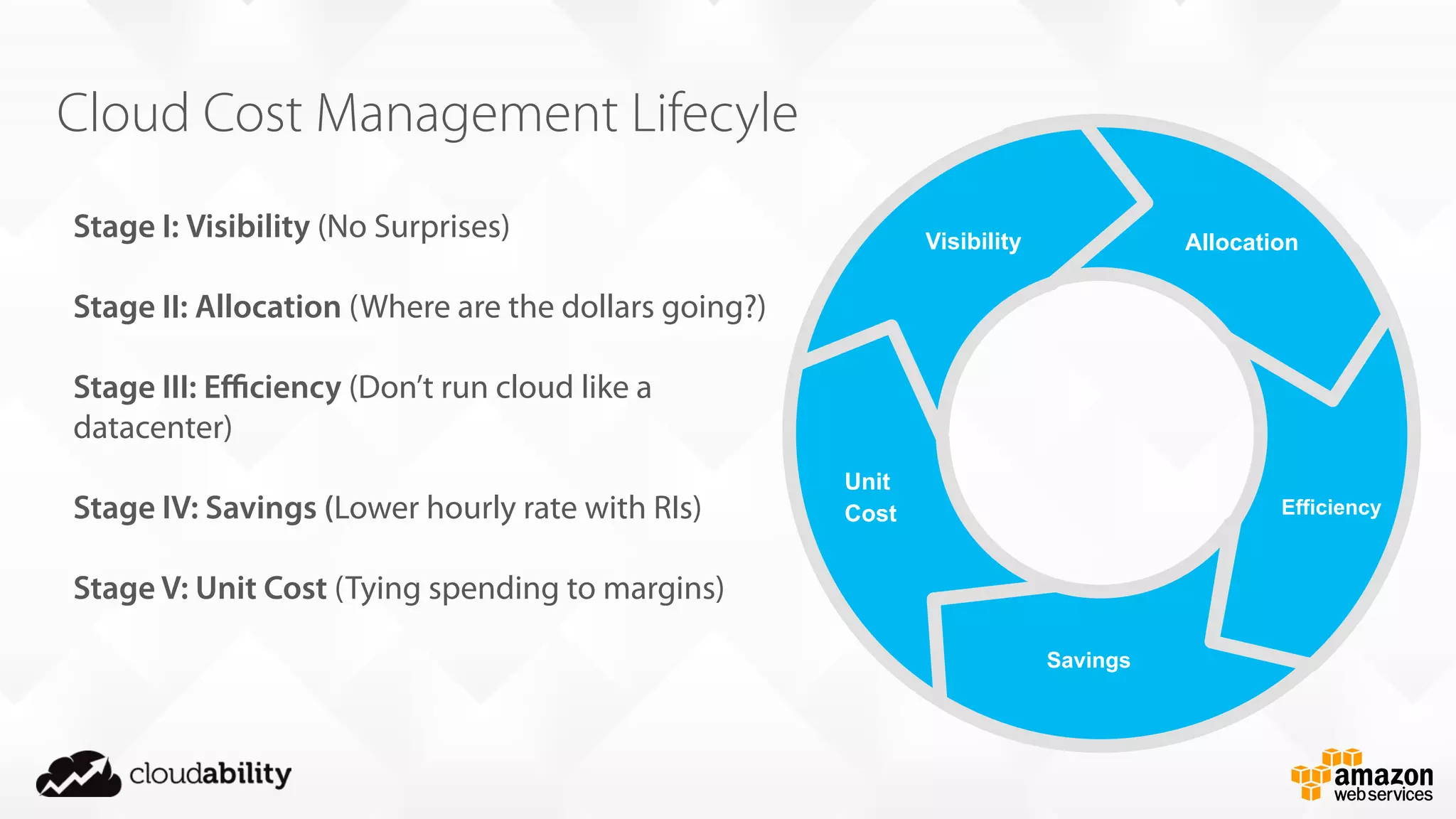

54. Visibility Allocation
Efficiency
Savings
Unit
Cost
Cloud Cost Management Lifecyle
Stage I: Visibility (No Surprises)
Stage II: Allocation (Where are the dollars going?)
Stage III: Efficiency (Don’t run cloud like a
datacenter)
Stage IV: Savings (Lower hourly rate with RIs)
Stage V: Unit Cost (Tying spending to margins)

55. ๏ @cloudability
The Road Ahead
55
1) AWS data is complex. Get your hands on your DBR file to start understanding what’s in it.
2) Tagging is hard. Sit down with key stakeholders and agree a basic taxonomy (3-5 required tags),
consider linked accounts for most important items.
3) Instances are easy to spin up. Start sharing reports of underutilized instances to spark a
conversation about potential waste.
4) RIs are frequently misunderstood. Educate yourself then make a small, uncontroversial purchase.
Buy, Measure, Learn each month.
5) The bill going up may not be a bad thing. Start setting expectations with your team that more apps
& more traffic mean more dollars. That may be OK in the context of margins.
Things to remember (and do) after this webinar
