Managing user's data with Spring Session

Managing user’s data with
Spring Session
David Gómez G.
@dgomezg

@dgomezg
Agenda
• Session Data: State of the art
• Spring-‐Session: Motivations & Goals
• Out of the box integration with Redis
• Use Cases
• Change persistent store
• Multiple user login handling
• Adding session to RESTful APIs

@dgomezg

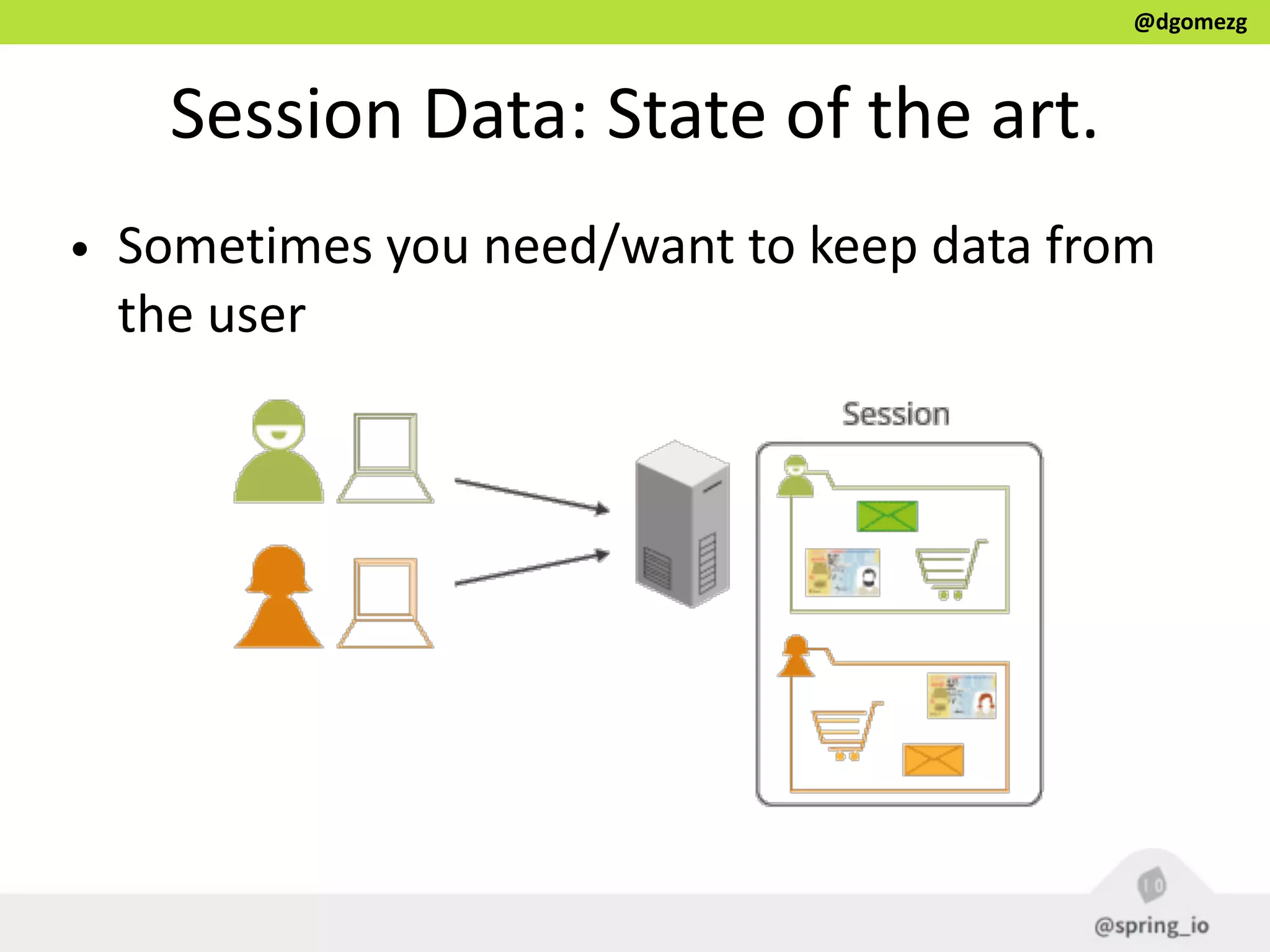

Session Data: State of the art.
• Sometimes you need/want to keep data from
the user

@dgomezg

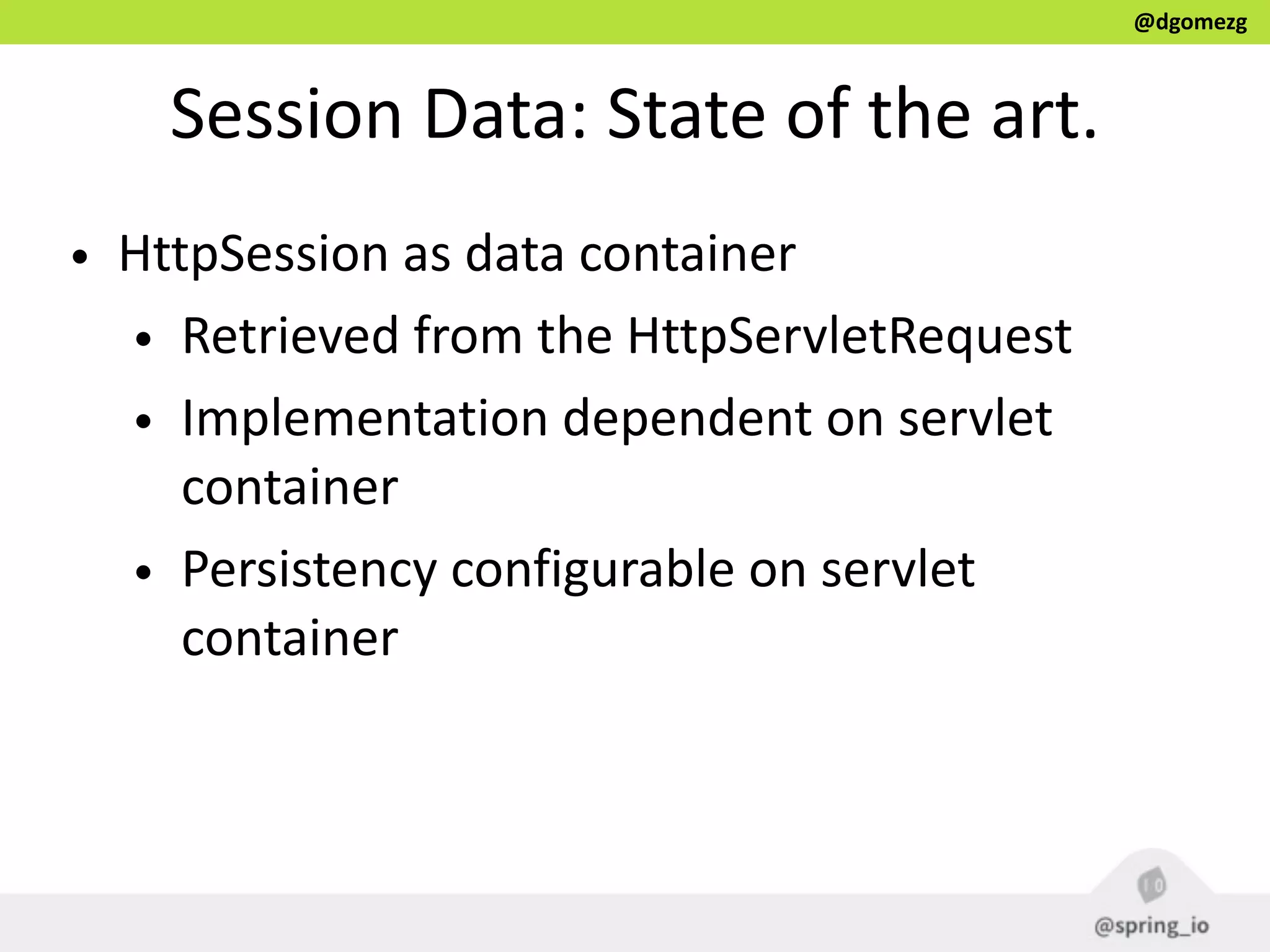

Session Data: State of the art.
• HttpSession as data container
• Retrieved from the HttpServletRequest
• Implementation dependent on servlet
container
• Persistency configurable on servlet
container

@dgomezg

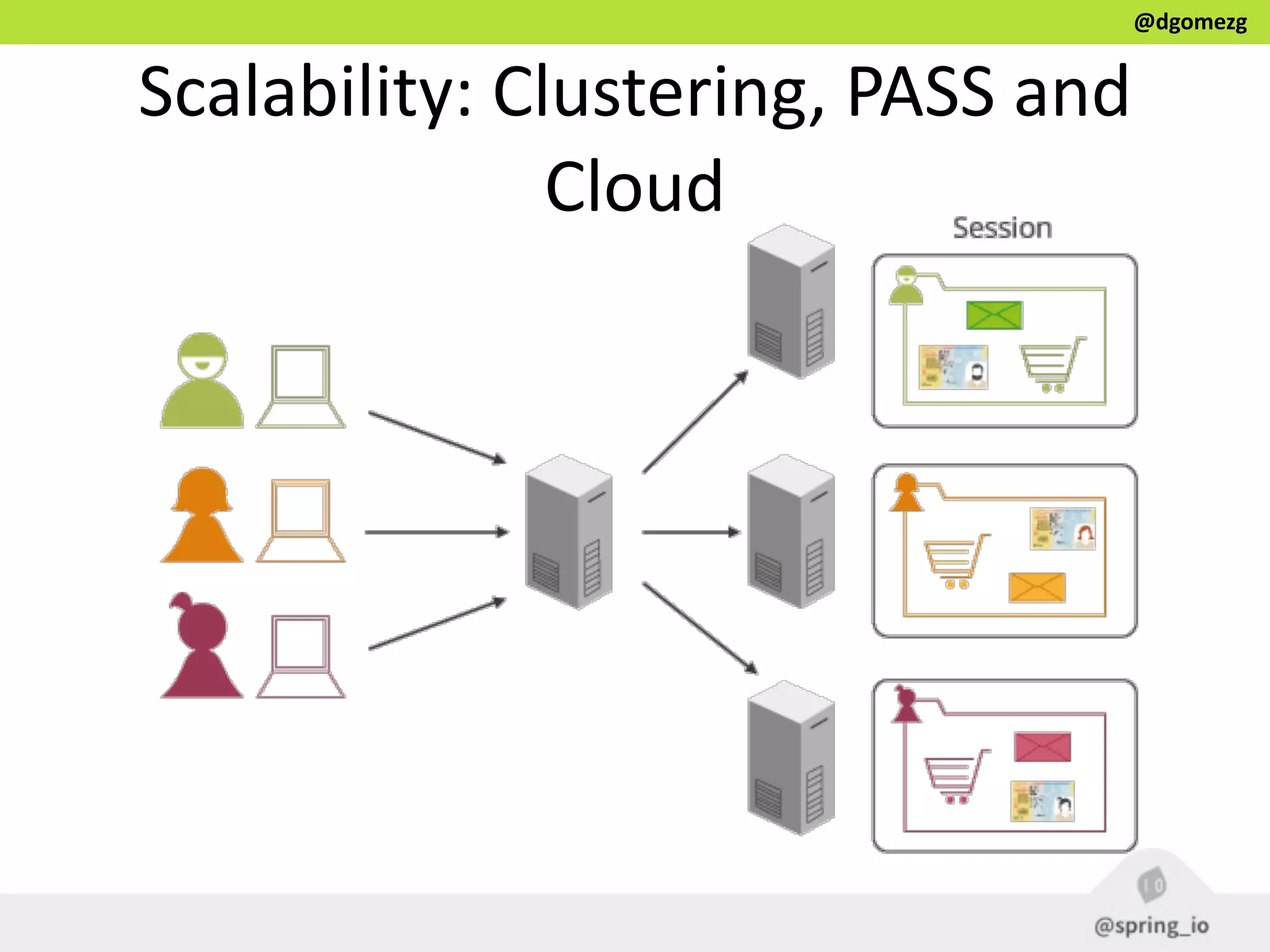

Scalability: Clustering, PASS and
Cloud

@dgomezg

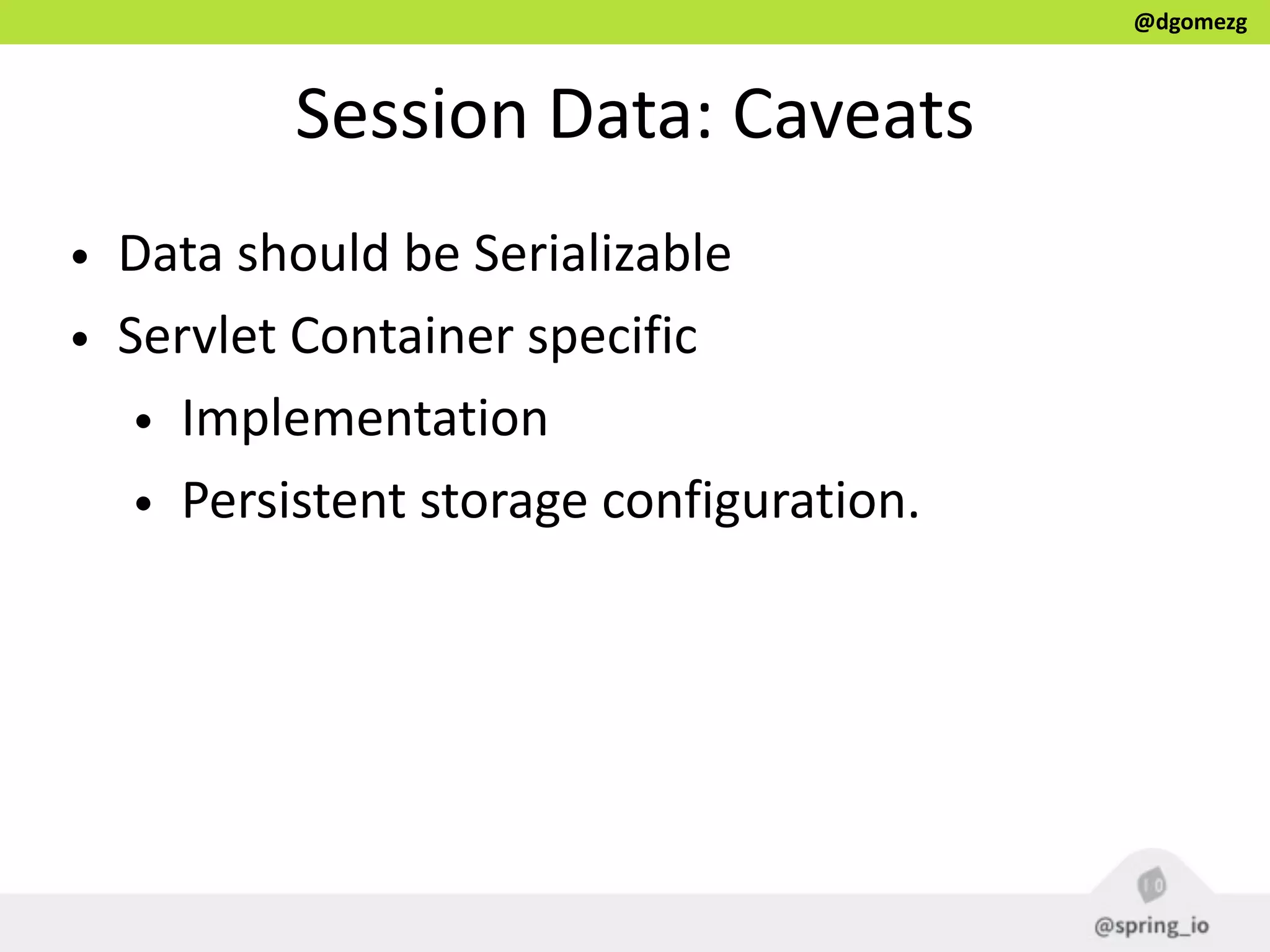

Session Data: Caveats
• Data should be Serializable
• Servlet Container specific
• Implementation
• Persistent storage configuration.

@dgomezg

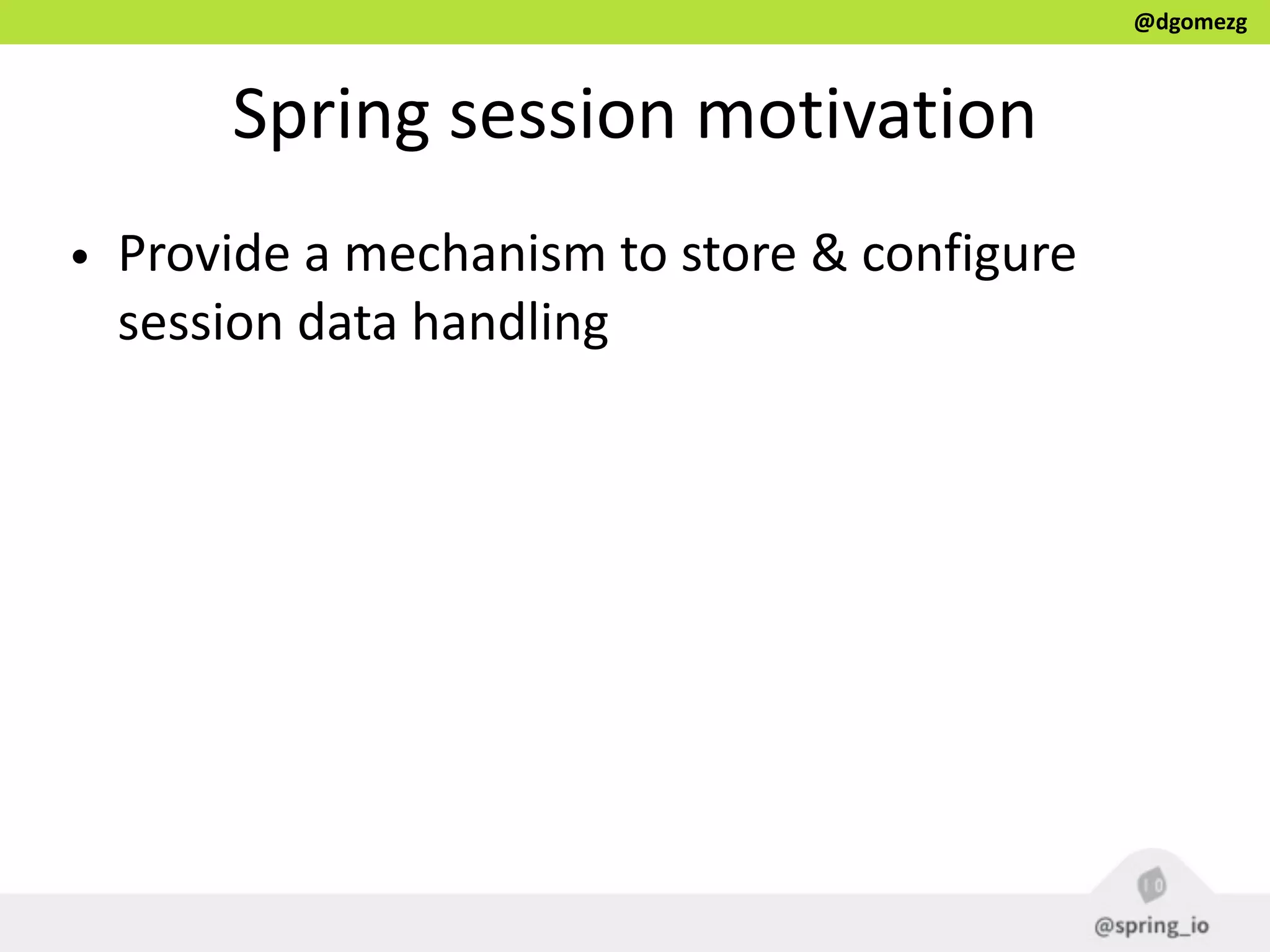

Spring session motivation
• Provide a mechanism to store & configure
session data handling

@dgomezg

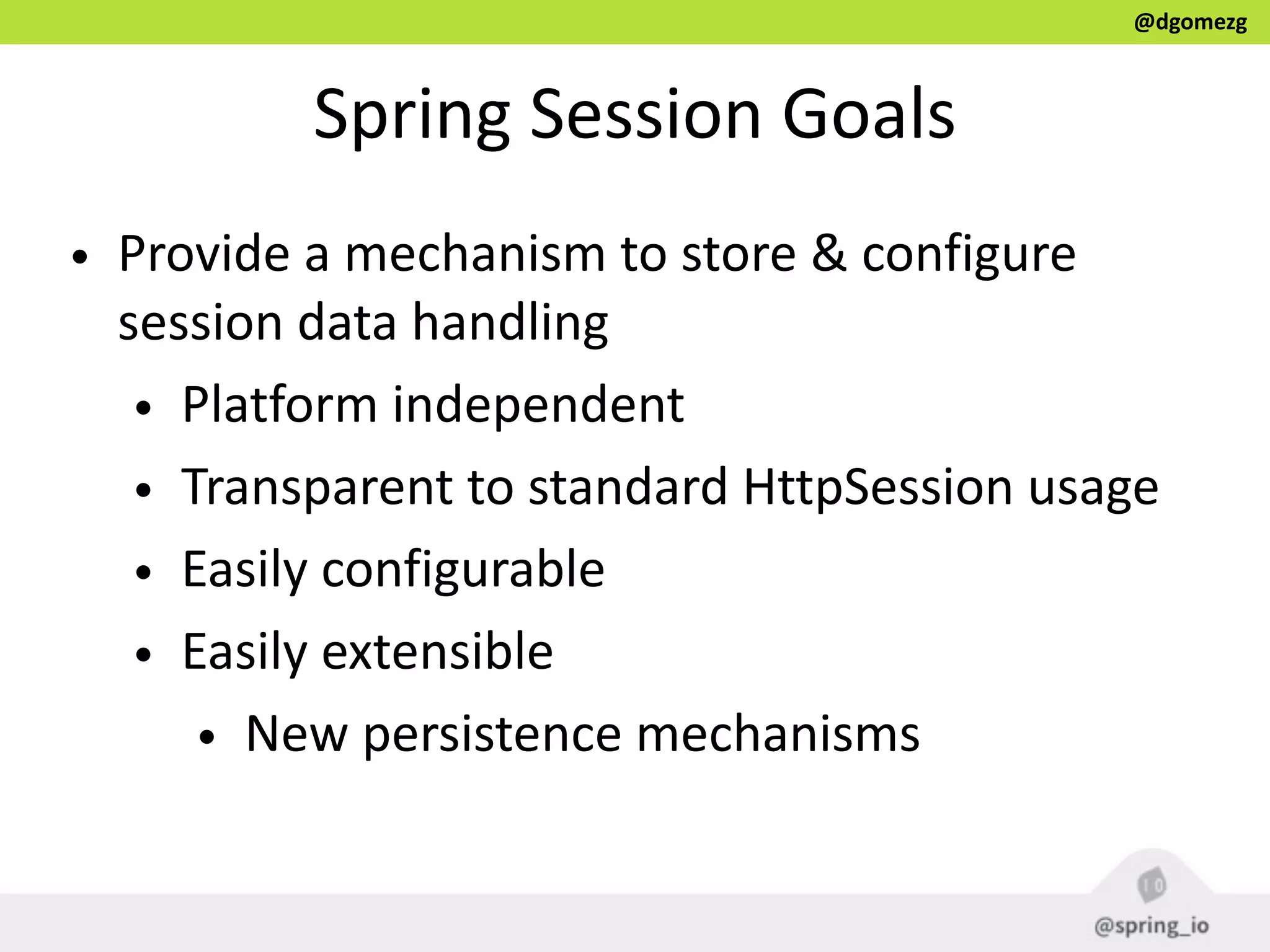

Spring Session Goals
• Provide a mechanism to store & configure
session data handling
• Platform independent
• Transparent to standard HttpSession usage
• Easily configurable
• Easily extensible
• New persistence mechanisms

@dgomezg
INTRODUCING
SPRING SESSION
9

@dgomezg

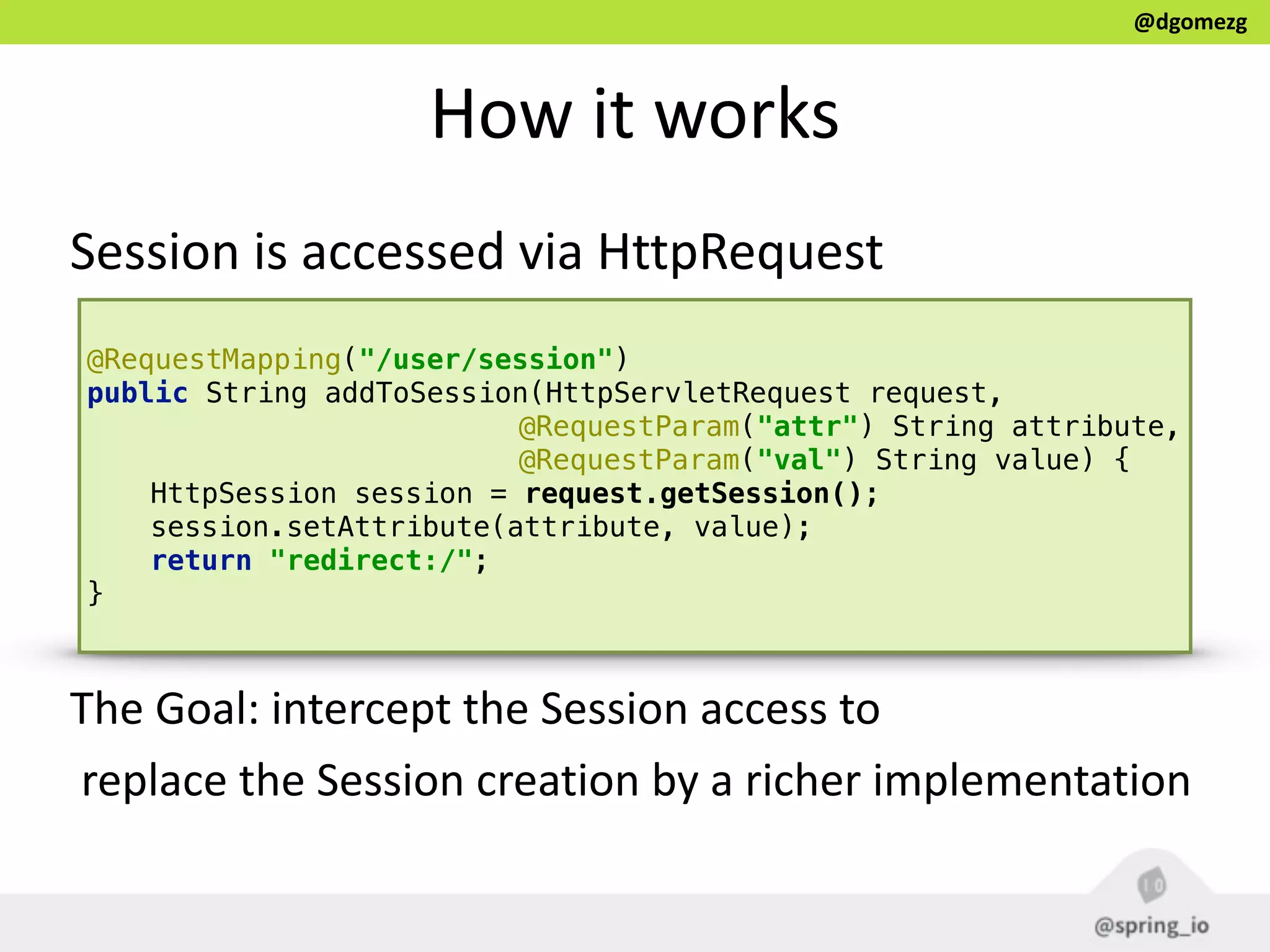

How it works
Session is accessed via HttpRequest
@RequestMapping("/user/session") 
public String addToSession(HttpServletRequest request, 
@RequestParam("attr") String attribute, 
@RequestParam("val") String value) { 
HttpSession session = request.getSession(); 
session.setAttribute(attribute, value); 
return "redirect:/"; 
}
The Goal: intercept the Session access to
replace the Session creation by a richer implementation

@dgomezg

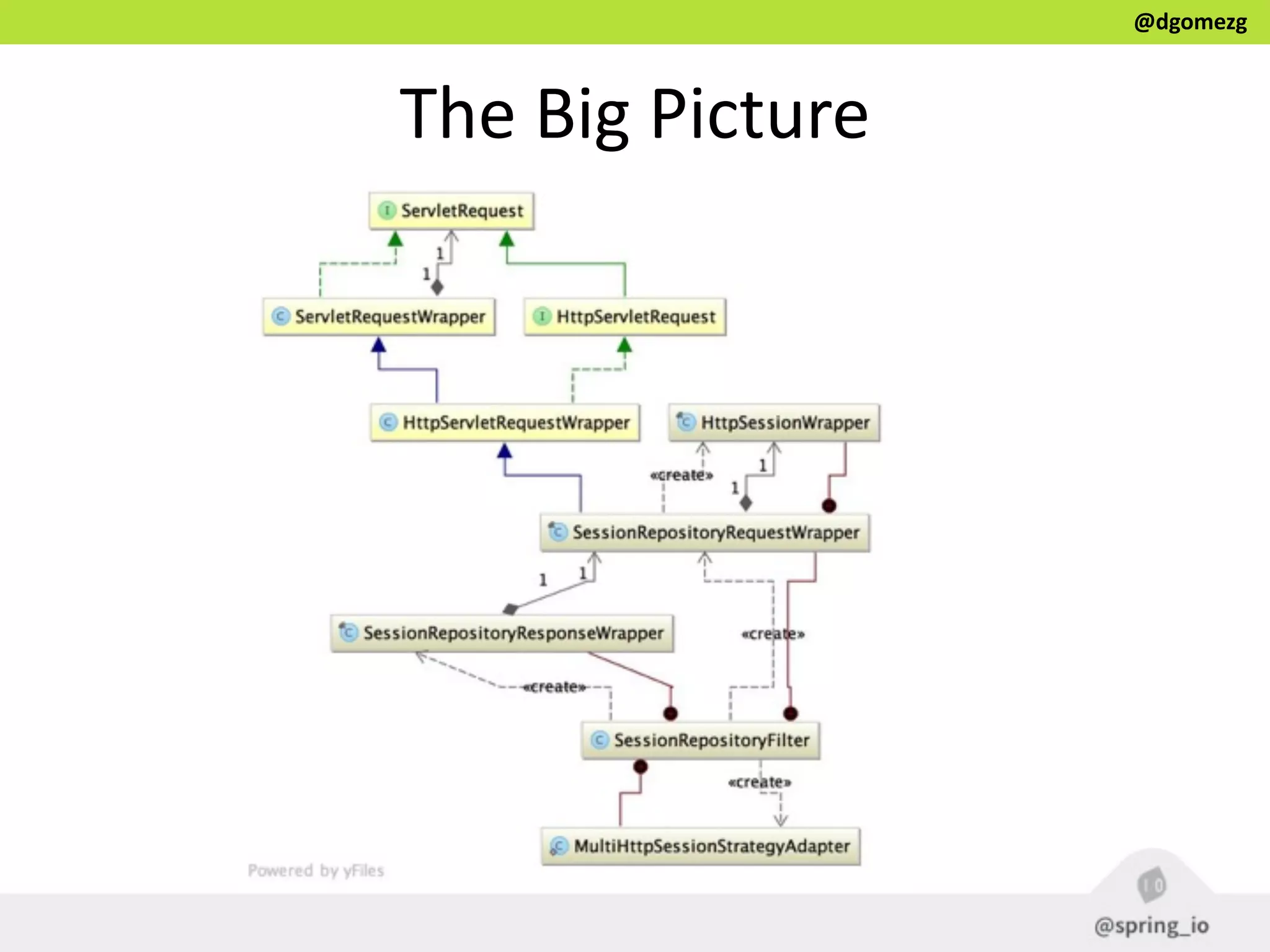

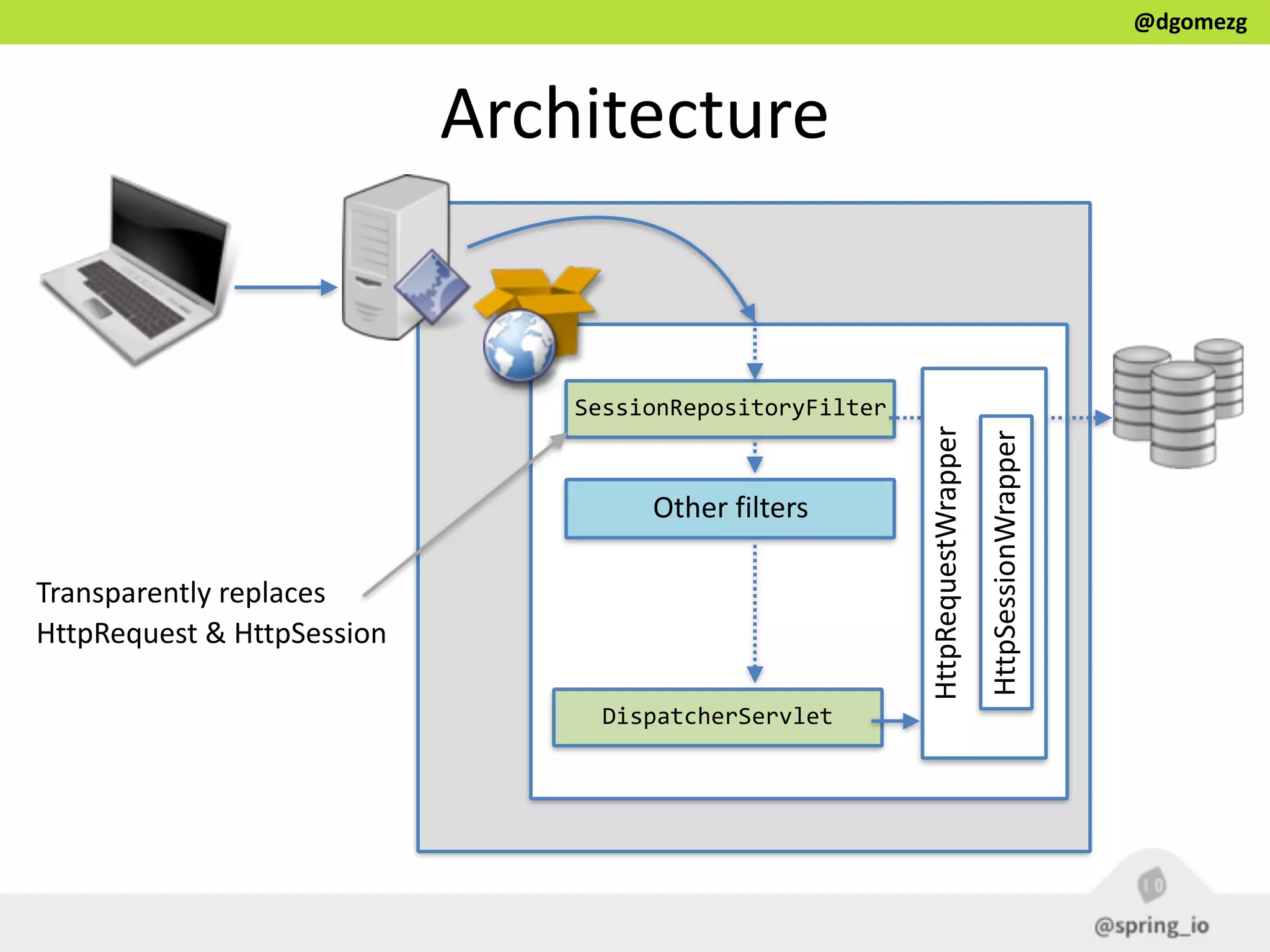

Architecture
SessionRepositoryFilter
Other filters
DispatcherServlet
HttpRequestWrapper
HttpSessionWrapper
Transparently replaces
HttpRequest & HttpSession

@dgomezg

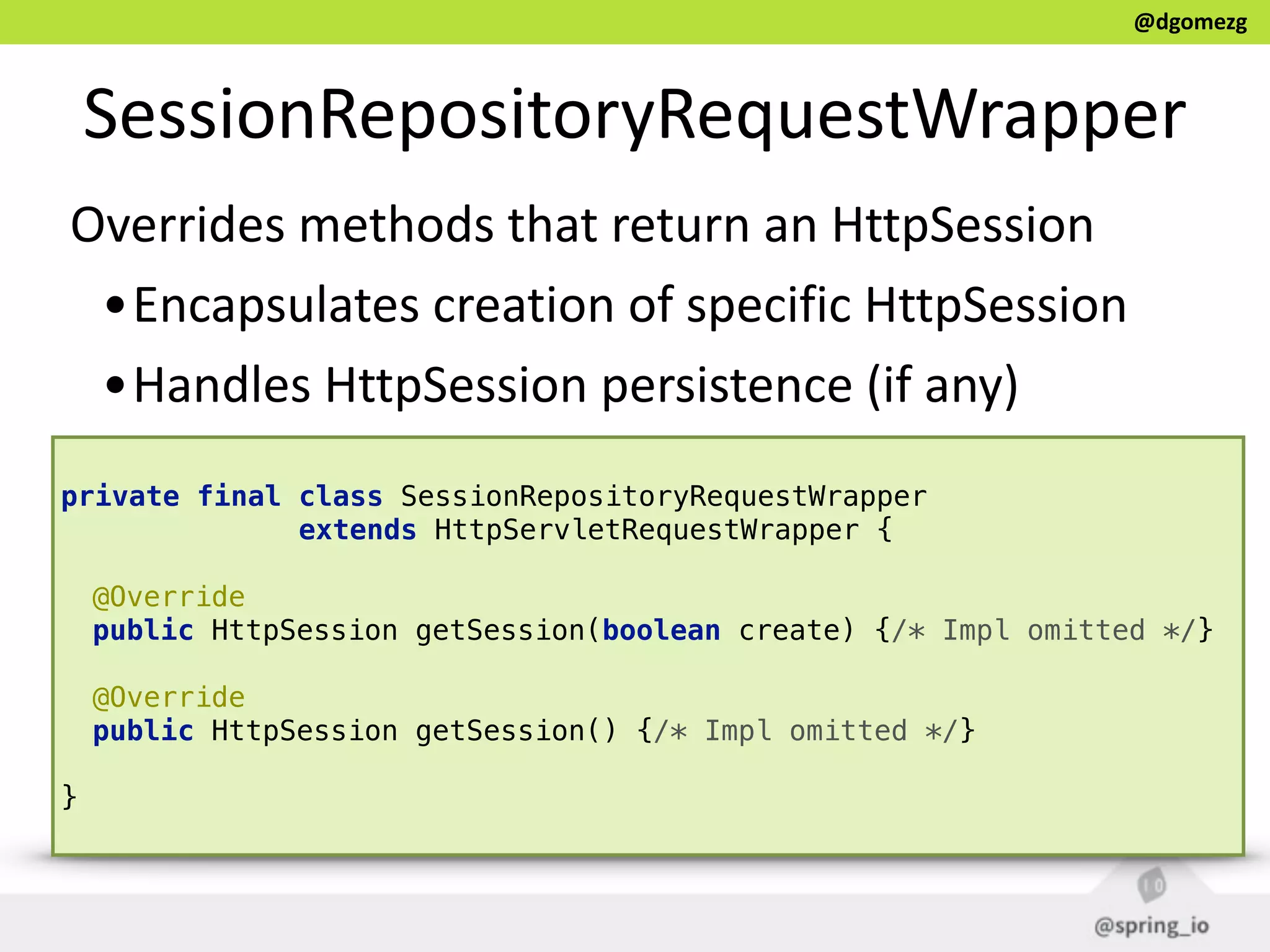

SessionRepositoryRequestWrapper
Overrides methods that return an HttpSession
•Encapsulates creation of specific HttpSession
•Handles HttpSession persistence (if any)
private final class SessionRepositoryRequestWrapper
extends HttpServletRequestWrapper {
@Override 
public HttpSession getSession(boolean create) {/* Impl omitted */} 
 
@Override 
public HttpSession getSession() {/* Impl omitted */} 
}

@dgomezg

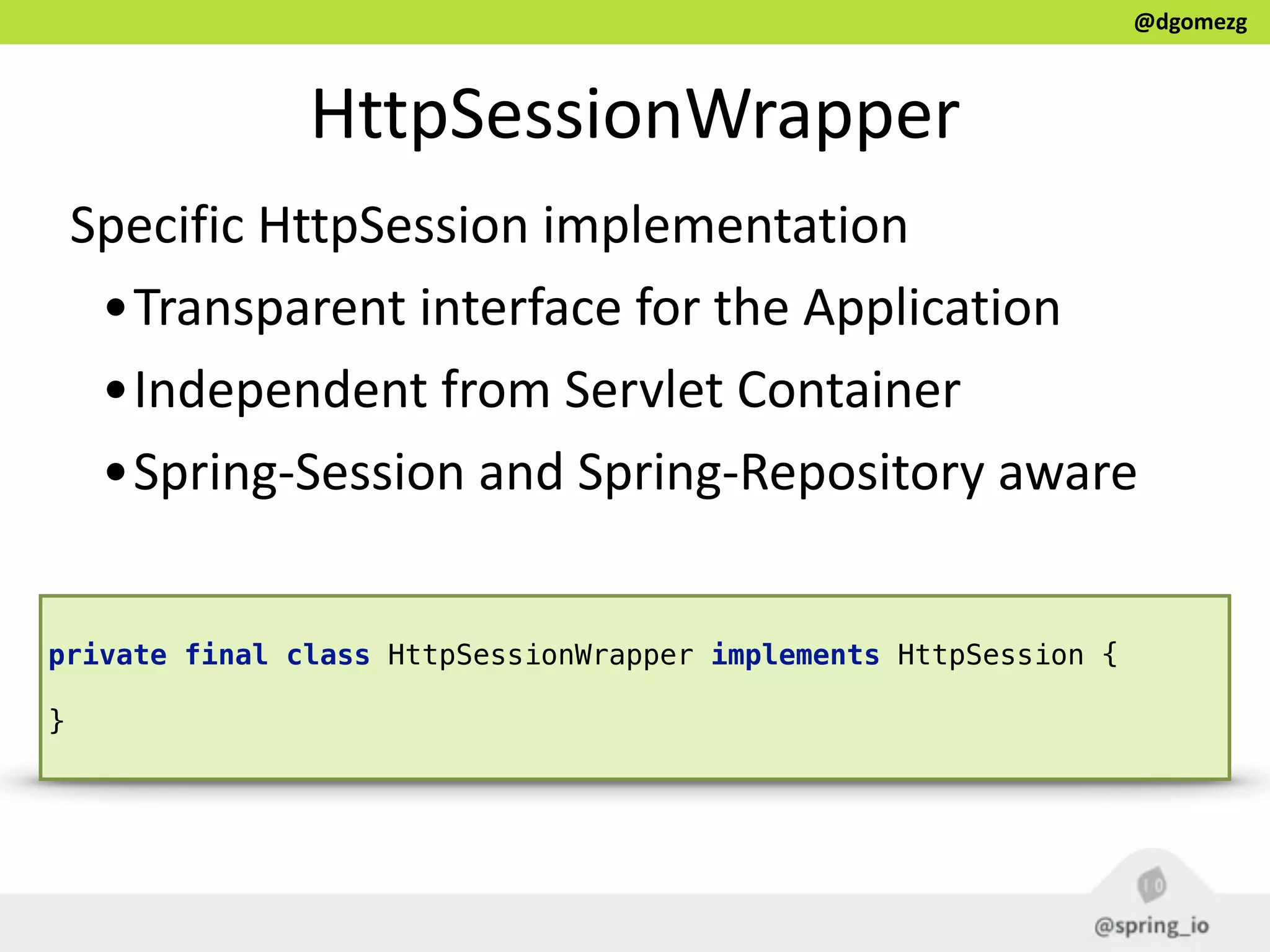

HttpSessionWrapper
Specific HttpSession implementation
•Transparent interface for the Application
•Independent from Servlet Container
•Spring-‐Session and Spring-‐Repository aware
private final class HttpSessionWrapper implements HttpSession { 
}

@dgomezg

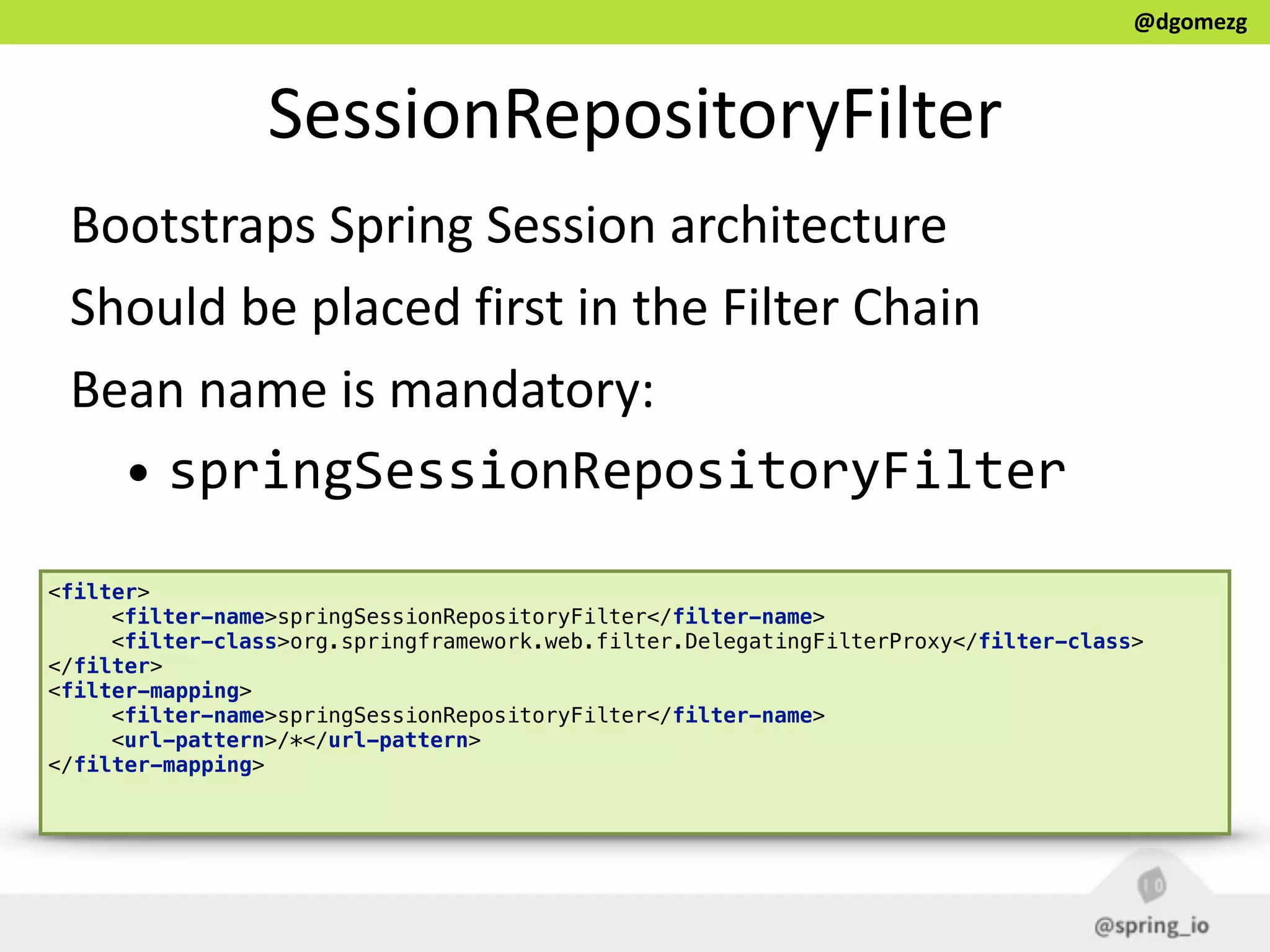

Bootstraps Spring Session architecture
Should be placed first in the Filter Chain
Bean name is mandatory:
• springSessionRepositoryFilter
<filter> 
<filter-name>springSessionRepositoryFilter</filter-name> 
<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class> 
</filter> 
<filter-mapping> 
<filter-name>springSessionRepositoryFilter</filter-name> 
<url-pattern>/*</url-pattern> 
</filter-mapping>

@dgomezg

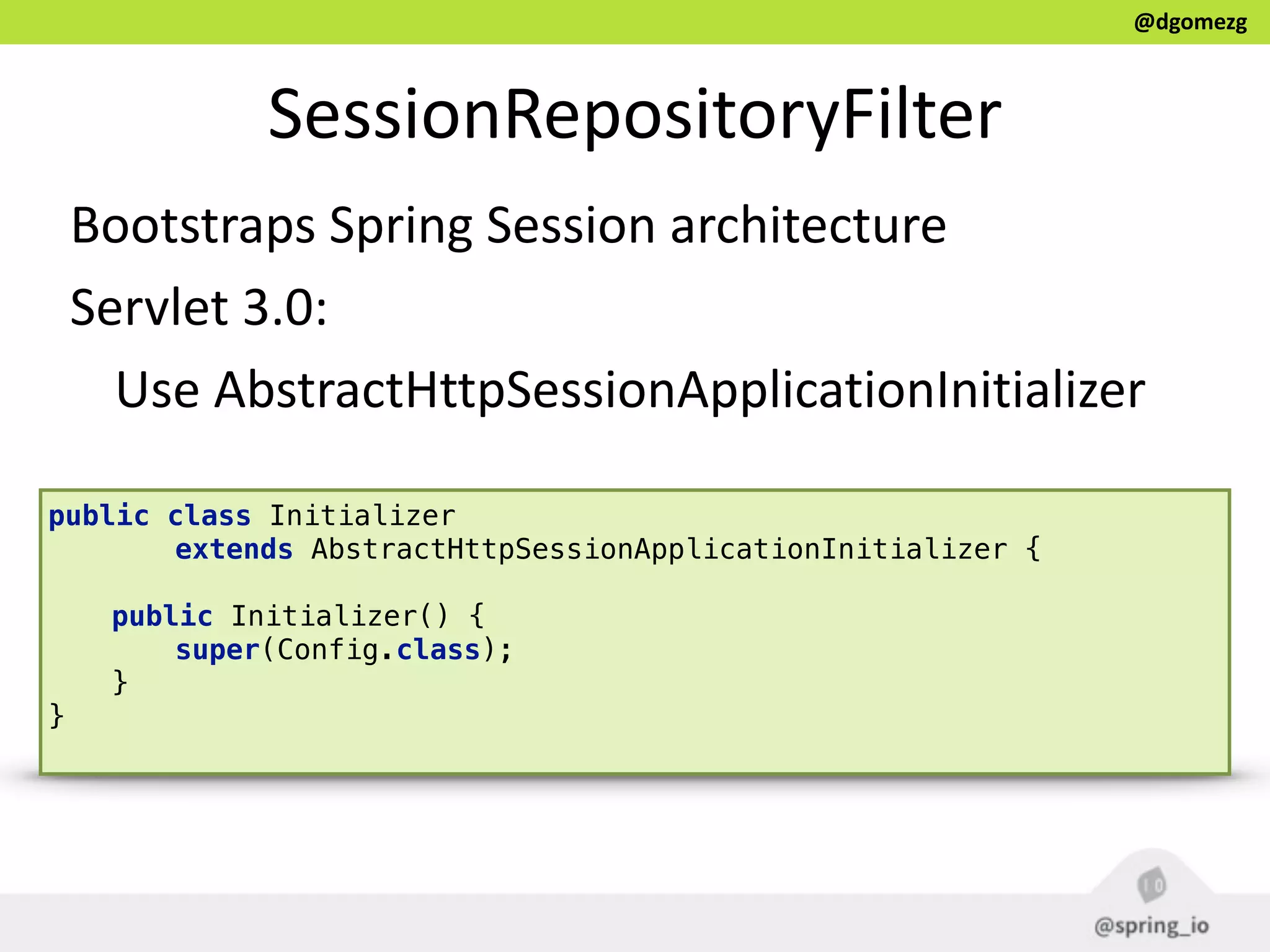

Bootstraps Spring Session architecture
Servlet 3.0:
Use AbstractHttpSessionApplicationInitializer
public class Initializer 
extends AbstractHttpSessionApplicationInitializer { 
 
public Initializer() { 
super(Config.class); 
} 
}

@dgomezg
USING SPRING SESSION IN YOUR
APPLICATION
17

@dgomezg

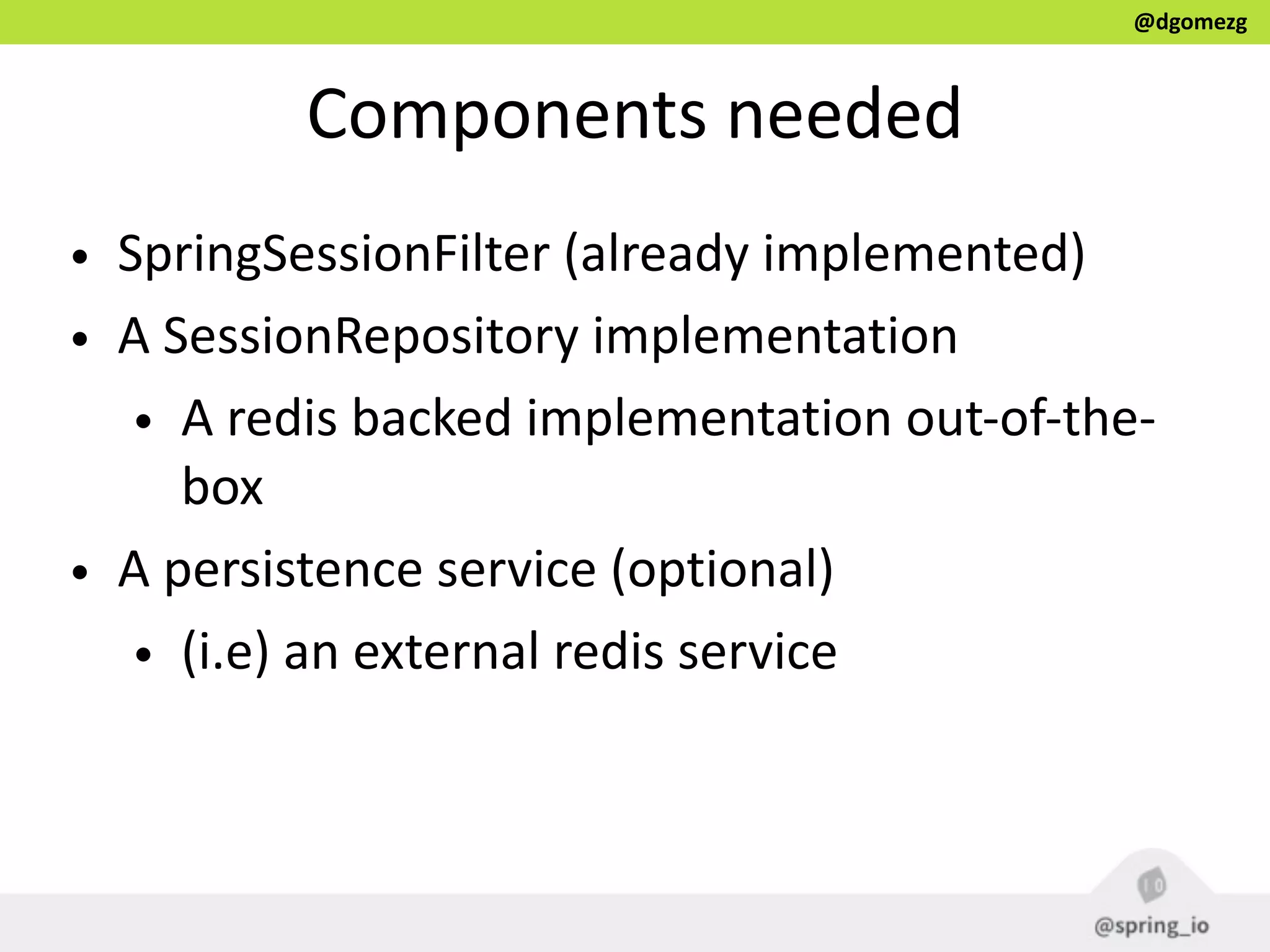

Components needed
• SpringSessionFilter (already implemented)
• A SessionRepository implementation
• A redis backed implementation out-‐of-‐the-‐
box
• A persistence service (optional)
• (i.e) an external redis service

@dgomezg

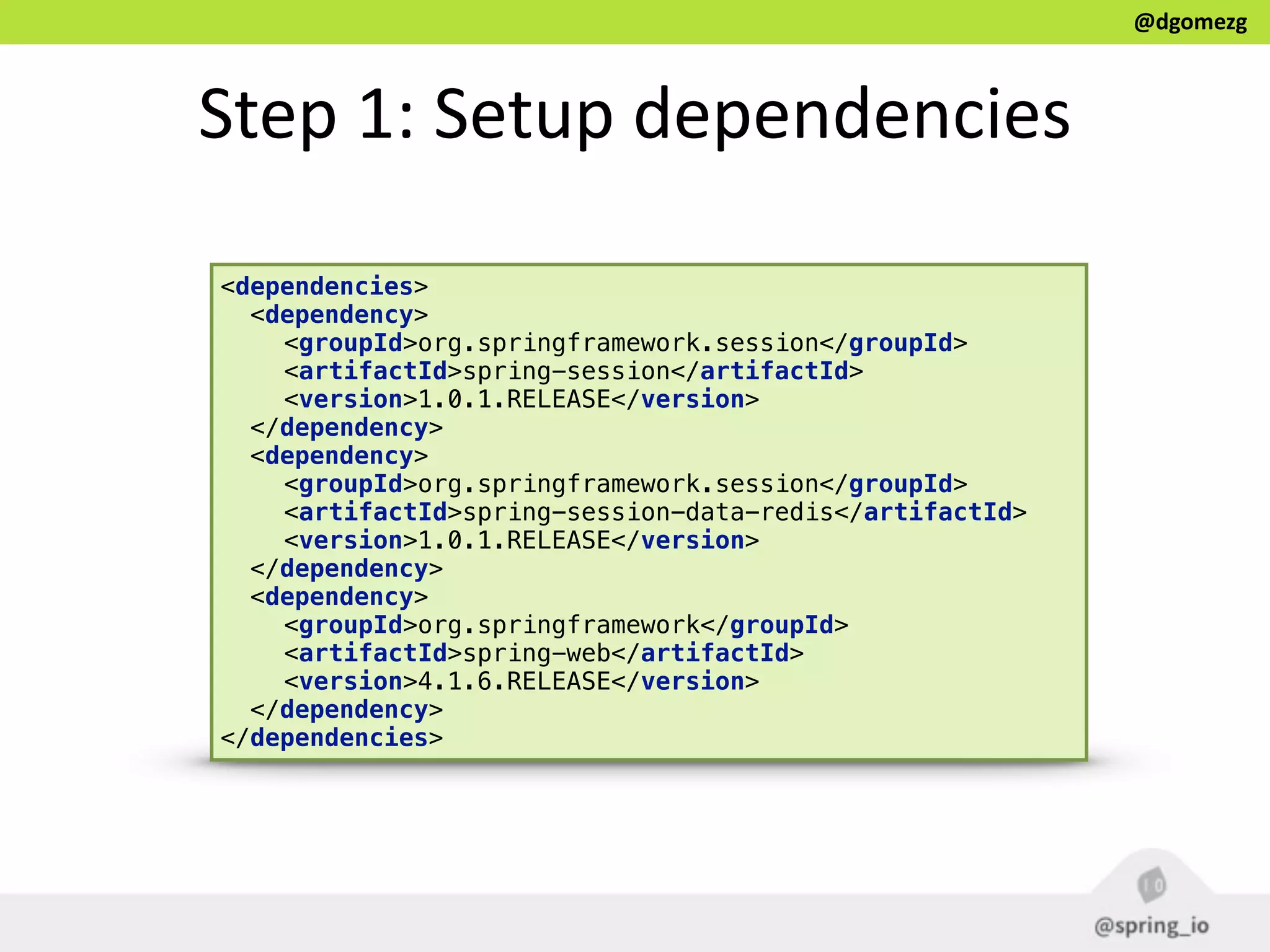

Step 1: Setup dependencies
<dependencies>
<dependency>
<groupId>org.springframework.session</groupId> 
<artifactId>spring-session</artifactId> 
<version>1.0.1.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.session</groupId> 
<artifactId>spring-session-data-redis</artifactId> 
</dependency>
<dependency>
<groupId>org.springframework</groupId> 
<artifactId>spring-web</artifactId> 
</dependency>
</dependencies>

@dgomezg

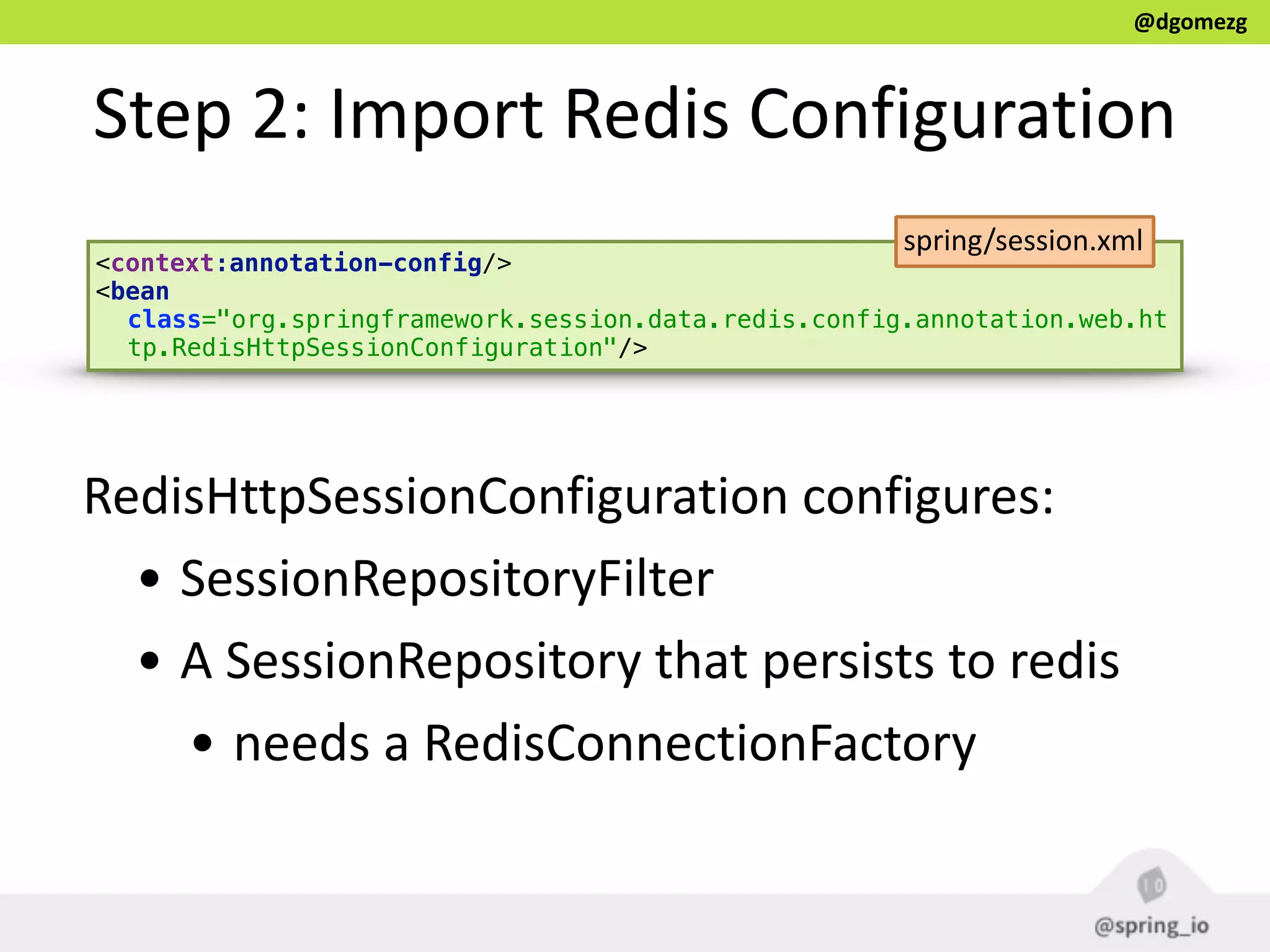

Step 2: Import Redis Configuration
<context:annotation-config/> 
<bean
class="org.springframework.session.data.redis.config.annotation.web.ht
tp.RedisHttpSessionConfiguration"/>
RedisHttpSessionConfiguration configures:
• SessionRepositoryFilter
• A SessionRepository that persists to redis
• needs a RedisConnectionFactory
spring/session.xml

@dgomezg

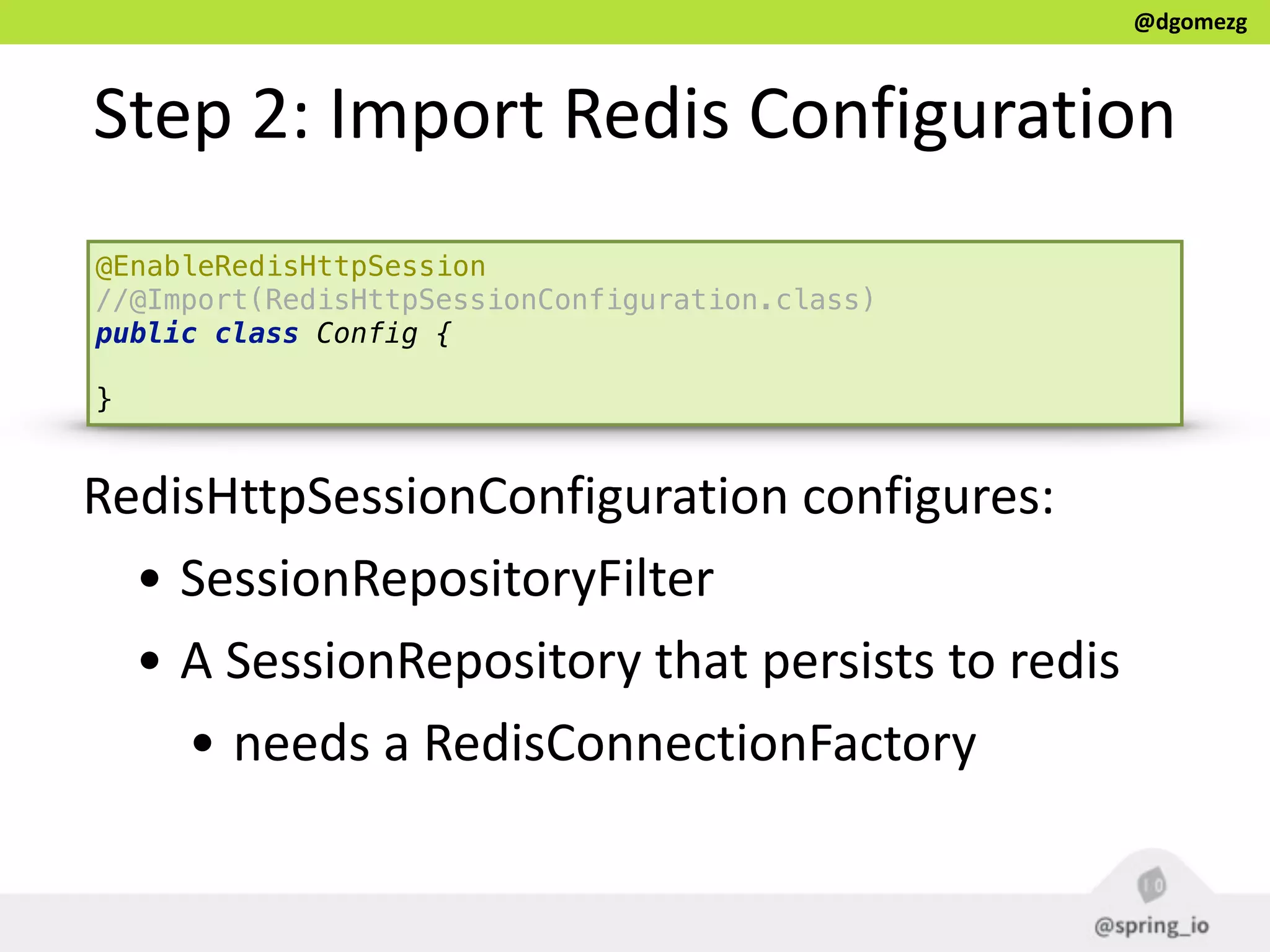

Step 2: Import Redis Configuration
@EnableRedisHttpSession
//@Import(RedisHttpSessionConfiguration.class)
public class Config { 
}
RedisHttpSessionConfiguration configures:
• SessionRepositoryFilter
• A SessionRepository that persists to redis
• needs a RedisConnectionFactory

@dgomezg

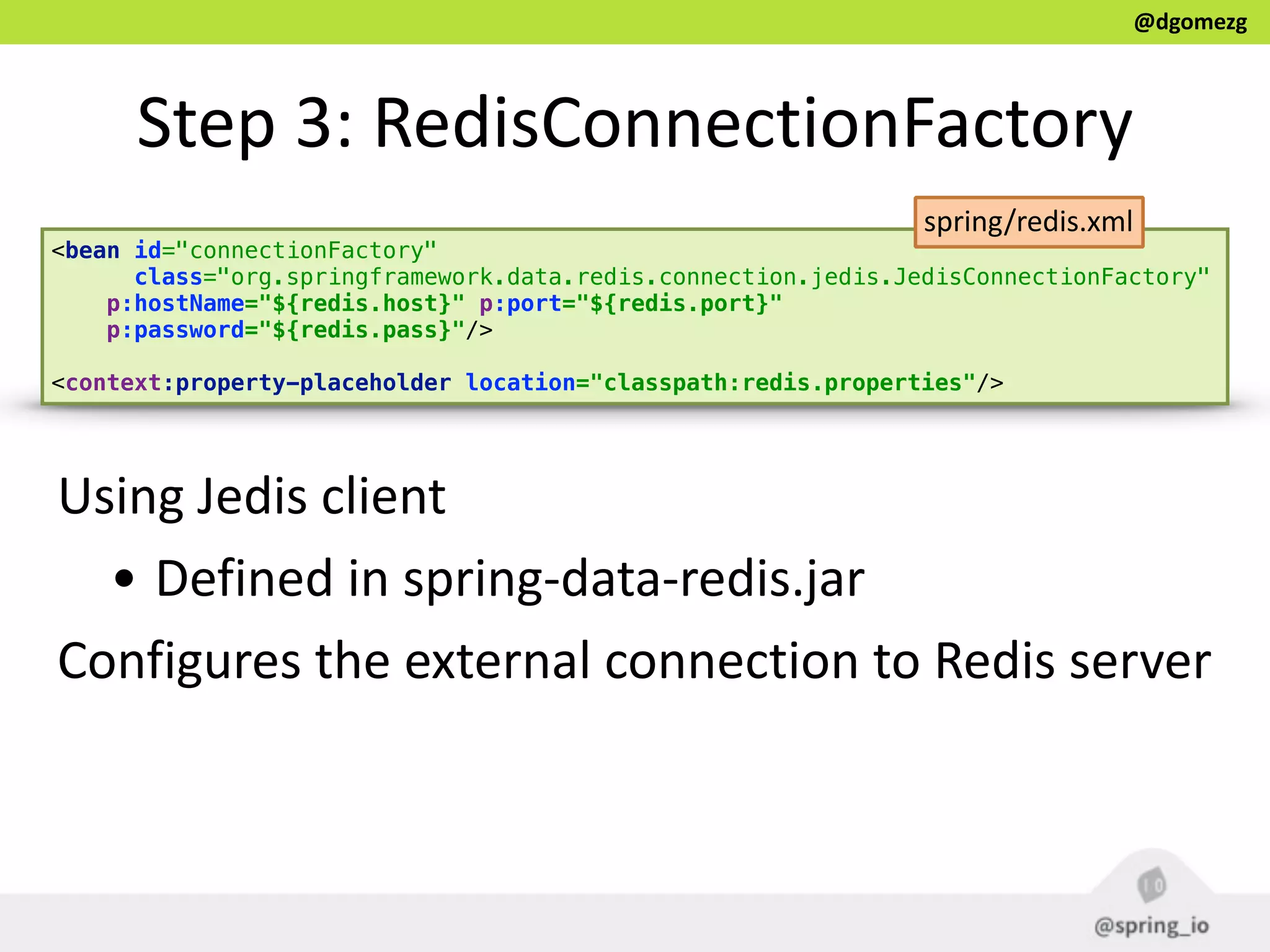

Step 3: RedisConnectionFactory
<bean id="connectionFactory" 
class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory" 
p:hostName="${redis.host}" p:port="${redis.port}"
p:password="${redis.pass}"/> 
 
<context:property-placeholder location="classpath:redis.properties"/>
Using Jedis client
• Defined in spring-‐data-‐redis.jar
Configures the external connection to Redis server
spring/redis.xml

@dgomezg

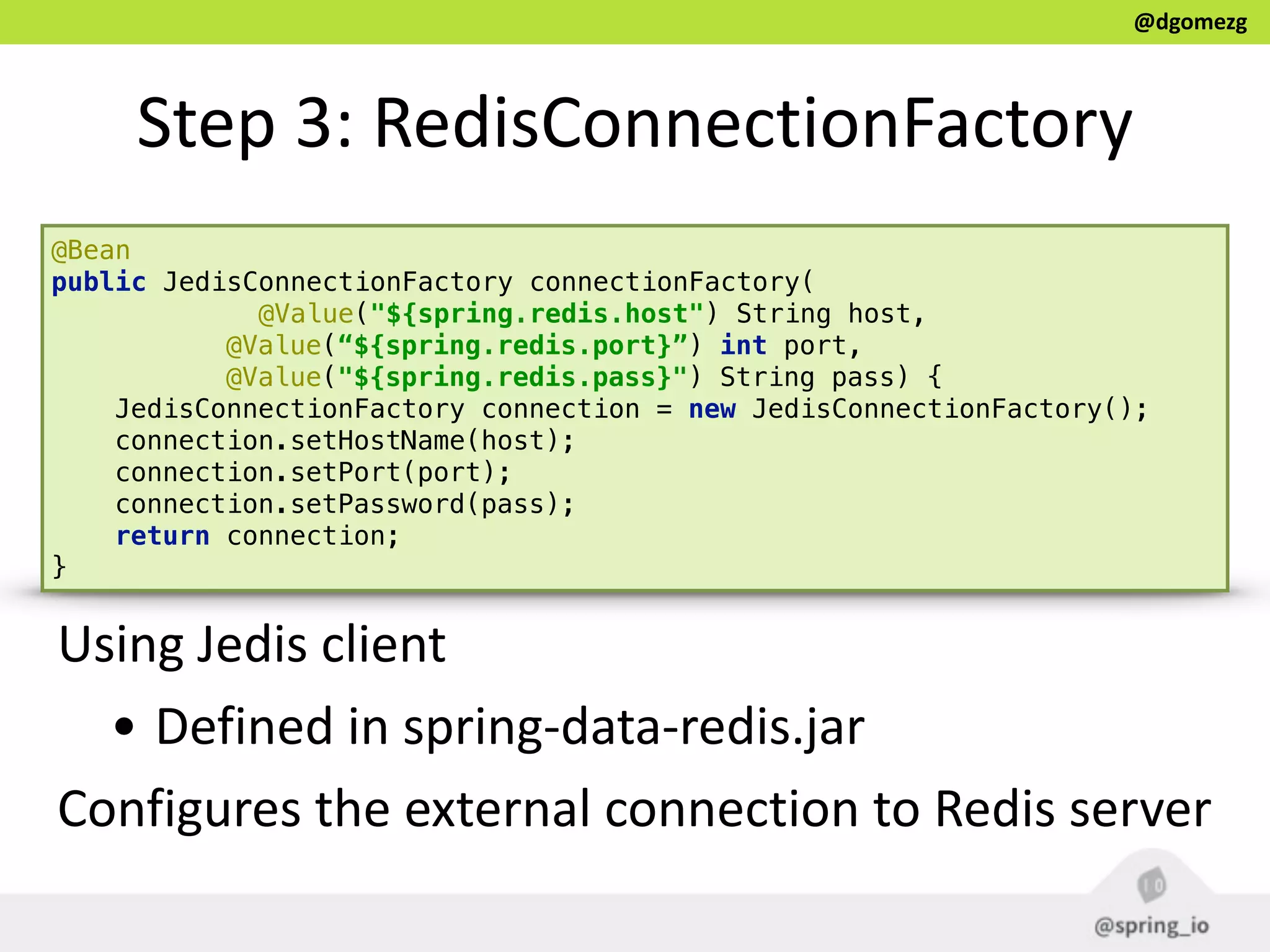

Step 3: RedisConnectionFactory
@Bean 
public JedisConnectionFactory connectionFactory(
@Value("${spring.redis.host") String host, 
@Value(“${spring.redis.port}”) int port, 
@Value("${spring.redis.pass}") String pass) { 
JedisConnectionFactory connection = new JedisConnectionFactory(); 
connection.setHostName(host); 
connection.setPort(port); 
connection.setPassword(pass); 
return connection; 
}
Using Jedis client
• Defined in spring-‐data-‐redis.jar
Configures the external connection to Redis server

@dgomezg

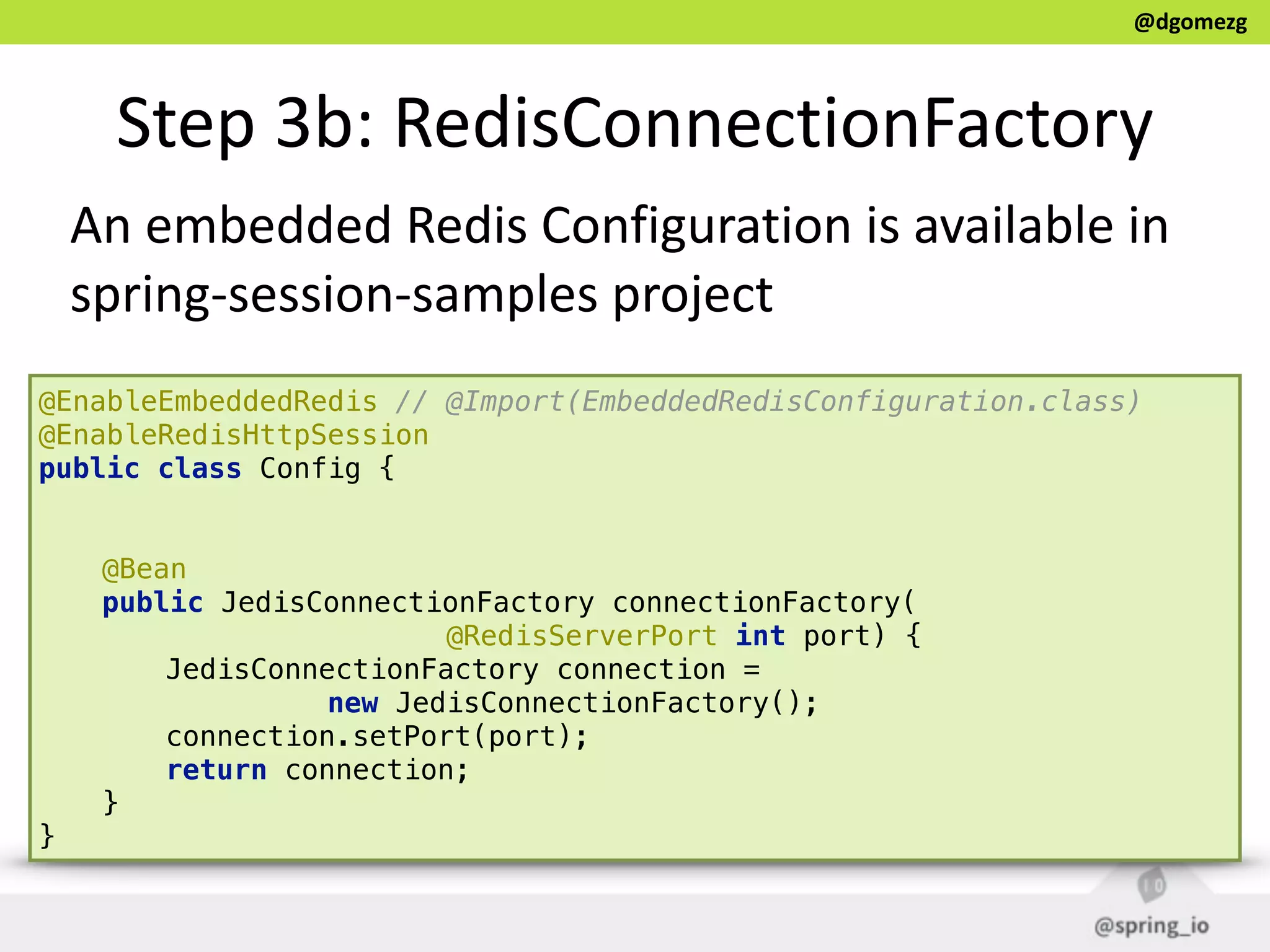

Step 3b: RedisConnectionFactory
@EnableEmbeddedRedis // @Import(EmbeddedRedisConfiguration.class) 
@EnableRedisHttpSession  
 
 
@Bean 
public JedisConnectionFactory connectionFactory(
@RedisServerPort int port) { 
JedisConnectionFactory connection =
new JedisConnectionFactory();  
connection.setPort(port); 
return connection; 
} 
}
An embedded Redis Configuration is available in
spring-‐session-‐samples project

@dgomezg

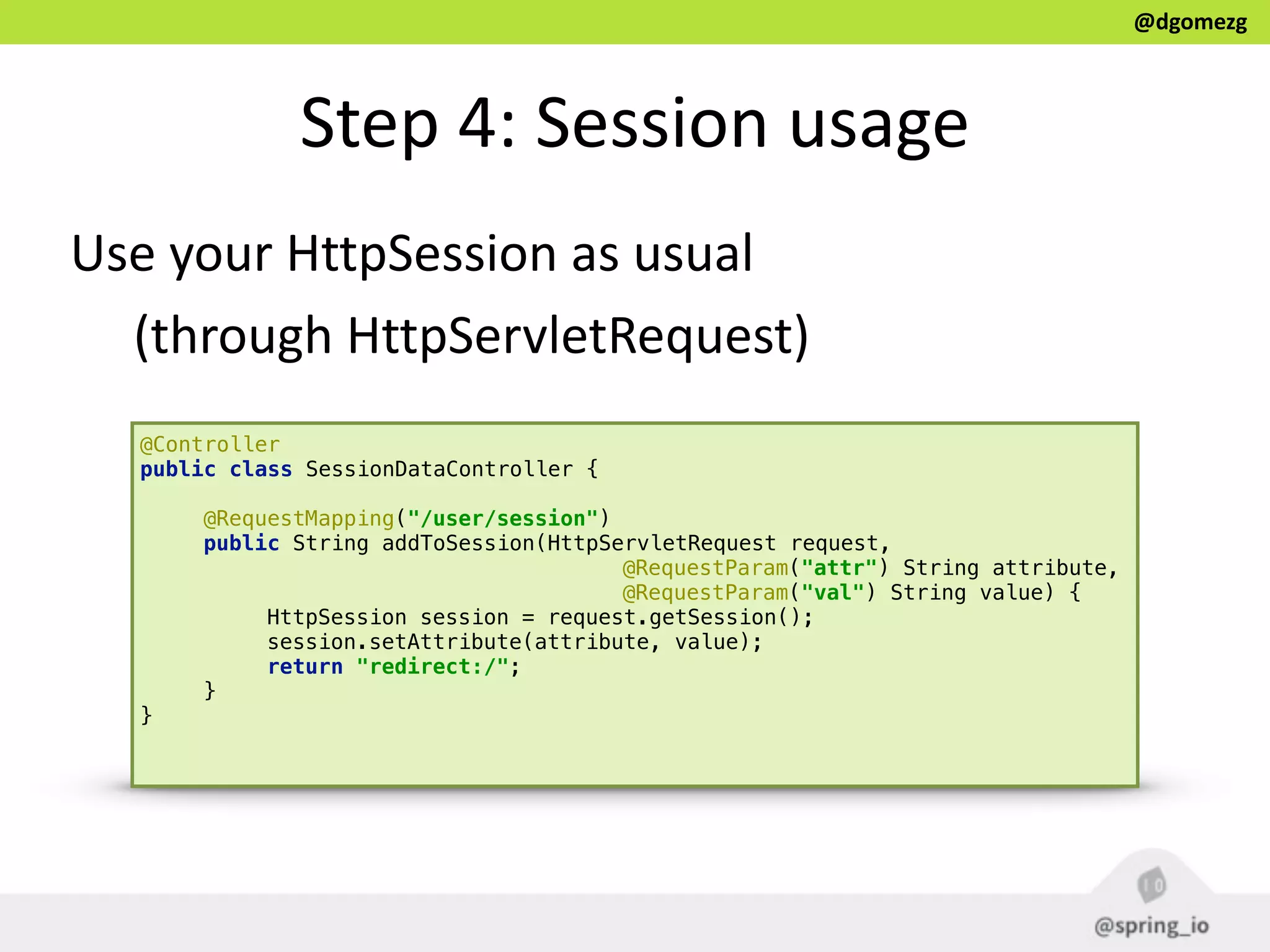

Step 4: Session usage
@Controller 
public class SessionDataController { 
 
@RequestMapping("/user/session") 
public String addToSession(HttpServletRequest request, 
@RequestParam("attr") String attribute, 
@RequestParam("val") String value) { 
HttpSession session = request.getSession(); 
session.setAttribute(attribute, value); 
return "redirect:/"; 
} 
} 
Use your HttpSession as usual
(through HttpServletRequest)

@dgomezg

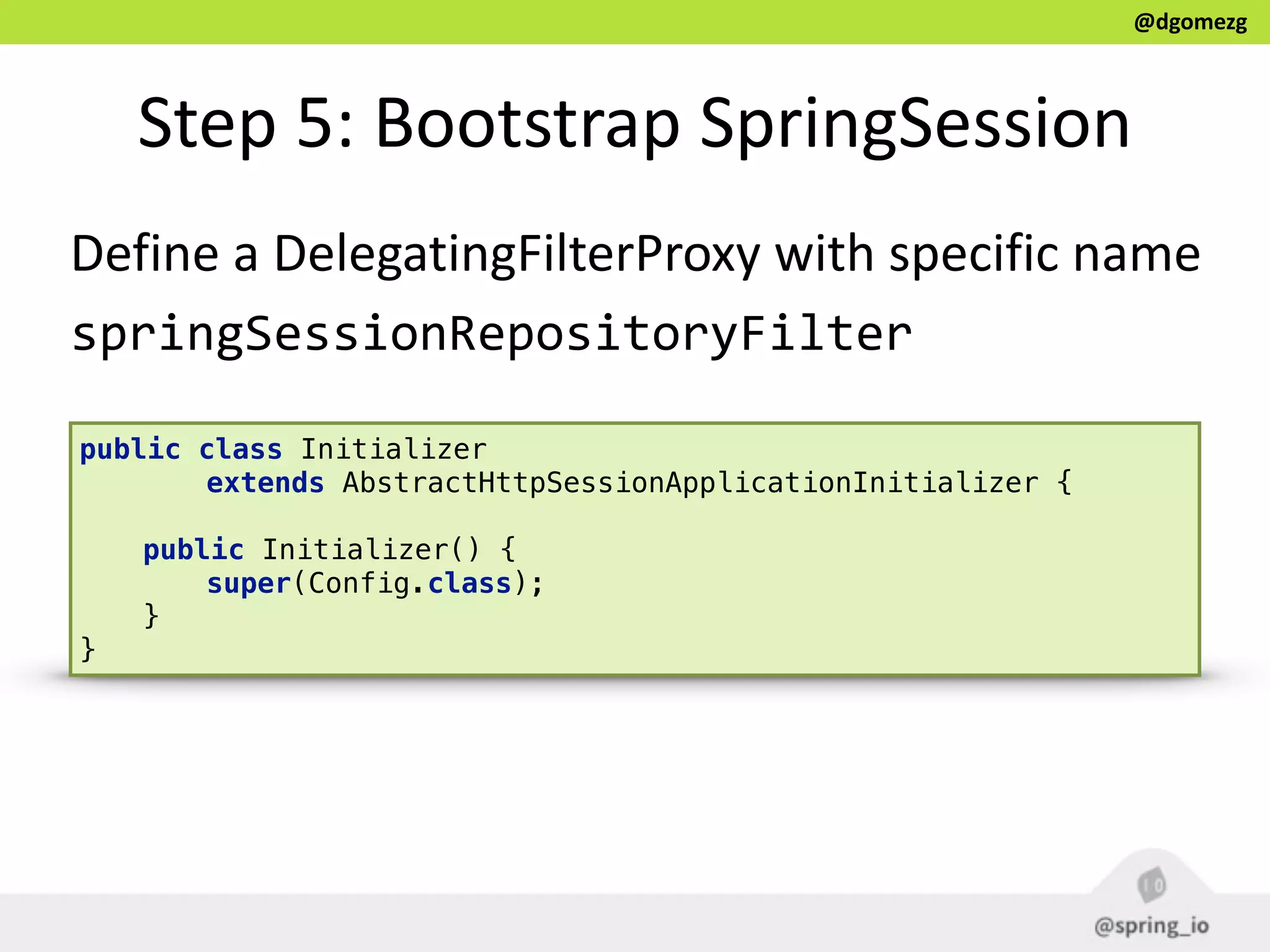

Step 5: Bootstrap SpringSession
public class Initializer 
extends AbstractHttpSessionApplicationInitializer { 
 
public Initializer() { 
super(Config.class); 
} 
}
Define a DelegatingFilterProxy with specific name
springSessionRepositoryFilter

@dgomezg

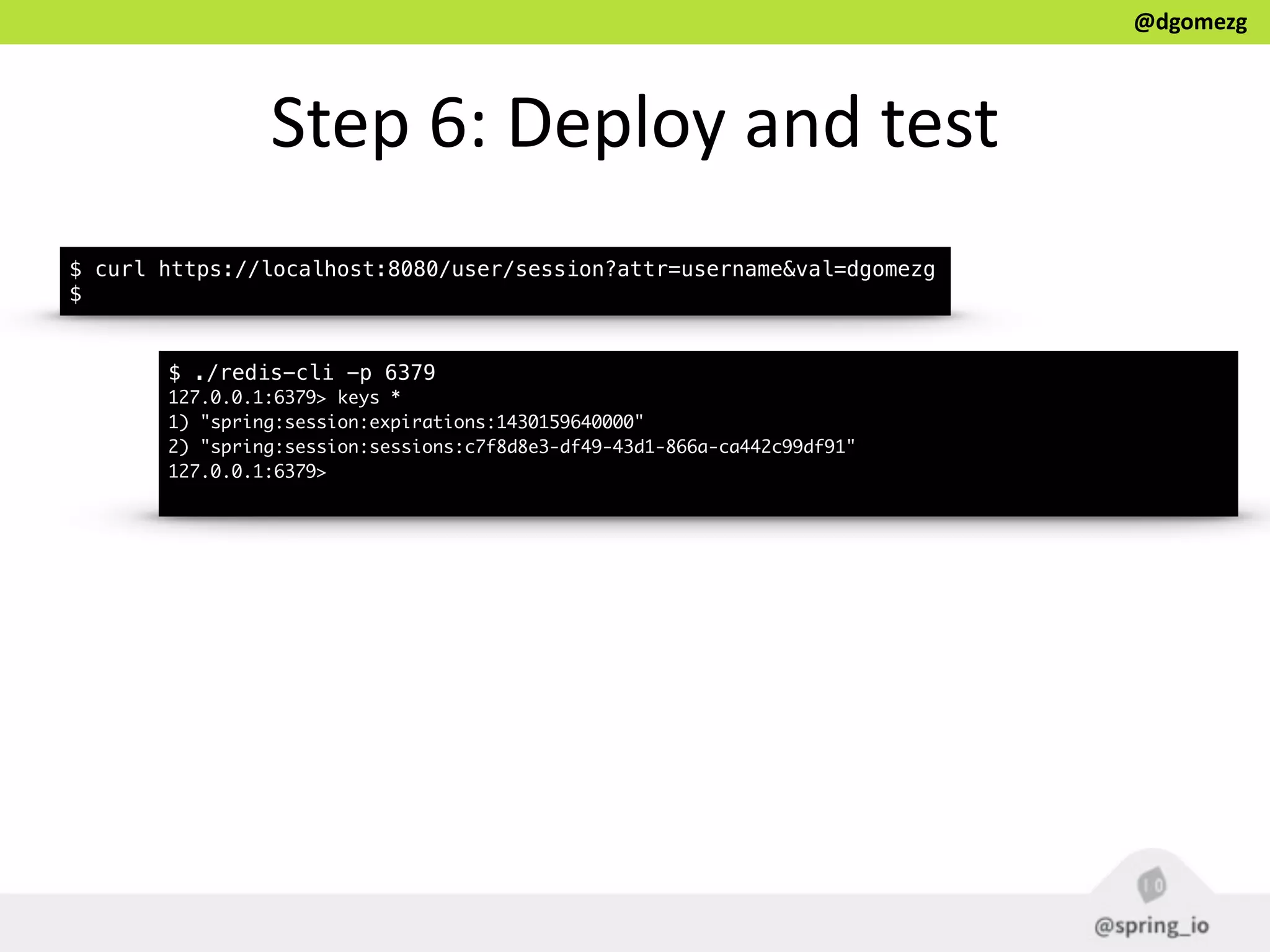

Step 6: Deploy and test
$ curl https://localhost:8080/user/session?attr=username&val=dgomezg
$
$ ./redis-cli -p 6379
127.0.0.1:6379> keys *
1) "spring:session:expirations:1430159640000"
2) "spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91"
127.0.0.1:6379>

@dgomezg

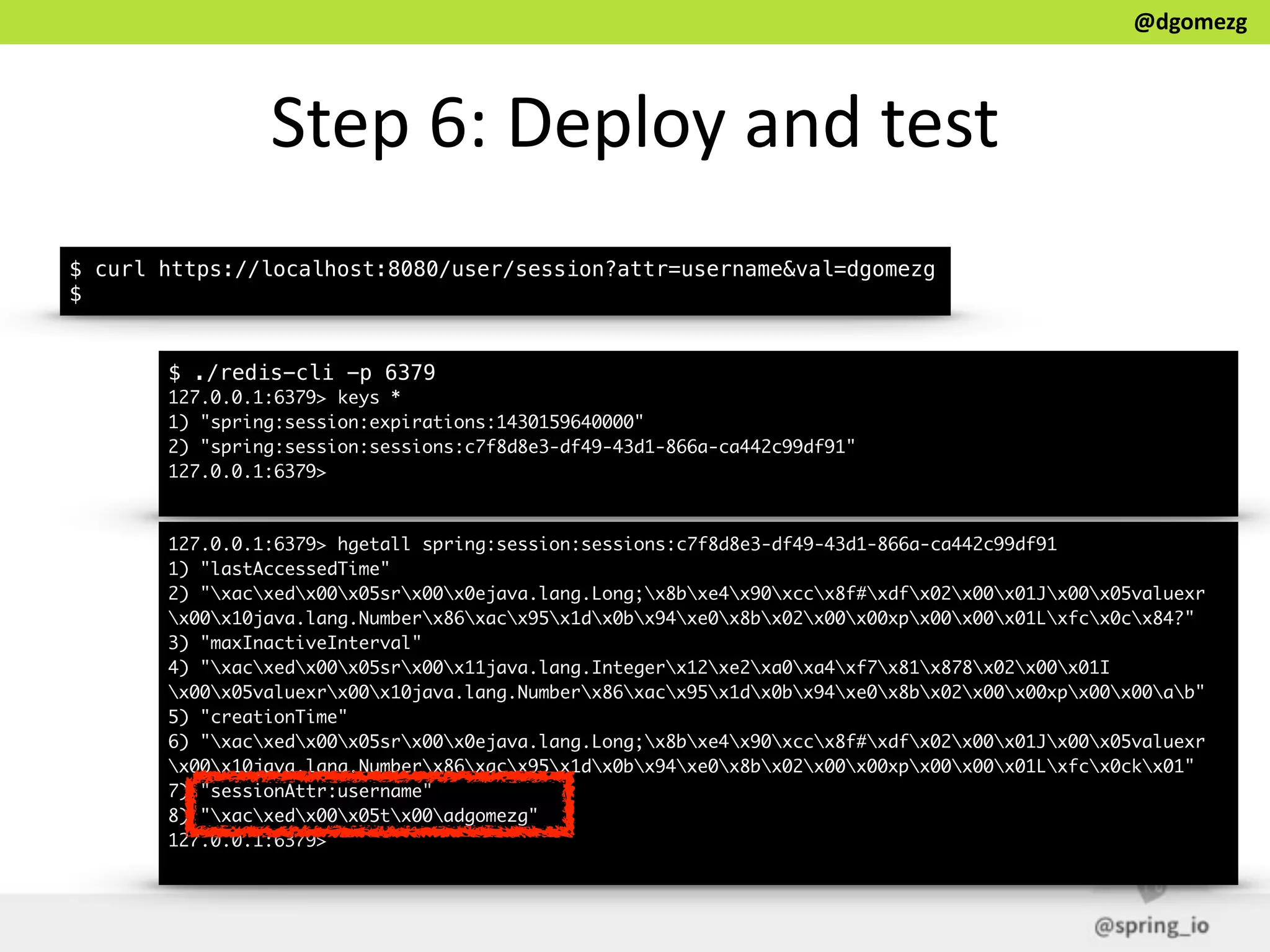

Step 6: Deploy and test
$ curl https://localhost:8080/user/session?attr=username&val=dgomezg
$
$ ./redis-cli -p 6379
127.0.0.1:6379> keys *
1) "spring:session:expirations:1430159640000"
2) "spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91"
127.0.0.1:6379>
127.0.0.1:6379> hgetall spring:session:sessions:c7f8d8e3-df49-43d1-866a-ca442c99df91
1) "lastAccessedTime"
2) "xacxedx00x05srx00x0ejava.lang.Long;x8bxe4x90xccx8f#xdfx02x00x01Jx00x05valuexr
x00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00x01Lxfcx0cx84?"
3) "maxInactiveInterval"
4) "xacxedx00x05srx00x11java.lang.Integerx12xe2xa0xa4xf7x81x878x02x00x01I
x00x05valuexrx00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00ab"
5) "creationTime"
6) "xacxedx00x05srx00x0ejava.lang.Long;x8bxe4x90xccx8f#xdfx02x00x01Jx00x05valuexr
x00x10java.lang.Numberx86xacx95x1dx0bx94xe0x8bx02x00x00xpx00x00x01Lxfcx0ckx01"
7) "sessionAttr:username"
8) "xacxedx00x05tx00adgomezg"
127.0.0.1:6379>

@dgomezg
FURTHER CUSTOMIZATION
29

@dgomezg

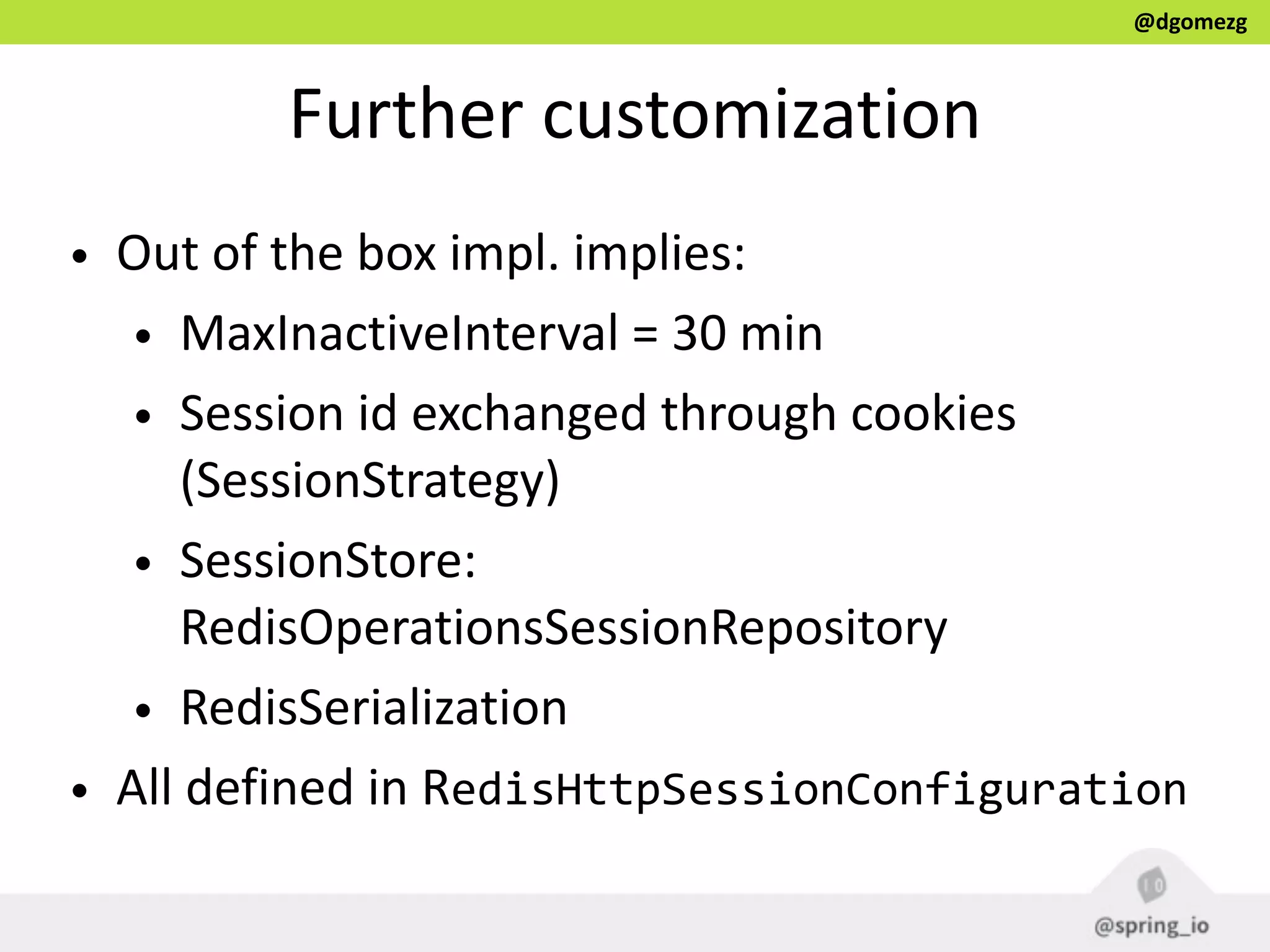

Further customization
• Out of the box impl. implies:
• MaxInactiveInterval = 30 min
• Session id exchanged through cookies
(SessionStrategy)
• SessionStore:
RedisOperationsSessionRepository
• RedisSerialization
• All defined in RedisHttpSessionConfiguration

@dgomezg

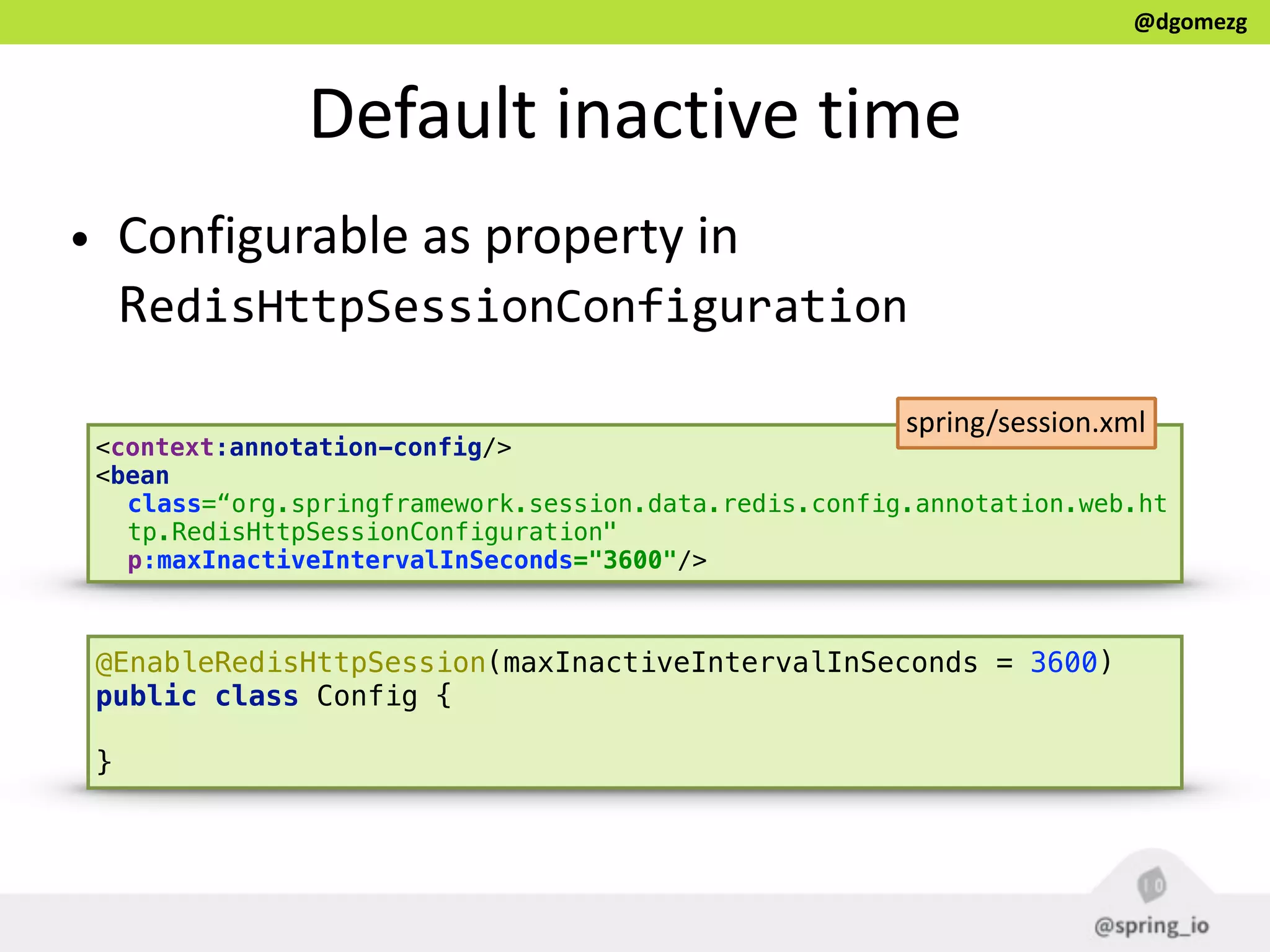

Default inactive time
• Configurable as property in
RedisHttpSessionConfiguration
<bean
class=“org.springframework.session.data.redis.config.annotation.web.ht
tp.RedisHttpSessionConfiguration"
p:maxInactiveIntervalInSeconds="3600"/>
spring/session.xml
@EnableRedisHttpSession(maxInactiveIntervalInSeconds = 3600)  
}

@dgomezg

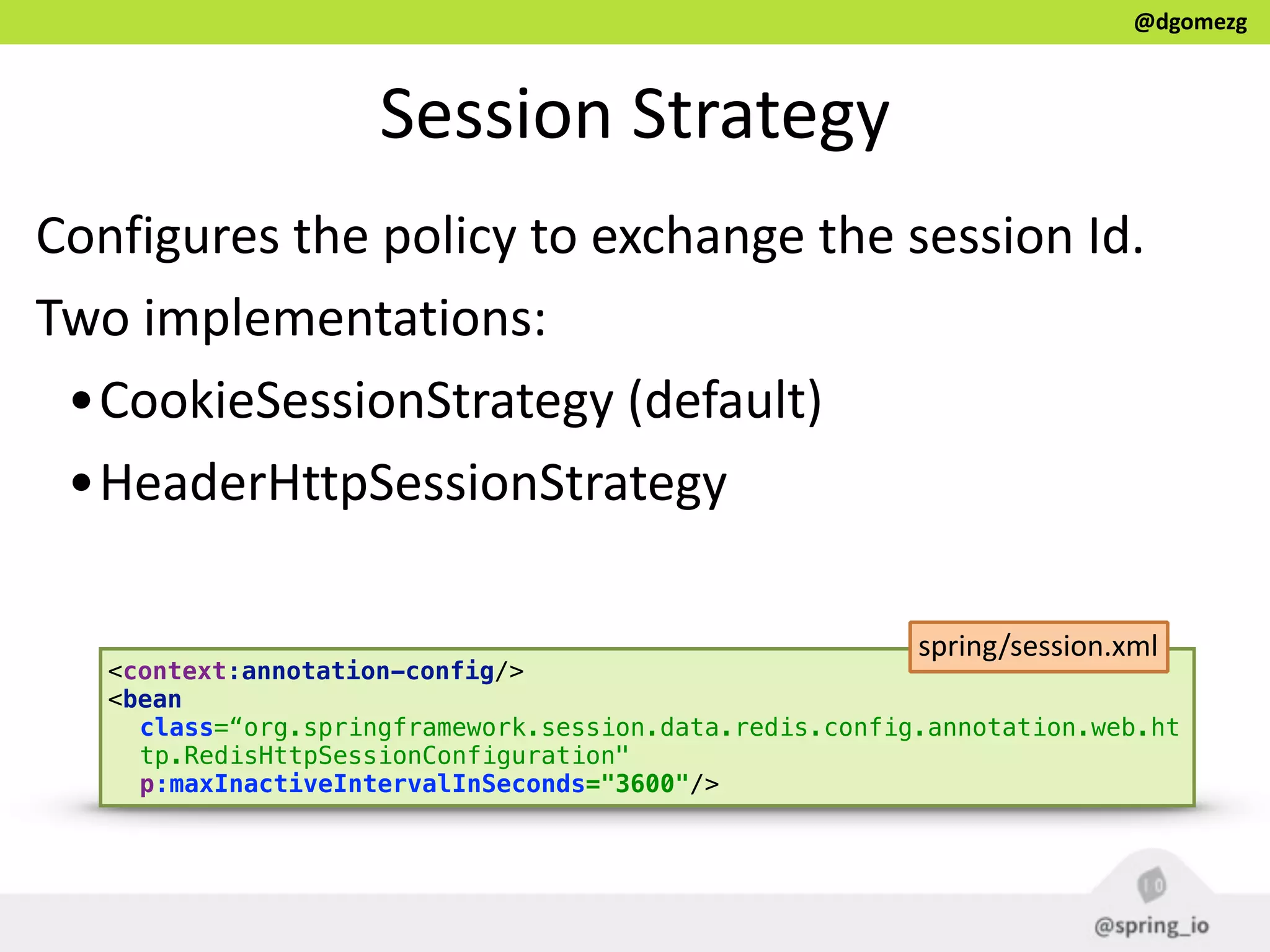

Session Strategy
Configures the policy to exchange the session Id.
Two implementations:
•CookieSessionStrategy (default)
•HeaderHttpSessionStrategy
<bean
class=“org.springframework.session.data.redis.config.annotation.web.ht
tp.RedisHttpSessionConfiguration"
p:maxInactiveIntervalInSeconds="3600"/>
spring/session.xml

@dgomezg

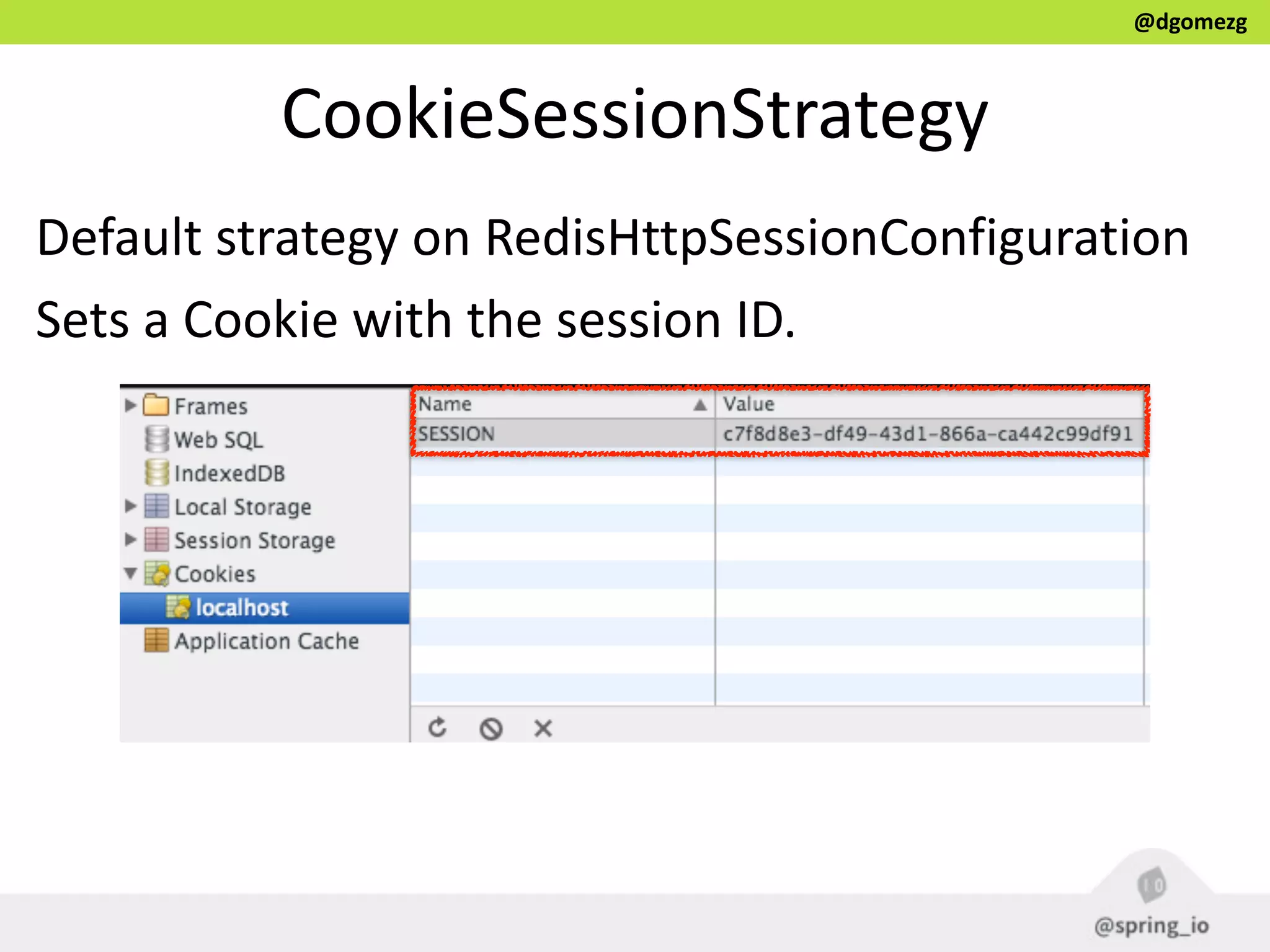

CookieSessionStrategy
Default strategy on RedisHttpSessionConfiguration
Sets a Cookie with the session ID.

@dgomezg

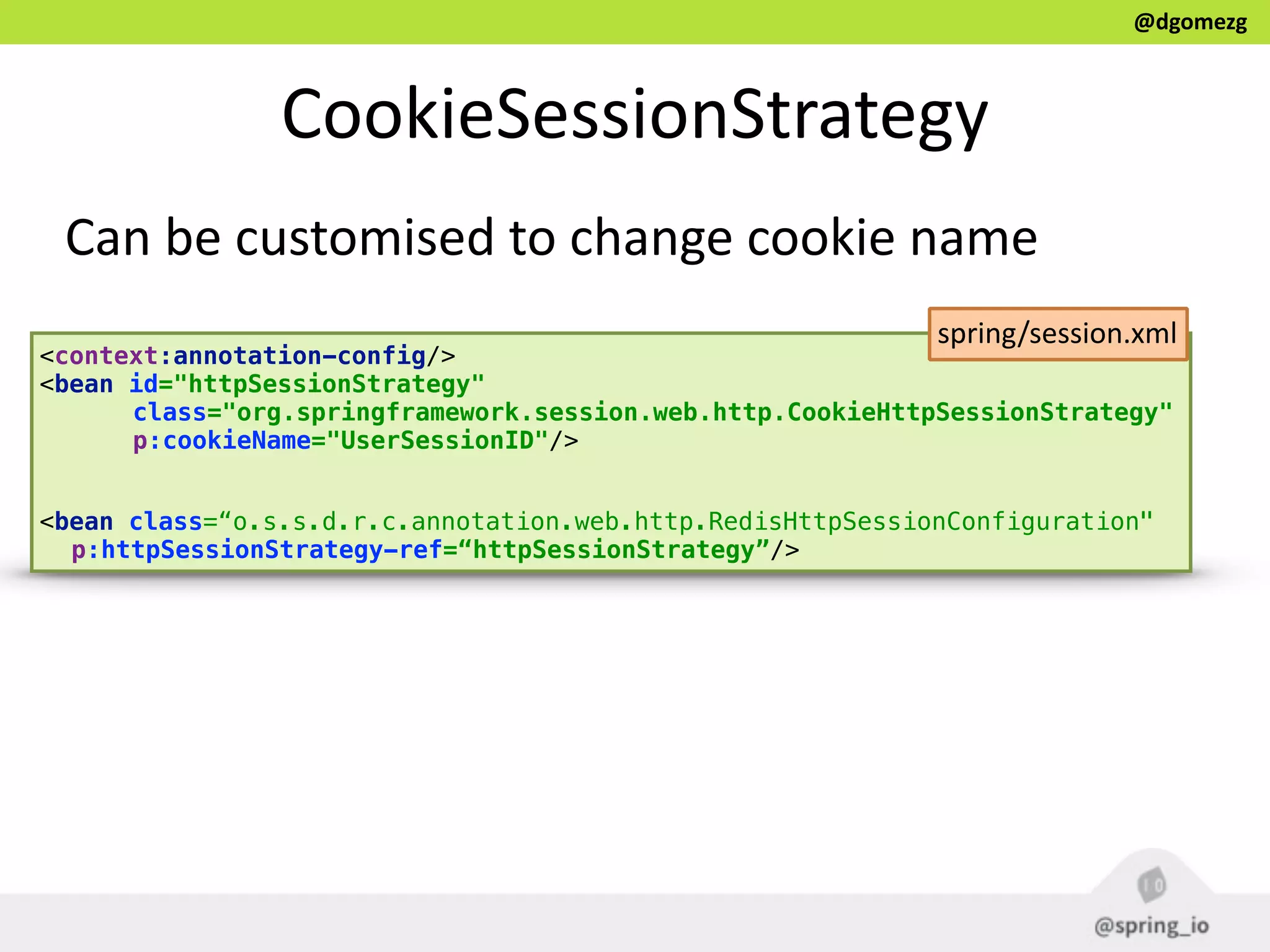

CookieSessionStrategy
Can be customised to change cookie name
<context:annotation-config/>
<bean id="httpSessionStrategy" 
class="org.springframework.session.web.http.CookieHttpSessionStrategy" 
p:cookieName="UserSessionID"/> 
 
<bean class=“o.s.s.d.r.c.annotation.web.http.RedisHttpSessionConfiguration"
p:httpSessionStrategy-ref=“httpSessionStrategy”/>
spring/session.xml

@dgomezg

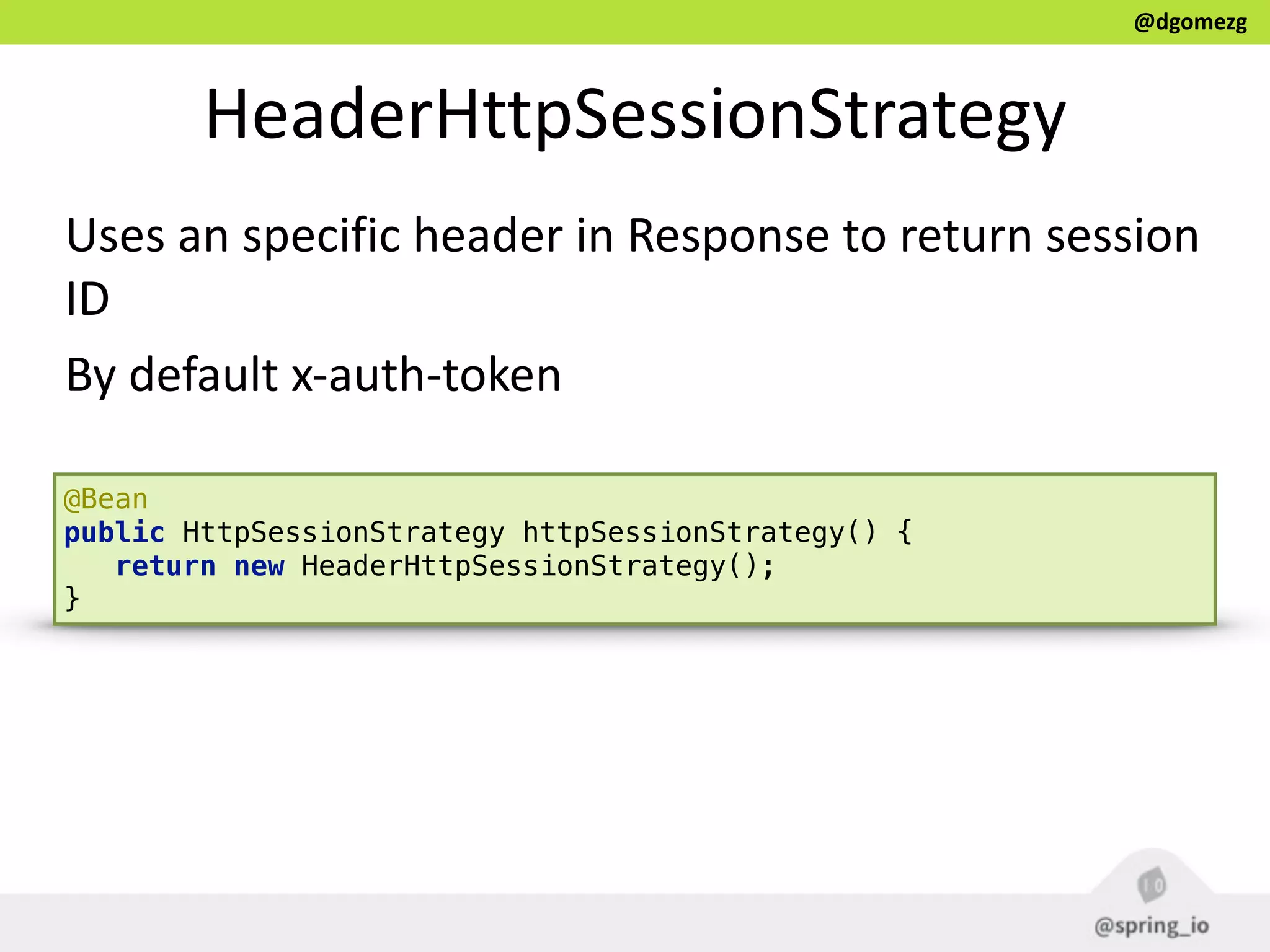

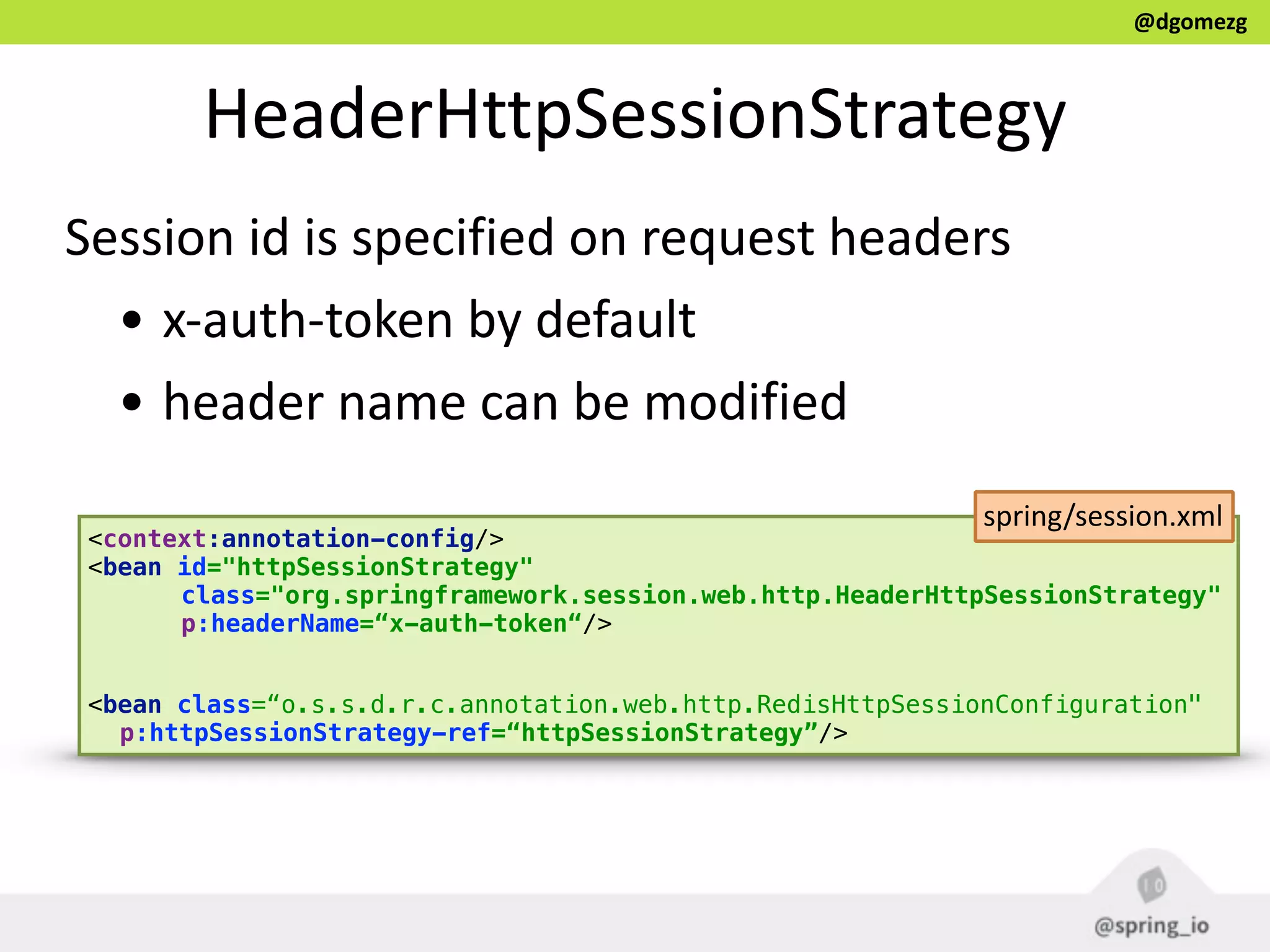

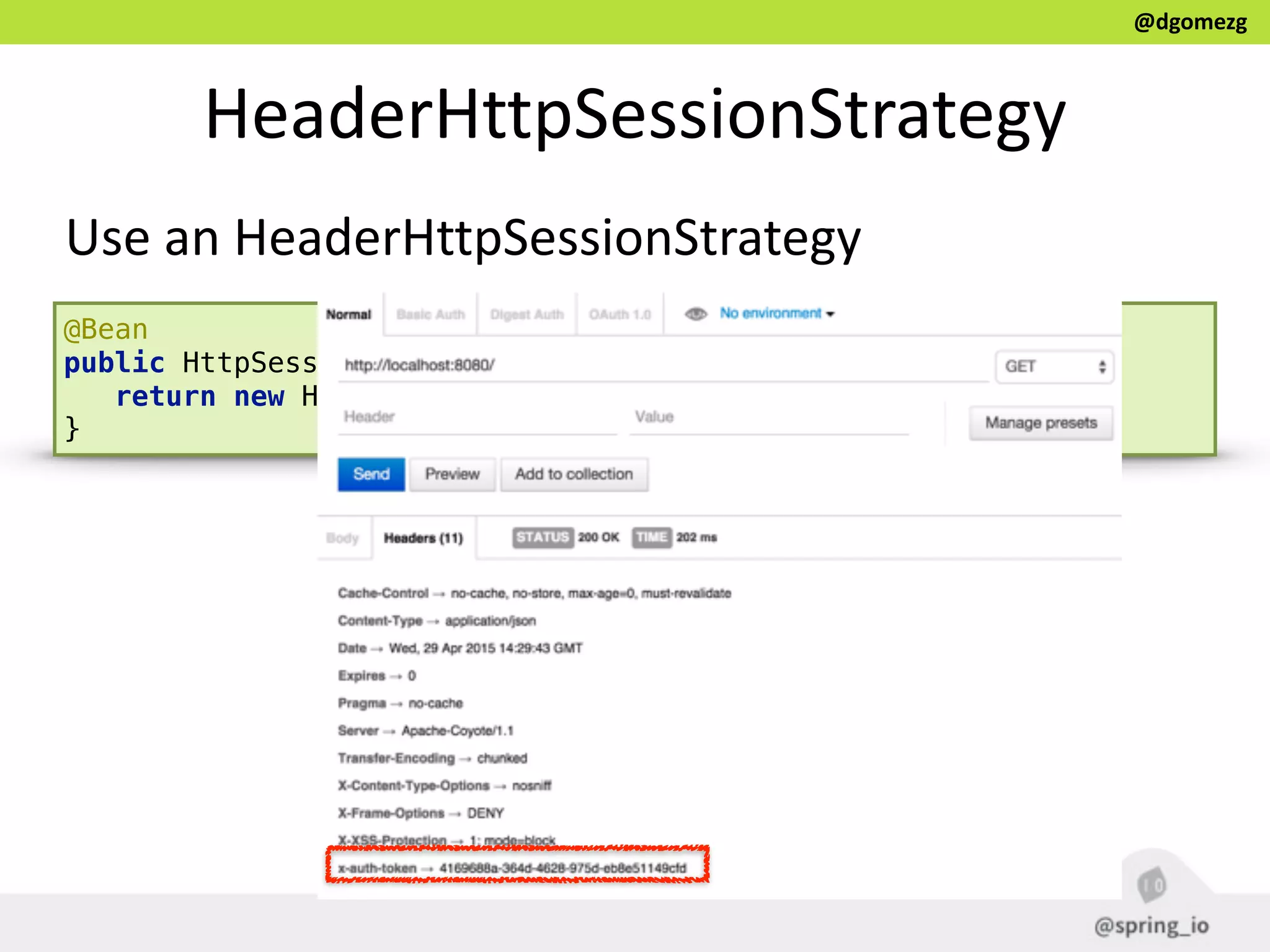

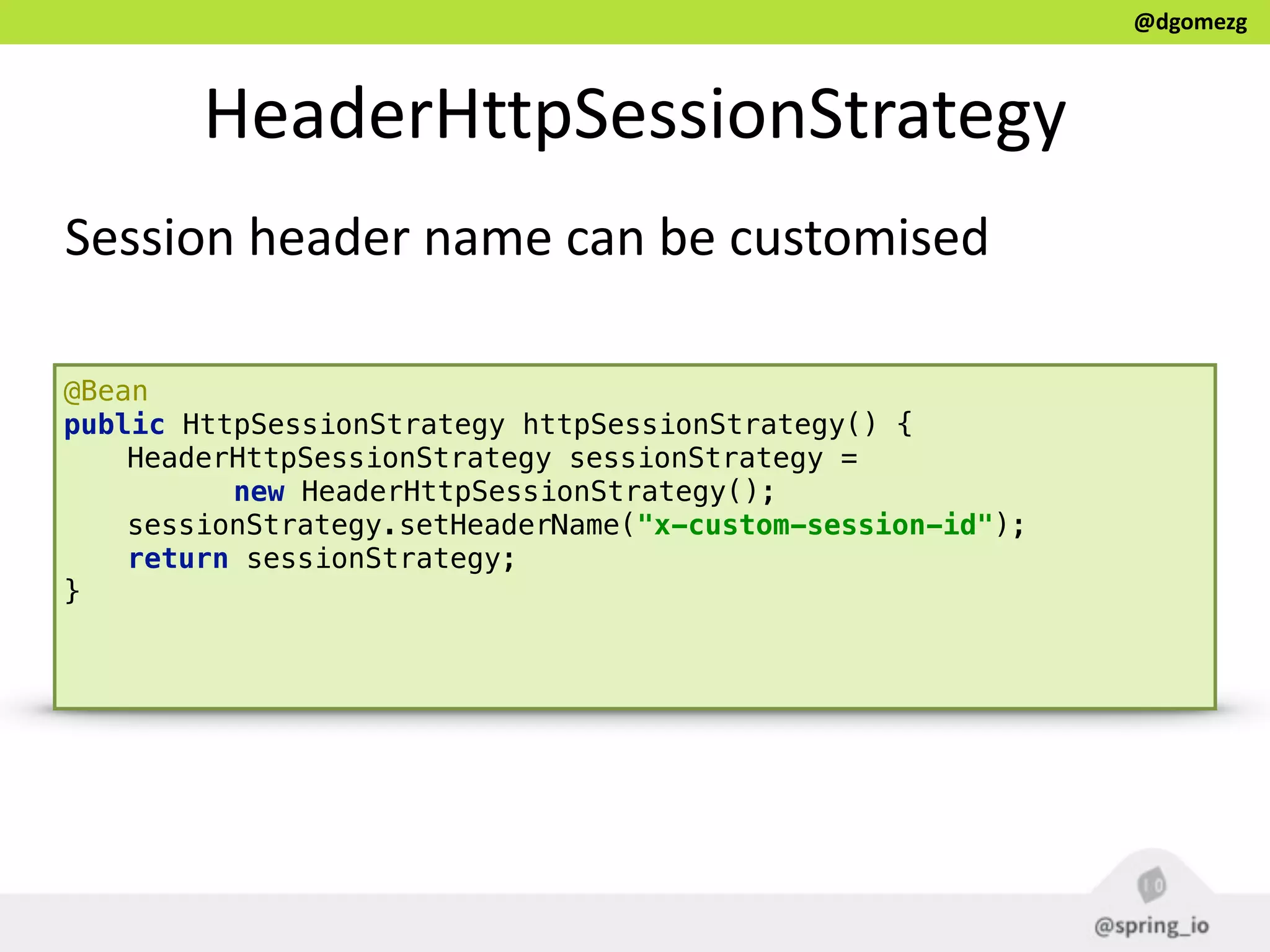

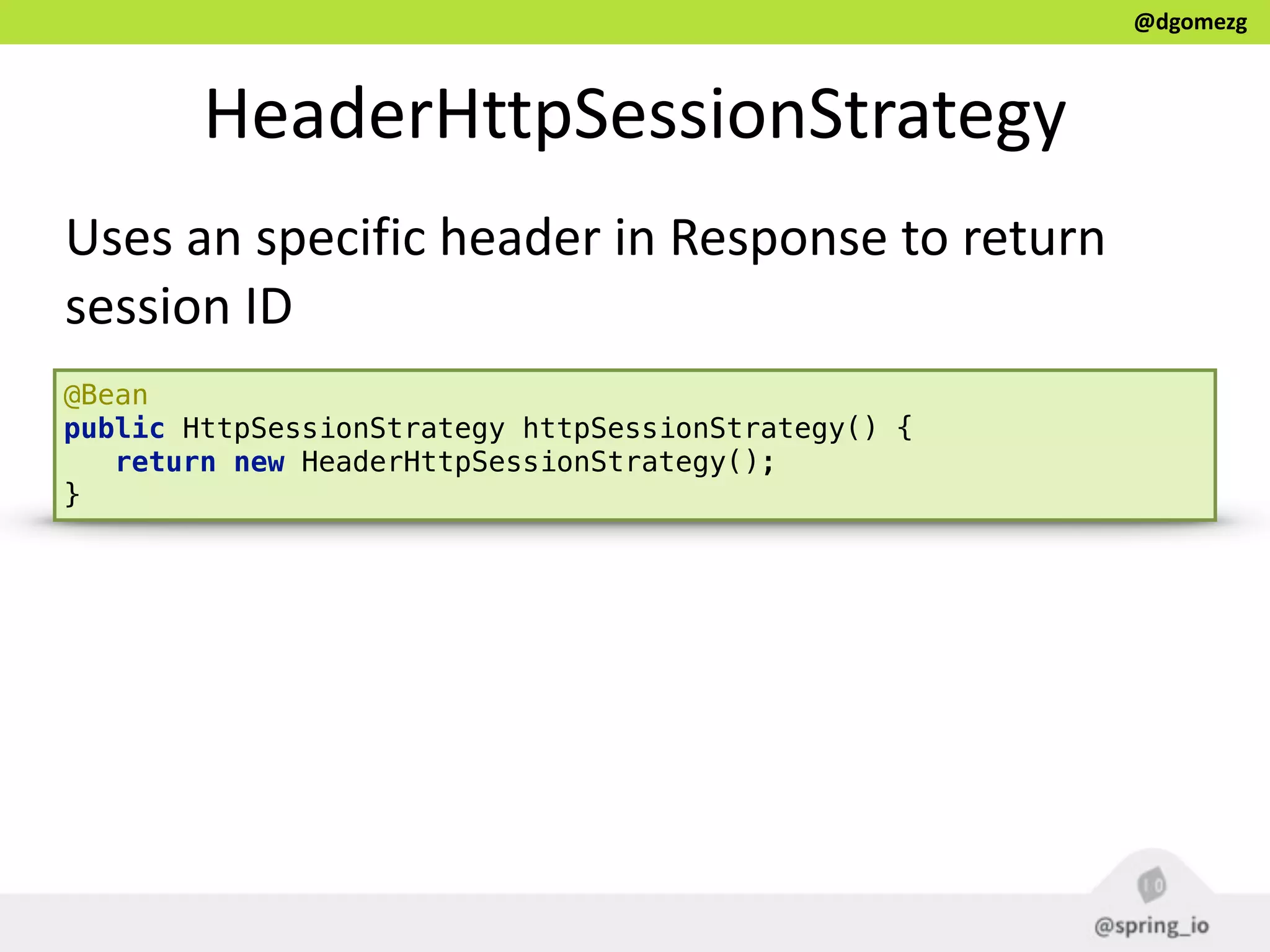

HeaderHttpSessionStrategy
Session id is specified on request headers
• x-‐auth-‐token by default
• header name can be modified
<context:annotation-config/>
<bean id="httpSessionStrategy" 
class="org.springframework.session.web.http.HeaderHttpSessionStrategy" 
p:headerName=“x-auth-token“/> 
 
<bean class=“o.s.s.d.r.c.annotation.web.http.RedisHttpSessionConfiguration"
p:httpSessionStrategy-ref=“httpSessionStrategy”/>
spring/session.xml

@dgomezg

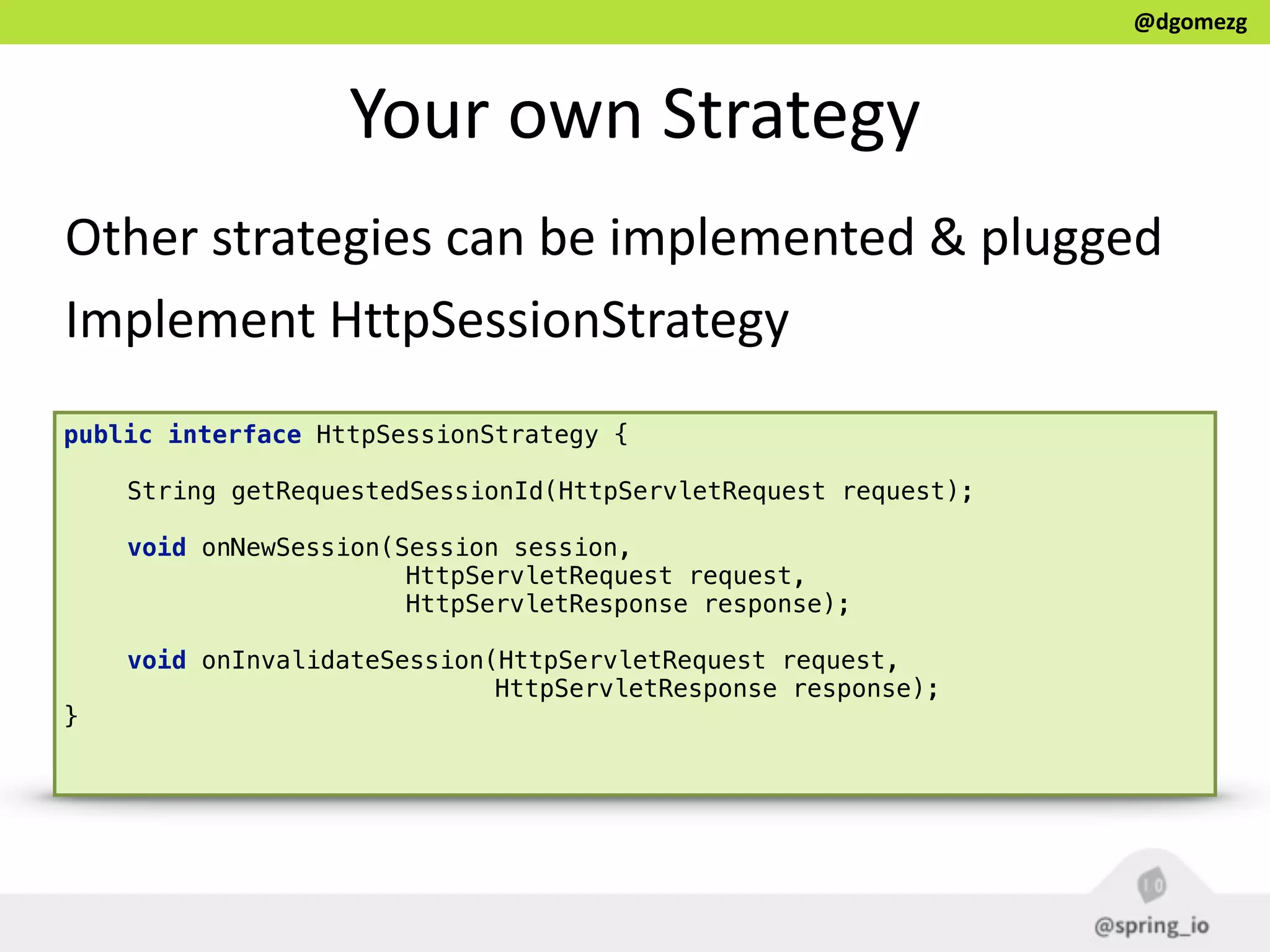

Your own Strategy
Other strategies can be implemented & plugged
Implement HttpSessionStrategy
public interface HttpSessionStrategy { 
 
String getRequestedSessionId(HttpServletRequest request); 
 
void onNewSession(Session session,
HttpServletRequest request,
HttpServletResponse response); 
 
void onInvalidateSession(HttpServletRequest request,
HttpServletResponse response); 
}

@dgomezg

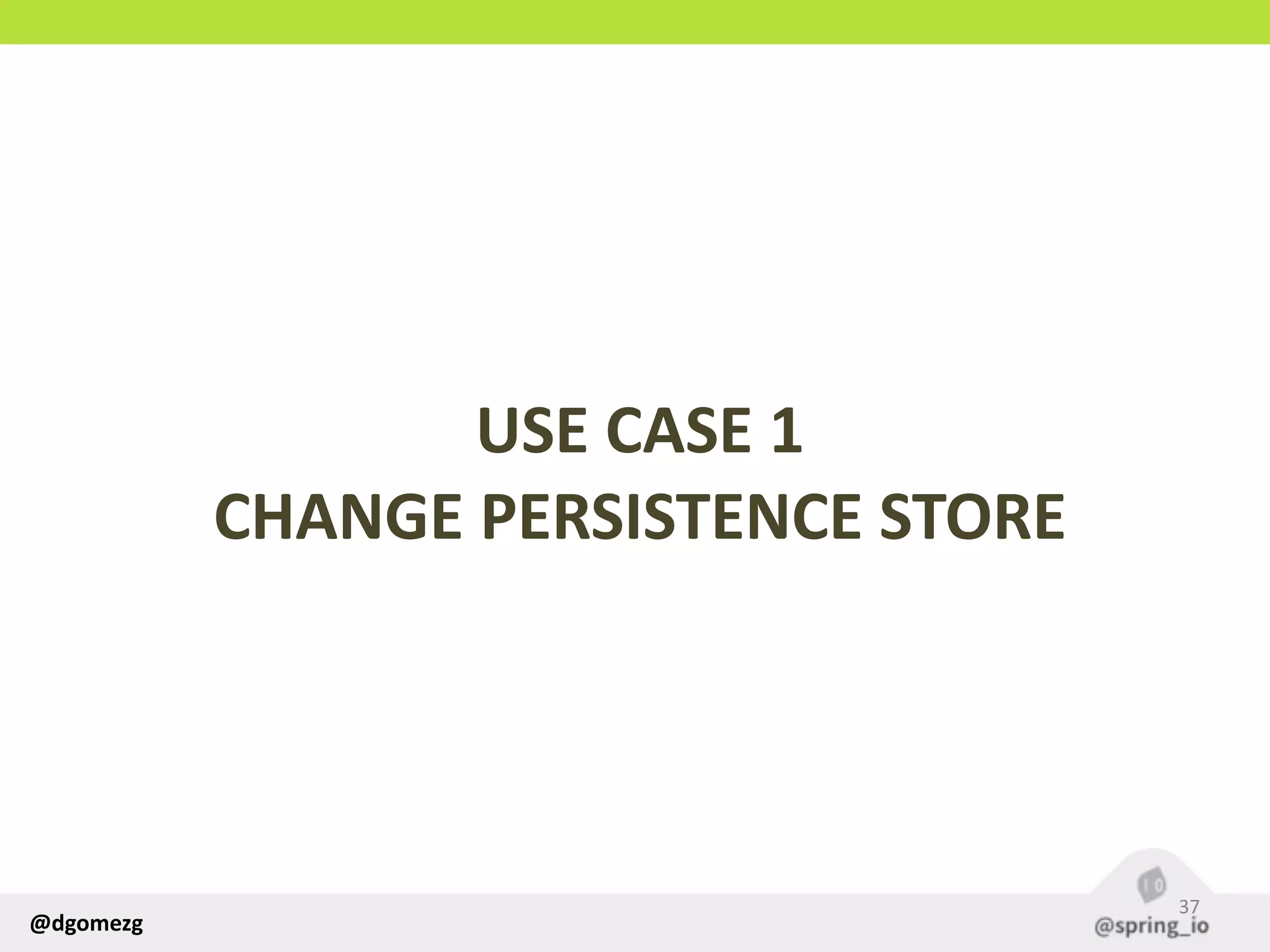

USE CASE 1
CHANGE PERSISTENCE STORE
37

@dgomezg

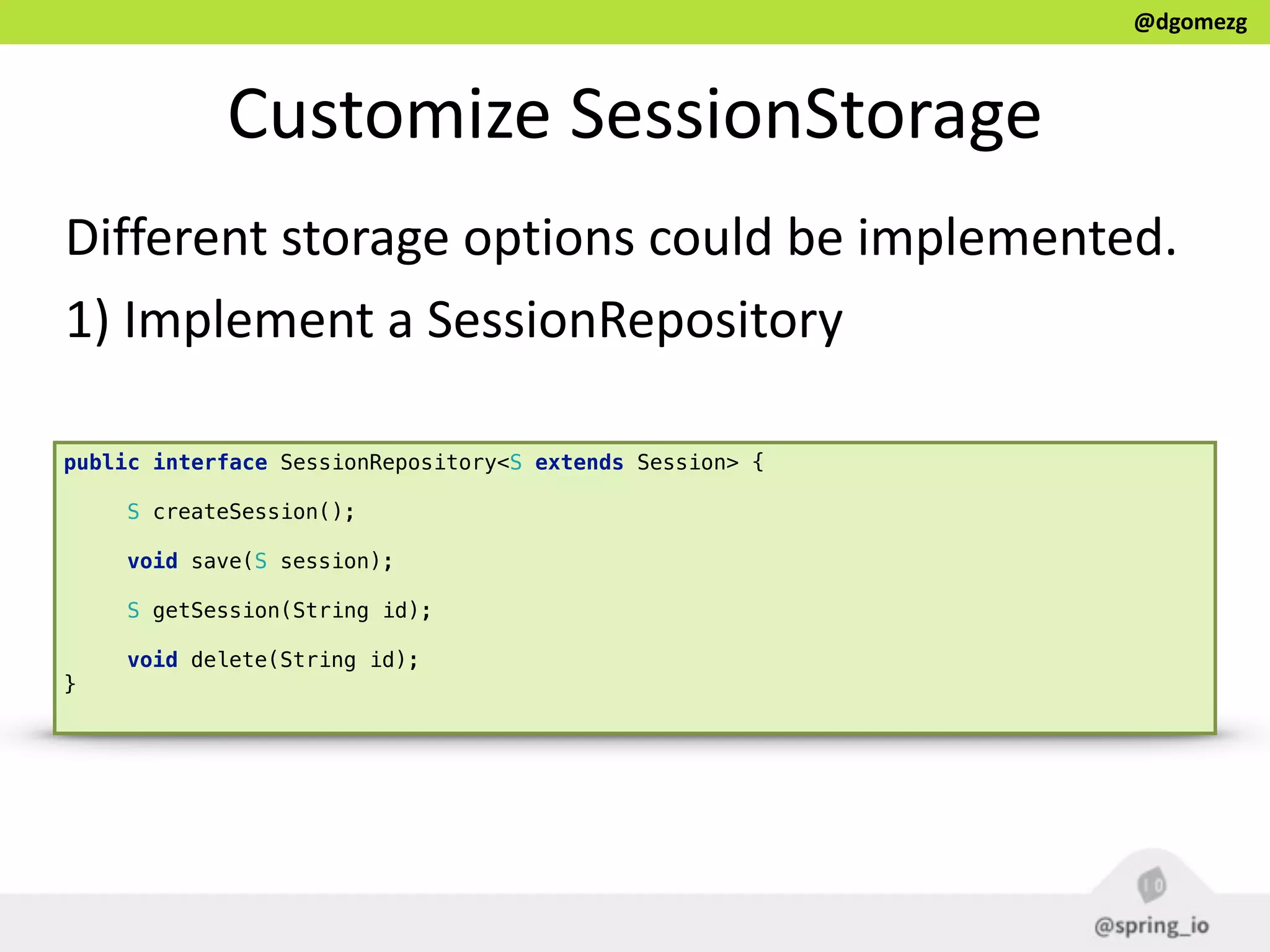

Customize SessionStorage
Different storage options could be implemented.
1) Implement a SessionRepository
public interface SessionRepository<S extends Session> { 
 
S createSession(); 
 
void save(S session); 
 
S getSession(String id); 
 
void delete(String id); 
}

@dgomezg

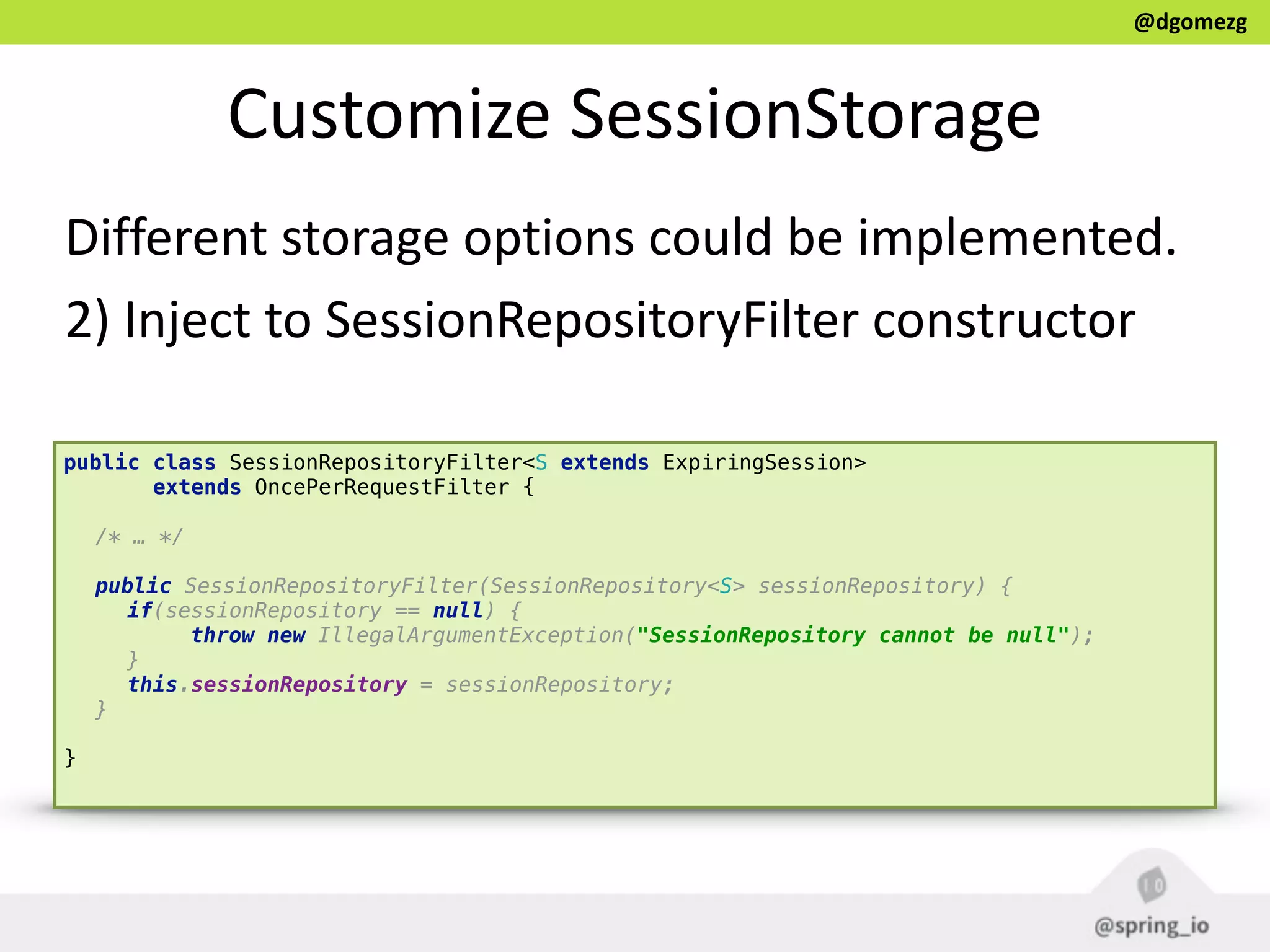

Customize SessionStorage
Different storage options could be implemented.
2) Inject to SessionRepositoryFilter constructor
public class SessionRepositoryFilter<S extends ExpiringSession>
extends OncePerRequestFilter { 
/* … */
 
public SessionRepositoryFilter(SessionRepository<S> sessionRepository) { 
if(sessionRepository == null) { 
throw new IllegalArgumentException("SessionRepository cannot be null"); 
} 
this.sessionRepository = sessionRepository; 
} 
}

@dgomezg
USE CASE 2
MULTIPLE USER SESSIONS
40

@dgomezg

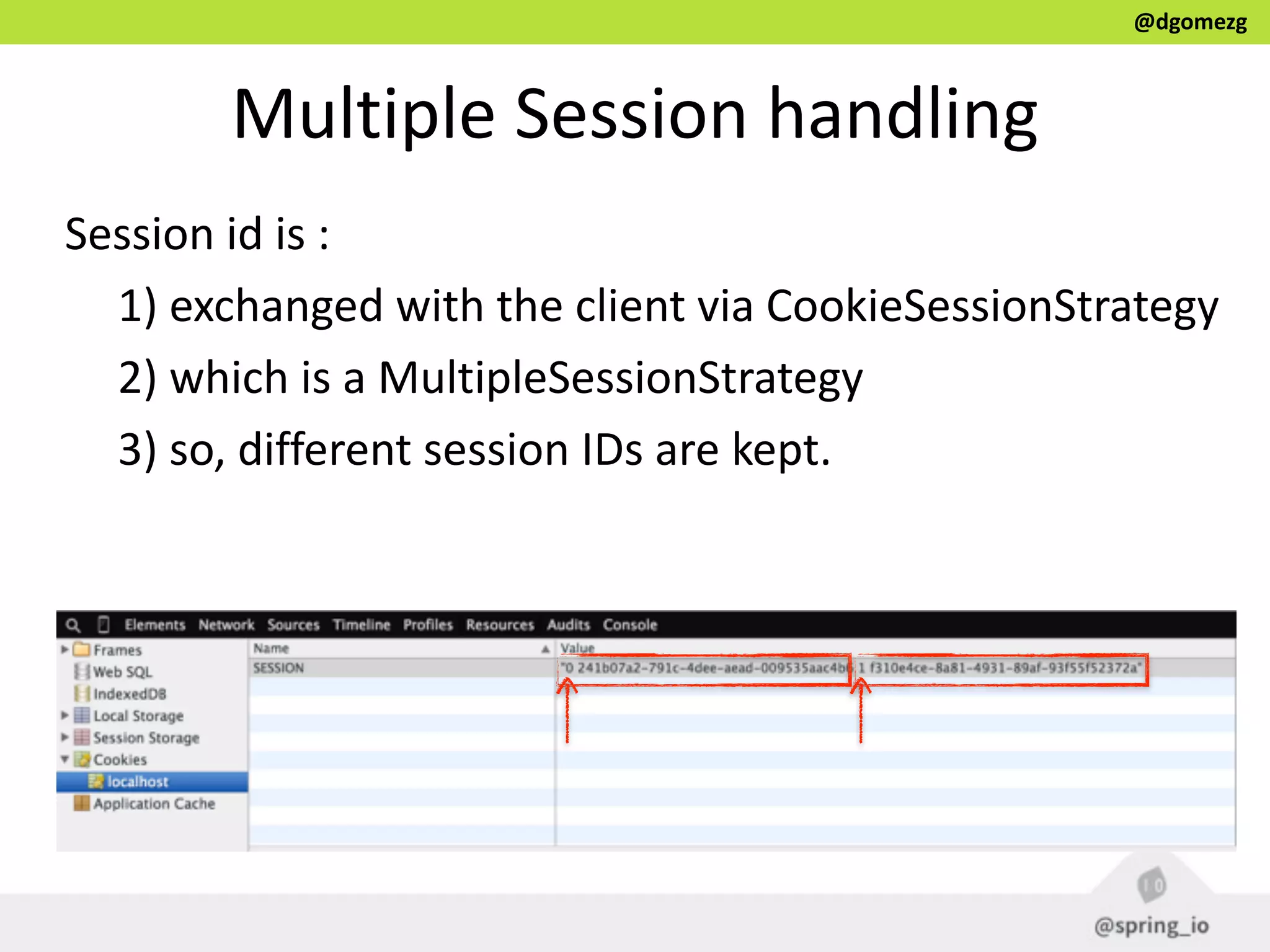

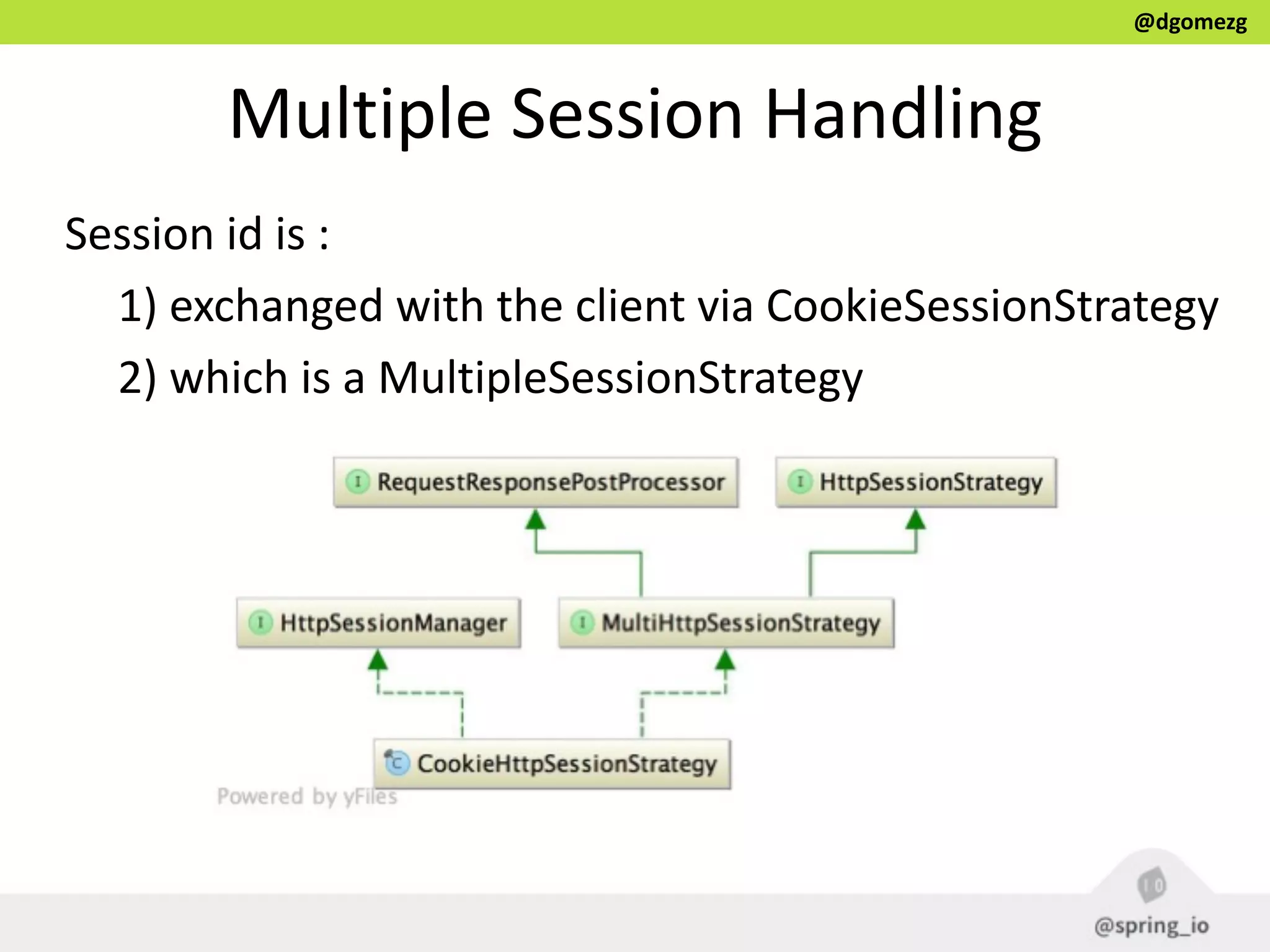

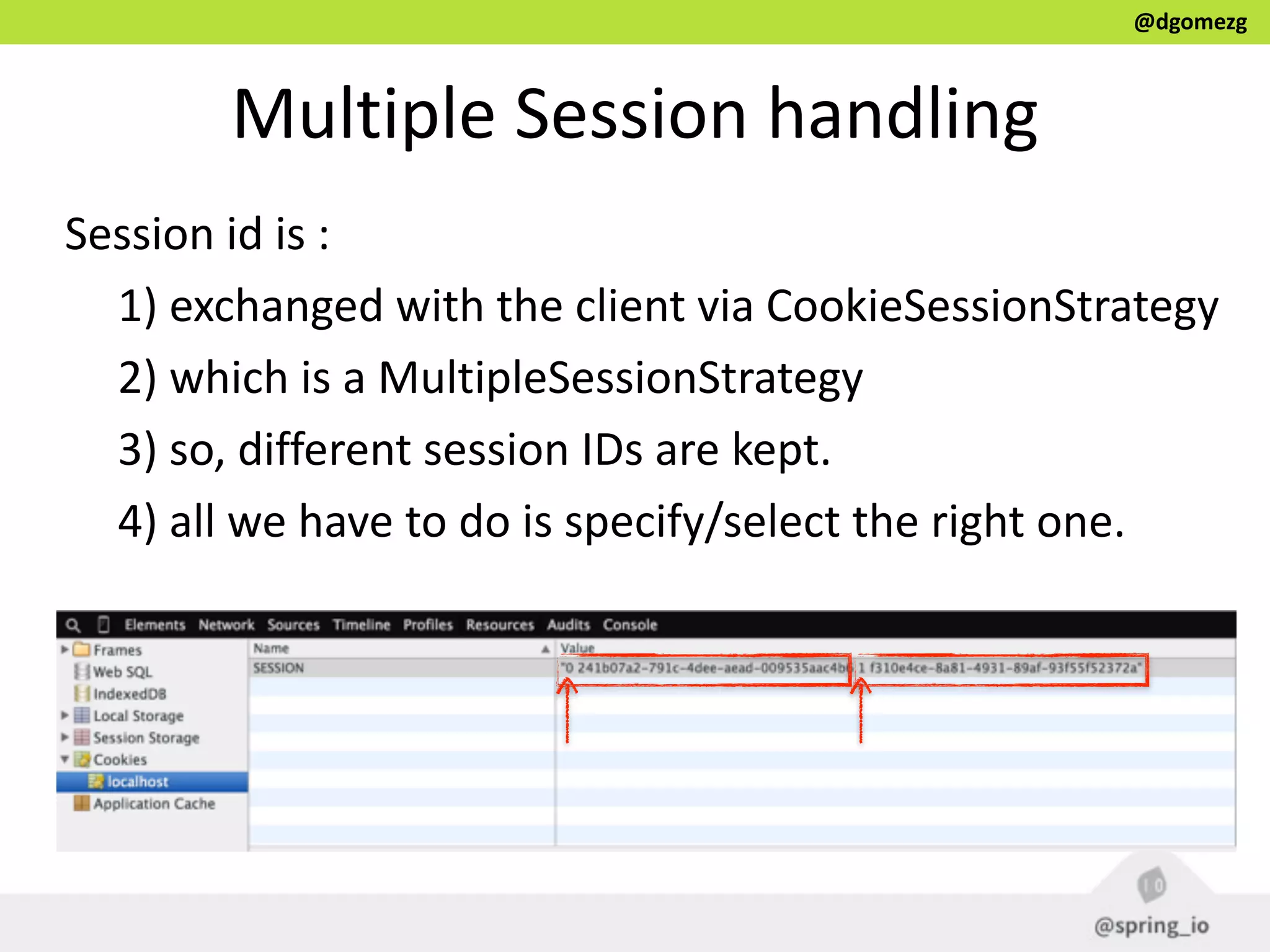

Multiple Session Handling
Session id is :
1) exchanged with the client via CookieSessionStrategy
2) which is a MultipleSessionStrategy

@dgomezg
Multiple Session handling
Session id is :
3) so, different session IDs are kept.

@dgomezg
Multiple Session handling
Session id is :
3) so, different session IDs are kept.
4) all we have to do is specify/select the right one.

@dgomezg
Session selection
Specific Session selected by parameter ?_s=#alias
http://localhost:8080/?_s=0

@dgomezg

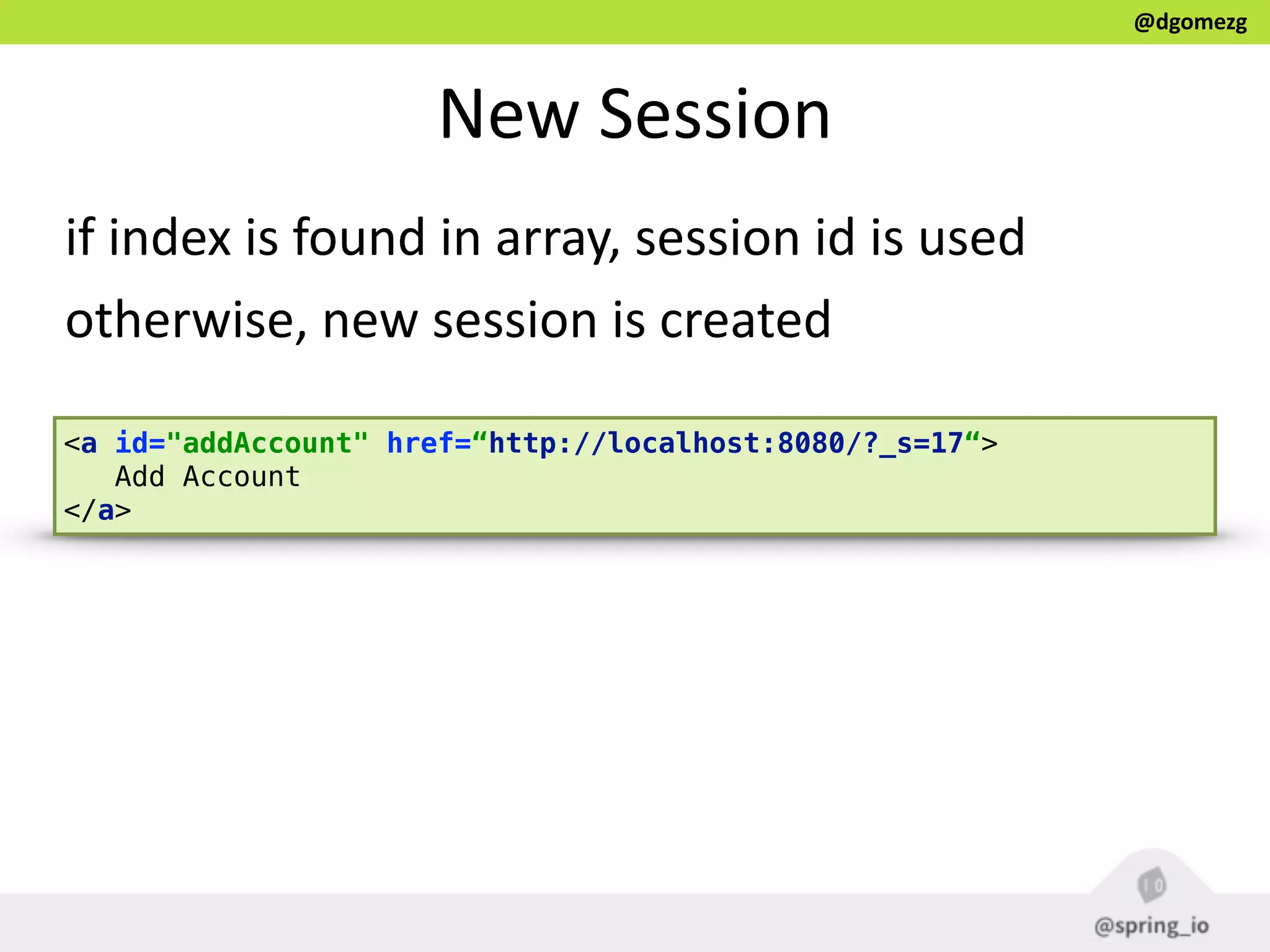

New Session
if index is found in array, session id is used
otherwise, new session is created
<a id="addAccount" href=“http://localhost:8080/?_s=17“>
Add Account
</a>

@dgomezg

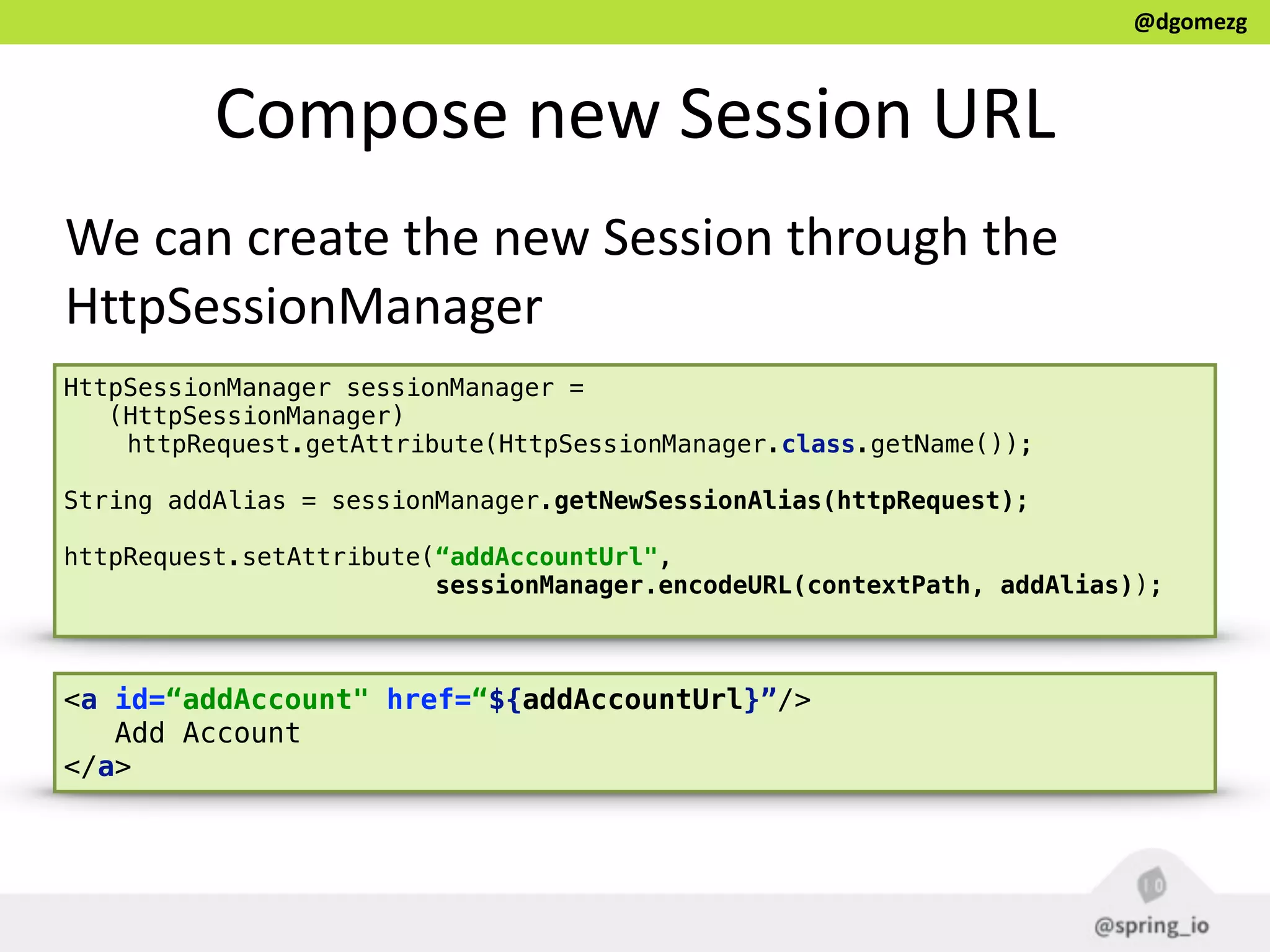

Compose new Session URL
We can create the new Session through the
HttpSessionManager
<a id=“addAccount" href=“${addAccountUrl}”/>
Add Account
</a>
HttpSessionManager sessionManager =
(HttpSessionManager)
httpRequest.getAttribute(HttpSessionManager.class.getName());
String addAlias = sessionManager.getNewSessionAlias(httpRequest);
httpRequest.setAttribute(“addAccountUrl",
sessionManager.encodeURL(contextPath, addAlias));

@dgomezg

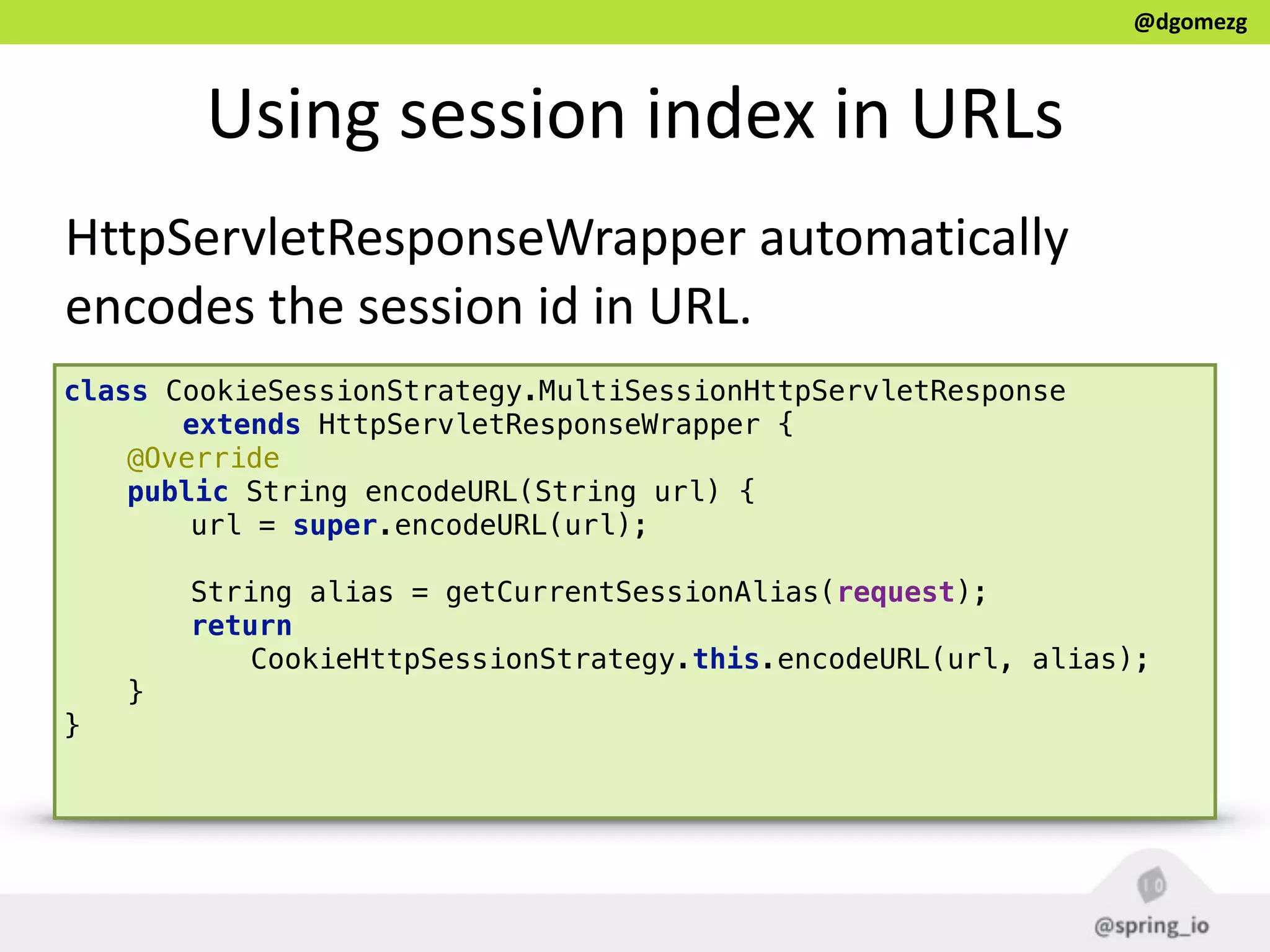

Using session index in URLs
HttpServletResponseWrapper automatically
encodes the session id in URL.
class CookieSessionStrategy.MultiSessionHttpServletResponse
extends HttpServletResponseWrapper {
@Override 
public String encodeURL(String url) { 
url = super.encodeURL(url); 
 
String alias = getCurrentSessionAlias(request); 
return
CookieHttpSessionStrategy.this.encodeURL(url, alias); 
} 
}

@dgomezg
USE CASE 3
RESTORING STATE TO RESTFUL APIS
48

@dgomezg
State in RESTful APIs
We could add State to REST endpoints:
• Persisted on external persistent service (redis)
• Restored into the HttpSession by the filter
• Used trasparently

@dgomezg
Uses an specific header in Response to return
session ID
@Bean 
public HttpSessionStrategy httpSessionStrategy() { 
return new HeaderHttpSessionStrategy(); 
}

@dgomezg
Uses an specific header in Response to return session
ID
By default x-‐auth-‐token
@Bean 
}

@dgomezg
Use an HeaderHttpSessionStrategy
@Bean 
}

@dgomezg
Session header name can be customised
@Bean 
HeaderHttpSessionStrategy sessionStrategy =
new HeaderHttpSessionStrategy(); 
sessionStrategy.setHeaderName("x-custom-session-id"); 
return sessionStrategy; 
}

@dgomezg

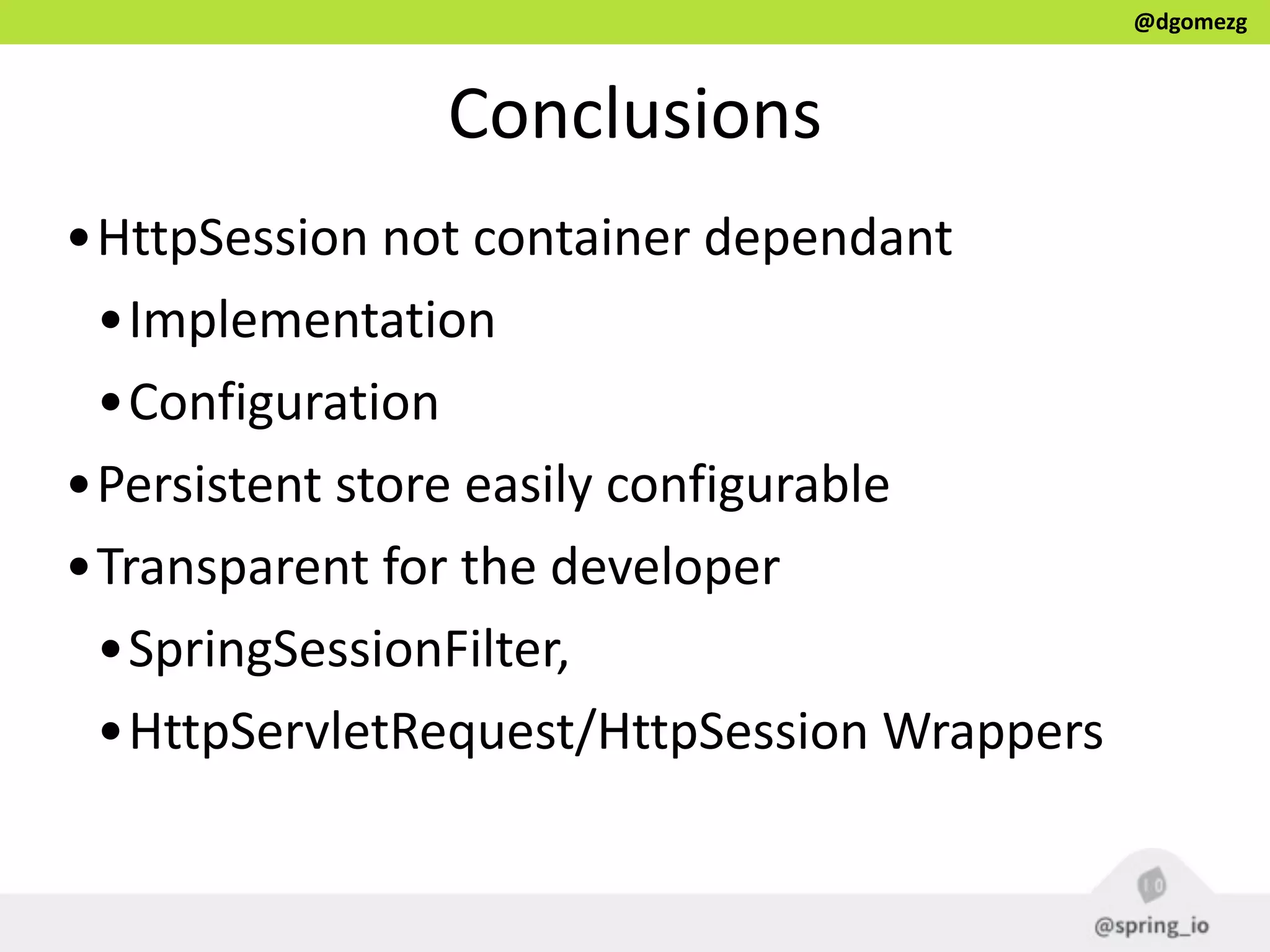

Conclusions
•HttpSession not container dependant
•Implementation
•Configuration
•Persistent store easily configurable
•Transparent for the developer
•SpringSessionFilter,
•HttpServletRequest/HttpSession Wrappers

@dgomezg
THANKS!
56
Reach me on
dgomezg@autentia.com
@dgomezg
Resources
Spring guides Spring samples repository

Managing user's data with Spring Session

In this document

More Related Content

What's hot

Viewers also liked

Similar to Managing user's data with Spring Session

More from David Gómez García

Recently uploaded

Managing user's data with Spring Session
