Machine Learning in a
Flash
Kory Becker
August, 2017, http://primaryobjects.com
1
Sponsored by
2
AI IS GOOD

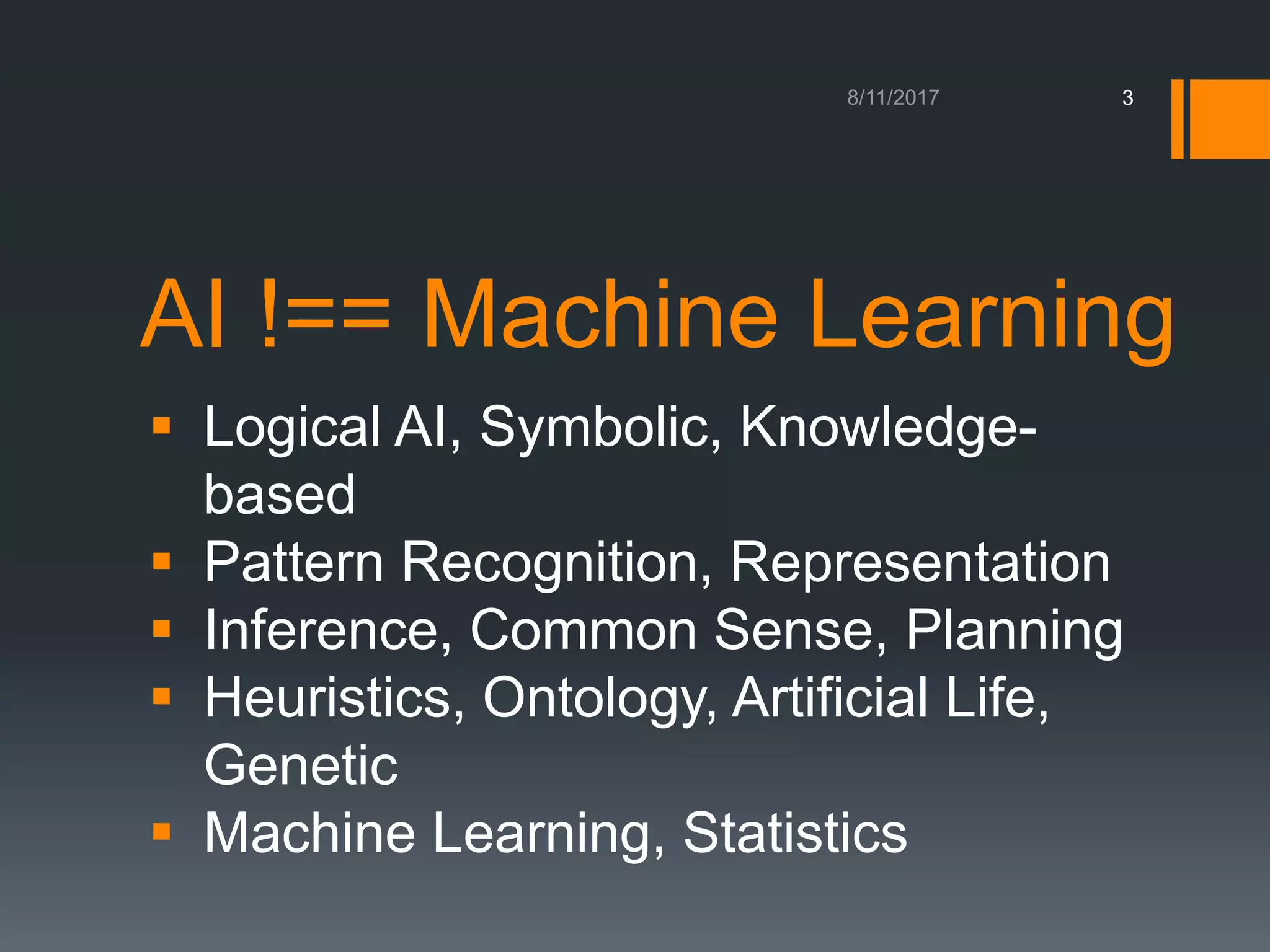

AI !== Machine Learning
 Logical AI, Symbolic, Knowledge-
based
 Pattern Recognition, Representation
 Inference, Common Sense, Planning
 Heuristics, Ontology, Artificial Life,
Genetic
 Machine Learning, Statistics
3

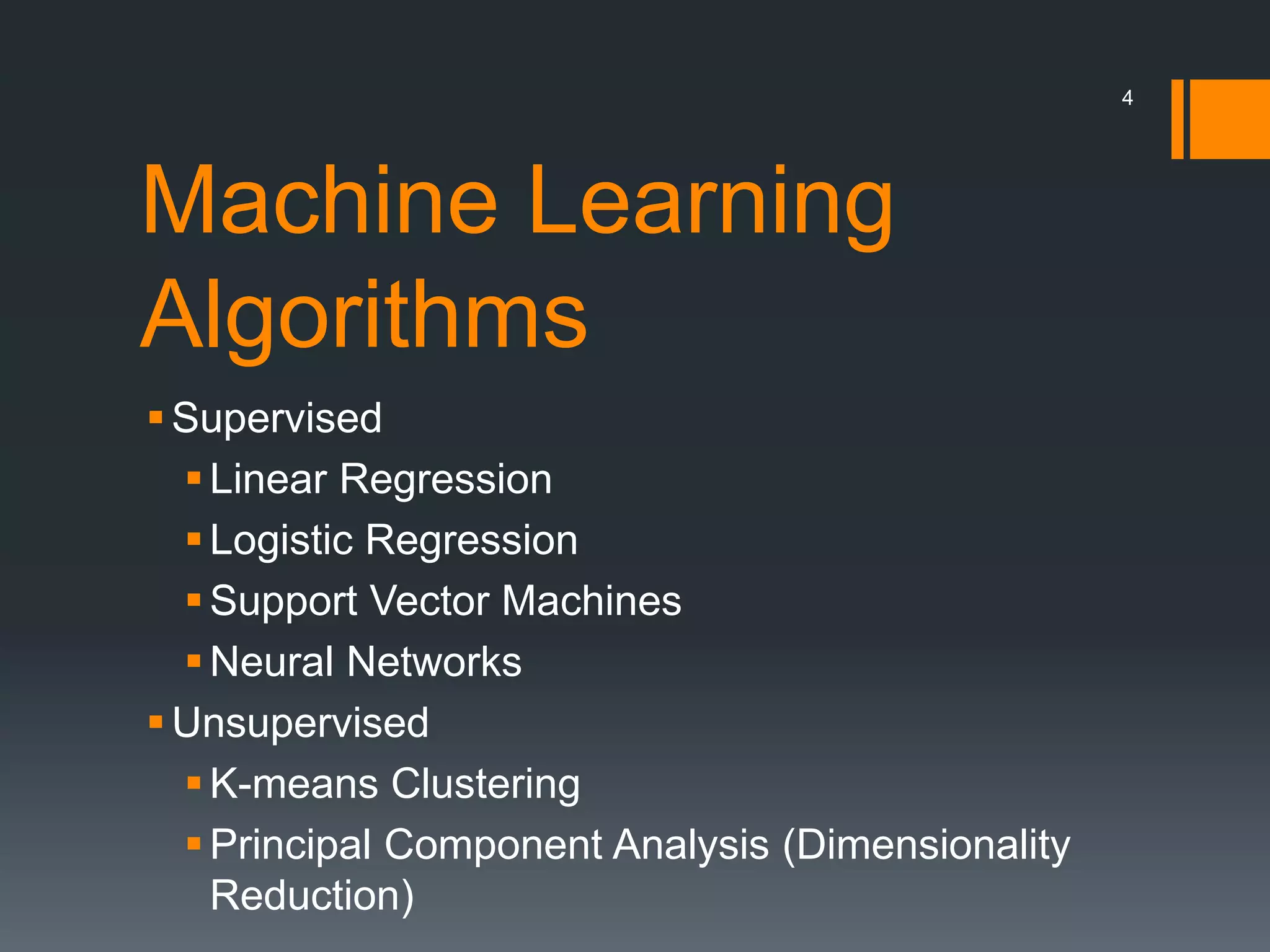

Machine Learning
Algorithms
Supervised
Linear Regression
Logistic Regression
Support Vector Machines
Neural Networks
Unsupervised
K-means Clustering
Principal Component Analysis (Dimensionality
Reduction)
4

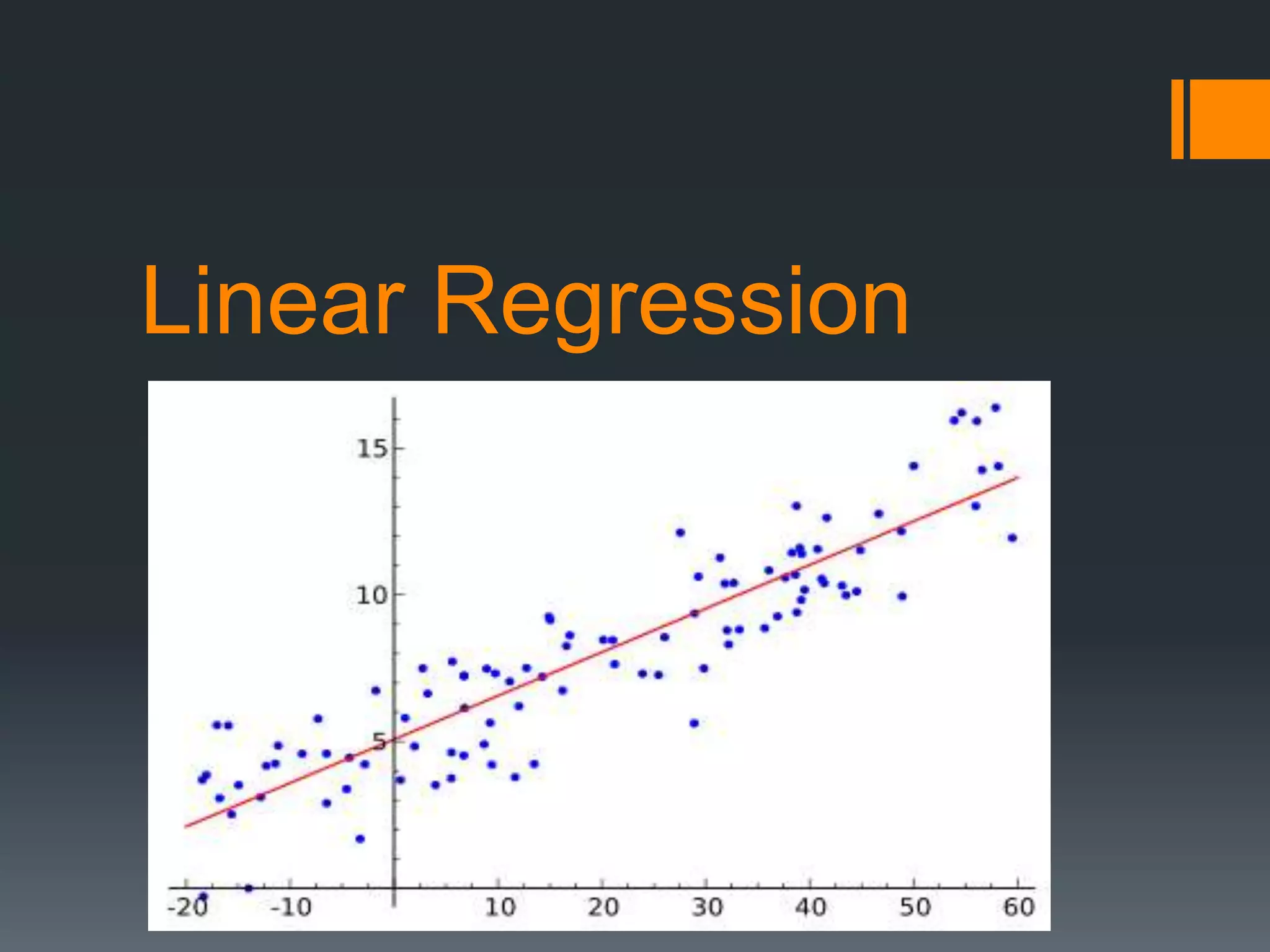

Linear Regression

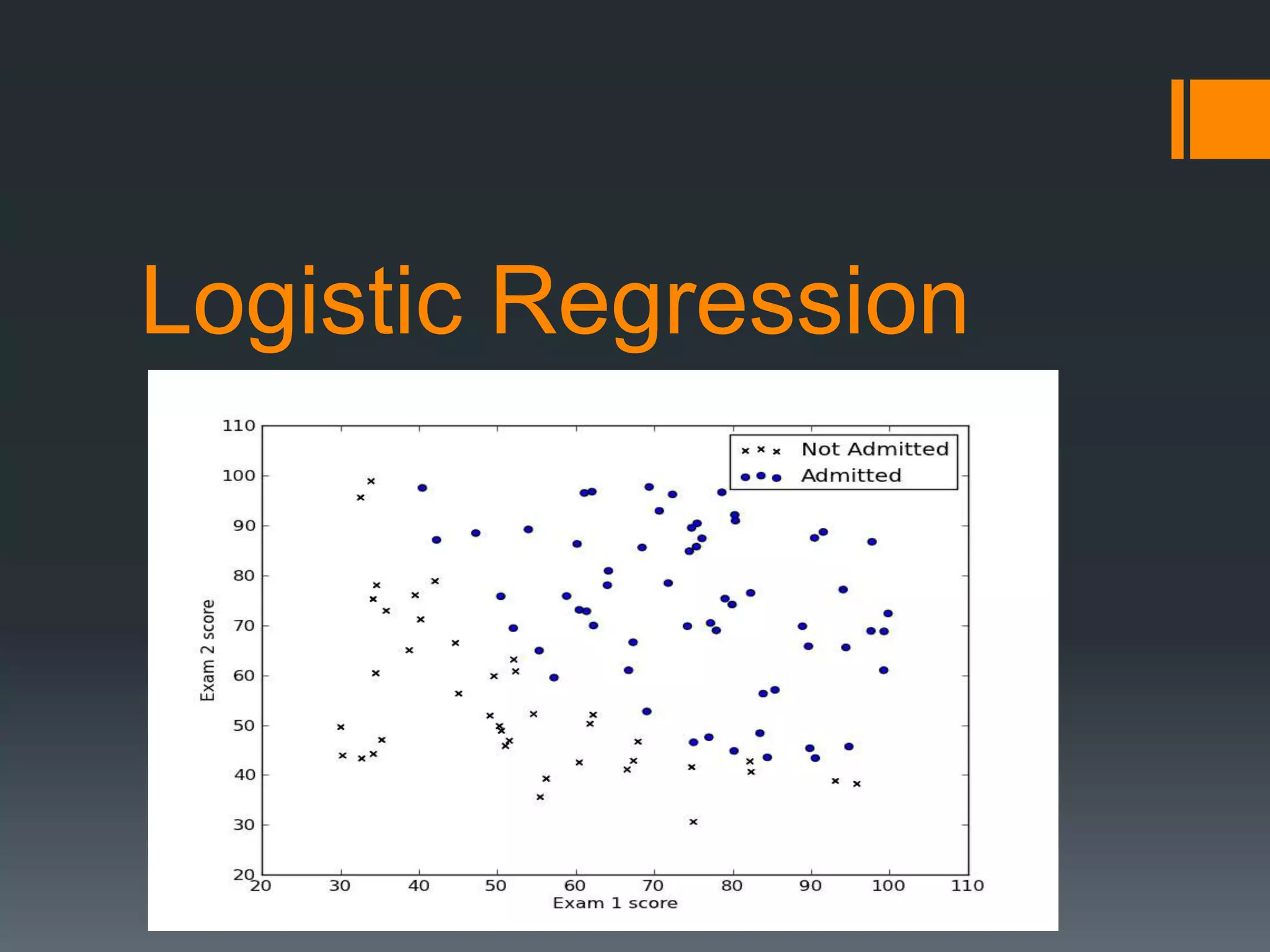

Logistic Regression

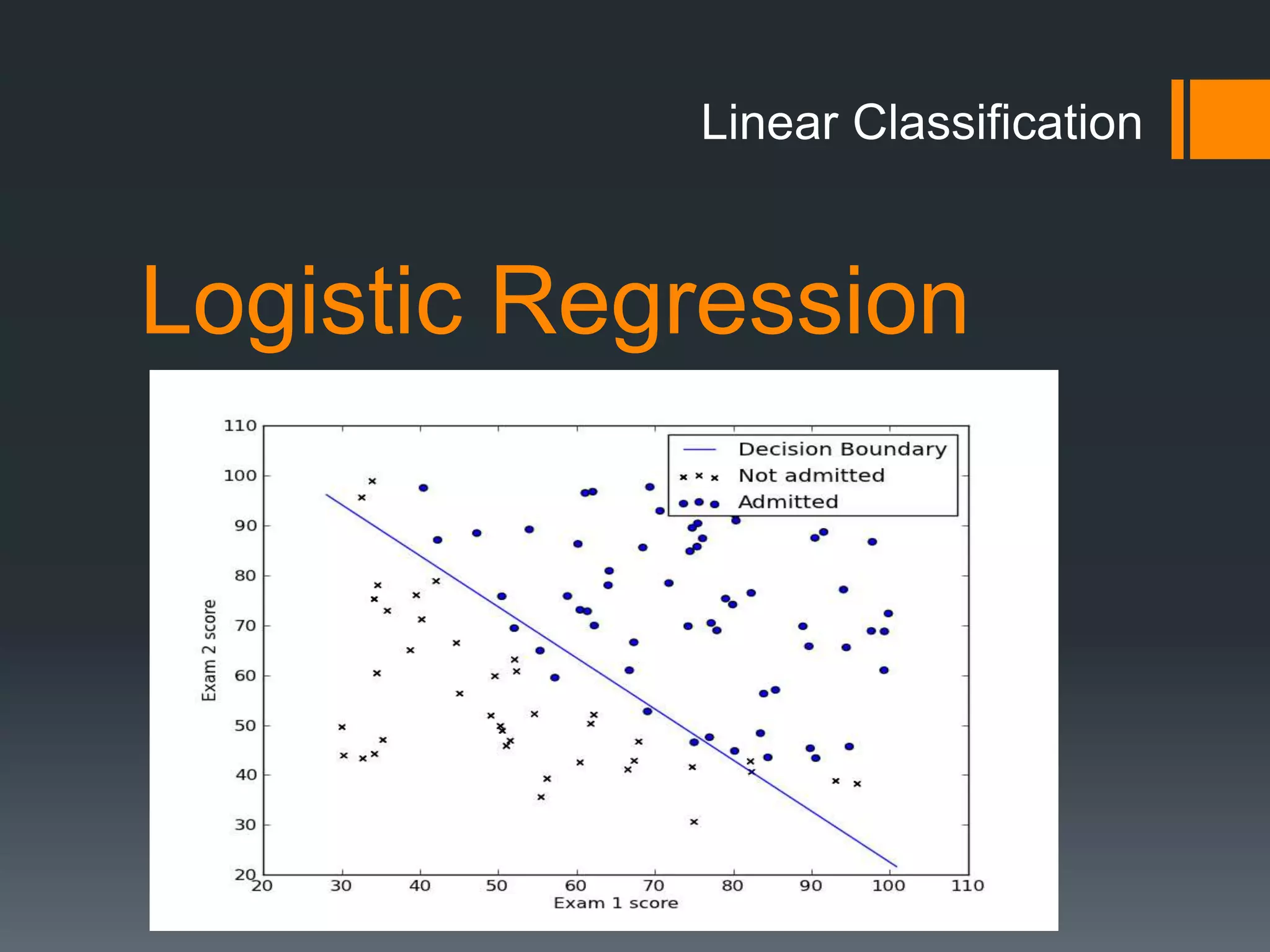

Logistic Regression
Linear Classification

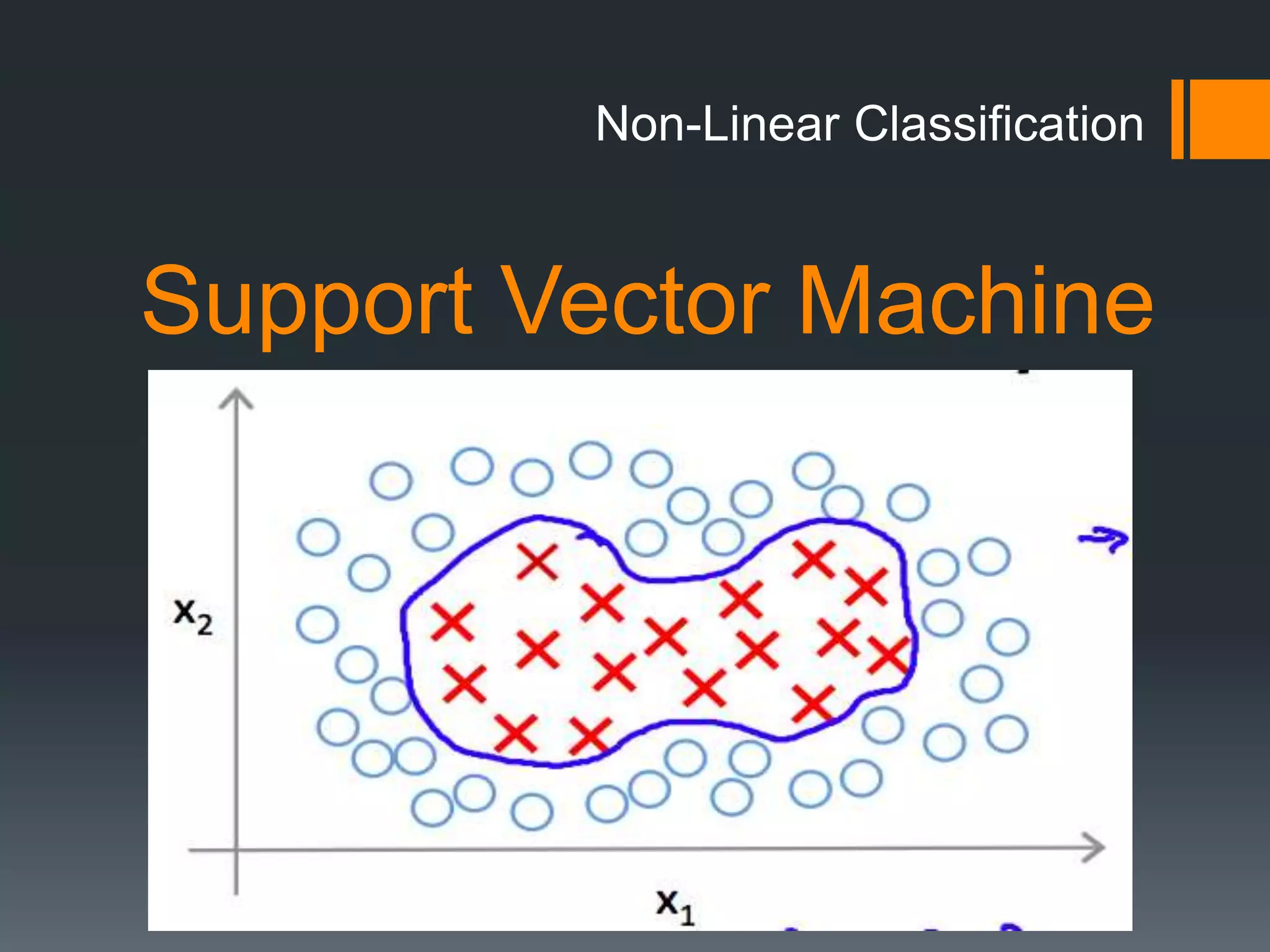

Support Vector Machine
Non-Linear Classification

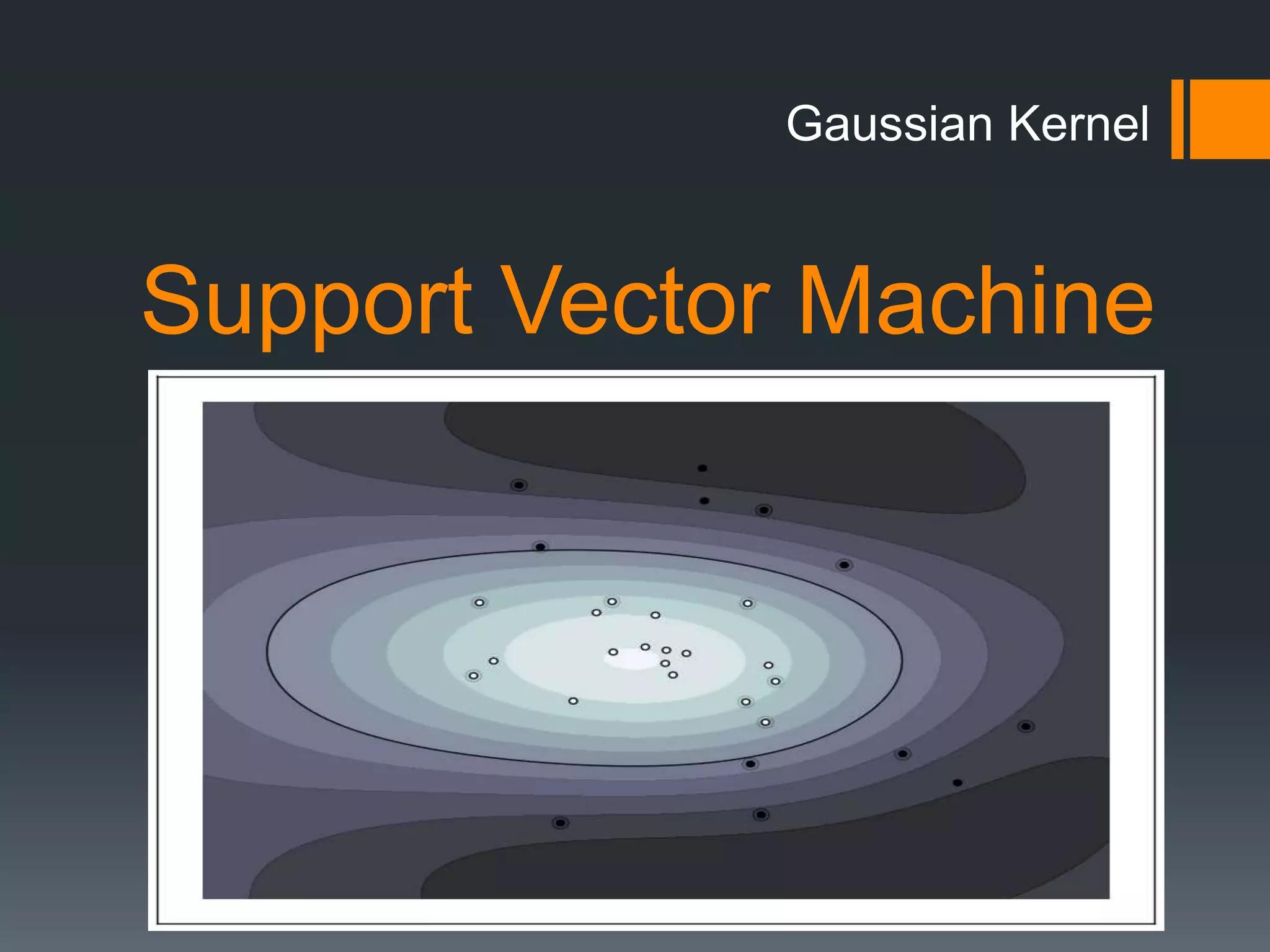

Support Vector Machine
Gaussian Kernel
Pop Quiz!

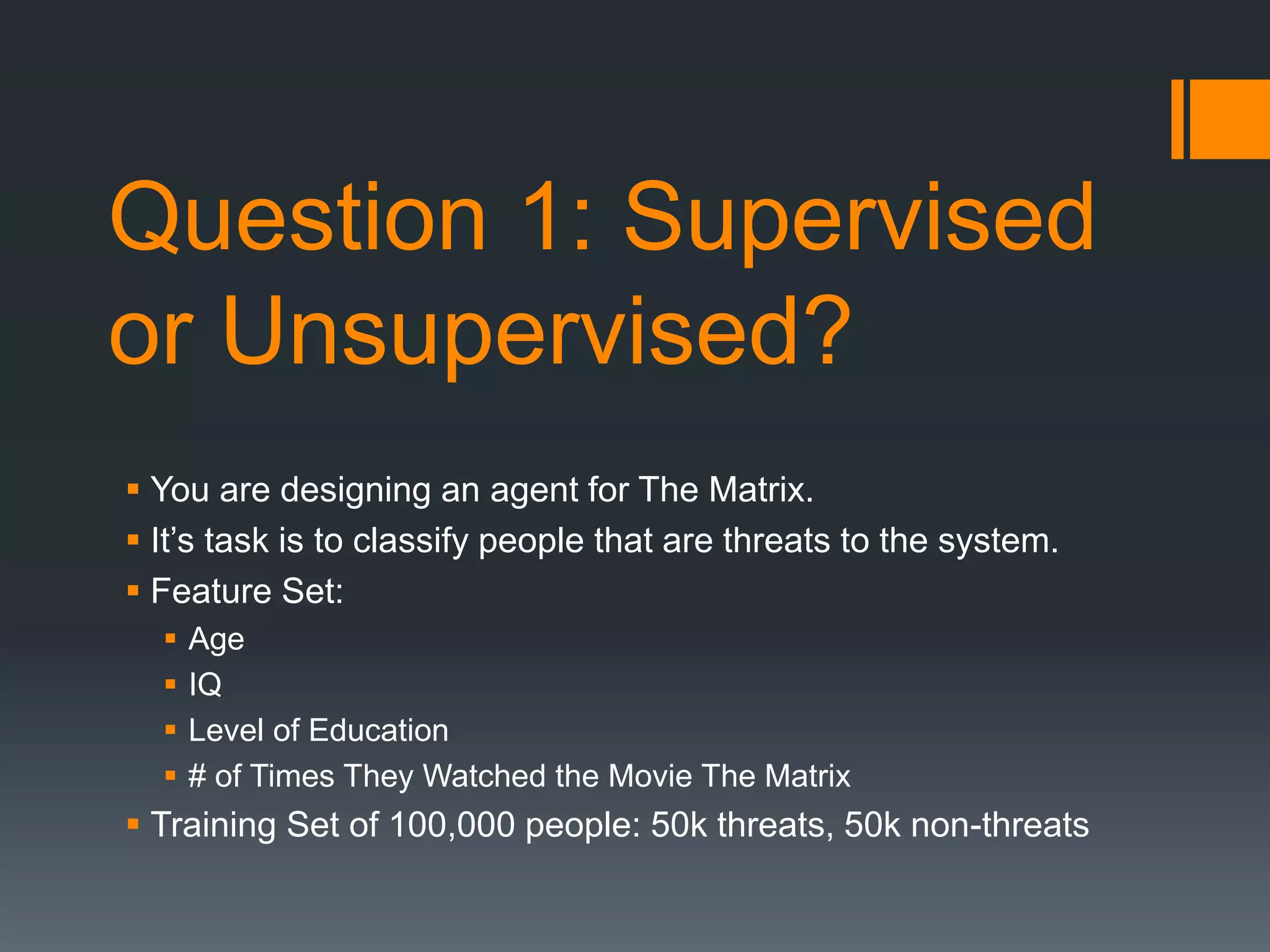

Question 1: Supervised
or Unsupervised?
 You are designing an agent for The Matrix.
 It’s task is to classify people that are threats to the system.
 Feature Set:
 Age
 IQ
 Level of Education
 # of Times They Watched the Movie The Matrix
 Training Set of 100,000 people: 50k threats, 50k non-threats

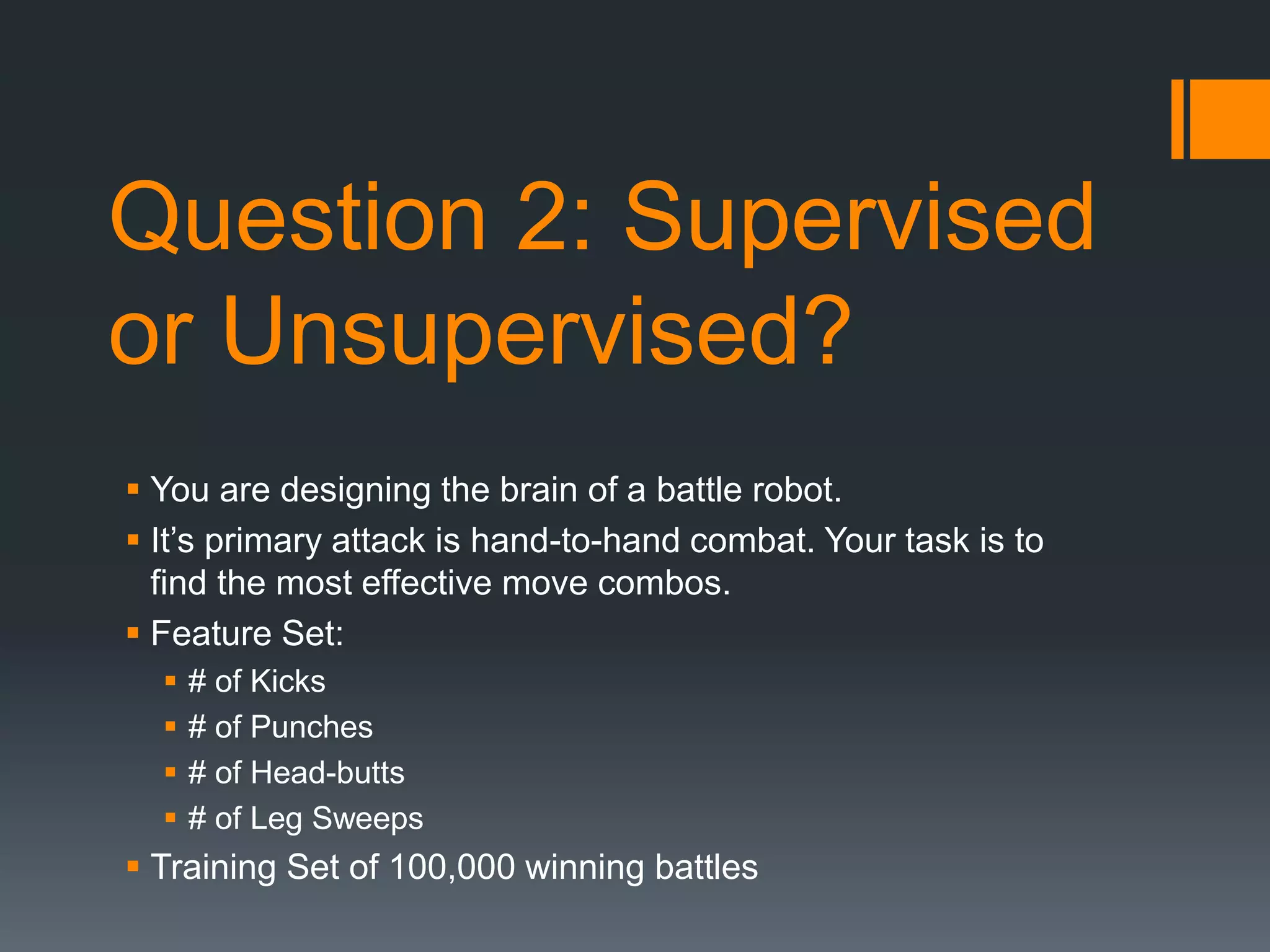

Question 2: Supervised
or Unsupervised?
 You are designing the brain of a battle robot.
 It’s primary attack is hand-to-hand combat. Your task is to
find the most effective move combos.
 Feature Set:
 # of Kicks
 # of Punches
 # of Head-butts
 # of Leg Sweeps
 Training Set of 100,000 winning battles

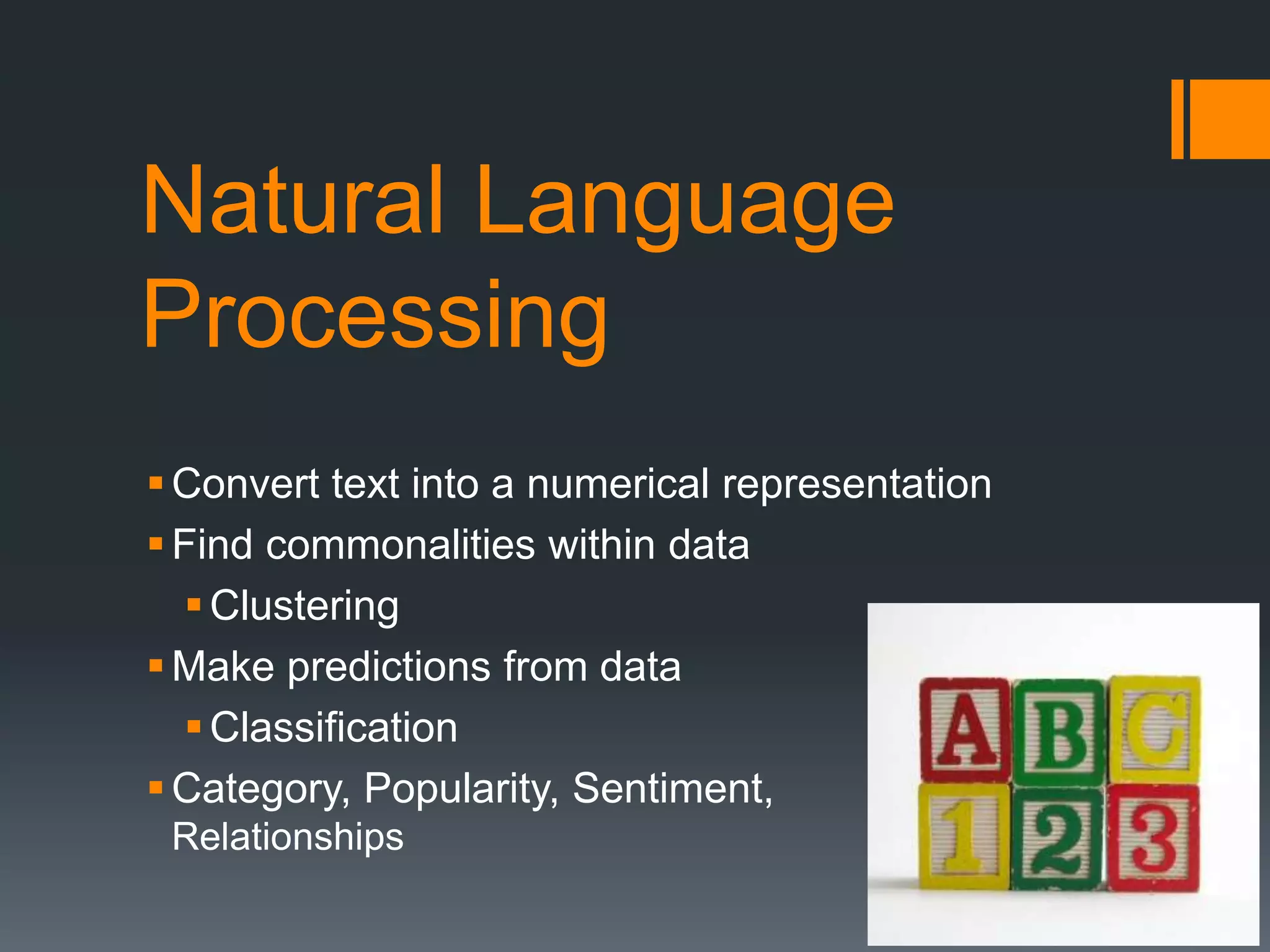

Natural Language
Processing
Convert text into a numerical representation
Find commonalities within data
Clustering
Make predictions from data
Classification
Category, Popularity, Sentiment,
Relationships

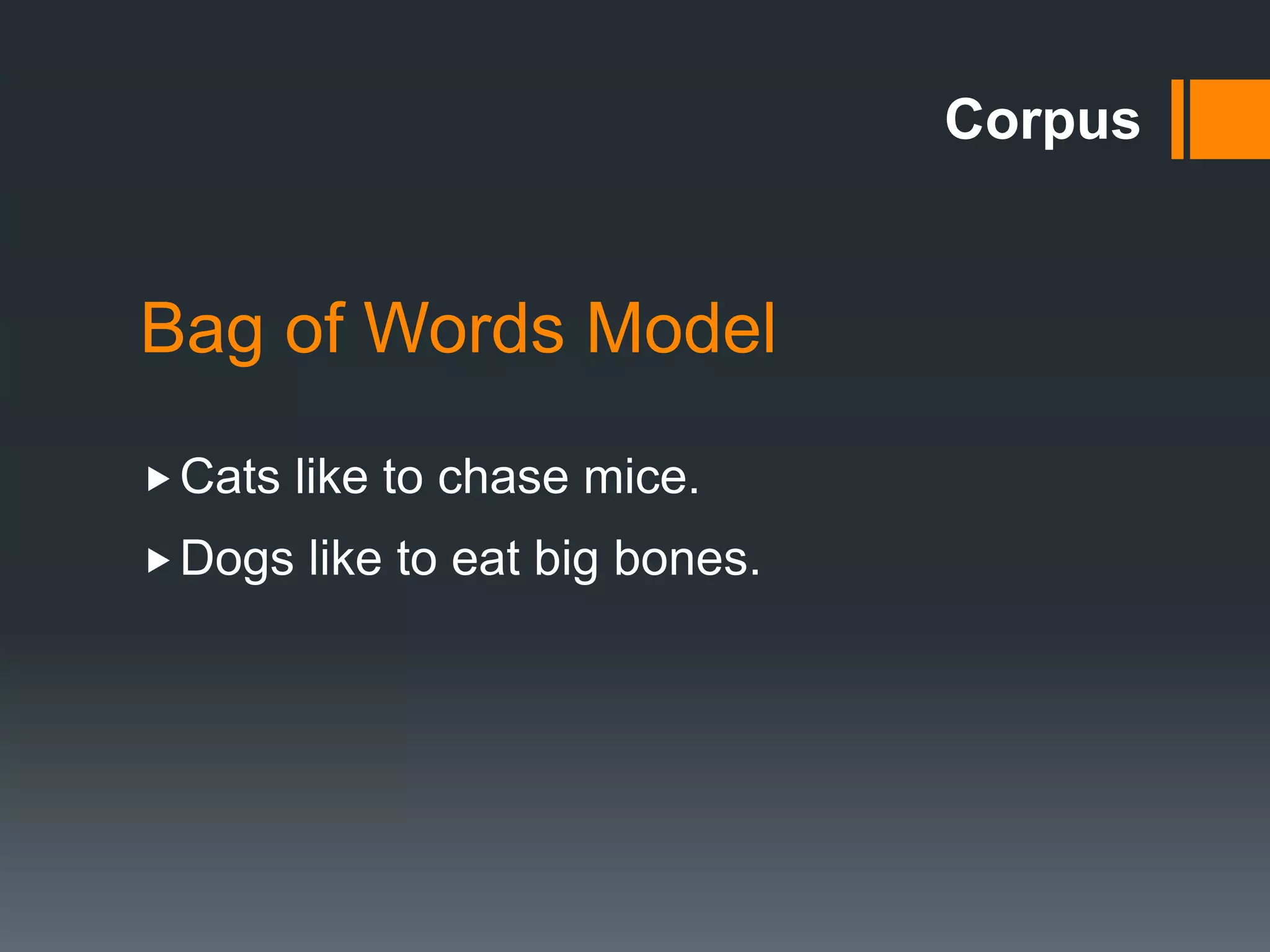

Bag of Words Model
Corpus
Cats like to chase mice.
Dogs like to eat big bones.

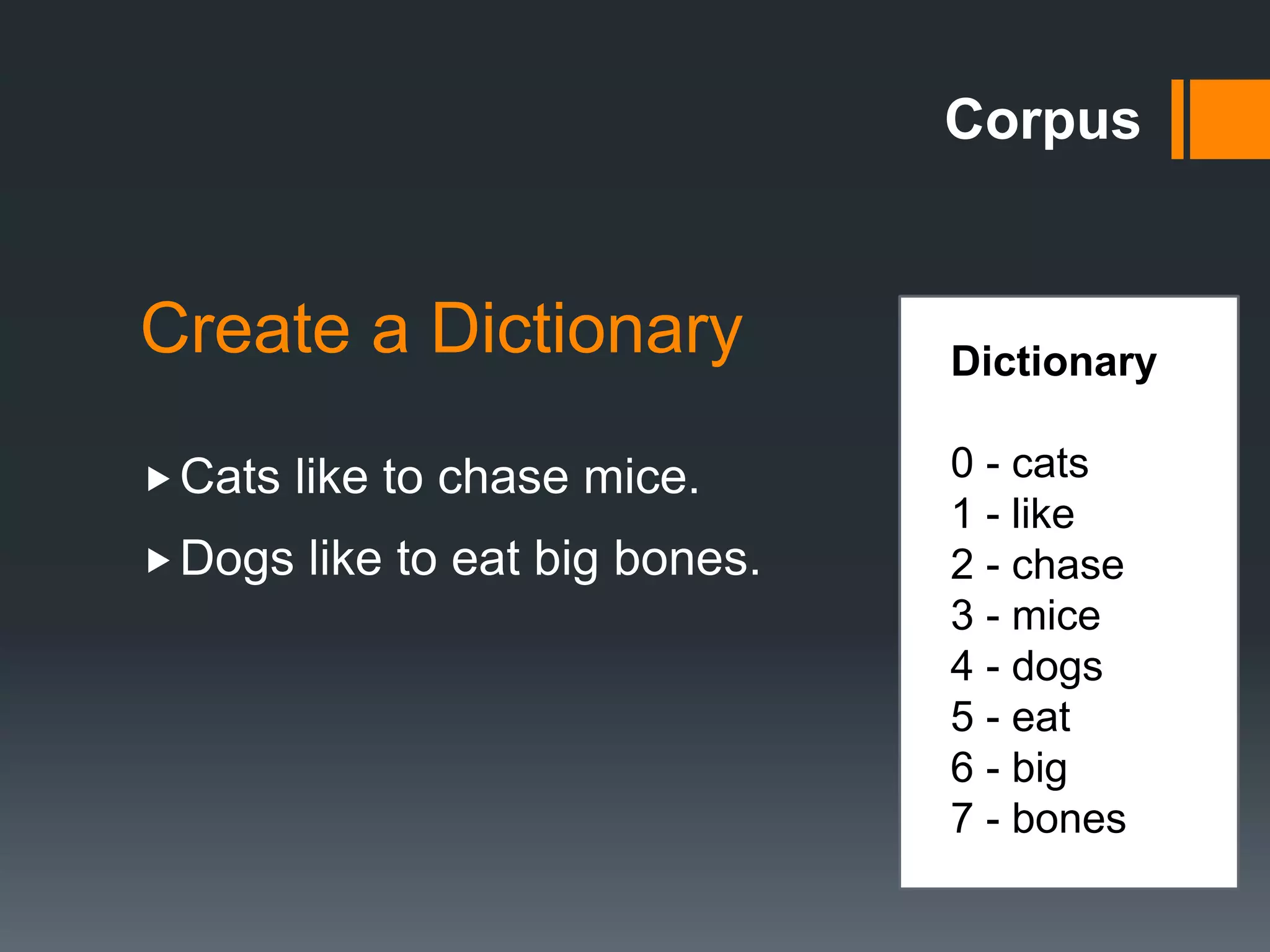

Create a Dictionary Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones
Cats like to chase mice.
Dogs like to eat big bones.
Corpus

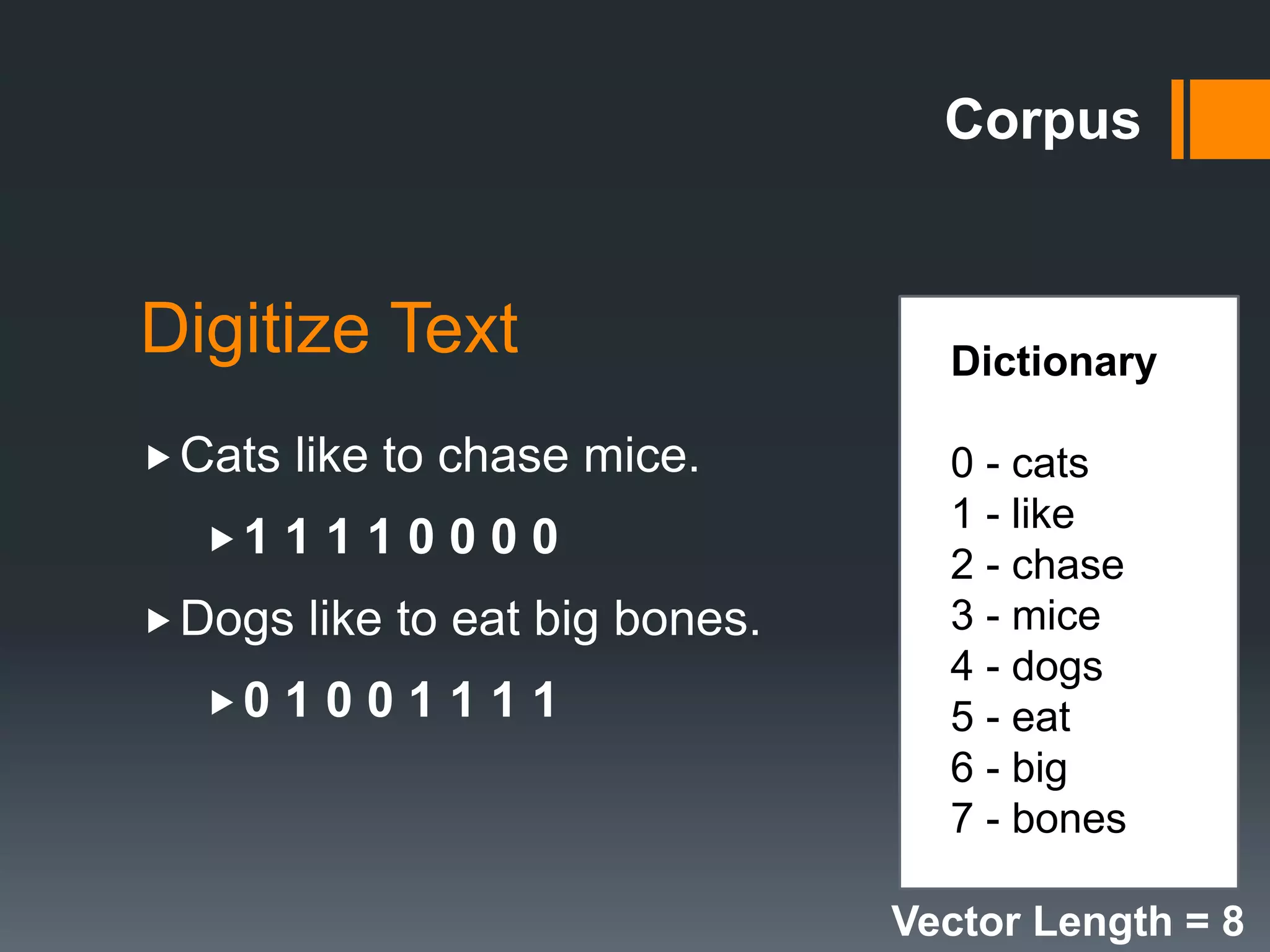

Digitize Text
Cats like to chase mice.
1 1 1 1 0 0 0 0
Dogs like to eat big bones.
0 1 0 0 1 1 1 1
Vector Length = 8
Corpus
Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones

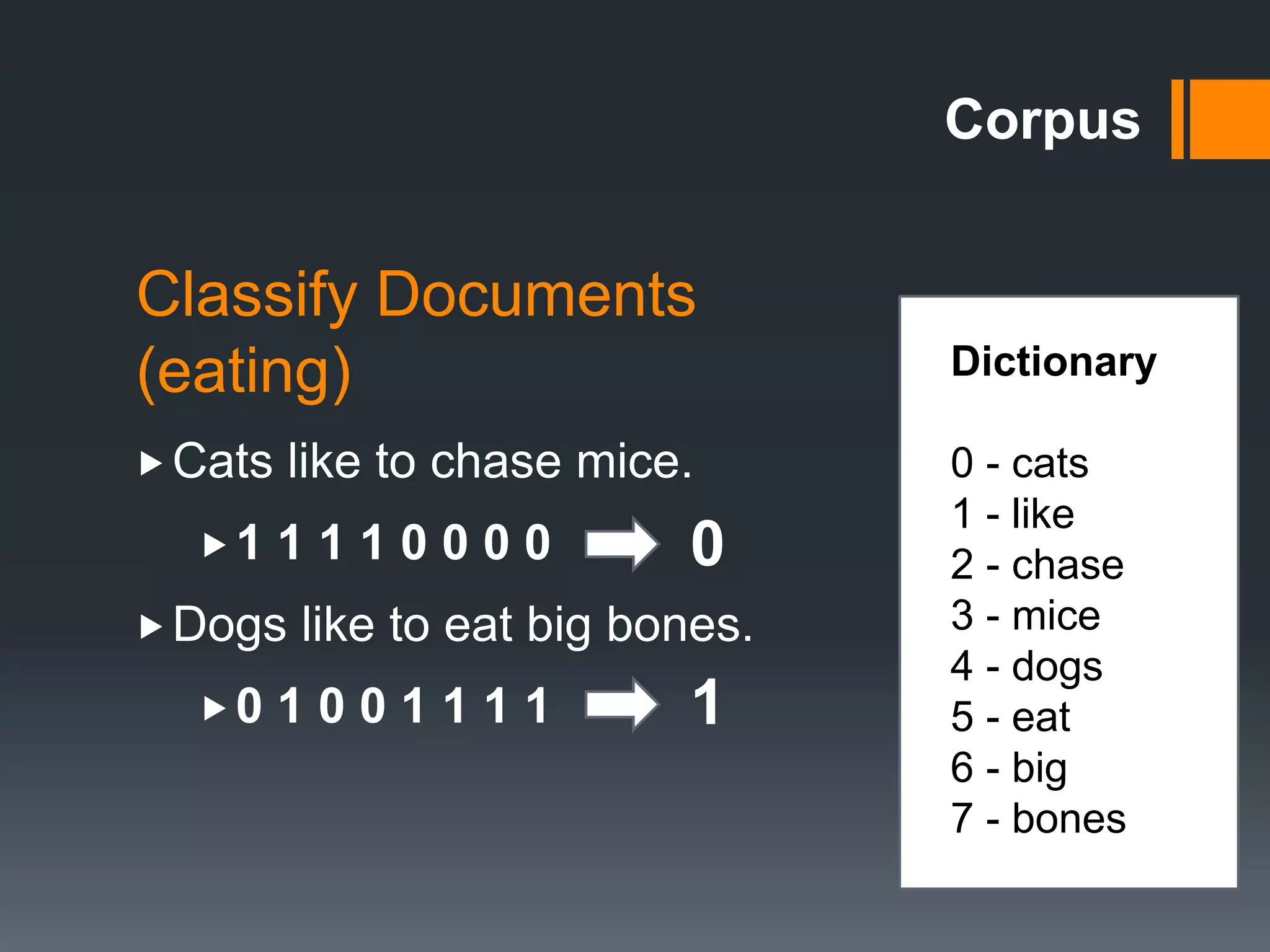

Classify Documents
(eating)
Cats like to chase mice.
1 1 1 1 0 0 0 0
Dogs like to eat big bones.
0 1 0 0 1 1 1 1
0
1
Corpus
Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones

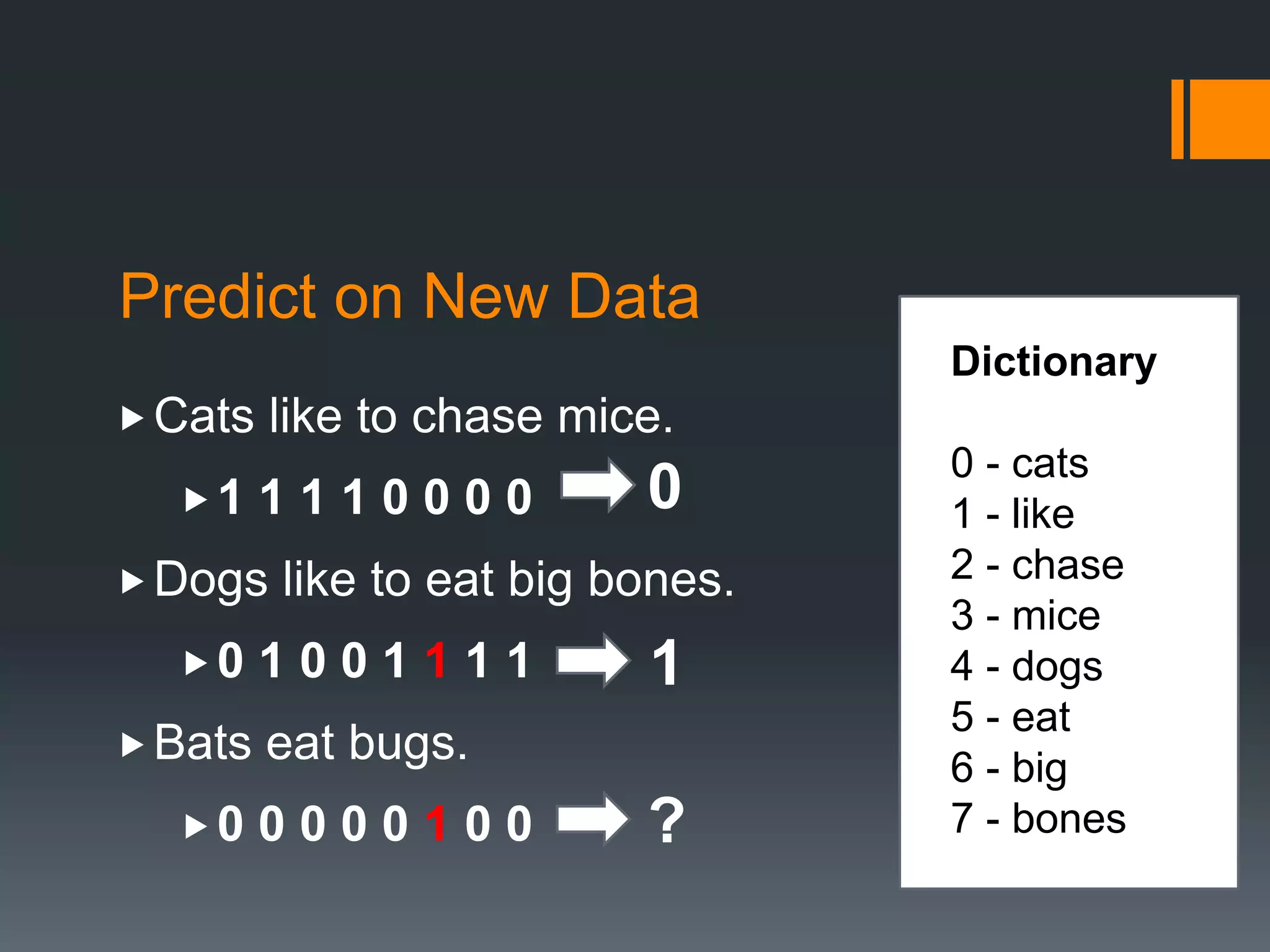

Predict on New Data
Cats like to chase mice.
1 1 1 1 0 0 0 0
Dogs like to eat big bones.
0 1 0 0 1 1 1 1
Bats eat bugs.
0 0 0 0 0 1 0 0
0
1
?
Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones
Predict on New Data
Cats like to chase mice.
1 1 1 1 0 0 0 0
Dogs like to eat big bones.
0 1 0 0 1 1 1 1
Bats eat bugs.
0 0 0 0 0 1 0 0
0
1
?
Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones
Predict on New Data
Cats like to chase mice.
1 1 1 1 0 0 0 0
Dogs like to eat big bones.
0 1 0 0 1 1 1 1
Bats eat bugs.
0 0 0 0 0 1 0 0
0
1
1
Dictionary
0 - cats
1 - like
2 - chase
3 - mice
4 - dogs
5 - eat
6 - big
7 - bones

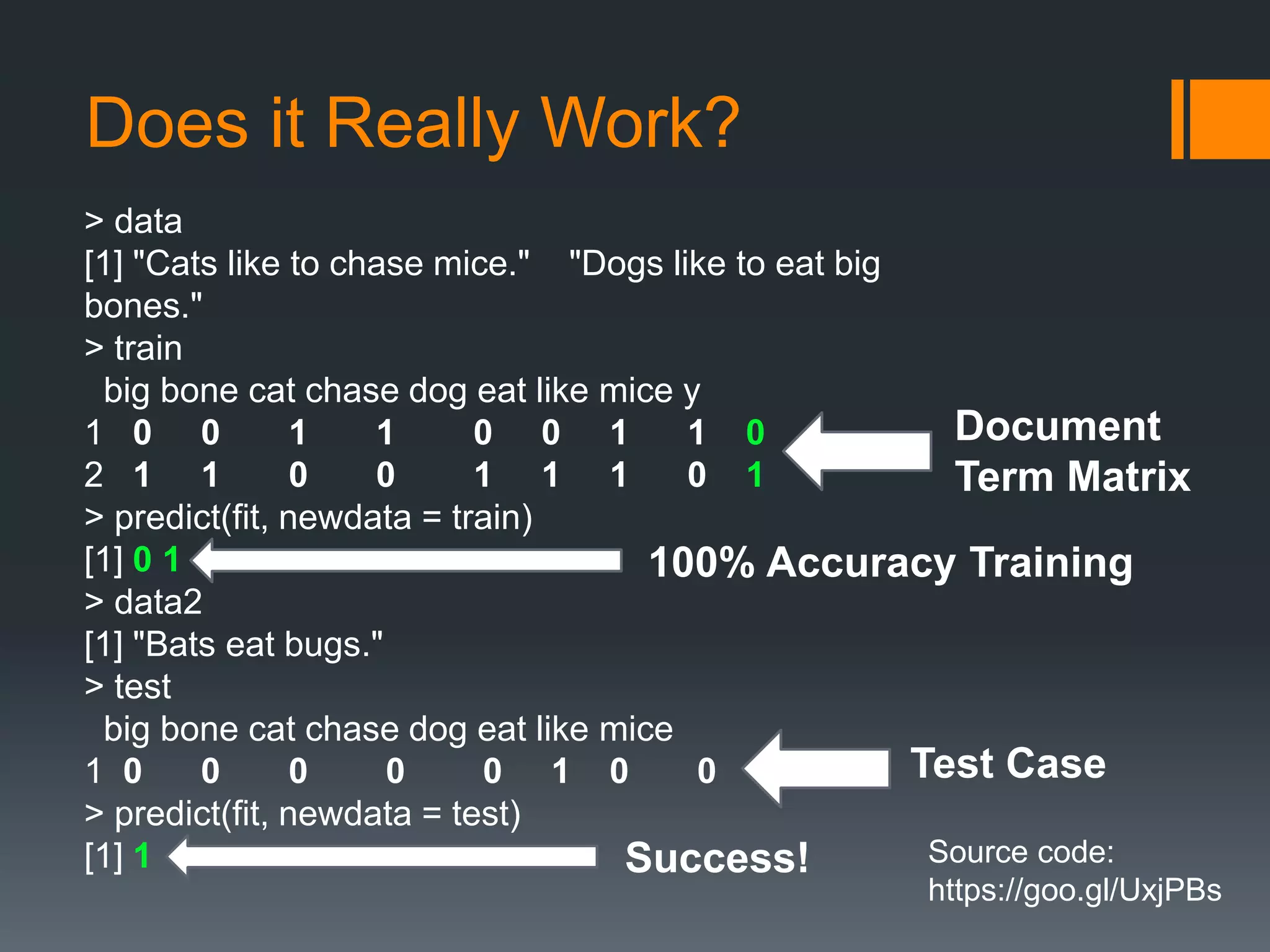

Does it Really Work?
> data
[1] "Cats like to chase mice." "Dogs like to eat big
bones."
> train
big bone cat chase dog eat like mice y
1 0 0 1 1 0 0 1 1 0
2 1 1 0 0 1 1 1 0 1
> predict(fit, newdata = train)
[1] 0 1
> data2
[1] "Bats eat bugs."
> test
big bone cat chase dog eat like mice
1 0 0 0 0 0 1 0 0
> predict(fit, newdata = test)
[1] 1
Document
Term Matrix
100% Accuracy Training
Test Case
Success! Source code:
https://goo.gl/UxjPBs

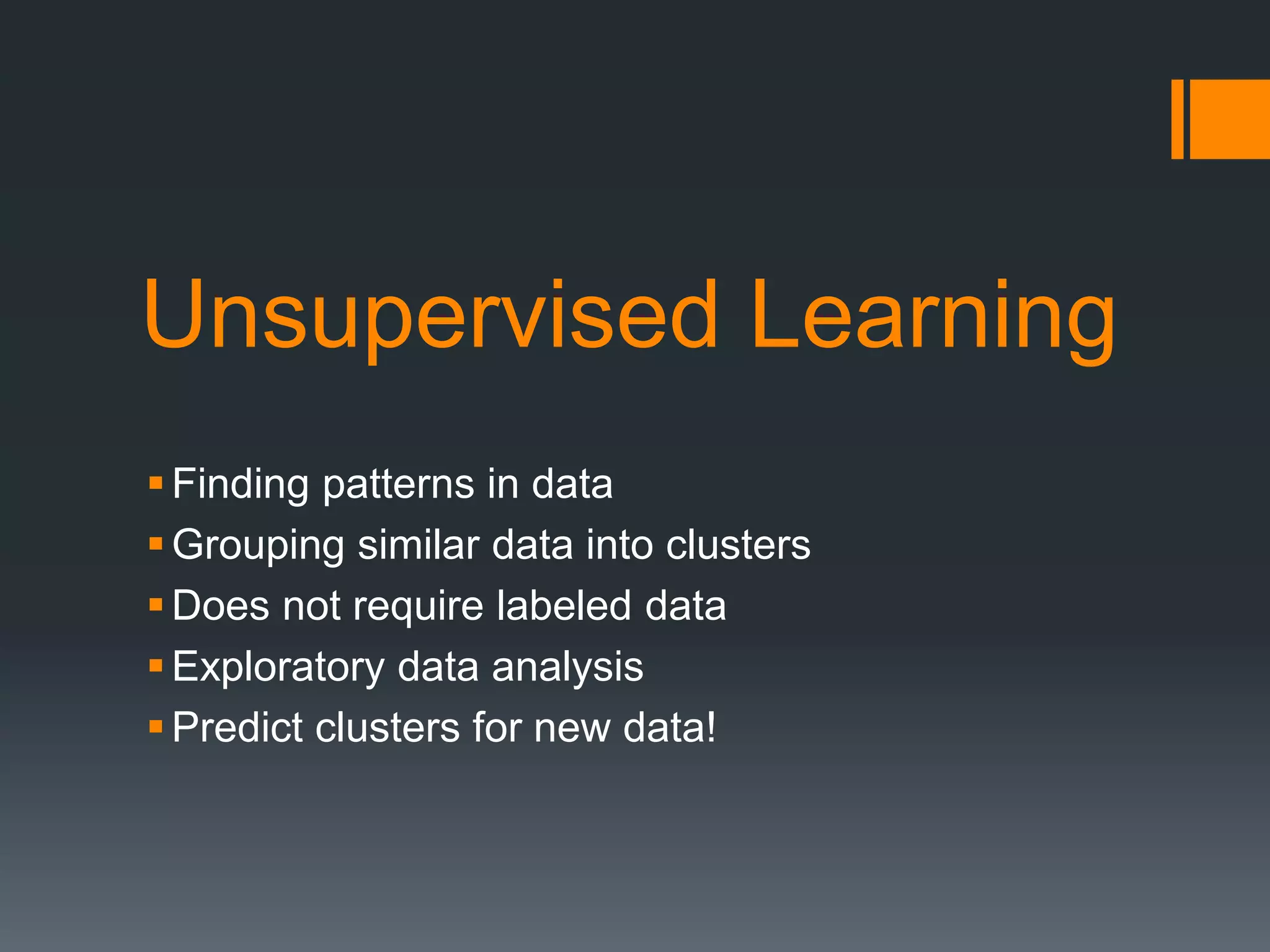

Unsupervised Learning
Finding patterns in data
Grouping similar data into clusters
Does not require labeled data
Exploratory data analysis
Predict clusters for new data!

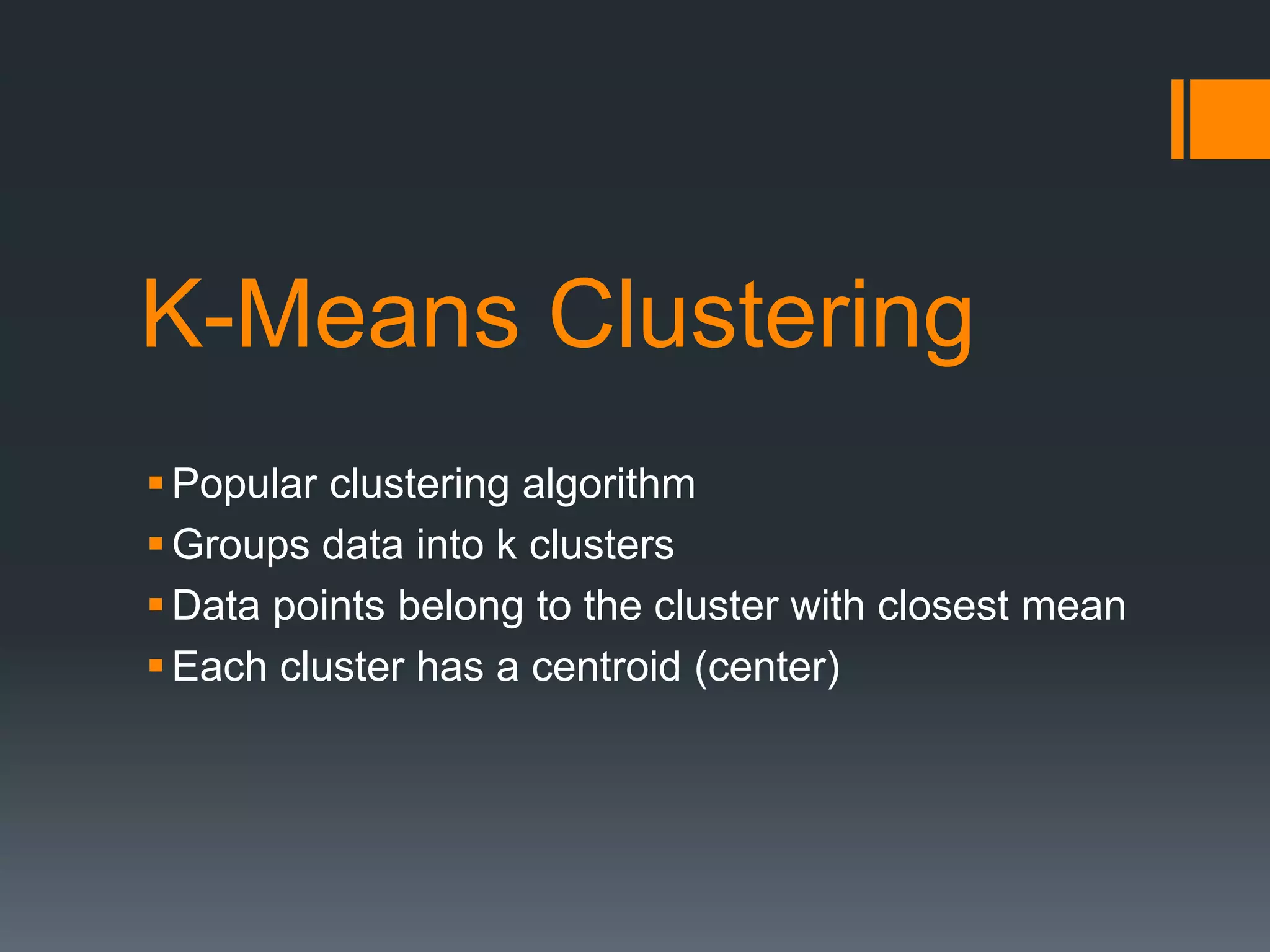

K-Means Clustering
Popular clustering algorithm
Groups data into k clusters
Data points belong to the cluster with closest mean
Each cluster has a centroid (center)

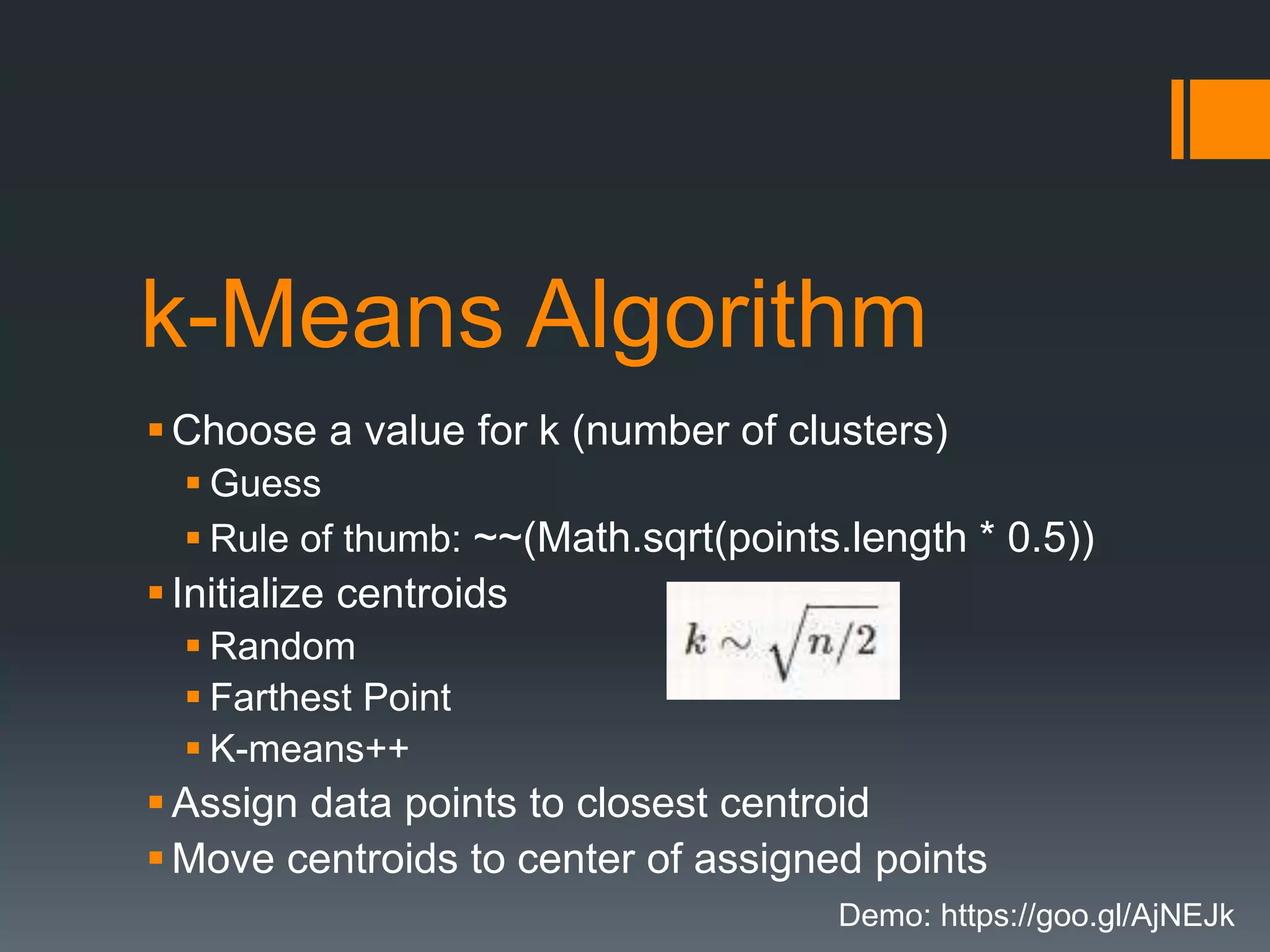

k-Means Algorithm
Choose a value for k (number of clusters)
 Guess
 Rule of thumb: ~~(Math.sqrt(points.length * 0.5))
Initialize centroids
 Random
 Farthest Point
 K-means++
Assign data points to closest centroid
Move centroids to center of assigned points
Demo: https://goo.gl/AjNEJk

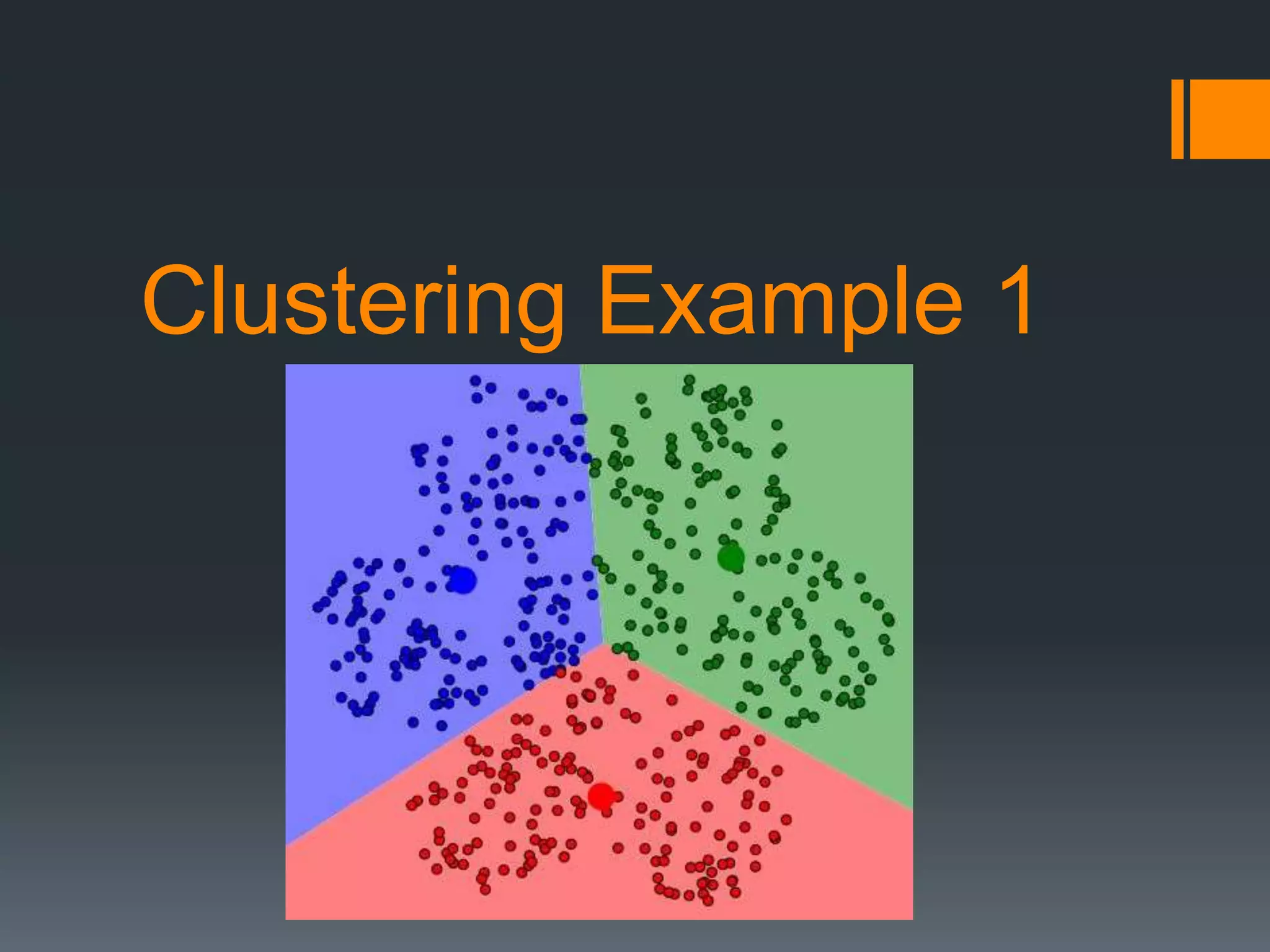

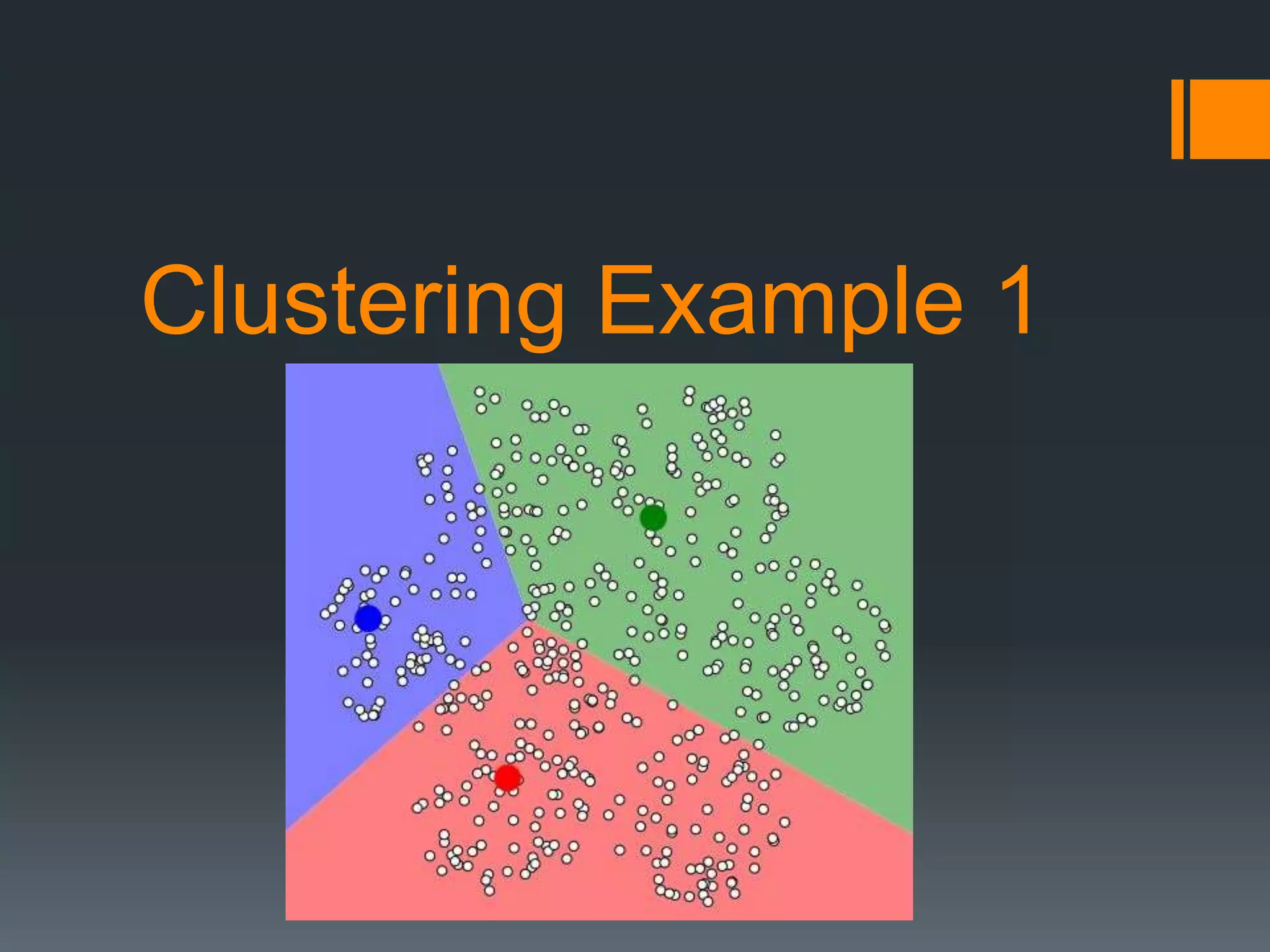

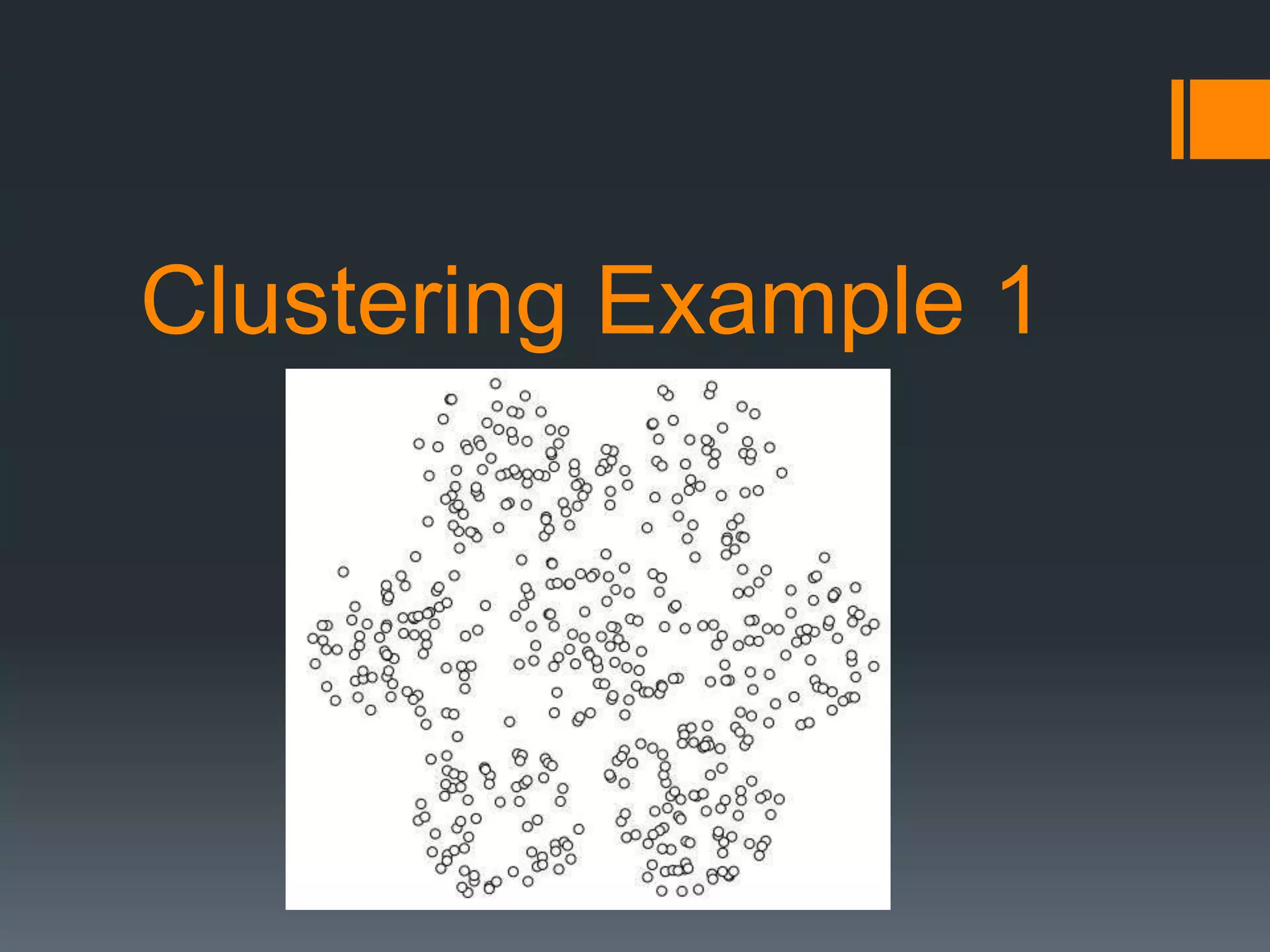

Clustering Example 1
Clustering Example 1
Clustering Example 1

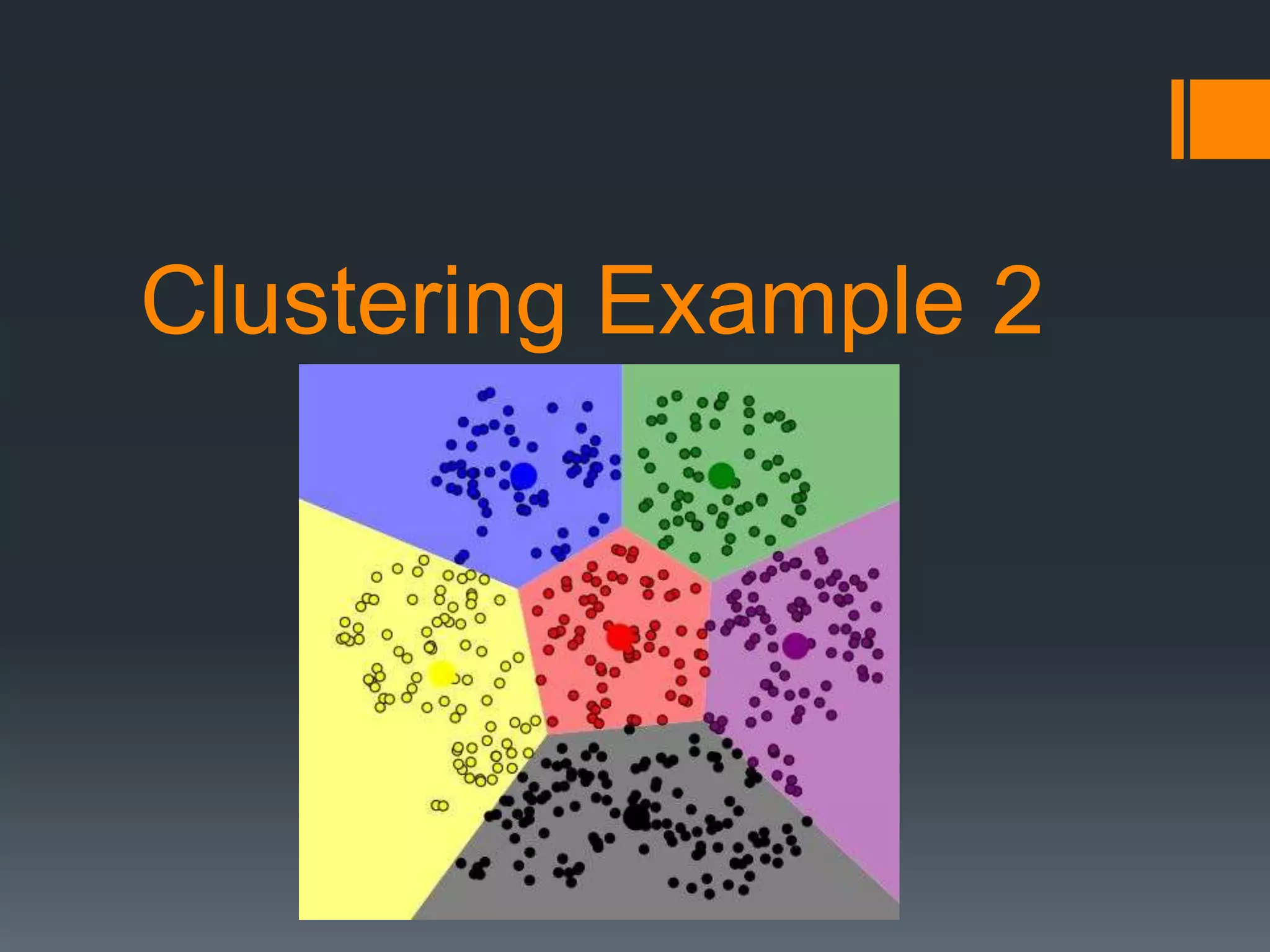

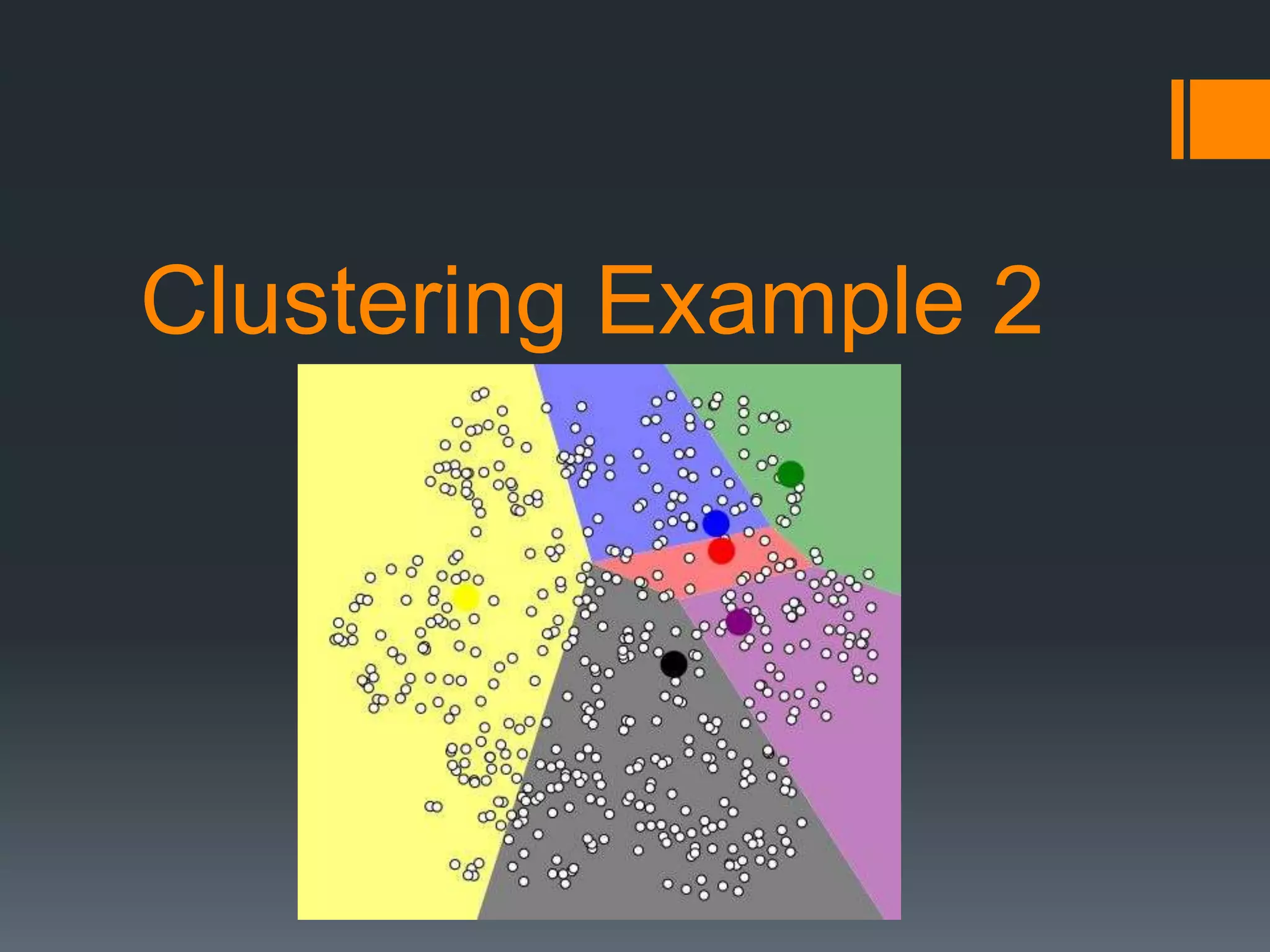

Clustering Example 2
Clustering Example 2

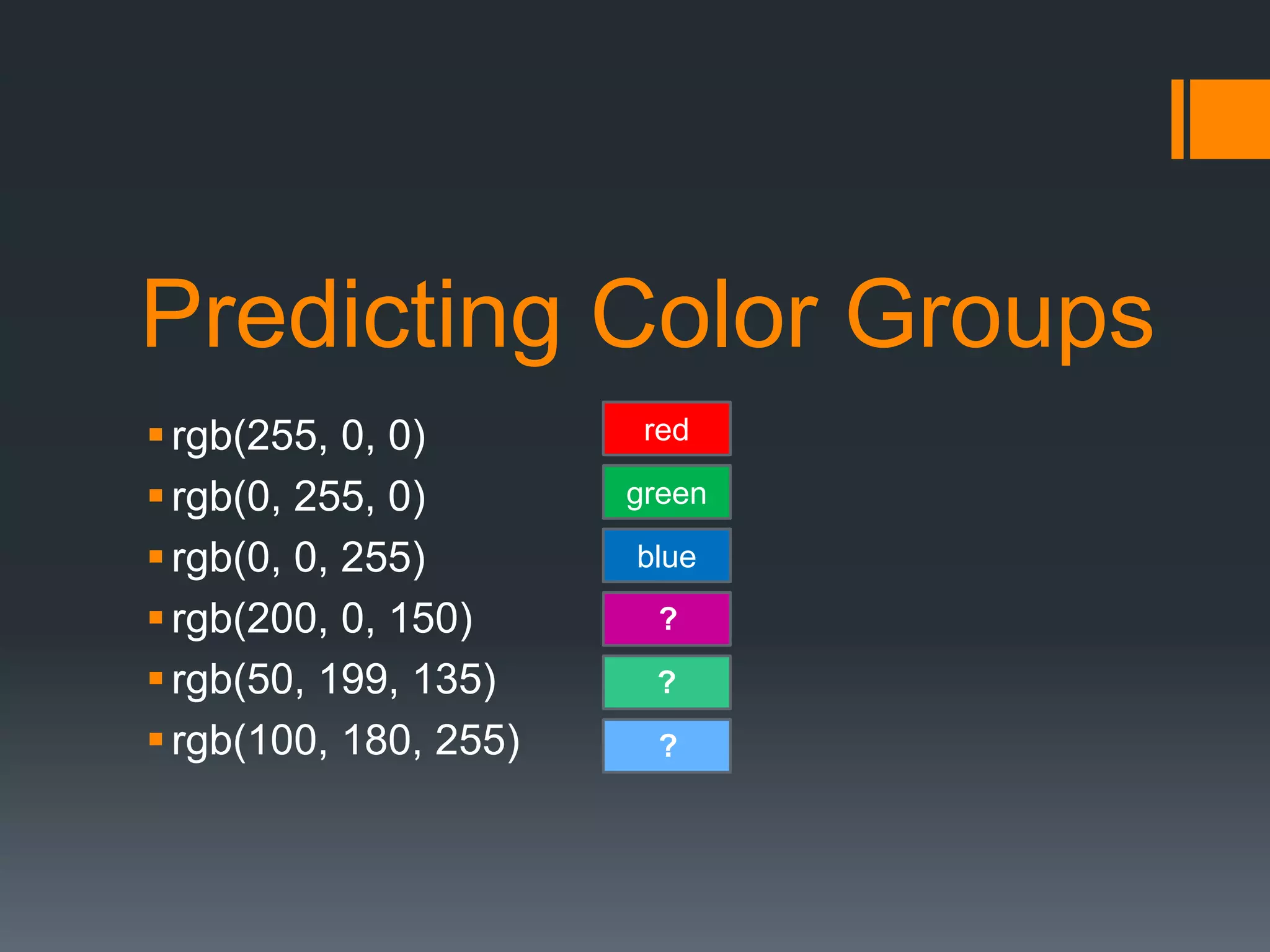

Predicting Color Groups
rgb(255, 0, 0)
rgb(0, 255, 0)
rgb(0, 0, 255)
rgb(200, 0, 150)
rgb(50, 199, 135)
rgb(100, 180, 255)
red
green
blue
?
?
?

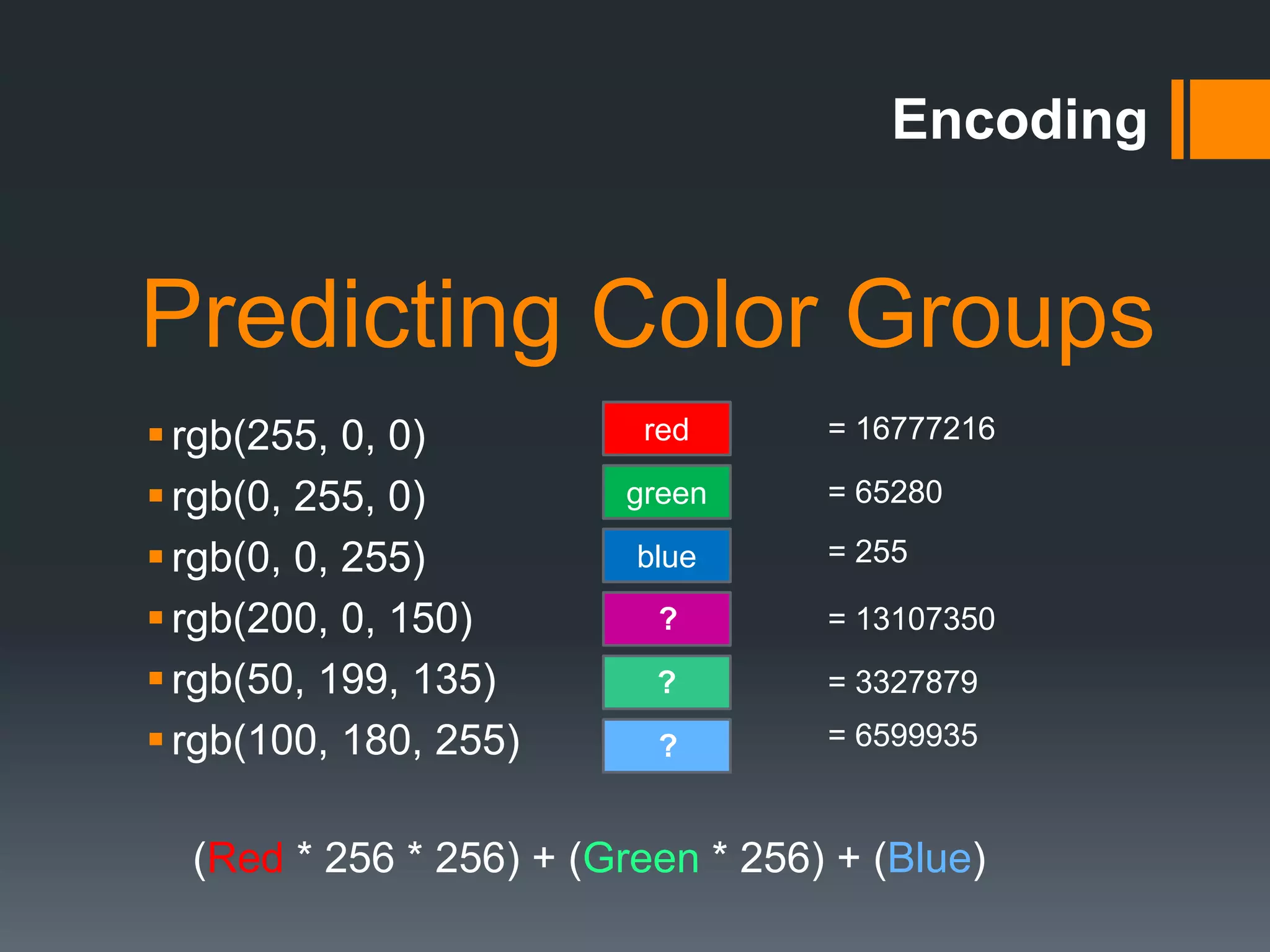

Predicting Color Groups
rgb(255, 0, 0)
rgb(0, 255, 0)
rgb(0, 0, 255)
rgb(200, 0, 150)
rgb(50, 199, 135)
rgb(100, 180, 255)
red
green
blue
?
?
?
= 16777216
Encoding
= 65280
= 13107350
= 3327879
= 6599935
= 255
(Red * 256 * 256) + (Green * 256) + (Blue)

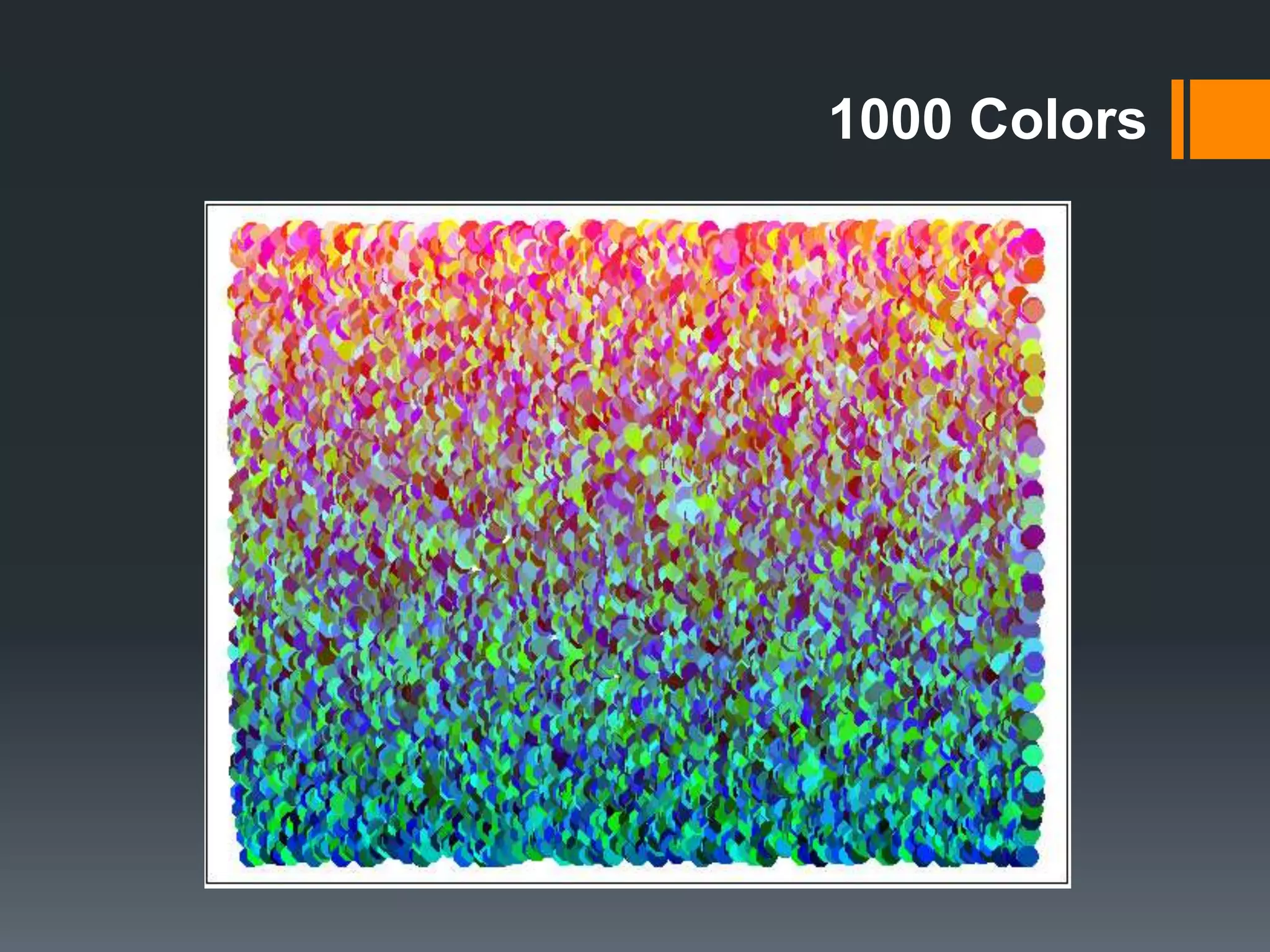

1000 Colors

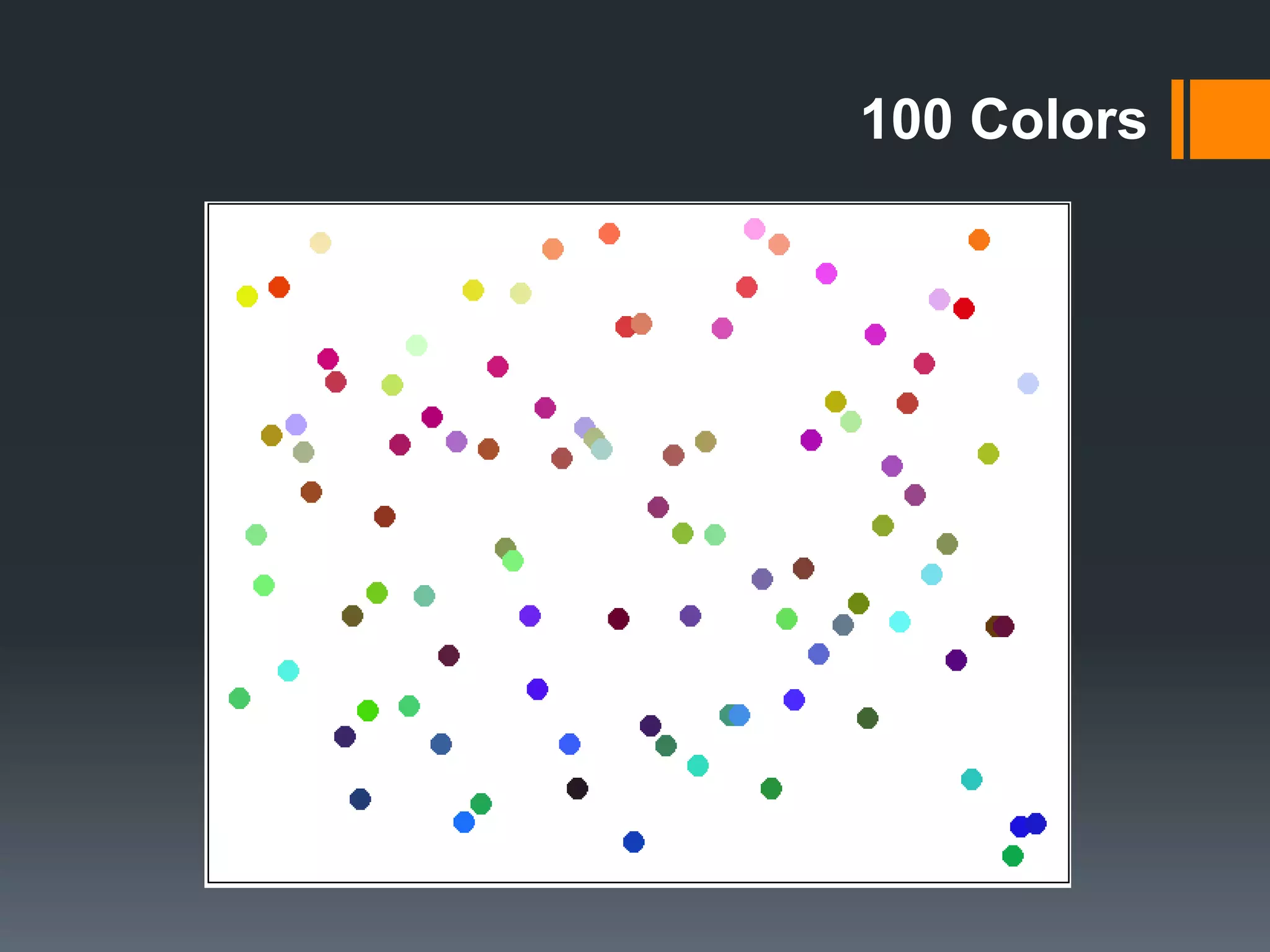

100 Colors

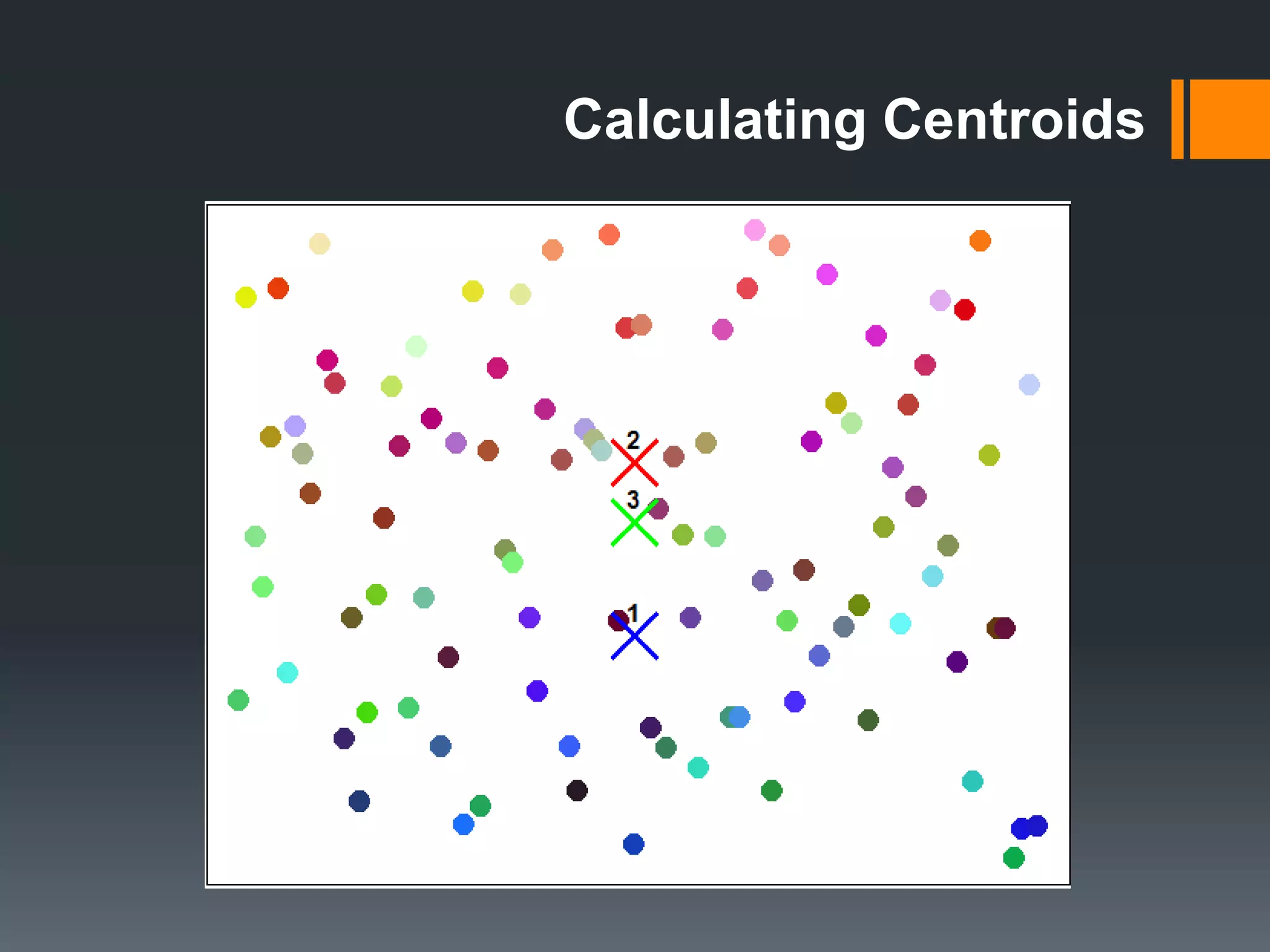

Calculating Centroids

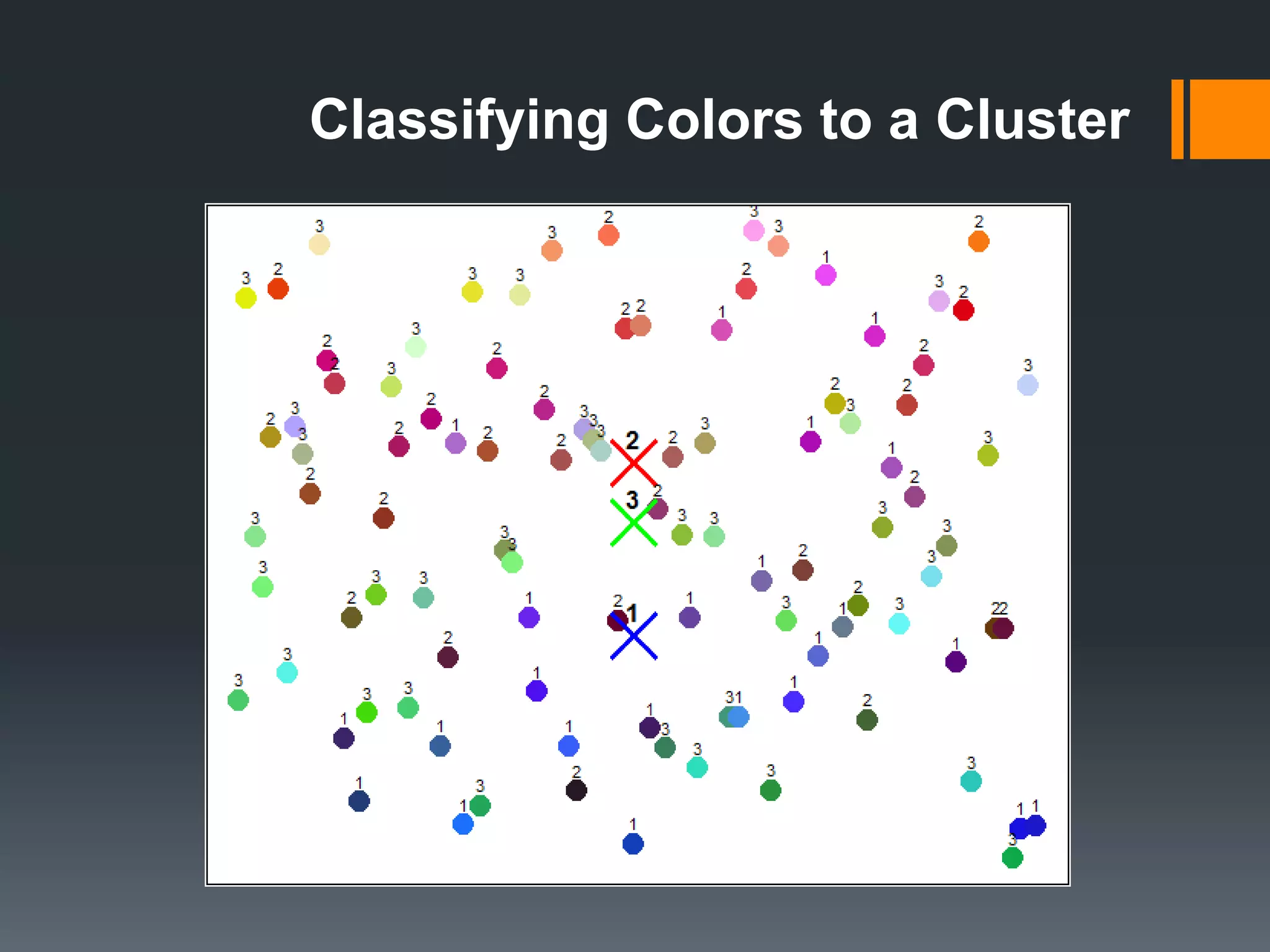

Classifying Colors to a Cluster

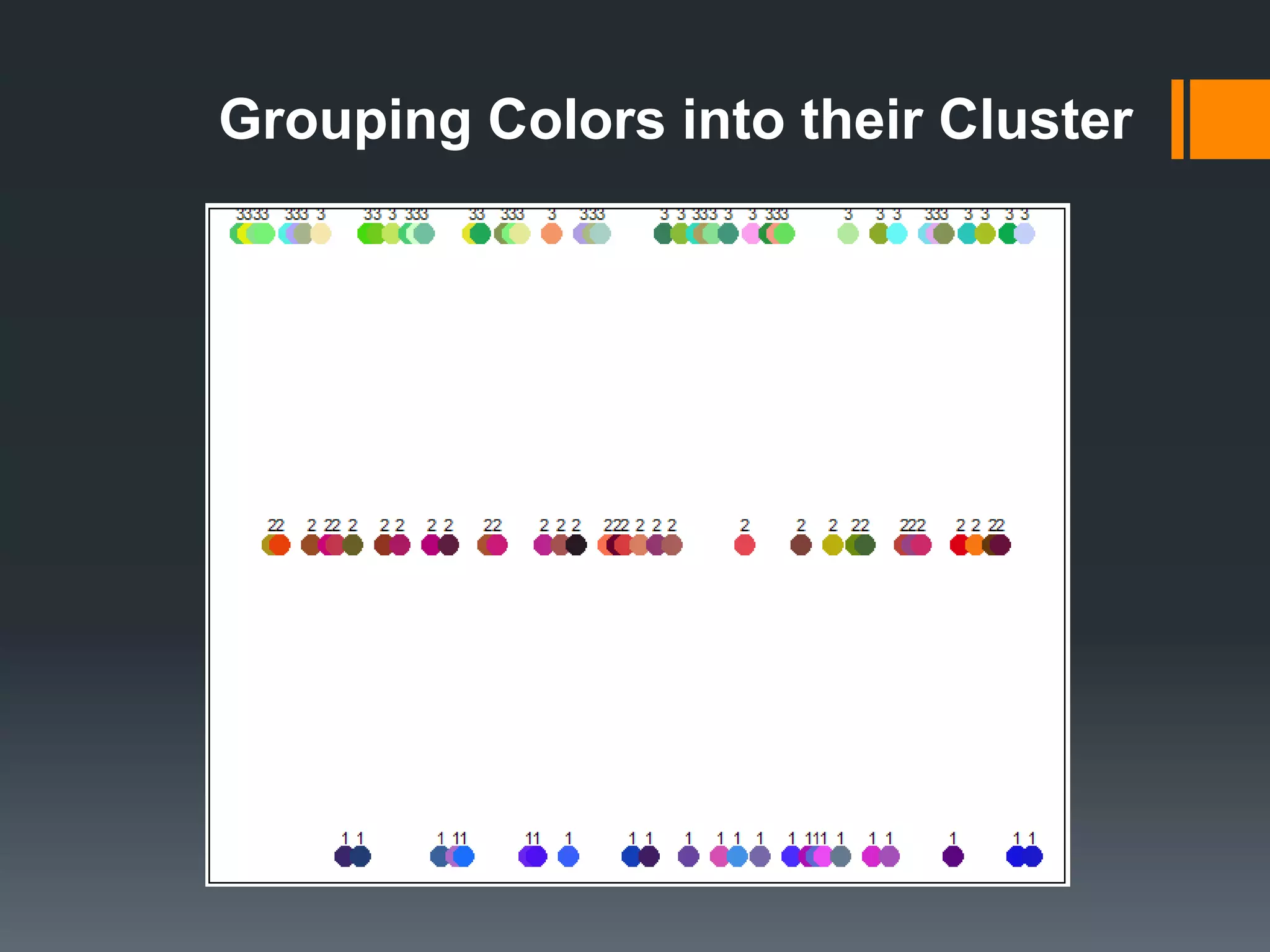

Grouping Colors into their Cluster

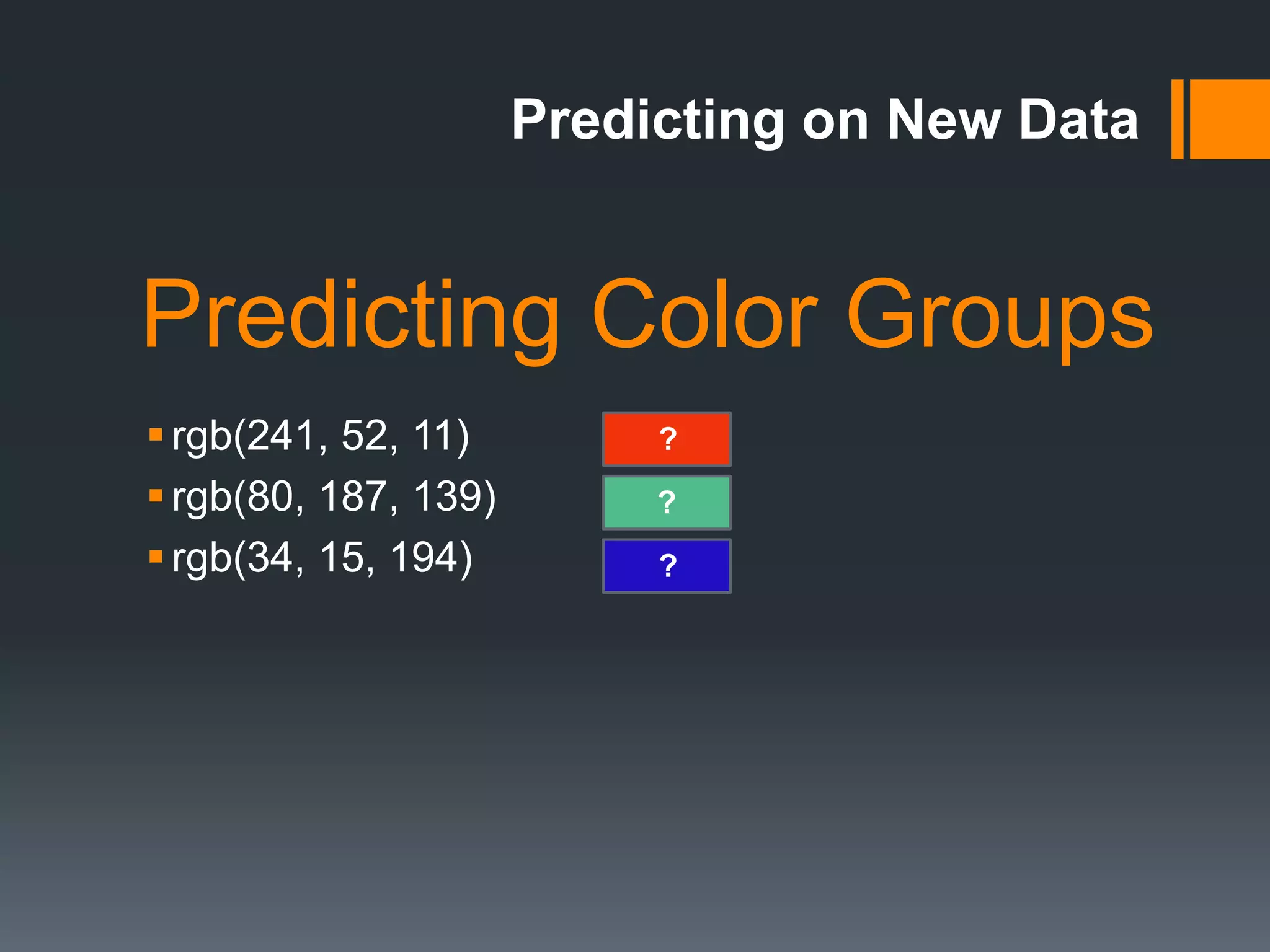

Predicting Color Groups
rgb(241, 52, 11)
rgb(80, 187, 139)
rgb(34, 15, 194)
?
?
?

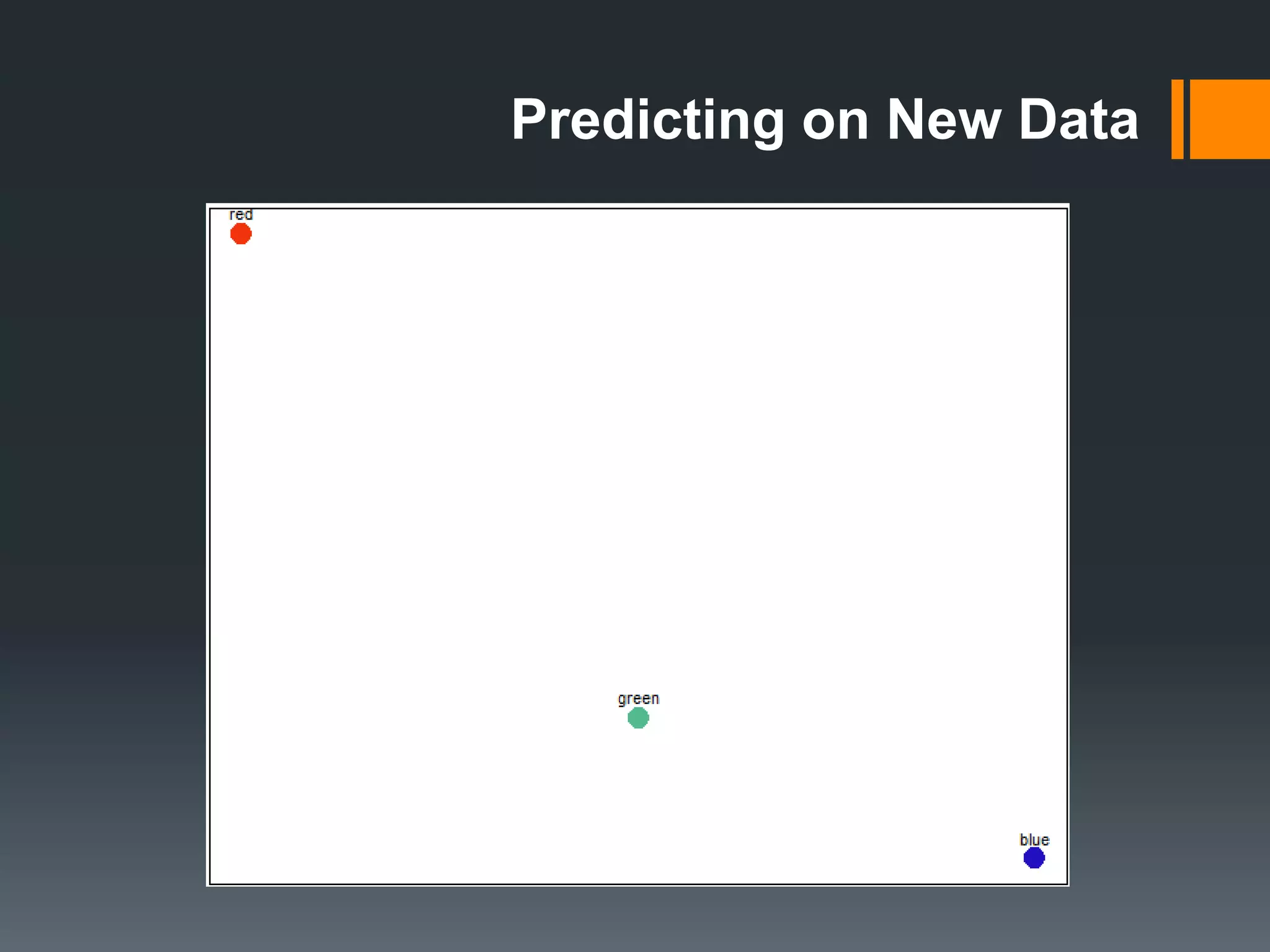

Predicting on New Data
Predicting on New Data

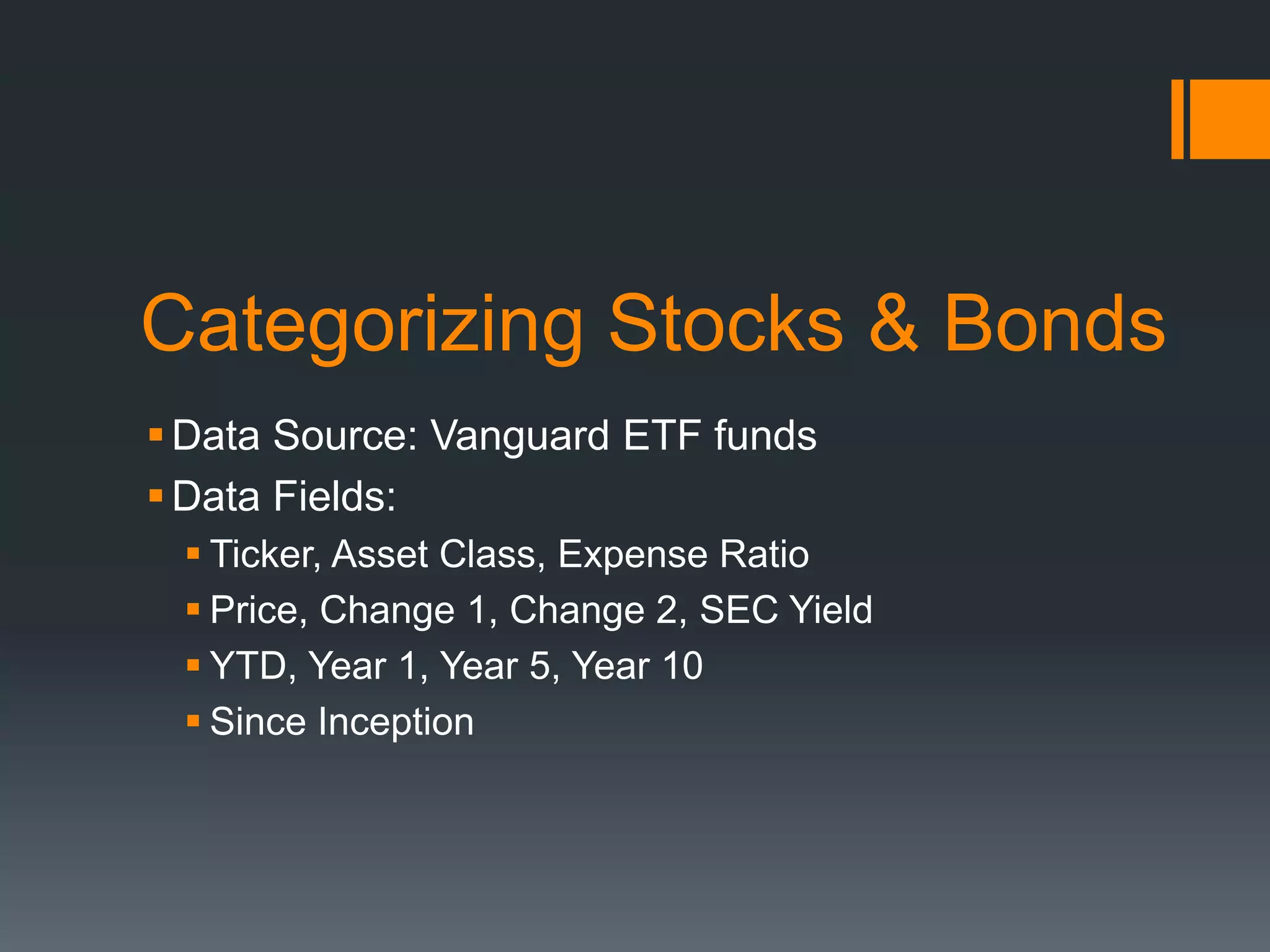

Categorizing Stocks & Bonds
Data Source: Vanguard ETF funds
Data Fields:
 Ticker, Asset Class, Expense Ratio
 Price, Change 1, Change 2, SEC Yield
 YTD, Year 1, Year 5, Year 10
 Since Inception

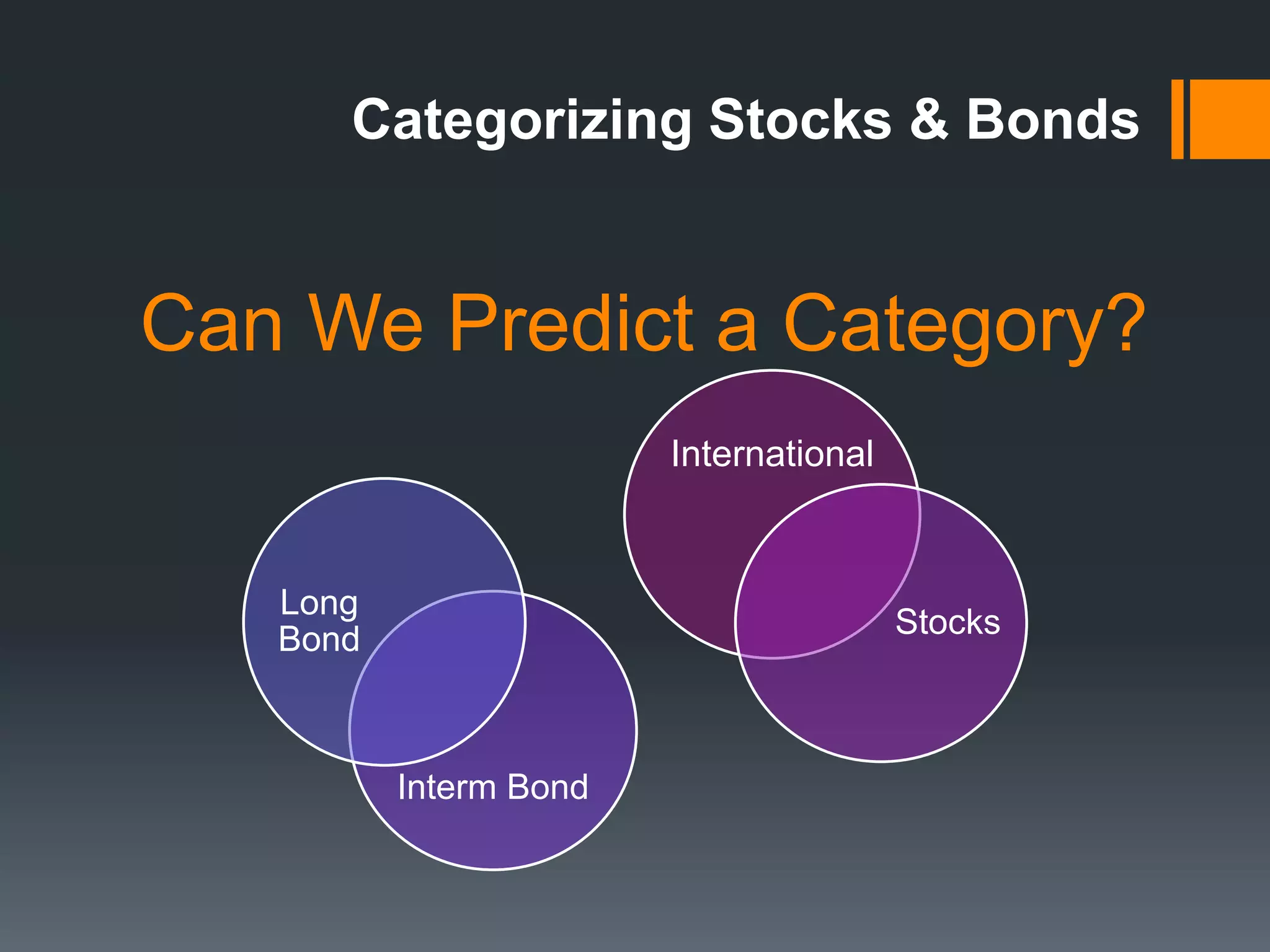

Can We Predict a Category?
Categorizing Stocks & Bonds
International
Stocks
Interm Bond
Long
Bond
Asset Classes
Stock Sector
Stock Mid-Cap Blend
Stock Large-Cap Value
International
Bond Inter-term Investment
Bond Inter-term Government
Bond Long-term Government

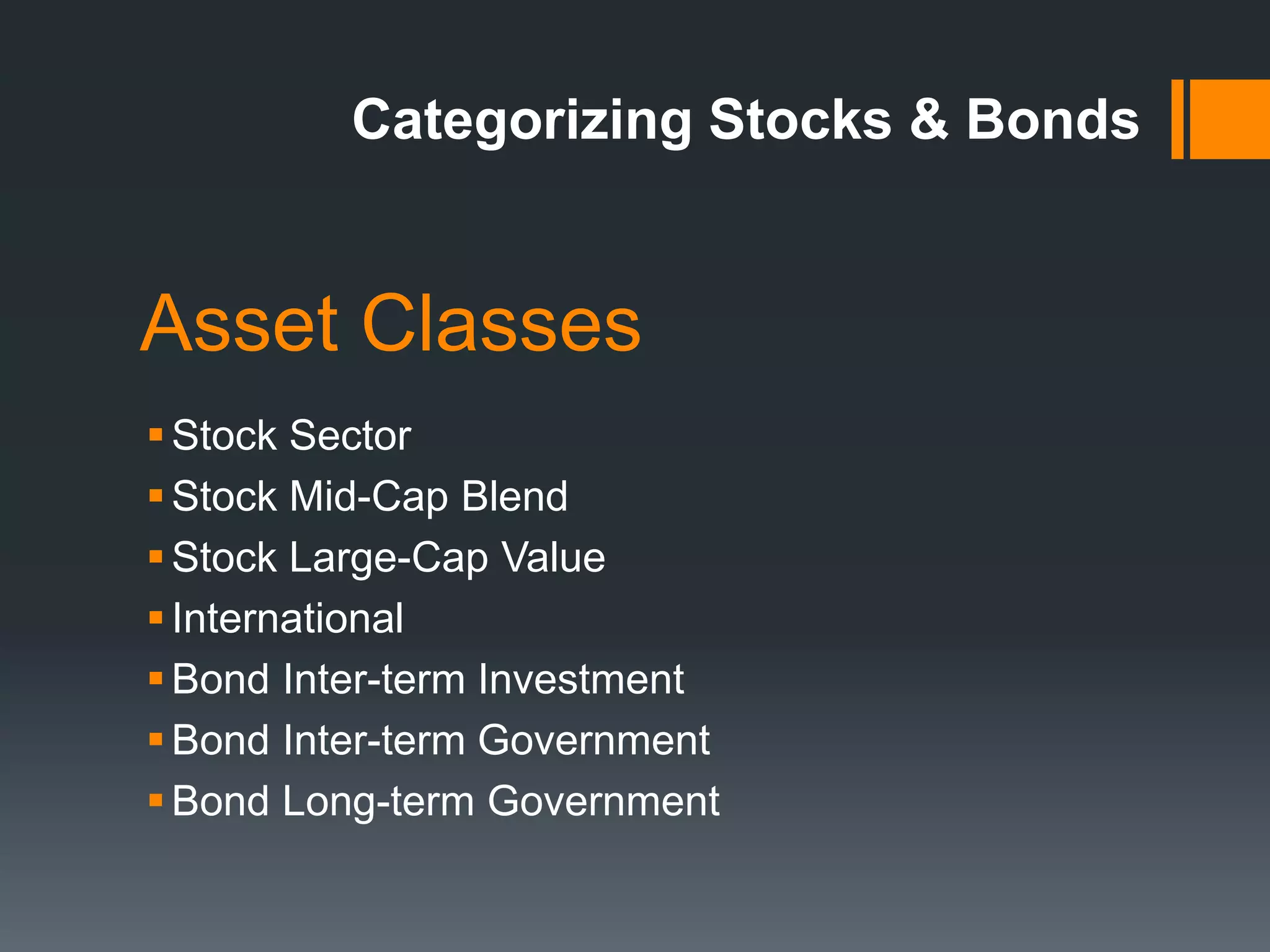

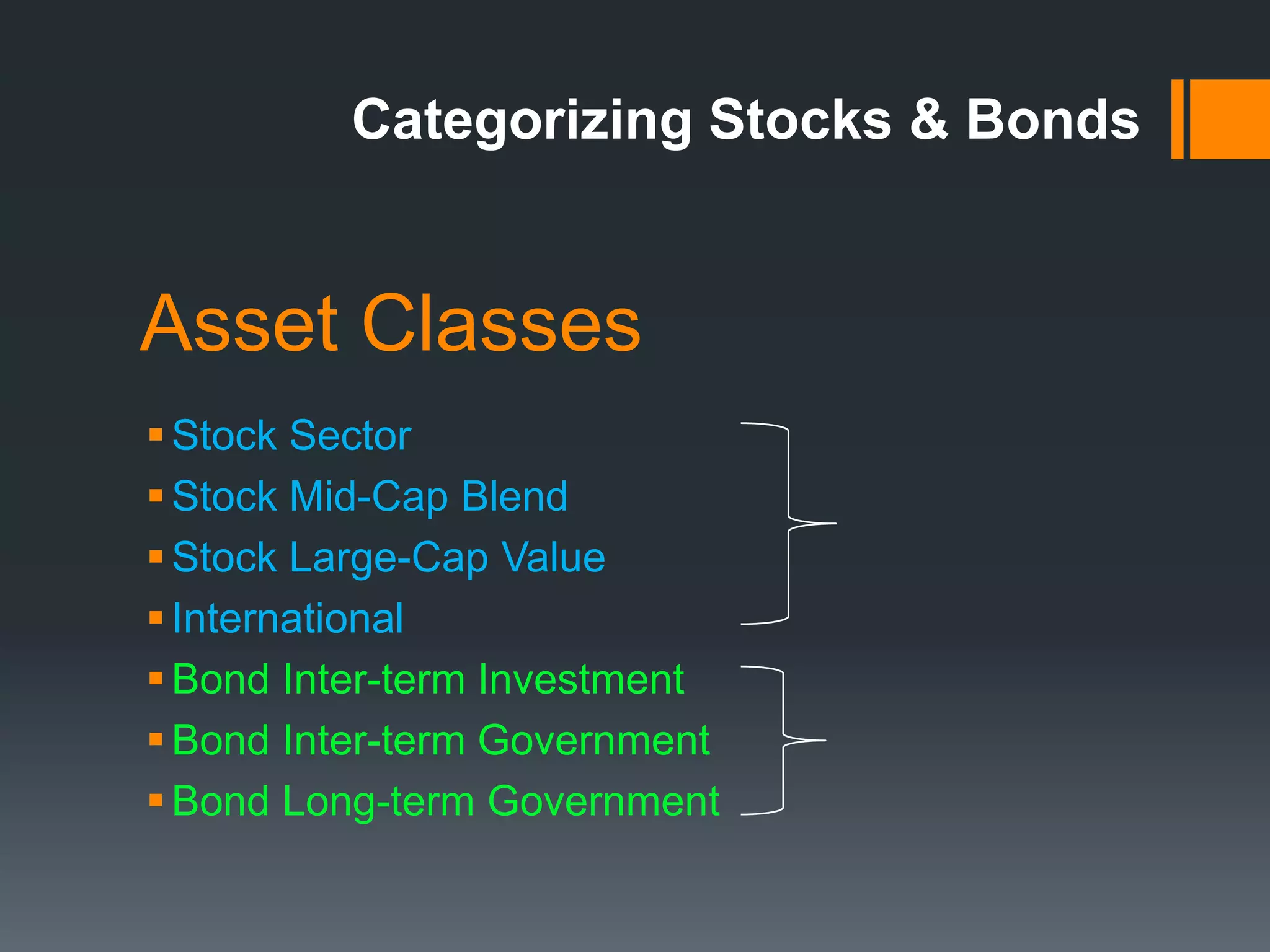

Categorizing Stocks & Bonds
Asset Classes
Stock Sector
Stock Mid-Cap Blend
Stock Large-Cap Value
International
Bond Inter-term Investment
Bond Inter-term Government
Bond Long-term Government

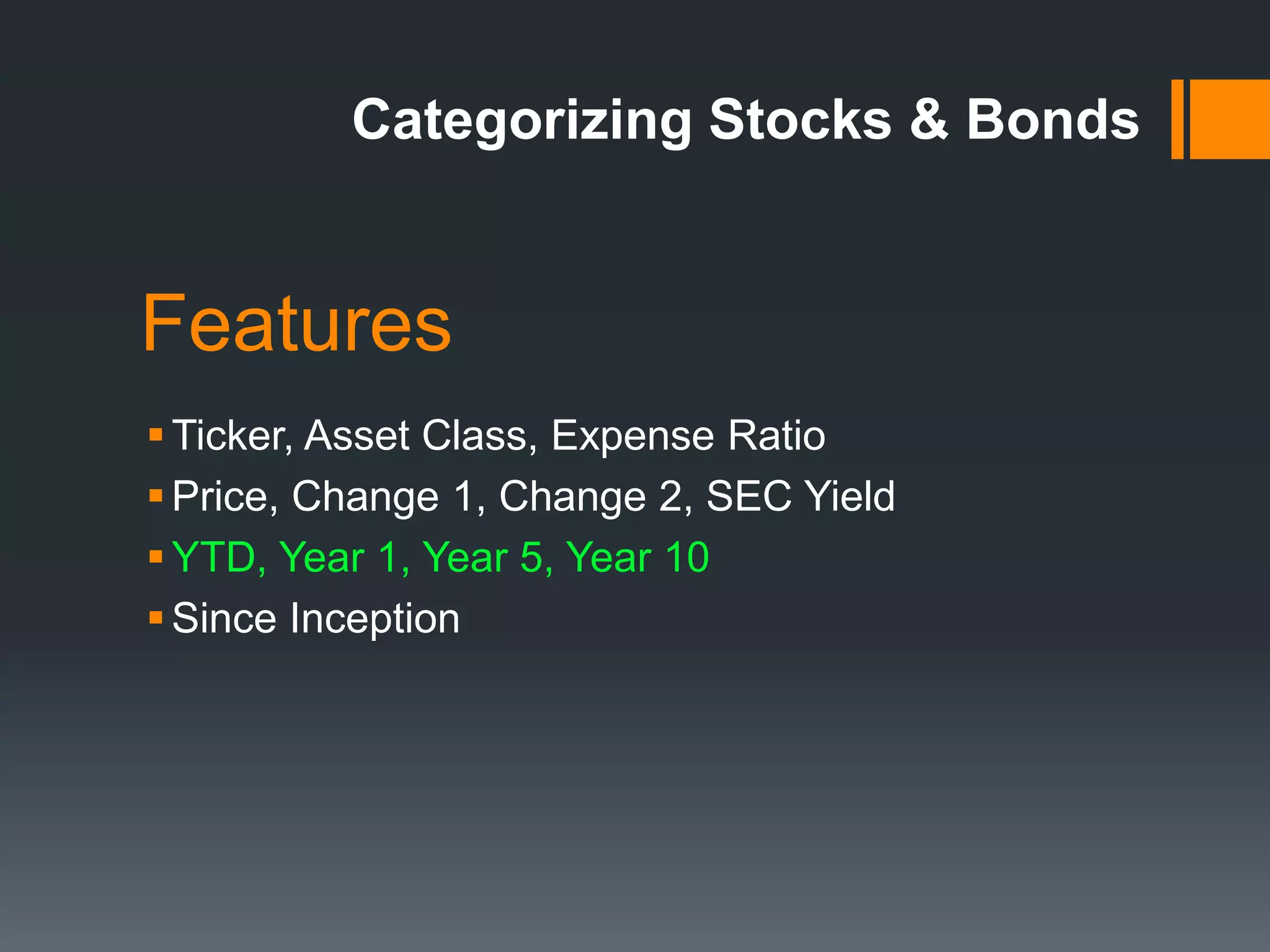

Categorizing Stocks & Bonds
Features
Ticker, Asset Class, Expense Ratio
Price, Change 1, Change 2, SEC Yield
YTD, Year 1, Year 5, Year 10
Since Inception
Categorizing Stocks & Bonds

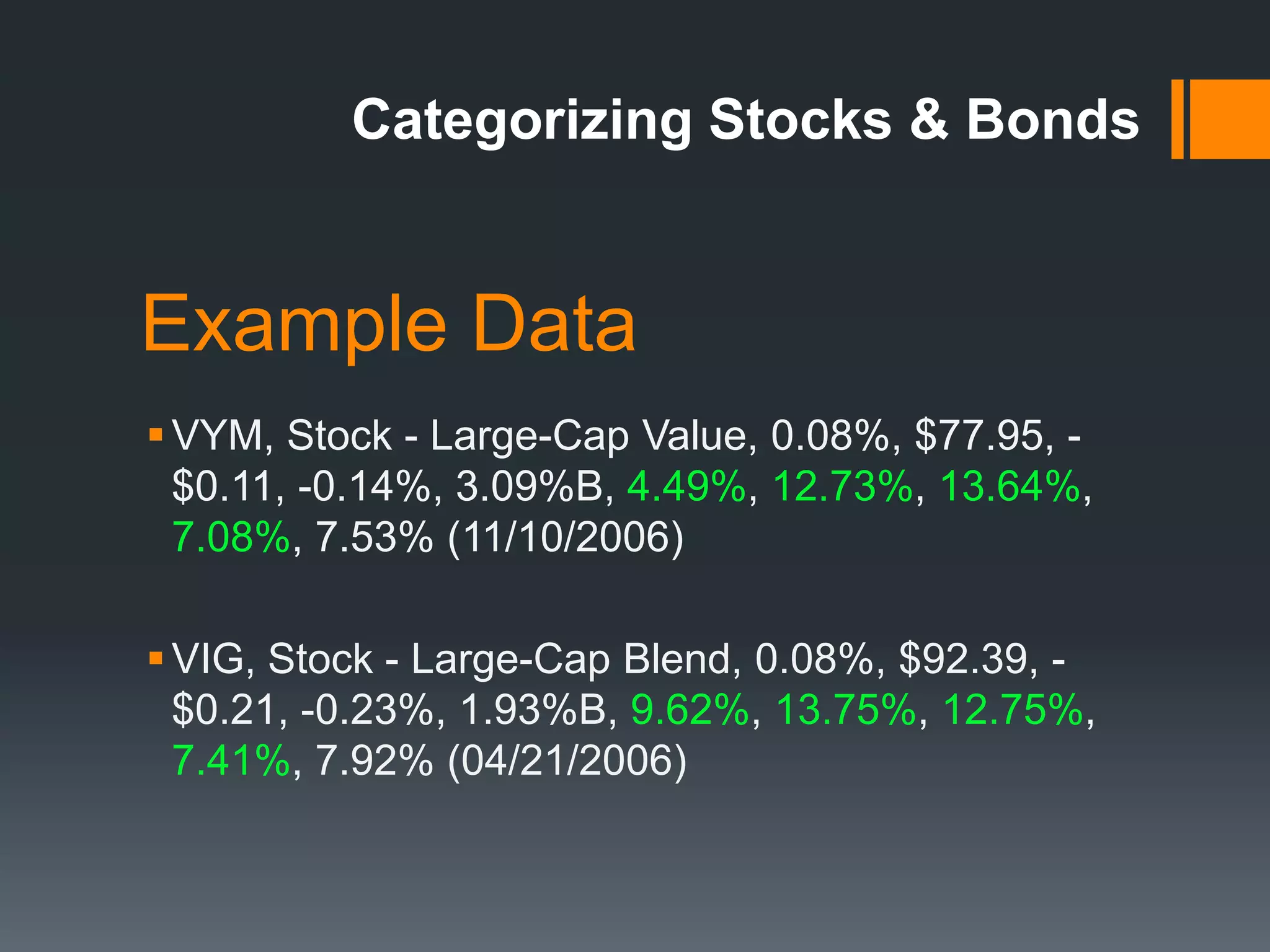

Example Data
VYM, Stock - Large-Cap Value, 0.08%, $77.95, -
$0.11, -0.14%, 3.09%B, 4.49%, 12.73%, 13.64%,
7.08%, 7.53% (11/10/2006)
VIG, Stock - Large-Cap Blend, 0.08%, $92.39, -
$0.21, -0.23%, 1.93%B, 9.62%, 13.75%, 12.75%,
7.41%, 7.92% (04/21/2006)
Categorizing Stocks & Bonds

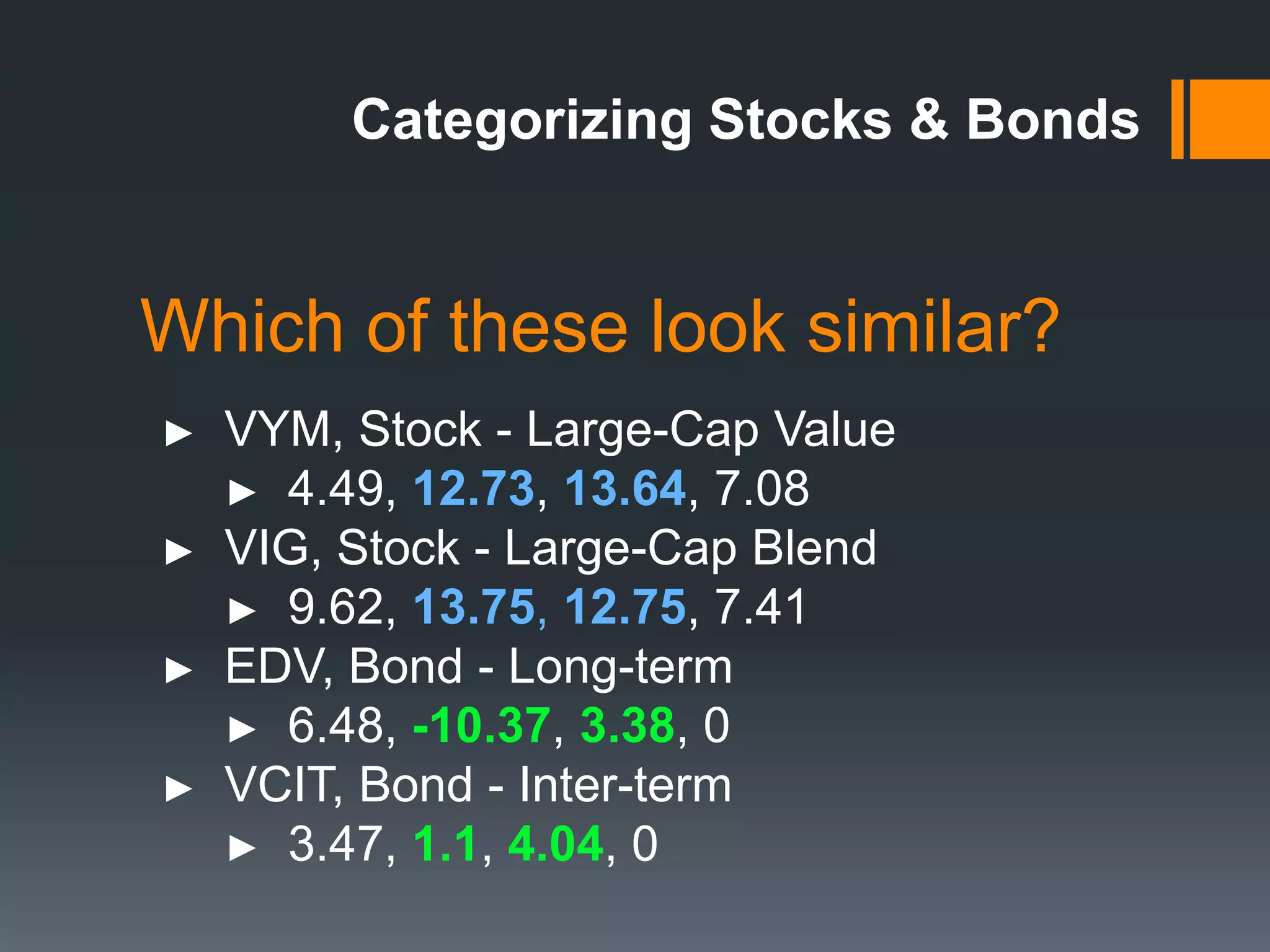

Which of these look similar?
Categorizing Stocks & Bonds
► VYM, Stock - Large-Cap Value
► 4.49, 12.73, 13.64, 7.08
► VIG, Stock - Large-Cap Blend
► 9.62, 13.75, 12.75, 7.41
► EDV, Bond - Long-term
► 6.48, -10.37, 3.38, 0
► VCIT, Bond - Inter-term
► 3.47, 1.1, 4.04, 0

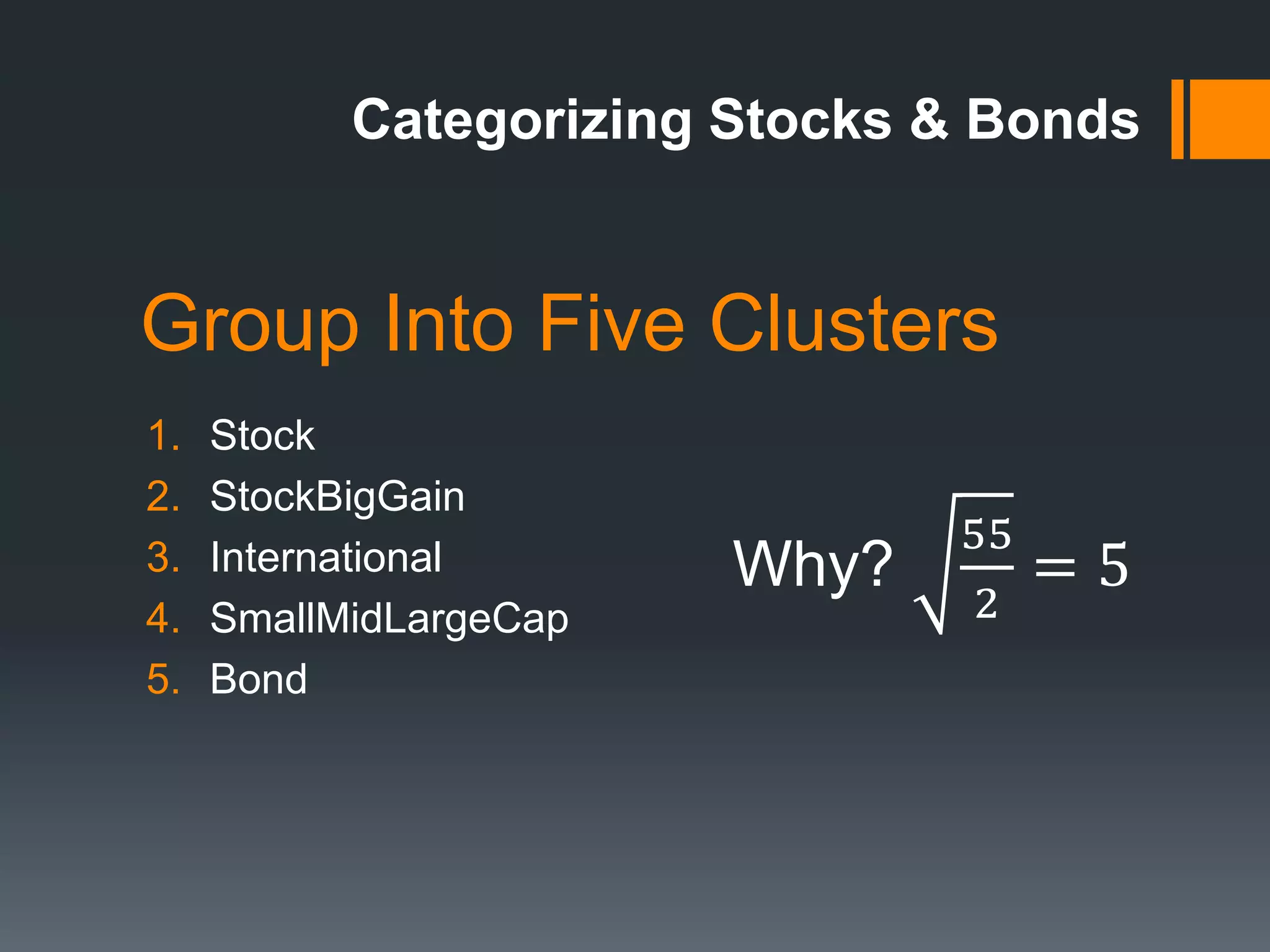

Group Into Five Clusters
1. Stock
2. StockBigGain
3. International
4. SmallMidLargeCap
5. Bond
Categorizing Stocks & Bonds
Why?
55
2
= 5

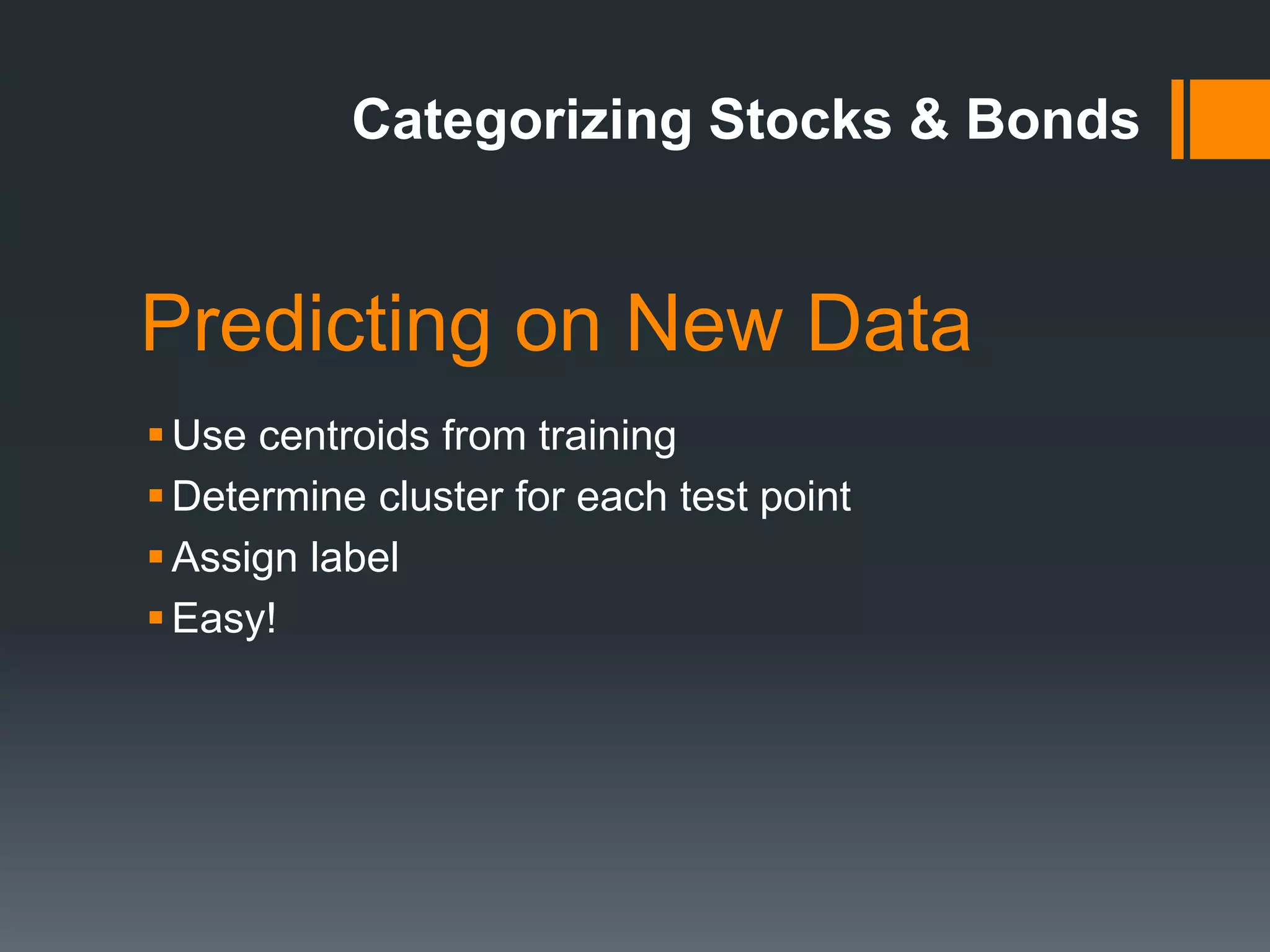

Predicting on New Data
Use centroids from training
Determine cluster for each test point
Assign label
Easy!
Categorizing Stocks & Bonds

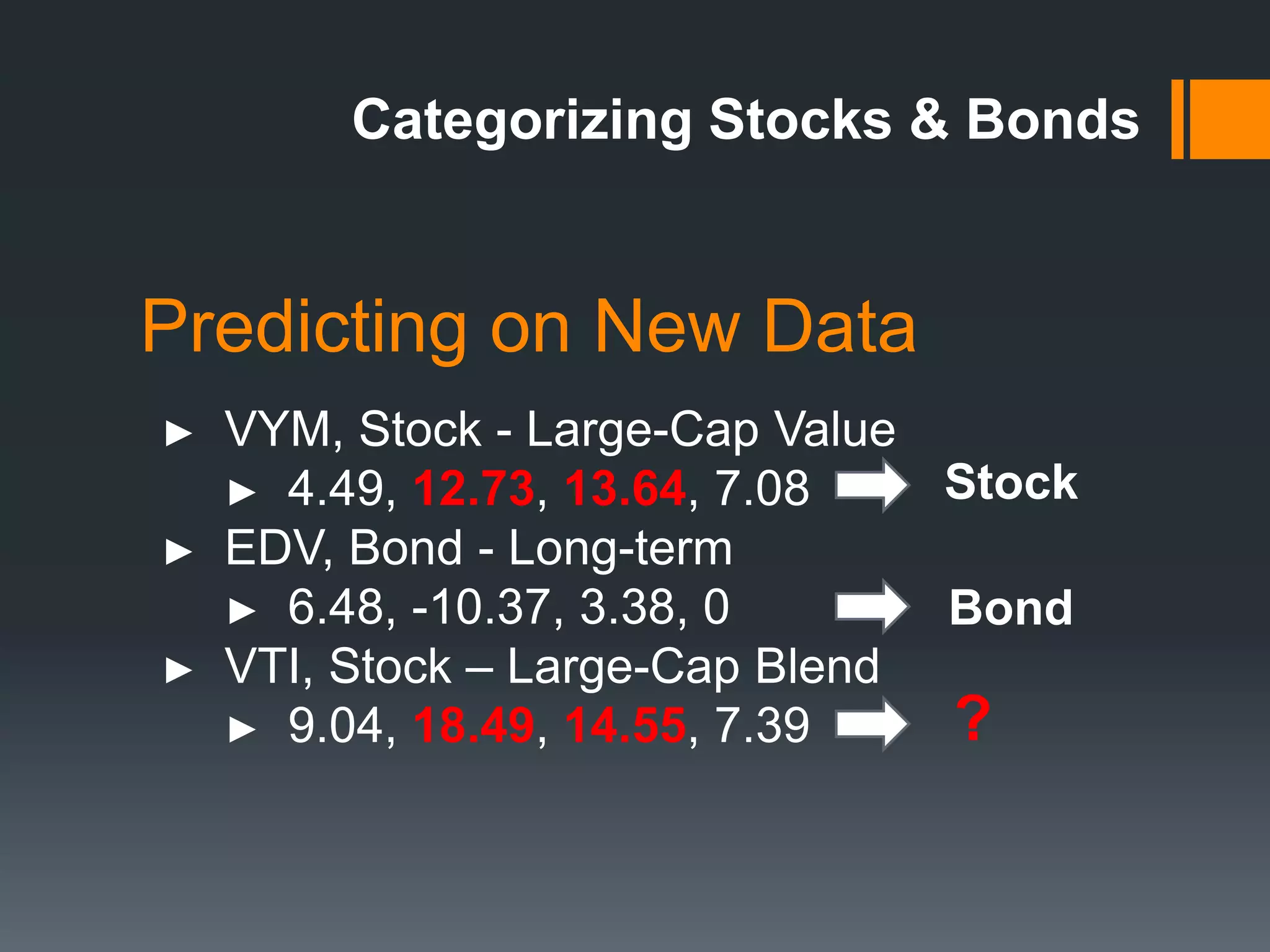

Predicting on New Data
Categorizing Stocks & Bonds
► VYM, Stock - Large-Cap Value
► 4.49, 12.73, 13.64, 7.08
► EDV, Bond - Long-term
► 6.48, -10.37, 3.38, 0
► VTI, Stock – Large-Cap Blend
► 9.04, 18.49, 14.55, 7.39
Stock
Bond
?

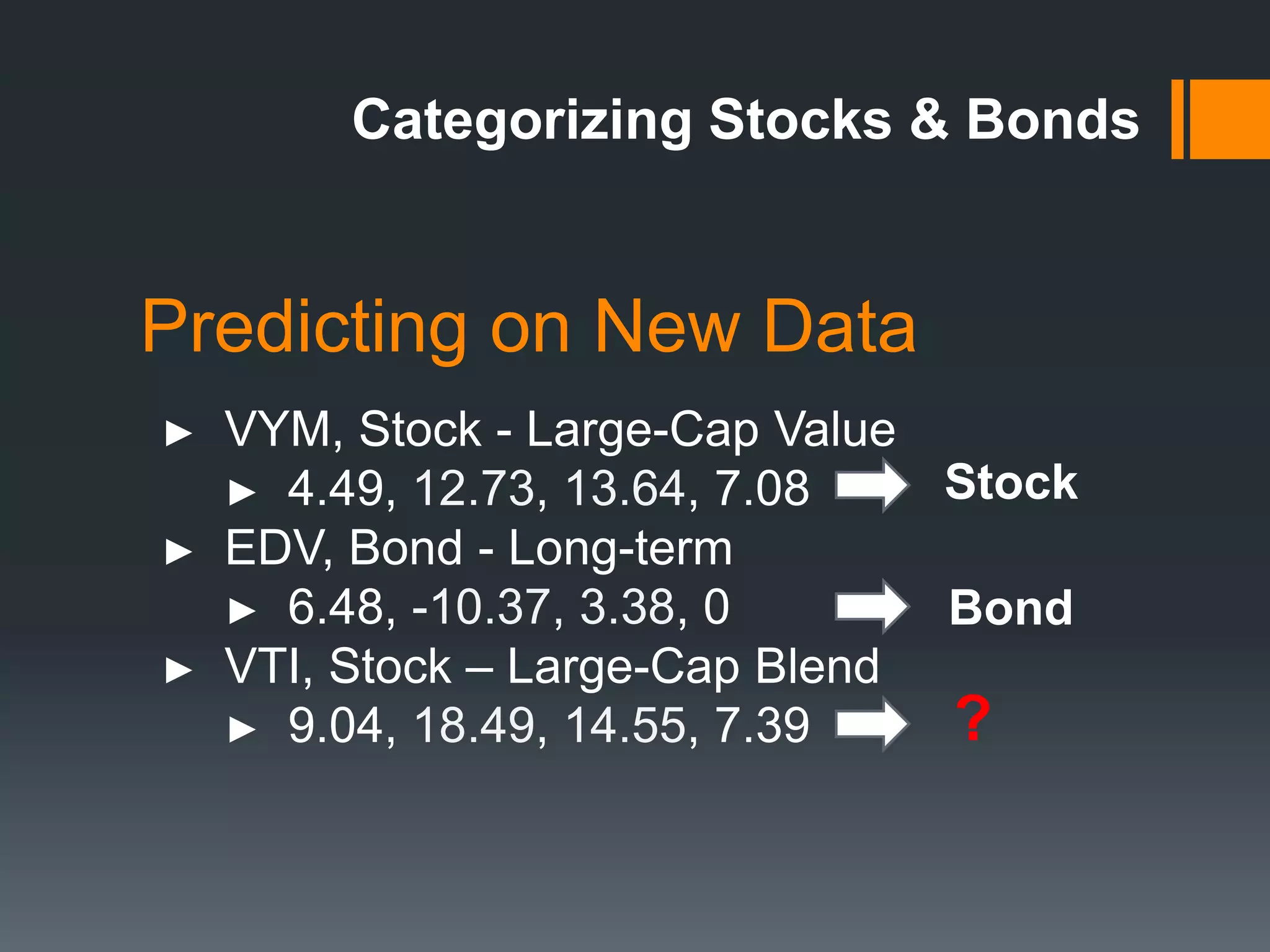

Predicting on New Data
Categorizing Stocks & Bonds
► VYM, Stock - Large-Cap Value
► 4.49, 12.73, 13.64, 7.08
► EDV, Bond - Long-term
► 6.48, -10.37, 3.38, 0
► VTI, Stock – Large-Cap Blend
► 9.04, 18.49, 14.55, 7.39
Stock
Bond
?

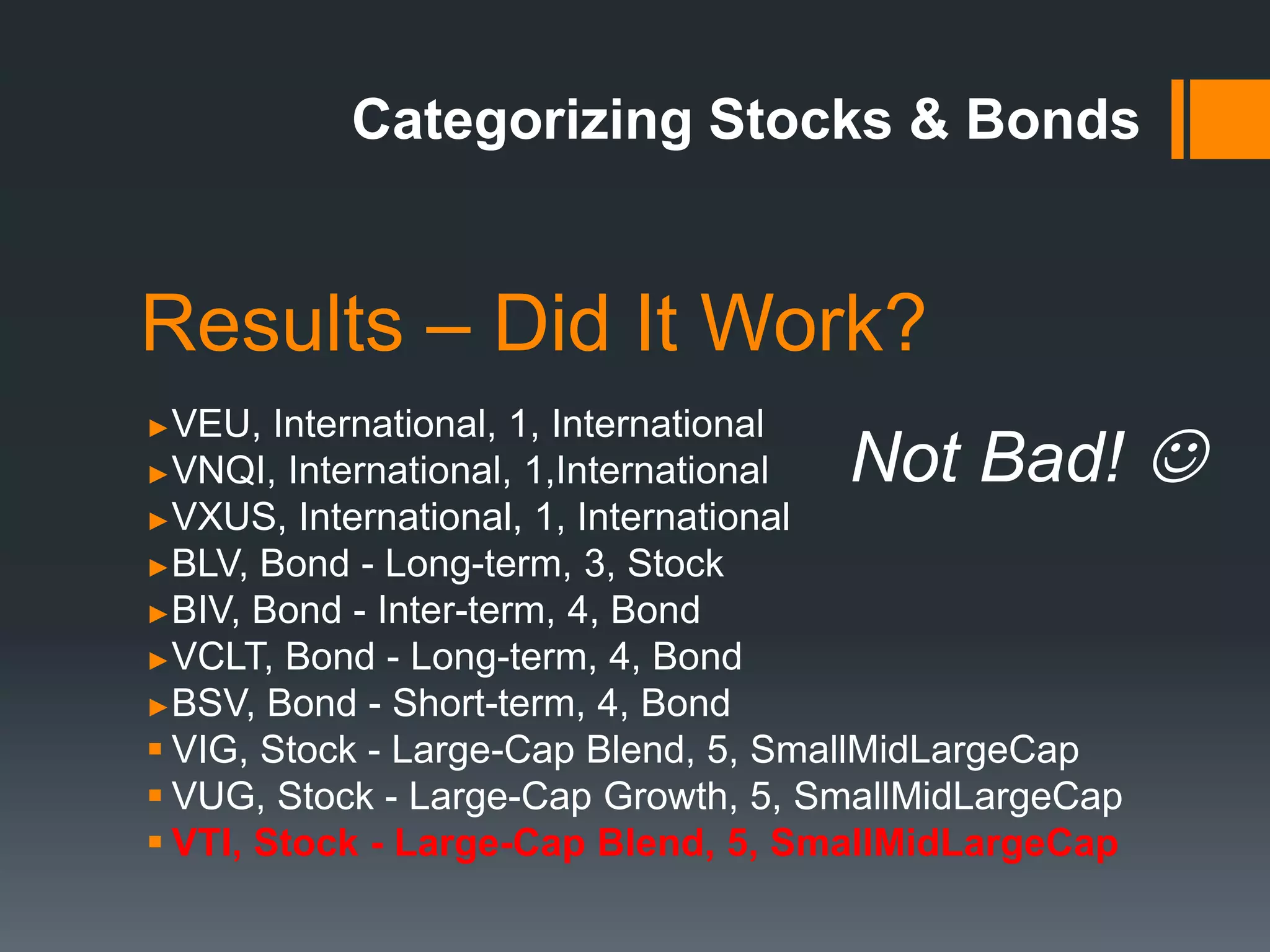

Results – Did It Work?
►VEU, International, 1, International
►VNQI, International, 1,International
►VXUS, International, 1, International
►BLV, Bond - Long-term, 3, Stock
►BIV, Bond - Inter-term, 4, Bond
►VCLT, Bond - Long-term, 4, Bond
►BSV, Bond - Short-term, 4, Bond
 VIG, Stock - Large-Cap Blend, 5, SmallMidLargeCap
 VUG, Stock - Large-Cap Growth, 5, SmallMidLargeCap
 VTI, Stock - Large-Cap Blend, 5, SmallMidLargeCap
Categorizing Stocks & Bonds
Not Bad! 
Thank you!
Kory Becker
http://primaryobjects.com
@primaryobjects

More Related Content

Similar to Machine Learning in a Flash (Extended Edition): An Introduction to Natural Language Processing and Clustering

Computational Biology, Part 4 Protein Coding Regions
Computational Biology, Part 4 Protein Coding RegionsComputational Biology, Part 4 Protein Coding Regions
Computational Biology, Part 4 Protein Coding Regions
butest

PHP - Introduction to PHP MySQL Joins and SQL Functions
PHP -  Introduction to PHP MySQL Joins and SQL FunctionsPHP -  Introduction to PHP MySQL Joins and SQL Functions
PHP - Introduction to PHP MySQL Joins and SQL Functions
Vibrant Technologies & Computers

Genetic algorithm
Genetic algorithmGenetic algorithm
Genetic algorithm
Syed Muhammad Zeejah Hashmi

ObjRecog2-17 (1).pptx
ObjRecog2-17 (1).pptxObjRecog2-17 (1).pptx
ObjRecog2-17 (1).pptx
ssuserc074dd

Unit 4.pptx
Unit 4.pptxUnit 4.pptx
Unit 4.pptx
DrThenmozhiSPESUMCA

Machine learning and decision trees
Machine learning and decision treesMachine learning and decision trees
Machine learning and decision trees
Padma Metta

Simplicial closure and higher-order link prediction --- SIAMNS18
Simplicial closure and higher-order link prediction --- SIAMNS18Simplicial closure and higher-order link prediction --- SIAMNS18
Simplicial closure and higher-order link prediction --- SIAMNS18
Austin Benson

Data Science - Part XIV - Genetic Algorithms
Data Science - Part XIV - Genetic AlgorithmsData Science - Part XIV - Genetic Algorithms
Data Science - Part XIV - Genetic Algorithms
Derek Kane

ItemResponseTheory+ComputerizedAdaptiveTesting.pptx
ItemResponseTheory+ComputerizedAdaptiveTesting.pptxItemResponseTheory+ComputerizedAdaptiveTesting.pptx
ItemResponseTheory+ComputerizedAdaptiveTesting.pptx
foodcoop1

Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...
Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...
Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...
Jeffrey Nichols

IBM Watson Concept Insights
IBM Watson Concept InsightsIBM Watson Concept Insights
IBM Watson Concept Insights
Kory Becker

Topic_6
Topic_6Topic_6
Topic_6
butest

ML基本からResNetまで
ML基本からResNetまでML基本からResNetまで
ML基本からResNetまで
Institute of Agricultural Machinery, NARO

Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)
Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)
Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)
Numenta

The application of artificial intelligence
The application of artificial intelligenceThe application of artificial intelligence
The application of artificial intelligence
Pallavi Vashistha

Mike Thelwall - Sentiment strength detection for the social web: From YouTube...
Mike Thelwall - Sentiment strength detection for the social web: From YouTube...Mike Thelwall - Sentiment strength detection for the social web: From YouTube...
Mike Thelwall - Sentiment strength detection for the social web: From YouTube...
yaevents

Michael Thelwall "Sentiment strength detection for the social web: From YouTu...
Michael Thelwall "Sentiment strength detection for the social web: From YouTu...Michael Thelwall "Sentiment strength detection for the social web: From YouTu...
Michael Thelwall "Sentiment strength detection for the social web: From YouTu...
Yandex

Sciences Games #Glass2015
Sciences Games #Glass2015Sciences Games #Glass2015
Sciences Games #Glass2015
Antoine Taly

ensemble learning
ensemble learningensemble learning
ensemble learning
butest

Data Science 101
Data Science 101Data Science 101
Data Science 101
ideatoipo


Similar to Machine Learning in a Flash (Extended Edition): An Introduction to Natural Language Processing and Clustering (20)

Computational Biology, Part 4 Protein Coding Regions
Computational Biology, Part 4 Protein Coding RegionsComputational Biology, Part 4 Protein Coding Regions
Computational Biology, Part 4 Protein Coding Regions

PHP - Introduction to PHP MySQL Joins and SQL Functions
PHP -  Introduction to PHP MySQL Joins and SQL FunctionsPHP -  Introduction to PHP MySQL Joins and SQL Functions
PHP - Introduction to PHP MySQL Joins and SQL Functions

Genetic algorithm
Genetic algorithmGenetic algorithm
Genetic algorithm

ObjRecog2-17 (1).pptx
ObjRecog2-17 (1).pptxObjRecog2-17 (1).pptx
ObjRecog2-17 (1).pptx

Unit 4.pptx
Unit 4.pptxUnit 4.pptx
Unit 4.pptx

Machine learning and decision trees
Machine learning and decision treesMachine learning and decision trees
Machine learning and decision trees

Simplicial closure and higher-order link prediction --- SIAMNS18
Simplicial closure and higher-order link prediction --- SIAMNS18Simplicial closure and higher-order link prediction --- SIAMNS18
Simplicial closure and higher-order link prediction --- SIAMNS18

Data Science - Part XIV - Genetic Algorithms
Data Science - Part XIV - Genetic AlgorithmsData Science - Part XIV - Genetic Algorithms
Data Science - Part XIV - Genetic Algorithms

ItemResponseTheory+ComputerizedAdaptiveTesting.pptx
ItemResponseTheory+ComputerizedAdaptiveTesting.pptxItemResponseTheory+ComputerizedAdaptiveTesting.pptx
ItemResponseTheory+ComputerizedAdaptiveTesting.pptx

Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...
Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...
Who will RT this?: Automatically Identifying and Engaging Strangers on Twitte...

IBM Watson Concept Insights
IBM Watson Concept InsightsIBM Watson Concept Insights
IBM Watson Concept Insights

Topic_6
Topic_6Topic_6
Topic_6

ML基本からResNetまで
ML基本からResNetまでML基本からResNetまで
ML基本からResNetまで

Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)
Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)
Brains, Data, and Machine Intelligence (2014 04 14 London Meetup)

The application of artificial intelligence
The application of artificial intelligenceThe application of artificial intelligence
The application of artificial intelligence

Mike Thelwall - Sentiment strength detection for the social web: From YouTube...
Mike Thelwall - Sentiment strength detection for the social web: From YouTube...Mike Thelwall - Sentiment strength detection for the social web: From YouTube...
Mike Thelwall - Sentiment strength detection for the social web: From YouTube...

Michael Thelwall "Sentiment strength detection for the social web: From YouTu...
Michael Thelwall "Sentiment strength detection for the social web: From YouTu...Michael Thelwall "Sentiment strength detection for the social web: From YouTu...
Michael Thelwall "Sentiment strength detection for the social web: From YouTu...

Sciences Games #Glass2015
Sciences Games #Glass2015Sciences Games #Glass2015
Sciences Games #Glass2015

ensemble learning
ensemble learningensemble learning
ensemble learning

Data Science 101
Data Science 101Data Science 101
Data Science 101


More from Kory Becker

Intelligent Heuristics for the Game Isolation
Intelligent Heuristics  for the Game IsolationIntelligent Heuristics  for the Game Isolation
Intelligent Heuristics for the Game Isolation
Kory Becker

Tips for Submitting a Proposal to Grace Hopper GHC 2020
Tips for Submitting a Proposal to Grace Hopper GHC 2020Tips for Submitting a Proposal to Grace Hopper GHC 2020
Tips for Submitting a Proposal to Grace Hopper GHC 2020
Kory Becker

Grace Hopper 2019 Quantum Computing Recap
Grace Hopper 2019 Quantum Computing RecapGrace Hopper 2019 Quantum Computing Recap
Grace Hopper 2019 Quantum Computing Recap
Kory Becker

An Introduction to Quantum Computing - Hopper X1 NYC 2019
An Introduction to Quantum Computing - Hopper X1 NYC 2019An Introduction to Quantum Computing - Hopper X1 NYC 2019
An Introduction to Quantum Computing - Hopper X1 NYC 2019
Kory Becker

Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18
Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18
Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18
Kory Becker

Self Programming Artificial Intelligence - Lightning Talk
Self Programming Artificial Intelligence - Lightning TalkSelf Programming Artificial Intelligence - Lightning Talk
Self Programming Artificial Intelligence - Lightning Talk
Kory Becker

Self Programming Artificial Intelligence
Self Programming Artificial IntelligenceSelf Programming Artificial Intelligence
Self Programming Artificial Intelligence
Kory Becker

Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)
Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)
Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)
Kory Becker


More from Kory Becker (8)

Intelligent Heuristics for the Game Isolation
Intelligent Heuristics  for the Game IsolationIntelligent Heuristics  for the Game Isolation
Intelligent Heuristics for the Game Isolation

Tips for Submitting a Proposal to Grace Hopper GHC 2020
Tips for Submitting a Proposal to Grace Hopper GHC 2020Tips for Submitting a Proposal to Grace Hopper GHC 2020
Tips for Submitting a Proposal to Grace Hopper GHC 2020

Grace Hopper 2019 Quantum Computing Recap
Grace Hopper 2019 Quantum Computing RecapGrace Hopper 2019 Quantum Computing Recap
Grace Hopper 2019 Quantum Computing Recap

An Introduction to Quantum Computing - Hopper X1 NYC 2019
An Introduction to Quantum Computing - Hopper X1 NYC 2019An Introduction to Quantum Computing - Hopper X1 NYC 2019
An Introduction to Quantum Computing - Hopper X1 NYC 2019

Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18
Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18
Self-Programming Artificial Intelligence Grace Hopper GHC 2018 GHC18

Self Programming Artificial Intelligence - Lightning Talk
Self Programming Artificial Intelligence - Lightning TalkSelf Programming Artificial Intelligence - Lightning Talk
Self Programming Artificial Intelligence - Lightning Talk

Self Programming Artificial Intelligence
Self Programming Artificial IntelligenceSelf Programming Artificial Intelligence
Self Programming Artificial Intelligence

Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)
Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)
Detecting a Hacked Tweet with Machine Learning (5 Minute Presentation)


Recently uploaded

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
bhumivarma35300

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django
akshesh doshi

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
kiara pandey

Introduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of ThingsIntroduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of Things
NachuSubramanian1

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
bahubalikumar09988

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
simran hot girls

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning
VishrutGoyani1

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx
SimonedeGijt

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation
NYGGS Construction ERP Software

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series
Philip Schwarz

Il Data Streaming per un’AI real-time di nuova generazione
Il Data Streaming per un’AI real-time di nuova generazioneIl Data Streaming per un’AI real-time di nuova generazione
Il Data Streaming per un’AI real-time di nuova generazione
confluent

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System
SSTech System

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.
shivamt017

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Aardwolf Security

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
aslasdfmkhan4750

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)
miso_uam

bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Deliverybangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884


Recently uploaded (20)

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...

Introduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of ThingsIntroduction to Cloud computing for Internet of Things
Introduction to Cloud computing for Internet of Things

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series

Il Data Streaming per un’AI real-time di nuova generazione
Il Data Streaming per un’AI real-time di nuova generazioneIl Data Streaming per un’AI real-time di nuova generazione
Il Data Streaming per un’AI real-time di nuova generazione

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)

bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Deliverybangalore Girls call  👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
bangalore Girls call 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery


Machine Learning in a Flash (Extended Edition): An Introduction to Natural Language Processing and Clustering

  • 1. Machine Learning in a Flash Kory Becker August, 2017, http://primaryobjects.com 1 Sponsored by
  • 3. AI !== Machine Learning  Logical AI, Symbolic, Knowledge- based  Pattern Recognition, Representation  Inference, Common Sense, Planning  Heuristics, Ontology, Artificial Life, Genetic  Machine Learning, Statistics 3
  • 4. Machine Learning Algorithms Supervised Linear Regression Logistic Regression Support Vector Machines Neural Networks Unsupervised K-means Clustering Principal Component Analysis (Dimensionality Reduction) 4
  • 11. Question 1: Supervised or Unsupervised?  You are designing an agent for The Matrix.  It’s task is to classify people that are threats to the system.  Feature Set:  Age  IQ  Level of Education  # of Times They Watched the Movie The Matrix  Training Set of 100,000 people: 50k threats, 50k non-threats
  • 12. Question 2: Supervised or Unsupervised?  You are designing the brain of a battle robot.  It’s primary attack is hand-to-hand combat. Your task is to find the most effective move combos.  Feature Set:  # of Kicks  # of Punches  # of Head-butts  # of Leg Sweeps  Training Set of 100,000 winning battles
  • 13. Natural Language Processing Convert text into a numerical representation Find commonalities within data Clustering Make predictions from data Classification Category, Popularity, Sentiment, Relationships
  • 14. Bag of Words Model Corpus Cats like to chase mice. Dogs like to eat big bones.
  • 15. Create a Dictionary Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones Cats like to chase mice. Dogs like to eat big bones. Corpus
  • 16. Digitize Text Cats like to chase mice. 1 1 1 1 0 0 0 0 Dogs like to eat big bones. 0 1 0 0 1 1 1 1 Vector Length = 8 Corpus Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones
  • 17. Classify Documents (eating) Cats like to chase mice. 1 1 1 1 0 0 0 0 Dogs like to eat big bones. 0 1 0 0 1 1 1 1 0 1 Corpus Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones
  • 18. Predict on New Data Cats like to chase mice. 1 1 1 1 0 0 0 0 Dogs like to eat big bones. 0 1 0 0 1 1 1 1 Bats eat bugs. 0 0 0 0 0 1 0 0 0 1 ? Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones
  • 19. Predict on New Data Cats like to chase mice. 1 1 1 1 0 0 0 0 Dogs like to eat big bones. 0 1 0 0 1 1 1 1 Bats eat bugs. 0 0 0 0 0 1 0 0 0 1 ? Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones
  • 20. Predict on New Data Cats like to chase mice. 1 1 1 1 0 0 0 0 Dogs like to eat big bones. 0 1 0 0 1 1 1 1 Bats eat bugs. 0 0 0 0 0 1 0 0 0 1 1 Dictionary 0 - cats 1 - like 2 - chase 3 - mice 4 - dogs 5 - eat 6 - big 7 - bones
  • 21. Does it Really Work? > data [1] "Cats like to chase mice." "Dogs like to eat big bones." > train big bone cat chase dog eat like mice y 1 0 0 1 1 0 0 1 1 0 2 1 1 0 0 1 1 1 0 1 > predict(fit, newdata = train) [1] 0 1 > data2 [1] "Bats eat bugs." > test big bone cat chase dog eat like mice 1 0 0 0 0 0 1 0 0 > predict(fit, newdata = test) [1] 1 Document Term Matrix 100% Accuracy Training Test Case Success! Source code: https://goo.gl/UxjPBs
  • 22. Unsupervised Learning Finding patterns in data Grouping similar data into clusters Does not require labeled data Exploratory data analysis Predict clusters for new data!
  • 23. K-Means Clustering Popular clustering algorithm Groups data into k clusters Data points belong to the cluster with closest mean Each cluster has a centroid (center)
  • 24. k-Means Algorithm Choose a value for k (number of clusters)  Guess  Rule of thumb: ~~(Math.sqrt(points.length * 0.5)) Initialize centroids  Random  Farthest Point  K-means++ Assign data points to closest centroid Move centroids to center of assigned points Demo: https://goo.gl/AjNEJk
  • 30. Predicting Color Groups rgb(255, 0, 0) rgb(0, 255, 0) rgb(0, 0, 255) rgb(200, 0, 150) rgb(50, 199, 135) rgb(100, 180, 255) red green blue ? ? ?
  • 31. Predicting Color Groups rgb(255, 0, 0) rgb(0, 255, 0) rgb(0, 0, 255) rgb(200, 0, 150) rgb(50, 199, 135) rgb(100, 180, 255) red green blue ? ? ? = 16777216 Encoding = 65280 = 13107350 = 3327879 = 6599935 = 255 (Red * 256 * 256) + (Green * 256) + (Blue)
  • 36. Grouping Colors into their Cluster
  • 37. Predicting Color Groups rgb(241, 52, 11) rgb(80, 187, 139) rgb(34, 15, 194) ? ? ? Predicting on New Data
  • 39. Categorizing Stocks & Bonds Data Source: Vanguard ETF funds Data Fields:  Ticker, Asset Class, Expense Ratio  Price, Change 1, Change 2, SEC Yield  YTD, Year 1, Year 5, Year 10  Since Inception
  • 40. Can We Predict a Category? Categorizing Stocks & Bonds International Stocks Interm Bond Long Bond
  • 41. Asset Classes Stock Sector Stock Mid-Cap Blend Stock Large-Cap Value International Bond Inter-term Investment Bond Inter-term Government Bond Long-term Government Categorizing Stocks & Bonds
  • 42. Asset Classes Stock Sector Stock Mid-Cap Blend Stock Large-Cap Value International Bond Inter-term Investment Bond Inter-term Government Bond Long-term Government Categorizing Stocks & Bonds
  • 43. Features Ticker, Asset Class, Expense Ratio Price, Change 1, Change 2, SEC Yield YTD, Year 1, Year 5, Year 10 Since Inception Categorizing Stocks & Bonds
  • 44. Example Data VYM, Stock - Large-Cap Value, 0.08%, $77.95, - $0.11, -0.14%, 3.09%B, 4.49%, 12.73%, 13.64%, 7.08%, 7.53% (11/10/2006) VIG, Stock - Large-Cap Blend, 0.08%, $92.39, - $0.21, -0.23%, 1.93%B, 9.62%, 13.75%, 12.75%, 7.41%, 7.92% (04/21/2006) Categorizing Stocks & Bonds
  • 45. Which of these look similar? Categorizing Stocks & Bonds ► VYM, Stock - Large-Cap Value ► 4.49, 12.73, 13.64, 7.08 ► VIG, Stock - Large-Cap Blend ► 9.62, 13.75, 12.75, 7.41 ► EDV, Bond - Long-term ► 6.48, -10.37, 3.38, 0 ► VCIT, Bond - Inter-term ► 3.47, 1.1, 4.04, 0
  • 46. Group Into Five Clusters 1. Stock 2. StockBigGain 3. International 4. SmallMidLargeCap 5. Bond Categorizing Stocks & Bonds Why? 55 2 = 5
  • 47. Predicting on New Data Use centroids from training Determine cluster for each test point Assign label Easy! Categorizing Stocks & Bonds
  • 48. Predicting on New Data Categorizing Stocks & Bonds ► VYM, Stock - Large-Cap Value ► 4.49, 12.73, 13.64, 7.08 ► EDV, Bond - Long-term ► 6.48, -10.37, 3.38, 0 ► VTI, Stock – Large-Cap Blend ► 9.04, 18.49, 14.55, 7.39 Stock Bond ?
  • 49. Predicting on New Data Categorizing Stocks & Bonds ► VYM, Stock - Large-Cap Value ► 4.49, 12.73, 13.64, 7.08 ► EDV, Bond - Long-term ► 6.48, -10.37, 3.38, 0 ► VTI, Stock – Large-Cap Blend ► 9.04, 18.49, 14.55, 7.39 Stock Bond ?
  • 50. Results – Did It Work? ►VEU, International, 1, International ►VNQI, International, 1,International ►VXUS, International, 1, International ►BLV, Bond - Long-term, 3, Stock ►BIV, Bond - Inter-term, 4, Bond ►VCLT, Bond - Long-term, 4, Bond ►BSV, Bond - Short-term, 4, Bond  VIG, Stock - Large-Cap Blend, 5, SmallMidLargeCap  VUG, Stock - Large-Cap Growth, 5, SmallMidLargeCap  VTI, Stock - Large-Cap Blend, 5, SmallMidLargeCap Categorizing Stocks & Bonds Not Bad! 
