Legacy System Migration Workbench 1 of 74

What is LSMW

• It is a interactive tool for data transfer.
• Data transfer between legacy system (non-SAP) to SAP once or periodically.
• Key benefits:
– Dramatically reduces the cost and time of migrating data.
– Ensure optimum quality and consistency through import checks.

• Advantages of LSMW:
– Wide ranges of data conversion techniques (fixed values, translation, ABAP coding etc).
– Conversion program generated from conversion rules.
– Consistency in migration.
– Less programming required.
– Platform independent.
– Check data before updating in database.

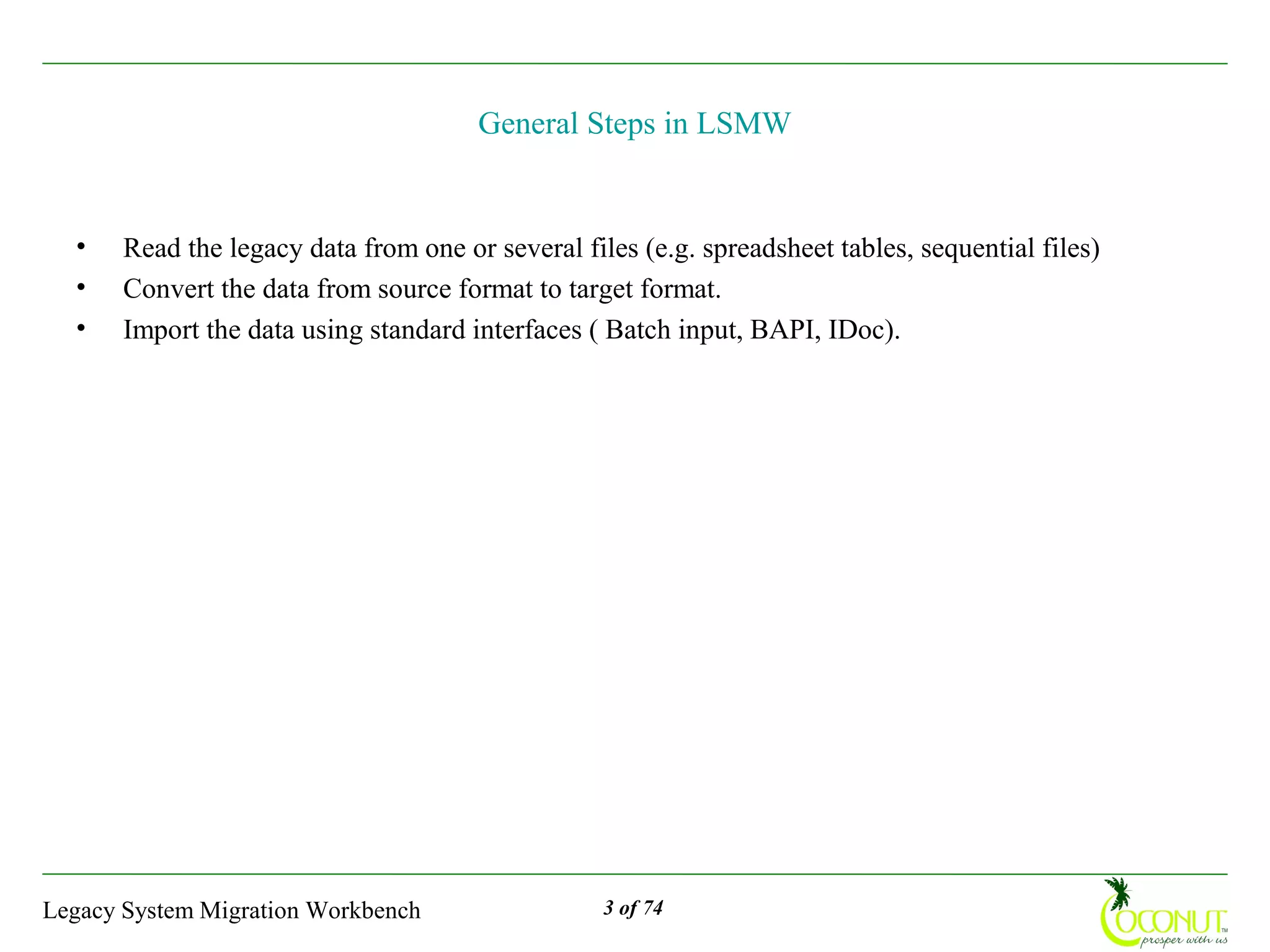

General Steps in LSMW

• Read the legacy data from one or several files (e.g. spreadsheet tables, sequential files)
• Convert the data from source format to target format.
• Import the data using standard interfaces ( Batch input, BAPI, IDoc).

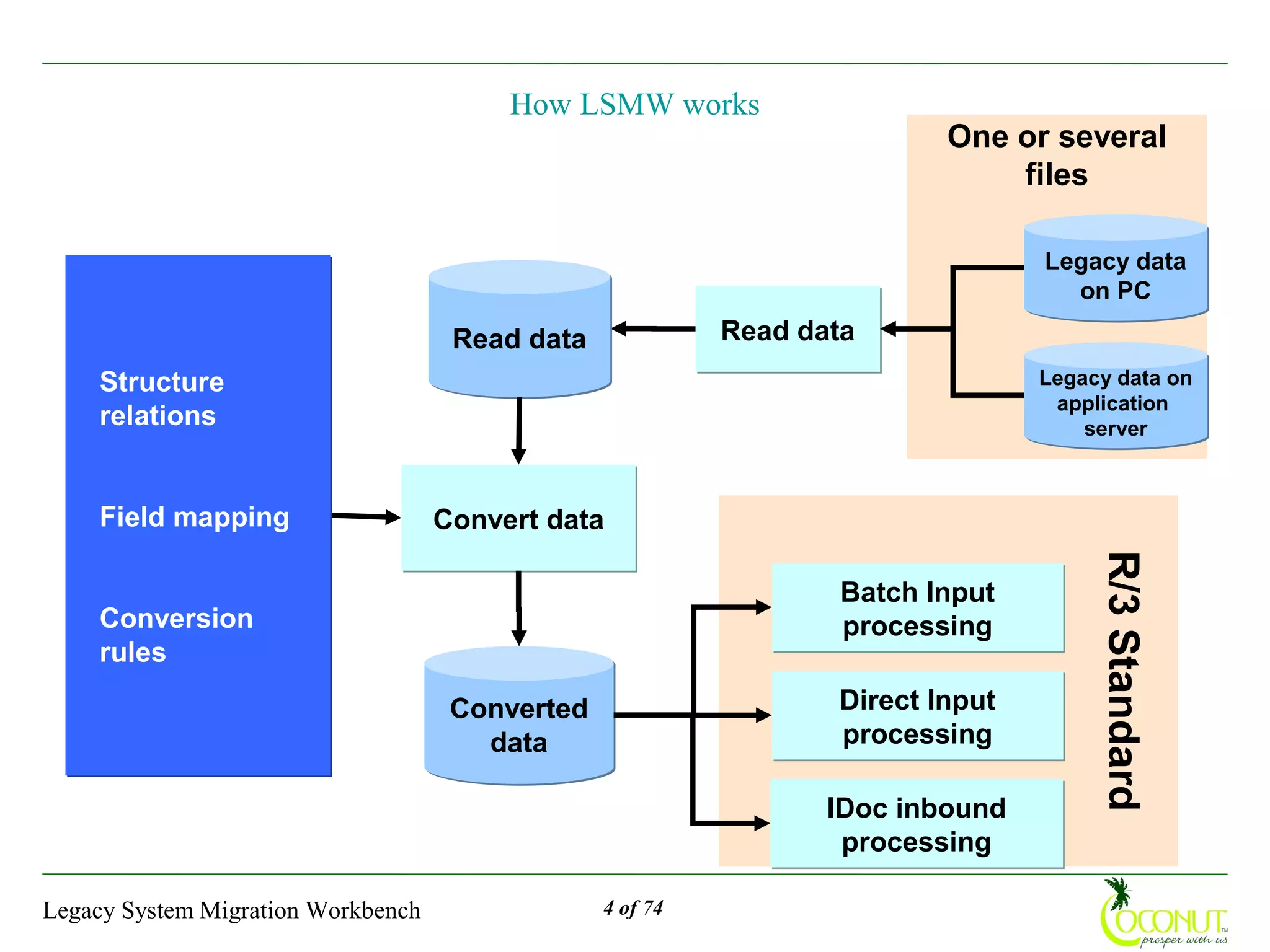

How LSMW works
One or several
files

Legacy data
on PC

Read data Read data
Structure Legacy data on
application
relations server

Field mapping Convert data

R/3 Standard
Batch Input
Conversion processing
rules

Converted Direct Input
data processing

IDoc inbound
processing


Step in LSMW

• Transaction code : LSMW
• 14 steps:
– Maintain object attributes.
– Maintain source structures.
– Maintain source fields.
– Maintain source relations.
– Maintain field mapping and conversion rules.
– Maintain fixed values, translations, user-defined routines.
– Specify files.
– Assign files.
– Read/import data.
– Display read/import data.
– Convert data.
– Display converted data.
– Create batch input session
– Run Batch input session.

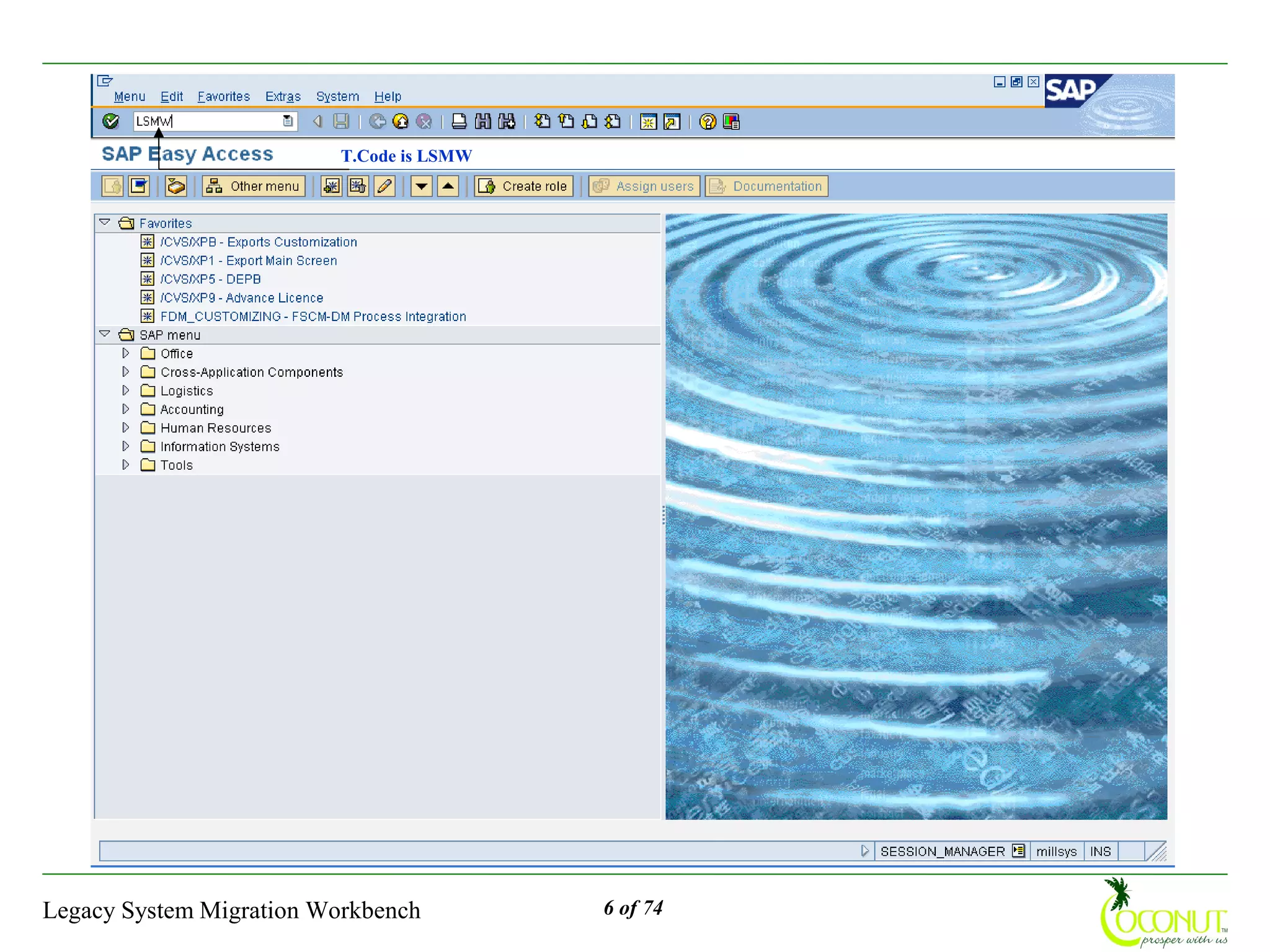

T.Code is LSMW


Create New Project


Create Subproject , Object and click here


Go To Menu path Goto->Recordings


Click on ‘Recordings’ and create


Specify the Name of Recording
and click here

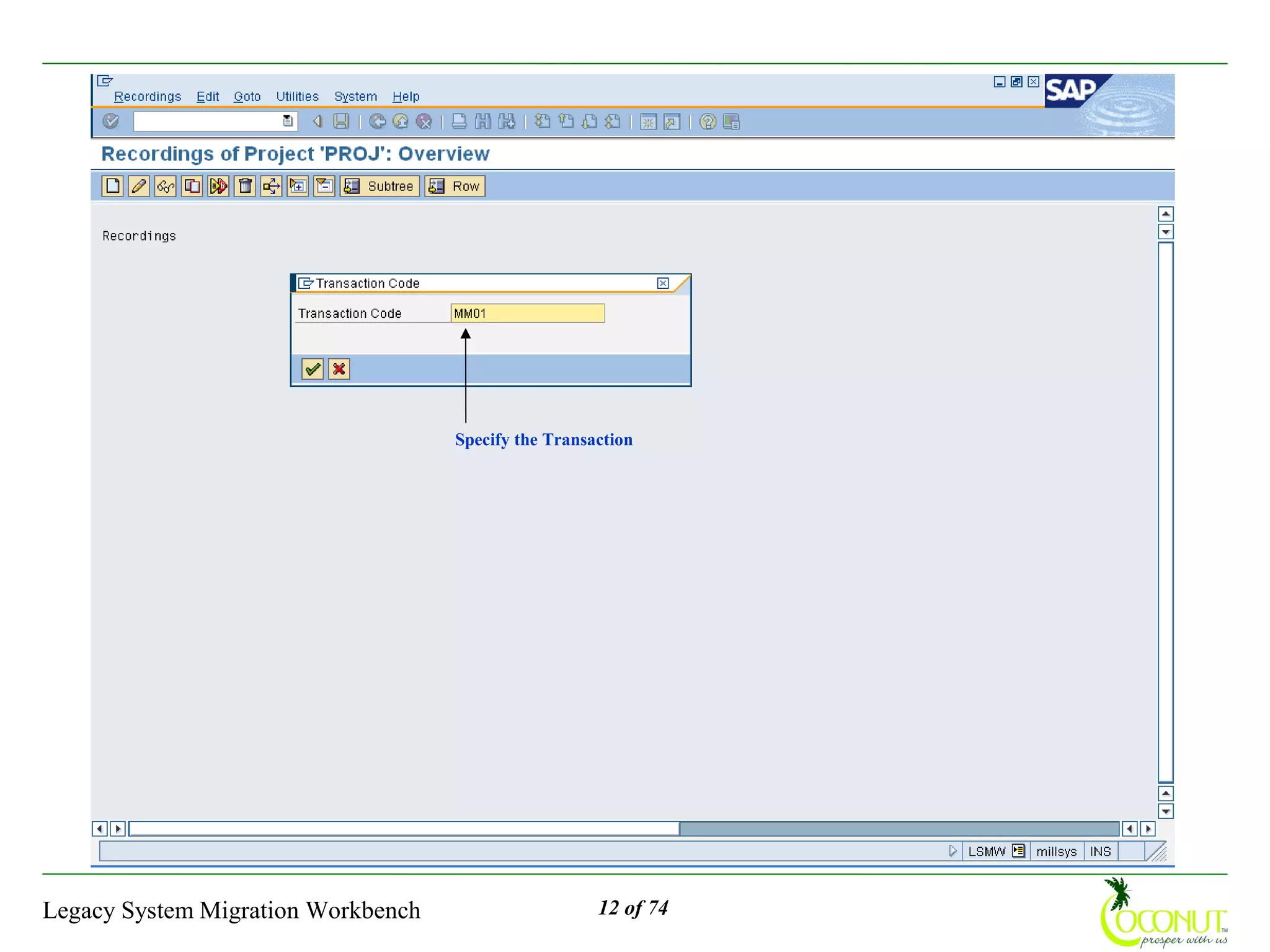

Specify the Transaction


Enter relevant Data

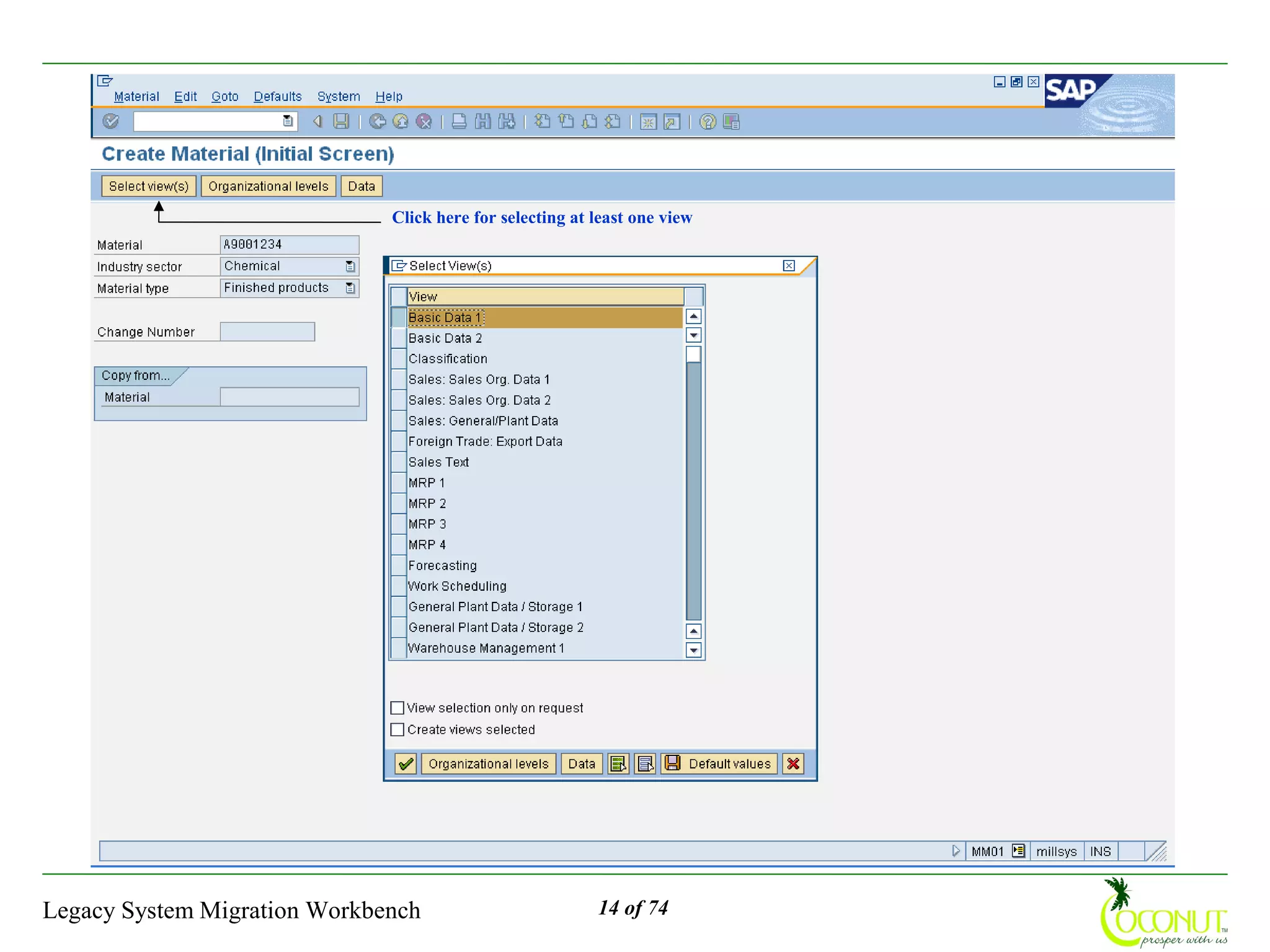

Click here for selecting at least one view

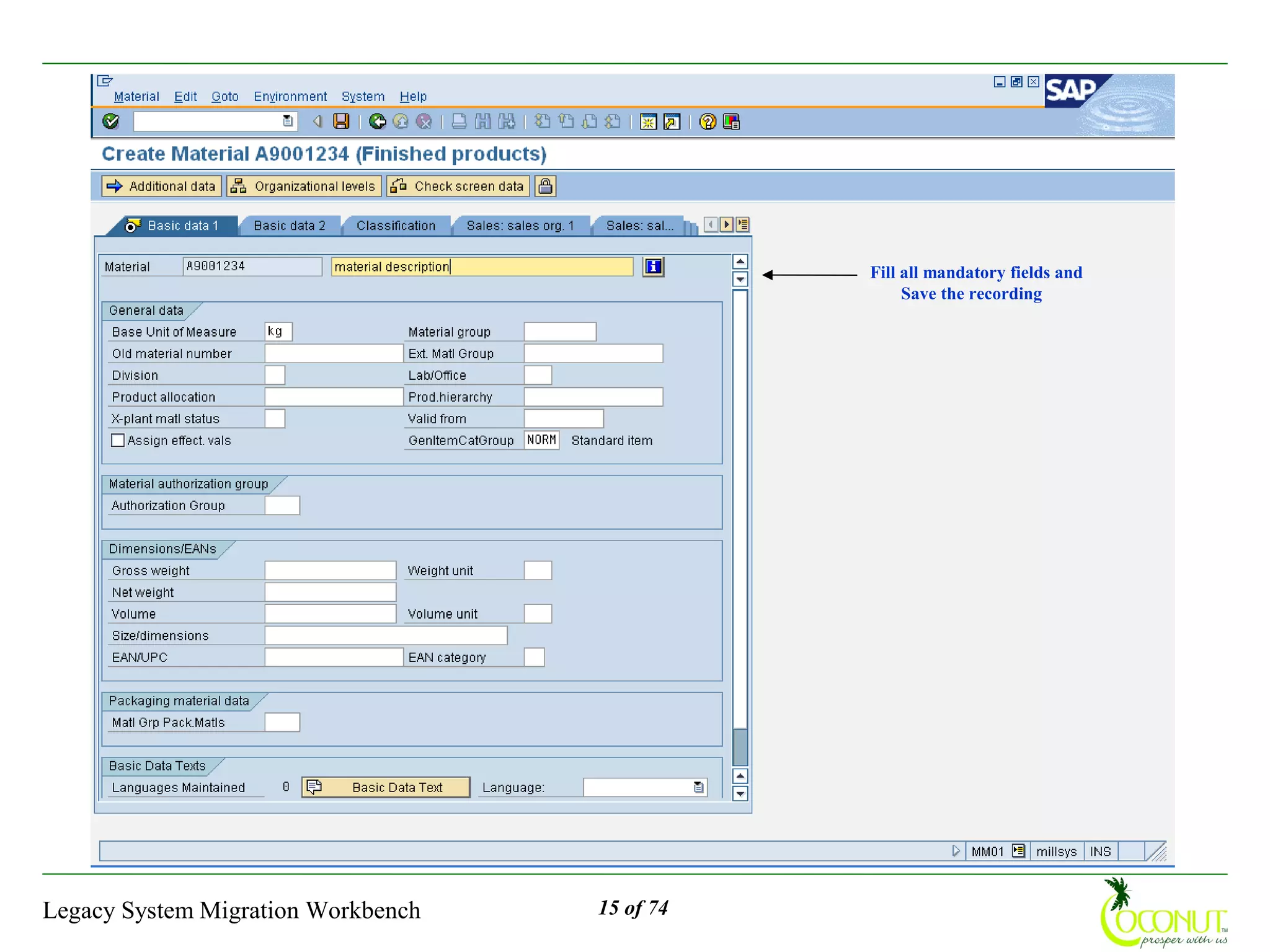

Fill all mandatory fields and
Save the recording

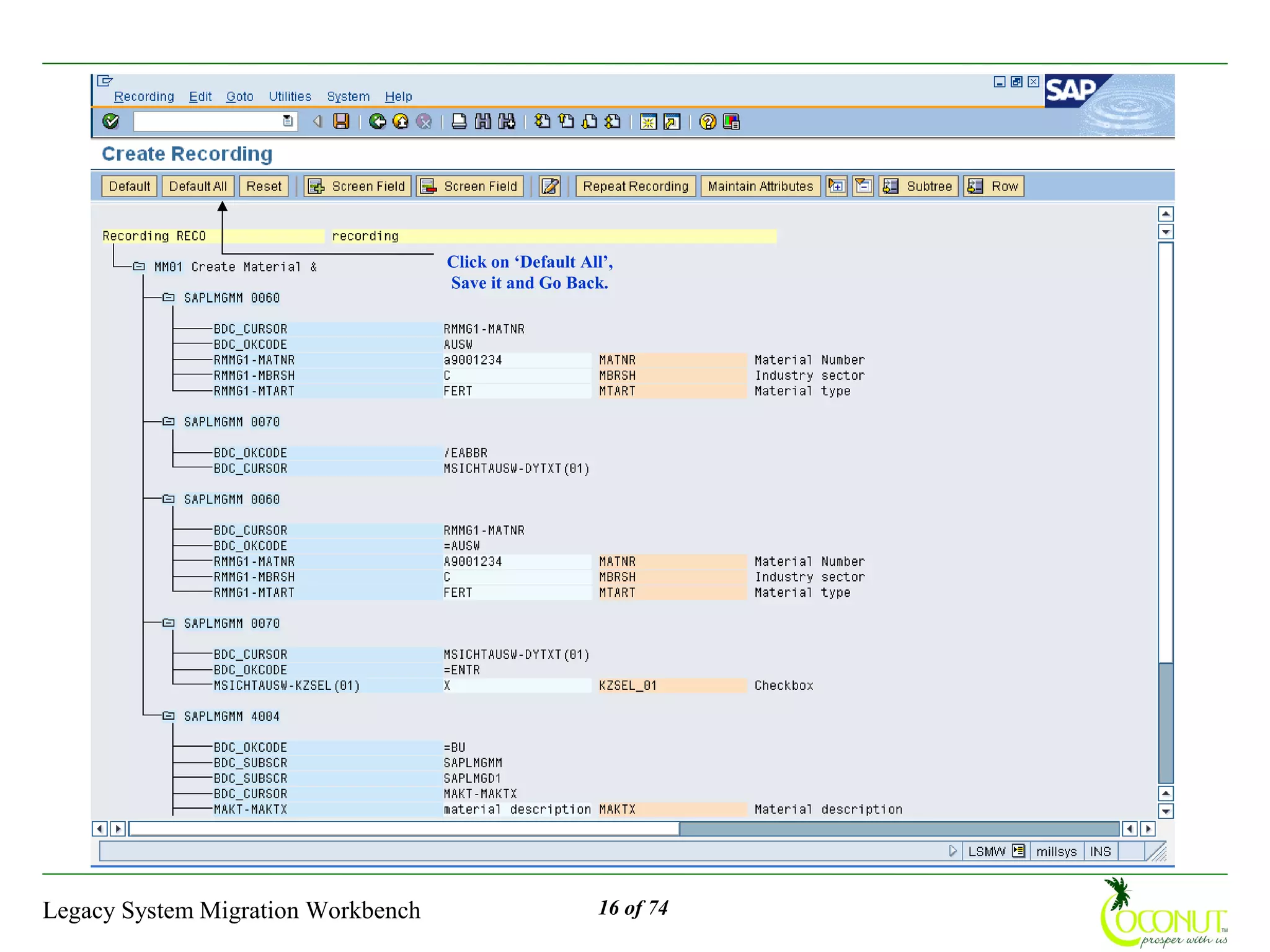

Click on ‘Default All’,
Save it and Go Back.

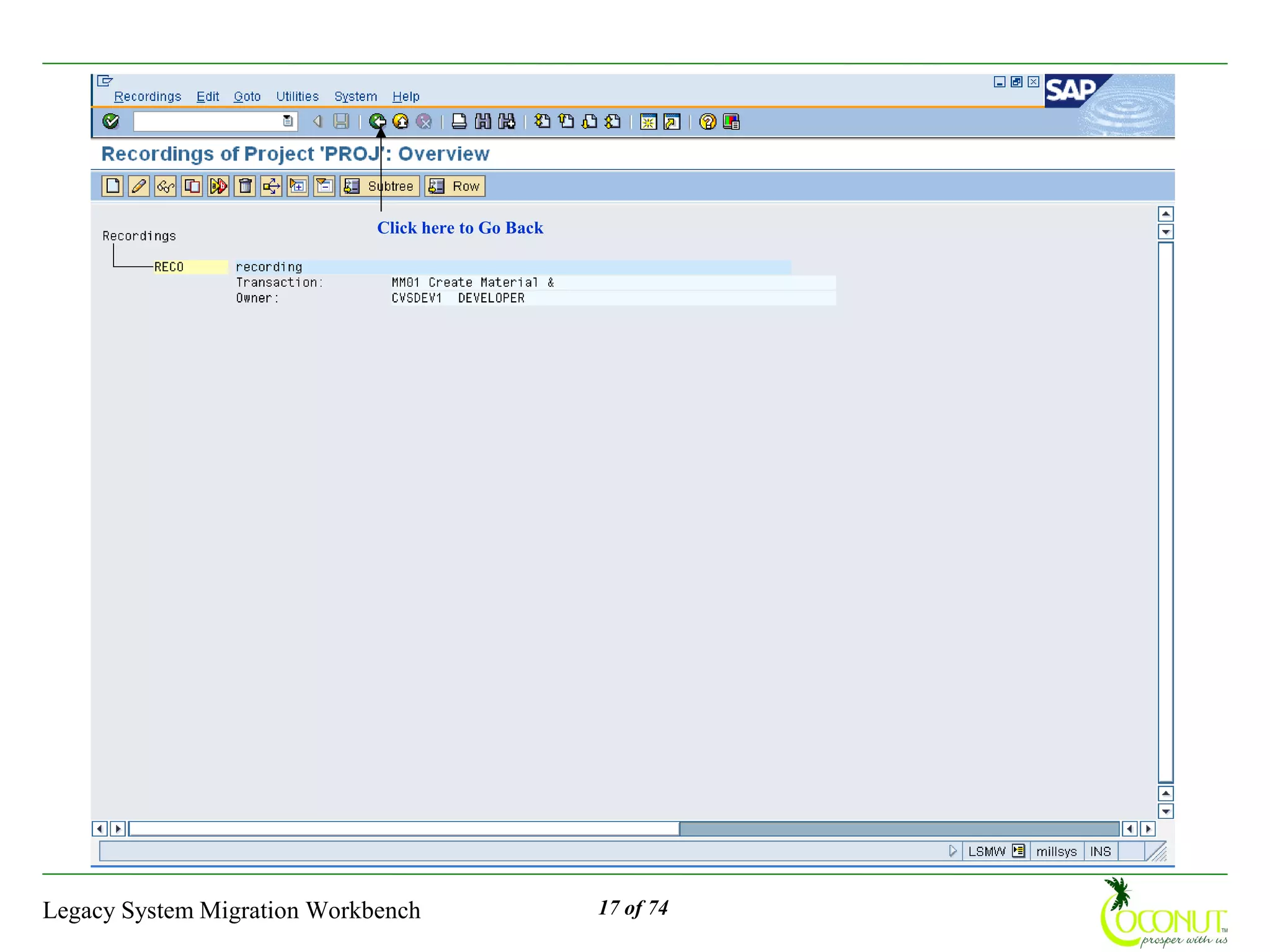

Click here to Go Back

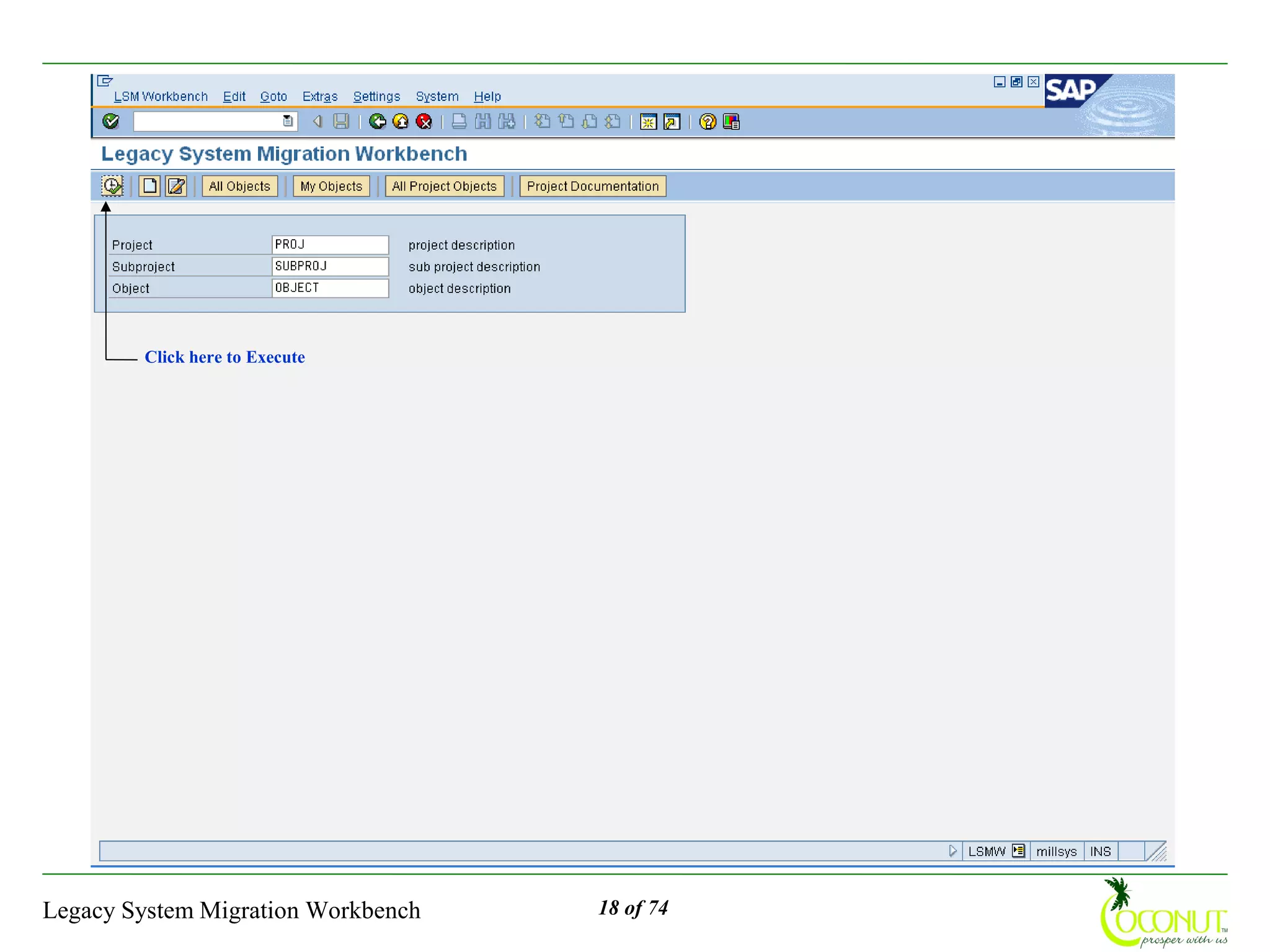

Click here to Execute

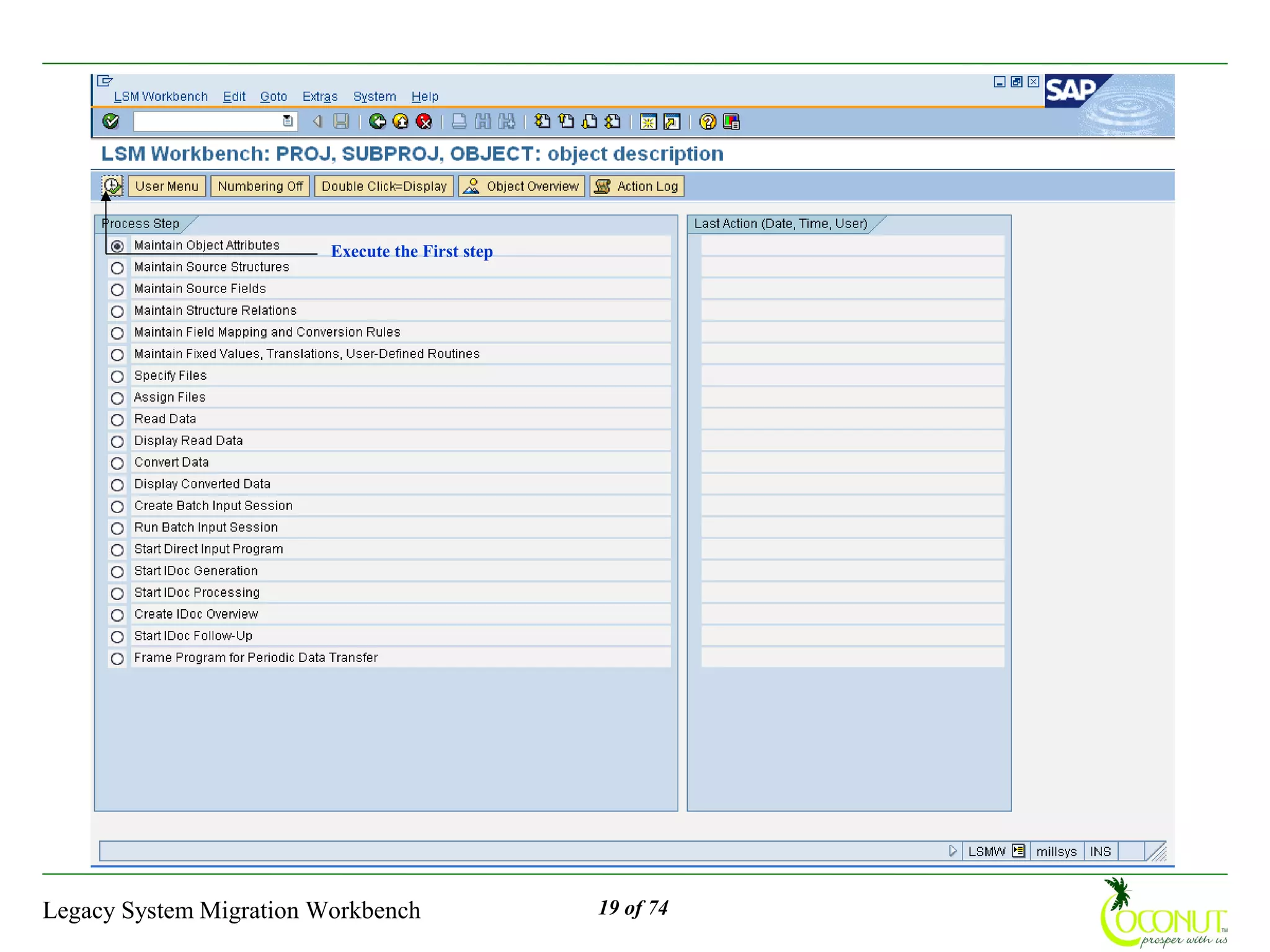

Execute the First step

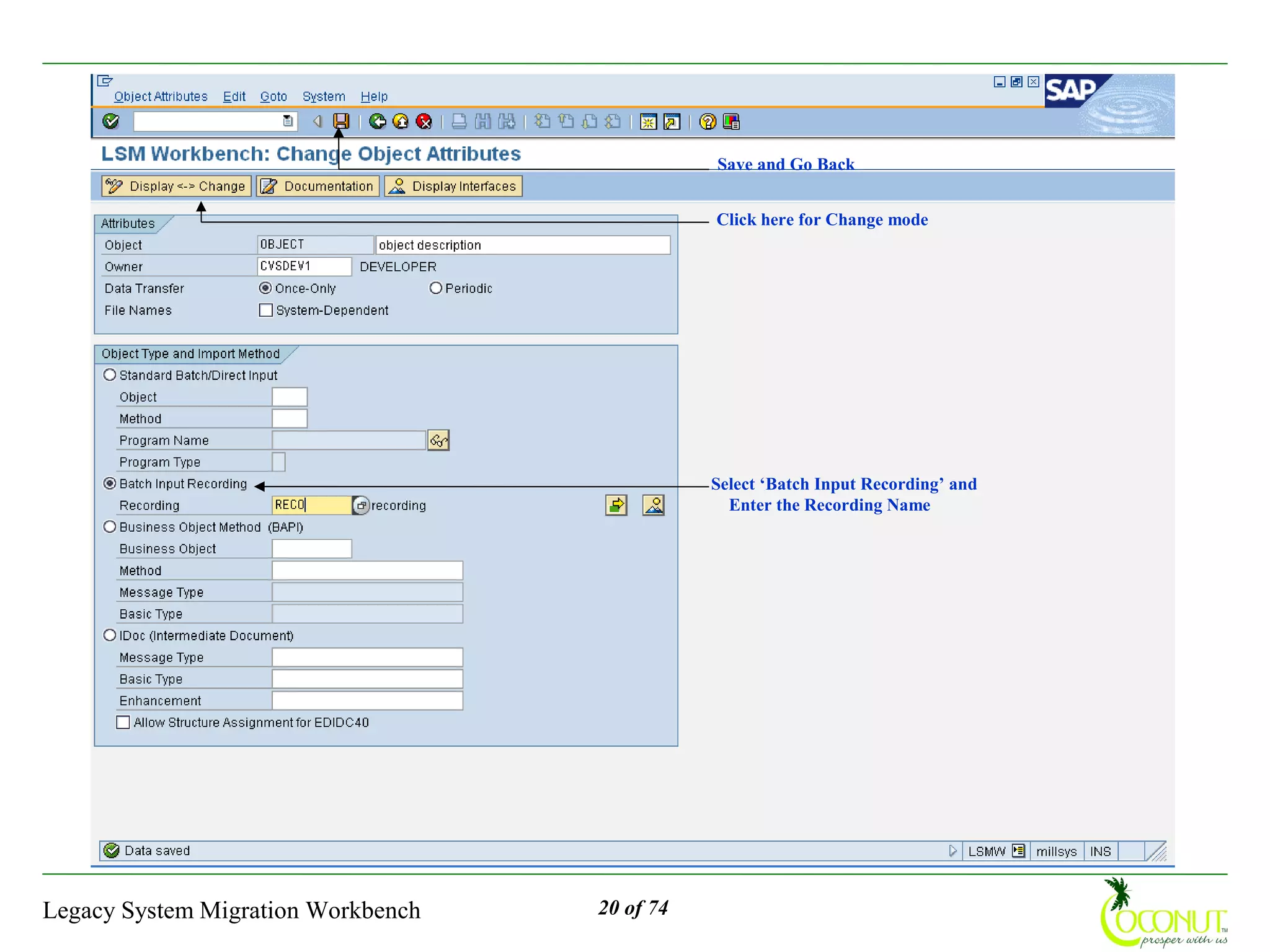

Save and Go Back

Click here for Change mode

Select ‘Batch Input Recording’ and
Enter the Recording Name

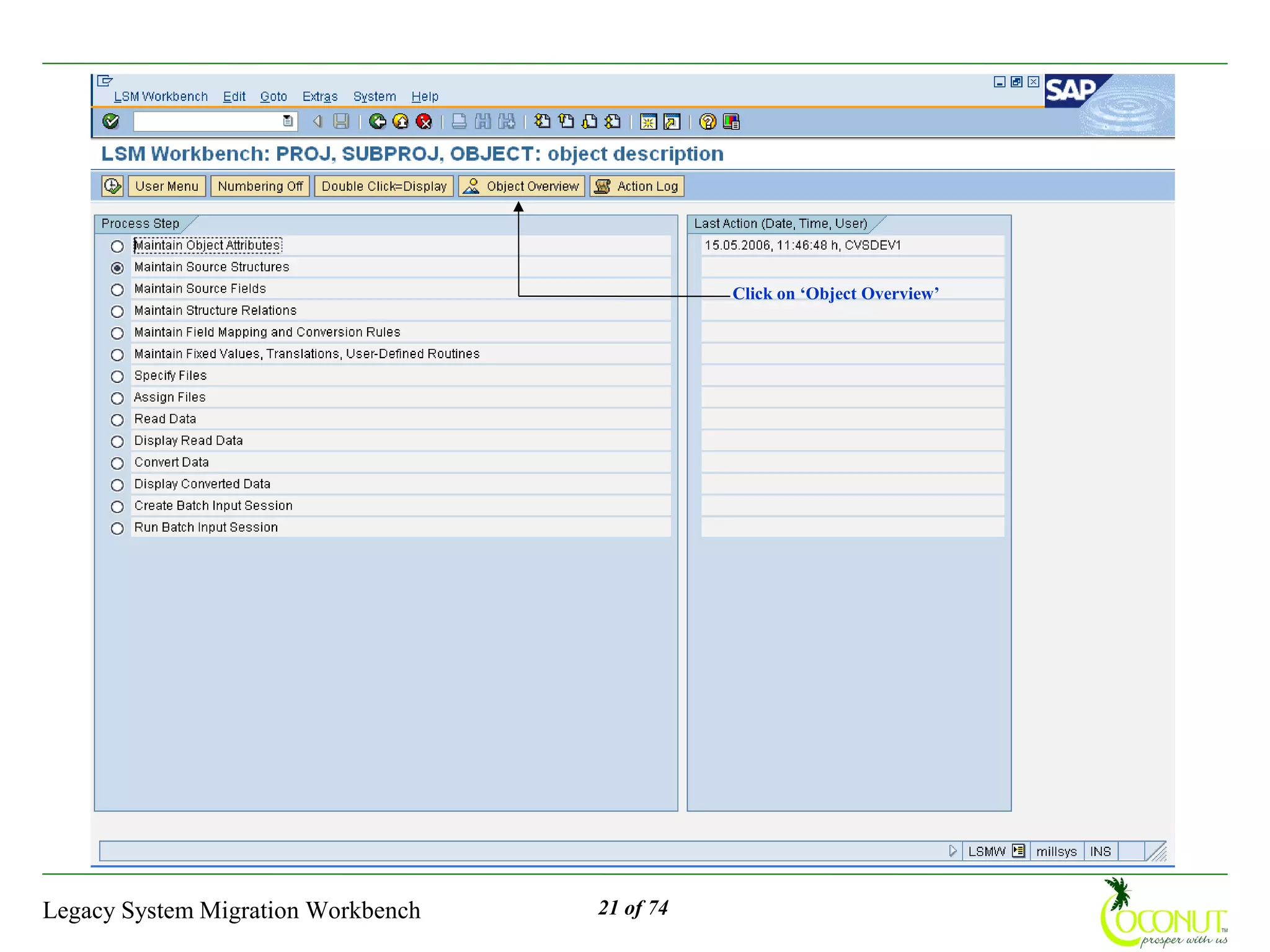

Click on ‘Object Overview’

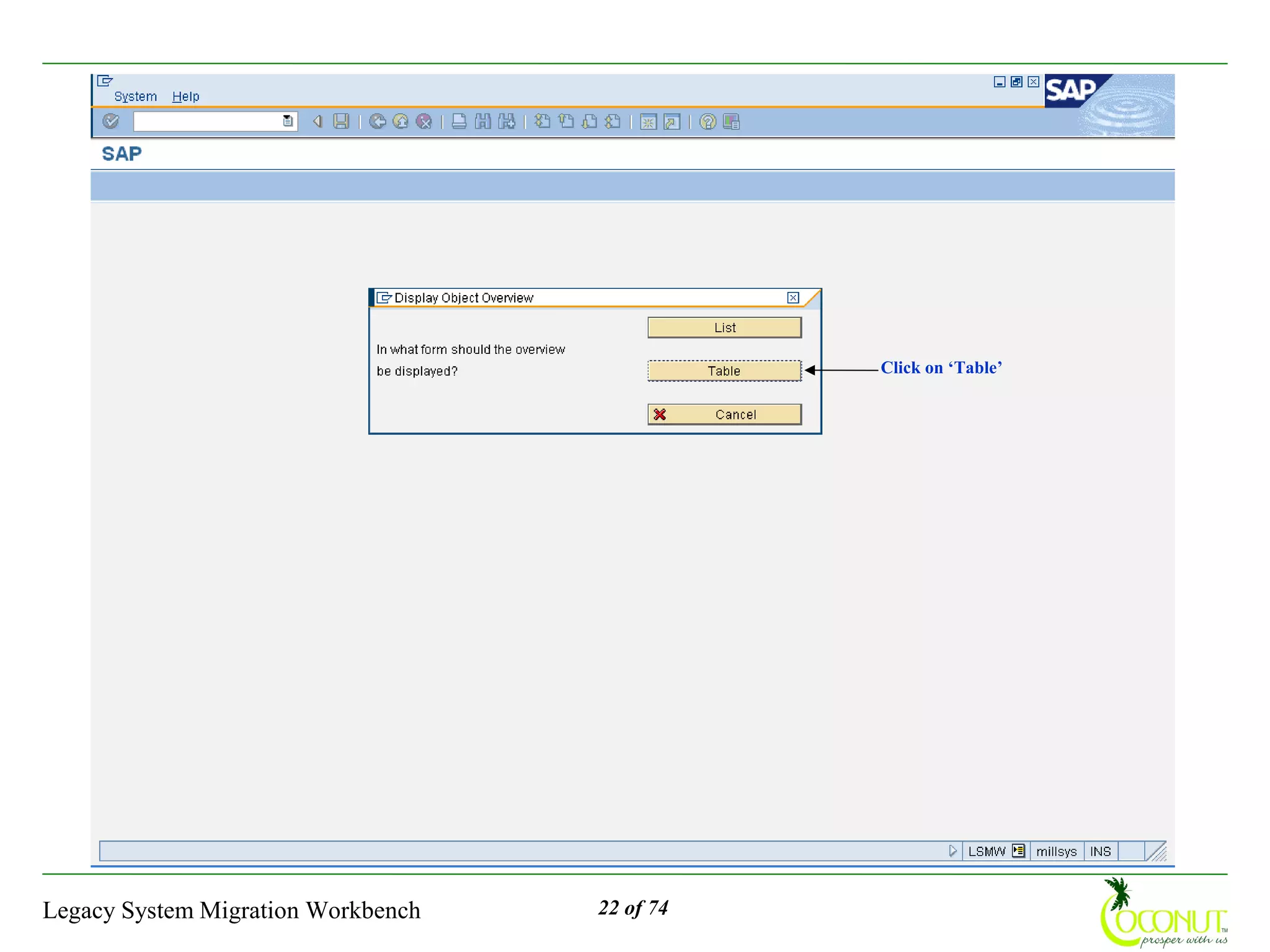

Click on ‘Table’

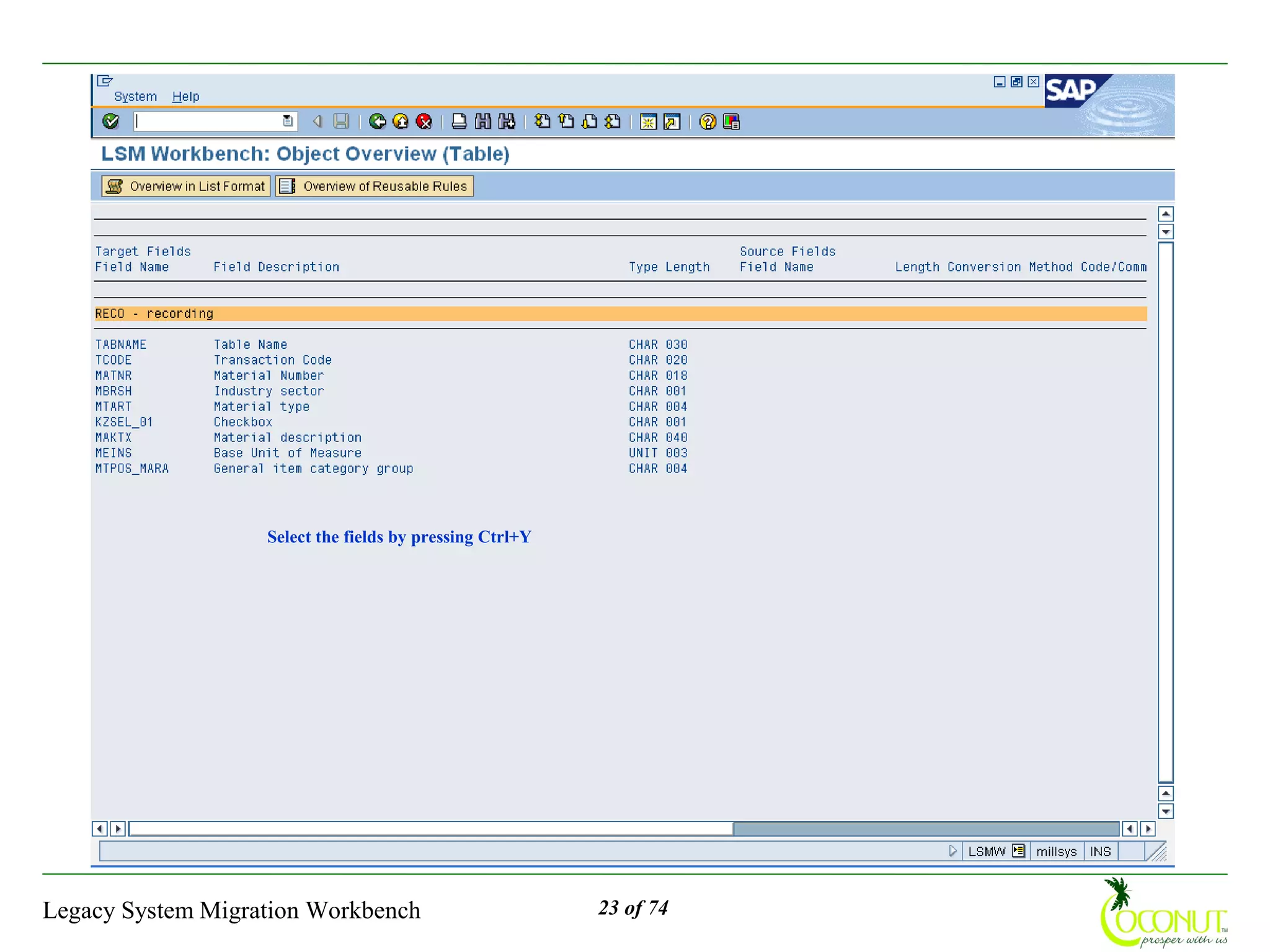

Select the fields by pressing Ctrl+Y


Copy the fields which are selected

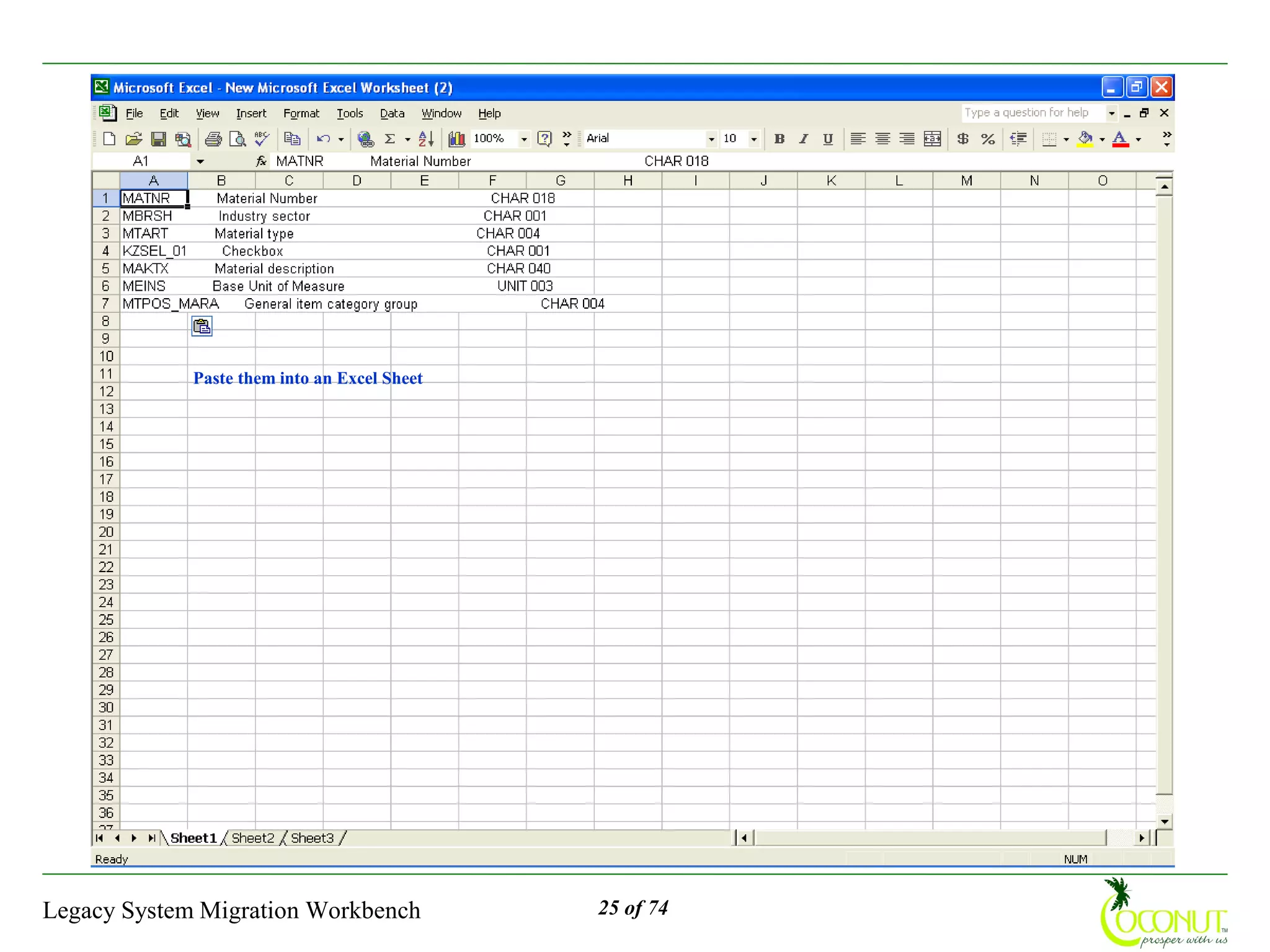

Paste them into an Excel Sheet

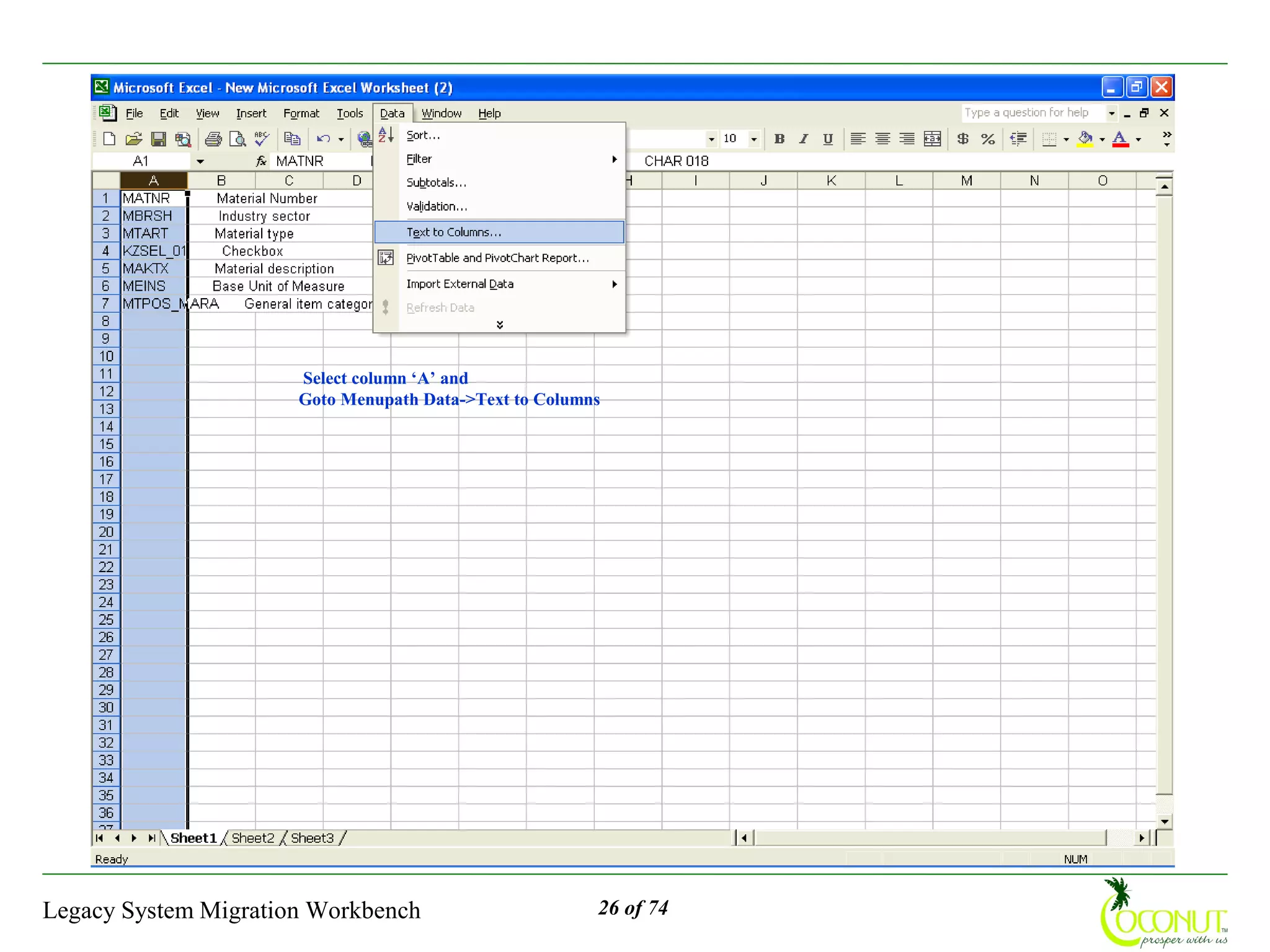

Select column ‘A’ and
Goto Menupath Data->Text to Columns

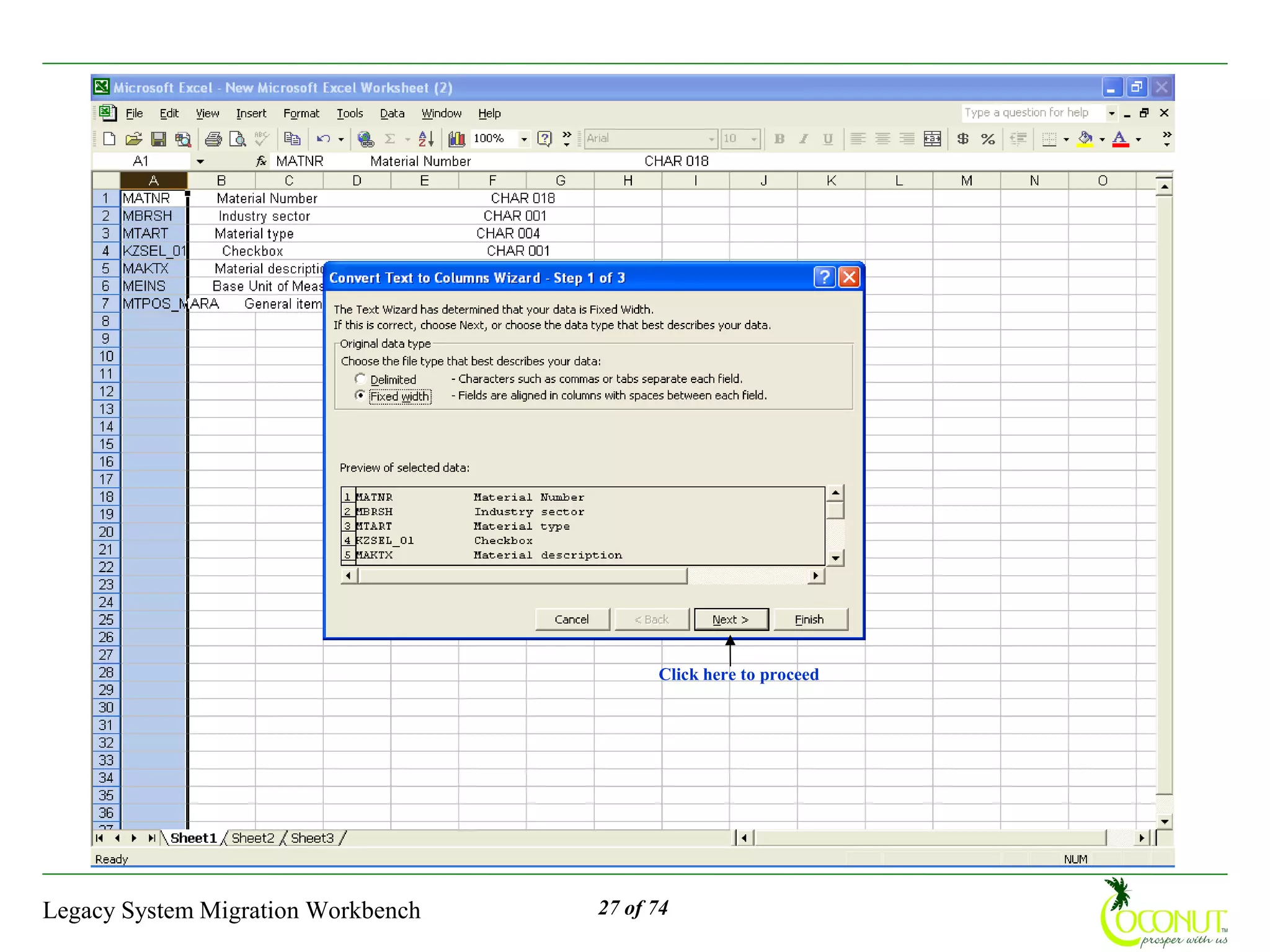

Click here to proceed

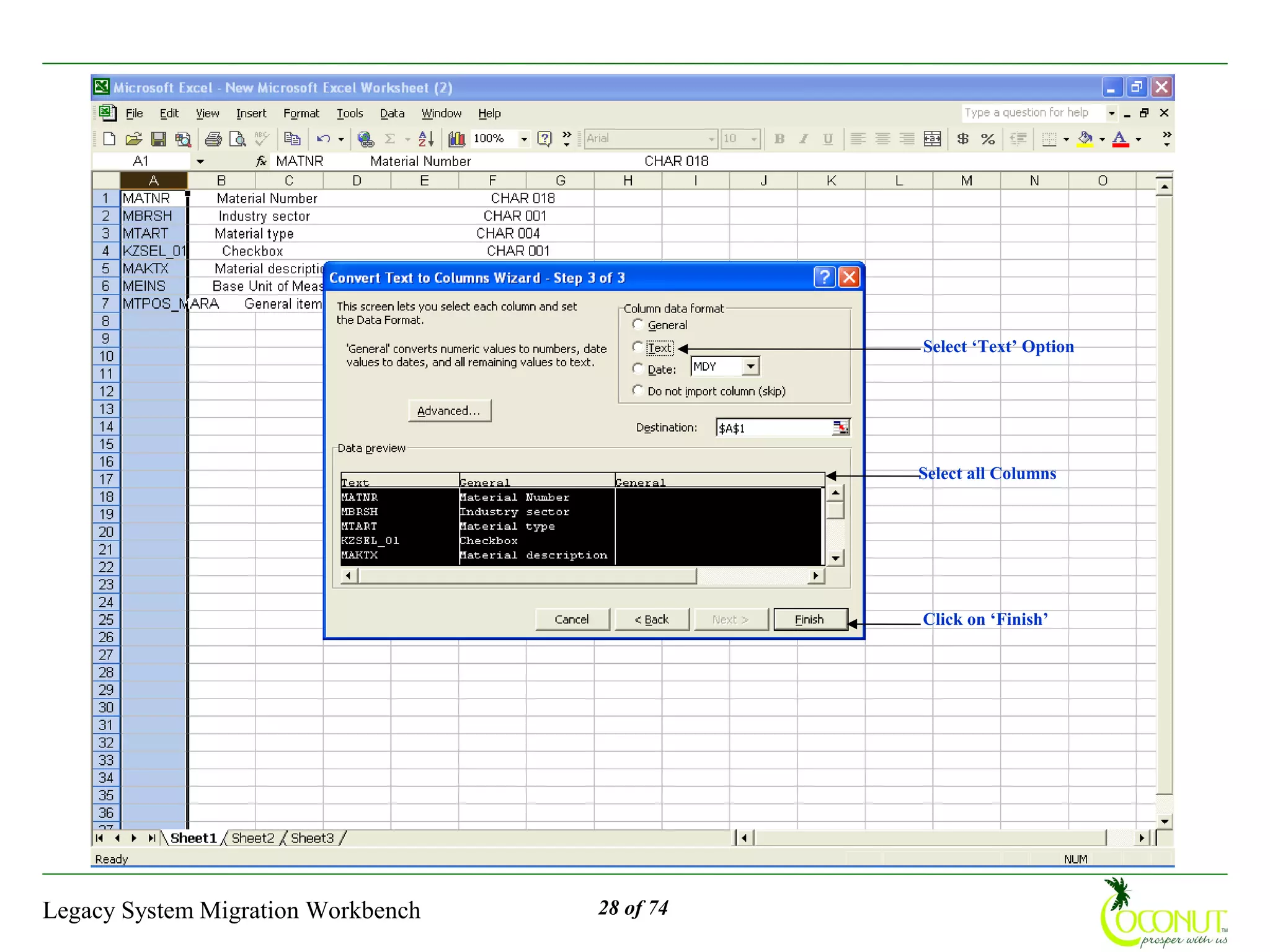

Select ‘Text’ Option

Select all Columns

Click on ‘Finish’

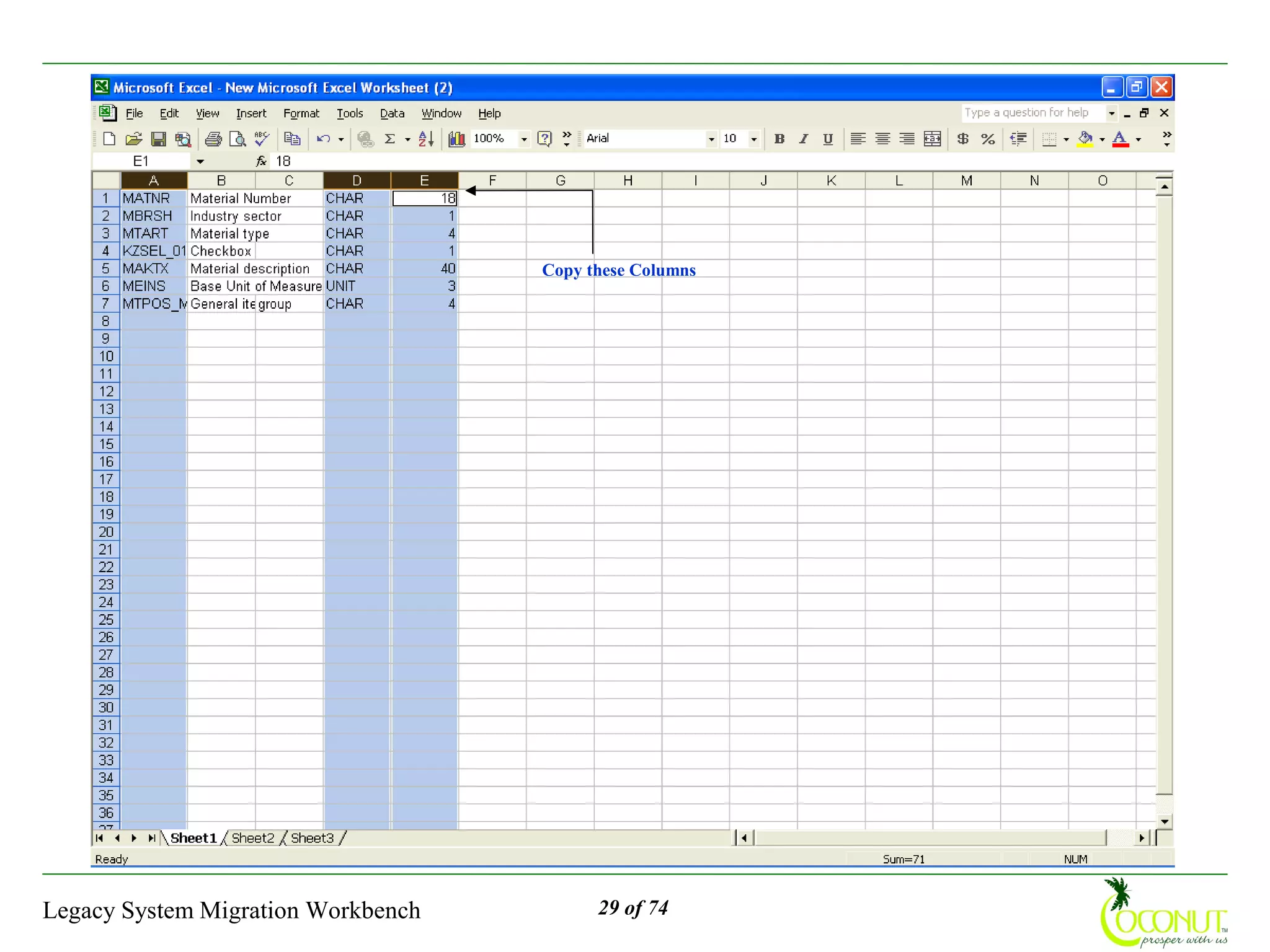

Copy these Columns

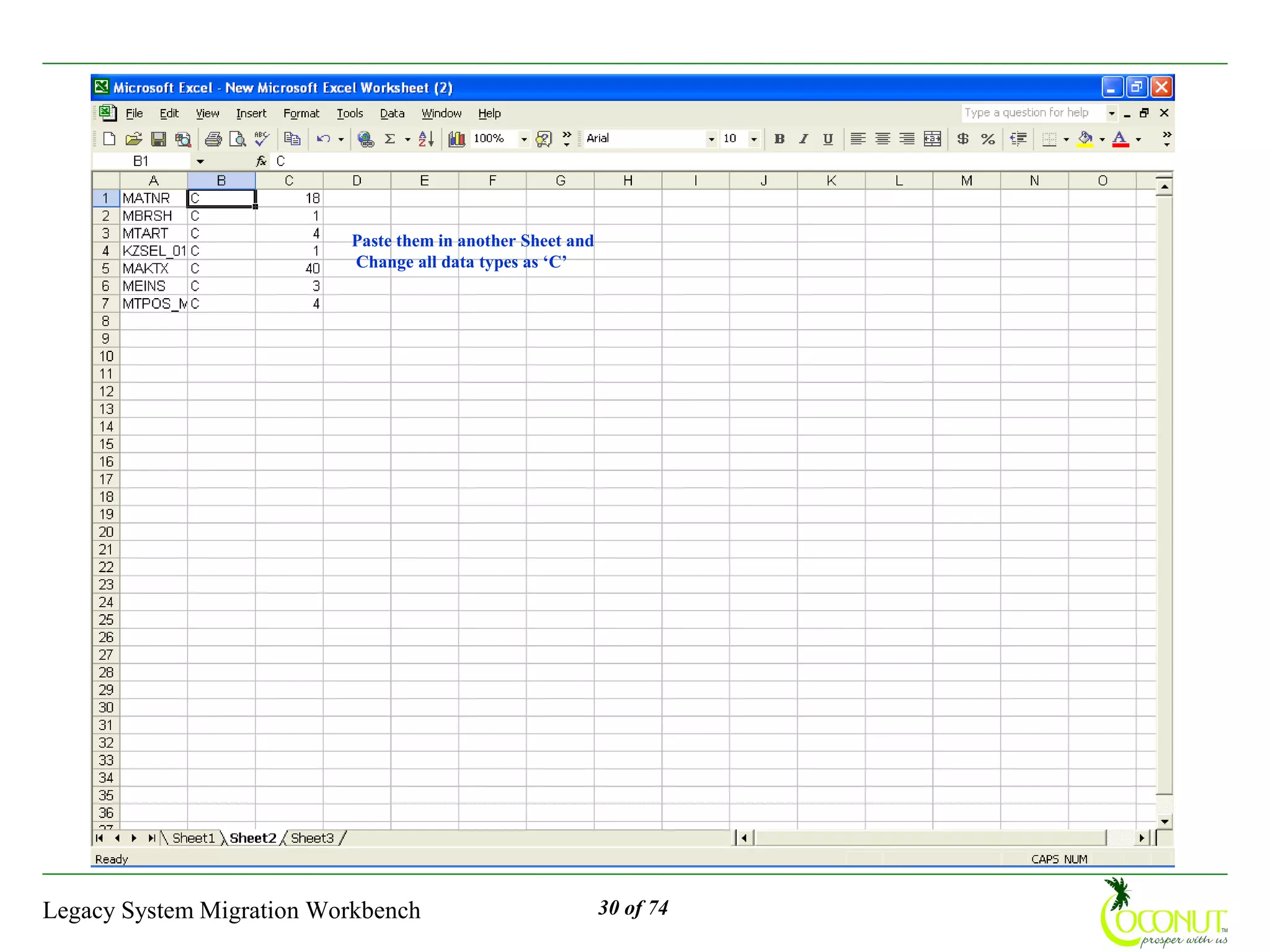

Paste them in another Sheet and
Change all data types as ‘C’


Click here to Go Back

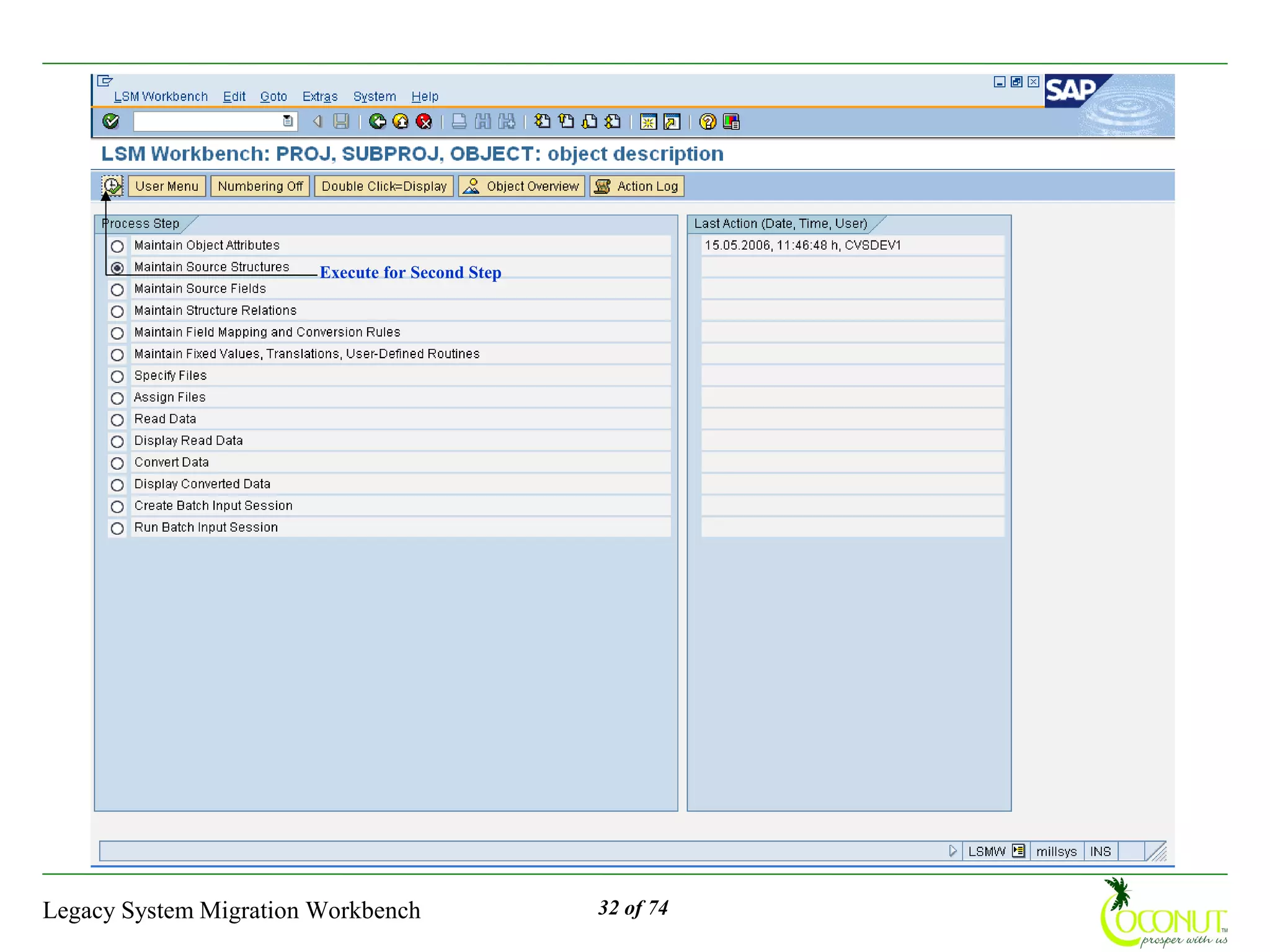

Execute for Second Step

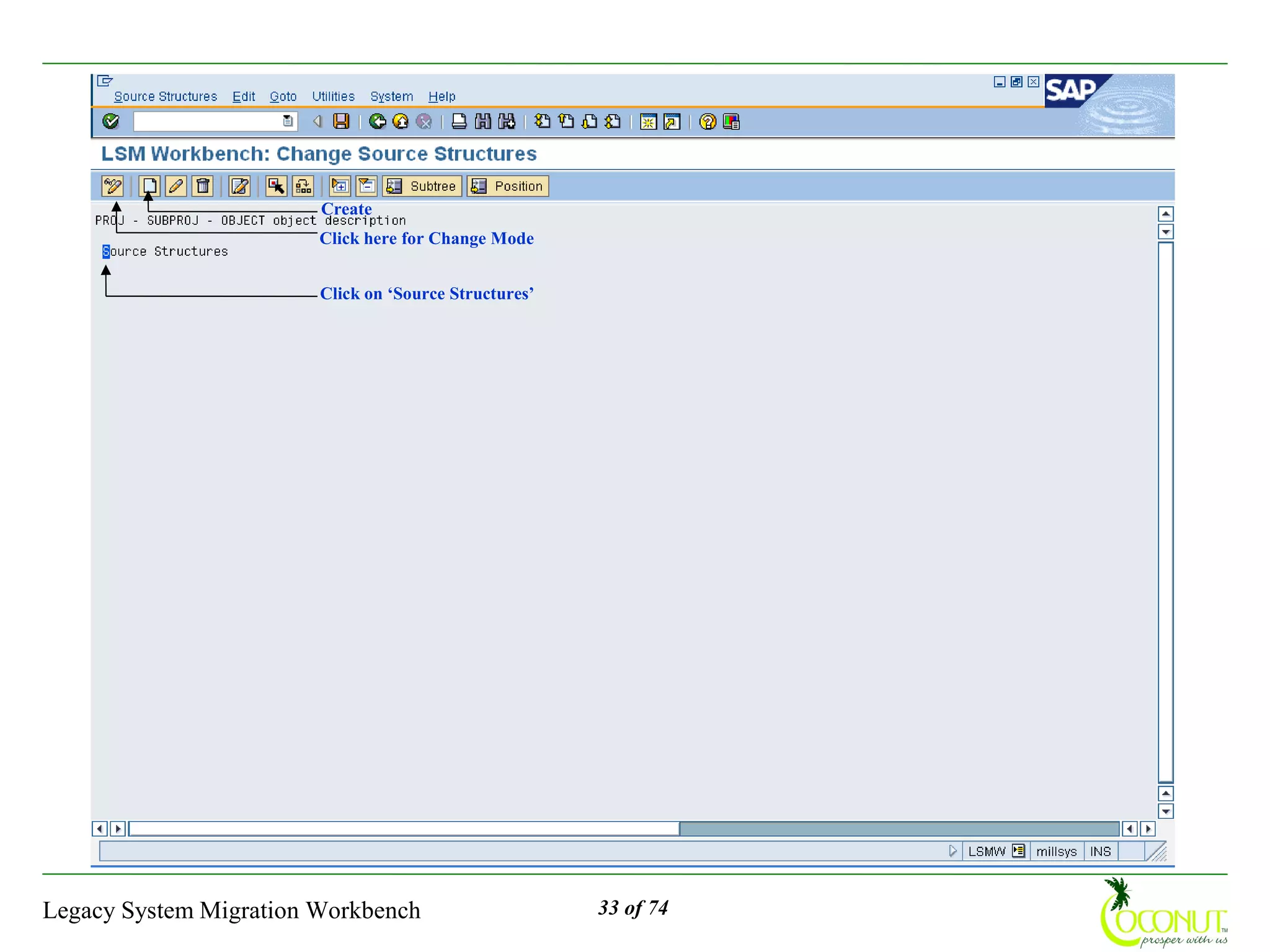

Create
Click here for Change Mode

Click on ‘Source Structures’

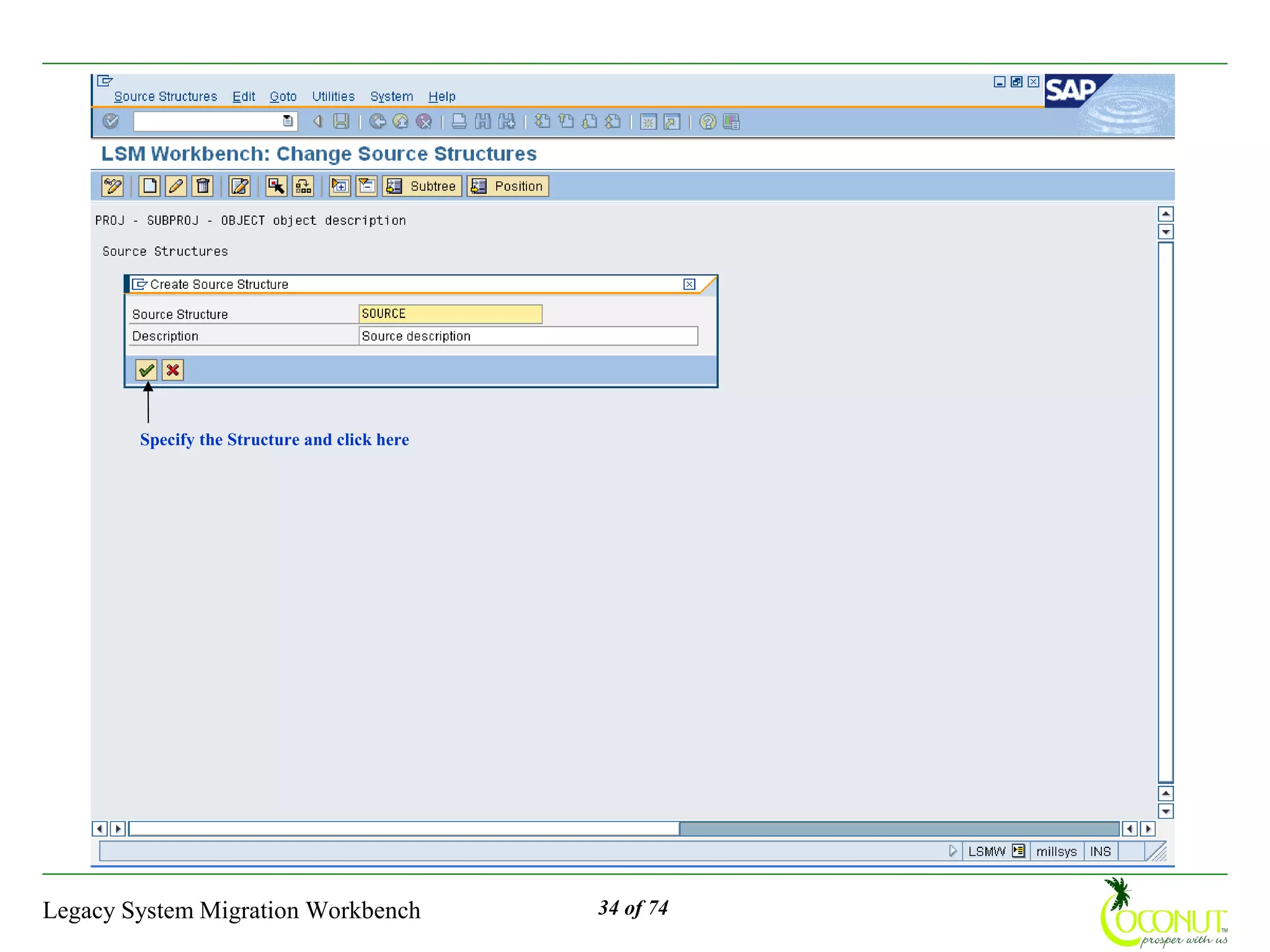

Specify the Structure and click here

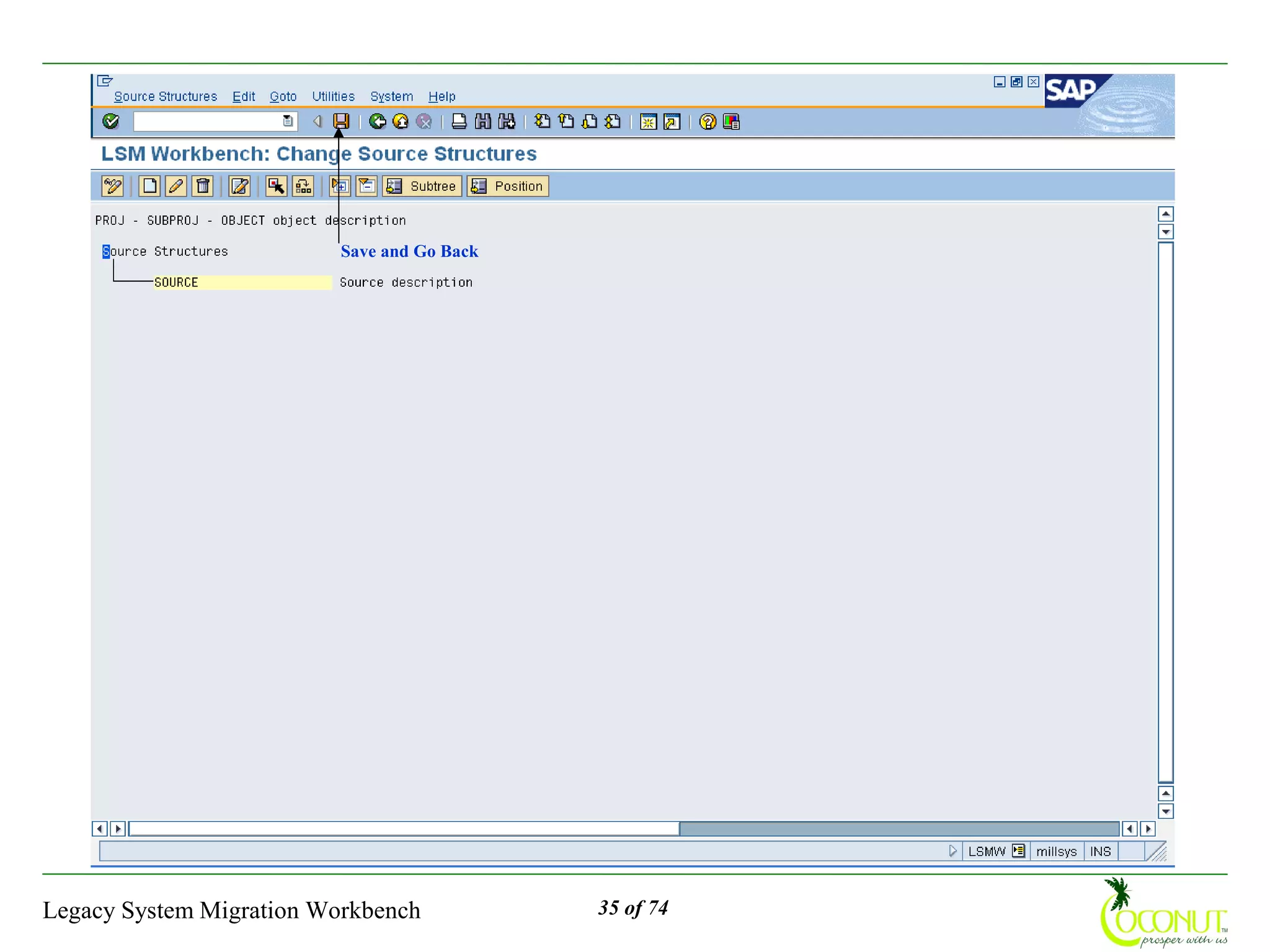

Save and Go Back


Execute for Third Step

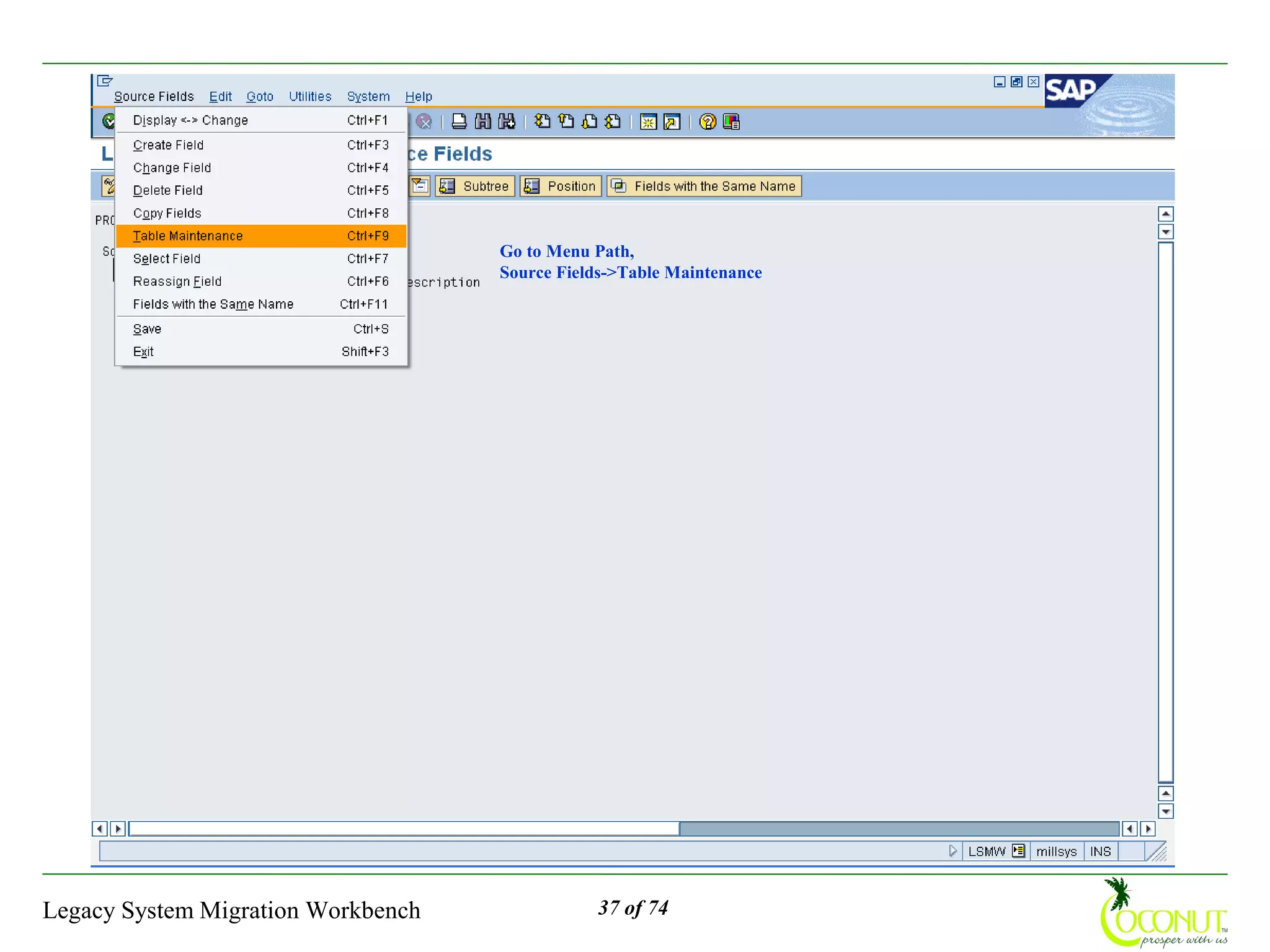

Go to Menu Path,
Source Fields->Table Maintenance

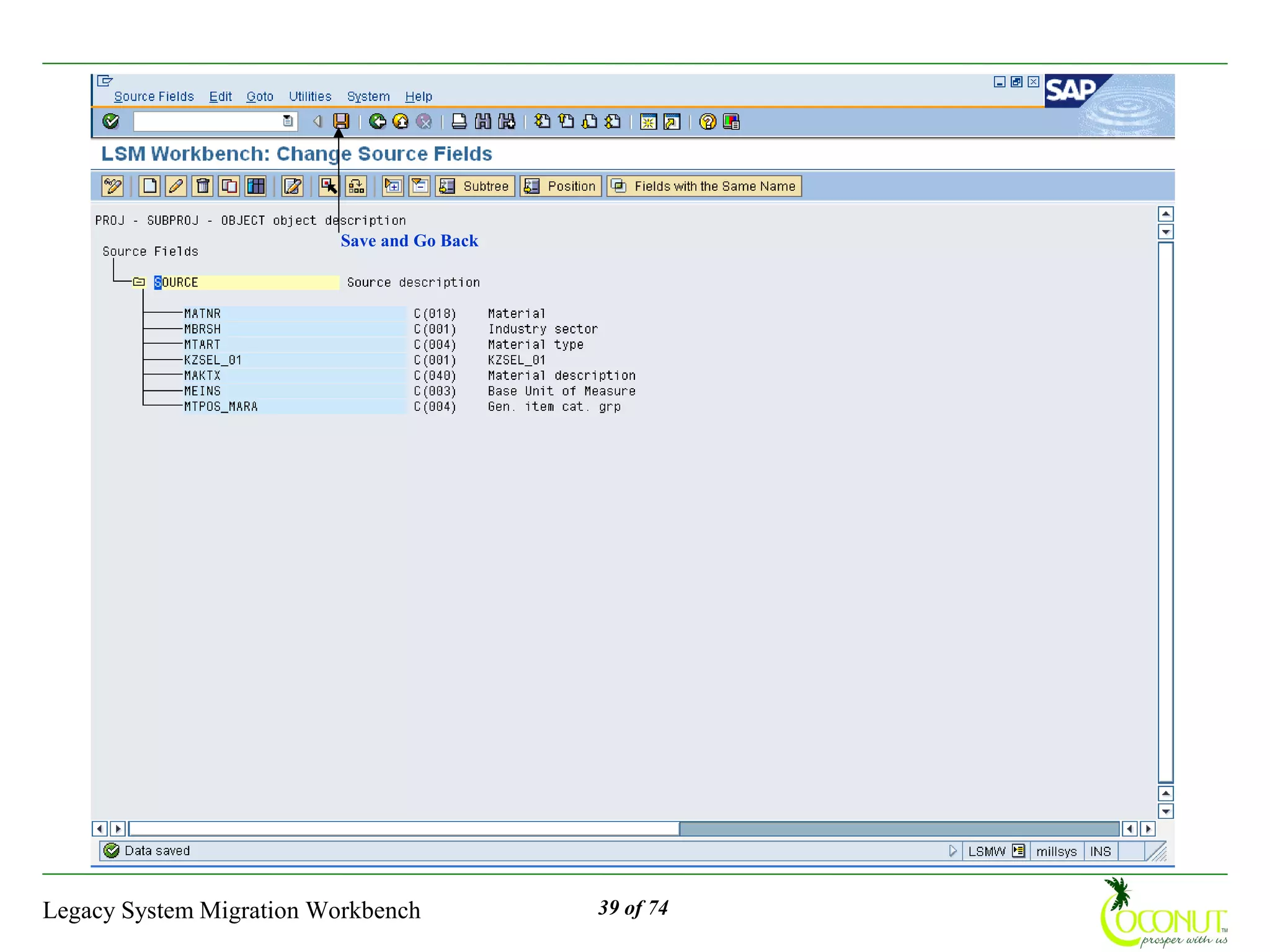

Save and Go Back

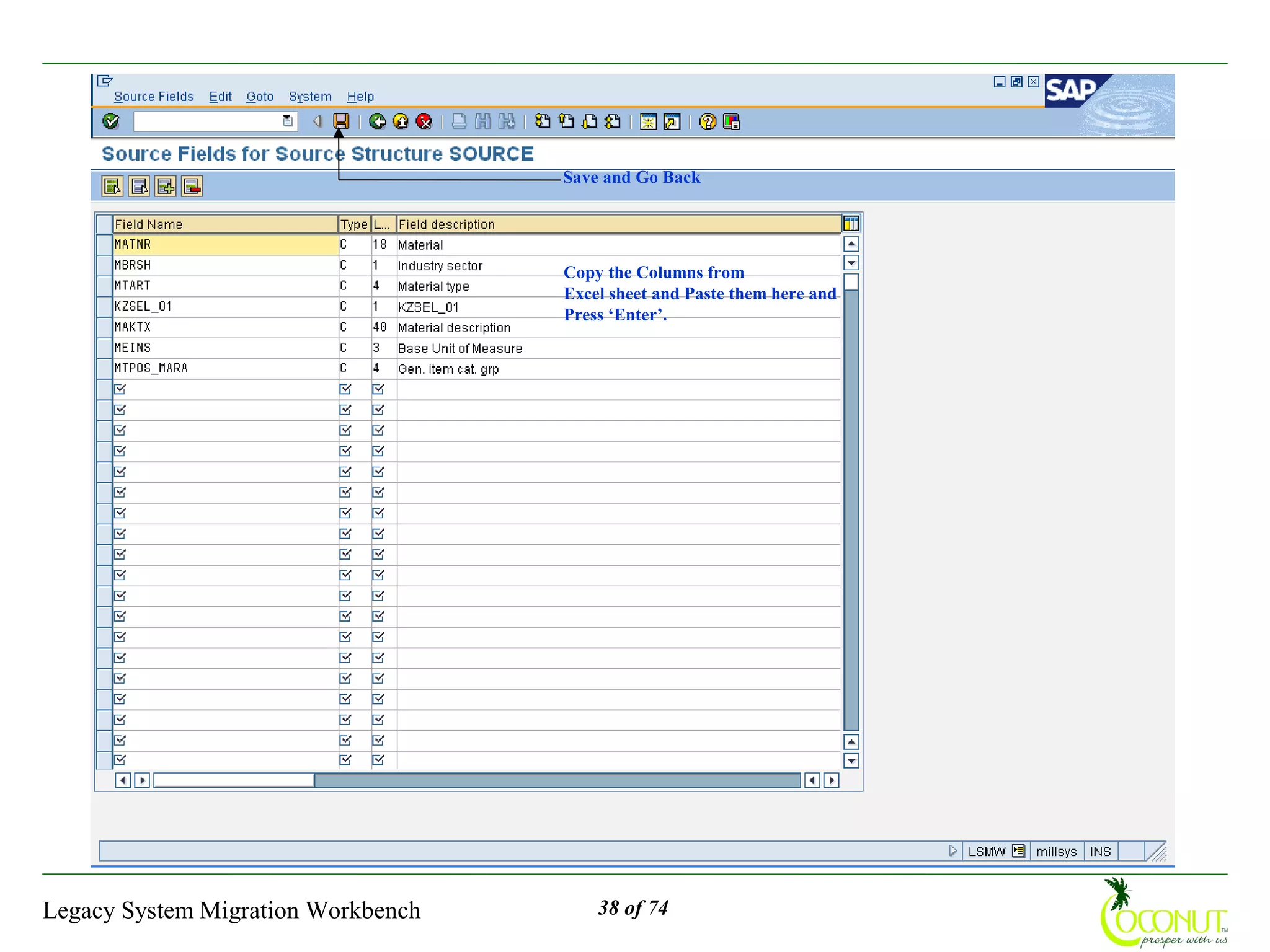

Copy the Columns from
Excel sheet and Paste them here and
Press ‘Enter’.


Save and Go Back

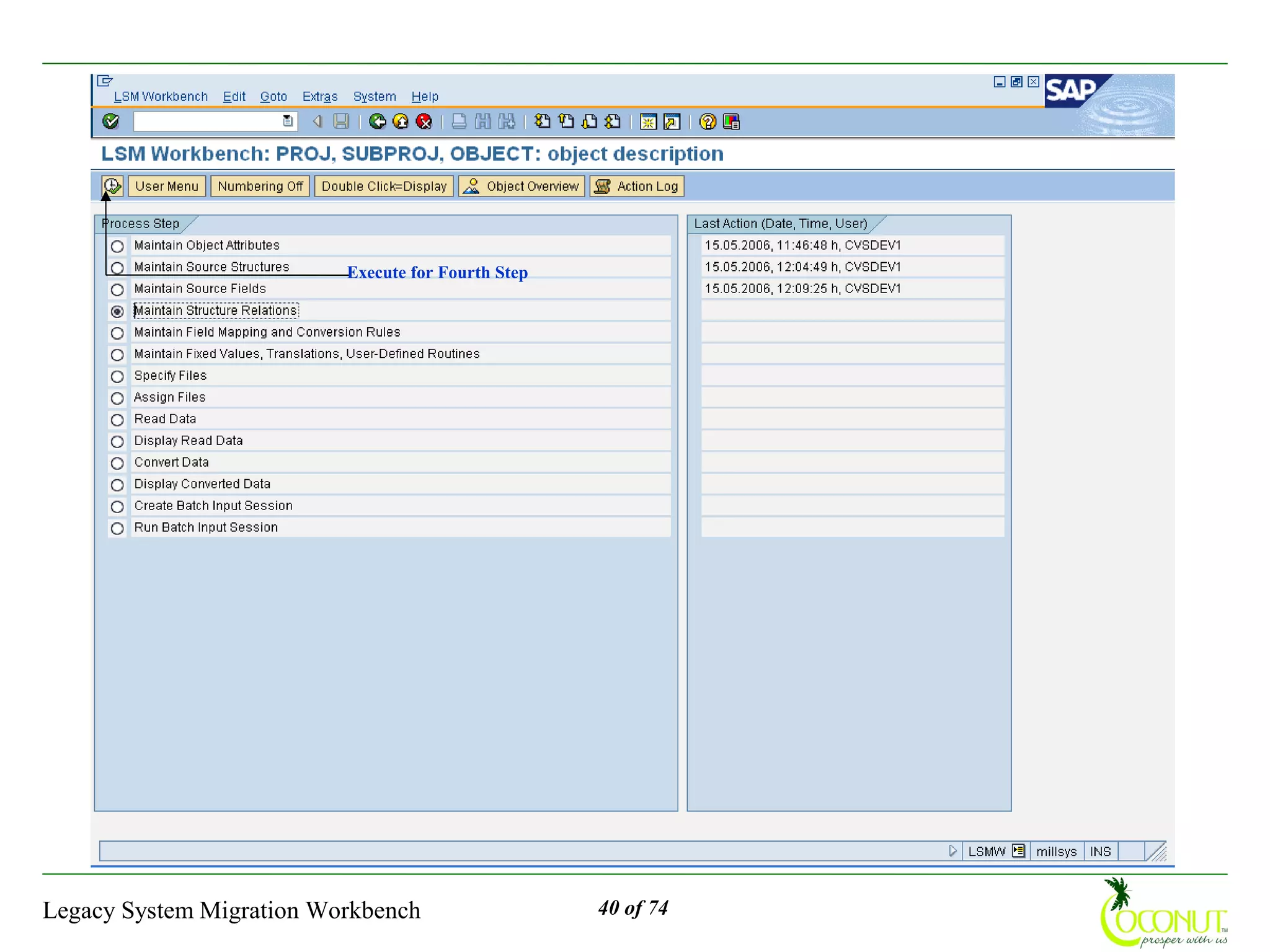

Execute for Fourth Step

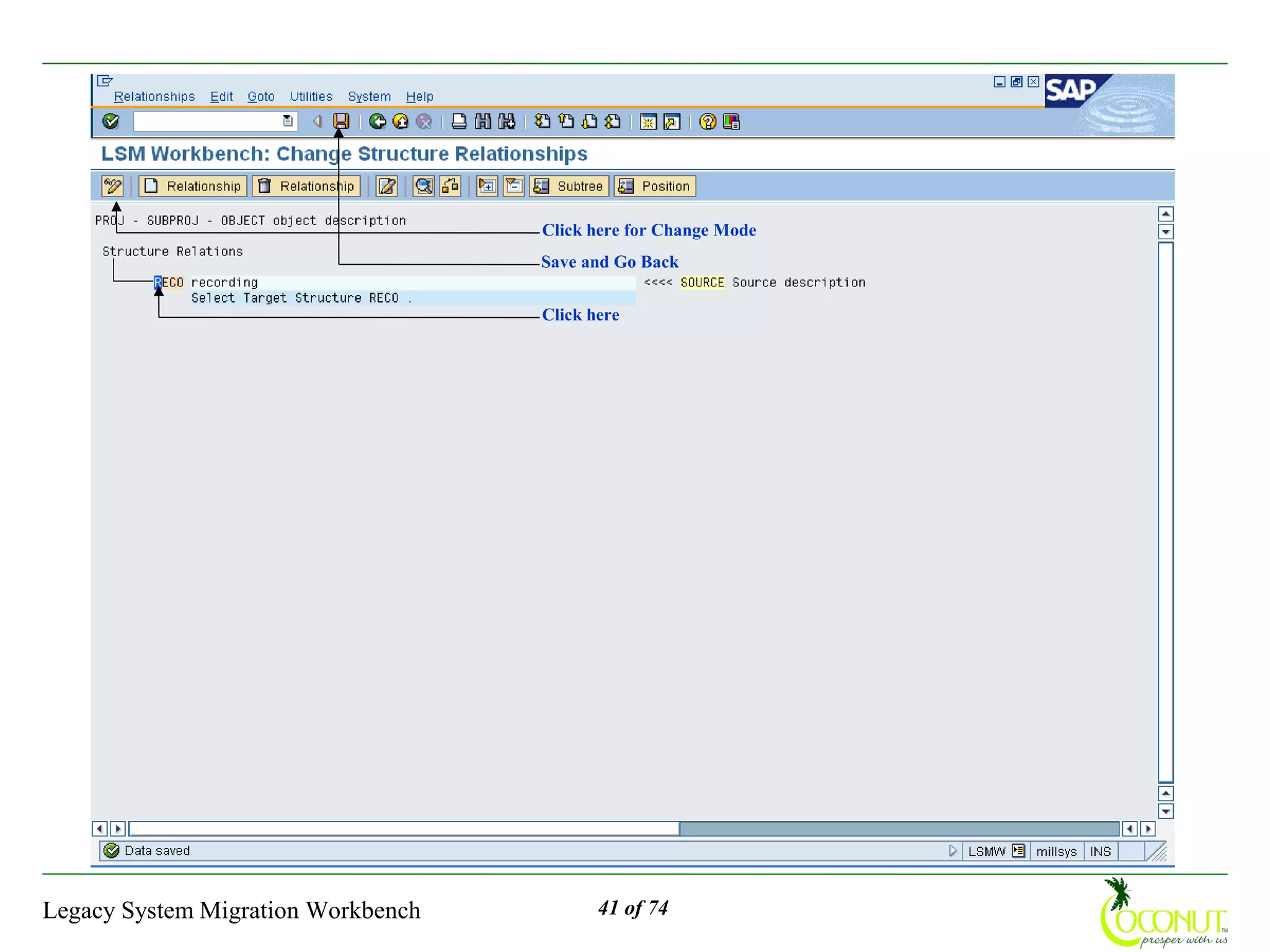

Save and Go Back

Click here

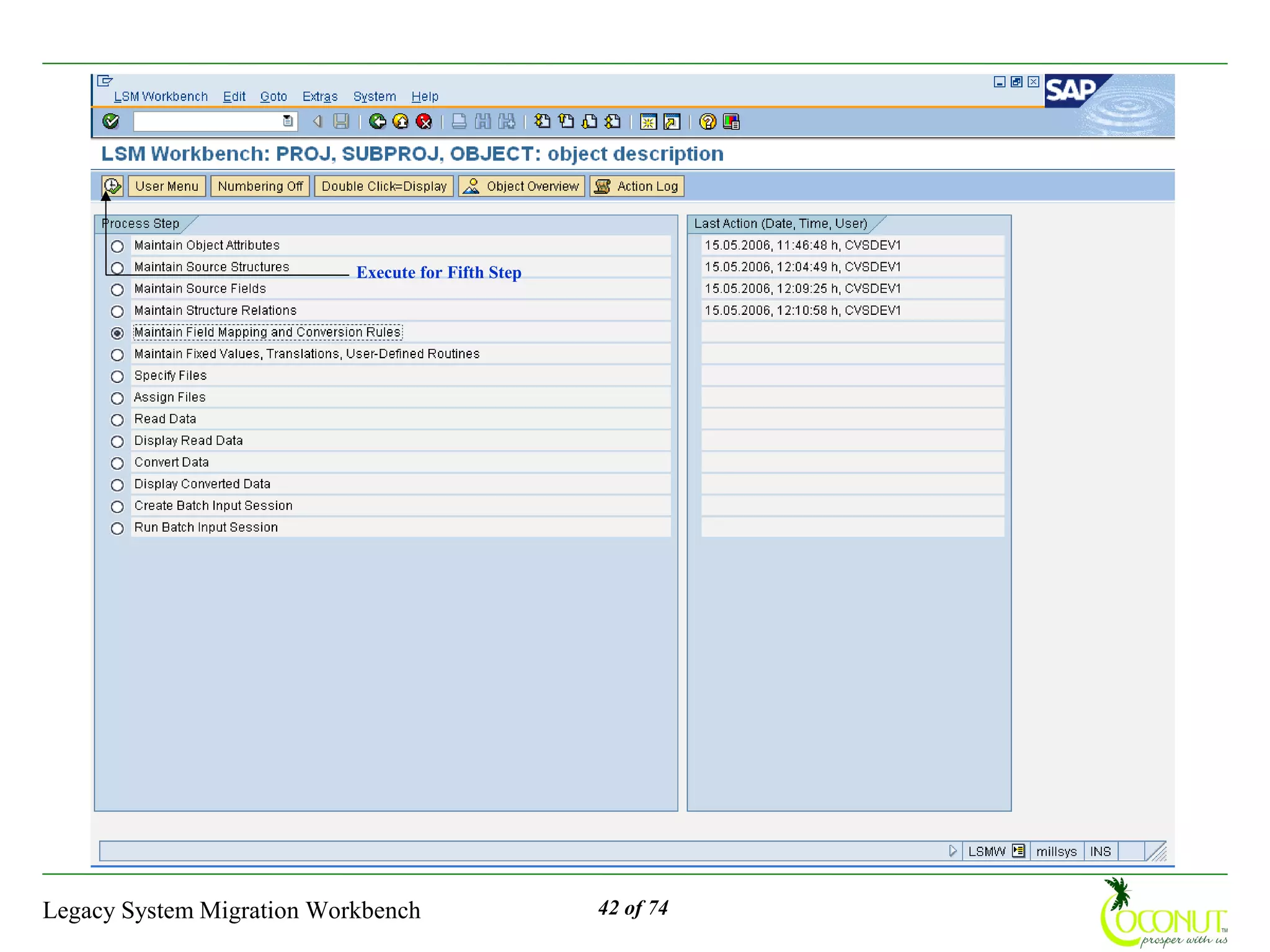

Execute for Fifth Step

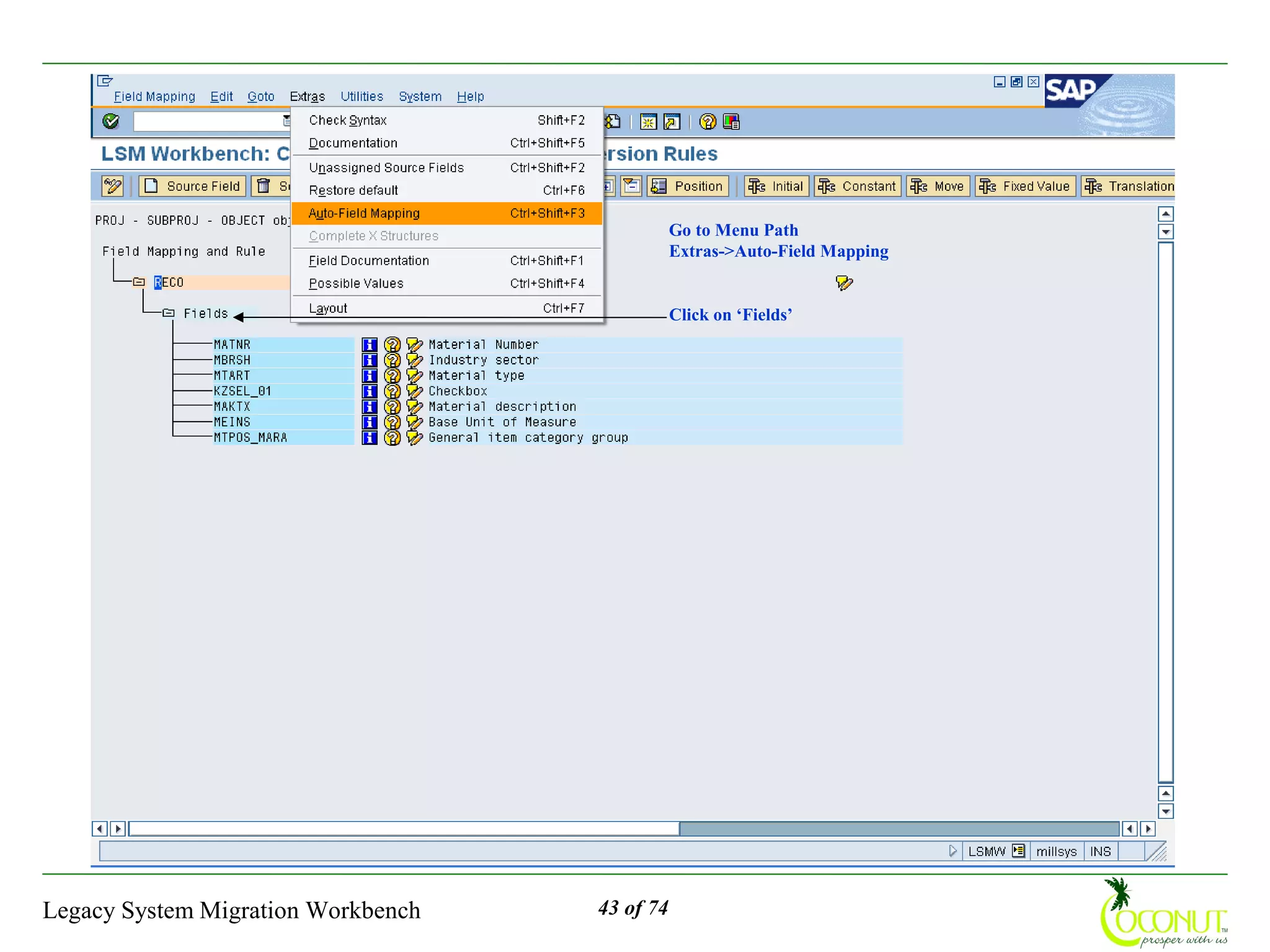

Go to Menu Path
Extras->Auto-Field Mapping

Click on ‘Fields’

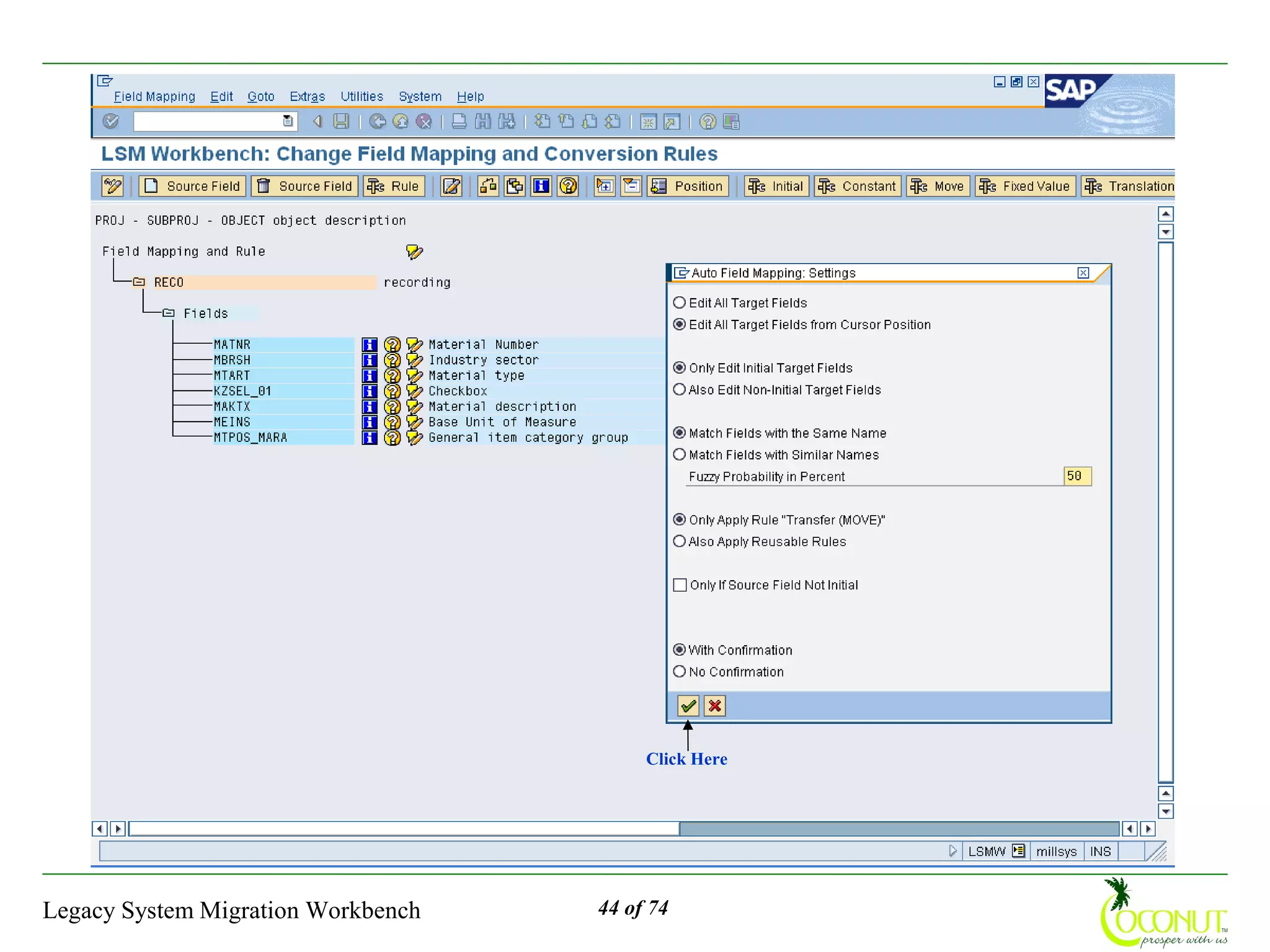

Click Here

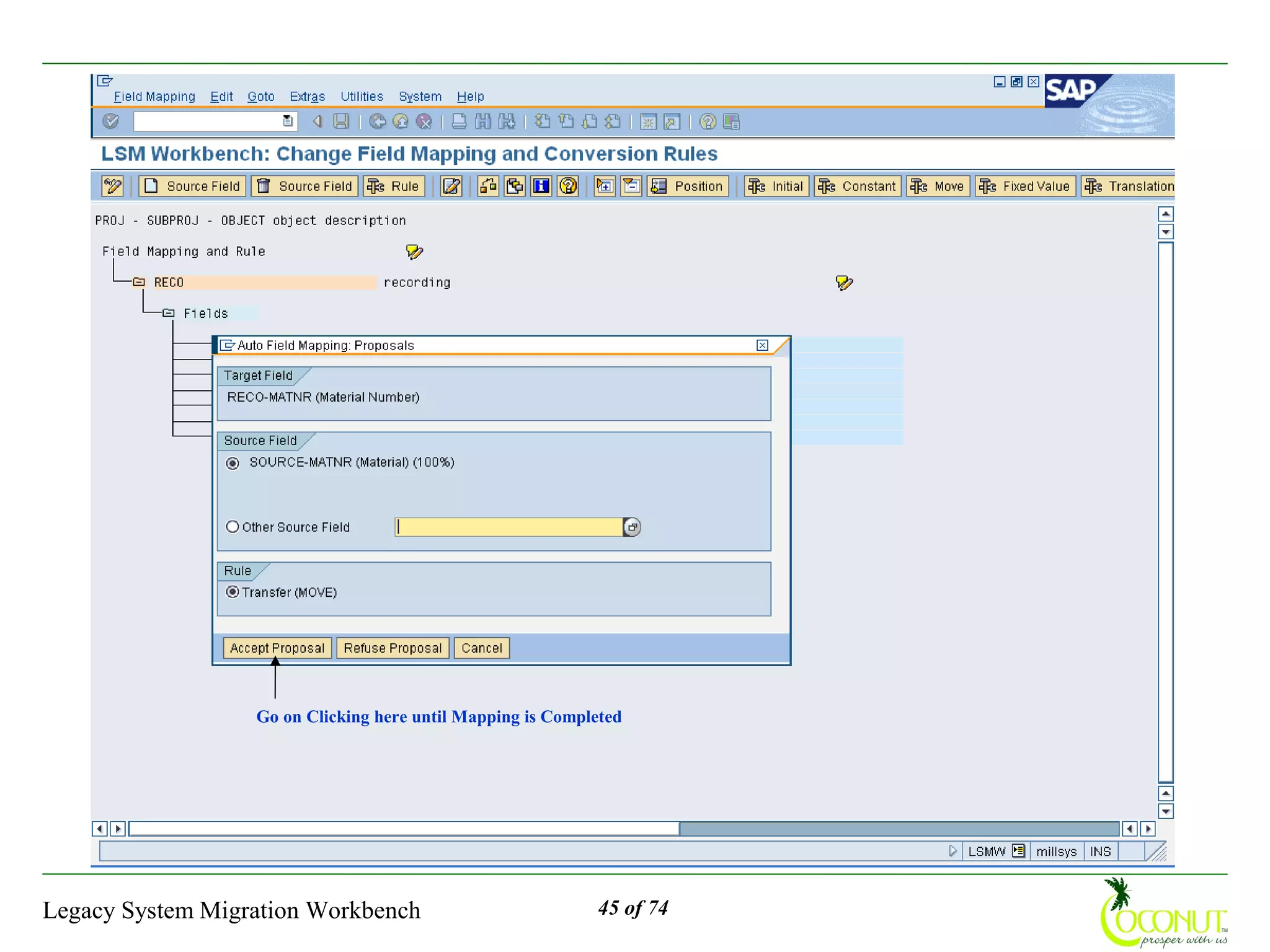

Go on Clicking here until Mapping is Completed

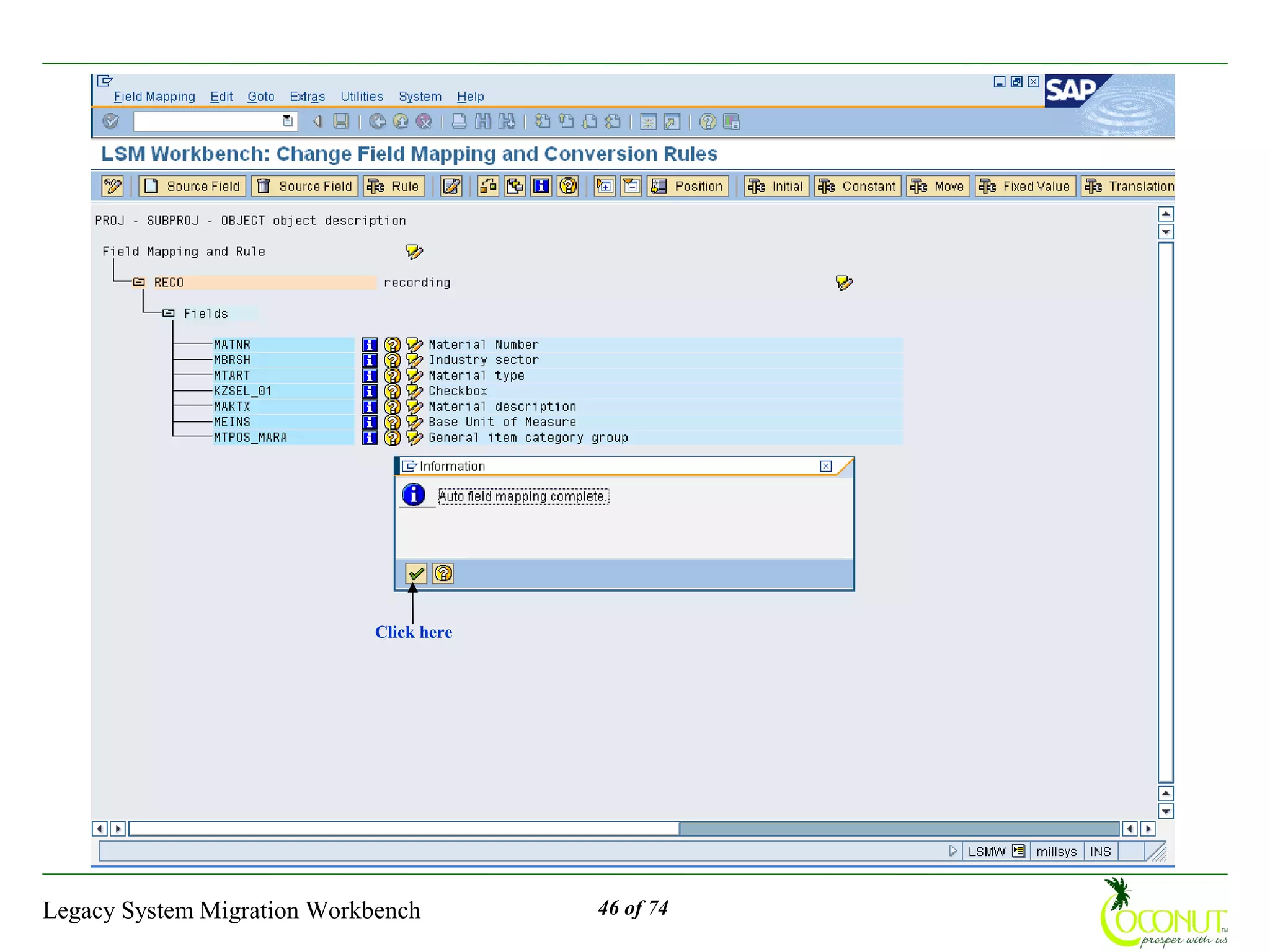

Click here

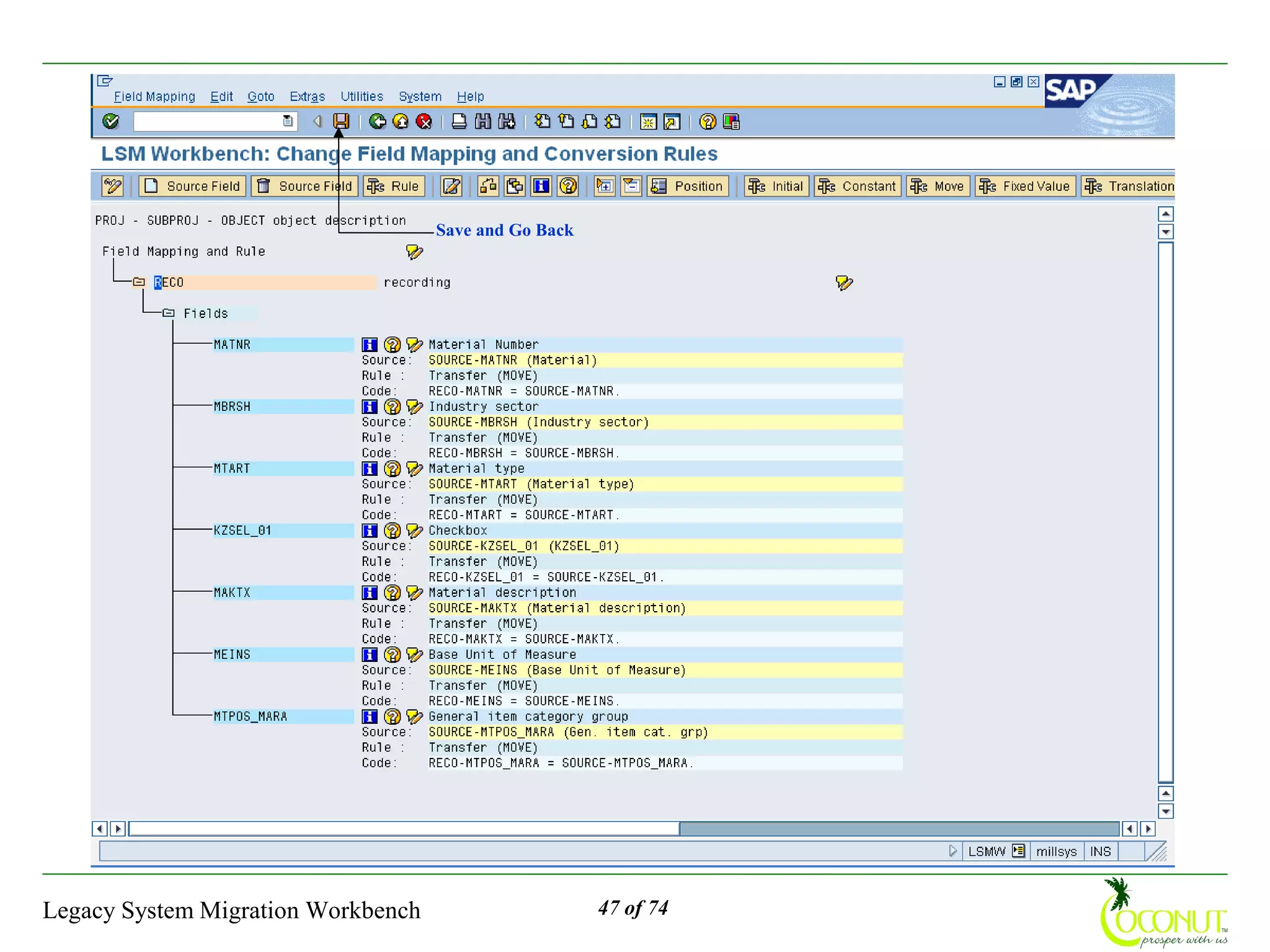

Save and Go Back

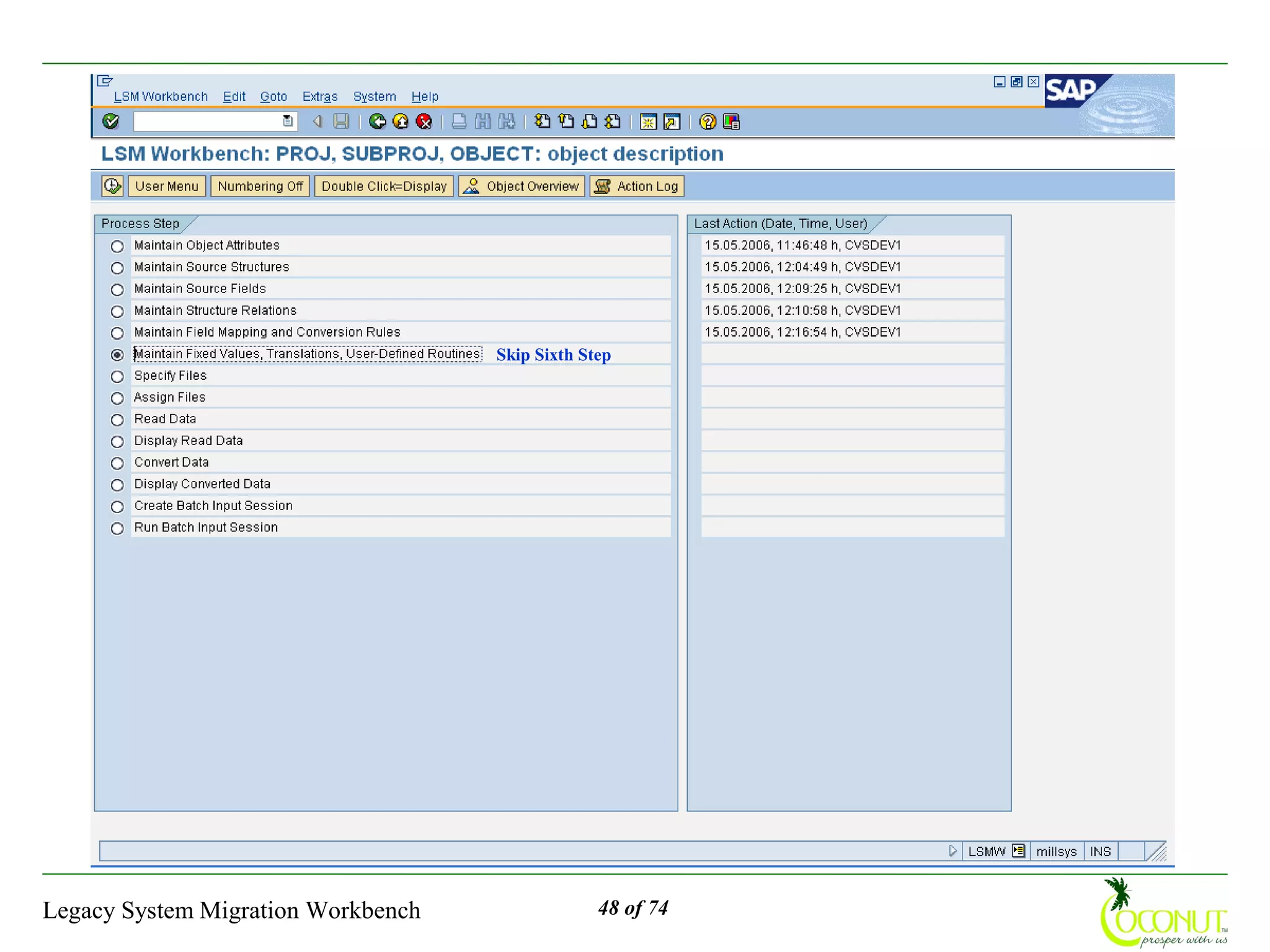

Skip Sixth Step


Execute for Seventh Step

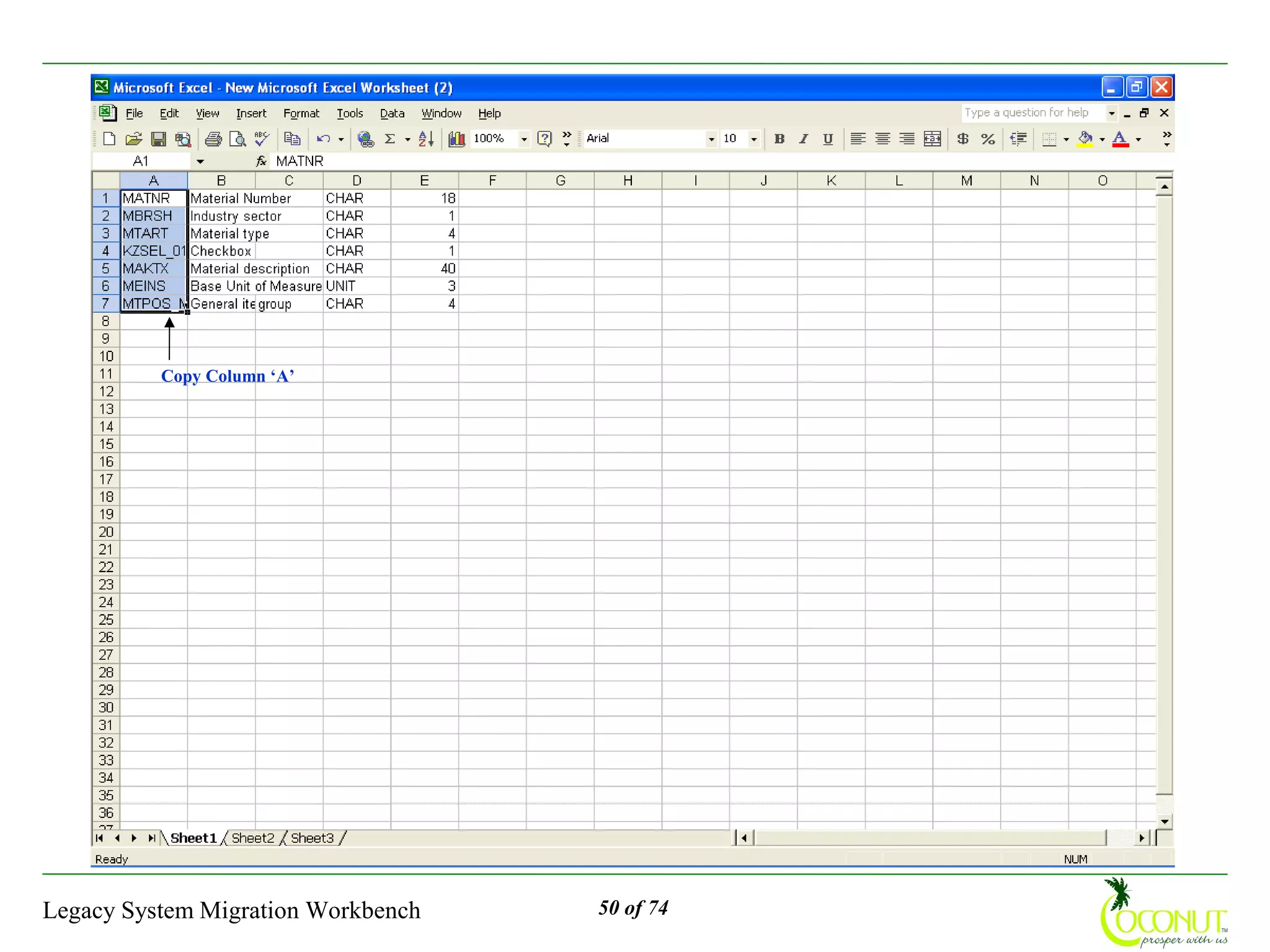

Copy Column ‘A’

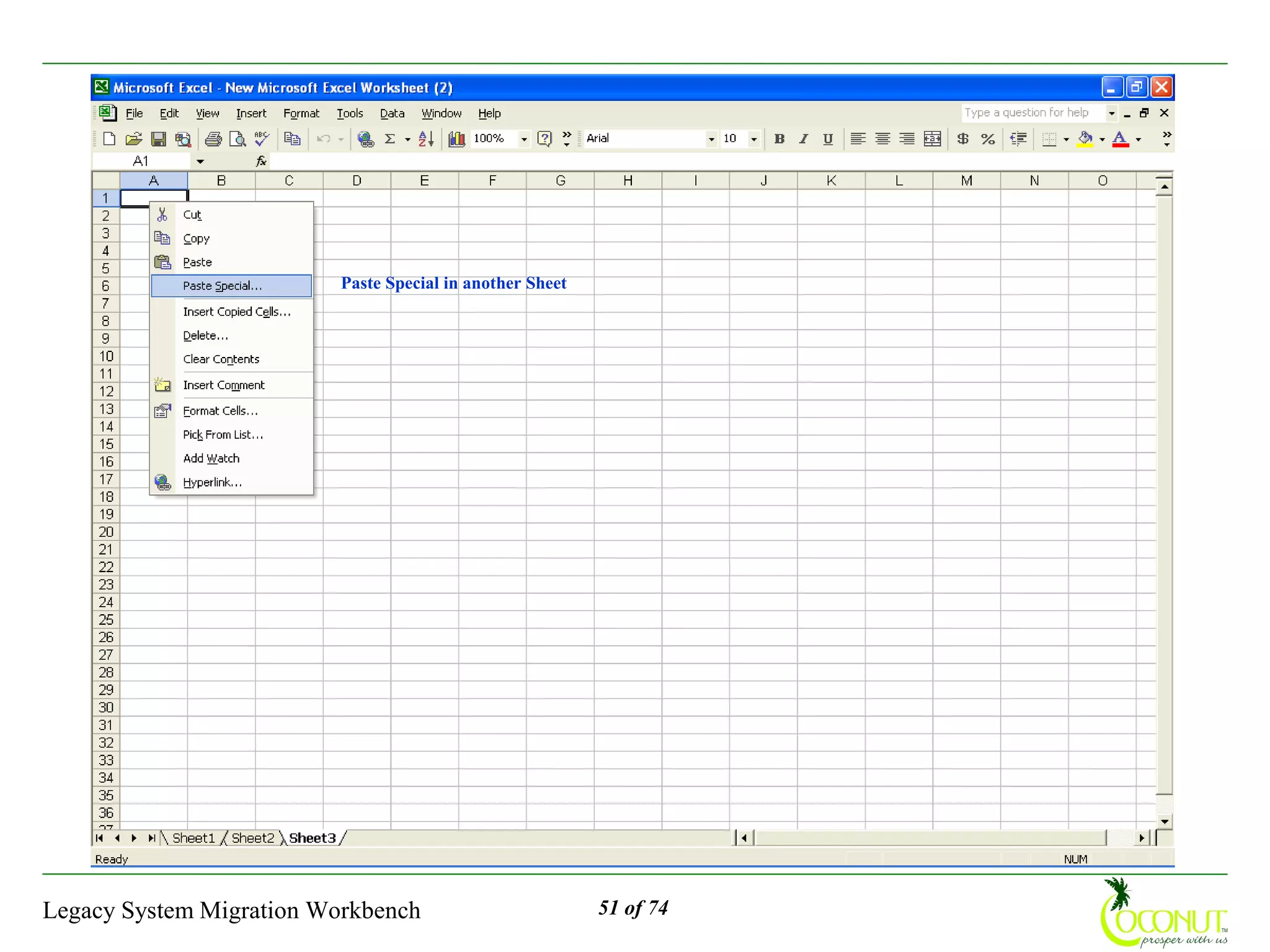

Paste Special in another Sheet

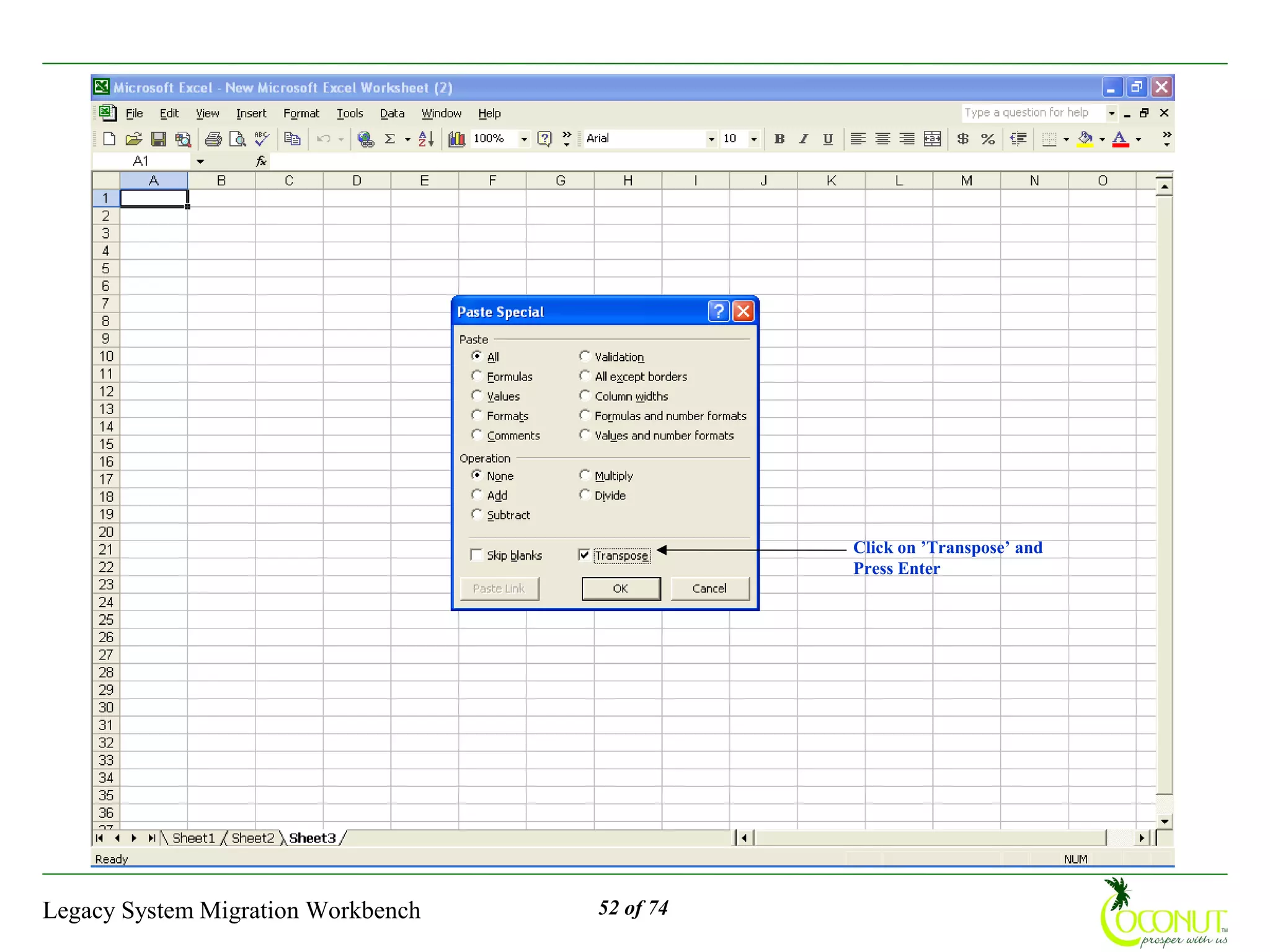

Click on ’Transpose’ and
Press Enter

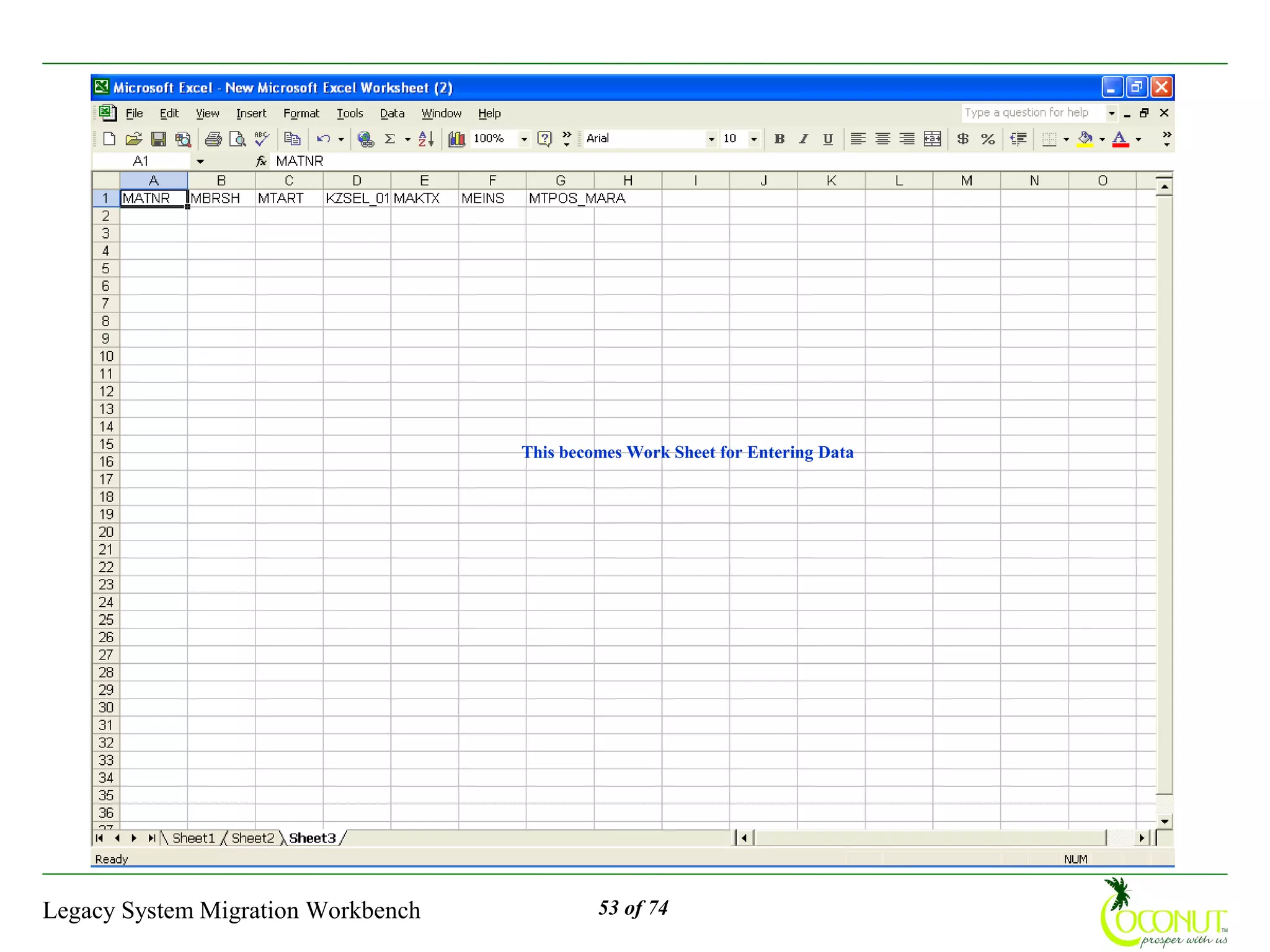

This becomes Work Sheet for Entering Data

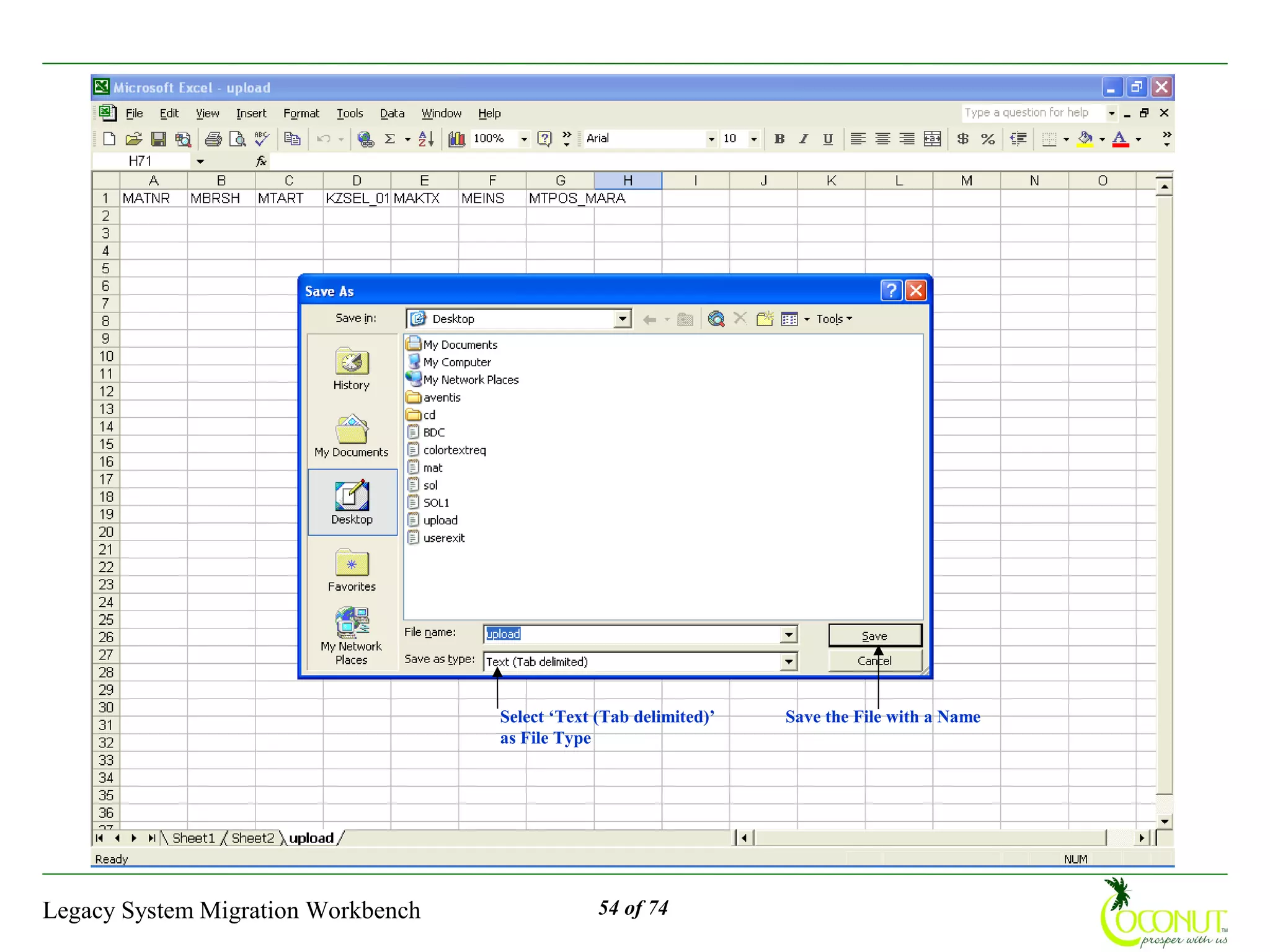

Select ‘Text (Tab delimited)’ Save the File with a Name
as File Type

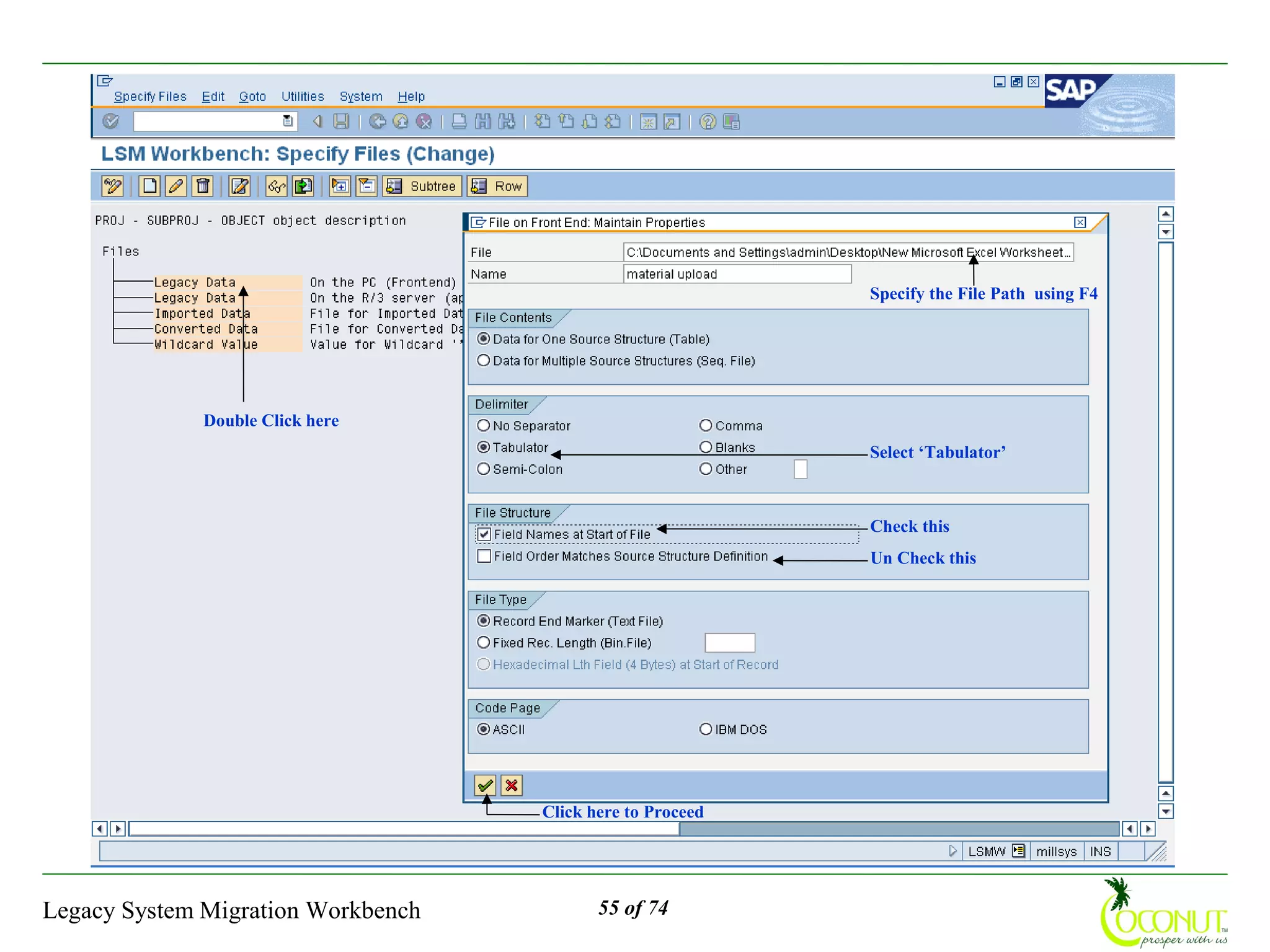

Specify the File Path using F4

Double Click here
Select ‘Tabulator’

Check this
Un Check this

Click here to Proceed

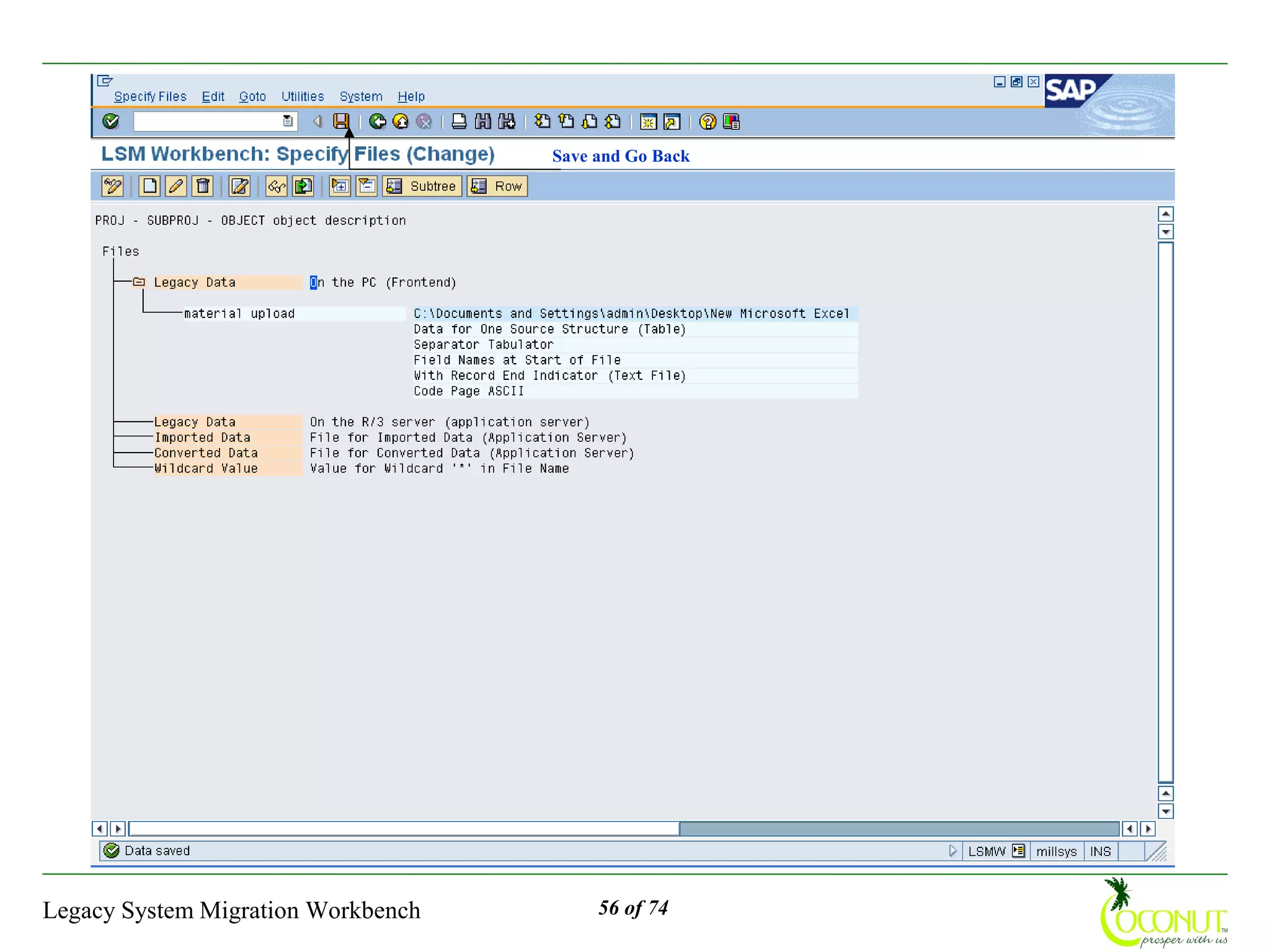

Save and Go Back

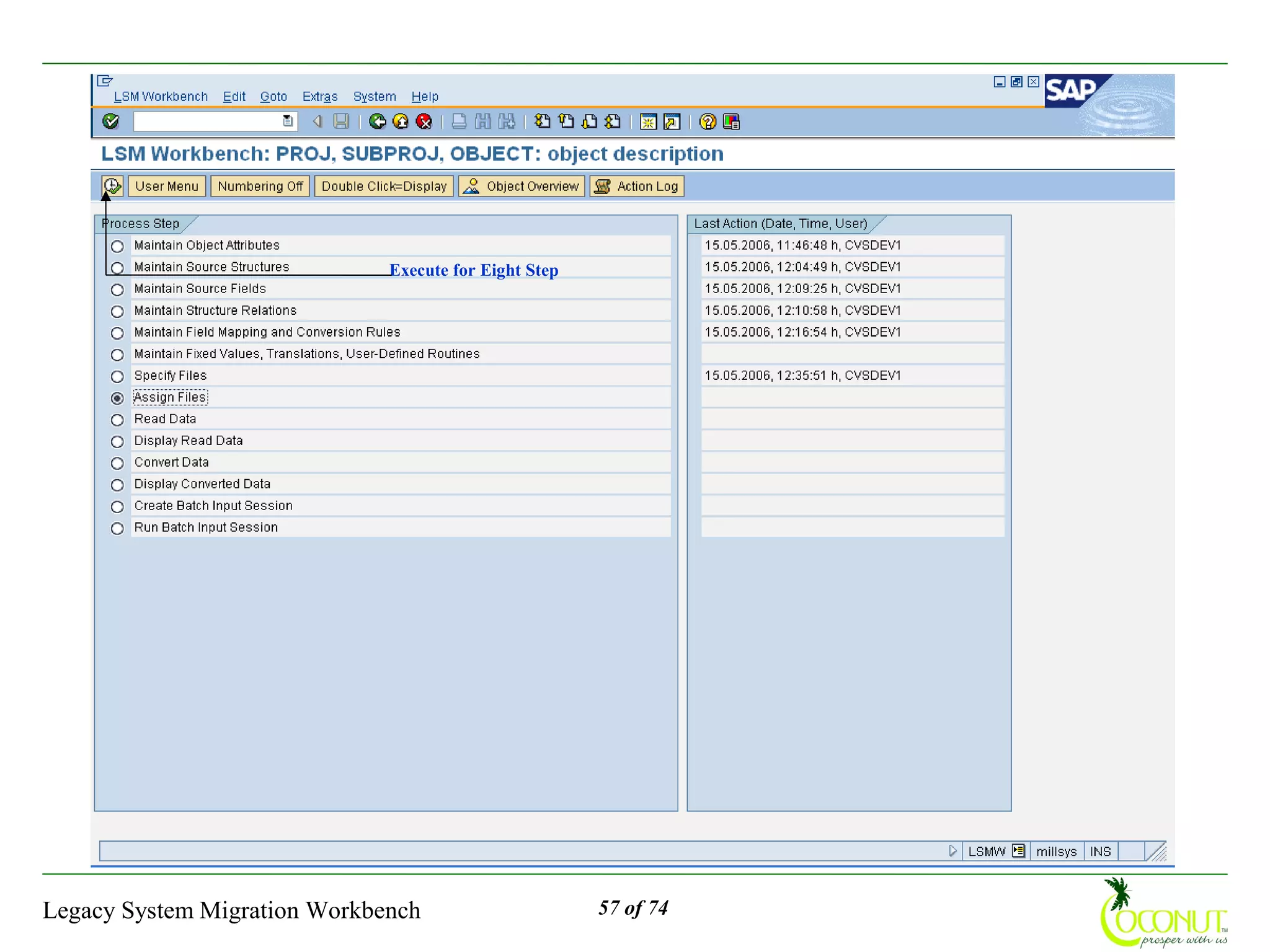

Execute for Eight Step

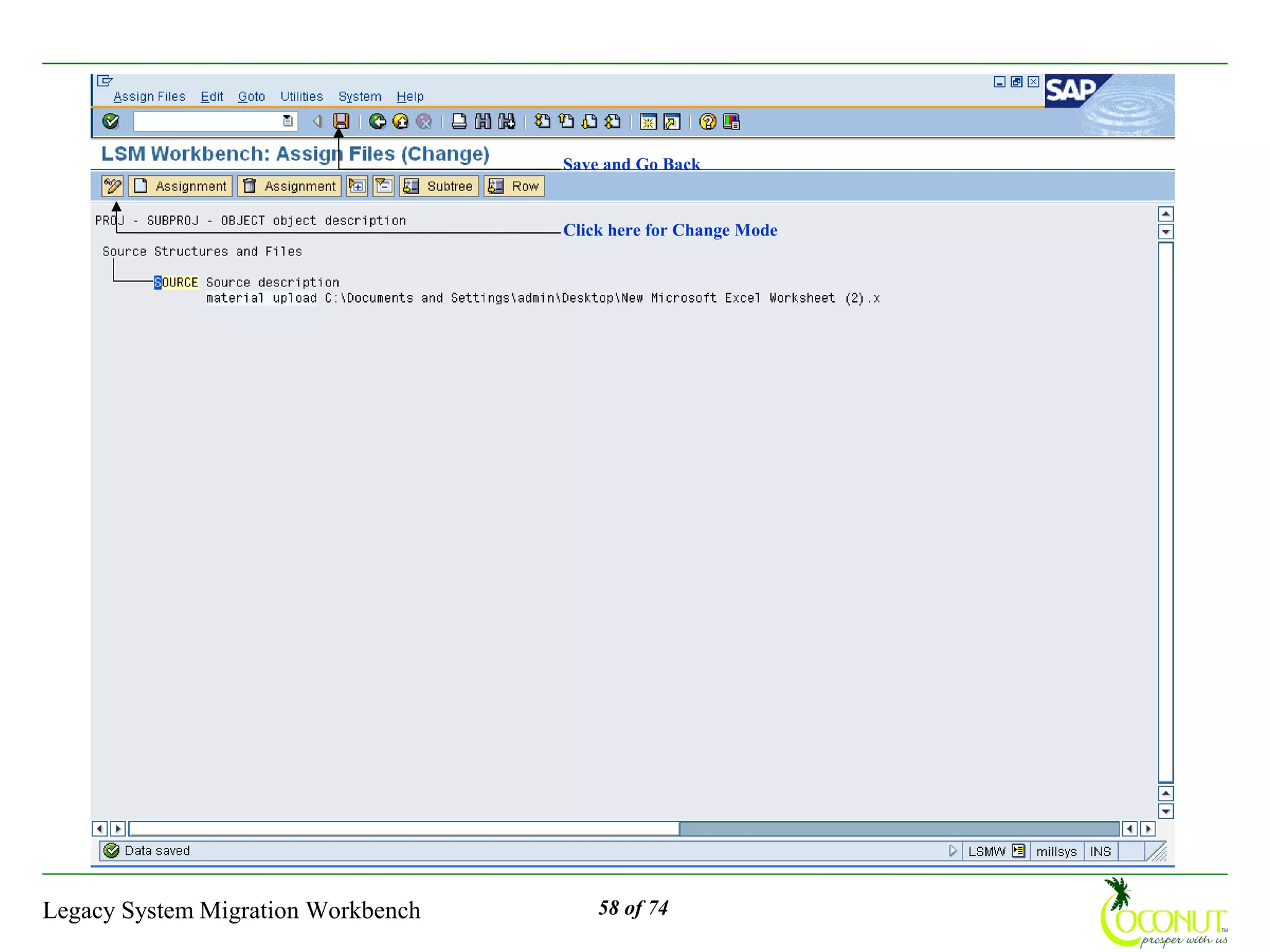

Save and Go Back

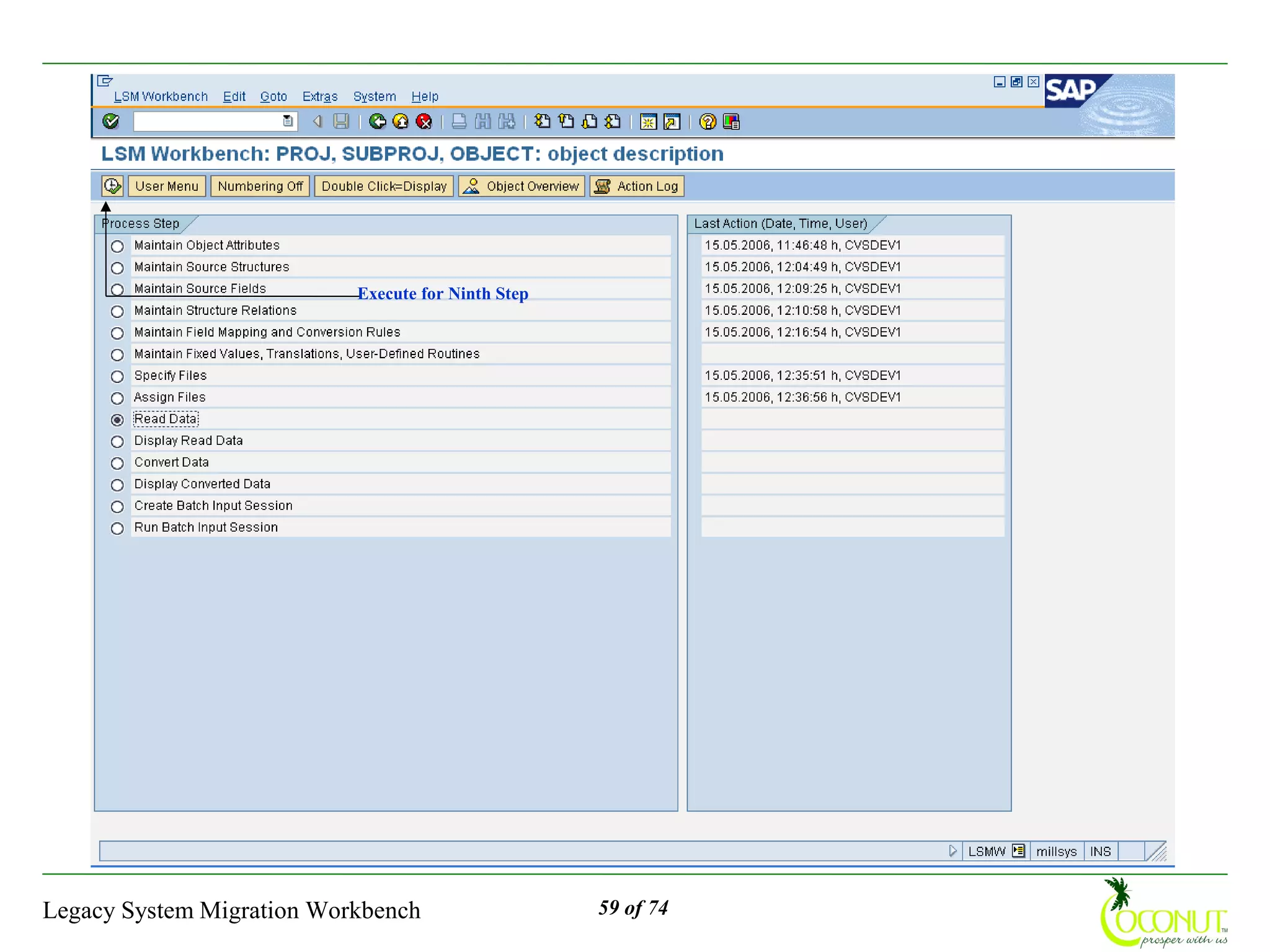

Execute for Ninth Step

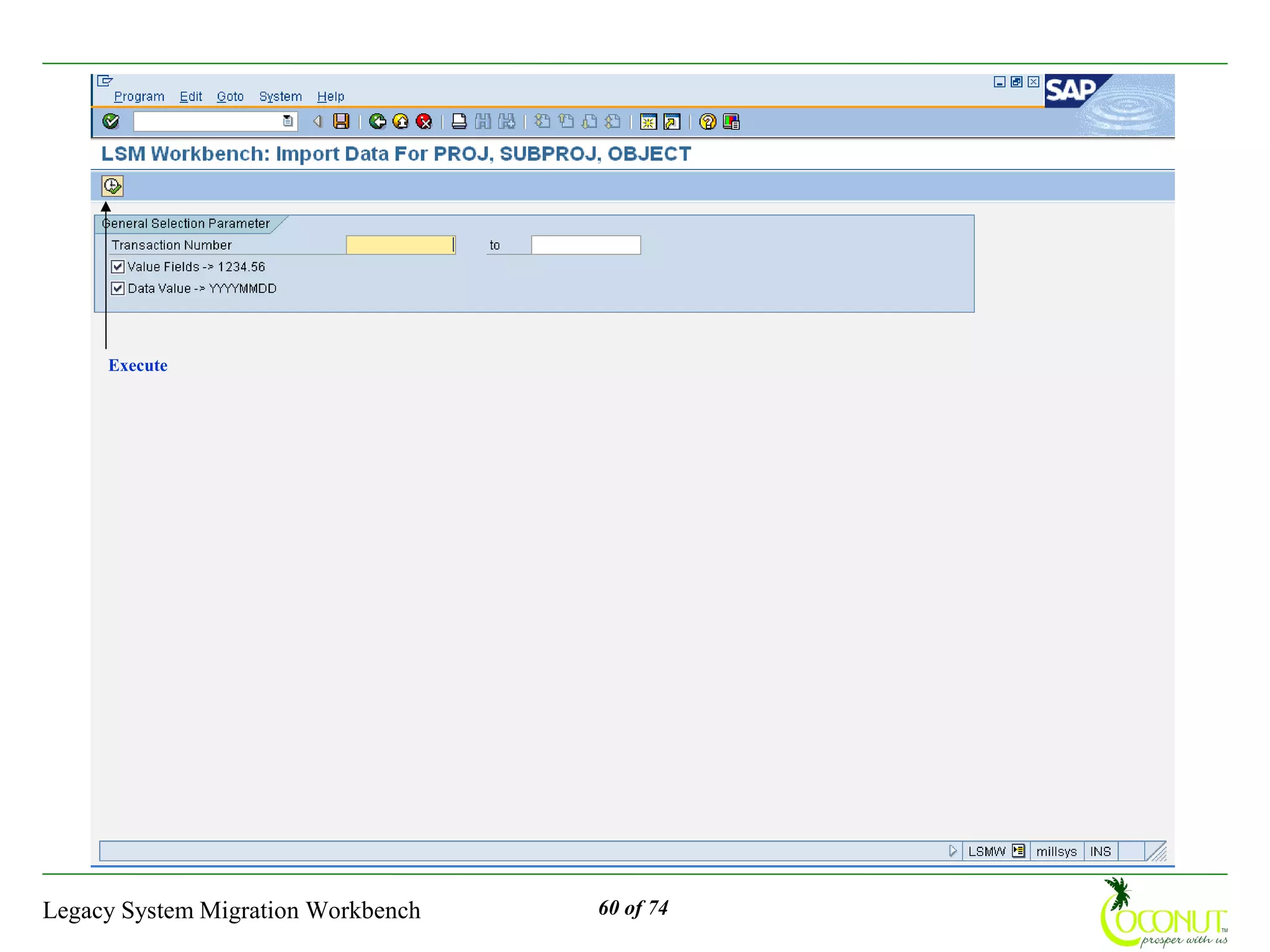

Execute


Go Back

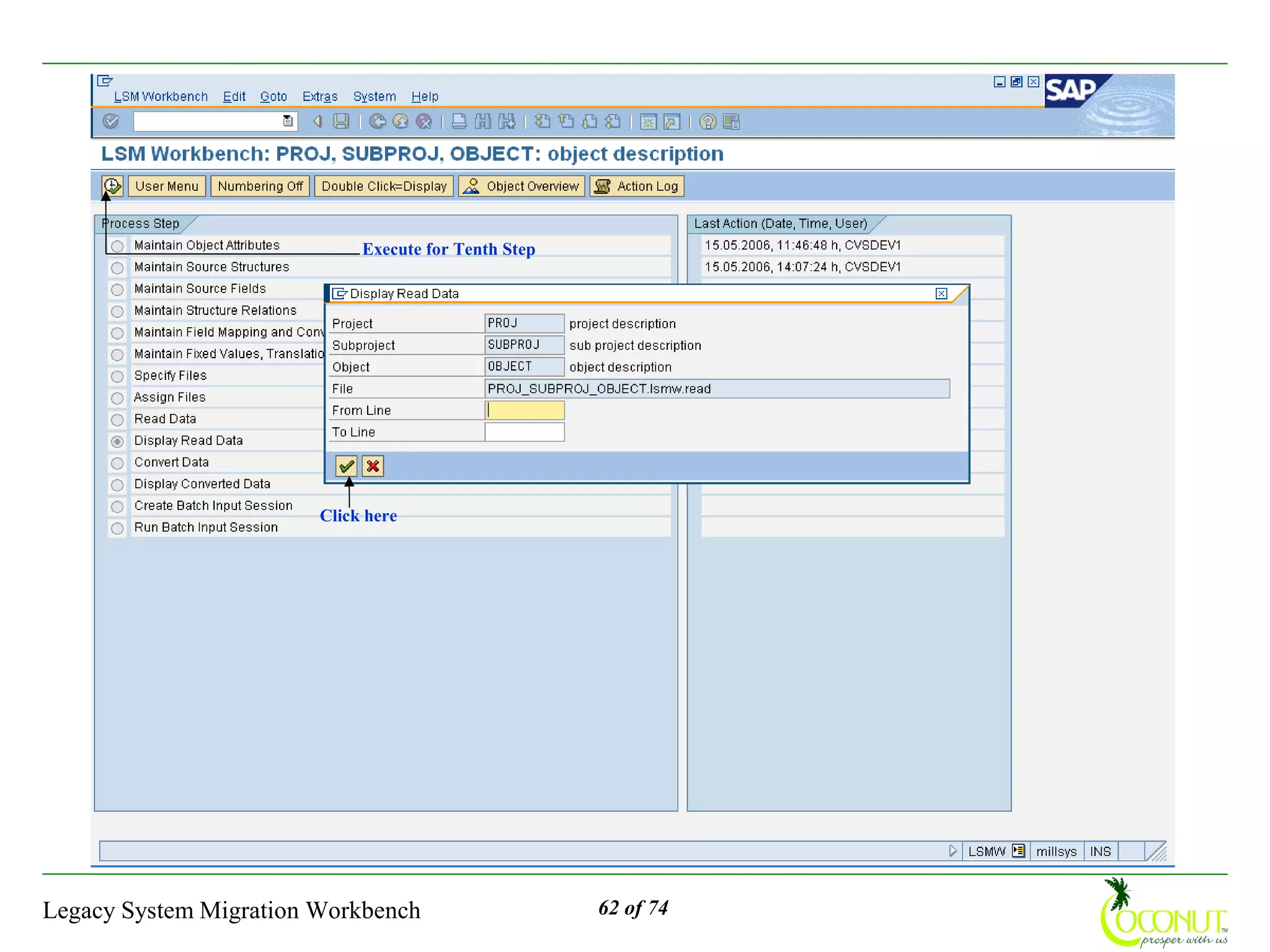

Execute for Tenth Step

Click here

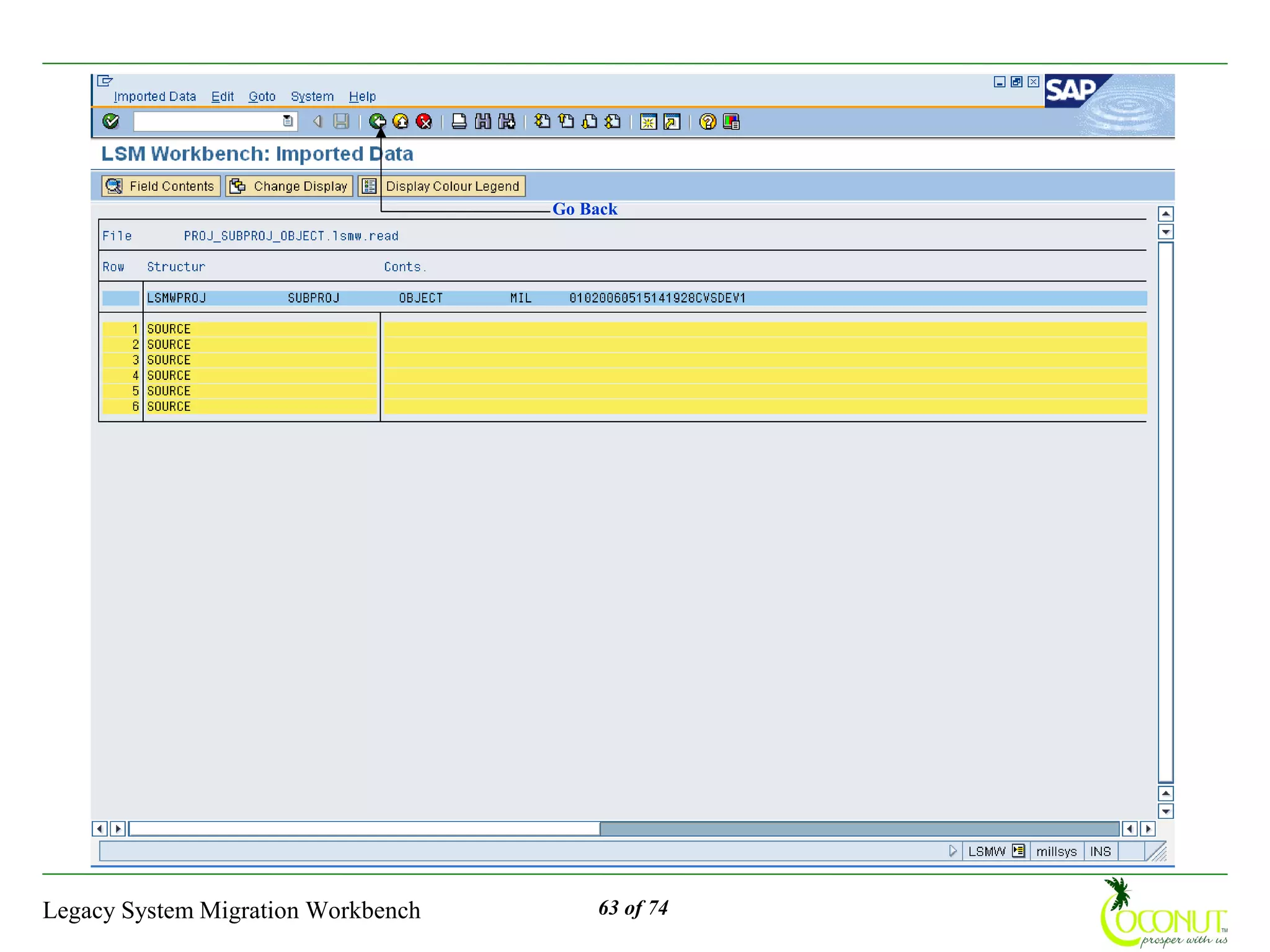

Go Back

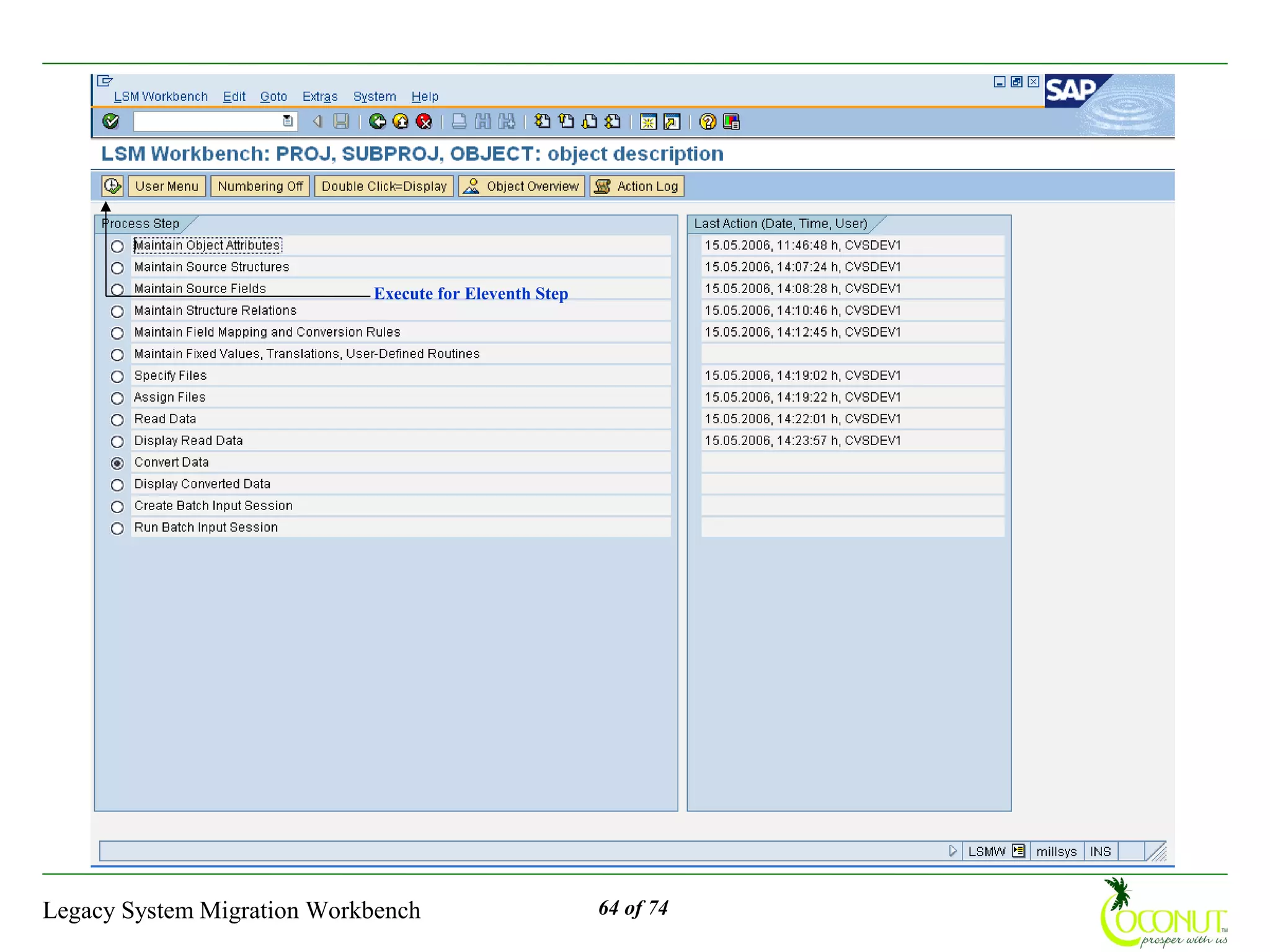

Execute for Eleventh Step

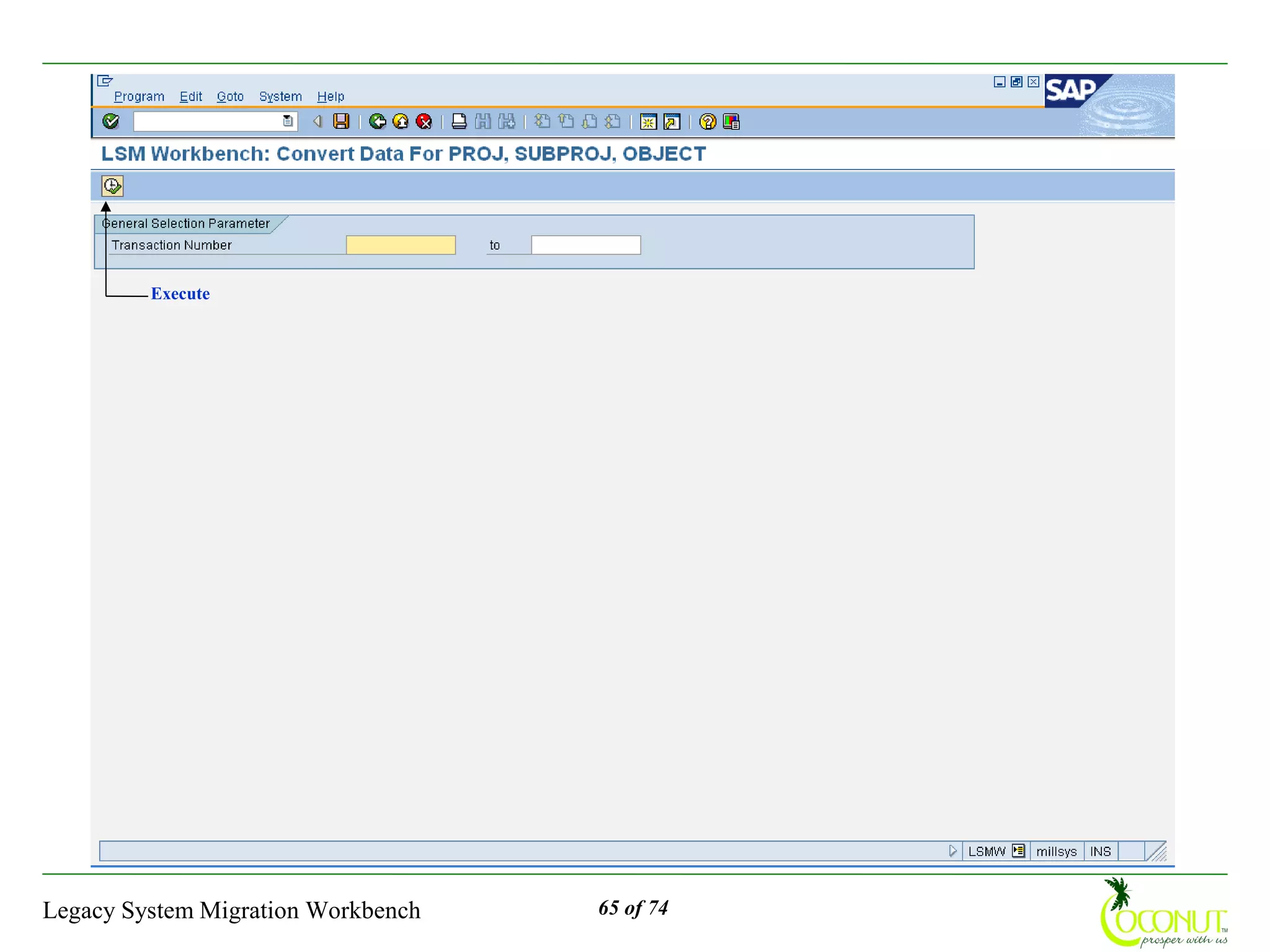

Execute

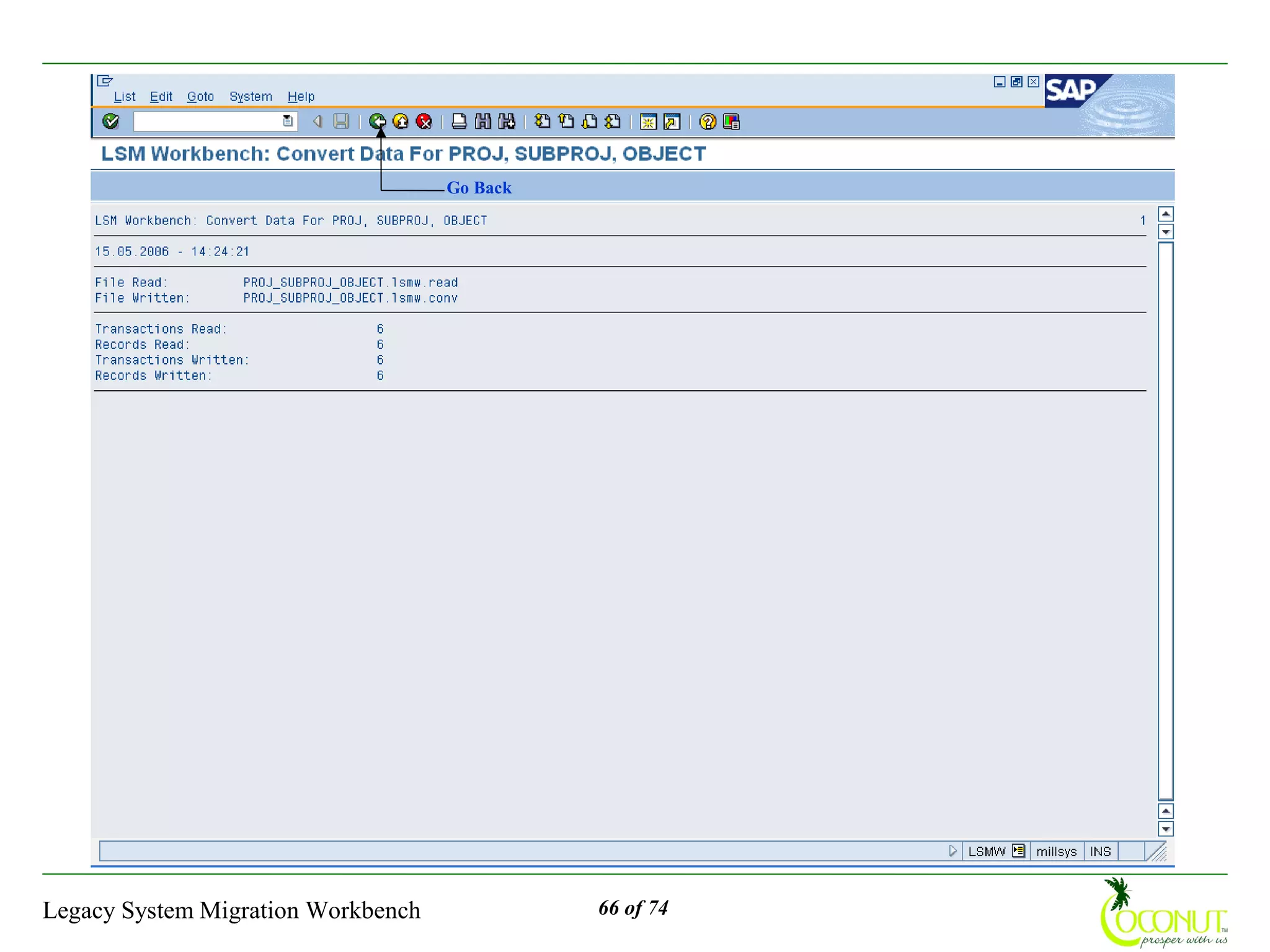

Go Back

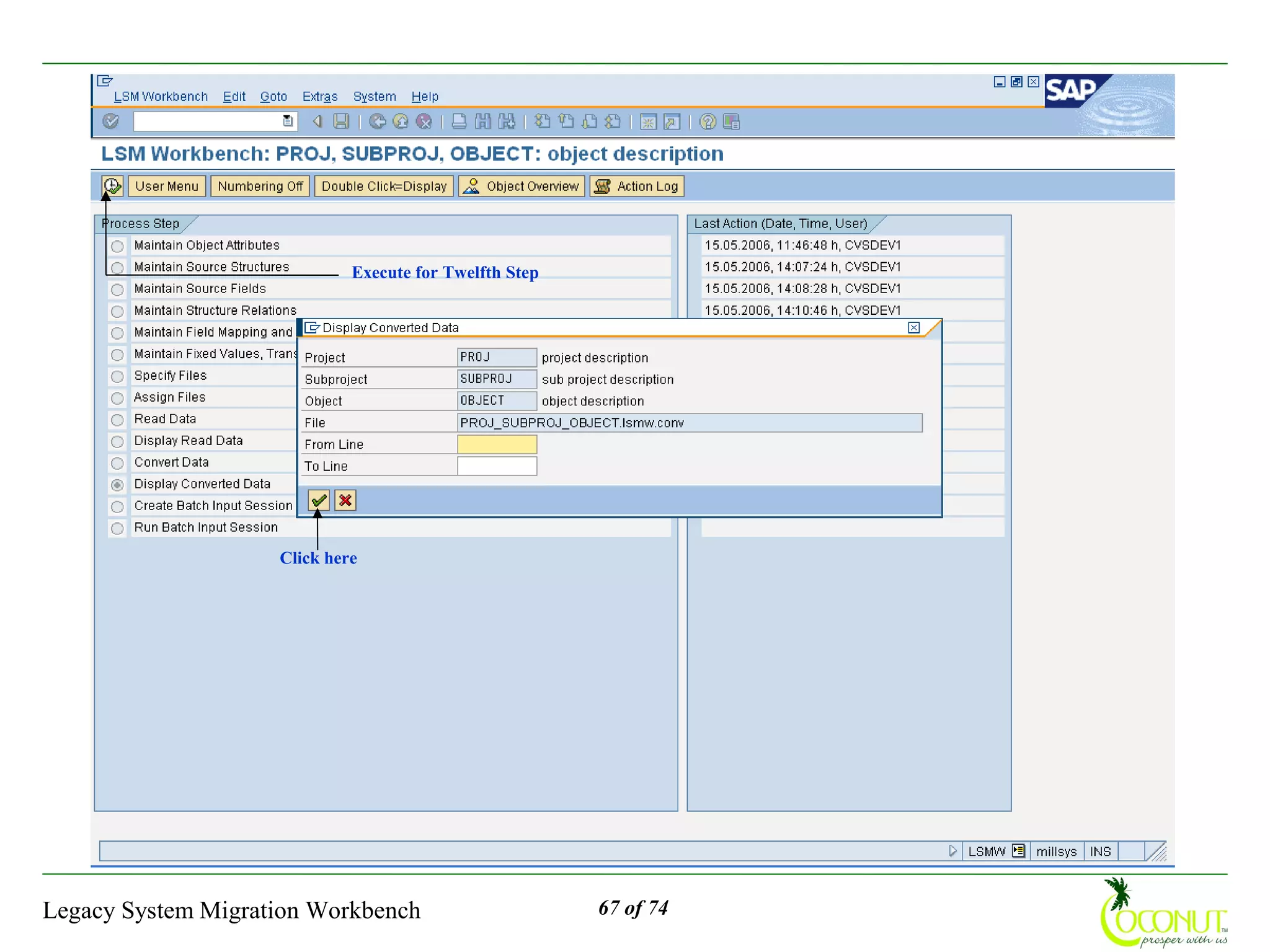

Execute for Twelfth Step

Click here

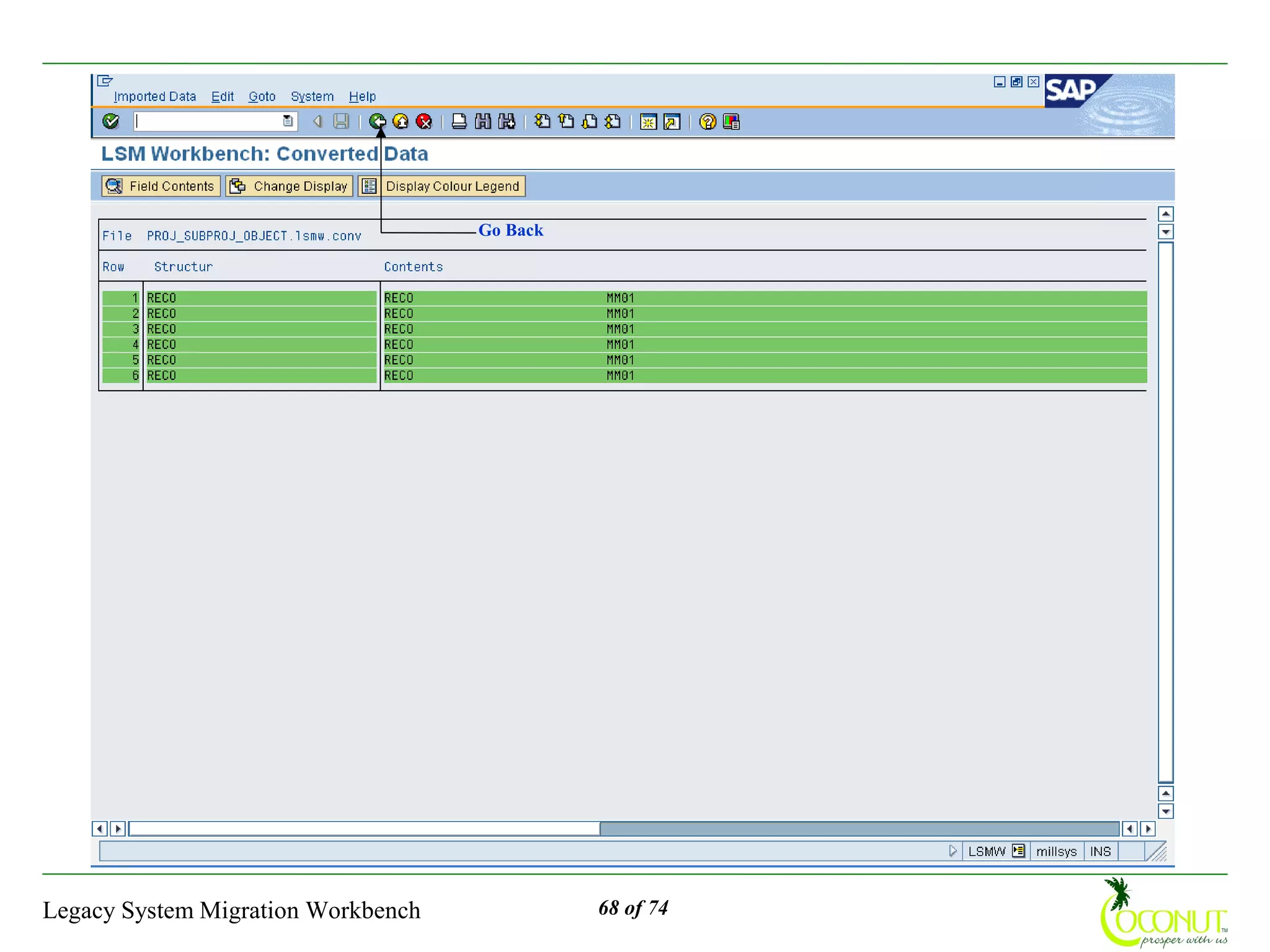

Go Back

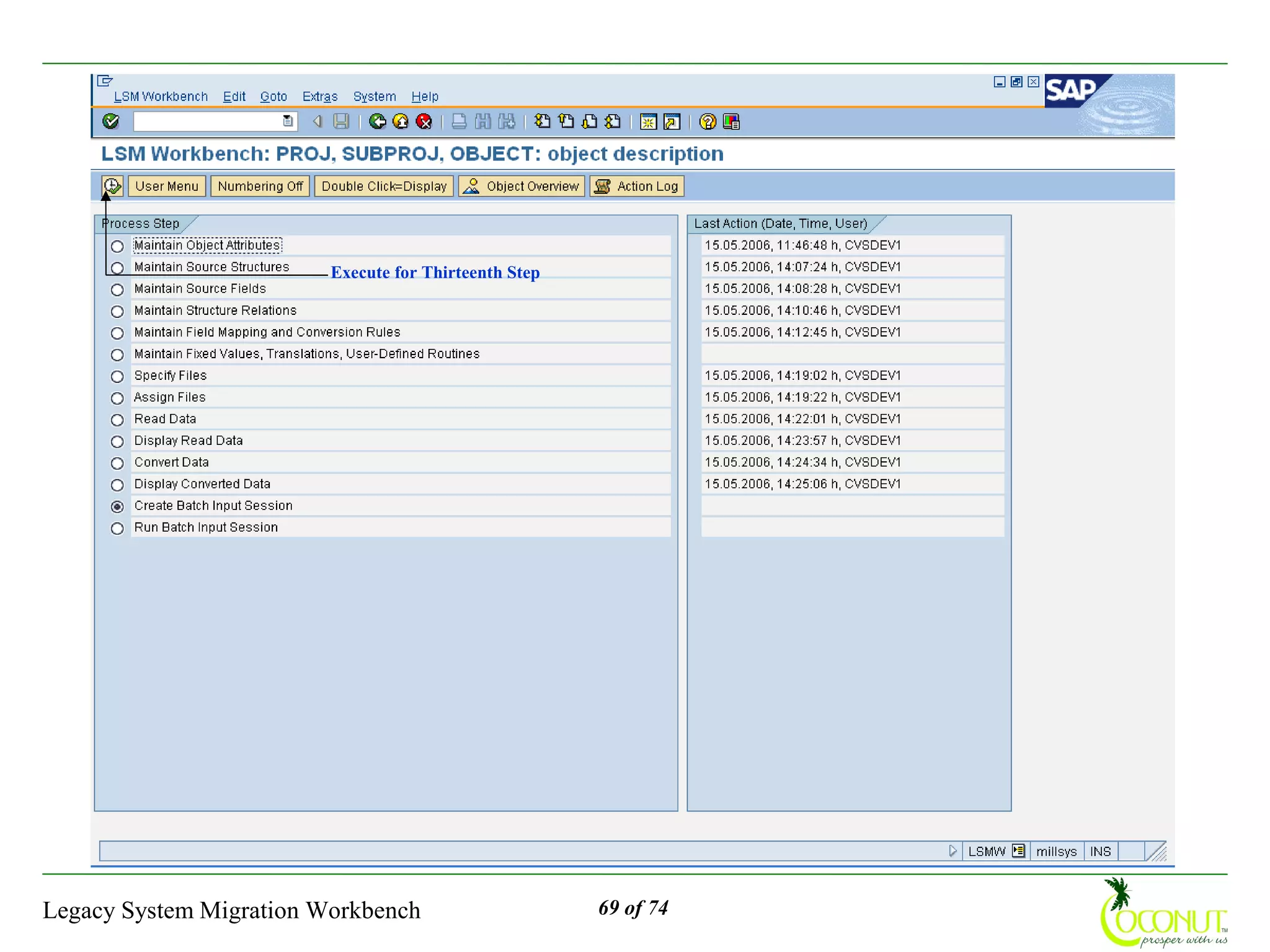

Execute for Thirteenth Step

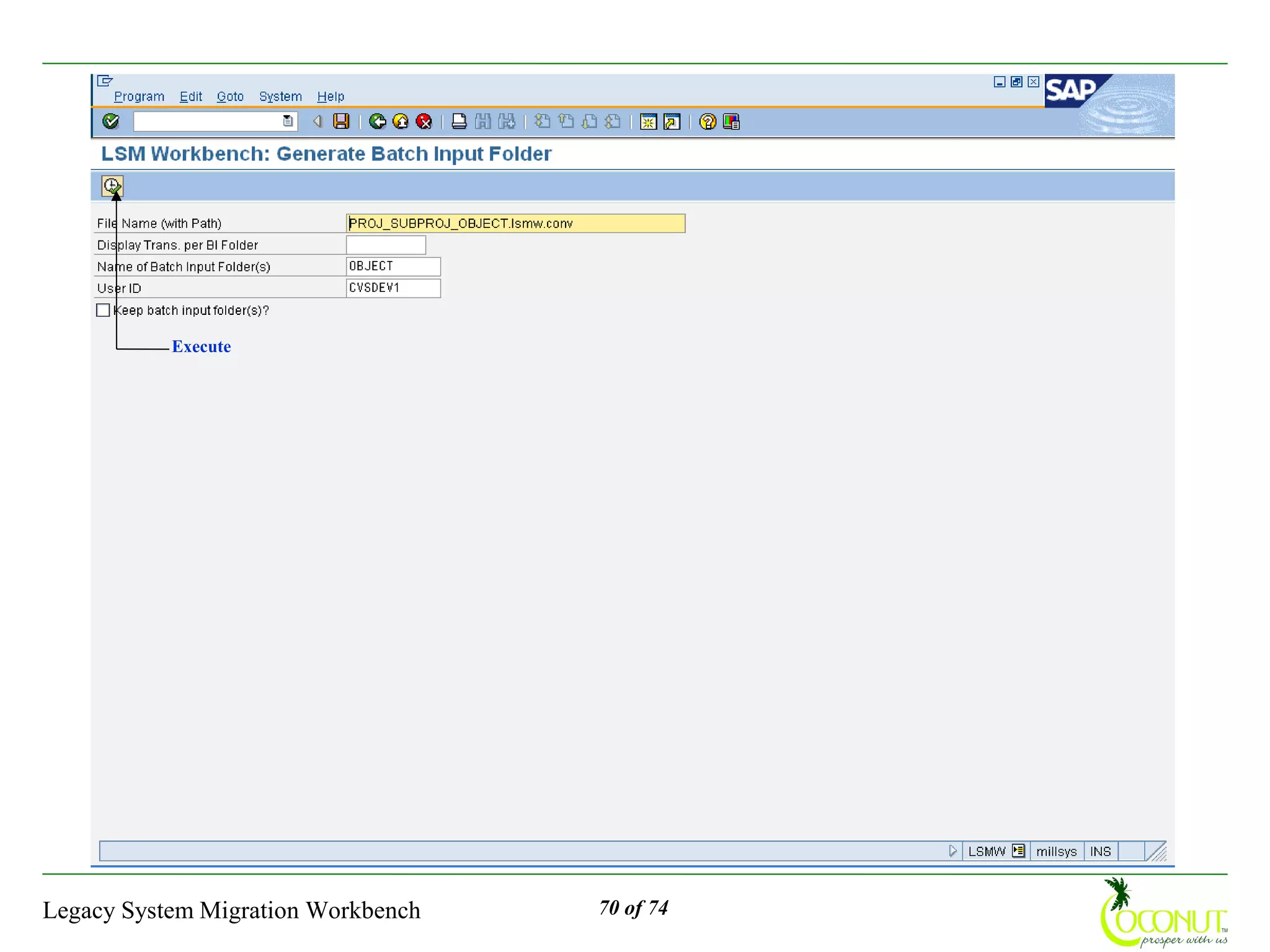

Execute


Click here

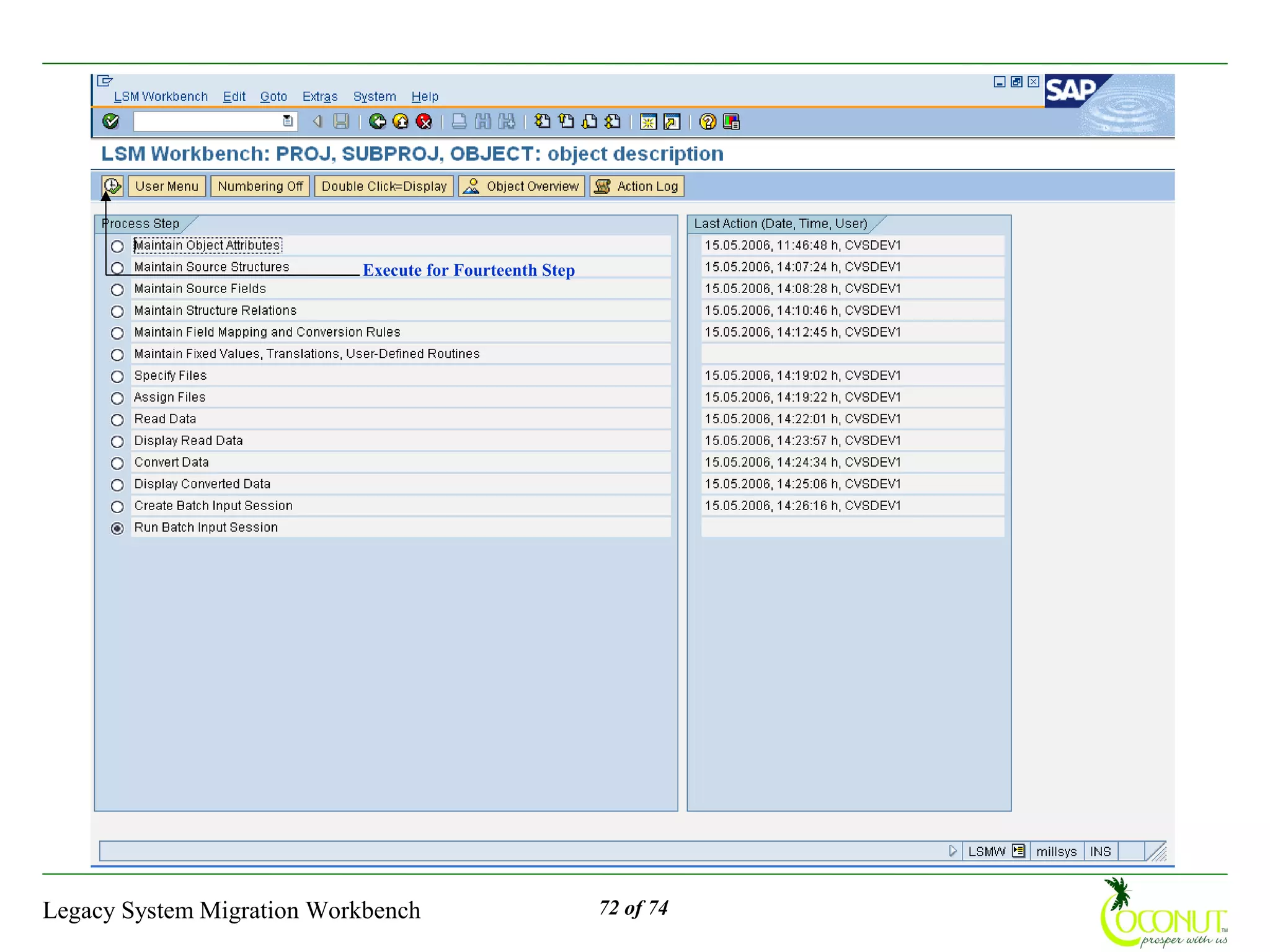

Execute for Fourteenth Step

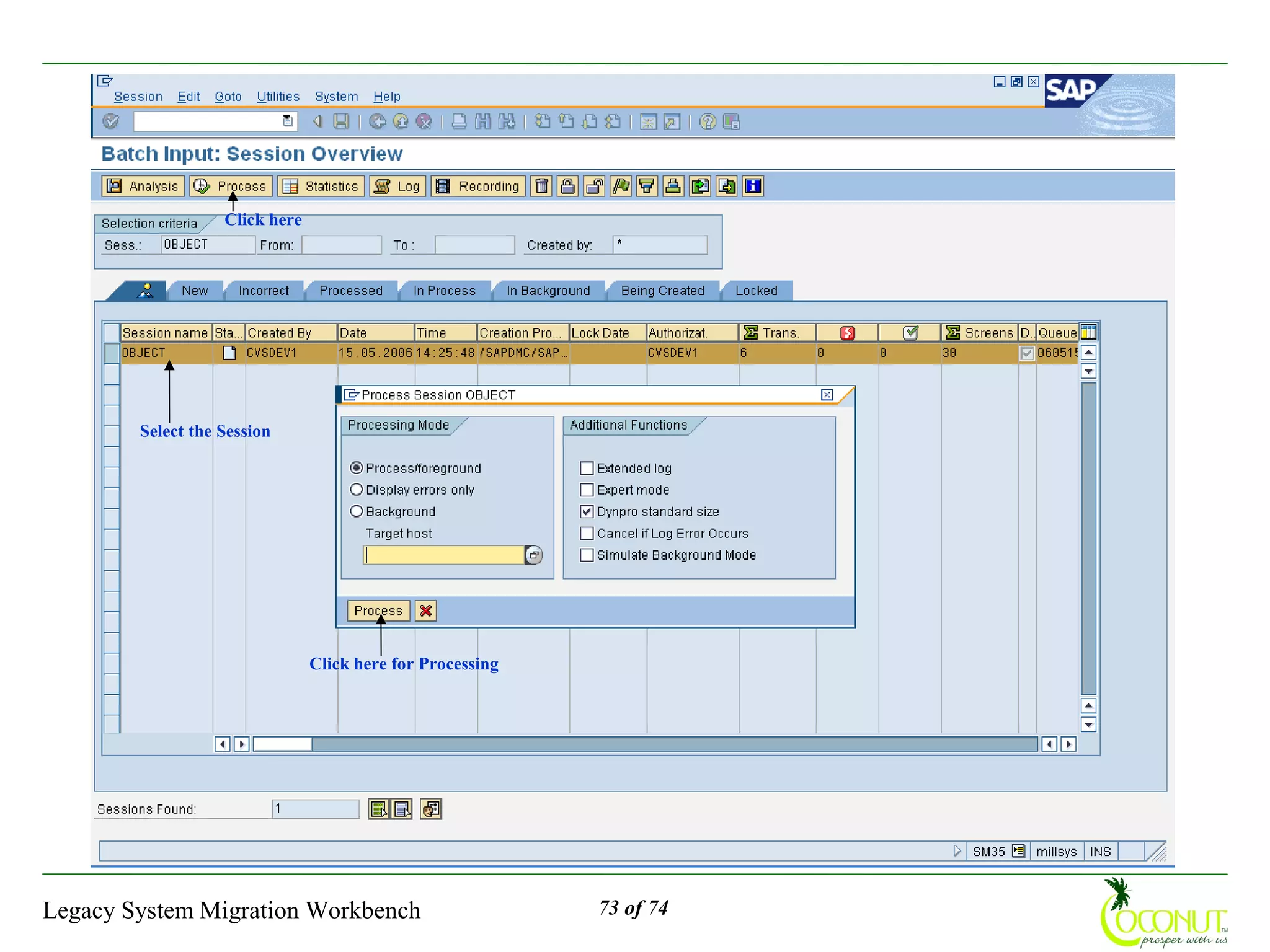

Click here

Select the Session

Click here for Processing
