Live Scoring
Visualizer
@JOYC2017Final
Report
eagle0wl / Kazuki Matsuda
Twitter: eagle0wl
masm0wl@hotmail.com

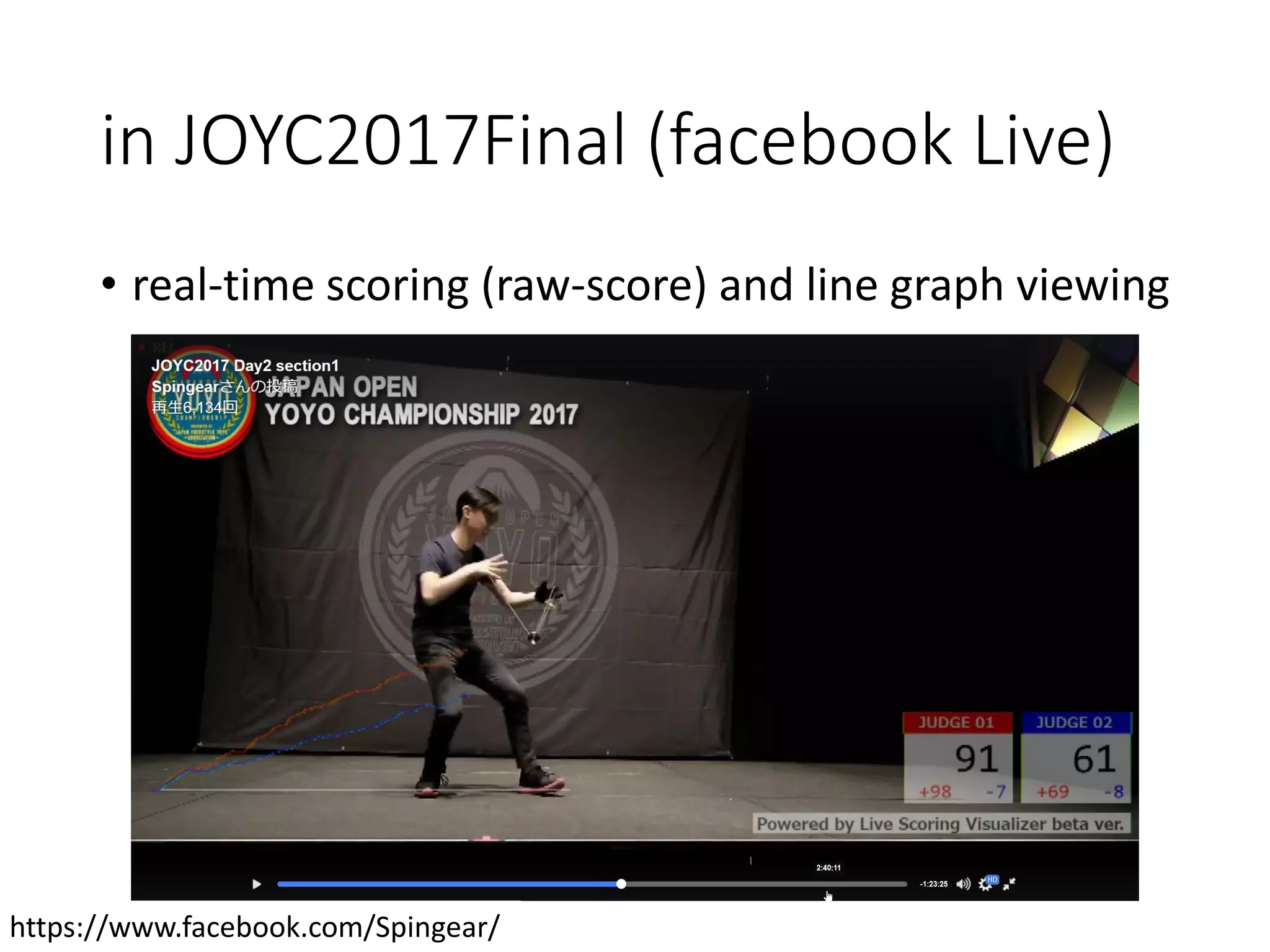

in JOYC2017Final (facebook Live)
• real-time scoring (raw-score) and line graph viewing
https://www.facebook.com/Spingear/

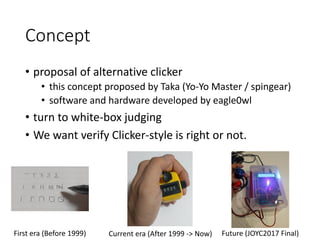

Concept
• proposal of alternative clicker
• this concept proposed by Taka (Yo-Yo Master / spingear)
• software and hardware developed by eagle0wl
• turn to white-box judging
• We want verify Clicker-style is right or not.
First era (Before 1999) Current era (After 1999 -> Now) Future (JOYC2017 Final)
Configure a Scoring Visualizer
Player
Live Camera
Judge & Digital Clicker
OperatorMixer
Live Stream
Clicked Signal
Clicked Signal

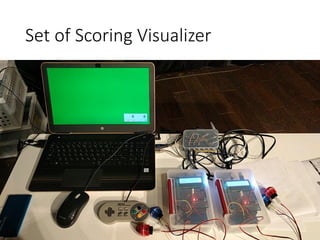

Set of Scoring Visualizer
• s

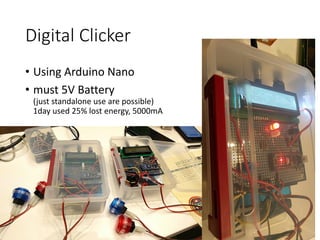

Digital Clicker
• Using Arduino Nano
• must 5V Battery
(just standalone use are possible)
1day used 25% lost energy, 5000mA

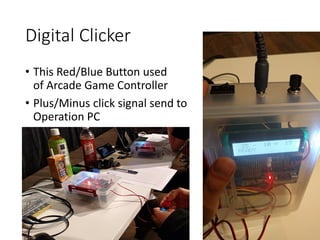

Digital Clicker
• This Red/Blue Button used
of Arcade Game Controller
• Plus/Minus click signal send to
Operation PC

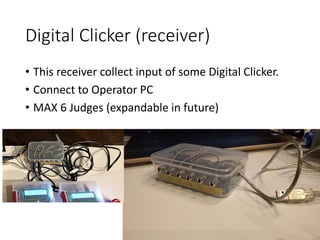

Digital Clicker (receiver)
• This receiver collect input of some Digital Clicker.
• Connect to Operator PC
• MAX 6 Judges (expandable in future)

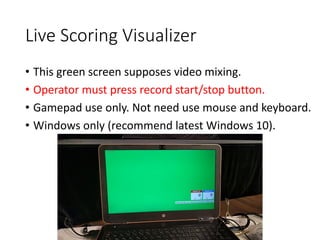

Live Scoring Visualizer
• This green screen supposes video mixing.
• Operator must press record start/stop button.
• Gamepad use only. Not need use mouse and keyboard.
• Windows only (recommend latest Windows 10).

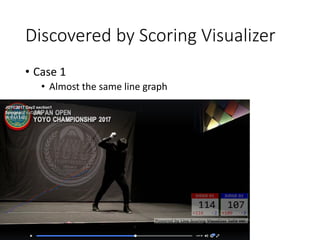

Discovered by Scoring Visualizer
• Case 1
• Almost the same line graph
Discovered by Scoring Visualizer
• Case 1
• Almost the same line graph
Discovered by Scoring Visualizer
• Case 2
• Different score, but similar slope line graph
(It can revise by normalize or adjusting)
Discovered by Scoring Visualizer
• Case 2
• Different score, but similar slope line graph
(It can revise by normalize or adjusting)

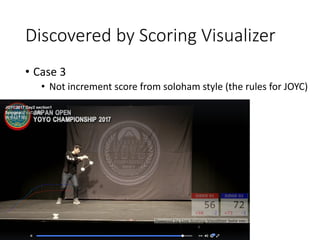

Discovered by Scoring Visualizer
• Case 3
• Not increment score from soloham style (the rules for JOYC)

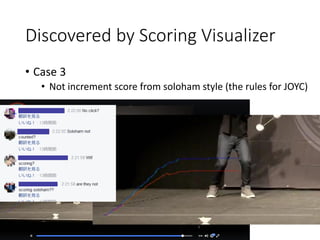

Discovered by Scoring Visualizer
• Case 3
• Not increment score from soloham style (the rules for JOYC)

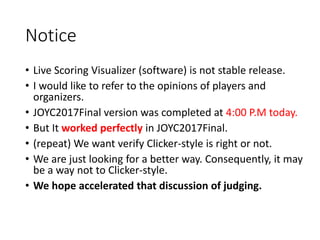

Notice
• Live Scoring Visualizer (software) is not stable release.
• I would like to refer to the opinions of players and
organizers.
• JOYC2017Final version was completed at 4:00 P.M today.
• But It worked perfectly in JOYC2017Final.
• (repeat) We want verify Clicker-style is right or not.
• We are just looking for a better way. Consequently, it may
be a way not to Clicker-style.
• We hope accelerated that discussion of judging.

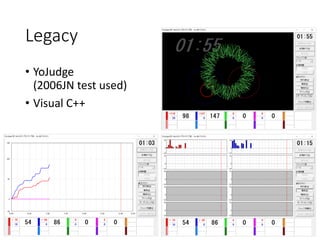

Legacy
• YoJudge
(2006JN test used)
• Visual C++

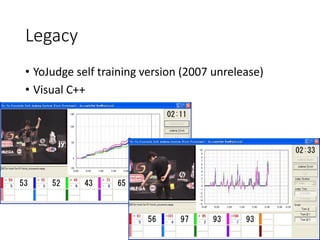

Legacy
• YoJudge self training version (2007 unrelease)
• Visual C++

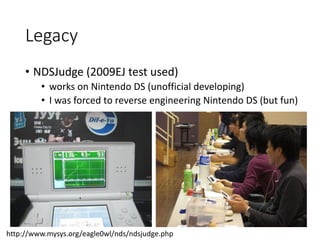

Legacy
• NDSJudge (2009EJ test used)
• works on Nintendo DS (unofficial developing)
• I was forced to reverse engineering Nintendo DS (but fun)
http://www.mysys.org/eagle0wl/nds/ndsjudge.php

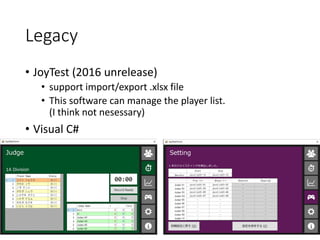

Legacy
• JoyTest (2016 unrelease)
• support import/export .xlsx file
• This software can manage the player list.
(I think not nesessary)
• Visual C#

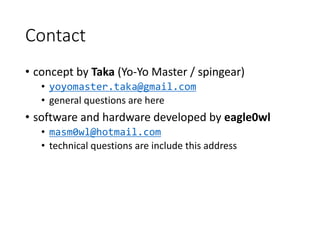

Contact
• concept by Taka (Yo-Yo Master / spingear)
• yoyomaster.taka@gmail.com
• general questions are here
• software and hardware developed by eagle0wl
• masm0wl@hotmail.com
• technical questions are include this address
