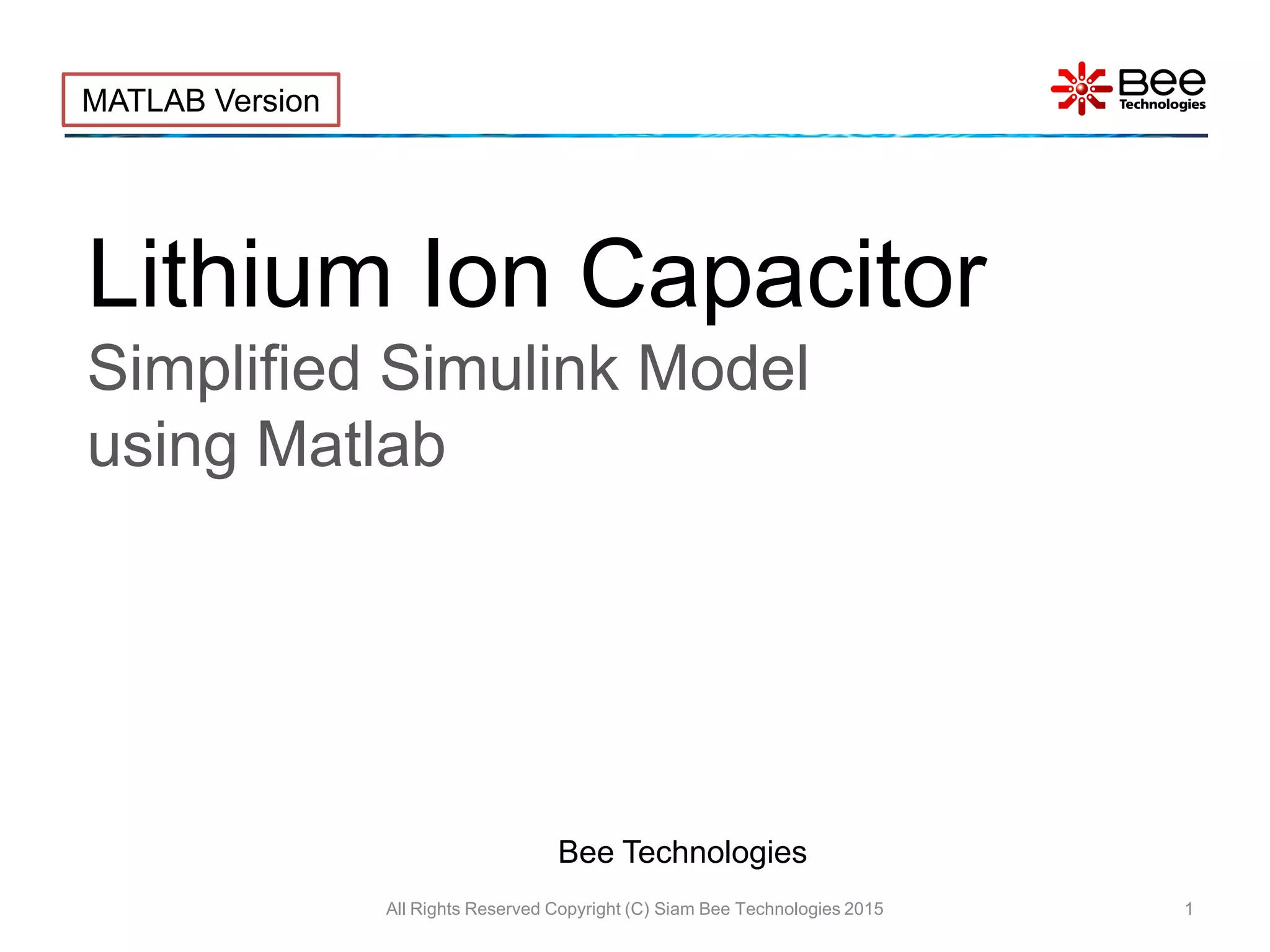

Lithium Ion Capacitor
Simplified Simulink Model
using Matlab
All Rights Reserved Copyright (C) Siam Bee Technologies 2015 1
MATLAB Version
Bee Technologies

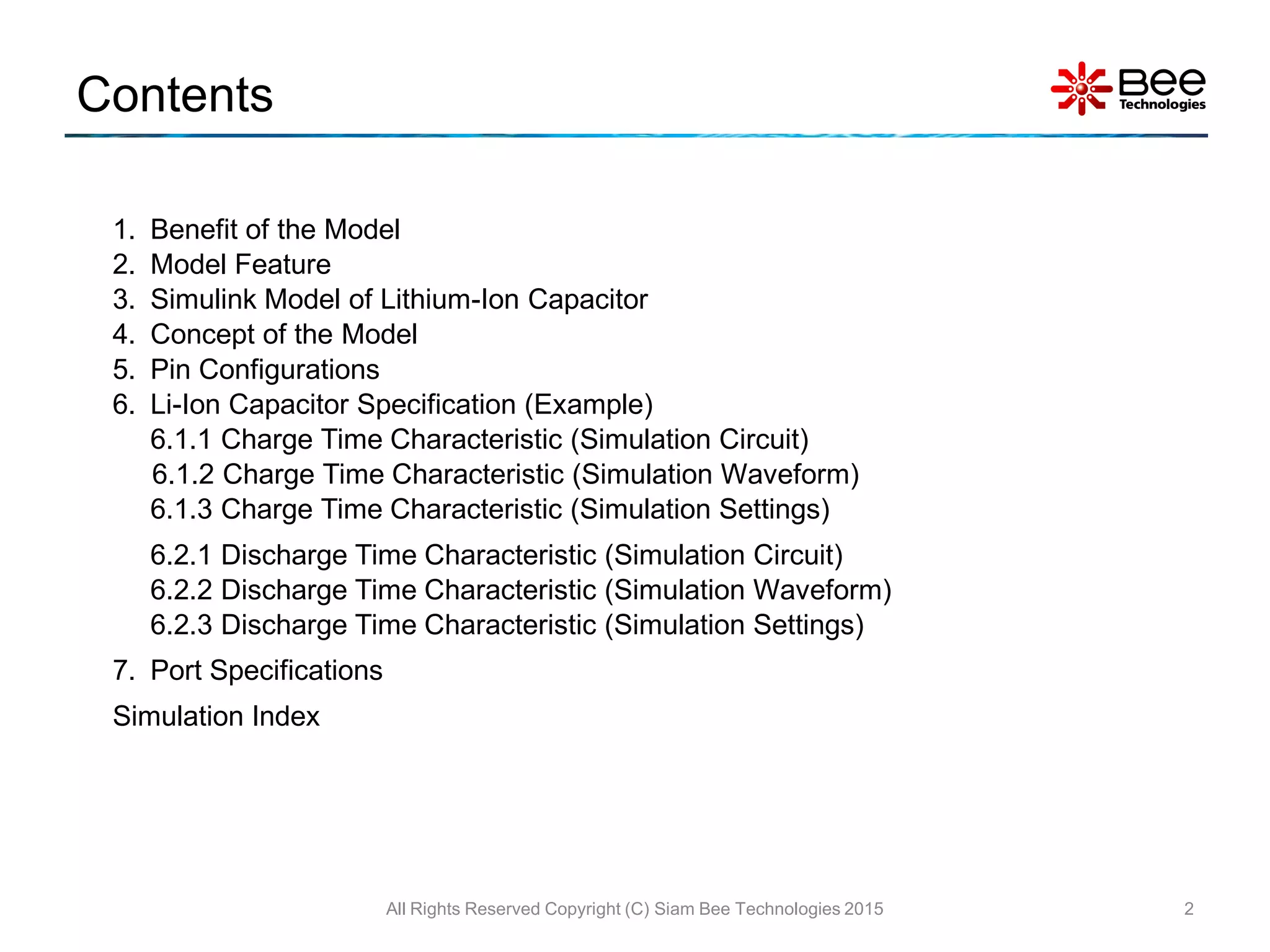

Contents
1. Benefit of the Model
2. Model Feature
3. Simulink Model of Lithium-Ion Capacitor
4. Concept of the Model
5. Pin Configurations
6. Li-Ion Capacitor Specification (Example)
6.1.1 Charge Time Characteristic (Simulation Circuit)
6.1.2 Charge Time Characteristic (Simulation Waveform)
6.1.3 Charge Time Characteristic (Simulation Settings)
6.2.1 Discharge Time Characteristic (Simulation Circuit)
6.2.2 Discharge Time Characteristic (Simulation Waveform)
6.2.3 Discharge Time Characteristic (Simulation Settings)
7. Port Specifications
Simulation Index
2All Rights Reserved Copyright (C) Siam Bee Technologies 2015
1. Benefit of the Model
• The model enables circuit designer to predict and optimize the Li-ion
Capacitor runtime and circuit performance.
• The model can be easily adjusted to your own Li-ion Capacitor
specifications by editing a few parameters that are provided in the
datasheet.
• The model is optimized to reduce the convergence error and the
simulation time
3All Rights Reserved Copyright (C) Siam Bee Technologies 2015
• This Li-Ion Capacitor Simplified Simulink Model is for users who require the
model of a Li-Ion Capacitor as a part of their system.
• Voltage(V) vs. Capacity Level (SOC) Characteristic, that can perform
Capacitor charge and discharge time at various current rate conditions, are
accounted by the model.
• As a simplified model, the effects of cycle number and temperature are
neglected.
2. Model Feature
4
Simplified Equivalent Circuit Model
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
2
MINUS
1
PLUS
3. Simulink Model of Lithium-Ion Battery
5
Equivalent Circuit of Lithium-Ion Capacitor Model using Matlab
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
4. Concept of the Model
6
Li-Ion Capacitor
Simplified Simulink Model
[Spec: CAP (F), NS, RDC, ESR]
Adjustable SOC : 0-100(%)
+
-
• The model is characterized by parameters: CAP (F), which represent the
Capacity and SOC, which represent the initial capacity level.
• Open-circuit voltage (VOC) vs. SOC is included in the model as a behavioral
model.
• NS (Number of Cells in series) is used when the Li-ion cells are in series to
increase voltage level.
Output
Characteristics
All Rights Reserved Copyright (C) Bee Technologies Corporation 2015All Rights Reserved Copyright (C) Siam Bee Technologies 2015
5. Pin Configurations
CAP (F) is the capacity [Farad]
– e.g. CAP = 10, 100, or 1000 [Farad]
NS is the number of cells in series
– e.g. NS=1 for 1 cell battery, NS=2 for 2 cells
(Capacitor voltage is double from 1 cell)
SOC is the initial state of charge in percent
– e.g. SOC=0 for a empty battery (0%), SOC=100 for a full
charged battery (100%)
TSCALE turns TSCALE seconds into a second
– e.g. TSCALE=60 turns 60s or 1min into a second
TSCALE=3600 turns 3600s or 1h into a second
ESR is the equivalent series resistance of capacitors
– e.g. ESR = 0.1m, 1m, or 10m []
RDC is the DC resistance of capacitors
– e.g. RDC = 0.1m, 1m, or 10m []
• From the Li-Ion Capacitor specification, the model is characterized by setting
parameters NS, CAP(F), TSCALE, SOC, ESR and RDC.
7
Model Parameters:
All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
Probe
“SOC”
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
6. Li-Ion Capacitor Specification (Example)
8
Capacity is input as a
model parameter
Rated Voltage 3.8V
Minimal Operating Voltage
(Cutoff Voltage)
2.2V
Capacitance/Capacity 1000F
ESR 0.8m
DCR 1.2m
All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
Table 1
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
6.1.1 Charge Time Characteristic
 Simulation Circuit
9All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
• Voltage vs. time are simulated at 5.0A charging current.
Li-Ion Capacitor start
from 0% of capacity
(empty)
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
10All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
6.1.2 Charge Time Characteristic
 Simulation Waveform
(Sec)
• Charging Current: 5.0A
• Rated Voltage: 3.8V
1.5
2
2.5
3
3.5
4
0 100 200 300 400
Voltage(V)
Time(s)
5ACharge Time Chracteristic
V
Measurement Simulation
5.0A charging current
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
6.1.3 Charge Time Characteristic
 Simulation Settings
11All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
Table 2: Simulation settings
Property Value
StartTime 0
StopTime 325
AbsTol auto
InitialStep auto
ZcThreshold auto
MaxConsecutiveZCs 1000
NumberNewtonIterations 1
MaxStep 0.1
MinStep auto
MaxConsecutiveMinStep 1
RelTol 1e-3
SolverMode Auto
Solver ode23t
SolverName ode23t
SolverType Variable-step
SolverJacobianMethodControl auto
ShapePreserveControl DisableAll
ZeroCrossControl UseLocalSettings
ZeroCrossAlgorithm Adaptive
SolverResetMethod Fast
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
6.2.1 Discharge Time Characteristic
 Simulation Circuit
12All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
• Voltage vs. time are simulated at 5.0A discharge current.
Li-ion Capacitor starts
from 100% of capacity
(fully charged)
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
13All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
6.2.2 Discharge Time Characteristic
 Simulation Waveform
• Discharge Current: 5.0A
• Minimal Operating Voltage (Cutoff Voltage) : 2.2V
1.5
2
2.5
3
3.5
4
0 100 200 300 400
Voltage(V)
Time(s)
5ADischarge Time Characteristic
V
Measurement Simulation
5.0A discharge current
(Sec)
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
14All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
6.2.3 Discharge Time Characteristic
 Simulation Settings
Table 3: Simulation settings
Property Value
StartTime 0
StopTime 315
AbsTol auto
InitialStep auto
ZcThreshold auto
MaxConsecutiveZCs 1000
NumberNewtonIterations 1
MaxStep 0.1
MinStep auto
MaxConsecutiveMinStep 1
RelTol 1e-3
SolverMode Auto
Solver ode23t
SolverName ode23t
SolverType Variable-step
SolverJacobianMethodControl auto
ShapePreserveControl DisableAll
ZeroCrossControl UseLocalSettings
ZeroCrossAlgorithm Adaptive
SolverResetMethod Fast
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
7. Port Specifications
15All Rights Reserved Copyright (C) Bee Technologies Corporation 2015
Table 4
Parameter Simulink Simscape
NS O
CAP (F) O
TSCALE O
%SOC O
VSOC O
ESR O
RDC O
PLUS O
MINUS O
Li-Ion Capacitor Model
All Rights Reserved Copyright (C) Siam Bee Technologies 2015
Simulation Index
16
Simulations Folder name
1. Charge Time Characteristic...................................................
2. Discharge Time Characteristic...............................................
Charge-Voltage
Discharge-Voltage
All Rights Reserved Copyright (C) Bee Technologies Corporation 2015All Rights Reserved Copyright (C) Siam Bee Technologies 2015
