BRIEFINTRODUCTION
As manufacturer of LED lighting fixtures, Vaiao lighting has been working on
luminaires over 10 years. Through the years, Vaiao Lighting grows up from a
components supplier to a company having the capabilities on design , engineering
and manufacturing.
Currently Vaiao Lighting focuses on deigning and Producing high-quality LED
luminaires used for lighting commerical spaces. Main products includes LED
recessed downlight, LED track light and LED peddant light.
Vaiao Lighting assist customers to turn their ideas on luminaires into reality relying
on its total in-house capabilities, including:
Design and Engineering
Machining and Powder coating
Prototyping and 3D printing
Photometric and thermal testing
Tooling and Aluminum die-casting
Assembly and Inspection
CONTENTS
LED Recessed Downlight P1-28
DL-00659-LED DL-00660-LED DL-00661-LED CL-00875-LED CL-00876-LED CL-00877-LED CL-00878-LEDP2 P2 P2 P3 P4 P5 P6
CL-00893-LED P28
CL-00879-LED CL-00880-LED DL-00664A-LED DL-00664B-LED DL-00664C-LED DL-00664D-LED CL-00897A-LEDP7 P8 P9 P9 P10 P10 P11
CL-00897B-LED CL-00894-LED CL-00895-LED CL-00896-LED CL-00900-LED CL-00898-LED CL-00899-LEDP11 P12 P12 P13 P13 P14 P14
CL-00901-LED CL-00902-LED CL-00906-LED CL-00907-LED CL-00908-LED CL-00909-LED CL-00910-LEDP15 P15 P16 P17 P18 P19 P20
CL-00881-LED CL-00890-LED CL-00884-LED CL-00883-LED CL-00882-LED CL-00891-LED CL-00892-LEDP26 P27P21 P22 P23 P24 P25

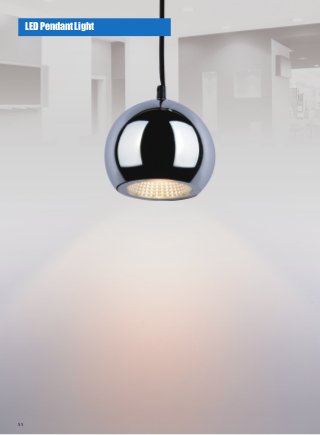

LED Pendant Light P56
3-Phase Track Light P29-54
TL-01015R-LED TL-01008-LED TL-01016-LED TL-01011-LED TL-01010-LED TL-01012-LEDP31 P32 P33 P34 P35 P36TL-01015-LED P30
TL-01000-LED TL-01001-LED TL-01002-LED TL-01021-LED TL-01022-LED TL-01020-LEDP38 P39 P40 P41 P42 P43TL-01009-LED P37
TL-01026-LED TL-01024-LED TL-01027-LED TL-01030-LEDTL-01013-LED TL-01031-LEDP45 P46 P47 P49P48 P50TL-01025-LED P44
TL-01008A-LED TL-01007-LED TL-01005-LEDP52 P53 P54TL-01032-LED P51

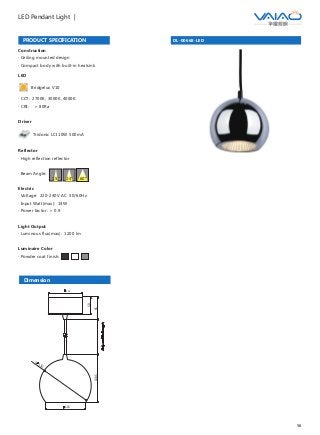

DL-00668-LED P56

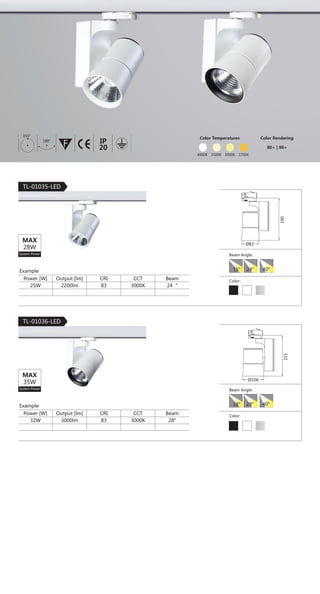

29
| 3-Phase Track Light
3-Phase Track Light
29
30
3-Phase Track Light |
TL-01015-LED
F IESAlu.COB IP20C B0.5m
Dimension
82
134
42
94 141
132
64
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 25/220-240/700 PC
Philips CertaDrive 20W 500mA
Tridonic LCI 20W 350mA-900mA
LED
· Selectable LED COB
Bridgelux Vero 13
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 25W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°

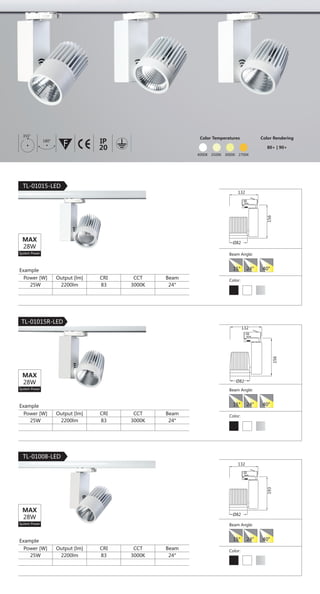

31
| 3-Phase Track Light
Dimension
82
134
42
94 141
132
64
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 25/220-240/700 PC
Philips CertaDrive 20W 500mA
Tridonic LCI 20W 350mA-900mA
LED
· Selectable LED COB
Bridgelux Vero 13
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 25W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
TL-01015R-LED
F IESAlu.COB IP20C B0.5m
180° 355°
32
3-Phase Track Light |
TL-01008-LED
F IESAlu.COB IP20C B0.5m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 25/220-240/700 PC
Philips CertaDrive 20W 500mA
Tridonic LCI 20W 350mA-900mA
LED
· Selectable LED COB
Bridgelux Vero 13
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
180° 355°
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 25W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
80
128
171
131
84
Dimension
33
| 3-Phase Track Light
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
LED
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Driver
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 30W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2500 lm
Luminaire Color
· Powder coat finish:
PRODUCT SPECIFICATION TL-01016-LED
CITIZEN CLL034
Philips CertaDriver 30W 700mA
91 146
135
46
135
80
Dimension
F IESAlu.COB IP20C B0.8m
15° 24° 40°
180° 355°
34
3-Phase Track Light |
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
TL-01011-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Dimension
100
155
127
167
46
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:

Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
15° 24° 38°
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
180° 355°
35
| 3-Phase Track Light
TL-01010-LED
Dimension
100
155
46
186
147
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
15° 24° 38°
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra F IESAlu.COB IP20C B0.8m
180° 355°
36
3-Phase Track Light |
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
LED
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Driver
Reflector
· High reflection reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
PRODUCT SPECIFICATION
Bridgelux Vero 18
Philips CertaDriver 40W 1050mA
127
100
155
46
167
Dimension
15° 24° 38°
TL-01012-LED
F IESAlu.COB IP20C B0.8m
180° 355°
37
| 3-Phase Track Light
Dimension
10046
147
186
155
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL34
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
15° 24° 38°
TL-01009-LED
F IESAlu.COB IP20C B0.8m
180° 355°
38
3-Phase Track Light |
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system

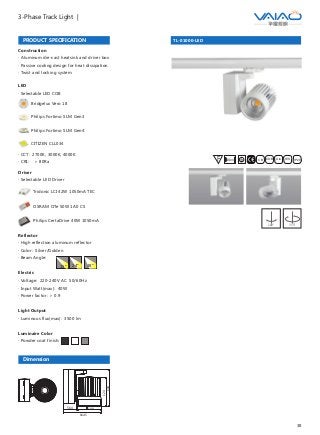

TL-01000-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Dimension
100
164.5
124
150
56.4
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
15° 24° 38°
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
180° 355°
39
| 3-Phase Track Light

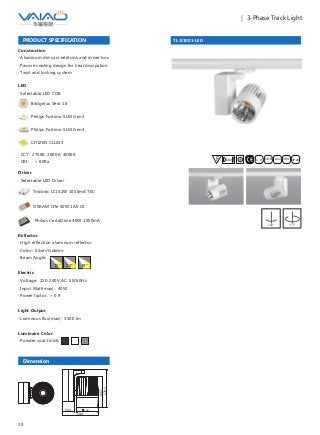

TL-01001-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Dimension
100
164.5
56.4
146.5
178.5
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
15° 24° 38°
180° 355°
40
3-Phase Track Light |

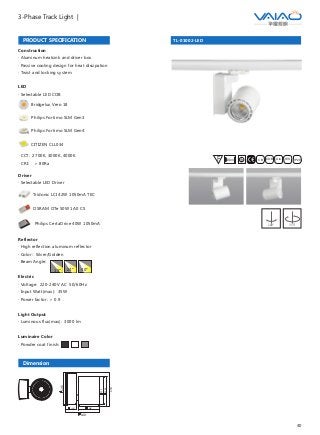

TL-01002-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Dimension
95
140
146
46
120
130.5
153
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°

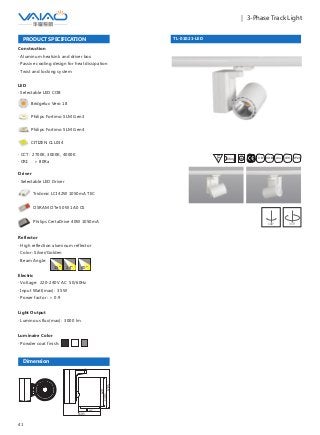

41
| 3-Phase Track Light
TL-01021-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
Dimension
95
159.5
120
130.5
170.5
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
180° 355°

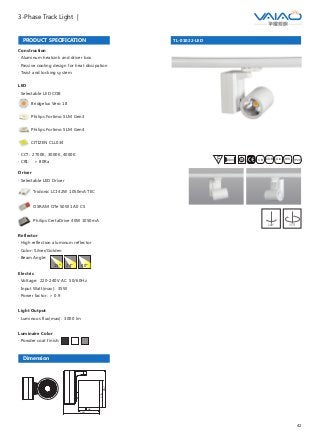

42
3-Phase Track Light |
TL-01022-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Dimension
Construction
· Aluminum heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
95
160
123
167
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
180° 355°

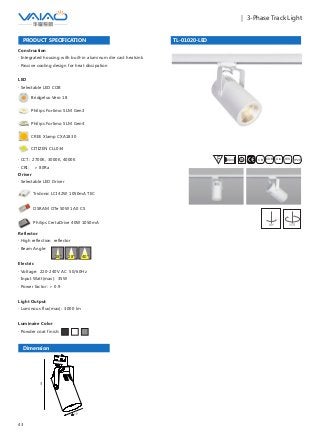

43
| 3-Phase Track Light
TL-01020-LED
F IESAlu.COB IP20C B0.8m
Construction
· Integrated housing with built-in aluminum die cast heatsink
· Passive cooling design for heat dissipation
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
PRODUCT SPECIFICATION
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
CREE Xlamp CXA1830
Reflector
· High reflection reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
40°18° 28°
Dimension
300
109
90° 355°

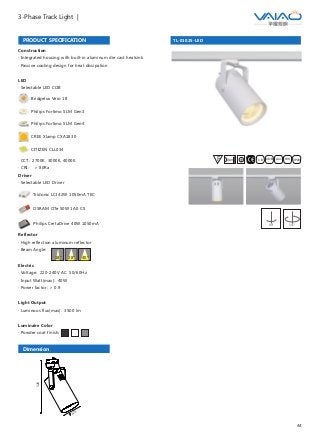

44
3-Phase Track Light |
TL-01025-LED
F IESAlu.COB IP20C B0.8m
90° 355°
Construction
· Integrated housing with built-in aluminum die cast heatsink
· Passive cooling design for heat dissipation
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
PRODUCT SPECIFICATION
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
CREE Xlamp CXA1830
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 40W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3500 lm
Luminaire Color
· Powder coat finish:
40°18° 28°
Dimension
320
120
45
| 3-Phase Track Light

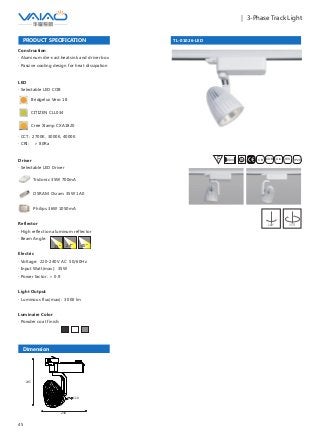

TL-01026-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°
LED
· Selectable LED COB
Bridgelux Vero 18
CITIZEN CLL034
Cree Xlamp CXA1820
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Driver
· Selectable LED Driver
OSRAM Osram 35W 1A0
Philips 36W 1050mA
Tridonic 35W 700mA
Dimension
238
245
110
46
3-Phase Track Light |
Driver
· Selectable LED Driver
LED
· Selectable LED COB
Bridgelux Vero 18
CITIZEN CLL034
Cree Xlamp CXA1820
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Tridonic 42W 1050mA
Osram 50W 1A4
Philips 40W 1050mA
TL-01024-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 30W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2500 lm
Luminaire Color
· Powder coat finish:
18° 28° 40°
180° 355°
Dimension
154
210
90
47
| 3-Phase Track Light

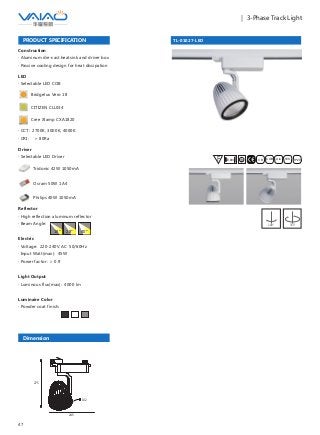

TL-01027-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 45W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 4000 lm
Luminaire Color
· Powder coat finish:
18° 28° 40°
180° 355°
LED
· Selectable LED COB
Bridgelux Vero 18
CITIZEN CLL034
Cree Xlamp CXA1820
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Dimension
Driver
· Selectable LED Driver
Tridonic 42W 1050mA
Osram 50W 1A4
Philips 40W 1050mA
245
275
132
48
3-Phase Track Light |
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
· Twist and locking system
Driver
· Selectable LED Driver
OSRAM OTe 50W 1A0 CS
Philips CertaDrive 40W 1050mA
Tridonic LCI 42W 1050mA TEC
Dimension
122
184.5
50
152
100
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 45W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 4000 lm
Luminaire Color
· Powder coat finish:
15° 28° 40°
LED
· Selectable LED COB
Bridgelux Vero 18
Philips Fortimo SLM Gen3
Philips Fortimo SLM Gen4
CITIZEN CLL034
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
TL-01013-LED
F IESAlu.COB IP20C B0.8m
180° 355°
49
| 3-Phase Track Light

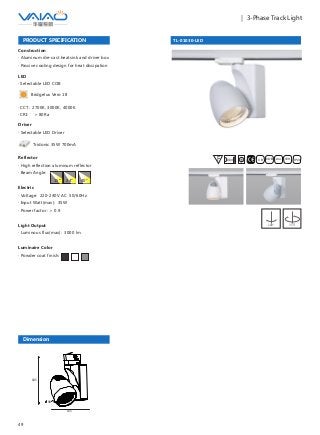

TL-01030-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 35W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 3000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°
Driver
· Selectable LED Driver
LED
· Selectable LED COB
Bridgelux Vero 18
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Tridonic 35W 700mA
Dimension
135
185
90

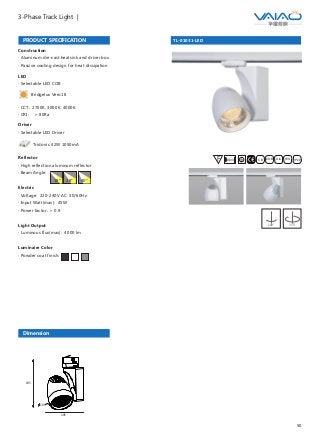

50
3-Phase Track Light |
TL-01031-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 45W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 4000 lm
Luminaire Color
· Powder coat finish:
18° 28° 40°
180° 355°
Driver
· Selectable LED Driver
LED
· Selectable LED COB
Bridgelux Vero18
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Tridonic 42W 1050mA
Dimension
105
195
105
51
| 3-Phase Track Light

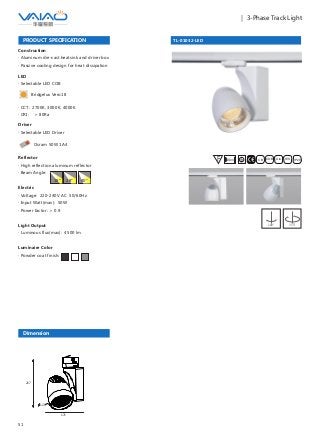

TL-01032-LED
F IESAlu.COB IP20C B0.8m
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink and driver box
· Passive cooling design for heat dissipation
Reflector
· High reflection aluminum reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 50W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 4500 lm
Luminaire Color
· Powder coat finish:
18° 28° 40°
180° 355°
Driver
· Selectable LED Driver
LED
· Selectable LED COB
Bridgelux Vero18
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Dimension
171
217
120
Osram 50W 1A4
52
3-Phase Track Light |
TL-01008A-LED
F IESAlu.COB IP20C B0.8m
Dimension
80
105
84
131
174
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink
· Twist and locking system
LED
OSRAM PrevaLED Core AC
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 26W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
355°180°

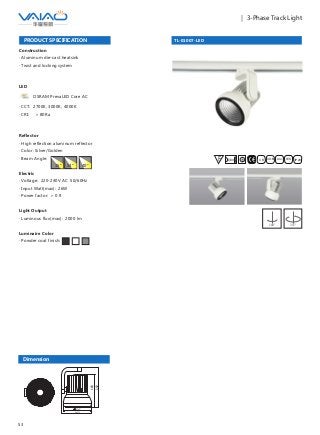

53
| 3-Phase Track Light
TL-01007-LED
F IESAlu.COB IP20C B0.8m
Dimension
135
160
192
143
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink
· Twist and locking system
LED
OSRAM PrevaLED Core AC
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 26W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°

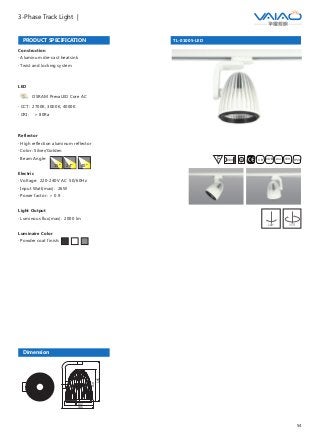

54
3-Phase Track Light |
TL-01005-LED
F IESAlu.COB IP20C B0.8m
Dimension
132
146
150
185
PRODUCT SPECIFICATION
Construction
· Aluminum die-cast heatsink
· Twist and locking system
LED
OSRAM PrevaLED Core AC
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
Reflector
· High reflection aluminum reflector
· Color: Silver/Golden
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 26W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 2000 lm
Luminaire Color
· Powder coat finish:
15° 24° 40°
180° 355°
55
| 3-Phase Track Light
LED Pendant Light
55
56
LED Pendant Light |
DL-00668-LEDPRODUCT SPECIFICATION
Dimension
Construction
· Ceiling mounted design
· Compact body with built-in heatsink
Driver
Tridonic LCI 10W 500mA
LED
Bridgelux V10
· CCT: 2700K, 3000K, 4000K
· CRI: > 80Ra
65138.5
50
100
150
S
115
Reflector
· High reflection reflector
· Beam Angle:
Electric
· Voltage: 220-240V AC 50/60Hz
· Input Watt(max): 14W
· Power factor: > 0.9
Light Output
· Luminous flux(max): 1200 lm
Luminaire Color
· Powder coat finish:
15° 24° 60°
Add: No.8 XinFeng Rd, JiXi, Xiaolan Town
Zhongshan City, Guangdong, China
Contacts: Brondon Dong /Sales Manager
Tel: +86 (0)760 2222 1980
Fax: +86 (0)760 2227 7160
Mail: vaiao-2@vaiao.com
Web: www.vaiao.com
Please send mail or call us for more information !
Zhongshan Vaiao Lighting Technology Co., Ltd.
