SECTION - 12 LED TECHNOLOGY Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma INTRODUCTION TO AIRFIELD GROUND LIGHTING (AGL) By Rahul Sharma Airfield Ground Lighting (AGL) Specialist This presentation is intended for introductory and educational purposes only. It does not constitute engineering specifications or regulatory guidance.
LED Runway Lighting Energy Saving Significant reduction in power consumption (up to 60%) compared to halogen. This lowers the VA load on Constant Current Regulators and reduces substation energy costs. Long Operational Life Features a lifespan exceeding 50,000 hours. Drastically reduces the frequency of field maintenance interventions, minimizing runway downtime and technician exposure. Optical Precision Provides stable color chromaticity and crisp, high- intensity light beams throughout the life of the fixture. Instant-on capability ensures immediate response for all operations. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
The LED Advantage 60% TOTAL ENERGY SAVINGS ENERGY EFFICIENCY Up to 60% reduction in power consumption compared to traditional halogen systems. LONG OPERATIONAL LIFE Lifespan of 50,000+ hours, reducing the replacement cycle frequency by 25x. LOWER MAINTENANCE Minimized runway downtime and intervention costs due to superior component reliability. PHOTOMETRIC STABILITY Maintains consistent beam intensity and color saturation throughout the entire lifecycle. INSTANT SWITCHING Solid-state responsiveness allows for immediate light output during CAT-III transitions. SUSTAINABILITY IMPACT Significant reduction in CO2 footprint and hazardous waste disposal from bulbs. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Performance figures are indicative and subject to operating environment and manufacturer specifications.

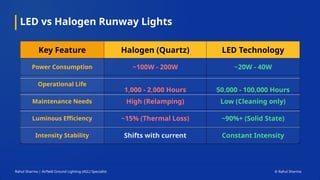

LED vs Halogen Runway Lights Key Feature Halogen (Quartz) LED Technology Power Consumption ~100W - 200W ~20W - 40W Operational Life 1,000 - 2,000 Hours 50,000 - 100,000 Hours Maintenance Needs High (Relamping) Low (Cleaning only) Luminous Efficiency ~15% (Thermal Loss) ~90%+ (Solid State) Intensity Stability Shifts with current Constant Intensity Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
SECTION - 13 CONTROL & MONITORING Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma

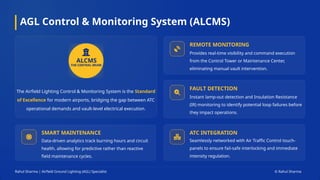

AGL Control & Monitoring System (ALCMS) The Airfield Lighting Control & Monitoring System is the Standard of Excellence for modern airports, bridging the gap between ATC operational demands and vault-level electrical execution. ALCMS REMOTE MONITORING Provides real-time visibility and command execution from the Control Tower or Maintenance Center, eliminating manual vault intervention. FAULT DETECTION Instant lamp-out detection and Insulation Resistance (IR) monitoring to identify potential loop failures before they impact operations. SMART MAINTENANCE Data-driven analytics track burning hours and circuit health, allowing for predictive rather than reactive field maintenance cycles. ATC INTEGRATION Seamlessly networked with Air Traffic Control touch- panels to ensure fail-safe interlocking and immediate intensity regulation. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
ATC Tower Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma ALCMS Control Architecture Monitoring Real-time circuit and fixture status. Control Remote dimming and switching. Alarm Reporting Instant fault detection and logging. Redundancy Hot-standby server support. ALCMS Server PLC / Remote I/O CCR Series Circuit Field Fixtures
A-SMGCS (Advanced Surface Movement Guidance and Control System) Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Surveillance Integrates SMR, MLAT, and ADS- B to provide controllers with complete position, identification, and tracking data of all aircraft and vehicles on the movement area. Alerting Analyzes tracking data to automatically detect conflicts, unauthorized runway incursions, and deviations from ATC clearances, triggering predictive safety alerts. Routing Generates optimal, dynamic taxi routes for flight crews and surface vehicles, factoring in current runway configurations, restrictions, and real-time surface traffic blocks. Guidance Dynamically activates airfield ground lighting (AGL) like individual stop bars and taxiway centerline lights to guide pilots automatically along the assigned route.
Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma A-SMGCS Guided Taxiing Sequence Aircraft Requests Taxi ATC Clearance Route Generated Stop Bar OFF Green Route ON Aircraft Movement Route Monitoring Stop Bar Reset
