LED High Bay Lighting Choosing Guide by Lightide-2026

LED High Bay Lighting Choosing Guide by Lightide-2026

• 1.
  2026V1 LED HIGH BAY SALESCATALOG Lightide Manufactory Co., Ltd.
• 2.
  COMPANY ABOUT OUR Lightide ManufactoryCo., Ltd. was set up in 2009. By now, we have focused on the lighting industry for over 20 years. In addition, we have designed and produced several varieties of commercial & outdoor LED light fixtures. Till now, we have provided service to more than 200 companies from 19 countries.
• 3.
  Enhanced Safety Cost Savings Peaceof Mind WHAT WE OFFER ALWAYS 1 2 3 Maintain a safe working environment for your employees, even during power outages. Reduce energy consumption and long-term maintenance costs, improving your bottom line. Invest in a reliable and durable emergency lighting solution that you can trust to keep your business protected.
• 4.
  SOLUTIONS WE PROVIDE that cannot only be custom-made but also enhance the overall ambiance of your space. LIGHT UP LIKE A PRO Our high bay lighting experts will design a plan to make your space super bright, no matter the size or what you use it for. Plus, it’ll save you cash on those electric bills! We’ll send you a crystal-clear proposal with all the details – what industrial high bay lights you need, how much it costs, and when you can expect them. No surprises, just bright lights! Our ninja installers will get your new lights up in a flash, so you can get back to work. They’re fast, clean, and won’t leave a mess behind. KNOW BEFORE YOU GLOW INSTALLATION DONE RIGHT
• 5.
  LINEAR STYLE LINEAR STYLE LEDHIGH BAY GARAGE LIGHTS
• 6.
  Model# Wattage CCTLight Output Input Voltage L70 Dimension LT-VTA440 40 Watt 30K/40K/50K, ADJ Ava. 5,200 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x95x86 mm LT-VTA440CPT ADJ. 32W-40W-50W ADJ. 30k-40k-50k 6,500 lumens 120-347vac 60,000 hrs （120K hrs Option) 1200x125x86 mm LT-VTA450 50 Watt 30K/40K/50K, ADJ Ava. 6,500 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x125x86 mm LT-VTA460 60 Watt 30K/40K/50K, ADJ Ava. 7,800 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x125x86 mm LT-VTA810 100 Watt 30K/40K/50K, ADJ Ava. 13,800 lumens 120-277vac 60,000 hrs （120K hrs Option) 2400x125x86 mm 6 CCT &Wattage Selectable Emergency Backup Lightide Industrial FEATURE IP66 EM Upgrade your outdoor lighting with our cutting-edge LED vapor tight fixtures, engineered for superior performance, uncompromising durability, and intelligent features that redefine safety and convenience. These fixtures are not just about illuminating your space; they're about transforming your outdoor environment into a haven of safety, security, and efficiency. 5 YEARS WARRANTY 150 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT ADJ CCT SPECIFICATION LED VAPOR TIGHT WATERPROOF IP66 (NEMA 4X) 150 LPW (Clear Strip)/130 LPW (Frosty) Beam Angle- 120O Easy Installation – Suspending mount, Surface Mount Polycarbonate housing material 1. Optional Fiberglass-reinforced plastic + PMMA 2. Optional Stainless steel (SUS304/316) Impact rated-IK80 Rigid conduit entry, strain relief available UL94-V0 Rated Adjustable wattage & CCT IP65/66 Rated, NEMA4X Optional UL/CE Emergency Backup 90-180 minutes Stainless steel fastener/clips 5 Year Warranty DLC, ETL/CETL, CE, RoHS Optional SUS304/316 Optional Fiberglass STD. PC Housing Marine Style Liquid Tight
• 7.
  15 Model# Wattage CCTLight Output Input Voltage L70 Dimension LT-VTA440 40 Watt 30K/40K/50K, ADJ Ava. 5,200 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x125x92 mm LT-VTA440CPT ADJ. 32W-40W-50W ADJ. 30k-40k-50k 6,500 lumens 120-347vac 60,000 hrs （120K hrs Option) 1200x125x92 mm LT-VTA450 50 Watt 30K/40K/50K, ADJ Ava. 6,500 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x125x92 mm LT-VTA460 60 Watt 30K/40K/50K, ADJ Ava. 7,800 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x125x92 mm Lightide Industrial FIBERGLASS REFORCED 150 lumens per watt. (Transparent) Beam Angle 120O Easy Installation – Suspending mount, Surface Mount Fiberglass-reinforced plastic housing & Polymethyl Methacrylate (PMMA) diffuser Optional motion sensor UL94-V0 Rated Adjustable wattage &CCT IP65/66 Rated, NEMA4X Optional Emergency Backup Stainless steel fastener/clips 5 Year Warranty ETL/CETL, CE, RoHS FEATURE IP66 EM Upgrade your garage lighting with our best 4ft vapor-tight garage LED lighting fixtures, designed for durability and efficiency. Constructed with fiberglass-reinforced plastic and featuring an IP66 rating, these lights are built to withstand harsh environments while maintaining optimal performance. With an impressive efficacy of 150 lumens per watt, they provide bright, energy-efficient illumination. 5 YEARS WARRANTY 150 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT ADJ CCT SPECIFICATION 7 CCT &Wattage Selectable Emergency Backup Liquid Tight (GRP+PMMA)
• 8.
  15 ADJ. CCT &Wattage LightideIndustrial Optional Emergency Backup FEATURE IP65 EM 5 YEARS WARRANTY 150 LPW ROHS COMPLIANT CE CERTIFICATE SAA CERTIFICATE ADJ WATT SPECIFICATION ADJ CCT CB CERTIFICATE 8 LED VAPOR TIGHT 4in1 Adjutable Wattage 90mm (3.54") 80mm (3.15") Model# ADJ. Wattage CCT Light Output Dimension LT-TPV2N 20W/18W/16W/14W 30K/40K/50K 2,900 lumens 600x90x80 mm LT-TPV2W 32W/28W/26W/24W ADJ. 30k-40k-50k 4,640 lumens 600x120x88 mm LT-TPV4N 44W/40W/36W/32W 30K/40K/50K 6,400 lumens 1200x90x80 mm LT-TPV4W 54W/50W/45/40W 30K/40K/50K 7,800 lumens 1200x120x88 mm LT-TPV5N 60W/54W/48W/42W 30K/40K/50K 8,800 lumens 1500x90x80 mm LT-TPV5W 72W/66W/60W/54W 30K/40K/50K 10,800 lumens 1500x120x88 mm UL94-V0 Rated IP65 Rated, NEMA4X Optional Emergency Backup Stainless steel fastener/clips Rigid conduit entry, strain relief available 5 Year Warranty CB, SAA, CE, RoHS AC 200-240V 130-145 LPW Beam Angle- 120O Suspending mount, Surface Mount Shatter-proof Polycarbontae housing & diffuser Optional motion sensor Impact rated-IK80
• 9.
  Model# Wattage CCTLight Output Input Voltage L70 Dimension LT-TPA220 ADJ. 18W-22W-27W 30K/40K/50K, ADJ Ava. 3,780 lumens 120-277vac 60,000 hrs （120K hrs Option) 600x95x80 mm LT-TPA436 ADJ. 20W-30W-40W 30K/40K/50K, ADJ Ava. 7,000 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x95x80 mm LT-TPA440 ADJ. 32W-40W-50W 30K/40K/50K, ADJ Ava. 7,500 lumens 120-277vac 60,000 hrs （120K hrs Option) 1200x95x80 mm LT-TPA880 ADJ. 60W-70W-80W 30K/40K/50K, ADJ Ava. 11,200 lumens 120-277vac 60,000 hrs （120K hrs Option) 2400x95x80 mm LT-TPA810 ADJ. 80W-90W-100W 30K/40K/50K, ADJ Ava. 15,200 lumens 120-277vac 60,000 hrs （120K hrs Option) 2400x95x80 mm 15 ADJ. CCT &Wattage Lightide Industrial Optional Emergency Backup UL94-V0 Rated Adjustable wattage &CCT IP65 Rated, NEMA4X Optional Emergency Backup Stainless steel fastener/clips 5 Year Warranty ETL/CETL, CE, RoHS FEATURE IP65 EM Elevate your workspace with the professional-grade LED Linear Garage Light fixture. This robust fixture delivers brilliant, uniform illumination, transforming your garage into a safe, efficient, and productive environment. And these fixtures can be built with selectable wattage and CCT switches to reduce the need for stocking inventory. And these LED fixtures also can provide powerful lighting in harsh environments, protecting the light source from dust and moisture 5 YEARS WARRANTY 150 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT SPECIFICATION 150 LPW (Clear Strip)/130 LPW (Frosty) Beam Angle- 120O Easy Installation – Suspending mount, Surface Mount shatter-proof Polycarbontae housing & diffuser Optional motion sensor Impact rated-IK80 ADJ CCT DLC CERTIFICATE 8 LED VAPOR TIGHT ADJ. Wattage & CCT 95mm (3.74") 80mm (3.15")
• 10.
  Model# Wattage CCTLight Output Input Voltage L70 Dimension LT-TPA4100 100 Watt 30K, 40K, 50K, 57K 13,500 lumens 120-277vac 60,000 hrs （120K hrs Option) 1209x241x106 mm LT-TPA4120 120 Watt 30K, 40K, 50K, 57K 15,500 lumens 120-277vac 60,000 hrs （120K hrs Option) 1209x241x106 mm LT-TPA4150 150 Watt 30K, 40K, 50K, 57K 19,600 lumens 120-277vac 60,000 hrs （120K hrs Option) 1209x241x106 mm Emergency Backup UL94-V0 Rated IP65 Rated, NEMA4X Optional Emergency Backup Stainless steel fastener/clips 5 Year Warranty ETL/CETL, CE, RoHS FEATURE IP65 EM For challenging environments where dust, moisture, and impact are constant threats, our Vapor Tight LED Garage Lighting stands as the definitive solution. Engineered for superior performance and unmatched resilience, these fixtures are designed to elevate safety, efficiency, and longevity in even the most demanding garage and industrial settings 5 YEARS WARRANTY 135 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE SPECIFICATION 135 LPW (Frosty) Beam Angle- 120O Easy Installation – Suspending mount, Surface Mount shatter-proof Polycarbontae housing & diffuser Optional motion sensor Impact rated-IK80 9 HIGH POWER LED 4FT VAPOR TIGHT Lightide Industrial
• 11.
  Model# Wattage CCTLight Output Input Voltage THD CRI Dimension LT-VTHA20 20 Watt 30K, 40K,50K, 57K 1,750 lumens 120-277vac <15% >80 304X191X117 mm LT-VTVA20 20 Watt 30K, 40K,50K, 57K 1,750 lumens 120-277vac <15% >80 Ø117X302 mm Lightide Industrial 85 lumens per watt. Beam Angle- NEMA 7X7 (180 ) O Frosty glass cover High duty die-casting aluminum housing. Wall mount, ceiling mount for options Junction-box mount IP65/66 Rated (NEMA4X) Optional Emergency Backup 5 Year Warranty ETL/CETL, CE, RoHS FEATURE SPECIFICATION 180 EM 5 YEARS WARRANTY 85 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE BEAM 18 LED JELLY JAR VAPOR-PROOF & JUNCTION-BOX Need a light that can take a beating and still shine bright? Our LED Jelly Jar fixtures are built for demanding environments, offering rugged durability and excellent performance where other lights fail. Perfect for stairwells, industrial walkways, entryways, or any area needing a tough, reliable light source. IP66 LT-VTVA20 LT-VTHA20
• 12.
  Model# Wattage LightOutput Input Voltage Equivalent Dimension Rated LT-HBA150 ADJ. 115W-130W-155W 26,600 Lumens 120-277vac 400 Watt MH/HPS 386*276*56.5 mm IP65, IK08 LT-HBA210 ADJ. 155W-180W-210W 35,700 Lumens 120-277vac 600 Watt MH/HPS 486*276*56.5 mm IP65, IK08 LT-HBA310 ADJ. 240W-270W-310W 52,700 Lumens 120-277vac 1000 Watt MH/HPS 590*276*56.5 mm IP65, IK08 LT-HBA420 ADJ. 310W-360W-420W 71,400 Lumens 120-277vac 1500 Watt MH/HPS 972*276*56.5 mm IP65, IK08 IP65 EM 170 lumens per watt. Various Distribution- 60 , 90 , 120 , Type II, III and V O O O Easy Installation – Suspending mount, Surface Mount High-duty die-casting aluminum housing. SPECIFICATION Introducing our LED Linear High Bay Light, boasting an impressive efficacy of 170 lumens per watt and a powerful output of up to 71,400 lumens. Perfect for warehouses, manufacturing facilities, and large retail spaces, this light ensures you get the brightness you need while saving on energy costs. Polycarbonate lens and glass cover Adjustable wattage IP65 Rated Optional Emergency Backup 5 Year Warranty ETL/CETL, CE, RoHS 5 YEARS WARRANTY 170 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT FEATURE Emergency Backup 10 LED SHOP LIGHT WATERPROOF IP65 (NEMA4X) Lightide Industrial
• 13.
  Lightide Industrial Emergency Backup EM LinearLED High Bay shop lights are a top-of-the-line lighting solution that boasts a slim profile and high efficacy of 140 LPW. These led industrial shop lights are perfect for industrial and commercial settings, providing bright and efficient lighting while maintaining a sleek and modern look. 5 YEARS WARRANTY 140 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT FEATURE ADJ CCT SPECIFICATION ADJ ANGLE 11 LED SHOP LIGHT ADJ. CCT, Wattage & Beam Angle AC100-277V, AC120-480V 140 lumens per watt. Beam Angle- 120 x120 , 65 x95 , 90 x90 , 45 x100 O O O O O O O O Easy Installation – Suspending, Surface, Conduit App/Bluetooth Control High-duty die-casting aluminum housing. Optional Zhaga /NEMA sensor Polycarbonate cover Adjustable wattage, CCT & Beam angle IP20 Rated & IK08 Optional UL/CE Emergency Backup 90-180 minutes 5 Year Warranty ETL/CETL, CE, RoHS Model# Wattage CCT Light Output Beam Angle Dimension LT-LBA150 150 Watt 30K, 40K,50K, 57K 21,000 Lumens B66, B35, B45, B55 312X245X66 mm LT-LBA150C ADJ. 80-120-150 Watt ADJ. 30K-40K-50K 21,000 Lumens ADJ. B35-B45-B55 312X245X66 mm LT-LBA200 220 Watt 30K, 40K,50K, 57K 31,000 Lumens B66, B35, B45, B55 420X245X66 mm LT-LBA200C ADJ. 140-180-220 Watt ADJ. 30K-40K-50K 31,000 Lumens ADJ. B35-B45-B55 420X245X66 mm LT-LBA300 300 Watt 30K, 40K,50K, 57K 42,400 Lumens B66, B35, B45, B55 480X288X66 mm LT-LBA300C ADJ. 200-250-300 Watt ADJ. 30K-40K-50K 42,400 Lumens ADJ. B35-B45-B55 480X288X66 mm
• 14.
  Model# Wattage CCTLight Output Input Voltage THD CRI Dimension LT-LBA020 ADJ. 12W-16W-20W 30K, 40K,50K, 57K, ADJ 3,000 Lumens 120-277vac <15% >80 600mmx82mmx82mm LT-LBA027 ADJ. 20W- 30W-40W 30K, 40K,50K, 57K, ADJ 6,406 Lumens 120-277vac <15% >80 1200mmx82mmx82mm LT-LBA080 ADJ. 60W-70W-80W 30K, 40K,50K, 57K, ADJ 12,400 Lumens 120-277vac <15% >80 2400mmx82mmx82mm Lightide Industrial Emergency Backup 150 lumens per watt. Beam Angle- 120 , O Easy Installation – Suspending/Surface mount 3KV Surge protection Metal steel housing. Optional motion sensor Polycarbonate cover Adjustable wattage & CCT IP20 Rated & IK10 Optional Emergency Backup 5 Year Warranty ETL/CETL, CE, RoHS Upgrade your lighting with our LED Low Bay Strip Light, designed for versatility and efficiency. Featuring selectable wattage and CCT options, this lighting solution allows you to customize your space effortlessly. With an impressive high efficacy of 140 lumens per watt (LPW), it delivers bright, energy-saving illumination. Choose from multiple mounting options—Surface, Suspension, or Recessed—to suit your needs. Available FEATURE SPECIFICATION 3KV EM 5 YEARS WARRANTY 150 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT ADJ CCT DLC CERTIFICATE SPD 12 LED LOW BAY STRIP LIGHT
• 15.

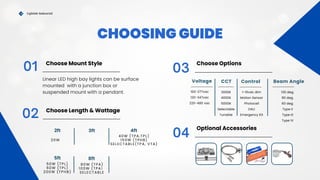

  Choose Options 5ft 50W (TPL) 60W(TPL) 200W (TPHB) Beam Angle 3000K 4000K 5000K Selectable Tunable CCT CHOOSING GUIDE 01 Choose Mount Style 02 03 Optional Accessories 04 Linear LED high bay lights can be surface mounted with a junction box or suspended mount with a pendant. Choose Length & Wattage 2ft 20W 3ft 4ft 40W (TPA,TPL) 150W (TPHB) SELECTABLE(TPA, VTA) Voltage 100-277vac 120-347vac 220-480 vac Control 1-10vdc dim Motion Sensor Photocell DALI Emergency Kit 120 deg. 90 deg. 60 deg. Type II Type III Type IV Lightide Industrial 8ft 80W (TPA) 100W (TPA） SELECTABLE
• 16.
  ROUND STYLE ROUND STYLE UFOLED HIGH BAY LIGHTS
• 17.
  Lightide Industrial Emergency Backup 160lumens per watt. Beam Angle- NEMA 4X4 (60 ), 5X5 (90 ), 6X6 (120 ) O O O 6-10KV Surge protection High duty die-casting aluminum housing. Optional motion sensor Polycarbonate lens Adjustable wattage & CCT IP65/66 Rated (NEMA4X) Optional Emergency Backup 5 Year Warranty DLC, ETL/CETL, CE, RoHS Looking to upgrade your lighting solutions? UFO LED High Bay Light is the ultimate choice for efficiency and durability. With an impressive high efficacy of up to 170 lumens per watt (LPW), these UFO LED lights deliver exceptional brightness while saving energy. Built to withstand tough environments, they come with an IP66 waterproof rating, ensuring reliable performance even in wet or dusty conditions. FEATURE SPECIFICATION 6KV EM 5 YEARS WARRANTY 160 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT ADJ CCT DLC CERTIFICATE SPD Hook Option Motion Sensor 15 LED UFO LIGHT SBA SERIES Model# Wattage CCT Light Output Dimension Weight LT-SBA-100W 100 Watt 30K, 40K,50K, 57K, ADJ 14,500 Lumens Φ240*148 mm 1.8 Kg (4 LBS) LT-SBA-150W 150 Watt 30K, 40K,50K, 57K, ADJ 21,406 Lumens Φ280*151 mm 2.1 Kg (4.7 LBS) LT-SBA-200W 200 Watt 30K, 40K,50K, 57K, ADJ 28,400 Lumens Φ320*155 mm 2.7 Kg (6 LBS) LT-SBA-240W 240 Watt 30K, 40K,50K, 57K, ADJ 33,400 Lumens Φ320*155 mm 2.7 Kg (6 LBS) LT-SBA-300W 300 Watt 30K, 40K,50K, 57K, ADJ 42,400 Lumens Φ360*175 mm 4.4 Kg (9.8 LBS) LT-SBA-400W 400 Watt 30K, 40K,50K, 57K 55,300 Lumens Φ449*228 mm 6.9 Kg (15.3 LBS) LT-SBA-500W 500 Watt 30K, 40K,50K, 57K 61,400 Lumens Φ449*228 mm 6.9 Kg (15.3 LBS)
• 18.
  Lightide Industrial Emergency Backup TheUFO LED High Bay Light offers high power options of up to 500 watts, ensuring bright and consistent lighting for any large area. With selectable wattage and CCT (Correlated Color Temperature), you have the flexibility to customize the lighting to perfectly suit your environment’s needs. FEATURE SPECIFICATION 6KV EM 5 YEARS WARRANTY 190 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE ADJ WATT ADJ CCT SPD Hook Option Motion Sensor 16 HIGH EFFICACY 190 LUMENS/WATT Model# Wattage CCT Light Output Dimension Weight LT-SBB-60W 60 Watt 30K, 40K, 50K, 60K 11,000 Lumens Φ235*151 mm 2.2 Kg (4.9LBS) LT-SBB-100W 100 Watt, ADJ. 60-80-100W 30K, 40K,50K, 60K, ADJ 19,000 Lumens Φ254*151 mm 2.2 Kg (4.9LBS) LT-SBB-150W 150 Watt, ADJ. 80-100-150W 30K, 40K,50K, 60K, ADJ 28,406 Lumens Φ254*151 mm 2.2 Kg (4.9LBS) LT-SBB-200W 200 Watt, ADJ. 100-150-200W 30K, 40K,50K, 60K, ADJ 37,400 Lumens Φ300*153 mm 3.2 Kg (7.1 LBS) LT-SBB-240W 240 Watt, ADJ. 150-200-240W 30K, 40K,50K, 60K, ADJ 45,000 Lumens Φ365*153 mm 3.2 Kg (7.1 LBS) LT-SBB-300W 300 Watt 30K, 40K, 50K, 60K 56,200 Lumens Φ385*174 mm 4.4 Kg (9.8 LBS) LT-SBB-400W 400 Watt 30K, 40K, 50K, 60K 75,400 Lumens Φ400*193 mm 8.6 Kg (19 LBS) LT-SBB-500W 500 Watt 30K, 40K, 50K, 60K 92,000 Lumens Φ490*200 mm 10 Kg (22.2 LBS) Input 100-277vac, 200-480vac, or 120-347vac Up to 190 lumens per watt. (160, 200 LPW for options) Beam Angle- NEMA 4X4 (60 ), 5X5 (90 ), 6X6 (120 ) O O O STD. 4-6KV Surge protection High duty die-casting aluminum housing. Polycarbonate lens, optional tempered glass cover Adjustable wattage & CCT （40K-50K-60K) IP65 Rated (NEMA4X) Optional Emergency Backup STD. Black Finish (White Option) 5 Year Warranty DLC, ETL/CETL, CE, RoHS DLC CERTIFICATE
• 19.
  Lightide Industrial Introducing ourlatest UFO LED High Bay Lights, designed with a compact design and high efficacy of 160 LPW. These lights are IP66 rated and feature a high duty die-casting aluminum alloy housing, ensuring durability and long-lasting performance. With a 5-year warranty, you can trust in the quality and reliability of our product. FEATURE SPECIFICATION 6KV EM 5 YEARS WARRANTY 140 LPW ROHS COMPLIANT CE CERTIFICATE ETL CERTIFICATE DLC CERTIFICATE SPD 17 HIGH POWER HPRF SERIES Model# Wattage Input Voltage Light Output SPD Weight LT-HPRF-400W 400 Watt, 100~277vac Or 198~440Vac 74,000 lumens 10KV 14.9 Kg LT-HPRF-600W 600 Watt (500W option) 100~277vac Or 198~440Vac 90,000 lumens 10KV 14.9 Kg LT-HPRF-800W 800 Watt (700W option) 100~277vac Or 198~440Vac 140,000 lumens 10KV 18.4 Kg LT-HPRF-1000W 1000 Watt (900W option) 100~277vac Or 198~440Vac 175,000 lumens 10KV 22 Kg LT-HPRF-1200W 1200 Watt (1000W option) 100~277vac Or 198~440Vac 210,000 lumens 10KV 25.8 Kg FLOOD LIGHT MOUNT BRACKET HIGHBAY MOUNT BRACKET Input 100-277vac, 190-440vac Up to 170 lumens per watt. Beam Angle- 15 , 25 ， 40 ， 60 ， 90 O O O O O Std. 10KV Surge protection High duty die-casting aluminum housing. Polycarbonate lens L90B10: >100,000 hrs IP66， IK10 Rated STD. Black Finish 5 Year Warranty DLC, ETL/CETL, ENEC, CB,SAA, CE, RoHS, LM80, LM79
• 20.
  Choose Options 240W 1,000W EQU. Upto 38,400 lm Beam Angle 3000K 4000K 5000K Selectable CCT CHOOSING GUIDE 01 Choose Mount Style 02 03 Optional Accessories 04 LED high bay lights can be surface mounted or suspended mount with a pendant. Choose Wattage 100W 250W EQU. Up to 16,094 lm 150W 400W EQU. Up to 24,945 lm 200W 600W EQU. Up to 32,009 lm Voltage 100-277vac 120-347vac 220-480 vac Control 1-10vdc dim Motion Sensor Photocell Zigbee Emergency Kit 120 deg. 90 deg. 60 deg. Lightide Industrial 300W 1000W EQU. Up to 45,094 lm Selectable 100W-150W- 240W
• 21.

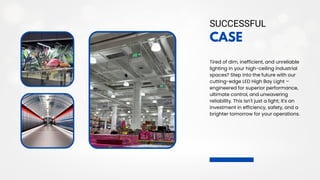

  CASE Tired of dim,inefficient, and unreliable lighting in your high-ceiling industrial spaces? Step into the future with our cutting-edge LED High Bay Light – engineered for superior performance, ultimate control, and unwavering reliability. This isn't just a light; it's an investment in efficiency, safety, and a brighter tomorrow for your operations. SUCCESSFUL
• 22.
  Lightide Manufactory Co.,Ltd. Connect with us. Thank's For Watching Thank's For Watching sales@lightideled.com www.lightideled.com
