1. PDS (Week-6)
Sorting and Example Programs
Jayanta Mukhopadhyay
jay@cse.iitkgp.ernet.in

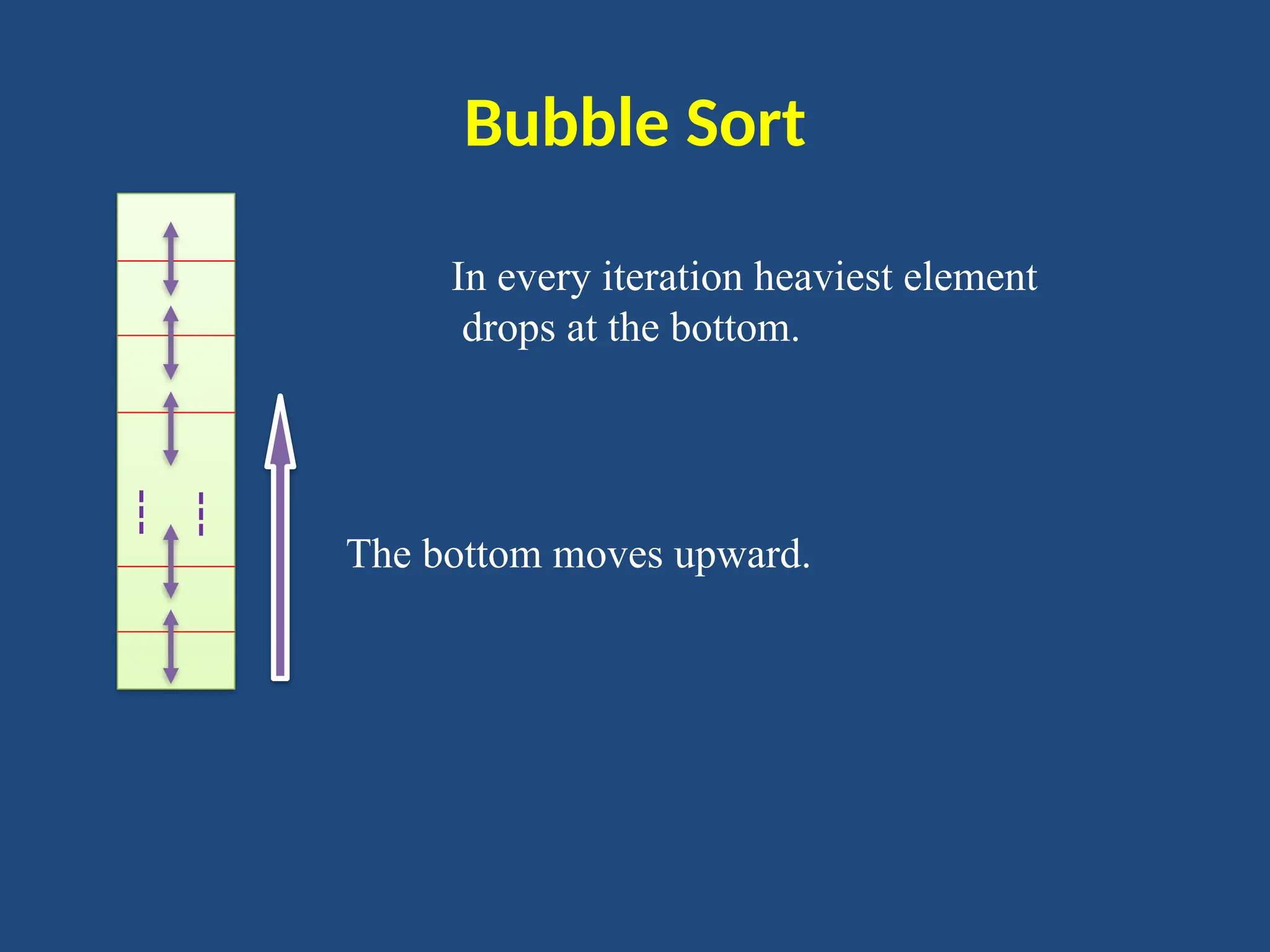

2. Bubble Sort
In every iteration heaviest element
drops at the bottom.
The bottom moves upward.

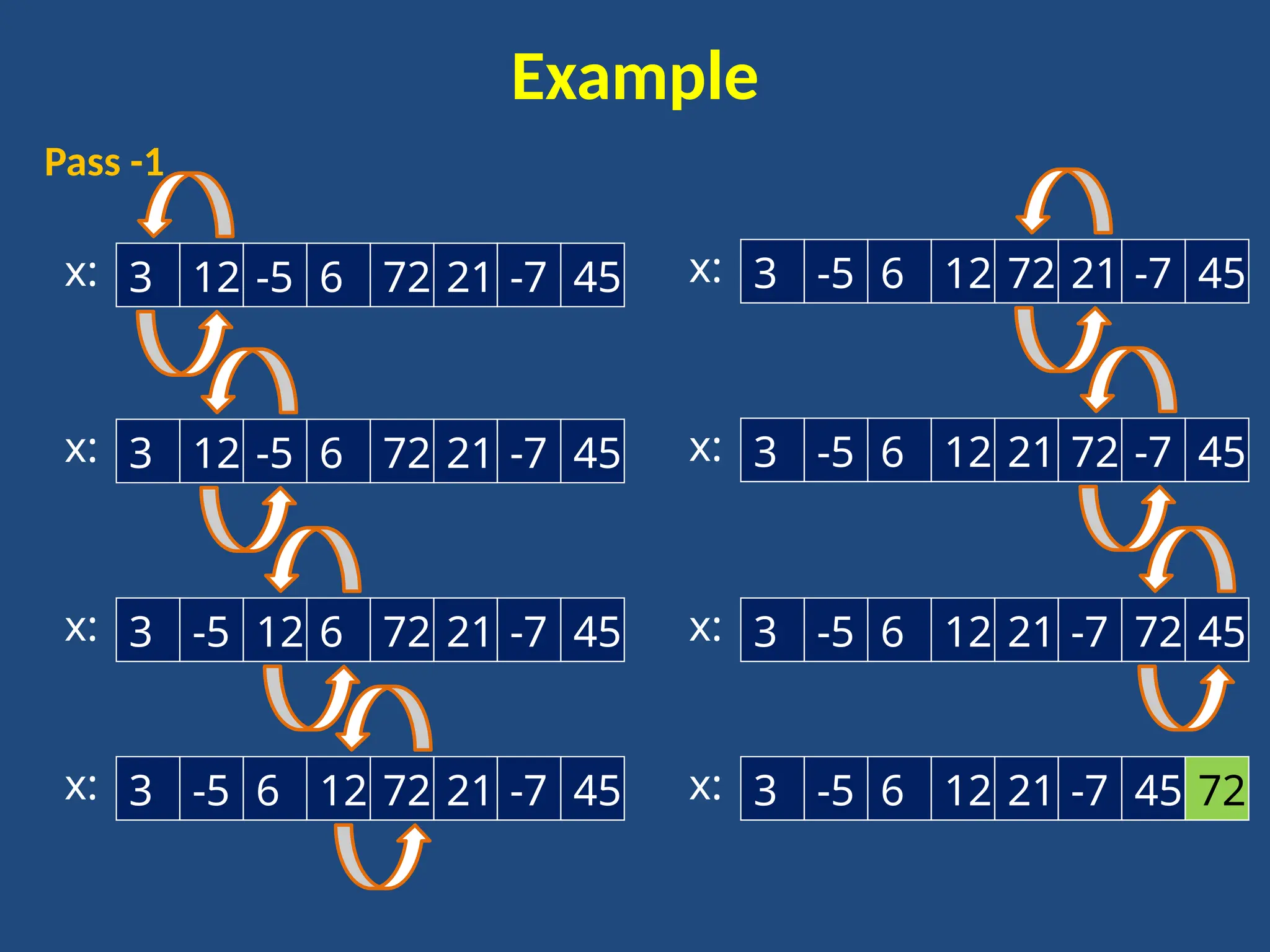

3. Example
3 12 -5 6 72 21 -7 45
x:
Pass -1
3 12 -5 6 72 21 -7 45
x:
3 -5 12 6 72 21 -7 45
x:
3 -5 6 12 72 21 -7 45
x:
3 -5 6 12 72 21 -7 45
x:
3 -5 6 12 21 72 -7 45
x:
3 -5 6 12 21 -7 72 45
x:
3 -5 6 12 21 -7 45 72
x:

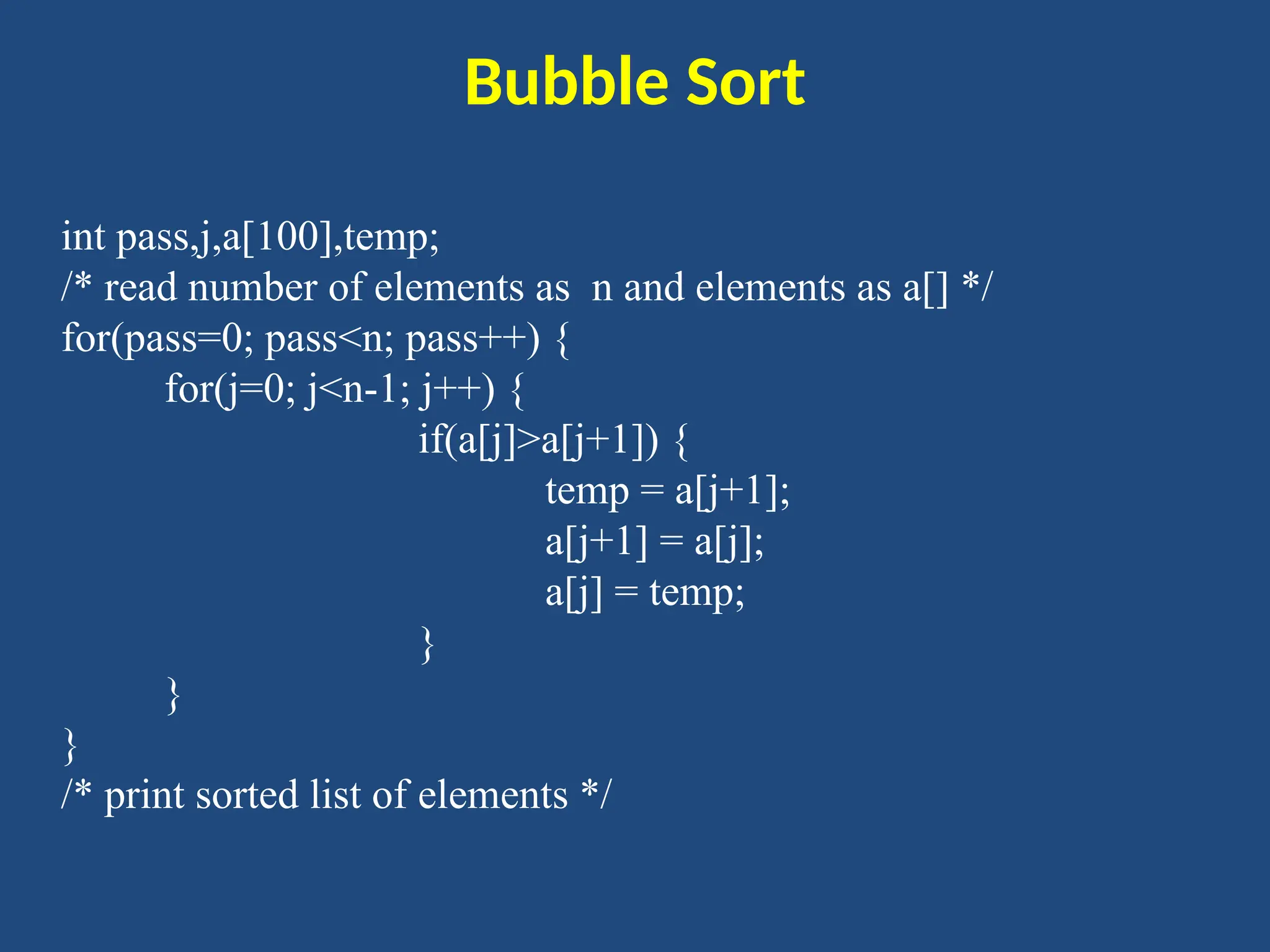

4. Bubble Sort
int pass,j,a[100],temp;
/* read number of elements as n and elements as a[] */
for(pass=0; pass<n; pass++) {
for(j=0; j<n-1; j++) {
if(a[j]>a[j+1]) {
temp = a[j+1];
a[j+1] = a[j];
a[j] = temp;
}
}
}
/* print sorted list of elements */

5. Example
3 12 -5 6 72 21 -7 45
x:
Pass: 1
3 12 -5 6 72 21 -7 45
x:
3 -5 12 6 72 21 -7 45
x:
3 -5 6 12 72 21 -7 45
x:
3 -5 6 12 72 21 -7 45
x:
3 -5 6 12 21 72 -7 45
x:
3 -5 6 12 21 -7 72 45
x:
3 -5 6 12 21 -7 45 72
x:

6. Example
3 -5 6 12 21 -7 45 72
x:
Pass: 2
-5 3 6 12 21 -7 45 72
x:
-5 3 6 12 21 -7 45 72
x:
-5 3 6 12 21 -7 45 72
x:
-5 3 6 12 21 -7 45 72
x:
-5 3 6 12 -7 21 45 72
x:
-5 3 6 12 -7 21 45 72
x:

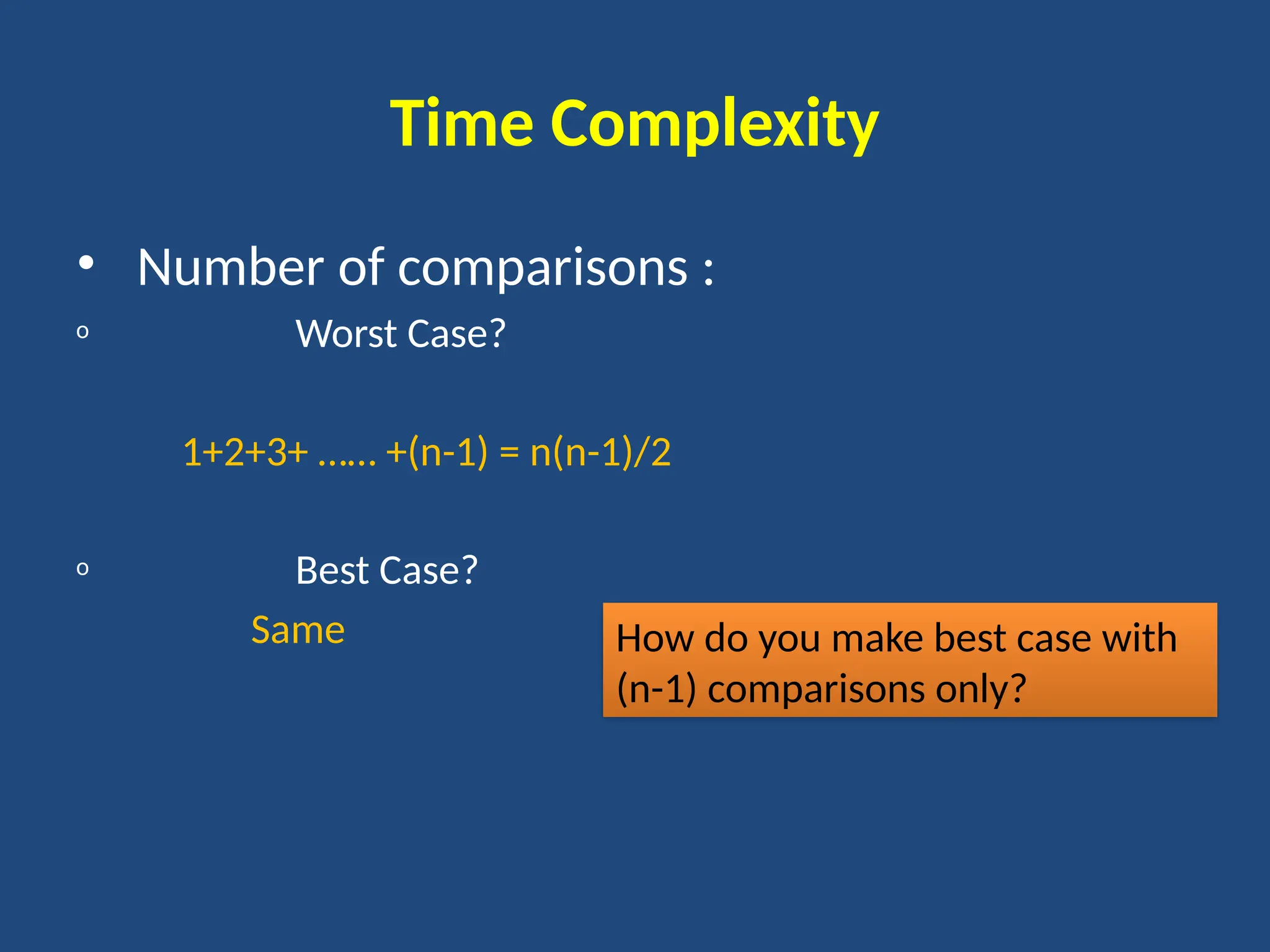

7. Time Complexity
• Number of comparisons :
o Worst Case?
1+2+3+ …… +(n-1) = n(n-1)/2
o Best Case?
Same How do you make best case with
(n-1) comparisons only?

8. Bubble Sort
int pass,j,a[100],temp,swapflag;
/* read number of elements as n and elements as a[] */
for(pass=0; pass<n; pass++) {
swapflag=0;
for(j=0; j<n-1; j++) {
if(a[j]>a[j+1]) {
temp = a[j+1];
a[j+1] = a[j];
a[j] = temp;
swapflag=1;
}
}
if(swapflag==0)
break;
}
/* print sorted list of elements */

9. Can we improve the sorting time?

10. Basis of efficient sorting algorithms
• Two of the most popular sorting algorithms are
based on divide-and-conquer approach.
– Quick sort
– Merge sort
• Basic concept:
sort (list)
{
if the list has length greater than 1
{
Partition the list into lowlist and highlist;
sort (lowlist);
sort (highlist);
combine (lowlist, highlist);
}
}

11. Merge Sort

12. Merging two
sorted arrays
Splitting arrays
Example
3 12 -5 6 72 21 -7 45
x:
3 12 -5 6 72 21 -7 45
3 12 -5 6 72 21 -7 45
3 12 -5 6 72 21 -7 45
3 12 -5 6 21 72 -7 45
-5 3 6 12 -7 21 45 72
-7 -5 3
-7 -5 3 6 12 21 45 72

13. Merge Sort C program
lude<stdio.h>
mergesort(int a[],int i,int j);
merge(int a[],int i1,int j1,int i2,int j2);
main()
t a[30],n,i;
intf("Enter no of elements:");
anf("%d",&n);
intf("Enter array elements:");
r(i=0;i<n;i++)
scanf("%d",&a[i]);
ergesort(a,0,n-1);
intf("nSorted array is :");
r(i=0;i<n;i++)
printf("%d ",a[i]);
turn 0;
void mergesort(int a[],int i,int j)
{
int mid;
if(i<j) {
mid=(i+j)/2;
/* left recursion */
mergesort(a,i,mid);
/* right recursion */
mergesort(a,mid+1,j);
/* merging of two sorted sub-arrays */
merge(a,i,mid,mid+1,j);
}
}

14. Merge Sort C program
void merge(int a[],int i1,int j1,int i2,int j2)
{
int temp[50]; //array used for merging
int i=i1,j=i2,k=0;
while(i<=j1 && j<=j2) //while elements in both lists
{
if(a[i]<a[j])
temp[k++]=a[i++];
else
temp[k++]=a[j++];
}
while(i<=j1) //copy remaining elements of the first list
temp[k++]=a[i++];
while(j<=j2) //copy remaining elements of the second list
temp[k++]=a[j++];
for(i=i1,j=0;i<=j2;i++,j++)
a[i]=temp[j]; //Transfer elements from temp[] back to a[]
}

15. Splitting Trace
-56 23 43 -5 -3 0 123 -35 87 56 75 80
-56 -35 -5 -3 0 23 43 56 75 80 87 123
-56 23 43
23 43
-56 23 43 -5 -3 0 123 -35 87 56 75 80
-56 23 43 -5 -3 0
-3 0
-3 0
123 -35 87
-35 87
123 -35 87 56 75 80
56
75 80
75 80
Worst Case: O(n.log(n))
Space Complexity??

16. Quicksort
• At every step, we select a pivot element in the list
(usually the first element).
– We put the pivot element in the final position of the
sorted list.
– All the elements less than or equal to the pivot element
are to the left.
– All the elements greater than the pivot element are to the
right.

17. Partitioning
0 size-1
x:
pivot
Values smaller Values greater
Perform
partitioning
Perform
partitioning

18. Quick Sort program
#include <stdio.h>
void quickSort( int[], int, int);
int partition( int[], int, int);
void main()
{
int i,a[] = { 7, 12, 1, -2, 0, 15, 4, 11, 9};
printf("nnUnsorted array is: ");
for(i = 0; i < 9; ++i)
printf(" %d ", a[i]);
quickSort( a, 0, 8);
printf("nnSorted array is: ");
for(i = 0; i < 9; ++i)
printf(" %d ", a[i]);
}
void quickSort( int a[], int l, int r)
{
int j;
if( l < r ) { // divide and conquer
j = partition( a, l, r);
quickSort( a, l, j-1);
quickSort( a, j+1, r);
}
}
int partition( int a[], int l, int r)
{
int pivot, i, j, t;
pivot = a[l];
i = l;
j = r+1;
while( 1) {
do {
++i;
} while(a[i]<=pivot && i<=r);
do {
--j;
} while( a[j] > pivot );
if( i >= j ) break;
t = a[i];
a[i] = a[j];
a[j] = t;
}
t = a[l];
a[l] = a[j];
a[j] = t;
return j;
}

19. Trace of Partitioning
Input: 45 -56 78 90 -3 -6 123 0 -3 45 69 68
Output: -56 -6 -3 -3 0 45 45 68 69 78 90 123
45 -56 78 90 -3 -6 123 0 -3 45 69 68
-6 -56 -3 0 -3 45 123 90 78 45 69 68
-3 0 -3
-6
-56
0 -3
-3
-3 0
68 90 78 45 69 123
78 90 69
68
45
78
69 90

20. 2k
=n
Time Complexity
• Partitioning with n elements.
- No. of comparisons:
n-1
• Worst Case Performance:
(n-1)+(n-2)+(n-3)+………. +1= n(n-1)/2
• Best Case performance:
(n-1)+2((n-1)/2-1)+4(((n-1)/2-1)-1)/2-1) .. k steps
= O(n. log(n))
Choice of pivot element affects
the time complexity.

21. Exercise
• Implement non-recursive version of quick sort and
merge sort.

22. Multi-file programs

23. Example 1
• Determine the value of x which causes the
function
y = x cos(x)
to be maximized within a specified interval.

24. /* find the maximum of a function within a specified interval */
#include <stdio.h>
double a,b,xl,yl,xr,yr,cnst=0.0001; /* external variable declaration */
extern void reduce(void); /* external function prototype */
extern double curve(double xl); /* external function prototype */
int main()
{
double xmax, ymax;
printf("na= ");
scanf("%lf",&a);
printf("nb= ");
scanf("%lf",&b);
do
reduce();
while((yl!=yr) && ((b-a)>3*cnst));
xmax=0.5*(xl+xr);
ymax=curve(xmax);
printf("nxmax= %8.6lf ymax= %8.6lfn",xmax,ymax);
}
mainFile.c

25. extern double a,b,xl,yl,xr,yr,cnst;
extern double curve(double xl);
extern void reduce(void)
{
xl=a+0.5*(b-a-cnst);
xr=xl+cnst;
yl=curve(xl);
yr=curve(xr);
if(yl>yr) {
b=xr;
return;
}
if(yl<yr)
a=xl;
return;
}
intReduce.c
#include <math.h>
extern double curve(double x)
{
return (x*cos(x));
}
evalFunc.c

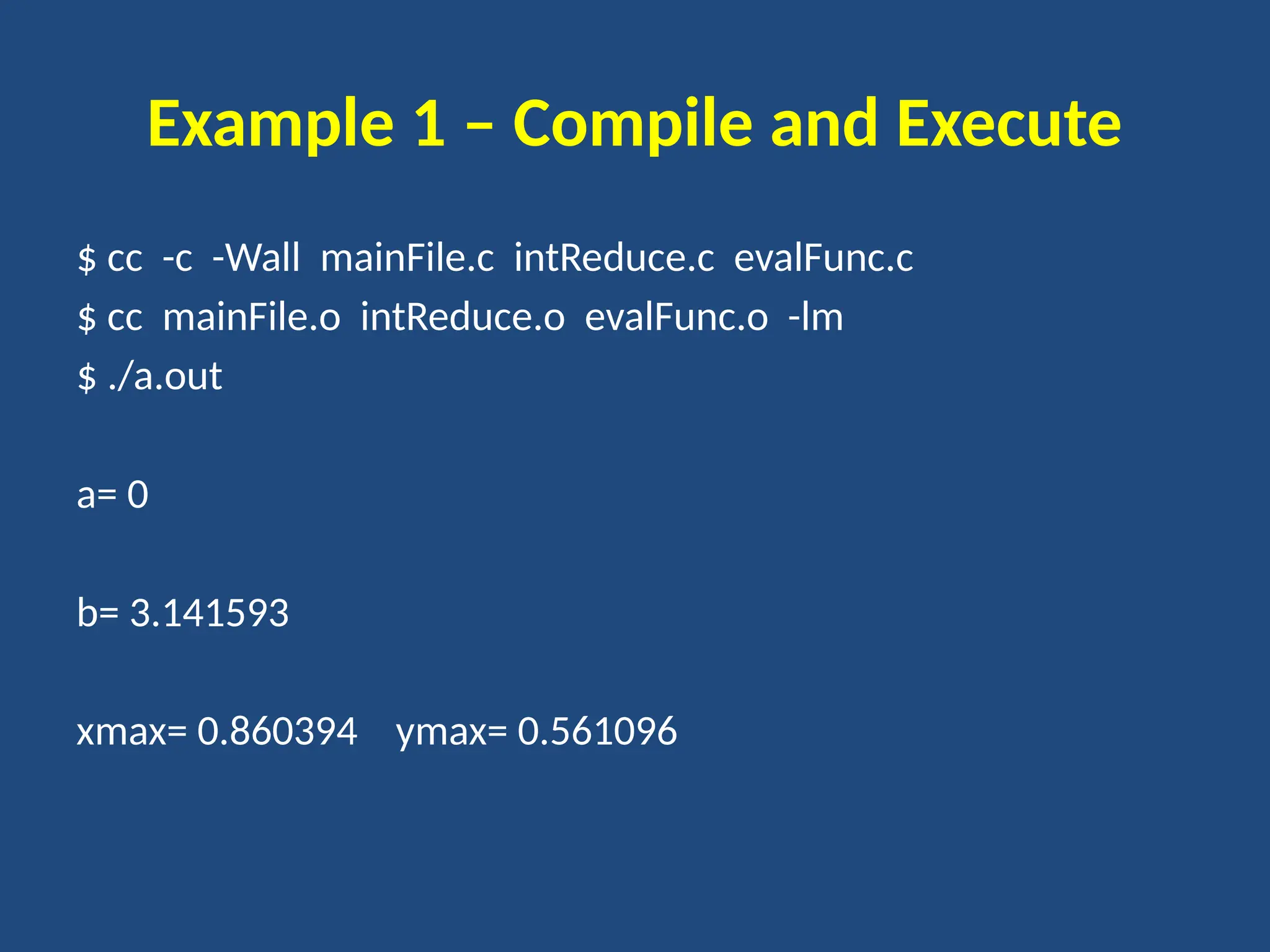

26. Example 1 – Compile and Execute
$ cc -c -Wall mainFile.c intReduce.c evalFunc.c
$ cc mainFile.o intReduce.o evalFunc.o -lm
$ ./a.out
a= 0
b= 3.141593
xmax= 0.860394 ymax= 0.561096

27. Example
Write a complete C program that will read N (to be read
from the user) number of integers and sort them. User
will input his/her choice of sorting technique from a pool
of Selection/Insertion/Bubble sort. Each sorting
technique will be implemented as separate function.
User choice will pick right sorting function using switch-
case statement.

28. Example
#include <stdio.h>
#define SIZE 100
void selSort(int a[],int n);
void insSort(int a[],int n);
void bubbleSort(int a[],int n);
int main()
{
char choice;
int k,x[SIZE],size;
do {
printf("Enter the number of elements: ");
scanf("%d",&size);
printf("Enter the elements: ");
for(k=0;k<size;k++)
scanf("%d",&x[k]);
printf("Sorting method [I/S/B]: ");
getchar();
choice=getchar();
switch(choice) {
case 'I':
case 'i': insSort(x,size);
break;
case 'S':
case 's': selSort(x,size);
break;
case 'B':
case 'b': bubbleSort(x,size);
break;
default: printf(“No Sorting");
}
for(k=0;k<size;k++)
printf("%d ",x[k]);
printf("Continue [Y/N]: ");
getchar();
choice=getchar();
} while(choice=='Y' || choice=='y');
return 0;
}

29. void bubbleSort(int a[],int n)
{
int pass,j,temp,swapflag;
for(pass=0; pass<n; pass++) {
swapflag=0;
for(j=0; j<n-1; j++) {
if(a[j]>a[j+1]) {
temp = a[j+1];
a[j+1] = a[j];
a[j] = temp;
swapflag=1;
}
}
if(swapflag==0)
break;
}
}
void insSort(int x[],int size)
{
int i,j,temp;
for (i=1; i<size; i++) {
temp = x[i] ;
for (j=i-1; (j>=0)&& (x[j] > temp); j--)
x[j+1] = x[j];
x[j+1] = temp ;
}
}
void selSort(int x[],int size)
{
int k,j,pos,temp;
for (k=0; k<size-1; k++) {
pos = k;
for (j=k+1; j<size; j++) {
if (x[j] < x[pos]) {
pos = j;
}
}
temp = x[k];
x[k] = x[pos];
x[pos] = temp;
}
}

30. EXAMPLE
PROBLEMS

31. Problem 1
Write a C program to print a Geometric
Progression (GP) series and its sum till N terms.
Expression for a GP Series:
where, a is the first term
r is the common ratio
n is the number of terms

32. Problem 1 (Gp-sum)
#include <stdio.h>
#include <math.h>
int main()
{
float a, r, sum, term;
int n, i;
printf("Give the first term, common ratio, and number of terms: n");
scanf("%f%f%d",&a,&r,&n);
sum=0;
term=a;
for (i=0; i<n; i++)
{ sum=sum+term;
term=term*r;
}
printf("Sum=%f n",sum);
return 0;
}

33. Problem 2
Write a C program to generate a FLOYD's triangle.
1
2 3
4 5 6
7 8 9 10
11 13 14 15
16 17 18 19 20 21

34. C Program Code (Floyd Triangle)
#include <stdio.h>
int main()
{
int rows, a, b, number = 1;
printf("Number of rows of Floyd's triangle to print:");
scanf("%d",&rows);
for ( a = 1 ; a <= rows ; a++ ) {
for ( b = 1 ; b <= a ; b++ ) {
printf("%d ", number);
number++;
}
printf("n");
}
return 0;
}

35. Problem 3
Write a C program to check whether a number is a
strong number or not.
What is a strong number ?
A number whose sum of the factorial of its digit is
equal to the number itself.
Example: 145 = 1! +4! +5! = 1 + 24 + 120 = 145 is a
strong number.

36. Problem 3 (Strong Number)
#include <stdio.h>
int factorial(int k);
int main()
{
int number, tmpnum, i, sum, digit;
printf("Input the number: n");
scanf("%d",&number);
sum=0;
tmpnum=number;
/* Get digits one by one and add their
factorials cumulatively */
while(tmpnum>0)
{
digit=tmpnum%10;
tmpnum=tmpnum/10;
sum=sum+factorial(digit);
}
int factorial(int k)
{
int prod=1, i;
for(i=1; i<=k;i++)
prod=prod*i;
return(prod);
}
if (sum==number)
printf("The number %d is a
strong number n",number);
else
printf("The number is NOT
a strong number n");
return 0;
} /* End of main() */

37. Problem 4
Write a C program to arrange elements in an array
in ascending order.

38. Problem 5
Write a C program to reverse a string (array of
characters) without using any extra array.

39. Problem 5 (String reversal w/o extra array)
/* String reversal without using extra array */
#include <stdio.h>
#include <string.h>
int main()
{
char S[100],tmpChar;
int i,j;
printf("Read the string n");
scanf("%s",S);
printf("The input string %s n", S);
i=0;
j=strlen(S)-1;
while(i<j)
{
tmpChar=S[i];
S[i]=S[j];
S[j]=tmpChar;
i++;
j--;
}
printf("The output string %s n", S);
return(0);
}

40. Problem 6
Write a C program to concatenate two strings
without using library function.

41. Problem 6 (String concatenation)
#include <stdio.h>
int main()
{
char S1[100], S2[100], S3[200];
int i,j;
printf("Read two strings n");
scanf("%s%s",S1,S2);
i=0;
j=0;
while(S1[i]!='0')
{
S3[j]=S1[i];
i++;
j++;
}
i=0;
while(S2[i]!='0')
{
S3[j]=S2[i];
i++;
j++;
}
S3[j]='0'; /* Denote end of string */
printf("Concatenated string %s n",S3);
return(0);
}

42. Problem 7
Given 2 positive numbers n and r, n>=r , write a C
function to compute the number of combinations(n
Cr)
and the number of permutations(n
Pr).
Permutations formula is P(n,r)=n!/(n-r)!
Combinations formula is C(n,r)=n!/(r!(n-r)!)

43. Problem 7- Program for testing permutaion
and combination
#include <stdio.h>
int permute(int n, int m);
int choose(int n,int r);
int main()
{
int n,m,r;
int permVal,combVal;
printf("Give n and m for n permute m n");
scanf("%d%d",&n,&m);
permVal=permute(n,m);
printf("Number of permutations=%d
n",permVal);
printf("Give n and r for n choose r n");
scanf("%d%d",&n,&r);
combVal=choose(n,r);
printf("Number of combinations=%d
n",combVal);
return(0);
}

44. permute() and choose() functions
int permute(int n,int m)
{
int i, val;
val=n;
for(i=n-1;i>=n-m+1;i--)
val=val*i;
return(val);
}
int choose(int n,int r)
{
int i;
float val;
val=n;
for(i=1;i<r;i++)
val=val* (float) (n-i)/ (float) (i+1);
return((int) val);
}

45. Problem 8
Scope of variable:
What is the output of the following code snippet?
#include <stdio.h>
int main(){
int i = 10;
for(int i = 5; i < 15; i++)
printf(“i is %dn”, i);
printf(“i=%d n”,i);
return 0;
}

46. Scope of variable: What is the output of the following code snippet?
#include <stdio.h>
int a = 20;
int sum(int a, int b) {
printf ("value of a in sum() = %dn", a);
printf ("value of b in sum() = %dn", b);
return a + b;
}
int main ()
{
int a = 10; int b = 20; int c = 0;
printf ("value of a in main() = %dn", a);
c = sum( a, b);
printf ("value of c in main() = %dn", c);
return 0;
}
Problem 9

47. Problem 10
Write a C program which display the entered
number in words.
Example:
Input:
Enter a number: 7
Output:
Seven

48. Problem 11
Write a C program to delete duplicate elements in
an array without using another auxiliary array.
Example:
Input:
5 8 5 5 6 9 8 2 1 1 3 3
Output:
5 8 6 9 2 1 3

49. Problem 12
Write a C program to print PASCAL’s triangle.

50. Problem 13
Given 2 numbers a and b, write a C program to
compute the Greatest Common Divisor(GCD) of the 2
numbers.
The GCD of 2 numbers is the largest positive integer
that divides the numbers without a remainder.
Example: GCD(2,8)=2; GCD(3,7)=1

51. Problem 14
Given 2 arrays of integers A and B of size n each, write a
C program to calculate the dot product of the 2 arrays.
If A=[a0, a1, a2,….,an-1] and
B= [b0, b1, b2,….,bn-1],
the dot product of A and B is given by
A.B=[a0*b0 + a1*b1 + a2*b2 + ……. + an-1*bn-1]

52. Problem 15
Given a non negative integer n, write a C function to
output the decimal integer(base 10) in its binary
representation (base 2).
Example: Binary representation of
3 is 11
8 is 1000
15 is 1111

53. Problem 16
Given two array of sorted numbers A and B, both are of
arbitrary sizes, write a C function named merge_arrays
that merges both the arrays in sorted order and returns
the sorted array C.
