• 1.
  Advanced Web Technologies CSC337 Lecture 7& 8 Beginning Node.js, Express & MongoDB Development, Lim, G., Amazon, 2019.
• 2.

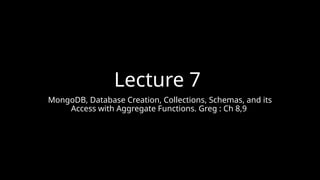

  Lecture 7 MongoDB, DatabaseCreation, Collections, Schemas, and its Access with Aggregate Functions. Greg : Ch 8,9
• 3.

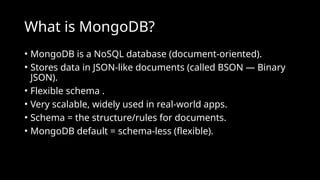

  What is MongoDB? •MongoDB is a NoSQL database (document-oriented). • Stores data in JSON-like documents (called BSON — Binary JSON). • Flexible schema . • Very scalable, widely used in real-world apps. • Schema = the structure/rules for documents. • MongoDB default = schema-less (flexible).
• 4.

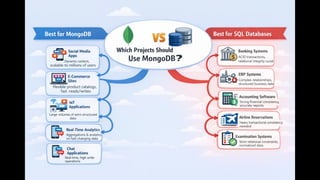

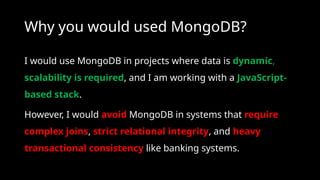

  Why you wouldused MongoDB? I would use MongoDB in projects where data is dynamic, scalability is required, and I am working with a JavaScript- based stack. However, I would avoid MongoDB in systems that require complex joins, strict relational integrity, and heavy transactional consistency like banking systems.
• 6.

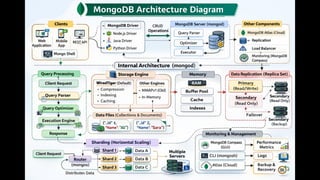

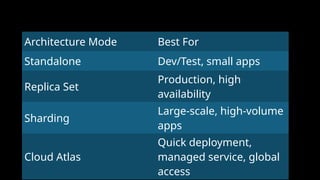

  Architecture Mode BestFor Standalone Dev/Test, small apps Replica Set Production, high availability Sharding Large-scale, high-volume apps Cloud Atlas Quick deployment, managed service, global access
• 8.

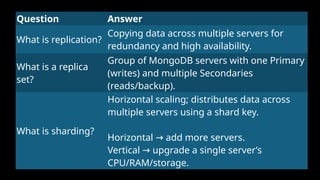

  Question Answer What isreplication? Copying data across multiple servers for redundancy and high availability. What is a replica set? Group of MongoDB servers with one Primary (writes) and multiple Secondaries (reads/backup). What is sharding? Horizontal scaling; distributes data across multiple servers using a shard key. Horizontal add more servers. → Vertical upgrade a single server’s → CPU/RAM/storage.
• 9.

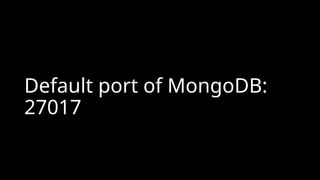

  Default port ofMongoDB: 27017
• 10.

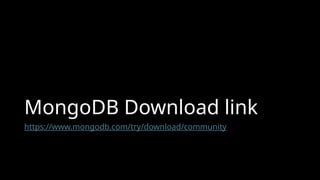

  MongoDB Download link https://www.mongodb.com/try/download/community
• 11.

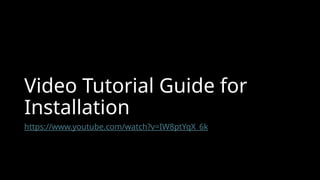

  Video Tutorial Guidefor Installation https://www.youtube.com/watch?v=IW8ptYqX_6k
• 12.
  Key Terms inMongoDB
• 13.

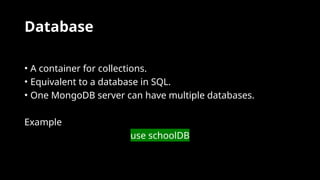

  Database • A containerfor collections. • Equivalent to a database in SQL. • One MongoDB server can have multiple databases. Example use schoolDB
• 14.

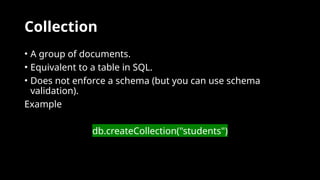

  Collection • A groupof documents. • Equivalent to a table in SQL. • Does not enforce a schema (but you can use schema validation). Example db.createCollection("students")
• 15.

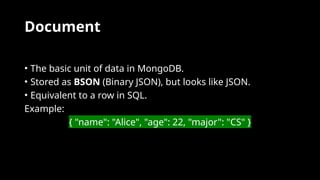

  Document • The basicunit of data in MongoDB. • Stored as BSON (Binary JSON), but looks like JSON. • Equivalent to a row in SQL. Example: { "name": "Alice", "age": 22, "major": "CS" }
• 16.

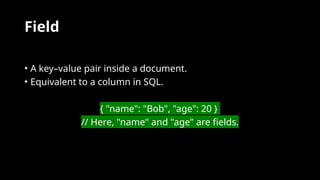

  Field • A key–valuepair inside a document. • Equivalent to a column in SQL. { "name": "Bob", "age": 20 } // Here, "name" and "age" are fields.
• 17.

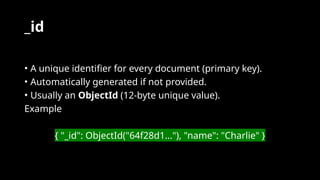

  _id • A uniqueidentifier for every document (primary key). • Automatically generated if not provided. • Usually an ObjectId (12-byte unique value). Example { "_id": ObjectId("64f28d1..."), "name": "Charlie" }
• 18.

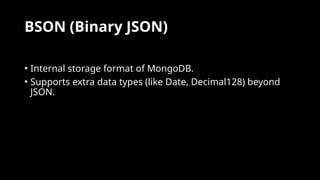

  BSON (Binary JSON) •Internal storage format of MongoDB. • Supports extra data types (like Date, Decimal128) beyond JSON.
• 19.

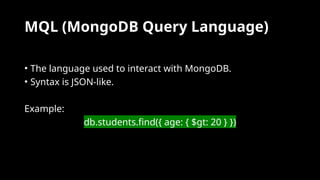

  MQL (MongoDB QueryLanguage) • The language used to interact with MongoDB. • Syntax is JSON-like. Example: db.students.find({ age: { $gt: 20 } })
• 20.

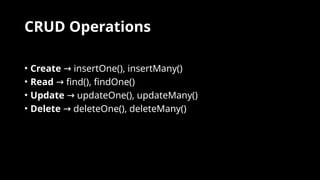

  CRUD Operations • CreateinsertOne(), insertMany() → • Read find(), findOne() → • Update updateOne(), updateMany() → • Delete deleteOne(), deleteMany() →
• 21.

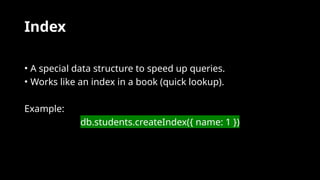

  Index • A specialdata structure to speed up queries. • Works like an index in a book (quick lookup). Example: db.students.createIndex({ name: 1 })

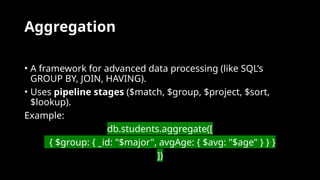

• 22.
  Aggregation • A frameworkfor advanced data processing (like SQL’s GROUP BY, JOIN, HAVING). • Uses pipeline stages ($match, $group, $project, $sort, $lookup). Example: db.students.aggregate([ { $group: { _id: "$major", avgAge: { $avg: "$age" } } } ])

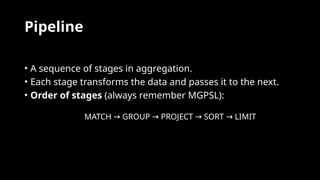

• 23.
  Pipeline • A sequenceof stages in aggregation. • Each stage transforms the data and passes it to the next. • Order of stages (always remember MGPSL): MATCH GROUP PROJECT SORT LIMIT → → → →
• 24.

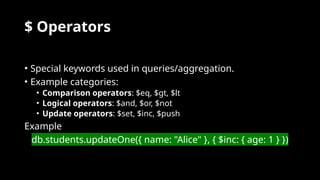

  $ Operators • Specialkeywords used in queries/aggregation. • Example categories: • Comparison operators: $eq, $gt, $lt • Logical operators: $and, $or, $not • Update operators: $set, $inc, $push Example db.students.updateOne({ name: "Alice" }, { $inc: { age: 1 } })
• 25.

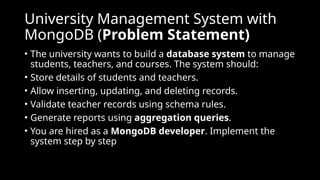

  University Management Systemwith MongoDB (Problem Statement) • The university wants to build a database system to manage students, teachers, and courses. The system should: • Store details of students and teachers. • Allow inserting, updating, and deleting records. • Validate teacher records using schema rules. • Generate reports using aggregation queries. • You are hired as a MongoDB developer. Implement the system step by step

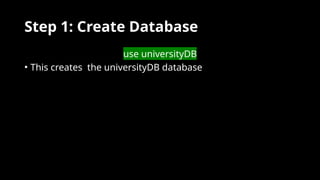

• 26.
  Step 1: CreateDatabase use universityDB • This creates the universityDB database
• 27.

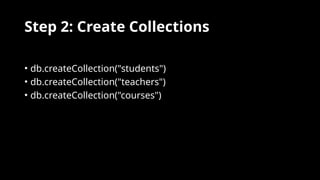

  Step 2: CreateCollections • db.createCollection("students") • db.createCollection("teachers") • db.createCollection("courses")
• 28.

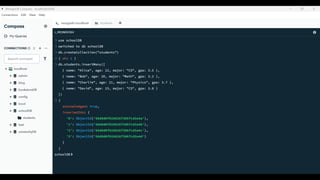

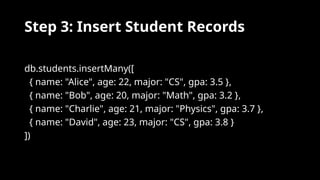

  Step 3: InsertStudent Records db.students.insertMany([ { name: "Alice", age: 22, major: "CS", gpa: 3.5 }, { name: "Bob", age: 20, major: "Math", gpa: 3.2 }, { name: "Charlie", age: 21, major: "Physics", gpa: 3.7 }, { name: "David", age: 23, major: "CS", gpa: 3.8 } ])
• 30.

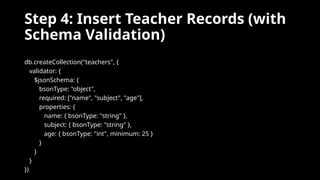

  Step 4: InsertTeacher Records (with Schema Validation) db.createCollection("teachers", { validator: { $jsonSchema: { bsonType: "object", required: ["name", "subject", "age"], properties: { name: { bsonType: "string" }, subject: { bsonType: "string" }, age: { bsonType: "int", minimum: 25 } } } } })
• 31.

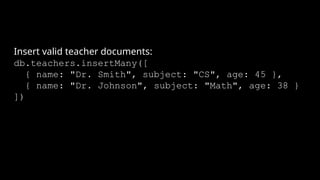

  Insert valid teacherdocuments: db.teachers.insertMany([ { name: "Dr. Smith", subject: "CS", age: 45 }, { name: "Dr. Johnson", subject: "Math", age: 38 } ])
• 32.

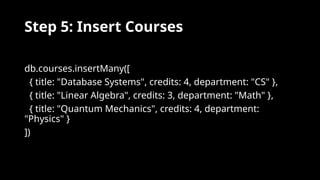

  Step 5: InsertCourses db.courses.insertMany([ { title: "Database Systems", credits: 4, department: "CS" }, { title: "Linear Algebra", credits: 3, department: "Math" }, { title: "Quantum Mechanics", credits: 4, department: "Physics" } ])
• 33.

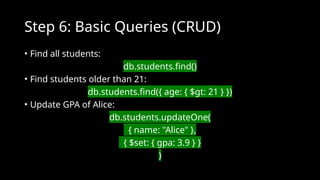

  Step 6: BasicQueries (CRUD) • Find all students: db.students.find() • Find students older than 21: db.students.find({ age: { $gt: 21 } }) • Update GPA of Alice: db.students.updateOne( { name: "Alice" }, { $set: { gpa: 3.9 } } )
• 34.

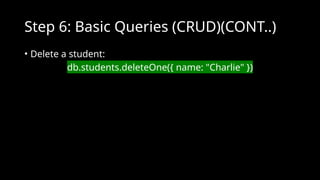

  Step 6: BasicQueries (CRUD)(CONT..) • Delete a student: db.students.deleteOne({ name: "Charlie" })
• 35.

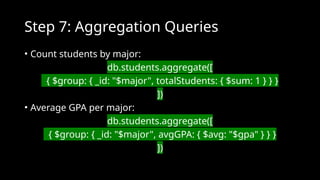

  Step 7: AggregationQueries • Count students by major: db.students.aggregate([ { $group: { _id: "$major", totalStudents: { $sum: 1 } } } ]) • Average GPA per major: db.students.aggregate([ { $group: { _id: "$major", avgGPA: { $avg: "$gpa" } } } ])
• 36.

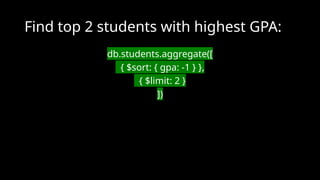

  Find top 2students with highest GPA: db.students.aggregate([ { $sort: { gpa: -1 } }, { $limit: 2 } ])
• 38.

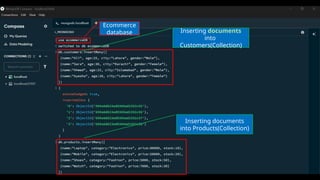

  Ecommerce database Inserting documents into Customers(Collection) Insertingdocuments into Products(Collection)
• 39.

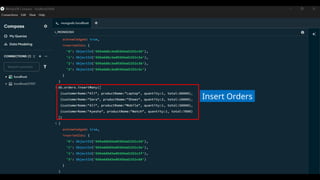

  Insert Orders
• 40.

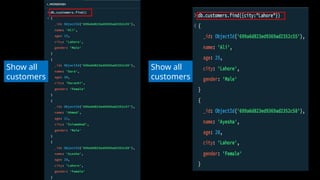

  Show all customers Show all customers
• 41.

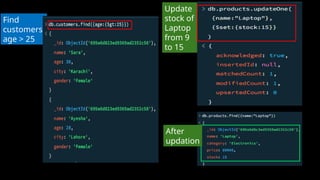

  Find customers age > 25 Update stockof Laptop from 9 to 15 After updation
• 42.

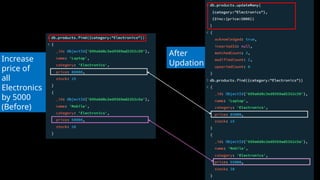

  Increase price of all Electronics by 5000 (Before) After Updation
• 43.

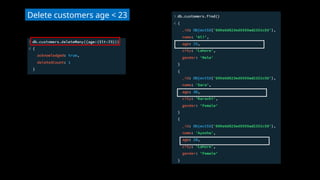

  Delete customers age< 23

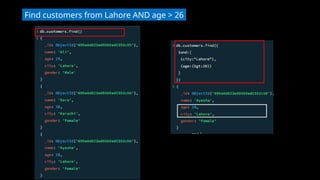

• 44.
  Find customers fromLahore AND age > 26
• 45.

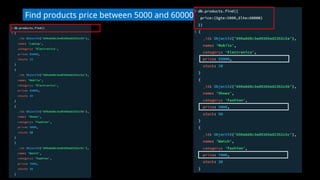

  Find products pricebetween 5000 and 60000
• 46.

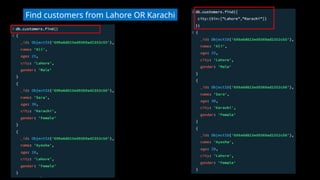

  Find customers fromLahore OR Karachi
• 47.

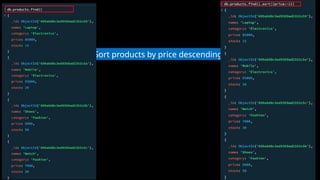

  Sort products byprice descending
• 48.

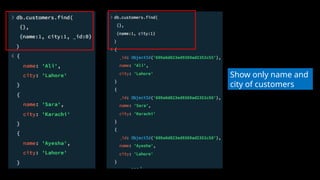

  Show only nameand city of customers
• 49.

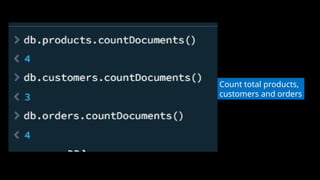

  Count total products, customersand orders
• 50.

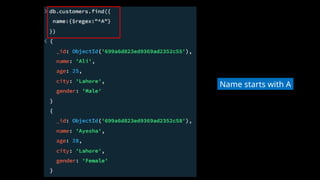

  Name starts withA

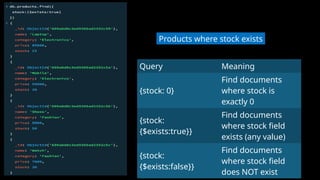

• 51.
  Query Meaning {stock: 0} Finddocuments where stock is exactly 0 {stock: {$exists:true}} Find documents where stock field exists (any value) {stock: {$exists:false}} Find documents where stock field does NOT exist Products where stock exists
• 52.

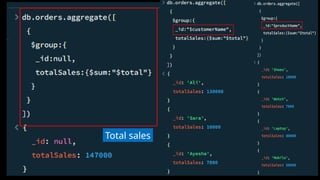

  Total sales
• 53.

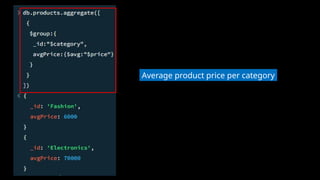

  Average product priceper category
• 54.

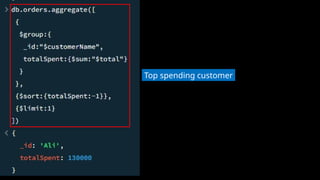

  Top spending customer
• 55.

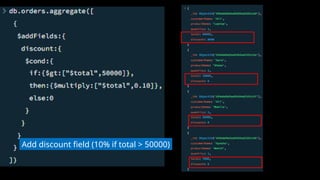

  Add discount field(10% if total > 50000)
• 56.

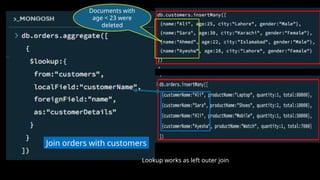

  Join orders withcustomers Lookup works as left outer join Documents with age < 23 were deleted
• 57.

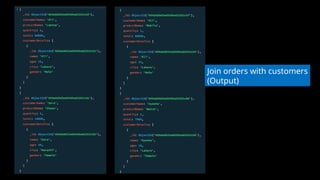

  Join orders withcustomers (Output)
• 58.

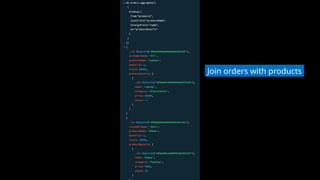

  Join orders withproducts
• 59.

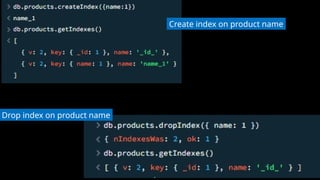

  Create index onproduct name Drop index on product name
• 60.

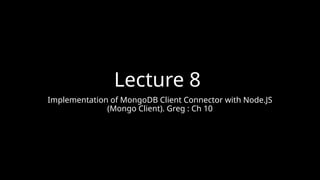

  Lecture 8 Implementation ofMongoDB Client Connector with Node.JS (Mongo Client). Greg : Ch 10
• 61.

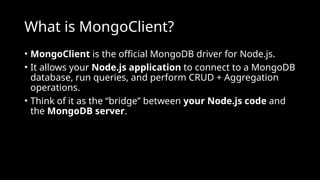

  What is MongoClient? •MongoClient is the official MongoDB driver for Node.js. • It allows your Node.js application to connect to a MongoDB database, run queries, and perform CRUD + Aggregation operations. • Think of it as the “bridge” between your Node.js code and the MongoDB server.
• 62.
  Setup

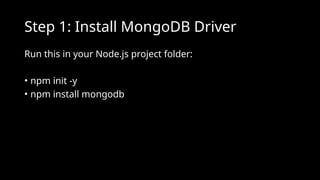

• 63.
  Step 1: InstallMongoDB Driver Run this in your Node.js project folder: • npm init -y • npm install mongodb
• 64.

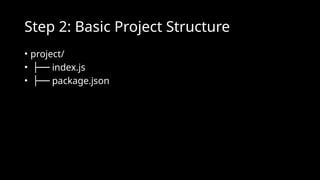

  Step 2: BasicProject Structure • project/ • ├── index.js • ├── package.json

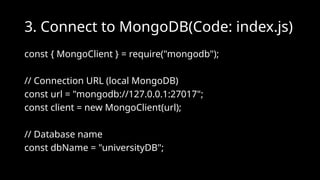

• 65.
  3. Connect toMongoDB(Code: index.js) const { MongoClient } = require("mongodb"); // Connection URL (local MongoDB) const url = "mongodb://127.0.0.1:27017"; const client = new MongoClient(url); // Database name const dbName = "universityDB";

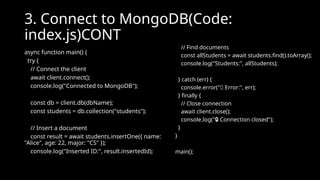

• 66.
  3. Connect toMongoDB(Code: index.js)CONT async function main() { try { // Connect the client await client.connect(); console.log("Connected to MongoDB"); const db = client.db(dbName); const students = db.collection("students"); // Insert a document const result = await students.insertOne({ name: "Alice", age: 22, major: "CS" }); console.log("Inserted ID:", result.insertedId); // Find documents const allStudents = await students.find().toArray(); console.log("Students:", allStudents); } catch (err) { console.error("❌ Error:", err); } finally { // Close connection await client.close(); console.log(" Connection closed"); 🔒 } } main();
• 69.

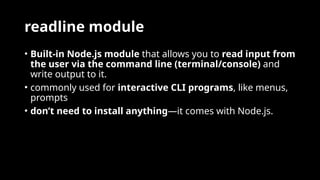

  readline module • Built-inNode.js module that allows you to read input from the user via the command line (terminal/console) and write output to it. • commonly used for interactive CLI programs, like menus, prompts • don’t need to install anything—it comes with Node.js.
• 70.

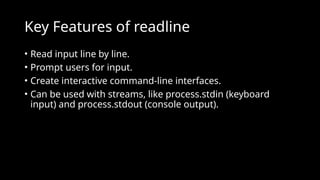

  Key Features ofreadline • Read input line by line. • Prompt users for input. • Create interactive command-line interfaces. • Can be used with streams, like process.stdin (keyboard input) and process.stdout (console output).
• 72.

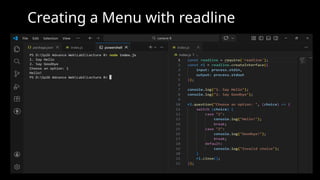

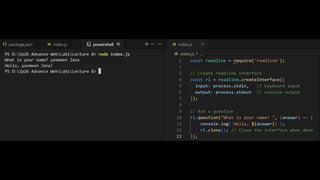

  Creating a Menuwith readline
