Brigade is a tool that allows users to run scriptable and automated tasks as part of a Kubernetes cluster. It provides simple and powerful pipelines through a brigade.js configuration file. Brigade runs inside the Kubernetes cluster, leveraging Docker images. Kashti provides a UI for visualizing Brigade builds, logs, and DevOps workflows. GitHub and other event triggers can be used to trigger Brigade pipelines. Helm helps users define, install, and upgrade complex Kubernetes applications through reusable charts.

1. Azure
Event driven pipelines with Brigade
Justin Davies
Open Source Technical Sales Lead
@justindavies

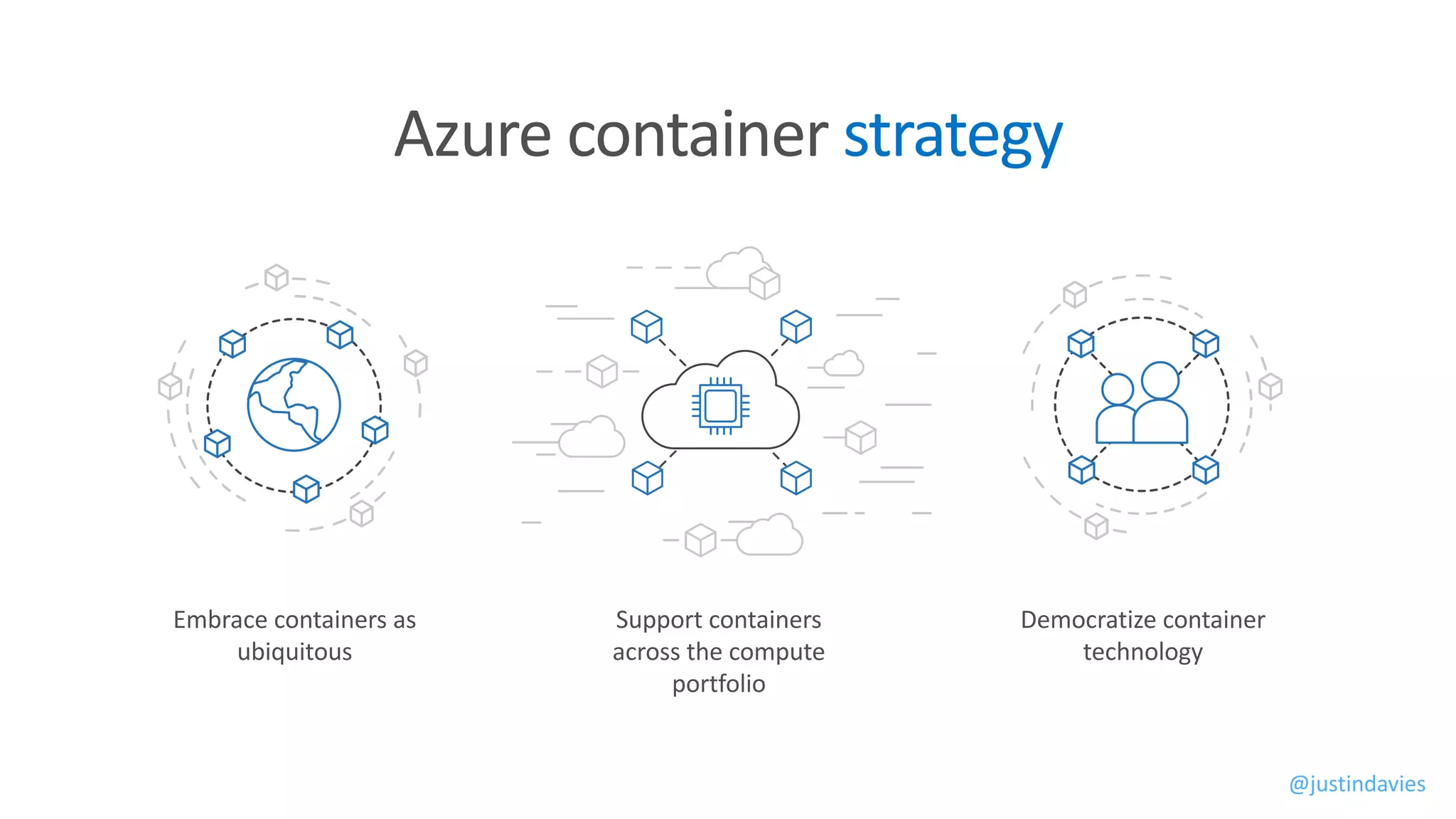

2. Azure container strategy
Embrace containers as
ubiquitous
Support containers
across the compute
portfolio
Democratize container
technology
@justindavies

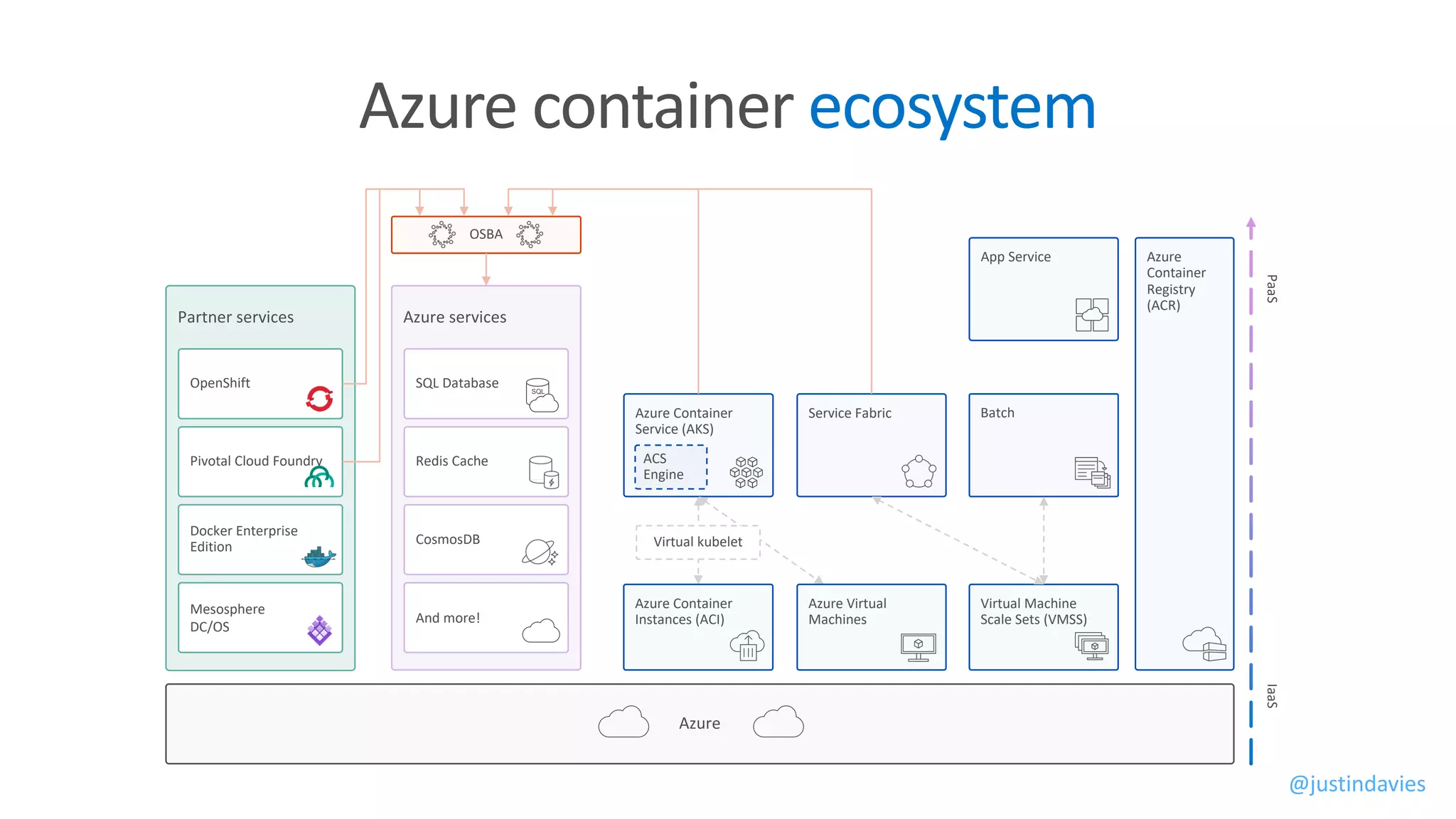

3. Azure container ecosystem
IaaSPaaS
Azure services
SQL Database
Redis Cache
CosmosDB
And more!
Partner services
OpenShift
Pivotal Cloud Foundry
Docker Enterprise
Edition
Mesosphere
DC/OS
Azure
Azure
Container
Registry
(ACR)
OSBA
Azure Container
Service (AKS)
ACS
Engine
Batch
Azure Container
Instances (ACI)
Azure Virtual
Machines
Virtual Machine
Scale Sets (VMSS)
Service Fabric
Virtual kubelet
App Service
@justindavies

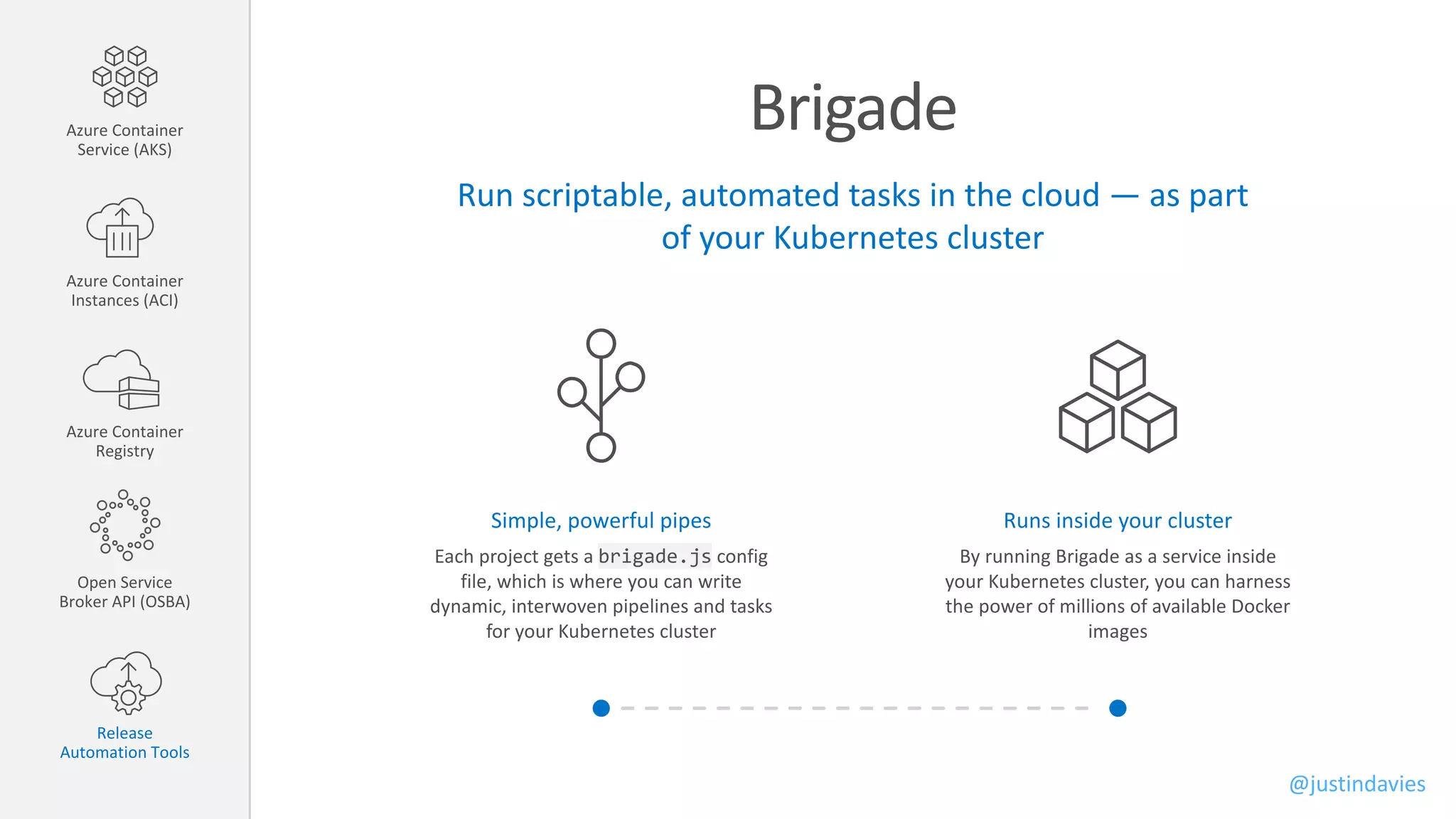

4. Brigade
Run scriptable, automated tasks in the cloud — as part
of your Kubernetes cluster
Simple, powerful pipes
Each project gets a brigade.js config
file, which is where you can write
dynamic, interwoven pipelines and tasks
for your Kubernetes cluster
Runs inside your cluster
By running Brigade as a service inside
your Kubernetes cluster, you can harness
the power of millions of available Docker
images
Azure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
@justindavies

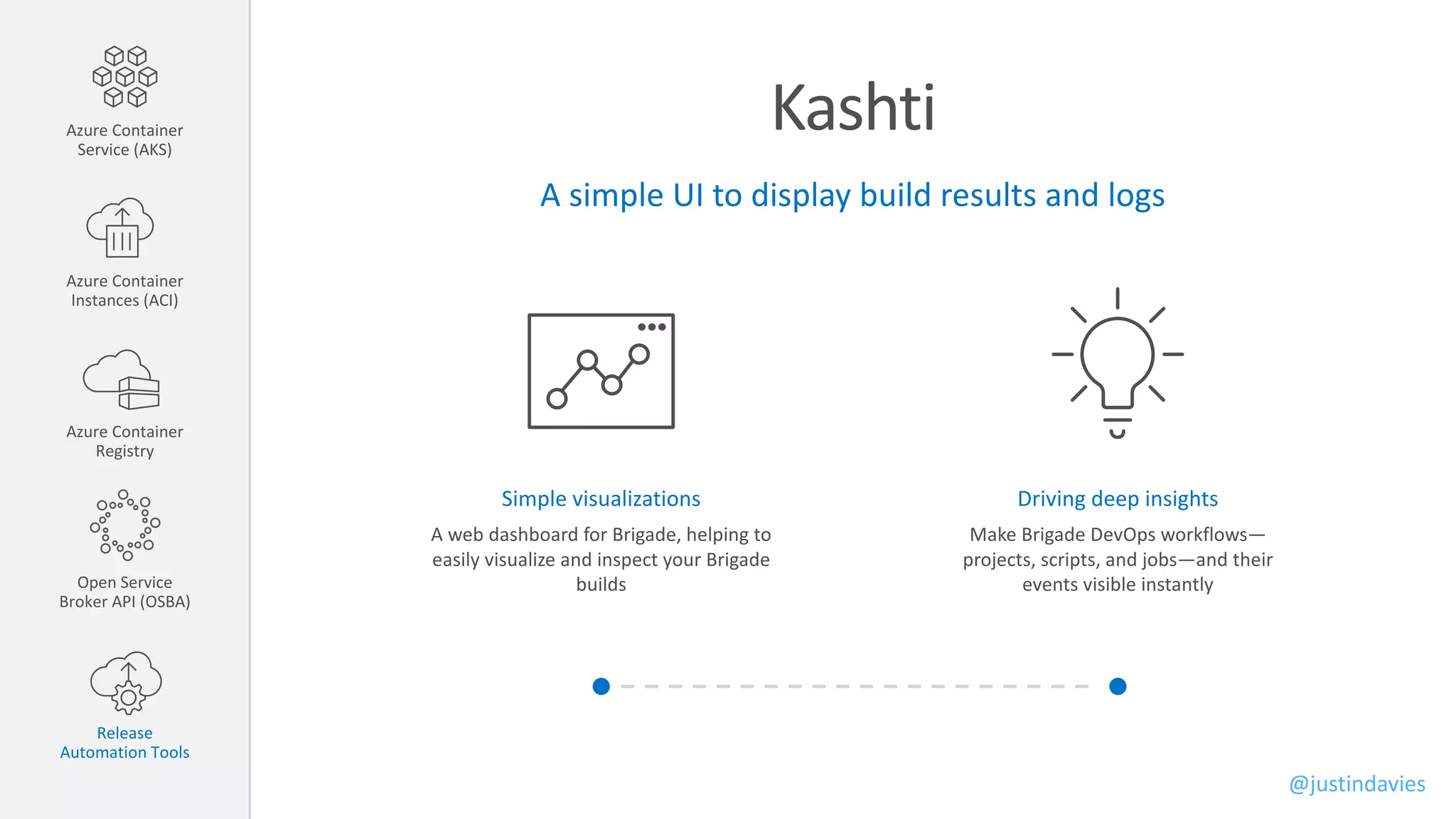

5. Kashti
A simple UI to display build results and logs
Simple visualizations
A web dashboard for Brigade, helping to
easily visualize and inspect your Brigade
builds
Driving deep insights
Make Brigade DevOps workflows—
projects, scripts, and jobs—and their
events visible instantly
Azure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
@justindavies

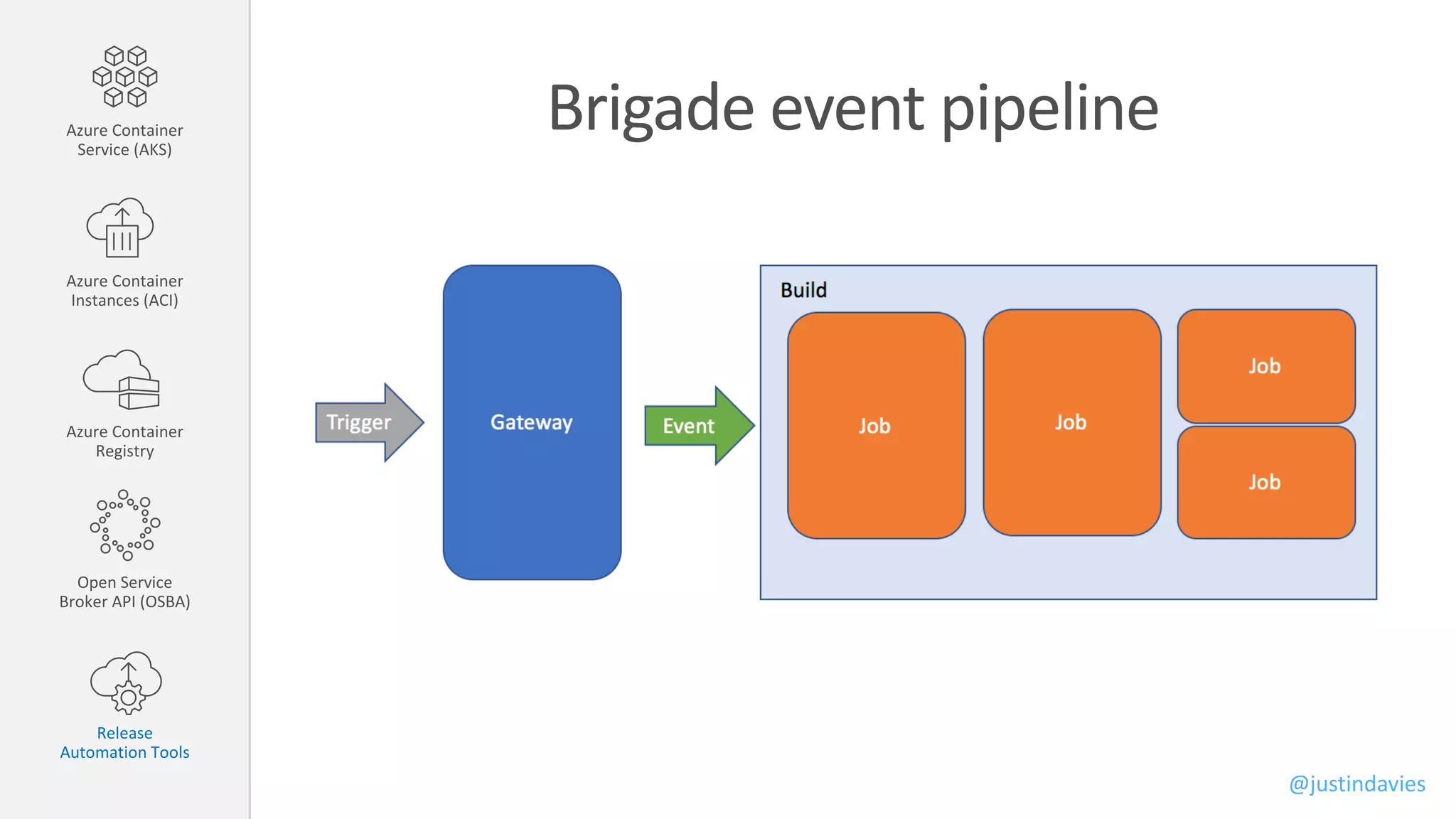

6. Brigade event pipelineAzure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
@justindavies

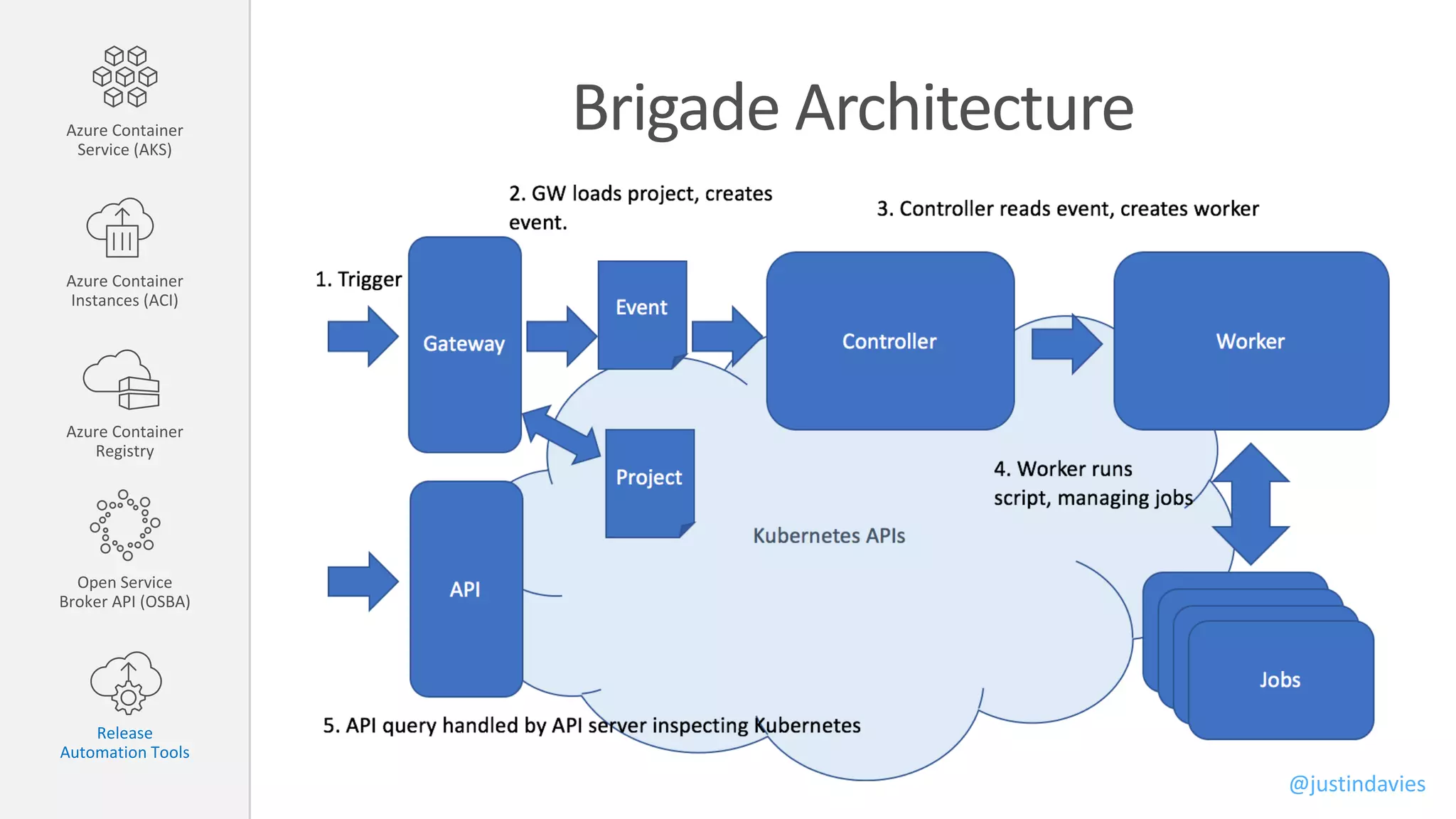

7. Brigade ArchitectureAzure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
@justindavies

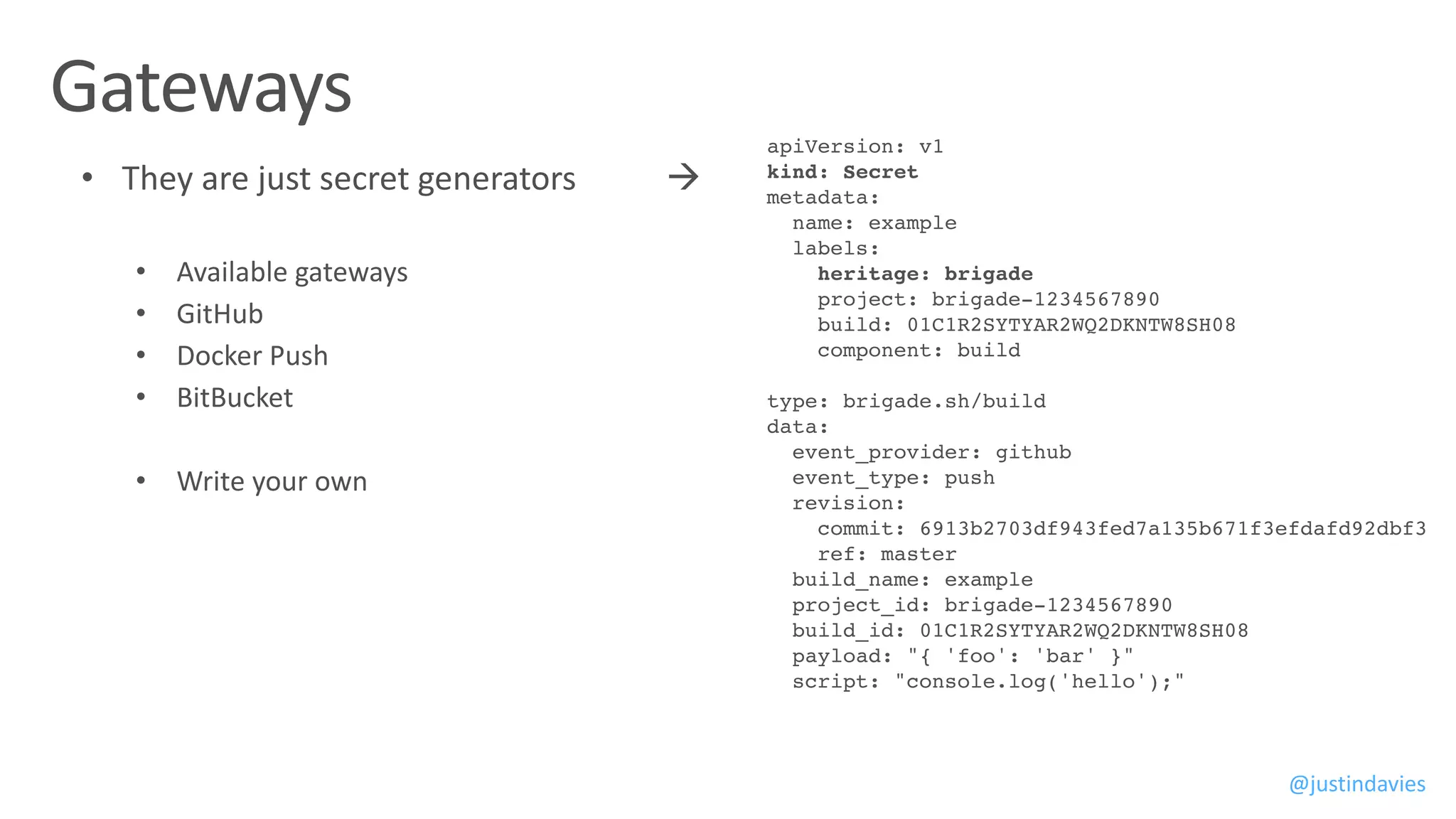

8. @justindavies
apiVersion: v1
kind: Secret
metadata:
name: example
labels:
heritage: brigade
project: brigade-1234567890
build: 01C1R2SYTYAR2WQ2DKNTW8SH08
component: build
type: brigade.sh/build
data:
event_provider: github
event_type: push
revision:
commit: 6913b2703df943fed7a135b671f3efdafd92dbf3
ref: master
build_name: example
project_id: brigade-1234567890
build_id: 01C1R2SYTYAR2WQ2DKNTW8SH08
payload: "{ 'foo': 'bar' }"
script: "console.log('hello');"

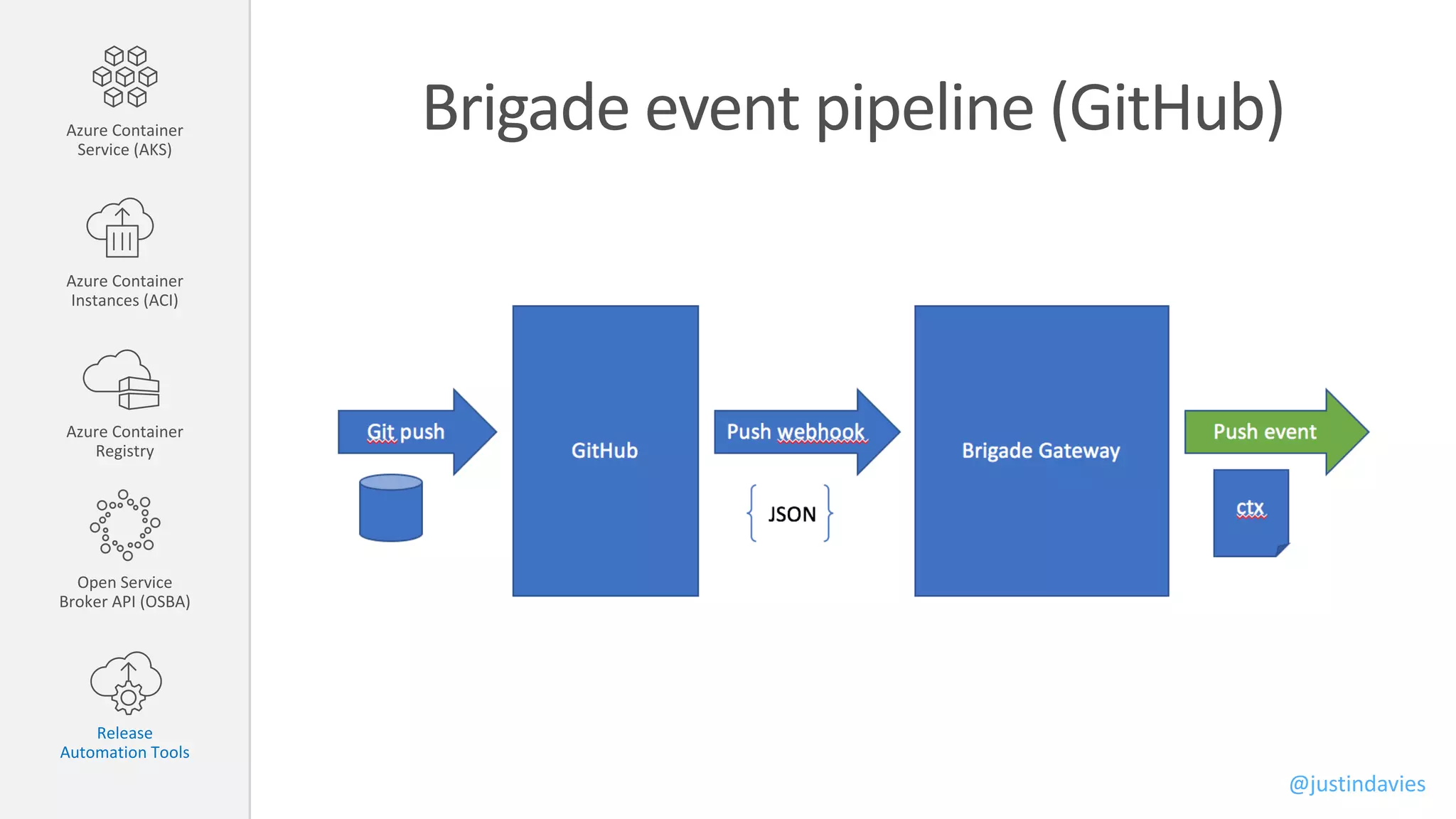

10. Brigade event pipeline (GitHub)Azure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
@justindavies

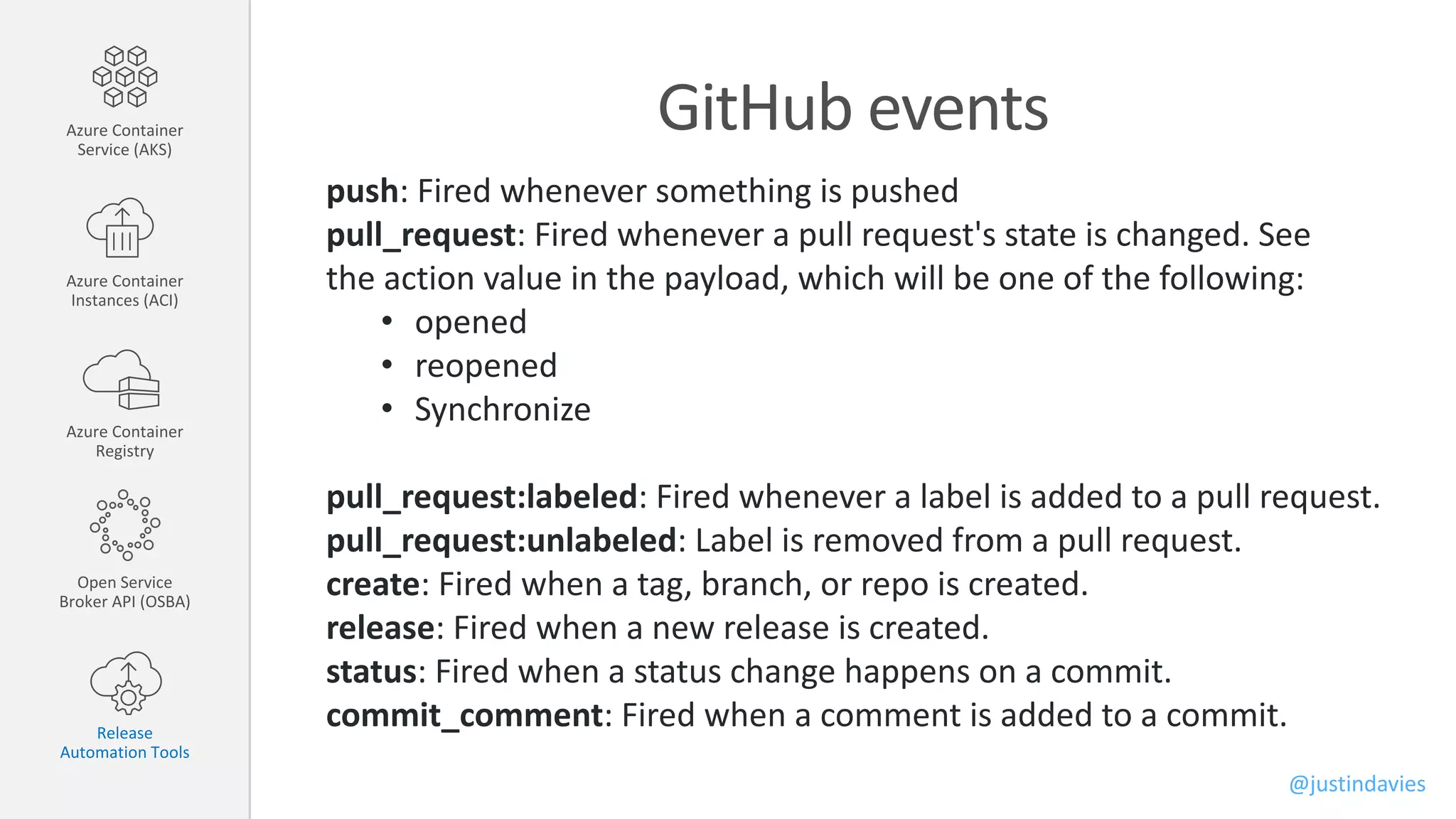

11. GitHub eventsAzure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
push: Fired whenever something is pushed
pull_request: Fired whenever a pull request's state is changed. See
the action value in the payload, which will be one of the following:
• opened
• reopened
• Synchronize
pull_request:labeled: Fired whenever a label is added to a pull request.
pull_request:unlabeled: Label is removed from a pull request.
create: Fired when a tag, branch, or repo is created.
release: Fired when a new release is created.
status: Fired when a status change happens on a commit.
commit_comment: Fired when a comment is added to a commit.
@justindavies

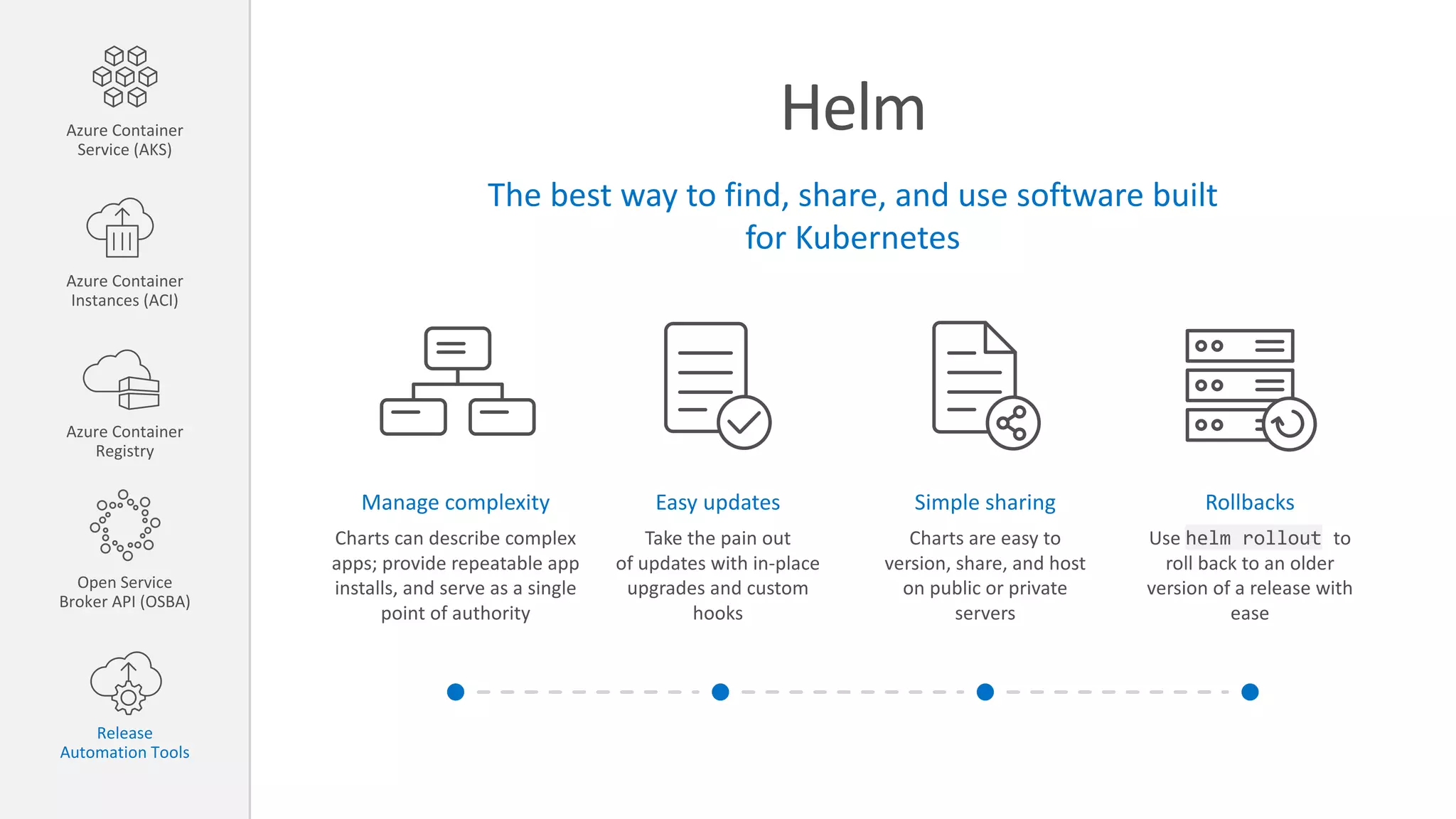

12. Helm
The best way to find, share, and use software built
for Kubernetes
Manage complexity
Charts can describe complex
apps; provide repeatable app
installs, and serve as a single
point of authority
Easy updates
Take the pain out
of updates with in-place
upgrades and custom
hooks
Simple sharing
Charts are easy to
version, share, and host
on public or private
servers
Rollbacks
Use helm rollout to
roll back to an older
version of a release with
ease
Azure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools

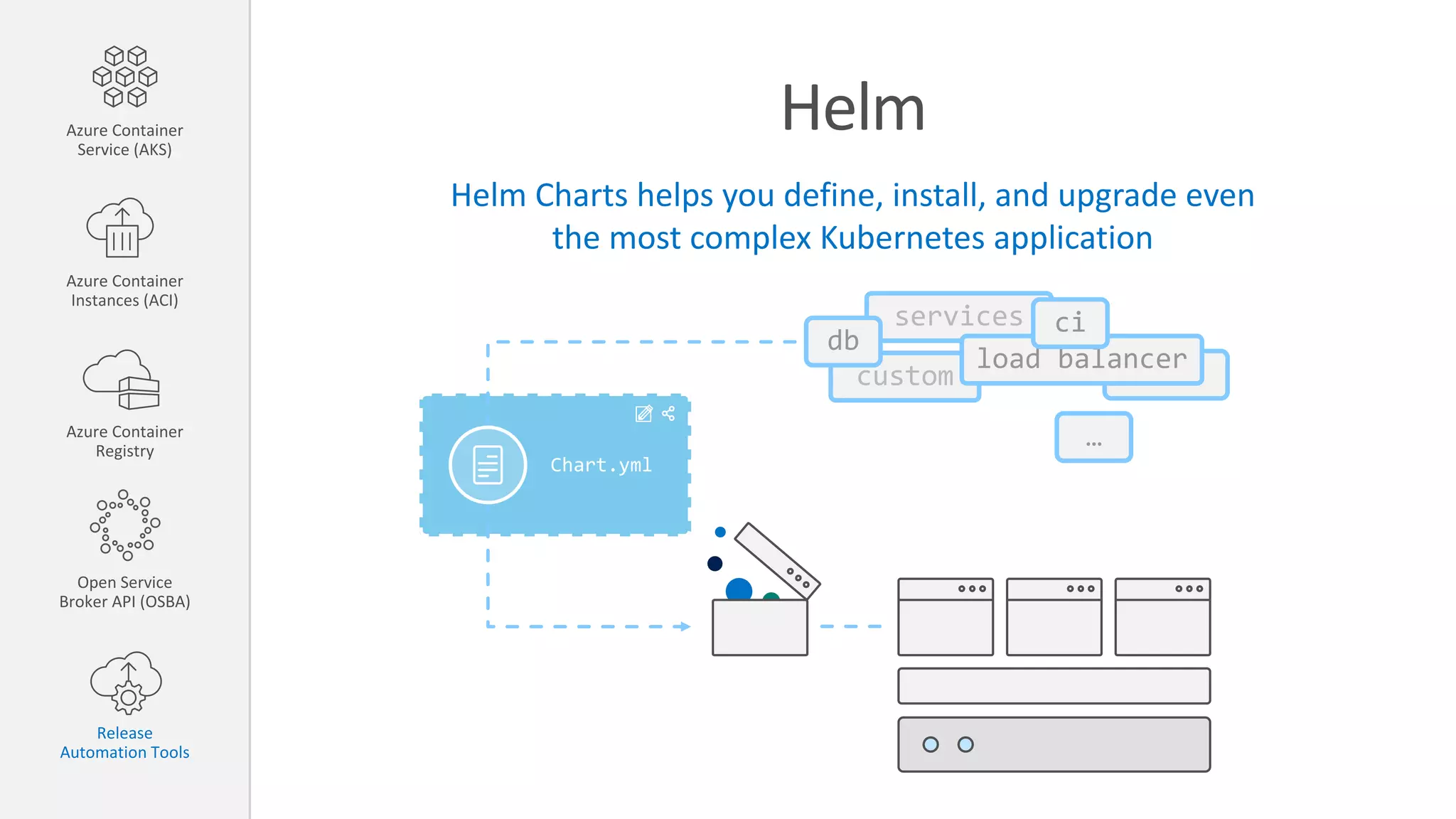

13. Helm
Helm Charts helps you define, install, and upgrade even
the most complex Kubernetes application
custom
services
Chart.yml
db
load balancer
ci
…
Azure Container
Service (AKS)
Azure Container
Instances (ACI)
Azure Container
Registry
Open Service
Broker API (OSBA)
Release
Automation Tools
