K2000 Mac Imaging
This document outlines best practices and procedures for Mac imaging and deployment using the K2000 system. It provides an overview of netboot environments, image configuration, application deployment methods, and postinstallation configurations. Additionally, it highlights best practices for creating and managing Mac system images efficiently.
More Related Content
K2000 Mac Imaging
- 1. Dell World UserForum UFIL507: K2000 Mac Imaging Mike Pace, Training Lead Patrick Warme, Senior Support Engineer Dell World User Forum

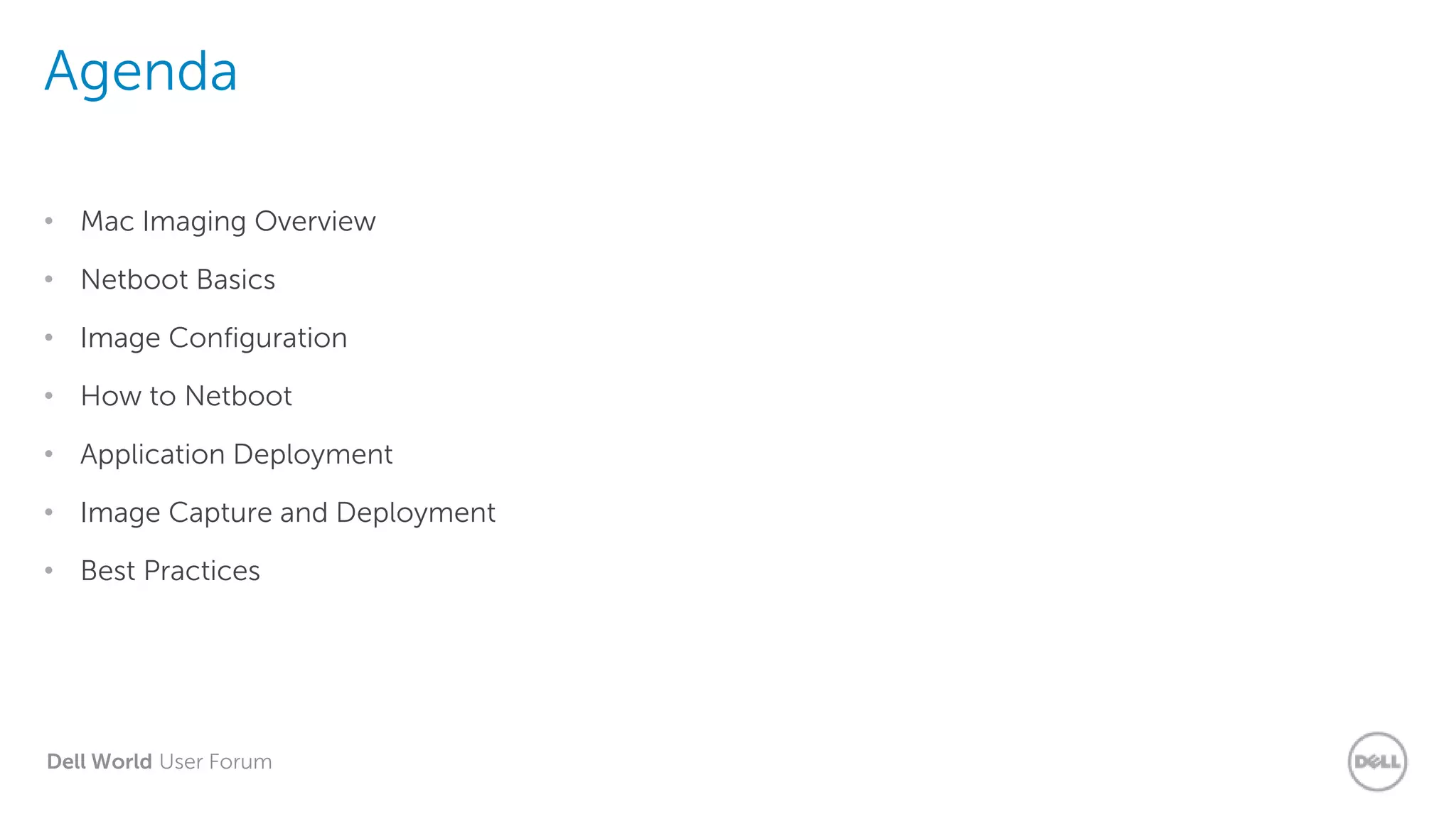

- 2. Dell World UserForum Agenda • Mac Imaging Overview • Netboot Basics • Image Configuration • How to Netboot • Application Deployment • Image Capture and Deployment • Best Practices
- 3. Dell World UserForum Mac Imaging Overview

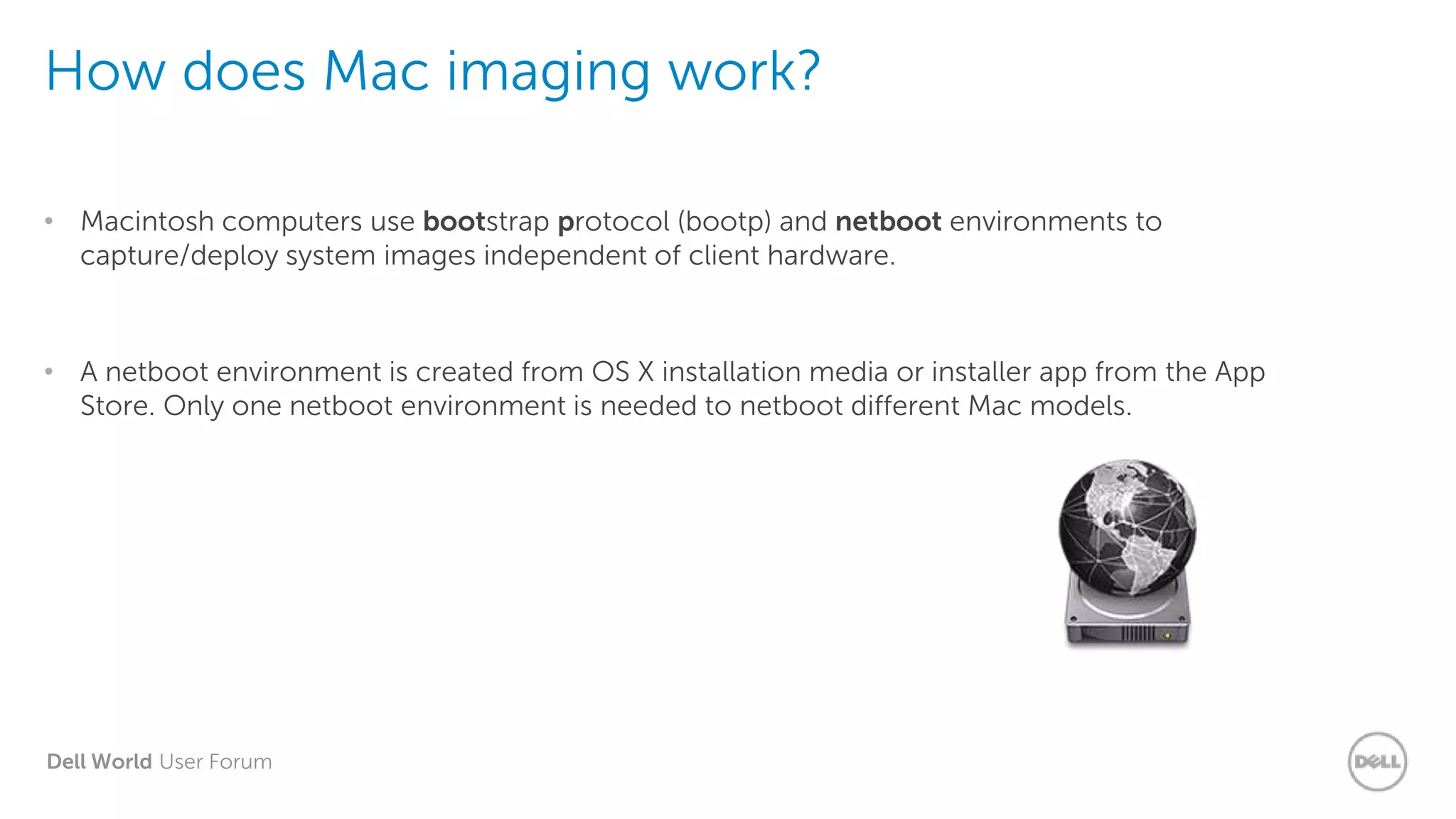

- 4. Dell World UserForum How does Mac imaging work? • Macintosh computers use bootstrap protocol (bootp) and netboot environments to capture/deploy system images independent of client hardware. • A netboot environment is created from OS X installation media or installer app from the App Store. Only one netboot environment is needed to netboot different Mac models.

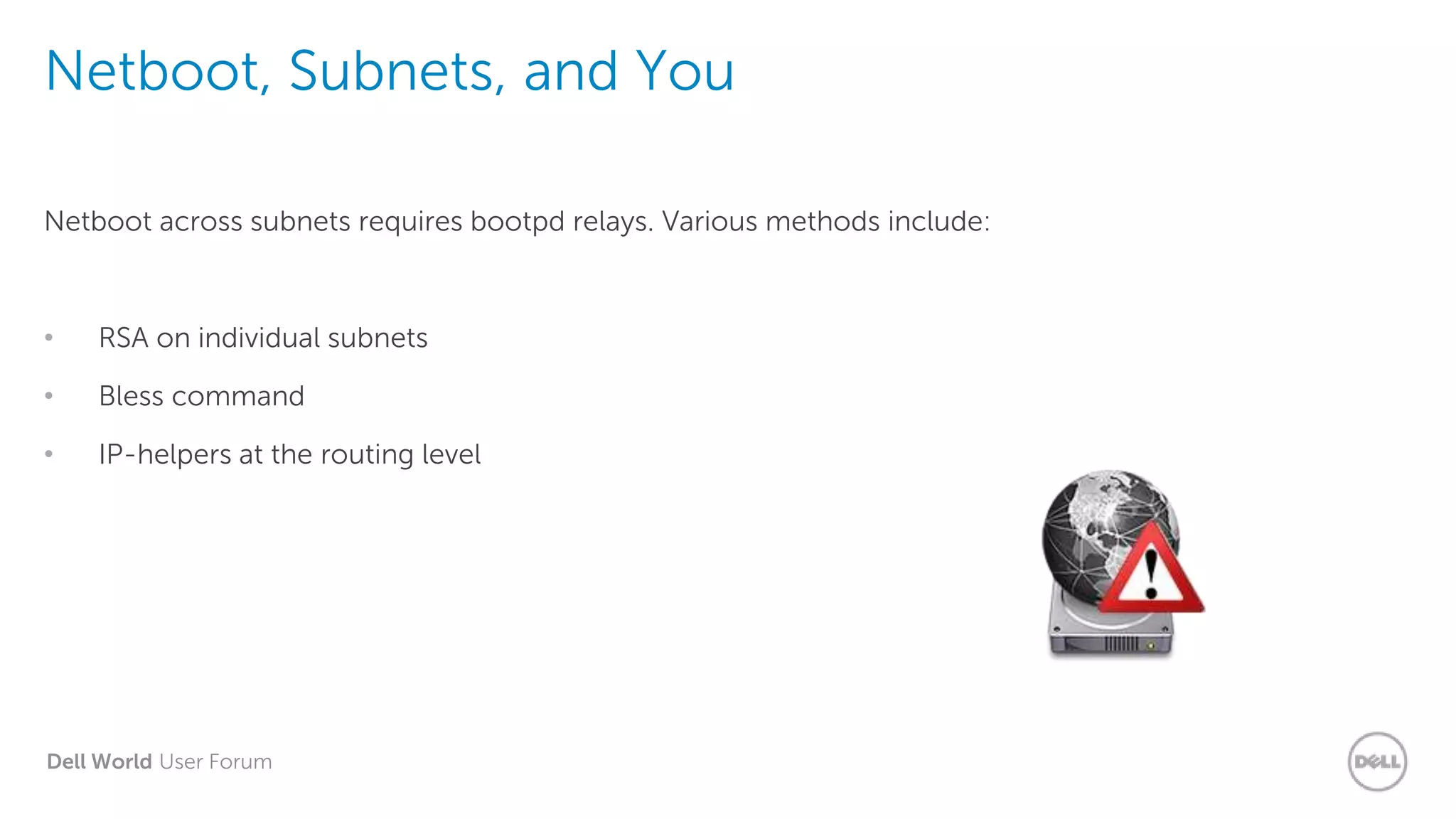

- 5. Dell World UserForum Netboot, Subnets, and You Netboot across subnets requires bootpd relays. Various methods include: • RSA on individual subnets • Bless command • IP-helpers at the routing level

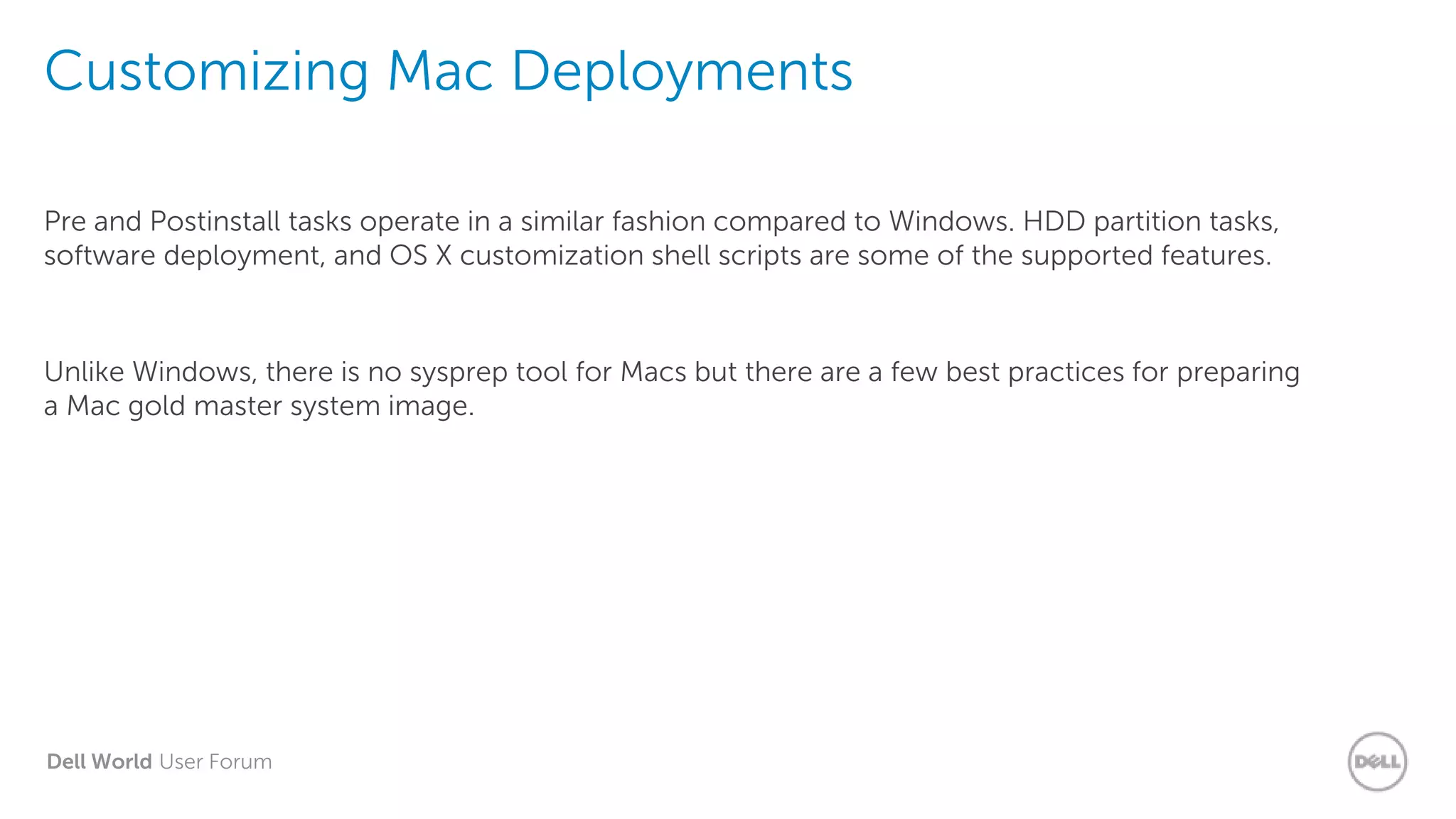

- 6. Dell World UserForum Customizing Mac Deployments Pre and Postinstall tasks operate in a similar fashion compared to Windows. HDD partition tasks, software deployment, and OS X customization shell scripts are some of the supported features. Unlike Windows, there is no sysprep tool for Macs but there are a few best practices for preparing a Mac gold master system image.
- 7. Dell World UserForum Netboot Basics

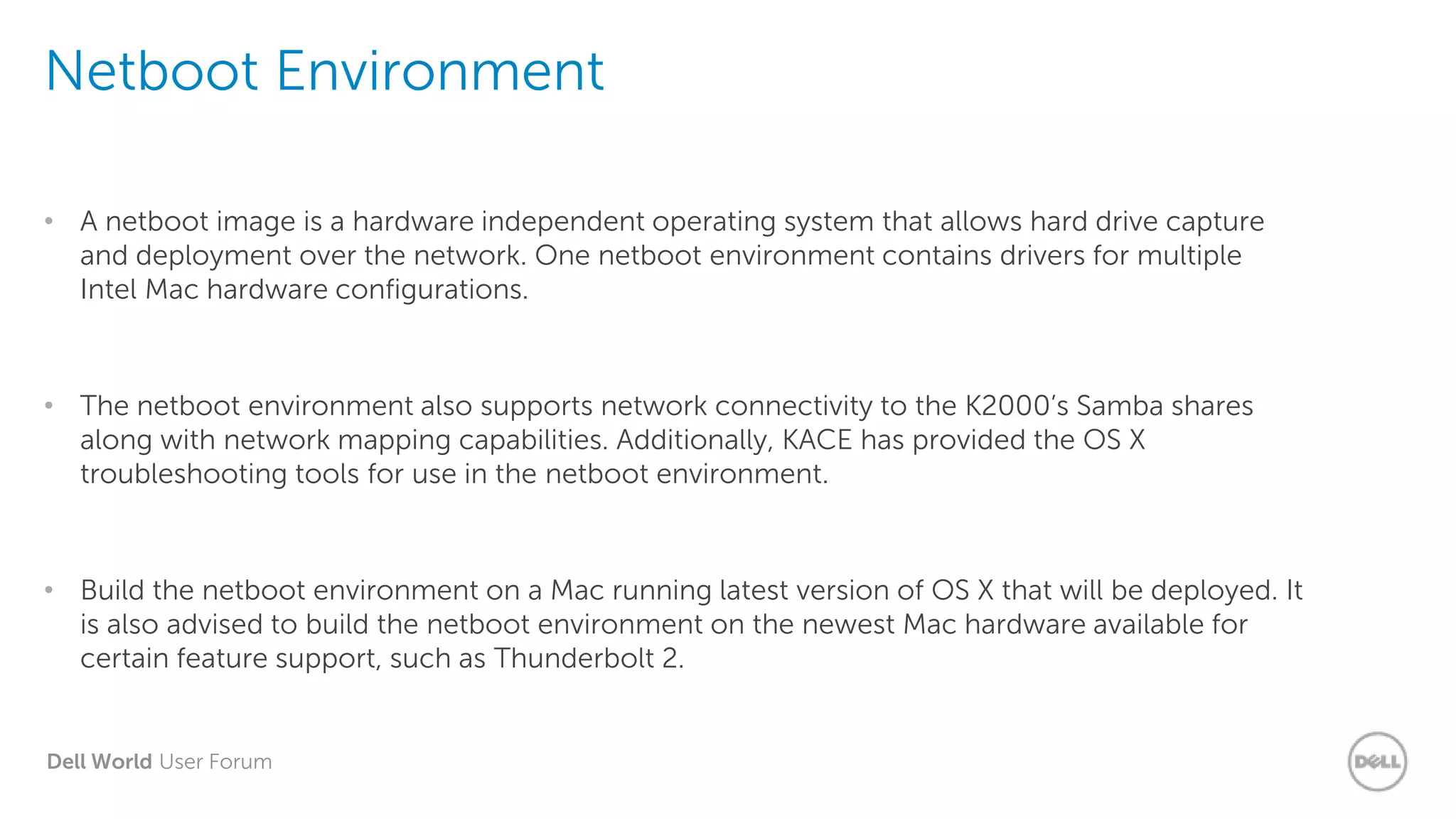

- 8. Dell World UserForum Netboot Environment • A netboot image is a hardware independent operating system that allows hard drive capture and deployment over the network. One netboot environment contains drivers for multiple Intel Mac hardware configurations. • The netboot environment also supports network connectivity to the K2000’s Samba shares along with network mapping capabilities. Additionally, KACE has provided the OS X troubleshooting tools for use in the netboot environment. • Build the netboot environment on a Mac running latest version of OS X that will be deployed. It is also advised to build the netboot environment on the newest Mac hardware available for certain feature support, such as Thunderbolt 2.
- 9. Dell World UserForum Demo: Building the Netboot Environment
- 10. Dell World UserForum Demo: Configuring K2000 to Netboot
- 11. Dell World UserForum Image Configuration

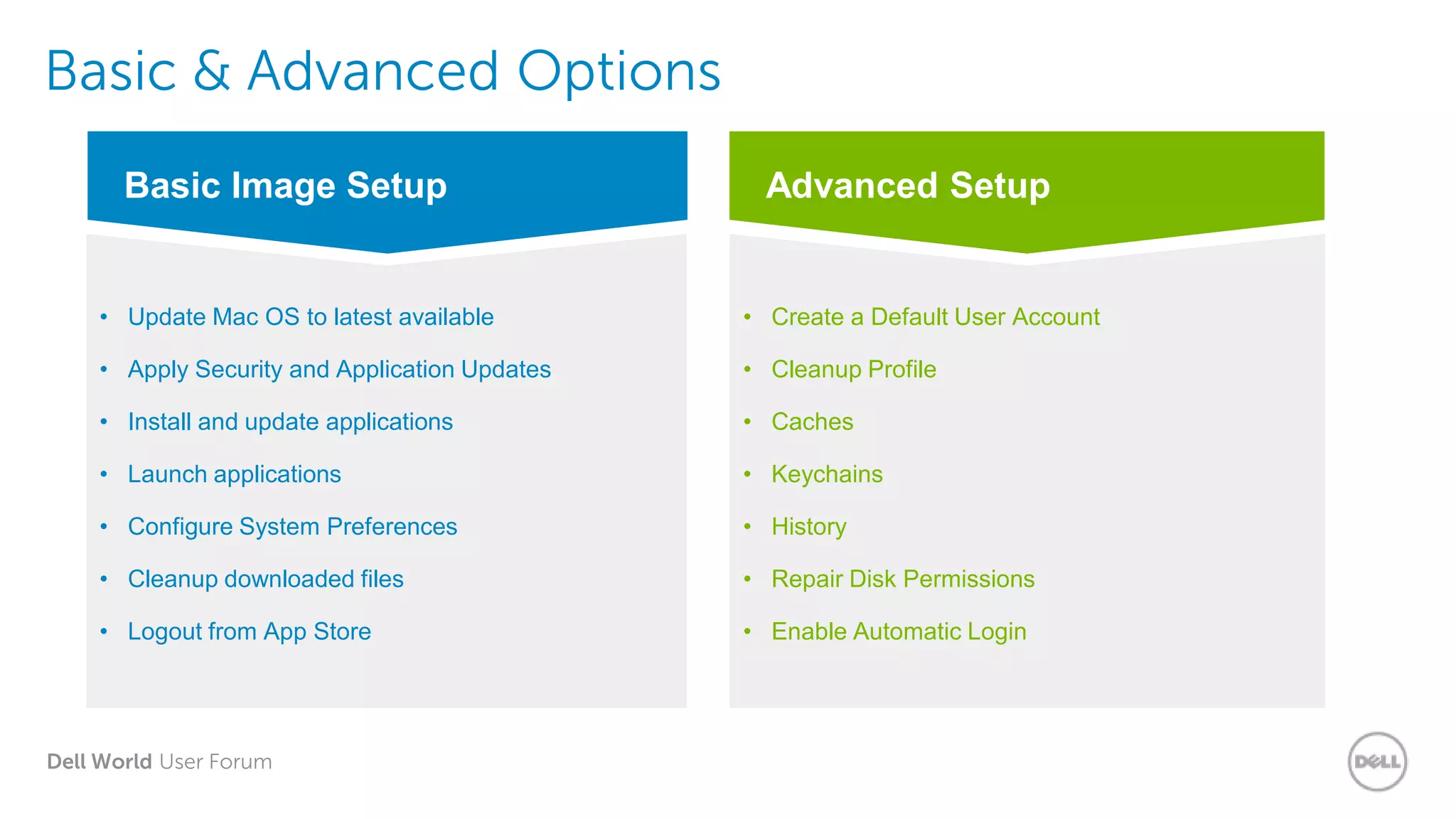

- 12. Dell World UserForum Basic & Advanced Options Advanced Setup • Create a Default User Account • Cleanup Profile • Caches • Keychains • History • Repair Disk Permissions • Enable Automatic Login Basic Image Setup • Update Mac OS to latest available • Apply Security and Application Updates • Install and update applications • Launch applications • Configure System Preferences • Cleanup downloaded files • Logout from App Store
- 13. Dell World UserForum Demo 3: Advanced Image Configuration
- 14. Dell World UserForum Netbooting your Mac

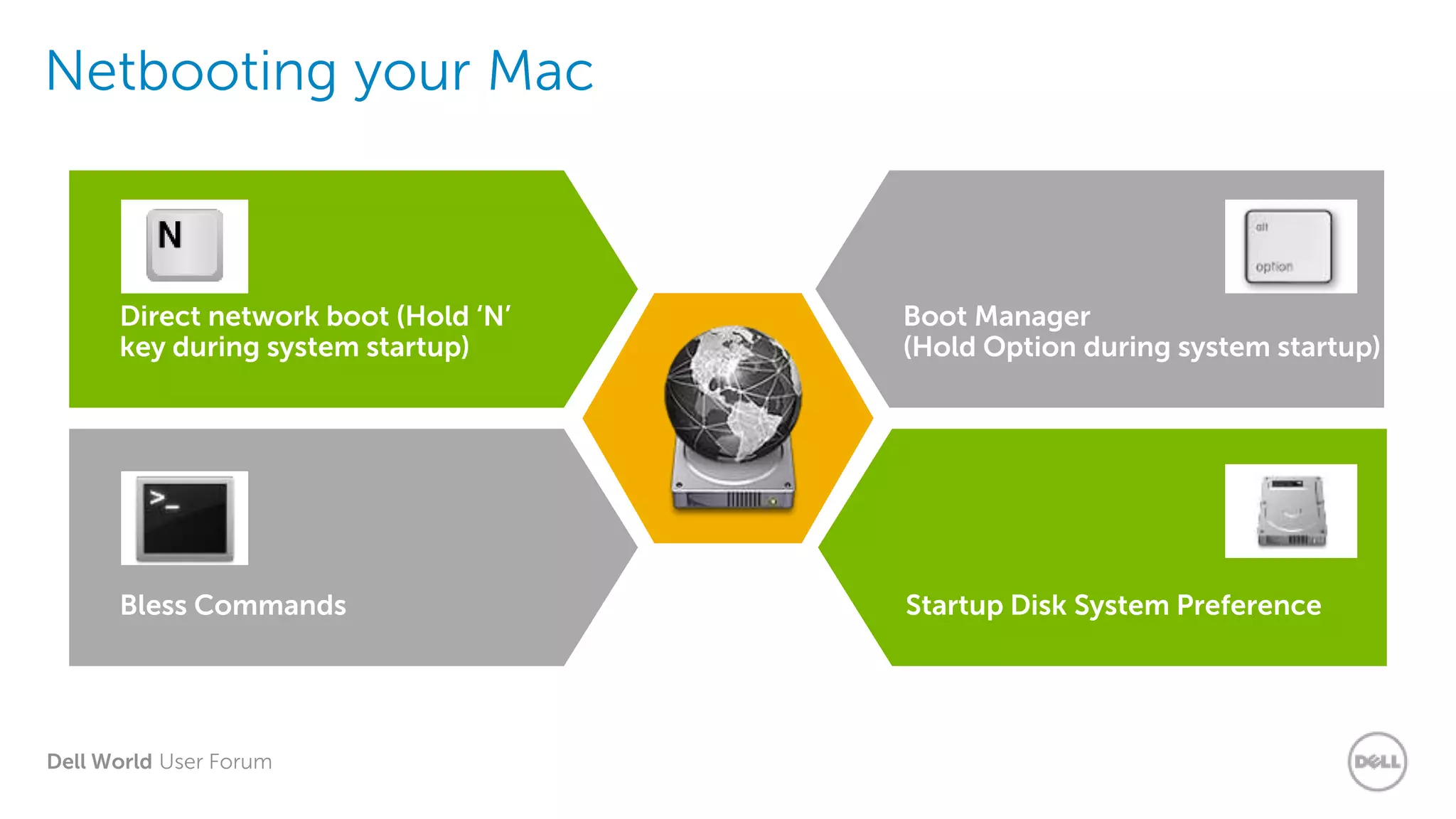

- 15. Dell World UserForum Netbooting your Mac Boot Manager (Hold Option during system startup) Netboot Startup Disk System PreferenceBless Commands Direct network boot (Hold ‘N’ key during system startup) Insert icon here Insert icon here
- 16. Dell World UserForum Demo 4: Netbooting your Mac
- 17. Dell World UserForum Application Deployment

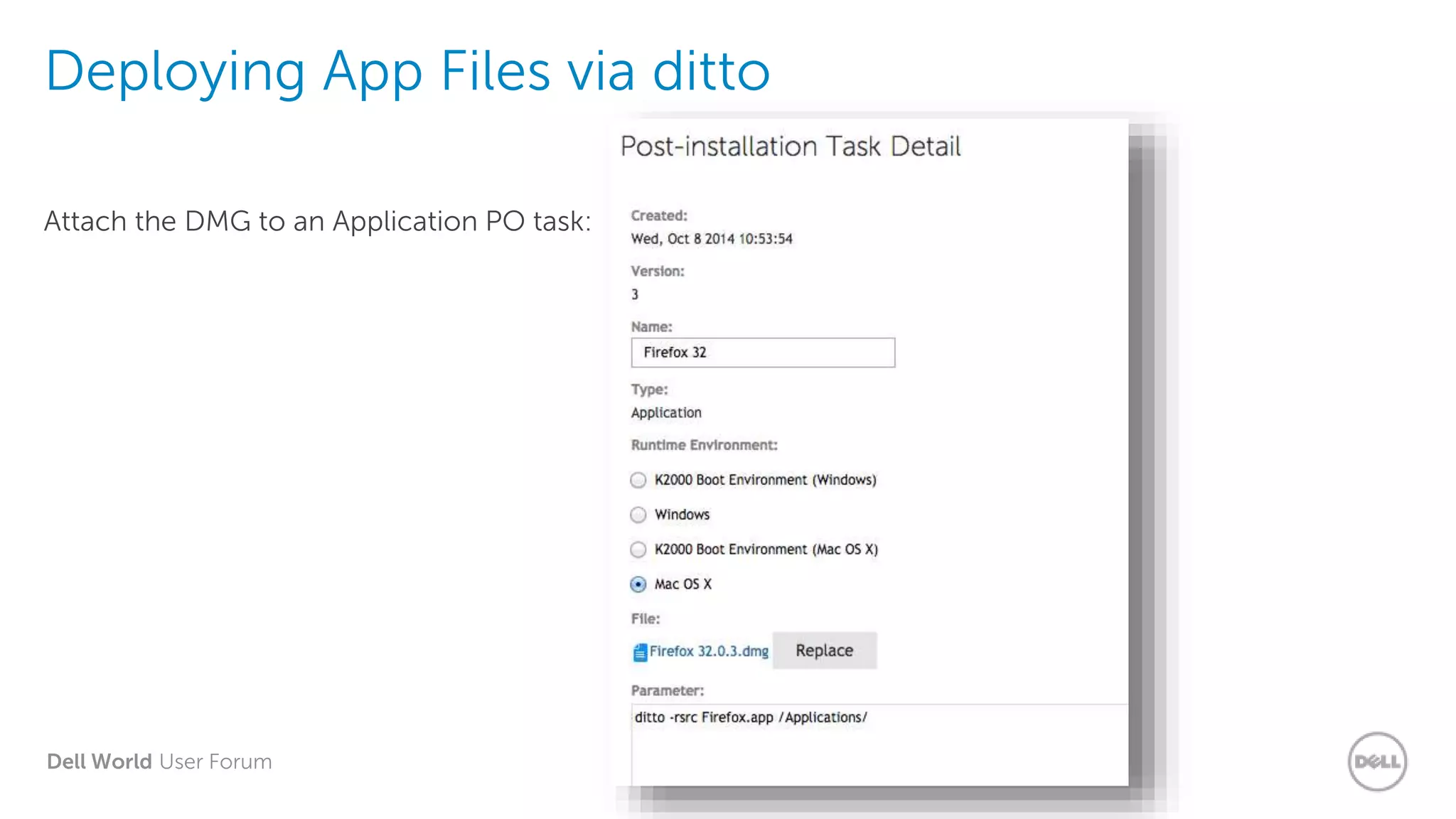

- 18. Dell World UserForum Deploying App Files via ditto Attach the DMG to an Application PO task:

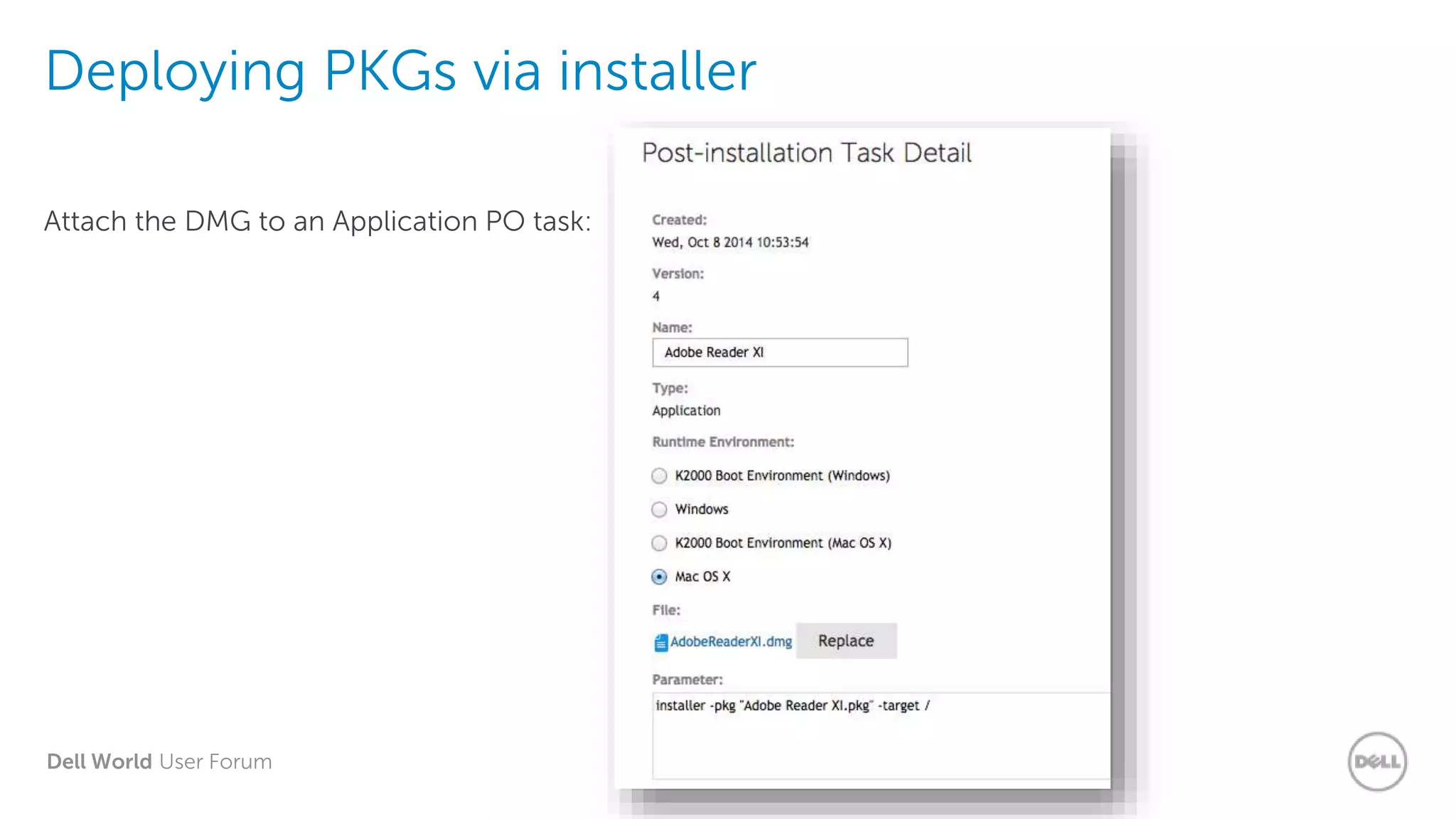

- 19. Dell World UserForum Deploying PKGs via installer Attach the DMG to an Application PO task:

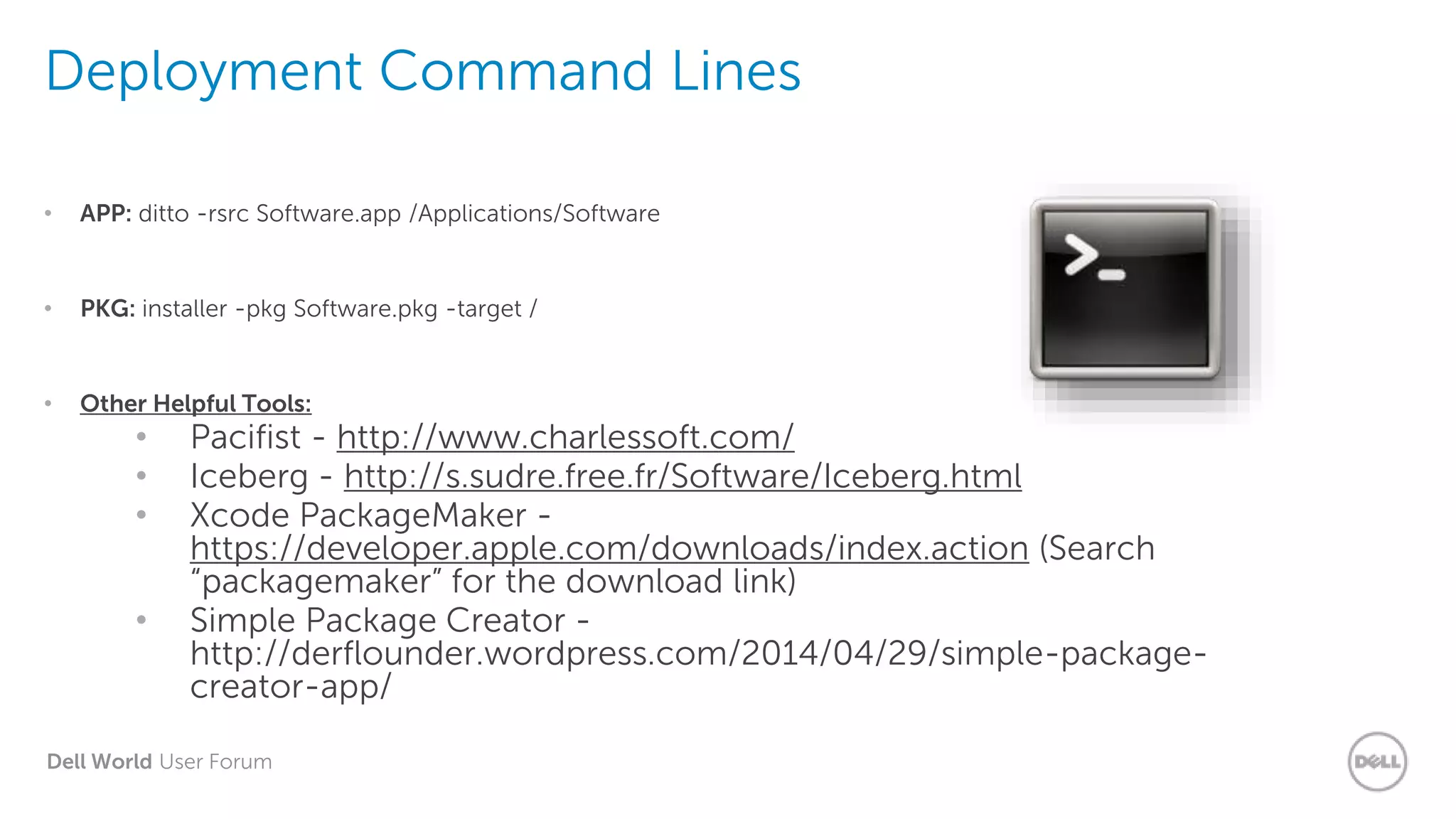

- 20. Dell World UserForum Deployment Command Lines • APP: ditto -rsrc Software.app /Applications/Software • PKG: installer -pkg Software.pkg -target / • Other Helpful Tools: • Pacifist - http://www.charlessoft.com/ • Iceberg - http://s.sudre.free.fr/Software/Iceberg.html • Xcode PackageMaker - https://developer.apple.com/downloads/index.action (Search “packagemaker” for the download link) • Simple Package Creator - http://derflounder.wordpress.com/2014/04/29/simple-package- creator-app/

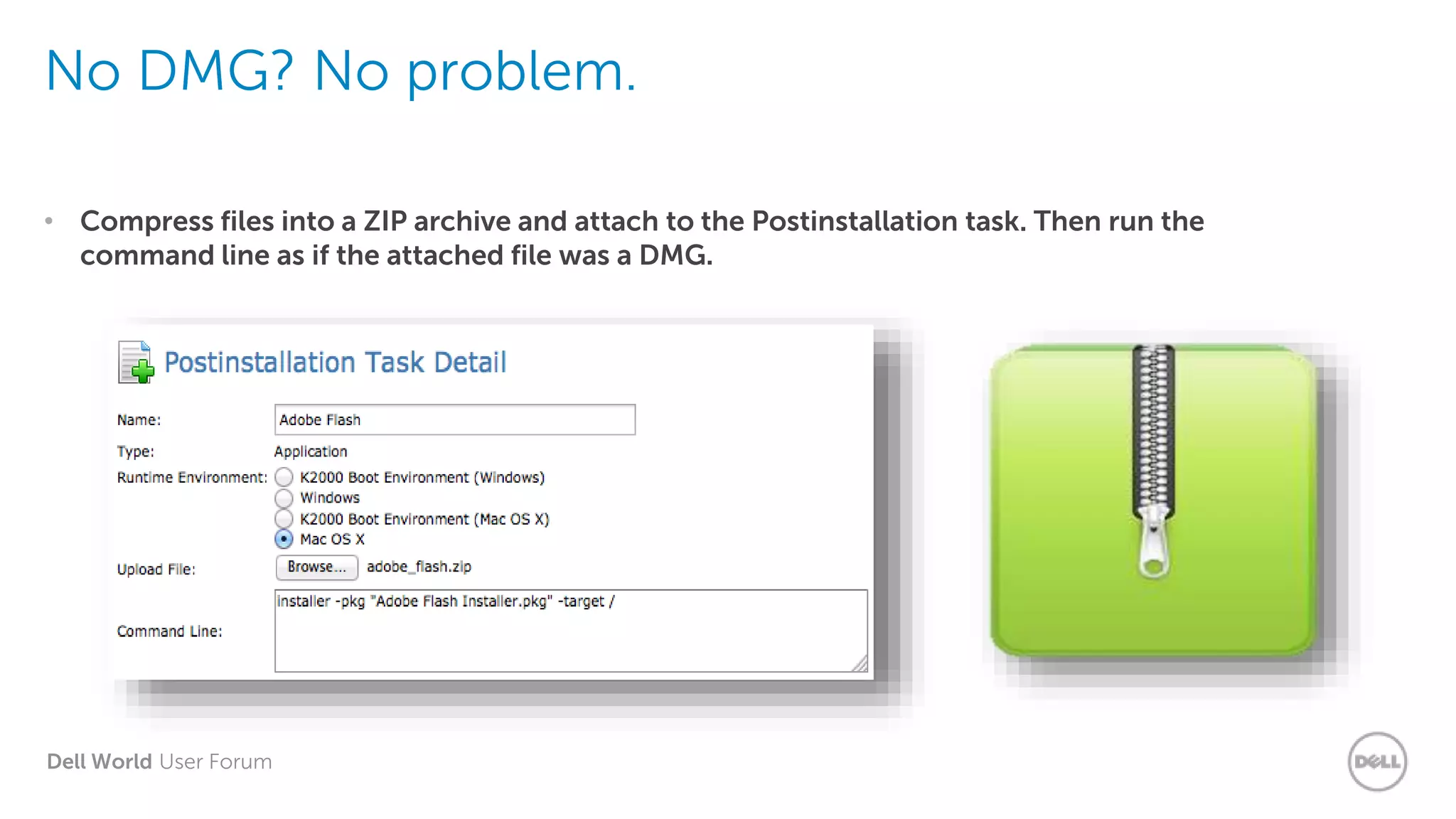

- 21. Dell World UserForum No DMG? No problem. • Compress files into a ZIP archive and attach to the Postinstallation task. Then run the command line as if the attached file was a DMG.

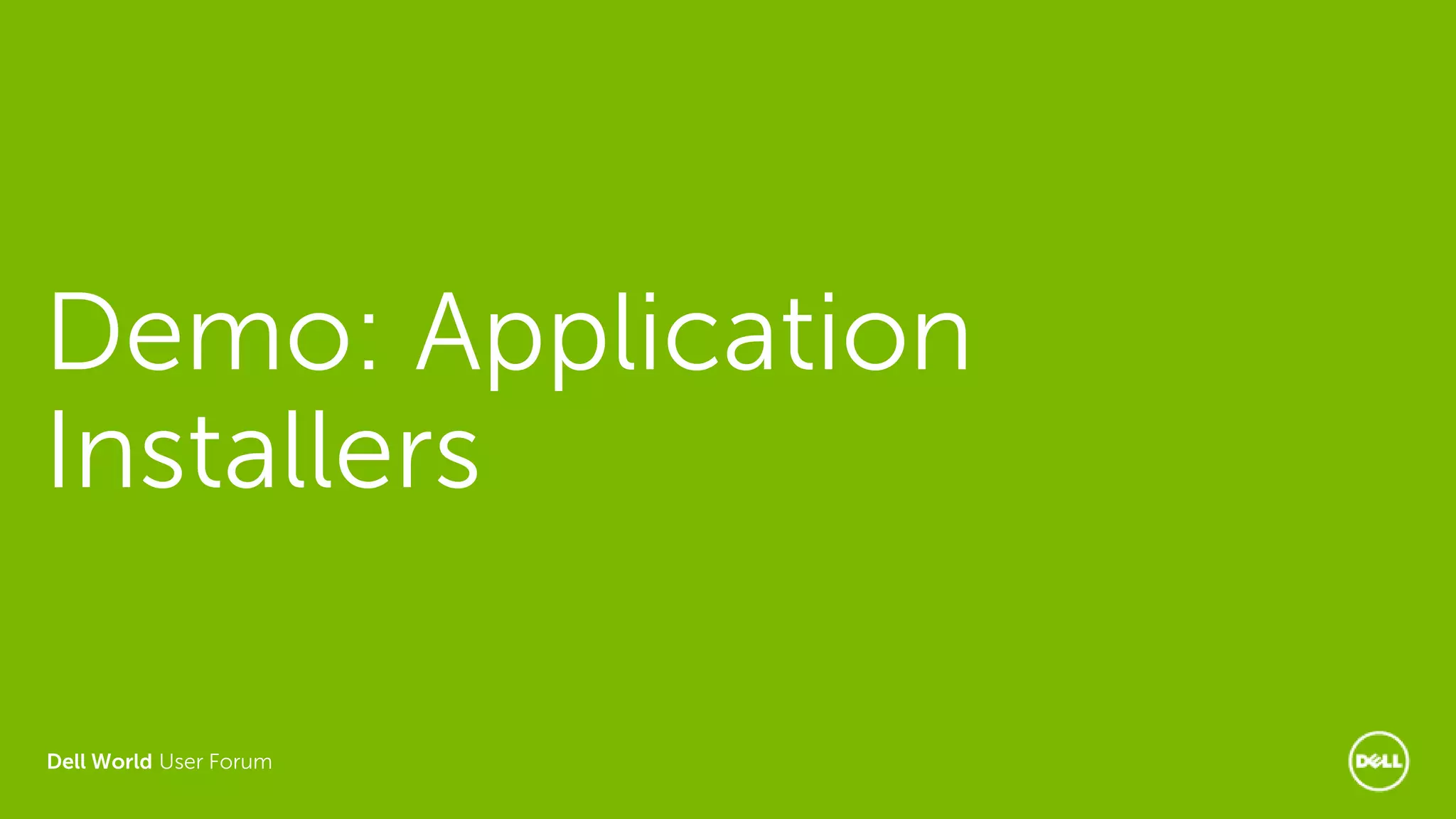

- 22. Dell World UserForum Demo: Application Installers

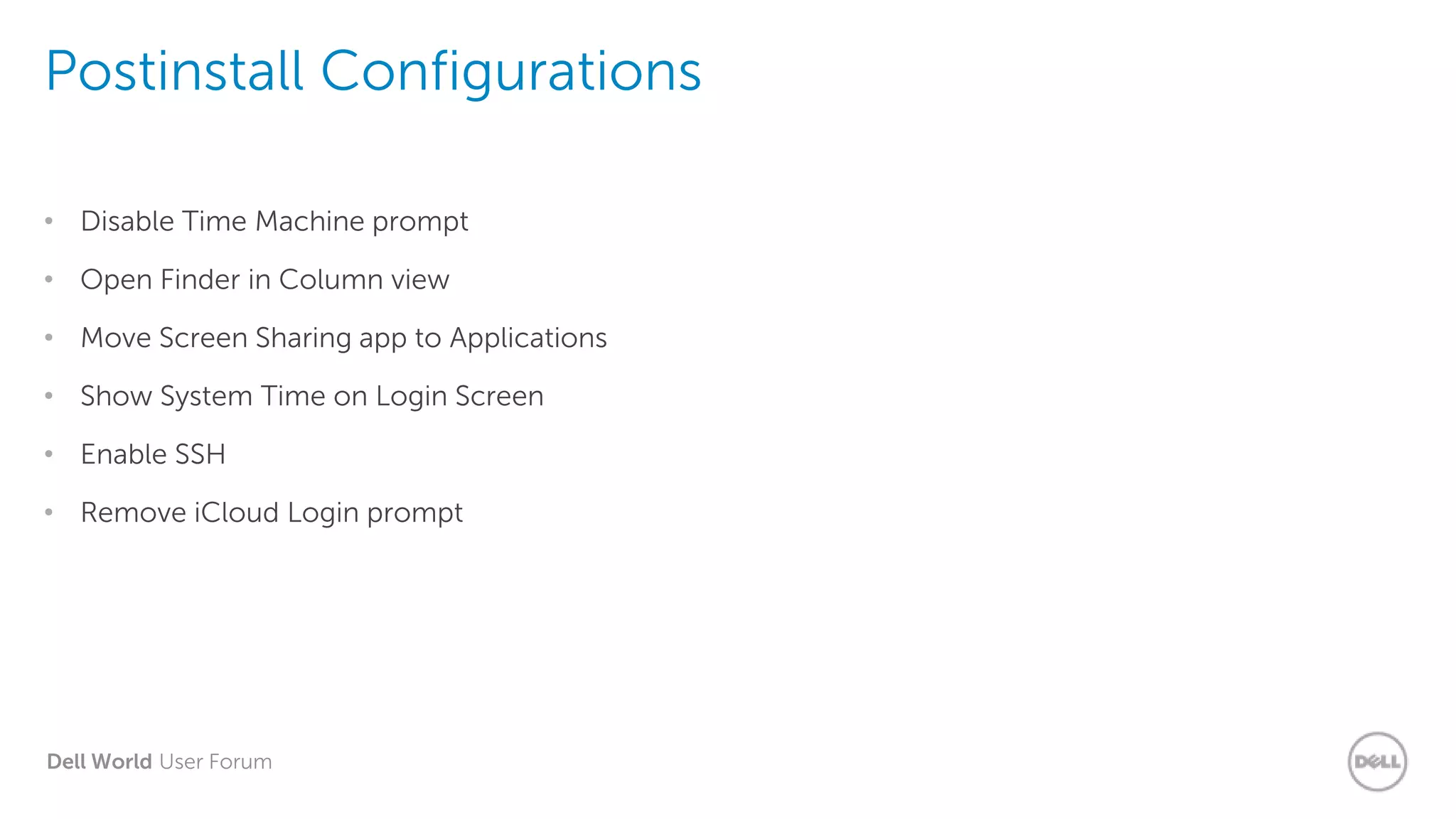

- 23. Dell World UserForum Postinstall Configurations • Disable Time Machine prompt • Open Finder in Column view • Move Screen Sharing app to Applications • Show System Time on Login Screen • Enable SSH • Remove iCloud Login prompt

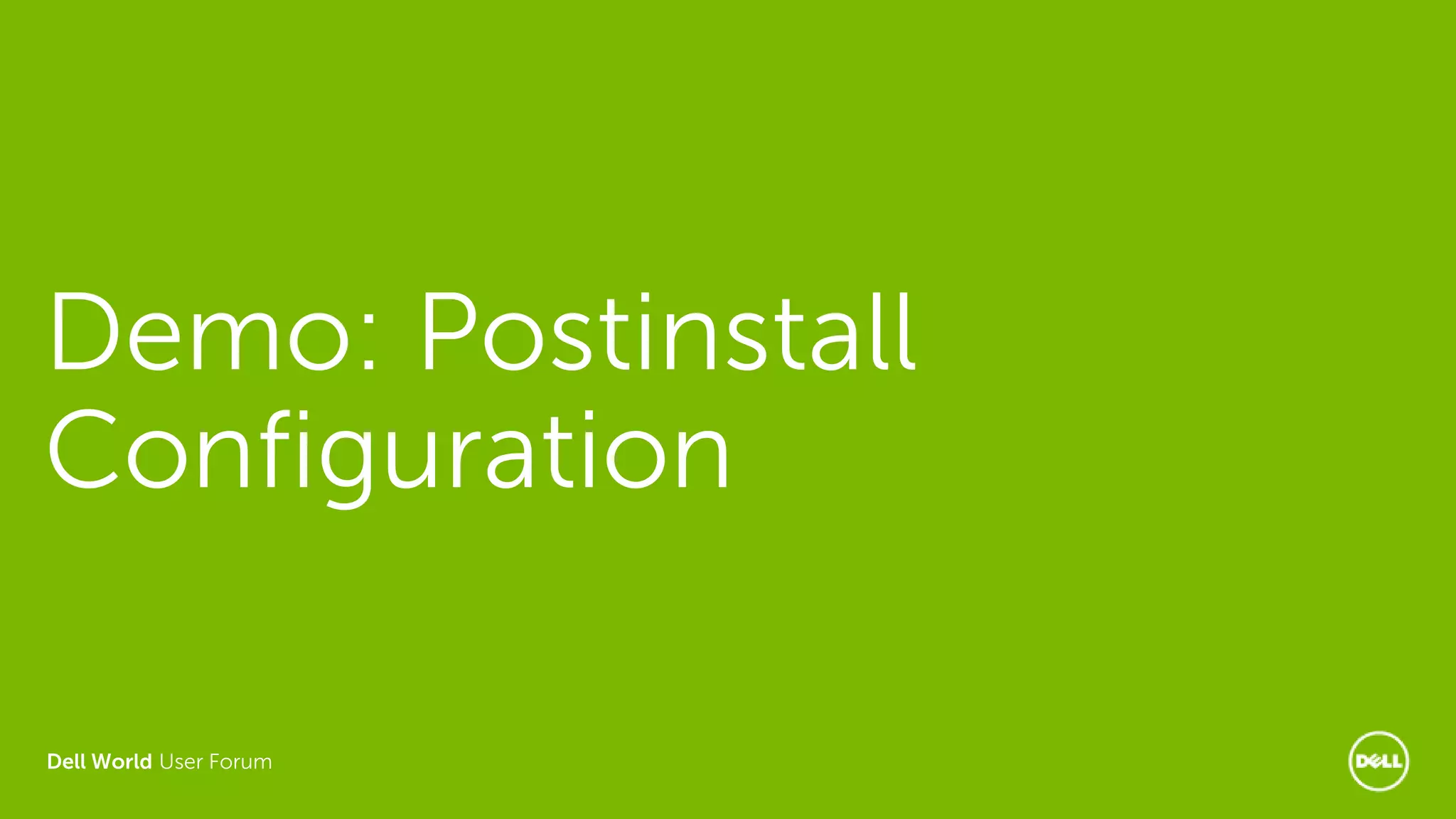

- 24. Dell World UserForum Demo: Postinstall Configuration
- 25. Dell World UserForum Image Capture and Deployment

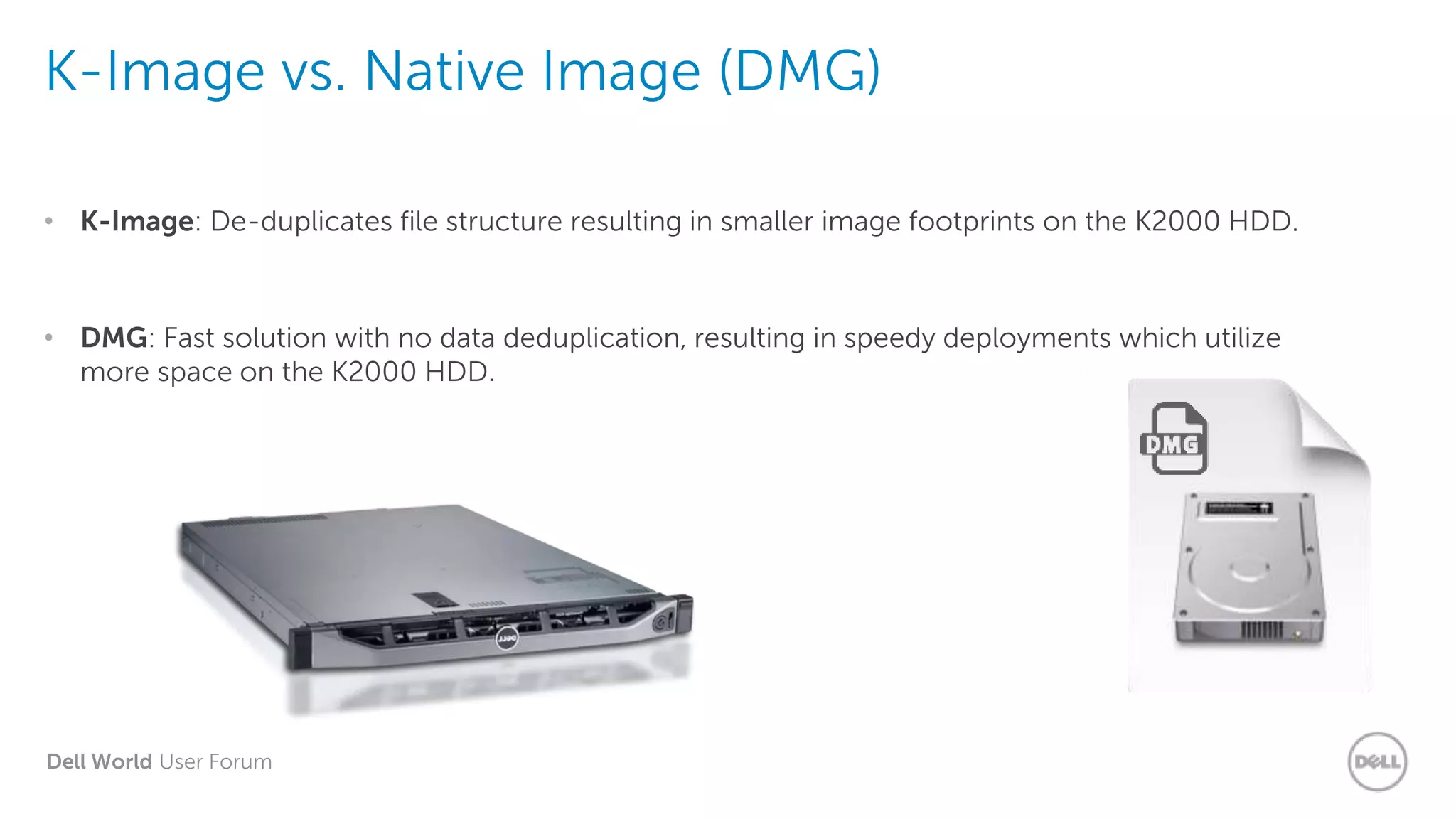

- 26. Dell World UserForum K-Image vs. Native Image (DMG) • K-Image: De-duplicates file structure resulting in smaller image footprints on the K2000 HDD. • DMG: Fast solution with no data deduplication, resulting in speedy deployments which utilize more space on the K2000 HDD.
- 27. Dell World UserForum Demo: Capture, Configure, and Deploy

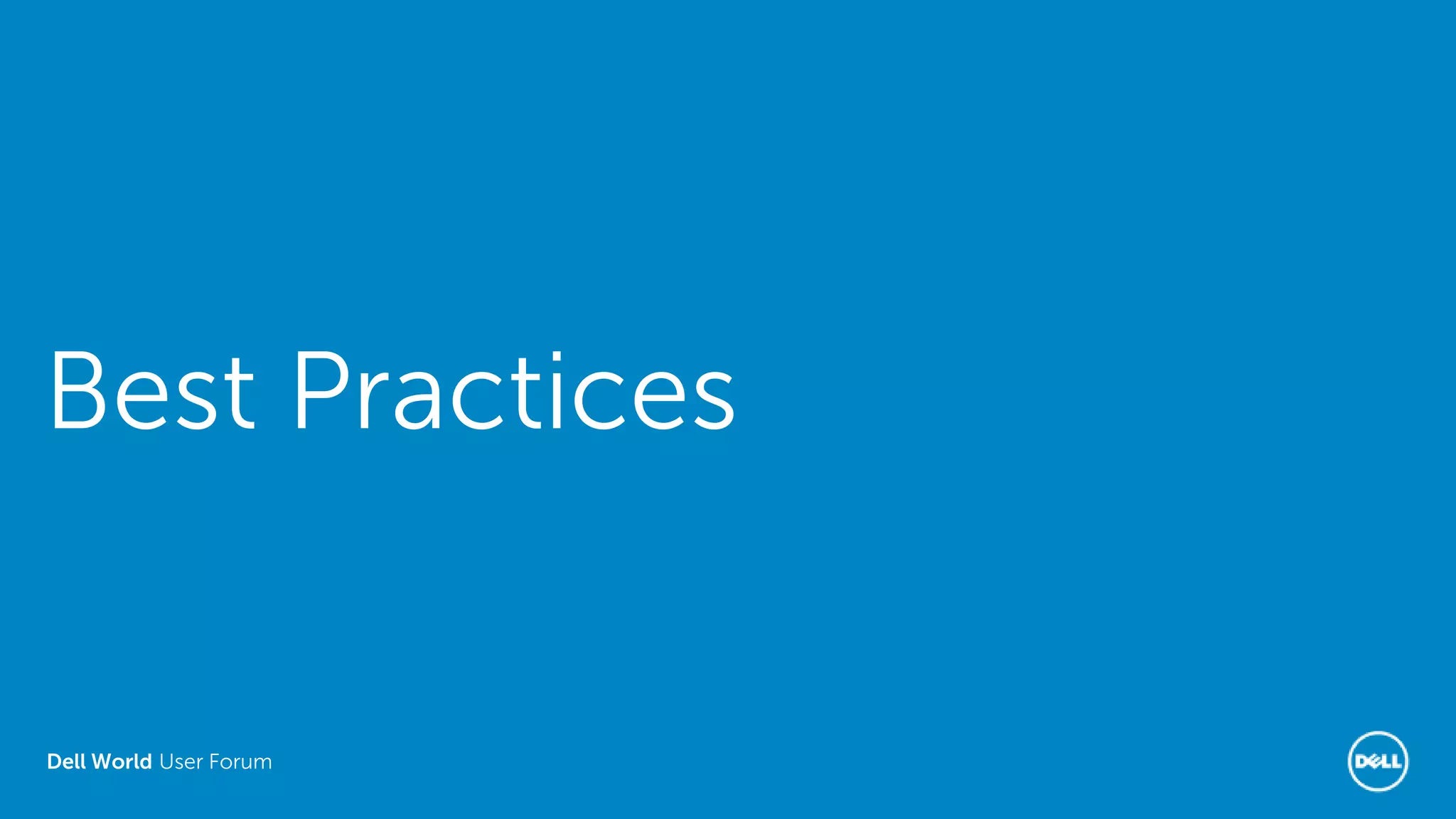

- 28. Dell World UserForum Best Practices

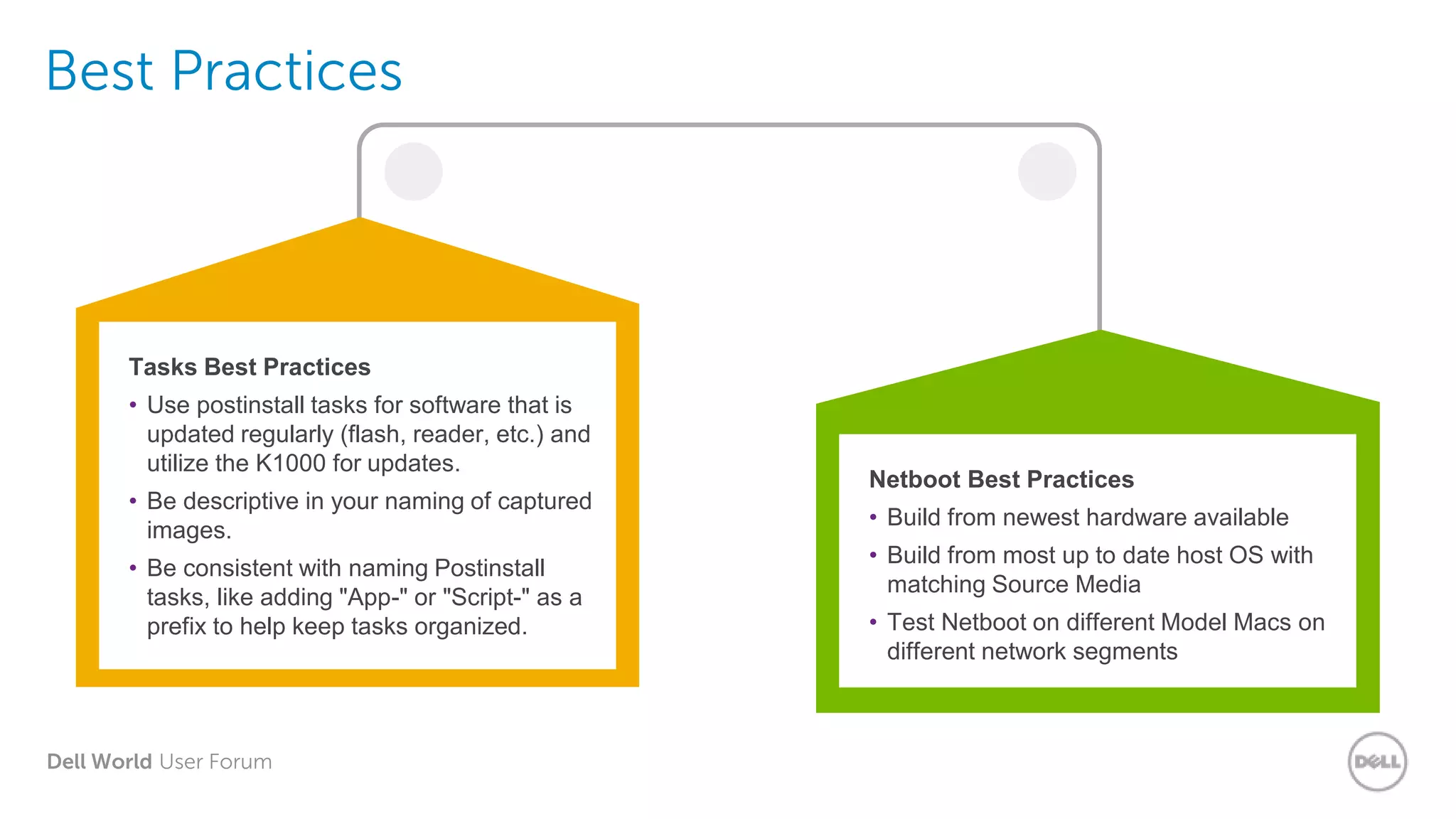

- 29. Dell World UserForum Best Practices Tasks Best Practices • Use postinstall tasks for software that is updated regularly (flash, reader, etc.) and utilize the K1000 for updates. • Be descriptive in your naming of captured images. • Be consistent with naming Postinstall tasks, like adding "App-" or "Script-" as a prefix to help keep tasks organized. Netboot Best Practices • Build from newest hardware available • Build from most up to date host OS with matching Source Media • Test Netboot on different Model Macs on different network segments
- 30. Dell World UserForum Thank you.

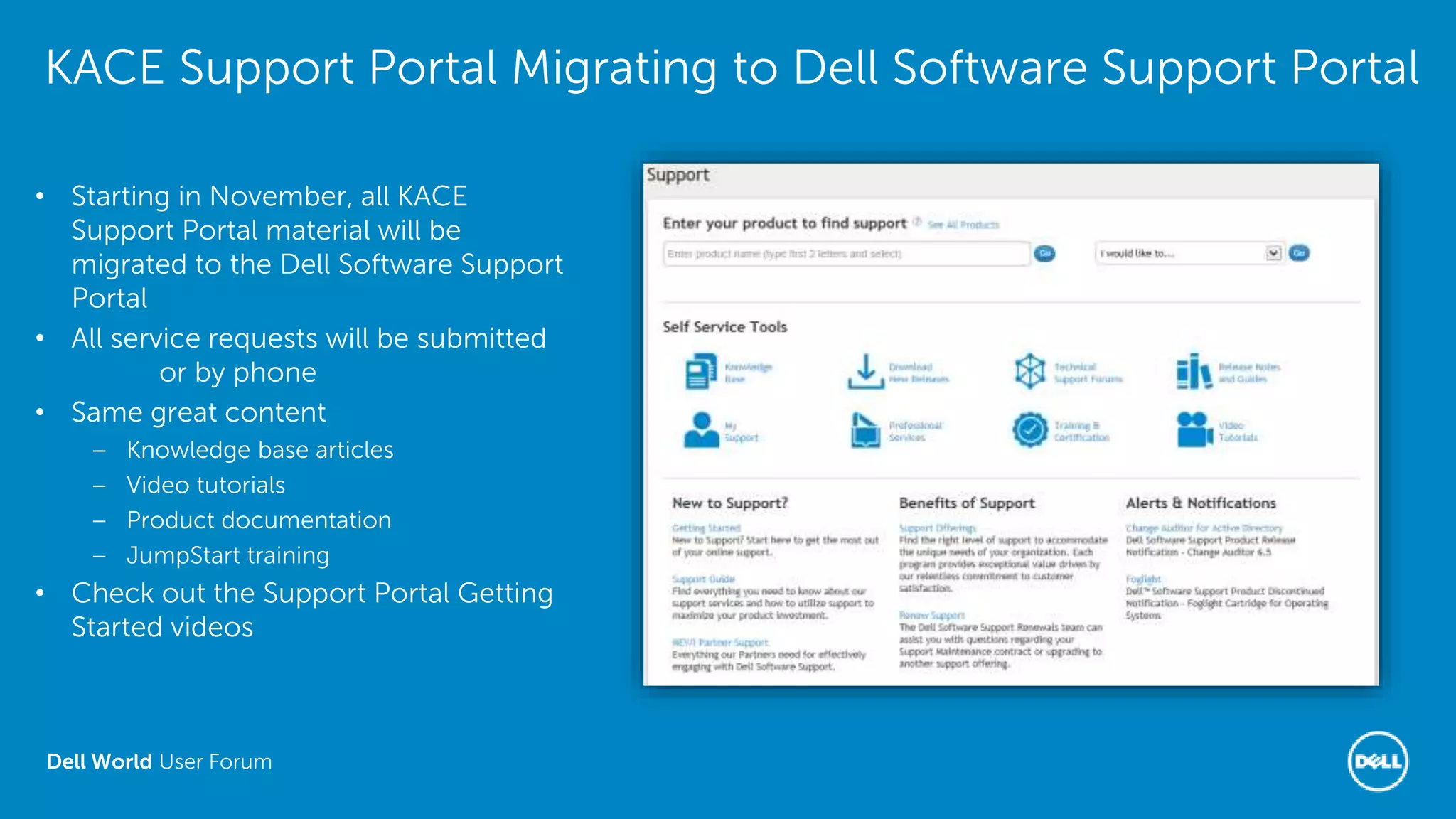

- 31. Dell World UserForum KACE Support Portal Migrating to Dell Software Support Portal • Starting in November, all KACE Support Portal material will be migrated to the Dell Software Support Portal • All service requests will be submitted online or by phone • Same great content – Knowledge base articles – Video tutorials – Product documentation – JumpStart training • Check out the Support Portal Getting Started videos
Editor's Notes
- #6 Verbose bless command for 10.8: sudo /usr/sbin/bless --netboot --booter "tftp://K2000_or_RSA_IP/netbootintel/i386/booter" --kernelcache "tftp://K2000_or_RSA_IP/netbootintel/i386/x86_64/kernelcache" --options "rp=nfs:K2000_or_RSA_IP:/kbox/datastore/internal/tftpboot/netbootintel:netboot.dmg" --nextonly
- #10 1. Start the K2000 virtual machine if it has not been done yet. VMWare Fusion is on the Dock. Click the icon to launch the app, and then select the K2000 virtual machine and click Play. 2. Click the icon for the Media Manager located on the Dock. This will run the K2000 Media Manager for OS X. 3. Next you will harvest the necessary files from the OS X 10.8 installer in order to build the netboot environment. a. Navigate to “Desktop/K2000/K2000 Mac Imaging 101/Mavericks” and right-click the “Install OS X Mavericks” app. Select Show Package Contents b. Navigate to “Contents/SharedSupport/” and double click the InstallESD.dmg file to mount the core OS X files. 4. Click back to the Media Manager. Click the tab Create NetBoot Image a. For Name type 192.168.132.5 b. Source Media Name: OS X 10.8 KBE c. Click Browse and select the mounted DMG (listed as Mac OS X Install ESD under Devices). Once selected, click Open. d. Network password: admin e. Click Start Build f. When prompted, type admin for the local admin
- #11 Enable Netboot in Network Settings Configure Default Netboot in General Settings Add VNC Action Icon to General Settings
- #14 Have a Mac VM of a basic Mac install. Show how to setup/create a Default User Account Would like for SHELL scripts of Mike’s post to be available on this VM as well as on HOST computer to show (if needed).
- #17 Netboot the CLIENT/VM
- #19 UPDATE SCREENSHOT FOR 3.7
- #20 UPDATE SCREENSHOT FOR 3.7
- #22 UPDATE SCREENSHOT FOR 3.7
- #23 Show how to handle a few basic applications like Firefox and Adobe Reader
- #25 Show how to handle to turn the postinstall configurations from Mike’s post into PO tasks.
- #28 After booted into Netboot launch VNC Launch K2000 Imaging Utility and show how to start an Image Capture Have an already captured MAC Image (or placeholder) and add the applications and configuration tasks to deployment Switch back to VNC viewer and show how to deploy a MAC Image from utility
- #32 Portal: http://www.software.dell.com/support Ticket Entry: https://support.software.dell.com/create-service-request Videos: https://support.software.dell.com/essentials/getting-started
