1. Joomla Code Quality Control
[Automated Tools]
Shyam S. Verma
Founder & CEO
Ready Bytes Software Labs Pvt. Ltd.

2. Team JoomlaXi Develops
Joomla Extensions
RBSL Develop Web Apps
and Websites

3. Agenda
● Software Quality Assurance
● Code Testing
● Code Analysis
● Continous Integration
● Quick Demo of QA

4. Software Quality Assurance (SQA)
● Systematic Monitoring and Evaluation of the
software engineering processes
● Monitoring and Evalution can be done
automatically via tools called QA tools
● Not a Rocket Science, but heavily depends on
the proejct

5. Benefit of SQA?
● early detection of issues
● cleaner & consistent code
● knowledge about the codebase
● increase of confidence
● enables frequent releases, refactoring

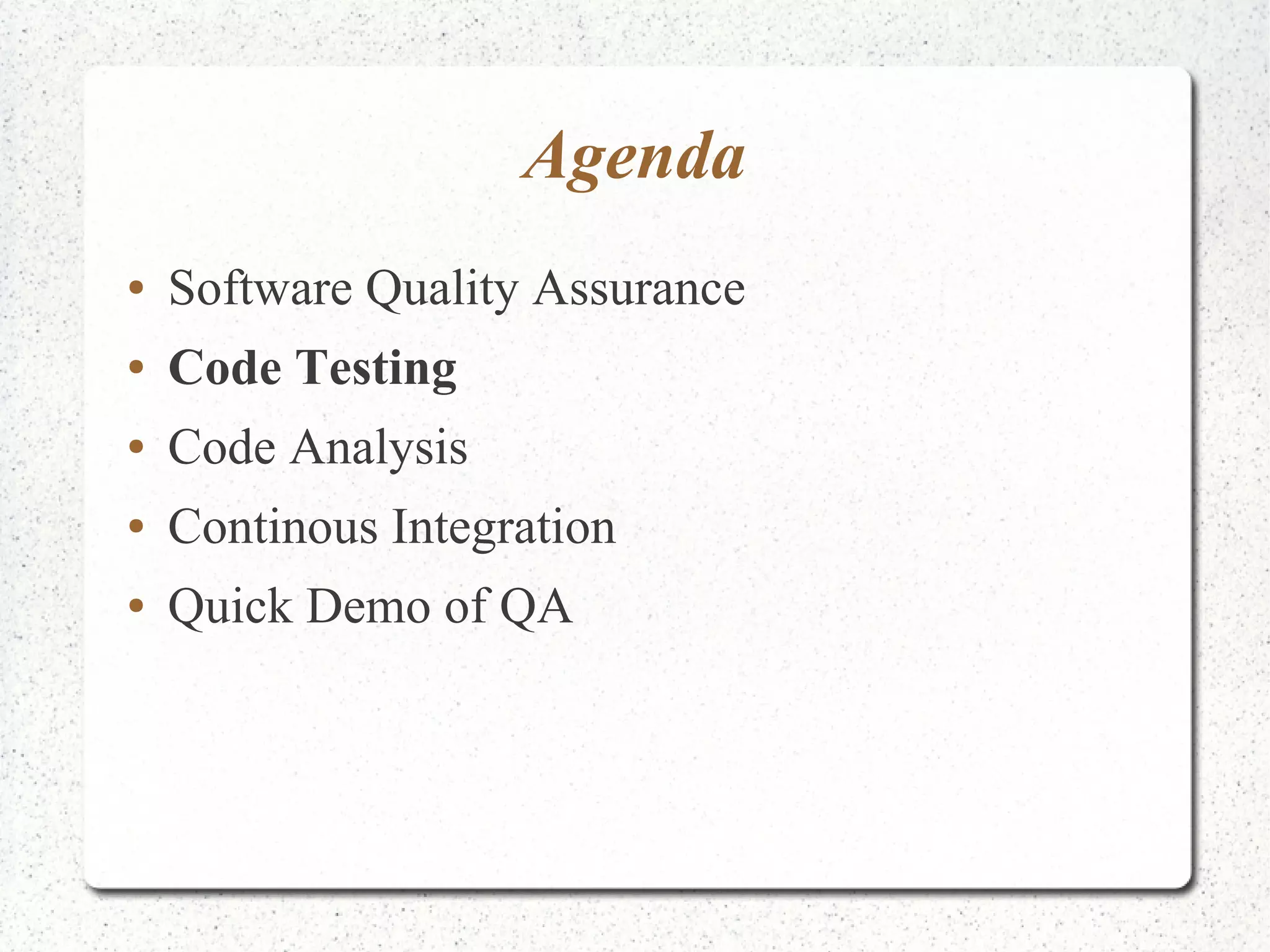

6. Agenda
● Software Quality Assurance
● Code Testing
● Code Analysis
● Continous Integration
● Quick Demo of QA

7. Manual Testing
● Not automated, slow and expensive
● Complete application must be ready before it
can be tested
● Tests need to be repeated when the application
changes

8. Automated Testing
● Test results are -
– automatically evaluated and
– do not have to be interpreted by a human tester
● Tests are repeatable
– with deterministic results
– without additional costs

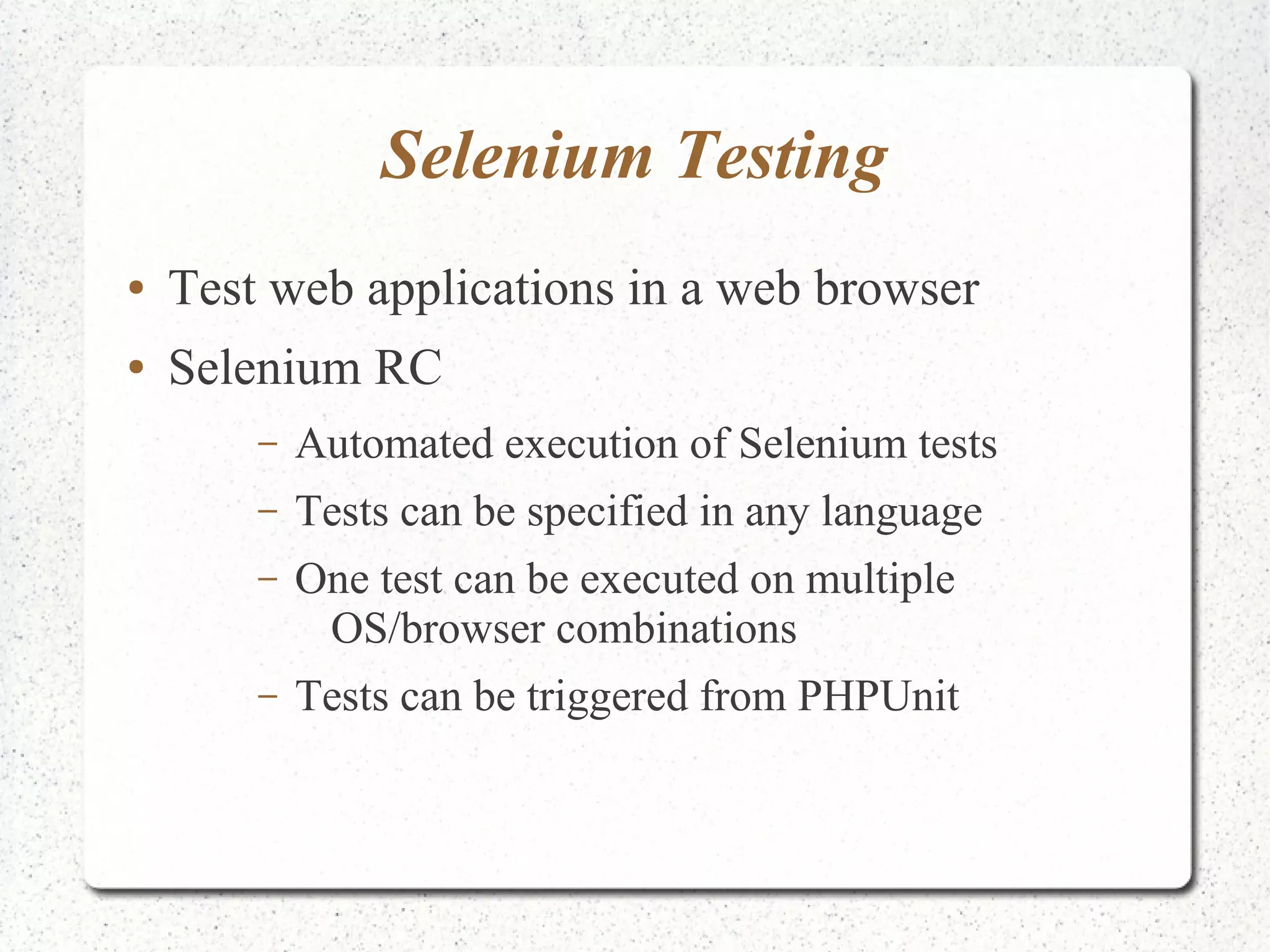

9. Selenium Testing
● Test web applications in a web browser
● Selenium RC
– Automated execution of Selenium tests
– Tests can be specified in any language
– One test can be executed on multiple
OS/browser combinations
– Tests can be triggered from PHPUnit

11. problems
● Complex test environments
● Dependencies between tests
● Running the tests is slow, thus incompatible
with the agile approach
● It is not enough and/or does not scale

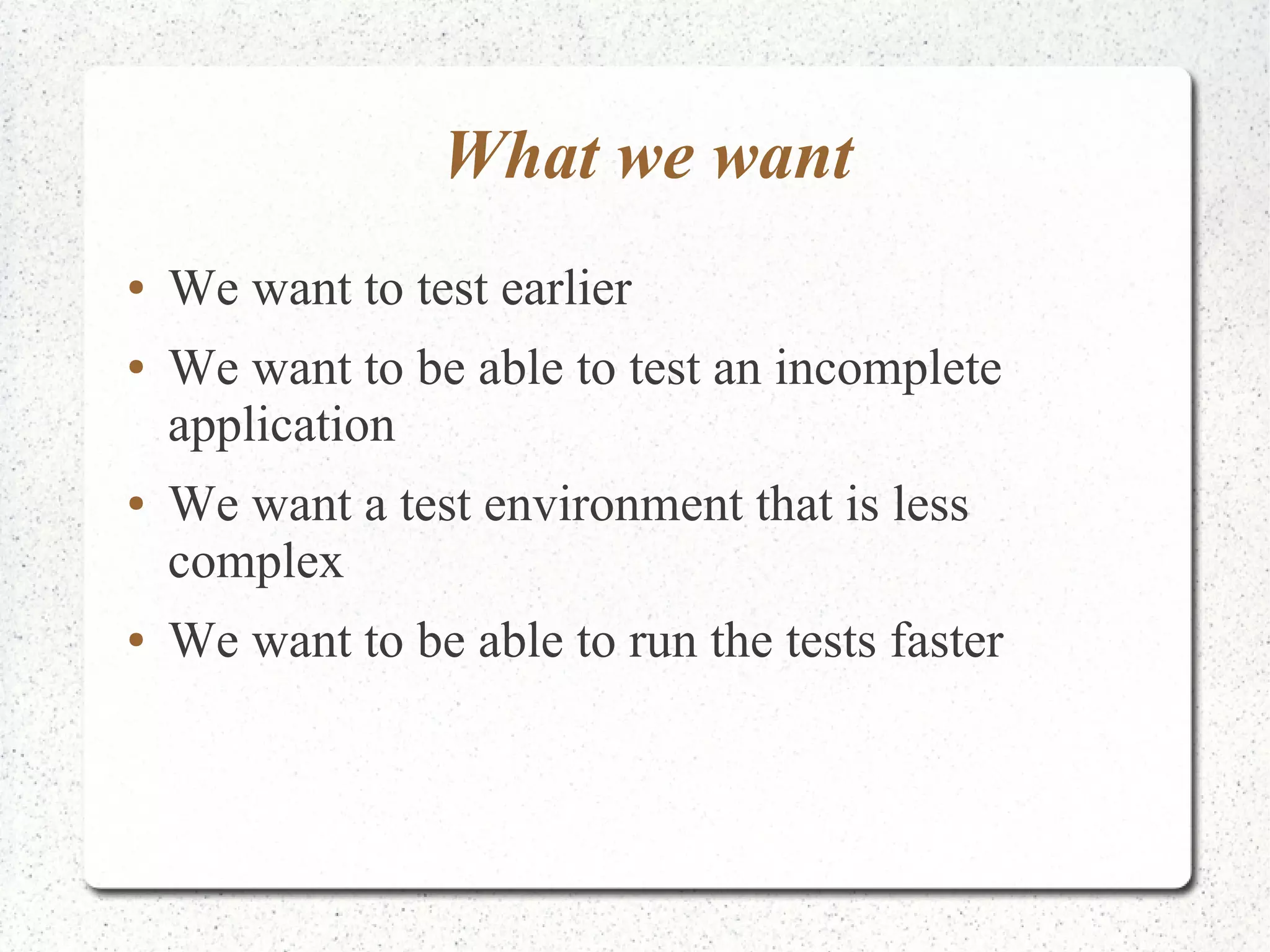

12. What we want
● We want to test earlier
● We want to be able to test an incomplete
application
● We want a test environment that is less
complex
● We want to be able to run the tests faster

13. Unit Tests
● Executable specification
● Automatic evaluation
● Simple test environment
● Instant feedback
● Works as regression test
>> Unit Tests improve the confidence in your code as they detect problems as early as possible.

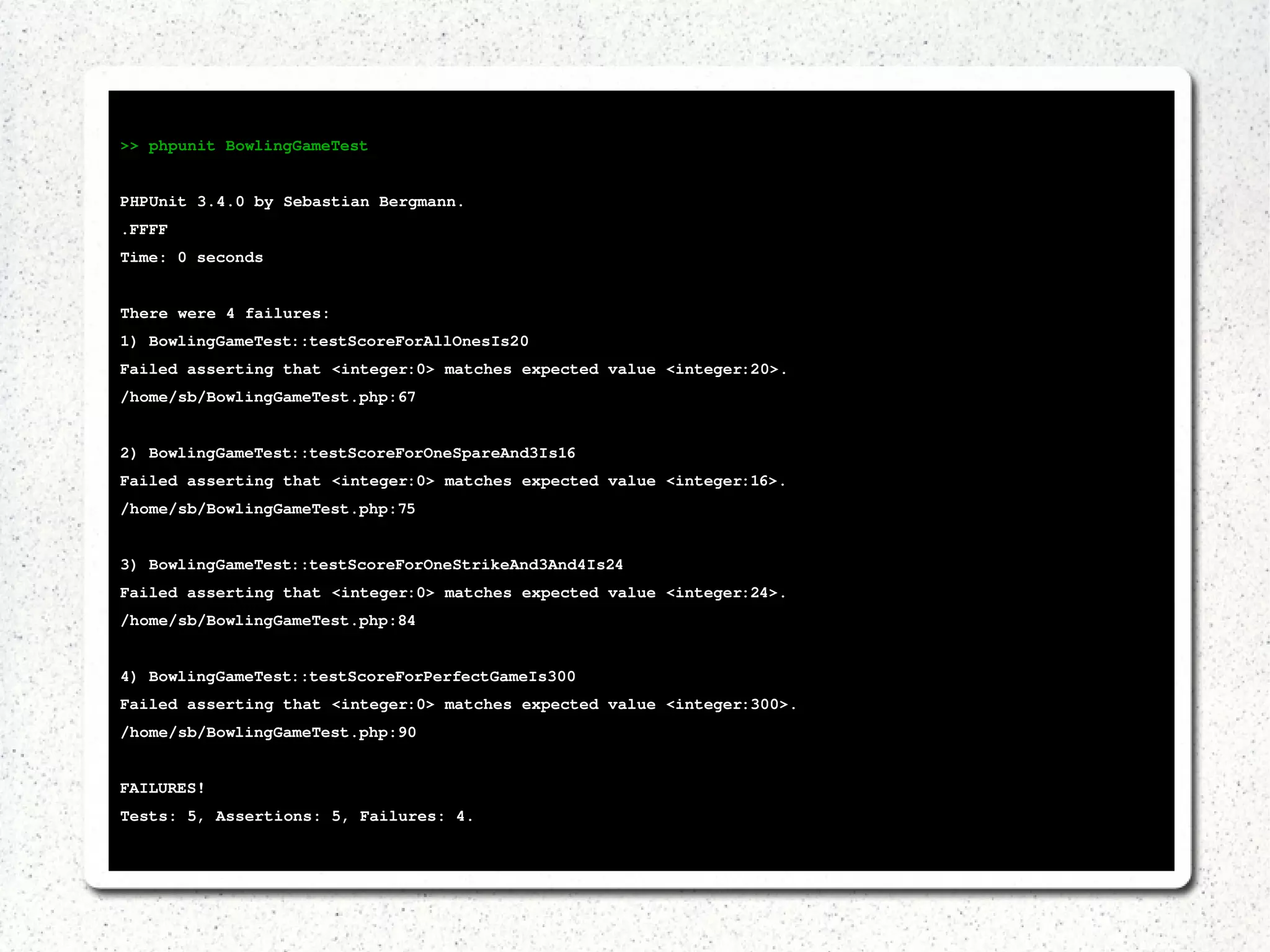

14. >> phpunit BowlingGameTest
PHPUnit 3.4.0 by Sebastian Bergmann.
.FFFF
Time: 0 seconds
There were 4 failures:
1) BowlingGameTest::testScoreForAllOnesIs20
Failed asserting that <integer:0> matches expected value <integer:20>.
/home/sb/BowlingGameTest.php:67
2) BowlingGameTest::testScoreForOneSpareAnd3Is16
Failed asserting that <integer:0> matches expected value <integer:16>.
/home/sb/BowlingGameTest.php:75
3) BowlingGameTest::testScoreForOneStrikeAnd3And4Is24
Failed asserting that <integer:0> matches expected value <integer:24>.
/home/sb/BowlingGameTest.php:84
4) BowlingGameTest::testScoreForPerfectGameIs300
Failed asserting that <integer:0> matches expected value <integer:300>.
/home/sb/BowlingGameTest.php:90
FAILURES!
Tests: 5, Assertions: 5, Failures: 4.

15. Agenda
● Software Quality Assurance
● Code Testing
● Code Analysis
● Continous Integration
● Quick Demo of QA

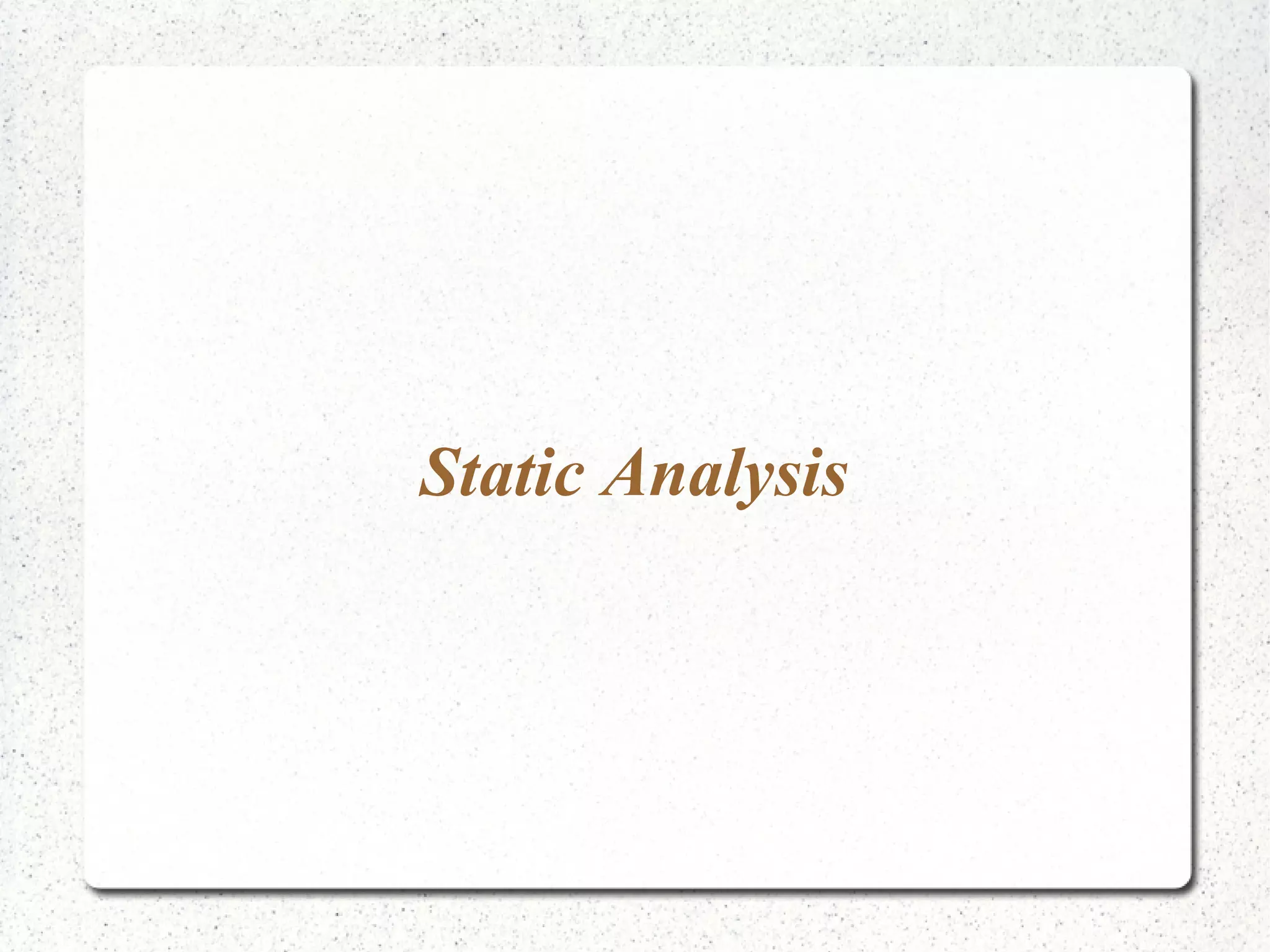

16. Static Analysis

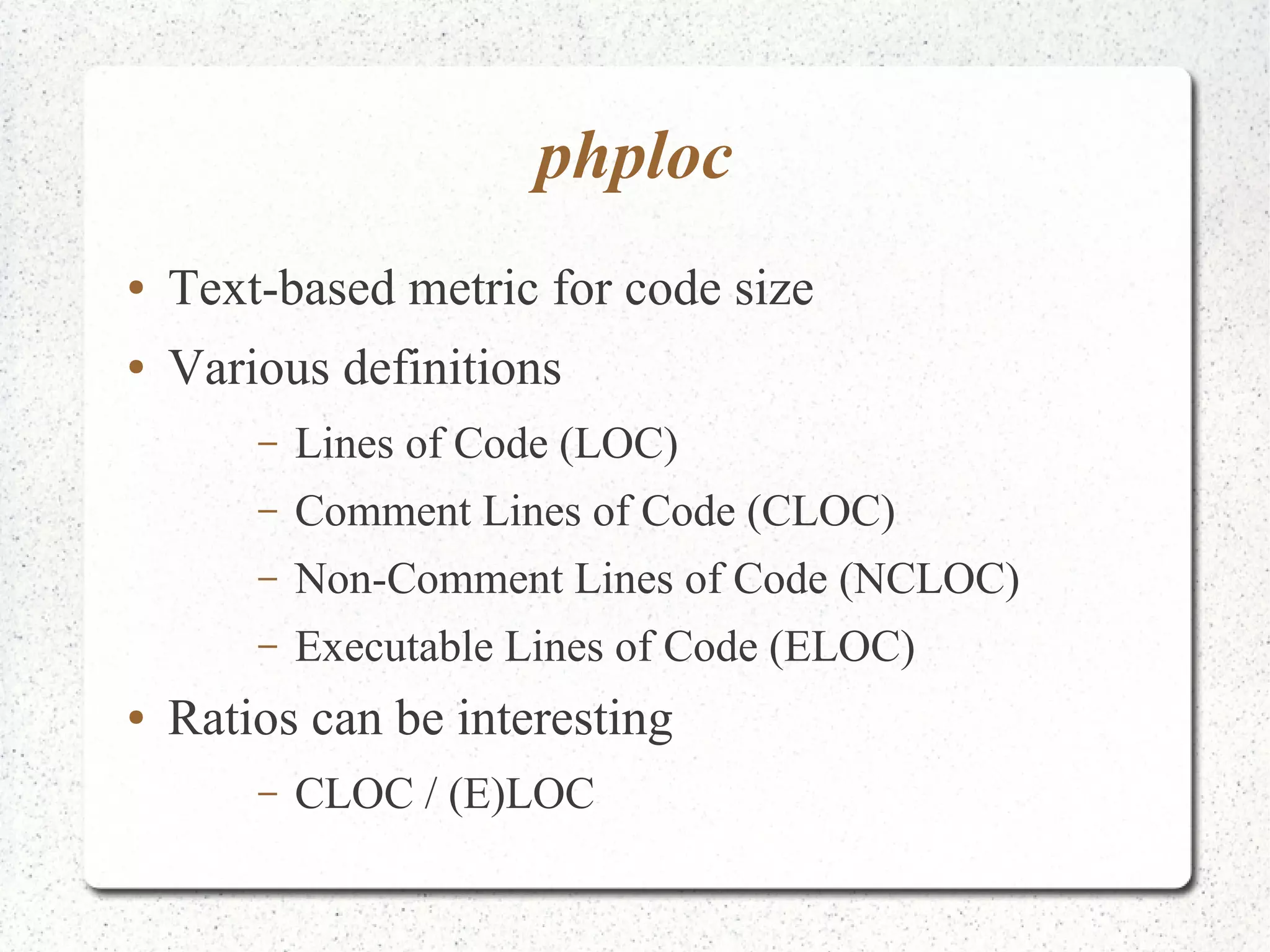

17. phploc
● Text-based metric for code size
● Various definitions
– Lines of Code (LOC)
– Comment Lines of Code (CLOC)
– Non-Comment Lines of Code (NCLOC)
– Executable Lines of Code (ELOC)
● Ratios can be interesting
– CLOC / (E)LOC

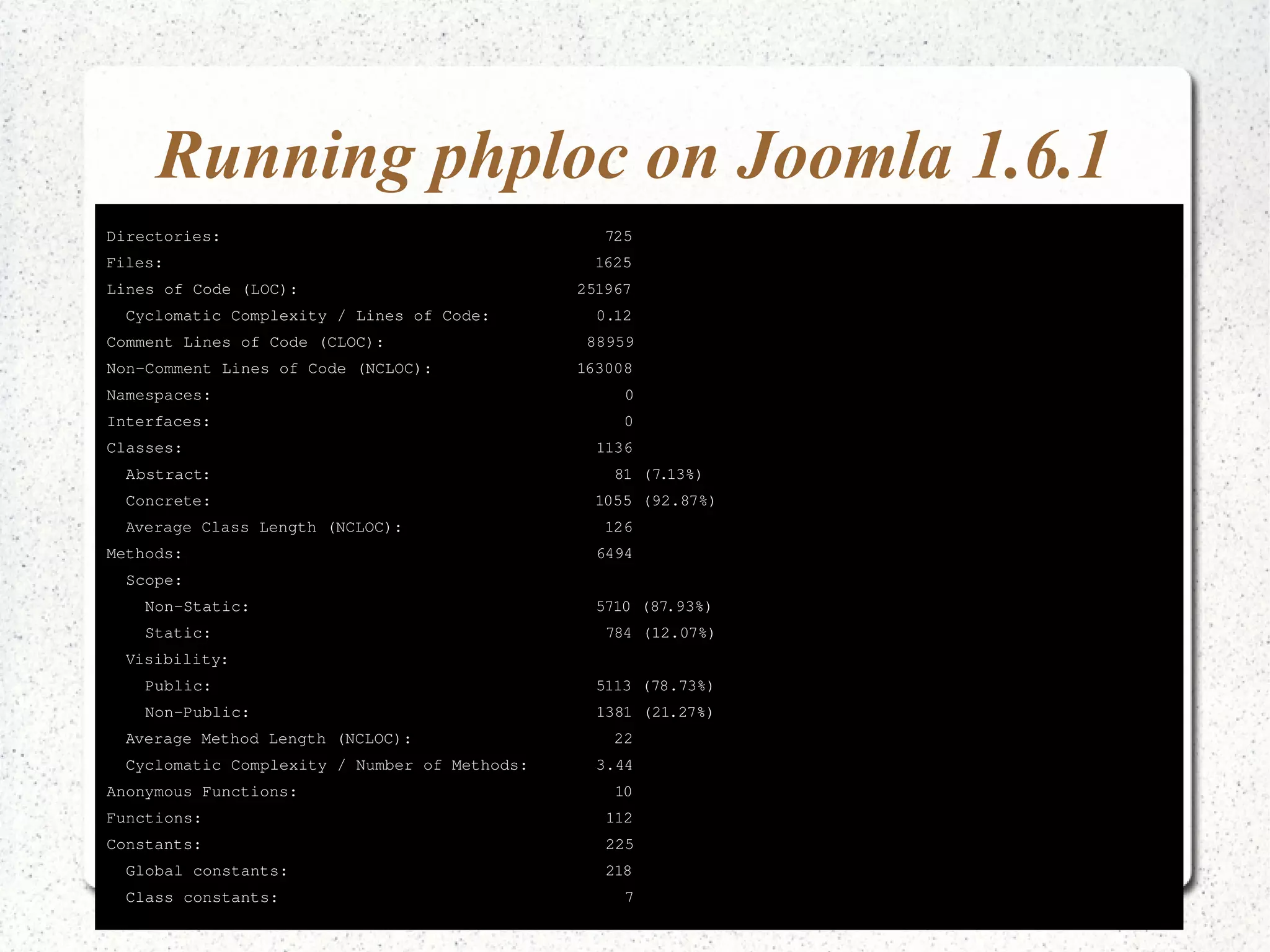

18. Running phploc on Joomla 1.6.1
Directories: 725
Files: 1625
Lines of Code (LOC): 251967
Cyclomatic Complexity / Lines of Code: 0.12
Comment Lines of Code (CLOC): 88959
Non­Comment
Lines of Code (NCLOC): 163008
Namespaces: 0
Interfaces: 0
Classes: 1136
Abstract: 81 (7.13%)
Concrete: 1055 (92.87%)
Average Class Length (NCLOC): 126
Methods: 6494
Scope:
Non­Static:
5710 (87.93%)
Static: 784 (12.07%)
Visibility:
Public: 5113 (78.73%)
Non­Public:
1381 (21.27%)
Average Method Length (NCLOC): 22
Cyclomatic Complexity / Number of Methods: 3.44
Anonymous Functions: 10
Functions: 112
Constants: 225
Global constants: 218
Class constants: 7

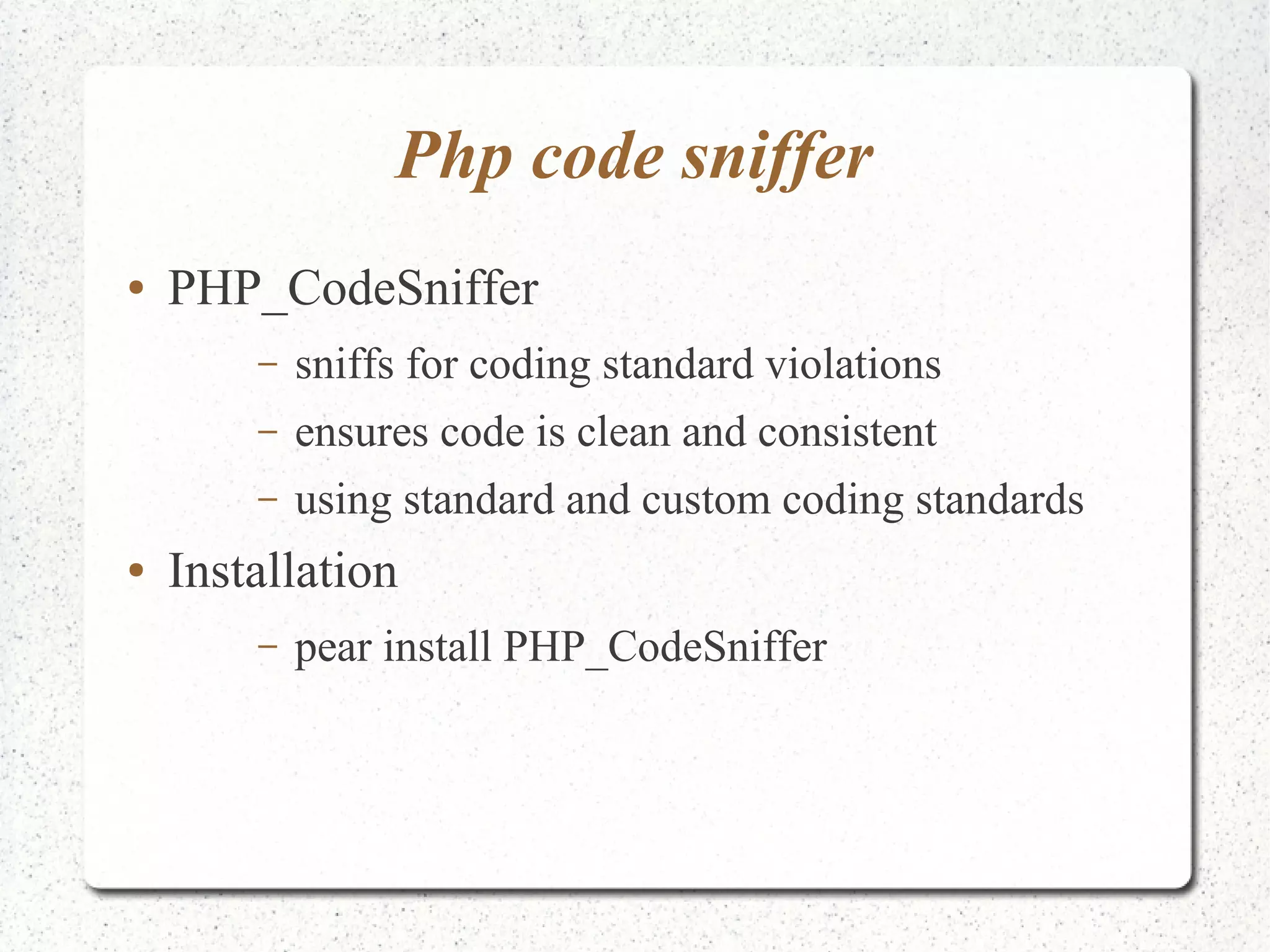

19. Php code sniffer
● PHP_CodeSniffer
– sniffs for coding standard violations
– ensures code is clean and consistent
– using standard and custom coding standards
● Installation
– pear install PHP_CodeSniffer

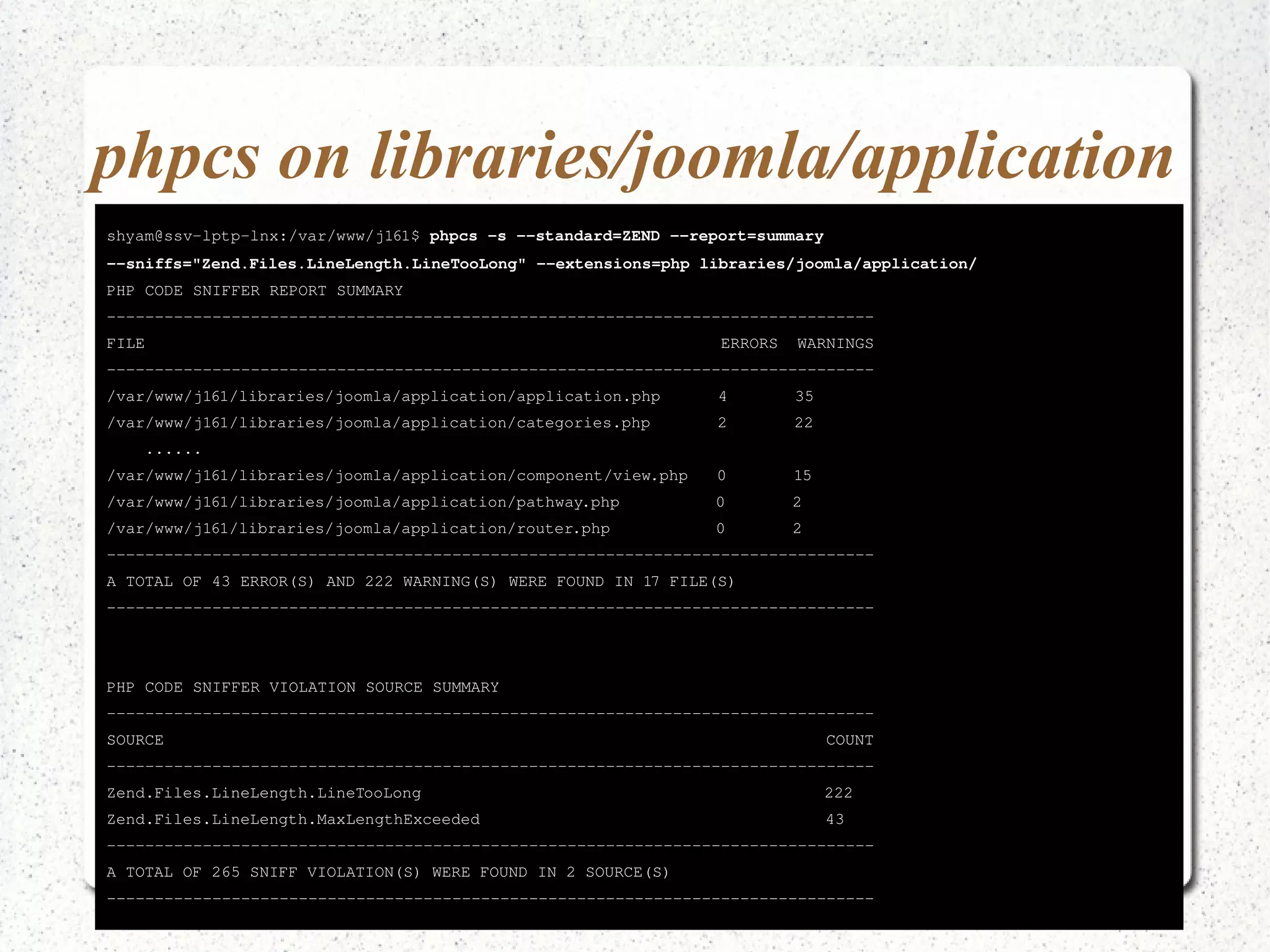

20. phpcs on libraries/joomla/application
shyam@ssv­lptp­lnx:/
var/www/j161$ phpcs ­s
­­standard=
ZEND ­­report=
summary
­­sniffs="
Zend.Files.LineLength.LineTooLong" ­­extensions=
php libraries/joomla/application/
PHP CODE SNIFFER REPORT SUMMARY
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­FILE
ERRORS WARNINGS
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­/
var/www/j161/libraries/joomla/application/application.php 4 35
/var/www/j161/libraries/joomla/application/categories.php 2 22
......
/var/www/j161/libraries/joomla/application/component/view.php 0 15
/var/www/j161/libraries/joomla/application/pathway.php 0 2
/var/www/j161/libraries/joomla/application/router.php 0 2
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­A
TOTAL OF 43 ERROR(S) AND 222 WARNING(S) WERE FOUND IN 17 FILE(S)
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­PHP
CODE SNIFFER VIOLATION SOURCE SUMMARY
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­SOURCE
COUNT
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­Zend.
Files.LineLength.LineTooLong 222
Zend.Files.LineLength.MaxLengthExceeded 43
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­A
TOTAL OF 265 SNIFF VIOLATION(S) WERE FOUND IN 2 SOURCE(S)
­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­

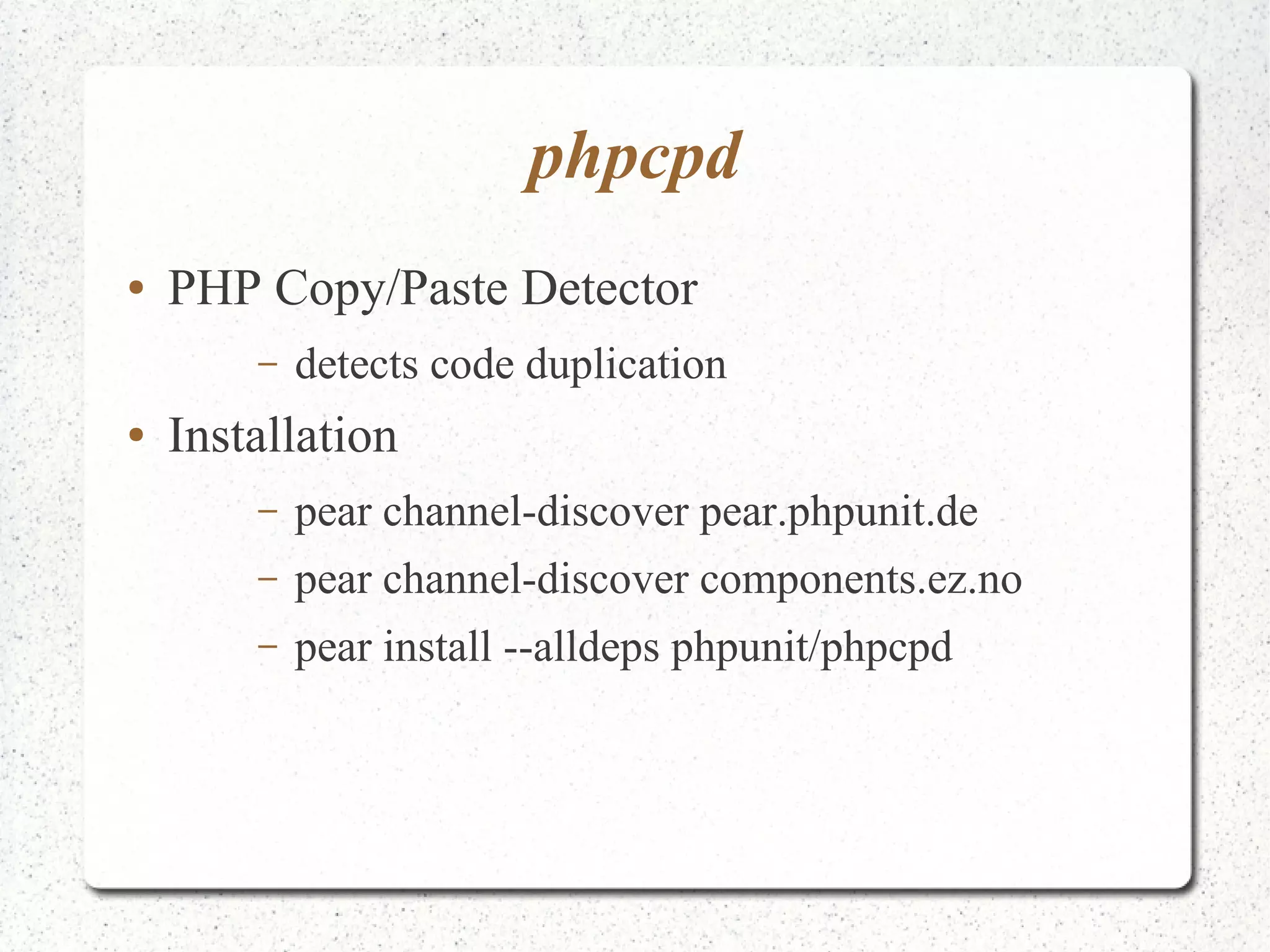

21. phpcpd
● PHP Copy/Paste Detector
– detects code duplication
● Installation
– pear channel-discover pear.phpunit.de
– pear channel-discover components.ez.no
– pear install --alldeps phpunit/phpcpd

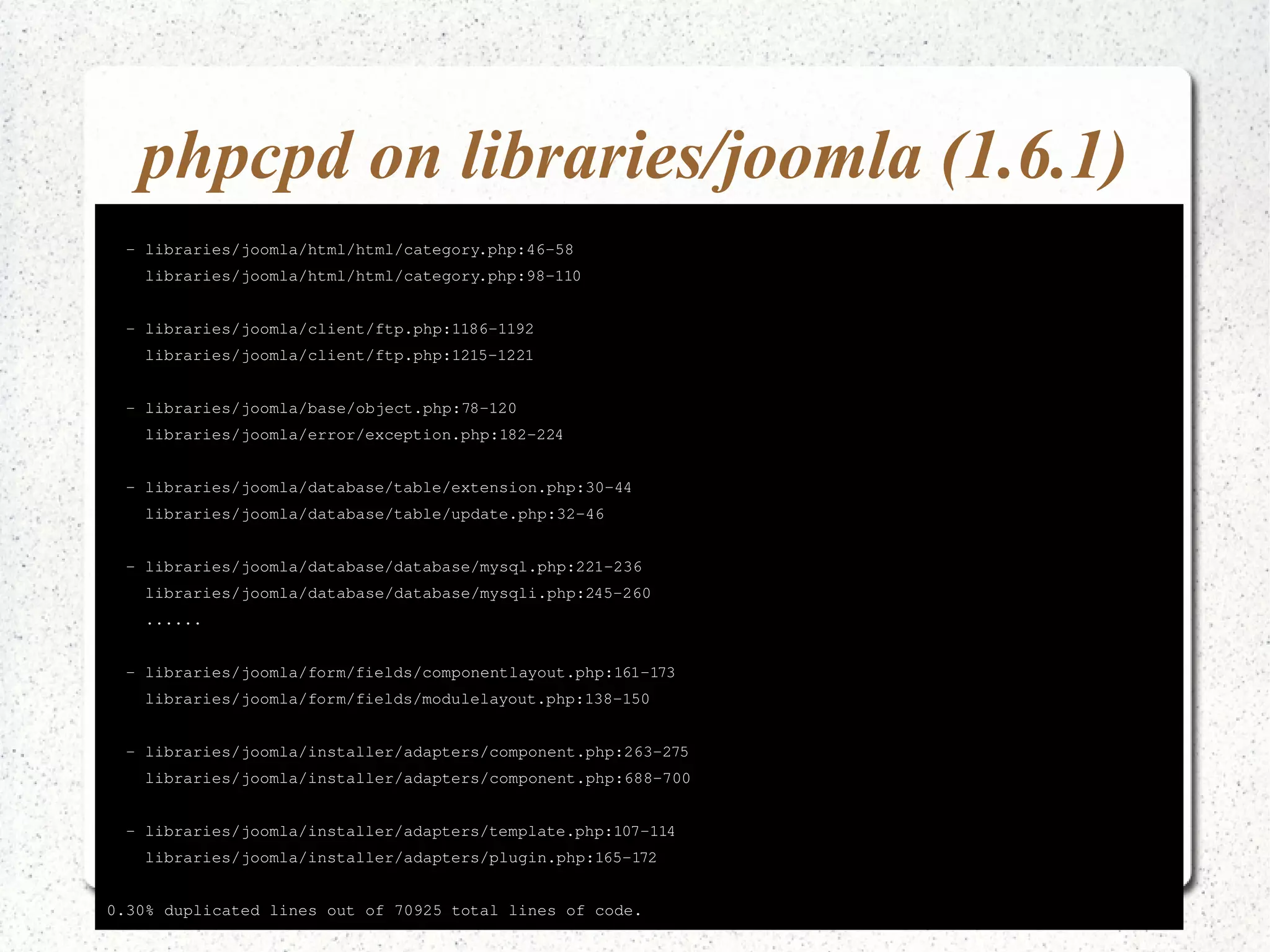

22. phpcpd on libraries/joomla (1.6.1) Found 10 exact clones with 216 duplicated lines in 13 files:
­libraries/
joomla/html/html/category.php:46­58
libraries/joomla/html/html/category.php:98­110
­libraries/
joomla/client/ftp.php:1186­1192
libraries/joomla/client/ftp.php:1215­1221
­libraries/
joomla/base/object.php:78­120
libraries/joomla/error/exception.php:182­224
­libraries/
joomla/database/table/extension.php:30­44
libraries/joomla/database/table/update.php:32­46
­libraries/
joomla/database/database/mysql.php:221­236
libraries/joomla/database/database/mysqli.php:245­260
......
­libraries/
joomla/form/fields/componentlayout.php:161­173
libraries/joomla/form/fields/modulelayout.php:138­150
­libraries/
joomla/installer/adapters/component.php:263­275
libraries/joomla/installer/adapters/component.php:688­700
­libraries/
joomla/installer/adapters/template.php:107­114
libraries/joomla/installer/adapters/plugin.php:165­172
0.30% duplicated lines out of 70925 total lines of code.

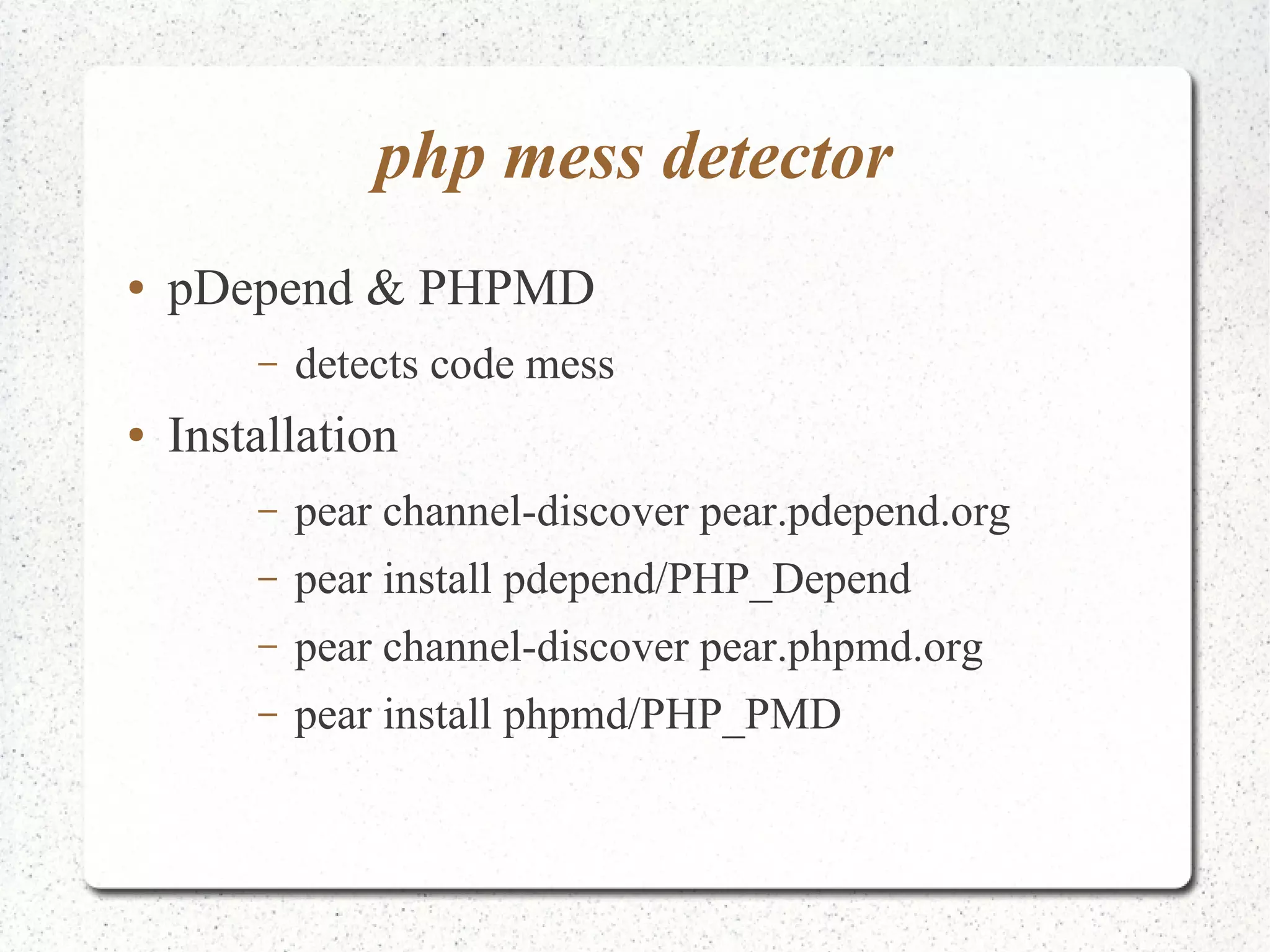

23. php mess detector
● pDepend & PHPMD
– detects code mess
● Installation
– pear channel-discover pear.pdepend.org
– pear install pdepend/PHP_Depend
– pear channel-discover pear.phpmd.org
– pear install phpmd/PHP_PMD

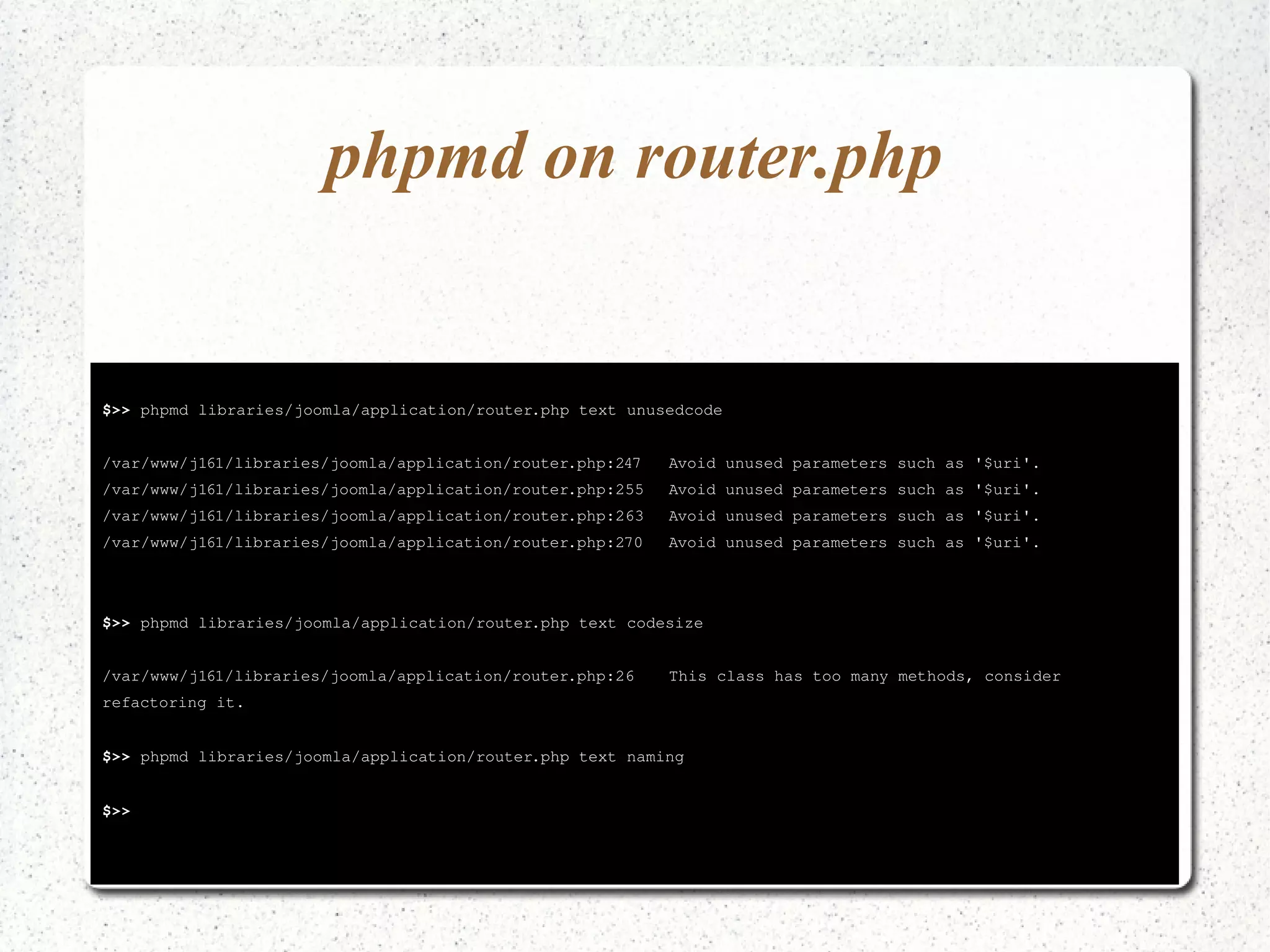

24. phpmd on router.php
$>> phpmd libraries/joomla/application/router.php text unusedcode
/var/www/j161/libraries/joomla/application/router.php:247 Avoid unused parameters such as '$uri'.
/var/www/j161/libraries/joomla/application/router.php:255 Avoid unused parameters such as '$uri'.
/var/www/j161/libraries/joomla/application/router.php:263 Avoid unused parameters such as '$uri'.
/var/www/j161/libraries/joomla/application/router.php:270 Avoid unused parameters such as '$uri'.
$>> phpmd libraries/joomla/application/router.php text codesize
/var/www/j161/libraries/joomla/application/router.php:26 This class has too many methods, consider
refactoring it.
$>> phpmd libraries/joomla/application/router.php text naming
$>>

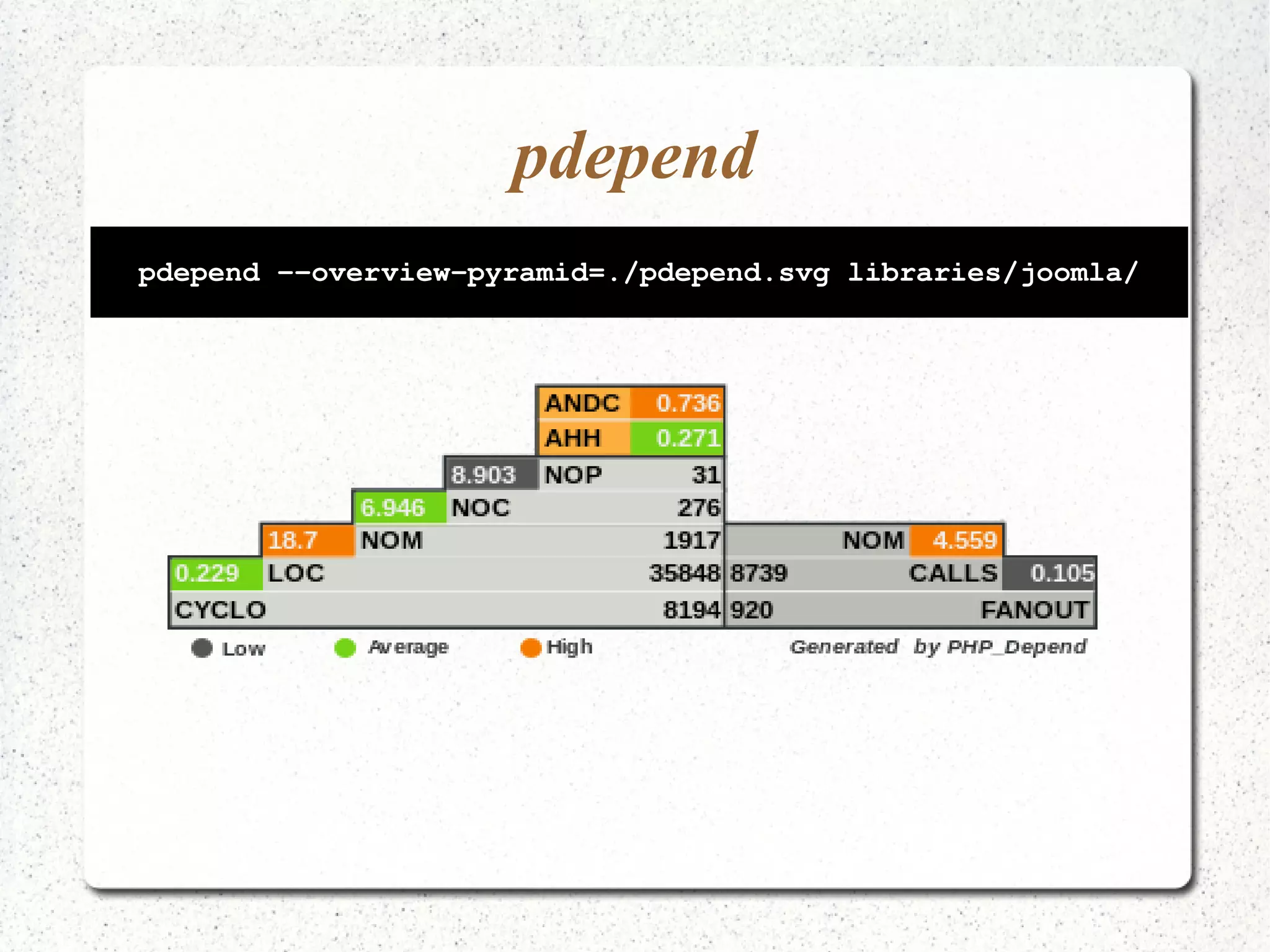

25. pdepend
pdepend ­­overview­pyramid=./
pdepend.svg libraries/joomla/

26. php documentation generator
● PHPDocumentator
– creates automated API documentation based on
inline code blocks
● Installation
– pear install PhpDocumentor

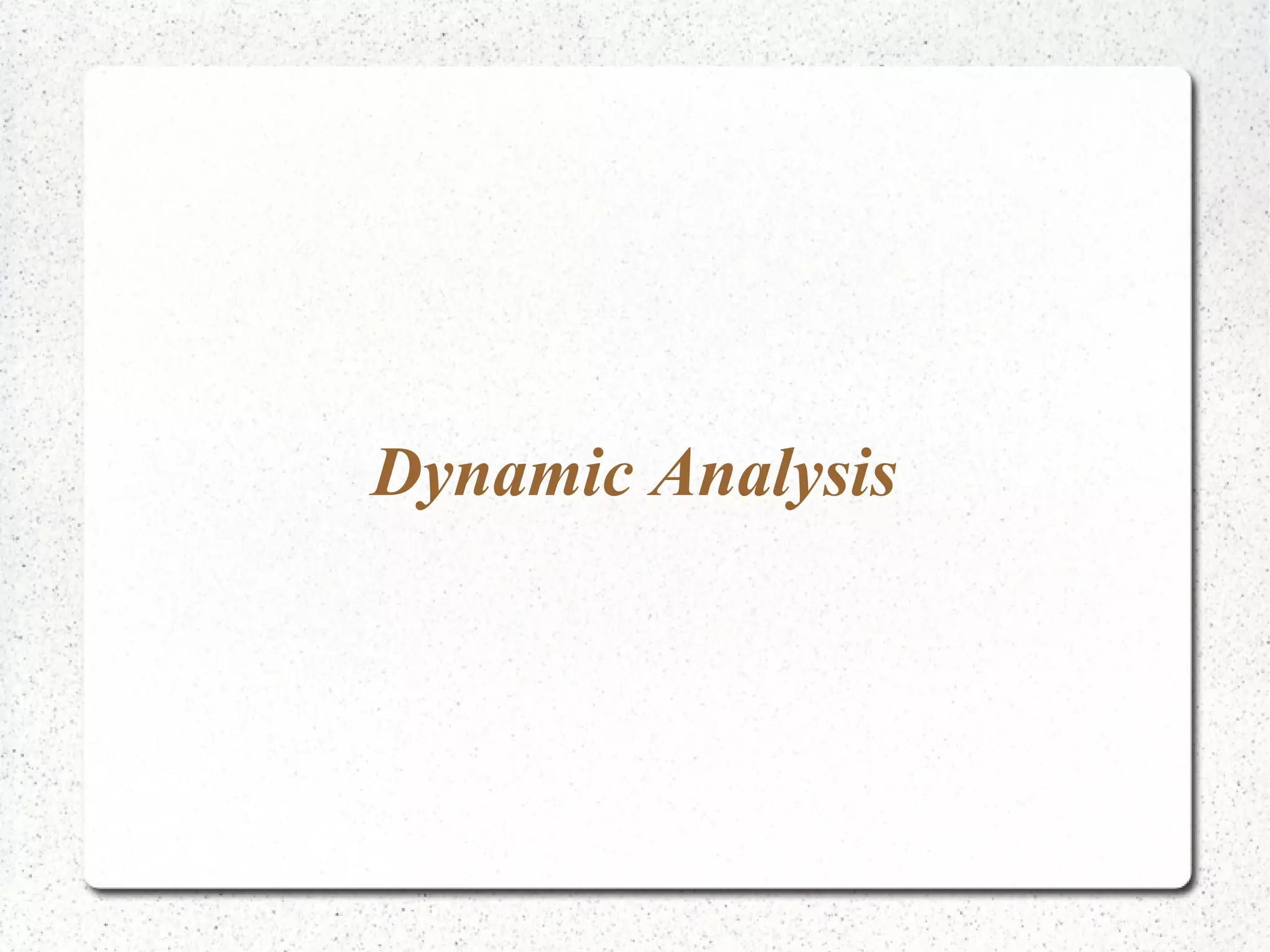

27. Dynamic Analysis

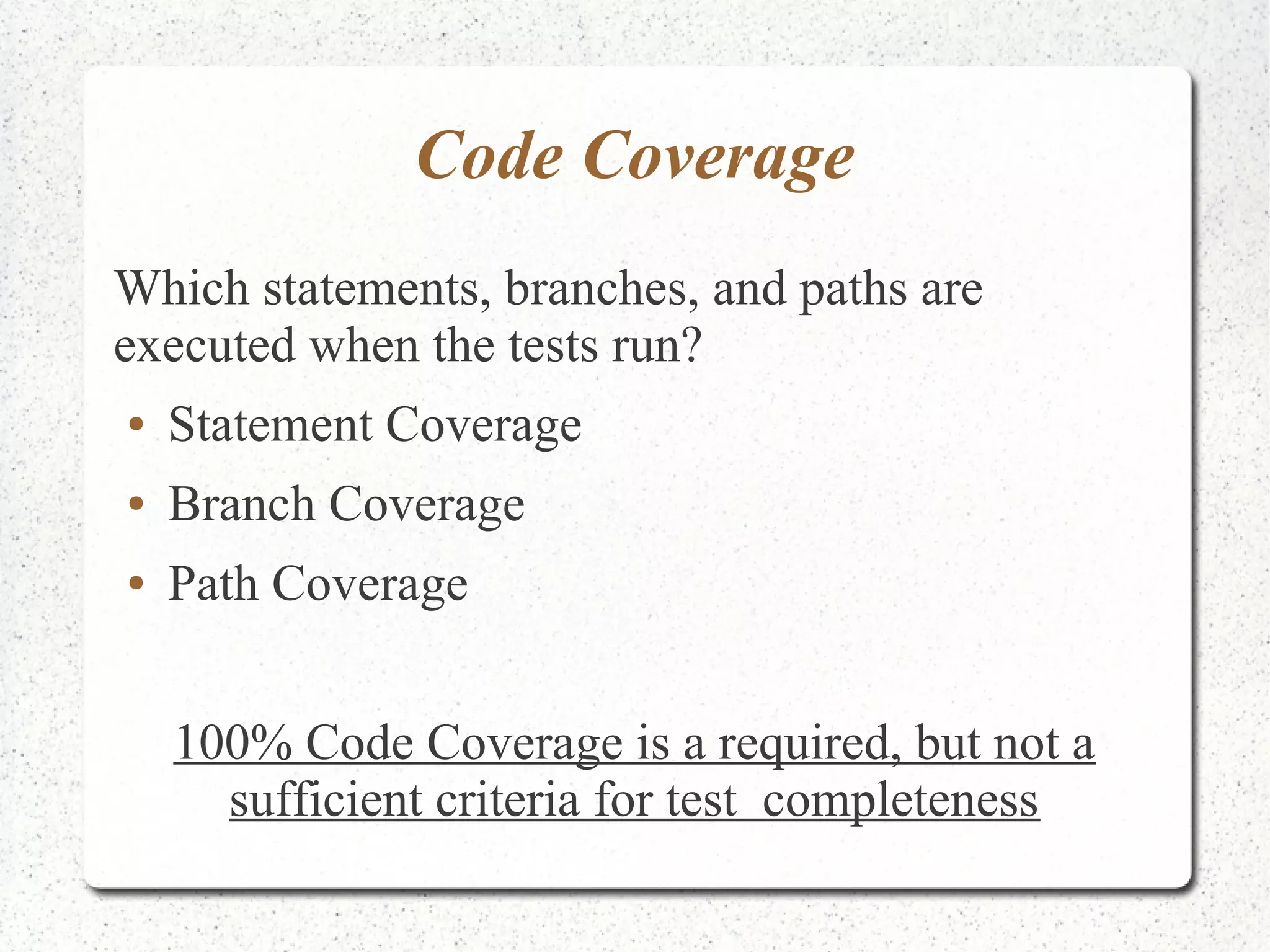

28. Code Coverage
Which statements, branches, and paths are
executed when the tests run?
● Statement Coverage
● Branch Coverage
● Path Coverage
100% Code Coverage is a required, but not a
sufficient criteria for test completeness

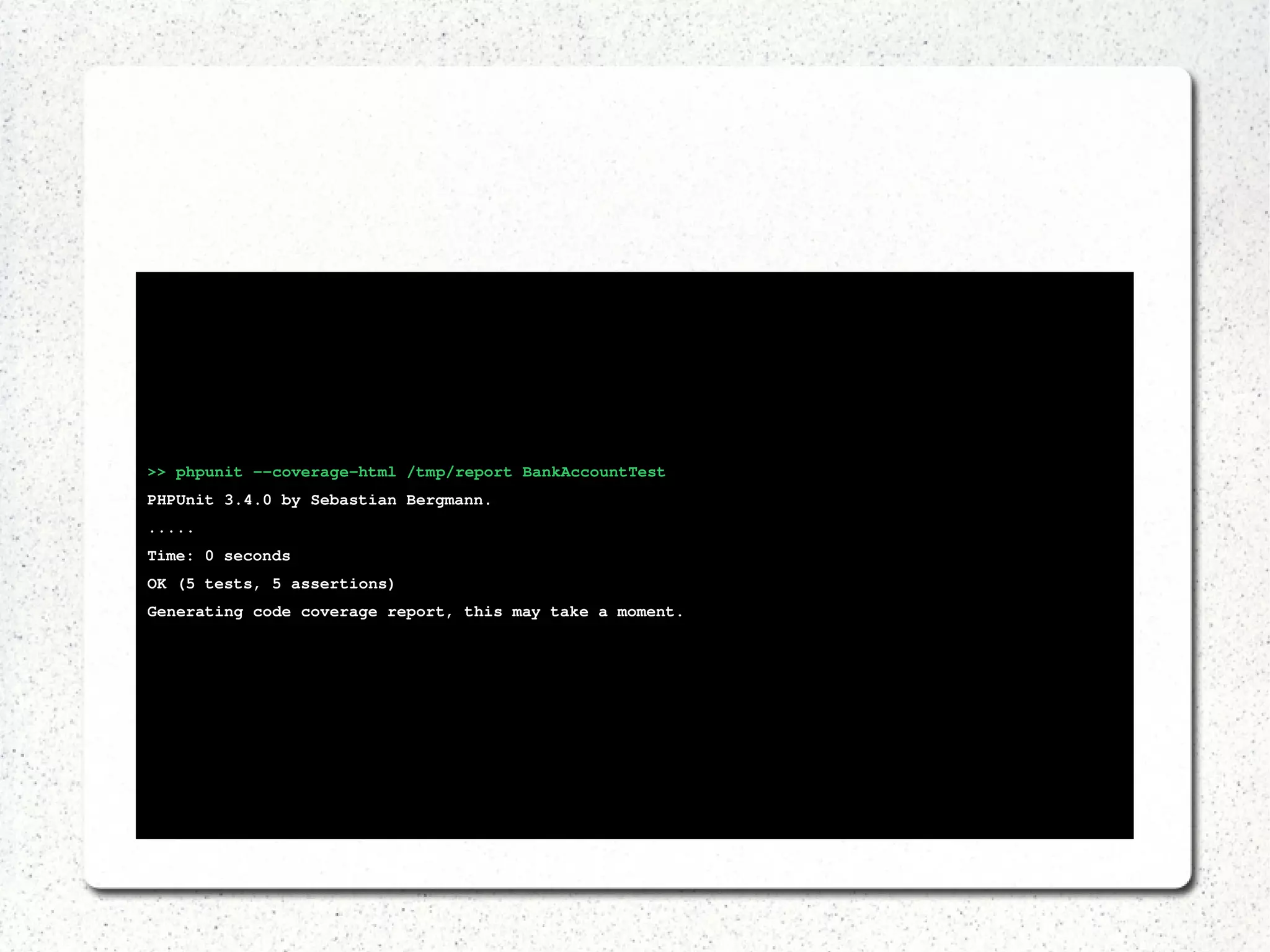

29. >> phpunit ­­coverage­html
/tmp/report BankAccountTest
PHPUnit 3.4.0 by Sebastian Bergmann.
.....
Time: 0 seconds
OK (5 tests, 5 assertions)
Generating code coverage report, this may take a moment.

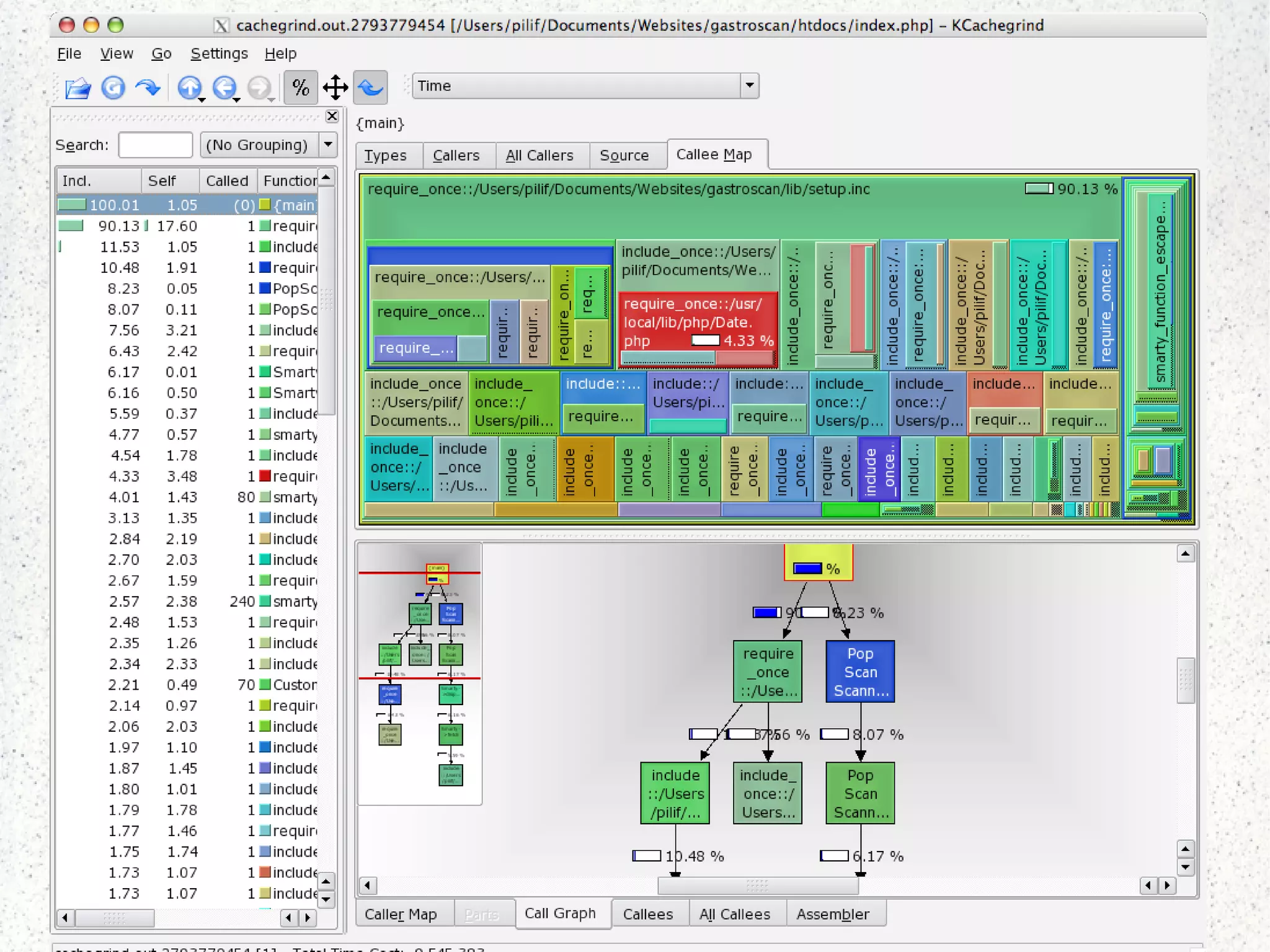

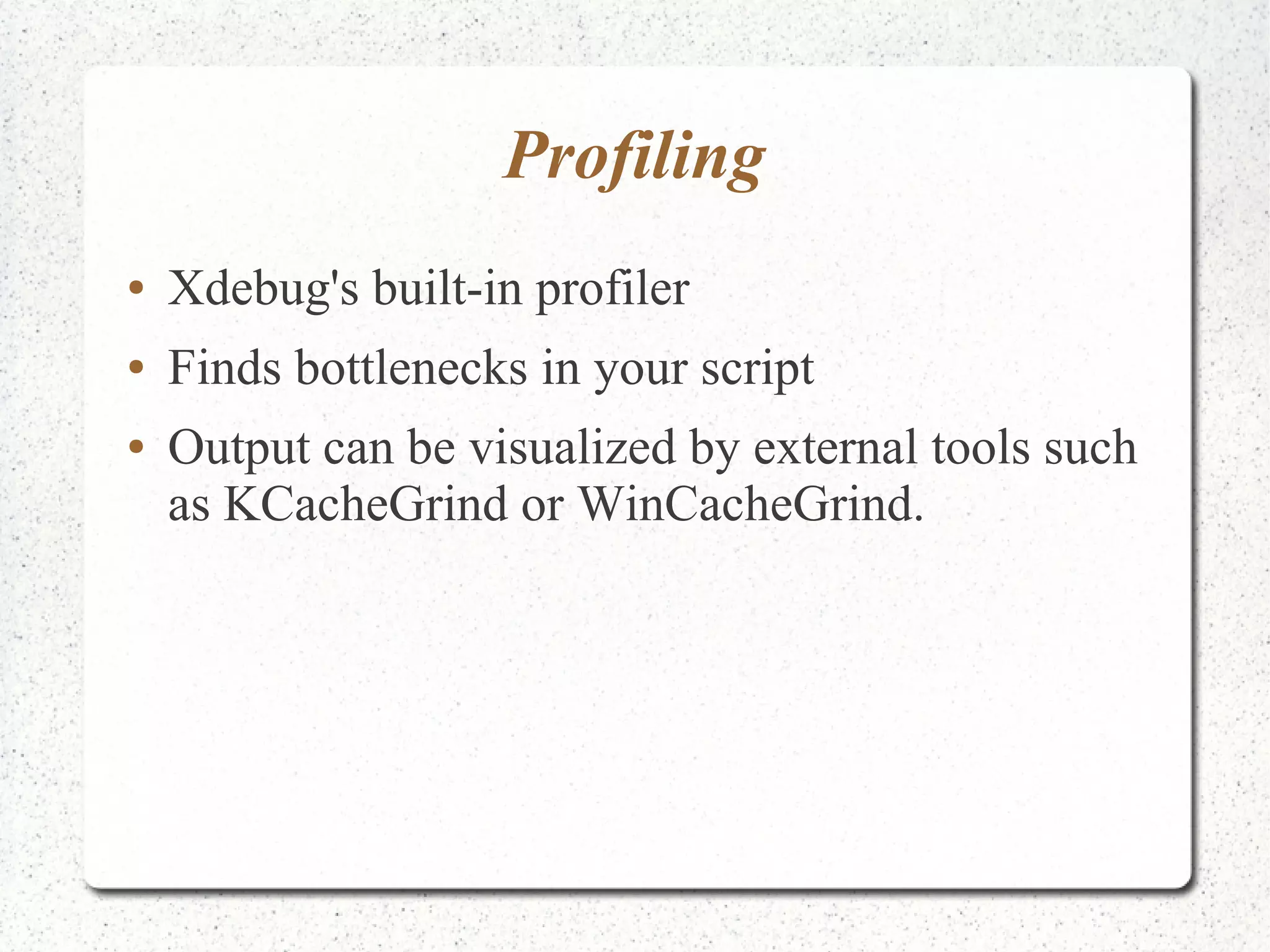

30. Profiling
● Xdebug's built-in profiler
● Finds bottlenecks in your script
● Output can be visualized by external tools such
as KCacheGrind or WinCacheGrind.

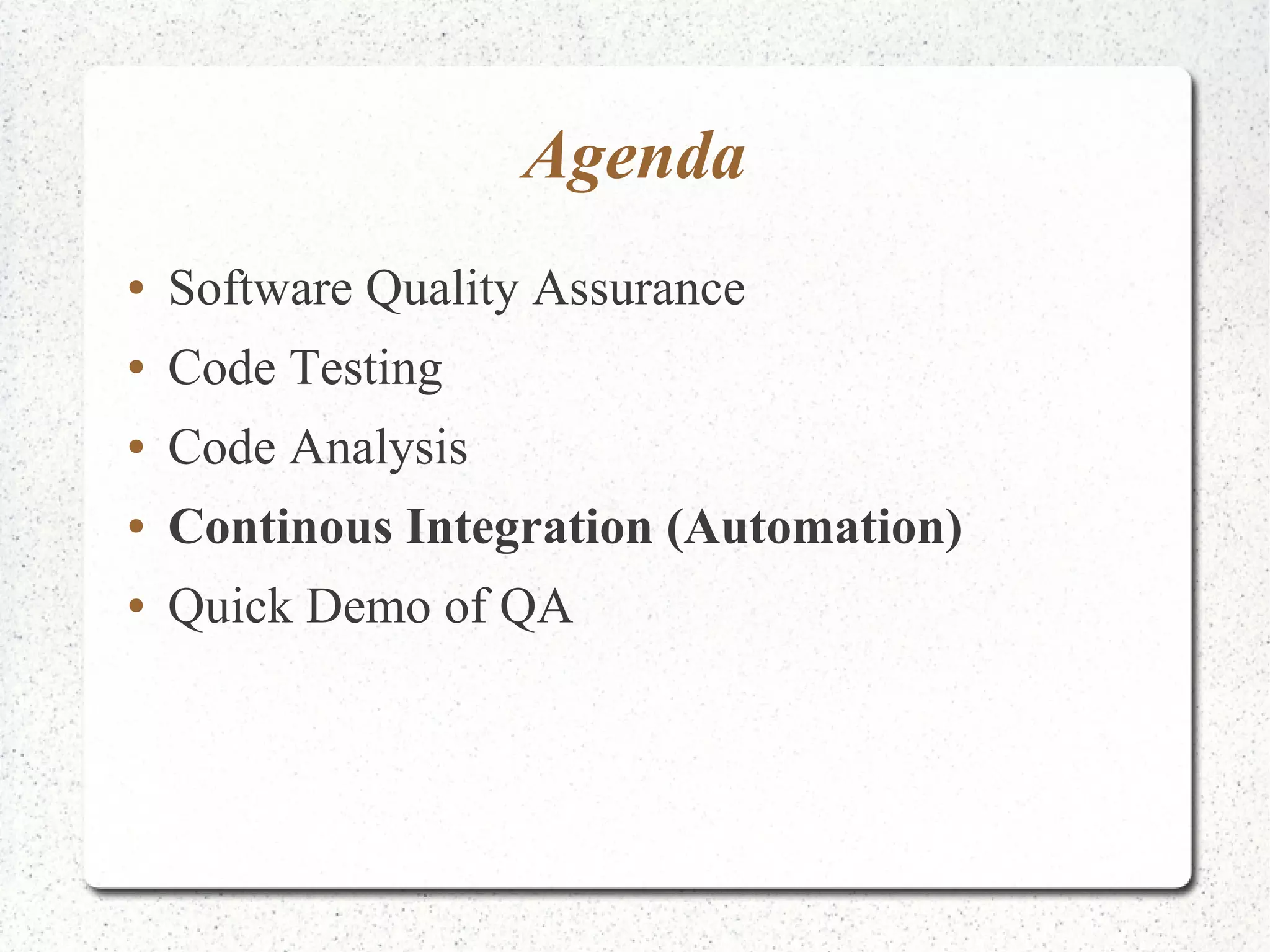

32. Agenda
● Software Quality Assurance
● Code Testing
● Code Analysis
● Continous Integration (Automation)
● Quick Demo of QA

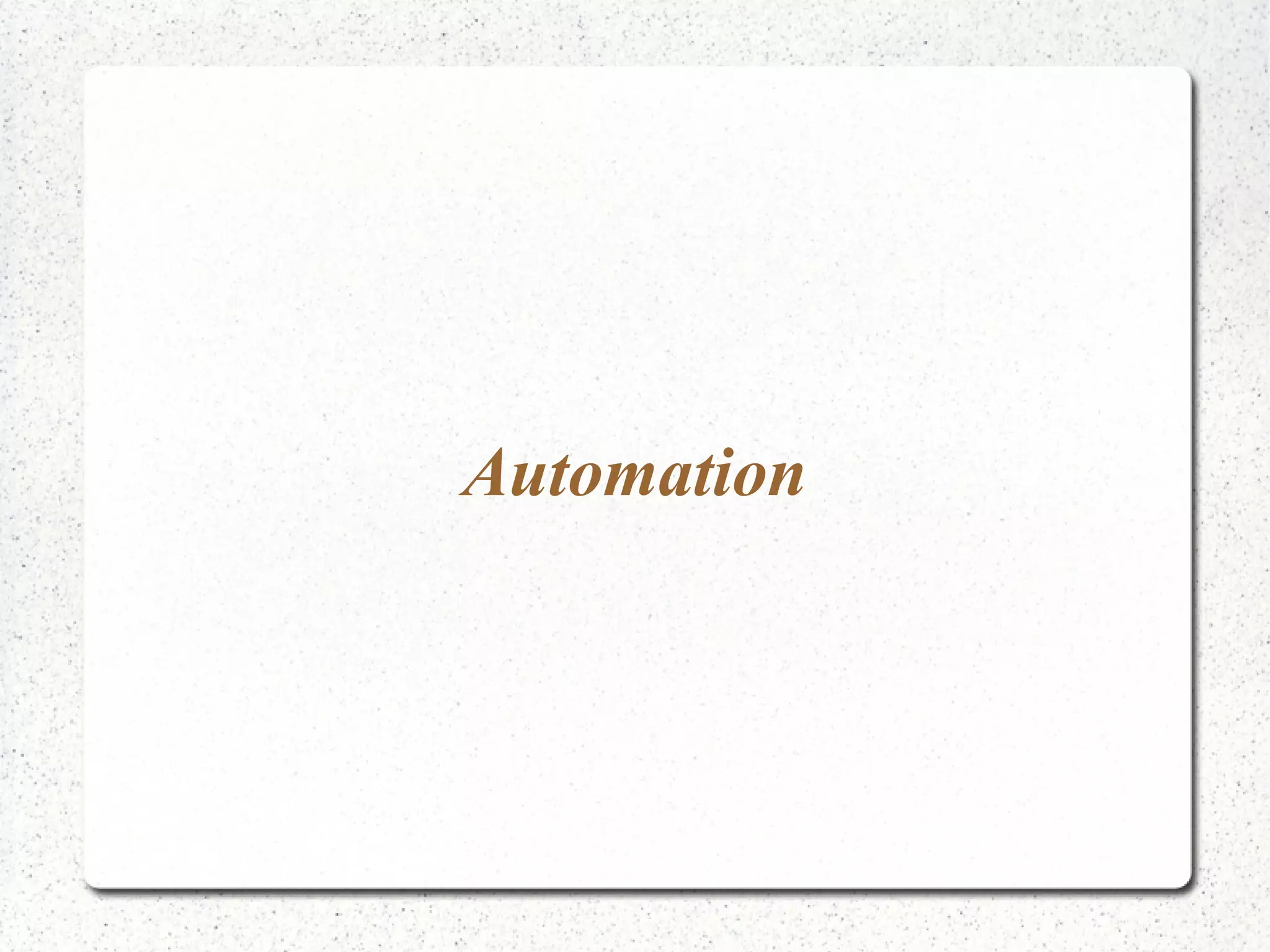

33. Automation

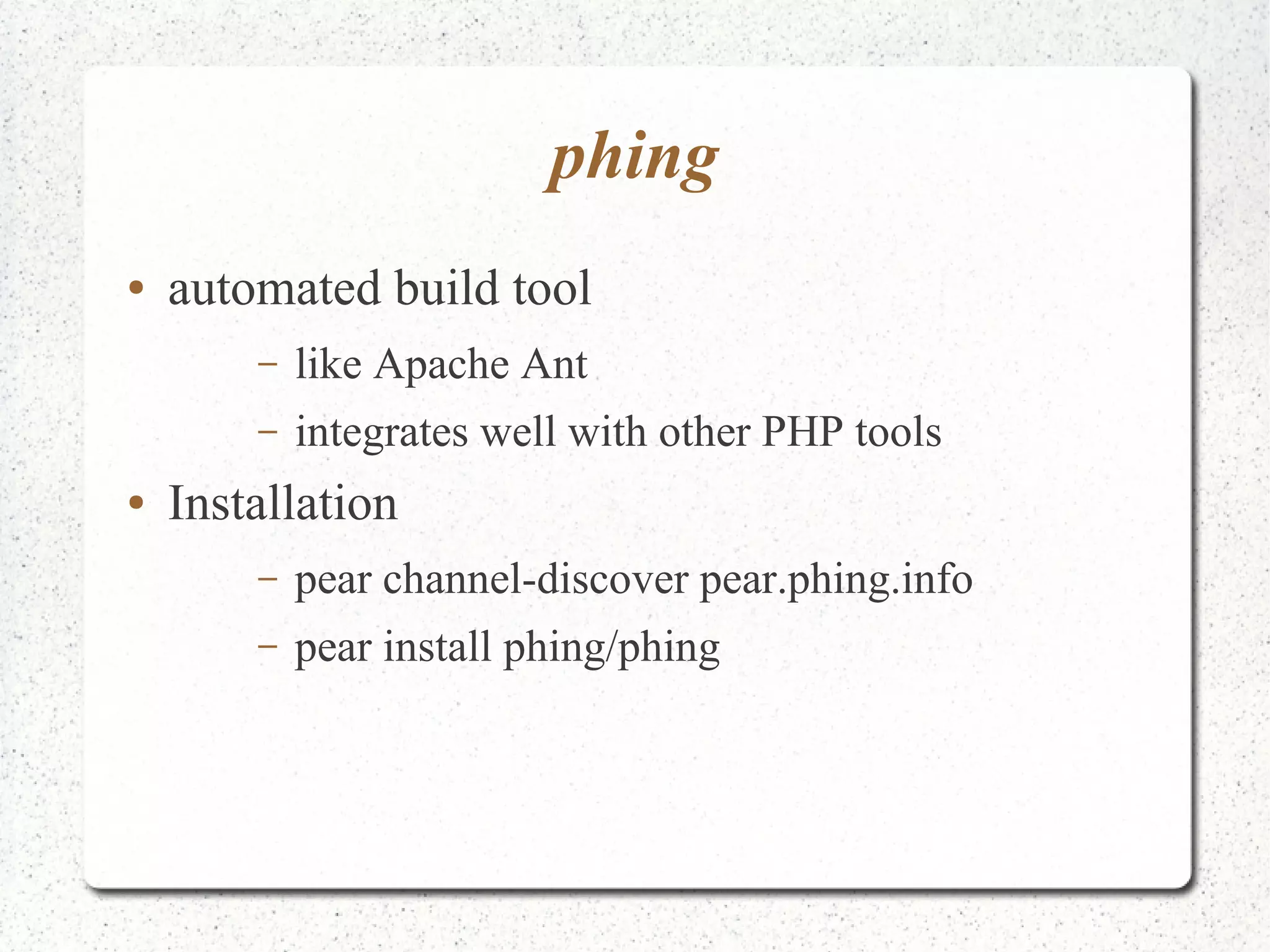

34. phing
● automated build tool
– like Apache Ant
– integrates well with other PHP tools
● Installation
– pear channel-discover pear.phing.info
– pear install phing/phing

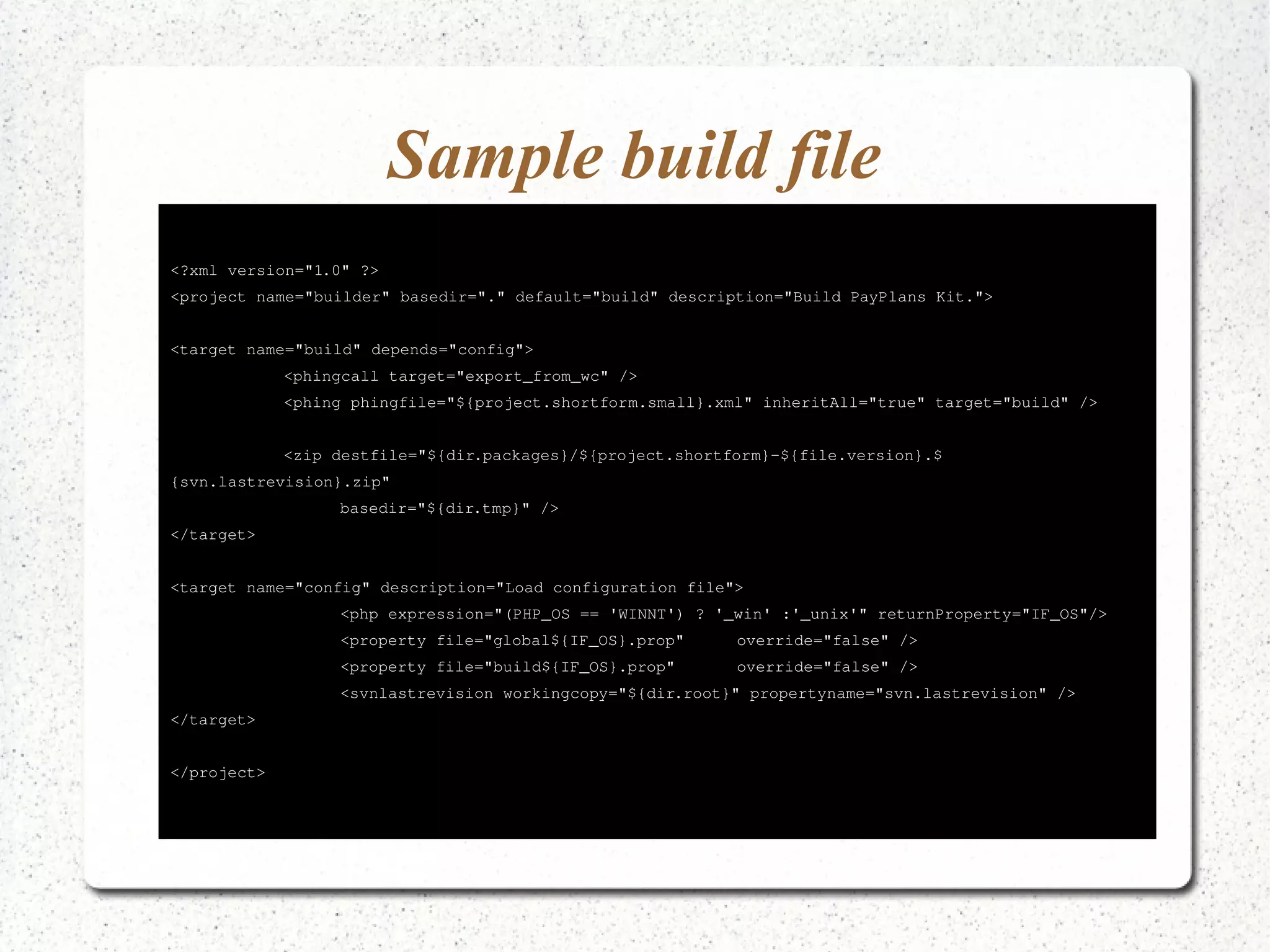

35. Sample build file
<?xml version="1.0" ?>
<project name="builder" basedir="." default="build" description="Build PayPlans Kit.">
<target name="build" depends="config">
<phingcall target="export_from_wc" />
<phing phingfile="${project.shortform.small}.xml" inheritAll="true" target="build" />
<zip destfile="${dir.packages}/${project.shortform}­${
file.version}.$
{svn.lastrevision}.zip"
basedir="${dir.tmp}" />
</target>
<target name="config" description="Load configuration file">
<php expression="(PHP_OS == 'WINNT') ? '_win' :'_unix'" returnProperty="IF_OS"/>
<property file="global${IF_OS}.prop" override="false" />
<property file="build${IF_OS}.prop" override="false" />
<svnlastrevision workingcopy="${dir.root}" propertyname="svn.lastrevision" />
</target>
</project>

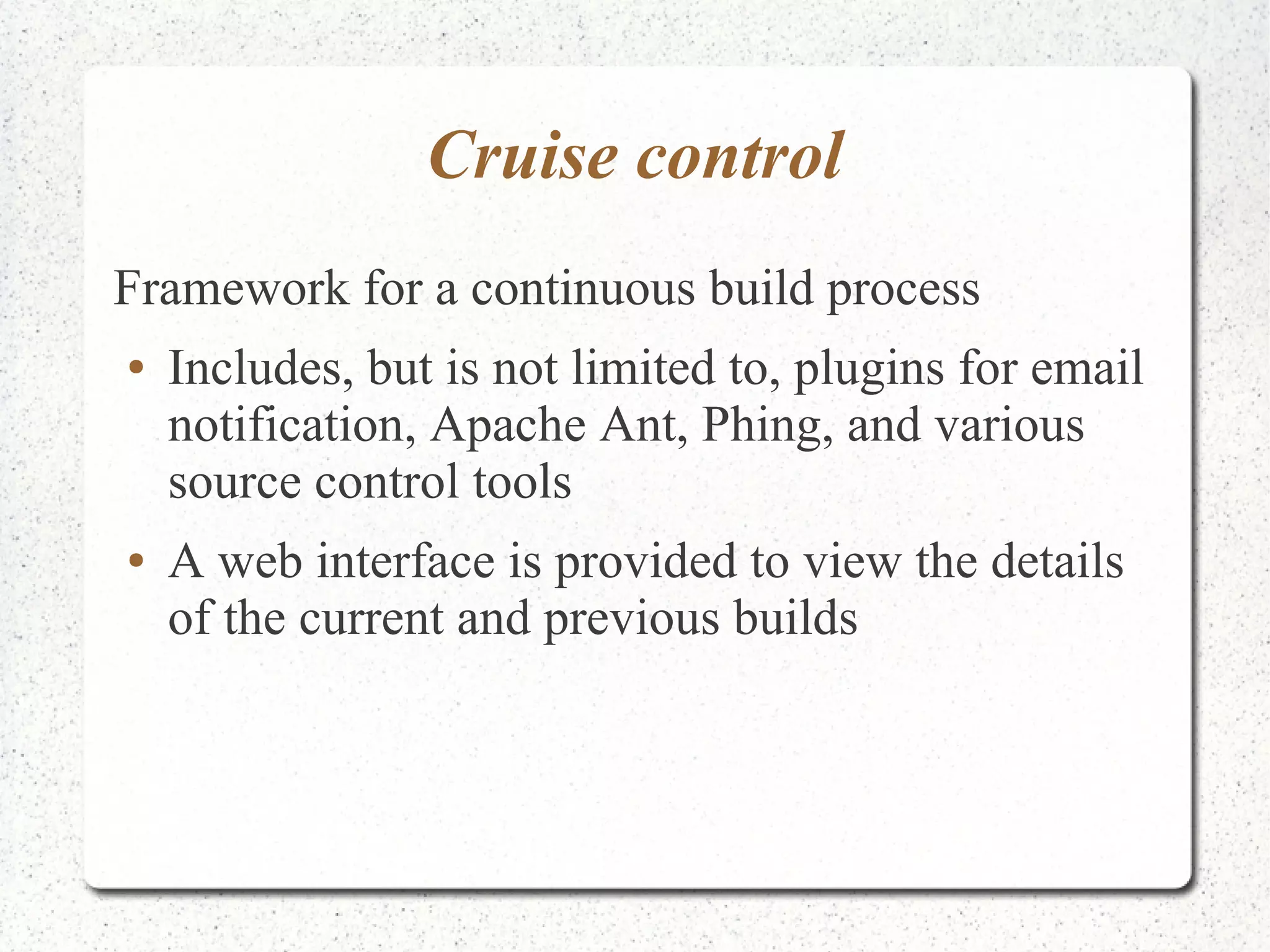

36. Cruise control
Framework for a continuous build process
● Includes, but is not limited to, plugins for email
notification, Apache Ant, Phing, and various
source control tools
● A web interface is provided to view the details
of the current and previous builds

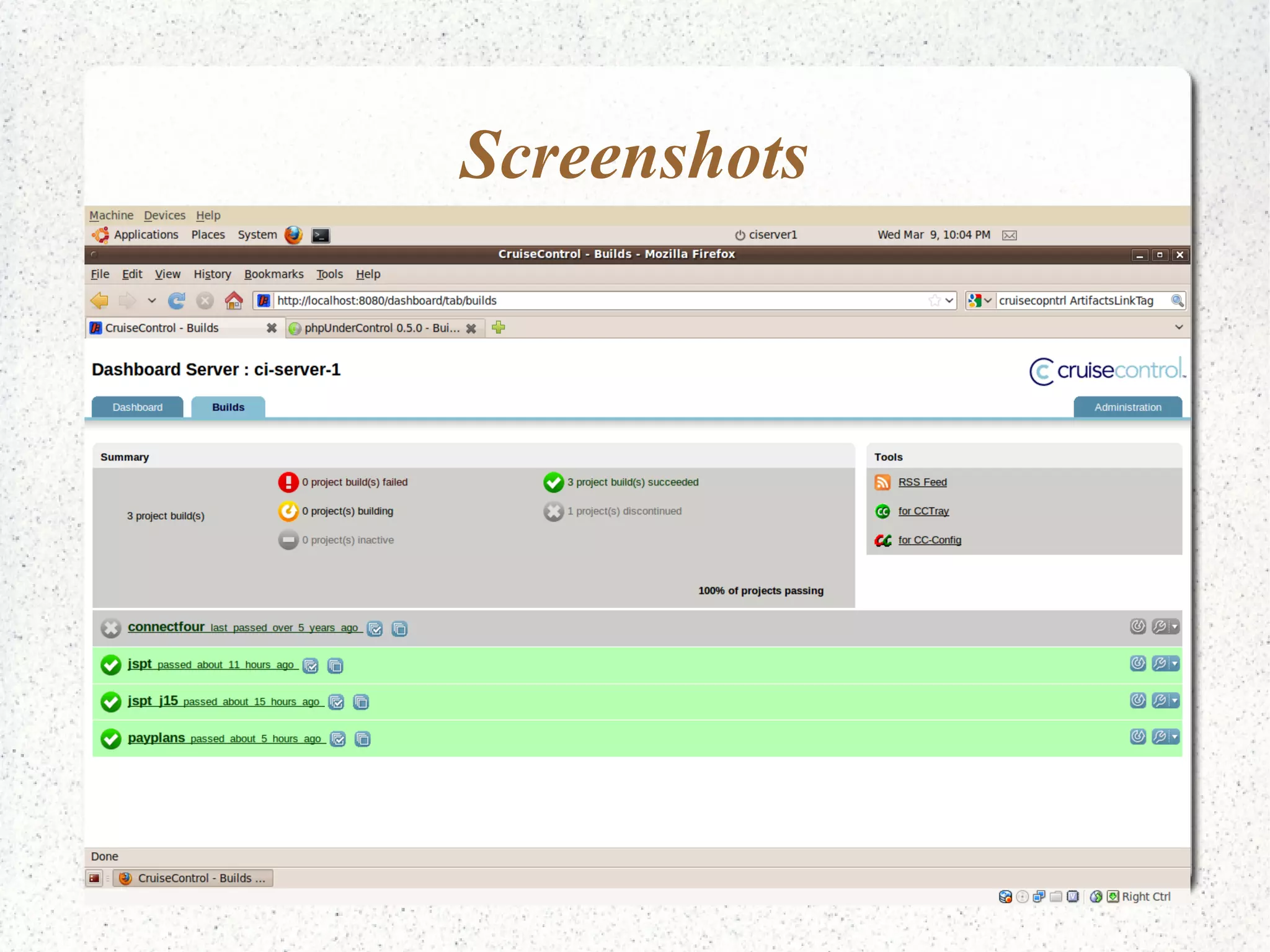

37. Screenshots

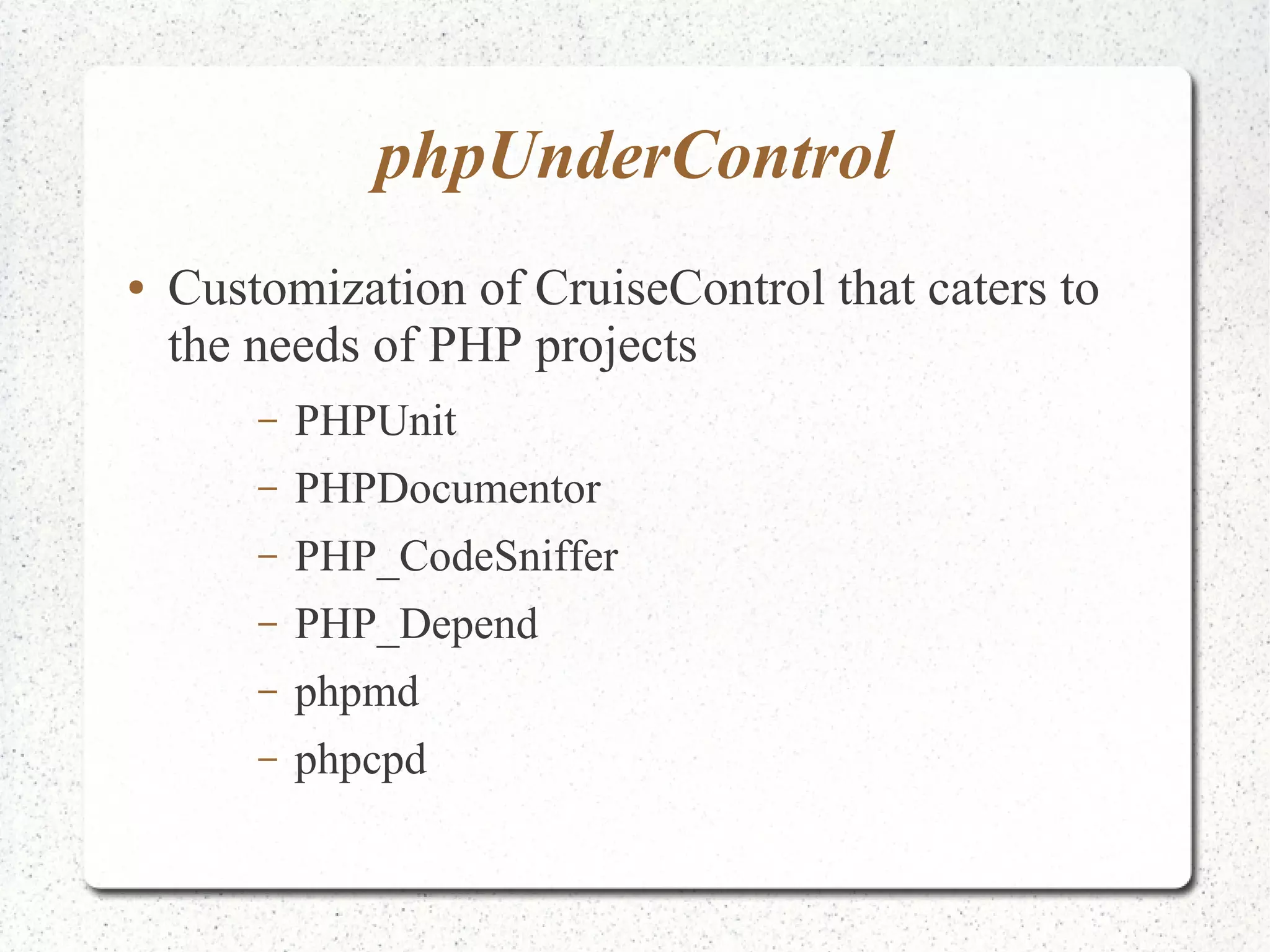

38. phpUnderControl
● Customization of CruiseControl that caters to
the needs of PHP projects
– PHPUnit
– PHPDocumentor
– PHP_CodeSniffer
– PHP_Depend
– phpmd
– phpcpd

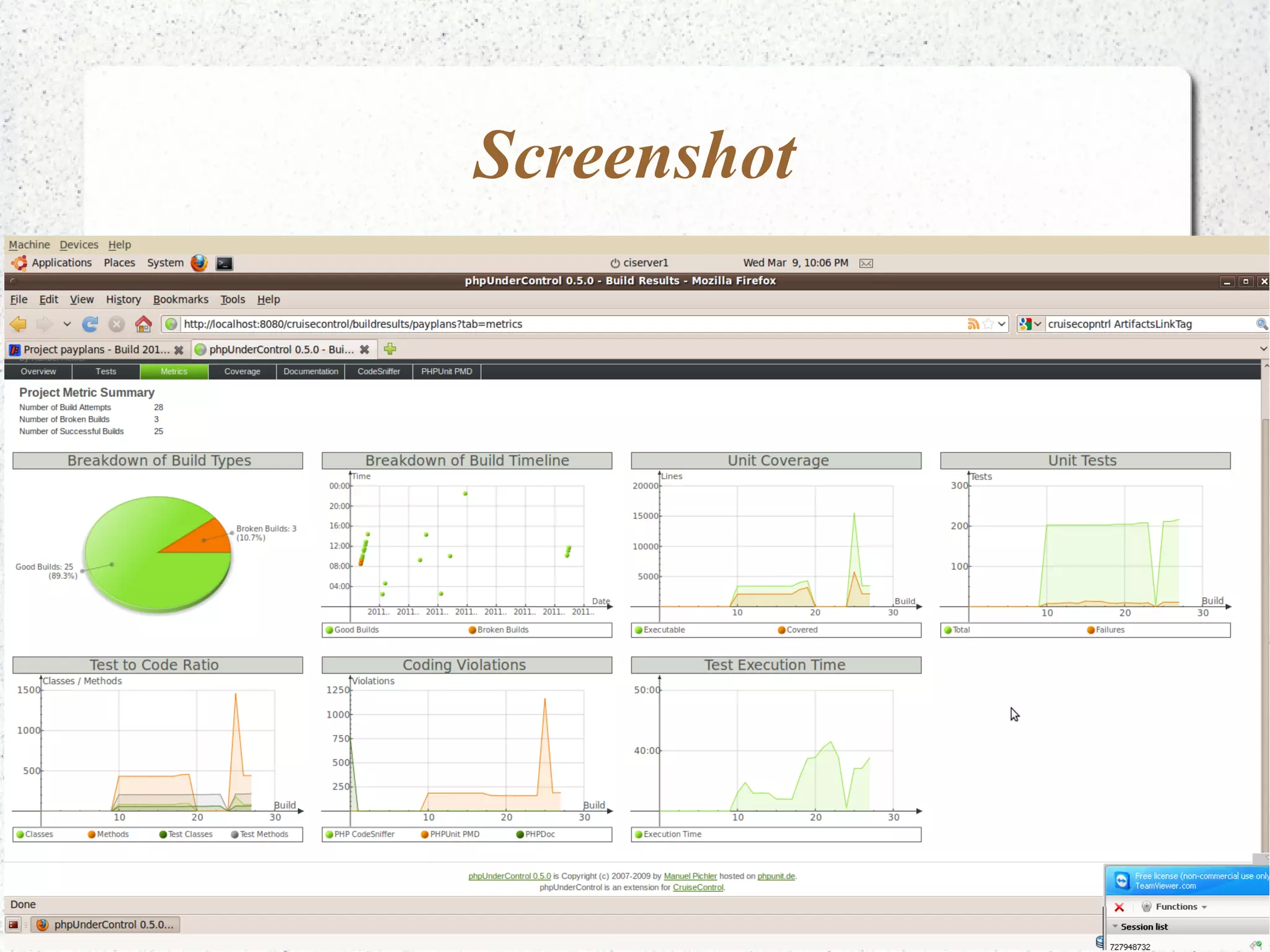

39. Screenshot

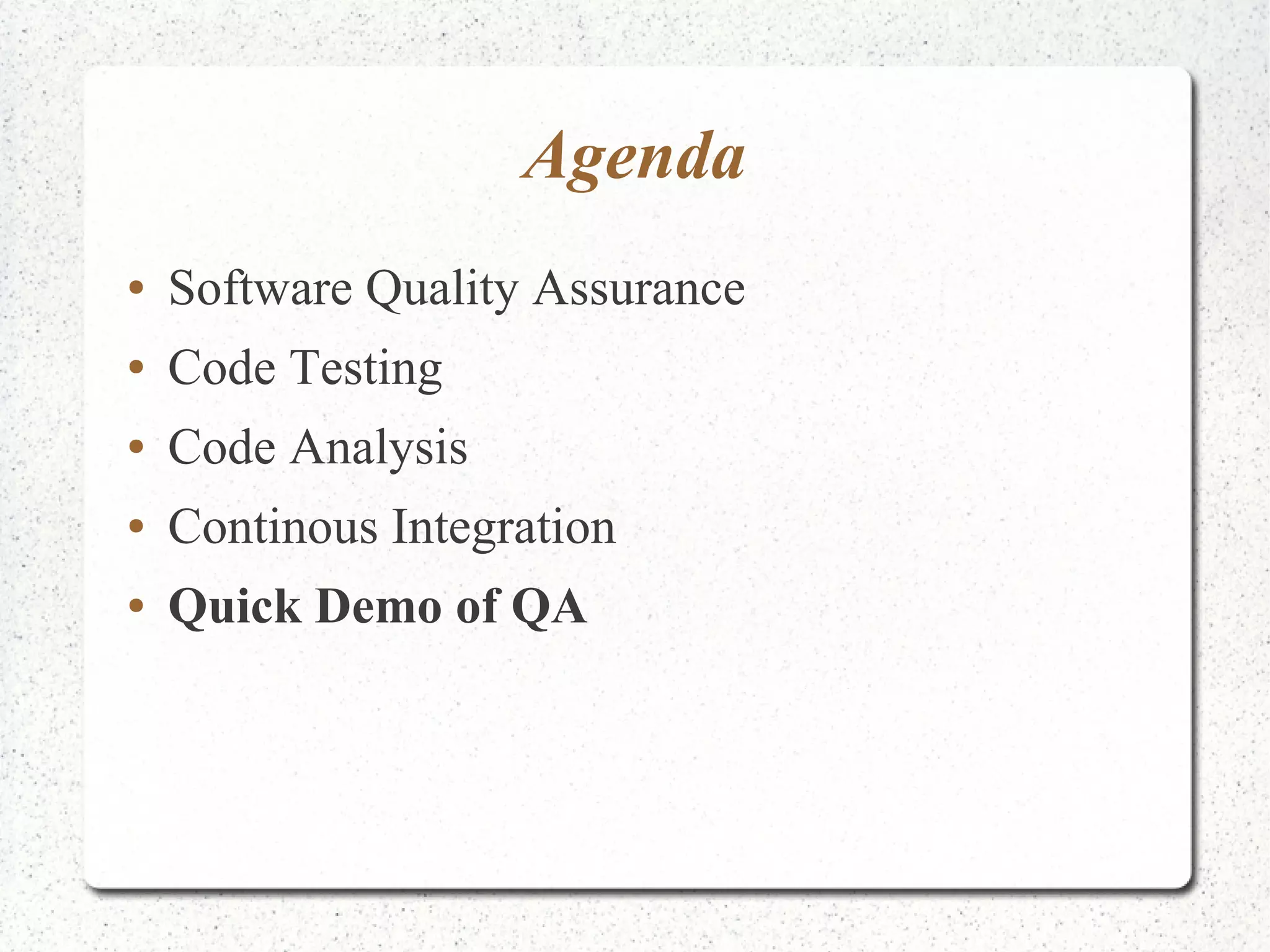

40. Agenda
● Software Quality Assurance
● Code Testing
● Code Analysis
● Continous Integration
● Quick Demo of QA

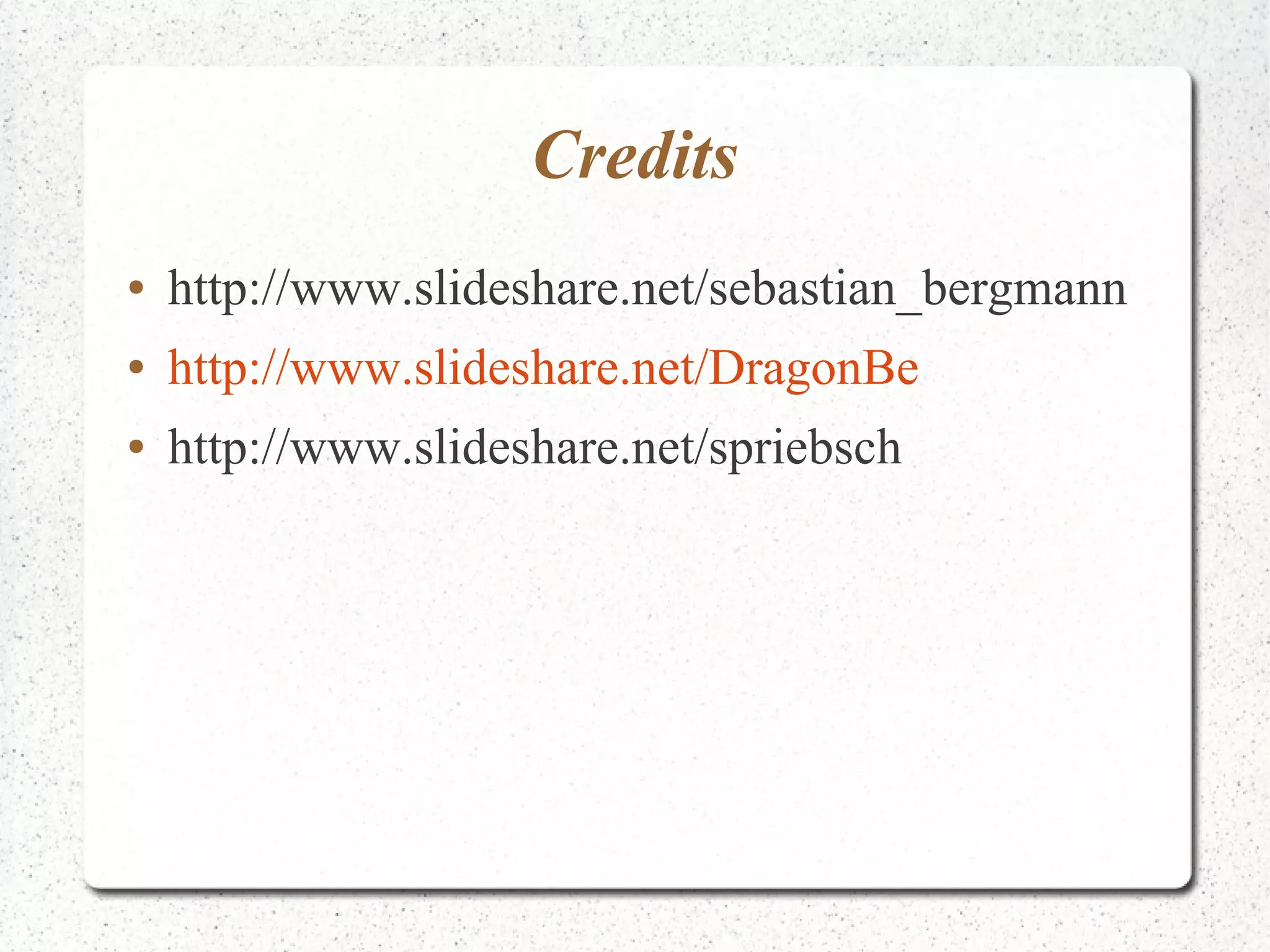

41. Credits
● http://www.slideshare.net/sebastian_bergmann
● http://www.slideshare.net/DragonBe
● http://www.slideshare.net/spriebsch

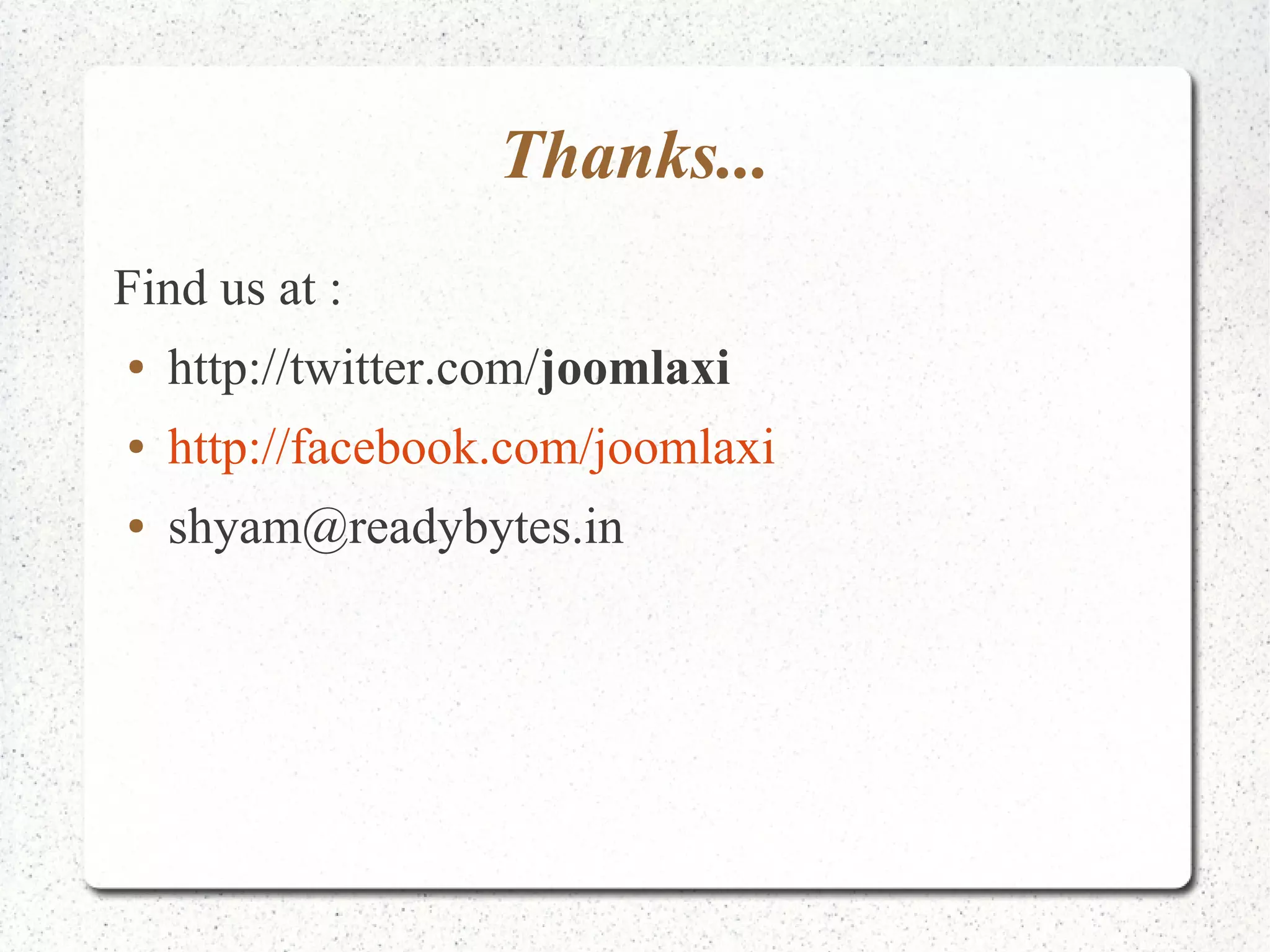

42. Thanks...
