The document discusses JDBC (Java Database Connectivity) basics including connecting to a database, executing SQL statements to create, update, query, and delete data. It covers establishing a connection using the DriverManager, executing SQL using Statement objects, and includes examples for creating a table, inserting rows, updating rows, selecting rows, and deleting rows. The document is intended as a 20 minute introduction to JDBC fundamentals.

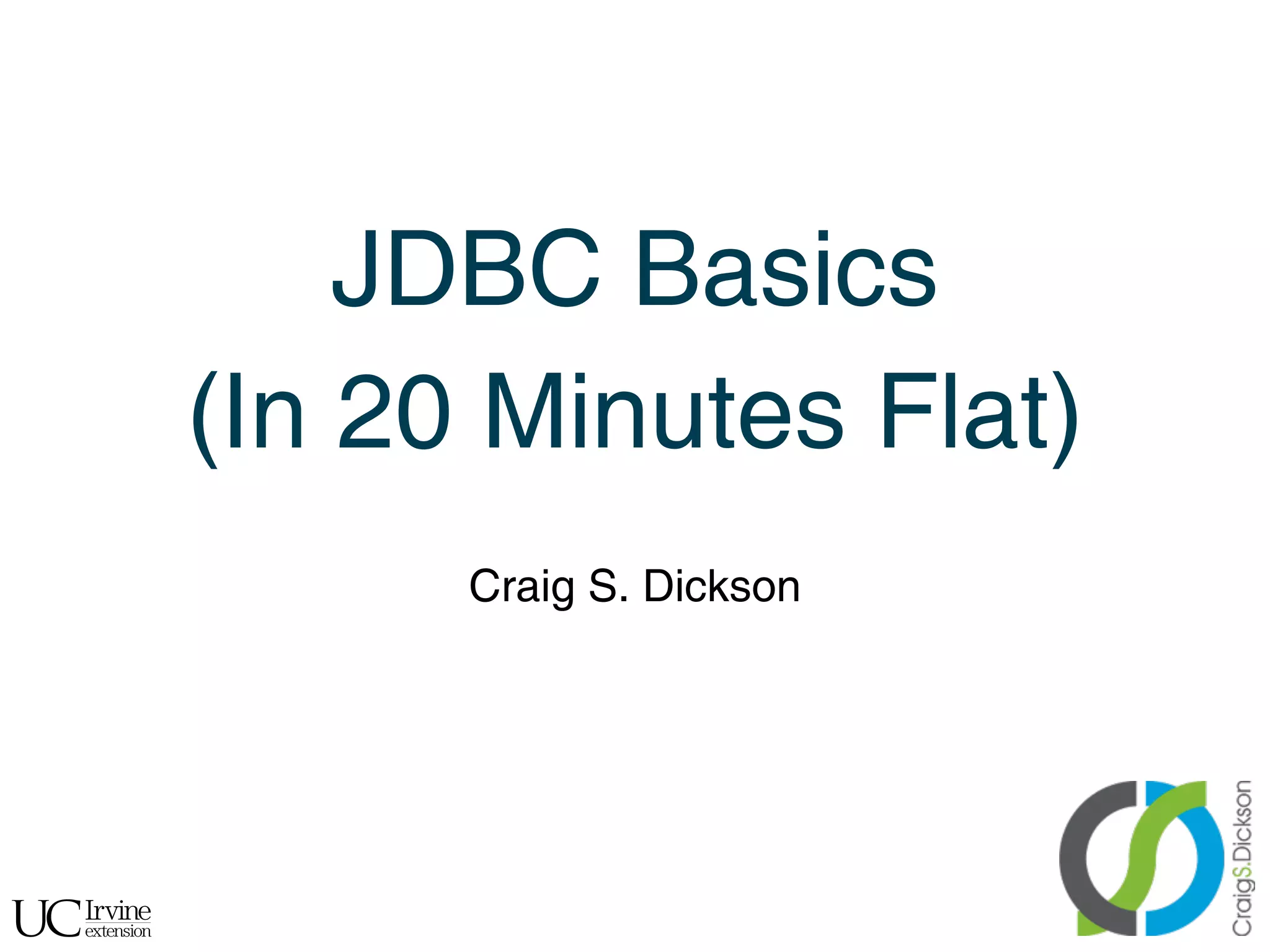

1. JDBC Basics
(In 20 Minutes Flat)
Craig S. Dickson
!

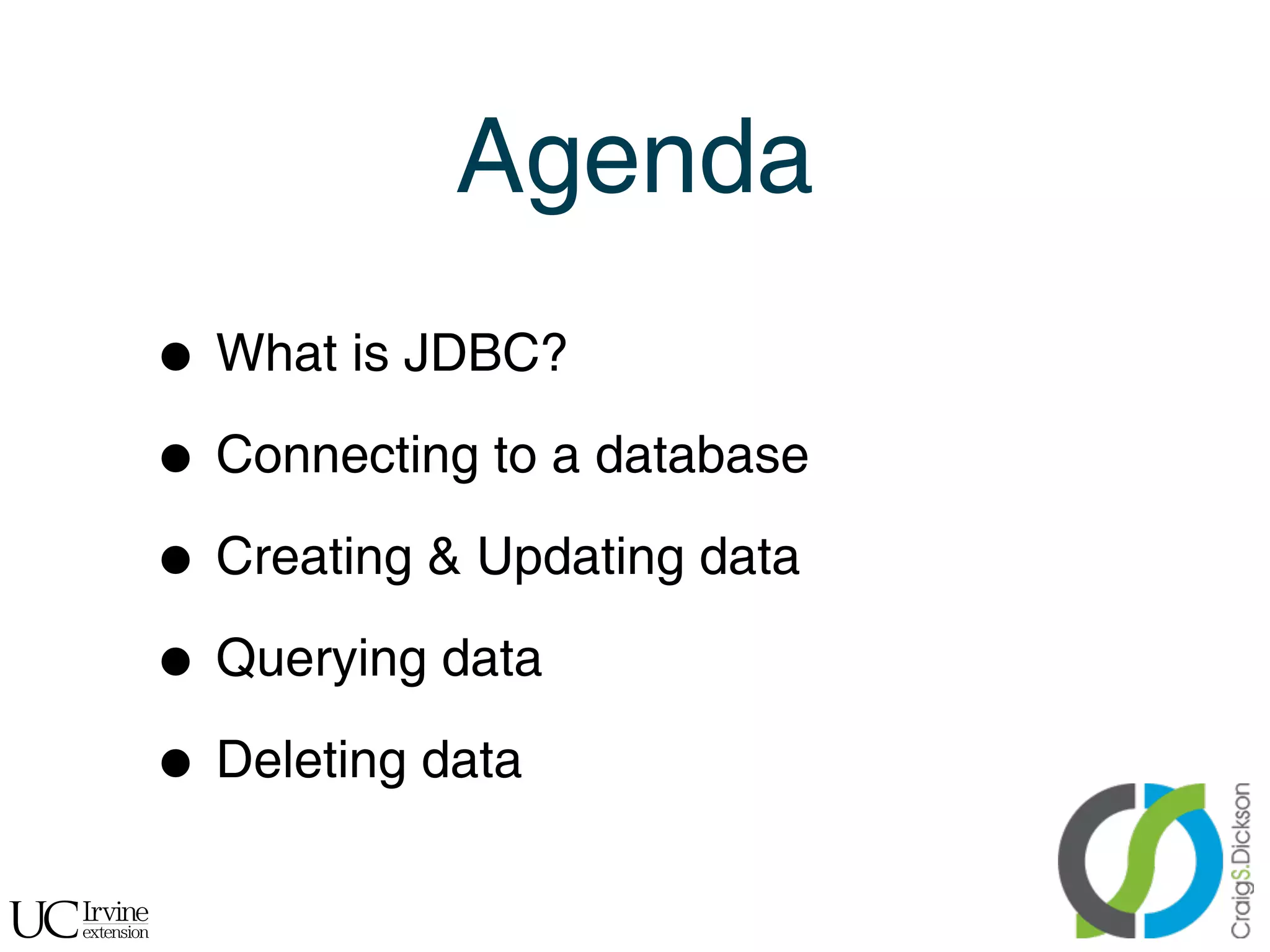

2. Agenda
• What is JDBC?
• Connecting to a database
• Creating & Updating data
• Querying data
• Deleting data
!

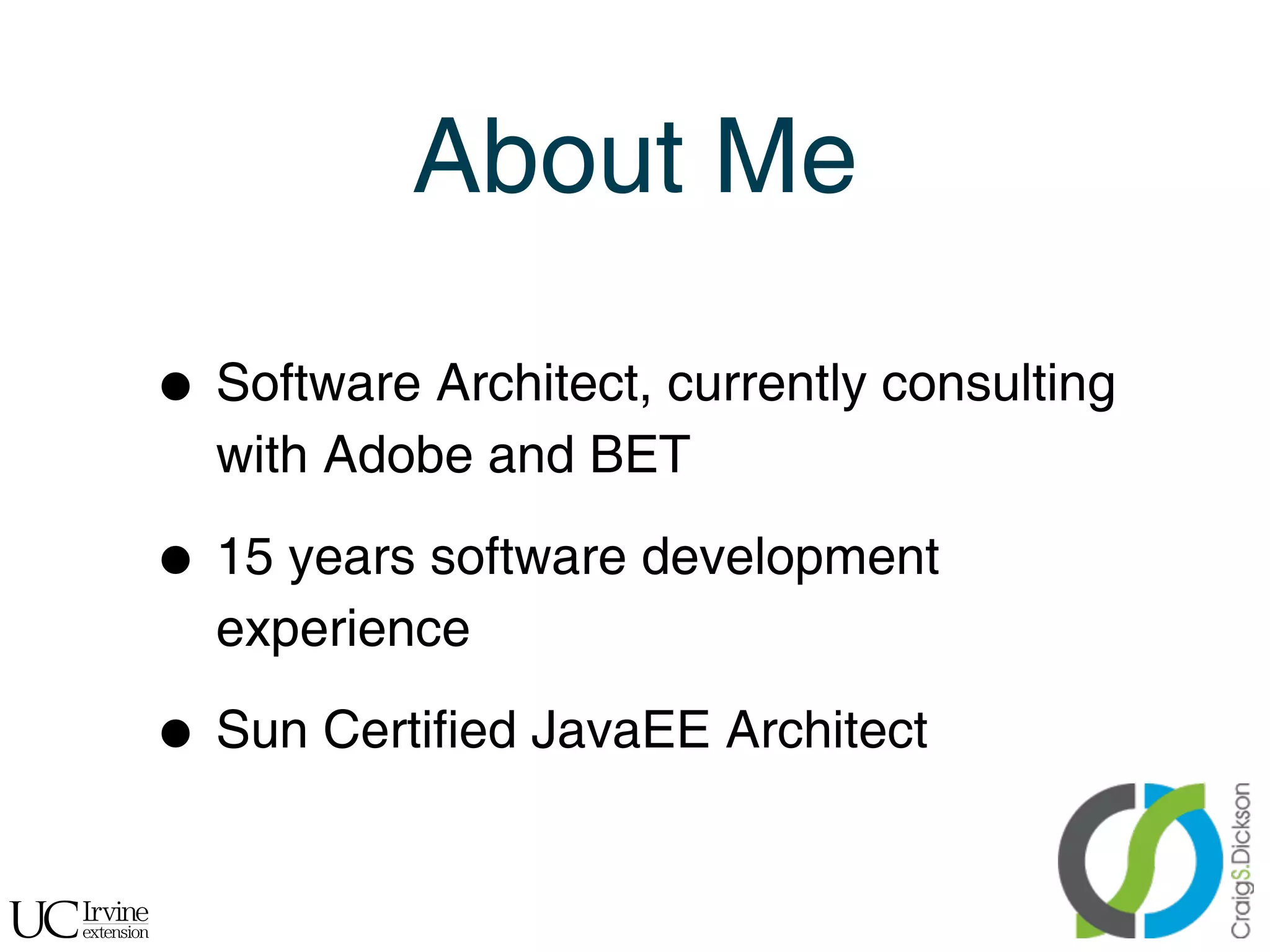

3. About Me
• Software Architect, currently consulting
with Adobe and BET
• 15 years software development
experience
• Sun Certified JavaEE Architect
!

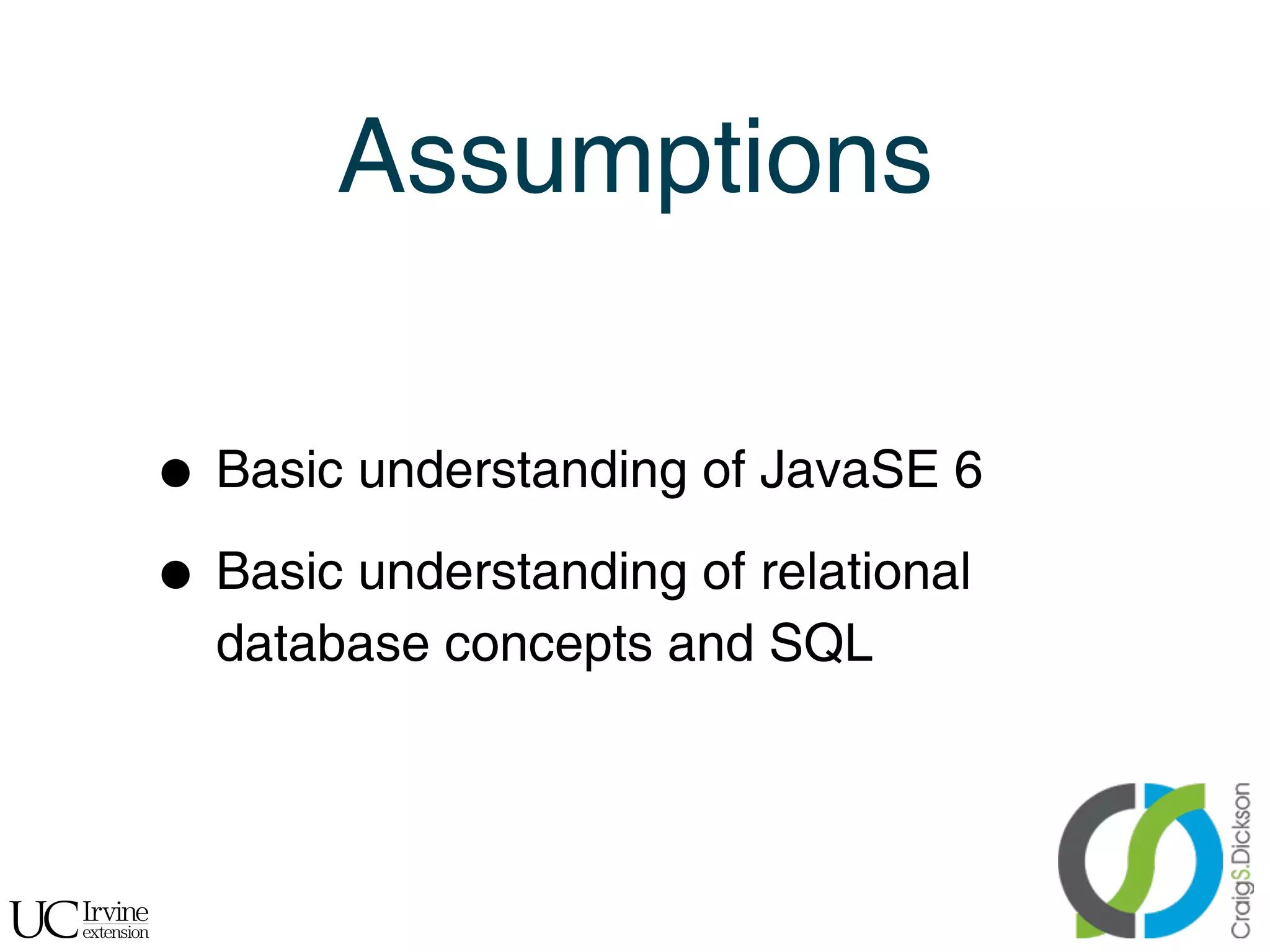

4. Assumptions
• Basic understanding of JavaSE 6
• Basic understanding of relational
database concepts and SQL
!

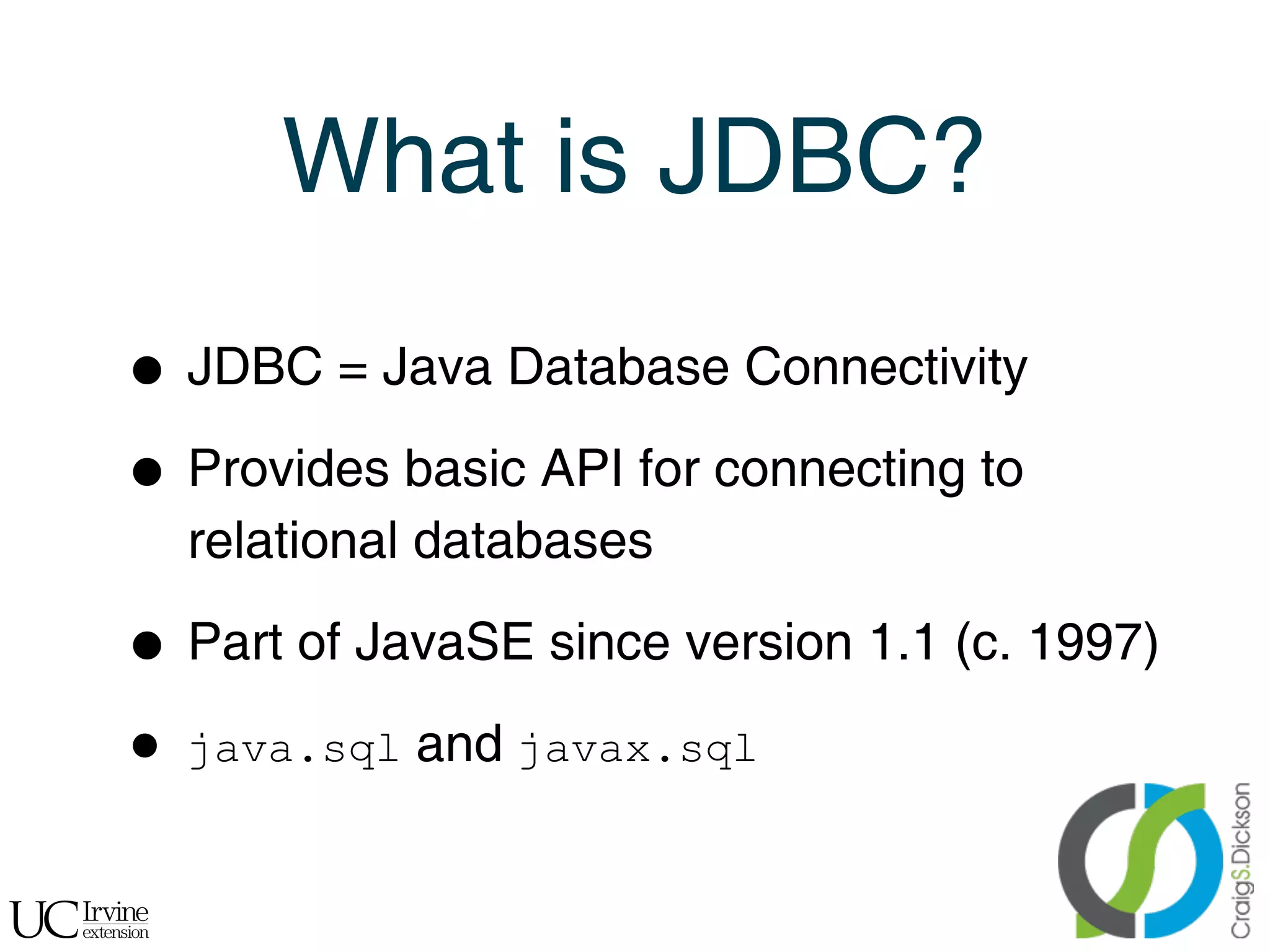

5. What is JDBC?
• JDBC = Java Database Connectivity
• Provides basic API for connecting to
relational databases
• Part of JavaSE since version 1.1 (c. 1997)
• java.sql and javax.sql
!

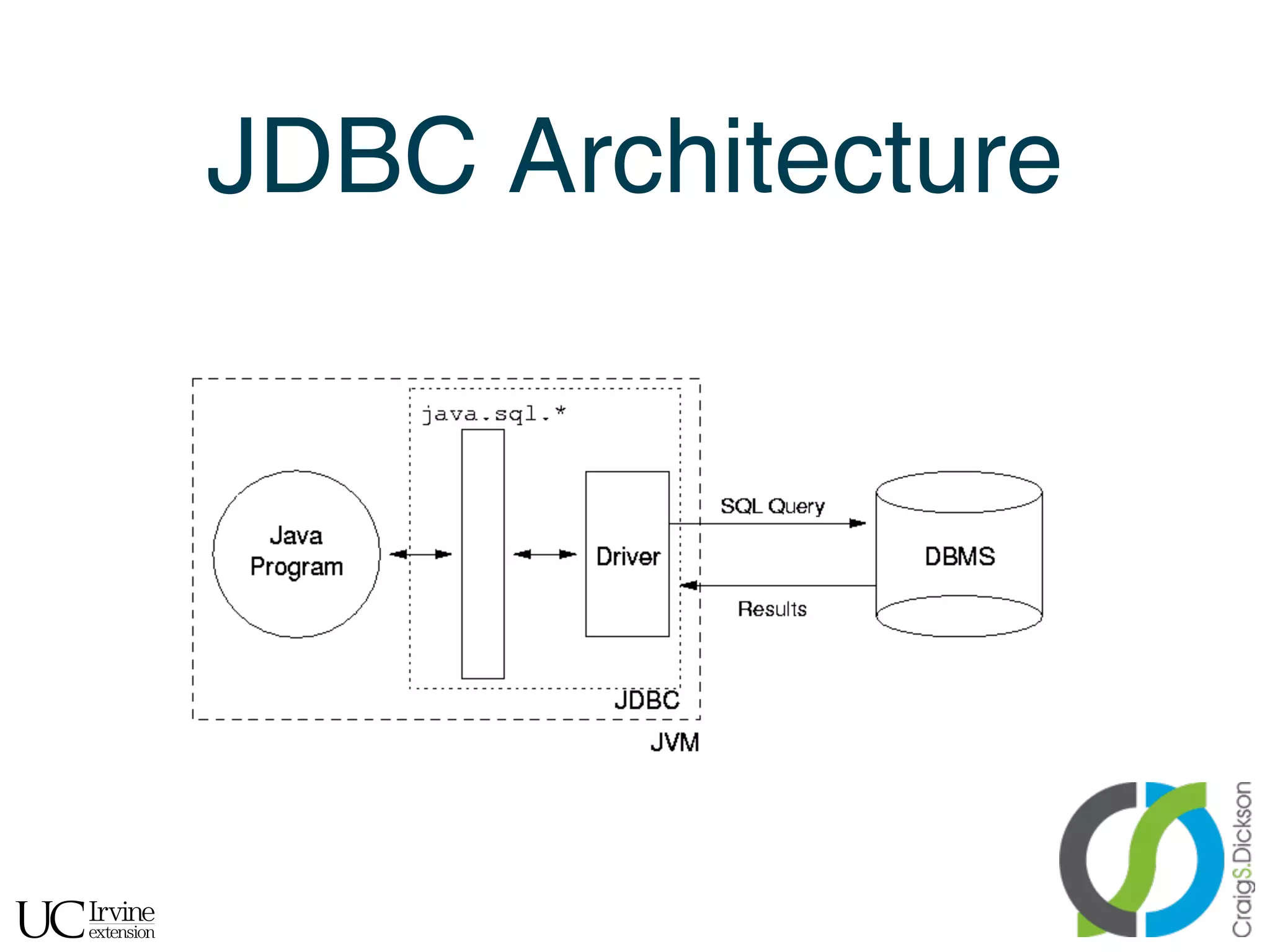

6. JDBC Architecture
!

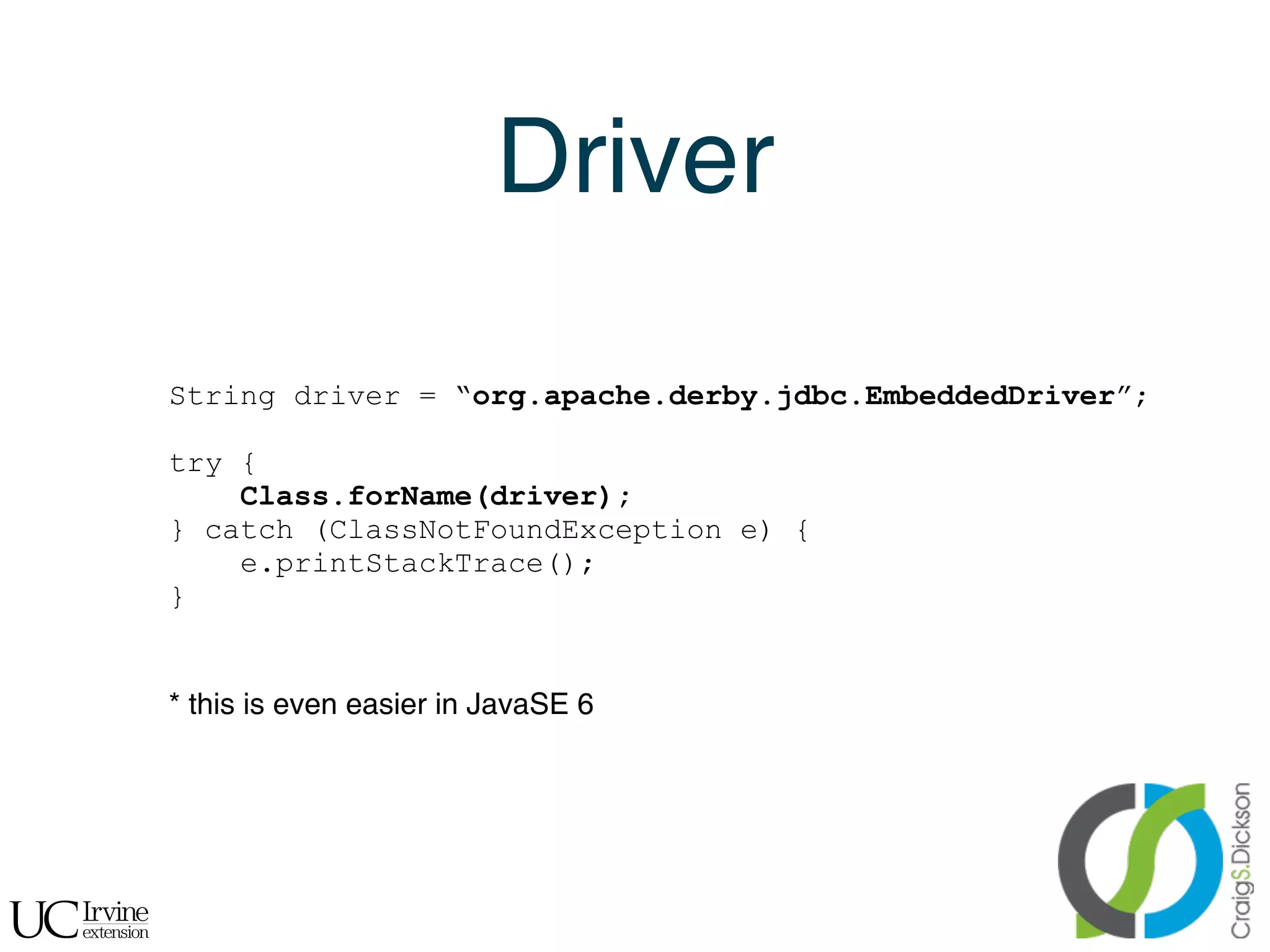

7. Driver
String driver = “org.apache.derby.jdbc.EmbeddedDriver”;
try {
Class.forName(driver);
} catch (ClassNotFoundException e) {
e.printStackTrace();
}
* this is even easier in JavaSE 6
!

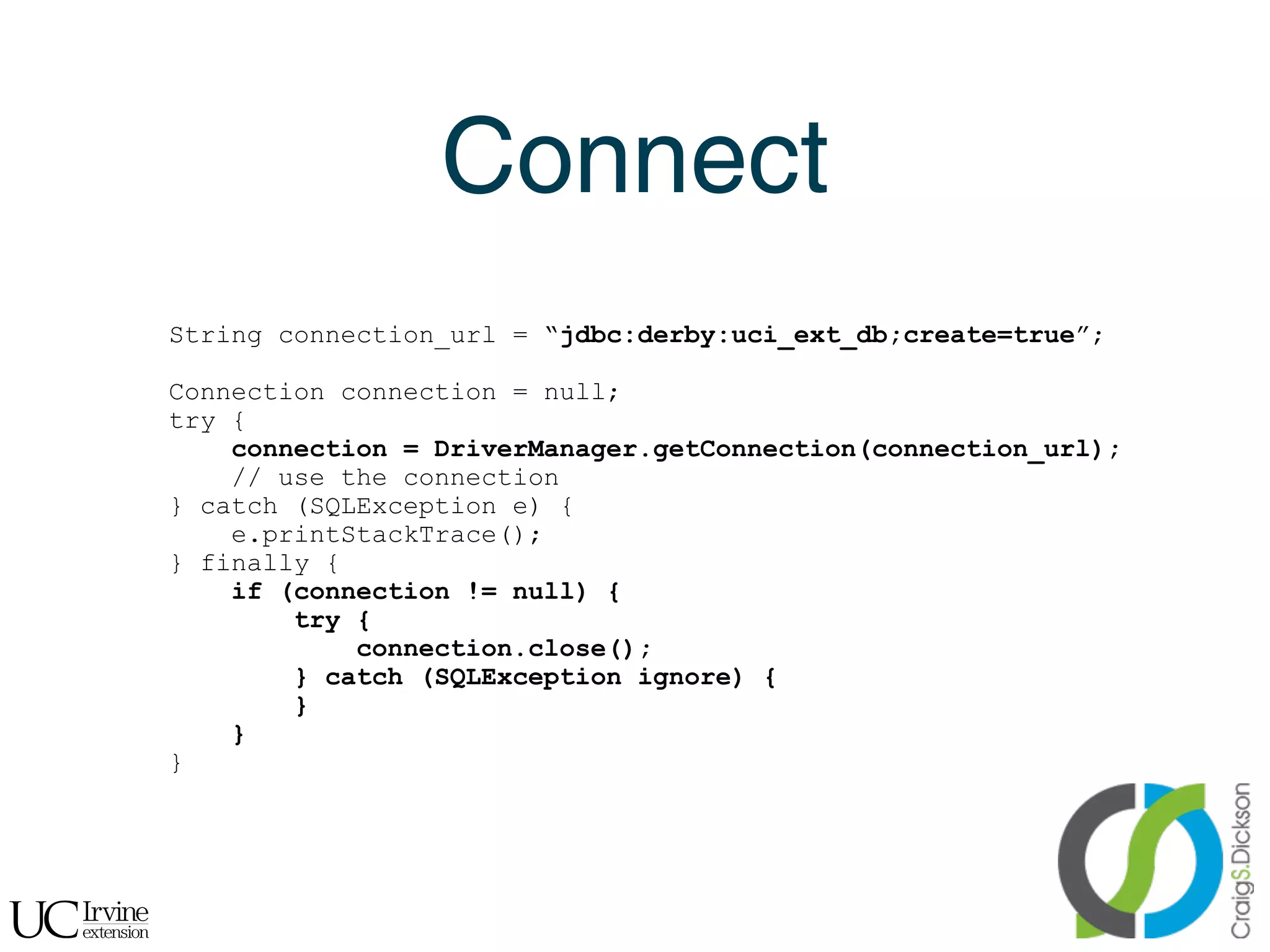

8. Connect
String connection_url = “jdbc:derby:uci_ext_db;create=true”;
Connection connection = null;
try {
connection = DriverManager.getConnection(connection_url);
// use the connection
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (connection != null) {
try {
connection.close();
} catch (SQLException ignore) {
}
}
}
!

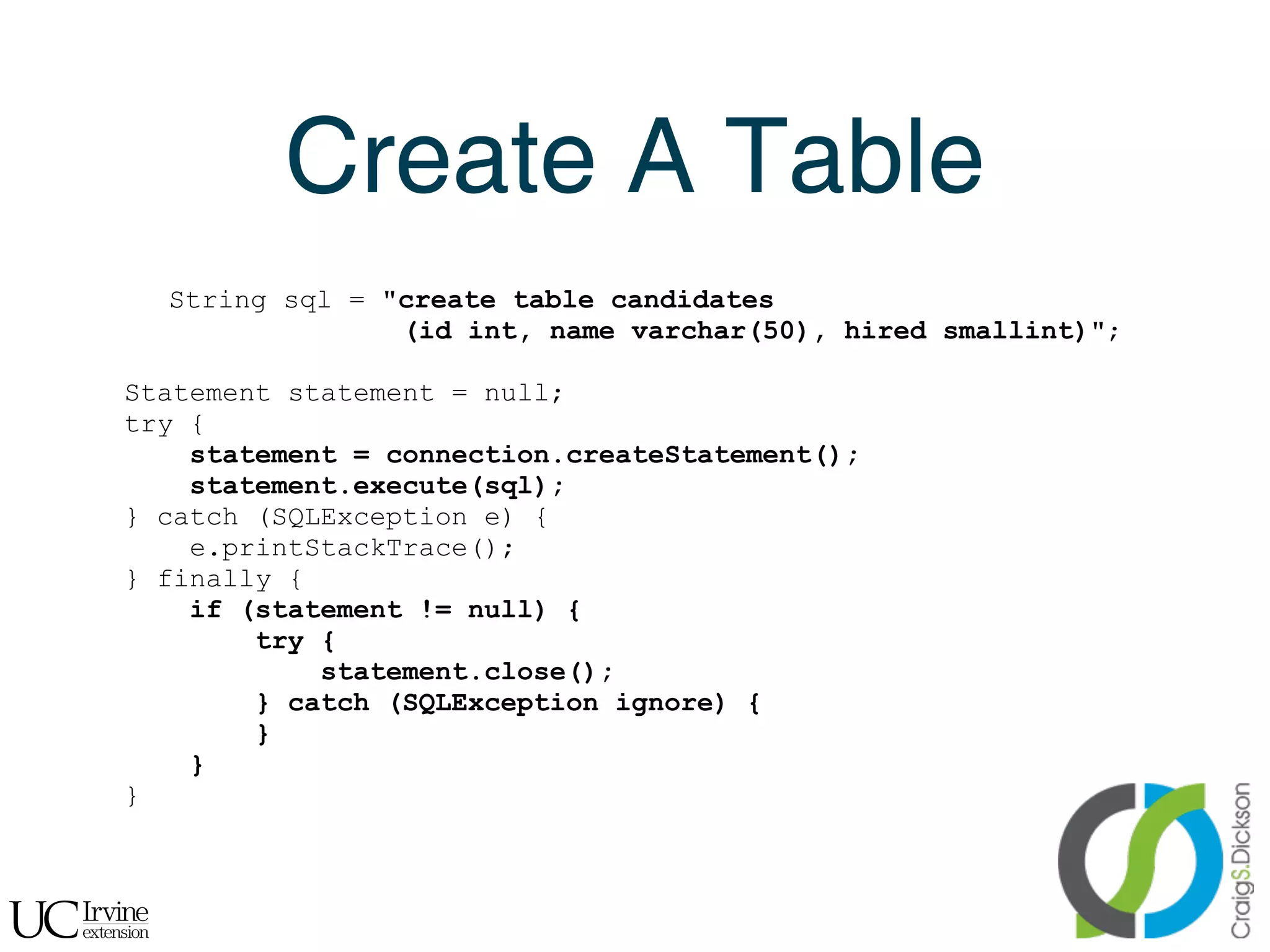

9. Create A Table
String sql = "create table candidates
(id int, name varchar(50), hired smallint)";
Statement statement = null;
try {
statement = connection.createStatement();
statement.execute(sql);
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (statement != null) {
try {
statement.close();
} catch (SQLException ignore) {
}
}
}
!

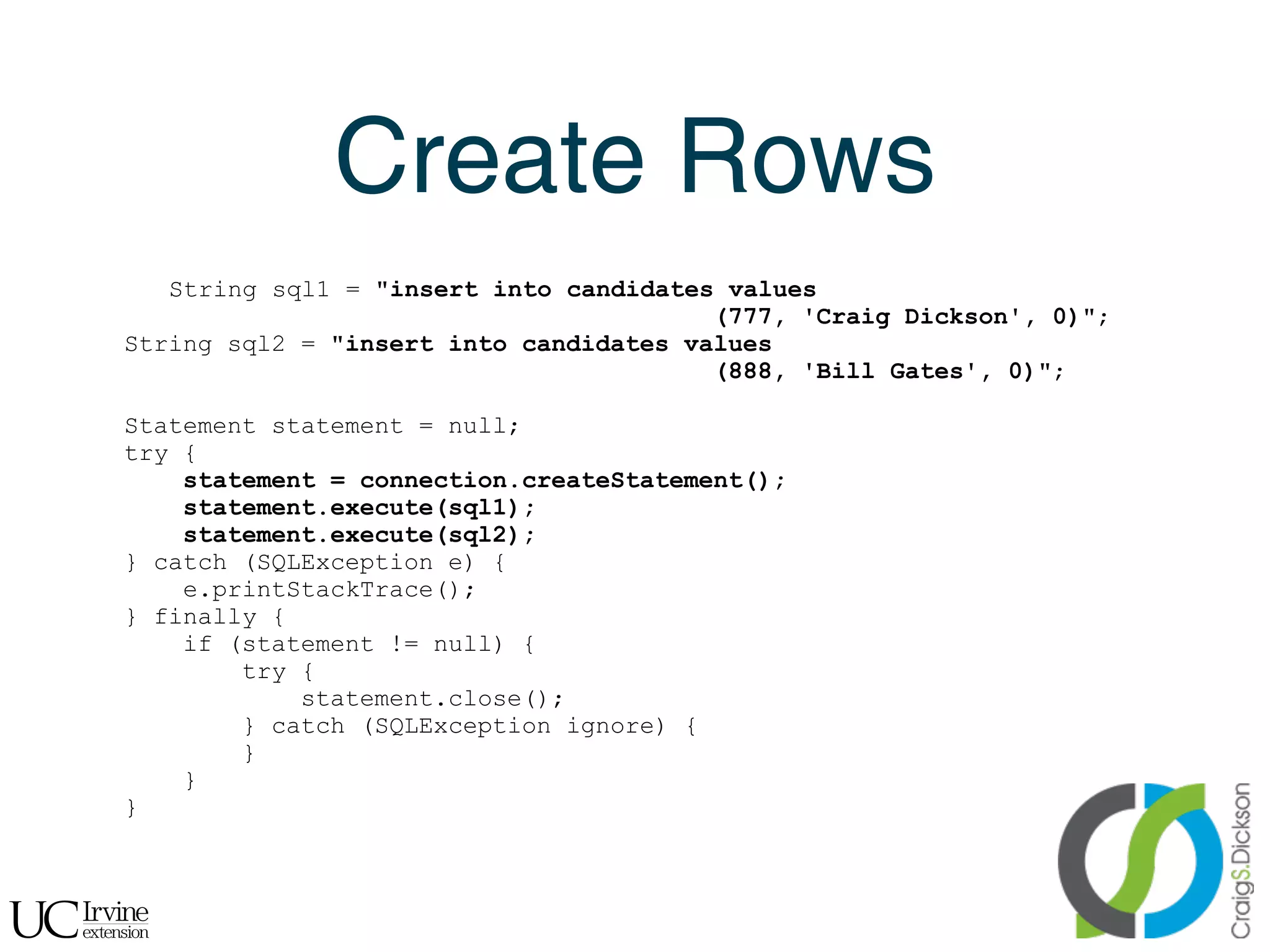

10. Create Rows
String sql1 = "insert into candidates values
(777, 'Craig Dickson', 0)";
String sql2 = "insert into candidates values
(888, 'Bill Gates', 0)";
Statement statement = null;
try {
statement = connection.createStatement();
statement.execute(sql1);
statement.execute(sql2);
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (statement != null) {
try {
statement.close();
} catch (SQLException ignore) {
}
}
}
!

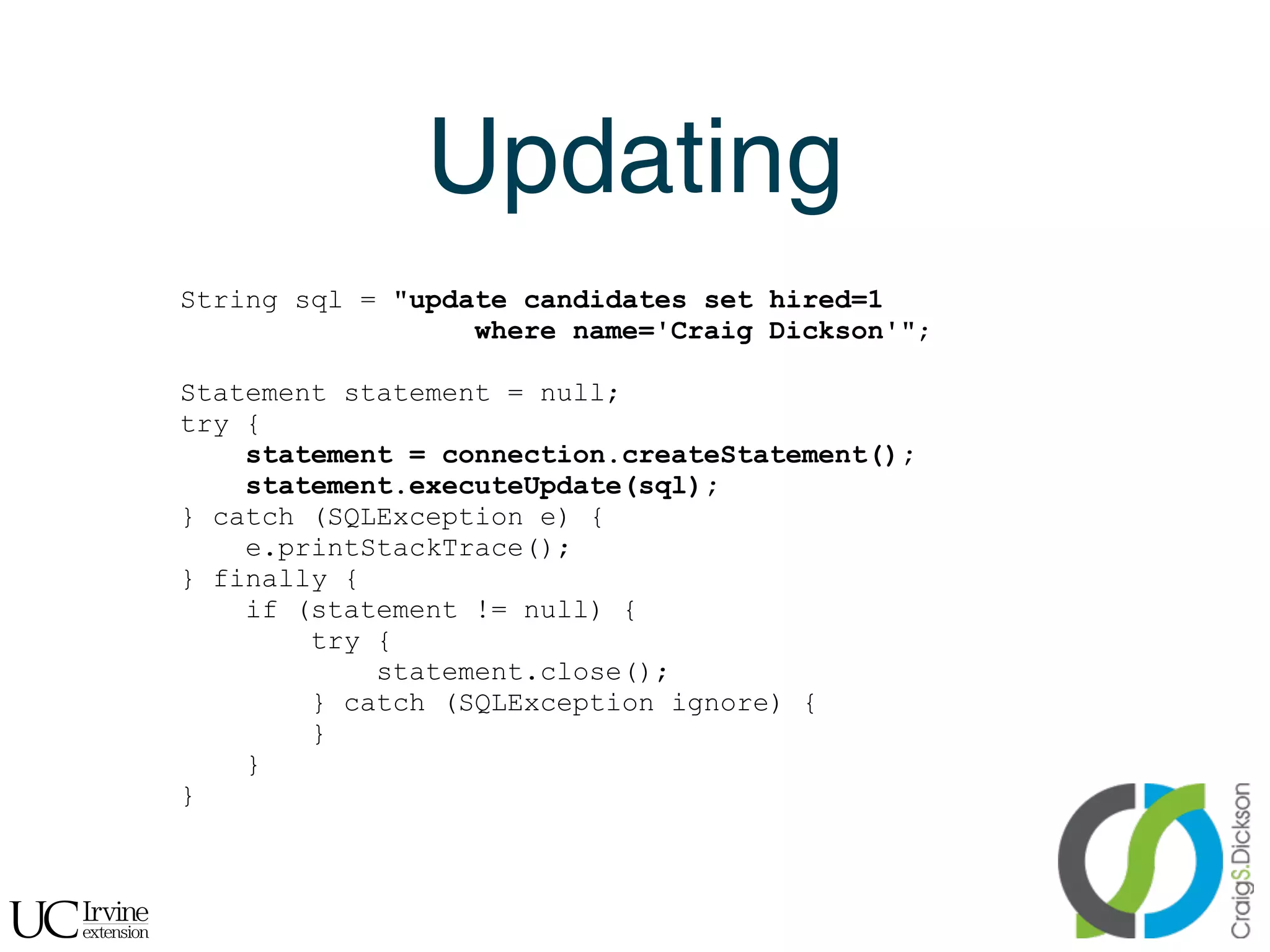

11. Updating
String sql = "update candidates set hired=1
where name='Craig Dickson'";
Statement statement = null;
try {
statement = connection.createStatement();
statement.executeUpdate(sql);
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (statement != null) {
try {
statement.close();
} catch (SQLException ignore) {
}
}
}
!

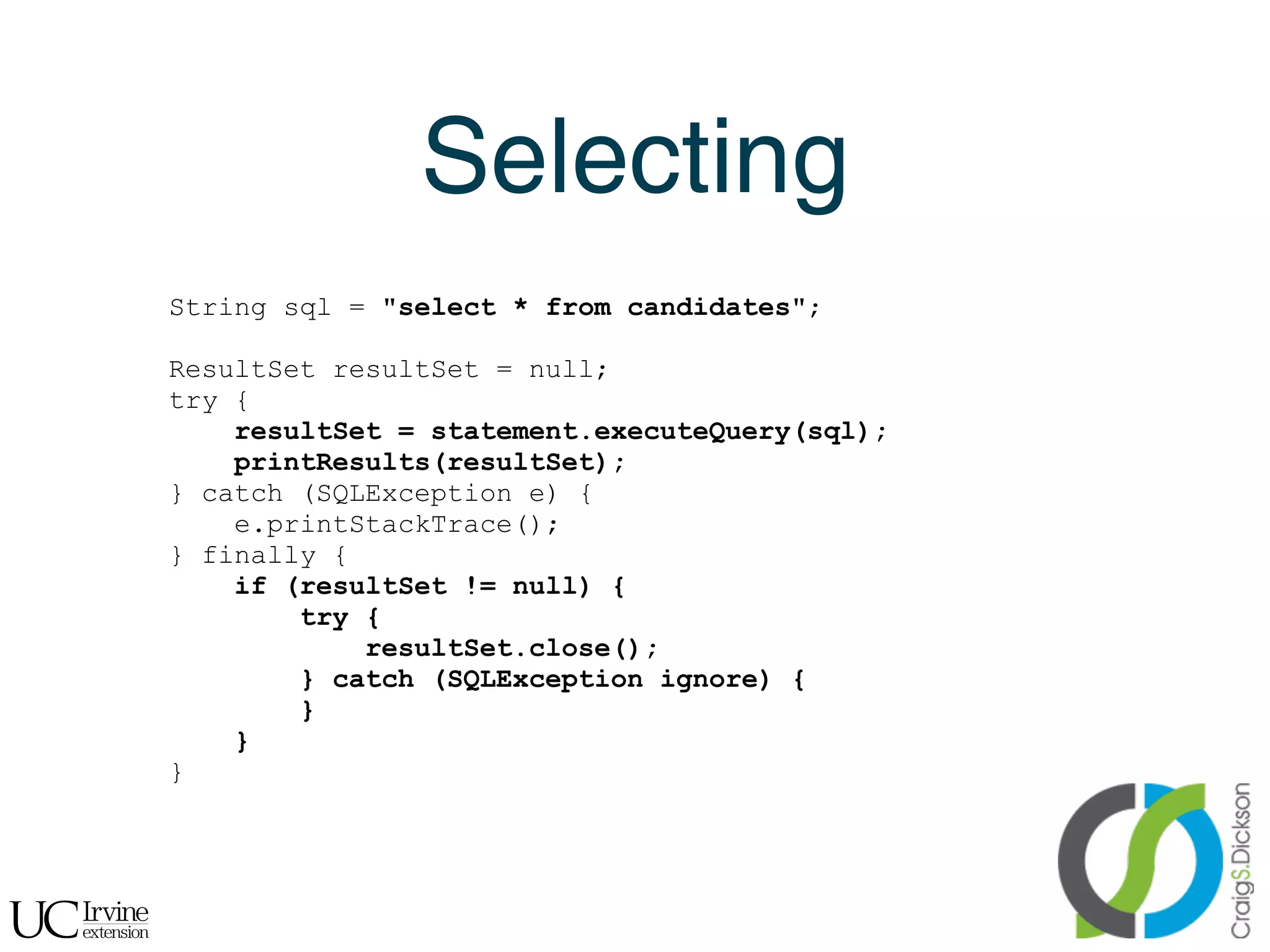

12. Selecting
String sql = "select * from candidates";
ResultSet resultSet = null;
try {
resultSet = statement.executeQuery(sql);
printResults(resultSet);
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (resultSet != null) {
try {
resultSet.close();
} catch (SQLException ignore) {
}
}
}
!

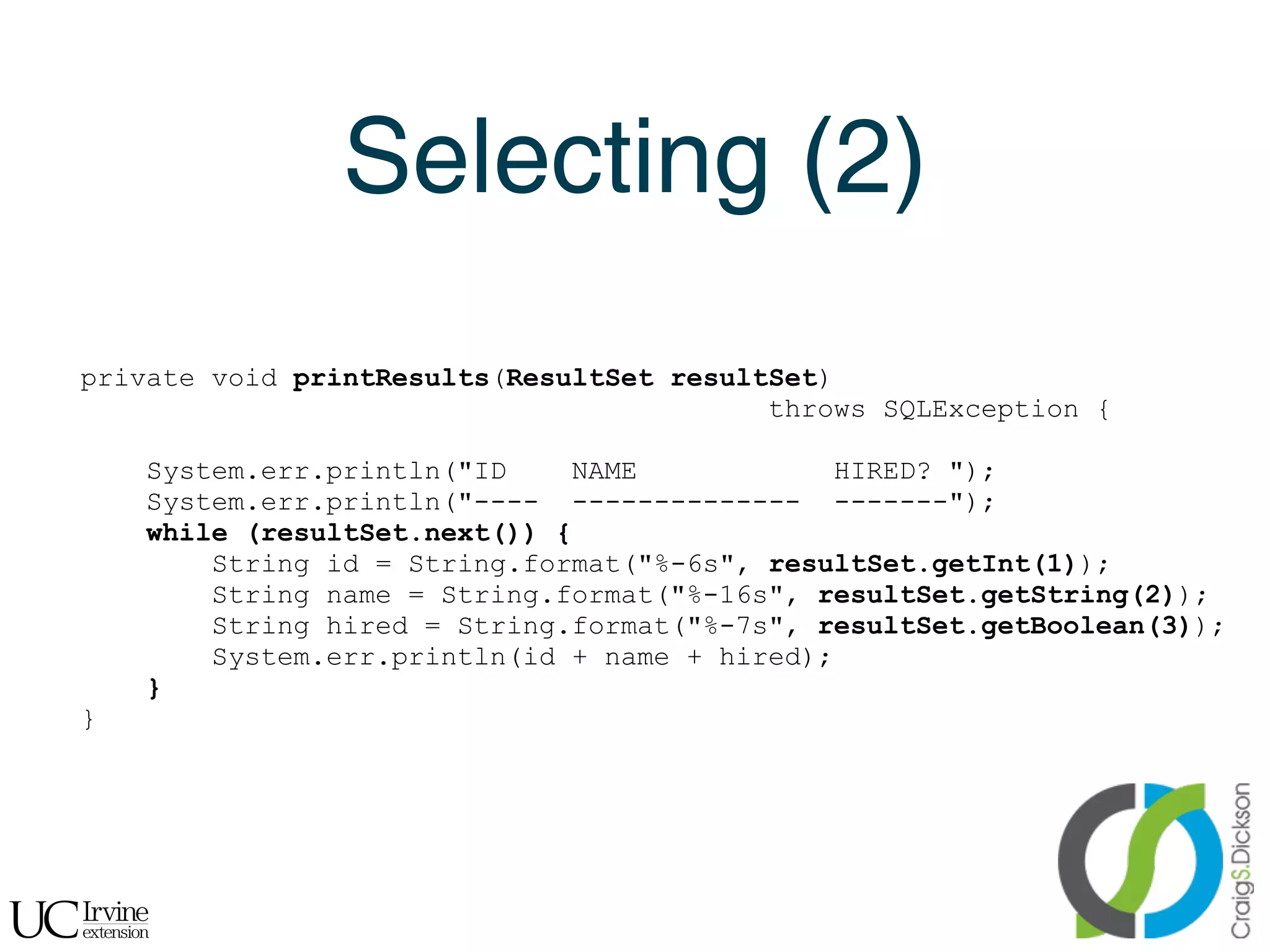

13. Selecting (2)
private void printResults(ResultSet resultSet)
throws SQLException {
System.err.println("ID NAME HIRED? ");
System.err.println("---- -------------- -------");
while (resultSet.next()) {
String id = String.format("%-6s", resultSet.getInt(1));
String name = String.format("%-16s", resultSet.getString(2));
String hired = String.format("%-7s", resultSet.getBoolean(3));
System.err.println(id + name + hired);
}
}
!

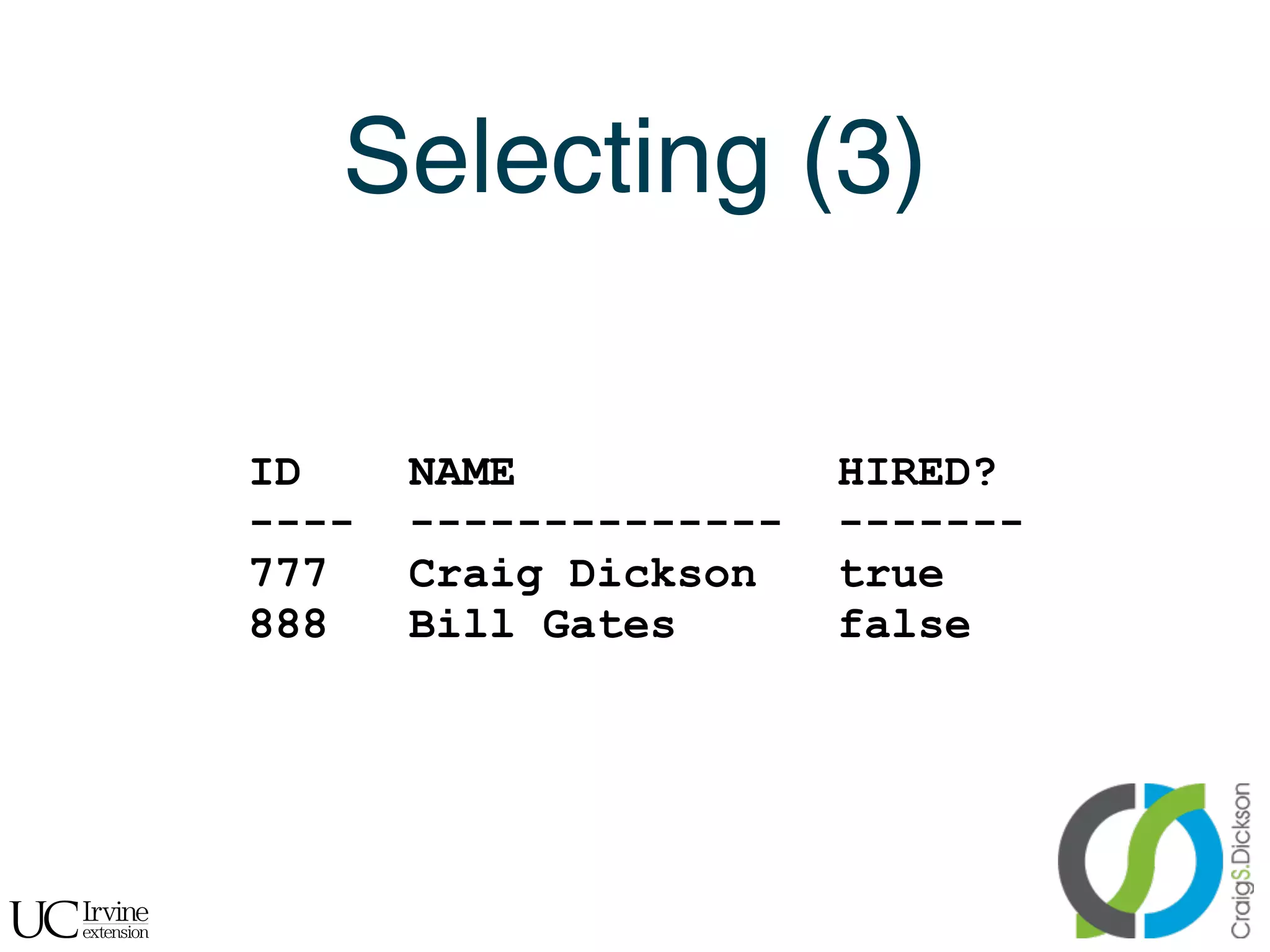

14. Selecting (3)
ID NAME HIRED?
---- -------------- -------
777 Craig Dickson true
888 Bill Gates false
!

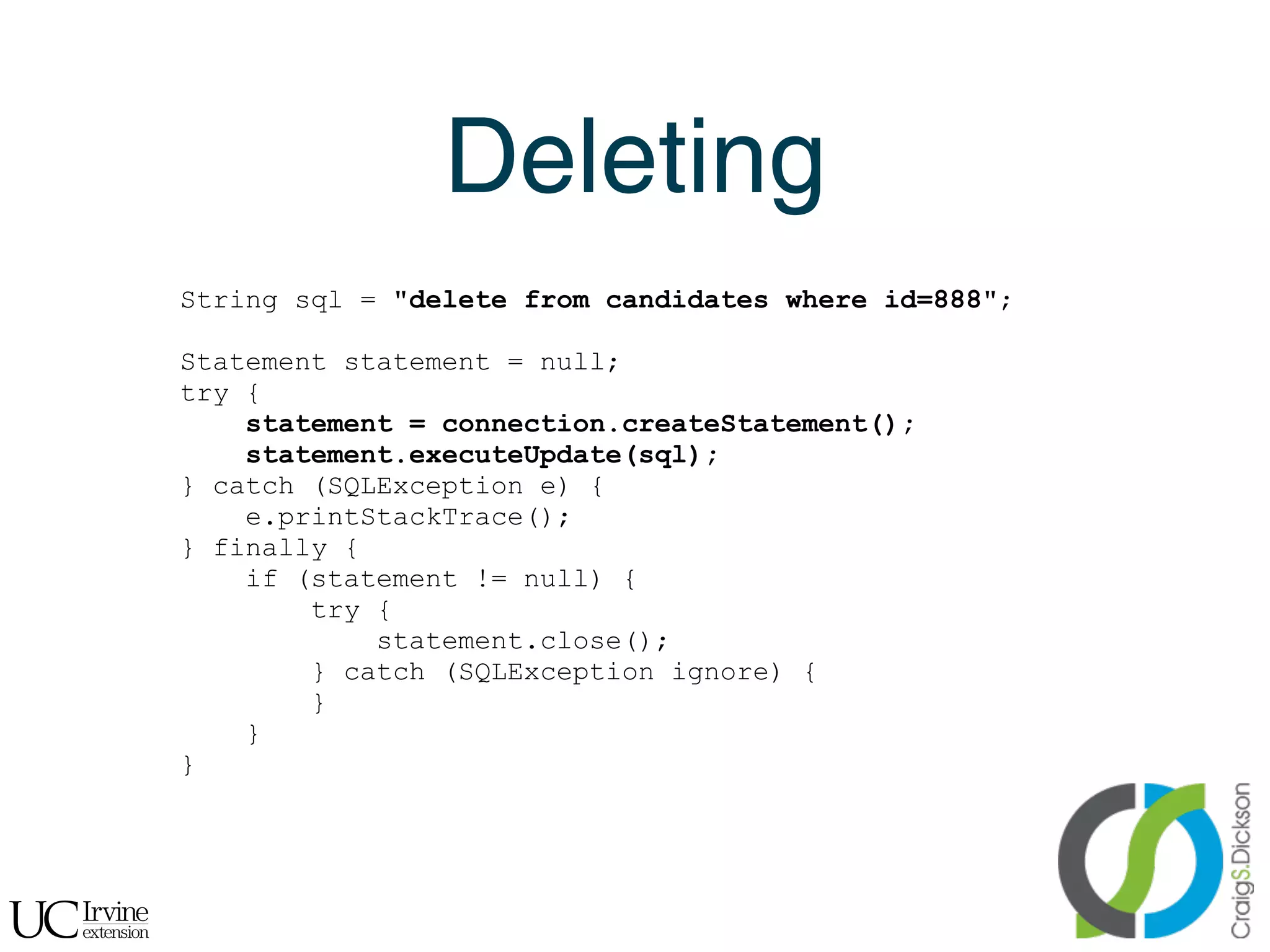

15. Deleting
String sql = "delete from candidates where id=888";
Statement statement = null;
try {
statement = connection.createStatement();
statement.executeUpdate(sql);
} catch (SQLException e) {
e.printStackTrace();
} finally {
if (statement != null) {
try {
statement.close();
} catch (SQLException ignore) {
}
}
}
!

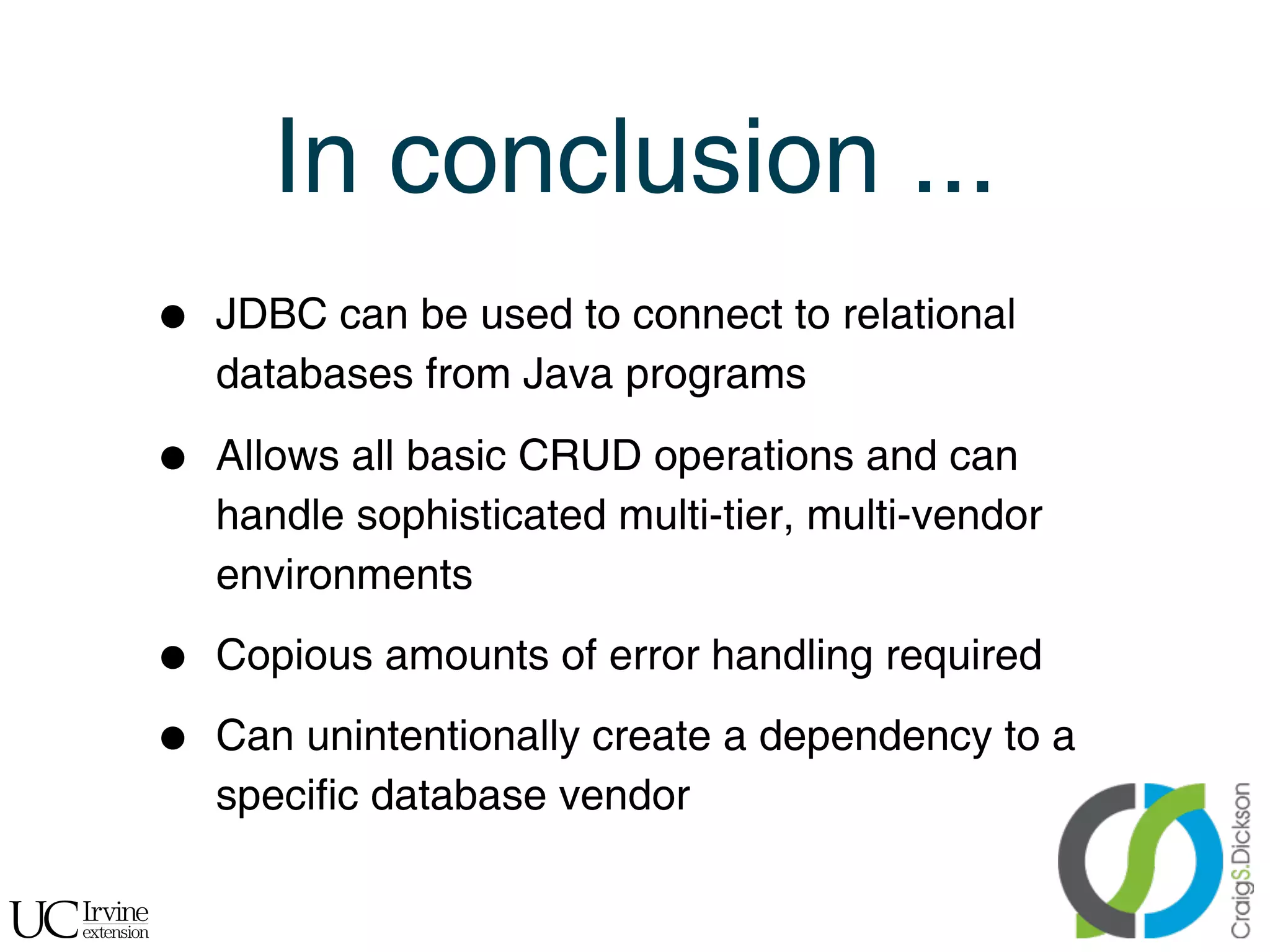

16. In conclusion ...
• JDBC can be used to connect to relational
databases from Java programs
• Allows all basic CRUD operations and can
handle sophisticated multi-tier, multi-vendor
environments
• Copious amounts of error handling required
• Can unintentionally create a dependency to a
specific database vendor
!

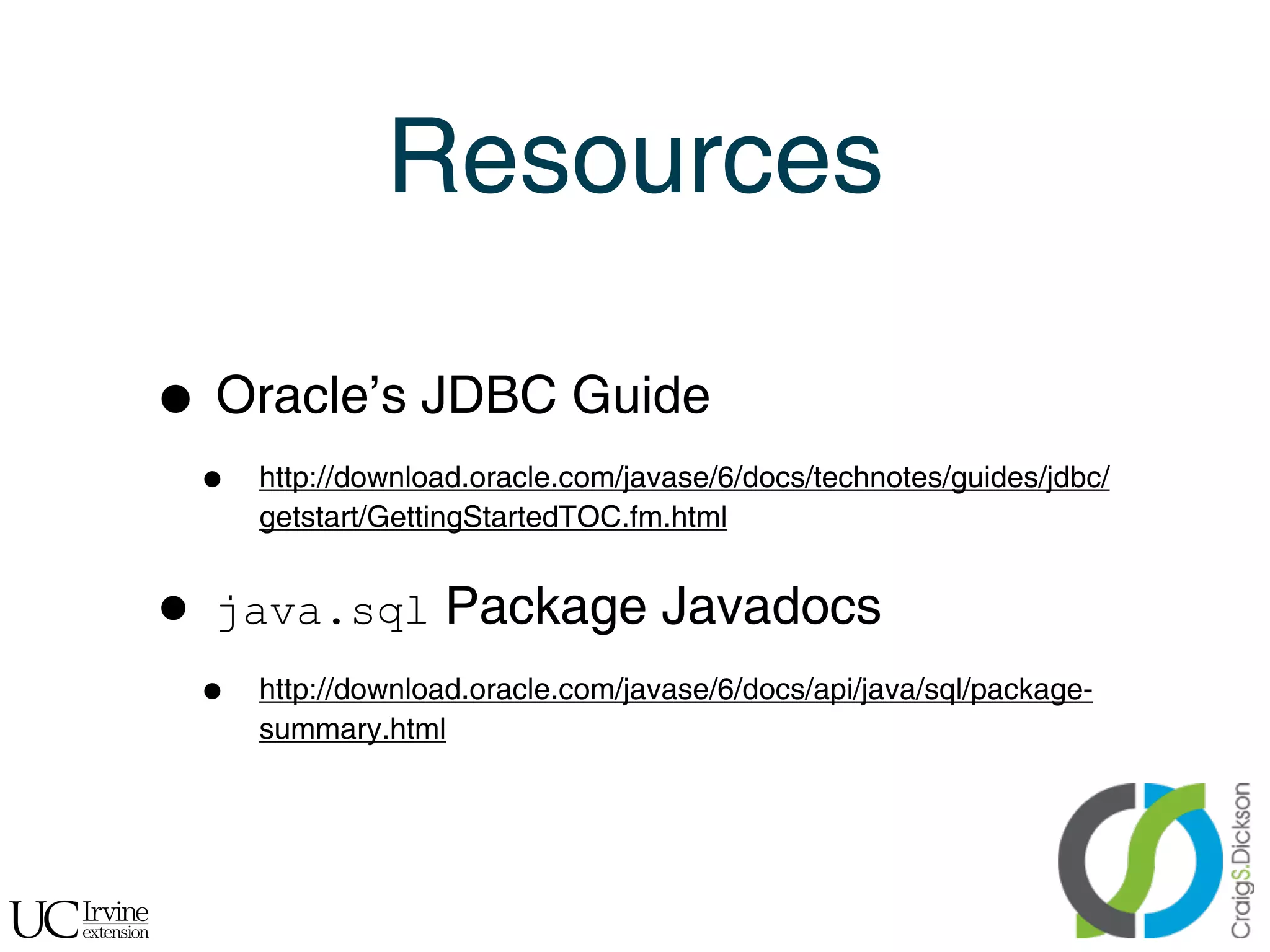

17. Resources
• Oracle’s JDBC Guide
• http://download.oracle.com/javase/6/docs/technotes/guides/jdbc/
getstart/GettingStartedTOC.fm.html
• java.sql Package Javadocs
• http://download.oracle.com/javase/6/docs/api/java/sql/package-
summary.html
!

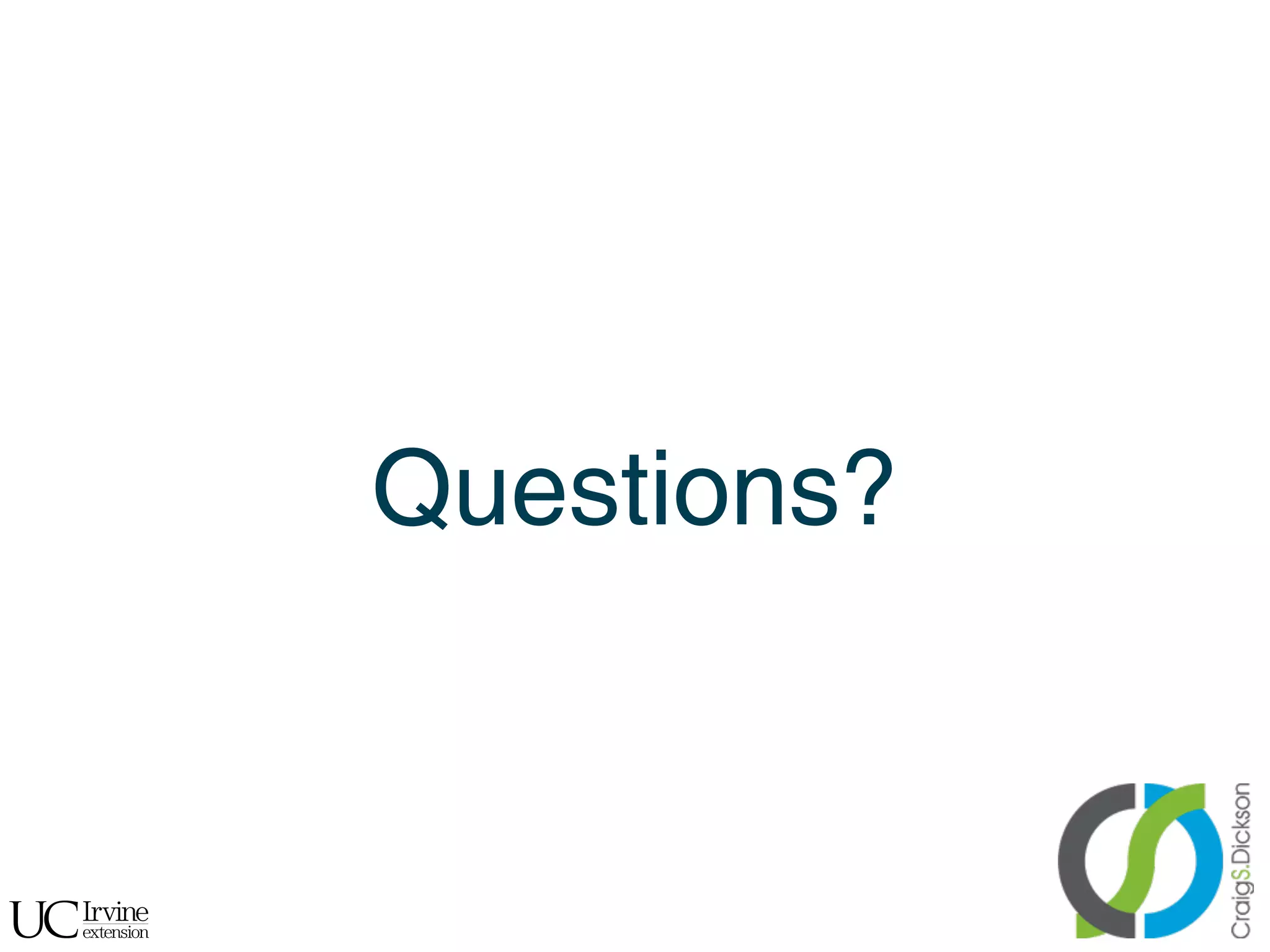

18. Questions?
!
