1. Life after JavaReusing code and skills in a .NET world

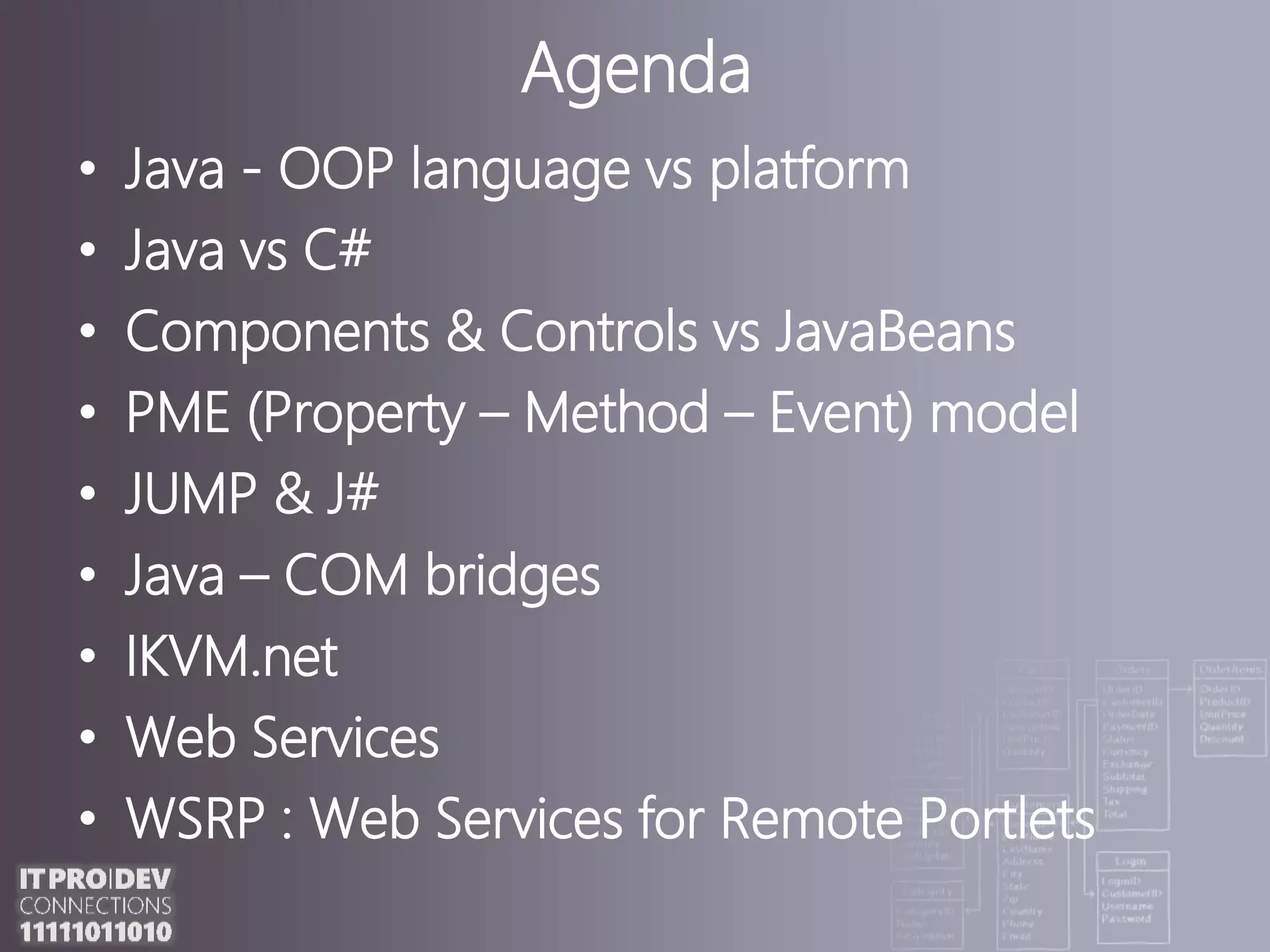

2. AgendaJava- OOP language vsplatformJava vs C#Components & Controls vs JavaBeansPME (Property – Method – Event) modelJUMP & J#Java – COM bridgesIKVM.net Web ServicesWSRP : Web Services for Remote Portlets

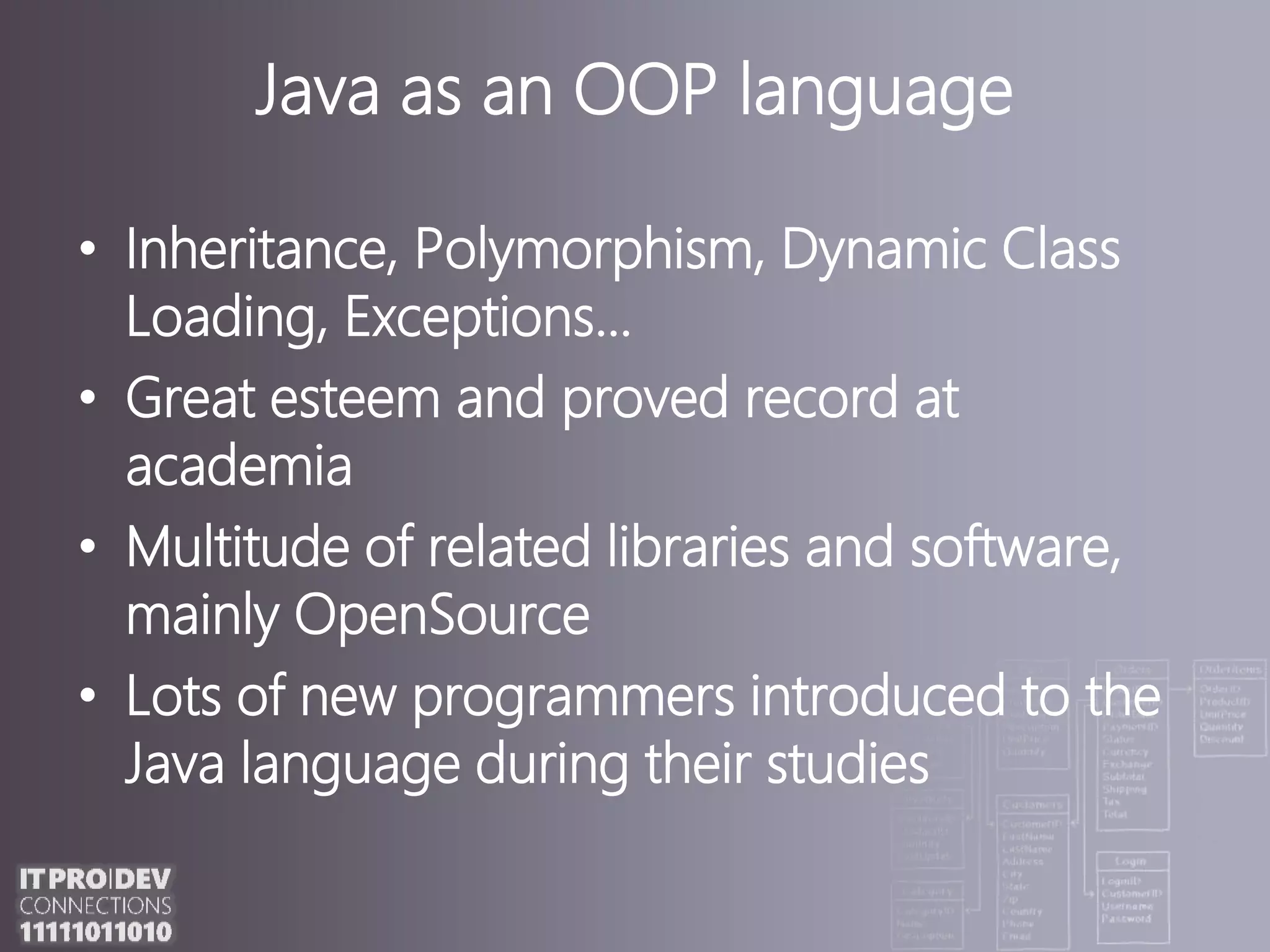

3. Java as an OOPlanguageInheritance, Polymorphism, Dynamic Class Loading, Exceptions...Great esteem and proved record at academiaMultitude of related libraries and software, mainly OpenSourceLots of new programmers introduced to the Java language during their studies

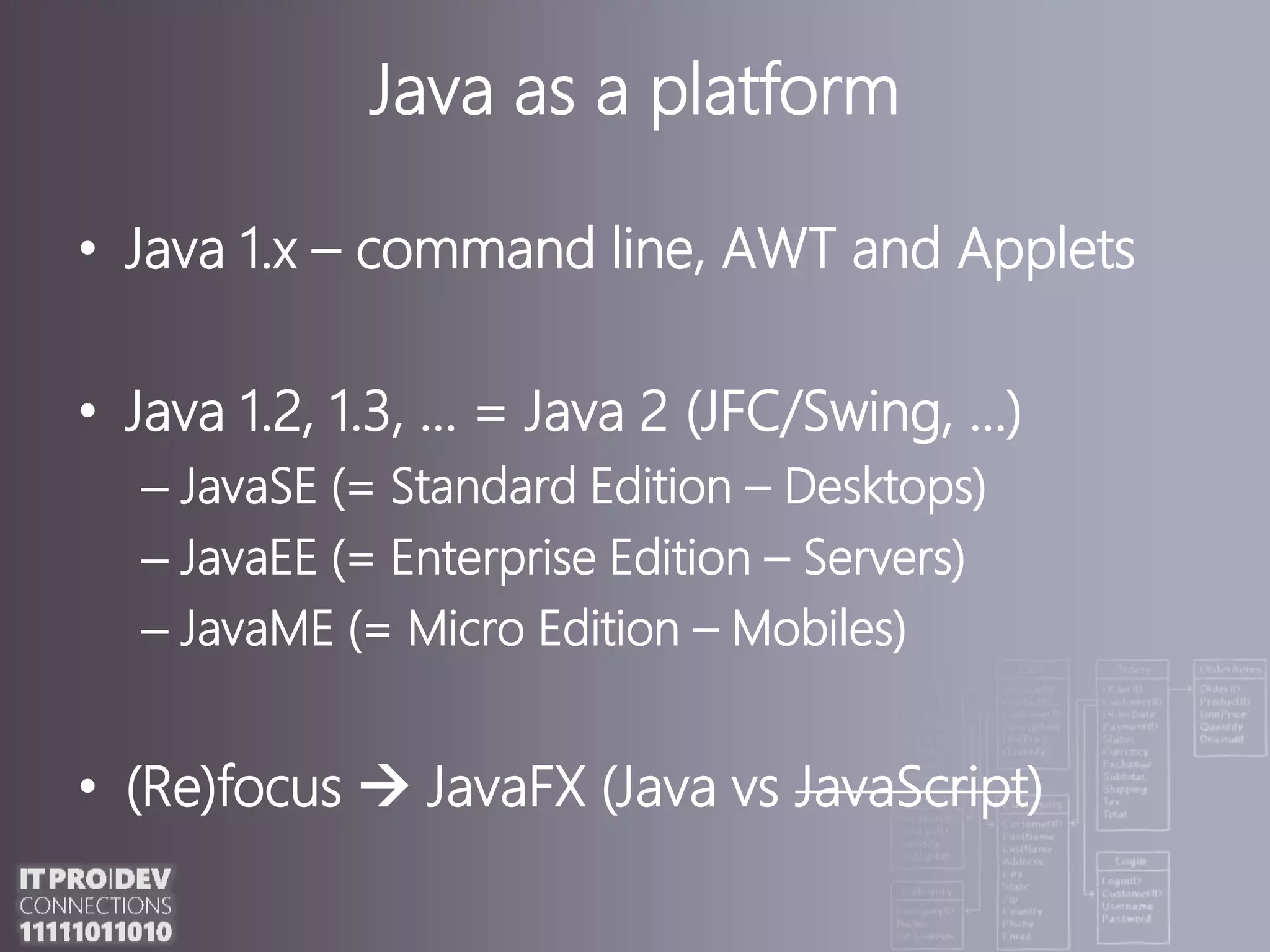

4. Java as a platformJava 1.x –command line, AWT andAppletsJava 1.2, 1.3, … = Java 2 (JFC/Swing, …)JavaSE (= Standard Edition – Desktops)JavaEE (= Enterprise Edition – Servers)JavaME (= Micro Edition – Mobiles)(Re)focus  JavaFX (Java vs JavaScript)

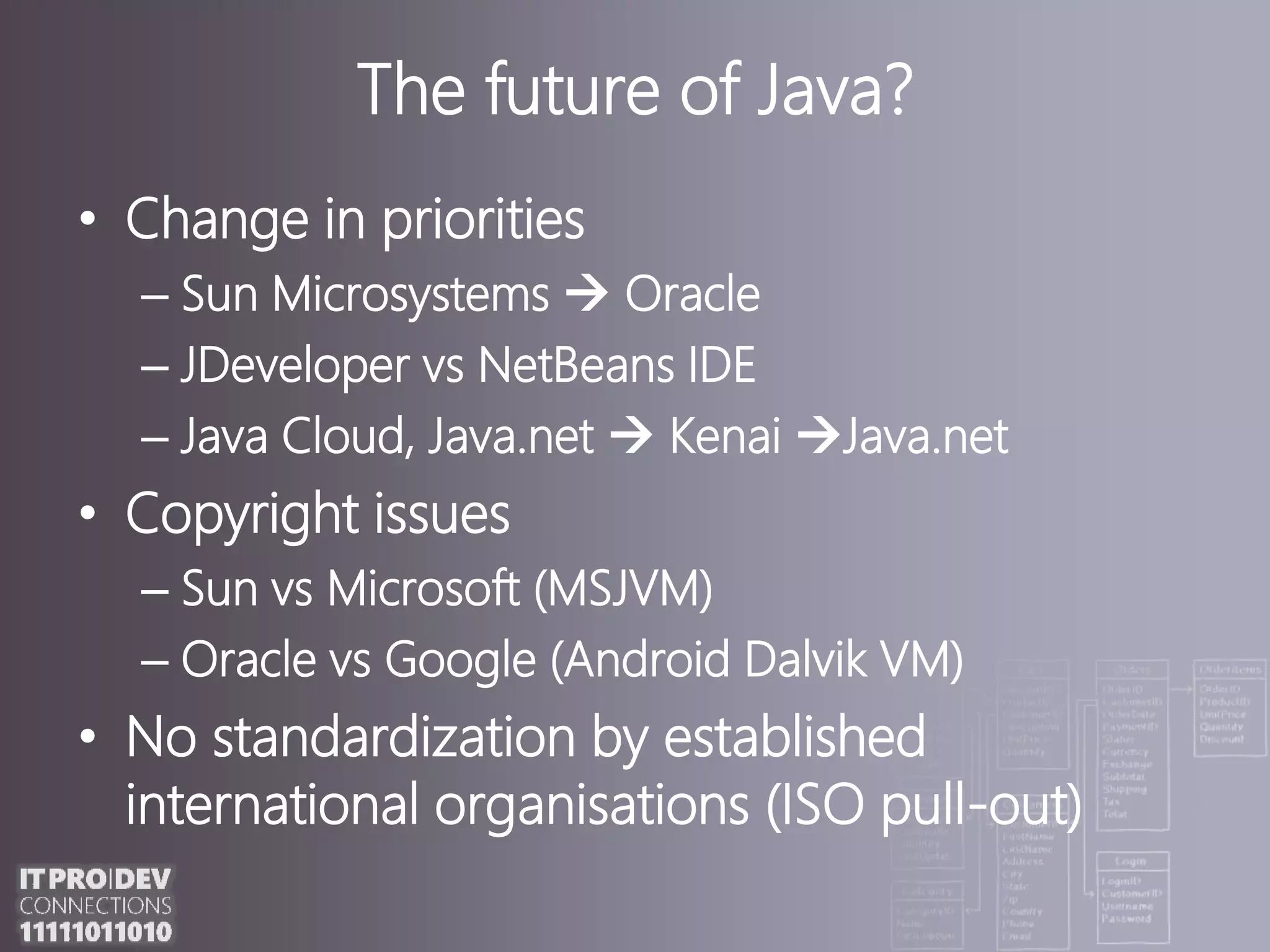

5. The future of Java?Change in prioritiesSun Microsystems  OracleJDeveloper vs NetBeans IDEJava Cloud, Java.net  Kenai Java.netCopyright issuesSun vs Microsoft (MSJVM)Oracle vs Google (Android Dalvik VM)No standardization by established international organisations (ISO pull-out)

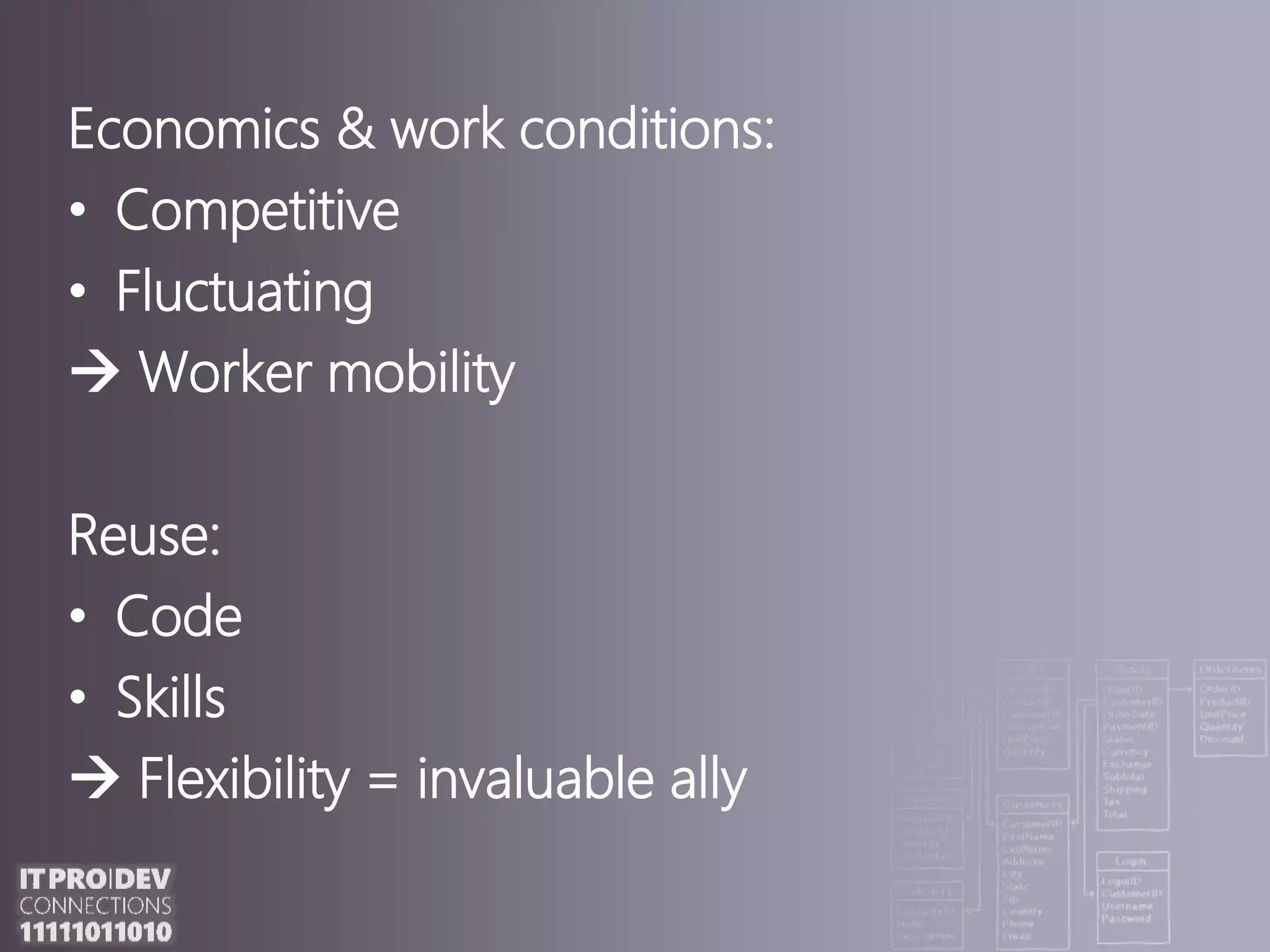

6. Economics & work conditions:CompetitiveFluctuating Worker mobilityReuse:CodeSkillsFlexibility = invaluable ally

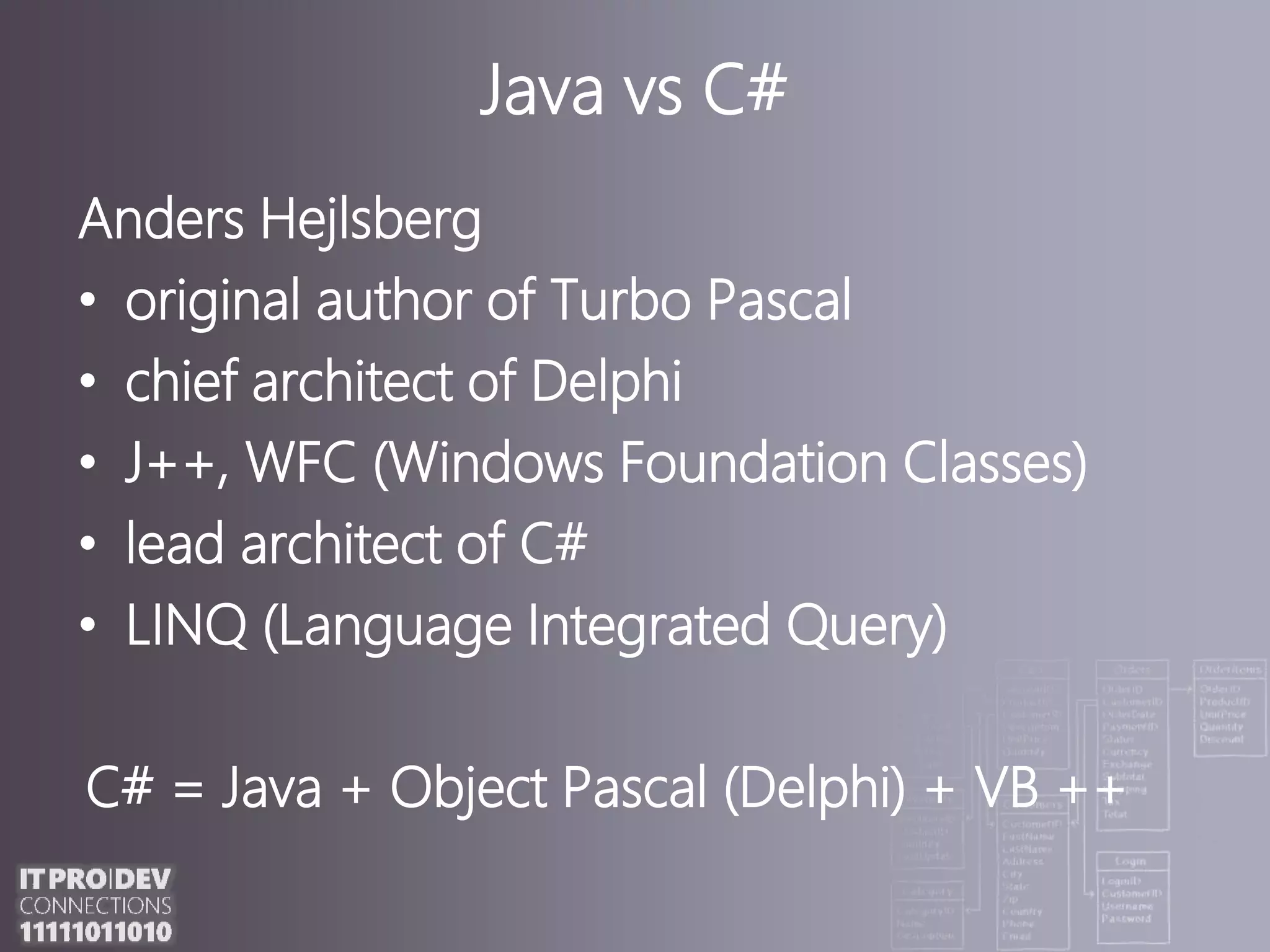

7. Java vs C#Anders Hejlsberg original author ofTurbo Pascalchief architect of DelphiJ++, WFC (Windows Foundation Classes)lead architect ofC#LINQ (Language Integrated Query)C# = Java + Object Pascal (Delphi) + VB ++

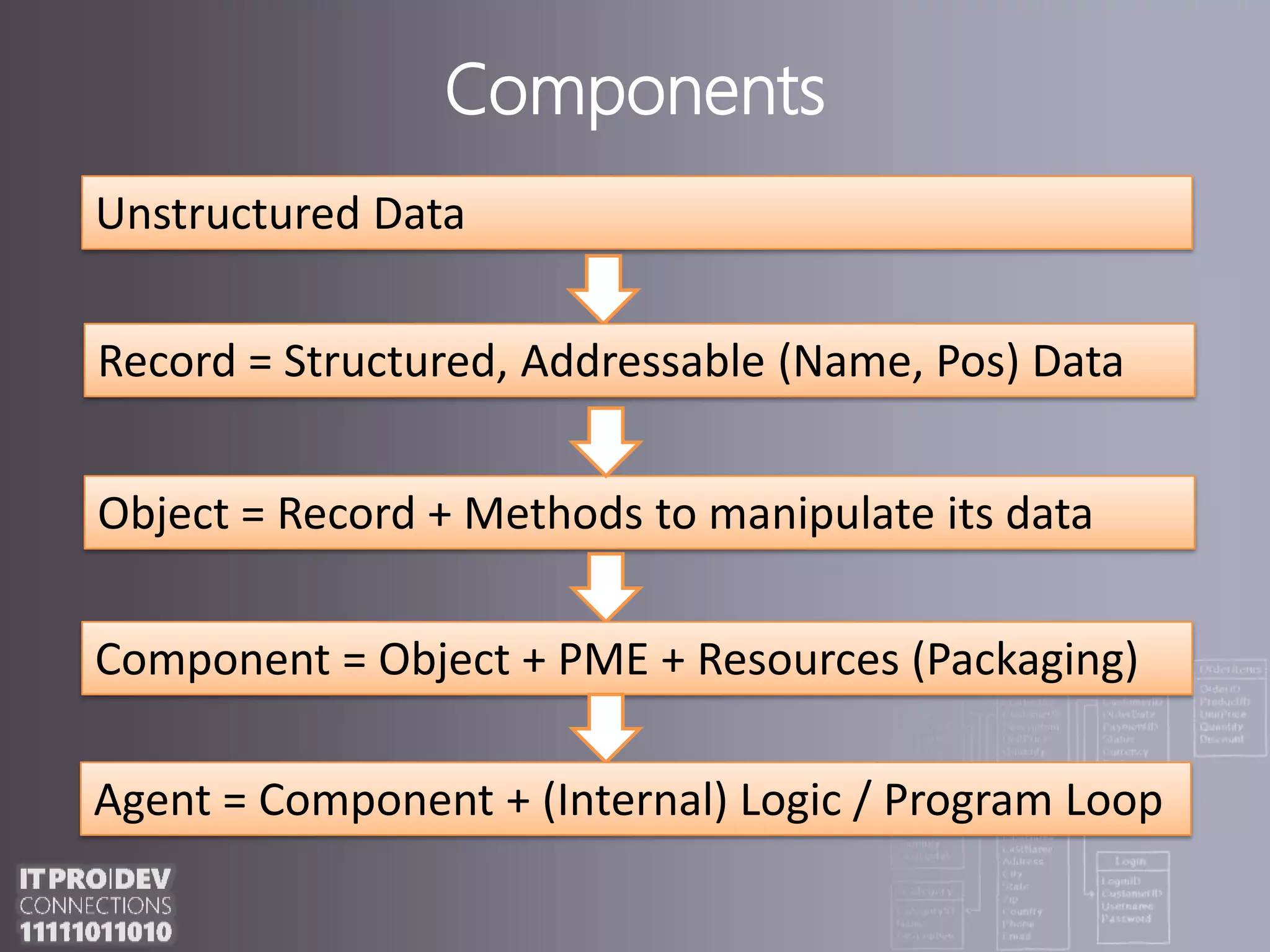

8. ComponentsUnstructured DataRecord = Structured, Addressable (Name, Pos) DataObject = Record + Methods to manipulate its dataComponent = Object + PME + Resources (Packaging) Agent = Component + (Internal) Logic / Program Loop

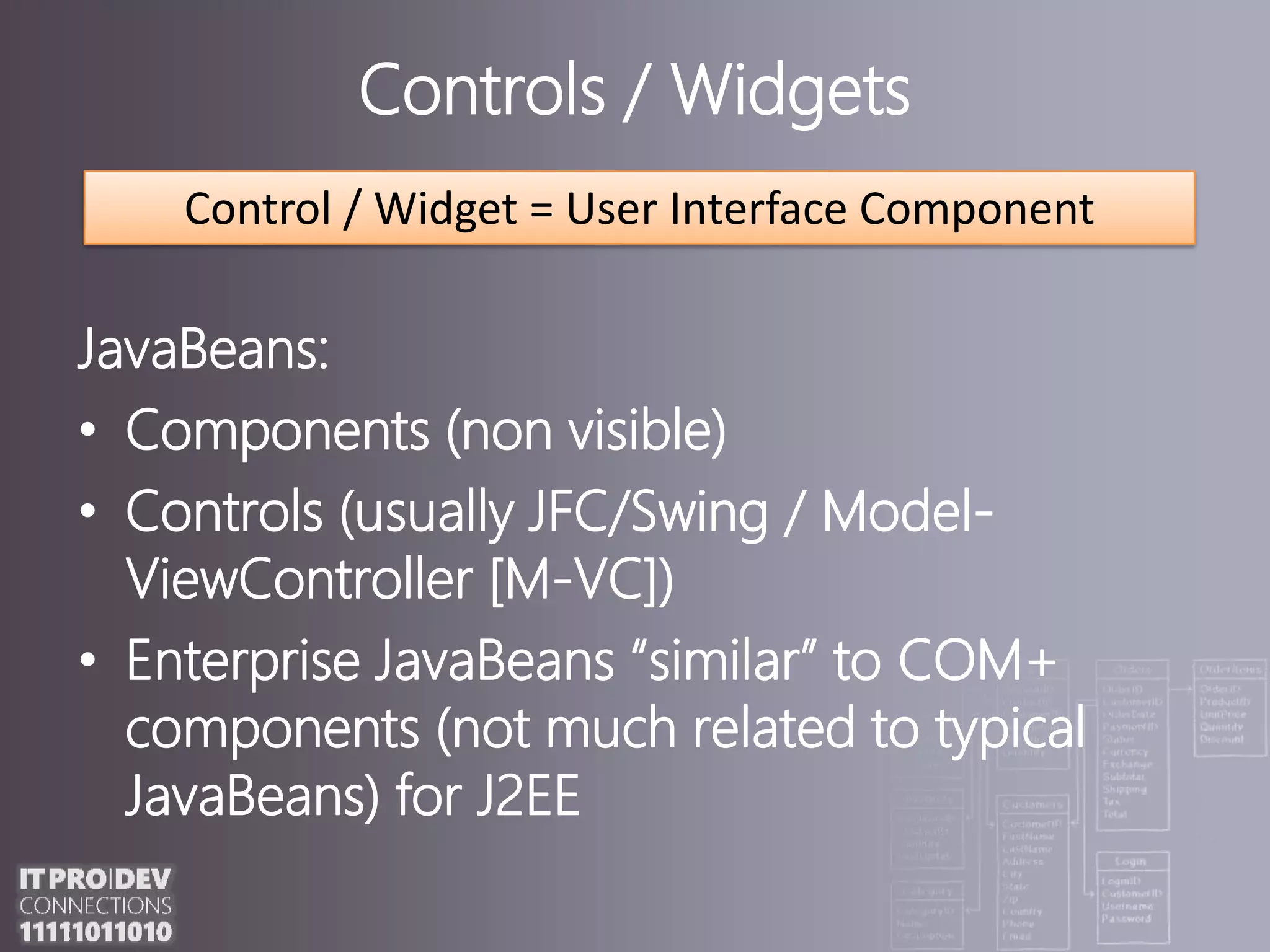

9. Controls / WidgetsControl / Widget = User Interface ComponentJavaBeans:Components (non visible)Controls (usually JFC/Swing /Model-ViewController [M-VC])Enterprise JavaBeans “similar” toCOM+ components (not much related to typicalJavaBeans)for J2EE

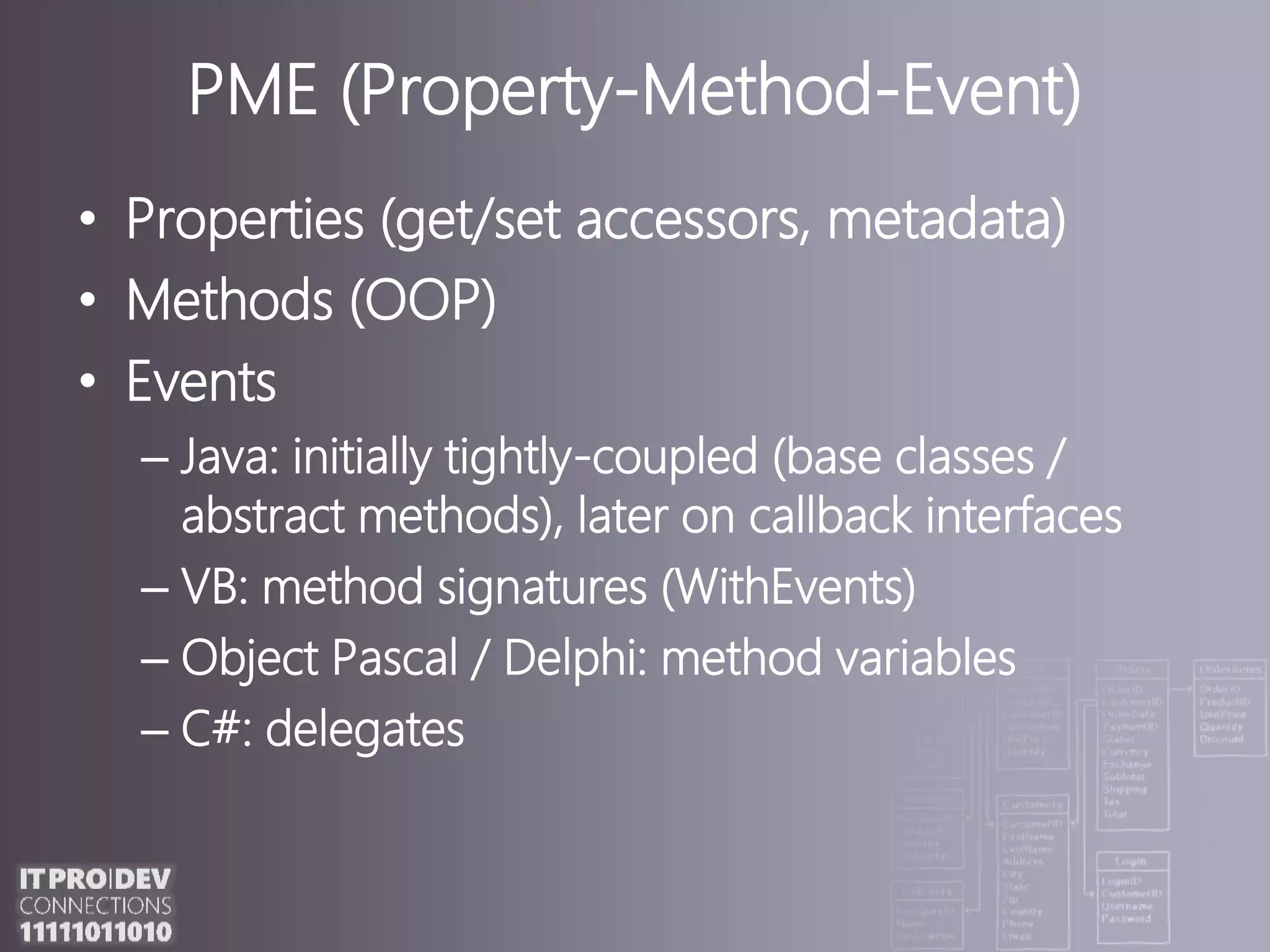

10. PME (Property-Method-Event)Properties (get/set accessors, metadata)Methods (OOP)EventsJava: initially tightly-coupled (base classes / abstract methods), later on callback interfacesVB: method signatures (WithEvents)Object Pascal / Delphi: method variablesC#: delegates

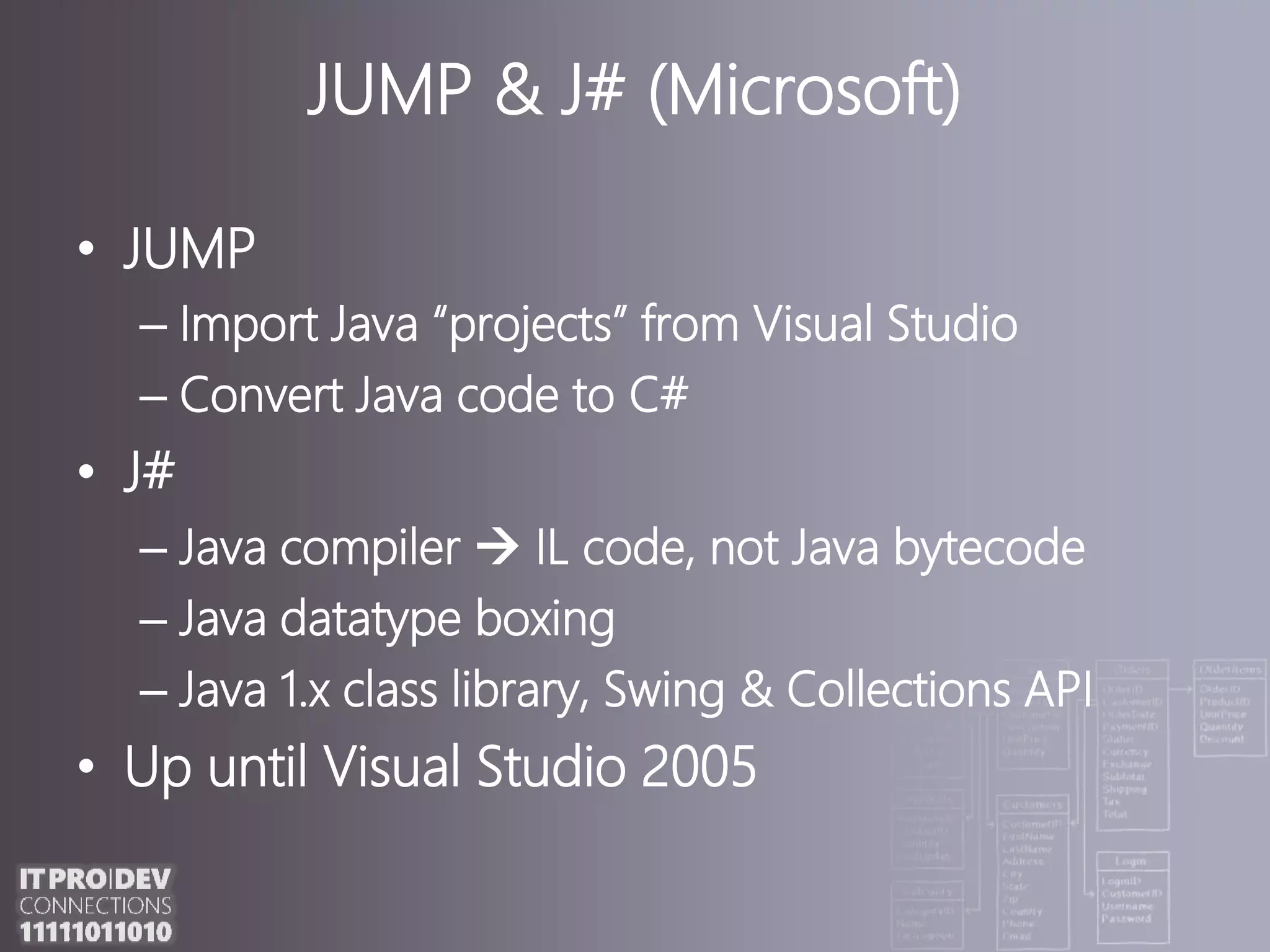

11. JUMP & J# (Microsoft)JUMPImport Java “projects” from Visual StudioConvert Java code toC#J#Java compiler  IL code, not Java bytecodeJava datatype boxingJava 1.x class library, Swing & Collections APIUp until Visual Studio 2005

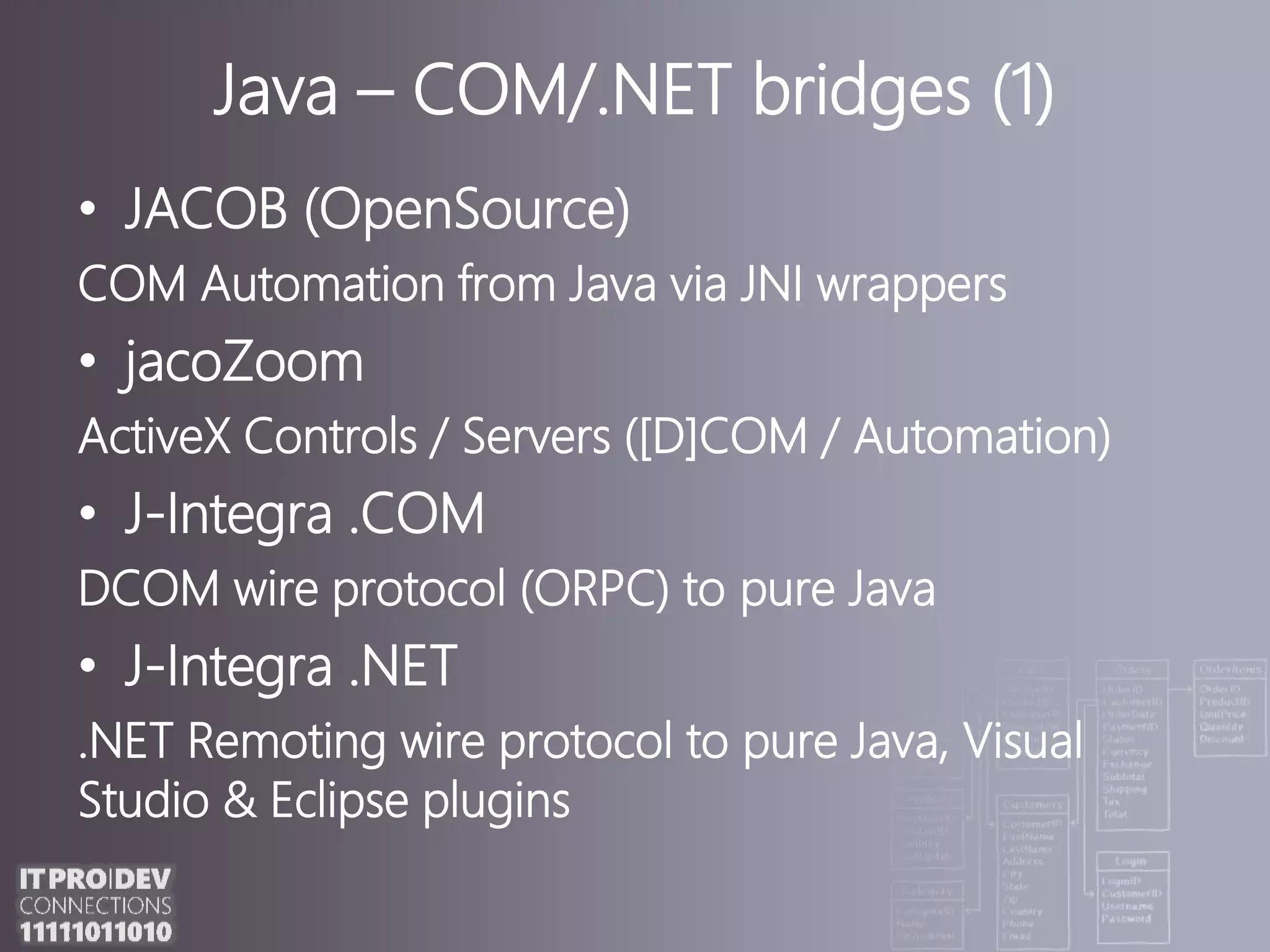

12. Java – COM/.NET bridges (1)JACOB (OpenSource)COM Automation from Java via JNI wrappersjacoZoomActiveX Controls / Servers ([D]COM / Automation)J-Integra .COMDCOM wire protocol (ORPC) topure JavaJ-Integra .NET.NET Remoting wire protocolto pure Java, Visual Studio & Eclipse plugins

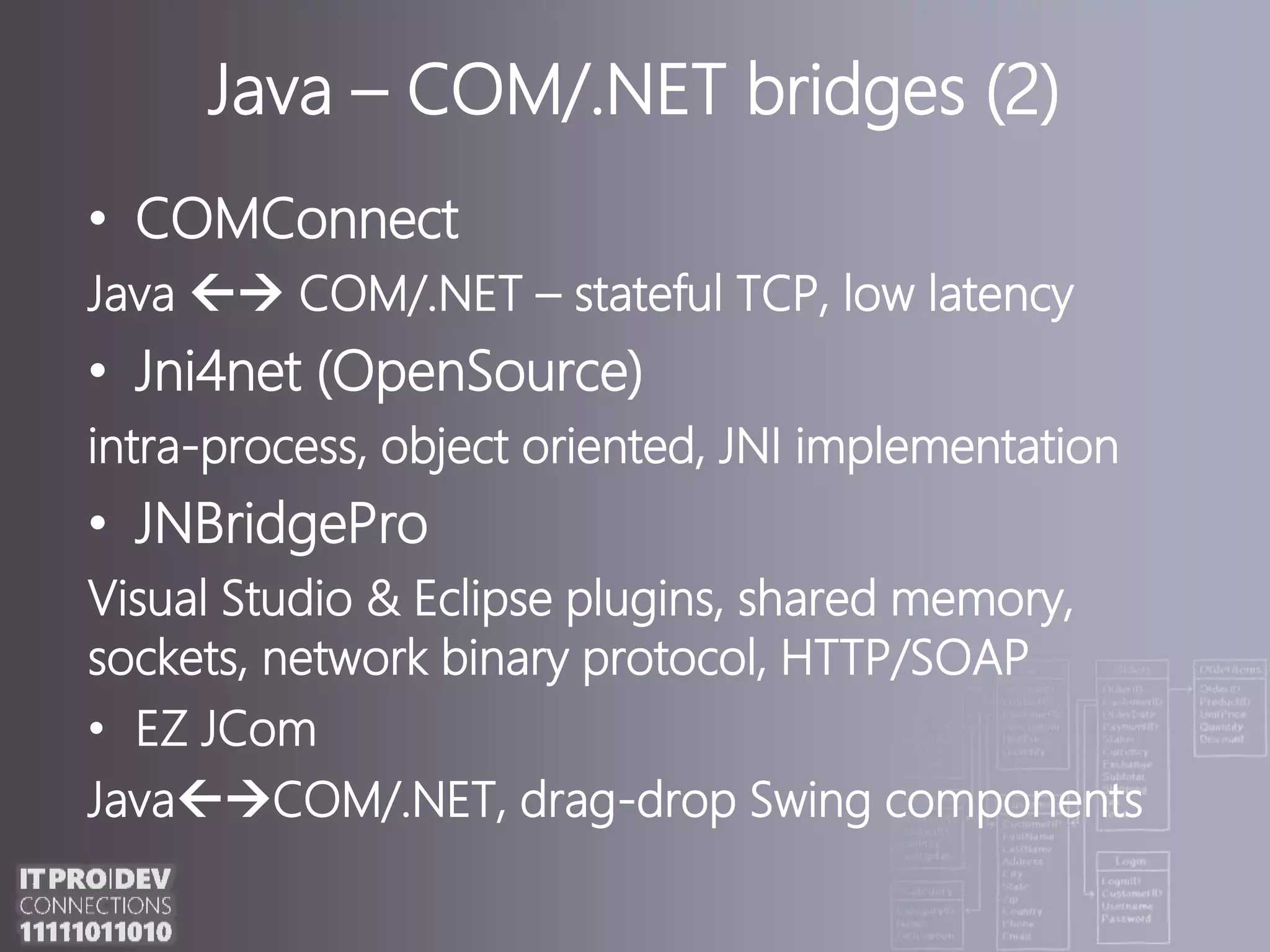

13. Java – COM/.NET bridges (2)COMConnectJava  COM/.NET – stateful TCP, low latencyJni4net (OpenSource)intra-process, object oriented, JNI implementationJNBridgeProVisual Studio & Eclipse plugins, shared memory, sockets, network binary protocol, HTTP/SOAPEZ JComJavaCOM/.NET, drag-drop Swing components

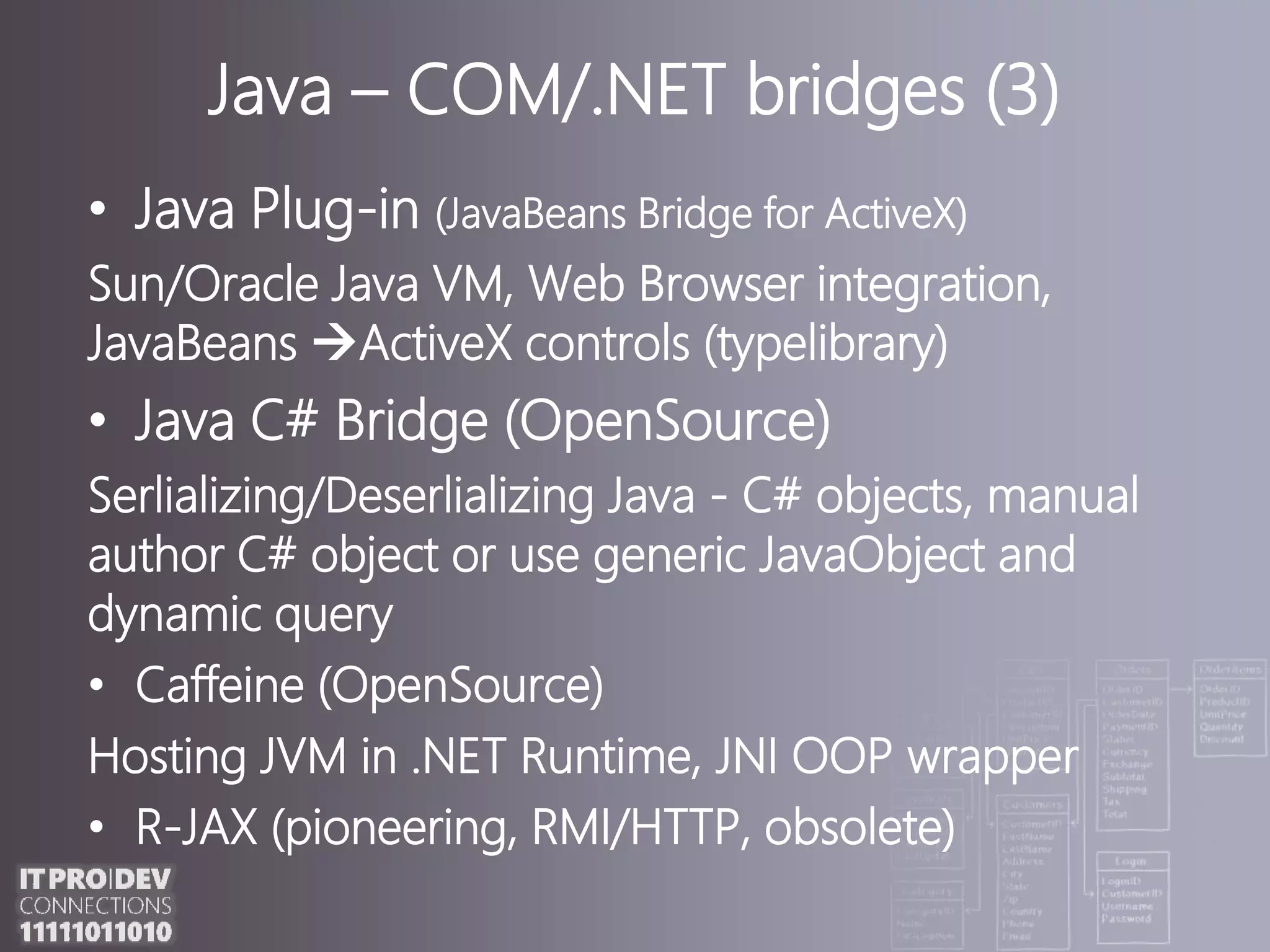

14. Java – COM/.NET bridges (3)Java Plug-in (JavaBeans Bridge for ActiveX)Sun/Oracle Java VM, Web Browser integration, JavaBeans ActiveX controls (typelibrary)Java C# Bridge (OpenSource)Serlializing/DeserlializingJava - C# objects, manual authorC# object or use generic JavaObject and dynamic queryCaffeine (OpenSource)Hosting JVM in .NET Runtime,JNI OOP wrapperR-JAX (pioneering, RMI/HTTP, obsolete)

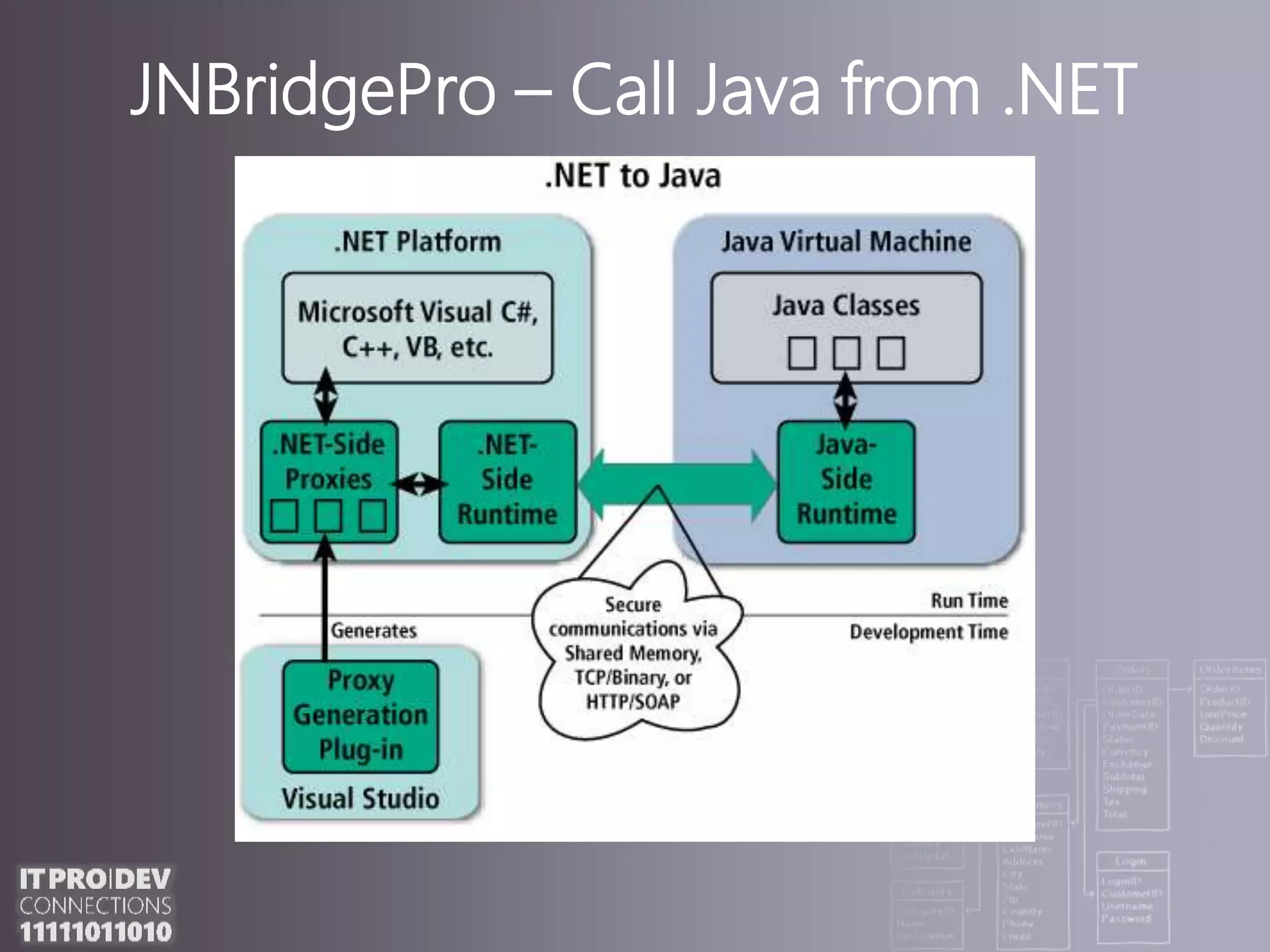

15. JNBridgePro – Call Java from .NET

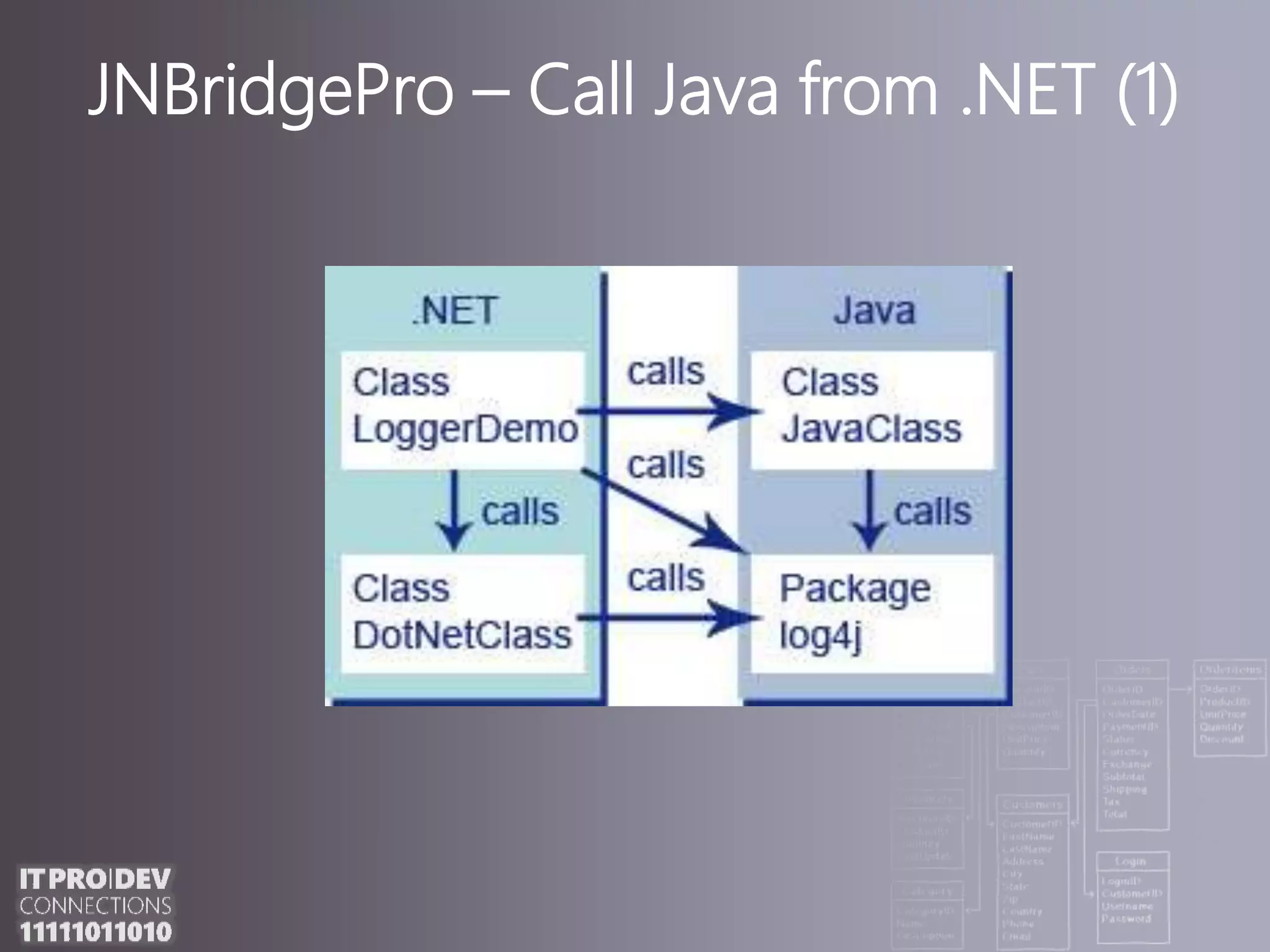

16. JNBridgePro – Call Java from .NET (1)

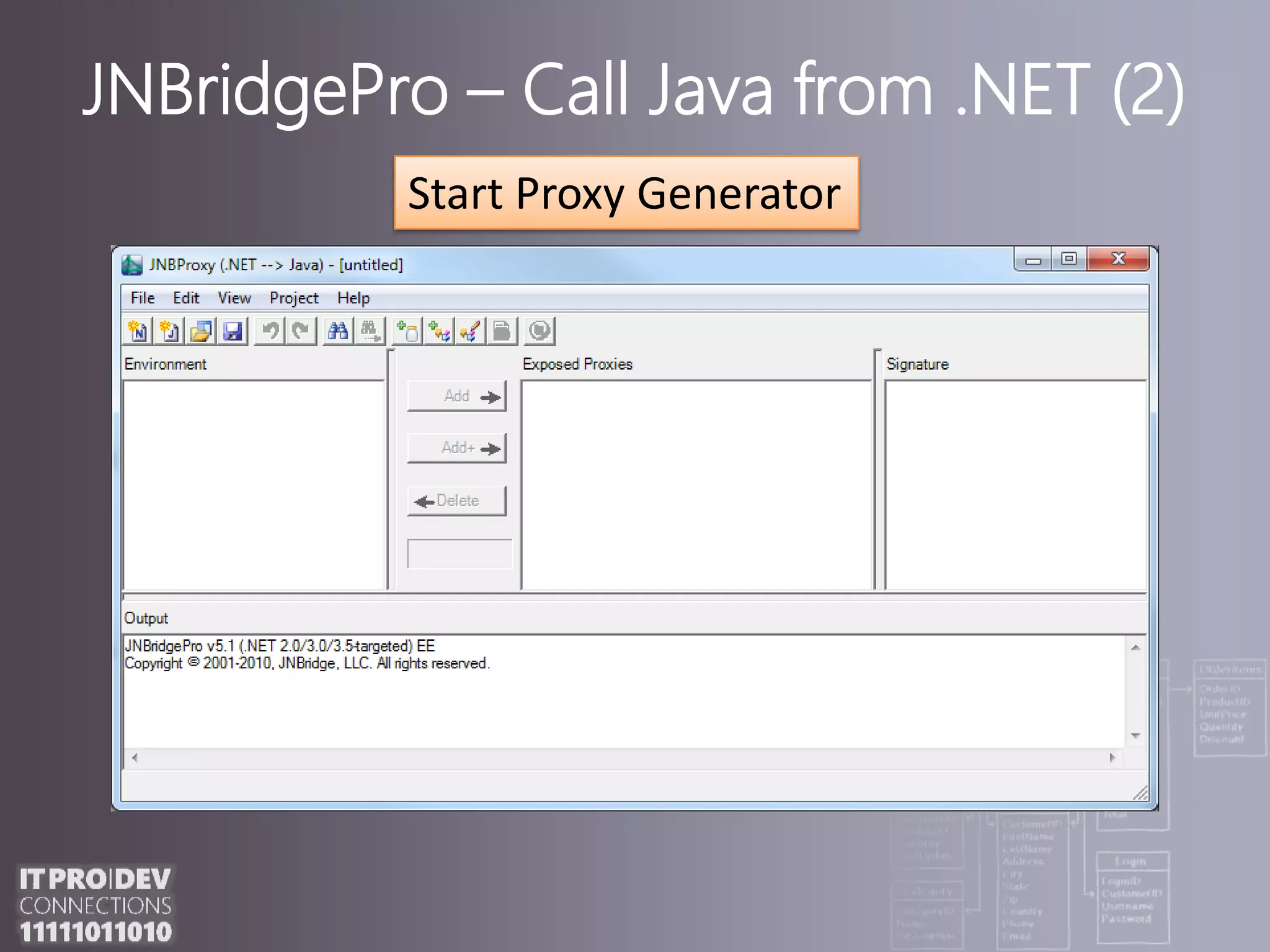

17. JNBridgePro – Call Java from .NET (2)Start Proxy Generator

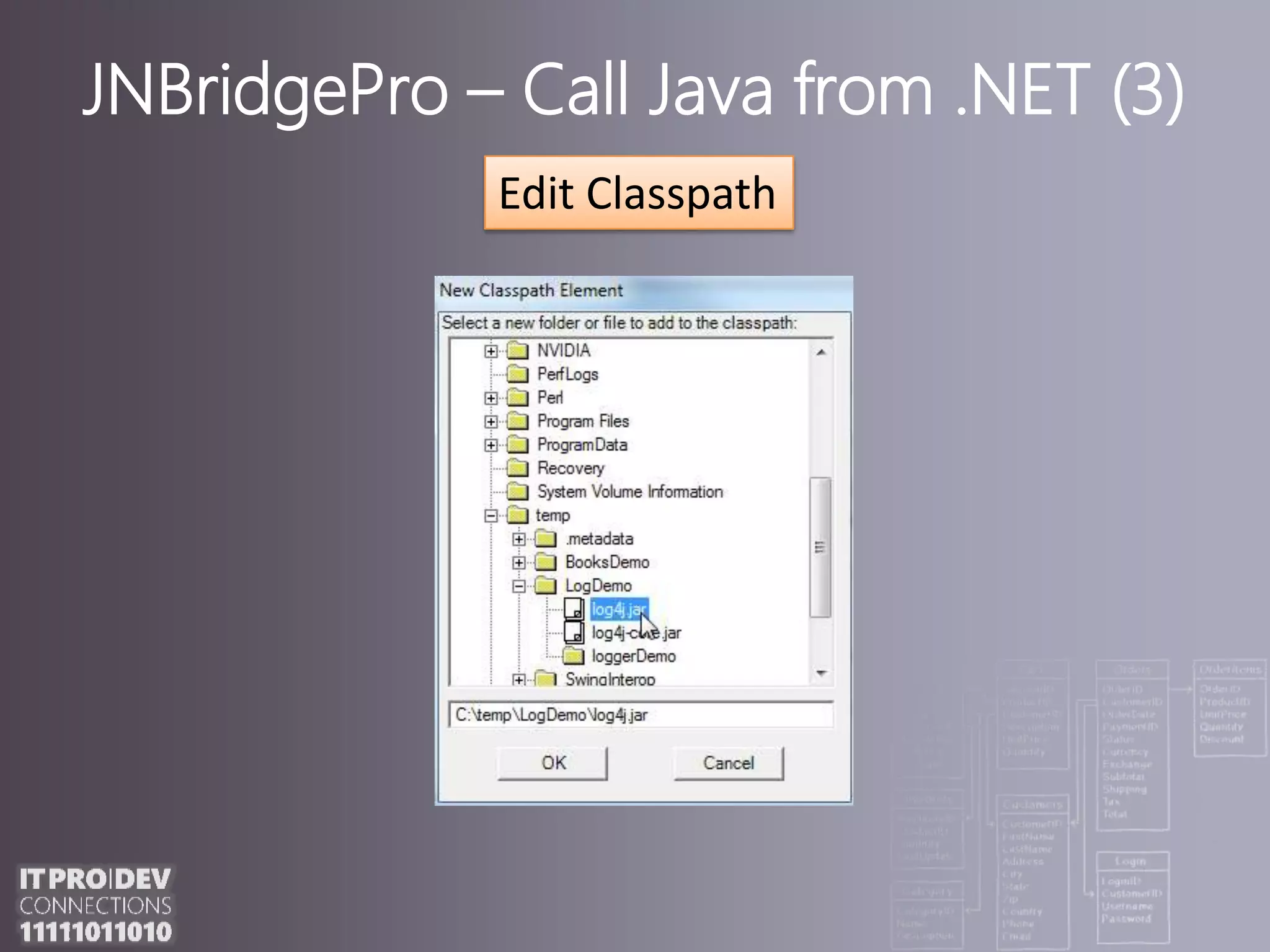

18. JNBridgePro – Call Java from .NET (3)Edit Classpath

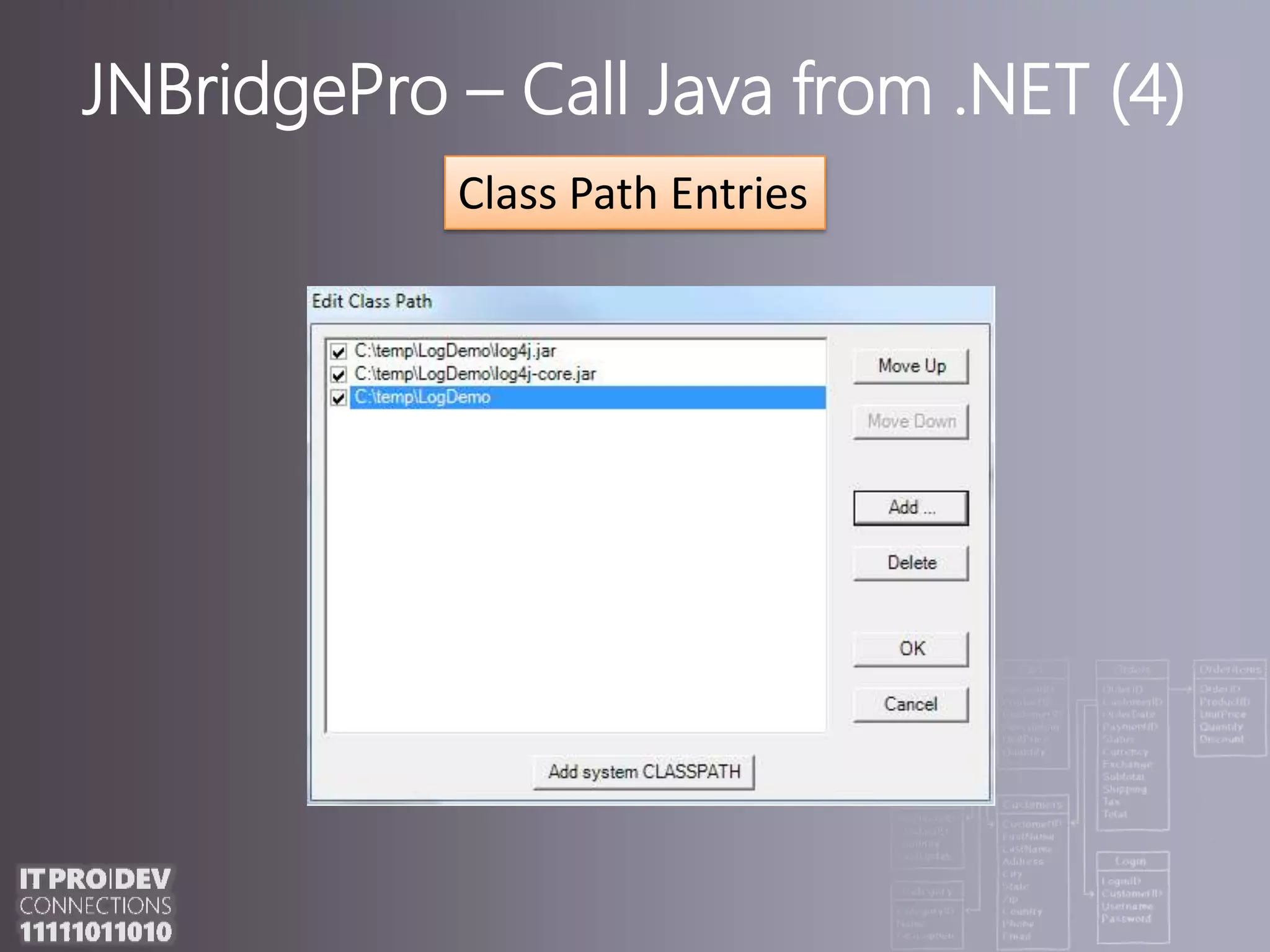

19. JNBridgePro – Call Java from .NET (4)Class Path Entries

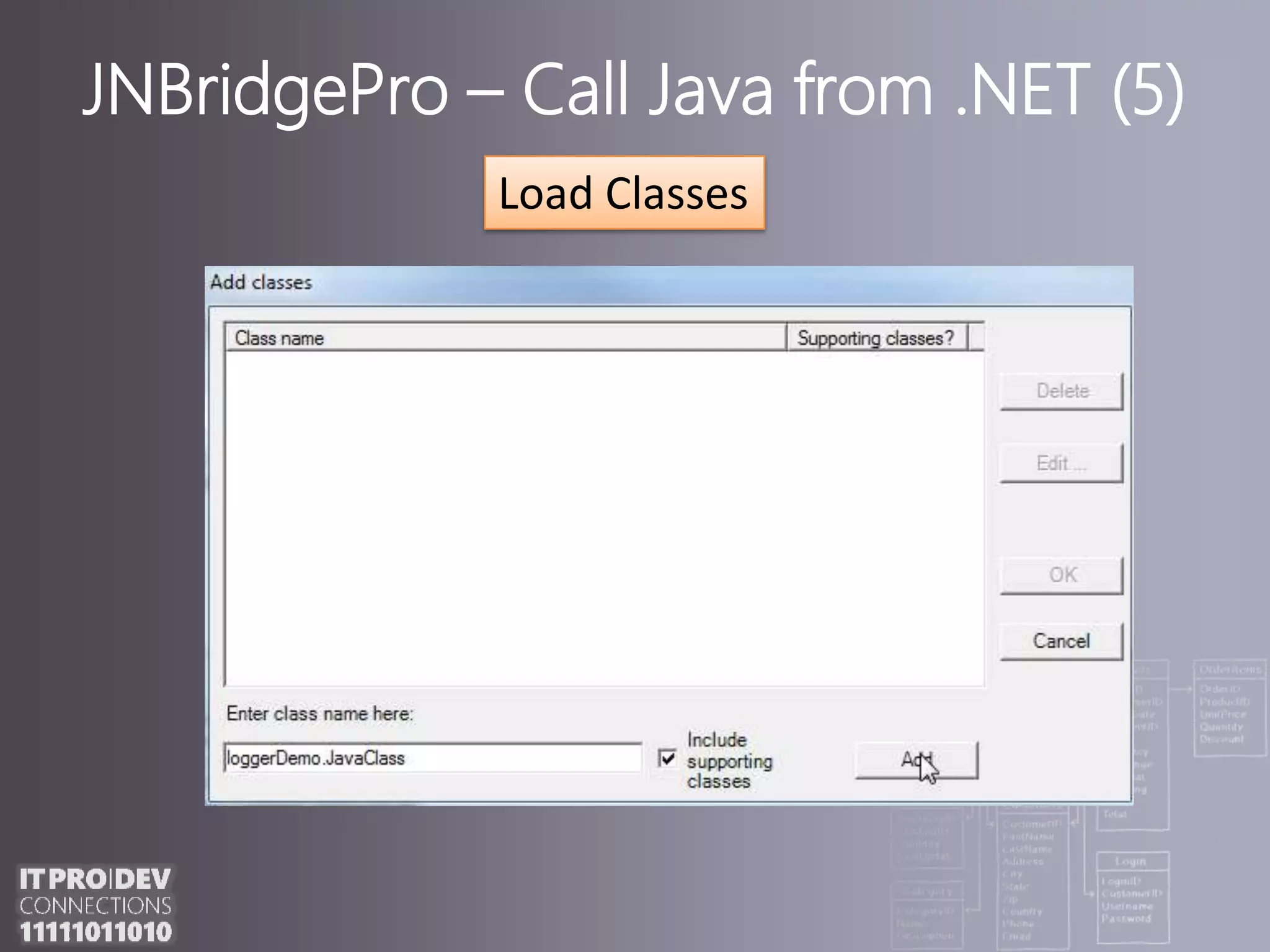

20. JNBridgePro – Call Java from .NET (5)Load Classes

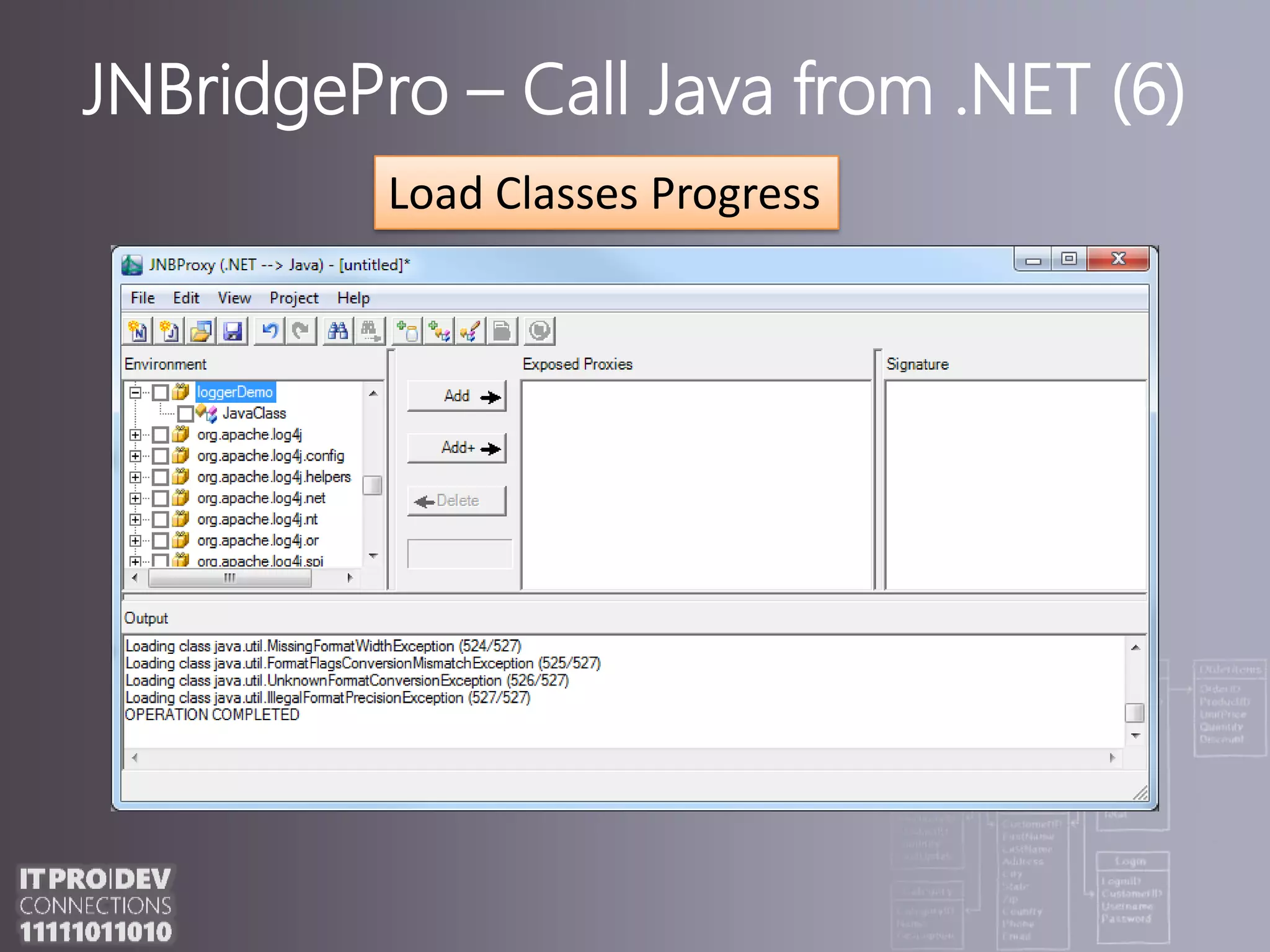

21. JNBridgePro – Call Java from .NET (6)Load Classes Progress

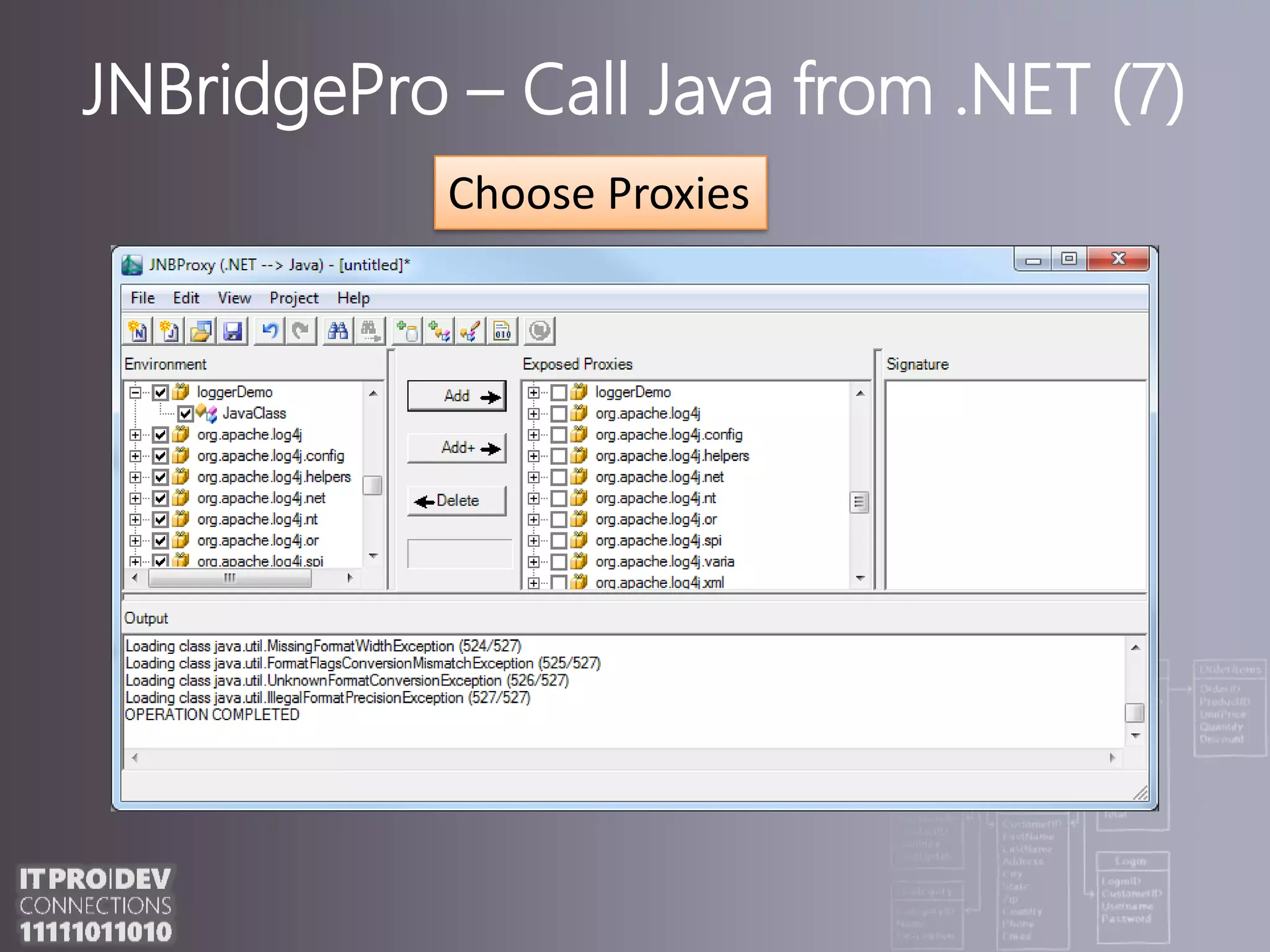

22. JNBridgePro – Call Java from .NET (7)Choose Proxies

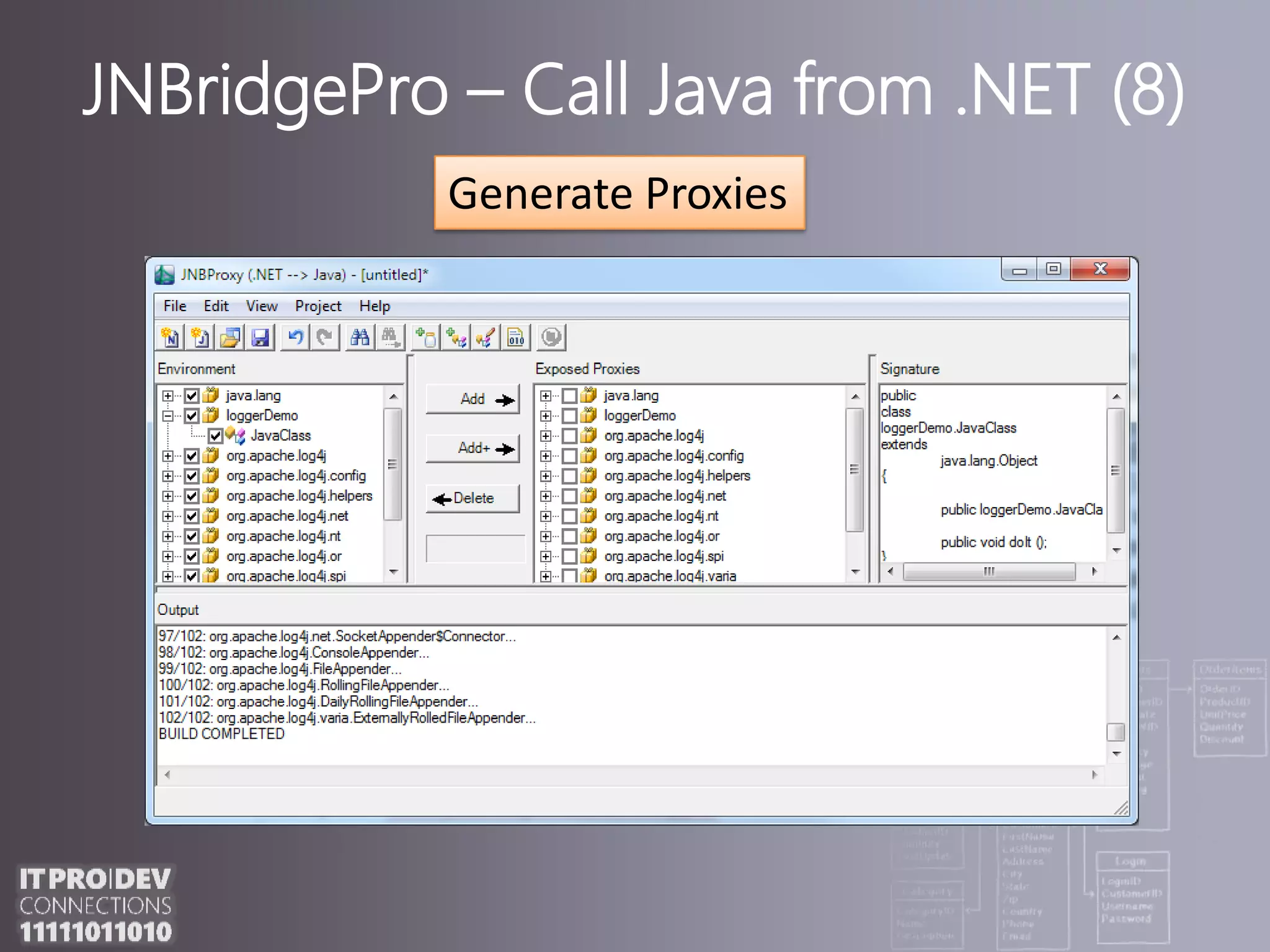

23. JNBridgePro – Call Java from .NET (8)Generate Proxies

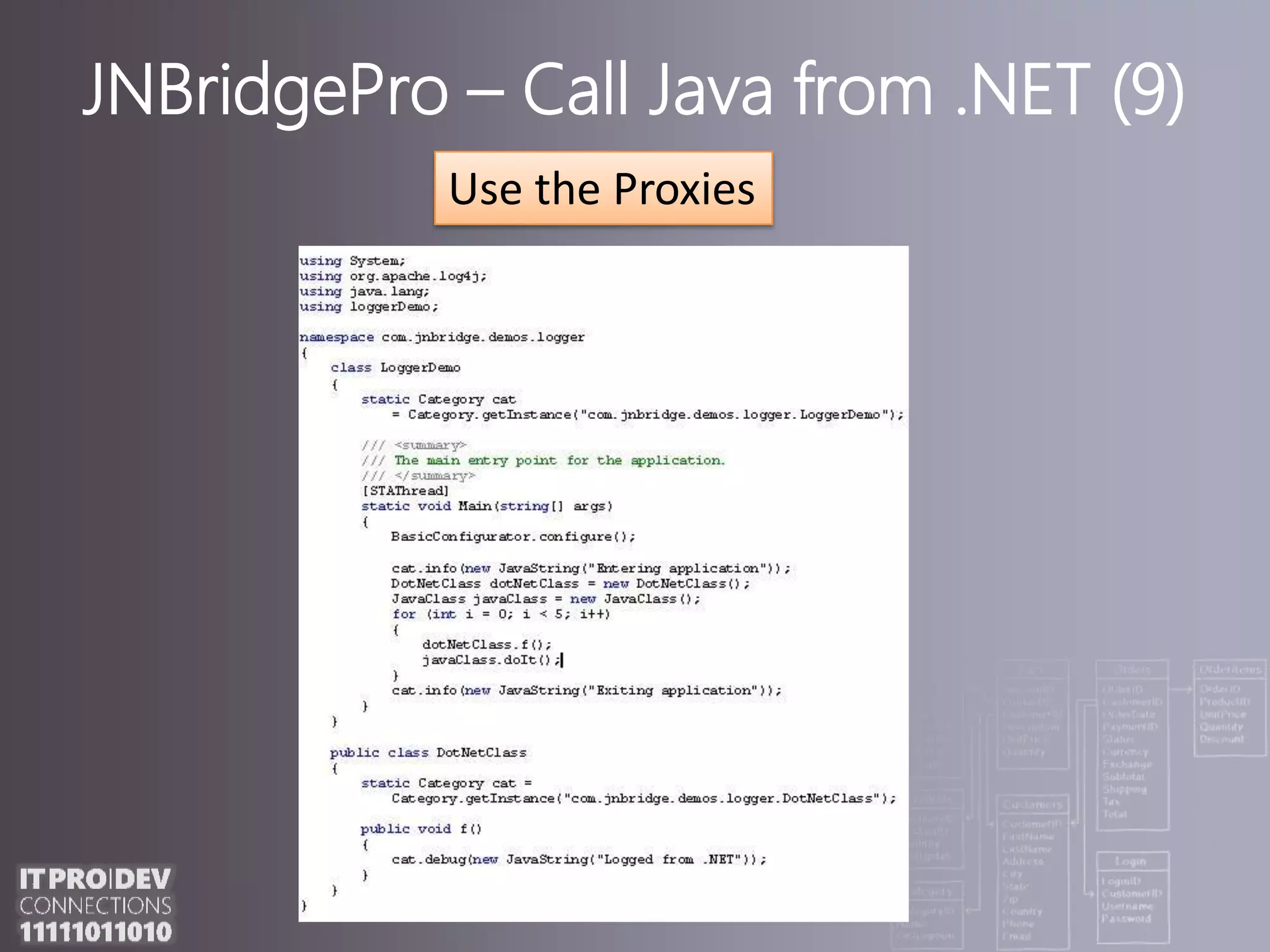

24. JNBridgePro – Call Java from .NET (9)Use the Proxies

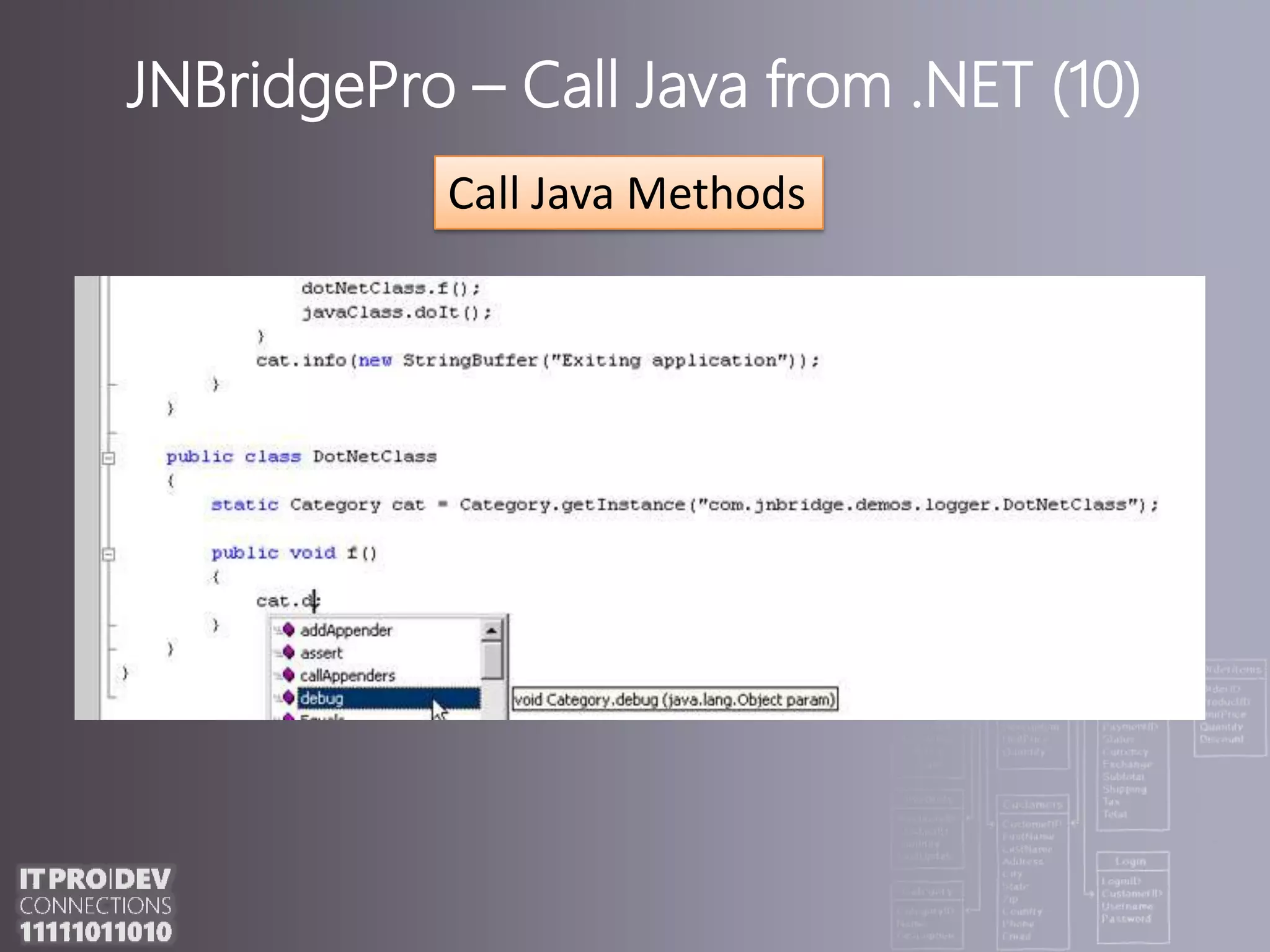

25. JNBridgePro – Call Java from .NET (10)Call Java Methods

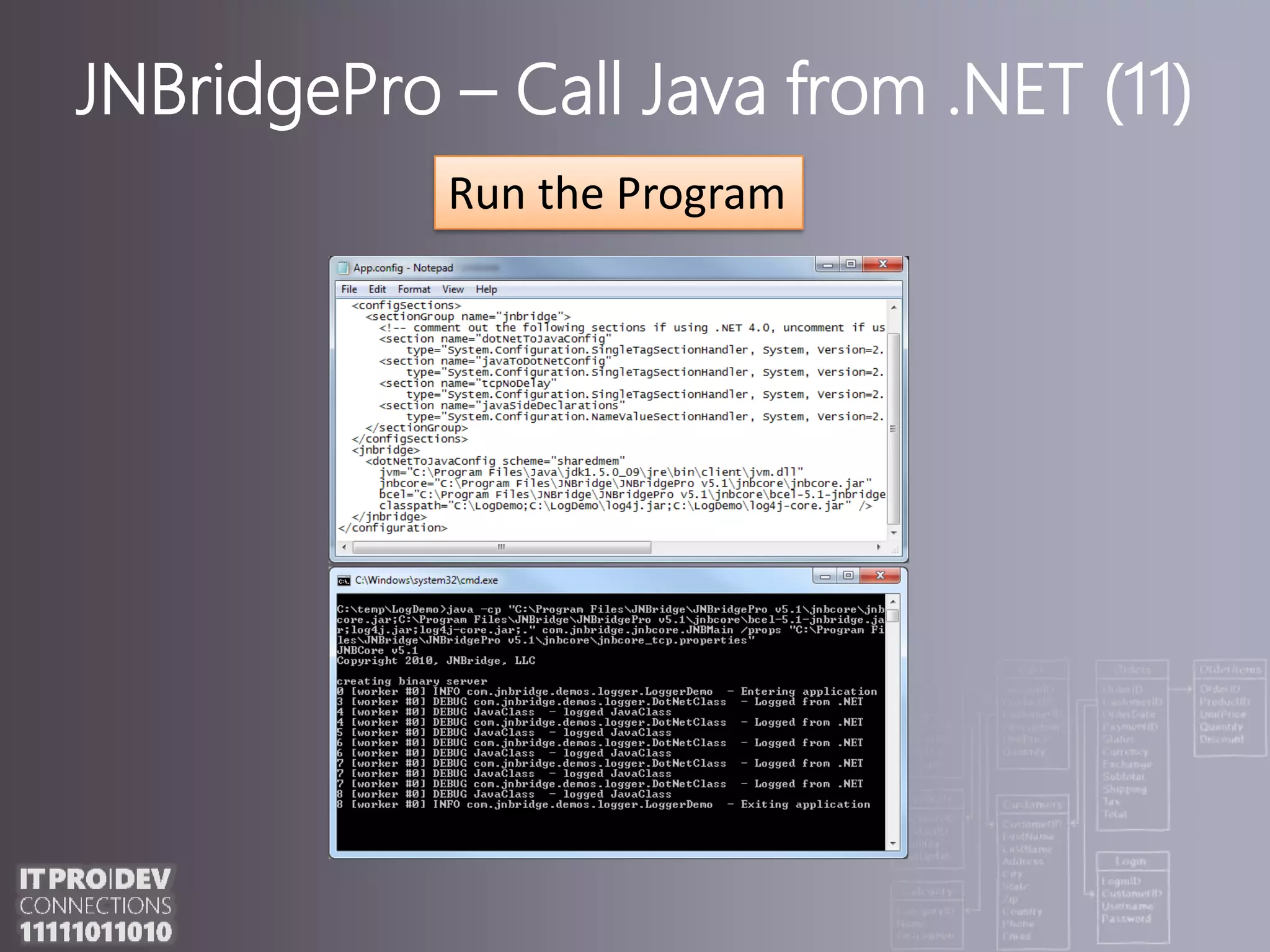

26. JNBridgePro – Call Java from .NET (11)Run the Program

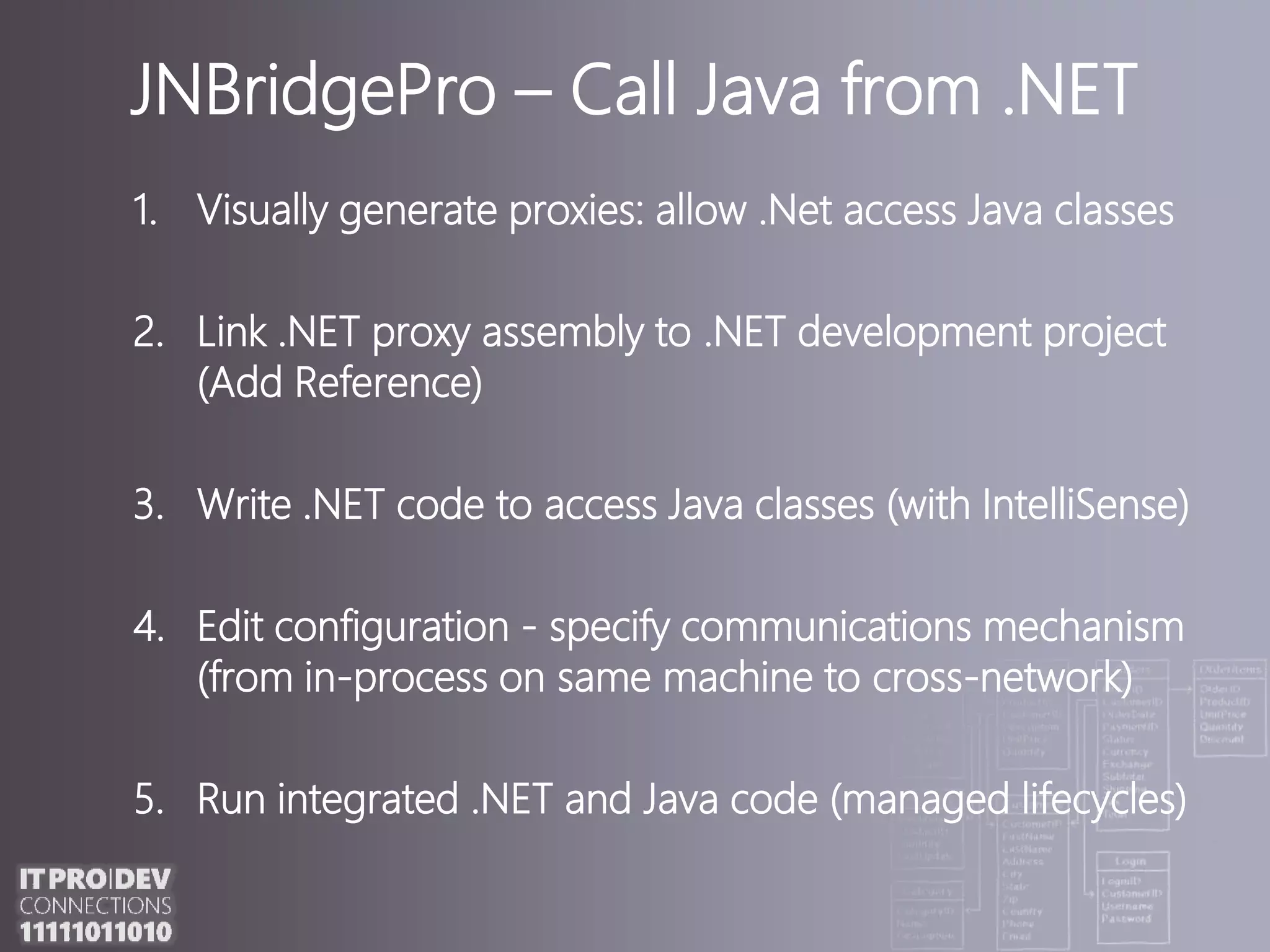

27. JNBridgePro – Call Java from .NETVisually generate proxies: allow .Netaccess Java classesLink .NET proxy assembly to .NET development project (Add Reference)Write .NET code to access Java classes(with IntelliSense)Edit configuration - specify communications mechanism (from in-process on same machine to cross-network)Run integrated .NET and Java code (managed lifecycles)

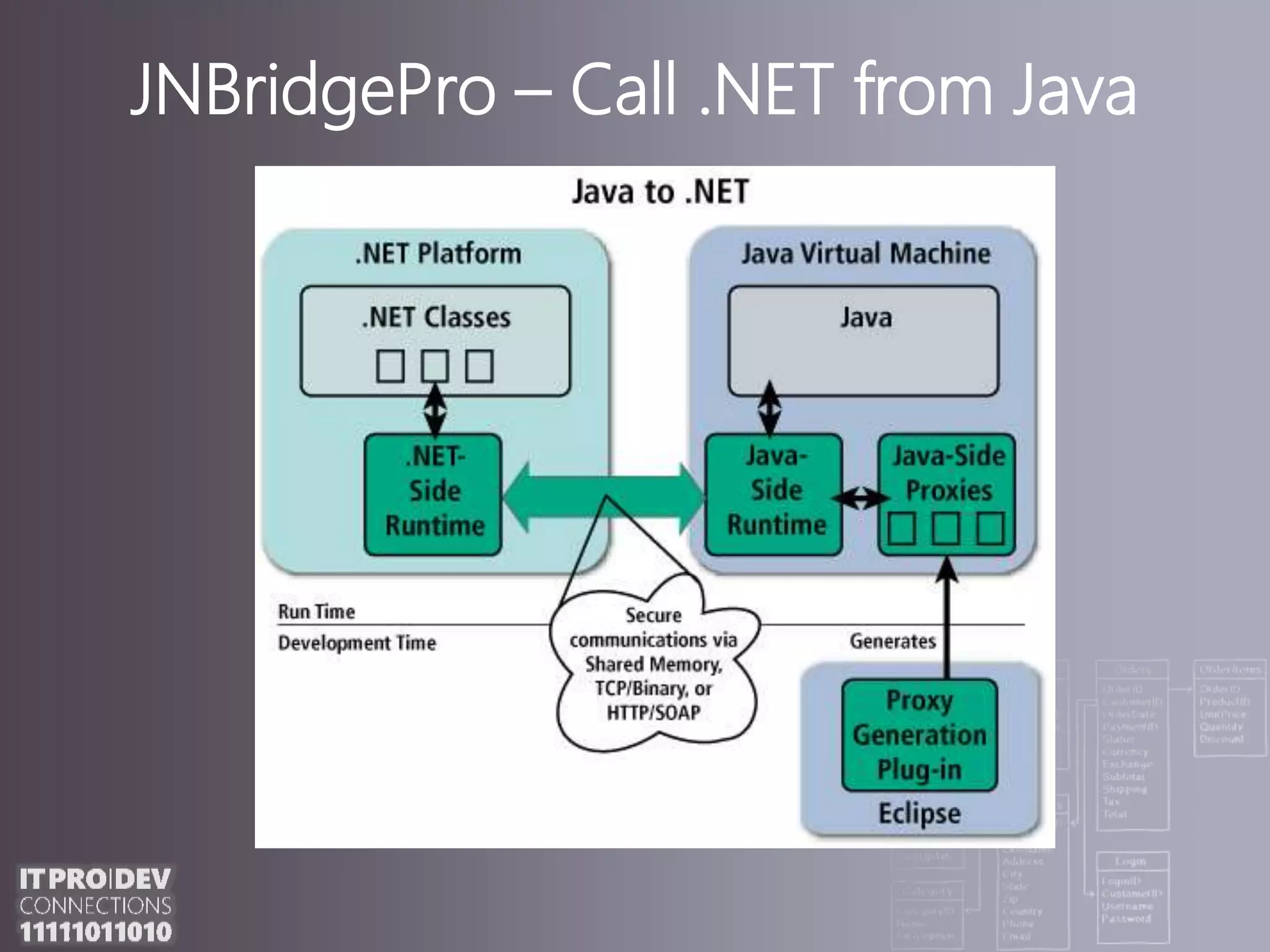

28. JNBridgePro – Call .NET from Java

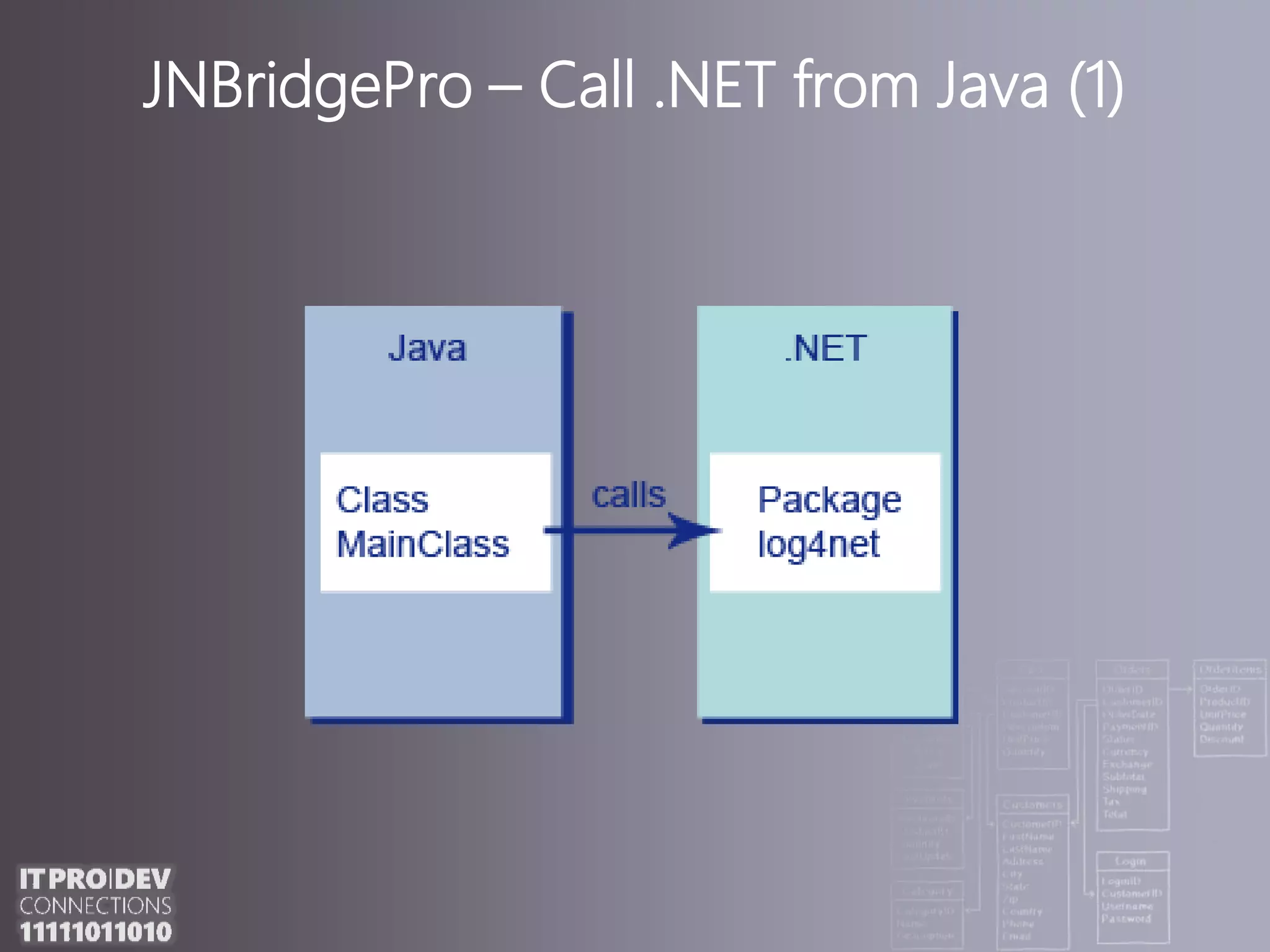

29. JNBridgePro – Call .NET from Java (1)

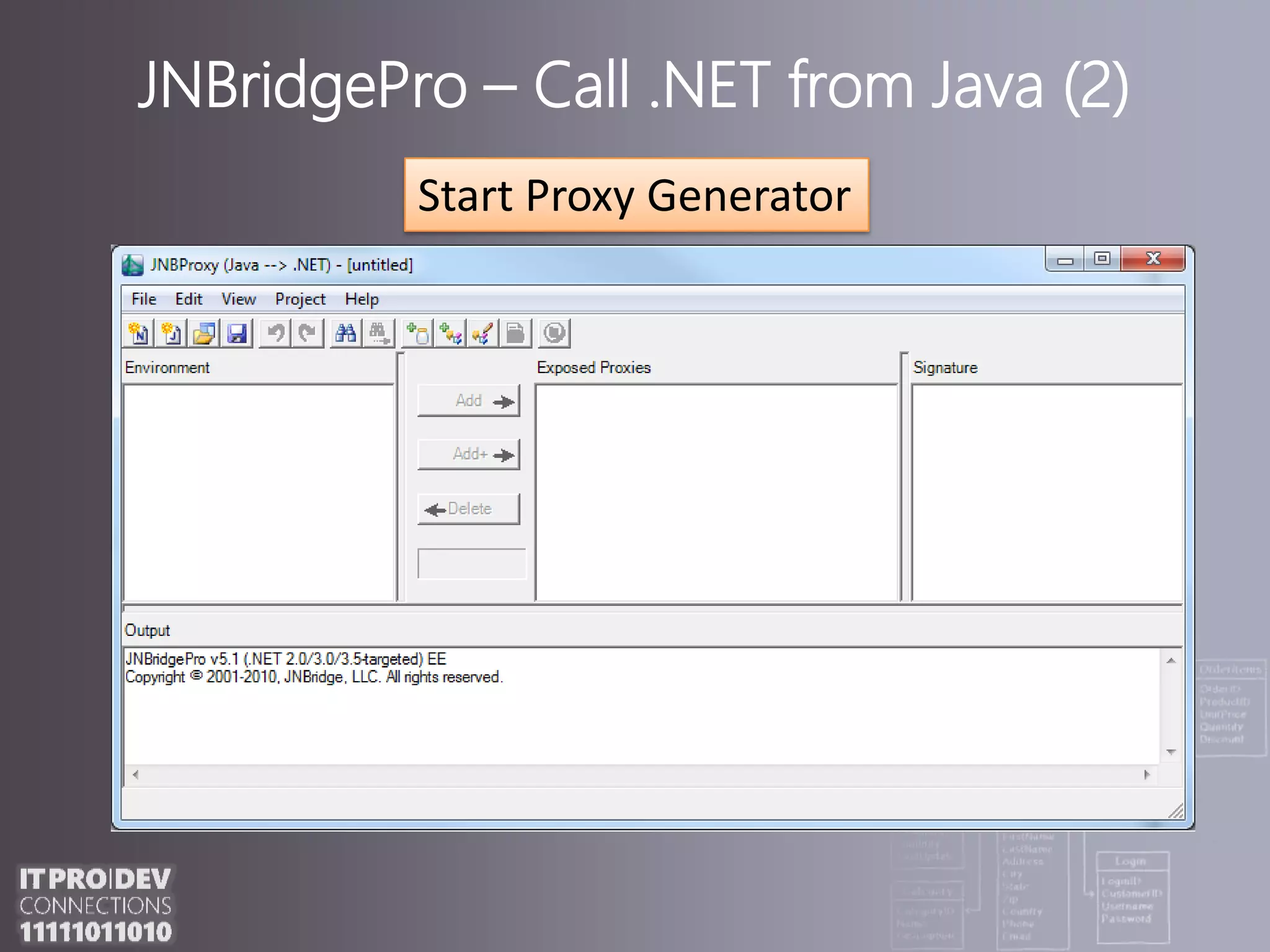

30. JNBridgePro – Call .NET from Java (2)Start Proxy Generator

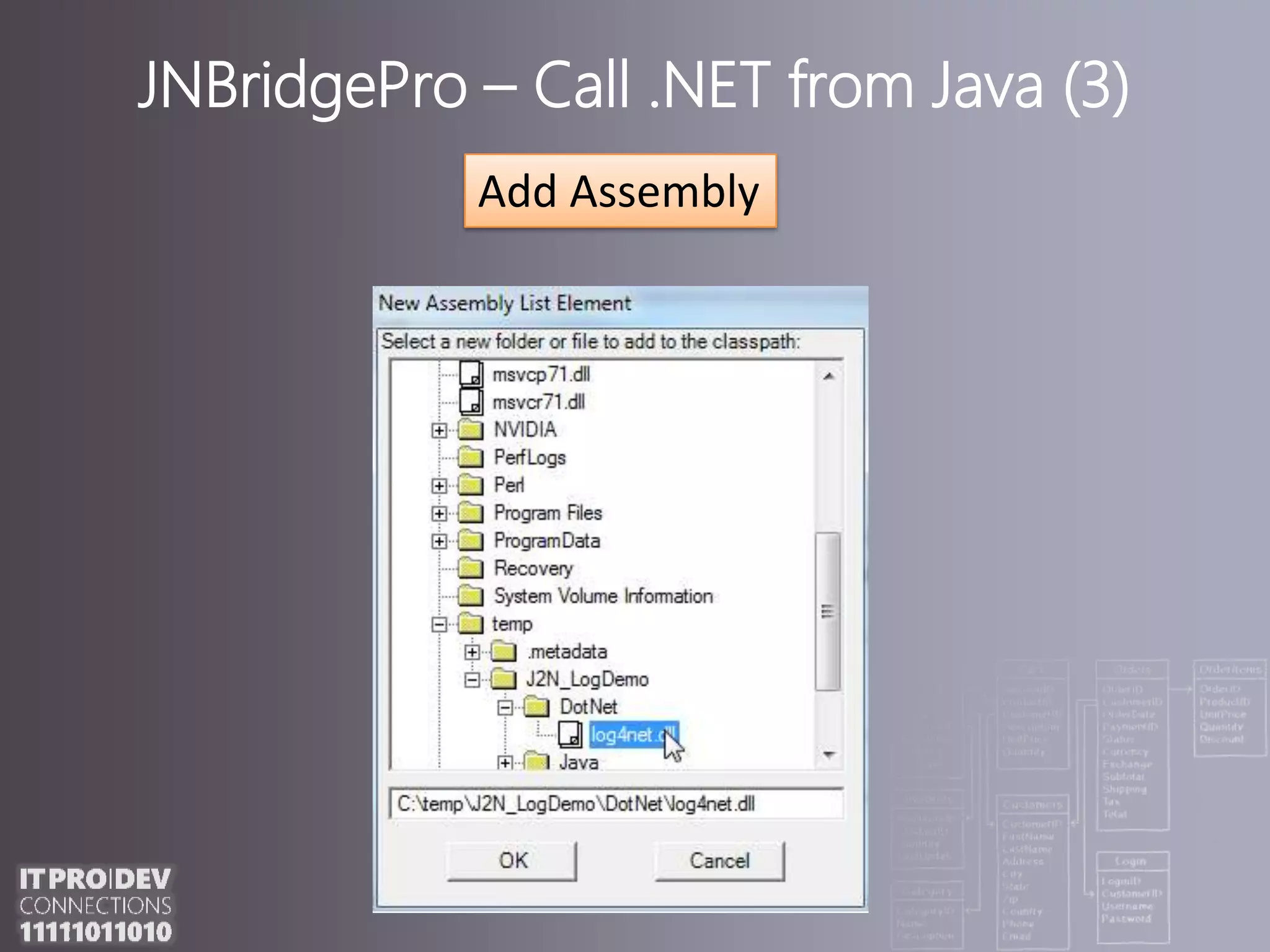

31. JNBridgePro – Call .NET from Java (3)Add Assembly

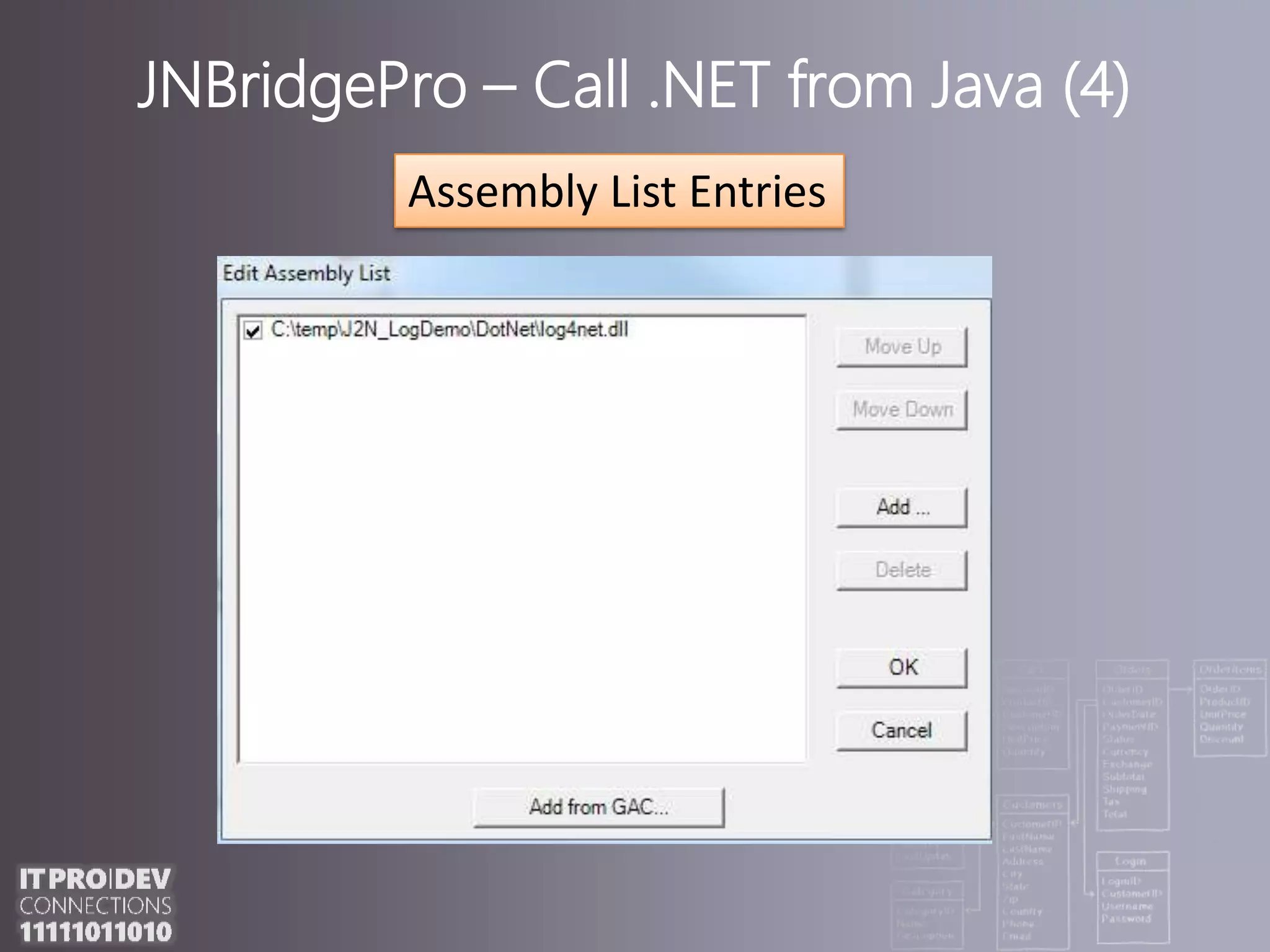

32. JNBridgePro – Call .NET from Java (4)Assembly List Entries

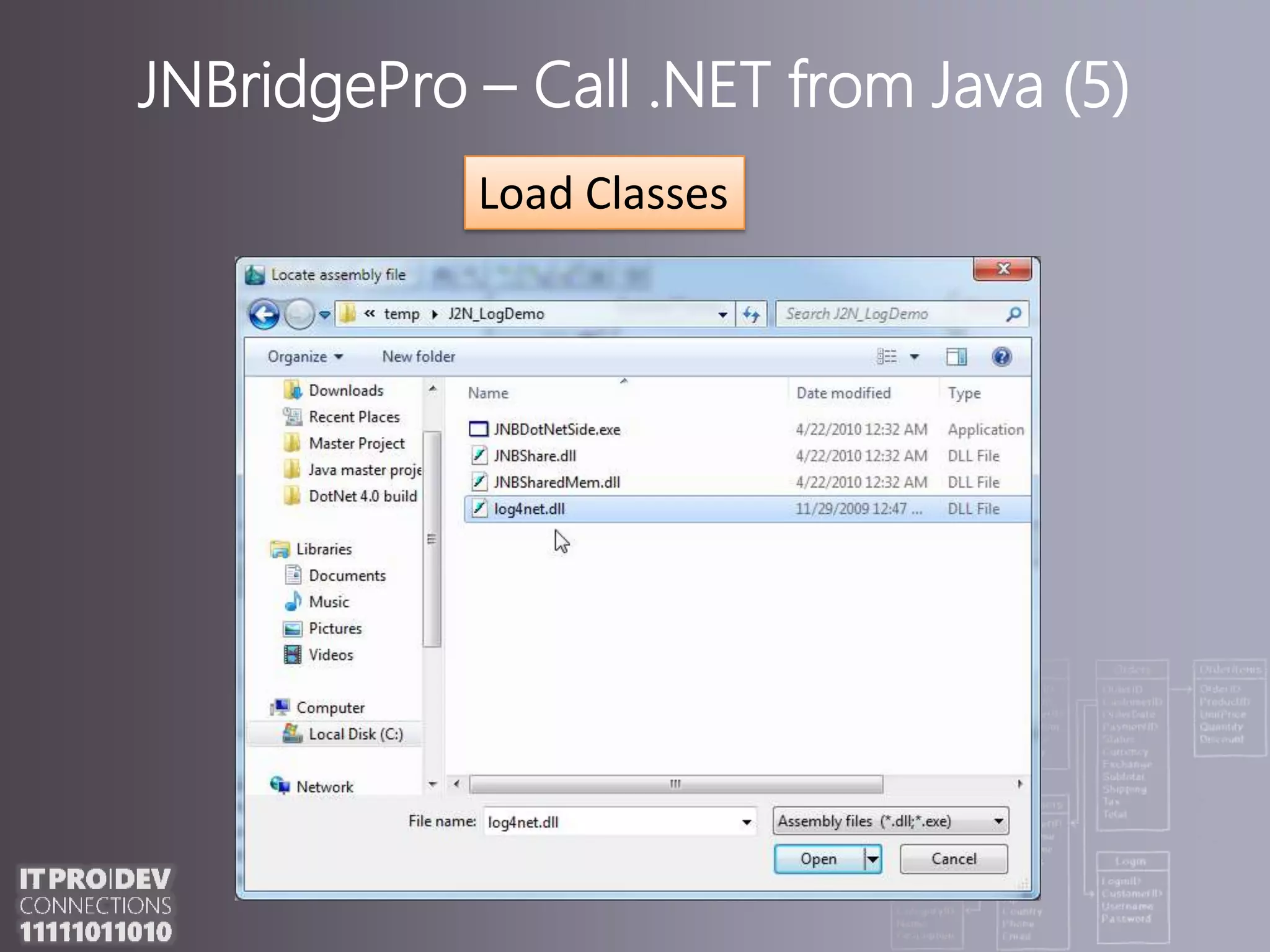

33. JNBridgePro – Call .NET from Java (5)Load Classes

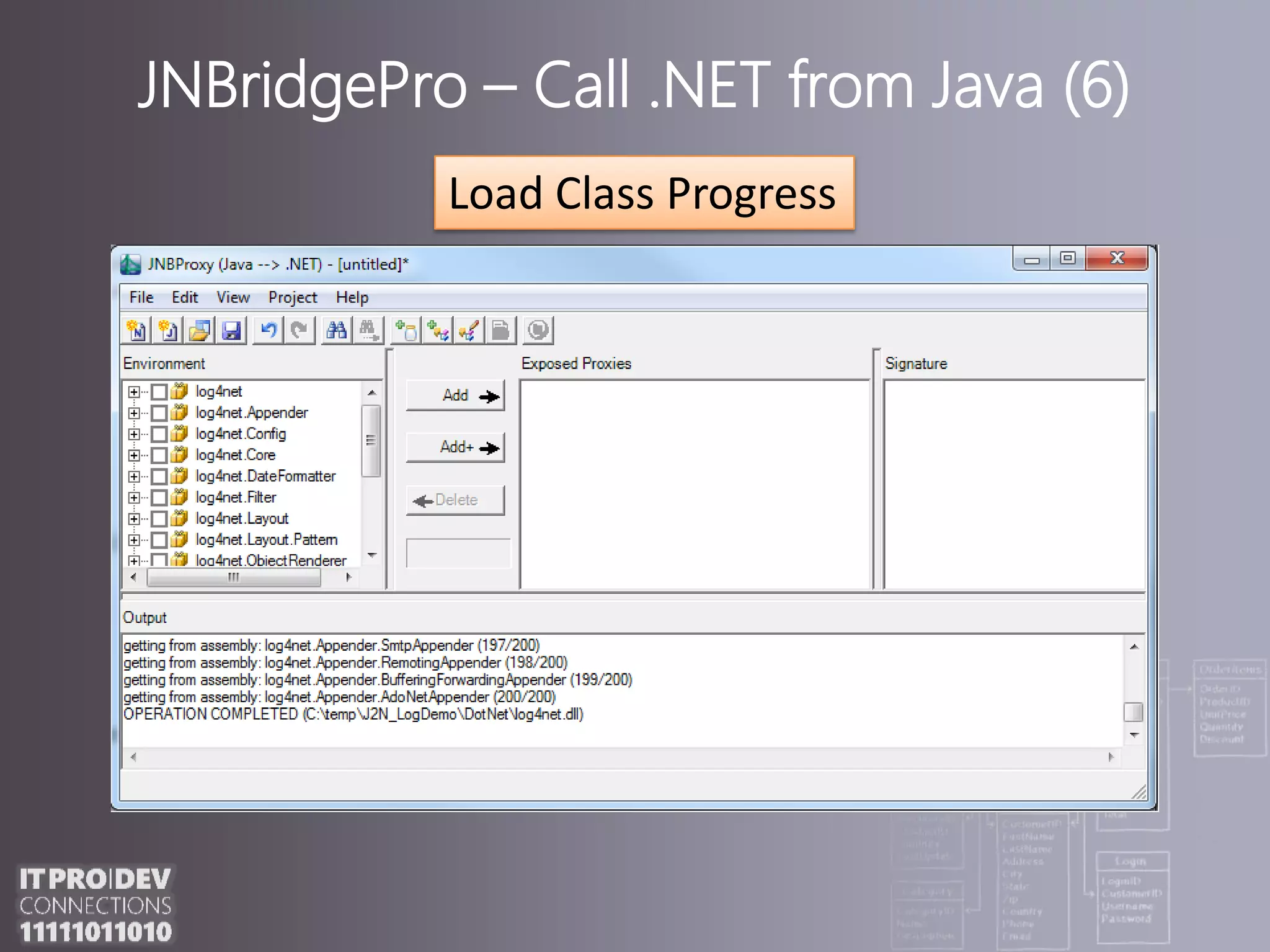

34. JNBridgePro – Call .NET from Java (6)Load Class Progress

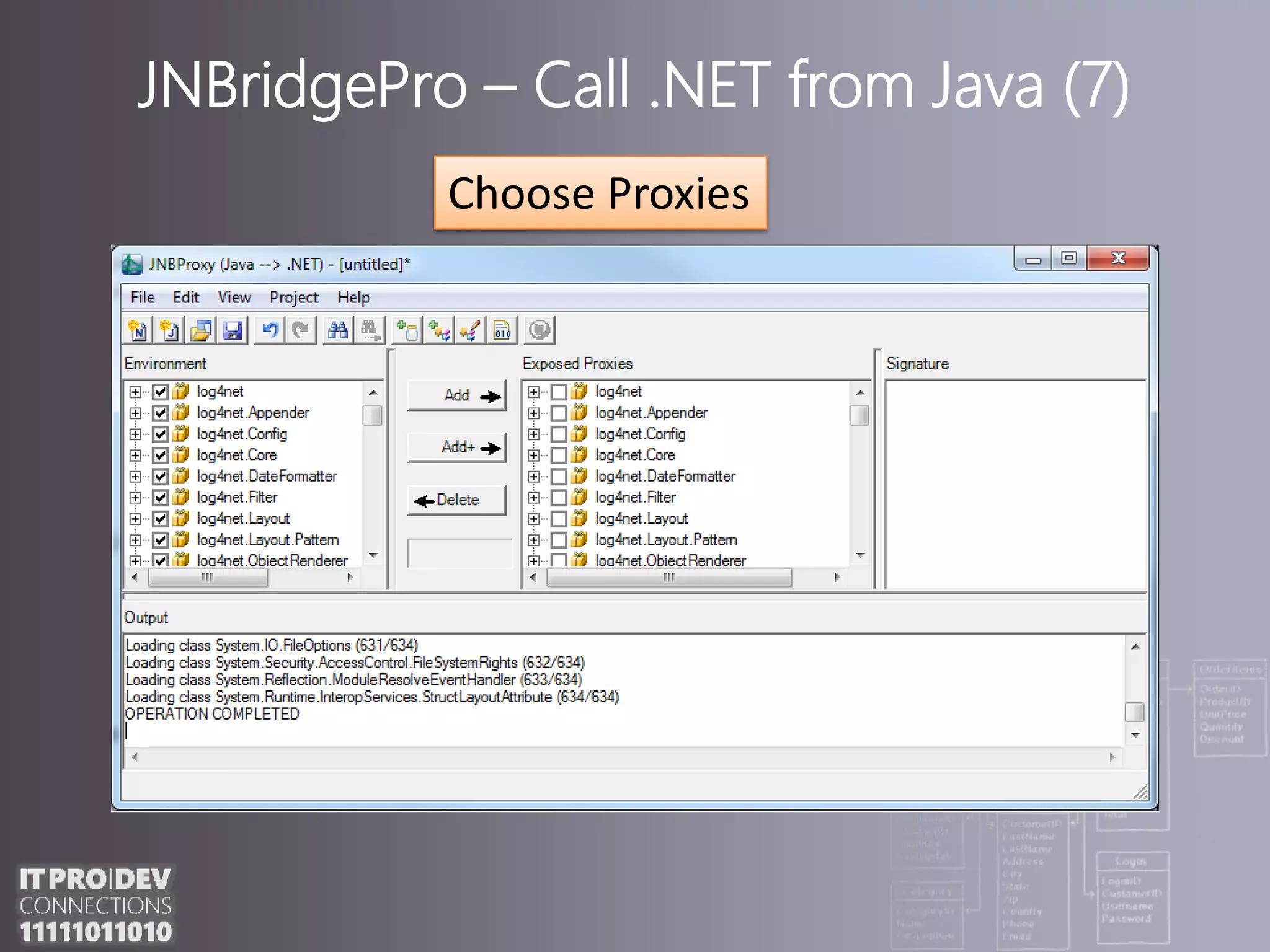

35. JNBridgePro – Call .NET from Java (7)Choose Proxies

36. JNBridgePro – Call .NET from Java (8)Generate Proxies

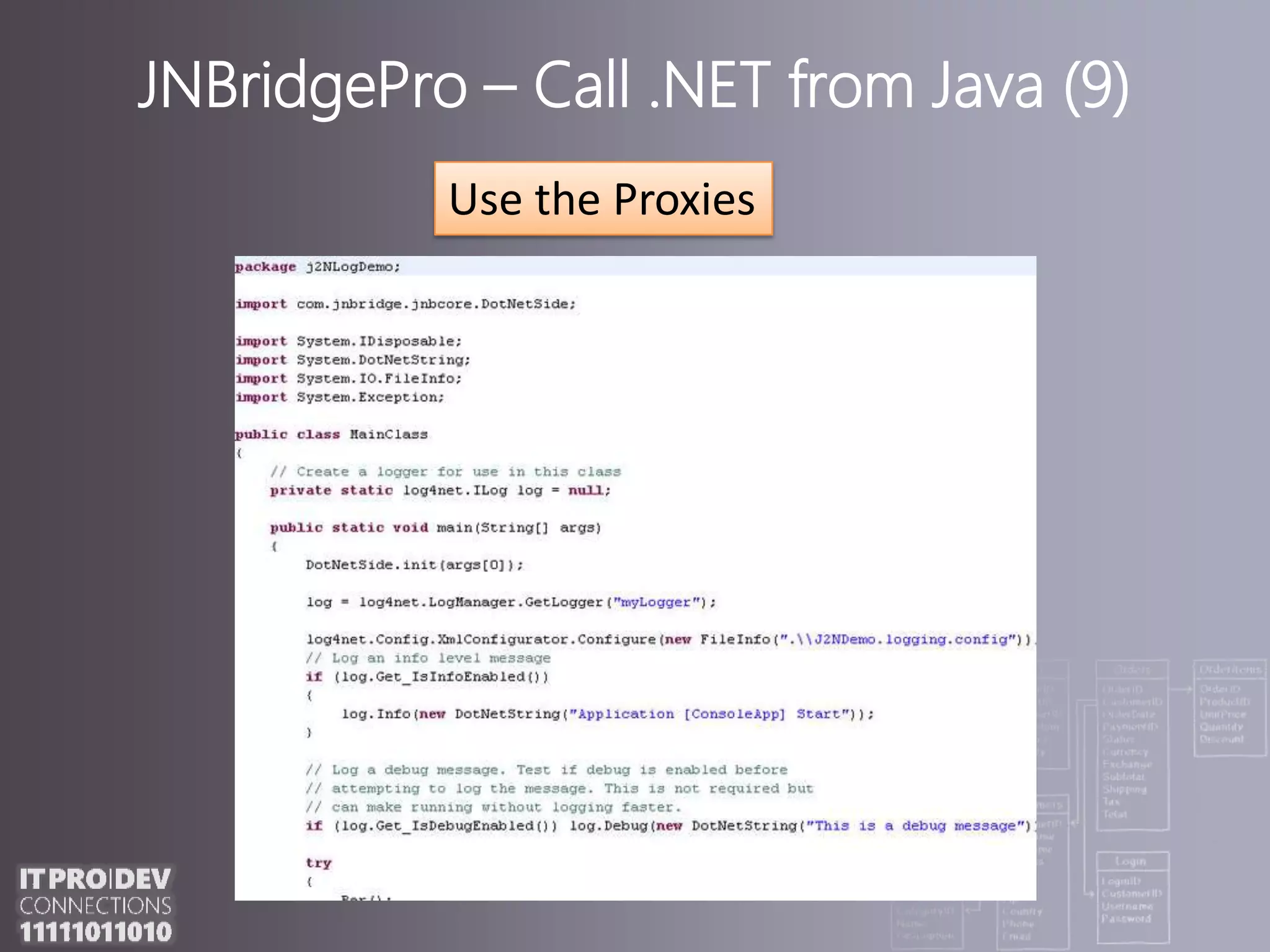

37. JNBridgePro – Call .NET from Java (9)Use the Proxies

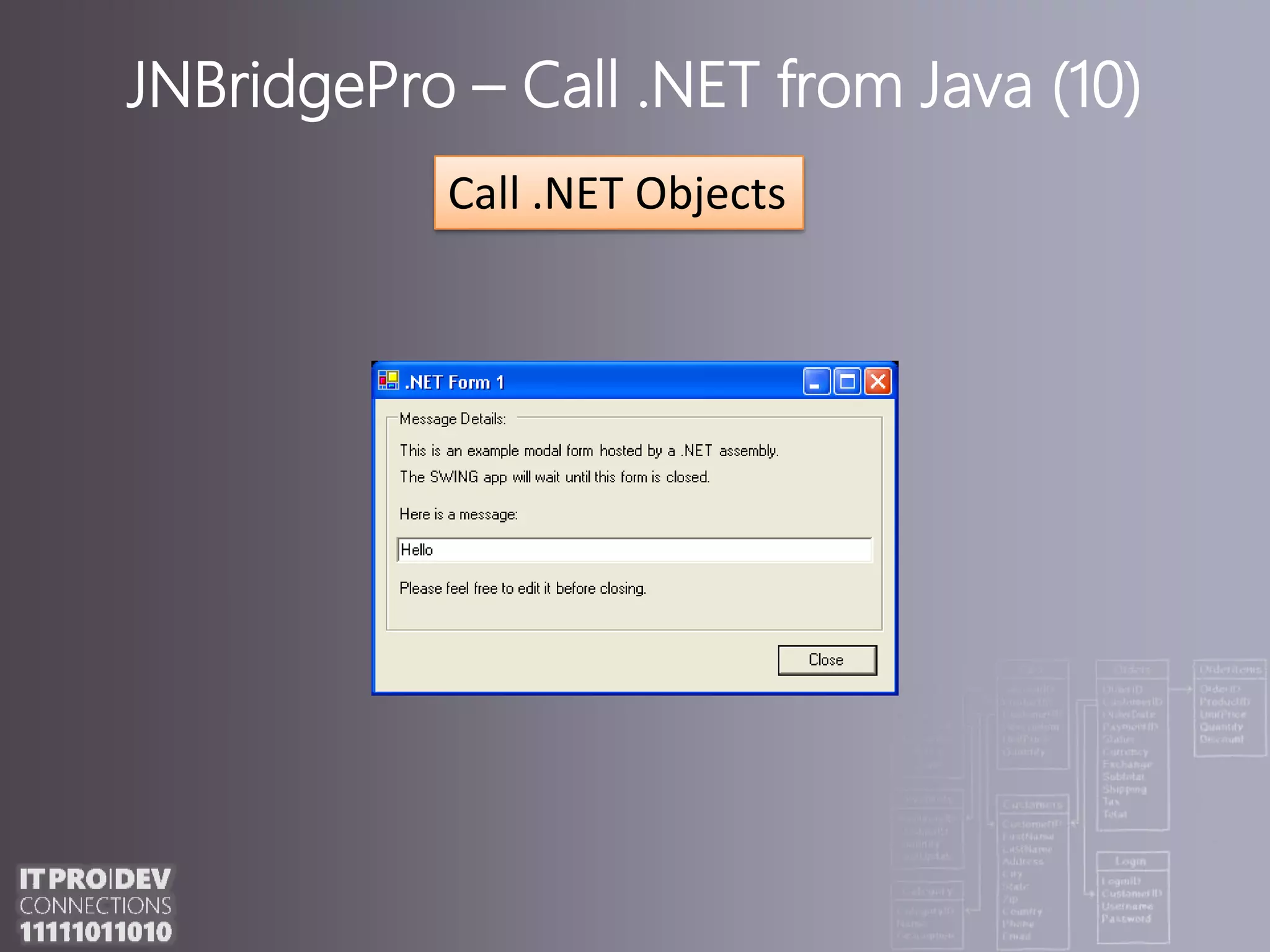

38. JNBridgePro – Call .NET from Java (10)Call .NET Objects

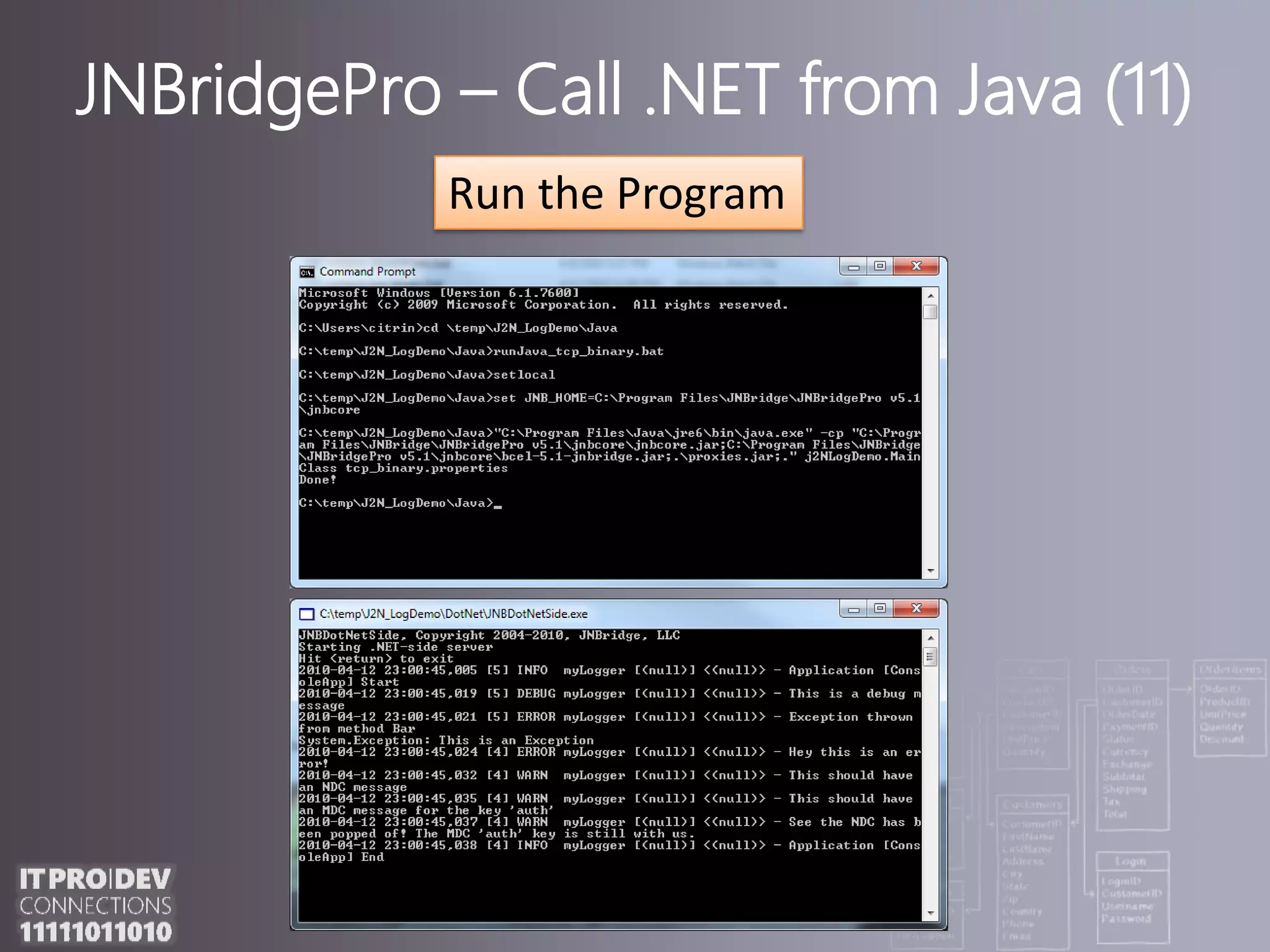

39. JNBridgePro – Call .NET from Java (11)Run the Program

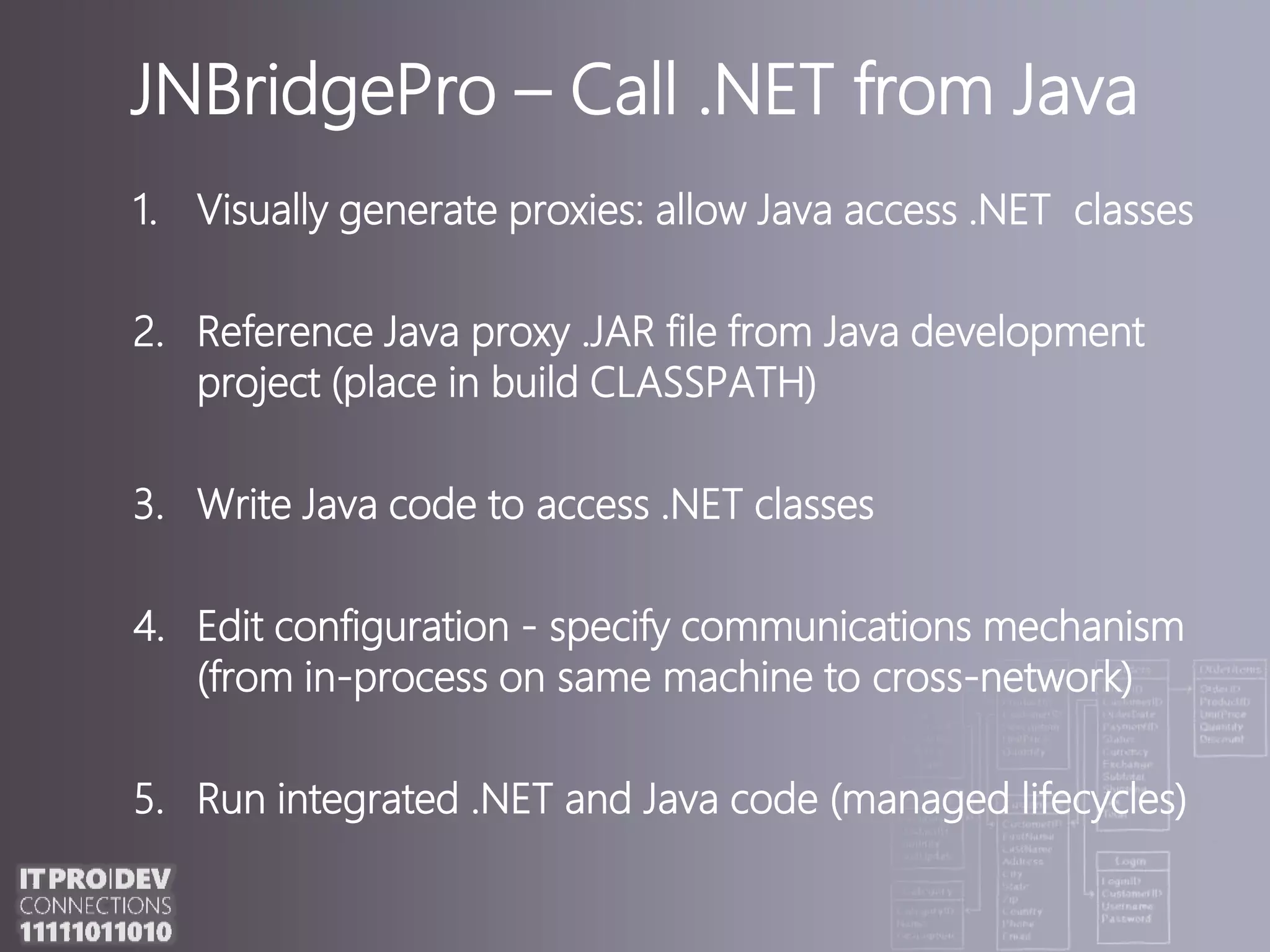

40. JNBridgePro – Call .NET from JavaVisually generate proxies: allow Java access .NET classesReference Java proxy .JAR file from Java development project (place in build CLASSPATH)Write Java code to access .NET classesEdit configuration - specify communications mechanism (from in-process on same machine to cross-network)Run integrated .NET and Java code (managed lifecycles)

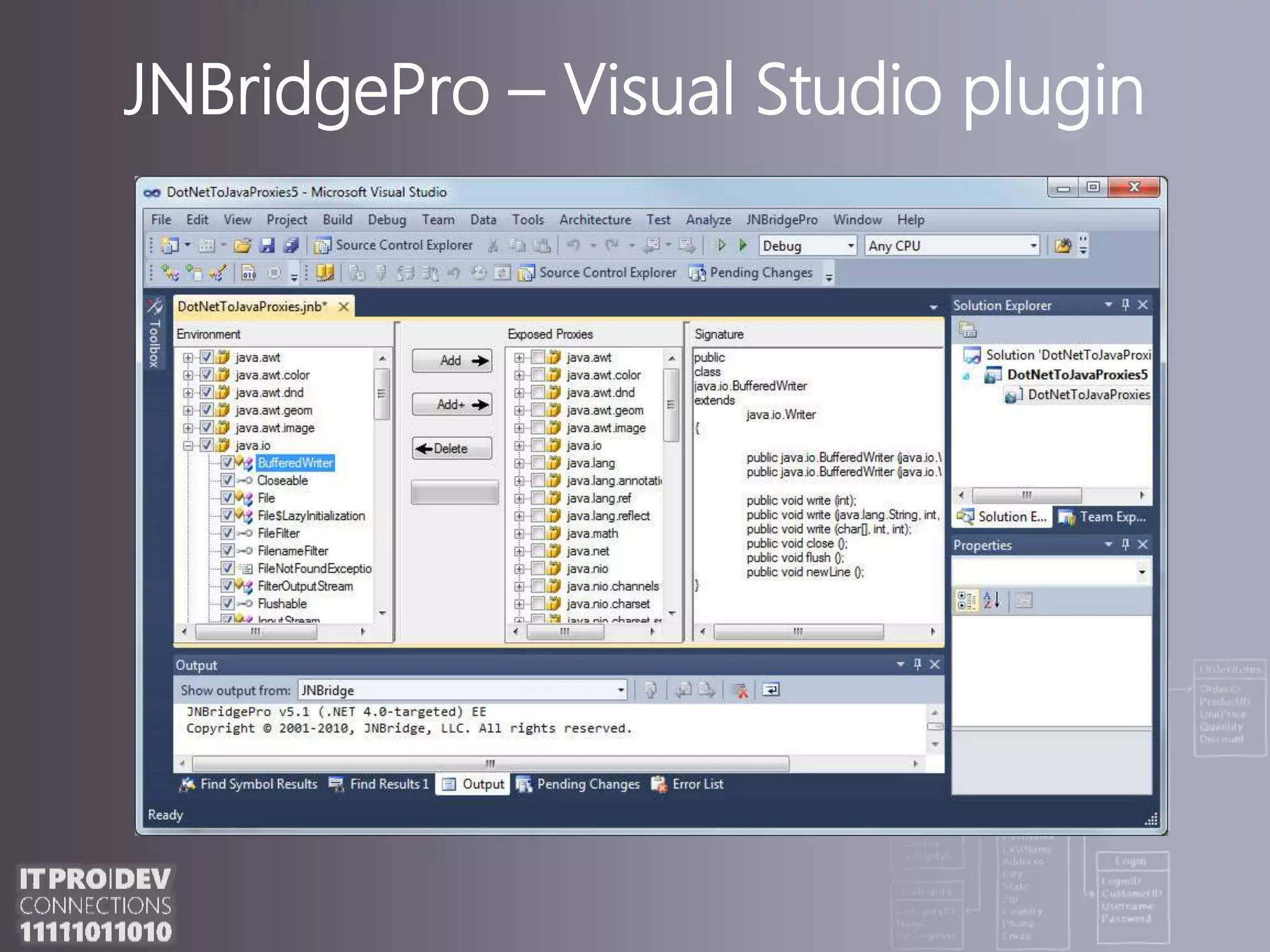

41. JNBridgePro – Visual Studio plugin

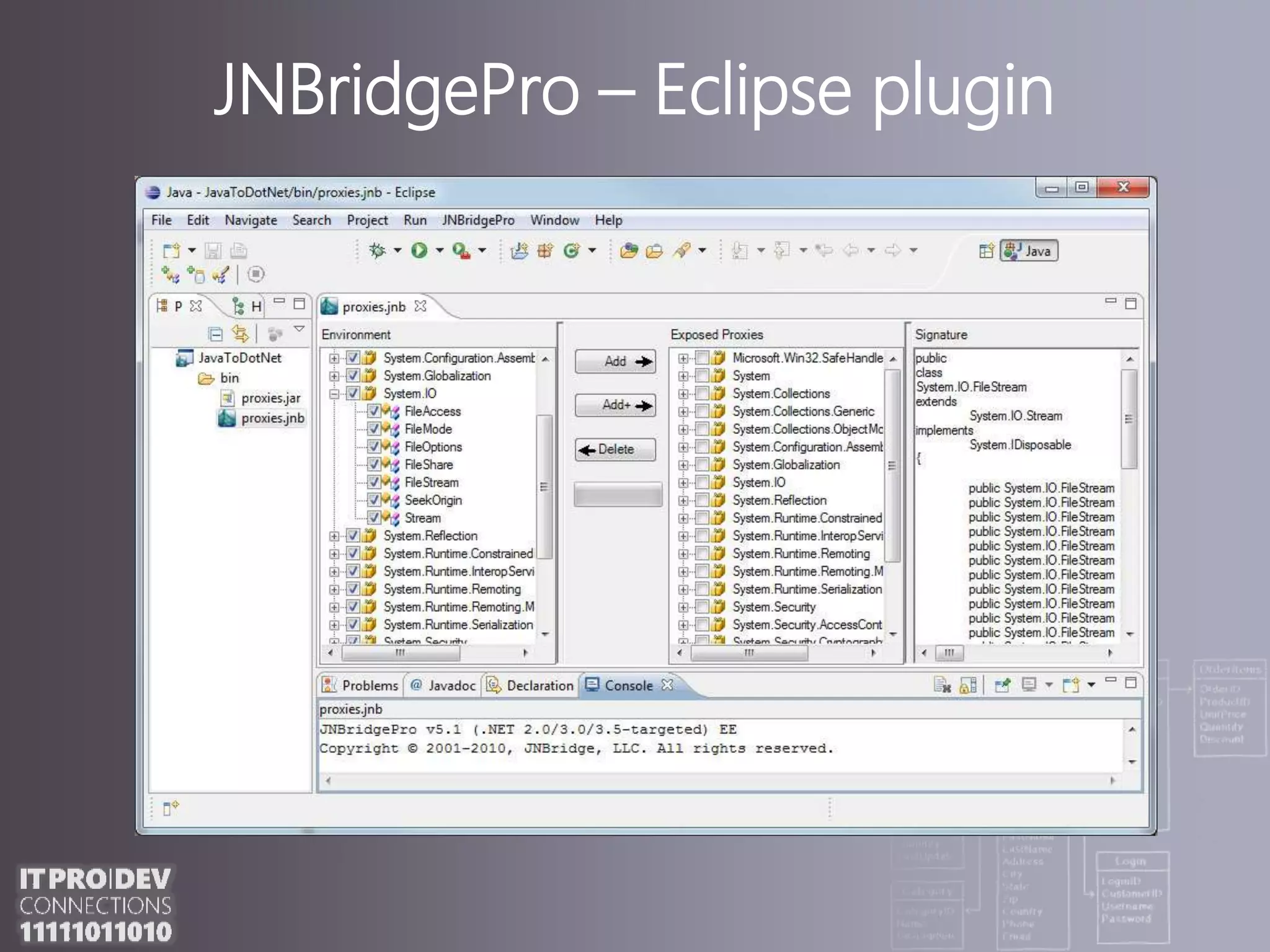

42. JNBridgePro – Eclipse plugin

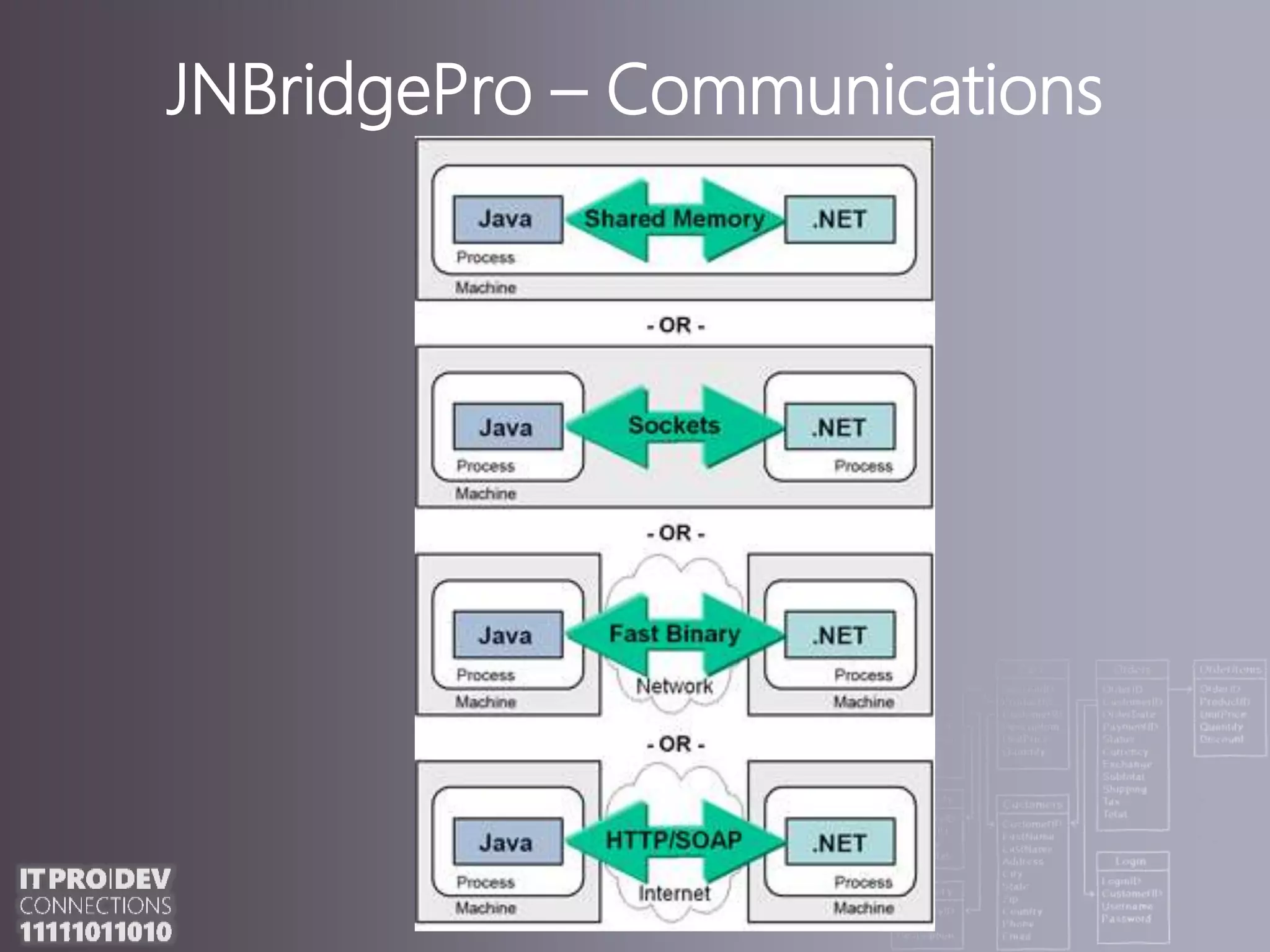

43. JNBridgePro – Communications

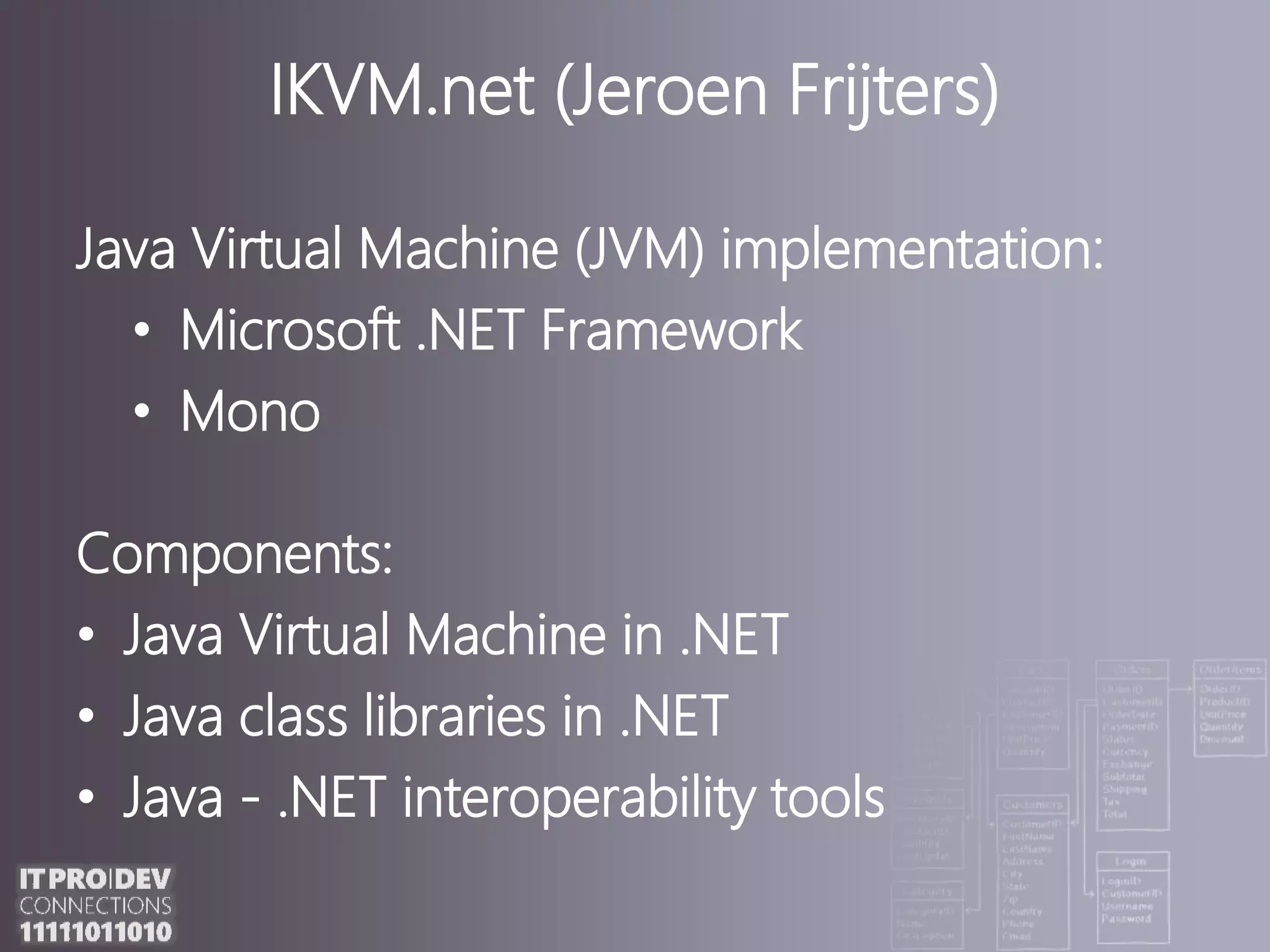

44. IKVM.net (Jeroen Frijters)JavaVirtual Machine (JVM) implementation:Microsoft .NET FrameworkMonoComponents:Java Virtual Machine in .NETJava class librariesin .NETJava-.NET interoperability tools

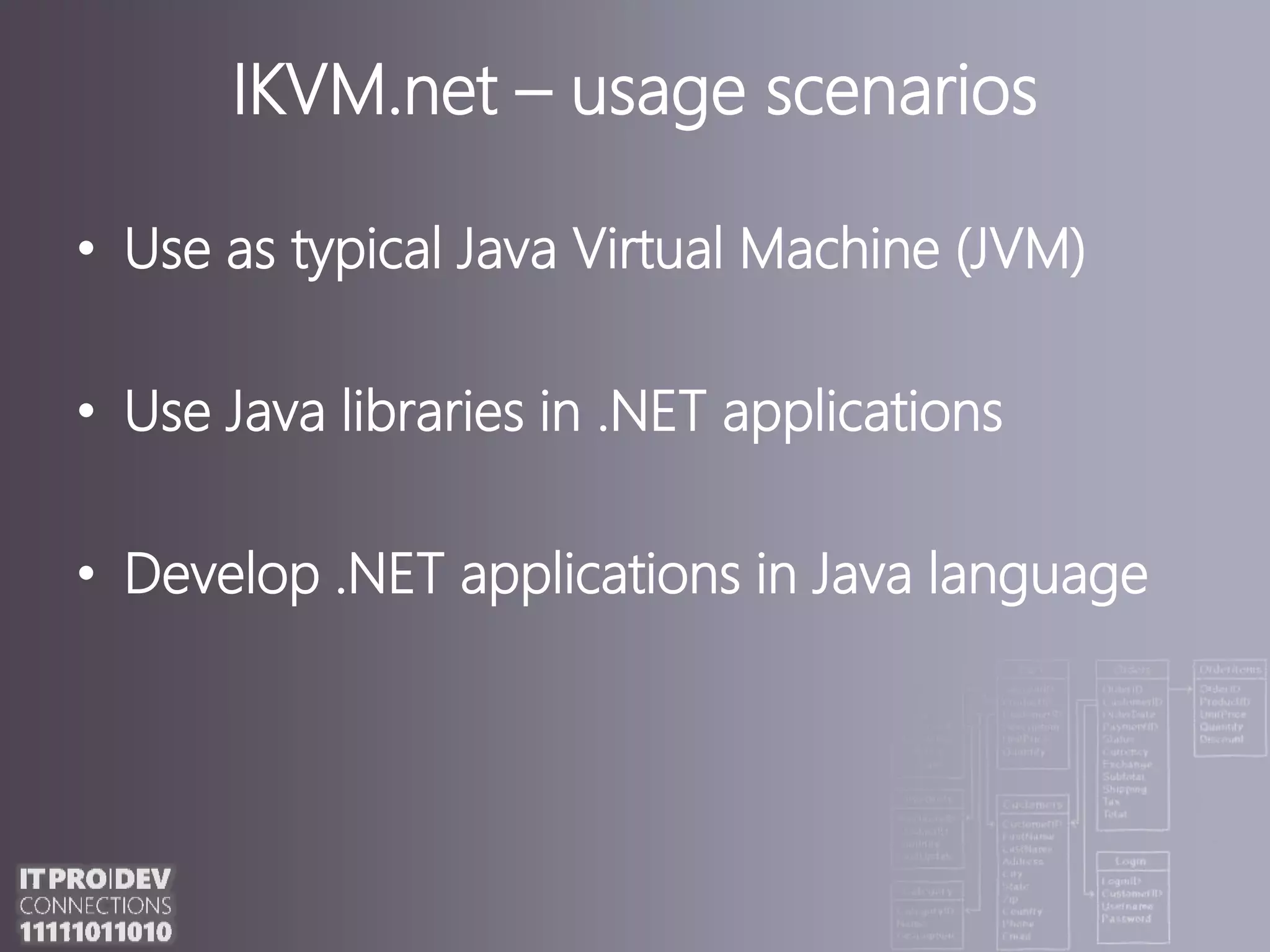

45. IKVM.net – usage scenariosUse as typical Java Virtual Machine (JVM)Use Java libraries in .ΝΕΤ applicationsDevelop .NET applications in Java language

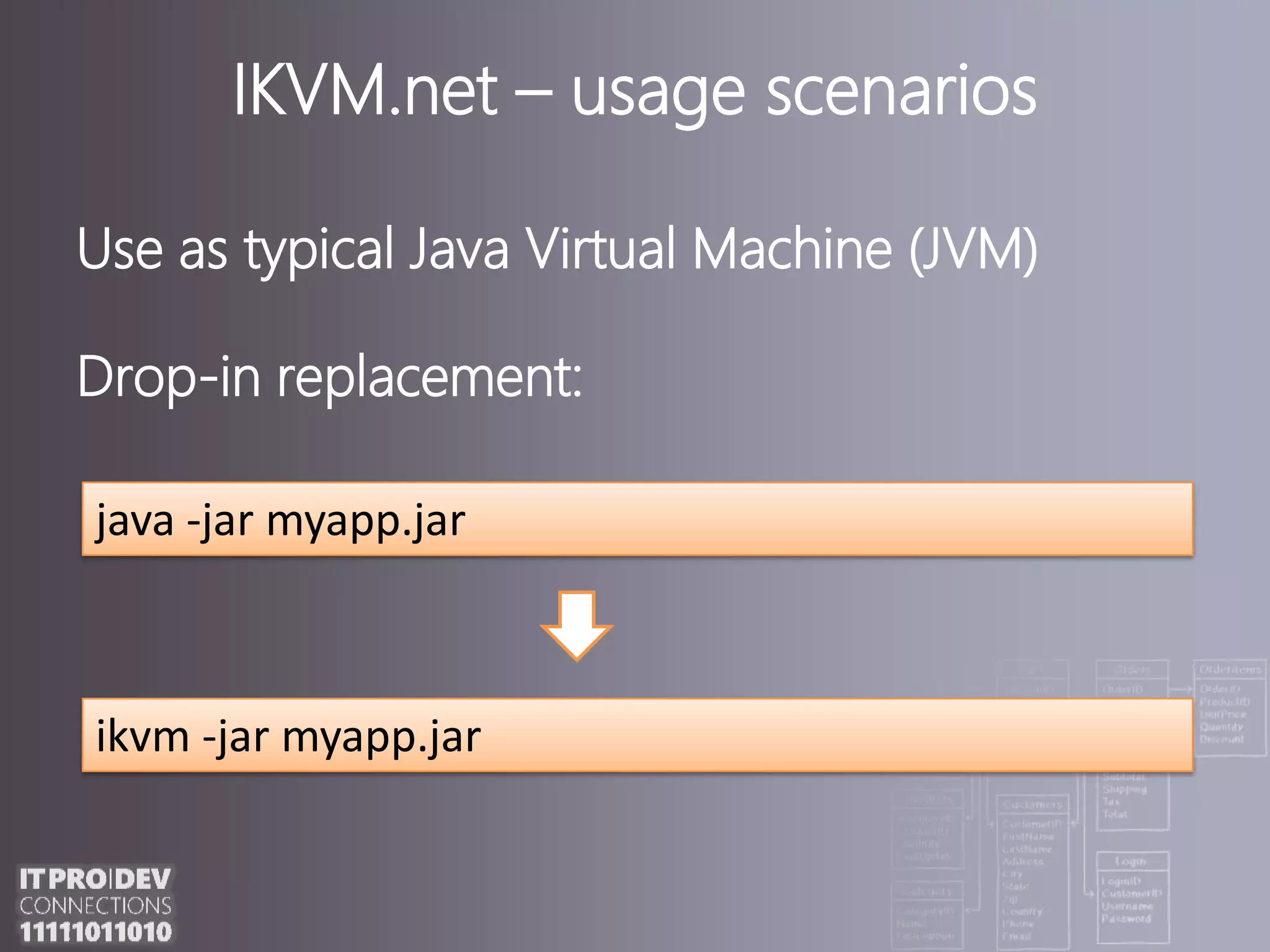

46. IKVM.net – usage scenariosUse as typicalJava Virtual Machine (JVM)Drop-in replacement:java -jar myapp.jarikvm -jar myapp.jar

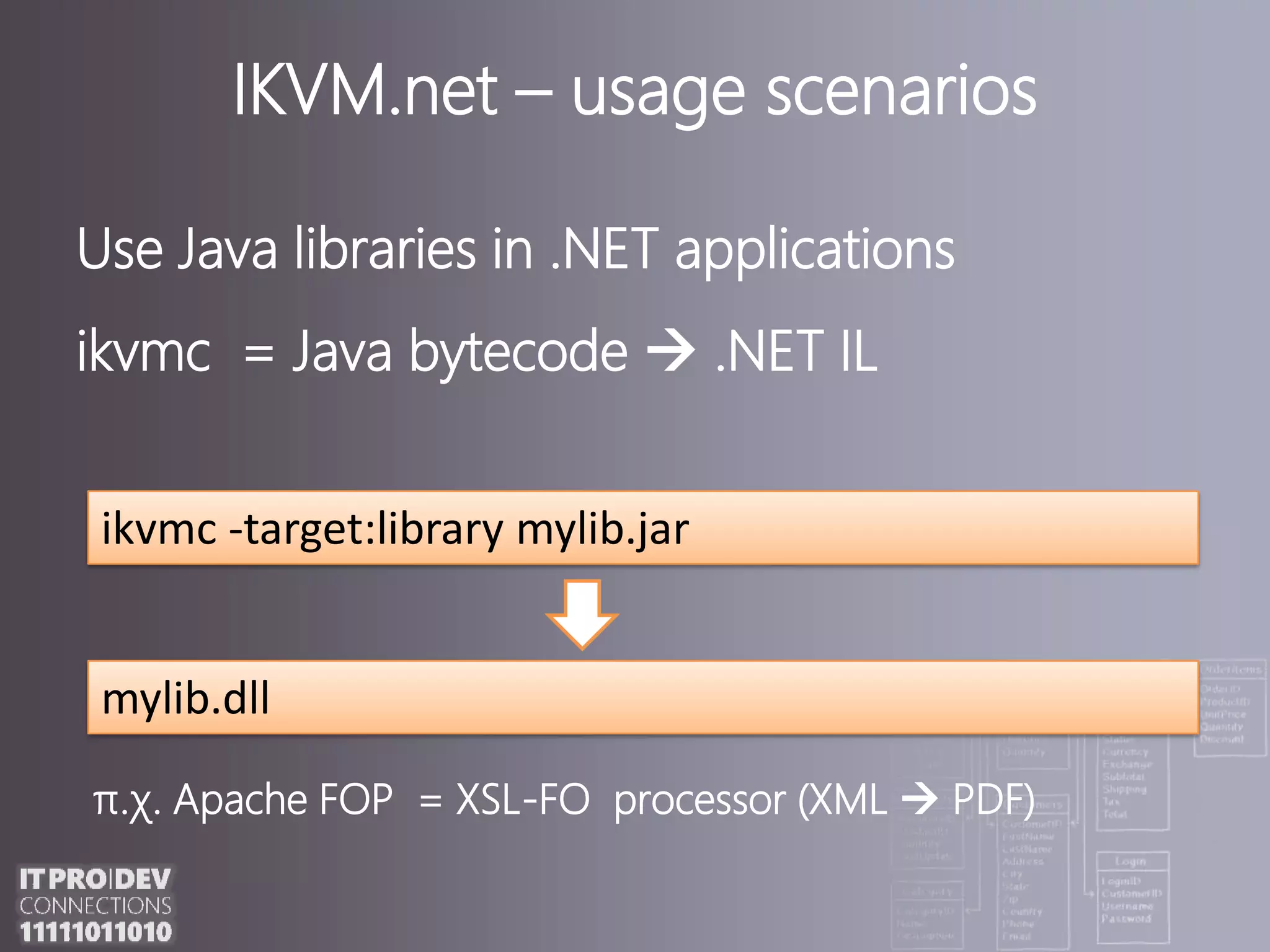

47. IKVM.net – usage scenariosUse Java libraries in.ΝΕΤ applicationsikvmc = Java bytecode  .NET ILikvmc -target:library mylib.jarmylib.dllπ.χ. Apache FOP = XSL-FO processor (XML  PDF)

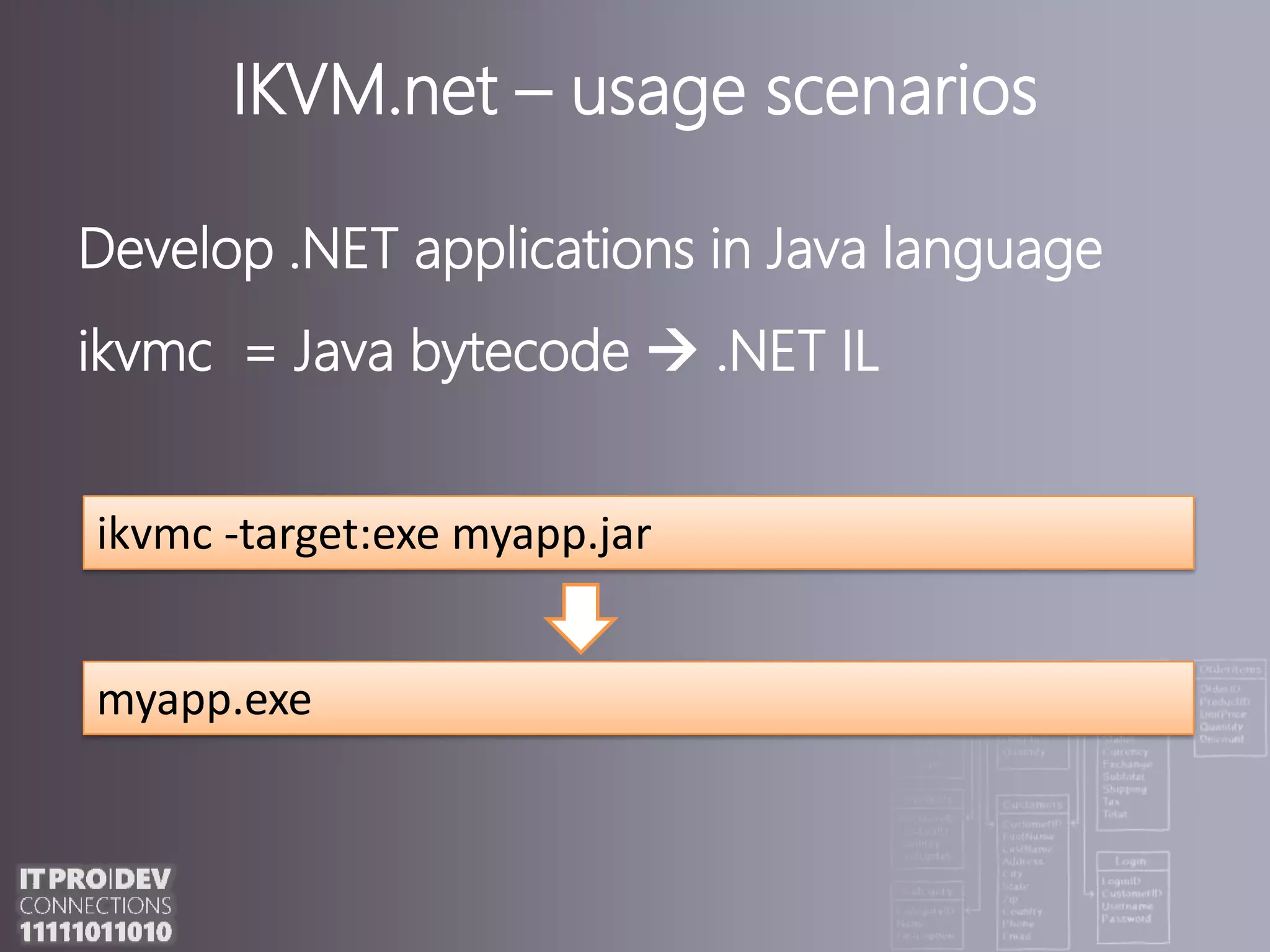

48. IKVM.net – usage scenariosDevelop .NET applicationsin Java languageikvmc = Java bytecode  .NET ILikvmc -target:exe myapp.jarmyapp.exe

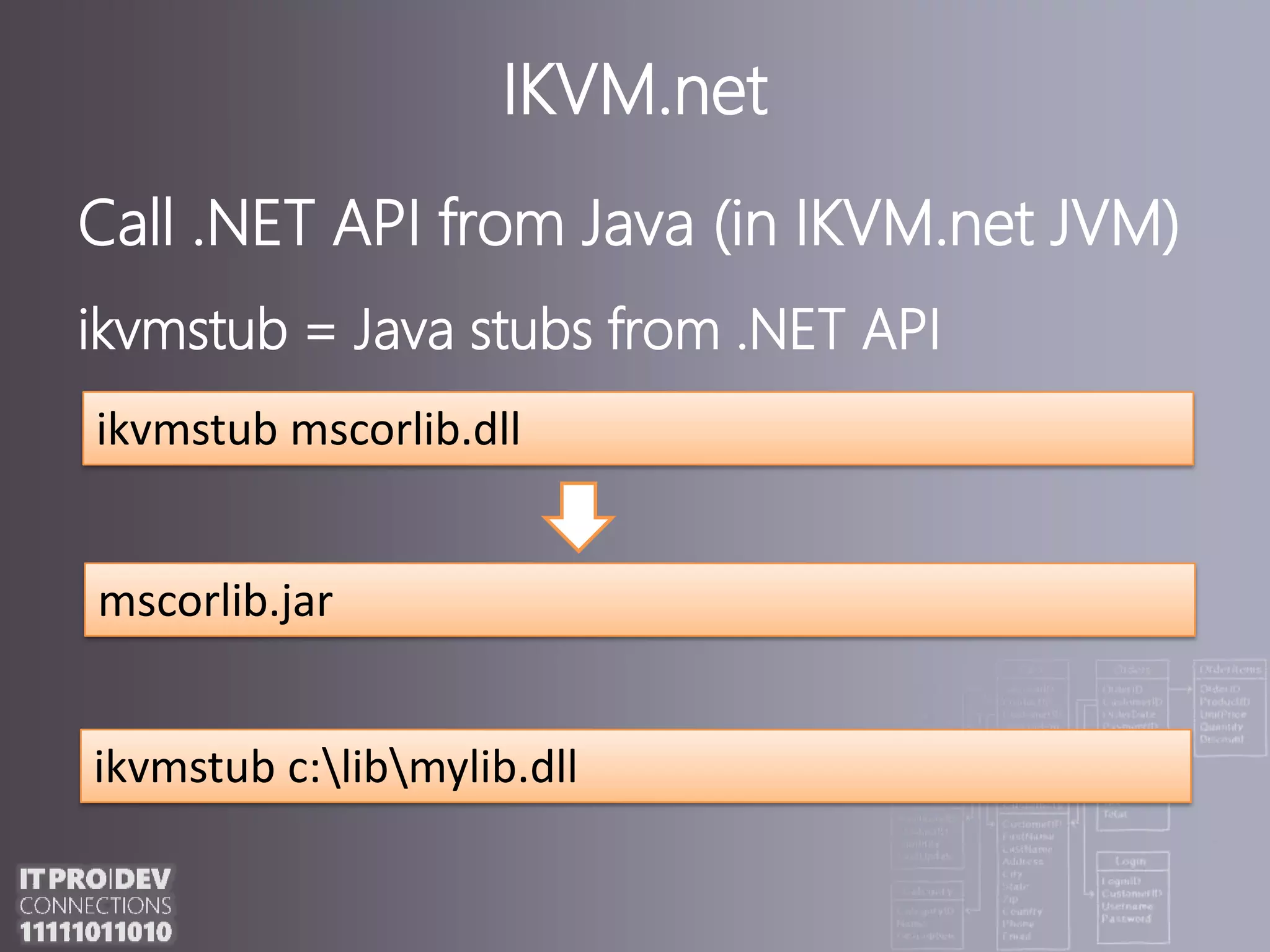

49. IKVM.netCall .NET API from Java(inIKVM.net JVM)ikvmstub = Java stubs from .NETAPIikvmstub mscorlib.dll mscorlib.jarikvmstub c:\lib\mylib.dll

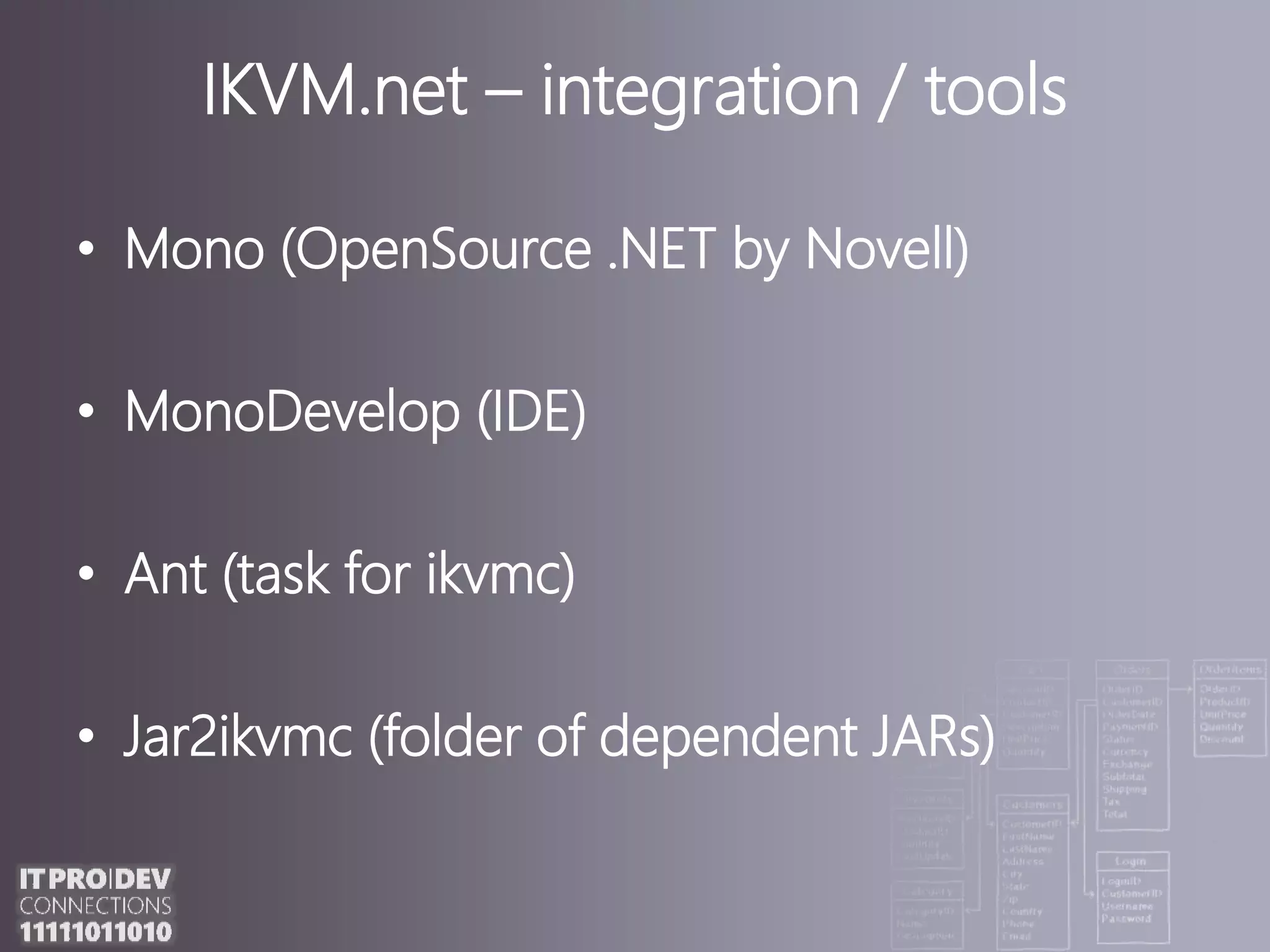

50. IKVM.net – integration / toolsMono (OpenSource .NET by Novell)MonoDevelop (IDE)Ant (task for ikvmc)Jar2ikvmc(folder of dependentJARs)

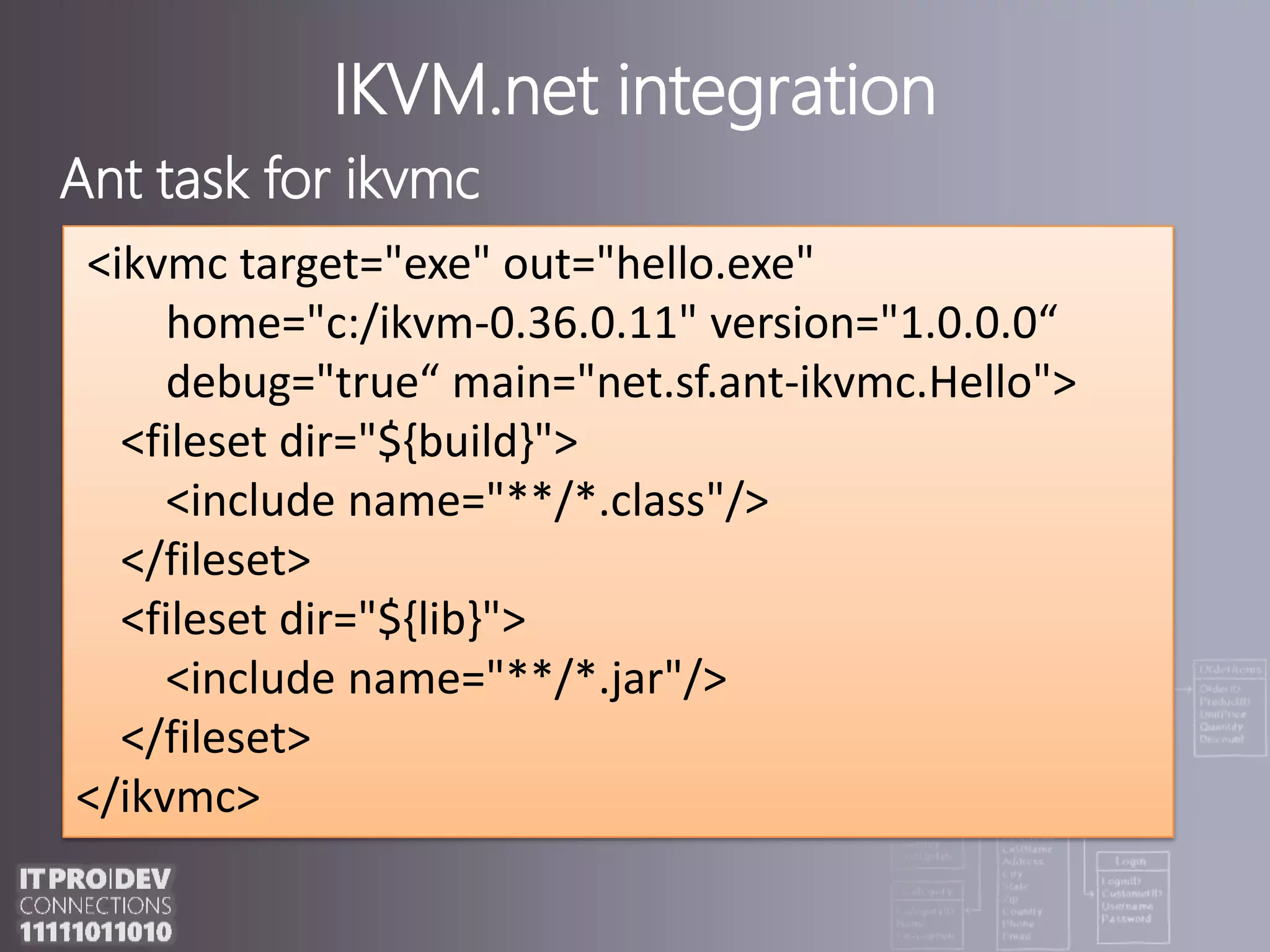

51. IKVM.netintegrationAnt task for ikvmc <ikvmc target="exe" out="hello.exe" home="c:/ikvm-0.36.0.11" version="1.0.0.0“ debug="true“ main="net.sf.ant-ikvmc.Hello"> <fileset dir="${build}"> <include name="**/*.class"/> </fileset> <fileset dir="${lib}"> <include name="**/*.jar"/> </fileset></ikvmc>

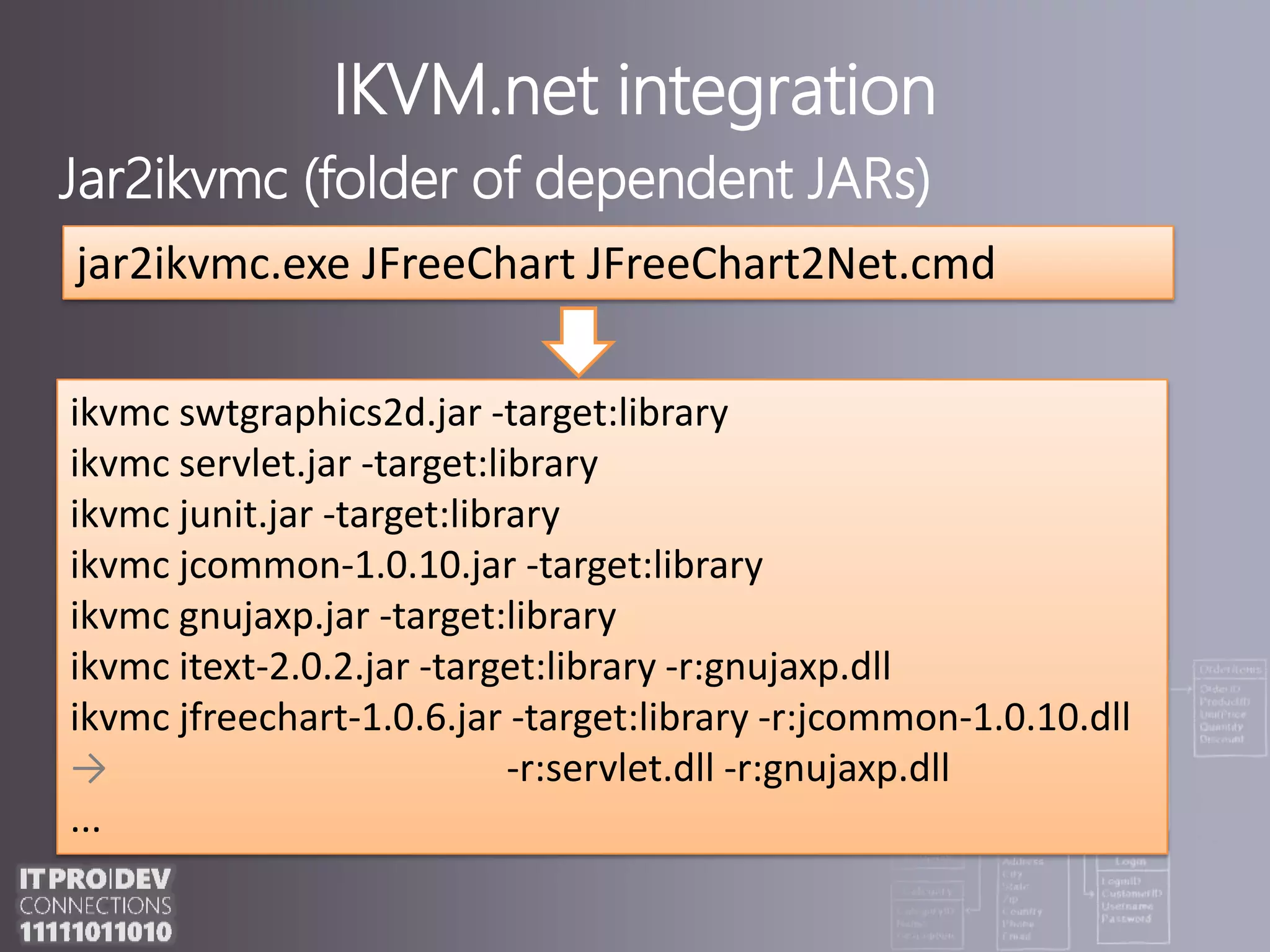

52. IKVM.netintegrationJar2ikvmc(folder of dependentJARs)jar2ikvmc.exe JFreeChart JFreeChart2Net.cmd ikvmc swtgraphics2d.jar -target:library ikvmc servlet.jar -target:library ikvmc junit.jar -target:library ikvmc jcommon-1.0.10.jar -target:library ikvmc gnujaxp.jar -target:library ikvmc itext-2.0.2.jar -target:library -r:gnujaxp.dllikvmc jfreechart-1.0.6.jar -target:library -r:jcommon-1.0.10.dll->-r:servlet.dll -r:gnujaxp.dll...

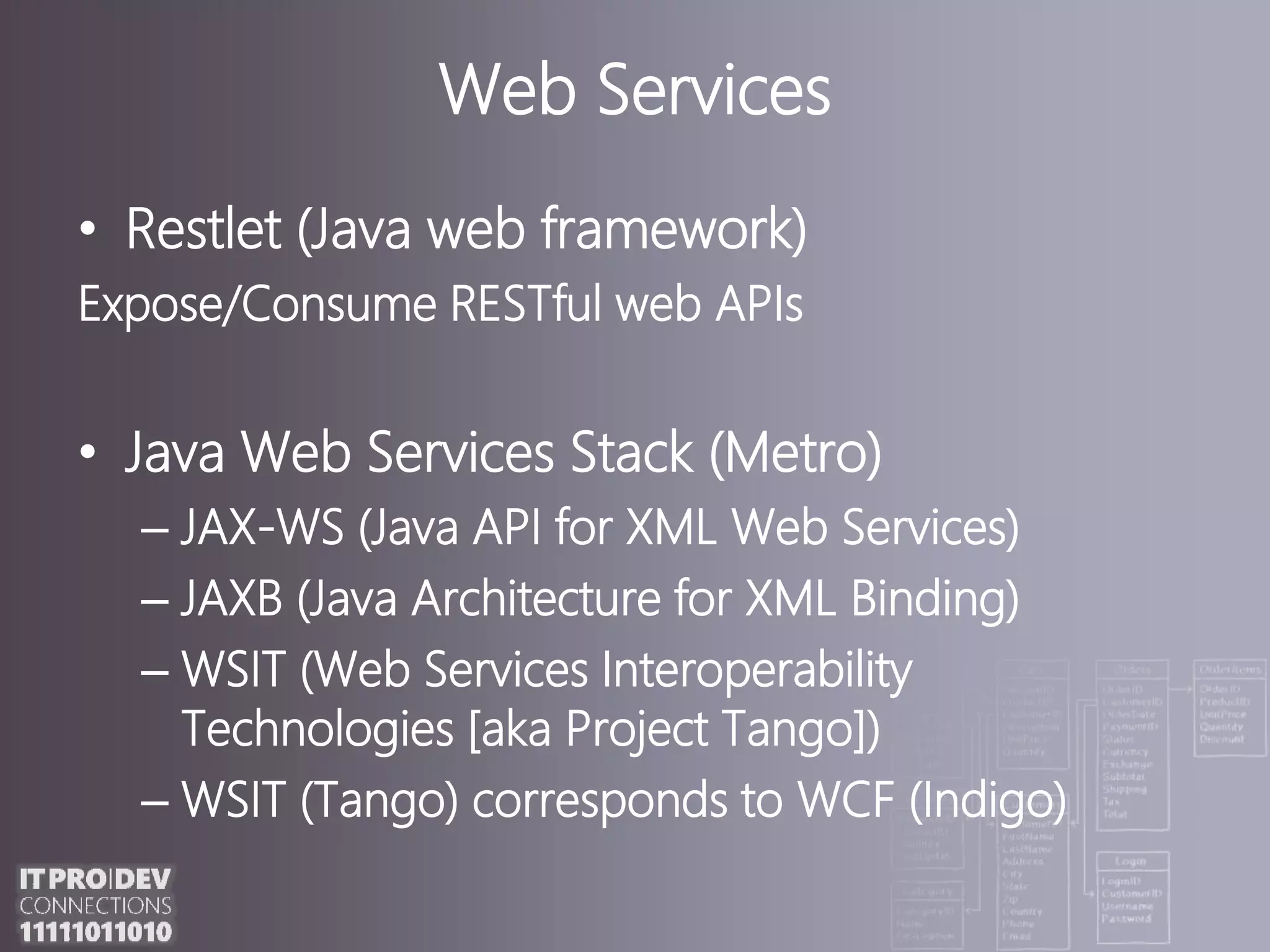

53. Web ServicesRestlet (Java web framework)Expose/Consume RESTful web APIsJava Web Services Stack (Metro)JAX-WS (Java API for XML Web Services)JAXB (Java Architecture for XML Binding)WSIT (Web Services Interoperability Technologies [aka Project Tango])WSIT (Tango) corresponds to WCF (Indigo)

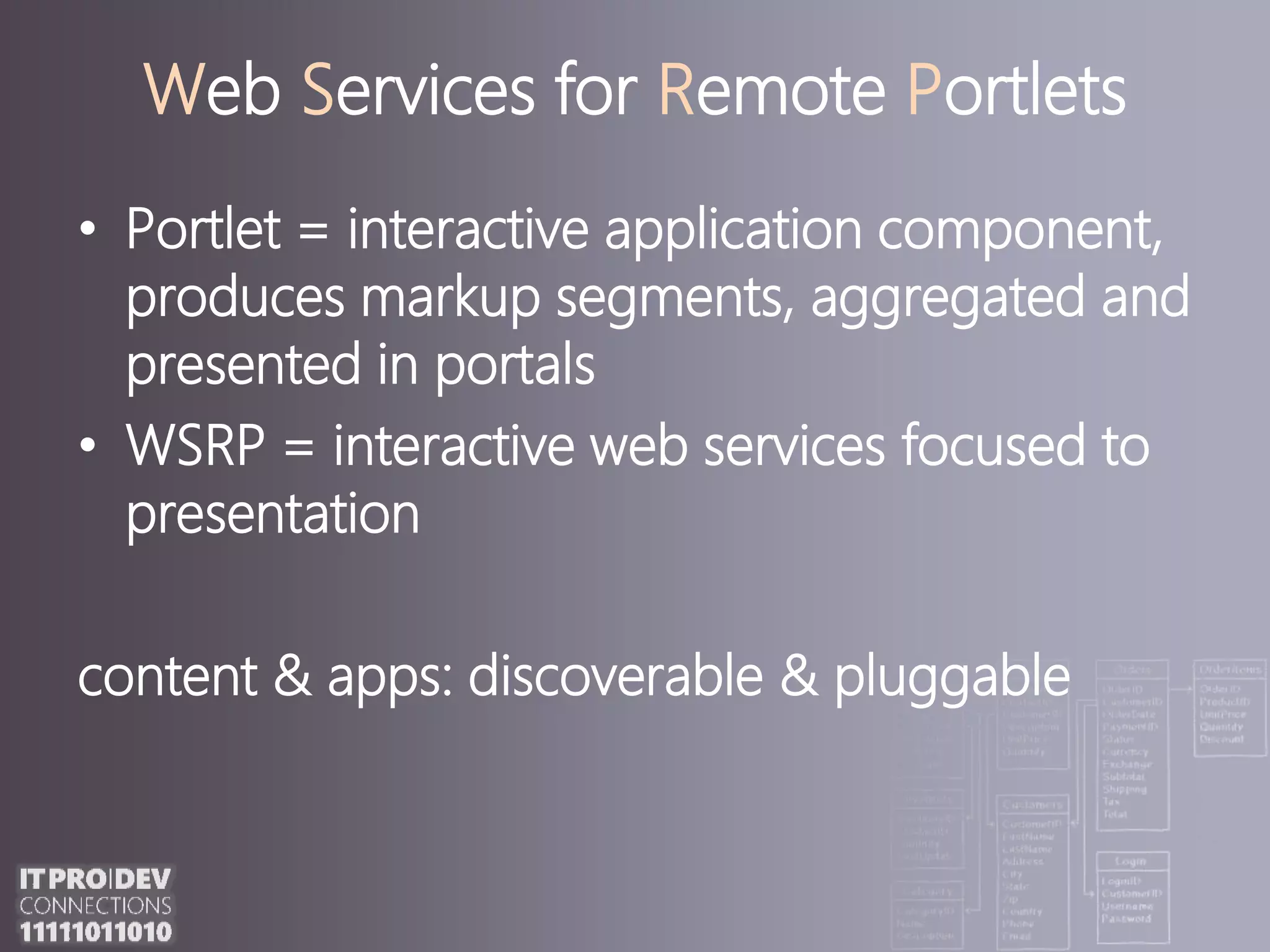

54. Web Services for Remote PortletsPortlet = interactive application component, produces markup segments, aggregated and presented inportalsWSRP = interactive web servicesfocused to presentationcontent & apps: discoverable & pluggable

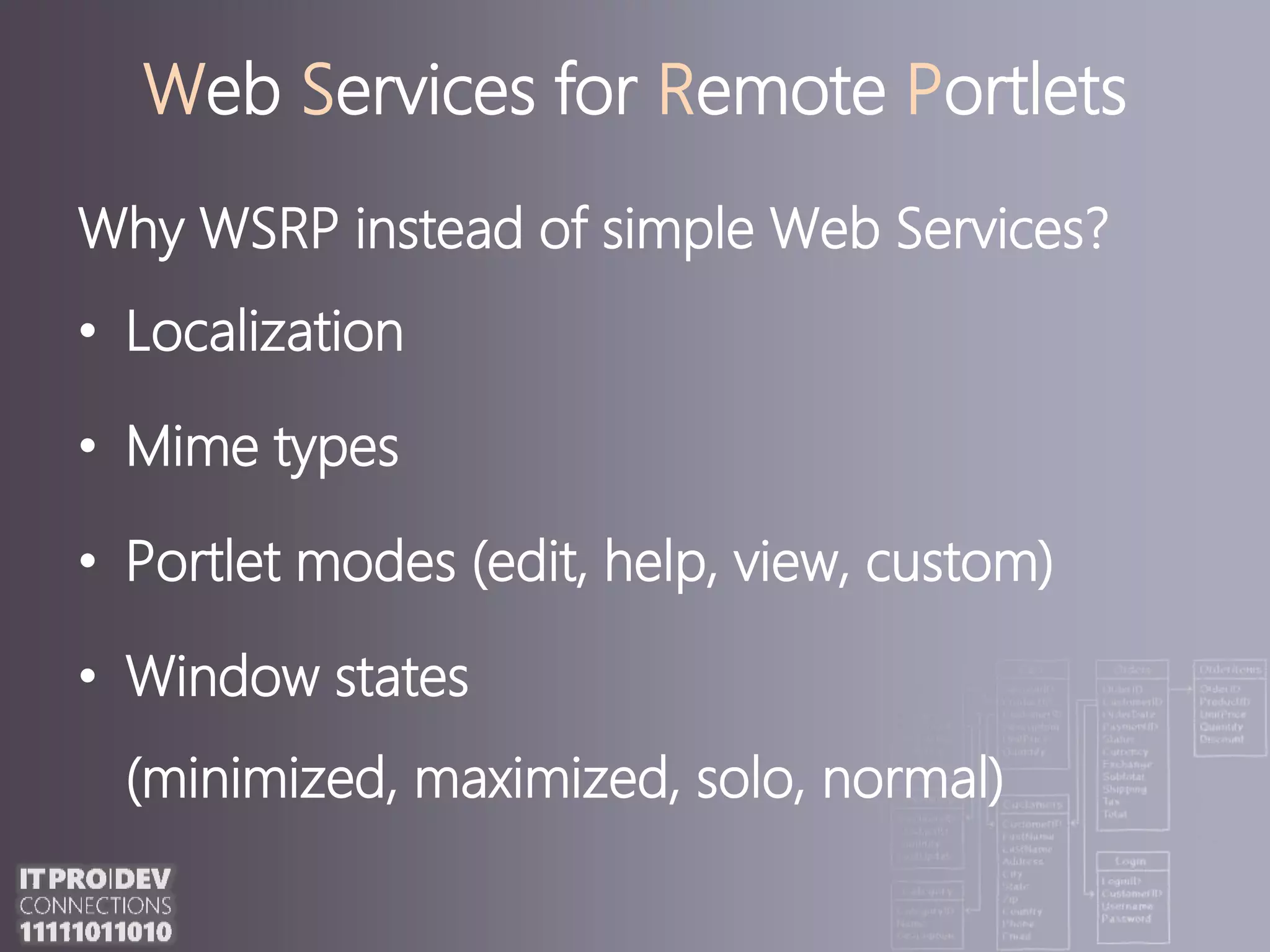

55. Web Services for Remote PortletsWhy WSRPinstead of simple Web Services?LocalizationMime typesPortlet modes (edit, help, view, custom)Window states (minimized, maximized, solo, normal)

56. Web Services for Remote PortletsWhy remoteportlets?Ease of configurationPlatform independenceScalability

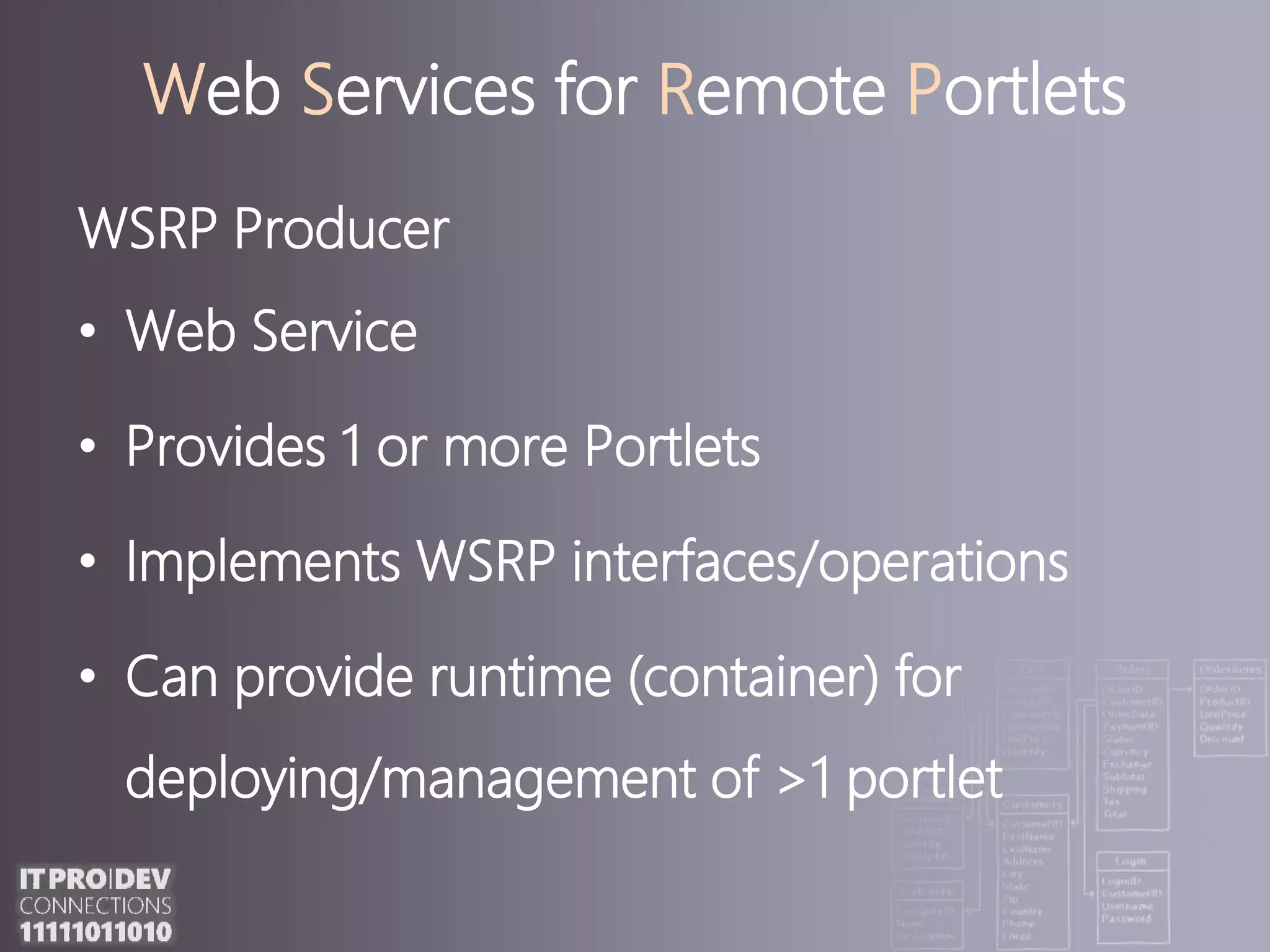

57. Web Services for Remote PortletsWSRP ProducerWeb ServiceProvides 1 or morePortletsImplements WSRP interfaces/operationsCan provideruntime (container) fordeploying/management of>1 portlet

58. Web Services for Remote PortletsWSRP ConsumerWeb Service clientUsually aportalCalls producer WSRP web servicesProvides environment to interact withportlets theProducers provide

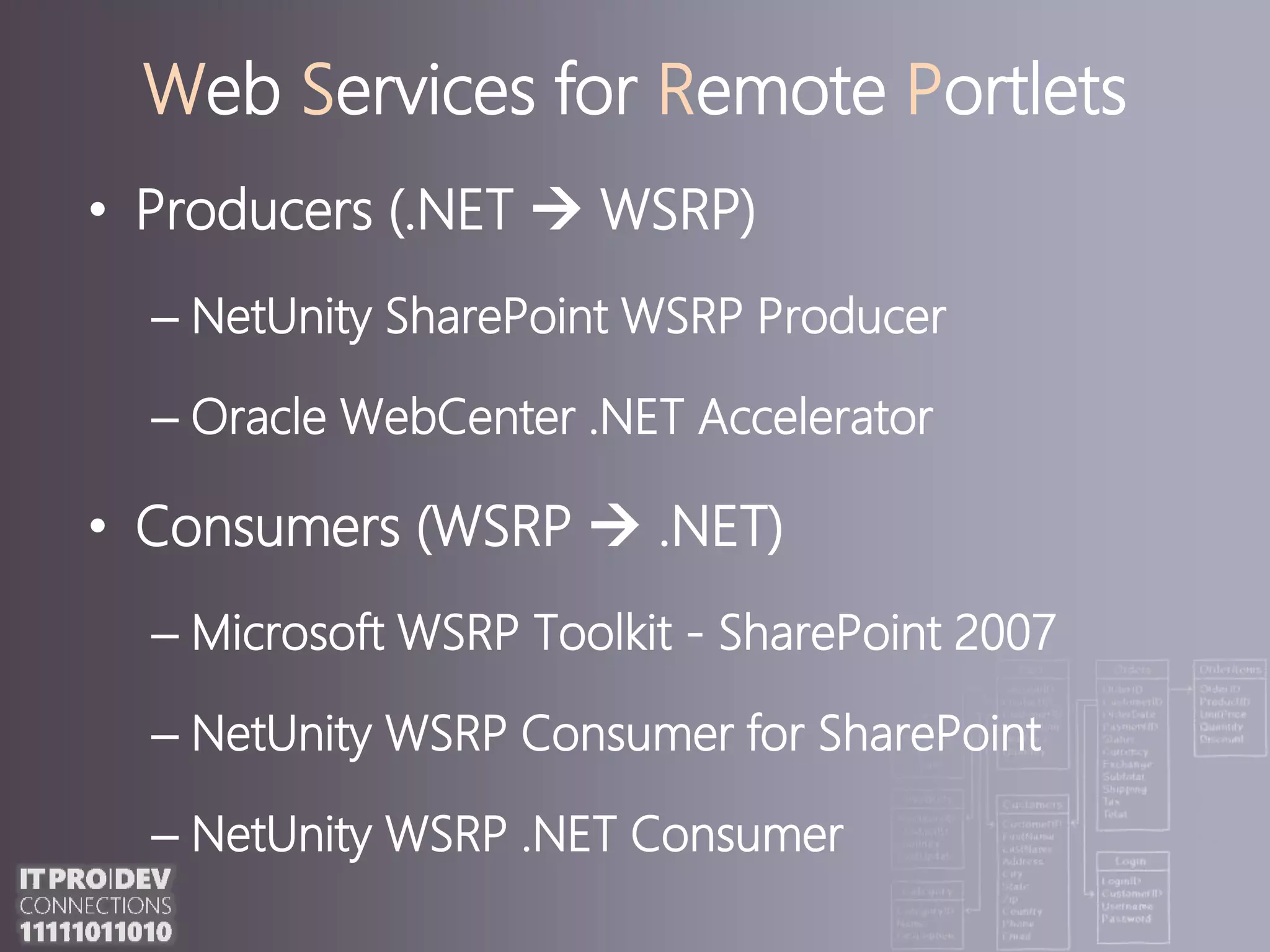

59. Web Services for Remote PortletsProducers (.NET  WSRP)NetUnitySharePoint WSRP ProducerOracle WebCenter .NET AcceleratorConsumers (WSRP  .NET)Microsoft WSRP Toolkit - SharePoint 2007NetUnity WSRP Consumer for SharePointNetUnity WSRP .NET Consumer

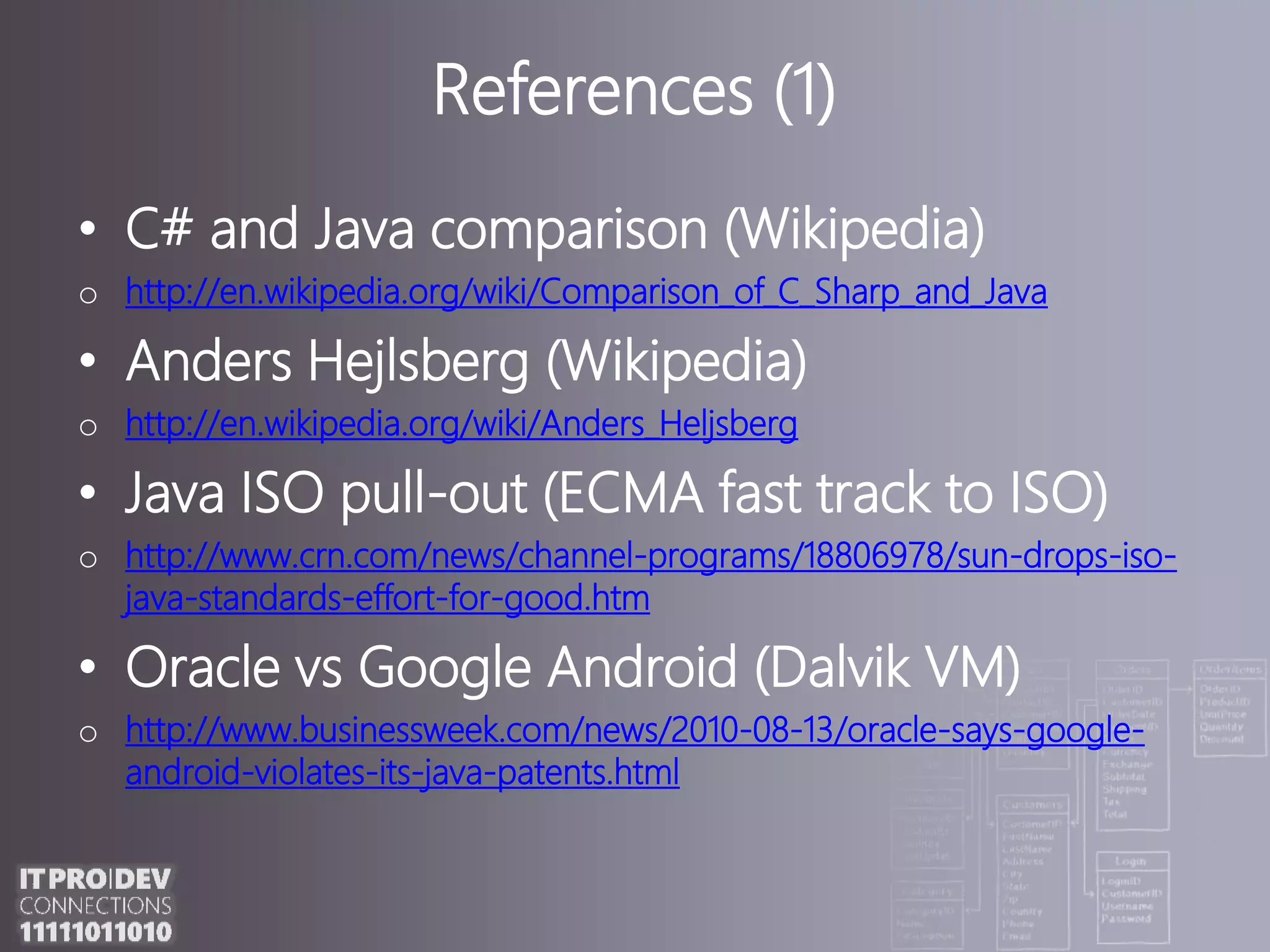

60. References (1)C# andJava comparison (Wikipedia)http://en.wikipedia.org/wiki/Comparison_of_C_Sharp_and_JavaAnders Hejlsberg (Wikipedia)http://en.wikipedia.org/wiki/Anders_HeljsbergJava ISO pull-out (ECMA fast track to ISO)http://www.crn.com/news/channel-programs/18806978/sun-drops-iso-java-standards-effort-for-good.htmOracle vs Google Android (Dalvik VM)http://www.businessweek.com/news/2010-08-13/oracle-says-google-android-violates-its-java-patents.htmlReferences (2)Java Native Interface (JNI)http://download.oracle.com/javase/6/docs/technotes/guides/jni/spec/jniTOC.htmlJACOBhttp://sourceforge.net/projects/jacob-projectjacoZoomhttp://www.infozoom.de/en_jacoZoom.shtmlJ-Integrahttp://j-integra.intrinsyc.comReferences (3)COMConnecthttp://sourceforge.net/projects/comconnectjni4nethttp://jni4net.sourceforge.netJNBridgeProhttp://www.jnbridge.com

61. http://www.jnbridge.com/jnbpro.htmEZ JComhttp://www.ezjcom.com

62. http://www.ezjcom.com/java.net.htmlReferences (4)Java Plug-in (JavaBeans Bridge for ActiveX)http://www.oracle.com/technetwork/java/index-jsp-141438.html

63. http://download.oracle.com/javase/1.4.2/docs/guide/beans/axbridge/developerguide/index.html

64. http://download.oracle.com/javase/1.4.2/docs/guide/beans/axbridge/developerguide/examples.htmlJava C# Bridgehttp://java-cs-bridge.sourceforge.netCaffeinehttp://caffeine.berlios.de/site

65. http://www.codeproject.com/KB/dotnet/Espresso.aspx

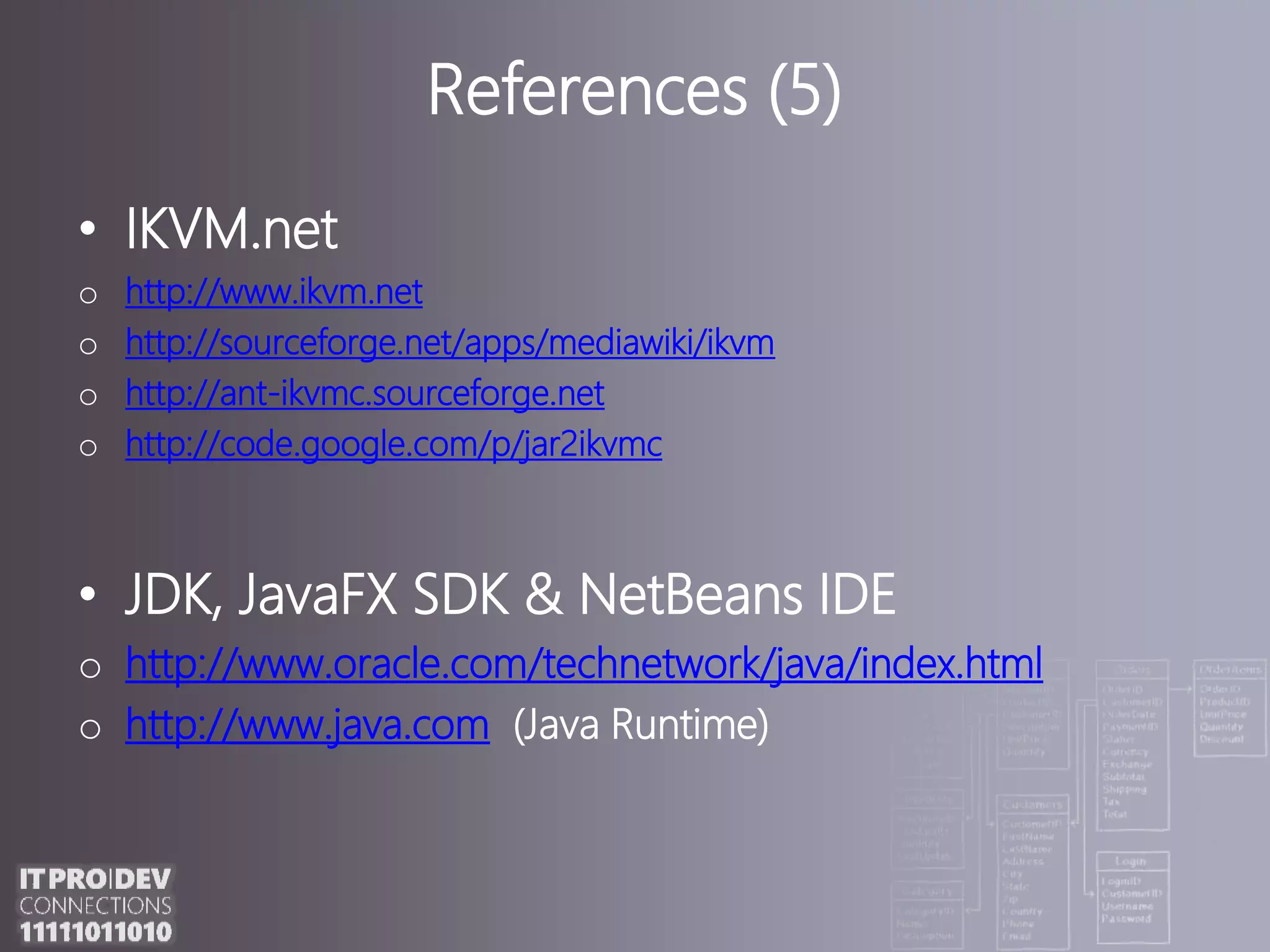

66. http://lsd.luminis.nl/java-net-interoperability/References (5)IKVM.nethttp://www.ikvm.net

67. http://sourceforge.net/apps/mediawiki/ikvm

68. http://ant-ikvmc.sourceforge.net

69. http://code.google.com/p/jar2ikvmc JDK, JavaFX SDK & NetBeans IDEhttp://www.oracle.com/technetwork/java/index.html

70. http://www.java.com (Java Runtime)References (6).NET Framework & Visual Studio IDEhttp://www.microsoft.com/net

71. http://msdn.microsoft.com/en-us/vstudio/default.aspx

72. http://www.microsoft.com/express

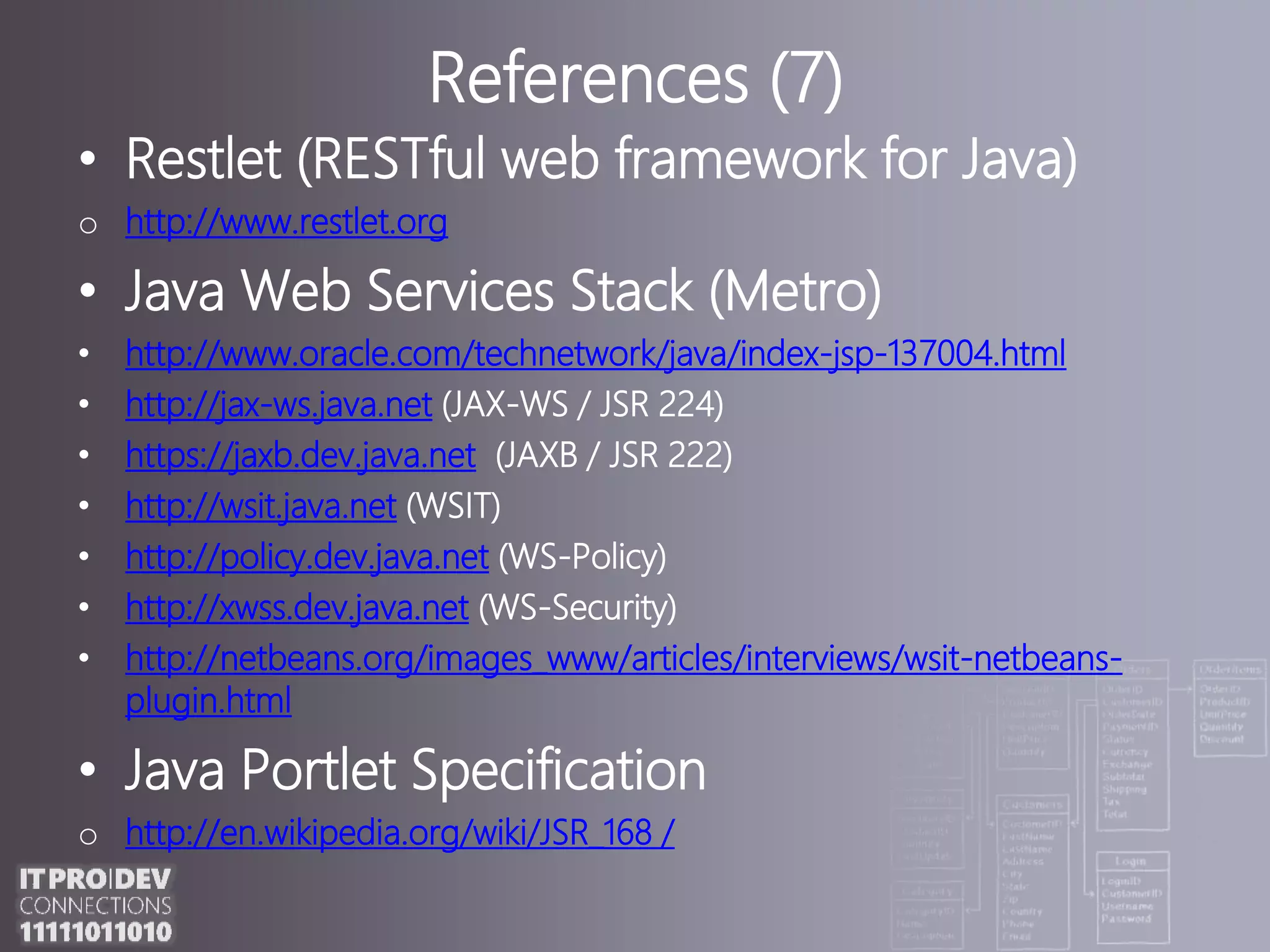

73. http://msdn.microsoft.com/en-us/library/ff649514.aspxMono & MonoDevelop IDEhttp://www.mono-project.comhttp://monodevelop.comEclipse Platform & IDEhttp://www.eclipse.orgReferences (7)Restlet (RESTful web framework for Java)http://www.restlet.orgJava Web Services Stack (Metro)http://www.oracle.com/technetwork/java/index-jsp-137004.htmlhttp://jax-ws.java.net (JAX-WS / JSR 224)https://jaxb.dev.java.net (JAXB/ JSR 222)http://wsit.java.net (WSIT)http://policy.dev.java.net (WS-Policy)http://xwss.dev.java.net (WS-Security)http://netbeans.org/images_www/articles/interviews/wsit-netbeans-plugin.htmlJava Portlet Specificationhttp://en.wikipedia.org/wiki/JSR_168/References (8)WSRP (Web Services for Remote Portlets)http://en.wikipedia.org/wiki/Web_Services_for_Remote_Portlets

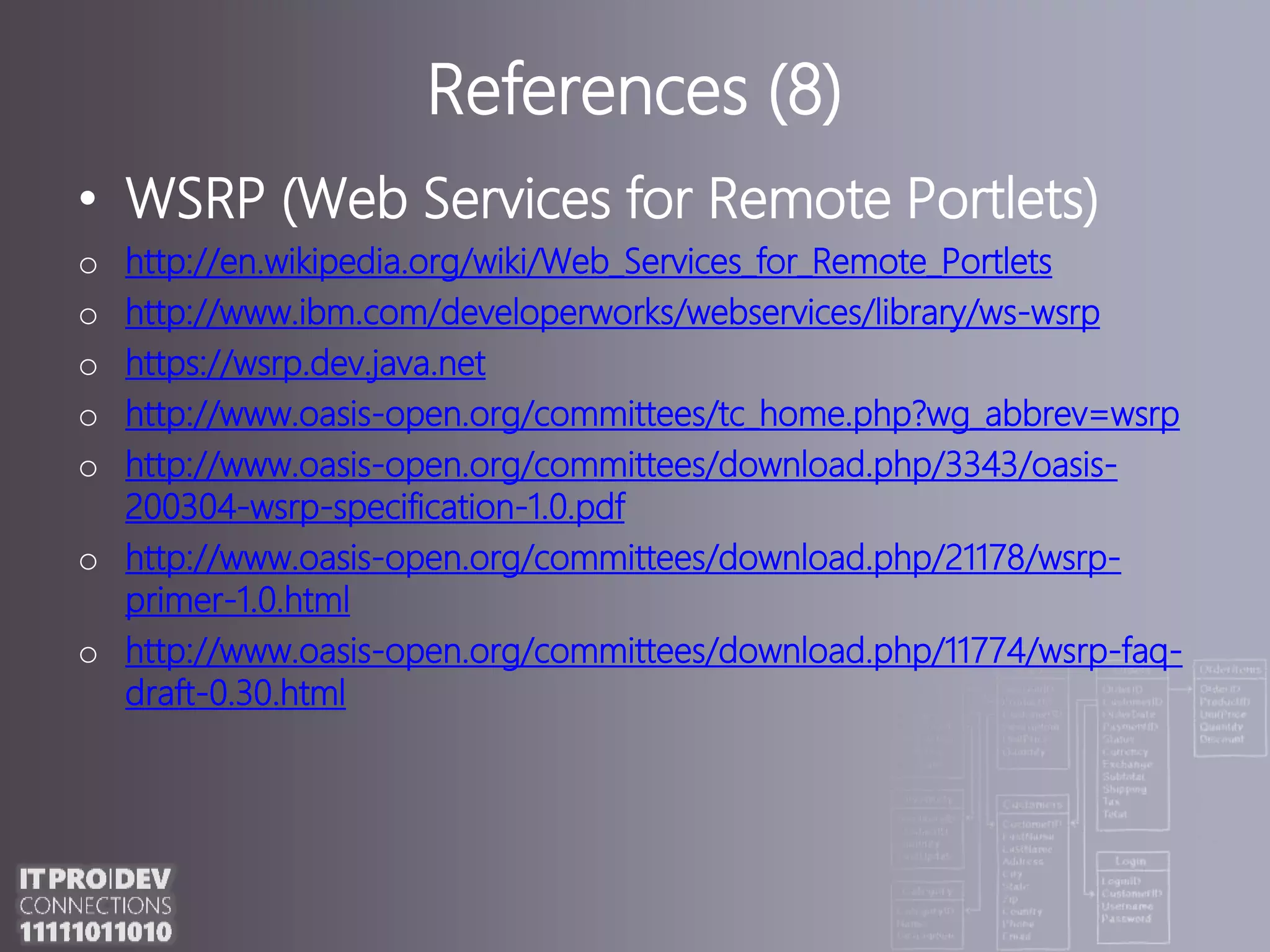

74. http://www.ibm.com/developerworks/webservices/library/ws-wsrp

75. https://wsrp.dev.java.net

76. http://www.oasis-open.org/committees/tc_home.php?wg_abbrev=wsrp

77. http://www.oasis-open.org/committees/download.php/3343/oasis-200304-wsrp-specification-1.0.pdf

78. http://www.oasis-open.org/committees/download.php/21178/wsrp-primer-1.0.html

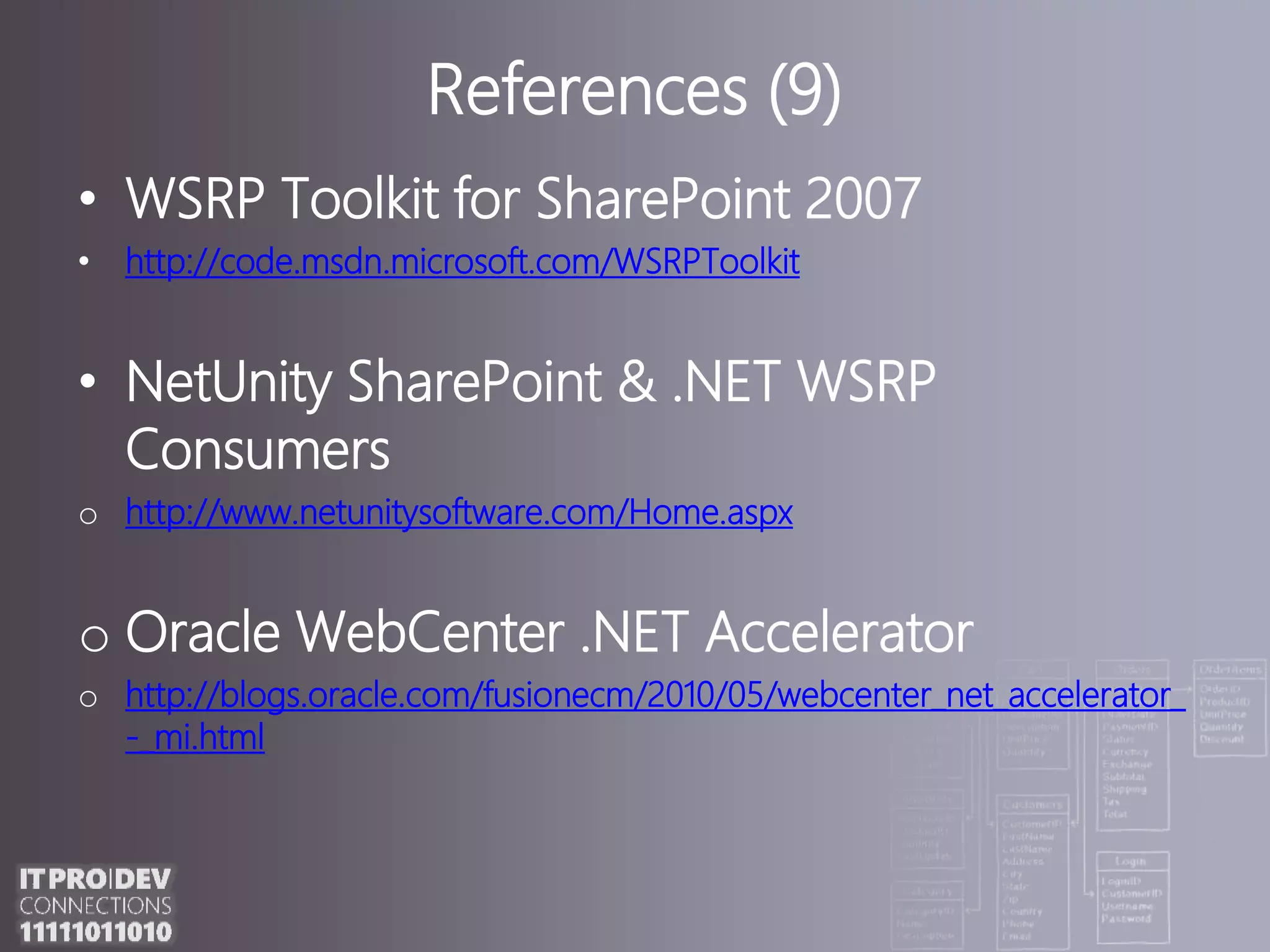

79. http://www.oasis-open.org/committees/download.php/11774/wsrp-faq-draft-0.30.htmlReferences (9)WSRP Toolkit for SharePoint 2007http://code.msdn.microsoft.com/WSRPToolkitNetUnity SharePoint & .NET WSRP Consumershttp://www.netunitysoftware.com/Home.aspx

80. Oracle WebCenter.NET Accelerator

81. http://blogs.oracle.com/fusionecm/2010/05/webcenter_net_accelerator_-_mi.html
