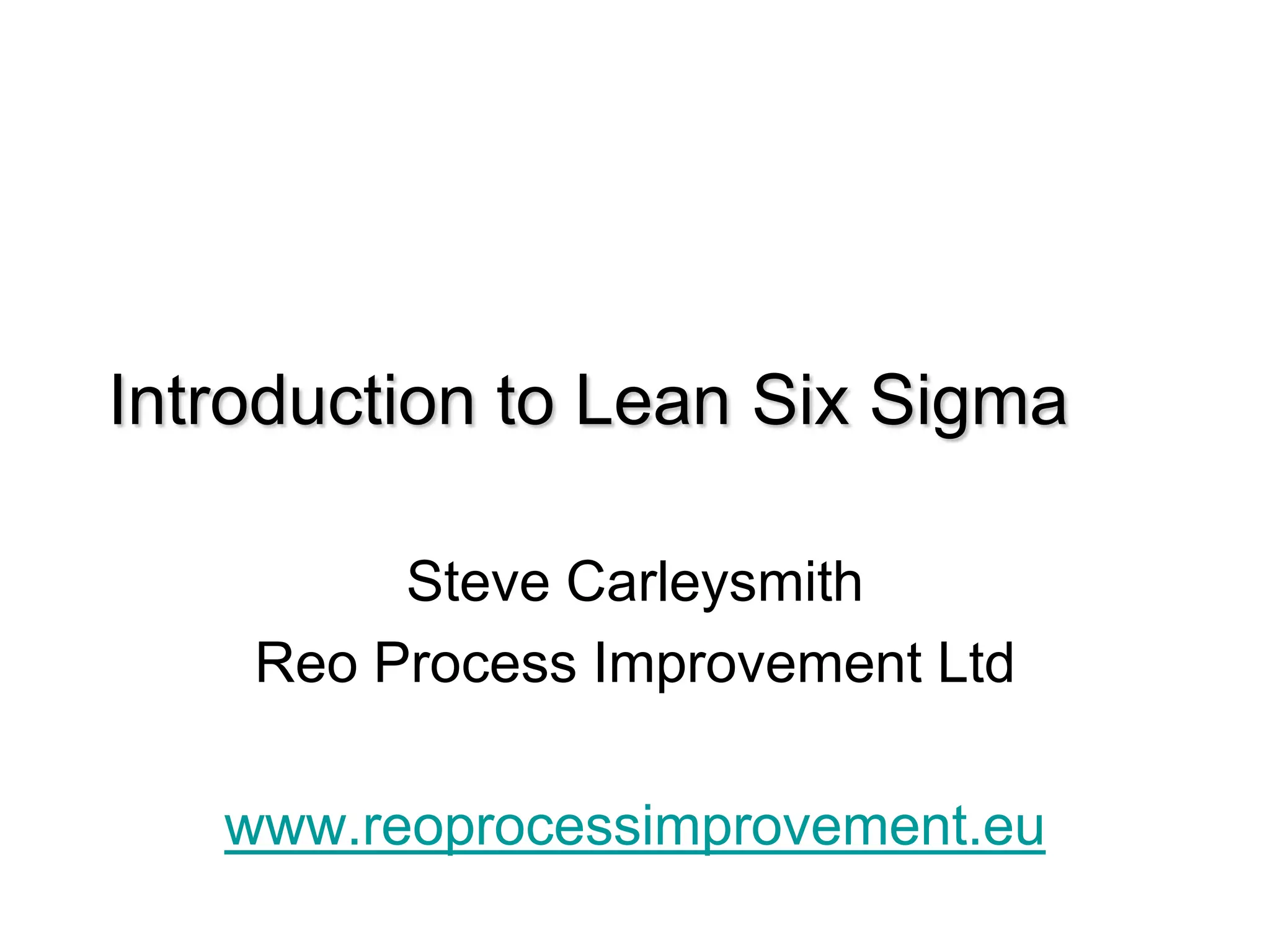

Introduction to Lean Six Sigma Steve Carleysmith Reo Process Improvement Ltd www.reoprocessimprovement.eu

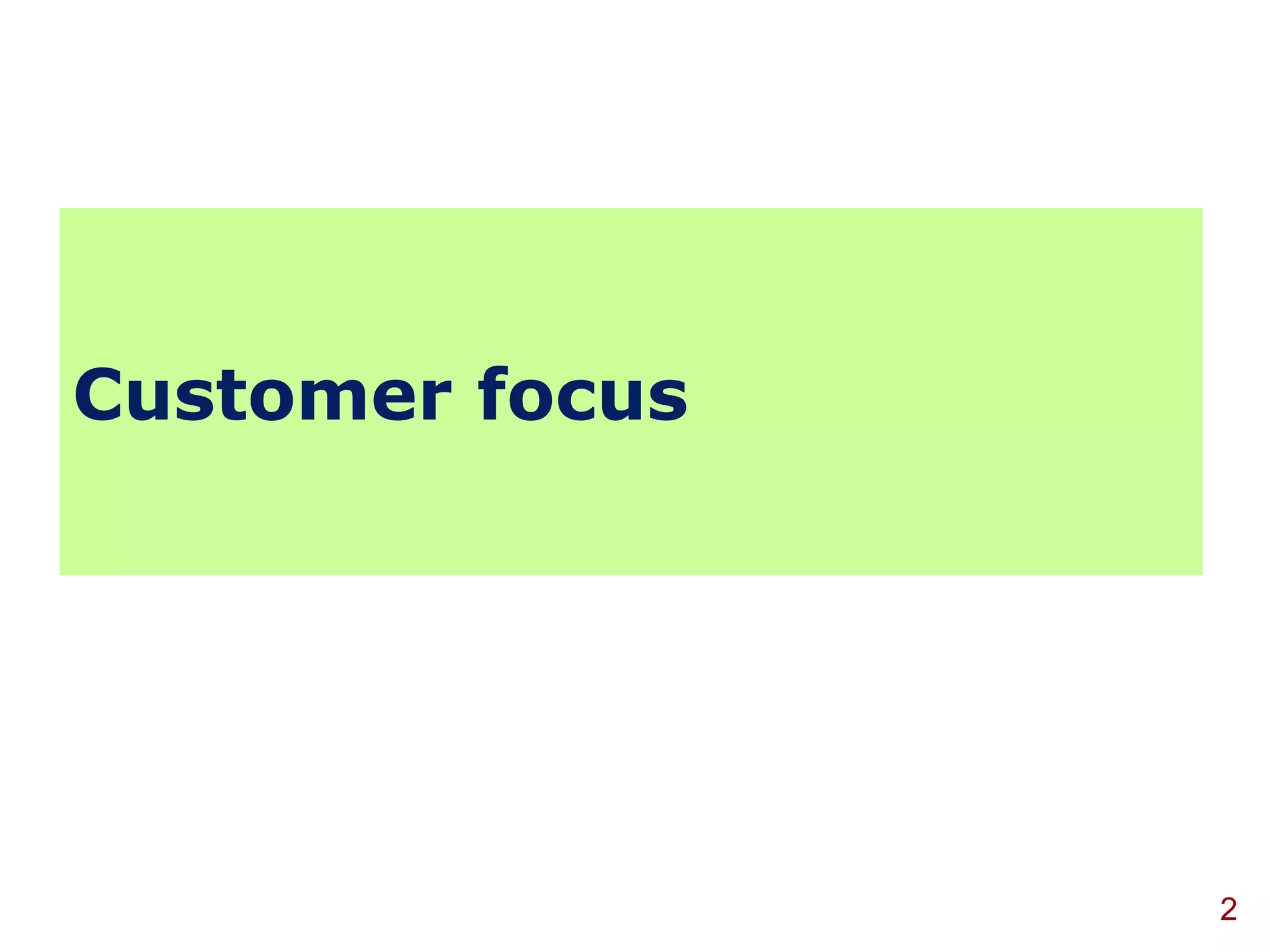

Customer focus 2

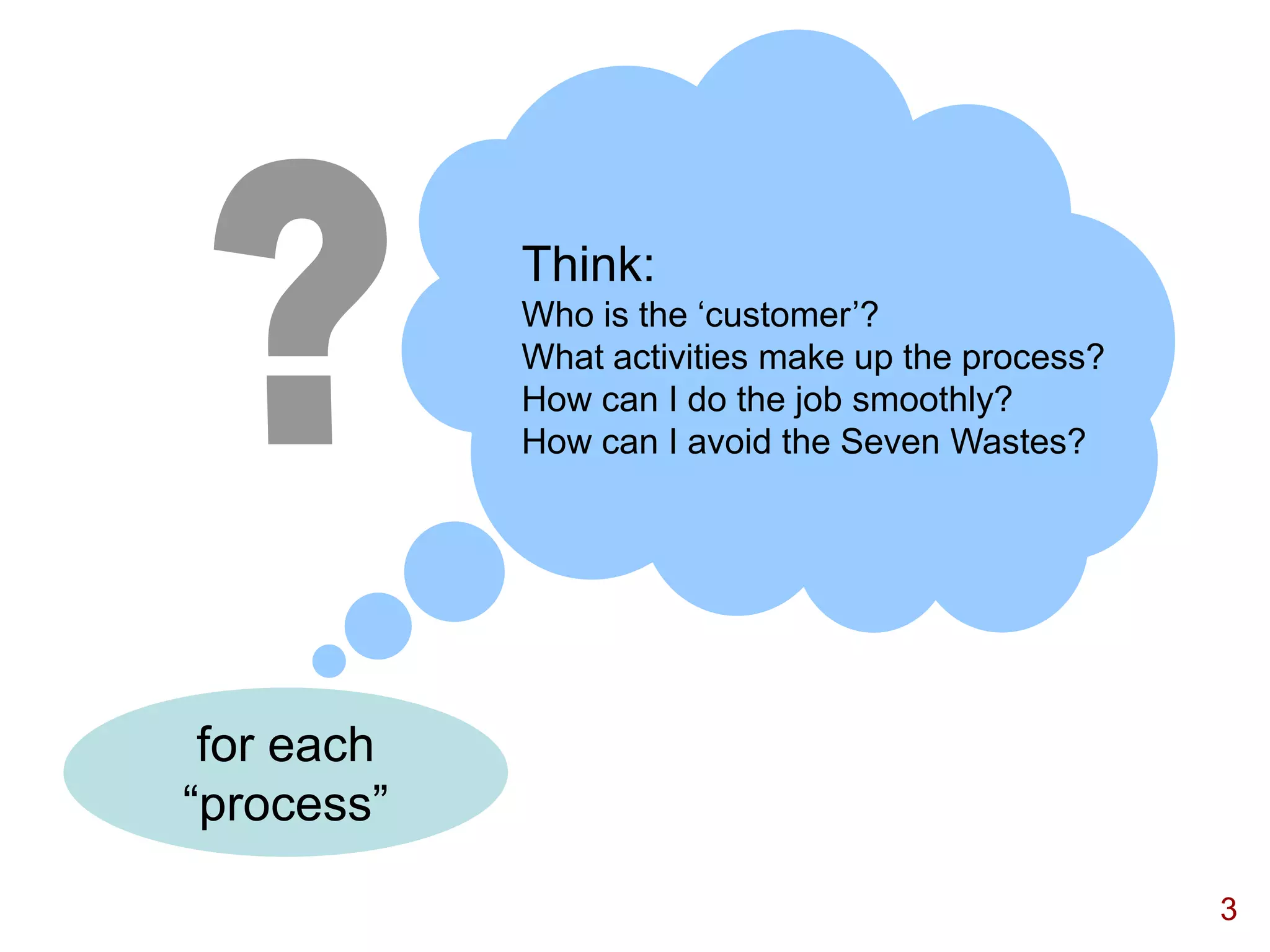

Think: Who is the „customer‟? What activities make up the process? How can I do the job smoothly? How can I avoid the Seven Wastes? for each “process” 3

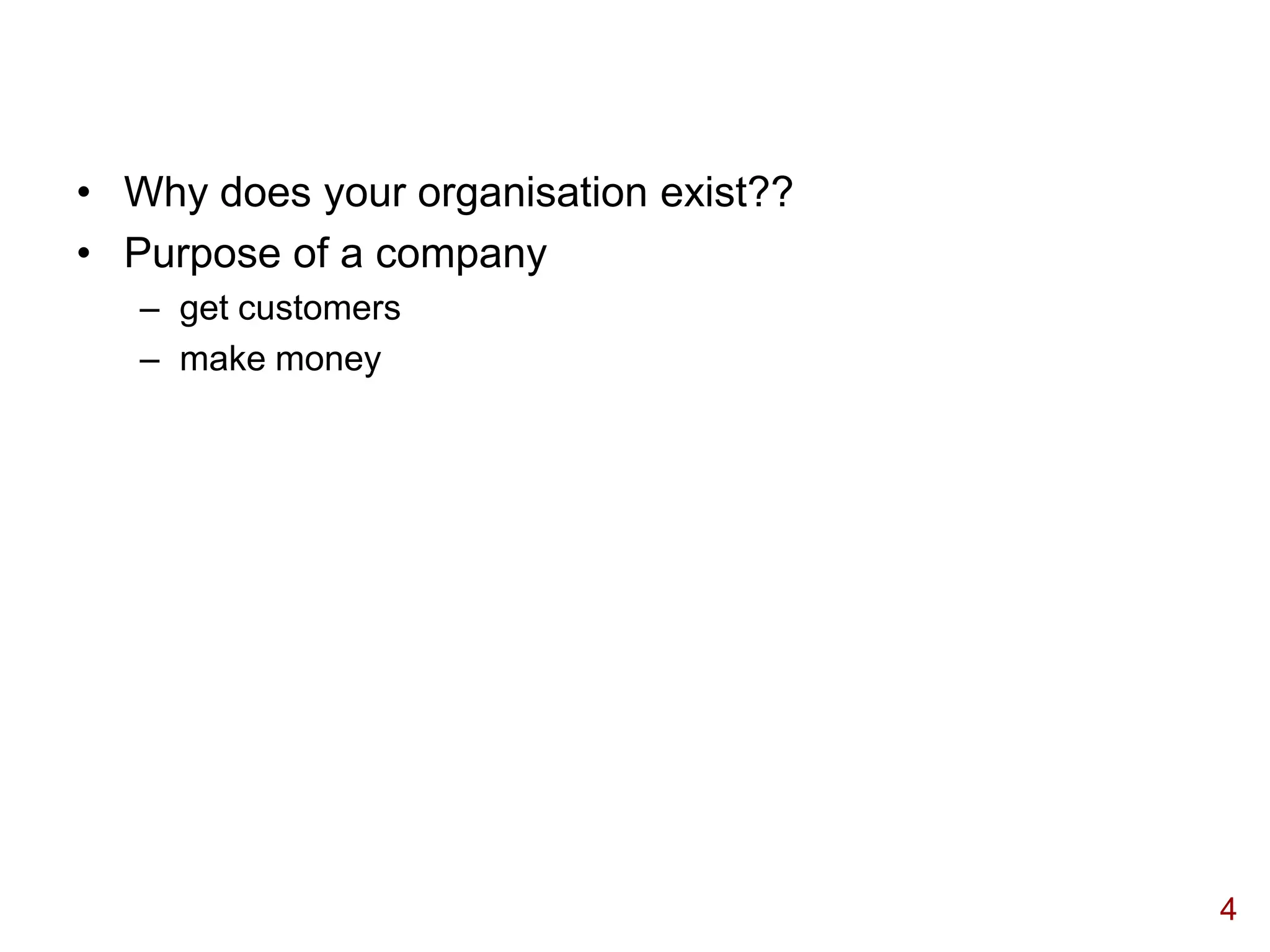

• Why does your organisation exist?? • Purpose of a company – get customers – make money 4

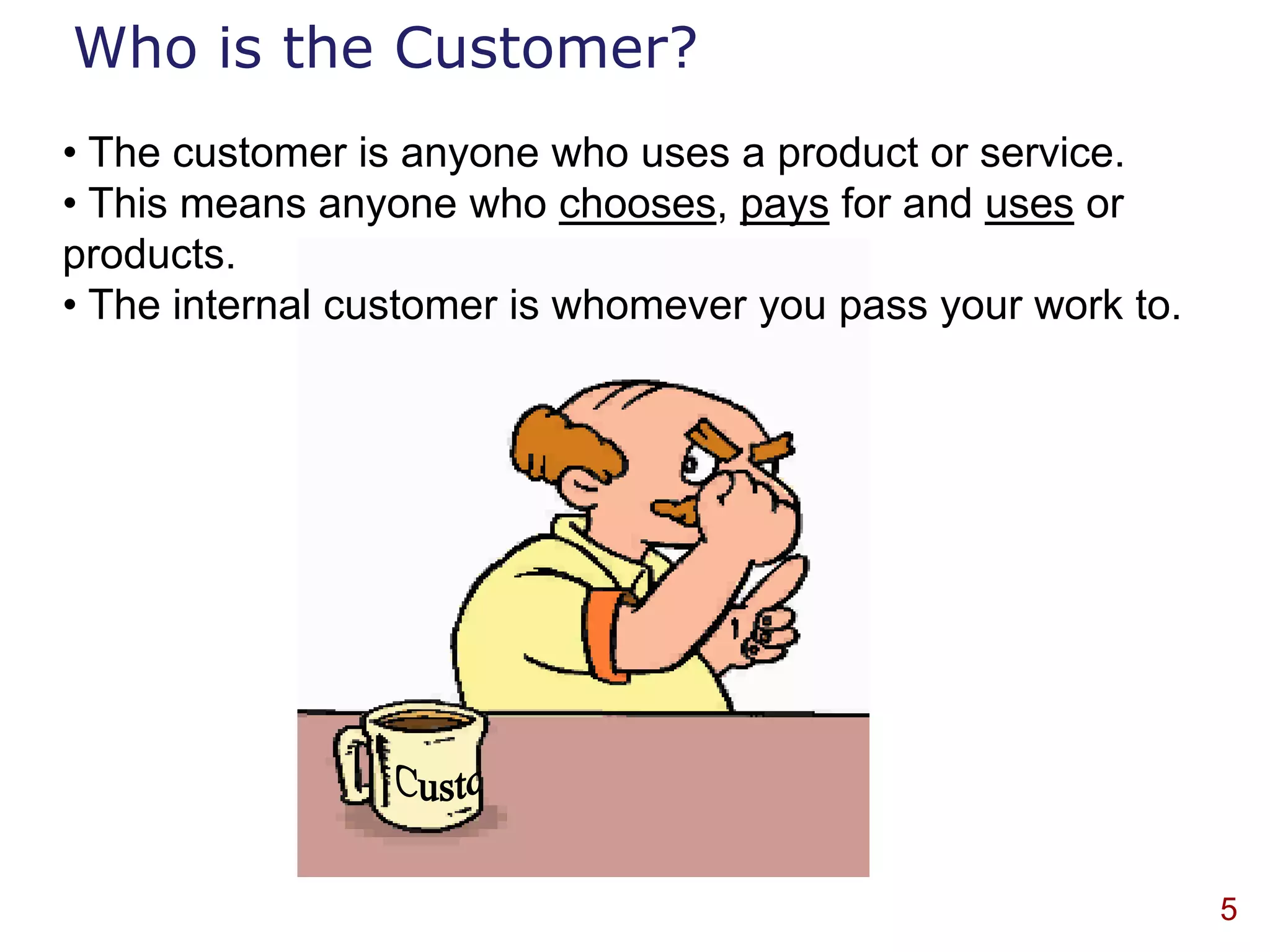

Who is the Customer? • The customer is anyone who uses a product or service. • This means anyone who chooses, pays for and uses or products. • The internal customer is whomever you pass your work to. 5

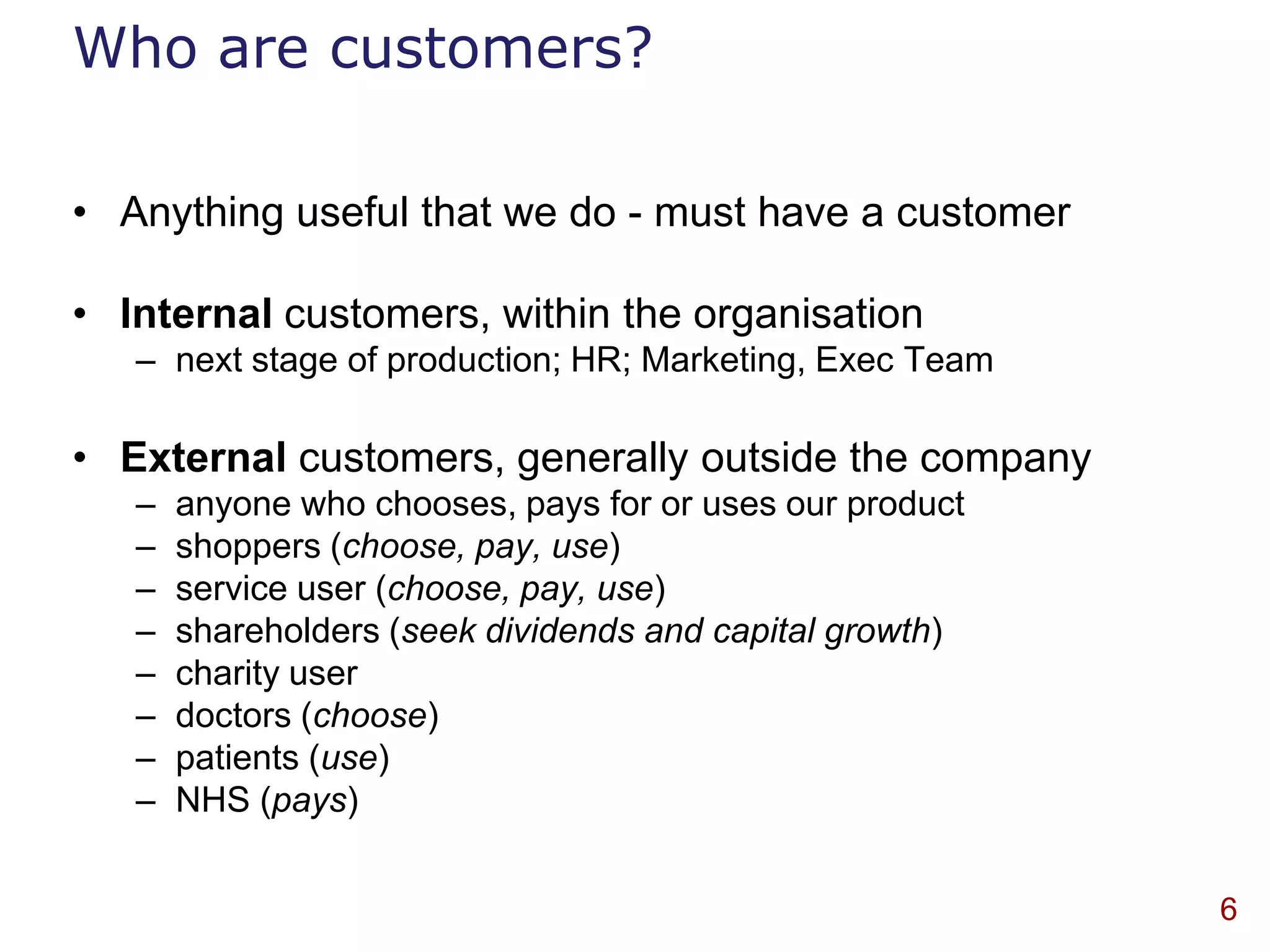

Who are customers? • Anything useful that we do - must have a customer • Internal customers, within the organisation – next stage of production; HR; Marketing, Exec Team • External customers, generally outside the company – anyone who chooses, pays for or uses our product – shoppers (choose, pay, use) – service user (choose, pay, use) – shareholders (seek dividends and capital growth) – charity user – doctors (choose) – patients (use) – NHS (pays) 6

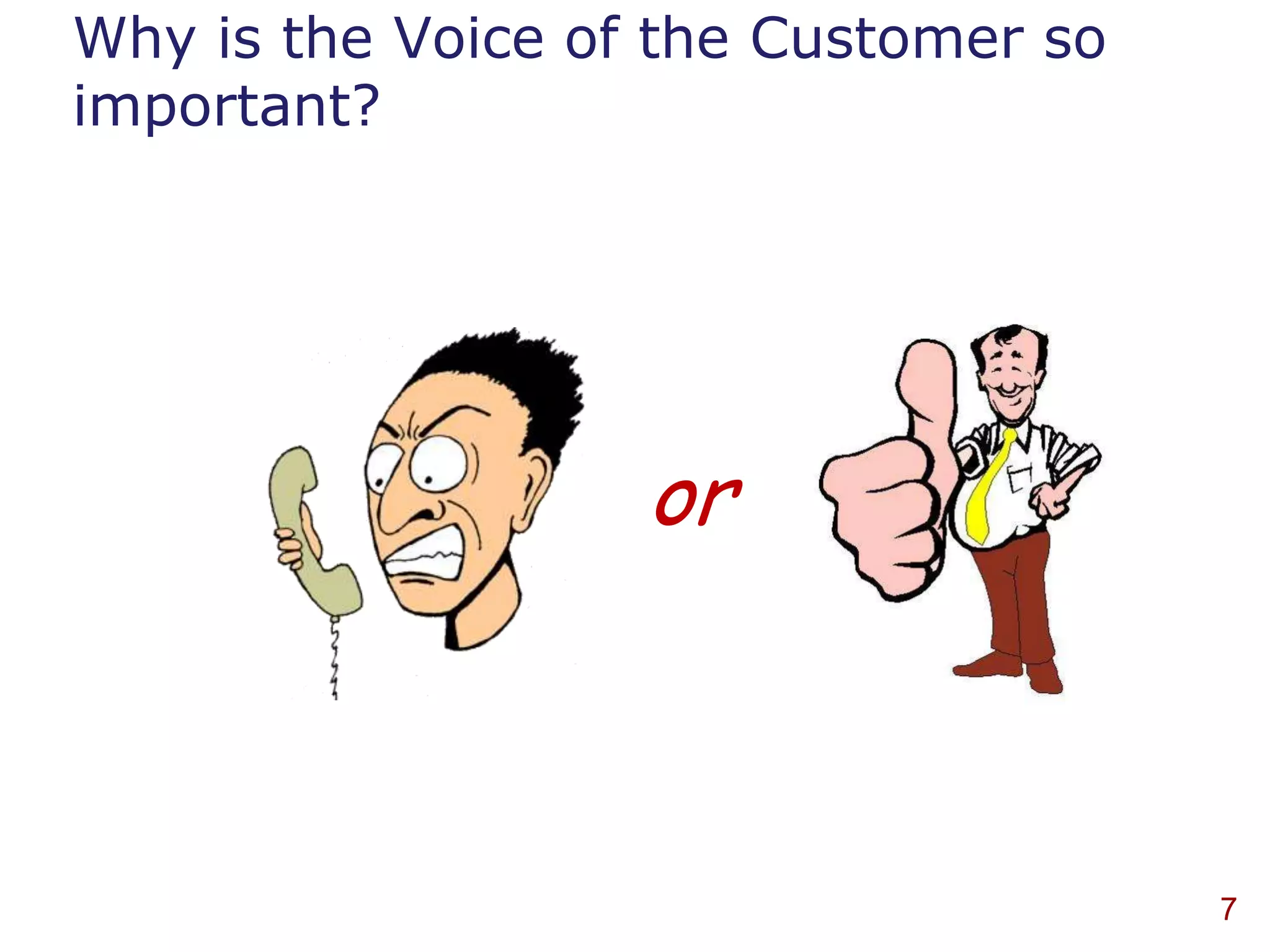

Why is the Voice of the Customer so important? or 7

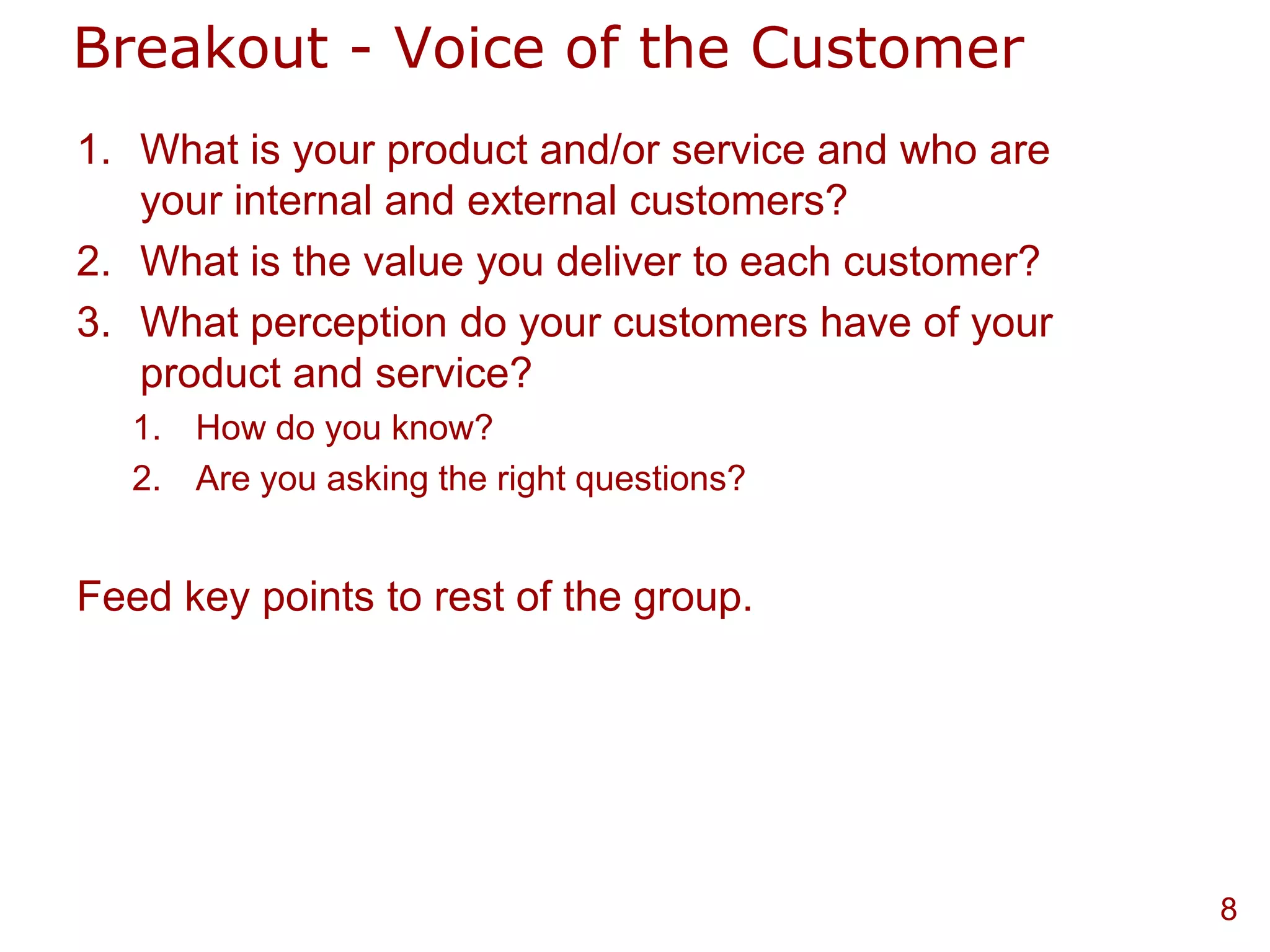

Breakout - Voice of the Customer 1. What is your product and/or service and who are your internal and external customers? 2. What is the value you deliver to each customer? 3. What perception do your customers have of your product and service? 1. How do you know? 2. Are you asking the right questions? Feed key points to rest of the group. 8

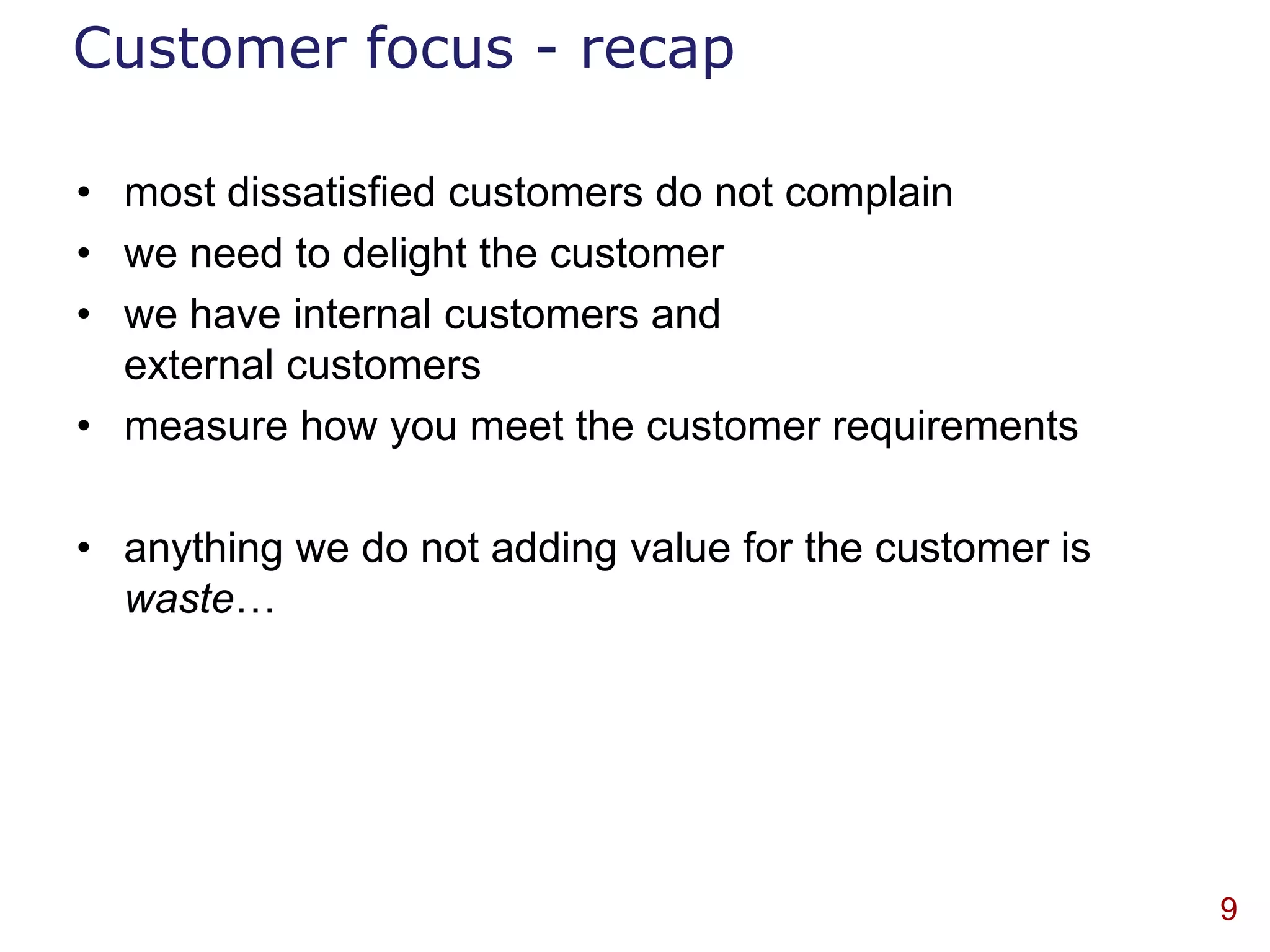

Customer focus - recap • most dissatisfied customers do not complain • we need to delight the customer • we have internal customers and external customers • measure how you meet the customer requirements • anything we do not adding value for the customer is waste… 9

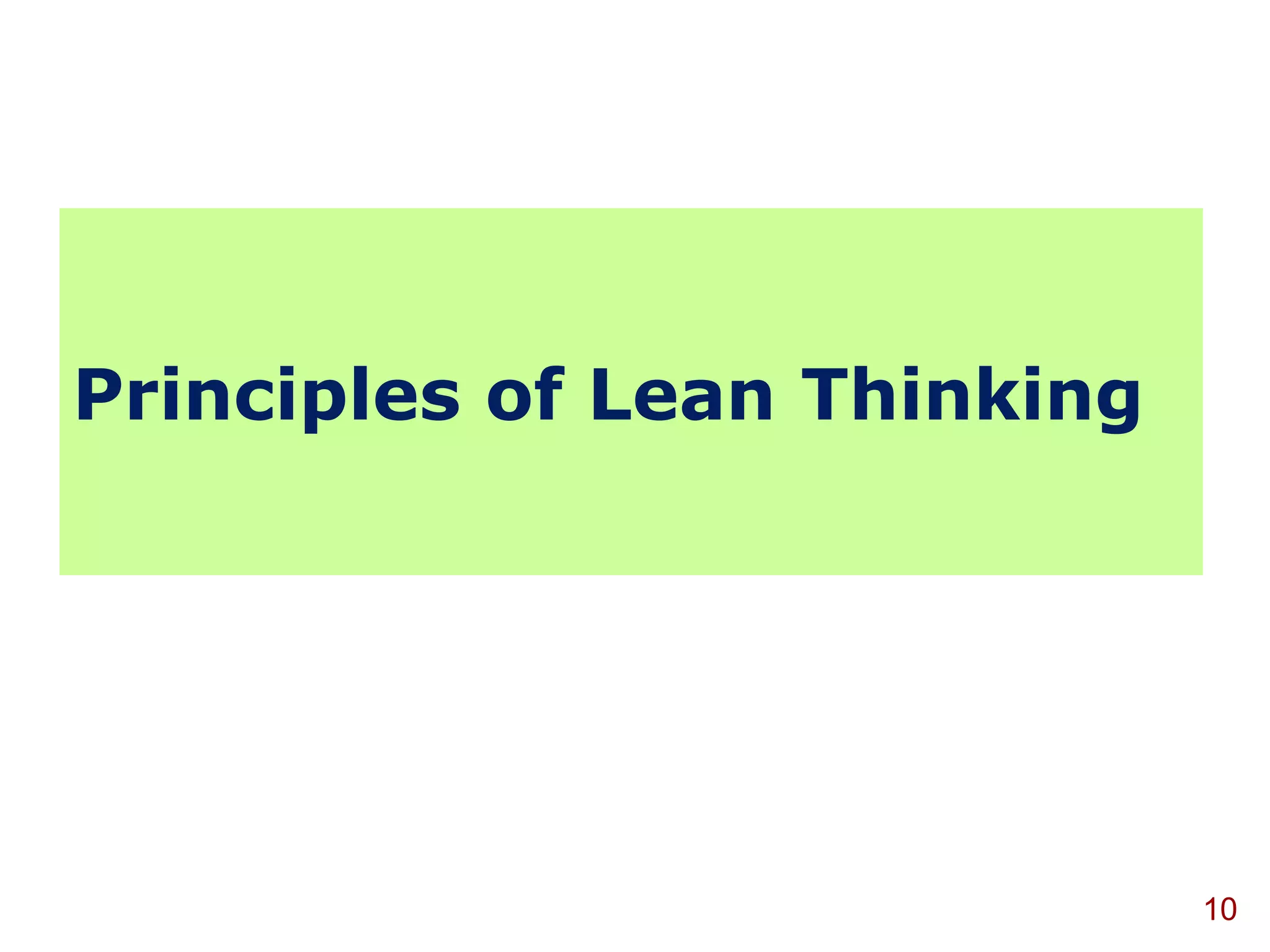

Principles of Lean Thinking 10

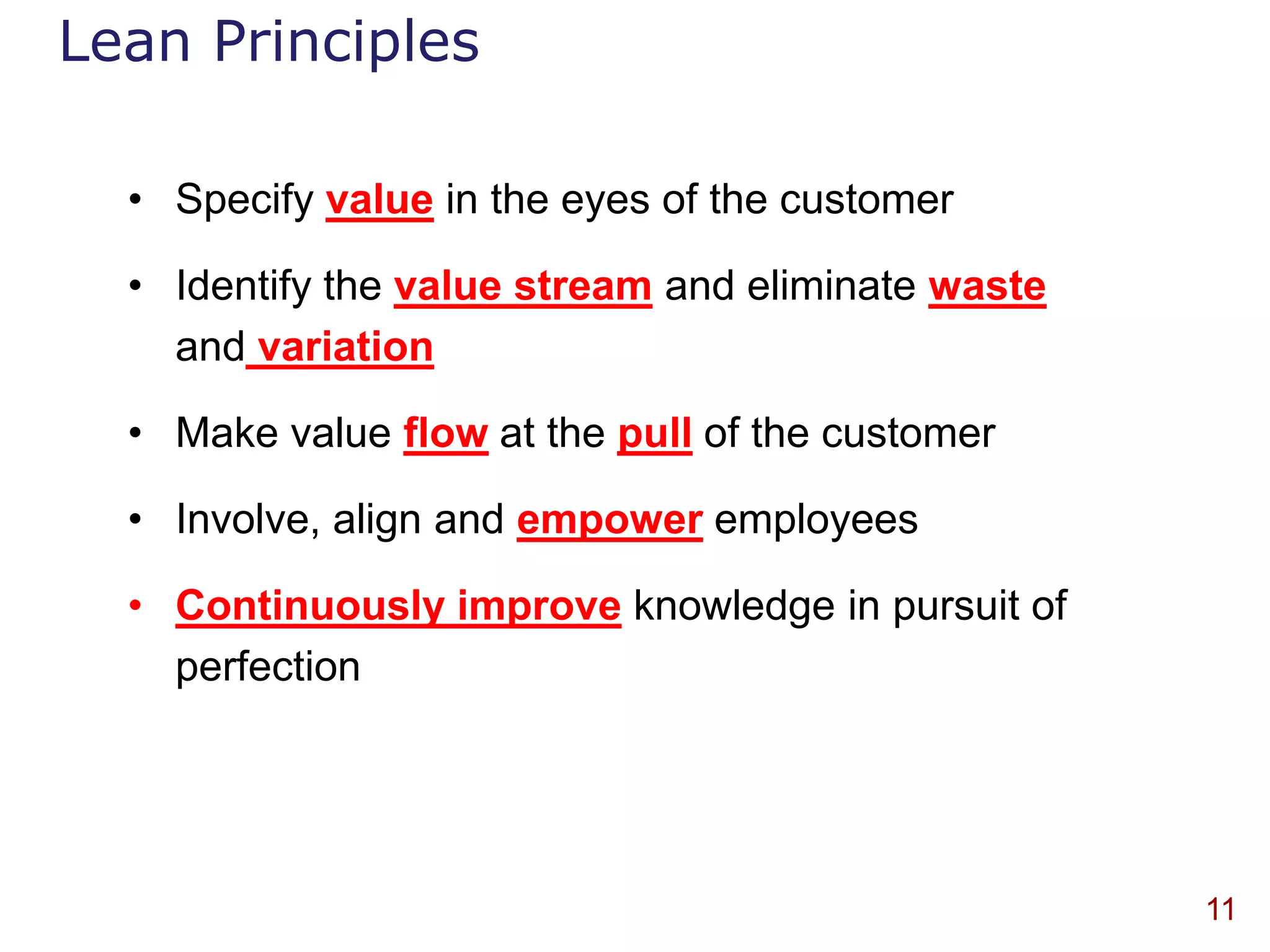

Lean Principles • Specify value in the eyes of the customer • Identify the value stream and eliminate waste and variation • Make value flow at the pull of the customer • Involve, align and empower employees • Continuously improve knowledge in pursuit of perfection 11

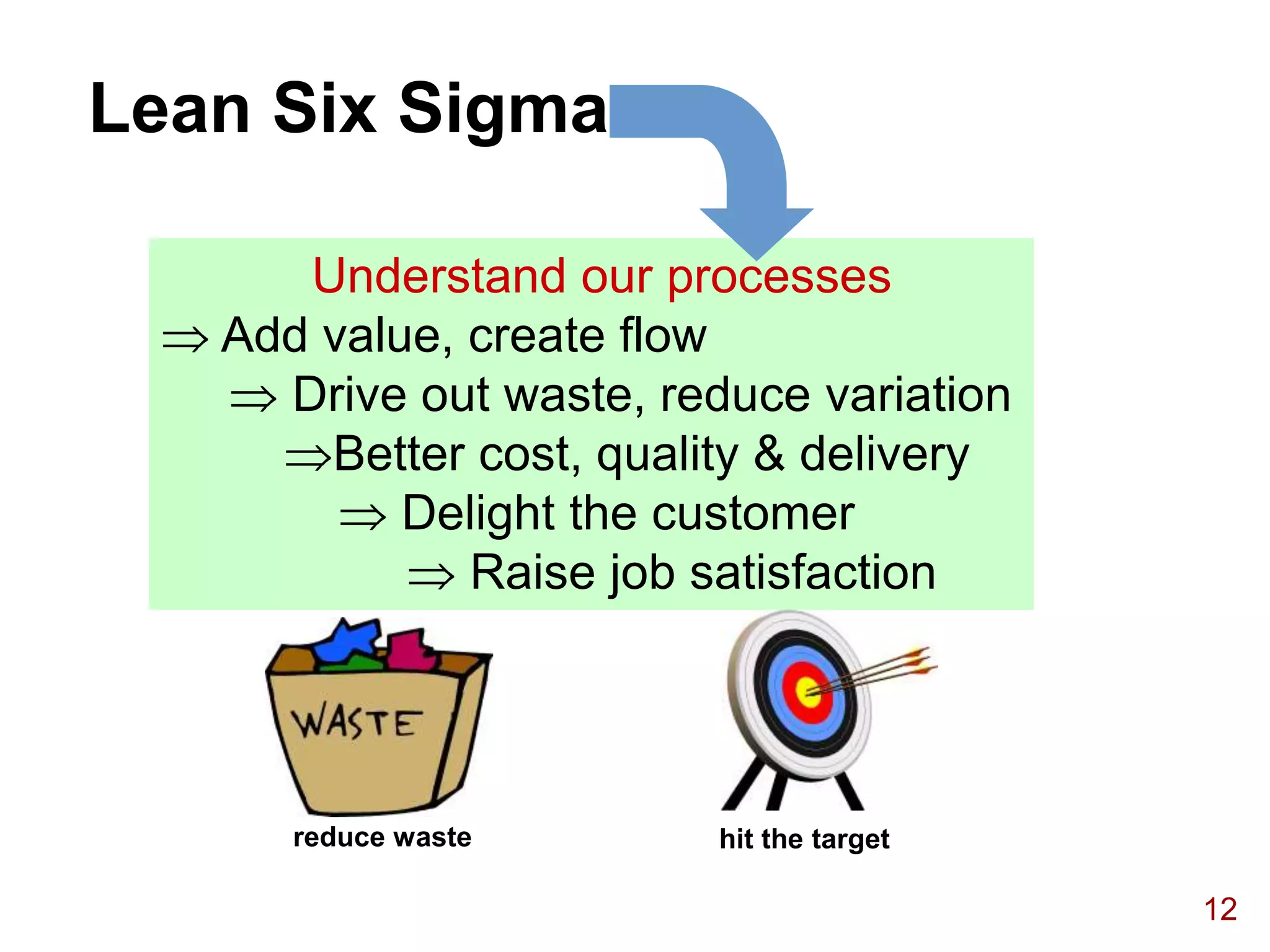

Lean Six Sigma Understand our processes Add value, create flow Drive out waste, reduce variation Better cost, quality & delivery Delight the customer Raise job satisfaction reduce waste hit the target 12
Non value adding time or 13
Value added and non value added :.: granulate and tumble blend compress coat release dry 0.5h 1h 0.5h 4h 1h 1h Typical process time start-to-end = 5-10 days Value-added time = 7 hours Non-value added but essential = 1 hour Value-added time as % of total ~5% 14

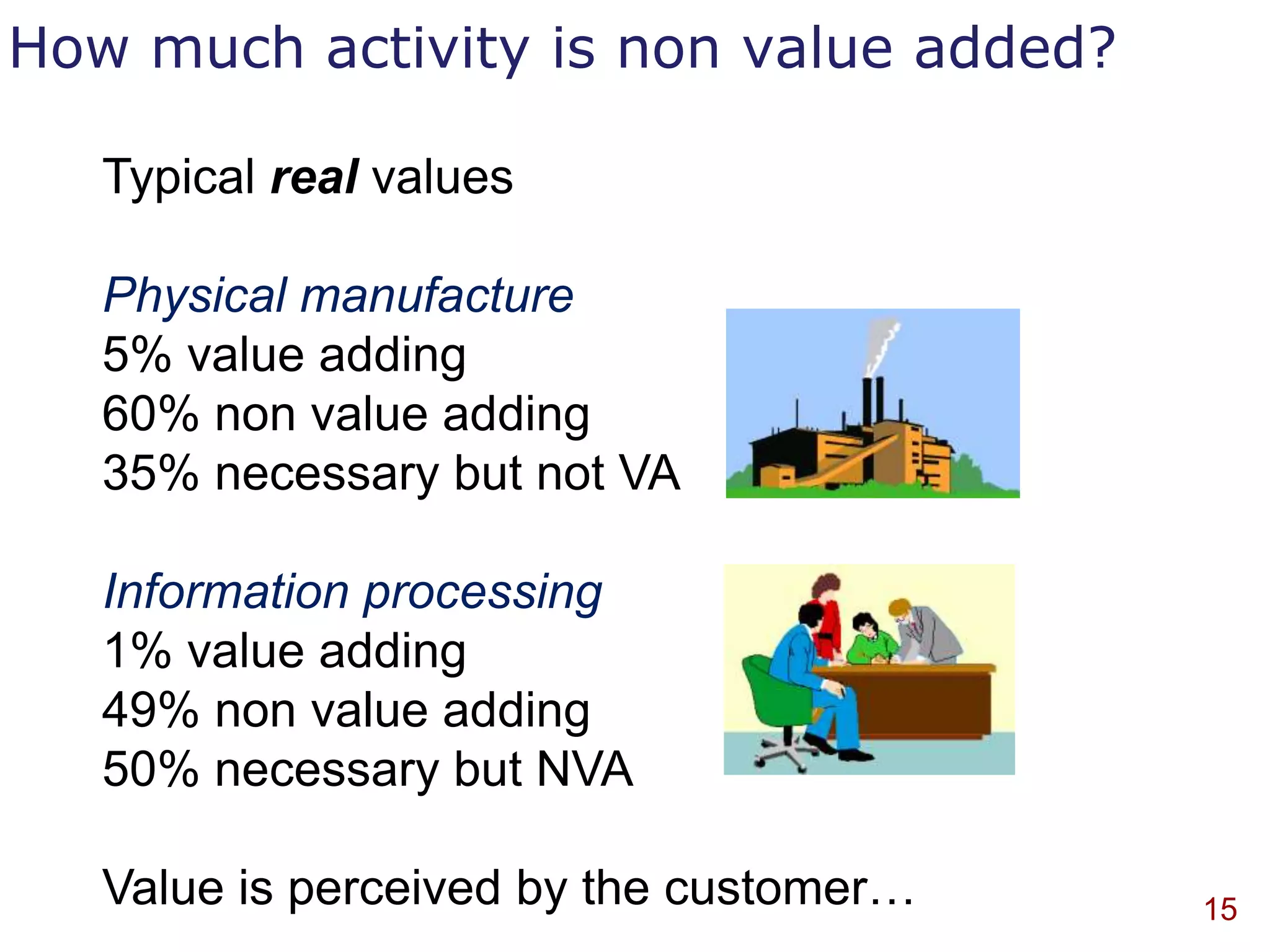

How much activity is non value added? Typical real values Physical manufacture 5% value adding 60% non value adding 35% necessary but not VA Information processing 1% value adding 49% non value adding 50% necessary but NVA Value is perceived by the customer… 15

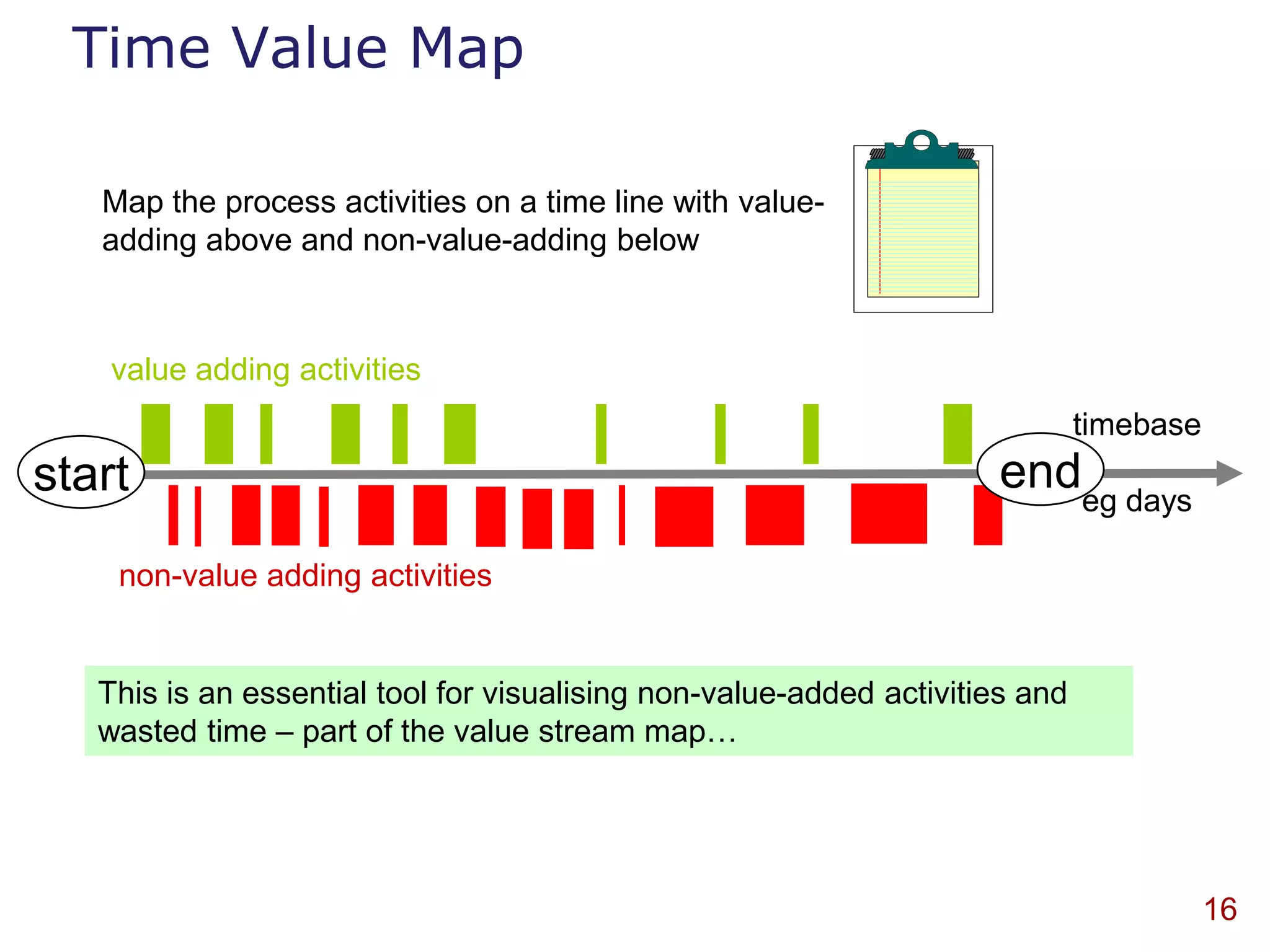

Time Value Map Map the process activities on a time line with value- adding above and non-value-adding below value adding activities timebase start endeg days non-value adding activities This is an essential tool for visualising non-value-added activities and wasted time – part of the value stream map… 16

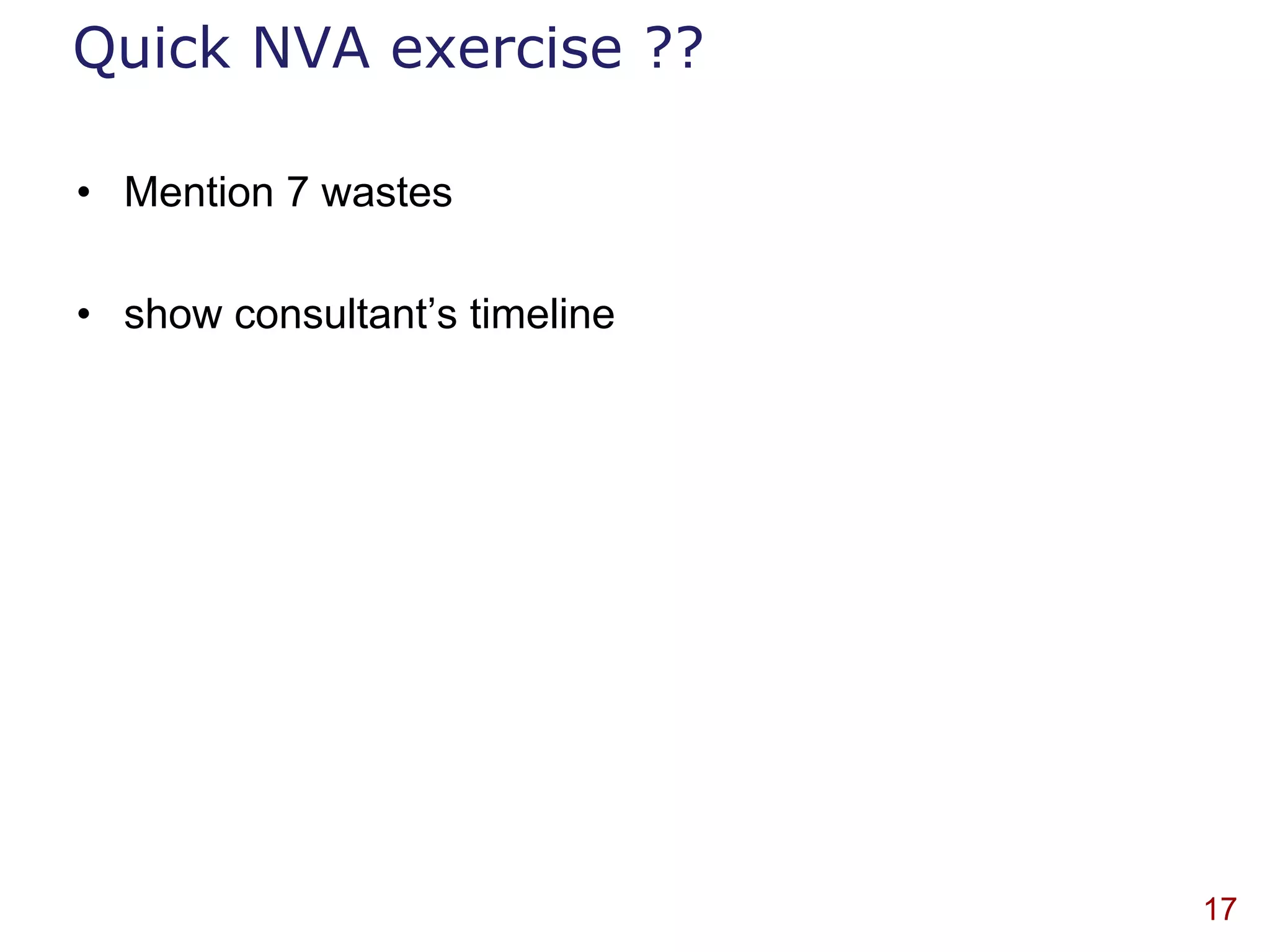

Quick NVA exercise ?? • Mention 7 wastes • show consultant‟s timeline 17

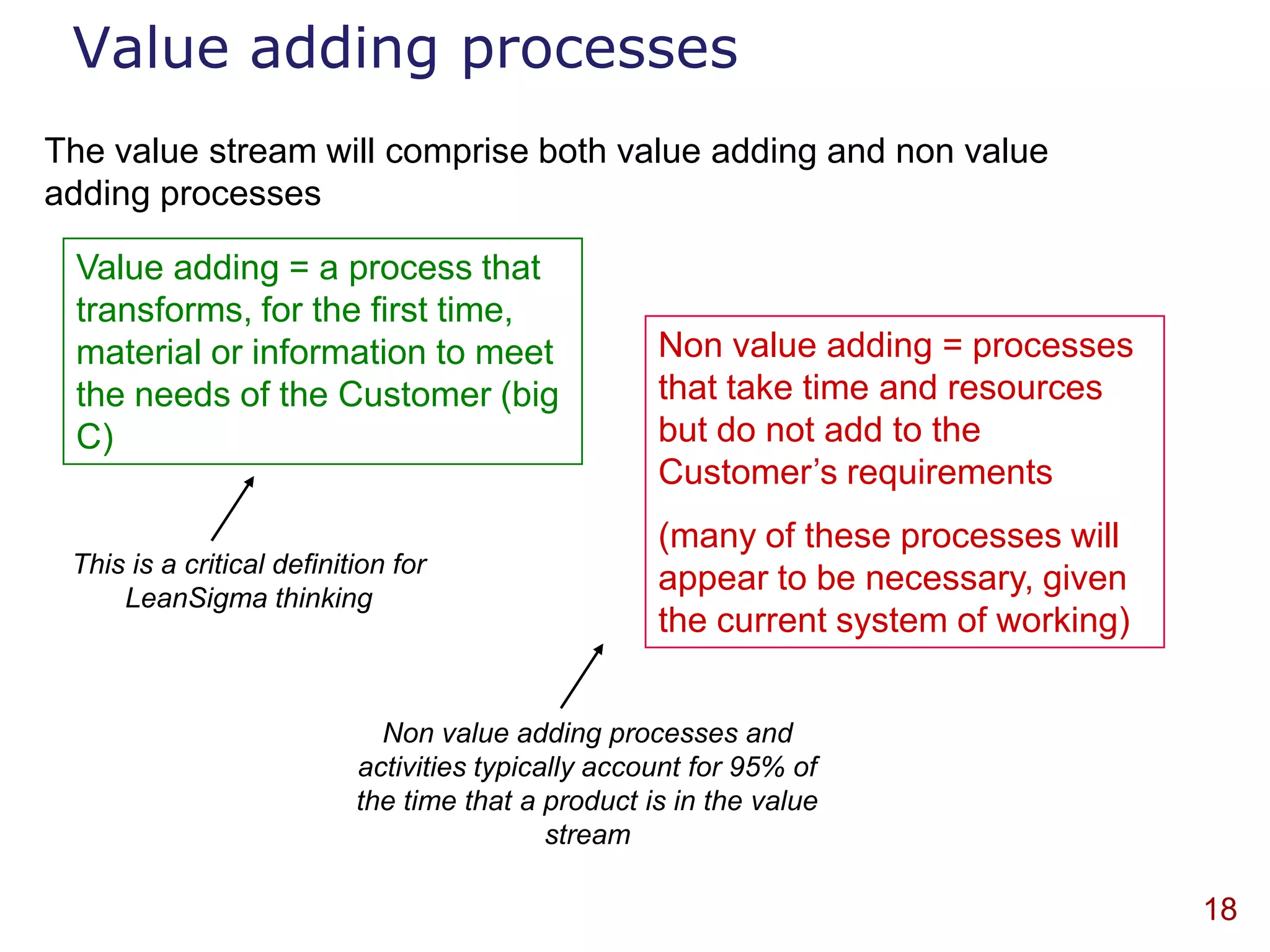

Value adding processes The value stream will comprise both value adding and non value adding processes Value adding = a process that transforms, for the first time, material or information to meet Non value adding = processes the needs of the Customer (big that take time and resources C) but do not add to the Customer‟s requirements (many of these processes will This is a critical definition for appear to be necessary, given LeanSigma thinking the current system of working) Non value adding processes and activities typically account for 95% of the time that a product is in the value stream 18

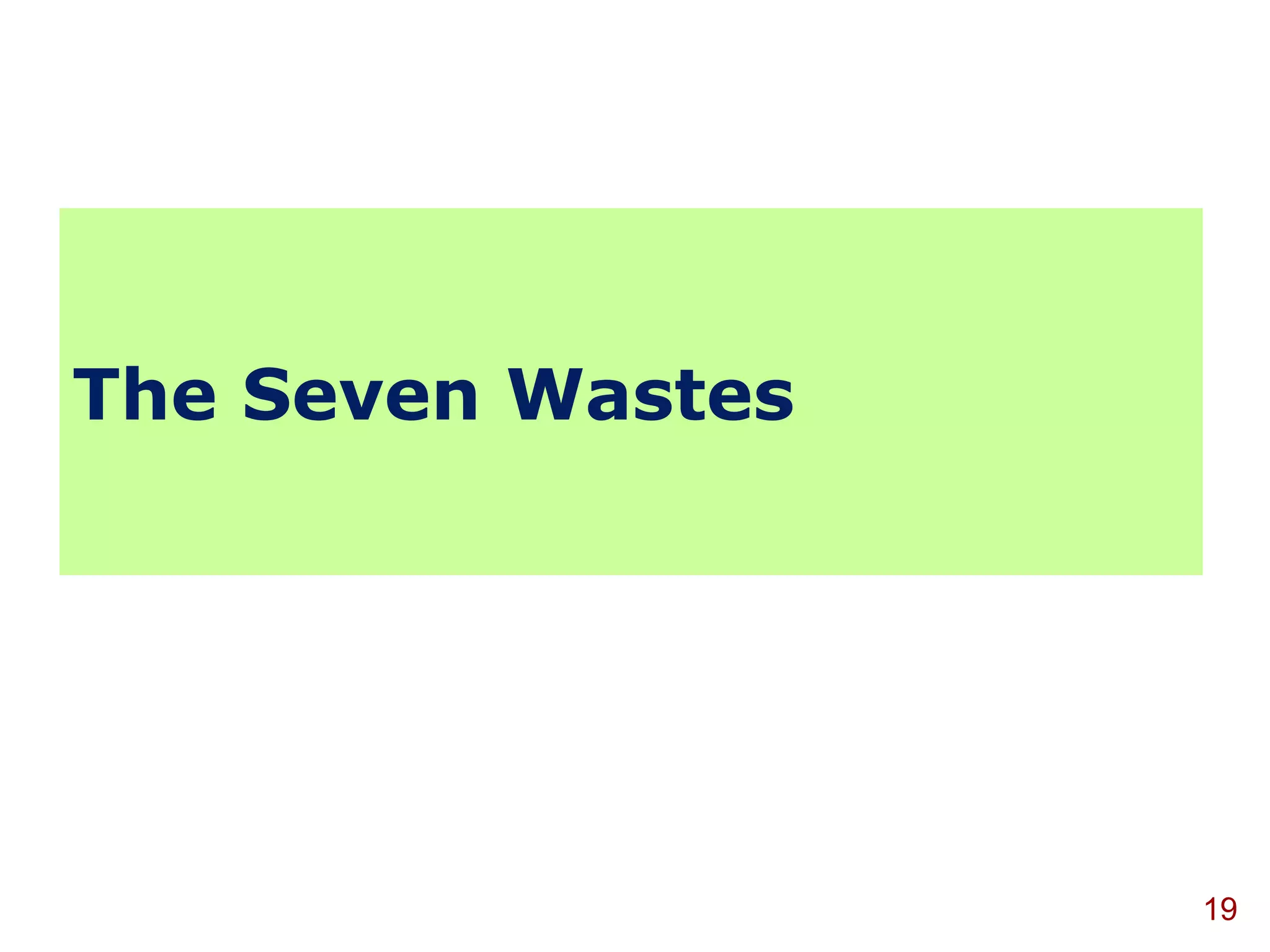

The Seven Wastes 19

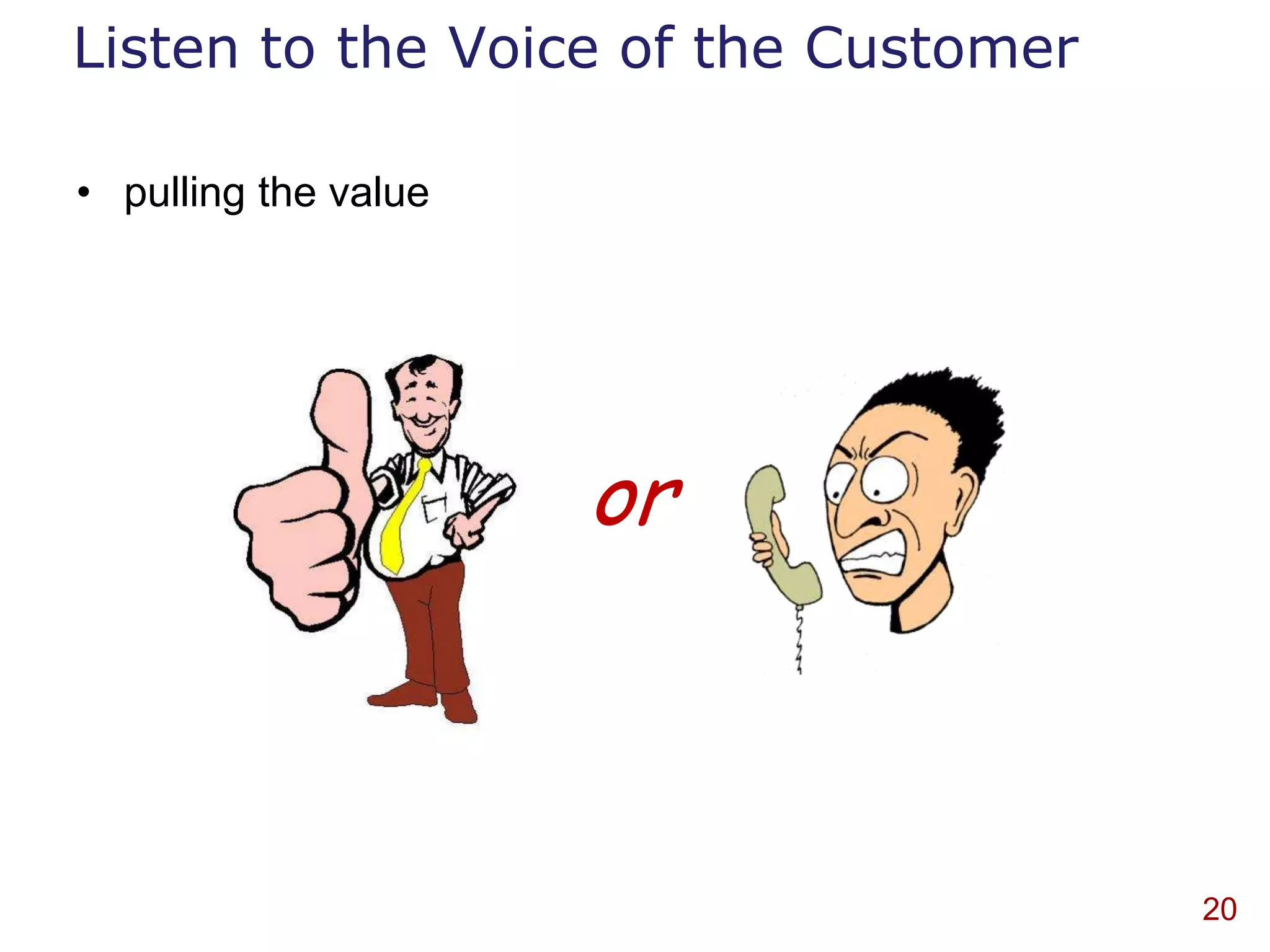

Listen to the Voice of the Customer • pulling the value or 20

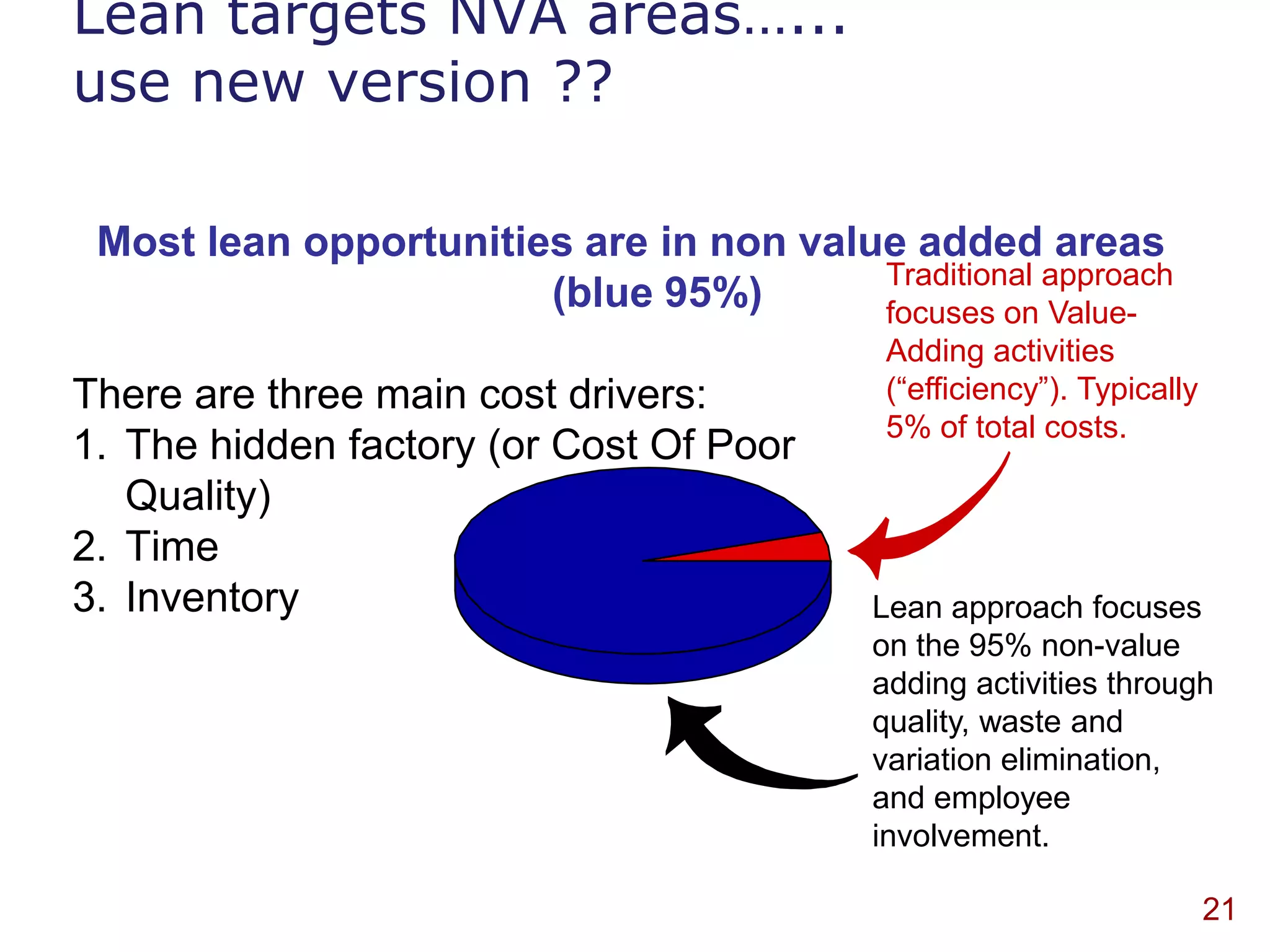

Lean targets NVA areas…... use new version ?? Most lean opportunities are in non value added areas Traditional approach (blue 95%) focuses on Value- Adding activities There are three main cost drivers: (“efficiency”). Typically 5% of total costs. 1. The hidden factory (or Cost Of Poor Quality) 2. Time 3. Inventory Lean approach focuses on the 95% non-value adding activities through quality, waste and variation elimination, and employee involvement. 21
The Seven Wastes... • waste is anything that does not add value for the customer (internal and external) 22

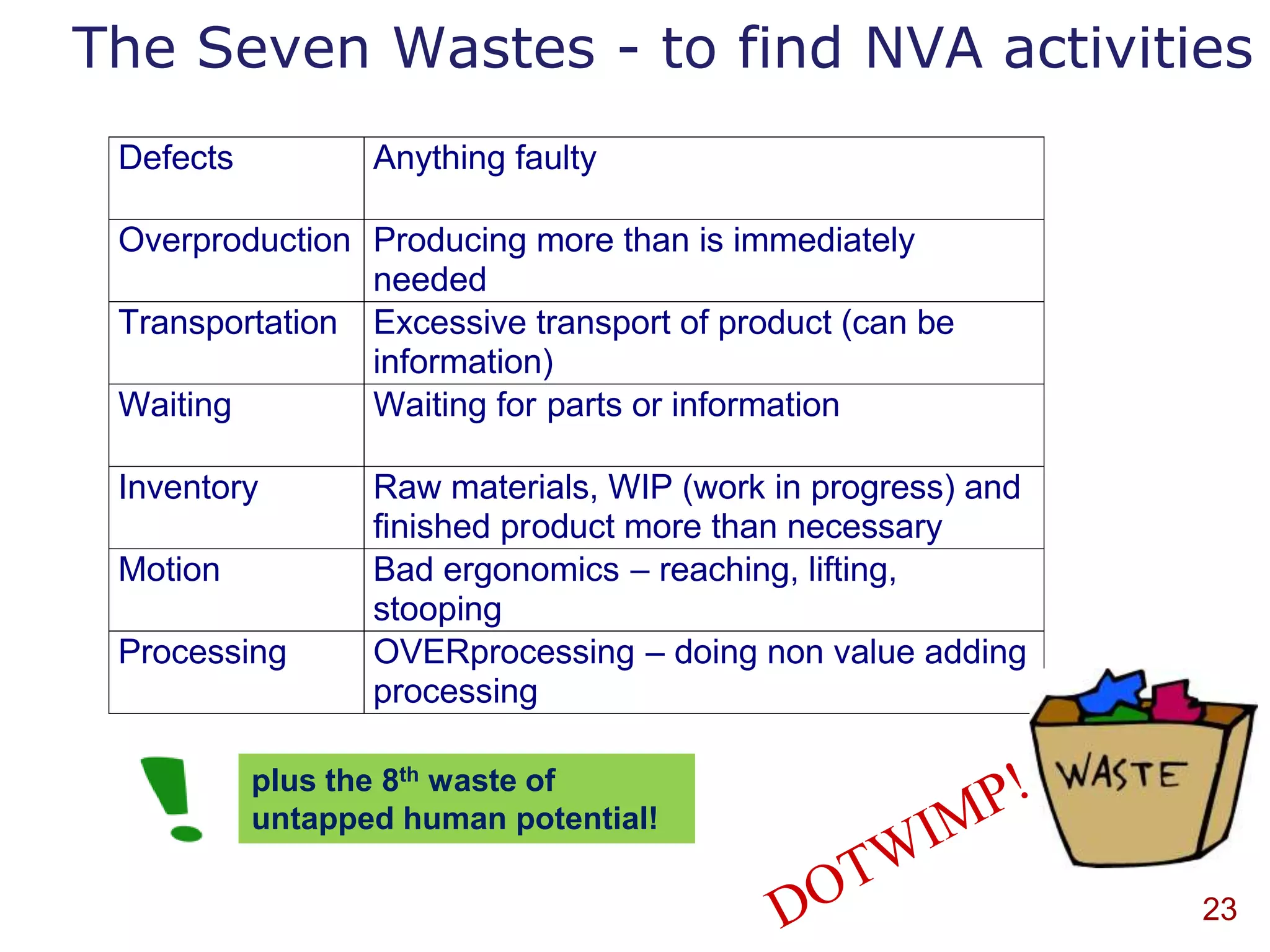

The Seven Wastes - to find NVA activities Defects Anything faulty Overproduction Producing more than is immediately needed Transportation Excessive transport of product (can be information) Waiting Waiting for parts or information Inventory Raw materials, WIP (work in progress) and finished product more than necessary Motion Bad ergonomics – reaching, lifting, stooping Processing OVERprocessing – doing non value adding processing plus the 8th waste of untapped human potential! 23

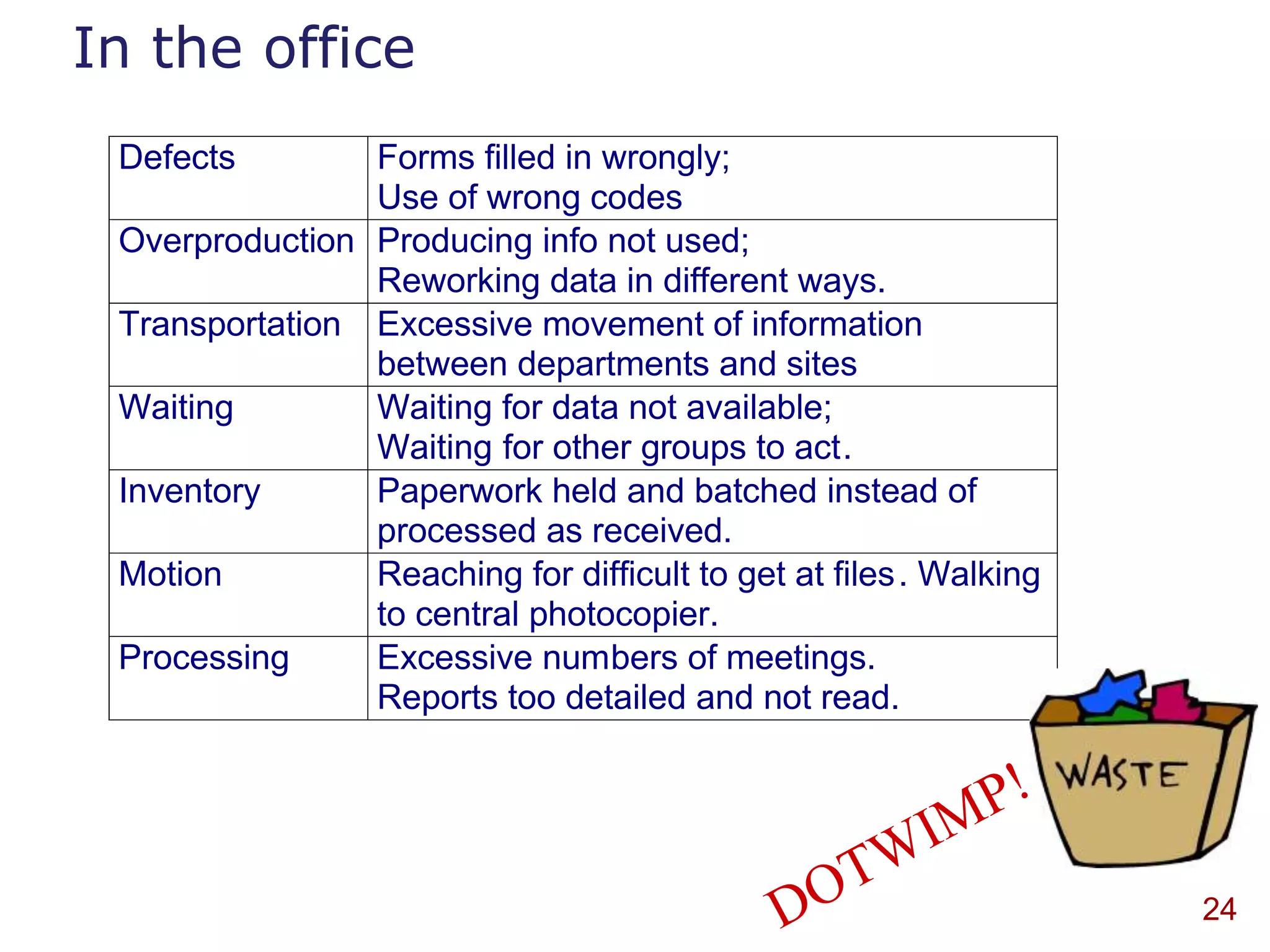

In the office Defects Forms filled in wrongly; Use of wrong codes Overproduction Producing info not used; Reworking data in different ways. Transportation Excessive movement of information between departments and sites Waiting Waiting for data not available; Waiting for other groups to act. Inventory Paperwork held and batched instead of processed as received. Motion Reaching for difficult to get at files . Walking to central photocopier. Processing Excessive numbers of meetings. Reports too detailed and not read. 24
In the workshop Defects Fitting wrong parts. Using wrong lubricants. Overproduction Doing stuff not needed. Replacing good parts? Transportation Parts and tools are a long way away. Waiting Waiting for tools. Waiting for parts to be delivered. Inventory Too much stuff stored. Too many tools of same type? Motion Poor ergonomics – too much bending and stretching to do the job. Processing Doing work long before it‟s needed. 25

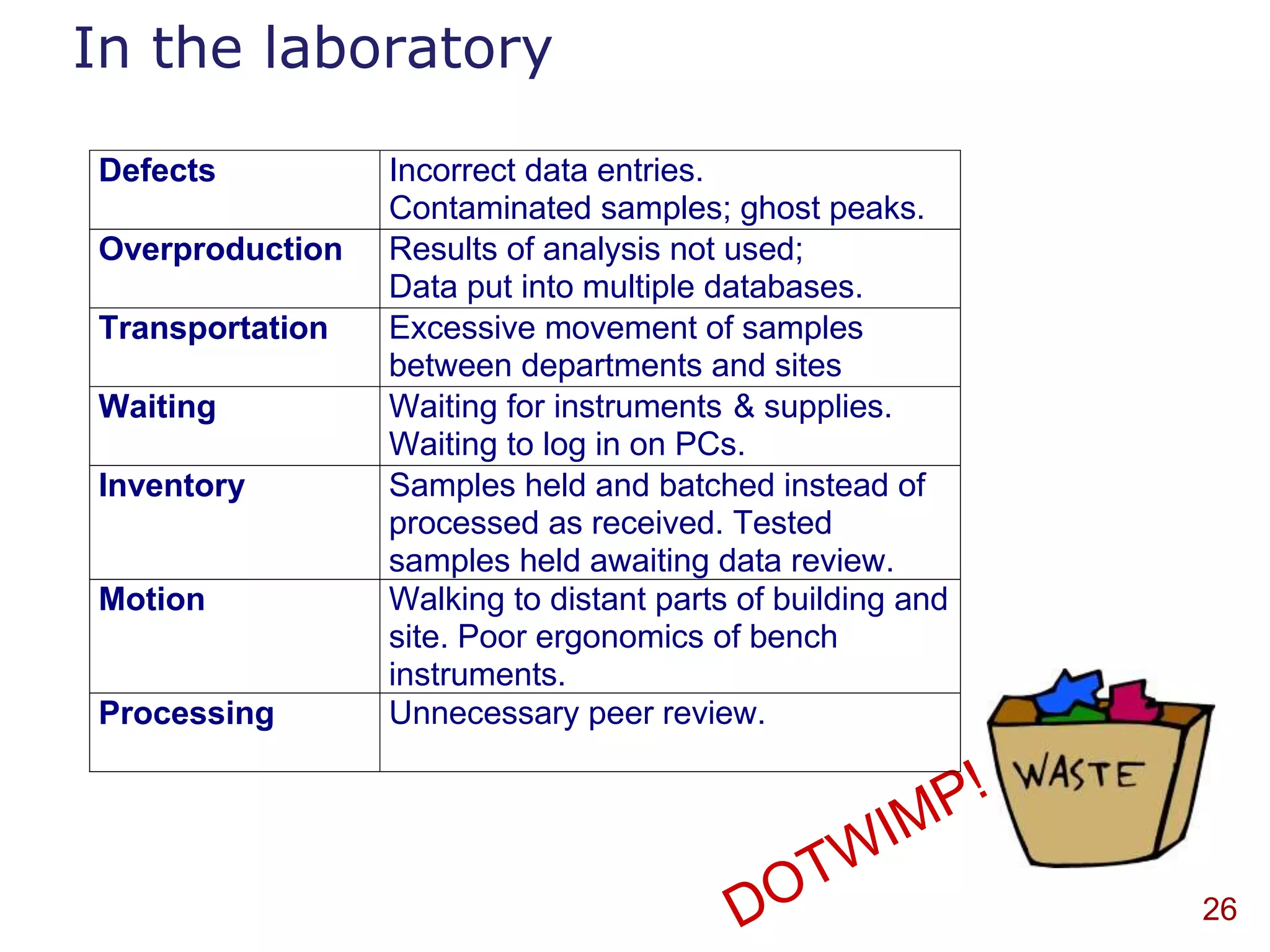

In the laboratory Defects Incorrect data entries. Contaminated samples; ghost peaks. Overproduction Results of analysis not used; Data put into multiple databases. Transportation Excessive movement of samples between departments and sites Waiting Waiting for instruments & supplies. Waiting to log in on PCs. Inventory Samples held and batched instead of processed as received. Tested samples held awaiting data review. Motion Walking to distant parts of building and site. Poor ergonomics of bench instruments. Processing Unnecessary peer review. 26

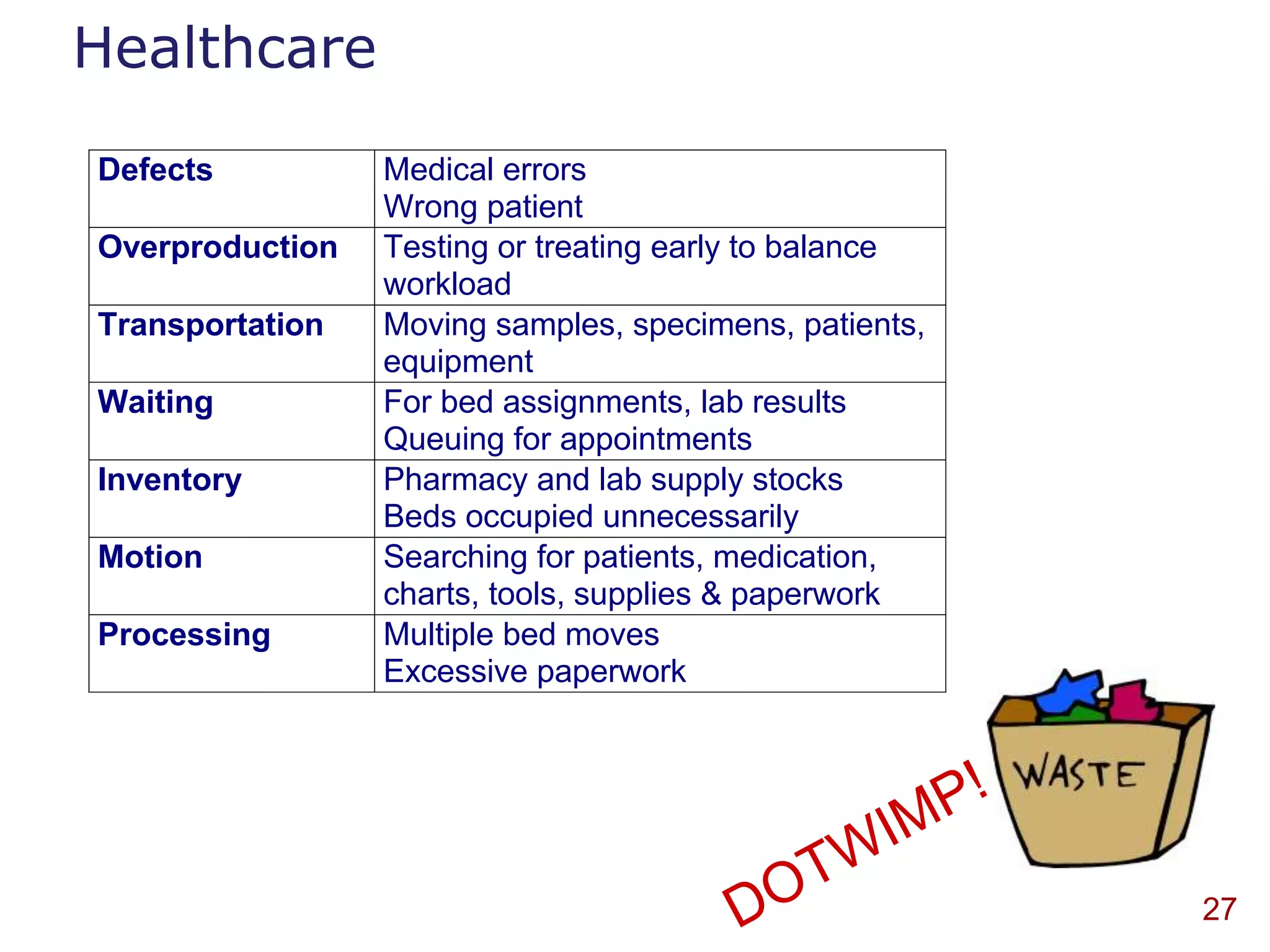

Healthcare Defects Medical errors Wrong patient Overproduction Testing or treating early to balance workload Transportation Moving samples, specimens, patients, equipment Waiting For bed assignments, lab results Queuing for appointments Inventory Pharmacy and lab supply stocks Beds occupied unnecessarily Motion Searching for patients, medication, charts, tools, supplies & paperwork Processing Multiple bed moves Excessive paperwork 27

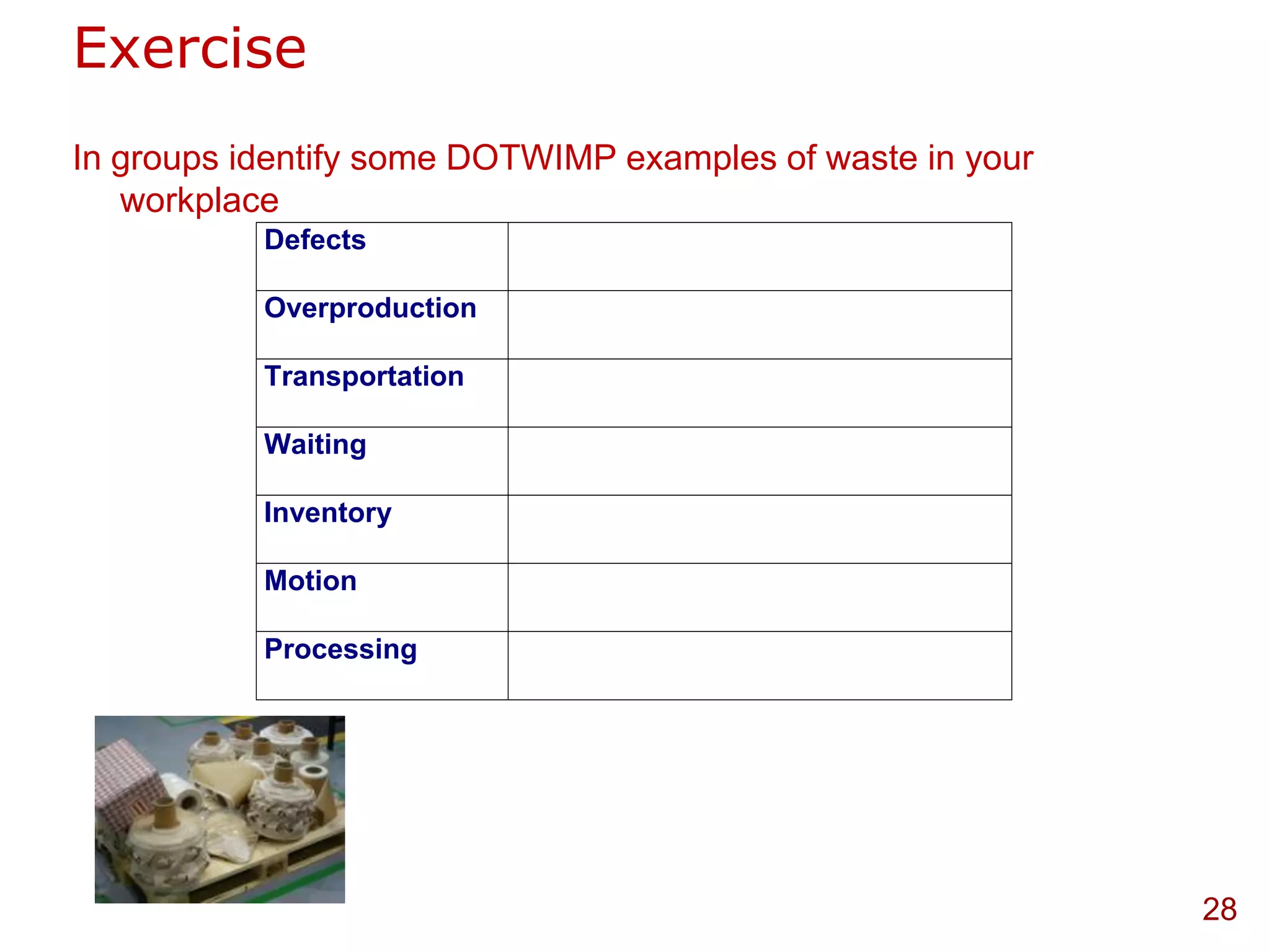

Exercise In groups identify some DOTWIMP examples of waste in your workplace Defects Overproduction Transportation Waiting Inventory Motion Processing 28

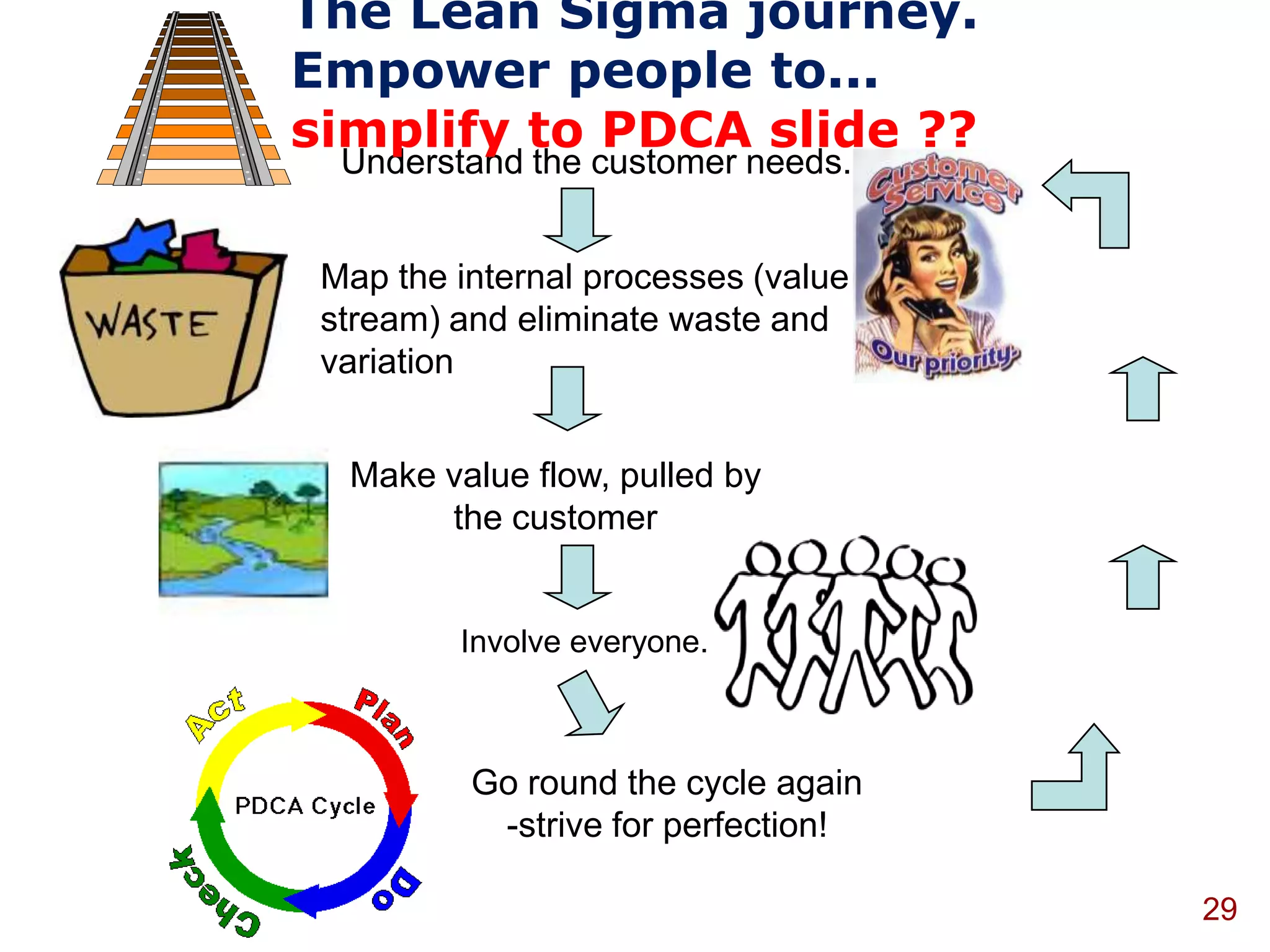

The Lean Sigma journey. Empower people to... simplify to PDCA slide ?? Understand the customer needs. Map the internal processes (value stream) and eliminate waste and variation Make value flow, pulled by the customer Involve everyone. Go round the cycle again -strive for perfection! 29

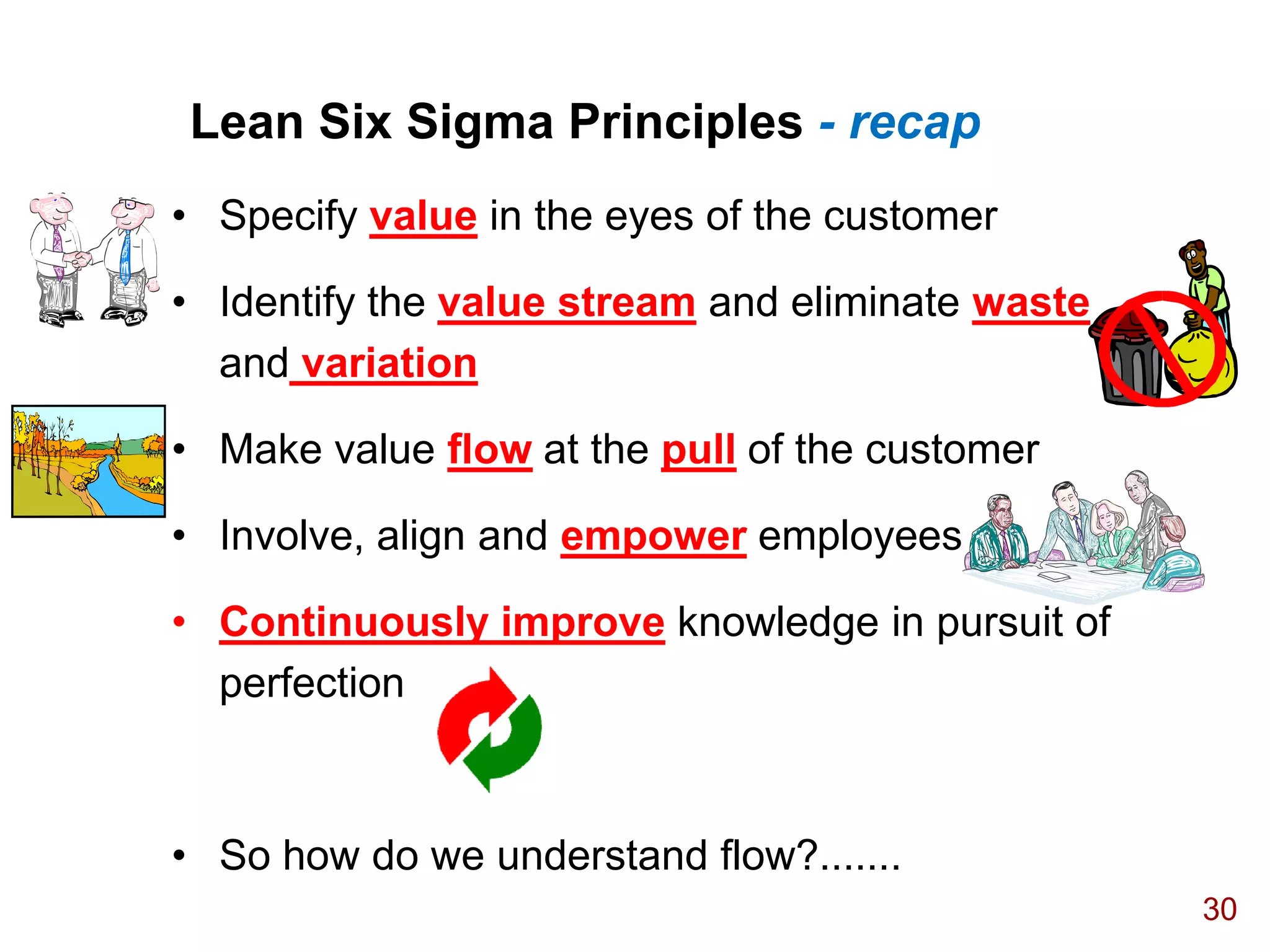

Lean Six Sigma Principles - recap • Specify value in the eyes of the customer • Identify the value stream and eliminate waste and variation • Make value flow at the pull of the customer • Involve, align and empower employees • Continuously improve knowledge in pursuit of perfection • So how do we understand flow?....... 30

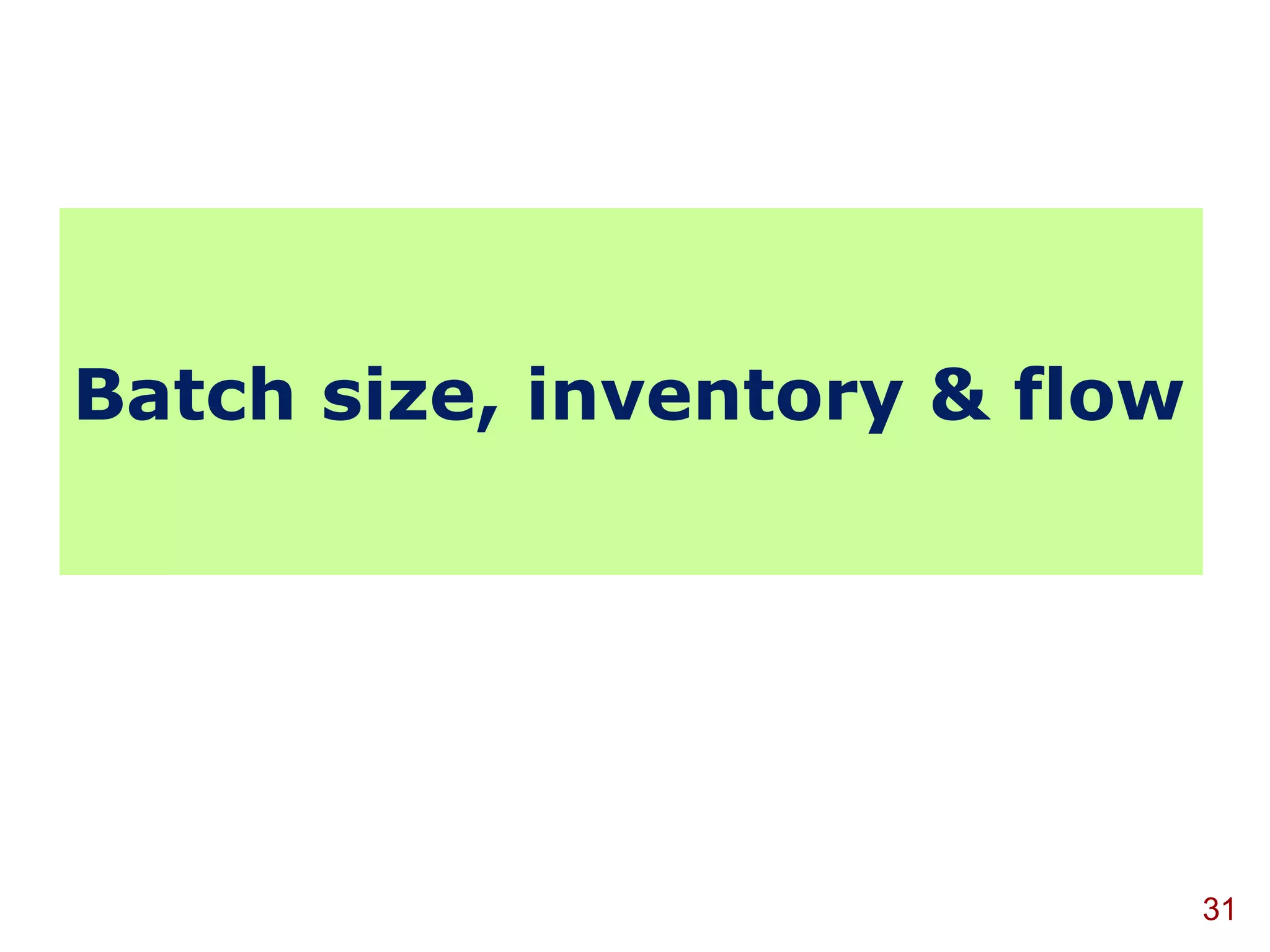

Batch size, inventory & flow 31

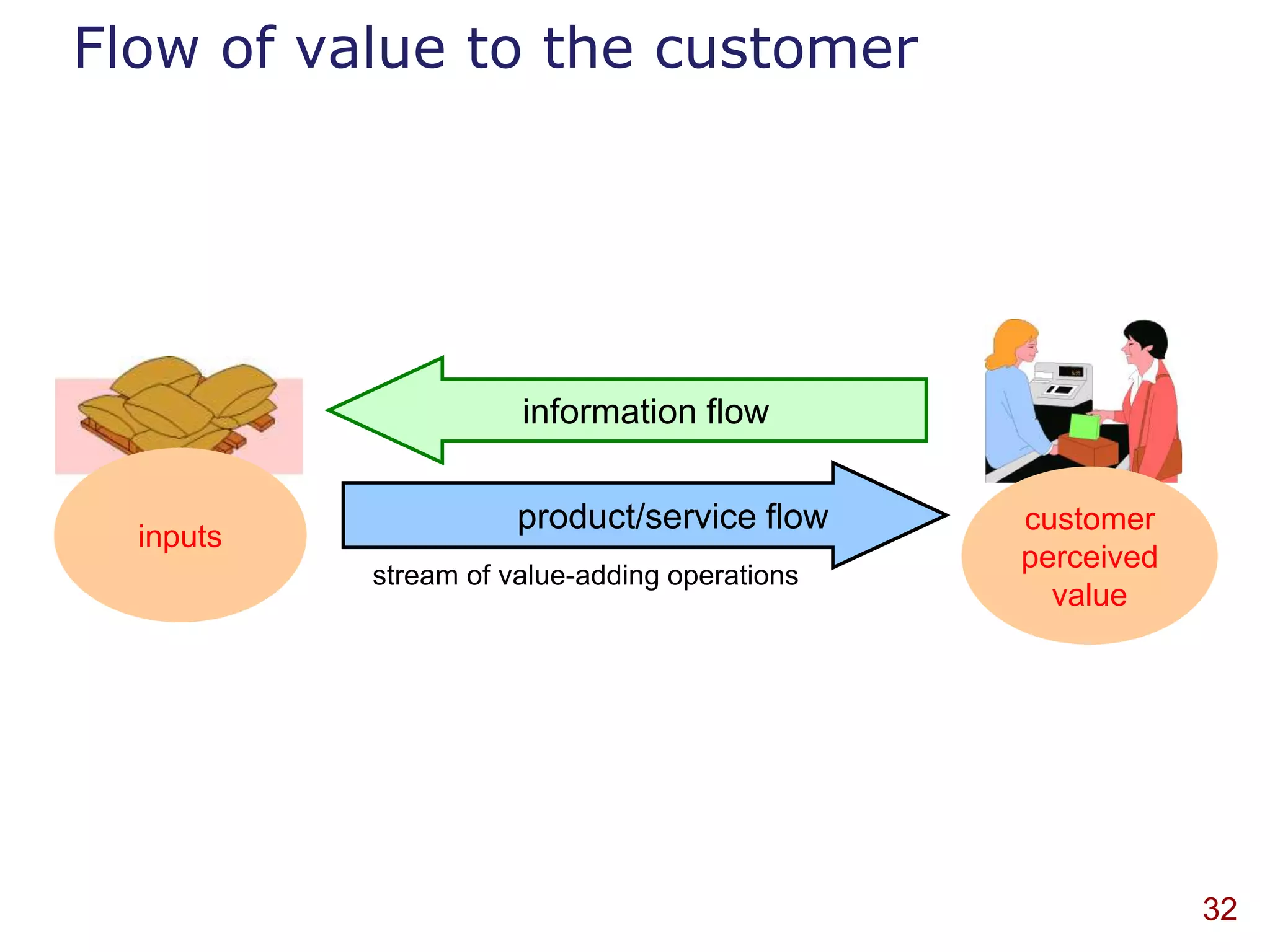

Flow of value to the customer information flow product/service flow customer inputs perceived stream of value-adding operations value 32

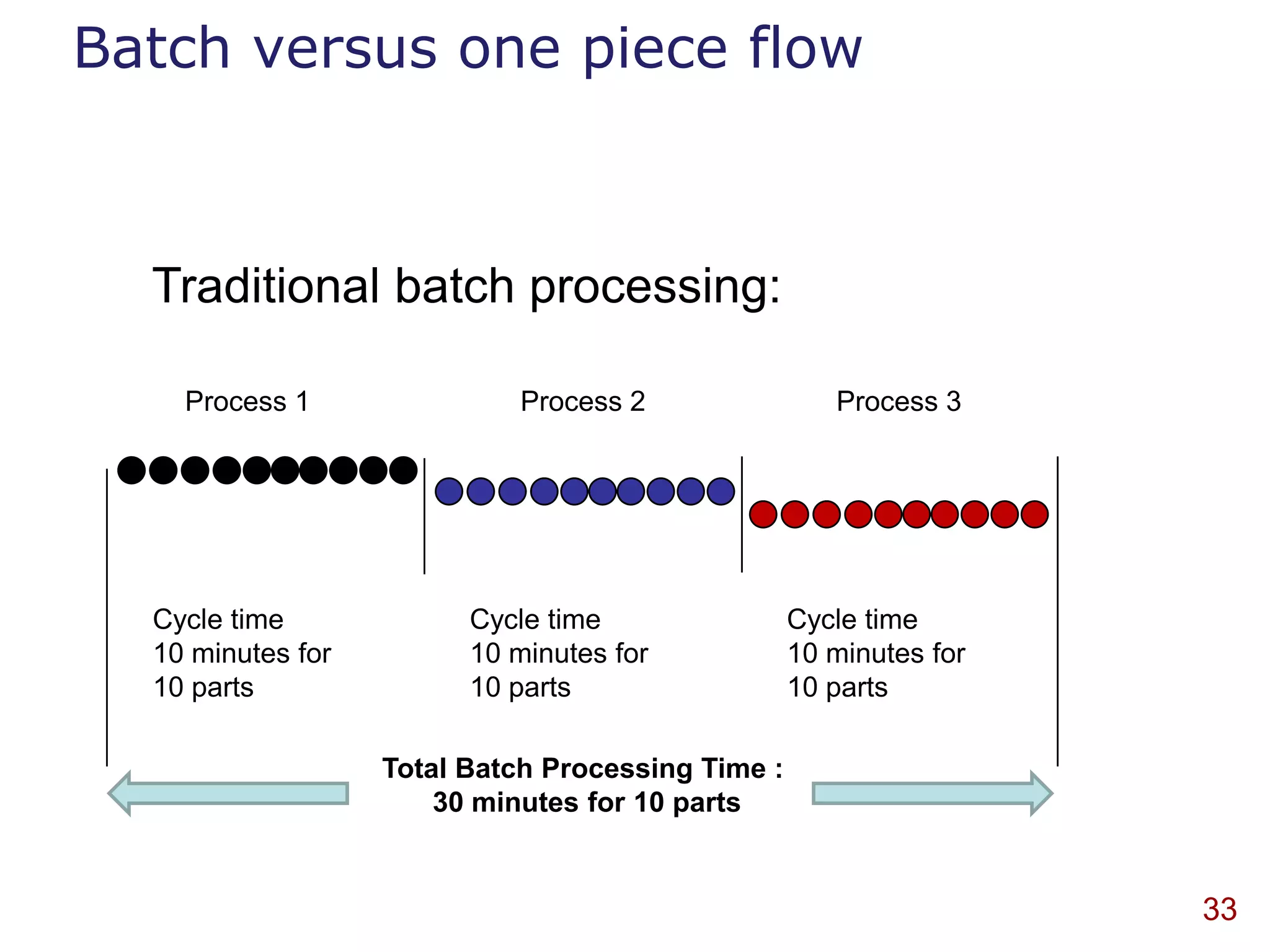

Batch versus one piece flow Traditional batch processing: Process 1 Process 2 Process 3 Cycle time Cycle time Cycle time 10 minutes for 10 minutes for 10 minutes for 10 parts 10 parts 10 parts Total Batch Processing Time : 30 minutes for 10 parts 33

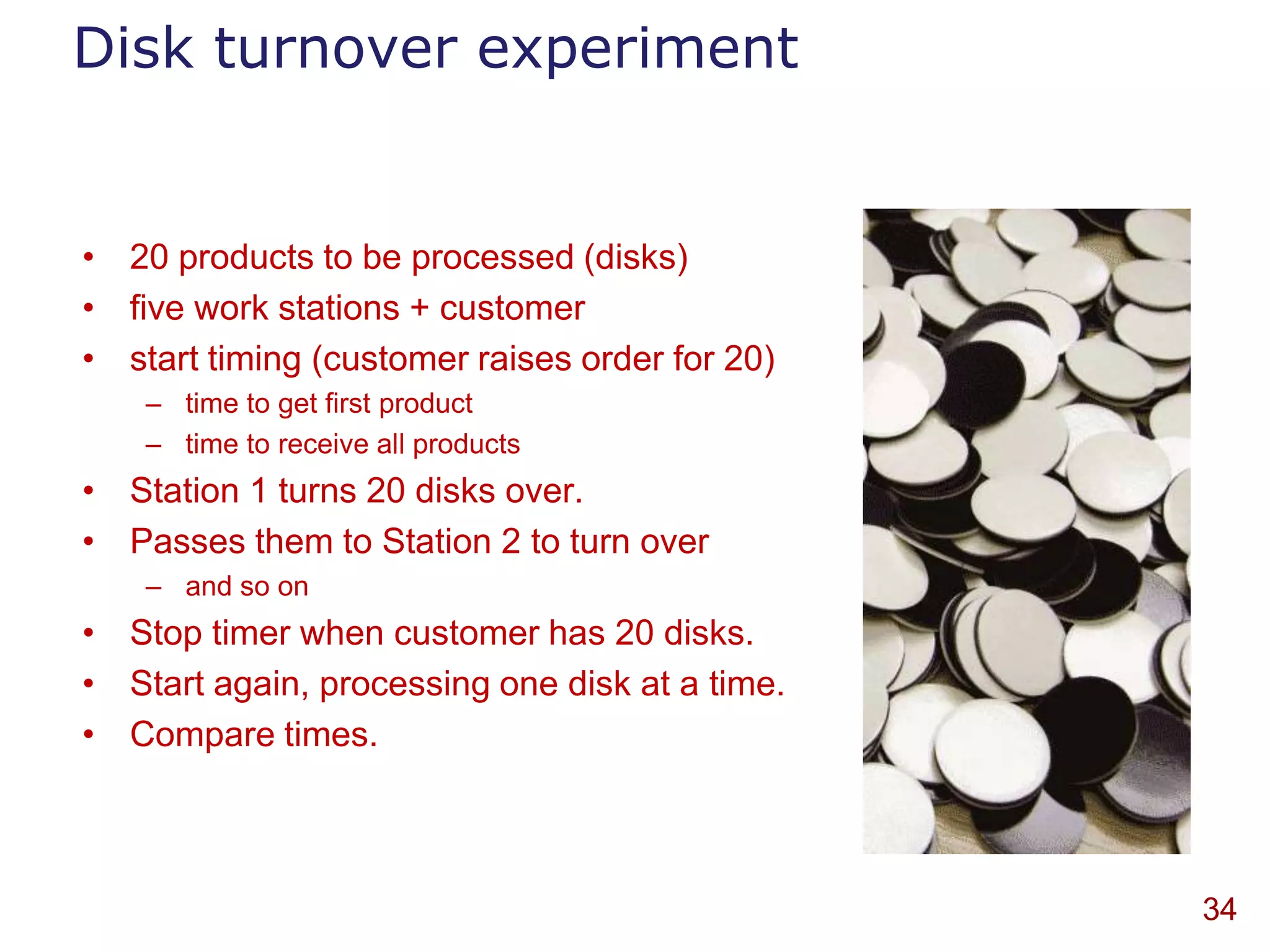

Disk turnover experiment • 20 products to be processed (disks) • five work stations + customer • start timing (customer raises order for 20) – time to get first product – time to receive all products • Station 1 turns 20 disks over. • Passes them to Station 2 to turn over – and so on • Stop timer when customer has 20 disks. • Start again, processing one disk at a time. • Compare times. 34

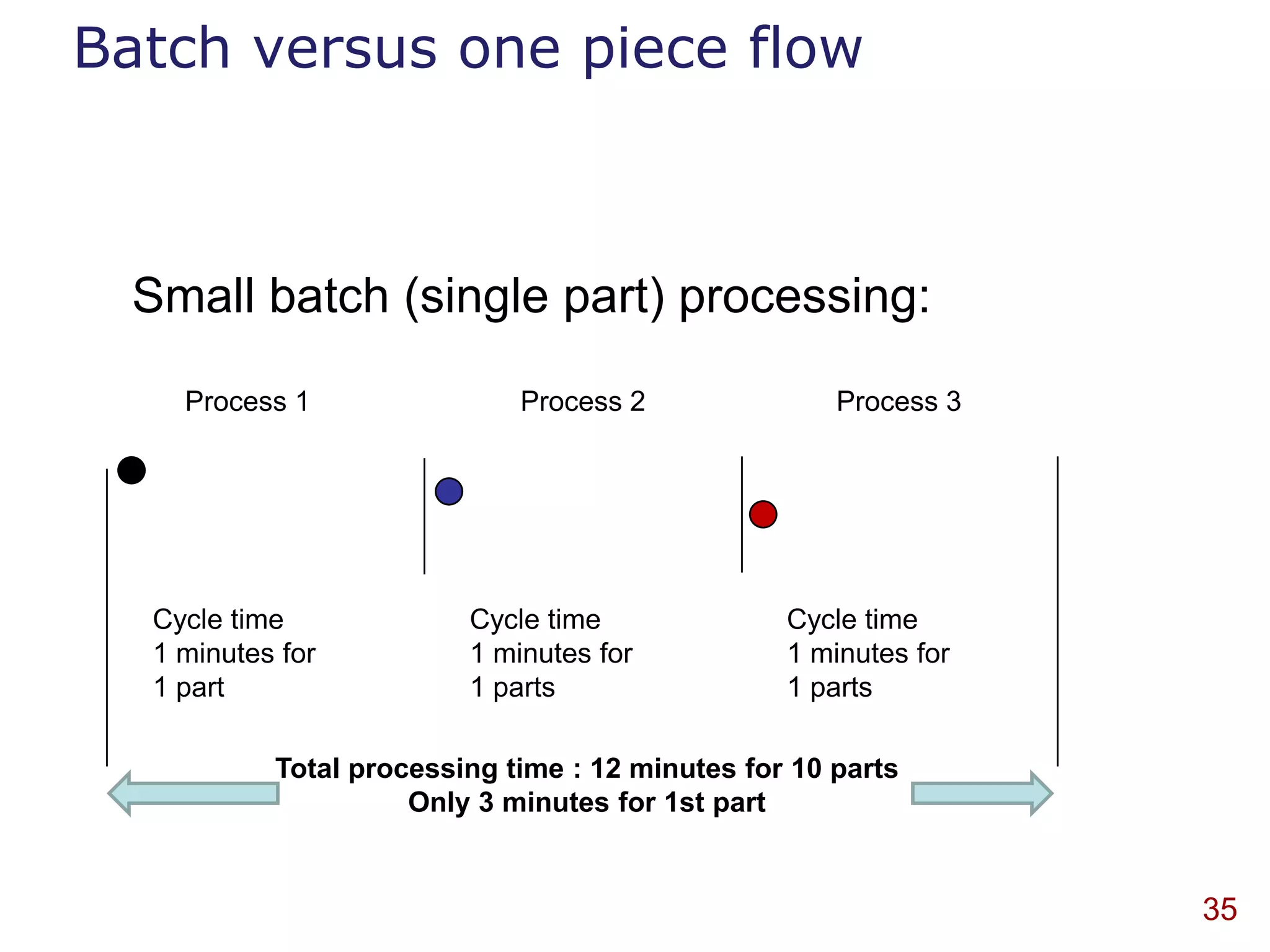

Batch versus one piece flow Small batch (single part) processing: Process 1 Process 2 Process 3 Cycle time Cycle time Cycle time 1 minutes for 1 minutes for 1 minutes for 1 part 1 parts 1 parts Total processing time : 12 minutes for 10 parts Only 3 minutes for 1st part 35

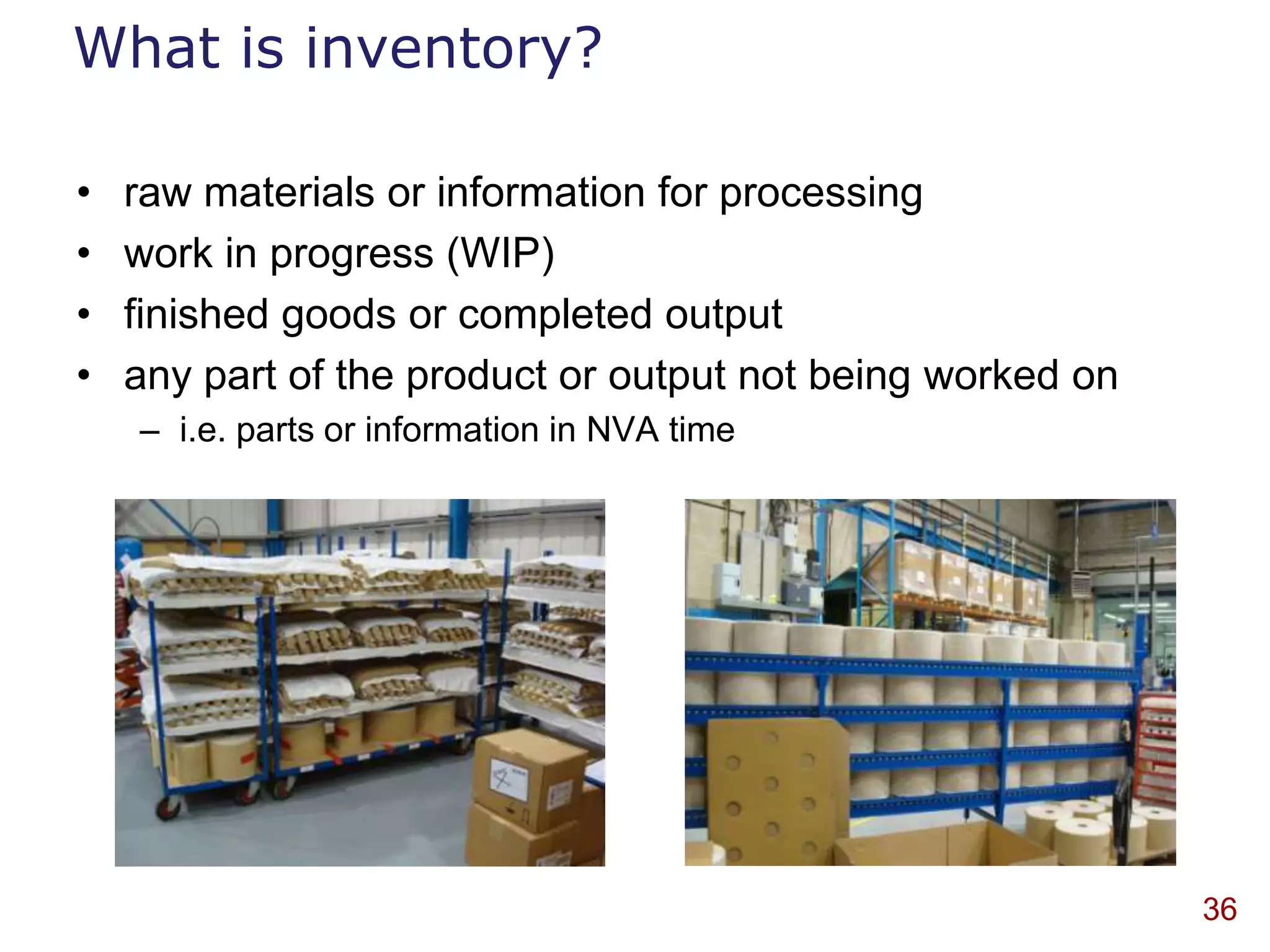

What is inventory? • raw materials or information for processing • work in progress (WIP) • finished goods or completed output • any part of the product or output not being worked on – i.e. parts or information in NVA time 36

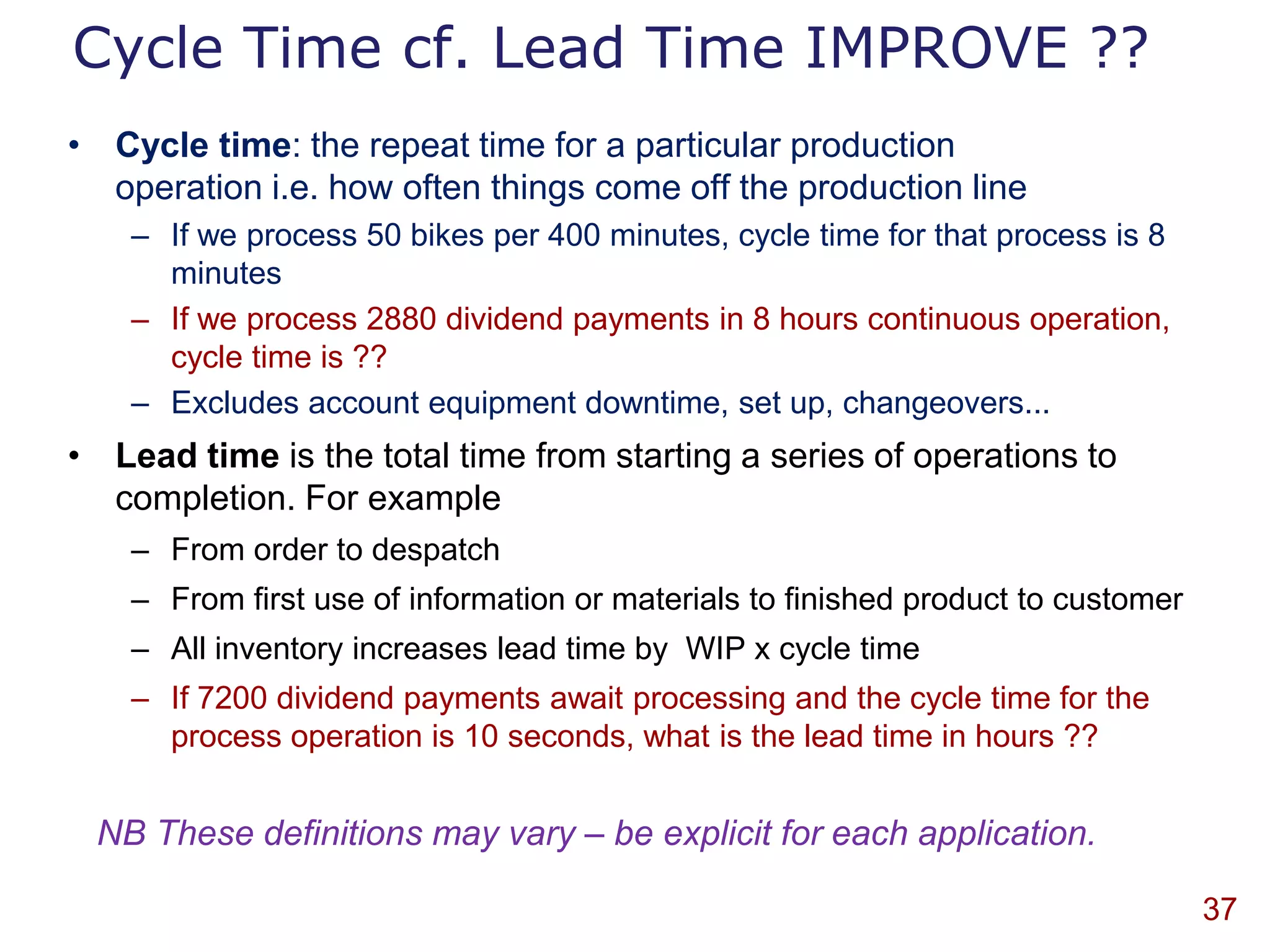

Cycle Time cf. Lead Time IMPROVE ?? • Cycle time: the repeat time for a particular production operation i.e. how often things come off the production line – If we process 50 bikes per 400 minutes, cycle time for that process is 8 minutes – If we process 2880 dividend payments in 8 hours continuous operation, cycle time is ?? – Excludes account equipment downtime, set up, changeovers... • Lead time is the total time from starting a series of operations to completion. For example – From order to despatch – From first use of information or materials to finished product to customer – All inventory increases lead time by WIP x cycle time – If 7200 dividend payments await processing and the cycle time for the process operation is 10 seconds, what is the lead time in hours ?? NB These definitions may vary – be explicit for each application. 37

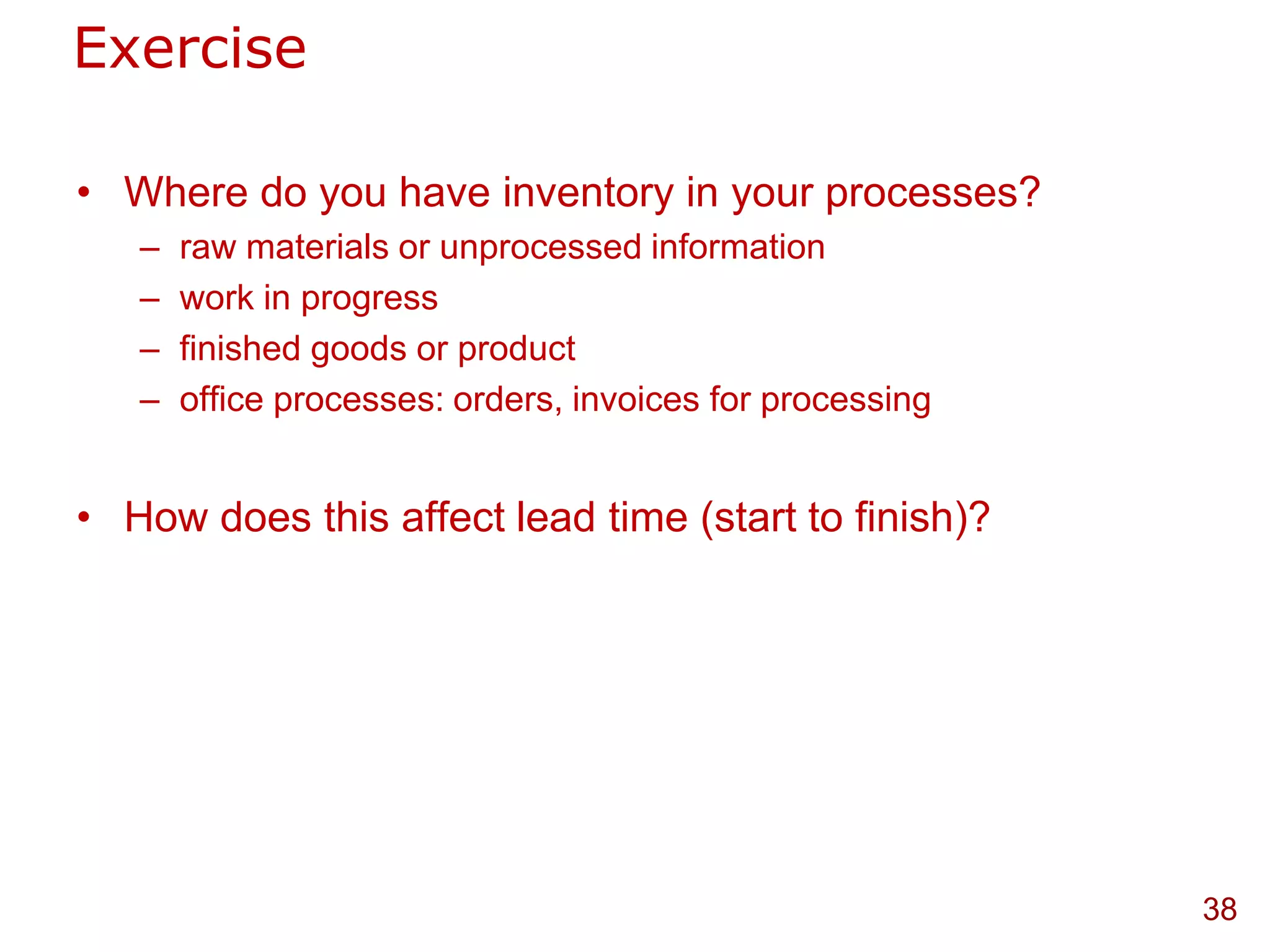

Exercise • Where do you have inventory in your processes? – raw materials or unprocessed information – work in progress – finished goods or product – office processes: orders, invoices for processing • How does this affect lead time (start to finish)? 38
Push vs Pull • Push - produce as much as possible, builds inventory • “Build for stock” • “Ensure people are busy” • “Keep the machines running” • not at all lean! Process 1 Process 2 Process 3 Inventory Inventory 39

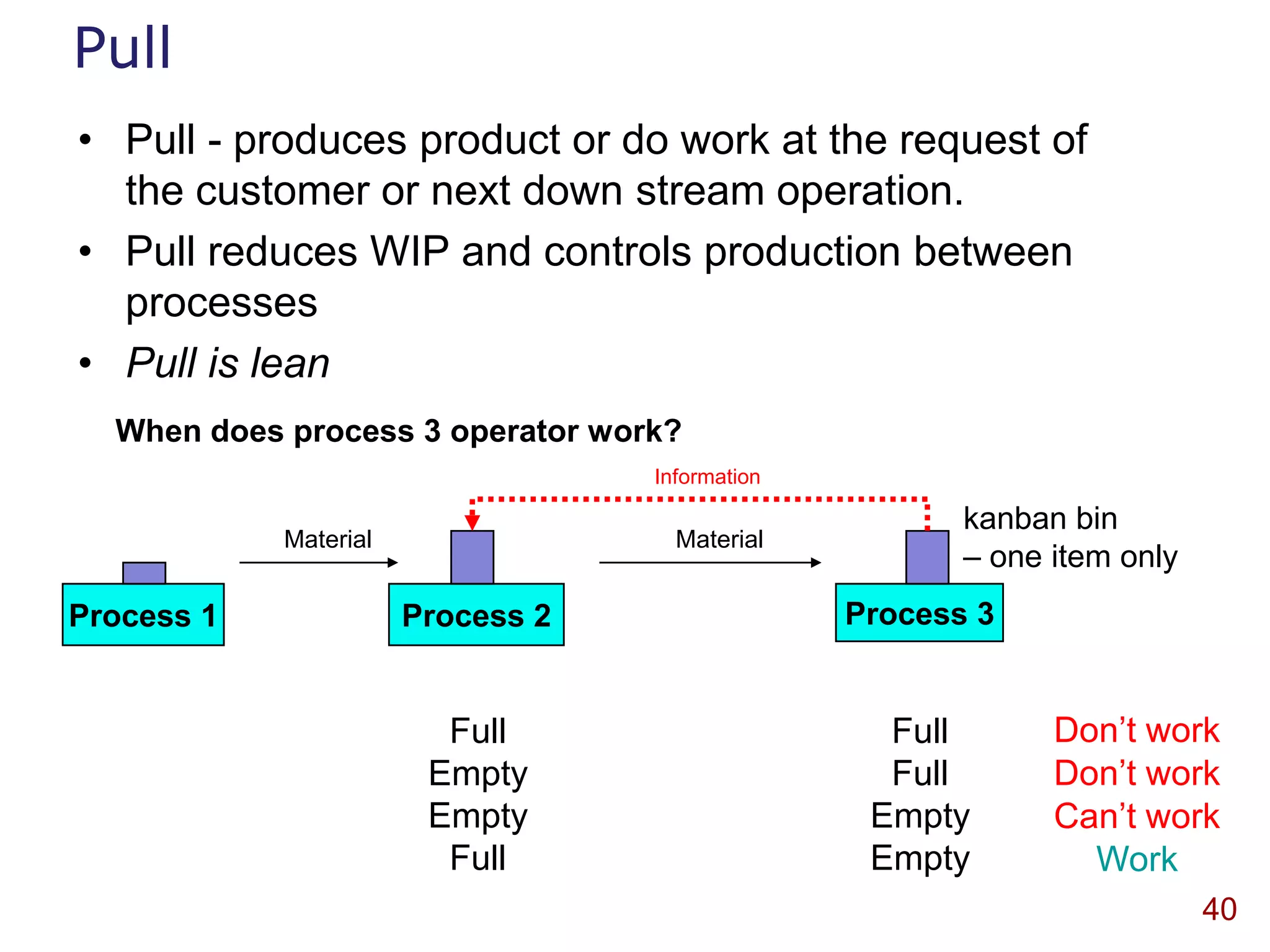

Pull • Pull - produces product or do work at the request of the customer or next down stream operation. • Pull reduces WIP and controls production between processes • Pull is lean When does process 3 operator work? Information kanban bin Material Material – one item only Process 1 Process 2 Process 3 Full Full Don‟t work Empty Full Don‟t work Empty Empty Can‟t work Full Empty Work 40

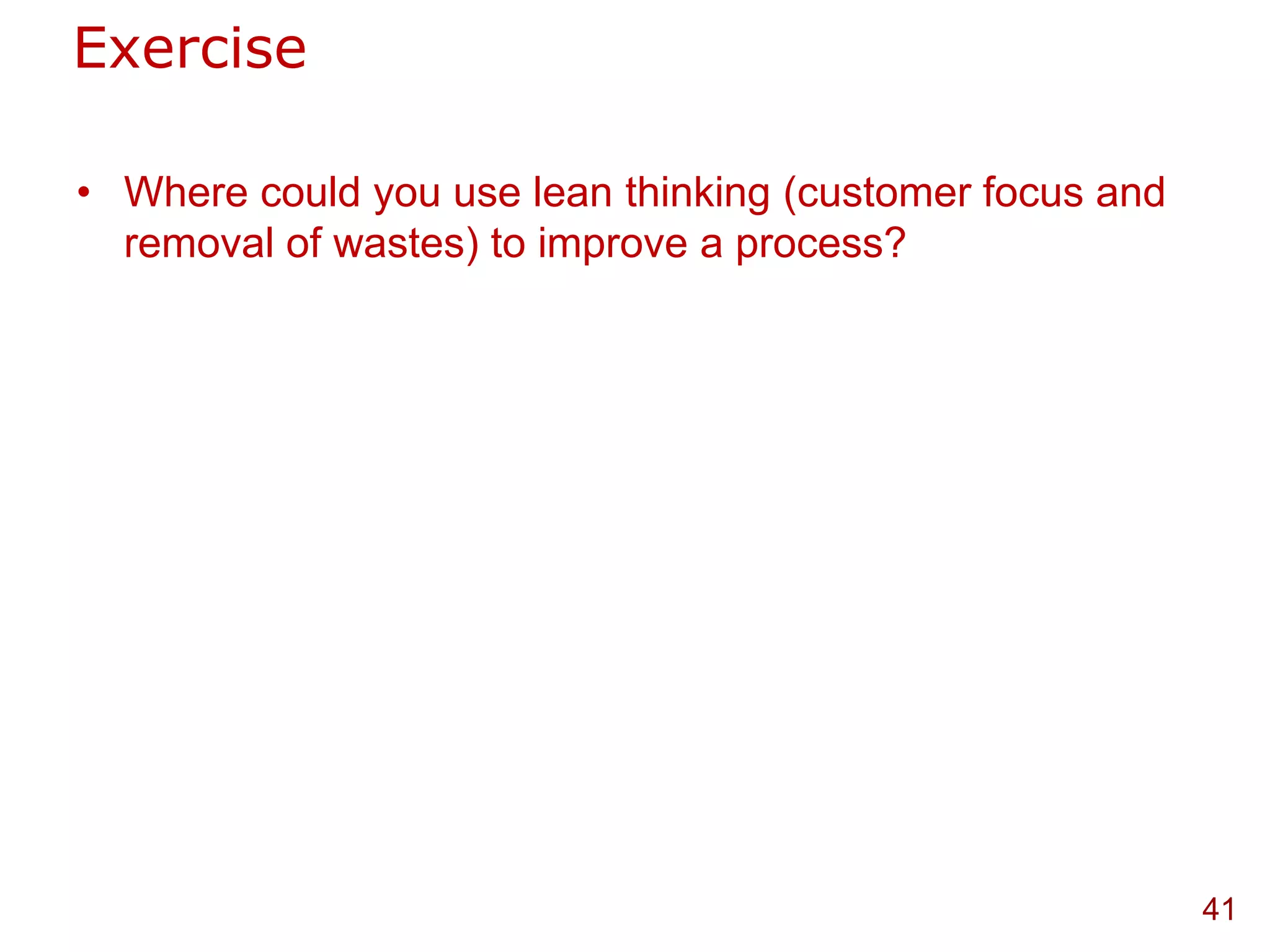

Exercise • Where could you use lean thinking (customer focus and removal of wastes) to improve a process? 41

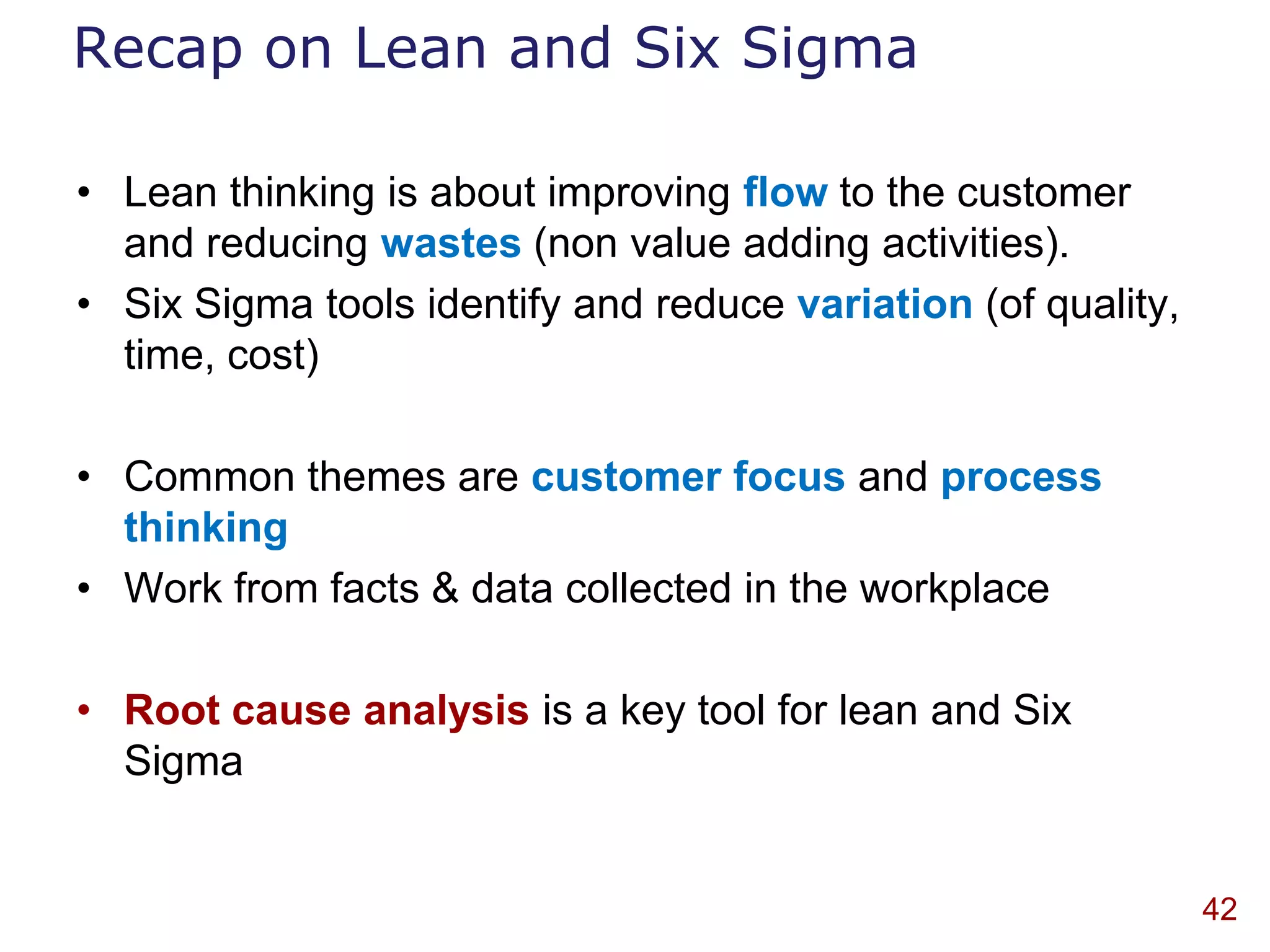

Recap on Lean and Six Sigma • Lean thinking is about improving flow to the customer and reducing wastes (non value adding activities). • Six Sigma tools identify and reduce variation (of quality, time, cost) • Common themes are customer focus and process thinking • Work from facts & data collected in the workplace • Root cause analysis is a key tool for lean and Six Sigma 42

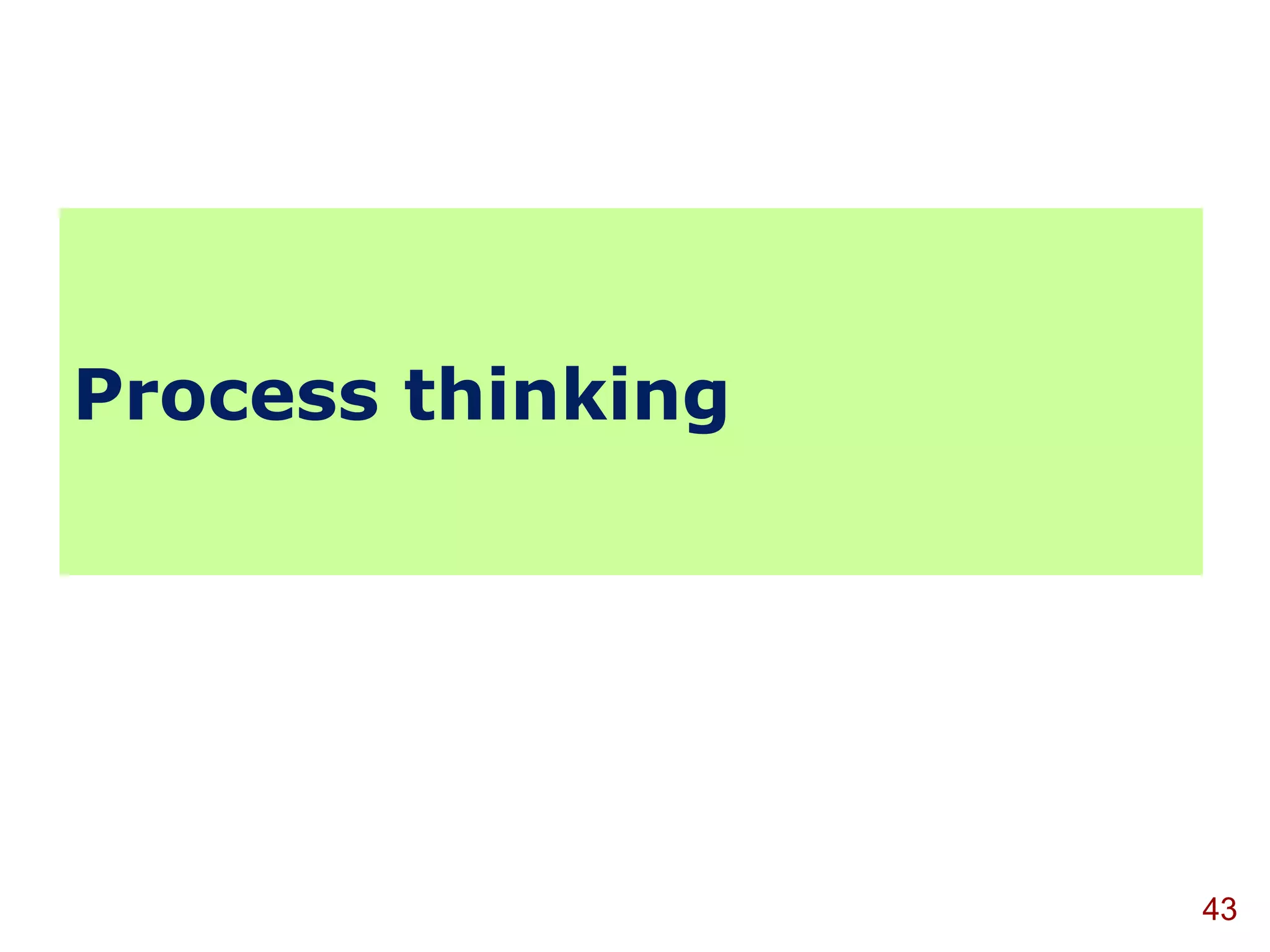

Process thinking 43

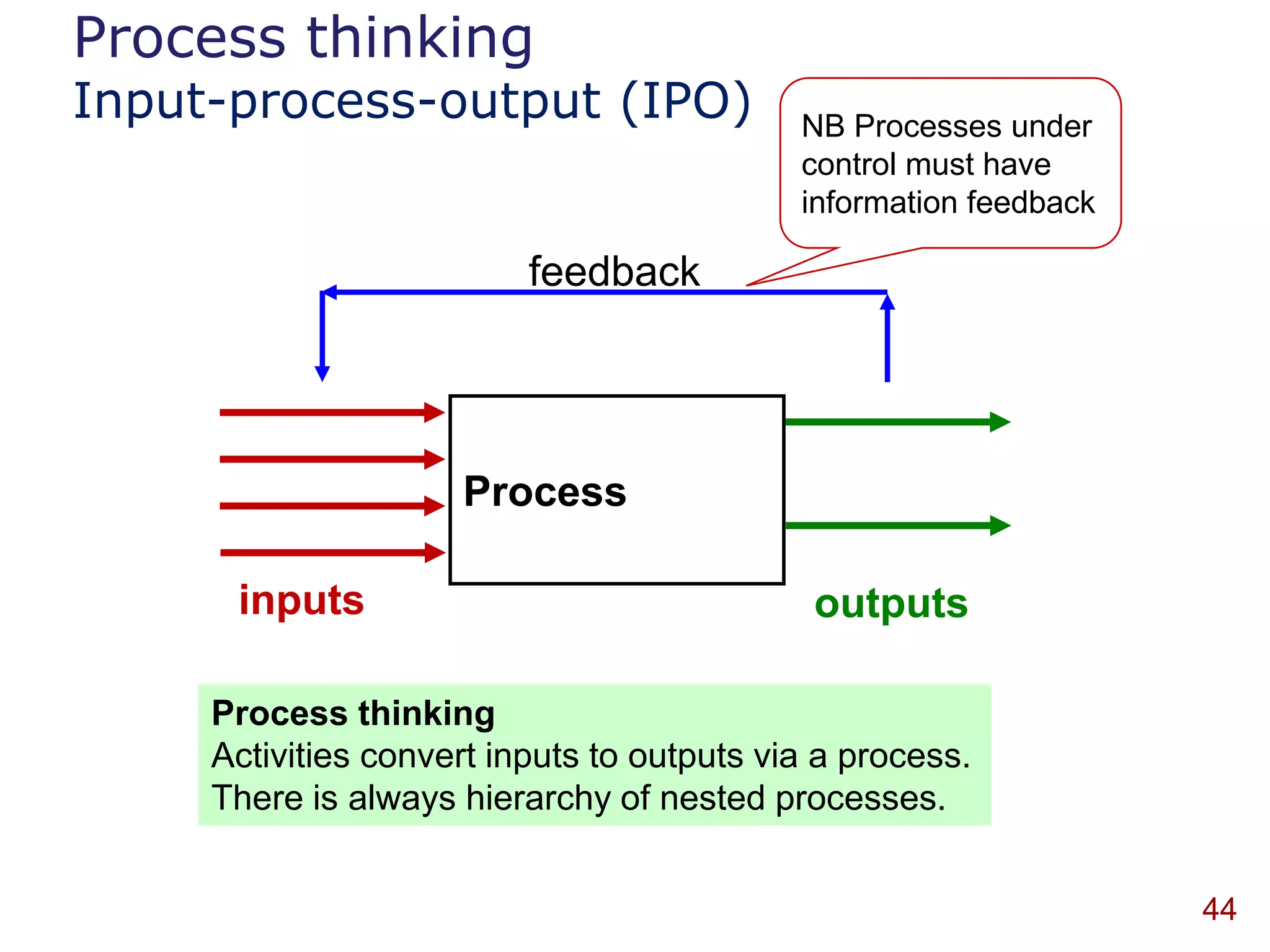

Process thinking Input-process-output (IPO) NB Processes under control must have information feedback feedback Process inputs outputs Process thinking Activities convert inputs to outputs via a process. There is always hierarchy of nested processes. 44
Manufacturing Raw Materials & Compo- Manufac- nents turing Packaging Distribution Customer These can be IPOs or SIPOCs linked 45

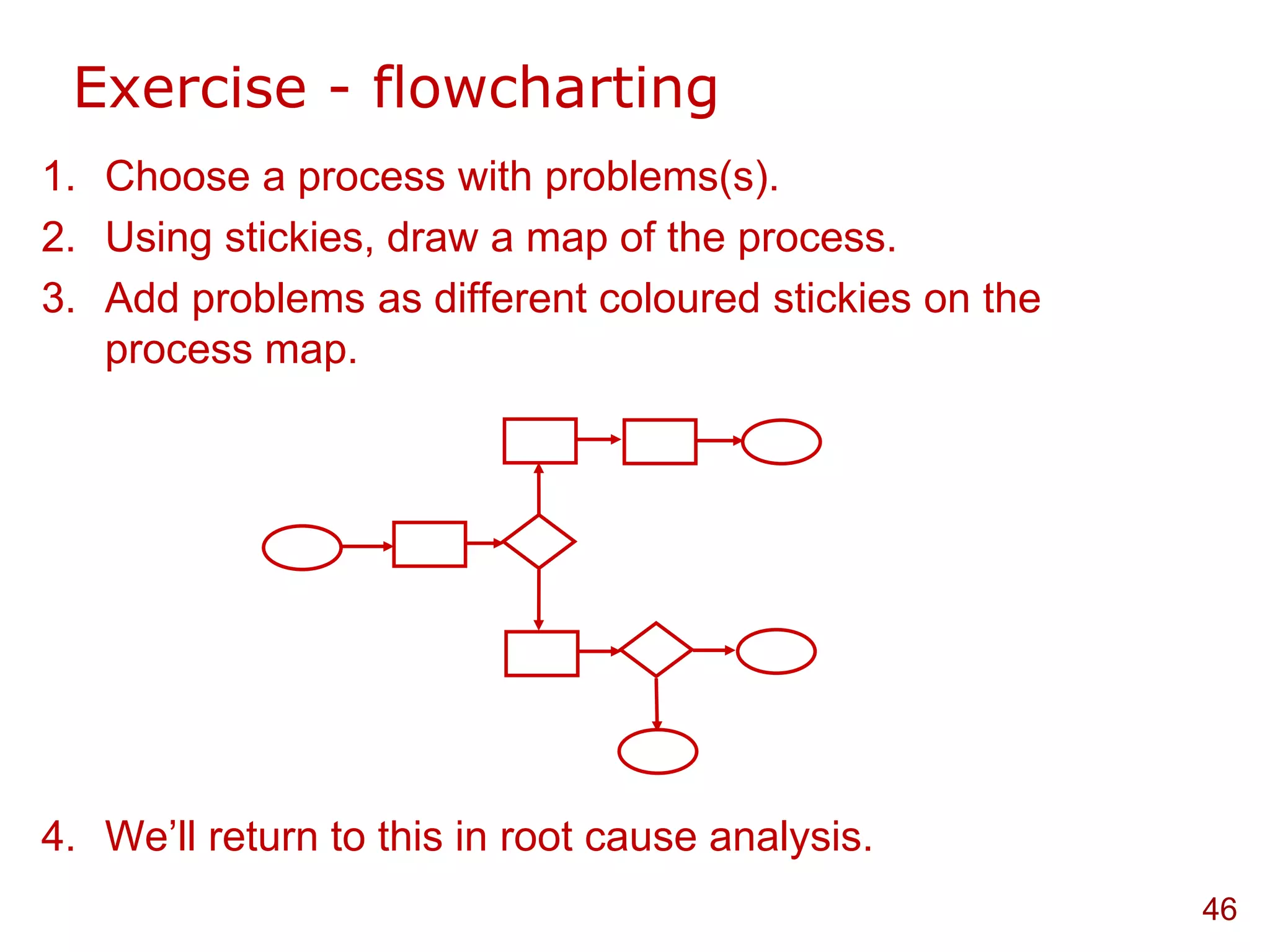

Exercise - flowcharting 1. Choose a process with problems(s). 2. Using stickies, draw a map of the process. 3. Add problems as different coloured stickies on the process map. 4. We‟ll return to this in root cause analysis. 46
The Value Stream 47

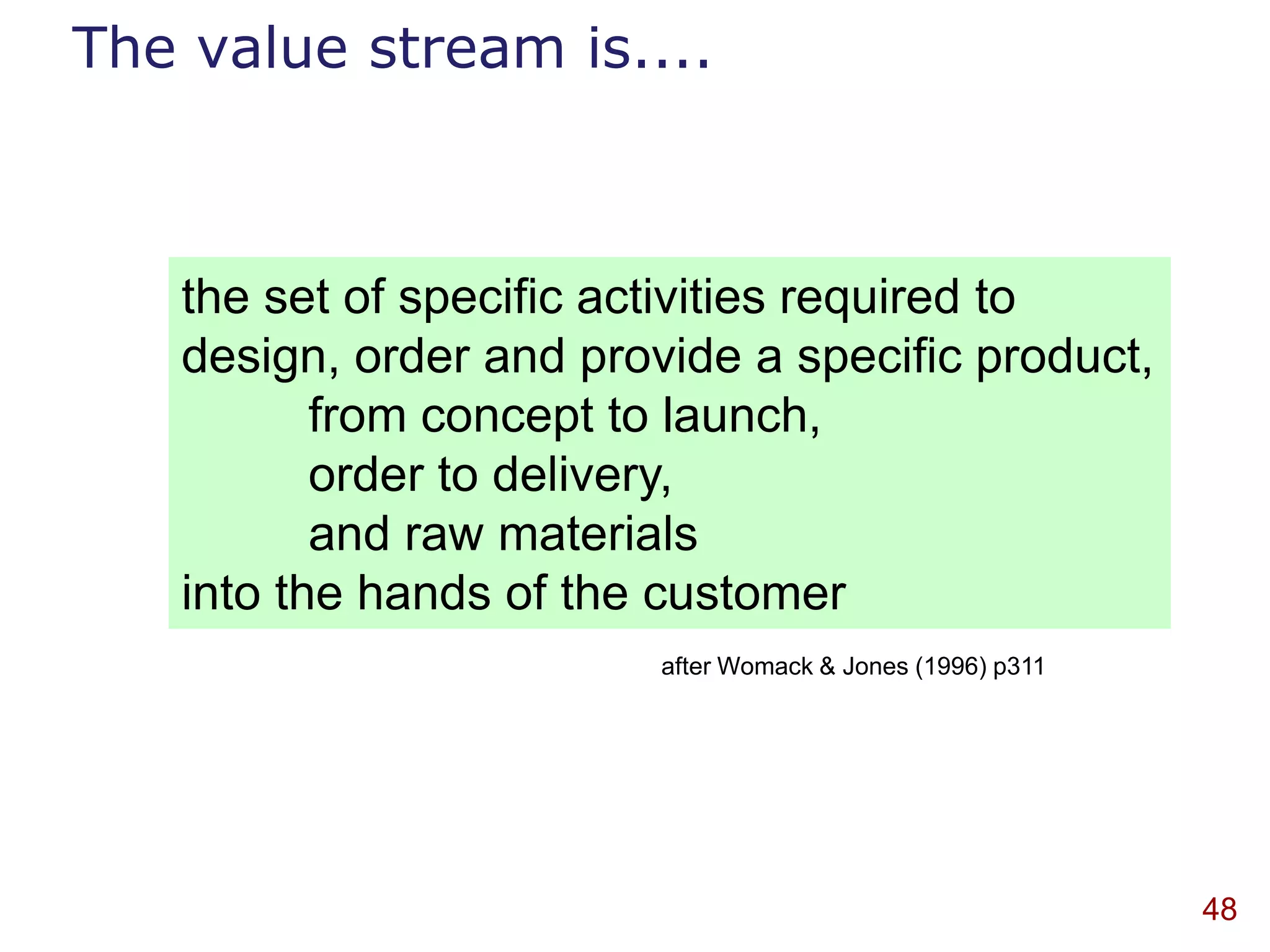

The value stream is.... the set of specific activities required to design, order and provide a specific product, from concept to launch, order to delivery, and raw materials into the hands of the customer after Womack & Jones (1996) p311 48

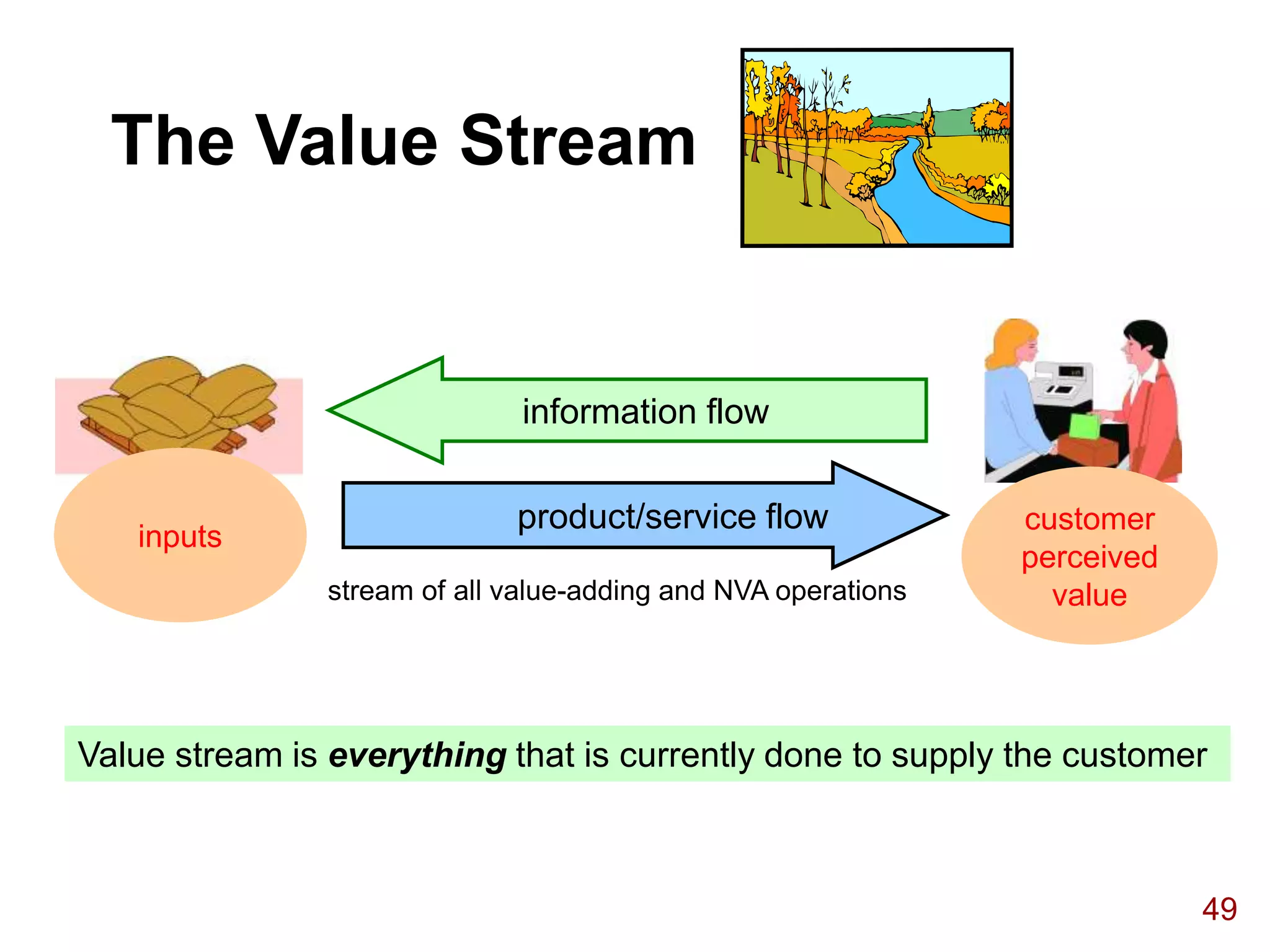

The Value Stream information flow product/service flow customer inputs perceived stream of all value-adding and NVA operations value Value stream is everything that is currently done to supply the customer 49

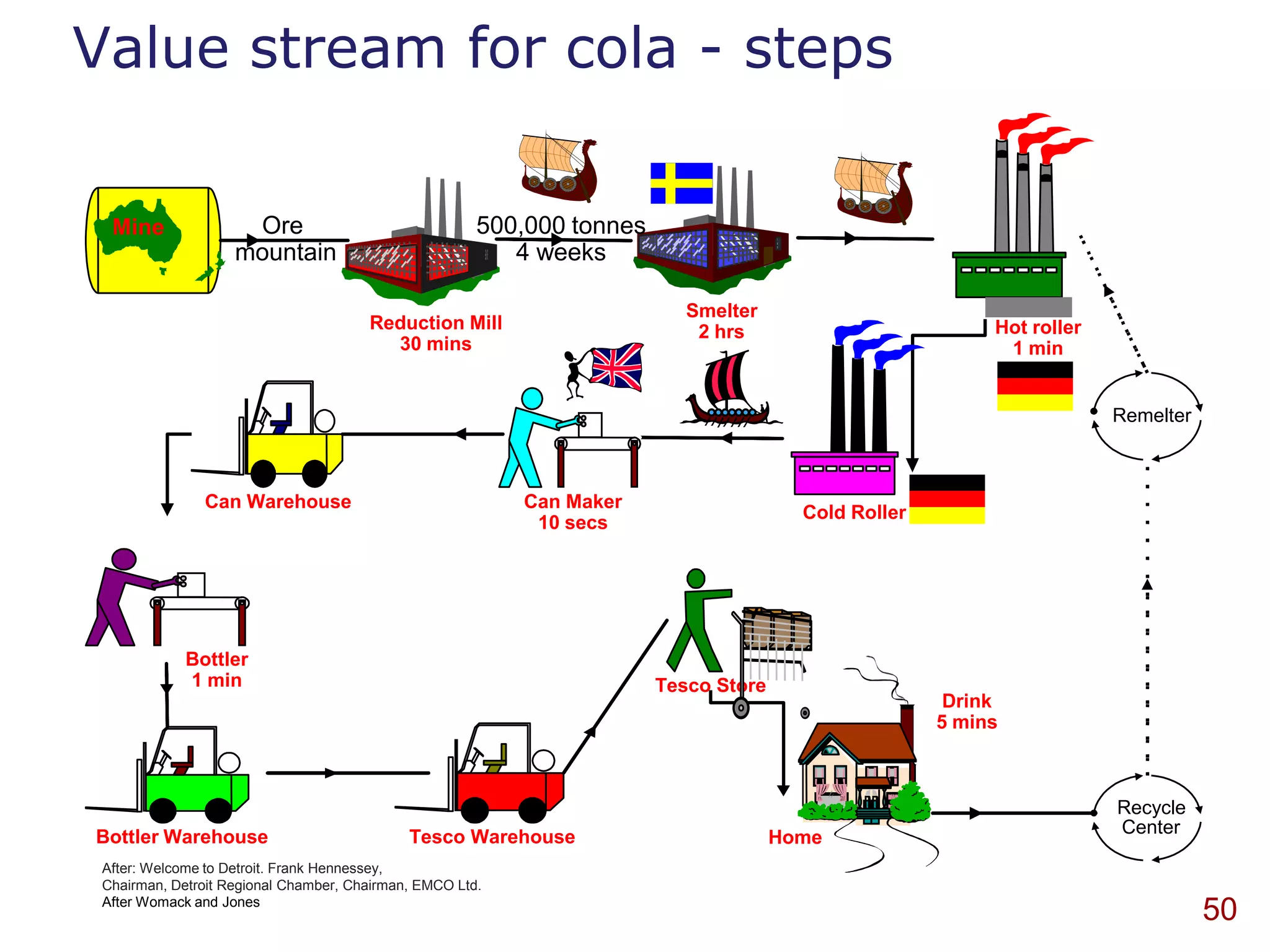

Value stream for cola - steps Mine Ore 500,000 tonnes mountain 4 weeks Smelter Hot Roller Reduction Mill 2 hrs Hot roller 30 mins 1 min Remelter Can Warehouse Can Maker Cold Roller 10 secs Bottler 1 min Tesco Store Drink 5 mins Recycle Bottler Warehouse Tesco Warehouse Center Home After: Welcome to Detroit. Frank Hennessey, Chairman, Detroit Regional Chamber, Chairman, EMCO Ltd. After Womack and Jones 50

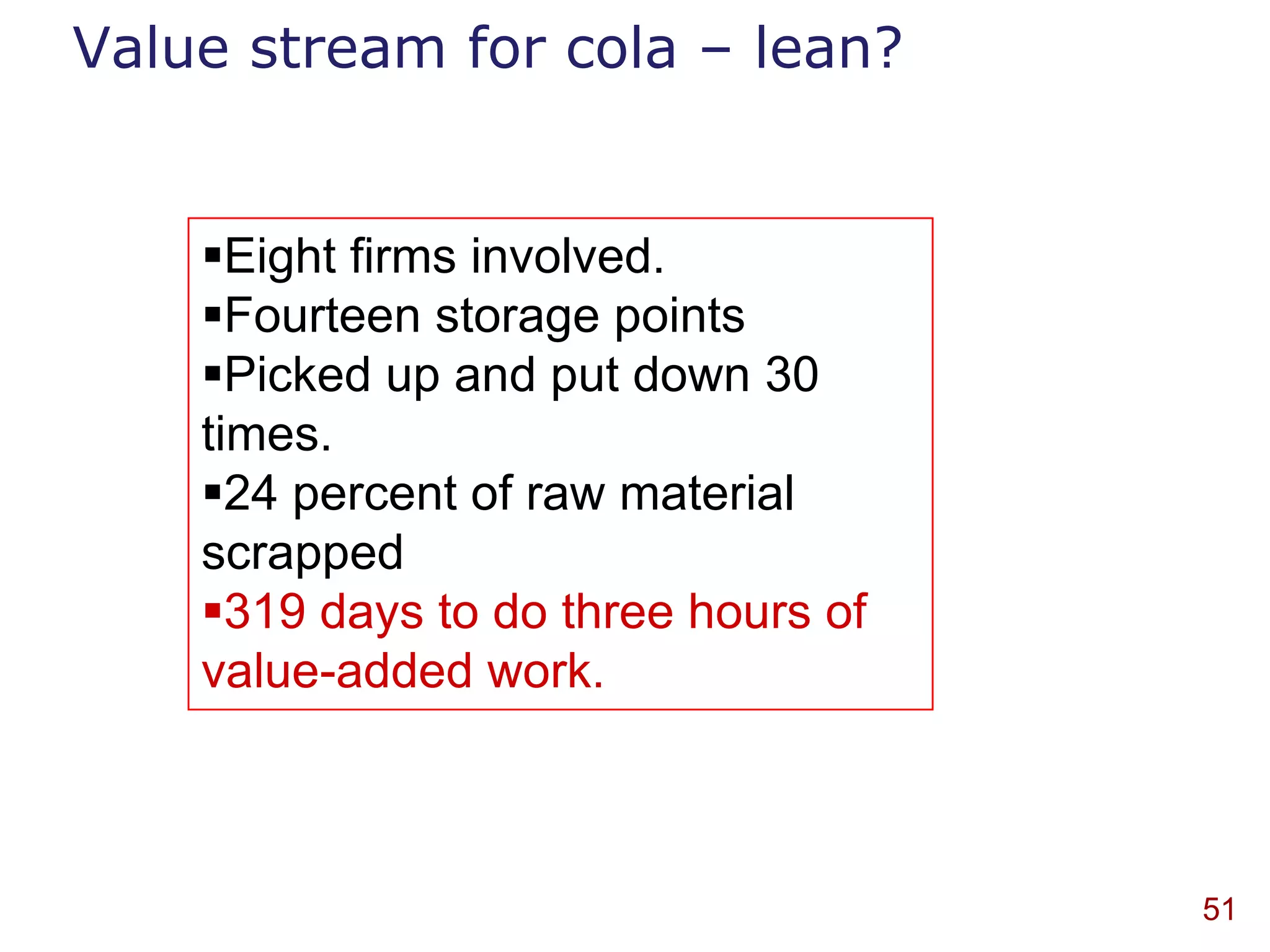

Value stream for cola – lean? Eight firms involved. Fourteen storage points Picked up and put down 30 times. 24 percent of raw material scrapped 319 days to do three hours of value-added work. 51

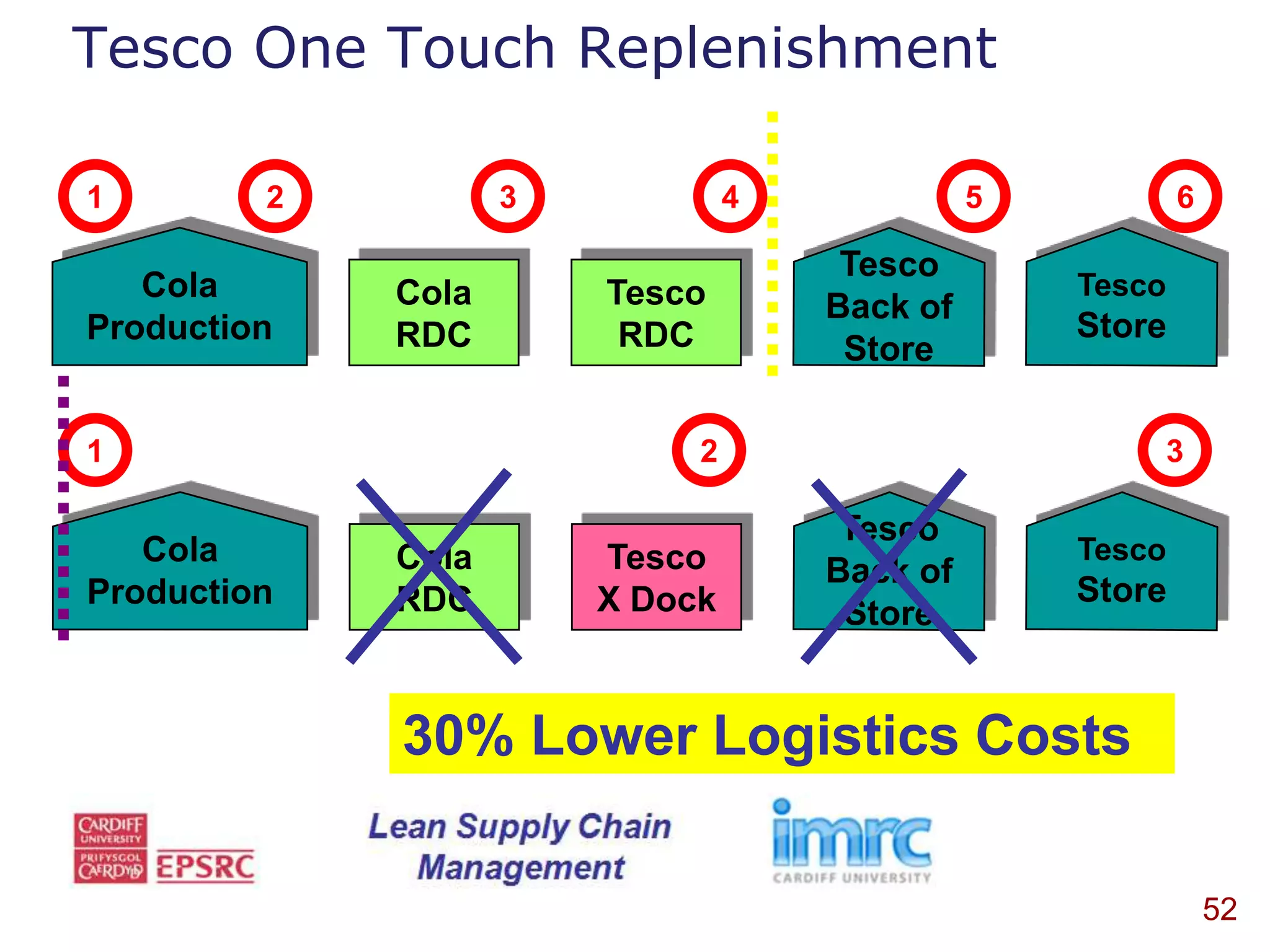

Tesco One Touch Replenishment 1 2 3 4 5 6 Cola Tesco RDC RDC 1 2 3 Cola Tesco RDC X Dock 30% Lower Logistics Costs 52

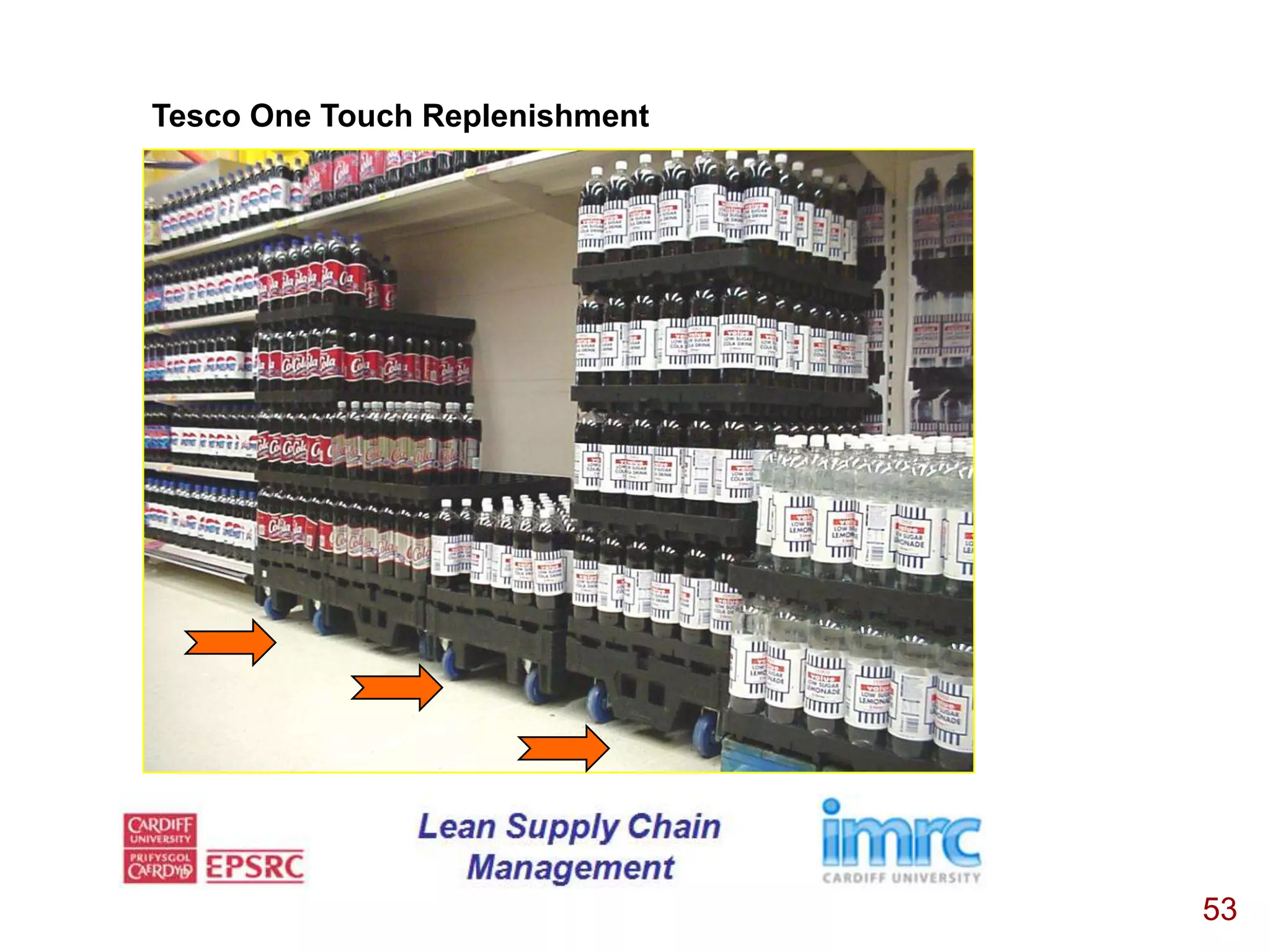

Tesco One Touch Replenishment 53
VALUE STREAMS AT TOYOTA Value Stream Organization Body Interior Chassis Elect. Proto. Eng. John Shook • David Verble May 1, 2001 54

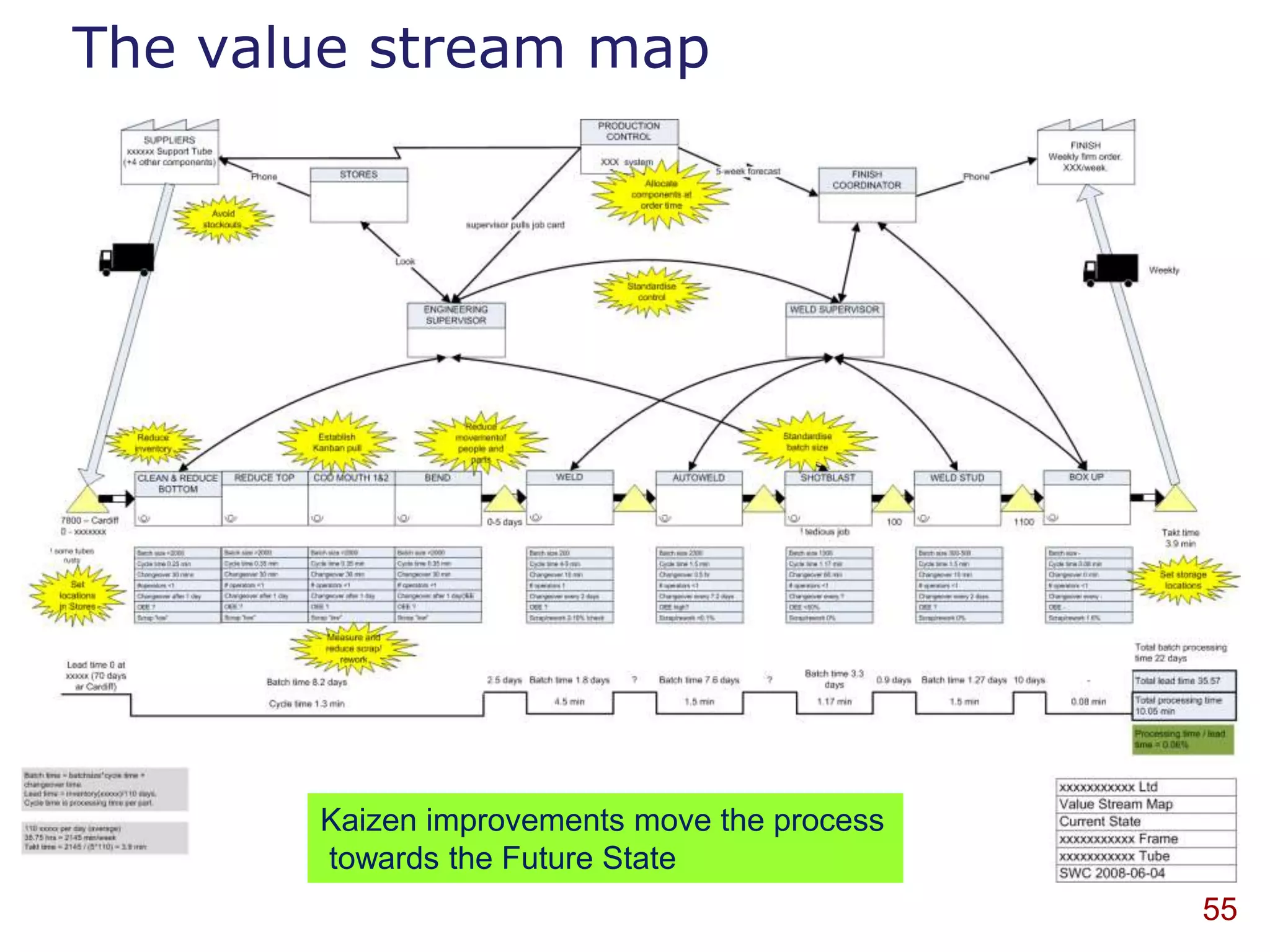

The value stream map Kaizen improvements move the process towards the Future State 55

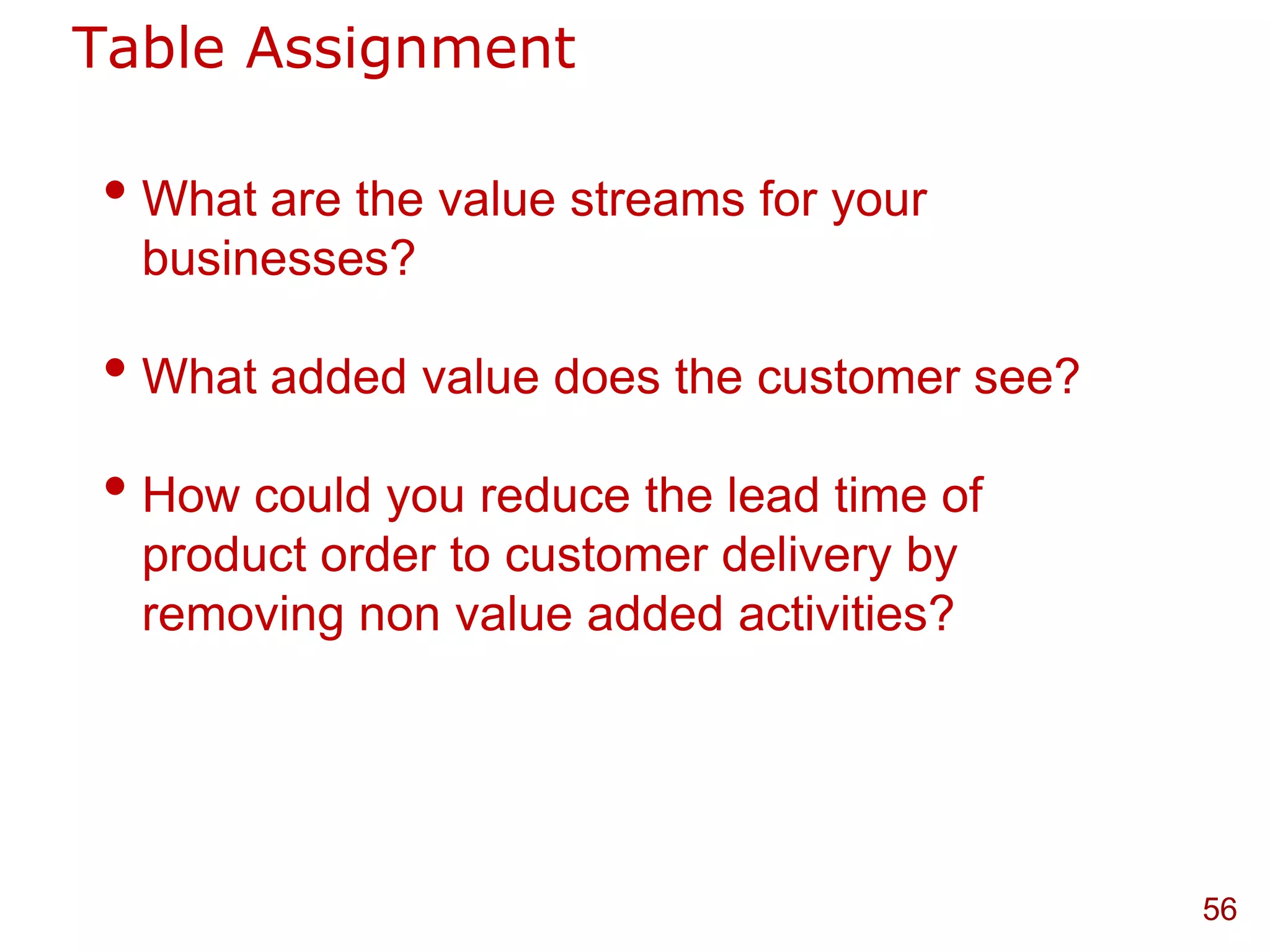

Table Assignment • What are the value streams for your businesses? • What added value does the customer see? • How could you reduce the lead time of product order to customer delivery by removing non value added activities? 56

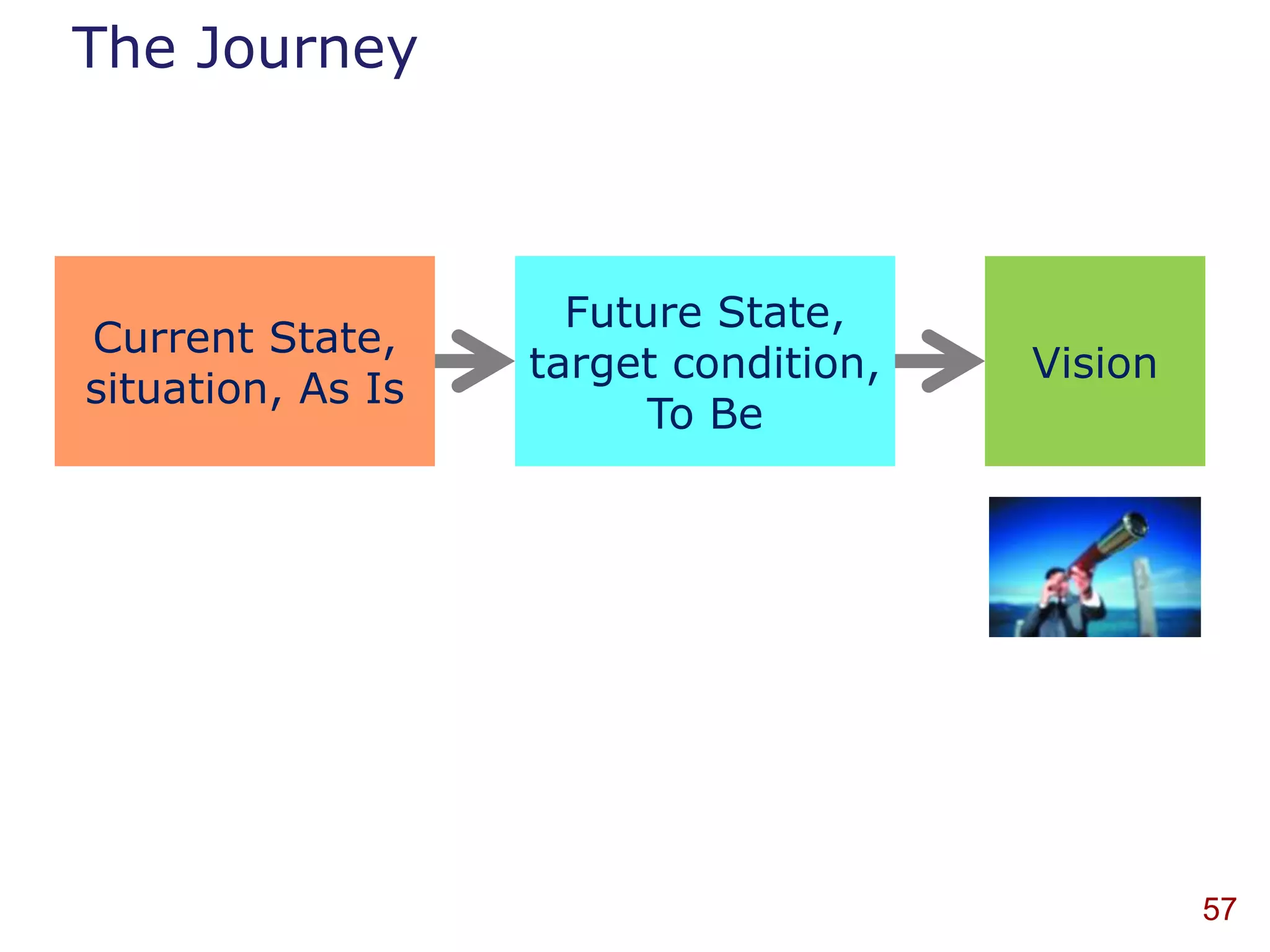

The Journey Future State, Current State, target condition, Vision situation, As Is To Be 57

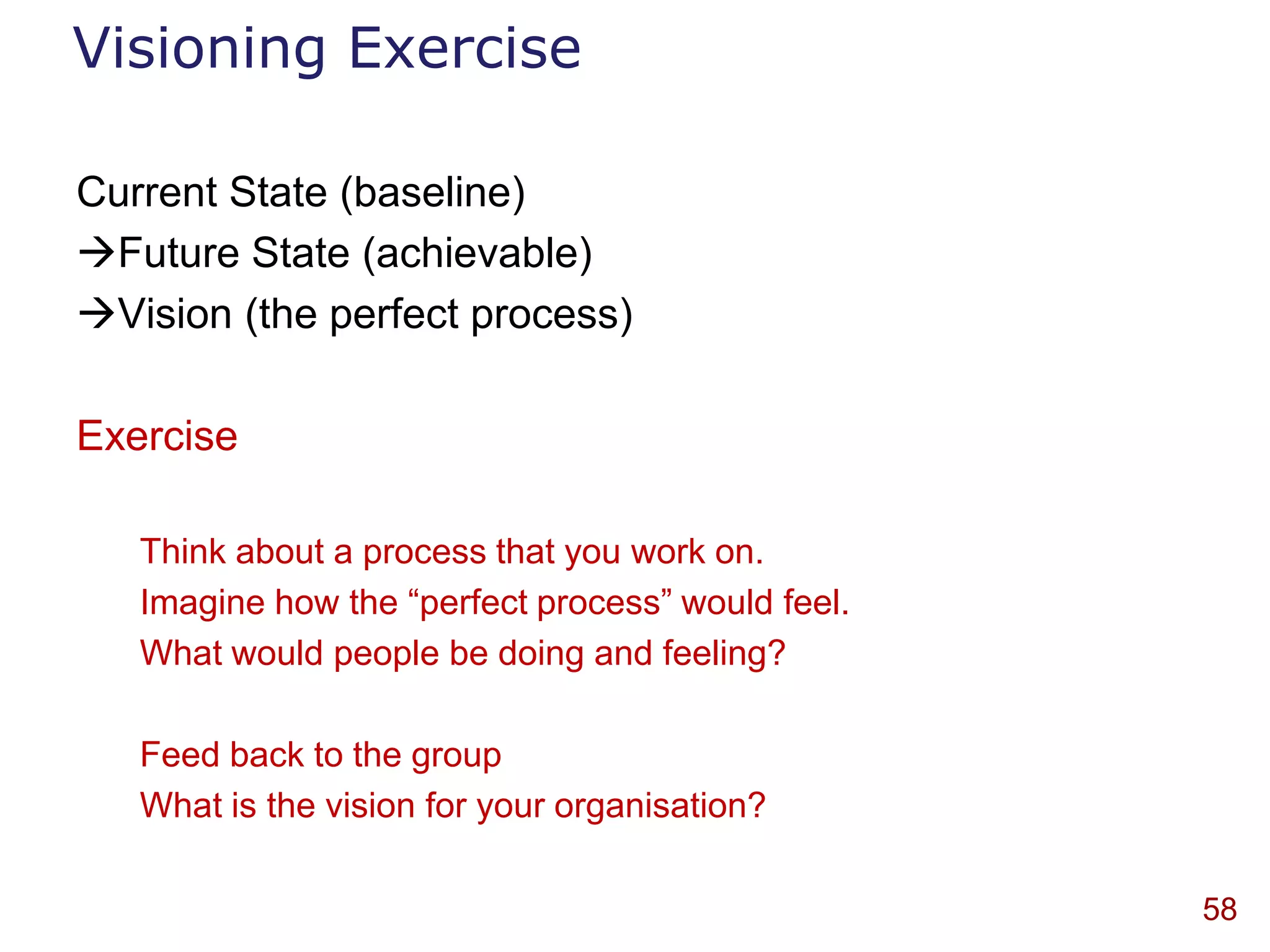

Visioning Exercise Current State (baseline) Future State (achievable) Vision (the perfect process) Exercise Think about a process that you work on. Imagine how the “perfect process” would feel. What would people be doing and feeling? Feed back to the group What is the vision for your organisation? 58

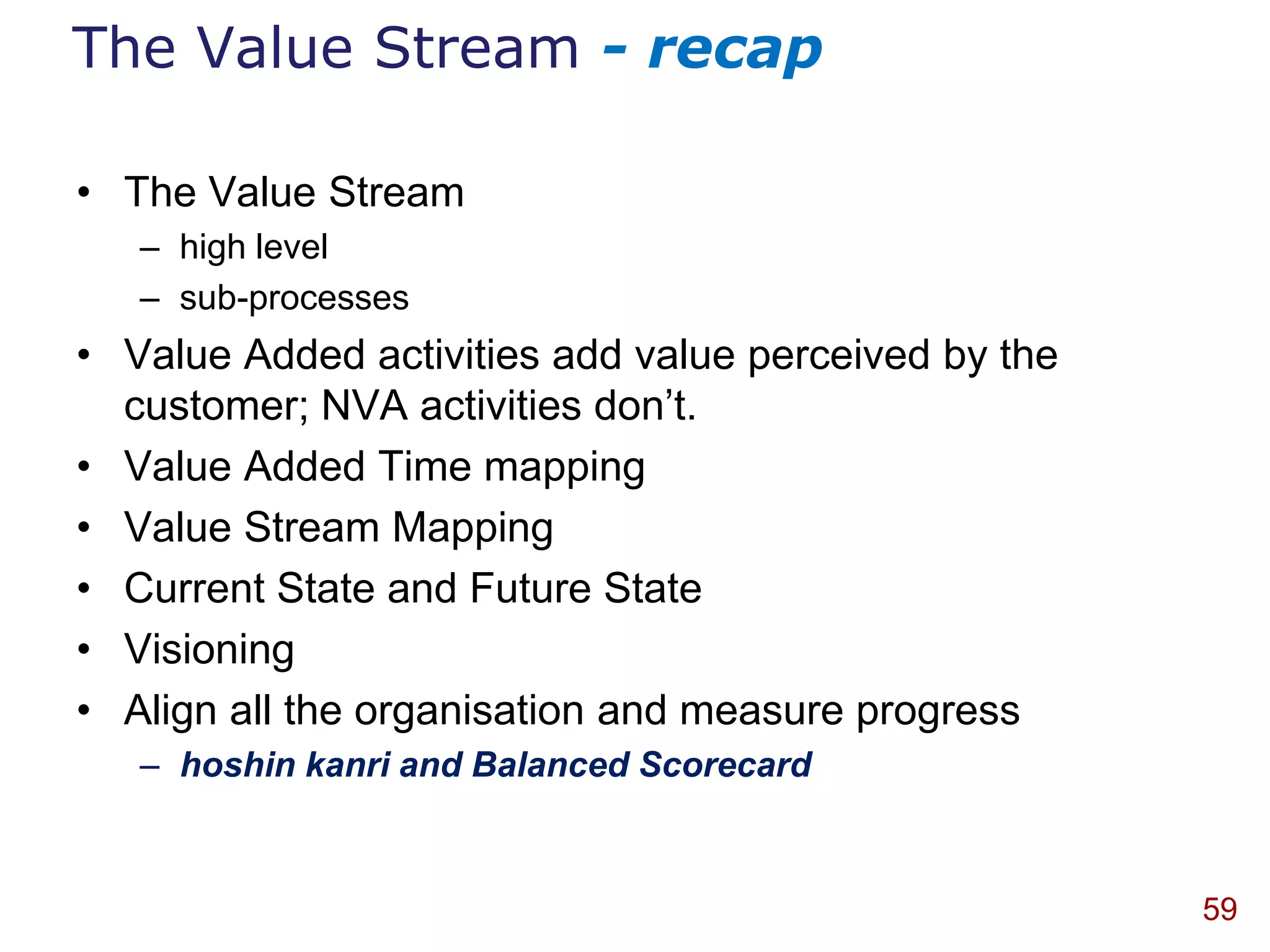

The Value Stream - recap • The Value Stream – high level – sub-processes • Value Added activities add value perceived by the customer; NVA activities don‟t. • Value Added Time mapping • Value Stream Mapping • Current State and Future State • Visioning • Align all the organisation and measure progress – hoshin kanri and Balanced Scorecard 59

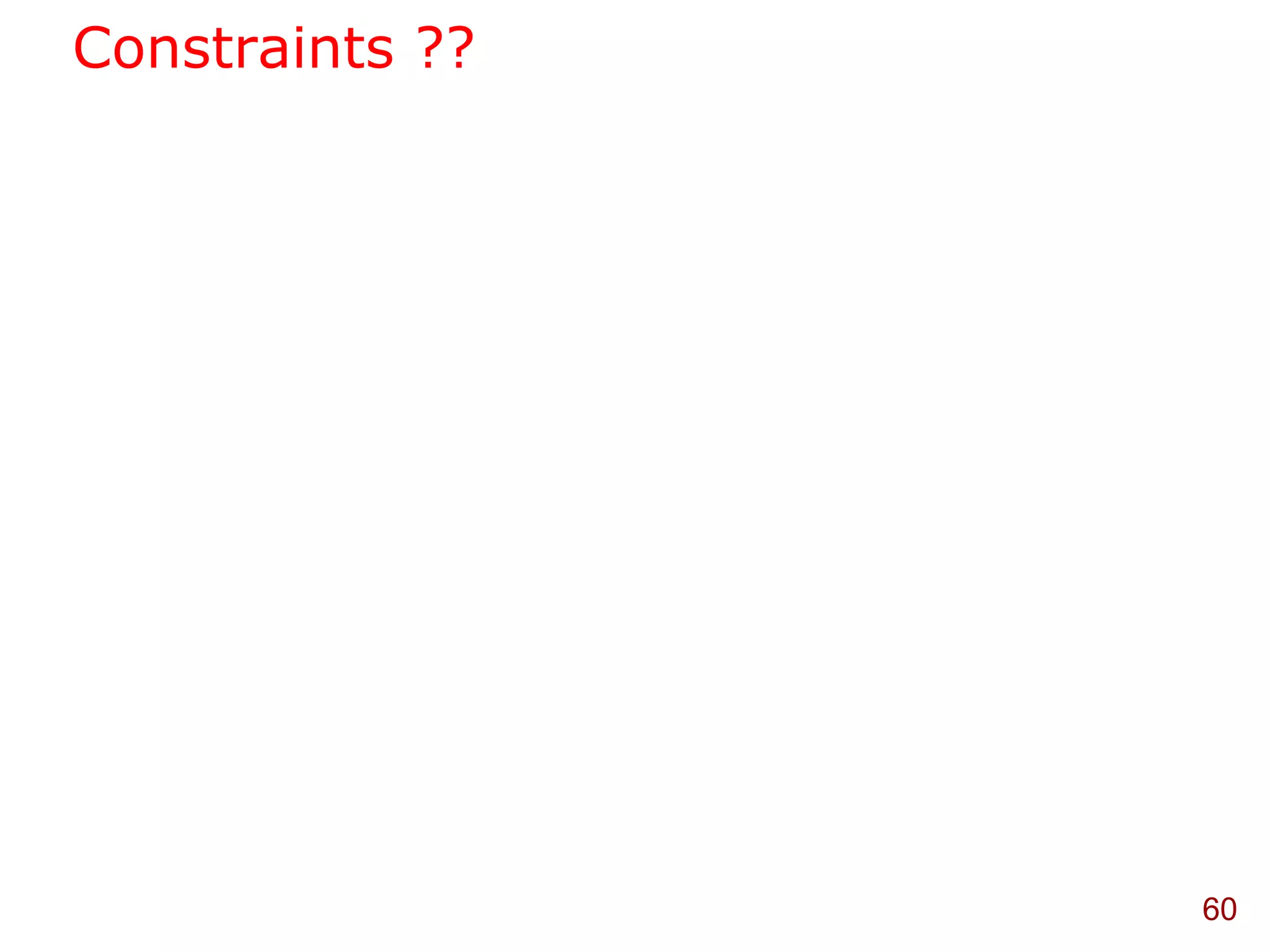

Constraints ?? 60
5S ?? 61

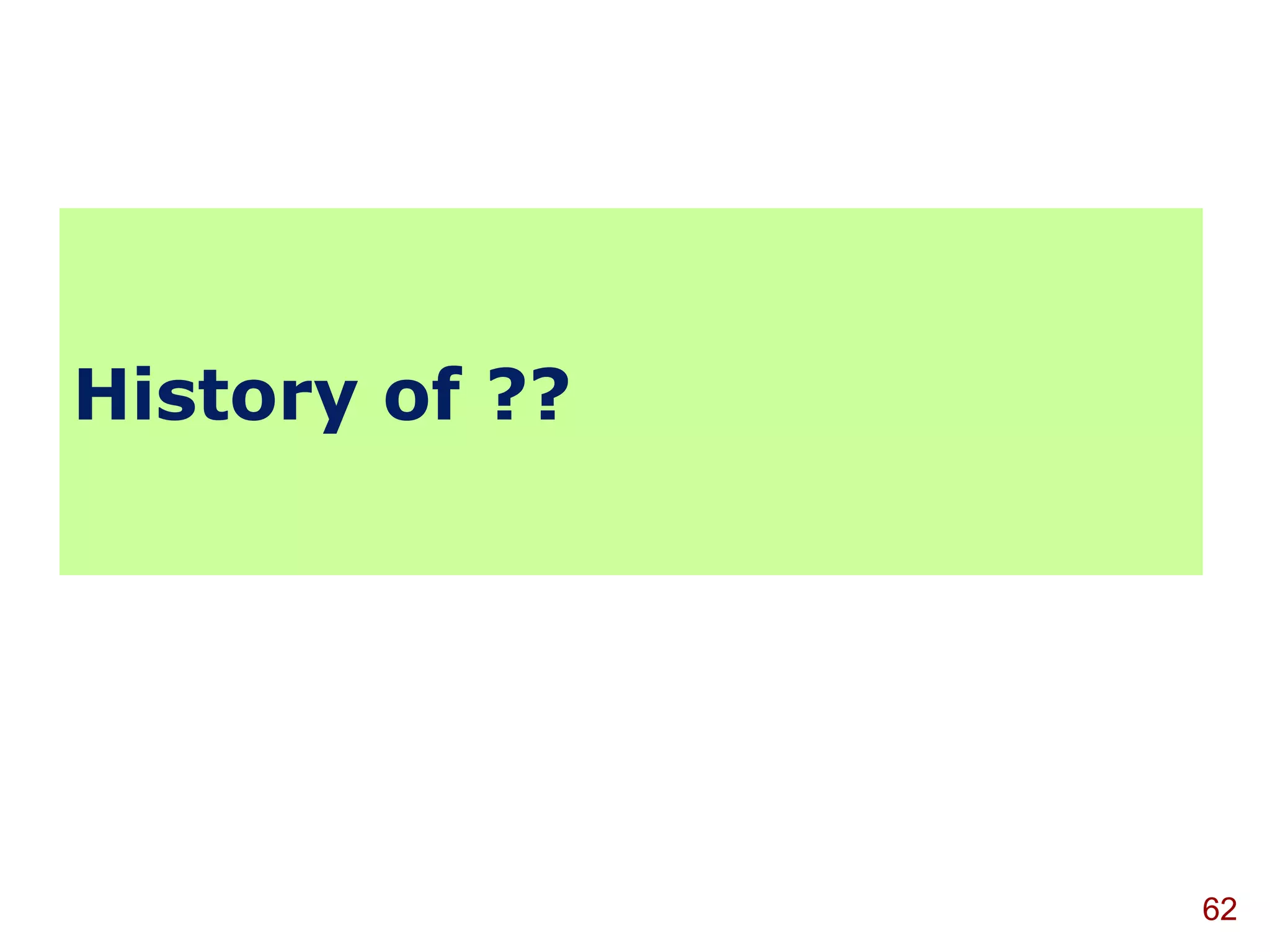

History of ?? 62

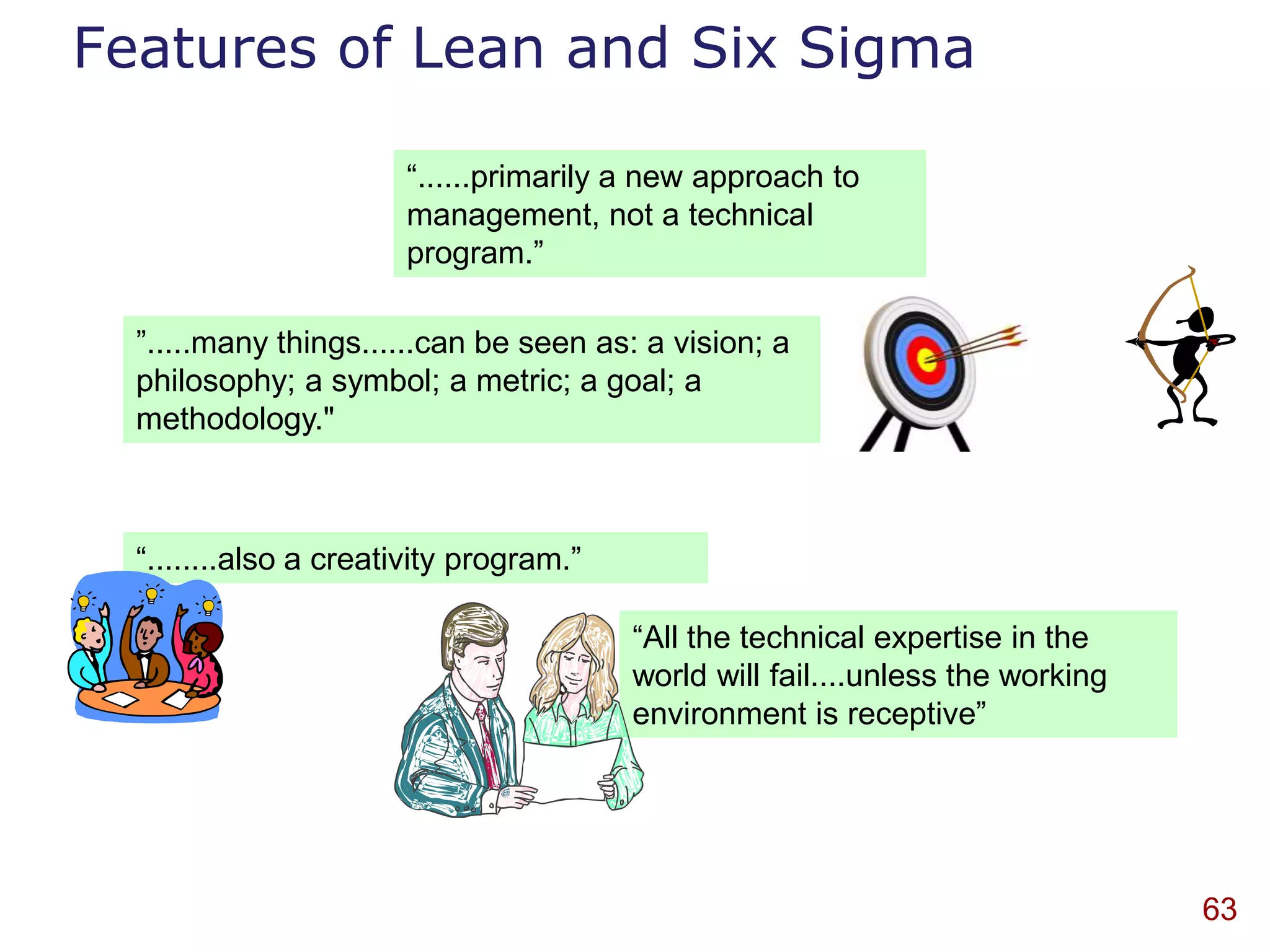

Features of Lean and Six Sigma “......primarily a new approach to management, not a technical program.” ”.....many things......can be seen as: a vision; a philosophy; a symbol; a metric; a goal; a methodology." “........also a creativity program.” “All the technical expertise in the world will fail....unless the working environment is receptive” 63

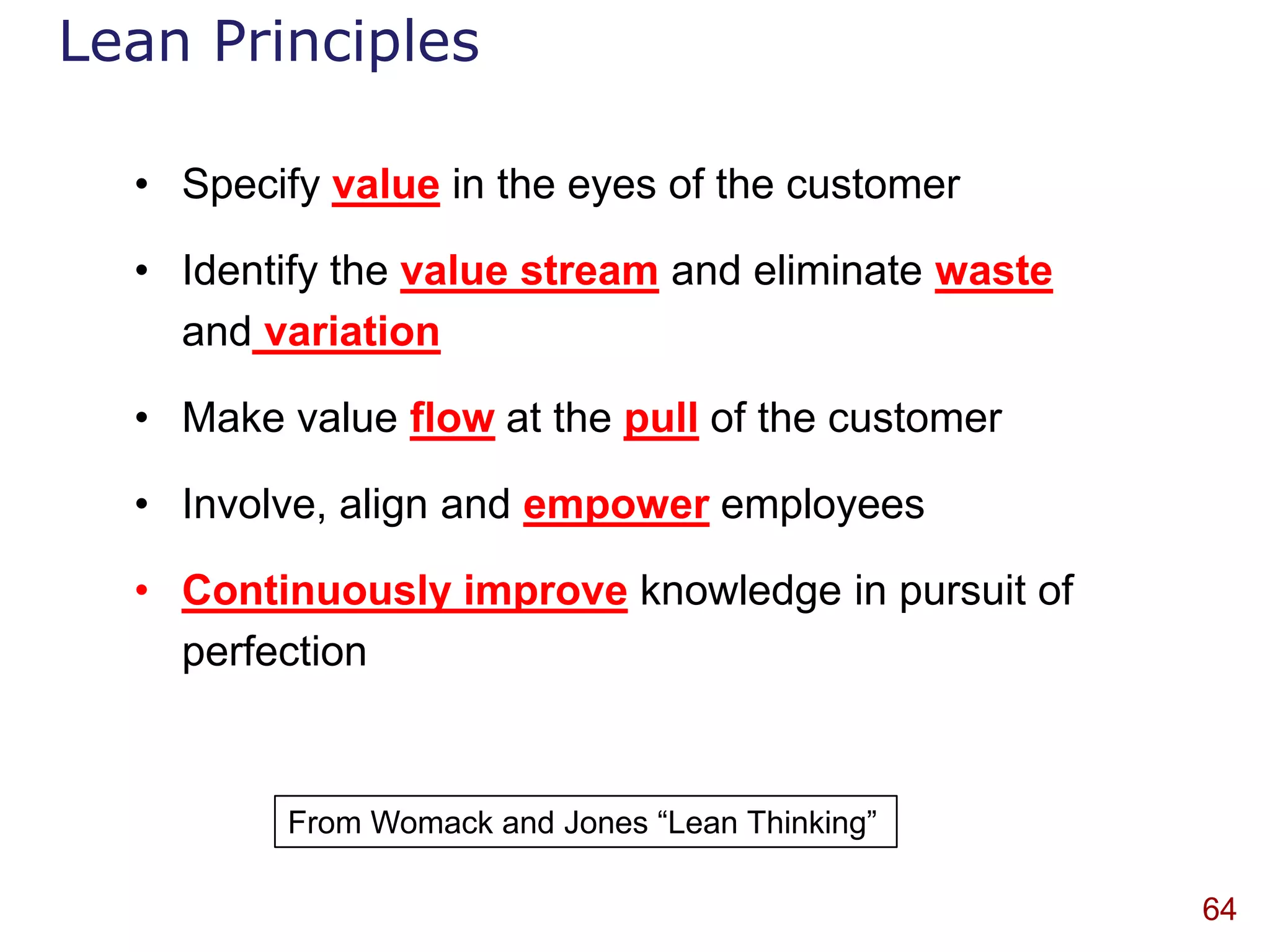

Lean Principles • Specify value in the eyes of the customer • Identify the value stream and eliminate waste and variation • Make value flow at the pull of the customer • Involve, align and empower employees • Continuously improve knowledge in pursuit of perfection From Womack and Jones “Lean Thinking” 64

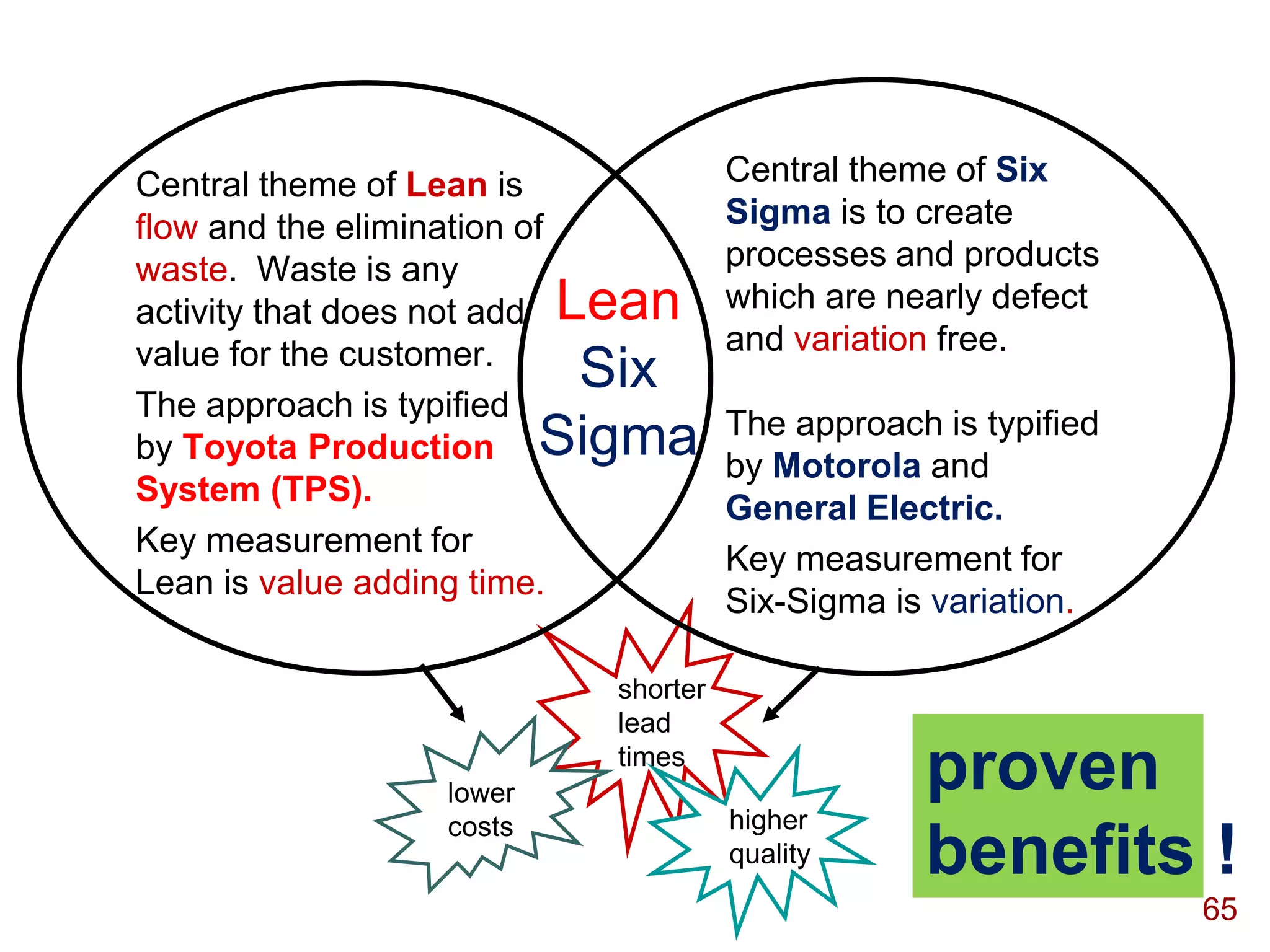

Central theme of Lean is Central theme of Six flow and the elimination of Sigma is to create waste. Waste is any processes and products activity that does not add Lean which are nearly defect value for the customer. and variation free. Six The approach is typified The approach is typified by Toyota Production Sigma by Motorola and System (TPS). General Electric. Key measurement for Key measurement for Lean is value adding time. Six-Sigma is variation. shorter lead lower times proven costs higher quality benefits ! 65
History of lean & Six Sigma • Lean • Six Sigma – 1945 on: Japan: Shigeo Shinko – 1970s “Our quality stinks”: Motorola shows batches cause delay quotation – 1948 on: Deming in Japan – 1986 Motorola Trademark; – 1953 Taiichi Ohno develops “Motorola University” Bill Smith Toyota Production System – 1995 General Electric (Jack Welch) – 1960s-70s: Shigeo Shingo poka + wider application yoke & “stockless production” – 1990s Motorola publish Six Sigma; – 1990 Womack and Jones use DMAIC introduced the term “lean” – 1999 application to finance and – ...and in 1996 publish transactional processes “Lean Thinking” – ~2000 Lean Six Sigma in use Shigeo Shingo Taiichi Ohno Bill Smith Jack Welch 66
Benefits: use BW colourful slides 67
Tea-making 68
Lunch 69
Root Cause Analysis Solving problems and finding solutions 70

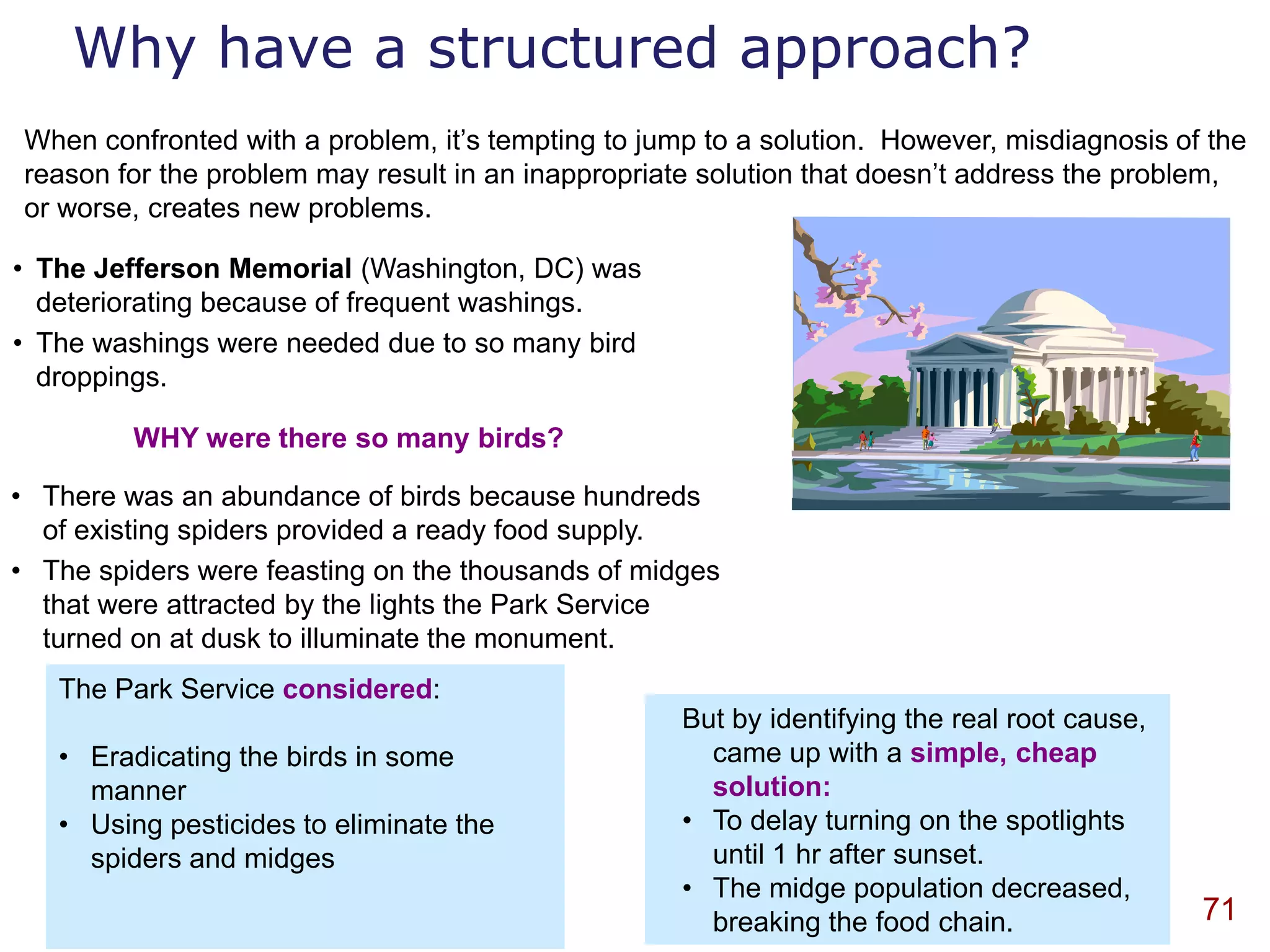

Why have a structured approach? When confronted with a problem, it‟s tempting to jump to a solution. However, misdiagnosis of the reason for the problem may result in an inappropriate solution that doesn‟t address the problem, or worse, creates new problems. • The Jefferson Memorial (Washington, DC) was deteriorating because of frequent washings. • The washings were needed due to so many bird droppings. WHY were there so many birds? • There was an abundance of birds because hundreds of existing spiders provided a ready food supply. • The spiders were feasting on the thousands of midges that were attracted by the lights the Park Service turned on at dusk to illuminate the monument. The Park Service considered: But by identifying the real root cause, • Eradicating the birds in some came up with a simple, cheap manner solution: • Using pesticides to eliminate the • To delay turning on the spotlights spiders and midges until 1 hr after sunset. • The midge population decreased, breaking the food chain. 71
Solution jumping 72

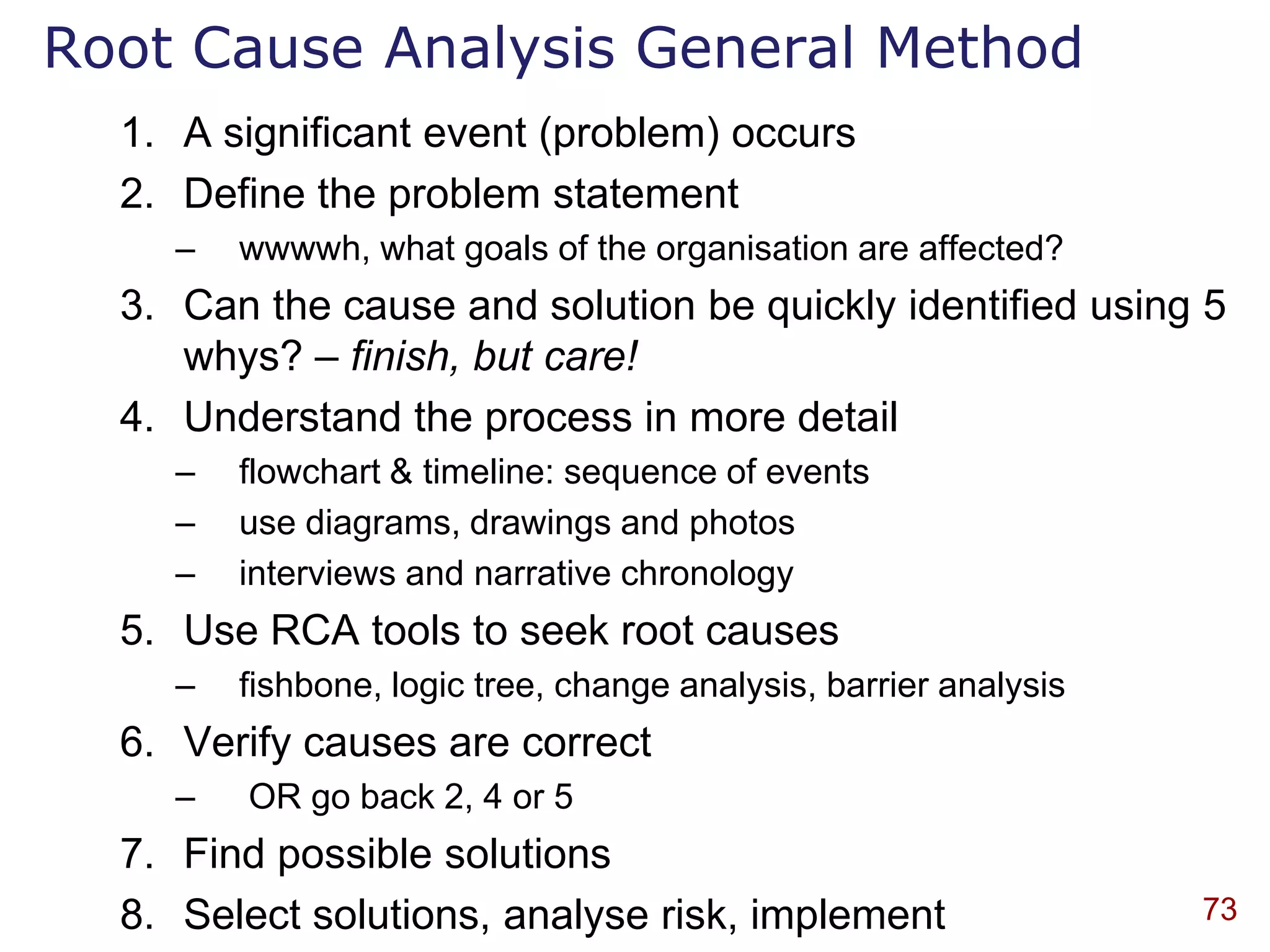

Root Cause Analysis General Method 1. A significant event (problem) occurs 2. Define the problem statement – wwwwh, what goals of the organisation are affected? 3. Can the cause and solution be quickly identified using 5 whys? – finish, but care! 4. Understand the process in more detail – flowchart & timeline: sequence of events – use diagrams, drawings and photos – interviews and narrative chronology 5. Use RCA tools to seek root causes – fishbone, logic tree, change analysis, barrier analysis 6. Verify causes are correct – OR go back 2, 4 or 5 7. Find possible solutions 8. Select solutions, analyse risk, implement 73

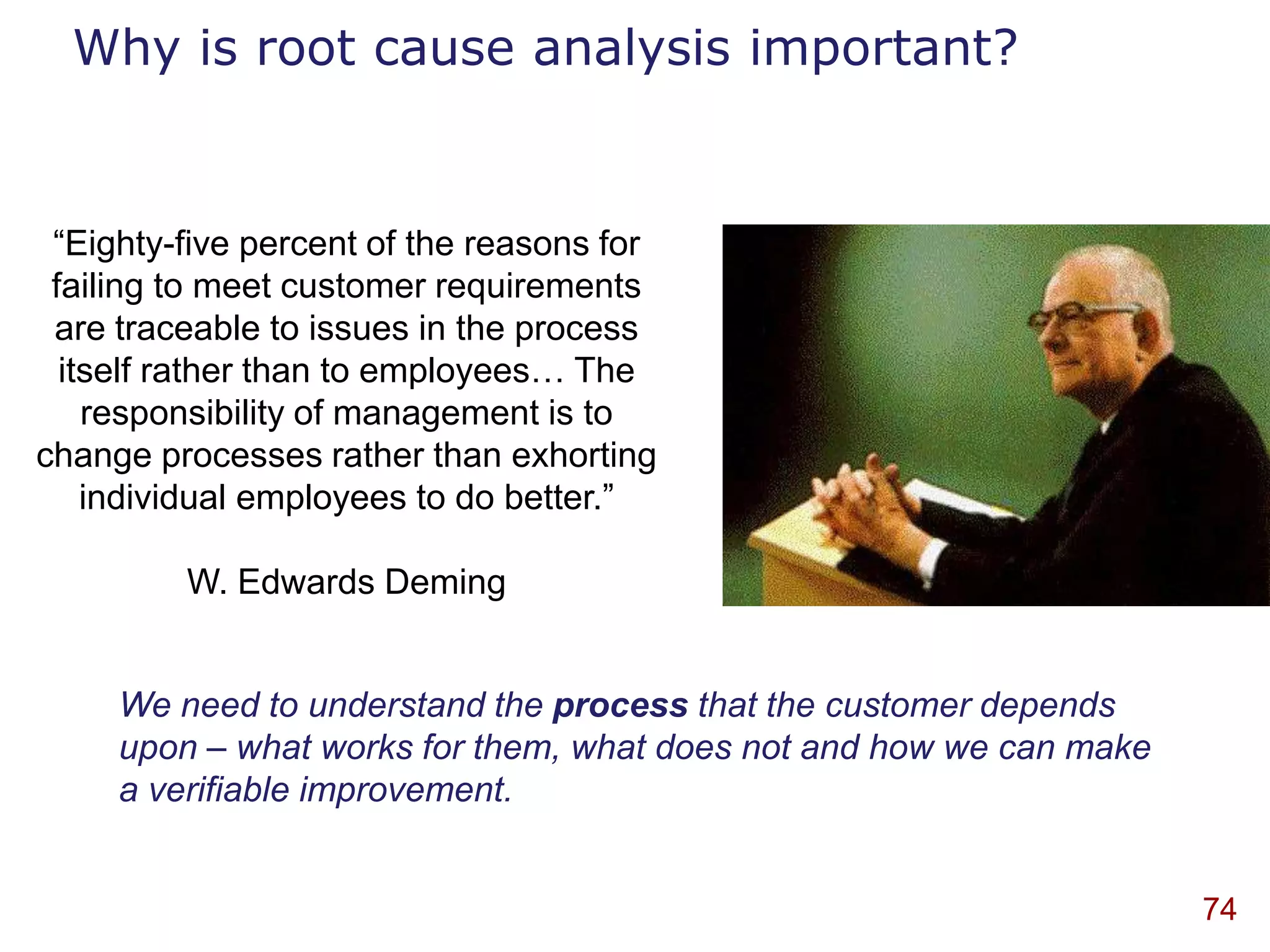

Why is root cause analysis important? “Eighty-five percent of the reasons for failing to meet customer requirements are traceable to issues in the process itself rather than to employees… The responsibility of management is to change processes rather than exhorting individual employees to do better.” W. Edwards Deming We need to understand the process that the customer depends upon – what works for them, what does not and how we can make a verifiable improvement. 74

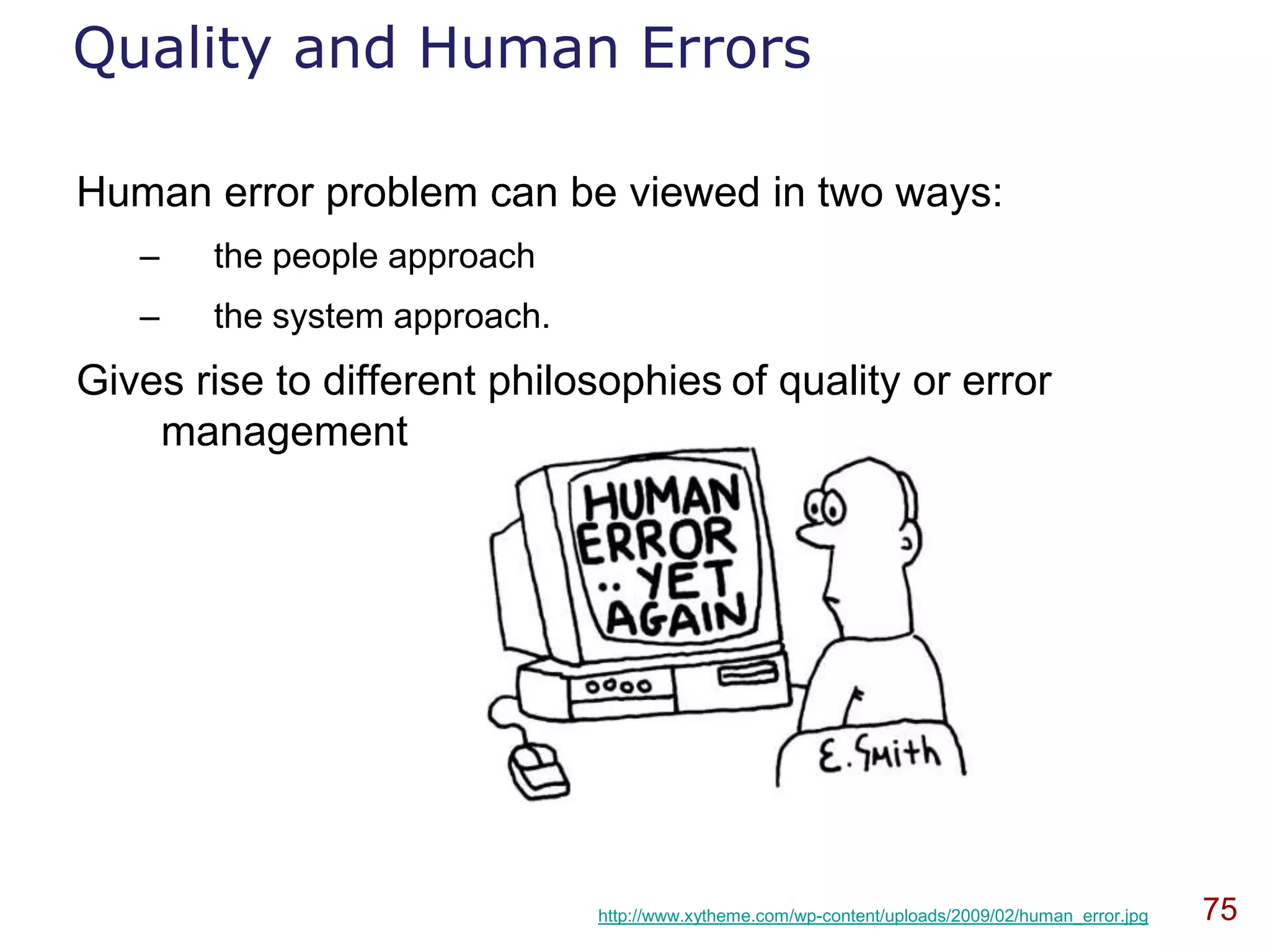

Quality and Human Errors Human error problem can be viewed in two ways: – the people approach – the system approach. Gives rise to different philosophies of quality or error management http://www.xytheme.com/wp-content/uploads/2009/02/human_error.jpg 75
76

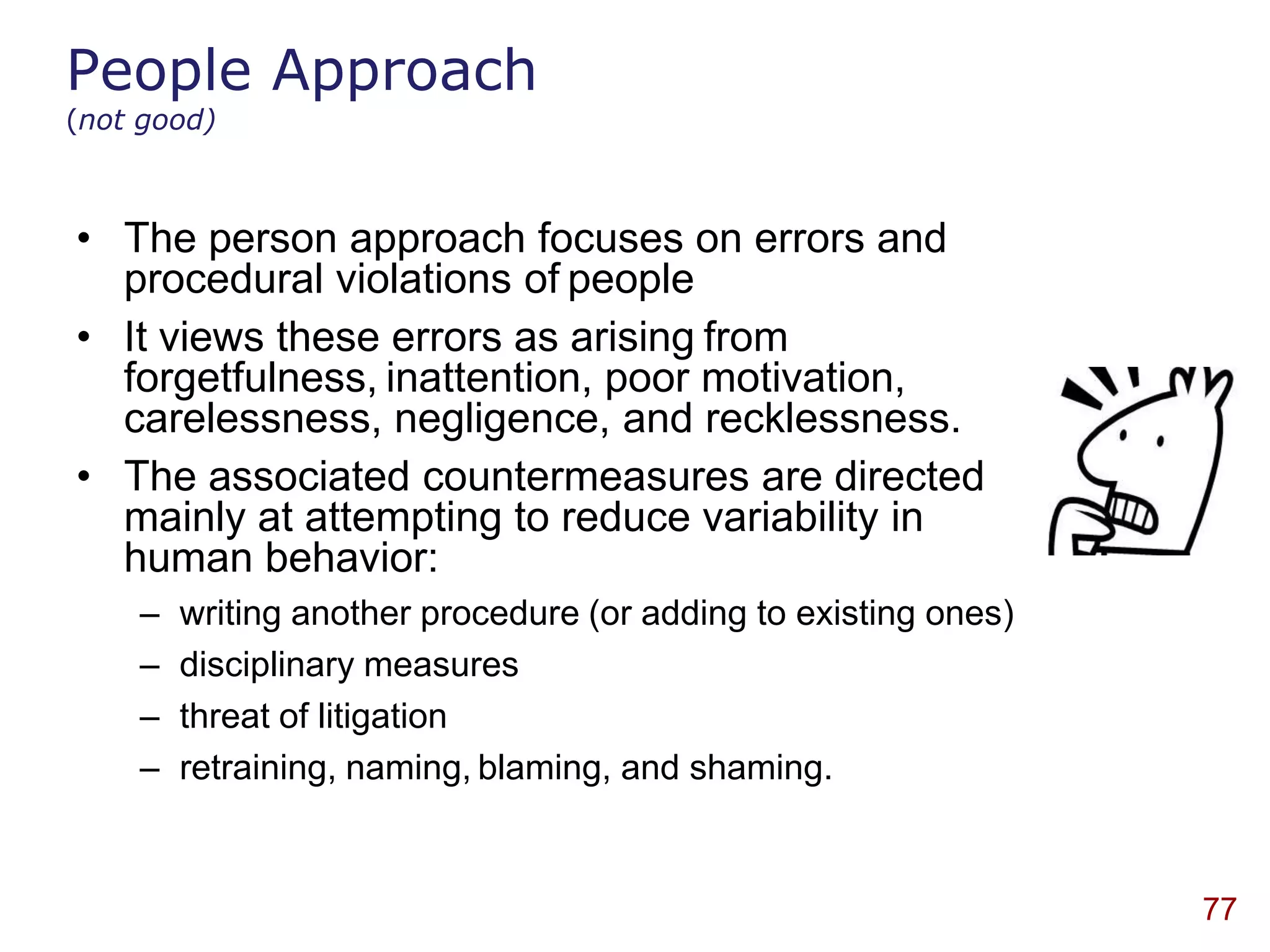

People Approach (not good) • The person approach focuses on errors and procedural violations of people • It views these errors as arising from forgetfulness, inattention, poor motivation, carelessness, negligence, and recklessness. • The associated countermeasures are directed mainly at attempting to reduce variability in human behavior: – writing another procedure (or adding to existing ones) – disciplinary measures – threat of litigation – retraining, naming, blaming, and shaming. 77

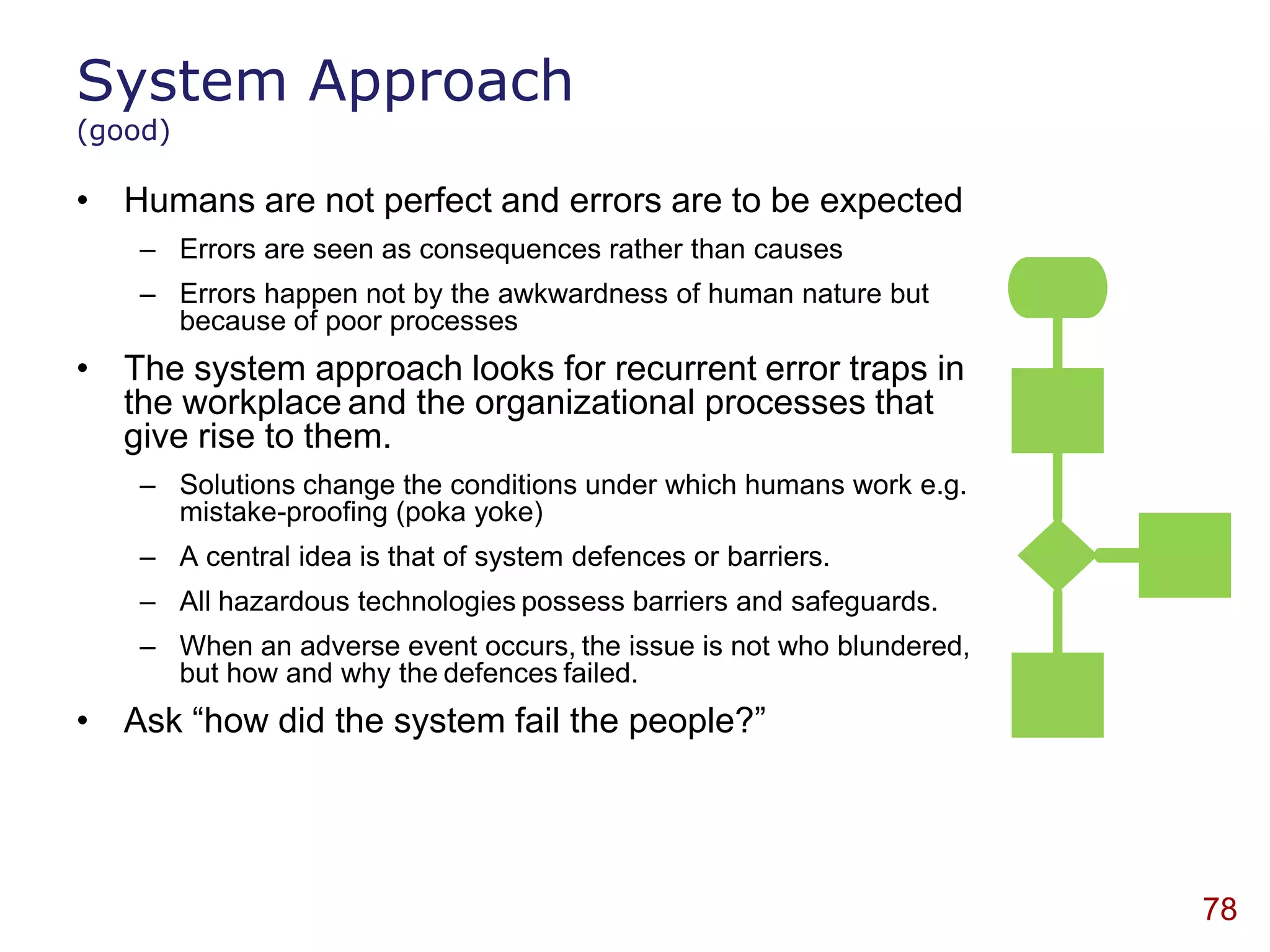

System Approach (good) • Humans are not perfect and errors are to be expected – Errors are seen as consequences rather than causes – Errors happen not by the awkwardness of human nature but because of poor processes • The system approach looks for recurrent error traps in the workplace and the organizational processes that give rise to them. – Solutions change the conditions under which humans work e.g. mistake-proofing (poka yoke) – A central idea is that of system defences or barriers. – All hazardous technologies possess barriers and safeguards. – When an adverse event occurs, the issue is not who blundered, but how and why the defences failed. • Ask “how did the system fail the people?” 78

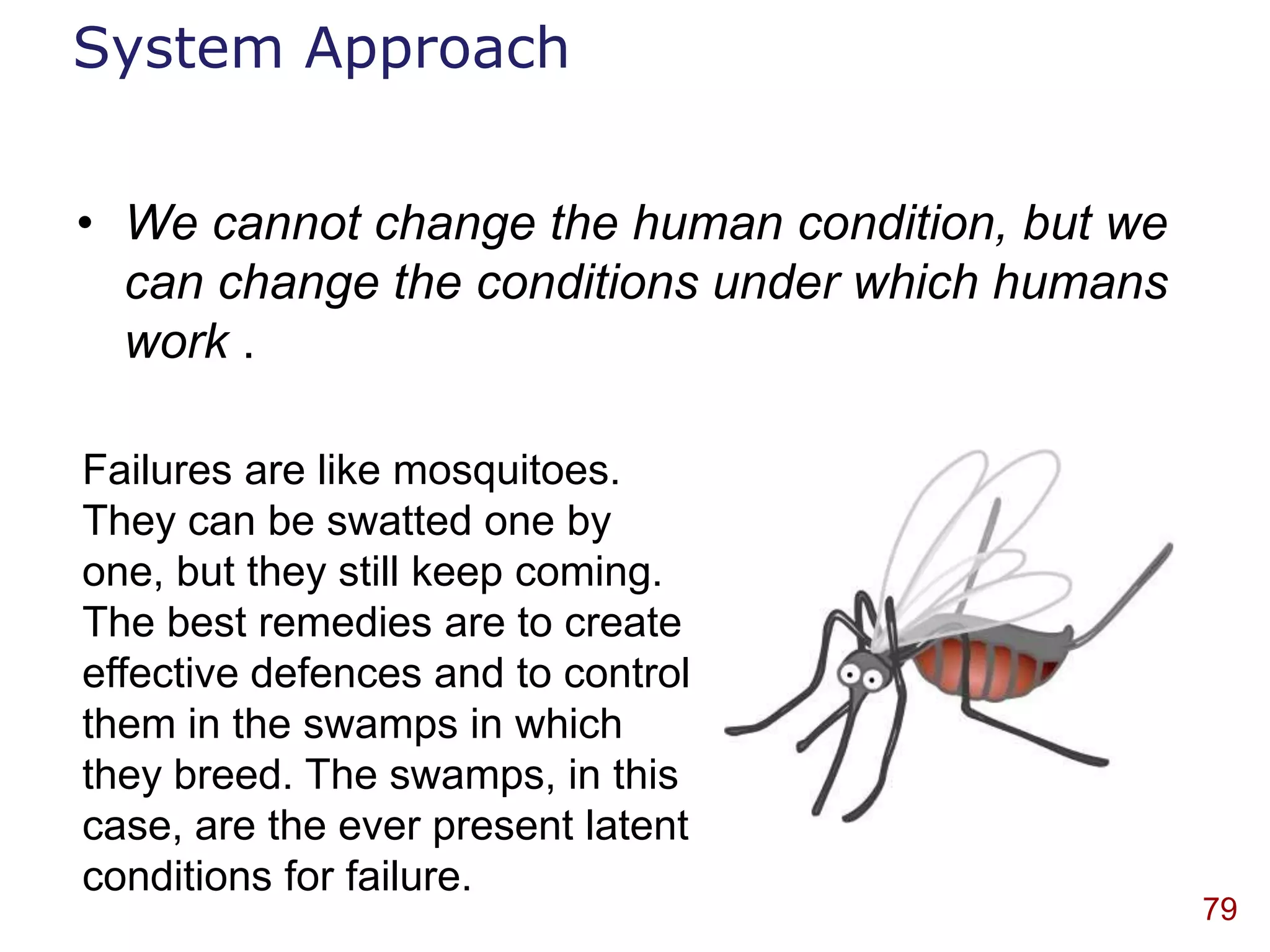

System Approach • We cannot change the human condition, but we can change the conditions under which humans work . Failures are like mosquitoes. They can be swatted one by one, but they still keep coming. The best remedies are to create effective defences and to control them in the swamps in which they breed. The swamps, in this case, are the ever present latent conditions for failure. 79
Discussion • What are your experiences of root cause analysis? – how did you select a problem? – what method did you use? – was it successful or not? – why? http://www.thinkreliability.com/Root-Cause-Analysis-CM-Basics.aspx 80

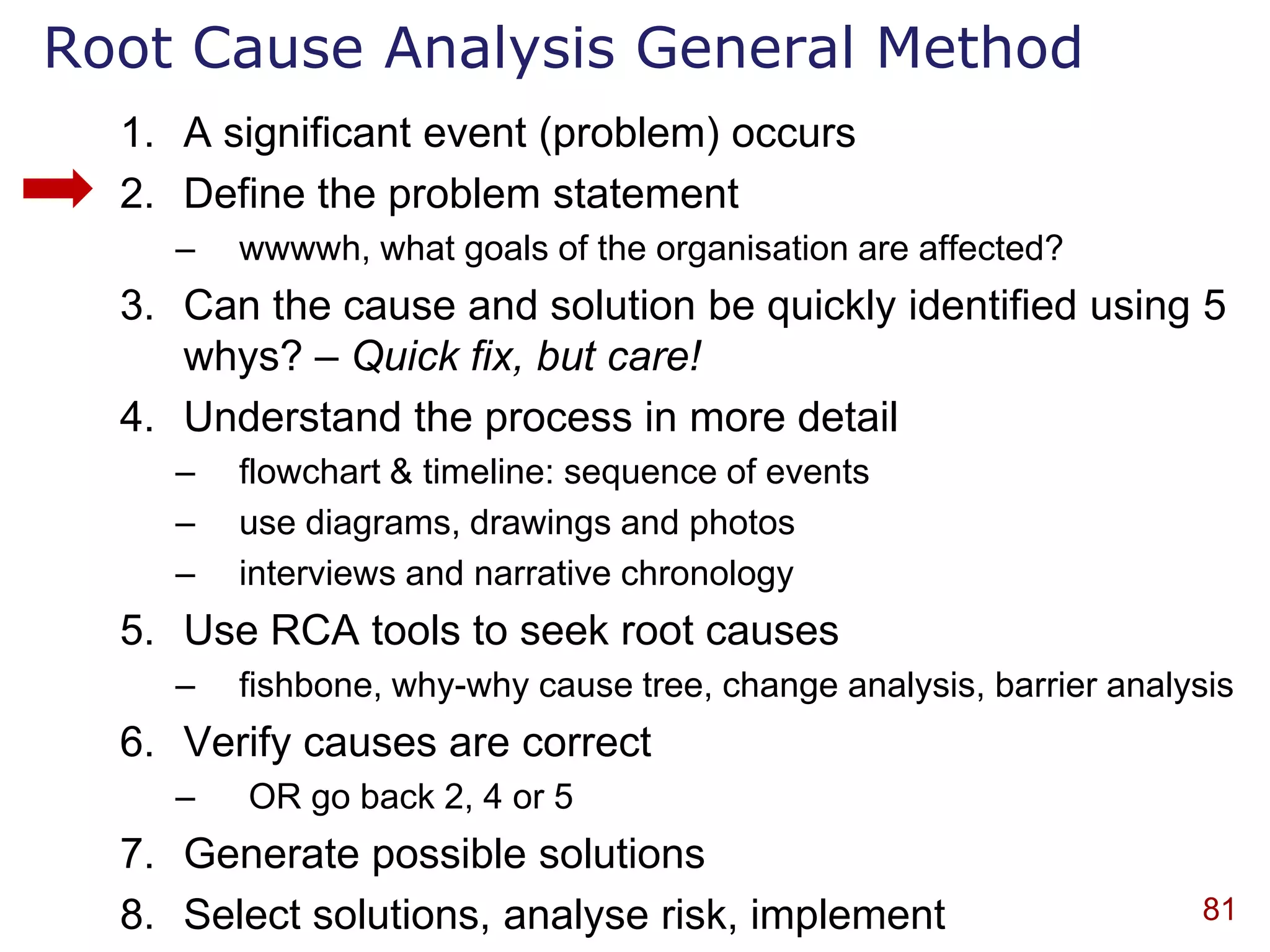

Root Cause Analysis General Method 1. A significant event (problem) occurs 2. Define the problem statement – wwwwh, what goals of the organisation are affected? 3. Can the cause and solution be quickly identified using 5 whys? – Quick fix, but care! 4. Understand the process in more detail – flowchart & timeline: sequence of events – use diagrams, drawings and photos – interviews and narrative chronology 5. Use RCA tools to seek root causes – fishbone, why-why cause tree, change analysis, barrier analysis 6. Verify causes are correct – OR go back 2, 4 or 5 7. Generate possible solutions 8. Select solutions, analyse risk, implement 81

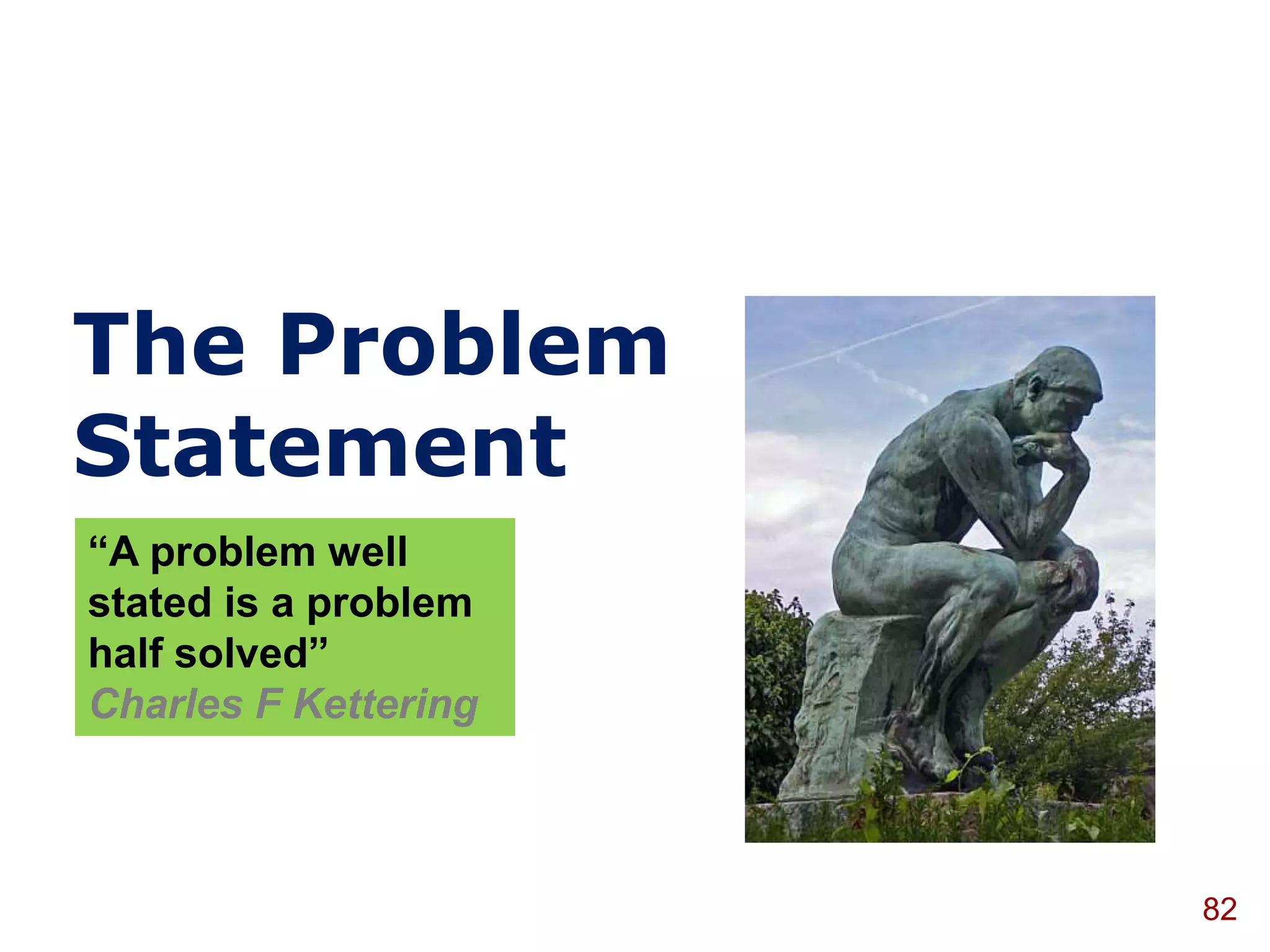

The Problem Statement “A problem well stated is a problem half solved” Charles F Kettering 82

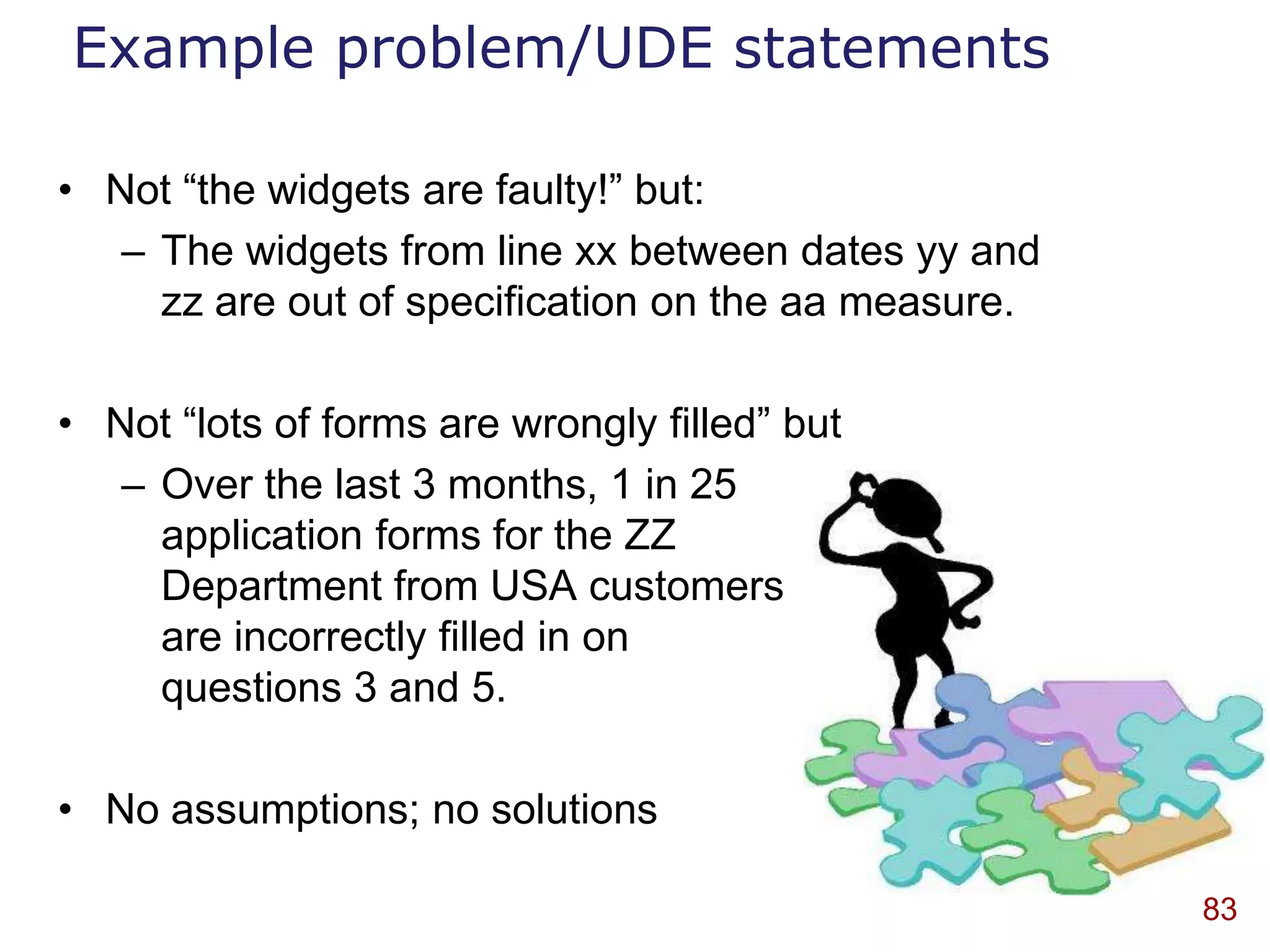

Example problem/UDE statements • Not “the widgets are faulty!” but: – The widgets from line xx between dates yy and zz are out of specification on the aa measure. • Not “lots of forms are wrongly filled” but – Over the last 3 months, 1 in 25 application forms for the ZZ Department from USA customers are incorrectly filled in on questions 3 and 5. • No assumptions; no solutions 83

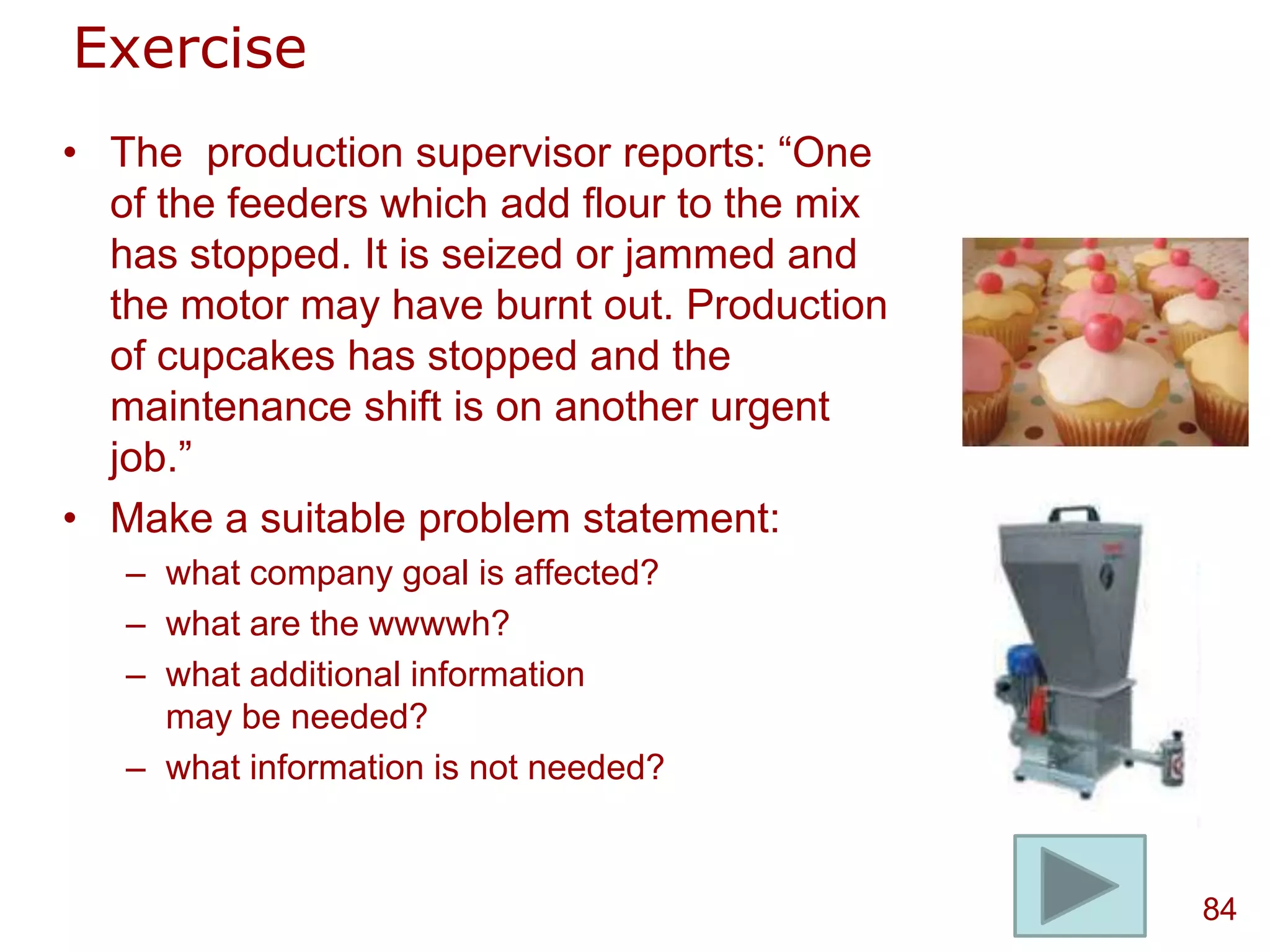

Exercise • The production supervisor reports: “One of the feeders which add flour to the mix has stopped. It is seized or jammed and the motor may have burnt out. Production of cupcakes has stopped and the maintenance shift is on another urgent job.” • Make a suitable problem statement: – what company goal is affected? – what are the wwwwh? – what additional information may be needed? – what information is not needed? 84
Objectives and success measures • What are your measures of a successful solution? – avoid cost increase – prevent late delivery – prevent defects – improve customer relations – make a permanent fix • Can you make a rough financial assessment – cost of RCA and implementing fix versus benefits from permanent cure 85

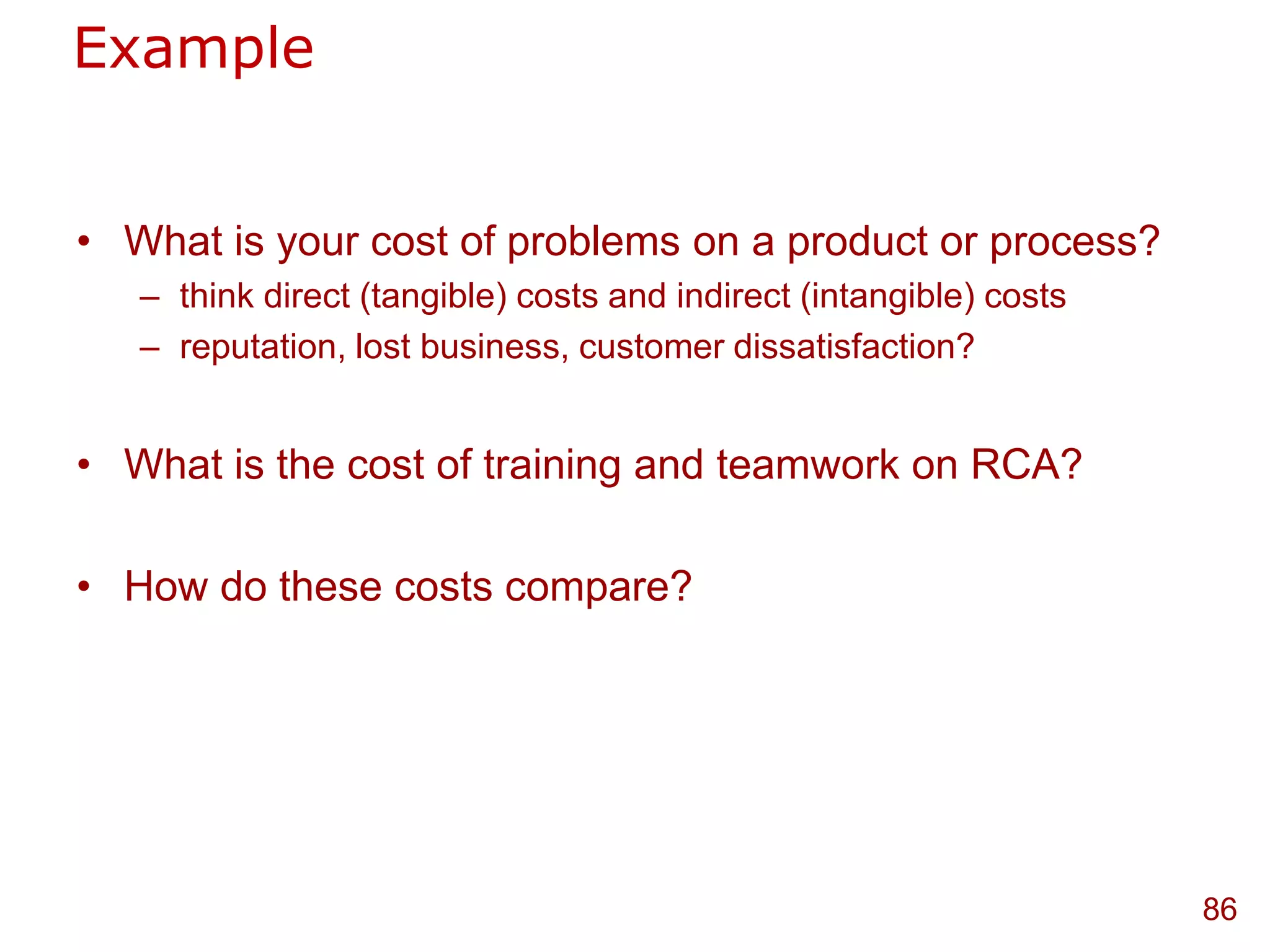

Example • What is your cost of problems on a product or process? – think direct (tangible) costs and indirect (intangible) costs – reputation, lost business, customer dissatisfaction? • What is the cost of training and teamwork on RCA? • How do these costs compare? 86

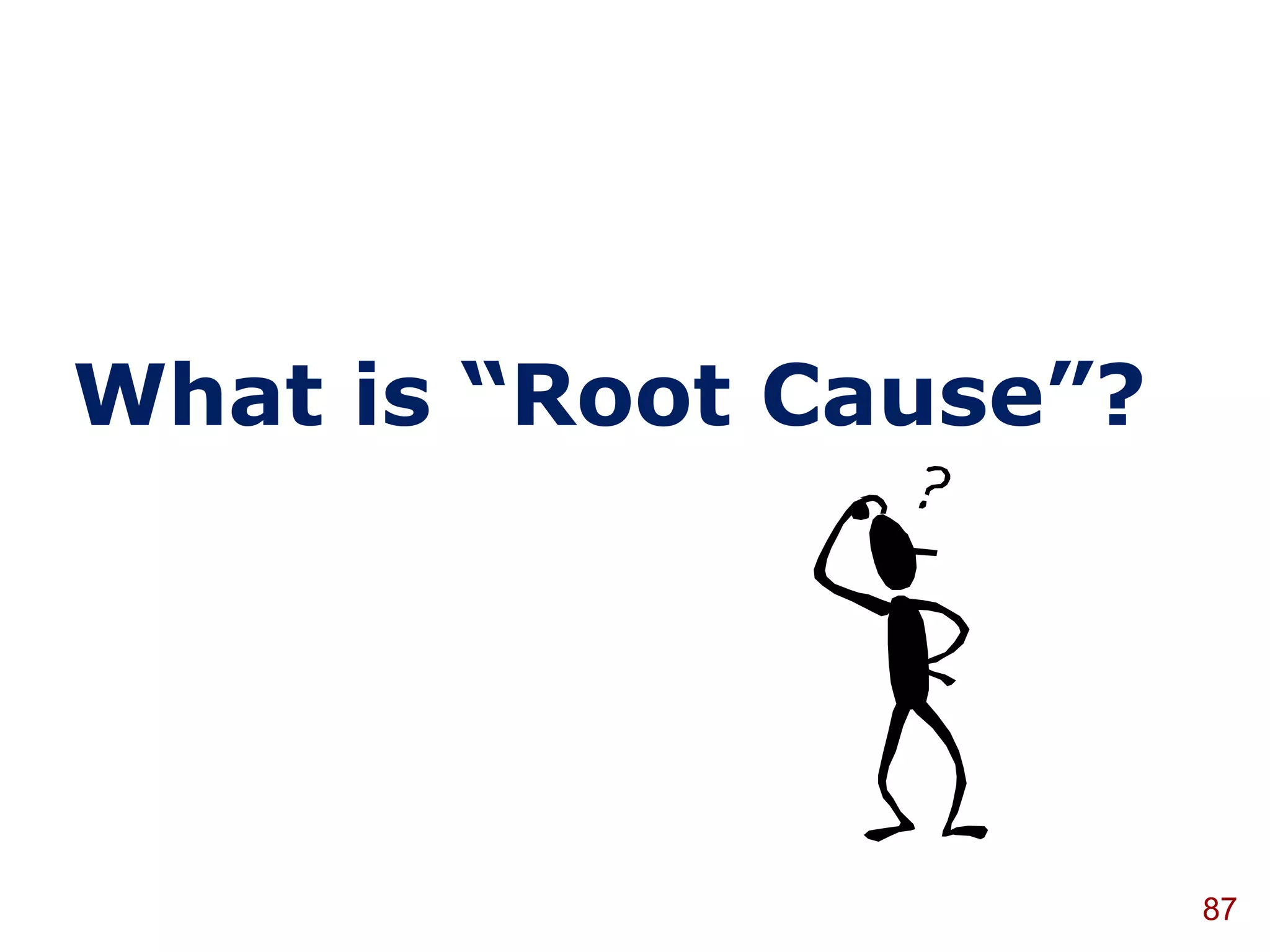

What is “Root Cause”? 87

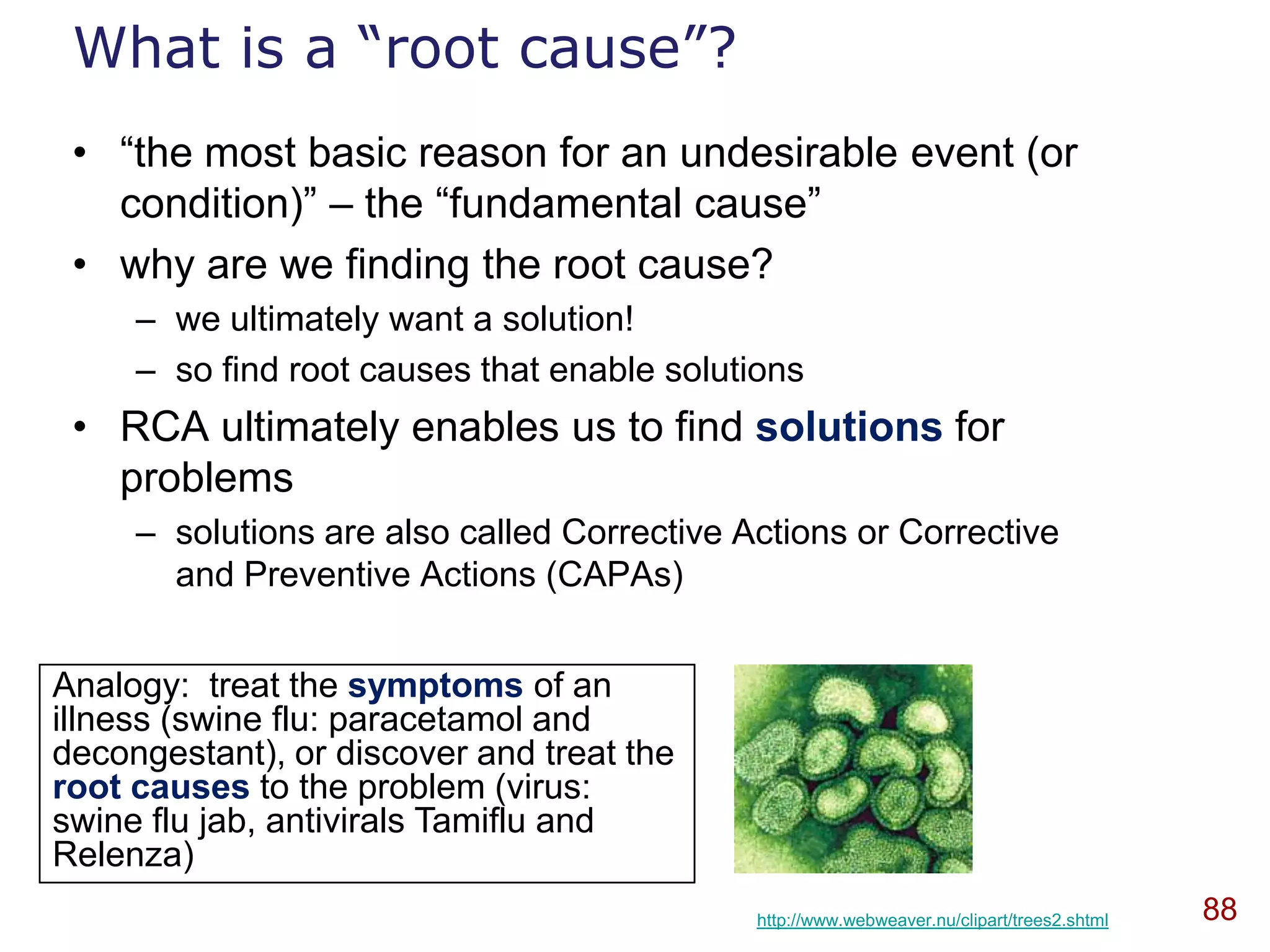

What is a “root cause”? • “the most basic reason for an undesirable event (or condition)” – the “fundamental cause” • why are we finding the root cause? – we ultimately want a solution! – so find root causes that enable solutions • RCA ultimately enables us to find solutions for problems – solutions are also called Corrective Actions or Corrective and Preventive Actions (CAPAs) Analogy: treat the symptoms of an illness (swine flu: paracetamol and decongestant), or discover and treat the root causes to the problem (virus: swine flu jab, antivirals Tamiflu and Relenza) http://www.webweaver.nu/clipart/trees2.shtml 88

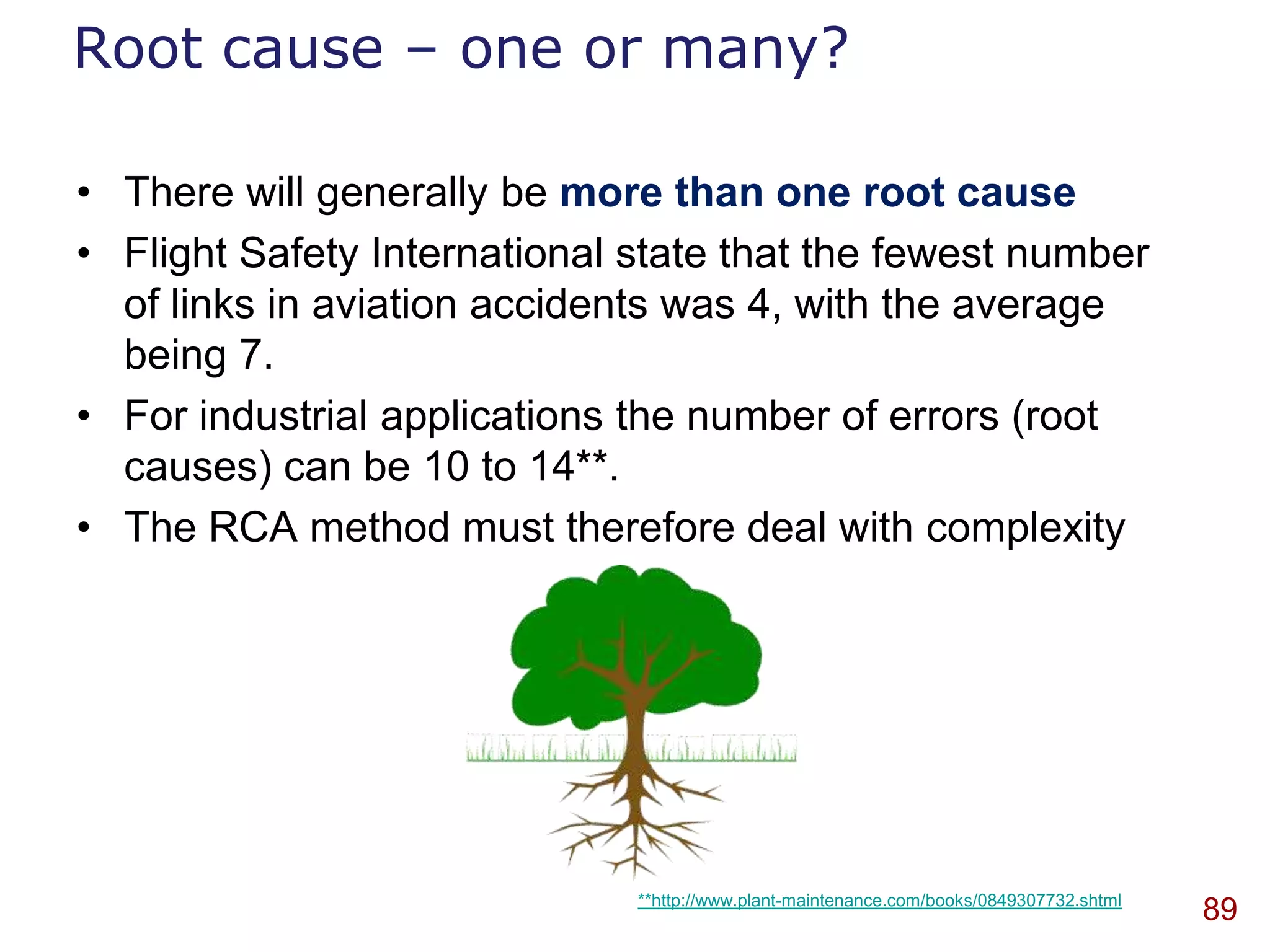

Root cause – one or many? • There will generally be more than one root cause • Flight Safety International state that the fewest number of links in aviation accidents was 4, with the average being 7. • For industrial applications the number of errors (root causes) can be 10 to 14**. • The RCA method must therefore deal with complexity **http://www.plant-maintenance.com/books/0849307732.shtml 89

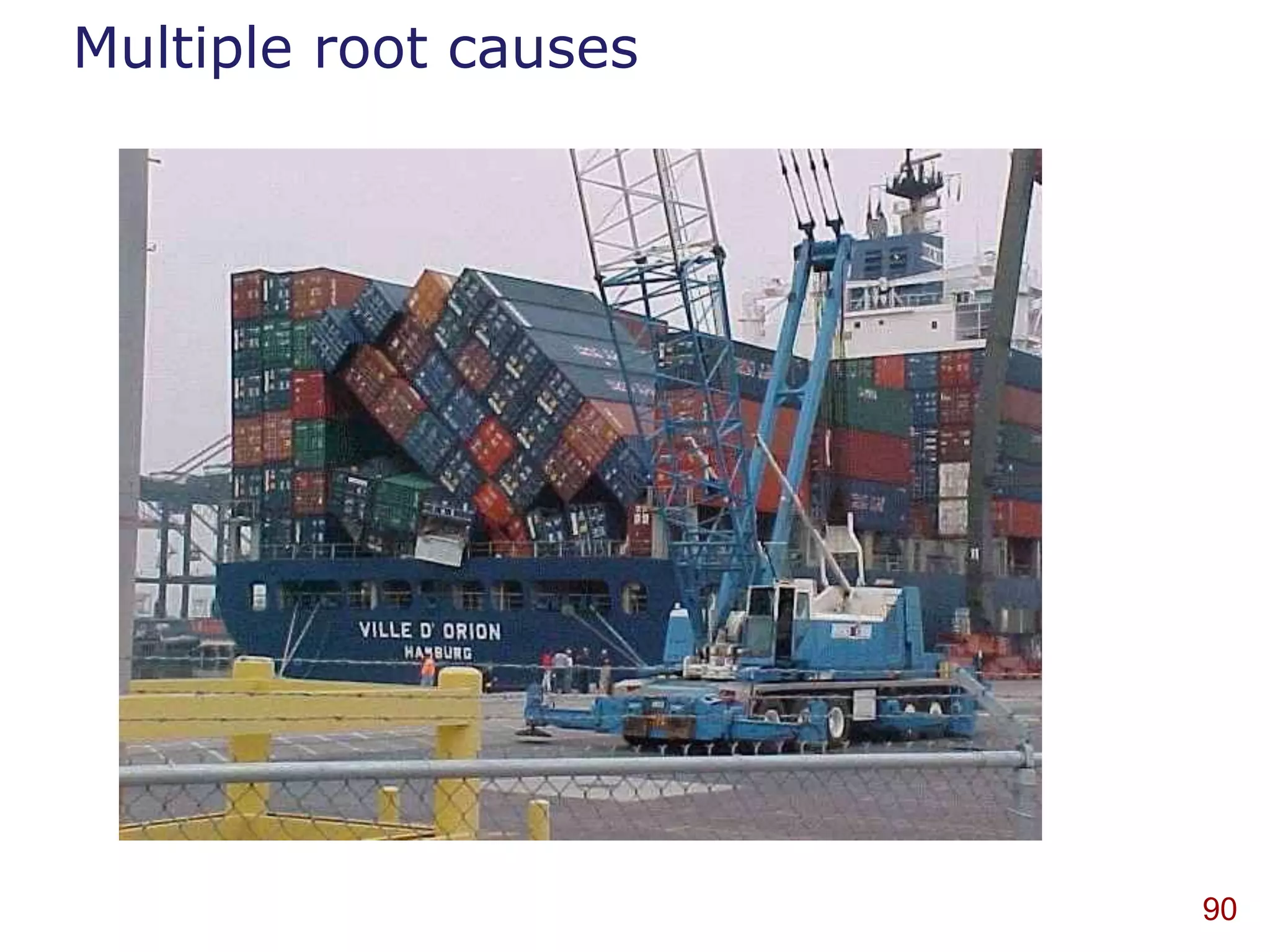

Multiple root causes 90

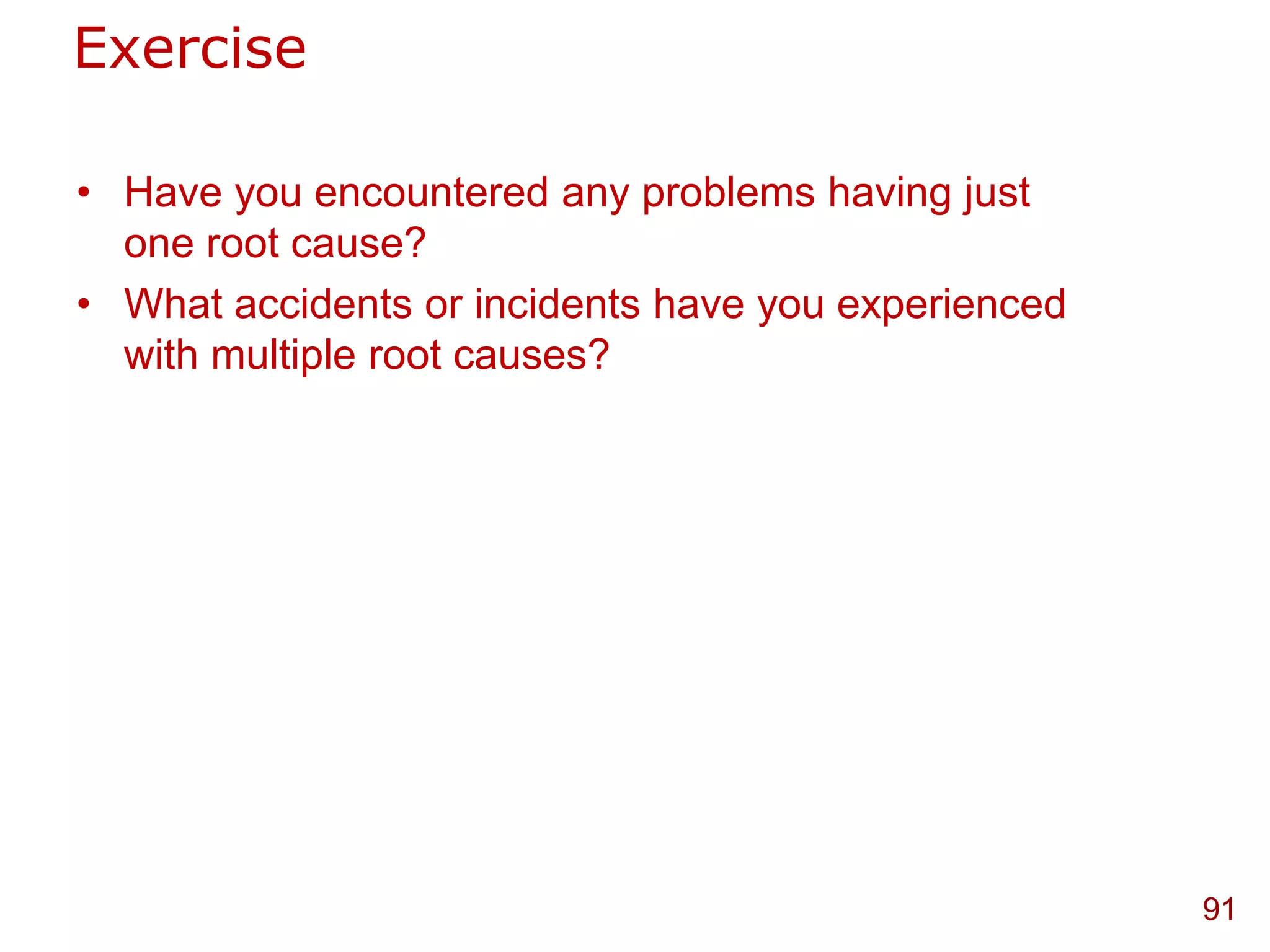

Exercise • Have you encountered any problems having just one root cause? • What accidents or incidents have you experienced with multiple root causes? 91
Why do we need a structured method for root cause analysis? For every complex problem there is an answer that is clear, simple – and wrong. H.L. Mencken 1880-1956 92

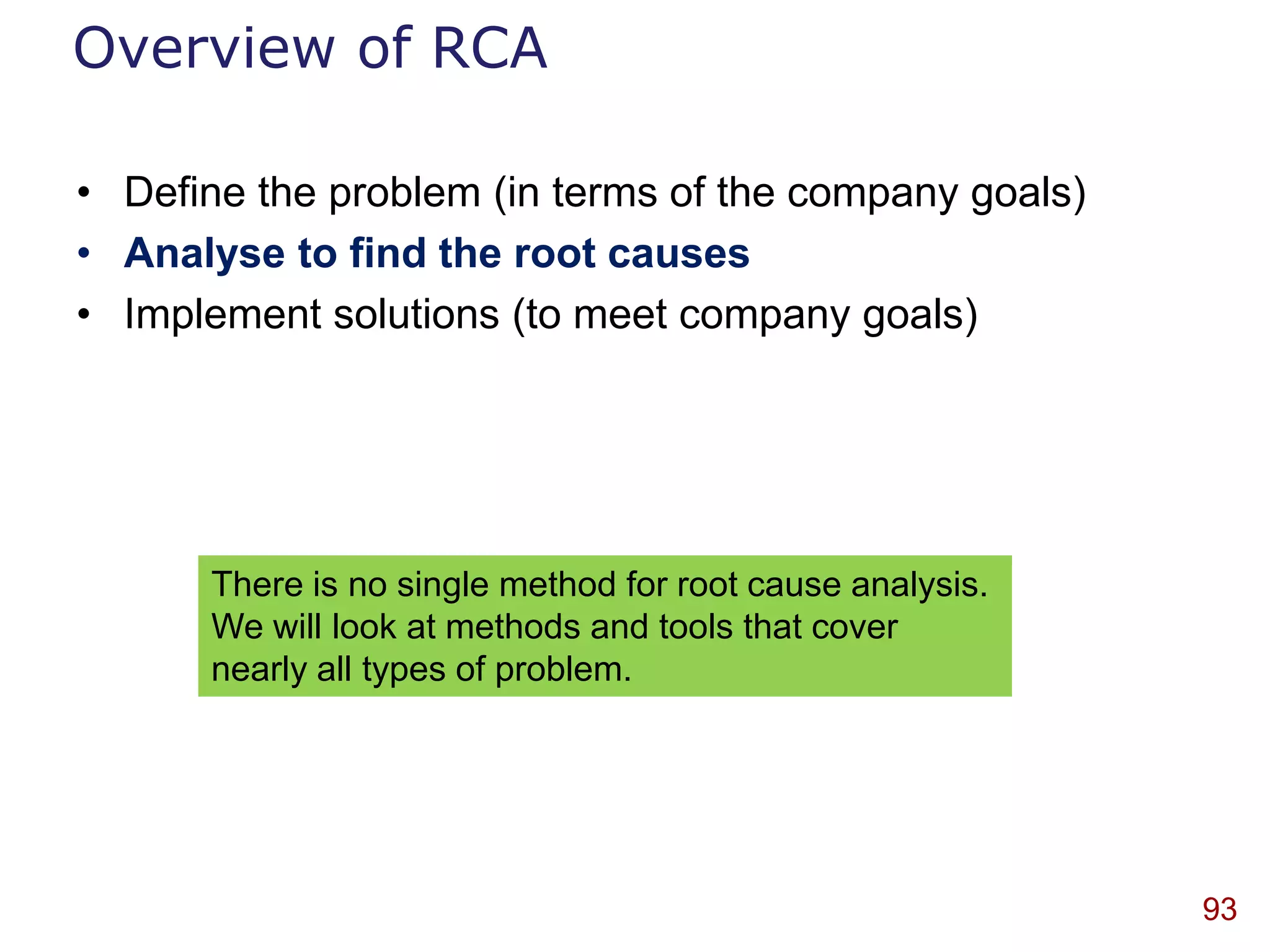

Overview of RCA • Define the problem (in terms of the company goals) • Analyse to find the root causes • Implement solutions (to meet company goals) There is no single method for root cause analysis. We will look at methods and tools that cover nearly all types of problem. 93

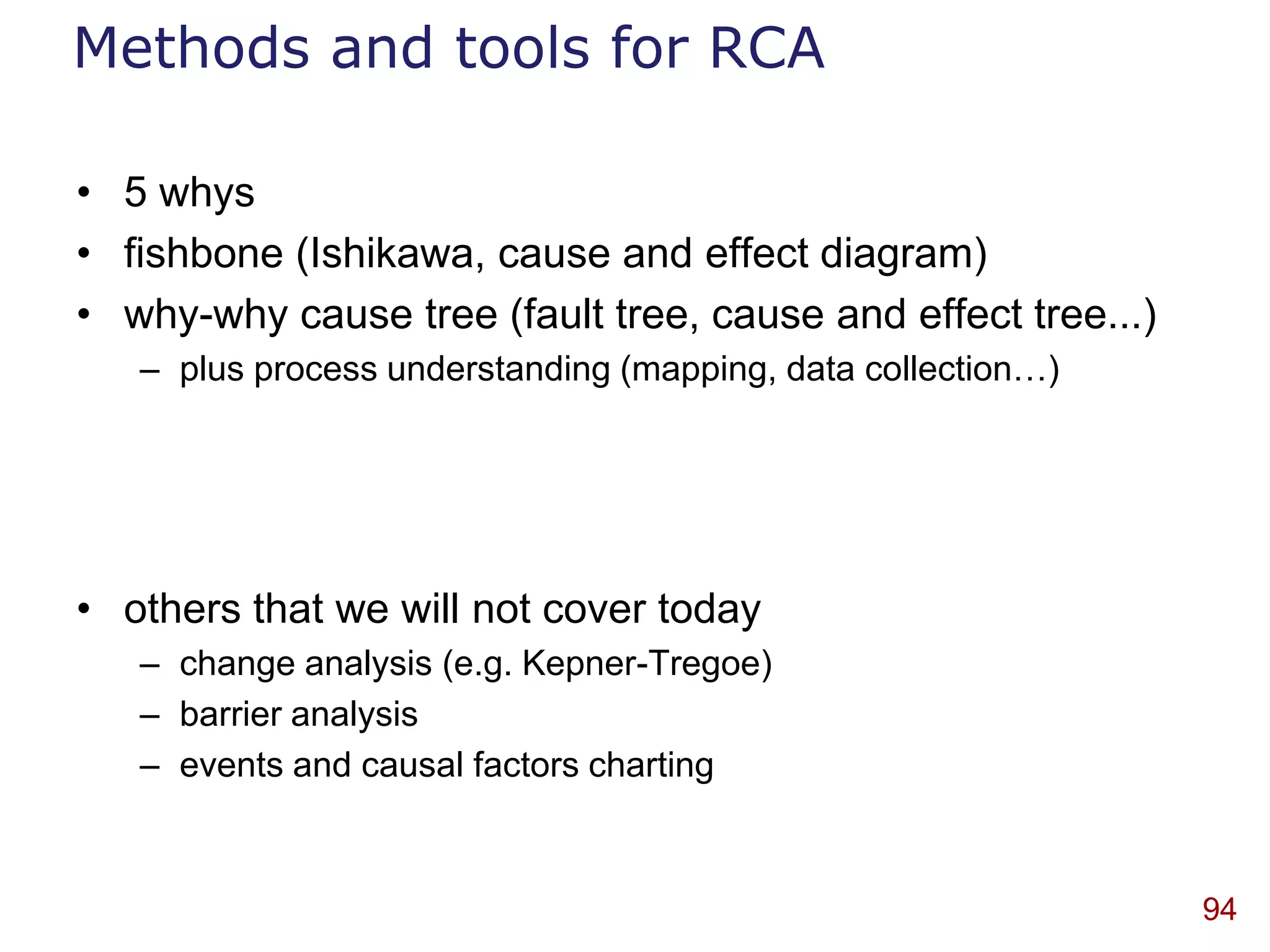

Methods and tools for RCA • 5 whys • fishbone (Ishikawa, cause and effect diagram) • why-why cause tree (fault tree, cause and effect tree...) – plus process understanding (mapping, data collection…) • others that we will not cover today – change analysis (e.g. Kepner-Tregoe) – barrier analysis – events and causal factors charting 94

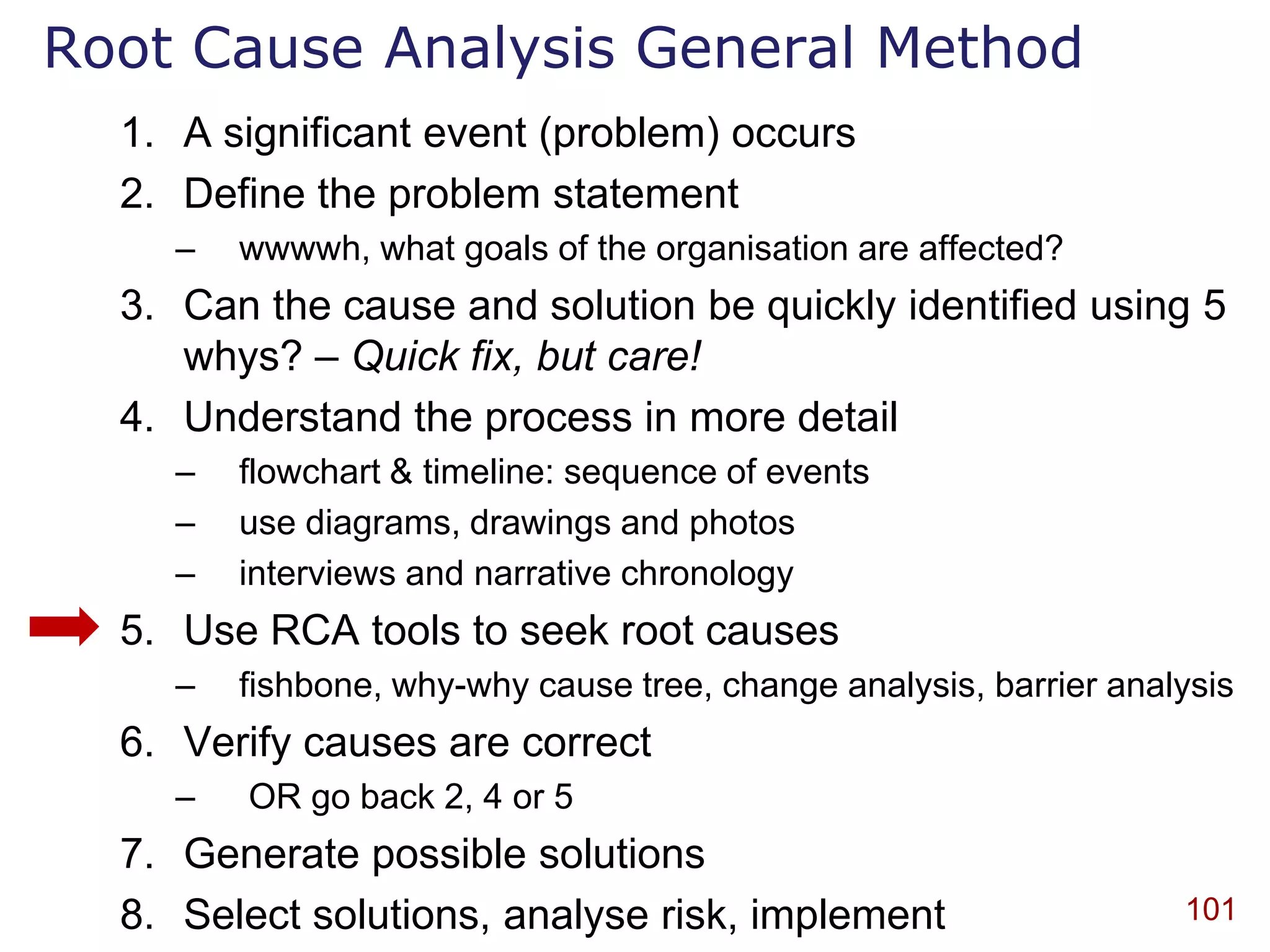

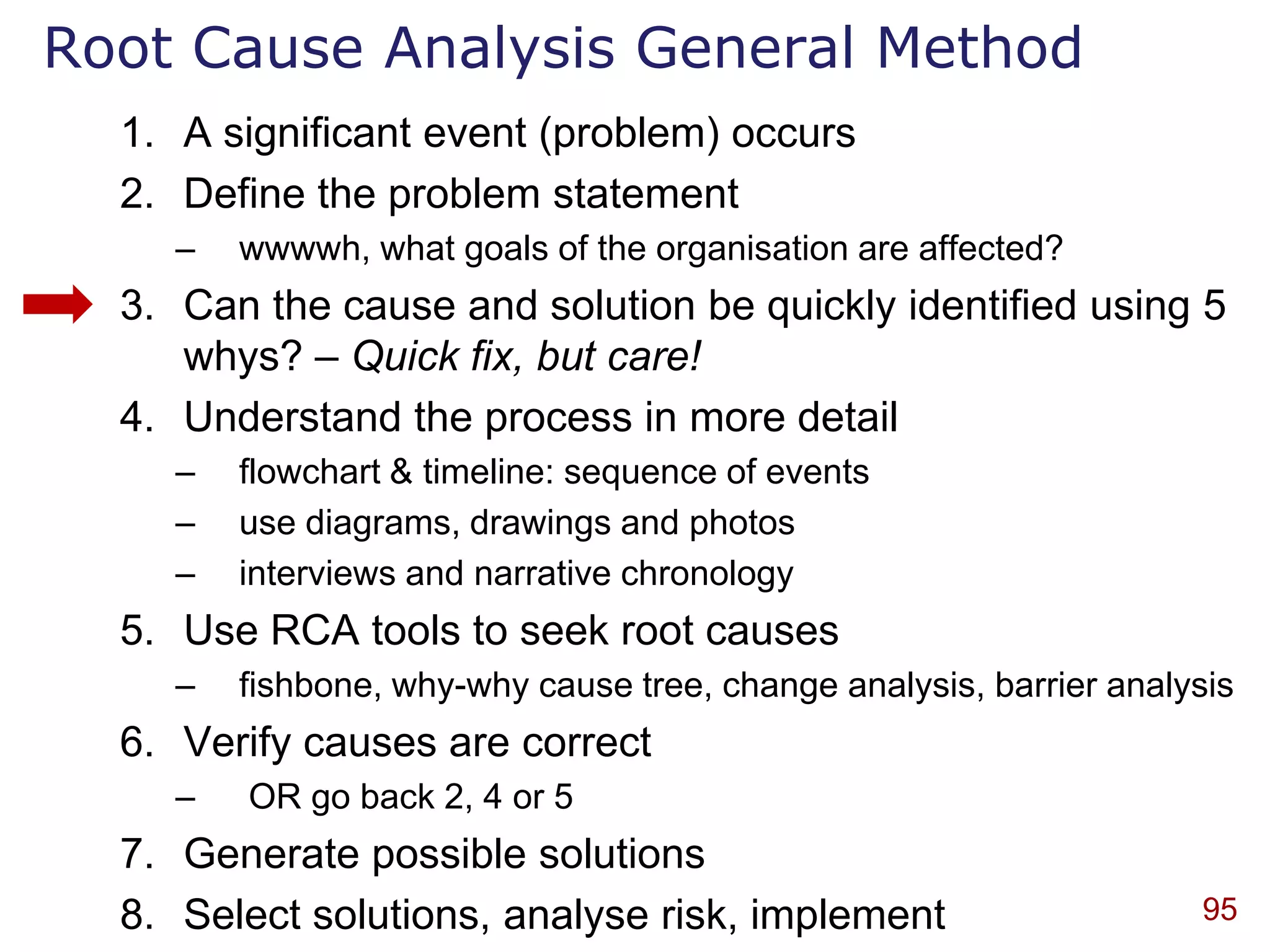

Root Cause Analysis General Method 1. A significant event (problem) occurs 2. Define the problem statement – wwwwh, what goals of the organisation are affected? 3. Can the cause and solution be quickly identified using 5 whys? – Quick fix, but care! 4. Understand the process in more detail – flowchart & timeline: sequence of events – use diagrams, drawings and photos – interviews and narrative chronology 5. Use RCA tools to seek root causes – fishbone, why-why cause tree, change analysis, barrier analysis 6. Verify causes are correct – OR go back 2, 4 or 5 7. Generate possible solutions 8. Select solutions, analyse risk, implement 95

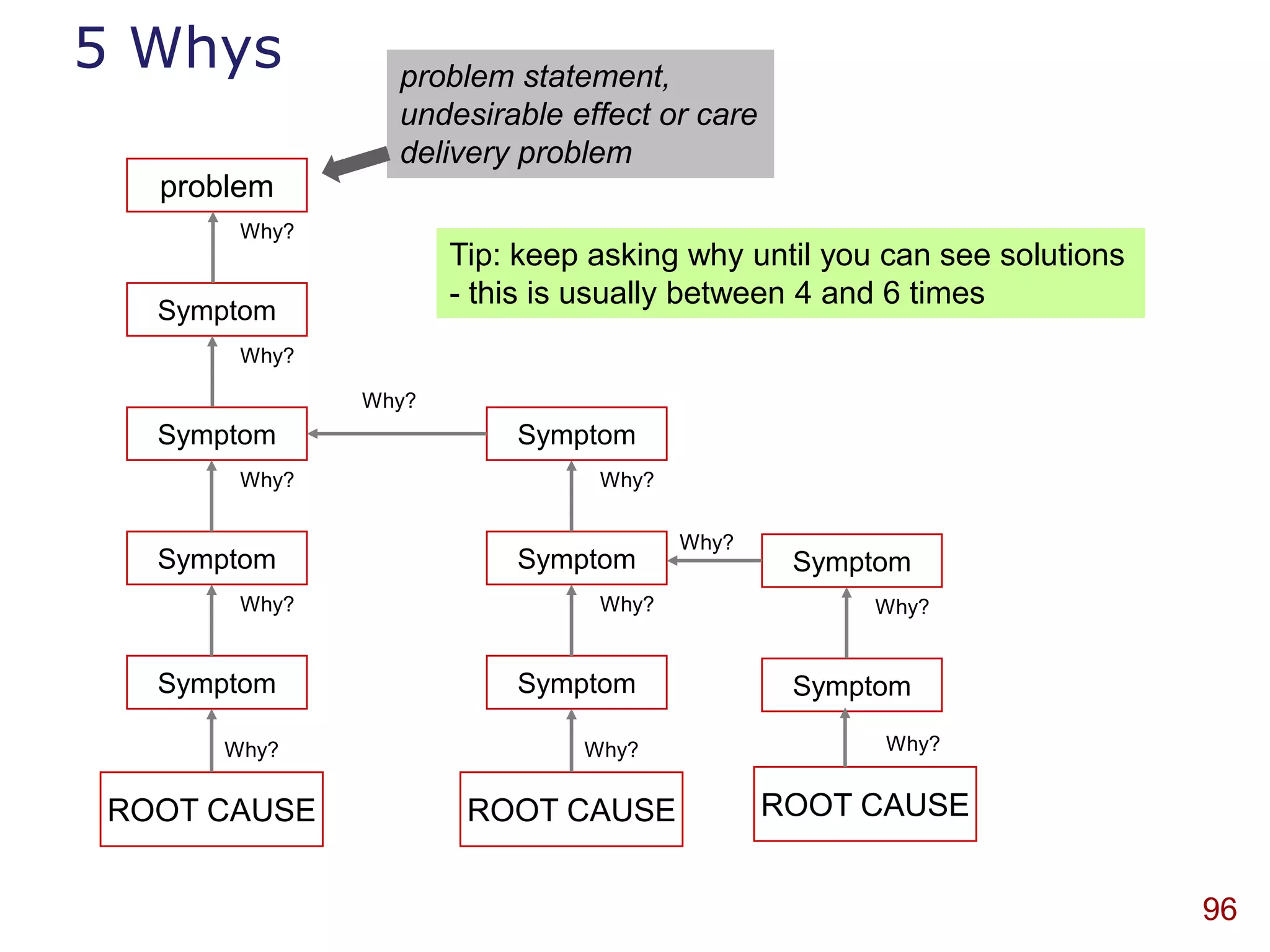

5 Whys problem statement, undesirable effect or care delivery problem problem Why? Tip: keep asking why until you can see solutions - this is usually between 4 and 6 times Symptom Why? Why? Symptom Symptom Why? Why? Why? Symptom Symptom Symptom Why? Why? Why? Symptom Symptom Symptom Why? Why? Why? ROOT CAUSE ROOT CAUSE ROOT CAUSE 96

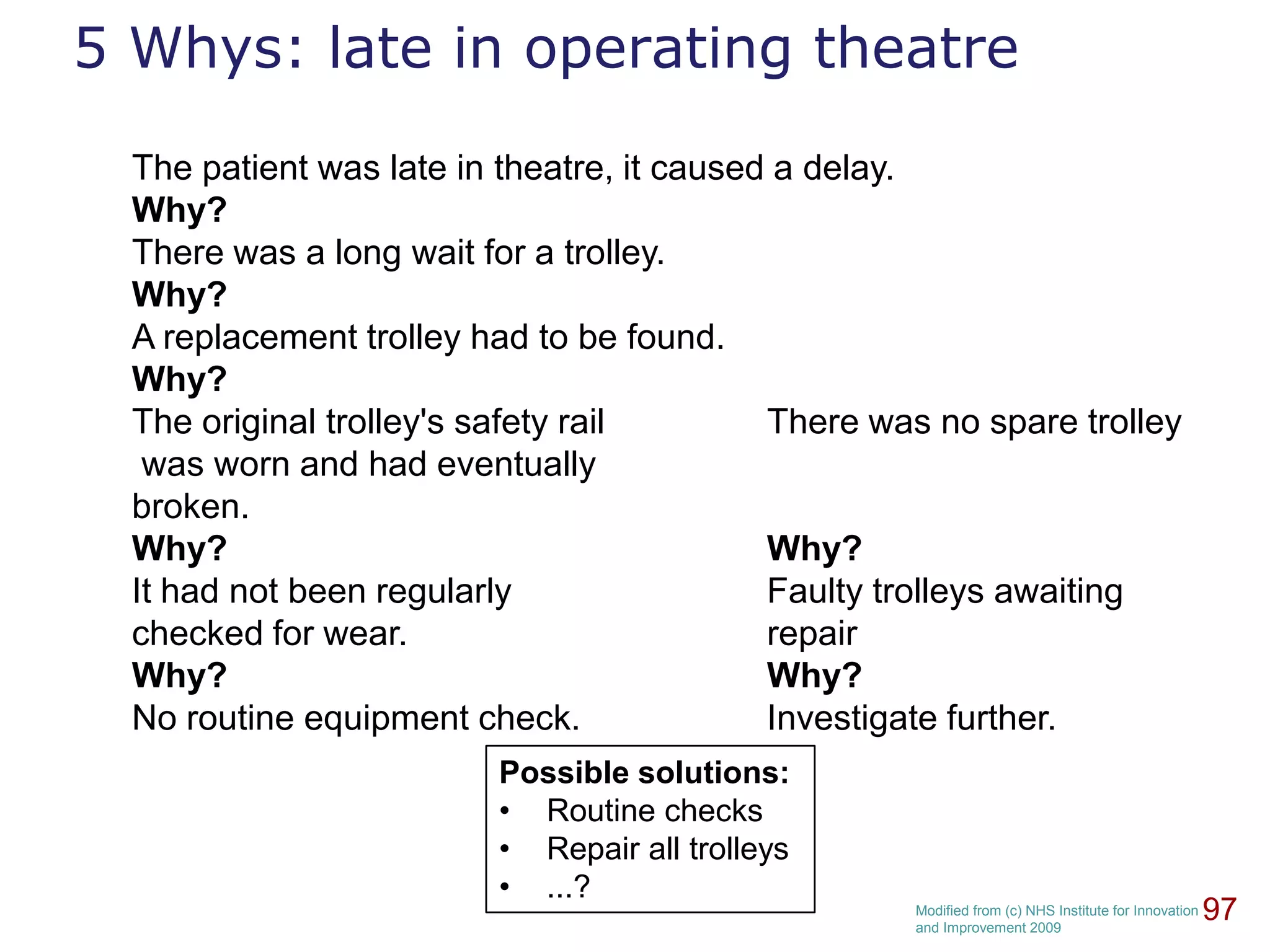

5 Whys: late in operating theatre The patient was late in theatre, it caused a delay. Why? There was a long wait for a trolley. Why? A replacement trolley had to be found. Why? The original trolley's safety rail There was no spare trolley was worn and had eventually broken. Why? Why? It had not been regularly Faulty trolleys awaiting checked for wear. repair Why? Why? No routine equipment check. Investigate further. Possible solutions: • Routine checks • Repair all trolleys • ...? Modified from (c) NHS Institute for Innovation and Improvement 2009 97

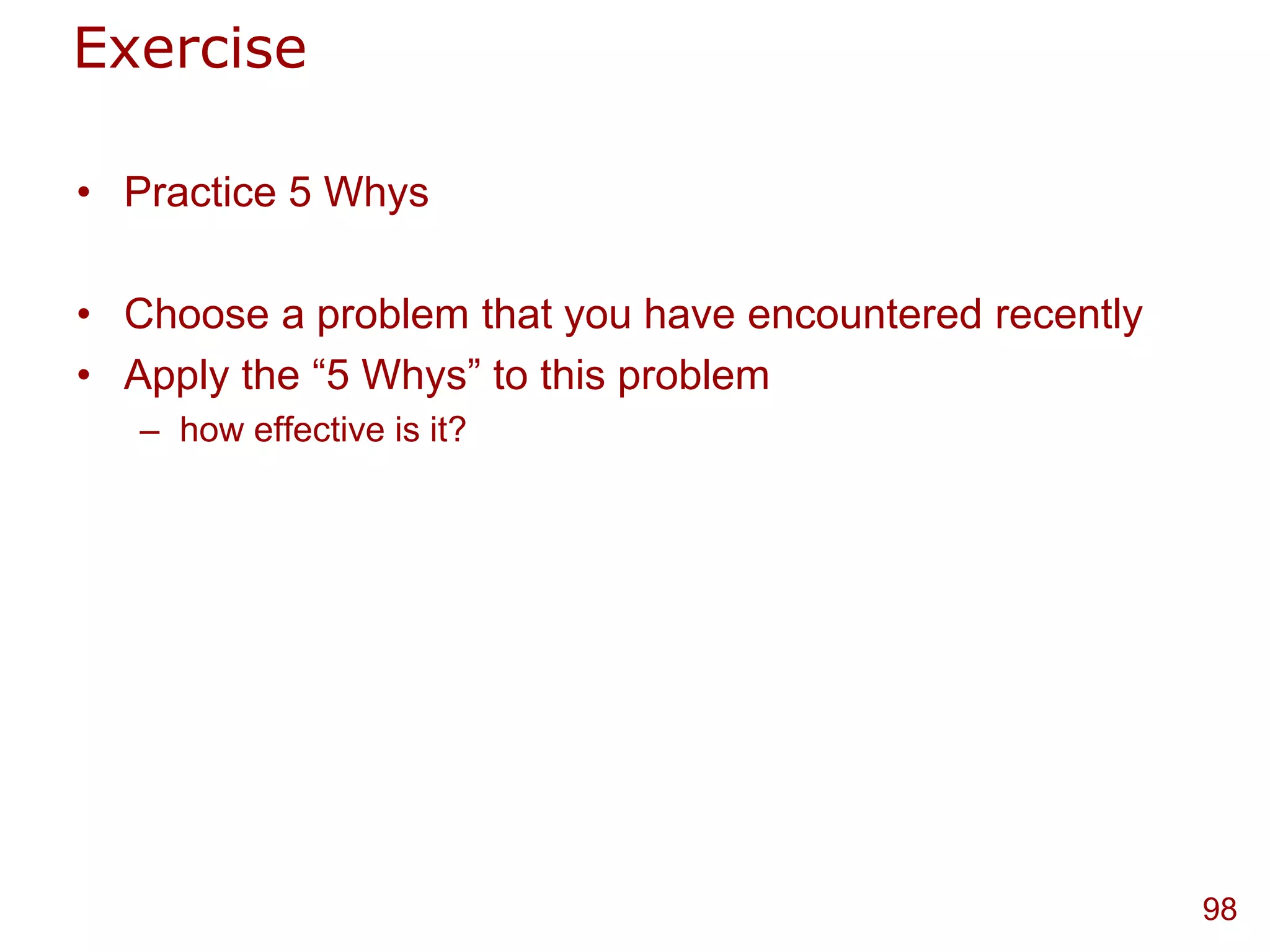

Exercise • Practice 5 Whys • Choose a problem that you have encountered recently • Apply the “5 Whys” to this problem – how effective is it? 98

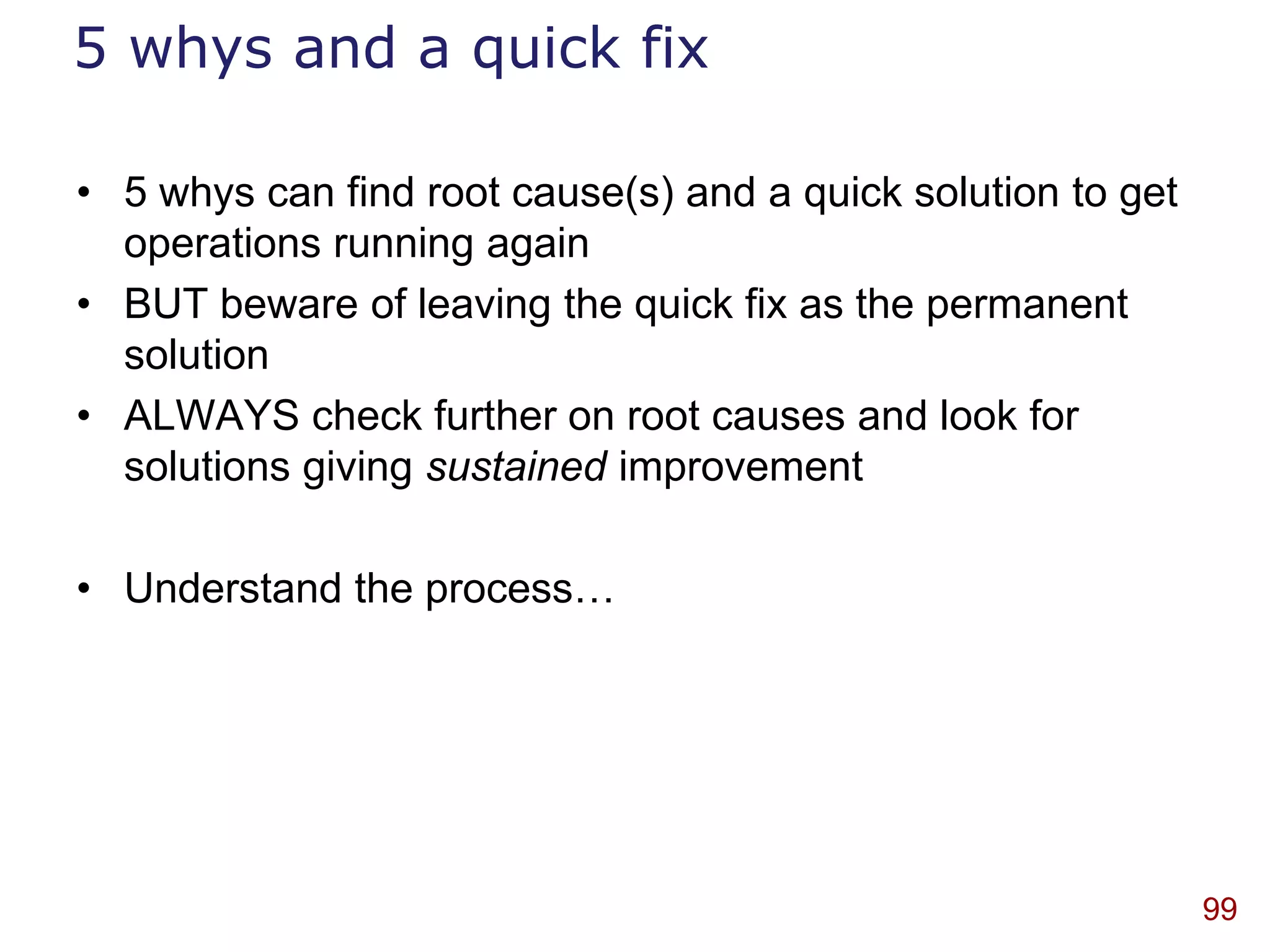

5 whys and a quick fix • 5 whys can find root cause(s) and a quick solution to get operations running again • BUT beware of leaving the quick fix as the permanent solution • ALWAYS check further on root causes and look for solutions giving sustained improvement • Understand the process… 99

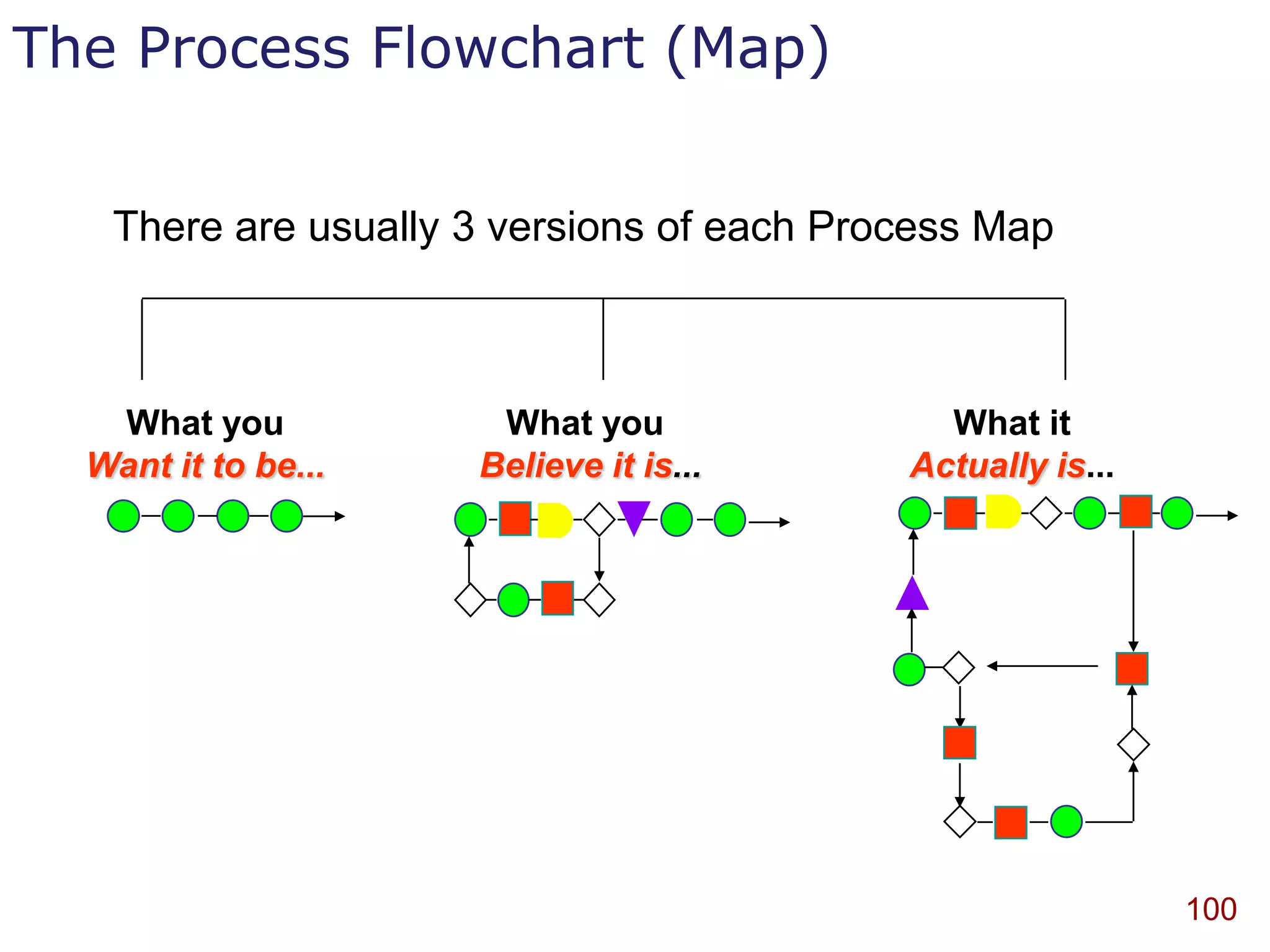

The Process Flowchart (Map) There are usually 3 versions of each Process Map What you What you What it Want it to be... Believe it is... Actually is... 100
Root Cause Analysis General Method 1. A significant event (problem) occurs 2. Define the problem statement – wwwwh, what goals of the organisation are affected? 3. Can the cause and solution be quickly identified using 5 whys? – Quick fix, but care! 4. Understand the process in more detail – flowchart & timeline: sequence of events – use diagrams, drawings and photos – interviews and narrative chronology 5. Use RCA tools to seek root causes – fishbone, why-why cause tree, change analysis, barrier analysis 6. Verify causes are correct – OR go back 2, 4 or 5 7. Generate possible solutions 8. Select solutions, analyse risk, implement 101

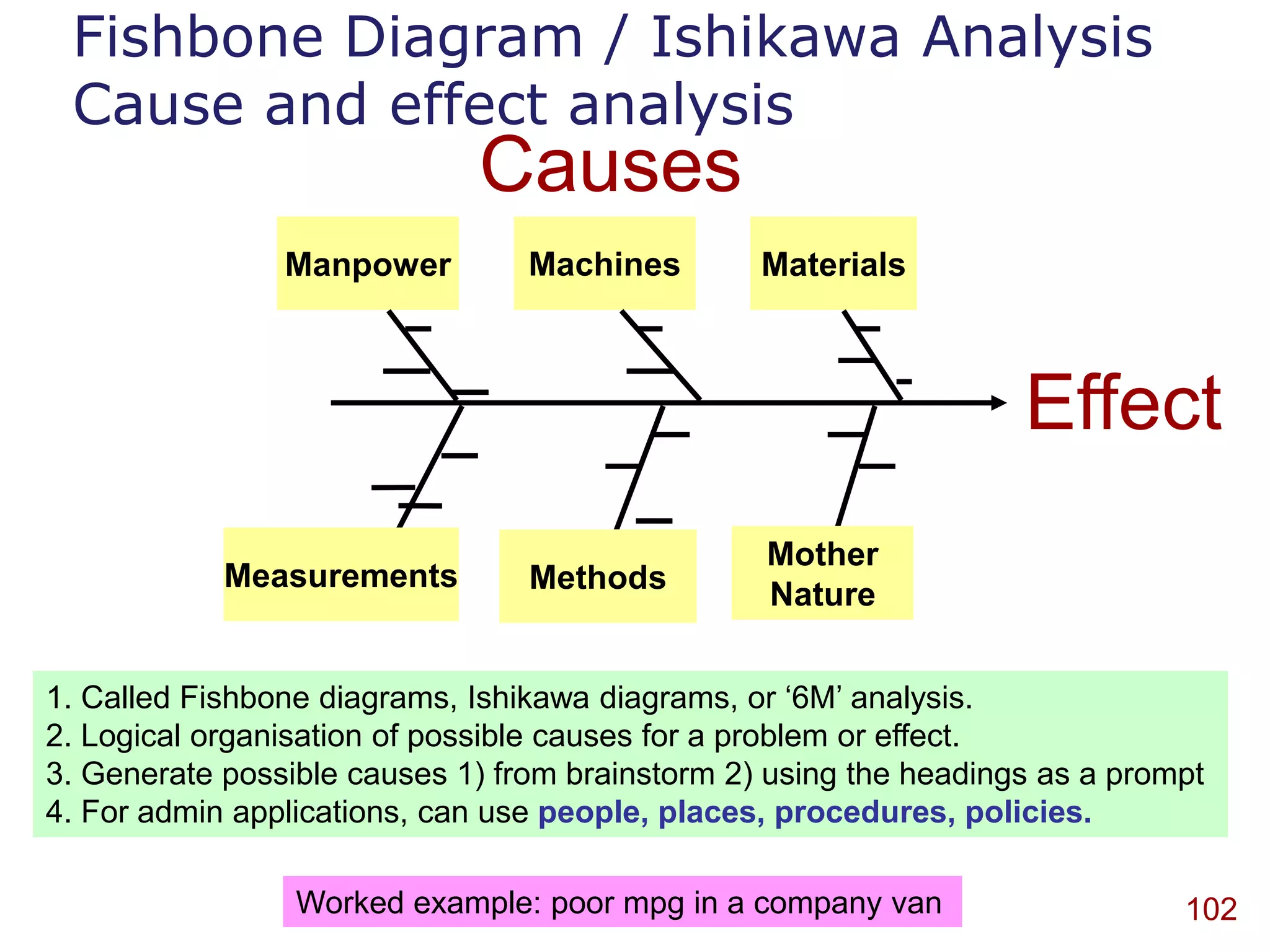

Fishbone Diagram / Ishikawa Analysis Cause and effect analysis Causes Manpower Machines Materials Effect Mother Measurements Methods Nature 1. Called Fishbone diagrams, Ishikawa diagrams, or „6M‟ analysis. 2. Logical organisation of possible causes for a problem or effect. 3. Generate possible causes 1) from brainstorm 2) using the headings as a prompt 4. For admin applications, can use people, places, procedures, policies. Worked example: poor mpg in a company van 102

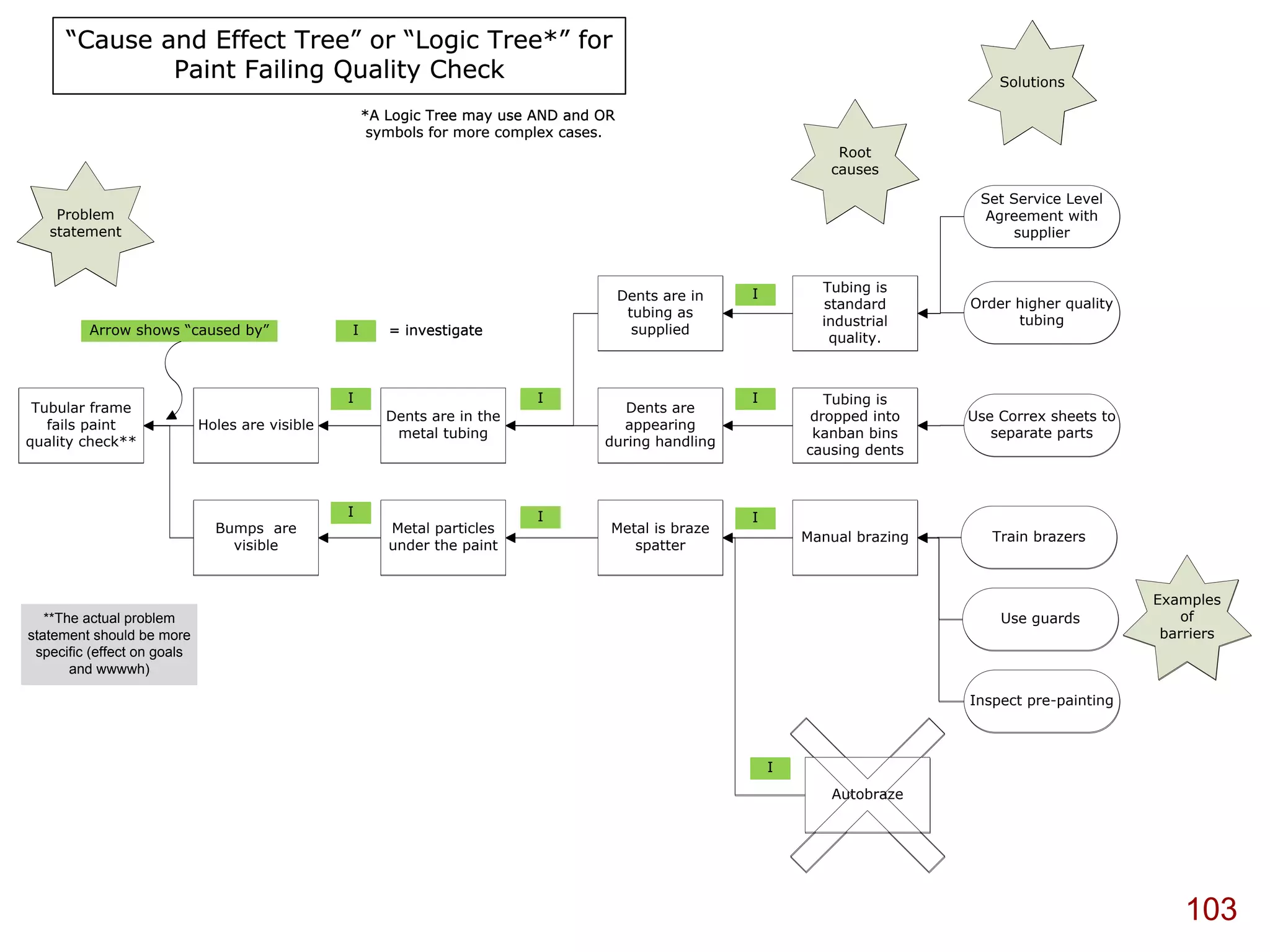

“Cause and Effect Tree” or “Logic Tree*” for Paint Failing Quality Check Solutions *A Logic Tree may use AND and OR symbols for more complex cases. Root causes Set Service Level Problem Agreement with statement supplier I Tubing is Dents are in standard Order higher quality tubing as industrial tubing Arrow shows “caused by” I = investigate supplied quality. I I I Tubing is Tubular frame Dents are Dents are in the dropped into Use Correx sheets to fails paint Holes are visible appearing metal tubing kanban bins separate parts quality check** during handling causing dents I I I Bumps are Metal particles Metal is braze Manual brazing Train brazers visible under the paint spatter Examples **The actual problem Use guards of statement should be more barriers specific (effect on goals and wwwwh) Inspect pre-painting I Autobraze 103

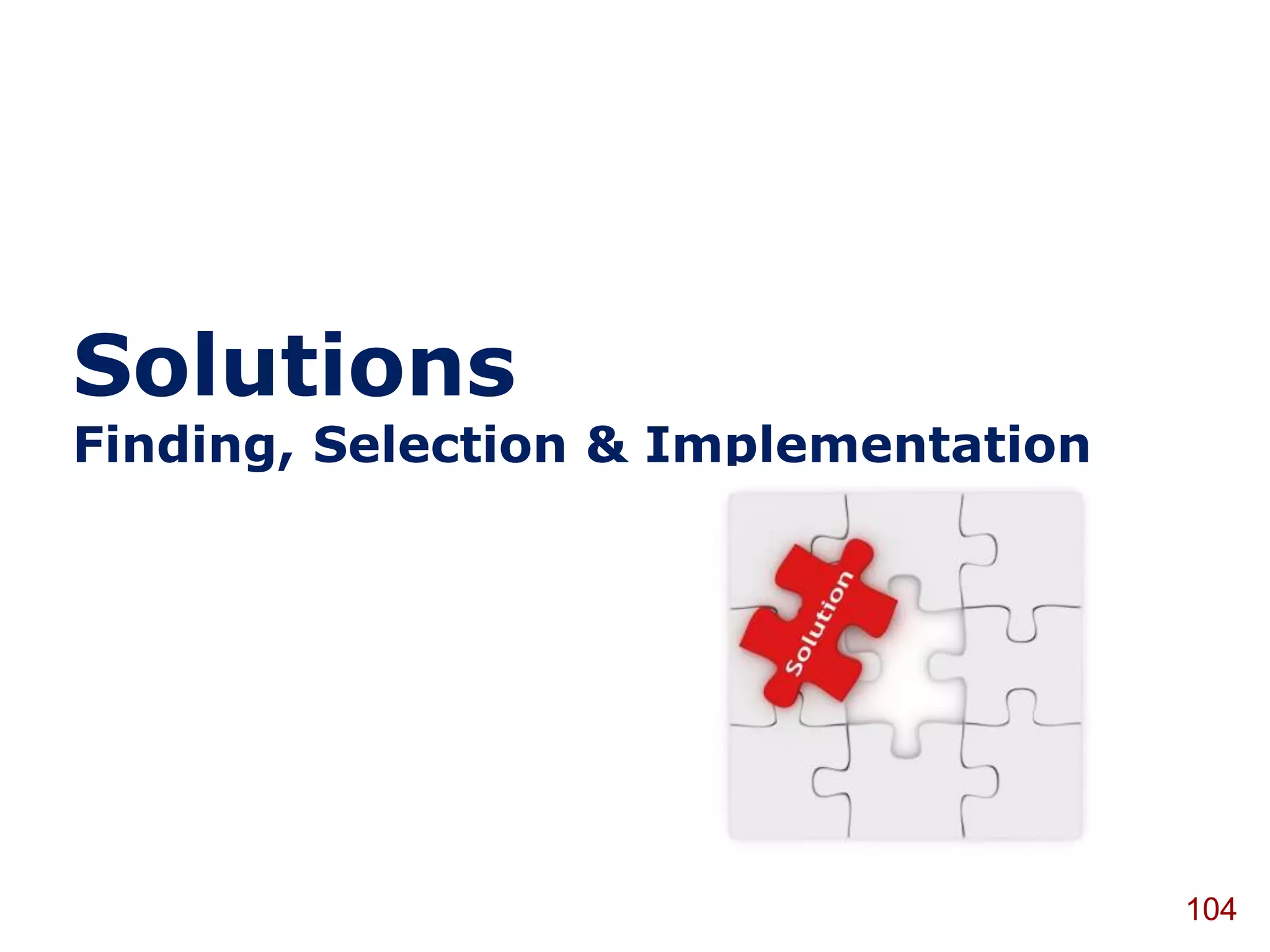

Solutions Finding, Selection & Implementation 104

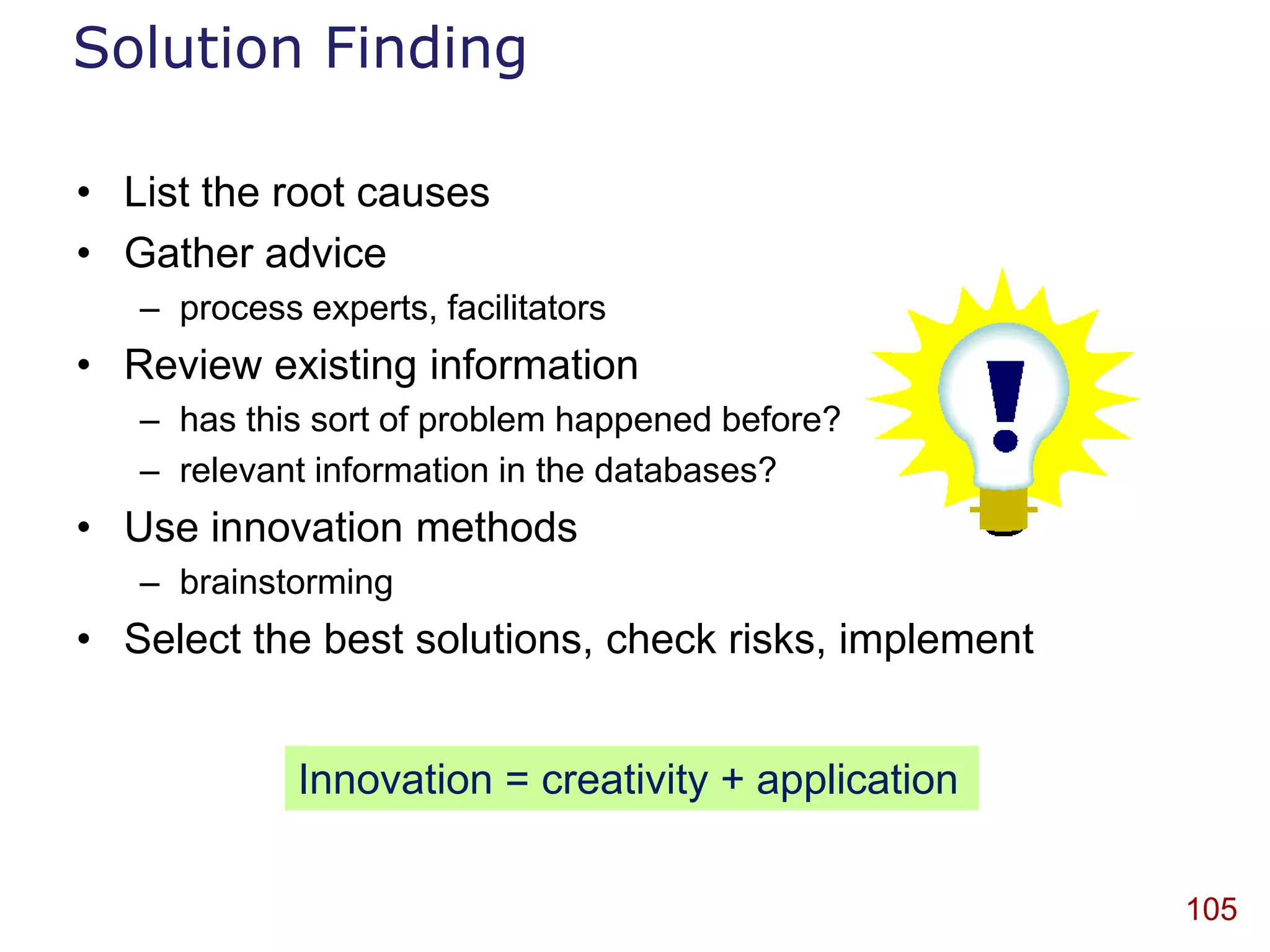

Solution Finding • List the root causes • Gather advice – process experts, facilitators • Review existing information – has this sort of problem happened before? – relevant information in the databases? • Use innovation methods – brainstorming • Select the best solutions, check risks, implement Innovation = creativity + application 105

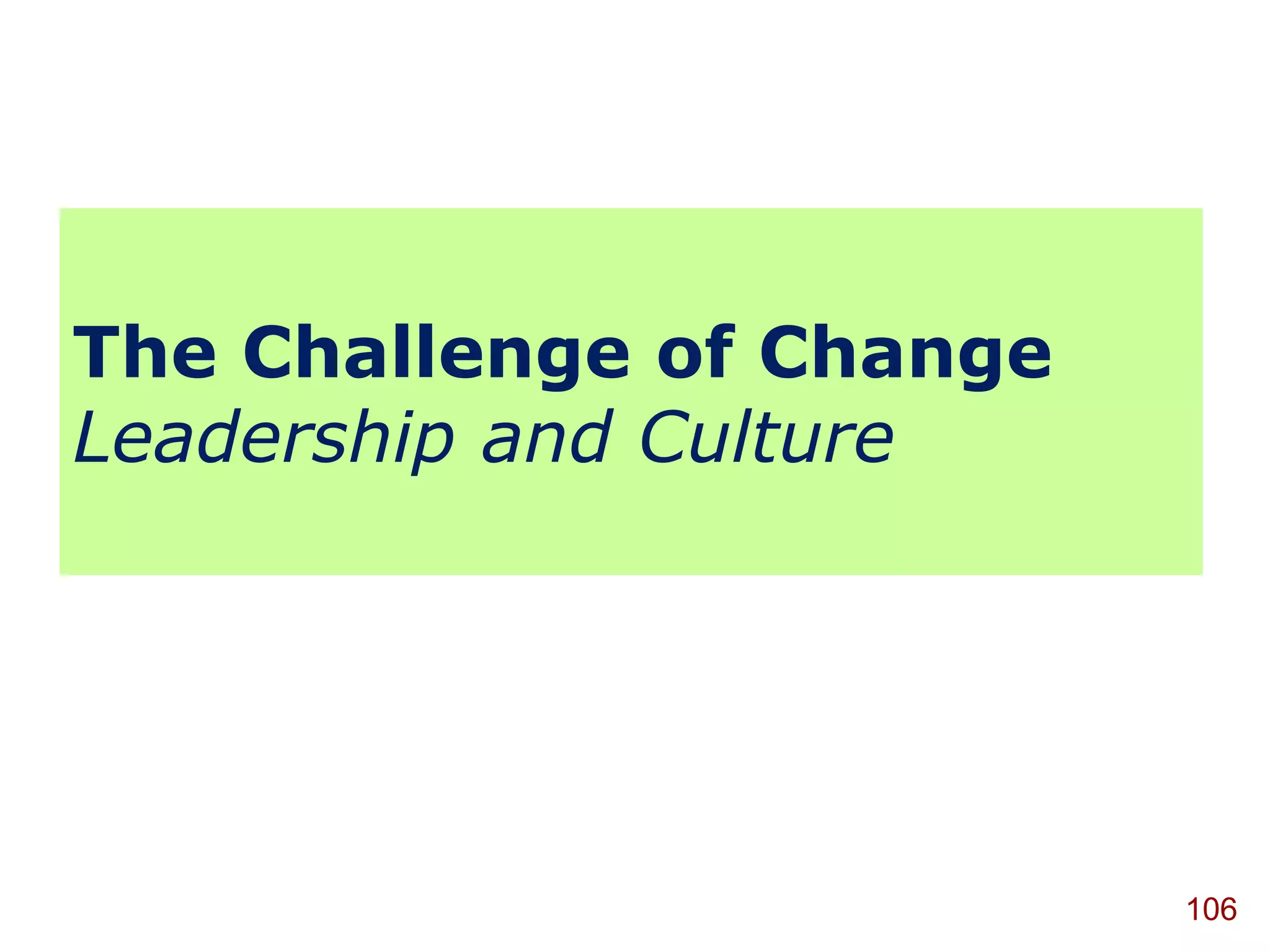

The Challenge of Change Leadership and Culture 106
“ It is not necessary to change... Survival is not mandatory.” W. Edwards Deming 107
Your view? • Do you know of change programmes? • Why were they successful or otherwise? 108
109

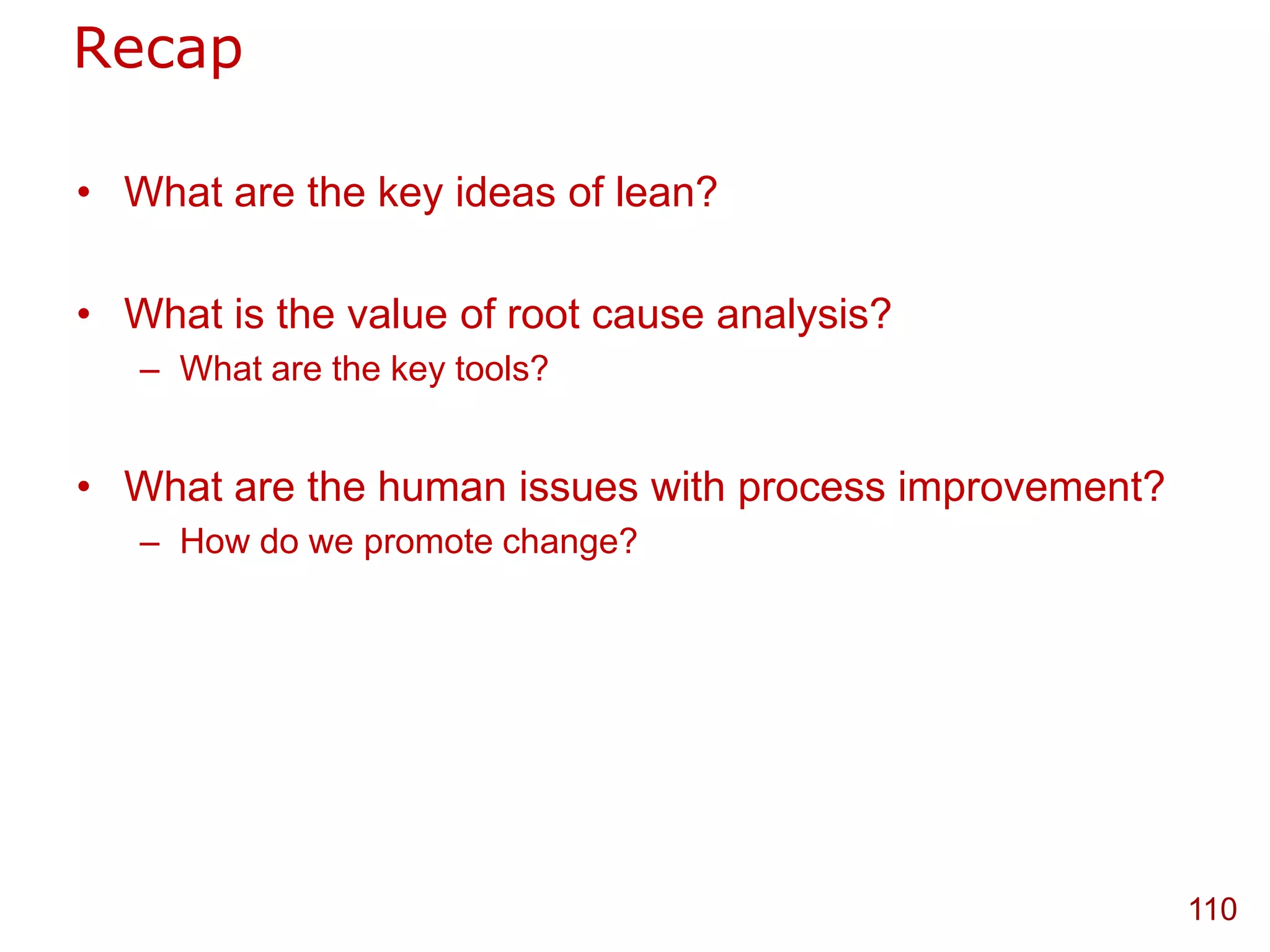

Recap • What are the key ideas of lean? • What is the value of root cause analysis? – What are the key tools? • What are the human issues with process improvement? – How do we promote change? 110

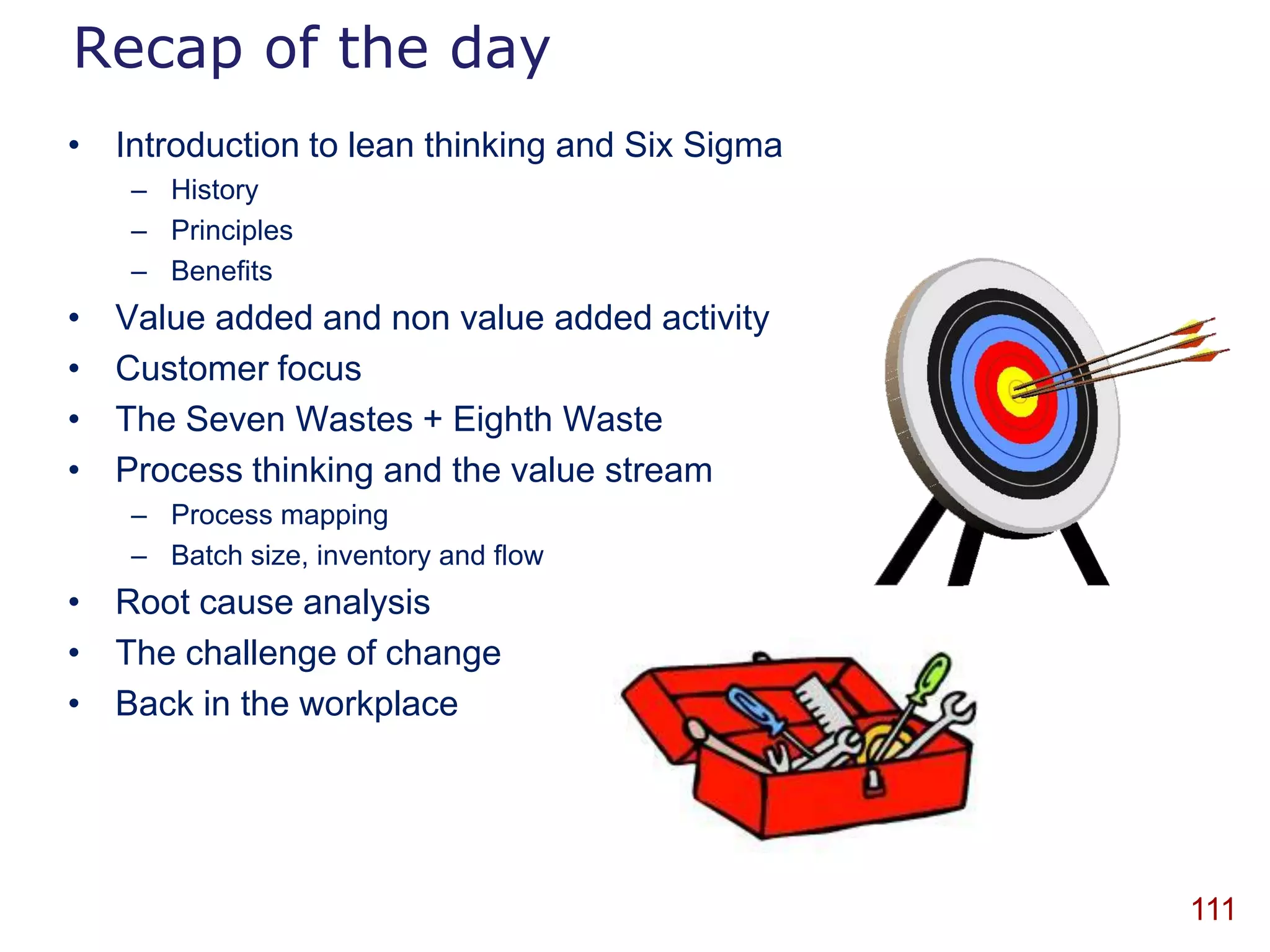

Recap of the day • Introduction to lean thinking and Six Sigma – History – Principles – Benefits • Value added and non value added activity • Customer focus • The Seven Wastes + Eighth Waste • Process thinking and the value stream – Process mapping – Batch size, inventory and flow • Root cause analysis • The challenge of change • Back in the workplace 111
Implementation • What ideas do you have for – a project using lean principles? – an application of root cause analysis? • What are your next steps in lean and root cause analysis? 112
END Excellence is a journey, not a destination! 113

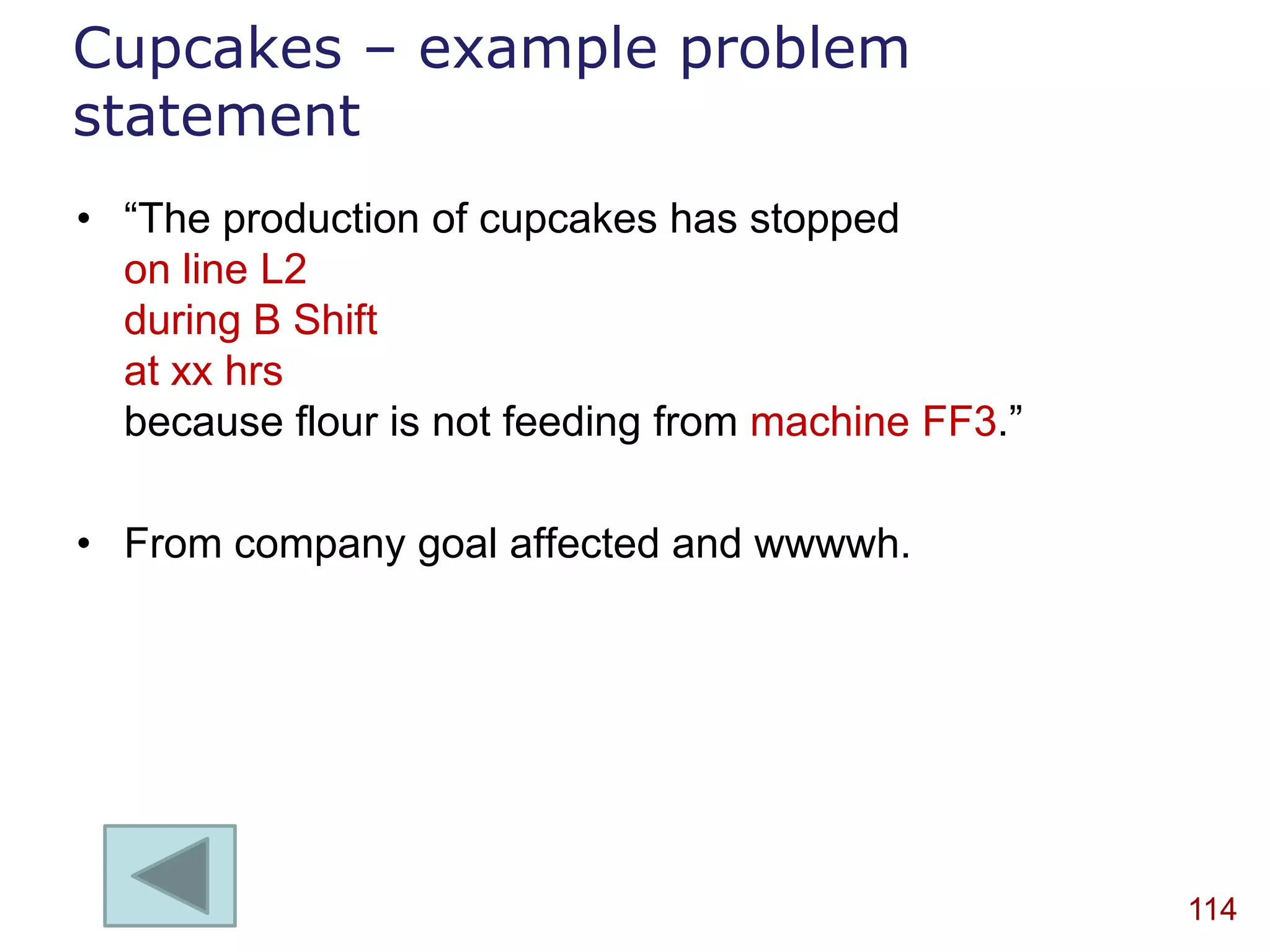

Cupcakes – example problem statement • “The production of cupcakes has stopped on line L2 during B Shift at xx hrs because flour is not feeding from machine FF3.” • From company goal affected and wwwwh. 114
What is Lean and Six Sigma? • A structured method for improving processes – “Improve” means reduce costs, increase quality, reduce times – “Process” is any series of linked activities for a useful function • Lean and Six Sigma work together Lean: improve flow and reduce waste Six Sigma: minimise variation in processes (statistical; not covered today) • When applied, will – reduce costs – improve quality – shorten process times – improve employee engagement 115

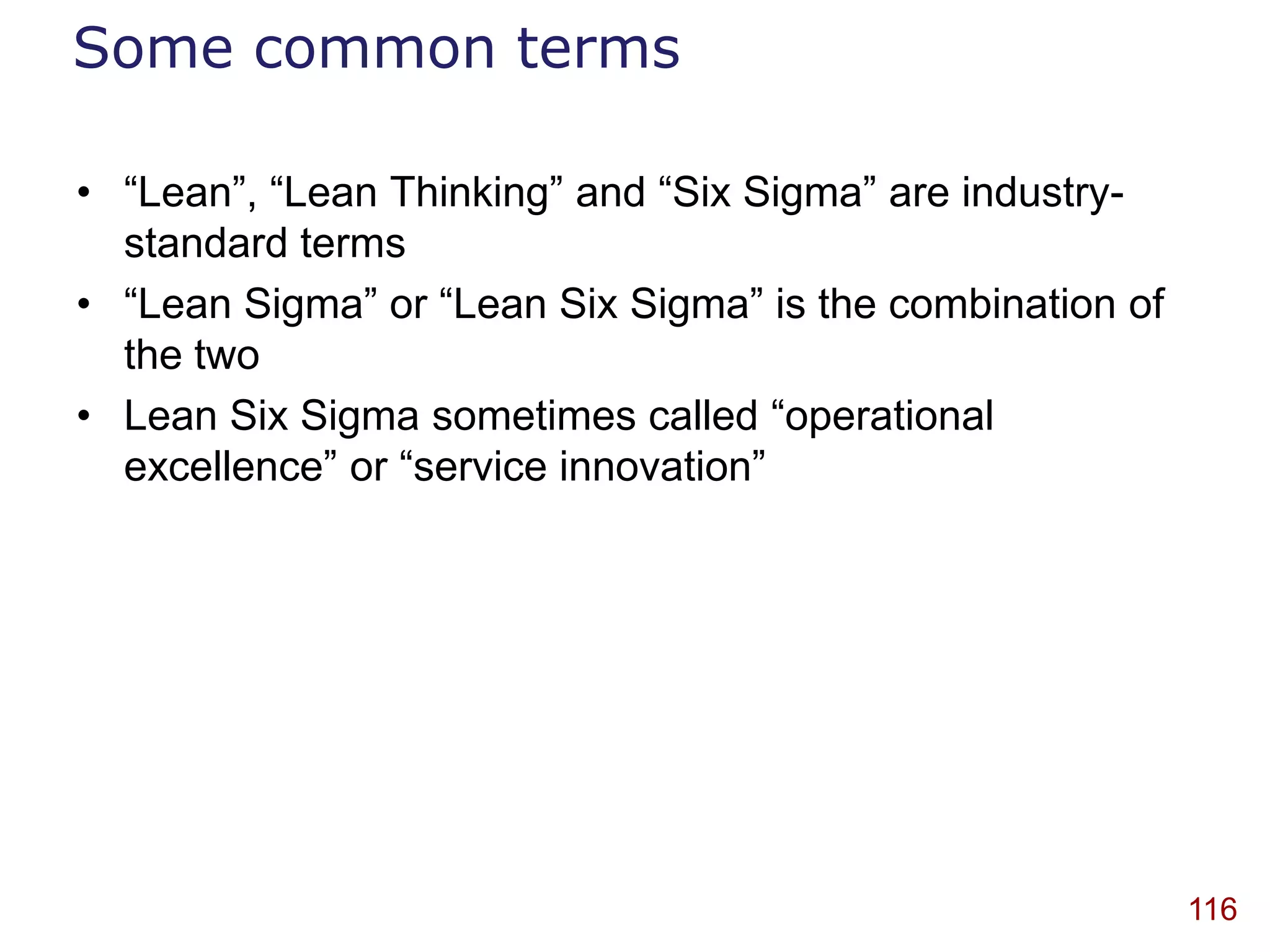

Some common terms • “Lean”, “Lean Thinking” and “Six Sigma” are industry- standard terms • “Lean Sigma” or “Lean Six Sigma” is the combination of the two • Lean Six Sigma sometimes called “operational excellence” or “service innovation” 116

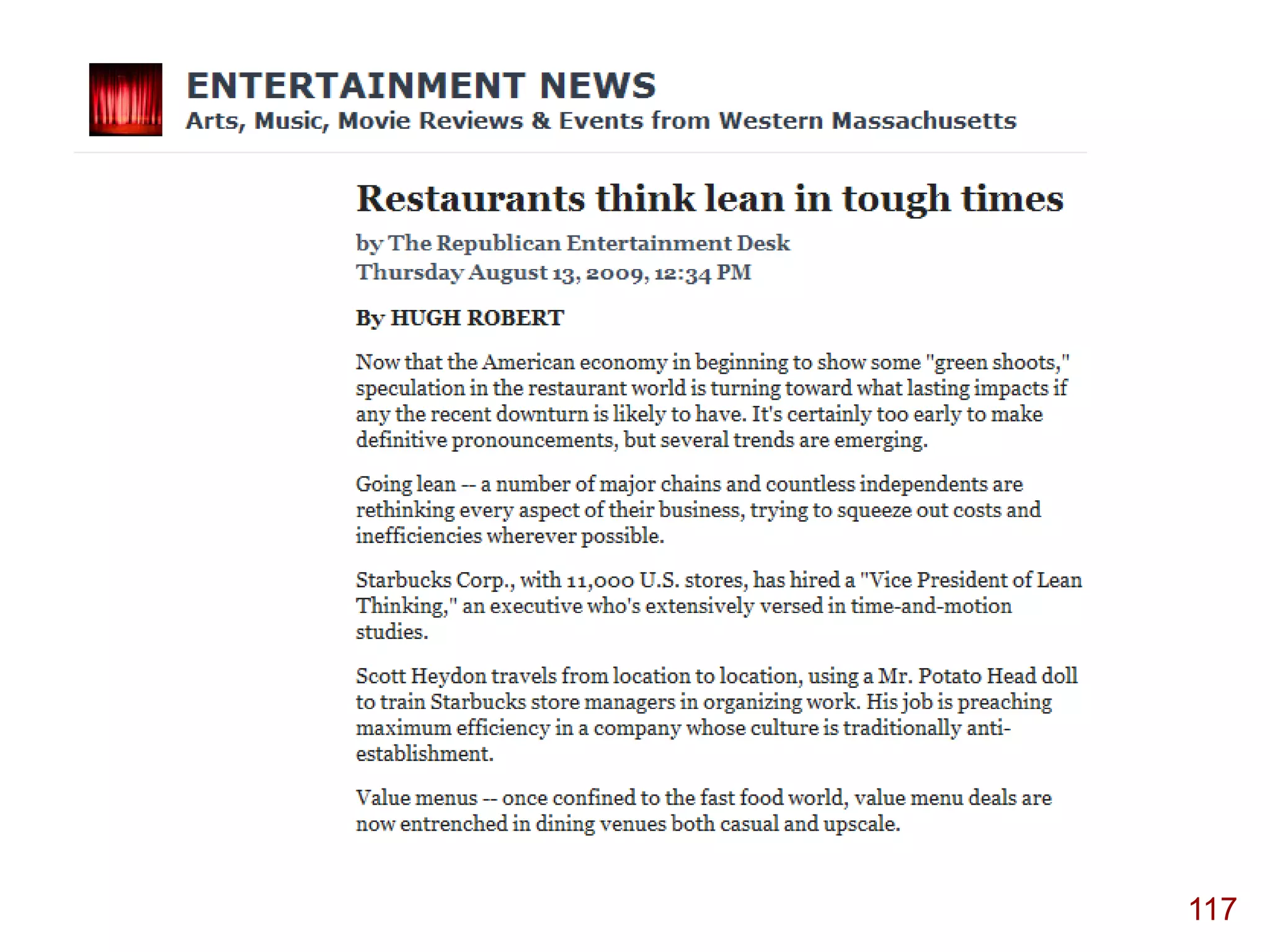

117
118

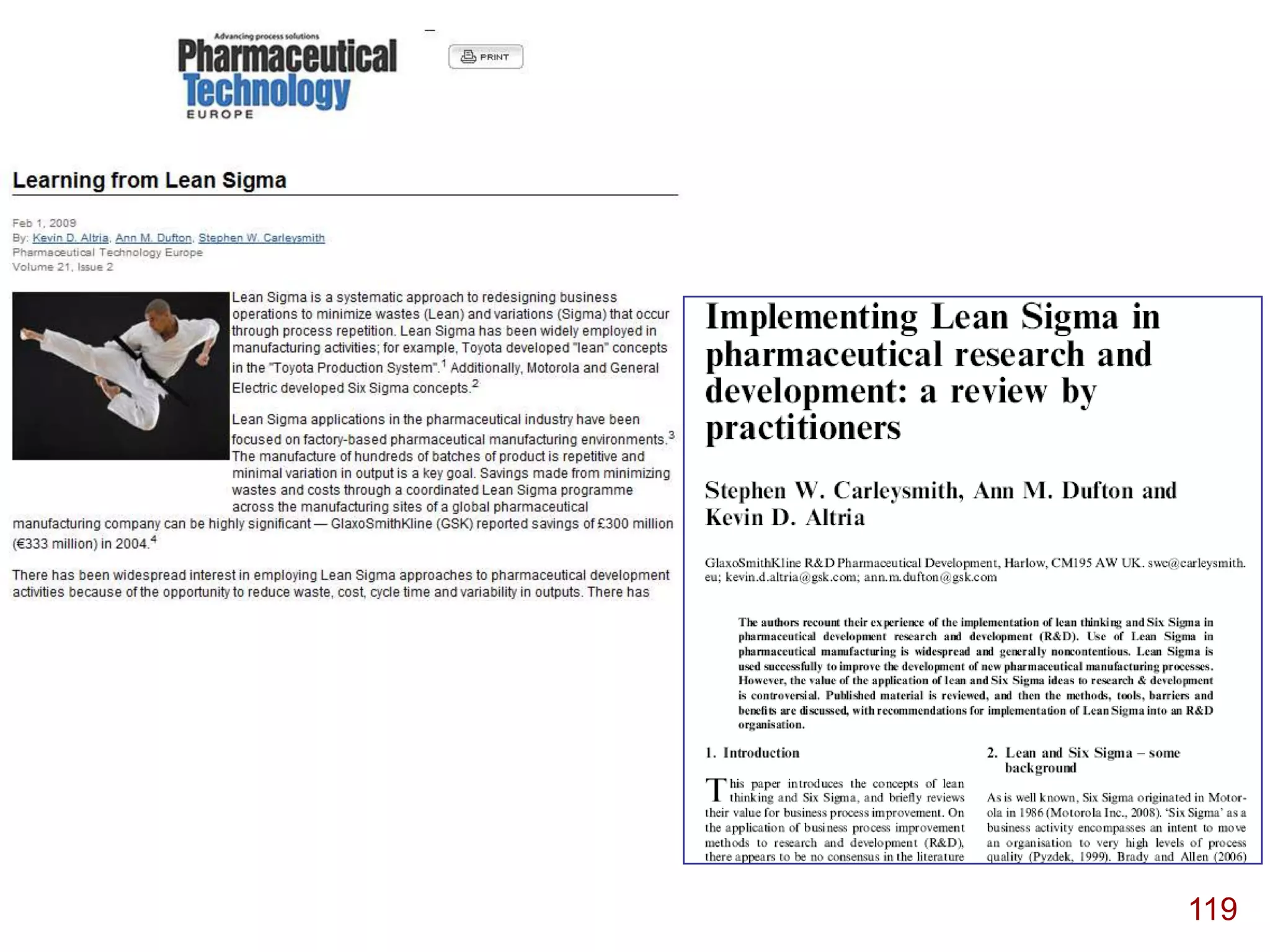

119
120

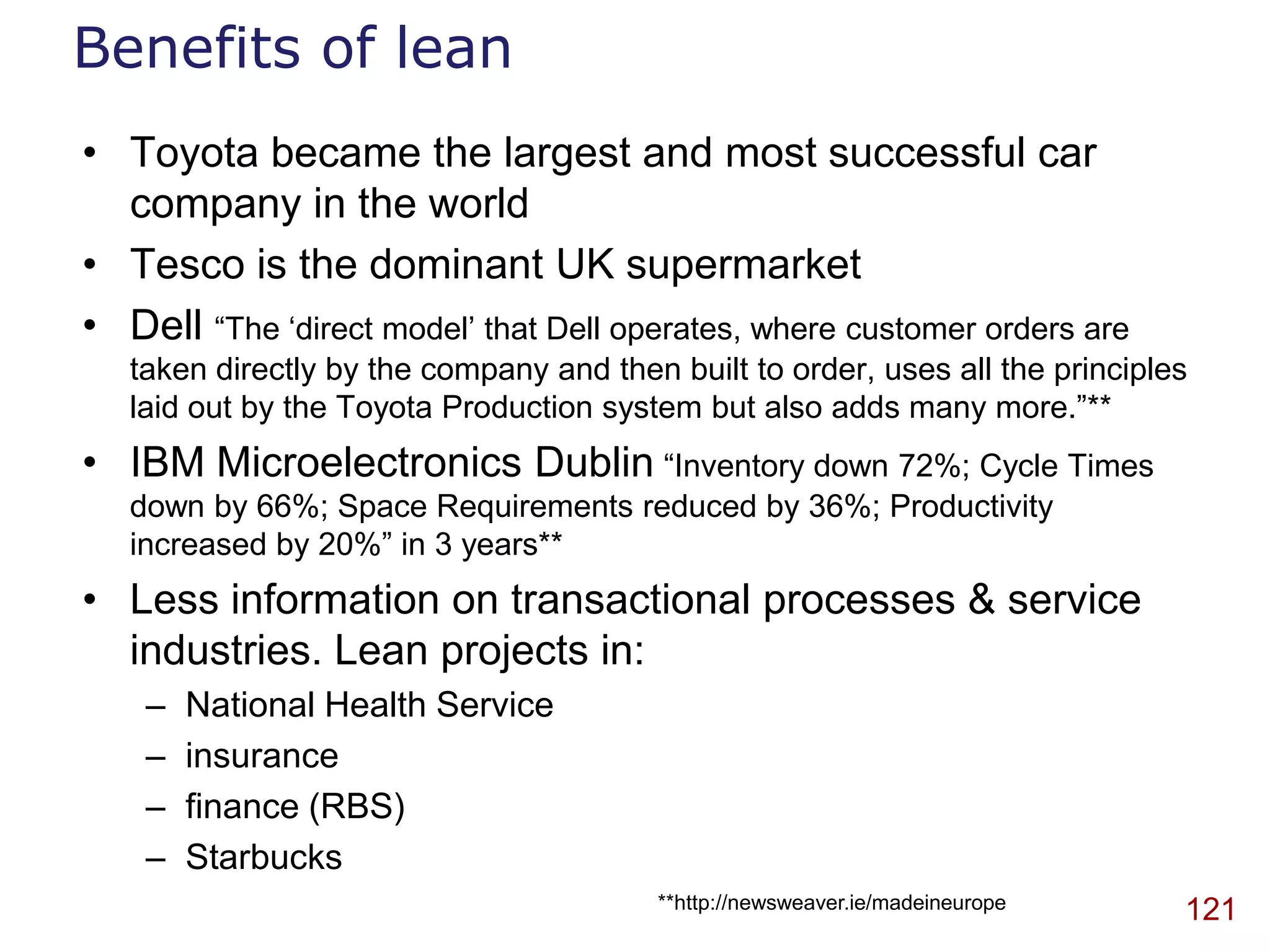

Benefits of lean • Toyota became the largest and most successful car company in the world • Tesco is the dominant UK supermarket • Dell “The „direct model‟ that Dell operates, where customer orders are taken directly by the company and then built to order, uses all the principles laid out by the Toyota Production system but also adds many more.”** • IBM Microelectronics Dublin “Inventory down 72%; Cycle Times down by 66%; Space Requirements reduced by 36%; Productivity increased by 20%” in 3 years** • Less information on transactional processes & service industries. Lean projects in: – National Health Service – insurance – finance (RBS) – Starbucks **http://newsweaver.ie/madeineurope 121

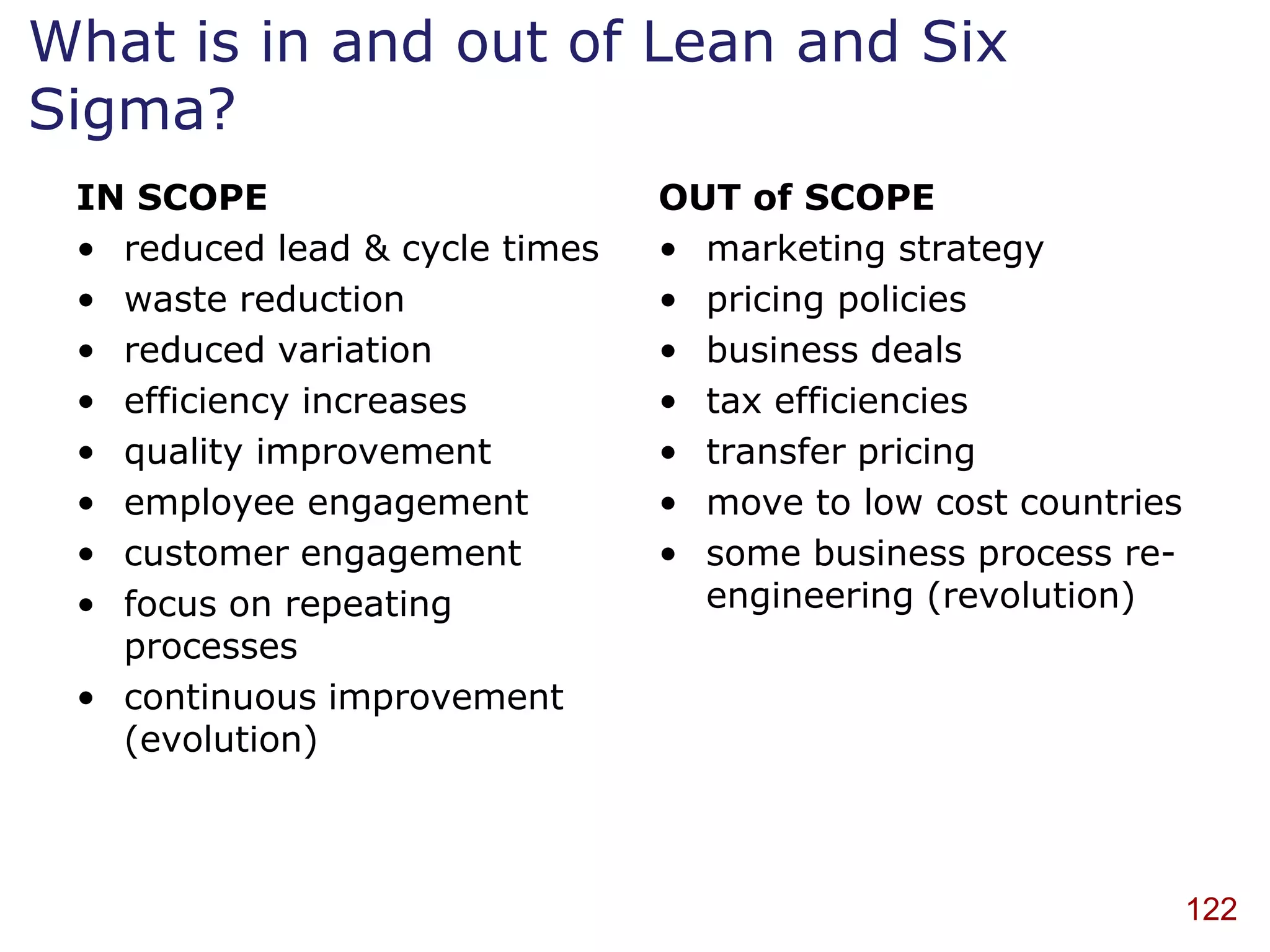

What is in and out of Lean and Six Sigma? IN SCOPE OUT of SCOPE • reduced lead & cycle times • marketing strategy • waste reduction • pricing policies • reduced variation • business deals • efficiency increases • tax efficiencies • quality improvement • transfer pricing • employee engagement • move to low cost countries • customer engagement • some business process re- • focus on repeating engineering (revolution) processes • continuous improvement (evolution) 122
DMAIC & team charter?? SKIP 123
