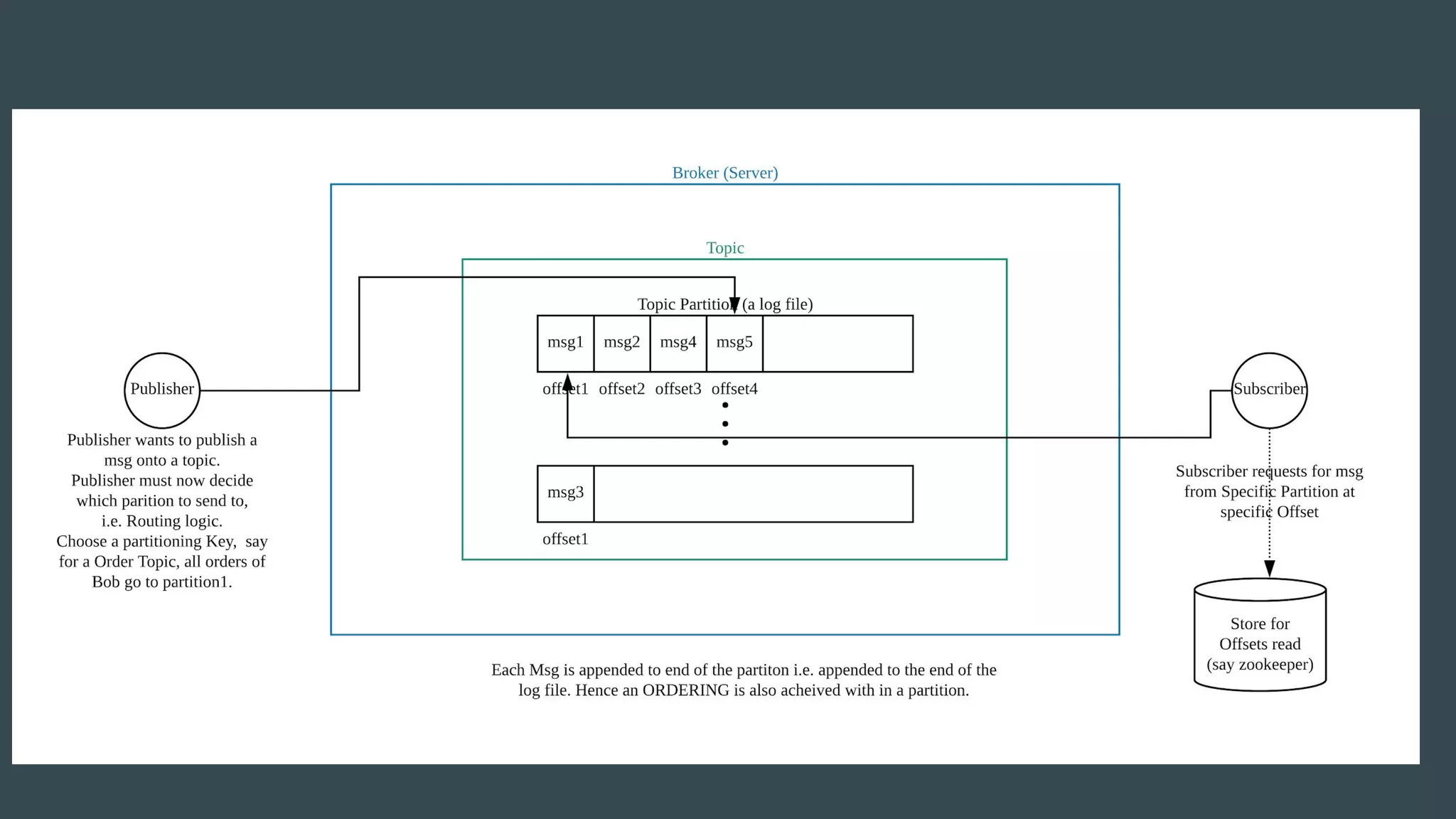

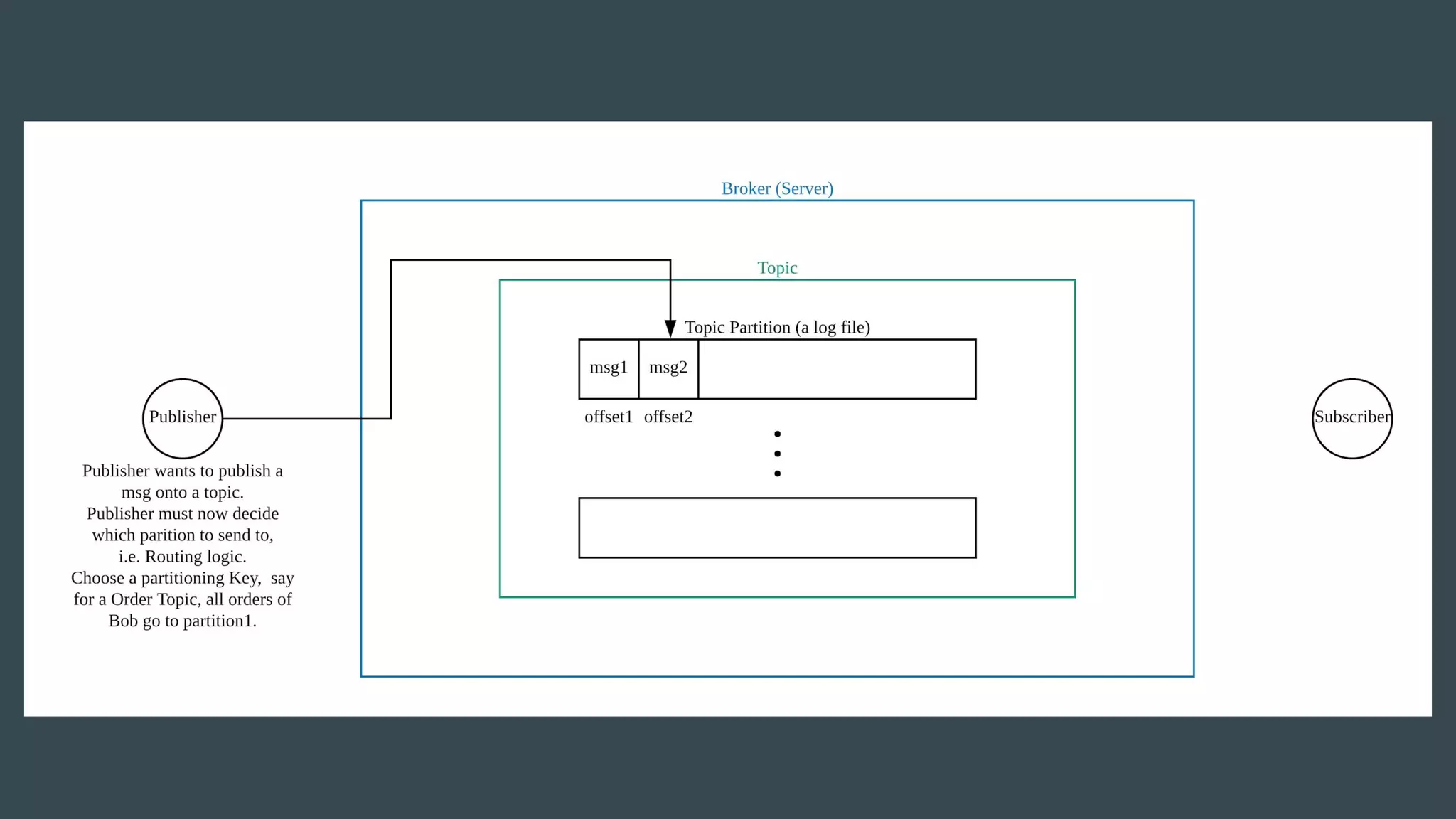

- Publishers send messages to topics in Apache Kafka which are partitioned across brokers - Brokers append messages to the ends of partitions and subscribers can request messages from specific offsets in partitions - This allows subscribers to replay processing from any point in time as they request messages based on offset rather than relying on brokers to deliver messages

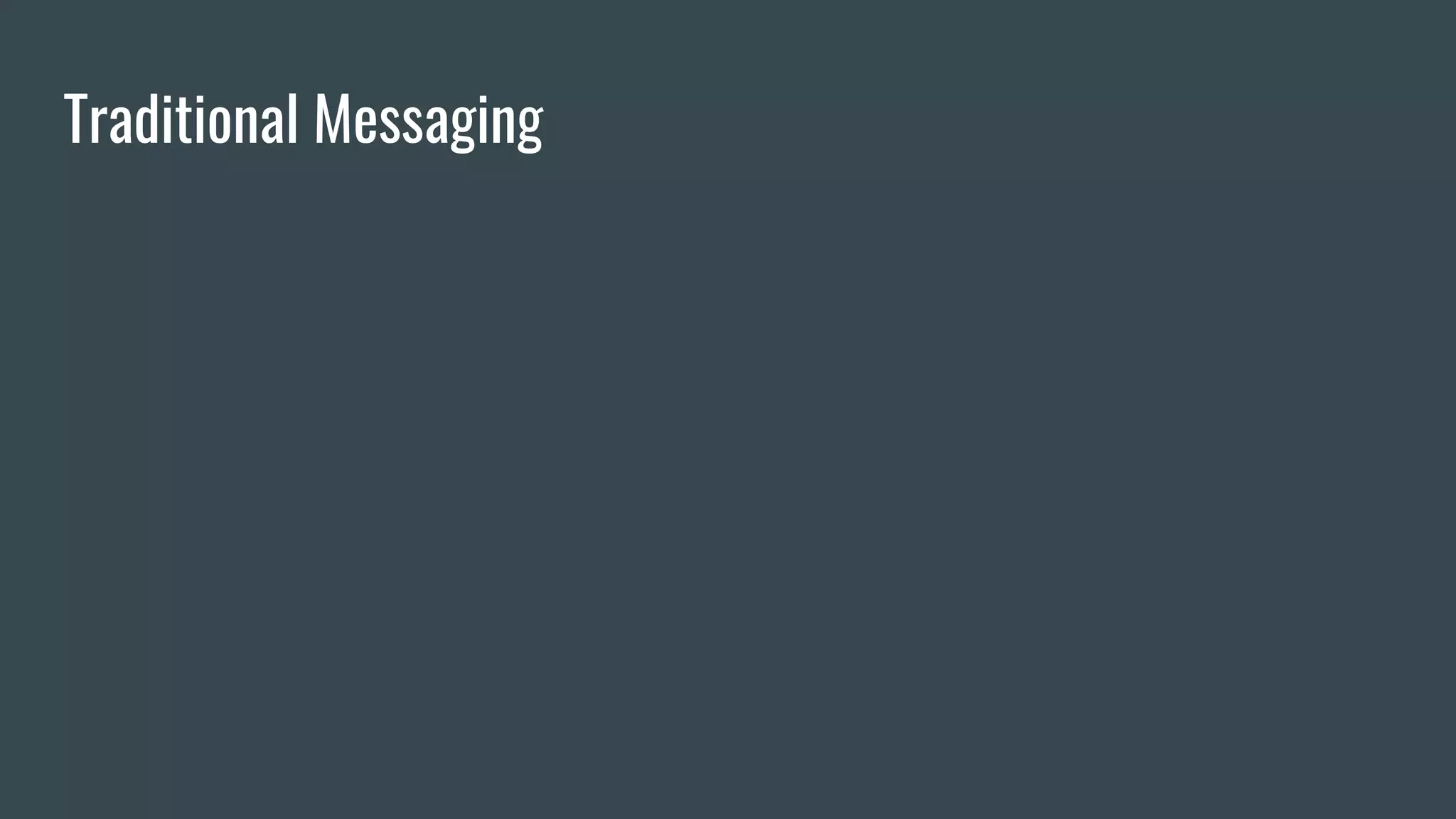

2. Traditional Messaging

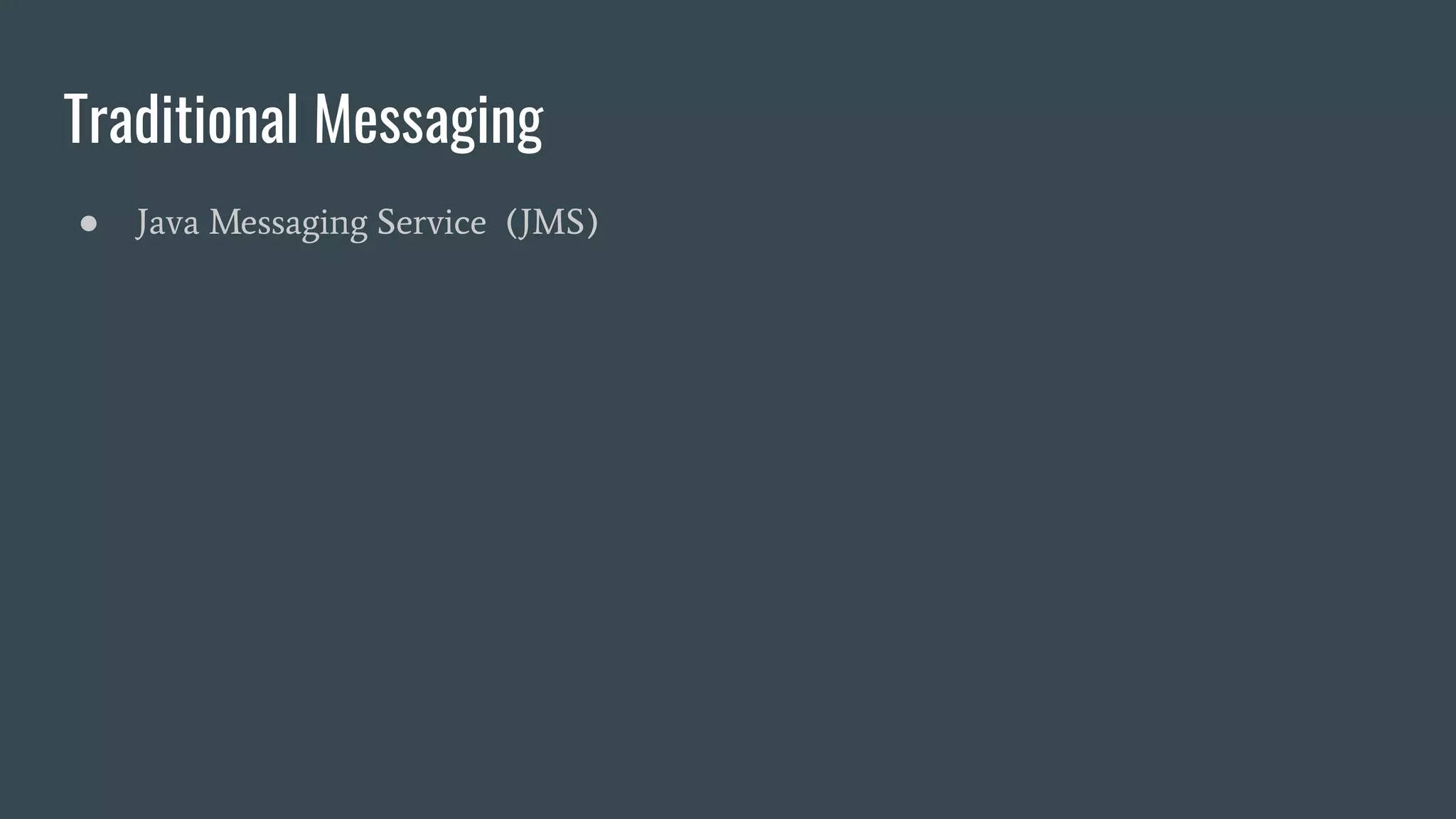

3. Traditional Messaging
● Java Messaging Service (JMS)

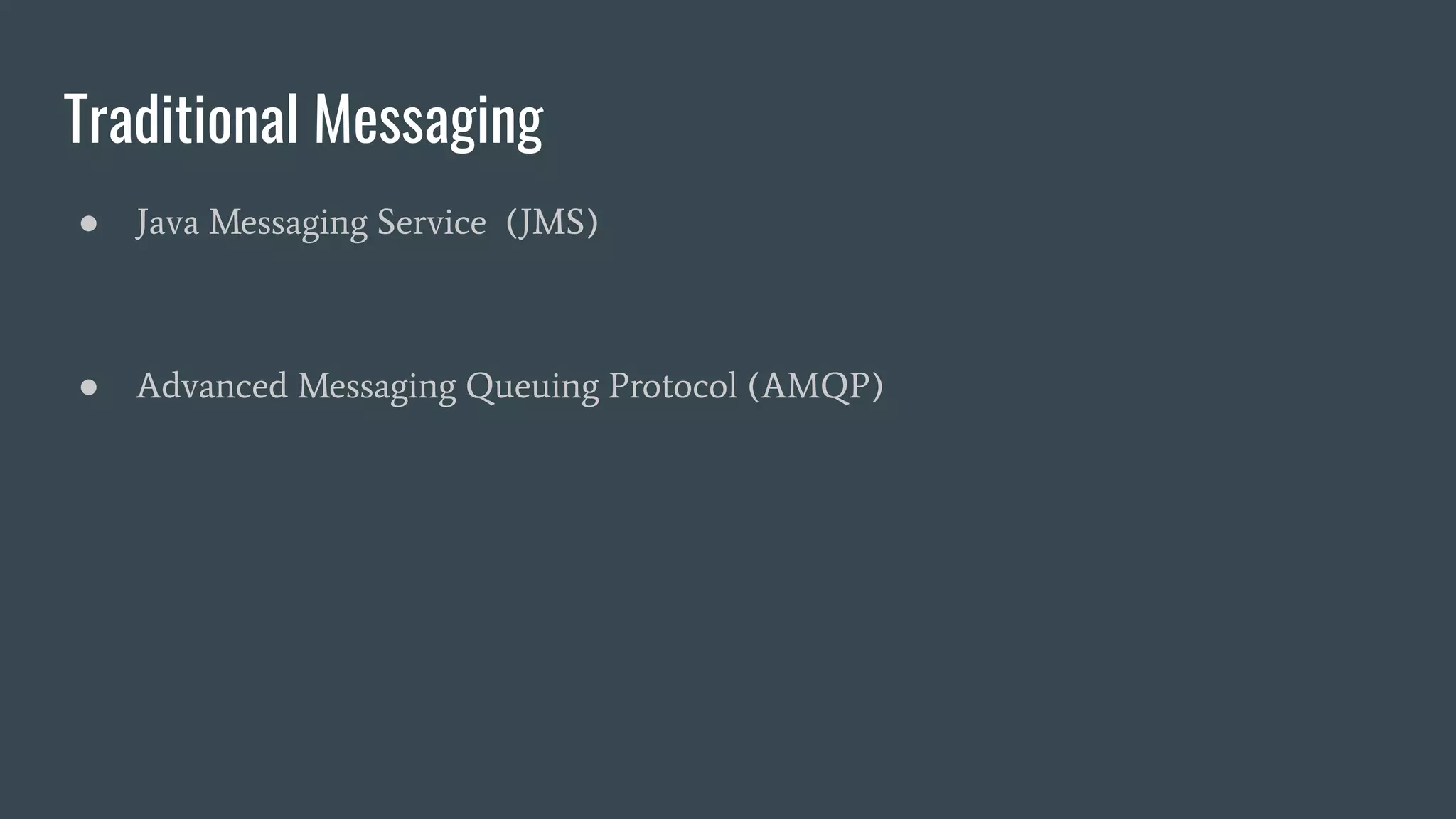

4. Traditional Messaging
● Java Messaging Service (JMS)
● Advanced Messaging Queuing Protocol (AMQP)

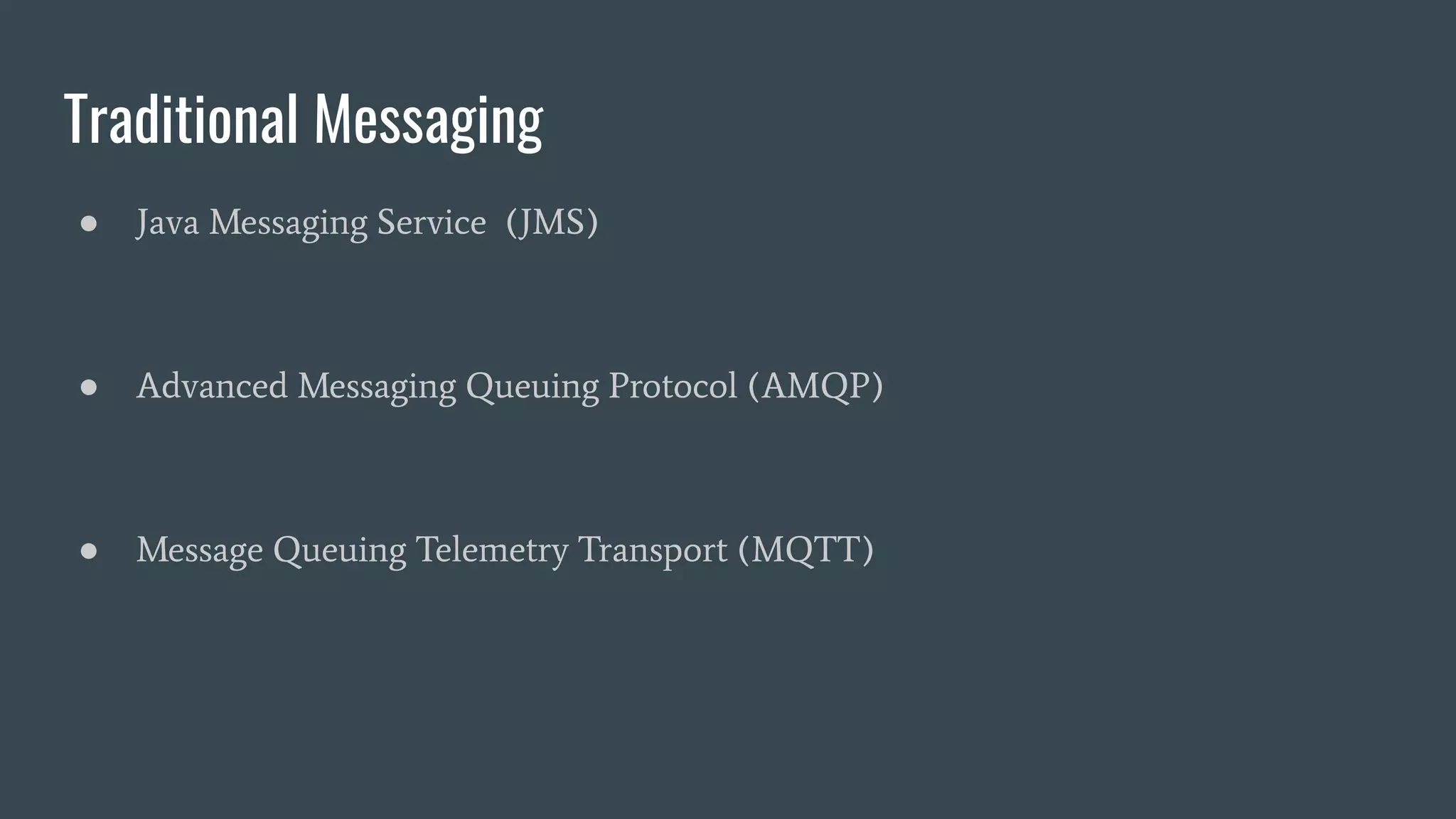

5. Traditional Messaging
● Java Messaging Service (JMS)
● Advanced Messaging Queuing Protocol (AMQP)
● Message Queuing Telemetry Transport (MQTT)

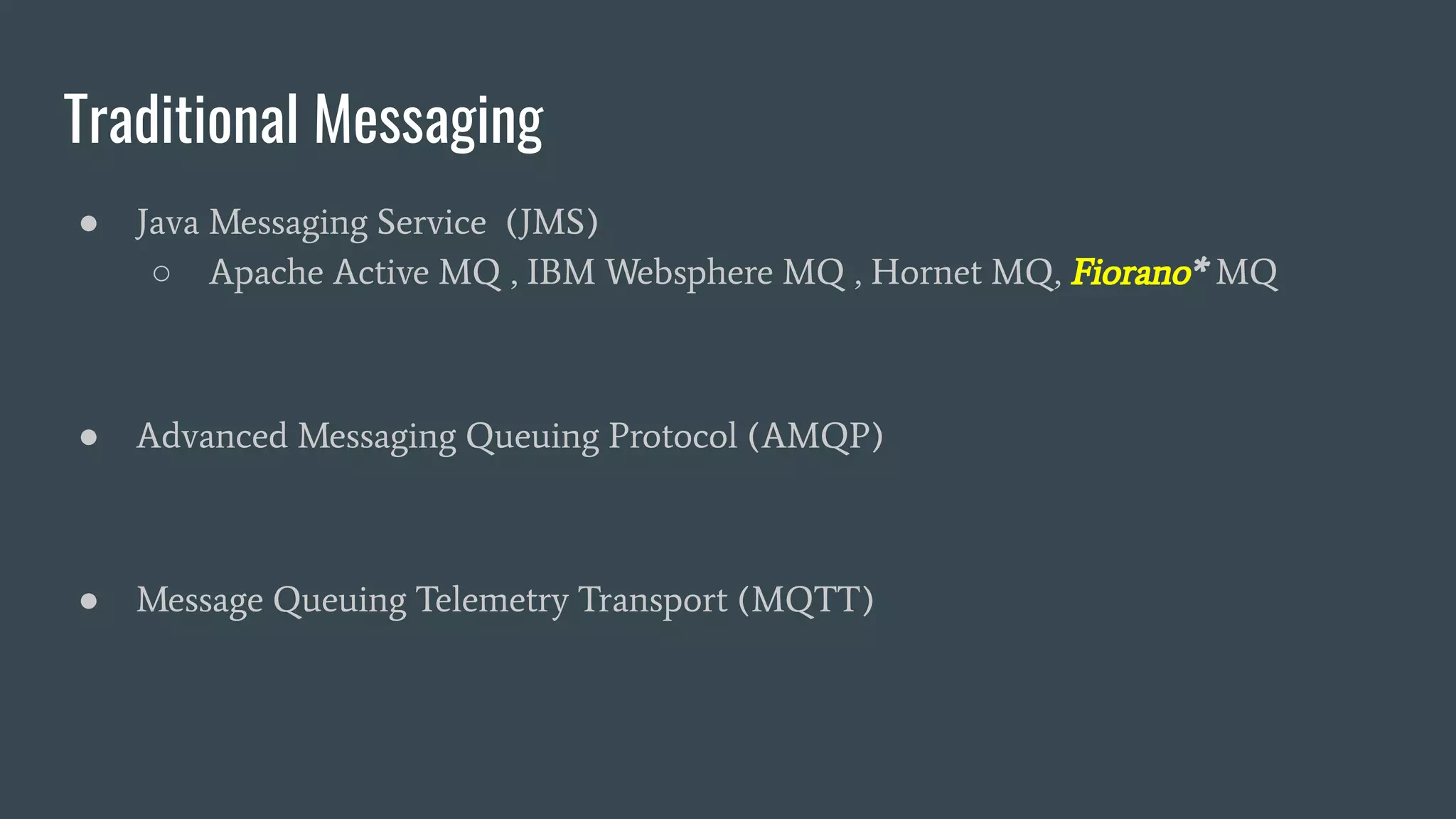

6. Traditional Messaging
● Java Messaging Service (JMS)
○ Apache Active MQ , IBM Websphere MQ , Hornet MQ, Fiorano* MQ
● Advanced Messaging Queuing Protocol (AMQP)
● Message Queuing Telemetry Transport (MQTT)

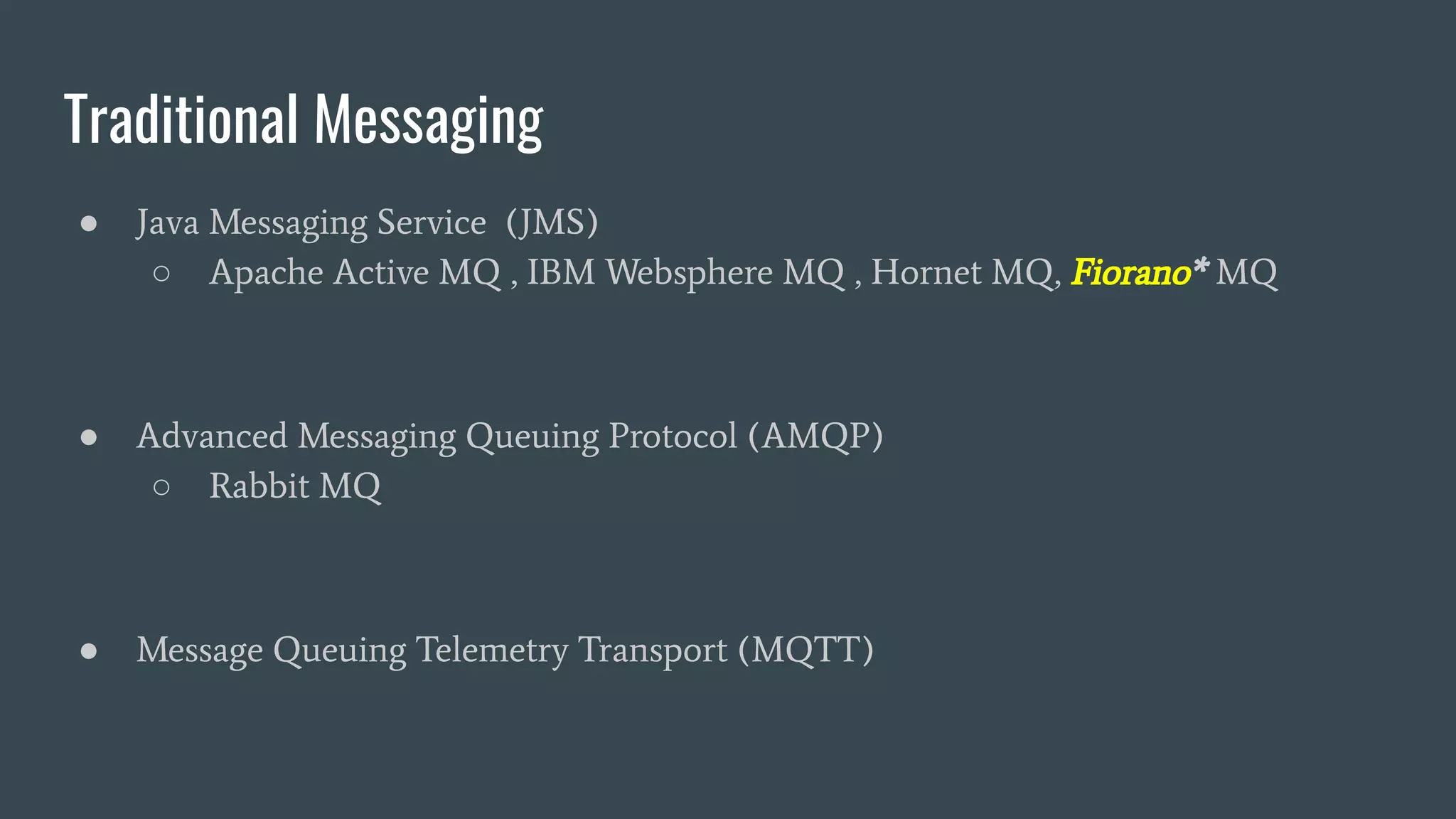

7. Traditional Messaging
● Java Messaging Service (JMS)
○ Apache Active MQ , IBM Websphere MQ , Hornet MQ, Fiorano* MQ
● Advanced Messaging Queuing Protocol (AMQP)
○ Rabbit MQ
● Message Queuing Telemetry Transport (MQTT)

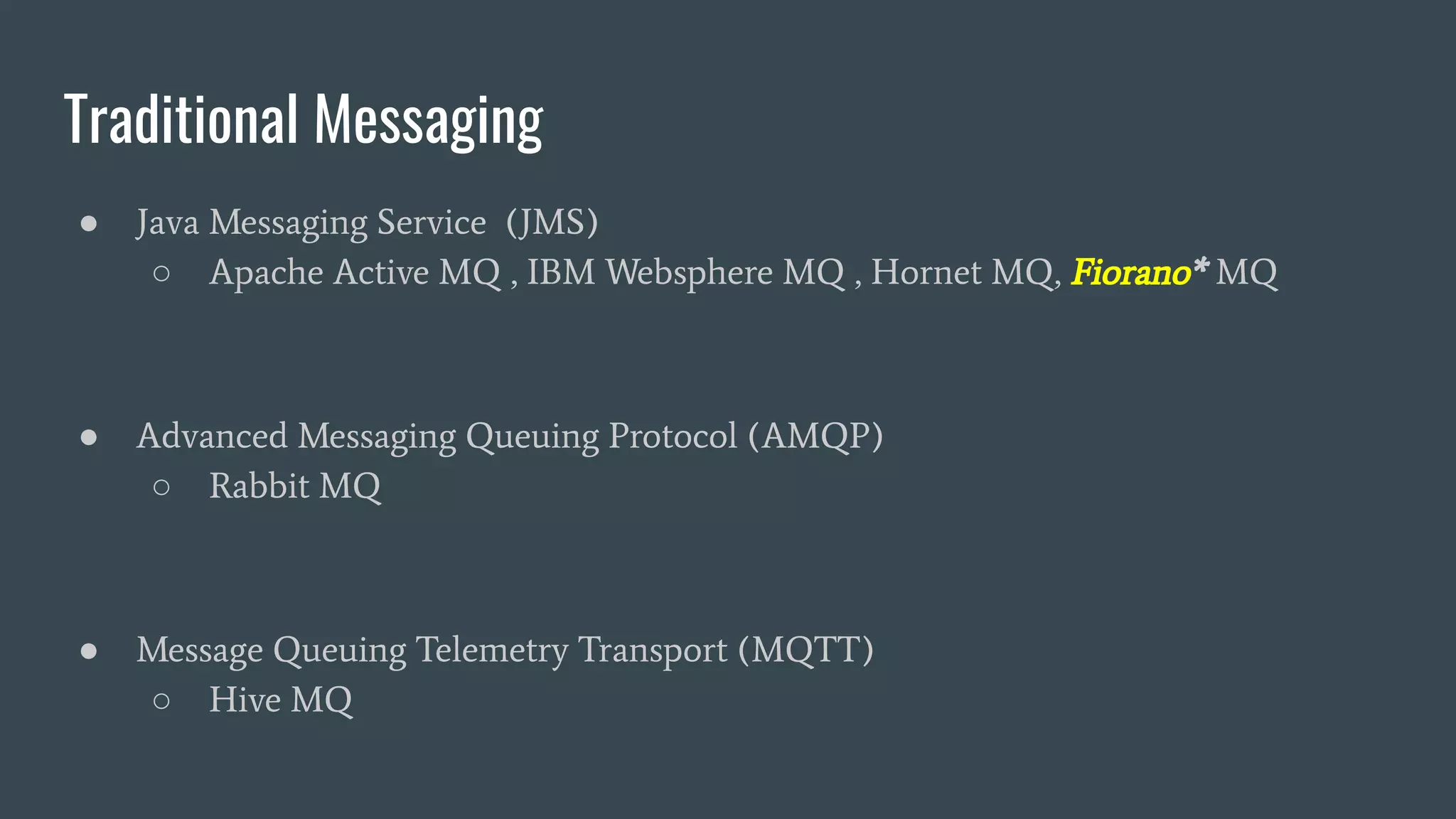

8. Traditional Messaging
● Java Messaging Service (JMS)
○ Apache Active MQ , IBM Websphere MQ , Hornet MQ, Fiorano* MQ
● Advanced Messaging Queuing Protocol (AMQP)
○ Rabbit MQ
● Message Queuing Telemetry Transport (MQTT)
○ Hive MQ

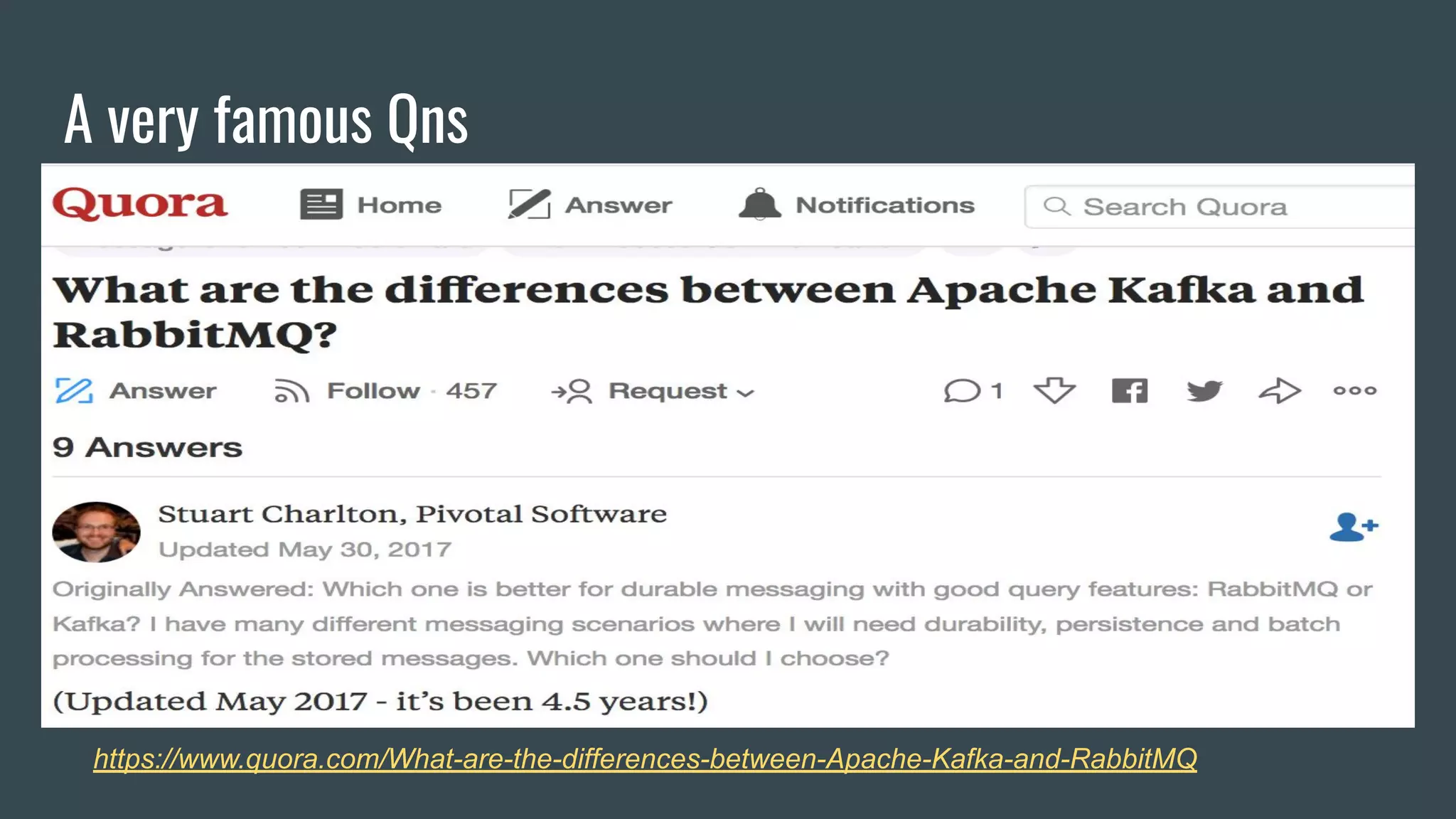

9. A very famous Qns
https://www.quora.com/What-are-the-differences-between-Apache-Kafka-and-RabbitMQ

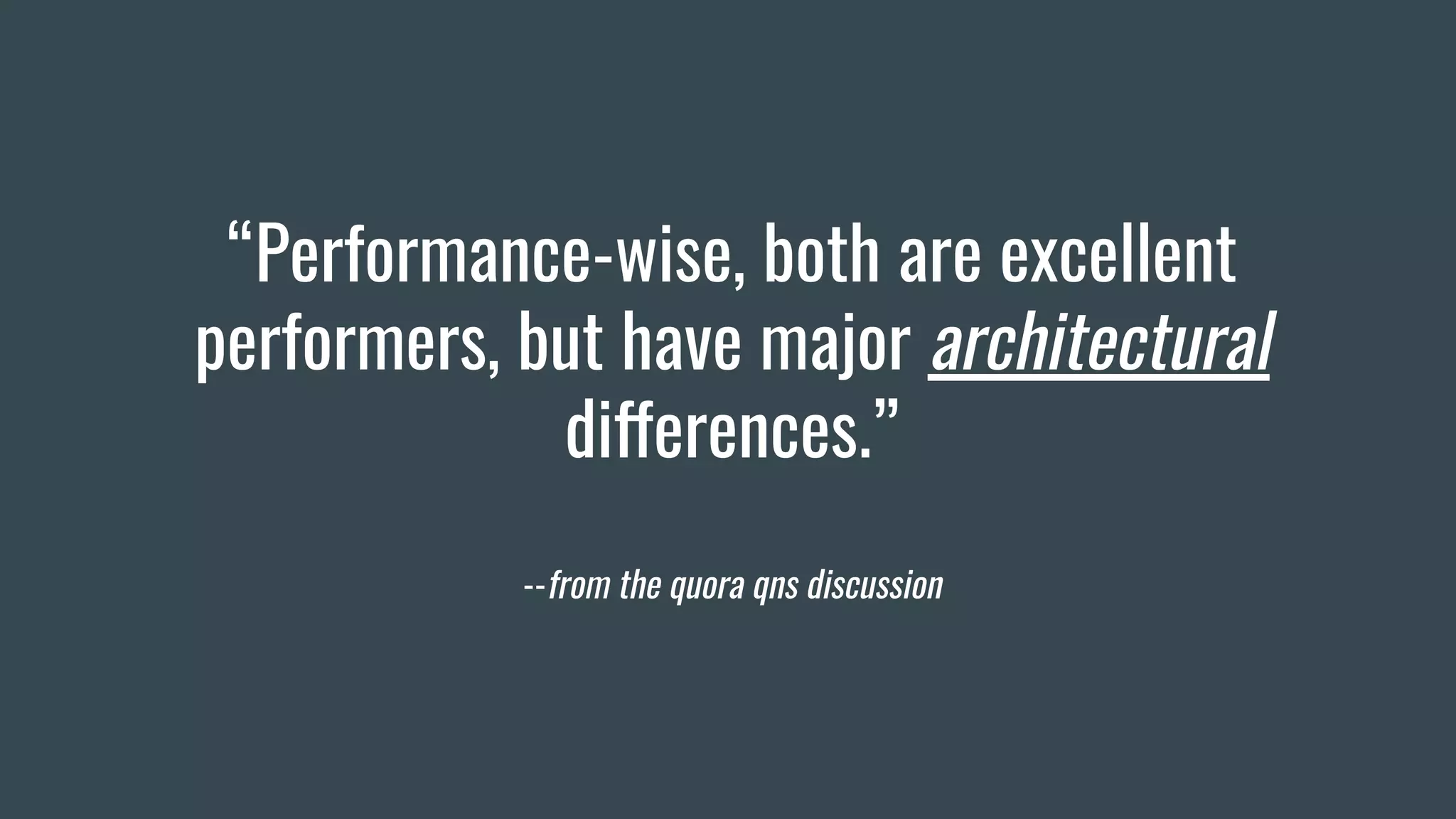

10. “Performance-wise, both are excellent
performers, but have major architectural
differences.”
--from the quora qns discussion

11. What’s the Diff ?

12. What’s the Diff ?

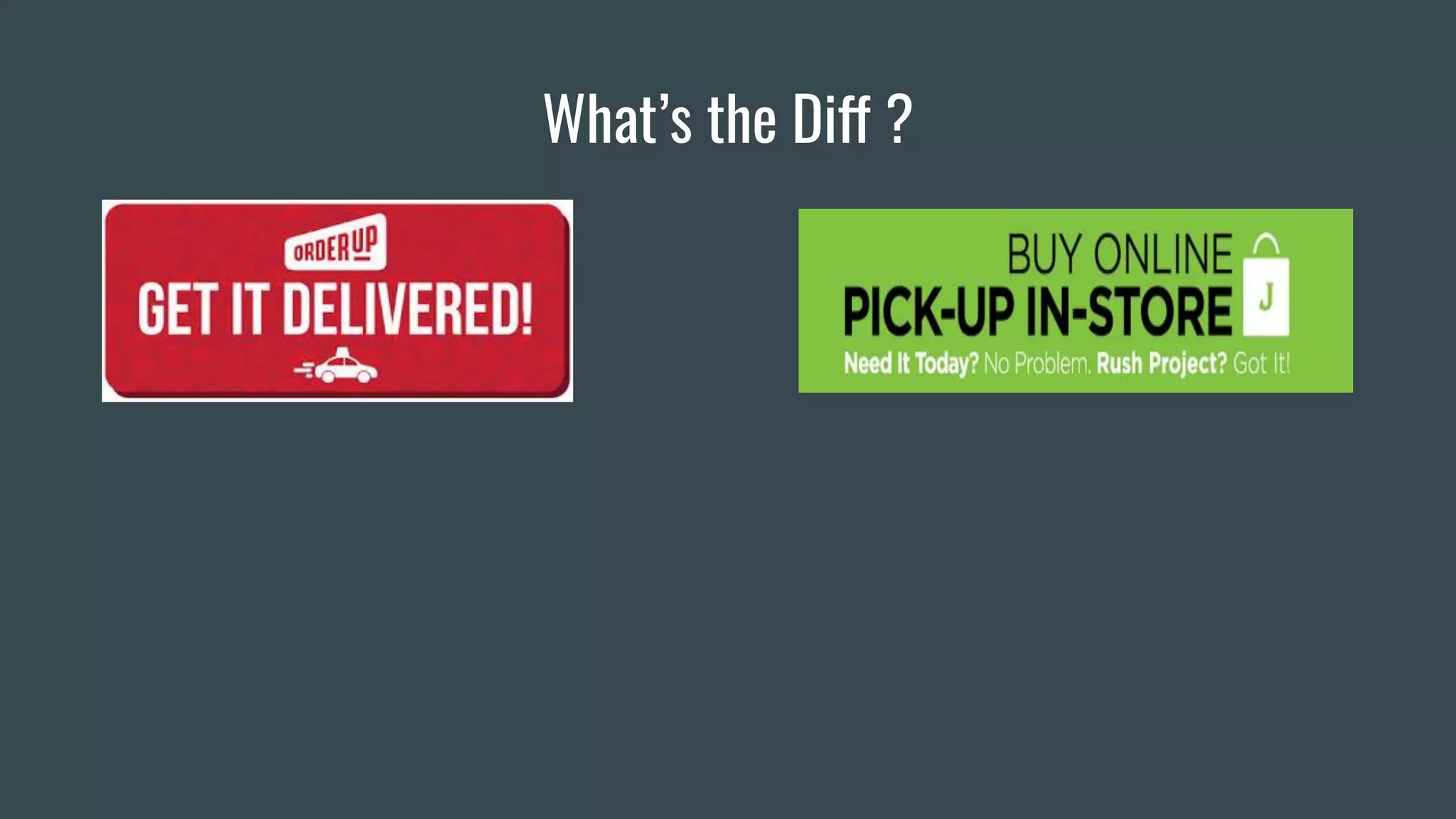

13. What’s the Diff ?

14. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber ● Subscriber pulls/picks up msg from server

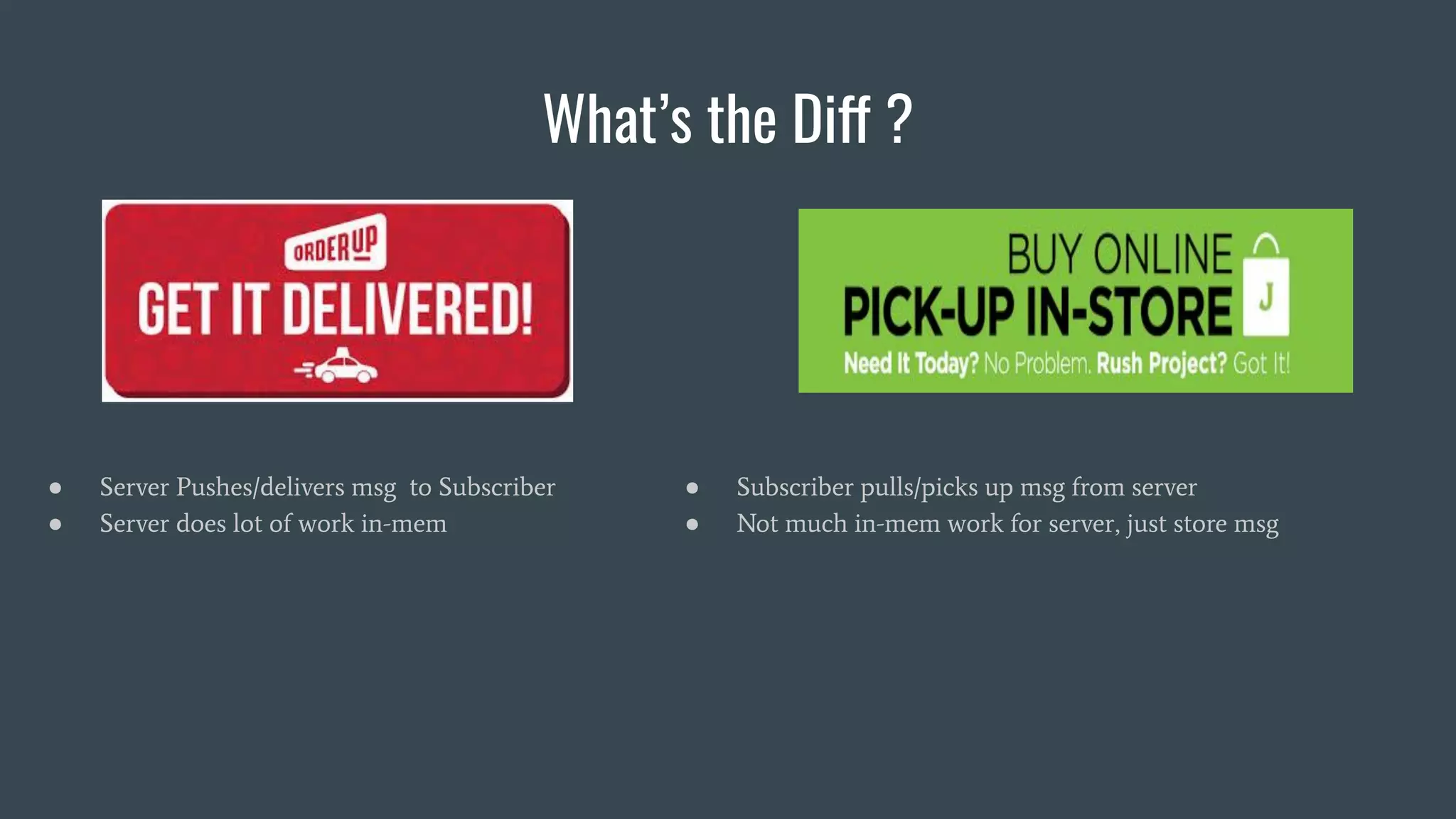

15. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg

16. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not

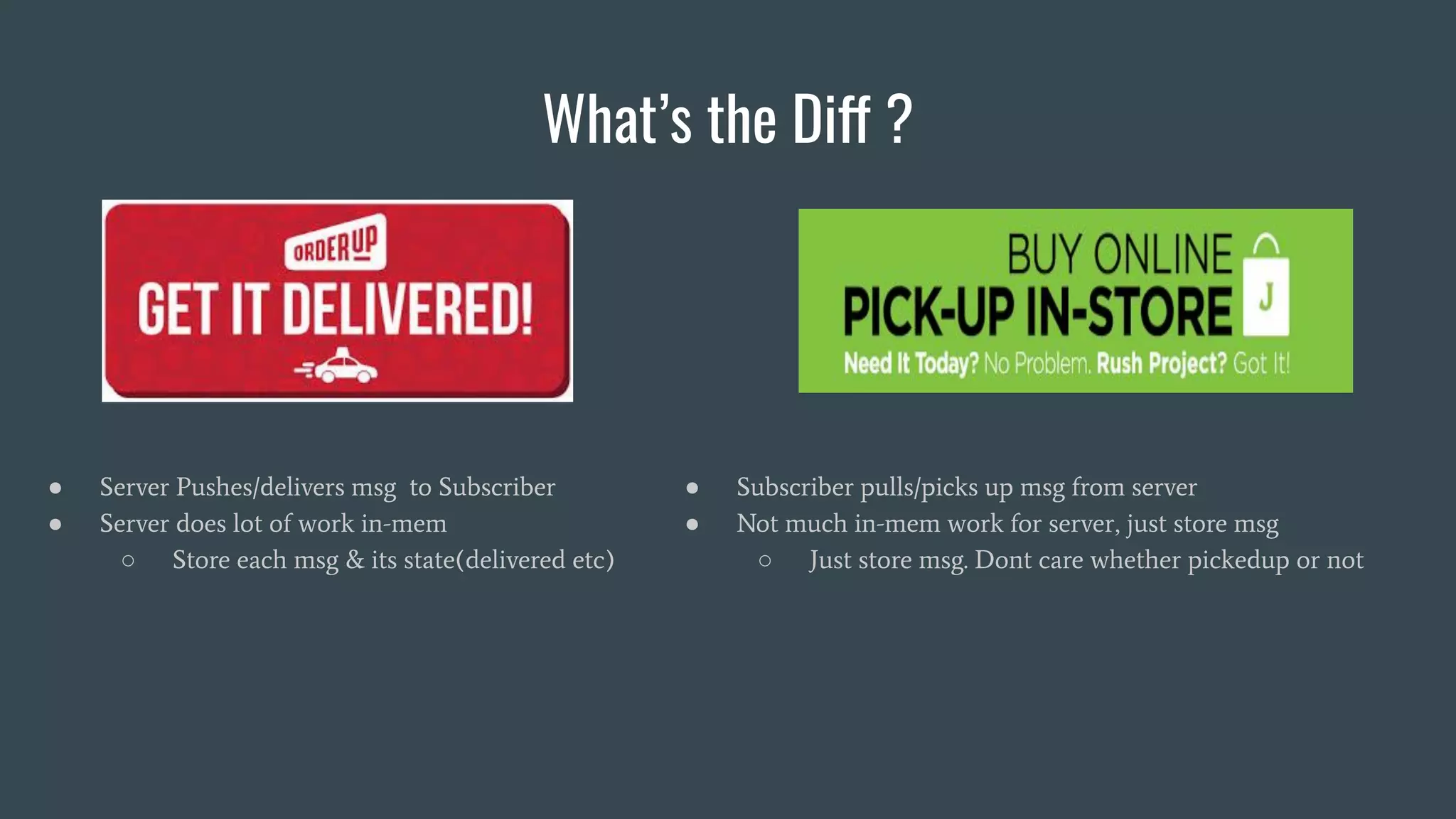

17. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
○ Maintain order of msg
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not
○ Ordering logic dictated by client & storage format

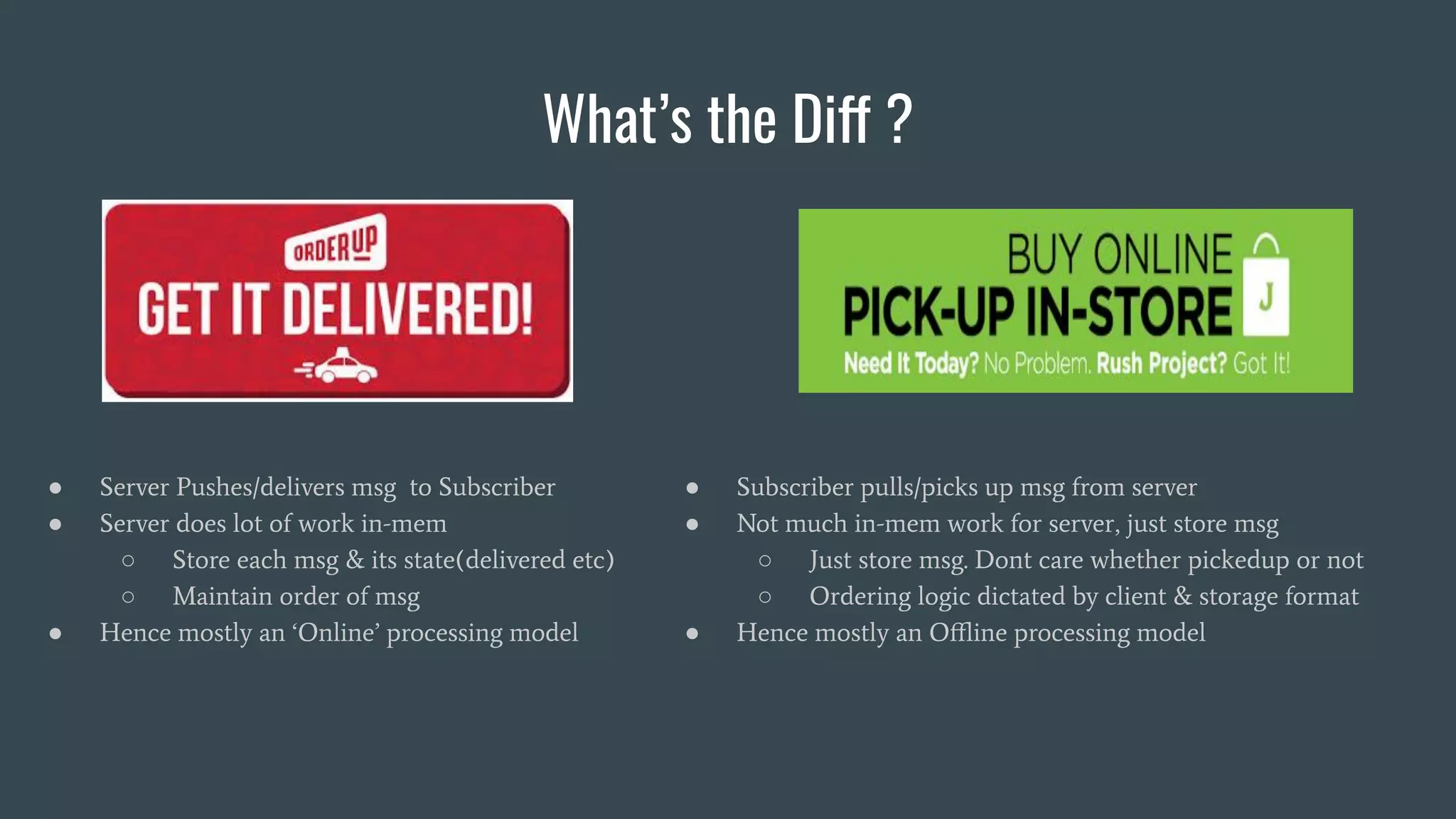

18. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
○ Maintain order of msg
● Hence mostly an ‘Online’ processing model
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not
○ Ordering logic dictated by client & storage format
● Hence mostly an Offline processing model

19. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
○ Maintain order of msg
● Hence mostly an ‘Online’ processing model
● Server can do complex routing logic.
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not
○ Ordering logic dictated by client & storage format
● Hence mostly an Offline processing model
● Client maintains routing logic. Server is blind to it.

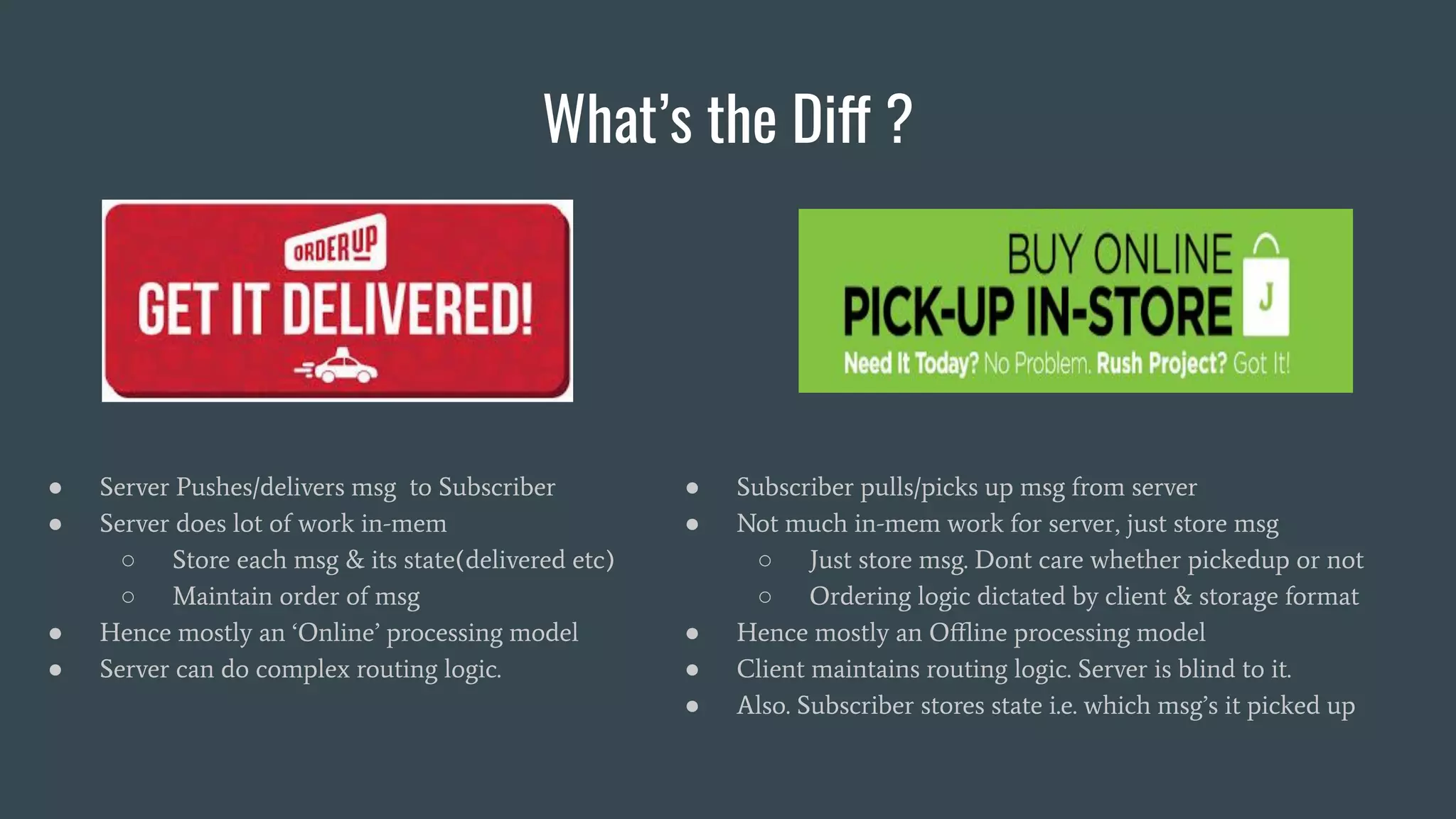

20. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
○ Maintain order of msg
● Hence mostly an ‘Online’ processing model
● Server can do complex routing logic.
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not
○ Ordering logic dictated by client & storage format
● Hence mostly an Offline processing model
● Client maintains routing logic. Server is blind to it.
● Also. Subscriber stores state i.e. which msg’s it picked up

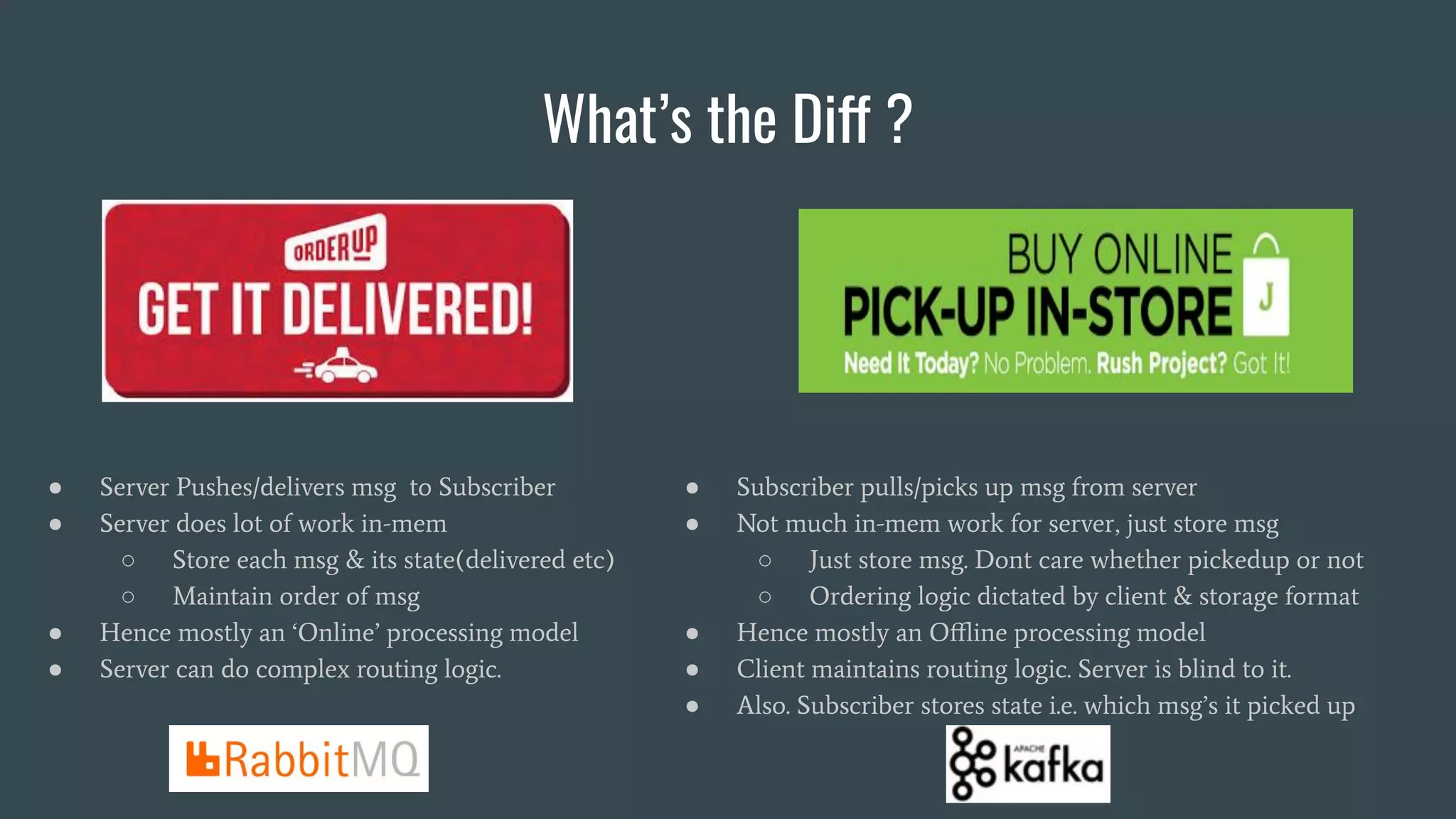

21. What’s the Diff ?
● Server Pushes/delivers msg to Subscriber
● Server does lot of work in-mem
○ Store each msg & its state(delivered etc)
○ Maintain order of msg
● Hence mostly an ‘Online’ processing model
● Server can do complex routing logic.
● Subscriber pulls/picks up msg from server
● Not much in-mem work for server, just store msg
○ Just store msg. Dont care whether pickedup or not
○ Ordering logic dictated by client & storage format
● Hence mostly an Offline processing model
● Client maintains routing logic. Server is blind to it.
● Also. Subscriber stores state i.e. which msg’s it picked up

22. So Apache Kafka...

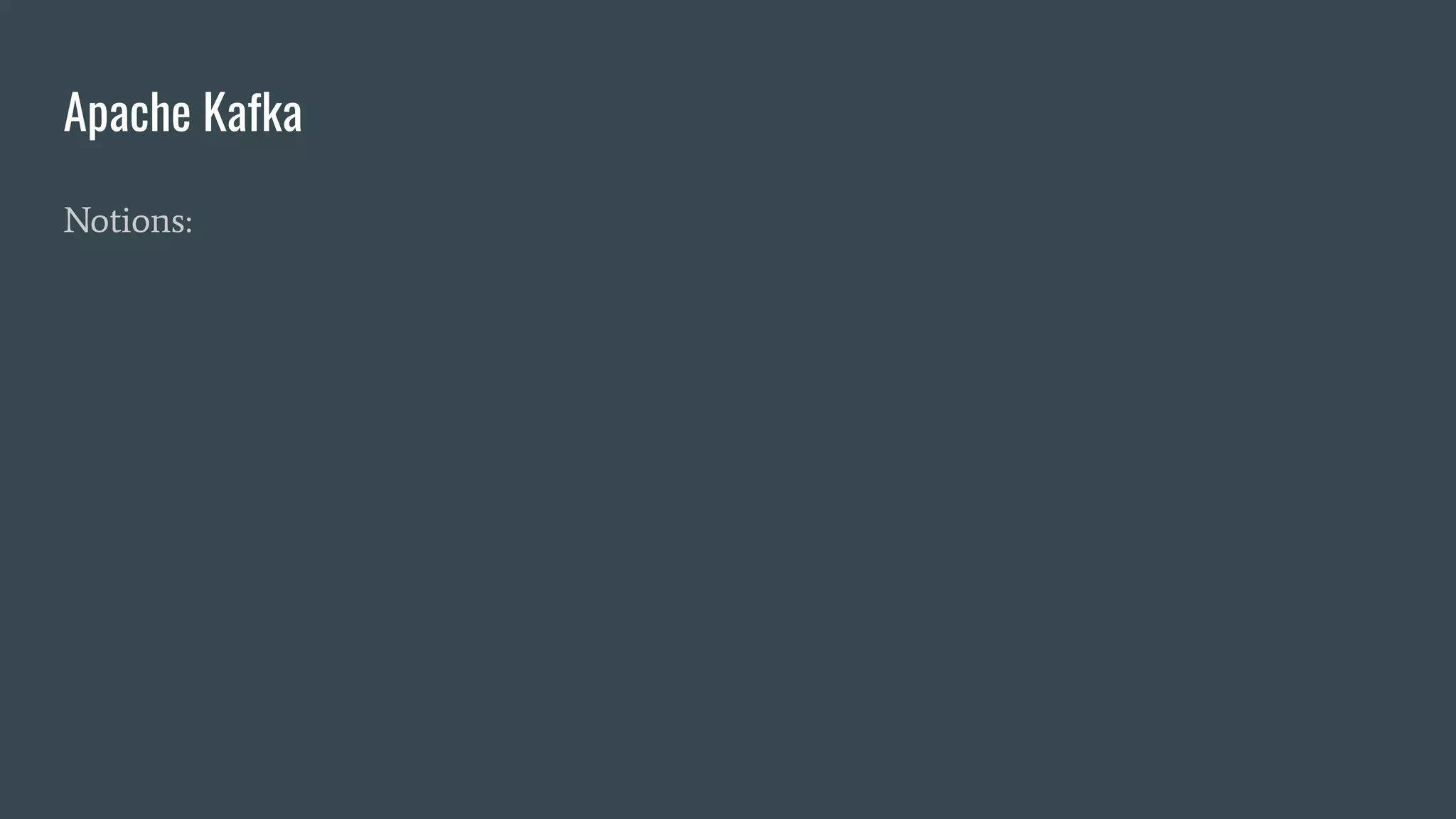

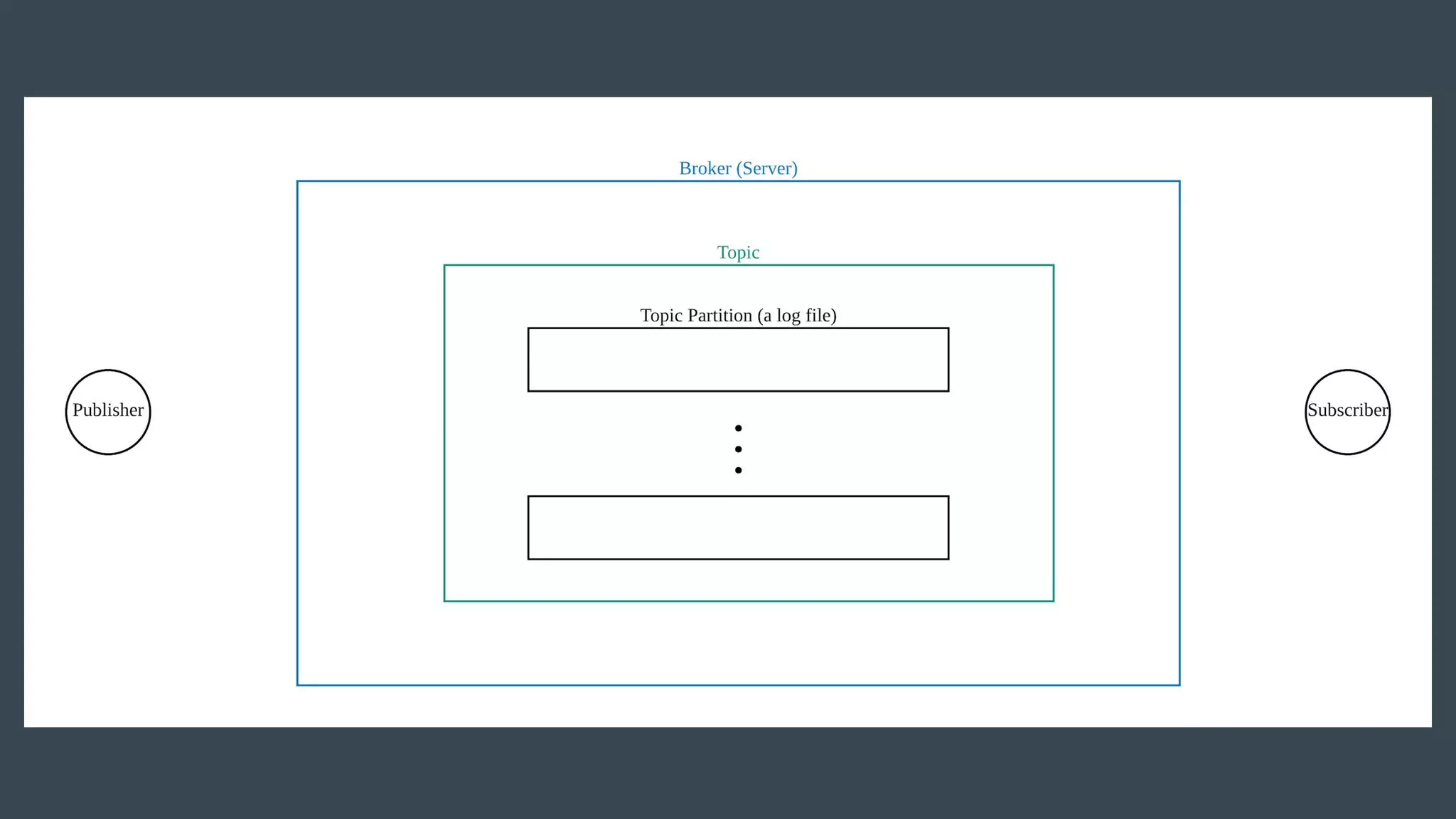

23. Apache Kafka
Notions:

24. Apache Kafka
Notions:
● Publisher

25. Apache Kafka
Notions:
● Publisher
● Message

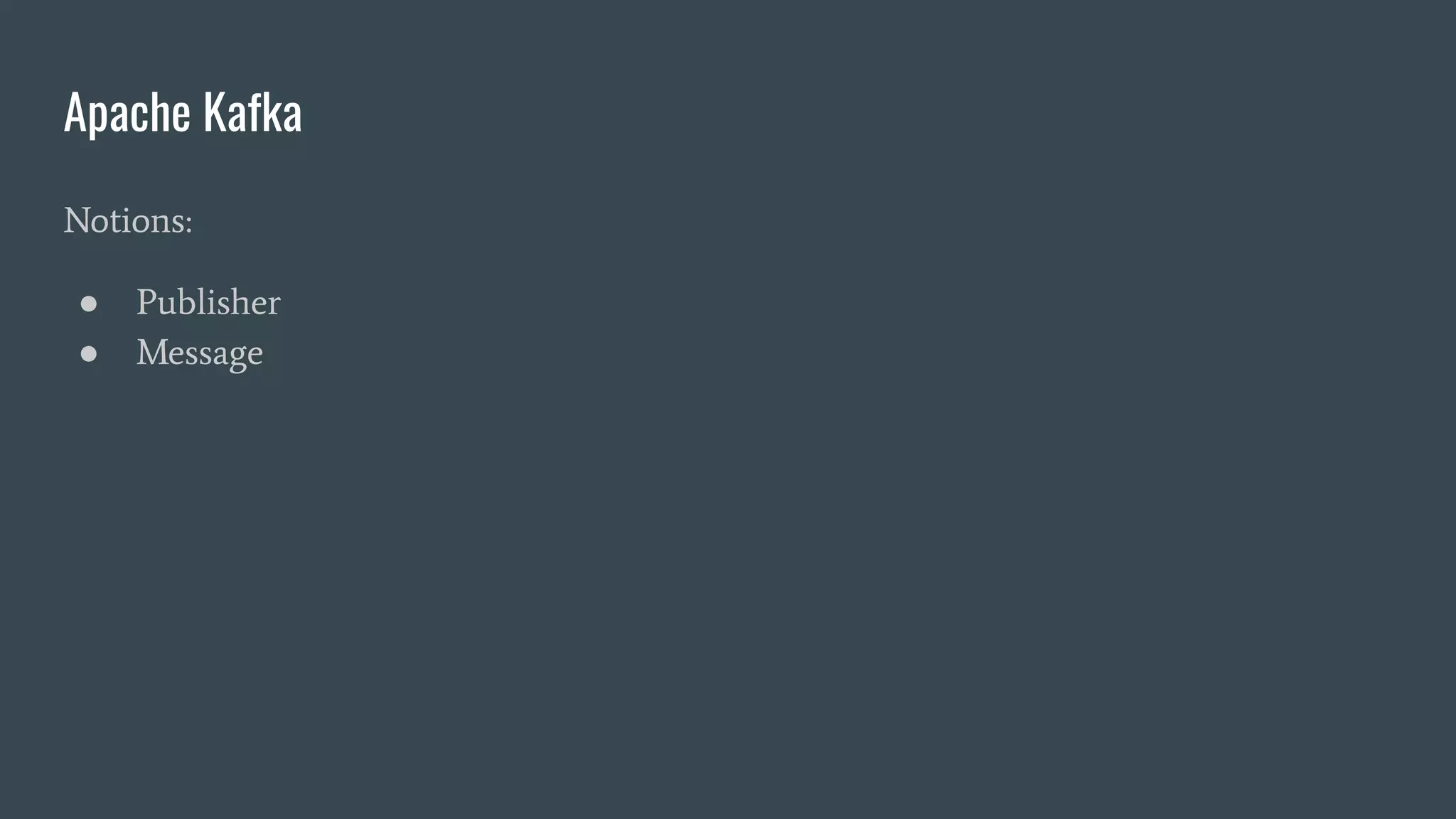

26. Apache Kafka
Notions:
● Publisher
● Message
● Topic

27. Apache Kafka
Notions:
● Publisher
● Message
● Topic
○ Topic Partition

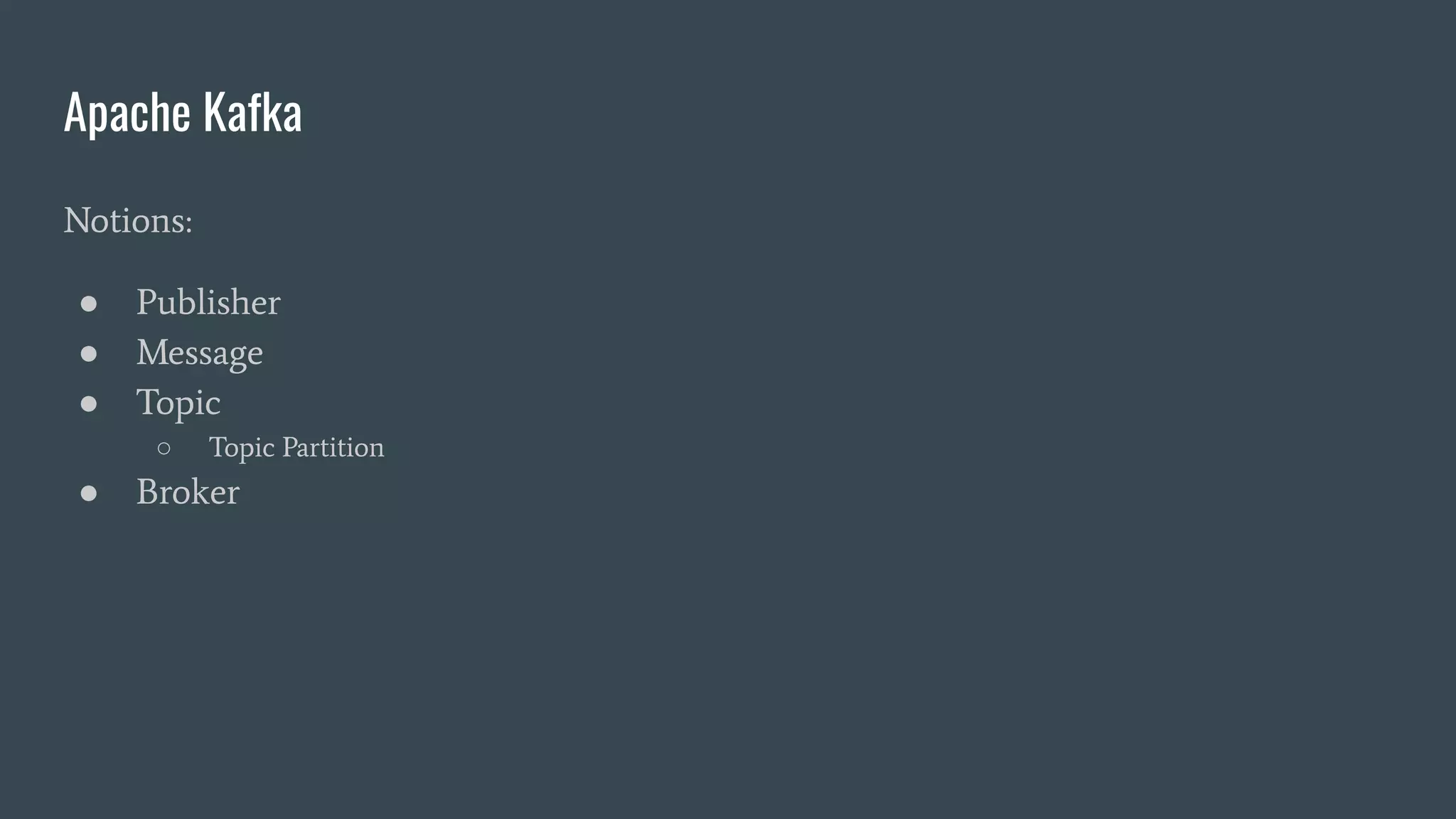

28. Apache Kafka
Notions:
● Publisher
● Message
● Topic
○ Topic Partition
● Broker

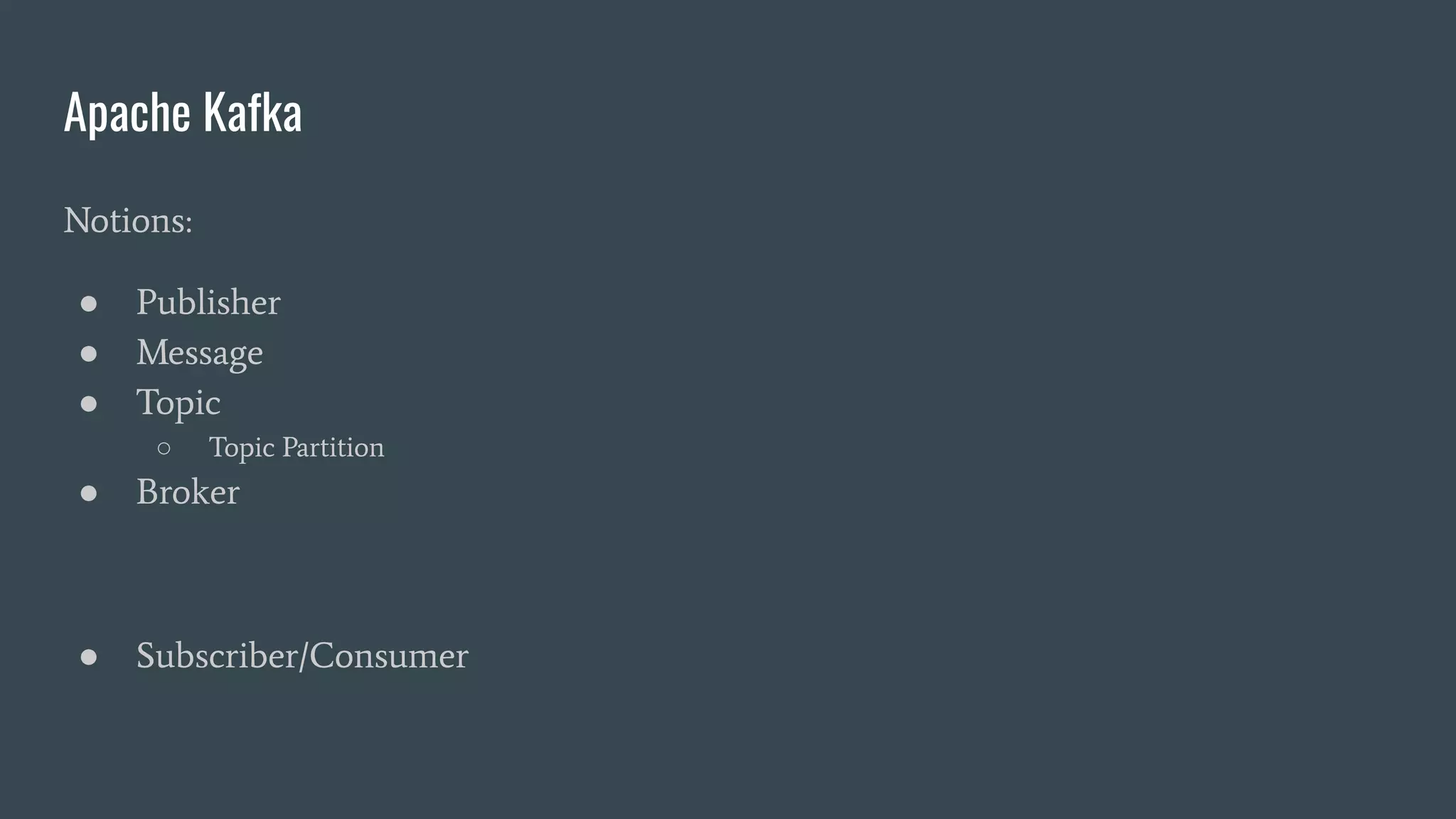

29. Apache Kafka
Notions:
● Publisher
● Message
● Topic
○ Topic Partition
● Broker
● Subscriber/Consumer

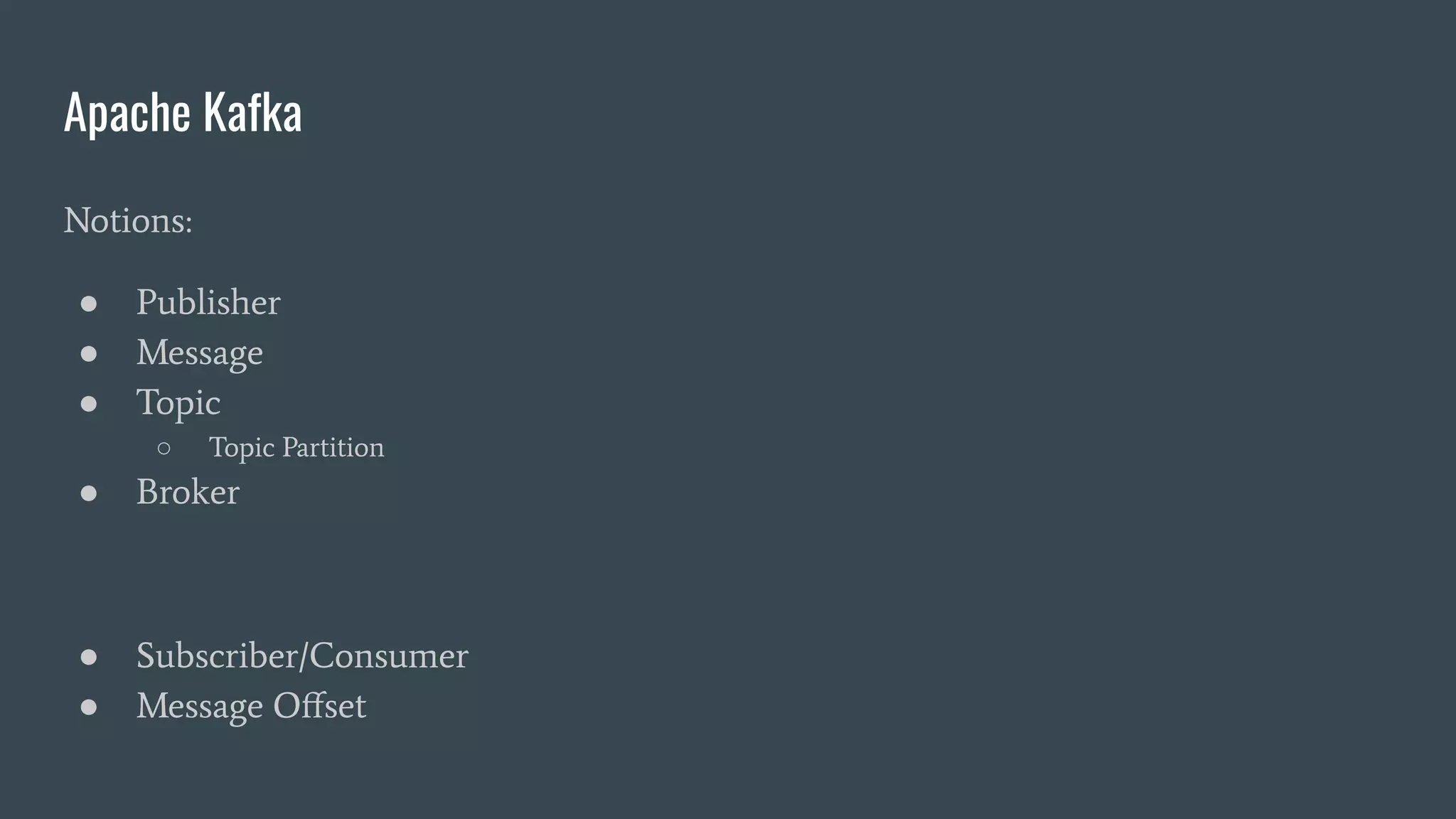

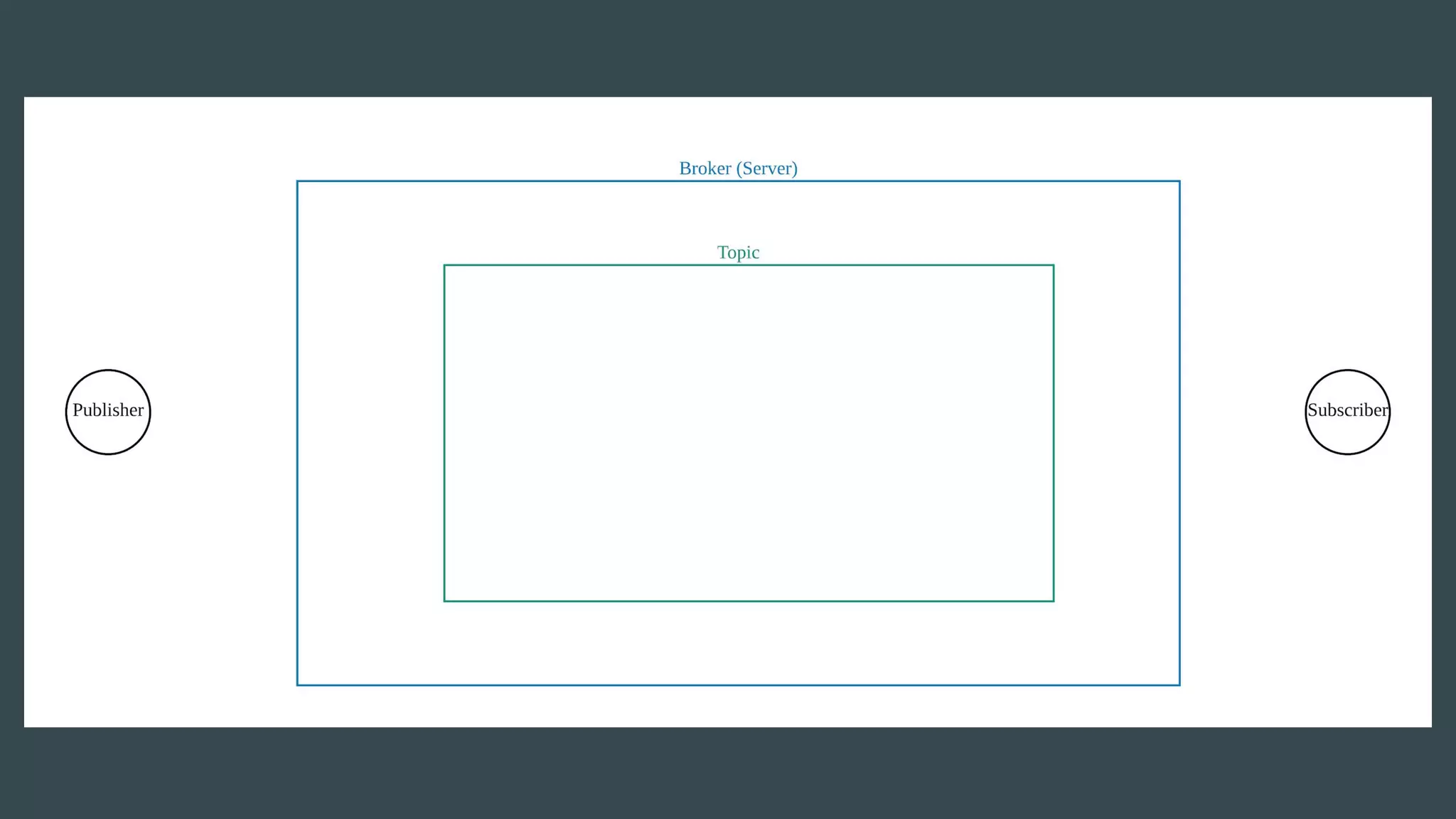

30. Apache Kafka
Notions:
● Publisher
● Message
● Topic
○ Topic Partition
● Broker
● Subscriber/Consumer
● Message Offset

41. Summary

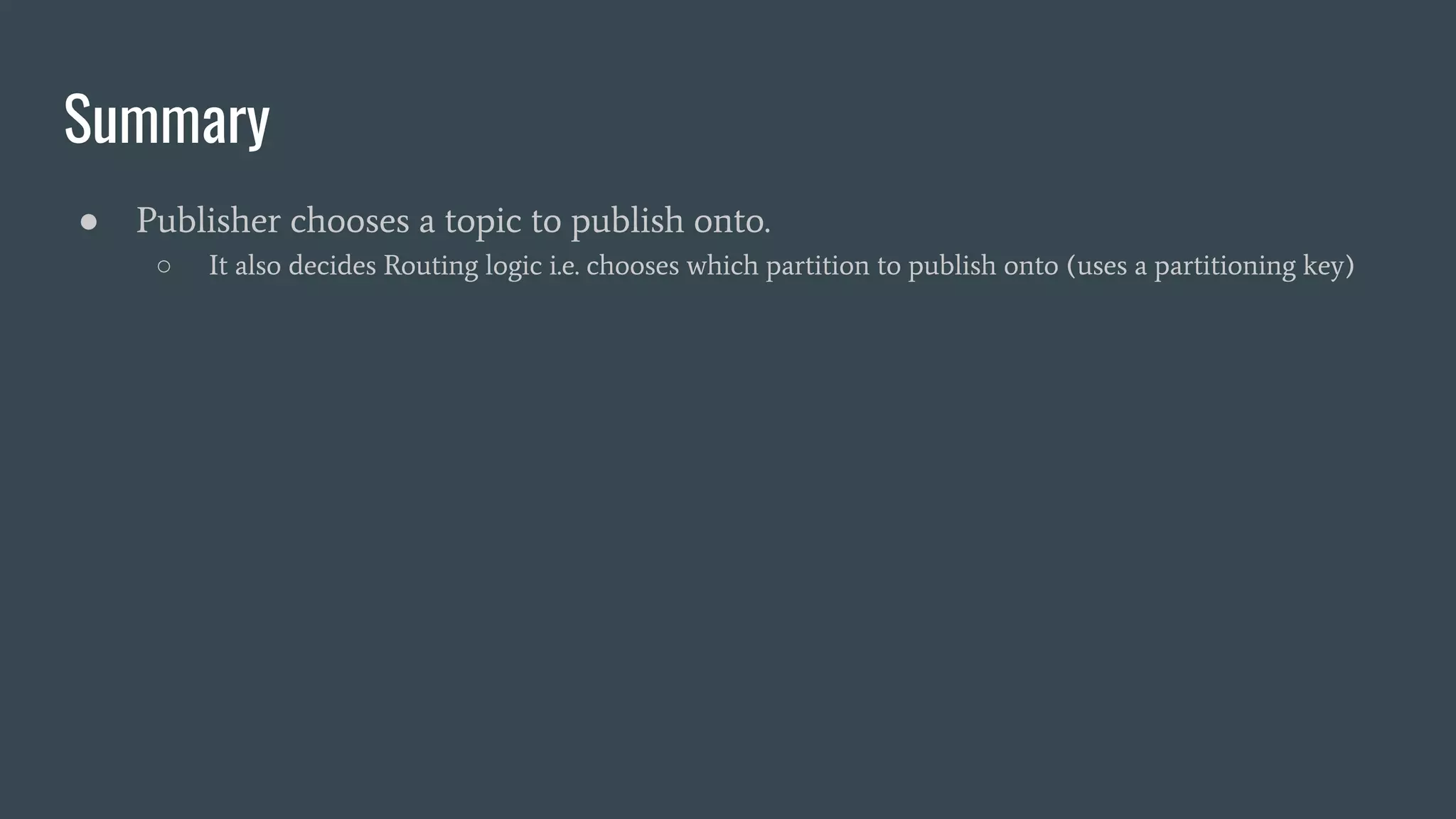

42. Summary

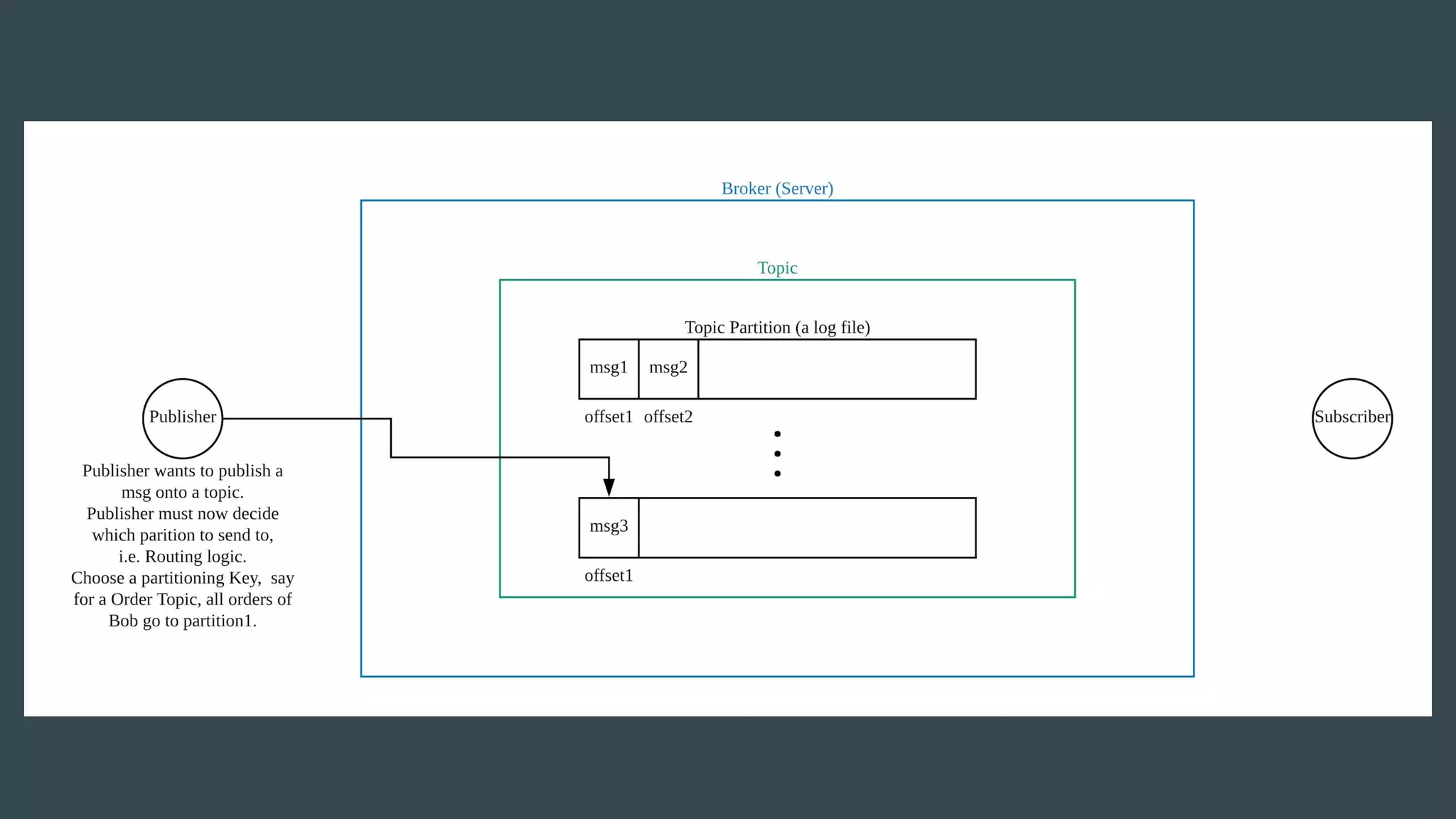

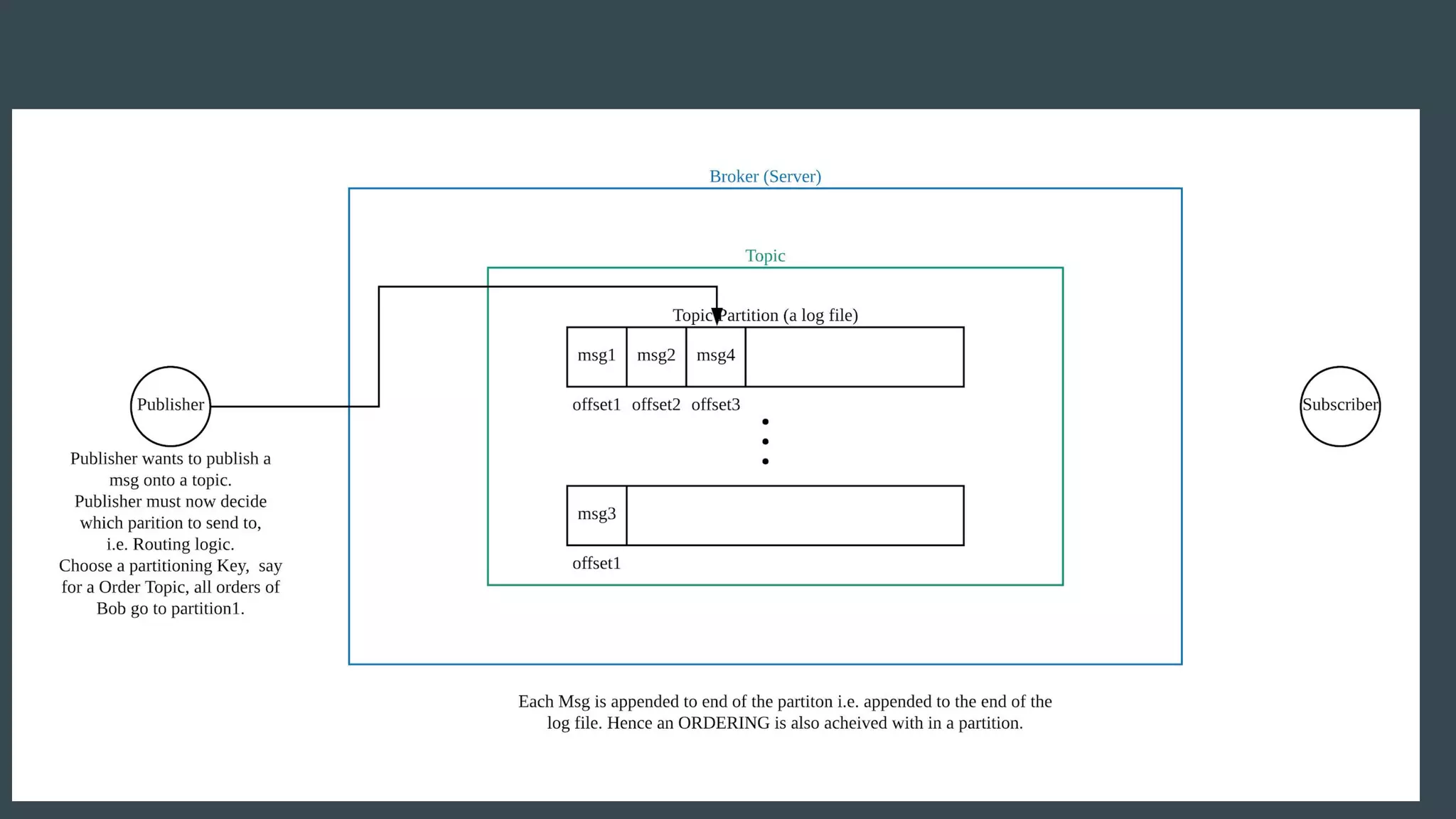

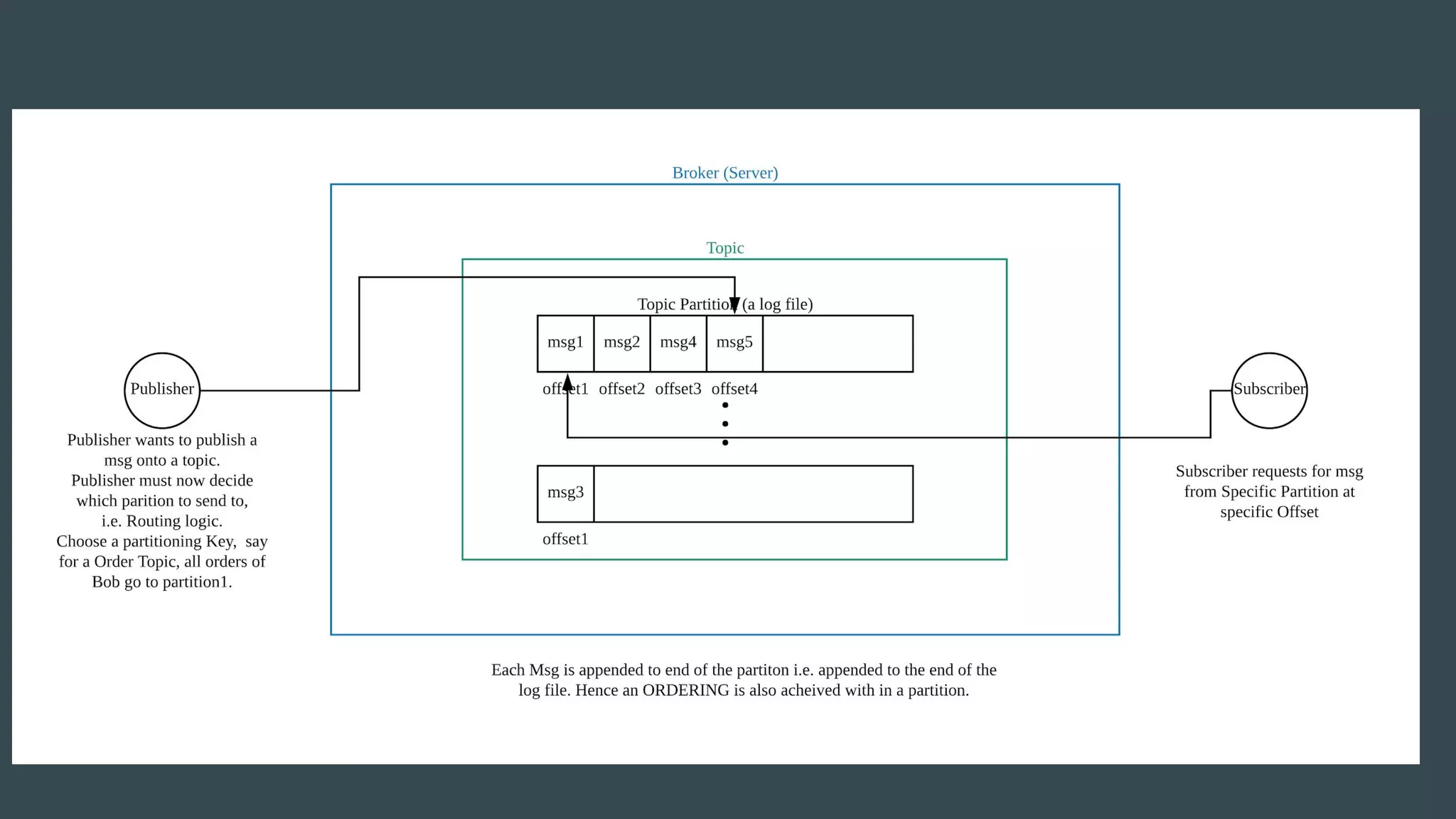

● Publisher chooses a topic to publish onto.
○ It also decides Routing logic i.e. chooses which partition to publish onto (uses a partitioning key)

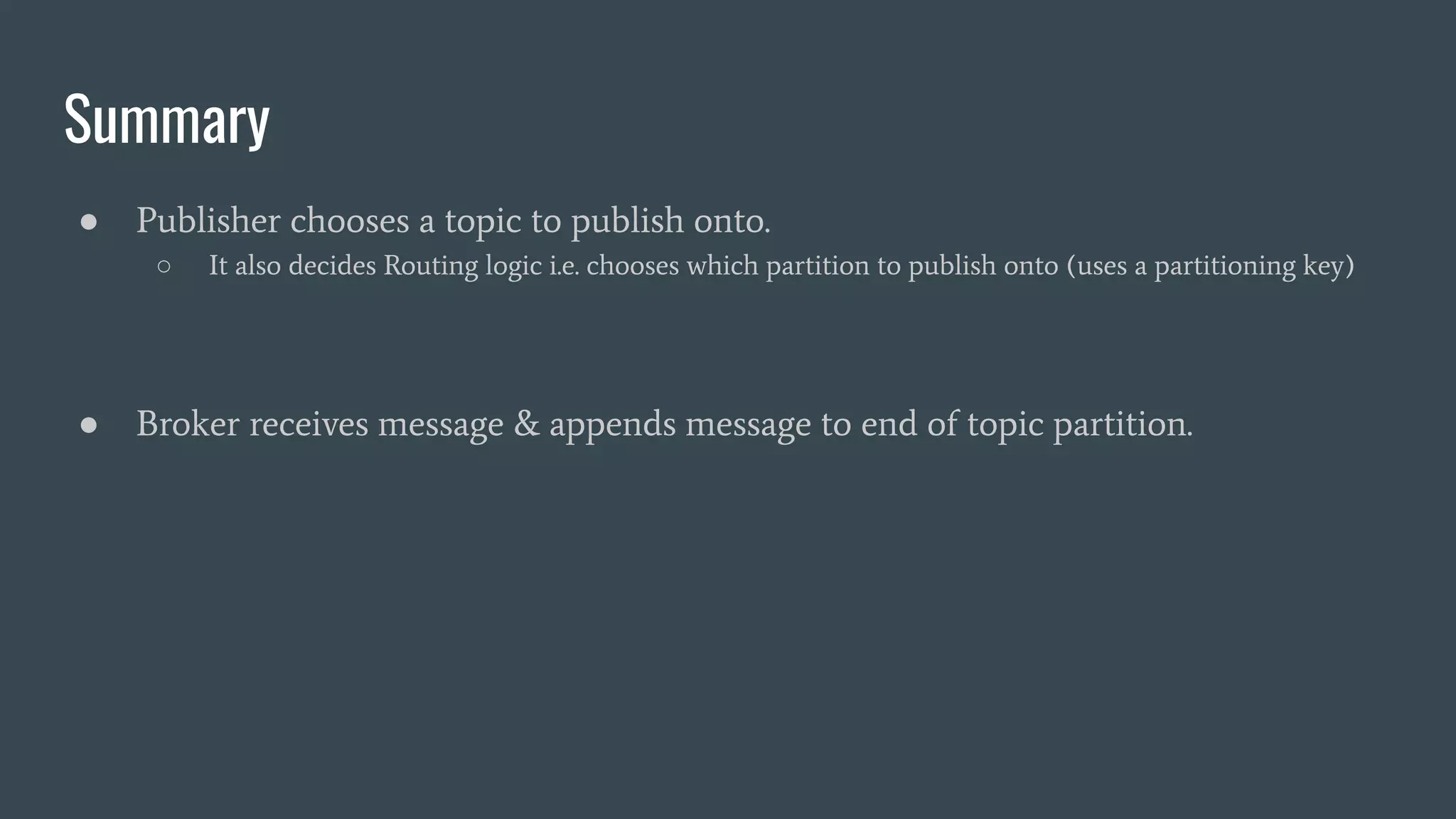

43. Summary
● Publisher chooses a topic to publish onto.
○ It also decides Routing logic i.e. chooses which partition to publish onto (uses a partitioning key)
● Broker receives message & appends message to end of topic partition.

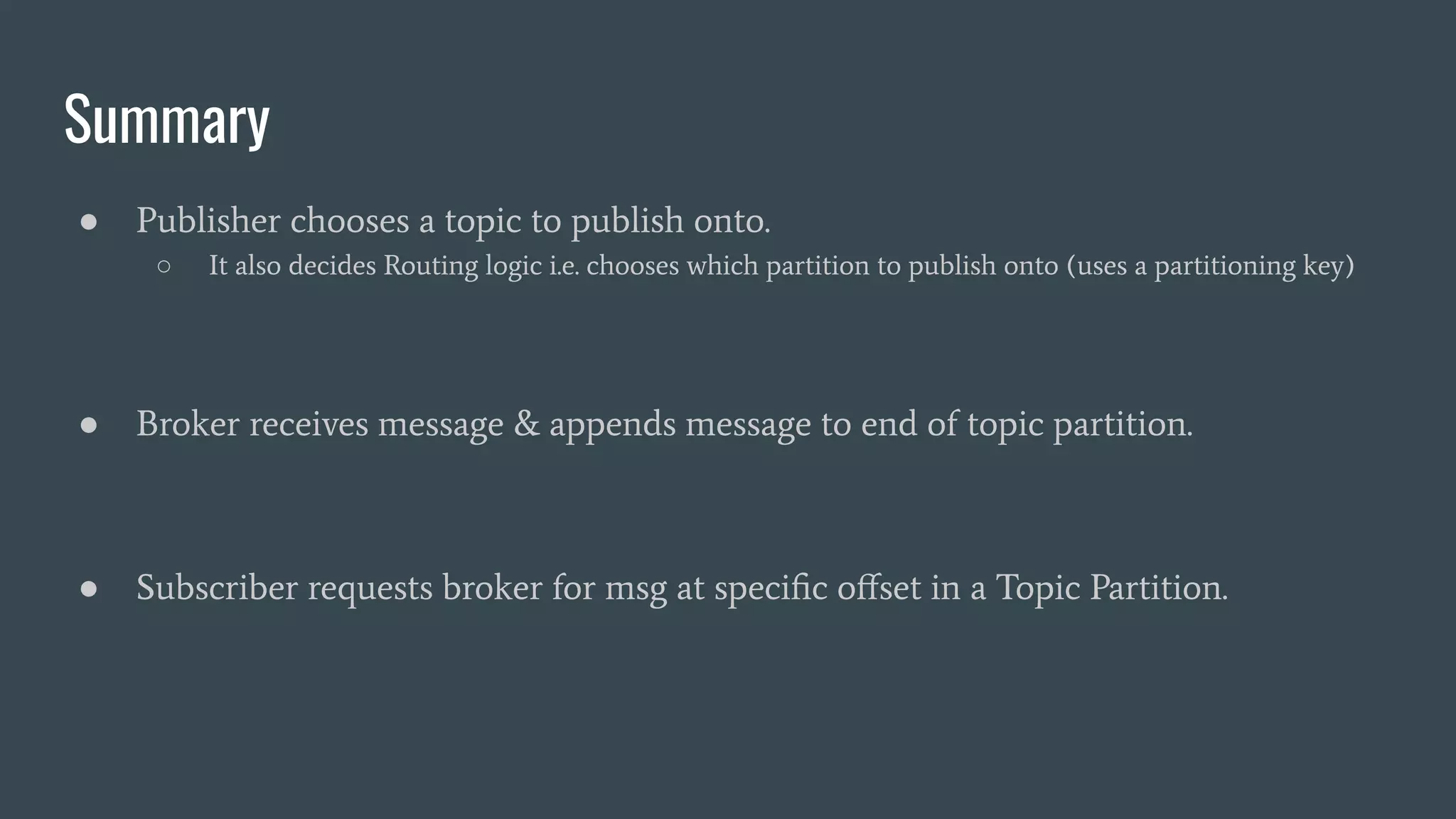

44. Summary
● Publisher chooses a topic to publish onto.
○ It also decides Routing logic i.e. chooses which partition to publish onto (uses a partitioning key)
● Broker receives message & appends message to end of topic partition.
● Subscriber requests broker for msg at specific offset in a Topic Partition.

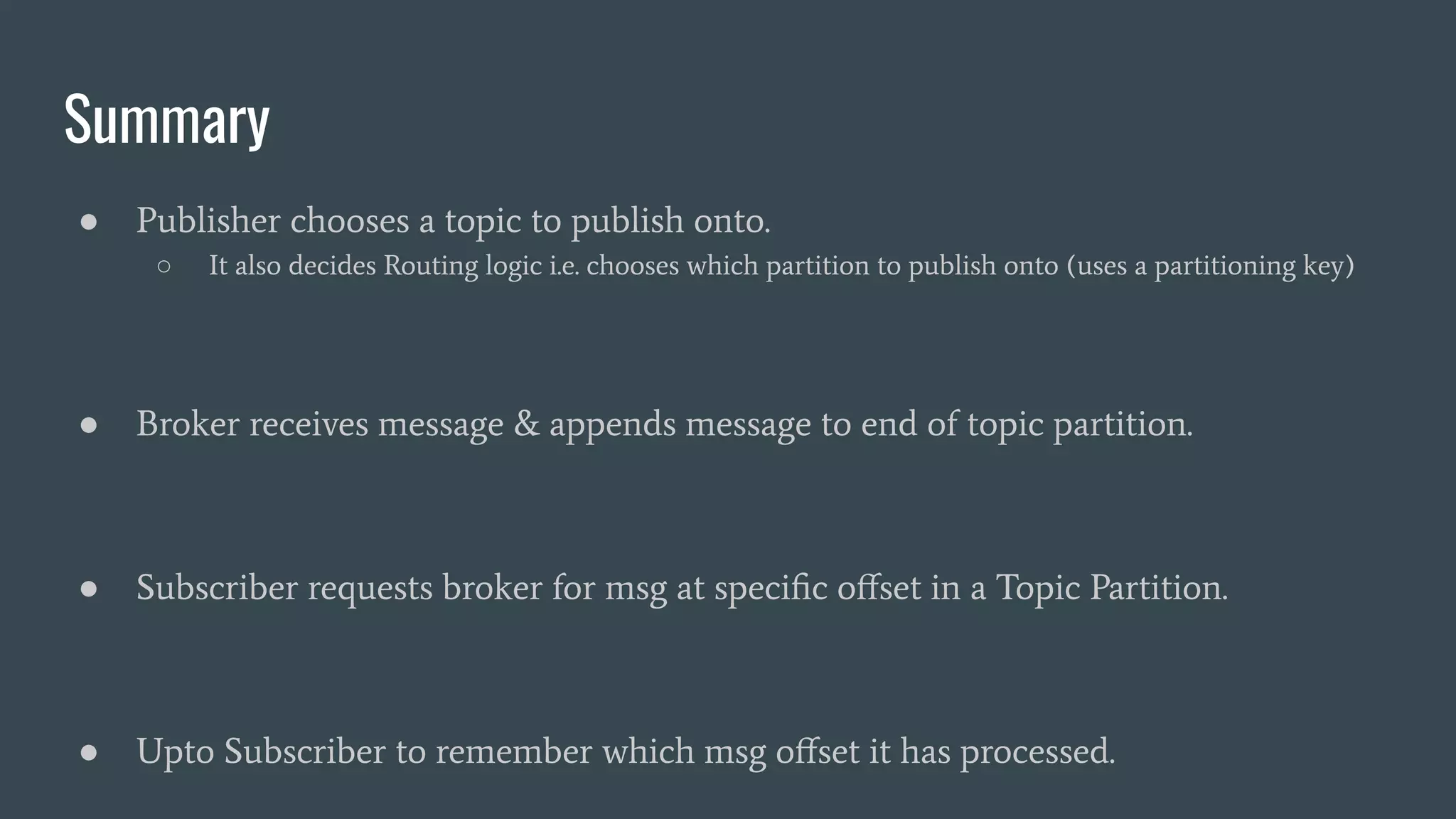

45. Summary
● Publisher chooses a topic to publish onto.
○ It also decides Routing logic i.e. chooses which partition to publish onto (uses a partitioning key)
● Broker receives message & appends message to end of topic partition.
● Subscriber requests broker for msg at specific offset in a Topic Partition.
● Upto Subscriber to remember which msg offset it has processed.

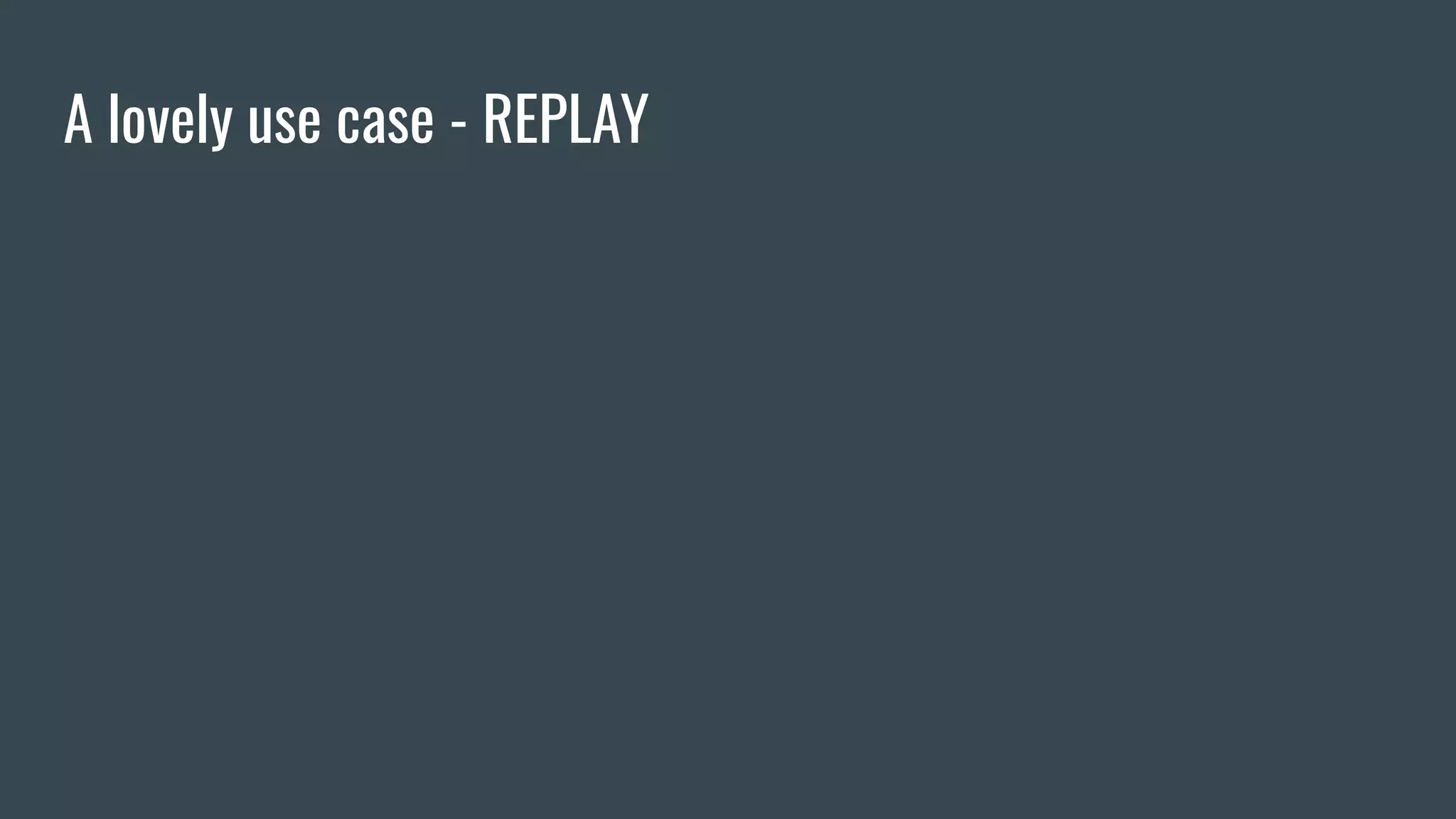

46. A lovely use case - REPLAY

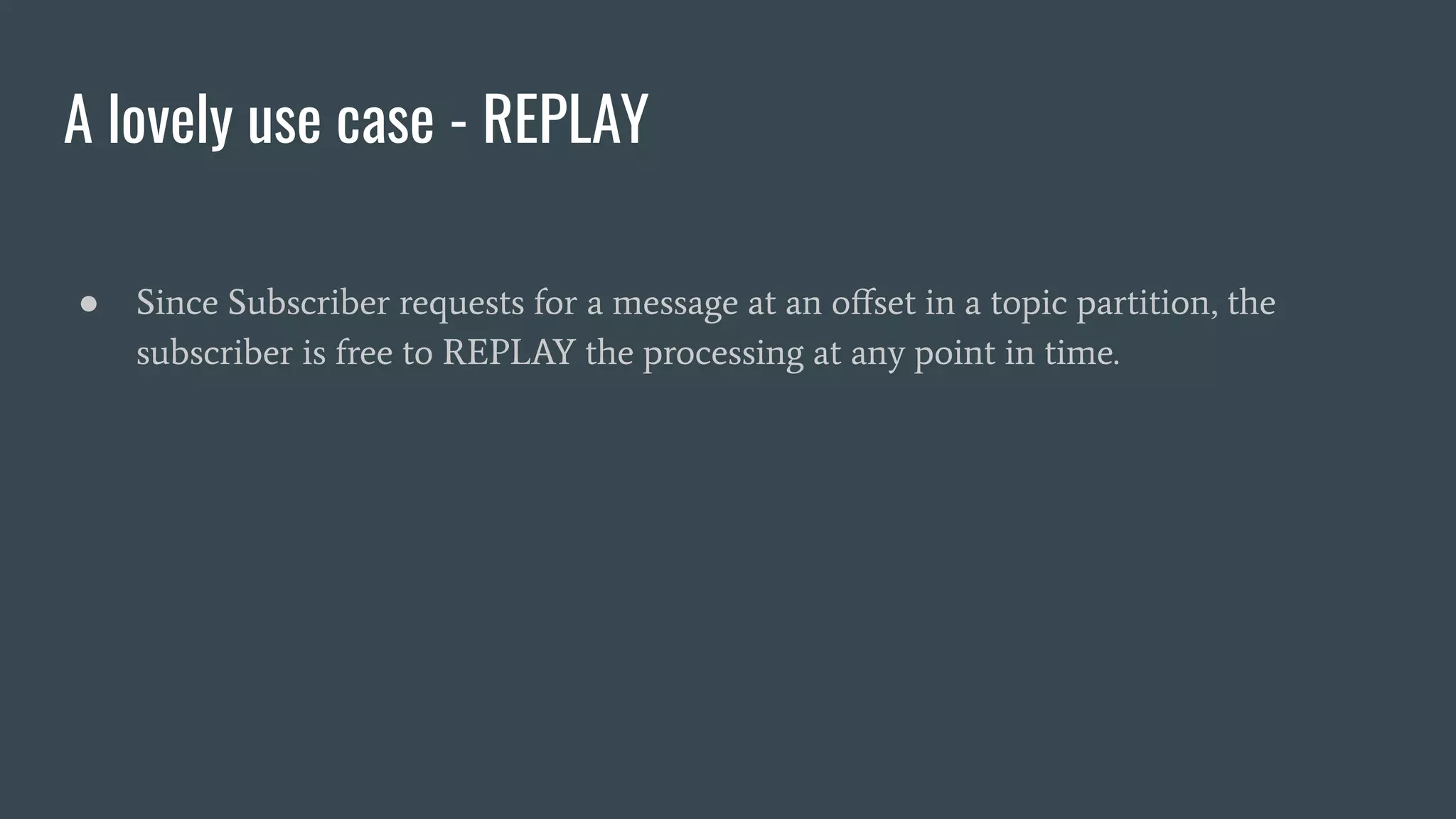

47. A lovely use case - REPLAY
● Since Subscriber requests for a message at an offset in a topic partition, the
subscriber is free to REPLAY the processing at any point in time.

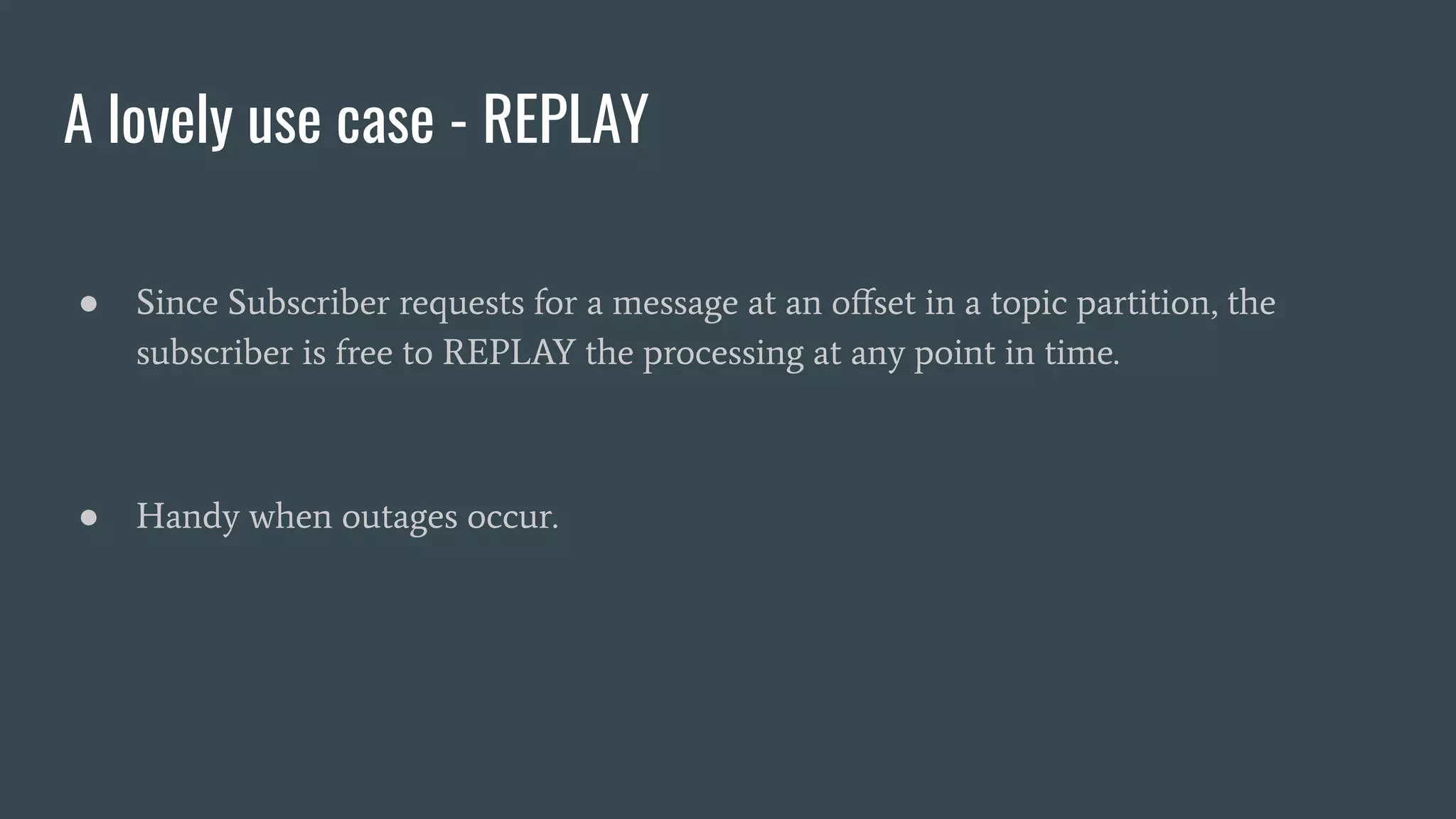

48. A lovely use case - REPLAY
● Since Subscriber requests for a message at an offset in a topic partition, the
subscriber is free to REPLAY the processing at any point in time.
● Handy when outages occur.

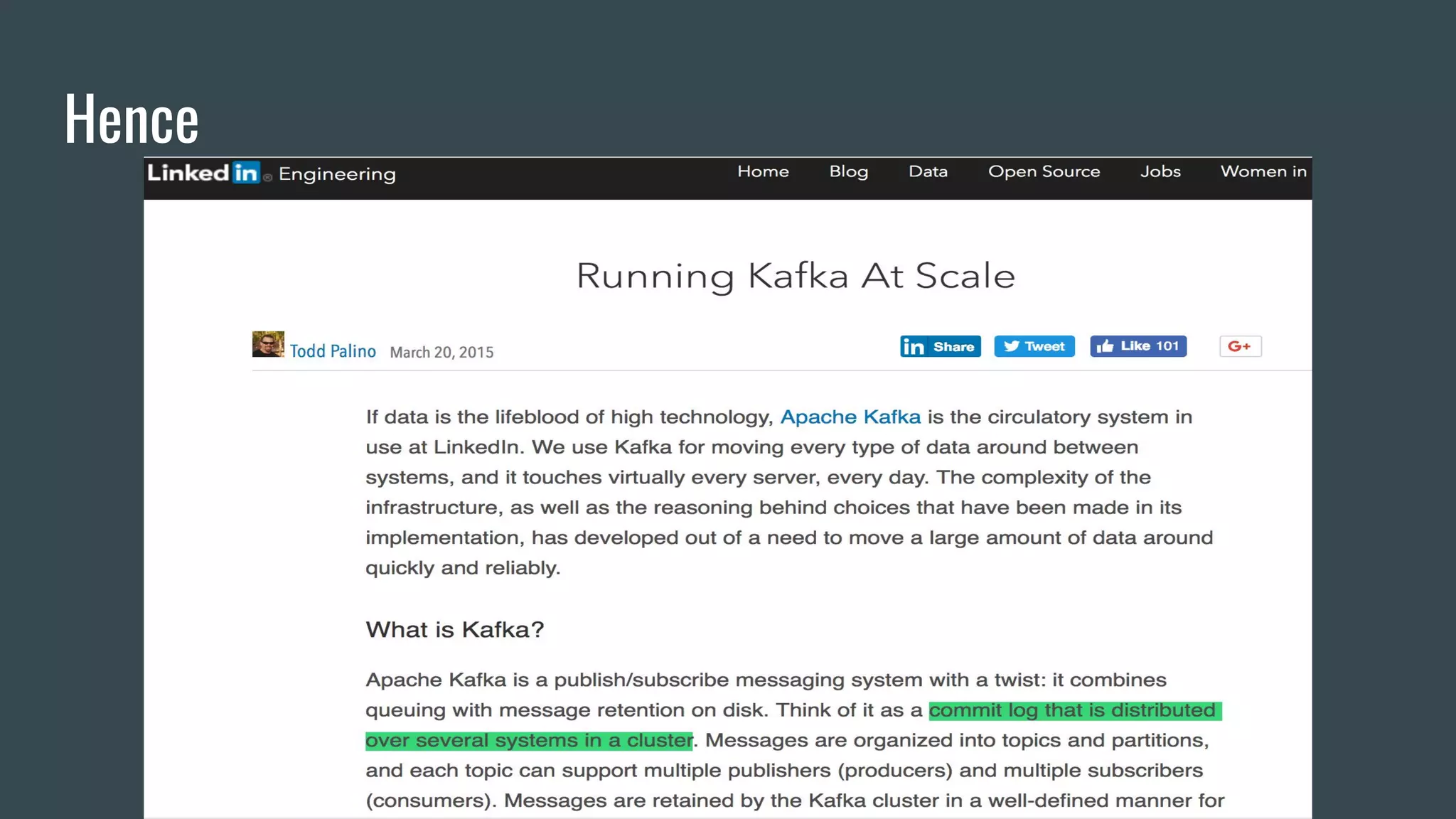

50. Hence

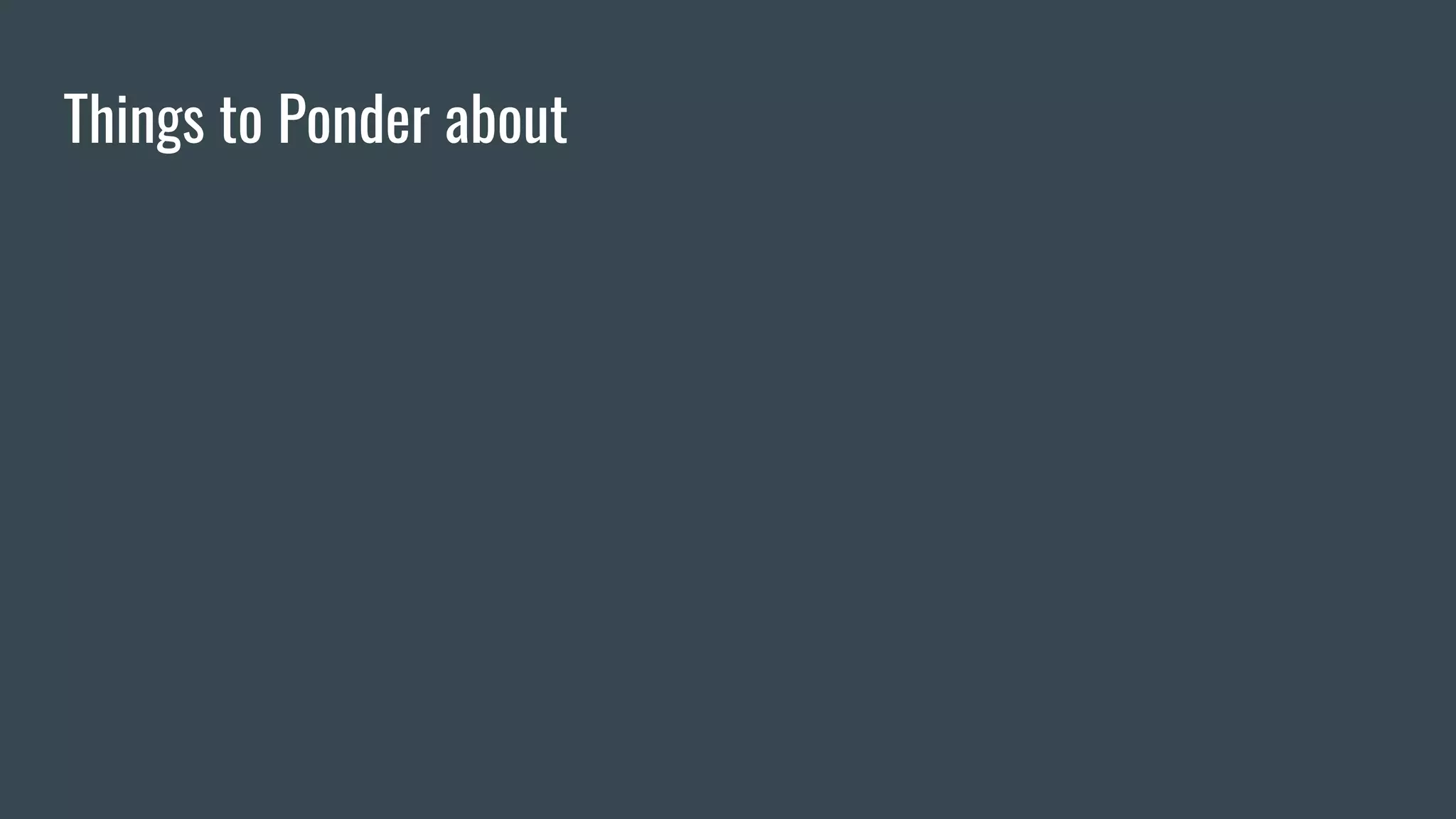

51. Things to Ponder about

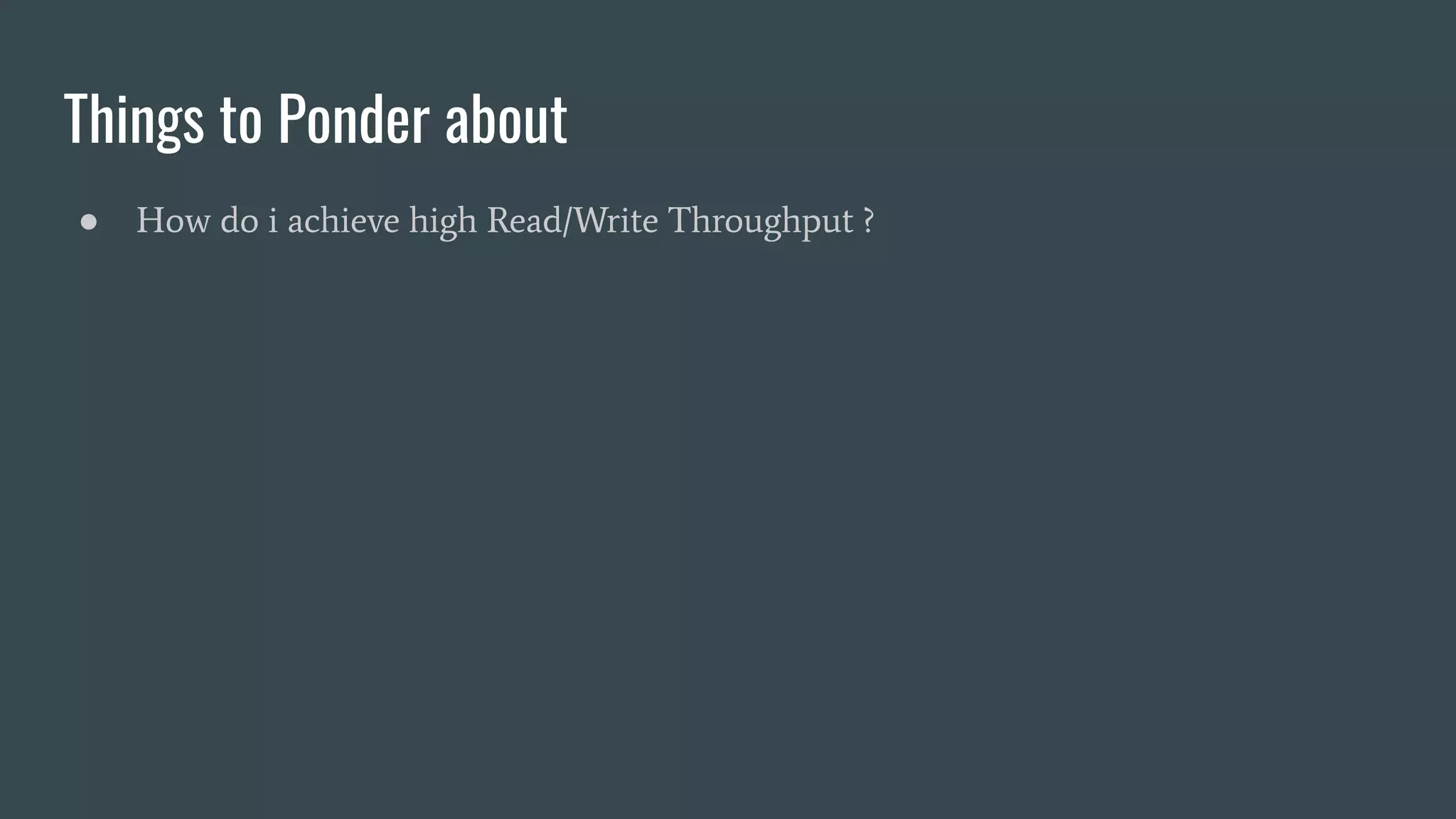

52. Things to Ponder about
● How do i achieve high Read/Write Throughput ?

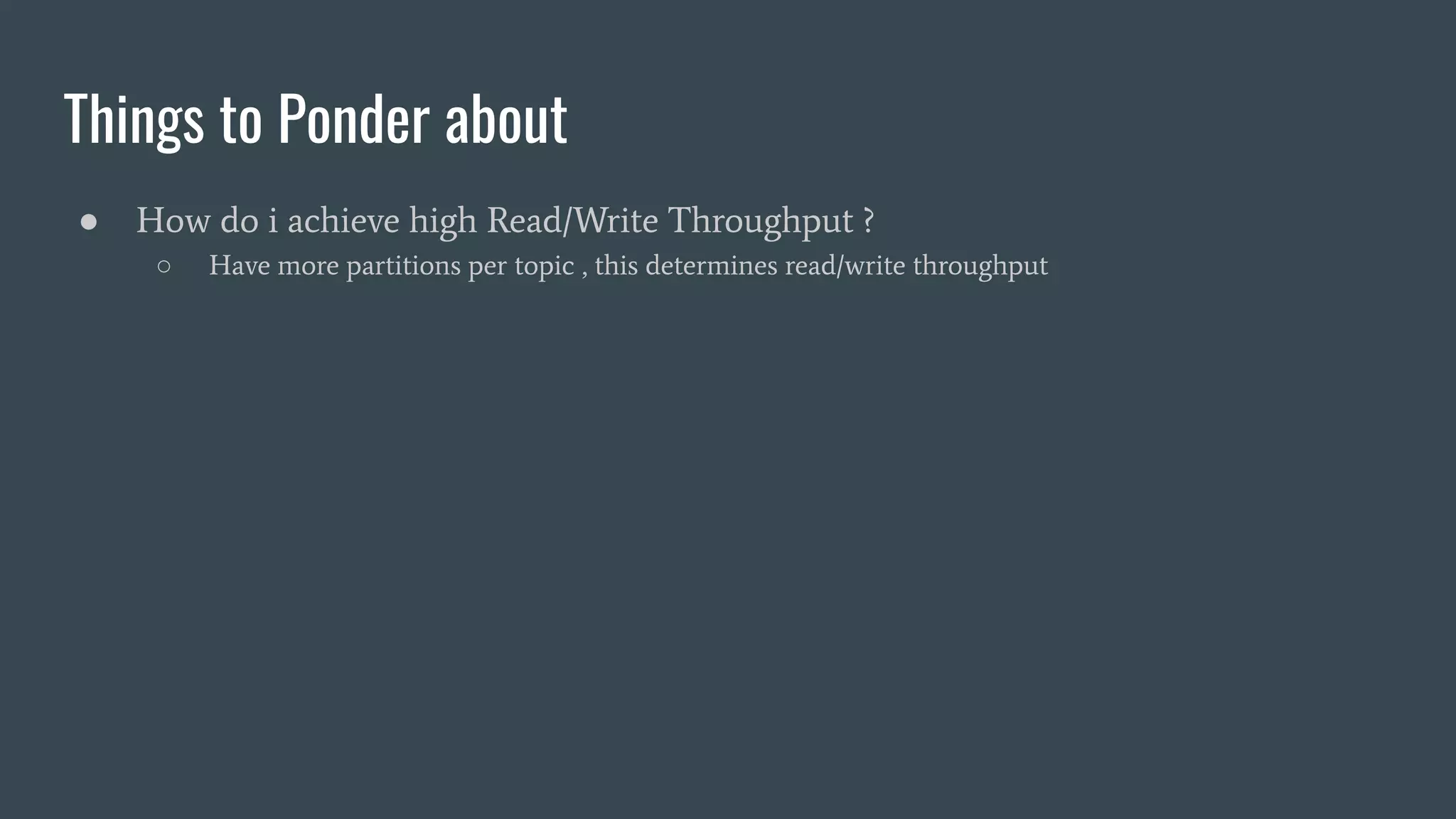

53. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput

54. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?

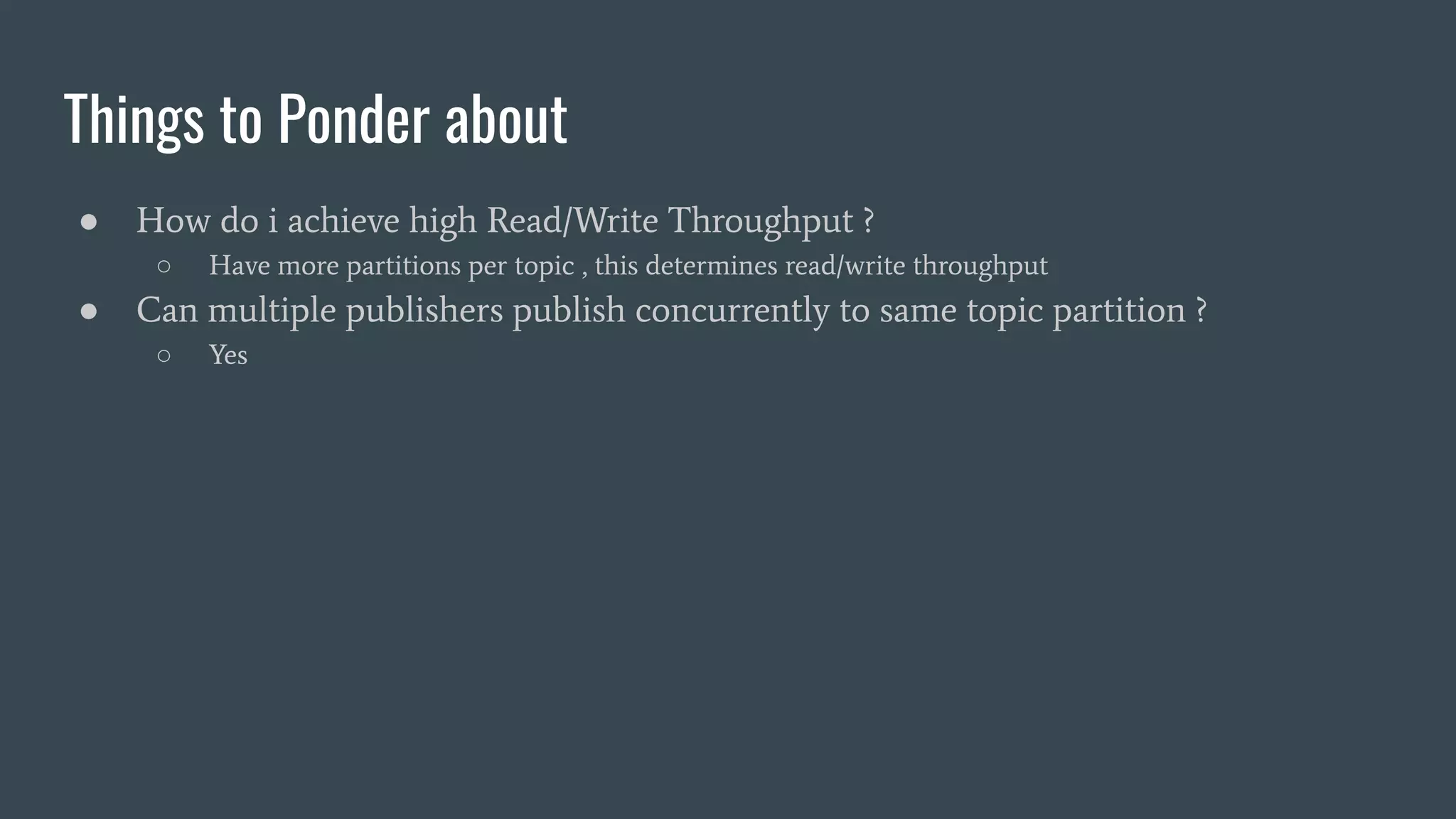

55. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes

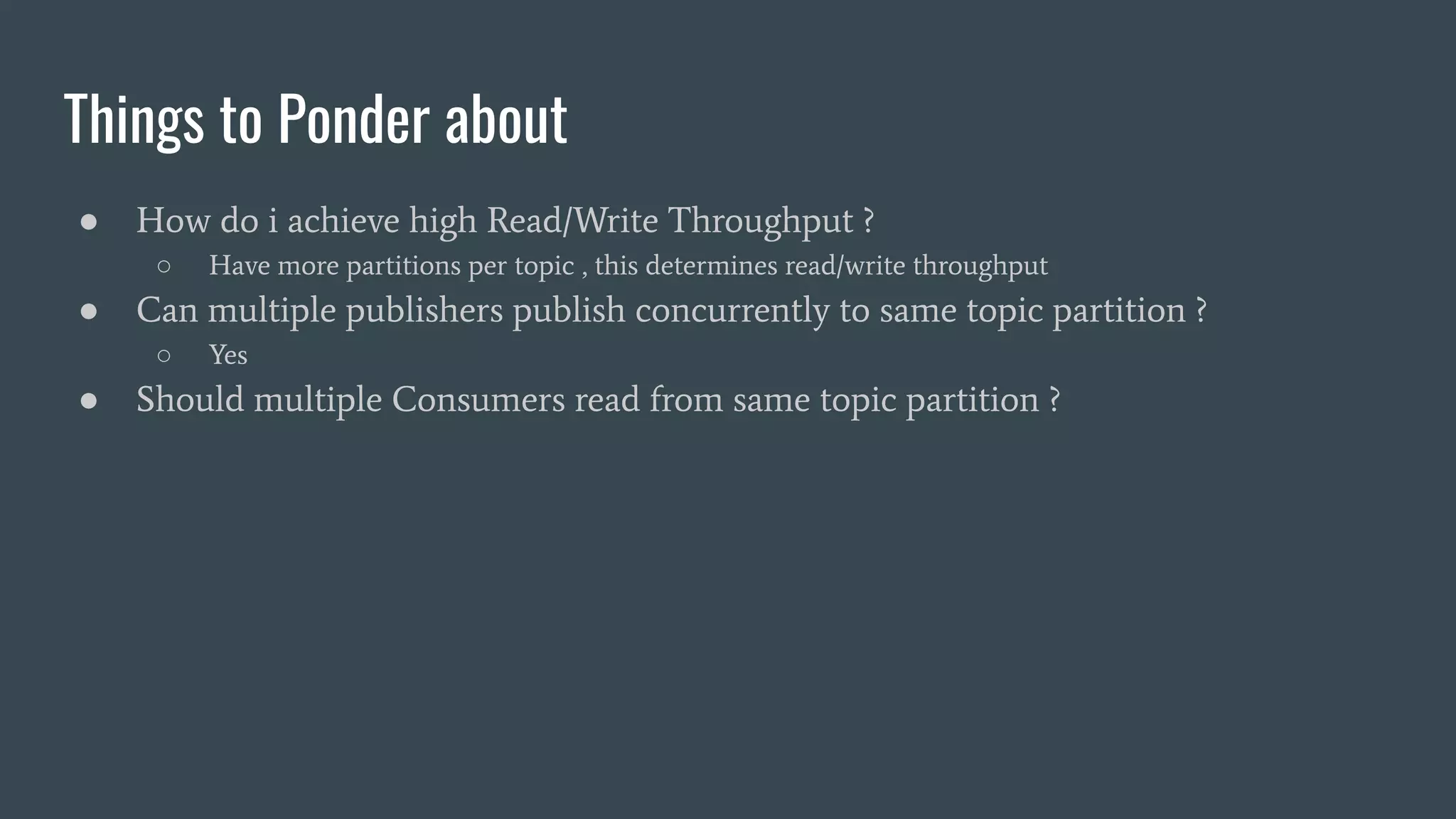

56. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?

57. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition

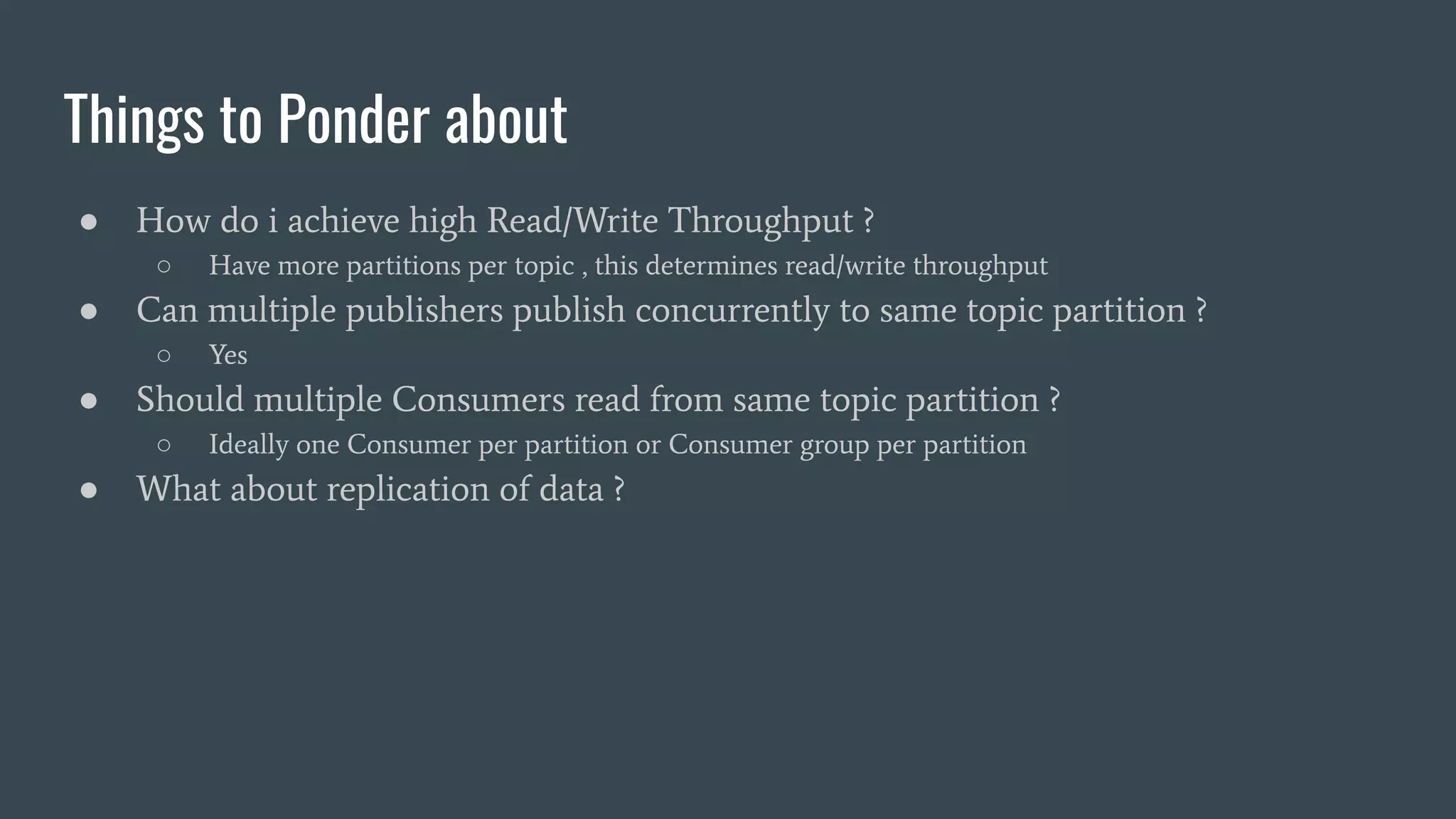

58. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?

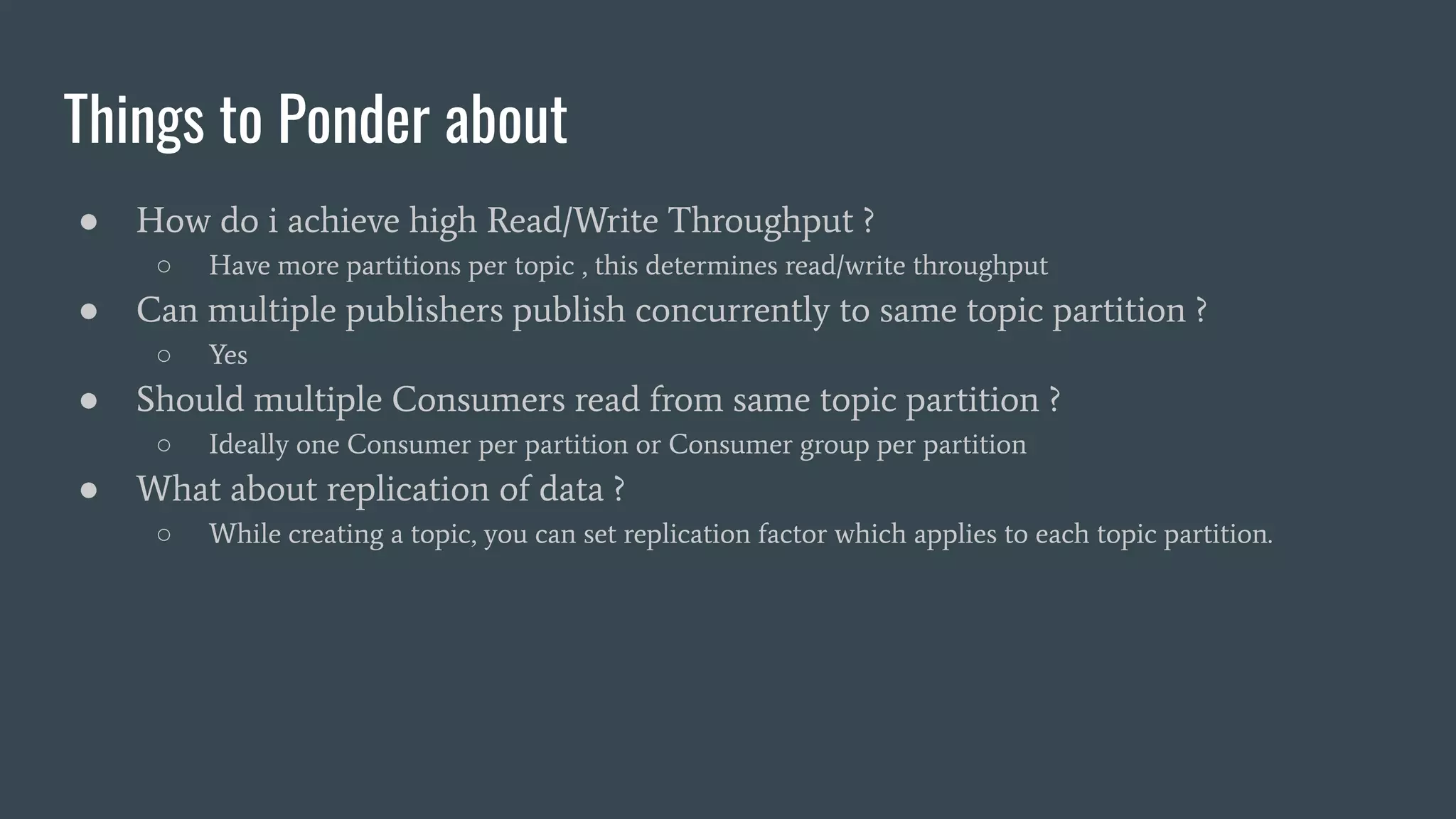

59. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?
○ While creating a topic, you can set replication factor which applies to each topic partition.

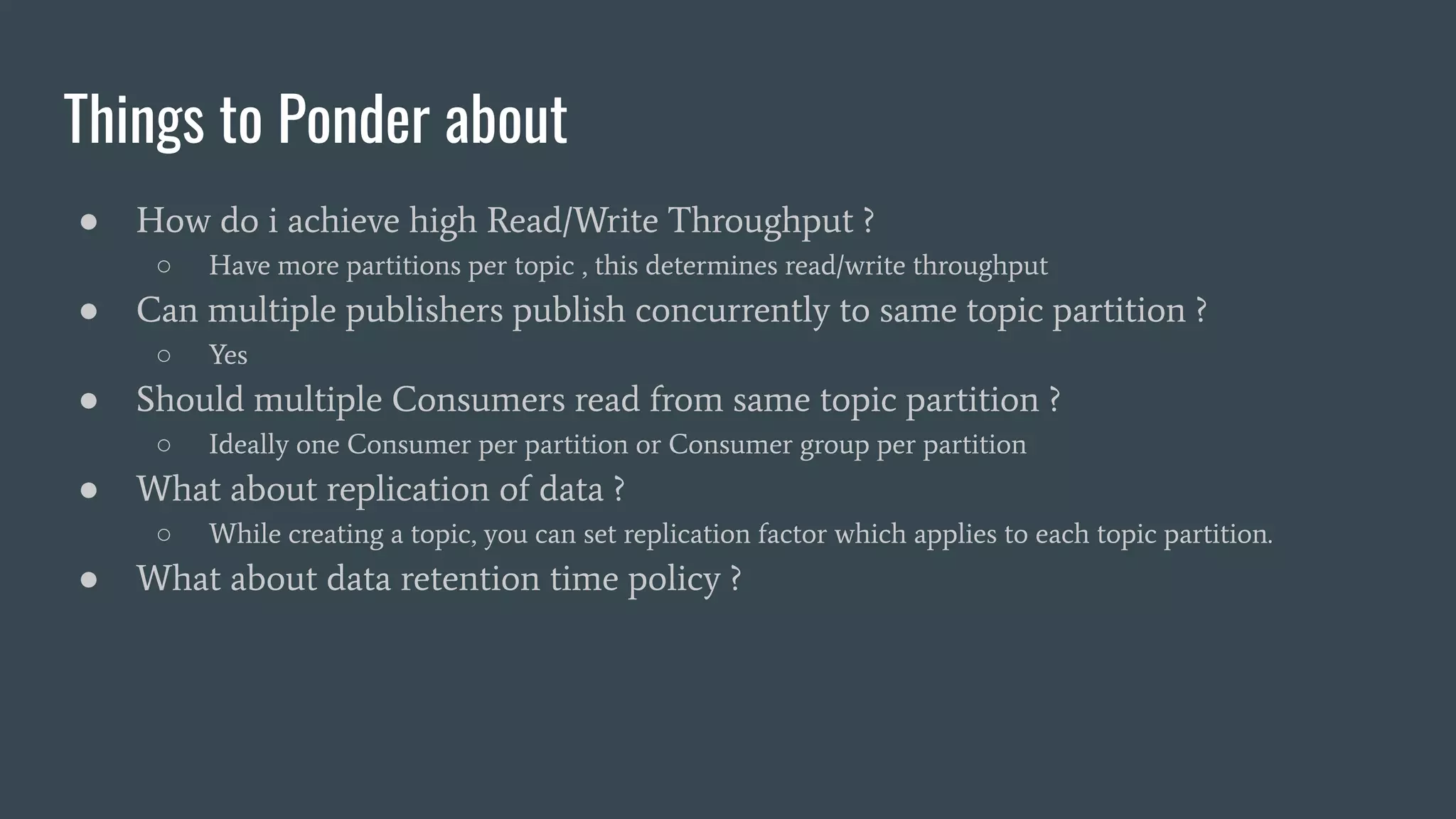

60. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?
○ While creating a topic, you can set replication factor which applies to each topic partition.
● What about data retention time policy ?

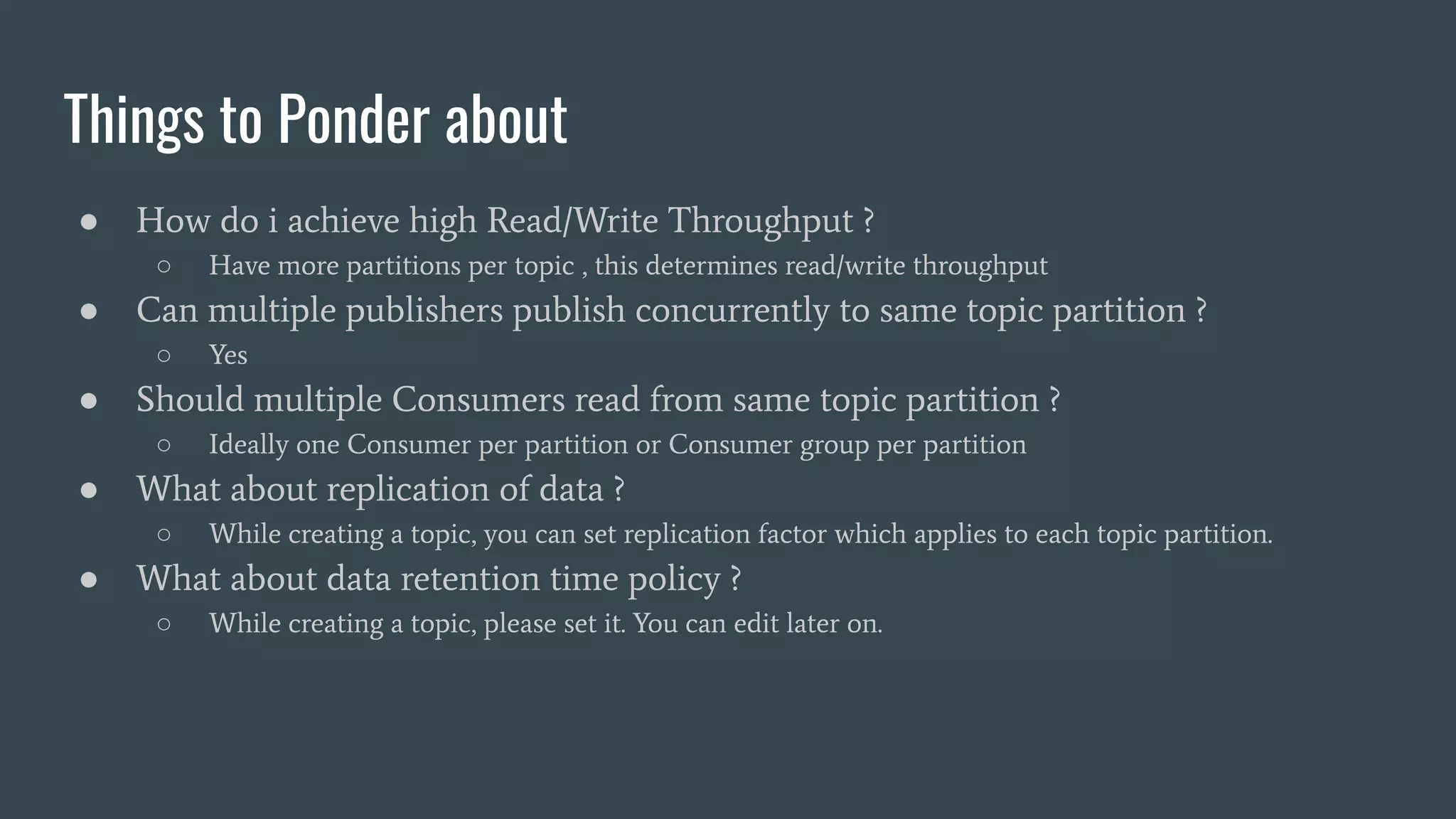

61. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?
○ While creating a topic, you can set replication factor which applies to each topic partition.
● What about data retention time policy ?
○ While creating a topic, please set it. You can edit later on.

62. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?
○ While creating a topic, you can set replication factor which applies to each topic partition.
● What about data retention time policy ?
○ While creating a topic, please set it. You can edit later on.
● Think about producer Partitioning key ...

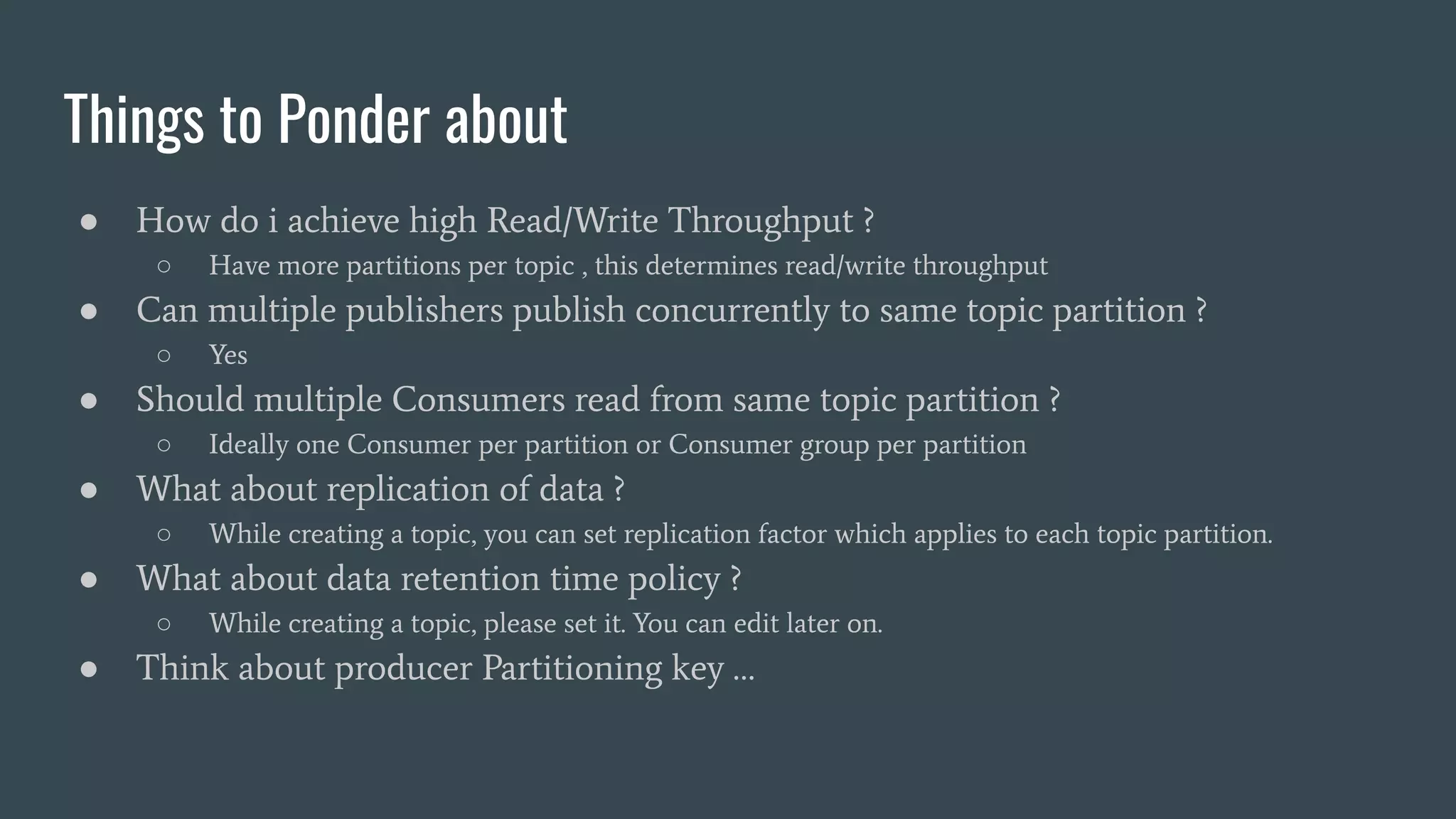

63. Things to Ponder about
● How do i achieve high Read/Write Throughput ?
○ Have more partitions per topic , this determines read/write throughput
● Can multiple publishers publish concurrently to same topic partition ?
○ Yes
● Should multiple Consumers read from same topic partition ?
○ Ideally one Consumer per partition or Consumer group per partition
● What about replication of data ?
○ While creating a topic, you can set replication factor which applies to each topic partition.
● What about data retention time policy ?
○ While creating a topic, please set it. You can edit later on.
● Think about producer Partitioning key …

64. In dataspark
●

65. Others ...
● Amazon Kinesis is similar to Kafka ….
● You have Redis - PubSub (different guarantees, not similar to
kafka)

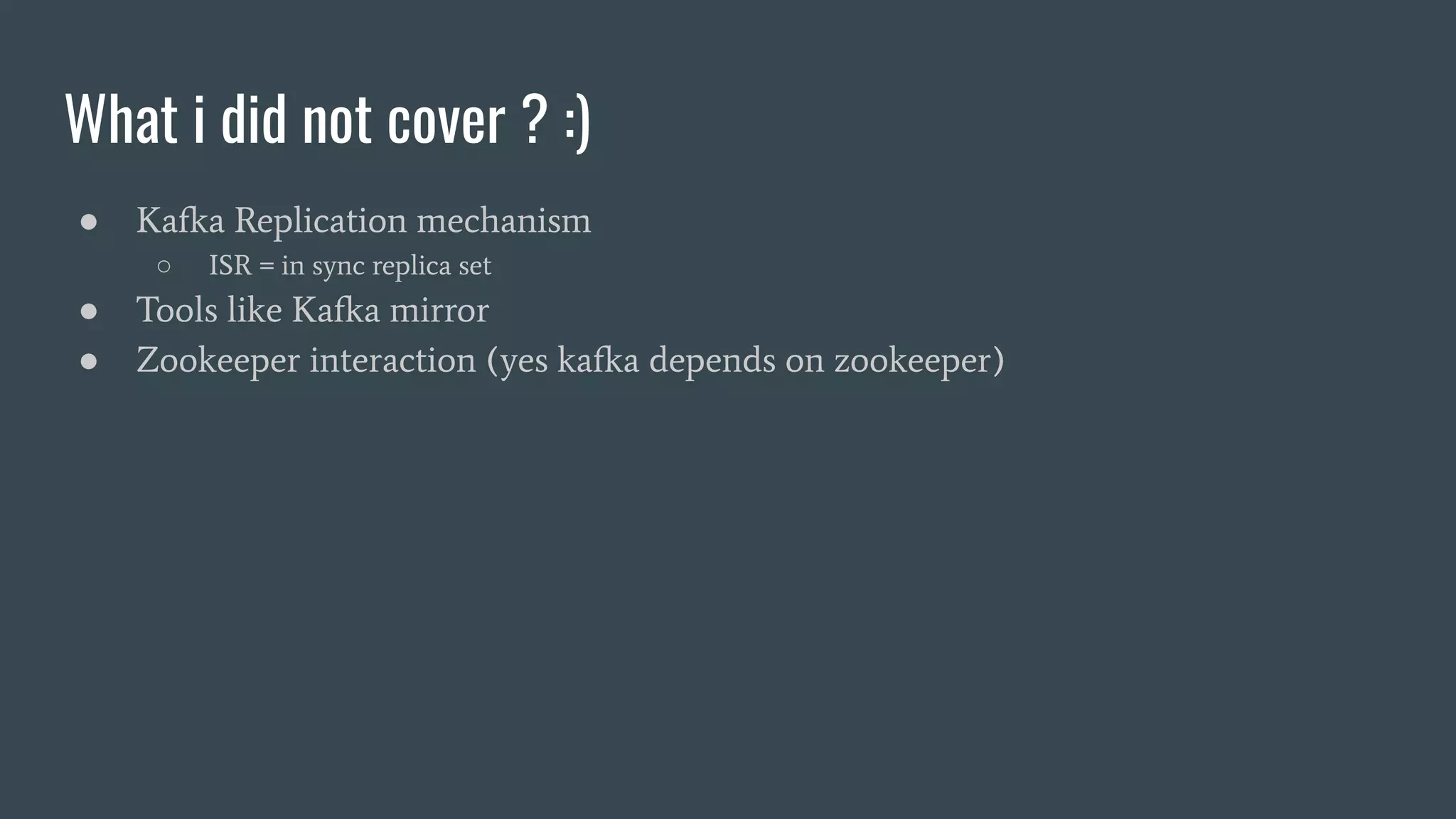

66. What i did not cover ? :)
● Kafka Replication mechanism
○ ISR = in sync replica set
● Tools like Kafka mirror
● Zookeeper interaction (yes kafka depends on zookeeper)

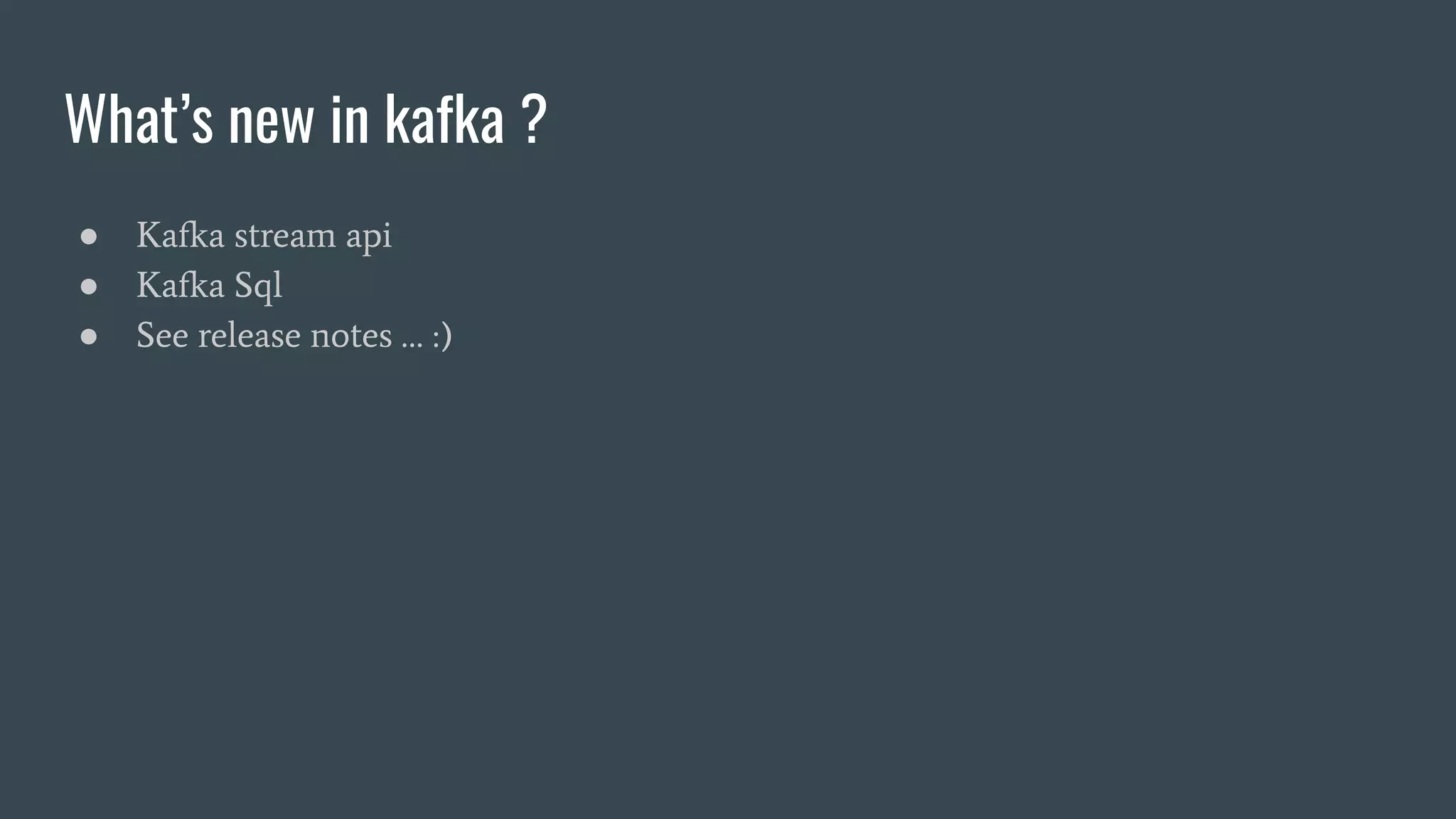

67. What’s new in kafka ?
● Kafka stream api
● Kafka Sql
● See release notes … :)

68. producer.send(“ Any Questions ? Thanks ”)
