Introducing tivoli personalized services manager 1.1 sg246031

Introducing
Tivoli Personalized
Services Manager 1.1
Supports pervasive devices

Creates personalized service
environments

Provides self care

Stephen Hochstetler
Edgar Gutierrez
Patricia Iglesias

ibm.com/redbooks

SG24-6031-00

International Technical Support Organization

Introducing
Tivoli Personalized Services Manager 1.1

June 2001

Take Note!
Before using this information and the product it supports, be sure to read the general information in

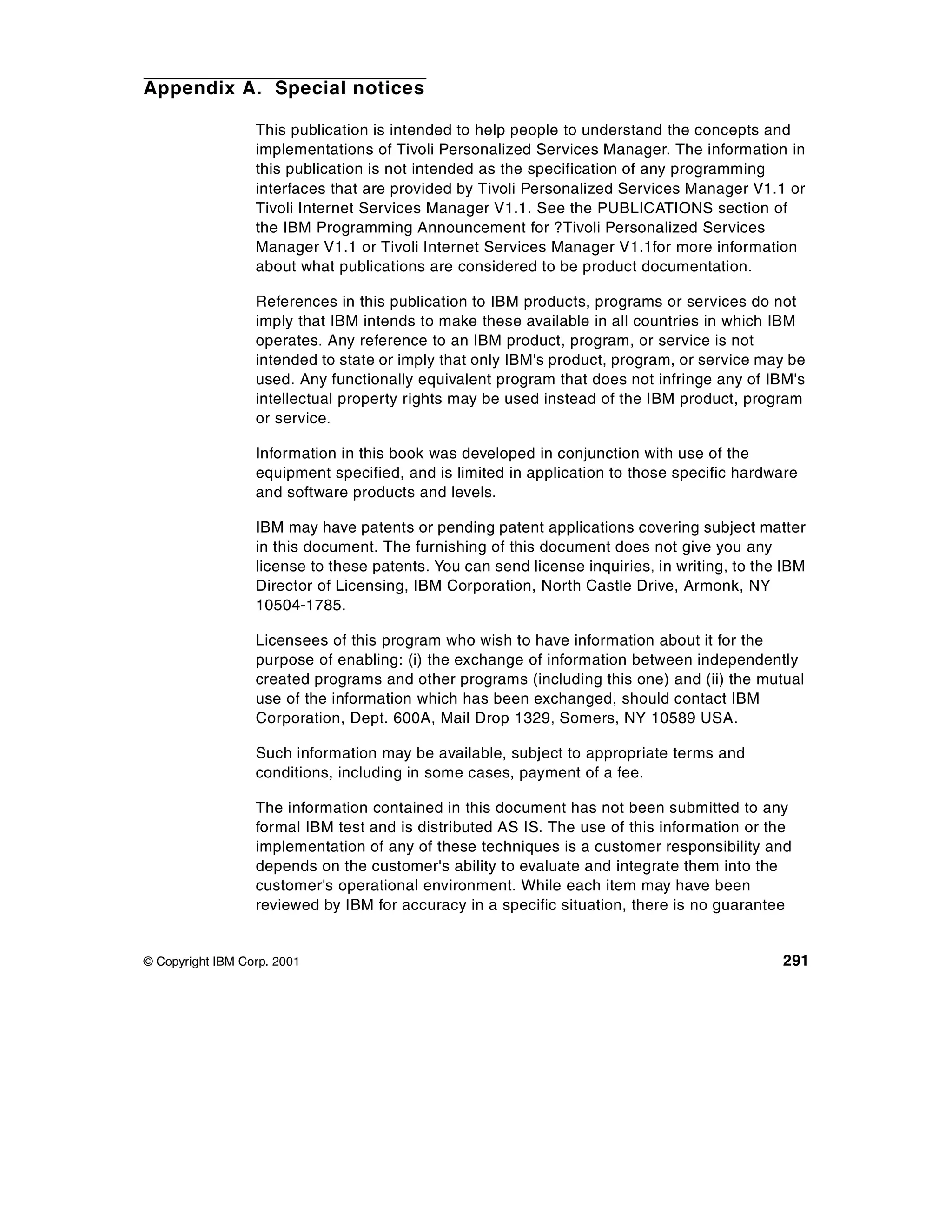

Appendix A, “Special notices” on page 291.

First Edition (June 2001)

This edition applies to V1R1 of Tivoli Personalized Services Manager, TPSM product number
5698-PSM for use with the AIX and Solaris operating systems.

Comments may be addressed to:
IBM Corporation, International Technical Support Organization
Dept. JN9B Building 003 Internal Zip 2834
11400 Burnet Road
Austin, Texas 78758-3493

When you send information to IBM, you grant IBM a non-exclusive right to use or distribute the
information in any way it believes appropriate without incurring any obligation to you.

© Copyright International Business Machines Corporation 2001. All rights reserved.
Note to U.S Government Users – Documentation related to restricted rights – Use, duplication or disclosure is subject to
restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents

Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
The team that wrote this redbook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Comments welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Chapter 1. Evolution of the Internet and ISP solutions . . . . . . . . . . . . . 1

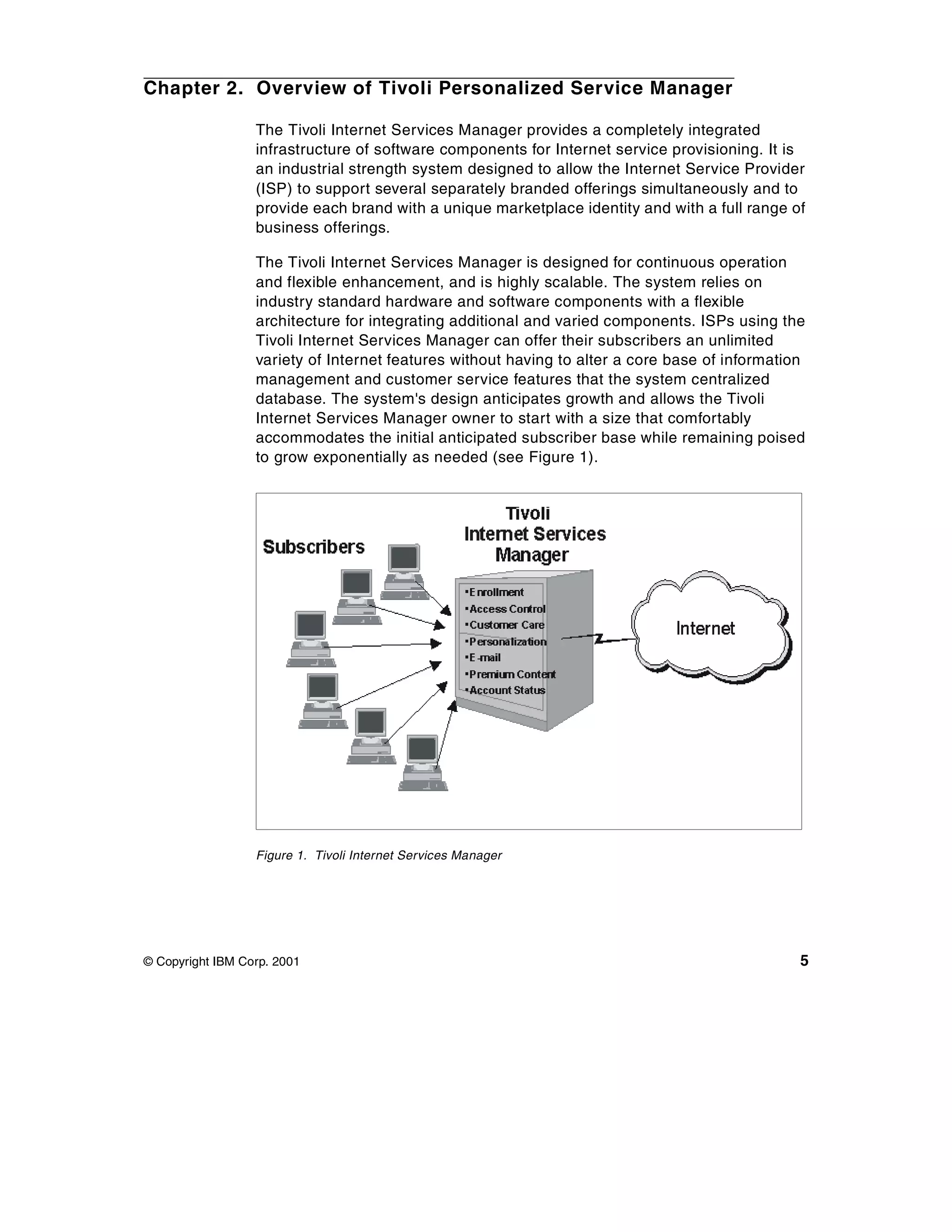

Chapter 2. Overview of Tivoli Personalized Service Manager . . . . . . . . 5

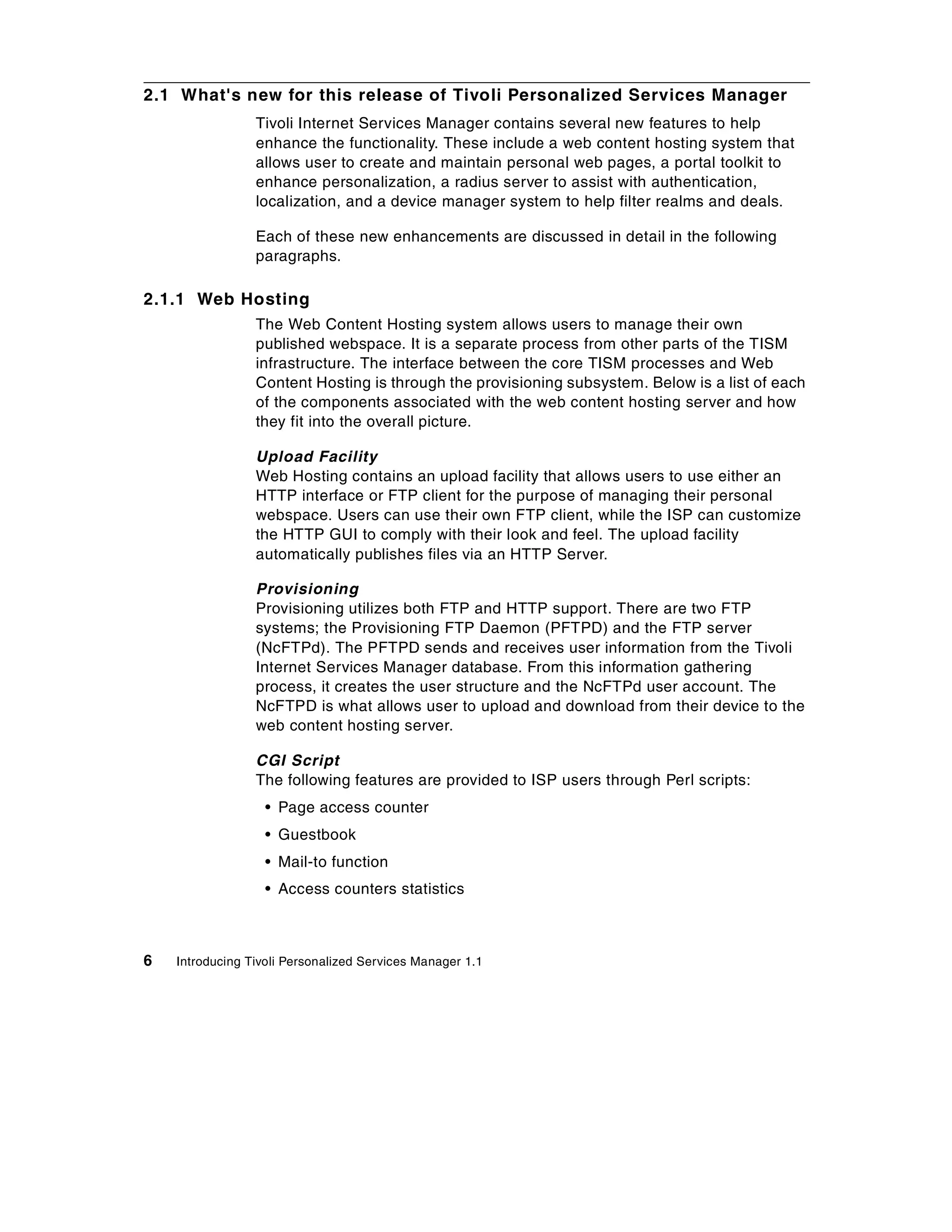

2.1 What's new for this release of Tivoli Personalized Services Manager . . 6
2.1.1 Web Hosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.2 Portal Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1.3 Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1.4 DB2 support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1.5 Localization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1.6 Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.7 Integration with WebSphere Everyplace suite . . . . . . . . . . . . . . . 10
2.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 Device Manager (only in TPSM) . . . . . . . . . . . . . . . . . . . . . . . . . 10

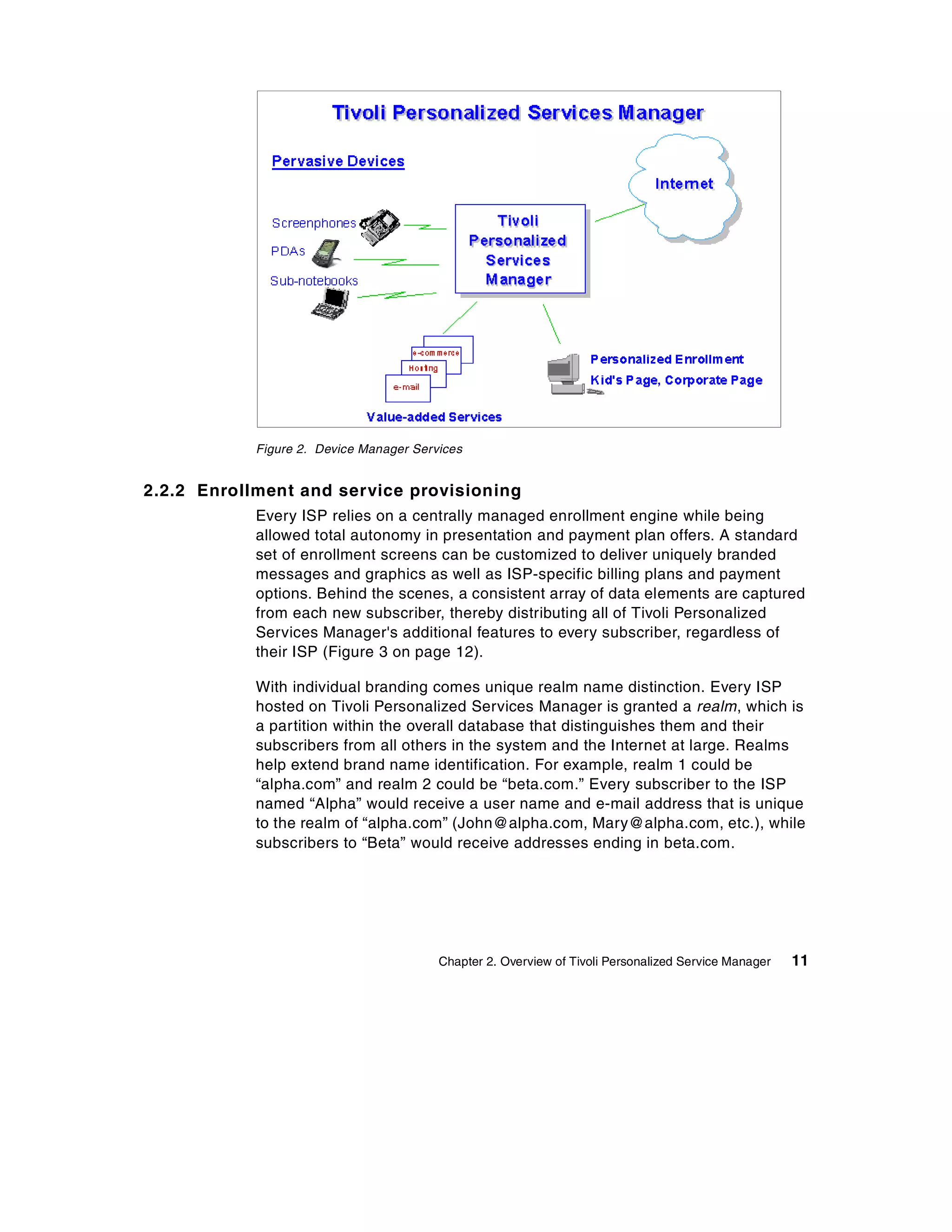

2.2.2 Enrollment and service provisioning . . . . . . . . . . . . . . . . . . . . . . 11
2.2.3 Subscriber authentication and access control . . . . . . . . . . . . . . . 12

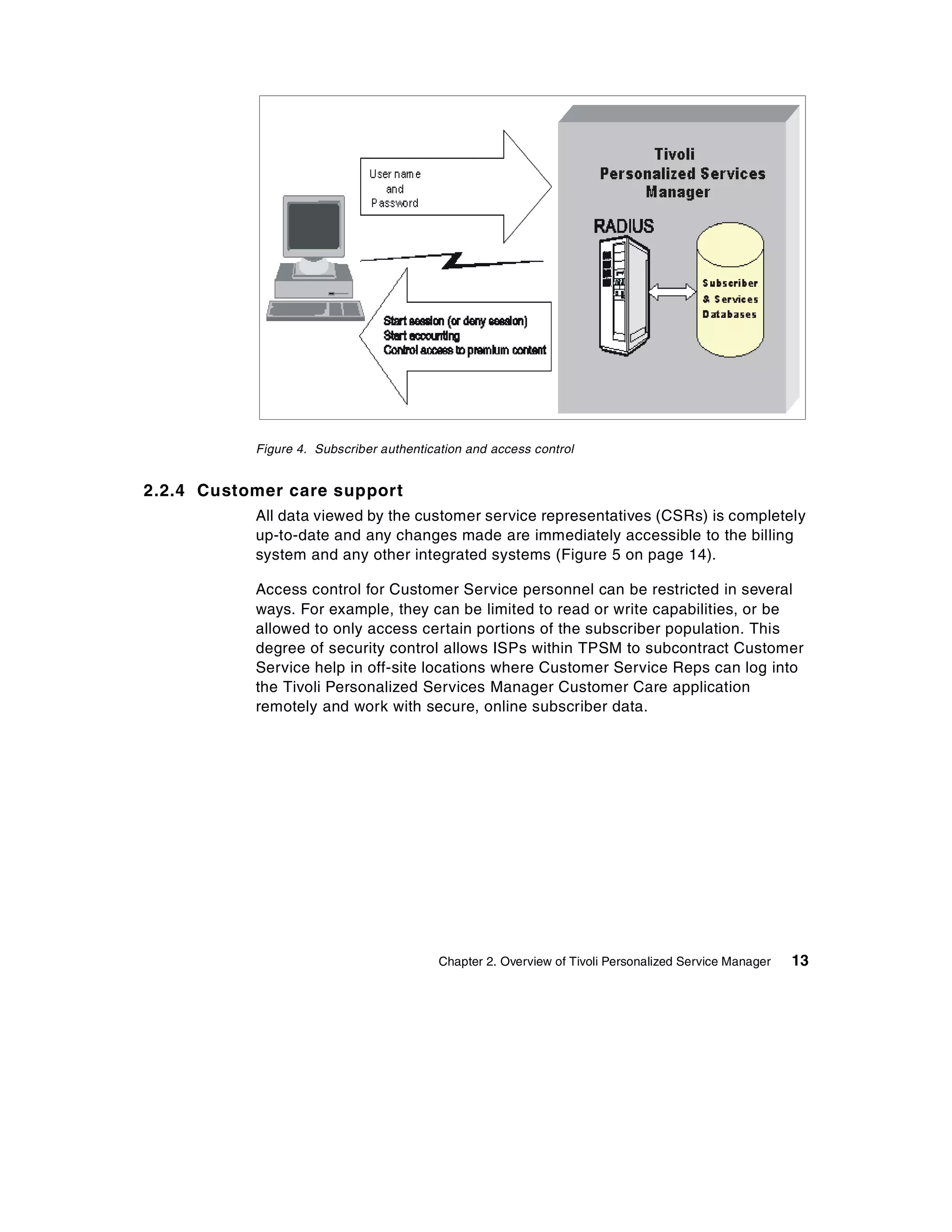

2.2.4 Customer care support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2.5 Subscriber personalized service environment and self care . . . . 14
2.2.6 Integration with third party components and tools . . . . . . . . . . . . 16

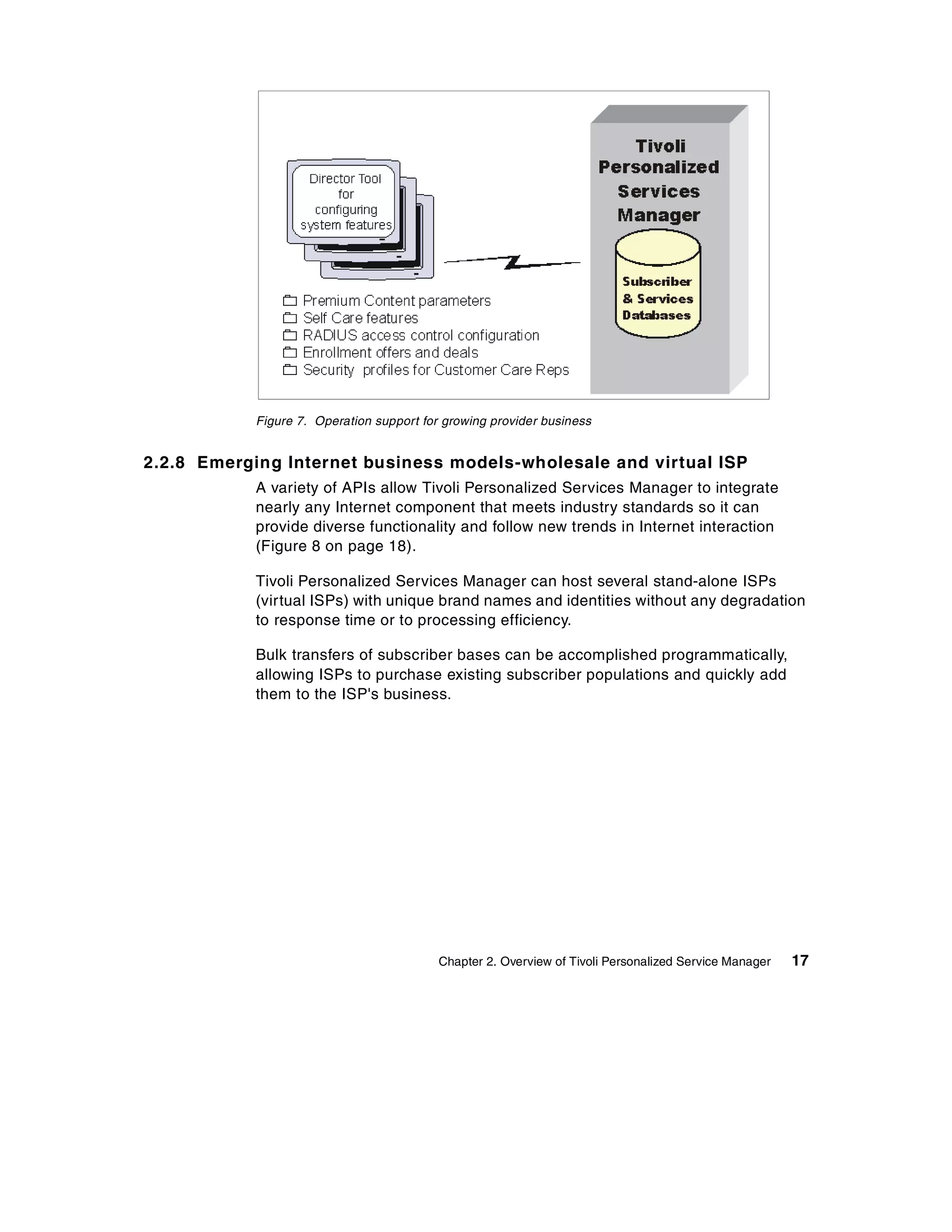

2.2.7 Operation support for growing provider business . . . . . . . . . . . . 16
2.2.8 Emerging Internet business models-wholesale and virtual ISP . . 17

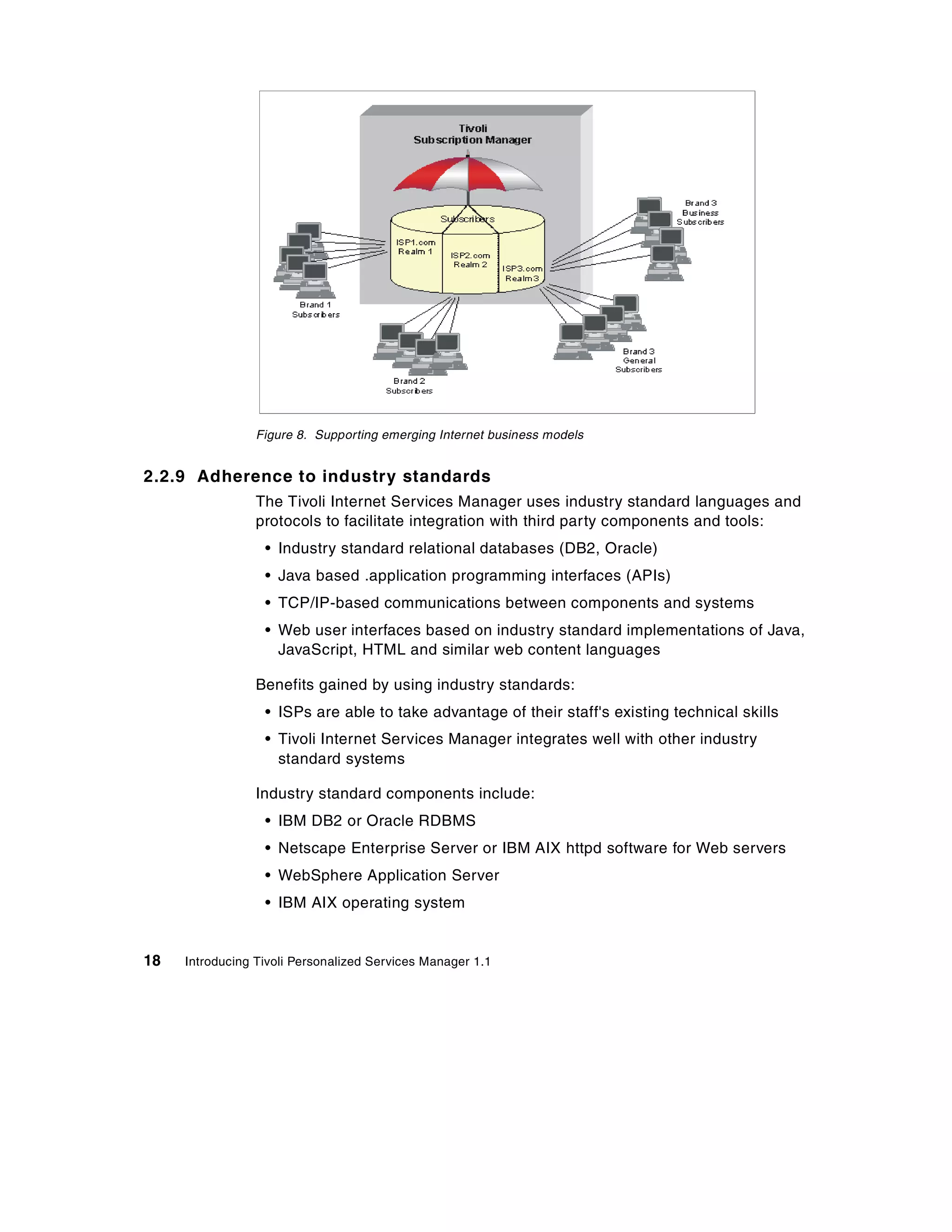

2.2.9 Adherence to industry standards . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 3. Installation checklist . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 21

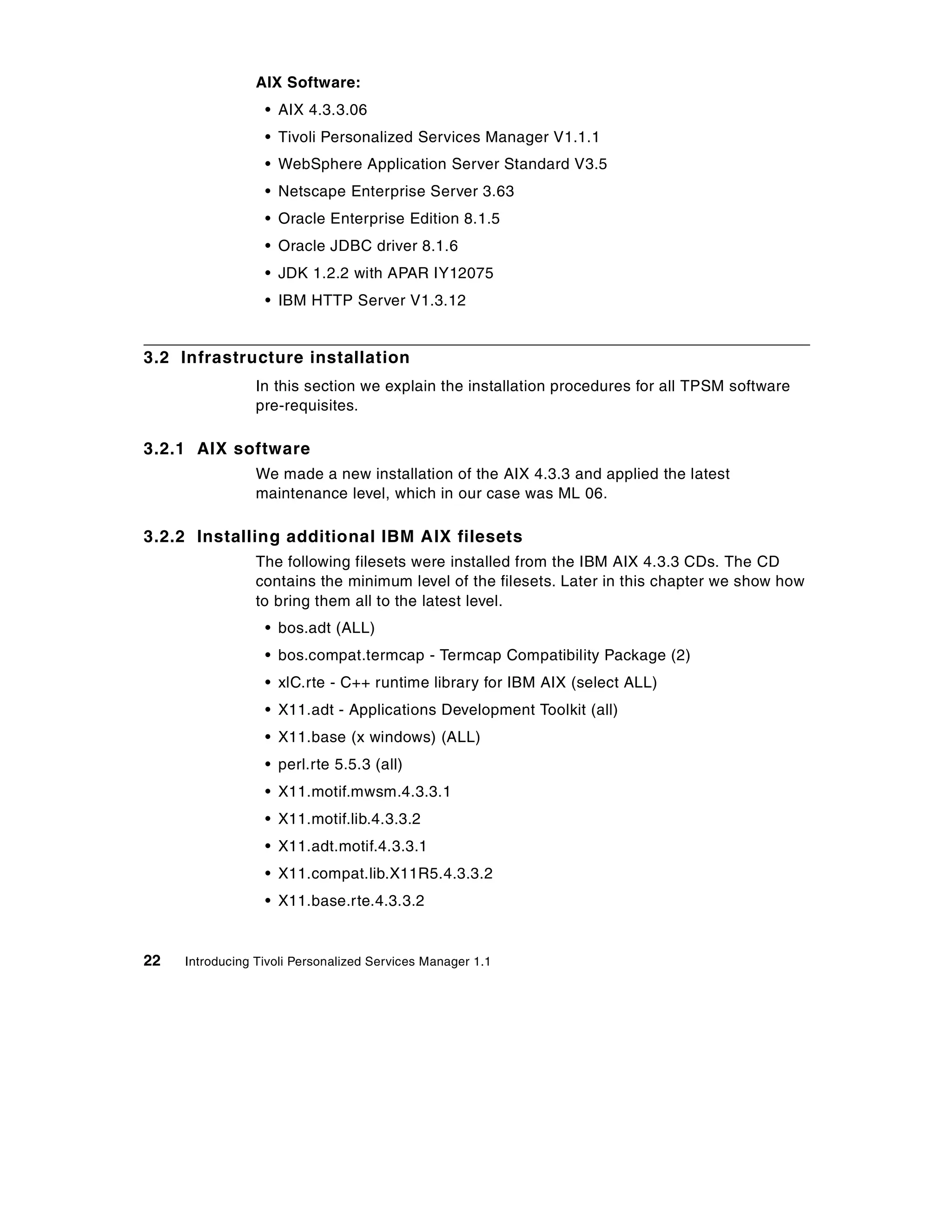

3.1 Infrastructure used in this project . . . . . . . . . . . . . . . . .. . . . . .. . . . . 21
3.2 Infrastructure installation . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 22
3.2.1 AIX software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 22

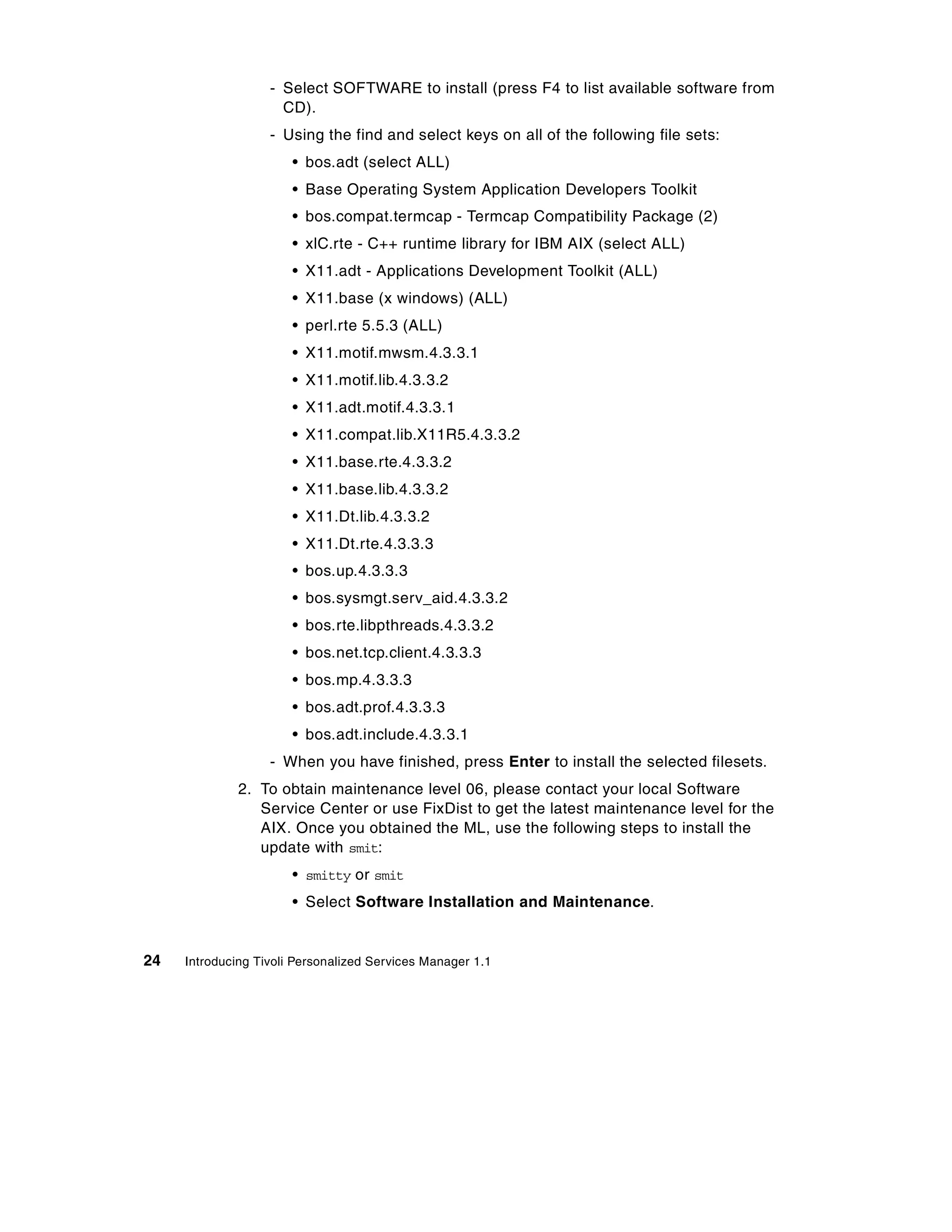

3.2.2 Installing additional IBM AIX filesets . . . . . . . . . . .. . . . . .. . . . . 22

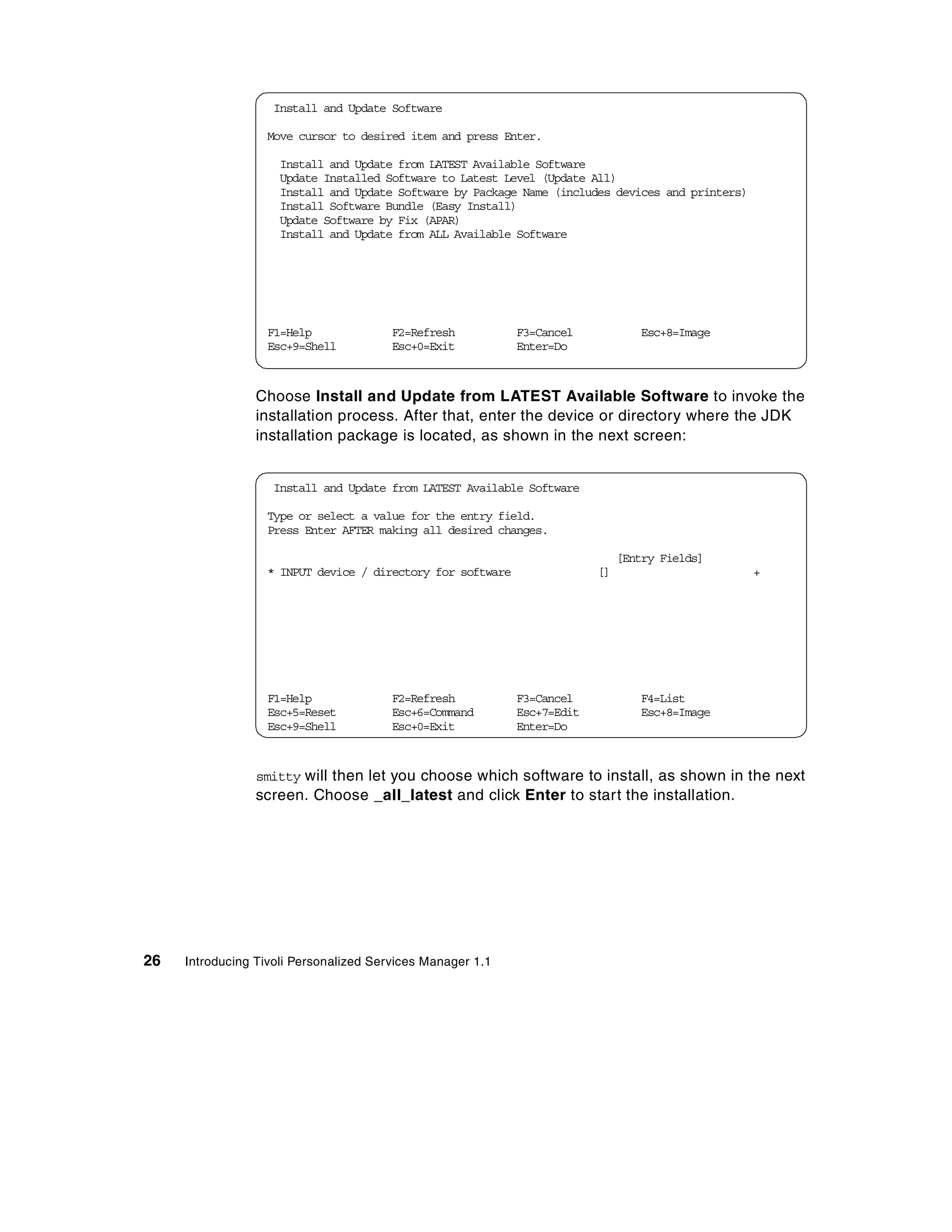

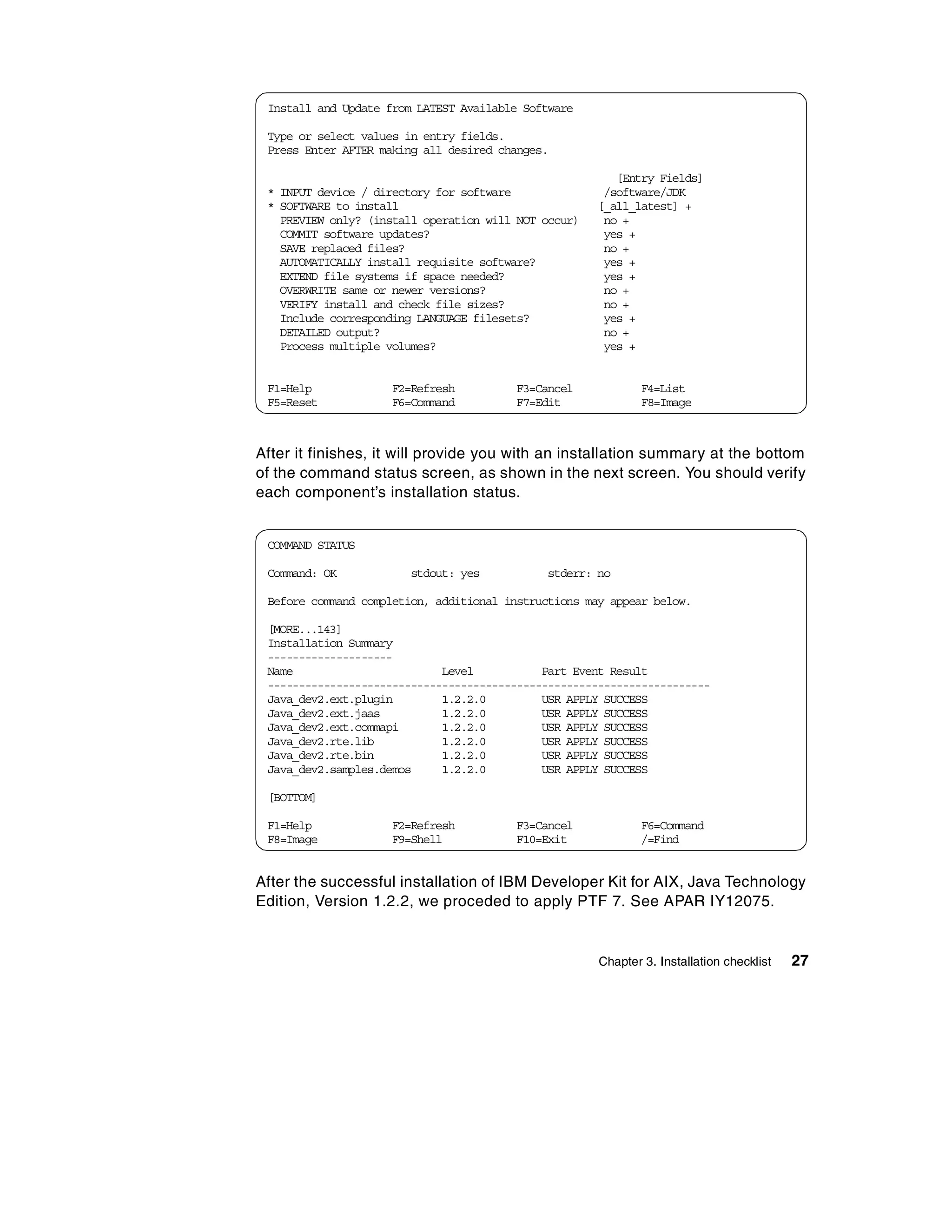

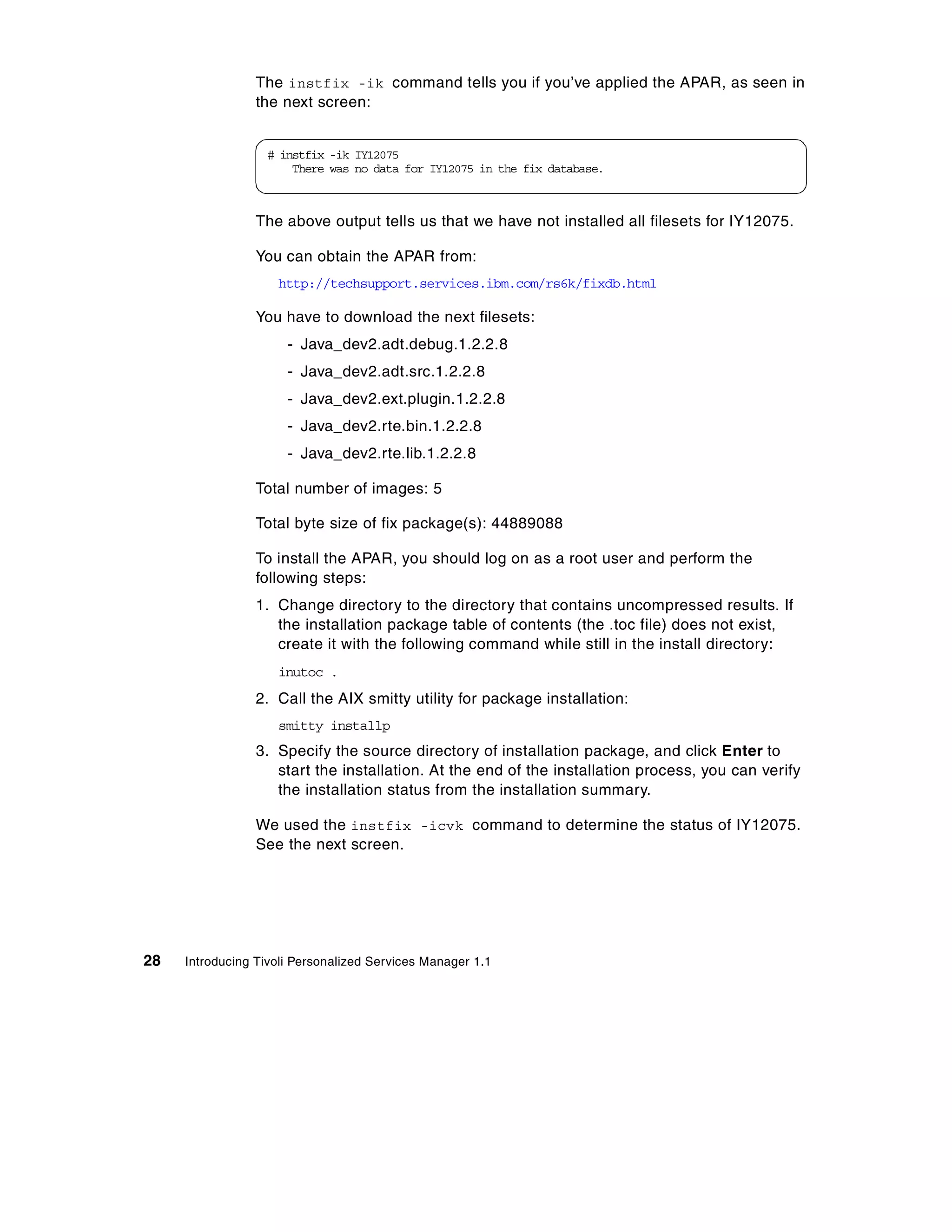

3.2.3 JDK 1.2.2 installation and setup procedure. . . . . .. . . . . .. . . . . 25
3.2.4 IBM HTTP Server V1.3.12 for AIX . . . . . . . . . . . .. . . . . .. . . . . 29
3.3 Oracle JDBC driver 8.1.6 . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 30

Chapter 4. Building the environment . . . . . . . . . . . . . . . . . . . . . . . . . . 31

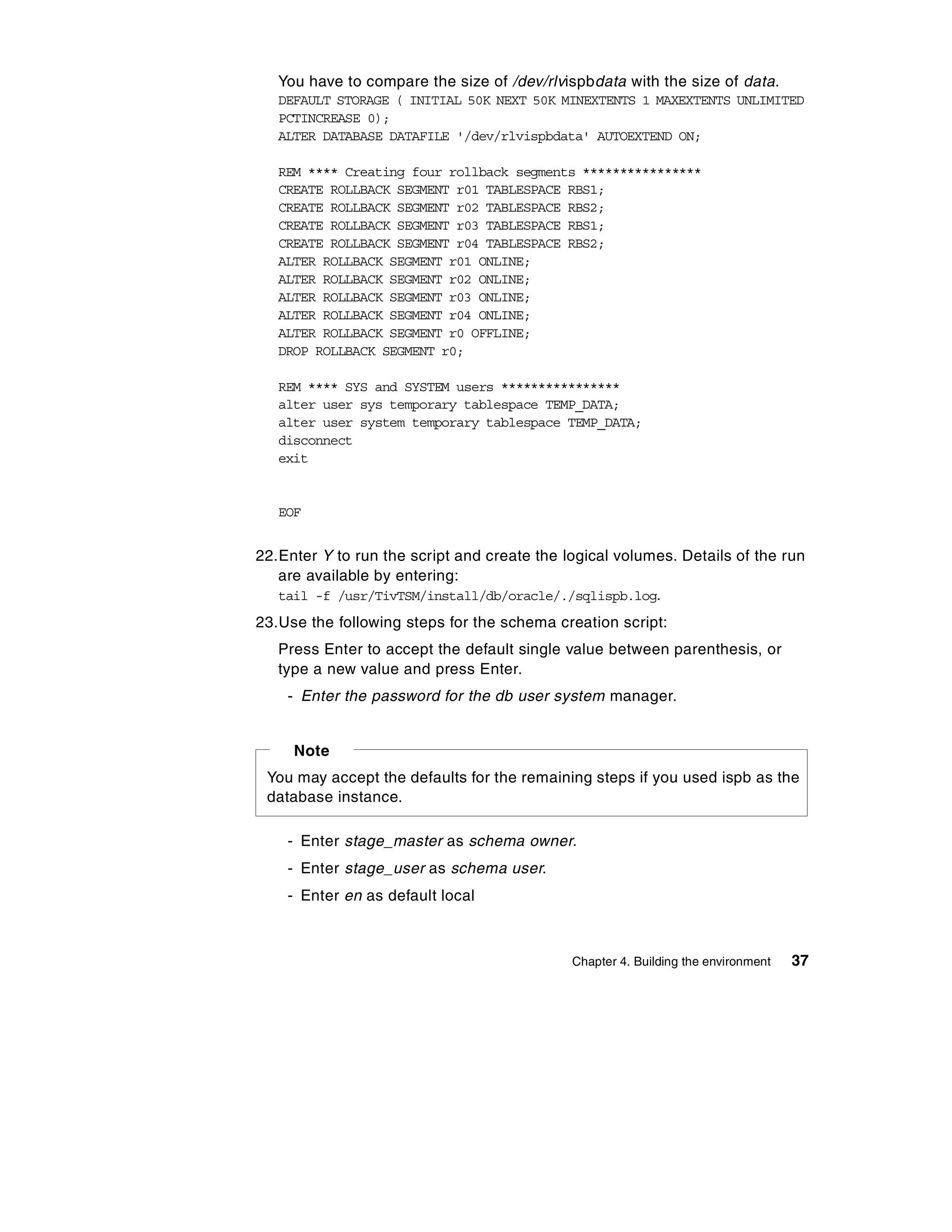

4.1 File system configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

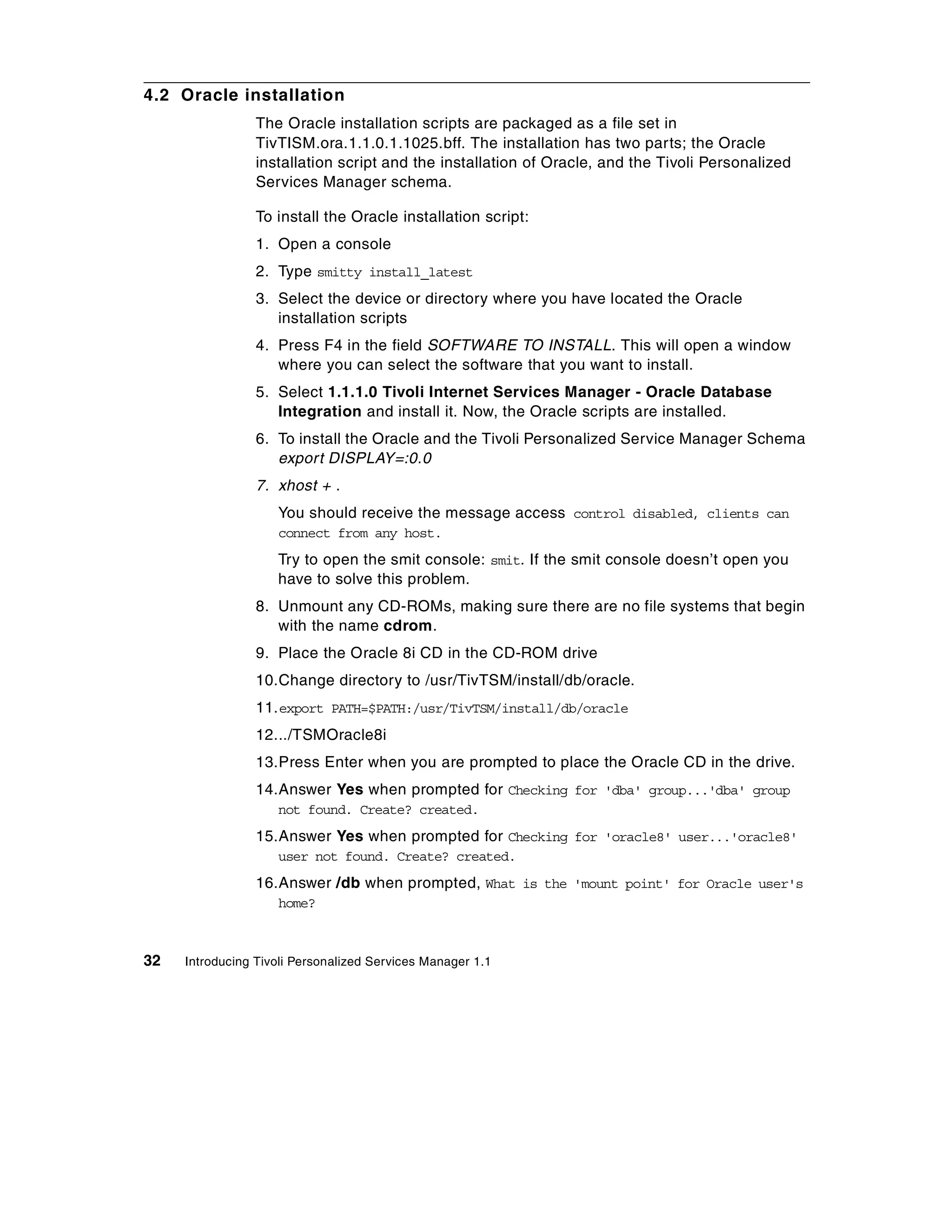

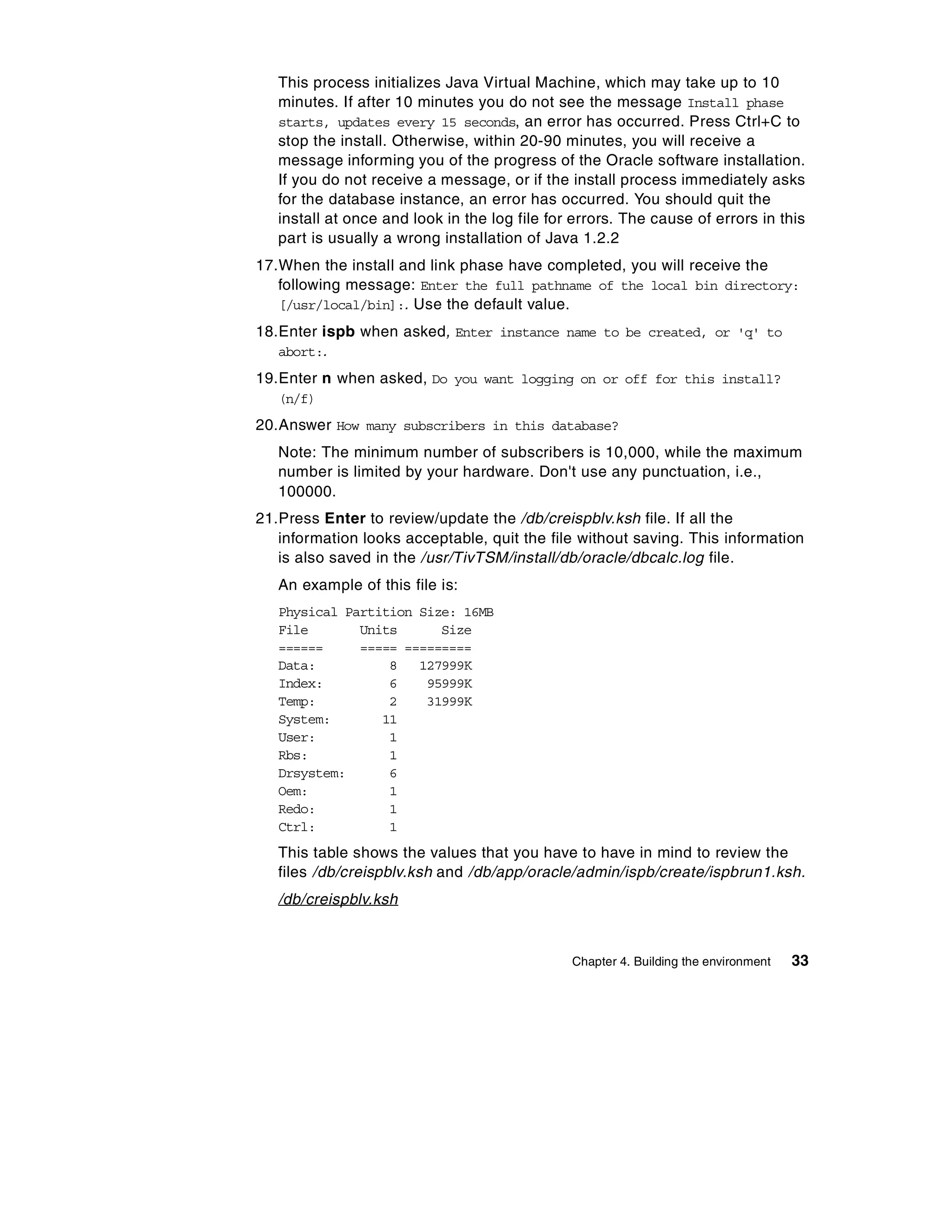

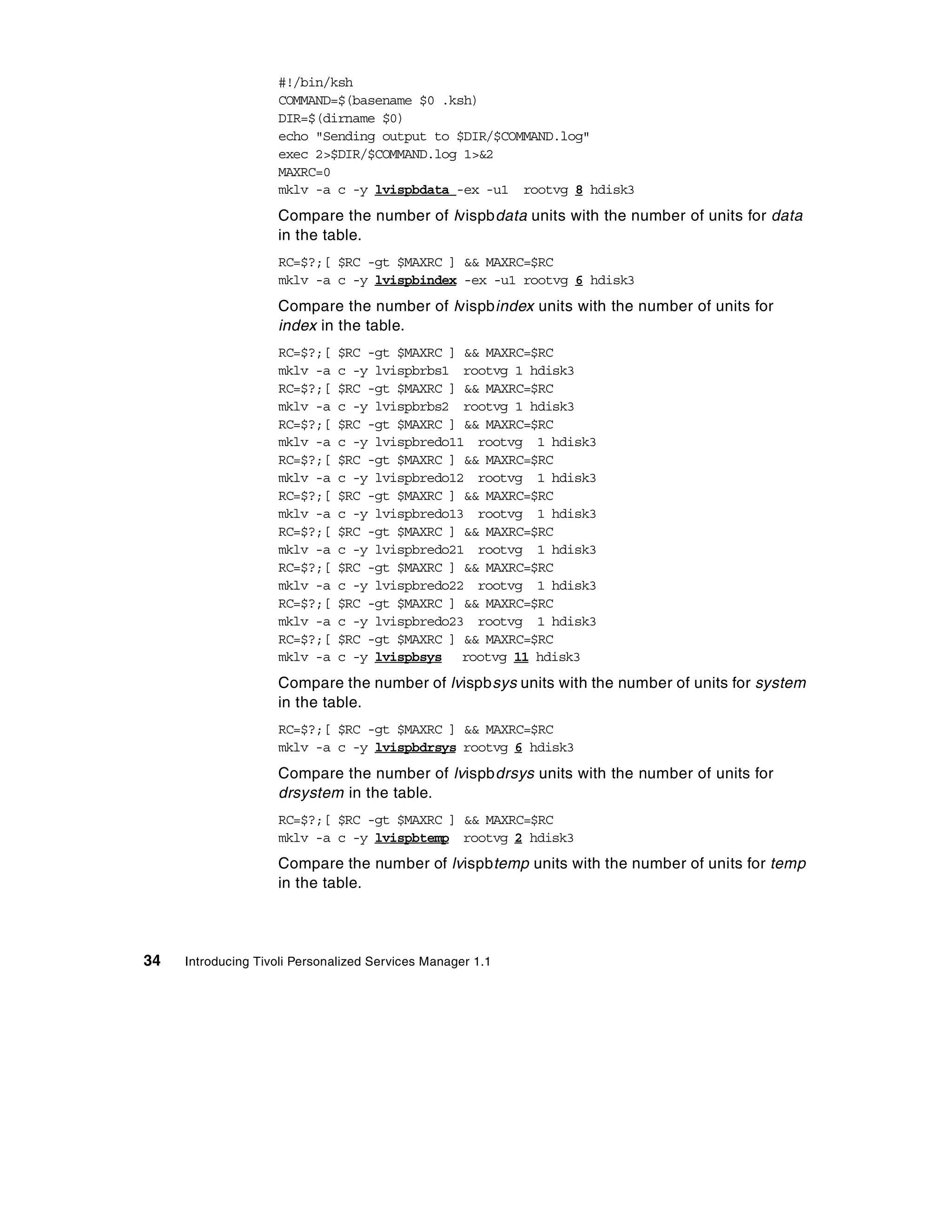

4.2 Oracle installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

© Copyright IBM Corp. 2001 iii

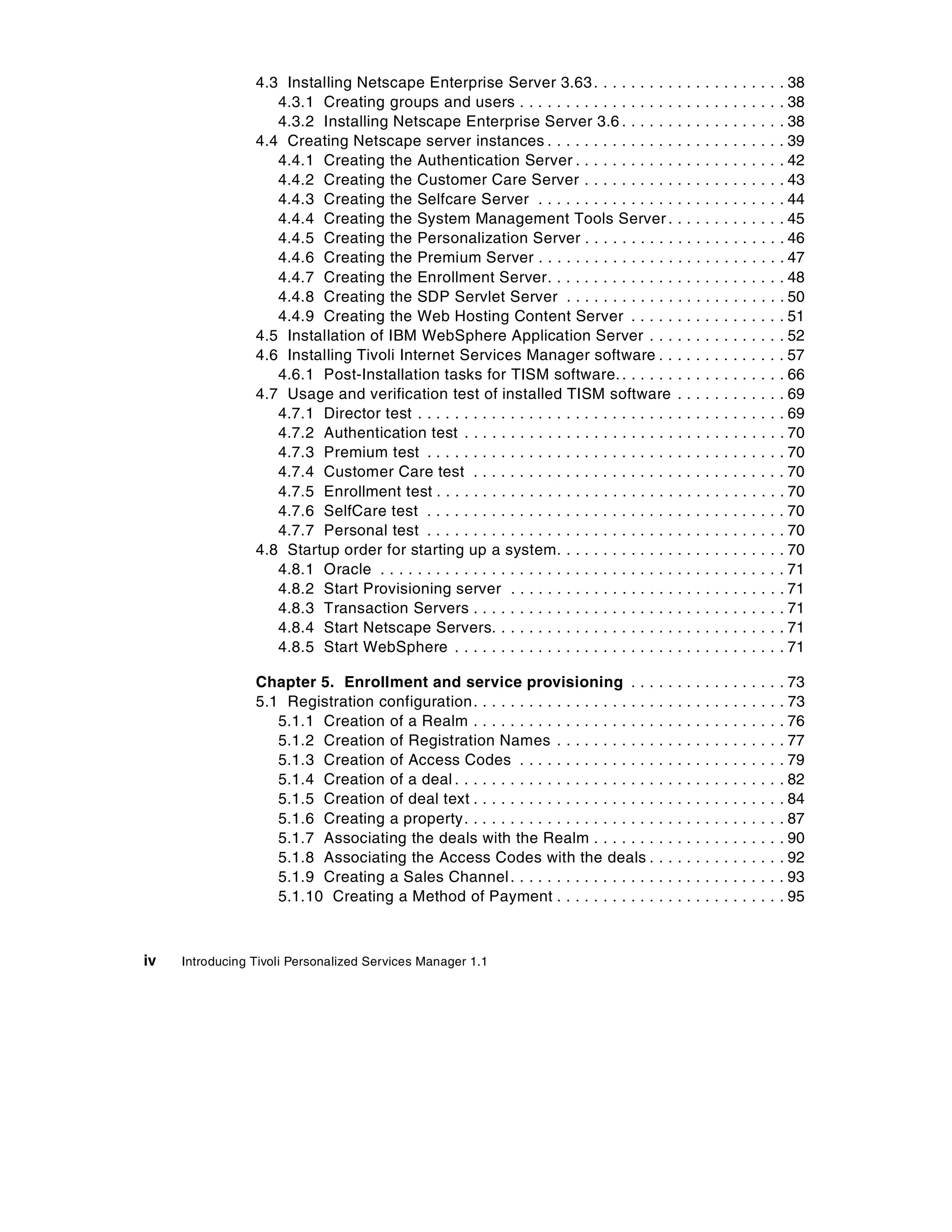

4.3 Installing Netscape Enterprise Server 3.63 . . . . . . . . . . . . . . . . . . . . . 38
4.3.1 Creating groups and users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.3.2 Installing Netscape Enterprise Server 3.6 . . . . . . . . . . . . . . . . . . 38

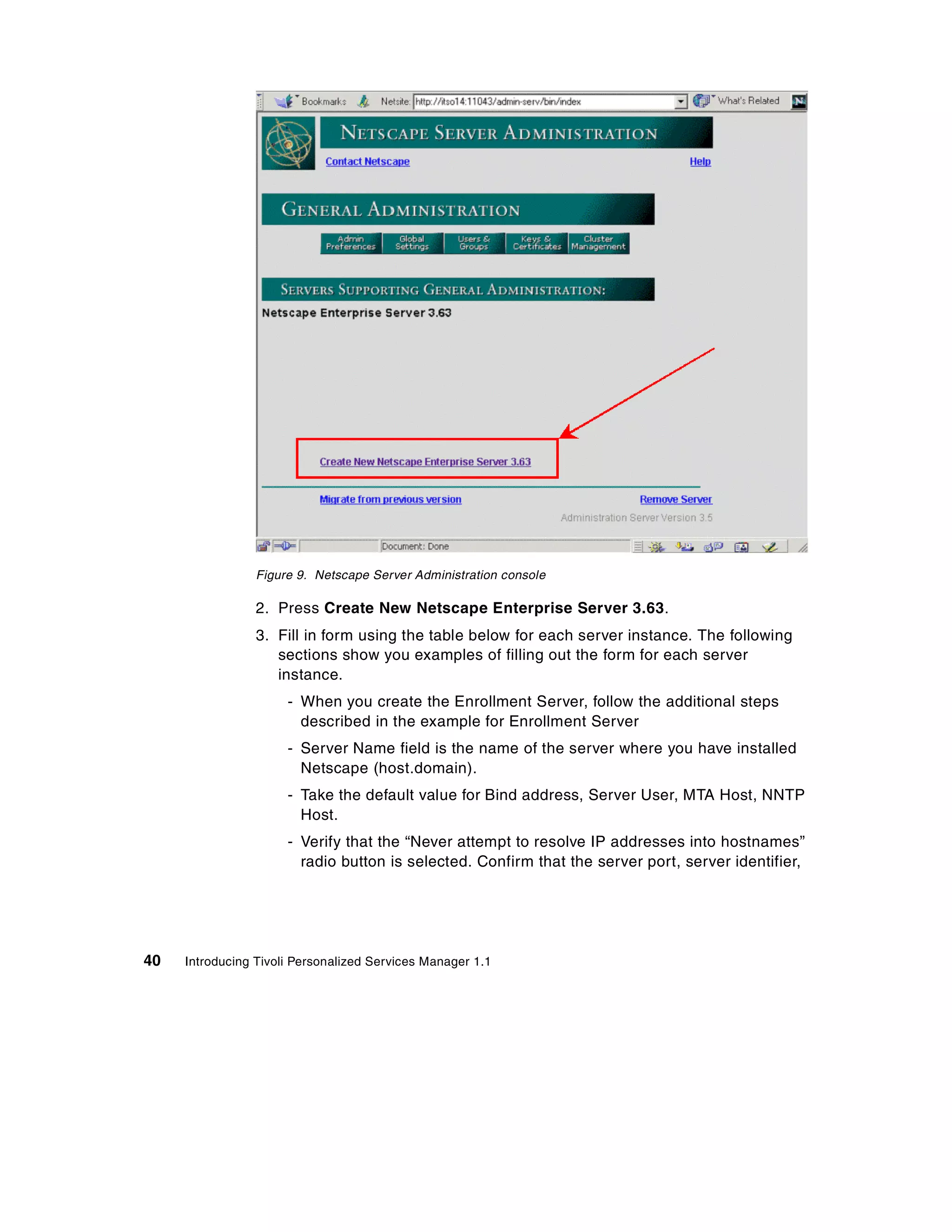

4.4 Creating Netscape server instances . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.4.1 Creating the Authentication Server . . . . . . . . . . . . . . . . . . . . . . . 42
4.4.2 Creating the Customer Care Server . . . . . . . . . . . . . . . . . . . . . . 43

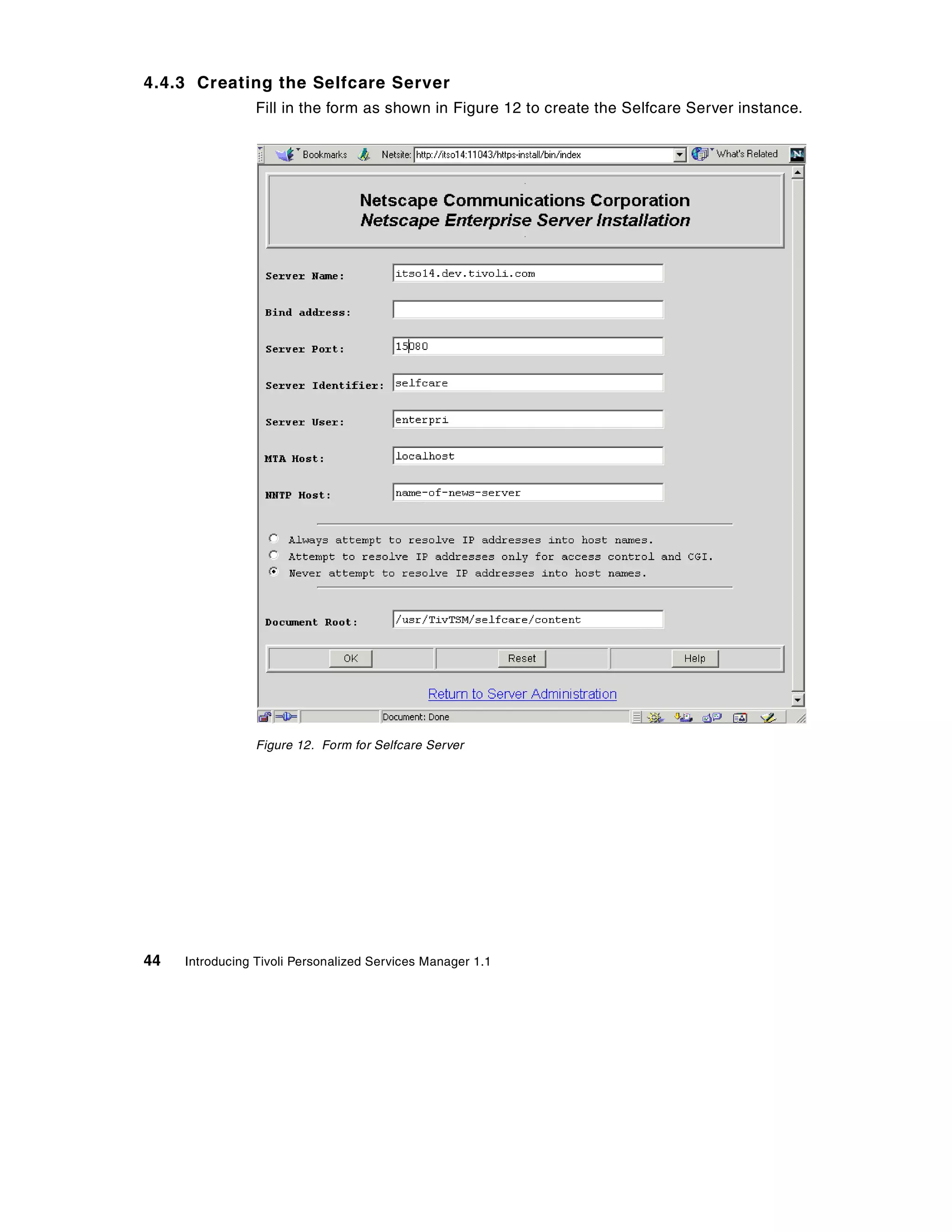

4.4.3 Creating the Selfcare Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

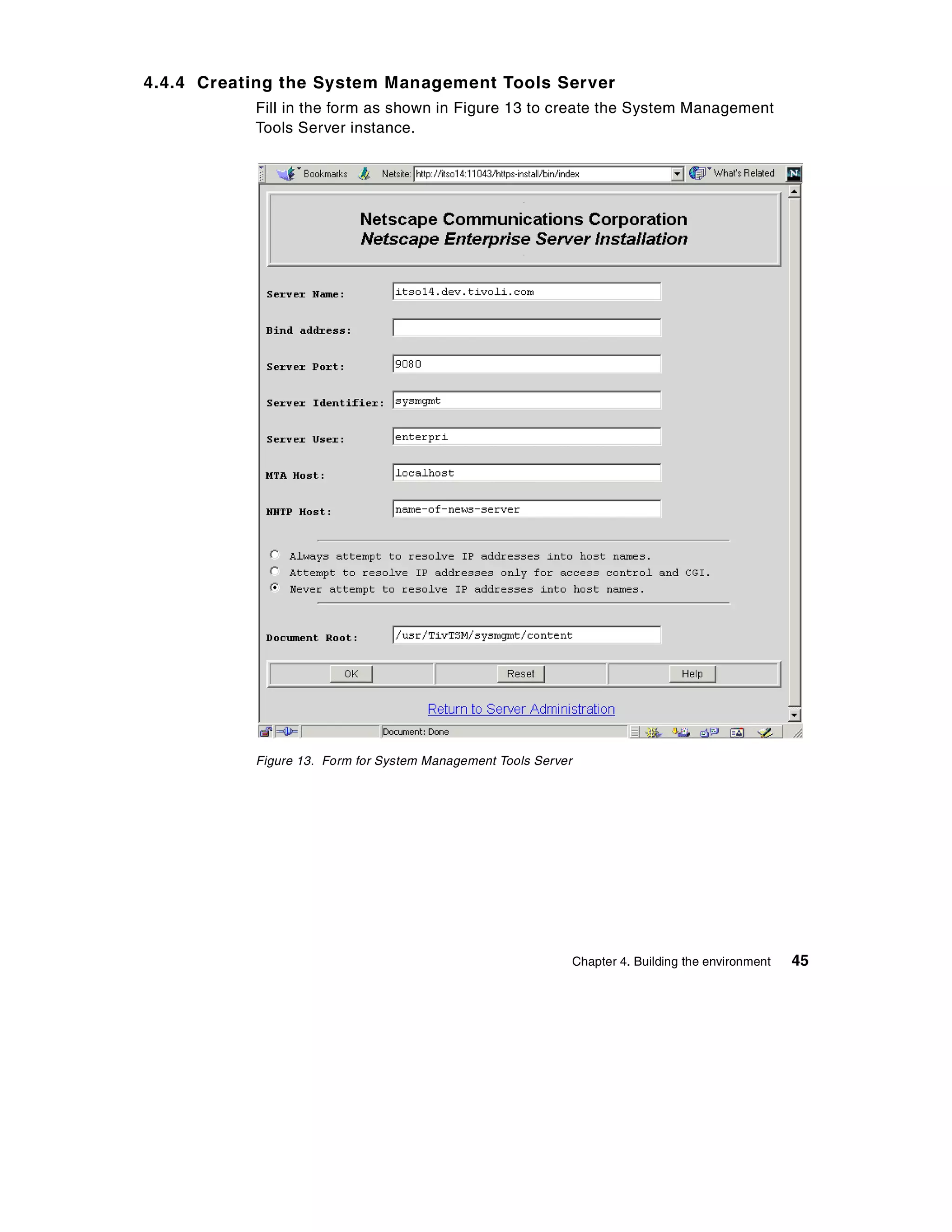

4.4.4 Creating the System Management Tools Server . . . . . . . . . . . . . 45
4.4.5 Creating the Personalization Server . . . . . . . . . . . . . . . . . . . . . . 46

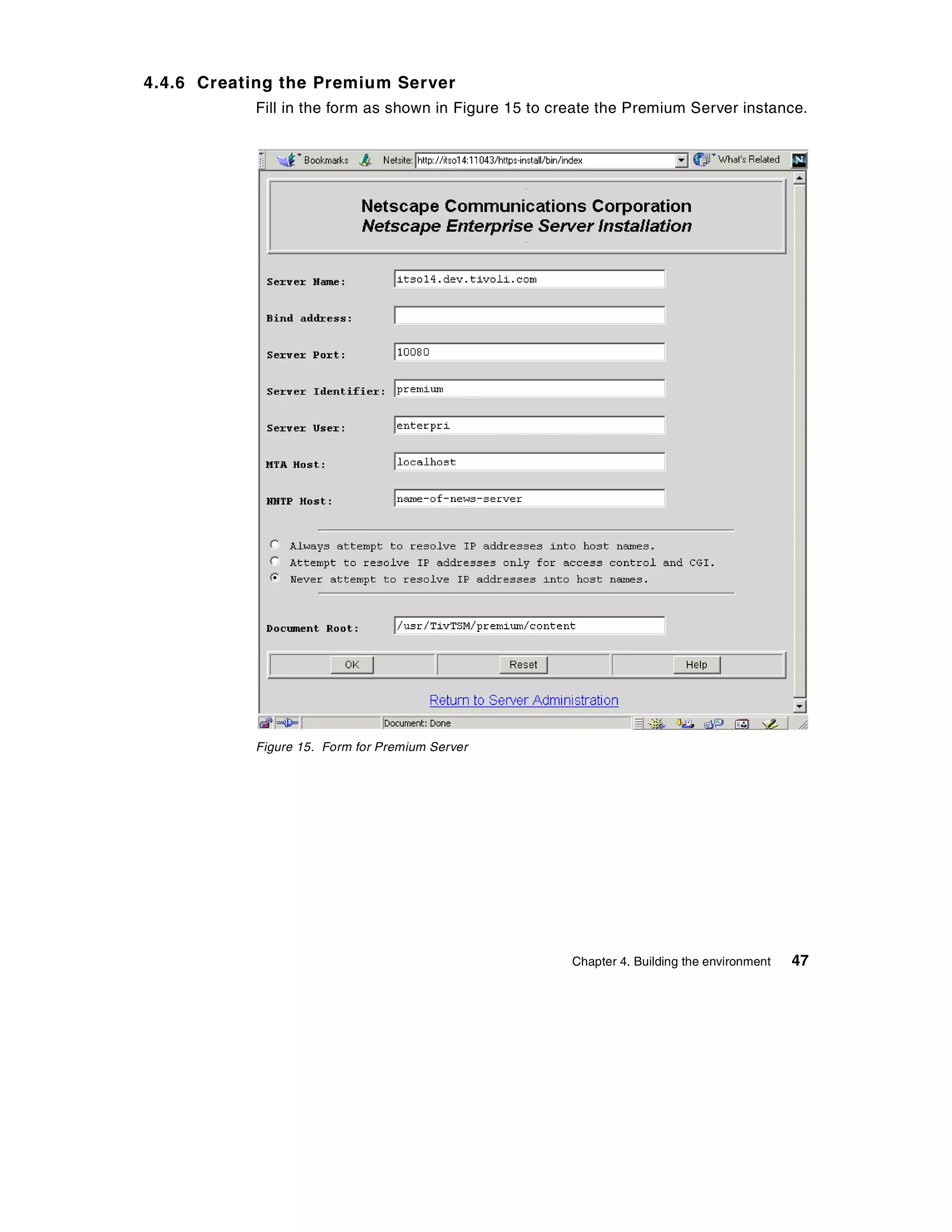

4.4.6 Creating the Premium Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4.4.7 Creating the Enrollment Server. . . . . . . . . . . . . . . . . . . . . . . . . . 48

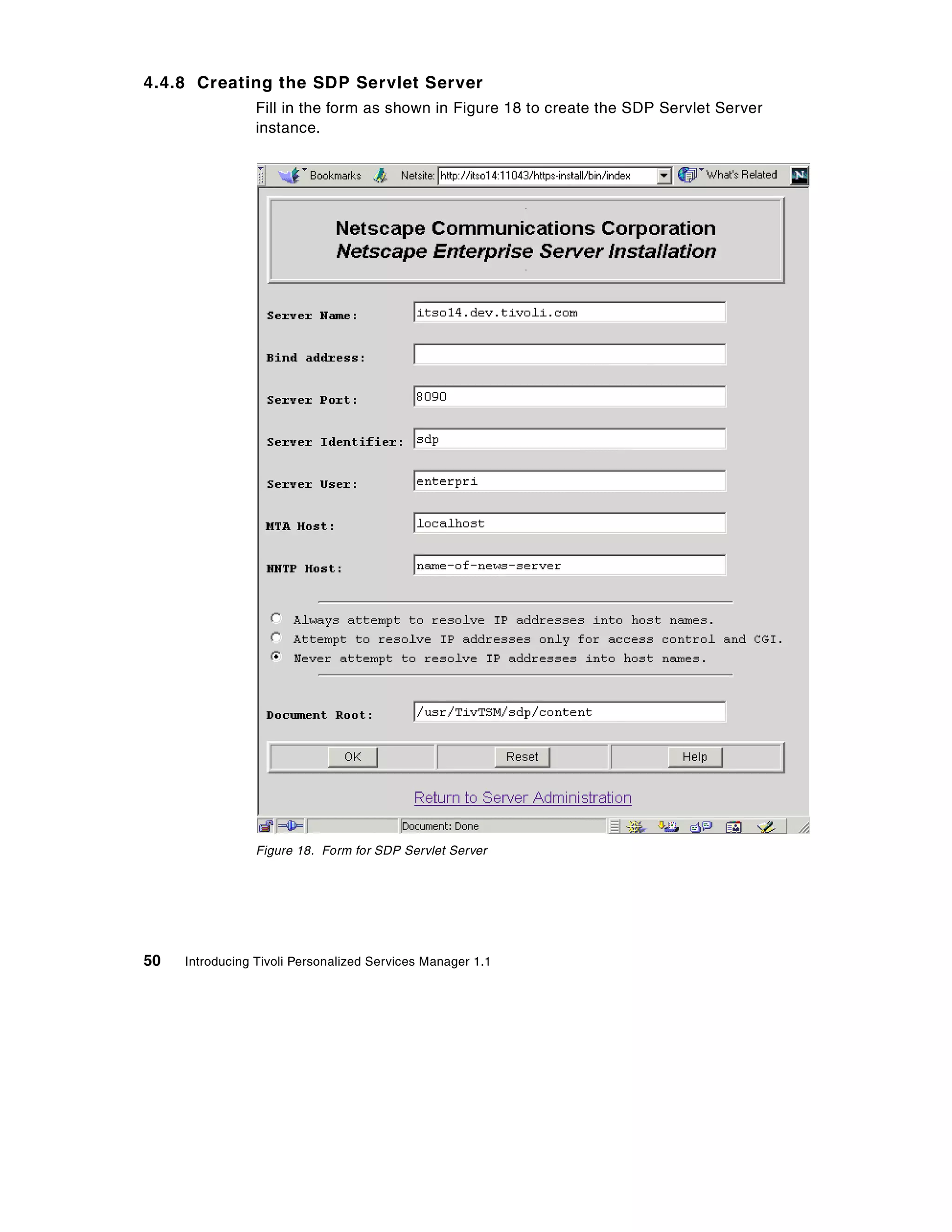

4.4.8 Creating the SDP Servlet Server . . . . . . . . . . . . . . . . . . . . . . . . 50

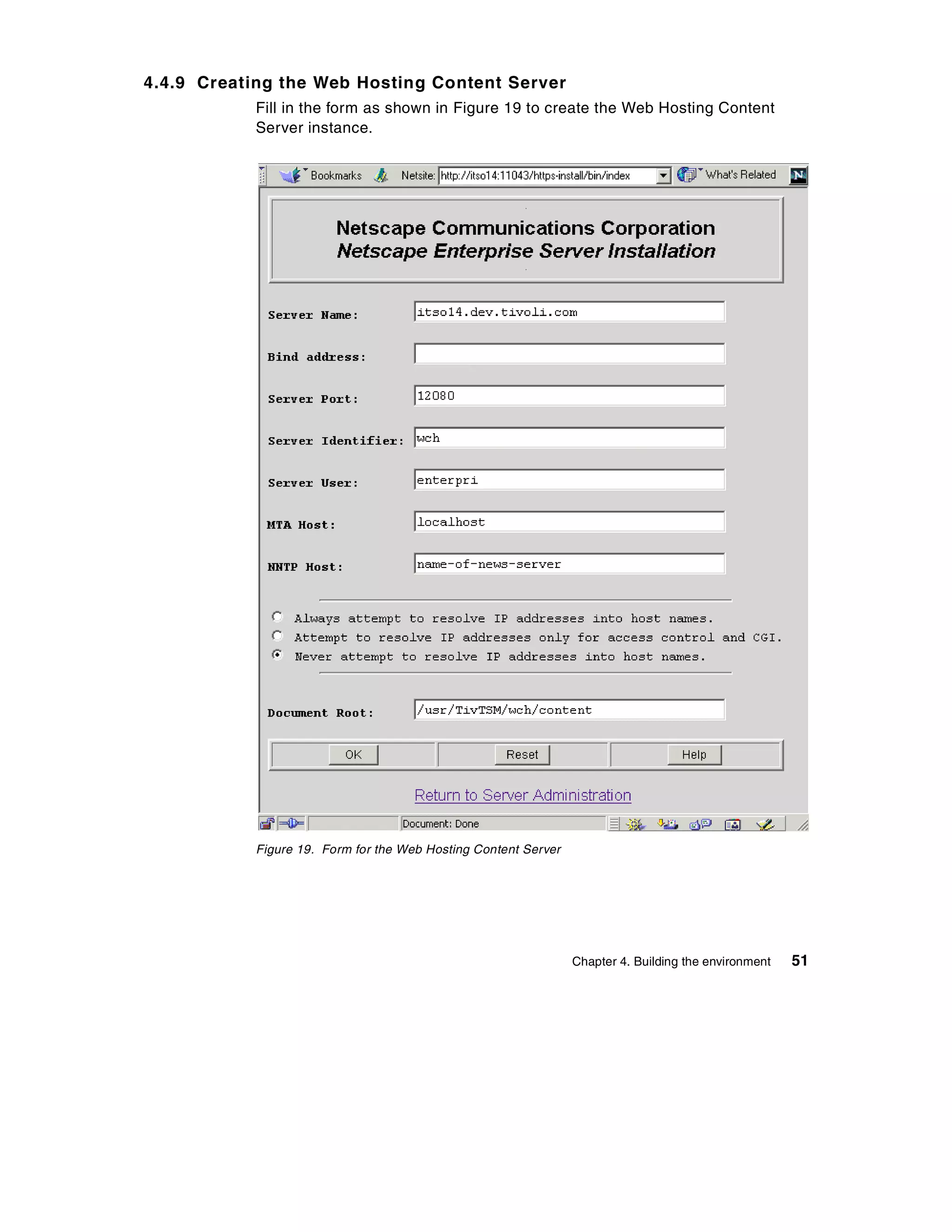

4.4.9 Creating the Web Hosting Content Server . . . . . . . . . . . . . . . . . 51

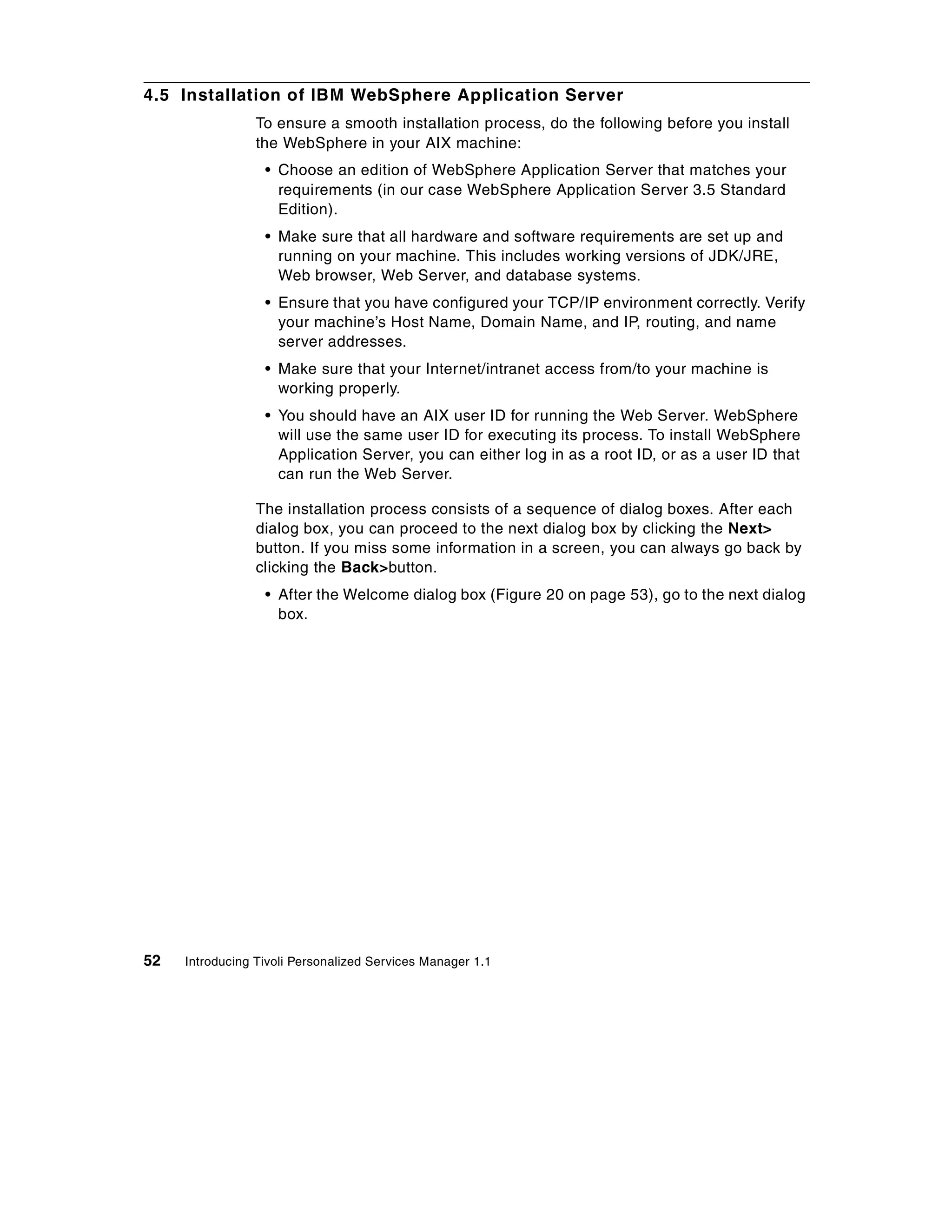

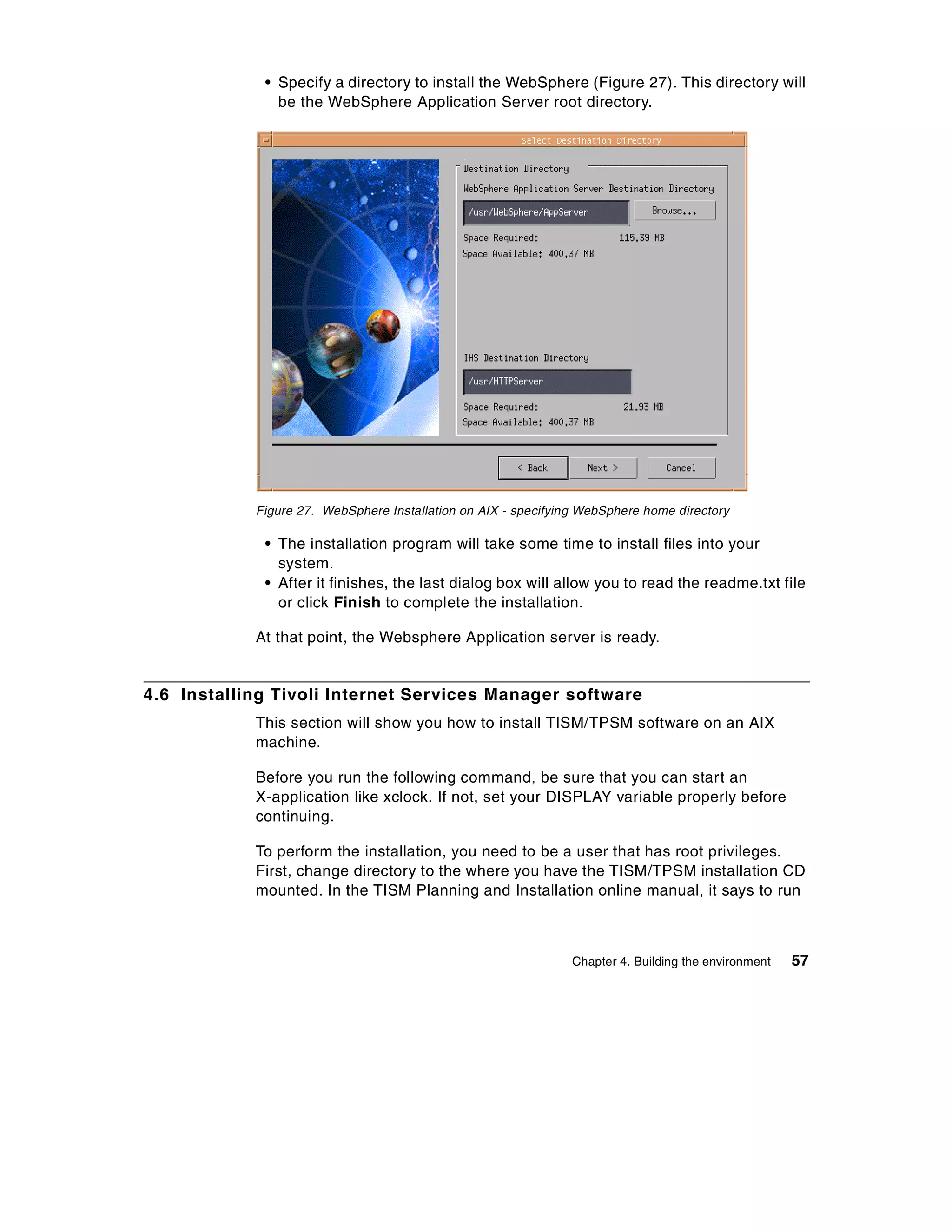

4.5 Installation of IBM WebSphere Application Server . . . . . . . . . . . . . . . 52
4.6 Installing Tivoli Internet Services Manager software . . . . . . . . . . . . . . 57

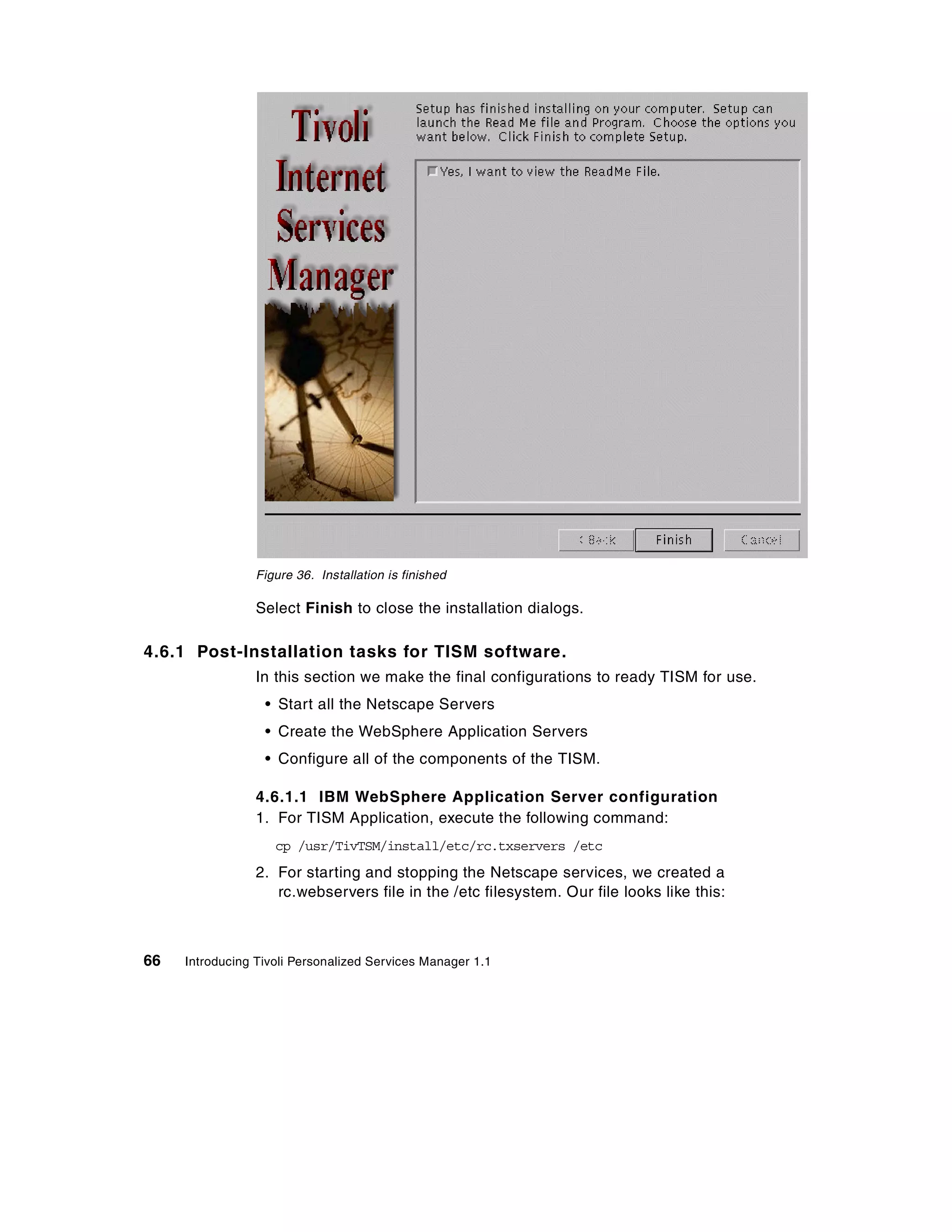

4.6.1 Post-Installation tasks for TISM software. . . . . . . . . . . . . . . . . . . 66

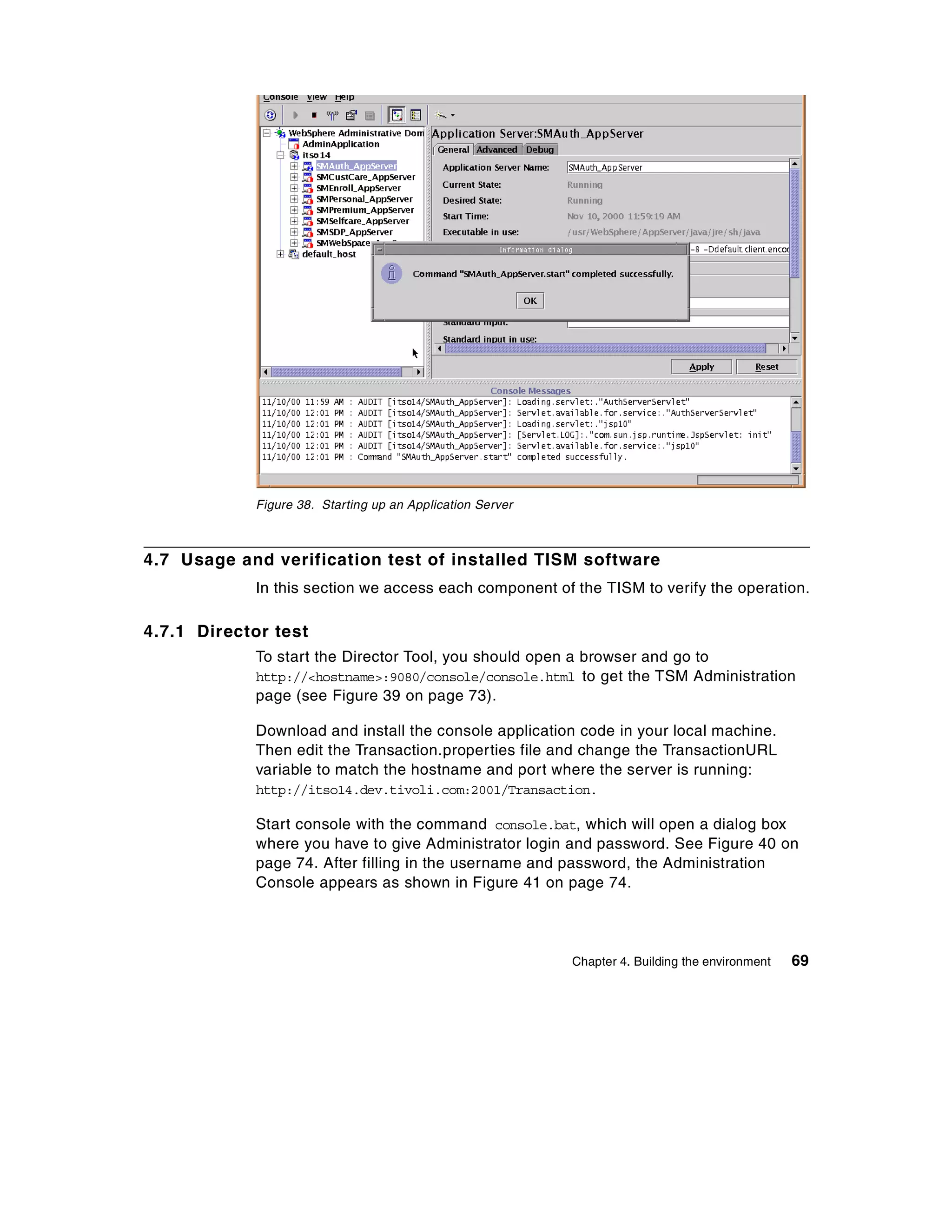

4.7 Usage and verification test of installed TISM software . . . . . . . . . . . . 69
4.7.1 Director test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

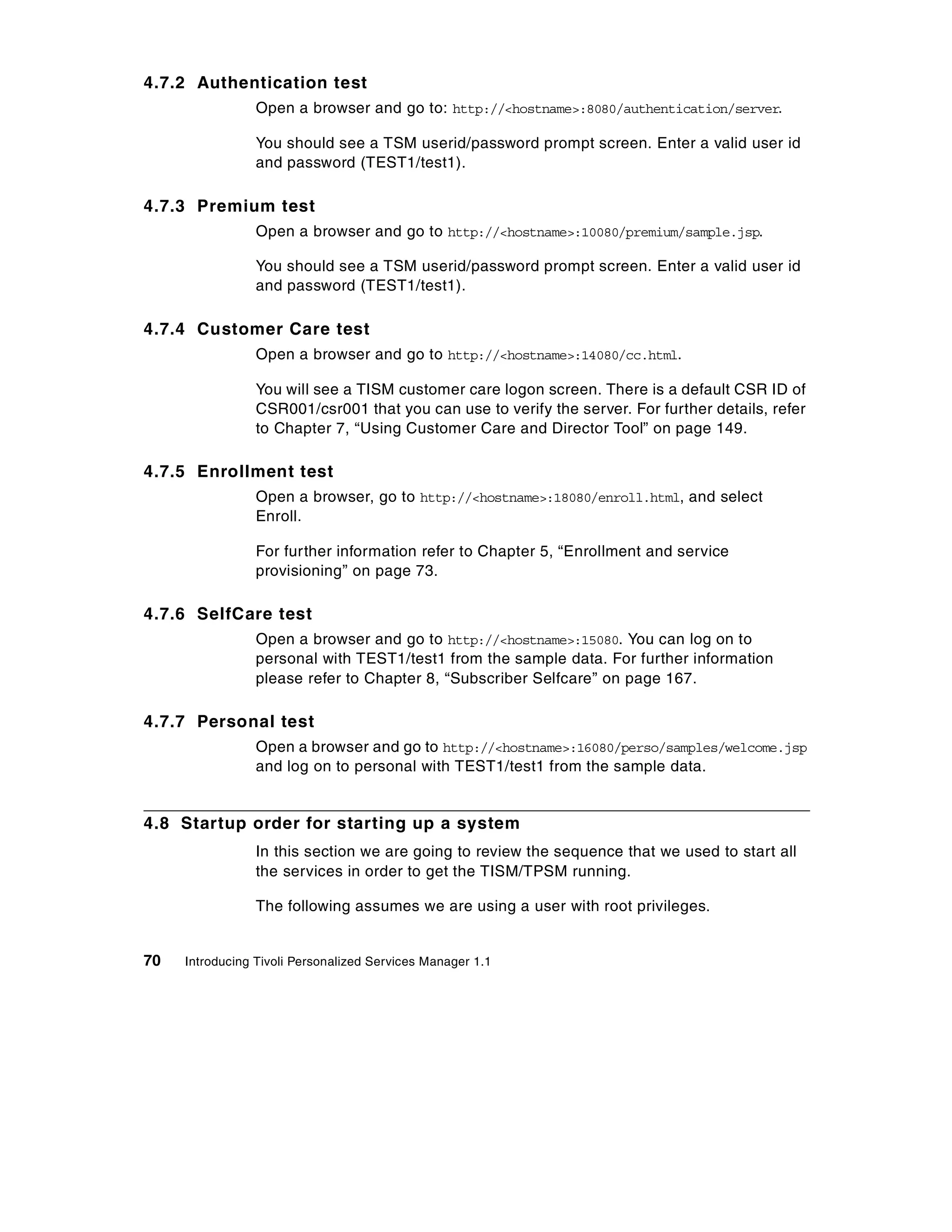

4.7.2 Authentication test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.7.3 Premium test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.7.4 Customer Care test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.7.5 Enrollment test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.7.6 SelfCare test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.7.7 Personal test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4.8 Startup order for starting up a system. . . . . . . . . . . . . . . . . . . . . . . . . 70
4.8.1 Oracle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.8.2 Start Provisioning server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.8.3 Transaction Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.8.4 Start Netscape Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.8.5 Start WebSphere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Chapter 5. Enrollment and service provisioning . . . . . .. . . . . .. . . . . 73

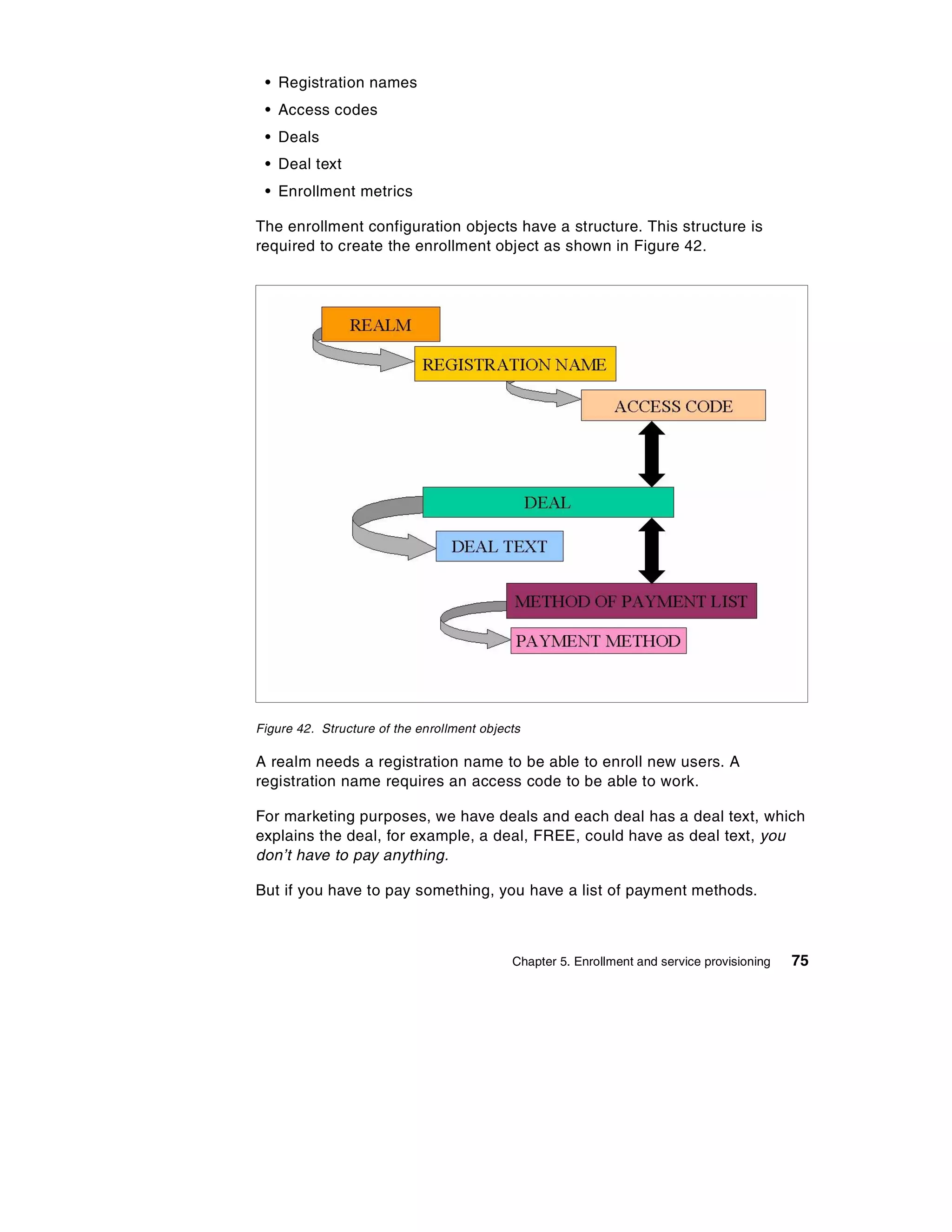

5.1 Registration configuration . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 73

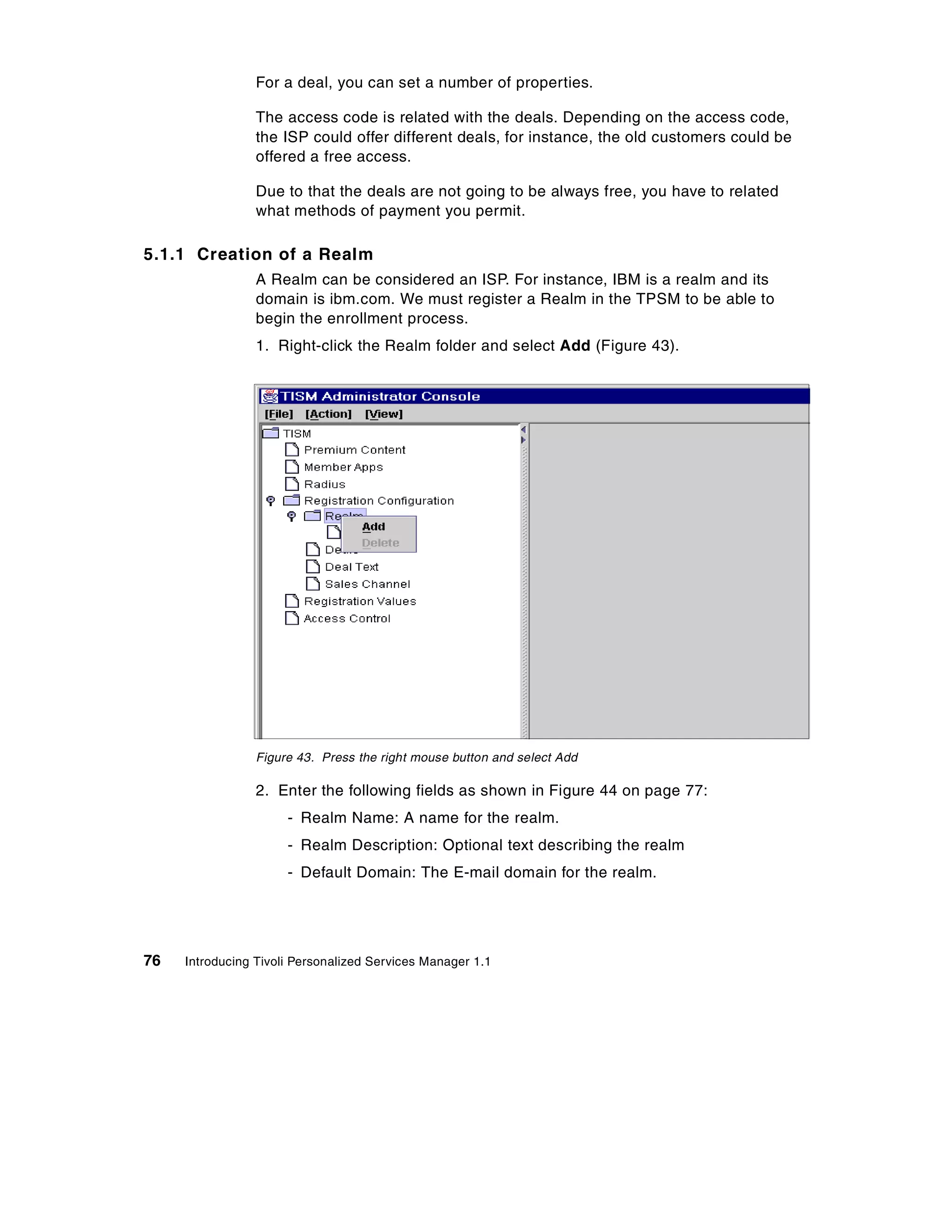

5.1.1 Creation of a Realm . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 76
5.1.2 Creation of Registration Names . . . . . . . . . . . . . .. . . . . .. . . . . 77

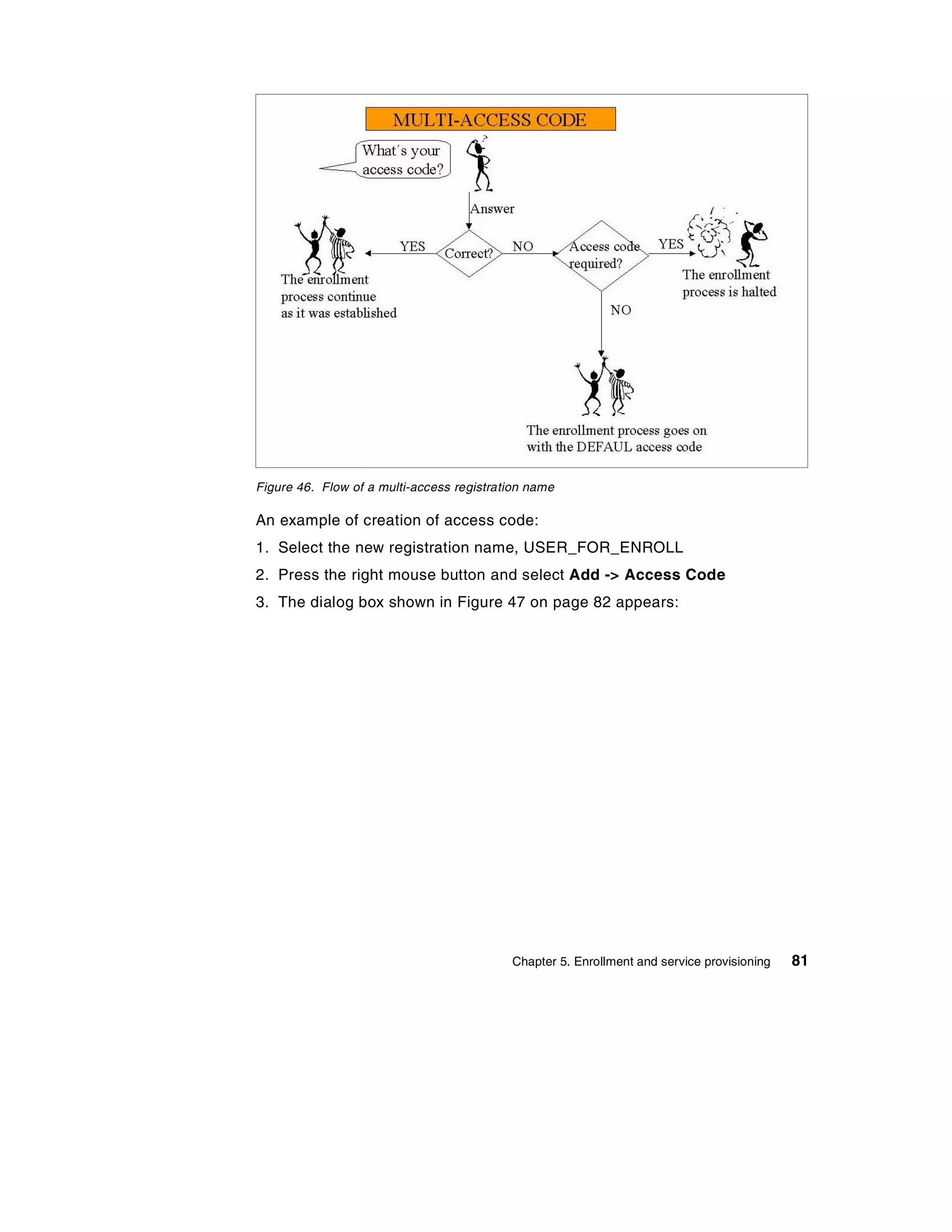

5.1.3 Creation of Access Codes . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 79

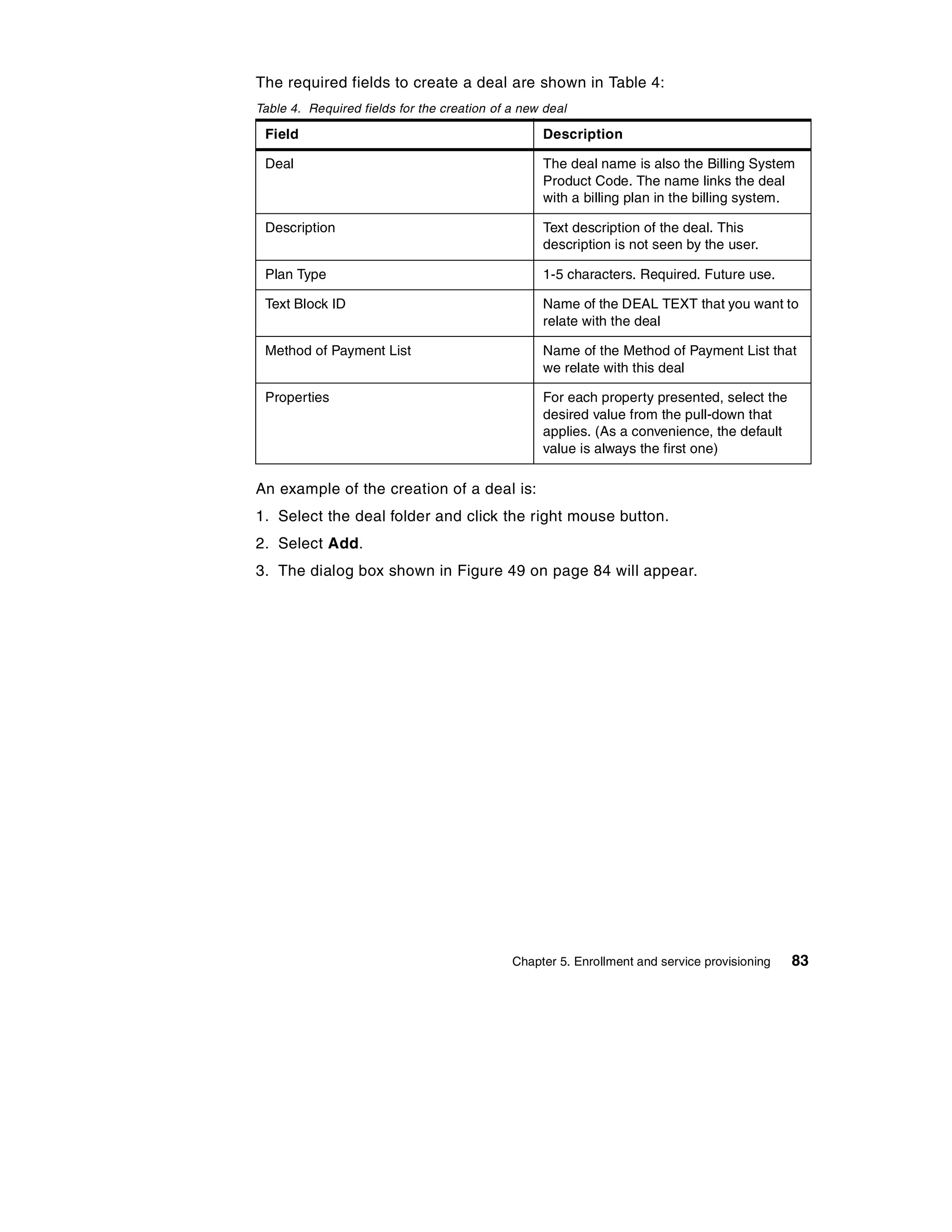

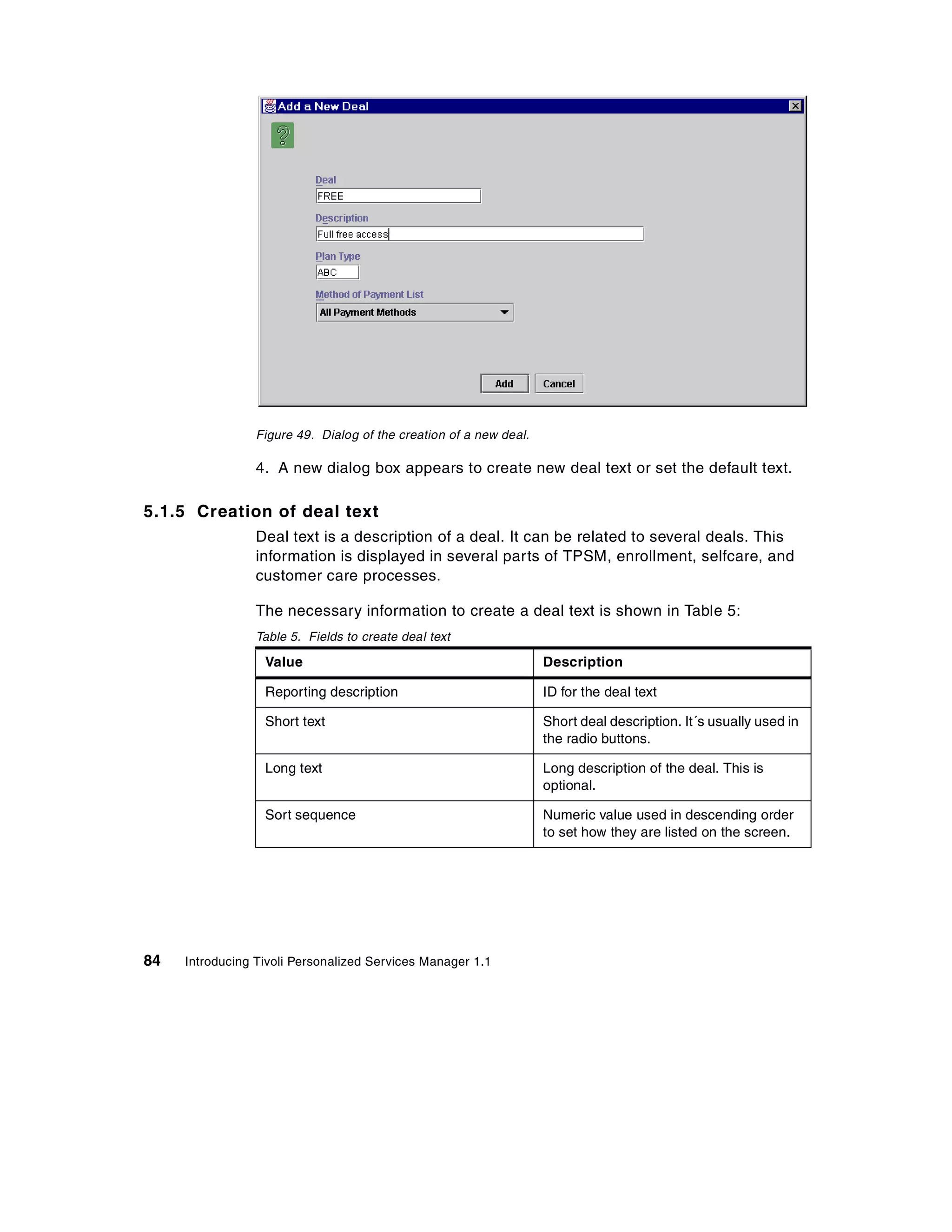

5.1.4 Creation of a deal . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 82

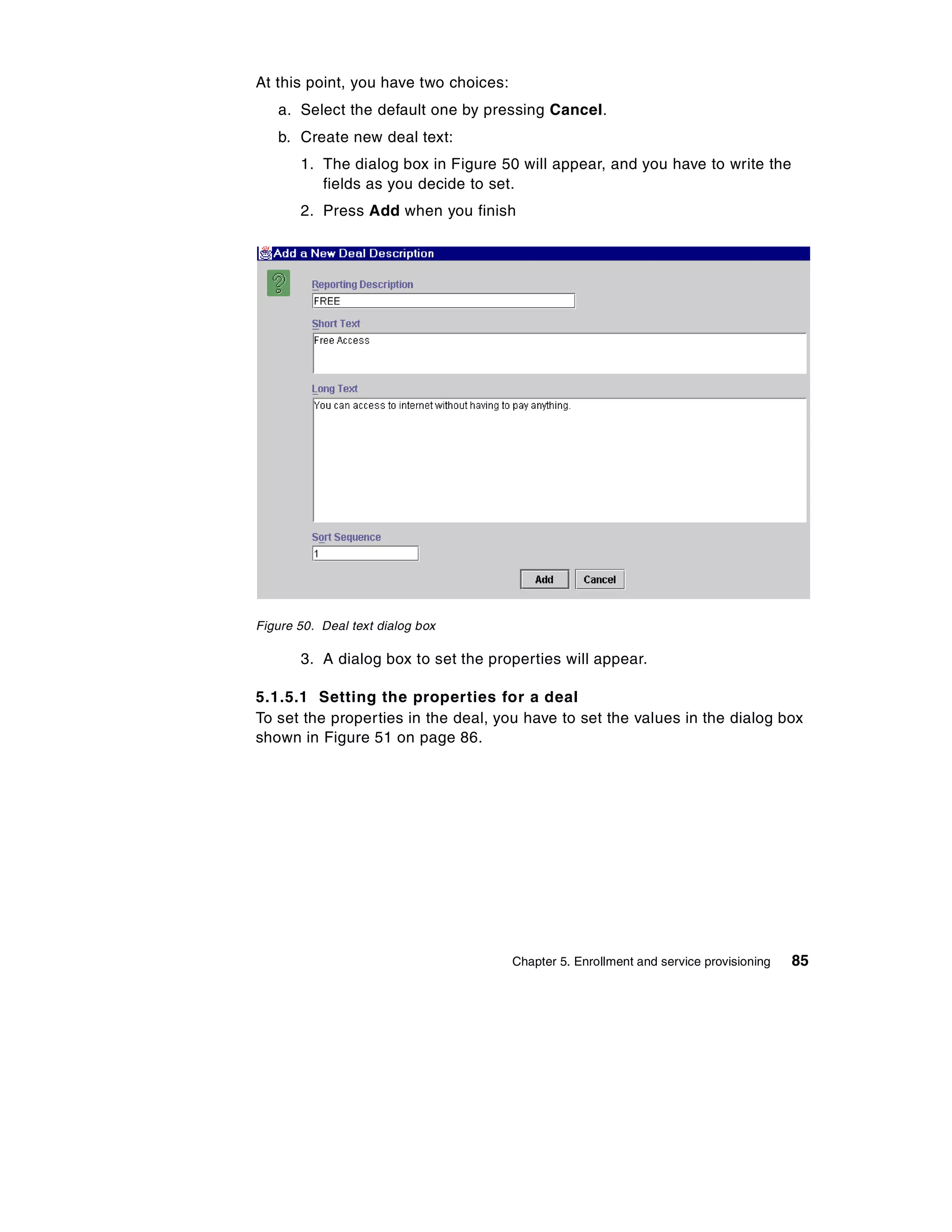

5.1.5 Creation of deal text . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 84

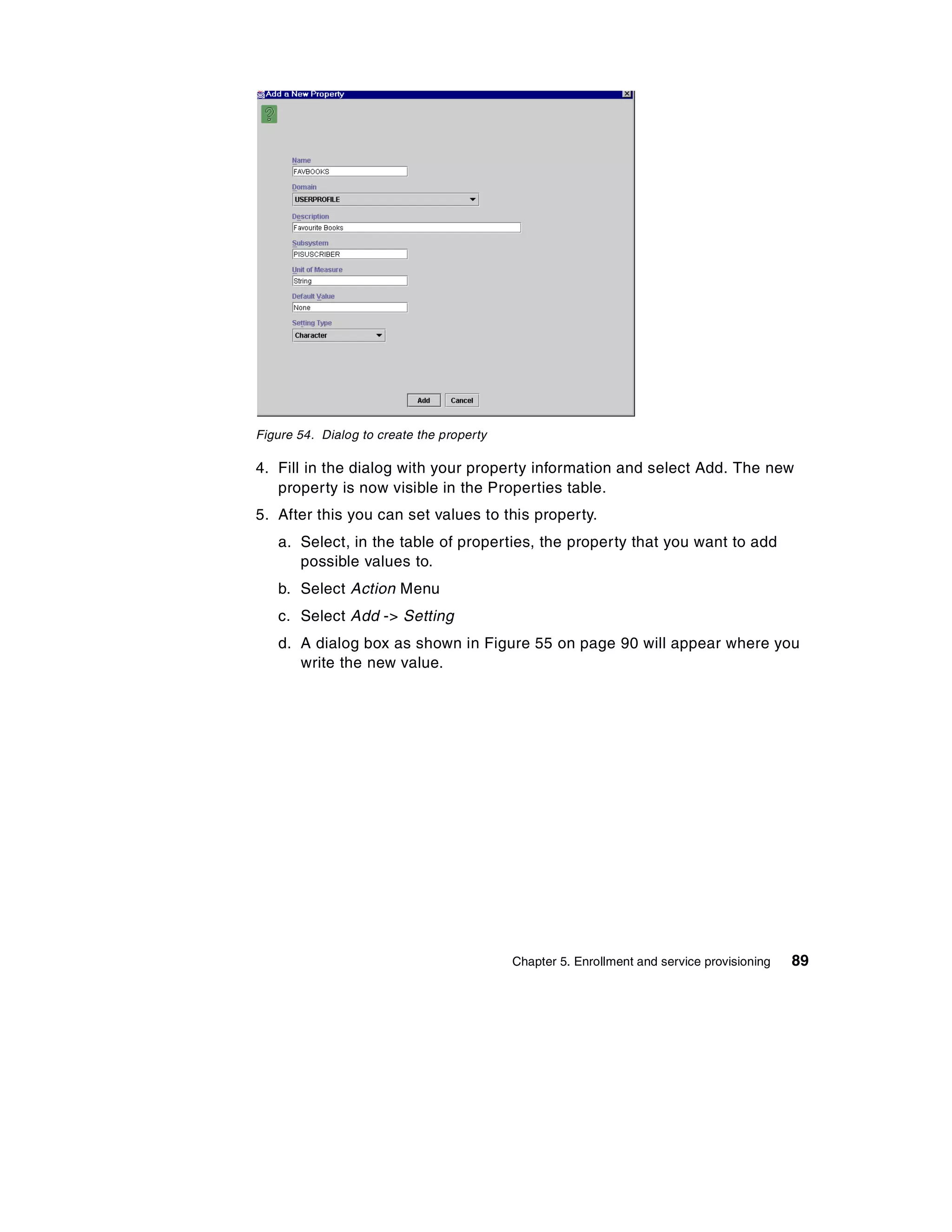

5.1.6 Creating a property. . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 87

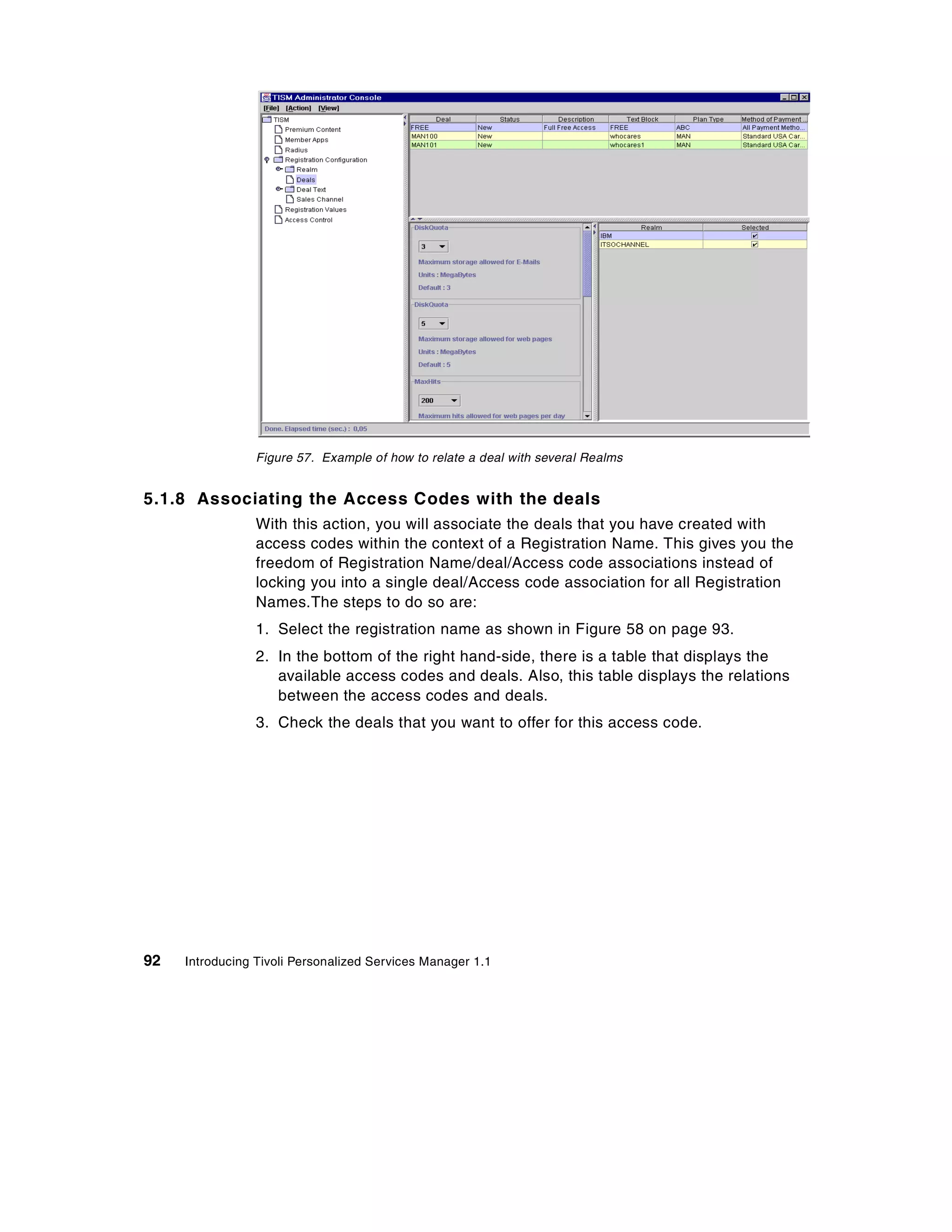

5.1.7 Associating the deals with the Realm . . . . . . . . . .. . . . . .. . . . . 90
5.1.8 Associating the Access Codes with the deals . . . .. . . . . .. . . . . 92

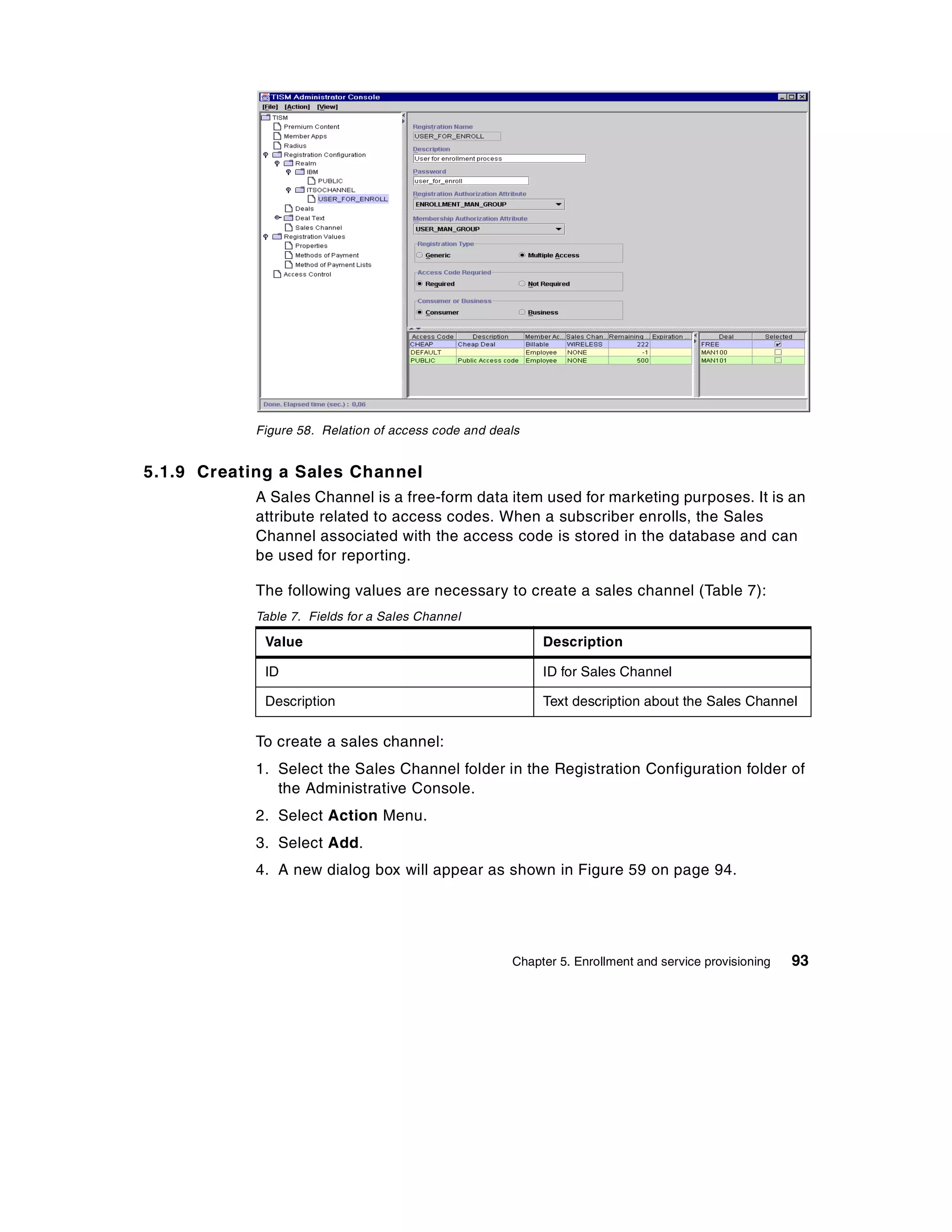

5.1.9 Creating a Sales Channel . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . 93

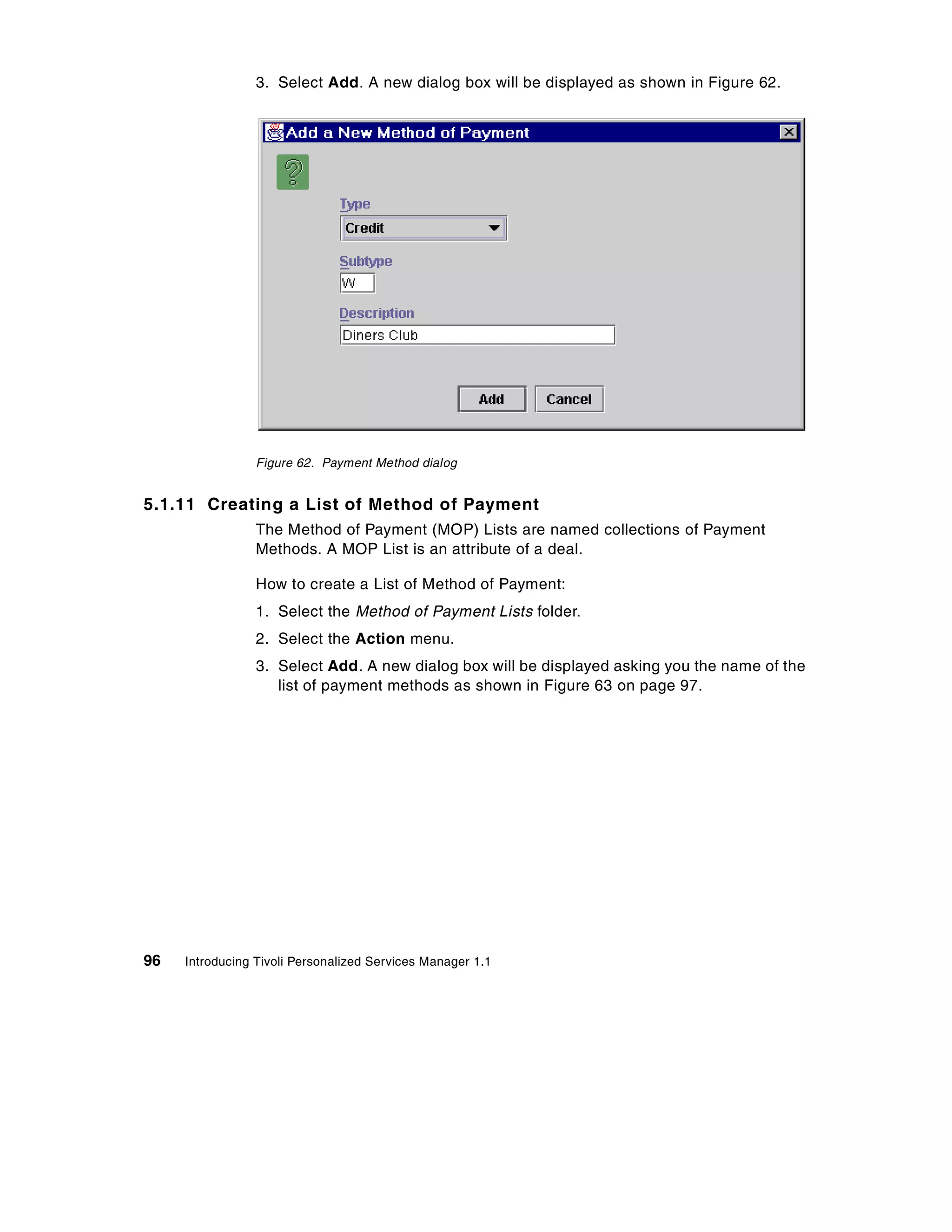

5.1.10 Creating a Method of Payment . . . . . . . . . . . . . .. . . . . .. . . . . 95

iv Introducing Tivoli Personalized Services Manager 1.1

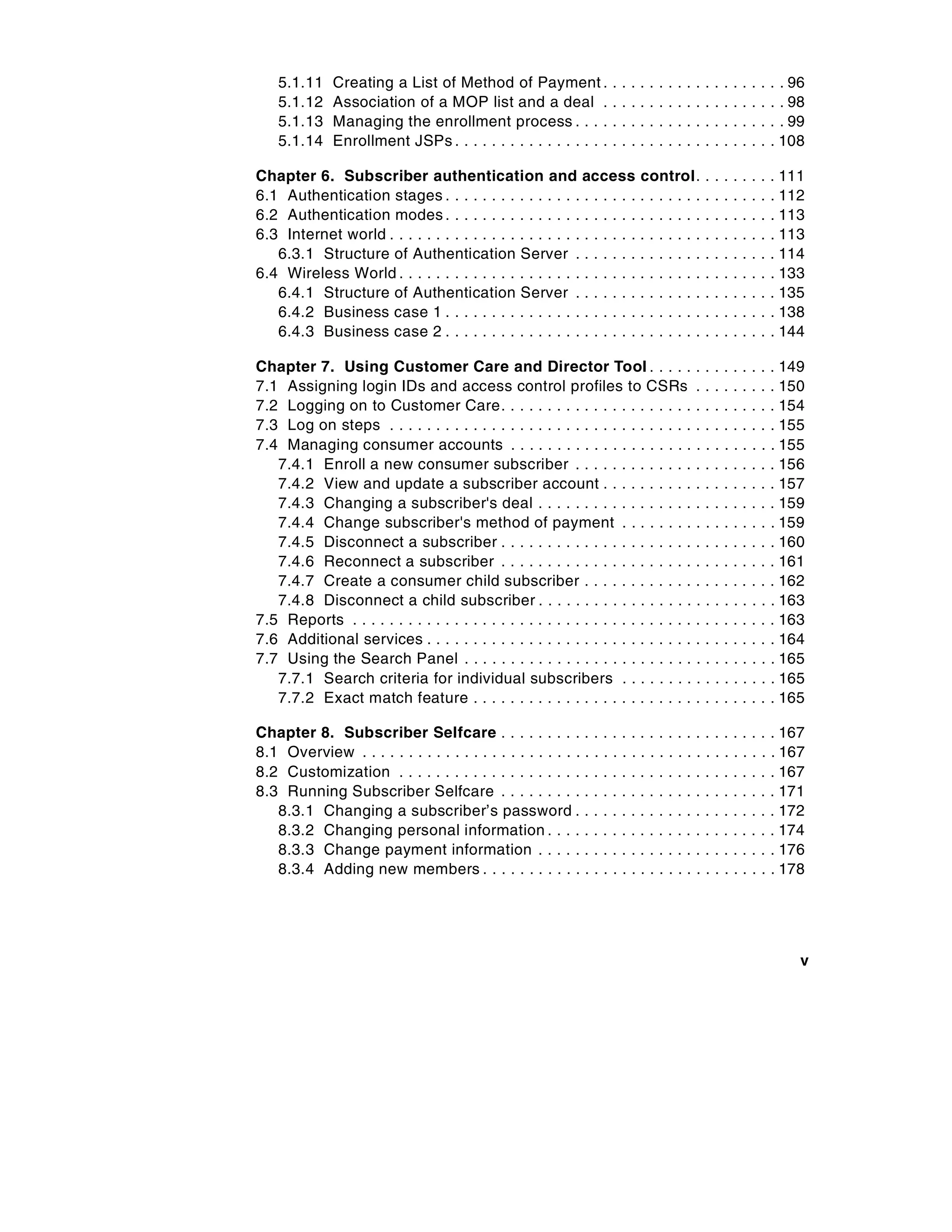

5.1.11 Creating a List of Method of Payment . . . . . . . . . . . . . . . . . . . . 96

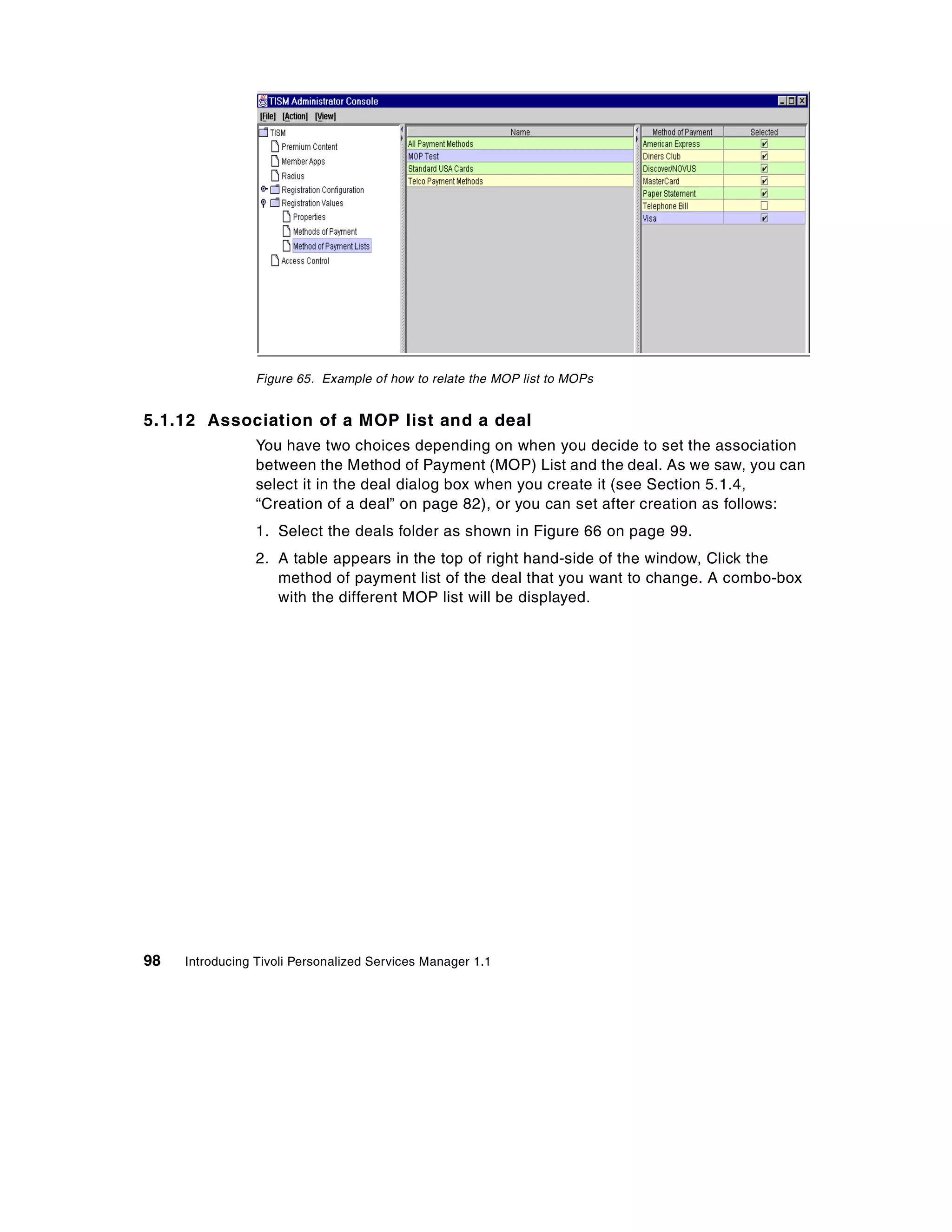

5.1.12 Association of a MOP list and a deal . . . . . . . . . . . . . . . . . . . . 98
5.1.13 Managing the enrollment process . . . . . . . . . . . . . . . . . . . . . . . 99

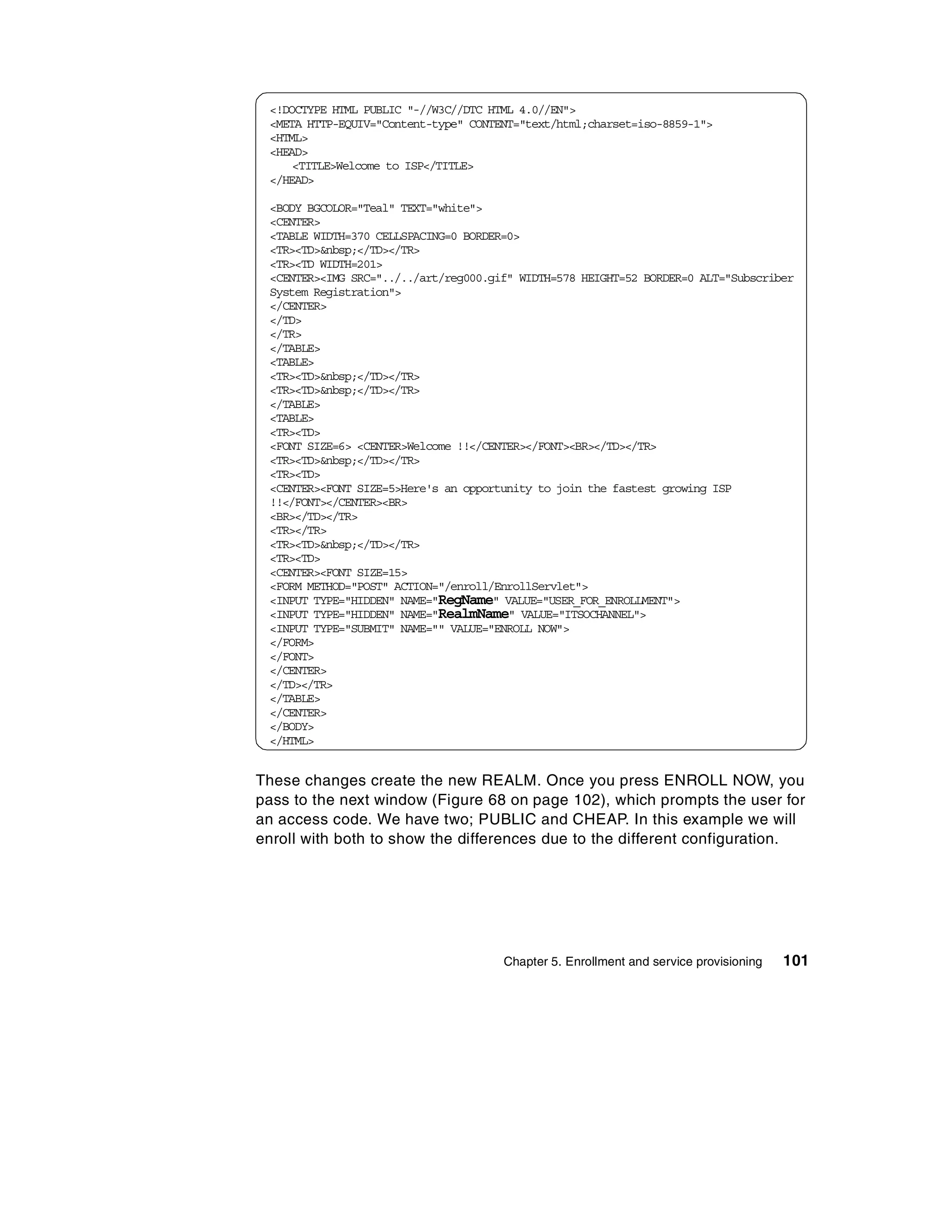

5.1.14 Enrollment JSPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Chapter 6. Subscriber authentication and access control. . . . . . . . . 111
6.1 Authentication stages . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 112

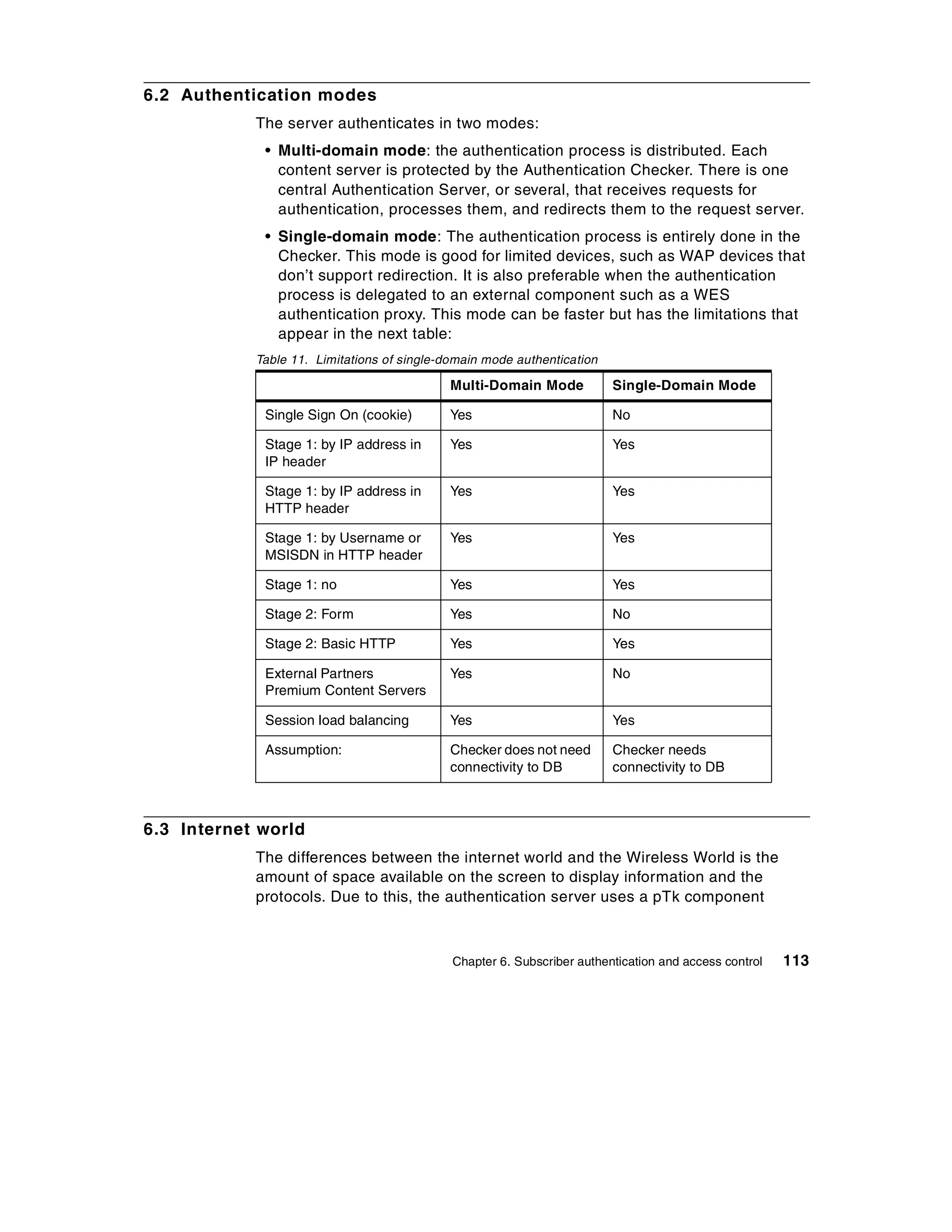

6.2 Authentication modes . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 113
6.3 Internet world . . . . . . . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 113

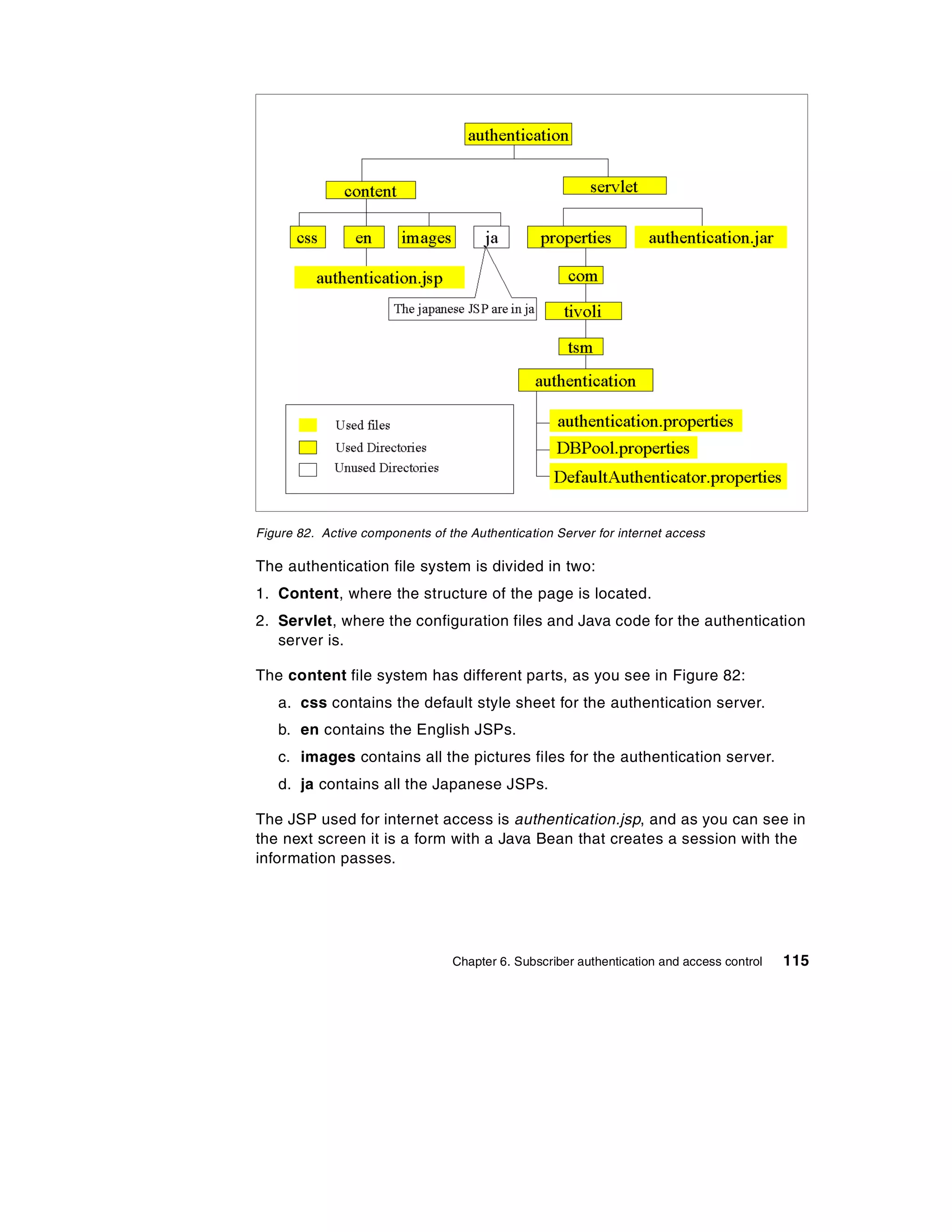

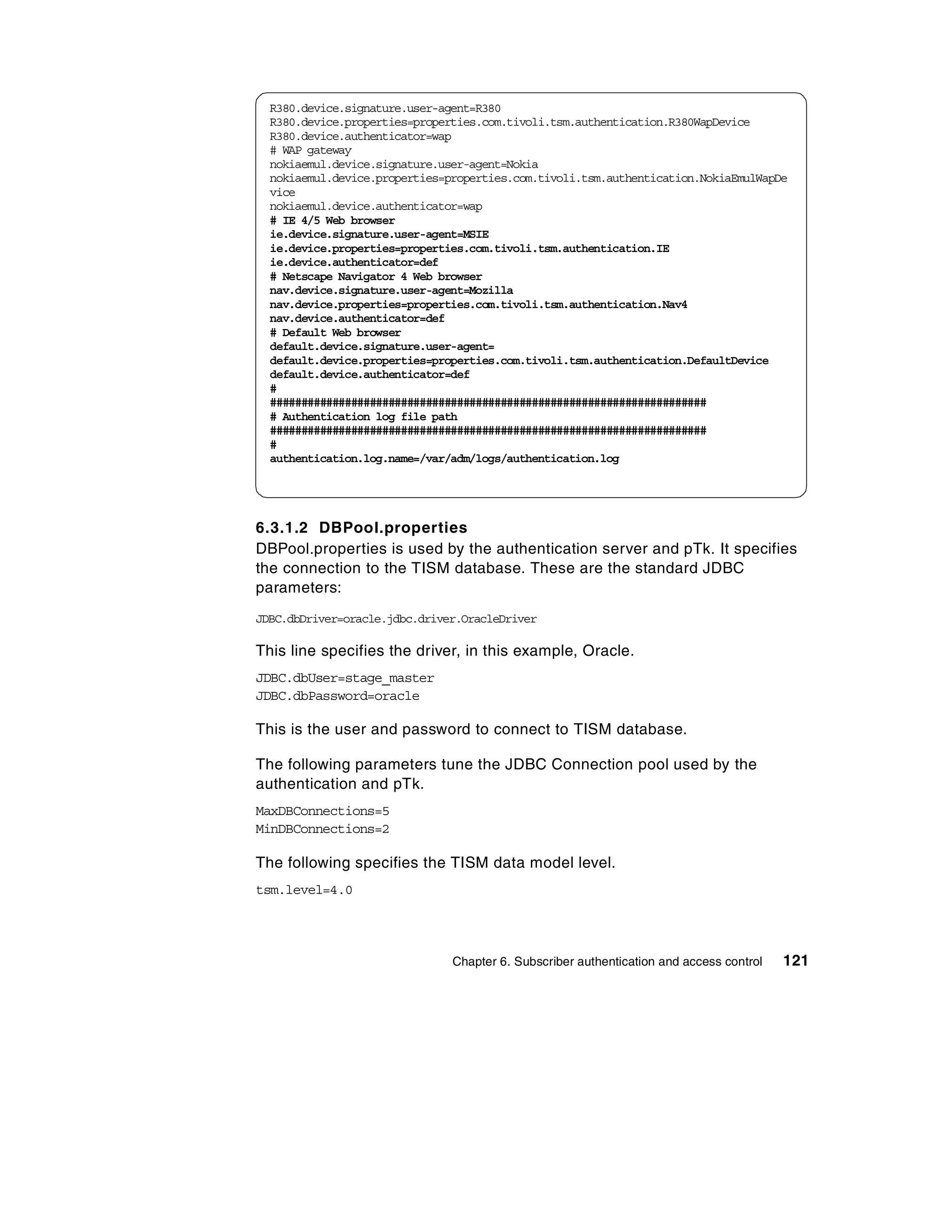

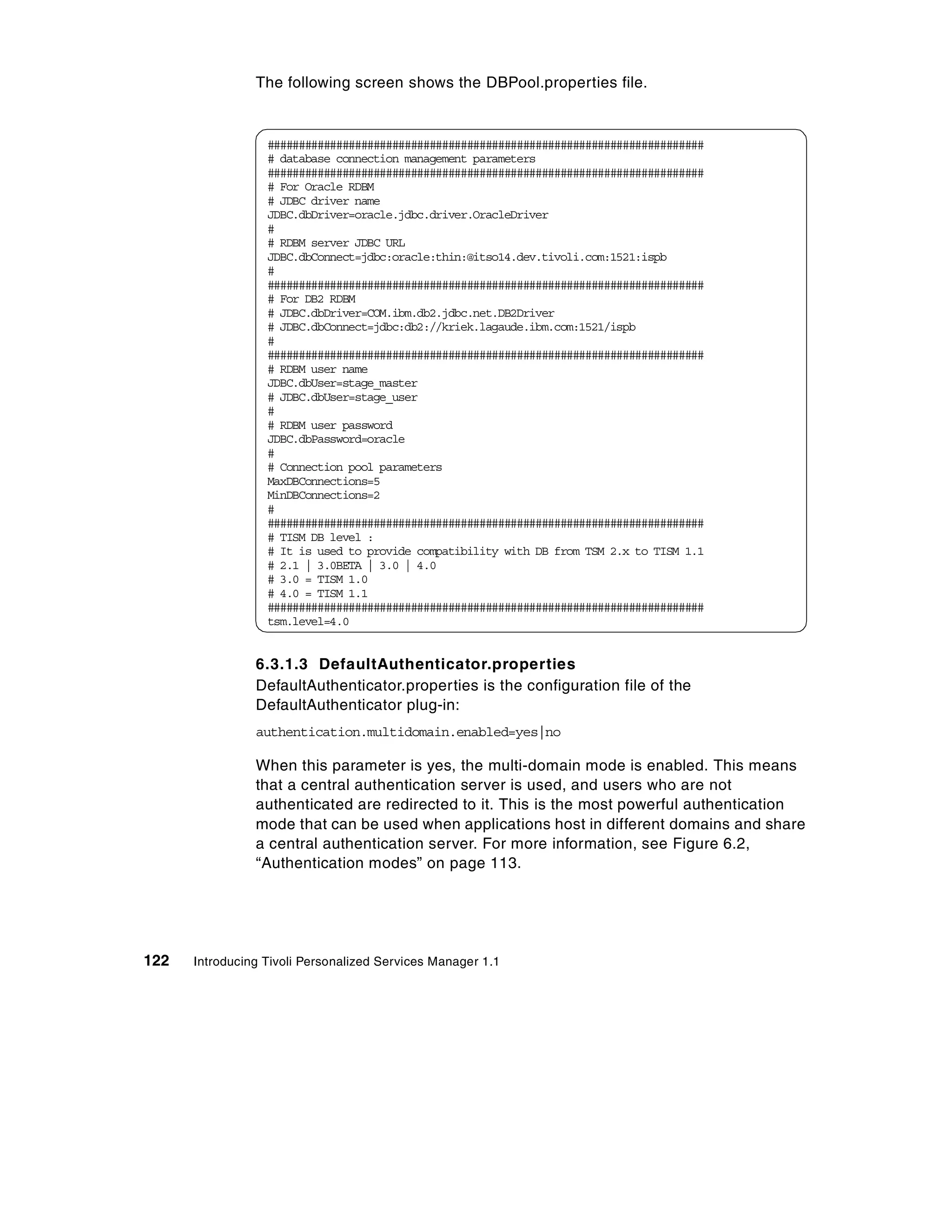

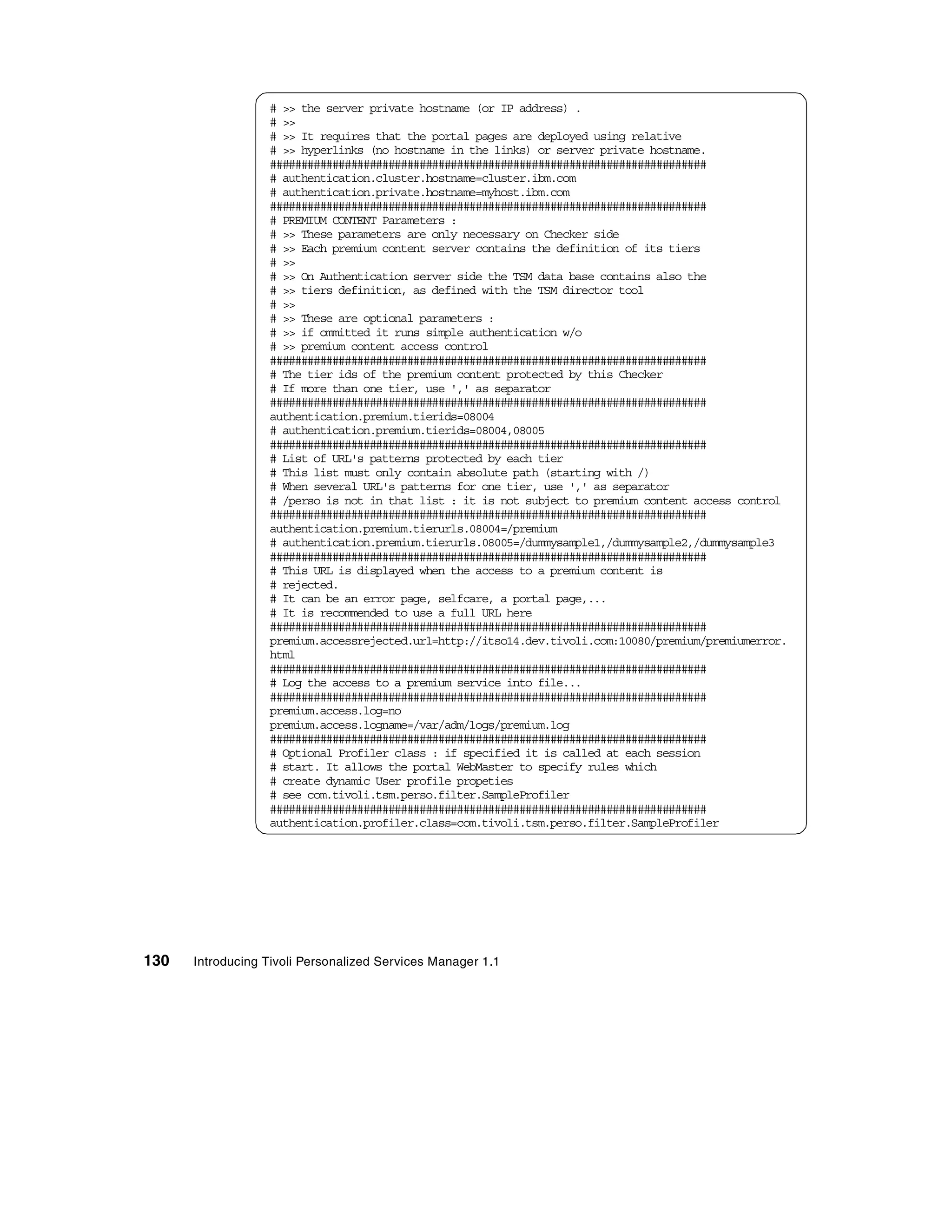

6.3.1 Structure of Authentication Server . . . . . . . ....... . . . . . . . . 114

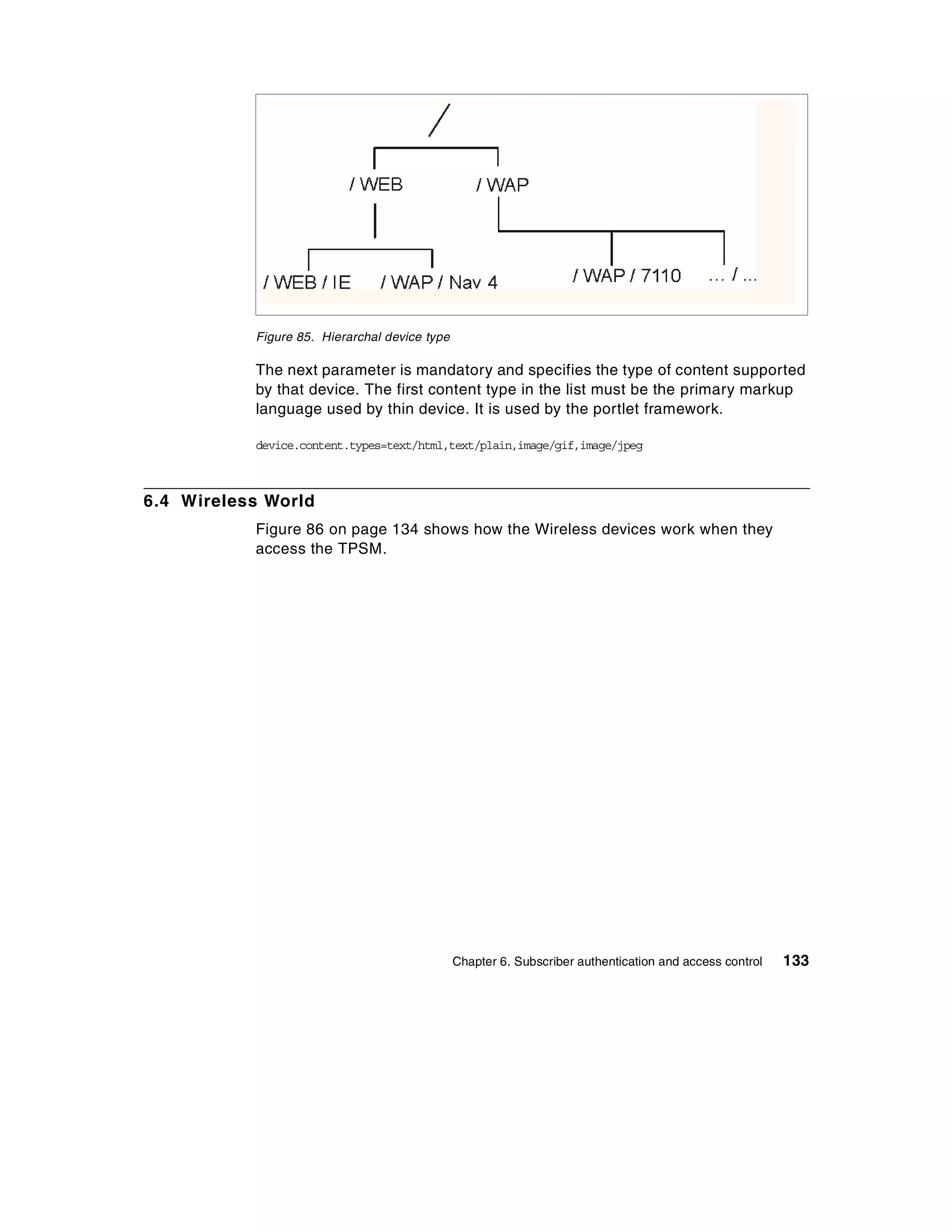

6.4 Wireless World . . . . . . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 133
6.4.1 Structure of Authentication Server . . . . . . . ....... . . . . . . . . 135

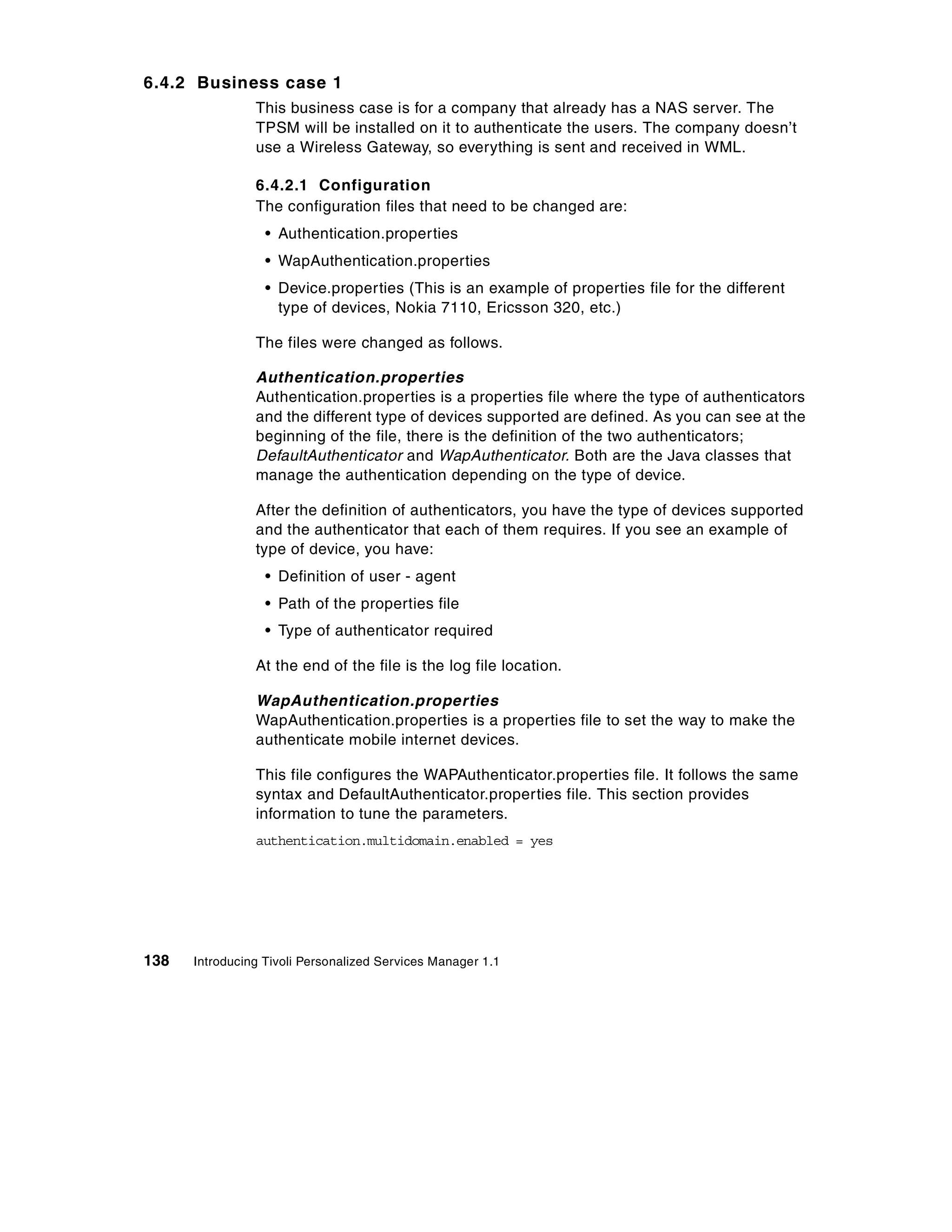

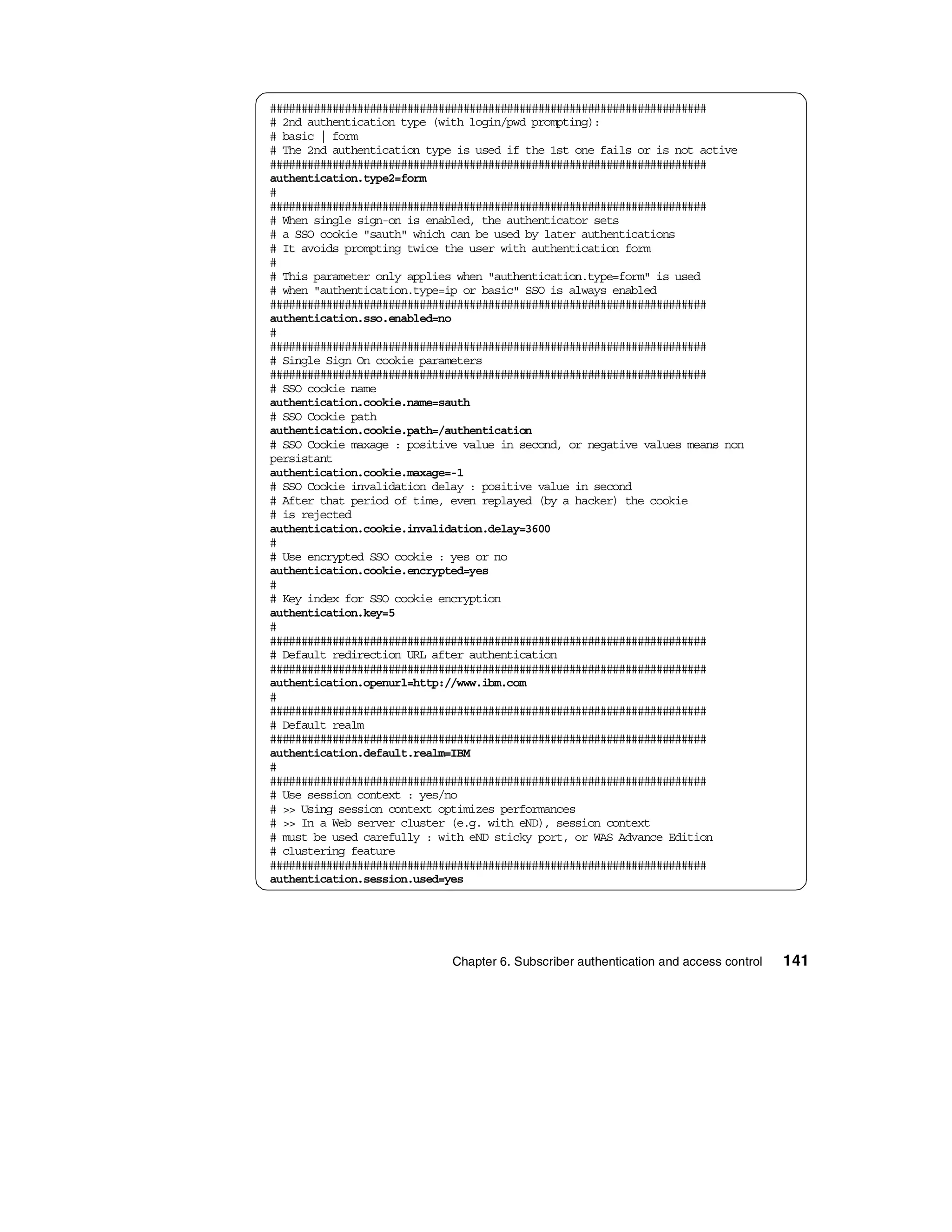

6.4.2 Business case 1 . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 138

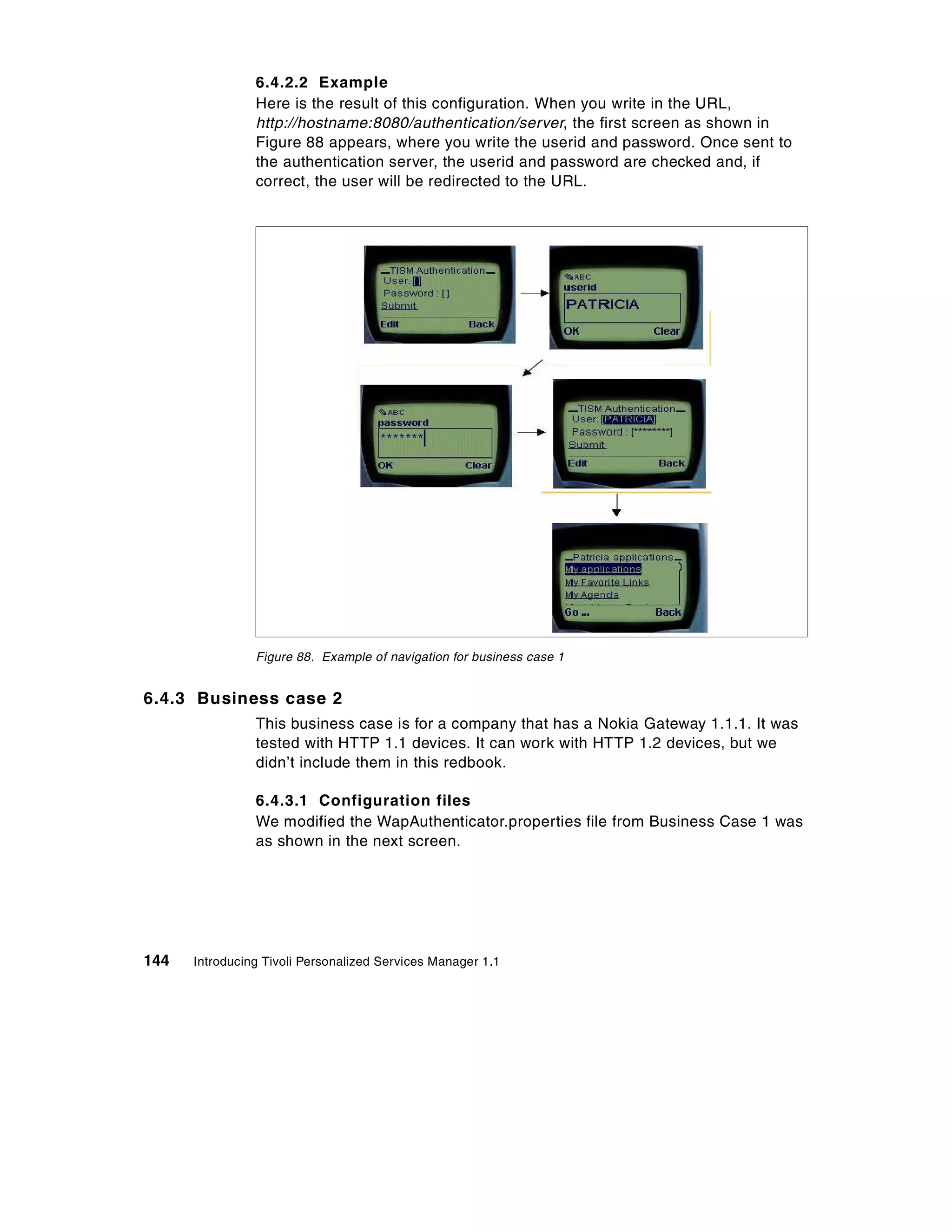

6.4.3 Business case 2 . . . . . . . . . . . . . . . . . . . . . ....... . . . . . . . . 144

Chapter 7. Using Customer Care and Director Tool . . . . . . . . . . . . . . 149

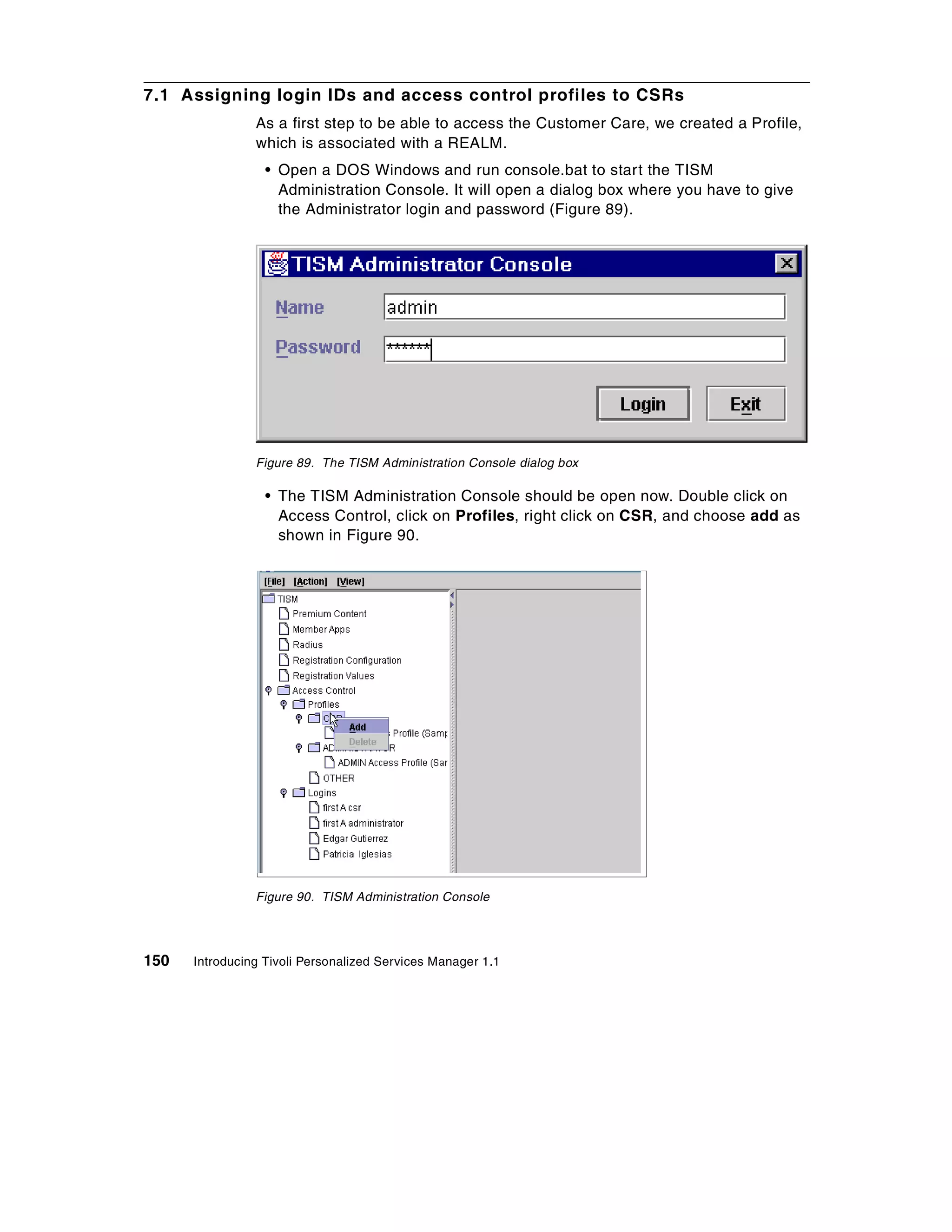

7.1 Assigning login IDs and access control profiles to CSRs . . . . . . . . . 150
7.2 Logging on to Customer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

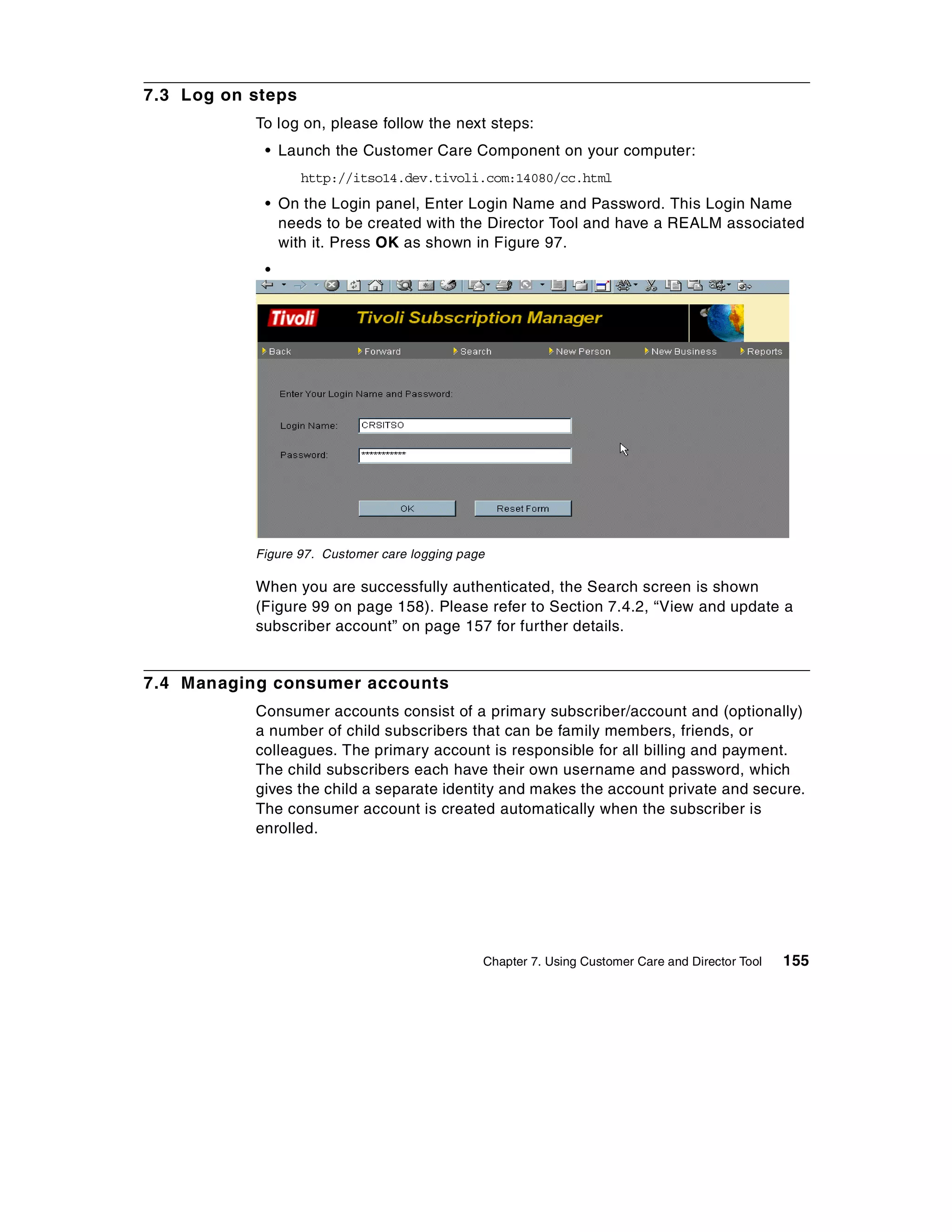

7.3 Log on steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
7.4 Managing consumer accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
7.4.1 Enroll a new consumer subscriber . . . . . . . . . . . . . . . . . . . . . . 156

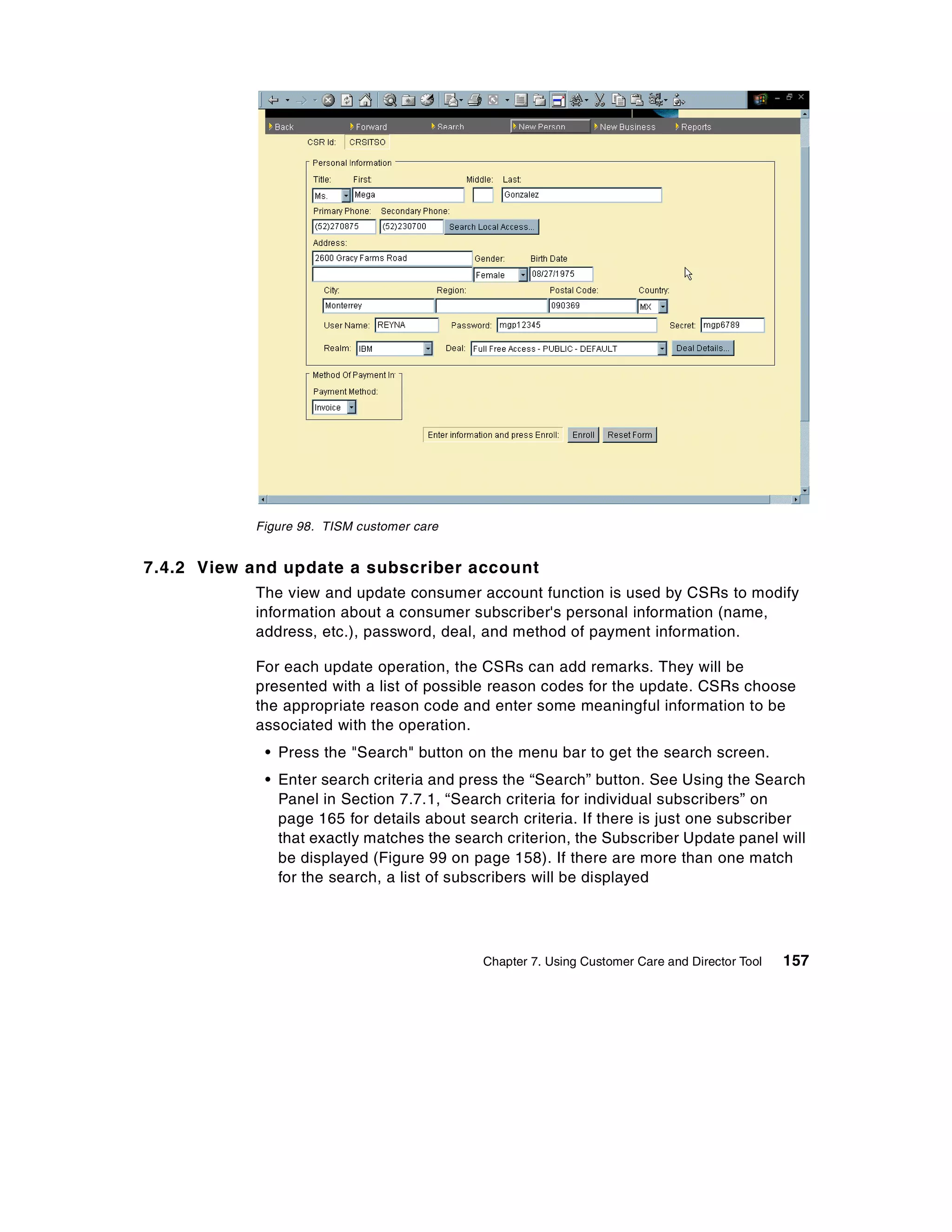

7.4.2 View and update a subscriber account . . . . . . . . . . . . . . . . . . . 157

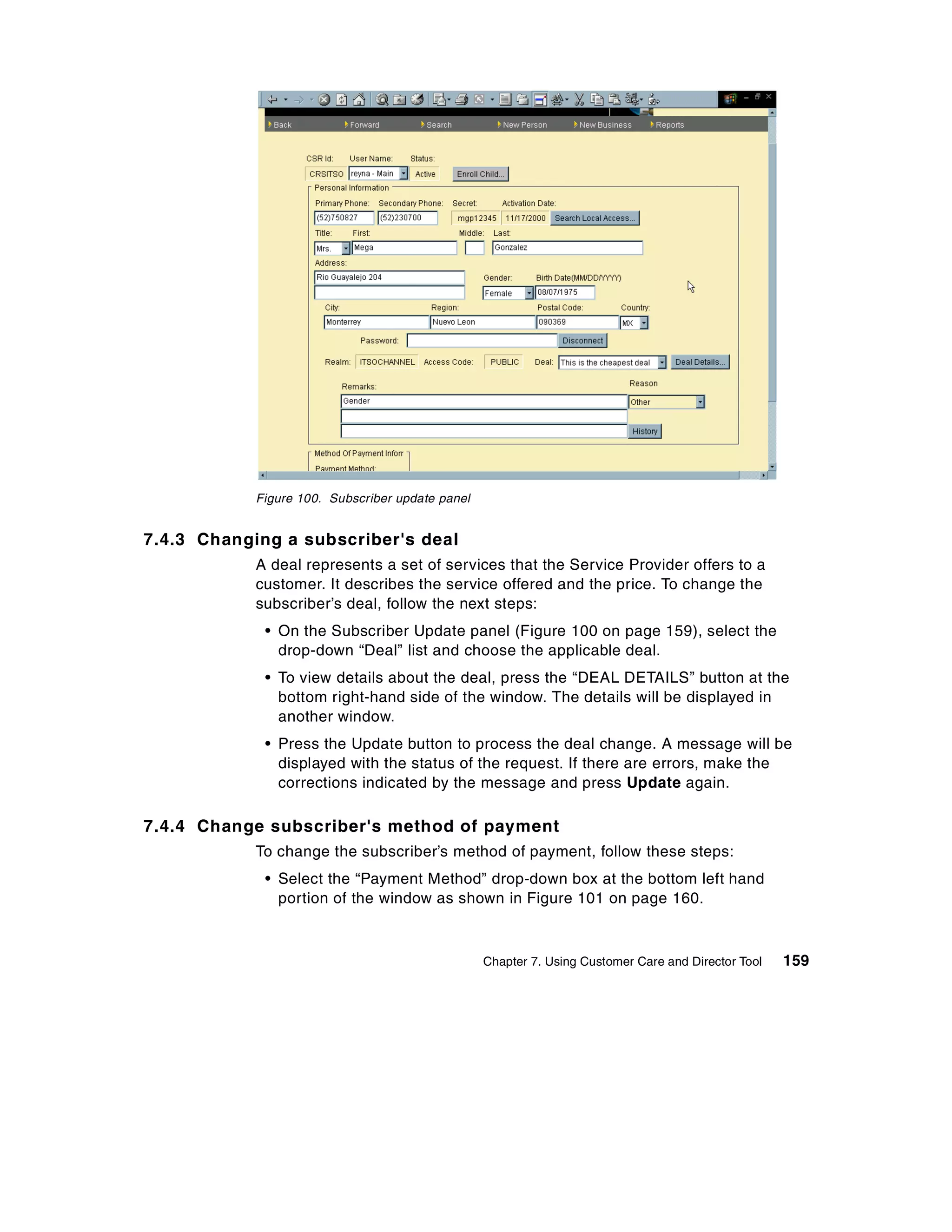

7.4.3 Changing a subscriber's deal . . . . . . . . . . . . . . . . . . . . . . . . . . 159

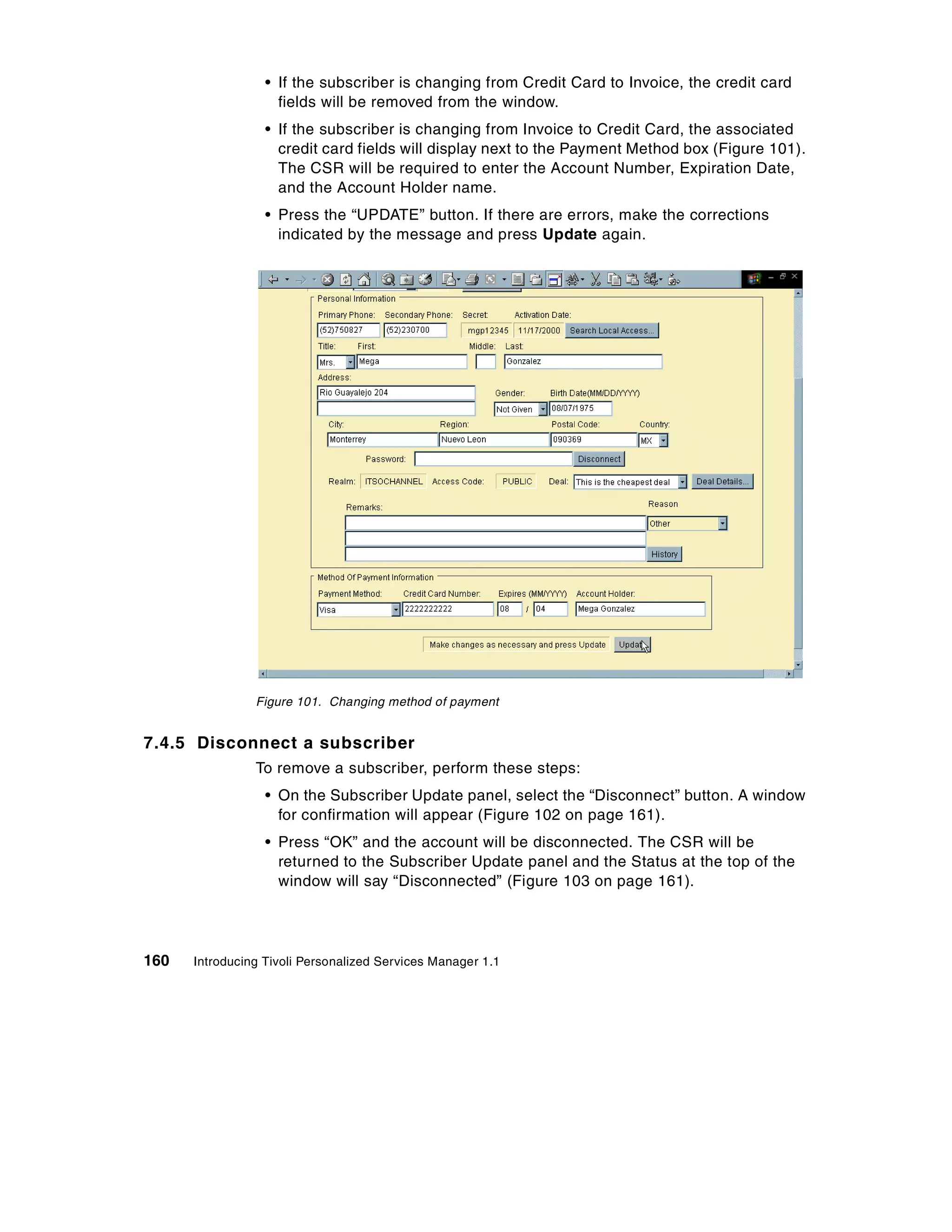

7.4.4 Change subscriber's method of payment . . . . . . . . . . . . . . . . . 159

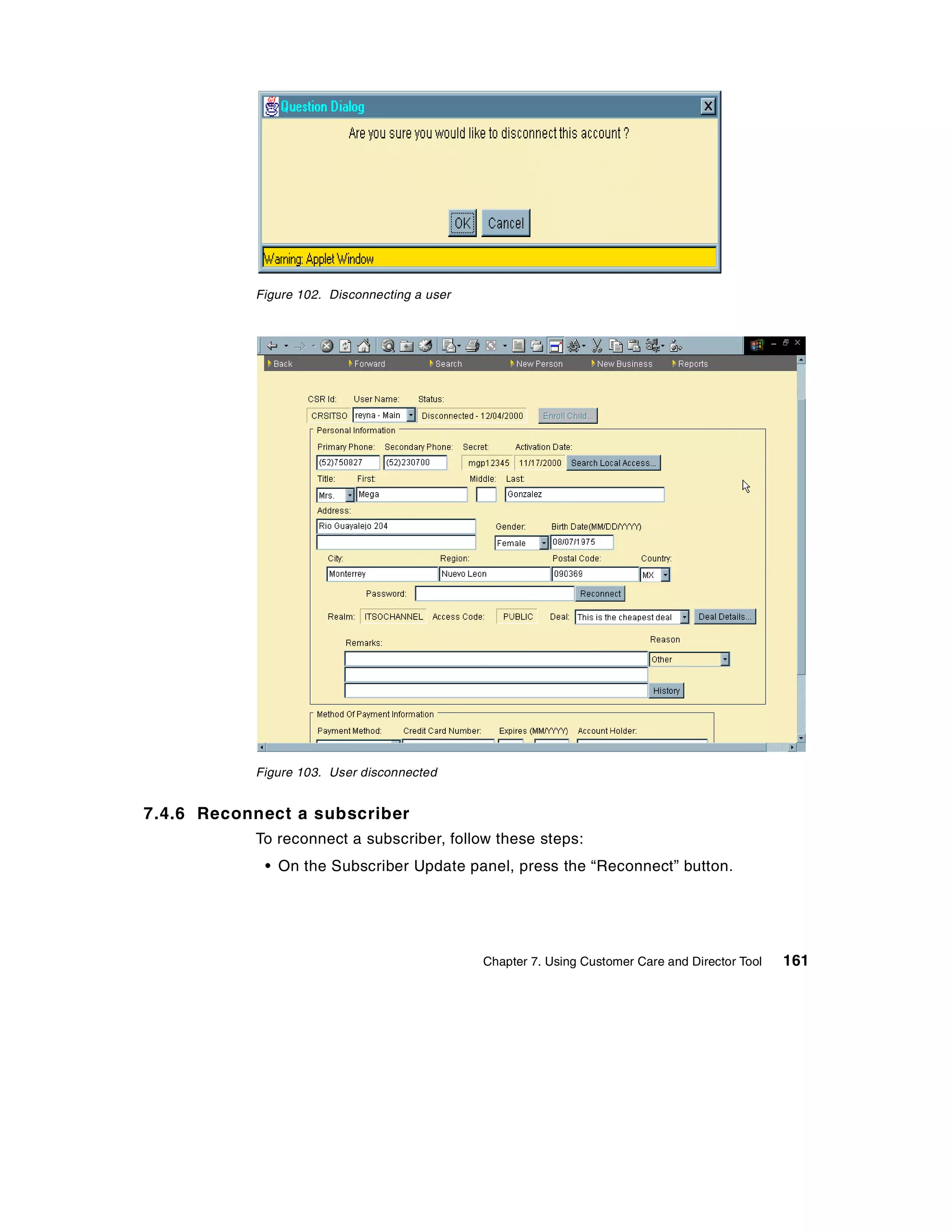

7.4.5 Disconnect a subscriber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
7.4.6 Reconnect a subscriber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
7.4.7 Create a consumer child subscriber . . . . . . . . . . . . . . . . . . . . . 162

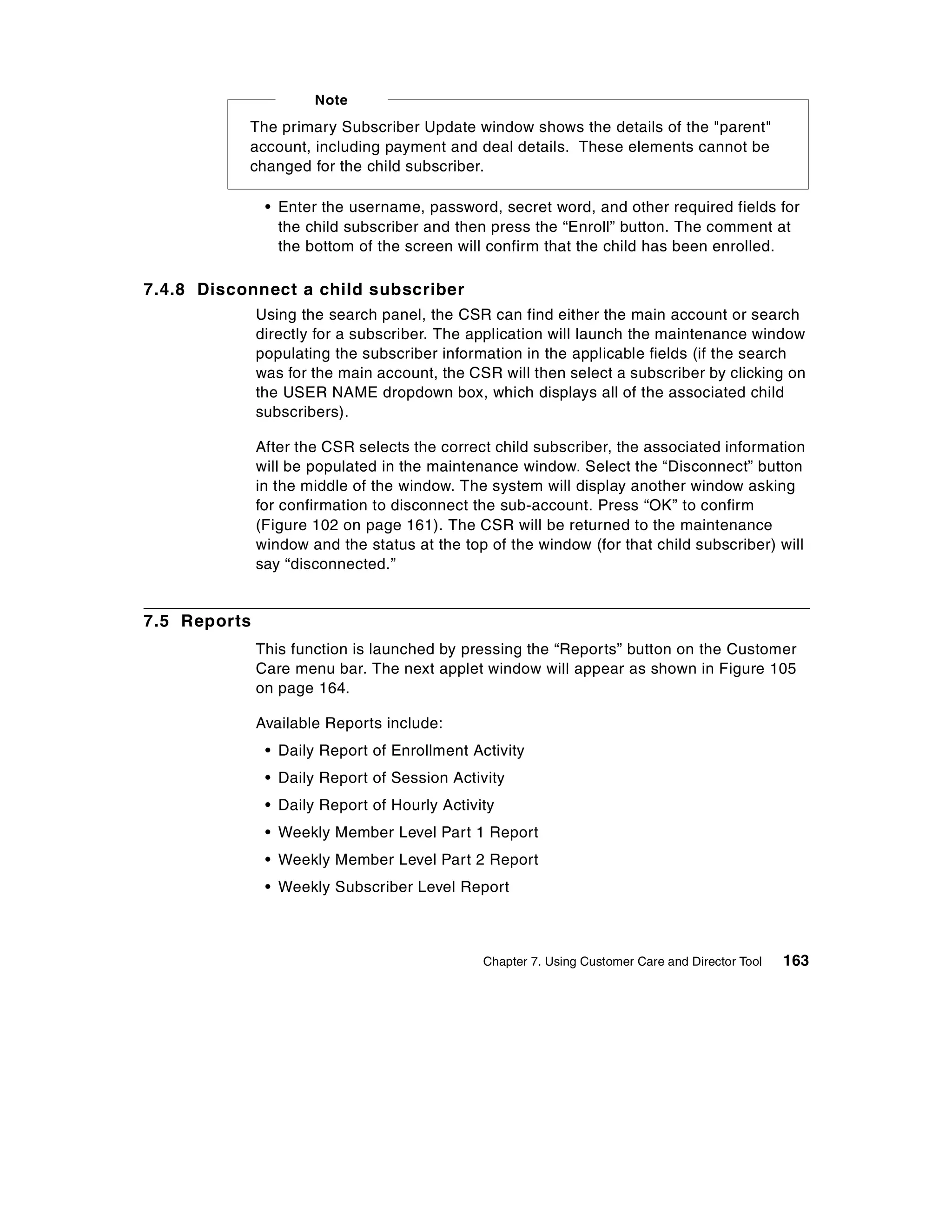

7.4.8 Disconnect a child subscriber . . . . . . . . . . . . . . . . . . . . . . . . . . 163

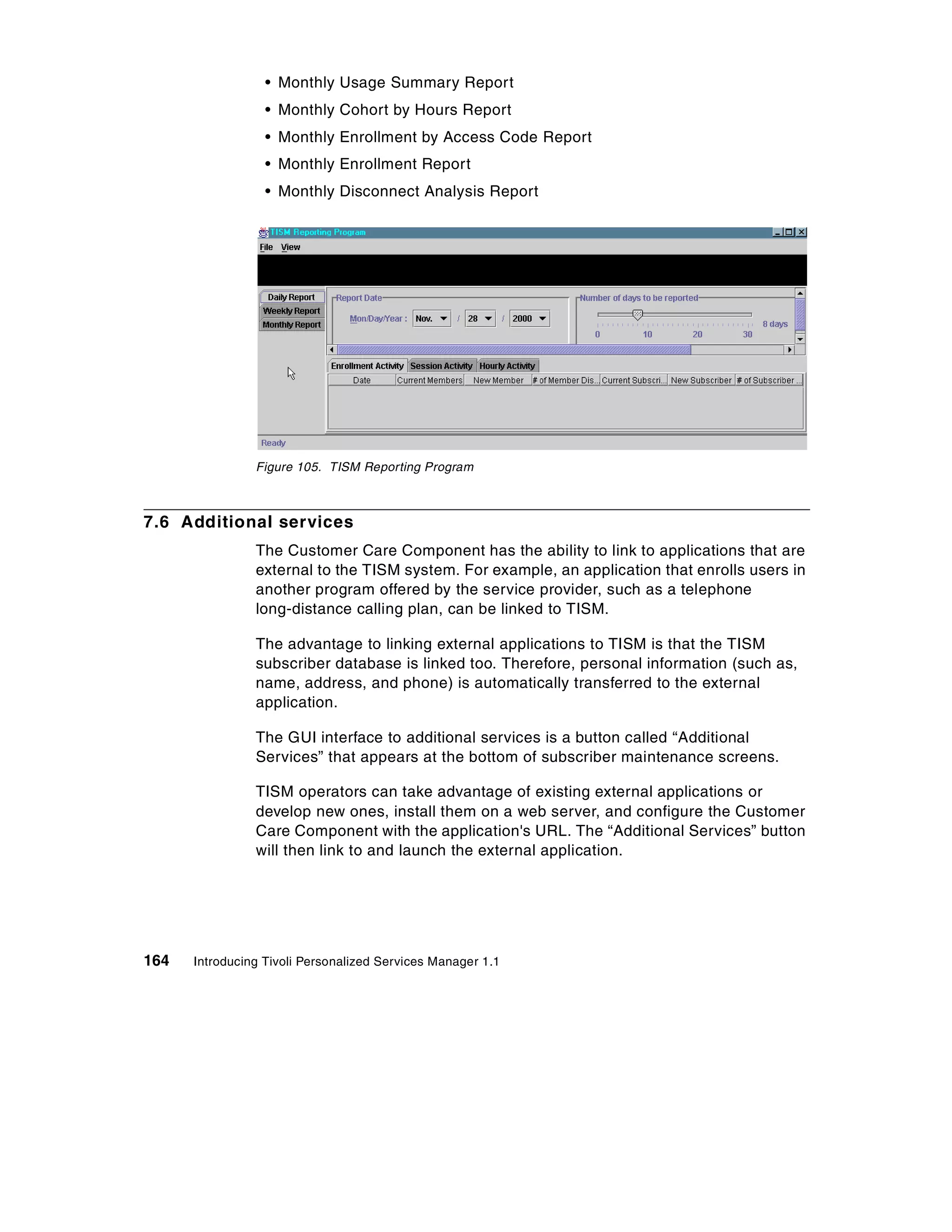

7.5 Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
7.6 Additional services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
7.7 Using the Search Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
7.7.1 Search criteria for individual subscribers . . . . . . . . . . . . . . . . . 165
7.7.2 Exact match feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Chapter 8. Subscriber Selfcare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
8.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

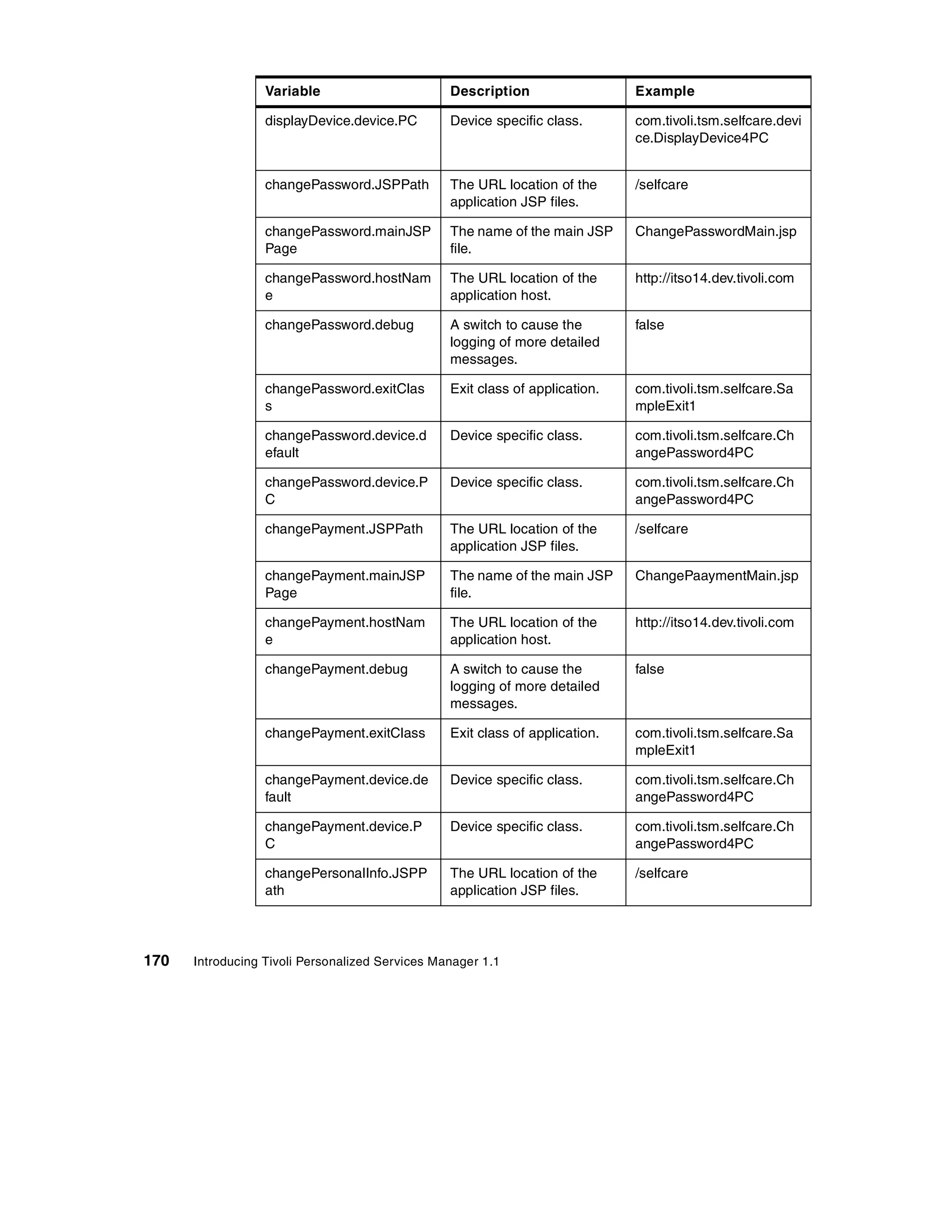

8.2 Customization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

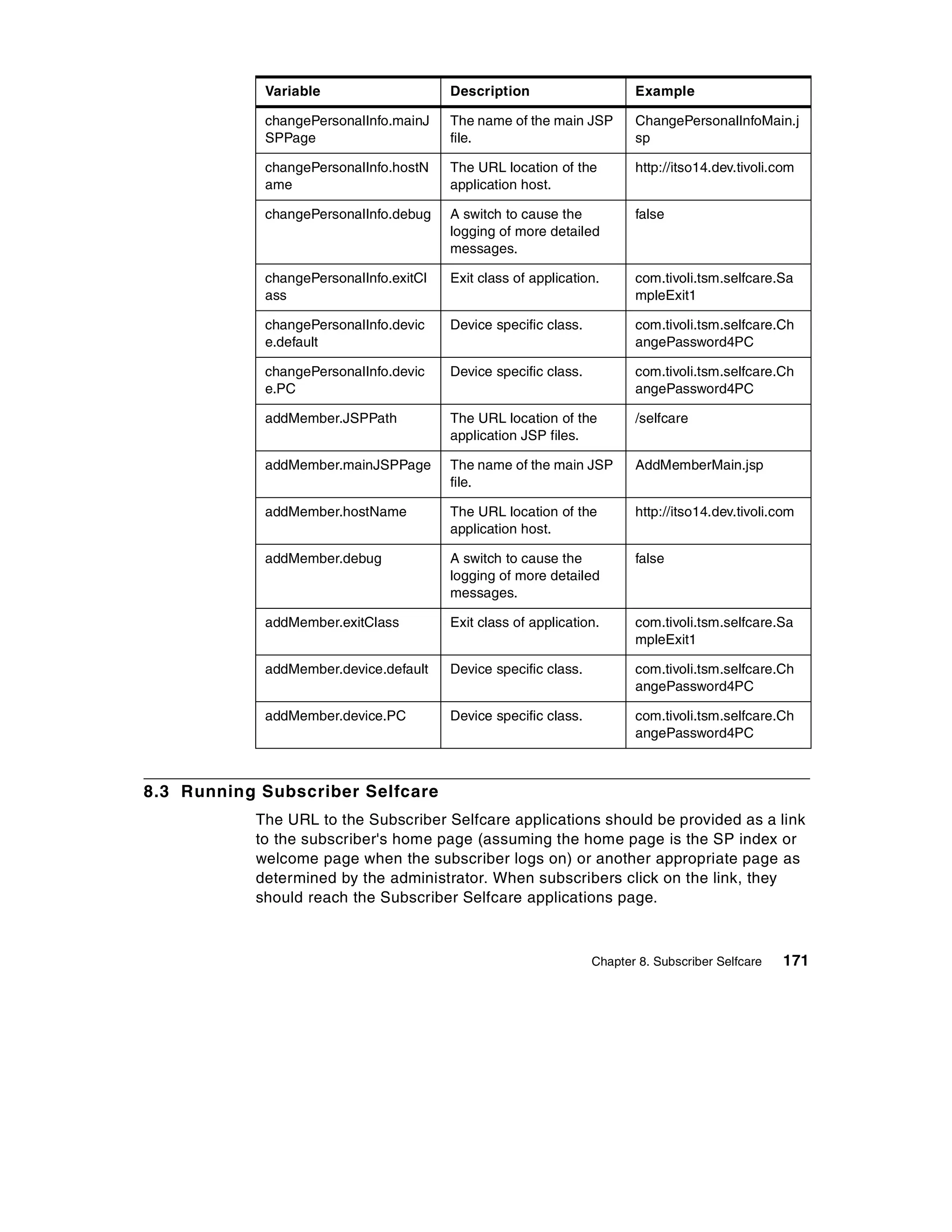

8.3 Running Subscriber Selfcare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

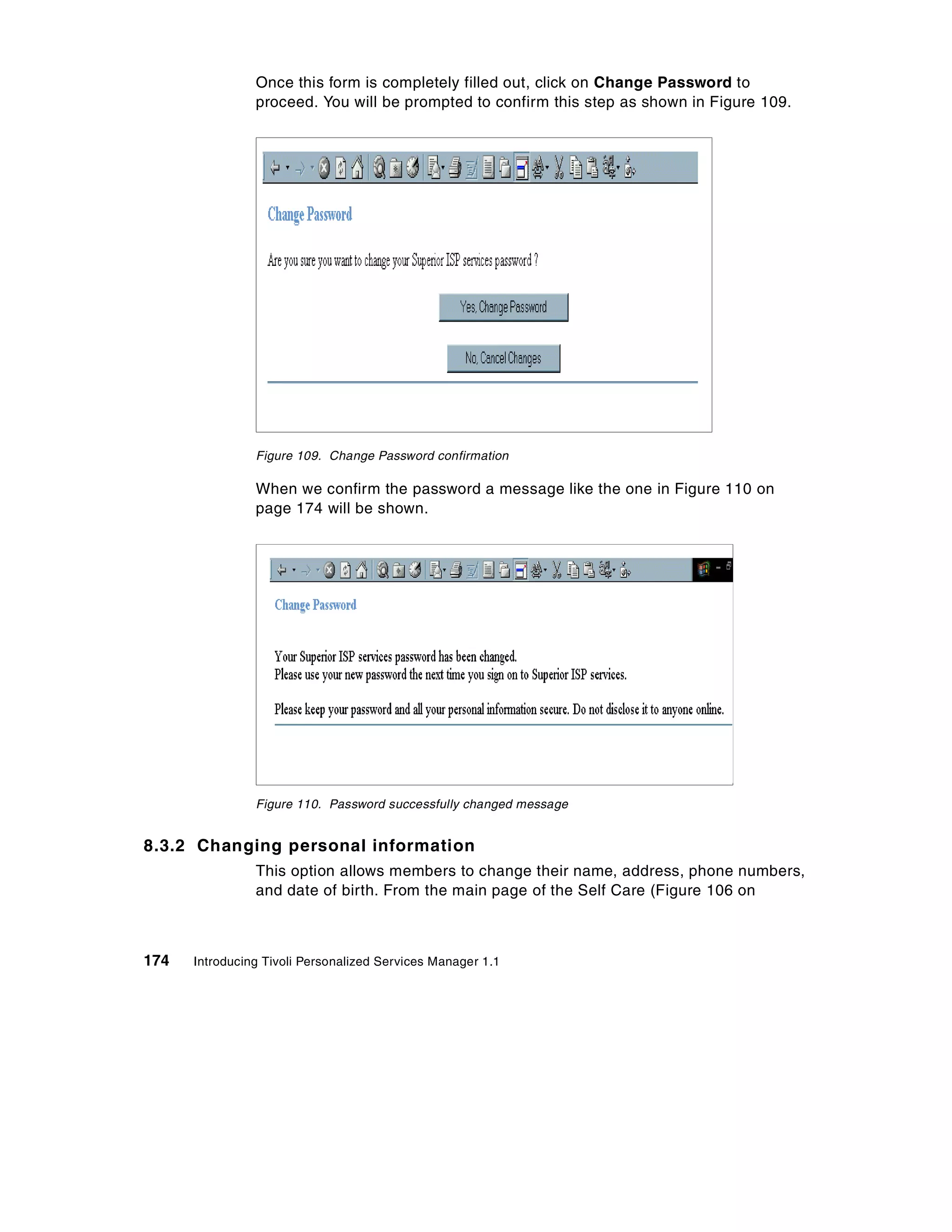

8.3.1 Changing a subscriber’s password . . . . . . . . . . . . . . . . . . . . . . 172
8.3.2 Changing personal information . . . . . . . . . . . . . . . . . . . . . . . . . 174
8.3.3 Change payment information . . . . . . . . . . . . . . . . . . . . . . . . . . 176
8.3.4 Adding new members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

v

Chapter 9. Subscriber Personalized Service Environment . . . . . . . . 181
9.1 Portal Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
9.2 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
9.2.1 Multi-device Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
9.2.2 User Preferences API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

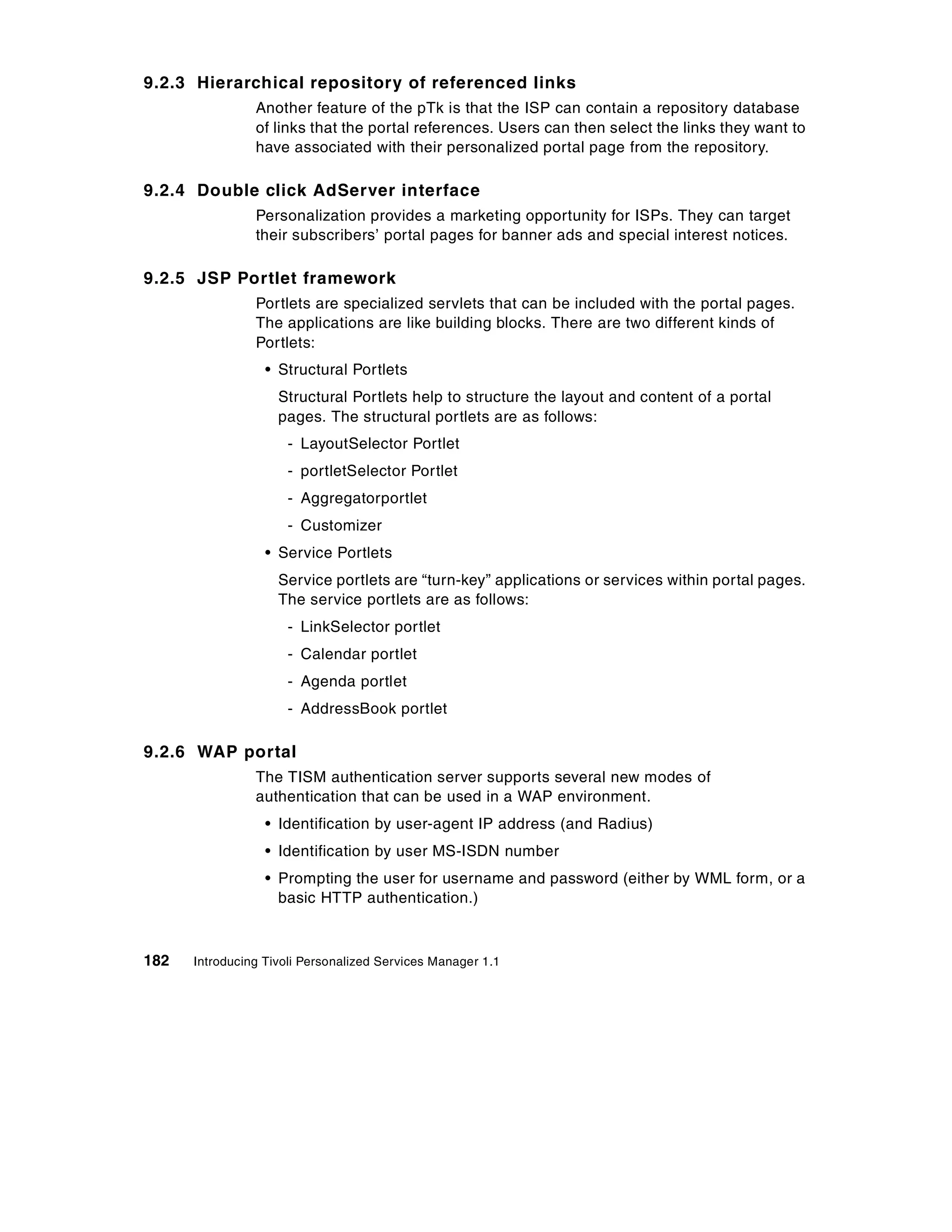

9.2.3 Hierarchical repository of referenced links . . . . . . . . . . . . . . . . 182
9.2.4 Double click AdServer interface . . . . . . . . . . . . . . . . . . . . . . . . 182
9.2.5 JSP Portlet framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
9.2.6 WAP portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

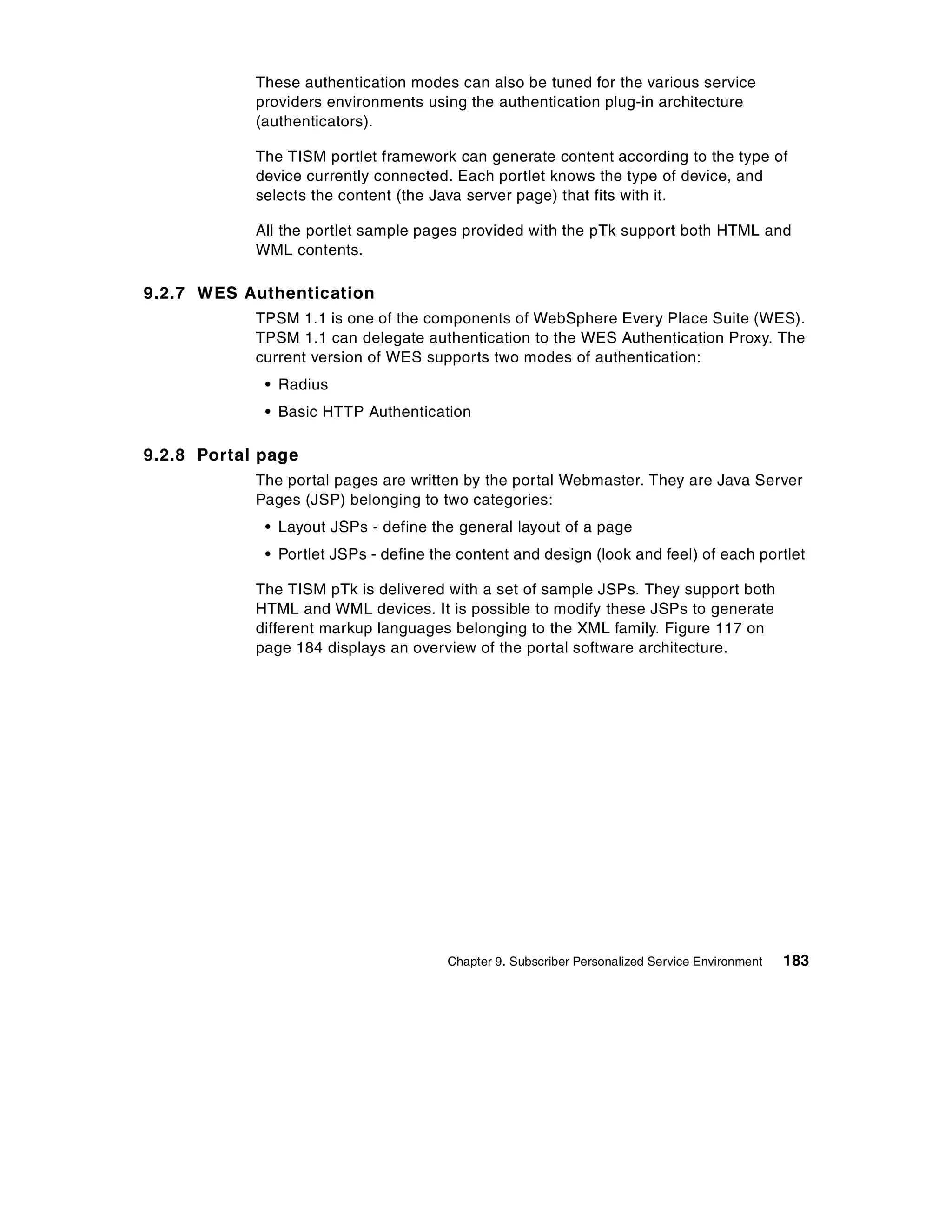

9.2.7 WES Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
9.2.8 Portal page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
9.3 Portal software architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
9.3.1 Authentication API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

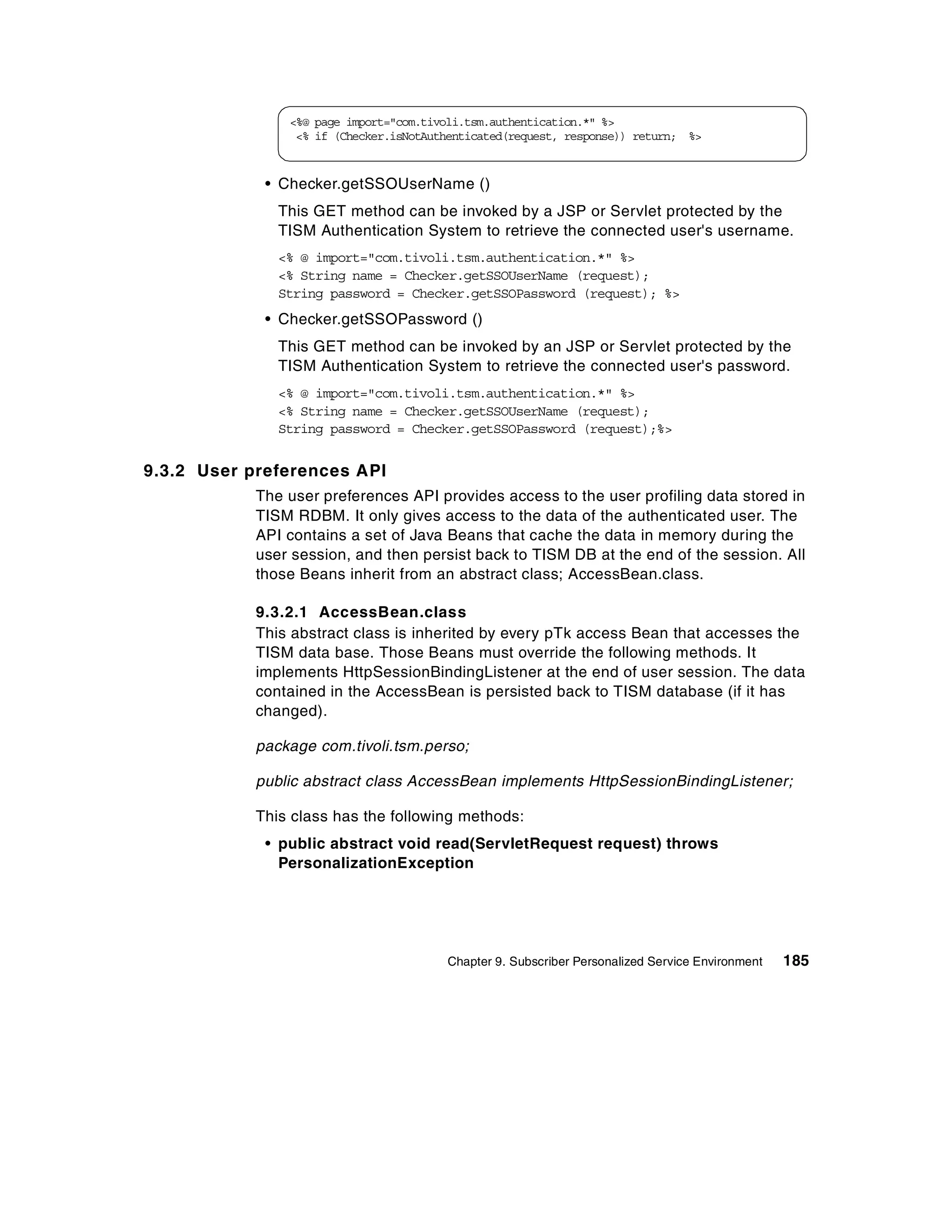

9.3.2 User preferences API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
9.4 JSP portlets framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
9.4.1 JSP portlet architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
9.4.2 Portlet design pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

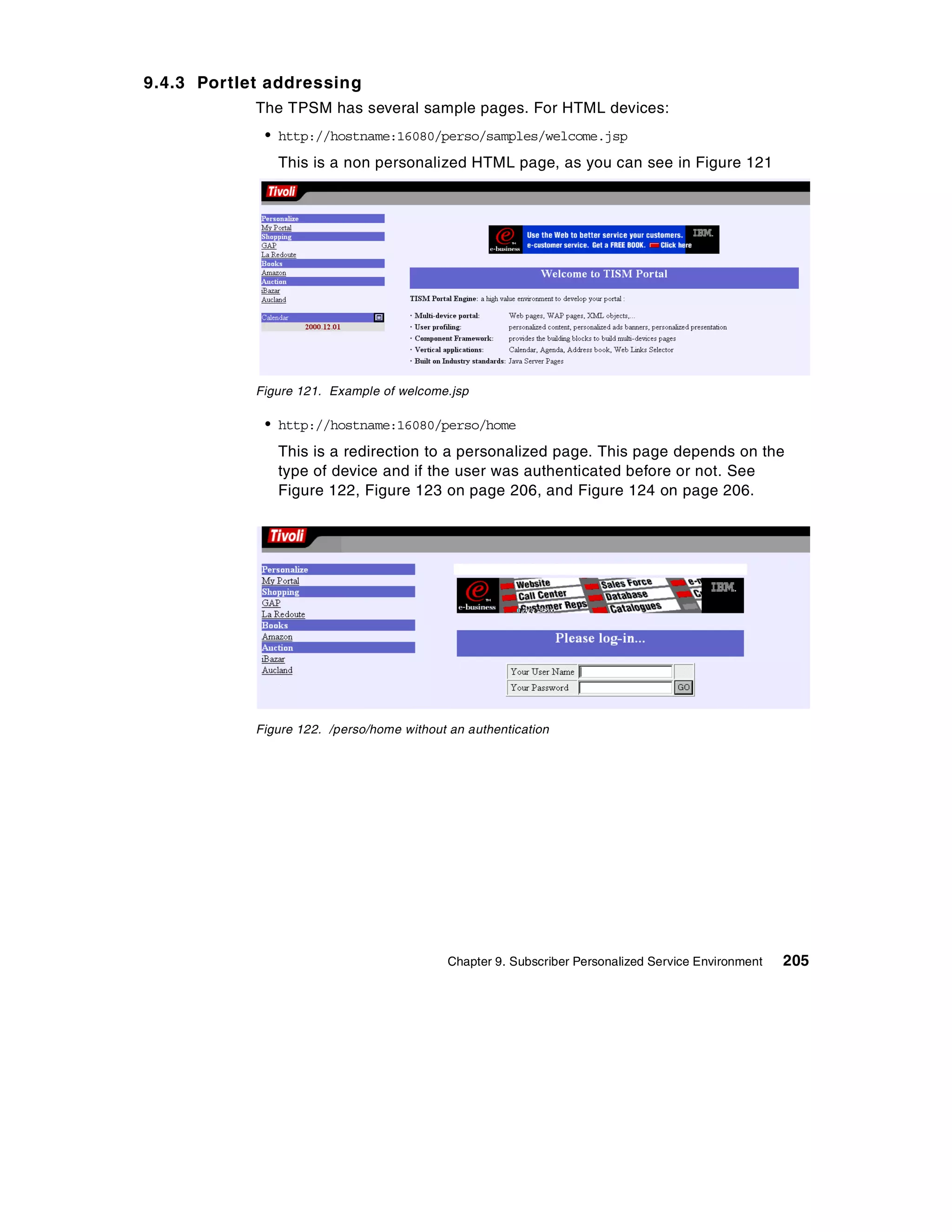

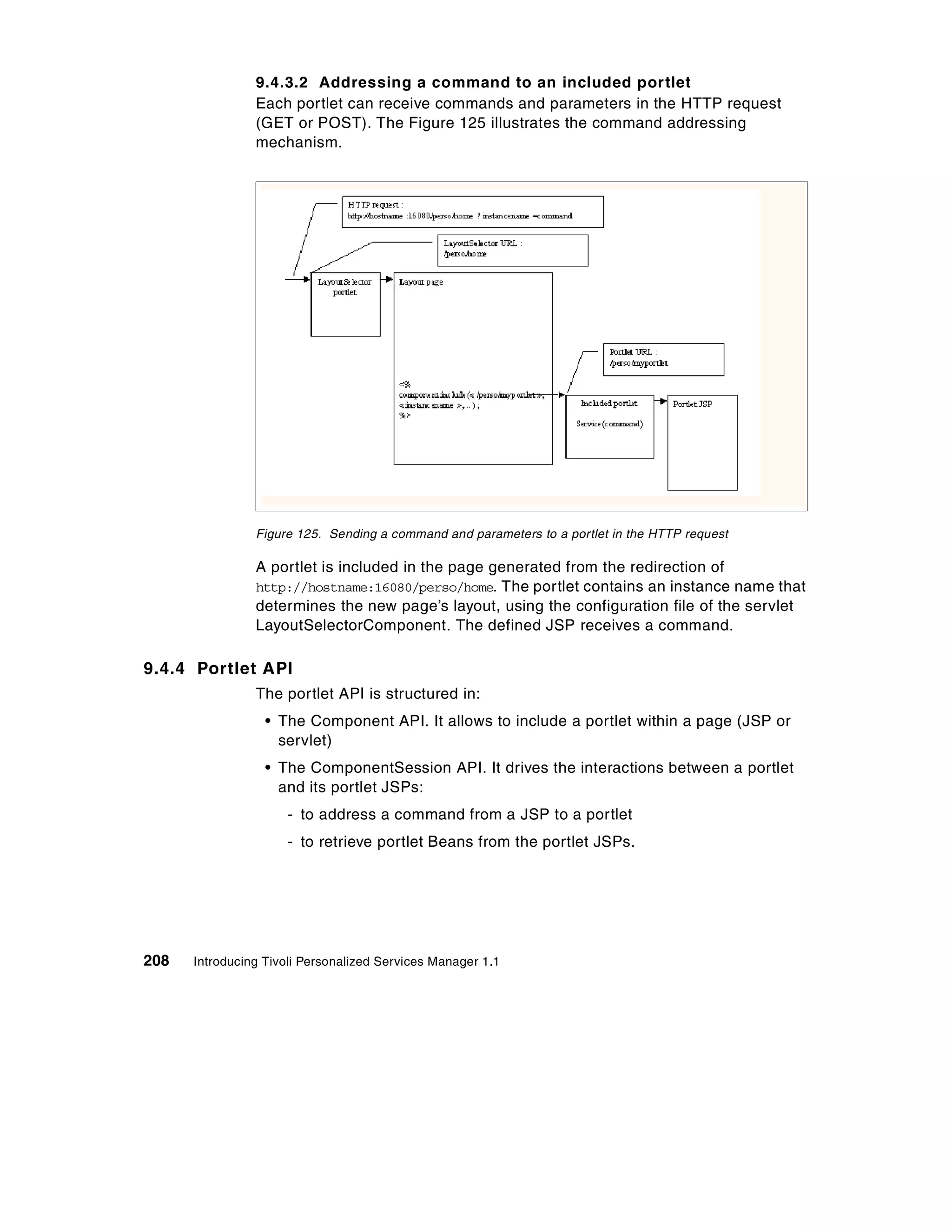

9.4.3 Portlet addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

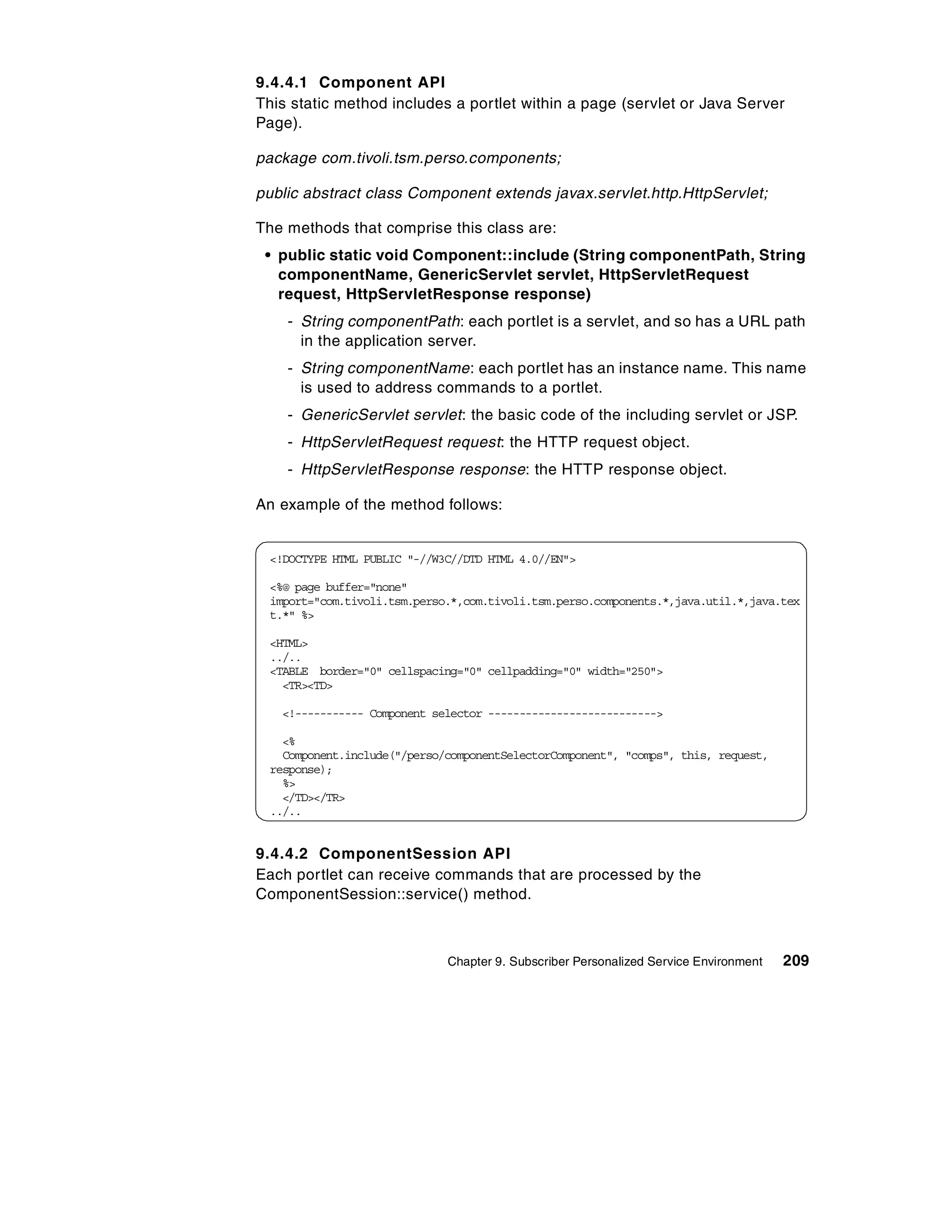

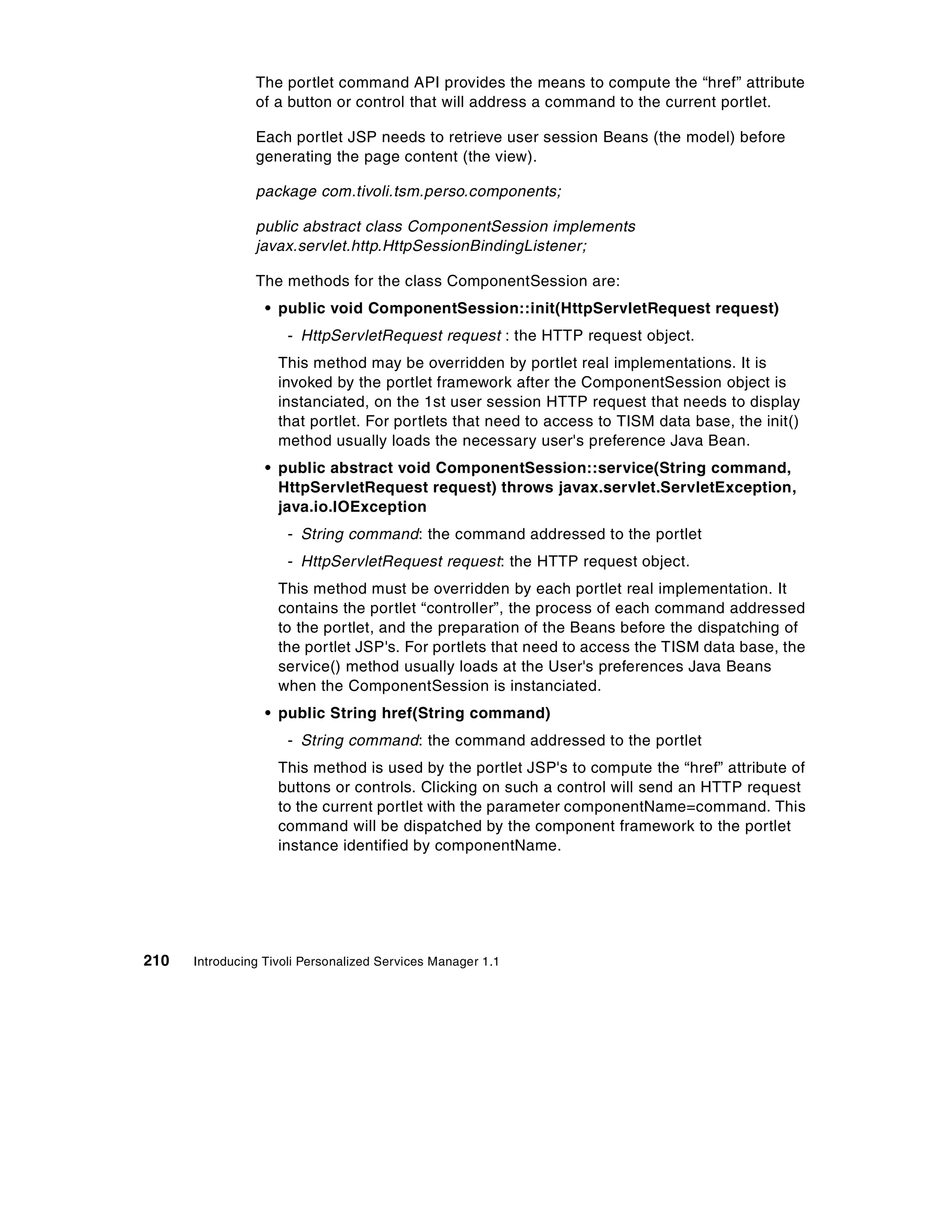

9.4.4 Portlet API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
9.5 TPSM portlet library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
9.5.1 Structural portlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
9.6 Service portlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

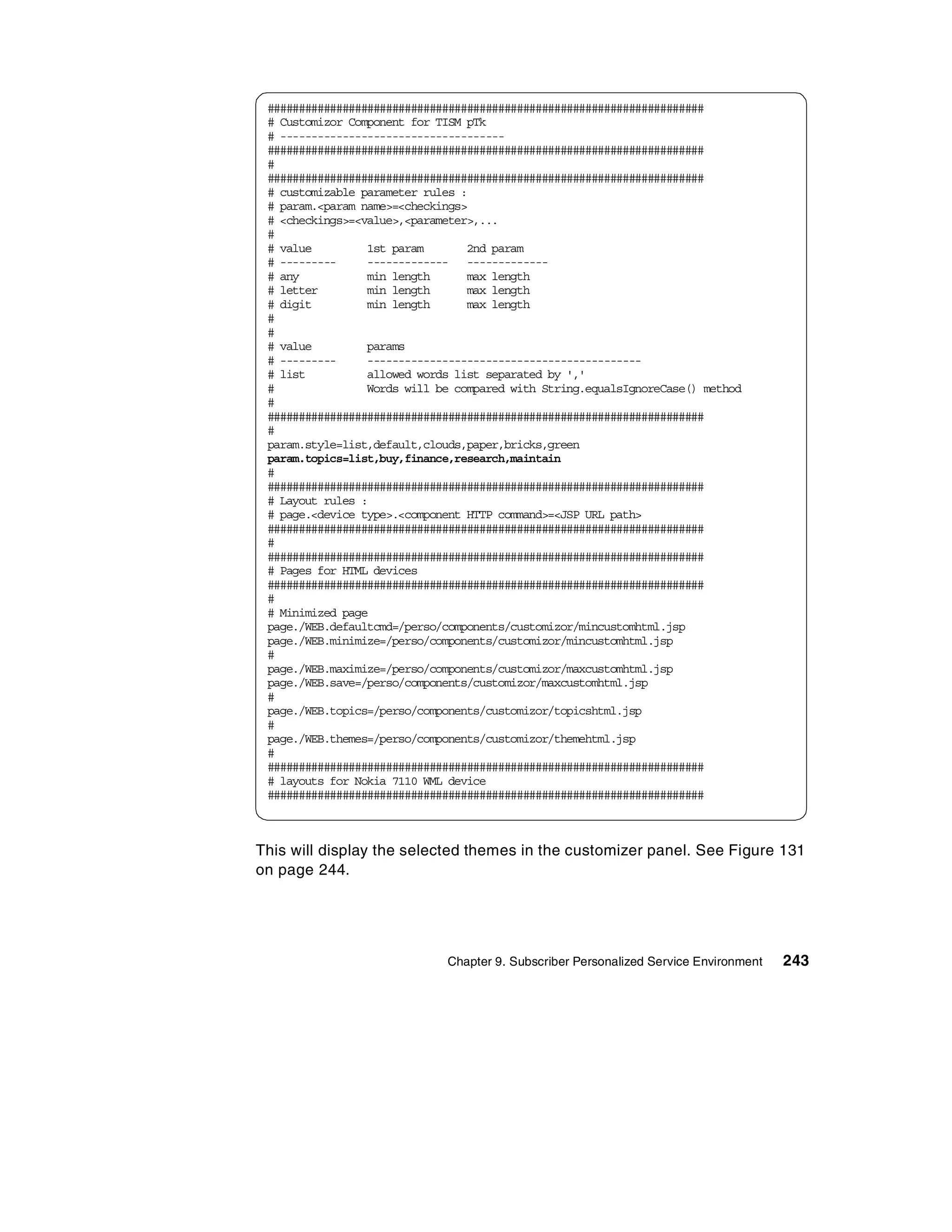

9.6.1 Customizor Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

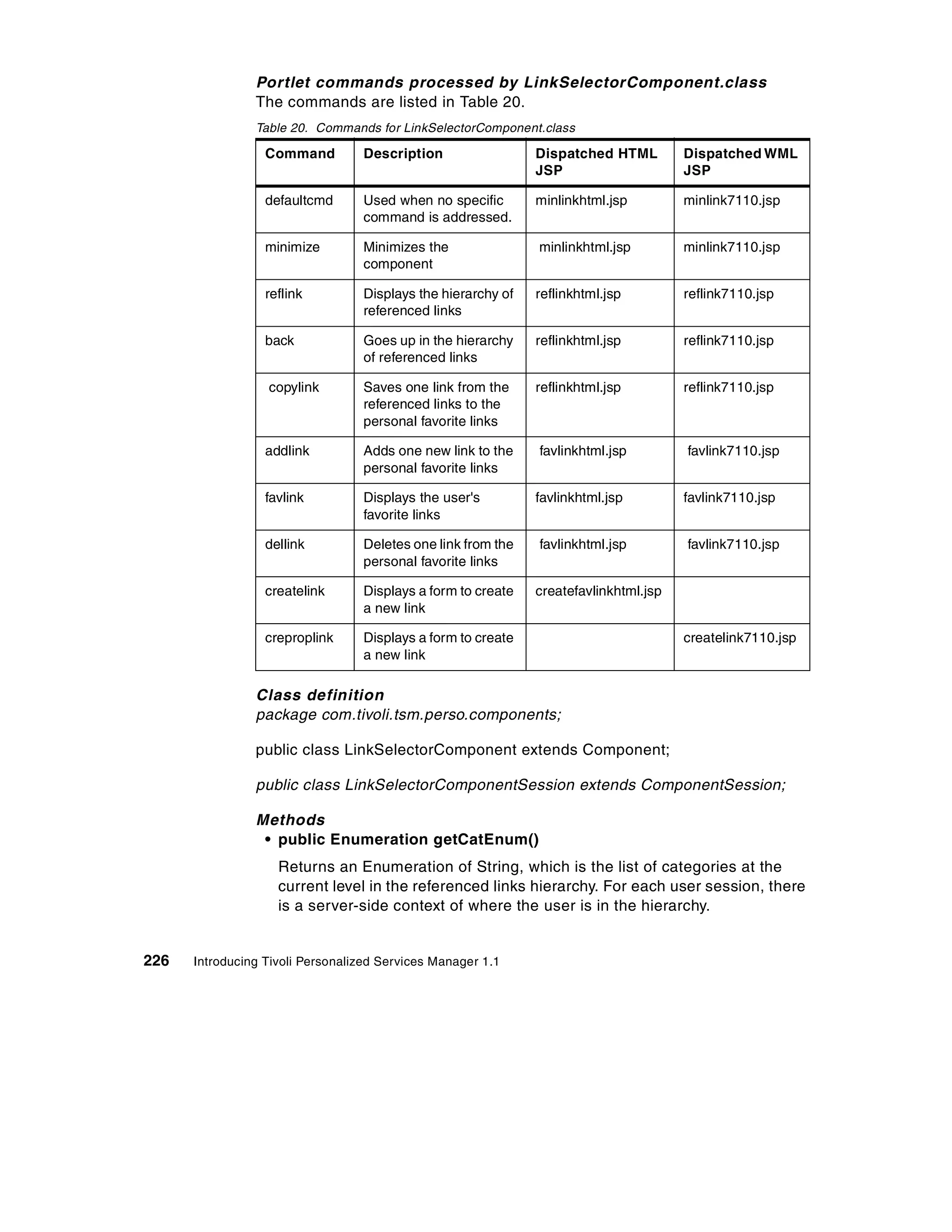

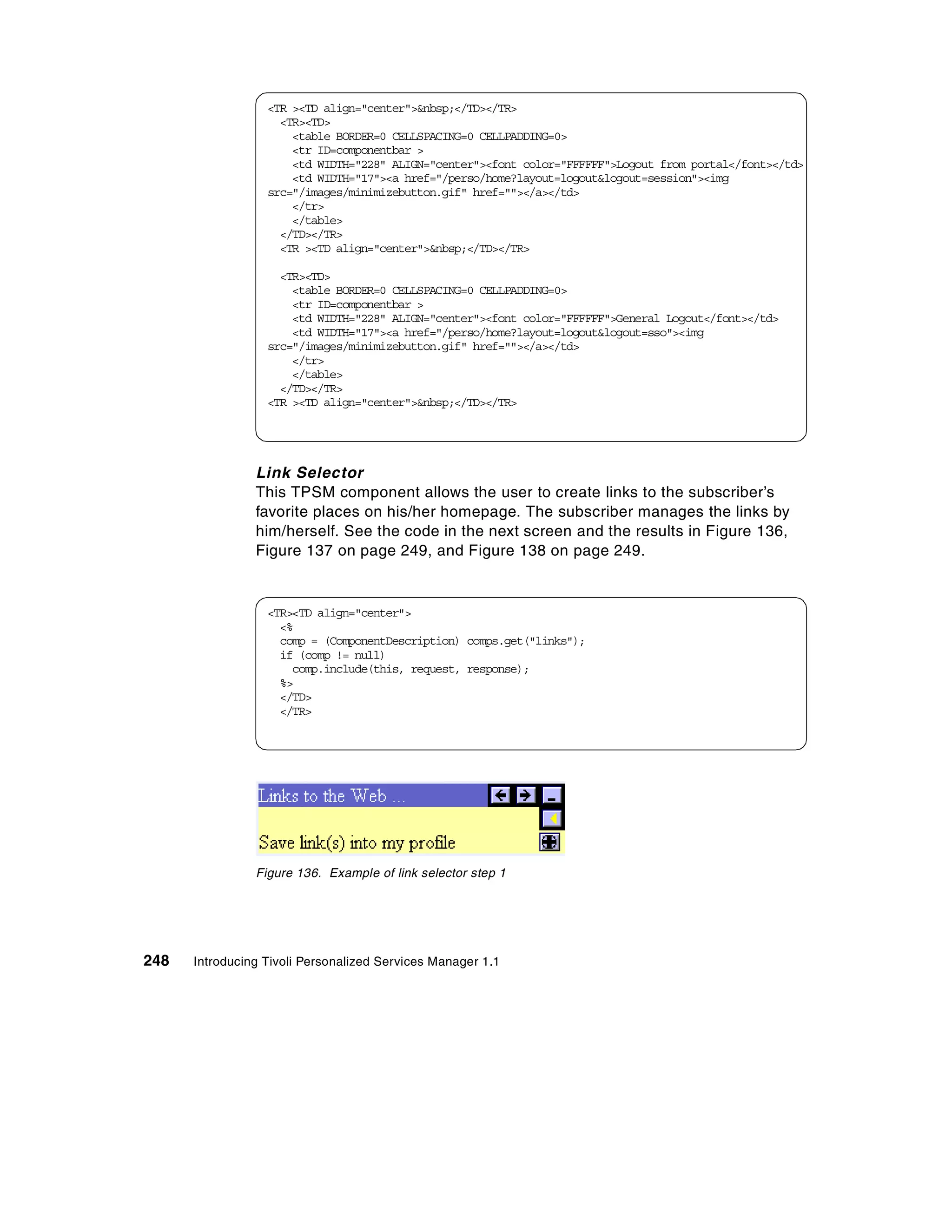

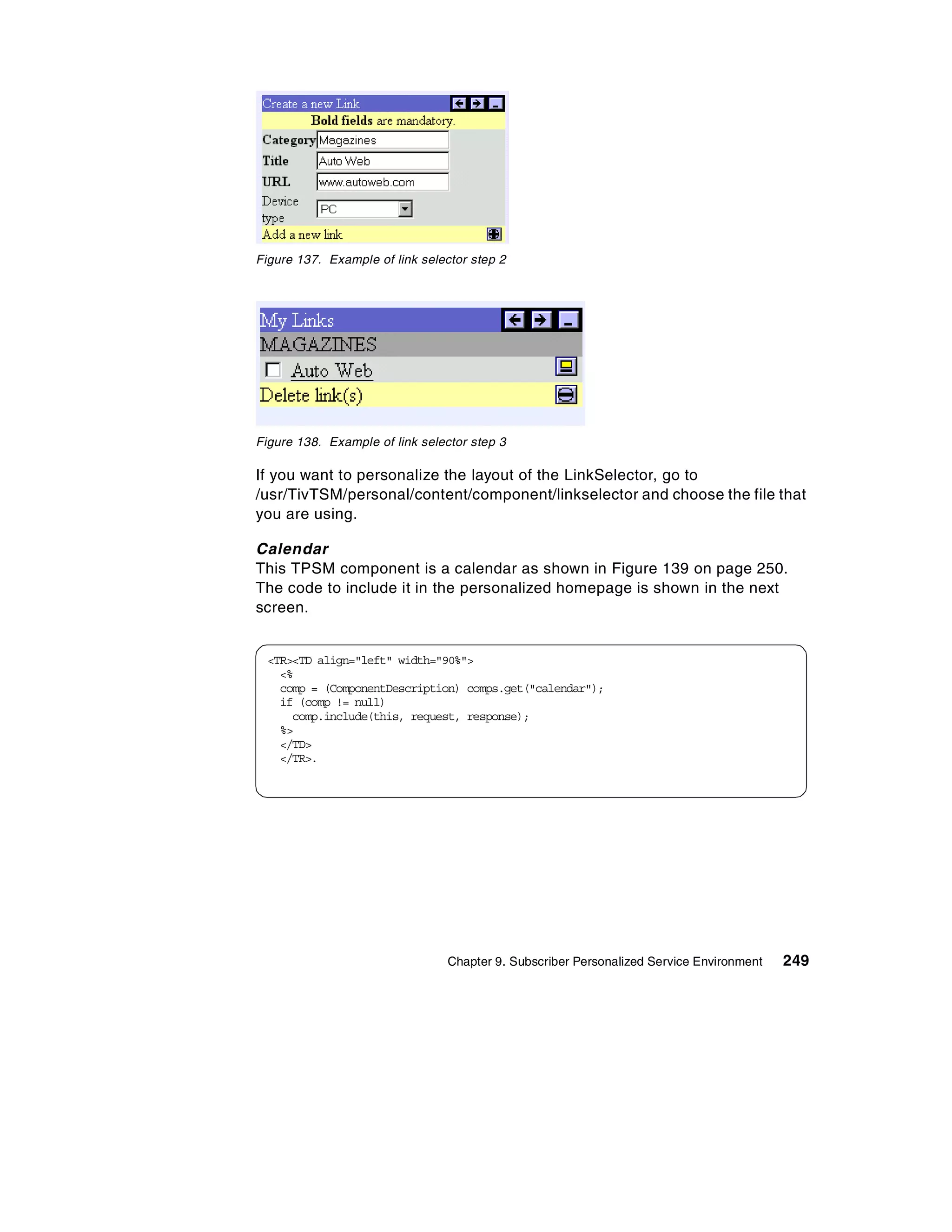

9.6.2 LinkSelector Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

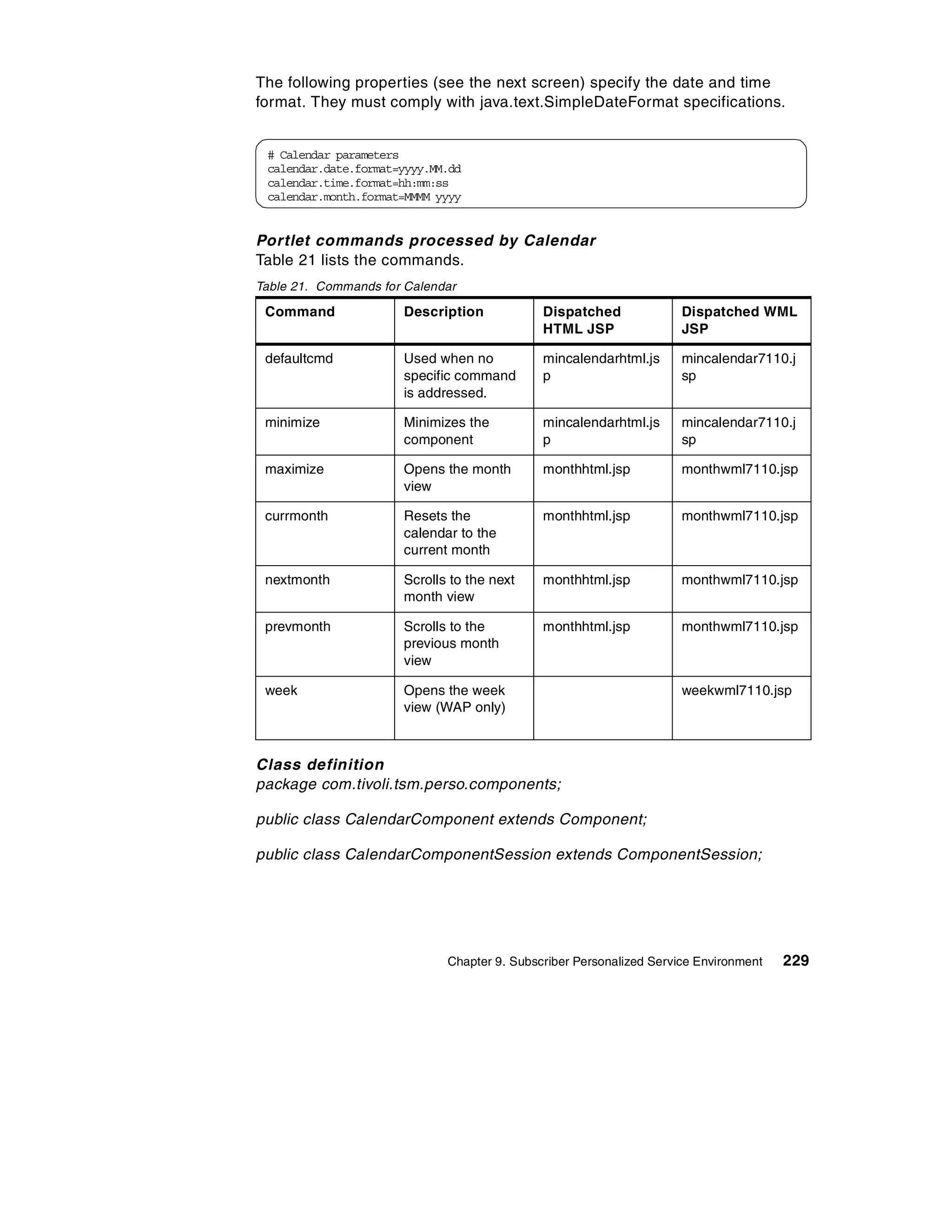

9.6.3 Calendar Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

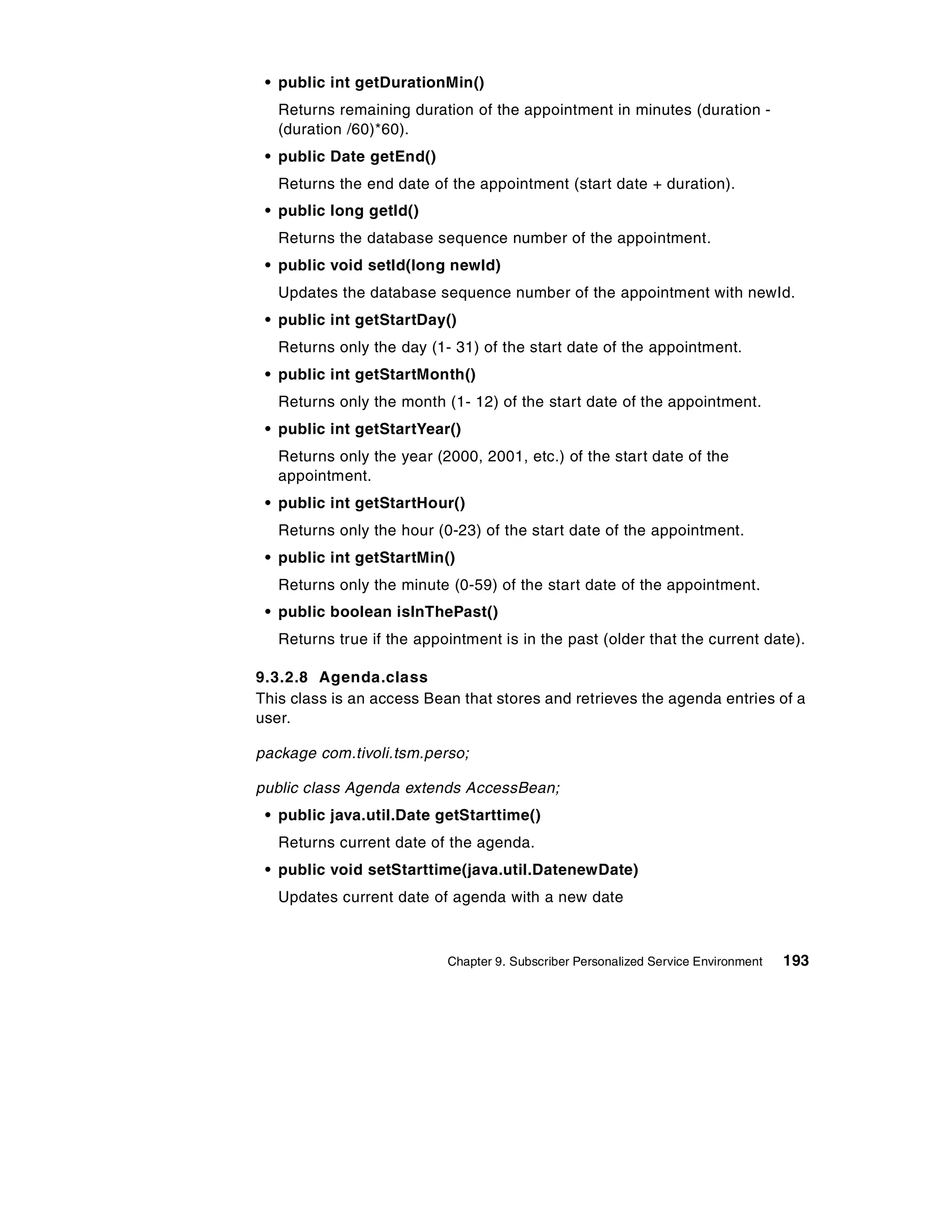

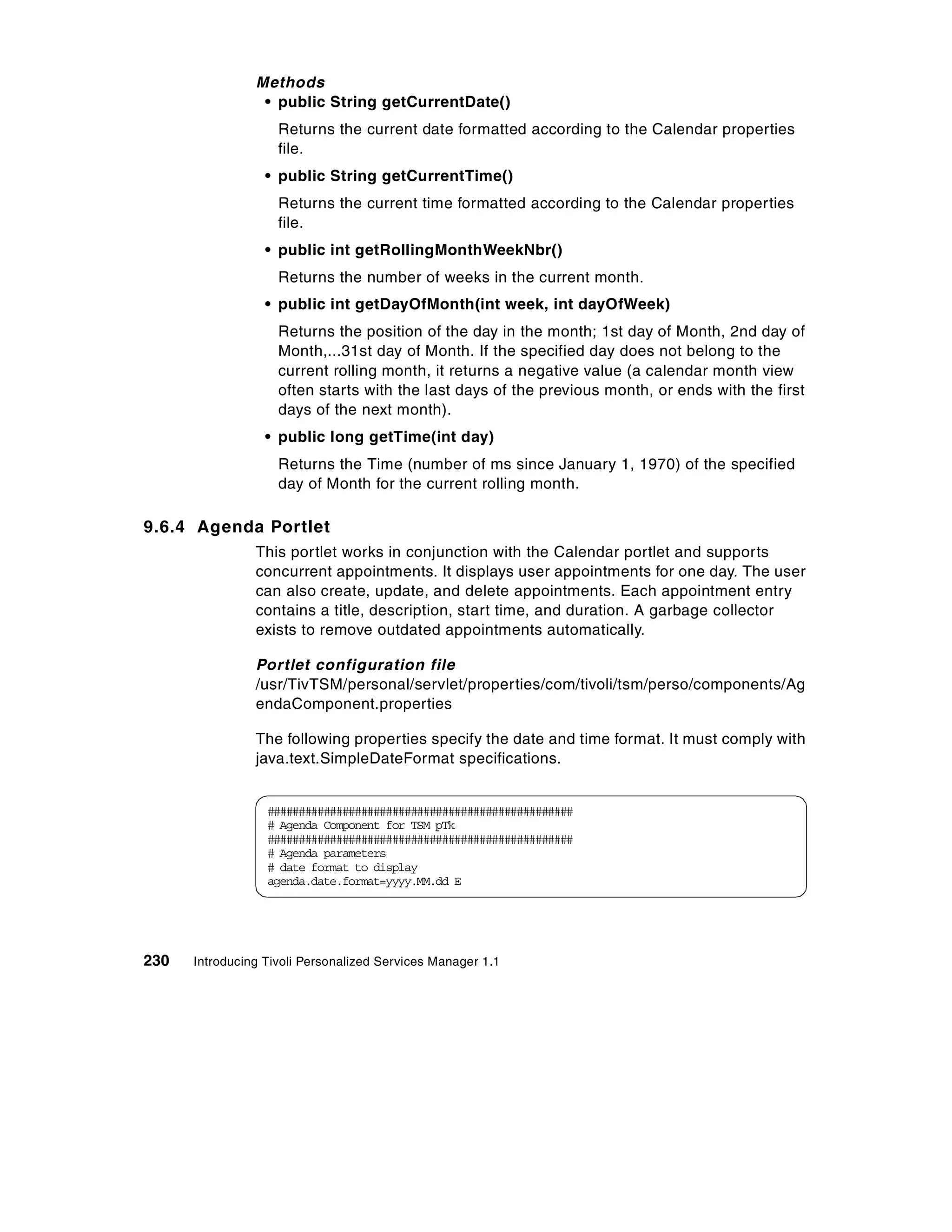

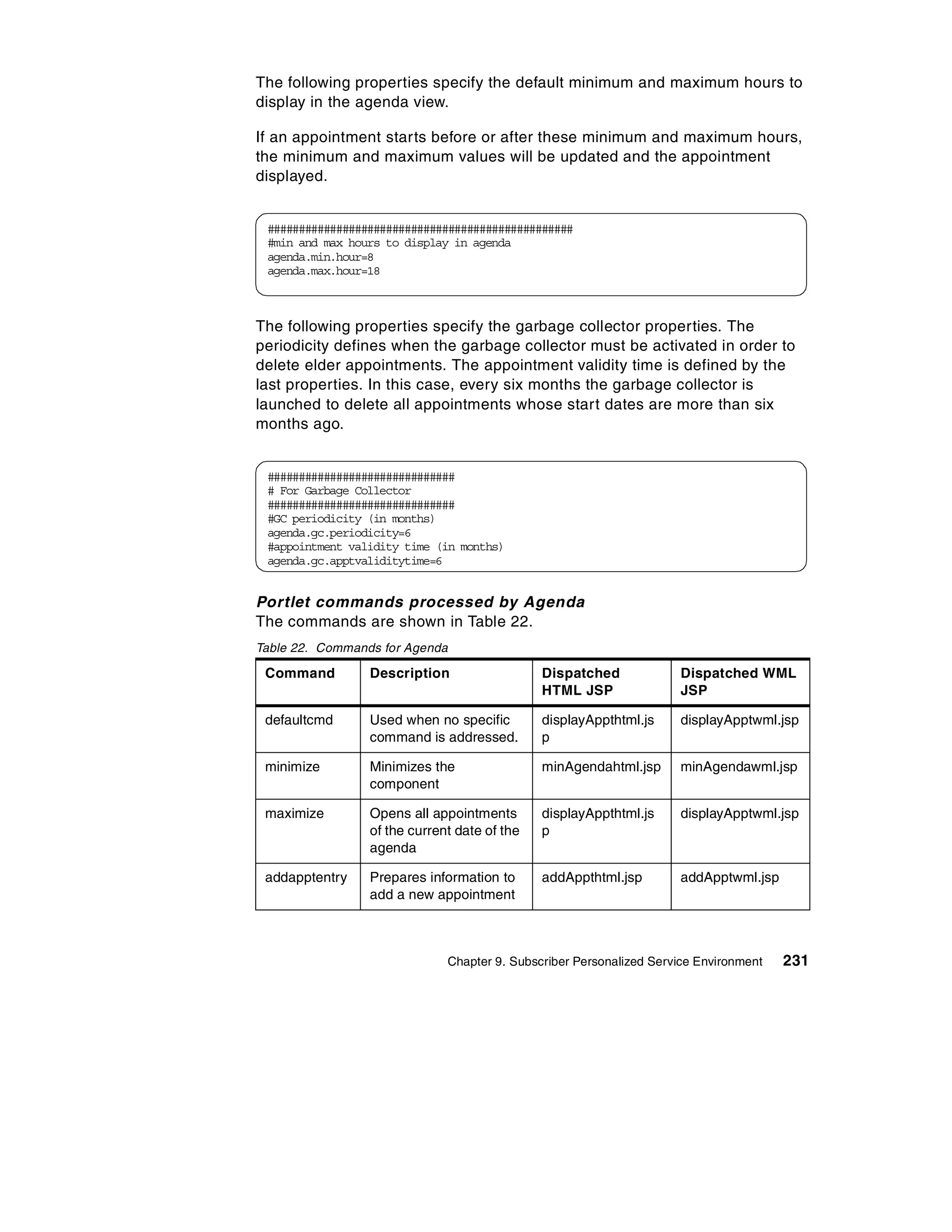

9.6.4 Agenda Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

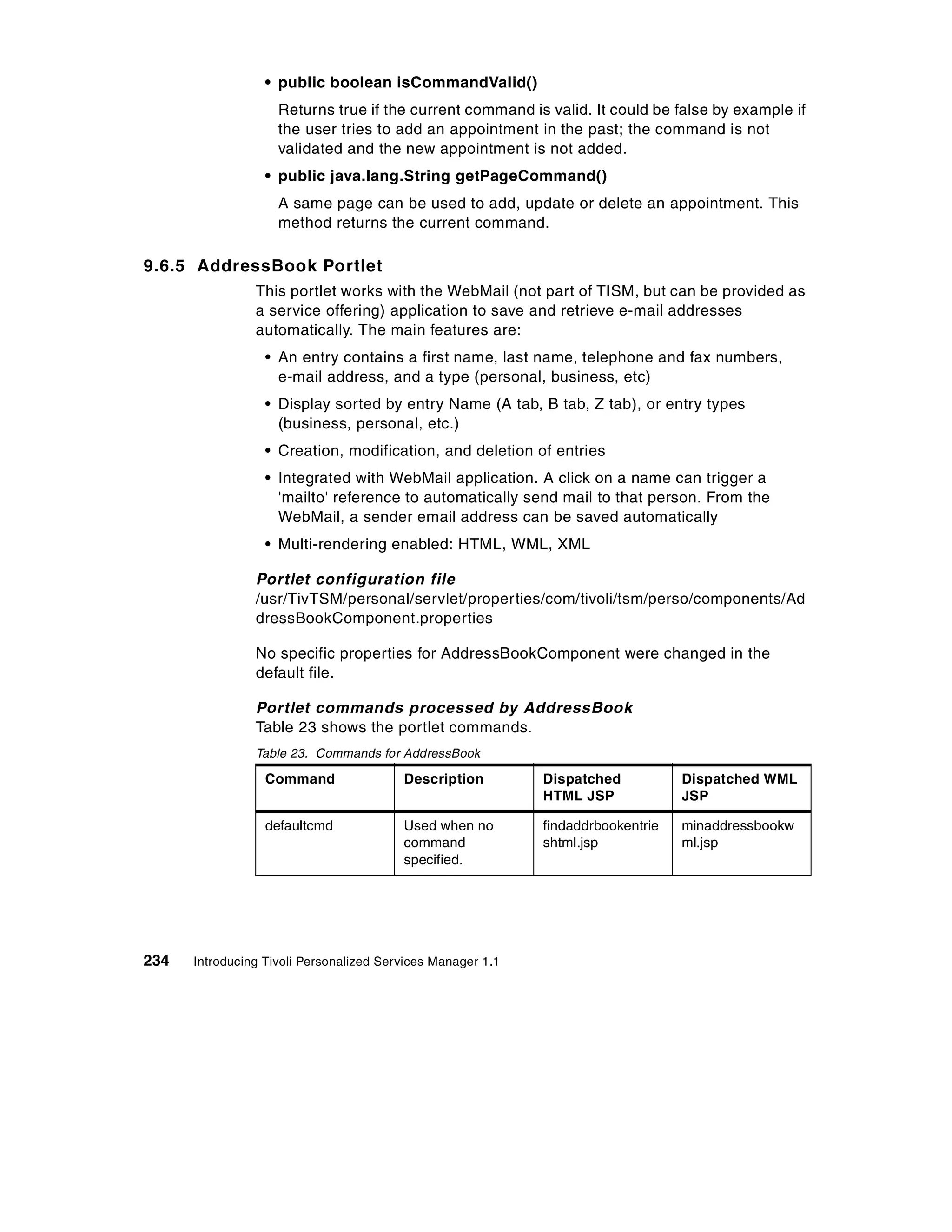

9.6.5 AddressBook Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

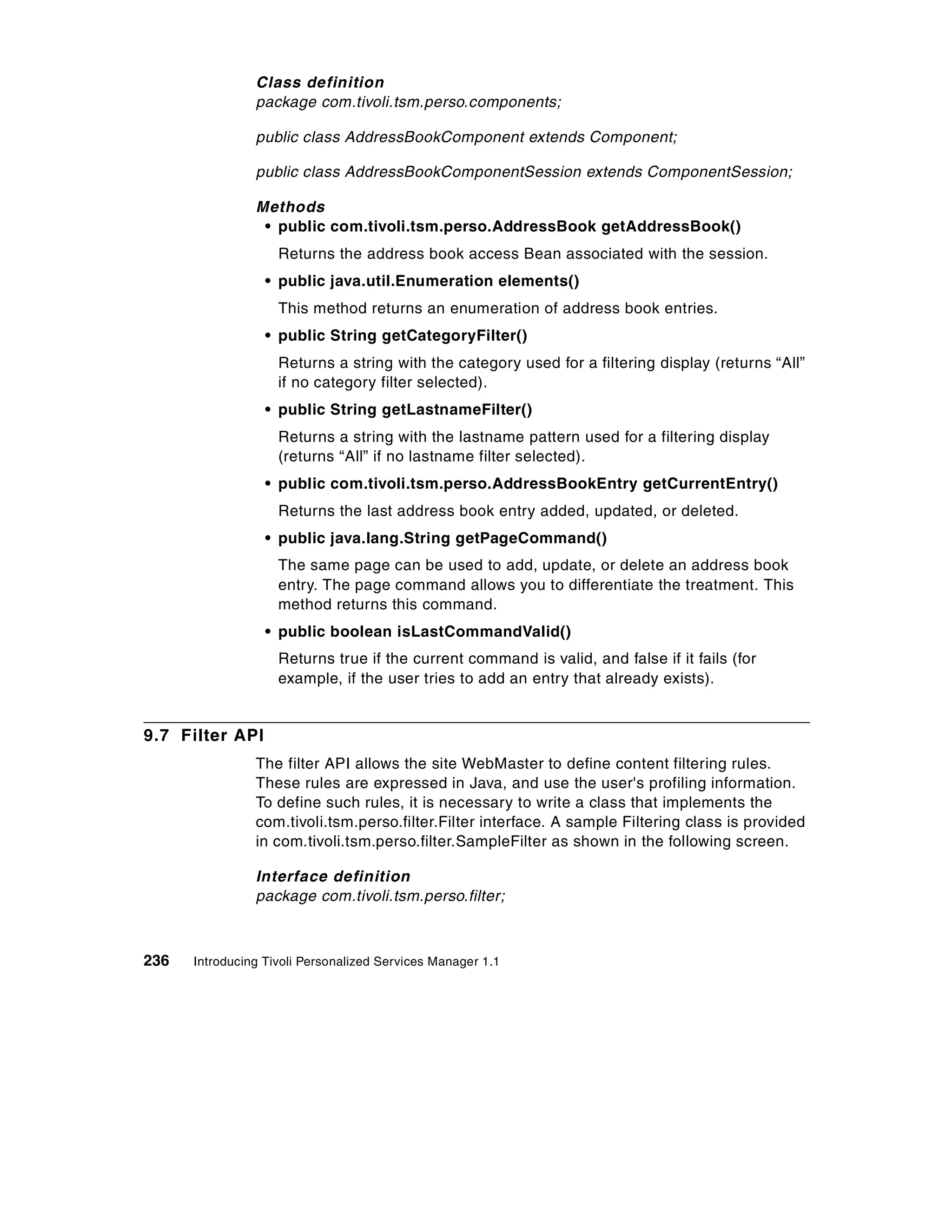

9.7 Filter API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

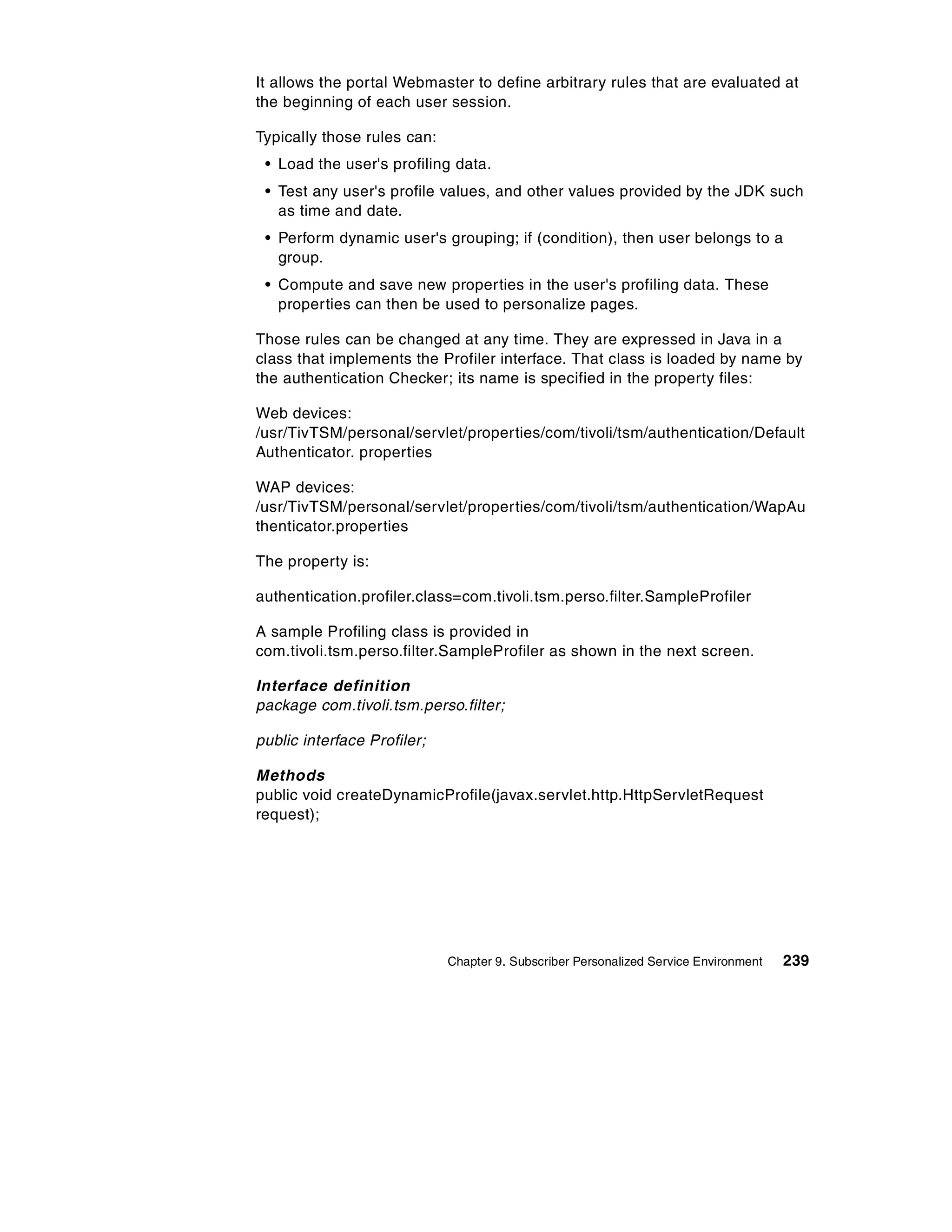

9.8 Profiler API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
9.9 Example of personalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
9.9.1 Internet world . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
9.9.2 Wireless World . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Chapter 10. Virtual ISP . . . . . . . . . . . . . . . .. . . . . .. . . . .. . . . . .. . . . 263
10.1 Overview . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . .. . . . . .. . . . 263
10.2 REALMs . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . .. . . . . .. . . . 264
10.2.1 User groups Within Realms . . . . .. . . . . .. . . . .. . . . . .. . . . 265
10.3 Enrollment and service provisioning . . .. . . . . .. . . . .. . . . . .. . . . 265
10.4 Configuring a Virtual ISP . . . . . . . . . . .. . . . . .. . . . .. . . . . .. . . . 266
10.5 Enrolling into the Virtual ISP . . . . . . . . .. . . . . .. . . . .. . . . . .. . . . 267

Chapter 11. Integration Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
11.1 Architectural overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

vi Introducing Tivoli Personalized Services Manager 1.1

11.2 iTk usage scenarios . . . . . . . . . .. . . . .. . . . . .. . . . .. . . . . .. . . . 271
11.3 iTk classes . . . . . . . . . . . . . . . . .. . . . .. . . . . .. . . . .. . . . . .. . . . 272
11.3.1 Core classes. . . . . . . . . . . .. . . . .. . . . . .. . . . .. . . . . .. . . . 272
11.3.2 iTk Business Objects . . . . .. . . . .. . . . . .. . . . .. . . . . .. . . . 275

Chapter 12. Device Manager . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 277
12.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 277
12.2 Device Manager on TPSM . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 278
12.3 Device Manager Components . . . . . . . . . . . . . . . . . .. . . . . .. . . . 278
12.3.1 Device Manager server. . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 279
12.3.2 Device plug-ins . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 280
12.3.3 Device management server API . . . . . . . . . . . . .. . . . . .. . . . 281
12.3.4 Device Manager database . . . . . . . . . . . . . . . . .. . . . . .. . . . 281
12.3.5 Device management API . . . . . . . . . . . . . . . . . .. . . . . .. . . . 282
12.3.6 Device Manager console . . . . . . . . . . . . . . . . . .. . . . . .. . . . 283
12.4 Device Manager functions . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 284
12.5 Supported devices . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 285
12.5.1 Palm Computing PDAs . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 286
12.5.2 Compaq Aero 8000 H/PC Pro devices . . . . . . . .. . . . . .. . . . 286
12.5.3 NetVista Internet Appliance devices . . . . . . . . . .. . . . . .. . . . 287
12.5.4 Generic Windows CE devices . . . . . . . . . . . . . . .. . . . . .. . . . 288
12.6 Features of Device Manager . . . . . . . . . . . . . . . . . . .. . . . . .. . . . 289
12.6.1 Extensibility for managing various devices . . . . .. . . . . .. . . . 289
12.6.2 Centralized management . . . . . . . . . . . . . . . . . .. . . . . .. . . . 290
12.6.3 Provisioning to other system . . . . . . . . . . . . . . . .. . . . . .. . . . 290
12.6.4 Scalability and availability . . . . . . . . . . . . . . . . . .. . . . . .. . . . 290

Appendix A. Special notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Appendix B. Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
B.1 IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
B.2 IBM Redbooks collections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
B.3 Other resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

How to get IBM Redbooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
IBM Redbooks fax order form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

IBM Redbooks review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

vii

viii Introducing Tivoli Personalized Services Manager 1.1

Figures

1. Tivoli Internet Services Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Device Manager Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Enrollment and service provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Subscriber authentication and access control . . . . . . . . . . . . . . . . . . . . . . 13
5. Customer care support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6. Subscriber personalization and self care . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. Operation support for growing provider business . . . . . . . . . . . . . . . . . . . 17
8. Supporting emerging Internet business models. . . . . . . . . . . . . . . . . . . . . 18
9. Netscape Server Administration console . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10. Form for Authentication Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11. Form for Customer Care Serer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12. Form for Selfcare Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
13. Form for System Management Tools Server . . . . . . . . . . . . . . . . . . . . . . . 45
14. Form for Personalization Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
15. Form for Premium Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
16. Form for Enrollment Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
17. Form of CGI for Enrollment Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
18. Form for SDP Servlet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
19. Form for the Web Hosting Content Server. . . . . . . . . . . . . . . . . . . . . . . . . 51

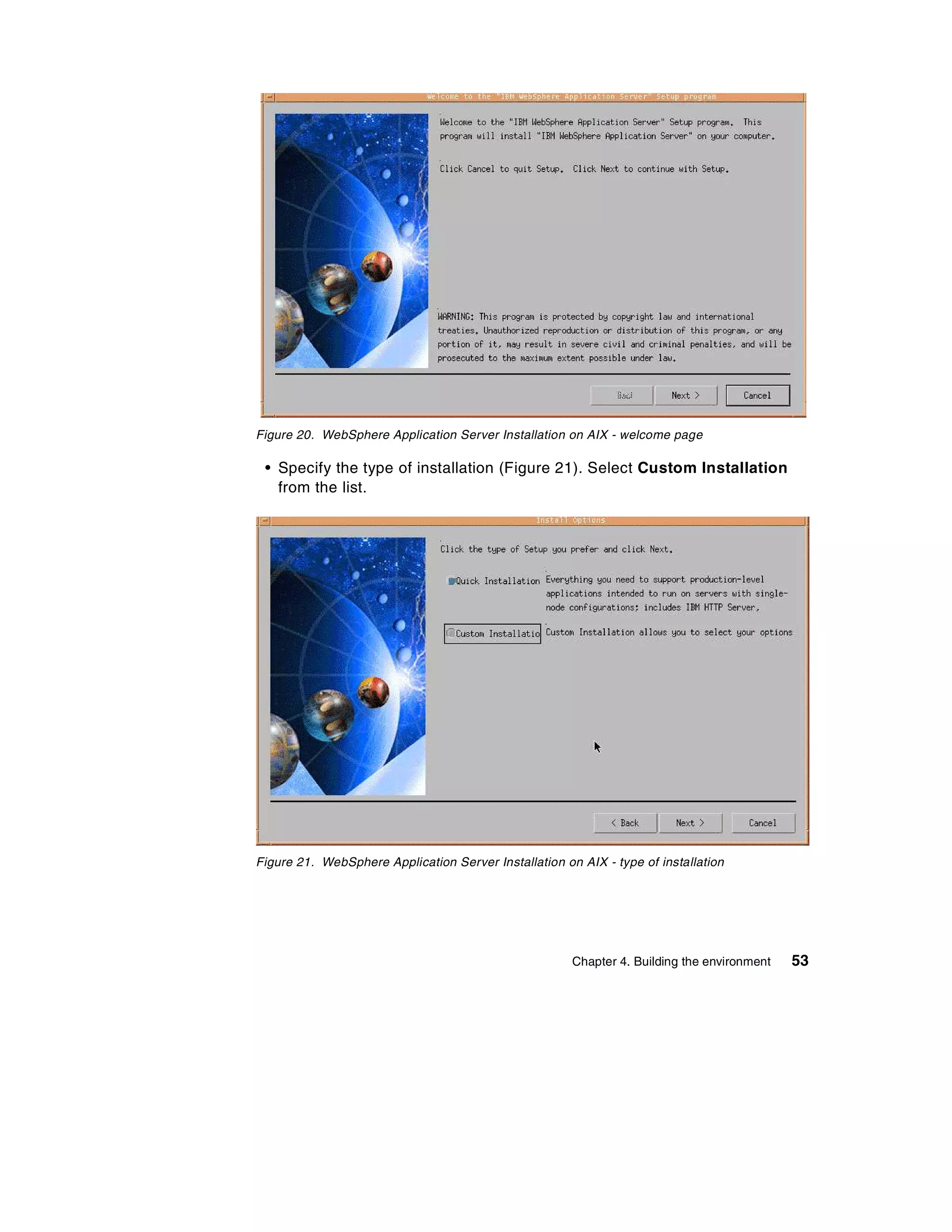

20. WebSphere Application Server Installation on AIX - welcome page . . . . . 53
21. WebSphere Application Server Installation on AIX - type of installation . . 53

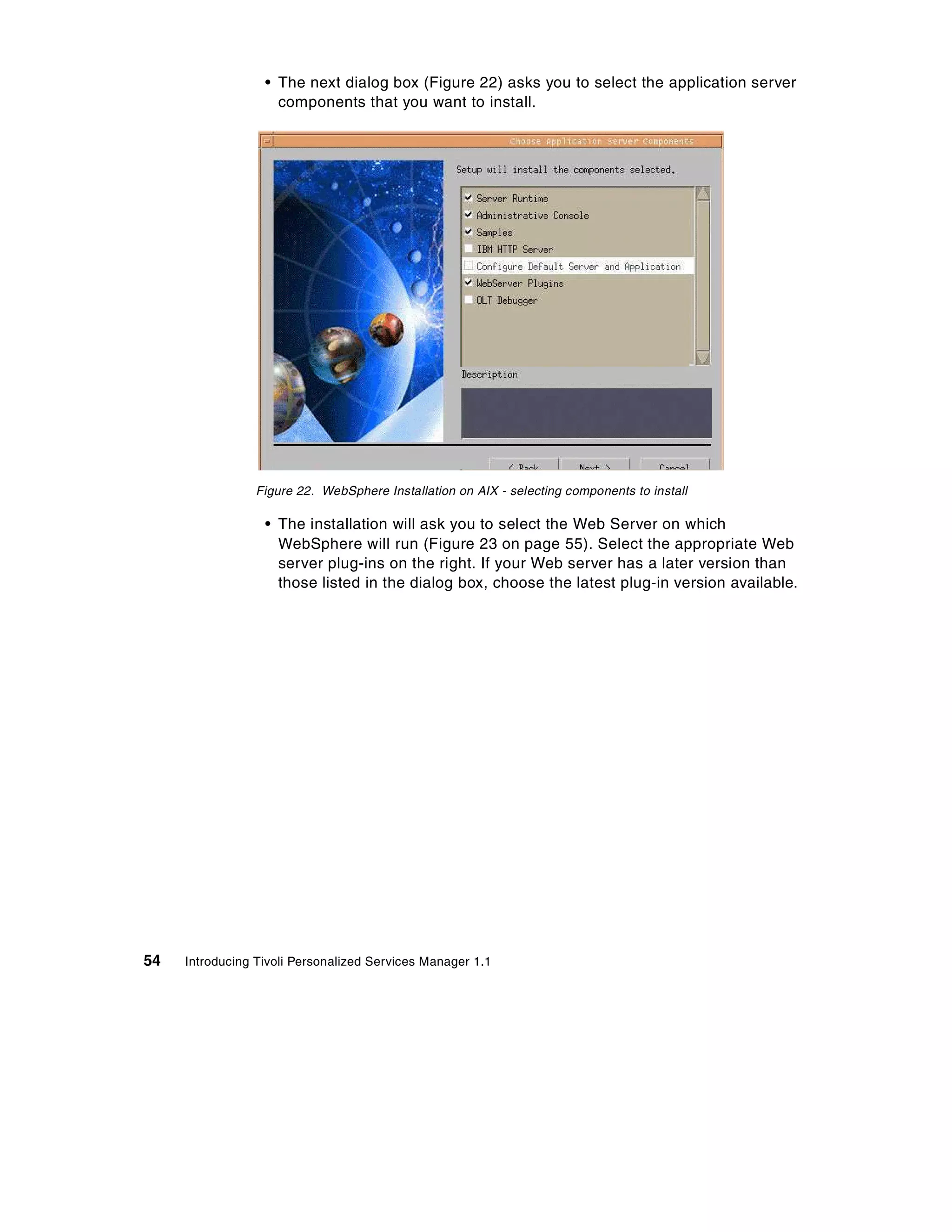

22. WebSphere Installation on AIX - selecting components to install . . . . . . . 54

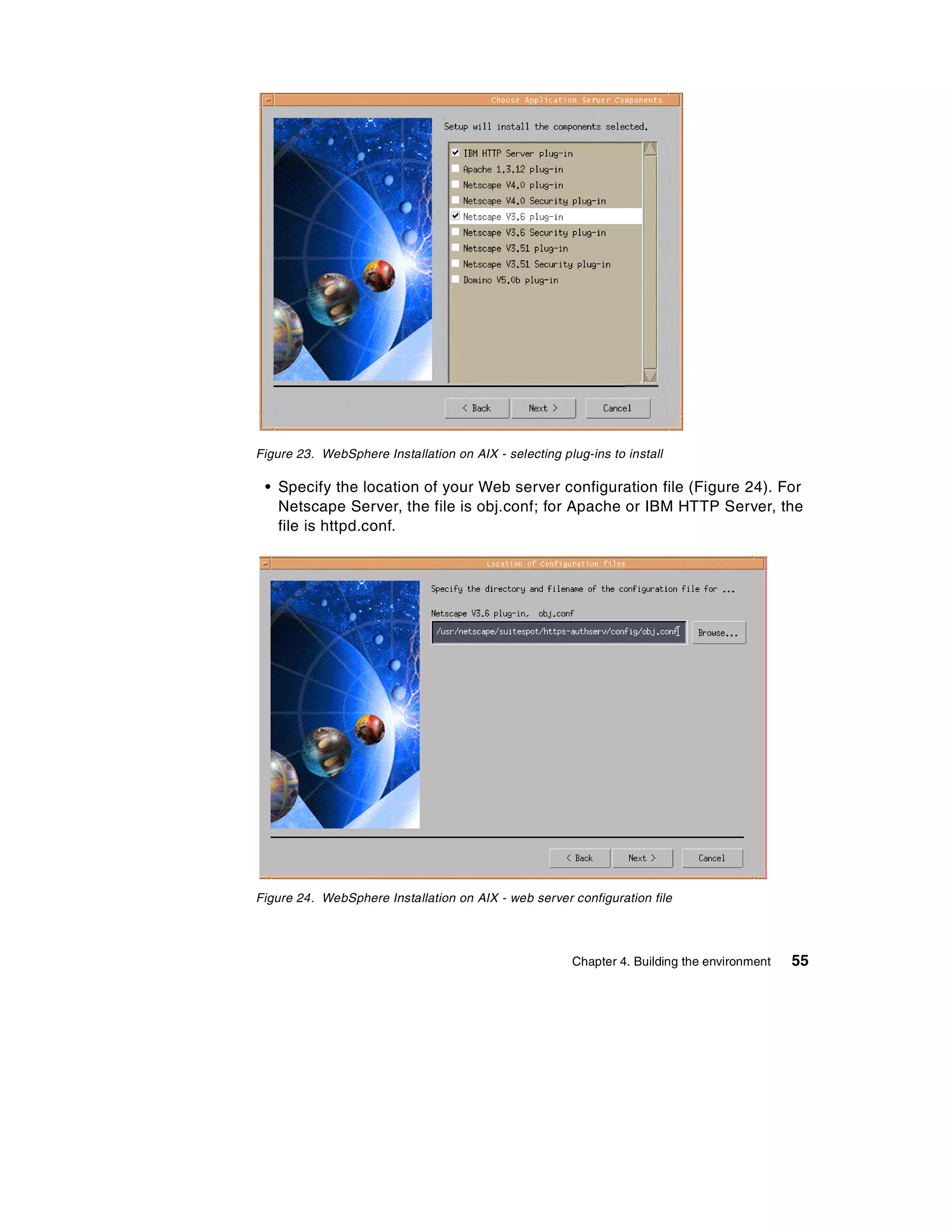

23. WebSphere Installation on AIX - selecting plug-ins to install. . . . . . . . . . . 55
24. WebSphere Installation on AIX - web server configuration file . . . . . . . . . 55
25. WebSphere Installation on AIX - indicating database repository . . . . . . . . 56
26. WebSphere Installation on AIX - security information . . . . . . . . . . . . . . . . 56
27. WebSphere Installation on AIX - specifying WebSphere home directory . 57
28. TISM/TPSM installationwelcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

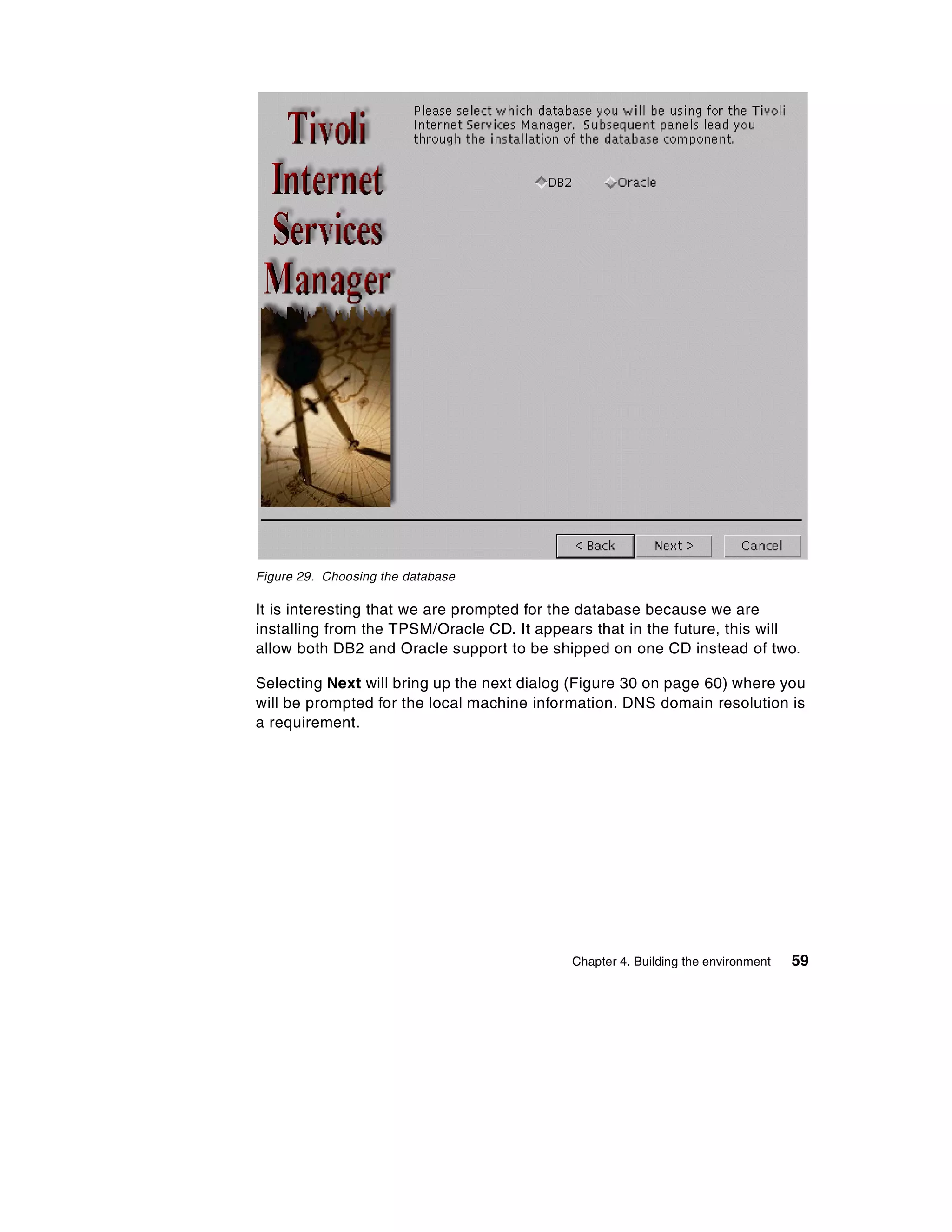

29. Choosing the database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
30. Local Information for the install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

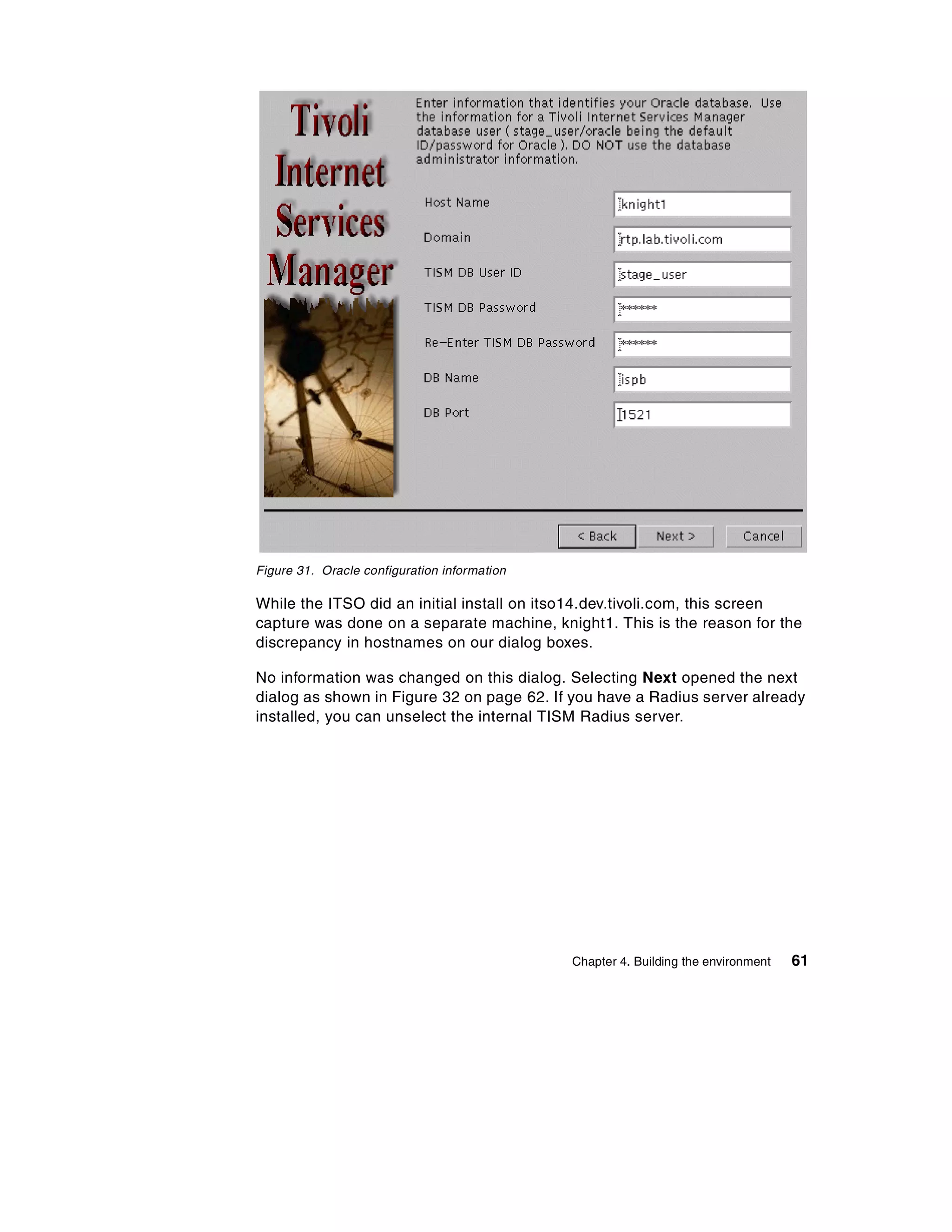

31. Oracle configuration information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

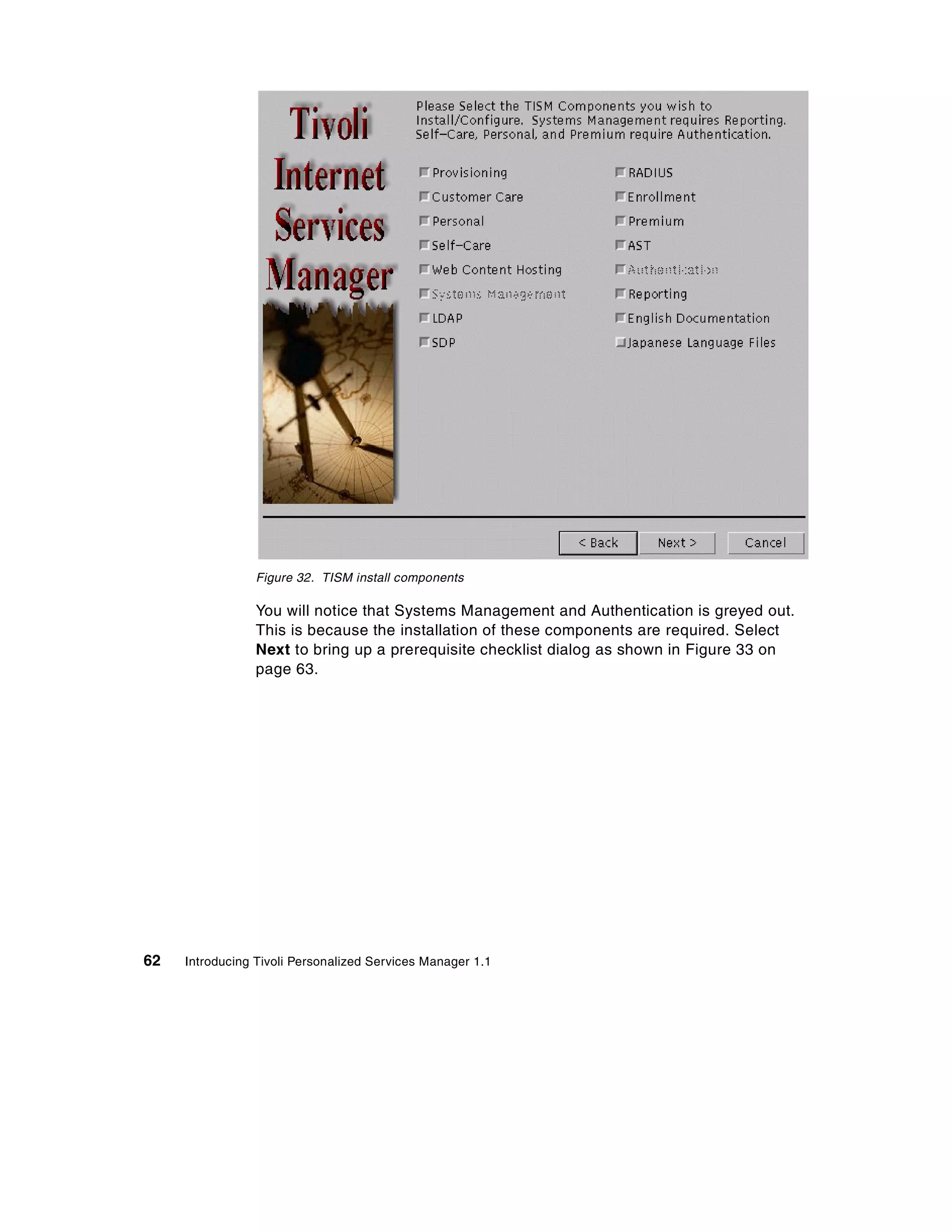

32. TISM install components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
33. TISM prerequisite checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

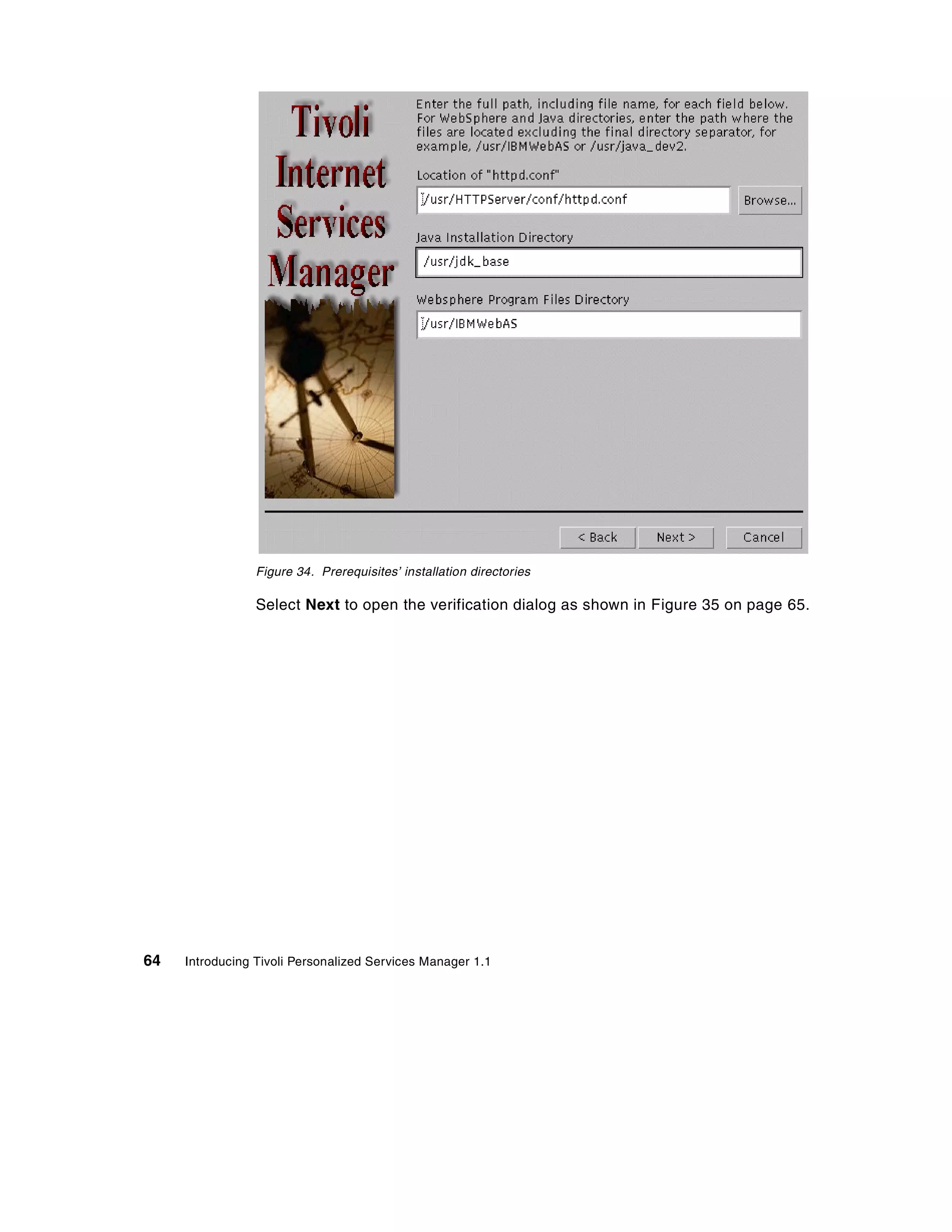

34. Prerequisites’ installation directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
35. Installation verification dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
36. Installation is finished . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
37. WebSphere administration console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
38. Starting up an Application Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
39. Administration Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
40. The TISM Administration Console dialog box . . . . . . . . . . . . . . . . . . . . . . 74

© Copyright IBM Corp. 2001 ix

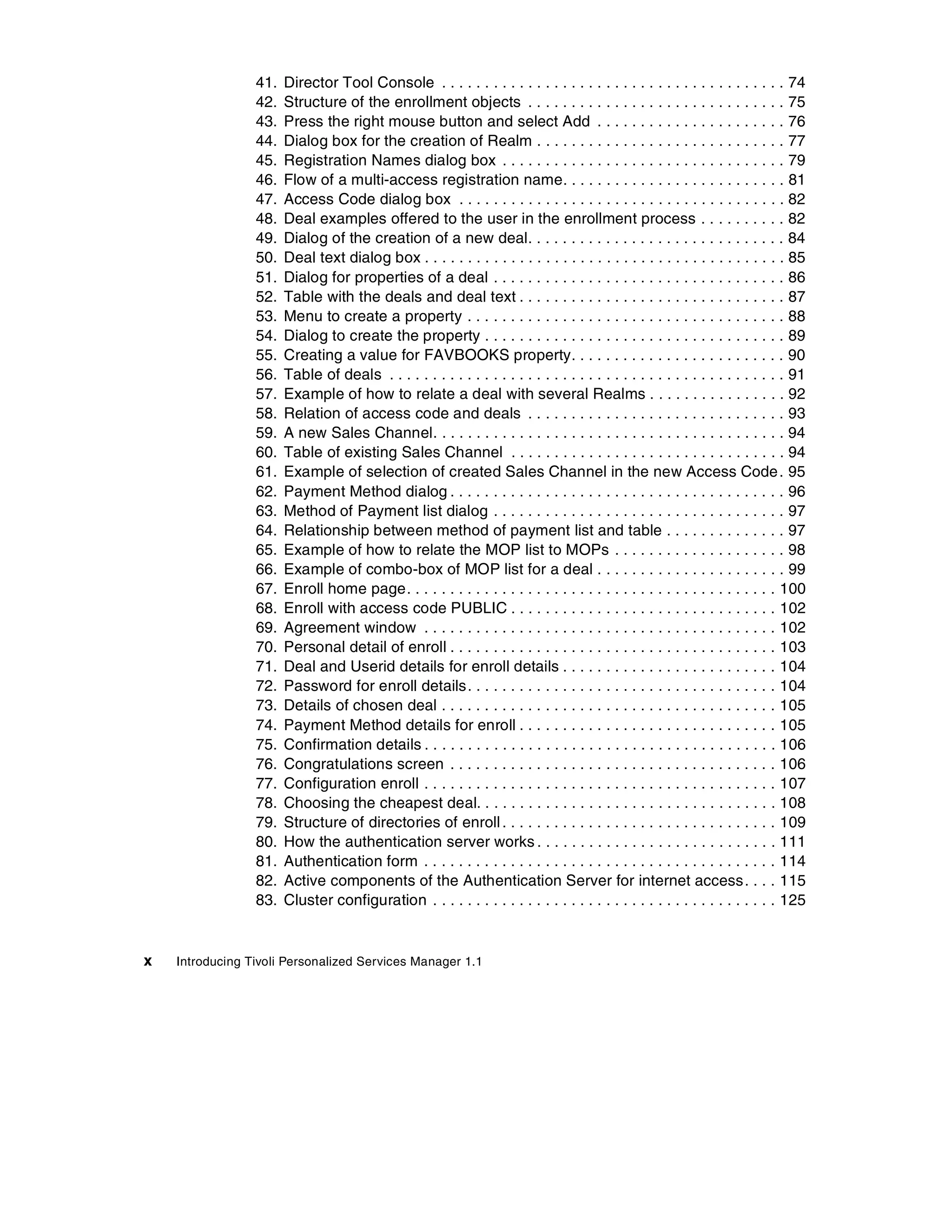

41. Director Tool Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
42. Structure of the enrollment objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
43. Press the right mouse button and select Add . . . . . . . . . . . . . . . . . . . . . . 76
44. Dialog box for the creation of Realm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
45. Registration Names dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
46. Flow of a multi-access registration name. . . . . . . . . . . . . . . . . . . . . . . . . . 81
47. Access Code dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
48. Deal examples offered to the user in the enrollment process . . . . . . . . . . 82
49. Dialog of the creation of a new deal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
50. Deal text dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
51. Dialog for properties of a deal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
52. Table with the deals and deal text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
53. Menu to create a property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
54. Dialog to create the property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
55. Creating a value for FAVBOOKS property. . . . . . . . . . . . . . . . . . . . . . . . . 90
56. Table of deals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
57. Example of how to relate a deal with several Realms . . . . . . . . . . . . . . . . 92
58. Relation of access code and deals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
59. A new Sales Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
60. Table of existing Sales Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
61. Example of selection of created Sales Channel in the new Access Code . 95
62. Payment Method dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
63. Method of Payment list dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
64. Relationship between method of payment list and table . . . . . . . . . . . . . . 97
65. Example of how to relate the MOP list to MOPs . . . . . . . . . . . . . . . . . . . . 98
66. Example of combo-box of MOP list for a deal . . . . . . . . . . . . . . . . . . . . . . 99
67. Enroll home page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

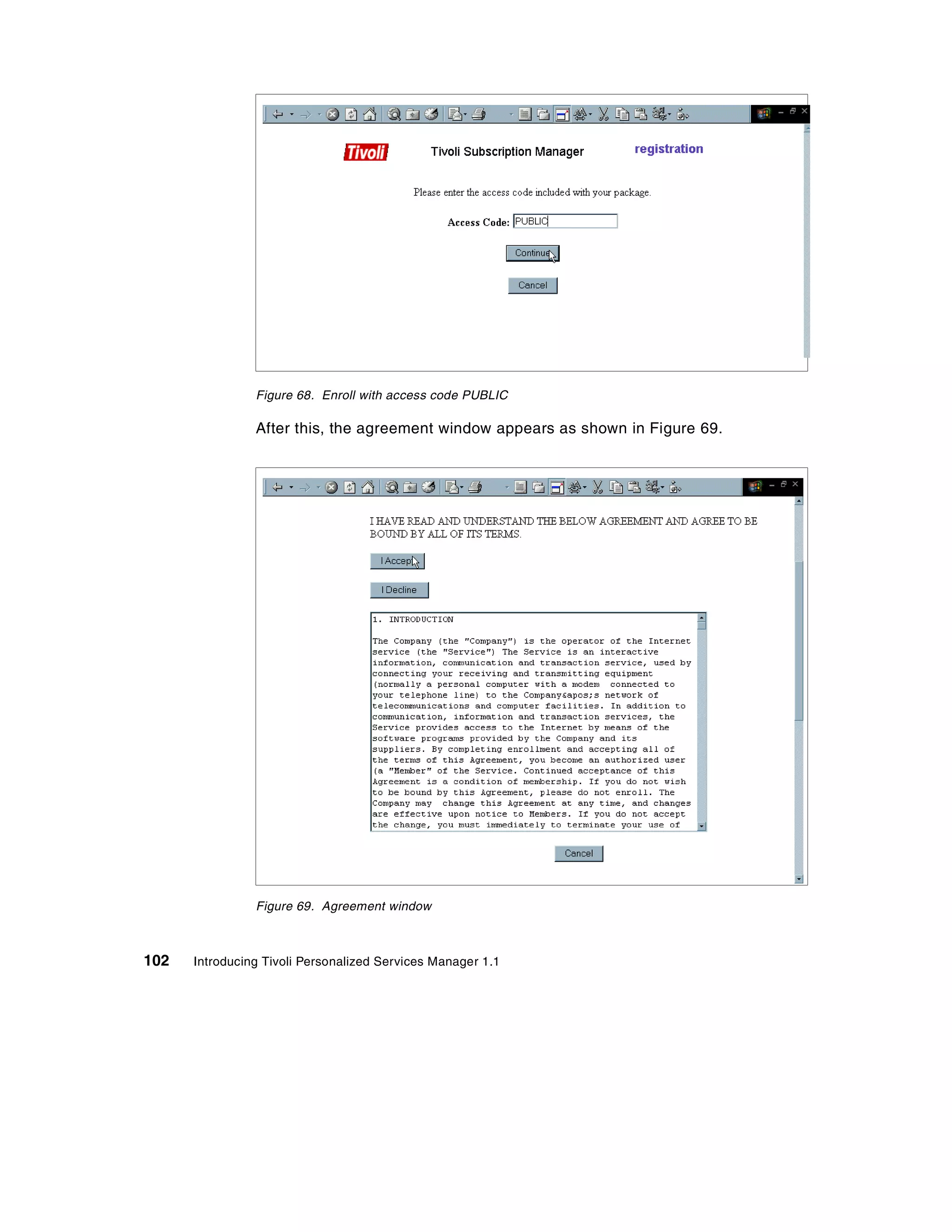

68. Enroll with access code PUBLIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
69. Agreement window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
70. Personal detail of enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
71. Deal and Userid details for enroll details . . . . . . . . . . . . . . . . . . . . . . . . . 104
72. Password for enroll details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

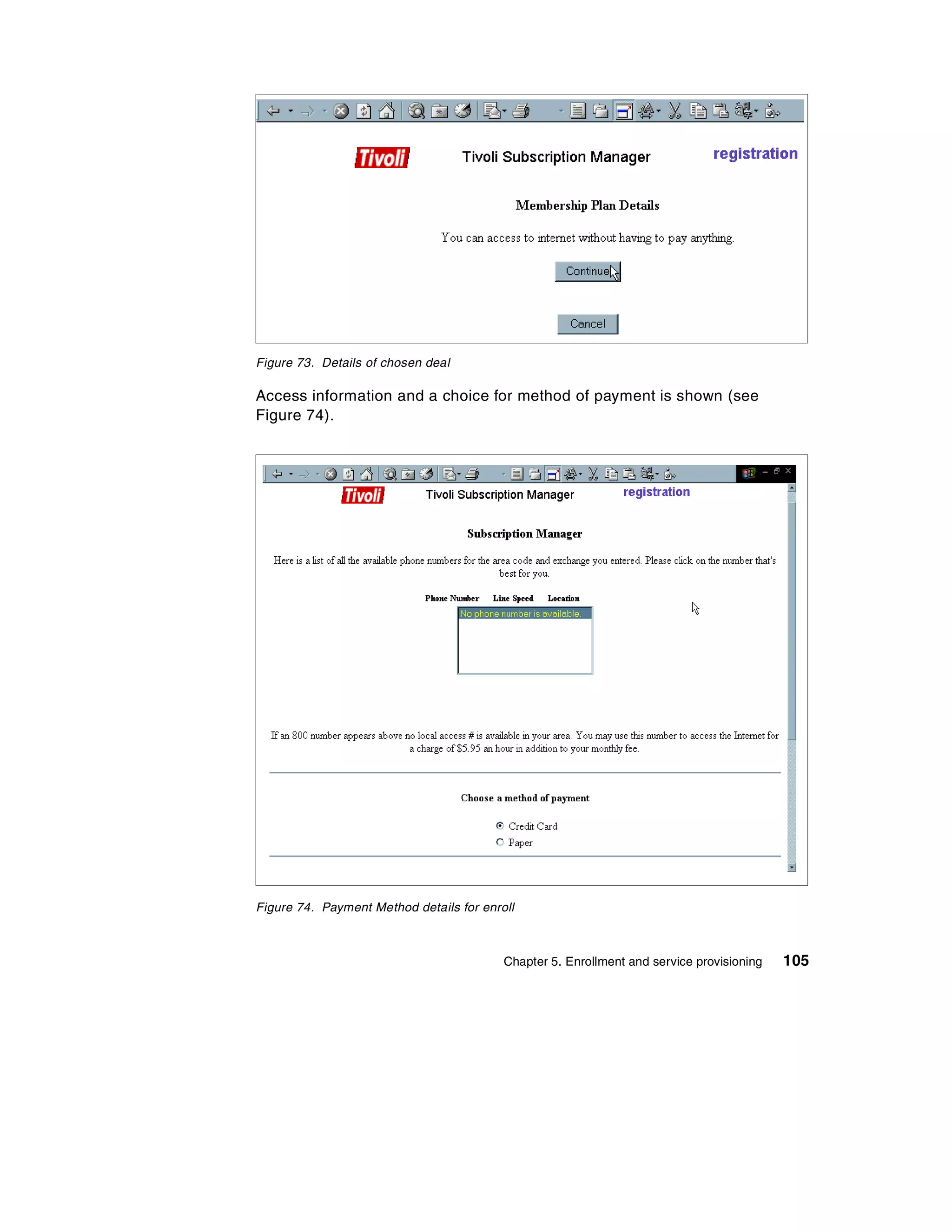

73. Details of chosen deal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
74. Payment Method details for enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
75. Confirmation details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
76. Congratulations screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

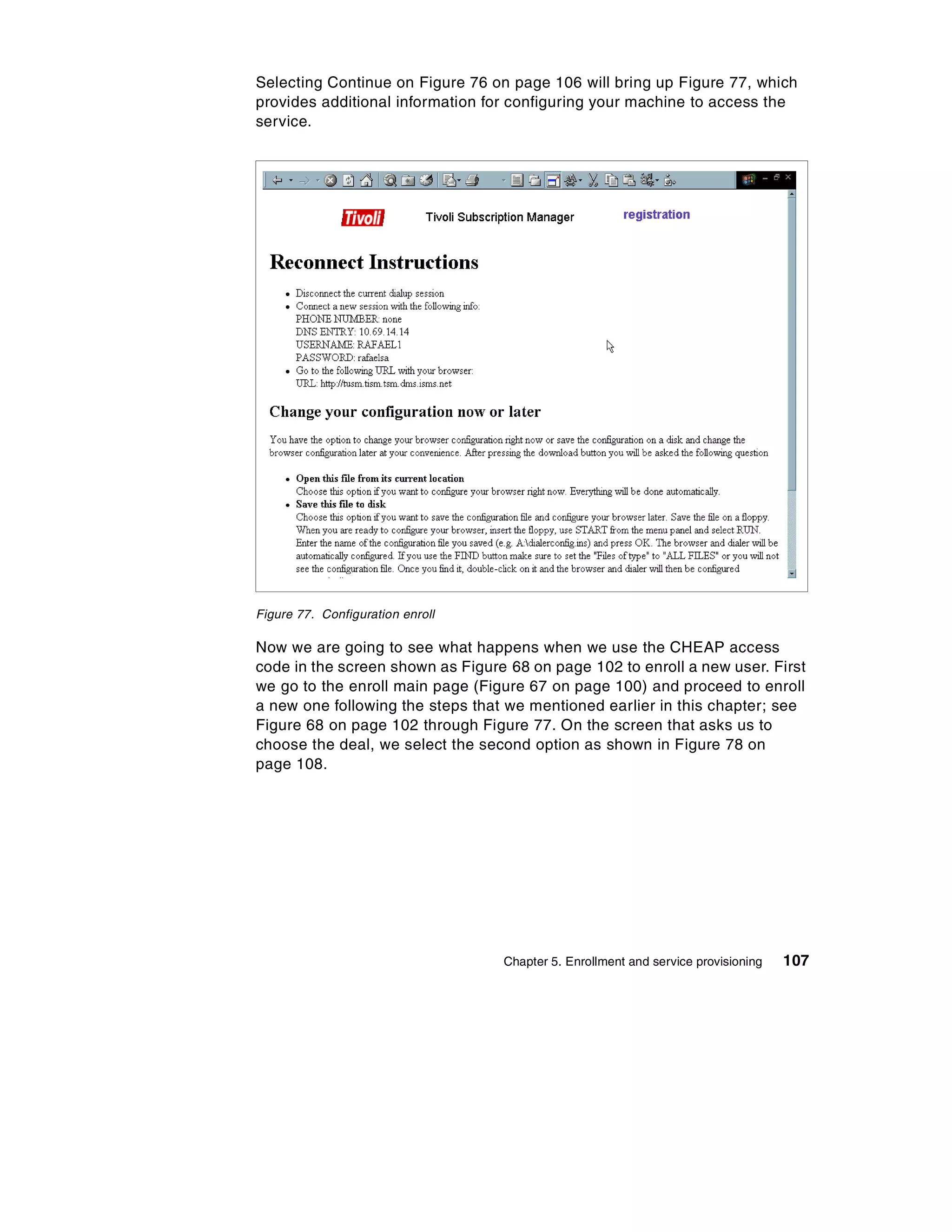

77. Configuration enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
78. Choosing the cheapest deal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

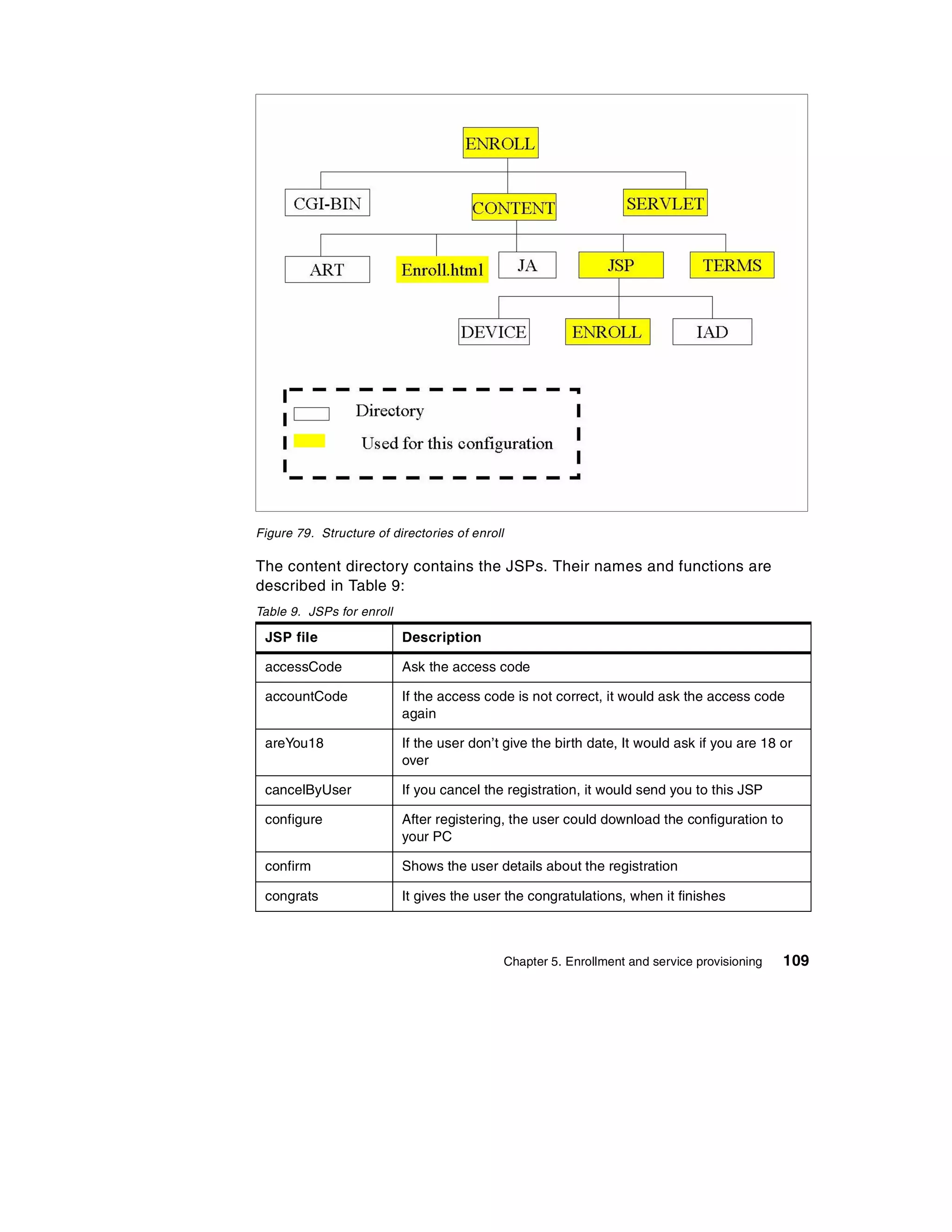

79. Structure of directories of enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
80. How the authentication server works . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

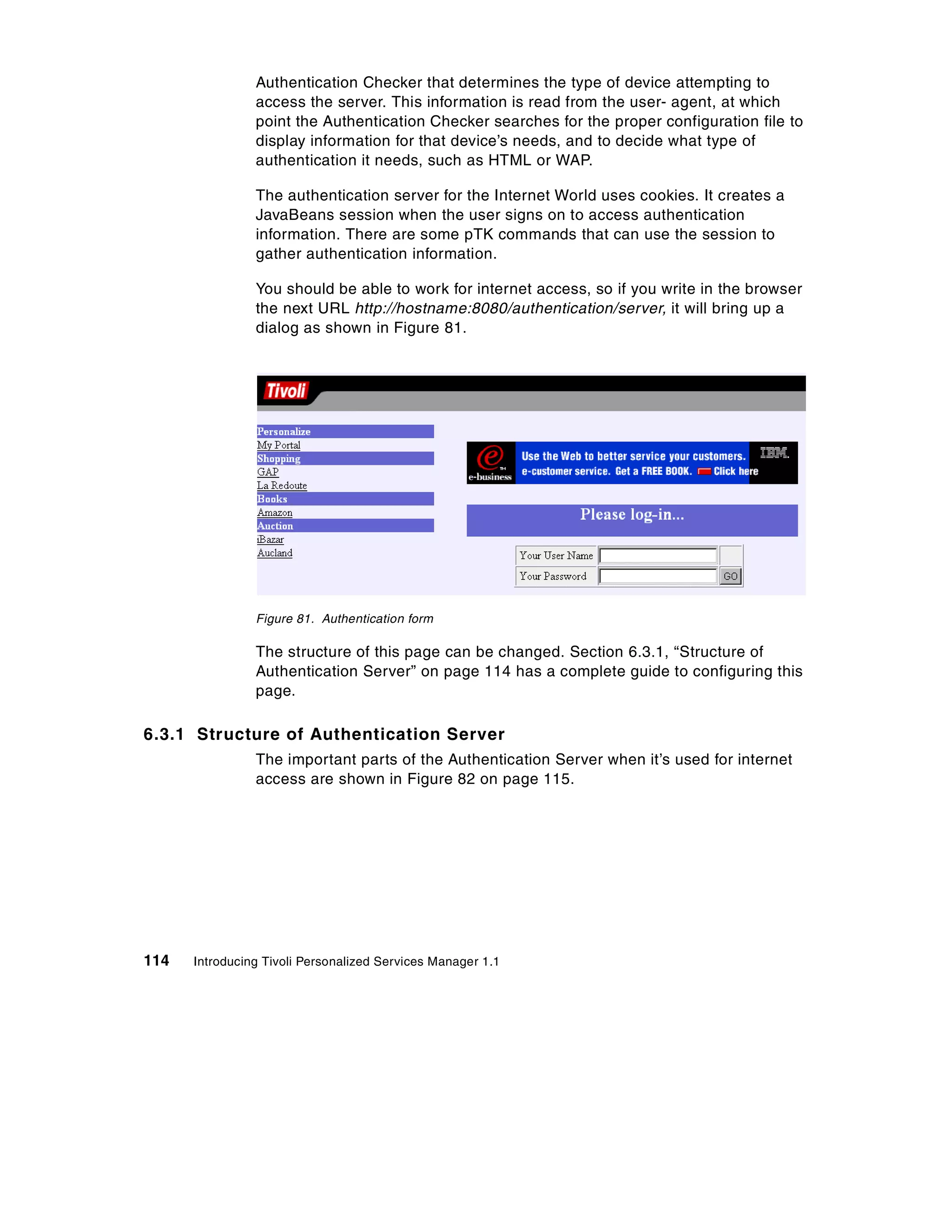

81. Authentication form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
82. Active components of the Authentication Server for internet access. . . . 115
83. Cluster configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

x Introducing Tivoli Personalized Services Manager 1.1

84. Premium configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
85. Hierarchal device type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
86. WAP architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
87. Active components of the Authentication Server (mobile internet) . . . . . 136
88. Example of navigation for business case 1 . . . . . . . . . . . . . . . . . . . . . . . 144
89. The TISM Administration Console dialog box . . . . . . . . . . . . . . . . . . . . . 150
90. TISM Administration Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

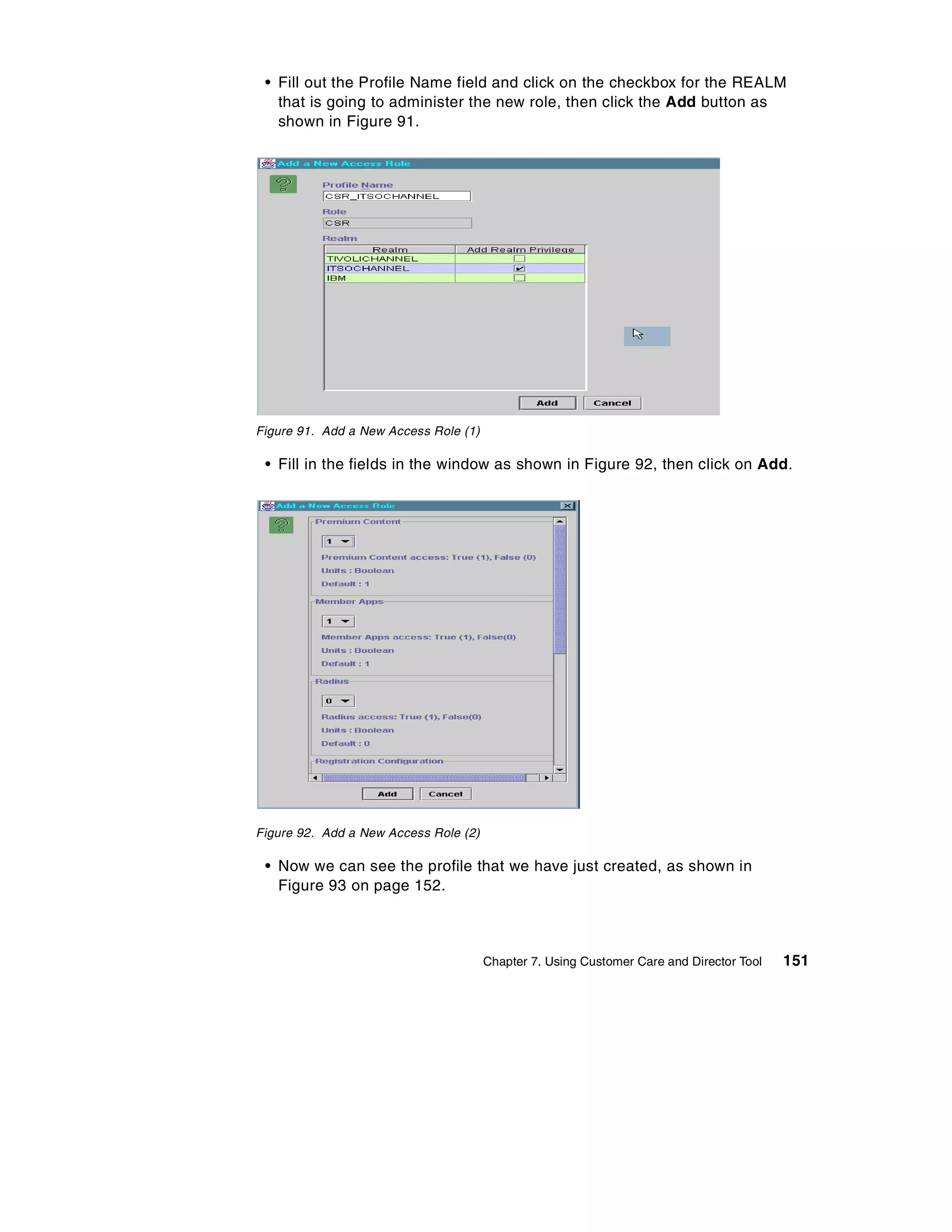

91. Add a New Access Role (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
92. Add a New Access Role (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

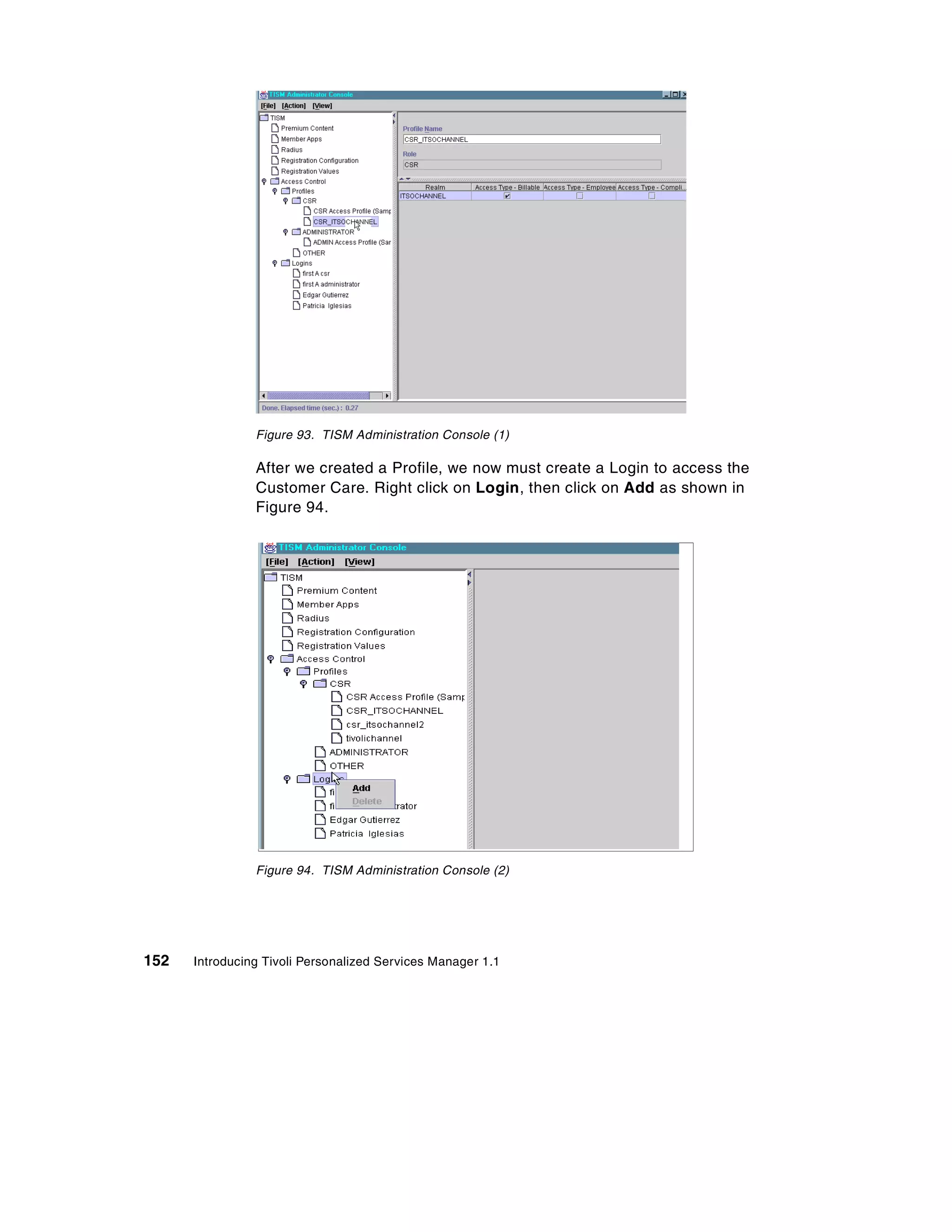

93. TISM Administration Console (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

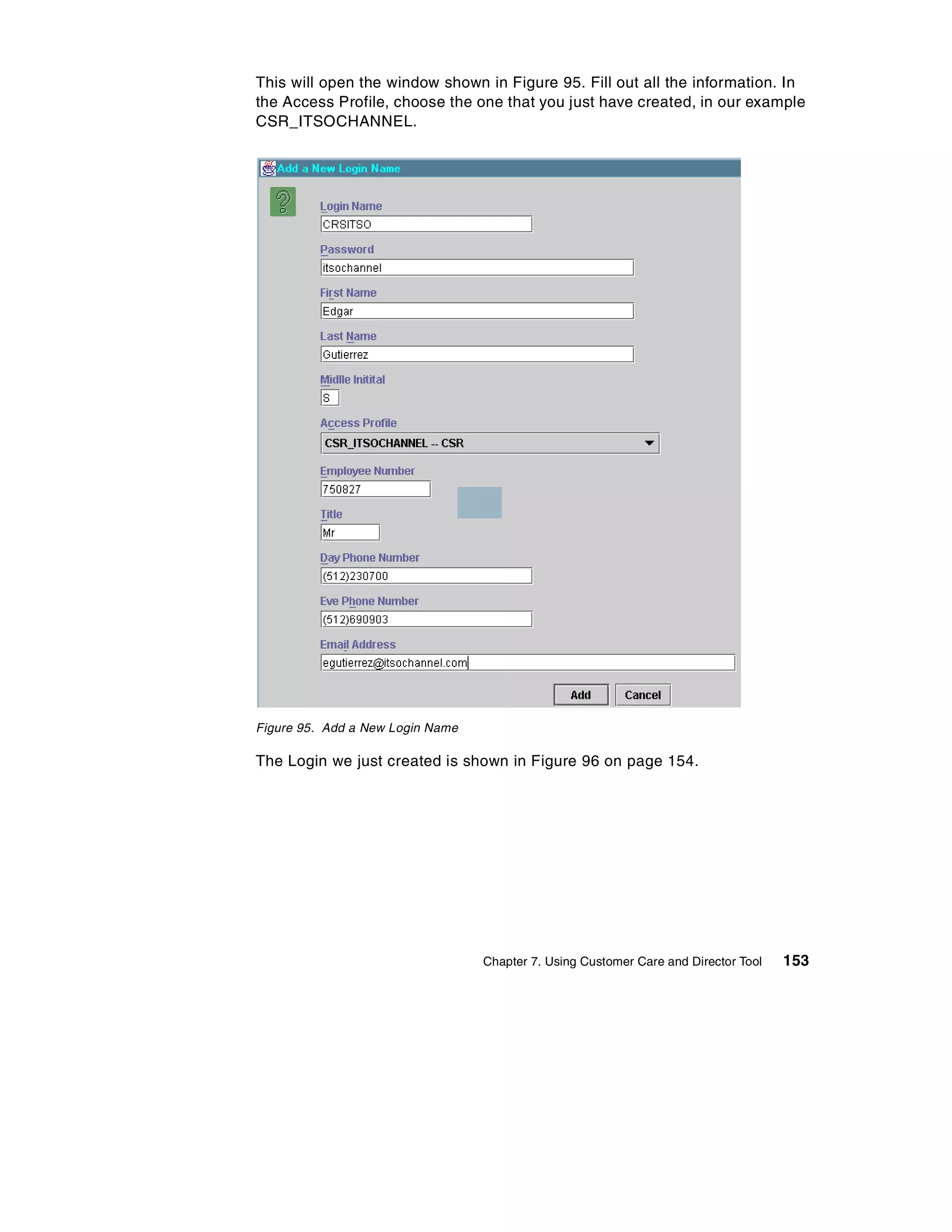

95. Add a New Login Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
97. Customer care logging page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
98. TISM customer care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
99. Search results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
100.Subscriber update panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
101.Changing method of payment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
102.Disconnecting a user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
103.User disconnected. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
104.Enrolling a customer child subscriber . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
105.TISM Reporting Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
106.Selfcare initial page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
107.Logging into Selfcare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
108.Changing a subscriber’s password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
109.Change Password confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
110.Password successfully changed message . . . . . . . . . . . . . . . . . . . . . . . 174
111.Change Personal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
112.Changing Personal Information confirmation . . . . . . . . . . . . . . . . . . . . . 176
113.Changing Payment Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
114.Changing method of payment confirmation. . . . . . . . . . . . . . . . . . . . . . . 178
115.Adding a new member (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
116.Adding a new member (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
117.Portal software architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
118.JSP Portlet Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
119.Pattern model-view-controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
120.More detail about the architecture of JSP Portlets . . . . . . . . . . . . . . . . . 204
121.Example of welcome.jsp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
122./perso/home without an authentication . . . . . . . . . . . . . . . . . . . . . . . . . . 205
123./perso/home with authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
124./perso/home for WAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
125.Sending a command and parameters to a portlet in the HTTP request . 208
126.Use of LayoutSelectorComponent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

xi

127.Example for HTML browsers of ComponentSelectorComponent . . . . . . 214
128.Example for WAP browsers of ComponentSelectorComponent . . . . . . . 214
129.Example of redirection to authentication server . . . . . . . . . . . . . . . . . . . 241
130.Customizor component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
131.Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
132.Abstracts news . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
133.Content news . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
134.The selection of themes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
135.An applied theme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
136.Example of link selector step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
139.Example of Calendar component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
140.Example of Agenda component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

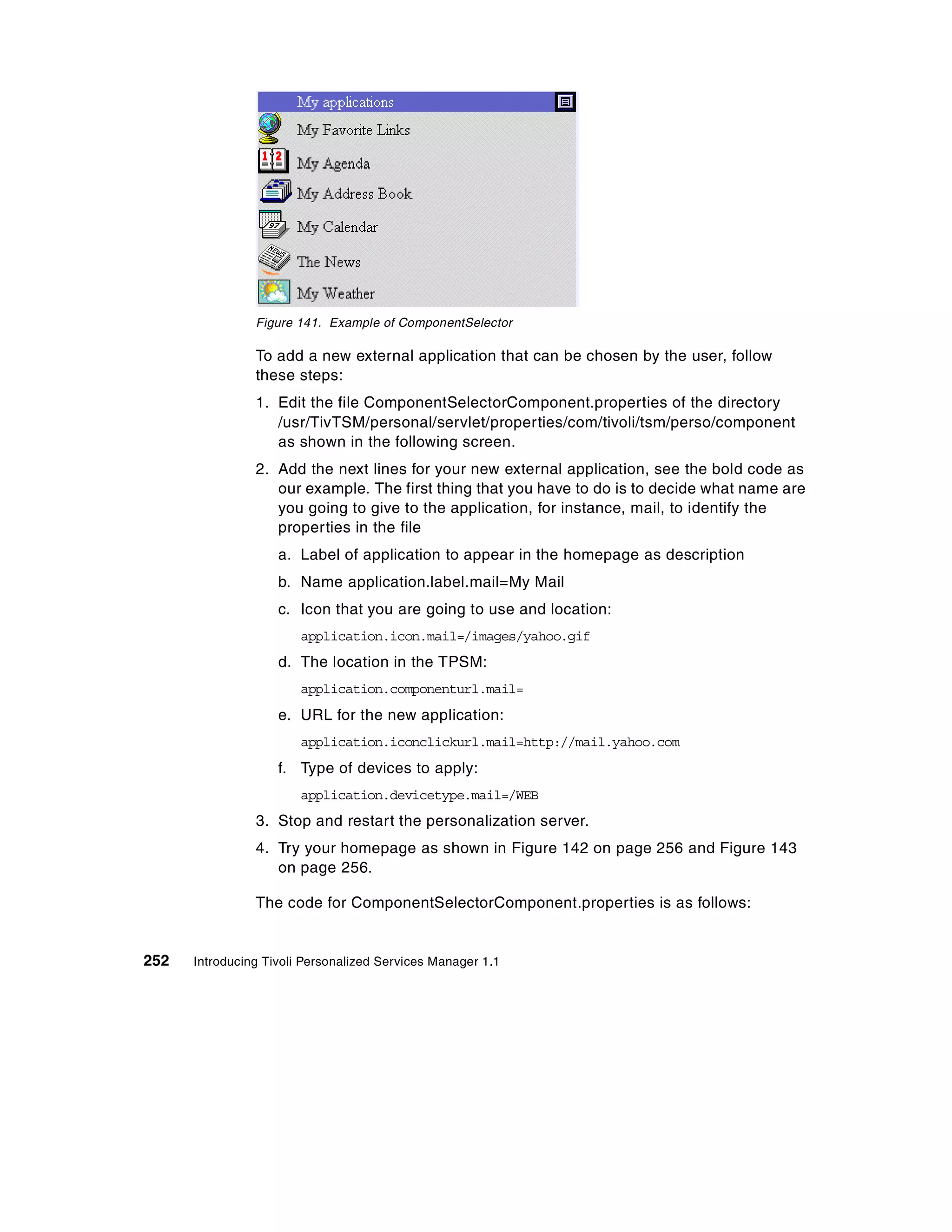

141.Example of ComponentSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

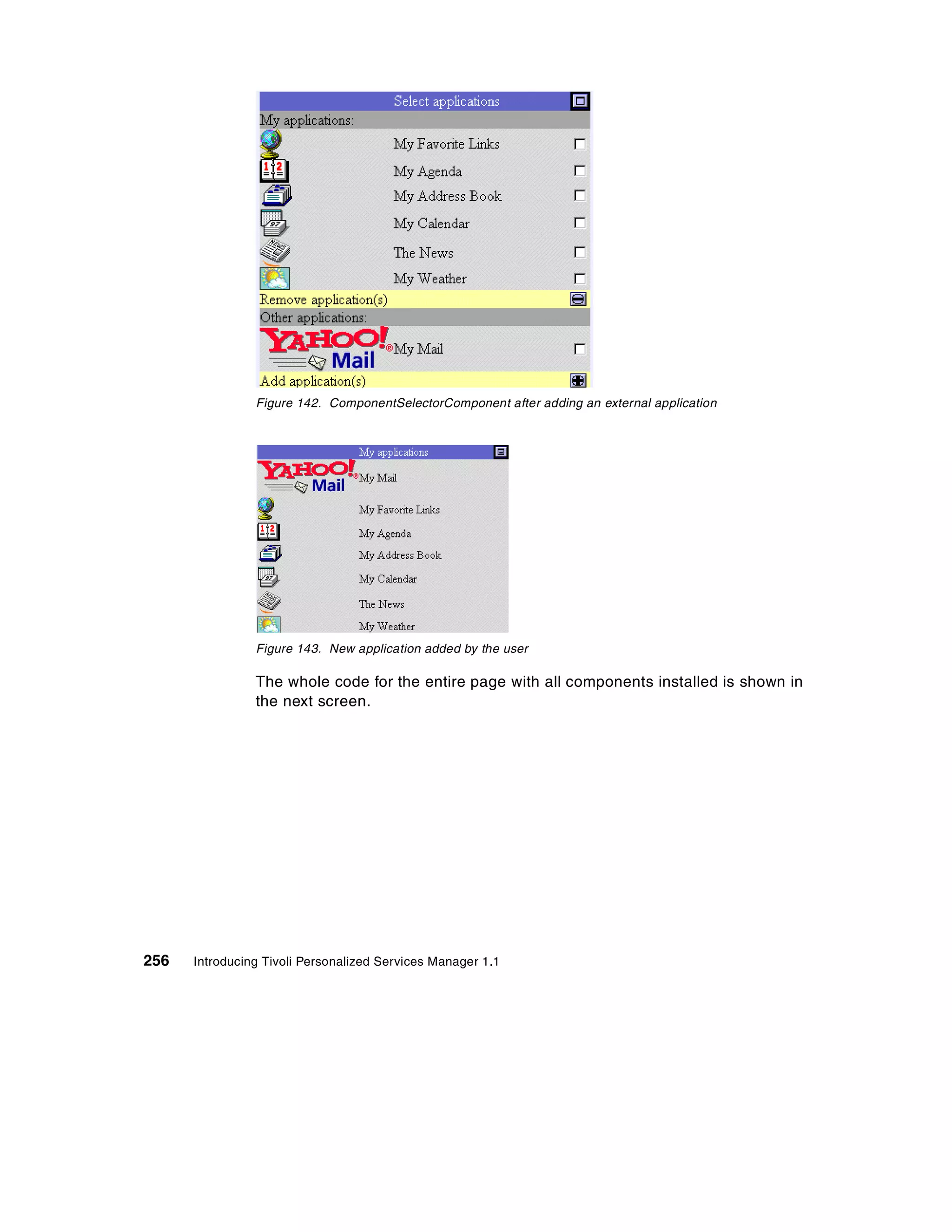

142.ComponentSelectorComponent after adding an external application . . . 256
143.New application added by the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
144.Internet business model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
145.Enrollment and Service Provisioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

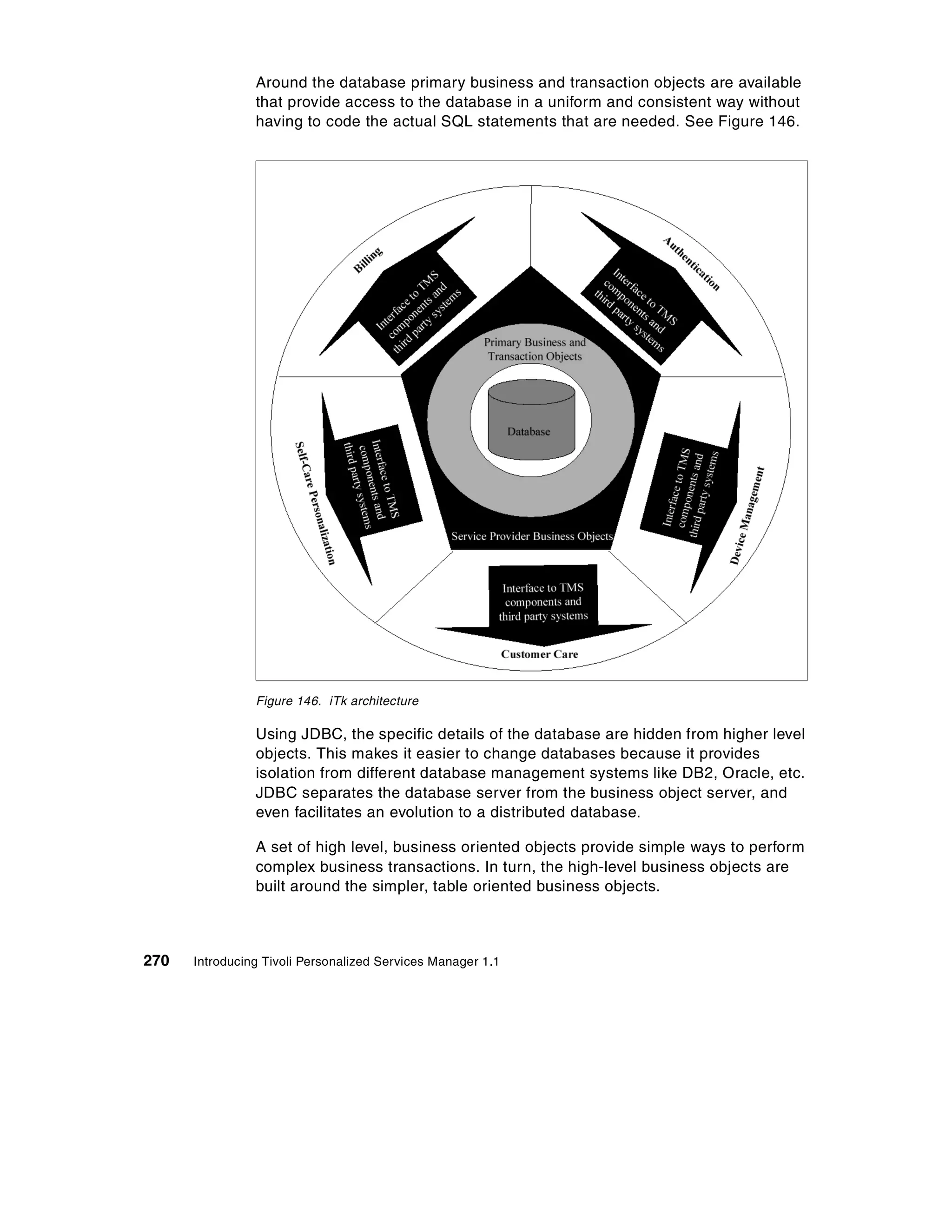

146.iTk architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
147.iTk usage scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

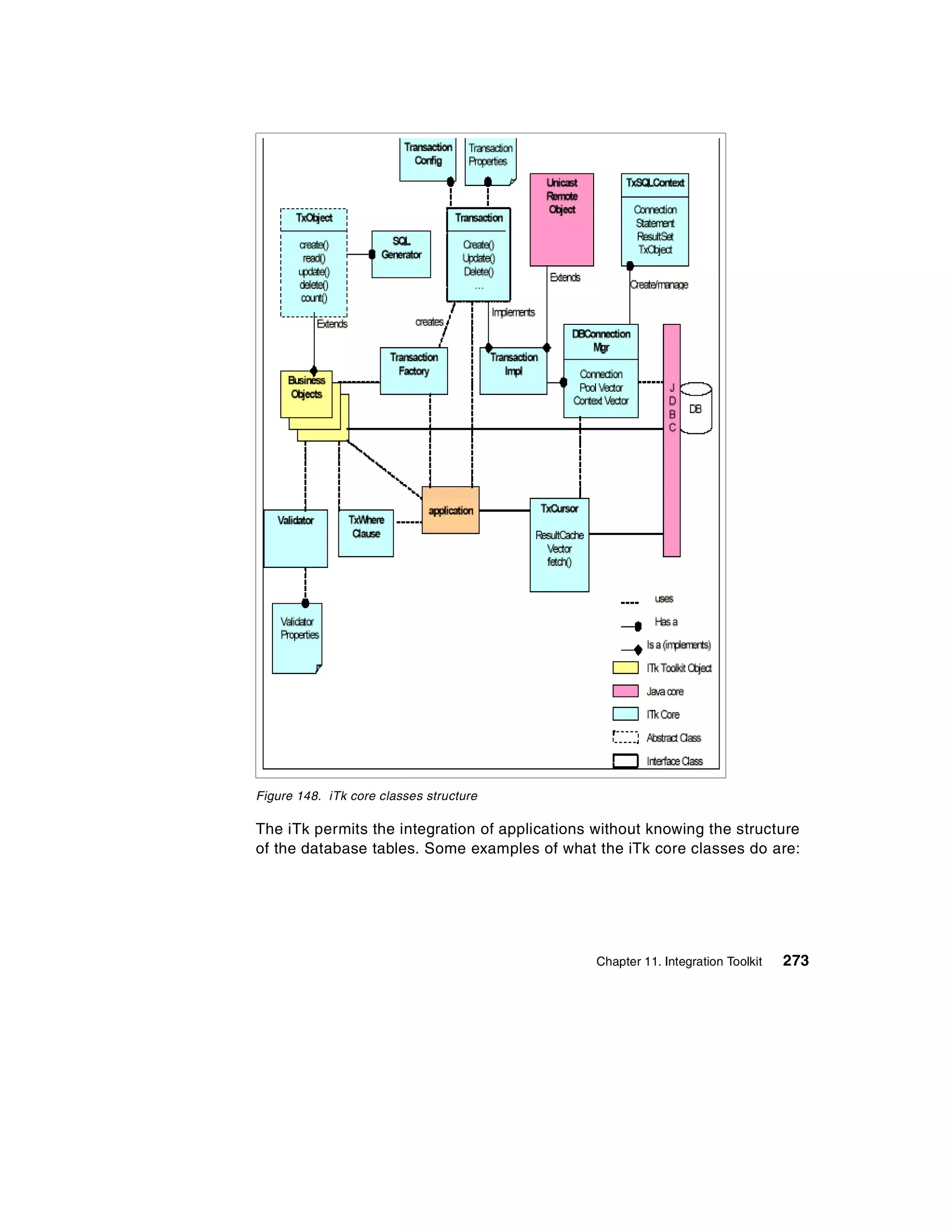

148.iTk core classes structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
149.Device Manager on TPSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

xii Introducing Tivoli Personalized Services Manager 1.1

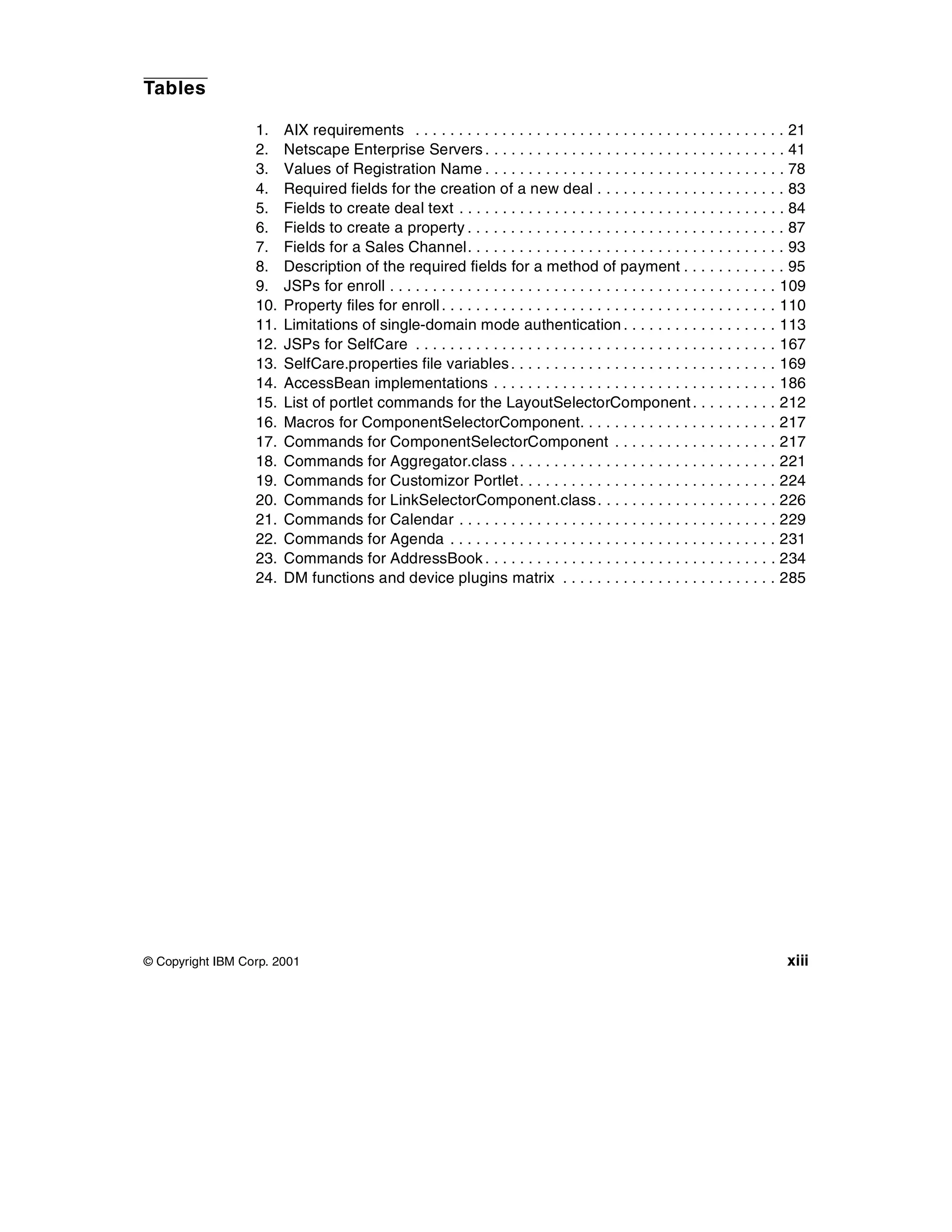

Tables

1. AIX requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2. Netscape Enterprise Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3. Values of Registration Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4. Required fields for the creation of a new deal . . . . . . . . . . . . . . . . . . . . . . 83
5. Fields to create deal text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
6. Fields to create a property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
7. Fields for a Sales Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
8. Description of the required fields for a method of payment . . . . . . . . . . . . 95
9. JSPs for enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
10. Property files for enroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
11. Limitations of single-domain mode authentication . . . . . . . . . . . . . . . . . . 113
12. JSPs for SelfCare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
13. SelfCare.properties file variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
14. AccessBean implementations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
15. List of portlet commands for the LayoutSelectorComponent . . . . . . . . . . 212
16. Macros for ComponentSelectorComponent. . . . . . . . . . . . . . . . . . . . . . . 217
17. Commands for ComponentSelectorComponent . . . . . . . . . . . . . . . . . . . 217
18. Commands for Aggregator.class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
19. Commands for Customizor Portlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
20. Commands for LinkSelectorComponent.class . . . . . . . . . . . . . . . . . . . . . 226
21. Commands for Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
22. Commands for Agenda . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
23. Commands for AddressBook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

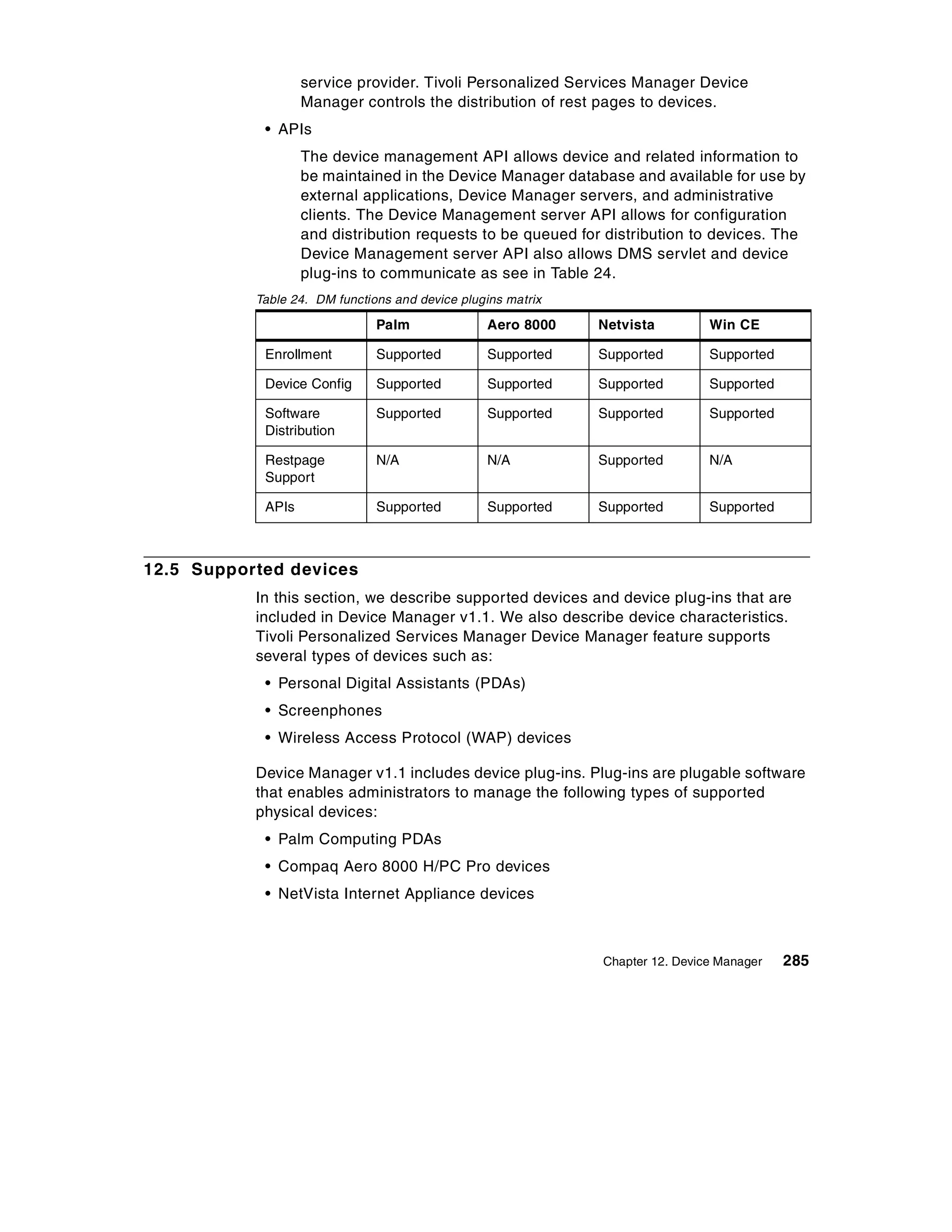

24. DM functions and device plugins matrix . . . . . . . . . . . . . . . . . . . . . . . . . 285

© Copyright IBM Corp. 2001 xiii

xiv Introducing Tivoli Personalized Services Manager 1.1

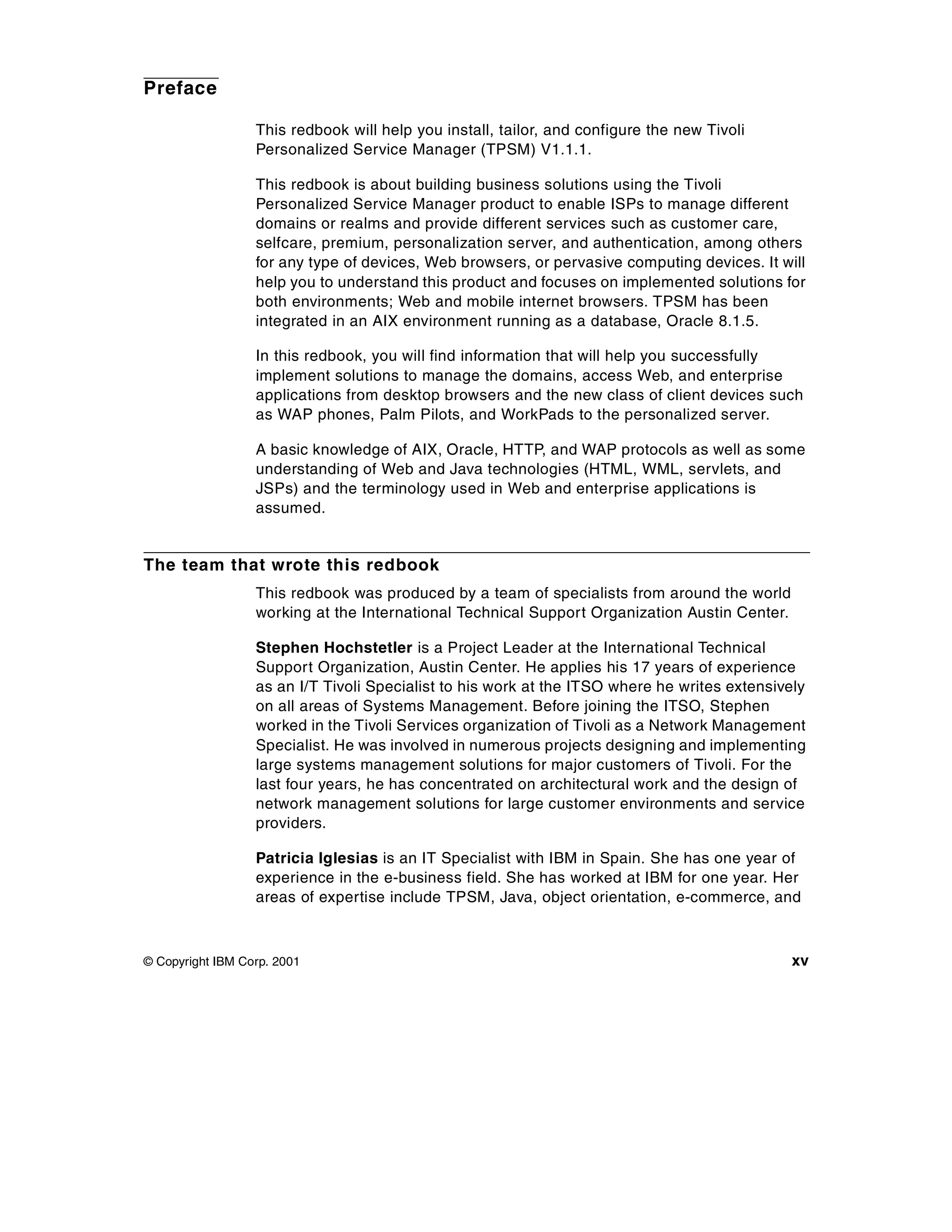

Preface

This redbook will help you install, tailor, and configure the new Tivoli
Personalized Service Manager (TPSM) V1.1.1.

This redbook is about building business solutions using the Tivoli
Personalized Service Manager product to enable ISPs to manage different
domains or realms and provide different services such as customer care,
selfcare, premium, personalization server, and authentication, among others
for any type of devices, Web browsers, or pervasive computing devices. It will
help you to understand this product and focuses on implemented solutions for
both environments; Web and mobile internet browsers. TPSM has been
integrated in an AIX environment running as a database, Oracle 8.1.5.

In this redbook, you will find information that will help you successfully
implement solutions to manage the domains, access Web, and enterprise
applications from desktop browsers and the new class of client devices such
as WAP phones, Palm Pilots, and WorkPads to the personalized server.

A basic knowledge of AIX, Oracle, HTTP, and WAP protocols as well as some
understanding of Web and Java technologies (HTML, WML, servlets, and
JSPs) and the terminology used in Web and enterprise applications is
assumed.

The team that wrote this redbook
This redbook was produced by a team of specialists from around the world
working at the International Technical Support Organization Austin Center.

Stephen Hochstetler is a Project Leader at the International Technical
Support Organization, Austin Center. He applies his 17 years of experience
as an I/T Tivoli Specialist to his work at the ITSO where he writes extensively
on all areas of Systems Management. Before joining the ITSO, Stephen
worked in the Tivoli Services organization of Tivoli as a Network Management
Specialist. He was involved in numerous projects designing and implementing
large systems management solutions for major customers of Tivoli. For the
last four years, he has concentrated on architectural work and the design of
network management solutions for large customer environments and service
providers.

Patricia Iglesias is an IT Specialist with IBM in Spain. She has one year of
experience in the e-business field. She has worked at IBM for one year. Her
areas of expertise include TPSM, Java, object orientation, e-commerce, and

© Copyright IBM Corp. 2001 xv

pervasive. For the last several months she has concentrated in pervasive
device development, e-business, and simulation with multi-agents.

Edgar Gutierrez is an RS/6000 support specialist for Grupo Vitro, an IBM
customer in Monterrey, Mexico. He has 5 years of experience with RS/6000.
His areas of expertise includes Oracle implementation and support as well as
performance tuning. For the last year he has concentrated on the software
platforms for e-business in his company.

Thanks to the following people for their invaluable contributions to this project:

Tivoli Systems
Doug Geiger, Kent Hayes, Al Montibello, Theresa Morris, Dean Skidmore,

IBM USA
Ernest A. Keenan, Bill Tracey

IBM France
Jean-Michel Porce

IBM Spain
Rafael Sanchez Alfonso

Comments welcome
Your comments are important to us!

We want our Redbooks to be as helpful as possible. Please send us your
comments about this or other Redbooks in one of the following ways:
• Fax the evaluation form found in “IBM Redbooks review” on page 317 to
the fax number shown on the form.
• Use the online evaluation form found at ibm.com/redbooks
• Send your comments in an Internet note to redbook@us.ibm.com

xvi Introducing Tivoli Personalized Services Manager 1.1

Chapter 1. Evolution of the Internet and ISP solutions

This is an abbreviated history to demonstrate how quickly the Internet has
expanded. With this expansion comes opportunities for your business. The
goal of Tivoli Personalized Services Manager (TPSM) is to allow you to seize
that opportunity by delivering premium services to your customers quickly. As
you seize that opportunity, TPSM can grow with your success by easily
scaling to handle millions of enrollments.

An abbreviated Internet history:
1969 ARPANET commissioned by DoD for research into networking.
One of the original four nodes is an IBM 360.
1972 Ray Tomlinson of Bolt Beranek and Newman, Inc. (BBN) modifies
the E-mail program for ARPANET, where it becomes a quick hit.
The @ sign was chosen from the punctuation keys on Tomlinson's
Model 33 Teletype for its “at” meaning.
1974 BBN opens Telenet, the first public packet data service (a
commercial version of ARPANET).
1978 TCP split into TCP and IP.
1979 USENET established using UUCP between Duke and UNC by
Tom Truscott, Jim Ellis, and Steve Bellovin. All original groups
were under the net.* hierarchy.
1982 DCA and ARPA establish the Transmission Control Protocol (TCP)
and Internet Protocol (IP) as the protocol suite, commonly known
as TCP/IP, for ARPANET.
1983 EARN (European Academic and Research Network) established.
Very similar to the way BITNET works with a gateway funded by
IBM.
1984 Domain Name System (DNS) introduced. Number of hosts breaks
1,000.
1985 100 years to the day of the last spike being driven on the
cross-Canada railroad, the last Canadian university is connected
to NetNorth in a one year effort to have coast-to-coast
connectivity.
1987 National Science Foundation (NSF) signs a cooperative
agreement to manage the NSFNET backbone with Merit Network,
Inc. (IBM and MCI involvement was through an agreement with
Merit). Merit, IBM, and MCI later founded ANS. Number of hosts
breaks 10,000.

© Copyright IBM Corp. 2001 1

1989 Number of hosts breaks 100,000.
1990 The World comes on-line (world.std.com), becoming the first
commercial provider of Internet dial-up access.
1992 Number of hosts breaks 1,000,000. The term “surfing the Internet”
is coined by Jean Armour Polly.
1993 Mosaic takes the Internet by storm; WWW proliferates at a
341,634% annual growth rate of service traffic. Gopher's growth is
997%.
1994 WWW edges out telnet to become 2nd most popular service on
the Net (behind ftp-data) based on percentage of packets and
bytes traffic distribution on NSFNET.
1995 WWW surpasses ftp-data in March as the service with greatest
traffic on NSFNet based on packet count, and in April based on
byte count.
1996 Various ISPs suffer extended service outages, bringing into
question whether they will be able to handle the growing number of
users. AOL (19 hours), Netcom (13 hours), and AT&T WorldNet
(28 hours - E-mail only).

Starting in 1990, individual companies, such as The World, have been writing
custom ISP programs to enroll customers, bill customers, provision services,
deliver content, provide hot backup, rewrite code to increase scalability, and
write new code for premium services. Many of those programs are still in use
today, maintained by an army of programmers, each fighting the issues of
scalability and content.

There is a better way. In late 1997, the IBM Telecommunications and Media
Industry Solutions Unit wanted to enter the Internet space. IBM named the
new system ISMS (Internet Subscription Management System).

In mid 1999 the process to move the ISMS team to Tivoli began. The name
was changed to TSM (Tivoli Subscription Manager), and ultimately, to TISM
(Tivoli Internet Services Manager) and TPSM (Tivoli Personalized Services
Manager), where TPSM operates on the same code base as TISM with some
additional modules to support pervasive device management.

TISM is a completely integrated infrastructure of software components for
Internet service provisioning. TISM is an industrial strength system designed
to allow the Internet Service Provider (ISP) to support multiple separately
branded offerings simultaneously, and provide each brand with a unique and
completely stand-alone identity and full range of business offerings. To do

2 Introducing Tivoli Personalized Services Manager 1.1

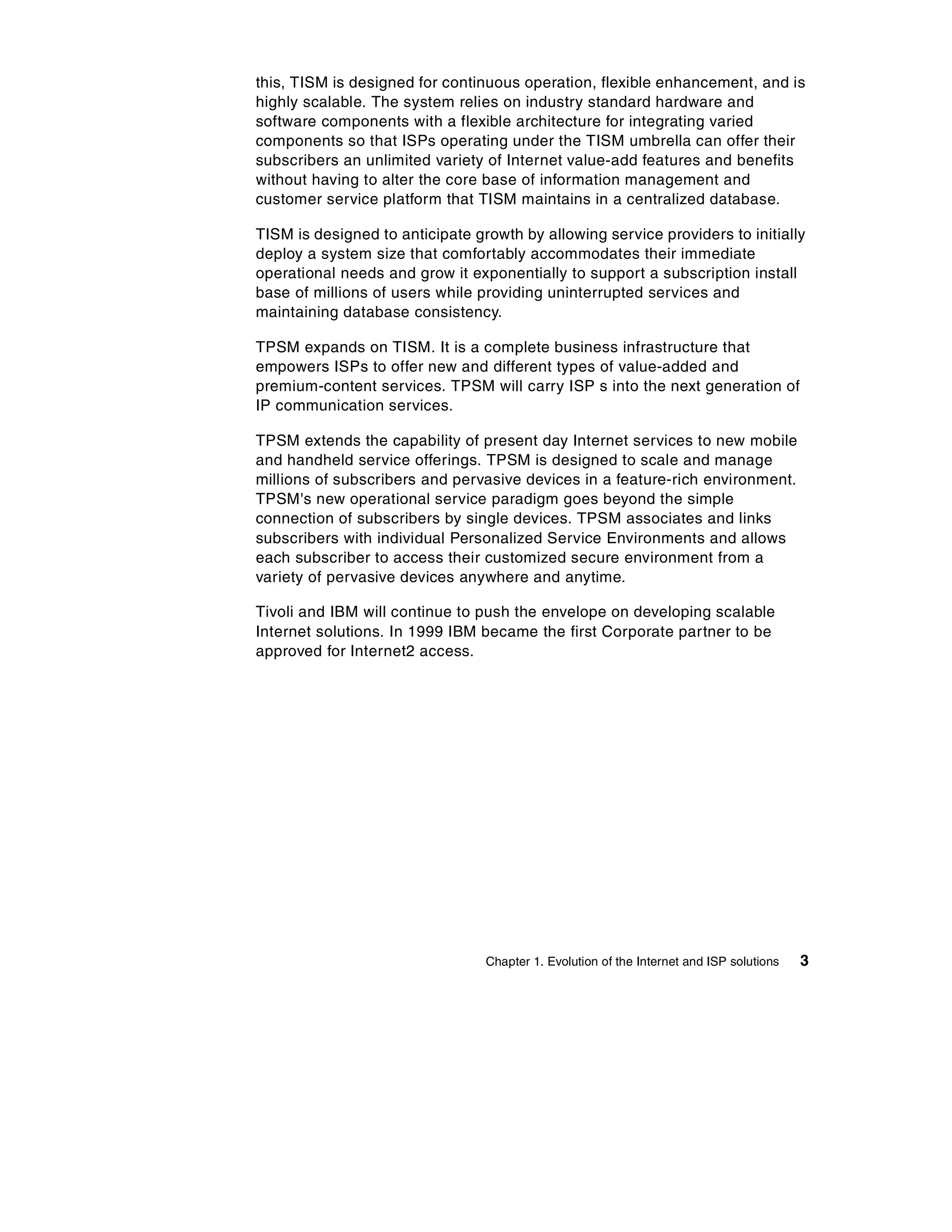

this, TISM is designed for continuous operation, flexible enhancement, and is
highly scalable. The system relies on industry standard hardware and
software components with a flexible architecture for integrating varied
components so that ISPs operating under the TISM umbrella can offer their
subscribers an unlimited variety of Internet value-add features and benefits
without having to alter the core base of information management and
customer service platform that TISM maintains in a centralized database.

TISM is designed to anticipate growth by allowing service providers to initially
deploy a system size that comfortably accommodates their immediate
operational needs and grow it exponentially to support a subscription install
base of millions of users while providing uninterrupted services and
maintaining database consistency.

TPSM expands on TISM. It is a complete business infrastructure that
empowers ISPs to offer new and different types of value-added and
premium-content services. TPSM will carry ISP s into the next generation of
IP communication services.

TPSM extends the capability of present day Internet services to new mobile
and handheld service offerings. TPSM is designed to scale and manage
millions of subscribers and pervasive devices in a feature-rich environment.
TPSM's new operational service paradigm goes beyond the simple
connection of subscribers by single devices. TPSM associates and links
subscribers with individual Personalized Service Environments and allows
each subscriber to access their customized secure environment from a
variety of pervasive devices anywhere and anytime.

Tivoli and IBM will continue to push the envelope on developing scalable
Internet solutions. In 1999 IBM became the first Corporate partner to be
approved for Internet2 access.

Chapter 1. Evolution of the Internet and ISP solutions 3

Chapter 2. Overview of Tivoli Personalized Service Manager

The Tivoli Internet Services Manager provides a completely integrated
infrastructure of software components for Internet service provisioning. It is
an industrial strength system designed to allow the Internet Service Provider
(ISP) to support several separately branded offerings simultaneously and to
provide each brand with a unique marketplace identity and with a full range of
business offerings.

The Tivoli Internet Services Manager is designed for continuous operation
and flexible enhancement, and is highly scalable. The system relies on
industry standard hardware and software components with a flexible
architecture for integrating additional and varied components. ISPs using the
Tivoli Internet Services Manager can offer their subscribers an unlimited
variety of Internet features without having to alter a core base of information
management and customer service features that the system centralized
database. The system's design anticipates growth and allows the Tivoli
Internet Services Manager owner to start with a size that comfortably
accommodates the initial anticipated subscriber base while remaining poised
to grow exponentially as needed (see Figure 1).

Figure 1. Tivoli Internet Services Manager


2.1 What's new for this release of Tivoli Personalized Services Manager
Tivoli Internet Services Manager contains several new features to help
enhance the functionality. These include a web content hosting system that
allows user to create and maintain personal web pages, a portal toolkit to
enhance personalization, a radius server to assist with authentication,
localization, and a device manager system to help filter realms and deals.

Each of these new enhancements are discussed in detail in the following
paragraphs.

2.1.1 Web Hosting
The Web Content Hosting system allows users to manage their own
published webspace. It is a separate process from other parts of the TISM
infrastructure. The interface between the core TISM processes and Web
Content Hosting is through the provisioning subsystem. Below is a list of each
of the components associated with the web content hosting server and how
they fit into the overall picture.

Upload Facility
Web Hosting contains an upload facility that allows users to use either an
HTTP interface or FTP client for the purpose of managing their personal
webspace. Users can use their own FTP client, while the ISP can customize
the HTTP GUI to comply with their look and feel. The upload facility
automatically publishes files via an HTTP Server.

Provisioning
Provisioning utilizes both FTP and HTTP support. There are two FTP
systems; the Provisioning FTP Daemon (PFTPD) and the FTP server
(NcFTPd). The PFTPD sends and receives user information from the Tivoli
Internet Services Manager database. From this information gathering
process, it creates the user structure and the NcFTPd user account. The
NcFTPD is what allows user to upload and download from their device to the
web content hosting server.

CGI Script
The following features are provided to ISP users through Perl scripts:
• Page access counter
• Guestbook
• Mail-to function
• Access counters statistics


WebSpace Administration Servlet
WebSpace management application provides the user with the following
operations:
• Personal Web space display
• File upload and automatic publishing
• File download
• File delete

2.1.2 Portal Toolkit
The Portal Toolkit (pTk) enhances personalization by allowing the
development of portal pages. Below is a listing of the new features for 1.1

Multi-device Portal Engine
This provides the ability to build portals with unique URLs capable of
generating pages for specific devices such as PCs with web browsers, mobile
phones with WAP devices, or screenphones.

User Preferences API
Allows users to personalize portal home pages. For example, users can
selecting from a list of news channels to appear within the news JSP.

Referenced Links Management
Administrators create a database repository of links that the portal can
reference. Users can access these links to customize their portal pages.

Vertical Services Integrated with pTk
These services provide the users with functionality such as a calendar,
agenda, and address book.

ISPs can use these services to develop their own additional services.

JSP Portlet Framework
Allows you to construct portal pages by assembling portlets.

Authentication Services
User are authenticated at the beginning of each user session. A user does
not have to be re-authenticated to access different services. This is all part of
a Single Sign-On process, which allows premium content access control.

Chapter 2. Overview of Tivoli Personalized Service Manager 7

Targeted Ads: Interface with Double Click Ads Server
Personalization allows users to customize their device's home page.
Subscribers can proactively customize their portal page by configuring
categories such as:
• Stock quotes (personal portfolio)
• Weather (local, national, or international)
• Entertainment (music, movies, theatre, etc.)
• Travel (destinations, prices, etc.)
• News (local, national, or international)

The Tivoli Personalized Service Manager and virtual ISPs can personalize
subscriber home pages over and above the choices made by subscribers by
adding:
• Links to local content based on subscriber profile
• Targeted ads pulled from an external ad-queue management system

2.1.3 Radius
The following are enhancements and changes to the Radius server.
• DB2 support - DB2 is not supported in this release.
• NLS message support - RADIUS will now support translated messages
written to an NLS log file in addition to the English-only message written to
the standard log file.
• IP Allocation - Rather than using the IP address generated by the
RADIUS client (NAS), the RADIUS server can be configured to generate
an IP address from a pool of IP addresses set up through the Director
Console.

2.1.4 DB2 support
TPSM now supports IBM DB2 as well as Oracle relational database
management system.

2.1.5 Localization
Enhancements were made to the data model, toolkits, and applications to
support localization. The purpose of localization is to have the ability to
translate into many different languages. In this release, only Japanese
translation is provided.


2.1.6 Device Manager
The enhancements and changes for this release of Device Manager are as
follows:

Job distribution by realm, deal, or both
A device's owner can be the member of a single realm and of one or more
deals, as defined by the subscription manager component used with Device
Manager. It is now possible to distribute jobs to devices in a realm, a deal, or
both. In addition, an administrator can filter jobs by realm or deal.

Support for DB2 Universal Database Version 7 and Oracle 8.1.5
Device Manager can now use DB2 Universal Database Version 7.1 as its
relational database. In addition, Device Manager has added support for
Oracle8i Version 8.1.5.

Changes to plug-ins
The following plug-ins have been added:
• The Internet appliance device (IAD) plug-in provides support for devices
used for Internet access, e-mail, voice mail, Personal Information
Management (PIM), and other pervasive computing tasks that use the
PVC client stack as their base architecture.
• The Generic Windows CE device plug-in provides basic support for all
devices that use the Windows CE operating system.

In addition, support for the Iap500 plug-in has been dropped for this release
of Device Manager.

Enhancements to the Device Manager console
The Device Manager console's filtering capability now allows for more
granularity and more complex combinations of filtering criteria. New icons
help an administrator to identify which criteria are being used, and which are
not valid or not in effect. Other “look and feel” changes improve the usability
of the console and its ability to display very large numbers of devices.

Integration with WebSphere Everyplace Suite (WES)
As part of Tivoli Personalized Services Manager Version 1.1, Device Manager
supports the WES concept of an authentication proxy. The authentication
proxy provides a single sign-on to the WES servers, including the Tivoli
Personalized Services Manager server. Installers who choose to take
advantage of this support need to take additional steps during the Device
Manager configuration so the Device Manager can redirect devices through
the authentication proxy during enrollment.


2.1.7 Integration with WebSphere Everyplace suite
TPSM can be used as a stand-alone system or as a component of the
WebSphere Everyplace Suite (WES).

Lightweight Directory Access Protocol (LDAP) Integration enhances
integration to provide information to the IBM LDAP Server.

Active Session Support provides complete tracking of subscribers user
sessions across their device set.

TPSM Portal Toolkit can provide portlets in the WES environment. It can
also delegate authentication to the WES Authentication Proxy. The web
authentication server interfaces with the WES authentication proxy and when
used, users are authenticated and device type identification is achieved.

2.2 Features
This section highlights the features that make TISM and TPSM formidable
Internet service provisioning systems. TISM and TPSM contain several new
features to help enhance the functionality that are detailed in the following
pages.

2.2.1 Device Manager (only in TPSM)
The Tivoli Personalized Services Manager provides a wide range of
subscriber device management features, including:
• Enrolling subscribers and their devices
• Distributing software to the device
• Updating device configuration remotely
• Listing the devices owned by a user
• Updating restpages (startup pages) for screenphones
The Device Manager feature provides a flexible framework and a set of
services for managing a subscriber's devices. Device vendors can extend the
system's framework and use it to enable their devices to be managed by the
Tivoli Personalized Services Manager (Figure 2 on page 11). Support is
provided for several distinct types of devises such as:
• Personal Digital Assistants (PDAs)
• Screenphones
• Wireless Access Protocol (WAP) devices


Figure 2. Device Manager Services

2.2.2 Enrollment and service provisioning
Every ISP relies on a centrally managed enrollment engine while being
allowed total autonomy in presentation and payment plan offers. A standard
set of enrollment screens can be customized to deliver uniquely branded
messages and graphics as well as ISP-specific billing plans and payment
options. Behind the scenes, a consistent array of data elements are captured
from each new subscriber, thereby distributing all of Tivoli Personalized
Services Manager's additional features to every subscriber, regardless of
their ISP (Figure 3 on page 12).

With individual branding comes unique realm name distinction. Every ISP
hosted on Tivoli Personalized Services Manager is granted a realm, which is
a partition within the overall database that distinguishes them and their
subscribers from all others in the system and the Internet at large. Realms
help extend brand name identification. For example, realm 1 could be
“alpha.com” and realm 2 could be “beta.com.” Every subscriber to the ISP
named “Alpha” would receive a user name and e-mail address that is unique
to the realm of “alpha.com” (John@alpha.com, Mary@alpha.com, etc.), while
subscribers to “Beta” would receive addresses ending in beta.com.


Realm distinctions provide benefits to system management. Customer Care
Reps can be granted complete read and write security provisions to specific
realms, which keeps each realm's data separate and secure from any others.

Figure 3. Enrollment and service provisioning

2.2.3 Subscriber authentication and access control
Subscribers are granted single sign-on status throughout a session.
Information pertinent to the continuation of the session is preserved via
cookies, eliminating the need to re-enter ID information. For access to
critically secure data, Tivoli's SecureWay Policy Director can be used in
conjunction with the Tivoli Personalized Services Manager (Figure 4 on
page 13).


Figure 4. Subscriber authentication and access control

2.2.4 Customer care support
All data viewed by the customer service representatives (CSRs) is completely
up-to-date and any changes made are immediately accessible to the billing
system and any other integrated systems (Figure 5 on page 14).

Access control for Customer Service personnel can be restricted in several
ways. For example, they can be limited to read or write capabilities, or be
allowed to only access certain portions of the subscriber population. This
degree of security control allows ISPs within TPSM to subcontract Customer
Service help in off-site locations where Customer Service Reps can log into
the Tivoli Personalized Services Manager Customer Care application
remotely and work with secure, online subscriber data.


Figure 5. Customer care support

2.2.5 Subscriber personalized service environment and self care
Personalization allows users to customize their device's home page.
Subscribers can proactively customize their portal page by configuring
categories such as:
• Stock quotes (personal portfolio)
• Weather (local, national, or international)
• Entertainment (music, movies, theatre, etc.)
• Travel (destination, prices, etc.)
• News (local, national or international)

The Portal Toolkit (pTk) was created to simplify the design and
implementation of custom portal pages. This is achieved through a building
block structure, or components. Structural components assist in creating the
layout and content of a portal page, while service components include
“turn-key” applications or services within portal pages (Figure 6 on page 15).


Figure 6. Subscriber personalization and self care

The portal engine is delivered with built-in components, such as Personal
Information Management (PIM), components such as calendar, agenda, and
address book. These components allow the subscriber to customize the
portal pages on their devices. Some additional key functions associated with
pTk are:
1. Multi-device Portal Engine
Web devices (e.g., PC, Win CE, screenphones), WAP devices
2. User Preferences API
Users and user groups profiling
3. Referenced Links Management
Hierarchical repository of links referenced by the portal
4. Vertical Services Integrated with pTk
Web Content Hosting
PIM: Calendar, Agenda, Address Book, etc.
5. JSP Components Framework
Components framework drastically simplifies JavaServer Pages (JSP)
writing
Components library: PIM components, structural components


6. Authentication Services
User authentication and device type identification
Single sign-on, Premium content access control, WAP support
7. Targeted Ads: Interface with Double Click Ads Server
This feature provides a marketing opportunity for ISPs. They can target
their subscriber's portal pages for banner ads and special interest notices.

Another aspect of personalization is self-care. Subscribers can access and
modify some of their profile data. They can update their address and
telephone data, change their billing plan and method of payment data, and
subscribe to premium content through the Tivoli Personalized Services
Manager's self-care application, which is linked to the central database from
links on their portal page.

2.2.6 Integration with third party components and tools
Tivoli Personalized Services Manager also supports an LDAP interface for
easy integration with LDAP oriented systems and servers such as mail and
messaging systems.

2.2.7 Operation support for growing provider business
A centralized configuration tool, called the Director Tool, allows easy access
to the central controls for system administration, enrollment customization,
billing plan customization, and Customer Service Rep. security profiling
(Figure 7 on page 17). Many of the configuration options can be used by
non-technical managers and marketing personnel, making Tivoli Personalized
Services Manager a more flexible Internet solution.


Figure 7. Operation support for growing provider business

2.2.8 Emerging Internet business models-wholesale and virtual ISP
A variety of APIs allow Tivoli Personalized Services Manager to integrate
nearly any Internet component that meets industry standards so it can
provide diverse functionality and follow new trends in Internet interaction
(Figure 8 on page 18).

Tivoli Personalized Services Manager can host several stand-alone ISPs
(virtual ISPs) with unique brand names and identities without any degradation
to response time or to processing efficiency.

Bulk transfers of subscriber bases can be accomplished programmatically,
allowing ISPs to purchase existing subscriber populations and quickly add
them to the ISP's business.


Figure 8. Supporting emerging Internet business models

2.2.9 Adherence to industry standards
The Tivoli Internet Services Manager uses industry standard languages and
protocols to facilitate integration with third party components and tools:
• Industry standard relational databases (DB2, Oracle)
• Java based .application programming interfaces (APIs)
• TCP/IP-based communications between components and systems
• Web user interfaces based on industry standard implementations of Java,
JavaScript, HTML and similar web content languages

Benefits gained by using industry standards:
• ISPs are able to take advantage of their staff's existing technical skills
• Tivoli Internet Services Manager integrates well with other industry
standard systems

Industry standard components include:
• IBM DB2 or Oracle RDBMS
• Netscape Enterprise Server or IBM AIX httpd software for Web servers
• WebSphere Application Server
• IBM AIX operating system


• Sun Solaris support

Industry standard protocols and languages include:
• Structured Query Language (SQL '92) standard interface for relational
database access.
• The Tivoli Internet Services Manager RADIUS authentication server,
which complies with Internet Engineering Task Force (IETF)
specifications.
• Web user interfaces and publishing based on industry standard
implementations of Java, JavaScript, HTML, and similar web content
languages.
• Java based APIs (Tivoli Internet Services Manager Integration Toolkits -
iTk's)
• Java Standard Java Server Pages (JSP) interfaces and Servlets
• Use of industry-standard utilities such as Perl for CGI.
• TCP/IP-based communications between components and systems.
• Standard scripts to assist in installation, maintenance, and
troubleshooting.


Chapter 3. Installation checklist

This chapter is a guide to the installation of all the software infrastructure that
we implemented for the successful operation of TPSM.

The hardware and software requirements for Tivoli Internet & Personalized
Services Manager on AIX are as follows (Table 1):
Table 1. AIX requirements

Operating System IBM AIX Version 4.3.3

Web Server IBM HTTP Server 1.3.12
or
Netscape Enterprise Server 3.6

JDK JDK 1.2.2 with PTF 7. See IBM APAR
IY12075

Supported Databases Oracle Database Enterprise Edition 8.1.5
IBM DB2 Version 7.1

Application Server WebSphere Application Server V3.5
Standard Edition using Instant DB Option.

• RS/6000 or RS/6000 SP running AIX V4.3.3, with maintenance level 06
applied
• Support for an appropriate network interface
• Minimum 300 MB of free disk space on the /usr filesystem for installation
• CD-ROM drive
• Minimum 256MB of memory; 512 MB recommended

3.1 Infrastructure used in this project
The following is a list of hardware and software that was used for this project:

RS/6000:
• RS/6000 F50 (7025-140)
• Four 332 MHz PowerPC_604e processors
• 1.5 GB RAM
• 4 * 8 GB SCSI HDD


AIX Software:
• AIX 4.3.3.06
• Tivoli Personalized Services Manager V1.1.1
• WebSphere Application Server Standard V3.5
• Netscape Enterprise Server 3.63
• Oracle Enterprise Edition 8.1.5
• Oracle JDBC driver 8.1.6
• JDK 1.2.2 with APAR IY12075
• IBM HTTP Server V1.3.12

3.2 Infrastructure installation
In this section we explain the installation procedures for all TPSM software
pre-requisites.

3.2.1 AIX software
We made a new installation of the AIX 4.3.3 and applied the latest
maintenance level, which in our case was ML 06.

3.2.2 Installing additional IBM AIX filesets
The following filesets were installed from the IBM AIX 4.3.3 CDs. The CD
contains the minimum level of the filesets. Later in this chapter we show how
to bring them all to the latest level.
• bos.adt (ALL)
• bos.compat.termcap - Termcap Compatibility Package (2)
• xlC.rte - C++ runtime library for IBM AIX (select ALL)
• X11.adt - Applications Development Toolkit (all)
• X11.base (x windows) (ALL)
• perl.rte 5.5.3 (all)
• X11.motif.mwsm.4.3.3.1
• X11.motif.lib.4.3.3.2
• X11.adt.motif.4.3.3.1
• X11.compat.lib.X11R5.4.3.3.2
• X11.base.rte.4.3.3.2


• X11.base.lib.4.3.3.2
• X11.Dt.lib.4.3.3.2
• X11.Dt.rte.4.3.3.3
• bos.up.4.3.3.3
• bos.sysmgt.serv_aid.4.3.3.2
• bos.rte.libpthreads.4.3.3.2
• bos.net.tcp.client.4.3.3.3
• bos.mp.4.3.3.3
• bos.adt.prof.4.3.3.3
• bos.adt.include.4.3.3.1

To verify that we have installed the fileset, we used the lslpp command as
shown below:

# lslpp -l bos.net.tcp.*
Fileset Level State Description
----------------------------------------------------------------------------
Path: /usr/lib/objrepos
bos.net.tcp.adt 4.3.3.25 COMMITTED TCP/IP Application Toolkit
bos.net.tcp.client 4.3.3.26 COMMITTED TCP/IP Client Support
bos.net.tcp.server 4.3.3.25 COMMITTED TCP/IP Server
bos.net.tcp.smit 4.3.3.25 COMMITTED TCP/IP SMIT Support

Path: /etc/objrepos
bos.net.tcp.client 4.3.3.26 COMMITTED TCP/IP Client Support
bos.net.tcp.server 4.3.3.25 COMMITTED TCP/IP Server

We can see that the bos.net.tcp.client is at the 4.3.3.26 level and we
required 4.3.3.3 as minimum, so with the 4.3.3.26 we do not have any
problem.
1. Use the following steps to install the required filesets with smit:
- smitty or smit
- Select Software Installation and Maintenance.
- Select Install and Update Software.
- Select Install and Update from LATEST Available Software.
- Enter INPUT device (press F4 to list devices).
- Select the CD-ROM where the IBM AIX CD is located, then press
Enter.

Chapter 3. Installation checklist 23

- Select SOFTWARE to install (press F4 to list available software from
CD).
- Using the find and select keys on all of the following file sets:
• bos.adt (select ALL)
• Base Operating System Application Developers Toolkit
• bos.compat.termcap - Termcap Compatibility Package (2)
• xlC.rte - C++ runtime library for IBM AIX (select ALL)
• X11.adt - Applications Development Toolkit (ALL)
• X11.base (x windows) (ALL)
• perl.rte 5.5.3 (ALL)
• X11.motif.mwsm.4.3.3.1
• X11.motif.lib.4.3.3.2
• X11.adt.motif.4.3.3.1
• X11.compat.lib.X11R5.4.3.3.2
• X11.base.rte.4.3.3.2
• X11.base.lib.4.3.3.2
• X11.Dt.lib.4.3.3.2
• X11.Dt.rte.4.3.3.3
• bos.up.4.3.3.3
• bos.sysmgt.serv_aid.4.3.3.2
• bos.rte.libpthreads.4.3.3.2
• bos.net.tcp.client.4.3.3.3
• bos.mp.4.3.3.3
• bos.adt.prof.4.3.3.3
• bos.adt.include.4.3.3.1
- When you have finished, press Enter to install the selected filesets.
2. To obtain maintenance level 06, please contact your local Software
Service Center or use FixDist to get the latest maintenance level for the
AIX. Once you obtained the ML, use the following steps to install the
update with smit:
• smitty or smit
• Select Software Installation and Maintenance.


• Select Install and Update Software.
• Select Install and Update from LATEST Available Software.
• Enter INPUT device (press F4 to list devices).
• Select the directory where you downloaded the maintenance level
• Select all file sets from SOFTWARE maintenance level 6
• When you have finished, press Enter to install.

3.2.3 JDK 1.2.2 installation and setup procedure
This section will show you how to install a Java Developer Toolkit (JDK) on an
AIX machine. You can obtain the JDK by downloading from
http://www.ibm.com/java/jdk/download/index.html.

On the AIX platform, the JDK is available in tar format. You need to make sure
to download the following files:
• Java_dev2.rte.tar
• Java_dev2.msg.tar
• Java_dev2.samples.tar
• Java_dev2.ext.tar
• Java_dev2.adt.tar

You need to uncompress each of these files into a temporary directory before
starting the installation.
- Uncompress the downloaded tar file using:
tar -xvf <tar-filename>
- Change directory to the directory that contains uncompressed results.
If the installation package table of contents (the .toc file) does not exist,
create it with the following command while still in the install directory:
inutoc .

To perform the installation, you need to be a user that has root privileges. In
an AIX terminal window, enter the following command:
smitty installp

This will bring up the AIX System Management Interface Tool window and put
you at the Install and Update Software menu as shown in the next screen:


Install and Update Software

Move cursor to desired item and press Enter.

Install and Update from LATEST Available Software
Update Installed Software to Latest Level (Update All)
Install and Update Software by Package Name (includes devices and printers)
Install Software Bundle (Easy Install)
Update Software by Fix (APAR)
Install and Update from ALL Available Software

F1=Help F2=Refresh F3=Cancel Esc+8=Image
Esc+9=Shell Esc+0=Exit Enter=Do

Choose Install and Update from LATEST Available Software to invoke the
installation process. After that, enter the device or directory where the JDK
installation package is located, as shown in the next screen:


Type or select a value for the entry field.
Press Enter AFTER making all desired changes.

[Entry Fields]
* INPUT device / directory for software [] +

F1=Help F2=Refresh F3=Cancel F4=List
Esc+5=Reset Esc+6=Command Esc+7=Edit Esc+8=Image
Esc+9=Shell Esc+0=Exit Enter=Do

smitty will then let you choose which software to install, as shown in the next
screen. Choose _all_latest and click Enter to start the installation.



Type or select values in entry fields.
Press Enter AFTER making all desired changes.

[Entry Fields]
* INPUT device / directory for software /software/JDK
* SOFTWARE to install [_all_latest] +
PREVIEW only? (install operation will NOT occur) no +
COMMIT software updates? yes +
SAVE replaced files? no +
AUTOMATICALLY install requisite software? yes +
EXTEND file systems if space needed? yes +
OVERWRITE same or newer versions? no +
VERIFY install and check file sizes? no +
Include corresponding LANGUAGE filesets? yes +
DETAILED output? no +
Process multiple volumes? yes +

F1=Help F2=Refresh F3=Cancel F4=List
F5=Reset F6=Command F7=Edit F8=Image

After it finishes, it will provide you with an installation summary at the bottom
of the command status screen, as shown in the next screen. You should verify
each component’s installation status.

COMMAND STATUS

Command: OK stdout: yes stderr: no

Before command completion, additional instructions may appear below.

[MORE...143]
Installation Summary
--------------------
Name Level Part Event Result
-----------------------------------------------------------------------
Java_dev2.ext.plugin 1.2.2.0 USR APPLY SUCCESS
Java_dev2.ext.jaas 1.2.2.0 USR APPLY SUCCESS
Java_dev2.ext.commapi 1.2.2.0 USR APPLY SUCCESS
Java_dev2.rte.lib 1.2.2.0 USR APPLY SUCCESS
Java_dev2.rte.bin 1.2.2.0 USR APPLY SUCCESS
Java_dev2.samples.demos 1.2.2.0 USR APPLY SUCCESS

[BOTTOM]

F1=Help F2=Refresh F3=Cancel F6=Command
F8=Image F9=Shell F10=Exit /=Find

After the successful installation of IBM Developer Kit for AIX, Java Technology
Edition, Version 1.2.2, we proceded to apply PTF 7. See APAR IY12075.


The instfix -ik command tells you if you’ve applied the APAR, as seen in
the next screen:

# instfix -ik IY12075
There was no data for IY12075 in the fix database.

The above output tells us that we have not installed all filesets for IY12075.

You can obtain the APAR from:
http://techsupport.services.ibm.com/rs6k/fixdb.html

You have to download the next filesets:
- Java_dev2.adt.debug.1.2.2.8
- Java_dev2.adt.src.1.2.2.8
- Java_dev2.ext.plugin.1.2.2.8
- Java_dev2.rte.bin.1.2.2.8
- Java_dev2.rte.lib.1.2.2.8

Total number of images: 5

Total byte size of fix package(s): 44889088

To install the APAR, you should log on as a root user and perform the
following steps:
1. Change directory to the directory that contains uncompressed results. If
the installation package table of contents (the .toc file) does not exist,
inutoc .
2. Call the AIX smitty utility for package installation:
smitty installp
3. Specify the source directory of installation package, and click Enter to
start the installation. At the end of the installation process, you can verify
the installation status from the installation summary.

We used the instfix -icvk command to determine the status of IY12075.
See the next screen.


# instfix -ivck IY12075
#Keyword:Fileset:ReqLevel:InstLevel:Status:Abstract
IY12075:Java_dev2.adt.debug:1.2.2.8:1.2.2.8:=:SDK 1.2.2 PTF 7: ca122-20000726
IY12075:Java_dev2.adt.src:1.2.2.8:1.2.2.8:=:SDK 1.2.2 PTF 7: ca122-20000726
IY12075:Java_dev2.ext.plugin:1.2.2.8:1.2.2.8:=:SDK 1.2.2 PTF 7: ca122-20000726
IY12075:Java_dev2.rte.bin:1.2.2.8:1.2.2.8:=:SDK 1.2.2 PTF 7: ca122-20000726
IY12075:Java_dev2.rte.lib:1.2.2.8:1.2.2.8:=:SDK 1.2.2 PTF 7: ca122-20000726
#

There are five filesets for IY12075. The Status field tells us if we’ve installed
the fileset or not. If it says “+”, it means that we’ve already applied the correct
level of fileset. If it shows “-”, it indicates that we need to apply the level of
fileset that the ReqLevel field shows you.

Setting environment variable
After installation, the JDK needs to know the path to its own class libraries. To
enable the JDK to find other class libraries, you should set the system
CLASSPATH environment variable. You should also set the JAVA_HOME
environment variable to point to the base directory for the JDK, which is
/usr/jdk_dev2 by default.

You can set this variable in your current AIX session by using the export
command or put these commands into your login profile.

export CLASSPATH=$CLASSPATH:.:path1:path2:any path to class library

export JAVA_HOME=/usr/jdk_dev2

3.2.4 IBM HTTP Server V1.3.12 for AIX
For the AIX platform, you can obtain the IBM HTTP Server from the
WebSphere CD or obtain it in tar format from:

http://www.software.ibm.com/webservers/httpservers/download.html

3.2.4.1 Installing IBM HTTP Server
If you install the HTTP Server from a downloaded package, you should log on
as a root user, and perform the following steps:
• Uncompress the downloaded tar file using:
tar -xvf <tar-filename>
• Change directory to the directory that contains uncompressed results. If
the installation package table of contents (the .toc file) does not exist,
inutoc .


• Call the AIX smitty utility for package installation:
smitty installp
• Specify the source directory of installation package, and click Enter to
start the installation. At the end of the installation process, you can verify
the installation status from the installation summary.

3.3 Oracle JDBC driver 8.1.6
We obtained the classes12.zip file from:
http://technet.oracle.com/software

After we downloaded the classes12.zip file, we copied to the
$ORACLE_HOME/jdbc/lib directory. This file must be available to Java
through the CLASSPATH variable.


Chapter 4. Building the environment

In this chapter we explain all the Operating Systems tasks that we performed,
and also explain the installation and configuration of the products that we
used in this project.

We choose the following products to run the TPSM:
• Oracle 8.1.5i
• Netscape Enterprise Server 3.63
• WebSphere Application Server 3.5 Standard Edition

4.1 File system configuration
In order to begin installing the products, we must increase the size of some
filesystems. You can use smitty to change the file system sizes, or use the
following commands:
chfs -a size='65536' /
chfs -a size='32768' /var
chfs -a size='32768' /home
chfs -a size='655360' /tmp
chfs -a size='4030464' /usr

Also we need to create two new file systems; /db and /var/adm/logs. For
/var/adm/logs, we are going to create it in the rootvg volume group.
crfs -v jfs -g'rootvg' -asize='49152' -m'/var/adm/logs' -Ayes

For /db, we are going to create in a new volume group dbvg. If you have only
one disk, it´s possible to create the new file system for the database in the
same volume group. This change requires that you change the Oracle scripts.
We will explain that in Section 4.2, “Oracle installation” on page 32.

We create the volume group and the new file system /db.
mkvg -f -y'dbvg' -s'8' hdisk1
crfs -v jfs -g'dbvg' -asize=' 4259840' -m'/db' -Ayes

We mount the file systems.
mount /var/adm/logs
mount /db


4.2 Oracle installation
The Oracle installation scripts are packaged as a file set in
TivTISM.ora.1.1.0.1.1025.bff. The installation has two parts; the Oracle
installation script and the installation of Oracle, and the Tivoli Personalized
Services Manager schema.

To install the Oracle installation script:
1. Open a console
2. Type smitty install_latest
3. Select the device or directory where you have located the Oracle
installation scripts
4. Press F4 in the field SOFTWARE TO INSTALL. This will open a window
where you can select the software that you want to install.
5. Select 1.1.1.0 Tivoli Internet Services Manager - Oracle Database
Integration and install it. Now, the Oracle scripts are installed.
6. To install the Oracle and the Tivoli Personalized Service Manager Schema
export DISPLAY=:0.0
7. xhost + .
You should receive the message access control disabled, clients can
connect from any host.
Try to open the smit console: smit. If the smit console doesn’t open you
have to solve this problem.
8. Unmount any CD-ROMs, making sure there are no file systems that begin
with the name cdrom.
9. Place the Oracle 8i CD in the CD-ROM drive
10.Change directory to /usr/TivTSM/install/db/oracle.
11. export PATH=$PATH:/usr/TivTSM/install/db/oracle
12.../TSMOracle8i
13.Press Enter when you are prompted to place the Oracle CD in the drive.
14.Answer Yes when prompted for Checking for 'dba' group...'dba' group
not found. Create? created.
15.Answer Yes when prompted for Checking for 'oracle8' user...'oracle8'
user not found. Create? created.
16.Answer /db when prompted, What is the 'mount point' for Oracle user's
home?


This process initializes Java Virtual Machine, which may take up to 10
minutes. If after 10 minutes you do not see the message Install phase
starts, updates every 15 seconds, an error has occurred. Press Ctrl+C to
stop the install. Otherwise, within 20-90 minutes, you will receive a
message informing you of the progress of the Oracle software installation.
If you do not receive a message, or if the install process immediately asks
for the database instance, an error has occurred. You should quit the
install at once and look in the log file for errors. The cause of errors in this
part is usually a wrong installation of Java 1.2.2
17.When the install and link phase have completed, you will receive the
following message: Enter the full pathname of the local bin directory:
[/usr/local/bin]:. Use the default value.
18.Enter ispb when asked, Enter instance name to be created, or 'q' to
abort:.
19.Enter n when asked, Do you want logging on or off for this install?
(n/f)
20.Answer How many subscribers in this database?
Note: The minimum number of subscribers is 10,000, while the maximum
number is limited by your hardware. Don't use any punctuation, i.e.,
100000.
21.Press Enter to review/update the /db/creispblv.ksh file. If all the
information looks acceptable, quit the file without saving. This information
is also saved in the /usr/TivTSM/install/db/oracle/dbcalc.log file.
An example of this file is:
Physical Partition Size: 16MB
File Units Size
====== ===== =========
Data: 8 127999K
Index: 6 95999K
Temp: 2 31999K
System: 11
User: 1
Rbs: 1
Drsystem: 6
Oem: 1
Redo: 1
Ctrl: 1
This table shows the values that you have to have in mind to review the
files /db/creispblv.ksh and /db/app/oracle/admin/ispb/create/ispbrun1.ksh.
/db/creispblv.ksh

Chapter 4. Building the environment 33

#!/bin/ksh
COMMAND=$(basename $0 .ksh)
DIR=$(dirname $0)
echo "Sending output to $DIR/$COMMAND.log"
exec 2>$DIR/$COMMAND.log 1>&2
MAXRC=0
mklv -a c -y lvispbdata -ex -u1 rootvg 8 hdisk3
Compare the number of lvispbdata units with the number of units for data
in the table.
RC=$?;[ $RC -gt $MAXRC ] && MAXRC=$RC
mklv -a c -y lvispbindex -ex -u1 rootvg 6 hdisk3
Compare the number of lvispbindex units with the number of units for
index in the table.
mklv -a c -y lvispbrbs1 rootvg 1 hdisk3
mklv -a c -y lvispbrbs2 rootvg 1 hdisk3
mklv -a c -y lvispbredo11 rootvg 1 hdisk3
mklv -a c -y lvispbsys rootvg 11 hdisk3
Compare the number of lvispbsys units with the number of units for system
in the table.
mklv -a c -y lvispbdrsys rootvg 6 hdisk3
Compare the number of lvispbdrsys units with the number of units for
drsystem in the table.
mklv -a c -y lvispbtemp rootvg 2 hdisk3
Compare the number of lvispbtemp units with the number of units for temp
in the table.


mklv -a c -y lvispbctrl1 rootvg 1 hdisk3
mklv -a c -y lvispbuser rootvg 1 hdisk3

Compare the number of lvispbuser units with the number of units for user
in the table.
mklv -a c -y lvispboem rootvg 1 hdisk3
Finally, compare the number of lvispboem units with the number of units
for oem in the table.

chown oracle8:dba /dev/lvispb*
chown oracle8:dba /dev/rlvispb*

exit $MAXRC
The others usually are 1 so you don´t have to worry about them.
Another important point is the volume group where you are going to install
it. It´s specified here, so if you want to install in another volume group (in
our case dbvg) you must change the command to read:
mklv -a c -y lvispboem dbvg 1 hdisk3
If you change the name of the instance for the db, you will notice that the
names for the logical volumes change in the middle for the name of the
instance.
/db/app/oracle/admin/ispb/create/ispbrun1.ksh

#!/bin/sh
ORACLE_SID=ispb
export ORACLE_SID

/db/app/oracle/products/8.1.5/bin/svrmgrl << EOF
connect internal
@/db/app/oracle/products/8.1.5/rdbms/admin/catalog.sql;
CREATE ROLLBACK SEGMENT r0 TABLESPACE SYSTEM
STORAGE (INITIAL 32K NEXT 64K MINEXTENTS 10 MAXEXTENTS 512);
ALTER ROLLBACK SEGMENT r0 ONLINE;


REM ************ TABLESPACE FOR OEM_REPOSITORY ***************
CREATE TABLESPACE OEM_REPOSITORY DATAFILE '/dev/rlvispboem' SIZE 5M
REUSE
AUTOEXTEND ON NEXT 25M MAXSIZE 80M
MINIMUM EXTENT 128K
DEFAULT STORAGE ( INITIAL 128K NEXT 128K MINEXTENTS 1
MAXEXTENTS UNLIMITED PCTINCREASE 0);

REM ************** TABLESPACE FOR ROLLBACK *****************
CREATE TABLESPACE RBS1 DATAFILE '/dev/rlvispbrbs1' SIZE 12M REUSE
DEFAULT STORAGE ( INITIAL 128K NEXT 128K MINEXTENTS 2 MAXEXTENTS
UNLIMITED PCTINCREASE 0);
ALTER DATABASE DATAFILE '/dev/rlvispbrbs1' AUTOEXTEND ON;

REM ************** TABLESPACE FOR ROLLBACK *****************
CREATE TABLESPACE RBS2 DATAFILE '/dev/rlvispbrbs2' SIZE 12M REUSE
UNLIMITED PCTINCREASE 0);
ALTER DATABASE DATAFILE '/dev/rlvispbrbs2' AUTOEXTEND ON;

REM ************** TABLESPACE FOR TEMPORARY *****************
CREATE TABLESPACE TEMP_DATA DATAFILE '/dev/rlvispbtemp' SIZE 31999K
REUSE
You have to compare the size of /dev/rlvispbtemp with the size of temp.
UNLIMITED PCTINCREASE 0) TEMPORARY;
ALTER DATABASE DATAFILE '/dev/rlvispbtemp' AUTOEXTEND ON;

REM ************** TABLESPACE FOR USER *********************
CREATE TABLESPACE USER_DATA DATAFILE '/dev/rlvispbuser' SIZE 5M REUSE
DEFAULT STORAGE ( INITIAL 50K NEXT 50K MINEXTENTS 1 MAXEXTENTS UNLIMITED
PCTINCREASE 0);
ALTER DATABASE DATAFILE '/dev/rlvispbuser' AUTOEXTEND ON;

REM ************** TABLESPACE FOR INDEX *********************
CREATE TABLESPACE ISPB_INDEX DATAFILE '/dev/rlvispbindex' SIZE 95999K
REUSE
You have to compare the size of /dev/rlvispbindex with the size of index.
PCTINCREASE 0);
ALTER DATABASE DATAFILE '/dev/rlvispbindex' AUTOEXTEND ON;

REM ************** TABLESPACE FOR DATA *********************
CREATE TABLESPACE ISPB_DATA DATAFILE '/dev/rlvispbdata' SIZE 127999K
REUSE


You have to compare the size of /dev/rlvispbdata with the size of data.
PCTINCREASE 0);
ALTER DATABASE DATAFILE '/dev/rlvispbdata' AUTOEXTEND ON;

REM **** Creating four rollback segments ****************
CREATE ROLLBACK SEGMENT r01 TABLESPACE RBS1;
ALTER ROLLBACK SEGMENT r0 OFFLINE;
DROP ROLLBACK SEGMENT r0;

REM **** SYS and SYSTEM users ****************
alter user sys temporary tablespace TEMP_DATA;
alter user system temporary tablespace TEMP_DATA;
disconnect
exit

EOF

22.Enter Y to run the script and create the logical volumes. Details of the run
are available by entering:
tail -f /usr/TivTSM/install/db/oracle/./sqlispb.log.
23.Use the following steps for the schema creation script:
Press Enter to accept the default single value between parenthesis, or
type a new value and press Enter.
- Enter the password for the db user system manager.

Note
You may accept the defaults for the remaining steps if you used ispb as the
database instance.

- Enter stage_master as schema owner.
- Enter stage_user as schema user.
- Enter en as default local


- e value.
- Enter Y to create the schema.
- The install will load tables and check results.
- If you will use Device Manager, enter Y to include the Device Schema.
- Enter Y to load the zip code table.
- Enter Y to configure LDAP Integration.
- Enter Y to configure eBill.
- Enter Y to configure Web Hosting.
24.At this point the installation is complete. You may review the logs in the
following directories:
- /usr/TivTSM/install/db/oracle/
- /db/app/oracle/products/8.1.5/schemas/ispb
- /tmp/OrasoftInst.log.

4.3 Installing Netscape Enterprise Server 3.63
We installed the Netscape Enterprise Server 3.63 as our Web Server. In this
section we explain the tasks we performed to get Netscape Server up and
running.

4.3.1 Creating groups and users
1. mkgroup -'A' netscape
2. mkuser 'enterpri'
3. chuser pgrp=netscape enterpri

4.3.2 Installing Netscape Enterprise Server 3.6
The Netscape installation requires approximately 250 MB of file system
space for the 3.6 server version.

Execute the ns-setup file (./ns-setup). Use the following answers to the
Netscape install prompts:
Do you agree to the license terms? [no]: y
Server root [/usr/netscape/suitespot]: /usr/netscape/suitespot
Machine's name [hostname.]: hostname.domainname.com
SuiteSpot User [nobody]: enterpri


SuiteSpot Group [nobody]: netscape
Are you using an LDAP-based directory server? [n] n
After all prompts, press Enter to copy the software. When prompted
provide the following information:
Administration port [6557]: 11043
Run Administration Server as [root]:root
Enter path to 2.x version of Netscape Administration Server root:
[/usr/ns-home] leave blank if 2.x of Netscape was not loaded prior
Server Administrator ID [admin]: admin
password: admin
password (again): admin
Web browser [netscape]: NONE
Perform the following steps to allow remote access to Netscape server:
Stop the admin server by typing the command
/usr/netscape/suitespot/stop-admin
Type cd /usr/netscape/suitespot/admin-serv/config
In a text editor, open ns-admin.conf.
Change Hosts X.X.X.X to Hosts *
Change Addresses X.X.X.X to Addresses *
Start the admin server by typing the following command:
/usr/netscape/suitespot/start-admin

4.4 Creating Netscape server instances
Use the following steps to create Netscape server instances.
1. To get to the Netscape server administration console, start a browser and
go to http://hostname:11043, where ‘hostname’ is the name of the server
and ‘11043’ is the port where the admin was loaded as shown in Figure 9
on page 40.


Figure 9. Netscape Server Administration console

2. Press Create New Netscape Enterprise Server 3.63.
3. Fill in form using the table below for each server instance. The following
sections show you examples of filling out the form for each server
instance.
- When you create the Enrollment Server, follow the additional steps
described in the example for Enrollment Server
- Server Name field is the name of the server where you have installed
Netscape (host.domain).
- Take the default value for Bind address, Server User, MTA Host, NNTP
Host.
- Verify that the “Never attempt to resolve IP addresses into hostnames”
radio button is selected. Confirm that the server port, server identifier,


and primary document directory values are set in the form as in
Table 2.
Table 2. Netscape Enterprise Servers

Server Server Server Primary document directory
component port identifier

Authentication 8080 authserv /usr/TivTSM/authentication/conte
Insecure nt

Customer Care 14080 custcare /usr/TivTSM/custcare/content

Subscriber 15080 selfcare /usr/TivTSM/selfcare/content
Self-Care

System 9080 sysmgmt /usr/TivTSM/sysmgmt/content
Management Tools

Personalization 16080 personal /usr/TivTSM/personal/content

Premium 10080 premium /usr/TivTSM/premium/content
1
Enrollment 18080 enroll /usr/TivTSM/enroll/content

SDP Servlet 8090 sdp /usr/TivTSM/sdp/content

Web Content 12080 wch /usr/TivTSM/wch/content
Hosting


4.4.1 Creating the Authentication Server
Fill in the form as shown in Figure 10 to create the Authentication Server
instance.

Figure 10. Form for Authentication Server


4.4.2 Creating the Customer Care Server
Fill in the form as shown in Figure 11 to create the Customer Care Server
instance.

Figure 11. Form for Customer Care Serer


4.4.3 Creating the Selfcare Server
Fill in the form as shown in Figure 12 to create the Selfcare Server instance.

Figure 12. Form for Selfcare Server


4.4.4 Creating the System Management Tools Server
Fill in the form as shown in Figure 13 to create the System Management
Tools Server instance.

Figure 13. Form for System Management Tools Server


4.4.5 Creating the Personalization Server
Fill in the form as shown in Figure 14 to create the Personalization Server
instance.

Figure 14. Form for Personalization Server


4.4.6 Creating the Premium Server
Fill in the form as shown in Figure 15 to create the Premium Server instance.

Figure 15. Form for Premium Server


4.4.7 Creating the Enrollment Server
Fill in the form as shown in Figure 16 to create the Enrollment Server
instance.

Figure 16. Form for Enrollment Server

1. After you create the Enrollment Server, click on the enroll server button to
configure the server.
2. Click Programs, then click CGI Directory (see Figure 17 on page 49).


Figure 17. Form of CGI for Enrollment Server

3. Type cgi-bin on the URL prefix line.
4. Type /usr/TivTSM/enroll/cgi-bin on the CGI directory line.
5. When you see a warning that the directory does not exist, click OK.
6. Save.
7. Apply.
8. Click OK.
9. Click admin.


4.4.8 Creating the SDP Servlet Server
Fill in the form as shown in Figure 18 to create the SDP Servlet Server
instance.

Figure 18. Form for SDP Servlet Server


4.4.9 Creating the Web Hosting Content Server
Fill in the form as shown in Figure 19 to create the Web Hosting Content
Server instance.

Figure 19. Form for the Web Hosting Content Server


4.5 Installation of IBM WebSphere Application Server
To ensure a smooth installation process, do the following before you install
the WebSphere in your AIX machine:
• Choose an edition of WebSphere Application Server that matches your
requirements (in our case WebSphere Application Server 3.5 Standard
Edition).
• Make sure that all hardware and software requirements are set up and
running on your machine. This includes working versions of JDK/JRE,
Web browser, Web Server, and database systems.
• Ensure that you have configured your TCP/IP environment correctly. Verify
your machine’s Host Name, Domain Name, and IP, routing, and name
server addresses.
• Make sure that your Internet/intranet access from/to your machine is
working properly.
• You should have an AIX user ID for running the Web Server. WebSphere
will use the same user ID for executing its process. To install WebSphere
Application Server, you can either log in as a root ID, or as a user ID that
can run the Web Server.

The installation process consists of a sequence of dialog boxes. After each
dialog box, you can proceed to the next dialog box by clicking the Next>
button. If you miss some information in a screen, you can always go back by
clicking the Back>button.
• After the Welcome dialog box (Figure 20 on page 53), go to the next dialog
box.


Figure 20. WebSphere Application Server Installation on AIX - welcome page

• Specify the type of installation (Figure 21). Select Custom Installation
from the list.

Figure 21. WebSphere Application Server Installation on AIX - type of installation


• The next dialog box (Figure 22) asks you to select the application server
components that you want to install.

Figure 22. WebSphere Installation on AIX - selecting components to install

• The installation will ask you to select the Web Server on which
WebSphere will run (Figure 23 on page 55). Select the appropriate Web
server plug-ins on the right. If your Web server has a later version than
those listed in the dialog box, choose the latest plug-in version available.


Figure 23. WebSphere Installation on AIX - selecting plug-ins to install

• Specify the location of your Web server configuration file (Figure 24). For
Netscape Server, the file is obj.conf; for Apache or IBM HTTP Server, the
file is httpd.conf.

Figure 24. WebSphere Installation on AIX - web server configuration file


• The next dialog box (Figure 25) asks you to indicate the type of the
database you would like to use. For our purposes, choose InstantDB.

Figure 25. WebSphere Installation on AIX - indicating database repository

• Now, enter the security information (Figure 26). The user is the user that
WebSphere is going to run under. Use the dummy key ring file.

Figure 26. WebSphere Installation on AIX - security information


• Specify a directory to install the WebSphere (Figure 27). This directory will
be the WebSphere Application Server root directory.

Figure 27. WebSphere Installation on AIX - specifying WebSphere home directory

• The installation program will take some time to install files into your
system.
• After it finishes, the last dialog box will allow you to read the readme.txt file
or click Finish to complete the installation.

At that point, the Websphere Application server is ready.

4.6 Installing Tivoli Internet Services Manager software
This section will show you how to install TISM/TPSM software on an AIX
machine.

Before you run the following command, be sure that you can start an
X-application like xclock. If not, set your DISPLAY variable properly before
continuing.

To perform the installation, you need to be a user that has root privileges.
First, change directory to the where you have the TISM/TPSM installation CD
mounted. In the TISM Planning and Installation online manual, it says to run


./install.sh in an AIX terminal window, but it really should be the following
command:
./install.ksh

This will bring up the install welcome panel as shown in Figure 28.

Figure 28. TISM/TPSM installationwelcome

Choose Next to continue. You will then be asked which database you will be
using. Select the proper database and click on Next as shown in Figure 29 on
page 59.


Figure 29. Choosing the database

It is interesting that we are prompted for the database because we are
installing from the TPSM/Oracle CD. It appears that in the future, this will
allow both DB2 and Oracle support to be shipped on one CD instead of two.

Selecting Next will bring up the next dialog (Figure 30 on page 60) where you
will be prompted for the local machine information. DNS domain resolution is
a requirement.


Figure 30. Local Information for the install

Fill in the information and select Next to bring up the next dialog as shown in
Figure 31 on page 61.


Figure 31. Oracle configuration information

While the ITSO did an initial install on itso14.dev.tivoli.com, this screen
capture was done on a separate machine, knight1. This is the reason for the
discrepancy in hostnames on our dialog boxes.

No information was changed on this dialog. Selecting Next opened the next
dialog as shown in Figure 32 on page 62. If you have a Radius server already
installed, you can unselect the internal TISM Radius server.


Figure 32. TISM install components

You will notice that Systems Management and Authentication is greyed out.
This is because the installation of these components are required. Select
Next to bring up a prerequisite checklist dialog as shown in Figure 33 on
page 63.


Figure 33. TISM prerequisite checklist

Selecting Next will bring up the dialog to ask you where the prerequisites
have been installed as shown in Figure 34 on page 64. Update the dialog with
any changes from the application defaults.


Figure 34. Prerequisites’ installation directories

Select Next to open the verification dialog as shown in Figure 35 on page 65.


Figure 35. Installation verification dialog

You can scroll up/down the information that you have chosen from the
previous panels. When you have verified that it is correct select Next to start
the install.

While it is installing this version of the install code does not display a status
window. While the install document tells us to look at
/installdir/TivTSM/install/tisminstall.log, that file is not written until the
installation is complete or fails. You cannot tail the file to check the status of
the installation. After the installation has completed a dialog will open as
shown in Figure 36 on page 66.


Figure 36. Installation is finished

Select Finish to close the installation dialogs.

4.6.1 Post-Installation tasks for TISM software.
In this section we make the final configurations to ready TISM for use.
• Start all the Netscape Servers
• Create the WebSphere Application Servers
• Configure all of the components of the TISM.

4.6.1.1 IBM WebSphere Application Server configuration
1. For TISM Application, execute the following command:
cp /usr/TivTSM/install/etc/rc.txservers /etc
2. For starting and stopping the Netscape services, we created a
rc.webservers file in the /etc filesystem. Our file looks like this:


cat /etc/rc.webservers
/usr/netscape/suitespot/https-enroll/$1
/usr/netscape/suitespot/https-custcare/$1
/usr/netscape/suitespot/https-personal/$1
/usr/netscape/suitespot/https-selfcare/$1
/usr/netscape/suitespot/https-premium/$1
/usr/netscape/suitespot/https-authserv/$1

3. In the Netscape server administration console, http://hostname:port,
select each Netscape server instance and select Apply to load manual file
changes.
4. Stop all the Netscape servers:
/etc/rc.webservers stop
5. Start all the Netscape servers:
/etc/rc.webservers start

4.6.1.2 IBM WebSphere Application Server configuration
This section shows you the steps to configure the Application Servers.
1. Change directory to /usr/WebSphere/AppServer/bin.
2. In a text editor, open was.prp. and change traceLevel=0 to traceLevel=4 to
avoid a huge log file.
3. Enter ./startupServer.sh to start the WebSphere.
4. Enter tail -f ../logs/tracefile. Wait for an Open for e-business message.

To create all the application servers for TISM, follow the next steps:
5. Enter ./setupCmdLine.sh
6. Enter ./XMLConfig.sh -adminNodeName nodename -import SMAPPV11ora.xml.
7. Ignore the following warning messages during the import process
Failed to find Servlet
Creating Servlet : xxxxxxxxxxxx, since it was not found for update.
8. Backup the InstantDB database:
- Change directory to usr/WebSphere/AppServer/bin and issue tar -cvf
./idbstore.tar ./idbStore.
- Enter ./XMLConfig.sh -adminNodeName node name -export nodename.xml

Now we can start the Admin Console (Figure 37 on page 68) to verify the
creation of the application servers. Go to the /usr/WebSphere/AppServer and
issue ./adminclient.sh&. Ignore the following warning messages:


[00.11.15 15:59:11:457 CST] bbe7e34f IExtendedSecu A 2000.11.15
15:59:11.457 SecurityConfiguration reportVerificationAnalysis IBM
WebSphere Security The security service will not be disabled during
bootstrap activation.

Figure 37. WebSphere administration console

Now we start up all the application servers. Just click on the Application
Server to be started and then click on Start. You should see a completed
message as shown in Figure 38 on page 69.


Figure 38. Starting up an Application Server

4.7 Usage and verification test of installed TISM software
In this section we access each component of the TISM to verify the operation.

4.7.1 Director test
To start the Director Tool, you should open a browser and go to
http://<hostname>:9080/console/console.html to get the TSM Administration
page (see Figure 39 on page 73).

Download and install the console application code in your local machine.
Then edit the Transaction.properties file and change the TransactionURL
variable to match the hostname and port where the server is running:
http://itso14.dev.tivoli.com:2001/Transaction.

Start console with the command console.bat, which will open a dialog box
where you have to give Administrator login and password. See Figure 40 on
page 74. After filling in the username and password, the Administration
Console appears as shown in Figure 41 on page 74.


4.7.2 Authentication test
Open a browser and go to: http://<hostname>:8080/authentication/server.

You should see a TSM userid/password prompt screen. Enter a valid user id
and password (TEST1/test1).

4.7.3 Premium test
Open a browser and go to http://<hostname>:10080/premium/sample.jsp.

You should see a TSM userid/password prompt screen. Enter a valid user id
and password (TEST1/test1).

4.7.4 Customer Care test
Open a browser and go to http://<hostname>:14080/cc.html.

You will see a TISM customer care logon screen. There is a default CSR ID of
CSR001/csr001 that you can use to verify the server. For further details, refer
to Chapter 7, “Using Customer Care and Director Tool” on page 149.

4.7.5 Enrollment test
Open a browser, go to http://<hostname>:18080/enroll.html, and select
Enroll.

For further information refer to Chapter 5, “Enrollment and service
provisioning” on page 73.

4.7.6 SelfCare test
Open a browser and go to http://<hostname>:15080. You can log on to
personal with TEST1/test1 from the sample data. For further information
please refer to Chapter 8, “Subscriber Selfcare” on page 167.

4.7.7 Personal test
Open a browser and go to http://<hostname>:16080/perso/samples/welcome.jsp
and log on to personal with TEST1/test1 from the sample data.

4.8 Startup order for starting up a system
In this section we are going to review the sequence that we used to start all
the services in order to get the TISM/TPSM running.

The following assumes we are using a user with root privileges.


4.8.1 Oracle
Switch to the oracle software owner, in our case oracle8:
su - oracle8

Start up the Oracle listener:
lsnrctl start

Start up the Oracle Database:
dbstart

4.8.2 Start Provisioning server
Change to the /usr/TivTSM/provisioning/bin directory and issue:
nohup ./StartProvServer.ksh > /var/adm/logs/ProvServ.log

4.8.3 Transaction Servers
To verify if the Transactions Servers are running using the next command:

[# ps -ef|grep Trans
root 9024 18256 0 Nov 10 - 5:17 /usr/java_dev2/jre/sh/../bin/java
com.tivoli.tsm.tx.TransactionImp
root 21396 20432 0 Nov 10 - 8:33 /usr/java_dev2/jre/sh/../bin/java
com.tivoli.tsm.tx.TransactionImp
root 36504 13136 0 15:39:18 pts/4 0:00 grep Trans
#

To start up the Transaction Server, go to the /etc directory and enter:
./rc.txservers

4.8.4 Start Netscape Servers
To start up the Netscape Servers, go to /etc directory and enter:
./rc.webservers start

4.8.5 Start WebSphere
To start the WebSphere, please refer to Section 4.6.1.2, “IBM WebSphere
Application Server configuration” on page 67.


Chapter 5. Enrollment and service provisioning

This chapter is divided into two parts; registration configuration and managing
the enrollment process. To use the enrollment process in a realm, you must
establish which flow the user will follow.

5.1 Registration configuration
Enrollment can be performed through Dial-Up Networking or the Internet. In
either case, the enrollment server is used. Several people can be logged onto
the enrollment server using the same Registration Name and password. The
Registration Name can be used for an unlimited number of enrollments, or a
limit may be imposed on the number of subscribers who can be enrolled
using a Registration Name.

Network Access Server (NAS)-level filtering restricts a potential subscriber’s
access to the enrollment application only while the Registration Name and
password are being used. Before new members can be enrolled, the TISM
enrollment options in the Enrollment profile database must be configured. To
do this, use the Director Tool. This tool is run in a Windows environment. To
install it:
1. Open a browser and go to http://hostname:9080/console (Figure 39)

Figure 39. Administration Console


2. Download console.zip to your hard disk.
3. Unzip the file to a known location.
4. Edit the unzipped Transaction.properties, TransactionURL variable. It
should match the hostname and port of the machine where the console
RMI server is running. For instance:
//itso14.dev.tivoli.com:2001/Transaction
5. Open a DOS Windows and cd (change directory) to the directory where
you unzipped. Type console.bat to start the TISM Administration Console.
6. It will open a dialog box where you must give the Administrator login and
password (Figure 40).

Figure 40. The TISM Administration Console dialog box

7. The TISM Administration Console will open.
8. Double-click the Registration configuration folder (Figure 41).

Figure 41. Director Tool Console

A wide variety of configuration options are available to the ISP. The following
section provides an overview of the enrollment configuration objects:
• Realms


• Registration names
• Access codes
• Deals
• Deal text
• Enrollment metrics

The enrollment configuration objects have a structure. This structure is
required to create the enrollment object as shown in Figure 42.

Figure 42. Structure of the enrollment objects

A realm needs a registration name to be able to enroll new users. A
registration name requires an access code to be able to work.

For marketing purposes, we have deals and each deal has a deal text, which
explains the deal, for example, a deal, FREE, could have as deal text, you
don’t have to pay anything.

But if you have to pay something, you have a list of payment methods.

Chapter 5. Enrollment and service provisioning 75

For a deal, you can set a number of properties.

The access code is related with the deals. Depending on the access code,
the ISP could offer different deals, for instance, the old customers could be
offered a free access.

Due to that the deals are not going to be always free, you have to related
what methods of payment you permit.

5.1.1 Creation of a Realm
A Realm can be considered an ISP. For instance, IBM is a realm and its
domain is ibm.com. We must register a Realm in the TPSM to be able to
begin the enrollment process.
1. Right-click the Realm folder and select Add (Figure 43).

Figure 43. Press the right mouse button and select Add

2. Enter the following fields as shown in Figure 44 on page 77:
- Realm Name: A name for the realm.
- Realm Description: Optional text describing the realm
- Default Domain: The E-mail domain for the realm.


Figure 44. Dialog box for the creation of Realm

5.1.2 Creation of Registration Names
A Registration Name is a special TISM User Name used to enroll new
members. Subscribers who log in via a Registration Name have access only
to the enrollment server. They cannot access other resources of the ISP such
as the open Internet.

Registration Names always have at least one access code named DEFAULT.
The process of defining a Registration Name builds the DEFAULT Access
Code automatically.

There are 2 kinds of registration names; Generic and Multiple Access. A
Generic Registration Name has only the DEFAULT Access Code. A Multiple
Access Registration Name has the DEFAULT Access Code, and may have
additional Access Codes.

Registration Name does not meaningfully exist without an Access Code.
There must always be a Registration Name-Access Code combination in
effect for registration to succeed.


The following values define a Registration Name as shown in Table 3:
Table 3. Values of Registration Name

Value Description

Registration The username of this Registration Name.
Name

Description Optional 40 character text description

Password The password for this Registration Name.

Registration The set of NAS filters to be invoked during the time this
Authorization Registration Name is logged on (for example, filters that force
Attributes subscribers to stay in the registration subnet and not be able to
surf the web).

Member NAS attributes to be set for subscribers who register using this
Authorization Registration Name (for example, the attributes for the new
Attributes subscriber for all subsequent sessions after registration).

Registration Generic, or Multiple Access Code
Type

Access Code Only meaningful for Multiple Access Registration Names.
Required Y= Access Code is required (if not provided, registration is
terminated).
N= Access Code is optional (if not provided, registration
proceeds, using the DEFAULT Access Code).

Consumer or Determines if the subscriber, when created, will be considered
Business business or consumer.

Sales Channel Drop-down selection list that comes from the sales channel
folder of available sales channels.

Account Type Account type used on the subscriber's account when it is
created.

An example of creation of Registration Name is shown in Figure 45 on
page 79.
1. Select the new realm, ITSOCHANNEL.
2. Press the right mouse button and select Add
3. An example of dialog is:


Figure 45. Registration Names dialog box

5.1.3 Creation of Access Codes
Access Codes are a convenient way to extend the Registration Name.
Registration Names always have at least one Access Code, called DEFAULT.
When a Registration Name is defined, the DEFAULT Access Code is created
automatically. Access Codes are specific to a Registration Name. A particular
Realm, Registration Name, and Access Code combination is unique in the
TPSM database.

Access Codes are identifiers that provide an entry point into the registration
process. An Access Code is essentially a software override to a Registration


Name. The Access Code allows the Service Provider to track the sales
channel used to acquire subscribers.

An important aspect of Access code is that each one has its own set of billing
deals, thus enabling the generation of many different deals and registration
scenarios without having to build a new software kit for each new promotion.

As noted before, a registration name can be one of two types; generic or
multiple access. The first one uses the DEFAULT access code, so it doesn’t
deal with access codes. The second one requires an access code from the
registering subscriber, although it could have also the DEFAULT access code.

If a Multiple-Access Registration Name is driving a particular registration,
then the run-time registration code asks the access code, which is usually
provided in the software kit.

If the access code given by the user is correct, the registration flow continues
as it was established in the attributes. If the access code entered is incorrect,
the user would be asked again. If the access code is incorrect again, one of
two things can happen depending on whether the access code is required or
not. If it is not required, the registration will go on. If the access code is
required, the registration flow will be halted. This is shown in Figure 46 on
page 81.


Figure 46. Flow of a multi-access registration name

An example of creation of access code:
1. Select the new registration name, USER_FOR_ENROLL
2. Press the right mouse button and select Add -> Access Code
3. The dialog box shown in Figure 47 on page 82 appears:


Figure 47. Access Code dialog box

5.1.4 Creation of a deal
The deal is a set of services and associated billing options that are offered to
potential subscribers at enrollment time (Figure 48).

A given deal may be re-used by any number of Registration Name - Access
Code combinations. A registration name can be related with several deals, in
which case the subscriber can choose between them during the enrollment.

Figure 48. Deal examples offered to the user in the enrollment process

A deal may have any number of properties. These can be used to associate
various parameters with a deal, which at registration time become associated
with the subscriber´s account. If no deals are found for a given Registration
Name-Access code combination, the registration fails.


The required fields to create a deal are shown in Table 4:
Table 4. Required fields for the creation of a new deal

Field Description

Deal The deal name is also the Billing System
Product Code. The name links the deal
with a billing plan in the billing system.

Description Text description of the deal. This
description is not seen by the user.

Plan Type 1-5 characters. Required. Future use.

Text Block ID Name of the DEAL TEXT that you want to
relate with the deal

Method of Payment List Name of the Method of Payment List that
we relate with this deal

Properties For each property presented, select the
desired value from the pull-down that
applies. (As a convenience, the default
value is always the first one)

An example of the creation of a deal is:
1. Select the deal folder and click the right mouse button.
2. Select Add.
3. The dialog box shown in Figure 49 on page 84 will appear.


Figure 49. Dialog of the creation of a new deal.

4. A new dialog box appears to create new deal text or set the default text.

5.1.5 Creation of deal text
Deal text is a description of a deal. It can be related to several deals. This
information is displayed in several parts of TPSM, enrollment, selfcare, and
customer care processes.

The necessary information to create a deal text is shown in Table 5:
Table 5. Fields to create deal text

Value Description

Reporting description ID for the deal text

Short text Short deal description. It´s usually used in
the radio buttons.

Long text Long description of the deal. This is
optional.

Sort sequence Numeric value used in descending order
to set how they are listed on the screen.


At this point, you have two choices:
a. Select the default one by pressing Cancel.
b. Create new deal text:
1. The dialog box in Figure 50 will appear, and you have to write the
fields as you decide to set.
2. Press Add when you finish

Figure 50. Deal text dialog box

3. A dialog box to set the properties will appear.

5.1.5.1 Setting the properties for a deal
To set the properties in the deal, you have to set the values in the dialog box
shown in Figure 51 on page 86.


Figure 51. Dialog for properties of a deal

When completed, select Add. In the TISM Administrator Console you will now
see the deal that you added (Figure 52 on page 87).


Figure 52. Table with the deals and deal text

Now you have to relate the deals with the Realms, which is described in
Section 5.1.7, “Associating the deals with the Realm” on page 90

5.1.6 Creating a property
A property is a definition of a system parameter that can be assigned to
various components. Each property is identified by its domain name. Each
property has a sublist of possible setting values for it. Each property is also
assigned a subsystem, which is the name of the application that presets a
given property.

The values in Table 6 are required to create a property:
Table 6. Fields to create a property

Value Description

Name Name of the property

Domain Domain of the property

Description Description of the property

Subsystem Component that sets property values; for
instance, PIDEAL, so the property is going
to be defined as a deal level in the
registration configuration folder. For more
information, check the Data Dictionary
documentation


Value Description

Unit of Measure Unit of measure for property values; for
instance, MegaBytes

Default Value Default setting for property; for instance, 1,
0, 2, None

Setting type Determines the type of values the
properties have. This value determines
the sort order of the Setting Folder for the
property. Currently, there is no type
checking when new setting values are
added to a property. They may be one of
the following:
- Number
-Character
- Date

The Director Tool has a few defaults. You can also add your own.

5.1.6.1 Creating a new property
To add a new property, follow these steps as shown in Figure 53:
1. Select the Registration Values Folder in the TISM Administrator Console.
2. Select the Properties Folder.
3. Select the Action Menu, and select Add -> Property to bring up a dialog
box as shown in Figure 54 on page 89.

Figure 53. Menu to create a property


Figure 54. Dialog to create the property

4. Fill in the dialog with your property information and select Add. The new
property is now visible in the Properties table.
5. After this you can set values to this property.
a. Select, in the table of properties, the property that you want to add
possible values to.
b. Select Action Menu
c. Select Add -> Setting
d. A dialog box as shown in Figure 55 on page 90 will appear where you
write the new value.


Figure 55. Creating a value for FAVBOOKS property

5.1.7 Associating the deals with the Realm
With this action, you set which deals are going to be offered in the enrollment,
customer care, and selfcare to a customer for a specific Realm. Follow these
steps:
1. Select the deal folder in the Administrator Console.
2. As you can see in Figure 56 on page 91, in the top of the window you have
the available deals and in the bottom of the right hand side, you have the
existing Realms. Check the deal that you want to relate, for instance,
FREE.


Figure 56. Table of deals

3. Select the deal in the top table that you want to associate with a Realm,
then select the Realm(s) in the lower right window that will offer this deal,
for example, IBM and ITSOCHANNEL. See Figure 57 on page 92 to see
the deal and Realms associated.


Figure 57. Example of how to relate a deal with several Realms

5.1.8 Associating the Access Codes with the deals
With this action, you will associate the deals that you have created with
access codes within the context of a Registration Name. This gives you the
freedom of Registration Name/deal/Access code associations instead of
locking you into a single deal/Access code association for all Registration
Names.The steps to do so are:
1. Select the registration name as shown in Figure 58 on page 93.
2. In the bottom of the right hand-side, there is a table that displays the
available access codes and deals. Also, this table displays the relations
between the access codes and deals.
3. Check the deals that you want to offer for this access code.


Figure 58. Relation of access code and deals

5.1.9 Creating a Sales Channel
A Sales Channel is a free-form data item used for marketing purposes. It is an
attribute related to access codes. When a subscriber enrolls, the Sales
Channel associated with the access code is stored in the database and can
be used for reporting.

The following values are necessary to create a sales channel (Table 7):
Table 7. Fields for a Sales Channel

Value Description

ID ID for Sales Channel

Description Text description about the Sales Channel

To create a sales channel:
1. Select the Sales Channel folder in the Registration Configuration folder of
the Administrative Console.
2. Select Action Menu.
3. Select Add.
4. A new dialog box will appear as shown in Figure 59 on page 94.


Figure 59. A new Sales Channel

The new Sales Channel will now show up in the Administrator Console
(Figure 60).

Figure 60. Table of existing Sales Channel

When you create a new Access Code, you would have the choice of selecting
the new Sales Channel as shown in Figure 61 on page 95.


Figure 61. Example of selection of created Sales Channel in the new Access Code

5.1.10 Creating a Method of Payment
A method of payment describe a valid payment method available in the
overall system. The payment methods are contained in the list of payment
methods.

Table 8 explains each required field to create a payment method:
Table 8. Description of the required fields for a method of payment

Value Description

Type There are three primitive Method of
Payment types:
- Paper - For paper invoice creation
- Credit - Credit card
- Telco - Add to phone bill

Subtype It could be any letter

Description Description of the new method

Here is an example about how to create a payment method:
1. Select the Payment Method folder in the Registration values folder.
2. Either right click on the folder or choose the Action menu.


3. Select Add. A new dialog box will be displayed as shown in Figure 62.

Figure 62. Payment Method dialog

5.1.11 Creating a List of Method of Payment
The Method of Payment (MOP) Lists are named collections of Payment
Methods. A MOP List is an attribute of a deal.

How to create a List of Method of Payment:
1. Select the Method of Payment Lists folder.
2. Select the Action menu.
3. Select Add. A new dialog box will be displayed asking you the name of the
list of payment methods as shown in Figure 63 on page 97.


Figure 63. Method of Payment list dialog

4. Now you have to add the Payment Methods that you want contained in the
MOP list. Select the MOP List in the table that appears in the middle of
Figure 64.

Figure 64. Relationship between method of payment list and table

5. Select the Method of Payment we want to include in the MOP list in the
right hand-side of the table as shown in Figure 65 on page 98.


Figure 65. Example of how to relate the MOP list to MOPs

5.1.12 Association of a MOP list and a deal
You have two choices depending on when you decide to set the association
between the Method of Payment (MOP) List and the deal. As we saw, you can
select it in the deal dialog box when you create it (see Section 5.1.4,
“Creation of a deal” on page 82), or you can set after creation as follows:
1. Select the deals folder as shown in Figure 66 on page 99.
2. A table appears in the top of right hand-side of the window, Click the
method of payment list of the deal that you want to change. A combo-box
with the different MOP list will be displayed.


Figure 66. Example of combo-box of MOP list for a deal

3. Select the MOP list that you want to set for the deal.

5.1.13 Managing the enrollment process
With the settings we have specified, we are going to personalize a enrollment
process for ITSOCHANNEL, explaining the object components and the role
that they are going to play in this scenario as we go.

We have a Realm, ITSOCHANNEL. This realm has created a registration
name for the enrollment process, USER_FOR_ENROLL. This registration
name has a Multi Access type, so we can use access codes other than
DEFAULT. We created two access codes, PUBLIC and CHEAP. Depending on
the access code, the user will be offered different deals. PUBLIC access code
offers the FREE deal. The CHEAP access code offers two deals; FREE and
CHEAP. Both use MOP test as the method of payment list. MOP test contains
all the available credit cards.

Keeping this in mind, we are going to see what we need to change in the code
to make it work how we want. The generic configuration for enrollment
process is explained in Chapter 4, “Building the environment” on page 31.


The enroll process begins in the URL:

http://hostname:18080/enroll.html

This will bring up the enrollment home page as shown in Figure 67.

Figure 67. Enroll home page

This page sets the Realm that the user is going to be enrolled in, and the
Registration Name that we want to use for the enrollment process, in this
case ITSOCHANNEL as Realm and USER_FOR_ENROLL as Registration
Name.

The following screen shows the code associated with this page:


<!DOCTYPE HTML PUBLIC "-//W3C//DTC HTML 4.0//EN">
<META HTTP-EQUIV="Content-type" CONTENT="text/html;charset=iso-8859-1">
<HTML>
<HEAD>
<TITLE>Welcome to ISP</TITLE>
</HEAD>

<BODY BGCOLOR="Teal" TEXT="white">
<CENTER>
<TABLE WIDTH=370 CELLSPACING=0 BORDER=0>
<TR><TD> </TD></TR>
<TR><TD WIDTH=201>
<CENTER><IMG SRC="../../art/reg000.gif" WIDTH=578 HEIGHT=52 BORDER=0 ALT="Subscriber
System Registration">
</CENTER>
</TD>
</TR>
</TABLE>
<TABLE>
<TR><TD> </TD></TR>
<TR><TD> </TD></TR>
</TABLE>
<TABLE>
<TR><TD>
<FONT SIZE=6> <CENTER>Welcome !!</CENTER></FONT><BR></TD></TR>
<TR><TD> </TD></TR>
<TR><TD>
<CENTER><FONT SIZE=5>Here's an opportunity to join the fastest growing ISP
!!</FONT></CENTER><BR>
<BR></TD></TR>
<TR></TR>
<TR><TD> </TD></TR>
<TR><TD>
<CENTER><FONT SIZE=15>
<FORM METHOD="POST" ACTION="/enroll/EnrollServlet">
<INPUT TYPE="HIDDEN" NAME="RegName" VALUE="USER_FOR_ENROLLMENT">
<INPUT TYPE="HIDDEN" NAME="RealmName" VALUE="ITSOCHANNEL">
<INPUT TYPE="SUBMIT" NAME="" VALUE="ENROLL NOW">
</FORM>
</FONT>
</CENTER>
</TD></TR>
</TABLE>
</CENTER>
</BODY>
</HTML>

These changes create the new REALM. Once you press ENROLL NOW, you
pass to the next window (Figure 68 on page 102), which prompts the user for
an access code. We have two; PUBLIC and CHEAP. In this example we will
enroll with both to show the differences due to the different configuration.


Figure 68. Enroll with access code PUBLIC

After this, the agreement window appears as shown in Figure 69.

Figure 69. Agreement window


The enrollment details window appears. This is divided into Personal details
(Figure 70) and deals/Username (Figure 71 on page 104).

Figure 70. Personal detail of enroll


Figure 71. Deal and Userid details for enroll details

At this point the customer can choose the password for accessing the new
account as shown in Figure 72.

Figure 72. Password for enroll details

Next, TPSM gives details about the deal that the user chooses as shown in


Figure 73. Details of chosen deal

Access information and a choice for method of payment is shown (see
Figure 74).

Figure 74. Payment Method details for enroll


The enrolling person is given a chance to confirm all the information that had
been entered (see Figure 75).

Figure 75. Confirmation details

Enrollment is complete, as shown in Figure 76.

Figure 76. Congratulations screen


Selecting Continue on Figure 76 on page 106 will bring up Figure 77, which
provides additional information for configuring your machine to access the
service.

Figure 77. Configuration enroll

Now we are going to see what happens when we use the CHEAP access
code in the screen shown as Figure 68 on page 102 to enroll a new user. First
we go to the enroll main page (Figure 67 on page 100) and proceed to enroll
a new one following the steps that we mentioned earlier in this chapter; see
Figure 68 on page 102 through Figure 77. On the screen that asks us to
choose the deal, we select the second option as shown in Figure 78 on
page 108.


Figure 78. Choosing the cheapest deal.

As you can see, there are two deals. These deals are those we set for
CHEAP access code. After we choose the deal, the enrollment procedure
continues as described on the prior pages.

5.1.14 Enrollment JSPs
You can change the flow of the enrollment process by changing the JSPs.
Table 9 on page 109 describes the enrollment JSPs.

Figure 79 on page 109 shows the structure of directories for Enroll.


Figure 79. Structure of directories of enroll

The content directory contains the JSPs. Their names and functions are
described in Table 9:
Table 9. JSPs for enroll

JSP file Description

accessCode Ask the access code

accountCode If the access code is not correct, it would ask the access code
again

areYou18 If the user don’t give the birth date, It would ask if you are 18 or
over

cancelByUser If you cancel the registration, it would send you to this JSP

configure After registering, the user could download the configuration to
your PC

confirm Shows the user details about the registration

congrats It gives the user the congratulations, when it finishes


JSP file Description

debug Not used

dontGo If the user presses cancel

enroll Controls the flow of the enrollment

mopCombined Shows the Payment Details to be confirmed by the user

paymentPlan Shows the Deal Details to be confirmed by the user

userNameInvalid If the user chooses a ID that is used already

personalCombined The form with all the personal details

agreement Shows the terms of agreement

For the servlet directory, we have the configuration files. In Table 10, we are
going to explain what who they are and they do.
Table 10. Property files for enroll

File name Description

EnrollJspMsg.properties Variables with messages for the user

Transaction.properties JDBC configuration for Oracle

Validator.properties Variable format to validate the data that the user
introduces

device_enroll.properties It has the error page where if something wrong happens
go

enroll.properties General configuration file


Chapter 6. Subscriber authentication and access control

Authentication is the process by which a user is recognized by the system
and allowed to gain access to files or views. Typically a user is authenticated
by prompting a form with their user name and password. This information is
verified by the server.

The authentication server is one of the most important parts of TPSM
because almost all the other servers use it.

Figure 80 shows how the authentication server works in TPSM.

Figure 80. How the authentication server works

1. A user attempts to access a portal page and is intercepted by the
authentication checker 1.
2. The user has never access the portal page before and therefore is not
authenticated. The user is redirected to the Authentication Server.
1
The Authentication Checker is a component of the Portal Toolkit (pTk) that recognizes the type of device.


3. The authentication server prompts the user for a username and password
in order to validate them. The other possibility is the authentication server
verifies the IP address given to the user at sign-on with the Radius server.
4. User enters the appropriate information if prompted. The Authentication
Server validates that he or she is an authorized user, and stores
information in the TISM database.
5. The user is authenticated and redirected back to the portal page. Now the
checker acknowledges the user’s authentication and permits them to enter
the site.
6. A user session is opened that contains all the profiling information stored
in the database.

As you know, TPSM supports multiple types of devices. Depending on the
type, it’s necessary to change the configuration. There are mainly two types
of devices; the internet browsers, such as Microsoft Internet Explorer and
Netscape, and the wireless browsers such as mobile telephones and PDA’s.
Because these are handled very differently, this chapter is divided into two
sections.

6.1 Authentication stages
The server attempts to authenticate users in two stages. These stages are:
• Stage 1 tries to identify the user with information extracted from the HTTP
request headers. It supports:
- Authentication by source IP address
- Authentication by source IP address forwarded in any HTTP header
- Authentication by username forwarded in any HTTP header (or
MS-ISDN)
• Stage 2 prompts the user for login password if stage 1.
- Basic HTTP authentication
- Authentication form using http or https: That form is device dependant.
it can be HTML, WML, etc.


6.2 Authentication modes
The server authenticates in two modes:
• Multi-domain mode: the authentication process is distributed. Each
content server is protected by the Authentication Checker. There is one
central Authentication Server, or several, that receives requests for
authentication, processes them, and redirects them to the request server.
• Single-domain mode: The authentication process is entirely done in the
Checker. This mode is good for limited devices, such as WAP devices that
don’t support redirection. It is also preferable when the authentication
process is delegated to an external component such as a WES
authentication proxy. This mode can be faster but has the limitations that
appear in the next table:
Table 11. Limitations of single-domain mode authentication

Multi-Domain Mode Single-Domain Mode

Single Sign On (cookie) Yes No

Stage 1: by IP address in Yes Yes
IP header

Stage 1: by IP address in Yes Yes
HTTP header

Stage 1: by Username or Yes Yes
MSISDN in HTTP header

Stage 1: no Yes Yes

Stage 2: Form Yes No

Stage 2: Basic HTTP Yes Yes

External Partners Yes No
Premium Content Servers

Session load balancing Yes Yes

Assumption: Checker does not need Checker needs
connectivity to DB connectivity to DB

6.3 Internet world
The differences between the internet world and the Wireless World is the
amount of space available on the screen to display information and the
protocols. Due to this, the authentication server uses a pTk component

Chapter 6. Subscriber authentication and access control 113

Authentication Checker that determines the type of device attempting to
access the server. This information is read from the user- agent, at which
point the Authentication Checker searches for the proper configuration file to
display information for that device’s needs, and to decide what type of
authentication it needs, such as HTML or WAP.

The authentication server for the Internet World uses cookies. It creates a
JavaBeans session when the user signs on to access authentication
information. There are some pTK commands that can use the session to
gather authentication information.

You should be able to work for internet access, so if you write in the browser
the next URL http://hostname:8080/authentication/server, it will bring up a
dialog as shown in Figure 81.

Figure 81. Authentication form

The structure of this page can be changed. Section 6.3.1, “Structure of
Authentication Server” on page 114 has a complete guide to configuring this
page.

6.3.1 Structure of Authentication Server
The important parts of the Authentication Server when it’s used for internet
access are shown in Figure 82 on page 115.


Figure 82. Active components of the Authentication Server for internet access

The authentication file system is divided in two:
1. Content, where the structure of the page is located.
2. Servlet, where the configuration files and Java code for the authentication
server is.

The content file system has different parts, as you see in Figure 82:
a. css contains the default style sheet for the authentication server.
b. en contains the English JSPs.
c. images contains all the pictures files for the authentication server.
d. ja contains all the Japanese JSPs.

The JSP used for internet access is authentication.jsp, and as you can see in
the next screen it is a form with a Java Bean that creates a session with the
information passes.


The bolded lines are the important code for authentication.jsp. As you can
see at the beginning, we have the Java code for importing the classes and
creating the Java Bean for authentication. In the second part of the code, we
have the form with the auth JavaBeans methods for verifying the
authentication in the server and the redirection to the page where the
authentication was requested from.

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0//EN">

<%@ page import="java.util.*,java.text.*" %>
<jsp:useBean id="auth" class="com.tivoli.tsm.authentication.AuthFormBean"
scope="request" />

<HTML>
<HEAD>
<META http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<TITLE> TSM Authentication Page </TITLE>
<LINK rel="stylesheet" href="/css/default.css" type="text/css">
</head>
<BODY text="#000000" bgcolor="#FFFFFF" link="#000000" vlink="#000000"
alink="#000000">
<TABLE border="0" cellspacing="0" cellpadding="0" >
<TR>
<TD><A href="http://www.tivoli.com"><IMG src="/images/tivoli_logo.gif"
ALT="Tivoli" border="0" ></A></TD>
<TD ><IMG width="1000" height="50" src="/images/spacer.gif" ></TD>
</TR>
<TR><TD> </TD><TD> </TD></TR>
</TABLE>

<TABLE border="0" cellspacing="0" cellpadding="0" width="100%">
<TR>
<TD valign="top" align="left">
<TABLE border="0" cellspacing="0" cellpadding="0" width="250">
<TR><TD bgcolor="#6666CC"><FONT
color="#FFFFFF"><b>Personalize</b></font></TD></TR>
<TR><TD ><A href="/perso/home">My Portal</A></TD></TR>
<TR><TD bgcolor="#6666CC"><FONT color="#FFFFFF"><b>Shopping</b></font></TD></TR>
<TR><TD ><a
href="http://www.gap.com/onlinestore/gap/default.htm">GAP</a></TD></TR>
<TR><TD ><a href="http://www.laredoute.fr">La Redoute</a></TD></TR>
<TR><TD bgcolor="#6666CC"><FONT color="#FFFFFF"><b>Books</b></font></TD></TR>
<TR><TD ><a href="http://www.amazon.com">Amazon</a></TD></TR>
<TR><TD bgcolor="#6666CC"><FONT color="#FFFFFF"><b>Auction</b></font></TD></TR>
<TR><TD ><a href="http://www.ibazar.com">iBazar</a></TD></TR>
<TR><TD ><a href="http://www.aucland.com">Aucland</a></TD></TR>
<TR><TD > </TD></TR>
<TR><TD > </TD></TR>
<TR ><TD height="200"> </TD></TR>
</TABLE>
</TD>
<TD valign="top" align="left" >
<TABLE border="0" cellspacing="5" cellpadding="0">
<tr><td colspan="2" align="center"><IMG src="/images/ibmbanner.gif"></td></tr>
<tr><td> </td></tr>


<tr bgcolor="#6666CC"><td align="center" colspan="2"><H2><font
color="#FFFFFF">Please log-in...</font></H2></td></tr>
<tr bgcolor="#FFFFFF"> </td></tr>
<TR><TD valign="top" align="center" >
<FORM action="<%= auth.getAuthenticationServerURL() %>" method="get">
<TABLE border="1" cellspacing="1" cellpadding="0" bgcolor="#EEEEEE">
<TR>
<TD align=left> Your User Name </TD>
<TD align=left><INPUT type="text" name="SMSusername" value="<%=
auth.getUserName() %>" size="20" maxlength="30"></TD>

<TD align=left> </TD>
</TR>
<TR>
<TD align=left> Your Password </TD>
<TD align=left><INPUT type="password" name="SMSpassword" value="" size="20"
maxlength="30"></TD>
<TD align=right><INPUT type="submit" name="SMSsubmit" value="GO"
enctype="application/html-form-urlencoded"></TD>
</TR>
</TABLE>

<INPUT type="hidden" name="SMSkey" value="<%=auth.getKeyIndex()%>"><P>
<INPUT type="hidden" name="SMSrealm" value="<%=auth.getRealm()%>"><P>
<INPUT type="hidden" name="SMSurl" value="<%=auth.getComeBackURL()%>"><P>
<INPUT type="hidden" name="SMStiers" value="<%=auth.getTierList()%>"><P>

</FORM>
</TD></TR>
</TABLE>
</TD></TR>
</TABLE>

</BODY>
</HTML>

The servlet file system contains the configuration files for the servlets and
the Java code (jar files). The important files for internet access are:
• Authentication.properties (Section 6.3.1.1, “Authenticator.properties” on
page 118)
• DBPool.properties (Section 6.3.1.2, “DBPool.properties” on page 121)
• DefaultAuthenticator.properties (Section 6.3.1.3,
“DefaultAuthenticator.properties” on page 122)
• IE.properties (Section 6.3.1.4, “IE.properties” on page 131)
• Nav4.properties (Section 6.3.1.5, “Nav4.properties” on page 131)

We are going to explain how each of them works.


The authentication system of TPSM uses a server-side plug-in architecture.
Two plug-ins are delivered with TPSM. One of them is for browsers:
• DefaultAuthenticator.properties for Web Browsers

It’s possible to adapt this plug-in to the environment where it is going to be
used. The Authentication Checker and Authentication Server both use it. The
other is Authenticator.properties.

6.3.1.1 Authenticator.properties
The Authenticator.properties file defines the authentication plug-ins that are
loaded when the application server starts. It specifies a property file for each
authenticator. This is the code used for internet access:
def.authenticator.class=com.tivoli.tsm.authentication.DefaultAuthenticator
def.authenticator.properties=com.tivoli.tsm.authentication.DefaultAuthenti
cator

As you realize, the second part of the assignment is the directory and file.

The file also specifies the different types of devices, their HTTP signatures,
and their associated Authentication plug-ins. The following is an example and
definition for browsers.
# IE 4/5 Web browser
ie.device.signature.user-agent=MSIE
ie.device.properties=properties.com.tivoli.tsm.authentication.IE
ie.device.authenticator=def
# Netscape Navigator 4 Web browser
nav.device.signature.user-agent=Mozilla
nav.device.properties=properties.com.tivoli.tsm.authentication.Nav4
nav.device.authenticator=def

Imagine that a new browser appears and you need to configure for TPSM.
You have to get the user agent that it uses, in these cases, MSIE and Mozilla.

You then must create a new configuration file. The default files should have
been configured for Microsoft Explorer and Netscape as shown in Section
6.3.1.4, “IE.properties” on page 131 and Section 6.3.1.5, “Nav4.properties”
on page 131.

Because it’s going to use the DefaultAuthenticator.properties because it’s not
a wireless device, define it as authenticator def.

The file also specifies the path used to log the authentication tickets delivery:
authentication.log.name=/var/adm/logs/authentication.log


When the authentication is delegated to the WES authentication proxy, the
Authenticator.properties file must be replaced by the
Authentication.properties.wes. This change must be done at the end of
installation, before application servers start. The following screen is the
Authenticator.properties file.


######################################################################
# TSM Authentication properties
# This file is used by the class com.tivoli.tsm.Server
# This file lists
# - the different authenticators and their property file
# - the different devices and their signature
# - the TSM database connection pool properties
######################################################################
# List of authenticators
# ----------------------
# The syntax is :
# <authenticator index>.authenticator.class=<classname>
# <authenticator index>.authenticator.properties=<authenticator properties name>
#
######################################################################
# Default Authenticator is good for every WEB devices with a reasonable HTTP support
# It also supports Premium content access control
######################################################################
#
def.authenticator.class=com.tivoli.tsm.authentication.DefaultAuthenticator
def.authenticator.properties=properties.com.tivoli.tsm.authentication.DefaultAuthen
ticator
#
######################################################################
# WAP Authenticator can work with IBM and Nokia WAP gateway
# It may work too with Ericsson gateway (requires some tuning)
######################################################################
wap.authenticator.class=com.tivoli.tsm.authentication.WapAuthenticator
wap.authenticator.properties=properties.com.tivoli.tsm.authentication.WapAuthentica
tor
#
######################################################################
# List of devices
# ---------------
# The syntax is :
# <device index>.device.signature.<HTTP header name>=<HTTP header string>
# <device index>.device.properties=<device profile properties name>
# <device index>.device.authenticator=<authenticator index>
#
######################################################################
#
# Devices definition for TISM w/o WES
#
######################################################################
# WAP gateway
7110.device.signature.user-agent=Nokia7110/1.0
7110.device.properties=properties.com.tivoli.tsm.authentication.Nokia7110WapDevice
7110.device.authenticator=wap
# WAP gateway
R320.device.signature.user-agent=R320
R320.device.properties=properties.com.tivoli.tsm.authentication.R320WapDevice
R320.device.authenticator=wap
# WAP gateway


R380.device.signature.user-agent=R380
R380.device.properties=properties.com.tivoli.tsm.authentication.R380WapDevice
R380.device.authenticator=wap
# WAP gateway
nokiaemul.device.signature.user-agent=Nokia
nokiaemul.device.properties=properties.com.tivoli.tsm.authentication.NokiaEmulWapDe
vice
nokiaemul.device.authenticator=wap
# IE 4/5 Web browser
ie.device.signature.user-agent=MSIE
ie.device.properties=properties.com.tivoli.tsm.authentication.IE
ie.device.authenticator=def
# Netscape Navigator 4 Web browser
nav.device.signature.user-agent=Mozilla
nav.device.properties=properties.com.tivoli.tsm.authentication.Nav4
nav.device.authenticator=def
# Default Web browser
default.device.signature.user-agent=
default.device.properties=properties.com.tivoli.tsm.authentication.DefaultDevice
default.device.authenticator=def
#
######################################################################
# Authentication log file path
######################################################################
#
authentication.log.name=/var/adm/logs/authentication.log

6.3.1.2 DBPool.properties
DBPool.properties is used by the authentication server and pTk. It specifies
the connection to the TISM database. These are the standard JDBC
parameters:
JDBC.dbDriver=oracle.jdbc.driver.OracleDriver

This line specifies the driver, in this example, Oracle.
JDBC.dbUser=stage_master
JDBC.dbPassword=oracle

This is the user and password to connect to TISM database.

The following parameters tune the JDBC Connection pool used by the
authentication and pTk.
MaxDBConnections=5
MinDBConnections=2

The following specifies the TISM data model level.
tsm.level=4.0


The following screen shows the DBPool.properties file.

######################################################################
# database connection management parameters
######################################################################
# For Oracle RDBM
# JDBC driver name
JDBC.dbDriver=oracle.jdbc.driver.OracleDriver
#
# RDBM server JDBC URL
JDBC.dbConnect=jdbc:oracle:thin:@itso14.dev.tivoli.com:1521:ispb
#
######################################################################
# For DB2 RDBM
# JDBC.dbDriver=COM.ibm.db2.jdbc.net.DB2Driver
# JDBC.dbConnect=jdbc:db2://kriek.lagaude.ibm.com:1521/ispb
#
######################################################################
# RDBM user name
JDBC.dbUser=stage_master
# JDBC.dbUser=stage_user
#
# RDBM user password
JDBC.dbPassword=oracle
#
# Connection pool parameters
MaxDBConnections=5
MinDBConnections=2
#
######################################################################
# TISM DB level :
# It is used to provide compatibility with DB from TSM 2.x to TISM 1.1
# 2.1 | 3.0BETA | 3.0 | 4.0
# 3.0 = TISM 1.0
# 4.0 = TISM 1.1
######################################################################
tsm.level=4.0

6.3.1.3 DefaultAuthenticator.properties
DefaultAuthenticator.properties is the configuration file of the
DefaultAuthenticator plug-in:
authentication.multidomain.enabled=yes|no

When this parameter is yes, the multi-domain mode is enabled. This means
that a central authentication server is used, and users who are not
authenticated are redirected to it. This is the most powerful authentication
mode that can be used when applications host in different domains and share
a central authentication server. For more information, see Figure 6.2,
“Authentication modes” on page 113.


In multi-domain mode, the following parameter specifies the URL of the
authentication server (not including the URL path).
authentication.server.url=http://hostname:8080

In multi-domain mode, the following parameter specifies the URL path of the
authentication server.
authentication.form.path=/authentication/en/authentication.jsp

The next parameters define the type of authentication stage. For more
information, see Figure 6.1, “Authentication stages” on page 112.
authentication.type1=ip|username|no
authentication.type1.header=ip|<HTTP header name>

The first parameter defines the type of authentication for stage 1. If no value
is specified, it uses authentication stage 2 only. If the value IP is specified, it
tries to identity a dial-up user by their IP Address in the Radius Active
Session Table. If the value username is used, it searches for that username in
the specified HTTP Header. The syntax of the username cannot be
“username” or “username@realm.” The second parameter specifies the
header name where the IP address of the username must be fetched. IP
means the IP address contained within the original IP header.

The following parameter specifies the type of authentication for stage 2; by a
HTML (or WML) form, or by a basic HTTP authentication.
authentication.type2=basic|form

The next parameter covers Single Sign-On Cookies. For more information,
see Figure 6.2, “Authentication modes” on page 113.
authentication.sso.enabled=yes|no

If this parameter is set to yes, the central authentication server sets a Single
Sign-On Cookie to avoid prompting the user for several successive
authentications. An SSO Cookie only works in multi-domain mode.


The following parameters define the SSO Cookie more in-depth.
sso.cookie.name=sauth
sso.cookie.path=/authentication
authentication.cookie.maxage=-1
suthentication.cookie.invalidation.delay=3600
authentication.cookie.encrypted=yes|no
authentication.key=1,...,32

The above parameters specifies the Single Sign On Cookie. A negative
maxage means a session cookie (lost when the browser is stopped). If the
cookie is encrypted, a key number (from 1 to 32) must be specified.

The next parameter specify the default URL after the authentication. This is
not typically used.
authentication.openurl=http://www.afterauthentication.com

If the user logs off, the next parameter specifies where the user goes.
authentication.logout.url=http://www.whenlogout.com

If the user doesn’t pass a Realm, the next parameter specifies the default one
he or she will be assigned to.
authentication.default.realm=IBM

These parameters must be un-commented when a cluster configuration is
used, such as a configuration with an eND with several portal servers in
parallel. This enables TISM session level load balancing as shown in


Figure 83. Cluster configuration

On the authentication checker side, the Webmaster must specify the list of
premium services ids hosted by a thin server, and provide a list of URL paths
prefixes for each of them as shown in Figure 84.

Figure 84. Premium configuration


The next parameters are for the premium server.
authentication.premium.tierids= 08004, 08005, ..
authentication.premium.tierurls.08004=/premium1
authentication.premium.tierurls.08005=/premim2

This parameter specifies the URL where a non authorized user is sent when
he or she tries to attend to a premium server.
premium.accessrejected.url=http://hostname:1080/premium/auth.html

For setting the logs:
premium.access.log=no|yes
premium.access.logname=/var/adm/logs/premium.log

The authentication profiler class specifies an optional profiler class that can
be used by the Webmaster to write dynamic profiling rules. Profiling rules are
invoked at each user session start to dynamically add additional properties to
that user. It can be used to specify targeting rules for promotions, to count
user sessions, to make statistics, etc.
authentication.profile.class=<profile class name>

The following screen shows the DefaultAuthenticator.properties file.


######################################################################
# TSM DefaultAuthenticator properties
######################################################################
#
######################################################################
# Multi-domain or Single-Domain authentication
#
# - Multi-domain : allows Single Sign-On (SSO) on several
# domains, including domains hosted by tiers (premium content)
# It requires that devices supports HTTP redirect properly
#
# - Single-domain : allows SSO on a single ISP domain
# It does not use HTTP redirect since the authenticaiton is done
# directly in the Checkers.
# So it is faster, and good for dummy devices (I won't give name here ;-)
# It has limited functions : no SSO,
# authentication.type2=basic is forced
# It can be a good solution to work with WES authentication proxy
# or Tivoli Policy director.
#
# Multi-domain is the default, allowed values : yes | no
######################################################################
authentication.multidomain.enabled=yes
#
######################################################################
# authentication server URL : http://hostName:port
######################################################################
# authentication.server.url=http://thklamberton.lagaude.ibm.com
authentication.server.url=http://itso14.dev.tivoli.com:8080
#
######################################################################
# authentication server path
######################################################################
authentication.server.uri=/authentication/server
#
######################################################################
# authentication form file path
######################################################################
authentication.form.path=/authentication/en/authentication.jsp
#
######################################################################
# 1st authentication type (w/o login/pwd prompting) :
# authentication.type1 = ip | username | no
#
# it must also specify the packet header which contains that information :
# authentication.type1.header = ip | <any HTTP header name>
#
# if authentication.type1=username is used take care of the other property :
# authentication.force.username which forces a test username
#
######################################################################
authentication.type1=username


authentication.type1.header=
#
# Values to work with WES Authentication proxy :
#
# authentication.type1=username
# authentication.type1.header=X-IBM-PVC-User
#
######################################################################
# 2nd authentication type (with login/pwd prompting):
# basic | form : form is supported only in multi-domain mode :
# (authentication.multidomain.enabled=yes)
#
# The 2nd authentication type is used if the 1st one fails or is not active
#
######################################################################
authentication.type2=form
#
######################################################################
# When single sign-on is enabled, the authenticator sets
# a SSO cookie "sauth" which can be used by later authentications
# It avoids prompting twice the user with authentication form
#
# This parameter only applies when
# "authentication.type2=form" and "authentication.multidomain.enabled=yes"
#
# SSO is not available in single domain
#
# Allowed values : yes | no
######################################################################
authentication.sso.enabled=yes
#
######################################################################
# Single Sign On cookie parameters
# only required if "authentication.sso.enabled=yes"
######################################################################
# SSO cookie name
authentication.cookie.name=sauth
# SSO cookie path
authentication.cookie.path=/authentication
# SS0 Cookie maxage : positive value in second, or negative values means non
persistant
# SSO Cookie invalidation delay : positive value in second
# After that period of time, even replayed (by a hacker) the cookie
# is rejected
authentication.cookie.invalidation.delay=3600
#
# Use encrypted SSO cookie : yes | no
# Turn to off when single-domain authentication is used : it avoids
# useless encryption/decryption
authentication.cookie.encrypted=yes


#
# Key index for cookie encryption
authentication.key=5
#
######################################################################
# Default redirection URL after authentication
# This default is usually overridden by the URL of the service
# which requests the authentication
######################################################################
authentication.openurl=http://www.ibm.com
#
######################################################################
# Redirection URL after Single Sign On logout :
# It can be a welcome page, not personalized
######################################################################
authentication.logout.url=http://www.tivoli.com
#
######################################################################
# Default realm
######################################################################
#
######################################################################
# Authentication server uses a pool of prepared statements
# Pool size : min, max nbr of statements
######################################################################
accessbean.statementpool.min = 1
accessbean.statementpool.max = 5
#
######################################################################
# For test : force a username or username@realm
# (uncomment to force a user name)
#
# to use that facility the property above must be set :
#
######################################################################
# authentication.force.username=TEST1@IBM
#

######################################################################
# Session Load Balancing Parameters :
# >> Parameters for Checker side only
#
# >> Session load balancing can be activated if the portal is
# >> deployed on a cluster of servers with eND (WebSphere Perf. Pack)
# >>
# >> It is perticularly useful in environments where eND sticky port cannot
# >> be used, such as with a WAP gateway or a proxy that hides user-agent IP address
# >>
# >> To enable the load balancing : specify here the server cluster
# >> hostname (or IP address), and


# >> the server private hostname (or IP address) .
# >>
# >> It requires that the portal pages are deployed using relative
# >> hyperlinks (no hostname in the links) or server private hostname.
######################################################################
# authentication.cluster.hostname=cluster.ibm.com
# authentication.private.hostname=myhost.ibm.com
######################################################################
# PREMIUM CONTENT Parameters :
# >> These parameters are only necessary on Checker side
# >> Each premium content server contains the definition of its tiers
# >>
# >> On Authentication server side the TSM data base contains also the
# >> tiers definition, as defined with the TSM director tool
# >>
# >> These are optional parameters :
# >> if ommitted it runs simple authentication w/o
# >> premium content access control
######################################################################
# The tier ids of the premium content protected by this Checker
# If more than one tier, use ',' as separator
######################################################################
authentication.premium.tierids=08004
# authentication.premium.tierids=08004,08005
######################################################################
# List of URL's patterns protected by each tier
# This list must only contain absolute path (starting with /)
# When several URL's patterns for one tier, use ',' as separator
# /perso is not in that list : it is not subject to premium content access control
######################################################################
authentication.premium.tierurls.08004=/premium
# authentication.premium.tierurls.08005=/dummysample1,/dummysample2,/dummysample3
######################################################################
# This URL is displayed when the access to a premium content is
# rejected.
# It can be an error page, selfcare, a portal page,...
# It is recommended to use a full URL here
######################################################################
premium.accessrejected.url=http://itso14.dev.tivoli.com:10080/premium/premiumerror.
html
######################################################################
# Log the access to a premium service into file...
######################################################################
premium.access.log=no
premium.access.logname=/var/adm/logs/premium.log
######################################################################
# Optional Profiler class : if specified it is called at each session
# start. It allows the portal WebMaster to specify rules which
# create dynamic User profile propeties
# see com.tivoli.tsm.perso.filter.SampleProfiler
######################################################################
authentication.profiler.class=com.tivoli.tsm.perso.filter.SampleProfiler


6.3.1.4 IE.properties
The IE.properties is the properties for Internet Explorer browsers as seen in
the following screen.

######################################################################
# TSM DeviceType properties for authentication and personalization
######################################################################
# device type name
# It is structured like a file path :
# / is the root
# /WEB is the sub-root for every HTTP/HTML browsers
# /WAP is the sub-root for every WAP devices
######################################################################
#
device.type=/WEB
#
######################################################################
# Content-type's accepted by the device separated by ,
#
# The 1st one in the list is the main content type,
# it plays a special role in the component framework : it is the content
# type forced by the LayoutComponent's
######################################################################
#
device.content.types=text/html,text/plain,image/gif,image/jpeg
#
######################################################################
# device presentation properties
# (-1 means unknown value)
######################################################################
#
device.color.nbr=-1
device.column.nbr=-1
device.line.nbr=-1
#
######################################################################
# Any ISP defined properties ...
######################################################################
#

6.3.1.5 Nav4.properties
Nav4.properties is the properties for Enterprise Navigator browsers, as seen
in the following screen.


.
######################################################################
######################################################################
# device type name
# It is structured like a file path :
# / is the root
# /WEB is the sub-root for every HTTP/HTML browsers
# /WAP is the sub-root for every WAP devices
######################################################################
#
device.type=/WEB
#
######################################################################
# Content-type's accepted by the device separated by ,
#
######################################################################
#
#
######################################################################
# (-1 means unknown value)
######################################################################
#
device.color.nbr=-1
device.column.nbr=-1
device.line.nbr=-1
#
######################################################################
# Any ISP defined properties ...
######################################################################
#

The next parameter specifies the device type and the user agent. This
property is mandatory. This type is used by pTk portlet framework to generate
the content that fits each device. The device type is hierarchal (Figure 85 on
page 133):
device.type=/WEB/IE


Figure 85. Hierarchal device type

The next parameter is mandatory and specifies the type of content supported
by that device. The first content type in the list must be the primary markup
language used by thin device. It is used by the portlet framework.


6.4 Wireless World
Figure 86 on page 134 shows how the Wireless devices work when they
access the TPSM.


Figure 86. WAP architecture

Mobile WAP Devices need to access the internet through a wireless network.
To do this, the user dials the NAS (Network Access Server), which prompts
the authentication form, user, and password. The NAS is a gateway between
networks and the internet that allows the users to connect to the ISP. Once
the user is connected to the internet, he or she goes through the WAP
Gateway that connects the WAP Protocol to HTTP Protocol to the Portal Web
Server.

Once users are connected, they can access their portal pages. At this point
the Authentication Checker determines if the user has accessed before and
prompts authentication for TPSM. The authentication can only be through
configuration with the TPSM.


The Wireless World has its own features that make the configuration and
personalization of TPSM different. The main features are:
• Protocol WAP
• Programming Language; WML, WML Script, XML
• Different infrastructure; Wireless Gateway, mobiles, PDAs

These features have important consequences that affect configuration. The
main consequences are:
• Different ways to process the data, so different ways to authenticate
• Different way to program the JSPs
• Different configuration of servlets

Besides all these general differences are some differences depending on the
infrastructure that the customer has, such as if the customer has a gateway or
not, a RADIUS server or not, and the type of gateway.

Authentication is the same as that for Internet World in some cases. The
authentication server has a pTk component called Authentication Checker
that determines the type of device that it´s trying to access. Once that it
knows the type of device, the Authentication Server treats it as the device
needs. To do this, the servlets must be configured for the type of
infrastructure.

6.4.1 Structure of Authentication Server
The important parts of the Authentication Server when it´s used for wireless
internet access are shown in Figure 87 on page 136.

The authentication file system is divided in two parts:
1. Contents, where the JSPs are stored.
2. Servlets, where all the configuration files and servlets for the
authentication server are stored.


Figure 87. Active components of the Authentication Server (mobile internet)

The content file system has different parts, as you can see in Figure 87:
• css contains the default style sheet for the authentication server.
• en contains all the English JSPs.
• images contains all the pictures for the authentication server.
• ja contains all the Japanese JSPs.

The JSP used for mobile internet is wapauthentication.jsp, and is a form in
WML with a Java Bean that creates a session. The default
wapauthenticator.jsp sometimes needs to be changed by hand in some fields
because it doesn’t get all the information. This is based on the mobile device.
Keep this in mind if you notice odd behavior while configuring an application,
and the /usr/WebSphere/AppServer/logs/authentication.log appears as the
user is using the wapauthentication.jsp, then you need to update the default.

The next screen is an example of wapauthentication.jsp, but the file has been
modified to be able to work for the business cases.


<%@ page contentType="text/vnd.wap.wml"
import="java.util.*,java.text.*,com.tivoli.tsm.authentication.*"%>
<jsp:useBean id="auth" class="com.tivoli.tsm.authentication.AuthFormBean"
scope="request" />
<?xml version="1.0"?>

<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN"
"http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
<template>
<do type="prev" name="back" label="Back">
<prev/>
</do>
</template>

<card id="login" title="TISM Authentication">

<p>
User:
<input type="text" title="userid" name="userid"/>
Password :
<input type="password" title="password" name="password"/>

<anchor>Submit
<go href="<%= auth.getAuthenticationServerURL() %>" method="get">
<postfield value="$(userid)" name="SMSusername" />
<postfield value="$(password)" name="SMSpassword" />
<postfield value="<%=auth.getKeyIndex()%>" name="SMSkey" />
<postfield value="ITSOCHANNEL" name="SMSrealm" />
<postfield value="http://itso14.dev.tivoli.com:16080/perso/home" name="SMSurl"
/>
<postfield value="<%=auth.getTierList()%>" name="SMStiers" />
</go>
</anchor>
</p>
</card>

</wml>

The bolded lines in this JSP are vital to understanding how TPSM works. In
that code, the JSP sets the type of mime type and creates the Java Bean auth
to collect the data needed for authentication.

The rest of the code is a WML form. As you can see the SMSrealm and
SMSurl has been changed by hand. These fields are the REALM and the
URL to go back to when the user is authenticated that we used because we
don’t pass these parameters.

The configuration for the servlets will be explained in the sample business
cases because it depends on the environment.


6.4.2 Business case 1
This business case is for a company that already has a NAS server. The
TPSM will be installed on it to authenticate the users. The company doesn’t
use a Wireless Gateway, so everything is sent and received in WML.

6.4.2.1 Configuration
The configuration files that need to be changed are:
• Authentication.properties
• WapAuthentication.properties
• Device.properties (This is an example of properties file for the different
type of devices, Nokia 7110, Ericsson 320, etc.)

The files were changed as follows.

Authentication.properties
Authentication.properties is a properties file where the type of authenticators
and the different type of devices supported are defined. As you can see at the
beginning of the file, there is the definition of the two authenticators;
DefaultAuthenticator and WapAuthenticator. Both are the Java classes that
manage the authentication depending on the type of device.

After the definition of authenticators, you have the type of devices supported
and the authenticator that each of them requires. If you see an example of
type of device, you have:
• Definition of user - agent
• Path of the properties file
• Type of authenticator required

At the end of the file is the log file location.

WapAuthentication.properties
WapAuthentication.properties is a properties file to set the way to make the
authenticate mobile internet devices.

This file configures the WAPAuthenticator.properties file. It follows the same
syntax and DefaultAuthenticator.properties file. This section provides
information to tune the parameters.
authentication.multidomain.enabled = yes


The recommended value is “no” because it can be used when devices do not
support HTTP redirect properly, but we set it as yes because the mobile
devices that we are using support HTTP redirection.

Because we don’t have a gateway, we set:
authentication.type1 = no
authentication.type2 = form

These parameters disable auto logon and prompt the user with a log-in WML
form.
authentication.sso.enabled = no

Although we are not using a gateway at the moment, we set this parameter as
no. Many WAP gateways do not support cookies. In that case, it is better to
disable the SSO Cookie. The IBM WAP gateway supports session cookies,
and can be used for SSO.

If the servlet doesn’t receive any ComeBackURL, it uses this one.

If the servlet doesn’t receive the REALM that is using, it would get this one as
default.

See the next screen for the WAPAuthentication.properties code.


######################################################################
######################################################################
#
######################################################################
#
#
#
######################################################################
#
######################################################################
######################################################################
#
######################################################################
######################################################################
#
######################################################################
######################################################################
authentication.form.path=/authentication/en/wapauthentication.jsp
#
######################################################################
#
#
#
authentication.type1=no
#authentication.type1.header = X-Network-Info
#
# IBM WAP gateway of Nokia enterprise gateway
#authentication.type1.header=X-Network-Info
# Ericsson WAP gateway 1.1
# authentication.type1.header=Cookie


######################################################################
# basic | form
######################################################################
#
######################################################################
#
# This parameter only applies when "authentication.type=form" is used
# when "authentication.type=ip or basic" SSO is always enabled
######################################################################
authentication.sso.enabled=no
#
######################################################################
######################################################################
# SSO cookie name
# SSO Cookie path
# SSO Cookie maxage : positive value in second, or negative values means non
persistant
# is rejected
#
# Use encrypted SSO cookie : yes or no
#
# Key index for SSO cookie encryption
#
######################################################################
######################################################################
#
######################################################################
# Default realm
######################################################################
#
######################################################################
# Use session context : yes/no
# >> Using session context optimizes performances
# >> In a Web server cluster (e.g. with eND), session context
# must be used carefully : with eND sticky port, or WAS Advance Edition
# clustering feature
######################################################################
authentication.session.used=yes


######################################################################
######################################################################

######################################################################
#
#
######################################################################

######################################################################
# >>
# >>
######################################################################
######################################################################
authentication.premium.tierids=08004,08005
#
######################################################################
######################################################################
authentication.premium.tierurls.08005=/dummysample1,/dummysample2,/dummysample3
#
######################################################################
# rejected.
######################################################################
premium.accessrejected.url=http://wap.yahoo.com


#######################################################################
######################################################################
premium.access.log=yes
premium.access.logname=premium.log
#
#
######################################################################
######################################################################

Device.properties
The Device.properties is an example of properties file for devices. The
explanation for this one is the same as IE.properties and Nav4.properties.
Each type of WAP Device has its own type of file, so now we have an
example. The first code line is a label for the device. After that, it sets the
mime types supported and the presentation properties for the device. See the
next screen for the code.

######################################################################
######################################################################
# device type label
######################################################################
device.type=/WAP/NokiaEmul

#
######################################################################
# content types accepted by the device
#
######################################################################
device.content.types=text/vnd.wap.wml,text/vnd.wap.wmlscript,application/vnd.wap.wm
lc,application/vnd.wap.wmlscriptc,image/vnd.wap.wbmp
#
######################################################################
######################################################################
device.color.nbr=2
device.column.nbr=20
device.line.nbr=5


6.4.2.2 Example
Here is the result of this configuration. When you write in the URL,
http://hostname:8080/authentication/server, the first screen as shown in
Figure 88 appears, where you write the userid and password. Once sent to
the authentication server, the userid and password are checked and, if
correct, the user will be redirected to the URL.

Figure 88. Example of navigation for business case 1

6.4.3 Business case 2
This business case is for a company that has a Nokia Gateway 1.1.1. It was
tested with HTTP 1.1 devices. It can work with HTTP 1.2 devices, but we
didn’t include them in this redbook.

6.4.3.1 Configuration files
We modified the WapAuthenticator.properties file from Business Case 1 was
as shown in the next screen.


######################################################################
######################################################################
#
######################################################################
#
#
#
######################################################################
#
######################################################################
######################################################################
#
######################################################################
######################################################################
#
######################################################################
######################################################################
authentication.form.path=/authentication/en/wapauthentication.jsp
#
######################################################################
#
#
#
#authentication.type1=no
authentication.type1.header = X-Network-Info


# Ericsson WAP gateway 1.1
# authentication.type1.header=Cookie
#
######################################################################
# basic | form
######################################################################
#
######################################################################
#
# This parameter only applies when "authentication.type=form" is used
# when "authentication.type=ip or basic" SSO is always enabled
######################################################################
authentication.sso.enabled=no
#
######################################################################
######################################################################
# SSO cookie name
# SSO Cookie path
# SSO Cookie maxage : positive value in second, or negative values means non
persistant
# is rejected
#
# Use encrypted SSO cookie : yes or no
#
# Key index for SSO cookie encryption
#
######################################################################
######################################################################
authentication.openurl=http://itso14.dev.tivoli.com:16080/perso/samples
#
######################################################################
# Default realm
######################################################################
authentication.default.realm=ITSOCHANNEL
######################################################################
# Use session context : yes/no
# >> Using session context optimizes performances
# >> In a Web server cluster (e.g. with eND), session context
# must be used carefully : with eND sticky port, or WAS Advance Edition
# clustering feature
######################################################################


authentication.session.used=yes

######################################################################
######################################################################

######################################################################
#
#
######################################################################

######################################################################
# >>
# >>
######################################################################
######################################################################
authentication.premium.tierids=08004,08005
#
######################################################################
######################################################################
authentication.premium.tierurls.08005=/dummysample1,/dummysample2,/dummysample3
#
######################################################################
# rejected.
######################################################################


premium.accessrejected.url=http://wap.yahoo.com
#
######################################################################
######################################################################
premium.access.log=yes
premium.access.logname=premium.log
#
#
######################################################################
######################################################################

6.4.3.2 Example screen
The screens that appear upon entering the URL
http://hostname:8080/authentication/server are the same as the ones from
Business Case 1 as seen in Figure 88 on page 144.


Chapter 7. Using Customer Care and Director Tool

The TISM Customer Care Component is the primary tool used for customer
service. This application will be the first point of contact that Customer
Service Representatives (CSRs) use to access customer information when
the customer calls in.

"Customers" are usually referred to as "subscribers"

The Customer Care Component allows the CSR to:
• Enroll and manage consumer subscribers Primary Accounts
• Add, update, and remove consumer Child Accounts
• Enroll and manage business accounts and sub-accounts
• Add, update, and remove business subscribers
• The CSRs can view and update:
- Account status
- Personal information
- Deals (i.e., service plans)
- Method of payment
- E-mail settings

TISM is designed to support both consumer accounts and business accounts.
Many of the processes described in this chapter are specific to one category
or the other. The topic headings will tell you which is being covered.

Consumer accounts consist of a primary subscriber/account and (optionally)
a number of child subscribers. The primary account is responsible for all
billing and payment. The child subscribers each have their own username
and password, which gives the child a separate identity. The consumer
account is created automatically when the subscriber is enrolled.

Business accounts consist of a primary (top-level) account, (optional)
sub-accounts, and subscribers. A CSR needs to create the business account
before subscribers can be enrolled. Billing can be set up at the primary or
sub-account level for business accounts.


7.1 Assigning login IDs and access control profiles to CSRs
As a first step to be able to access the Customer Care, we created a Profile,
which is associated with a REALM.
• Open a DOS Windows and run console.bat to start the TISM
Administration Console. It will open a dialog box where you have to give
the Administrator login and password (Figure 89).

Figure 89. The TISM Administration Console dialog box

• The TISM Administration Console should be open now. Double click on
Access Control, click on Profiles, right click on CSR, and choose add as
shown in Figure 90.

Figure 90. TISM Administration Console


• Fill out the Profile Name field and click on the checkbox for the REALM
that is going to administer the new role, then click the Add button as
shown in Figure 91.

Figure 91. Add a New Access Role (1)

• Fill in the fields in the window as shown in Figure 92, then click on Add.

Figure 92. Add a New Access Role (2)

• Now we can see the profile that we have just created, as shown in

Chapter 7. Using Customer Care and Director Tool 151

Figure 93. TISM Administration Console (1)

After we created a Profile, we now must create a Login to access the
Customer Care. Right click on Login, then click on Add as shown in
Figure 94.



This will open the window shown in Figure 95. Fill out all the information. In
the Access Profile, choose the one that you just have created, in our example
CSR_ITSOCHANNEL.

Figure 95. Add a New Login Name

The Login we just created is shown in Figure 96 on page 154.



7.2 Logging on to Customer Care
Customer Care Reps (CSRs) must be enrolled in the Customer Care system
by an authorized administrator and assigned a login name and password.
See the previous section for details.

The CSR’s login name and password must have an access control profile
associated with them. This profile controls the realms and types of accounts
that the CSR can access.

For example, CSR #1 may be given an access control profile that allows
access to (a)employee and (b)billable on ITSOchannel.com.

CSR #2 may be given an access control profile that allows access to
(a)employee, (b)billable, and (C)complementary on ITSOchannel.com and
Tivoli.com.


7.3 Log on steps
To log on, please follow the next steps:
• Launch the Customer Care Component on your computer:
http://itso14.dev.tivoli.com:14080/cc.html
• On the Login panel, Enter Login Name and Password. This Login Name
needs to be created with the Director Tool and have a REALM associated
with it. Press OK as shown in Figure 97.
•

Figure 97. Customer care logging page

When you are successfully authenticated, the Search screen is shown
(Figure 99 on page 158). Please refer to Section 7.4.2, “View and update a
subscriber account” on page 157 for further details.

7.4 Managing consumer accounts
Consumer accounts consist of a primary subscriber/account and (optionally)
a number of child subscribers that can be family members, friends, or
colleagues. The primary account is responsible for all billing and payment.
The child subscribers each have their own username and password, which
gives the child a separate identity and makes the account private and secure.
The consumer account is created automatically when the subscriber is
enrolled.


7.4.1 Enroll a new consumer subscriber
When the subscriber calls in, the Customer Service Representative (CSR)
will choose the Realm the subscriber will be enrolled in and, based on the
Realm, the CSR will choose the Deal from a list of options.

The CSR will also collect and enter the following information:

Personal Information: first and last names, address, city, state, zip code. Title,
middle initial, daytime phone, evening phone, gender, and birth date are
optional.

Account Information: username, password, secret.

Method of Payment Information: payment method (credit card, invoice,
telephone bill), account number (for telephone bill and credit cards only),
expiration date (for credit cards only), account holder name.

To enroll a new consumer subscriber follow these steps:
- Press the “New Person” button on the menu at the top of any screen.
This will bring up a new, blank enrollment screen as shown in Figure 98
on page 157.
- Enter subscriber information and press the "Enroll" button. If the
enrollment fails, a message at the bottom of the screen will indicate the
reason for failure. Correct the error and press the "Enroll" button again.
If everything is okay, the message "Enrollment completed successfully"
appears at the bottom of the screen.


Figure 98. TISM customer care

7.4.2 View and update a subscriber account
The view and update consumer account function is used by CSRs to modify
information about a consumer subscriber's personal information (name,
address, etc.), password, deal, and method of payment information.

For each update operation, the CSRs can add remarks. They will be
presented with a list of possible reason codes for the update. CSRs choose
the appropriate reason code and enter some meaningful information to be
associated with the operation.
• Press the "Search" button on the menu bar to get the search screen.
• Enter search criteria and press the “Search” button. See Using the Search
Panel in Section 7.7.1, “Search criteria for individual subscribers” on
page 165 for details about search criteria. If there is just one subscriber
that exactly matches the search criterion, the Subscriber Update panel will
be displayed (Figure 99 on page 158). If there are more than one match
for the search, a list of subscribers will be displayed


• If the search produced a list of subscribers, select the correct one from the
list by double clicking the subscriber's name or highlighting the subscriber
and clicking the "UPDATE" button.
• The Subscriber Update panel is displayed (Figure 100 on page 159) with
the subscriber information filled in.
• View the existing data or make changes as needed.
• If changes are made, press the "UPDATE" button to process them.
• Error messages will appear near the "Update" button if changes are
invalid. Make changes as indicated by the messages and press "Update"
again.
• A "success" message will appear when changes are successful.

Figure 99. Search results


Figure 100. Subscriber update panel

7.4.3 Changing a subscriber's deal
A deal represents a set of services that the Service Provider offers to a
customer. It describes the service offered and the price. To change the
subscriber’s deal, follow the next steps:
• On the Subscriber Update panel (Figure 100 on page 159), select the
drop-down “Deal” list and choose the applicable deal.
• To view details about the deal, press the “DEAL DETAILS” button at the
bottom right-hand side of the window. The details will be displayed in
another window.
• Press the Update button to process the deal change. A message will be
displayed with the status of the request. If there are errors, make the
corrections indicated by the message and press Update again.

7.4.4 Change subscriber's method of payment
To change the subscriber’s method of payment, follow these steps:
• Select the “Payment Method” drop-down box at the bottom left hand
portion of the window as shown in Figure 101 on page 160.


• If the subscriber is changing from Credit Card to Invoice, the credit card
fields will be removed from the window.
• If the subscriber is changing from Invoice to Credit Card, the associated
credit card fields will display next to the Payment Method box (Figure 101).
The CSR will be required to enter the Account Number, Expiration Date,
and the Account Holder name.
• Press the “UPDATE” button. If there are errors, make the corrections
indicated by the message and press Update again.

Figure 101. Changing method of payment

7.4.5 Disconnect a subscriber
To remove a subscriber, perform these steps:
• On the Subscriber Update panel, select the “Disconnect” button. A window
for confirmation will appear (Figure 102 on page 161).
• Press “OK” and the account will be disconnected. The CSR will be
returned to the Subscriber Update panel and the Status at the top of the
window will say “Disconnected” (Figure 103 on page 161).


Figure 102. Disconnecting a user

Figure 103. User disconnected

7.4.6 Reconnect a subscriber
To reconnect a subscriber, follow these steps:
• On the Subscriber Update panel, press the “Reconnect” button.


• Subscriber status displayed at the top of the window will state “Active”
instead of “Disconnected” (Figure 103 on page 161).

7.4.7 Create a consumer child subscriber
A child subscriber is an optional sub-account under a primary consumer
account. The child subscriber has a separate login id and E-mail address, but
is billed to the primary (parent) account.

Typically, child subscribers are used to set up separate logins and passwords
for children or relatives in a household. Only the primary account receives a
bill, but usage identifying each sub-account may be detailed on the bill.

To define a child subscriber, do the following:
• From the Subscriber Update screen (Figure 100 on page 159), press the
“Enroll Child” button. The child maintenance window will be displayed, as
shown in Figure 104.

Figure 104. Enrolling a customer child subscriber


Note
The primary Subscriber Update window shows the details of the "parent"
account, including payment and deal details. These elements cannot be
changed for the child subscriber.

• Enter the username, password, secret word, and other required fields for
the child subscriber and then press the “Enroll” button. The comment at
the bottom of the screen will confirm that the child has been enrolled.

7.4.8 Disconnect a child subscriber
Using the search panel, the CSR can find either the main account or search
directly for a subscriber. The application will launch the maintenance window
populating the subscriber information in the applicable fields (if the search
was for the main account, the CSR will then select a subscriber by clicking on
the USER NAME dropdown box, which displays all of the associated child
subscribers).

After the CSR selects the correct child subscriber, the associated information
will be populated in the maintenance window. Select the “Disconnect” button
in the middle of the window. The system will display another window asking
for confirmation to disconnect the sub-account. Press “OK” to confirm
(Figure 102 on page 161). The CSR will be returned to the maintenance
window and the status at the top of the window (for that child subscriber) will
say “disconnected.”

7.5 Reports
This function is launched by pressing the “Reports” button on the Customer
Care menu bar. The next applet window will appear as shown in Figure 105
on page 164.

Available Reports include:
• Daily Report of Enrollment Activity
• Daily Report of Session Activity
• Daily Report of Hourly Activity
• Weekly Member Level Part 1 Report
• Weekly Member Level Part 2 Report
• Weekly Subscriber Level Report


• Monthly Usage Summary Report
• Monthly Cohort by Hours Report
• Monthly Enrollment by Access Code Report
• Monthly Enrollment Report
• Monthly Disconnect Analysis Report

Figure 105. TISM Reporting Program

7.6 Additional services
The Customer Care Component has the ability to link to applications that are
external to the TISM system. For example, an application that enrolls users in
another program offered by the service provider, such as a telephone
long-distance calling plan, can be linked to TISM.

The advantage to linking external applications to TISM is that the TISM
subscriber database is linked too. Therefore, personal information (such as,
name, address, and phone) is automatically transferred to the external
application.

The GUI interface to additional services is a button called “Additional
Services” that appears at the bottom of subscriber maintenance screens.

TISM operators can take advantage of existing external applications or
develop new ones, install them on a web server, and configure the Customer
Care Component with the application's URL. The “Additional Services” button
will then link to and launch the external application.


7.7 Using the Search Panel
In this section we are going to review how to use the Search Panel.

7.7.1 Search criteria for individual subscribers
To find individual subscribers (either consumer subscribers or business
account subscribers), enter some or all of the following:
• Realm - this field defaults to one of the configured realms.
• User Name -the name a subscriber uses to login
• Subscriber's first name
• Subscriber's last name
• Phone Number - primary
• Phone Number - secondary

The Search button remains disabled until some search criteria are entered.
Do not enter Account Number or Company Name, as they are not recognized
as search criteria items for individual subscribers.

7.7.2 Exact match feature
The search screen looks up the character string you put in and assumes
there is a wildcard following the string unless you check Exact Match

For example, with Exact Match not checked, entering Last Name [Stein] will
find Steiner, Steinfeld, Steinsky, and Stein. With Exact Match checked, only
Stein will be found.

The Name field does not accept a star (*) for search criteria; it doesn't
interpret *stein, stein*, or *stein* where an asterisk (*) is typed in to signify a
wildcard. In other words, users might type *stein and expect the system to
find Rothstein or Willstein but it won't.

A User Name Field search assumes that what you type is the beginning of the
search object. If you type “nge” won't get “Engel,” for example. At best it gets
a name that starts with “Nge.”

For consumer accounts the Account Number does not appear when the
subscriber's data is displayed. For business accounts the Account Number
does appear when the subscriber's data is displayed


Chapter 8. Subscriber Selfcare

This chapter describes how to customize and run the Subscriber Selfcare
applications.

8.1 Overview
Subscriber Selfcare is a suite of applications that allows subscribers to view
and change personal information collected during enrollment (refer to
Chapter 5, “Enrollment and service provisioning” on page 73). These
applications let a subscriber perform the following:
• Change password
• Display and update personal information (name, address, phone numbers)
• Display and update payment information
• Display and add member accounts under the subscriber account
• Display devices the member has enrolled (only in Tivoli Personalized
Services Manager)

These functions are presented to a subscriber using HyperText Markup
Language (HTML) pages or Java Server Pages (JSPs) that a Service
Provider (SP) can customize to give them a unique appearance. All of the
applications are run from servlets hosted on a Web server.

8.2 Customization
The flow and order of presentation of pages is controlled by the main JSP file.
Through programmatic tests of the current state of the data object, the page
to be displayed is selected. The SP can rearrange the order of presentation,
combine or divide the content of individual pages, and take “side trips” to
other applications through customization of the JSP pages. The customiser is
responsible for ensuring that side trips are returned from and prerequisites
are entered before dependent data.

The JSP files, which are located in the /usr/TivTSM/selfcare/content/jsp
directory, are described in Table 12:
Table 12. JSPs for SelfCare

JSP File Description

AddMemberAuthError Authentication page.



AddMemberMemberCancel If you cancel the registration, it will send you to
this JSP.

AddMemberCommit Commits the changes to the database.

AddMemberInput New Member form,.

AddMemberMain JSP that controls all the flow.

AddMemberRefused If there is anything wrong with the information
entered.

AddMemberSubmit Asks for confirmation to proceed with the
registration.

ChangePasswordAuthError Authentication Page.

ChangePasswordCancel If you cancel the registration, it will send you to
this JSP.

ChangePasswordCommit Commits the changes to the database.

ChangePasswordInput The Change Password form to be filled.

ChangePasswordMain JSP that controls the flow.

ChangePasswordRefused If there is anything wrong with the password, this
JSP is called.

ChangePasswordSubmit Asks if you want to go ahead with the new
password.

ChangePaymentAuthError Authentication page.

ChangePaymentCancel If you cancel the payment, it would send you to
this JSP.

ChangePaymentCommit Commits the changes to the database.

ChangePaymentInput The form to change the information.

ChangePaymentMain JSP that controls the flow.

ChangePaymentRefused If there is something wrong.

ChangePaymentSubmit Asks for confirmation to proceed with the
changes.

ChangePersonalInfoAuthError User authentication.

ChangePersonalInfoCancel If you cancel the registration, it would send you to
this JSP.



ChangePersonalInfoCommit Commits the changes to the database.

ChangePersonalInfoInput Shows the fields to change.

ChangePersonalInfoMain JSP that controls the flow.

ChangePersonalInfoRefused If there is anything wrong with a field, this JSP is
called.

ChangePersonalInfoSubmit Asks for confirmation to proceed with the
changes.

DisplayDeviceAuthError Authentication page.

DisplayDeviceInfo Display the device information.

DisplayDeviceList Display the devices.

DisplayDeviceMain JSP that controls the flow.

DisplayDevicenotFound If a device is not found.

DisplayDeviceRefused If there is something wrong with the device.

All Selfcare use a common configuration file named selfcare.properties
located in /usr/TivTSM/selfcare/. In Table 13, you can see each of the
variables that you can modify.
Table 13. SelfCare.properties file variables

Variable Description Example

displayDevice.JSPPath The URL location of the /selfcare
application JSP files.

displayDevice.mainJSPPa The name of the main JSP DisplayDeviceMain.jsp
ge file.

displayDevice.hostName The URL location of the http://itso14.dev.tivoli.com
application host.

displayDevice.debug A switch to cause the false
logging of more detailed
messages.

displayDevice.exitClass Exit class of application. com.tivoli.tsm.selfcare.Sa
mpleExit1

displayDevice.device.defa Device specific class. com.tivoli.tsm.selfcare.devi
ult ce.DisplayDevice4PC

Chapter 8. Subscriber Selfcare 169


displayDevice.device.PC Device specific class. com.tivoli.tsm.selfcare.devi
ce.DisplayDevice4PC

changePassword.JSPPath The URL location of the /selfcare

changePassword.mainJSP The name of the main JSP ChangePasswordMain.jsp
Page file.

changePassword.hostNam The URL location of the http://itso14.dev.tivoli.com
e application host.

changePassword.debug A switch to cause the false
messages.

changePassword.exitClas Exit class of application. com.tivoli.tsm.selfcare.Sa
s mpleExit1

changePassword.device.d Device specific class. com.tivoli.tsm.selfcare.Ch
efault angePassword4PC

changePassword.device.P Device specific class. com.tivoli.tsm.selfcare.Ch
C angePassword4PC

changePayment.JSPPath The URL location of the /selfcare

changePayment.mainJSP The name of the main JSP ChangePaaymentMain.jsp
Page file.

changePayment.hostNam The URL location of the http://itso14.dev.tivoli.com
e application host.

changePayment.debug A switch to cause the false
messages.

changePayment.exitClass Exit class of application. com.tivoli.tsm.selfcare.Sa
mpleExit1

changePayment.device.de Device specific class. com.tivoli.tsm.selfcare.Ch
fault angePassword4PC

changePayment.device.P Device specific class. com.tivoli.tsm.selfcare.Ch
C angePassword4PC

changePersonalInfo.JSPP The URL location of the /selfcare
ath application JSP files.



changePersonalInfo.mainJ The name of the main JSP ChangePersonalInfoMain.j
SPPage file. sp

changePersonalInfo.hostN The URL location of the http://itso14.dev.tivoli.com
ame application host.

changePersonalInfo.debug A switch to cause the false
messages.

changePersonalInfo.exitCl Exit class of application. com.tivoli.tsm.selfcare.Sa
ass mpleExit1

changePersonalInfo.devic Device specific class. com.tivoli.tsm.selfcare.Ch
e.default angePassword4PC

changePersonalInfo.devic Device specific class. com.tivoli.tsm.selfcare.Ch
e.PC angePassword4PC

addMember.JSPPath The URL location of the /selfcare

addMember.mainJSPPage The name of the main JSP AddMemberMain.jsp
file.

addMember.hostName The URL location of the http://itso14.dev.tivoli.com
application host.

addMember.debug A switch to cause the false
messages.

addMember.exitClass Exit class of application. com.tivoli.tsm.selfcare.Sa
mpleExit1

addMember.device.default Device specific class. com.tivoli.tsm.selfcare.Ch
angePassword4PC

addMember.device.PC Device specific class. com.tivoli.tsm.selfcare.Ch
angePassword4PC

8.3 Running Subscriber Selfcare
The URL to the Subscriber Selfcare applications should be provided as a link
to the subscriber's home page (assuming the home page is the SP index or
welcome page when the subscriber logs on) or another appropriate page as
determined by the administrator. When subscribers click on the link, they
should reach the Subscriber Selfcare applications page.


Use the URL for each of the Subscriber Selfcare applications. In the
demonstration version of Subscriber Selfcare, links to all of the existing
Subscriber Selfcare applications are available in intro.htm.

To access the Self Care Administration home page, go to the next URL:
http://itso14.dev.tivoli.com:15080/intro.htm. The screen as shown in
Figure 106 will open.

Figure 106. Selfcare initial page

In this screen we can choose which task to perform:
• Change Password
• Change Personal Information
• Change Payment Information
• Add New Members

8.3.1 Changing a subscriber’s password
Select Change Password from the main page (Figure 106), which will bring
up the screen in Figure 107 on page 173.


Figure 107. Logging into Selfcare

When we introduced the username and password we were authenticated in
the Authentication Server, (please refer to Chapter 6, “Subscriber
authentication and access control” on page 111),and now we are ready to
change the password as is shown in Figure 108.

Figure 108. Changing a subscriber’s password


Once this form is completely filled out, click on Change Password to
proceed. You will be prompted to confirm this step as shown in Figure 109.

Figure 109. Change Password confirmation

When we confirm the password a message like the one in Figure 110 on
page 174 will be shown.

Figure 110. Password successfully changed message

8.3.2 Changing personal information
This option allows members to change their name, address, phone numbers,
and date of birth. From the main page of the Self Care (Figure 106 on


) choose Change Personal Information. Type your username and
password in the Login screen as shown in Figure 107 on page 173. This will
bring up a screen to update Personal Information as shown in Figure 111.

Figure 111. Change Personal Information

When the changes are complete, click on Change Personal Information,
which will bring up a confirmation page as shown in Figure 112 on page 176


Figure 112. Changing Personal Information confirmation

When you click on Yes, Change Personal Information, the database is
updated with the new data and a message with the new information is
displayed.

8.3.3 Change payment information
Allows members to change their payment type and payment information for
each of the types. From the main page of Selfcare (Figure 106 on page 172),
choose Change Payment Information. Type your username and password in
the Login screen as shown in Figure 107 on page 173. This will bring up a
screen to update Payment Information as shown in Figure 113 on page 177.


Figure 113. Changing Payment Information

Update the information and click Change Payment Information. A
confirmation screen will be displayed (Figure 114 on page 178), in this
screen, click Yes, Change Payment Information to confirm the changes.


Figure 114. Changing method of payment confirmation

When the changes are accepted a screen with the new values is shown.

8.3.4 Adding new members
Allows members to add new members to their account. From the main page
of Selfcare (Figure 106 on page 172), choose Add New Members. Type your
username and password in the Login screen as shown in Figure 107 on
page 173. This will bring up a screen to add new members as shown in
Figure 115.

Fill in all the information of the new member whom you are adding, then press
Add a Member. You can look at the Figure 115 on page 179 and Figure 116
on page 180 to see all the fields that need to be filled.


Figure 115. Adding a new member (1)


Figure 116. Adding a new member (2)

When you click on Add A Member, a confirmation screen is displayed. Click
Yes, Add Member, and the information on the new member will be displayed.


Chapter 9. Subscriber Personalized Service Environment

The TPSM Personalized Service Environment allows each subscriber to
customize his or her own home page. The ISP also has the Portal Toolkit,
which can be used to develop personalized portal pages.

9.1 Portal Toolkit
The Portal Toolkit (pTk) is a package that has several important functions:
1. Generation of pages according the specific devices.
2. Allow users to customize their own homepages. This personalization is
achieved by user profiling data stored in TPSM.
3. The Administrator creates a set of links that user can add to his or her own
homepage.
4. Vertical Services are integrated with pTk, such as Agenda, Calendar, and
Address Book.
5. The JSP Portlets Framework allows you to construct portal pages by
assembling portlets. A portlet is a servlet that can be invoked as a building
block from a JSP or a servlet.
6. Control of the authentication process.
7. The Double Click AdServer Interface, which is a sophisticated way to
perform marketing campaigns.

9.2 Functionality
The following are the main functions of Portal Toolkit.

9.2.1 Multi-device Portal
There are many kinds of devices that access the internet. Each type has its
own requirements about speed, size, and memory, and so must be treated in
a different way. This is the target of pTk.

9.2.2 User Preferences API
The User Preferences API is a set of Java Beans that access the user’s
profile and preferences. The TPSM customer can develop a set of
personalized JSP’s or servlets that use the personalization API Java Bean to
access the user data.


9.2.3 Hierarchical repository of referenced links
Another feature of the pTk is that the ISP can contain a repository database
of links that the portal references. Users can then select the links they want to
have associated with their personalized portal page from the repository.

9.2.4 Double click AdServer interface
Personalization provides a marketing opportunity for ISPs. They can target
their subscribers’ portal pages for banner ads and special interest notices.

9.2.5 JSP Portlet framework
Portlets are specialized servlets that can be included with the portal pages.
The applications are like building blocks. There are two different kinds of
Portlets:
• Structural Portlets
Structural Portlets help to structure the layout and content of a portal
pages. The structural portlets are as follows:
- LayoutSelector Portlet
- portletSelector Portlet
- Aggregatorportlet
- Customizer
• Service Portlets
Service portlets are “turn-key” applications or services within portal pages.
The service portlets are as follows:
- LinkSelector portlet
- Calendar portlet
- Agenda portlet
- AddressBook portlet

9.2.6 WAP portal
The TISM authentication server supports several new modes of
authentication that can be used in a WAP environment.
• Identification by user-agent IP address (and Radius)
• Identification by user MS-ISDN number
• Prompting the user for username and password (either by WML form, or a
basic HTTP authentication.)


These authentication modes can also be tuned for the various service
providers environments using the authentication plug-in architecture
(authenticators).

The TISM portlet framework can generate content according to the type of
device currently connected. Each portlet knows the type of device, and
selects the content (the Java server page) that fits with it.

All the portlet sample pages provided with the pTk support both HTML and
WML contents.

9.2.7 WES Authentication
TPSM 1.1 is one of the components of WebSphere Every Place Suite (WES).
TPSM 1.1 can delegate authentication to the WES Authentication Proxy. The
current version of WES supports two modes of authentication:
• Radius
• Basic HTTP Authentication

9.2.8 Portal page
The portal pages are written by the portal Webmaster. They are Java Server
Pages (JSP) belonging to two categories:
• Layout JSPs - define the general layout of a page
• Portlet JSPs - define the content and design (look and feel) of each portlet

The TISM pTk is delivered with a set of sample JSPs. They support both
HTML and WML devices. It is possible to modify these JSPs to generate
different markup languages belonging to the XML family. Figure 117 on
page 184 displays an overview of the portal software architecture.

Chapter 9. Subscriber Personalized Service Environment 183

Figure 117. Portal software architecture

9.3 Portal software architecture
Here is an indepth explanation of each of functionality of the Java package
portal toolkit.

9.3.1 Authentication API
The Authentication APIs are a set of Java Classes contained in the
authentication.jar library. They allow users to be authenticated, and allow
user credentials (username, password, etc) to be retrieved. The following
paragraphs explain the different Java Class methods:
• Checker.isNotAuthenticated ()
This method must be invoked at the beginning of each JSP or servlet
protected by the TISM Authentication System. If the statement returns
true, the user is not authenticated and the JSP/Servlet must return control.
<% @ import="com.tivoli.tsm.authentication.*" %>
<% if (Checker.isNotAuthenticated(request, response)) return; %>
An example of this is shown in the next screen.


<%@ page import="com.tivoli.tsm.authentication.*" %>

• Checker.getSSOUserName ()
This GET method can be invoked by a JSP or Servlet protected by the
TISM Authentication System to retrieve the connected user's username.
<% String name = Checker.getSSOUserName (request);
String password = Checker.getSSOPassword (request); %>
• Checker.getSSOPassword ()
This GET method can be invoked by an JSP or Servlet protected by the
TISM Authentication System to retrieve the connected user's password.
<% String name = Checker.getSSOUserName (request);
String password = Checker.getSSOPassword (request);%>

9.3.2 User preferences API
The user preferences API provides access to the user profiling data stored in
TISM RDBM. It only gives access to the data of the authenticated user. The
API contains a set of Java Beans that cache the data in memory during the
user session, and then persist back to TISM DB at the end of the session. All
those Beans inherit from an abstract class; AccessBean.class.

9.3.2.1 AccessBean.class
This abstract class is inherited by every pTk access Bean that accesses the
TISM data base. Those Beans must override the following methods. It
implements HttpSessionBindingListener at the end of user session. The data
contained in the AccessBean is persisted back to TISM database (if it has
changed).

package com.tivoli.tsm.perso;

public abstract class AccessBean implements HttpSessionBindingListener;

This class has the following methods:
• public abstract void read(ServletRequest request) throws
PersonalizationException


This method reads the data of the authenticated user from the TISM
database, and populates the AccessBean attributes. If it fails it throws a
PersonalizationException.
• public abstract void update(ServletRequest request) throws
This method stores the data contained in the AccessBean in the TISM
database. This is done only if the data in the AccessBean has been
changed since the read() has been invoked. If it fails it throws a
PersonalizationException.
• public static String getWellKnownName()
This method returns the “well-known name” of the AccessBean. Each
AccessBean class has a unique well-known name used as a key to store
its instance in the user HttpSession. Use that name to avoid storing double
instances of the same AccessBean in one user session.
• public static AccessBean getBean(ServletRequest request) throws
This method is not in AccessBean.class, but it is implemented by every
real sub-classes of access Bean. It retrieves in the user HttpSession the
corresponding AccessBean instance, either by its name or type. If no
instance exists yet, it creates one new instance and populates its data by
calling the read() method. It creates a user session, if none exists, and
stores the AccessBean instance as HttpSession attributes. These
attributes use the access Bean’s well-known name.
The following table is the real AccessBean implementations. They do not
provide a detailed description of all of their functions; this can be found in
the Java documentation provided with TISM. It only gives clues on the
most significant methods. Some access Beans are read only; it is not
possible to modify subscription data with the pTk. Table 14 also lists the
commodity classes that are handled by the access Beans.
Table 14. AccessBean implementations

AccessBean Class Description Commodity Classes Read or
Read/Write

Account Wraps the R
residential and
business accounts

AccountFavouriteLinks Favorite links at Link, LinkEnumeration, R/W
account level LinkCategoryEnumerat
ion,LinkCategorylxEnu
meration


AccessBean Class Description Commodity Classes Read or
Read/Write

AccountMembers All users sharing R
the same account

AccountNameValuePai Generic properties NameValue, R/W
rs at account level NameValueEnumeratio
n

AddressBook User´s agenda AddressBookEntry, R/W
entries AddressBookEntryEnu
meration

Agenda User´s agenda Appointment, R/W
entries AppointmentEnumerati
on

Device Device profile R

FamilyMembers All members of a R
family

FavouriteLinks User´s favourite Link, LinkEnumeration, R/W
links LinkCategoryEnumerat
ion,
LinkCategorylxEnumer
ation

NameValuePairs User´s generic NameValue, R/W
properties NameValueEnumeratio
n

ReferencedLinks Singleton that Link, R/W
contains the ReferencedLinkEnume
hierarchy of ration,
referenced links ReferencedLinkReposi
tory

User User´s information R

UserExtensions For future use R

UserTopics For future use

9.3.2.2 Account.class
This class is an access Bean that wraps the TISM EBILL_ACCOUNTINFO
and EBILL_ACCOUNT tables. An account can be either a residential account
or a business account. Business accounts can be organized in a hierarchy
mapped on the company organization. This access Bean is read only.


• public void read(ServletRequest request) throws
This method reads the account data of the authenticated user from the
TISM database. If it belongs to a hierarchy of accounts, it reads the lowest
level account (tree leaf side) of the user.
• public Account getParentAccount() throws
PersonalizationException, NoResourceFound
This method returns the parent account, if any. This is only useful with
business accounts that have been organized into a hierarchy.

9.3.2.3 AccountFavoriteLinks.class
This class is an access Bean that wraps the PERACCOUNTFAVLINKS table.
It can store and retrieve favorite links at each account level. It inherits from
FavoriteLinks. For explanations see Section 9.3.2.10, “FavoriteLinks.class” on
page 196.


public class AccountFavoriteLinks extends FavoriteLinks;

9.3.2.4 AccountMembers.class
This class is an access Bean that retrieves the member of an account, i.e. all
users sharing the same account.


public class AccountMembers extends AccessBean;
• public int getMemberNbr()
This method returns the number of users sharing that account.
• public Account getUserName(int ix)
This returns the name of the ixth user of that account. If ix is < 0 or >
getMemberNbr(), it returns null.
• public Account getUserFirstName(int ix)
It returns the first name of the ixth user of that account. If ix is < 0 or >
getMemberNbr(), it returns null.

9.3.2.5 AccountNameValuePairs.class
This class is an access Bean that wraps the
PERACCOUNTNAMEVALUESET table. It can store any generic property
(name=value) at each account level. The name=value set model is different


from the Java Properties model; it can store several values with the same
name. It inherits from NameValuePairs. For an explanation, refer to the
NameValuePairs class description.


public class AccountNameValuePairs extends NameValuePairs;

9.3.2.6 AddressBook.class
This class is an access Bean that stores and retrieves the address book
entries of a user.


public class AddressBook extends AccessBean;
• public synchronized boolean add(AddressBookEntry)
This method adds a new address book entry to the AddressBook
AccessBean. It is cached in the JVM memory. It will be stored into the
TISM data base when the update() method is invoked, or at the end of the
user session. It returns true if it succeeds, and false if it fails, in particular
if the entry already exists.
• public synchronized boolean add(String category, String firstname,
String lastname, String title, String company, String address, String
tel1, String tel2, String fax, String email, String url)
This is a commodity method to avoid handling AddrssBookEntry objects. It
is equivalent to the add(AddrssBookEntry) method.
• public synchronized String[] categories()
It returns a table containing all the address book categories. This list can
be used to display the contacts sorted by categories.
• public synchronized boolean del(AddressBookEntry delEntry)
These two methods delete a contact from the user's address book. It
returns true if it succeeded. It returns false if it fails, in particular if the
entry does not exist.
• public synchronized Enumeration
elementsByCategoryAndName(String category, String firstname,
String lastname)
It returns an Enumeration of AddressBookEntry for all the contacts of that
user. That enumeration can be used to display all the contacts of a user.
• public Enumeration elements()


It returns an Enumeration of AddressBookEntry for all the contacts.
• public Enumeration elementsByCategory(String category)
It returns an Enumeration of AddressBookEntry for all the contacts
belonging to that category.
• public Enumeration elementsByLastname(StringlastnamePattern)
Returns an Enumeration of AddressBookEntry for all the contacts where
the lastname field begins with the specified pattern.
• public Enumeration elementsByCategoryAndLastname(String
category, String lastnamePattern)
Returns a list of AddressBookEntry entries selected by category and
lastname.
• public synchronized boolean modify(AddressBookEntry entry, String
newTitle, String newCompany, String newAddress, String
newTel1,String newTel2, String newFax, String newEmail, String
newUrl)
This method modifies an existing AddressBookEntry from the
AddressBook AccessBean, with the new values title, company, address,
tel1, tel2, fax #, email, and Url. It returns true if it succeeds, and false if it
fails, in particular if the entry does not exist.
An example is shown in the following screen.


<%@ page buffer="none" import="com.tivoli.tsm.perso.* %>
<HTML><BODY>
<%
// Create, read and populate the AddressBook bean, or just retrieve it from session
AddressBook addbook = AddressBook.getBean(request);

// Add a new contact
AddressBookEntry newEntry = new AddressBookEntry ("Business", "John", "Smith", "Mr",
"IBM","LA", "1111111111", "2222222222", "333333333", "js@ibm.com",
"http://www.sm.com");
addbook.add(newEntry);
%>


<TABLE border=1 cellspacing=0 cellpadding=4>
<TR align="center">
<TD> Category </TD>
<TD> Lastname / Firstname </TD>
<TD> Tel </TD>
<TD> Email </TD>
<TD> Url </TD>
</TR>
<%
Enumeration entriesEnum = addbook.elements();
while (entriesEnum.hasMoreElements())
{
AddressBookEntry abookentry = (AddressBookEntry) entriesEnum.nextElement();
%>
<TR align="center">
<TD> <%=abookentry.getCategory()%></TD>
<TD> <%=abookentry.getLastname()%>, <%=abookentry.getFirstname()%></TD>
<TD> <%=abookentry.getTel1()%> </TD>
<TD> <%=abookentry.getEmail()%> </TD>
<TD> <%=abookentry.getUrl()%> </TD>
</TR>
<%
}
%>
</TABLE>

.../...

</BODY></HTML>

9.3.2.7 Appointment.class
This class is a utility class used to add or store Appointments in the Agenda
access Bean. It is not an access Bean.


public class Appointment;

• public Appointment(Date start, int duration, String description)
• public Appointment(long id, Date start, int duration, String
description)
start is the start date of the appointment. duration must be defined in
minutes.
• public String displayDate()
This method displays the start date of the appointment as a string with the
format “yyyy:MM:dd E”
• public String displayStart()
This method displays the start date of the appointment as a string with the
format “HH'h'mm”
• public String displayEnd()
This method displays the end date of the appointment (start date +
duration) as a string with the format “HH'h'mm”
• public boolean equals(Appointment appointment)
Returns true if the current appointment is equal (same start date, duration
and description) to appointment parameter.
• public java.lang.String getDescription()
Returns description of the appointment.
• public void setDescription(java.lang.String newDescription)
Updates the description of the appointment with newDescription.
• public Date getStart()
Returns start date of appointment.
• public void setStart(java.util.Date newStart)
Updates start date of appointment with newStart.
• public int getDuration()
Returns duration (in minutes) of the appointment.
• public void setDuration(int newDuration)
Updates duration of the appointment with newDuration.
• public int getDurationHour()
Converts duration of the appointment in hours (duration in minutes / 60).


• public int getDurationMin()
Returns remaining duration of the appointment in minutes (duration -
(duration /60)*60).
• public Date getEnd()
Returns the end date of the appointment (start date + duration).
• public long getId()
Returns the database sequence number of the appointment.
• public void setId(long newId)
Updates the database sequence number of the appointment with newId.
• public int getStartDay()
Returns only the day (1- 31) of the start date of the appointment.
• public int getStartMonth()
Returns only the month (1- 12) of the start date of the appointment.
• public int getStartYear()
Returns only the year (2000, 2001, etc.) of the start date of the
appointment.
• public int getStartHour()
Returns only the hour (0-23) of the start date of the appointment.
• public int getStartMin()
Returns only the minute (0-59) of the start date of the appointment.
• public boolean isInThePast()
Returns true if the appointment is in the past (older that the current date).

9.3.2.8 Agenda.class
This class is an access Bean that stores and retrieves the agenda entries of a
user.


public class Agenda extends AccessBean;
• public java.util.Date getStarttime()
Returns current date of the agenda.
• public void setStarttime(java.util.DatenewDate)
Updates current date of agenda with a new date


• public Enumeration elements(int interval, Calendar date)
Returns a AppointmentEnumeration of Appointment of the current date of
agenda filtered by the hour (interval=HOUR) or by the day (interval=DAY).
That enumeration can be used to display all appointments started between
a given hour h and h+1, or started on the day d.
• public synchronized boolean add(Appointmentappointment)
This method adds a new appointment to the Agenda AccessBean. It is
cached in the JVM memory. It will be stored in the TISM database when
the update() method is invoked, or at the end of the user session. It
returns true if it succeeds, and false if it fails, in particular if the
appointment already exists.
• public synchronized boolean del(Appointment appointment)
This method deletes an existing appointment from the Agenda
AccessBean. It will be deleted from the TISM database when the
update()method is invoked, or at the end of the user session.
• public synchronized void del(long id, java.util.Date start, int duration,
String description)
This method deletes an existing appointment from the Agenda access
Bean. The appointment can be identified by a data base sequence number
(id), or, if the id is zero, by its start date, duration, and description. It is
more efficient to delete an appointment by its id.
• public boolean modify(Appointment appt, java.util.Date date, int
duration, String description)
This method modifies an existing appointment appt from the Agenda
AccessBean with the new values; start date, duration (in minutes), and
description.
• public int getStartHour()
This method gets the latest hour of appointments found in the appointment
enumeration given by the elements() methods.
• public int getMinHour()
This method gets the earliest hour of appointments found in the
appointment enumeration given by the elements() methods.


• public void updateMinMaxHours(java.util.Datedate)
This method updates minimum or maximum hours given by the methods
getMinHour() and getMaxHour() of the agenda if necessary. If the hour of
date < getMinHour(), then minHour of agenda is updated with this value. If
the hour of date > getMaxHour() then maxHour is updated with this value.
An example of use of Agenda.class is shown in the following screen.

<%@ page buffer="none" import="com.tivoli.tsm.perso.*, java.text.*" %>
<HTML><BODY>
<%
// Create, read and populate Account bean, or just retrieve it from session
Agenda agenda = Agenda.getBean(request);
%>
<TABLE border=1>
<TR><TH>Start Date</TH><TH>Appointment description</TH><TH>Duration</TH><TR>
<%
Enumeration appointments = agenda.elements();
while (appointments.hasMoreElements())
{
Appointment appt = (com.tivoli.tsm.perso.Appointment) appointments.nextElement();
%>
<TR><TD><%=DateFormat.getDateTimeInstance().format(appt.getStart())%><TD>
<TD><%=appt.getDescription()%><TD>
<TD><%=Integer.toString(appt.getDurationHour())%>h<%=Integer.toString(appt.getDurat
ionMin())%>min<TD>
</TR>
<%
}
%>
</TABLE>
.../...
</BODY></HTML>

9.3.2.9 FamilyMembers.class
This class is an access Bean that retrieves the members of a family. It inherits
from AccountMembers. Refer to AccountMembers for explanations.


public class FamilyMembers extends AccountMembers;



!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0//EN">

<%@ page buffer="none"
import="com.tivoli.tsm.perso.*,com.tivoli.tsm.perso.components.*,java.util.*,java.tex
t.*" %>
<jsp:useBean id="myFamily" class="com.tivoli.tsm.perso.FamilyMembers" scope="session"
/>
<% myFamily.read(request); %>

<%

//----------------------------------
// Compute style sheet
String style[] = pairs.getValues("style");
String css = "default";
if (style.length >= 1)
css = style[0];

int nbr = myFamily.getMembersNbr();
%>

<HTML>
<HEAD>
<TITLE> TSM Personal page </TITLE>
<LINK rel="stylesheet" href="/perso/css/<%=css%>.css" type="text/css">
</head>
<BODY text="#000000" link="#000000" vlink="#000000" alink="#000000">

<TD><A href="http://www.tivoli.com"><IMG src="/images/tivoli_logo.gif" ALT="Tivoli"
border="0" ></A></TD>
</TR>
<% for (int ix = 0; ix<nbr ; ix++)
{
%>
<TR><TD> </TD><TD> <%= myFamily.getFirstName(ix)%> </TD></TR>
<%
}
%>
</TABLE>
..

9.3.2.10 FavoriteLinks.class
This class is an access Bean that stores and retrieves the favorite links of a
user.


public class FavoriteLinks extends AccessBean;


• public synchronized boolean add(Link link)
This method adds a new link to the FavoriteLinks AccessBean. It is cached
in the JVM memory. It will be stored in the TISM database when the
update() method is invoked, or at the end of the user session. It returns
true if it succeeded. It returns false if it fails, in particular if the link already
exists.
• public synchronized boolean add(String category, String title, String
URL)
This is a commodity method to avoid handling Link objects. It is equivalent
to the add(Link) method.
• public synchronized void del(Link)
Deletes a link from the user's favorite links.
• public synchronized void del(long id)
Each link is identified by a data base sequence number. It is more efficient
to delete a link by its id.
• public synchronized void delCategory(String category)
Deletes all the links belonging to that category.
Returns a LinkEnumeration of Link for all the favorite links of that user.
That enumeration can be used to display all the favorite links of a user.
• public Enumeration elements(String category)
Returns an Enumeration of Link for all the links belonging to that category.



<%@ page buffer="none" import="com.tivoli.tsm.perso.* %>
<HTML><BODY>
<%
// Create, read and populate FavoriteLinks bean, or just retrieve it from session
FavoriteLinks links = FavoriteLinks.getBean(request);
// Add new links
Link link = new Link ("software", "Tivoli", "http://www.tivoli.com");
links.add(link);
Link link = new Link ("computers", "IBM", "http://www.ibm.com");
links.add(link);
Enumeration myLinks = links.elements();

while (myLinks.hasMoreElement()) {
link = (Link) myLinks.nextElement();
%>
<H2><%=link.getCategory() + " " + link.getTitle() + " " + link.getUrl() + " " +
link.getDeviceType()%>
<%
}
%>
.../...
</BODY></HTML>

9.3.2.11 NameValuePairs.class
This class is an access Bean that stores and retrieves the properties of a
user. It wraps the PERNAMEVALUESET table in TISM database. The
name=value set model also stores several properties with the same name.


public class NameValuePairs extends AccessBean;
• public synchronized boolean add(NameValuepair)
This method adds a new name=value pair into the NameValuePairs
AccessBean. It is cached in the JVM memory. It will be stored in the TISM
database when the update() method is invoked, or at the end of the user
session. It returns true is it succeeds, and false if it fails, in particular if the
link already exists.
• public synchronized boolean add(String name, String value)
This is a commodity method to avoid handling NameValue objects. It is
equivalent to the add(NameValue) method.
• public synchronized void del(NameValue)
It deletes a NameValue from the user's NameValuePairs.


• public synchronized void del(long id)
Each NameValue is identified by a data base sequence number. It is more
efficient to delete a NameValue by its id.
• public synchronized void del(String name)
Deletes all the name=value pairs having the same name.
• public synchronized void del(String name, String value)
Deletes one name=value pair with the supplied name and value.
Returns a NameValueEnumeration of NameValue for all properties of that
user.
• public Enumeration elements(String name)
Returns a NameValueEnumeration of NameValue for all the values having
that name.




t.*" %>

<%
//**********************************************************************************
// Code for writting a table with the values of NameValuePairs java bean
//**********************************************************************************

// Be careful with this variable because it´s usually used for getting values for
the
// style sheets
// Getting the java bean for the NameValuePairs

NameValuePairs pairs = NameValuePairs.getBean(request);

//Creating a new Pair of Values

NameValue p = new NameValue("hobbies","football");
pairs.add(p);

// Code for going through the values of the NameValuePairs

Enumeration myProperties = pairs.elements();
NameValue prueba;
String valor;
String nombre;
while(myProperties.hasMoreElements()){
prueba = (NameValue)myProperties.nextElement();
valor = prueba.getValue();%>

<TR><td> <%=valor%> </td>

<%nombre = prueba.getName();%>

<td><%=nombre%></td></TR>

<%
}
%>

9.3.2.12 ReferencedLinks.class
This class accesses the repository of referenced links stored in the TISM data
base. It is instanciated by user session, and contains data on “user's
navigation” in the tree of referenced links. It is a read only AccessBean.

The class that caches the tree of referenced links is
ReferencedLinksRepository.class. It is a singleton class. It periodically


reloads the referenced links from TISM data base. To update the repository of
links, the operator must use TISM director tool.


public class ReferencedLinks extends AccessBean;

9.3.2.13 User.class
This class is an access Bean that represents the user's subscription data. It
wraps the TISM tables PIAUTHUSER, PISUBSCRIBER, and
PISUBSCRIBERINFO. It is a read only access Bean.


public class User extends AccessBean;



t.*" %>

<%
// Retrieve pTk access beans : user and name value pairs
// The getBean() method retrieves or instanciates the bean(s),
// then it populates it with TISM DB data.
User user = User.getBean(request);
%>
//
// In the HTML code
//
<H2><font color="#FFFFFF">Welcome <%= user.getFirstName() %> <%=user.getLastName()%>
<%= user.getAddress1() %> </font></H2>

9.4 JSP portlets framework
The portlet framework provides the mechanisms to structure JSP's by
including building blocks; the portlets. Because the requirements for PC,
PDA's, and WAP phones are so different, it is necessary to distinguish the
pages delivered to a Web browser from the pages delivered to a WAP
browser. The content markup languages, the aggregation model, and the
navigation are all different.


9.4.1 JSP portlet architecture
Figure 118 on page 203 displays the pTk JSP portlets framework
architecture. Portlets have the following features:
• Portlets inherit from the HttpServlet class.
• A portlet has a URL. It can be included in a JSP through the servlet API
include and forward mechanisms.
• Some portlets can be also called directly by a HTTP request carrying the
portlet URL. Such “top level portlets” are also called Desktop or Layout
portlets.
• A portlet has a state. Each specific portlet implementation can extend the
portletSession class to store their specific state. This state is cached in
memory for efficient portlet re-painting.
• A portlet receives commands passed as parameters of the HTTP request.
The portlet framework provides the mechanisms to address commands to
a specific portlet within a page.
• Portlets are enabled for multi-device rendering. Each portlet dispatches
portlet JSPs. The portlet JSPs are responsible for “painting” the area of
the page under control of the portlet. The portlet JSPs are dispatched
according to:
- portlet JSP = f (portlet Command , Device Type)
• A portlet uses configuration data. It basically contains the dispatching
rules for the portlet JSPs. Portlets can also extend their configuration data
to carry portlet specific properties (e.g. data formats for the
Calendarportlet).
• There are two types of portlets; the structural portlets that help structure
pages, and the services portlets.


Figure 118. JSP Portlet Architecture

9.4.2 Portlet design pattern
The portlet framework complies to the traditional servlet/JSP model with a
controller, a model, and a view, as shown in Figure 119.

Figure 119. Pattern model-view-controller


A portlet is made of three abstract classes that must be sub-classed by every
portlet implementation. See Figure 120.
• The Component class inherits from HttpServlet. It is the entry point of the
portlet.
• The ComponentSession class contains the user session state of the
portlet. The ComponentSession contains the business logic of the portlet:
the programmer of a new portlet must override the method:
ComponentSession::service() : it is the portlet "controller"
• The ComponentSession creates the Bean(s) that is (are) transmitted to
the portlet JSPs for rendering: it contains the portlet “model.”
• The ComponentConfiguration class parses the portlet properties file
during the portlet init(). In particular it contains the portlet JSP's
dispatching rules: portlet JSP = f (portlet Command, Device Type). It
contains all the references to the portlet JSP's.
• It can also be sub-classed to implement additional properties specific to
each portlet real implementation.

A portlet also contains “portlet JSPs” that are the portlet “view.”

Figure 120. More detail about the architecture of JSP Portlets


9.4.3 Portlet addressing
The TPSM has several sample pages. For HTML devices:
• http://hostname:16080/perso/samples/welcome.jsp
This is a non personalized HTML page, as you can see in Figure 121

Figure 121. Example of welcome.jsp

• http://hostname:16080/perso/home
This is a redirection to a personalized page. This page depends on the
type of device and if the user was authenticated before or not. See
Figure 122, Figure 123 on page 206, and Figure 124 on page 206.

Figure 122. /perso/home without an authentication


Figure 123. /perso/home with authentication

Figure 124. /perso/home for WAP

9.4.3.1 Selecting a layout page
The LayoutSelector portlet is possible to select a Layout page according to
the device type and page index. The structure of the URL is:

http://hostname:16080/perso/home?layout=pageindex


• hostname: The DNS or IP address of the portal server.
• 16080: port for the personalization server
• /perso/home: alias for LayoutSelector portlet
• layout: instance name of LayoutSelector portlet
• pageindex: label defined in the
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/personal/compone
nts/LayoutSelectorComponent.properties for the redirection to the JSP
file. See the next screen.

######################################################################
# Layout Selector Component for TISM pTk
# ------------------------------------
# The syntax is :
# page.<device type>.<component HTTP command>=<JSP URL path>
######################################################################
#
######################################################################
# Pages for HTML devices
######################################################################
#
page./WEB.defaultcmd=/perso/components/layoutselector/homehtml.jsp
page./WEB.home=/perso/components/layoutselector/homehtml.jsp
page./WEB.addrbook=/perso/components/layoutselector/addrbookhtml.jsp
page./WEB.agenda=/perso/components/layoutselector/agendahtml.jsp
page./WEB.news=/perso/components/layoutselector/newshtml.jsp
page./WEB.logout=/perso/components/layoutselector/logouthtml.jsp
#
######################################################################
# Pages for WML devices
######################################################################
#
page./WAP/R380.defaultcmd=/perso/components/layoutselector/homewml.jsp
page./WAP/R380.minimize=/perso/components/layoutselector/homewml.jsp

page./WAP/NokiaEmul.defaultcmd=/perso/components/layoutselector/homewml.jsp
page./WAP/NokiaEmul.minimize=/perso/components/layoutselector/homewml.jsp

page./WAP/nokia7110.defaultcmd=/perso/components/layoutselector/homewml.jsp
page./WAP/nokia7110.minimize=/perso/components/layoutselector/homewml.jsp

page./WAP/R320.defaultcmd=/perso/components/layoutselector/homewml.jsp
page./WAP/R320.minimize=/perso/components/layoutselector/homewml.jsp


9.4.3.2 Addressing a command to an included portlet
Each portlet can receive commands and parameters in the HTTP request
(GET or POST). The Figure 125 illustrates the command addressing
mechanism.

Figure 125. Sending a command and parameters to a portlet in the HTTP request

A portlet is included in the page generated from the redirection of
http://hostname:16080/perso/home. The portlet contains an instance name that
determines the new page’s layout, using the configuration file of the servlet
LayoutSelectorComponent. The defined JSP receives a command.

9.4.4 Portlet API
The portlet API is structured in:
• The Component API. It allows to include a portlet within a page (JSP or
servlet)
• The ComponentSession API. It drives the interactions between a portlet
and its portlet JSPs:
- to address a command from a JSP to a portlet
- to retrieve portlet Beans from the portlet JSPs.


9.4.4.1 Component API
This static method includes a portlet within a page (servlet or Java Server
Page).

package com.tivoli.tsm.perso.components;

public abstract class Component extends javax.servlet.http.HttpServlet;

The methods that comprise this class are:
• public static void Component::include (String componentPath, String
componentName, GenericServlet servlet, HttpServletRequest
request, HttpServletResponse response)
- String componentPath: each portlet is a servlet, and so has a URL path
in the application server.
- String componentName: each portlet has an instance name. This name
is used to address commands to a portlet.
- GenericServlet servlet: the basic code of the including servlet or JSP.
- HttpServletRequest request: the HTTP request object.
- HttpServletResponse response: the HTTP response object.

An example of the method follows:


t.*" %>

<HTML>
../..
<TR><TD>



<%
Component.include("/perso/componentSelectorComponent", "comps", this, request,
response);
%>
</TD></TR>
../..

9.4.4.2 ComponentSession API
Each portlet can receive commands that are processed by the
ComponentSession::service() method.

The portlet command API provides the means to compute the “href” attribute
of a button or control that will address a command to the current portlet.

Each portlet JSP needs to retrieve user session Beans (the model) before
generating the page content (the view).


public abstract class ComponentSession implements
javax.servlet.http.HttpSessionBindingListener;

The methods for the class ComponentSession are:
• public void ComponentSession::init(HttpServletRequest request)
- HttpServletRequest request : the HTTP request object.
This method may be overridden by portlet real implementations. It is
invoked by the portlet framework after the ComponentSession object is
instanciated, on the 1st user session HTTP request that needs to display
that portlet. For portlets that need to access to TISM data base, the init()
method usually loads the necessary user's preference Java Bean.
• public abstract void ComponentSession::service(String command,
HttpServletRequest request) throws javax.servlet.ServletException,
java.io.IOException
- String command: the command addressed to the portlet
This method must be overridden by each portlet real implementation. It
contains the portlet “controller”, the process of each command addressed
to the portlet, and the preparation of the Beans before the dispatching of
the portlet JSP's. For portlets that need to access the TISM data base, the
service() method usually loads at the User's preferences Java Beans
when the ComponentSession is instanciated.
• public String href(String command)
- String command: the command addressed to the portlet
This method is used by the portlet JSP's to compute the “href” attribute of
buttons or controls. Clicking on such a control will send an HTTP request
to the current portlet with the parameter componentName=command. This
command will be dispatched by the component framework to the portlet
instance identified by componentName.


• public static ComponentSession getSession(HttpServletRequest
request)
This method is used by the portlet JSP's to retrieve the current user's
ComponentSession instance. This object carries the Beans (the model)
with the data that must be rendered by the JSP. It is a common
programming idiom to implement simple data directly as attributes of the
ComponentSession class, and provide getXxx() accessors.

9.4.4.3 Portlet configuration
Each portlet loads a property file at initialization. That property file is parsed
by the ComponentConfiguration class. It contains the portlet JSP's
dispatching rules: portlet JSP = f (portlet Command, Device Type).

These rules are specified by properties with the following syntax:

page.<device type>.<command>=<Portlet JSP URL path>

For an example, see Section 9.4.3.1, “Selecting a layout page” on page 206.

9.5 TPSM portlet library
There are two types of portlets delivered with TISM 1.1; structural portlets,
and service portlets. Each portlet has specified the specific properties and
the interface between it and its portlet JSPs specified:
• The list of commands that can be sent from the JSP's controls (buttons) to
the portlet
• The list of accessors that the JSP's can use to retrieve the “model” data
Beans

9.5.1 Structural portlets
The Structural portlets help structure the layout and content of the portal
pages. The Structural portlets are:
1. LayoutSelectorComponent
2. ComponentSelectorComponent
3. Aggregator
4. CustomizorComponent


9.5.1.1 LayoutSelectorComponent
The LayoutSelectorComponent is not included in a page, but rather invoked
by an HTTP request URL. It sends out the correct “layout JSP” that fits the
device type. Although the LayoutSelectorComponent is optional, it can be
useful with devices such as WAP mobiles because WAP browsers rendering
is very critical and must be tuned for different devices. Figure 126 illustrates
the use of LayoutSelectorComponent.

Figure 126. Use of LayoutSelectorComponent

For the configuration of the servlet LayoutSelectorComponent, use the
LayoutSelectorComponent.properties, which are described in
Section 9.4.3.1, “Selecting a layout page” on page 206.

Portlet commands processed by LayoutSelectorComponent
For the layout selector, the command indexes the layout pages that are
dispatched on the reception of each command. This list is unlimited, and can
be extended by the webmaster when the portal site is designed. Table 15
gives a list of commands and layout pages provided with the TISM 1.1
samples.
Table 15. List of portlet commands for the LayoutSelectorComponent

Commands Description Dispatched Dispatched WML
HTML JSP JSP

defaultcmd Used when no specific homehtml.jsp homewml.jsp
command is addressed

home Displays the portal homehtml.jsp homewml.jsp
home page


HTML JSP JSP

addrbook Displays a layout page addrbookhtml.jsp
that includes the
addressbook

agenda Displays a layout page agendahtml.jsp
that includes the agenda

news Displays a layout page newshtml.jsp
that includes the news

logout Displays a layout page logouthtml.jsp
used at logout

Class definition

public class LayoutSelectorComponent extends LayoutComponent;

public class LayoutSelectorComponentSession extends
LayoutComponentSession;

9.5.1.2 ComponentSelectorComponent
ComponentSelectorComponent displays the list of available services to the
user. The user chooses services, and that information is saved in the user
profile. This is used to display, for instance, favorite applications in a
homepage. See examples in Figure 127 on page 214 and Figure 128 on
page 214.


Figure 127. Example for HTML browsers of ComponentSelectorComponent

Figure 128. Example for WAP browsers of ComponentSelectorComponent

Portlet configuration file
The configuration file used for ComponentSelectorComponent servlet is
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Co
mponentSelectorComponent.properties as shown in the following screen.


######################################################################
# Application Selector Component for TISM pTk
# ------------------------------------
#
# List of applications managed by the ComponentSelector
#
# The syntax is :
# ---------------
# application.label.<application name>=<application label>
# application.icon.<application name>=<application icon URL>
# application.componenturl.<application name>=<component URL>
# this parameter is required for components
# application.iconclickurl.<application name>=<Click URL for the icon>
# this parameter is optional : when present, the component icon is clickable
# application.devicetype.<application name>=<device_type>
# where <device_type> = /WEB, /WAP or / for all devices
######################################################################
# Calendar : Example of application which entry point is a component (servlet)
# it is referenced by the URI path of its servlet alias
#
application.label.calendar=My Calendar
application.icon.calendar=/images/calendar.gif
application.componenturl.calendar=/perso/calendarComponent
application.iconclickurl.calendar=
application.devicetype.calendar=/
#
######################################################################
# Agenda : Example of application which entry point is a component (servlet)
#
application.label.agenda=My Agenda
application.icon.agenda=/images/agenda.gif
application.componenturl.agenda=/perso/agendaComponent
application.iconclickurl.agenda=/perso/home?layout=agenda&agenda=maximize
application.devicetype.agenda=/
#
######################################################################
# Link Selector : Example of application which entry point is a component (servlet)
#
application.label.links=My Favorite Links
application.icon.links=/images/world.gif
application.componenturl.links=/perso/linkSelectorComponent
application.iconclickurl.links=
application.devicetype.links=/
#
######################################################################
# Address book Example of application which entry point is a JSP
# It is referenced by the JSP URI path used in a tag <a href="..."></a>
#
application.label.addressBook=My Address Book
application.icon.addressBook=/images/addrbook.gif
application.componenturl.addressBook=/perso/addressBookComponent
application.iconclickurl.addressBook=/perso/home?layout=addrbook&addressBook=maximize
application.devicetype.addressBook=/


######################################################################
# Example of aggregation content
application.label.news=The News
application.icon.news=/images/news.gif
application.componenturl.news=/perso/news
application.iconclickurl.news=/perso/home?layout=home&news=maximize
application.devicetype.news=/
######################################################################
# Example of an external link with macrosubstitution using the user's profile
# This type of link has no component URL
application.label.weather=My Weather
application.icon.weather=/images/weather.gif
application.componenturl.weather=
application.iconclickurl.weather=http://search.weather.yahoo.com/weather/query.cgi?
q=*getCity*
application.devicetype.weather=/WEB
######################################################################
# Component JSP's : dispatched according to (deviceType, componentCommand)
######################################################################
# The syntax is :
######################################################################
# Startup mode: defaultcmd --> maximized for WEB devices
page./WEB.defaultcmd=/perso/components/componentselector/myapplihtml.jsp
# Minimized page
page./WEB.minimize=/perso/components/componentselector/minapplihtml.jsp
# Page with my applications
page./WEB.maximize=/perso/components/componentselector/myapplihtml.jsp
page./WEB.myappli=/perso/components/componentselector/myapplihtml.jsp
page./WEB.add=/perso/components/componentselector/myapplihtml.jsp
page./WEB.delete=/perso/components/componentselector/myapplihtml.jsp
# Page with other available applications
page./WEB.customize=/perso/components/componentselector/customapplihtml.jsp
######################################################################
# layouts for WAP devices
######################################################################
# Startup mode for WAP devices : defaultcmd --> minimized
page./WAP/R380.defaultcmd=/perso/components/componentselector/myappliwml.jsp
page./WAP/R380.minimize=/perso/components/componentselector/minappliwml.jsp
page./WAP/R380.maximize=/perso/components/componentselector/maxappliwml.jsp
page./WAP/R380.add=/perso/components/componentselector/myappliwml.jsp
page./WAP/R380.delete=/perso/components/componentselector/myappliwml.jsp
page./WAP/R380.myappli=/perso/components/componentselector/myappliwml.jsp

page./WAP/NokiaEmul.defaultcmd=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.minimize=/perso/components/componentselector/minappliwml.jsp
page./WAP/NokiaEmul.maximize=/perso/components/componentselector/maxappliwml.jsp
page./WAP/NokiaEmul.add=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.delete=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.myappli=/perso/components/componentselector/myappliwml.jsp
page./WAP/nokia7110.defaultcmd=/perso/components/componentselector/myappliwml.jsp
page./WAP/nokia7110.minimize=/perso/components/componentselector/minappliwml.jsp
page./WAP/nokia7110.maximize=/perso/components/componentselector/maxappliwml.jsp
page./WAP/nokia7110.add=/perso/components/componentselector/myappliwml.jsp


Each service is described in the properties file by the following attributes:
• A title: application.label.agenda=My Agenda
• An icon URL: application.icon.agenda=/images/agenda.gif
• A portlet URL:
• An icon click URL:
application.iconclickurl.agenda=/perso/home?layout=agenda&agenda=ma
ximize

For external services (with no portlet) the property
application.componenturl.agenda is blank.

The icon click URL can be completed dynamically with the user's profiling
parameters. It uses pre-defined macros between * characters:

http://www.yahoo.com/weather?q=*getCity*

URL macros definition
The macros are listed in Table 16.
Table 16. Macros for ComponentSelectorComponent

Macro Definition Method

*getLastName* User.getLastName()

*getFirstName* User.getFirstName()

*getCity* User.getCity()

*getGender* User.getGender()

*getXxx* User.getXxx()

*Yyy // any property name not starting with NameValuePairs.getValue(Yyy)
‘get’

Commands
The commands are shown in Table 17.
Table 17. Commands for ComponentSelectorComponent

HTML JSP JSP

defaultcmd Used when no myapplihtml.jsp myappliwml.jsp
specific command
is addressed.


HTML JSP JSP

minimize Minimizes the minapplihtml.jsp minappliwml.jsp
component

maximize Maximizes the myapplihtml.jsp maxappliwml.jsp
component, and
displays the user's
selection.

add Adds a new myapplihtml.jsp myappliwml.jsp
application to the
user's profile, and
displays the user's
selection.

delete Deletes an myapplihtml.jsp myappliwml.jsp
application from
the user's profile,
and displays the
user's selection.

myappli Displays the user's myapplihtml.jsp myappliwml.jsp
selection.

customize Allows modification customapplihtml.js
of the user's p
selection.

Definition

public class ComponentSelectorComponent extends Component;

public class ComponentSelectorComponentSession extends
ComponentSession;

Methods
• public Hashtable getComponents()
Returns a Hashtable of ComponentDescription, which is the list of every
service available on the portal. ComponentDescription is a utility class that
describes a service; URL, title, icon URL, or type. Refer to the pTk Java
documentation for a complete description.
• public Hashtable getMyComponents()
Returns a Hashtable of ComponentDescription, which is the list of every
service selected by the current user.


9.5.1.3 Aggregator
The Aggregator is responsible for filtering and aggregating content into a
page, such as the head-lines of the portal. An aggregator handles a list of
Contents. For each user, that content can be filtered out according to filtering
rules specified by the site WebMaster, such as new promotions targeting
some categories of users.

The aggregated contents are presented in a JSP selected according to the
device type. Those JSPs are responsible for “skinning” the aggregated
contents with the correct mark-up language (HTML, WML, etc). The contents'
abstract and detailed texts should not include any markup tags so they are
device type independent.

The file used for the configuration of this servlet is
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Ag
gregatorComponent.properties as shown in the following screen.

Each content is defined by:
• A label: politics
• A content abstract defined by its local URL:
aggregator.abstract.politics=/perso/samples/news/politics_abstract.txt
• A content detail defined by its local URL:
aggregator.content.politics=/perso/samples/news/politics_news.txt
• An image defined by its URL:
aggregator.images.politics=/images/news/clinton.jpg

The content filtering rules are specified in a class which is loaded by name.
This class can be defined by the site webmaster to specify any filtering rules
based on the user's profile. This class must implement the Filter API. Its
name is specified in the property:

aggregator.filterclass=com.tivoli.tsm.perso.filter.SampleFilter

The component is shown in the following screen.


######################################################################
# Aggregator Component for TISM pTk
# ------------------------------------
######################################################################
#
# List of contents aggregated
# The syntax is :
# aggregator.content.<content name>=<URL>
#
aggregator.abstract.politics=/perso/samples/news/politics_abstract.txt
aggregator.content.politics=/perso/samples/news/politics_news.txt
aggregator.images.politics=/images/news/clinton.jpg
#
aggregator.abstract.basketball=/perso/samples/news/basketball_abstract.txt
aggregator.content.basketball=/perso/samples/news/basketball_news.txt
aggregator.images.basketball=/images/news/basketball.jpg
#
aggregator.abstract.golf=/perso/samples/news/basketball_abstract.txt
aggregator.content.golf=/perso/samples/news/golf_news.txt
aggregator.images.golf=/images/news/golf.jpg
#
aggregator.abstract.soccer_1=/perso/samples/news/soccer_abstract.txt
aggregator.content.soccer_1=/perso/samples/news/soccer_news.txt
aggregator.images.soccer_1=/images/news/soccer.jpg
#
aggregator.abstract.soccer_2=/perso/samples/news/euro2000_abstract.txt
aggregator.content.soccer_2=/perso/samples/news/euro2000_news.txt
aggregator.images.soccer_2=/images/news/euro2000.jpg
#
######################################################################
# Class to be provided to filter the contents to be displayed to a user
# The SampleFilter works with the samples provided with TISM
######################################################################
#
#
######################################################################
######################################################################
#
# news aggregator page
page./WEB.defaultcmd=/perso/components/aggregator/newsabstract.jsp
page./WEB.minimize=/perso/components/newsabstract.jsp
page./WEB.normal=/perso/components/aggregator/newsabstract.jsp
page./WEB.maximize=/perso/components/aggregator/newsfull.jsp
page./WEB.oneitem=/perso/components/aggregator/onenews.jsp
#
######################################################################
# Pages for R380 WAP device
######################################################################
page./WAP/R380.defaultcmd=/perso/components/aggregator/minnewswml.jsp
page./WAP/R380.minimize=/perso/components/aggregator/minnewswml.jsp
page./WAP/R380.maximize=/perso/components/aggregator/newswml.jsp
page./WAP/R380.oneitem=/perso/components/aggregator/onenewswml.jsp
#


page./WAP/NokiaEmul.defaultcmd=/perso/components/aggregator/minnewswml.jsp
page./WAP/NokiaEmul.minimize=/perso/components/aggregator/minnewswml.jsp
page./WAP/NokiaEmul.maximize=/perso/components/aggregator/newswml.jsp
page./WAP/NokiaEmul.oneitem=/perso/components/aggregator/onenewswml.jsp
# .../...
page./WAP/nokia7110.defaultcmd=/perso/components/aggregator/minnewswml.jsp
page./WAP/nokia7110.minimize=/perso/components/aggregator/minnewswml.jsp
page./WAP/nokia7110.maximize=/perso/components/aggregator/newswml.jsp
page./WAP/nokia7110.oneitem=/perso/components/aggregator/onenewswml.jsp
# .../...

Portlet commands processed by Aggregator.class
Table 18. Commands for Aggregator.class

Commands Description Dispatched DIspatched WML
HTML JSP JSP

defaultcmd Used when no newsabstract.jsp minnewswml.jsp
specific command
is addressed.

minimize Minimizes the newsabstract.jsp onenewswml.jsp
component.

normal Maximizes the newsabstract.jsp
component, and
displays the list of
news abstracts
filtered out for this
user.

maximize Maximizes the newsfull.jsp newswml.jsp
component, and
displays the list of
news details
filtered out for this
user.

oneitem Maximizes the onenews.jsp onenewswml.jsp
component, and
displays one news
details


Definition

public class Aggregator extends Component;

public class AggregatorComponentSession extends ComponentSession;

Methods
• public ContentDescription getContent(String contentName)
Returns the ContentDescription of one news item indexed by its content
name. The ContentDescription is a utility class that describes a content:
URL, title, icon URL, type,... Refer to the pTk java documentation for a
complete description.
• public Enumeration getContentEnumeration(HttpServletRequest
request)
Returns an Enumeration of ContentDescription filtered out with the current
user profile. The user's profile is retrieved in the request context.

9.6 Service portlets
Service portlets are “turn-key” applications or services within portal pages.
The service portlets are as follows:
• LinkSelector portlet
• Calendar portlet
• Agenda portlet
• AddressBook portlet
• Customizor portlet
• Customer can also implement their own service portlets

9.6.1 Customizor Portlet
The Customizor Portlet allows you to capture parameters from the HTTP
requests, validate them, and store them into the user's profile data. In the
samples provided with TISM, it is used to present customization forms to the
user: to select his favorite topics, and his desktop theme.

Portlet Configuration file
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Cu
stomizorComponent.properties is shown in the following screen.


######################################################################
# Customizor Component for TISM pTk
# ------------------------------------
######################################################################
#
######################################################################
# customizable parameter rules :
# param.<param name>=<checkings>
# <checkings>=<value>,<parameter>,...
# value 1st param 2nd param
# --------- ------------- -------------
# any min length max length
# letter min length max length
# digit min length max length
# value params
# --------- --------------------------------------------
# list allowed words list separated by ','
# Words will be compared with String.equalsIgnoreCase() method
######################################################################
param.style=list,default,clouds,paper,bricks,green
param.topics=list,politics,soccer,golf,basketball
######################################################################
# Layout rules :
######################################################################
######################################################################
######################################################################
# Minimized page
page./WEB.defaultcmd=/perso/components/customizor/mincustomhtml.jsp
page./WEB.minimize=/perso/components/customizor/mincustomhtml.jsp
#
page./WEB.maximize=/perso/components/customizor/maxcustomhtml.jsp
page./WEB.save=/perso/components/customizor/maxcustomhtml.jsp
#
page./WEB.topics=/perso/components/customizor/topicshtml.jsp
#
page./WEB.themes=/perso/components/customizor/themehtml.jsp
#
######################################################################
# layouts for Nokia 7110 WML device
######################################################################
#
######################################################################
# Pages for WML devices
######################################################################
#
# .../...


List of portlet commands processed by Customizor
Table 19 shows the portlet commands.
Table 19. Commands for Customizor Portlet

HTML JSP JSP

defaultcmd Used when no mincustomhtml.jsp
specific command
is addressed.

minimize Minimizes the mincustomhtml.jsp
component

maximize Maximizes the maxcustomhtml.jsp
component

save Validates, and maxcustomhtml.jsp
saves a parameter
whose name is
defined in the
properties file.
Then it displays the
maximized view.

topics Not processed by topicshtml.jsp
the service()
method. It displays
the topics selection
form.

themes Not processed by themehtml.jsp
the service()
method. It displays
the themes
selection form.

Class definition

public class CustomizorComponent extends Component;

public class CustomizorComponentSession extends ComponentSession;

Methods
• public boolean exists(String name, String value)
Checks if a (name,value) pair exists in the user's profile. This method can
be used in a portlet JSP to propose selections with check boxes. Choices


already selected by the user in a previous session, are already checked in
the proposed selection.
• public String getParameterCheckings(String parmName)
It returns the edit checkings specification String specified in the properties
file.
e.g.:"list,default,clouds,paper,bricks,green"
It can be used in a portlet JSP to retrieve and present the list of possible
values for a selection.

9.6.2 LinkSelector Portlet
The LinkSelector allows you to display and manage the links referenced in
the portal and saved in the user profile. The administrator of the portal uses
the TISM director tool to register the links referenced by the portal. These
links are sorted in a hierarchy of categories and stored in the TISM data base.

The LinkSelector Portlet can be toggled with different views:
• The hierarchy of links referenced by the portal. The user can navigate in
the categories, display the links per category, and save some of them into
his or her own profile.
• The user favorite links; he or she can display the links, ordered by
categories, and delete or modify them.
• Link input form to save new links into user profile; this is for links not
referenced in the portal database.

The links contained in the data base (both user favorite links, and portal
referenced links) can contain “macros.” A macro is a symbol that is
substituted at run-time with the values of the user profile. The macro's
definition is specified here.

/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Lin
kSelectorComponent.properties


Portlet commands processed by LinkSelectorComponent.class
The commands are listed in Table 20.
Table 20. Commands for LinkSelectorComponent.class

Command Description Dispatched HTML Dispatched WML
JSP JSP

defaultcmd Used when no specific minlinkhtml.jsp minlink7110.jsp
command is addressed.

minimize Minimizes the minlinkhtml.jsp minlink7110.jsp
component

reflink Displays the hierarchy of reflinkhtml.jsp reflink7110.jsp
referenced links

back Goes up in the hierarchy reflinkhtml.jsp reflink7110.jsp
of referenced links

copylink Saves one link from the reflinkhtml.jsp reflink7110.jsp
referenced links to the
personal favorite links

addlink Adds one new link to the favlinkhtml.jsp favlink7110.jsp

favlink Displays the user's favlinkhtml.jsp favlink7110.jsp
favorite links

dellink Deletes one link from the favlinkhtml.jsp favlink7110.jsp

createlink Displays a form to create createfavlinkhtml.jsp
a new link

creproplink Displays a form to create createlink7110.jsp
a new link

Class definition

public class LinkSelectorComponent extends Component;

public class LinkSelectorComponentSession extends ComponentSession;

Methods
• public Enumeration getCatEnum()
Returns an Enumeration of String, which is the list of categories at the
current level in the referenced links hierarchy. For each user session, there
is a server-side context of where the user is in the hierarchy.


• public Enumeration getCatIxEnum()
Returns an Enumeration (LinkCategoryIxEnumeration), which is the list of
categories indexes at the current level in the referenced links hierarchy. It
is more efficient to access categories by their indexes than by their name.
• public String getCurrentCategory()
Returns the name of the current category name for the user context in the
referenced links repository.
• public Enumeration getLinkEnum()
Returns the Enumeration of referenced links of the current category for the
user context in the referenced links repository.
• public String[] getFavCategories()
Returns the list of category names for the user's favorite links.
• public java.util.Enumeration getFavLinkEnum()
Returns the Enumeration of Favorite Links for the current user.
• public java.util.Enumeration getFavLinkEnum(String category)
Returns the Enumeration of Favorite Links of a given category for the
current user.
• public FavoriteLinks getFavLinks(HttpServletRequest request)
throws PersonalizationException
Returns the FavoriteLinks Java Bean.

9.6.3 Calendar Portlet
The purpose of this portlet is to display the current month or week calendar.
The user can scroll up and down the months, or click on a day to display the
day’s appointments.

/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Ca
lendar Component.properties is shown in the next screen.


######################################################################
# Calendar Component for TSM pTk
# ------------------------------------
# The syntax is :
#
# <device type> is specified in the device profile property "device.type"
#
######################################################################
# Calendar parameters
calendar.date.format=yyyy.MM.dd
calendar.time.format=hh:mm:ss
calendar.month.format=MMMM yyyy
#
######################################################################
# Component start mode = minimized | maximized
######################################################################
#
start.mode=maximized
#
######################################################################
# layouts for HTML devices
######################################################################
page./WEB.defaultcmd=/perso/components/calendar/mincalendarhtml.jsp
page./WEB.minimize=/perso/components/calendar/mincalendarhtml.jsp
page./WEB.maximize=/perso/components/calendar/monthhtml.jsp
page./WEB.currmonth=/perso/components/calendar/monthhtml.jsp
page./WEB.nextmonth=/perso/components/calendar/monthhtml.jsp
page./WEB.prevmonth=/perso/components/calendar/monthhtml.jsp
page./WEB.currweek=/perso/components/calendar/weekhtml.jsp
page./WEB.nextweek=/perso/components/calendar/weekhtml.jsp
page./WEB.prevweek=/perso/components/calendar/weekhtml.jsp
#
######################################################################
######################################################################
page./WAP/nokia7110.defaultcmd=/perso/components/calendar/mincalendar7110.jsp
page./WAP/nokia7110.minimize=/perso/components/calendar/mincalendar7110.jsp
page./WAP/nokia7110.maximize=/perso/components/calendar/monthwml7110.jsp
page./WAP/nokia7110.currmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/nokia7110.nextmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/nokia7110.prevmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/nokia7110.week=/perso/components/calendar/weekwml7110.jsp
#
######################################################################
# layouts for NokiaEmul WML device
######################################################################
page./WAP/NokiaEmul.defaultcmd=/perso/components/calendar/mincalendar7110.jsp
page./WAP/NokiaEmul.minimize=/perso/components/calendar/mincalendar7110.jsp
page./WAP/NokiaEmul.maximize=/perso/components/calendar/monthwml7110.jsp
page./WAP/NokiaEmul.currmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/NokiaEmul.nextmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/NokiaEmul.prevmonth=/perso/components/calendar/monthwml7110.jsp
page./WAP/NokiaEmul.week=/perso/components/calendar/weekwml7110.jsp


The following properties (see the next screen) specify the date and time
format. They must comply with java.text.SimpleDateFormat specifications.

# Calendar parameters
calendar.date.format=yyyy.MM.dd
calendar.time.format=hh:mm:ss
calendar.month.format=MMMM yyyy

Portlet commands processed by Calendar
Table 21 lists the commands.
Table 21. Commands for Calendar

Command Description Dispatched Dispatched WML
HTML JSP JSP

defaultcmd Used when no mincalendarhtml.js mincalendar7110.j
specific command p sp
is addressed.

minimize Minimizes the mincalendarhtml.js mincalendar7110.j
component p sp

maximize Opens the month monthhtml.jsp monthwml7110.jsp
view

currmonth Resets the monthhtml.jsp monthwml7110.jsp
calendar to the
current month

nextmonth Scrolls to the next monthhtml.jsp monthwml7110.jsp
month view

prevmonth Scrolls to the monthhtml.jsp monthwml7110.jsp
previous month
view

week Opens the week weekwml7110.jsp
view (WAP only)

Class definition

public class CalendarComponent extends Component;

public class CalendarComponentSession extends ComponentSession;


Methods
• public String getCurrentDate()
Returns the current date formatted according to the Calendar properties
file.
• public String getCurrentTime()
Returns the current time formatted according to the Calendar properties
file.
• public int getRollingMonthWeekNbr()
Returns the number of weeks in the current month.
• public int getDayOfMonth(int week, int dayOfWeek)
Returns the position of the day in the month; 1st day of Month, 2nd day of
Month,...31st day of Month. If the specified day does not belong to the
current rolling month, it returns a negative value (a calendar month view
often starts with the last days of the previous month, or ends with the first
days of the next month).
• public long getTime(int day)
Returns the Time (number of ms since January 1, 1970) of the specified
day of Month for the current rolling month.

9.6.4 Agenda Portlet
This portlet works in conjunction with the Calendar portlet and supports
concurrent appointments. It displays user appointments for one day. The user
can also create, update, and delete appointments. Each appointment entry
contains a title, description, start time, and duration. A garbage collector
exists to remove outdated appointments automatically.

/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Ag
endaComponent.properties

The following properties specify the date and time format. It must comply with
java.text.SimpleDateFormat specifications.

#################################################
# Agenda Component for TSM pTk
#################################################
# Agenda parameters
# date format to display
agenda.date.format=yyyy.MM.dd E


The following properties specify the default minimum and maximum hours to
display in the agenda view.

If an appointment starts before or after these minimum and maximum hours,
the minimum and maximum values will be updated and the appointment
displayed.

#################################################
#min and max hours to display in agenda
agenda.min.hour=8
agenda.max.hour=18

The following properties specify the garbage collector properties. The
periodicity defines when the garbage collector must be activated in order to
delete elder appointments. The appointment validity time is defined by the
last properties. In this case, every six months the garbage collector is
launched to delete all appointments whose start dates are more than six
months ago.

##############################
# For Garbage Collector
##############################
#GC periodicity (in months)
agenda.gc.periodicity=6
#appointment validity time (in months)
agenda.gc.apptvaliditytime=6

Portlet commands processed by Agenda
Table 22. Commands for Agenda

HTML JSP JSP

defaultcmd Used when no specific displayAppthtml.js displayApptwml.jsp
command is addressed. p

minimize Minimizes the minAgendahtml.jsp minAgendawml.jsp
component

maximize Opens all appointments displayAppthtml.js displayApptwml.jsp
of the current date of the p
agenda

addapptentry Prepares information to addAppthtml.jsp addApptwml.jsp
add a new appointment


HTML JSP JSP

updateappten Prepares information to addAppthtml.jsp updateDelApptwml
try update or delete an 7110.jsp
existing appointment

delapptentry Prepares information to delAppthtml.jsp displayApptwml.jsp
delete an existing
appointment

addappt Adds a new resultAgendahtml.j displayApptwml.jsp
appointment sp

updateappt Updates an existing resultAgendahtml.j displayApptwml.jsp
appointment sp

delappt Deletes an existing displayAppthtml.js displayApptwml.jsp
appointment p

resOK displayAppthtml.js
p

resKO displayAppthtml.js
p

nextday Changes the start date displayAppthtml.js displayApptwml.jsp
of agenda to the next day p
and updates the agenda
access Bean with the
appointments of this new
date

previousday Changes start date of displayAppthtml.js displayApptwml.jsp
agenda to the previous p
day and updates the
agenda access Bean
with the appointments of
this new date

Class definition

public class AgendaComponent extends Component;

public class AgendaComponentSession extends ComponentSession;


Methods
• public com.tivoli.tsm.perso.Agenda getAgenda()
Returns the agenda access Bean associated with the session.
• public java.util.Enumeration elements(int hour)
This method returns an enumeration of appointments which have their
start time between hour and hour+1.
• public String getDate()
Returns the current date of the agenda as a string. The format of the date
is defined in the configuration file.
• public int getStartDay()
Returns the current day of the agenda (day between 1 to 31).
• public int getStartMonth()
Returns the current month of the agenda (day between 1 to 12).
• public int getStartYear()
Returns the current year of the agenda (1999, 2000, 2001, etc.).
• public Calendar getStartTime()
Returns the current date of the agenda beginning at hour 00h00min00s.
• public int getMaxHourConfig()
• public void setMaxHourConfig(int newMaxHourConfig)
Returns or sets the maximum hour to display in the agenda defined in the
configuration file.
• public int getMinHourConfig()
• public void setMinHourConfig(int newMinHourConfig)
Returns or sets the minimum hour to display in the agenda defined in the
configuration file.
• public int getMaxHour()
It returns the maximum hour displayed in the agenda. It can be bigger than
the maximum hour defined in the configuration file if appointments start
after the maximum defined in the configuration file.
• public int getMinHour()
Returns the minimum hour displayed in the agenda. It can be smaller than
the minimum hour defined in the configuration file if appointments start
before the minimum defined in the configuration file.


• public boolean isCommandValid()
Returns true if the current command is valid. It could be false by example if
the user tries to add an appointment in the past; the command is not
validated and the new appointment is not added.
• public java.lang.String getPageCommand()
A same page can be used to add, update or delete an appointment. This
method returns the current command.

9.6.5 AddressBook Portlet
This portlet works with the WebMail (not part of TISM, but can be provided as
a service offering) application to save and retrieve e-mail addresses
automatically. The main features are:
• An entry contains a first name, last name, telephone and fax numbers,
e-mail address, and a type (personal, business, etc)
• Display sorted by entry Name (A tab, B tab, Z tab), or entry types
(business, personal, etc.)
• Creation, modification, and deletion of entries
• Integrated with WebMail application. A click on a name can trigger a
'mailto' reference to automatically send mail to that person. From the
WebMail, a sender email address can be saved automatically
• Multi-rendering enabled: HTML, WML, XML

/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/components/Ad
dressBookComponent.properties

No specific properties for AddressBookComponent were changed in the
default file.

Portlet commands processed by AddressBook
Table 23 shows the portlet commands.
Table 23. Commands for AddressBook

HTML JSP JSP

defaultcmd Used when no findaddrbookentrie minaddressbookw
command shtml.jsp ml.jsp
specified.


HTML JSP JSP

minimize Minimizes the findaddrbookentrie minaddressbookw
component shtml.jsp ml.jsp

maximize Opens all the displayaddressboo displayaddressboo
address book khtml.jsp kwml.jsp
entries

search Allows searching findaddrbookentrie
for an entry by the swml.jsp
first and lastname
characters

setfilter Applies a filtering displayaddressboo displayaddressboo
command by khtml.jsp kwtml.jsp
lastname

addentry Prepares manageaddrbooke addaddressbooken
information to add ntrieshtml.jsp trywml.jsp
to a new contact.

delupdateentry Prepares manageaddrbooke manageaddrbooke
information to ntrieshtml.jsp ntrieswml.jsp
update or delete an
existing entry

addcommand Adds a new contact manageaddrbooke addaddressbooken
ntrieshtml.jsp trywml.jsp

delupdatecomman Updates or deletes displayaddressboo displayaddressboo
d an existing entry khtml.jsp kwml.jsp

endmanageentry Terminates a displayaddressboo displayaddressboo
sequence of add khml.jsp kwtml.jsp
contacts (allow to
update the address
book entries in DB)

cancelmanageentr It cancels an add, displayaddressboo
y update or delete khtml.jsp
command


Class definition

public class AddressBookComponent extends Component;

public class AddressBookComponentSession extends ComponentSession;

Methods
• public com.tivoli.tsm.perso.AddressBook getAddressBook()
Returns the address book access Bean associated with the session.
• public java.util.Enumeration elements()
This method returns an enumeration of address book entries.
• public String getCategoryFilter()
Returns a string with the category used for a filtering display (returns “All”
if no category filter selected).
• public String getLastnameFilter()
Returns a string with the lastname pattern used for a filtering display
(returns “All” if no lastname filter selected).
• public com.tivoli.tsm.perso.AddressBookEntry getCurrentEntry()
Returns the last address book entry added, updated, or deleted.
• public java.lang.String getPageCommand()
The same page can be used to add, update, or delete an address book
entry. The page command allows you to differentiate the treatment. This
method returns this command.
• public boolean isLastCommandValid()
Returns true if the current command is valid, and false if it fails (for
example, if the user tries to add an entry that already exists).

9.7 Filter API
The filter API allows the site WebMaster to define content filtering rules.
These rules are expressed in Java, and use the user's profiling information.
To define such rules, it is necessary to write a class that implements the
com.tivoli.tsm.perso.filter.Filter interface. A sample Filtering class is provided
in com.tivoli.tsm.perso.filter.SampleFilter as shown in the following screen.

Interface definition
package com.tivoli.tsm.perso.filter;


public interface Filter;

Methods
• public boolean isIncluded(String contentName, HttpServletRequest
request)
For each content item defined in the Aggregator property file, the
Aggregator invokes the Filter API to determine if that content must be
presented to that user. The first parameter contentName is the label of the
content as defined in the Aggregator property file. The second parameter
request gives access to the user's profiling information.



import javax.servlet.http.*;
import com.tivoli.tsm.perso.*;
import com.tivoli.tsm.authentication.*;

/**
* It is a sample Filter implementation.
* It filters the contents aggregation for the sample news :
* - the golf news
* - the soccer news
* - the basketball news
* Date de création : (06/06/00 13:35:35)
* @author : Administrator
*/
public class SampleFilter implements Filter {
public SampleFilter() {
super();
}

/**
* Sample filtering function.
*/
public boolean isIncluded(String contentName,
javax.servlet.http.HttpServletRequest request) {
// It retrieves the NameValue pairs for the connected user
// and checks if that contentName matches with one of the topics selected by the
user
// with the Customizor portlet
try {
NameValuePairs nameValues = NameValuePairs.getBean(request);

// Isolate the prefix of content name (e.g. soccer_1 --> soccer)
int pos = contentName.indexOf('_');
if (pos >= 0)
contentName = contentName.substring (0, pos);

// Check that content topic is selected in user profile
if (nameValues.exists("topics", contentName))
return true;
}
catch (Exception ex) {
Recorder.slog(ex);
}
return false;
}
}

9.8 Profiler API
It is often necessary to change the personalization rules to define new
promotions, banners, content targeted according to user's profile, time of the
day, day of the week, etc. This is possible with the Profiler API.


It allows the portal Webmaster to define arbitrary rules that are evaluated at
the beginning of each user session.

Typically those rules can:
• Load the user's profiling data.
• Test any user's profile values, and other values provided by the JDK such
as time and date.
• Perform dynamic user's grouping; if (condition), then user belongs to a
group.
• Compute and save new properties in the user's profiling data. These
properties can then be used to personalize pages.

Those rules can be changed at any time. They are expressed in Java in a
class that implements the Profiler interface. That class is loaded by name by
the authentication Checker; its name is specified in the property files:

Web devices:
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/authentication/Default
Authenticator. properties

WAP devices:
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/authentication/WapAu
thenticator.properties

The property is:


A sample Profiling class is provided in
com.tivoli.tsm.perso.filter.SampleProfiler as shown in the next screen.

Interface definition

public interface Profiler;

Methods
public void createDynamicProfile(javax.servlet.http.HttpServletRequest
request);


This method is called at each user's session start. The user's profiling data is
accessible through the request object.

import java.util.*;
import javax.servlet.http.*;
import com.tivoli.tsm.perso.*;
import com.tivoli.tsm.authentication.*;

/**
* It is a sample Filter implementation.
* It filters the contents aggregation for the sample news :
* - the golf news
* - the soccer news
* - the basketball news
* Date de création : (06/06/00 13:35:35)
*/
public class SampleProfiler implements Profiler {
/**
* This sample Profiler applies rules to group users,
* according to their age and gender. It creates 3 groups :
* kids, women, men
* Date de création : (10/07/00 18:58:24)
* @param param javax.servlet.http.HttpServletRequest
*/
public void createDynamicProfile(javax.servlet.http.HttpServletRequest request) {
try {
pairs.del("group");

long now = new Date().getTime();
long birth = user.getBirthDate().getTime();
long age = (now - birth) / (31557600 * 1000);
String gender = user.getGender();

if ((age < 18)) {
pairs.add("group", "kid");
}
else if (gender.equals("F")) {
pairs.add("group", "woman");
}
else {
pairs.add("group", "man");
}
}
catch (PersonalizationException ex) {
}
}
}


9.9 Example of personalization
As you have seen, there is two different ways to develop depending on the
type of code that you have to produce, so we have two different examples for
internet and wireless. The wireless sample has been developed for a system
without a gateway. This is important because the gateway “transforms” the
code so some that works with a system without a gateway might not work for
a gateway system, and furthermore different gateways may have different
compatibility with the same code. You have to be conscious about that when
you develop for a Wireless World.

9.9.1 Internet world
This example is a car club, where the subscribers receive car news, agendas,
calendars, and other services. The subscriber must log on, and once the
system knows who it is, the system displays her/his homepage. This
homepage can be personalized by the user.

9.9.1.1 Implementation
This section is going to explain how to perform each of the requirements in
the code and configuration files. We will begin with the JSP codification.

Authentication
The subscriber when arrives at the homepage, we want the system to
recognize who he or she is. If the system doesn’t recognize the subscriber, he
or she should be redirected to the authentication server. The following screen
shows you how to do it.


Figure 129. Example of redirection to authentication server

Now the system knows who the user is and how the subscriber likes his/her
homepage.

Searching Yahoo
This is a simple code in HTML. See the following screen.


<TR ID=componentbar ><TD align="center"><font color="white">Search</font></TD></TR>
<TR ID=componentbckground ><TD>
<FORM method=get action="http://search.yahoo.com/bin/search" target="_blanck">
<INPUT type=text name="p" size=15 height=17 maxlength=64>
<INPUT type=submit value=go></TD>
</FORM>
</TD></TR>.

Customizor
This TPSM component is used for customizing the background and the topics
or themes that you want to receive in the news. See Figure 130.

Figure 130. Customizor component

The code to include in the home page is shown in the following screen.

<TR ><TD align="center"> </TD></TR>
<TR><TD bgcolor="black">
<%
Component.include("/perso/customizorComponent", "custom", this, request, response);
%>
</TD></TR>

With this step, you will have the component in the homepage. If you want to
customize the topics for the news that you want to offer or the themes for the
background, you will have to perform the next steps:

Customizing the topics

The topics are specified in the properties file,
/usr/TivTSM/personal/servlet/com/tivoli/tsm/perso/components/CustomizorC
omponent.properties

In the bold line in the next screen, you specify the different themes that you
want to offer.


######################################################################
# Customizor Component for TISM pTk
# ------------------------------------
######################################################################
#
######################################################################
# customizable parameter rules :
# param.<param name>=<checkings>
# <checkings>=<value>,<parameter>,...
#
# value 1st param 2nd param
# --------- ------------- -------------
# any min length max length
# letter min length max length
# digit min length max length
#
#
# value params
# --------- --------------------------------------------
# list allowed words list separated by ','
# Words will be compared with String.equalsIgnoreCase() method
#
######################################################################
#
param.style=list,default,clouds,paper,bricks,green
param.topics=list,buy,finance,research,maintain
#
######################################################################
# Layout rules :
######################################################################
#
######################################################################
######################################################################
#
# Minimized page
page./WEB.defaultcmd=/perso/components/customizor/mincustomhtml.jsp
page./WEB.minimize=/perso/components/customizor/mincustomhtml.jsp
#
page./WEB.maximize=/perso/components/customizor/maxcustomhtml.jsp
page./WEB.save=/perso/components/customizor/maxcustomhtml.jsp
#
page./WEB.topics=/perso/components/customizor/topicshtml.jsp
#
page./WEB.themes=/perso/components/customizor/themehtml.jsp
#
######################################################################
######################################################################

This will display the selected themes in the customizer panel. See Figure 131
on page 244.


Figure 131. Topics

The next step is to specify where the news will be located by altering
/usr/TivTSM/personal/servlet/com/tivoli/tsm/perso/components/AgregatorCo
mponent.properties as shown in the next screen. You specify for each topic
an abstract, the content, and where an image is. In the specified files, you will
create the abstract and content. You have a choice on displaying this as
shown in Figure 132 and Figure 133 on page 245.

Figure 132. Abstracts news


Figure 133. Content news

Now, you have a news service. If you have a problem that you don’t get the
changes in your page, restart the personal server.

Customizing the desktop themes

In the next screen, the themes are specified in the
AgregatorComponent.properties after the topics. Once you set this, there are
a few more steps. Create a style sheet in /usr/TivTSM/personal/content/css
with the same name that you specified as the theme name in the
AgregatorComponent.properties. For example, if you specify a theme name
as verde, then you will have in the /usr/TivTSM/personal/content/css a style
sheet file called verde.css.

The result is the shown in the Figure 134 on page 247 and Figure 135 on
page 247.


######################################################################
# Aggregator Component for TISM pTk
# ------------------------------------
######################################################################
#
# List of contents aggregated
# The syntax is :
# aggregator.content.<content name>=<URL>
#
aggregator.abstract.buy=/perso/samples/news/politics_abstract.txt
aggregator.content.buy=/perso/samples/news/politics_news.txt
aggregator.images.buy=/images/buy_off.gif
#
aggregator.abstract.finance=/perso/samples/news/basketball_abstract.txt
aggregator.content.finance=/perso/samples/news/basketball_news.txt
aggregator.images.finance=/images/finance_off.gif
#
aggregator.abstract.research=/perso/samples/news/basketball_abstract.txt
aggregator.content.research=/perso/samples/news/golf_news.txt
aggregator.images.research=/images/research_off.gif
#
aggregator.abstract.maintain=/perso/samples/news/soccer_abstract.txt
aggregator.content.maintain=/perso/samples/news/soccer_news.txt
aggregator.images.maintain=/images/maintain_off.gif
#
aggregator.abstract.sell=/perso/samples/news/euro2000_abstract.txt
aggregator.content.sell=/perso/samples/news/euro2000_news.txt
aggregator.images.sell=/images/sell_off.gif
#
######################################################################
# Class to be provided to filter the contents to be displayed to a user
# The SampleFilter works with the samples provided with TISM
######################################################################
#
#
######################################################################
######################################################################
#
# news aggregator page
page./WEB.defaultcmd=/perso/components/aggregator/newsabstract.jsp
page./WEB.minimize=/perso/components/newsabstract.jsp
page./WEB.normal=/perso/components/aggregator/newsabstract.jsp
page./WEB.maximize=/perso/components/aggregator/newsfull.jsp
page./WEB.oneitem=/perso/components/aggregator/onenews.jsp


.

Figure 134. The selection of themes

Figure 135. An applied theme

Logout
This TPSM component is for logging out from the personalization server and
TPSM. The next screen shows the code for this component.


<TR><TD>
<table BORDER=0 CELLSPACING=0 CELLPADDING=0>
<tr ID=componentbar >
<td WIDTH="228" ALIGN="center"><font color="FFFFFF">Logout from portal</font></td>
<td WIDTH="17"><a href="/perso/home?layout=logout&logout=session"><img
src="/images/minimizebutton.gif" href=""></a></td>
</tr>
</table>
</TD></TR>

<TR><TD>
<td WIDTH="228" ALIGN="center"><font color="FFFFFF">General Logout</font></td>
<td WIDTH="17"><a href="/perso/home?layout=logout&logout=sso"><img
</tr>
</table>
</TD></TR>

Link Selector
This TPSM component allows the user to create links to the subscriber’s
favorite places on his/her homepage. The subscriber manages the links by
him/herself. See the code in the next screen and the results in Figure 136,
Figure 137 on page 249, and Figure 138 on page 249.

<TR><TD align="center">
<%
comp = (ComponentDescription) comps.get("links");
if (comp != null)
comp.include(this, request, response);
%>
</TD>
</TR>

Figure 136. Example of link selector step 1




If you want to personalize the layout of the LinkSelector, go to
/usr/TivTSM/personal/content/component/linkselector and choose the file that
you are using.

Calendar
This TPSM component is a calendar as shown in Figure 139 on page 250.
The code to include it in the personalized homepage is shown in the next
screen.

<TR><TD align="left" width="90%">
<%
comp = (ComponentDescription) comps.get("calendar");
if (comp != null)
%>
</TD>
</TR>.


Figure 139. Example of Calendar component

Agenda
The Agenda is a TPSM component (see the Figure 140 on page 251) that you
can add to your personalize homepage with the code shown in the following
screen.

<%
comp = (ComponentDescription) comps.get("agenda");
if (comp != null)
%>
</TD>
</TR>


Figure 140. Example of Agenda component

ComponentSelector
This TPSM component permits the subscriber to customize the applications
that he/she wants to have in his/her homepage. An example of the code to
add to a homepage is shown in the next screen. Later on, we are going to
explain how to add new applications to the ComponentSelector.

<%
response);
%>

Figure 141 on page 252 shows what the ComponentSelector looks like on a
homepage.


Figure 141. Example of ComponentSelector

To add a new external application that can be chosen by the user, follow
these steps:
1. Edit the file ComponentSelectorComponent.properties of the directory
/usr/TivTSM/personal/servlet/properties/com/tivoli/tsm/perso/component
as shown in the following screen.
2. Add the next lines for your new external application, see the bold code as
our example. The first thing that you have to do is to decide what name are
you going to give to the application, for instance, mail, to identify the
properties in the file
a. Label of application to appear in the homepage as description
b. Name application.label.mail=My Mail
c. Icon that you are going to use and location:
application.icon.mail=/images/yahoo.gif
d. The location in the TPSM:
application.componenturl.mail=
e. URL for the new application:
application.iconclickurl.mail=http://mail.yahoo.com
f. Type of devices to apply:
application.devicetype.mail=/WEB
3. Stop and restart the personalization server.
4. Try your homepage as shown in Figure 142 on page 256 and Figure 143
on page 256.

The code for ComponentSelectorComponent.properties is as follows:


######################################################################
# Application Selector Component for TISM pTk
# ------------------------------------
#
# List of applications managed by the ComponentSelector
#
# The syntax is :
# ---------------
# application.label.<application name>=<application label>
# application.icon.<application name>=<application icon URL>
# application.componenturl.<application name>=<component URL>
# this parameter is required for components
# application.iconclickurl.<application name>=<Click URL for the icon>
# this parameter is optional : when present, the component icon is clickable
# application.devicetype.<application name>=<device_type>
# where <device_type> = /WEB, /WAP or / for all devices
######################################################################
# Calendar : Example of application which entry point is a component (servlet)
#
application.label.calendar=My Calendar
application.icon.calendar=/images/calendar.gif
application.componenturl.calendar=/perso/calendarComponent
application.iconclickurl.calendar=
application.devicetype.calendar=/
#
######################################################################
# Agenda : Example of application which entry point is a component (servlet)
#
application.label.agenda=My Agenda
application.icon.agenda=/images/agenda.gif
application.iconclickurl.agenda=/perso/home?layout=agenda&agenda=maximize
application.devicetype.agenda=/
#
######################################################################
# Link Selector : Example of application which entry point is a component (servlet)
#
application.label.links=My Favorite Links
application.icon.links=/images/world.gif
application.componenturl.links=/perso/linkSelectorComponent
application.iconclickurl.links=
application.devicetype.links=/
#
######################################################################
# Address book Example of application which entry point is a JSP
# It is referenced by the JSP URI path used in a tag <a href="..."></a>
#
application.label.addressBook=My Address Book
application.icon.addressBook=/images/addrbook.gif
application.componenturl.addressBook=/perso/addressBookComponent


application.iconclickurl.addressBook=/perso/home?layout=addrbook&addressBook=maximi
ze
application.devicetype.addressBook=/
#
######################################################################
# Example of aggregation content
#
application.label.news=The News
application.icon.news=/images/news.gif
application.componenturl.news=/perso/news
application.iconclickurl.news=/perso/home?layout=home&news=maximize
application.devicetype.news=/
#
######################################################################
#
application.label.weather=My Weather
application.icon.weather=/images/weather.gif
application.componenturl.weather=
application.iconclickurl.weather=http://search.weather.yahoo.com/weather/query.cgi?
q=*getCity*
application.devicetype.weather=/WEB
#
######################################################################
#
application.label.mail=My Mail
application.icon.mail=/images/yahoo.gif
application.componenturl.mail=
application.iconclickurl.mail=http://mail.yahoo.com
application.devicetype.mail=/WEB
######################################################################
#
# Component JSP's : dispatched according to (deviceType, componentCommand)
#
######################################################################
# ----------------------
# The syntax is :
######################################################################
#
# Startup mode: defaultcmd --> maximized for WEB devices
page./WEB.defaultcmd=/perso/components/componentselector/myapplihtml.jsp
#
# Minimized page
page./WEB.minimize=/perso/components/componentselector/minapplihtml.jsp
#
# Page with my applications
page./WEB.maximize=/perso/components/componentselector/myapplihtml.jsp
page./WEB.myappli=/perso/components/componentselector/myapplihtml.jsp
page./WEB.add=/perso/components/componentselector/myapplihtml.jsp
page./WEB.delete=/perso/components/componentselector/myapplihtml.jsp
#


#
# Page with other available applications
page./WEB.customize=/perso/components/componentselector/customapplihtml.jsp
#
######################################################################
# layouts for WAP devices
######################################################################
#
# Startup mode for WAP devices : defaultcmd --> minimized

page./WAP/NokiaEmul.defaultcmd=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.minimize=/perso/components/componentselector/minappliwml.jsp
page./WAP/NokiaEmul.maximize=/perso/components/componentselector/maxappliwml.jsp
page./WAP/NokiaEmul.add=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.delete=/perso/components/componentselector/myappliwml.jsp
page./WAP/NokiaEmul.myappli=/perso/components/componentselector/myappliwml.jsp

page./WAP/nokia7110.defaultcmd=/perso/components/componentselector/myappliwml.jsp
page./WAP/nokia7110.minimize=/perso/components/componentselector/minappliwml.jsp
page./WAP/nokia7110.maximize=/perso/components/componentselector/maxappliwml.jsp
page./WAP/nokia7110.add=/perso/components/componentselector/myappliwml.jsp
page./WAP/nokia7110.delete=/perso/components/componentselector/myappliwml.jsp
page./WAP/nokia7110.myappli=/perso/components/componentselector/myappliwml.jsp


# .../...


Figure 142. ComponentSelectorComponent after adding an external application

Figure 143. New application added by the user

The whole code for the entire page with all components installed is shown in
the next screen.


import="com.tivoli.tsm.perso.*,com.tivoli.tsm.perso.components.*,java.util.*,java.t
ext.*" %>
<%
String first, second, address1;
try{
first = user.getFirstName();
second = user.getLastName();
address1 = user.getAddress1();
}catch(Exception e)
{
System.out.println(e);
}
// Compute style sheet
String style[] = pairs.getValues("style");
String css = "default";
if (style.length >= 1)
css = style[0];
%>
<HTML>
<HEAD>
<TITLE> TSM Personal page </TITLE>
<LINK rel="stylesheet" href="/perso/css/<%=css%>.css" type="text/css">
</head>
<BODY text="#000000" link="#000000" vlink="#000000" alink="#000000">
<tr>
<TD><IMG width="250" height="190" src="/images/autoclub.gif" ALT="Auto Club"
border="3" ></TD>
<TD><IMG width="250" height="190" src="/images/ah1.gif" ALT="Auto Club" border="3"
></TD>
</TR>
<tr>
<td>
</TABLE>
<TABLE border="0" cellspacing="0" cellpadding="0" width="100%">
<TR>
<TD valign="top" align="left">


<TR ID=componentbar ><TD align="center"><font
color="white">Search</font></TD></TR>
<TR ID=componentbckground ><TD>
<FORM method=get action="http://search.yahoo.com/bin/search" target="_blanck">
<INPUT type=text name="p" size=15 height=17 maxlength=64>
<INPUT type=submit value=go></TD>
</FORM>
</TD></TR>

<%
Hashtable comps = ComponentSelectorComponent.getComponents("comps", request);
ComponentDescription comp;
%>

<TR><TD bgcolor="black">
<%
Component.include("/perso/customizorComponent", "custom", this, request, response);
%>
</TD></TR>

<TR><TD>
<td WIDTH="228" ALIGN="center"><font color="FFFFFF">Logout from portal</font></td>
<td WIDTH="17"><a href="/perso/home?layout=logout&logout=session"><img
</tr>
</table>
</TD></TR>
<TR><TD>
<td WIDTH="228" ALIGN="center"><font color="FFFFFF">General Logout</font></td>
<td WIDTH="17"><a href="/perso/home?layout=logout&logout=sso"><img
</tr>
</table>
</TD></TR>

<%
comp = (ComponentDescription) comps.get("links");
if (comp != null)
%></TD> </TR>
<tr><td> </td></TR>
<TR ID=componentbar ><TD align="center"><font color="white">Cars Trade Marks</font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.bmw.com">BMW</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.ferrari.com">Ferrari</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.ford.com">Ford</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.gm.com">General
Motors</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.hyundai.com">Hyundai</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.honda.com">Honda</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A
HREF="www.mercedes.com">Mercedes</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.nissan.com">Nissan</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.renault.com">Renault</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.seat.com">Seat</a></font></TD></TR>
<TR><TD align="left"><font color="black"><A HREF="www.toyota.com">Toyota</a></font></TD></TR>

<TR><TD align="left"><font color="black"><A
HREF="www.vw.com">Volkswagen</a></font></TD></TR>
</TABLE>
</TD>

<TD valign="top" align="left" >
<TABLE border="0" cellspacing="5" cellpadding="0">

<%
// Include promotional banner for kid
// The property group=xxx is set by the SampleProfiler at user session start
if (pairs.exists("group", "kid")) {
%>
<TR><TD align="center" valign="top" width="90%">
<A HREF="http://www.toysrus.com/"><IMG BORDER="0" SRC="/images/toys.jpg"></A>
</TD></TR>
<%
}
%>
<%
// Include promotional banner for men
if (pairs.exists("group", "man")) {
%>
<A HREF="http://www.ferrari.it/"><IMG SRC="/images/car.jpg"></A>
</TD></TR>
<%
}
%>
<%
// Include promotional banner for woman
if (pairs.exists("group", "woman")) {
%>
<A HREF="http://www.ferrari.it/"><IMG SRC="/images/elle.gif"></A>
</TD></TR>
<%
}
%>
<TR ID=componentbar ><TD align="center" WIDTH="500">
<H2><font color="#FFFFFF">Welcome <%=user.getFirstName() %> </font></H2>
</TD></TR>

<TR><TD align="left" valign="top" width="90%">
<%
// Include news filtered by user prefered topics
comp = (ComponentDescription) comps.get("news");
if (comp != null)
else {
%>
<H3>Please subscribe to the news...</H3>
<BR>
Click on the top left box 'My applications' to select the news.
<%

}
%>

</TD></TR>

<tr><td> </td></tr>
</TABLE>
</TD>


<td>
<TABLE>

<TR><TD>



<%
response);
%>
</TD></TR>

<TR><TD align="left" width="90%">
<%
comp = (ComponentDescription) comps.get("calendar");
if (comp != null)
%>
</TD>
</TR>

<%
comp = (ComponentDescription) comps.get("agenda");
if (comp != null)
%>
</TD>
</TR>

</TABLE>
</TD>
</TR>

</TABLE>
</BODY>
</HTML>

.
.

9.9.2 Wireless World
As in the Internet world, you can customize the homepage in Wireless World,
but the amount of space in the display is very limited.

TPSM doesn’t have a welcome homepage for WAP, so you have to create it
yourself. Here is an example.

<%@ page contentType="text/vnd.wap.wml"
import="java.util.*,java.text.*,com.tivoli.tsm.perso.*"%>
<?xml version="1.0"?>


import="com.tivoli.tsm.perso.components.*,com.tivoli.tsm.perso.*,java.util.*" %>
<%
LayoutComponentSession layout = (LayoutComponentSession)
LayoutComponentSession.getSession(request);
%>
<wml>
<template>
<do type="prev" name="back" label="Back">
<prev/>
</do>
<do type="accept" name="nav1" label="Service Menu">
<go href="<%=layout.href(response)%>">
<postfield name="currentComponent" value="comps"/>
<postfield name="comps" value="myappli"/>
</go>
</do>
</template>
<%
String currentComponent = layout.getCurrentComponent();

// If no previous value, set to component selector
if (currentComponent == null)
currentComponent = "comps";
if (currentComponent.equals("comps"))
Component.include("/perso/componentSelectorComponent", currentComponent, this,
request, response);
else {
// Component.include("/perso/componentSelectorComponent", "comps", this,
request, response, "minimize");
Hashtable comps = ComponentSelectorComponent.getComponents("comps", request);
ComponentDescription comp = (ComponentDescription) comps.get(currentComponent);
if (comp != null)
}
%></wml>

This code redirects the subscriber when it detects that he or she has not been
authenticated before. See the code in Section 9.9.1.1, “Implementation” on
page 241.

The rest of the code is for using the TPSM component,
ComponentSelectorComponent. Add other components just as we did for
HTML. To see the results, see Figure 88 on page 144.


Chapter 10. Virtual ISP

This chapter is an overview of the Virtual ISP feature. For configuration and
further information, please refer to Chapter 5, “Enrollment and service
provisioning” on page 73.

10.1 Overview
Tivoli Personalized Services Manager can host several stand-alone ISPs
(virtual ISPs) each with its own brand name and unique identity without any
degradation in response time or processing efficiency.

Bulk transfers of subscriber bases can be accomplished programmatically,
allowing ISPs to purchase existing subscriber populations and quickly add
them to the ISP's business.

Businesses can own and operate a virtual ISP within the Tivoli Internet
Services Manager base system. Virtual ISPs operate as distinct entities
separately branded with a unique realm name (e.g., “acme.com”)

Virtual ISPs can configure the Tivoli Internet Services Manager enrollment
screens to display their logo, and offer their billing plans and payment options.
Access codes used during enrollment to trigger the proper enrollment
screens and enrollment options from the Tivoli Internet Services Manager
system base. Also, virtual ISPs can create a unique home page to support
their company's identity.

The Internet Signup file (INS file) created at the end of enrollment and
downloaded to a subscriber's PC will configure the subscriber's browser to
use the virtual ISP's settings (for home page, e-mail and newsgroup settings).

Virtual ISPs can configure Tivoli Internet Services Manager's Customer Care
component to conform to their company's identity and support their
subscriber's needs, and can offer special business accounts within the ISP.
These business accounts can have their own subscribers

A variety of APIs allow Tivoli Personalized Services Manager to integrate
nearly any Internet component that meets industry standards to provide
diverse functionality and follow new trends in Internet interaction.


10.2 REALMs
Realms are a division of the subscriber name-space that allow the ISP to
divide its Internet provisioning services, effectively creating a set of “Virtual
ISPs.”

Tivoli Personalized Services Manager can support several realms for its
virtual ISPs. For example:
• allConsumers.com
• smallBusiness.com
• importantCustomer.com

Virtual ISPs can use the Tivoli Personalized Services Manager enrollment
process to enroll their own subscribers but maintain management control over
enrollment channels, access codes, deals, subscriber names, and e-mail
addresses as shown in Figure 144.

Realms can have consolidated or separate billing systems.

Figure 144. Internet business model

With a delegated REALM administration, TISM provides a configurable way to
limit the realms that Customer Service Reps (CSRs) can access.


This allows CSRs to use the full functionality of the Customer Care
application, but limits their access to some or all realms within Tivoli Internet
Services Manager.

10.2.1 User groups Within Realms
Subscribers can be divided into groups within a realm (see realm description
above). For example:
• Consumer account users
• Business account users
• Employee account users

Marketing managers, CSRs, and system administrators can support and
target information to specific groups by limiting their scope to the group they
have in mind.

Virtual ISPs can hire their own CSR staff or subcontract through agencies.
The CSRs working for the virtual ISP will be configured with security privilege
profiles that deny access to all but the virtual ISP's realm(s).

10.3 Enrollment and service provisioning
Every ISP relies on a centrally managed enrollment engine while being
allowed total autonomy in presentation and payment plan offers. A standard
set of enrollment screens can be customized to deliver uniquely branded
messages and graphics as well as ISP-specific billing plans and payment
options. Behind the scenes, a consistent array of data elements are captured
from each new subscriber, thereby distributing all of Tivoli Personalized
Services Manager's additional features to every subscriber, regardless of
their ISP as shown in Figure 145 on page 266.

With individual branding comes unique realm name distinction. Every ISP
hosted on Tivoli Personalized Services Manager is granted a realm - which is
a partition within the overall database that distinguishes them and their
subscribers from all others in the system and the Internet at large. Realms
help extend brand name identification.

Realm 1 could be "alpha.com" and Realm 2 could be "beta.com."

Every subscriber to the ISP named "Alpha" would receive a user name and
e-mail address that is unique to the realm of "alpha.com" (John@alpha.com,
Mary@alpha.com, etc.).

Chapter 10. Virtual ISP 265

Every subscriber enrolled with the ISP named "Beta" would get a user name
and e-mail address unique to "beta.com" (John@beta.com, Mary@beta.com,
etc.).

Figure 145. Enrollment and Service Provisioning

10.4 Configuring a Virtual ISP
A Realm is “an ISP”. It is “the area where is going to work a company”, for
example, IBM is a realm and its domain is ibm.com. To configure a Virtual
ISP, we need to create a new REALM on the TPSM, please refer to
Chapter 5.1.1, “Creation of a Realm” on page 76 for the creation of a REALM.

In order to be able to start using the new REALM or Virtual ISP, it is
necessary to perform the next tasks:
• Create a Registration name, refer to Chapter 5.1.2, “Creation of
Registration Names” on page 77.
• Create an Access Code, refer to Chapter 5.1.3, “Creation of Access
Codes” on page 79
• Create a Deal, refer to Chapter 5.1.4, “Creation of a deal” on page 82
• Create a Deal Text, refer to Chapter 5.1.5, “Creation of deal text” on
page 84


• Optionally, you can create a property for the deal, refer to Chapter 5.1.6,
“Creating a property” on page 87
• Associate the Deal with the Realm, refer to Chapter 5.1.7, “Associating the
deals with the Realm” on page 90
• Associate the Access Code with the Deal, refer to Chapter 5.1.8,
“Associating the Access Codes with the deals” on page 92

Also, we need to add CSRs to each one of the Virtual ISPs, please refer to
Chapter 7, “Using Customer Care and Director Tool” on page 149.

10.5 Enrolling into the Virtual ISP
With the creation of the REALM also the realm creates a registration name for
the enrollment process. The registration name by default has just one access
code, but we can create as much access codes as we want to offer and
assigned them to the REALM in order to make the a multi access REALM
type. Depending on the access code that the user selects, different deals are
going to be offered to him.

For further details refer to Chapter 5.1.13, “Managing the enrollment process”
on page 99.

Chapter 10. Virtual ISP 267

Chapter 11. Integration Toolkit

The TSM Integration Toolkit, iTk, is a set of tools that permits you to integrate
TPSM with other systems. The TSM Integration Toolkit, iTk, is written in Java,
so it is easy to use, portable, and independent of the type of database used.

The TPSM has its main functionality based in the database, so to be able to
manage TPSM, the developer has to manage the database. This is provided
via Java Database Connectivity (JDBC), and is oriented to transactions. This
means that if an error occurs in the middle of a set of database commands,
the database will not become inconsistent. A transaction must complete fully
before the database is updated.

Some examples of the use of iTk are:
• Read the available Access Codes for controlling the enrollment process
• Create an account and read the details of the accounts for TPSM
subscribers
• Read and change the deals
• Authenticate TSM Customer Service Representative and System
Administrators
• Read and change Methods of Payment (MOPs)
• Read Realms
• Create a subscriber and read it
• Create a transaction from the Transaction Factory
• Create a TxCursor interface, which provides an uniform return value from
the read() method of the Transaction class, using the fetch() and close()
methods
• Create a TxWhereClause instance, which provides the capability to
specify a complex searching criteria when invoking the read() method of
Transaction.

11.1 Architectural overview
The database is at the core of Tivoli Internet Services Manager. It contains all
the information needed to run the management system. It also implements
constraints to guarantee the integrity of the data.


Around the database primary business and transaction objects are available
that provide access to the database in a uniform and consistent way without
having to code the actual SQL statements that are needed. See Figure 146.

Figure 146. iTk architecture

Using JDBC, the specific details of the database are hidden from higher level
objects. This makes it easier to change databases because it provides
isolation from different database management systems like DB2, Oracle, etc.
JDBC separates the database server from the business object server, and
even facilitates an evolution to a distributed database.

A set of high level, business oriented objects provide simple ways to perform
complex business transactions. In turn, the high-level business objects are
built around the simpler, table oriented business objects.


11.2 iTk usage scenarios
iTk can be used in different ways as shown in Figure 147.

Figure 147. iTk usage scenarios

1. Form based browser
This is the most lightweight type of client possible. An unmodified (no
plug-in) version of Internet Explorer, Netscape Navigator, or any other type
of Web browser accesses a Web server. Behind the Web server, a servlet
engine verifies input submitted with HTML form fields and prepares the
pages to be sent to the browser. The servlet engine communicates with
the business logic server and prepares HTML to be sent to the browser
using Java Server Pages. This approach has major advantages over older
technologies like CGI (Common Gateway Interface) or Server Side
Plugins. First, the Java language used in the servlet engine guarantees
the uniformity of one platform. Second, the portability of the Java language
enables deployment on different platforms with different types of servlet
engines. Lastly, the presence of the servlet engine avoids the costly
generation of a new process with every HTTP request as required by CGI
type interfaces. With this model, the servlet engine contains iTk object
stubs if RMI is used. If RMI is not used the objects contained in the

Chapter 11. Integration Toolkit 271

business logic server will run in the Java Virtual Machine (JVM) of the
servlet engine.
2. Java Applets
This solution allows deploying business code on the browser without the
need of software installation. A Java applet is downloaded from the server
when the browser accesses a specific webpage. The code is dynamically
loaded into the Java Virtual Machine on the client and is launched once
the download is completed. This model does not require any software
installation and guarantees easy updates of software because only the
server needs to be updated. The applet can communicate directly with the
business logic, or an intermediate server can be introduced in between.
With this approach, the Java applet contains iTk object stubs if RMI is
used. Otherwise, the objects contained in the business logic server will run
in the same JVM as the applet.
3. Third party applications
In some cases customers want to integrate Tivoli Internet Services
Manager in their core applications. In this case, access to the Tivoli
Internet Services Manager services through a browser or Web server is
not convenient. Instead, customers would like to write programs that
access Tivoli Internet Services Manager directly, through well-known
interfaces. In this model, iTk object stubs are contained in the third party
application if RMI is used. Otherwise, the business logic server code will
run in the same JVM as the third party application.

11.3 iTk classes
iTk is a Java package, iTk.jar. This package contains all the iTk classes.
These classes can be classified into:
1. Core Classes: classes for iTk architecture.
2. iTk Business Objects: provides the business level functionality, for
instance, subscriber, account, realm, deal, etc.

11.3.1 Core classes
Figure 148 on page 273 shows the relations between the objects.


Figure 148. iTk core classes structure

The iTk permits the integration of applications without knowing the structure
of the database tables. Some examples of what the iTk core classes do are:


• Manage TSM Transactions. The action of creating a new subscriber is
represented as one transaction. Because there are several database
updatesm, if any fail, the database rolls back to avoid corruption.
• Connect to the database.
• Generate SQL commands dynamically.
• Providing a common interface to retrieve data.
• Utility function as debug or trace.
• Validate values set by an application.
• Manage exceptions.

There are objects oriented to transactions in the database, such as
Transaction, TransactionConfig, TransactionFactory, TxCursor, TxException,
and TxWhereClause. These classes are not accessible to the applications,
and are only explained to understand the architecture:

DbConnectionMgr
Manages and retains database connections.

SqlGenerator
Creates your own SQL statements dynamically. It optimizes updates and
validation of data.

Trace
Generic class used for tracking the progress and completion of methods. It
generates three types of methods; information, error, and warning.

TraceResources
Provides NLS support on tracing/logging.

TxObject
The base for all transaction objects. Defines the methods described in the
Transaction interface and provides a default implementation. It also takes
care of transaction management and failures.

TxSqlContext
Holds the resources that are reserved by a TxCursor Object.

TxValue
Encapsulates all objects and Java primitive types that are set to the fields of
TxObject. TxValue object can also store the TxWhereClause object.


TxValues
Developed to improve the performance of retrieving data with RMI.

Validator
Allows applications to perform some simple validation of user input locally.

11.3.2 iTk Business Objects
The TSM Business Objects are classes that manage TSM objects in the TSM
databases. A TSM Business Object is a representation of one or more
database tables. There are low level classes that can be used instead of TSM
Business Objects, but they are not recommended because they do not
guarantee integrity within TSM.

iTk also supports composed SqlGenerator to handle composed TSM
Business Object class queries.

The TSM Business Objects have three categories of methods:
1. Methods to specify returned fields:
Not all applications need all of the attributes from the database, which is
the iTk Tivoli Internet Services Manager Business Object default. Two
methods to choose among the attributes are provided:
a. void setSelectAllField(boolean): allows application to select all fields
true or false at once.
b. void setSelectField(int field_index, boolean): allows the application to
select/unselect an individual field. field_index is defined in the class as
public static final integer attributes -- usually they are all-caps class
attributes.
Code Example: to select realm name to be retrieved from Realm
object:
setSelectField(Realm.REALM_NAME,TRUE);
This set of methods won’t be described in this redbook.
NOTE: The table primary keys are always set as select field. The
reason is that the iTk is always prepared for an update or delete after a
read statement, and the keys are used to build the where clause
because it’s faster to update or delete an entry from the table based on
keys .
2. set <attributeName>|get<attributeName> methods:
All Tivoli Internet Services Manager Business Objects implement this
category of methods. It sets and gets attributes from the object.


Code Example: to set and get realm name from Realm object:
setRealmName(“Tivoli”);
String db_realm_name= getRealmName();
These methods won’t be described in this redbook.
3. Database related methods:
All Tivoli Internet Services Manager Business Objects derive from
TxObject, and implement the following methods.
Note: Additional specific methods will be described within the specific
Tivoli Internet Services Manager Business Object.
a. count(): Returns the number of entries in the database that matches
the specified criteria.
b. create(): Creates the object in the database.
NOTE: A few Tivoli Internet Services Manager Business Objects do not
allow creation.
c. delete(): Deletes one or more entries from the database.
d. NOTE: This method is not available for all classes because not all Tivoli
Internet Services Manager objects are programmatically deletable.
e. read(): Retrieves all entries from the database that match the specified
criteria
f. update(): Updates one or more entries in the database.
NOTE: A few Tivoli Internet Services Manager Business Objects do not
allow update.


Chapter 12. Device Manager

In this chapter we give an introduction of the Device Manager feature on
TPSM. For additional information about installation and configuration, please
refer to the IBM Redbook Pervasive Device Management, using Tivoli
Personalized Services Manager, SG24-6027.

12.1 Overview
Device Manager is software that helps service providers manage their
subscribers’ devices. In this chapter, the term ‘devices’ means information
appliances, such as personal digital assistants (PDAs), handheld PCs,
subnotebooks, smartphones, wireless access protocol (WAP) devices,
set-top boxes, in-vehicle information systems, and other emerging devices for
pervasive computing. You use the Device Manager as a part of Tivoli
Personalized Services Manager (TPSM). The Tivoli Personalized Services
Manager provides a completely integrated infrastructure of software
components for internet service provisioning.

The purpose of Device Manager is to extend the functionality of the required
subscription manager product to include management of devices and their
related resources, like device application software. Device Manager must
work in conjunction with either Tivoli Personalized Services Manager or
another subscription manager product whose enrollment application meets
the requirements.

Device Manager also requires a relational database. All job and device
information is stored in tables in this database. The relational database is a
required product, not a component. The subscription manager product and
Device Manager share the same database.

Device Manager uses Java technology. Its servers run on IBM AIX operating
system or Sun Solaris environments. It uses a global, relational database for
data storage. UDB and Oracle8 are supported with DMS v1.1. Its
administration clients run in Microsoft Windows operating system
environments, where the Device Manager console for administrators is
deployed.

Device Manager can be installed as a single-server environment or, for larger
user and device numbers, as a multi-server environment with a network
dispatcher as the front end. Using a network dispatcher as a load balancer,
you can keep scalability and high availability for a number of Device Manager
servers.


12.2 Device Manager on TPSM
The Device Manager feature on TPSM provides a flexible framework and set
of services for managing a subscriber's devices. Device vendors can extend
the system's framework to enable their devices to be managed by the Tivoli
Personalized Services Manager (Figure 149). The Tivoli Personalized
Services Manager provides a wide range of subscriber device management
features, including:
• Enrolling subscribers and their devices
• Listing the devices owned by a user

Figure 149. Device Manager on TPSM

12.3 Device Manager Components
Device Manager consists of six components:

• Device Manager server


• Device plug-ins

• Device management server API

• Device Manager database

• Device management API

• Device Manager console

We describe the functions of each component in this section.

12.3.1 Device Manager server
A Device Manager server is a computer that includes the device management
server servlet (DMS servlet) and the device plug-ins. When a new job gets
submitted, Device Manager server processes it for devices. The DMS servlet
and device plug-ins work together to process a job. When a device connects
to the service provider's network, it is directed, either directly or by a network
dispatcher, to a Device Manager server for job processing. A redirection
function checks to make sure the device is enrolled with the service provider.

Functionally, Device Management server is divided into two portions; Device
Management Dispatcher and the Device Management Server servlet.

12.3.1.1 Device Management Dispatcher
Device Management Dispatcher (DMD) assists the identification and
dispatching of devices connecting to the network. Devices new to Device
Manager contact Device Management Dispatcher first, and then are
redirected to an enrollment application for initial setup and configuration.
Devices already enrolled also contact DMD at the beginning of the
connection, and the DMD checks if any jobs are scheduled for the job. If so,
DMD redirects the device to a DMS servlet to process those jobs.

Thus, every device contacts DMD first in the connection, and DMD will
redirect a device to the appropriate enrollment server if it is not registered in
the database, or redirect it to a home DM server that executes device specific
jobs.

12.3.1.2 Device Management Server servlet
Devices are redirected by the DMD to Device Management Server servlet
(DMS servlet) when there are device management jobs for the device. The
DMS servlet interacts with Device plug-ins and coordinates the execution of
scheduled jobs against specific devices.

Chapter 12. Device Manager 279

The DMS servlet interacts with the device management API to get information
such as the home Device Manager server from the Device Manager
database. It also uses DM API to update the database after successful
completion of a job.

12.3.2 Device plug-ins
A device plug-in resides on the Device Manager server and provides the logic
that handles device identification, communications, job processing, and
high-level management tasks for a particular class of managed devices. A
device class is made up of specific kinds of manufacturer devices whose
operations can be managed similarly. For example, one device class provided
with Device Manager includes Palm PDAs that run PalmOS 3.0.1 (or later);
another device class might include Internet appliance devices that use the
Windows CE operating system and a specific CPU. Device plug-ins are
typically developed by and provided with Device Manager, but they can also
originate with a device manufacturer or integrator and be installed later on a
Device Manager server.

Device plug-ins communicate with device agent, device specific software that
is installed on the device, to distribute software and perform remote device
configuration. The communications between a device plug-in and the device
agent is device-class-dependent and is determined by the integrator who
wrote the plug-in code. The device management server API defines the
programming interface between a device plug-in residing on Device Manager
and the rest of Device Manager, including its redirection function. The device
management server API is designed to be generic and protocol-independent.

12.3.2.1 The components of device plug-in
Plug-ins are logically structured into four parts:
1. A device-specific communication component that the plug-in software
uses to communicate with the device. This interface is defined by the
plug-in developer; typically it is implemented as a servlet.
2. The internal device communications component, which enables
communication between the plug-in software and the DMS servlet. This
piece is created by the plug-in developer, using the
DeviceCommunicationManager API methods.
3. The set of device-specific job classes. This piece of the plug-in interacts
with the DMS servlet, the device-specific communication component, and
the DeviceCommunicationManager implementation. It implements the
higher-level management tasks (such as software distribution or device


configuration). This piece is created by the plug-in developer by
implementing the DeviceJob interface.
4. An optional template file that describes the set of device parameters such
as the IP gateway or domain name server used, that are required by all
devices of the same device class, to support many different kinds of
devices and jobs.

Device plug-ins provide the actual implementation logic for devices managed
by the Device Manager. Device plug-ins implement the logic described in 1.
and 2. as the Device Class layer. It defines a set of methods to perform
low-level primitive operations on the device. The Job Class layer implements
high-level management tasks, which is described in 3. It performs
management tasks by invoking the methods of the Device Class layer.

12.3.3 Device management server API
The Device Management Server API (DMS API, com.tivoli.dms.dmserver)
defines the programming interface between the Device Management Server
servlet (DMS servlet, which means DMD or DMS servlet here) and the device
plug-ins. This interface allows device plug-ins to interact with a Device
Manager server. The DMS API is a general purpose, protocol-independent
interface that serves as an abstraction layer, allowing all classes of devices to
be managed in the same way by Device Manager. Either Device Manager, or
the device manufacturer or integrator, provides a device plug-in for the new
device that implements the required functionality and contains logic for
performing the unique management functions for the class of devices. The
DMS API can be used to develop plug-ins for any new class of device that
implement device identification, communications, and job processing for all
devices in the new class.

12.3.4 Device Manager database
The Device Manager database is the repository for all device management
information. It is implemented in a relational database and accessed using
the device management API. The database contains tables of entries that
describe devices and device-related data resources.

Device Management database stores all device management information that
is used to perform management tasks. When a device connects to the Device
Manager server for the first time, the device information is enrolled to the
Device Manager database, such as Device ID, device type, and user name.
Also, when software distribution jobs are submitted to devices, the
information about the job; software package name, distribute duration, target
realm, and so forth; is stored.


The Device Manager database is accessed using the device management
API. This API updates all records in the Device Manager database that are
related to each other. Therefore, Device Management Server servlets, the
Device Manager console, and all external applications such as subscription
managers and billing systems should use the device management API to
access the Device Manager database.

The Subscription Manager and Device Manager databases reside in the
same database. However, they use different tables that have no relation
between them.

For additional information about these tables, see the Device Manager:
Developer's Guide, which is shipped on the TPSM CD.

12.3.5 Device management API
The device management API (package com.tivoli.dms.dmapi) defines the
programming interface between Device Manager servers, administration
clients, and external applications, and the device-related data resources
stored in the Device Manager database. Resources that can be managed
include table entries describing devices and classes of devices, their
parameters, the device class template, software defined for and available to
devices, software actually installed on devices by Device Manager, Device
Manager servers, and jobs and classes of jobs. Methods are provided to add,
delete, and modify these entries, and to search the database for entries
matching certain criteria.

In addition, the device management APIs will be used by various Subscription
Manager (SM) components of TPSM. Examples of how the device
management APIs are (or may be) used by these components are listed
below:
• The DMD uses the DM API to determine if connecting devices are defined
in the Device Manager database, and to determine where to route the
devices.
• The DMS servlet uses the DM API to determine the device class for a
specific device, the job class implementation for a specific device class
and the device, and/or device class parameters for a device. It also uses
DM API to query/update the list of installed software for a device.
• The Device Manager console uses the DM API to perform the operations t
invoked by an administrator such as creating/listing devices, displaying
device classes, viewing/modifying the parameters for devices or device
classes, and submitting new jobs for devices.


• The SM component of TPSM uses the DM API to define, configure, and
schedule jobs for new devices enrolled through the enrollment application.
In addition, Customer Care or Self Care applications can be written to
enable customer service representatives (CSRs) or customers to view or
manage devices within their scope of control.

12.3.6 Device Manager console
The Device Manager console is a graphical user interface (GUI) for
administering device management operations from a Microsoft Windows
client. Administrators use this interface to perform tasks like add and view
devices and device software, submit jobs for devices, and query job status.
The console invokes methods of the device management API to access
information in the Device Manager database and perform requested
operations. The Device Manager console uses the device management API
to interact with the Device Manager database to accomplish
administrator-initiated operations. External applications like enrollment and
billing can also use this API to retrieve device information from the database
and submit device jobs.

From this console, a service provider’s administrators can manage the
following:
• Single devices
• Classes of devices
• Parameters for devices
• Parameters for device classes
• Jobs for specific devices
• Jobs for all devices in a particular realm
• Jobs for all devices in a particular deal
• Software for devices
• Device Manager servers

Typical jobs for devices include the following supplied job types (though all job
types may not be applicable to all devices):
• Device configuration
• Software distribution
• Rest page management (typically for devices that stay continuously
connected to the service provider)


Administrators submit these jobs to update the configuration of devices
(including network parameters), distribute new or updated software
applications to devices, and update device rest pages with, for example,
timely new information from the service provider.

Administrators can initiate a new job of an available job type and target it to:
• All devices
• All devices of a device class
• All devices in a realm, a deal, or both
• One or more selected devices

Other typical administrator tasks include the following:
• Viewing device jobs and their status.
• Canceling jobs.
• Identifying and configuring a newly deployed device, including associating
the device with its owner.
• Obtaining and displaying information about the software Device Manager
has distributed to a device, and the configuration parameters it has set for
a device.

12.4 Device Manager functions
The Device Manager feature provides a flexible framework and set of services
for managing subscriber’s devices. It includes:
• Enrollment
Offers easy methods for enrolling new subscribers and their devices,
and enrolling devices for existing subscribers.
Performs initial device setup, and changes device setup as needed at
any time during enrollment or after.
The service provider can centrally manage software and configure
Tivoli Personalized Services Manager to automatically distribute
software to a subscriber’s personal devices.
Rest pages are device-resident initial start pages. They may contain
clickable icons and advertising that are remotely changed by the


service provider. Tivoli Personalized Services Manager Device
Manager controls the distribution of rest pages to devices.
• APIs
The device management API allows device and related information to
be maintained in the Device Manager database and available for use by
external applications, Device Manager servers, and administrative
clients. The Device Management server API allows for configuration
and distribution requests to be queued for distribution to devices. The
Device Management server API also allows DMS servlet and device
plug-ins to communicate as see in Table 24.
Table 24. DM functions and device plugins matrix

Palm Aero 8000 Netvista Win CE

Enrollment Supported Supported Supported Supported

Device Config Supported Supported Supported Supported

Software Supported Supported Supported Supported
Distribution

Restpage N/A N/A Supported N/A
Support

APIs Supported Supported Supported Supported

12.5 Supported devices
In this section, we describe supported devices and device plug-ins that are
included in Device Manager v1.1. We also describe device characteristics.
Tivoli Personalized Services Manager Device Manager feature supports
several types of devices such as:
• Personal Digital Assistants (PDAs)
• Screenphones
• Wireless Access Protocol (WAP) devices

Device Manager v1.1 includes device plug-ins. Plug-ins are plugable software
that enables administrators to manage the following types of supported
physical devices:
• Palm Computing PDAs
• Compaq Aero 8000 H/PC Pro devices
• NetVista Internet Appliance devices


• Generic support for Windows CE devices

12.5.1 Palm Computing PDAs
Device Manager supports all Palm III and Palm V-series Palm Computing
devices that use the PalmOS R3.0.1 (or later) operating system. Palm
positions these devices as PC companions used as “connected organizers.”
PalmOS devices, with their relatively small displays, infrequent network
connections, and portability features, are not necessarily optimized for all the
same services that might be offered to users of other devices. For example,
rest page presentations are ideal for devices that are continuously connected
to a service provider, but not for disconnected PalmOS devices that people
carry around in their pockets. As with any unique class of devices, the
services and jobs for which they are best suited will vary with the
characteristics of the device class itself. Device Manager supplies a device
plug-in for the supported PalmOS devices that includes the following Java
classes:
• The Palm device class
• The SW_DIST job class for software distribution
• The DEVICE_CFG job class for device configuration

For more information about the physical Palm computing devices themselves,
see the Palm organizer information on the Palm Computing Web site:
http://www.palm.com

12.5.2 Compaq Aero 8000 H/PC Pro devices
The Compaq Aero 8000 Handheld PC Professional (Aero 8000) is a handheld
PC or subnotebook for sales and service people, mobile business
professionals, and other field personnel who need access to their enterprise
network or the Internet. This handheld PC includes Microsoft Windows CE for
Handheld PC Professional Edition, Version 3.0 operating system. The Aero
8000 is light in weight at only three pounds, and has resources unavailable
with many palm-like devices. With the Aero 8000, you can access the Internet
or the enterprise network with an Ethernet PC card or internal modem. The
Aero 8000 also includes these features:
• Instant-on so there is no waiting to boot
• Flash memory to store applications in non-volatile memory
• A 10-inch SVGA (800 x 600) screen providing a 256-color display
• A 95% size keyboard
• A touch pad system for a point-and-click Windows environment


• A built-in smart card reader
• Pocket e-mail

The Aero 8000 can be pre-configured for Device Manager by a service
provider. The consumer has quick access to the Internet through the Pocket
Internet Explorer browser. For more about the Aero 8000, see the Compaq
Web site. See http://www5.compaq.com/products/handhelds/8000/

The Device Manager software includes a device plug-in for the Aero 8000 and
its agent program. The Aero 8000 plug-in installs with the Device Manager
software. The communication protocol between the Aero 8000 plug-in and its
agent program is based on the HTTP protocol. The device agent program
works only as an HTTP client.

12.5.3 NetVista Internet Appliance devices
The NetVista Internet Appliance is a device for Internet access, e-mail, voice
mail, Personal Information Management (PIM), and other pervasive
computing tasks. This device uses the PvC (pervasive computing) client stack
as the base architecture, and then places a shell and applications within that
architecture.

The PvC client stack is a set of software components for a wide range of
non-traditional devices, such as Service Gateway or Networked Vehicle. The
stack consists of a real time operating system, native programs, a JVM, the
Service Management Framework, and other services.

To manage the NetVista Internet Appliance efficiently, the plug-in software for
Device Manager server and the device agent program are needed. The
plug-in software and the device agent program communicate with each other
using a protocol based on the HTTP or HTTPS protocol, and perform system
management tasks.

The plug-in software functions as the servlet on the HTTP server, and the
device agent program is implemented as a Service Management Framework
bundle written in Java and functions as the client. When disconnected from
the service provider's network, the display on the NetVista Internet Appliance
presents a rest page, which is a Web page customized by the service
provider to display advertising and other information. The NetVista Internet
Appliance can be pre-configured for Device Manager by a telephone
company or service provider.


The NetVista Internet Appliance also includes:
• A unique ID, such as serial number or NIC ID
• The PvC client stack
• The ability to handle special HTTP messages from the enrollment program
for starting the system management agent after the enrollment is complete
• Support for HTTP redirection
• Support for SSL

For more information about the NetVista Internet Appliance, see the NetVista
Web site: http://www.pc.ibm.com/us/netvista/index.html

12.5.4 Generic Windows CE devices
A Windows CE device is a handheld PC, Palm-type device, pocket-type
device, or subnotebook for sales and service people, mobile business
professionals, and other field personnel who need access to their enterprise
network or the Internet. This handheld PC includes Microsoft Windows CE for
Handheld PC Professional Edition, Version 3.0 operating system. Windows
CE devices have resources unavailable with many Palm-type devices. With
Windows CE devices, you can access the Internet or the enterprise network
with an Ethernet PC card or internal modem. Windows CE devices also
include these features:
• Instant-on so there is no waiting to boot
• Flash memory to store applications in non-volatile memory
• Typical screen sizes are 240x320, 640x240, 640x480, 800x480, and
800x600
• Typical CPUs include SH-3, SH-4, MIPS, and StrongARM
• Pocket Internet Explorer browser

Because screen size and resolution varies among the Windows CE devices,
the Device Manager user interface may change for different types of Windows
CE devices. In addition, the CPU type and file structure can differ among the
various Windows CE devices.

A Windows CE device can be pre-configured for Device Manager by a service
provider. The consumer has quick access to the Internet through the Pocket
Internet Explorer browser.

The Device Manager software includes a device plug-in for Windows CE
devices and the Windows CE agent program. The Windows CE plug-in


installs with the Device Manager software. The communication protocol
between the Windows CE plug-in and the Windows CE agent program is
based on the HTTP protocol. The device agent program works only as an
HTTP client.

12.6 Features of Device Manager
This section describes the features of Device Manager.

12.6.1 Extensibility for managing various devices
In order to provide extensibility to manage a variety of devices, the Device
Manager server supports a “plug-in” architecture. Device Manager provides
some basic device modules that can be easily extended to support various
device types. And Device Manager can support more than one device type at
the same time.

TPSM Device Manager provides Device plug-ins that support Palm Pilot,
Aero8000, general WindowsCE, and NetVista Internet Appliance by default.
Other device venders, service providors, and ISPs can develop their own
plug-ins with specialized functions to meet their needs. Generic functions are
handled by other components of the Device Manager (that is Device
Management Server servlets), while functions specific to a class of devices
are localized to the plug-in for that device class.

Along with the Device plug-ins, device agents are provided. Device agents
reside on the device, and communicate with the server side plug-in to perform
actual installation or parameter settings. The communication between a
device plug-in and the device agent is device-class-dependent and is
determined by the integrator who writes the plug-in code. For example, the
WAP device vender can develop “WAP device plug-in” and the agent that
uses WAP as its communication protocol between the plug-in and the agent.
TPSM Device Manager plug-ins, which support Palm Pilot, Aero8000, general
WindowsCE devices, and NetVista Internet Appliance, use HTTP (and
HTTP-S) as their transport mechanism between the plug-in and the device
agent. This allows device management traffic to pass through various kinds of
network elements such as fire walls. However, it imposes some restrictions on
the interaction between devices and the Device Manager, primarily that
interactions take the form of request/response pairs initiated by the device.

The Device Management server API defines programming interface between
a Device plug-in and Device Management Dispatcher or Device Management
Server servlet. The device management server API is designed to be generic
and protocol-independent to support many kinds of devices and jobs.


Plug-ins developers use this API to write plug-in code.

12.6.2 Centralized management
Device Manager console is used to manage all Device Manager functions.
Business administrators and system administrators use this console to
perform management tasks.

12.6.3 Provisioning to other system
The Device Management API provides the programming interface for
managing the device, jobs, and related resources in the device Manager
database. All Device Manager components and other applications that
access the Device Manager database should use this API.

The interfaces between the DM feature and the subscription manager are
well-defined and highly localized. Consequently, DM can be used as a facility
through which other applications can perform device management.

Essentially, the DM system is a repository of device data and an engine for
processing “jobs” on devices when they are connected to the network. DM
relieves the applications that use it from the need to store detailed device
information (such as operating system, installed software, and configuration
settings), and shields them from the protocols used to communicate with
each type of device.

12.6.4 Scalability and availability
Scalability is achieved horizontally with many DM servers identically
configured. Requests are routed to these servers by a front-end such as an
IBM e-Network Dispatcher.

The e-Network Dispatcher allows you to add extra Device Manager servers
without stopping the service.

For the back-ended database system, you can use the IBM AIX HACMP
solution for high availability.


Appendix A. Special notices

This publication is intended to help people to understand the concepts and
implementations of Tivoli Personalized Services Manager. The information in
this publication is not intended as the specification of any programming
interfaces that are provided by Tivoli Personalized Services Manager V1.1 or
Tivoli Internet Services Manager V1.1. See the PUBLICATIONS section of
the IBM Programming Announcement for ?Tivoli Personalized Services
Manager V1.1 or Tivoli Internet Services Manager V1.1for more information
about what publications are considered to be product documentation.

References in this publication to IBM products, programs or services do not
imply that IBM intends to make these available in all countries in which IBM
operates. Any reference to an IBM product, program, or service is not
intended to state or imply that only IBM's product, program, or service may be
used. Any functionally equivalent program that does not infringe any of IBM's
intellectual property rights may be used instead of the IBM product, program
or service.

Information in this book was developed in conjunction with use of the
equipment specified, and is limited in application to those specific hardware
and software products and levels.

IBM may have patents or pending patent applications covering subject matter
in this document. The furnishing of this document does not give you any
license to these patents. You can send license inquiries, in writing, to the IBM
Director of Licensing, IBM Corporation, North Castle Drive, Armonk, NY
10504-1785.

Licensees of this program who wish to have information about it for the
purpose of enabling: (i) the exchange of information between independently
created programs and other programs (including this one) and (ii) the mutual
use of the information which has been exchanged, should contact IBM
Corporation, Dept. 600A, Mail Drop 1329, Somers, NY 10589 USA.

Such information may be available, subject to appropriate terms and
conditions, including in some cases, payment of a fee.

The information contained in this document has not been submitted to any
formal IBM test and is distributed AS IS. The use of this information or the
implementation of any of these techniques is a customer responsibility and
depends on the customer's ability to evaluate and integrate them into the
customer's operational environment. While each item may have been
reviewed by IBM for accuracy in a specific situation, there is no guarantee


that the same or similar results will be obtained elsewhere. Customers
attempting to adapt these techniques to their own environments do so at their
own risk.

Any pointers in this publication to external Web sites are provided for
convenience only and do not in any manner serve as an endorsement of
these Web sites.

The following terms are trademarks of the International Business Machines
Corporation in the United States and/or other countries:
e (logo)® IBM ®
Netfinity NetVista
Redbooks Redbooks Logo
RS/6000 SecureWay
System/390 WebSphere
WorkPad

The following terms are trademarks of other companies:

Tivoli, Manage. Anything. Anywhere.,The Power To Manage., Anything.
Anywhere.,TME, NetView, Cross-Site, Tivoli Ready, Tivoli Certified, Planet
Tivoli, and Tivoli Enterprise are trademarks or registered trademarks of Tivoli
Systems Inc., an IBM company, in the United States, other countries, or both.
In Denmark, Tivoli is a trademark licensed from Kjøbenhavns Sommer - Tivoli
A/S.

C-bus is a trademark of Corollary, Inc. in the United States and/or other
countries.

Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States and/or other
countries.

Microsoft, Windows, Windows NT, and the Windows logo are trademarks of
Microsoft Corporation in the United States and/or other countries.

PC Direct is a trademark of Ziff Communications Company in the United
States and/or other countries and is used by IBM Corporation under license.

ActionMedia, LANDesk, MMX, Pentium and ProShare are trademarks of Intel
Corporation in the United States and/or other countries.

UNIX is a registered trademark in the United States and other countries
licensed exclusively through The Open Group.


SET, SET Secure Electronic Transaction, and the SET Logo are trademarks
owned by SET Secure Electronic Transaction LLC.

Other company, product, and service names may be trademarks or service
marks of others.

Appendix A. Special notices 293

Appendix B. Related publications

The publications listed in this section are considered particularly suitable for a
more detailed discussion of the topics covered in this redbook.

B.1 IBM Redbooks
For information on ordering these publications see “How to get IBM
Redbooks” on page 297.
• Tivoli Personalized Services Manager Device Manager 1.1: Pervasive Device
Management, SG24-6027
• An Introduction to IBM WebSphere Everyplace Suite Version 1.1,
SG24-5995
• Database Performance on AIX in DB2 UDB and Oracle Environments,
SG24-5511
• IBM HTTP Server Powered by Apache on RS/6000, SG24-5132
• WebSphere Application Servers: Standard and Advanced Editions,
SG24-5460
• IBM WebSphere Performance Pack: Load Balancing·with IBM SecureWay
Network Dispatcher, SG24-5858
• IBM Network Dispatcher User's Guide (Version 3.0 for Multiplatforms),
GC31-8496

B.2 IBM Redbooks collections
Redbooks are also available on the following CD-ROMs. Click the CD-ROMs
button at ibm.com/redbooks for information about all the CD-ROMs offered,
updates and formats.
CD-ROM Title Collection Kit
Number
IBM System/390 Redbooks Collection SK2T-2177
IBM Networking Redbooks Collection SK2T-6022
IBM Transaction Processing and Data Management Redbooks Collection SK2T-8038
IBM Lotus Redbooks Collection SK2T-8039
Tivoli Redbooks Collection SK2T-8044
IBM AS/400 Redbooks Collection SK2T-2849
IBM Netfinity Hardware and Software Redbooks Collection SK2T-8046
IBM RS/6000 Redbooks Collection SK2T-8043
IBM Application Development Redbooks Collection SK2T-8037
IBM Enterprise Storage and Systems Management Solutions SK3T-3694


B.3 Other resources
These publications are also relevant as further information sources:
• HACMP for AIX 4.4 Planning Guide, SC23-4277

The following publications mentioned in this redbook are Product
Documentation, which can be obtained in Tivoli product CD-ROMs or IBM
WebSphere Everyplace Suite product CD-ROMs:
• WebSphere Everyplace Suite Getting Started v1.1
• Tivoli Internet and Personalized Services Manager Documentation:
TPSM Overview
Planning and Installation
Administration
Director Guide
Programmer’s Guide
• Tivoli Personalized Services Manager Device Manager:
Planning and Installation
Administration
Developer's Guide
PalmOS Plug-in Notes
NetVista Internet Appliance Plug-in Notes
Aero 8000 Plug-in Notes
Windows CE Plug-in Notes


How to get IBM Redbooks

This section explains how both customers and IBM employees can find out about IBM Redbooks,
redpieces, and CD-ROMs. A form for ordering books and CD-ROMs by fax or e-mail is also provided.
• Redbooks Web Site ibm.com/redbooks
Search for, view, download, or order hardcopy/CD-ROM Redbooks from the Redbooks Web site.
Also read redpieces and download additional materials (code samples or diskette/CD-ROM images)
from this Redbooks site.
Redpieces are Redbooks in progress; not all Redbooks become redpieces and sometimes just a few
chapters will be published this way. The intent is to get the information out much quicker than the
formal publishing process allows.
• E-mail Orders
Send orders by e-mail including information from the IBM Redbooks fax order form to:
e-mail address
In United States or Canada pubscan@us.ibm.com
Outside North America Contact information is in the “How to Order” section at this site:
http://www.elink.ibmlink.ibm.com/pbl/pbl
• Telephone Orders
United States (toll free) 1-800-879-2755
Canada (toll free) 1-800-IBM-4YOU
Outside North America Country coordinator phone number is in the “How to Order”
section at this site:
• Fax Orders
United States (toll free) 1-800-445-9269
Canada 1-403-267-4455
Outside North America Fax phone number is in the “How to Order” section at this site:

This information was current at the time of publication, but is continually subject to change. The latest
information may be found at the Redbooks Web site.

IBM Intranet for Employees
IBM employees may register for information on workshops, residencies, and Redbooks by accessing
the IBM Intranet Web site at http://w3.itso.ibm.com/ and clicking the ITSO Mailing List button.
Look in the Materials repository for workshops, presentations, papers, and Web pages developed
and written by the ITSO technical professionals; click the Additional Materials button. Employees may
access MyNews at http://w3.ibm.com/ for redbook, residency, and workshop announcements.


IBM Redbooks fax order form

Please send me the following:
Title Order Number Quantity

First name Last name

Company

Address

City Postal code Country

Telephone number Telefax number VAT number

Invoice to customer number

Credit card number

Credit card expiration date Card issued to Signature

We accept American Express, Diners, Eurocard, Master Card, and Visa. Payment by credit card not
available in all countries. Signature mandatory for credit card payment.


Glossary

Aero 8000 The Compaq Aero 8000 Handheld programming interface for manipulating the
PC, which is a kind of Windows CE machine. It device- and job-related data resources stored in
uses Hitachi SH4 processor and has a 10-inch the Device Manager database.
color SVGA screen with 800 x 600 resolution, Device management server API An API
256 colors, and a 0.24 pixel pitch. (package com.tivoli.dms.dmserver) that defines
AIX Advanced Interactive eXecutive. An IBM the programming interface between the device
industrial-strength version of UNIX. management server servlet and the device
plug-ins.
API Application program interface.
Device Manager console A graphical user
ASP Application Service Provider. An Internet interface, written by Java, for administering
service provider that offers application services. device management operations.
business object An object containing DHCP See Dynamic Host Configuration
business methods (logic) and state that is Protocol.
intended for use within business applications.
Business objects are Managed Objects. In some DM Device Manager.
contexts, the term “business object” in this book DM console see Device Manager console.
is used to refer to a business object class. It
may also be used to refer to a composition of DMD Device Management Dispatcher.
business object classes. DMS servlet Device management server
Challenge Handshake Authentication servlet.
Protocol (CHAP) A type of authentication in DNS See Domain Name System.
which the authentication agent (typically a
Domain Name System (DNS) A function to
network server) sends the client program a key
associate names and addresses on Internet
to be used to encrypt the username and
domain servers.
password.
Dynamic Host Configuration Protocol
CHAP See Challenge Handshake
(DHCP) A protocol for assigning dynamic IP
Authentication Protocol.
addresses to devices on a network.
conduit A component of Palm Desktop
e-business A term used by IBM to describe
software. A conduit specifies how to transfer
the use of Internet technologies to transform
and translate data between your handheld and
business processes. In practice, this means
your computer for a specific handheld
using Internet clients, such as Web browsers, as
application or database during a Hot Sync
front ends for applications that access back-end
operation.
legacy systems to allow greater access. See
cradle The docking station for PDA devices to http://www.software.ibm.com/ebusiness for
connect to the desktop PC. Generally, they also more information.
have the function to charge the device.
eXtensible Markup Language (XML) This
DBCS Double byte character set. markup language, a streamlined version of
DDL Data Definition Language. SGML, is regulated by WC3 (the World Wide
Web Consortium). Can create more advanced
deal Deals represent the service plan that is links than HTML.
being subscribed to.
Device management API An API (package
com.tivoli.dms.dmapi) that defines the


file package Describes which files and iTk Tivoli Internet Services Manager Integration
directories to distribute and how to distribute Toolkits.
them.
Java A high-level programming language
file package definition file An ASCII file that developed in 1991 by Sun Microsystems that
identifies the contents and characteristics of a file works on virtually any computer. Unlike HTML,
package. which is a document display format that is
continually improved to make it do more, Java is a
File Transfer Protocol (FTP) The protocol used
full-blown programming language like C and C++.
for sending files over the network.
It allows for the creation of sophisticated
FTP See File Transfer Protocol. client/server applications to be developed for the
GUI Graphical User Interface. Web and for intranets.

HACMP High Availability Cluster Java Database Connectivity (JDBC) A Java
Multi-Processing. API that allows Java programs to communicate
with different database management systems in a
HotSync A Palm function to do two-way platform-independent manner. Database vendors
synchronization of records between your provide JDBC drivers for their platforms that
handheld and your computer. Changes that you implement the API for their database, allowing
make on your handheld or your computer are the Java developer to write applications to a
updated on both platforms after a HotSync consistent API no matter which database is used.
operation. The HotSync operation only
synchronizes the changed portions of data, Java Development Kit (JDK) A software
reducing HotSync time. development kit (SDK) for producing Java
programs.
HTTP See Hyper Text Transmission Protocol.
JDBC See Java Database Connectivity.
Hyper Text Transmission Protocol (HTTP) The
communications protocol used to connect to JDK See Java Development Kit.
servers on the World Wide Web. Its primary kiosk services Solutions for business center
function is to establish a connection with a Web service providers such as hotel chains, airports,
server and transmit HTML pages to the client and office service franchises that offer document
browser. services (storing, reproduction, and distribution)
IBM International Business Machines. through shared access devices in public spaces.

IMAP See Internet Message Access Protocol. LAN See Local Area Network.

Integrated Services Digital Network (ISDN) LDAP See Lightweight Directory Access
An international communications standard for Protocol.
sending voice, video, and data over digital Lightweight Directory Access Protocol
telephone lines and normal telephone wires. (LDAP) A set of protocols for accessing
Internet Message Access Protocol (IMAP) A information directories. LDAP is based on the
protocol for retrieving e-mail messages. X.500 protocol, but supports TCP/IP, which is
necessary for Internet access. Because it's a
Internet screenphone A telephone-like simpler version of X.500, LDAP is sometimes
appliance with a built-in display screen that may called X.500-lite.
be used to call up Internet sites quickly.
Local Area Network (LAN) A computer network
Internet Service Provider (ISP) Offers services that spans a relatively small area, such as a
on the Internet, such as connection services. building or a group of buildings.
ISDN See Integrated Services Digital Network. meta file definition file An ASCII file that
ISP See Internet Service Provider. provides software distribution properties for the


job. It also has a numbered application stanza, Portal Toolkit (pTk) A toolkit that features a
[Applicationn], for each application package in Multi-device portal engine thata supports web
the software distribution job. devices such as Win CE based PDAs,
screenphones, and WAP devices as well as PCs.
NetVista The IBM NetVista™ system includes
It also features a User Preference API, which
all-in-one, legacy-free, traditional desktops and
allows user and user group profiling.
thin clients to provide a full range of computing
solutions for your business or home. Post Office Protocol (POP) A protocol used to
retrieve e-mail from a mail server.
Palm OS platform A popular operating system
for Palm and other handheld devices, designed PPP See Point-to-Point Protocol.
by Palm specifically for information management.
PRC Palm Resource. See Palm OS resource
Palm Pilot One of the most popular brands of database.
PDAs, which uses Palm OS provided by Palm,
proxy A proxy server is configured to manage
Inc. Nowadays, 3Com, IBM, Sony, and some
network traffic and to protect your network.
other vendors sell original Palm Pilot devices.
PSTN See Public Switched Telephone Network.
Palm OS resource database Commonly
referred to as a PRC (Palm Resource). A PRC PTF Problem temporary fix.
can exist as a file on the host computer (that is, a pTk See Portal Toolkit.
PC or a Macintosh) and is commonly referred to
as a PRC file. A PRC contains database header Public Switched Telephone Network (PSTN)
information as well as individual resource records The international telephone system based on
in the database itself. copper wires carrying analog voice data. This is
in contrast to newer telephone networks based on
Palmscape Palmscape is a Web browser for digital technologies such as ISDN and FDDI.
PDA. Palm version of Palmscape works on the
Palm OS 3.0 and above. RADIUS Remote Access Dial-In User Service.

PAP See Password Authentication Protocol. RAM disk Refers to RAM that has been
configured to simulate a disk drive. You can
Password Authentication Protocol (PAP) The access files on a RAM disk as you would access
most basic form of authentication in which a files on a real disk.
user's name and password are transmitted over a
network and compared to a table of RAS Short for Reliability, Availability,
name-password pairs. Serviceability. See Remote Access Services.

PDA See Personal Digital Assistant. Realm Realms are a division of the subscriber
name-space that allow the ISP to divide its
PDB PDB files contain database records that Internet provisioning services, effectively creating
are used by Palm OS to store the application a set of “Virtual ISPs.”
data. They have features unique to the Palm OS.
Remote Access Services (RAS) A feature built
Personal Digital Assistant (PDA) A small into Windows NT that enables users to log into an
handheld device that offers functions such as NT-based LAN using a modem, X.25 connection,
address storage, calendar, and e-mail. This or WAN link.
mobile device can be synchronized with desktop
PCs. screenphone See Internet screenphone.

Point-to-Point Protocol (PPP) A data link servlets Java classes that run on Web servers
protocol that provides dial-up access over several to provide dynamic HTML content to clients. They
lines. take as input the HTTP request from the client
and output dynamically generated HTML. For
POP See Post Office Protocol. more information on servlets, see

301

http://www.software.ibm.com/ebusiness/ HTML, so that the output will be displayed in a
pm.html#Servlets manner appropriate to the device.
Simple Mail Transfer Protocol (SMTP) A TSM Tivoli Subscriber Manager.
protocol for sending e-mail messages between
UDB DB2 Universal Database from IBM.
servers.
URL Universal Resource Locator.
SM See Subscription Manager.
WAN Wide Area Network.
smart phone Enables connections to the
Internet or Lotus Notes network so that users can WAP See Wireless Application Protocol.
access e-mail, faxes, voice mail, Web pages, and WAS IBM WebSphere Application Server.
other files. It also has the potential to connect to a
speech recognition server by phone, which would WE See WebSphere Everyplace Suite.
allow a user to dictate notes or responses and WebSphere Everyplace Suite (WES) IBM
then see the recognized text as it is returned from WebSphere Everyplace Suite is the solution for
the server. pervasive computing that connects any device to
SMTP See Simple Mail Transfer Protocol. any data, anywhere, anytime. It supports the
following features; Connectivity, Content
Solaris A UNIX-based operating environment Adaptation, Optimization, Security, Management
developed by Sun Microsystems. Originally Services, and Services.
developed to run on Sun's SPARC workstations, it
now runs on many workstations from other WebSphere Transcoding Publisher (WTP)
vendors. Solaris includes the SunOS operating A network software that modifies content
system and a windowing system (either Open presented to users based on the information
Windows or CDE). associated with the request, such as device
constraints, network constraints, user
SQL See Structured Query Language. preferences, and organization policies.
SSL Secure Sockets Layer. A protocol for Transforming content can reduce or eliminate the
transmitting private documents securely via the need to maintain multiple versions of data or
Internet. applications for different device types and
network service levels.
Structured Query Language (SQL) A standard
set of statements used to manage information Windows CE A version of the Windows
stored in a database. By using these statements, operating system designed for small devices such
users can add, delete, or update information in a as personal digital assistants (PDAs) (or
table, request information through a query, and handheld PCs in the Microsoft vernacular). The
display the result in a report. Windows CE graphical user interface (GUI) is
similar to Windows 95, so devices running
Subscription Manager (SM) A feature of the
Windows CE should be easy to operate for
Tivoli Internet and Personalized Services
anyone that is familiar with Windows 95.
Manager: Programmer’s Guide, which has
functions such as enrollment, access control, and Wireless Application Protocol (WAP) A
personalization. protocol to transfer content to and from wireless
devices.
TCP/IP Transmission Control Protocol/Internet
Protocol. Wireless Markup Language (WML) A
language to present content on wireless devices.
TISM Tivoli Internet Services Manager.
WML See Wireless Markup Language.
TPSM Tivoli Personalized Services Manager.
WTE Web Traffic Express.
transcoding The operation of changing data
from one format to another, such as XML to WTP See WebSphere Transcoding Publisher.


XML See eXtensible Markup Language.

303

Index
isLastCommandValid 236
AddressBook.class
A add method 189
Access Code 75, 76, 94
categories method 189
associating with a deal 92
del method 189
creation 79
elements method 189
DEFAULT 77, 79
elementsByCategory method 190
purpose 80
elementsByCategoryAndLastname method
unique billing deals 80
190
AccessBean
elementsByCategoryAndName method 189
implementation 186
elementsByLastname method 190
AccessBean.class 185
modify method 190
getBean method 186
Aero 8000 299
getWellKnownName method 186
Agenda 182
read method 185
example 250
update method 186
garbage collector 230
Account Information 156
Agenda portlet
Account.class
command
getParentAccount method 188
addappt 232
read method 188
addapptentry 231
AccountMembers.class
defaultcmd 231
getMemberNbr method 188
delappt 232
getUserFirstName method 188
delapptentry 232
getUserName method 188
maximize 231
accounts
minimize 231
sub-accounts 149
nextday 232
Additional Services 164
previousday 232
AddressBook 182
resOK 232
AddressBook portlet
updateappt 232
command
updateapptentry 232
addcommand 235
method
addentry 235
elements 233
cancelmanageentry 235
getAgenda 233
defaultcmd 234
getDate 233
delupdatecommand 235
getMaxHour 233
delupdateentry 235
getMaxHourConfig 233
endmanageentry 235
getMinHour 233
maximize 235
getMinHourConfig 233
minimize 235
getPageCommand 234
search 235
getStartDay 233
setfilter 235
getStartMonth 233
method
getStartTime 233
elements 236
getStartYear 233
getAddressBook 236
isCommandValid 234
getCategoryFilter 236
setMaxHourConfig 233
getCurrentEntry 236
setMinHourConfig 233
getLastnameFilter 236
Agenda.class
getPageCommand 236


add method 194 Architecture
del method 194 JSP Portlet 202
elements method 194 ARPANET 1
getMinHour method 194 ASP 299
getStartHour method 194 Authentication 111
getStarttime method 193 API 184
modify method 194 MS-ISDN 182
Starttime method 193 Multi-domain mode 113
updateMinMaxHours method 195 Single-domain mode 113
Aggregator 182 stages 112
Aggregator portlet WML 182
commands Authentication Checker 113
defaultcmd 221 supports multiple device types 114
maximize 221 wireless 134, 135
minimize 221 Authentication Server 111, 112, 241
normal 221 central 122
oneitem 221 creating 42
method file system 115
getContent 222 structure 114
getContentEnumeration 222 testing 70
AIX 299 wireless 135
AIX filesets 22 authentication.jar 184
installing latest level 23
API 299
Application Servers
B
billing systems 264
configuration 67
BITNET 1
Appointment.class
business accounts 149
Appointment method 192
business case one 138
displayDate method 192
business object 299
displayEnd method 192
displayStart method 192
equals method 192 C
getDescription method 192 Calendar 182
getDuration method 192 example 249
getDurationHour method 192 Calendar portlet
getDurationMin method 193 command
getEnd method 193 currmonth 229
getId method 193 defaultcmd 229
getStart method 192 maximize 229
getStartDay method 193 minimize 229
getStartHour method 193 nextmonth 229
getStartMin method 193 prevmonth 229
getStartMonth method 193 week 229
getStartYear method 193 method
isInThePast method 193 getCurrentDate 230
setDescription method 192 getCurrentTime 230
setDuration method 192 getDayOfMonth 230
setId method 193 getRollingMonthWeekNbr 230
setStart method 192 getTime 230


challenge handshake authentication protocol 299 getCity 217
CHAP 299 getComponents 218
child subscriber getFirstName 217
creating 162 getGender 217
disconnecting 163 getLastName 217
class getMyComponents 218
Component 204, 209 getValue 217
ComponentConfiguration 204, 211 getXxx 217
ComponentSession 204, 210 ComponentSession.class
HttpServlet 202, 204 getSession method 211
portletSession 202 href method 210
command init method 210
/etc/rc.txservers 71 service method 210
/etc/rc.webservers 71 conduit 299
/usr/netscape/suitespot/stop-admin 39 console application
adminclient.sh 67 downloading 69
chuser 38 Consumer account
console.bat 69, 74, 150 managing 155
instfix 28 consumer accounts 149
inutoc 25 cookies 12, 114, 123, 124
lslpp 23 cradle 299
mkgroup 38 CSR 13
mkuser 38 limits by realm 264
smitty 25 see Customer Service Representative 149
StartProvServer.ksh 71 Customer Care 12, 152
tar 25 accessing 150
XMLConfig.sh 67 component 149
Component.class functions 149
include method 209 launching 155
ComponentSelector linking external applications 164
example 251 reports 163
ComponentSelectorComponent security provisions 12
WAP example 262 Customer Care Representative
ComponentSelectorComponent portlet enrollment 154
commands Customer Care Server
add 218 creating 43
customize 218 test 70
defaultcmd 217 Customer Care Support 13
delete 218 Customer Service
maximize 218 security control 13
minimize 218 Customer Service Representative 149
myappli 218 access control profile 154
macro enrolling a consumer 156
*getCity* 217 view and update consumer account 157
*getFirstName* 217 Customizor
*getGender* 217 example 242
*getLastName* 217 Customizor portlet
*getXxx* 217 commands
method defaultcmd 224

307

maximize 224 Director Tool 16, 225
minimize 224 installing 73
save 224 testing 69
themes 224 directory
topics 224 /usr/TivTSM/selfcare/content/jsp 167
CustomizorComponent.class /usr/WebSphere/AppServer/bin 67
exists method 224 DM. See Device Manager
getParameterCheckings method 225 DMD 299
DMS servlet 299
DNS 299
D double byte character set 299
DB2 21
DbConnectionMgr 274
DBCS 299 E
DDL 299 EARN 1
Deal 9, 75 e-business 299
associate Method of Payment List 98 eND 124
associate with a realm 90 enrollment engine 11
associating an access code 92 Enrollment JSP 108
change the subscriber’s Deal 159 Enrollment metrics 75
creation 82 enrollment process
definition 299 managing 99
properties 76, 85 Enrollment Server
Deal text 75 creating 48
creation 84 test 70
device
distributing software 10
device management API 281, 282, 299
F
FavoriteLinks.class
device management server API 299
add method 197
Device Manager
del method 197
components 278
elements method 197
console 283
field
console updates 9
Profile Name 151
DB2 support 9
file
functions 278, 284
/db/app/oracle/admin/ispb/create/ispbrun1.ksh
Generic Windows CE device 9
33
Iap500 9
/db/creispblv.ksh 33
Internet appliance device 9
/installdir/TivTSM/install/tisminstall.log 65
job distribution 9
/usr/TivTSM/install/db/oracle/./sqlispb.log 37
overview 277
/usr/TivTSM/install/etc/rc.txservers 66
Personal Digital Assistants 10
/usr/WebSphere/AppServer/bin/setupCmd-
plug-ins changes 9
Line.sh 67
purpose 277
AddressBookComponent.properties 234
Screenphones 10
AgendaComponent.properties 230
subscription manager 9
AggregatorComponent.properties 219
Wireless Access Protocol 10
AgregatorComponent.properties 244, 245
Device Manager console 299
authentication.jsp 115, 116
device plug-ins 280
Authentication.properties 117, 138
DHCP 299
Authentication.properties.wes 119


Authenticator.properties 118, 119 I
Calendar Component. properties 227 IBM 300
ComponentSelectorComponent.properties IBM HTTP Server 21, 22
214, 252 IMAP 300
CustomizorComponent.properties 222, 242 installation
DBPool.properties 117, 121, 122 different volume group 35
DefaultAuthenticator.properties 117, 118, 122, InstantDB 56
126, 138, 239 backup database 67
Device.properties 138, 143 Integration Toolkit
device_enroll.properties 110 see iTk 269
enroll.properties 110 Internet Explorer 131
EnrollJspMsg.properties 110 Internet screenphone 300
httpd.conf 55 Internet Service Provider 2, 5
IE.properties 117, 131 Internet Signup file 263
install.ksh 58 Internet2 3
LayoutSelectorComponent.properties 207, 212 ISDN 300
LinkSelectorComponent.properties 225 ISP 300
Nav4.properties 117, 131 ispb 33
ns-setup 38 iTk 300
obj.conf 55 definition 269
selfcare.properties 169 example uses 269
Transaction.properties 69, 74, 110 form based browser 271
Validator.properties 110 Java Applets 272
WAPAuthentication.properties 138, 139 method
WapAuthentication.properties 138 count 276
WAPAuthenticator.properties 138, 144 create 276
file package 300 delete 276
definition file 300 read 276
file transfer protocol 300 setSelectAllField 275
filter API 236 setSelectField 275
Filter.class update 276
sample 236 third party applications 272
FTP 300 usage scenarios 271
IY12075 28
G
garbage collector J
agenda 230 jar files 117
properties 231 Java 19, 300
GUI 300 Java Bean 116
auth 137
personalization API 181
H Java Developer Toolkit
HACMP 300
home page download 25
customization 14 installation 25
HotSync 300 PTF 7 27
HTTP 300 Java Server Pages 19
JavaBeans session 114
JavaScript 19

309

JDBC 121, 269, 270, 300 customapplihtml.jsp 218
JDBC Connection pool debug 110
tuning 121 delAppthtml.jsp 232
JDK 22, 300 displayaddressbookhml.jsp 235
JDK 1.2.2 with PTF 7 21 displayaddressbookhtml.js 235
JSP displayaddressbookhtml.jsp 235
accessCode 109 displayaddressbookwml.jsp 235
accountCode 109 displayaddressbookwtml.jsp 235
addaddressbookentrywml.jsp 235 displayAppthtml.jsp 231, 232
addAppthtml.jsp 231, 232 displayApptwml.jsp 231, 232
addApptwml.jsp 231 DisplayDeviceAuthError 169
AddMemberAuthError 167 DisplayDeviceInfo 169
AddMemberCommit 168 DisplayDeviceList 169
AddMemberInput 168 DisplayDeviceMain 169
AddMemberMain 168 DisplayDevicenotFound 169
AddMemberMemberCancel 168 DisplayDeviceRefused 169
AddMemberRefused 168 dontGo 110
AddMemberSubmit 168 English 136
addrbookhtml.jsp 213 enroll 110
agendahtml.jsp 213 example 241
agreement 110 favlink7110.jsp 226
areYou18 109 favlinkhtml.jsp 226
cancelByUser 109 findaddrbookentrieshtml.jsp 234, 235
ChangePasswordAuthError 168 findaddrbookentrieswml.jsp 235
ChangePasswordCancel 168 homehtml.jsp 212
ChangePasswordCommit 168 homewml.jsp 212
ChangePasswordInput 168 Japanese 136
ChangePasswordMain 168 Layout 183
ChangePasswordRefused 168 logouthtml.jsp 213
ChangePasswordSubmit 168 manageaddrbookentrieshtml.jsp 235
ChangePaymentAuthError 168 manageaddrbookentrieswml.jsp 235
ChangePaymentCancel 168 maxappliwml.jsp 218
ChangePaymentCommit 168 maxcustomhtml.jsp 224
ChangePaymentInput 168 minaddressbookwml.jsp 234, 235
ChangePaymentMain 168 minAgendahtml.jsp 231
ChangePaymentRefused 168 minAgendawml.jsp 231
ChangePaymentSubmit 168 minapplihtml.jsp 218
ChangePersonalInfoAuthError 168 minappliwml.jsp 218
ChangePersonalInfoCancel 168 mincalendar7110.jsp 229
ChangePersonalInfoCommit 169 mincalendarhtml.jsp 229
ChangePersonalInfoInput 169 mincustomhtml.jsp 224
ChangePersonalInfoMain 169 minlink7110.jsp 226
ChangePersonalInfoRefused 169 minlinkhtml.jsp 226
ChangePersonalInfoSubmit 169 minnewswml.jsp 221
configure 109 monthhtml.jsp 229
confirm 109 monthwml7110.jsp 229
congrats 109 mopCombined 110
createfavlinkhtml.jsp 226 myapplihtml.jsp 217, 218
createlink7110.jsp 226 myappliwml.jsp 217, 218


newsabstract.jsp 221 creproplink 226
newsfull.jsp 221 defaultcmd 226
newshtml.jsp 213 dellink 226
newswml.jsp 221 favlink 226
onenews.jsp 221 minimize 226
onenewswml.jsp 221 reflink 226
paymentPlan 110 method
personalCombined 110 getCatEnum 226
Portlet 183 getCatIxEnum 227
Portlets Framework 201 getCurrentCategory 227
reflink7110.jsp 226 getFavCategories 227
reflinkhtml.jsp 226 getFavLinkEnum 227
resultAgendahtml.jsp 232 getFavLinks 227
themehtml.jsp 224 getLinkEnum 227
topicshtml.jsp 224 List of Method of Payment
updateDelApptwml7110.jsp 232 creation 96
userNameInvalid 110 load balancing 124
wapauthentication.jsp 136 log
wapauthenticator.jsp 136 /usr/WebSphere/AppServer/logs/authentica-
weekwml7110.jsp 229 tion.log 136
JSP Portlet locations 38
architecture 202 Login
creating 152
lvispbdata 34
K lvispbdrsys 34
Kiosk services 300
lvispbindex 34
lvispboem 35
L lvispbsys 34
LAN 300 lvispbtemp 34
LayoutSelector 182 lvispbuser 35
LayoutSelectorComponent portlet
command
addrbook 213 M
macros
agenda 213
links 225
defaultcmd 212
meta file definition file 300
home 212
method
logout 213
Checker.getSSOPassword 185
news 213
Checker.getSSOUserName 185
LDAP 16, 300
Checker.isNotAuthenticated 184
see Lightweight Directory Access Protocol 10
Method of Payment
Lightweight Directory Access Protocol 10
creation 95
LinkSelector 182
method of payment
example 248
changing 159
LinkSelectorComponent portlet
Method of Payment Information 156
command
Method of Payment List
addlink 226
associate deal 98
back 226
Mosaic 2
copylink 226
multi-domain mode 122, 123
createlink 226

311

N creating 46
NameValuePairs.class port 207
add method 198 test 70
del class 198 Personalized Service Environment 181
elements method 199 PFTPD 6
NAS 138 plug-in
National Science Foundation 1 Authenticator.properties 118
NcFTPd 6 DefaultAuthenticator.properties 118
Netscape Enterprise Server 18, 21 plug-ins
installing 38 Generic Windows CE 9
Netscape server administration console Internet appliance device 9
starting 39 lap500 9
Netscape server instances POP 301
creating 39 portal software architecture 183
ports 41 Portal Toolkit 14
primary directories 41 address book 7
server identifier 41 agenda 7
Netscape servers Authentication Services 7, 16
starting 67 calendar 7
stopping 67 JSP Components Framework 15
NetVista 301 JSP Portlet Framework 7
Network Access Server 73, 134 Multi-device Portal Engine 7, 15
Nokia Gateway 1.1.1 144 Referenced Links Management 7, 15
NSFNET 2 see pTk 181
Targeted Ads 8, 16
User Preferences API 7, 15
O Vertical Services Integrated 15
Oracle 21
portlet API
8i Version 8.1.5 9
Component API 208
starting 71
ComponentSession API 208
portlet framework
P design 203
Palm OS 301 portlet JSP
Palm pilot 301 definition 204
Palmscape 301 portlets 201
PAP 301 classes 204
password authentication protocol 301 command addressing mechanism 208
payment methods 75 Desktop 202
PDA 135, 277, 301 features 202
PDB 301 Layout 202
Perl 19 LayoutSelector 206, 207
Personal Information 156 service 182, 211
Personal Information Management AddressBook 222 , 234
address book 15 Agenda 222, 230
agenda 15 Calendar 222, 227
calendar 15 Customizor 222
personalization 14 LinkSelector 222, 225
example 241 structural 182, 211
Personalization Server Aggregator 211, 219


ComponentSelectorComponent 211, 213 R
CustomizorComponent 211 RADIUS 112, 123, 135, 182, 183, 301
LayoutSelectorComponent 211, 212 RADIUS authentication server 19
portletSelector 182 RADIUS server
PPP 301 enhancements 8
PRC 301 RAM disk 301
Premium Server RAS 301
creating 47 Realm 9, 11, 74, 91, 99, 150
parameters 126 associating with deals 90
test 70 creation 76
Profile 150 default 124
profile default domain 76
creating 151 definition 264, 301
Profiler.class description 76
sample 239 name 76
property wireless 137
creating 87 Registration Name 73, 92, 99
definition 87 creation 77
Provisioning FTP Daemon 6 Registration name 75
Provisioning server generic 77
starting 71 Multiple Access 77
proxy 301 reporting
PSTN 301 sales 93
PTF 301 reports
pTk 132, 135, 301 available reports 163
access Bean 185 restpages 10
Account.class 187 rlvispbdata 36
AccountFavoriteLinks.class 188 rlvispbindex 36
AccountMembers.class 188 rlvispbtemp 36
AccountNameValuePairs.class 188
AddressBook.class 189
Agenda.class 193 S
Sales Channel 94
Appointment.class 191
creation 93
banner ads 182
definition 93
database of links 182
sample pages
FamilyMembers.class 195
for HTML devices 205
FavoriteLinks.class 188, 196
screenphone 301
filter API 236
SDP Servlet Server
functions 181
creating 50
JSP portlets 202
SelfCare 16
NameValuePairs.class 198
adding members 178
Profiler API 238
administration home page 172
ReferencedLinks.class 200
change password 172
sample JSP for HTML 183
changing payment information 176
sample JSP for WML 183
changing personal information 174
see Portal Toolkit 7
configuration file 169
User.class 201
Server
creating 44

313

test 70 start sequence 70
Service Provisioning 265 what’s new 6
servlet 301 Tivoli
Single Sign On 124 SecureWay Policy Director 12
SM 302 TPSM 302
SMTP 302 installation 57
Solaris 302 overview 5
Solaris support 19 start sequence 70
SQL 302 Trace 274
SqlGenerator 274 traceLevel 67
SSL 302 TraceResources 274
SSO Cookie 123 Transaction Servers
style sheet 245 verifying 71
wireless 136 TSM 302
sub-accounts 149 TxObject 274
subscriber TxSqlContext 274
bulk transfer 17 TxValue 274
creating child subscriber 162 TxValues 275
disconnecting 160
reconnecting 161
removing 160
U
UDB 302
searching 165
URL 302
subscriber bases
USENET 1
bulk transfer 263
User Groups
subscriber number 33
definition 265
Subscriber Selfcare
User Preference
functions 167
API 185
Subscriber Update panel 158
User Preferences
subscribers
API 181
child 149
primary 149
System Management Tools Server V
creating 45 Validator 275
Virtual ISP 264
creation 266
T enrolling subscribers 267
TCP/IP 302
overview 263
Telenet 1
test environment
hardware 21 W
software 22 WAN 302
TISM 302 WAP 135, 277, 302
Administration Console 74, 150 authentication 182
DB2 support 8 welcome homepage 261
installation 57 WAP device 113
installation verification 69 WAP Gateway 134
localization 8 WAS 302
overview 5 Web Content Hosting 6
post-installation steps 66 File delete 7


File download 7
File upload and automatic publishing 7
Perl scripts
access counters statistics 6
guestbook 6
mail-to function 6
page access counter 6
Personal Web space display 7
provisioning 6
upload facility 6
Web Hosting Content Server
creating 51
Web server configuration file 55
WebMail 234
WebSphere
starting 67
Websphere
create application servers 67
WebSphere Application Server 21
installation 52
root directory 57
WebSphere Every Place Suite
see WES 183
WebSphere Everyplace Suite 9
WebSphere Everyplace suite
TPSM integration 10
WES 119, 302
Authentication Proxy 183
WES authentication proxy 113
Windows CE 302
wireless access 134
Wireless Gateway 135
WML 135, 137, 138, 139, 302
WML Script 135
WTE 302
WTP 302

X
XML 135, 183, 303

315

IBM Redbooks review
Your feedback is valued by the Redbook authors. In particular we are interested in situations where a
Redbook "made the difference" in a task or problem you encountered. Using one of the following
methods, please review the Redbook, addressing value, subject matter, structure, depth and
quality as appropriate.
• Use the online Contact us review redbook form found at ibm.com/redbooks
• Fax this form to: USA International Access Code + 1 845 432 8264
• Send your comments in an Internet note to redbook@us.ibm.com

Document Number SG24-6031-00
Redbook Title Introducing Tivoli Personalized Services Manager 1.1

Review

What other subjects would you
like to see IBM Redbooks
address?

Please rate your overall O Very Good O Good O Average O Poor
satisfaction:

Please identify yourself as O Customer O Business Partner O Solution Developer
belonging to one of the O IBM, Lotus or Tivoli Employee
following groups: O None of the above

Your email address:
The data you provide here may
be used to provide you with O Please do not use the information collected here for future
information from IBM or our marketing or promotional contacts or other communications beyond
business partners about our the scope of this transaction.
products, services or activities.

Questions about IBM’s privacy The following link explains how we protect your personal information.
policy? ibm.com/privacy/yourprivacy/


250 <-> 459 pages
0.475”<->0.875”
(0.5” spine)
Introducing Tivoli Personalized Services Manager 1.1

®

Introducing
Tivoli Personalized
Services Manager 1.1
Supports pervasive Tivoli Personalized Service Manager is a new product that
devices helps the Internet Services Providers to manage and provide
INTERNATIONAL
services to their clients. Tivoli Personalized Service Manager TECHNICAL
Creates personalized manages the different domains and provides services for SUPPORT
service them; selfcare, customer care, premium services, ORGANIZATION
personalization, and web content hosting. TPSM permits the
environments
creation of a portal for any type of device very quickly. All of
these features have the flexibility to be personalized very easy
Provides self care via standard languages, such as JavaBeans, JSP, HTML, BUILDING TECHNICAL
WML, and XML. INFORMATION BASED ON
PRACTICAL EXPERIENCE
This redbook will show you how to install the Tivoli
Personalized Service Manager and create a Portal for Internet IBM Redbooks are developed by
and Wireless Devices with all the necessary services to the IBM International Technical
manage it. The homepage can be personalized with Support Organization. Experts
from IBM, Customers and
applications provided via TPSM or the ISP. Some samples of
Partners from around the world
applications provided by TPSM are Agenda, Calendar, News. create timely technical
Tivoli Personalized Service Manager provides tools that information based on realistic
manage all these applications in the homepages, allowing you scenarios. Specific
to set up a professional portal with a lot of services in a few recommendations are provided
to help you implement IT
hours.
solutions more effectively in
your environment.
This book is valuable when planning a TPSM architecture and
development. The discussions of design, installation and
customization issues gives valuable information for
Administrators, Architects, and Developers. For more information:
ibm.com/redbooks

SG24-6031-00 ISBN 0738419788
