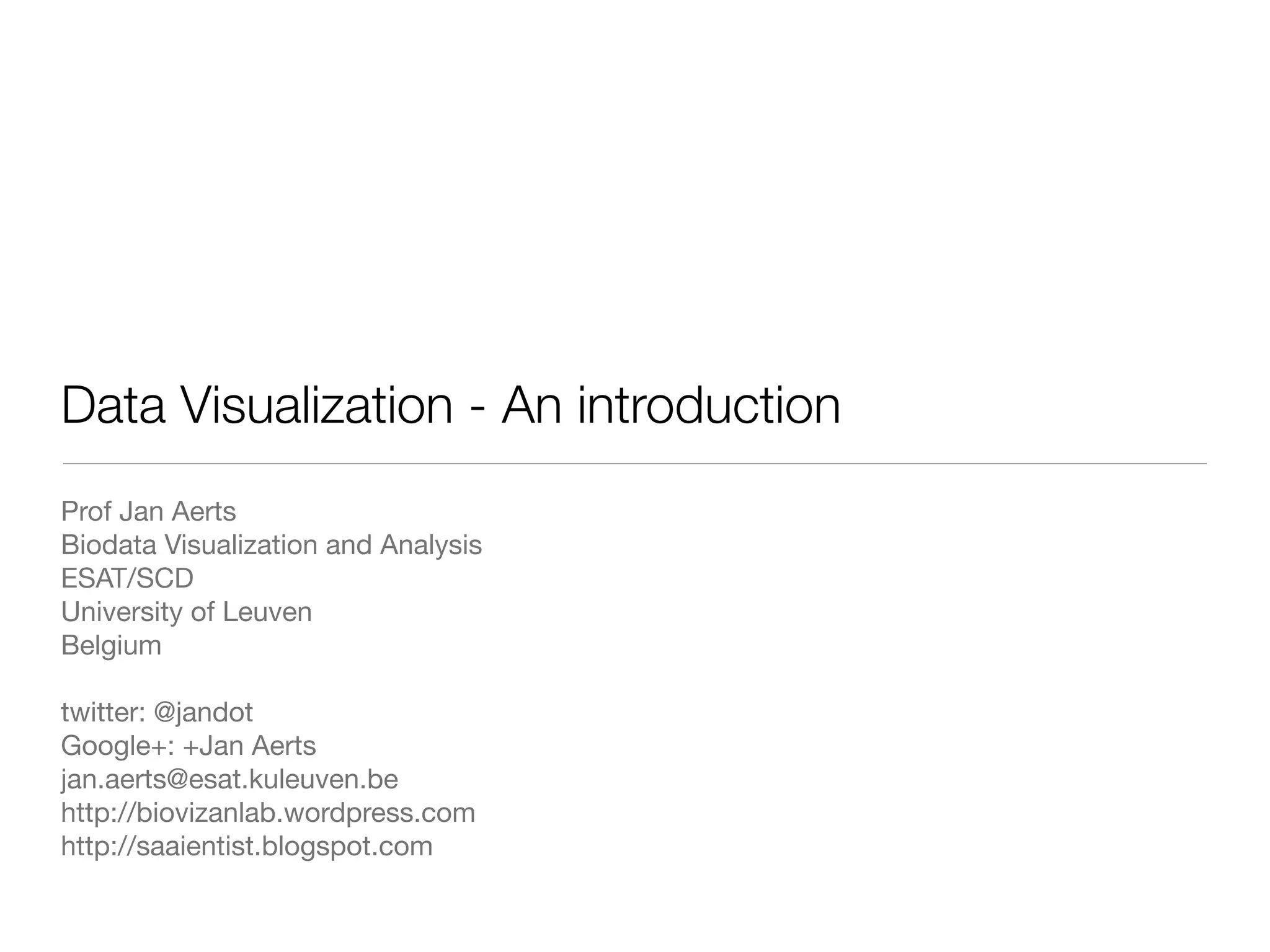

Data Visualization - An introduction
Prof Jan Aerts
Biodata Visualization and Analysis
ESAT/SCD
University of Leuven
Belgium

twitter: @jandot
Google+: +Jan Aerts
jan.aerts@esat.kuleuven.be
http://biovizanlab.wordpress.com
http://saaientist.blogspot.com

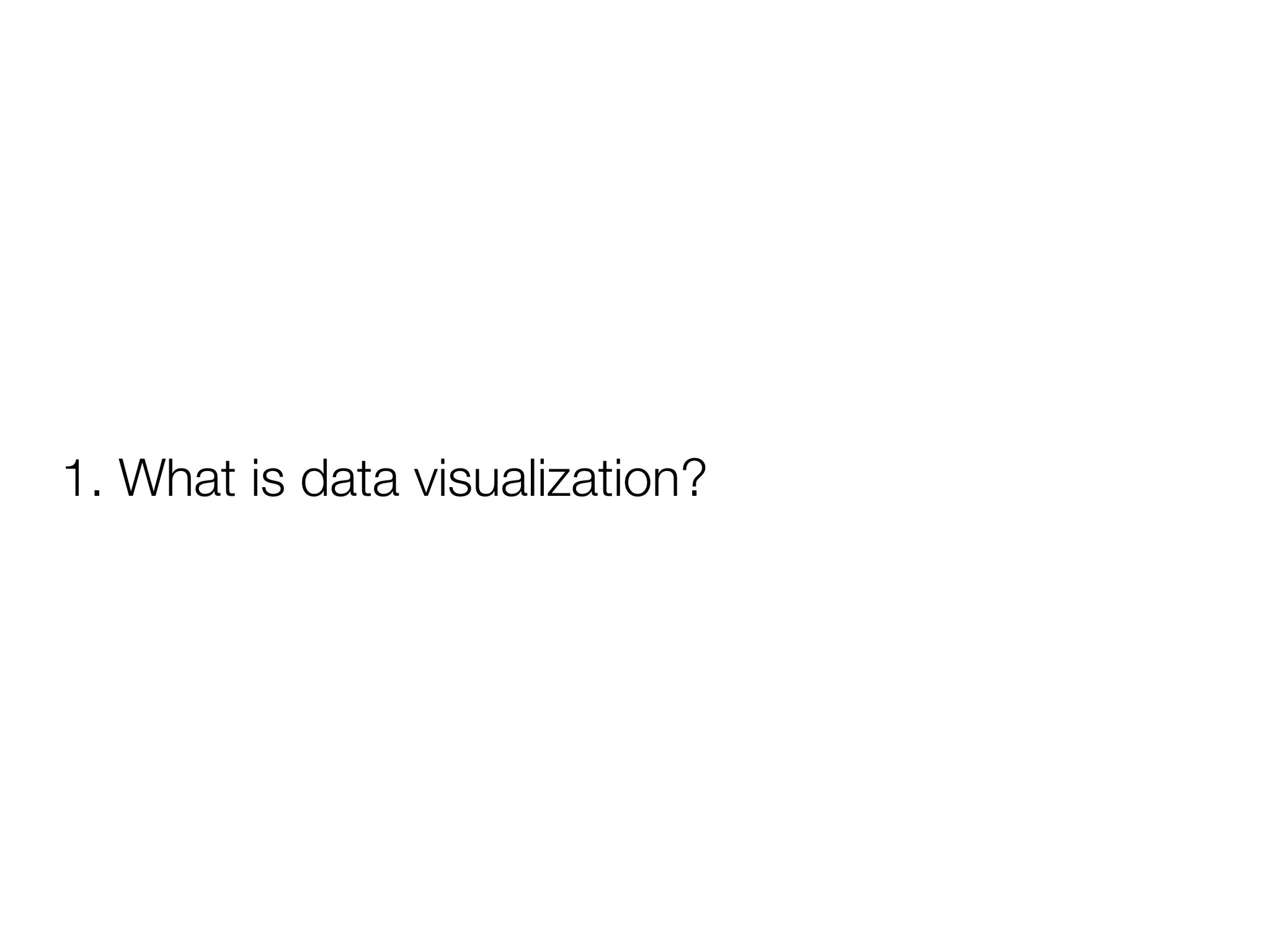

1. What is data visualization?

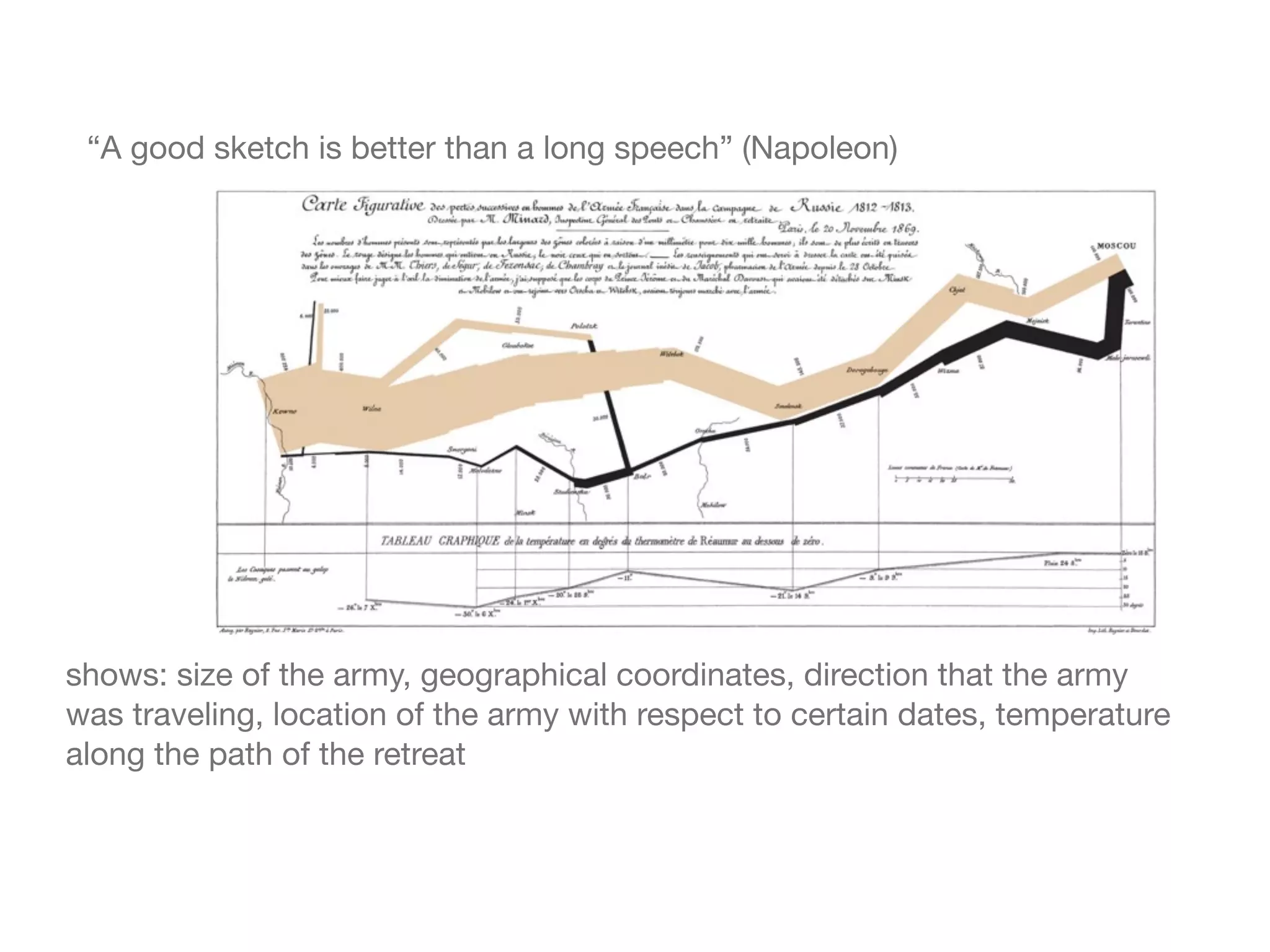

“A good sketch is better than a long speech” (Napoleon)
“A good sketch is better than a long speech” (Napoleon)




shows: size of the army, geographical coordinates, direction that the army
was traveling, location of the army with respect to certain dates, temperature
along the path of the retreat

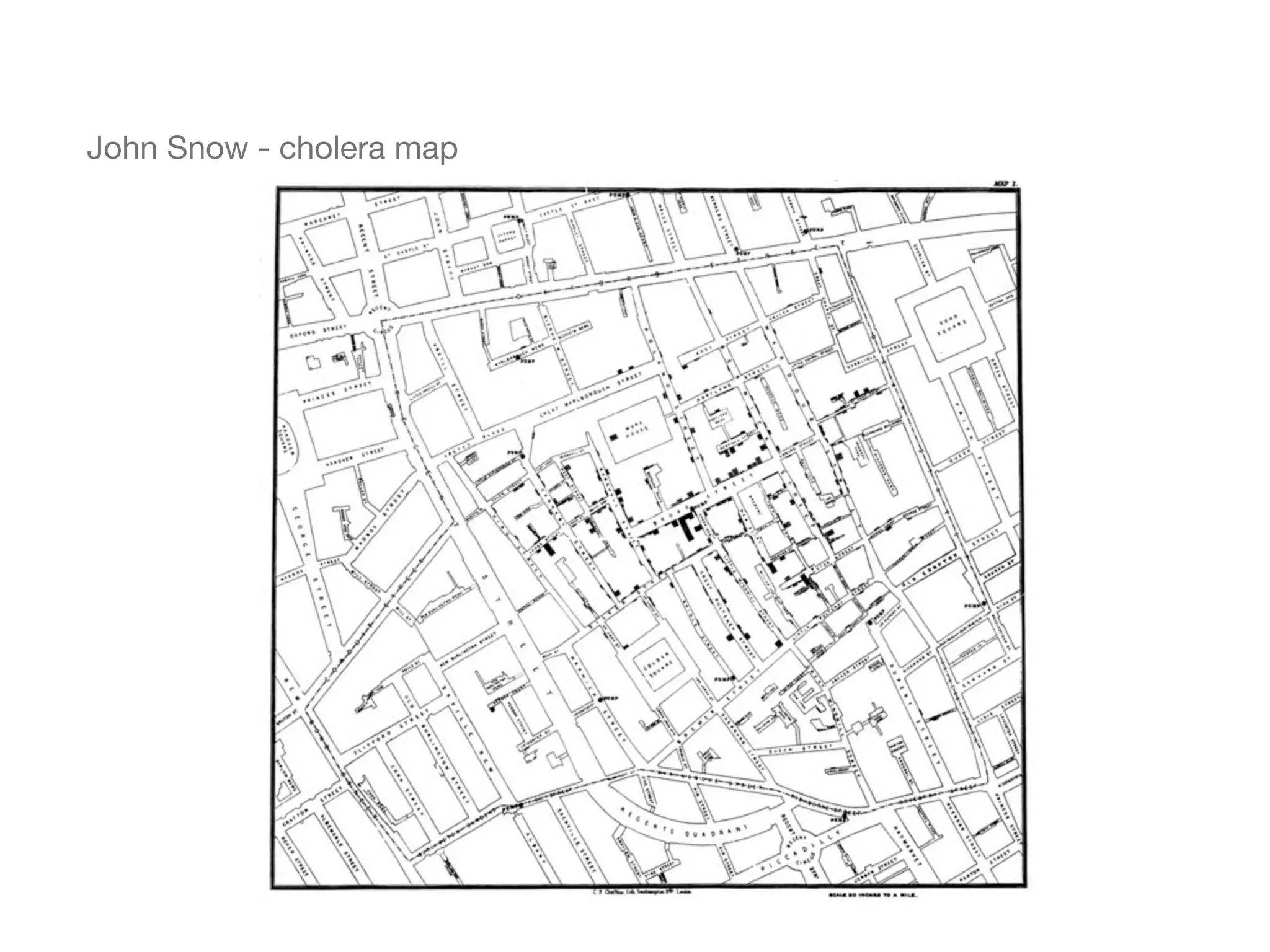

John Snow - cholera map

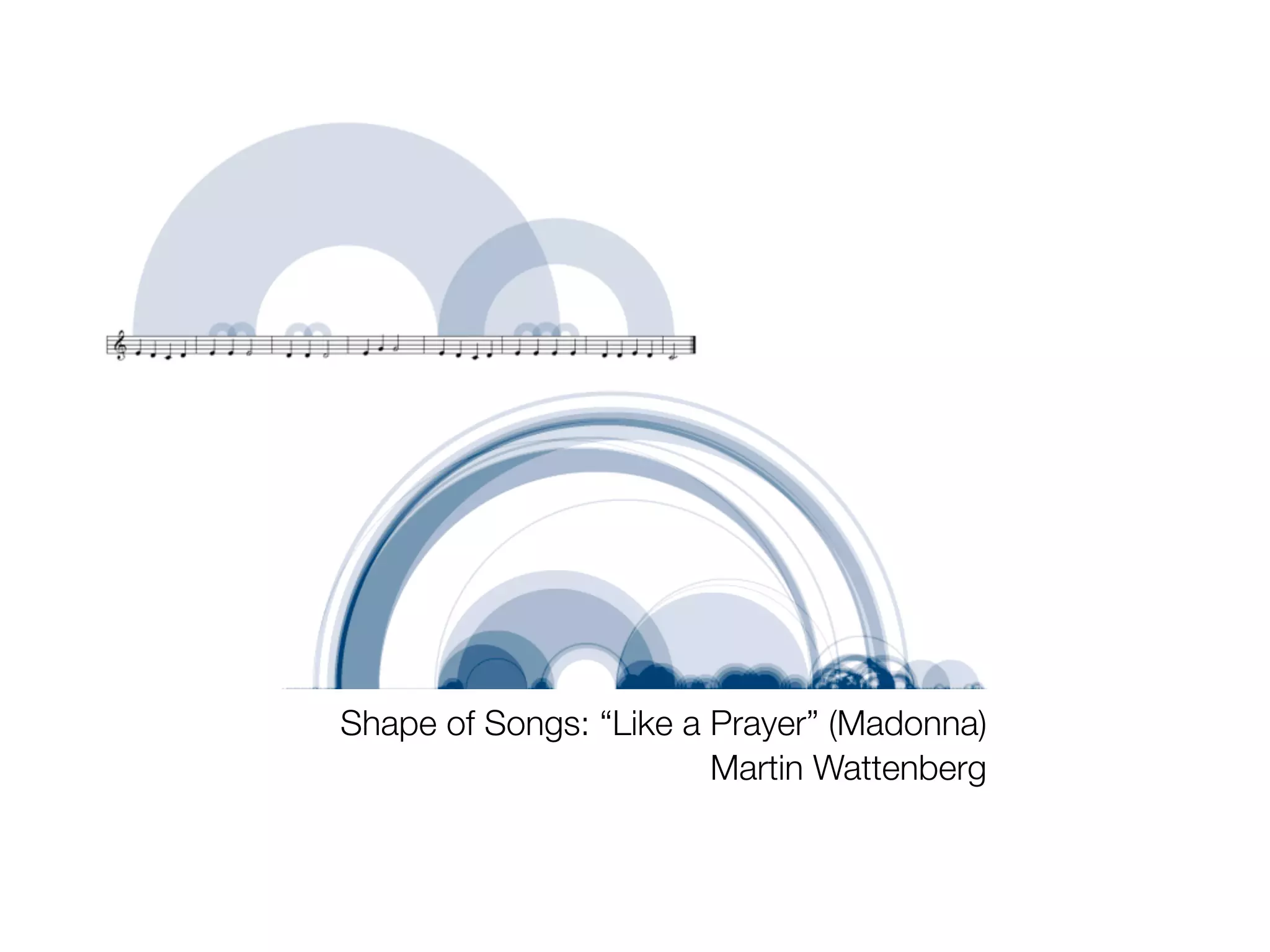

Shape of Songs: “Like a Prayer” (Madonna)
                        Martin Wattenberg
http://multimedia.mcb.harvard.edu/anim_innerlife.html
Intro to data visualization

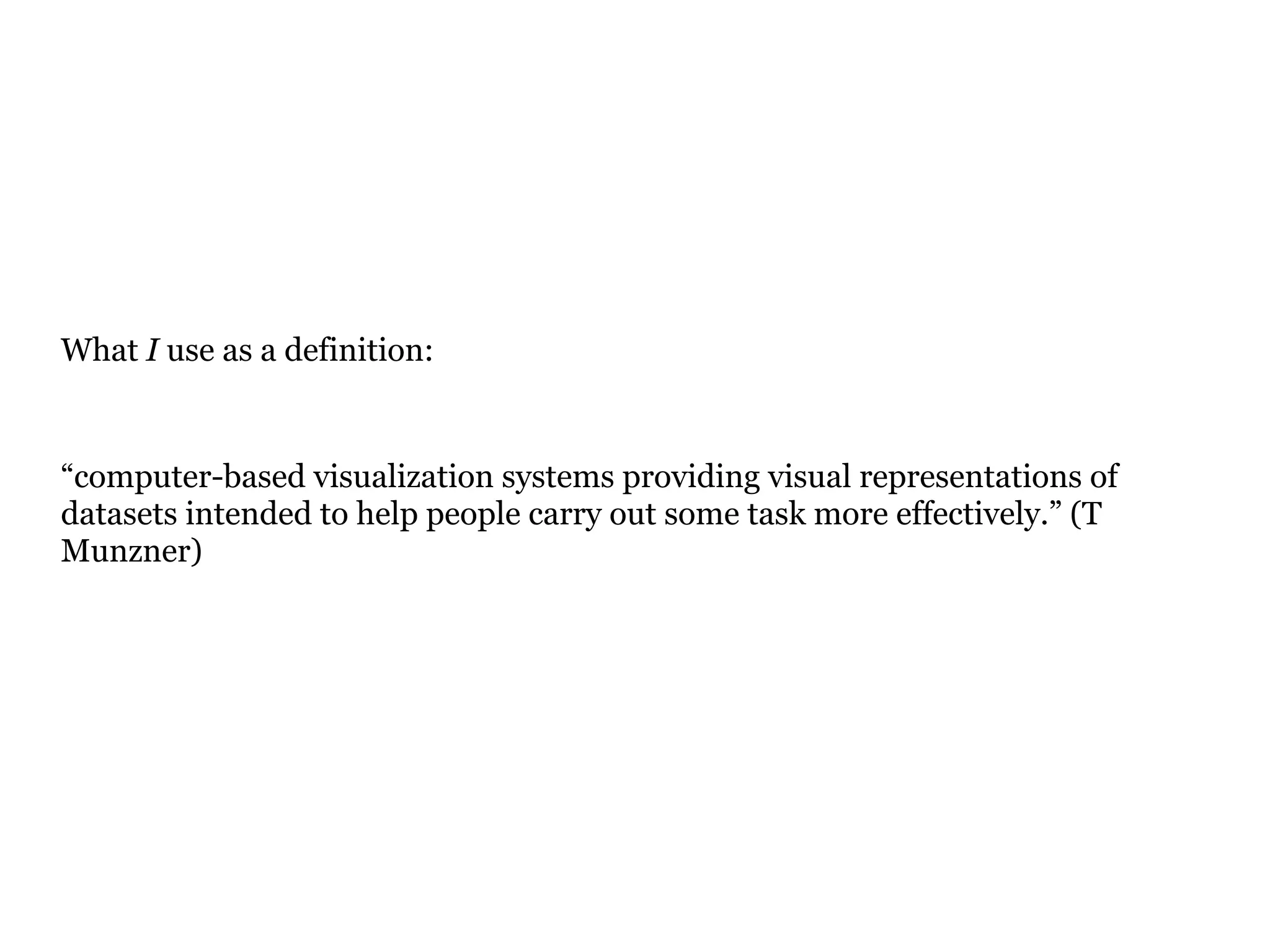

What I use as a definition:

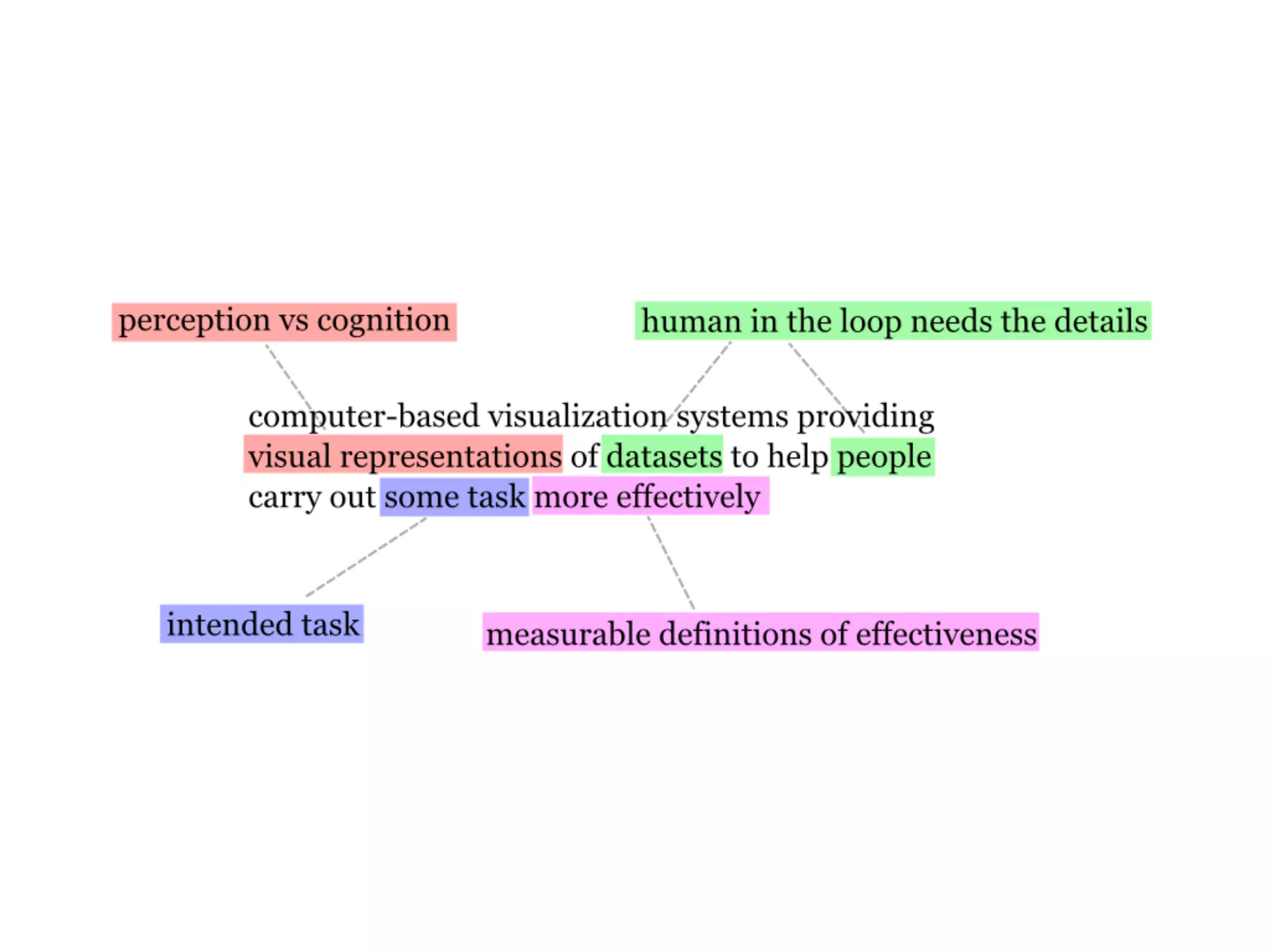

“computer-based visualization systems providing visual representations of
datasets intended to help people carry out some task more effectively.” (T
Munzner)
Intro to data visualization

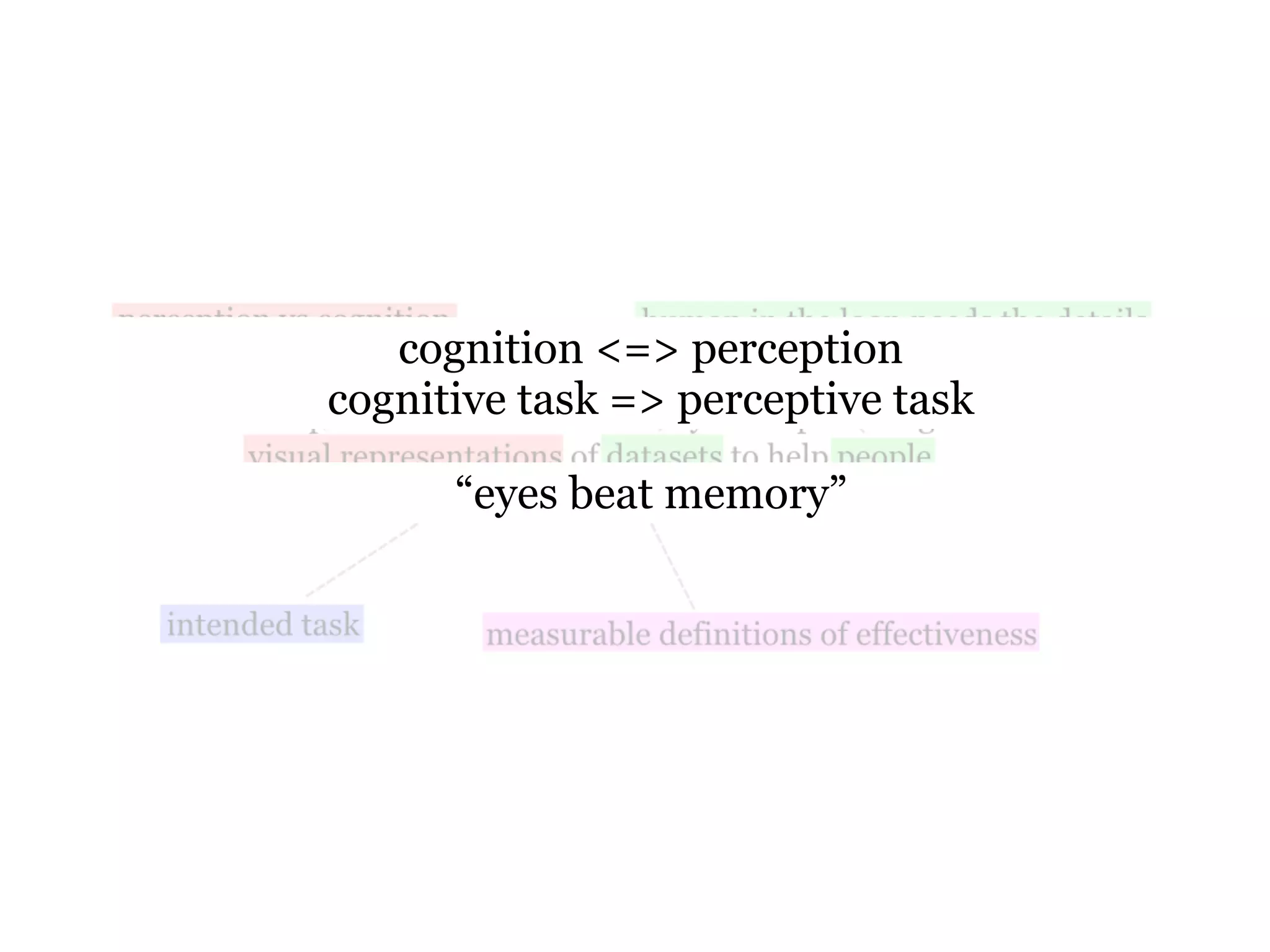

cognition <=> perception
cognitive task => perceptive task

      “eyes beat memory”

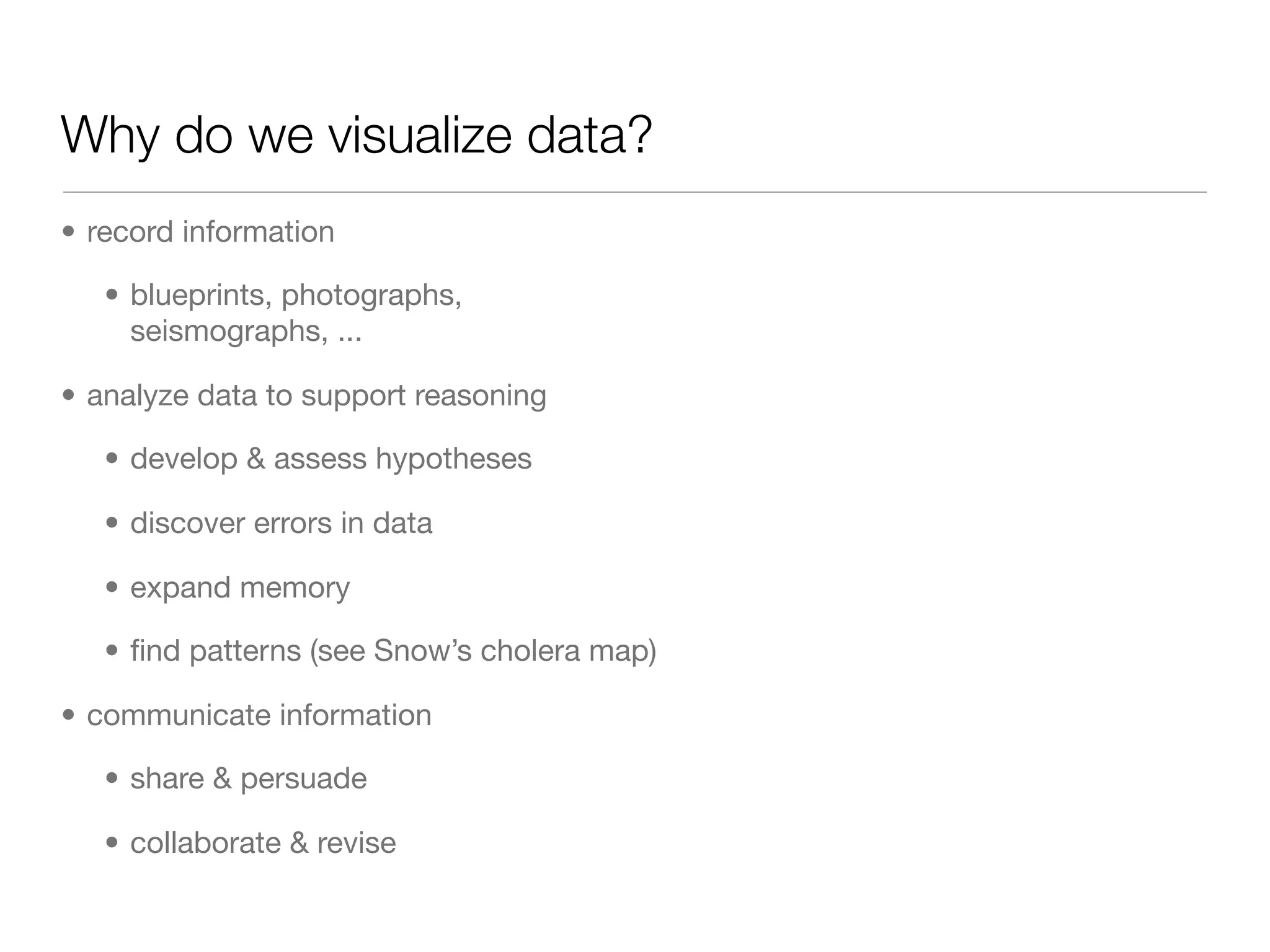

Why do we visualize data?
• record information

   • blueprints, photographs,
     seismographs, ...

• analyze data to support reasoning

   • develop & assess hypotheses

   • discover errors in data

   • expand memory

   • find patterns (see Snow’s cholera map)

• communicate information

   • share & persuade

   • collaborate & revise
exploration     explanation

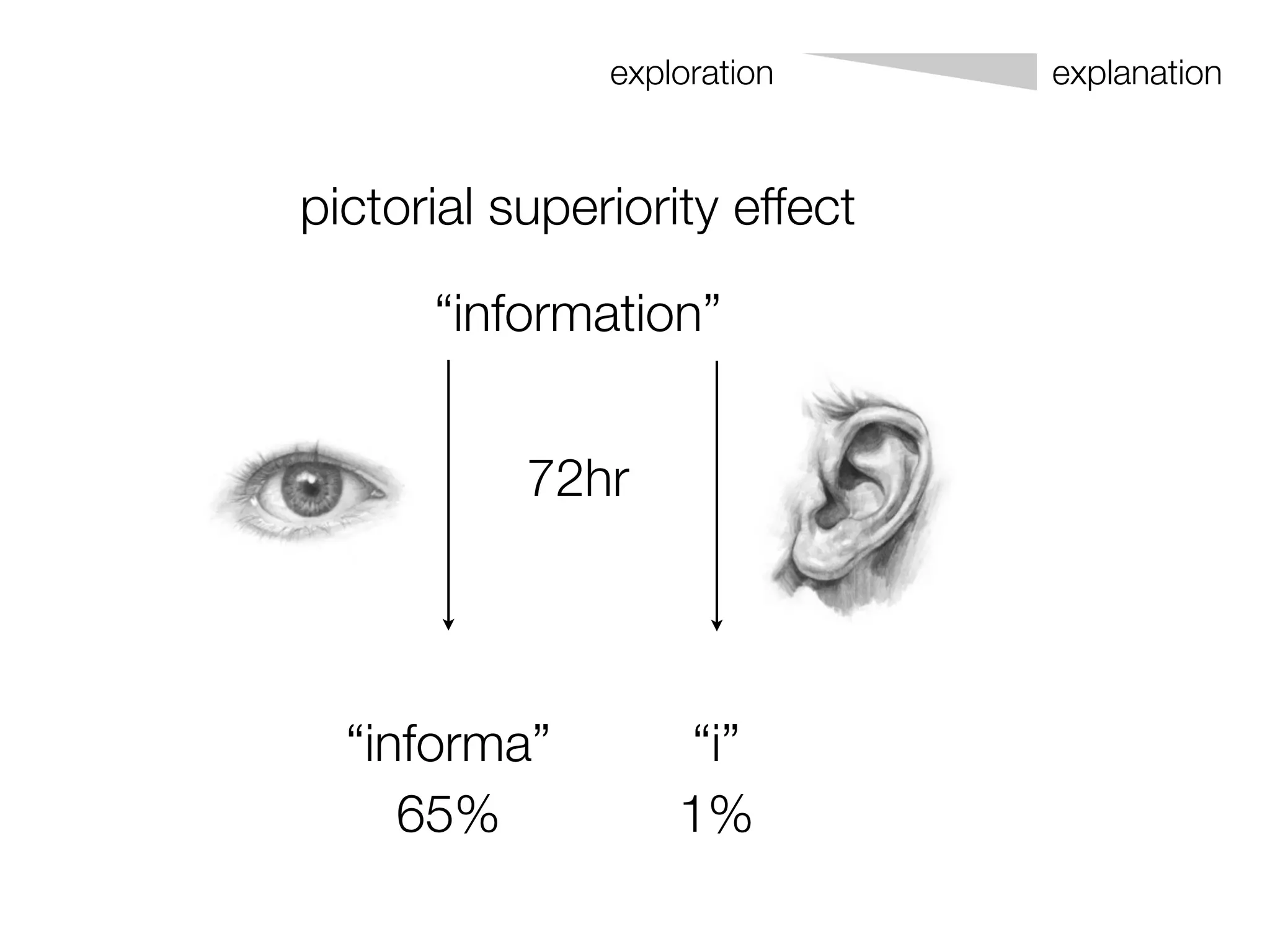

pictorial superiority effect

      “information”


           72hr




  “informa”        “i”
     65%           1%

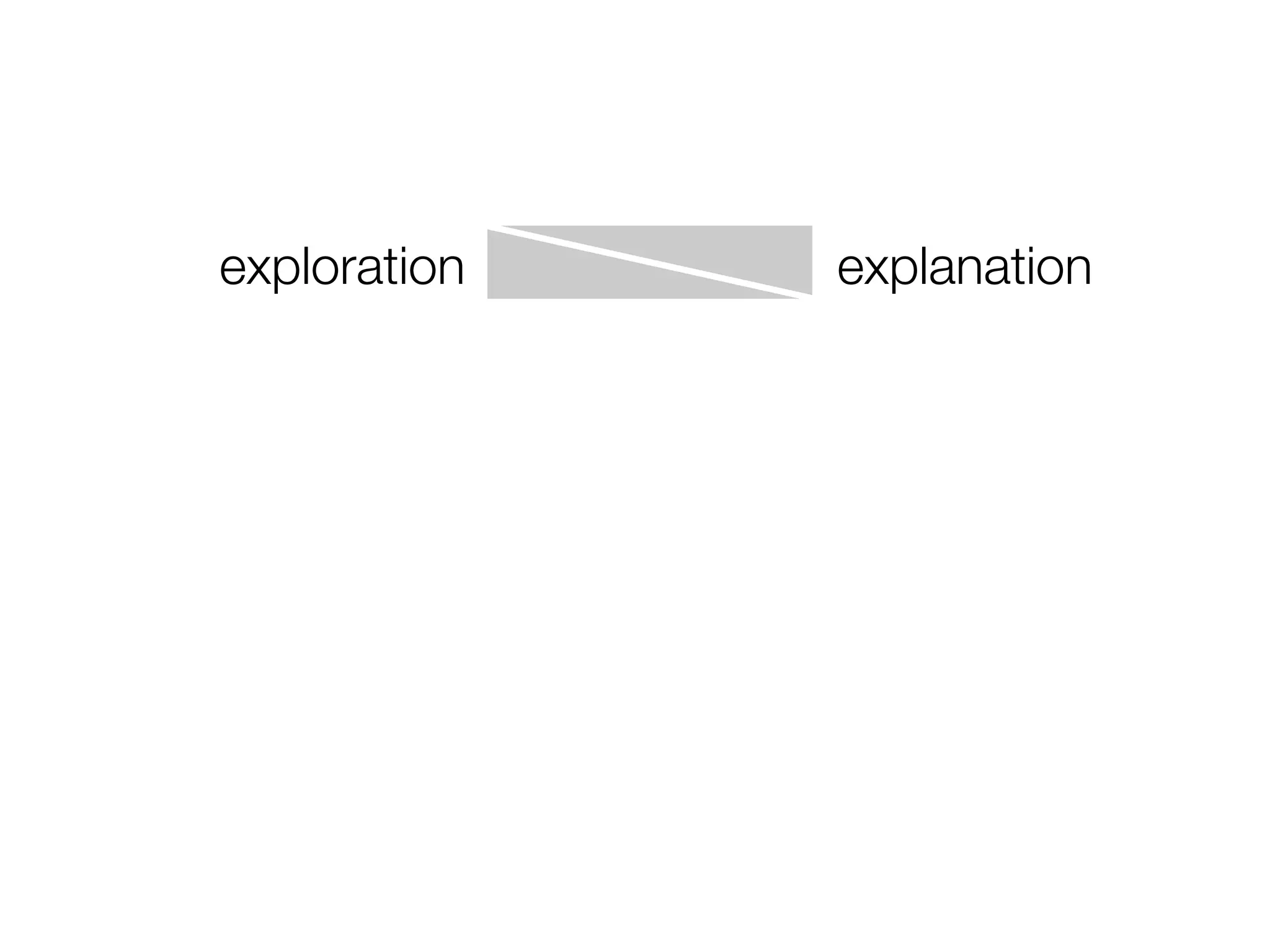

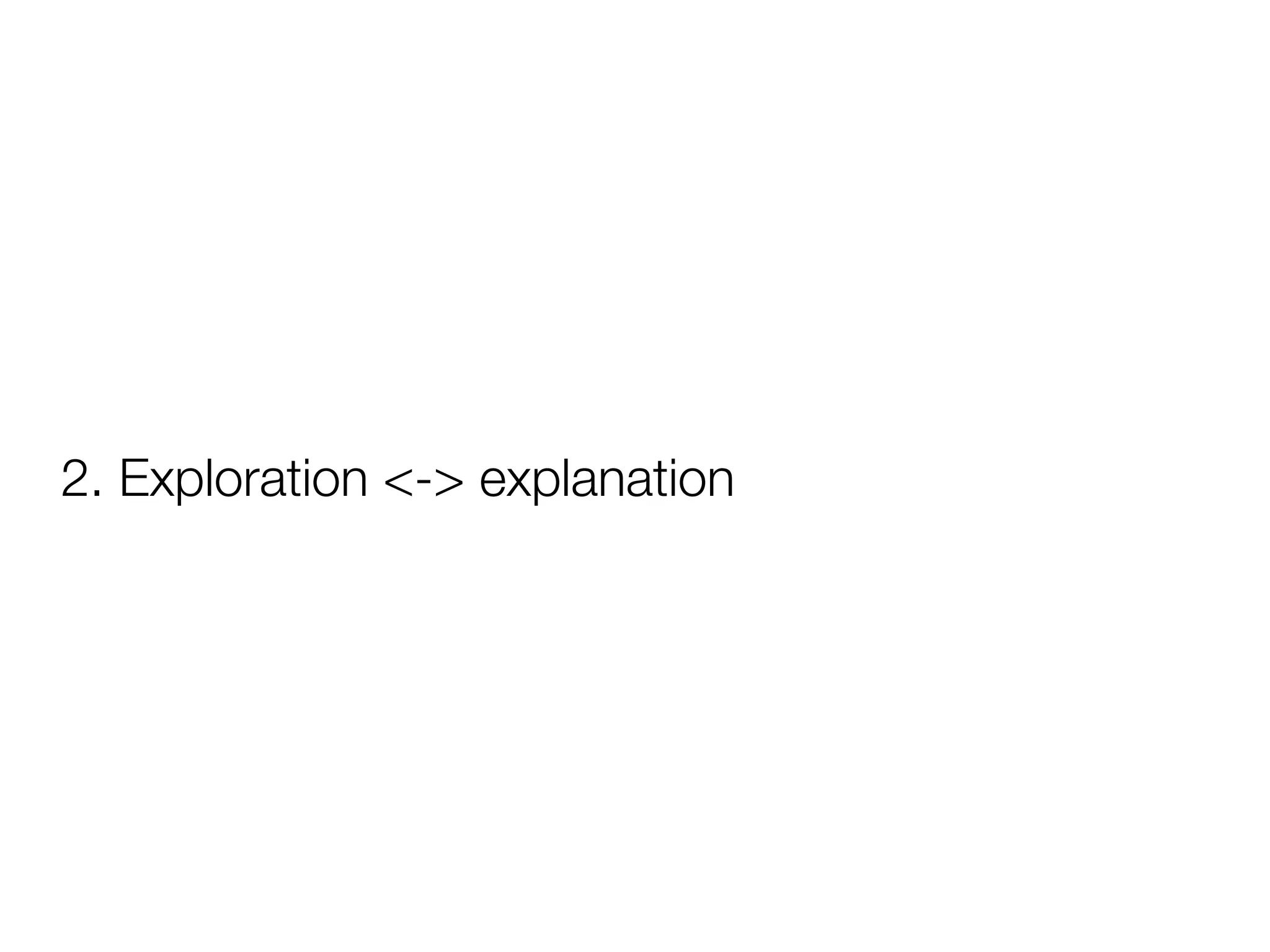

2. Exploration <-> explanation
exploration   explanation
exploration   explanation

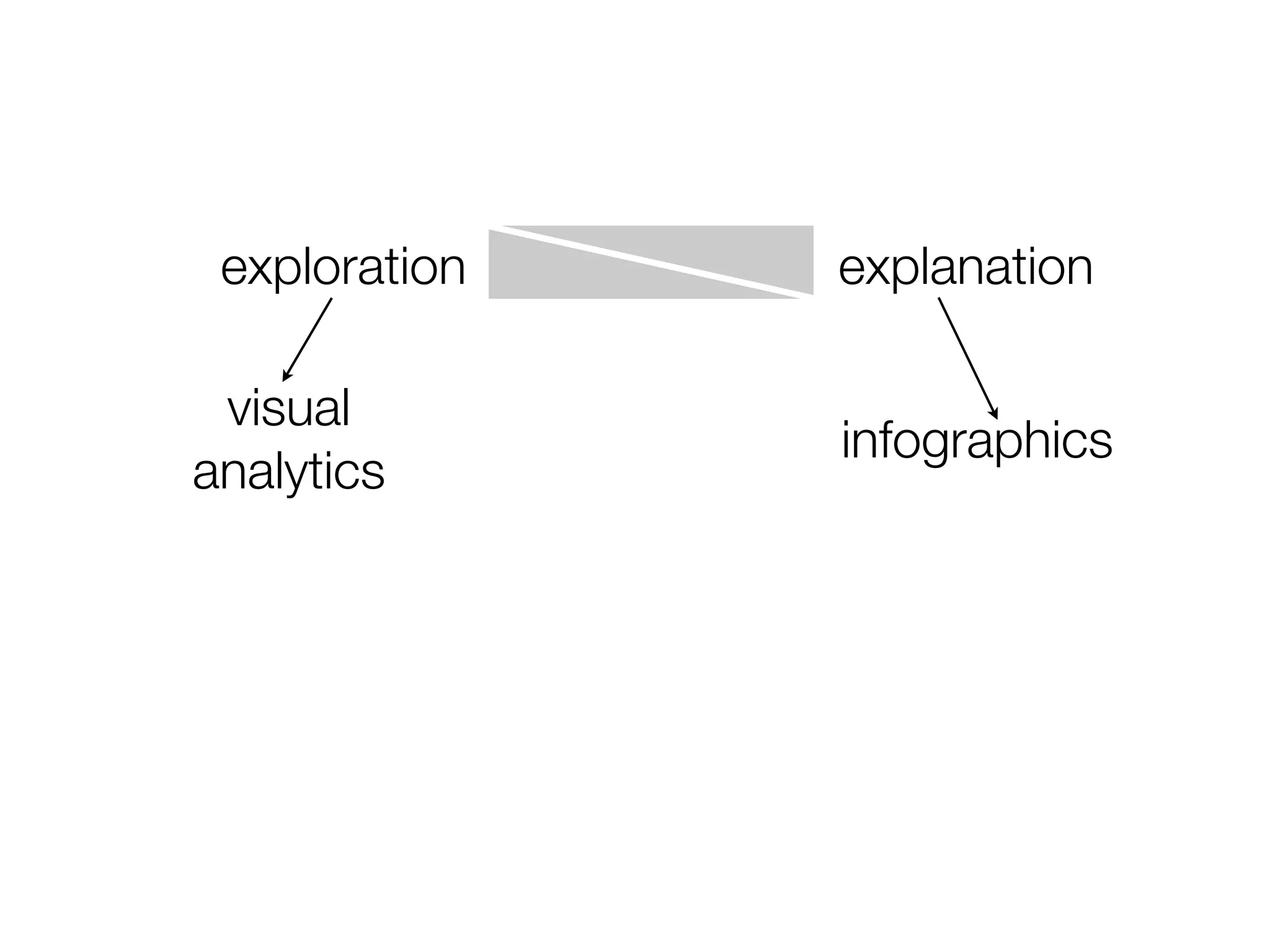

 visual

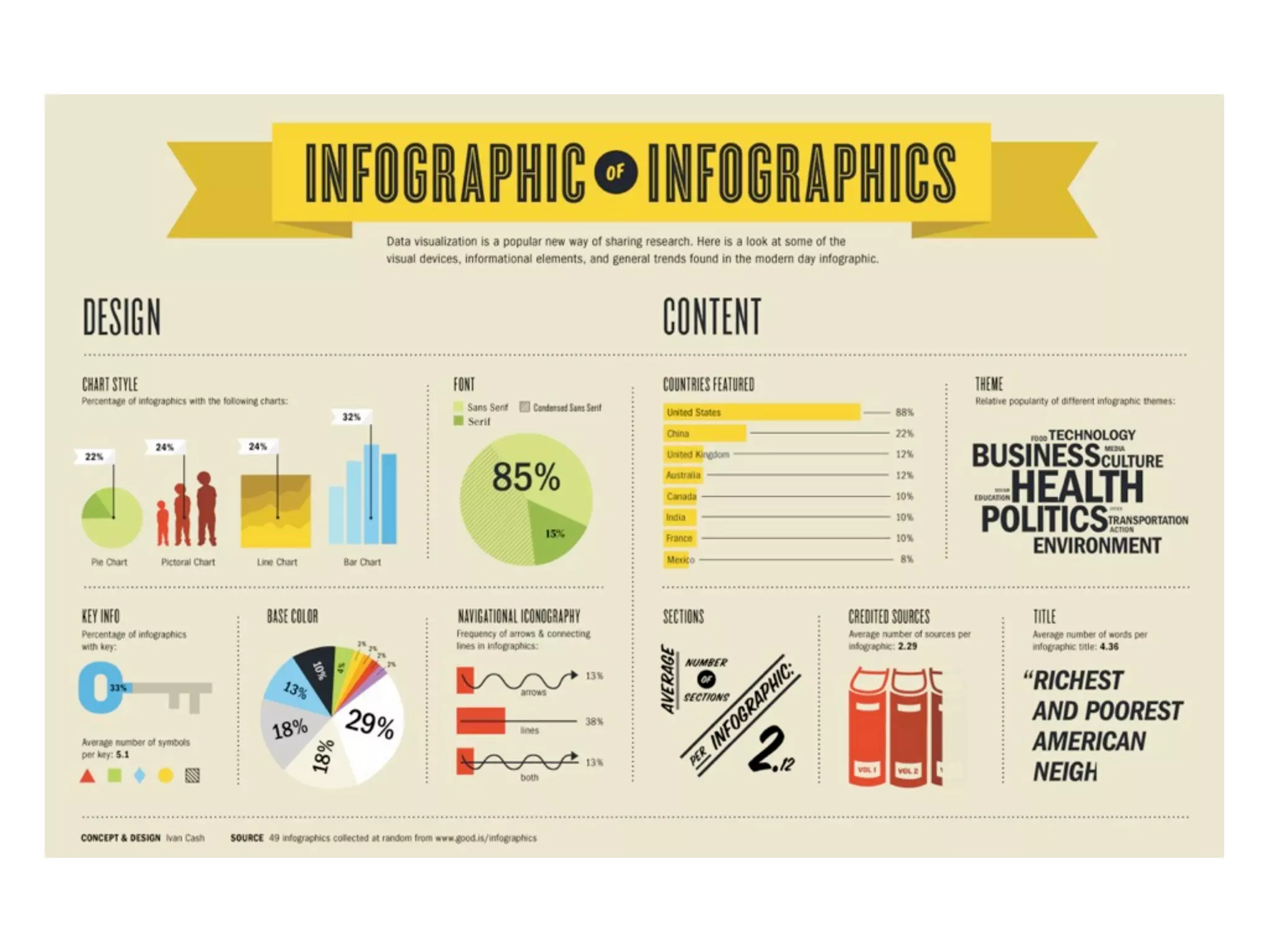

               infographics
analytics
exploration   explanation

 visual
               infographics
analytics
exploration   explanation

 visual
               infographics
analytics



 hypothesis
 generation

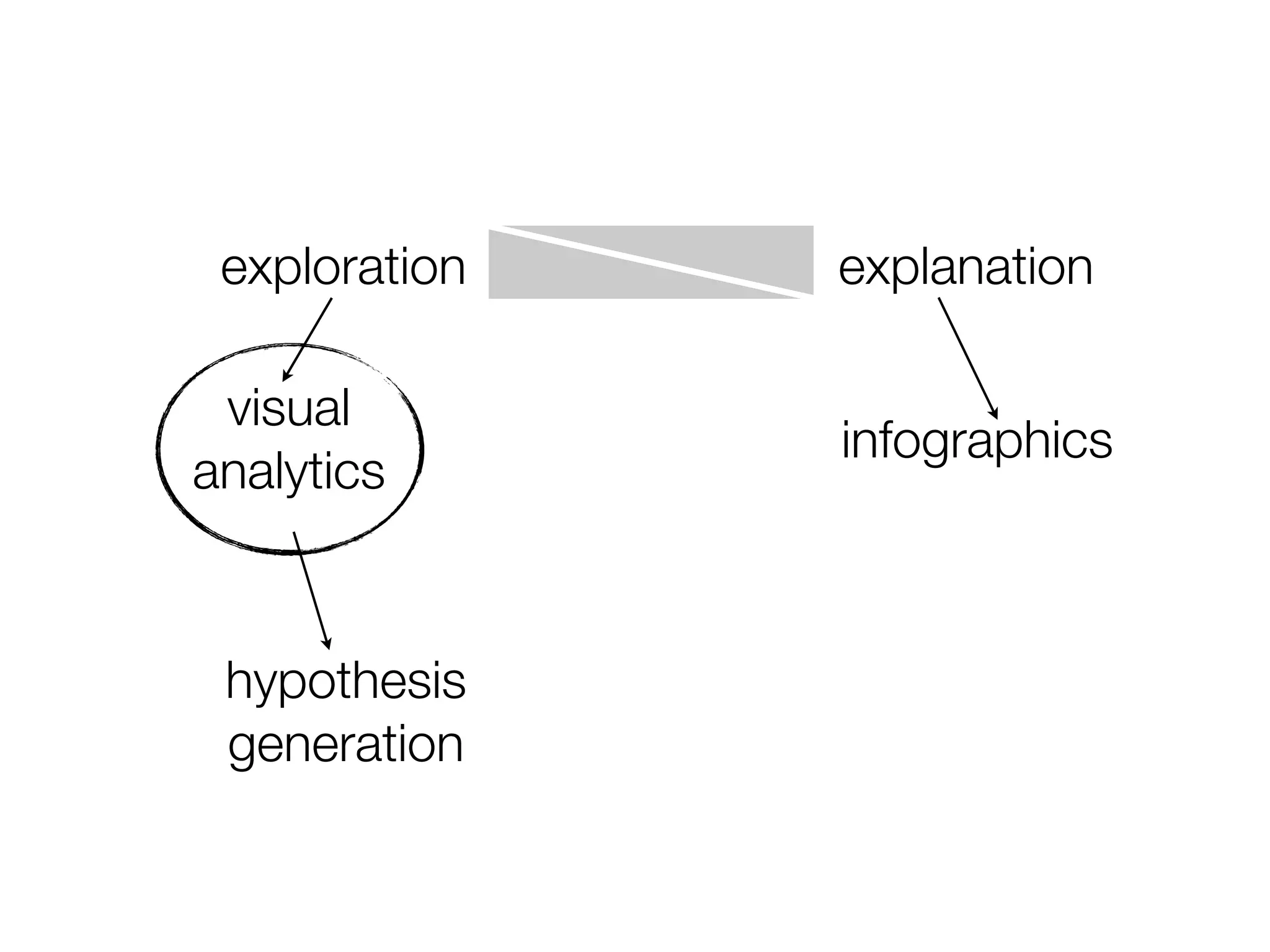

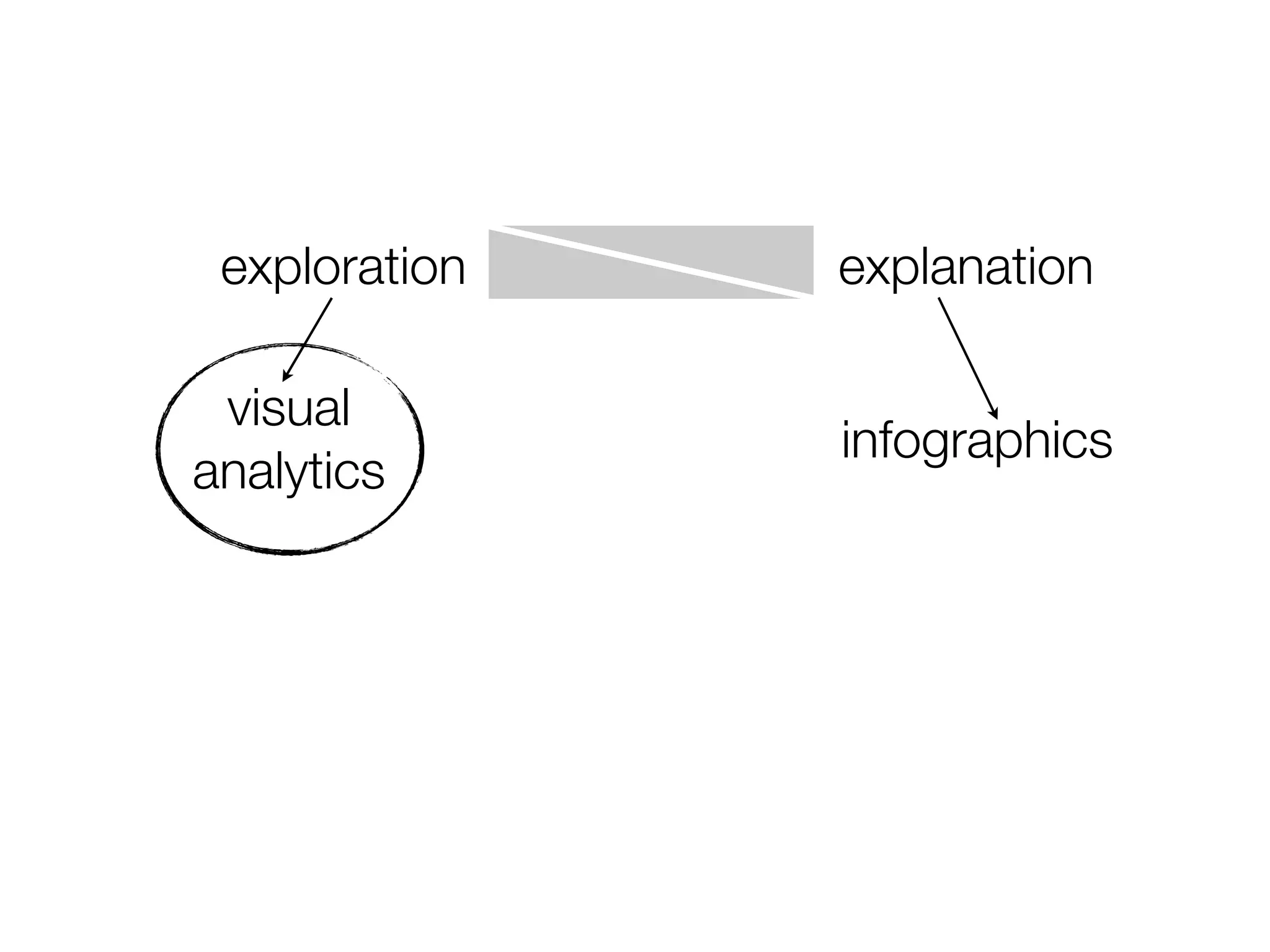

exploration           explanation

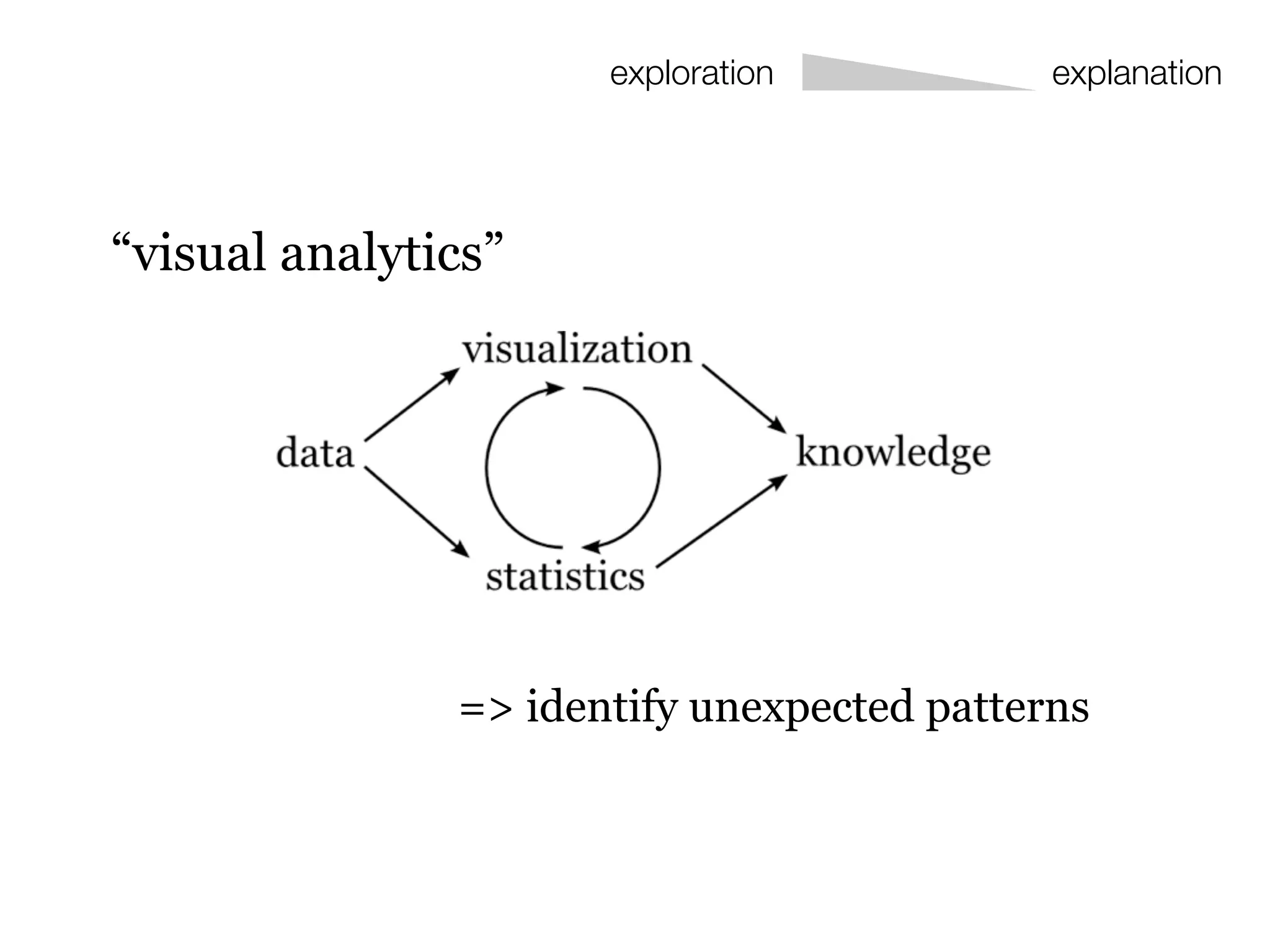

“visual analytics”

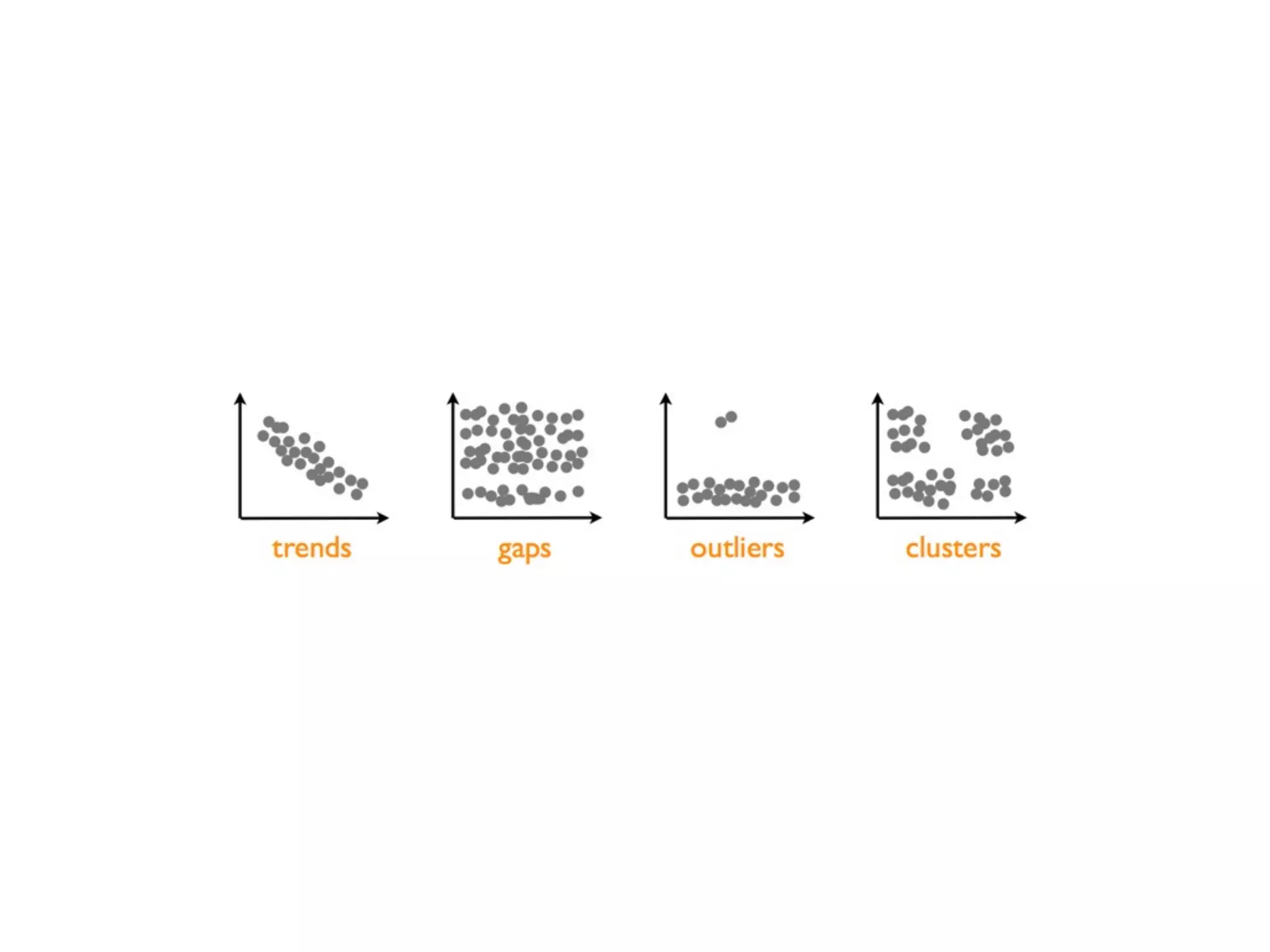

               => identify unexpected patterns
exploration                explanation

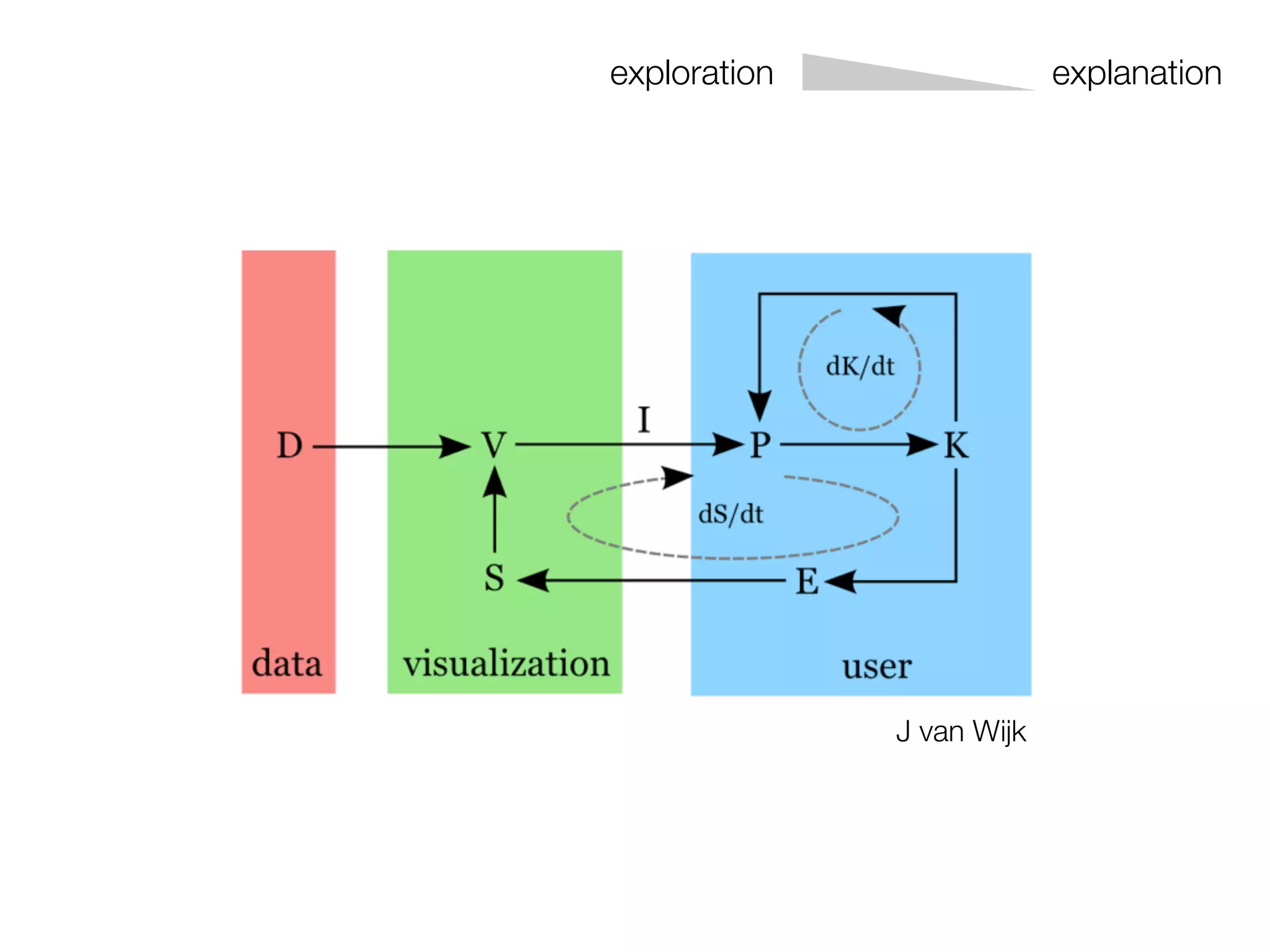

              J van Wijk

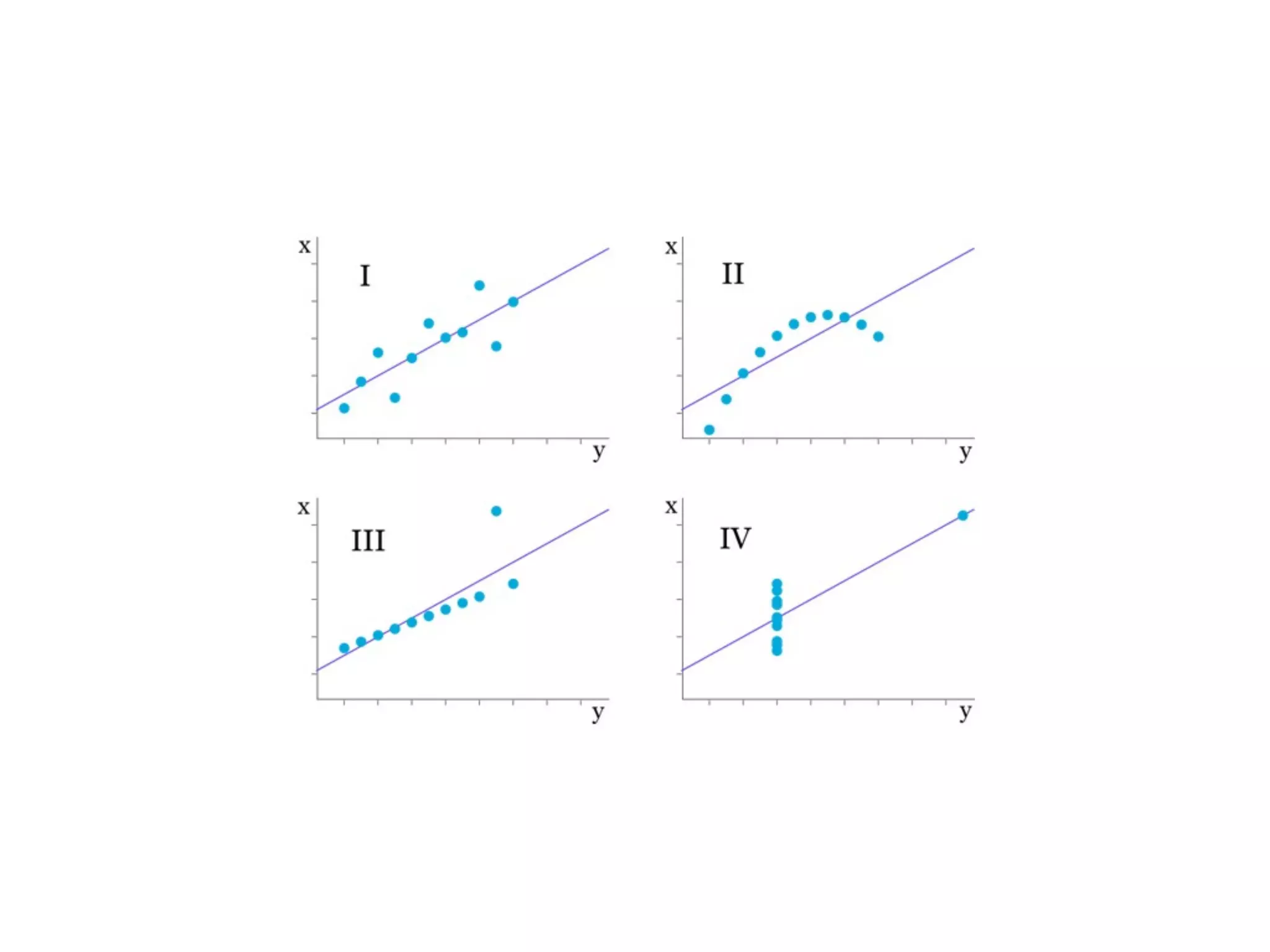

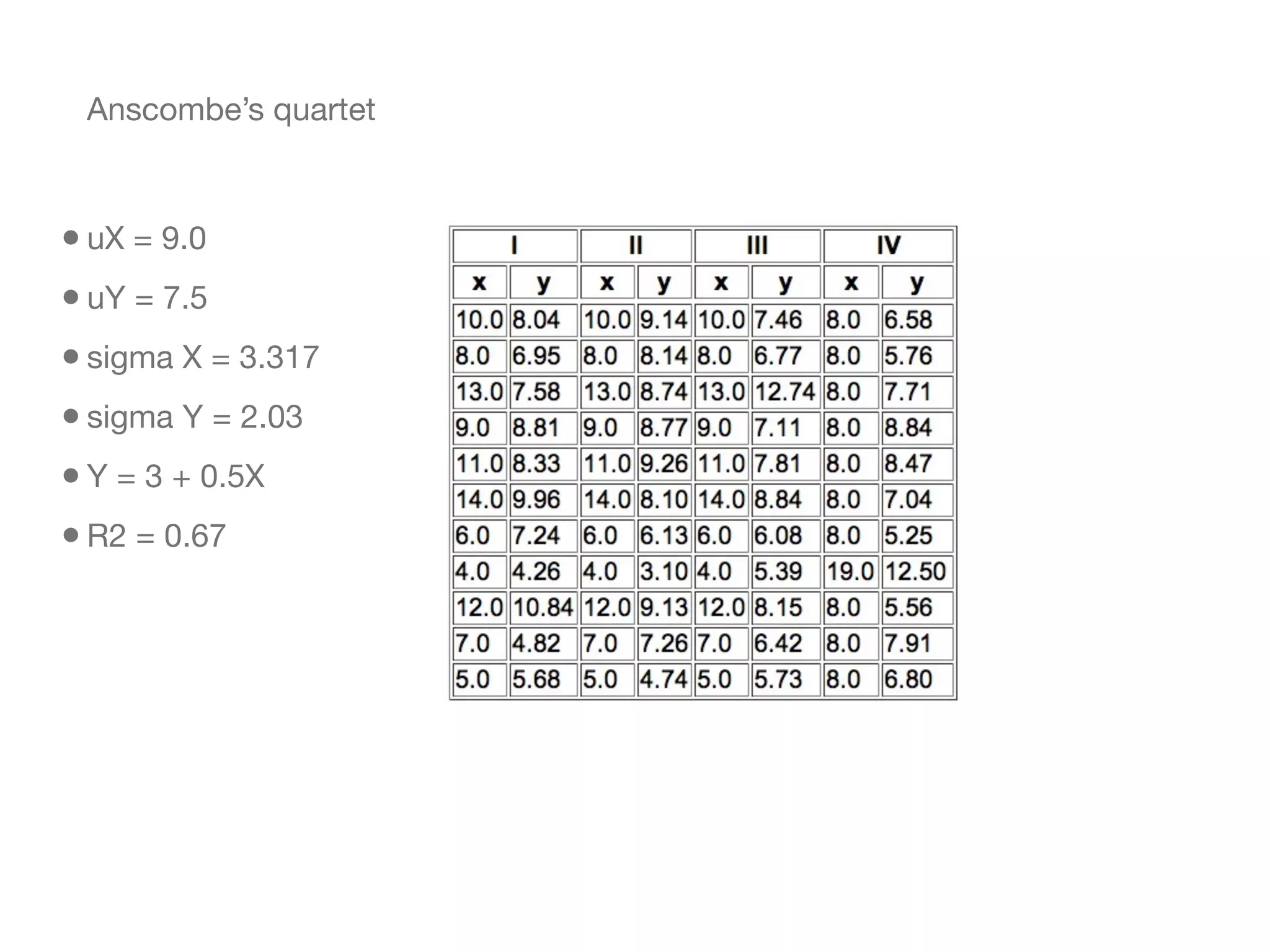

Anscombe’s quartet



• uX = 9.0
• uY = 7.5
• sigma X = 3.317
• sigma Y = 2.03
• Y = 3 + 0.5X
• R2 = 0.67
Intro to data visualization
Intro to data visualization

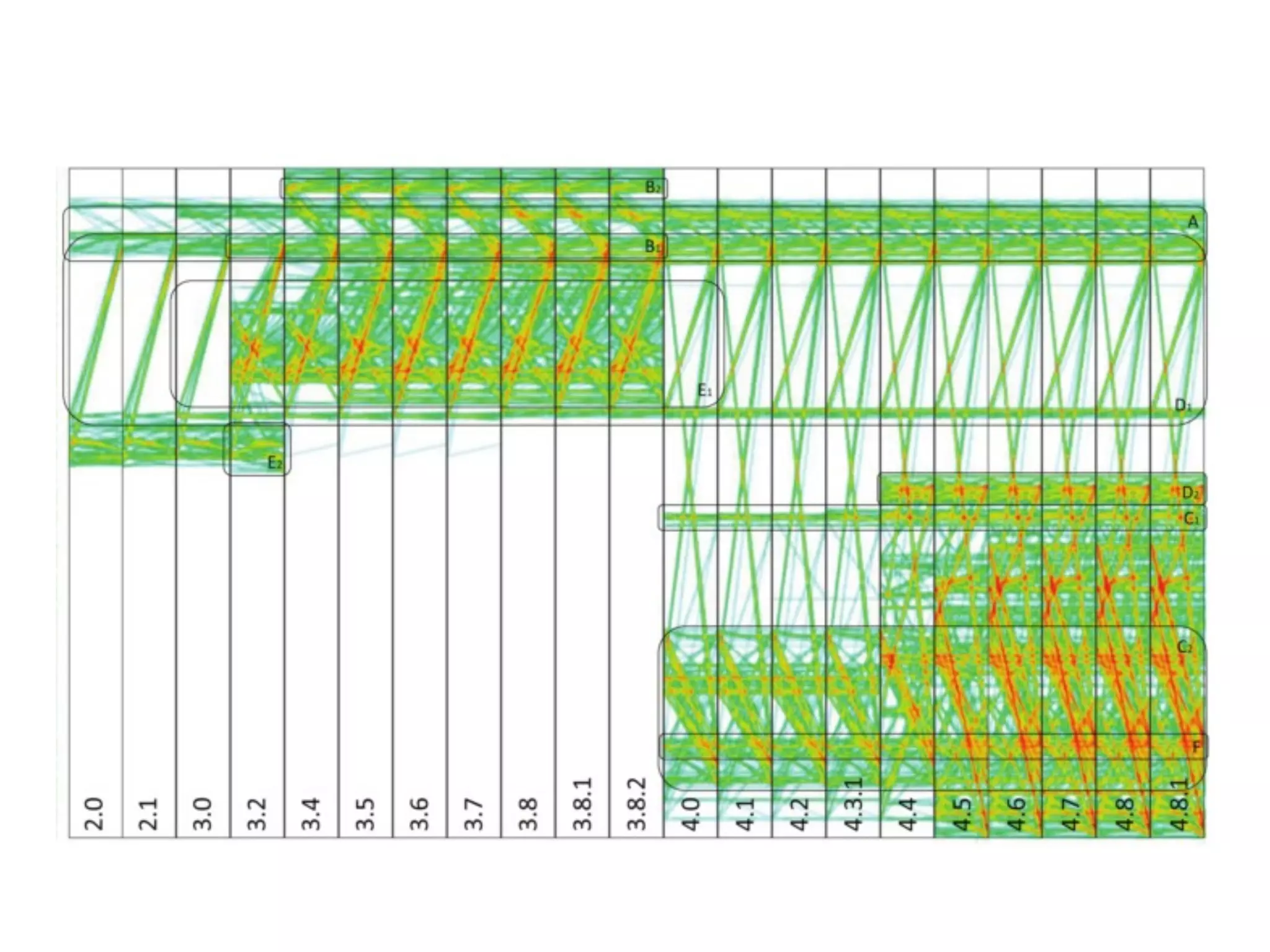

A concrete example: hive plots

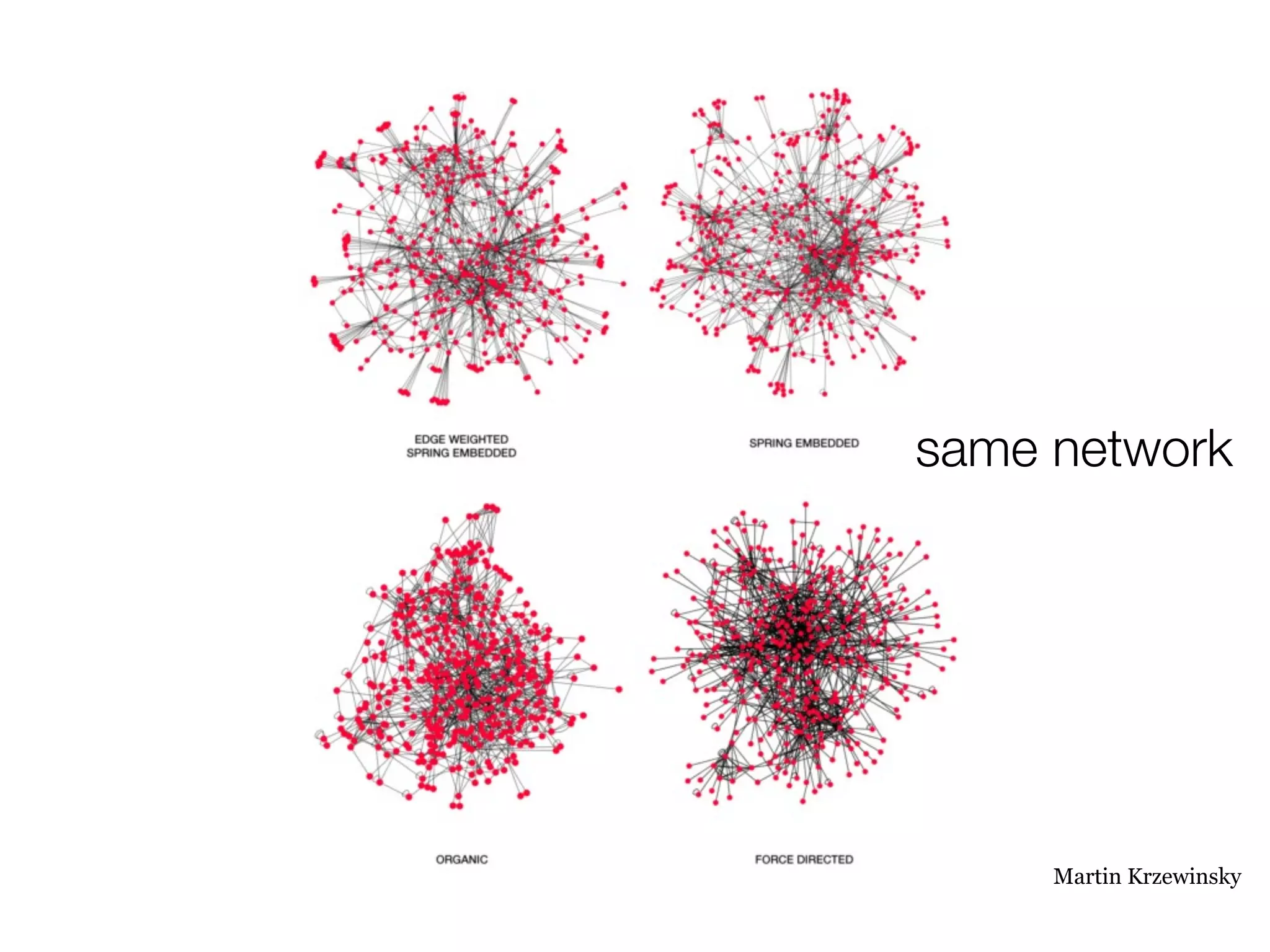

same network




     Martin Krzewinsky

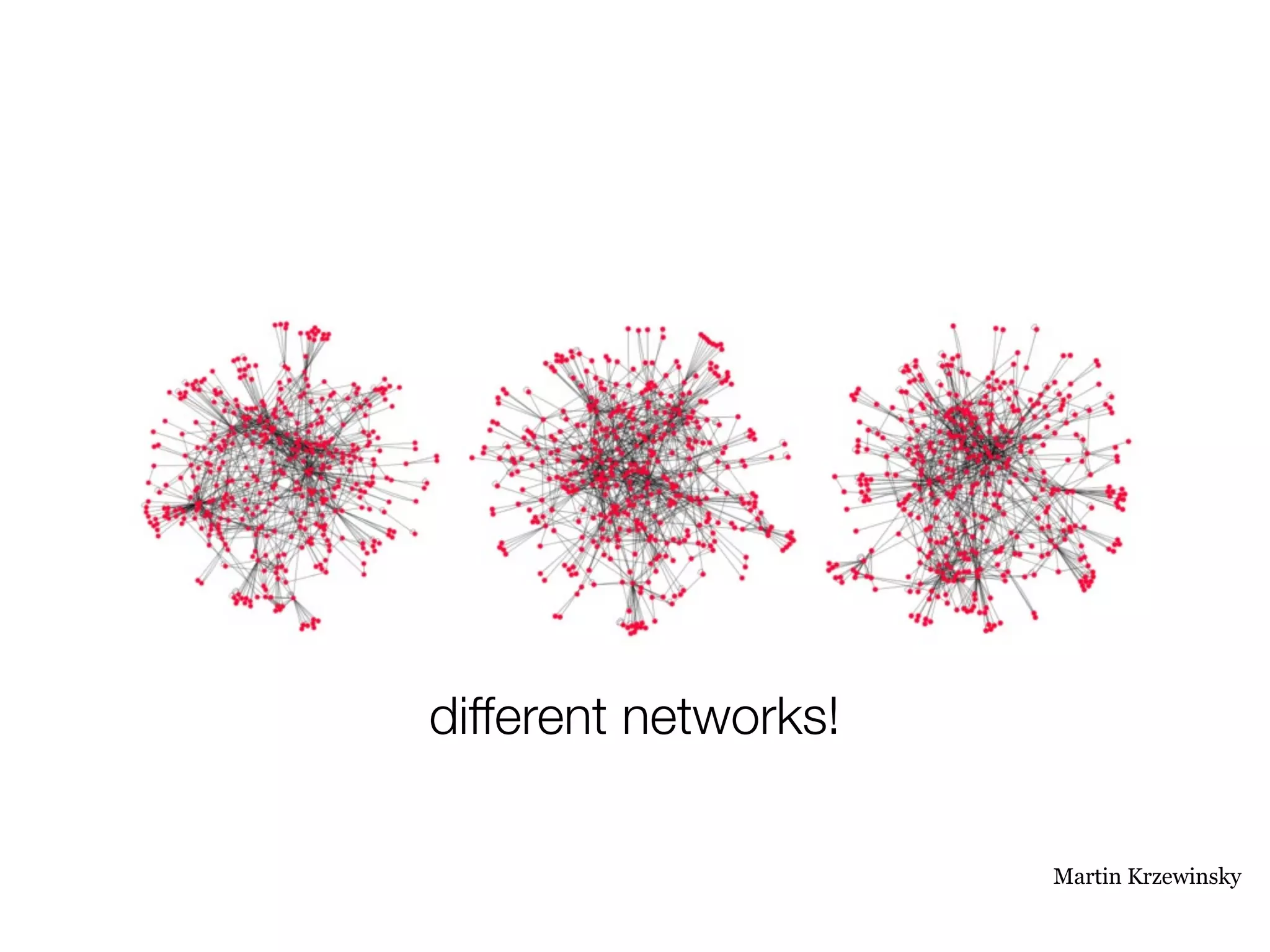

different networks!

                      Martin Krzewinsky

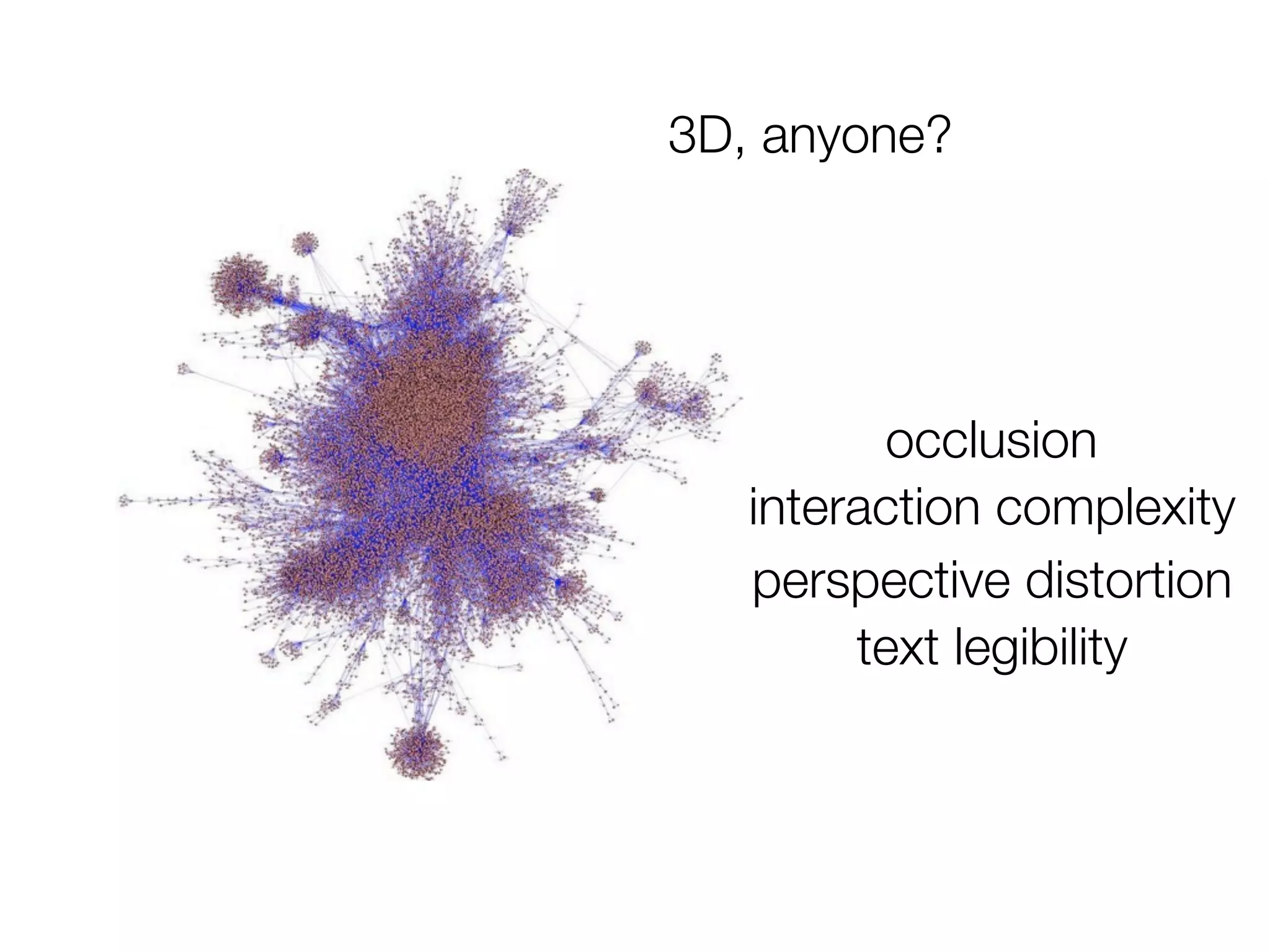

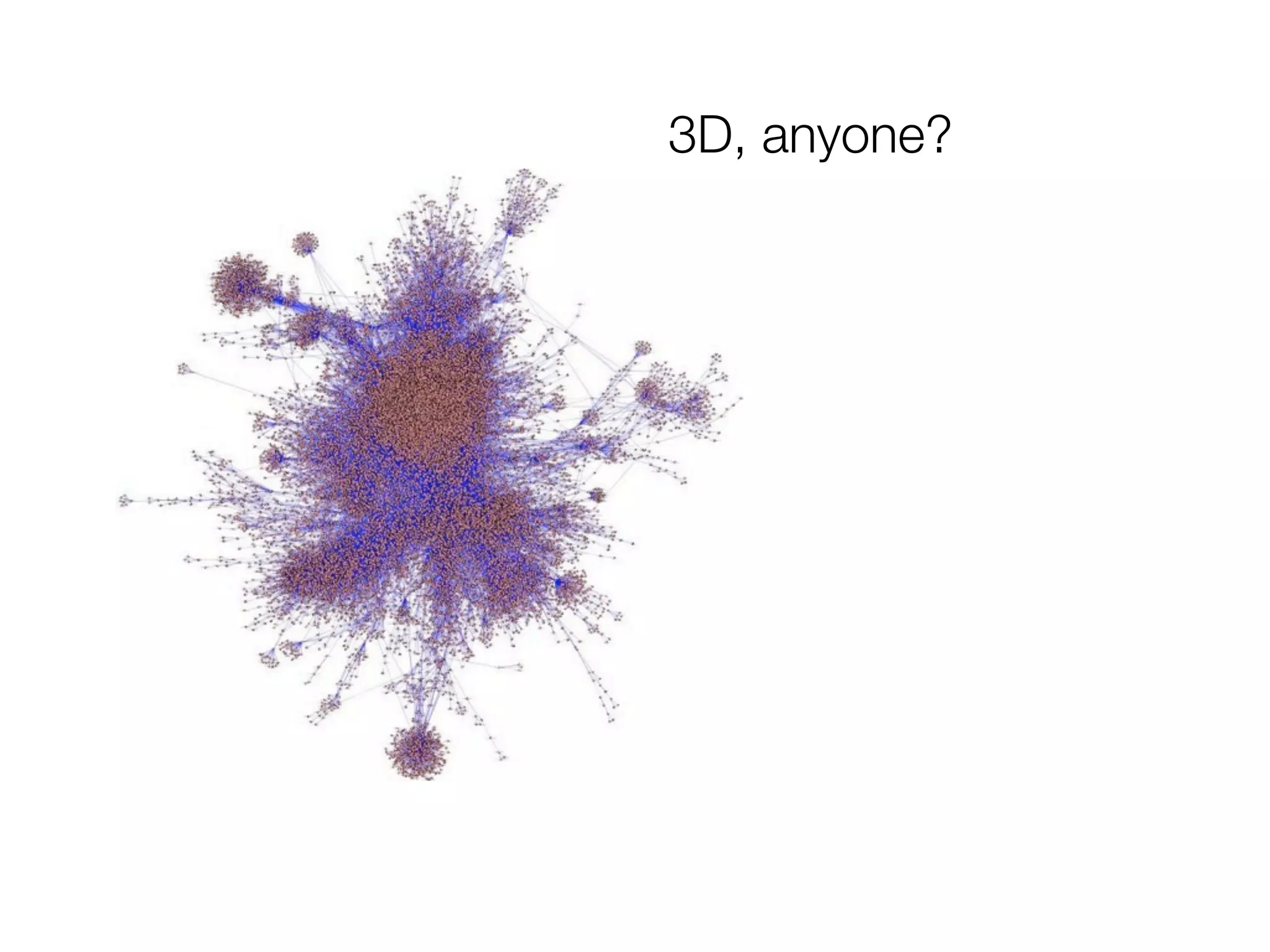

3D, anyone?
3D, anyone?




         occlusion
   interaction complexity
   perspective distortion
        text legibility

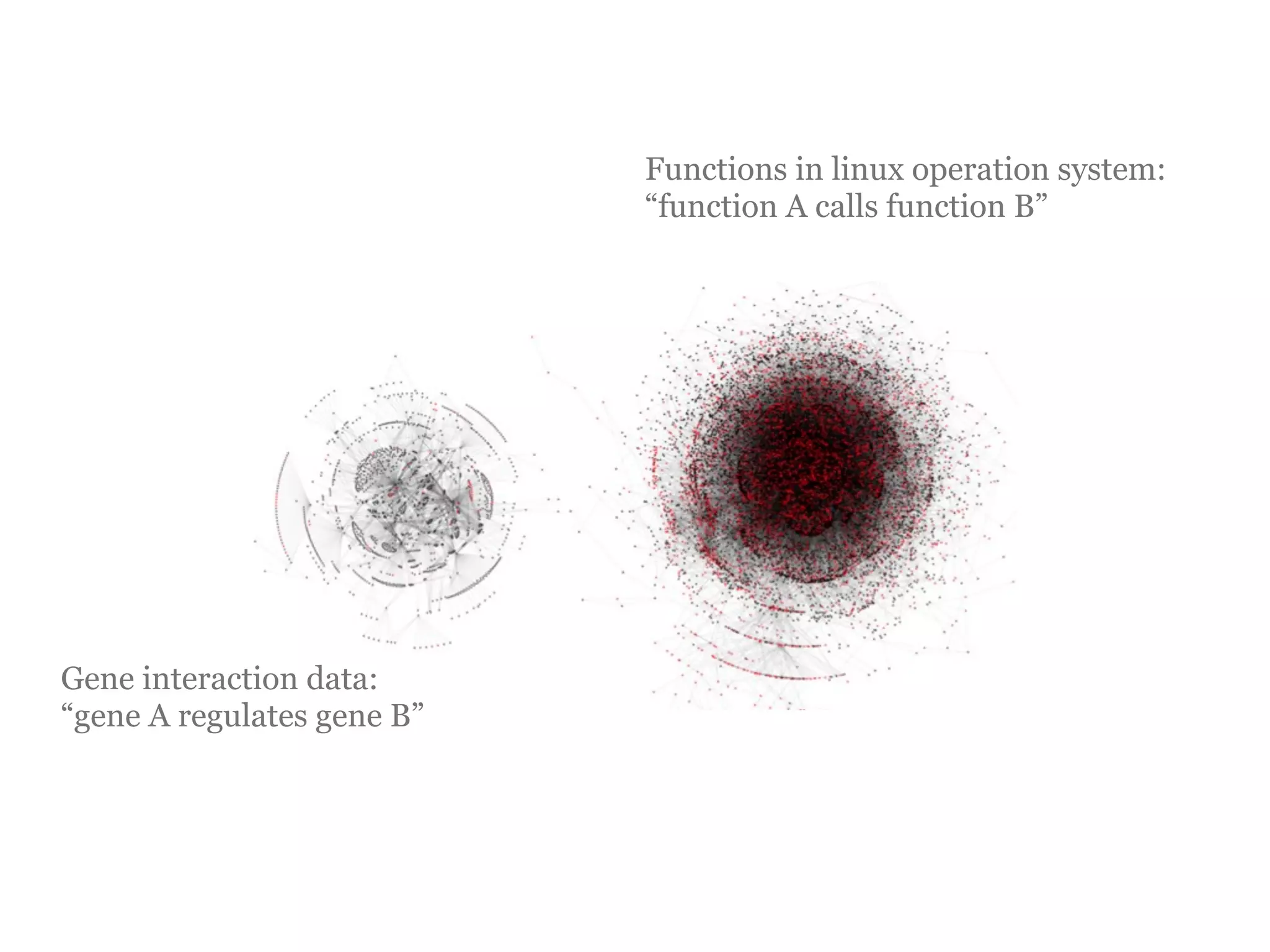

Functions in linux operation system:
                            “function A calls function B”




Gene interaction data:
“gene A regulates gene B”

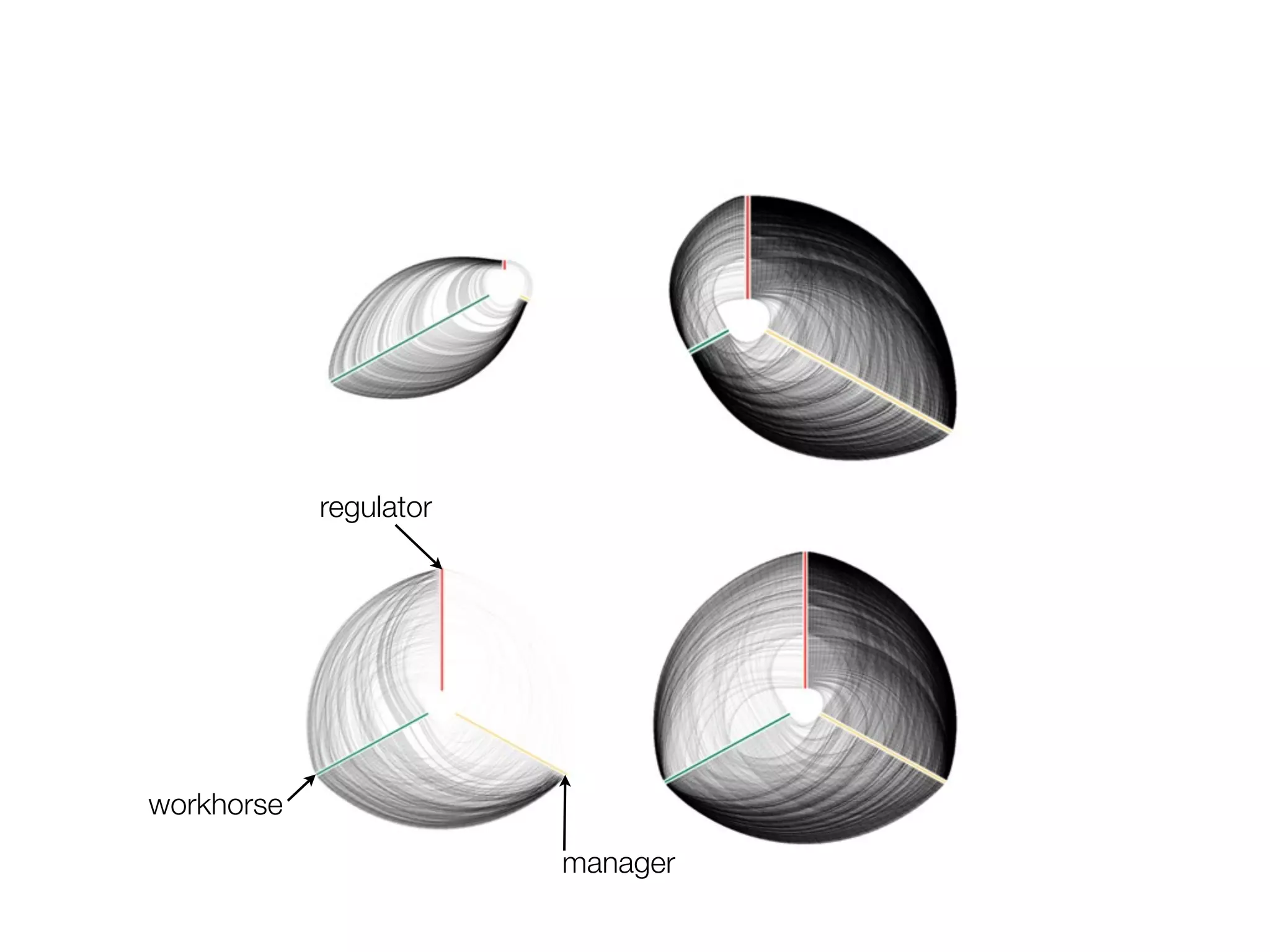

regulator




workhorse
                        manager

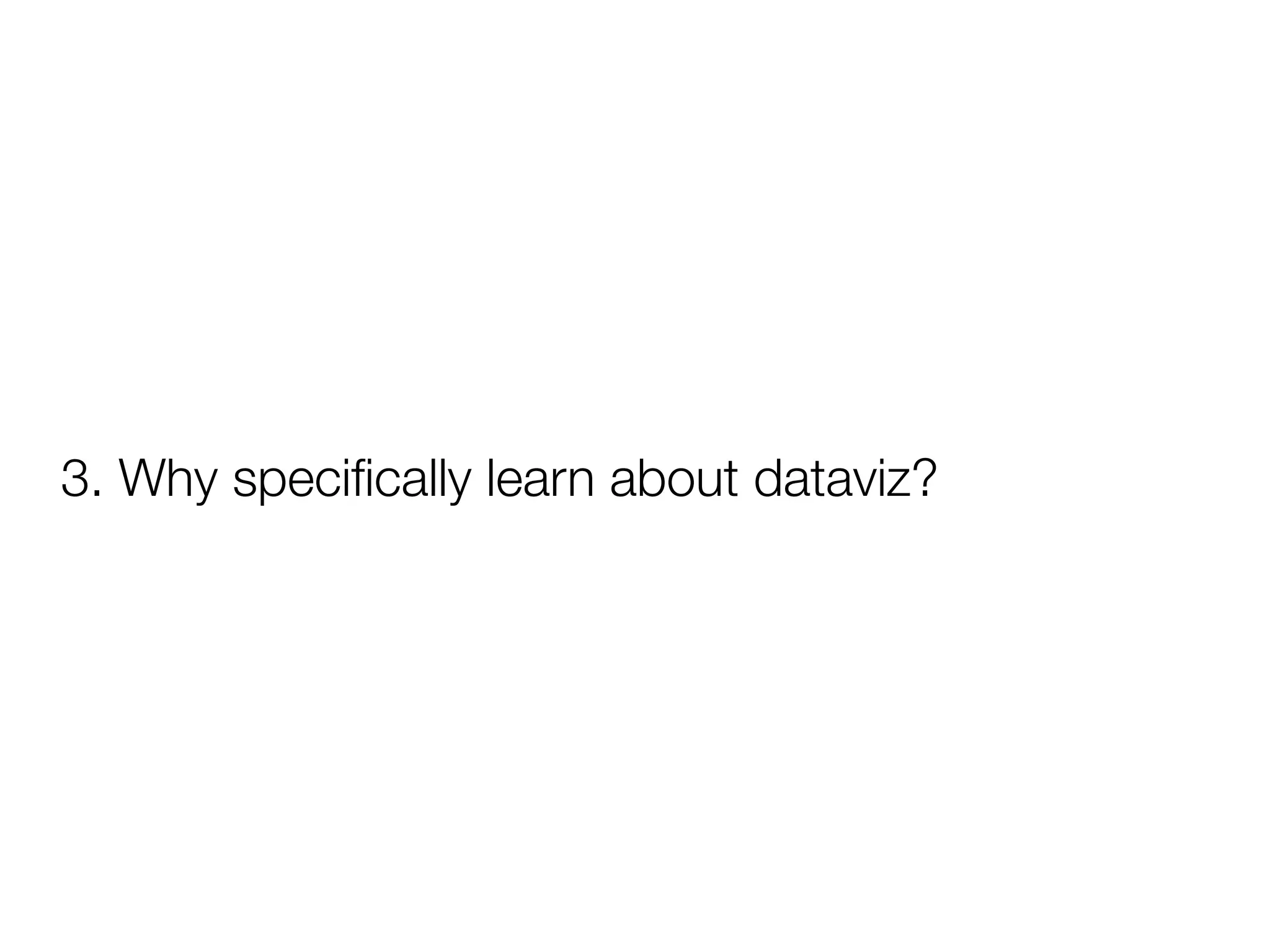

3. Why specifically learn about dataviz?

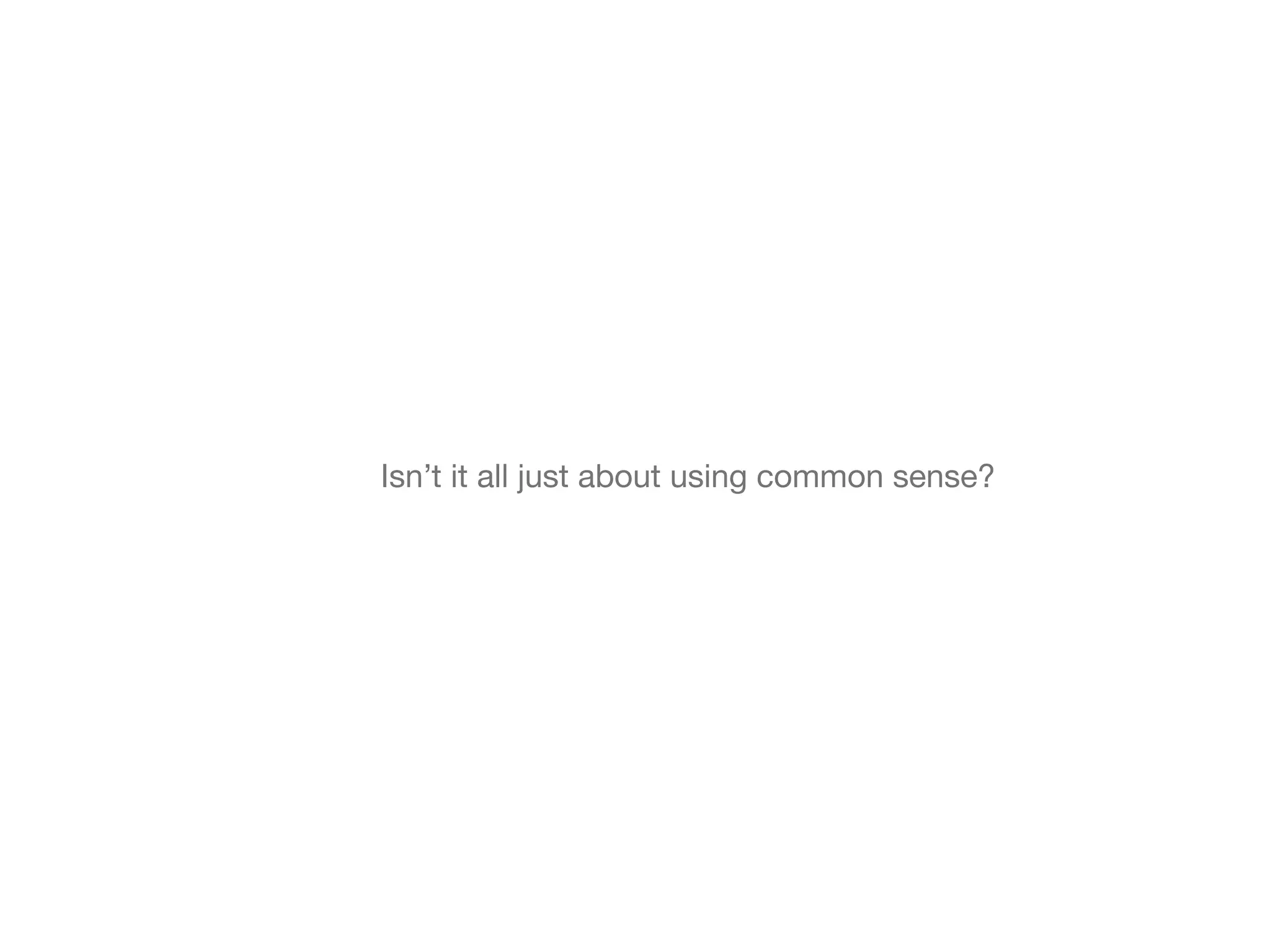

Isn’t it all just about using common sense?

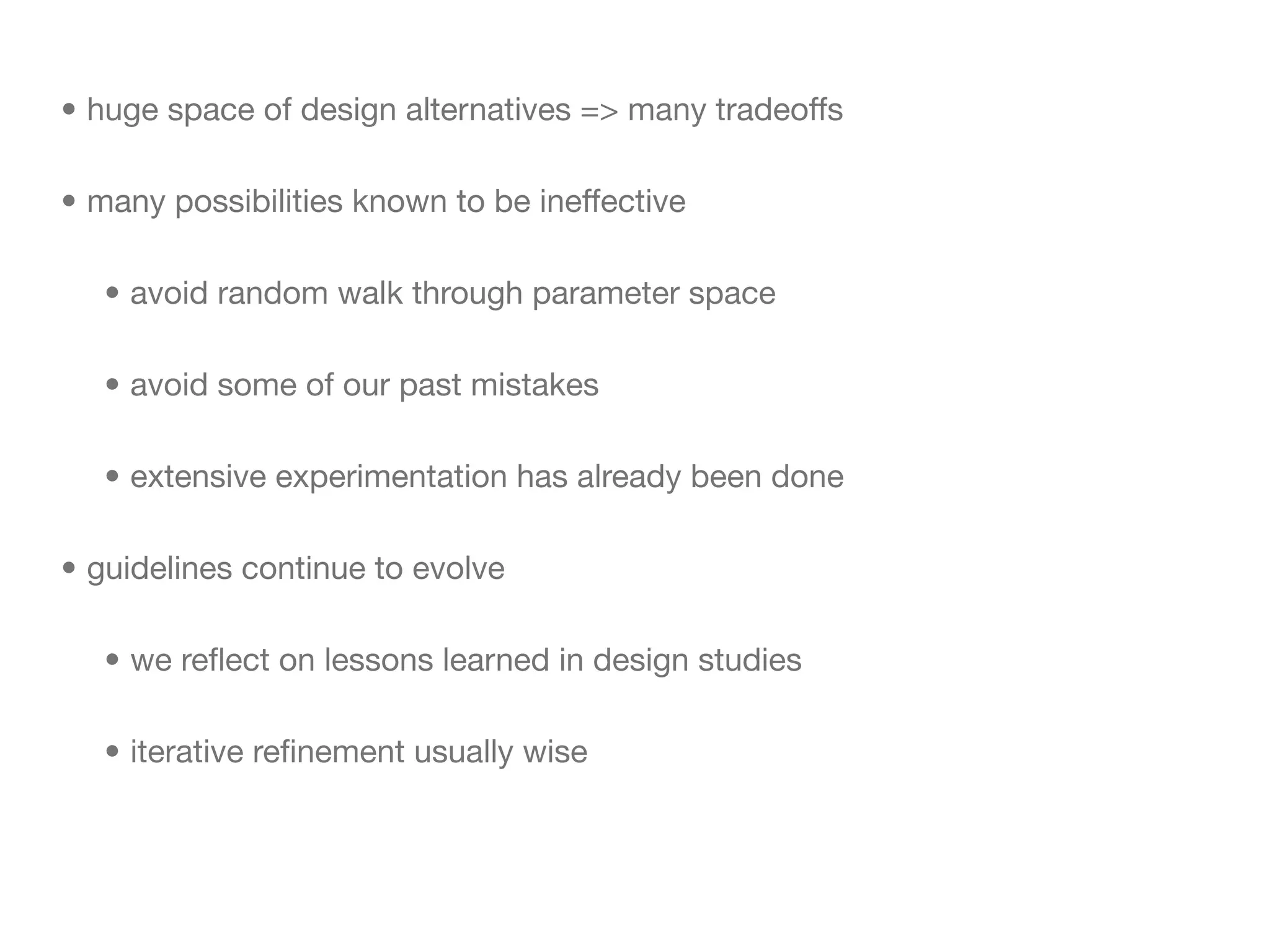

• huge space of design alternatives => many tradeoffs

• many possibilities known to be ineffective

   • avoid random walk through parameter space

   • avoid some of our past mistakes

   • extensive experimentation has already been done

• guidelines continue to evolve

   • we reflect on lessons learned in design studies

   • iterative refinement usually wise
4. Stages of data visualization

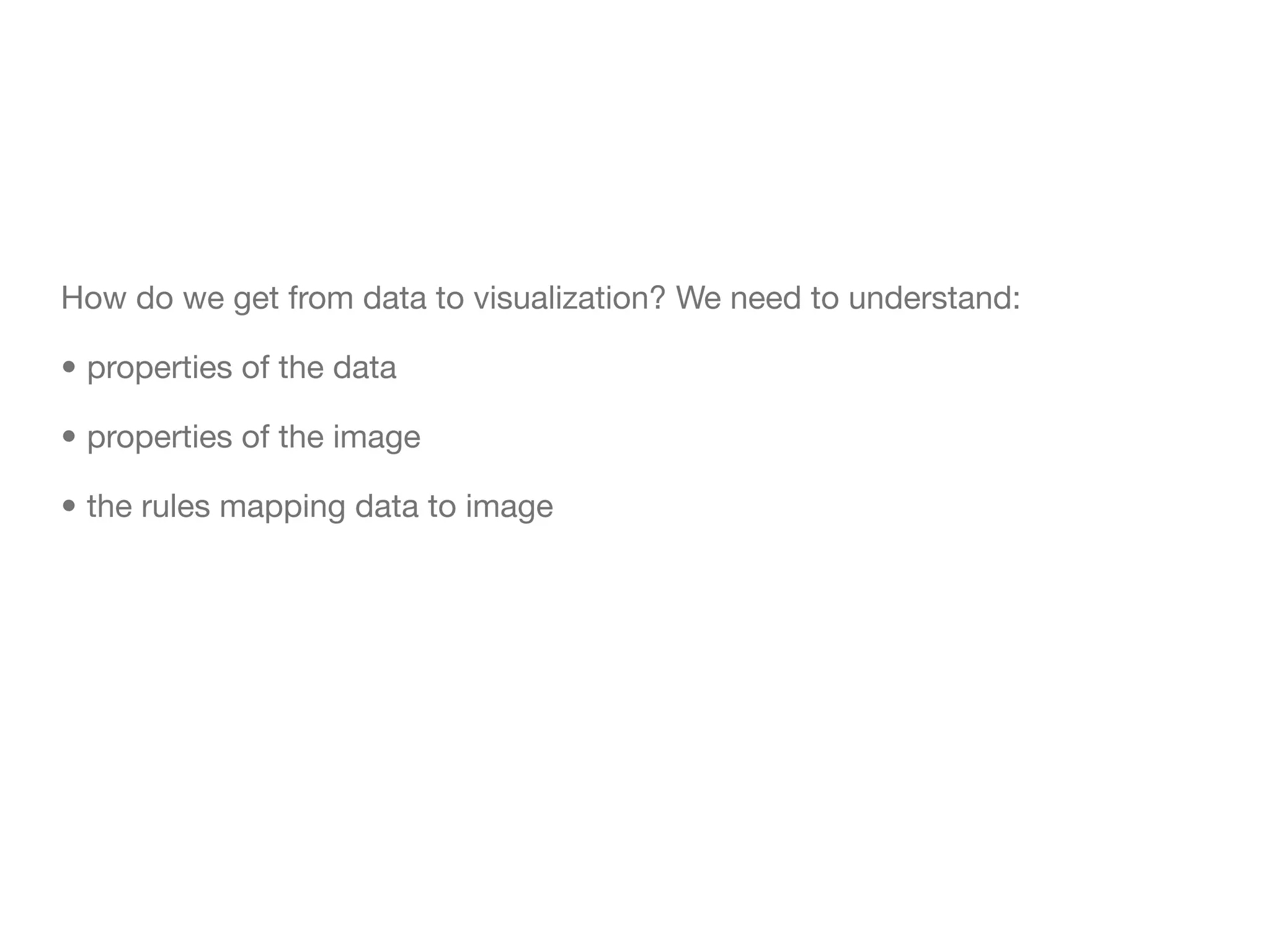

How do we get from data to visualization? We need to understand:

• properties of the data

• properties of the image

• the rules mapping data to image
4.1. Properties of the data

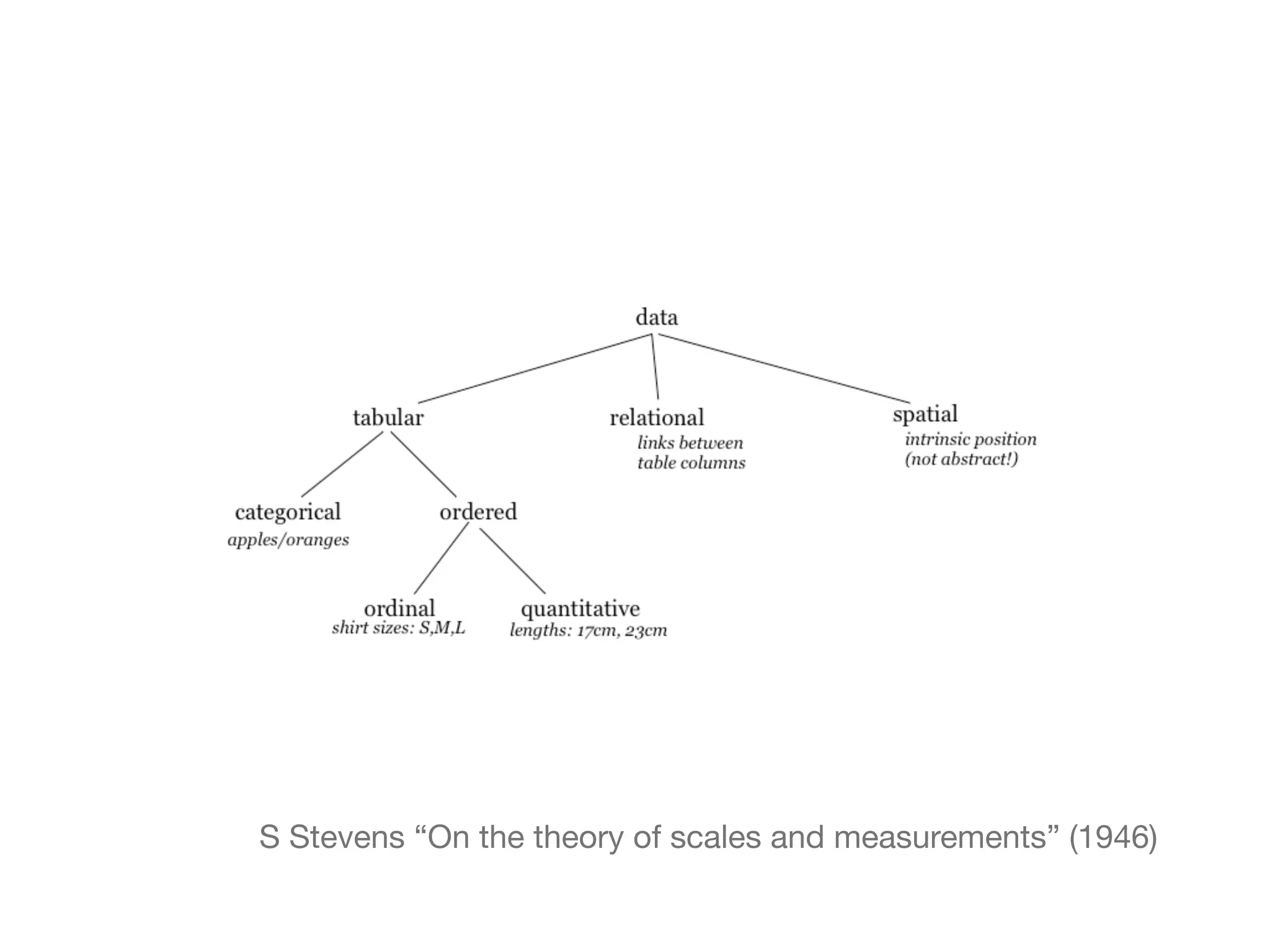

S Stevens “On the theory of scales and measurements” (1946)
4.2. Properties of the image - perception

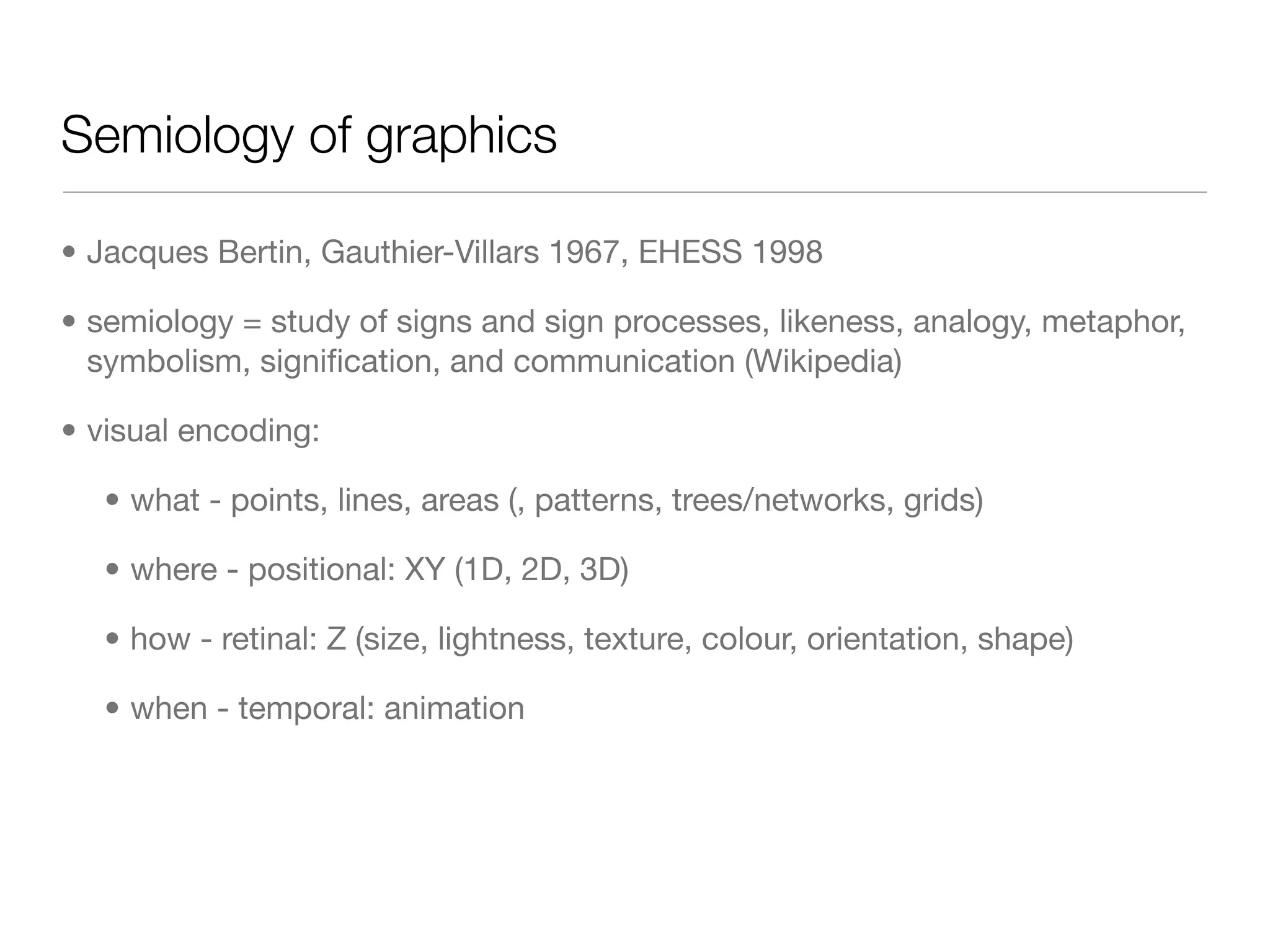

Semiology of graphics

• Jacques Bertin, Gauthier-Villars 1967, EHESS 1998

• semiology = study of signs and sign processes, likeness, analogy, metaphor,
  symbolism, signification, and communication (Wikipedia)

• visual encoding:

   • what - points, lines, areas (, patterns, trees/networks, grids)

   • where - positional: XY (1D, 2D, 3D)

   • how - retinal: Z (size, lightness, texture, colour, orientation, shape)

   • when - temporal: animation

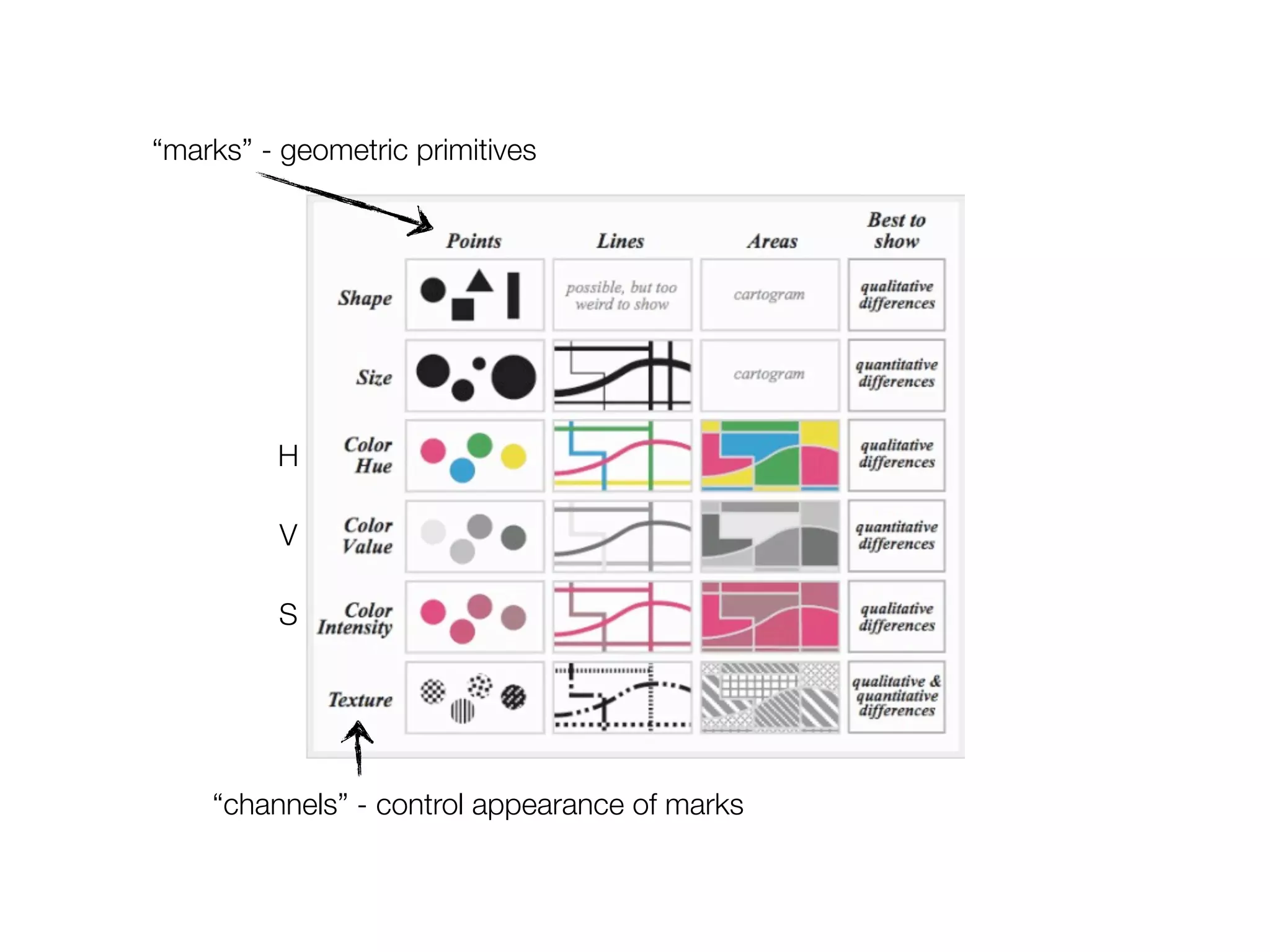

“marks” - geometric primitives




         H

         V

         S




    “channels” - control appearance of marks

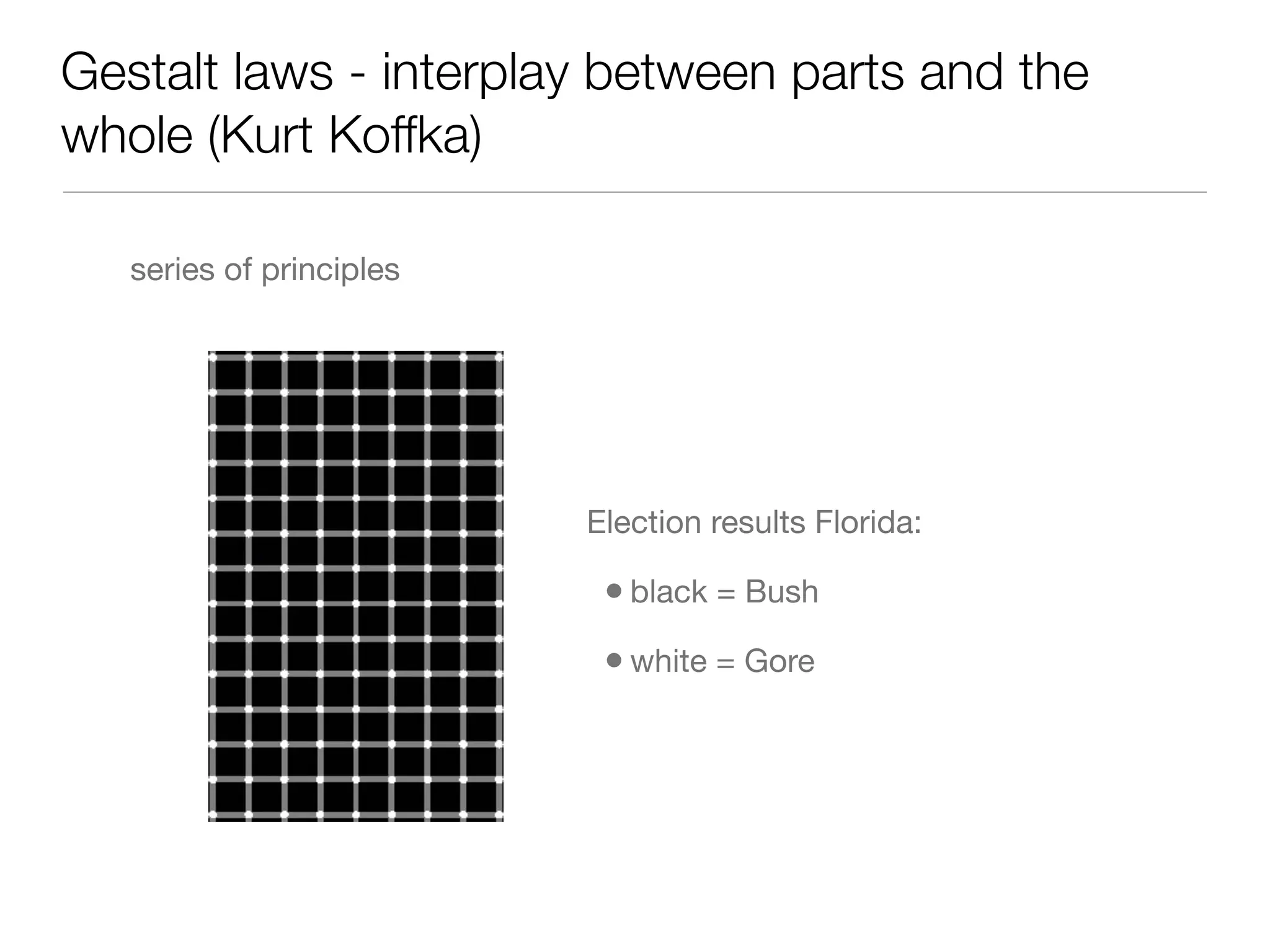

Gestalt laws - interplay between parts and the
whole (Kurt Koffka)

   series of principles




                          Election results Florida:

                           • black = Bush
                           • white = Gore
Intro to data visualization

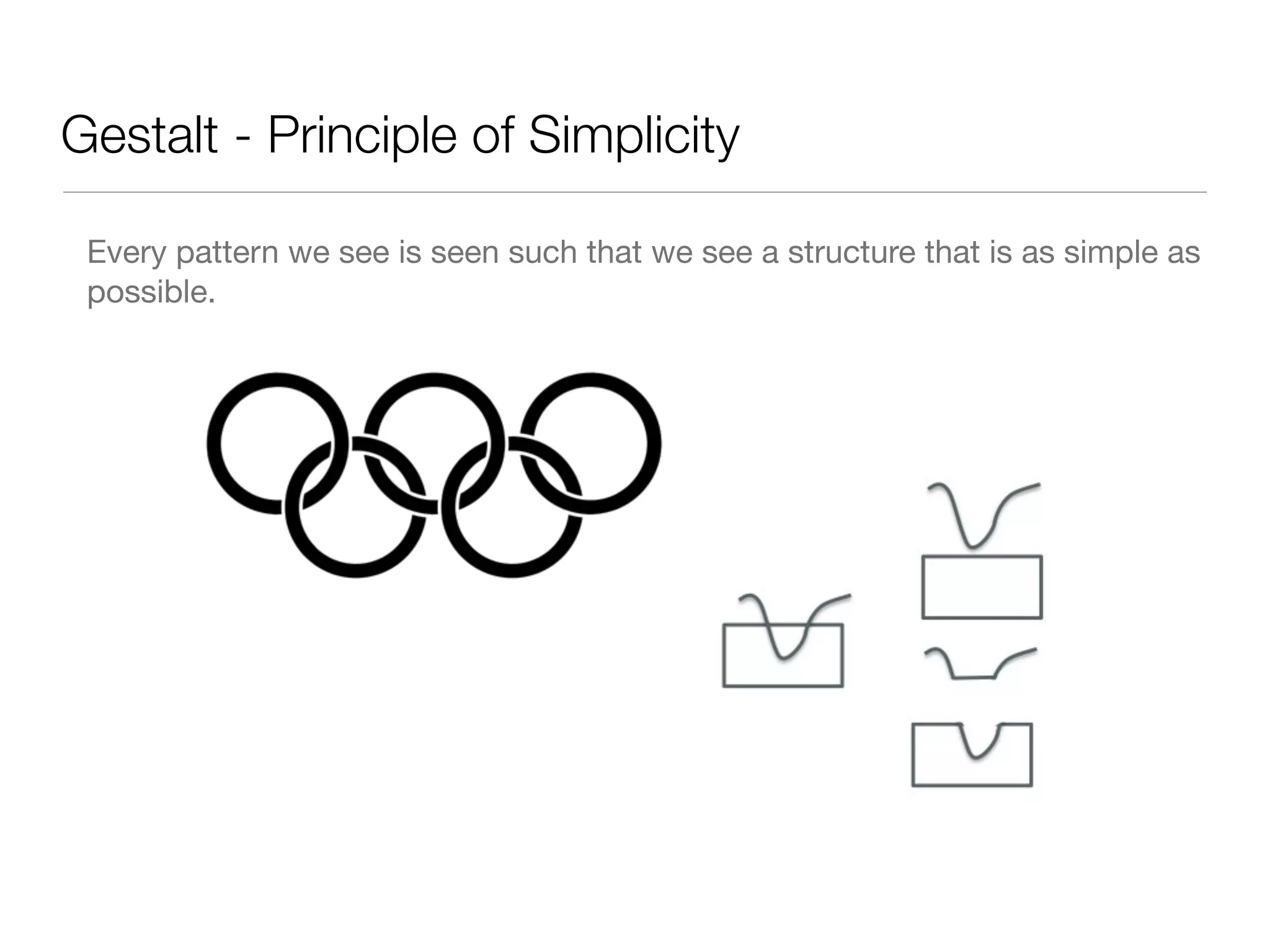

Gestalt - Principle of Simplicity

 Every pattern we see is seen such that we see a structure that is as simple as
 possible.

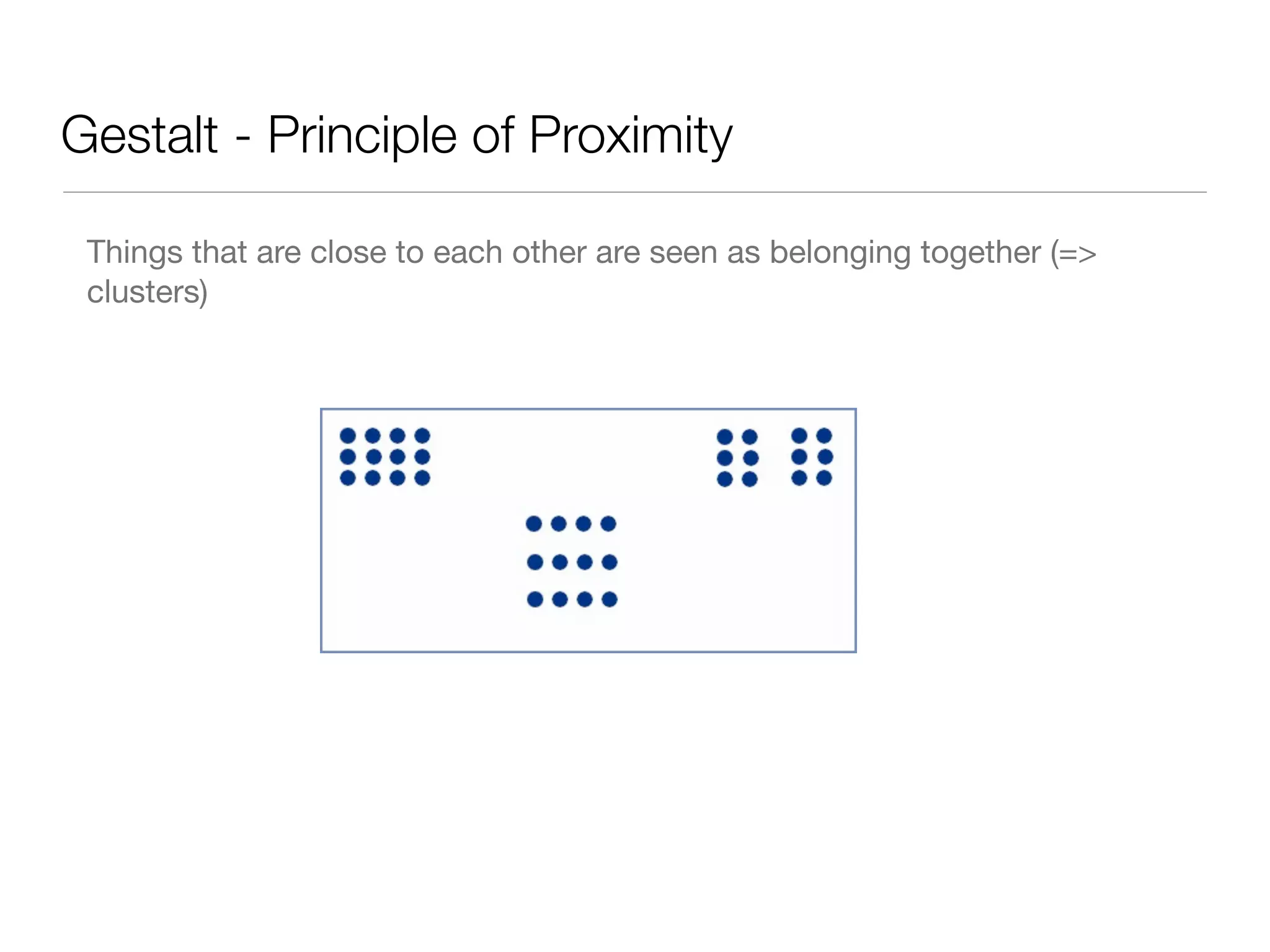

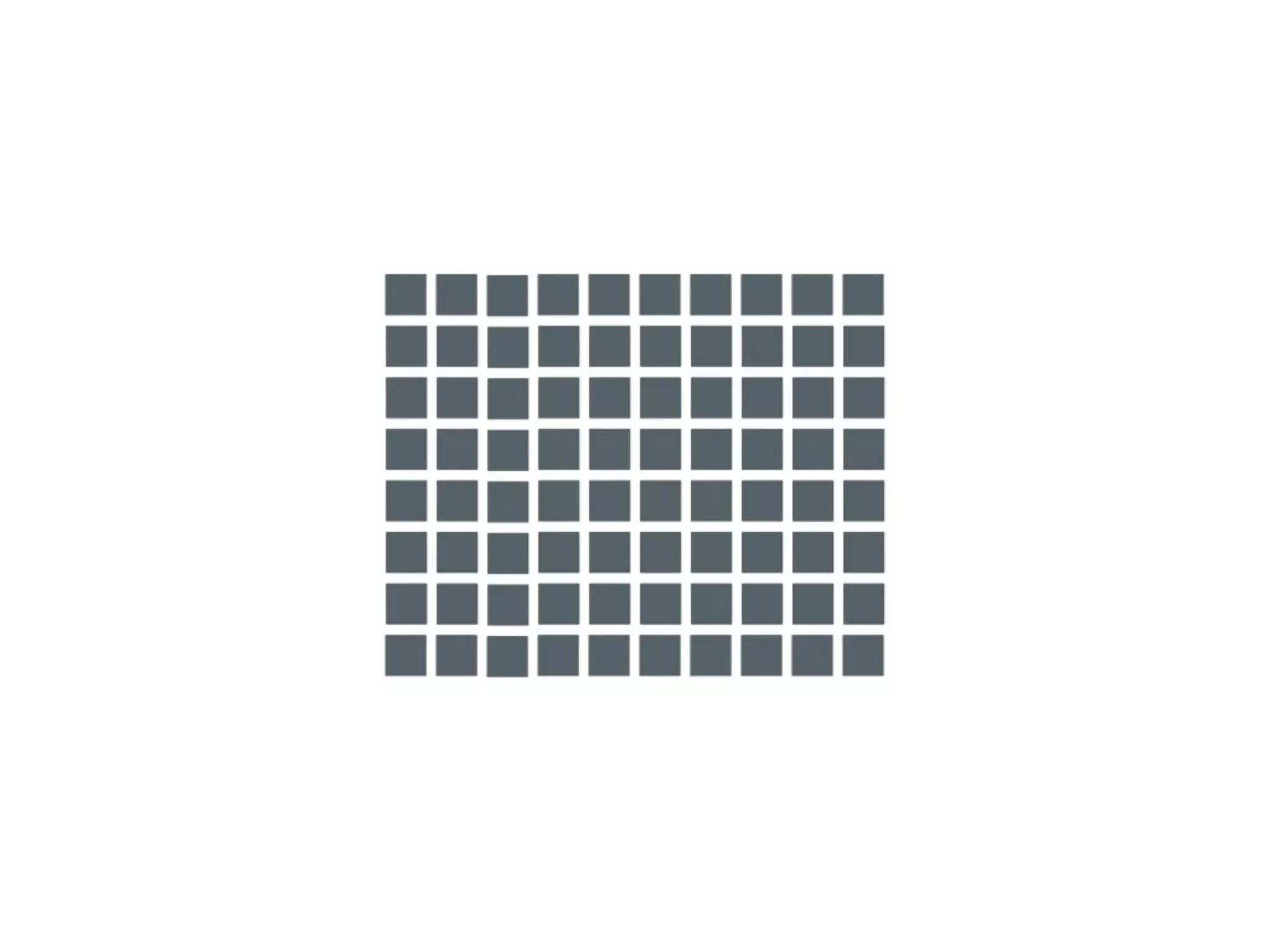

Gestalt - Principle of Proximity

 Things that are close to each other are seen as belonging together (=>
 clusters)

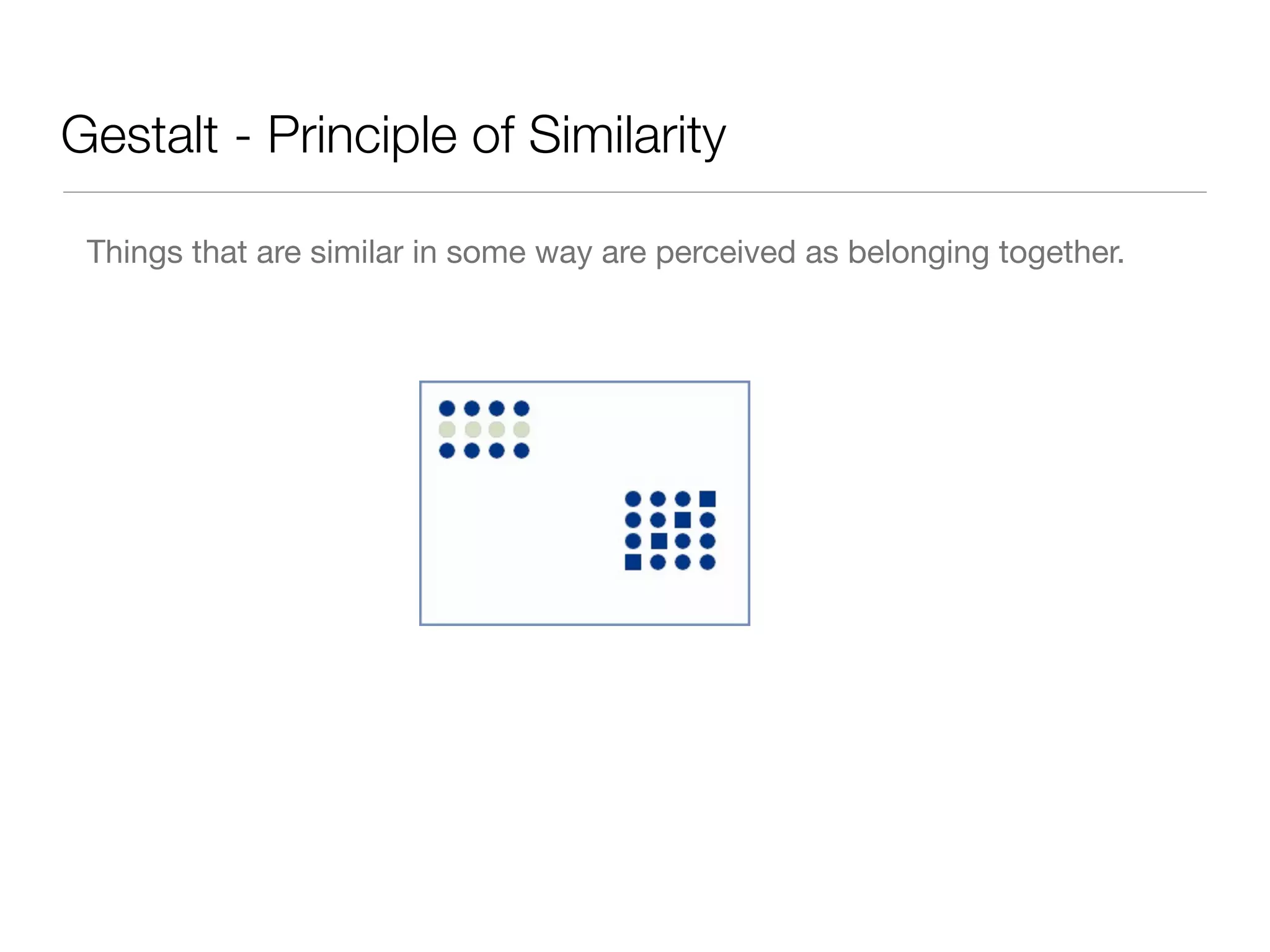

Gestalt - Principle of Similarity

 Things that are similar in some way are perceived as belonging together.

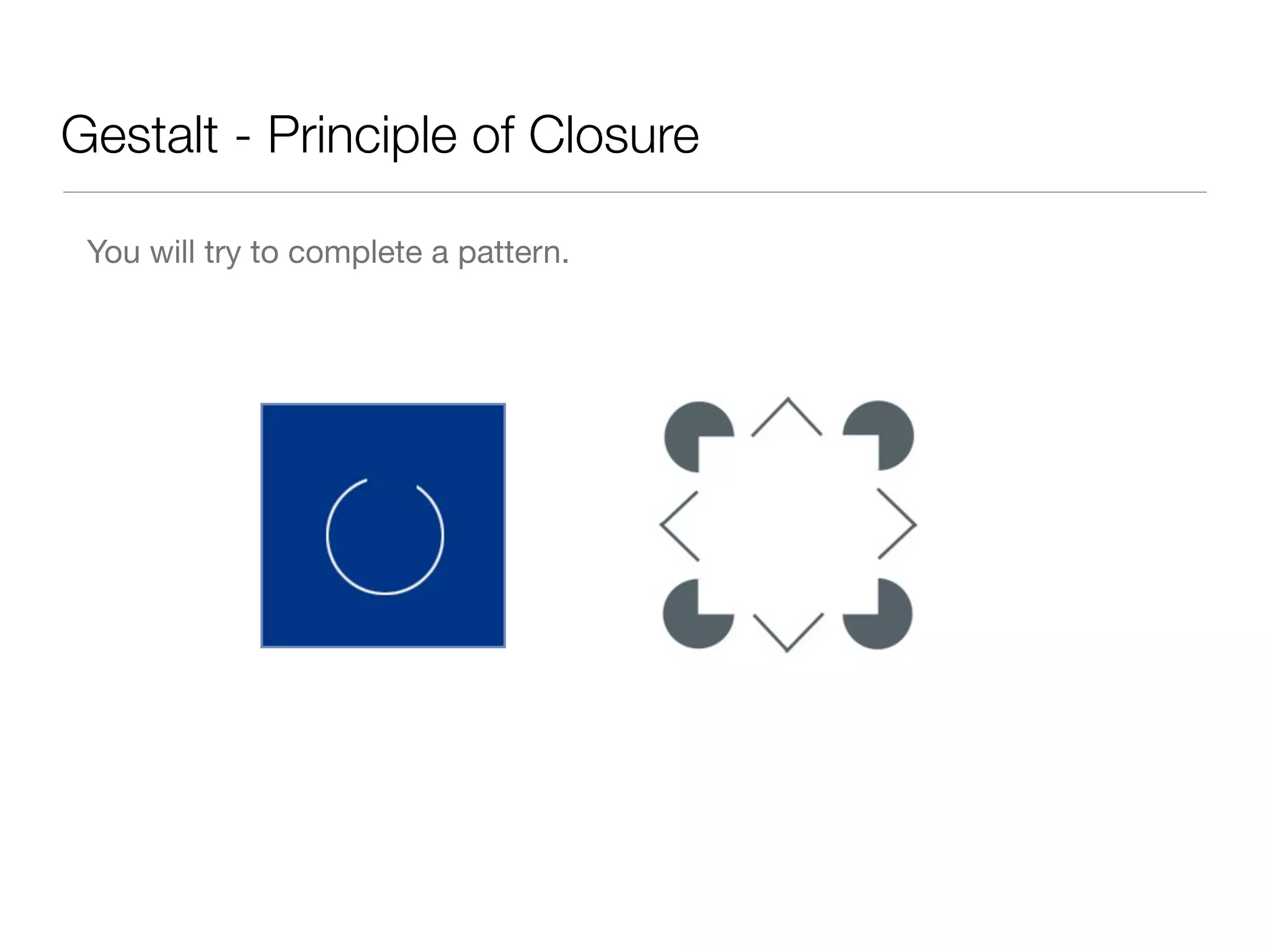

Gestalt - Principle of Closure

 You will try to complete a pattern.

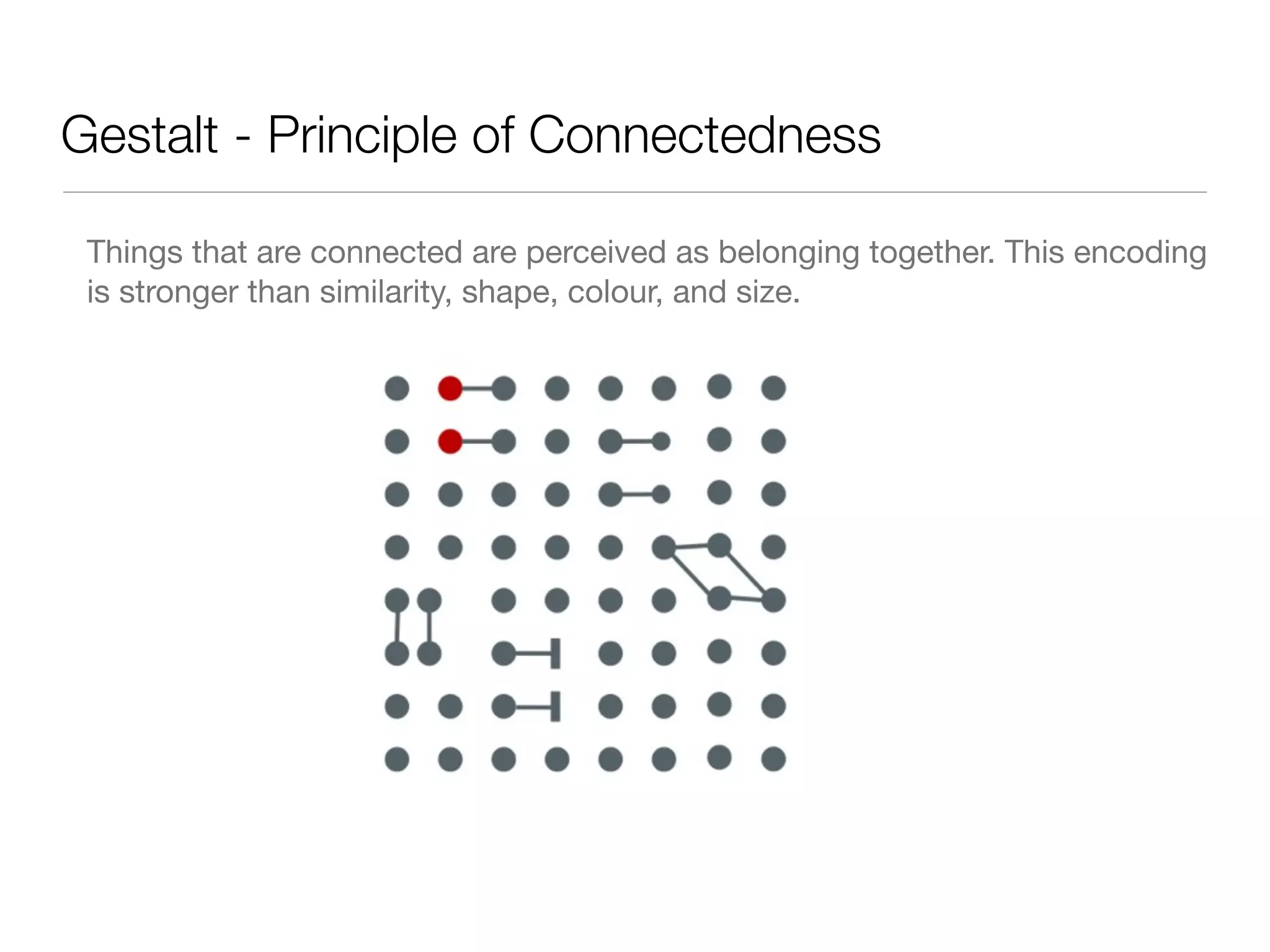

Gestalt - Principle of Connectedness

 Things that are connected are perceived as belonging together. This encoding
 is stronger than similarity, shape, colour, and size.

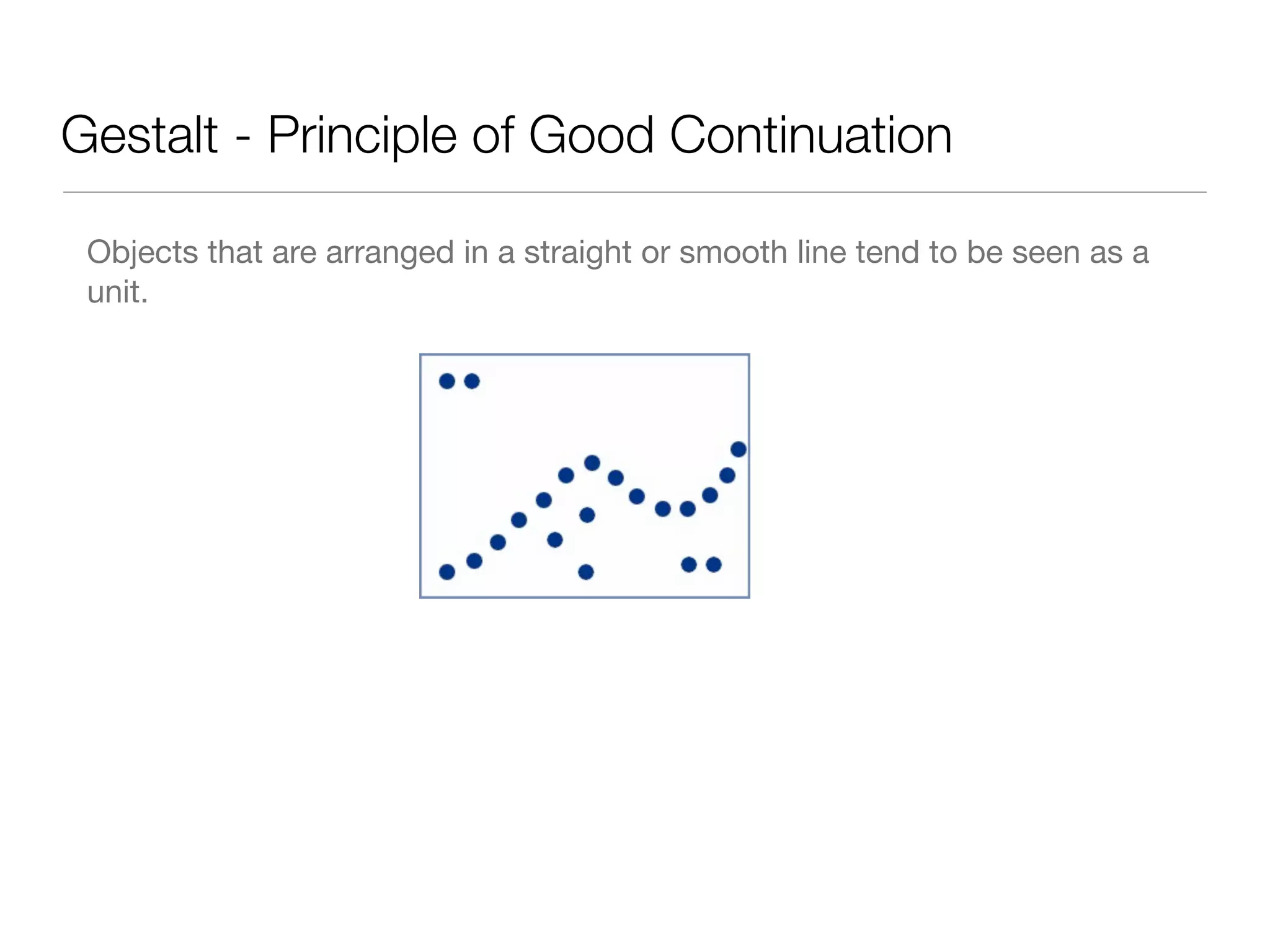

Gestalt - Principle of Good Continuation

 Objects that are arranged in a straight or smooth line tend to be seen as a
 unit.

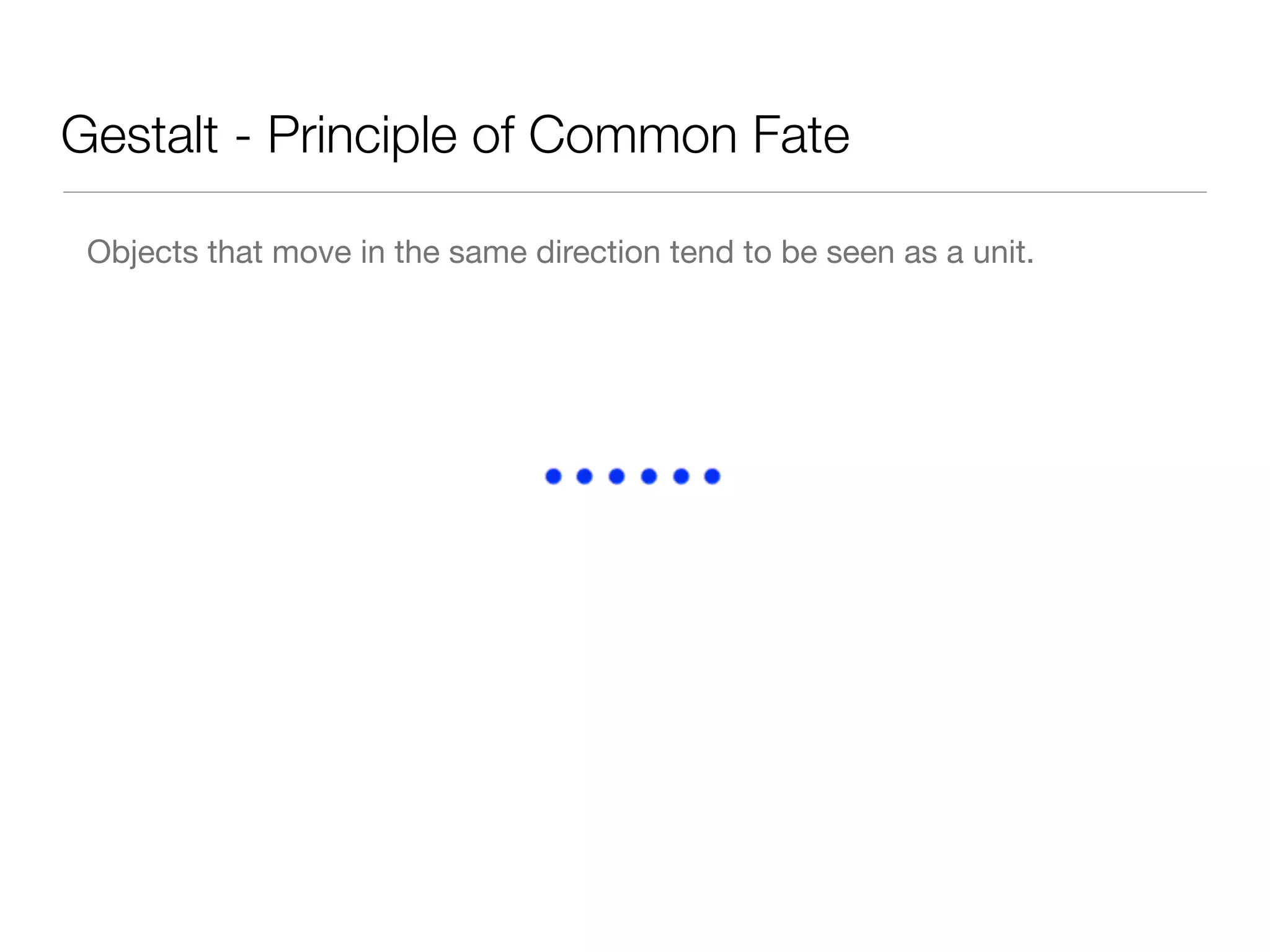

Gestalt - Principle of Common Fate

 Objects that move in the same direction tend to be seen as a unit.

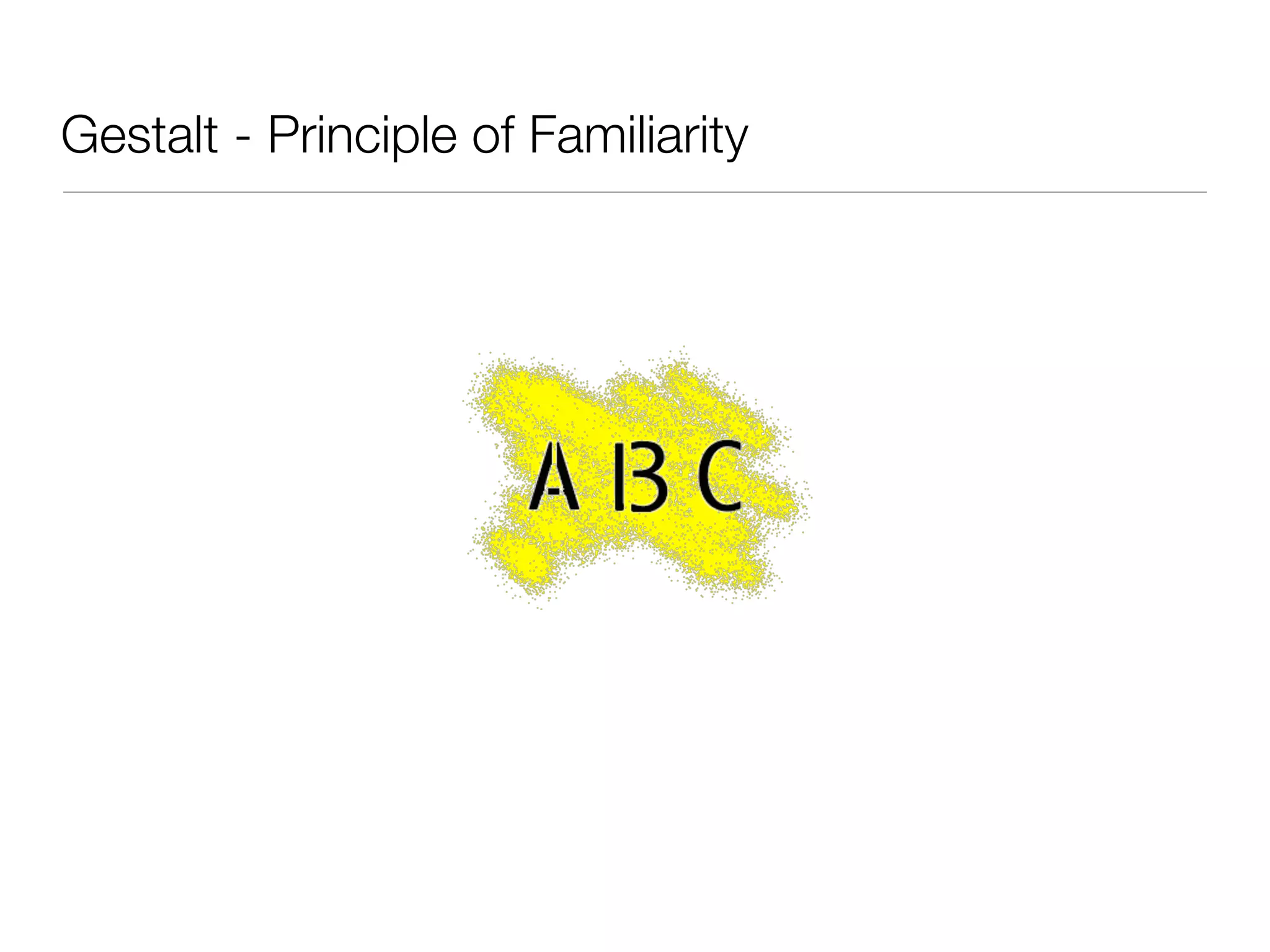

Gestalt - Principle of Familiarity
Intro to data visualization
Intro to data visualization
Intro to data visualization

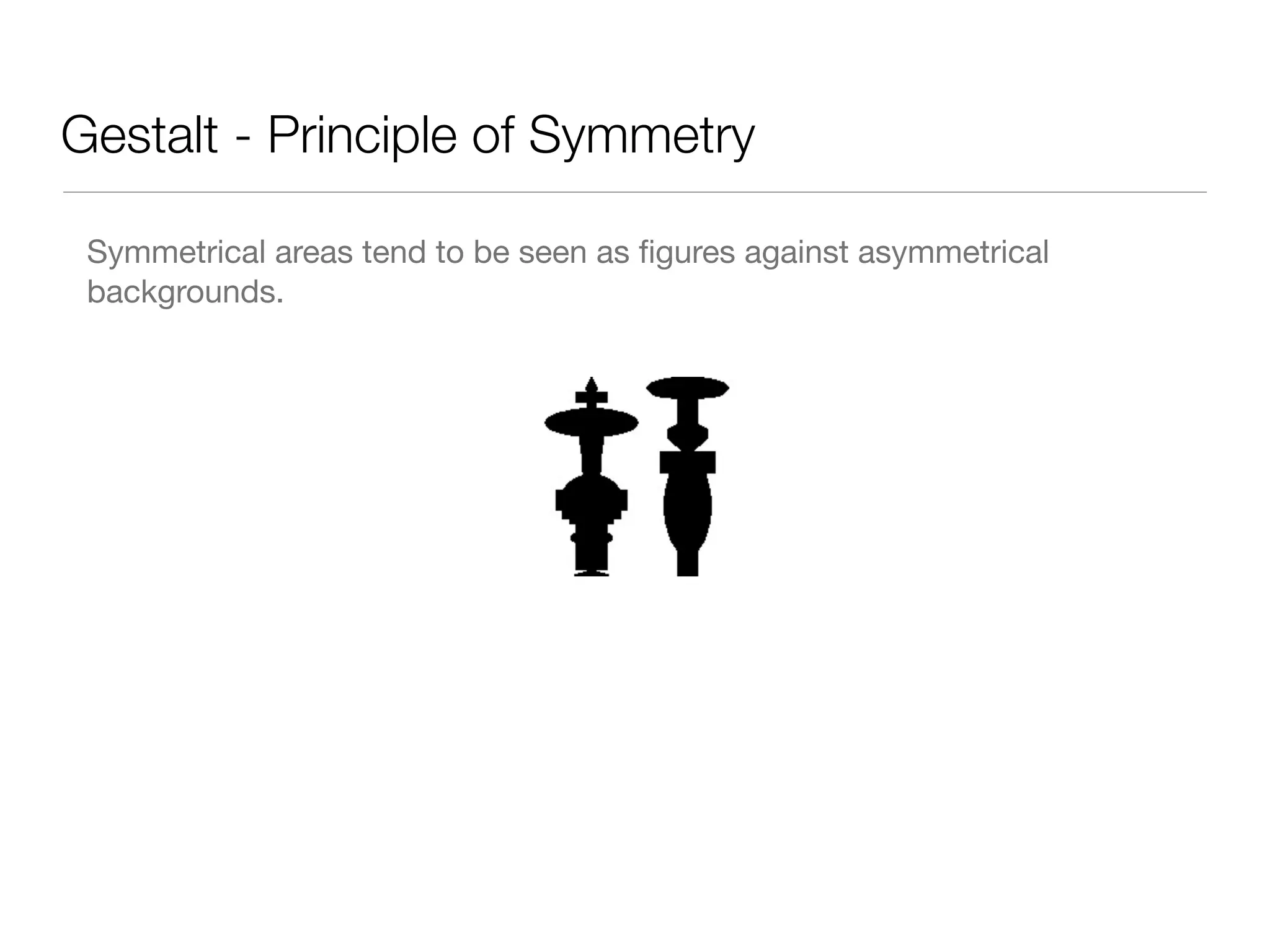

Gestalt - Principle of Symmetry

 Symmetrical areas tend to be seen as figures against asymmetrical
 backgrounds.

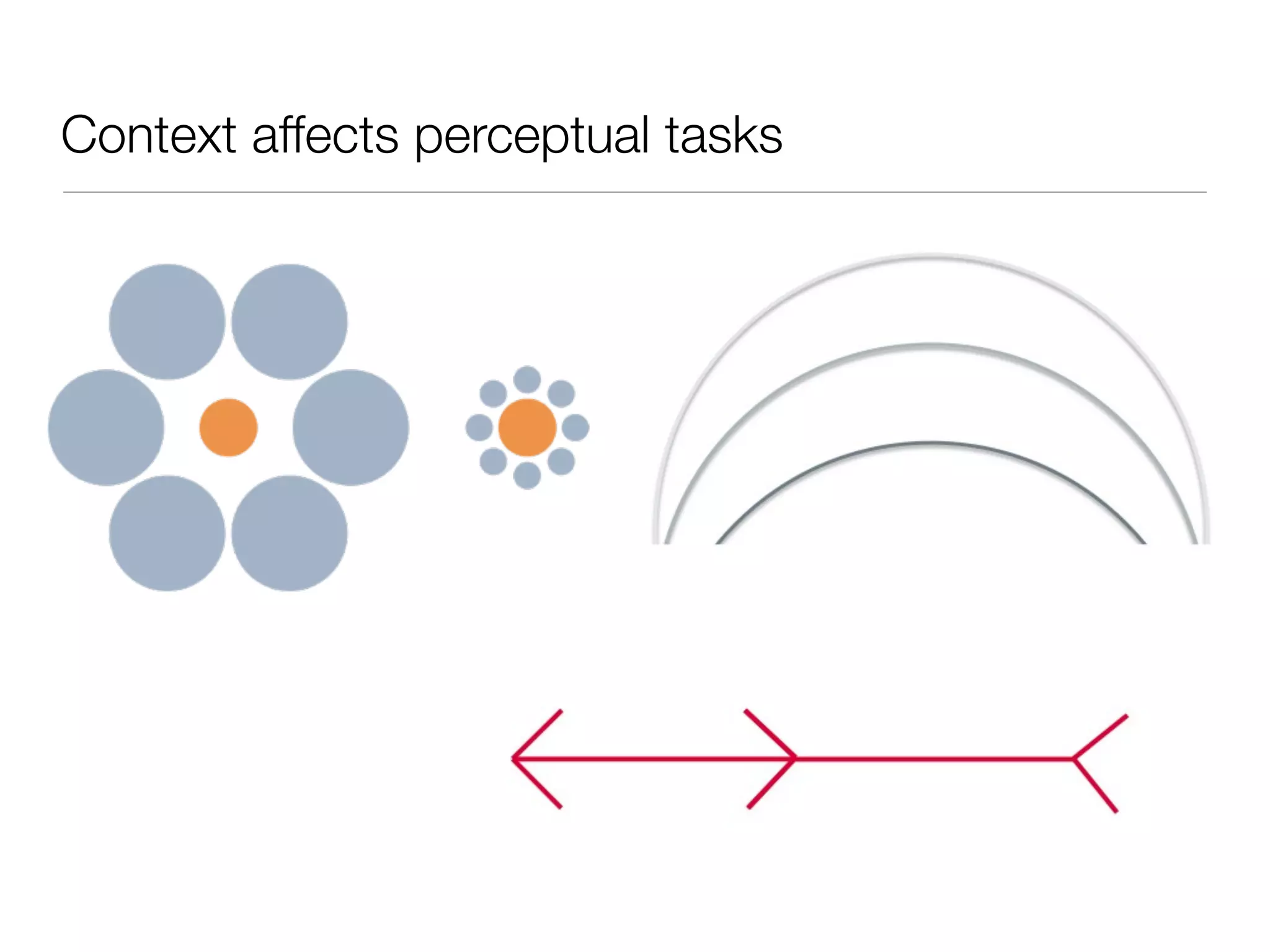

Context affects perceptual tasks

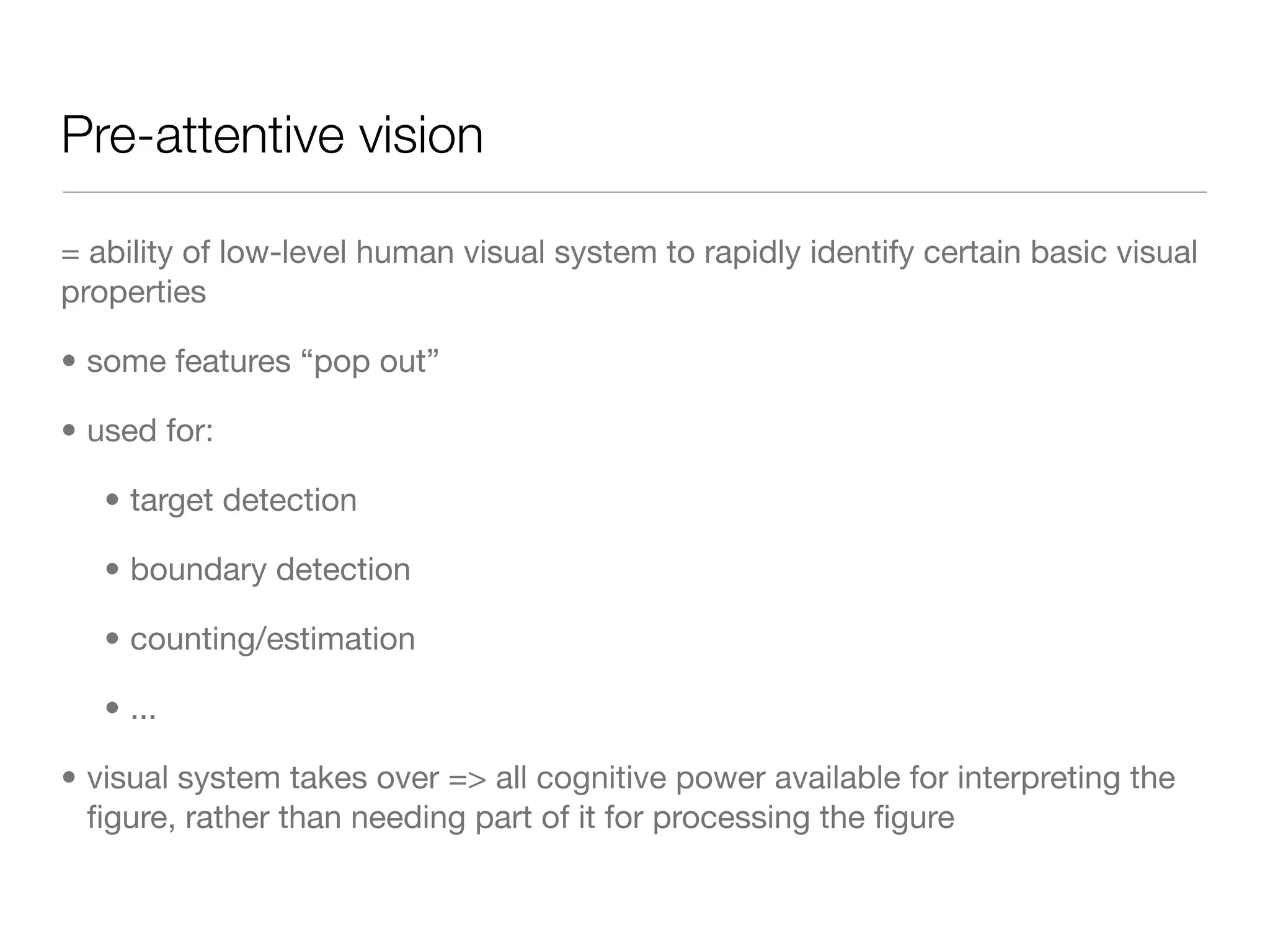

Pre-attentive vision

= ability of low-level human visual system to rapidly identify certain basic visual
properties

• some features “pop out”

• used for:

   • target detection

   • boundary detection

   • counting/estimation

   • ...

• visual system takes over => all cognitive power available for interpreting the
  figure, rather than needing part of it for processing the figure

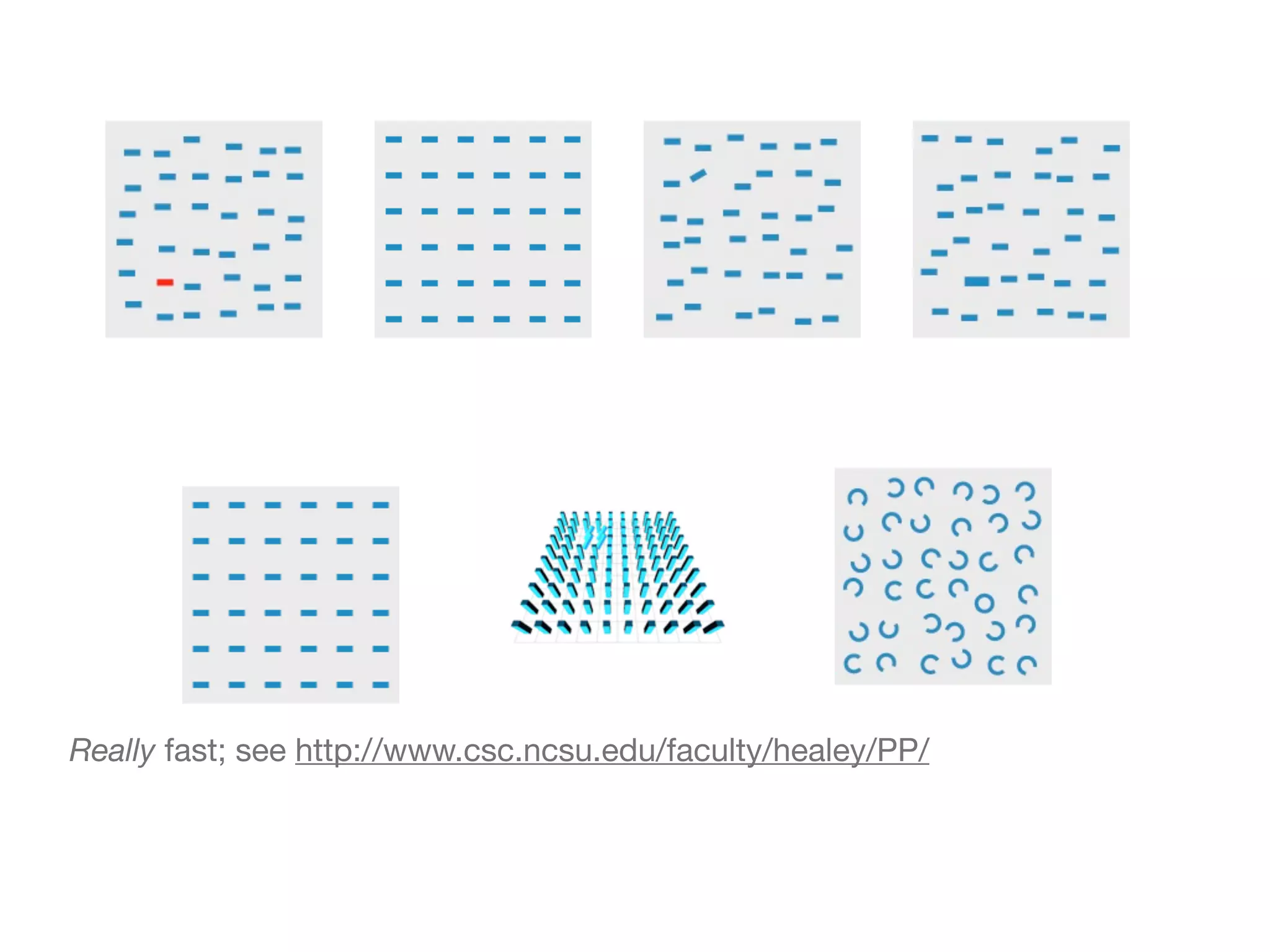

Really fast; see http://www.csc.ncsu.edu/faculty/healey/PP/

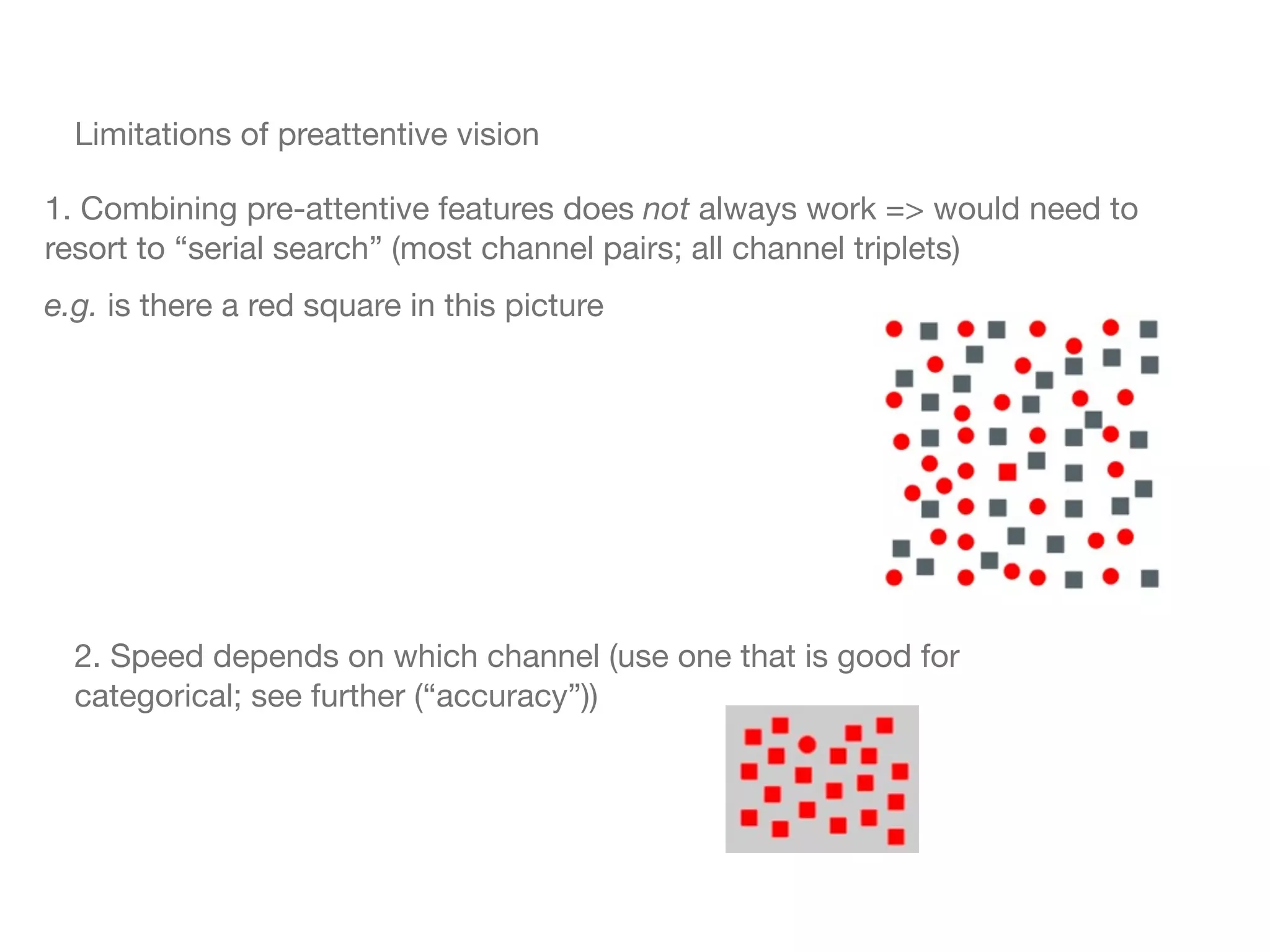

Limitations of preattentive vision

1. Combining pre-attentive features does not always work => would need to
resort to “serial search” (most channel pairs; all channel triplets)
e.g. is there a red square in this picture




  2. Speed depends on which channel (use one that is good for
  categorical; see further (“accuracy”))

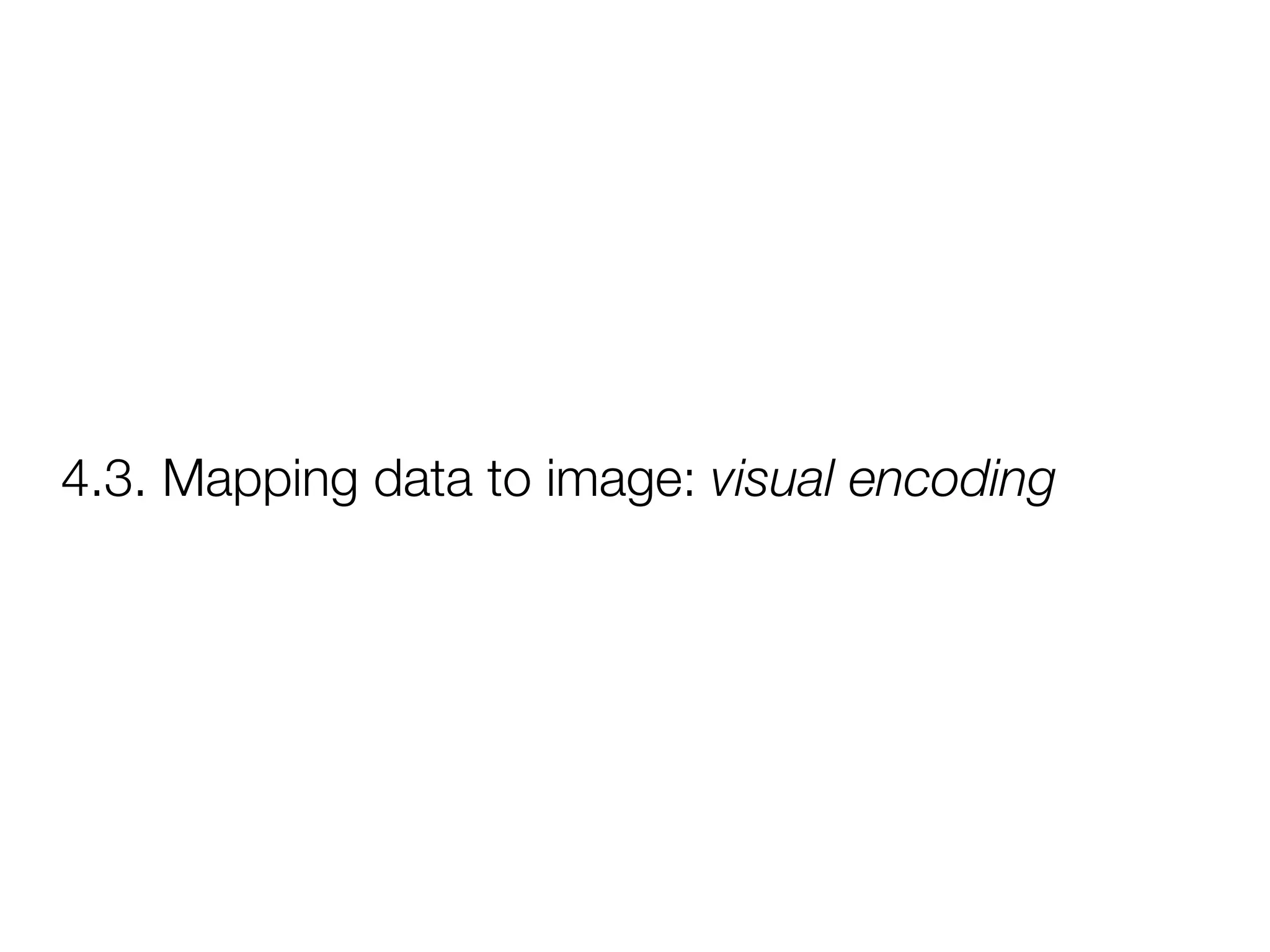

4.3. Mapping data to image: visual encoding

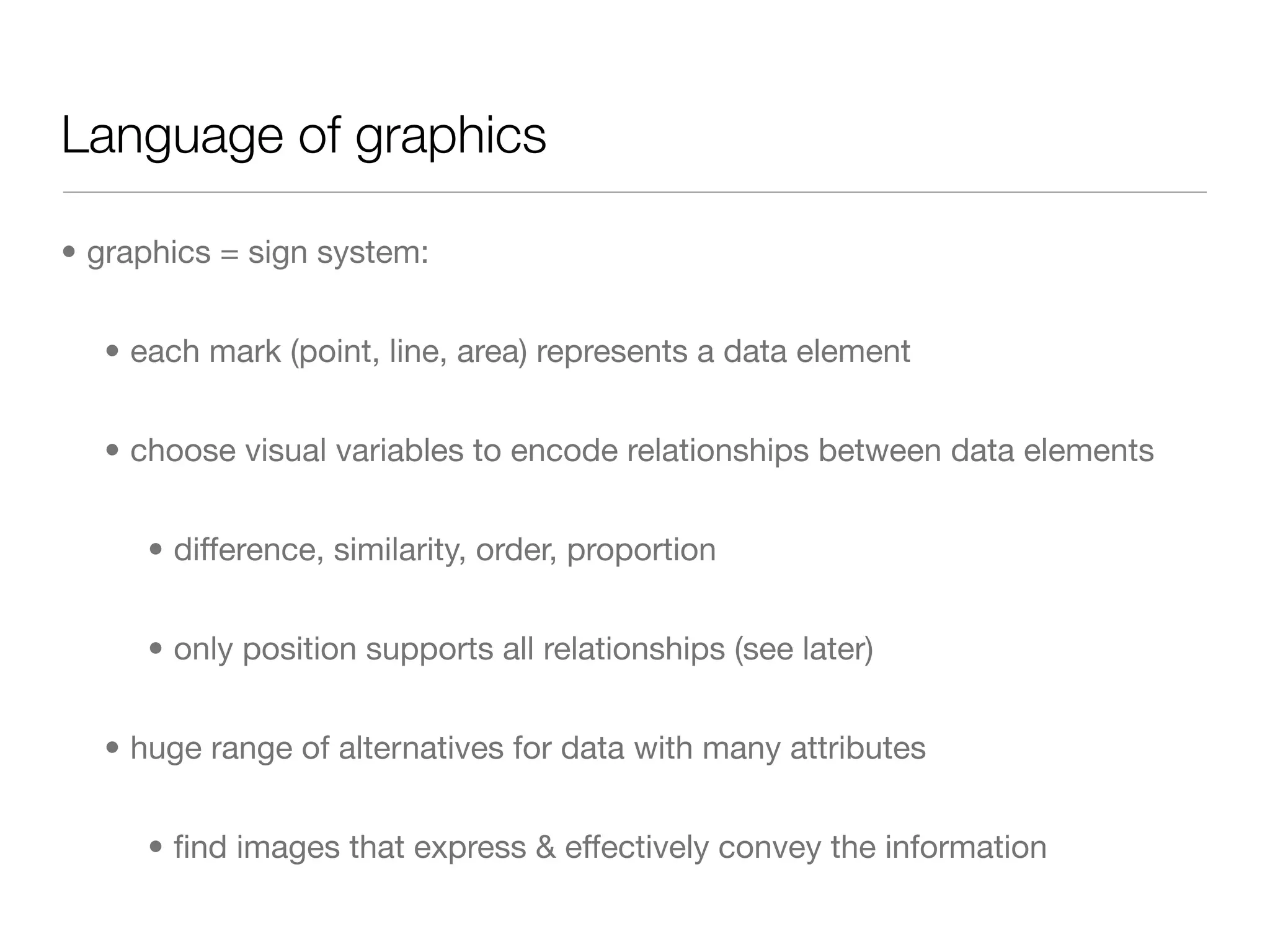

Language of graphics

• graphics = sign system:


  • each mark (point, line, area) represents a data element


  • choose visual variables to encode relationships between data elements


     • difference, similarity, order, proportion


     • only position supports all relationships (see later)


  • huge range of alternatives for data with many attributes


     • find images that express & effectively convey the information

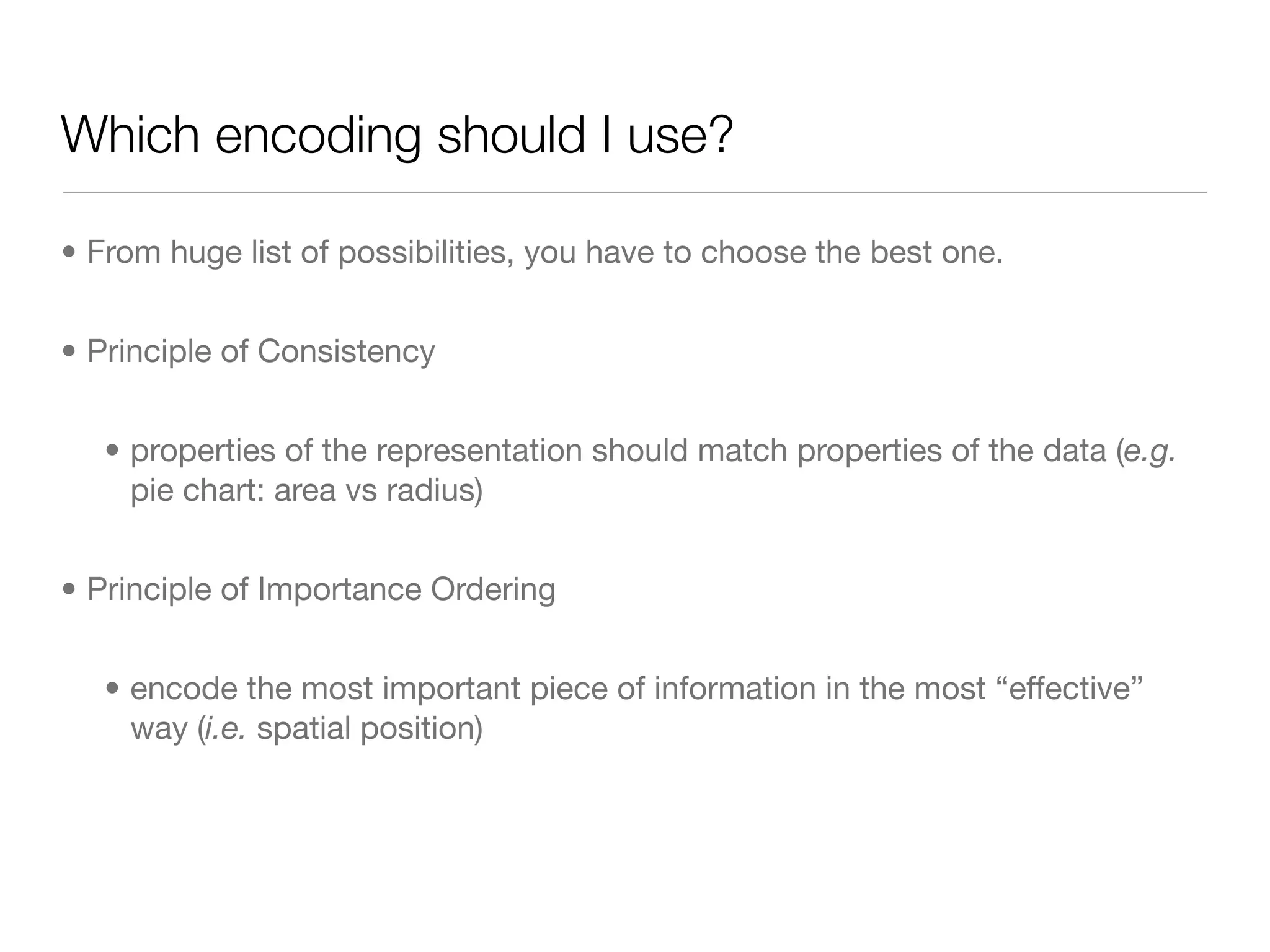

Which encoding should I use?

• From huge list of possibilities, you have to choose the best one.


• Principle of Consistency


   • properties of the representation should match properties of the data (e.g.
     pie chart: area vs radius)


• Principle of Importance Ordering


   • encode the most important piece of information in the most “effective”
     way (i.e. spatial position)
Intro to data visualization

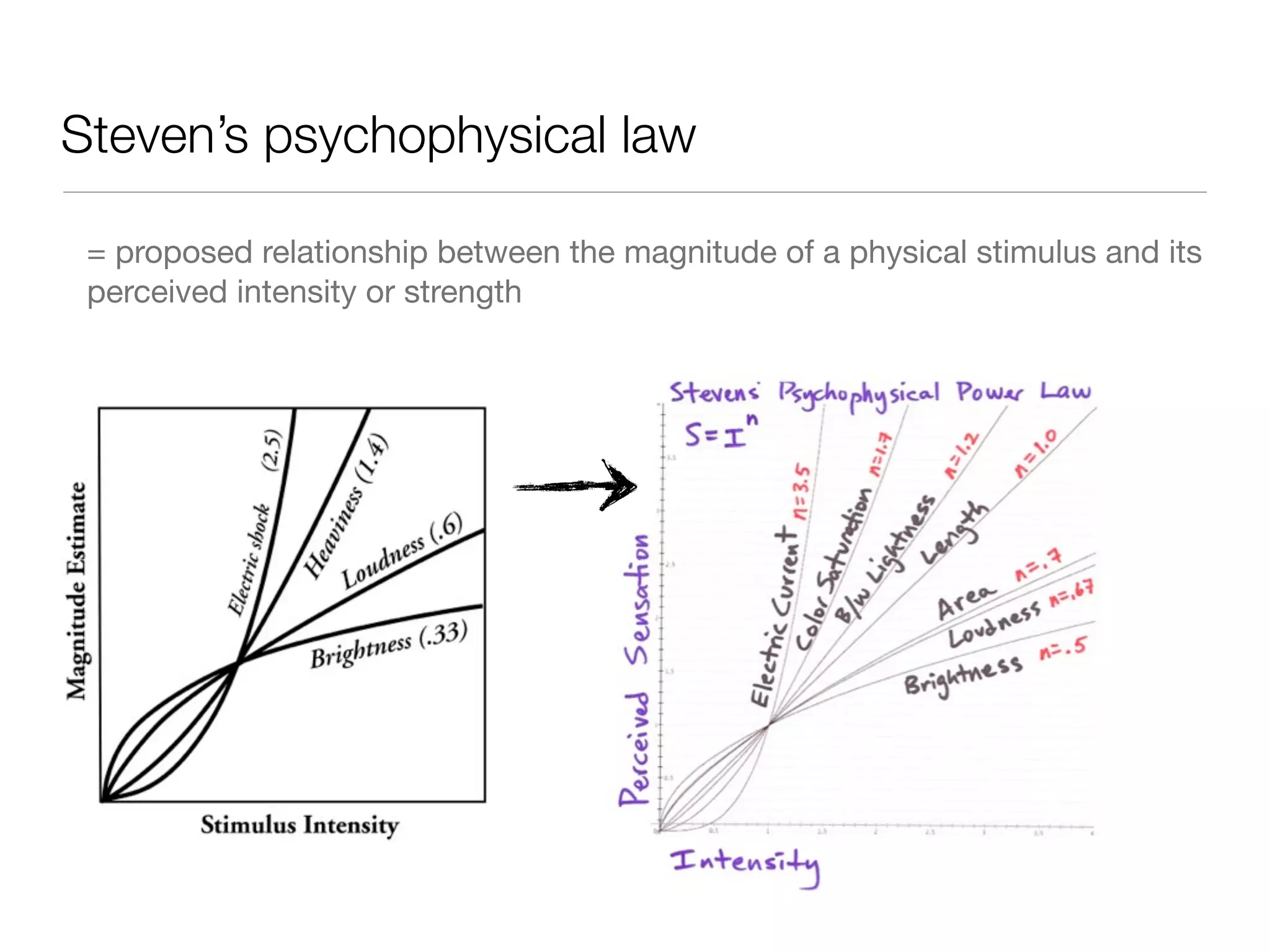

Steven’s psychophysical law

 = proposed relationship between the magnitude of a physical stimulus and its
 perceived intensity or strength

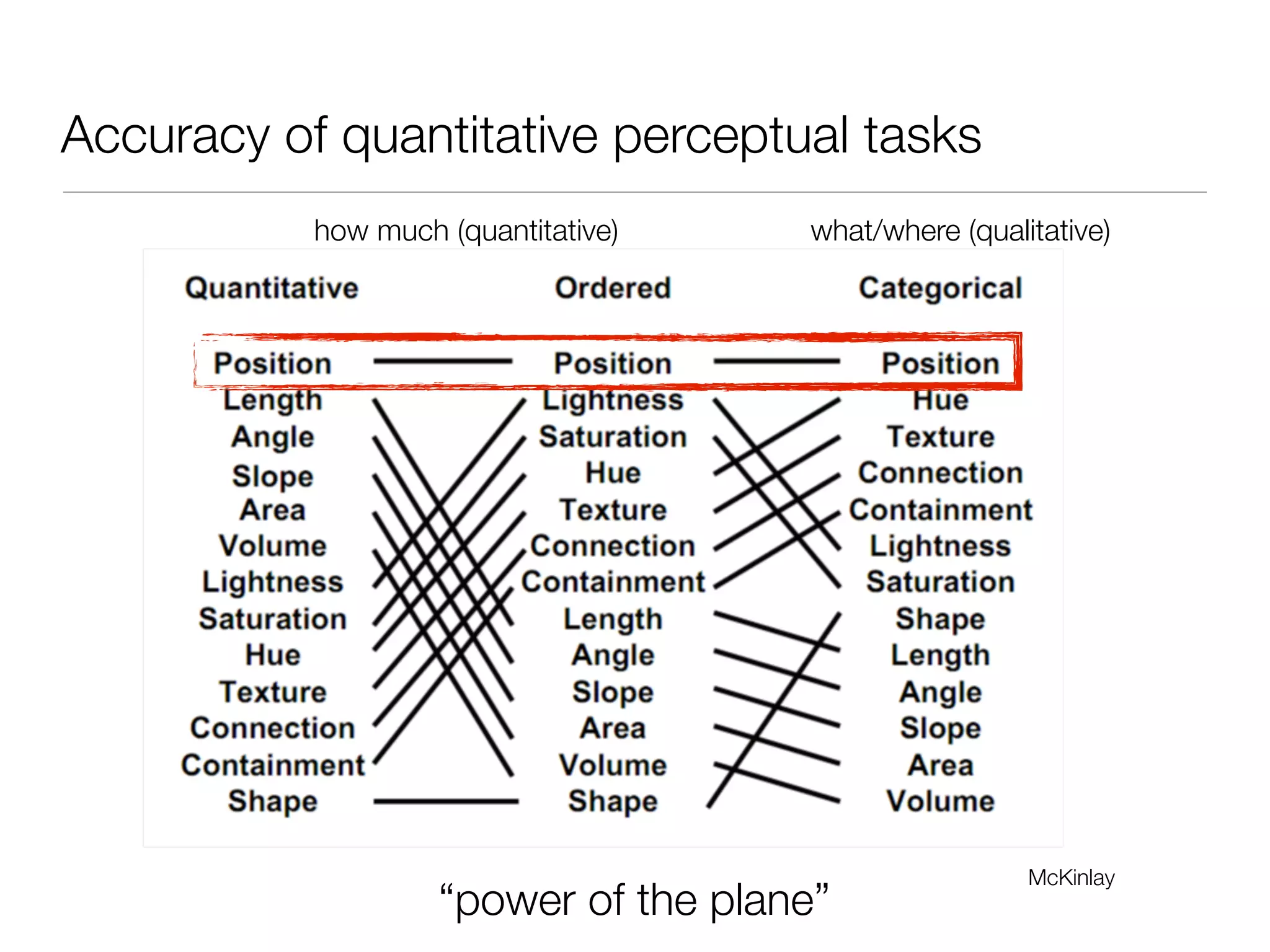

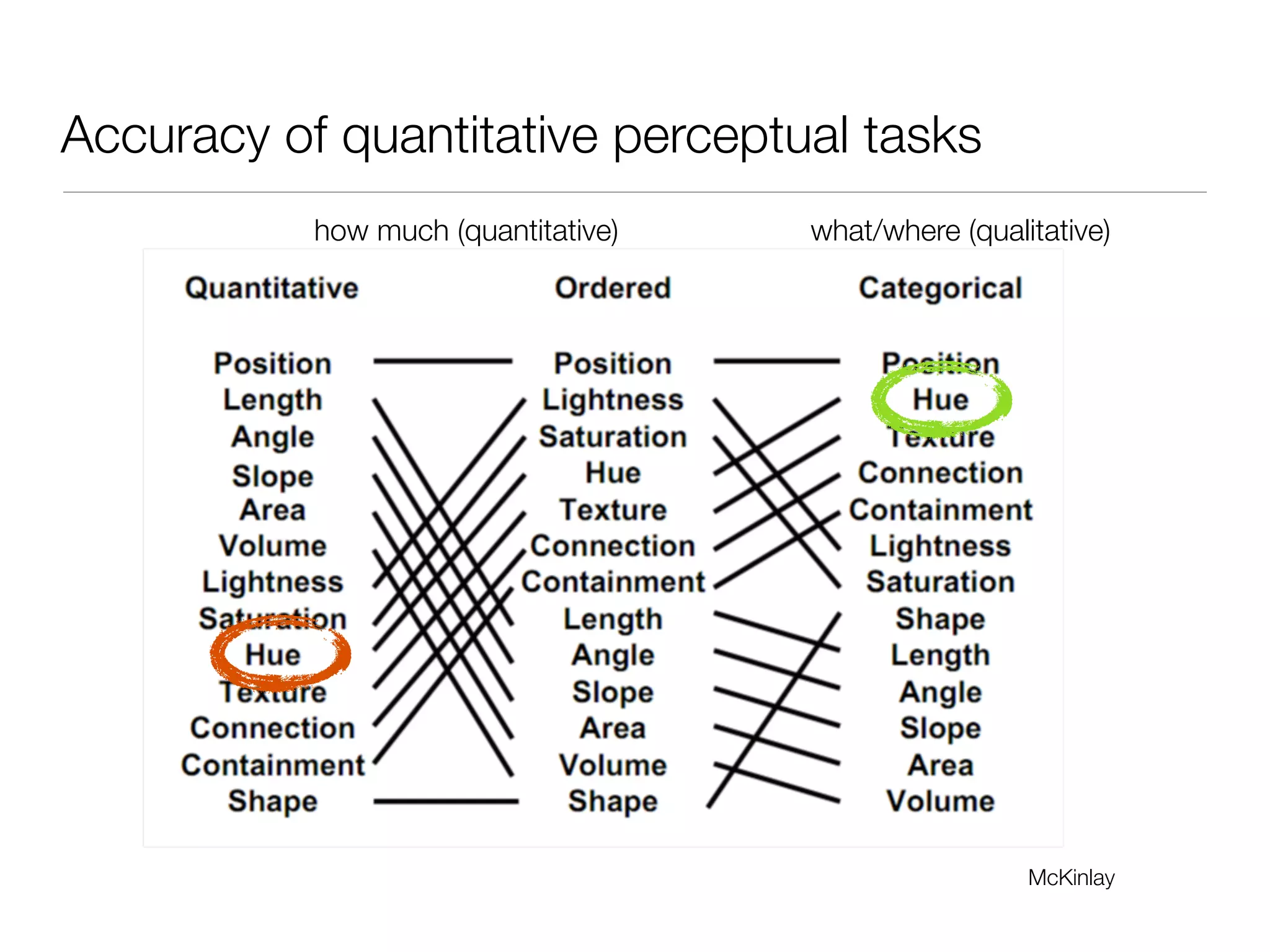

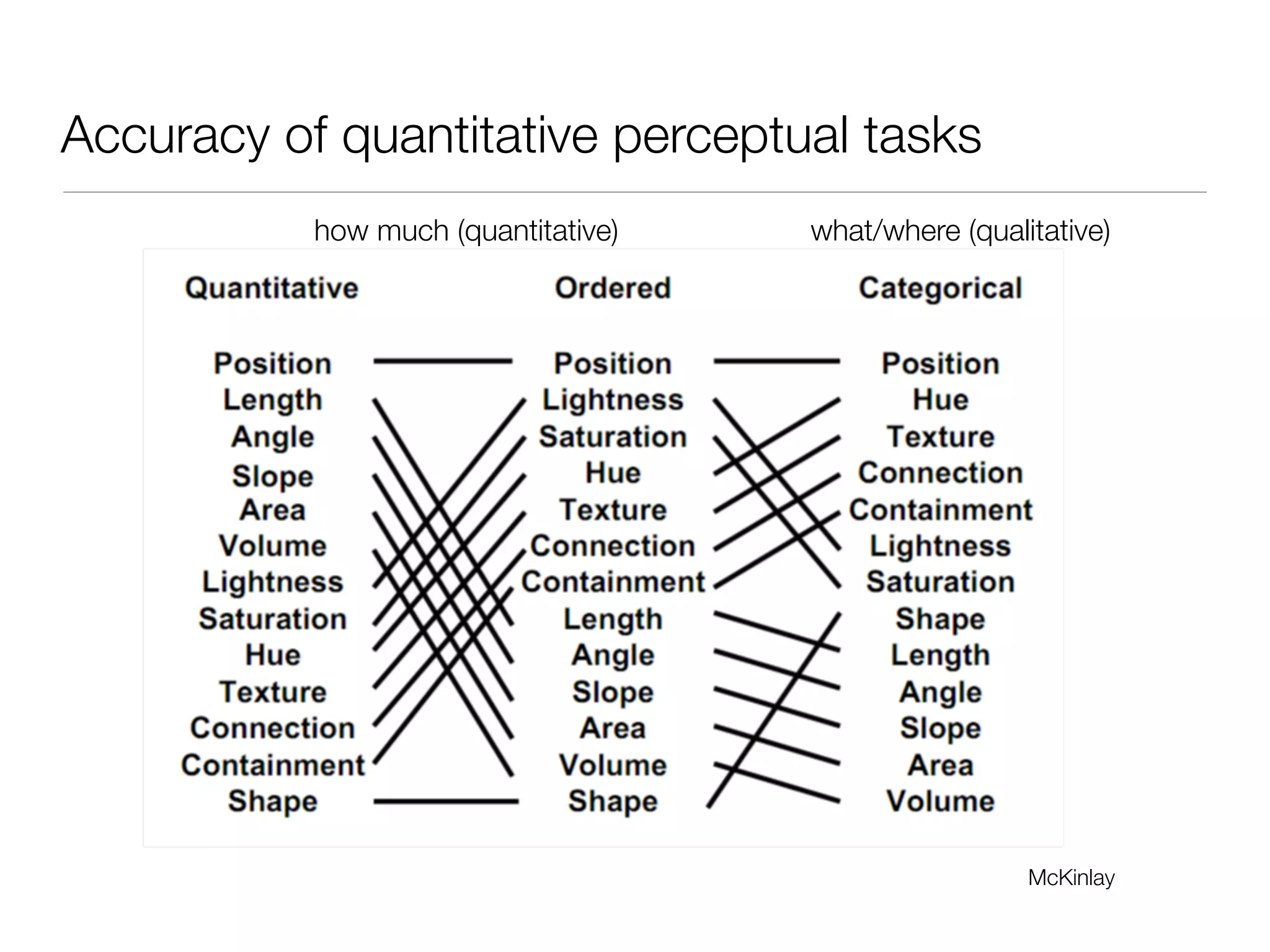

Accuracy of quantitative perceptual tasks
           how much (quantitative)   what/where (qualitative)




                                                      McKinlay
Accuracy of quantitative perceptual tasks
           how much (quantitative)   what/where (qualitative)




                                                      McKinlay
Accuracy of quantitative perceptual tasks
           how much (quantitative)    what/where (qualitative)




                                                       McKinlay
                    “power of the plane”

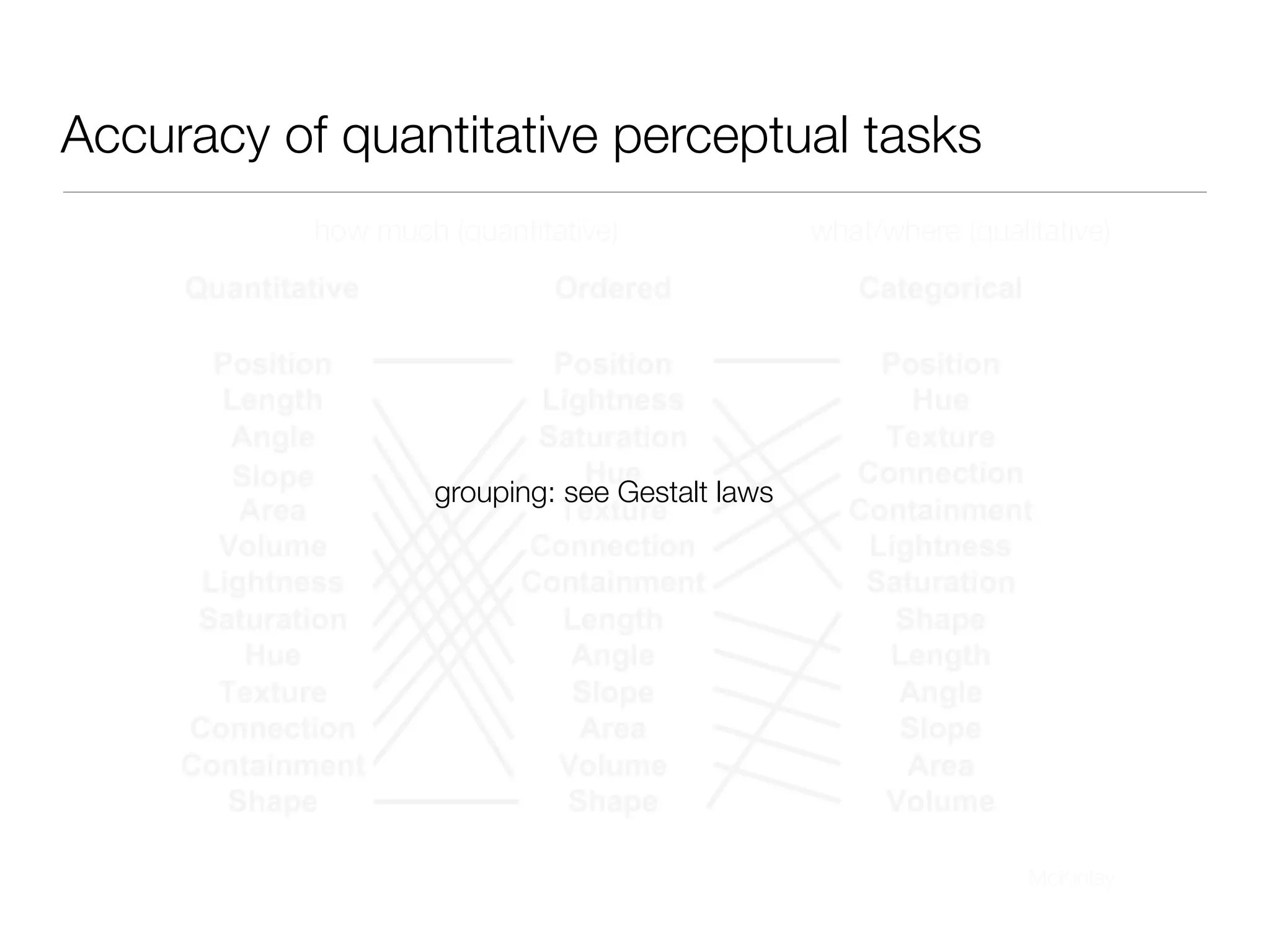

Accuracy of quantitative perceptual tasks
           how much (quantitative)               what/where (qualitative)




                    grouping: see Gestalt laws




                                                                  McKinlay

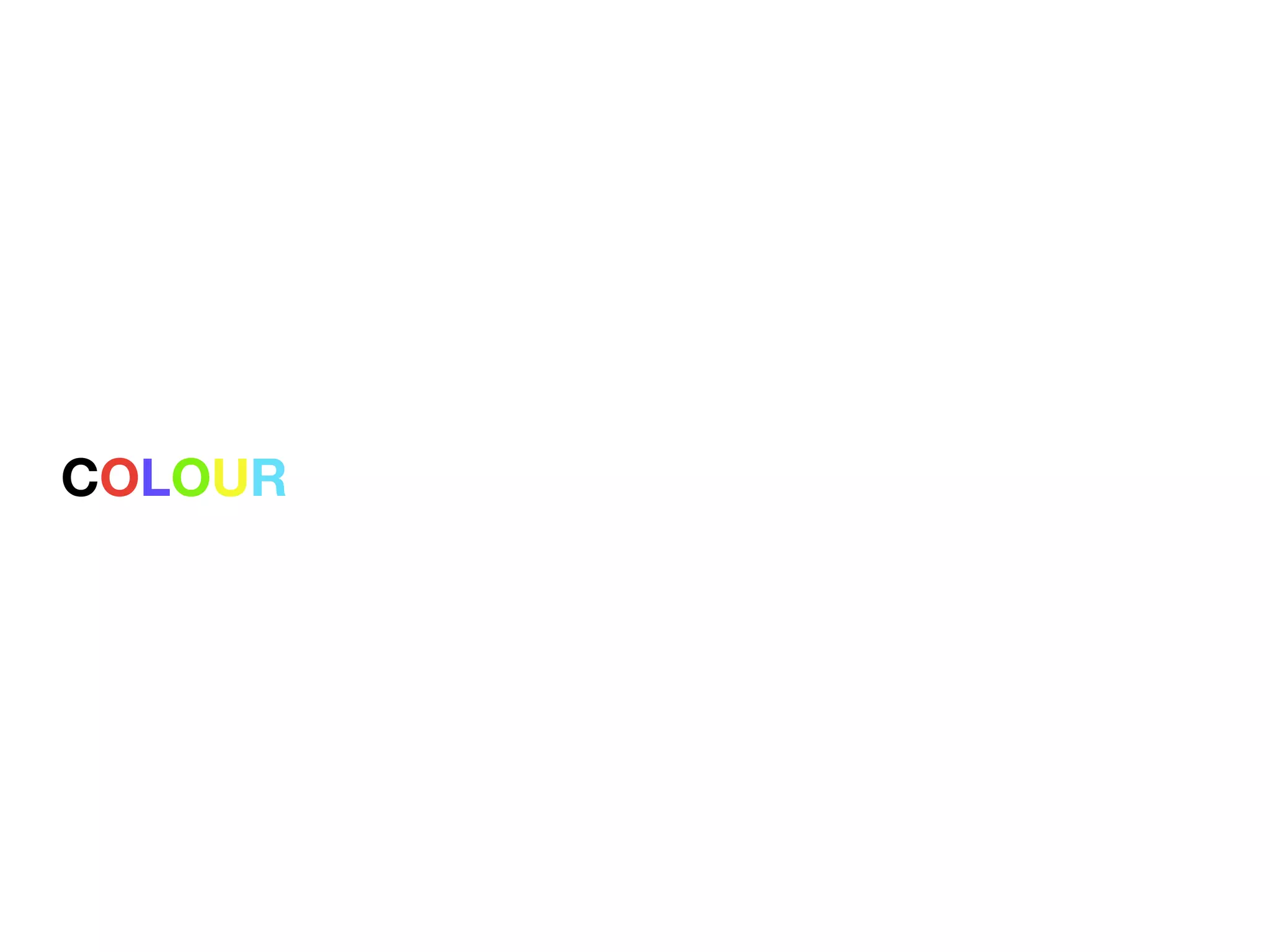

COLOUR

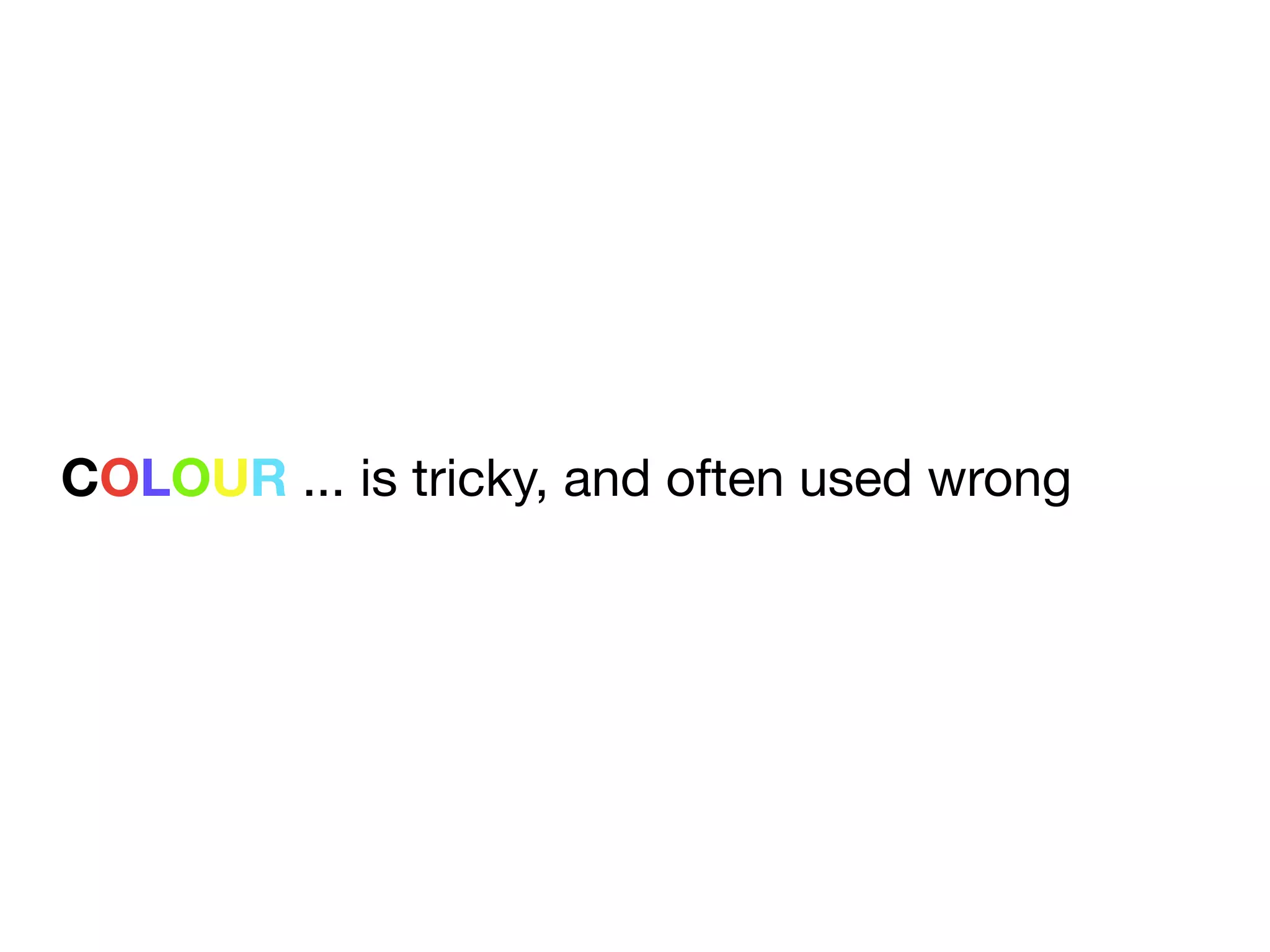

COLOUR ... is tricky, and often used wrong

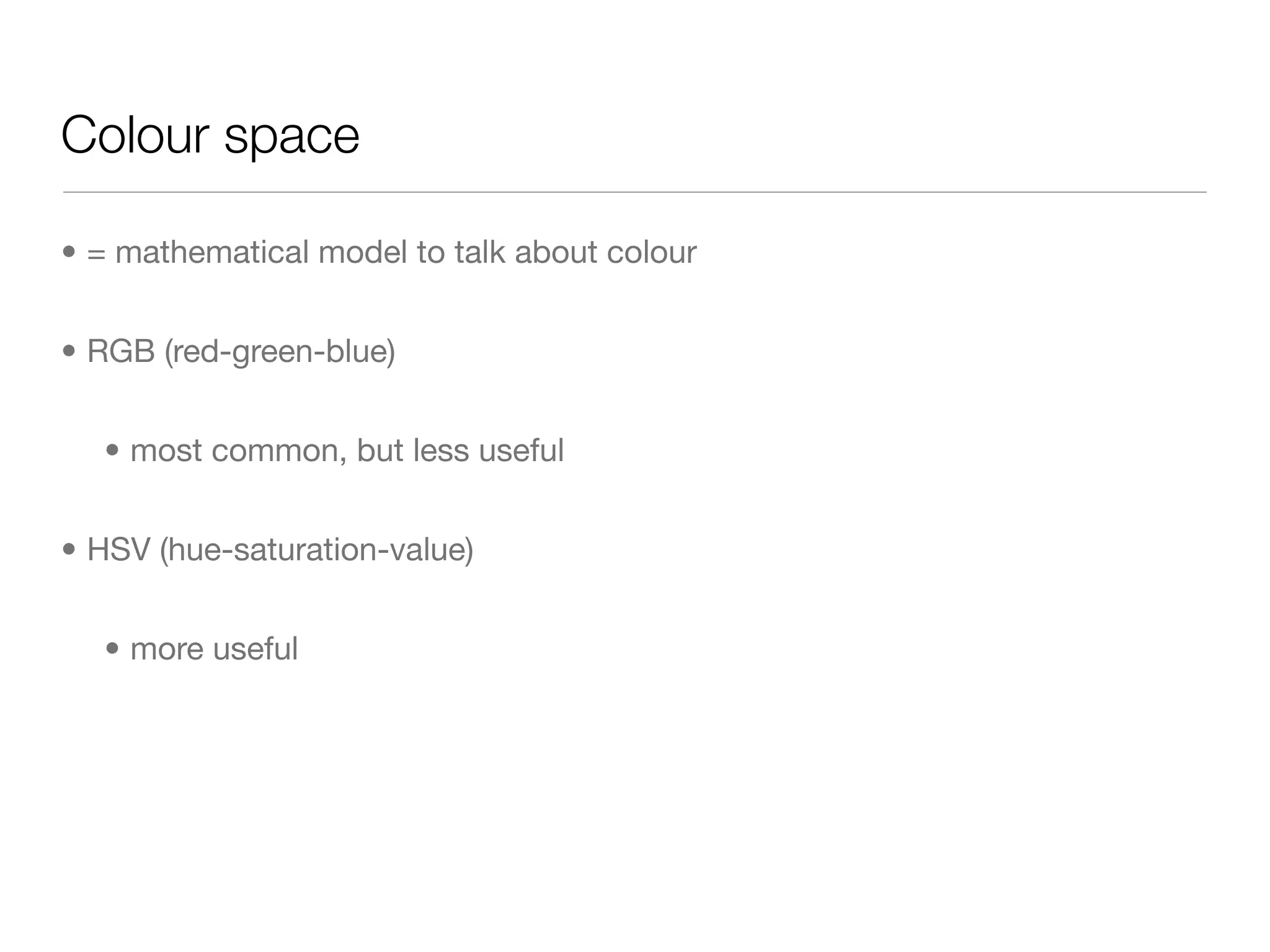

Colour space

• = mathematical model to talk about colour


• RGB (red-green-blue)


  • most common, but less useful


• HSV (hue-saturation-value)


  • more useful

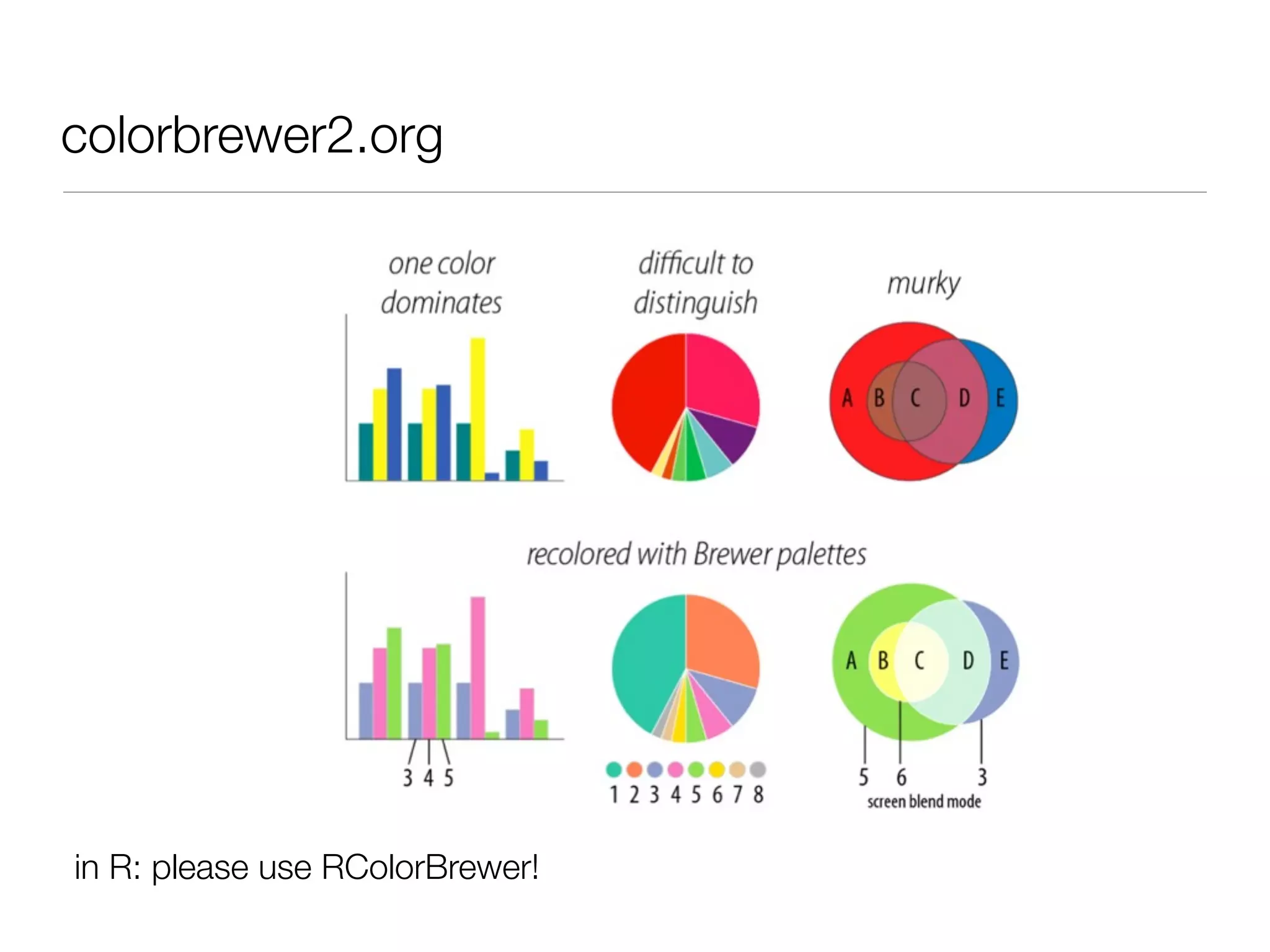

colorbrewer2.org




in R: please use RColorBrewer!

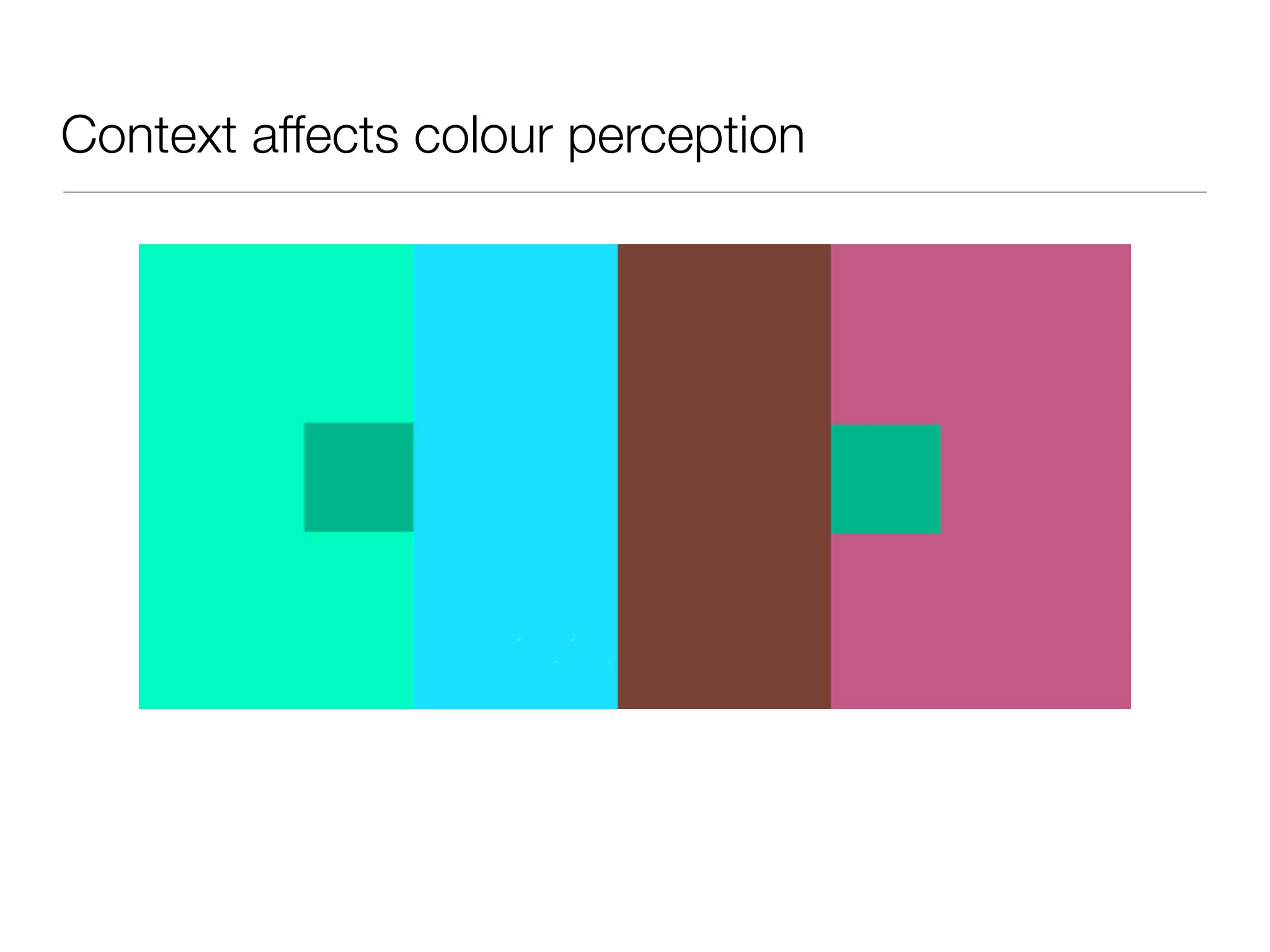

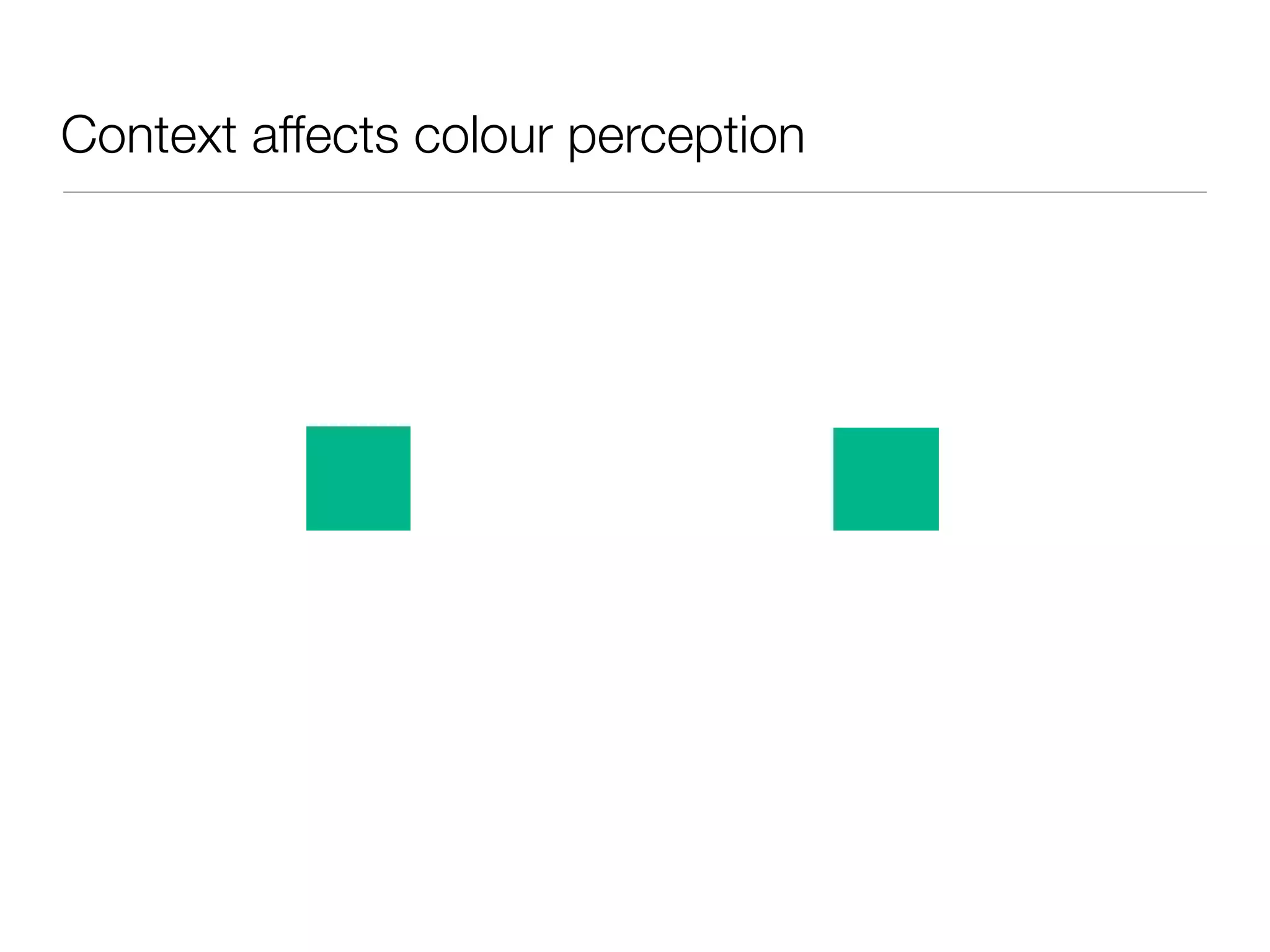

Context affects colour perception
Context affects colour perception

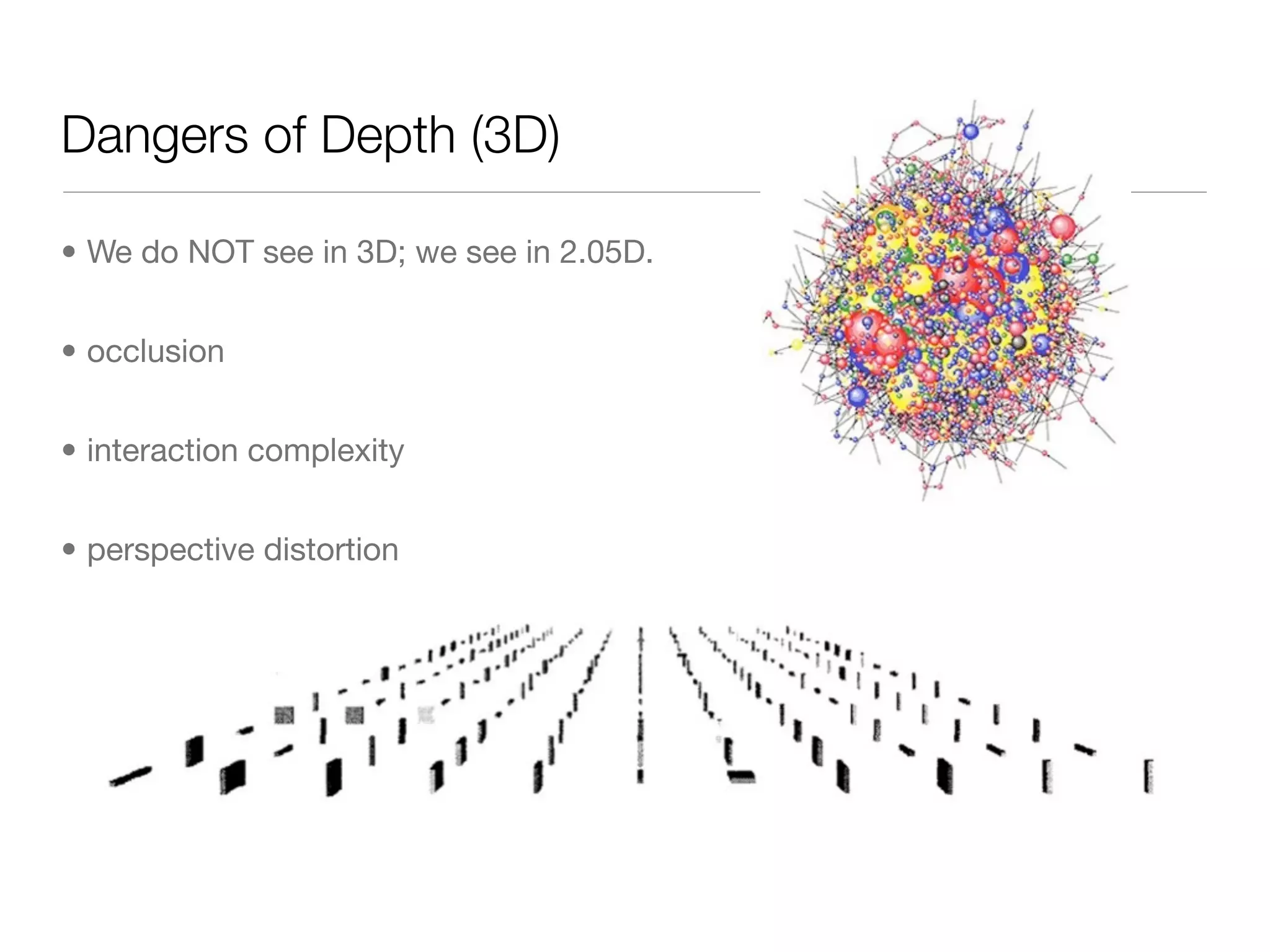

Dangers of Depth (3D)

• We do NOT see in 3D; we see in 2.05D.


• occlusion


• interaction complexity


• perspective distortion

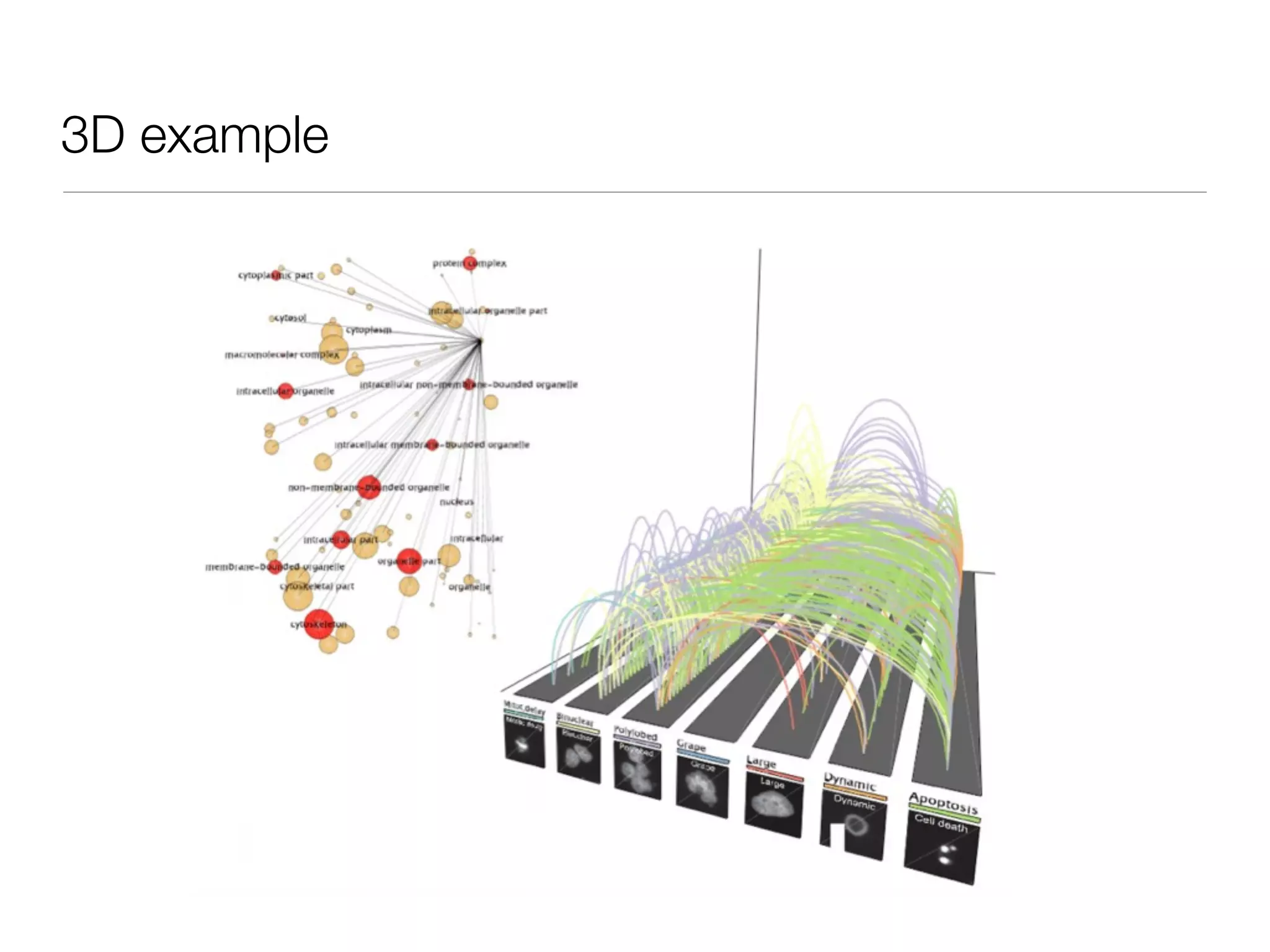

3D example

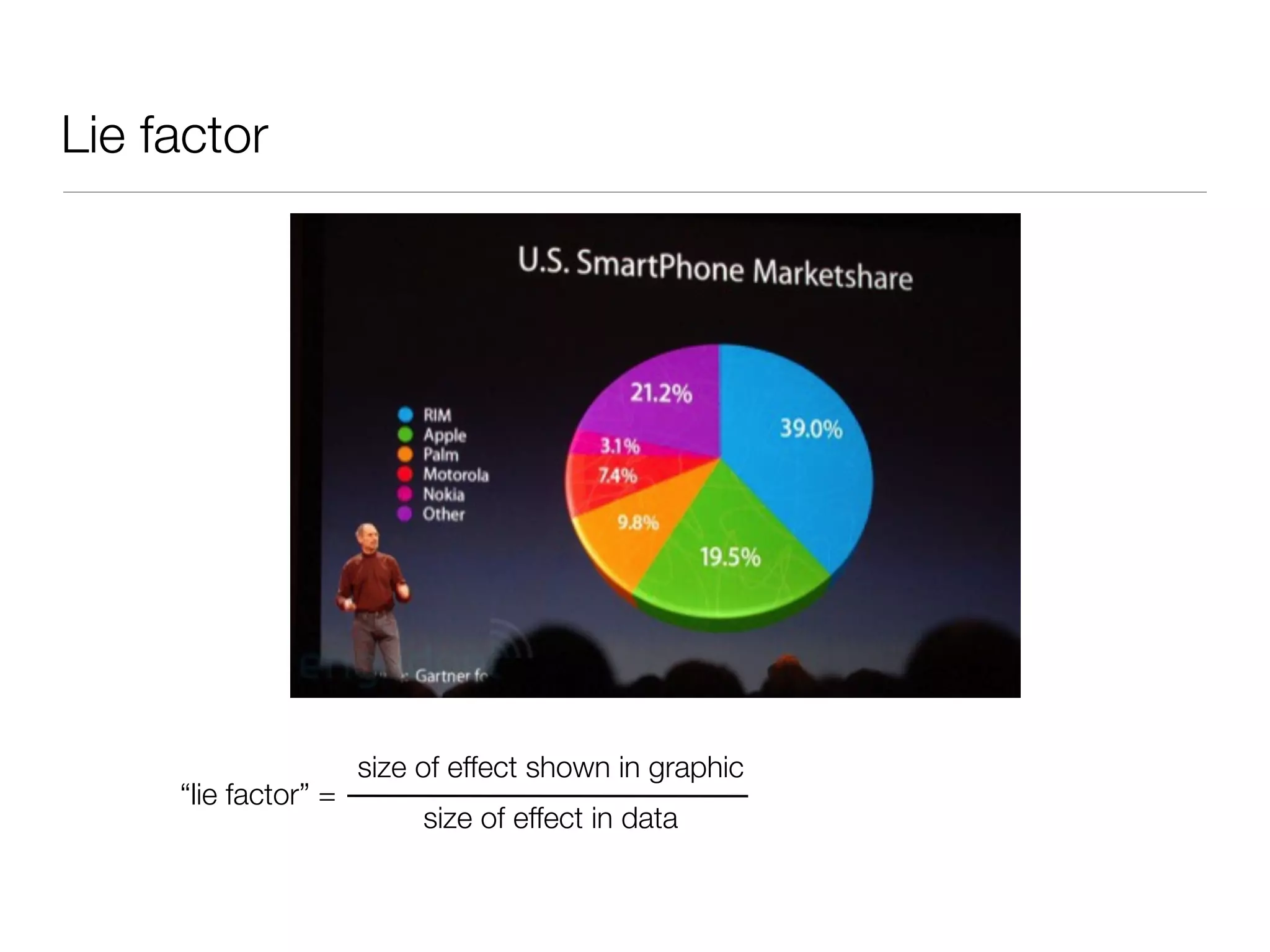

Lie factor




                      size of effect shown in graphic
     “lie factor” =
                           size of effect in data

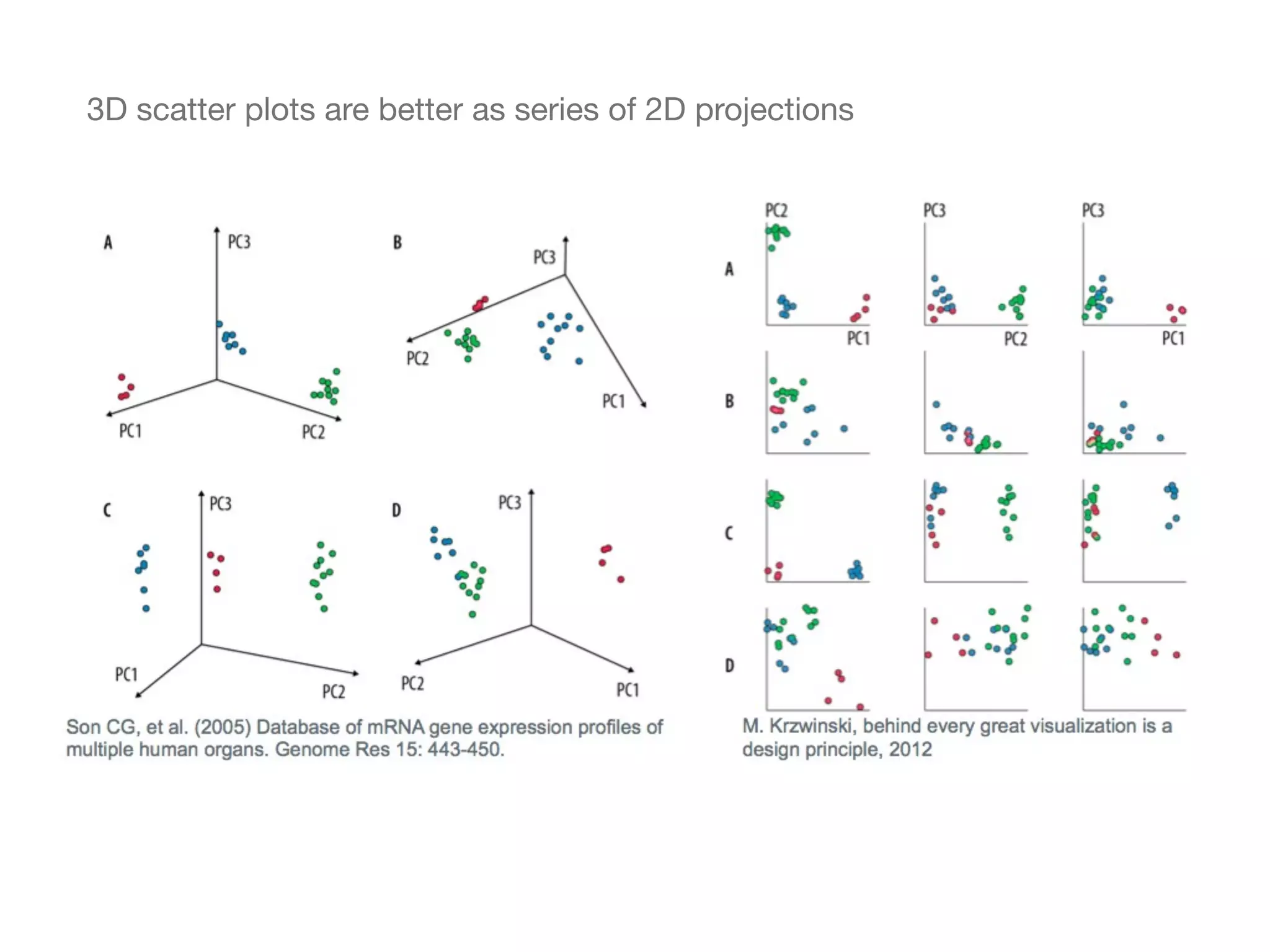

3D scatter plots are better as series of 2D projections

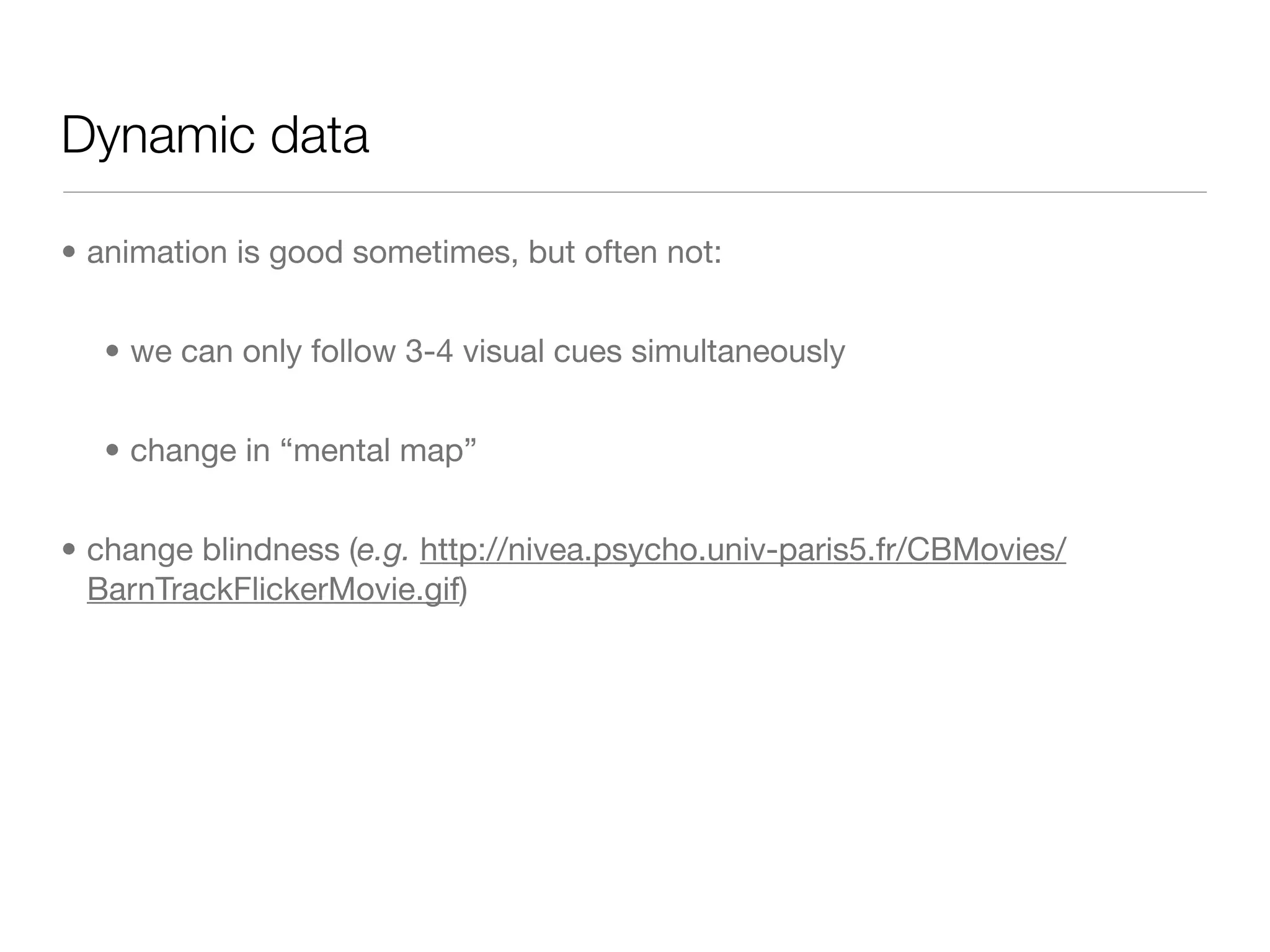

Dynamic data

• animation is good sometimes, but often not:


  • we can only follow 3-4 visual cues simultaneously


  • change in “mental map”


• change blindness (e.g. http://nivea.psycho.univ-paris5.fr/CBMovies/
  BarnTrackFlickerMovie.gif)

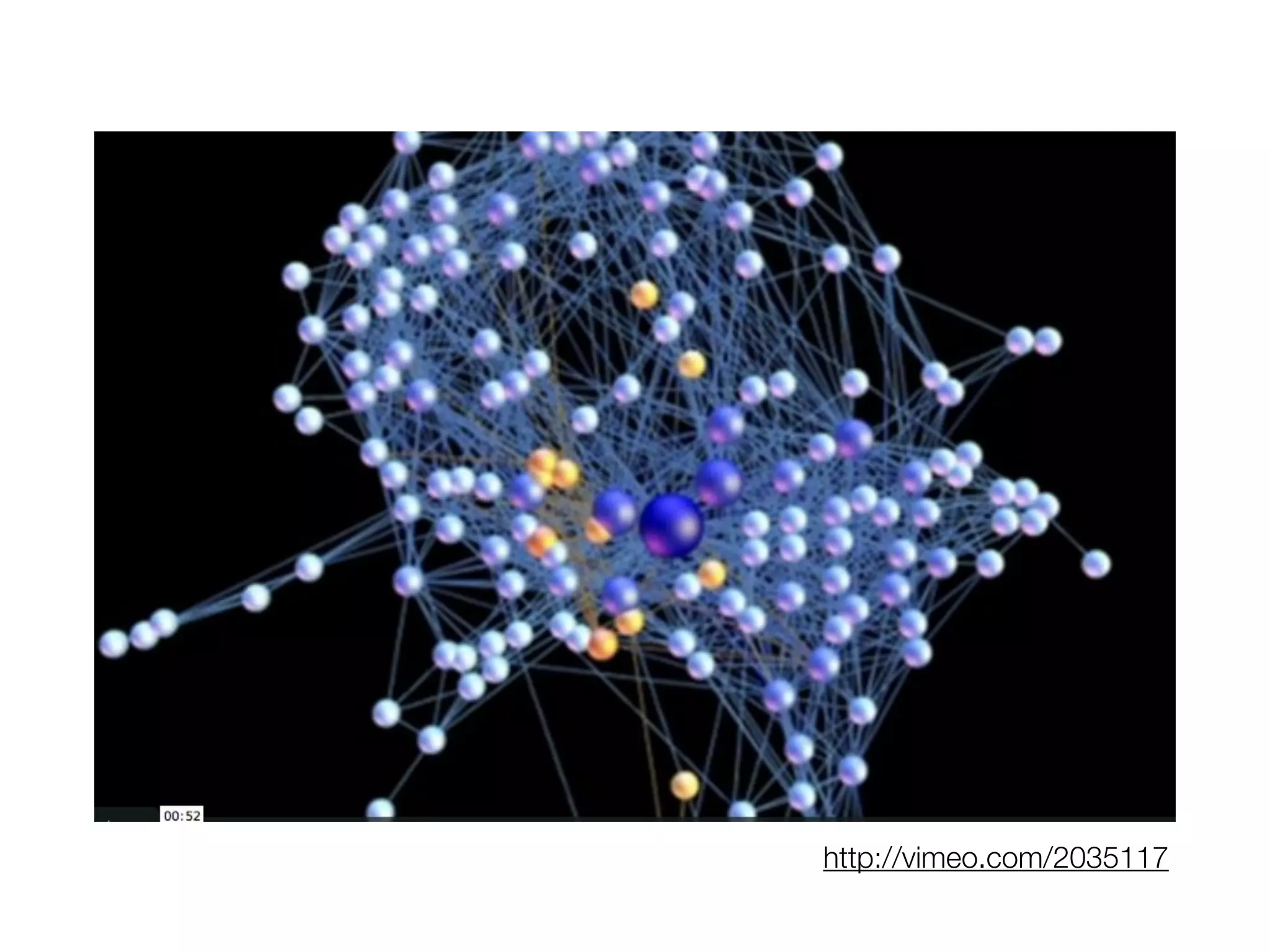

http://vimeo.com/2035117
Intro to data visualization
5. Interaction

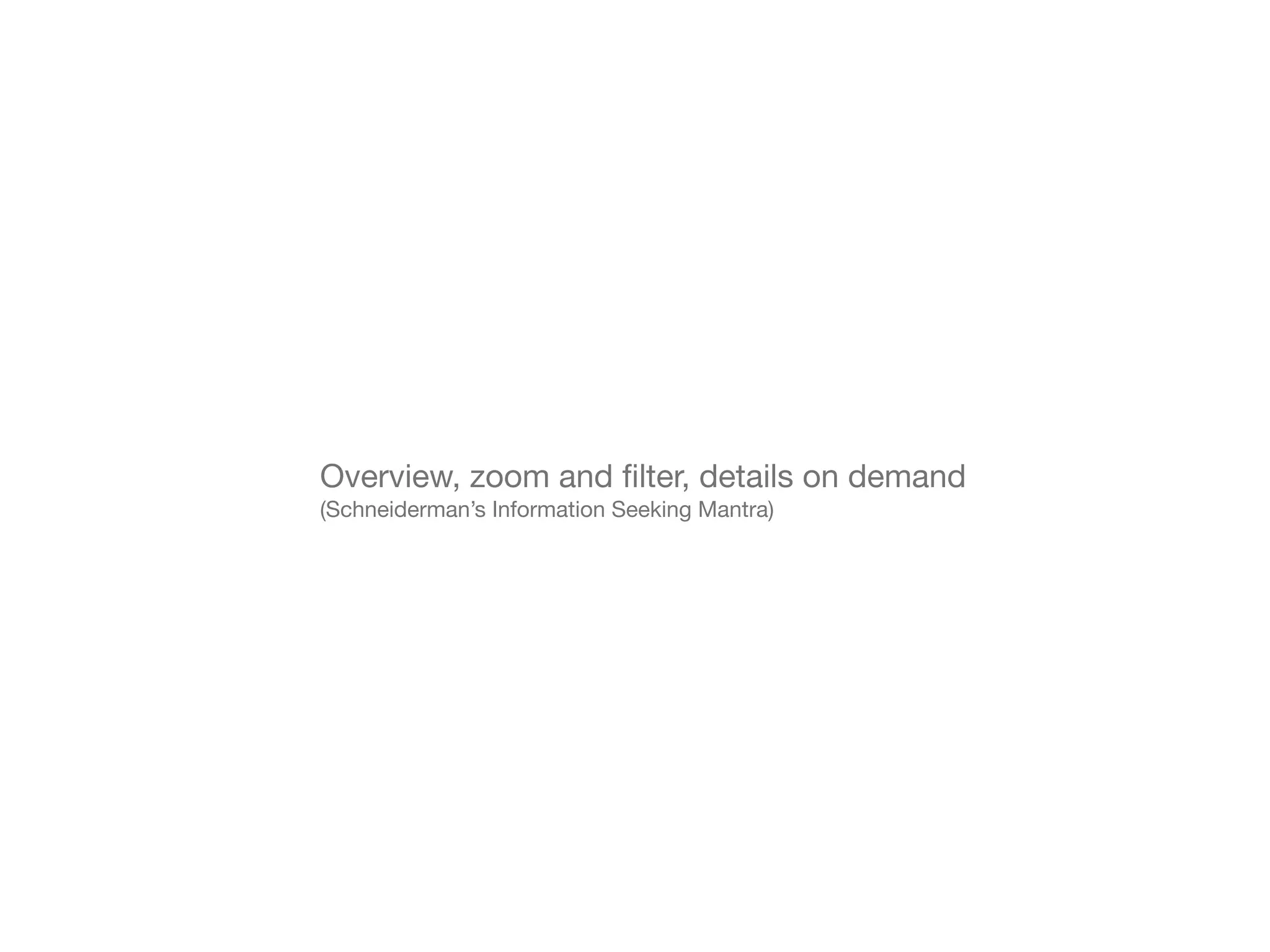

Overview, zoom and filter, details on demand
(Schneiderman’s Information Seeking Mantra)

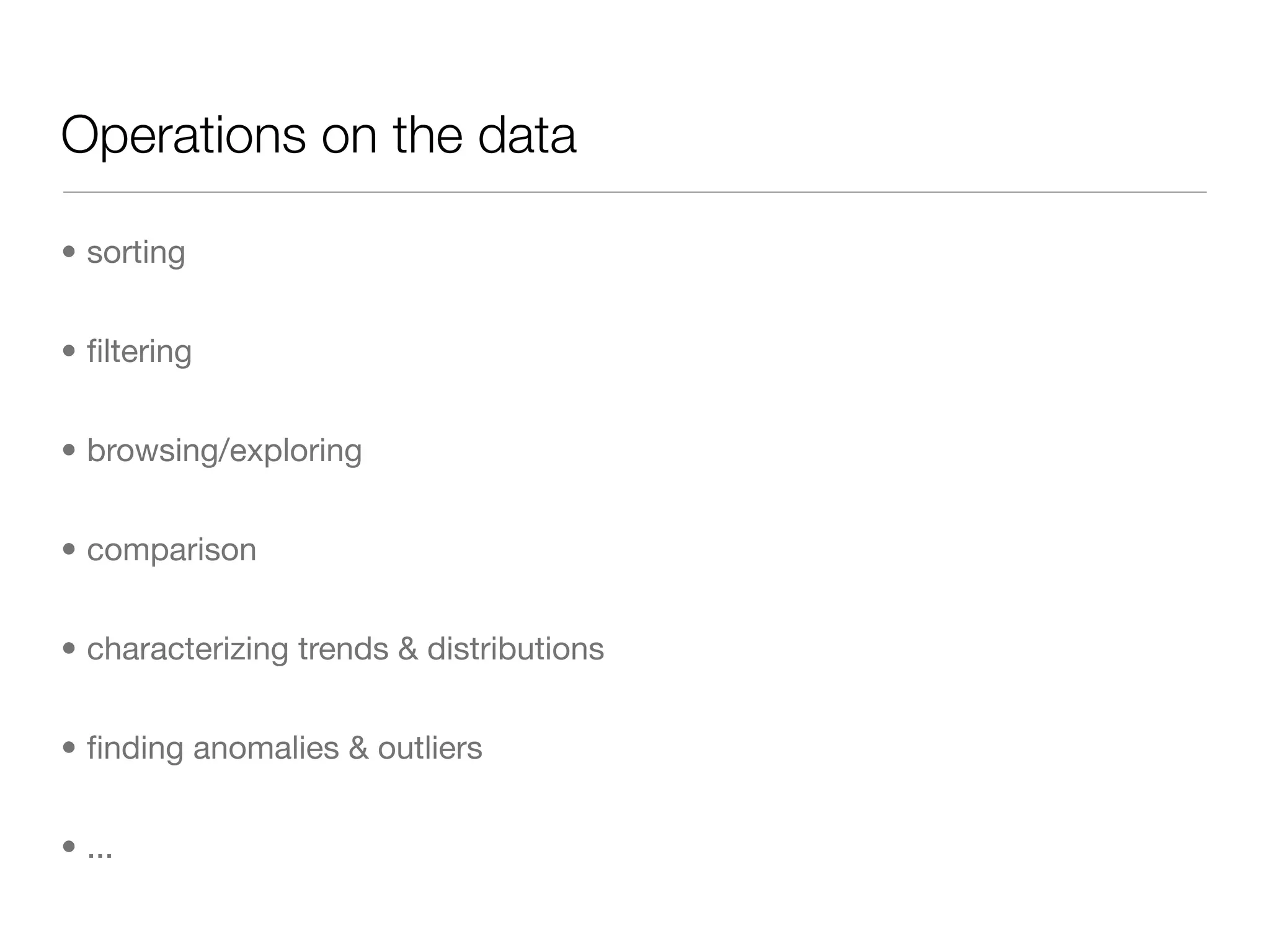

Operations on the data

• sorting


• filtering


• browsing/exploring


• comparison


• characterizing trends & distributions


• finding anomalies & outliers


• ...
Techniques to support these operations

• re-orderable matrices


• brushing


• linked views


• overview & detail


• focus & context


• ...

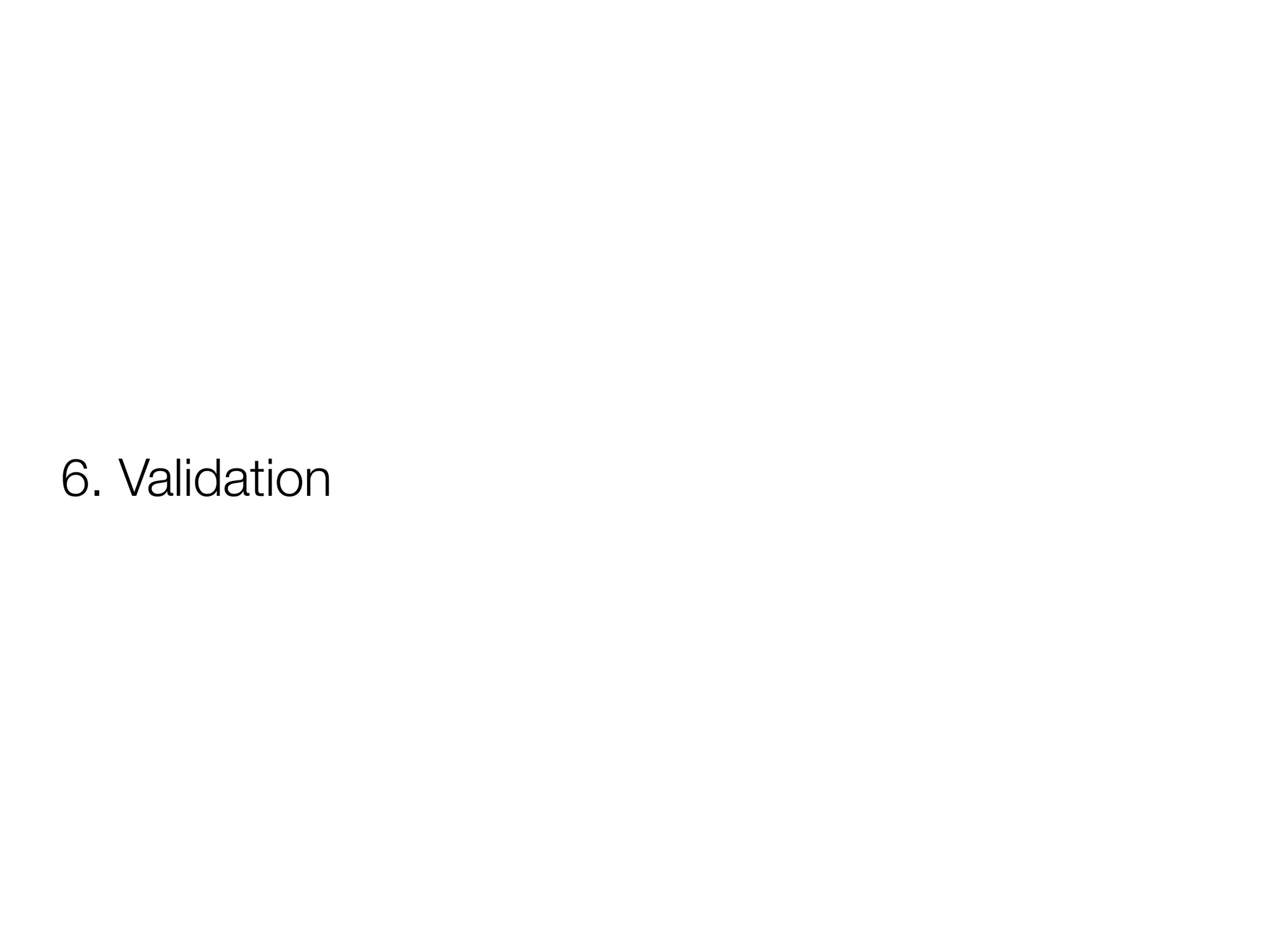

6. Validation

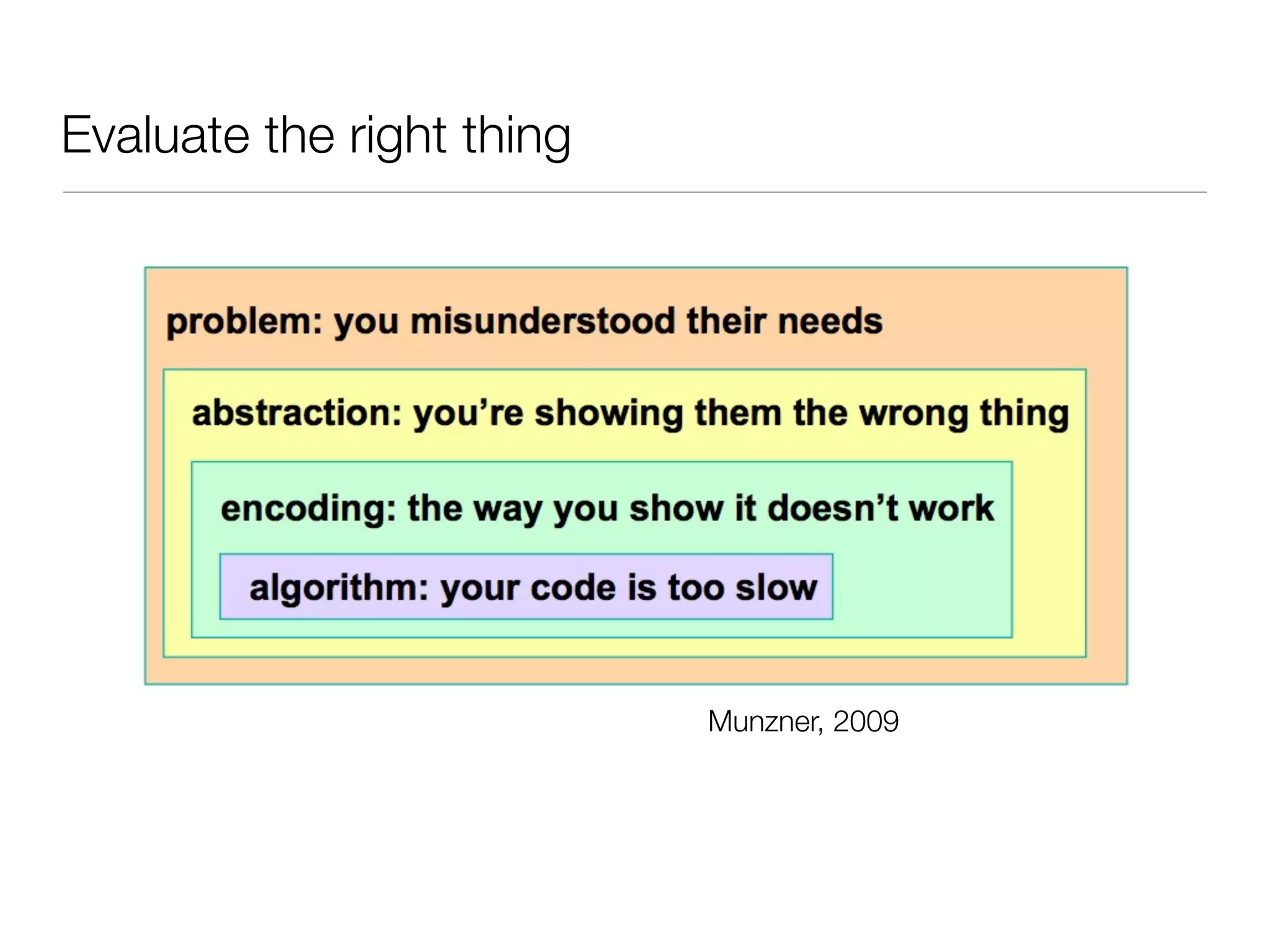

Evaluate the right thing




                           Munzner, 2009

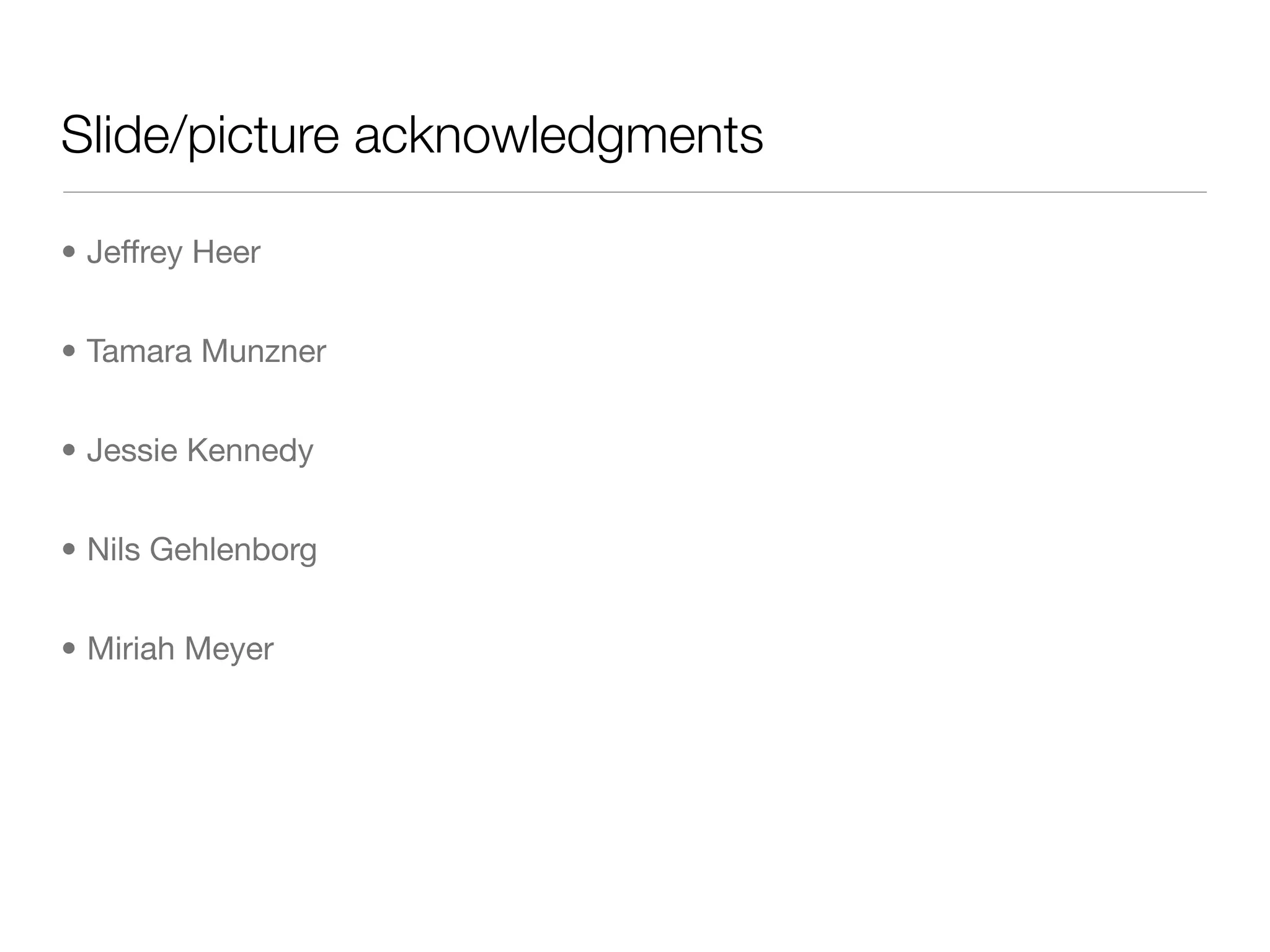

Slide/picture acknowledgments

• Jeffrey Heer


• Tamara Munzner


• Jessie Kennedy


• Nils Gehlenborg


• Miriah Meyer

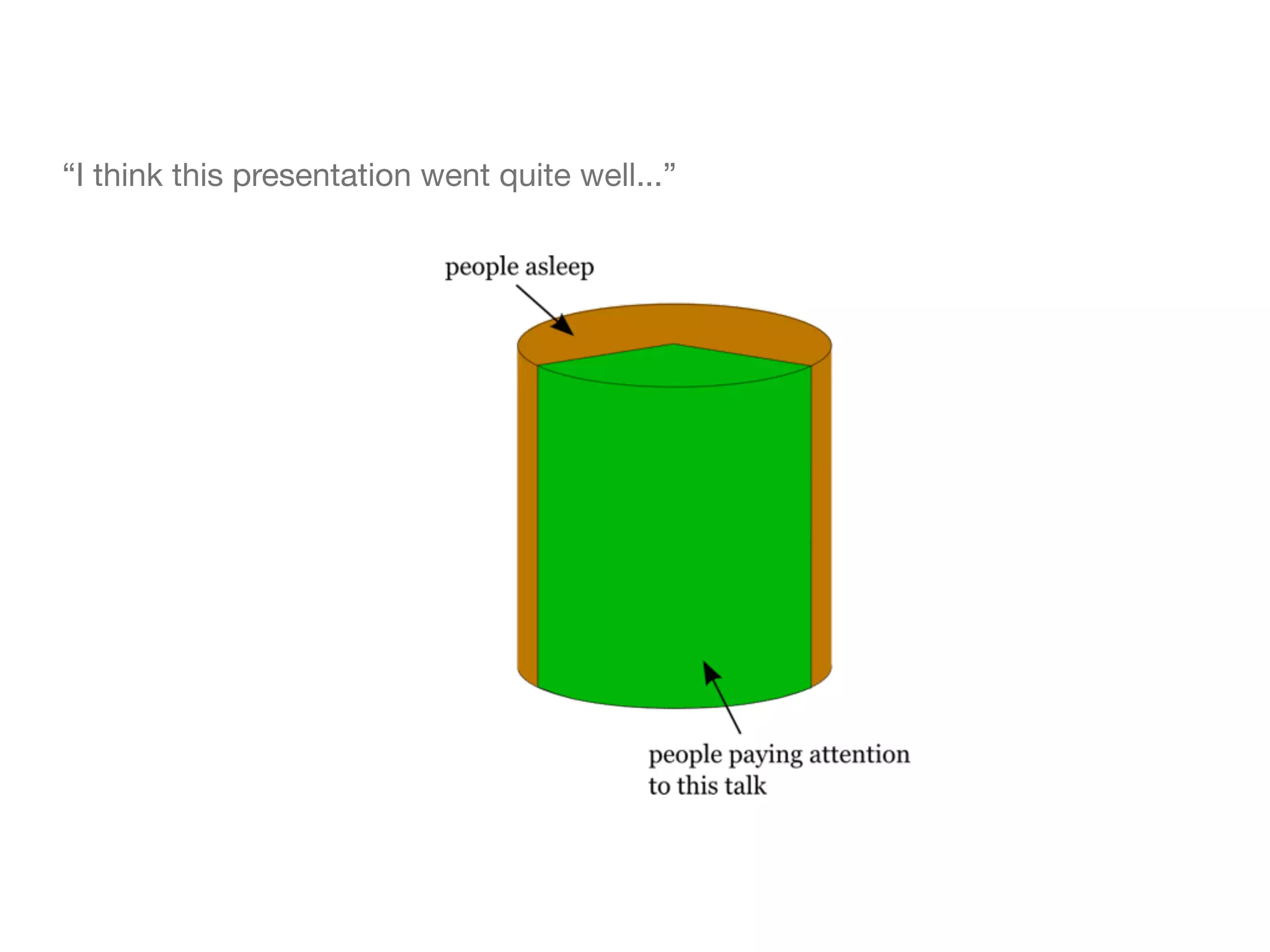

“I think this presentation went quite well...”
