Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot

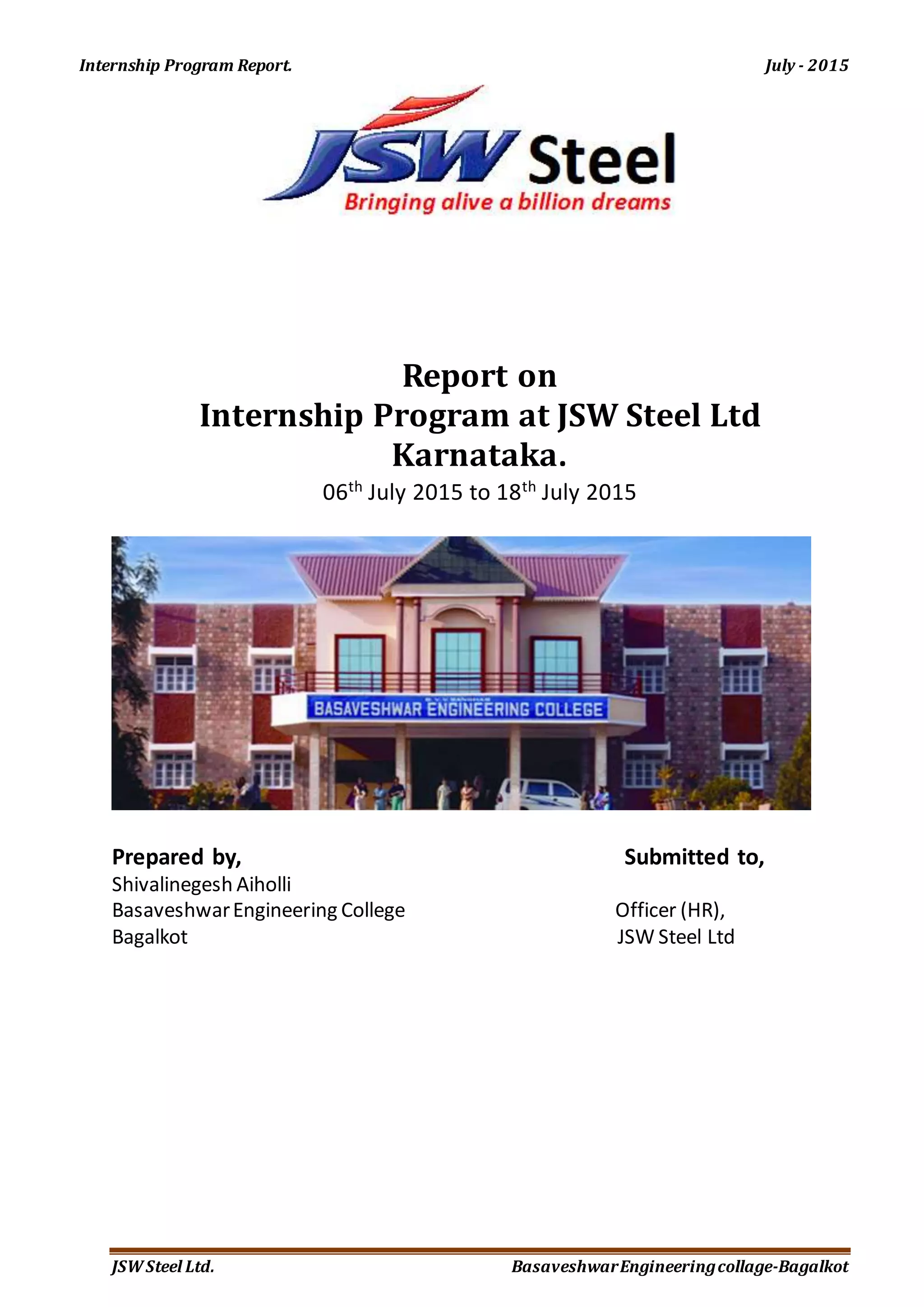

Report on
Internship Program at JSW Steel Ltd
Karnataka.
06th
July 2015 to 18th
July 2015
Prepared by, Submitted to,
Shivalinegesh Aiholli
BasaveshwarEngineering College Officer (HR),
Bagalkot JSW Steel Ltd
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
CONTENTS
 Introduction
 Safety Training
 Raw Material Handling Systems (RMHS)
 Beneficiation Plant
 Pellet
 Sinter Plant
 Coke Ovens and CDQ
 Blast Furnace
 DRI
 Steel Making Shop (SMS)
 Logistics
 Hot Strip Mill (HSM), Cold Rolling Mill (CRM), Bar-Rod
Mill & Wire Rod Mill
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
INTRODUCTION
A $11 billion conglomerate, the JSW Group is a part of the O.P. Jindal Group. JSW has set up
business facilities in various core sectors of India. With verticals that are exploring innovative and
sustainable avenues in steel, energy, infrastructure and cement, the Group is paving the way for
India’s development as a global superpower.
JSW Steel is India’s leading integrated steel producer with a capacity of 14 MTPA. The Group is
also leading from the front in every sector that it operates in. By maintaining exemplary
operational efficiencies, JSW Energy has grown ten-fold in just three years while JSW Cement
creates the building blocks of India with its environment friendly product. JSW Infrastructure is
contributing to the nation’s development by providing world class services to clients through
state-of-the-art ports, terminals, shipyards and other facilities.
The JSW Group is committed to creating more smiles at every step of the journey. JSW
Foundation, the Group’s CSR and sustainability arm, is in constant pursuit of making life better
for communities with its various initiatives in the fields of health, education, livelihood and
sports along with art and culture.
JSW’s zero effluent plants, green townships and happy employees are changing the course of the
nation with their spirited growth. JSW Group is proud to be charting a course to excellence that
creates opportunities for every Indian and leads to the creation of a sustainable, dynamic and
developed nation.
JSW Vijayanagar Works:
India’s first10 MTPA steelplant at single location, “the fastestgrowing steelplant
in India”.
The JSW Steel Vijayanagar plantis the firstintegrated steel plant to reach 10 MTPA
capacity in a single location. Itis the firstin India to use the Corextechnology for
hot metal production.
The firsthot strip mill at Vijayanagar wascommissioned in 1997. Sincethen it has
grown exponentially and now has an installed capacity to produce10 MTPA of
steel. Located at a remote village Toranagallu part of under developed North
Karnataka in the Bellary-Hospetiron ore belt of Karnataka, thefully integrated steel
plant, is well-connected with both the Goa and Chennai ports.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
Unique features
Regarded as the world’s Corexshowpiece; it was the firstGreenfield projectin
India and among the firstin the world to have successfully used this technology to
produce“green steel”
Houses India’s largestblastfurnaceand the widest hot strip mill
The only plant in India with pair-cross technology and twin-stand reversiblecold-
rolling mill
The highestproductivity steel plant in India, producing 800-plus tonnes per person
per annum
Recognised for its ‘zero-effluentdischarge’ status; itreuses morethan 95 per cent
of process waste
Low carbon footprintas it recycles 96% of coke oven gas for power generation
Uses sophisticated ambient air controlinfrastructurebeyond and has reduced gas
flaring to lower levels.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
SAFETY TRAINING
The company aims to provide safe work conditions at
all JSW plant locations. The safety and health of the
employees has always been a prime concern of the
company. Safety is one aspect, which the company
has never been complacent. Umpteen numbers of
industrial safety drives and training programs
conducted in the company validates its high sense of
concern for the safety of its employees. The
management also makes sure that every employee
including outsourced employees undergo industrial
safety training before they actually take up their
assignments in the company.
Periodical health check-ups are conducted to all the employees every 6 months working in the
plant area.
JSW has tie up with DuPont for maintaining world class safety standards. DuPont standards and
corrective measures are being implanted across the organization.
An effective occupational safety and health program includes the following four elements:
 Management commitment and employee involvement
 Worksite analysis
 Hazard prevention and control
On the first day of our internship, we were given the safety training. They explained us about the
various accidents that might happen in an industry and possible methods to prevent them. Then
we were introduced to various Personal Protective Equipment(PPE) that one should use in the
steel plant.
PRSONAL PROTECTIVE EQUIPMENTS (PPE’s)
1. Helmet
2. Goggles
3. Ear Plug/Muff
4. Jacket
5. Hand gloves
6. Safety Shoes
7. Welding Shields
8. Safety Belts
9. DustMask
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
SAFETY HELMET SAFETY SHOES DUST MASK
SAFETY GOGGLE HAND GLOVE SAFETY BELTS
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
RAW MATERIAL HANDING SYSTEM (RMHS):
The RMHS is designed to handle iron ore, pellets, non-coking coal, coking coal,
coke, lime stone, dolomite, quartzite and manganese ore. Major equipments are wagon tipplers,
stacker cum re-claimer and barrel re-claimer. There are two units in RMHS, the first serving the
needs of 4MTPA and the second one for the 10MTPA facilities which includes base mix (preparing
feed to sinter plant).
The RMHS takes the raw materials from the wagons (goods train) using tipplers.
As the instructor explained, the tippler holds the rail car to a section of track and rotates the
track and car together to dump out the contents into an underground stacking area from where
the raw materials are sent to the required destination by means of conveyor belts. There are two
types of tipplers, Rotary type and Side tippler(in pic). The difference between the two tipplers is
the angle of rotation of the tippler. The Rotary tippler rotates by an angle of 1750(max) while the
side tippler rotates by an angle of 1540(max).
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
A stacker is a large machine used in bulk material handling. Its function is to pile
bulk material such as limestone, ores and cereals on to a stockpile. A reclaimer can be used to
recover the material.
We visited the Tippler operation area where they explained us the various
electrical and electronic components involved and their operation. The whole mechanism of the
tippler is automated. The movement of the wagon is done by side arm charger whose position is
dictated by proximity sensors, while the temperature changes are detected by Resistance
Temperature Detectors(RTD) . Each sensor has got a supply of 24V. A PLC(Programmable Logic
Controller) systemis used to set the parameters of the sensors and check continuously the
movement of the side arm charger, the forward movement of the wagon, the angle of rotation of
tippler and temperature. Whenever a condition fails, the input trips and hence the mechanism
stops.
Each tippler has a 3 transformer with a capacity of 2MVA, 6.6kV/415V. The various
motors that are used in the tippler mechanism get a supply of 415V and rated for a capacity of
5.5kW
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
BENEFICIATION PLANT:
The job of the Beneficiation Plant is to concentrate the low grade iron ore to high grade
ones. Various processes involved are milling, washing, filtration, sorting, sizing, gravity
concentration, magnetic separation, flotation.
In JSW plant we saw milling, magnetic separation and flotation in operation.
MILLING : This is a process of grinding and crushing of the ore to a required size for magnetic
separation. The major instrument used is Ball Mill.
The Ball Mill rotates at a speed of about 30-35 rpm which uses Induction Motor, whose speed is
controlled by Variable Voltage Variable Frequency drives (VVVF). The power output of the
Induction Motor during operation is 25kW. The output of the ball mill is sent to the magnetic
separator.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
MAGNETIC SEPARATOR : Magnetic separation is most commonly used to separate
natural magnetic iron ore (magnetite) from a variety of less-magnetic or nonmagnetic material.
The Magnetic Separator consists of a conveyor belt and free magnet. The motor used in the
rolling of the conveyor belt is given a 415V supply. It rotates at a speed of 225 fpm. The whole
process is depicted in the pic given below:
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
PELLET PLANT:
Pellet plant: JSW has two pellet plants with a rated capacity of 4.2MTPA each and the
pellet size ranges from 8-16mm. The major units are dryers, ball mills, pelletizers of 7.5m dia,
indurating furnace, electro-static precipitator and water re-circulation system. We can see the
process flow in the fig below.
FLOW DIAGRAM OF PALLET PLANT
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
FLOW DIAGRAM OF PALLET PLANT
As seen in the above figs., we were given a brief explanation about the process. The
pellet plant takes its input from the RMHS site along with the wastes produced by various plants
like corex, blast furnace, coke oven. Hence it also acts as a scavenger. The balling disc is the main
device in a pellet plant. It gives a shape to the ore. The balling disc is shown below,
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
The balling disc runs on an induction motor of capacity 0f 5.5kW and rotates at a speed of 1470-
1480 rpm, but the required speed of the disc is 7-8 rpm. This is obtained by using a gear box.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
We can see the IMaboveconnected to disc through gear box.
The final product of the pellet plant is shown:
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
This is the major input for the corex plant and Blast furnace.
SINTER PLANTS
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
JSW steel plant has 4 sinter plants. SP 1 and 2 are each rated for a capacity of 2.3MTPA, SP 3 is of
5.75MTPA and SP 4 is of capacity 2.78 MTPA to produce suitable agglomerates for iron making.
Sinter plants agglomerate iron ore fines (dust) with other fine materials at high temperature, to
create a product that can be used in a blast furnace. The final product is 8mm to 25mm, and
<8mm sinter is used as return fines with raw materials for sinter making process. Sinter is
irregular nodule of iron mixed with small amounts of other minerals. The process, called
sintering, causes the constituent materials to fuse to make a single porous mass with little
change in the chemical properties of the ingredients. The process of the sinter plant is similar to
that of pellet plant but there is no balling disc. Hence the output has irregular shape.
Why Sinter is preferred for Blast Furnace
 It decreases coke rate.
 Increase productivity.
 Improves hot metal quality.
 Brings in smoothness in Operation.
Sintering Reactions:
 The sintering reaction starts with reduction of the hematite and formation of the low
melting liquid - mono calciumferrite (CaO.Fe2O3) - at around 1200ºC by reaction with
lime which absorbs silica and more of iron oxide.
 The melt so formed attacks the grain boundaries of hematite and the grains dislodge into
the melt forming CaO.2Fe2O3, 2FeO.SiO2, CaO.FeO.SiO2, 2CaO.Fe2O3, etc..
 With increase of temperature more and more hematite along with gangue go into
solution resulting in more of slag bonded complex sinter structure SFCA (silico-ferrite of
calciumand aluminum).
 At basicity levels of more than 2 calciumferrite and di-calcium silicate forms and at lesser
than 1.6, glassy silicate and secondary hematite and magnetite forms.
Major Equipment at Sinter Plants & their Capacities:
Sinter Machine – 204 Sq Mtrs.
Sinter Cooler
Mixing Drum
Nodulizing Drum.
Double Roll Crusher.
Sinter Screens (HL & RF).
Waste Gas Fan
De-dusting & Other Process Fans.
Conveyors.
Lubrication Systems & Utilities.
Dust Handling Systems.
ESP (Electrostatic Precipitator)
Final productof Sinter
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
COKE OVENS:
A coke oven is a device used to produce coke, a product that is derived from coal.
The mixing and heating of bituminous coal at temperatures ranging from around 1832° to 3632°F
(1000° to 2,000°C) within the airless oven yields the coke by-product. This device is a crucial part
of the coke-making process.
JSW has both recovery and non-recovery type coke making facilities. The total installed
capacity of non-recovery type coke making facilities is 1.2MTPA. Coke oven 1 having 139 ovens,
and coke oven 2 has 140 ovens. The salient features of non-recovery coke making is the waste
heat recovery for power generation. Coke ovens 3&4 are recovery type coke oven with installed
capacity of 1.5MTPA and 1.95MTPA respectively. Coke oven 3 has four batteries each of 56 ovens
and coke oven 4 has 4 batteries each of 72 ovens. The salient features of recovery type coke
ovens is extractions of value added products like coal tar, ammonia and sulphur. After the coke is
obtained it is sent to the quenching plant where both wet and dry quenching techniques are
used.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
BLAST FURNACE
Blast Furnace is a typical metallurgical furnace whose inputs are pellets and sinter.
There are 4 blast furnaces at JSW. The BF-1 is of 1250 cubic metre and a capacity of 0.9MTPA, BF-
2 is of 1680 cubic metre with a capacity of 1.3MTPA while BF-3 and BF-4 are of 4019 cubic metre
with a capacity of 3MTPA each. The blast furnaces 3 and 4 are the largest in India.
The process flow is depicted in the following picture
The output of both the corex and blast furnace is same i.e. pig iron, which is taken out as shown
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
STEEL MAKING SHOP (SMS):
Steelmaking is the process for producing steel from iron and ferrous
scrap. In steelmaking, impurities such as silicon, phosphorus, and excess carbon are removed
from the raw iron, and alloying elements such as manganese,
nickel, chromium and vanadium are added to produce different grades of steel. The process of
steel making used in JSW is Basic Oxygen Steelmaking.
The rated capacity of the Basic Oxygen Furnace shop is 10MTPA
liquid steel and this has seven converters in two separate shops SMS-1 & SMS-2. SMS-1 has a
heat size of 130 tonnes (3 converters) and SMS-2 has 175 tonnes (2 converters). The major units
are Hot metal de-sulphurising station, basic oxygen furnaces (converters), scrap yard, ladle
preparation, handling bay, ladle refining furnace, gas cooling and cleaning plant, and a water re-
circulation system. The salient technical features are pre-treatment of hot metal, bottom stirring
in BOF, adjustment of chemistry and temperature in ladle furnace, automated container
laboratory for quick analysis of bath samples, utilization of converter gas as fuel and slag
splashing systemto enhance converter lining life.
Continuous Casting Plant: Continuous casting, also called strand casting, is the process
whereby molten metal is solidified into a "semi finished" billet, bloom, or slab for subsequent
rolling in the finishing mills. In JSW there are six slab casters and one billet caster which produces
caster of dimension 220mm*800 to 1300mm. Maximum casting speed of 1.8m/min. Major units
of CCP are casting machine, gega torch cutting unit, marking machine and a water re-circulation
system.
These are the end products of the SMS plant. 1. Slab, 2. Billet.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
*Slab Handing at SMS.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
MILLS:
The slabs and billets obtained by SMS are sent to the Mills where the total end
products are generated. The end products are steel strip, steel rods and steel wire.
HOT STRIP MILL (HSM):
The rated capacity of the HSM-1 is 3.2MTPA HSM-2 is 3.5MTPA of hot rolled coils. The major
units are walking beam re-heating furnaces, reversing roughing stand, coil box, high finishing
stands, down coilers, roll grinding shops and water re-circulation system. The salient technical
features are high pressure de-scaling (180 bar), AGC control in three finishing stands, work roll
bending, online thickness and width gauge, roll bite lubrication system and online marking
system. The end product is as shown
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
COLD ROLL MILL (CRM):
The CRM complex has a capacity of 1MTPA. The CRM complex is focussed on the value added
products geared towards automobile and white goods industry. The major units are continuous
pickling liners, six high twin strand cold compact mill, electrolytic cleaning line, batch annealing,
accumulator, stress reliving and four high skin pass mill, recoiling line and auto packing line. The
output of the CRM is similar to that of HSM but a difference in its thickness (.3mm)
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
BAR ROD MILL (BRM):
Rated capacity of 0.9MT capable of rolling rebar in the range 8mm to 32mm, angles, RCS etc. This
is the first three stranded mill to be installed in India. M/s Morgan is the technology supplier of
both the long product mill.
Internship Program Report. July - 2015
JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
WIRE ROD MILL (WRM):
Rated capacity of 0.6MT and is considered to be the fastest mill in India (110ms-1). It is capable of
rolling the wire end and rebar in the range of 5.5mm to 22mm dia. Equipped with the latest
equipments like reducing and sizing mill- 1st of its kind in India.
.

More Related Content

What's hot

Bhilai Steel Plant presentation
Bhilai Steel Plant presentationBhilai Steel Plant presentation
Bhilai Steel Plant presentation
Pratyush Raj

BHILAI STEEL PLANT (BSP) ,Chhattisgarh
BHILAI  STEEL  PLANT (BSP) ,ChhattisgarhBHILAI  STEEL  PLANT (BSP) ,Chhattisgarh
BHILAI STEEL PLANT (BSP) ,Chhattisgarh
shashikesh

Bhilai steel plant Vocational training 2019
Bhilai steel plant Vocational training 2019Bhilai steel plant Vocational training 2019
Bhilai steel plant Vocational training 2019
MohitMaheshwari44

Industrial Training Project Report on B.S.P
Industrial Training Project Report on B.S.PIndustrial Training Project Report on B.S.P
Industrial Training Project Report on B.S.P
Piyush Verma

JSPL Project
JSPL ProjectJSPL Project
JSPL Project
ABINASH SAHU

BHEL Final Report
BHEL Final ReportBHEL Final Report
BHEL Final Report
Bharti Airtel Ltd.

BHILAI STEEL PLANT VOCATIONAL TRAINING
BHILAI STEEL PLANT VOCATIONAL TRAININGBHILAI STEEL PLANT VOCATIONAL TRAINING
BHILAI STEEL PLANT VOCATIONAL TRAINING
Vikash Kumar

B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.
B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.
B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.
Anirudh Singhar

Bhilai steel plant plate mill & mars 1
Bhilai steel plant  plate mill & mars 1Bhilai steel plant  plate mill & mars 1
Bhilai steel plant plate mill & mars 1
Akhilesh Rathiya

Steel melting shop (sms) - 2
Steel melting shop (sms) - 2Steel melting shop (sms) - 2
Steel melting shop (sms) - 2
NIT - ROURKELA

VOCATIONAL TRAINING REPORT
VOCATIONAL TRAINING REPORTVOCATIONAL TRAINING REPORT
VOCATIONAL TRAINING REPORT
Gunjesh Jha

Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...
Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...
Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...
Sumit Kumar

Jindal report
Jindal reportJindal report
Jindal report
Sai Sreenivas P

RMHS Manual 2.1
RMHS Manual 2.1RMHS Manual 2.1
RMHS Manual 2.1
Anshul Maheshwari

Industrial Report of bhushan steel ltd.
Industrial Report of bhushan steel ltd.Industrial Report of bhushan steel ltd.
Industrial Report of bhushan steel ltd.
AYUSH SAXENA

SAIL Summer Internship Report- Braj Kishor Sah
SAIL Summer Internship Report- Braj Kishor SahSAIL Summer Internship Report- Braj Kishor Sah
SAIL Summer Internship Report- Braj Kishor Sah
Braj Kishor Sah

SUMMER TRAINING REPORT
SUMMER TRAINING REPORTSUMMER TRAINING REPORT
SUMMER TRAINING REPORT
NIKHIL AGRAWAL

Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf
Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdfProject report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf
Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf
Anurag Yadav

Internship Training Report
Internship Training ReportInternship Training Report
Internship Training Report
AVINASH JURIANI

JSPL DRI#1 Training Report 2017
JSPL DRI#1 Training Report 2017JSPL DRI#1 Training Report 2017
JSPL DRI#1 Training Report 2017
Abhishek Prajapati


What's hot (20)

Bhilai Steel Plant presentation
Bhilai Steel Plant presentationBhilai Steel Plant presentation
Bhilai Steel Plant presentation

BHILAI STEEL PLANT (BSP) ,Chhattisgarh
BHILAI  STEEL  PLANT (BSP) ,ChhattisgarhBHILAI  STEEL  PLANT (BSP) ,Chhattisgarh
BHILAI STEEL PLANT (BSP) ,Chhattisgarh

Bhilai steel plant Vocational training 2019
Bhilai steel plant Vocational training 2019Bhilai steel plant Vocational training 2019
Bhilai steel plant Vocational training 2019

Industrial Training Project Report on B.S.P
Industrial Training Project Report on B.S.PIndustrial Training Project Report on B.S.P
Industrial Training Project Report on B.S.P

JSPL Project
JSPL ProjectJSPL Project
JSPL Project

BHEL Final Report
BHEL Final ReportBHEL Final Report
BHEL Final Report

BHILAI STEEL PLANT VOCATIONAL TRAINING
BHILAI STEEL PLANT VOCATIONAL TRAININGBHILAI STEEL PLANT VOCATIONAL TRAINING
BHILAI STEEL PLANT VOCATIONAL TRAINING

B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.
B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.
B.S.P VOCATIONAL TRAINING PRESENTATION by Anirudh.

Bhilai steel plant plate mill & mars 1
Bhilai steel plant  plate mill & mars 1Bhilai steel plant  plate mill & mars 1
Bhilai steel plant plate mill & mars 1

Steel melting shop (sms) - 2
Steel melting shop (sms) - 2Steel melting shop (sms) - 2
Steel melting shop (sms) - 2

VOCATIONAL TRAINING REPORT
VOCATIONAL TRAINING REPORTVOCATIONAL TRAINING REPORT
VOCATIONAL TRAINING REPORT

Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...
Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...
Vocational Training in Steel Authority of India Limited (SAIL)-Bokaro Steel P...

Jindal report
Jindal reportJindal report
Jindal report

RMHS Manual 2.1
RMHS Manual 2.1RMHS Manual 2.1
RMHS Manual 2.1

Industrial Report of bhushan steel ltd.
Industrial Report of bhushan steel ltd.Industrial Report of bhushan steel ltd.
Industrial Report of bhushan steel ltd.

SAIL Summer Internship Report- Braj Kishor Sah
SAIL Summer Internship Report- Braj Kishor SahSAIL Summer Internship Report- Braj Kishor Sah
SAIL Summer Internship Report- Braj Kishor Sah

SUMMER TRAINING REPORT
SUMMER TRAINING REPORTSUMMER TRAINING REPORT
SUMMER TRAINING REPORT

Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf
Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdfProject report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf
Project report on Automated Strapping Machine (BRM)_Bhilai Steel Plant.pdf

Internship Training Report
Internship Training ReportInternship Training Report
Internship Training Report

JSPL DRI#1 Training Report 2017
JSPL DRI#1 Training Report 2017JSPL DRI#1 Training Report 2017
JSPL DRI#1 Training Report 2017


Similar to INTERNSHIP REPORT new

Vipin mishra june 16
Vipin mishra june 16Vipin mishra june 16
Vipin mishra june 16
Vipin Mishra

Abhishek resume
Abhishek resumeAbhishek resume
Abhishek resume
Abhishek Sharma

CVPradeepKumarGupta
CVPradeepKumarGuptaCVPradeepKumarGupta
CVPradeepKumarGupta
Pradeep kumar Gupta

Power distribution
Power distribution Power distribution
Power distribution
rachanasharma53

SDTL BROCHURE complete
SDTL BROCHURE completeSDTL BROCHURE complete
SDTL BROCHURE complete
Star Delta Transformers Ltd, Bhopal

Encotec -Company Presentation_Apr 2016
Encotec -Company Presentation_Apr 2016Encotec -Company Presentation_Apr 2016
Encotec -Company Presentation_Apr 2016
Encotec Energy India Pvt Ltd

Pioneer of thermal power(o&m).
Pioneer of thermal power(o&m).Pioneer of thermal power(o&m).
Pioneer of thermal power(o&m).
any thermal power plant

CV- Praveen Channe (15NOV 2015)
CV- Praveen Channe (15NOV 2015)CV- Praveen Channe (15NOV 2015)
CV- Praveen Channe (15NOV 2015)
Praveen Channe

usha martin ltd. project report
usha martin ltd. project reportusha martin ltd. project report
usha martin ltd. project report
Ashish Kumar

Lhp training report
Lhp training reportLhp training report
Lhp training report
umesh chikhale

Internship saad
Internship saadInternship saad
Internship saad
Saad Qureshi

ADANI COMPLETE PROJECT 1
ADANI COMPLETE PROJECT 1ADANI COMPLETE PROJECT 1
ADANI COMPLETE PROJECT 1
dashdeepak33

Company profile sps
Company profile spsCompany profile sps
Company profile sps
营营 车

Izgen Engineering Ltd
Izgen Engineering LtdIzgen Engineering Ltd
Ajay Uikey
Ajay UikeyAjay Uikey
Ajay Uikey
AJAY UIKEY

SuryaMohan_Resume_2016
SuryaMohan_Resume_2016SuryaMohan_Resume_2016
SuryaMohan_Resume_2016
Surya Mohan

ajayuikey
ajayuikeyajayuikey
ajayuikey
AJAY UIKEY

CV-Sanjay Kasera
CV-Sanjay KaseraCV-Sanjay Kasera
CV-Sanjay Kasera
Sanjay Kasera

Internship Report
Internship ReportInternship Report
Internship Report
Muhammad Ali

SASIdharan p CV
SASIdharan p CVSASIdharan p CV
SASIdharan p CV
sasi panniyodan


Similar to INTERNSHIP REPORT new (20)

Vipin mishra june 16
Vipin mishra june 16Vipin mishra june 16
Vipin mishra june 16

Abhishek resume
Abhishek resumeAbhishek resume
Abhishek resume

CVPradeepKumarGupta
CVPradeepKumarGuptaCVPradeepKumarGupta
CVPradeepKumarGupta

Power distribution
Power distribution Power distribution
Power distribution

SDTL BROCHURE complete
SDTL BROCHURE completeSDTL BROCHURE complete
SDTL BROCHURE complete

Encotec -Company Presentation_Apr 2016
Encotec -Company Presentation_Apr 2016Encotec -Company Presentation_Apr 2016
Encotec -Company Presentation_Apr 2016

Pioneer of thermal power(o&m).
Pioneer of thermal power(o&m).Pioneer of thermal power(o&m).
Pioneer of thermal power(o&m).

CV- Praveen Channe (15NOV 2015)
CV- Praveen Channe (15NOV 2015)CV- Praveen Channe (15NOV 2015)
CV- Praveen Channe (15NOV 2015)

usha martin ltd. project report
usha martin ltd. project reportusha martin ltd. project report
usha martin ltd. project report

Lhp training report
Lhp training reportLhp training report
Lhp training report

Internship saad
Internship saadInternship saad
Internship saad

ADANI COMPLETE PROJECT 1
ADANI COMPLETE PROJECT 1ADANI COMPLETE PROJECT 1
ADANI COMPLETE PROJECT 1

Company profile sps
Company profile spsCompany profile sps
Company profile sps

Izgen Engineering Ltd
Izgen Engineering LtdIzgen Engineering Ltd
Izgen Engineering Ltd

Ajay Uikey
Ajay UikeyAjay Uikey
Ajay Uikey

SuryaMohan_Resume_2016
SuryaMohan_Resume_2016SuryaMohan_Resume_2016
SuryaMohan_Resume_2016

ajayuikey
ajayuikeyajayuikey
ajayuikey

CV-Sanjay Kasera
CV-Sanjay KaseraCV-Sanjay Kasera
CV-Sanjay Kasera

Internship Report
Internship ReportInternship Report
Internship Report

SASIdharan p CV
SASIdharan p CVSASIdharan p CV
SASIdharan p CV


INTERNSHIP REPORT new

  • 1. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot Report on Internship Program at JSW Steel Ltd Karnataka. 06th July 2015 to 18th July 2015 Prepared by, Submitted to, Shivalinegesh Aiholli BasaveshwarEngineering College Officer (HR), Bagalkot JSW Steel Ltd
  • 2. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot CONTENTS  Introduction  Safety Training  Raw Material Handling Systems (RMHS)  Beneficiation Plant  Pellet  Sinter Plant  Coke Ovens and CDQ  Blast Furnace  DRI  Steel Making Shop (SMS)  Logistics  Hot Strip Mill (HSM), Cold Rolling Mill (CRM), Bar-Rod Mill & Wire Rod Mill
  • 3. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot INTRODUCTION A $11 billion conglomerate, the JSW Group is a part of the O.P. Jindal Group. JSW has set up business facilities in various core sectors of India. With verticals that are exploring innovative and sustainable avenues in steel, energy, infrastructure and cement, the Group is paving the way for India’s development as a global superpower. JSW Steel is India’s leading integrated steel producer with a capacity of 14 MTPA. The Group is also leading from the front in every sector that it operates in. By maintaining exemplary operational efficiencies, JSW Energy has grown ten-fold in just three years while JSW Cement creates the building blocks of India with its environment friendly product. JSW Infrastructure is contributing to the nation’s development by providing world class services to clients through state-of-the-art ports, terminals, shipyards and other facilities. The JSW Group is committed to creating more smiles at every step of the journey. JSW Foundation, the Group’s CSR and sustainability arm, is in constant pursuit of making life better for communities with its various initiatives in the fields of health, education, livelihood and sports along with art and culture. JSW’s zero effluent plants, green townships and happy employees are changing the course of the nation with their spirited growth. JSW Group is proud to be charting a course to excellence that creates opportunities for every Indian and leads to the creation of a sustainable, dynamic and developed nation. JSW Vijayanagar Works: India’s first10 MTPA steelplant at single location, “the fastestgrowing steelplant in India”. The JSW Steel Vijayanagar plantis the firstintegrated steel plant to reach 10 MTPA capacity in a single location. Itis the firstin India to use the Corextechnology for hot metal production. The firsthot strip mill at Vijayanagar wascommissioned in 1997. Sincethen it has grown exponentially and now has an installed capacity to produce10 MTPA of steel. Located at a remote village Toranagallu part of under developed North Karnataka in the Bellary-Hospetiron ore belt of Karnataka, thefully integrated steel plant, is well-connected with both the Goa and Chennai ports.
  • 4. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot Unique features Regarded as the world’s Corexshowpiece; it was the firstGreenfield projectin India and among the firstin the world to have successfully used this technology to produce“green steel” Houses India’s largestblastfurnaceand the widest hot strip mill The only plant in India with pair-cross technology and twin-stand reversiblecold- rolling mill The highestproductivity steel plant in India, producing 800-plus tonnes per person per annum Recognised for its ‘zero-effluentdischarge’ status; itreuses morethan 95 per cent of process waste Low carbon footprintas it recycles 96% of coke oven gas for power generation Uses sophisticated ambient air controlinfrastructurebeyond and has reduced gas flaring to lower levels.
  • 5. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot SAFETY TRAINING The company aims to provide safe work conditions at all JSW plant locations. The safety and health of the employees has always been a prime concern of the company. Safety is one aspect, which the company has never been complacent. Umpteen numbers of industrial safety drives and training programs conducted in the company validates its high sense of concern for the safety of its employees. The management also makes sure that every employee including outsourced employees undergo industrial safety training before they actually take up their assignments in the company. Periodical health check-ups are conducted to all the employees every 6 months working in the plant area. JSW has tie up with DuPont for maintaining world class safety standards. DuPont standards and corrective measures are being implanted across the organization. An effective occupational safety and health program includes the following four elements:  Management commitment and employee involvement  Worksite analysis  Hazard prevention and control On the first day of our internship, we were given the safety training. They explained us about the various accidents that might happen in an industry and possible methods to prevent them. Then we were introduced to various Personal Protective Equipment(PPE) that one should use in the steel plant. PRSONAL PROTECTIVE EQUIPMENTS (PPE’s) 1. Helmet 2. Goggles 3. Ear Plug/Muff 4. Jacket 5. Hand gloves 6. Safety Shoes 7. Welding Shields 8. Safety Belts 9. DustMask
  • 6. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot SAFETY HELMET SAFETY SHOES DUST MASK SAFETY GOGGLE HAND GLOVE SAFETY BELTS
  • 7. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot RAW MATERIAL HANDING SYSTEM (RMHS): The RMHS is designed to handle iron ore, pellets, non-coking coal, coking coal, coke, lime stone, dolomite, quartzite and manganese ore. Major equipments are wagon tipplers, stacker cum re-claimer and barrel re-claimer. There are two units in RMHS, the first serving the needs of 4MTPA and the second one for the 10MTPA facilities which includes base mix (preparing feed to sinter plant). The RMHS takes the raw materials from the wagons (goods train) using tipplers. As the instructor explained, the tippler holds the rail car to a section of track and rotates the track and car together to dump out the contents into an underground stacking area from where the raw materials are sent to the required destination by means of conveyor belts. There are two types of tipplers, Rotary type and Side tippler(in pic). The difference between the two tipplers is the angle of rotation of the tippler. The Rotary tippler rotates by an angle of 1750(max) while the side tippler rotates by an angle of 1540(max).
  • 8. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot A stacker is a large machine used in bulk material handling. Its function is to pile bulk material such as limestone, ores and cereals on to a stockpile. A reclaimer can be used to recover the material. We visited the Tippler operation area where they explained us the various electrical and electronic components involved and their operation. The whole mechanism of the tippler is automated. The movement of the wagon is done by side arm charger whose position is dictated by proximity sensors, while the temperature changes are detected by Resistance Temperature Detectors(RTD) . Each sensor has got a supply of 24V. A PLC(Programmable Logic Controller) systemis used to set the parameters of the sensors and check continuously the movement of the side arm charger, the forward movement of the wagon, the angle of rotation of tippler and temperature. Whenever a condition fails, the input trips and hence the mechanism stops. Each tippler has a 3 transformer with a capacity of 2MVA, 6.6kV/415V. The various motors that are used in the tippler mechanism get a supply of 415V and rated for a capacity of 5.5kW
  • 9. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot BENEFICIATION PLANT: The job of the Beneficiation Plant is to concentrate the low grade iron ore to high grade ones. Various processes involved are milling, washing, filtration, sorting, sizing, gravity concentration, magnetic separation, flotation. In JSW plant we saw milling, magnetic separation and flotation in operation. MILLING : This is a process of grinding and crushing of the ore to a required size for magnetic separation. The major instrument used is Ball Mill. The Ball Mill rotates at a speed of about 30-35 rpm which uses Induction Motor, whose speed is controlled by Variable Voltage Variable Frequency drives (VVVF). The power output of the Induction Motor during operation is 25kW. The output of the ball mill is sent to the magnetic separator.
  • 10. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot MAGNETIC SEPARATOR : Magnetic separation is most commonly used to separate natural magnetic iron ore (magnetite) from a variety of less-magnetic or nonmagnetic material. The Magnetic Separator consists of a conveyor belt and free magnet. The motor used in the rolling of the conveyor belt is given a 415V supply. It rotates at a speed of 225 fpm. The whole process is depicted in the pic given below:
  • 11. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot PELLET PLANT: Pellet plant: JSW has two pellet plants with a rated capacity of 4.2MTPA each and the pellet size ranges from 8-16mm. The major units are dryers, ball mills, pelletizers of 7.5m dia, indurating furnace, electro-static precipitator and water re-circulation system. We can see the process flow in the fig below. FLOW DIAGRAM OF PALLET PLANT
  • 12. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot FLOW DIAGRAM OF PALLET PLANT As seen in the above figs., we were given a brief explanation about the process. The pellet plant takes its input from the RMHS site along with the wastes produced by various plants like corex, blast furnace, coke oven. Hence it also acts as a scavenger. The balling disc is the main device in a pellet plant. It gives a shape to the ore. The balling disc is shown below,
  • 13. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot The balling disc runs on an induction motor of capacity 0f 5.5kW and rotates at a speed of 1470- 1480 rpm, but the required speed of the disc is 7-8 rpm. This is obtained by using a gear box.
  • 14. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot We can see the IMaboveconnected to disc through gear box. The final product of the pellet plant is shown:
  • 15. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot This is the major input for the corex plant and Blast furnace. SINTER PLANTS
  • 16. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot JSW steel plant has 4 sinter plants. SP 1 and 2 are each rated for a capacity of 2.3MTPA, SP 3 is of 5.75MTPA and SP 4 is of capacity 2.78 MTPA to produce suitable agglomerates for iron making. Sinter plants agglomerate iron ore fines (dust) with other fine materials at high temperature, to create a product that can be used in a blast furnace. The final product is 8mm to 25mm, and <8mm sinter is used as return fines with raw materials for sinter making process. Sinter is irregular nodule of iron mixed with small amounts of other minerals. The process, called sintering, causes the constituent materials to fuse to make a single porous mass with little change in the chemical properties of the ingredients. The process of the sinter plant is similar to that of pellet plant but there is no balling disc. Hence the output has irregular shape. Why Sinter is preferred for Blast Furnace  It decreases coke rate.  Increase productivity.  Improves hot metal quality.  Brings in smoothness in Operation. Sintering Reactions:  The sintering reaction starts with reduction of the hematite and formation of the low melting liquid - mono calciumferrite (CaO.Fe2O3) - at around 1200ºC by reaction with lime which absorbs silica and more of iron oxide.  The melt so formed attacks the grain boundaries of hematite and the grains dislodge into the melt forming CaO.2Fe2O3, 2FeO.SiO2, CaO.FeO.SiO2, 2CaO.Fe2O3, etc..  With increase of temperature more and more hematite along with gangue go into solution resulting in more of slag bonded complex sinter structure SFCA (silico-ferrite of calciumand aluminum).  At basicity levels of more than 2 calciumferrite and di-calcium silicate forms and at lesser than 1.6, glassy silicate and secondary hematite and magnetite forms. Major Equipment at Sinter Plants & their Capacities: Sinter Machine – 204 Sq Mtrs. Sinter Cooler Mixing Drum Nodulizing Drum. Double Roll Crusher. Sinter Screens (HL & RF). Waste Gas Fan De-dusting & Other Process Fans. Conveyors. Lubrication Systems & Utilities. Dust Handling Systems. ESP (Electrostatic Precipitator) Final productof Sinter
  • 17. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
  • 18. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot COKE OVENS: A coke oven is a device used to produce coke, a product that is derived from coal. The mixing and heating of bituminous coal at temperatures ranging from around 1832° to 3632°F (1000° to 2,000°C) within the airless oven yields the coke by-product. This device is a crucial part of the coke-making process. JSW has both recovery and non-recovery type coke making facilities. The total installed capacity of non-recovery type coke making facilities is 1.2MTPA. Coke oven 1 having 139 ovens, and coke oven 2 has 140 ovens. The salient features of non-recovery coke making is the waste heat recovery for power generation. Coke ovens 3&4 are recovery type coke oven with installed capacity of 1.5MTPA and 1.95MTPA respectively. Coke oven 3 has four batteries each of 56 ovens and coke oven 4 has 4 batteries each of 72 ovens. The salient features of recovery type coke ovens is extractions of value added products like coal tar, ammonia and sulphur. After the coke is obtained it is sent to the quenching plant where both wet and dry quenching techniques are used.
  • 19. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot BLAST FURNACE Blast Furnace is a typical metallurgical furnace whose inputs are pellets and sinter. There are 4 blast furnaces at JSW. The BF-1 is of 1250 cubic metre and a capacity of 0.9MTPA, BF- 2 is of 1680 cubic metre with a capacity of 1.3MTPA while BF-3 and BF-4 are of 4019 cubic metre with a capacity of 3MTPA each. The blast furnaces 3 and 4 are the largest in India. The process flow is depicted in the following picture The output of both the corex and blast furnace is same i.e. pig iron, which is taken out as shown
  • 20. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot
  • 21. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot STEEL MAKING SHOP (SMS): Steelmaking is the process for producing steel from iron and ferrous scrap. In steelmaking, impurities such as silicon, phosphorus, and excess carbon are removed from the raw iron, and alloying elements such as manganese, nickel, chromium and vanadium are added to produce different grades of steel. The process of steel making used in JSW is Basic Oxygen Steelmaking. The rated capacity of the Basic Oxygen Furnace shop is 10MTPA liquid steel and this has seven converters in two separate shops SMS-1 & SMS-2. SMS-1 has a heat size of 130 tonnes (3 converters) and SMS-2 has 175 tonnes (2 converters). The major units are Hot metal de-sulphurising station, basic oxygen furnaces (converters), scrap yard, ladle preparation, handling bay, ladle refining furnace, gas cooling and cleaning plant, and a water re- circulation system. The salient technical features are pre-treatment of hot metal, bottom stirring in BOF, adjustment of chemistry and temperature in ladle furnace, automated container laboratory for quick analysis of bath samples, utilization of converter gas as fuel and slag splashing systemto enhance converter lining life. Continuous Casting Plant: Continuous casting, also called strand casting, is the process whereby molten metal is solidified into a "semi finished" billet, bloom, or slab for subsequent rolling in the finishing mills. In JSW there are six slab casters and one billet caster which produces caster of dimension 220mm*800 to 1300mm. Maximum casting speed of 1.8m/min. Major units of CCP are casting machine, gega torch cutting unit, marking machine and a water re-circulation system. These are the end products of the SMS plant. 1. Slab, 2. Billet.
  • 22. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot *Slab Handing at SMS.
  • 23. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot MILLS: The slabs and billets obtained by SMS are sent to the Mills where the total end products are generated. The end products are steel strip, steel rods and steel wire. HOT STRIP MILL (HSM): The rated capacity of the HSM-1 is 3.2MTPA HSM-2 is 3.5MTPA of hot rolled coils. The major units are walking beam re-heating furnaces, reversing roughing stand, coil box, high finishing stands, down coilers, roll grinding shops and water re-circulation system. The salient technical features are high pressure de-scaling (180 bar), AGC control in three finishing stands, work roll bending, online thickness and width gauge, roll bite lubrication system and online marking system. The end product is as shown
  • 24. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot COLD ROLL MILL (CRM): The CRM complex has a capacity of 1MTPA. The CRM complex is focussed on the value added products geared towards automobile and white goods industry. The major units are continuous pickling liners, six high twin strand cold compact mill, electrolytic cleaning line, batch annealing, accumulator, stress reliving and four high skin pass mill, recoiling line and auto packing line. The output of the CRM is similar to that of HSM but a difference in its thickness (.3mm)
  • 25. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot BAR ROD MILL (BRM): Rated capacity of 0.9MT capable of rolling rebar in the range 8mm to 32mm, angles, RCS etc. This is the first three stranded mill to be installed in India. M/s Morgan is the technology supplier of both the long product mill.
  • 26. Internship Program Report. July - 2015 JSWSteel Ltd. BasaveshwarEngineeringcollage-Bagalkot WIRE ROD MILL (WRM): Rated capacity of 0.6MT and is considered to be the fastest mill in India (110ms-1). It is capable of rolling the wire end and rebar in the range of 5.5mm to 22mm dia. Equipped with the latest equipments like reducing and sizing mill- 1st of its kind in India. .
