Integration Guide ISA-M_TEMPLATE_Version 4.0

The document outlines the SAP Integration Solution Advisory Methodology (ISA-M), which provides enterprise architects with guidelines to develop integration strategies and governance. It details various integration styles, technology mappings, and assessment methods to enhance integration maturity within organizations. The methodology incorporates SAP and third-party integration technologies and is adaptable to specific customer contexts.

Embed presentation

Downloaded 15 times
1 / 150
2 / 150
3 / 150
4 / 150
5 / 150
6 / 150
7 / 150
8 / 150
9 / 150
10 / 150
11 / 150
12 / 150
13 / 150
14 / 150
15 / 150
16 / 150
17 / 150
18 / 150
19 / 150
20 / 150
21 / 150
Most read
22 / 150
23 / 150
24 / 150
25 / 150
26 / 150
Most read
27 / 150
28 / 150
29 / 150
30 / 150
31 / 150
32 / 150
33 / 150
Most read
34 / 150
35 / 150
36 / 150
37 / 150
38 / 150
39 / 150
40 / 150
41 / 150
42 / 150
43 / 150
44 / 150
45 / 150
46 / 150
47 / 150
48 / 150
49 / 150
50 / 150
51 / 150
52 / 150
53 / 150
54 / 150
55 / 150
56 / 150
57 / 150
58 / 150
59 / 150
60 / 150
61 / 150
62 / 150
63 / 150
64 / 150
65 / 150
66 / 150
67 / 150
68 / 150
69 / 150
70 / 150
71 / 150
72 / 150
73 / 150
74 / 150
75 / 150
76 / 150
77 / 150
78 / 150
79 / 150
80 / 150
81 / 150
82 / 150
83 / 150
84 / 150
85 / 150
86 / 150
87 / 150
88 / 150
89 / 150
90 / 150
91 / 150
92 / 150
93 / 150
94 / 150
95 / 150
96 / 150
97 / 150
98 / 150
99 / 150
100 / 150
101 / 150
102 / 150
103 / 150
104 / 150
105 / 150
106 / 150
107 / 150
108 / 150
109 / 150
110 / 150
111 / 150
112 / 150
113 / 150
114 / 150
115 / 150
116 / 150
117 / 150
118 / 150
119 / 150
120 / 150
121 / 150
122 / 150
123 / 150
124 / 150
125 / 150
126 / 150
127 / 150
128 / 150
129 / 150
130 / 150
131 / 150
132 / 150
133 / 150
134 / 150
135 / 150
136 / 150
137 / 150
138 / 150
139 / 150
140 / 150
141 / 150
142 / 150
143 / 150
144 / 150
145 / 150
146 / 150
147 / 150
148 / 150
149 / 150
150 / 150
PUBLIC SAP Integration Solution Advisory Methodology Derive Integration Guidelines for Your Organization < Your Organization > This document uses templates from the SAP Integration Solution Advisory Methodology (ISA-M) provided by SAP SE. SAP SE is not responsible for the content of this document. ISA-M Template Version 4.0 ISA-M SAP Integration Solution Advisory M e t h o d o l o g y

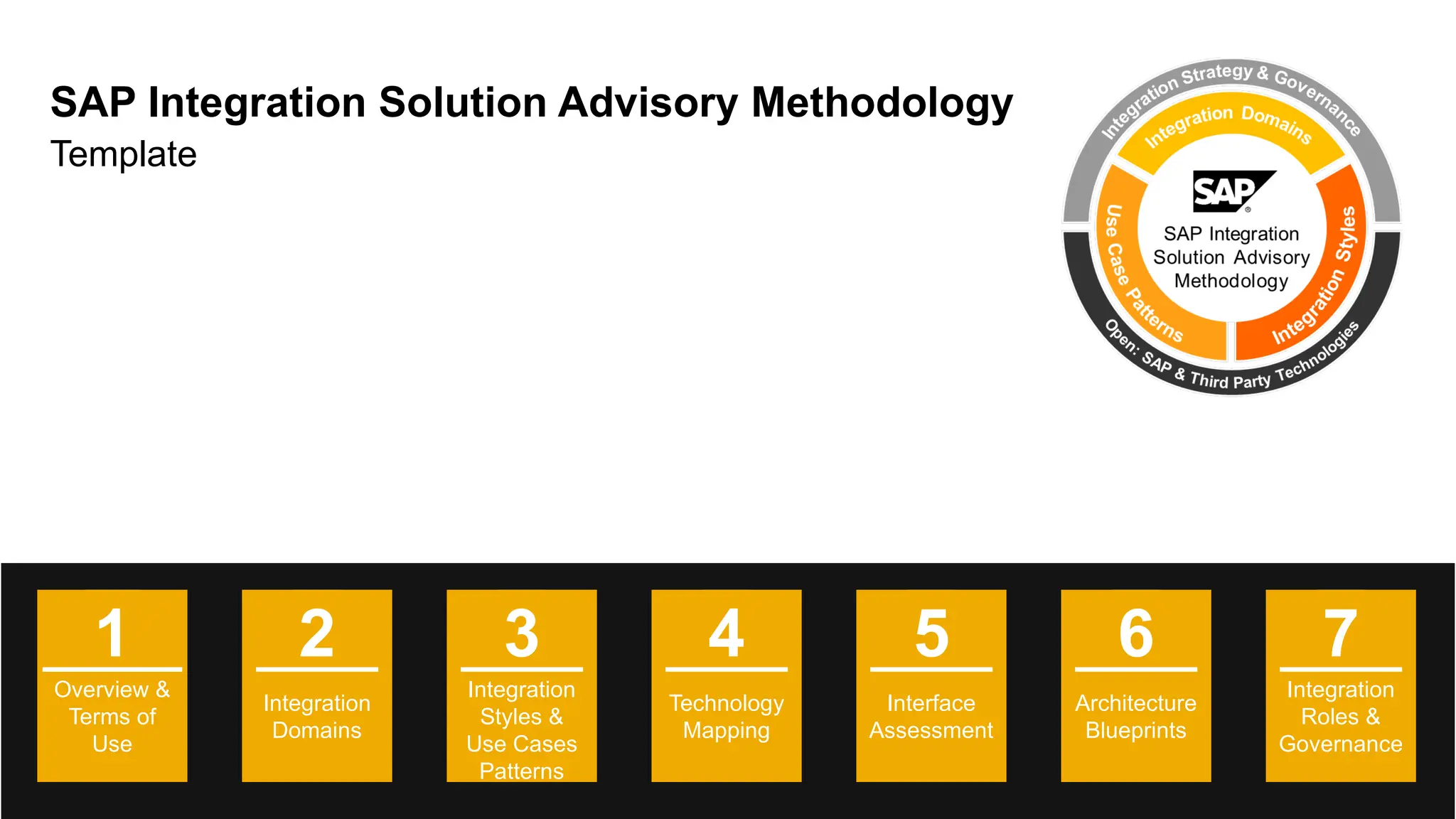

2 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6

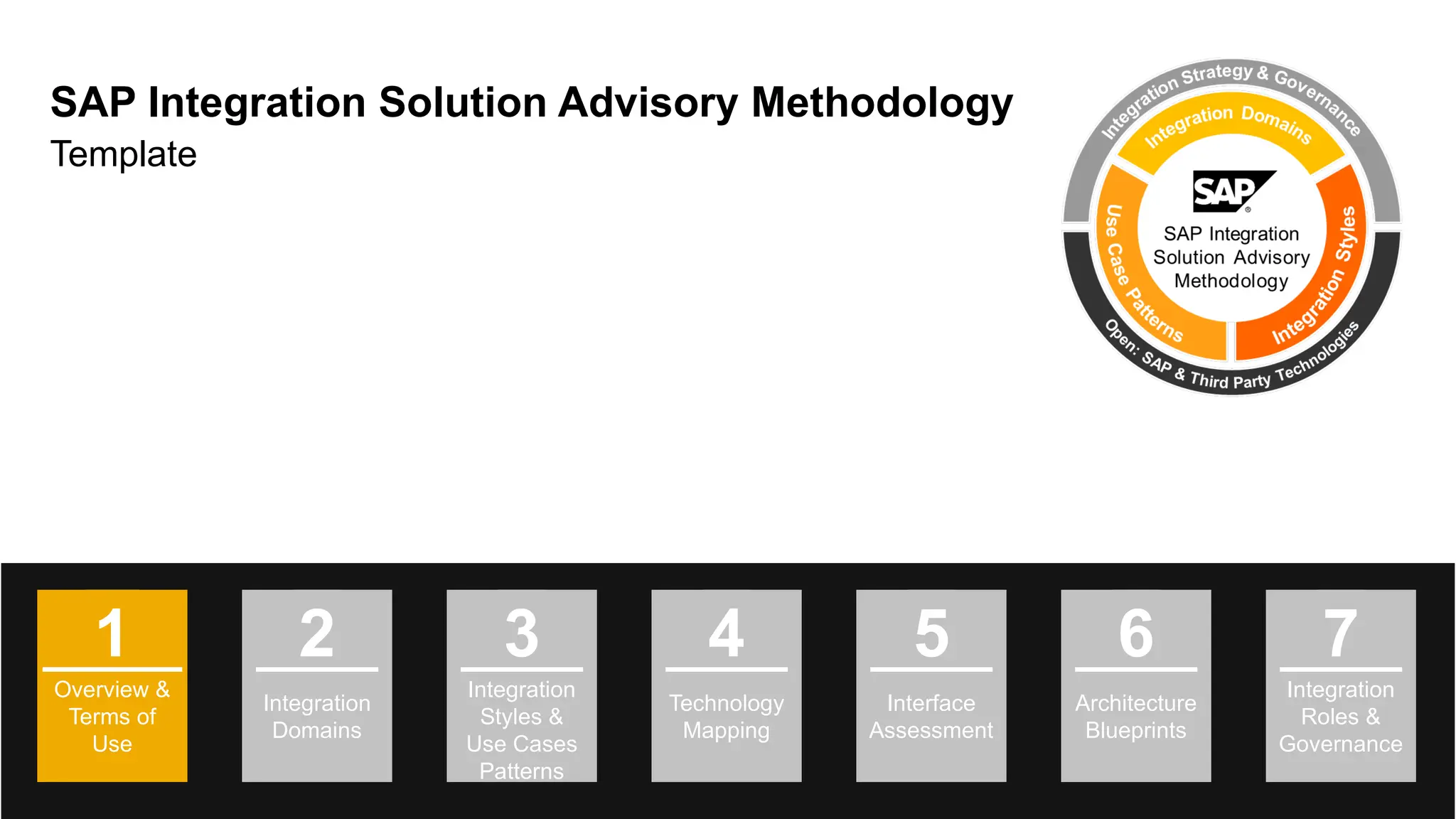

3 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
4 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public * Customers and partners must comply with the Terms of Use (“TOU”), see slide 5 Overview  Helps enterprise architects to shape their integration strategy  Collection of typical integration styles and patterns  Mapping to integration services (based on customer context)  Architecture blueprints for integration including decision criteria  Open to SAP and third party integration technologies  Target Group: Enterprise Architects / Integration Architects ISA-M Template for Use by Customers and Partners (*)  Template to define customer-specific integration guidelines  Successfully adopted in multiple global organizations  Reusable within organizations, projects or services  Can be adapted/extended to specific needs SAP Integration Solution Advisory Methodology (ISA-M) Simplify Integration by a Systematic Integration Approach Overview
5 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template - Terms of Use Overview
6 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Adapt and Customize To Your Specific Needs Overview This element is used to introduce and describe concepts of the methodology and/or related product information. Explanation This element is used to give additional information on how to apply the ISA-M template to your customer context. How To Use
7 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.0 September, 2016 • Updated description of integration domains • Updated descriptions of integration styles • New category ‘Enabling Services’ to capture integration related technologies • Updated descriptions of reference use case patterns • Updated decision table templates 3.1 March, 2017 • Updated template to reflect naming changes in SAP Cloud Platform 3.2 October, 2018 • Updated descriptions and examples for all integration styles, use case patterns and sample integration technology mappings • Added information on SAP’s integration strategy for the intelligent enterprise and the role of ISA-M (slide 8-9) • Added overview on ISA-M use cases for enterprise architects (slide 11-12) • Added ‘How to Use’ and ‘Explanations’ to slides to give additional information on how ISA-M can be adapted by customers • Added typical integration roles and their responsibilities (slide 15-17) • Updated examples for integration technology mappings including links to further product information (slide 32-74) • Added additional guidance based on integration patterns: • Integration Layer vs. Application Layer (slide 44) • Integration Layer vs. API Management Layer (slide 73) • Added section and links for CIO Guides (slide 81-82) • Added integration domain (slide 19) • Business-to-Government (B2G) • Renamed ‘Integration Solution Advisor Methodology’ to ‘Integration Solution Advisory Methodology’ • Renamed Integration Styles to more ‘classical names’ (all slides) • ‘Process Invocation’ to ‘Process Integration’ • ‘Data Movement’ to “Data Integration” • ‘User-Centric Consumption to ‘User Integration’ • ‘Enabling Services’ to ‘Cross Use Cases’ • Added new use case patterns (slide 30) • API-Managed Integration • Event-Based Integration • Stream Analytics ISA-M Template Document History (I) Overview
8 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.3 May, 2020 • Renamed Integration Solution Advisory Methodology to SAP Integration Solution Advisory Methodology (slide 1 ff.) • Removed section ‚CIO Guide‘ from the agenda and moved this information to the appendix of the deck (slide 2 ff.) • Updated Intelligent Enterprise visual (slide 9) • Added new quote from Gartner (slide 11) • Added ISA-M Cycle (slide 12, 17, 33, 84, 117) • Updated use cases for Enterprise Architects according to the new ISA-M Cycle (slide 13) • Updated Integration Maturity Level according to the new ISA-M Cycle (slide 14) • Updated ISA-M overview visuals to show updated integration domain, use case patterns and technology mapping (slide 15) • Moved section ‘Integration roles’ from position 2 to 7 according to the new ISA-M cycle (slides 116 – 121) • Updated Integration Domains to include private cloud deployment options, removed integration style B2B and B2G (now defined as integration use cases) (slide 18 ff.) • Added private cloud as application deployment option (slide 22) • Updated use case patterns (slide 24 ff.): • Process Integration Style: Removed ‘Business Network Integration’, added ‘Master Data Integration’ and ‘B2G Integration’ • Data Integration Style: Removed ‘Master Data Synchronization’, added ‘Data Orchestration’ • User Integration Style: Removed ‘Desktop Integration’, added ‘Chatbot Integration’ • Cross Use Case Patterns: Added ‘Robotic Process Automation’ and ‘Digital Integration Hub’ • Updated Integration Technology Mapping: Added integration technology categories such as ESB, IPaaS, IoT Platform (slide 34 ff.) • Updated Sample Mapping to SAP Technologies / Services for the Process Integration Style such as product names (slide 40) • Added slide about SAP Cloud Platform Integration Suite (slide 42) • Updated and enhanced resources for the Process Integration Style (slide 48, 49) • Updated Sample Mapping to SAP Technologies / Services for the Data Integration Style: Replaced SAP Data Hub with SAP Data Intelligence (slide 52 ff.) • Replaced SAP HANA Data Management Suite with SAP Data Intelligence (slide 54) • Updated and enhanced resources for the Data Integration Style (slide 56) • Updated Sample Mapping to SAP Technologies / Service for the Integration Style such as product names (slide 59) • Replaced SAP Fiori Launchpad with SAP Fiori Launchpad (ABAP) and SAP Fiori launchpad on SAP Cloud Platform (Cloud Foundry) (slide 60) • Updated version of SAP Fiori Deployment Options (slide 61) • Added Central Entry Point (Roadmap) (slide 62) • Updated and enhanced resources for the User Integration Style (slide 63) ISA-M Template Document History (II) Overview
9 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.3 continued May, 2020 • Updated Sample Mapping to SAP Technologies / Services for the Thing Integration Style: Replaced SAP Cloud Platform Internet of Things with SAP Leonardo IoT (slide 66) • Replaced SAP Cloud Platform Internet of Things with SAP Leonardo IoT (Cloud Foundry) (slide 67) • Updated version of SAP Leonardo IoT & SAP Edge Services overview (slide 68) • Updated and enhanced resources for the Thing Integration Style (slide 69) • Updated decision table template for Cross Use Cases to include SAP Intelligent Robot Process Automation (slide 73) • Updated and enhanced resources for the Cross Use Cases (slides 76, 77) • Replaced Interface Assessment for Data Replication with Data Orchestration (SAP Data Intelligence) • New section about Architecture Blueprints introduced which includes sample solution diagrams for selected integration uses case patterns, complemented with decision criteria/characteristics, integration do’s and don’ts (slide 83 ff.) • Replaced CIO Guides ‘SAP Vision for Integrating SAP Applications in Cloud and Hybrid Environments’ and ‘Identity Lifecycle in Hybrid Landscapes’ with link to all SAP CIO Guides from section 7 ‘CIO Guides’ (slide 122 ff.) 3.4 February, 2021 • Updated visuals (e.g. slide 10: SAP‘s integration strategy in context of the intelligent enterprise, slide 15: integration maturity levels, slide 57: SAP Data Intelligence, slide 88: SAP API Management overview) • New guidance regarding the Master Data Integration use case pattern introducing SAP Master Data Integration (slides 47/48) • New integration style Analytics Integration (slides 62 ff.) • Updated guidance regarding SAP Enterprise Information Management solutions (slides 58/59) • Updated guidance regarding the User Integration Style introducing the SAP Launchpad service (slides 74/75) • Updated reference to the new “Integration Architecture Guide for Cloud and Hybrid Landscapes” • Updated SAP products names along the sunset of the SAP Leonardo and SAP Cloud Platform brand (e.g. „SAP Leonardo Internet of Things“ renamed to „SAP Internet of Things“, „SAP Cloud Platform Integration Suite“ renamed to „SAP Integration Suite“, • Changed „Non-SAP“ to „third party“ • Changed section 7 „Integration Roles“ to „Integration Roles & Governance“ (slides 2, 3 and more) • New integration role of the Chief Integration Officer introduced (slides 136, 139) • New topics integration governance and quality assurance introduced (slides 142 to 145) ISA-M Template Document History (III) Overview
10 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 4.0 August, 2022 • Updated various SAP product names (e.g. SAP Enterprise Messaging to SAP Event Mesh, SAP Intelligent RPA and SAP Workflow together SAP Process Automation) and added new ones (e.g. SAP Mobile Start and SAP Work Zone) • Updated Intelligent Enterprise visual (p. 11) • Changed „out-of-the-box integration“ to „predefined integration“ (p.11, 12) • Changed „use cases“ to „phases“ (e.g. p. 14) • Added link of the ISA-M landing page on sap.com (p. 16) • Added Integration Assessment capability within SAP Integration Suite (e.g. p. 17, 18) • Changed integration domain „OnPremise2Cloud“ to „Cloud2OnPremise“ (e.g. p. 21, 22) • Removed „Key Characteristics“ (e.g. p. 26) • Changed "sample integration patterns" to "sample key characteristics" (p. 53) • Changed recommendation degrees from "recommended" to "good fit", "partially recommended" to "partial fit", "not recommended" to "not a fit" (p. 50, 53, 90) • Updated positioning of SAP Integration Suite (p. 44, 46, 48) • Updated positioning of SAP Data Intelligence (p. 57, 59, 60) • Updated integration guideline for process-, data integration and selected cross use cases inline with integration policies of the Integration Assessment capability within SAP Integration Suite (p. 45, 58, 88) • Updated positioning of SAP Analytics Cloud and SAP Data Warehouse Cloud (p. 68, 69, 70) • Updated positioning of SAP products for the user integration style (p. 74, 75, 77) • Updated positioning of SAP Internet of Things (p. 81, 83) • Updated information about interface assessment to leverage the Integration Assessment capability within SAP Integration Suite (p. 93) • Updated info sheets of architecture blueprints to include related missions of SAP Discovery Center (p. 105ff) • Updated integration roles to also include tasks related to the Integration Assessment capability within SAP Integration Suite (p. 137, 138) • Updated integration governance to leverage Integration Assessment (p. 143) • Added information about how to get started with ISA-M (p. 148) • Updated information rgd. the “Integration Architecture Guide for Cloud and Hybrid Landscapes (p. 149) • Added information about SAP Community topic page about the SAP Integration Strategy (p. 150) ISA-M Template Document History (III) Overview
11 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Intelligent Enterprises are Integrated Enterprises Key Integration Principles for the Intelligent Enterprise Overview Integration is a key enabler for intelligent enterprises. SAP’s integration strategy for the intelligent enterprise is based on four core principles. ISA-M complements SAP’s technology portfolio by a methodology that helps enterprise architects to shape their integration strategy. It provides a holistic view on integration including all types of integration use cases needed for full end to end integration. Source: Intelligent Enterprises Are Integrated Enterprises Explanation Predefined

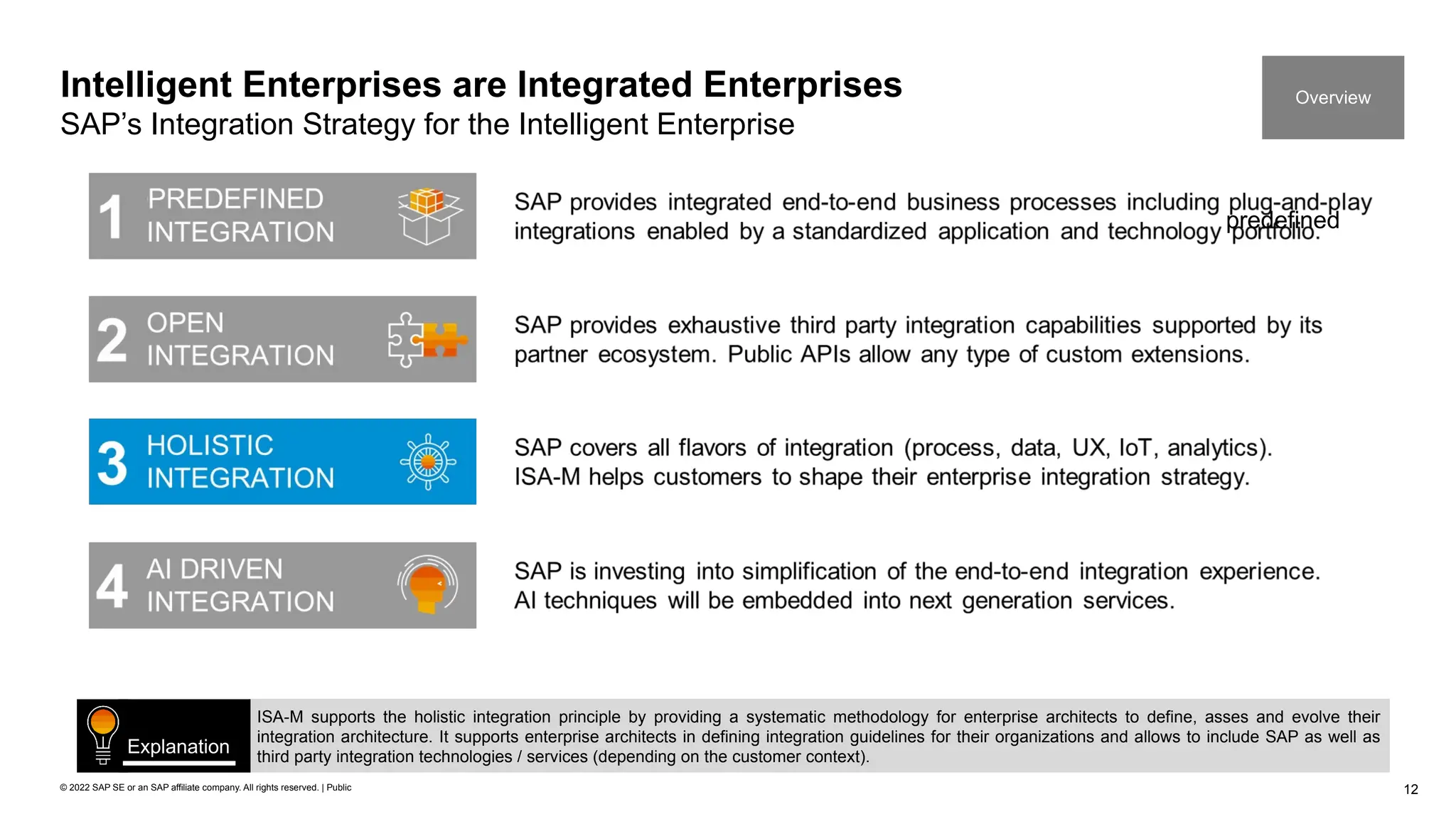

12 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Intelligent Enterprises are Integrated Enterprises SAP’s Integration Strategy for the Intelligent Enterprise Overview ISA-M supports the holistic integration principle by providing a systematic methodology for enterprise architects to define, asses and evolve their integration architecture. It supports enterprise architects in defining integration guidelines for their organizations and allows to include SAP as well as third party integration technologies / services (depending on the customer context). Explanation predefined

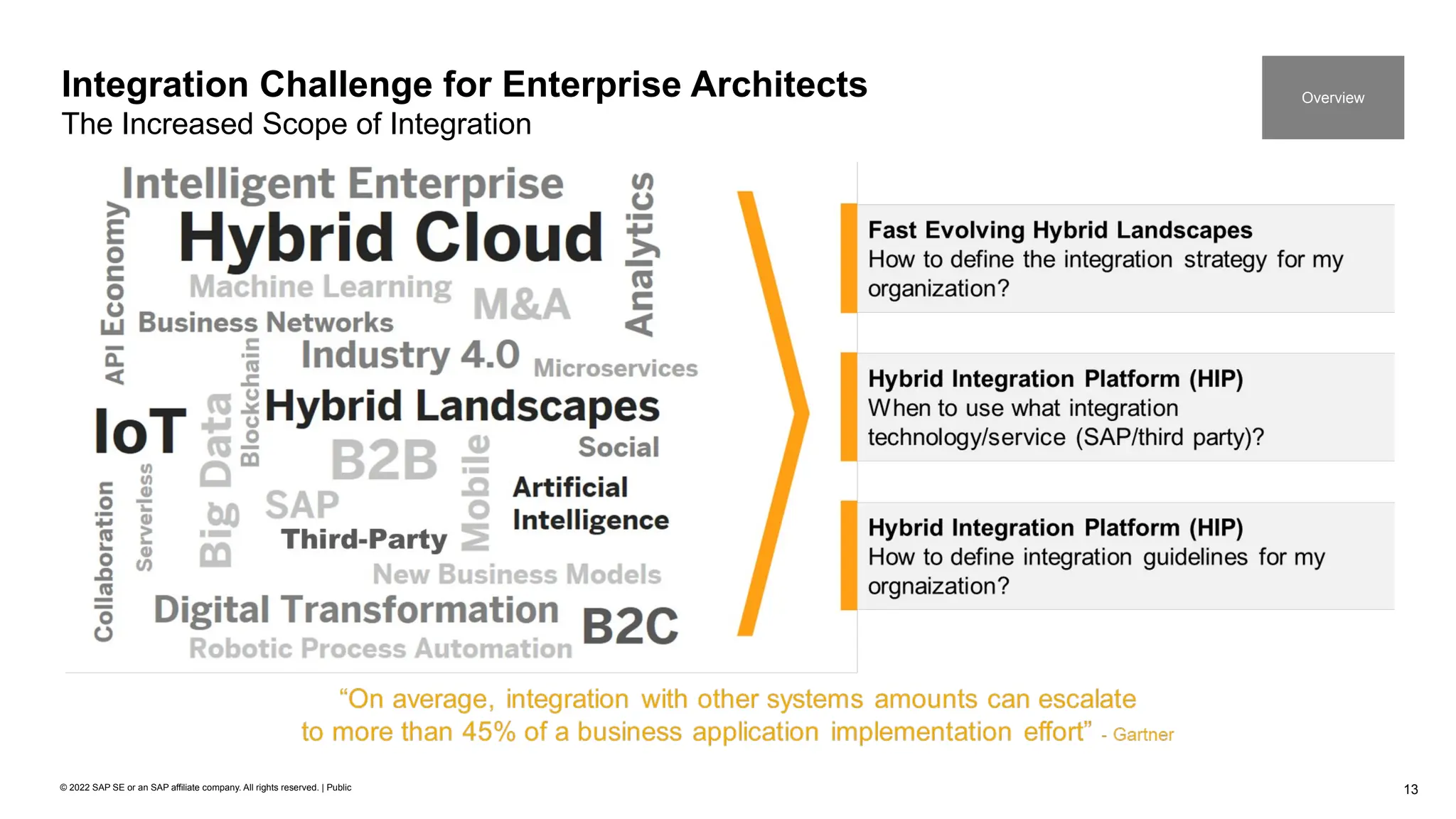

13 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Challenge for Enterprise Architects The Increased Scope of Integration Overview
14 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Overview: Adoption phases for Enterprise Architects Overview
15 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Phases for Enterprise Architects Simplify Integration by a Systematic Integration Approach Define Integration Best Practices 3 Define solution architecture blueprints Add decision criteria and key characteristics Establish integration as recognized discipline Assess your Integration Strategy 1 Document/review your integration architecture Scoping of focus areas e.g. future building blocks Use-case driven approach (technology-agnostic) Design your Hybrid Integration Platform 2 Map use case patterns to integration technologies Derive integration guidelines for your organization Reflect customer context This slide provides an overview on how ISA-M can be applied in organizations. Depending on the specific needs of your organization you can flexibly select from the possible use cases and use the ISA-M template as a starting point and adapt/extend it to your specific needs. Based on this template, you can create your customer-specific integration strategy and/or guidance document(s). How To Use Overview Enable a Practice of Empowerment 4 Democratize integration delivery Define areas for self service integration Establish a shared developer community
16 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Increase Your Integration Maturity Level Simplify Integration by a Systematic Integration Approach This slide shows how you can increase your integration maturity level by moving from an non-systematic integration practice to a more systematic way of integration. Based on established integration standards, you could also define areas for self-service integration e.g. by allowing citizen integrators to implement simple integration scenarios on their own within the context of your overall integration governance. See landing page on sap.com Explanation Overview
17 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Tool Based Approach for ISA-M to Enable Integration Governance Integration Assessment Capability within SAP Integration Suite ISA-M Framework This PPT Template Integration Assessment Capability within SAP Integration Suite Integration Assessment (powered by ISA-M) is a capability within SAP Integration Suite which will automate key parts of the SAP Integration Solution Advisory Methodology (ISA-M) and can be used to provide assessment and guidance within an organization to manage their hybrid integration platform (e.g. integration governance). See blog post Integration Assessment capability within SAP Integration Suite is general available now Explanation NEW

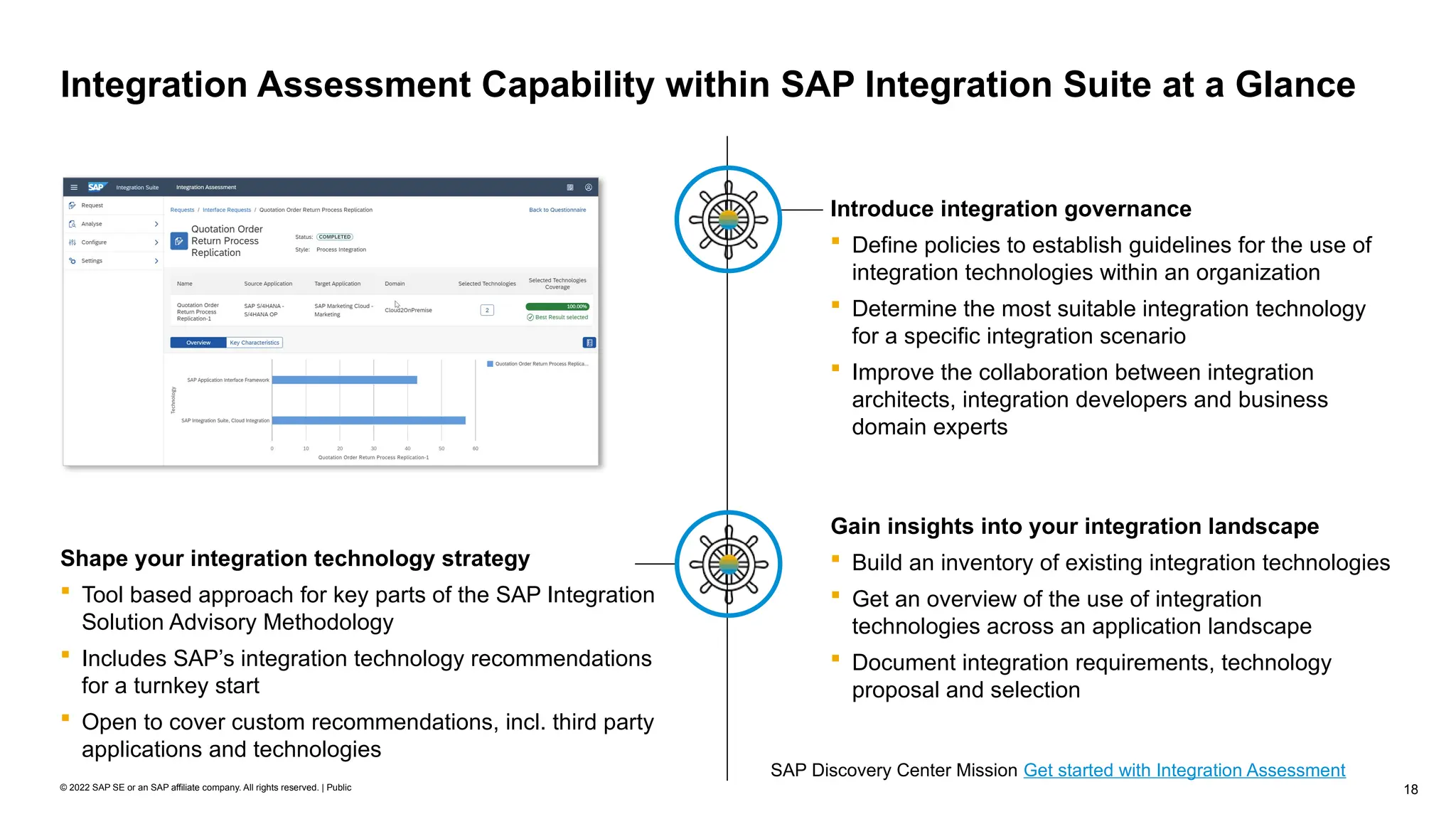

18 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Assessment Capability within SAP Integration Suite at a Glance Introduce integration governance  Define policies to establish guidelines for the use of integration technologies within an organization  Determine the most suitable integration technology for a specific integration scenario  Improve the collaboration between integration architects, integration developers and business domain experts Shape your integration technology strategy  Tool based approach for key parts of the SAP Integration Solution Advisory Methodology  Includes SAP’s integration technology recommendations for a turnkey start  Open to cover custom recommendations, incl. third party applications and technologies Gain insights into your integration landscape  Build an inventory of existing integration technologies  Get an overview of the use of integration technologies across an application landscape  Document integration requirements, technology proposal and selection SAP Discovery Center Mission Get started with Integration Assessment
19 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6

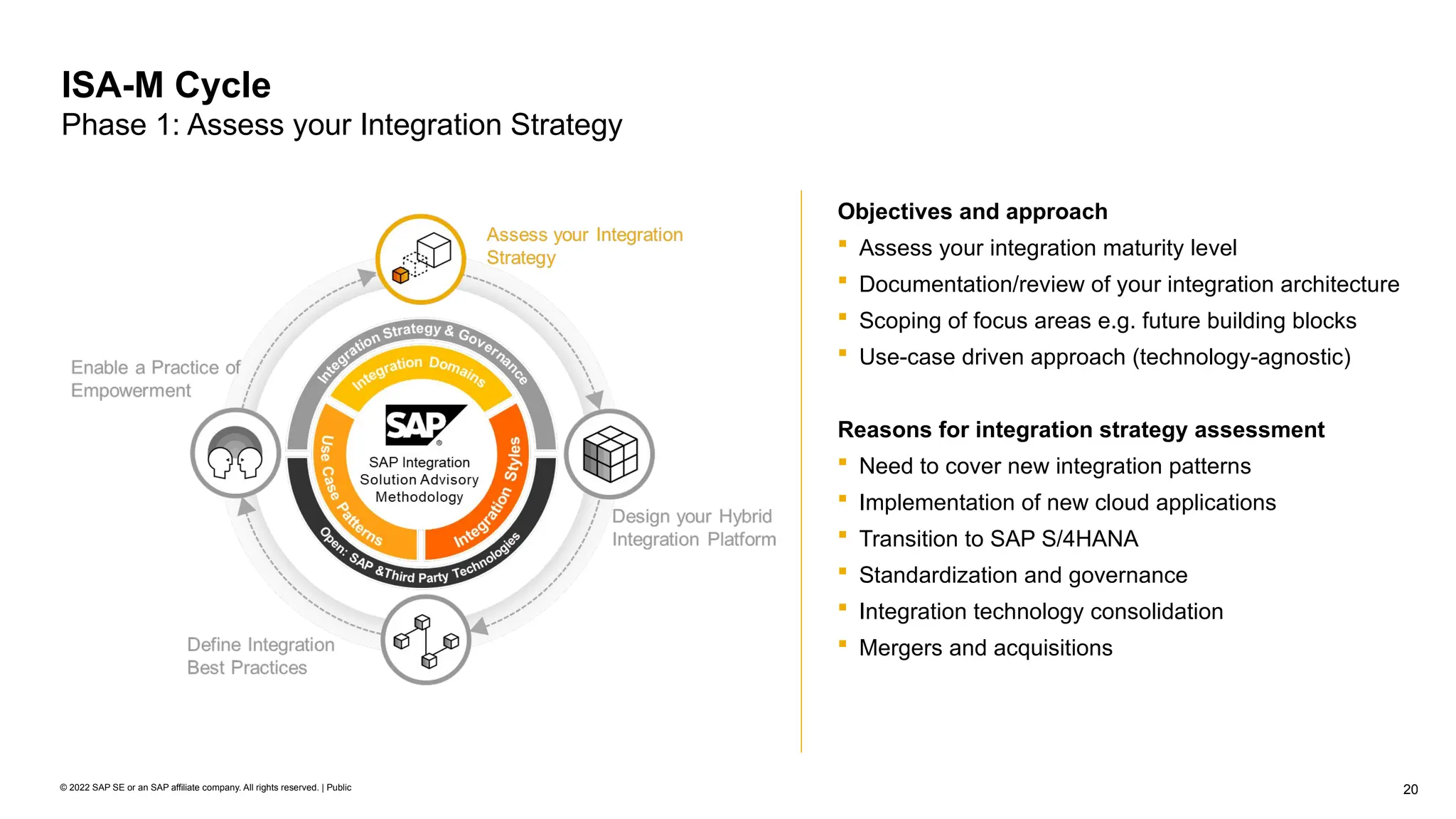

20 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 1: Assess your Integration Strategy Objectives and approach  Assess your integration maturity level  Documentation/review of your integration architecture  Scoping of focus areas e.g. future building blocks  Use-case driven approach (technology-agnostic) Reasons for integration strategy assessment  Need to cover new integration patterns  Implementation of new cloud applications  Transition to SAP S/4HANA  Standardization and governance  Integration technology consolidation  Mergers and acquisitions
21 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Assessment and Scoping of your Hybrid Integration Landscape On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 CX X … Third Party Cloud Apps S/4HANA Business Suite Third Party Applications OnPremise2 OnPremise Private Cloud Integration Domains Integration Styles Technology Mapping Integration Domain Business Partner Government Agency
22 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domain Relevance Integration Services / Technologies Relevant Not Relevant Under Evaluation As Is To Be Cloud2Cloud Cloud2OnPremise Cloud2Cloud User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Integration Domains High-Level Assessment of Your Integration Architecture Integration domains provide the entry point into ISA-M and can be used as a “big picture” for integration. You can do an assessment of your integration architecture by selecting the integration domains that are relevant for your organization or that you might want to further evaluate. Next, you can list your current integration technologies / services (As Is) and also derive your future target architecture (To Be). Integration domains are technology agnostic and can therefore also help in blueprinting a hybrid integration platform consisting of multiple integration services/technologies (SAP/third party). You could also remove integration domains that are not relevant in your organization. How To Use Integration Domains Integration Styles Technology Mapping
23 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
24 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Styles Five Fundamental Archetypes of Integration Integration Domains Integration Styles Technology Mapping Integration styles describe basic categories or types of integration: process-, data-, analytics-, user-, and thing-centric integration. Each integration style has specific characteristics and can be refined by use-case patterns (see following slides). Integration styles build the key pillar of ISA-M. Explanation Process Integration How to chain business processes across business applications? Data Integration How to synchronize data between business applications? User Integration How to integrate user-centric applications with business applications? Thing Integration How to integrate real- world things with business applications? Analytics Integration How to derive and expose analytical data for business insights from business applications?
25 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Styles Technology-Agnostic: Open to SAP and Third Party Integration Domains Integration Styles Technology Mapping Integration Styles cover key integration archetypes: the process integration style connects business processes across applications whereas the data integration style allows to synchronize or access data across applications. The user integration style allows to connect user-centric applications (e.g. mobile apps) with applications whereas the thing integration style allows to connect real world objects (e.g. sensors, machines) with applications. The analytics integration style allows you to derive and expose data from data sources to support business intelligence, augmented analytics and/or enterprise planning scenarios. All integration styles are technology agnostic and are applicable within multiple integration domains (e.g. cloud, on- premise, hybrid). Cross Use Cases build a category for all integration-related use cases that complement one ore more of the five core integration styles. For example, API-Managed Integration provides full-lifecycle management for APIs that, e.g. can be leveraged in user- or process- centric integration scenarios. Further examples in this category will be explained on the next slides such as Event-Based Integration. Explanation Application Business Logic Data Application Business Logic On Premise Cloud Data Mobile Browser Chatbot User-Centric Application User Integration Interaction Logic Device Sensor Asset Real-World Things Thing Integration Cross Use Cases Process Integration Data Integration Interaction Logic Private Cloud On Premise Private Cloud Cloud Analytics Integration

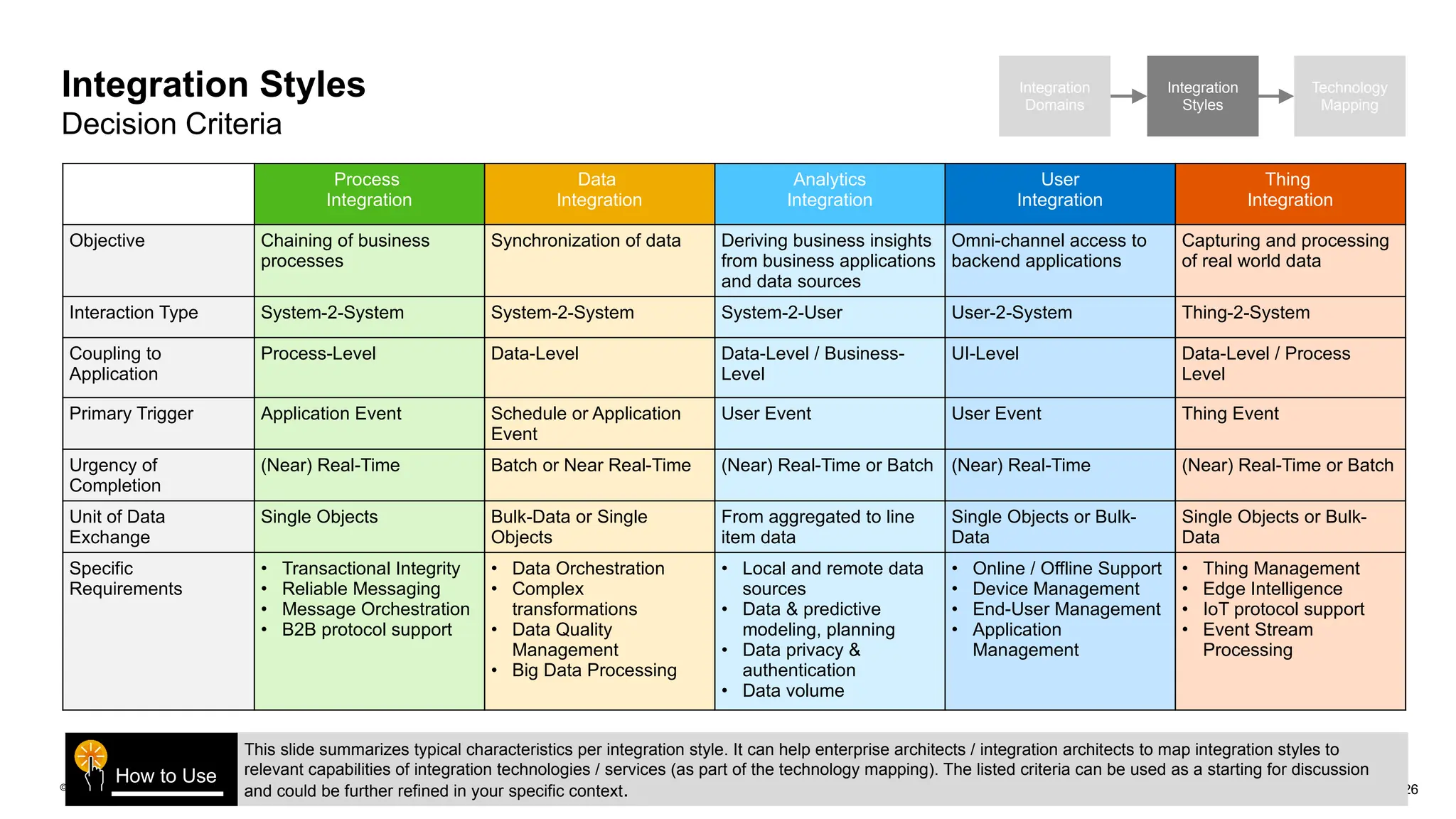

26 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration Data Integration Analytics Integration User Integration Thing Integration Objective Chaining of business processes Synchronization of data Deriving business insights from business applications and data sources Omni-channel access to backend applications Capturing and processing of real world data Interaction Type System-2-System System-2-System System-2-User User-2-System Thing-2-System Coupling to Application Process-Level Data-Level Data-Level / Business- Level UI-Level Data-Level / Process Level Primary Trigger Application Event Schedule or Application Event User Event User Event Thing Event Urgency of Completion (Near) Real-Time Batch or Near Real-Time (Near) Real-Time or Batch (Near) Real-Time (Near) Real-Time or Batch Unit of Data Exchange Single Objects Bulk-Data or Single Objects From aggregated to line item data Single Objects or Bulk- Data Single Objects or Bulk- Data Specific Requirements • Transactional Integrity • Reliable Messaging • Message Orchestration • B2B protocol support • Data Orchestration • Complex transformations • Data Quality Management • Big Data Processing • Local and remote data sources • Data & predictive modeling, planning • Data privacy & authentication • Data volume • Online / Offline Support • Device Management • End-User Management • Application Management • Thing Management • Edge Intelligence • IoT protocol support • Event Stream Processing Integration Styles Decision Criteria Integration Domains Integration Styles Technology Mapping This slide summarizes typical characteristics per integration style. It can help enterprise architects / integration architects to map integration styles to relevant capabilities of integration technologies / services (as part of the technology mapping). The listed criteria can be used as a starting for discussion and could be further refined in your specific context. How to Use
27 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Styles and Use Case Patterns Technology-Agnostic Library of Integration Use Cases 27 Integration Domains Integration Styles Technology Mapping Use Case Patterns: Each integration style can be refined by use case patterns which describe frequently found integration use cases in enterprise landscapes. Based on the same principles, the cross use cases category comprises use case patterns that complement one ore more of the five core integration styles – e.g. API-Managed Integration or Event-Based Integration. Use Case Patterns are technology-agnostic Extensible Library: ISA-M includes a typical set of use case patterns that you can use as a starting point for your organization. You can flexibly adjust the library of use case patterns to your specific needs e.g. by adding additional customer-specific use case patterns or removing patterns that are not relevant in your organization. In the next slides, all use case patterns are described in more detail including an example in the context of SAP. How To Use Integration Styles Use Case Patterns Data Integration Data Replication (ETL) Data Virtualization Data Quality Management Data Orchestration … Thing Integration Thing to Analytics Thing to Process Thing to Data Lake Thing to Thing … Cross Use Cases … User Integration UI Integration Mobile Integration Chatbot Integration Stream Analytics … Workflow Management API-Managed Integration Event-Based Integration Robotic Process Automation Digital Integration Hub Process Integration A2A Integration Master Data Integration B2B Integration B2G Integration … Analytics Integration Embedded Analytics Cross Application Analytics Customer- Specific Use Case
28 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping A2A Integration Chaining of business process steps between business applications by the exchange of transactional data. Example: Lead-to-cash process with integration of SAP Customer Experience and SAP S/4HANA: exchange of sales orders. B2G Integration Transform transactional data into predefined exchange formats and transfer it electronically to external legal or tax authority systems. Example: File goods and service tax returns from SAP S/4HANA to the Goods and Services Tax Network (GSTN) organization India in prescribed format and protected fashion. Master Data Integration API-based exchange of master data across business applications. Example: Exchange of business partner master data between SAP S/4HANA and SAP Sales Cloud and SAP Commerce Cloud. B2B Integration Chaining of business process steps between business partners by the exchange of transactional data leveraging standard B2B protocols. Example: Design-to-operate process with integration of a manufacturer with suppliers: exchange of purchase orders using B2B standards like ANSI X.12 or UN/EDIFACT. Application Application Application Application Partner 1 Application Application Application Application Partner 2 Organization Government Agency Application

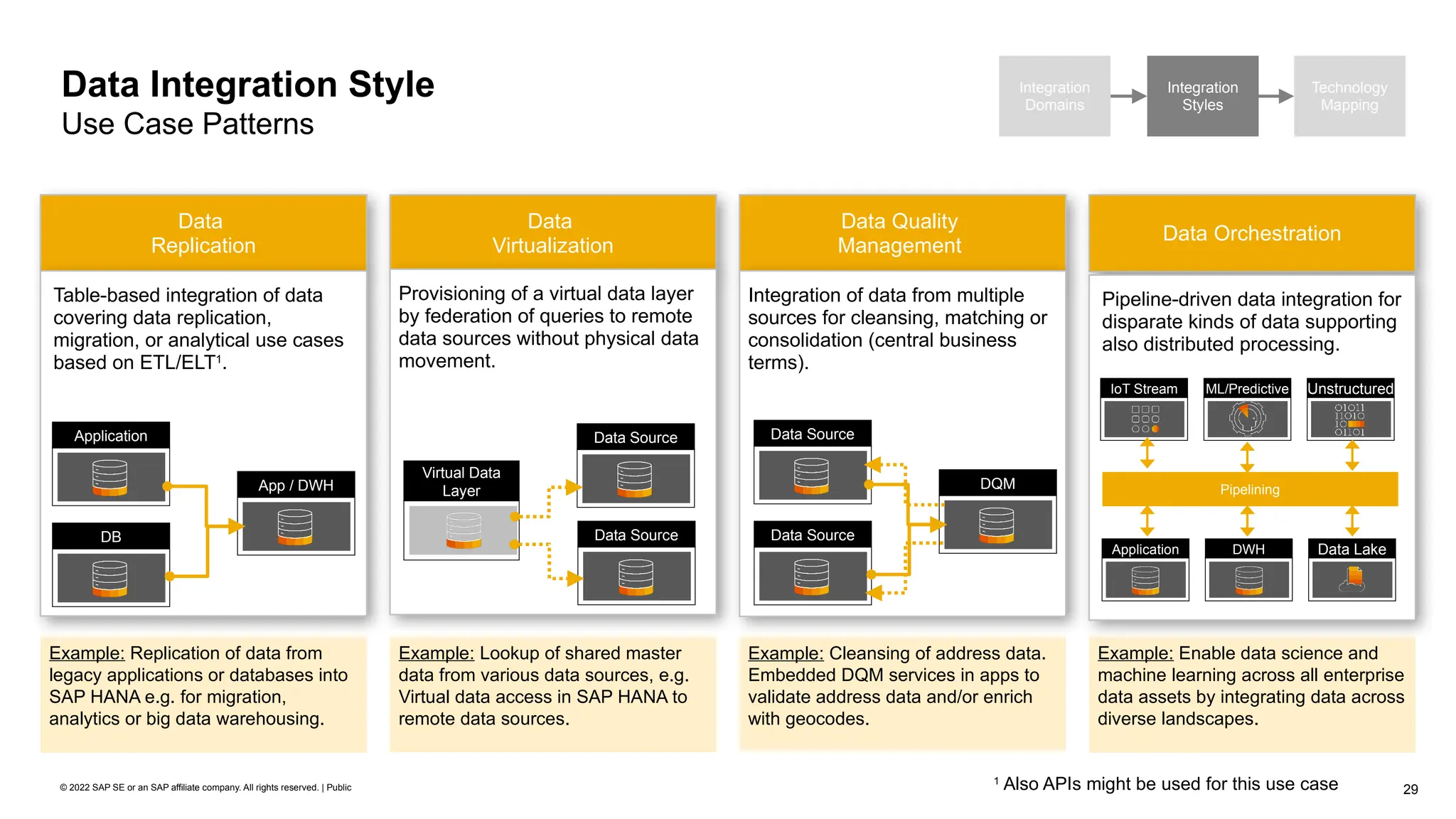

29 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Also APIs might be used for this use case Data Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Data Replication Table-based integration of data covering data replication, migration, or analytical use cases based on ETL/ELT1 . Example: Replication of data from legacy applications or databases into SAP HANA e.g. for migration, analytics or big data warehousing. App / DWH Application DB Data Orchestration Pipeline-driven data integration for disparate kinds of data supporting also distributed processing. Example: Enable data science and machine learning across all enterprise data assets by integrating data across diverse landscapes. Data Virtualization Provisioning of a virtual data layer by federation of queries to remote data sources without physical data movement. Example: Lookup of shared master data from various data sources, e.g. Virtual data access in SAP HANA to remote data sources. Virtual Data Layer Data Source Data Source Data Quality Management Integration of data from multiple sources for cleansing, matching or consolidation (central business terms). Example: Cleansing of address data. Embedded DQM services in apps to validate address data and/or enrich with geocodes. DQM Data Source Data Source Pipelining IoT Stream Unstructured ML/Predictive Application Data Lake DWH
30 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Embedded Analytics Embed analytical content such as reports and dashboards into a business application. Example: Treasury Executive Dashboard. By embedding SAP Analytics Cloud into SAP S/4HANA Cloud. Application Analytics Cross Application Analytics Combine data of one or more source systems using an analytics or data ware- house solution. On top of the combined data an analytic consumption model can be built to enable (cross app) reporting. Example: Financial analytics dashboard for SAP Analytics Cloud Analytics Analytics Data Source Application Analytics Platform / Data Warehouse
31 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public User Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping UI Integration Integration of multiple application UIs into a single point of entry including the consumption of backend application services in a web user interface. Example: Central entry point to SAP business application like SAP S/4HANA or SAP SuccessFactors. Web UI Application Application Mobile Integration Consumption of backend application services in a mobile app, leveraging native or hybrid device capabilities including offline data synchronization. Example: iOS or Android mobile apps that access data from on-premise or cloud-based data sources via OData with offline data synchronization. Mobile App Application Application Chatbot Integration Integration of chatbots into various communication channels including integration with backend applications to trigger a transaction or retrieve further information. Example: Digital Assistant as part of SAP SuccessFactors to enable interaction with business users using natural language. Digital Assistant Application
32 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Thing to Analytics Real-time integration of thing or machine data for monitoring and analytics. Example: Monitoring of connected devices or machines and to gain real- time visibility of shop floor based production operations. Thing to Thing Exchange of data between two or more things, e.g. machine-to- machine (M2M). Example: Communication between two robots during production process. Thing to Data Lake Collection of thing or machine data to derive future value out of it (e.g. by machine learning). Thing to Process Integration of thing or machine data for triggering a business process step. Example: Triggering of a service order process based on machine alerts (e.g. in the context of SAP Predictive Maintenance & Service). Example: Optimizing asset maintenance with anomaly detection, spectral analysis, and machine learning algorithms. Thing Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Analytical Application Thing Thing Business Application Thing Thing Data Lake Thing Thing Thing Thing

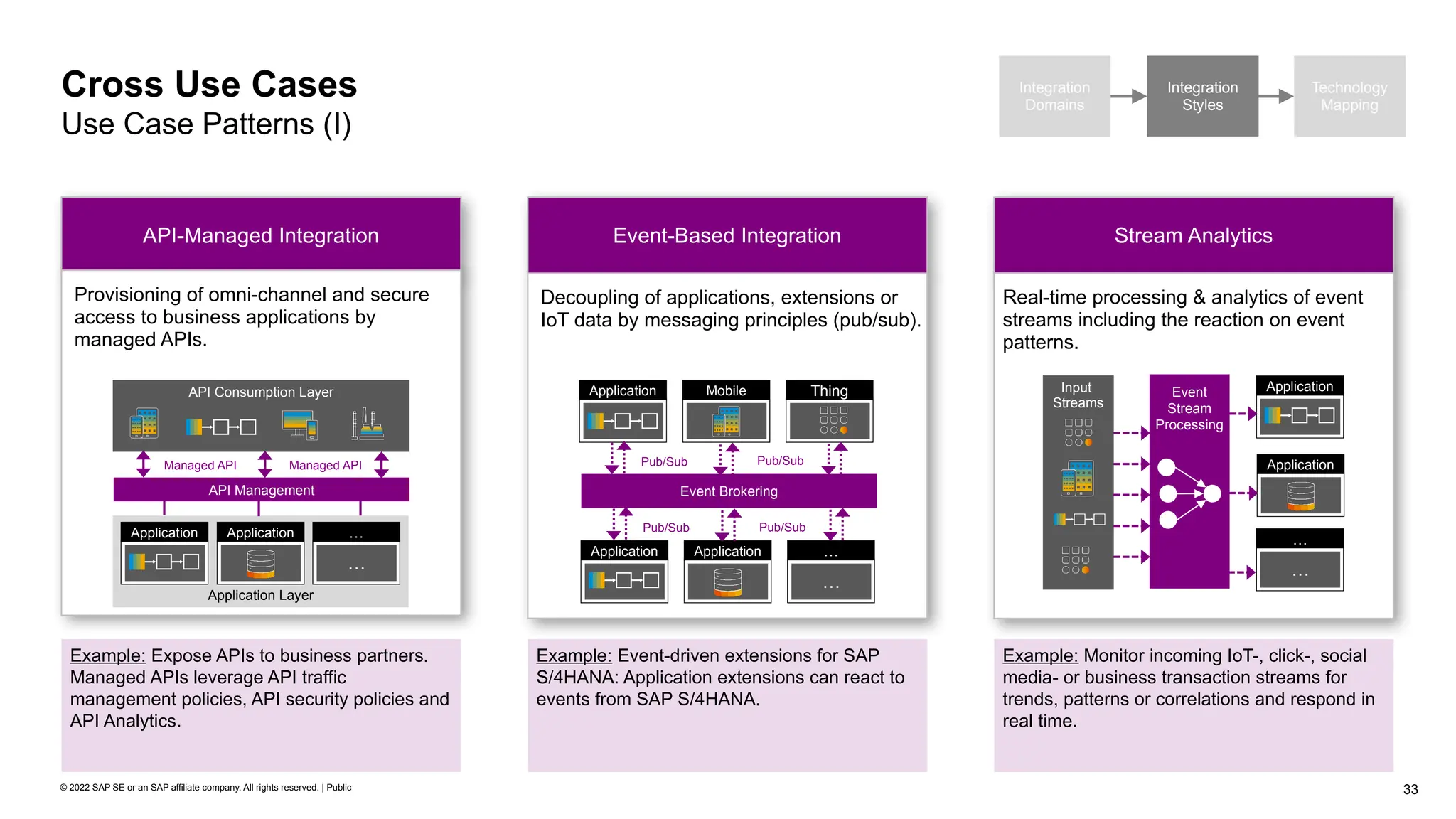

33 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Use Case Patterns (I) Integration Domains Integration Styles Technology Mapping API-Managed Integration Provisioning of omni-channel and secure access to business applications by managed APIs. Example: Expose APIs to business partners. Managed APIs leverage API traffic management policies, API security policies and API Analytics. Application Layer API Management API Consumption Layer … … Application Application Managed API Managed API Event-Based Integration Decoupling of applications, extensions or IoT data by messaging principles (pub/sub). Example: Event-driven extensions for SAP S/4HANA: Application extensions can react to events from SAP S/4HANA. Event Brokering Application Thing Mobile Application … … Application Pub/Sub Pub/Sub Pub/Sub Pub/Sub Stream Analytics Real-time processing & analytics of event streams including the reaction on event patterns. Example: Monitor incoming IoT-, click-, social media- or business transaction streams for trends, patterns or correlations and respond in real time. Event Stream Processing Input Streams … … Application Application

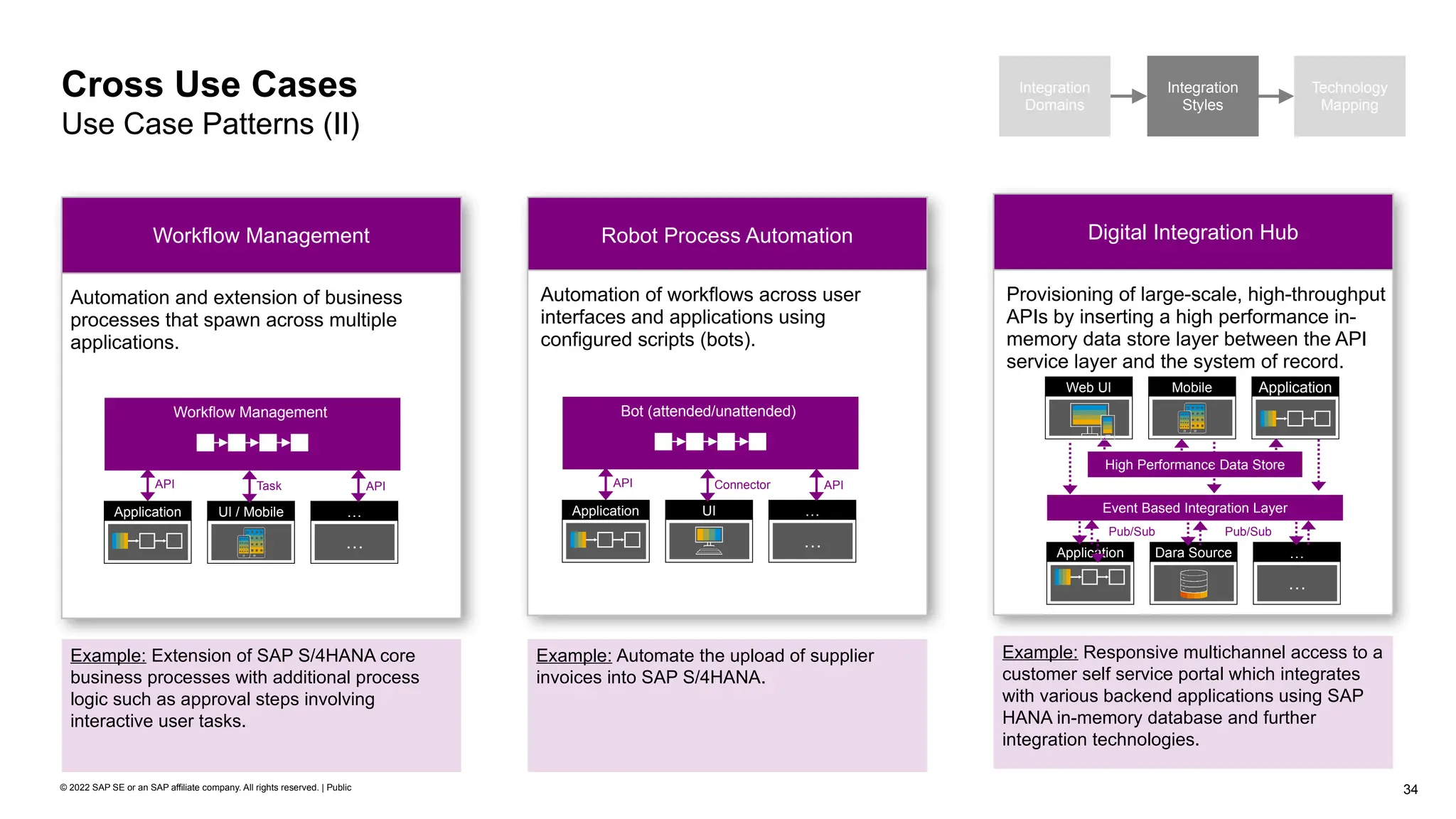

34 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Use Case Patterns (II) Integration Domains Integration Styles Technology Mapping Workflow Management Automation and extension of business processes that spawn across multiple applications. Example: Extension of SAP S/4HANA core business processes with additional process logic such as approval steps involving interactive user tasks. Workflow Management Application … … UI / Mobile API Task API Robot Process Automation Automation of workflows across user interfaces and applications using configured scripts (bots). Example: Automate the upload of supplier invoices into SAP S/4HANA. Bot (attended/unattended) Application … … UI API Connector API Digital Integration Hub Provisioning of large-scale, high-throughput APIs by inserting a high performance in- memory data store layer between the API service layer and the system of record. Example: Responsive multichannel access to a customer self service portal which integrates with various backend applications using SAP HANA in-memory database and further integration technologies. High Performance Data Store Web UI Application Mobile Application … … Dara Source Pub/Sub Pub/Sub Event Based Integration Layer

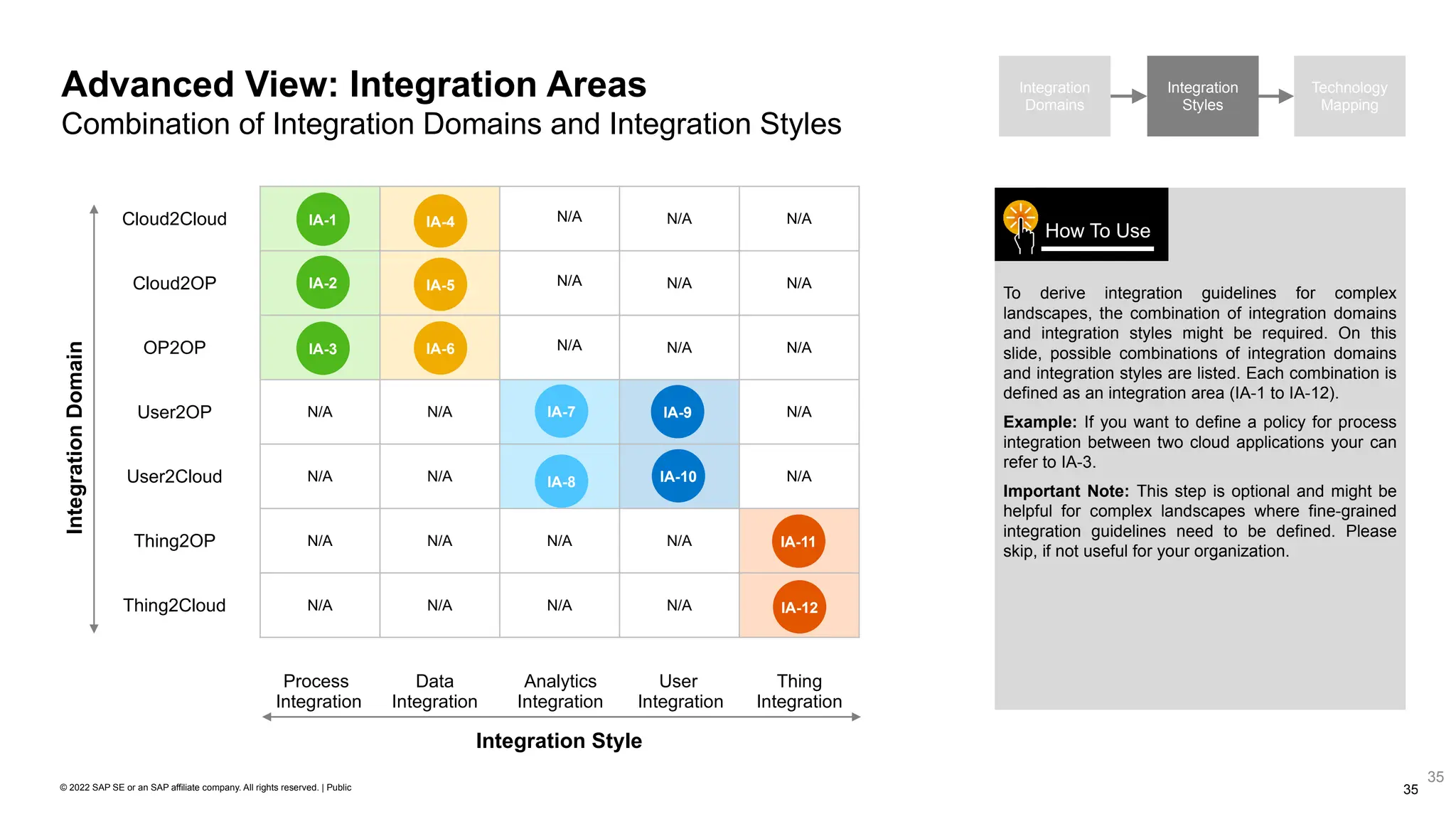

35 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 35 Advanced View: Integration Areas Combination of Integration Domains and Integration Styles Integration Domains Integration Styles Technology Mapping Integration Domain N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Cloud2Cloud Cloud2OP OP2OP User2OP User2Cloud Thing2OP Thing2Cloud Process Integration Data Integration Analytics Integration User Integration Thing Integration Integration Style IA-2 IA-3 IA-4 IA-5 IA-6 IA-1 IA-9 IA-10 IA-11 IA-12 To derive integration guidelines for complex landscapes, the combination of integration domains and integration styles might be required. On this slide, possible combinations of integration domains and integration styles are listed. Each combination is defined as an integration area (IA-1 to IA-12). Example: If you want to define a policy for process integration between two cloud applications your can refer to IA-3. Important Note: This step is optional and might be helpful for complex landscapes where fine-grained integration guidelines need to be defined. Please skip, if not useful for your organization. How To Use IA-7 IA-8
36 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
37 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 2: Design your Hybrid Integration Platform Objectives and approach  Mapping of use case patterns to integration technologies and services  Open to SAP and third party integration services  Derive integration guidelines for your organization  Highly depends on the customer context Sample customer context  Enterprise architecture strategy  Future application landscape  Existing investments  Skillsets  Commercial aspects

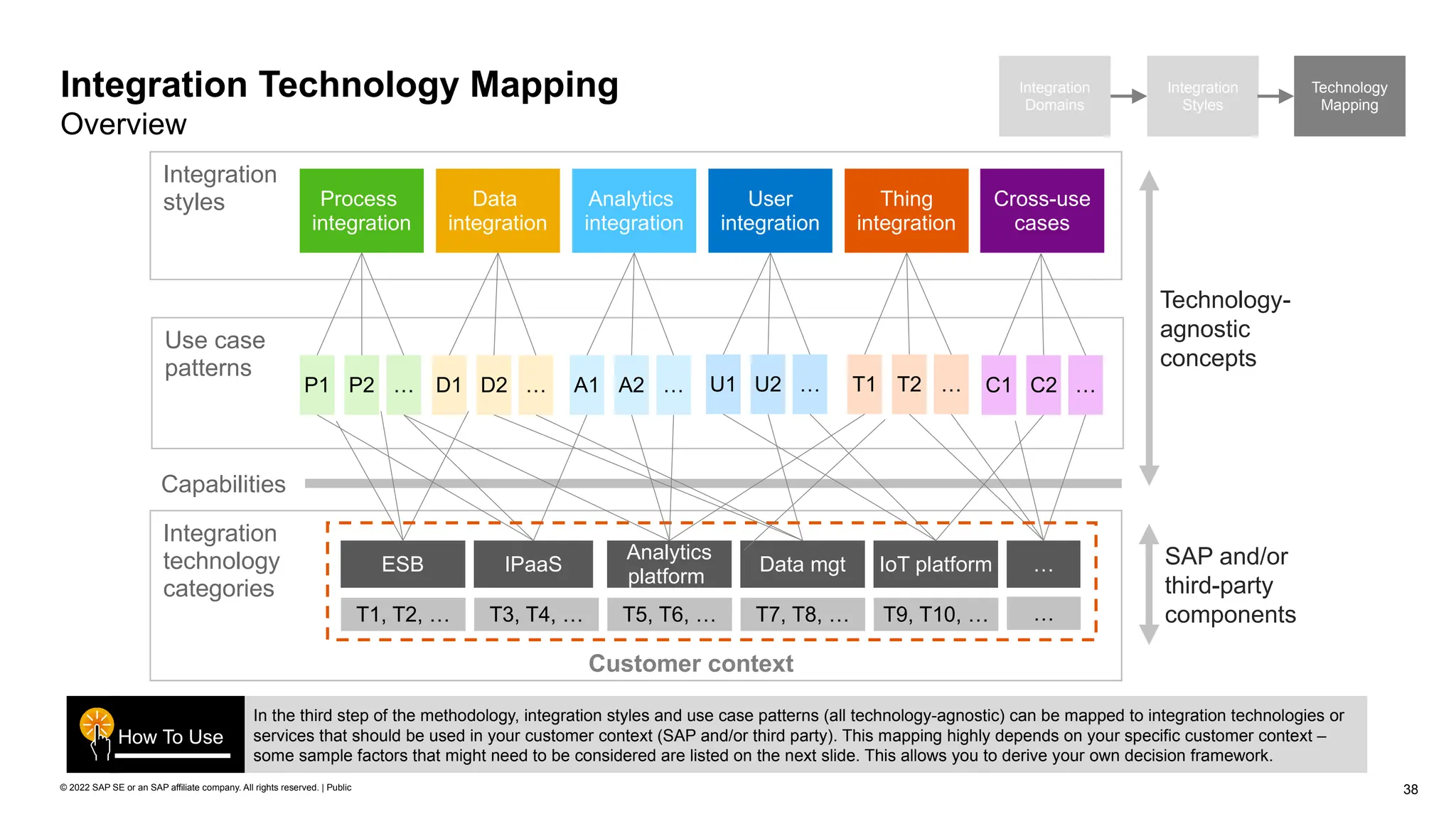

38 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Overview Technology- agnostic concepts SAP and/or third-party components Integration technology categories Use case patterns Integration styles P1 P2 … D1 D2 … A1 A2 … U1 U2 … Data integration Process integration Analytics integration User integration Thing integration T1 T2 … Customer context … ESB IPaaS Analytics platform Data mgt IoT platform … T1, T2, … T3, T4, … T5, T6, … T7, T8, … T9, T10, … Capabilities Cross-use cases C1 C2 … Integration Domains Integration Styles Technology Mapping In the third step of the methodology, integration styles and use case patterns (all technology-agnostic) can be mapped to integration technologies or services that should be used in your customer context (SAP and/or third party). This mapping highly depends on your specific customer context – some sample factors that might need to be considered are listed on the next slide. This allows you to derive your own decision framework. How To Use
39 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public The mapping to integration technologies / services highly depends on your specific customer context. This slide shows some sample factors that might need to be evaluated or considered in your organization. The listed factors can be adapted/extended to your specific needs. How To Use Integration Domains Integration Styles Technology Mapping Integration Technology Mapping Customer Context Industry & Business Requirements Existing & Future Application Landscape IT / Enterprise Architecture Strategy Existing Investments Preestablished integration Existing Skillsets …
40 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Integration Technology Mapping Recommendation Degrees Recommendation Degree Description General Recommendation Assign this degree to your default recommendation for a specific integration style and/or use case pattern, e.g. if you want to establish SAP Integration Suite as your company standard for hybrid or cloud integration scenarios. Reasonable Alternative Assign this degree to possible alternatives that are valid for specific integration scenarios, e.g. if you want to allow certain SAP-to-SAP scenarios to be implemented with a direct integration approach e.g. for migration purposes. Possible Exception Assign this degree to possible exceptions for your general recommendations that you would like to allow for restricted use cases, e.g. if you want to allow for some restricted scenarios file-based interfaces. To Be Avoided Assign this degree to explicitly cover integration techniques / approaches that you would not like to be further used for new integration scenarios, e.g. to phase out some non strategic integration technologies in you organization. ISA-M foresees various levels of recommendation degrees that you can assign to integration technologies / services in your organization. This allows you to define integration guidelines for your organization including default recommendations, reasonable alternatives, possible exceptions or techniques that you would like to avoid in your organization. The table below provides some further explanations. How To Use

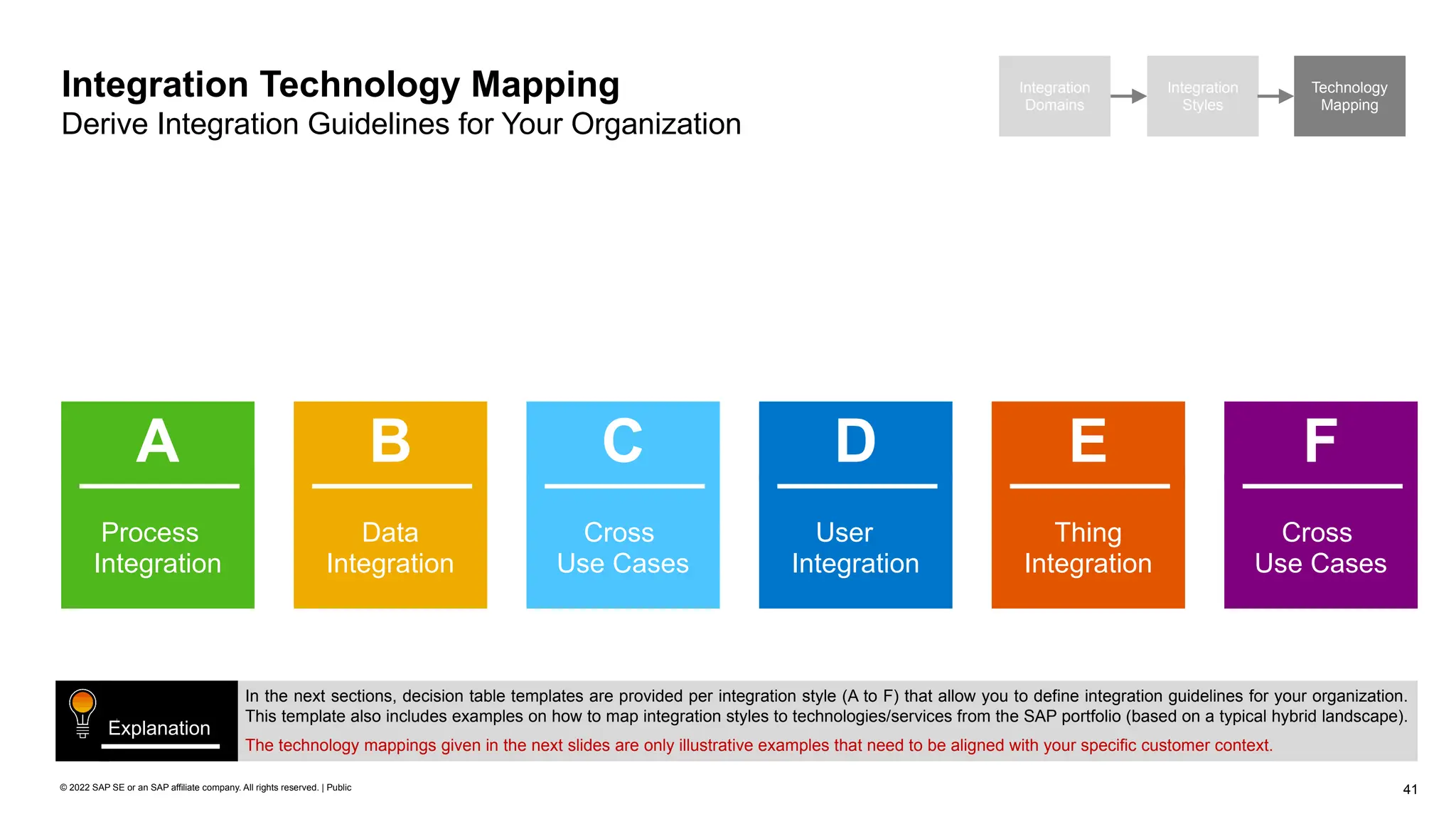

41 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F In the next sections, decision table templates are provided per integration style (A to F) that allow you to define integration guidelines for your organization. This template also includes examples on how to map integration styles to technologies/services from the SAP portfolio (based on a typical hybrid landscape). The technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific customer context. Explanation Cross Use Cases C
42 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
43 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the process integration style for your organization including the highlighted integration domains. ISA-M is open to also include third party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Where applicable, we have also added references to the Integration Architecture Guide for Cloud and Hybrid Landscapes or links to other documents where you will find more information. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

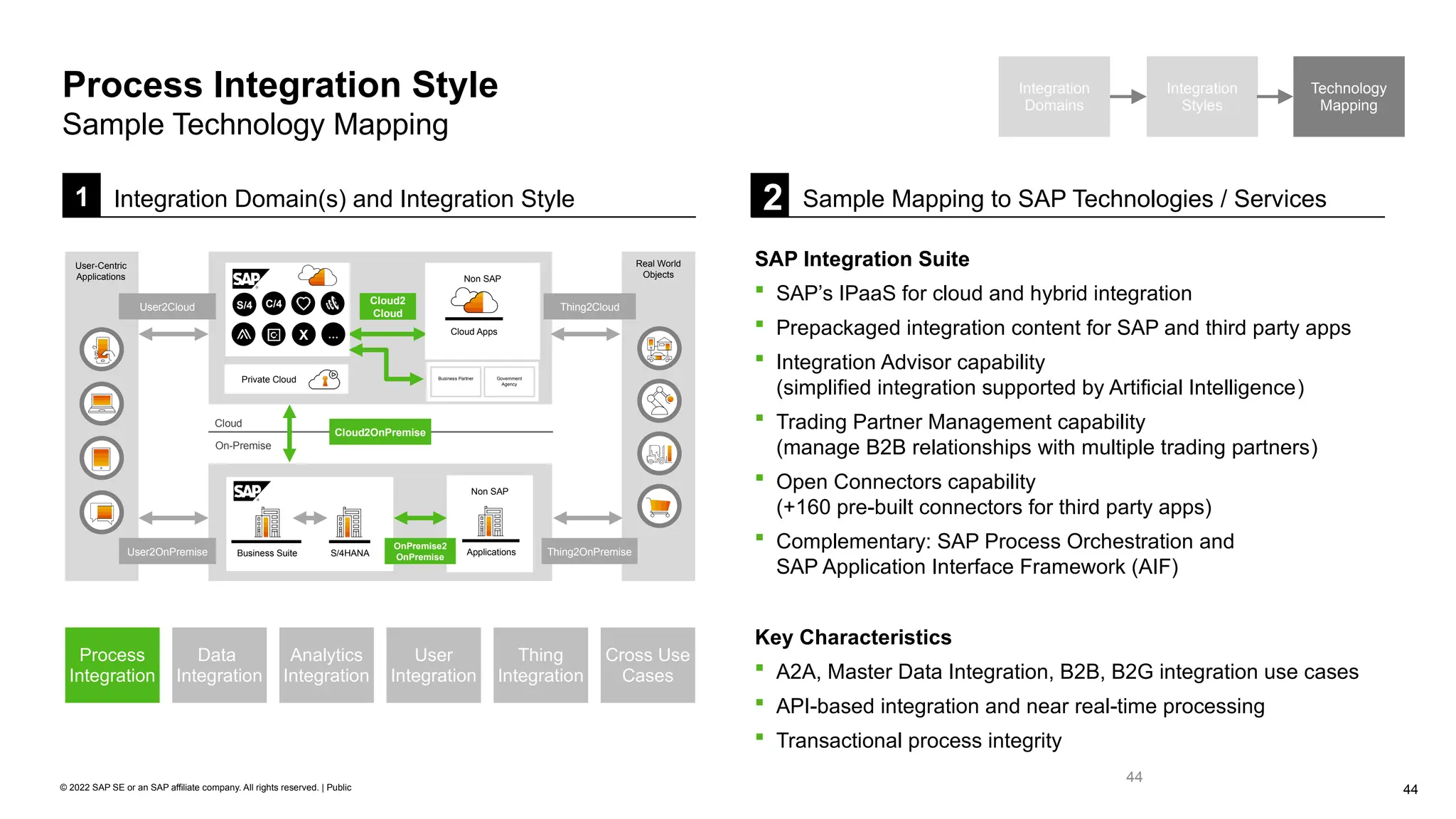

44 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style 44 Integration Domains Integration Styles Technology Mapping Process Integration Style Sample Technology Mapping SAP Integration Suite  SAP’s IPaaS for cloud and hybrid integration  Prepackaged integration content for SAP and third party apps  Integration Advisor capability (simplified integration supported by Artificial Intelligence)  Trading Partner Management capability (manage B2B relationships with multiple trading partners)  Open Connectors capability (+160 pre-built connectors for third party apps)  Complementary: SAP Process Orchestration and SAP Application Interface Framework (AIF) Key Characteristics  A2A, Master Data Integration, B2B, B2G integration use cases  API-based integration and near real-time processing  Transactional process integrity 2 Sample Mapping to SAP Technologies / Services On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
45 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) Cloud Integration capability within SAP Integration Suite 2) SAP Process Orchestration 3) SAP Application Interface Framework 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains OP2OP Cloud2OP Cloud2Cloud Cloud Integration capability within SAP Integration Suite General Recommendation Use whenever packaged integration content from SAP or SAP partners is available (see https://api.sap.com/discoverintegrations) or your custom build integration scenario requires mediation capabilities (such as mappings, routings, protocol conversions).   SAP Process Orchestration General Recommendation Use for on premise to on premise processes integration scenarios.  SAP Application Interface Framework General Recommendation Use whenever you want business users to monitor interfaces and to do error handling as part of a SAP S/4HANA or SAP ERP (as optional add-on).   … … … This table allows you to define integration guidelines for the process integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. Cloud Integration capability of SAP Integration Suite). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Cloud2OnPremise or Cloud2Cloud. Please adjust the decision template to your specific needs. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use
46 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration Style SAP Integration Suite SAP Integration Suite is a modular Enterprise Integration Platform as-a-Service solution for cloud-to-cloud and cloud-to-on premise integration use cases, covering both SAP and third party applications. Together with SAP integration software it can form a customer’s hybrid integration platform. Source and further Information: Integration Architecture Guide for Cloud and H ybrid Landscapes Explanation Integration Domains Integration Styles Technology Mapping
47 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Integration Suite & SAP Process Orchestration SAP Integration Suite builds the foundation of SAP’s integration strategy for supporting A2A, Master Data Integration, B2B, and B2G use cases. When using SAP Process Orchestration please explore options for transitioning to SAP Integration Suite. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation

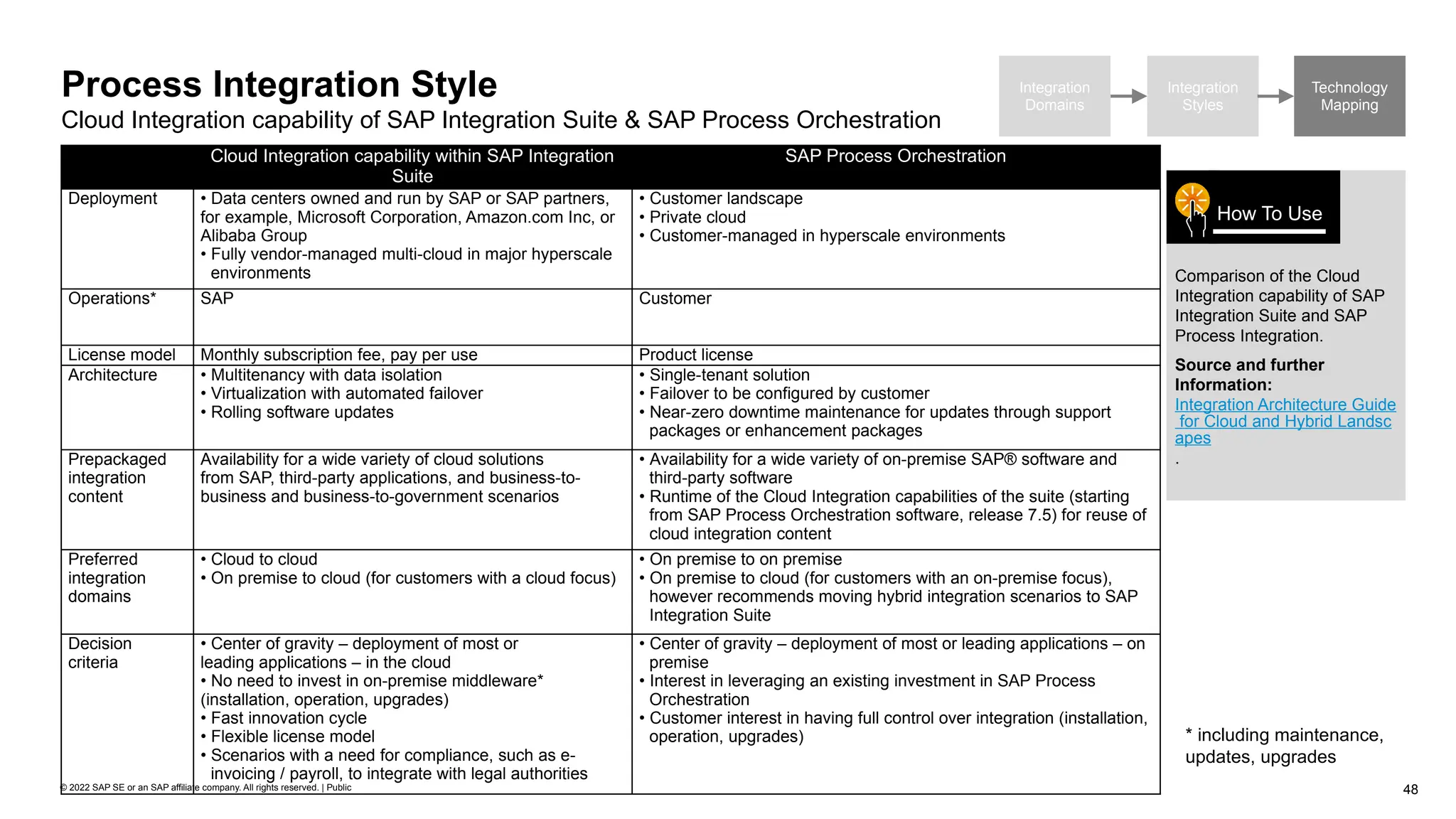

48 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Cloud Integration capability of SAP Integration Suite & SAP Process Orchestration Comparison of the Cloud Integration capability of SAP Integration Suite and SAP Process Integration. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landsc apes . How To Use Cloud Integration capability within SAP Integration Suite SAP Process Orchestration Deployment • Data centers owned and run by SAP or SAP partners, for example, Microsoft Corporation, Amazon.com Inc, or Alibaba Group • Fully vendor-managed multi-cloud in major hyperscale environments • Customer landscape • Private cloud • Customer-managed in hyperscale environments Operations* SAP Customer License model Monthly subscription fee, pay per use Product license Architecture • Multitenancy with data isolation • Virtualization with automated failover • Rolling software updates • Single-tenant solution • Failover to be configured by customer • Near-zero downtime maintenance for updates through support packages or enhancement packages Prepackaged integration content Availability for a wide variety of cloud solutions from SAP, third-party applications, and business-to- business and business-to-government scenarios • Availability for a wide variety of on-premise SAP® software and third-party software • Runtime of the Cloud Integration capabilities of the suite (starting from SAP Process Orchestration software, release 7.5) for reuse of cloud integration content Preferred integration domains • Cloud to cloud • On premise to cloud (for customers with a cloud focus) • On premise to on premise • On premise to cloud (for customers with an on-premise focus), however recommends moving hybrid integration scenarios to SAP Integration Suite Decision criteria • Center of gravity – deployment of most or leading applications – in the cloud • No need to invest in on-premise middleware* (installation, operation, upgrades) • Fast innovation cycle • Flexible license model • Scenarios with a need for compliance, such as e- invoicing / payroll, to integrate with legal authorities • Center of gravity – deployment of most or leading applications – on premise • Interest in leveraging an existing investment in SAP Process Orchestration • Customer interest in having full control over integration (installation, operation, upgrades) * including maintenance, updates, upgrades
49 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Master Data Integration SAP Master Data Integration service introduces a hub and spoke mechanism in cloud for exchanging and synchronizing master data. This service enables an out-of-the box integration for SAP-to-SAP integration scenarios exchanging semantically aligned data (based on SAP One Domain Model). Customers and third party applications can access the service through the Cloud Integration capability within SAP Integration Suite. Check out the SAP Road Map Explorer regarding the planned availability dates of supported master data objects and scenarios. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Customer and third party applications Exposure through SAP Integration Suite (Ready integrated) SAP applications SAP Master Data Integration service Change API (inbound) Distributed and scalable master data event log Log API (outbound) Change requests using SAP One Domain Model object representation) Change event notification (using SAP One Domain Model object representation)

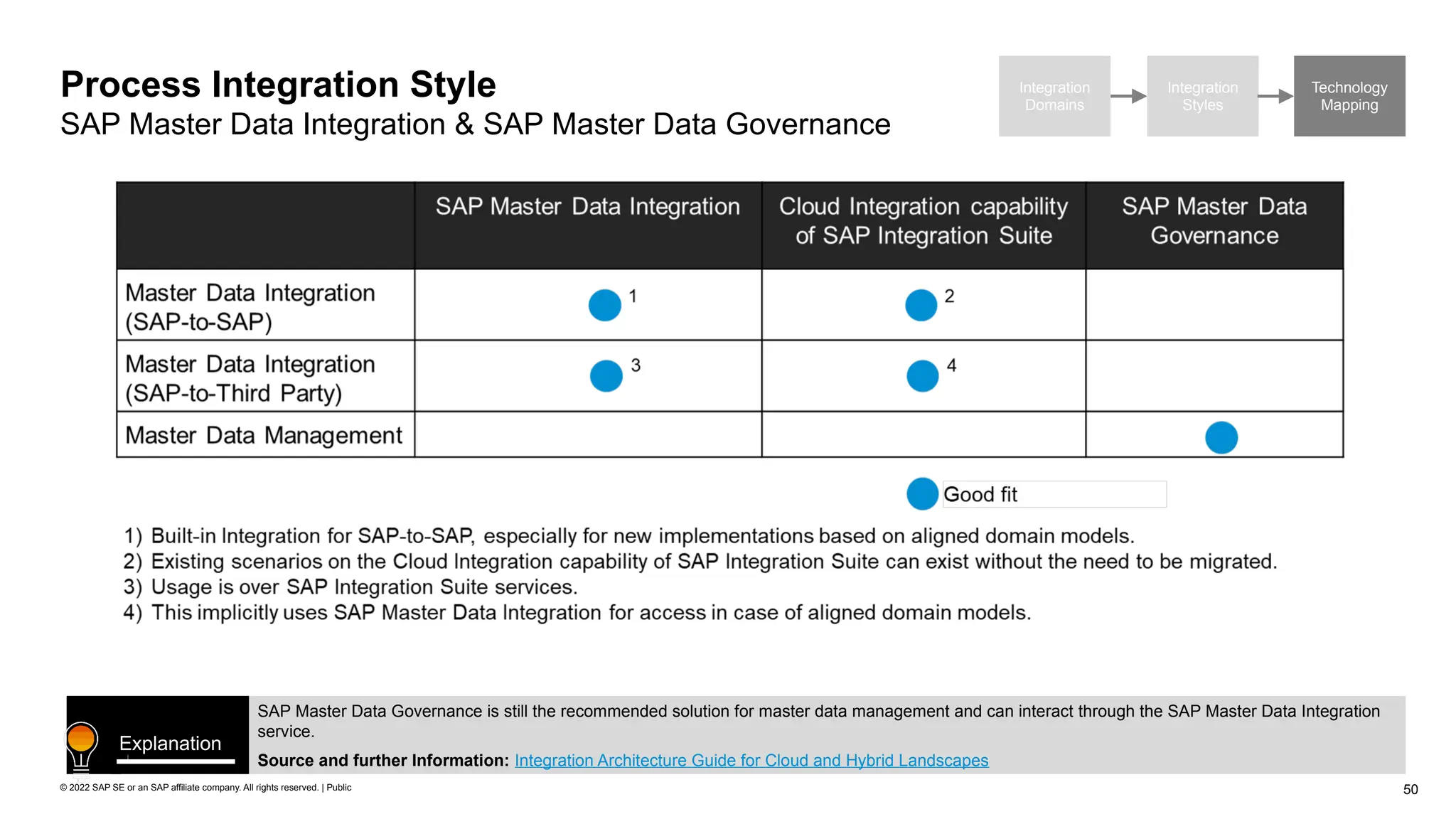

50 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration Style SAP Master Data Integration & SAP Master Data Governance Integration Domains Integration Styles Technology Mapping SAP Master Data Governance is still the recommended solution for master data management and can interact through the SAP Master Data Integration service. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Explanation
51 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Simplification: Evolution of SAP Integration Content SAP applications can synchronize business objects with common attributes and use common semantics, which reduces SAP-to-SAP integration efforts for customers: New implementations can take advantage of SAP Master Data Integration for scenarios for which SAP has delivered aligned domain models. SAP Integration Suite supports both types of integration scenarios – those for unaligned as well as aligned APIs Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes.. Explanation

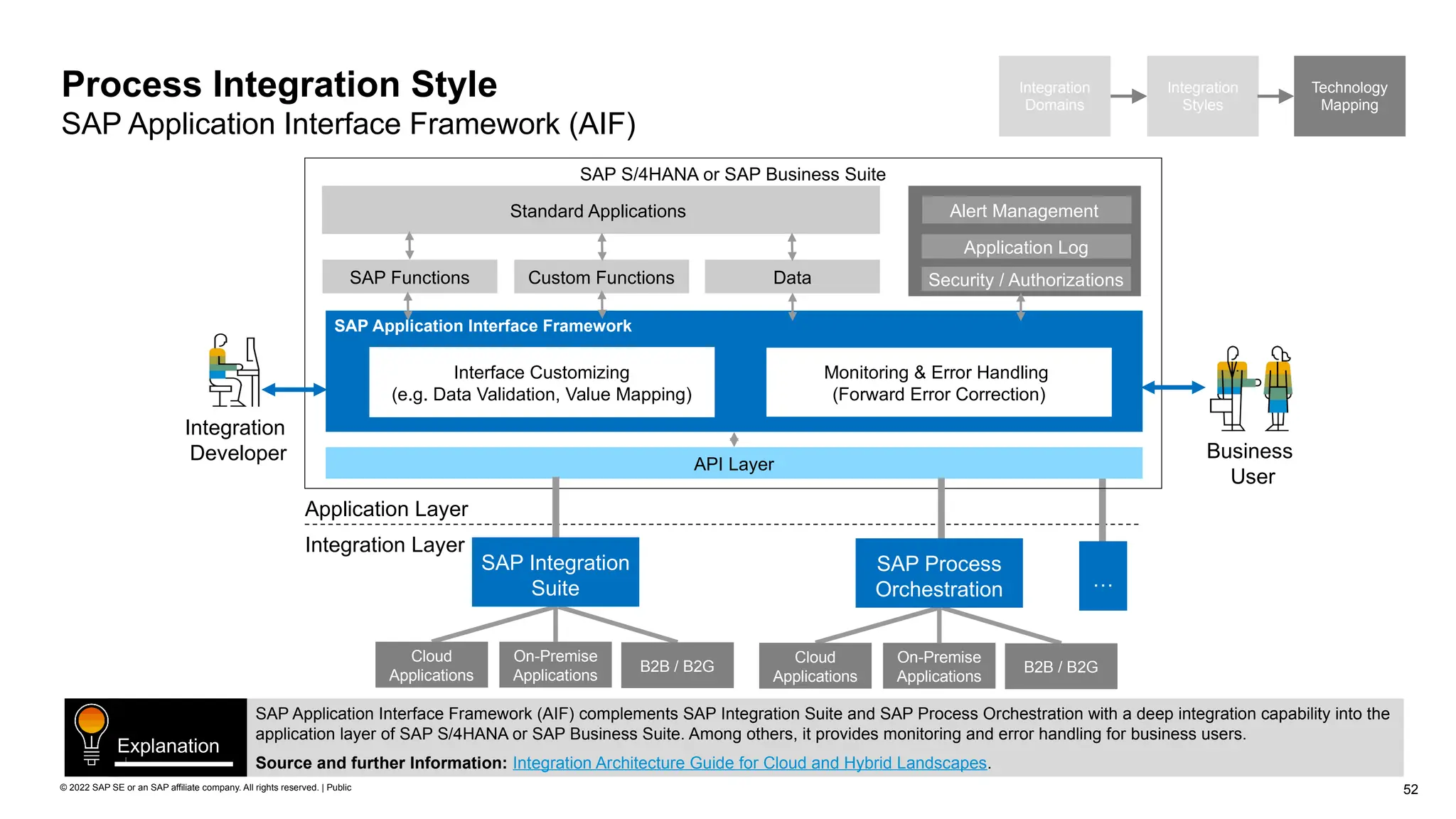

52 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Application Interface Framework (AIF) SAP Application Interface Framework (AIF) complements SAP Integration Suite and SAP Process Orchestration with a deep integration capability into the application layer of SAP S/4HANA or SAP Business Suite. Among others, it provides monitoring and error handling for business users. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Integration Layer Application Layer SAP S/4HANA or SAP Business Suite SAP Application Interface Framework API Layer Standard Applications Interface Customizing (e.g. Data Validation, Value Mapping) Monitoring & Error Handling (Forward Error Correction) Alert Management Application Log Security / Authorizations Custom Functions Data SAP Functions Integration Developer Business User SAP Integration Suite On-Premise Applications Cloud Applications B2B / B2G SAP Process Orchestration On-Premise Applications Cloud Applications B2B / B2G …
53 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Sample Key Characteristics – Integration and Application Layer A key question for integration architects is which patterns to implement in the integration layer and which patterns to implement in the application layer. This slide lists some typical patterns and their best practices and can be extended/adapted to capture best practices in your organization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Sample key characteristics
54 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 54 Integration Domains Integration Styles Technology Mapping Process Integration Style Further Information Resource Link Description Integration Architecture Guide for Cloud and Hybrid Landscapes Link This guide follows the concepts of ISA-M and provides detailed guidance regarding SAP integration technologies for process integration such as SAP Integration Suite, SAP Process Orchestration and SAP Application Interface Framework. In addition, it includes guidance for customers migrating from SAP Business Suite to SAP S/4HANA with regards to integration topics such as transition paths. SAP API Business Hub Link Discover and consume digital content packages with APIs, pre-packaged integrations, business process models and sample apps from SAP and select partners. Beside APIs, the SAP API Business Hub provides the central place for pre-packaged integration content for SAP Integration Suite (Cloud Integration capability) that is available for integration of the various SAP applications like SAP S/4HANA, SAP SuccessFactors, SAP Fieldglass, SAP Customer Experience to integrate with SAP and also third party applications. SAP Integration Suite Link SAP’s Integration Platform-as-a-Service (IPaaS): It simplifies integration by connecting people, processes, data, and devices everywhere by allowing people with different skills to leverage a wide variety of integration approaches, intuitive tools, and prepackaged content to achieve results faster and gain business agility with a versatile, dynamic, and enterprise-grade cloud integration platform. SAP Process Orchestration Link SAP’s on-premise integration platform: Model, implement, integrate, and monitor custom process applications and integration scenarios, quickly and flexibly. SAP Application Interface Framework Link Implement, monitor, and manage application interfaces from a central location within SAP S/4HANA or SAP Business Suite to simplify interface handling across your system landscape. SAP Activate Roadmap Viewer Link Provides access to SAP Activate methodology implementation roadmaps for SAP solutions. These offer a comprehensive view of associated activities, deliverables, and tasks with accompanying accelerator assets which also covers integration aspects. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
55 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
56 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the data integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Where applicable, we have also added references to the Integration Architecture Guide for Cloud and Hybrid Landscapes or links to other documents where you will find more information. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

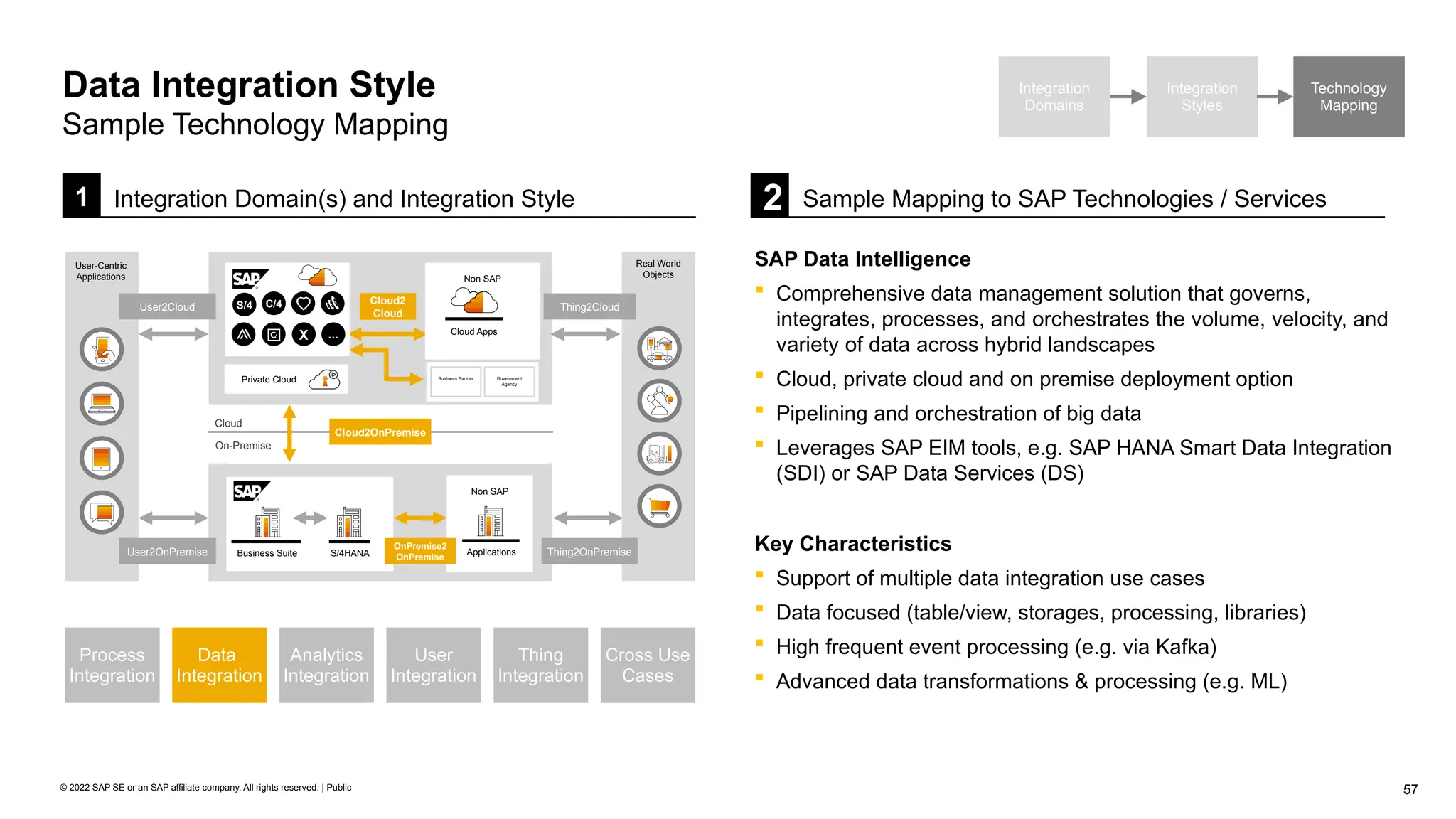

57 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Data Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Data Intelligence  Comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data across hybrid landscapes  Cloud, private cloud and on premise deployment option  Pipelining and orchestration of big data  Leverages SAP EIM tools, e.g. SAP HANA Smart Data Integration (SDI) or SAP Data Services (DS) Key Characteristics  Support of multiple data integration use cases  Data focused (table/view, storages, processing, libraries)  High frequent event processing (e.g. via Kafka)  Advanced data transformations & processing (e.g. ML) On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

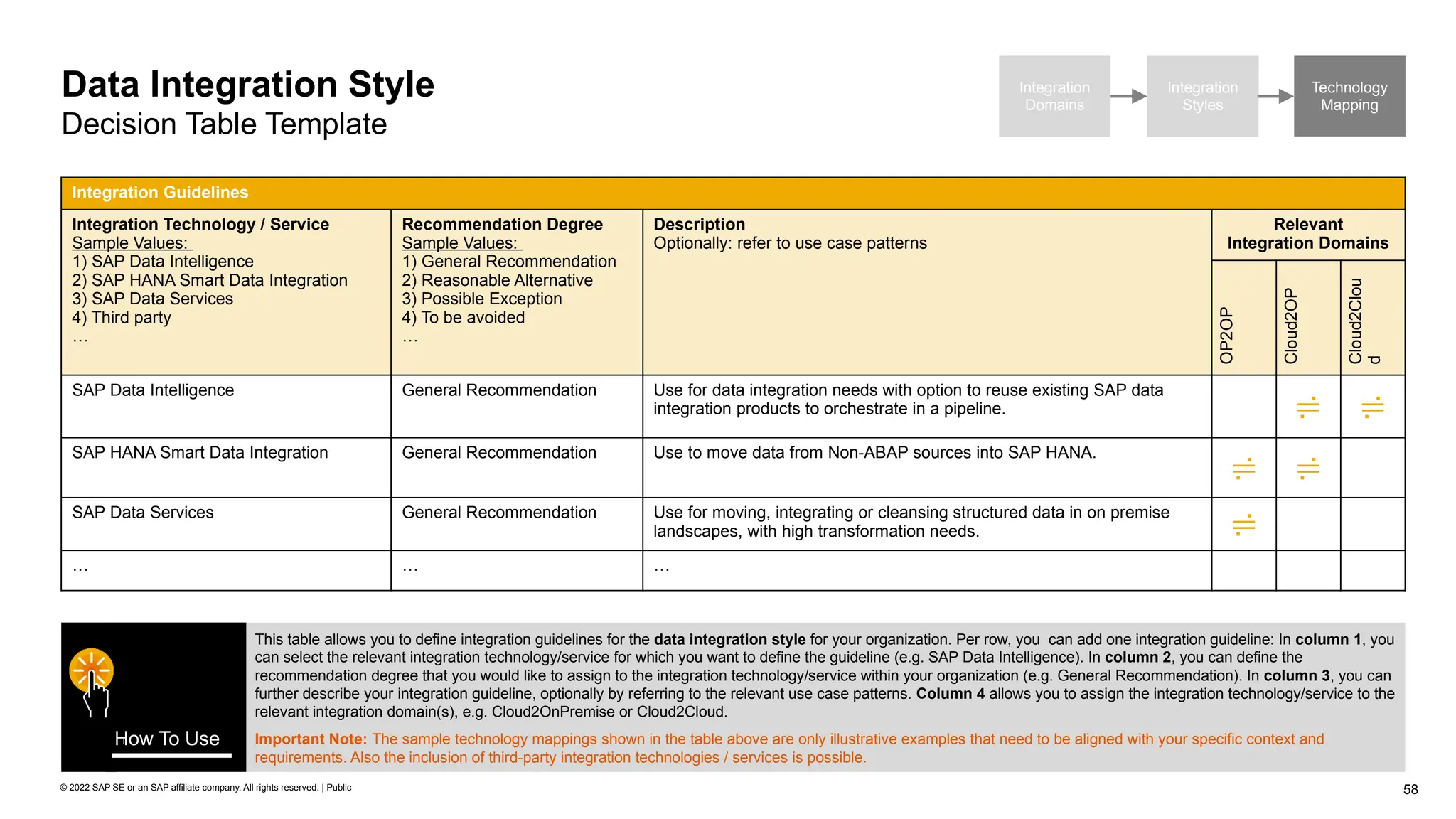

58 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Data Intelligence 2) SAP HANA Smart Data Integration 3) SAP Data Services 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains OP2OP Cloud2OP Cloud2Clou d SAP Data Intelligence General Recommendation Use for data integration needs with option to reuse existing SAP data integration products to orchestrate in a pipeline.   SAP HANA Smart Data Integration General Recommendation Use to move data from Non-ABAP sources into SAP HANA.   SAP Data Services General Recommendation Use for moving, integrating or cleansing structured data in on premise landscapes, with high transformation needs.  … … … This table allows you to define integration guidelines for the data integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Data Intelligence). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Cloud2OnPremise or Cloud2Cloud. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use
59 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Integration Style SAP Data Intelligence Integration Domains Integration Styles Technology Mapping The SAP Data Intelligence solution is a comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data in on-premise, cloud, multi-cloud, and hybrid distributed system landscapes. It is SAP’s strategic data management solution and the tool of choice, in particular for cloud and hybrid data integration, metadata management, and data processing needs. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation

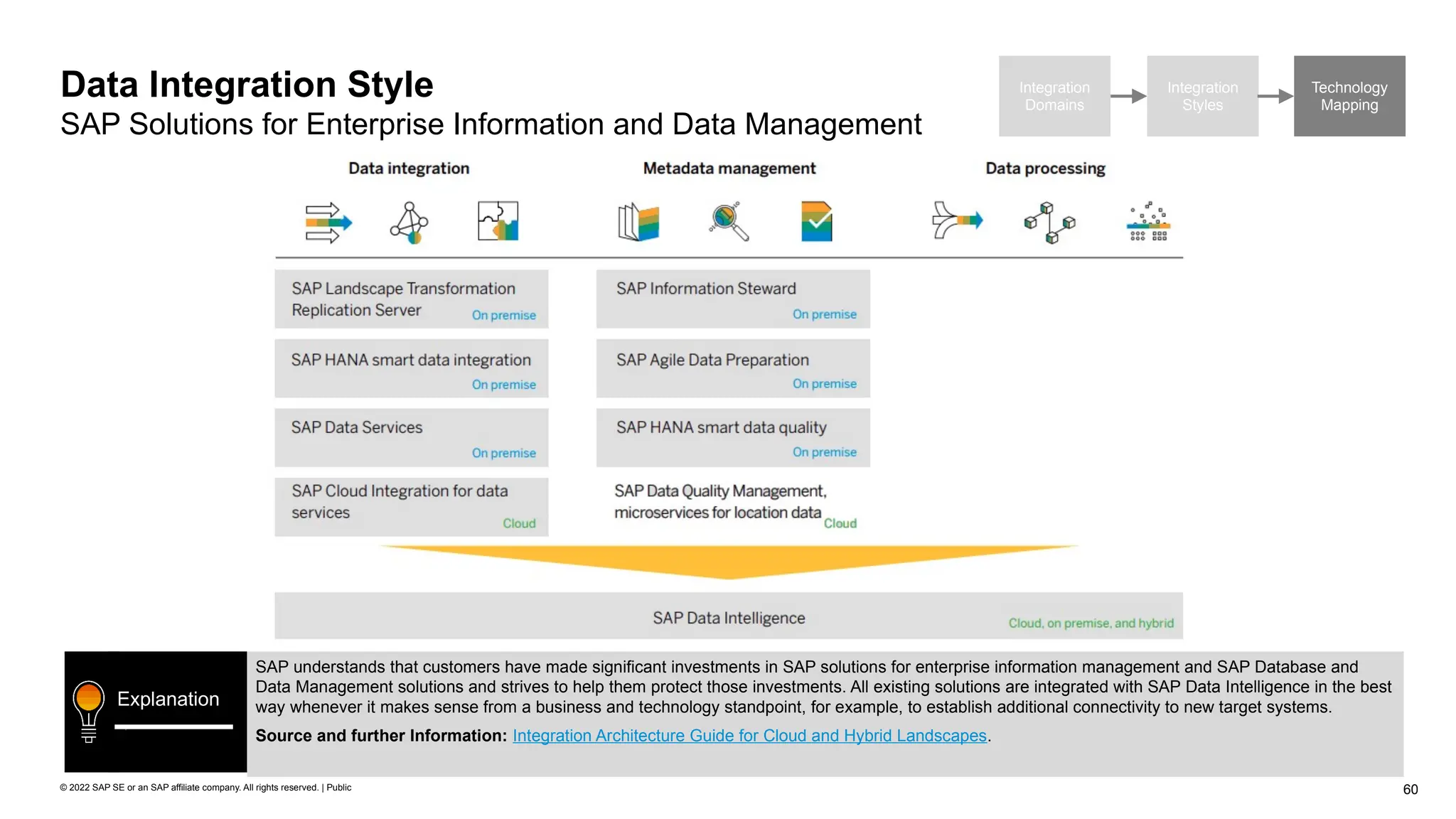

60 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Integration Style SAP Solutions for Enterprise Information and Data Management Integration Domains Integration Styles Technology Mapping SAP understands that customers have made significant investments in SAP solutions for enterprise information management and SAP Database and Data Management solutions and strives to help them protect those investments. All existing solutions are integrated with SAP Data Intelligence in the best way whenever it makes sense from a business and technology standpoint, for example, to establish additional connectivity to new target systems. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation

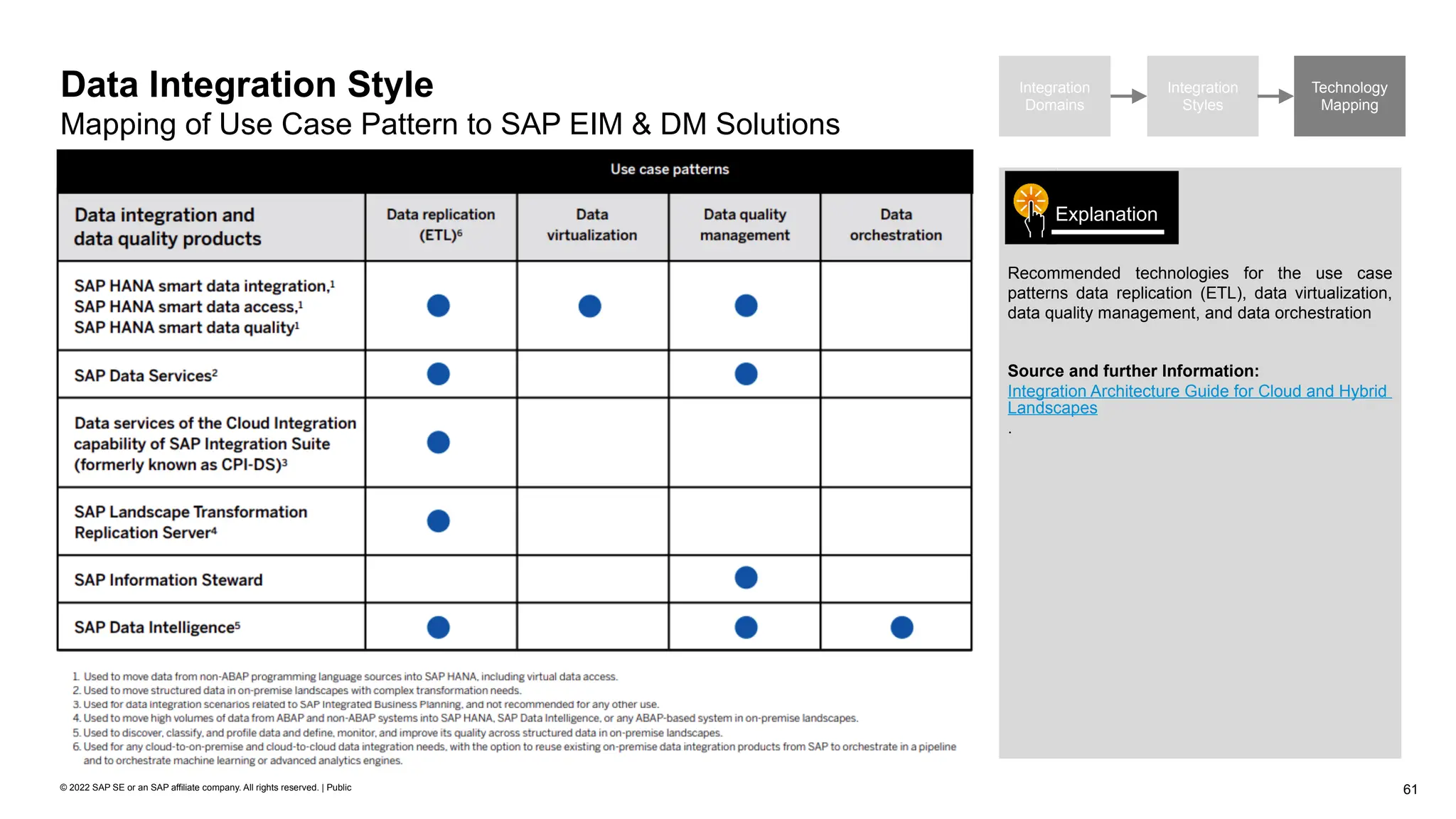

61 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Integration Style Mapping of Use Case Pattern to SAP EIM & DM Solutions Integration Domains Integration Styles Technology Mapping Recommended technologies for the use case patterns data replication (ETL), data virtualization, data quality management, and data orchestration Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes . Explanation

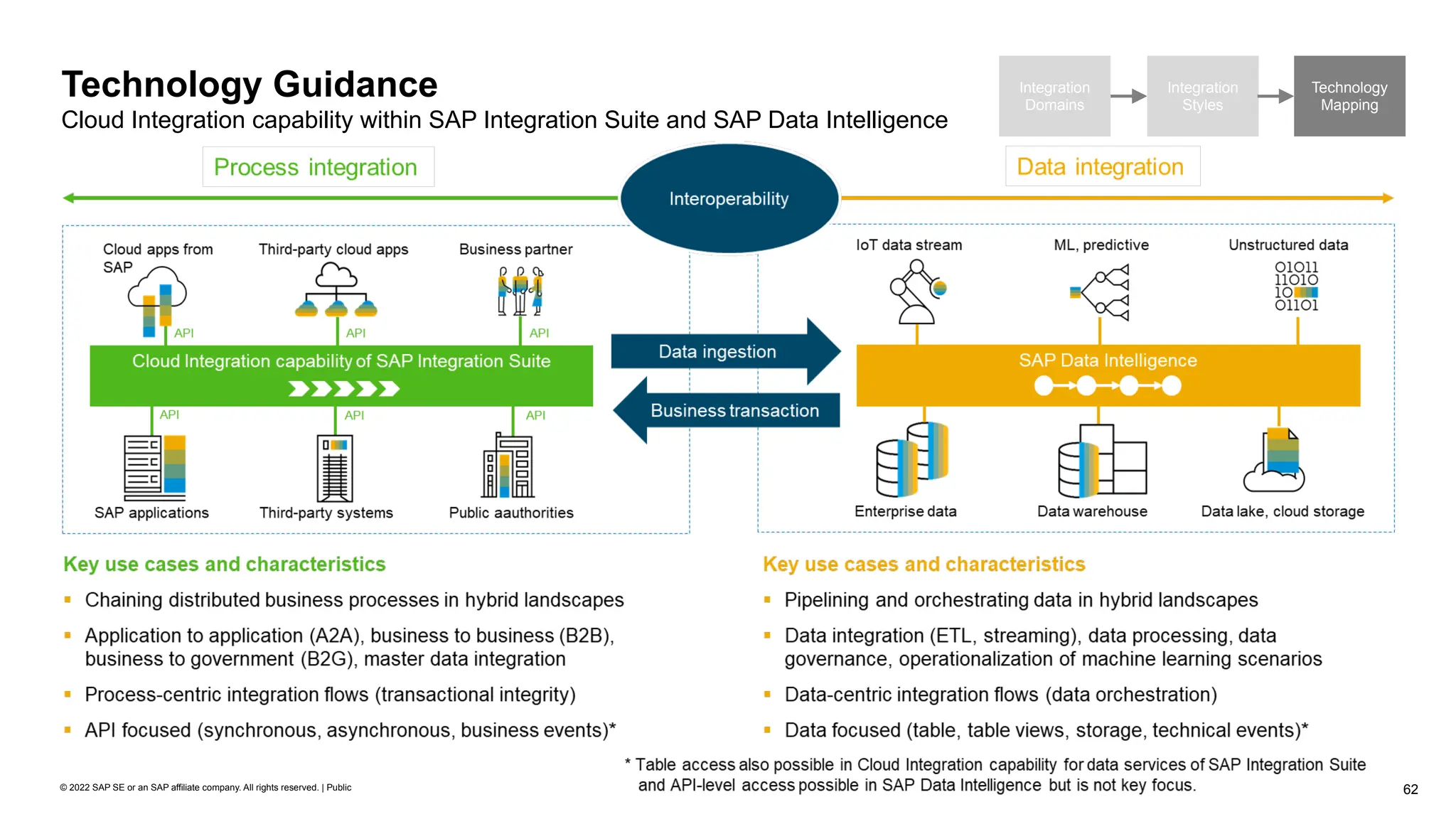

62 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Technology Guidance Cloud Integration capability within SAP Integration Suite and SAP Data Intelligence
63 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Further Information Resource Link Description SAP Data Intelligence Link The SAP Data Intelligence solution is a comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data in on-premise, cloud, multi-cloud, and hybrid distributed system landscapes. It is SAP’s strategic data management solution and the tool of choice, in particular for cloud and hybrid data integration, metadata management, and data processing needs. SAP HANA Smart Data Integration (SDI), SAP HANA Smart Data Access (SDA), SAP HANA Smart Data Quality (SDQ) Link All are part of the SAP HANA platform: SDI is a log-based, real-time data replication tool with transformation capabilities. Its focus is to move data from non-ABAP sources into SAP HANA. SDA enables remote data to be accessed as if it were stored in local tables in SAP HANA, without copying the data into SAP HANA. SDQ is a set of functionality provided by several components, which you can use to cleanse and enrich data. SAP Data Services Link Software to integrate, transform, improve, and load accurate and complete data to support operational and analytical data-driven initiatives. SAP Cloud Integration for data services Link Cloud-based data integration tool for batch data integration between on-premise application and cloud applications SAP Landscape Transformation Replication Server Link A trigger-based real-time data replication product with basic transformation capabilities. Its focus is to move high volumes of data from ABAP and non-ABAP systems into SAP HANA or any ABAP-based system. SAP Information Steward Link Software that provides data stewards and IT users with a single environment to discover, assess, define, monitor, and improve the quality of their enterprise data and metadata. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
64 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
65 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the analytics integration style for your organization including the highlighted integration domains. For the embedded analytics use case the cloud applications have also been highlighted. ISA-M is open to also include third party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

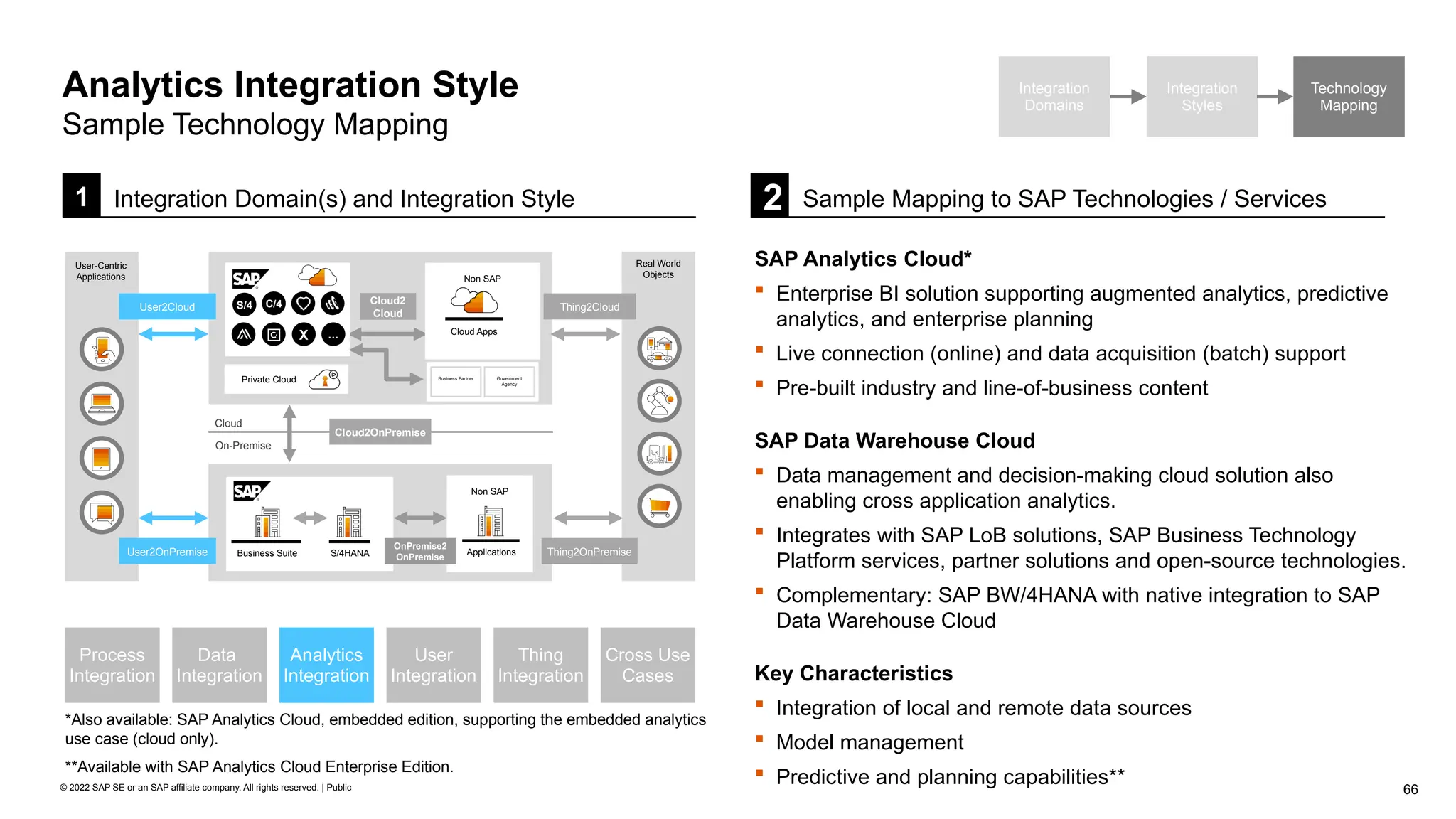

66 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Analytics Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Analytics Cloud*  Enterprise BI solution supporting augmented analytics, predictive analytics, and enterprise planning  Live connection (online) and data acquisition (batch) support  Pre-built industry and line-of-business content SAP Data Warehouse Cloud  Data management and decision-making cloud solution also enabling cross application analytics.  Integrates with SAP LoB solutions, SAP Business Technology Platform services, partner solutions and open-source technologies.  Complementary: SAP BW/4HANA with native integration to SAP Data Warehouse Cloud Key Characteristics  Integration of local and remote data sources  Model management  Predictive and planning capabilities** *Also available: SAP Analytics Cloud, embedded edition, supporting the embedded analytics use case (cloud only). **Available with SAP Analytics Cloud Enterprise Edition. On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
67 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Analytics Cloud 2) SAP Analytics Cloud, embedded edition 3) SAP Data Warehouse Cloud 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OnPremis e User2Cloud SAP Analytics Cloud General Recommendation For enterprise business intelligence, augmented analytics, predictive analytics, and enterprise planning (cross application analytics).   SAP Data Warehouse Cloud General Recommendation Data management and decision-making cloud solution enabling cross application analytics.   … … … This table allows you to define integration guidelines for the analytics integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Analytics Cloud). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or User2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use

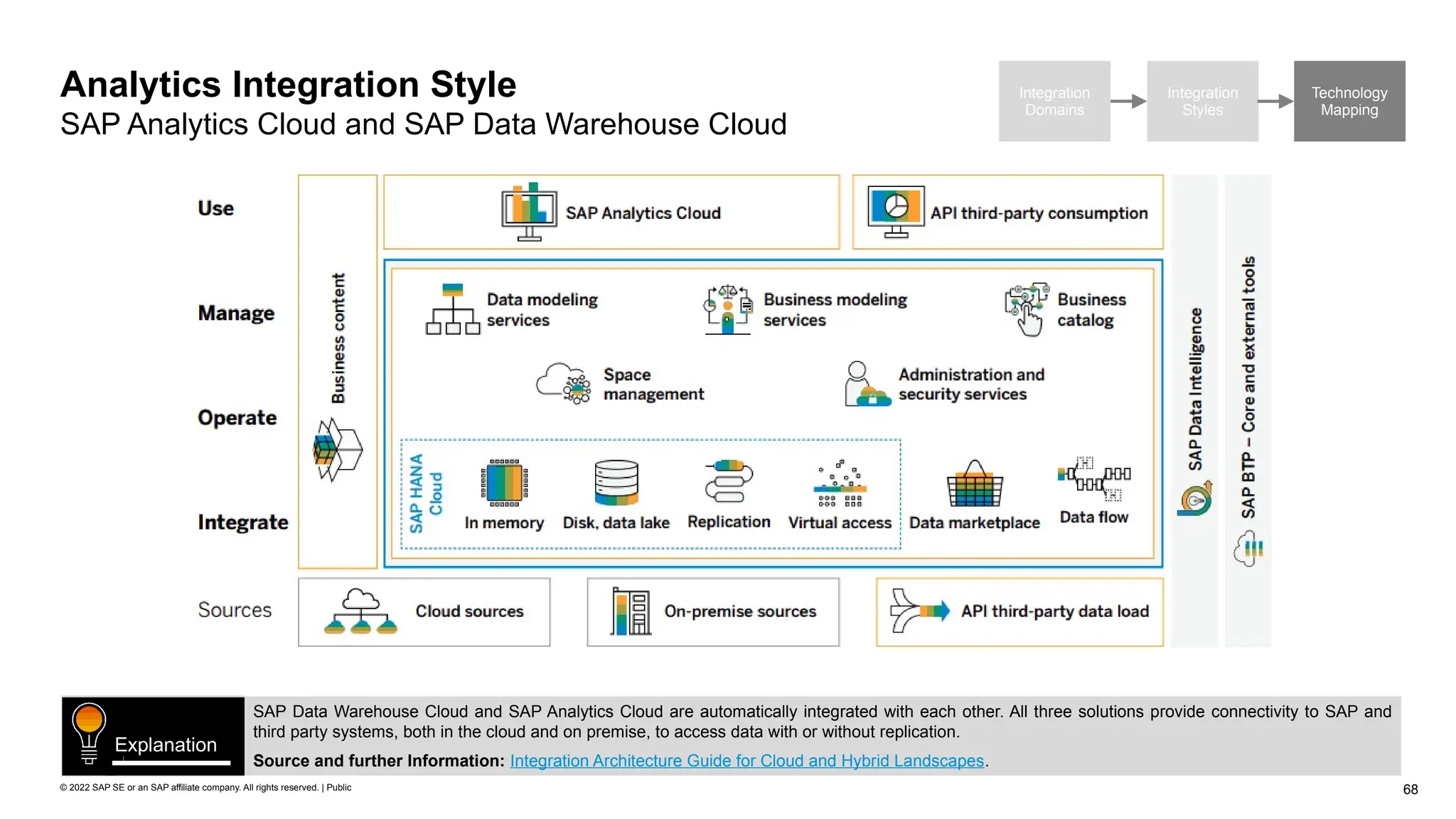

68 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style SAP Analytics Cloud and SAP Data Warehouse Cloud SAP Data Warehouse Cloud and SAP Analytics Cloud are automatically integrated with each other. All three solutions provide connectivity to SAP and third party systems, both in the cloud and on premise, to access data with or without replication. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Integration Domains Integration Styles Technology Mapping
69 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style SAP Analytics Cloud and SAP Data Warehouse Cloud Embedded analytics is realized by embedding SAP Analytics Cloud into business applications using direct live access to primary data. Cross application analytics can be implemented in three different ways: Query blending using SAP Analytics Cloud, data federation or data consolidation leveraging also SAP Data Warehouse Cloud. Further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Integration Domains Integration Styles Technology Mapping Data Source Single LoB using live data access Multiple LoBs Federated live data models to LoBs, SAP and third party data sources Consolidated (and cross-LoB) models with periodic data extraction (w/ delta) Product Embedded SAP Analytics Cloud SAP Analytics Cloud SAP Analytics Cloud + SAP Data Warehouse Cloud SAP Analytics Cloud + SAP Data Warehouse Cloud Cross Analytics N/A Cross Analytics via filtering and navigation on linked dimensions Cross Analytics bulit into federated view modeling Cross Analytics built into consolidated data modeling Example Embedded analytics in SAP S/4HANA Cloud Touchpoint NPS in Sales and Service Financial analytics dashboard for SAC (also known as CFO dashboard) Embedded (SAP Analytics Cloud) Linked Analysis (SAP Analytics Cloud) Federation* (SAP Data Warehouse Cloud) Consolidation (SAP Data Warehouse Cloud) Data Data Consolidated Data Data Data Data Data Federated View Data Cross Application Analytics & Planning Embedded Analytics Explanation * Restrictions may apply depending on source system type and use case
70 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style Innovation Journeys for SAP BW Customers Integration Domains Integration Styles Technology Mapping SAP Data Warehouse Cloud, SAP BW bridge enables the transition to SAP Data Warehouse Cloud with the help of SAP BW-based data integration & staging with tool-supported move*. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation SAP Data Warehouse Cloud SAP BW bridge SAP BW/4HANA & Data Warehouse Cloud Hybrid Combine the strengths of SAP BW/4HANA with the innovation, openness, and self-service abilities of SAP Data Warehouse Cloud in a hybrid scenario SAP Data Warehouse Cloud, SAP BW bridge Re-use and integrate SAP BW-based data ingestion and staging (incl. ABAP code) in SAP Data Warehouse Cloud (tool-supported move*) SAP BW 7.X SAP BW 7.X SAP BW & BW/4HANA Cloud Private Edition1 SAP Data Warehouse Cloud SAP BW & BW/4HANA Cloud Safe-guard investments by lifting existing landscape to the cloud – “RISE with SAP” SAP BW 7.X SAP BW & BW/4HANA Cloud Private Edition1 * Check SAP Data Warehouse Cloud Roadmap rgd. plannned availability and features. 1 SAP BW/4HANA is fully supported until 2040 and can also be deployed on-premises if desired.

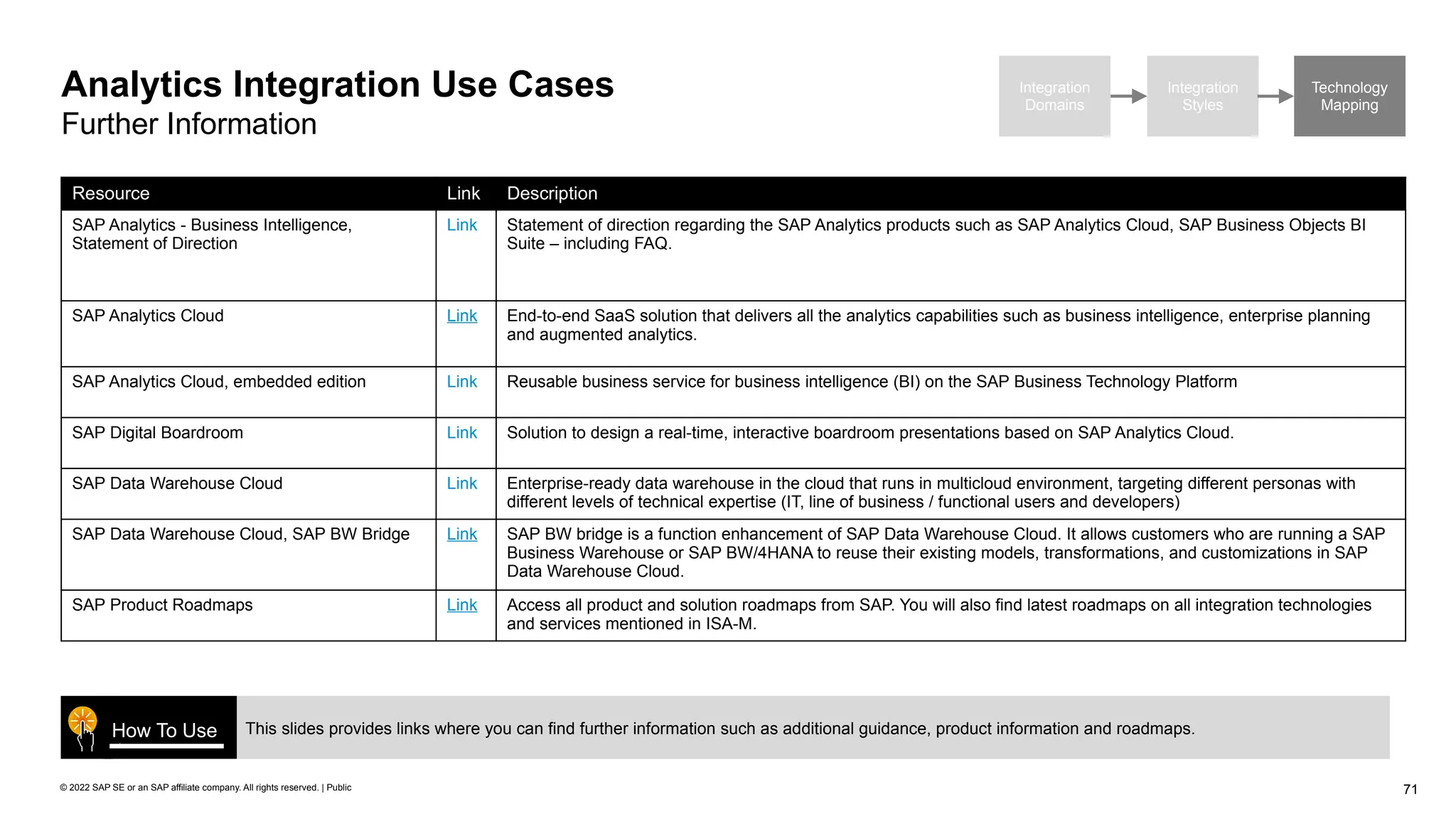

71 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Use Cases Further Information Resource Link Description SAP Analytics - Business Intelligence, Statement of Direction Link Statement of direction regarding the SAP Analytics products such as SAP Analytics Cloud, SAP Business Objects BI Suite – including FAQ. SAP Analytics Cloud Link End-to-end SaaS solution that delivers all the analytics capabilities such as business intelligence, enterprise planning and augmented analytics. SAP Analytics Cloud, embedded edition Link Reusable business service for business intelligence (BI) on the SAP Business Technology Platform SAP Digital Boardroom Link Solution to design a real-time, interactive boardroom presentations based on SAP Analytics Cloud. SAP Data Warehouse Cloud Link Enterprise-ready data warehouse in the cloud that runs in multicloud environment, targeting different personas with different levels of technical expertise (IT, line of business / functional users and developers) SAP Data Warehouse Cloud, SAP BW Bridge Link SAP BW bridge is a function enhancement of SAP Data Warehouse Cloud. It allows customers who are running a SAP Business Warehouse or SAP BW/4HANA to reuse their existing models, transformations, and customizations in SAP Data Warehouse Cloud. SAP Product Roadmaps Link Access all product and solution roadmaps from SAP. You will also find latest roadmaps on all integration technologies and services mentioned in ISA-M. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
72 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
73 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the user integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

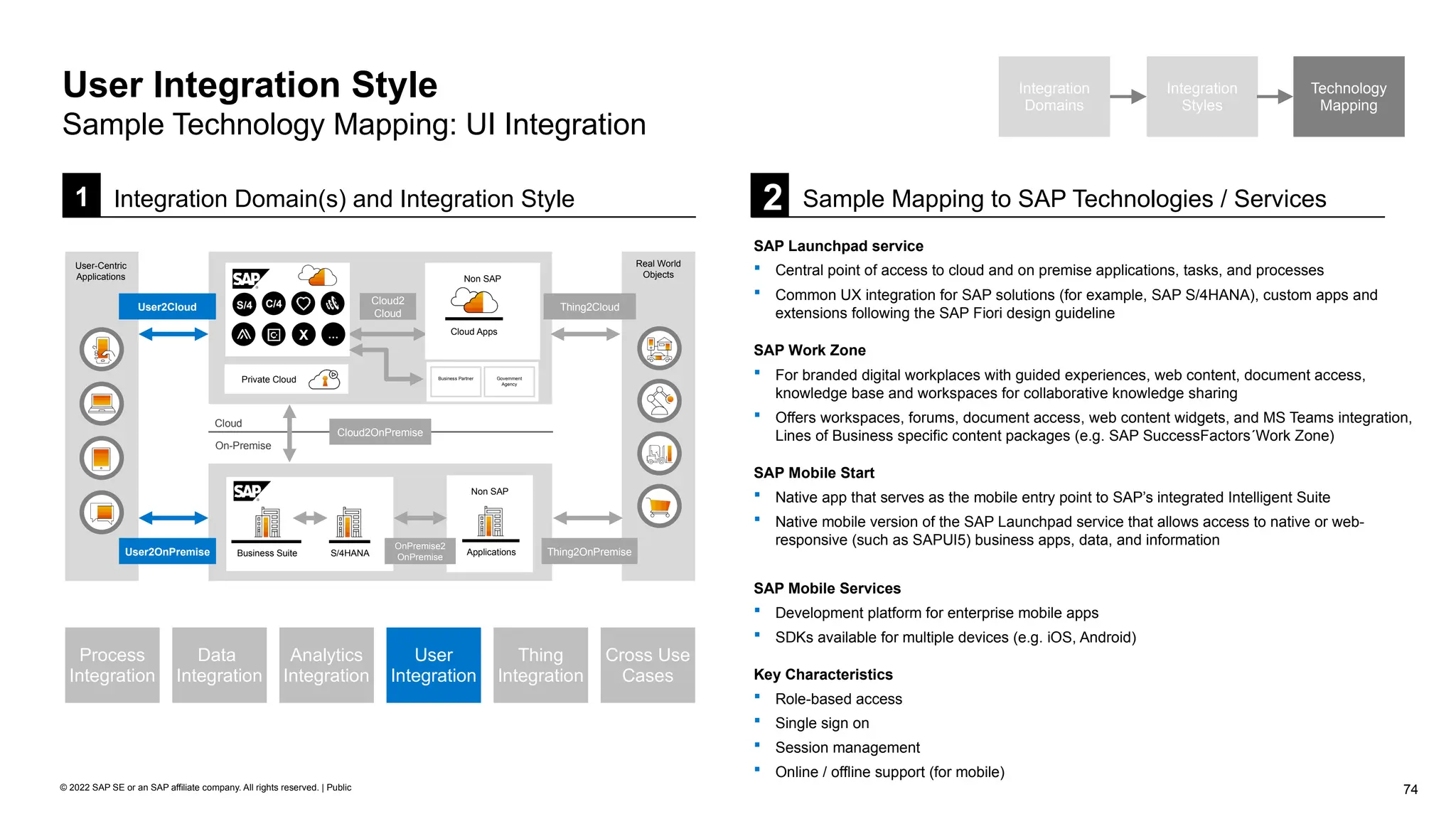

74 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping User Integration Style Sample Technology Mapping: UI Integration 2 Sample Mapping to SAP Technologies / Services SAP Launchpad service  Central point of access to cloud and on premise applications, tasks, and processes  Common UX integration for SAP solutions (for example, SAP S/4HANA), custom apps and extensions following the SAP Fiori design guideline SAP Work Zone  For branded digital workplaces with guided experiences, web content, document access, knowledge base and workspaces for collaborative knowledge sharing  Offers workspaces, forums, document access, web content widgets, and MS Teams integration, Lines of Business specific content packages (e.g. SAP SuccessFactors´Work Zone) SAP Mobile Start  Native app that serves as the mobile entry point to SAP’s integrated Intelligent Suite  Native mobile version of the SAP Launchpad service that allows access to native or web- responsive (such as SAPUI5) business apps, data, and information SAP Mobile Services  Development platform for enterprise mobile apps  SDKs available for multiple devices (e.g. iOS, Android) Key Characteristics  Role-based access  Single sign on  Session management  Online / offline support (for mobile) On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
75 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Launchpad service 2) SAP Work Zone 3) SAP Mobile Services 4) Third Party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OnPremis e User2Cloud SAP Launchpad service General Recommendation Central point of access to cloud and on premise applications, tasks, and processes   SAP Work Zone General Recommendation For branded digital workplaces with guided experiences, web content, document access, knowledge base and workspaces for collaborative knowledge sharing.   SAP Mobile Services General Recommendation Use to develop mobile apps (e.g. iOS and Android apps) and integrate them with backend applications (relates to the Mobile Integration use case pattern).   … … … This table allows you to define integration guidelines for the user integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Launchpad service. In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or User2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use *Check out product road map regarding supported applications.
76 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public User Integration Style SAP Launchpad service SAP Launchpad service provides SAP Fiori launchpad experience in the cloud, including related UX services such as branding, tasks, notifications and secure single sign-on.. Source and further Information: SAP Fiori Deployment Options and System Landscape Recommendations Explanation Integration Domains Integration Styles Technology Mapping
77 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public User Integration Style SAP Launchpad service and SAP Work Zone Integration Domains Integration Styles Technology Mapping SAP Work Zone extends the SAP Launchpad service with additional capabilities, such as: workspaces, end & key user content creation, knowledge base, web and document management, lean-collaboration capabilities, Lines of Businesses specific content packages (example: SuccessFactors Work Zone) Source and further Information Blog post SAP Portal, SAP Launchpad Service and SAP Work Zone Explanation UI Integration & Secure Access Business & Key User Authoring Personalized & role-based Experience Workspaces & Guided Experiences Knowledge & (Web) Content Management Customization & Extensibility SAP Launchpad service (foundation) SAP Work Zone (premium capabilities) Mobile experience: SAP Mobile Start / Work Zone Mobile Desktop (web) experience Business (Key) users Content Managers & Administrators (Citizen) Developers Content packages by LoB / Industries
78 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Further Information Resource Link Description SAP Launchpad service Link Establish a central point of access to SAP (e.g. SAP S/4HANA), custom-built, and third party applications and extensions, both on the cloud and on premise. SAP Work Zone Link For building digital workplace solutions with a centralized access to relevant business applications, processes, information, and communication. SAP Fiori Deployment Options and System Landscape Recommendations Link In this document, you can find the main SAP Fiori scenarios, the recommended system landscape setup, and the SAP Front-end server deployment options. This document also includes insights into SAP Fiori front-end server hub and embedded deployment and what aspects to consider. The FAQ section provides answers to common questions regarding the SAP Fiori deployment options. Relates to the “UI Integration” use case pattern. SAP Mobile Services Link Create and run native, hybrid and micro mobile apps with a mobile app development platform (Enterprise iOS and Android apps). Secure access to on-premise or cloud-based data sources, data-access features and offline OData synchronization. Relates to the “Mobile Integration” use case pattern. SAP Conversational AI Link Build enterprise-grade chatbots leveraging an end-to-end bot building platform as well as a digital assistant. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
79 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
80 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Thing Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the thing integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

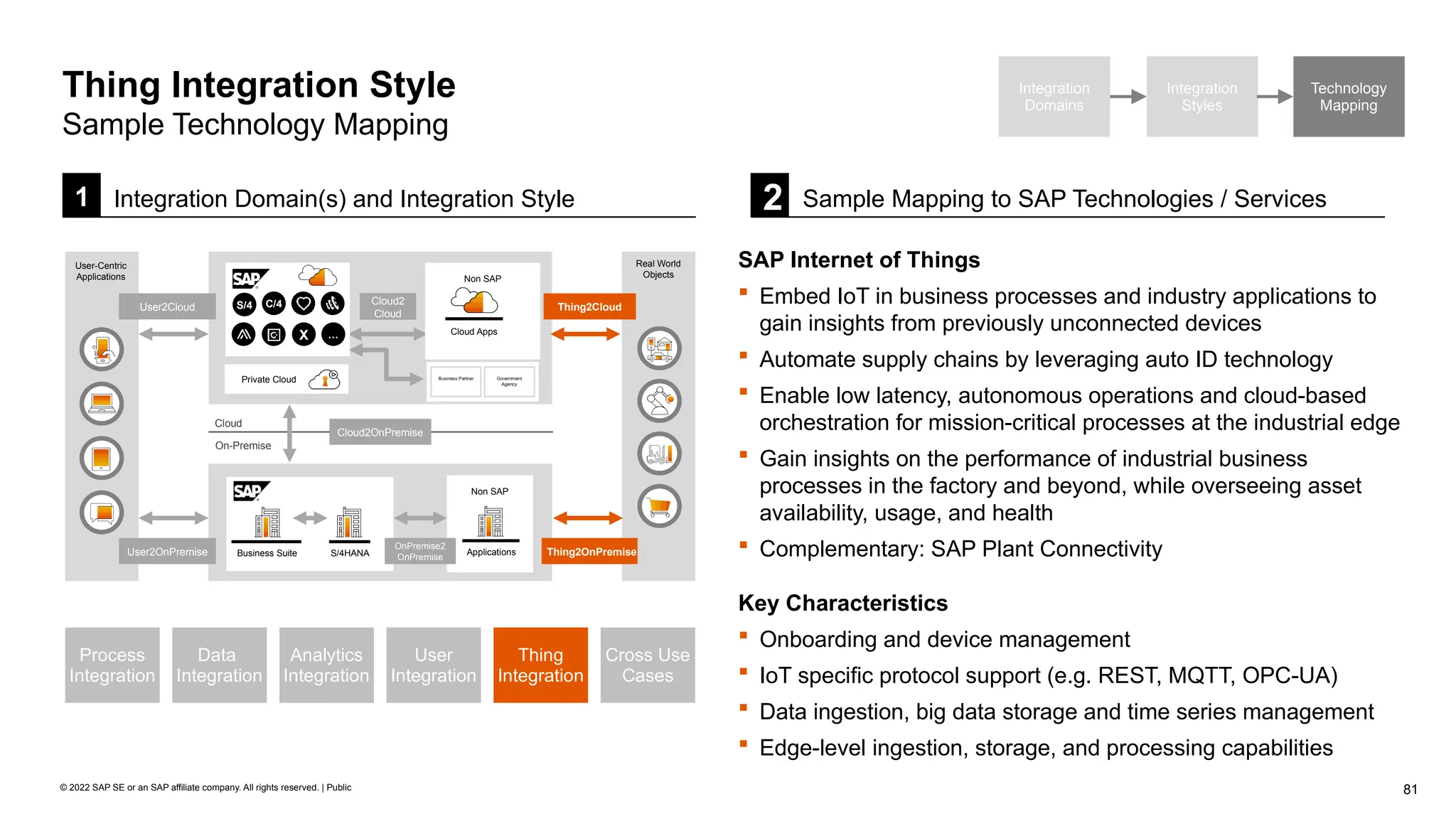

81 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Thing Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Internet of Things  Embed IoT in business processes and industry applications to gain insights from previously unconnected devices  Automate supply chains by leveraging auto ID technology  Enable low latency, autonomous operations and cloud-based orchestration for mission-critical processes at the industrial edge  Gain insights on the performance of industrial business processes in the factory and beyond, while overseeing asset availability, usage, and health  Complementary: SAP Plant Connectivity Key Characteristics  Onboarding and device management  IoT specific protocol support (e.g. REST, MQTT, OPC-UA)  Data ingestion, big data storage and time series management  Edge-level ingestion, storage, and processing capabilities On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

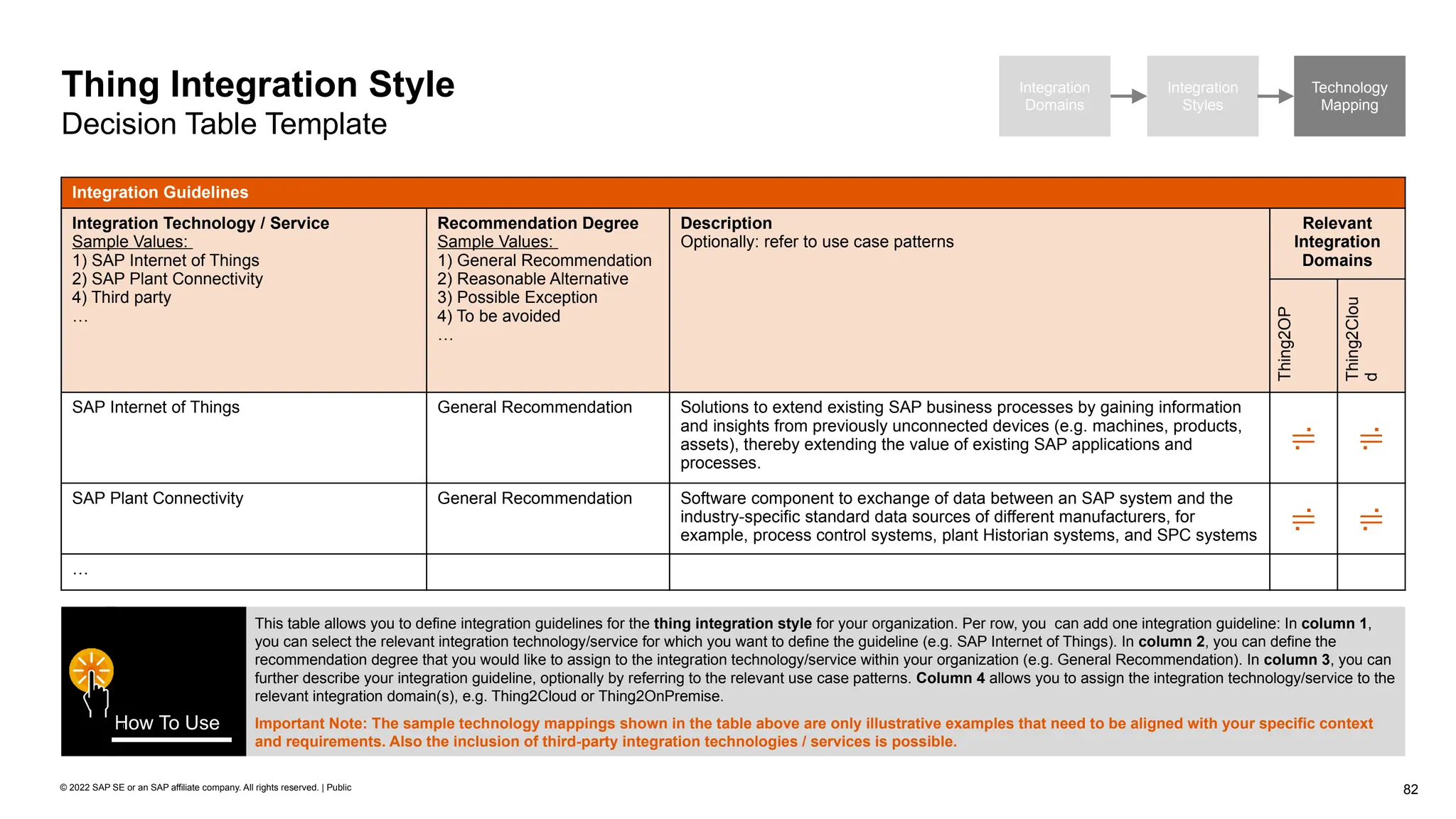

82 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Thing Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Internet of Things 2) SAP Plant Connectivity 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains Thing2OP Thing2Clou d SAP Internet of Things General Recommendation Solutions to extend existing SAP business processes by gaining information and insights from previously unconnected devices (e.g. machines, products, assets), thereby extending the value of existing SAP applications and processes.   SAP Plant Connectivity General Recommendation Software component to exchange of data between an SAP system and the industry-specific standard data sources of different manufacturers, for example, process control systems, plant Historian systems, and SPC systems   … This table allows you to define integration guidelines for the thing integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Internet of Things). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Thing2Cloud or Thing2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use
83 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Thing Integration Style SAP Internet of Things: Building Blocks and Process Flow SAP Internet of Things comprises three main capabilities in the cloud: IoT data management, modeling, and data processing, smart sensing based on auto-ID technology, analytics and intelligence. These building blocks are complemented by the “intelligent edge.” The intelligent edge includes capabilities to ingest and process IoT data and auto- ID events, which form part of SAP IoT, machine orchestration with SAP Plant Connectivity software, and the SAP Digital Manufacturing Cloud solution for edge computing. They provide the needed integration technology to embed IoT insights into SAP Digital Supply Chain solutions and SAP S/4HANA applications to enable data-driven business processes. Source and further Information: SAP Internet of Things Explanation Integration Domains Integration Styles Technology Mapping

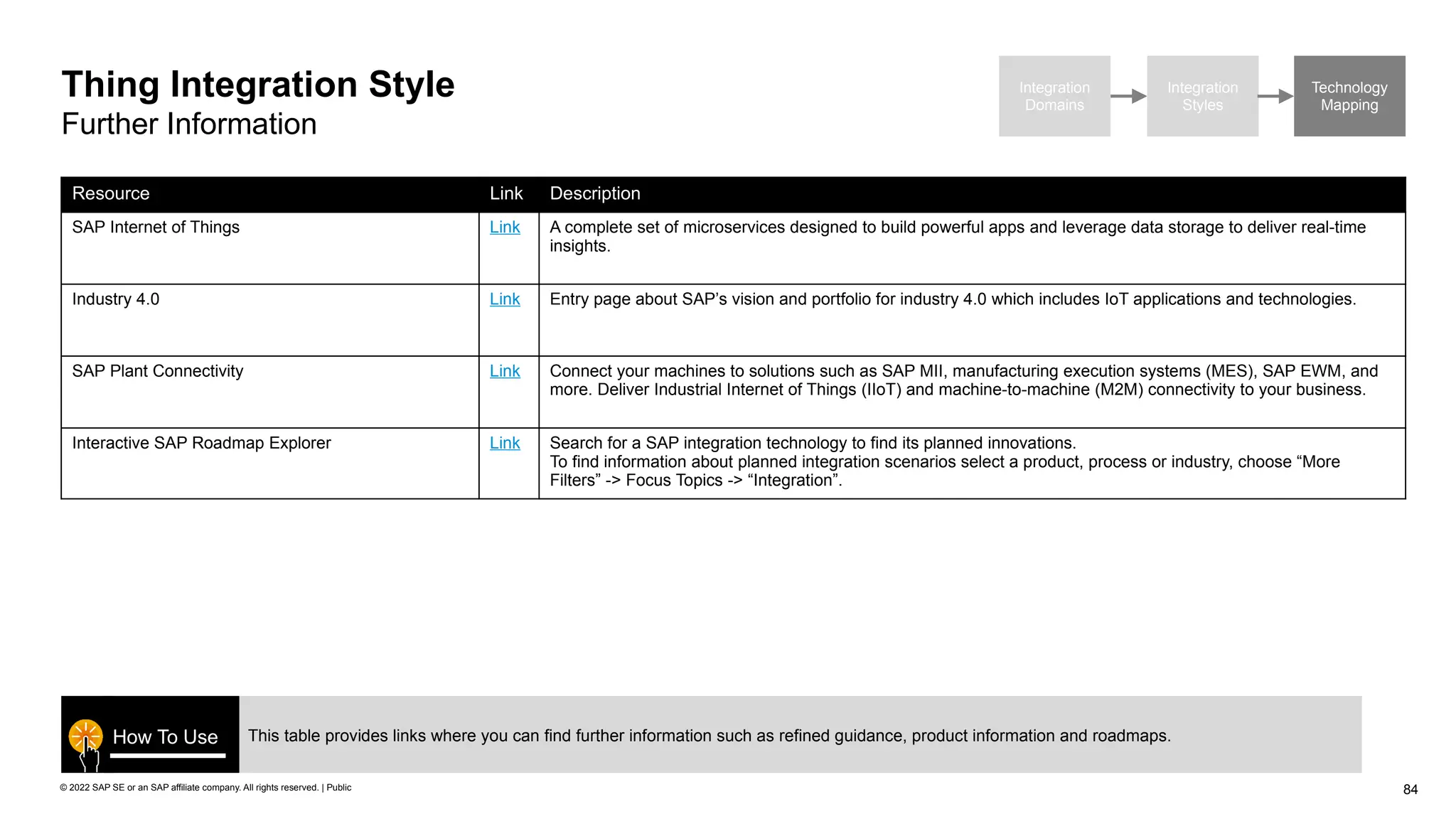

84 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public This table provides links where you can find further information such as refined guidance, product information and roadmaps. How To Use Integration Domains Integration Styles Technology Mapping Thing Integration Style Further Information Resource Link Description SAP Internet of Things Link A complete set of microservices designed to build powerful apps and leverage data storage to deliver real-time insights. Industry 4.0 Link Entry page about SAP’s vision and portfolio for industry 4.0 which includes IoT applications and technologies. SAP Plant Connectivity Link Connect your machines to solutions such as SAP MII, manufacturing execution systems (MES), SAP EWM, and more. Deliver Industrial Internet of Things (IIoT) and machine-to-machine (M2M) connectivity to your business. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”.

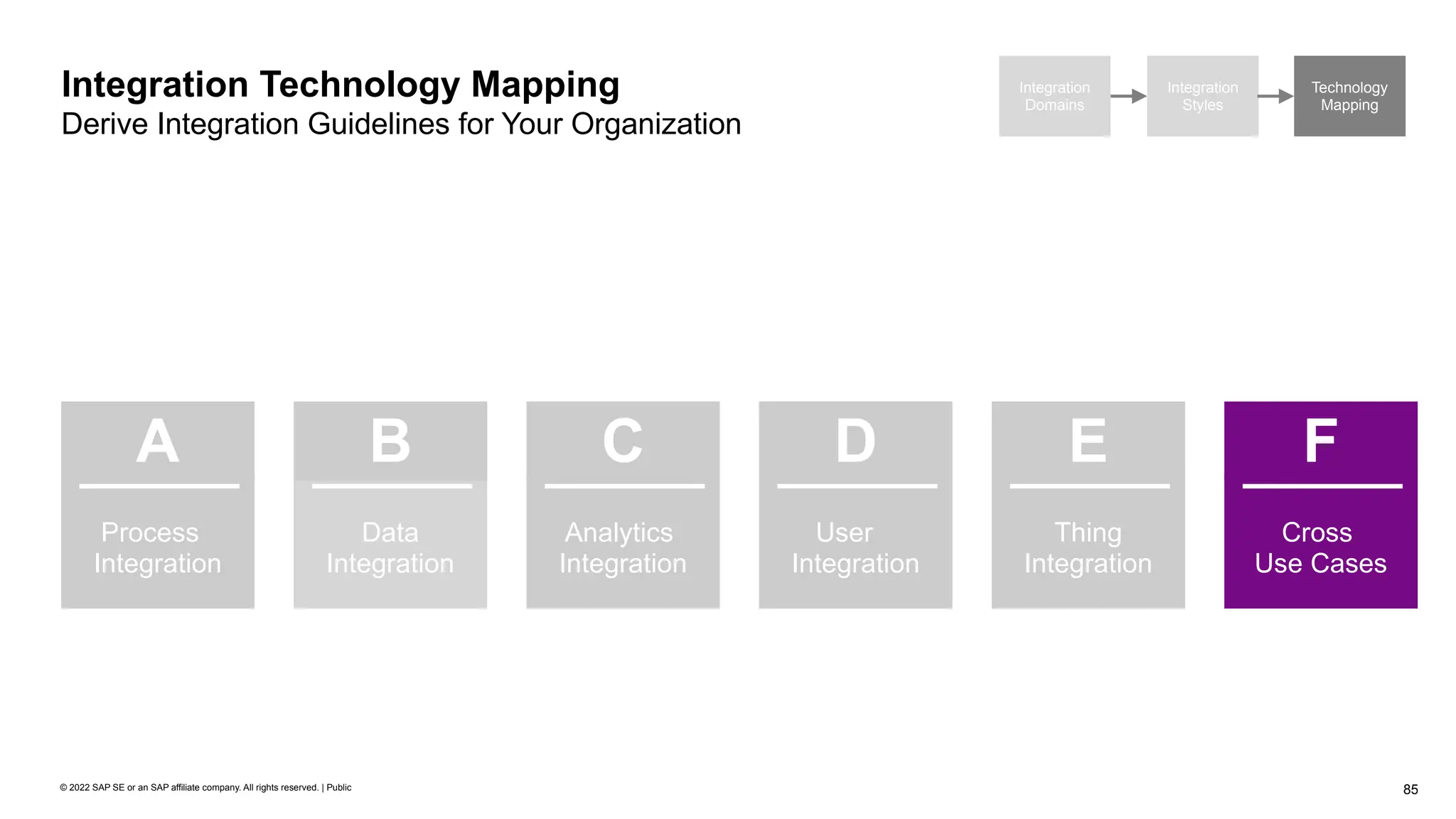

85 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
86 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Overview Cross Use Cases build a category for all use case patterns that complement one ore more of the five core integration styles. For example, API-Managed Integration provides full-lifecycle management for APIs that, e.g. can be leveraged in user- or process-centric integration scenarios. Workflow Management is an other example for a cross use case as it can spawn across process-, user- and data-centric integration scenarios. It also includes all other integration-related use cases such as business rules management or stream analytics. This section provides a decision table template that allows you to define integration guidelines for the cross use case category for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map cross use cases to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
87 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Cross Use Cases Sample Technology Mapping: API Managed Integration 2 Sample Mapping to SAP Technologies / Services API Management  Capability within SAP Integration Suite  Provides full lifecycle management for APIs  Can be used in multiple integration domains and styles Examples  Omnichannel access and mobile  Open real-time B2B Integration  Data access governance and monetization Key Characteristics  API traffic management policies  API security policies  API analytics and monetization On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

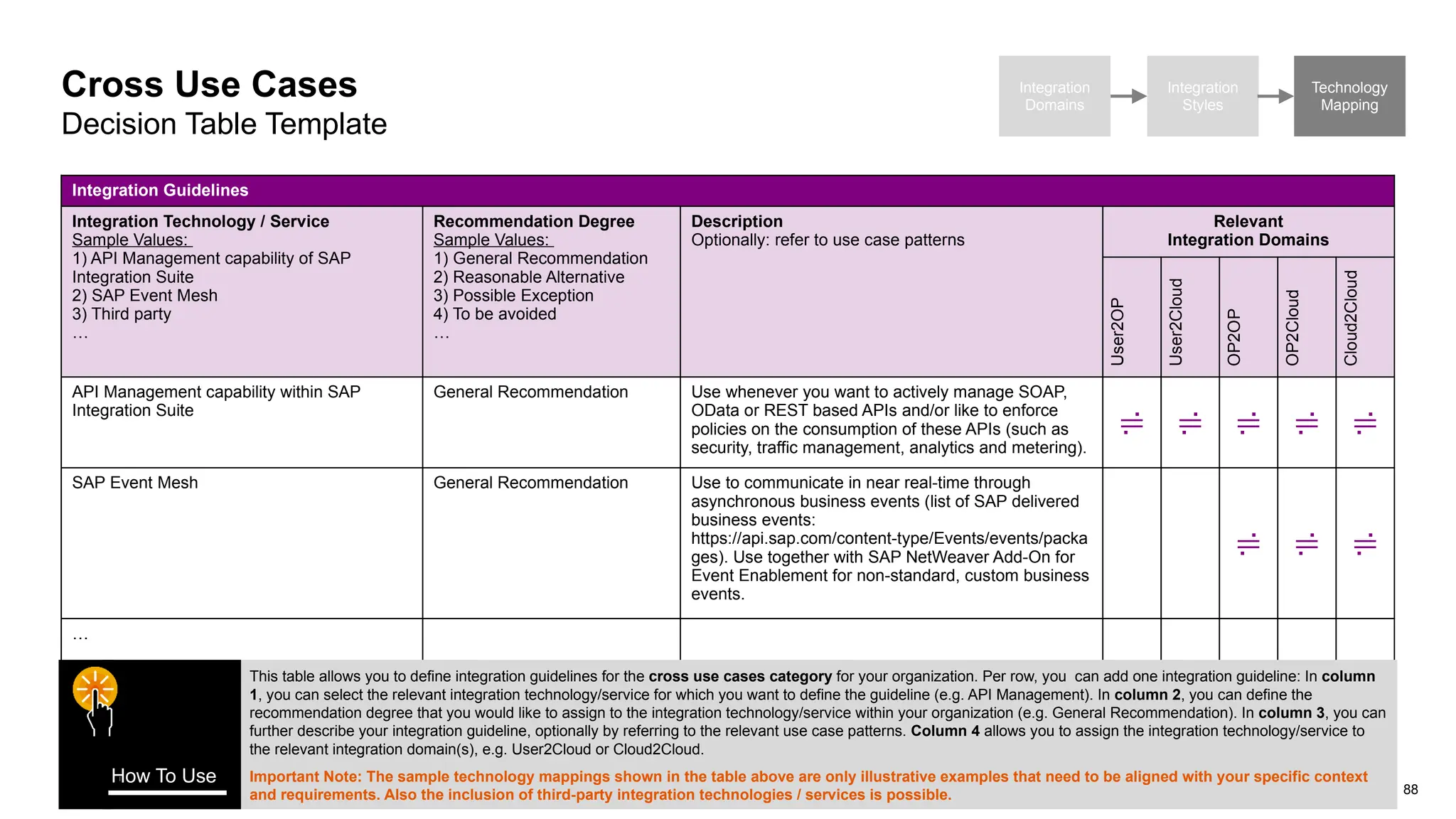

88 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) API Management capability of SAP Integration Suite 2) SAP Event Mesh 3) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OP User2Cloud OP2OP OP2Cloud Cloud2Cloud API Management capability within SAP Integration Suite General Recommendation Use whenever you want to actively manage SOAP, OData or REST based APIs and/or like to enforce policies on the consumption of these APIs (such as security, traffic management, analytics and metering).      SAP Event Mesh General Recommendation Use to communicate in near real-time through asynchronous business events (list of SAP delivered business events: https://api.sap.com/content-type/Events/events/packa ges). Use together with SAP NetWeaver Add-On for Event Enablement for non-standard, custom business events.    … This table allows you to define integration guidelines for the cross use cases category for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. API Management). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or Cloud2Cloud. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use

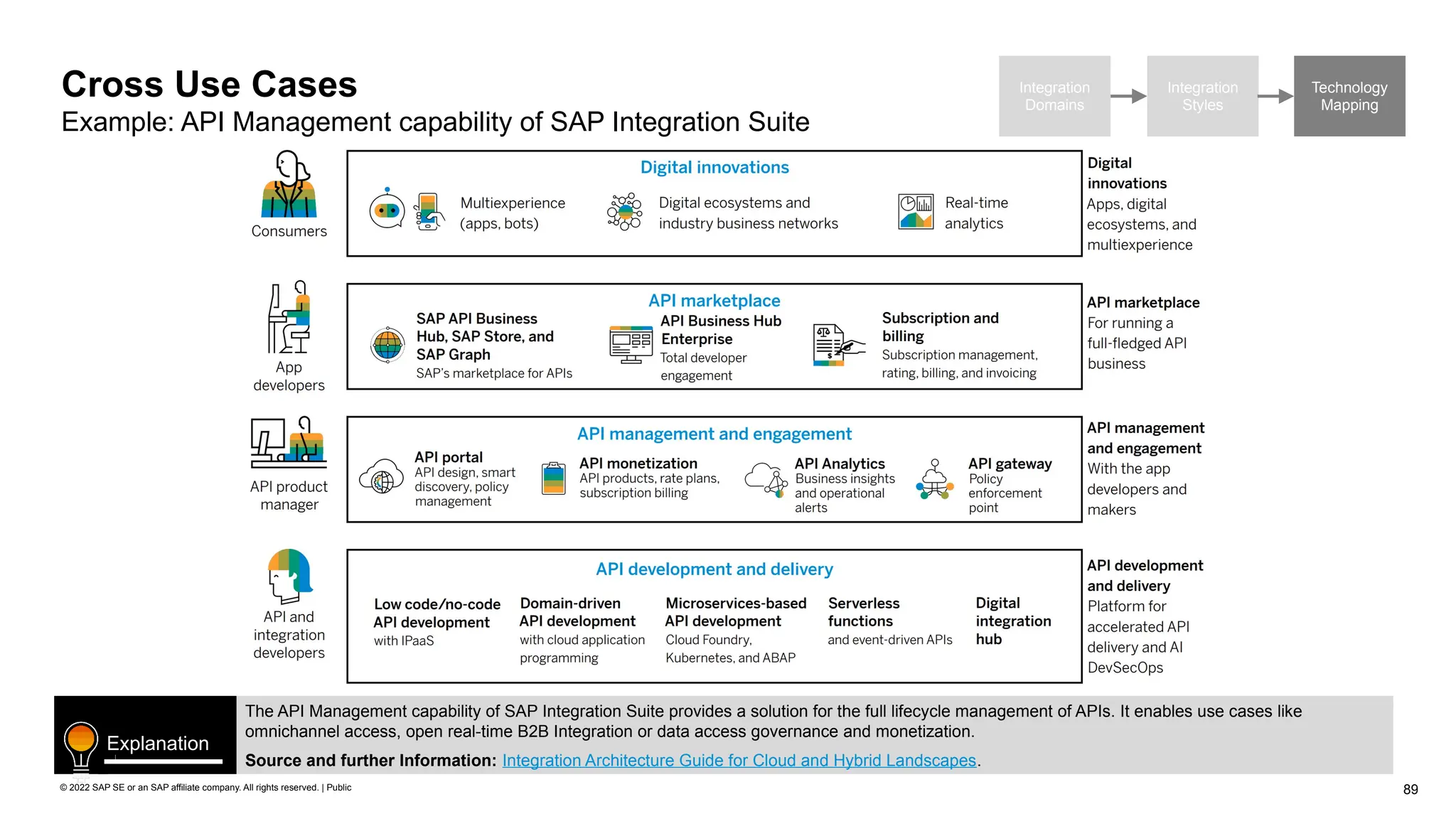

89 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Example: API Management capability of SAP Integration Suite The API Management capability of SAP Integration Suite provides a solution for the full lifecycle management of APIs. It enables use cases like omnichannel access, open real-time B2B Integration or data access governance and monetization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation
90 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Sample Key Characteristics – API Management and Integration Layer Integration Domains Integration Styles Technology Mapping This slide shows some typical API policies and integration patterns that are best implemented in the API management layer or the integration layer. It provides guidance for integration architects on how to combine both offerings and can be extended/adapted to capture best practices in your organization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Explanation
91 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Further Information Resource Link Description Integration Architecture Guide for Cloud and Hybrid Landscapes Link This guide follows the concepts of ISA-M and provides detailed guidance regarding SAP integration technologies. This also includes guidance on the complementary usage of the API Management. SAP Integration Suite Link SAP’s Integration Platform-as-a-Service (IPaaS): It simplifies integration by connecting people, processes, data, and devices everywhere by allowing people with different skills to leverage a wide variety of integration approaches, intuitive tools, and prepackaged content to achieve results faster and gain business agility with a versatile, dynamic, and enterprise-grade cloud integration platform. SAP Process Automation Link Citizen developer solution to adapt, improve, and innovate business processes with no-code workflow management and robotic process automation capabilities. SAP HANA Streaming Analytics Link Capture, analyze, and act on data streaming in from many sources with the highly scalable processing engine of SAP HANA. Digital Integration Hub Link The digital integration hub allows is a real-time digital access layer to insulate heterogenous transaction back ends using in-memory data grids and leveraging microservice-based architectures. This architecture enables a high-scale API-based access to system-of-record applications and data, while minimizing workload on these systems. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
92 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
93 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Overview Interface Assessment User Integration Data Integration Thing Integration Cross Use Cases Process Integration A typical task in implementation projects is to blueprint integration scenarios between two applications. Typically, a business scenario is decomposed into technical interfaces. Next, each technical interface needs to be classified / assessed whether it is a process-, data-, analytics-, user- or thing-centric integration style. Based on the specific characteristics, the appropriate integration technology/service needs to be selected. ISA-M supports the classification of interfaces that will we shown on the next slides: in this example a business scenario is decomposed into three technical interfaces: Data Replication, A2A Integration, Mobile Integration. It is recommended to use the Integration Assessment capability within SAP Integration Suite for performing this task. How To Use Interface Decomposition Application 1 Application 2 Business Scenario Application 1 Application 2 ? ? Analytics Integration
94 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 2: A2A Integration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 Cloud Integration capability within SAP Integration Suite 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain If not, decompose your business scenario into single interfaces for custom-built integration Interface Decomposition Application 1 Application 2 1 3 Data Integration Master Data Synchronization Data Replication Data Virtualization Data Quality Management … Thing Integration Thing to Analytics Thing to Process Thing to Data Lake Thing to Thing … Cross Use Cases Stream Analytics … Workflow Management API-Managed Integration Process Integration A2A Integration B2B Integration Business Network Integration Customer-Specific Use Case User Integration UI Integration Mobile Integration Desktop Integration … … Event-Based Integration A2A Integration 2 2

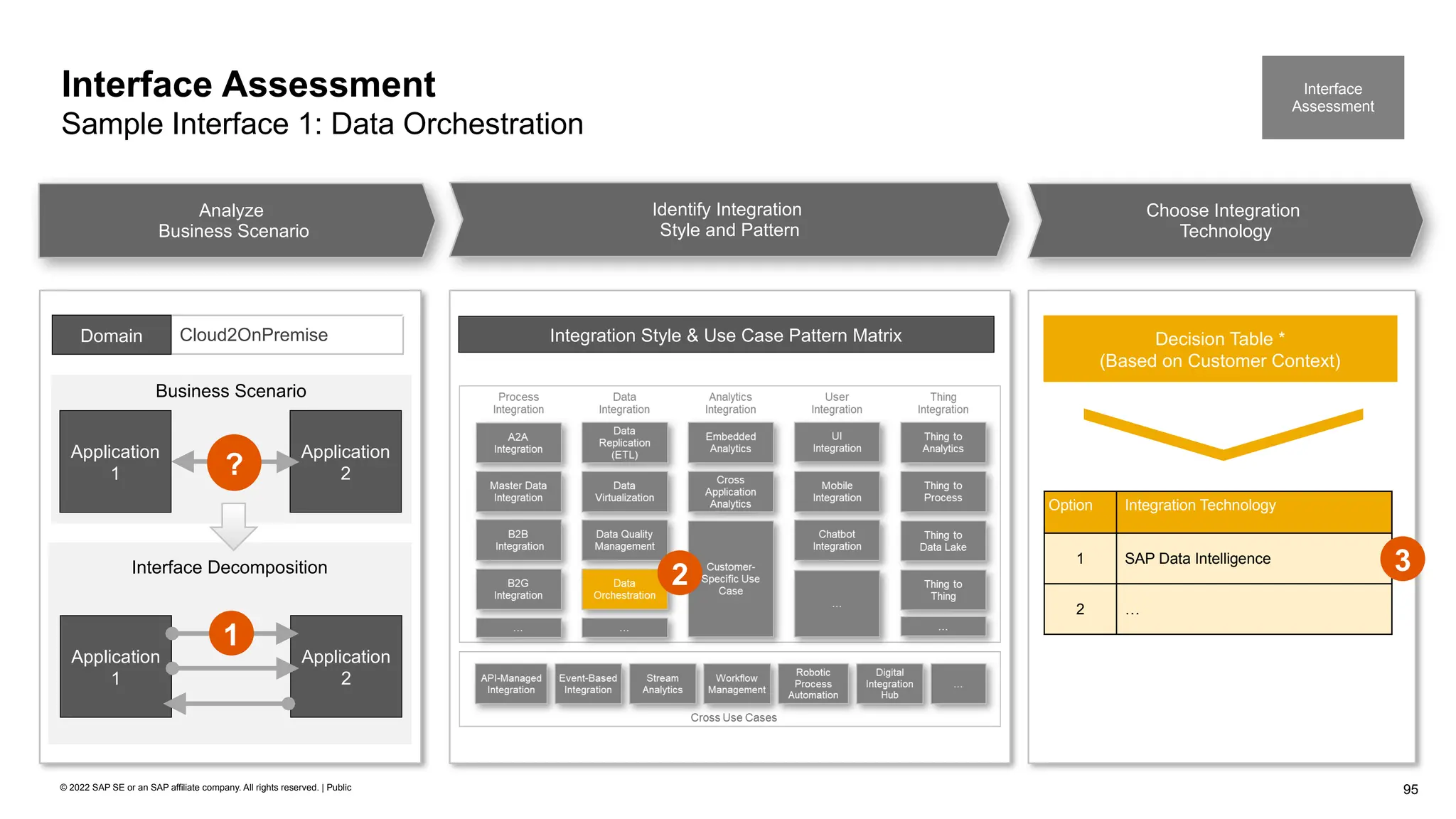

95 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 1: Data Orchestration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 SAP Data Intelligence 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain If not, decompose your business scenario into single interfaces for custom-built integration Interface Decomposition Application 1 Application 2 1 3 2
96 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 3: Mobile Integration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 SAP Mobile Services 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain Interface Decomposition Application 1 Application 2 3 Mobile Integration Mobile 1 2
97 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
98 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 3: Define Integration Best Practices Objectives  Govern and safeguard the implementation of integrations across your organization  Achieve transparency about integration design and implementation Approach  Define architecture blueprints for integration use case patterns complemented with decision criteria for choosing an architecture blueprint  Define integration do’s and don’ts for common integration use cases or solutions  Derive integration guidelines tailored to your organization’s technical and business requirements

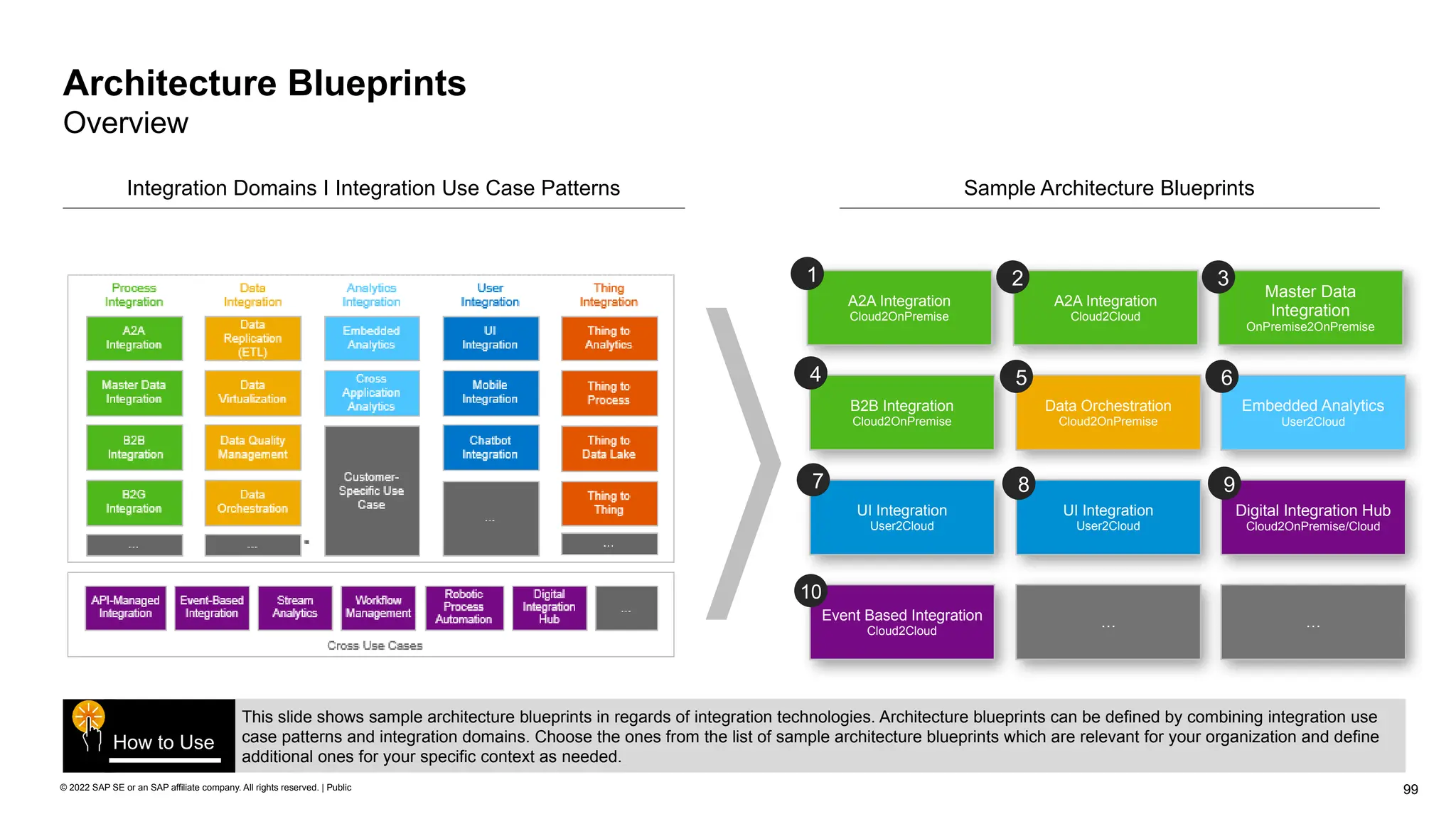

99 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprints Overview Sample Architecture Blueprints B2B Integration Cloud2OnPremise UI Integration User2Cloud Event Based Integration Cloud2Cloud A2A Integration Cloud2OnPremise 1 4 7 A2A Integration Cloud2Cloud Data Orchestration Cloud2OnPremise UI Integration User2Cloud … 2 5 8 Master Data Integration OnPremise2OnPremise Embedded Analytics User2Cloud Digital Integration Hub Cloud2OnPremise/Cloud … 3 6 9 This slide shows sample architecture blueprints in regards of integration technologies. Architecture blueprints can be defined by combining integration use case patterns and integration domains. Choose the ones from the list of sample architecture blueprints which are relevant for your organization and define additional ones for your specific context as needed. How to Use Integration Domains I Integration Use Case Patterns 10

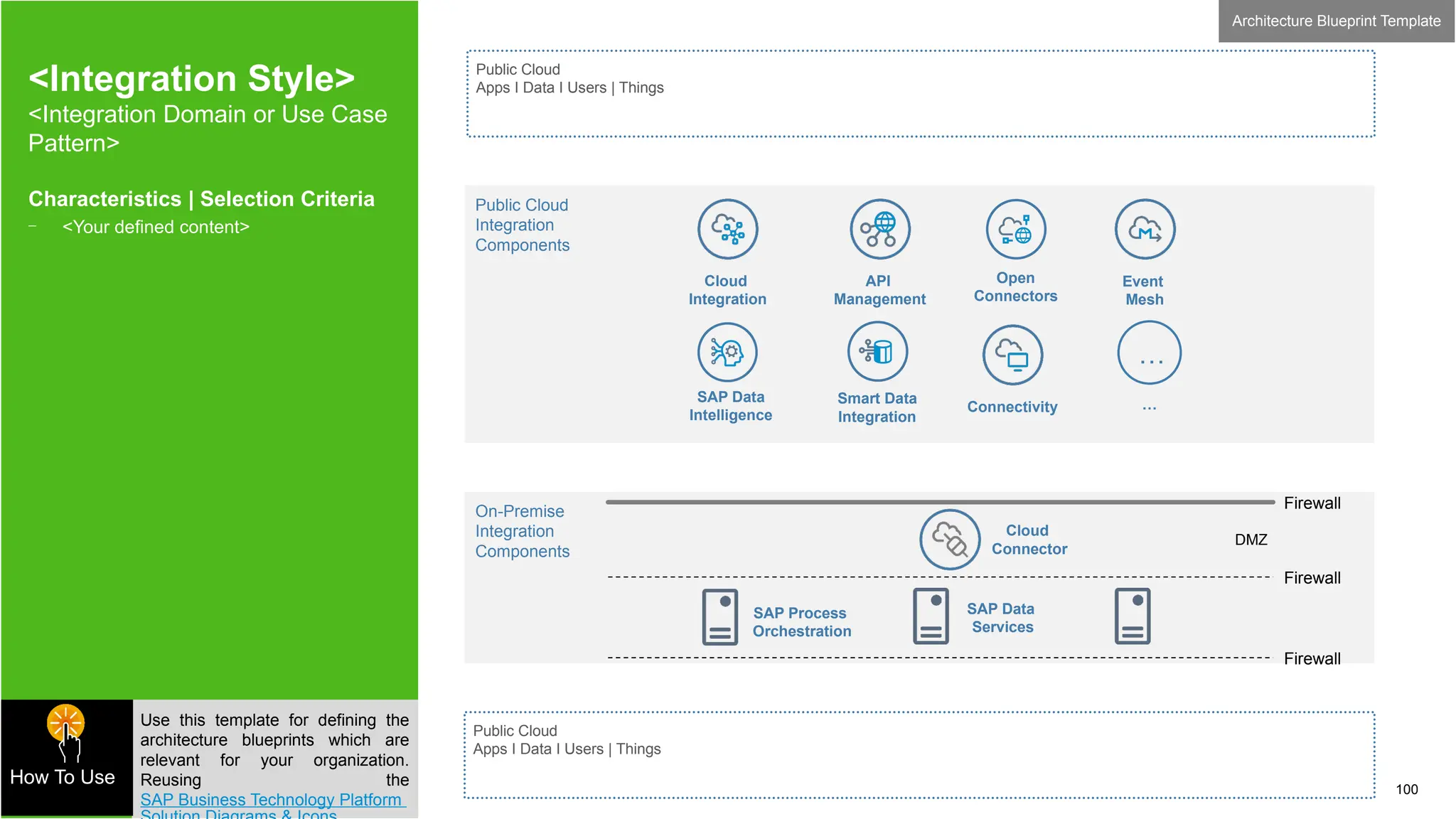

100 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public <Integration Style> <Integration Domain or Use Case Pattern> Public Cloud Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Connectivity … Event Mesh Open Connectors API Management Smart Data Integration Cloud Integration SAP Data Intelligence … SAP Process Orchestration SAP Data Services Cloud Connector Firewall DMZ Firewall Firewall Architecture Blueprint Template Characteristics | Selection Criteria - <Your defined content> Use this template for defining the architecture blueprints which are relevant for your organization. Reusing the SAP Business Technology Platform How To Use

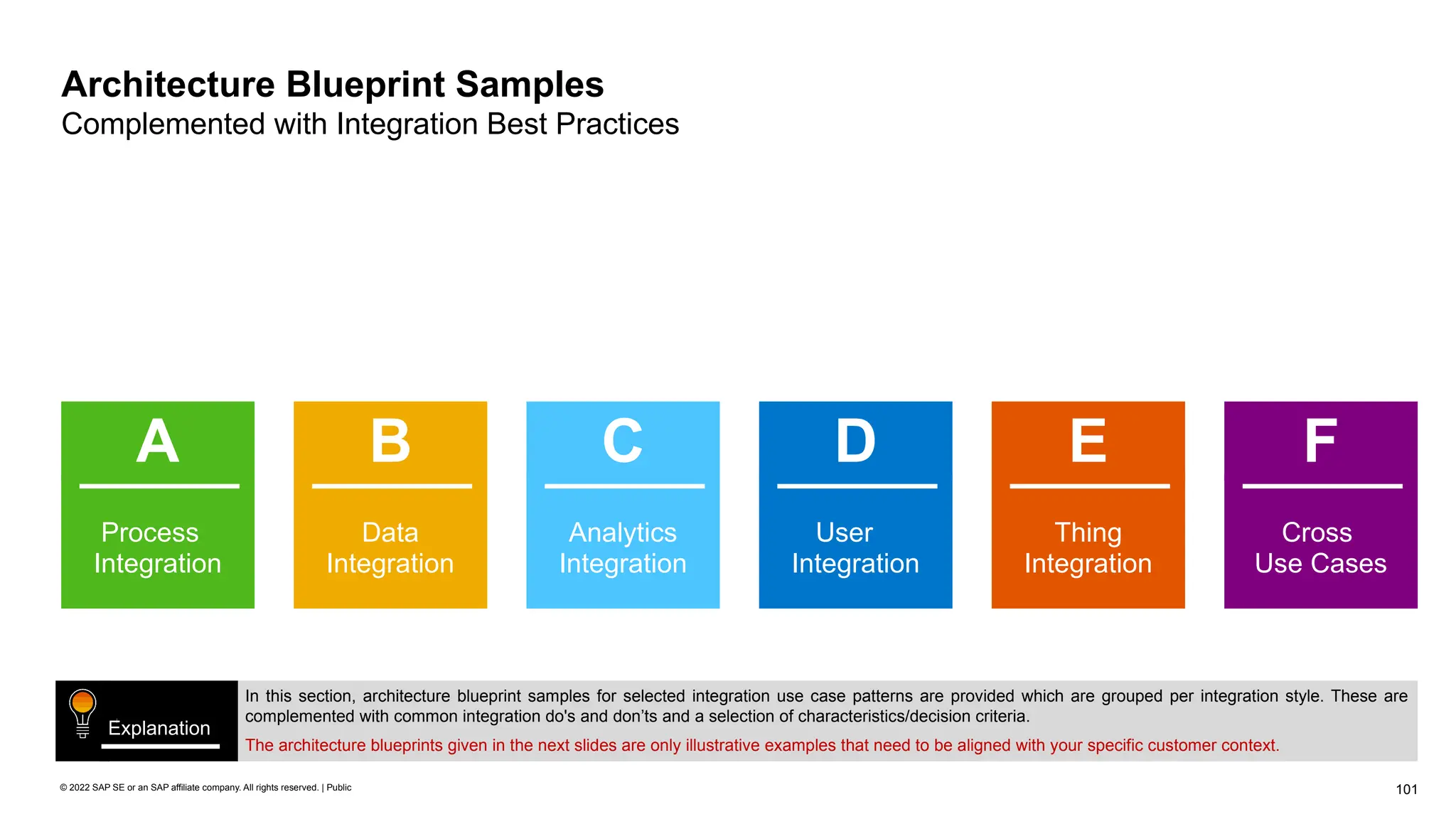

101 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint Samples Complemented with Integration Best Practices In this section, architecture blueprint samples for selected integration use case patterns are provided which are grouped per integration style. These are complemented with common integration do's and don’ts and a selection of characteristics/decision criteria. The architecture blueprints given in the next slides are only illustrative examples that need to be aligned with your specific customer context. Explanation Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
102 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
103 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration General Integration Do’s and Don’ts  Leverage integration packages (content) wherever possible  Decoupling of applications via asynchronous messaging and events  Usage of synchronous calls only in selected use cases  Avoid direct integration (point-to point) and tight coupling of applications  Prefer real-time distribution of data over batch oriented processes  Avoid chaining as less as possible integration runtime components (operations, monitoring, …)  Distribute integration logic and functionality in the most efficient way across the hybrid landscape  … As part of an overall integration strategy, integration architects often define general integration guardrails / principles (what should be done – what should be avoided?). This slide contains some typical examples and needs to be adapted / extended to a specific customer context. How To Use
104 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Process Integration Use Cases Decision Criteria Catalog - Legend Criteria / Capability Description Aligned APIs / Unaligned APIs Defines whether the sender and receiver application are using semantically and syntactically aligned APIs or not Pre-Packaged Content Availability of prepackaged content for a certain integration scenario (e.g. on SAP API Business Hub) Structure Mapping Maps message fields and hierarchies between two interfaces. Value Mapping Transforms field values that are exchanged between two applications Routing Used to determine, for a given message, a set of receivers based on static settings or message payload data Splitting / Aggregation Creates multiple messages out of a received message. Collects multiple inbound messages until a modelled threshold is reached. Protocol Mediation Covers the mediation between two different protocols used by sending and receiving applications (e.g. JMS, REST or SOAP). Exception Handling Technical capability to pick up and resolve errors during runtime Quality of Service Defines the QoS of the message transfer e.g. Exactly Once, Exactly Once in Order, Best Effort … … When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use
105 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for A2A Integration (Cloud to On Premise) – Info Sheet Details Description Integration of on premise applications with cloud applications using a cloud based integration solution to enable business processes across an hybrid application landscape. The communication between the cloud based integration solution and the on premise application landscape and other cloud applications requires special security measures (e.g. via VPN, digital certificate based). The cloud based integration solution is operated by the provider. Involved SAP technology products • SAP Connectivity service or reverse proxy (see decision tree) The following capabilities of SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) • API Management (conditional) • Integration Advisor (conditional) When to apply • For exchanging transactional and master data between on premise and cloud applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. How to apply • Cloud Integration as cloud based process integration solution leveraging prepackaged integration content (SAP API Business Hub) and/or implement custom integrations using Cloud Integration tooling (SAP Discovery Center Mission) • SAP Connectivity service to establish a secure tunnel from SAP Business Technology Platform (cloud) to the on premise application landscape (tutorial) • Open Connectors for simplified integration with third party cloud applications (SAP Discovery Center Mission) • API Management to govern, protect and meter API access (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post) Example SAP Cloud for Customer Integration with SAP ERP (prepackaged integration content) * 1
106 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public A2A Integration Cloud to On Premise 1 Characteristics | Selection Criteria - Hybrid Traffic - Unaligned APIs - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform Cloud Connector1 Secure tunnel SAP API Business Hub On Premise Application (SAP / Third Party) Cloud Application (SAP / Third Party) Cloud Integration Connectivity1 Firewall DMZ Firewall Firewall 1 Or reverse proxy (see decision tree).

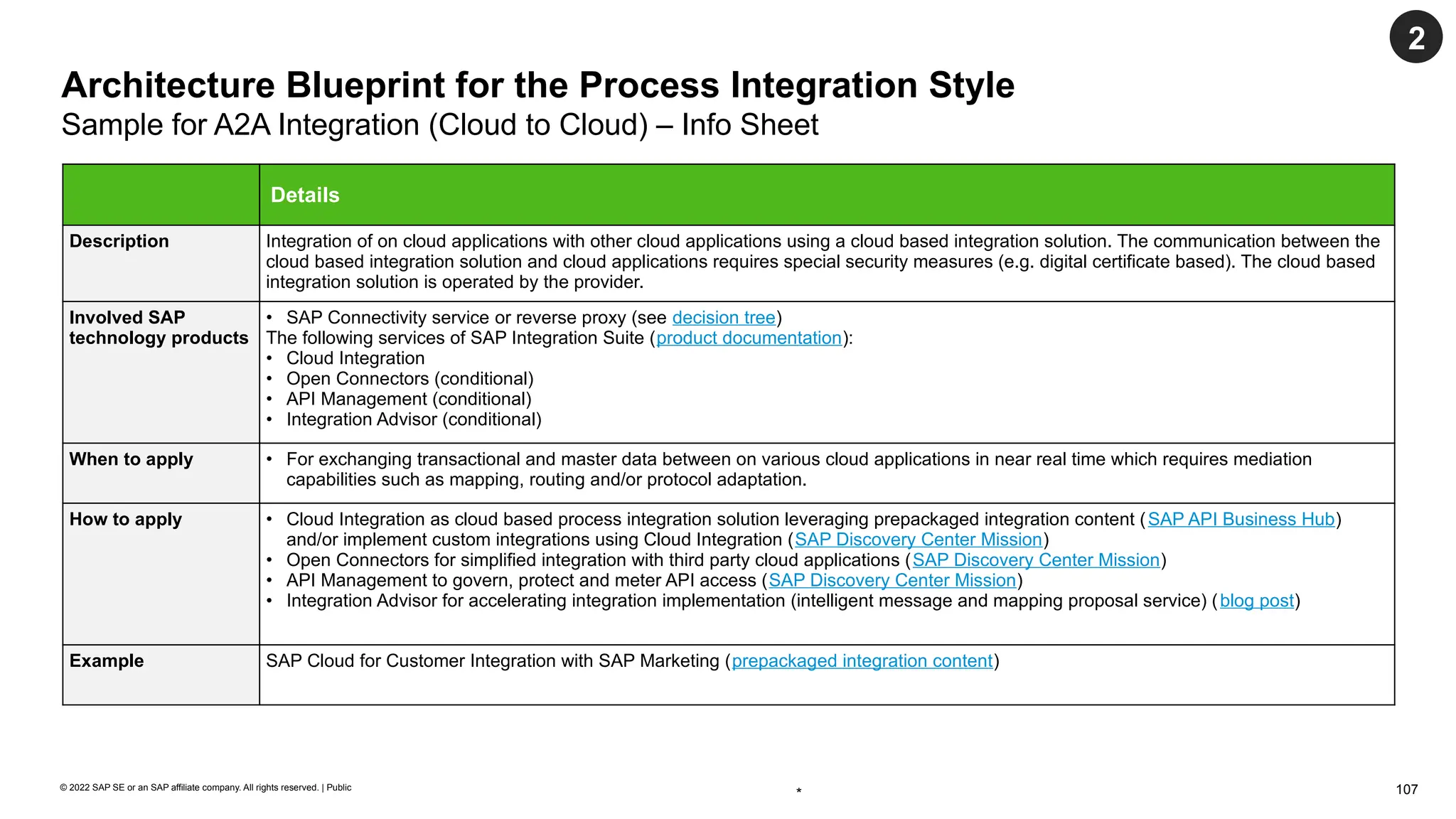

107 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for A2A Integration (Cloud to Cloud) – Info Sheet Details Description Integration of on cloud applications with other cloud applications using a cloud based integration solution. The communication between the cloud based integration solution and cloud applications requires special security measures (e.g. digital certificate based). The cloud based integration solution is operated by the provider. Involved SAP technology products • SAP Connectivity service or reverse proxy (see decision tree) The following services of SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) • API Management (conditional) • Integration Advisor (conditional) When to apply • For exchanging transactional and master data between on various cloud applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. How to apply • Cloud Integration as cloud based process integration solution leveraging prepackaged integration content (SAP API Business Hub) and/or implement custom integrations using Cloud Integration (SAP Discovery Center Mission) • Open Connectors for simplified integration with third party cloud applications (SAP Discovery Center Mission) • API Management to govern, protect and meter API access (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post) Example SAP Cloud for Customer Integration with SAP Marketing (prepackaged integration content) * 2

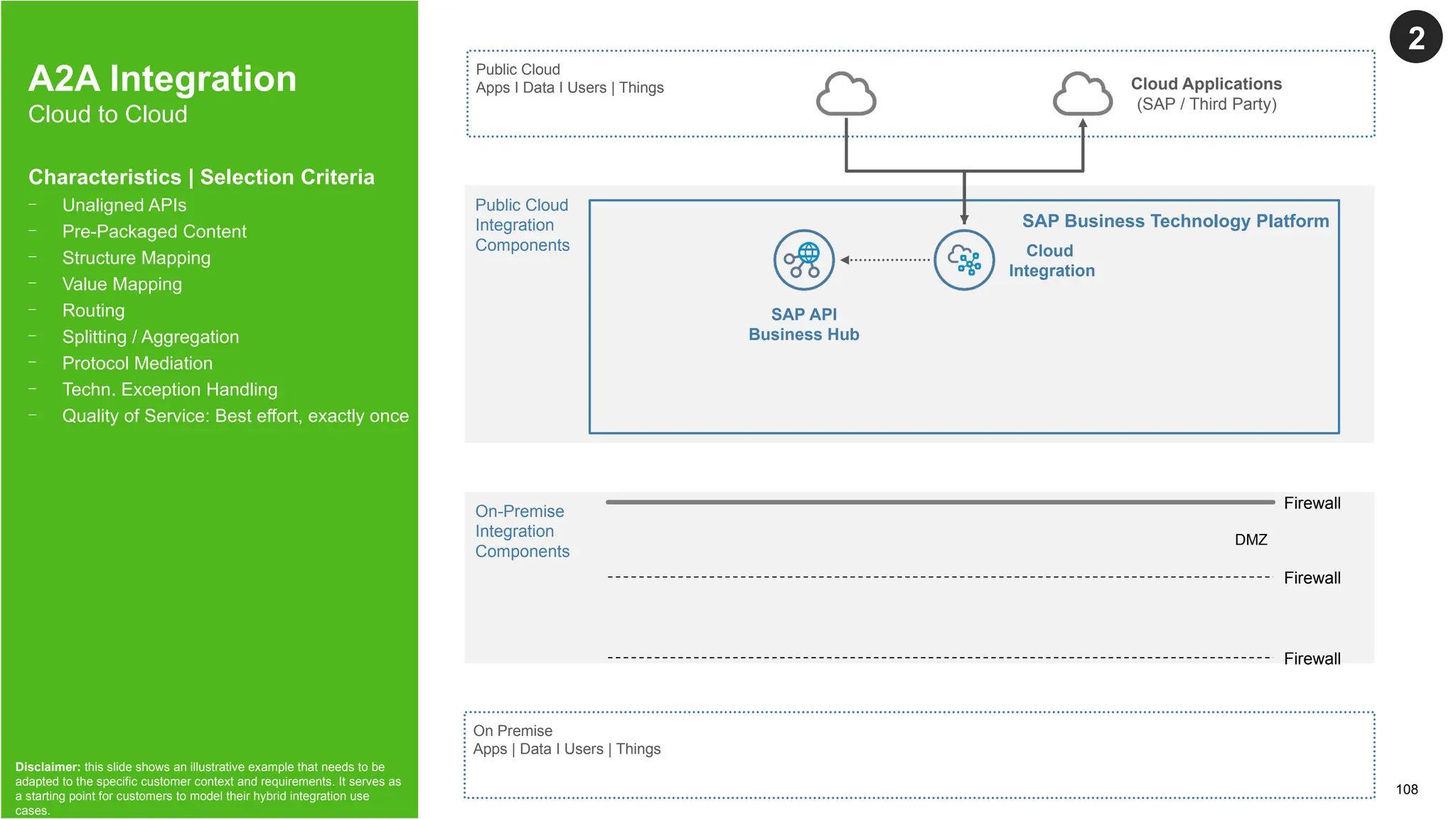

108 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public A2A Integration Cloud to Cloud 2 Characteristics | Selection Criteria - Unaligned APIs - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. Internal On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform SAP API Business Hub Cloud Integration Cloud Applications (SAP / Third Party) Firewall DMZ Firewall Firewall
109 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for Master Data Integration (On Premise to On Premise) – Info Sheet Details Description Integration of on premise applications with each other using an on premise integration solution (e.g. middleware, enterprise service bus) deployed and operated by the customer (or service provider). Involved SAP technology products • SAP Process Orchestration software (product documentation) When to apply • For exchanging master data between on various on premise applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. • Common key characteristics of process integration can be found here. How to apply • Deploy SAP Process Orchestration as integration platform for on premise applications (SAP, third party) • Implement predefined integration content and/or develop custom integration scenarios (product documentation) • Leverage embedded cloud integration runtime (as of release SAP NetWeaver 7.5) whenever possible Example SAP S/4HANA integration with SAP Transportation Management (product documentation) * 3
110 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Master Data Integration On Premise to On Premise 3 Characteristics | Selection Criteria - On Premise Traffic - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once, exactly once in order Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components On Premise Applications (SAP / Third Party) SAP Process Orchestration Firewall DMZ Firewall Firewall
111 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for B2B Integration (Cloud to On Premise) – Info Sheet Details Description Exchange of business documents from internal on premise applications with external entities such as business partners (customers, suppliers). This integration is implemented with an on premise integration solution (e.g. Middleware, Enterprise Service Bus, B2B Gateway) which supports B2B specific capabilities such as business partner management, acknowledgement handling, different type system (e.g. EDIFACT, ANSI X.12) and B2B protocol standards (e.g. AS2, OFTP). The integration solution is managed by the customer (or service provider). Involved SAP technology products • SAP Process Orchestration software (product documentation) • SAP Process Orchestration, business-to-business add-on and/or secure connectivity add-on (blog post) • Integration Advisor capability of SAP Integration Suite (optional) (blog post) When to apply • To exchange business documents (such as purchase orders, invoices) of an organization with business partners using classical B2B standards such as Electronic Data Interchange (EDI). How to apply • SAP Process Orchestration acting as B2B gateway solution (for B2B communication only) or as integration solution for A2A and B2B integration (product documentation) • SAP Process Orchestration, business-to-business add-on and/or secure connectivity add-on for supporting specific B2B protocol standards, type systems (product documentation) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post). Example Direct procurement of goods from suppliers using the ANSI X.12 standard and AS2 protocol. * 4a

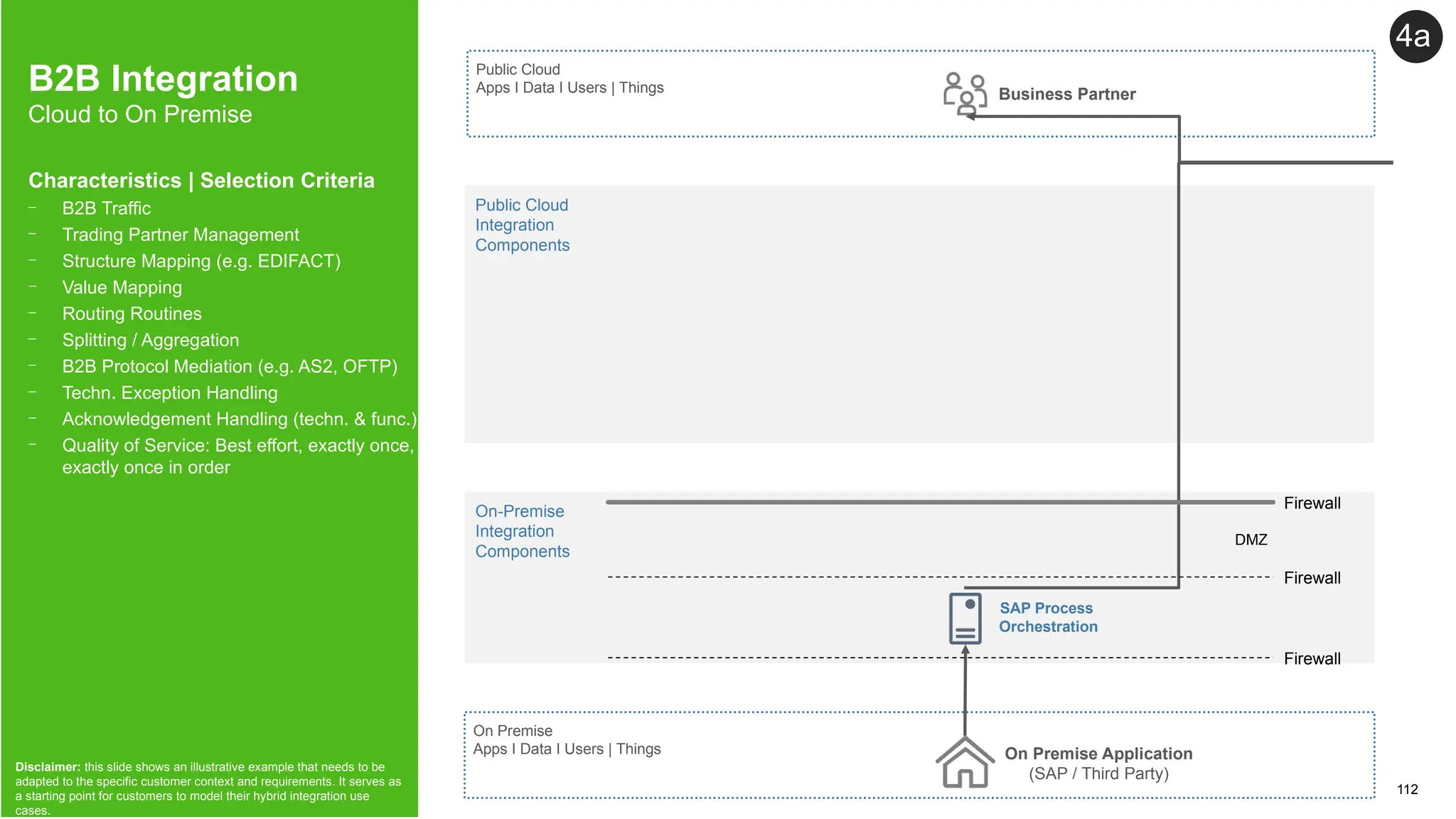

112 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public B2B Integration Cloud to On Premise Characteristics | Selection Criteria - B2B Traffic - Trading Partner Management - Structure Mapping (e.g. EDIFACT) - Value Mapping - Routing Routines - Splitting / Aggregation - B2B Protocol Mediation (e.g. AS2, OFTP) - Techn. Exception Handling - Acknowledgement Handling (techn. & func.) - Quality of Service: Best effort, exactly once, exactly once in order Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Process Orchestration On Premise Application (SAP / Third Party) Business Partner 4a Firewall DMZ Firewall Firewall
113 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for B2B Integration (Cloud to Cloud) – Info Sheet 4b Details Description Exchange of business documents from cloud applications with external entities such as business partners (customers, suppliers). This integration is implemented with a cloud based integration solution (e.g. Integration Platform-as-a-Service) which supports B2B specific capabilities such as business partner management, acknowledgement handling, different type system (e.g. EDIFACT, ANSI X.12) and B2B protocol standards (e.g. AS2). Involved SAP technology products The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • Integration Advisor • Trading Partner Management When to apply • To exchange business documents (such as purchase orders, invoices) of an organization with business partners using classical B2B standards such as Electronic Data Interchange (EDI). How to apply • Cloud Integration capability within SAP Integration Suite acting as B2B gateway solution (for B2B communication only) or as integration solution for A2A and B2B integration (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post). • Trading Partner Management for managing business transactions with multiple trading partners for the electronic exchange of business data (blog post) Example Exchange of purchase orders with suppliers using B2B standards such as EDIFACT or ANSI X.12 *

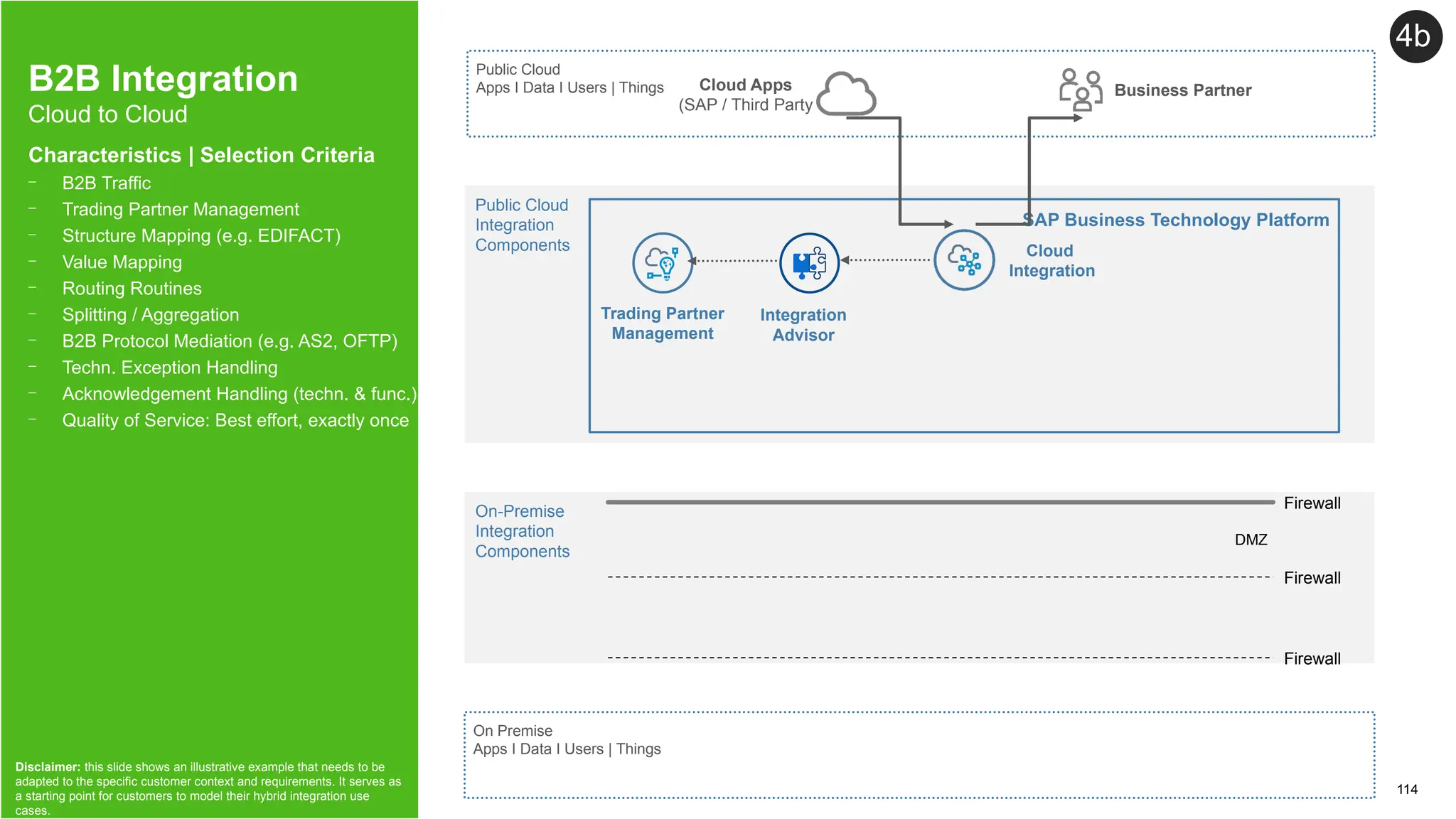

114 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public B2B Integration Cloud to Cloud Characteristics | Selection Criteria - B2B Traffic - Trading Partner Management - Structure Mapping (e.g. EDIFACT) - Value Mapping - Routing Routines - Splitting / Aggregation - B2B Protocol Mediation (e.g. AS2, OFTP) - Techn. Exception Handling - Acknowledgement Handling (techn. & func.) - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Business Partner 4b Cloud Apps (SAP / Third Party Cloud Integration Integration Advisor SAP Business Technology Platform Firewall DMZ Firewall Firewall Trading Partner Management
115 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
116 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Data Source (Connectors) Availability of connectors for source systems (e.g. DBs) of the integration scenario Data Target (Connectors) Availability of connectors for target system (e.g. DBs) of the integration scenario Data Orchestration Capability to orchestrate data flows (pipelining) Data Transformation Capability to transform data (e.g. aggregations, DB operations, …) Data Virtualization Provisioning of a virtual data layer by federation of queries to remote data sources without physical data movement. Data Replication Extract Transform Load (classical batch or real-time) … …
117 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Data Integration Style Sample for Data Orchestration (Cloud to On Premise) – Info Sheet Details Description Integration of on premise data sources (e.g. from applications, databases) with cloud based applications (e.g. cloud data warehouse) using a cloud based data integration solution. Focus is on discovering, refining, governing and orchestrating data across heterogenous data sources. Involved SAP technology products • SAP Data Intelligence Cloud (product documentation) • SAP Connectivity service (conditional) The following capabilities within SAP Integration Suite (product documentation) • Open Connectors (conditional) Further SAP integration solutions can integrate with SAP Data Intelligence Cloud such as SAP Data Services, SAP HANA Smart Data Integration, SAP Landscape Transformation Replication Server (blog post) When to apply • Pipeline-driven data integration, operations and governance solution for disparate kinds of data (structured, unstructured, streaming etc.) for data lake, data warehousing or data science. How to apply • SAP Data Intelligence includes can integrate and orchestrate data from heterogeneous data sources (SAP Discovery Center Mission). Deployment options: On SAP Business Technology Platform, public cloud Kubernetes service, private cloud, on premise installation (see PAM). • SAP Connectivity service to establish a secure tunnel from the SAP Business Technology Platform (cloud) to the on premise application landscape (tutorial) • Open Connectors for simplified integration with third party cloud apps (SAP Discovery Center Mission) Example Data movement from SAP S/4HANA to SAP Data Warehouse Cloud * 5

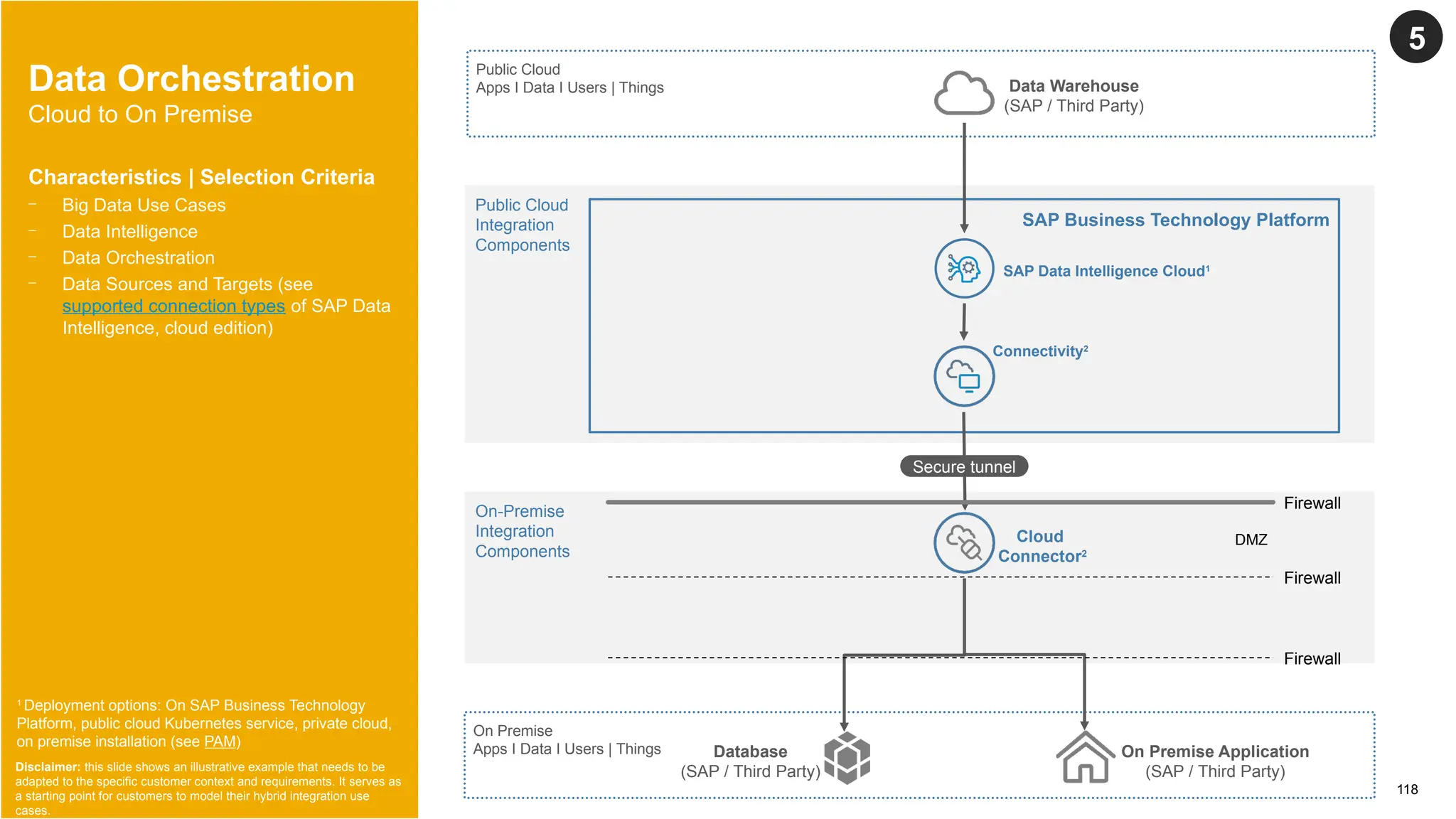

118 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Data Orchestration Cloud to On Premise 5 Characteristics | Selection Criteria - Big Data Use Cases - Data Intelligence - Data Orchestration - Data Sources and Targets (see supported connection types of SAP Data Intelligence, cloud edition) Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform Data Warehouse (SAP / Third Party) Database (SAP / Third Party) On Premise Application (SAP / Third Party) On-Premise Integration Components SAP Data Intelligence Cloud1 Cloud Connector2 Secure tunnel Connectivity2 1 Deployment options: On SAP Business Technology Platform, public cloud Kubernetes service, private cloud, on premise installation (see PAM) Firewall DMZ Firewall Firewall
119 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
120 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Remote data & live data connectivity Allows to replicate data from a data source (e.g. business application) and/or to access the data source online. (Near) real time & historic analytics Ability to perform analytical queries on real-time or historical data. Data modeling Ability to reuse existing data models from the data source or to create data models from scratch. Data preparation and data blending Ability to prepare the data and blend the same from multiple data sources Pre-built & custom built content Availability of pre-built analytical content for business applications and ability to create custom stories. ... …
121 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Analytics Integration Style Sample for Embedded Analytics (User to Cloud) – Info Sheet Details Description Provide analytical insights through reports or dashboards for custom built applications that run on the SAP Business Technology Platform or SAP business applications using SAP Analytics Cloud, embedded edition. For custom build applications you can expose business data to SAP Analytics Cloud, embedded edition, using a live data connection to the SAP HANA database of this application. Involved SAP technology products • SAP Analytics Cloud, embedded edition (product documentation) • SAP Connectivity service (link) When to apply • For business intelligence needs of custom built applications on the SAP Business Technology Platform • Embedded as part of SAP business applications (such as SAP S/4HANA Cloud, SAP Successfactors solutions) How to apply • Configure your SAP Analytics Cloud, embedded edition tenant before building stories and embedding these stories into your business application (getting started guide) • Embed an SAP Analytics Cloud story in a custom built web application (tutorial) Example • Embedding SAP Analytics Cloud, embedded edition, into custom build applications which run on the SAP Business Technology Platform. * 6
122 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Embedded Analytics User to Cloud Characteristics | Selection Criteria - Business intelligence scenarios - Expose data as charts, visualizations, text, and images - Live data connectivity - (Near) real time & historic analytics - Data modeling to represent business data from source system Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. 6 On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components SAP Business Technology Platform On-Premise Integration Components SAP Analytics Cloud Desktop Mobile Metadata SAP HANA database Spatial Text and search Predictive Modeling SAP Analytics Cloud Rest story API URL API Permission API User and team management Your application Java or SAPUI5 Live connection Connectivity
123 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public User Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C

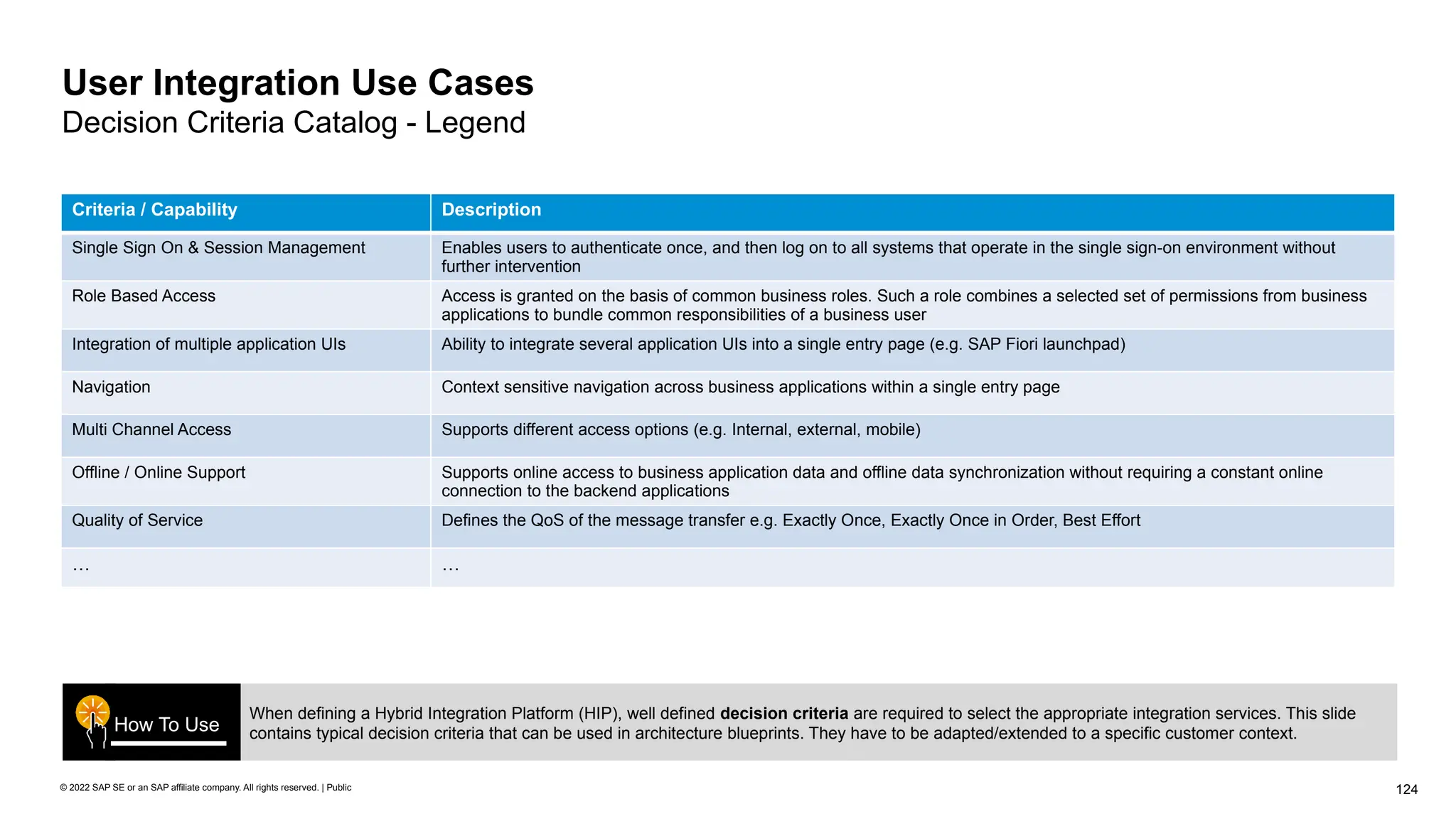

124 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public User Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Single Sign On & Session Management Enables users to authenticate once, and then log on to all systems that operate in the single sign-on environment without further intervention Role Based Access Access is granted on the basis of common business roles. Such a role combines a selected set of permissions from business applications to bundle common responsibilities of a business user Integration of multiple application UIs Ability to integrate several application UIs into a single entry page (e.g. SAP Fiori launchpad) Navigation Context sensitive navigation across business applications within a single entry page Multi Channel Access Supports different access options (e.g. Internal, external, mobile) Offline / Online Support Supports online access to business application data and offline data synchronization without requiring a constant online connection to the backend applications Quality of Service Defines the QoS of the message transfer e.g. Exactly Once, Exactly Once in Order, Best Effort … …

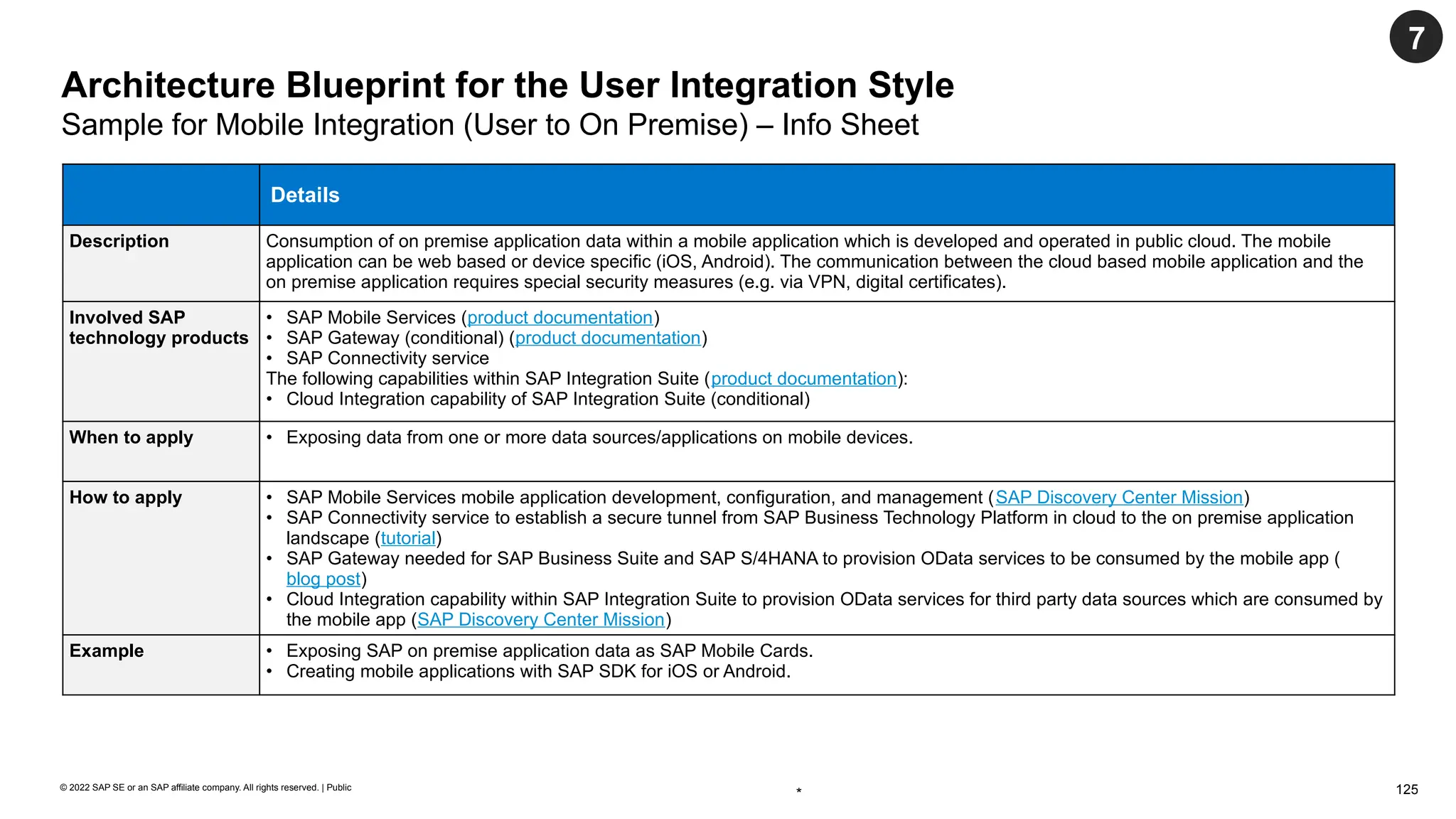

125 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the User Integration Style Sample for Mobile Integration (User to On Premise) – Info Sheet Details Description Consumption of on premise application data within a mobile application which is developed and operated in public cloud. The mobile application can be web based or device specific (iOS, Android). The communication between the cloud based mobile application and the on premise application requires special security measures (e.g. via VPN, digital certificates). Involved SAP technology products • SAP Mobile Services (product documentation) • SAP Gateway (conditional) (product documentation) • SAP Connectivity service The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration capability of SAP Integration Suite (conditional) When to apply • Exposing data from one or more data sources/applications on mobile devices. How to apply • SAP Mobile Services mobile application development, configuration, and management (SAP Discovery Center Mission) • SAP Connectivity service to establish a secure tunnel from SAP Business Technology Platform in cloud to the on premise application landscape (tutorial) • SAP Gateway needed for SAP Business Suite and SAP S/4HANA to provision OData services to be consumed by the mobile app ( blog post) • Cloud Integration capability within SAP Integration Suite to provision OData services for third party data sources which are consumed by the mobile app (SAP Discovery Center Mission) Example • Exposing SAP on premise application data as SAP Mobile Cards. • Creating mobile applications with SAP SDK for iOS or Android. * 7

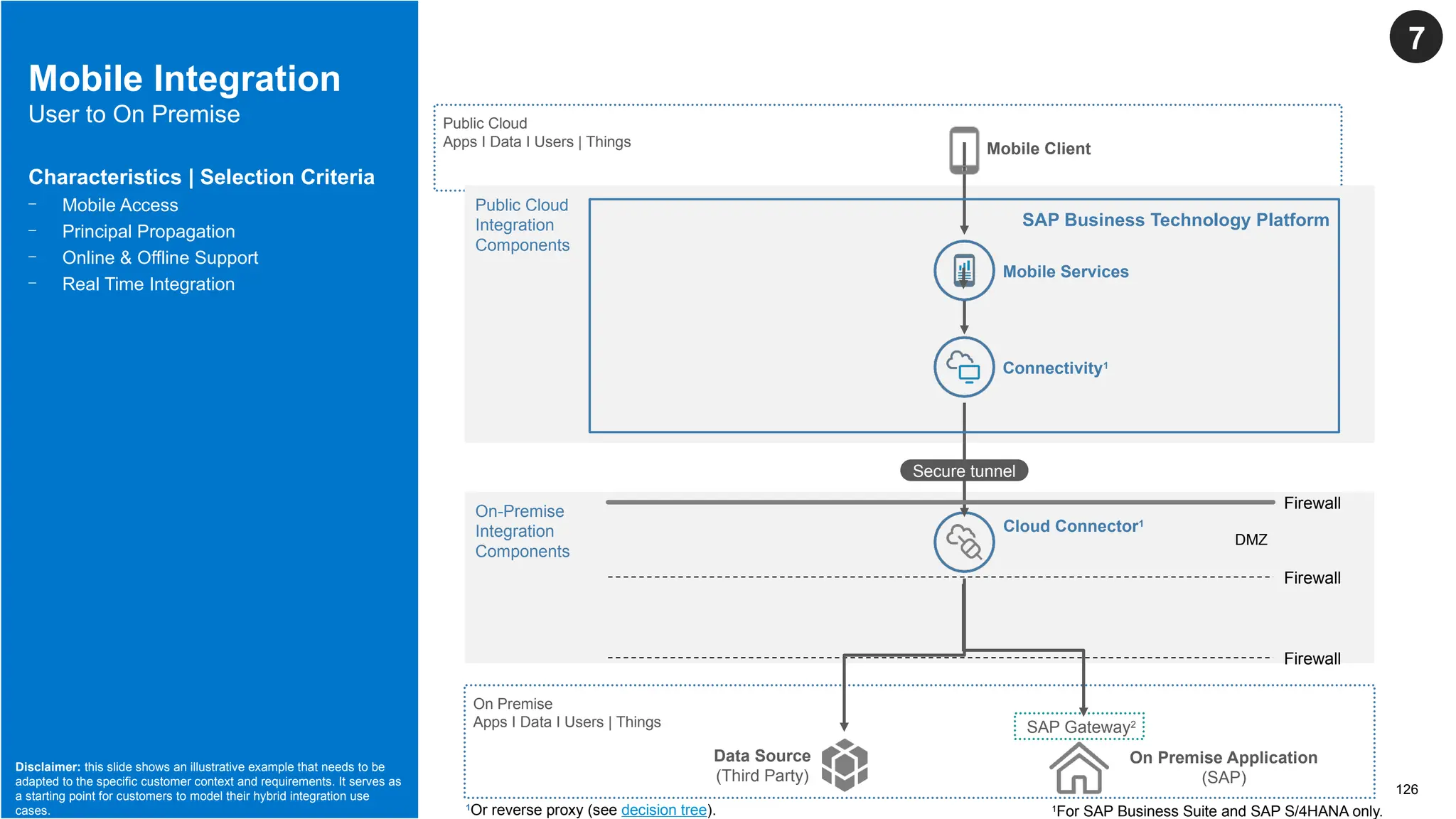

126 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Mobile Integration User to On Premise 7 Characteristics | Selection Criteria - Mobile Access - Principal Propagation - Online & Offline Support - Real Time Integration Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Connectivity1 Cloud Connector1 Secure tunnel Mobile Services Mobile Client SAP Gateway2 1 For SAP Business Suite and SAP S/4HANA only. SAP Business Technology Platform Firewall DMZ Firewall Firewall On Premise Application (SAP) Data Source (Third Party) 1 Or reverse proxy (see decision tree).

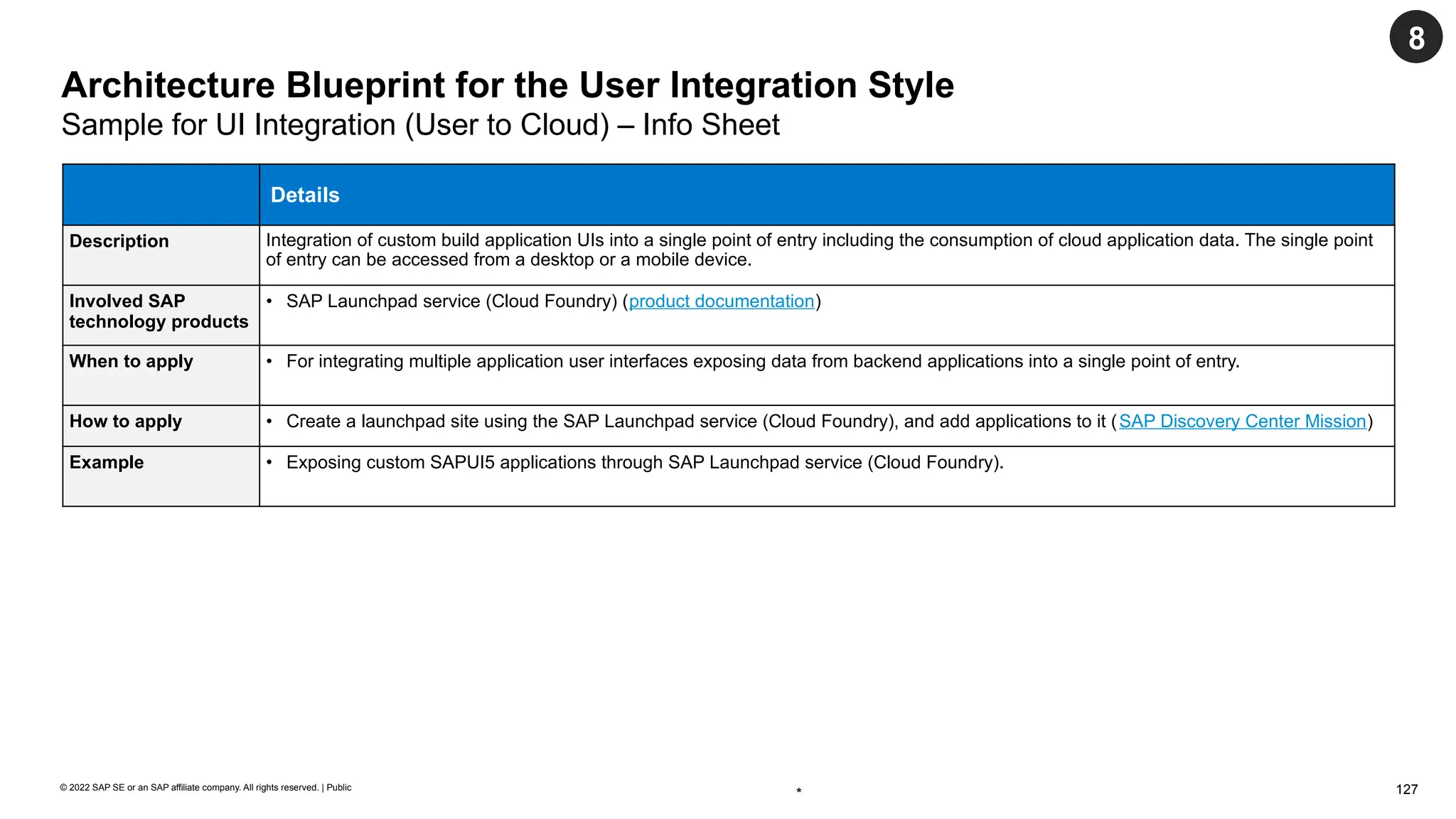

127 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the User Integration Style Sample for UI Integration (User to Cloud) – Info Sheet Details Description Integration of custom build application UIs into a single point of entry including the consumption of cloud application data. The single point of entry can be accessed from a desktop or a mobile device. Involved SAP technology products • SAP Launchpad service (Cloud Foundry) (product documentation) When to apply • For integrating multiple application user interfaces exposing data from backend applications into a single point of entry. How to apply • Create a launchpad site using the SAP Launchpad service (Cloud Foundry), and add applications to it (SAP Discovery Center Mission) Example • Exposing custom SAPUI5 applications through SAP Launchpad service (Cloud Foundry). * 8

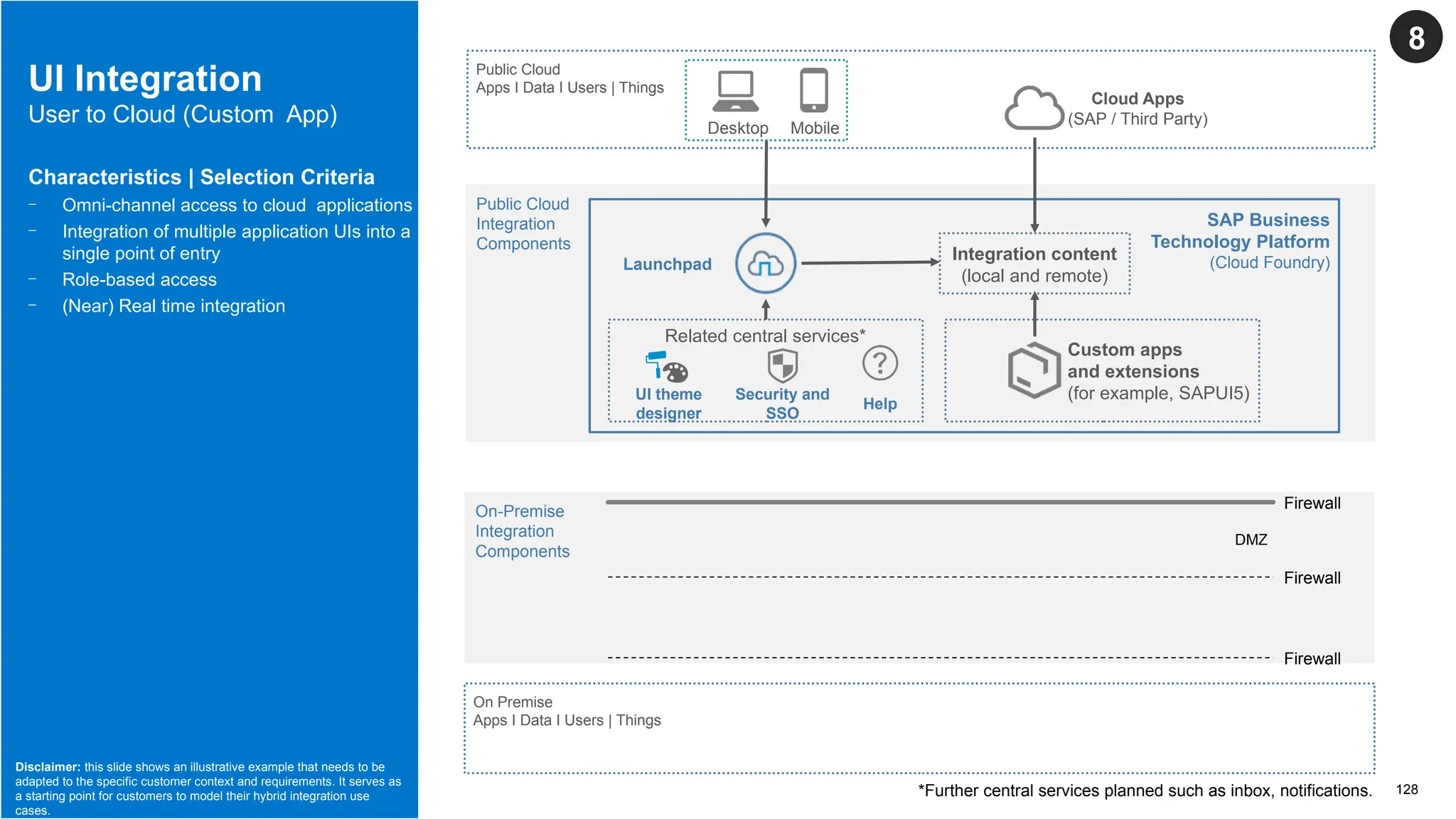

128 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public UI Integration User to Cloud (Custom App) 8 Characteristics | Selection Criteria - Omni-channel access to cloud applications - Integration of multiple application UIs into a single point of entry - Role-based access - (Near) Real time integration Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Launchpad Cloud Apps (SAP / Third Party) SAP Business Technology Platform (Cloud Foundry) Firewall DMZ Firewall Firewall Desktop Mobile Integration content (local and remote) Custom apps and extensions (for example, SAPUI5) Help UI theme designer Related central services* Security and SSO *Further central services planned such as inbox, notifications.
129 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
130 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for a Cross Use Case Sample for Digital Integration Hub (Cloud to On Premise and Cloud) – Info Sheet Details Description The Digital Integration Hub is an emerging architecture for implementing a large-scale, high-throughput access layer to business data by inserting a high performance in-memory data store layer between the frontend API service layer and backend app and data sources. Involved SAP technology products • SAP HANA Database • SAP Event Mesh • SAP Connectivity service • SAP HANA Smart Data Integration The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • API Management • Open Connectors (conditional) When to apply • Need for a large-scale, high-throughput and low-latency front-end API services (e.g. for user interfaces) • For protecting back-end systems from excessive front-end APIs How to apply • SAP HANA Database acts as a high-performance data store for caching the relevant subset of business data. Furthermore it provides a single consolidated view of entities which is stored in one or multiple business applications (cloud / on premise) and databases. • Cloud Integration integrates apps (SAP/third party, cloud/on premise) with SAP HANA database and keeps the data in sync. • Open Connectors for simplified integration of third party cloud applications. • SAP HANA Smart Data Integration is needed when integrating data from databases with the SAP HANA and to keep the data in sync. • SAP Event Mesh acts as an event broker for a loosely coupled event based integration between business applications. These publish their events to Event Mesh. Cloud Integration capability is the subscriber of these events and sends the data to the SAP HANA database for update. • API Management enables a low-latency frontend API service connecting to SAP HANA database for read queries. Update calls can be performed directly on the business applications. (See blog post) 9
131 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Digital Integration Hub Cloud to On Premise and Cloud 9 Characteristics | Selection Criteria - Need for responsive API access to data stored in business applications for large- scale/high performance scenarios - Decoupling of business application data sources from front-end API by introducing an in memory data store layer - In memory layer aggregate and synchronizes data with business applications by using event-based, request-based, and batch integration patterns Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Cloud Integration API Management Cloud Connector Data Provisioning Agent Cloud Application (SAP / Third Party) SAP Fiori Desktop Mobile On Premise Application (SAP / Third Party) Database (SAP / Third Party) SAP HANA Database Your Application TCP Smart Data Integration (SDI) Read Write SAP Business Technology Platform Firewall DMZ Firewall Firewall Event Mesh Pub / Sub Pub / Sub Secure tunnel

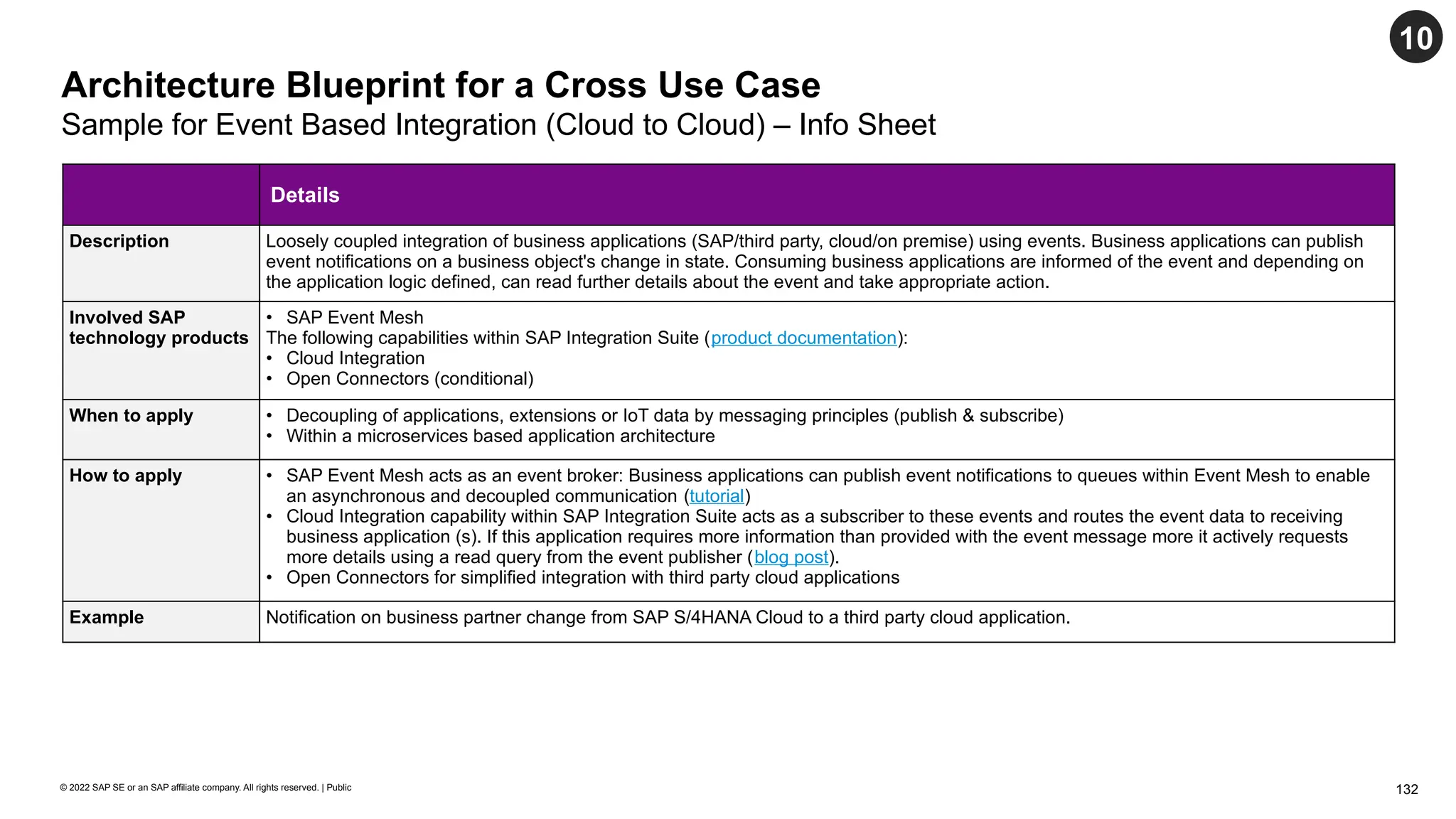

132 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for a Cross Use Case Sample for Event Based Integration (Cloud to Cloud) – Info Sheet Details Description Loosely coupled integration of business applications (SAP/third party, cloud/on premise) using events. Business applications can publish event notifications on a business object's change in state. Consuming business applications are informed of the event and depending on the application logic defined, can read further details about the event and take appropriate action. Involved SAP technology products • SAP Event Mesh The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) When to apply • Decoupling of applications, extensions or IoT data by messaging principles (publish & subscribe) • Within a microservices based application architecture How to apply • SAP Event Mesh acts as an event broker: Business applications can publish event notifications to queues within Event Mesh to enable an asynchronous and decoupled communication (tutorial) • Cloud Integration capability within SAP Integration Suite acts as a subscriber to these events and routes the event data to receiving business application (s). If this application requires more information than provided with the event message more it actively requests more details using a read query from the event publisher (blog post). • Open Connectors for simplified integration with third party cloud applications Example Notification on business partner change from SAP S/4HANA Cloud to a third party cloud application. 10
133 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Event Based Integration Cloud to Cloud Characteristics | Selection Criteria - Event based and driven integration - Exchange patterns: Publish & subscribe, point-to-point, request/reply - Decoupling of sender and receiver(s) - Using standard protocols (AMQP 1.0, Webhook, REST, MQTT) - QoS: Asynchronous Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Event Mesh Cloud Integration Cloud Application (SAP / Third Party) Cloud Application (SAP / Third Party) 2. Read SAP Business Technology Platform 3. Lookup Firewall DMZ Firewall Firewall publisher subscriber 1. Expose Event Integration flows queues 10
134 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
135 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 4: Enable a Practice of Empowerment Objectives  Establish integration as recognized discipline  Position integration as a strategic differentiator  Provide holistic view on integration  Democratize integration delivery  Establish knowledge sharing culture (best practices)  Improve communication between teams / SIs Sample approach*  Define and introduce integration roles  Setup a dedicated integration strategy team  Roll-out integration guidelines in your organization  Establish an enterprise architecture board  Rollout solution architecture blueprints  Define areas for self-service integration * Highly depends on your organizational context
136 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Overview Sample Integration Roles and Responsibilities ISA-M includes frequently used integration roles in organizations, together with their typical responsibilities and some sample activities in the context of SAP. The concrete definition of integration roles depends on your specific customer context. You can use the outlined integration roles as a starting point and adapt/extend them to your specific needs. These roles, for example, can help you to establish an integration competency center within your organization and derive areas for self-service integration (e.g. simple integration tasks covered by citizen integrators). How To Use Integration Roles Enterprise Architect Business Domain Expert Integration Administrator Application/API Developer Integration Developer Citizen Integrator Integration Architect Business User Chief Integration Office
137 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions I Sample Integration Roles and Responsibilities Integration Architect • Definition of technical integration architectures with a focus on specific integration technologies / services • Definition of technical specifications for integration scenarios based on business requirements • Definition and communication of patterns, templates, and best practices Responsibilities • Definition of development guidelines for SAP Integration Suite or SAP Process Orchestration • Definition of best practices for integration flows using the Cloud Integration capability within SAP Integration Suite, Sample Tasks in SAP Context Enterprise Architect • Definition, communication, and continuous improvement of an integration reference architecture based on an overall IT strategy • Definition of integration standards and technology selection guidelines (cross- vendor, hybrid integration platform) • Evaluation of new integration technologies / services Responsibilities • Definition and rollout of company-wide technology selection guidelines using the ISA-M • Roll-out of integration standards • Review and adjustment of ISA-M content as part of the Integration Assessment capability within SAP Integration Suite Sample Tasks in SAP Context Integration Developer • Implementation and test of integration scenarios based on technical specifications • Implementation and extension of prepackaged integration scenarios Responsibilities • Leverage Integration Assessment to determine the best fitting integration technology • Implementation of integration flows in the Cloud Integration capability of SAP Integration Suite or SAP Process Orchestration • Implementation of data orchestration flows in the SAP Data Intelligence solution Sample Tasks in SAP Context Integration Administrator • Technical setup and operations of integration scenarios (for example, archiving or certificate management) • Technical monitoring of interfaces, including root-cause analysis and technical error handling Responsibilities • Technical monitoring of messages from SAP Integration Suite in SAP Solution Manager or SAP Cloud ALM • Deployment of certificates in SAP Integration Suite. Sample Tasks in SAP Context Integration Roles
138 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions II Sample Integration Roles and Responsibilities Business User • Processing of workflow tasks • Interacting with business applications (omni-channel access) • Monitoring and error correction of messages in a specific business process domain or line of business Responsibilities • Processing of workflow tasks, e.g. in SAP Workflow service. • Error correction, canceling, or restart of messages in the SAP Application Interface Framework as part of SAP S/4HANA or SAP Business Suite applications Sample Tasks in SAP Context Business Domain Expert • Specification of business requirements for a specific business process domain or line of business • Semantic definition of interface customizations and messages mapping (together with an integration architect) Responsibilities • Specify integration requirements from a business perspective leveraging the Integration Assessment capability within SAP Integration Suite • Definition of customized B2B interfaces and mappings in the Integration Advisor capability within SAP Integration Suite. Sample Tasks in SAP Context Citizen Integrator • Business user with the ability to perform some integration tasks independently (self-service) • Elimination of need for deep integration knowledge Responsibilities • Leverage Integration Assessment to determine the best fitting technology • Implementation of simple integration scenarios by HR business users in the integration center of SAP SuccessFactors • Integration of buyers and suppliers in the SAP Ariba Cloud Integration Gateway solution based on a self- service wizard approach Sample Tasks in SAP Context Application/API Developer • Customization of enterprise applications • Provisioning of customer-specific APIs • Development of extension applications or mobile applications Responsibilities • Customization of applications with SAP S/4HANA • Development of extension applications on SAP Business Technology Platform • Development of innovate, API-based applications (e.g. for fast innovation cycles, bimodal IT) Sample Tasks in SAP Context Integration Roles
139 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions III Sample Integration Roles and Responsibilities Chief Integration Officer  New emerging integration role  Creates a strategy for successful business and technology integration  Opens up an organization’s technical landscape to a wider ecosystem  Leverages opportunities to collaborate and share digital assets beyond the company’s boundaries  Facilitates the ultimate sharing economy Integration Roles A Chief Integration Officer is a new emerging integration role which is responsible for the strategic use of integration services to achieve immediate and impactful business outcomes. Source and further Information:. Integration as a Strategic Imperative – Part 5: Smart Lifecycle Management Explanation
140 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Center of Excellence Overview of Responsibilities Integration Strategy Definition I Execution Hybrid Integration Platform Design I Implementation Integration Best Practices Definition I Adoption Integration Coaching Enablement I Governance I Proof of Concepts Self-service integration based on well-defined standards Integration Developer Citizen Integrator API / Application Developer Virtual Integration Community Integration Center of Excellence Support an agile and decentral integration development approach by shifting from a traditional Integration Competence Center towards Integration Center of Excellence. An ICoE is responsible for applying ISA-M at an organization which also includes integration coaching of a virtual integration community. Source and further Information: Integration as a Strategic Imperative – Part 4: Integration Democratization Explanation
141 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Center of Excellence Supports a Holistic Integration Approach to Unlock Innovation Business Users Developer Experts Executive Managers Data Analysts Integration Center of Excellence Accelerators Data access Real-time synchronization Short-term support Executive reporting Data insights & intelligence Support & operations Established pathways to various data sources An Integration Center of Excellence based on agile building blocks can optimize tactical integration projects and empower strategic initiatives by also delivering data access, insights and intelligence.. Source and further Information: Unlocking Innovation Through Integration Explanation Integration Center of Excellence
142 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Governance Defining a Process for Integration Governance* *Simplified sample process definition Integration Governance You can also leverage accelerators of ISA-M along a governance process for integration developments. Integration developers can identify the right integration technology and approach leveraging integration best practices of ISA-M. If no existing integration technology can fulfill the requirements, the developer can consult the Integration Center of Excellence. Explanation
143 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Tool Supported Integration Governance Approach Leveraging the Integration Assessment capability within SAP Integration Suite Business Domain Expert • Specifies high level integration requirements from a business perspective by leveraging a business solution request Integration Developer • Defines the integration scope from a technical perspective by processing an interface request • Gets a proposal of the integration technology/ies with the best fit to the specified requirements Enterprise Architect • Manages ISA-M master data • Maintains customer specific data and integration policies (e.g. for third party integration technologies) SAP Integration Suite Integration Assessment allows Integration Architects to define and document an integration technology strategy. You can leverage this tool to provide integration developers guidance about which integration technology/ies to choose for an integration scenario. Integration Assessment follows the concepts of ISA-M and therefore can cover all integration needs in heterogenous environments. It also aims at improving the collaboration across business and IT personas as part of integration projects. Explanation
144 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Governance API & Integration Governance Framework* *Simplified customer example The processes for integration governance have to be interconnected with the overall technology governance process of an organization. This includes defined responsibilities including escalation paths. Explanation Integration Governance
145 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Quality Assurance Agile Quality Assurance Process  Objective: Introduce lightweight governance policies  Type of quality requirements: 1. Mandatory: Protect the organization from material damage by taking into account legal implications, business and technology risks 2. Basic: Meet end user expectations 3. Advanced (optional): Outperform end user expectations  Governance: Supervised by the Integration Center of Excellence Integration Quality Assurance Complement your existing quality assurance (QA) process with a lightweight one for non-mission critical integration scenarios. For the latter ones you can implement a more agile and lean QA process which is still supervised by the Integration Center of Excellence. Full QA process still applies for mission critical and more complex integration scenarios. Explanation
146 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration Quality Assurance Agile quality assurance process for integration developments (II) Approach: Questionnaire-based assessment owned by the Integration Center of Excellence 1. Mandatory requirements – Validation through self-declaration (possibly code reviews) 2.+ 3. Basic & advanced requirements – Questions derived from defined integration best practices – Provided as self service or interview-based with option for coaching – Results documented through an auto-generated report Every developer is responsible for unit and scenario testing. Integration Quality Assurance Introduce a questionnaire based assessment approach for non-mission critical integration scenarios. These can be offered as self service to integration development teams / citizen integrators. The Integration Center of Excellence team shall also offer to run such assessments in an interview based style which will allow them to coach integration developers regarding quality requirements. Explanation
SAP Integration Solution Advisory Methodology Template Appendix

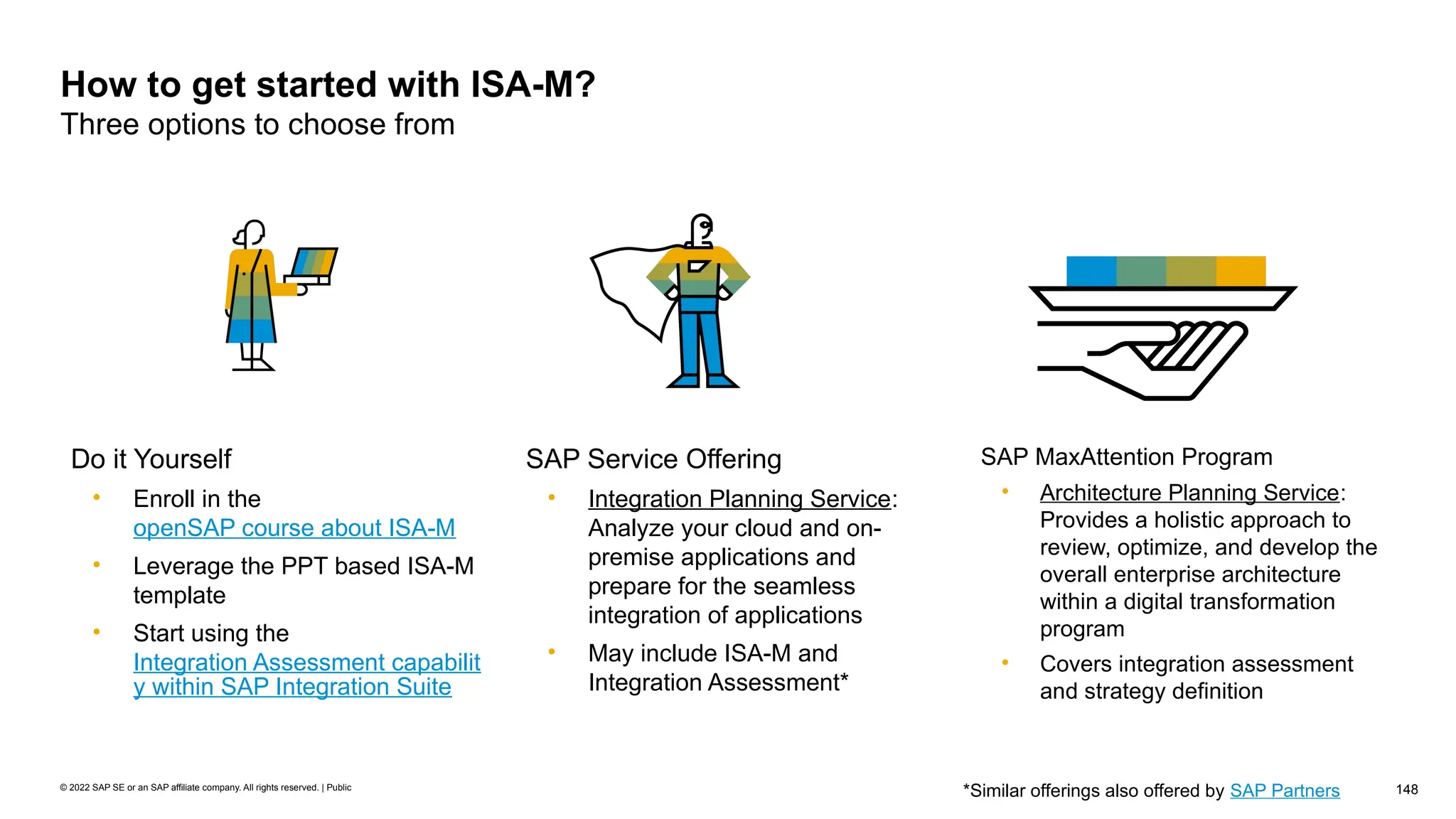

148 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public How to get started with ISA-M? Three options to choose from SAP MaxAttention Program • Architecture Planning Service: Provides a holistic approach to review, optimize, and develop the overall enterprise architecture within a digital transformation program • Covers integration assessment and strategy definition Do it Yourself • Enroll in the openSAP course about ISA-M • Leverage the PPT based ISA-M template • Start using the Integration Assessment capabilit y within SAP Integration Suite SAP Service Offering • Integration Planning Service: Analyze your cloud and on- premise applications and prepare for the seamless integration of applications • May include ISA-M and Integration Assessment* *Similar offerings also offered by SAP Partners
149 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public Integration architecture guide for cloud and hybrid landscapes Overview Context  Deep dive into integration patterns for heterogenous landscapes  Scope: Existing product portfolio, technology focus, no specific LoB focus Target group  Enterprise architects and integration architects Updated content in 2022  Update of all sections (based on customer feedback)  New sections – Things integration: Integration for IoT scenarios (cloud, edge processing) – Identity integration: Identity lifecycle management across applications Download 2022 Update
150 © 2022 SAP SE or an SAP affiliate company. All rights reserved. | Public SAP Community Topic Page about the SAP Integration Strategy Stay up-to-date and engage with us! Context SAP integration strategy in context of the intelligent enterprise, including:  End-to-end business processes  Suite qualities  Core technologies and best practices, such as the SAP Integration Solution Advisory Methodology Objectives  Follow the topic page to get the latest news from the experts through blog posts and SAP Community Calls  Opportunity to ask questions and to share your knowledge and experiences by writing blog posts

More Related Content

PDF
MuleSoft PKO - C4E and Platform Insights
byAngel Alberici

PPTX
webMethods 10.5 and webMethods.io Integration: Everything You Must Know
byKellton Tech Solutions Ltd

PDF
Operationalizing your C4E VirtualMuleys & Deployment Considerations: Cloudhub...
byAngel Alberici

PDF
MuleSoft Surat Meetup#41 - Universal API Management, Anypoint Flex Gateway an...
byJitendra Bafna

PPTX
Rethinking it for digital transformation
byMuleSoft

PDF
SAP Integration: Best Practices | MuleSoft
byMuleSoft

PDF
A MARKETER'S GUIDE : " INTEGRATION PLATFORM AS A SERVICE (iPaaS) "
byMUHAMMAD HUZAIFA CHAUDHARY

PPTX
Microservices on Anypoint Platform
byMuleSoft

MuleSoft PKO - C4E and Platform Insights
byAngel Alberici

webMethods 10.5 and webMethods.io Integration: Everything You Must Know
byKellton Tech Solutions Ltd

Operationalizing your C4E VirtualMuleys & Deployment Considerations: Cloudhub...
byAngel Alberici

MuleSoft Surat Meetup#41 - Universal API Management, Anypoint Flex Gateway an...
byJitendra Bafna

Rethinking it for digital transformation
byMuleSoft

SAP Integration: Best Practices | MuleSoft
byMuleSoft

A MARKETER'S GUIDE : " INTEGRATION PLATFORM AS A SERVICE (iPaaS) "
byMUHAMMAD HUZAIFA CHAUDHARY

Microservices on Anypoint Platform
byMuleSoft


What's hot

PPTX
Basic patterns for capability map level 0
byJörgen Dahlberg

PDF
Agile Solution Architecture and Design
byAlan McSweeney

PDF
Agile Delivery Powerpoint Presentation Slides
bySlideTeam

PDF
The Paved Road at Netflix
byDianne Marsh

PDF
Business PMO & IT Pmo What Is The Difference
byStefan Rank

PDF
SFA2018 Project to Product - Carmen DeArdo
byCarmen DeArdo

PPTX
Introduction to scaled agile framework
bySrinath Ramakrishnan

PPT
Sap Upgrade Project Brief
byvpallapothu

PDF
Scaled Agile Framework
byKnoldus Inc.

PPTX
Real-time Data Pipelines with SAP and Apache Kafka
byCarole Gunst

PPTX
Intro to Salesforce for Nonprofits
byMarc Baizman

PDF
Introduction to scaled agile framework
byITEM

PDF
A Self-Service API Portal for Developers
byCA Technologies

PDF
On Call Process (PDF)
byJOE RUSSO

PDF
DevOps vs Agile | DevOps Tutorial For Beginners | DevOps Training | Edureka
byEdureka!

PDF
Projetando com Lean UX
byEdu Agni

DOCX
Ravi Roy_.Net Developer
byRavi Roy

PPTX
Webinar: Development with Agile, Waterfall and Agile-Waterfall Hybrid
byIntland Software GmbH

PDF
Why Agile Works?
byAaron Medina

DOC
Newest CV
byhelmourad

Basic patterns for capability map level 0
byJörgen Dahlberg

Agile Solution Architecture and Design
byAlan McSweeney

Agile Delivery Powerpoint Presentation Slides
bySlideTeam

The Paved Road at Netflix
byDianne Marsh

Business PMO & IT Pmo What Is The Difference
byStefan Rank

SFA2018 Project to Product - Carmen DeArdo
byCarmen DeArdo

Introduction to scaled agile framework
bySrinath Ramakrishnan

Sap Upgrade Project Brief
byvpallapothu

Scaled Agile Framework
byKnoldus Inc.

Real-time Data Pipelines with SAP and Apache Kafka
byCarole Gunst

Intro to Salesforce for Nonprofits
byMarc Baizman

Introduction to scaled agile framework
byITEM

A Self-Service API Portal for Developers
byCA Technologies

On Call Process (PDF)
byJOE RUSSO

DevOps vs Agile | DevOps Tutorial For Beginners | DevOps Training | Edureka
byEdureka!

Projetando com Lean UX
byEdu Agni

Ravi Roy_.Net Developer
byRavi Roy

Webinar: Development with Agile, Waterfall and Agile-Waterfall Hybrid
byIntland Software GmbH

Why Agile Works?
byAaron Medina

Newest CV
byhelmourad


Similar to Integration Guide ISA-M_TEMPLATE_Version 4.0

PPTX
Microsoft power platform
byMichael Stephenson

PPTX
The Evolution of Integration
bySoftware AG

PDF
Integration: The $100 Billion Opportunity No One Wants to Talk About
byBramh Gupta

PPTX
Introduction to Integration Technologies
byBizTalk360

PDF
19_04_11_sap_cloud_platform_ipass_overview.pdf
byyshu1217

PPTX
SAP EIM Overview
bySAP Technology

PDF
SAP S4 hana Integration Suite documents
byannapureddyn

PDF
sap_cloud_platform_integration_suite_review.pdf
byssuser23eb4b

PDF
sap_cloud_alm_for_operations_delta_q1_2023.pdf
byBupesh krishnasamy

PPTX
What is SAP and what are the uses of sAP?.pptx
byRykaBhatt

PDF
ISA M Template for cloud implemenation DRP
byssuserd257fb

PDF
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
byTorry Harris

PPTX
SAP_High_Level_Overview_Presentation.pptx
byBhaskarAmbikapathy1

PDF
iPaaS for Smart Integration - Slide deck by Torry Harris Integration Solutions
byTorry Harris

PPTX
Key takeaways for SAP PI Integration 2018
byDaniel Graversen

PDF
How to go about your SAP Integration 2019, SAP PI, and cloud
byDaniel Graversen

PDF
01 sap inside_track_sapintegrationstrategy
byshetkars

PDF
Future Technologies for the Connected Enterprise
byPaul Hofmann

PPTX
How is iPaaS Shaping Up Next-generation’s Utility?
bymartcehcubepal

PPTX
How cloud and in memory computing revolutionised enterprise development - Ste...
byjaxconf

Microsoft power platform
byMichael Stephenson

The Evolution of Integration
bySoftware AG

Integration: The $100 Billion Opportunity No One Wants to Talk About
byBramh Gupta

Introduction to Integration Technologies
byBizTalk360

19_04_11_sap_cloud_platform_ipass_overview.pdf
byyshu1217

SAP EIM Overview
bySAP Technology

SAP S4 hana Integration Suite documents
byannapureddyn

sap_cloud_platform_integration_suite_review.pdf
byssuser23eb4b

sap_cloud_alm_for_operations_delta_q1_2023.pdf
byBupesh krishnasamy

What is SAP and what are the uses of sAP?.pptx
byRykaBhatt

ISA M Template for cloud implemenation DRP
byssuserd257fb

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
byTorry Harris

SAP_High_Level_Overview_Presentation.pptx
byBhaskarAmbikapathy1

iPaaS for Smart Integration - Slide deck by Torry Harris Integration Solutions
byTorry Harris

Key takeaways for SAP PI Integration 2018
byDaniel Graversen

How to go about your SAP Integration 2019, SAP PI, and cloud
byDaniel Graversen

01 sap inside_track_sapintegrationstrategy
byshetkars

Future Technologies for the Connected Enterprise
byPaul Hofmann

How is iPaaS Shaping Up Next-generation’s Utility?
bymartcehcubepal

How cloud and in memory computing revolutionised enterprise development - Ste...
byjaxconf


Recently uploaded

PDF
[BDD 2025 - Full-Stack Development] The Modern Stack: Building Web & AI Appli...
byWintari Yasmin

PDF
Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

PDF
[BDD 2025 - Full-Stack Development] Agentic AI Architecture: Redefining Syste...
byWintari Yasmin

PDF
Mulesoft Meetup Online Portuguese: MCP e IA
byPedro Baroni

PDF
How Much Does It Cost to Build an eCommerce Website in 2025.pdf
byPixlogix Infotech

PDF
[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...
byWintari Yasmin

PDF
[DevFest Strasbourg 2025] - NodeJs Can do that !!
bymoassiongbon

PPTX
Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

PPTX
UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

PDF
Integrating AI with Meaningful Human Collaboration
byCadabra Studio

PDF
KMWorld - KM & AI Bring Collectivity, Nostalgia, & Selectivity
byJonathan Ralton

PPTX
Leon Brands - Intro to GPU Occlusion (Graphics Programming Conference 2024)
byleonbrands1998

PDF
Top Crypto Supers 15th Report November 2025
byStephen Perrenod

PDF
Transcript: The partnership effect: Libraries and publishers on collaborating...
byBookNet Canada

PPTX
kernel PPT (Explanation of Windows Kernal).pptx
byINFOBYTES1

PDF
The partnership effect: Libraries and publishers on collaborating and thrivin...
byBookNet Canada

PPTX
Connecting the unconnectable: Exploring LoRaWAN for IoT
byasasiraarthur

PDF
The Necessity of Digital Forensics, the Digital Forensics Process & Laborator...
bychrstnpetwinchester

PDF
The Evolving Role of the CEO in the Age of AI
byPipal Tree Services Executive Search Firm

PDF
"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

[BDD 2025 - Full-Stack Development] The Modern Stack: Building Web & AI Appli...
byWintari Yasmin

Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

[BDD 2025 - Full-Stack Development] Agentic AI Architecture: Redefining Syste...
byWintari Yasmin

Mulesoft Meetup Online Portuguese: MCP e IA
byPedro Baroni

How Much Does It Cost to Build an eCommerce Website in 2025.pdf
byPixlogix Infotech

[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...
byWintari Yasmin

[DevFest Strasbourg 2025] - NodeJs Can do that !!
bymoassiongbon

Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

Integrating AI with Meaningful Human Collaboration
byCadabra Studio

KMWorld - KM & AI Bring Collectivity, Nostalgia, & Selectivity
byJonathan Ralton

Leon Brands - Intro to GPU Occlusion (Graphics Programming Conference 2024)
byleonbrands1998

Top Crypto Supers 15th Report November 2025
byStephen Perrenod

Transcript: The partnership effect: Libraries and publishers on collaborating...
byBookNet Canada

kernel PPT (Explanation of Windows Kernal).pptx
byINFOBYTES1

The partnership effect: Libraries and publishers on collaborating and thrivin...
byBookNet Canada

Connecting the unconnectable: Exploring LoRaWAN for IoT
byasasiraarthur

The Necessity of Digital Forensics, the Digital Forensics Process & Laborator...
bychrstnpetwinchester

The Evolving Role of the CEO in the Age of AI
byPipal Tree Services Executive Search Firm

"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

In this document
Powered by AI

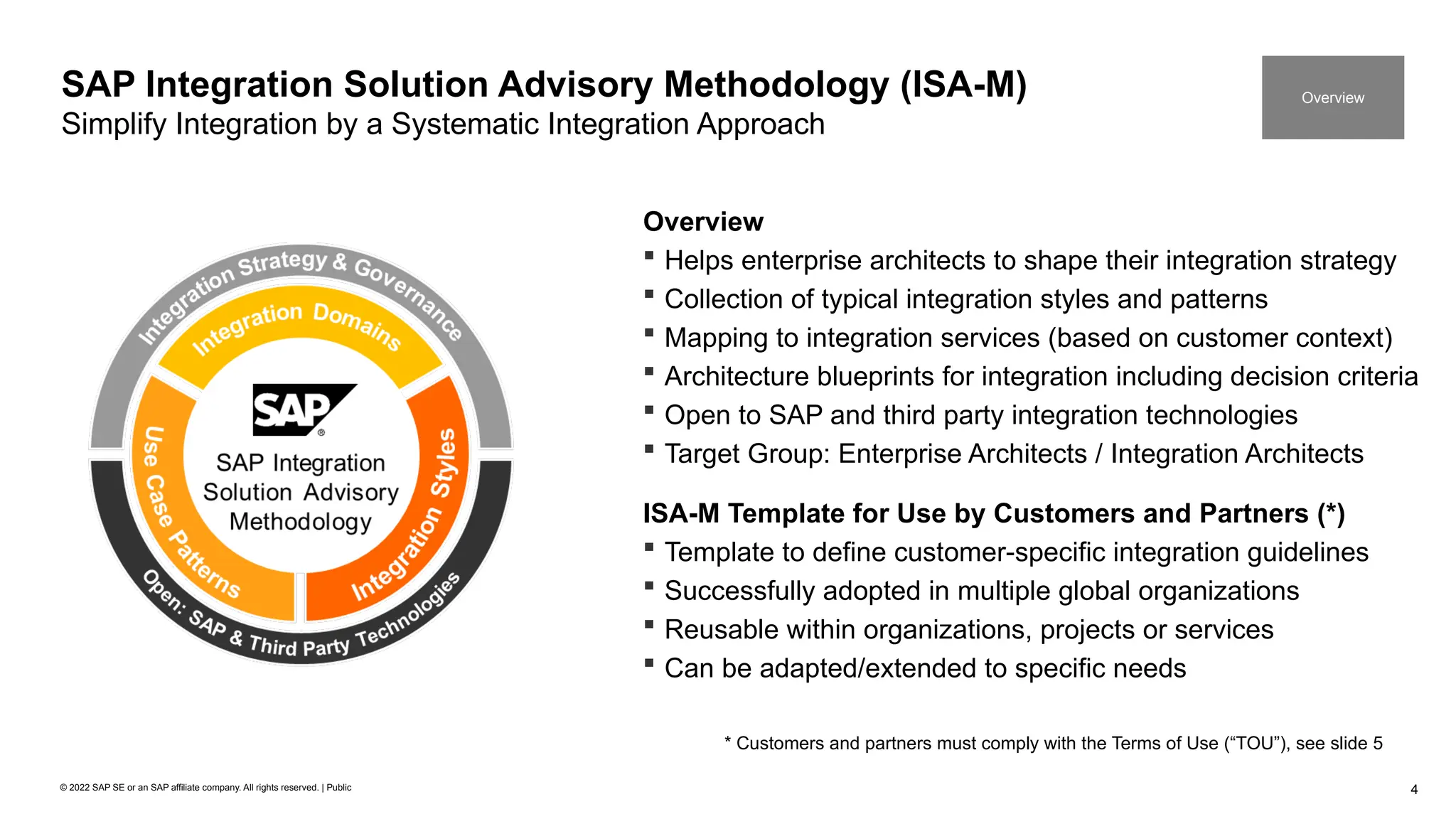

An introduction to the SAP Integration Solution Advisory Methodology, emphasizing systematic approaches and templates for designing integration strategies.

Overview of terms of use and historical updates to the framework, detailing changes in integration practices from version 3.0 to 4.0.

Explanation of the comprehensive integration strategy for intelligent enterprises, emphasizing architecture blueprints and various integration phases.

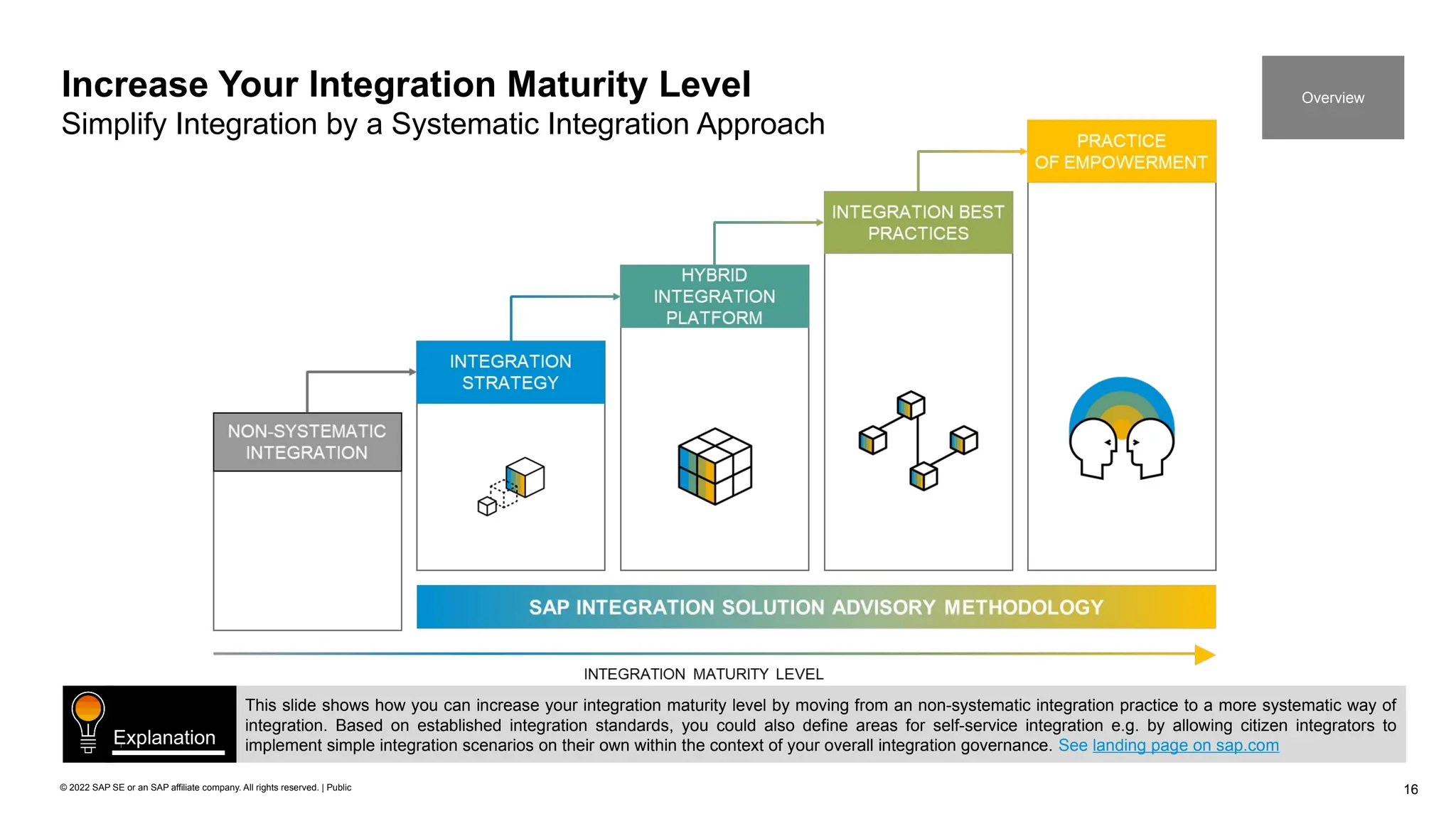

Discussion on integration maturity levels, roles in integration, and governance strategies, highlighting the importance of roles and responsibilities for successful integration.

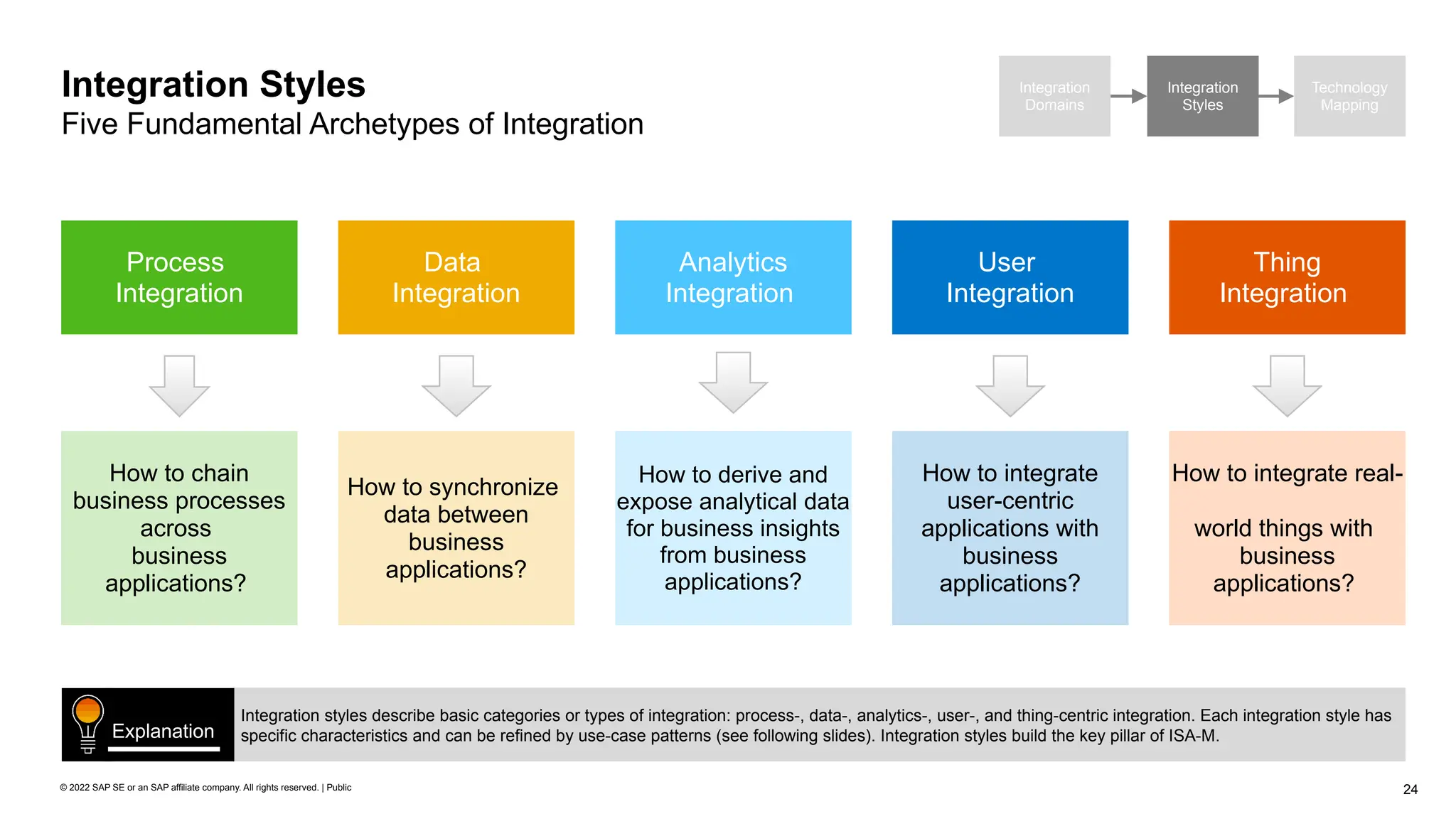

Explains the concept of integration domains and the five fundamental styles (process, data, analytics, user, thing) essential for creating effective integrations.

Details various integration use case patterns for process, data, user, thing, and analytics integrations, providing examples and categorization.

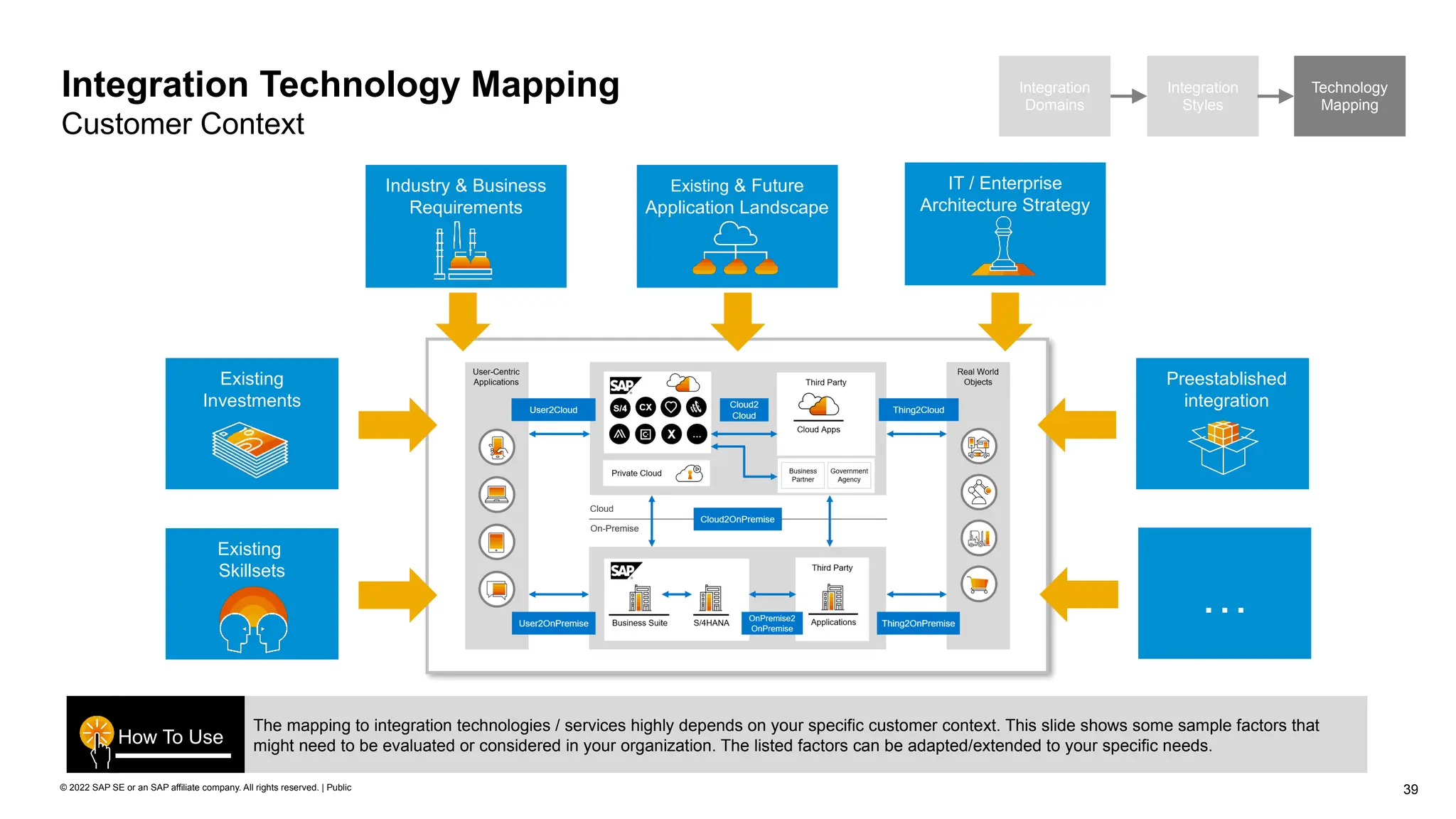

Introduction of decision frameworks for mapping integration technologies against specific use cases, providing guidelines for selecting suitable technologies.

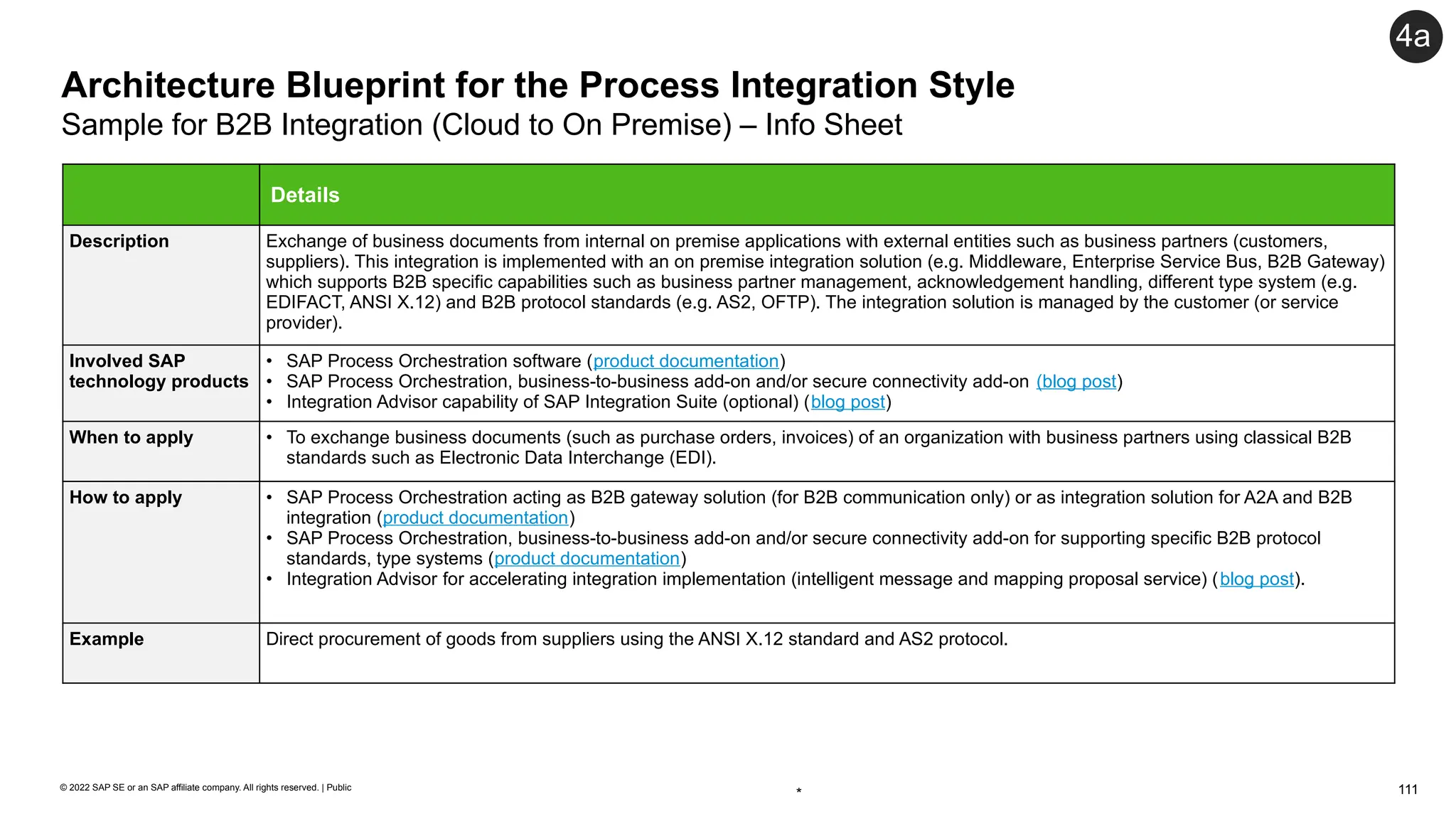

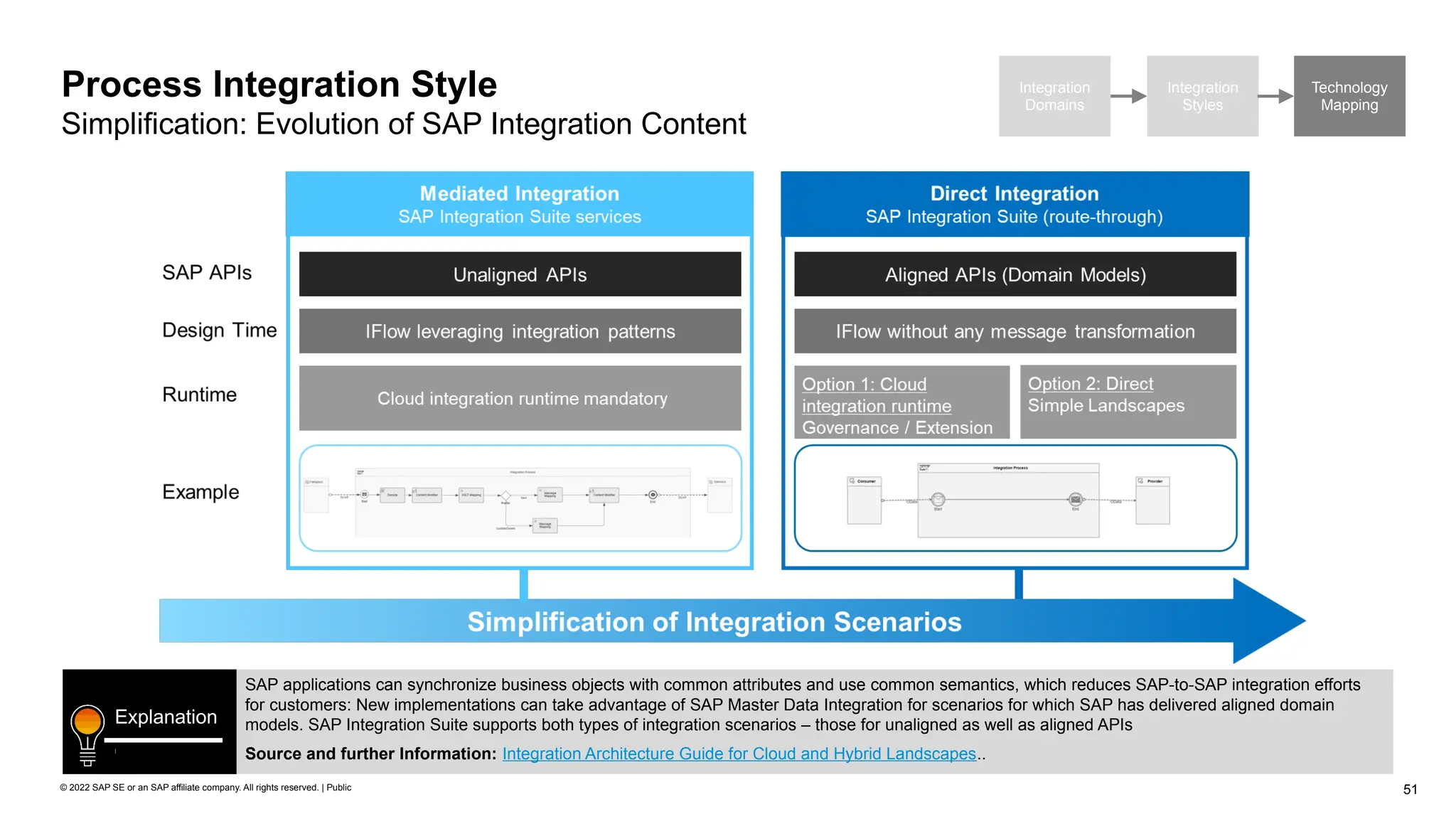

Overview of process integration strategy, including details on architecture, use cases, and recommendations for effective implementation.

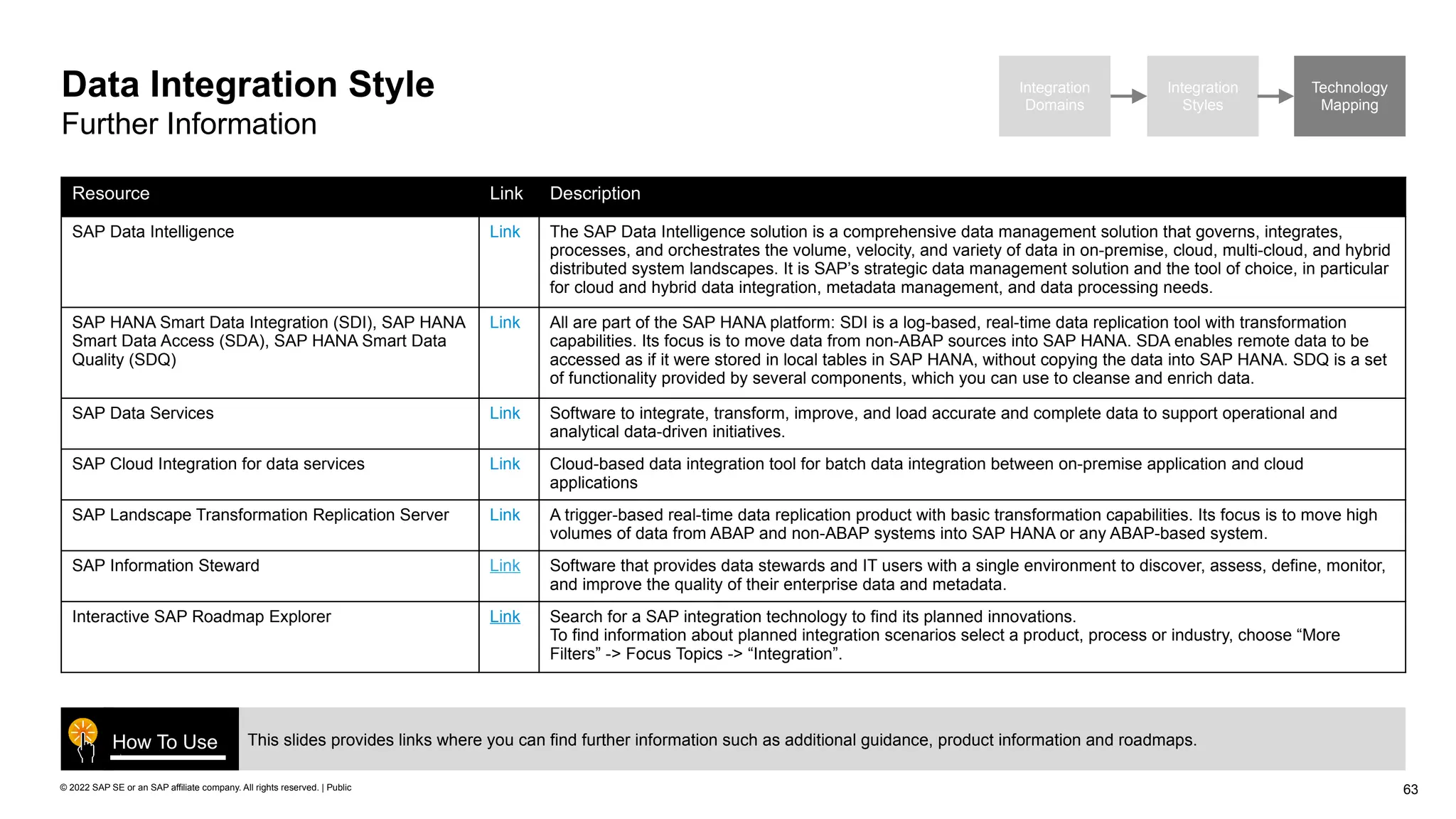

Focus on data integration, detailing methods for integration management, data quality checks, and SAP Data Intelligence for managing diverse data landscapes.

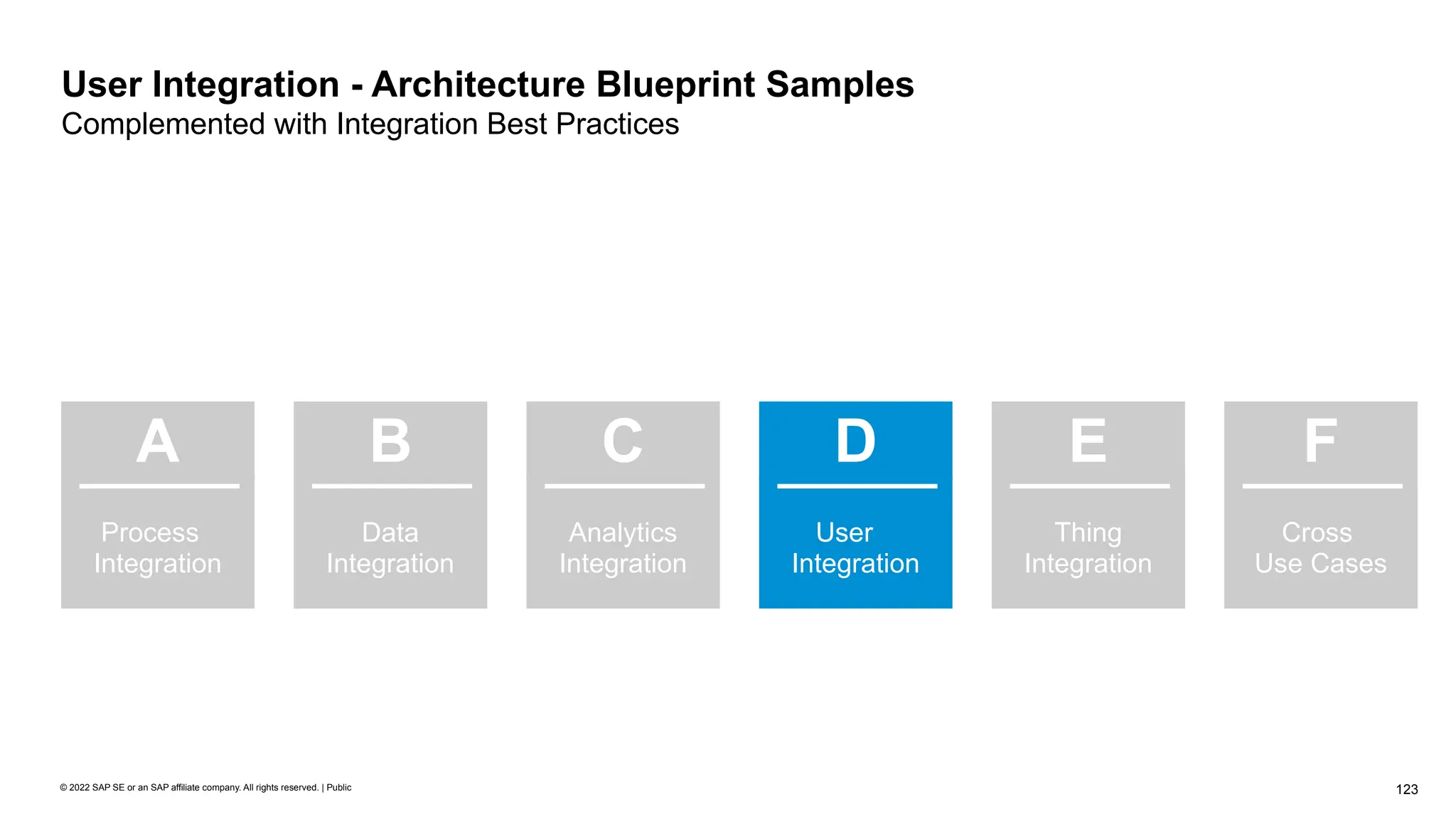

Discusses UI integration strategies, emphasizing user access, single-point entry, and mobile integration techniques to enhance user experiences.

Overview of thing integration and IoT, highlighting how to integrate real-world data with SAP applications for improved business processes.

Insights into cross use cases such as API management and event-based integration strategies for efficient information flow between applications.

Delves into establishing integration governance, quality assurance, and the role of an integration center of excellence to ensure effective integration practices.

Final guidance on implementing ISA-M, including tools available for users and the integration community for better collaboration and sharing of knowledge.

Integration Guide ISA-M_TEMPLATE_Version 4.0

  • 1.
    PUBLIC SAP Integration SolutionAdvisory Methodology Derive Integration Guidelines for Your Organization < Your Organization > This document uses templates from the SAP Integration Solution Advisory Methodology (ISA-M) provided by SAP SE. SAP SE is not responsible for the content of this document. ISA-M Template Version 4.0 ISA-M SAP Integration Solution Advisory M e t h o d o l o g y
  • 2.
    2 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 3.
    3 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 4.
    4 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public * Customers and partners must comply with the Terms of Use (“TOU”), see slide 5 Overview  Helps enterprise architects to shape their integration strategy  Collection of typical integration styles and patterns  Mapping to integration services (based on customer context)  Architecture blueprints for integration including decision criteria  Open to SAP and third party integration technologies  Target Group: Enterprise Architects / Integration Architects ISA-M Template for Use by Customers and Partners (*)  Template to define customer-specific integration guidelines  Successfully adopted in multiple global organizations  Reusable within organizations, projects or services  Can be adapted/extended to specific needs SAP Integration Solution Advisory Methodology (ISA-M) Simplify Integration by a Systematic Integration Approach Overview
  • 5.
    5 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template - Terms of Use Overview
  • 6.
    6 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Adapt and Customize To Your Specific Needs Overview This element is used to introduce and describe concepts of the methodology and/or related product information. Explanation This element is used to give additional information on how to apply the ISA-M template to your customer context. How To Use
  • 7.

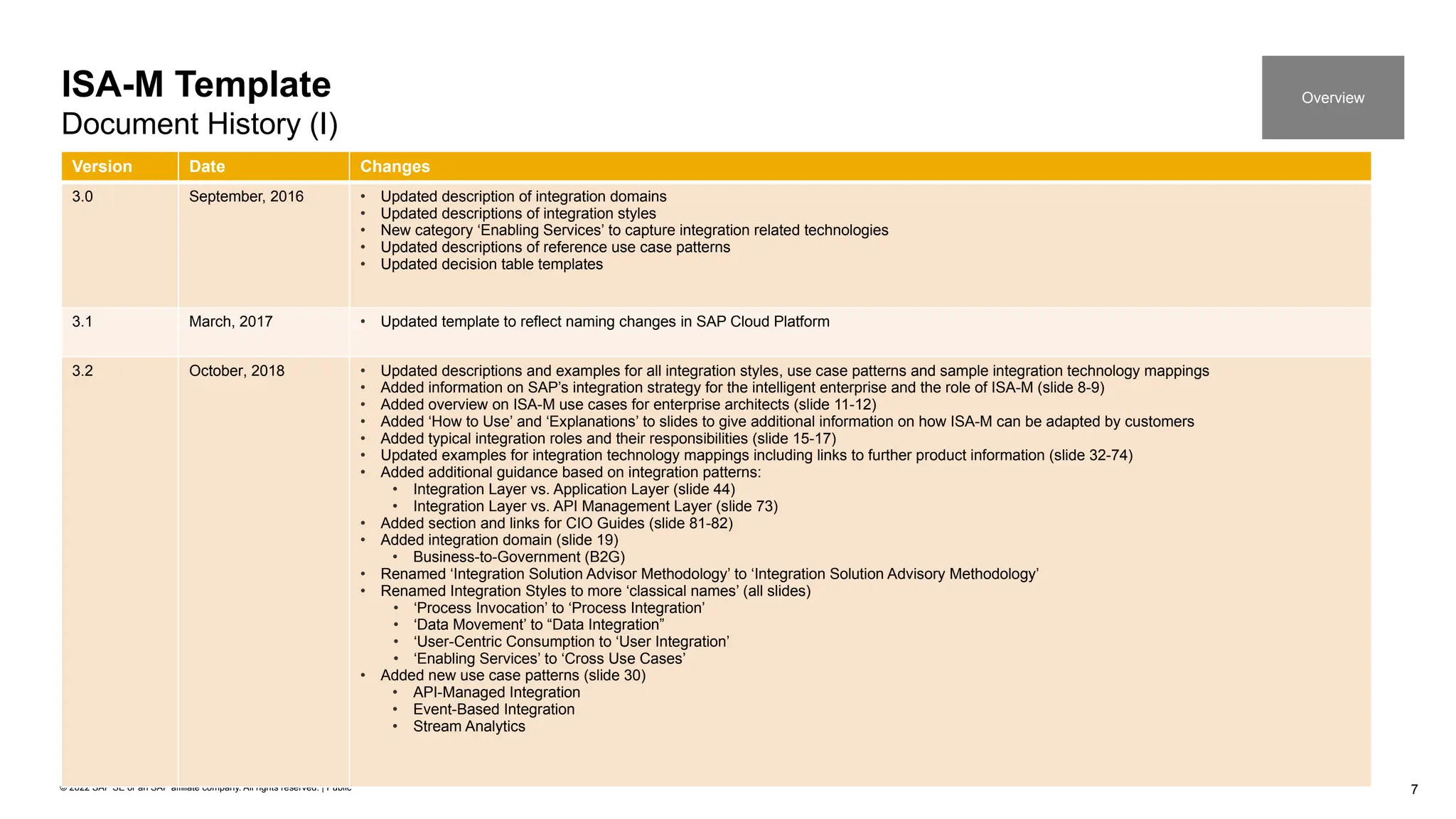

    7 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.0 September, 2016 • Updated description of integration domains • Updated descriptions of integration styles • New category ‘Enabling Services’ to capture integration related technologies • Updated descriptions of reference use case patterns • Updated decision table templates 3.1 March, 2017 • Updated template to reflect naming changes in SAP Cloud Platform 3.2 October, 2018 • Updated descriptions and examples for all integration styles, use case patterns and sample integration technology mappings • Added information on SAP’s integration strategy for the intelligent enterprise and the role of ISA-M (slide 8-9) • Added overview on ISA-M use cases for enterprise architects (slide 11-12) • Added ‘How to Use’ and ‘Explanations’ to slides to give additional information on how ISA-M can be adapted by customers • Added typical integration roles and their responsibilities (slide 15-17) • Updated examples for integration technology mappings including links to further product information (slide 32-74) • Added additional guidance based on integration patterns: • Integration Layer vs. Application Layer (slide 44) • Integration Layer vs. API Management Layer (slide 73) • Added section and links for CIO Guides (slide 81-82) • Added integration domain (slide 19) • Business-to-Government (B2G) • Renamed ‘Integration Solution Advisor Methodology’ to ‘Integration Solution Advisory Methodology’ • Renamed Integration Styles to more ‘classical names’ (all slides) • ‘Process Invocation’ to ‘Process Integration’ • ‘Data Movement’ to “Data Integration” • ‘User-Centric Consumption to ‘User Integration’ • ‘Enabling Services’ to ‘Cross Use Cases’ • Added new use case patterns (slide 30) • API-Managed Integration • Event-Based Integration • Stream Analytics ISA-M Template Document History (I) Overview
  • 8.
    8 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.3 May, 2020 • Renamed Integration Solution Advisory Methodology to SAP Integration Solution Advisory Methodology (slide 1 ff.) • Removed section ‚CIO Guide‘ from the agenda and moved this information to the appendix of the deck (slide 2 ff.) • Updated Intelligent Enterprise visual (slide 9) • Added new quote from Gartner (slide 11) • Added ISA-M Cycle (slide 12, 17, 33, 84, 117) • Updated use cases for Enterprise Architects according to the new ISA-M Cycle (slide 13) • Updated Integration Maturity Level according to the new ISA-M Cycle (slide 14) • Updated ISA-M overview visuals to show updated integration domain, use case patterns and technology mapping (slide 15) • Moved section ‘Integration roles’ from position 2 to 7 according to the new ISA-M cycle (slides 116 – 121) • Updated Integration Domains to include private cloud deployment options, removed integration style B2B and B2G (now defined as integration use cases) (slide 18 ff.) • Added private cloud as application deployment option (slide 22) • Updated use case patterns (slide 24 ff.): • Process Integration Style: Removed ‘Business Network Integration’, added ‘Master Data Integration’ and ‘B2G Integration’ • Data Integration Style: Removed ‘Master Data Synchronization’, added ‘Data Orchestration’ • User Integration Style: Removed ‘Desktop Integration’, added ‘Chatbot Integration’ • Cross Use Case Patterns: Added ‘Robotic Process Automation’ and ‘Digital Integration Hub’ • Updated Integration Technology Mapping: Added integration technology categories such as ESB, IPaaS, IoT Platform (slide 34 ff.) • Updated Sample Mapping to SAP Technologies / Services for the Process Integration Style such as product names (slide 40) • Added slide about SAP Cloud Platform Integration Suite (slide 42) • Updated and enhanced resources for the Process Integration Style (slide 48, 49) • Updated Sample Mapping to SAP Technologies / Services for the Data Integration Style: Replaced SAP Data Hub with SAP Data Intelligence (slide 52 ff.) • Replaced SAP HANA Data Management Suite with SAP Data Intelligence (slide 54) • Updated and enhanced resources for the Data Integration Style (slide 56) • Updated Sample Mapping to SAP Technologies / Service for the Integration Style such as product names (slide 59) • Replaced SAP Fiori Launchpad with SAP Fiori Launchpad (ABAP) and SAP Fiori launchpad on SAP Cloud Platform (Cloud Foundry) (slide 60) • Updated version of SAP Fiori Deployment Options (slide 61) • Added Central Entry Point (Roadmap) (slide 62) • Updated and enhanced resources for the User Integration Style (slide 63) ISA-M Template Document History (II) Overview
  • 9.

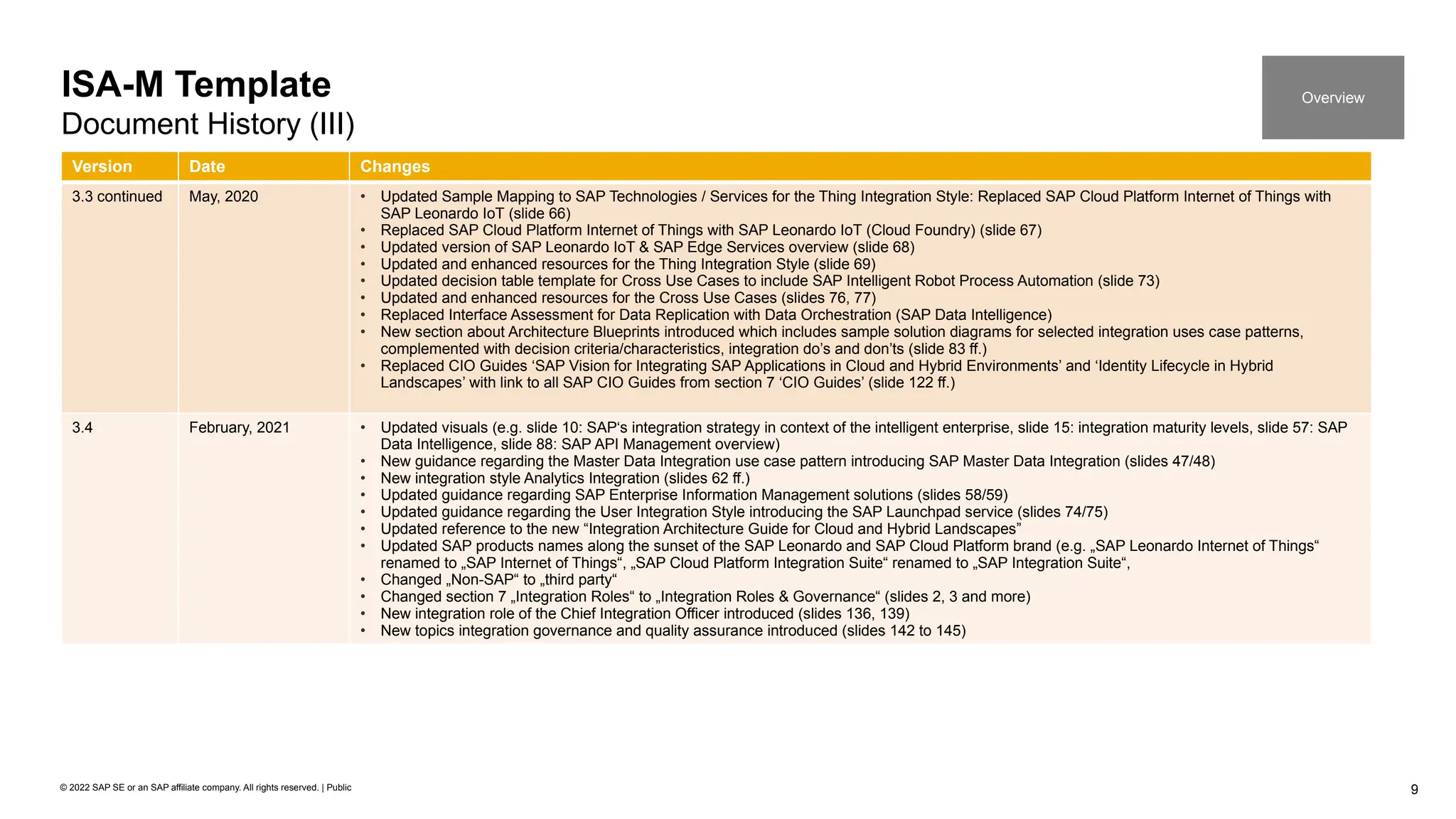

    9 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 3.3 continued May, 2020 • Updated Sample Mapping to SAP Technologies / Services for the Thing Integration Style: Replaced SAP Cloud Platform Internet of Things with SAP Leonardo IoT (slide 66) • Replaced SAP Cloud Platform Internet of Things with SAP Leonardo IoT (Cloud Foundry) (slide 67) • Updated version of SAP Leonardo IoT & SAP Edge Services overview (slide 68) • Updated and enhanced resources for the Thing Integration Style (slide 69) • Updated decision table template for Cross Use Cases to include SAP Intelligent Robot Process Automation (slide 73) • Updated and enhanced resources for the Cross Use Cases (slides 76, 77) • Replaced Interface Assessment for Data Replication with Data Orchestration (SAP Data Intelligence) • New section about Architecture Blueprints introduced which includes sample solution diagrams for selected integration uses case patterns, complemented with decision criteria/characteristics, integration do’s and don’ts (slide 83 ff.) • Replaced CIO Guides ‘SAP Vision for Integrating SAP Applications in Cloud and Hybrid Environments’ and ‘Identity Lifecycle in Hybrid Landscapes’ with link to all SAP CIO Guides from section 7 ‘CIO Guides’ (slide 122 ff.) 3.4 February, 2021 • Updated visuals (e.g. slide 10: SAP‘s integration strategy in context of the intelligent enterprise, slide 15: integration maturity levels, slide 57: SAP Data Intelligence, slide 88: SAP API Management overview) • New guidance regarding the Master Data Integration use case pattern introducing SAP Master Data Integration (slides 47/48) • New integration style Analytics Integration (slides 62 ff.) • Updated guidance regarding SAP Enterprise Information Management solutions (slides 58/59) • Updated guidance regarding the User Integration Style introducing the SAP Launchpad service (slides 74/75) • Updated reference to the new “Integration Architecture Guide for Cloud and Hybrid Landscapes” • Updated SAP products names along the sunset of the SAP Leonardo and SAP Cloud Platform brand (e.g. „SAP Leonardo Internet of Things“ renamed to „SAP Internet of Things“, „SAP Cloud Platform Integration Suite“ renamed to „SAP Integration Suite“, • Changed „Non-SAP“ to „third party“ • Changed section 7 „Integration Roles“ to „Integration Roles & Governance“ (slides 2, 3 and more) • New integration role of the Chief Integration Officer introduced (slides 136, 139) • New topics integration governance and quality assurance introduced (slides 142 to 145) ISA-M Template Document History (III) Overview
  • 10.
    10 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Version Date Changes 4.0 August, 2022 • Updated various SAP product names (e.g. SAP Enterprise Messaging to SAP Event Mesh, SAP Intelligent RPA and SAP Workflow together SAP Process Automation) and added new ones (e.g. SAP Mobile Start and SAP Work Zone) • Updated Intelligent Enterprise visual (p. 11) • Changed „out-of-the-box integration“ to „predefined integration“ (p.11, 12) • Changed „use cases“ to „phases“ (e.g. p. 14) • Added link of the ISA-M landing page on sap.com (p. 16) • Added Integration Assessment capability within SAP Integration Suite (e.g. p. 17, 18) • Changed integration domain „OnPremise2Cloud“ to „Cloud2OnPremise“ (e.g. p. 21, 22) • Removed „Key Characteristics“ (e.g. p. 26) • Changed "sample integration patterns" to "sample key characteristics" (p. 53) • Changed recommendation degrees from "recommended" to "good fit", "partially recommended" to "partial fit", "not recommended" to "not a fit" (p. 50, 53, 90) • Updated positioning of SAP Integration Suite (p. 44, 46, 48) • Updated positioning of SAP Data Intelligence (p. 57, 59, 60) • Updated integration guideline for process-, data integration and selected cross use cases inline with integration policies of the Integration Assessment capability within SAP Integration Suite (p. 45, 58, 88) • Updated positioning of SAP Analytics Cloud and SAP Data Warehouse Cloud (p. 68, 69, 70) • Updated positioning of SAP products for the user integration style (p. 74, 75, 77) • Updated positioning of SAP Internet of Things (p. 81, 83) • Updated information about interface assessment to leverage the Integration Assessment capability within SAP Integration Suite (p. 93) • Updated info sheets of architecture blueprints to include related missions of SAP Discovery Center (p. 105ff) • Updated integration roles to also include tasks related to the Integration Assessment capability within SAP Integration Suite (p. 137, 138) • Updated integration governance to leverage Integration Assessment (p. 143) • Added information about how to get started with ISA-M (p. 148) • Updated information rgd. the “Integration Architecture Guide for Cloud and Hybrid Landscapes (p. 149) • Added information about SAP Community topic page about the SAP Integration Strategy (p. 150) ISA-M Template Document History (III) Overview

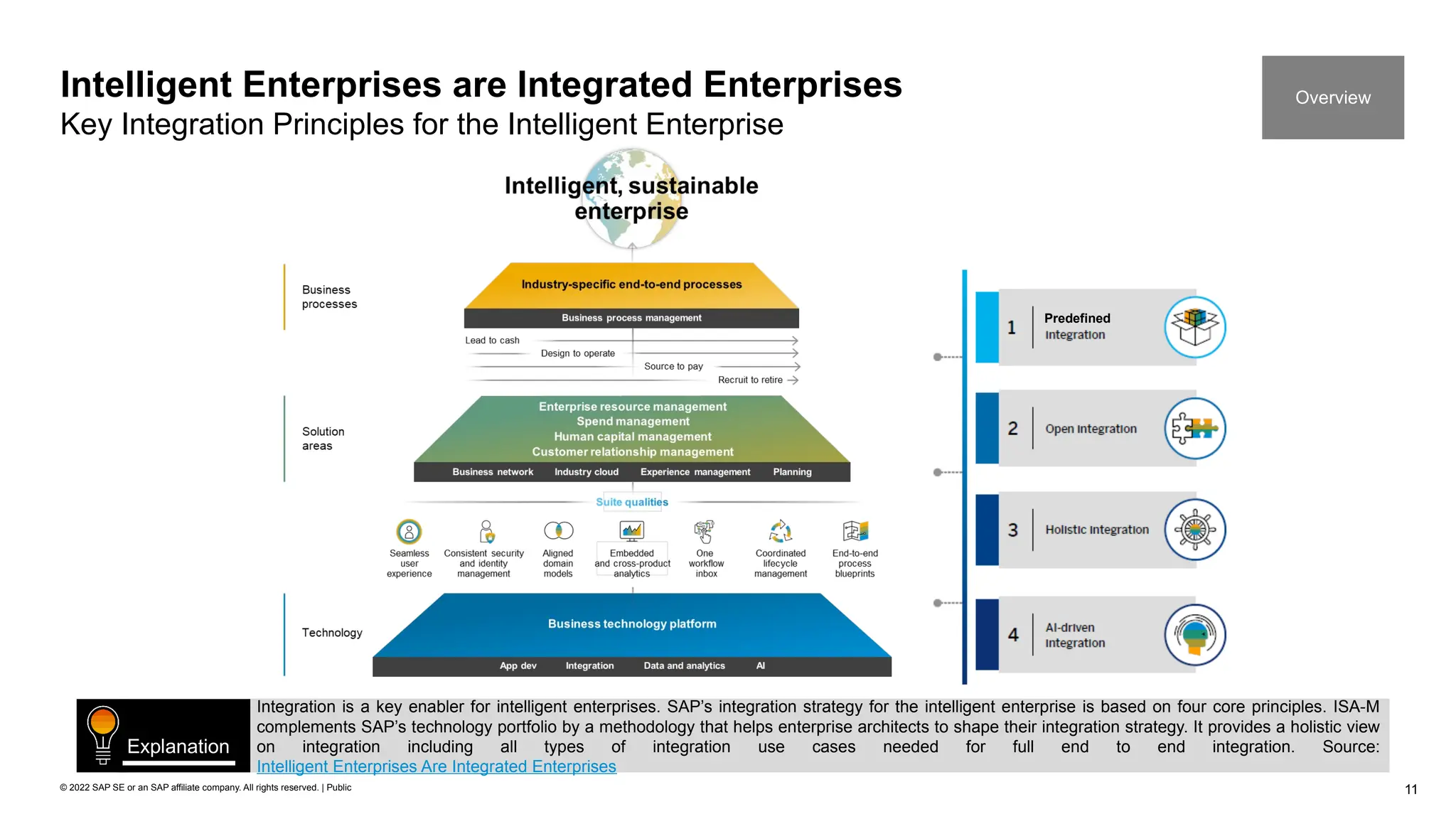

  • 11.
    11 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Intelligent Enterprises are Integrated Enterprises Key Integration Principles for the Intelligent Enterprise Overview Integration is a key enabler for intelligent enterprises. SAP’s integration strategy for the intelligent enterprise is based on four core principles. ISA-M complements SAP’s technology portfolio by a methodology that helps enterprise architects to shape their integration strategy. It provides a holistic view on integration including all types of integration use cases needed for full end to end integration. Source: Intelligent Enterprises Are Integrated Enterprises Explanation Predefined
  • 12.
    12 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Intelligent Enterprises are Integrated Enterprises SAP’s Integration Strategy for the Intelligent Enterprise Overview ISA-M supports the holistic integration principle by providing a systematic methodology for enterprise architects to define, asses and evolve their integration architecture. It supports enterprise architects in defining integration guidelines for their organizations and allows to include SAP as well as third party integration technologies / services (depending on the customer context). Explanation predefined
  • 13.
    13 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Challenge for Enterprise Architects The Increased Scope of Integration Overview
  • 14.

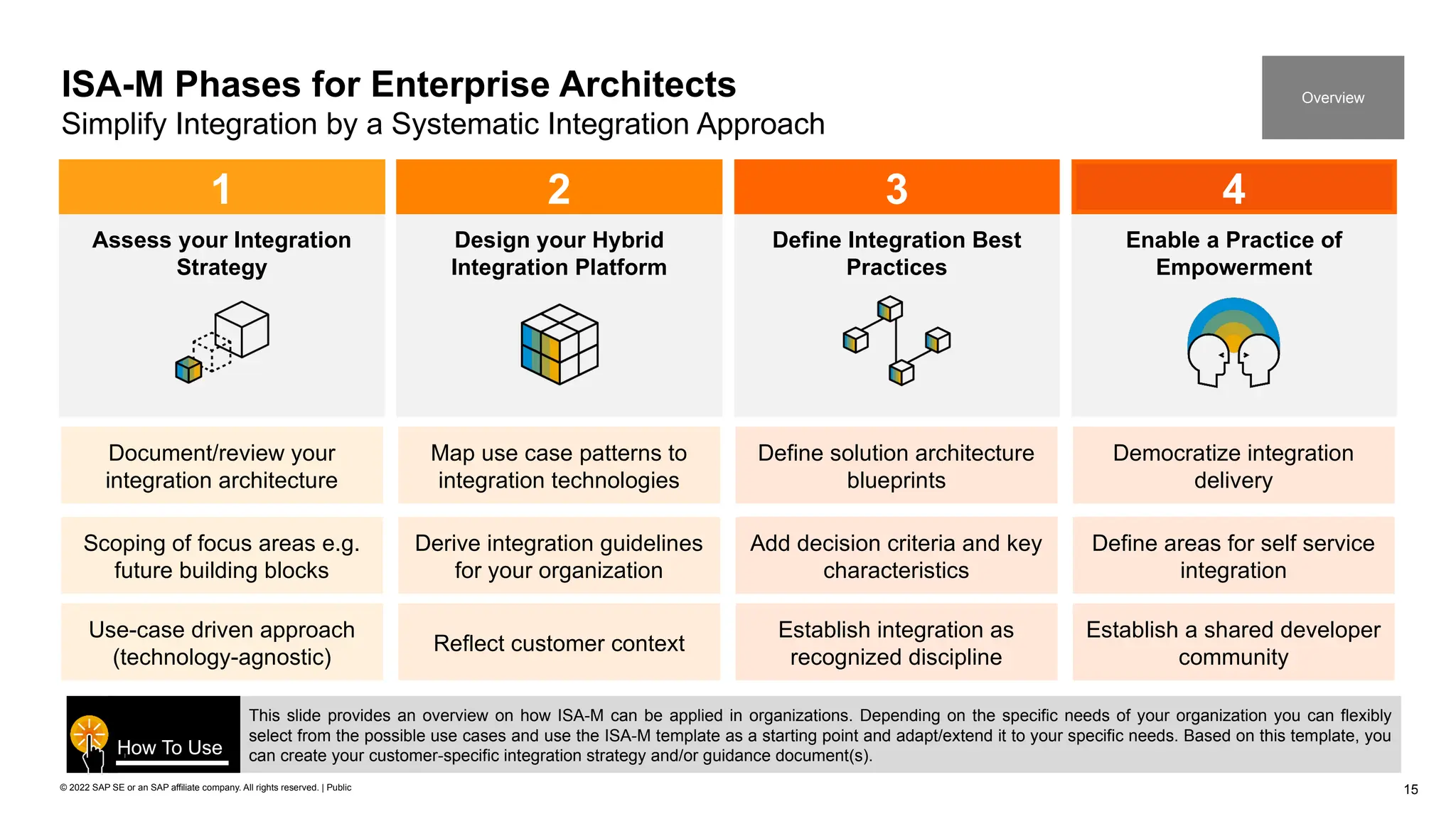

    14 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Overview: Adoption phases for Enterprise Architects Overview
  • 15.
    15 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Phases for Enterprise Architects Simplify Integration by a Systematic Integration Approach Define Integration Best Practices 3 Define solution architecture blueprints Add decision criteria and key characteristics Establish integration as recognized discipline Assess your Integration Strategy 1 Document/review your integration architecture Scoping of focus areas e.g. future building blocks Use-case driven approach (technology-agnostic) Design your Hybrid Integration Platform 2 Map use case patterns to integration technologies Derive integration guidelines for your organization Reflect customer context This slide provides an overview on how ISA-M can be applied in organizations. Depending on the specific needs of your organization you can flexibly select from the possible use cases and use the ISA-M template as a starting point and adapt/extend it to your specific needs. Based on this template, you can create your customer-specific integration strategy and/or guidance document(s). How To Use Overview Enable a Practice of Empowerment 4 Democratize integration delivery Define areas for self service integration Establish a shared developer community
  • 16.
    16 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Increase Your Integration Maturity Level Simplify Integration by a Systematic Integration Approach This slide shows how you can increase your integration maturity level by moving from an non-systematic integration practice to a more systematic way of integration. Based on established integration standards, you could also define areas for self-service integration e.g. by allowing citizen integrators to implement simple integration scenarios on their own within the context of your overall integration governance. See landing page on sap.com Explanation Overview

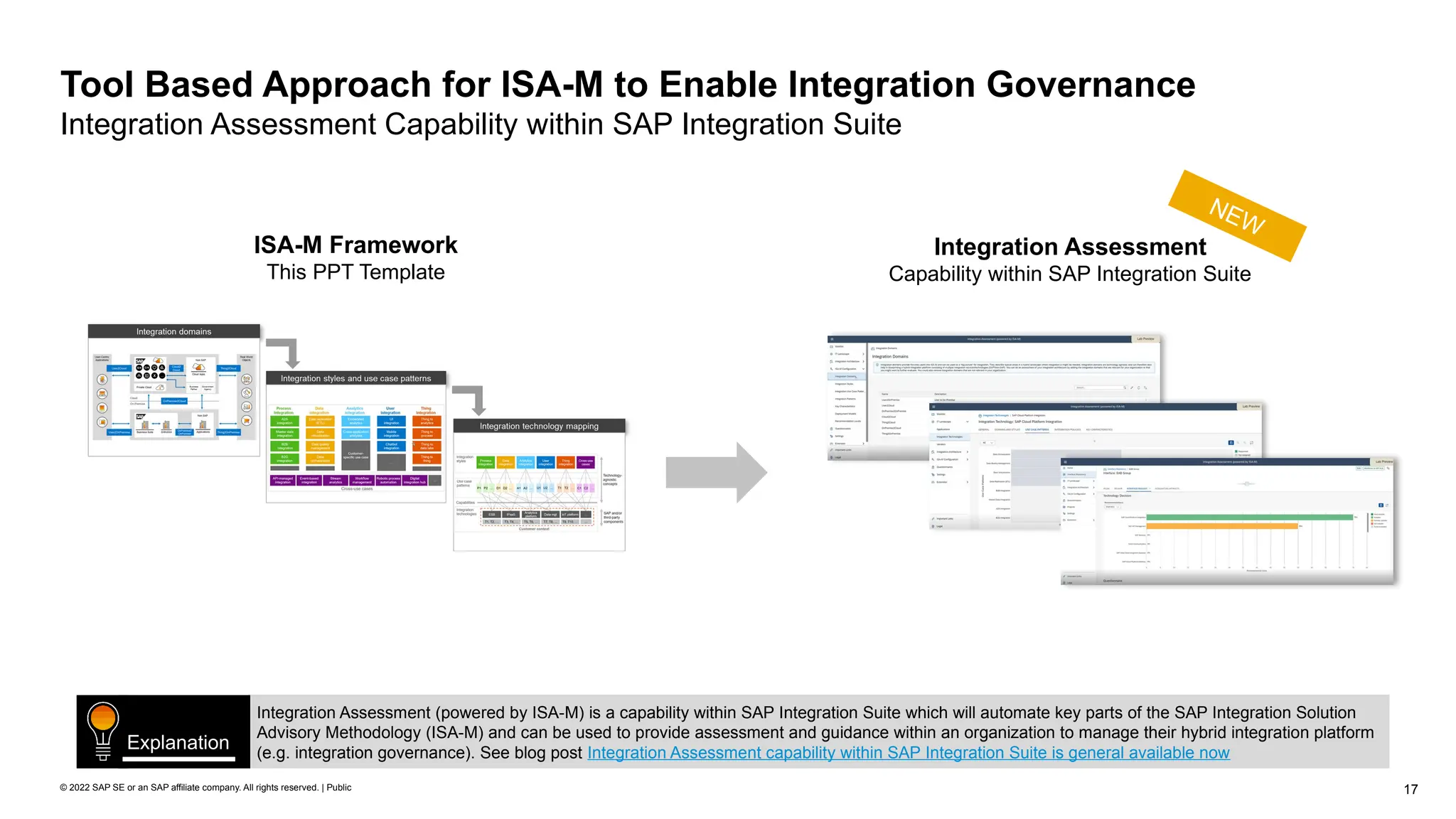

  • 17.
    17 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Tool Based Approach for ISA-M to Enable Integration Governance Integration Assessment Capability within SAP Integration Suite ISA-M Framework This PPT Template Integration Assessment Capability within SAP Integration Suite Integration Assessment (powered by ISA-M) is a capability within SAP Integration Suite which will automate key parts of the SAP Integration Solution Advisory Methodology (ISA-M) and can be used to provide assessment and guidance within an organization to manage their hybrid integration platform (e.g. integration governance). See blog post Integration Assessment capability within SAP Integration Suite is general available now Explanation NEW
  • 18.
    18 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Assessment Capability within SAP Integration Suite at a Glance Introduce integration governance  Define policies to establish guidelines for the use of integration technologies within an organization  Determine the most suitable integration technology for a specific integration scenario  Improve the collaboration between integration architects, integration developers and business domain experts Shape your integration technology strategy  Tool based approach for key parts of the SAP Integration Solution Advisory Methodology  Includes SAP’s integration technology recommendations for a turnkey start  Open to cover custom recommendations, incl. third party applications and technologies Gain insights into your integration landscape  Build an inventory of existing integration technologies  Get an overview of the use of integration technologies across an application landscape  Document integration requirements, technology proposal and selection SAP Discovery Center Mission Get started with Integration Assessment
  • 19.
    19 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 20.
    20 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 1: Assess your Integration Strategy Objectives and approach  Assess your integration maturity level  Documentation/review of your integration architecture  Scoping of focus areas e.g. future building blocks  Use-case driven approach (technology-agnostic) Reasons for integration strategy assessment  Need to cover new integration patterns  Implementation of new cloud applications  Transition to SAP S/4HANA  Standardization and governance  Integration technology consolidation  Mergers and acquisitions
  • 21.
    21 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Assessment and Scoping of your Hybrid Integration Landscape On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 CX X … Third Party Cloud Apps S/4HANA Business Suite Third Party Applications OnPremise2 OnPremise Private Cloud Integration Domains Integration Styles Technology Mapping Integration Domain Business Partner Government Agency
  • 22.

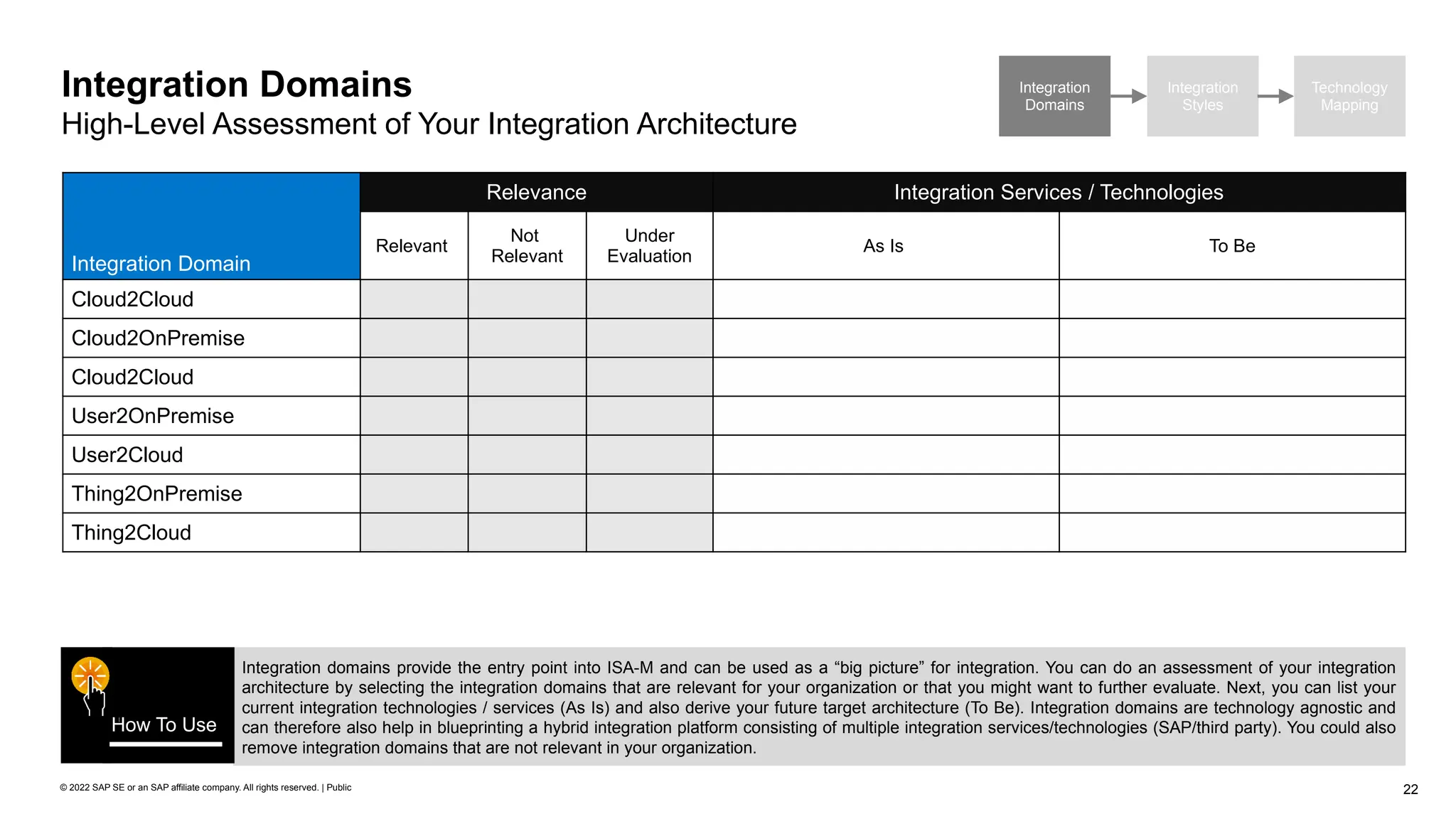

    22 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domain Relevance Integration Services / Technologies Relevant Not Relevant Under Evaluation As Is To Be Cloud2Cloud Cloud2OnPremise Cloud2Cloud User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Integration Domains High-Level Assessment of Your Integration Architecture Integration domains provide the entry point into ISA-M and can be used as a “big picture” for integration. You can do an assessment of your integration architecture by selecting the integration domains that are relevant for your organization or that you might want to further evaluate. Next, you can list your current integration technologies / services (As Is) and also derive your future target architecture (To Be). Integration domains are technology agnostic and can therefore also help in blueprinting a hybrid integration platform consisting of multiple integration services/technologies (SAP/third party). You could also remove integration domains that are not relevant in your organization. How To Use Integration Domains Integration Styles Technology Mapping
  • 23.
    23 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 24.
    24 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Styles Five Fundamental Archetypes of Integration Integration Domains Integration Styles Technology Mapping Integration styles describe basic categories or types of integration: process-, data-, analytics-, user-, and thing-centric integration. Each integration style has specific characteristics and can be refined by use-case patterns (see following slides). Integration styles build the key pillar of ISA-M. Explanation Process Integration How to chain business processes across business applications? Data Integration How to synchronize data between business applications? User Integration How to integrate user-centric applications with business applications? Thing Integration How to integrate real- world things with business applications? Analytics Integration How to derive and expose analytical data for business insights from business applications?
  • 25.
    25 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Styles Technology-Agnostic: Open to SAP and Third Party Integration Domains Integration Styles Technology Mapping Integration Styles cover key integration archetypes: the process integration style connects business processes across applications whereas the data integration style allows to synchronize or access data across applications. The user integration style allows to connect user-centric applications (e.g. mobile apps) with applications whereas the thing integration style allows to connect real world objects (e.g. sensors, machines) with applications. The analytics integration style allows you to derive and expose data from data sources to support business intelligence, augmented analytics and/or enterprise planning scenarios. All integration styles are technology agnostic and are applicable within multiple integration domains (e.g. cloud, on- premise, hybrid). Cross Use Cases build a category for all integration-related use cases that complement one ore more of the five core integration styles. For example, API-Managed Integration provides full-lifecycle management for APIs that, e.g. can be leveraged in user- or process- centric integration scenarios. Further examples in this category will be explained on the next slides such as Event-Based Integration. Explanation Application Business Logic Data Application Business Logic On Premise Cloud Data Mobile Browser Chatbot User-Centric Application User Integration Interaction Logic Device Sensor Asset Real-World Things Thing Integration Cross Use Cases Process Integration Data Integration Interaction Logic Private Cloud On Premise Private Cloud Cloud Analytics Integration
  • 26.
    26 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration Data Integration Analytics Integration User Integration Thing Integration Objective Chaining of business processes Synchronization of data Deriving business insights from business applications and data sources Omni-channel access to backend applications Capturing and processing of real world data Interaction Type System-2-System System-2-System System-2-User User-2-System Thing-2-System Coupling to Application Process-Level Data-Level Data-Level / Business- Level UI-Level Data-Level / Process Level Primary Trigger Application Event Schedule or Application Event User Event User Event Thing Event Urgency of Completion (Near) Real-Time Batch or Near Real-Time (Near) Real-Time or Batch (Near) Real-Time (Near) Real-Time or Batch Unit of Data Exchange Single Objects Bulk-Data or Single Objects From aggregated to line item data Single Objects or Bulk- Data Single Objects or Bulk- Data Specific Requirements • Transactional Integrity • Reliable Messaging • Message Orchestration • B2B protocol support • Data Orchestration • Complex transformations • Data Quality Management • Big Data Processing • Local and remote data sources • Data & predictive modeling, planning • Data privacy & authentication • Data volume • Online / Offline Support • Device Management • End-User Management • Application Management • Thing Management • Edge Intelligence • IoT protocol support • Event Stream Processing Integration Styles Decision Criteria Integration Domains Integration Styles Technology Mapping This slide summarizes typical characteristics per integration style. It can help enterprise architects / integration architects to map integration styles to relevant capabilities of integration technologies / services (as part of the technology mapping). The listed criteria can be used as a starting for discussion and could be further refined in your specific context. How to Use

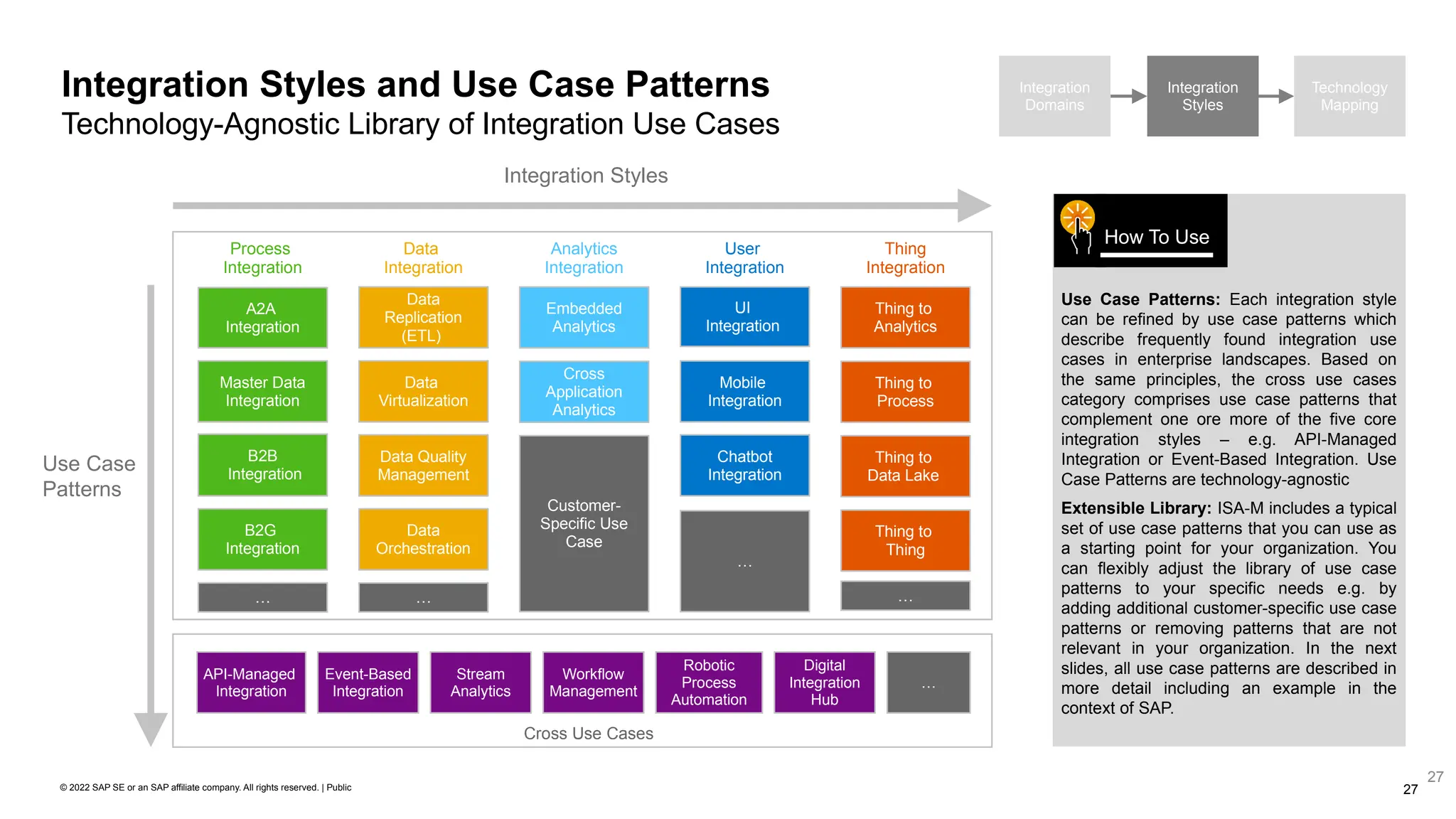

  • 27.
    27 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Styles and Use Case Patterns Technology-Agnostic Library of Integration Use Cases 27 Integration Domains Integration Styles Technology Mapping Use Case Patterns: Each integration style can be refined by use case patterns which describe frequently found integration use cases in enterprise landscapes. Based on the same principles, the cross use cases category comprises use case patterns that complement one ore more of the five core integration styles – e.g. API-Managed Integration or Event-Based Integration. Use Case Patterns are technology-agnostic Extensible Library: ISA-M includes a typical set of use case patterns that you can use as a starting point for your organization. You can flexibly adjust the library of use case patterns to your specific needs e.g. by adding additional customer-specific use case patterns or removing patterns that are not relevant in your organization. In the next slides, all use case patterns are described in more detail including an example in the context of SAP. How To Use Integration Styles Use Case Patterns Data Integration Data Replication (ETL) Data Virtualization Data Quality Management Data Orchestration … Thing Integration Thing to Analytics Thing to Process Thing to Data Lake Thing to Thing … Cross Use Cases … User Integration UI Integration Mobile Integration Chatbot Integration Stream Analytics … Workflow Management API-Managed Integration Event-Based Integration Robotic Process Automation Digital Integration Hub Process Integration A2A Integration Master Data Integration B2B Integration B2G Integration … Analytics Integration Embedded Analytics Cross Application Analytics Customer- Specific Use Case
  • 28.
    28 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping A2A Integration Chaining of business process steps between business applications by the exchange of transactional data. Example: Lead-to-cash process with integration of SAP Customer Experience and SAP S/4HANA: exchange of sales orders. B2G Integration Transform transactional data into predefined exchange formats and transfer it electronically to external legal or tax authority systems. Example: File goods and service tax returns from SAP S/4HANA to the Goods and Services Tax Network (GSTN) organization India in prescribed format and protected fashion. Master Data Integration API-based exchange of master data across business applications. Example: Exchange of business partner master data between SAP S/4HANA and SAP Sales Cloud and SAP Commerce Cloud. B2B Integration Chaining of business process steps between business partners by the exchange of transactional data leveraging standard B2B protocols. Example: Design-to-operate process with integration of a manufacturer with suppliers: exchange of purchase orders using B2B standards like ANSI X.12 or UN/EDIFACT. Application Application Application Application Partner 1 Application Application Application Application Partner 2 Organization Government Agency Application
  • 29.
    29 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Also APIs might be used for this use case Data Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Data Replication Table-based integration of data covering data replication, migration, or analytical use cases based on ETL/ELT1 . Example: Replication of data from legacy applications or databases into SAP HANA e.g. for migration, analytics or big data warehousing. App / DWH Application DB Data Orchestration Pipeline-driven data integration for disparate kinds of data supporting also distributed processing. Example: Enable data science and machine learning across all enterprise data assets by integrating data across diverse landscapes. Data Virtualization Provisioning of a virtual data layer by federation of queries to remote data sources without physical data movement. Example: Lookup of shared master data from various data sources, e.g. Virtual data access in SAP HANA to remote data sources. Virtual Data Layer Data Source Data Source Data Quality Management Integration of data from multiple sources for cleansing, matching or consolidation (central business terms). Example: Cleansing of address data. Embedded DQM services in apps to validate address data and/or enrich with geocodes. DQM Data Source Data Source Pipelining IoT Stream Unstructured ML/Predictive Application Data Lake DWH
  • 30.

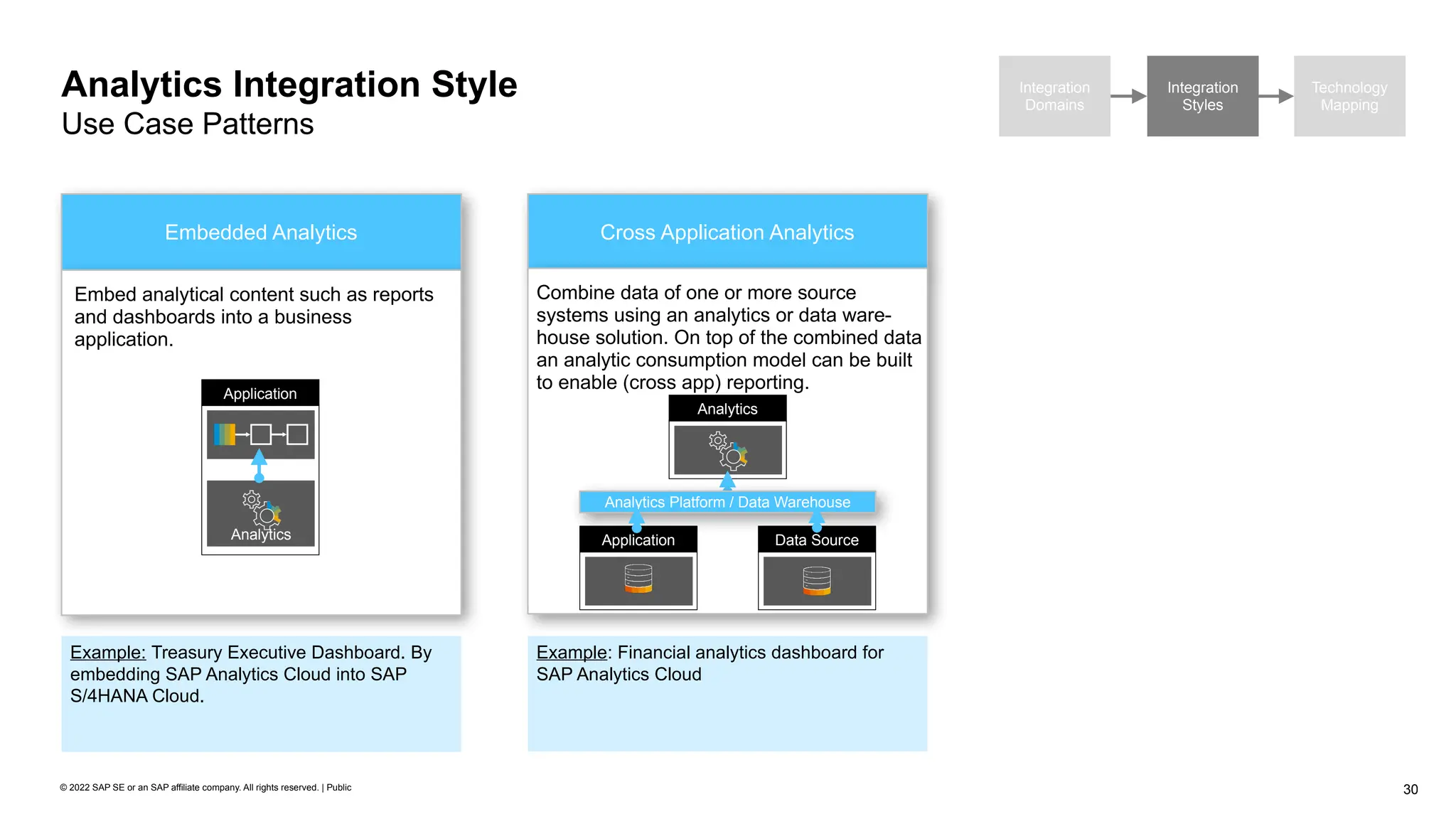

    30 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Embedded Analytics Embed analytical content such as reports and dashboards into a business application. Example: Treasury Executive Dashboard. By embedding SAP Analytics Cloud into SAP S/4HANA Cloud. Application Analytics Cross Application Analytics Combine data of one or more source systems using an analytics or data ware- house solution. On top of the combined data an analytic consumption model can be built to enable (cross app) reporting. Example: Financial analytics dashboard for SAP Analytics Cloud Analytics Analytics Data Source Application Analytics Platform / Data Warehouse
  • 31.
    31 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public User Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping UI Integration Integration of multiple application UIs into a single point of entry including the consumption of backend application services in a web user interface. Example: Central entry point to SAP business application like SAP S/4HANA or SAP SuccessFactors. Web UI Application Application Mobile Integration Consumption of backend application services in a mobile app, leveraging native or hybrid device capabilities including offline data synchronization. Example: iOS or Android mobile apps that access data from on-premise or cloud-based data sources via OData with offline data synchronization. Mobile App Application Application Chatbot Integration Integration of chatbots into various communication channels including integration with backend applications to trigger a transaction or retrieve further information. Example: Digital Assistant as part of SAP SuccessFactors to enable interaction with business users using natural language. Digital Assistant Application
  • 32.

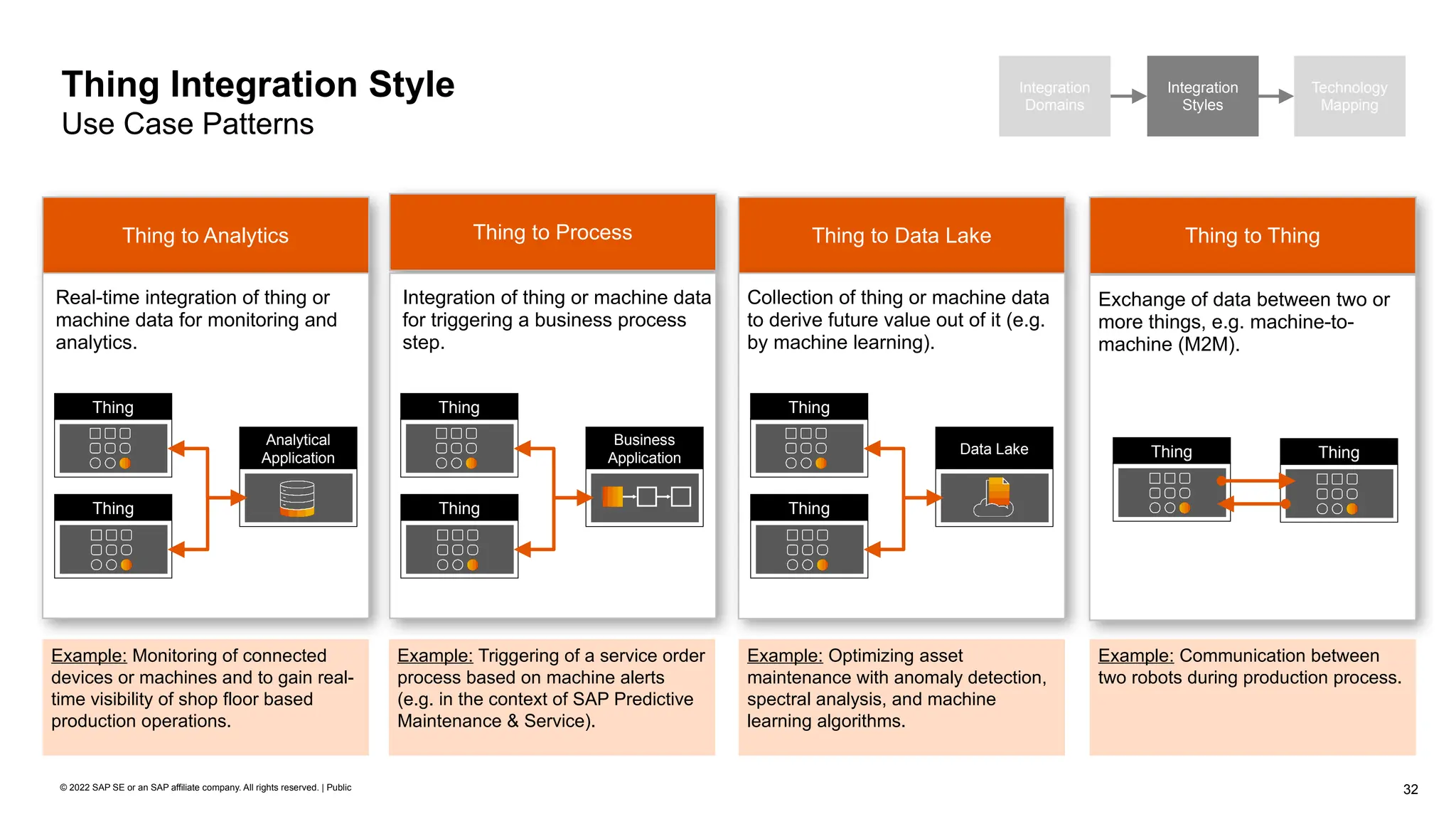

    32 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Thing to Analytics Real-time integration of thing or machine data for monitoring and analytics. Example: Monitoring of connected devices or machines and to gain real- time visibility of shop floor based production operations. Thing to Thing Exchange of data between two or more things, e.g. machine-to- machine (M2M). Example: Communication between two robots during production process. Thing to Data Lake Collection of thing or machine data to derive future value out of it (e.g. by machine learning). Thing to Process Integration of thing or machine data for triggering a business process step. Example: Triggering of a service order process based on machine alerts (e.g. in the context of SAP Predictive Maintenance & Service). Example: Optimizing asset maintenance with anomaly detection, spectral analysis, and machine learning algorithms. Thing Integration Style Use Case Patterns Integration Domains Integration Styles Technology Mapping Analytical Application Thing Thing Business Application Thing Thing Data Lake Thing Thing Thing Thing
  • 33.
    33 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Use Case Patterns (I) Integration Domains Integration Styles Technology Mapping API-Managed Integration Provisioning of omni-channel and secure access to business applications by managed APIs. Example: Expose APIs to business partners. Managed APIs leverage API traffic management policies, API security policies and API Analytics. Application Layer API Management API Consumption Layer … … Application Application Managed API Managed API Event-Based Integration Decoupling of applications, extensions or IoT data by messaging principles (pub/sub). Example: Event-driven extensions for SAP S/4HANA: Application extensions can react to events from SAP S/4HANA. Event Brokering Application Thing Mobile Application … … Application Pub/Sub Pub/Sub Pub/Sub Pub/Sub Stream Analytics Real-time processing & analytics of event streams including the reaction on event patterns. Example: Monitor incoming IoT-, click-, social media- or business transaction streams for trends, patterns or correlations and respond in real time. Event Stream Processing Input Streams … … Application Application
  • 34.
    34 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Use Case Patterns (II) Integration Domains Integration Styles Technology Mapping Workflow Management Automation and extension of business processes that spawn across multiple applications. Example: Extension of SAP S/4HANA core business processes with additional process logic such as approval steps involving interactive user tasks. Workflow Management Application … … UI / Mobile API Task API Robot Process Automation Automation of workflows across user interfaces and applications using configured scripts (bots). Example: Automate the upload of supplier invoices into SAP S/4HANA. Bot (attended/unattended) Application … … UI API Connector API Digital Integration Hub Provisioning of large-scale, high-throughput APIs by inserting a high performance in- memory data store layer between the API service layer and the system of record. Example: Responsive multichannel access to a customer self service portal which integrates with various backend applications using SAP HANA in-memory database and further integration technologies. High Performance Data Store Web UI Application Mobile Application … … Dara Source Pub/Sub Pub/Sub Event Based Integration Layer
  • 35.
    35 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 35 Advanced View: Integration Areas Combination of Integration Domains and Integration Styles Integration Domains Integration Styles Technology Mapping Integration Domain N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Cloud2Cloud Cloud2OP OP2OP User2OP User2Cloud Thing2OP Thing2Cloud Process Integration Data Integration Analytics Integration User Integration Thing Integration Integration Style IA-2 IA-3 IA-4 IA-5 IA-6 IA-1 IA-9 IA-10 IA-11 IA-12 To derive integration guidelines for complex landscapes, the combination of integration domains and integration styles might be required. On this slide, possible combinations of integration domains and integration styles are listed. Each combination is defined as an integration area (IA-1 to IA-12). Example: If you want to define a policy for process integration between two cloud applications your can refer to IA-3. Important Note: This step is optional and might be helpful for complex landscapes where fine-grained integration guidelines need to be defined. Please skip, if not useful for your organization. How To Use IA-7 IA-8

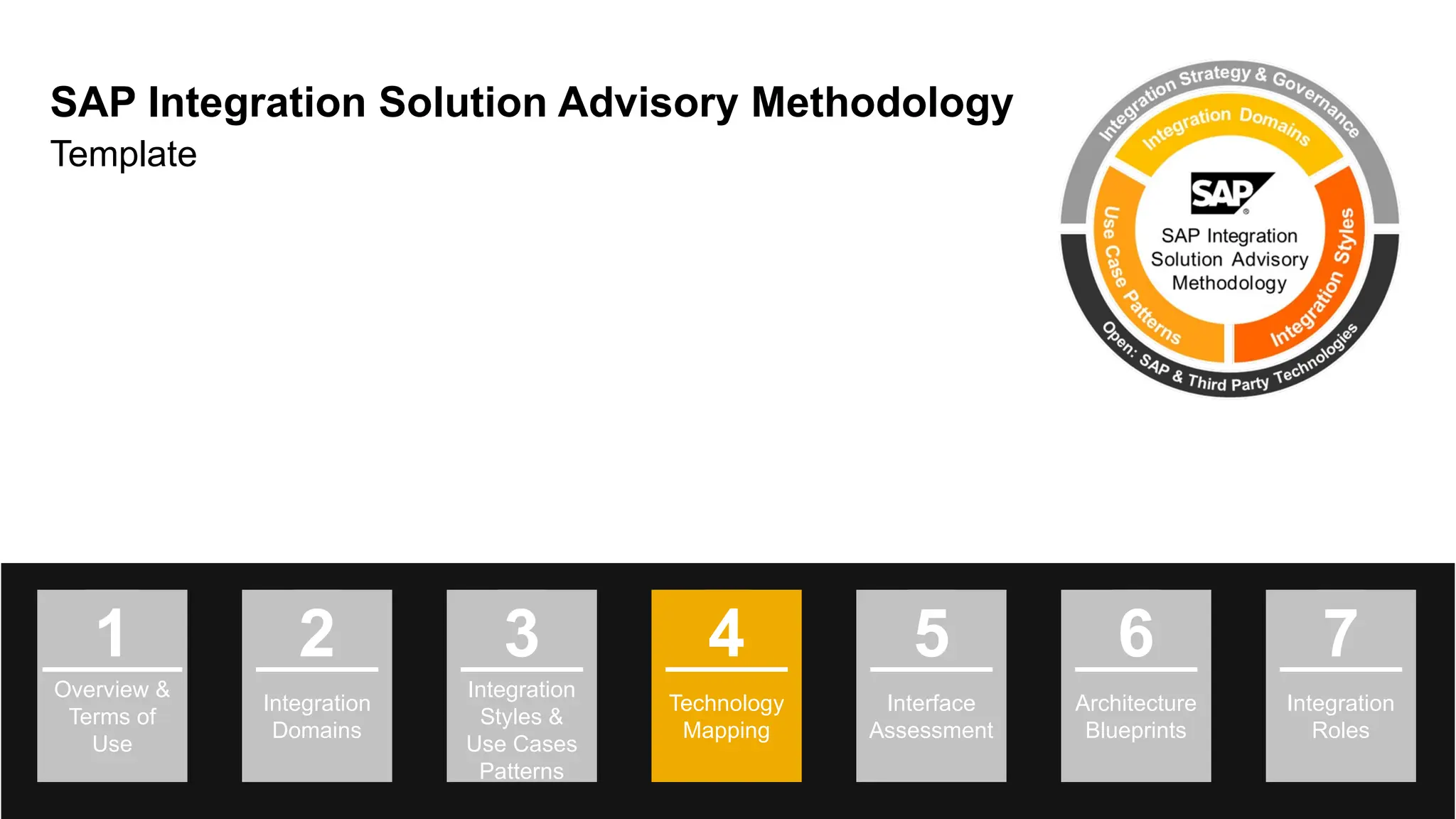

  • 36.
    36 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 37.
    37 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 2: Design your Hybrid Integration Platform Objectives and approach  Mapping of use case patterns to integration technologies and services  Open to SAP and third party integration services  Derive integration guidelines for your organization  Highly depends on the customer context Sample customer context  Enterprise architecture strategy  Future application landscape  Existing investments  Skillsets  Commercial aspects
  • 38.
    38 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Overview Technology- agnostic concepts SAP and/or third-party components Integration technology categories Use case patterns Integration styles P1 P2 … D1 D2 … A1 A2 … U1 U2 … Data integration Process integration Analytics integration User integration Thing integration T1 T2 … Customer context … ESB IPaaS Analytics platform Data mgt IoT platform … T1, T2, … T3, T4, … T5, T6, … T7, T8, … T9, T10, … Capabilities Cross-use cases C1 C2 … Integration Domains Integration Styles Technology Mapping In the third step of the methodology, integration styles and use case patterns (all technology-agnostic) can be mapped to integration technologies or services that should be used in your customer context (SAP and/or third party). This mapping highly depends on your specific customer context – some sample factors that might need to be considered are listed on the next slide. This allows you to derive your own decision framework. How To Use
  • 39.

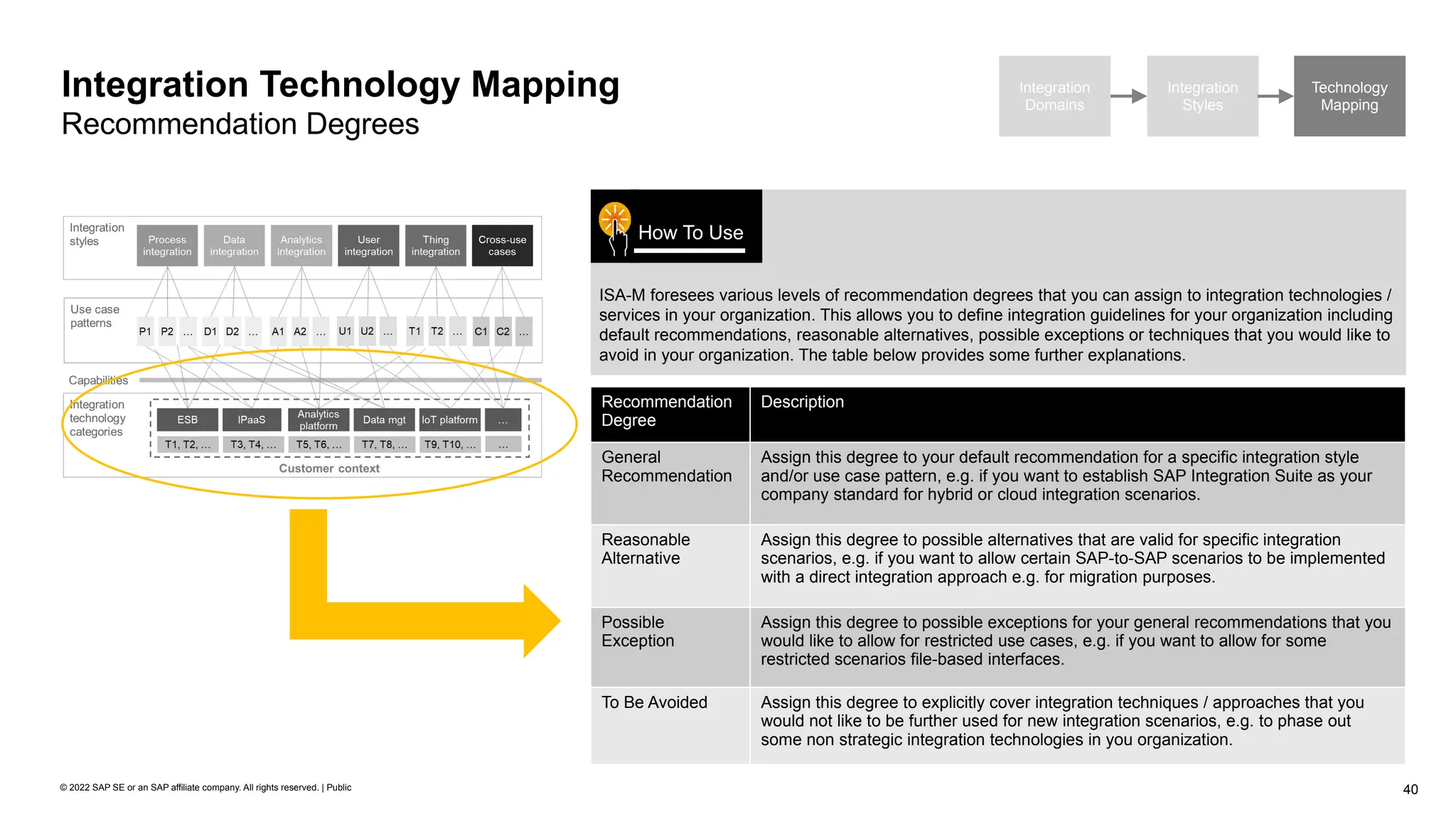

    39 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public The mapping to integration technologies / services highly depends on your specific customer context. This slide shows some sample factors that might need to be evaluated or considered in your organization. The listed factors can be adapted/extended to your specific needs. How To Use Integration Domains Integration Styles Technology Mapping Integration Technology Mapping Customer Context Industry & Business Requirements Existing & Future Application Landscape IT / Enterprise Architecture Strategy Existing Investments Preestablished integration Existing Skillsets …
  • 40.
    40 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Integration Technology Mapping Recommendation Degrees Recommendation Degree Description General Recommendation Assign this degree to your default recommendation for a specific integration style and/or use case pattern, e.g. if you want to establish SAP Integration Suite as your company standard for hybrid or cloud integration scenarios. Reasonable Alternative Assign this degree to possible alternatives that are valid for specific integration scenarios, e.g. if you want to allow certain SAP-to-SAP scenarios to be implemented with a direct integration approach e.g. for migration purposes. Possible Exception Assign this degree to possible exceptions for your general recommendations that you would like to allow for restricted use cases, e.g. if you want to allow for some restricted scenarios file-based interfaces. To Be Avoided Assign this degree to explicitly cover integration techniques / approaches that you would not like to be further used for new integration scenarios, e.g. to phase out some non strategic integration technologies in you organization. ISA-M foresees various levels of recommendation degrees that you can assign to integration technologies / services in your organization. This allows you to define integration guidelines for your organization including default recommendations, reasonable alternatives, possible exceptions or techniques that you would like to avoid in your organization. The table below provides some further explanations. How To Use
  • 41.
    41 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F In the next sections, decision table templates are provided per integration style (A to F) that allow you to define integration guidelines for your organization. This template also includes examples on how to map integration styles to technologies/services from the SAP portfolio (based on a typical hybrid landscape). The technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific customer context. Explanation Cross Use Cases C
  • 42.
    42 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 43.
    43 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the process integration style for your organization including the highlighted integration domains. ISA-M is open to also include third party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Where applicable, we have also added references to the Integration Architecture Guide for Cloud and Hybrid Landscapes or links to other documents where you will find more information. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 44.
    44 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style 44 Integration Domains Integration Styles Technology Mapping Process Integration Style Sample Technology Mapping SAP Integration Suite  SAP’s IPaaS for cloud and hybrid integration  Prepackaged integration content for SAP and third party apps  Integration Advisor capability (simplified integration supported by Artificial Intelligence)  Trading Partner Management capability (manage B2B relationships with multiple trading partners)  Open Connectors capability (+160 pre-built connectors for third party apps)  Complementary: SAP Process Orchestration and SAP Application Interface Framework (AIF) Key Characteristics  A2A, Master Data Integration, B2B, B2G integration use cases  API-based integration and near real-time processing  Transactional process integrity 2 Sample Mapping to SAP Technologies / Services On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 45.

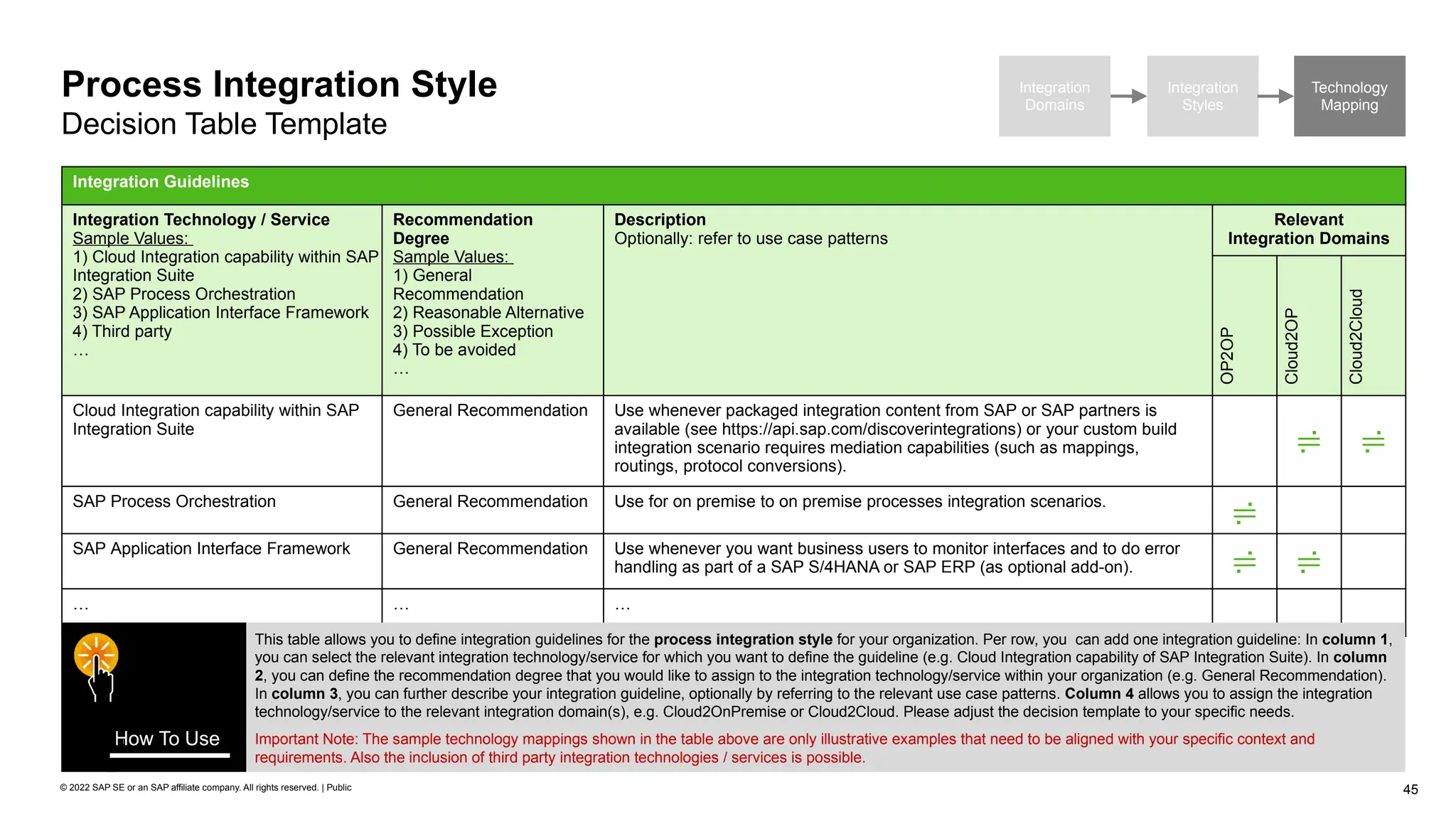

    45 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) Cloud Integration capability within SAP Integration Suite 2) SAP Process Orchestration 3) SAP Application Interface Framework 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains OP2OP Cloud2OP Cloud2Cloud Cloud Integration capability within SAP Integration Suite General Recommendation Use whenever packaged integration content from SAP or SAP partners is available (see https://api.sap.com/discoverintegrations) or your custom build integration scenario requires mediation capabilities (such as mappings, routings, protocol conversions).   SAP Process Orchestration General Recommendation Use for on premise to on premise processes integration scenarios.  SAP Application Interface Framework General Recommendation Use whenever you want business users to monitor interfaces and to do error handling as part of a SAP S/4HANA or SAP ERP (as optional add-on).   … … … This table allows you to define integration guidelines for the process integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. Cloud Integration capability of SAP Integration Suite). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Cloud2OnPremise or Cloud2Cloud. Please adjust the decision template to your specific needs. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use

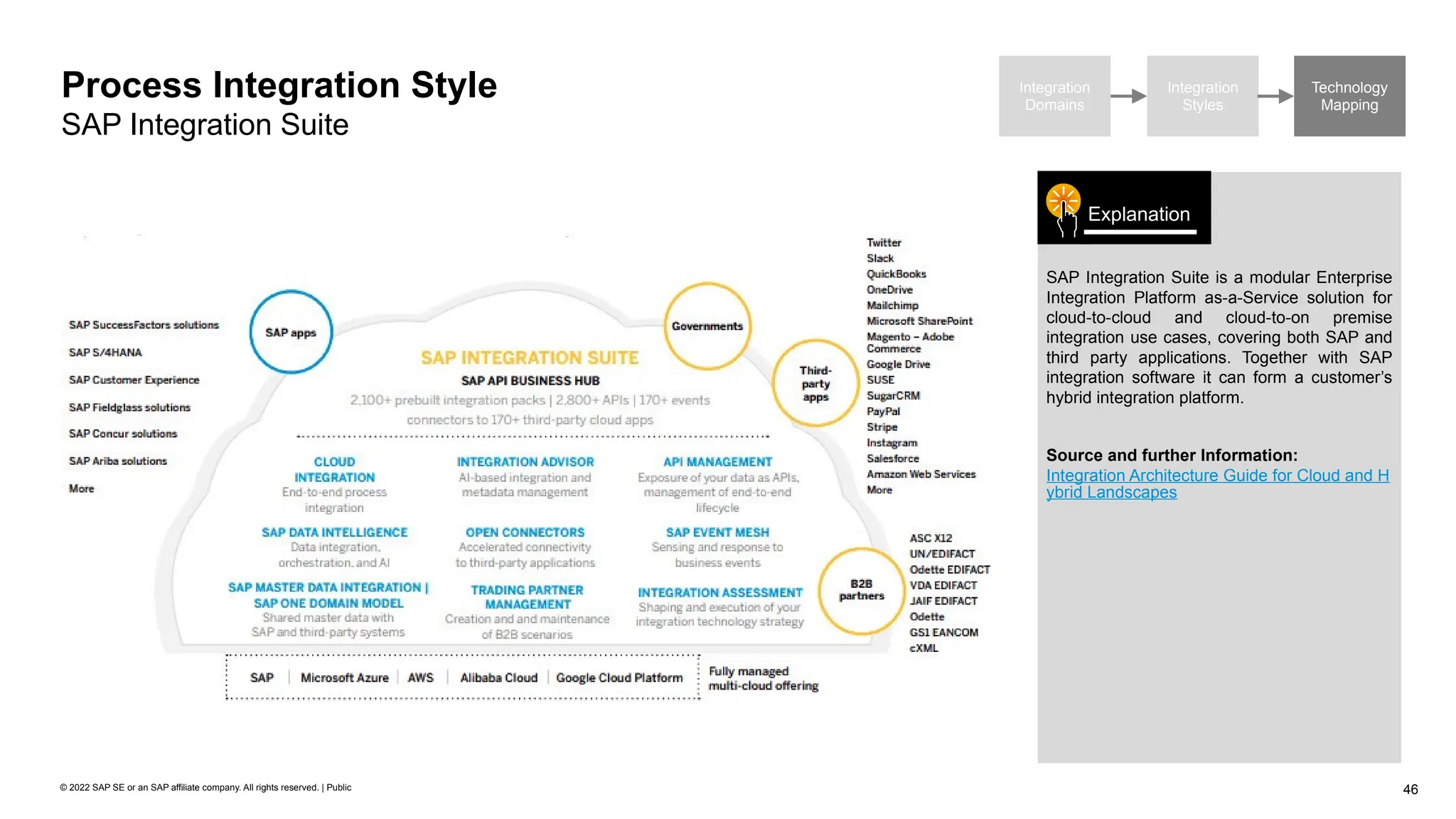

  • 46.
    46 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration Style SAP Integration Suite SAP Integration Suite is a modular Enterprise Integration Platform as-a-Service solution for cloud-to-cloud and cloud-to-on premise integration use cases, covering both SAP and third party applications. Together with SAP integration software it can form a customer’s hybrid integration platform. Source and further Information: Integration Architecture Guide for Cloud and H ybrid Landscapes Explanation Integration Domains Integration Styles Technology Mapping
  • 47.

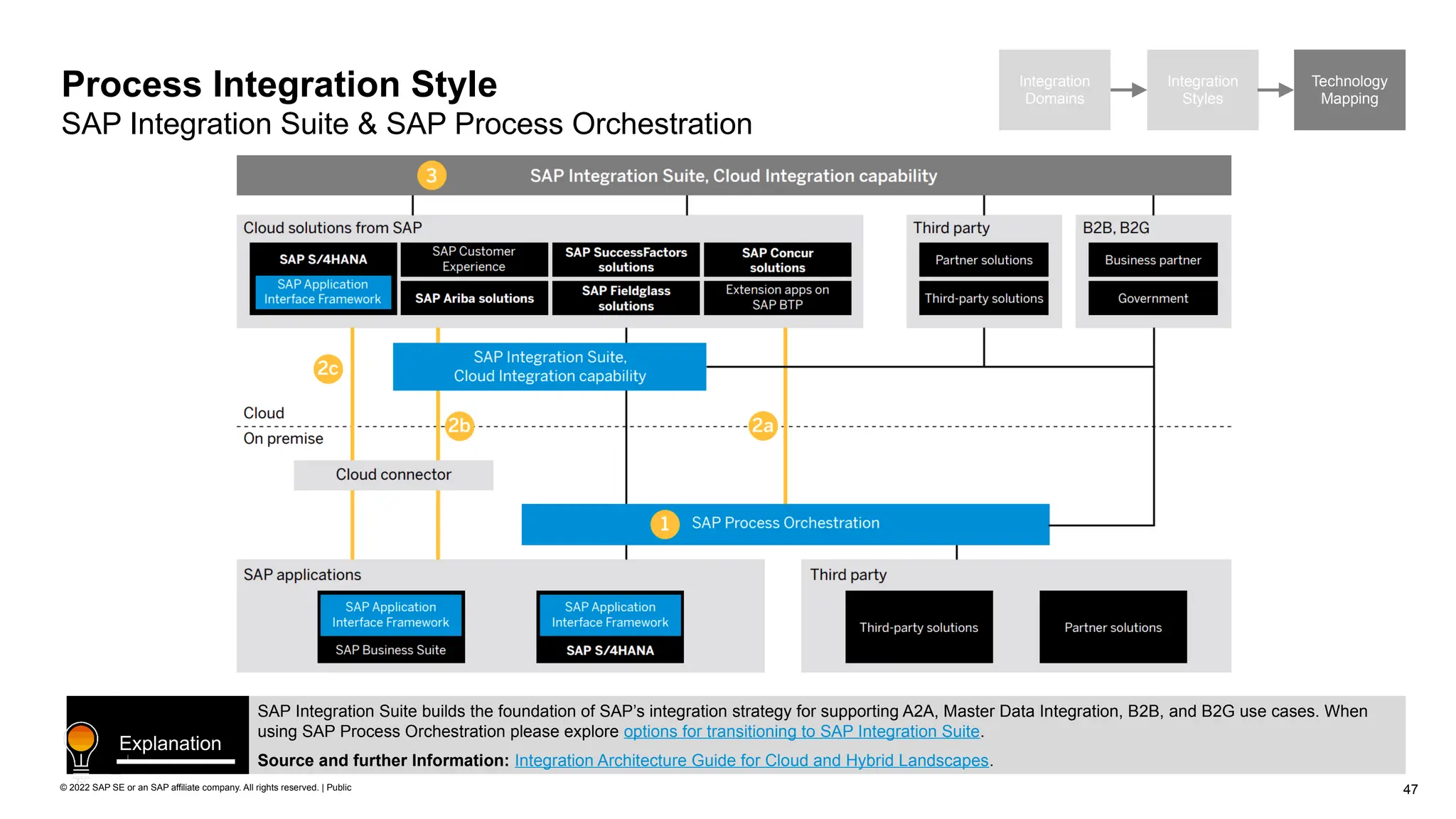

    47 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Integration Suite & SAP Process Orchestration SAP Integration Suite builds the foundation of SAP’s integration strategy for supporting A2A, Master Data Integration, B2B, and B2G use cases. When using SAP Process Orchestration please explore options for transitioning to SAP Integration Suite. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation
  • 48.
    48 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Cloud Integration capability of SAP Integration Suite & SAP Process Orchestration Comparison of the Cloud Integration capability of SAP Integration Suite and SAP Process Integration. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landsc apes . How To Use Cloud Integration capability within SAP Integration Suite SAP Process Orchestration Deployment • Data centers owned and run by SAP or SAP partners, for example, Microsoft Corporation, Amazon.com Inc, or Alibaba Group • Fully vendor-managed multi-cloud in major hyperscale environments • Customer landscape • Private cloud • Customer-managed in hyperscale environments Operations* SAP Customer License model Monthly subscription fee, pay per use Product license Architecture • Multitenancy with data isolation • Virtualization with automated failover • Rolling software updates • Single-tenant solution • Failover to be configured by customer • Near-zero downtime maintenance for updates through support packages or enhancement packages Prepackaged integration content Availability for a wide variety of cloud solutions from SAP, third-party applications, and business-to- business and business-to-government scenarios • Availability for a wide variety of on-premise SAP® software and third-party software • Runtime of the Cloud Integration capabilities of the suite (starting from SAP Process Orchestration software, release 7.5) for reuse of cloud integration content Preferred integration domains • Cloud to cloud • On premise to cloud (for customers with a cloud focus) • On premise to on premise • On premise to cloud (for customers with an on-premise focus), however recommends moving hybrid integration scenarios to SAP Integration Suite Decision criteria • Center of gravity – deployment of most or leading applications – in the cloud • No need to invest in on-premise middleware* (installation, operation, upgrades) • Fast innovation cycle • Flexible license model • Scenarios with a need for compliance, such as e- invoicing / payroll, to integrate with legal authorities • Center of gravity – deployment of most or leading applications – on premise • Interest in leveraging an existing investment in SAP Process Orchestration • Customer interest in having full control over integration (installation, operation, upgrades) * including maintenance, updates, upgrades
  • 49.
    49 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Master Data Integration SAP Master Data Integration service introduces a hub and spoke mechanism in cloud for exchanging and synchronizing master data. This service enables an out-of-the box integration for SAP-to-SAP integration scenarios exchanging semantically aligned data (based on SAP One Domain Model). Customers and third party applications can access the service through the Cloud Integration capability within SAP Integration Suite. Check out the SAP Road Map Explorer regarding the planned availability dates of supported master data objects and scenarios. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Customer and third party applications Exposure through SAP Integration Suite (Ready integrated) SAP applications SAP Master Data Integration service Change API (inbound) Distributed and scalable master data event log Log API (outbound) Change requests using SAP One Domain Model object representation) Change event notification (using SAP One Domain Model object representation)
  • 50.
    50 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration Style SAP Master Data Integration & SAP Master Data Governance Integration Domains Integration Styles Technology Mapping SAP Master Data Governance is still the recommended solution for master data management and can interact through the SAP Master Data Integration service. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Explanation
  • 51.
    51 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Simplification: Evolution of SAP Integration Content SAP applications can synchronize business objects with common attributes and use common semantics, which reduces SAP-to-SAP integration efforts for customers: New implementations can take advantage of SAP Master Data Integration for scenarios for which SAP has delivered aligned domain models. SAP Integration Suite supports both types of integration scenarios – those for unaligned as well as aligned APIs Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes.. Explanation
  • 52.
    52 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style SAP Application Interface Framework (AIF) SAP Application Interface Framework (AIF) complements SAP Integration Suite and SAP Process Orchestration with a deep integration capability into the application layer of SAP S/4HANA or SAP Business Suite. Among others, it provides monitoring and error handling for business users. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Integration Layer Application Layer SAP S/4HANA or SAP Business Suite SAP Application Interface Framework API Layer Standard Applications Interface Customizing (e.g. Data Validation, Value Mapping) Monitoring & Error Handling (Forward Error Correction) Alert Management Application Log Security / Authorizations Custom Functions Data SAP Functions Integration Developer Business User SAP Integration Suite On-Premise Applications Cloud Applications B2B / B2G SAP Process Orchestration On-Premise Applications Cloud Applications B2B / B2G …

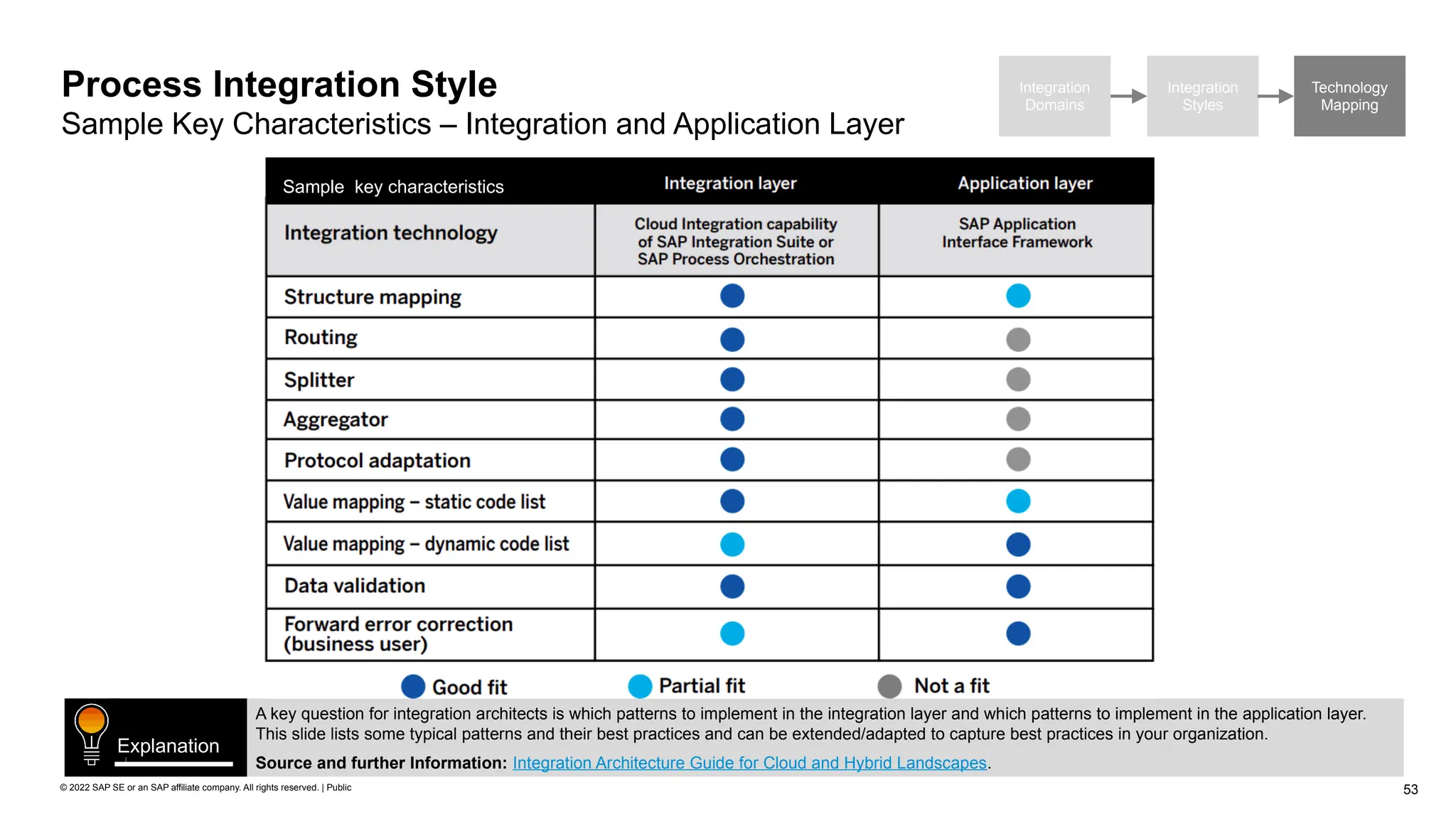

  • 53.
    53 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Process Integration Style Sample Key Characteristics – Integration and Application Layer A key question for integration architects is which patterns to implement in the integration layer and which patterns to implement in the application layer. This slide lists some typical patterns and their best practices and can be extended/adapted to capture best practices in your organization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Sample key characteristics
  • 54.
    54 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 54 Integration Domains Integration Styles Technology Mapping Process Integration Style Further Information Resource Link Description Integration Architecture Guide for Cloud and Hybrid Landscapes Link This guide follows the concepts of ISA-M and provides detailed guidance regarding SAP integration technologies for process integration such as SAP Integration Suite, SAP Process Orchestration and SAP Application Interface Framework. In addition, it includes guidance for customers migrating from SAP Business Suite to SAP S/4HANA with regards to integration topics such as transition paths. SAP API Business Hub Link Discover and consume digital content packages with APIs, pre-packaged integrations, business process models and sample apps from SAP and select partners. Beside APIs, the SAP API Business Hub provides the central place for pre-packaged integration content for SAP Integration Suite (Cloud Integration capability) that is available for integration of the various SAP applications like SAP S/4HANA, SAP SuccessFactors, SAP Fieldglass, SAP Customer Experience to integrate with SAP and also third party applications. SAP Integration Suite Link SAP’s Integration Platform-as-a-Service (IPaaS): It simplifies integration by connecting people, processes, data, and devices everywhere by allowing people with different skills to leverage a wide variety of integration approaches, intuitive tools, and prepackaged content to achieve results faster and gain business agility with a versatile, dynamic, and enterprise-grade cloud integration platform. SAP Process Orchestration Link SAP’s on-premise integration platform: Model, implement, integrate, and monitor custom process applications and integration scenarios, quickly and flexibly. SAP Application Interface Framework Link Implement, monitor, and manage application interfaces from a central location within SAP S/4HANA or SAP Business Suite to simplify interface handling across your system landscape. SAP Activate Roadmap Viewer Link Provides access to SAP Activate methodology implementation roadmaps for SAP solutions. These offer a comprehensive view of associated activities, deliverables, and tasks with accompanying accelerator assets which also covers integration aspects. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
  • 55.
    55 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 56.
    56 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the data integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Where applicable, we have also added references to the Integration Architecture Guide for Cloud and Hybrid Landscapes or links to other documents where you will find more information. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 57.
    57 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Data Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Data Intelligence  Comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data across hybrid landscapes  Cloud, private cloud and on premise deployment option  Pipelining and orchestration of big data  Leverages SAP EIM tools, e.g. SAP HANA Smart Data Integration (SDI) or SAP Data Services (DS) Key Characteristics  Support of multiple data integration use cases  Data focused (table/view, storages, processing, libraries)  High frequent event processing (e.g. via Kafka)  Advanced data transformations & processing (e.g. ML) On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 58.
    58 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Data Intelligence 2) SAP HANA Smart Data Integration 3) SAP Data Services 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains OP2OP Cloud2OP Cloud2Clou d SAP Data Intelligence General Recommendation Use for data integration needs with option to reuse existing SAP data integration products to orchestrate in a pipeline.   SAP HANA Smart Data Integration General Recommendation Use to move data from Non-ABAP sources into SAP HANA.   SAP Data Services General Recommendation Use for moving, integrating or cleansing structured data in on premise landscapes, with high transformation needs.  … … … This table allows you to define integration guidelines for the data integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Data Intelligence). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Cloud2OnPremise or Cloud2Cloud. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use
  • 59.
    59 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Integration Style SAP Data Intelligence Integration Domains Integration Styles Technology Mapping The SAP Data Intelligence solution is a comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data in on-premise, cloud, multi-cloud, and hybrid distributed system landscapes. It is SAP’s strategic data management solution and the tool of choice, in particular for cloud and hybrid data integration, metadata management, and data processing needs. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation
  • 60.
    60 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Integration Style SAP Solutions for Enterprise Information and Data Management Integration Domains Integration Styles Technology Mapping SAP understands that customers have made significant investments in SAP solutions for enterprise information management and SAP Database and Data Management solutions and strives to help them protect those investments. All existing solutions are integrated with SAP Data Intelligence in the best way whenever it makes sense from a business and technology standpoint, for example, to establish additional connectivity to new target systems. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation
  • 61.
    61 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Integration Style Mapping of Use Case Pattern to SAP EIM & DM Solutions Integration Domains Integration Styles Technology Mapping Recommended technologies for the use case patterns data replication (ETL), data virtualization, data quality management, and data orchestration Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes . Explanation
  • 62.
    62 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Technology Guidance Cloud Integration capability within SAP Integration Suite and SAP Data Intelligence
  • 63.
    63 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Data Integration Style Further Information Resource Link Description SAP Data Intelligence Link The SAP Data Intelligence solution is a comprehensive data management solution that governs, integrates, processes, and orchestrates the volume, velocity, and variety of data in on-premise, cloud, multi-cloud, and hybrid distributed system landscapes. It is SAP’s strategic data management solution and the tool of choice, in particular for cloud and hybrid data integration, metadata management, and data processing needs. SAP HANA Smart Data Integration (SDI), SAP HANA Smart Data Access (SDA), SAP HANA Smart Data Quality (SDQ) Link All are part of the SAP HANA platform: SDI is a log-based, real-time data replication tool with transformation capabilities. Its focus is to move data from non-ABAP sources into SAP HANA. SDA enables remote data to be accessed as if it were stored in local tables in SAP HANA, without copying the data into SAP HANA. SDQ is a set of functionality provided by several components, which you can use to cleanse and enrich data. SAP Data Services Link Software to integrate, transform, improve, and load accurate and complete data to support operational and analytical data-driven initiatives. SAP Cloud Integration for data services Link Cloud-based data integration tool for batch data integration between on-premise application and cloud applications SAP Landscape Transformation Replication Server Link A trigger-based real-time data replication product with basic transformation capabilities. Its focus is to move high volumes of data from ABAP and non-ABAP systems into SAP HANA or any ABAP-based system. SAP Information Steward Link Software that provides data stewards and IT users with a single environment to discover, assess, define, monitor, and improve the quality of their enterprise data and metadata. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
  • 64.
    64 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 65.
    65 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the analytics integration style for your organization including the highlighted integration domains. For the embedded analytics use case the cloud applications have also been highlighted. ISA-M is open to also include third party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 66.
    66 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Analytics Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Analytics Cloud*  Enterprise BI solution supporting augmented analytics, predictive analytics, and enterprise planning  Live connection (online) and data acquisition (batch) support  Pre-built industry and line-of-business content SAP Data Warehouse Cloud  Data management and decision-making cloud solution also enabling cross application analytics.  Integrates with SAP LoB solutions, SAP Business Technology Platform services, partner solutions and open-source technologies.  Complementary: SAP BW/4HANA with native integration to SAP Data Warehouse Cloud Key Characteristics  Integration of local and remote data sources  Model management  Predictive and planning capabilities** *Also available: SAP Analytics Cloud, embedded edition, supporting the embedded analytics use case (cloud only). **Available with SAP Analytics Cloud Enterprise Edition. On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 67.

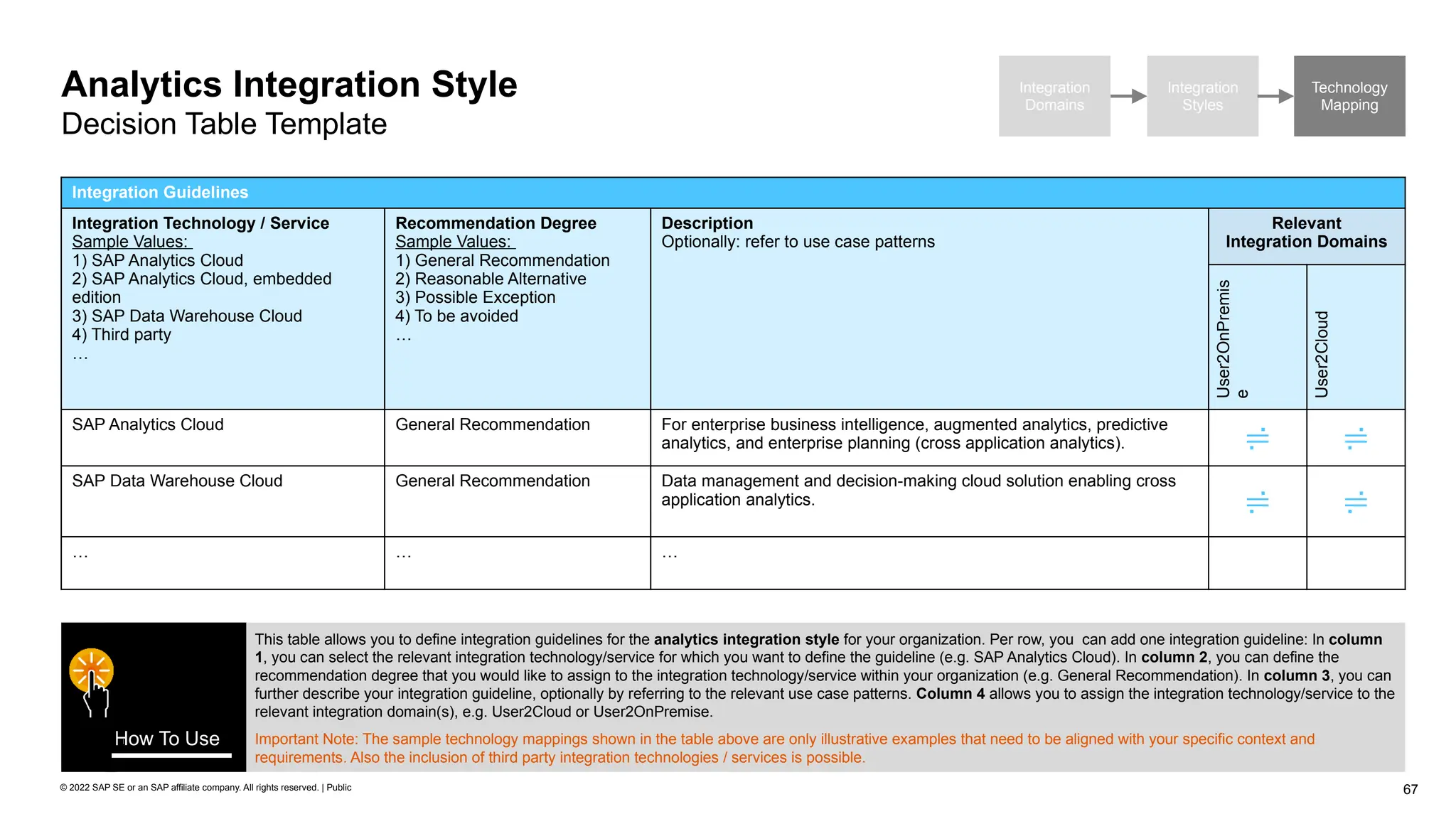

    67 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Analytics Cloud 2) SAP Analytics Cloud, embedded edition 3) SAP Data Warehouse Cloud 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OnPremis e User2Cloud SAP Analytics Cloud General Recommendation For enterprise business intelligence, augmented analytics, predictive analytics, and enterprise planning (cross application analytics).   SAP Data Warehouse Cloud General Recommendation Data management and decision-making cloud solution enabling cross application analytics.   … … … This table allows you to define integration guidelines for the analytics integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Analytics Cloud). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or User2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use
  • 68.
    68 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style SAP Analytics Cloud and SAP Data Warehouse Cloud SAP Data Warehouse Cloud and SAP Analytics Cloud are automatically integrated with each other. All three solutions provide connectivity to SAP and third party systems, both in the cloud and on premise, to access data with or without replication. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation Integration Domains Integration Styles Technology Mapping
  • 69.

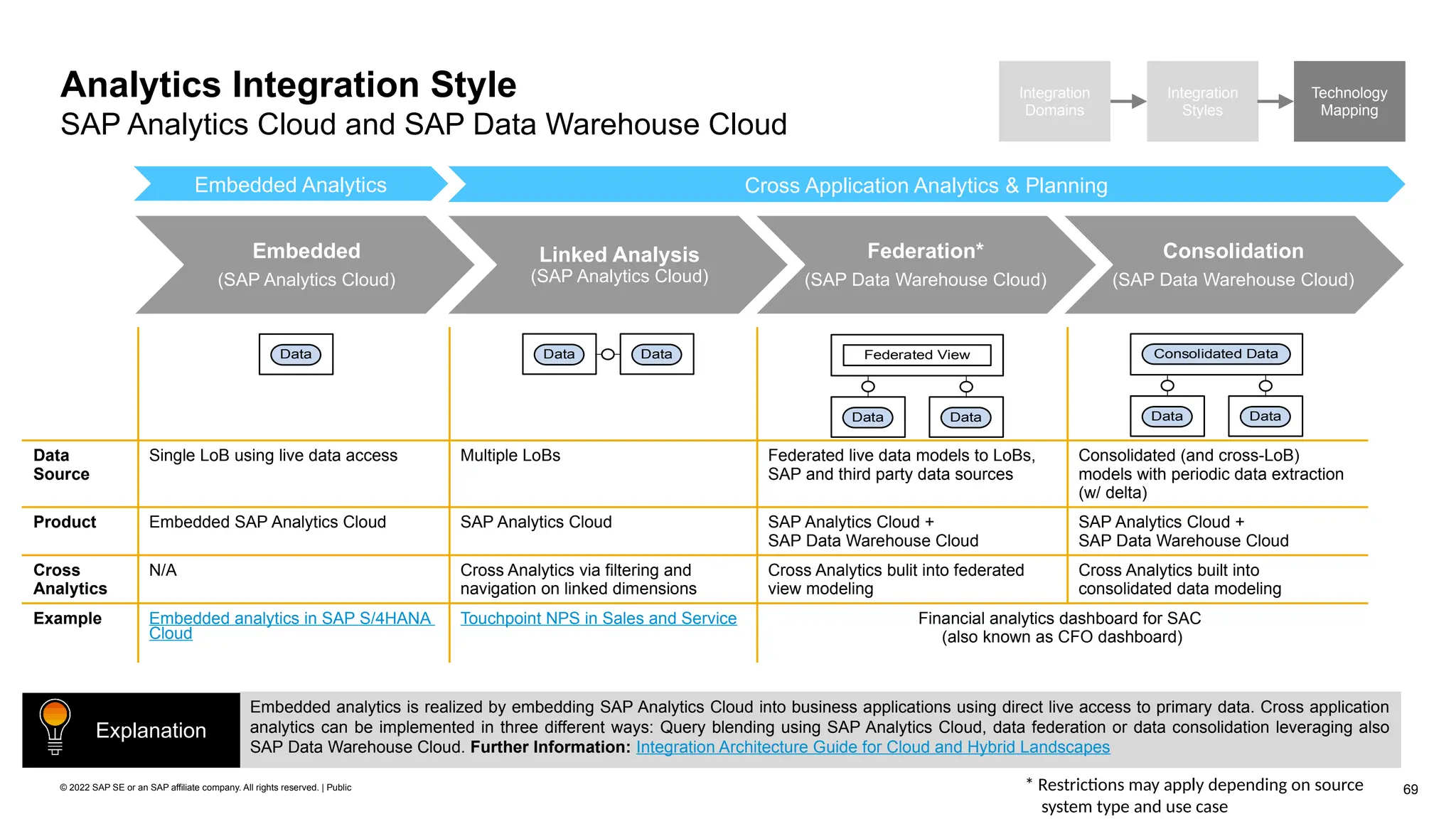

    69 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style SAP Analytics Cloud and SAP Data Warehouse Cloud Embedded analytics is realized by embedding SAP Analytics Cloud into business applications using direct live access to primary data. Cross application analytics can be implemented in three different ways: Query blending using SAP Analytics Cloud, data federation or data consolidation leveraging also SAP Data Warehouse Cloud. Further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Integration Domains Integration Styles Technology Mapping Data Source Single LoB using live data access Multiple LoBs Federated live data models to LoBs, SAP and third party data sources Consolidated (and cross-LoB) models with periodic data extraction (w/ delta) Product Embedded SAP Analytics Cloud SAP Analytics Cloud SAP Analytics Cloud + SAP Data Warehouse Cloud SAP Analytics Cloud + SAP Data Warehouse Cloud Cross Analytics N/A Cross Analytics via filtering and navigation on linked dimensions Cross Analytics bulit into federated view modeling Cross Analytics built into consolidated data modeling Example Embedded analytics in SAP S/4HANA Cloud Touchpoint NPS in Sales and Service Financial analytics dashboard for SAC (also known as CFO dashboard) Embedded (SAP Analytics Cloud) Linked Analysis (SAP Analytics Cloud) Federation* (SAP Data Warehouse Cloud) Consolidation (SAP Data Warehouse Cloud) Data Data Consolidated Data Data Data Data Data Federated View Data Cross Application Analytics & Planning Embedded Analytics Explanation * Restrictions may apply depending on source system type and use case
  • 70.
    70 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Style Innovation Journeys for SAP BW Customers Integration Domains Integration Styles Technology Mapping SAP Data Warehouse Cloud, SAP BW bridge enables the transition to SAP Data Warehouse Cloud with the help of SAP BW-based data integration & staging with tool-supported move*. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation SAP Data Warehouse Cloud SAP BW bridge SAP BW/4HANA & Data Warehouse Cloud Hybrid Combine the strengths of SAP BW/4HANA with the innovation, openness, and self-service abilities of SAP Data Warehouse Cloud in a hybrid scenario SAP Data Warehouse Cloud, SAP BW bridge Re-use and integrate SAP BW-based data ingestion and staging (incl. ABAP code) in SAP Data Warehouse Cloud (tool-supported move*) SAP BW 7.X SAP BW 7.X SAP BW & BW/4HANA Cloud Private Edition1 SAP Data Warehouse Cloud SAP BW & BW/4HANA Cloud Safe-guard investments by lifting existing landscape to the cloud – “RISE with SAP” SAP BW 7.X SAP BW & BW/4HANA Cloud Private Edition1 * Check SAP Data Warehouse Cloud Roadmap rgd. plannned availability and features. 1 SAP BW/4HANA is fully supported until 2040 and can also be deployed on-premises if desired.
  • 71.
    71 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Analytics Integration Use Cases Further Information Resource Link Description SAP Analytics - Business Intelligence, Statement of Direction Link Statement of direction regarding the SAP Analytics products such as SAP Analytics Cloud, SAP Business Objects BI Suite – including FAQ. SAP Analytics Cloud Link End-to-end SaaS solution that delivers all the analytics capabilities such as business intelligence, enterprise planning and augmented analytics. SAP Analytics Cloud, embedded edition Link Reusable business service for business intelligence (BI) on the SAP Business Technology Platform SAP Digital Boardroom Link Solution to design a real-time, interactive boardroom presentations based on SAP Analytics Cloud. SAP Data Warehouse Cloud Link Enterprise-ready data warehouse in the cloud that runs in multicloud environment, targeting different personas with different levels of technical expertise (IT, line of business / functional users and developers) SAP Data Warehouse Cloud, SAP BW Bridge Link SAP BW bridge is a function enhancement of SAP Data Warehouse Cloud. It allows customers who are running a SAP Business Warehouse or SAP BW/4HANA to reuse their existing models, transformations, and customizations in SAP Data Warehouse Cloud. SAP Product Roadmaps Link Access all product and solution roadmaps from SAP. You will also find latest roadmaps on all integration technologies and services mentioned in ISA-M. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
  • 72.
    72 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C

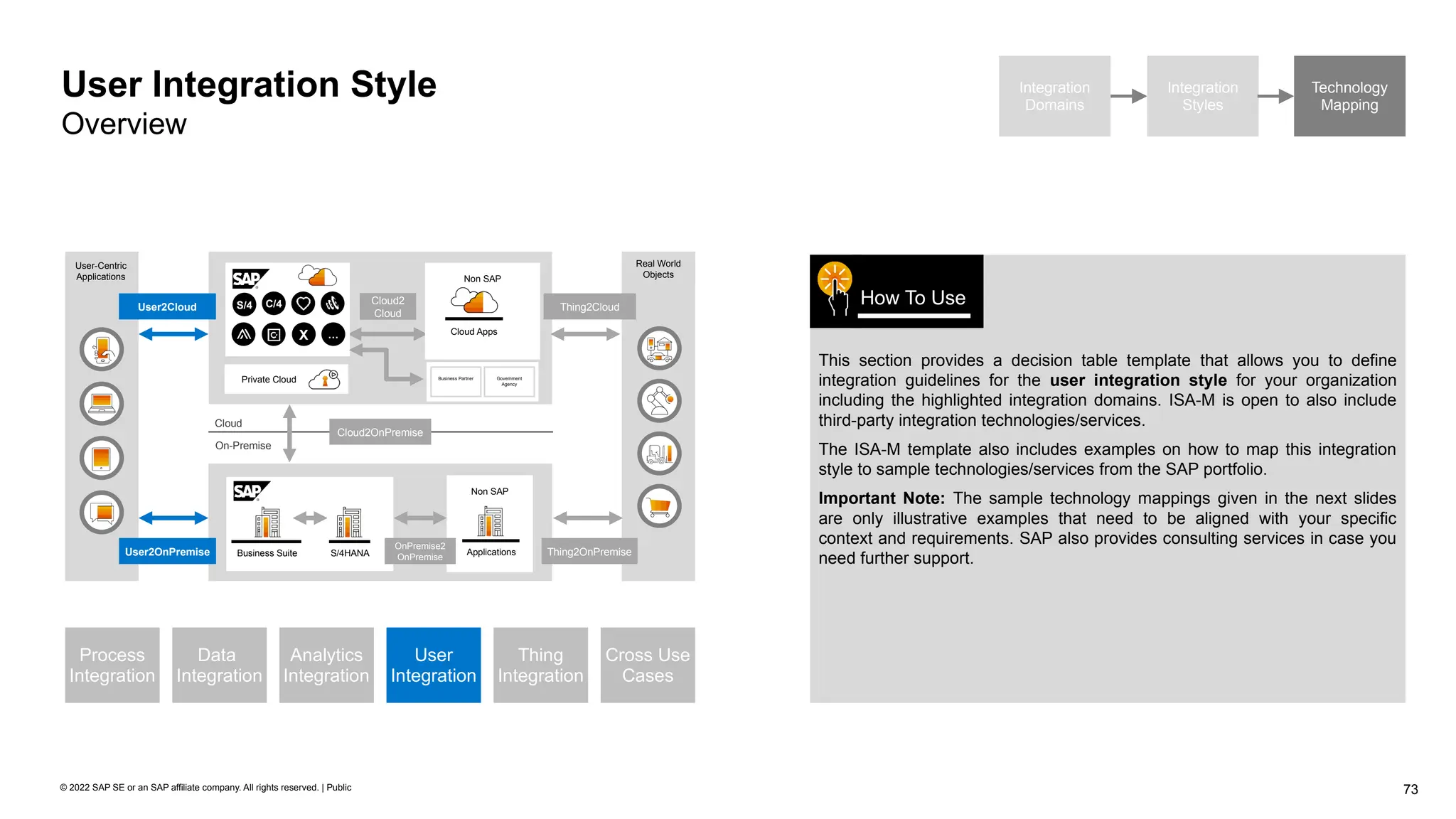

  • 73.
    73 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the user integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 74.
    74 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping User Integration Style Sample Technology Mapping: UI Integration 2 Sample Mapping to SAP Technologies / Services SAP Launchpad service  Central point of access to cloud and on premise applications, tasks, and processes  Common UX integration for SAP solutions (for example, SAP S/4HANA), custom apps and extensions following the SAP Fiori design guideline SAP Work Zone  For branded digital workplaces with guided experiences, web content, document access, knowledge base and workspaces for collaborative knowledge sharing  Offers workspaces, forums, document access, web content widgets, and MS Teams integration, Lines of Business specific content packages (e.g. SAP SuccessFactors´Work Zone) SAP Mobile Start  Native app that serves as the mobile entry point to SAP’s integrated Intelligent Suite  Native mobile version of the SAP Launchpad service that allows access to native or web- responsive (such as SAPUI5) business apps, data, and information SAP Mobile Services  Development platform for enterprise mobile apps  SDKs available for multiple devices (e.g. iOS, Android) Key Characteristics  Role-based access  Single sign on  Session management  Online / offline support (for mobile) On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 75.
    75 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Launchpad service 2) SAP Work Zone 3) SAP Mobile Services 4) Third Party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OnPremis e User2Cloud SAP Launchpad service General Recommendation Central point of access to cloud and on premise applications, tasks, and processes   SAP Work Zone General Recommendation For branded digital workplaces with guided experiences, web content, document access, knowledge base and workspaces for collaborative knowledge sharing.   SAP Mobile Services General Recommendation Use to develop mobile apps (e.g. iOS and Android apps) and integrate them with backend applications (relates to the Mobile Integration use case pattern).   … … … This table allows you to define integration guidelines for the user integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Launchpad service. In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or User2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third party integration technologies / services is possible. How To Use *Check out product road map regarding supported applications.

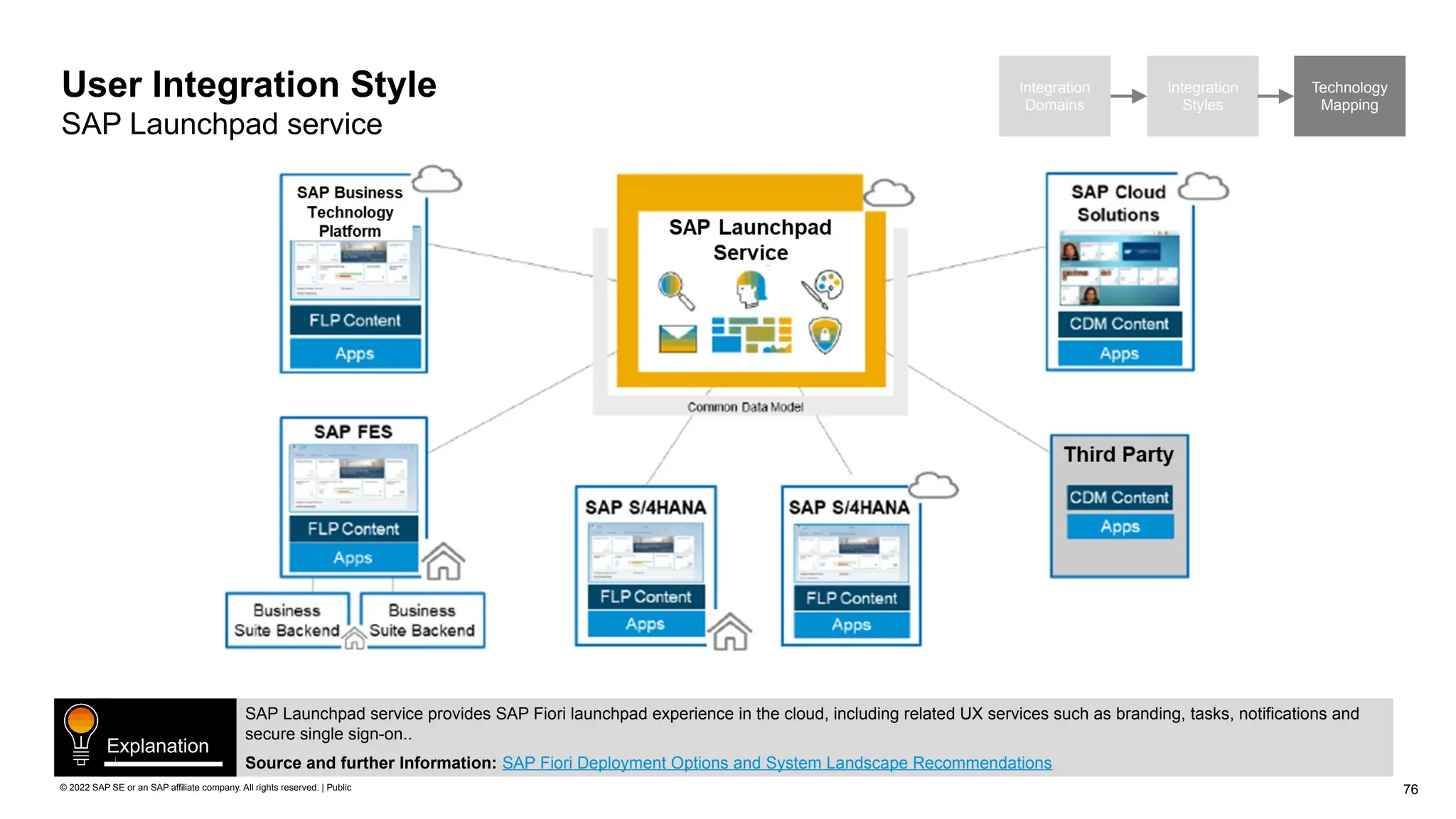

  • 76.
    76 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public User Integration Style SAP Launchpad service SAP Launchpad service provides SAP Fiori launchpad experience in the cloud, including related UX services such as branding, tasks, notifications and secure single sign-on.. Source and further Information: SAP Fiori Deployment Options and System Landscape Recommendations Explanation Integration Domains Integration Styles Technology Mapping
  • 77.
    77 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public User Integration Style SAP Launchpad service and SAP Work Zone Integration Domains Integration Styles Technology Mapping SAP Work Zone extends the SAP Launchpad service with additional capabilities, such as: workspaces, end & key user content creation, knowledge base, web and document management, lean-collaboration capabilities, Lines of Businesses specific content packages (example: SuccessFactors Work Zone) Source and further Information Blog post SAP Portal, SAP Launchpad Service and SAP Work Zone Explanation UI Integration & Secure Access Business & Key User Authoring Personalized & role-based Experience Workspaces & Guided Experiences Knowledge & (Web) Content Management Customization & Extensibility SAP Launchpad service (foundation) SAP Work Zone (premium capabilities) Mobile experience: SAP Mobile Start / Work Zone Mobile Desktop (web) experience Business (Key) users Content Managers & Administrators (Citizen) Developers Content packages by LoB / Industries
  • 78.
    78 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping User Integration Style Further Information Resource Link Description SAP Launchpad service Link Establish a central point of access to SAP (e.g. SAP S/4HANA), custom-built, and third party applications and extensions, both on the cloud and on premise. SAP Work Zone Link For building digital workplace solutions with a centralized access to relevant business applications, processes, information, and communication. SAP Fiori Deployment Options and System Landscape Recommendations Link In this document, you can find the main SAP Fiori scenarios, the recommended system landscape setup, and the SAP Front-end server deployment options. This document also includes insights into SAP Fiori front-end server hub and embedded deployment and what aspects to consider. The FAQ section provides answers to common questions regarding the SAP Fiori deployment options. Relates to the “UI Integration” use case pattern. SAP Mobile Services Link Create and run native, hybrid and micro mobile apps with a mobile app development platform (Enterprise iOS and Android apps). Secure access to on-premise or cloud-based data sources, data-access features and offline OData synchronization. Relates to the “Mobile Integration” use case pattern. SAP Conversational AI Link Build enterprise-grade chatbots leveraging an end-to-end bot building platform as well as a digital assistant. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
  • 79.
    79 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 80.
    80 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Thing Integration Style Overview This section provides a decision table template that allows you to define integration guidelines for the thing integration style for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map this integration style to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 81.
    81 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Thing Integration Style Sample Technology Mapping 2 Sample Mapping to SAP Technologies / Services SAP Internet of Things  Embed IoT in business processes and industry applications to gain insights from previously unconnected devices  Automate supply chains by leveraging auto ID technology  Enable low latency, autonomous operations and cloud-based orchestration for mission-critical processes at the industrial edge  Gain insights on the performance of industrial business processes in the factory and beyond, while overseeing asset availability, usage, and health  Complementary: SAP Plant Connectivity Key Characteristics  Onboarding and device management  IoT specific protocol support (e.g. REST, MQTT, OPC-UA)  Data ingestion, big data storage and time series management  Edge-level ingestion, storage, and processing capabilities On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 82.

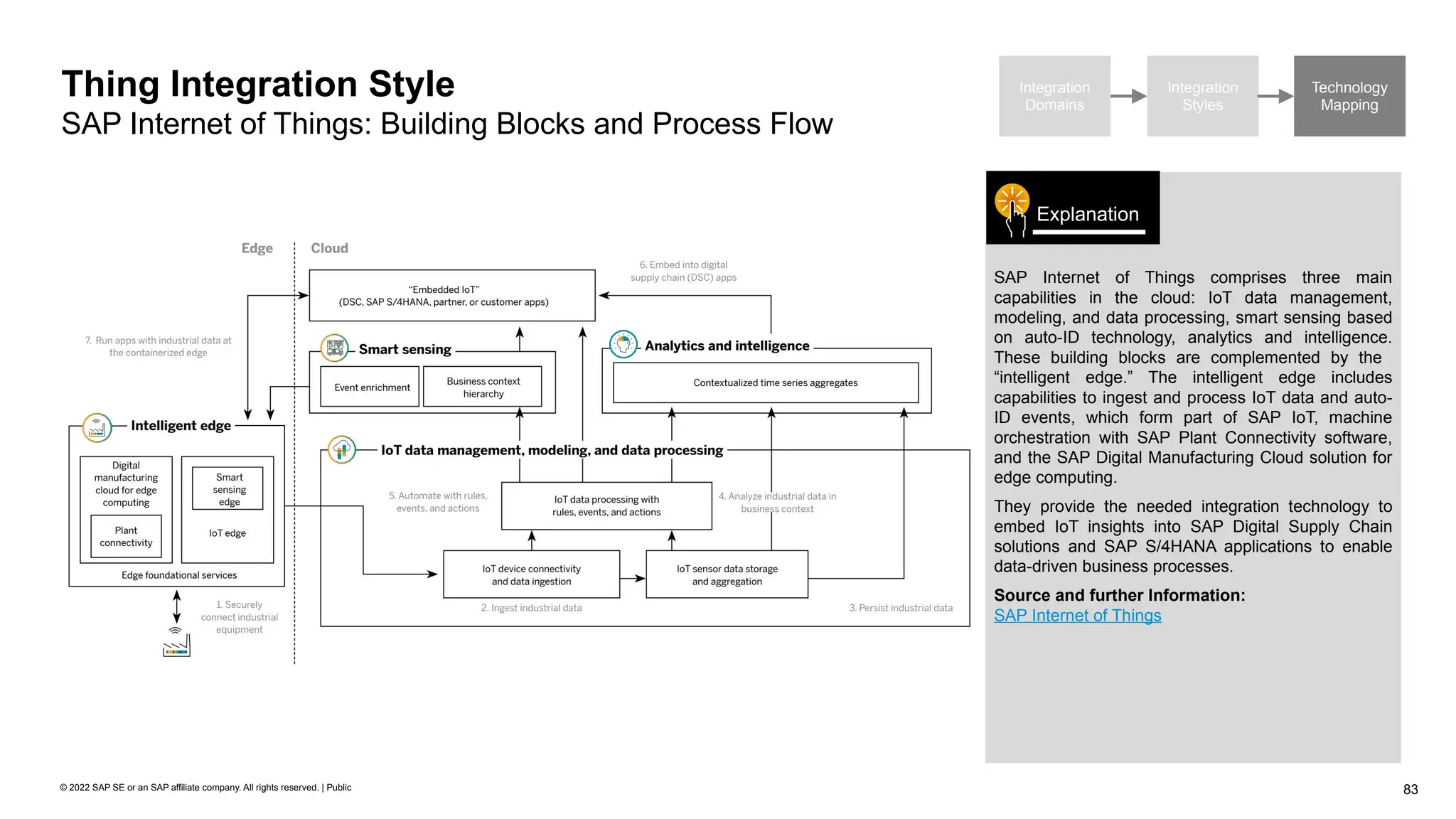

    82 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Thing Integration Style Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) SAP Internet of Things 2) SAP Plant Connectivity 4) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains Thing2OP Thing2Clou d SAP Internet of Things General Recommendation Solutions to extend existing SAP business processes by gaining information and insights from previously unconnected devices (e.g. machines, products, assets), thereby extending the value of existing SAP applications and processes.   SAP Plant Connectivity General Recommendation Software component to exchange of data between an SAP system and the industry-specific standard data sources of different manufacturers, for example, process control systems, plant Historian systems, and SPC systems   … This table allows you to define integration guidelines for the thing integration style for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. SAP Internet of Things). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. Thing2Cloud or Thing2OnPremise. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use
  • 83.
    83 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Thing Integration Style SAP Internet of Things: Building Blocks and Process Flow SAP Internet of Things comprises three main capabilities in the cloud: IoT data management, modeling, and data processing, smart sensing based on auto-ID technology, analytics and intelligence. These building blocks are complemented by the “intelligent edge.” The intelligent edge includes capabilities to ingest and process IoT data and auto- ID events, which form part of SAP IoT, machine orchestration with SAP Plant Connectivity software, and the SAP Digital Manufacturing Cloud solution for edge computing. They provide the needed integration technology to embed IoT insights into SAP Digital Supply Chain solutions and SAP S/4HANA applications to enable data-driven business processes. Source and further Information: SAP Internet of Things Explanation Integration Domains Integration Styles Technology Mapping
  • 84.
    84 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public This table provides links where you can find further information such as refined guidance, product information and roadmaps. How To Use Integration Domains Integration Styles Technology Mapping Thing Integration Style Further Information Resource Link Description SAP Internet of Things Link A complete set of microservices designed to build powerful apps and leverage data storage to deliver real-time insights. Industry 4.0 Link Entry page about SAP’s vision and portfolio for industry 4.0 which includes IoT applications and technologies. SAP Plant Connectivity Link Connect your machines to solutions such as SAP MII, manufacturing execution systems (MES), SAP EWM, and more. Deliver Industrial Internet of Things (IIoT) and machine-to-machine (M2M) connectivity to your business. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”.
  • 85.
    85 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Technology Mapping Derive Integration Guidelines for Your Organization Integration Domains Integration Styles Technology Mapping Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 86.
    86 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Overview Cross Use Cases build a category for all use case patterns that complement one ore more of the five core integration styles. For example, API-Managed Integration provides full-lifecycle management for APIs that, e.g. can be leveraged in user- or process-centric integration scenarios. Workflow Management is an other example for a cross use case as it can spawn across process-, user- and data-centric integration scenarios. It also includes all other integration-related use cases such as business rules management or stream analytics. This section provides a decision table template that allows you to define integration guidelines for the cross use case category for your organization including the highlighted integration domains. ISA-M is open to also include third-party integration technologies/services. The ISA-M template also includes examples on how to map cross use cases to sample technologies/services from the SAP portfolio. Important Note: The sample technology mappings given in the next slides are only illustrative examples that need to be aligned with your specific context and requirements. SAP also provides consulting services in case you need further support. How To Use On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases

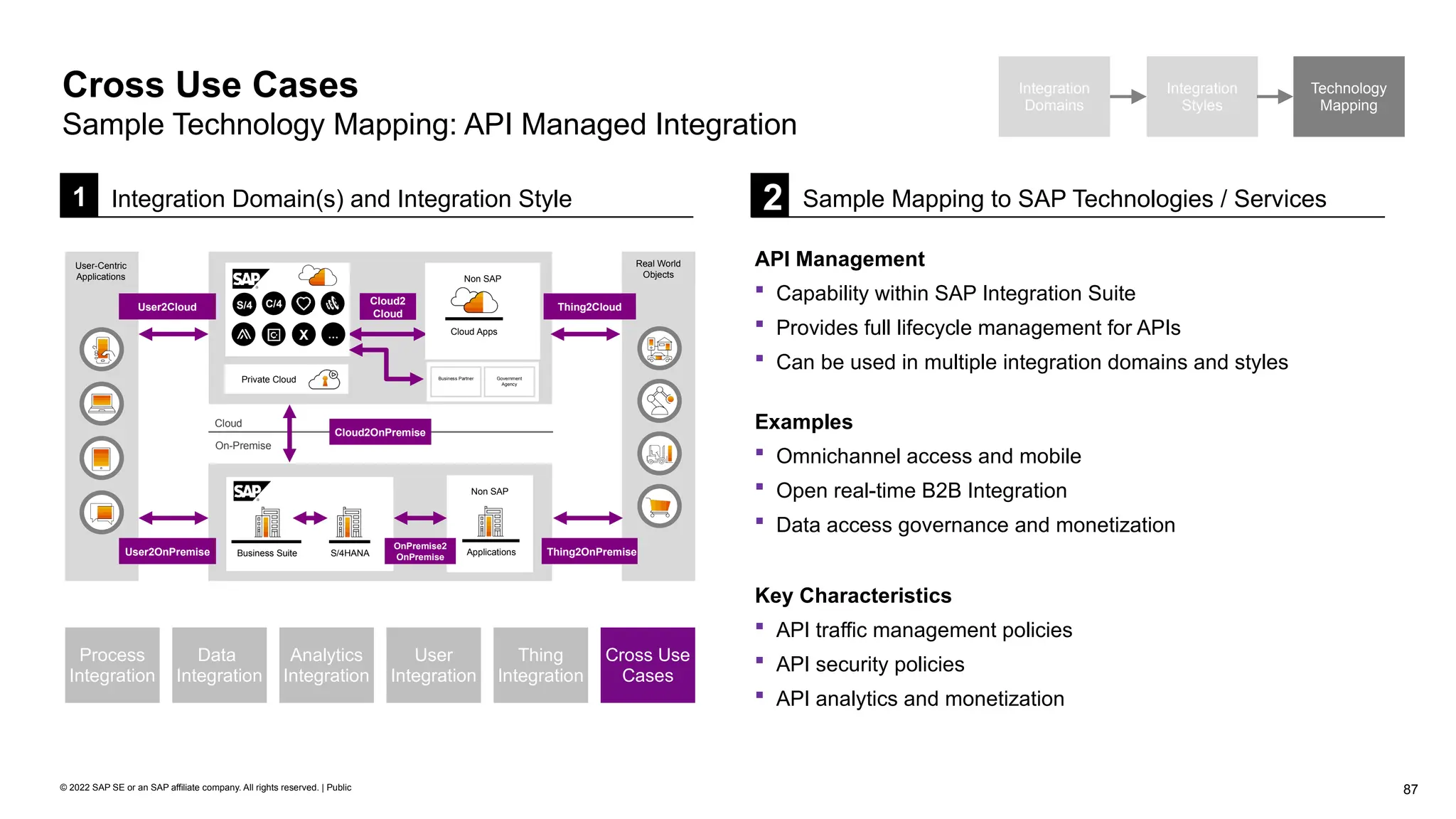

  • 87.
    87 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public 1 Integration Domain(s) and Integration Style Integration Domains Integration Styles Technology Mapping Cross Use Cases Sample Technology Mapping: API Managed Integration 2 Sample Mapping to SAP Technologies / Services API Management  Capability within SAP Integration Suite  Provides full lifecycle management for APIs  Can be used in multiple integration domains and styles Examples  Omnichannel access and mobile  Open real-time B2B Integration  Data access governance and monetization Key Characteristics  API traffic management policies  API security policies  API analytics and monetization On-Premise Cloud Cloud2OnPremise Real World Objects User2OnPremise User2Cloud Thing2OnPremise Thing2Cloud Cloud2 Cloud User-Centric Applications S/4 C/4 X … Non SAP Cloud Apps S/4HANA Business Suite Non SAP Applications OnPremise2 OnPremise Private Cloud Business Partner Government Agency Analytics Integration Data Integration User Integration Thing Integration Process Integration Cross Use Cases
  • 88.
    88 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Decision Table Template Integration Guidelines Integration Technology / Service Sample Values: 1) API Management capability of SAP Integration Suite 2) SAP Event Mesh 3) Third party … Recommendation Degree Sample Values: 1) General Recommendation 2) Reasonable Alternative 3) Possible Exception 4) To be avoided … Description Optionally: refer to use case patterns Relevant Integration Domains User2OP User2Cloud OP2OP OP2Cloud Cloud2Cloud API Management capability within SAP Integration Suite General Recommendation Use whenever you want to actively manage SOAP, OData or REST based APIs and/or like to enforce policies on the consumption of these APIs (such as security, traffic management, analytics and metering).      SAP Event Mesh General Recommendation Use to communicate in near real-time through asynchronous business events (list of SAP delivered business events: https://api.sap.com/content-type/Events/events/packa ges). Use together with SAP NetWeaver Add-On for Event Enablement for non-standard, custom business events.    … This table allows you to define integration guidelines for the cross use cases category for your organization. Per row, you can add one integration guideline: In column 1, you can select the relevant integration technology/service for which you want to define the guideline (e.g. API Management). In column 2, you can define the recommendation degree that you would like to assign to the integration technology/service within your organization (e.g. General Recommendation). In column 3, you can further describe your integration guideline, optionally by referring to the relevant use case patterns. Column 4 allows you to assign the integration technology/service to the relevant integration domain(s), e.g. User2Cloud or Cloud2Cloud. Important Note: The sample technology mappings shown in the table above are only illustrative examples that need to be aligned with your specific context and requirements. Also the inclusion of third-party integration technologies / services is possible. How To Use
  • 89.
    89 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Example: API Management capability of SAP Integration Suite The API Management capability of SAP Integration Suite provides a solution for the full lifecycle management of APIs. It enables use cases like omnichannel access, open real-time B2B Integration or data access governance and monetization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes. Explanation
  • 90.
    90 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Sample Key Characteristics – API Management and Integration Layer Integration Domains Integration Styles Technology Mapping This slide shows some typical API policies and integration patterns that are best implemented in the API management layer or the integration layer. It provides guidance for integration architects on how to combine both offerings and can be extended/adapted to capture best practices in your organization. Source and further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes Explanation
  • 91.

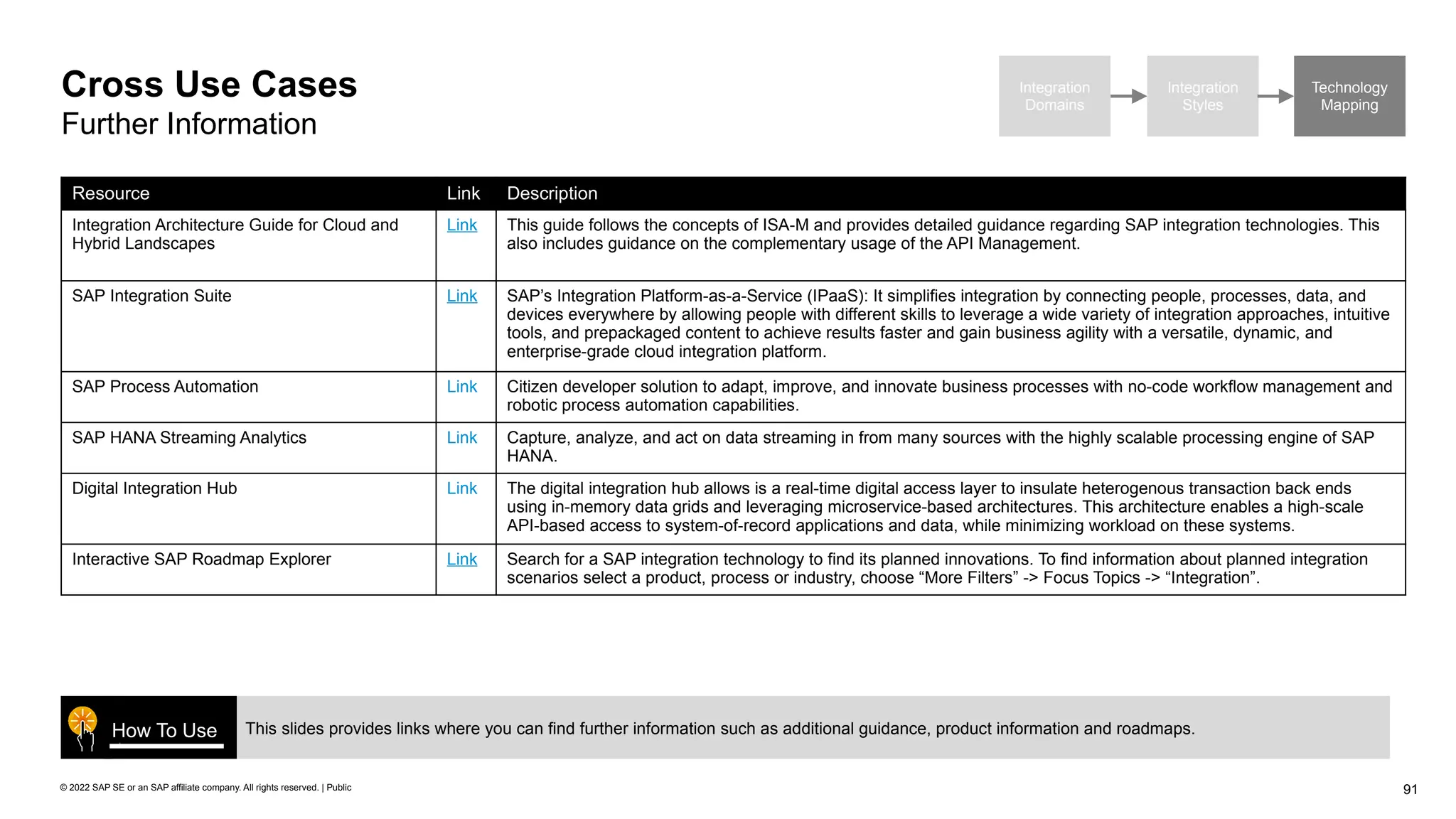

    91 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Domains Integration Styles Technology Mapping Cross Use Cases Further Information Resource Link Description Integration Architecture Guide for Cloud and Hybrid Landscapes Link This guide follows the concepts of ISA-M and provides detailed guidance regarding SAP integration technologies. This also includes guidance on the complementary usage of the API Management. SAP Integration Suite Link SAP’s Integration Platform-as-a-Service (IPaaS): It simplifies integration by connecting people, processes, data, and devices everywhere by allowing people with different skills to leverage a wide variety of integration approaches, intuitive tools, and prepackaged content to achieve results faster and gain business agility with a versatile, dynamic, and enterprise-grade cloud integration platform. SAP Process Automation Link Citizen developer solution to adapt, improve, and innovate business processes with no-code workflow management and robotic process automation capabilities. SAP HANA Streaming Analytics Link Capture, analyze, and act on data streaming in from many sources with the highly scalable processing engine of SAP HANA. Digital Integration Hub Link The digital integration hub allows is a real-time digital access layer to insulate heterogenous transaction back ends using in-memory data grids and leveraging microservice-based architectures. This architecture enables a high-scale API-based access to system-of-record applications and data, while minimizing workload on these systems. Interactive SAP Roadmap Explorer Link Search for a SAP integration technology to find its planned innovations. To find information about planned integration scenarios select a product, process or industry, choose “More Filters” -> Focus Topics -> “Integration”. This slides provides links where you can find further information such as additional guidance, product information and roadmaps. How To Use
  • 92.
    92 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 93.
    93 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Overview Interface Assessment User Integration Data Integration Thing Integration Cross Use Cases Process Integration A typical task in implementation projects is to blueprint integration scenarios between two applications. Typically, a business scenario is decomposed into technical interfaces. Next, each technical interface needs to be classified / assessed whether it is a process-, data-, analytics-, user- or thing-centric integration style. Based on the specific characteristics, the appropriate integration technology/service needs to be selected. ISA-M supports the classification of interfaces that will we shown on the next slides: in this example a business scenario is decomposed into three technical interfaces: Data Replication, A2A Integration, Mobile Integration. It is recommended to use the Integration Assessment capability within SAP Integration Suite for performing this task. How To Use Interface Decomposition Application 1 Application 2 Business Scenario Application 1 Application 2 ? ? Analytics Integration
  • 94.
    94 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 2: A2A Integration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 Cloud Integration capability within SAP Integration Suite 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain If not, decompose your business scenario into single interfaces for custom-built integration Interface Decomposition Application 1 Application 2 1 3 Data Integration Master Data Synchronization Data Replication Data Virtualization Data Quality Management … Thing Integration Thing to Analytics Thing to Process Thing to Data Lake Thing to Thing … Cross Use Cases Stream Analytics … Workflow Management API-Managed Integration Process Integration A2A Integration B2B Integration Business Network Integration Customer-Specific Use Case User Integration UI Integration Mobile Integration Desktop Integration … … Event-Based Integration A2A Integration 2 2
  • 95.
    95 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 1: Data Orchestration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 SAP Data Intelligence 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain If not, decompose your business scenario into single interfaces for custom-built integration Interface Decomposition Application 1 Application 2 1 3 2
  • 96.
    96 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Interface Assessment Sample Interface 3: Mobile Integration Interface Assessment Integration Style & Use Case Pattern Matrix Analyze Business Scenario Identify Integration Style and Pattern Choose Integration Technology Option Integration Technology 1 SAP Mobile Services 2 … Decision Table * (Based on Customer Context) If not, decompose your business scenario into single interfaces for custom-built integration Business Scenario Application 1 Application 2 ? Cloud2OnPremise Domain Interface Decomposition Application 1 Application 2 3 Mobile Integration Mobile 1 2
  • 97.
    97 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 98.

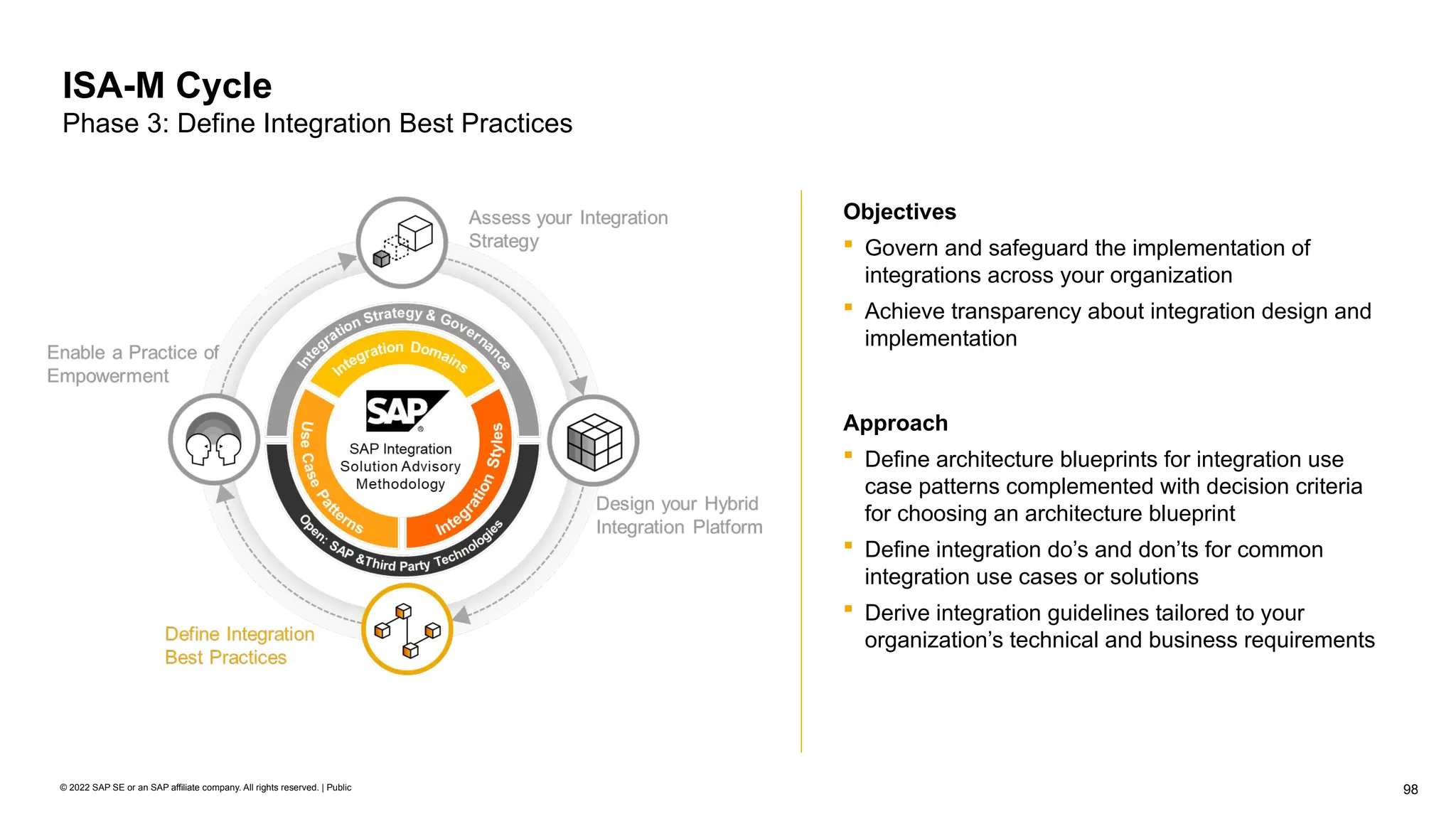

    98 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 3: Define Integration Best Practices Objectives  Govern and safeguard the implementation of integrations across your organization  Achieve transparency about integration design and implementation Approach  Define architecture blueprints for integration use case patterns complemented with decision criteria for choosing an architecture blueprint  Define integration do’s and don’ts for common integration use cases or solutions  Derive integration guidelines tailored to your organization’s technical and business requirements
  • 99.
    99 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprints Overview Sample Architecture Blueprints B2B Integration Cloud2OnPremise UI Integration User2Cloud Event Based Integration Cloud2Cloud A2A Integration Cloud2OnPremise 1 4 7 A2A Integration Cloud2Cloud Data Orchestration Cloud2OnPremise UI Integration User2Cloud … 2 5 8 Master Data Integration OnPremise2OnPremise Embedded Analytics User2Cloud Digital Integration Hub Cloud2OnPremise/Cloud … 3 6 9 This slide shows sample architecture blueprints in regards of integration technologies. Architecture blueprints can be defined by combining integration use case patterns and integration domains. Choose the ones from the list of sample architecture blueprints which are relevant for your organization and define additional ones for your specific context as needed. How to Use Integration Domains I Integration Use Case Patterns 10
  • 100.
    100 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public <Integration Style> <Integration Domain or Use Case Pattern> Public Cloud Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Connectivity … Event Mesh Open Connectors API Management Smart Data Integration Cloud Integration SAP Data Intelligence … SAP Process Orchestration SAP Data Services Cloud Connector Firewall DMZ Firewall Firewall Architecture Blueprint Template Characteristics | Selection Criteria - <Your defined content> Use this template for defining the architecture blueprints which are relevant for your organization. Reusing the SAP Business Technology Platform How To Use
  • 101.
    101 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint Samples Complemented with Integration Best Practices In this section, architecture blueprint samples for selected integration use case patterns are provided which are grouped per integration style. These are complemented with common integration do's and don’ts and a selection of characteristics/decision criteria. The architecture blueprints given in the next slides are only illustrative examples that need to be aligned with your specific customer context. Explanation Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 102.
    102 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C

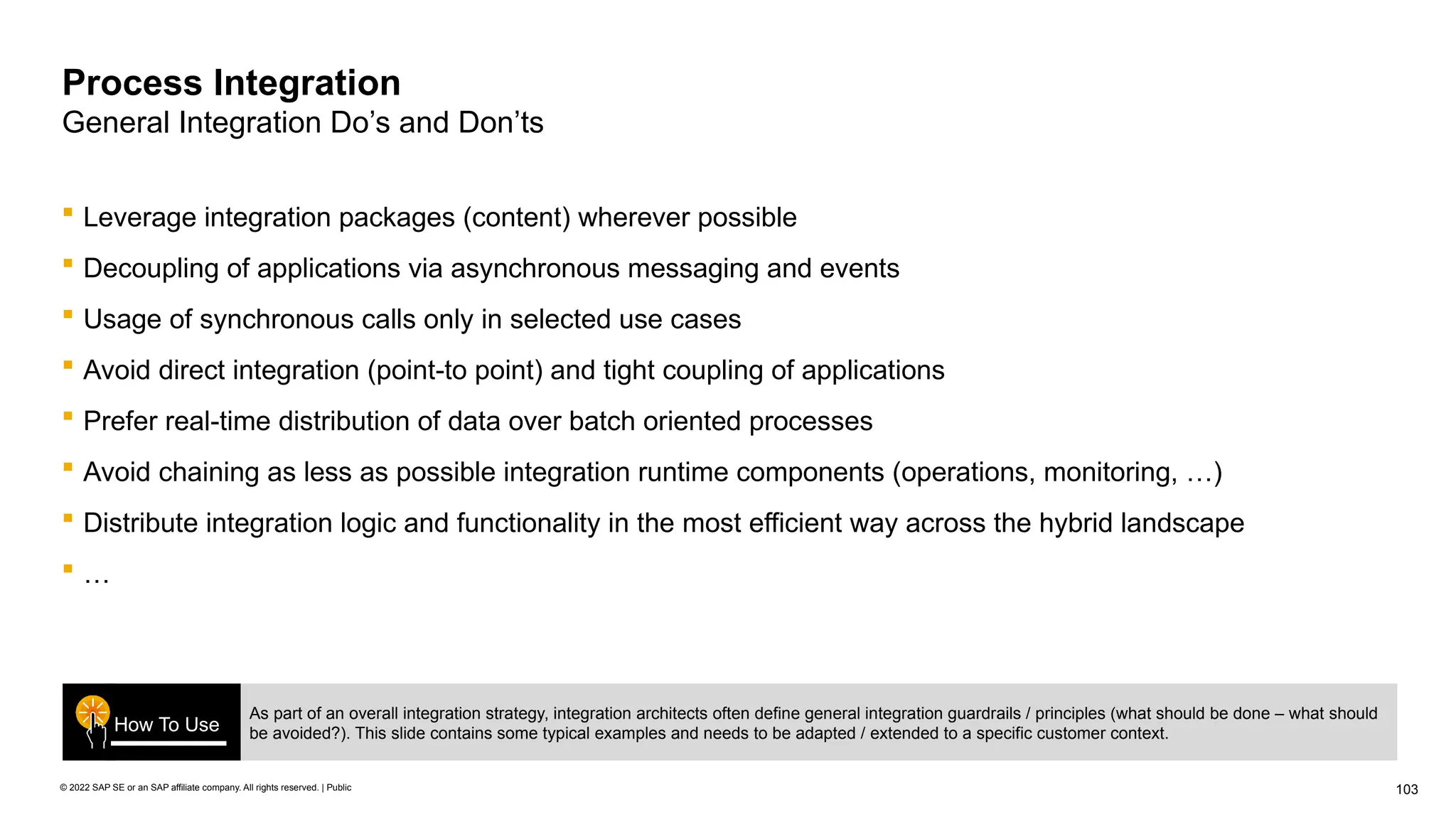

  • 103.
    103 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration General Integration Do’s and Don’ts  Leverage integration packages (content) wherever possible  Decoupling of applications via asynchronous messaging and events  Usage of synchronous calls only in selected use cases  Avoid direct integration (point-to point) and tight coupling of applications  Prefer real-time distribution of data over batch oriented processes  Avoid chaining as less as possible integration runtime components (operations, monitoring, …)  Distribute integration logic and functionality in the most efficient way across the hybrid landscape  … As part of an overall integration strategy, integration architects often define general integration guardrails / principles (what should be done – what should be avoided?). This slide contains some typical examples and needs to be adapted / extended to a specific customer context. How To Use
  • 104.
    104 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Process Integration Use Cases Decision Criteria Catalog - Legend Criteria / Capability Description Aligned APIs / Unaligned APIs Defines whether the sender and receiver application are using semantically and syntactically aligned APIs or not Pre-Packaged Content Availability of prepackaged content for a certain integration scenario (e.g. on SAP API Business Hub) Structure Mapping Maps message fields and hierarchies between two interfaces. Value Mapping Transforms field values that are exchanged between two applications Routing Used to determine, for a given message, a set of receivers based on static settings or message payload data Splitting / Aggregation Creates multiple messages out of a received message. Collects multiple inbound messages until a modelled threshold is reached. Protocol Mediation Covers the mediation between two different protocols used by sending and receiving applications (e.g. JMS, REST or SOAP). Exception Handling Technical capability to pick up and resolve errors during runtime Quality of Service Defines the QoS of the message transfer e.g. Exactly Once, Exactly Once in Order, Best Effort … … When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use
  • 105.
    105 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for A2A Integration (Cloud to On Premise) – Info Sheet Details Description Integration of on premise applications with cloud applications using a cloud based integration solution to enable business processes across an hybrid application landscape. The communication between the cloud based integration solution and the on premise application landscape and other cloud applications requires special security measures (e.g. via VPN, digital certificate based). The cloud based integration solution is operated by the provider. Involved SAP technology products • SAP Connectivity service or reverse proxy (see decision tree) The following capabilities of SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) • API Management (conditional) • Integration Advisor (conditional) When to apply • For exchanging transactional and master data between on premise and cloud applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. How to apply • Cloud Integration as cloud based process integration solution leveraging prepackaged integration content (SAP API Business Hub) and/or implement custom integrations using Cloud Integration tooling (SAP Discovery Center Mission) • SAP Connectivity service to establish a secure tunnel from SAP Business Technology Platform (cloud) to the on premise application landscape (tutorial) • Open Connectors for simplified integration with third party cloud applications (SAP Discovery Center Mission) • API Management to govern, protect and meter API access (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post) Example SAP Cloud for Customer Integration with SAP ERP (prepackaged integration content) * 1
  • 106.
    106 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public A2A Integration Cloud to On Premise 1 Characteristics | Selection Criteria - Hybrid Traffic - Unaligned APIs - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform Cloud Connector1 Secure tunnel SAP API Business Hub On Premise Application (SAP / Third Party) Cloud Application (SAP / Third Party) Cloud Integration Connectivity1 Firewall DMZ Firewall Firewall 1 Or reverse proxy (see decision tree).
  • 107.
    107 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for A2A Integration (Cloud to Cloud) – Info Sheet Details Description Integration of on cloud applications with other cloud applications using a cloud based integration solution. The communication between the cloud based integration solution and cloud applications requires special security measures (e.g. digital certificate based). The cloud based integration solution is operated by the provider. Involved SAP technology products • SAP Connectivity service or reverse proxy (see decision tree) The following services of SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) • API Management (conditional) • Integration Advisor (conditional) When to apply • For exchanging transactional and master data between on various cloud applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. How to apply • Cloud Integration as cloud based process integration solution leveraging prepackaged integration content (SAP API Business Hub) and/or implement custom integrations using Cloud Integration (SAP Discovery Center Mission) • Open Connectors for simplified integration with third party cloud applications (SAP Discovery Center Mission) • API Management to govern, protect and meter API access (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post) Example SAP Cloud for Customer Integration with SAP Marketing (prepackaged integration content) * 2
  • 108.
    108 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public A2A Integration Cloud to Cloud 2 Characteristics | Selection Criteria - Unaligned APIs - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. Internal On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform SAP API Business Hub Cloud Integration Cloud Applications (SAP / Third Party) Firewall DMZ Firewall Firewall
  • 109.
    109 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for Master Data Integration (On Premise to On Premise) – Info Sheet Details Description Integration of on premise applications with each other using an on premise integration solution (e.g. middleware, enterprise service bus) deployed and operated by the customer (or service provider). Involved SAP technology products • SAP Process Orchestration software (product documentation) When to apply • For exchanging master data between on various on premise applications in near real time which requires mediation capabilities such as mapping, routing and/or protocol adaptation. • Common key characteristics of process integration can be found here. How to apply • Deploy SAP Process Orchestration as integration platform for on premise applications (SAP, third party) • Implement predefined integration content and/or develop custom integration scenarios (product documentation) • Leverage embedded cloud integration runtime (as of release SAP NetWeaver 7.5) whenever possible Example SAP S/4HANA integration with SAP Transportation Management (product documentation) * 3
  • 110.
    110 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Master Data Integration On Premise to On Premise 3 Characteristics | Selection Criteria - On Premise Traffic - Pre-Packaged Content - Structure Mapping - Value Mapping - Routing - Splitting / Aggregation - Protocol Mediation - Techn. Exception Handling - Quality of Service: Best effort, exactly once, exactly once in order Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps | Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components On Premise Applications (SAP / Third Party) SAP Process Orchestration Firewall DMZ Firewall Firewall
  • 111.
    111 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for B2B Integration (Cloud to On Premise) – Info Sheet Details Description Exchange of business documents from internal on premise applications with external entities such as business partners (customers, suppliers). This integration is implemented with an on premise integration solution (e.g. Middleware, Enterprise Service Bus, B2B Gateway) which supports B2B specific capabilities such as business partner management, acknowledgement handling, different type system (e.g. EDIFACT, ANSI X.12) and B2B protocol standards (e.g. AS2, OFTP). The integration solution is managed by the customer (or service provider). Involved SAP technology products • SAP Process Orchestration software (product documentation) • SAP Process Orchestration, business-to-business add-on and/or secure connectivity add-on (blog post) • Integration Advisor capability of SAP Integration Suite (optional) (blog post) When to apply • To exchange business documents (such as purchase orders, invoices) of an organization with business partners using classical B2B standards such as Electronic Data Interchange (EDI). How to apply • SAP Process Orchestration acting as B2B gateway solution (for B2B communication only) or as integration solution for A2A and B2B integration (product documentation) • SAP Process Orchestration, business-to-business add-on and/or secure connectivity add-on for supporting specific B2B protocol standards, type systems (product documentation) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post). Example Direct procurement of goods from suppliers using the ANSI X.12 standard and AS2 protocol. * 4a
  • 112.
    112 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public B2B Integration Cloud to On Premise Characteristics | Selection Criteria - B2B Traffic - Trading Partner Management - Structure Mapping (e.g. EDIFACT) - Value Mapping - Routing Routines - Splitting / Aggregation - B2B Protocol Mediation (e.g. AS2, OFTP) - Techn. Exception Handling - Acknowledgement Handling (techn. & func.) - Quality of Service: Best effort, exactly once, exactly once in order Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Process Orchestration On Premise Application (SAP / Third Party) Business Partner 4a Firewall DMZ Firewall Firewall

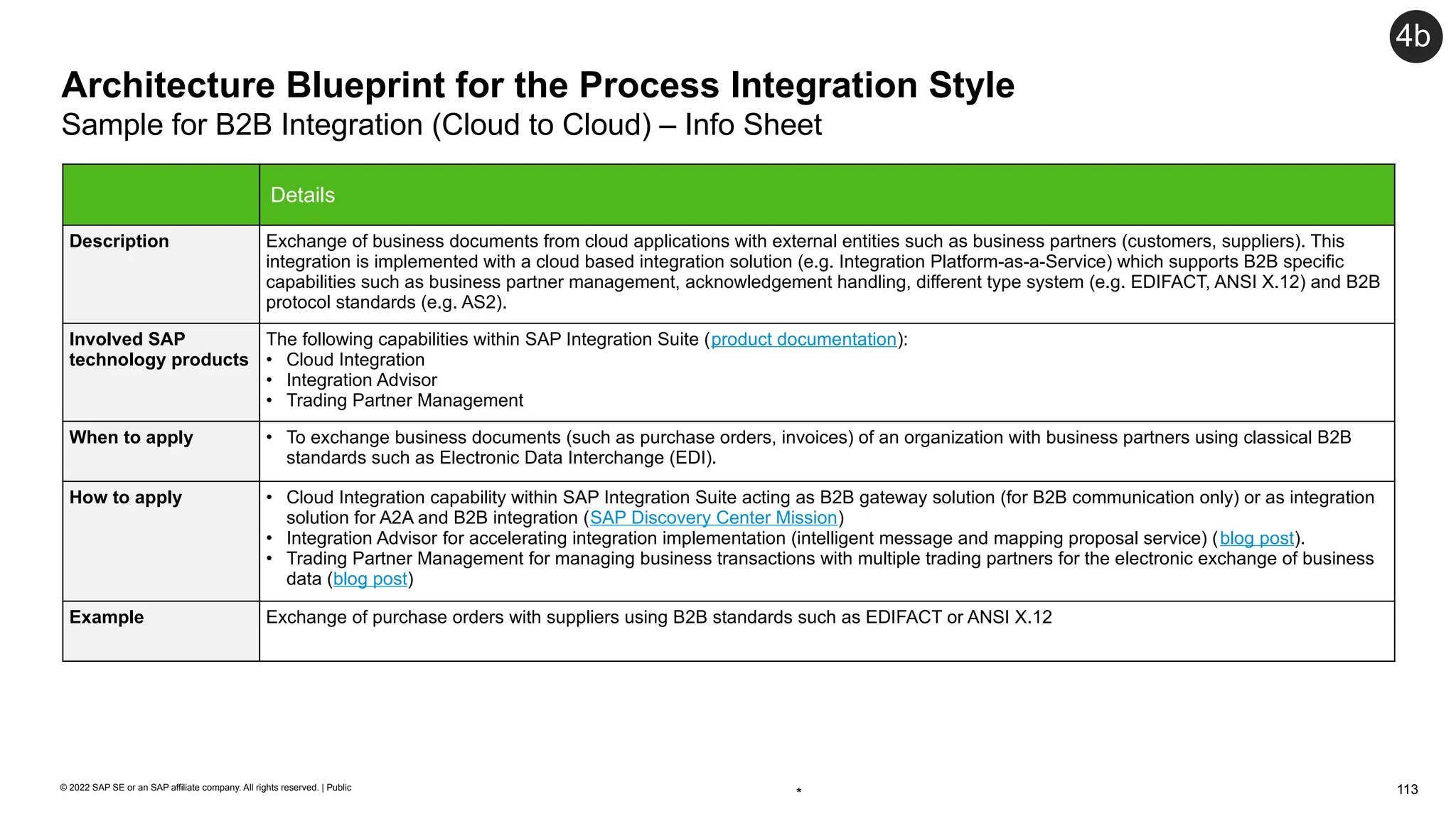

  • 113.
    113 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Process Integration Style Sample for B2B Integration (Cloud to Cloud) – Info Sheet 4b Details Description Exchange of business documents from cloud applications with external entities such as business partners (customers, suppliers). This integration is implemented with a cloud based integration solution (e.g. Integration Platform-as-a-Service) which supports B2B specific capabilities such as business partner management, acknowledgement handling, different type system (e.g. EDIFACT, ANSI X.12) and B2B protocol standards (e.g. AS2). Involved SAP technology products The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • Integration Advisor • Trading Partner Management When to apply • To exchange business documents (such as purchase orders, invoices) of an organization with business partners using classical B2B standards such as Electronic Data Interchange (EDI). How to apply • Cloud Integration capability within SAP Integration Suite acting as B2B gateway solution (for B2B communication only) or as integration solution for A2A and B2B integration (SAP Discovery Center Mission) • Integration Advisor for accelerating integration implementation (intelligent message and mapping proposal service) (blog post). • Trading Partner Management for managing business transactions with multiple trading partners for the electronic exchange of business data (blog post) Example Exchange of purchase orders with suppliers using B2B standards such as EDIFACT or ANSI X.12 *
  • 114.
    114 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public B2B Integration Cloud to Cloud Characteristics | Selection Criteria - B2B Traffic - Trading Partner Management - Structure Mapping (e.g. EDIFACT) - Value Mapping - Routing Routines - Splitting / Aggregation - B2B Protocol Mediation (e.g. AS2, OFTP) - Techn. Exception Handling - Acknowledgement Handling (techn. & func.) - Quality of Service: Best effort, exactly once Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Business Partner 4b Cloud Apps (SAP / Third Party Cloud Integration Integration Advisor SAP Business Technology Platform Firewall DMZ Firewall Firewall Trading Partner Management
  • 115.
    115 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 116.
    116 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Data Source (Connectors) Availability of connectors for source systems (e.g. DBs) of the integration scenario Data Target (Connectors) Availability of connectors for target system (e.g. DBs) of the integration scenario Data Orchestration Capability to orchestrate data flows (pipelining) Data Transformation Capability to transform data (e.g. aggregations, DB operations, …) Data Virtualization Provisioning of a virtual data layer by federation of queries to remote data sources without physical data movement. Data Replication Extract Transform Load (classical batch or real-time) … …
  • 117.
    117 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Data Integration Style Sample for Data Orchestration (Cloud to On Premise) – Info Sheet Details Description Integration of on premise data sources (e.g. from applications, databases) with cloud based applications (e.g. cloud data warehouse) using a cloud based data integration solution. Focus is on discovering, refining, governing and orchestrating data across heterogenous data sources. Involved SAP technology products • SAP Data Intelligence Cloud (product documentation) • SAP Connectivity service (conditional) The following capabilities within SAP Integration Suite (product documentation) • Open Connectors (conditional) Further SAP integration solutions can integrate with SAP Data Intelligence Cloud such as SAP Data Services, SAP HANA Smart Data Integration, SAP Landscape Transformation Replication Server (blog post) When to apply • Pipeline-driven data integration, operations and governance solution for disparate kinds of data (structured, unstructured, streaming etc.) for data lake, data warehousing or data science. How to apply • SAP Data Intelligence includes can integrate and orchestrate data from heterogeneous data sources (SAP Discovery Center Mission). Deployment options: On SAP Business Technology Platform, public cloud Kubernetes service, private cloud, on premise installation (see PAM). • SAP Connectivity service to establish a secure tunnel from the SAP Business Technology Platform (cloud) to the on premise application landscape (tutorial) • Open Connectors for simplified integration with third party cloud apps (SAP Discovery Center Mission) Example Data movement from SAP S/4HANA to SAP Data Warehouse Cloud * 5
  • 118.
    118 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Data Orchestration Cloud to On Premise 5 Characteristics | Selection Criteria - Big Data Use Cases - Data Intelligence - Data Orchestration - Data Sources and Targets (see supported connection types of SAP Data Intelligence, cloud edition) Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components SAP Business Technology Platform Data Warehouse (SAP / Third Party) Database (SAP / Third Party) On Premise Application (SAP / Third Party) On-Premise Integration Components SAP Data Intelligence Cloud1 Cloud Connector2 Secure tunnel Connectivity2 1 Deployment options: On SAP Business Technology Platform, public cloud Kubernetes service, private cloud, on premise installation (see PAM) Firewall DMZ Firewall Firewall
  • 119.
    119 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 120.
    120 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Analytics Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Remote data & live data connectivity Allows to replicate data from a data source (e.g. business application) and/or to access the data source online. (Near) real time & historic analytics Ability to perform analytical queries on real-time or historical data. Data modeling Ability to reuse existing data models from the data source or to create data models from scratch. Data preparation and data blending Ability to prepare the data and blend the same from multiple data sources Pre-built & custom built content Availability of pre-built analytical content for business applications and ability to create custom stories. ... …
  • 121.

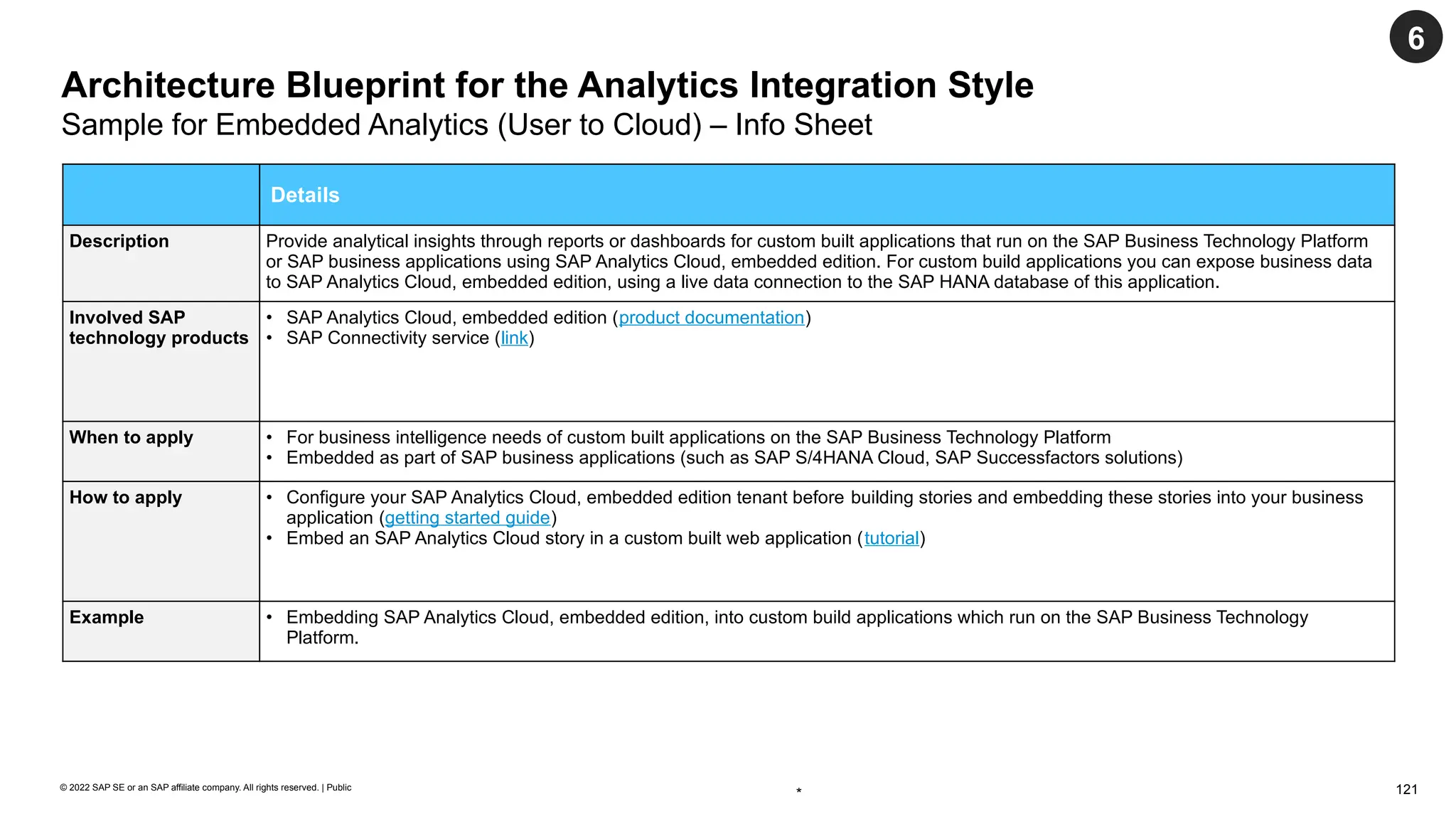

    121 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the Analytics Integration Style Sample for Embedded Analytics (User to Cloud) – Info Sheet Details Description Provide analytical insights through reports or dashboards for custom built applications that run on the SAP Business Technology Platform or SAP business applications using SAP Analytics Cloud, embedded edition. For custom build applications you can expose business data to SAP Analytics Cloud, embedded edition, using a live data connection to the SAP HANA database of this application. Involved SAP technology products • SAP Analytics Cloud, embedded edition (product documentation) • SAP Connectivity service (link) When to apply • For business intelligence needs of custom built applications on the SAP Business Technology Platform • Embedded as part of SAP business applications (such as SAP S/4HANA Cloud, SAP Successfactors solutions) How to apply • Configure your SAP Analytics Cloud, embedded edition tenant before building stories and embedding these stories into your business application (getting started guide) • Embed an SAP Analytics Cloud story in a custom built web application (tutorial) Example • Embedding SAP Analytics Cloud, embedded edition, into custom build applications which run on the SAP Business Technology Platform. * 6
  • 122.
    122 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Embedded Analytics User to Cloud Characteristics | Selection Criteria - Business intelligence scenarios - Expose data as charts, visualizations, text, and images - Live data connectivity - (Near) real time & historic analytics - Data modeling to represent business data from source system Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. 6 On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components SAP Business Technology Platform On-Premise Integration Components SAP Analytics Cloud Desktop Mobile Metadata SAP HANA database Spatial Text and search Predictive Modeling SAP Analytics Cloud Rest story API URL API Permission API User and team management Your application Java or SAPUI5 Live connection Connectivity
  • 123.
    123 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public User Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 124.
    124 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public User Integration Use Cases Decision Criteria Catalog - Legend When defining a Hybrid Integration Platform (HIP), well defined decision criteria are required to select the appropriate integration services. This slide contains typical decision criteria that can be used in architecture blueprints. They have to be adapted/extended to a specific customer context. How To Use Criteria / Capability Description Single Sign On & Session Management Enables users to authenticate once, and then log on to all systems that operate in the single sign-on environment without further intervention Role Based Access Access is granted on the basis of common business roles. Such a role combines a selected set of permissions from business applications to bundle common responsibilities of a business user Integration of multiple application UIs Ability to integrate several application UIs into a single entry page (e.g. SAP Fiori launchpad) Navigation Context sensitive navigation across business applications within a single entry page Multi Channel Access Supports different access options (e.g. Internal, external, mobile) Offline / Online Support Supports online access to business application data and offline data synchronization without requiring a constant online connection to the backend applications Quality of Service Defines the QoS of the message transfer e.g. Exactly Once, Exactly Once in Order, Best Effort … …
  • 125.
    125 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the User Integration Style Sample for Mobile Integration (User to On Premise) – Info Sheet Details Description Consumption of on premise application data within a mobile application which is developed and operated in public cloud. The mobile application can be web based or device specific (iOS, Android). The communication between the cloud based mobile application and the on premise application requires special security measures (e.g. via VPN, digital certificates). Involved SAP technology products • SAP Mobile Services (product documentation) • SAP Gateway (conditional) (product documentation) • SAP Connectivity service The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration capability of SAP Integration Suite (conditional) When to apply • Exposing data from one or more data sources/applications on mobile devices. How to apply • SAP Mobile Services mobile application development, configuration, and management (SAP Discovery Center Mission) • SAP Connectivity service to establish a secure tunnel from SAP Business Technology Platform in cloud to the on premise application landscape (tutorial) • SAP Gateway needed for SAP Business Suite and SAP S/4HANA to provision OData services to be consumed by the mobile app ( blog post) • Cloud Integration capability within SAP Integration Suite to provision OData services for third party data sources which are consumed by the mobile app (SAP Discovery Center Mission) Example • Exposing SAP on premise application data as SAP Mobile Cards. • Creating mobile applications with SAP SDK for iOS or Android. * 7
  • 126.
    126 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Mobile Integration User to On Premise 7 Characteristics | Selection Criteria - Mobile Access - Principal Propagation - Online & Offline Support - Real Time Integration Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Connectivity1 Cloud Connector1 Secure tunnel Mobile Services Mobile Client SAP Gateway2 1 For SAP Business Suite and SAP S/4HANA only. SAP Business Technology Platform Firewall DMZ Firewall Firewall On Premise Application (SAP) Data Source (Third Party) 1 Or reverse proxy (see decision tree).
  • 127.
    127 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for the User Integration Style Sample for UI Integration (User to Cloud) – Info Sheet Details Description Integration of custom build application UIs into a single point of entry including the consumption of cloud application data. The single point of entry can be accessed from a desktop or a mobile device. Involved SAP technology products • SAP Launchpad service (Cloud Foundry) (product documentation) When to apply • For integrating multiple application user interfaces exposing data from backend applications into a single point of entry. How to apply • Create a launchpad site using the SAP Launchpad service (Cloud Foundry), and add applications to it (SAP Discovery Center Mission) Example • Exposing custom SAPUI5 applications through SAP Launchpad service (Cloud Foundry). * 8
  • 128.
    128 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public UI Integration User to Cloud (Custom App) 8 Characteristics | Selection Criteria - Omni-channel access to cloud applications - Integration of multiple application UIs into a single point of entry - Role-based access - (Near) Real time integration Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Launchpad Cloud Apps (SAP / Third Party) SAP Business Technology Platform (Cloud Foundry) Firewall DMZ Firewall Firewall Desktop Mobile Integration content (local and remote) Custom apps and extensions (for example, SAPUI5) Help UI theme designer Related central services* Security and SSO *Further central services planned such as inbox, notifications.
  • 129.

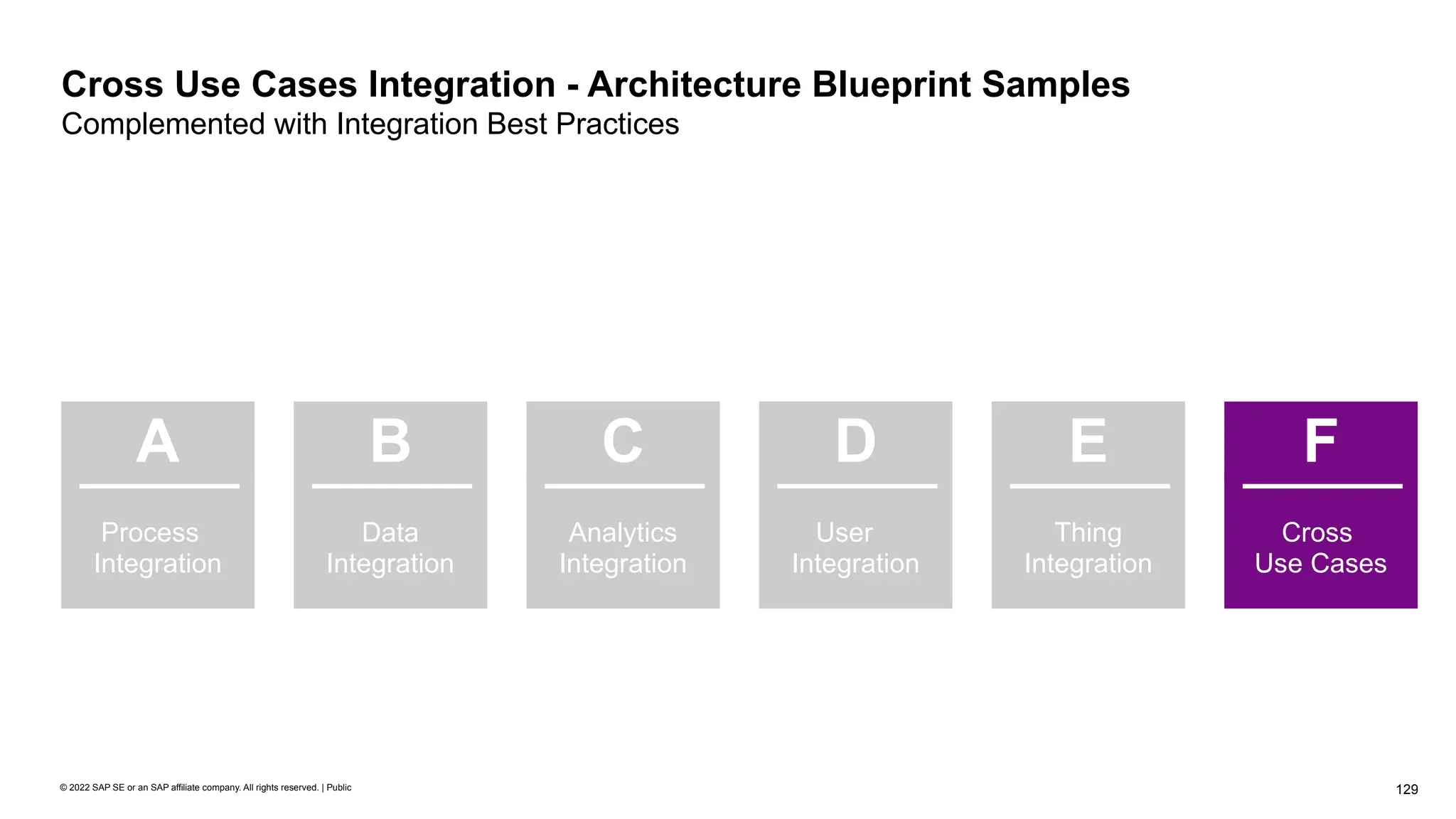

    129 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Cross Use Cases Integration - Architecture Blueprint Samples Complemented with Integration Best Practices Process Integration A Data Integration B User Integration D Thing Integration E Cross Use Cases F Analytics Integration C
  • 130.
    130 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for a Cross Use Case Sample for Digital Integration Hub (Cloud to On Premise and Cloud) – Info Sheet Details Description The Digital Integration Hub is an emerging architecture for implementing a large-scale, high-throughput access layer to business data by inserting a high performance in-memory data store layer between the frontend API service layer and backend app and data sources. Involved SAP technology products • SAP HANA Database • SAP Event Mesh • SAP Connectivity service • SAP HANA Smart Data Integration The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • API Management • Open Connectors (conditional) When to apply • Need for a large-scale, high-throughput and low-latency front-end API services (e.g. for user interfaces) • For protecting back-end systems from excessive front-end APIs How to apply • SAP HANA Database acts as a high-performance data store for caching the relevant subset of business data. Furthermore it provides a single consolidated view of entities which is stored in one or multiple business applications (cloud / on premise) and databases. • Cloud Integration integrates apps (SAP/third party, cloud/on premise) with SAP HANA database and keeps the data in sync. • Open Connectors for simplified integration of third party cloud applications. • SAP HANA Smart Data Integration is needed when integrating data from databases with the SAP HANA and to keep the data in sync. • SAP Event Mesh acts as an event broker for a loosely coupled event based integration between business applications. These publish their events to Event Mesh. Cloud Integration capability is the subscriber of these events and sends the data to the SAP HANA database for update. • API Management enables a low-latency frontend API service connecting to SAP HANA database for read queries. Update calls can be performed directly on the business applications. (See blog post) 9
  • 131.

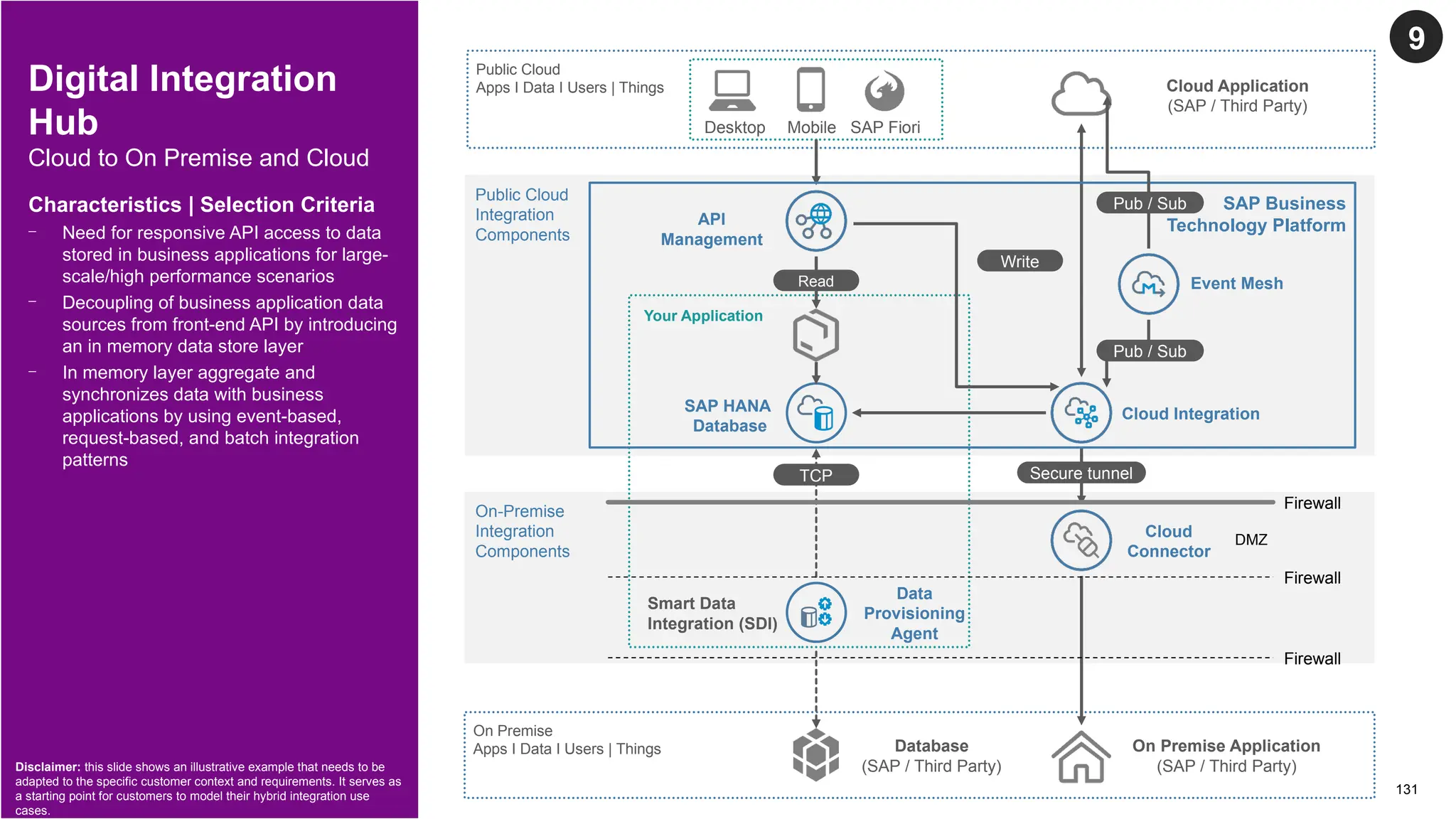

    131 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Digital Integration Hub Cloud to On Premise and Cloud 9 Characteristics | Selection Criteria - Need for responsive API access to data stored in business applications for large- scale/high performance scenarios - Decoupling of business application data sources from front-end API by introducing an in memory data store layer - In memory layer aggregate and synchronizes data with business applications by using event-based, request-based, and batch integration patterns Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Cloud Integration API Management Cloud Connector Data Provisioning Agent Cloud Application (SAP / Third Party) SAP Fiori Desktop Mobile On Premise Application (SAP / Third Party) Database (SAP / Third Party) SAP HANA Database Your Application TCP Smart Data Integration (SDI) Read Write SAP Business Technology Platform Firewall DMZ Firewall Firewall Event Mesh Pub / Sub Pub / Sub Secure tunnel
  • 132.
    132 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Architecture Blueprint for a Cross Use Case Sample for Event Based Integration (Cloud to Cloud) – Info Sheet Details Description Loosely coupled integration of business applications (SAP/third party, cloud/on premise) using events. Business applications can publish event notifications on a business object's change in state. Consuming business applications are informed of the event and depending on the application logic defined, can read further details about the event and take appropriate action. Involved SAP technology products • SAP Event Mesh The following capabilities within SAP Integration Suite (product documentation): • Cloud Integration • Open Connectors (conditional) When to apply • Decoupling of applications, extensions or IoT data by messaging principles (publish & subscribe) • Within a microservices based application architecture How to apply • SAP Event Mesh acts as an event broker: Business applications can publish event notifications to queues within Event Mesh to enable an asynchronous and decoupled communication (tutorial) • Cloud Integration capability within SAP Integration Suite acts as a subscriber to these events and routes the event data to receiving business application (s). If this application requires more information than provided with the event message more it actively requests more details using a read query from the event publisher (blog post). • Open Connectors for simplified integration with third party cloud applications Example Notification on business partner change from SAP S/4HANA Cloud to a third party cloud application. 10
  • 133.

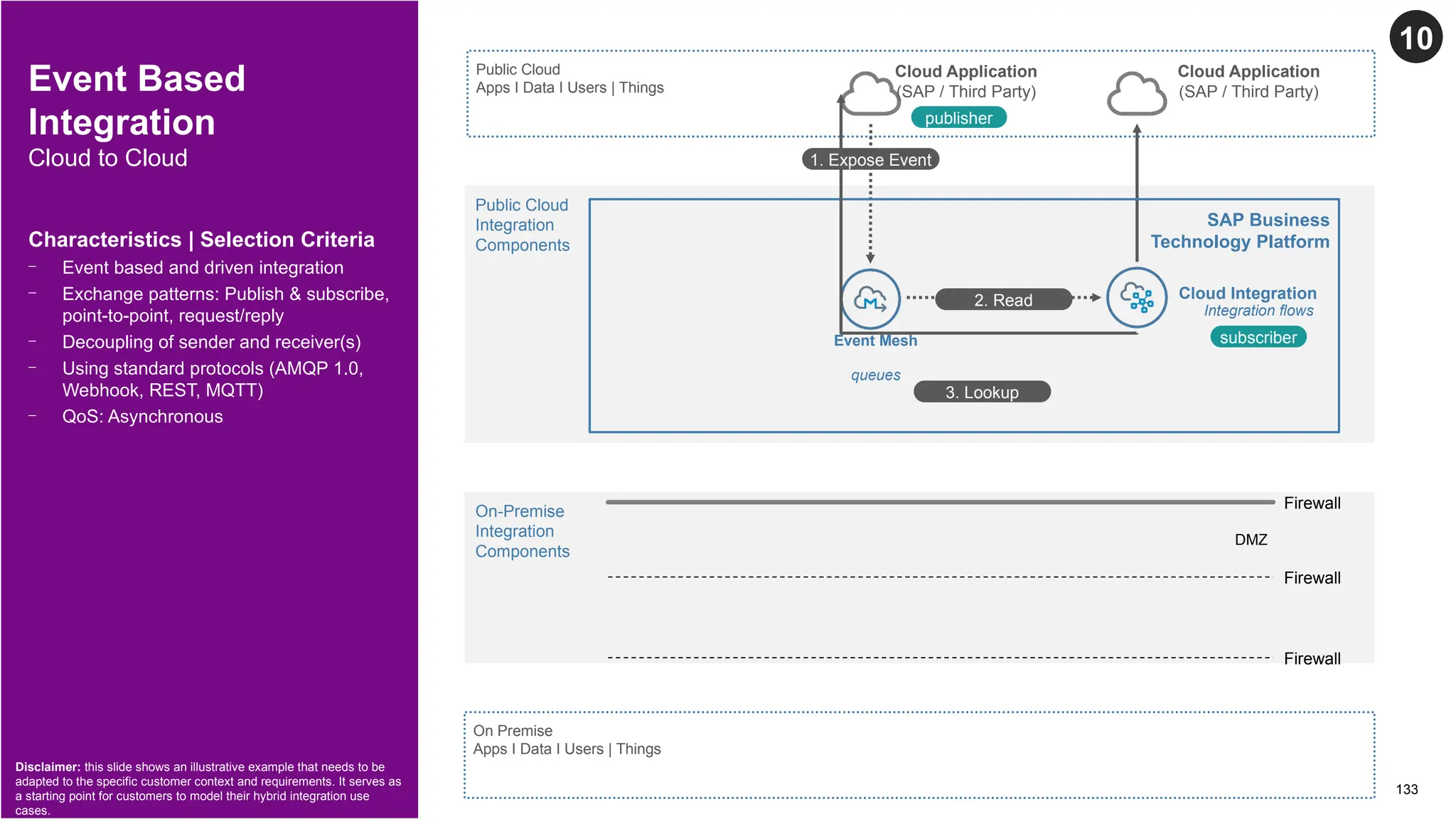

    133 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Event Based Integration Cloud to Cloud Characteristics | Selection Criteria - Event based and driven integration - Exchange patterns: Publish & subscribe, point-to-point, request/reply - Decoupling of sender and receiver(s) - Using standard protocols (AMQP 1.0, Webhook, REST, MQTT) - QoS: Asynchronous Disclaimer: this slide shows an illustrative example that needs to be adapted to the specific customer context and requirements. It serves as a starting point for customers to model their hybrid integration use cases. On Premise Apps I Data I Users | Things Public Cloud Apps I Data I Users | Things Public Cloud Integration Components On-Premise Integration Components Event Mesh Cloud Integration Cloud Application (SAP / Third Party) Cloud Application (SAP / Third Party) 2. Read SAP Business Technology Platform 3. Lookup Firewall DMZ Firewall Firewall publisher subscriber 1. Expose Event Integration flows queues 10
  • 134.
    134 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Integration Solution Advisory Methodology Template Overview & Terms of Use 1 Integration Roles & Governance 7 Integration Domains 2 Integration Styles & Use Cases Patterns 3 Technology Mapping 4 Interface Assessment 5 Architecture Blueprints 6
  • 135.

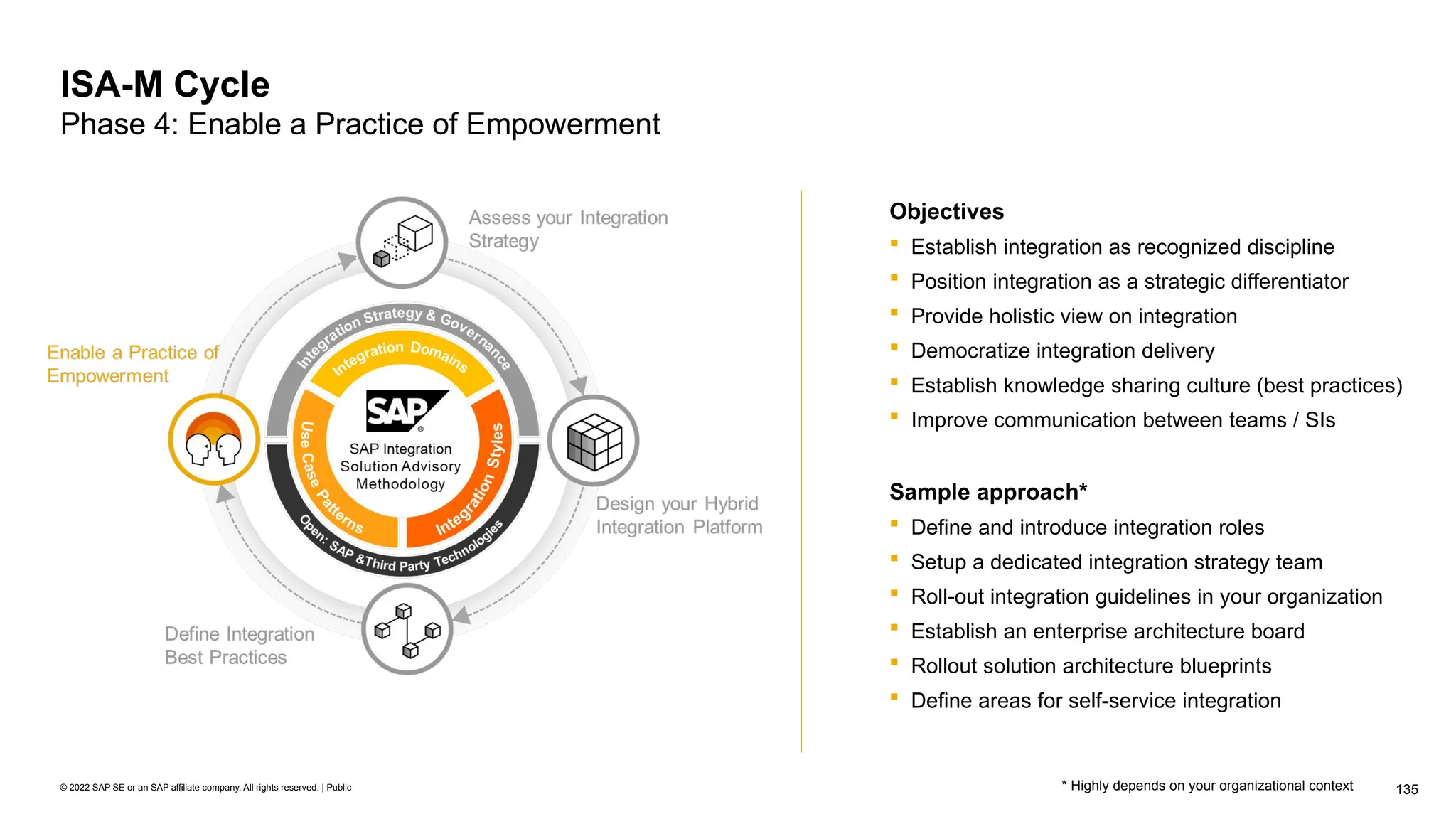

    135 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public ISA-M Cycle Phase 4: Enable a Practice of Empowerment Objectives  Establish integration as recognized discipline  Position integration as a strategic differentiator  Provide holistic view on integration  Democratize integration delivery  Establish knowledge sharing culture (best practices)  Improve communication between teams / SIs Sample approach*  Define and introduce integration roles  Setup a dedicated integration strategy team  Roll-out integration guidelines in your organization  Establish an enterprise architecture board  Rollout solution architecture blueprints  Define areas for self-service integration * Highly depends on your organizational context

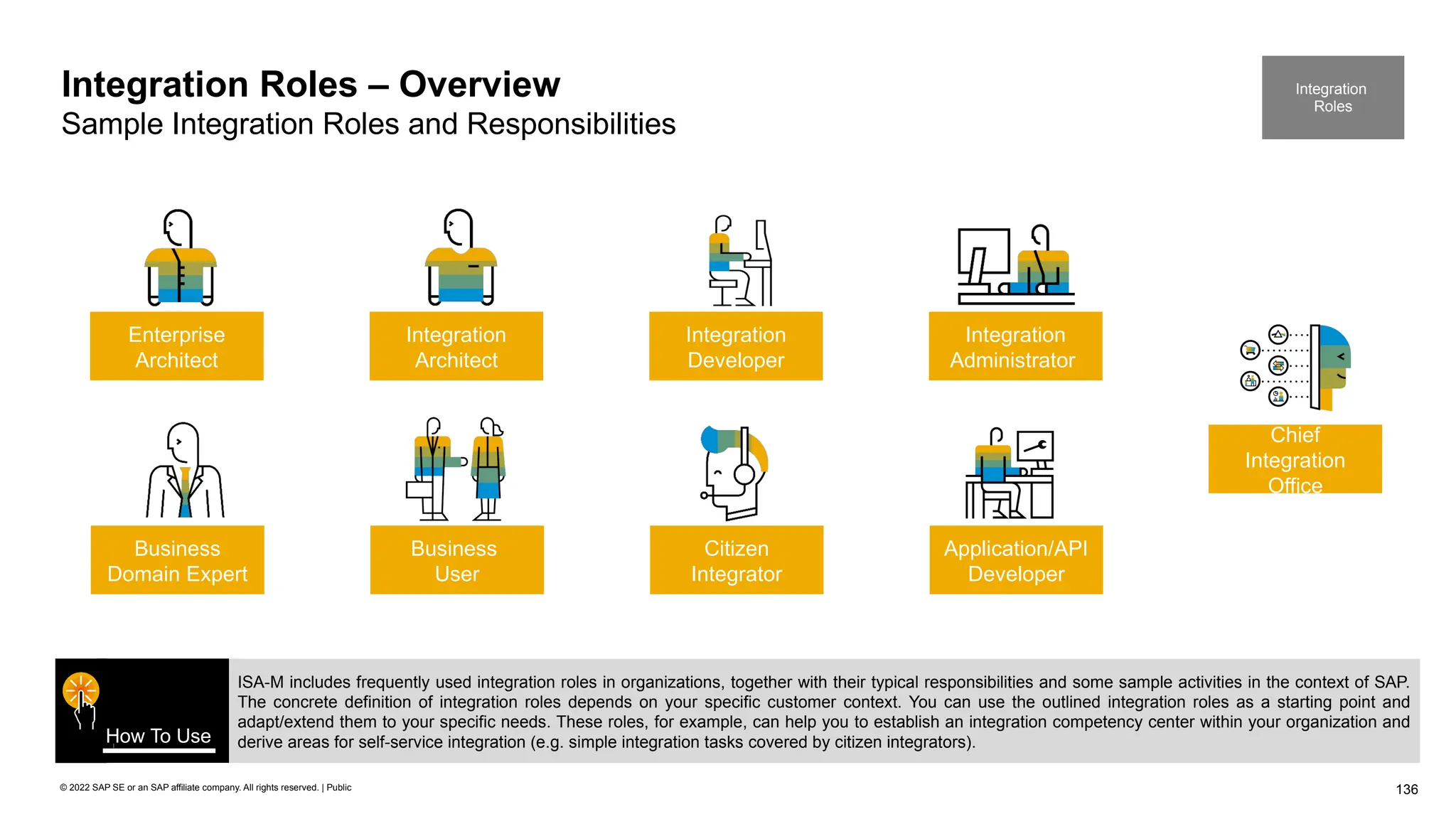

  • 136.
    136 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Overview Sample Integration Roles and Responsibilities ISA-M includes frequently used integration roles in organizations, together with their typical responsibilities and some sample activities in the context of SAP. The concrete definition of integration roles depends on your specific customer context. You can use the outlined integration roles as a starting point and adapt/extend them to your specific needs. These roles, for example, can help you to establish an integration competency center within your organization and derive areas for self-service integration (e.g. simple integration tasks covered by citizen integrators). How To Use Integration Roles Enterprise Architect Business Domain Expert Integration Administrator Application/API Developer Integration Developer Citizen Integrator Integration Architect Business User Chief Integration Office
  • 137.
    137 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions I Sample Integration Roles and Responsibilities Integration Architect • Definition of technical integration architectures with a focus on specific integration technologies / services • Definition of technical specifications for integration scenarios based on business requirements • Definition and communication of patterns, templates, and best practices Responsibilities • Definition of development guidelines for SAP Integration Suite or SAP Process Orchestration • Definition of best practices for integration flows using the Cloud Integration capability within SAP Integration Suite, Sample Tasks in SAP Context Enterprise Architect • Definition, communication, and continuous improvement of an integration reference architecture based on an overall IT strategy • Definition of integration standards and technology selection guidelines (cross- vendor, hybrid integration platform) • Evaluation of new integration technologies / services Responsibilities • Definition and rollout of company-wide technology selection guidelines using the ISA-M • Roll-out of integration standards • Review and adjustment of ISA-M content as part of the Integration Assessment capability within SAP Integration Suite Sample Tasks in SAP Context Integration Developer • Implementation and test of integration scenarios based on technical specifications • Implementation and extension of prepackaged integration scenarios Responsibilities • Leverage Integration Assessment to determine the best fitting integration technology • Implementation of integration flows in the Cloud Integration capability of SAP Integration Suite or SAP Process Orchestration • Implementation of data orchestration flows in the SAP Data Intelligence solution Sample Tasks in SAP Context Integration Administrator • Technical setup and operations of integration scenarios (for example, archiving or certificate management) • Technical monitoring of interfaces, including root-cause analysis and technical error handling Responsibilities • Technical monitoring of messages from SAP Integration Suite in SAP Solution Manager or SAP Cloud ALM • Deployment of certificates in SAP Integration Suite. Sample Tasks in SAP Context Integration Roles
  • 138.
    138 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions II Sample Integration Roles and Responsibilities Business User • Processing of workflow tasks • Interacting with business applications (omni-channel access) • Monitoring and error correction of messages in a specific business process domain or line of business Responsibilities • Processing of workflow tasks, e.g. in SAP Workflow service. • Error correction, canceling, or restart of messages in the SAP Application Interface Framework as part of SAP S/4HANA or SAP Business Suite applications Sample Tasks in SAP Context Business Domain Expert • Specification of business requirements for a specific business process domain or line of business • Semantic definition of interface customizations and messages mapping (together with an integration architect) Responsibilities • Specify integration requirements from a business perspective leveraging the Integration Assessment capability within SAP Integration Suite • Definition of customized B2B interfaces and mappings in the Integration Advisor capability within SAP Integration Suite. Sample Tasks in SAP Context Citizen Integrator • Business user with the ability to perform some integration tasks independently (self-service) • Elimination of need for deep integration knowledge Responsibilities • Leverage Integration Assessment to determine the best fitting technology • Implementation of simple integration scenarios by HR business users in the integration center of SAP SuccessFactors • Integration of buyers and suppliers in the SAP Ariba Cloud Integration Gateway solution based on a self- service wizard approach Sample Tasks in SAP Context Application/API Developer • Customization of enterprise applications • Provisioning of customer-specific APIs • Development of extension applications or mobile applications Responsibilities • Customization of applications with SAP S/4HANA • Development of extension applications on SAP Business Technology Platform • Development of innovate, API-based applications (e.g. for fast innovation cycles, bimodal IT) Sample Tasks in SAP Context Integration Roles
  • 139.
    139 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Roles – Definitions III Sample Integration Roles and Responsibilities Chief Integration Officer  New emerging integration role  Creates a strategy for successful business and technology integration  Opens up an organization’s technical landscape to a wider ecosystem  Leverages opportunities to collaborate and share digital assets beyond the company’s boundaries  Facilitates the ultimate sharing economy Integration Roles A Chief Integration Officer is a new emerging integration role which is responsible for the strategic use of integration services to achieve immediate and impactful business outcomes. Source and further Information:. Integration as a Strategic Imperative – Part 5: Smart Lifecycle Management Explanation
  • 140.

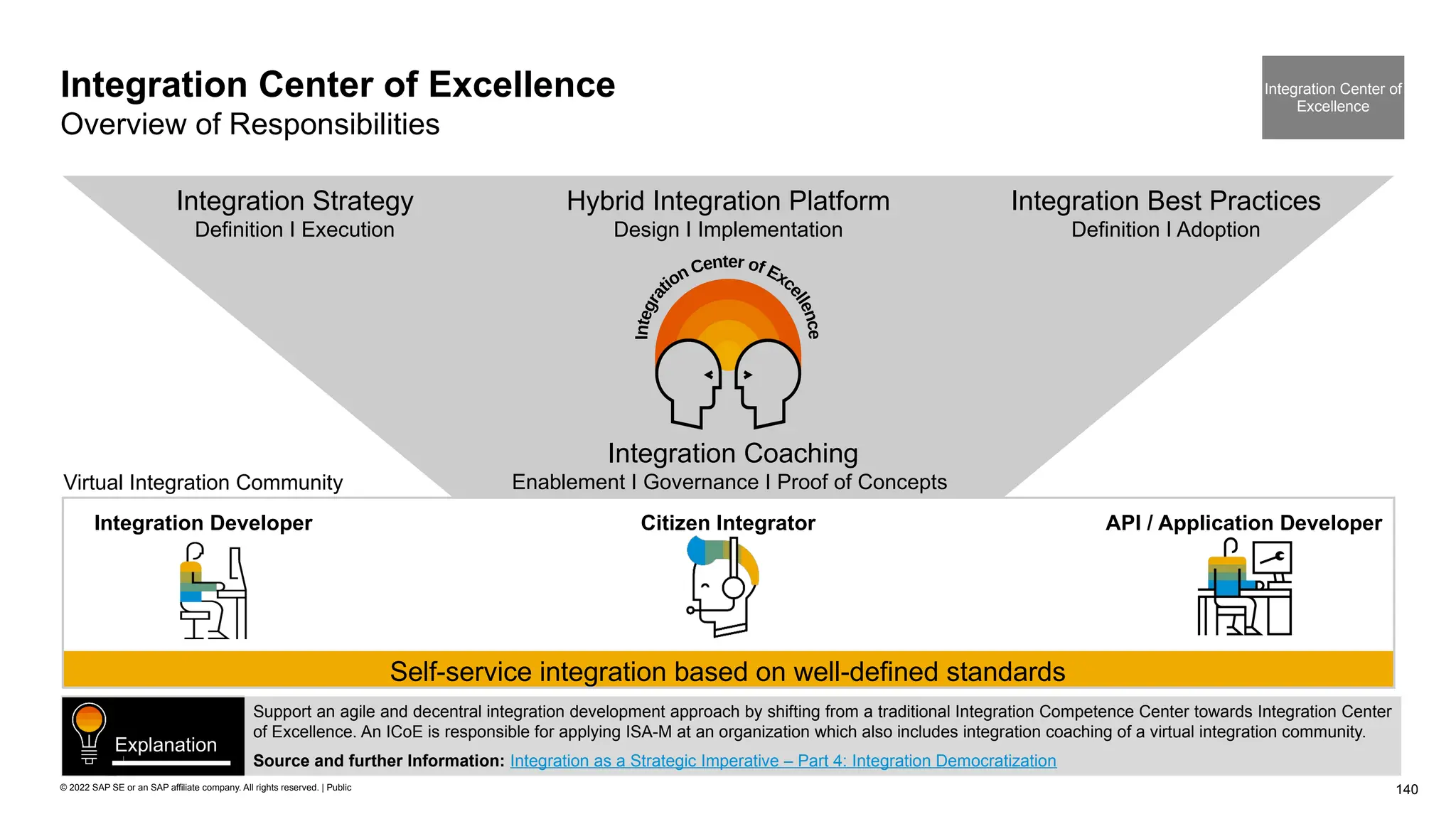

    140 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Center of Excellence Overview of Responsibilities Integration Strategy Definition I Execution Hybrid Integration Platform Design I Implementation Integration Best Practices Definition I Adoption Integration Coaching Enablement I Governance I Proof of Concepts Self-service integration based on well-defined standards Integration Developer Citizen Integrator API / Application Developer Virtual Integration Community Integration Center of Excellence Support an agile and decentral integration development approach by shifting from a traditional Integration Competence Center towards Integration Center of Excellence. An ICoE is responsible for applying ISA-M at an organization which also includes integration coaching of a virtual integration community. Source and further Information: Integration as a Strategic Imperative – Part 4: Integration Democratization Explanation
  • 141.
    141 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Center of Excellence Supports a Holistic Integration Approach to Unlock Innovation Business Users Developer Experts Executive Managers Data Analysts Integration Center of Excellence Accelerators Data access Real-time synchronization Short-term support Executive reporting Data insights & intelligence Support & operations Established pathways to various data sources An Integration Center of Excellence based on agile building blocks can optimize tactical integration projects and empower strategic initiatives by also delivering data access, insights and intelligence.. Source and further Information: Unlocking Innovation Through Integration Explanation Integration Center of Excellence
  • 142.
    142 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Governance Defining a Process for Integration Governance* *Simplified sample process definition Integration Governance You can also leverage accelerators of ISA-M along a governance process for integration developments. Integration developers can identify the right integration technology and approach leveraging integration best practices of ISA-M. If no existing integration technology can fulfill the requirements, the developer can consult the Integration Center of Excellence. Explanation
  • 143.

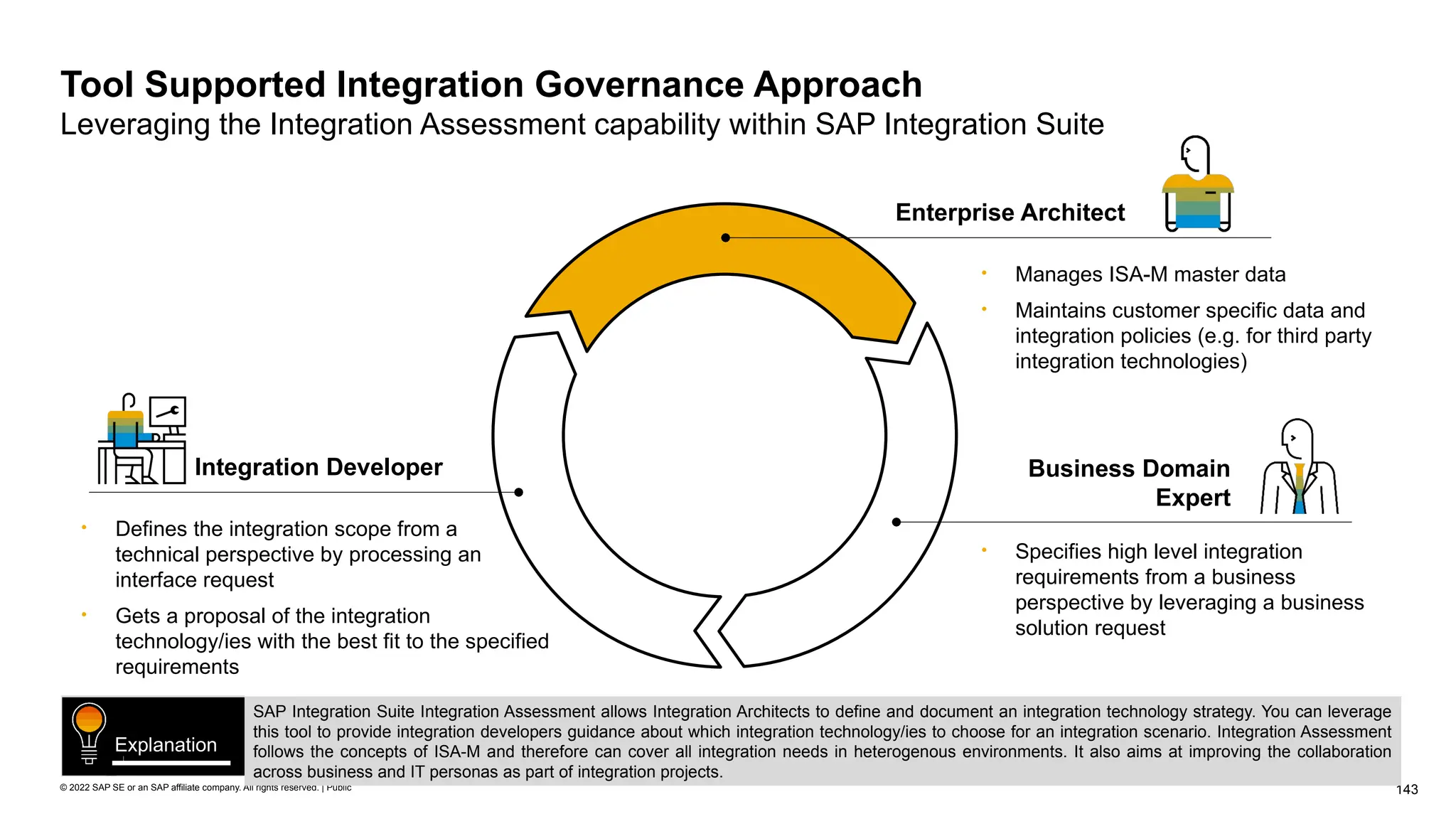

    143 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Tool Supported Integration Governance Approach Leveraging the Integration Assessment capability within SAP Integration Suite Business Domain Expert • Specifies high level integration requirements from a business perspective by leveraging a business solution request Integration Developer • Defines the integration scope from a technical perspective by processing an interface request • Gets a proposal of the integration technology/ies with the best fit to the specified requirements Enterprise Architect • Manages ISA-M master data • Maintains customer specific data and integration policies (e.g. for third party integration technologies) SAP Integration Suite Integration Assessment allows Integration Architects to define and document an integration technology strategy. You can leverage this tool to provide integration developers guidance about which integration technology/ies to choose for an integration scenario. Integration Assessment follows the concepts of ISA-M and therefore can cover all integration needs in heterogenous environments. It also aims at improving the collaboration across business and IT personas as part of integration projects. Explanation
  • 144.
    144 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Governance API & Integration Governance Framework* *Simplified customer example The processes for integration governance have to be interconnected with the overall technology governance process of an organization. This includes defined responsibilities including escalation paths. Explanation Integration Governance
  • 145.
    145 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Quality Assurance Agile Quality Assurance Process  Objective: Introduce lightweight governance policies  Type of quality requirements: 1. Mandatory: Protect the organization from material damage by taking into account legal implications, business and technology risks 2. Basic: Meet end user expectations 3. Advanced (optional): Outperform end user expectations  Governance: Supervised by the Integration Center of Excellence Integration Quality Assurance Complement your existing quality assurance (QA) process with a lightweight one for non-mission critical integration scenarios. For the latter ones you can implement a more agile and lean QA process which is still supervised by the Integration Center of Excellence. Full QA process still applies for mission critical and more complex integration scenarios. Explanation
  • 146.

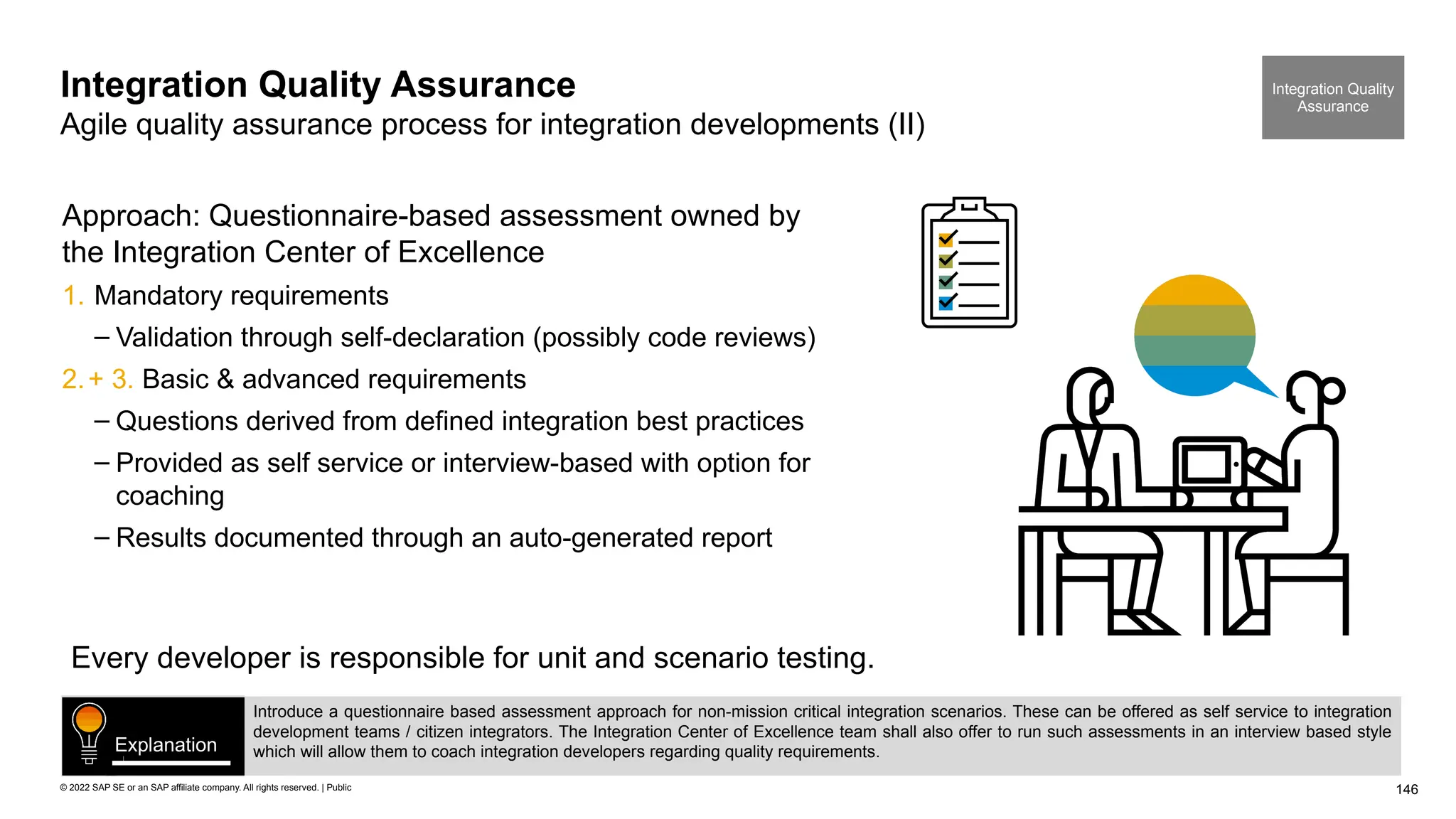

    146 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration Quality Assurance Agile quality assurance process for integration developments (II) Approach: Questionnaire-based assessment owned by the Integration Center of Excellence 1. Mandatory requirements – Validation through self-declaration (possibly code reviews) 2.+ 3. Basic & advanced requirements – Questions derived from defined integration best practices – Provided as self service or interview-based with option for coaching – Results documented through an auto-generated report Every developer is responsible for unit and scenario testing. Integration Quality Assurance Introduce a questionnaire based assessment approach for non-mission critical integration scenarios. These can be offered as self service to integration development teams / citizen integrators. The Integration Center of Excellence team shall also offer to run such assessments in an interview based style which will allow them to coach integration developers regarding quality requirements. Explanation
  • 147.
    SAP Integration SolutionAdvisory Methodology Template Appendix
  • 148.
    148 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public How to get started with ISA-M? Three options to choose from SAP MaxAttention Program • Architecture Planning Service: Provides a holistic approach to review, optimize, and develop the overall enterprise architecture within a digital transformation program • Covers integration assessment and strategy definition Do it Yourself • Enroll in the openSAP course about ISA-M • Leverage the PPT based ISA-M template • Start using the Integration Assessment capabilit y within SAP Integration Suite SAP Service Offering • Integration Planning Service: Analyze your cloud and on- premise applications and prepare for the seamless integration of applications • May include ISA-M and Integration Assessment* *Similar offerings also offered by SAP Partners
  • 149.
    149 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public Integration architecture guide for cloud and hybrid landscapes Overview Context  Deep dive into integration patterns for heterogenous landscapes  Scope: Existing product portfolio, technology focus, no specific LoB focus Target group  Enterprise architects and integration architects Updated content in 2022  Update of all sections (based on customer feedback)  New sections – Things integration: Integration for IoT scenarios (cloud, edge processing) – Identity integration: Identity lifecycle management across applications Download 2022 Update
  • 150.
    150 © 2022 SAPSE or an SAP affiliate company. All rights reserved. | Public SAP Community Topic Page about the SAP Integration Strategy Stay up-to-date and engage with us! Context SAP integration strategy in context of the intelligent enterprise, including:  End-to-end business processes  Suite qualities  Core technologies and best practices, such as the SAP Integration Solution Advisory Methodology Objectives  Follow the topic page to get the latest news from the experts through blog posts and SAP Community Calls  Opportunity to ask questions and to share your knowledge and experiences by writing blog posts

Editor's Notes

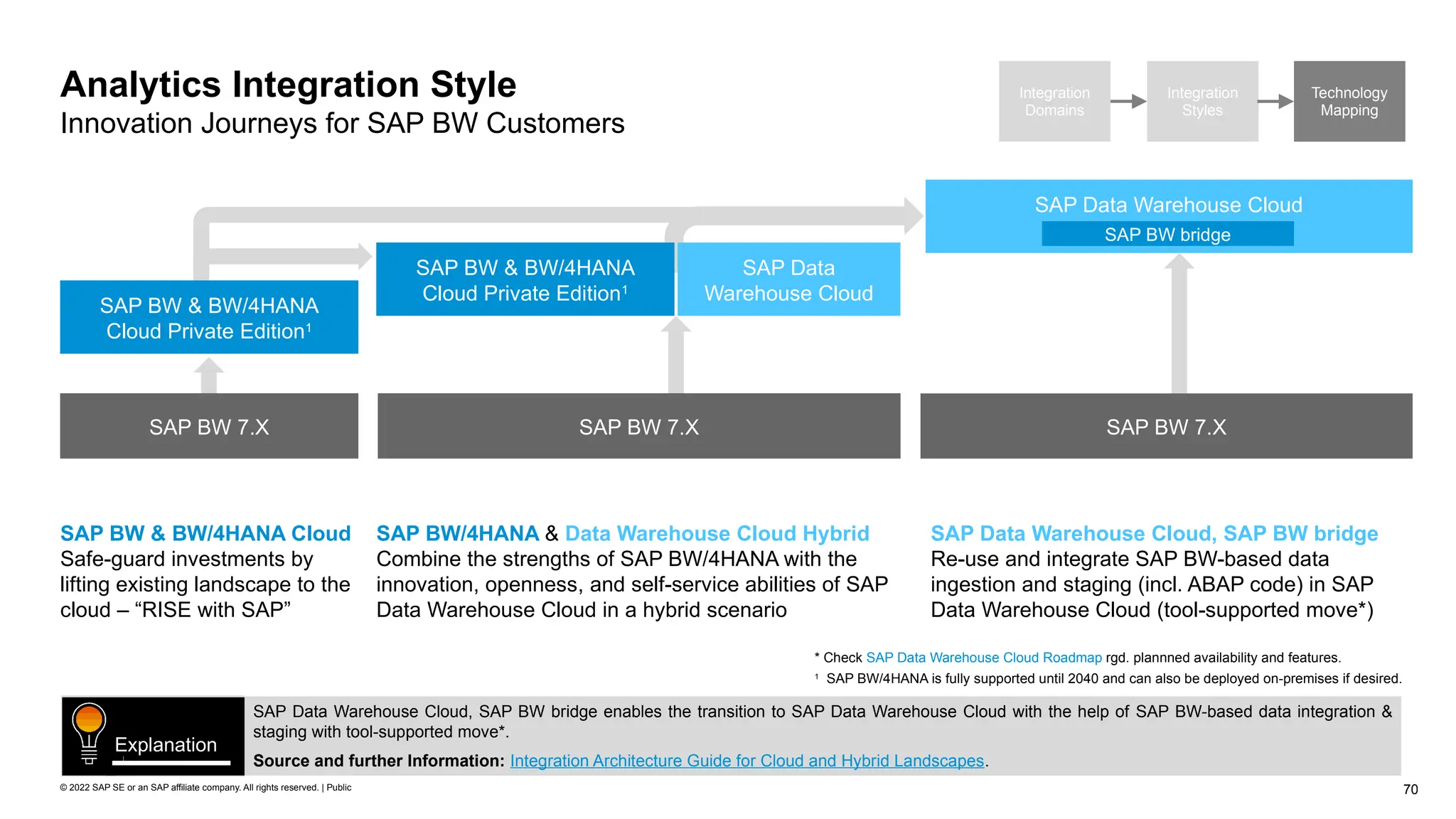

  • #70 Customers may choose a hybrid deployment option by combining the SAP Business Warehouse application (SAP BW) or the SAP BW/4HANA solution with the SAP Data Warehouse Cloud solution or switch from hybrid to SAP Data Warehouse Cloud leveraging SAP BW bridge. Further Information: Integration Architecture Guide for Cloud and Hybrid Landscapes.
  • #74 Supported Platforms/Products | SAP Help Portal Guided experiences, web content, document access, knowledge base and workspaces for collaborative knowledge sharing
  • #139 Open up an organization’s technical landscape to a wider ecosystem of suppliers, consumers, and machines by providing deeper integration between customer engagement, business processes and technology. create a strategy for successful business and technology integration while leveraging opportunities to collaborate and share digital assets beyond the company’s boundaries, in an open and secure way. Such a role could facilitate the ultimate sharing economy
